Launch Tech MAXG Automotive Diagnosis Computer User Manual MAXGO English indd
Launch Tech Co., Ltd. Automotive Diagnosis Computer MAXGO English indd
Users Manual
Version: V1.00.000
Revised date: 03-10-2014
II
MAXGo User's Manual
Copyright Information
Copyright © 2013 by LAUNCH TECH. CO., LTD. All rights reserved.
No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior
written permission of LAUNCH. The information contained herein is
designed only for the use of this unit. LAUNCH is not responsible for
any use of this information as applied to other units.
Neither LAUNCH nor its affiliates shall be liable to the purchaser
of this unit or third parties for damages, losses, costs, or expenses
incurred by purchaser or third parties as a result of: Accident,
misuse, or abuse of this unit, or unauthorized modifi cations, repairs,
or alterations to this unit, or failure to strictly comply with LAUNCH
operating and maintenance instructions. LAUNCH shall not be liable
for any damages or problems arising from the use of any options or
any consumable products other than those designated as Original
LAUNCH Products or LAUNCH Approved Products by LAUNCH.
Trademark Information
LAUNCH is a registered trademark of LAUNCH TECH CO., LTD.
(also called LAUNCH for short) in China and other countries.
All other LAUNCH trademarks, service marks, domain names,
logos, and company names referred to in this manual are either
trademarks, registered trademarks, service marks, domain names,
logos, company names of or are otherwise the property of LAUNCH
or its affiliates. In countries where any of the LAUNCH trademarks,
service marks, domain names, logos and company names are not
registered, LAUNCH claims other rights associated with unregistered
trademarks, service marks, domain names, logos, and company
names. Other products or company names referred to in this manual
may be trademarks of their respective owners. You may not use any
trademark, service mark, domain name, logo, or company name
of LAUNCH or any third party without permission from the owner
of the applicable trademark, service mark, domain name, logo, or
company name. You may contact LAUNCH by visiting the website
at www.cnlaunch.com, or writing to LAUNCH TECH. CO., LTD.,
Launch Industrial Park, North of Wuhe Avenue, Banxuegang, Bantian,
Longgang, Shenzhen, Guangdong, P.R.China, to request written
permission to use Materials on this manual for purposes or for all other
questions relating to this manual.
Safety Precautions
Before using MAXGo, please read the following safety information
carefully.
Never collide, throw, or punch MAXGo, and avoid falling, extruding • and blending it.
Do not use MAXGo in exceptionally cold or hot, dusty, damp or dry • environments.
In places where MAXGo is forbidden or using MAXGo may cause • interference or generate a potential risk, please turn it off.
To ensure a safe driving, please do not use MAXGo while driving.• Turn off MAXGo before boarding any airplane. • Do not dismantle MAXGo by yourself. If there is any inquiry, please • contact the dealer.
Never place MAXGo into apparatus with strong electromagnetic • fi eld.
Keep MAXGo far away from magnetic devices because its • radiations may erase the data stored on MAXGo.
Store MAXGo out of reach of children and do not allow children to • use it unsupervised.
Please use the included battery and charger. Otherwise, explosion • may happen.
Do not disconnect power abruptly when MAXGo is being formatted • or in process of uploading or downloading. Or else it may result in
program error.
MAXGo User's Manual
III
Precautions on Using MAXGo
The ignition switch should be OFF while plugging or unplugging the • DBScar diagnostic connector.
When DBScar connector is not used, remember to place it into the • diagnostic connector housing located at the back of the protection
sleeve to avoid loss.
If your vehicle keeps unattended for a week or a long period, it • is suggested to unplug the connector from vehicle’s DLC to save
battery power.
While diagnosing a vehicle, you are not advised to use phone • or messaging, because it may cause a data communication
interruption. If it happens, it is abnormal and just try to re-do it.
Precautions on Operating Vehicle’s ECU
Do not disconnect the vehicle inner consumer when the ignition • switch is on. High voltage transients may encounter at the moment
of disconnecting, which may damage the sensors and the ECU.
Protect the computer from magnetic object.• Do cut off the power supply of ECU system before welding on the • vehicle.
Pay more attention to the ECU and the sensors when the operation • is next to them.
Ground yourself when you disassemble PROM, otherwise ECU • and sensors will be damaged by static electricity.
Do connect ECU harness connector firmly, otherwise electronic • elements, such as IC inside ECU, will be damaged.
Table of Contents
1 Introduction .....................................................................................1
1.1 Product Profi le ...............................................................................1
1.2 Features ........................................................................................1
1.3 Technical Specifi cations ................................................................1
2 Knowledge of MAXGo ....................................................................2
2.1 MAXGo Display Tablet ...................................................................3
2.2 Diagnostic Connector ....................................................................4
2.3 MAXGo Accessory Checklist .........................................................4
3 Preparations....................................................................................6
3.1 Charging MAXGo ..........................................................................6
3.2 On Using Your Battery ...................................................................6
3.3 Power On / Power Off MAXGo .....................................................6
3.3.1 Power on................................................................................6
3.3.2 Power off ................................................................................6
3.4 Tips On Finger Operations ............................................................6
3.5 Lock & unlock the screen ..............................................................6
3.5.1 Lock the screen .....................................................................6
3.5.2 Unlock the screen ..................................................................7
3.6 Screen Layout ...............................................................................7
3.7 Status Bar ......................................................................................7
3.8 Notifi cation bar...............................................................................8
3.9 Customize your desktop ................................................................8
3.9.1 Move items on the desktop ....................................................8
3.9.2 Delete items from the desktop ...............................................8
3.9.3 Change your wallpaper ..........................................................8
3.9.4 Adjust brightness ...................................................................8
3.9.5 Set standby time ....................................................................8
IV
MAXGo User's Manual
3.9.6 Set screen lock ......................................................................8
3.9.7 Adjust the volume ..................................................................9
3.10 Input Method................................................................................9
3.10.1 Activate / hide on-screen keyboard .....................................9
3.10.2 Edit text ................................................................................9
3.10.3 Android input method ...........................................................9
4 Wi-Fi Setting ..................................................................................10
5 How to diagnose ...........................................................................10
5.1 Connections.................................................................................10
5.1.1 Preparation ..........................................................................10
5.1.2 DLC Location .......................................................................10
5.1.3 Vehicle Connection .............................................................. 11
5.2 Bluetooth Setting .........................................................................12

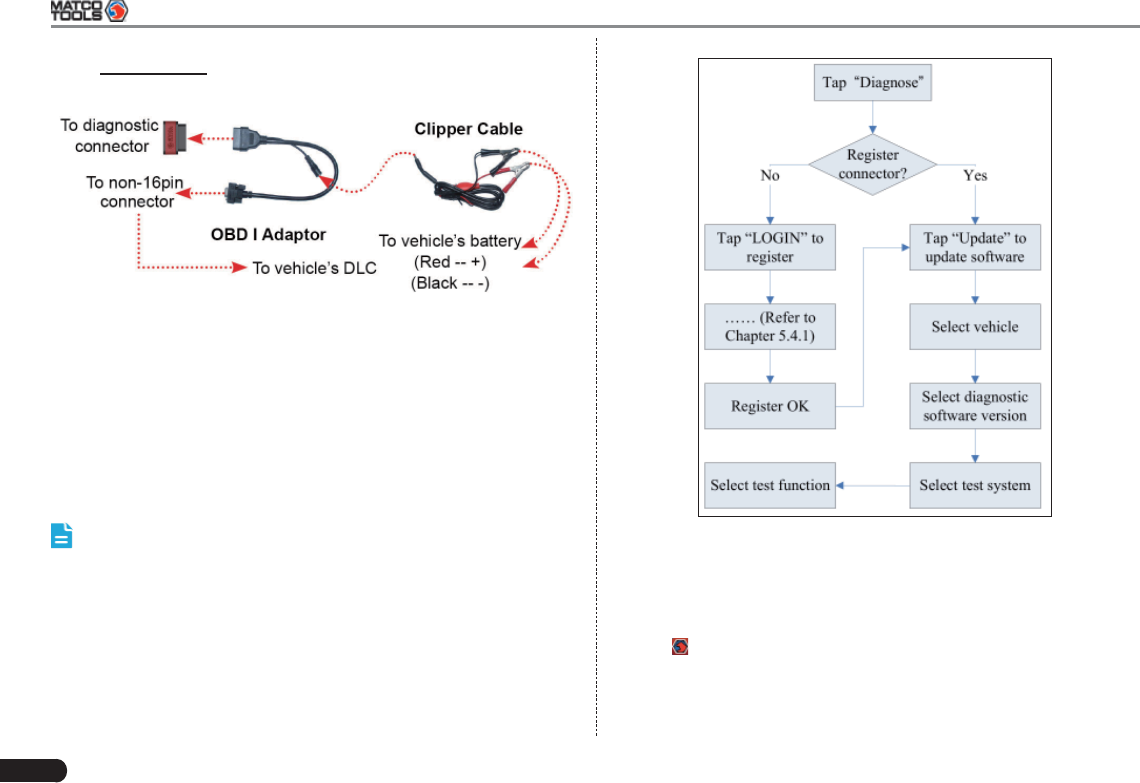

5.3 Diagnosis Flowchart ....................................................................12
5.4 User and Connector Registration ................................................12

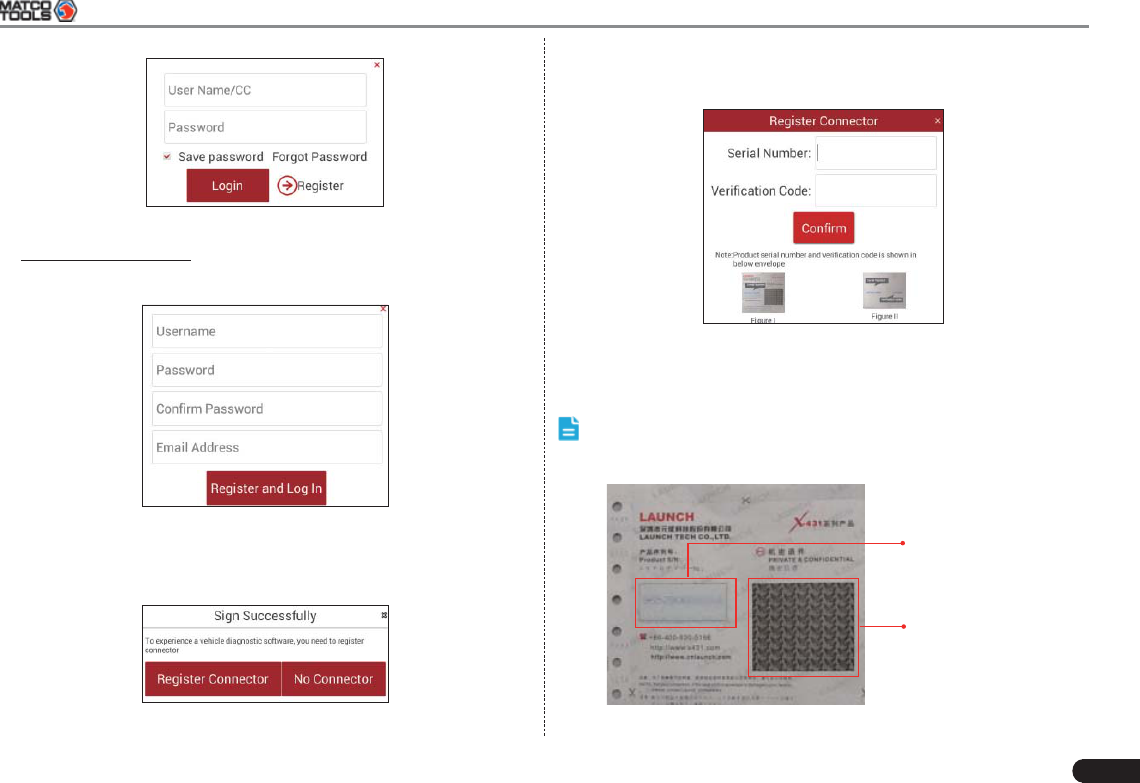

5.4.1 User registration ..................................................................12
5.4.2 Diagnostic software layout ...................................................14
5.4.3 Function menu .....................................................................15

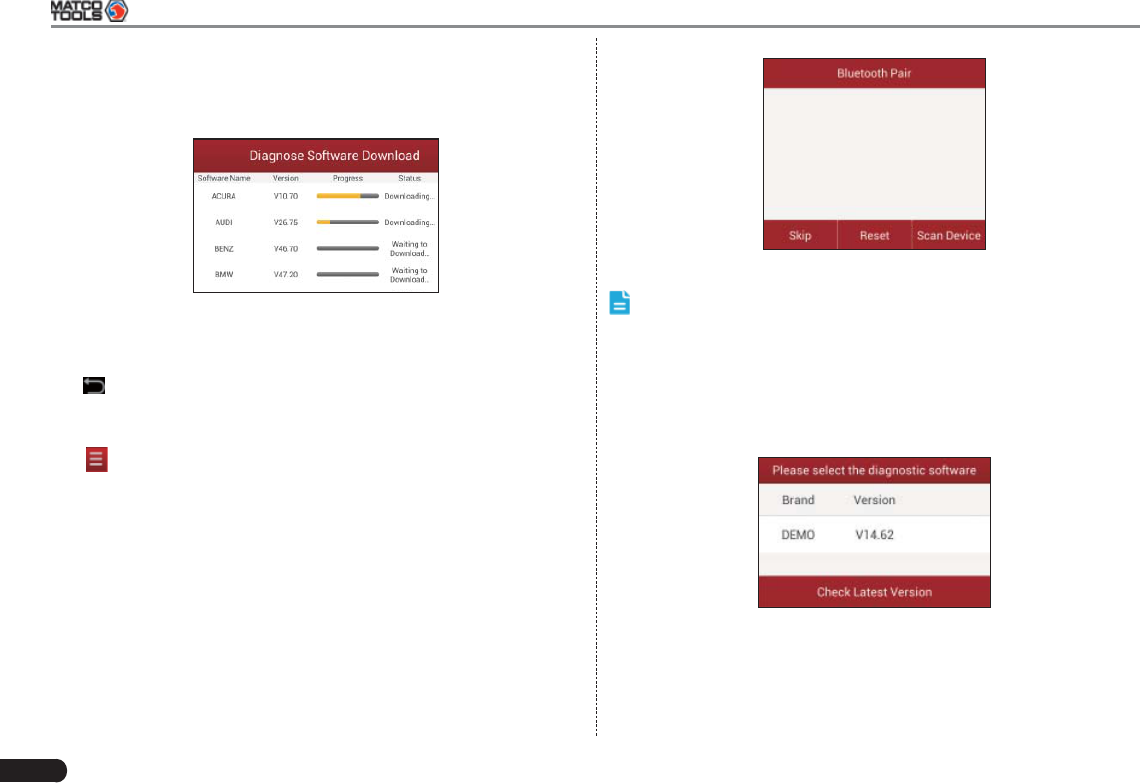

5.5 Download/ Update Diagnostic Software ......................................15
5.6 Start Diagnosing ..........................................................................16
5.6.1 Read Trouble Code..............................................................17
5.6.2 Clear Trouble Code..............................................................17
5.6.3 Read Data Stream ...............................................................17
5.6.4 Special Function ..................................................................18
5.7 Profi le ..........................................................................................18
5.7.1 My Report ............................................................................18
5.7.2 Orders ..................................................................................19
5.7.3 Activate Device ....................................................................19
5.7.4 Private Information...............................................................19
5.7.5 Settings ................................................................................20
5.7.6 Logout ..................................................................................20
6 Others ............................................................................................21
6.1 Email............................................................................................21
6.1.1 Confi gure an email account .................................................21
6.1.2 Send an email ......................................................................21
6.1.3 View an email ......................................................................21
6.1.4 Delete an email ...................................................................21
6.1.5 Revise an account setting....................................................21
6.1.6 Delete an email account ......................................................21
6.2 Browser .......................................................................................22
6.2.1 Open browser ......................................................................22
6.2.2 Download fi les .....................................................................22
6.2.3 Manage bookmarks .............................................................22
6.2.4 Set homepage .....................................................................22
6.2.5 Clear history.........................................................................22
6.3 Using Bluetooth ...........................................................................23
6.3.1 Open Bluetooth ....................................................................23
6.3.2 Allow other devices to search for MAXGo ...........................23
6.3.3 Search other devices and pair MAXGo with it .....................23
6.3.4 Send fi le via Bluetooth .........................................................23
6.4 Camera ........................................................................................23
6.4.1 How to take a picture ...........................................................23
6.4.2 How to record a video ..........................................................24
6.5 Gallery .........................................................................................25
6.5.1 Open gallery ........................................................................25
6.5.2 View pictures or videos ........................................................25
6.5.3 Edit photos ...........................................................................25
6.6 Music ...........................................................................................25
MAXGo User's Manual
V
6.7 Calendar ......................................................................................25
6.8 Alarms..........................................................................................26
6.8.1 Add an alarm........................................................................26
6.8.2 Delete an alarm ...................................................................26
6.8.3 Turn on/off alarm ..................................................................26
6.9 File Manager................................................................................26
6.10 Applications ...............................................................................26
6.10.1 Install applications .............................................................26
6.10.2 View installed applications .................................................26
6.10.3 Uninstall applications .........................................................26
6.11 Set Date & Time .........................................................................26
6.12 Clear Cache...............................................................................27
7 FAQ ................................................................................................27
MAXGo User's Manual
1
Golo IM (Instant Messager) application enables technicians to 2. exchange repair experience and perform remote assistance more
conveniently;
Built-in Indentfi x speed dial helps repair professionals diagnose 3. and repair vehicles effi ciently, accurately and profi tably.
Wi-Fi connection is supported;4.
Web browser: Users can make online search and visit any 5. website.
HDMI interface is provided for connecting the external projectors 6. or displays;
Other Android-based applications can be customized to install or 7. uninstall.
File Manager: Lets you manage fi les or downloaded fi les stored in 8. SD card effi ciently;
Settings: To confi gure your personalized MAXGo;9.
1.3 Technical Specifi cations
A. MAXGo Display Tablet
Item Description
Operating system Android 4.2
CPU Quad-core Processor, 1.2GHz
Display 8 inch touch screen with 1024 x 768
resolution
Memory 2GB
Hard disk 32GB SSD
Connectivity Wi-Fi (802.11 b/g/n)•
USB: 2.0•
Bluetooth 2.1•
1 Introduction
1.1 Product Profi le
MAXGo is a new Android-based vehicle trouble diagnostic device
developed for internet applications. It inherits from LAUNCH’s
advanced diagnosing technology and is characterized by covering a
wide range of vehicles, featuring powerful functions, and providing
precise test result.
Through the Bluetooth communication between vehicle diagnostic
connector and variant mobile intelligent terminals, it achieves X-431
series full car model and full system vehicle trouble diagnosis, which
include Reading DTCs, Clearing DTCs, Reading Data Stream,
Actuation Test and Special Functions.
Meanwhile, taking advantage of mobile internet, it integrates more
application and service, such as Customer Management, Identifix
(Maintenance Database), Upgrade and IM (Instant Messager) etc.
MAXGo adopts a higher performance-price ratio display tablet, which
is equipped with Android 4.2 operating system, 1.2GHz quad core
CPU and 8” IPS screen display.
1.2 Features
Diagnose:1.
Can diagnose the electronic control system of prevailing vehicle • models covering Asian, European, American and Chinese.
Diagnosis functions include: Read DTCs, Clear DTCs, Read
Data Stream, Special Functions etc;
Specially designed for Android platform with clear and user-• friendly interface;
Via Bluetooth, it is simple for diagnostic connector to • communicate with MAXGo display tablet;
2
MAXGo User's Manual
2 Knowledge of MAXGo
There are three main components to the MAXGo system:
MAXGo Display Tablet -- the central processor and monitor for the • system (For details, please refer to Chapter 2.1.)
Fig. 2-1
Diagnostic Connector -- the device for accessing vehicle data (For • details, please refer to Chapter 2.3.)
Fig. 2-2
Camera Front-facing, 2.0 megapixel; Rear-
facing, 5.0 megapixel, AF with
Flashlight
Sensors Gravity Accelerometer, Ambient Light
Sensor
Audio Input/Output Microphone•
Speakers•
3.5mm stereo headset jack•
Power and Battery 7000 mAh lithium-polymer battery
Charging via 5V DC power supply
Operating Temperature -10℃ ~ 55℃(14 ~131℉)
Storage Temperature -20℃ ~ 70℃(-4 ~158℉)
B. Diagnostic Connector
Item Description
Working temperature -10℃ ~ 55℃(14 ~131℉)
Storage temperature -20℃ ~ 70℃(-4 ~158℉)
Relative humidity 20% ~ 90%
MAXGo User's Manual
3
Table 2-1 formulates interfaces and indicators of MAXGo
display tablet:
No. Name & Descriptions
1Headphone Jack
2USB Port -- to connect the included power
adaptor.
3Front Camera Lens
4Screen Lock/Power Button -- to turn the
display tablet on/off with long press, or lock the
screen with short press.
5Volume Keys -- to adjust the volume.
6Reset Button
7golo Button -- for quick access to IM (Instant
Messager) application
8SD Card Slot -- to store the SD card.
9HDMI Port
10 Charging indicator
11 Return Button
12 Homepage Button
13 Recent Apps Button
14 Microphone
15 IPS Touch Screen
16 Camera Flash
17 Rear Camera Lens
18 Lithium Battery
19 Audio Speaker
2.1 MAXGo Display Tablet
Fig. 2-3 MAXGo Display Tablet (front & rear view)
4
MAXGo User's Manual
2.3 MAXGo Accessory Checklist
Common accessories for each MAXGo are same, but for different
destinations, the accessories of MAXGo (such as diagnostic software,
testing connectors) may vary. Please consult from the local agency or
check the package list supplied with MAXGo together.
Table 2-3 -- MAXGo common accessories and descriptions
No. Name Qt. Picture
1MAXGo Display
Tablet 1
2Diagnostic
Connector 1
(To connect to vehicle’s DLC.)
3Power Adaptor 1
(To convert 100~240V AC power
supply to 5V DC power supply.)
2.2 Diagnostic Connector
1
2
3
4
Fig. 2-4 Diagnostic Connector
Table 2-2 formulates ports and indicators of diagnostic connector:
No. Name & Descriptions
1OBD-16 Diagnostic Connector -- To connect on vehicle’s
OBD2 DLC.
2Power Indicator -- It lights up while the connector is
plugged into the vehicle’s DLC.
3Communication Indicator -- It will fl ash once the
connector is communicating with MAXGo or it is being
reset.
4Micro USB Port -- To connect on PC for data transmission
or upgrade via USB cable.
MAXGo User's Manual
5
4HDMI Cable 1
(To connect to an external
projector or monitor with HDMI
interface.)
5OBD II extension
cable 1
(To connect the diagnostic
connector for extension purpose.)
6OBDI Adaptor 1
(A converting cable for connecting
non-16 pin connector.)
7Password
Envelope 1
(A piece of paper bearing
Product S/N and Verifi cation
Code, which is required for your
registration.)
8Cigarette Lighter
Cable 1(To obtain power supply from
vehicle’s cigarette lighter )
9Clipper Cable 1
(To provide power to the non-16
pin connector through connection
to the vehicle's battery.)
10 Non-16pin
Connector (Optional)
6
MAXGo User's Manual
3 Preparations
3.1 Charging MAXGo
Remove the USB port cover from top of MAXGo display tablet, and 1. then connect one end of the included battery charger into it;
Connect the other end of the charger into AC outlet. If MAXGo is 2. being charged, the charging indicator illuminates red; Once the
indicator turns green, it means that the charging is complete.
3.2 On Using Your Battery
If the battery keeps unused for a long time or battery is completely • discharged, it is normal in case it can not be turned on while being
charged. Please charge it for a period and then turn it on.
Please use the included charger to charge your MAXGo. We • assume no responsibility for damage or loss resulting from using
other similar chargers other than the specifi ed one.
To prolong the service life of the battery, avoid charging too • frequently.
The charging time of battery varies with temperature condition and • battery consumption status.
While MAXGo has low battery, a beep will sound. If it is very low, • MAXGo will be switched off automatically.
3.3 Power On / Power Off MAXGo
3.3.1 Power on
Press the POWER key to turn on MAXGo.
Note: If it is the fi rst time you use MAXGo or MAXGo keeps idle
for a long time, MAXGo could fail to be turned on. It results from low
battery. In this case, please recharge your MAXGo for a while and try
to turn it on.
3.3.2 Power off
Press the POWER key, an option menu will pop up on the screen.1.
Tap “Power off” to turn off MAXGo.2.
3.4 Tips On Finger Operations
Actions Results
Single-tap To select an item or launch a program.
Double-tap To zoom in so that the text on a webpage appears
in a column that fi ts your device’s screen.
Long press Press and hold on the current interface or area
until a contextual menu pops up on the screen,
and then release it.
Slide To jump to different pages.
Drag Tap the desktop icon and drop it to other location.
Spread apart /
Pinch together
To zoom in manually, place two fingers on the
screen and then spread them apart. To zoom out,
place two fingers apart on the screen and then
pinch them together.
3.5 Lock & unlock the screen
Many screen lock modes are available on MAXGo. Take the preset
screen-lock mode as example for demonstration.
3.5.1 Lock the screen
When MAXGo is ON, press POWER key once to lock the screen; •
The system will lock the screen automatically after MAXGo remains • idle over the preset standby time.
MAXGo User's Manual
7
3.5.2 Unlock the screen
Press POWER key to activate the screen, and then drag the lock to
“Unlock” position.
Note: If you defi ne as unlock using the pattern, you have to draw
the right target pattern to unlock it.
3.6 Screen Layout
1
7
8
2
3
4
5
6
Fig. 3-1
On-screen keys and status bar are as follows:
1 shows whether the diagnostic connector is connected.
2Tap to display a list of applications that are currently
running. To open an application, tap it. To remove an
application, swipe it upwards.
3Tap to jump to the Android System’s home screen.
4Tap
to return to the previous screen or exit the application.
5Tap
to capture the current screen and all captured
screenshots are stored in the Screenshots folder.
6Tap
to confi gure the MAXGo system settings and to view
the general information about the Display Tablet.
7 Display the widget and application icons.
8 It shows: System time, Wi-Fi connection status and signal
strength, battery status and other information. Tap the digital
clock to open the notice panel.
3.7 Status Bar
For some common indicators, please see the following table.
Icons Defi nitions Icons Defi nitions
Airplane mode Bluetooth is on
Positioning GPS Charging
Battery is fully charged Low battery
New mail Preparing SD card
Uploading Downloading
Connected to a PC USB bound is activated
Available Wi-Fi is
detected Connected to Wi-Fi
8
MAXGo User's Manual
Notes: When the icon appears on the status bar, please charge
it immediately.
3.8 Notifi cation bar
The notification bar is used to display some activities, such as new
messages, to do list and running tasks. You can also open the
notifi cation bar to view the reminder or activity notifi cation.
3.9 Customize your desktop
3.9.1 Move items on the desktop
Hold and press the item to be moved until it is shaken. 1.
Drag and drop it to the target location.2.
Note: Drag the icon to the margin of the screen and keep it still,
the system will switch to other extension desktop, place it to the
desired location.
3.9.2 Delete items from the desktop
Hold and press the item to be moved until it is shaken. 1.
Drag it on the trash icon, then release it.2.
Warning: Deleting an icon will uninstall the corresponding
application. Please be careful to do so.
3.9.3 Change your wallpaper
Hold and press a blank area on the desktop, a pop-up wallpaper 1. window will be shown on the screen.
Set different wallpaper as desired:2.
• Wallpapers: Choose a still picture from gallery as wallpaper.
• Live Wallpapers: Open it to choose one of the preset live
wallpapers as wallpaper.
• Gallery: Set the photos you captured as wallpaper.
3.9.4 Adjust brightness
Tips: Reducing the brightness of the screen is helpful to save the
power of MAXGo.
On the main menu screen, tap Settings > Display > Brightness.1.
Drag the slider to adjust it as desired.2.
3.9.5 Set standby time
If no activities are made within the defi ned standby period, the screen
will be locked automatically and the system enters sleep mode to save
power.
On the main menu screen, tap Settings > Display > Sleep.1.
Choose the desired sleep time.2.
3.9.6 Set screen lock
This function is designed to lock the screen and buttons to avoid
accidental operations while MAXGo keeps unattended.
On the main menu screen, tap Settings > Security > Screen lock.1.
Choose the desired screen lock mode and follow the on-screen 2. instructions to fi nish your setting.
3.9.7 Adjust the volume
This option enables you to adjust the volume of the ringtones, media
player, alarm and notice.
On the main menu screen, tap Settings > Sound > Volume.1.
Drag the slider to adjust it.2.
MAXGo User's Manual
9
Note: Alternatively, you can also press the volume keys to control
the volume of the current application.
3.10 Input Method
3.10.1 Activate / hide on-screen keyboard
By default, Android keybaord is available on MAXGo.
To input text, tap the input box and the on-screen keyboard will be • activated automatically.
After inputting, tap • to hide the keyboard.
Note: In some applications, the on-screen keyboard may appear
over some interfaces partially. Close it to view more so that you can
judge what’s next to do.
3.10.2 Edit text
Cut, copy and paste operations are supported.
Tap and hold the desired text area until a blue cursor appears. 1.
Press and drag the cursor to highlight the text to be edited. 2.
Tap SELECT ALL, CUT or COPY to perform the corresponding 3. operations. To delete the selected text, tap the delete key on the
keyboard.
3.10.3 Android input method
1 7
6
2
3
45
Fig. 3-6
1 To jump to next textbox.
2 To switch to numeric & symbol keyboard.
3 To toggle between upper case and lower case.
4 To bring up an input options menu. Input languages and
Android keyboard settings such as auto-capitalization and
sound on keypress are available.
5 To enter a space.
6 Line feed.
7 > To delete the character before the cursor.
> Long-press this key to delete all characters before the
cursor.
Note: For different input box, keyboard layout may vary. The
fi gure shown as above is provided for reference purpose.
10
MAXGo User's Manual
4 Wi-Fi Setting
Note: Once Wi-Fi is set as ON, MAXGo will consume more
power. While Wi-Fi keeps unused, please set it off to save power.
On the main menu screen, tap Settings > Wi-Fi.1.
Tap or slide the Wi-Fi switch to ON, MAXGo starts searching all 2. available wireless LANs.
Choose the desired Wi-Fi,3.
If the network you chose is open, you can connect on it directly;•
If the selected network is encrypted and secured with WPA, you • have to input the right access password to connect.
Once it is connected successfully, tap the Wi-Fi from the list to view its
name, link speed, security type, IP address etc.
When MAXGo is in range of the WLAN, it will connect to the previously
linked network automatically.
5 How to diagnose
5.1 Connections
5.1.1 Preparation
Normal testing conditions
Turn on the vehicle power supply.•
Vehicle battery voltage range should be 9-14V and working voltage • of MAXGo is 5V.
Throttle should be closed at its close position. •
Ignition timing and idle speed should be within specified range; • water and transmission oil temperature are within normal working
range (water temperature is 90-110℃ and transmission oil
temperature is 50-80℃).
Select testing connectors
If MAXGo is testing vehicles equipped with universal OBD II 16 PIN
diagnostic socket, please use the included diagnostic connector. (For
vehicles with non-OBD II 16 PIN diagnostic socket, a non-16 PIN
connector is required.)
5.1.2 DLC Location
The DLC (Data Link Connector or Diagnostic Link Connector) is the
standardized 16-cavity connector where diagnostic code readers
interface with the vehicle’s on-board computer. The DLC is usually
located 12 inches from the center of the instrument panel (dash), under
or around the driver’s side for most vehicles. If Data Link Connector is
not located under dashboard, a label should be there telling location.
For some Asian and European vehicles, the DLC is located behind the
ashtray and the ashtray must be removed to access the connector. If
the DLC cannot be found, refer to the vehicle’s service manual for the
MAXGo User's Manual
11
location.
Near the center
of dashboard
Fig. 5-1
5.1.3 Vehicle Connection
The method used to connect the diagnostic connector to a vehicle’s
DLC depends on the vehicle’s confi guration as follows:
A vehicle equipped with an OBD II management system supplies • both communication and 12V power through a standardized DLC.
A vehicle not equipped with an OBD II management system • supplies communication through a DLC connection, and in some
cases supplies 12V power through the cigarette lighter receptacle
or a connection to the vehicle battery.
Follow the steps mentioned below to connect OBD II vehicle:
Locate vehicle’s DLC socket. 1.
Plug the diagnostic connector into the vehicle’s DLC socket (It 2. is suggested to use the OBD II extension cable to connect the
diagnostic connector and DLC socket.).
Choose one of the two ways to obtain power from:3.
A. Power adaptor: connect one end of the included power adaptor
to Power interface of MAXIMUS2.0 display tablet, and the other
end to AC outlet.
B. Internal battery pack: For details on how to recharge
MAXIMUS2.0, see “Chapter 3.1 Charging MAXIMUS2.0”.
For non-OBDII vehicle, proceed as follows:
Locate vehicle’s DLC socket. 1.
Select the corresponding non-16pin connector.2.
Plug the non-16pin end of the connector into the DLC socket, then 3. connect the other end to the OBD I adaptor, and then tighten the
captive screws.
Connect the other end of the adaptor to the included diagnostic 4. connector.
To supply power to OBD I adaptor from:5.
A. Cigaretter Lighter: Connect one end of the cigarette lighter
cable to vehicle’s cigaratte lighter receptacle, and the other end
to the power jack of OBDI adaptor.
Fig. 5-2
12
MAXGo User's Manual
B. Clipper Cable: Connect one end of the clipper cable to vehicle’s
battery, and the other end to the power jack of OBDI adaptor.
Fig. 5-3
5.2 Bluetooth Setting
Enter MAXGo Bluetooth setting screen (“Settings” --> “WIRELESS
& NETWORK” --> “Bluetooth”), slide the Bluetooth switch to ON
and MAXGo will start searching available Bluetooth device, click the
desired connector to pair and match.
By default, the Bluetooth name is 98409*****00 (where ***** stands for
5 digits.).
Note: In case no Bluetooth setting is done before diagnostic
software is launched, you can also configure it while using the
software. For details on Bluetooth connection, please refer to “Chapter
5.6 Start diagnosing”.
5.3 Diagnosis Flowchart
For new users, please follow the operation chart shown in Fig. 5-4 to
get familiar with and start using MAXGo.
Fig. 5-4
5.4 User and Connector Registration
5.4.1 User registration
Tap the icon on the desktop to launch the application, a disclaimer
page will pop up on the window. Tap “I’ve read it” to enter the login
interface of diagnosis software, as indicated in Fig. 5-5.
MAXGo User's Manual
13
Fig. 5-5
1. If you are a new user, click “Register” to enter registration page.
See Fig. 5-6.
Fig. 5-6
In Fig. 5-6, fill in the information in each field. After inputting, click
“Register and Log In”, a prompt message similar to the following will
appear:
Fig. 5-7
In Fig. 5-7, click “Register Connector” if you want to experience vehicle
diagnostic software. See Fig. 5-8.
Fig. 5-8
To exit and register it later, click “No connector”.
Input the Serial Number and Verifi cation Code, and then click “Confi rm”.
Note: The Serial Number and Verifi cation Code can be obtained
from the password envelope. See Fig. 5-9.
Product S/N
Verifi cation Code
Fig. 5-9
14
MAXGo User's Manual
3Tap to display a list of applications that are currently
running. To open an application, tap it. To remove an
application, swipe it upwards.
4Tap to jump to the Android System’s home screen.
5Tap
to return to the previous screen or exit the application.
6Tap
to capture the current screen and all captured
screenshots are stored in the Screenshots folder.
7Tap
to confi gure the MAXGo system settings and to view
the general information about the Display Tablet.
8Tap to fi nd more applications.
9 Vehicle region buttons: Tap different buttons to switch to
corresponding vehicles.
10 Login button: Tap it to log in or register the diagnostic system.
Once users have logged in successfully, it will change to your
user name.
11 Vehicle diagnosis software logo: To start diagnosing a
vehicle, you have to download the corresponding diagnostic
software. In case a diagnostic software is downloaded and
installed, will disappear.
For details on downloading or updating a software, please
refer to “Chapter 5.5 Download/ Update Diagnostic
Software”.
12 Downloadable logo: shown at the lower right corner of
the vehicle software logo means that this diagnosis software
is downloadable. Once it is successfully downloaded and
installed, will disappear.
Alternatively, you can also register your connector by clicking “Activate
Device” in “Profi le”. For details, please refer to Chapter 5.7.3 Activate
Device.
2. If you have registered to be a member, input your name/CC and
password in Fig. 5-5, and then tap the “Login” button to enter the main
menu screen directly.
5.4.2 Diagnostic software layout
2
3
4
5
110
11
12
9
6
7
8
Fig. 5-10
1Tap to pull down all function menu. Refer to “Chapter
5.4.3 Function menu” for details.
2 shows whether the diagnostic connector is properly
connected or not.
MAXGo User's Manual
15
5.4.3 Function menu
Tap to unfold function menu, it mainly includes the following items:
Fig. 5-11
Name Description
Diagnose Confi gures MAXGo to operate as a diagnostic
tool.
History Views all diagnostic records.
Identifi x An speed-dial to Identifi x website.
Customers Enables you to manage your customers.
Profi le Accesses to My Report, Activate Device,
Private information and Settings etc.
More
Messages To launch IM (Instant Messager) application.
Contacts To manage your friend and accounts.
Share To share information with others, including
text, voice, images and fi les.
Update To dowload or update vehicle software.
Setting Allows you to confi gure system settings.
Chrome Launches the Chrome brower.
Camera Opens the camera.
5.5 Download/ Update Diagnostic Software
Before diagnosing a vehicle, you have to download the corresponding
vehicle diagnosis software.
In Fig. 5-11, tap “Update” to select the paired diagnostic connector.
Tap the serial number and a list of diagnostic software will pop up on
the screen.
Fig. 5-12
16
MAXGo User's Manual
By default, all diagnostic software are selected. To select certain
software, Tap “Select All”, and then uncheck the box next to Version.
Tap “Update” to start downloading.
Fig. 5-13
Once it is complete, the system will decompress automatically and
then install it.
Tap to the main menu screen.
5.6 Start Diagnosing
Tap on the main menu screen, and then choose “Diagnose” to
enter the vehicle selection page.
Take Demo as an example to demonstrate how to diagnose a vehicle.
1. Tap the “Demo” logo, the system will prompt you to make Bluetooth
pair firstly (See Fig. 5-14). Since Bluetooth is not required for
DEMO program, just tap “Skip” to proceed to Step 2.
Fig. 5-14
Note: Generally you have to match and pair Bluetooth while
diagnosing a certain vehicle. If Bluetooth pair has been done, “Not
Connected” but “Paired” will appear on the screen. Tap the desired
connector to start connecting. If successful, a pop-up message
“Connected to 98419*****00” will be shown.
2. After Bluetooth is properly connected, the system will enter
software version selection screen. See Fig. 5-15.
Fig. 5-15
To check whether a new version is available or not, click “Check Latest
Version”. If a newer version is detected, it will start downloading the
latest version.
MAXGo User's Manual
17
3. Tap the desired version to start initializing. After initializing is
complete, the screen will display as below:
Fig. 5-16
4. Tap “Demo” to enter system selection interface. See Fig. 5-17.
Fig. 5-17
5. Tap “Engine”, the system will jump to the function menu. See Fig.
5-18.
Fig. 5-18
5.6.1 Read Trouble Code
Tap “Read Trouble Code” in function menu, the screen will display the
diagnostic result.
Generate Current Text Reports: To save the current data in text format.
Generate Screenshot Reports: To save the current data in screenshot
form.
Tap to return to the function selection screen.
5.6.2 Clear Trouble Code
Tap “Clear Trouble Code” function menu, the system will automatically
delete the currently existing trouble code.
Note: The trouble code will not disappear until the trouble was
completely cleared.
5.6.3 Read Data Stream
Tap “Read Data Stream” in function menu, the system will display data
stream items.
18
MAXGo User's Manual
Fig. 5-19
To select certain data stream item, just tap , then the selected item
will be activated and will change into .
To select all items of the current screen, tap “Select Page”, and then
tap “Confi rm” to enter data stream reading interface. See Fig. 5-20.
To deselect all items, tap “unselect”.
Fig. 5-20
After selecting, tap “Graphic”, the system will display data changes in
waveform.
To start to record, tap “Record”; To stop reading, click “Stop”.
On data stream reading page, the following operations can be done:
Graphic: Tap to select the desired datastream to be browsed, and
then tap it to view the waveform.
Record: Tap to start recording diagnostic data for future playback and
view. The saved file follows the naming rule: It begins with vehicle
type, and then the record starting time and ends with .x431 (To
differentiate between fi les, please confi gure the accurate system time).
The file is stored in “My Report” under menu. For details on
playback operations, please refer to Chapter 5.7.1 “My Report”.
Reports: To save the current data in text format.
Tap to return to the function selection screen.
5.6.4 Special Function
This option allows you to detect whether the system parameters are
normal or not. It mainly includes: Injector test, fuel pump test, purge
control solenoid and so on.
Take “1# injector” as an example.
To detect whether 1# injector works normally or not, click “1# injector”,
the system will automatically carry out the function. After complete, a
prompt dialog box will pop up on the screen.
5.7 Profi le
This function allows users to manage your profi le.
5.7.1 My Report
This option is used to view the diagnostic report generated in process
of vehicle diagnosis. Additionally, delete, send operations are also
supported.
MAXGo User's Manual
19
Tap “My Report”, a list of diagnostic report will appear below the tab.
If user records the running parameters while reading data stream,
.x431 fi le will be shown on the screen.
In case the DTC result is saved as .txt file on Read Trouble Code
page, .txt fi le will be displayed on the screen.
Fig. 5-21
Tap certain diagnostic report (.txt) to view it. See Fig. 5-24.
Fig. 5-21
Tap to view and perform more operations.
Tap certain diagnosis playback fi le (.x431) to view it.
On-Screen button defi nitions:
Delete: To delete the current report;
Character: To view the diagnostic report in character form.
Graph: To view the diagnostic report in waveform form.
5.7.2 Orders
This option is specially designed to facilitate on-line purchase. You can
check unpaid orders, paid orders and shopping cart. To make an on-
line order, just follow the on-screen instructions to proceed.
5.7.3 Activate Device
It is used to register your diagnostic connector.
Fig. 5-26
Input the Serial Number and Verifi cation Code, and then tap “Activate”
to register the connector.
For details on how to obtain Serial Number and Verifi cation Code, tap
the below links to get help.
5.7.4 Private Information
Use this item to view and confi gure your personal information.
5.7.5 Settings
It enables you to make some application settings and view software
20
MAXGo User's Manual
version information and user manual etc.
App Settings: This item allows you to set the measurement unit.
About: Version Information, Version Update, Quick Start Guide, User
Manual are included.
5.7.6 Logout
This option allows you to log out the system.
To log out the current user ID, tap “Logout”.
MAXGo User's Manual
21
6.1.3 View an email
Enter main menu screen, and click 1. Email to enter account screen.
Tap the desired email account.2.
Tap the desired one to read:3.
Note: For different networks, inbox may have some delays. Tap
on the upper right corner to refresh the email list.
6.1.4 Delete an email
Enter main menu screen, and click 1. Email to enter account screen.
Tap the desired account, and then select the mail to be deleted. 2.
Tap 3. to delete.
Note: To delete multiple emails, check the box before the message
and then click . Once “Messages deleted” appear, it indicated the
selected messages has been removed successfully.
6.1.5 Revise an account setting
Enter main menu screen, and click 1. Email to enter account screen.
Tap 2. > Settings.
Choose the desired Email account from the account list.3.
Follow the instructions on the screen to make general settings and 4. notifi cation settings.
Note: Never change the default settings of the server, otherwise
email failure may occur.
6.1.6 Delete an email account
Once Email account is removed, MAXGo stops receiving the emails
from this account, but all messages in it still keeps as it is.
6 Others
6.1 Email
The function allows you to send and receive email. You can add POP3
or IMAP email account for some common web email service provider.
6.1.1 Confi gure an email account
Note: Before sending or receiving email, you have to set up an
email account. In addition, this function required a stable network
connection.
On the desktop, click 1. Email.
Input email address and password, click “Next” or “Manual setup”. 2.
Note: If “Manual setup” is selected, please consult your email
service provider for detailed parameter setting.
Choose the desired email account type to enter the incoming 3. settings screen, tap “Next”.
Follow the on-screen instructions to proceed until the system 4. prompts you that the account setup has been fi nished.
6.1.2 Send an email
Enter main menu screen, and click 1. Email to enter account screen.
If several email accounts are confi gured, choose the desired one.
Tap 2. to enter new mail writing interface. Input the receiver
address in “To” fi eld and a title in “Subject” column, and then type in
the content in “Compose” email area.
After inputting, click 3. , you can perform any one of the followings:
Attach fi le, add CC/BCC, save draft, discard and setting.
Tap 4. to send email.
22
MAXGo User's Manual
Enter main menu screen, and tap Email to enter account screen.1.
Tap 2. > Settings.
Choose the desired Email account from the account list.3.
Choose “Remove account” to delete it.4.
6.2 Browser
6.2.1 Open browser
Enter main menu screen, tap to launch the browser. You can
choose the desired homepage or input the website address to browse.
1
2
3
45
6
7
8
Fig. 6-1
1Create a new tab.
2Close the current page.
3Refresh the current page.
4Input a web address.
5Add the current page as bookmark.
6Open search bar.
7Open bookmark list.
8View more options.
6.2.2 Download fi les
Files, pictures, and applications can be downloaded from the website
in browser.
For example:
Tap and press a picture, then choose “Save image” from pop-up menu
to download it.
To download a link, tap and press it, and then choose “Save link”.
To protect your MAXGo and personal data, please download
applications from trusted sources. To configure it, tap Settings >
Security, and then deselect the box next to Unknown sources.
6.2.3 Manage bookmarks
You can set the favorite website as bookmark for your quick access.
Enter main menu screen, tap 1. to launch the browser.
Tap 2. to enter bookmarks page.
Long press it, you can share, open and delete the bookmark. 3.
6.2.4 Set homepage
This option enables you to set commonly visited website as the
homepage. The homepage will be opened by default every time you
launch your browser.
Enter main menu screen, tap 1. to launch the browser.
Tap 2. > Settings > General.
Tap “Set homepage”, then follow the on-screen instructions to fi nish 3. it.
6.2.5 Clear history
To prevent your personal information from being exposed much better,
MAXGo User's Manual
23
you are strongly recommended to clear your browser navigation
history.
Enter main menu screen, tap 1. to launch the browser.
Tap 2. > Settings > Privacy & security.
Tap “Clear history”.3.
6.3 Using Bluetooth
Bluetooth connection is supported on MAXGo. Using it, you can
connect MAXGo to other compatible devices for data transmission.
Note: Bluetooth connection is likely to be disturbed by other
objects, such as walls or other electronic devices.
6.3.1 Open Bluetooth
Enter main menu screen, tap “Settings” --> “Bluetooth”. 1.
When the Bluetooth switch is ON position, it indicates it is already 2. on and a corresponding Bluetooth icon will appear on the status bar
of MAXGo.
6.3.2 Allow other devices to search for MAXGo
Enter main menu screen, tap “Settings” --> “Bluetooth”. Tap 1. and
choose “Visibility timeout”.
Set the desired visibility option.2.
6.3.3 Search other devices and pair MAXGo with it
Before transmitting data with other Bluetooth devices, you have to pair
MAXGo with it.
Check and ensure Bluetooth is ON. 1.
Enter main menu screen, tap “Settings” --> “Bluetooth”.2.
MAXGo starts scanning all Bluetooth devices. 3.
Choose the desired one from the search result to pair it with 4. MAXGo.
6.3.4 Send fi le via Bluetooth
You can send pictures, videos, audio fi les or test reports to others for
sharing and review via Bluetooth.
To transfer files via Bluetooth, please proceed following the steps
described below:
Enter main menu screen, and tap “File Manager”.1.
Access the corresponding folder and choose the desired picture, 2. video or audio fi le.
Tap 3. and choose “Bluetooth” from the pull-down menu.
Tap the target Bluetooth device you want to transmit fi les. 4.
6.4 Camera
6.4.1 How to take a picture
Enter main menu screen, tap .
24
MAXGo User's Manual
1
10
9
8
7
6
5
4
2
3
Fig. 4-30
1 Drag the slider to toggle between camera and video mode.
2 Tap it to take a picture.
3 Tap it to browse your pictures.
4 Slide to right or left to zoom in/out the screen.
5 Set camera parameters, such as Exposure, White
balance, Picture size etc.
6 Tap it to select color effect.
7 Tap it to set snap mode: Normal or Panorama Snap.
8 Tap it to set continuous snap mode: Normal or Fast Snap.
9 Tap it to turn on/off fl ash mode.
10 Tap to toggle between front camera and rear camera.
6.4.2 How to record a video
In camera mode, drag the slider to video mode.
1
10
9
8
7
6
5
4
2
3
Fig. 4-30
1 Drag the slider to toggle between camera and video mode.
2 Tap it to start recording a video.
3 Tap it to play back your video.
4 Slide to right or left to zoom in/out the screen.
5 Tap it to make some video settings, including Fix time,
Exposure, Save location etc.
6 Tap it to choose video size.
7 Tap it to set time lapse interval.
8 Tap it to set white balance.
9 Tap it to turn on/off fl ash mode.
MAXGo User's Manual
25
10 Tap to toggle between front camera and rear camera.
6.5 Gallery
This option is used to manage pictures and video fi les.
6.5.1 Open gallery
Enter the main menu screen, tap to open gallery, the system
starts scanning all pictures and videos on MAXGo.
6.5.2 View pictures or videos
Enter the main menu screen, tap 1. to open gallery.
Tap a picture or video fi le to view it in full screen mode. Swipe the 2. screen to right or left to view the previous or next one.
To zoom in manually, place two fi ngers on the screen and then spread
them apart. To zoom out, either double-tap again or place two fi ngers
apart on the screen and then pinch them together.
Featuring gravity sensor, MAXGo will adjust the orientation of the
pictures automatically if it is rotated.
The following operations can be also done while browsing gallery:
To play back pictures in the current folder.
To launch camera.
To share pictures or videos.
To view more options.
6.5.3 Edit photos
Without installing third-party photo processing software, MAXGo
provides powerful photo editing functions, such as light compensation,
red eye processing, crops etc.
Open the picture to be edited in 1. .
Tap the icons located on the bottom of the piture to perform the 2. corresponding functions.
Tap Save, the edited picture will also be saved in the same folder in 3. which the original picture lies.
6.6 Music
Enter main menu screen, and tap to enter. Music fi les are stored
into 4 categories: Artists, Albums, Folders and Playlist.
Tap the desired music type. Open music fi le list.1.
Tap the desired audio fi les to start playing. 2.
6.7 Calendar
This function lets you view calendar or create to-do events.
Enter main menu screen, tap . Tap the time in the upper left corner
to switch between Day, Week, Month and Agenda.
26
MAXGo User's Manual
6.8 Alarms
6.8.1 Add an alarm
Enter main menu screen, tap 1. .
Tap 2. to enter new alarm setting interface.
Set the detailed items. 3.
After setting, tap “OK” to confi rm.4.
6.8.2 Delete an alarm
On alarm list screen, hold and press the desired alarm.1.
Tap the 2. , and then tap “OK” in the confirmation dialog box to
delete it.
6.8.3 Turn on/off alarm
On alarm list screen, slide the switch to ON to activate it. To disable it,
just switch it to OFF.
6.9 File Manager
This option enables you to manage your fi les.
Tap File Manager, and then choose the desired folder to perform
corresponding operations.
6.10 Applications
6.10.1 Install applications
To install an application, you need to download it firstly. All items
downloaded in default browser are saved in Downloads.
On the main menu screen, tap 1. Downloads.
Choose the desired .apk fi le.2.
Tap “Install” to start installing the application.3.
Tap “Done” to fi nish it.4.
Note: In process of installation, a message prompting installation
prohibited may appear. Please read it carefully. To install it, please tap
“Settings” > “Security”, and check the box next to “Unknown sources”,
which allows you to install non-Market application.
6.10.2 View installed applications
Tap Settings > Apps.1.
Swipe the screen from right to left until ALL tab appears. 2.
Tap the desired one to view its detailed information.3.
6.10.3 Uninstall applications
To release storage space, you can uninstall some unused applications.
Tap Settings > Apps.1.
Swipe the screen from right to left until ALL tab appears. 2.
Tap the desired one to enter.3.
Tap “Uninstall” and then tap “OK” in the dialog box to start 4. uninstalling.
6.11 Set Date & Time
MAXGo is preset to use the network-provided date, time zone and
time.
Note: If Automatic date & time is set as Use network-provided
time, date, time and time zone will not be defi ned.
MAXGo User's Manual
27
Enter the main menu screen, tap Settings > “Date & time”.1.
Deselect “Automatic date & time”.2.
Follow the on-screen instructions to set date, time and time zone. 3.
6.12 Clear Cache
If insufficient memory occurs, please clear cache to spare more
storage space.
Tap Settings > Apps.1.
Swipe the screen from right to left until ALL tab appears. 2.
Tap “Clear cache”.3.
7 FAQ
1. How to save power?
Please turn off the screen while MAXGo keeps idle.•
Set a shorter standby time.•
Decrease the brightness of the screen.•
Try to use earphone.•
Please turn off Bluetooth when it’s not in use.•
If Wi-Fi connection is not required, please turn it off.•
Disable GPS function if GPS service is not in use.•
2. What should I do in case I forgot the screen lock?
You can set screen lock as pattern or password. If you forgot the
password, please consult your device provider or reset your device.
Warning: Resetting may cause data loss. Before use, please
make sure important data has been backed up.
3. How to do if the system runs slowly?
In this case, please do the followings:
> Check all running applications and stop the unused applications.
> Check all installed applications and remove the unnecessary
applications.
If all steps mentioned above are fi nished and the system still works
slowly. Please try to close the system and reboot your MAXGo.
4. How to format internal storage?
On the main menu screen, tap Settings.1.
Tap “Storage” > “Erase internal storage” to enter and confi rm your 2. operation.
28
MAXGo User's Manual
Warning: Doing so will erase all stored data and all running
applications may encounter abnormal operations. To restore it, just
restart your MAXGo.
5. Why some videos on the website can be not played?
It possibly results from:
The current browser does not support Flash playing; 1.
Flash player does not support this video. 2.
Try to use other browsers to watch it or install other Flash player.
6. The data and time of MAXGo can not be set.
It is because Automatic date & time is set on your MAXGo. Tap
Settings > Date & time, deselect “Automatic date & time” and then set
the date and time manually.
7. How to distinguish between PIN and password in screen lock?
The difference between PIN and password is as follows:
> PIN: Generally, it is composed of 4~16 numbers.
> Password: it may include: 4~16 numbers, characters and symbols.
Customer Service Department
If you have any questions on the operation of the unit, please contact
us: 1-877-LAUNCH-9
Statement:
LAUNCH reserves the rights to make any change to product designs
and specifi cations without notice. The actual object may differ a little
from the descriptions in the manual in physical appearance, color
and configuration. We have tried our best to make the descriptions
and illustrations in the manual as accurate as possible, and defects
are inevitable, if you have any question, please contact local dealer
or after-sale service center of LAUNCH, LAUNCH does not bear any
responsibility arising from misunderstandings.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between theequipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
FCC RF Radiation Exposure and SAR Statements
The exposure standard for wireless devices employs a unit of measurement
known as the Specific Absorption Rate(SAR). The SAR limit set by the FCC is
1.6 W/kg. The highest SAR level measured for this device is0.359W/kg <1.6W/kg,
so this device meets the FCC Requirement.
