Le Shi Zhi Xin Electronic Technology L554UCNN LED TV User Manual X4 55 US MI 20160613 V1 0
Le Shi Zhi Xin Electronic Technology (Tian jin) Limited LED TV X4 55 US MI 20160613 V1 0
User Manual
Super4 X55 Product Quick Guide v1.0
Safety Information
The lightning flash with arrowhead symbol, within an equilateral triangle is intended
to alert the user to the presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sucient magnitude to constitute a risk of
electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOSTURE.
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
WARNING:
CAUTION:
CAUTION: These servicing instructions are for use by qualified service personnel only. To
reduce the risk of electric shock, do not perform any servicing other than that contained in
the operating instructions unless you are qualified to do so.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION - RISK OF ELECTRIC SHOCK-DO NOT OPEN
AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR
ELECTRIC SHOCK DO NOT OPEN
CAUTION
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet，consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs，
convenience receptacles，and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart / Apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15. The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
16. The MAINS plug or appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
17. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
18. Excessive sound pressure from earphones and headphones can cause hearing loss.
19. Caution Marking and rating plate are located at rear enclosure of the apparatus.
20. The mains plug of apparatus should not be obstructed and should be easily accessed
during intended use. To be completely disconnected from the power input, the apparatus
shall be disconnected from the mains.
ATTENTION-Pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet
appareil à la pluie ou à l'humidité.
Les piles (pack de piles ou piles installées) ne doivent pas être exposées à une chaleur
excessive comme le soleil, le feu ou similaire.
Les prise d'alimentation ou une entrée d'appareil est utilisé comme dispositif de
déconnexion, le restent facilement utilisable lors de l'utilisation normale de l'appareil.
marquage Attention et la plaque signalétique sont situés au boîtier arrière de l'appareil.
L'appareil ne doit pas être exposé à des gouttes et éclaboussures et aucun objet rempli de
liquide, comme des vases, doivent être placés sur l'appareil.
Certification Information
FCC NOTE：
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT. SUCH
MODIFICATIONS OR CHANGE COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF exposure guidelines, this equipment should be
installed and operated with a minimum distance of 20cm between the radiator and your
body.
For 5150-5250MHz and 5725-5825MHz frequency bands, add below statement for indoor
use warning statement on manual,
Operations in the 5150-5250MHz and 5725-5825MHz bands are restricted to indoor usage
only.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS
Premium Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. All other
trademarks remain the property of their respective owners.
Mobile High-Definition Link
MHL and the MHL logo are trademarks or registered trademarks or service mark of MHL, LLC
in the United States and/or other countries.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other
countries.
Note: Picture is for reference only.
Packing Layout
Stand Stand
Accessory box
Note: Picture is for reference only, please prevail in kind.
Accessory List
Product Quick Guide
Stand Screwx2
3-in-1 component cablePower cord
Super Remote AAA Battery x 2
Super4 X55 Product Quick Guide v1.0
Specifitions
Product model L554UCNN
Power supply (voltage, Hz) 120V, 60Hz
170 WPower consumption
Standby power consumption 0.5 W
Intrinsic resolution Y
YYmm
Dimensions (without stand)
Dimensions (with stand)
YY mm
kg
kg
Color system PAL / NTSC / SECAM
Sound system DK / I / M / BG
RF in 75 ohms unbalanced
Supported HDMI resolution
Sound output power 10 W x 2
Environment
Digital system DTMB
Weight (with stand)
Weight (without stand)
Ambient temperature: 0°C ~ +45°C
Ambient humidity: 20% ~ 80%
Storage temperature: - 15°C ~ +45°C
Storage humidity: ≤ 80%
Note: If storage temperature is below 0°C, ensure
to restore the TV to working temperature at least 2
hours before turning on.
J1J1
1)[1)[
J)[J)[
1)[1)[
1)[1)[
L)[L)[
Make sure there is enough surrounding space for the Super TV as indicated below.
Note: Picture is for reference only.
Stand Installation:
Installation notes:
Do not cover ventialtion hole or put any object into enclosure, such as newspaper,
soft cloth, curtain, etc.
Reserve adequate ventil tion space a ound Super TV.
Do not put Super TV in places where there is vibration.
Do not put Super TV close to air conditioner. Otherwise, moisture condensation may
appear on interior panel of display and demage the panel.
Do not put Super TV in the area with strong electromagnetic field. Otherwise, the TV
may be interfered or damaged.
Installation Guide
14cm
30cm
10cm
10cm
Wall Mounting
Note:
Contact a professional for assistance when wall mounting your TV. We are not responsible
for any damage to the product or injury to yourself, if you mount the TV on your own.
Do not power on the TV when performing wall mount installation. It may cause personal
injury due to electric shock.
Please reserve enough space as suggested below for proper installation.
Install the wall mount requires at least 4 pieces screws.
Wall mount: It is advised to use suitable wall frame and screws in order to enjoy the
premium sound eect.
Mounting Hole Pattern: 400 x 200mm
30cm
10cm
10cm
400mm
200mm
CONNECTING YOUR TV
POWERING ON:
Following setup,
connect power
cord to TV port.
Connect plug to
electric outlet.
Power on using
switch behind TV.

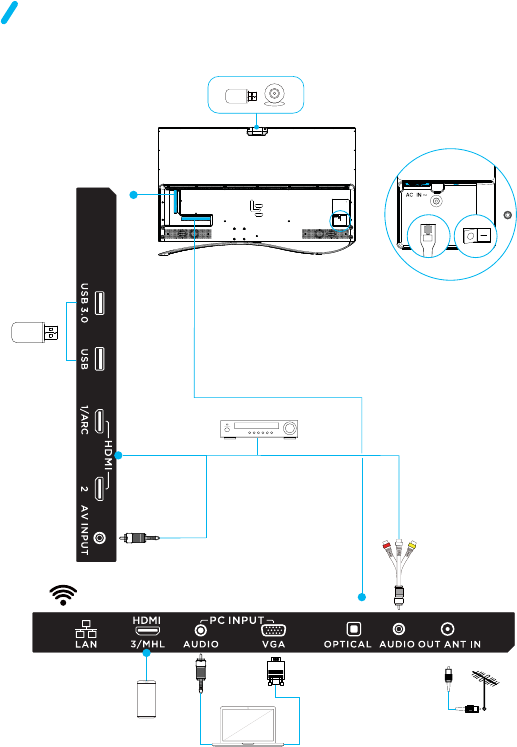

CONNECTING YOUR TV
HDMI: Connect external components (such as Blu-ray and
game consoles) to your TV
using HDMI.
ARC: (Audio Return Channel): Send a digital signal to
a compatible device without the need for an
additional optical audio connection.
MHL: Use the MHL option for mobile phones
and cameras.
A/V (Composite): Connect to an older-generation device,
such as VCR, game consoles or DVD player, using
the composite cable*.
Digital Optical Audio: Connect to external sound devices
using optical audio cable.
Video Graphics Array (VGA): Use your TV as a monitor by
connecting your computer with a VGA cable**.
Antenna: Connect to antenna by plugging coaxial cable
into the ANT IN connector.
Connecting to Internet: Connect TV to the
internet using a wired (LAN) or wireless
(built in 802.11 b/g/n/ac wifi) connections.
*Male RCA cable not included.
**VGA cable not included.

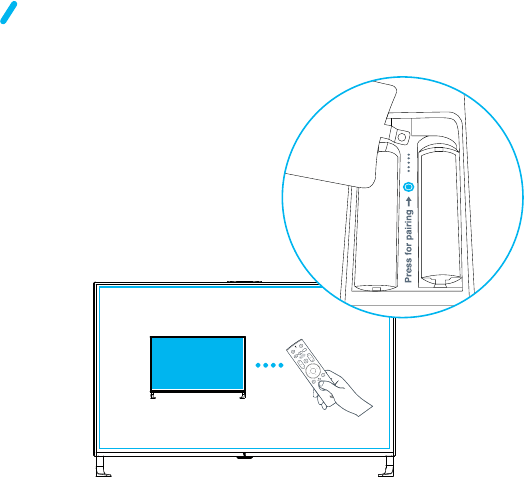

REMOTE SET UP
PAIRING
Slide battery cover o of remote and locate pairing button. Insert 2
AA batteries, press and hold button until connection is confirmed on
screen.
NOTE: In order to connect, remote must be less than eight inches from
lower section of TV.

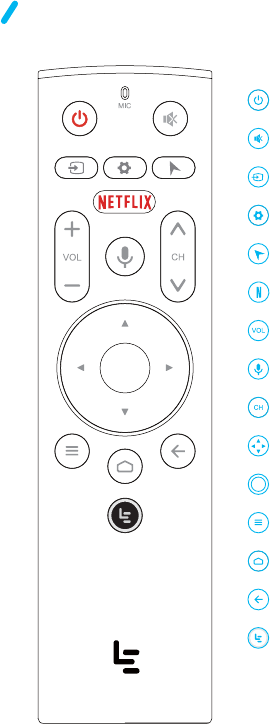

REMOTE PAIRING
Power television on or o
Mute sound
Display and select input sources
Display and select settings
Activate screen navigation
Access Netflix services
Increase or decrease volume
Activate voice commands
Channel up or down
Navigate up, down, left or right
Select/Enter
Display application menu
Display TV home page
Return to previous screen
Access Le
Before seeking repair service, please inspect following items and confirm
whether fault symptom encountered can be solved.
Problem
No image or sound
(TV, Video,PC)
Inspection item
No sound
(TV, Video, PC) Check the TV volume is not muted.
No video or sound,
or only noise (TV)
Check the antenna is properly connected.
Likely due to poor signal reception.
&KHFN9SRZHUSOXJLV´UPO\LQVHUWHGLQWRSRZHUVRFNHW
Check that signal cable is connected.
Check the signal source unit is properly powered on.
Check the TV is not in standby mode.
Poor image(TV) Check the antenna is properly connected.
Likely due to poor signal reception.
Double patterning
or triple patterning
of video (TV)
Check the antenna is pointed to correct direction.
7KHUHPD\EHUHµHFWHGVLJQDOLQWHUIHUHQFHIURPKLJKPRXQWDLQRU
building.
Poor image(Video) Check correct video signal mode is selected.
Image blurring (TV) Check the antenna connection is not loose.
Likely due to poor signal reception.
Stripe or thin hue
Check the TV is not suffering interference from other devices.
Keep away from other devices which may cause interference.
Troubleshooting
After-sales Service Policy
Thank you for purchasing Letv Super TV (the “Product”). If you experience any problems
when using the Product and need help, please contact our customer service at any time,
and we will provide you with quick, professional and high-quality after-sales service!
Manufacturer’s Warranty
Le Shi Zhi Xin Electronic Technology (Tianjin) Limited ("Letv ") represents and warrants to
the original purchaser ("Purchaser") that Letv's Super TV Devices and accessories
("Product") are free from material defects, including improper or inferior workmanship,
materials, and design, during the designated warranty period, and subject to the following
terms and conditions, when used normally and in accordance with all operating instructions.
This warranty covers only the hardware components of the Product and does not cover any
software products, whether or not included with the Product. Purchaser’s rights and
obligations with respect to any software is governed by the applicable End User License
Agreement.
During the warranty period, Letv will provide repair, replacement or refund in accordance
with this Policy. After the expiration of the warranty period, Letv will provide paid repair or
paid replacement in lieu of repair in accordance with this Policy.
Seller shall be obligated to:
Not sell any Product listed in the sales catalog for which it cannot guarantee the
implementation of the warranty policy;
Maintain the quality of the sold Product;
Implement acceptance inspection of the purchased Product, and not sell any Product that
is not properly labeled;
Inform consumers of information related to the Product’s use, maintenance, warranty and
repair service providers, and provide a valid receipt when selling the Product; and
Appropriately handle consumer requests and complaints and provide approximate
service.
1.
2.
3.
4.
5.
Warranty policy:
Product
Letv
Super TV
Whole
product
Main Parts
Warranty
Coverage Part Name
Main board, Power board and Remote
controller, etc
Display Panel
Accompanying documents (such as
user’s manual) and packaging
Software
Other
Materials
OTA This only refers to restoring
the TV to its factory default
conditions
12
12
0
36
Notes
Warranty
Month
Repairer shall be obligated to:
Provide repair services;
Protect the seller’s and the manufacturer’s reputation, not use any parts or components
that are not compliant with the Product’s specifications, make detailed records of
malfunction and post-repair quality information, and ensure that after repair, the Product
can work properly for at least 30 days;
Ensure that the repair charges and components are exclusively used for the repair, and
accept supervision and inspection from the seller and the manufacturer;
Bear liability and losses arising from its own negligence; and
Respond to consumer inquiries about repair quality.
1.
2.
3.
4.
5.
Refund and replacement policy:
Letv will provide replacement or refund for the Super TV in accordance with the laws of the
United States:
1. 30-day refund without reasons: Purchaser is entitled to a 30-day refund for any reason
by returning the Product purchased from LeMall, as received (including packaging and all
accessories), within 30 days starting from the next day after receipt of the Product. Letv
will bear the corresponding shipping cost incurred for refund and replacement.
1.
Refund within the warranty period: For any material malfunction of the Product
FRQ´UPHGWKURXJKWHVWLQJE\/HWYRUDQDXWKRUL]HGVHUYLFHSURYLGHUZLWKLQGD\V
starting from the next day after receipt of the Product, Purchaser has the option of
having the Product refunded at the purchase price. In case of refund, please provide the
original packaging, accessories, user’s manual and warranty card, and Letv will bear the
corresponding shipping cost.
Replacement within the warranty period: In the event of any functional fault of the
Product within 30 days starting from the next day after receipt of the Product, subject to
WKHFRQ´UPDWLRQE\/HWYRUDQDXWKRUL]HGVHUYLFHSURYLGHUWKURXJKWHVWLQJ3XUFKDVHUKDV
the option of having the Product repaired or replaced with a new product of the same
PRGHODQGVSHFL´FDWLRQVDQG/HWYZLOOEHDUWKHFRUUHVSRQGLQJVKLSSLQJFRVW
2.
3
.
Refund or
Replacement
Refund 30 days
Time
Limit Description
Except for the above-mentioned two reasons, if
Purchaser requests a refund, s/he shall ensure
that the Product is returned in its original
conditions and packaging with all accessories
and accompanying documents.
7KH´UVWGD\
starting from
the next day
after receipt
Letv will bear the
corresponding
shipping cost
incurred for
refund and
replacement.
)XQFWLRQDOIDXOWVRUTXDOLW\GHIHFWVDVGH´QHGLQ
applicable laws and regulations (as determined
by after-sales personnel with corresponding
evaluation reports)
7KH´UVWGD\
starting from
the next day
after receipt
Free service
Shipping damages, missing of parts,
inconsistence between the Product and its online
description, and other issues attributable to Letv
USA (shipping damages refer to damages,
OHDNDJHRIOLTXLGEUHDNL]QJRUIXQFWLRQDOIDXOWV
that are caused during shipment subject to
YHUL´FDWLRQE\/HWY86$0LVVLQJRISDUWVUHIHUV
to absence of original parts of the Product).
7KH´UVWGD\
starting from
the next day
after receipt
Free service
30 daysReplacement
)XQFWLRQDOIDXOWVRUTXDOLW\GHIHFWVDVGH´QHGLQ
applicable laws and regulations (as determined
by after-sales personnel with corresponding
evaluation reports)
7KH´UVWGD\
starting from
the next day
after receipt
Free service
Notes
Service Type
The Product cannot be refunded or replaced in any of
the following situations:
Any commodities not sold by Letv (wrong serial number);
7KH3URGXFWLVGDPDJHGGXHWRXQDXWKRUL]HGUHSDLUPLVXVHQHJOLJHQFHDEXVHDFFLGHQW
PRGL´FDWLRQLPSURSHULQVWDOODWLRQRULPSURSHUXVH
Purchaser cannot provide the valid purchase receipt of the Product, or the receipt
provided doesn’t match the Product or is obliterated;
Pseudo-faults or affected performance attributable to Purchaser’s setting of use, where
the Product is determined to be free from any faults;
Other situations where replacement and refund are not supported by laws.
1.
2.
3.
4.
5.
Cases where free repair is not guaranteed:
Abuse, accident, misuse, improper storage, exposure to liquid, moisture, or dampness;
([WHUQDOFDXVHVVXFKDVIURPFROOLVLRQ´UHµRRGLQJVDQGGLUWZLQGVWRUPOLJKWQLQJRU
earthquake;
Exposure to extreme weather conditions, Acts of God, theft, blown fuse, electrical surge,
or improper use of any electrical source;
Computer or internet viruses, bugs, worms, Trojan Horses, cancelbots;
Use with non-Letv USA products or products not recommended for use with Letv USA
Products;
Normal wear and tear of the equipment;
Usage of Product other than its normal and customary manner;
,PSURSHUWHVWLQJRSHUDWLRQPDLQWHQDQFHLQVWDOODWLRQRUDQ\DOWHUDWLRQRUPRGL´FDWLRQ
of Product;
Consumable parts, such as batteries, unless damage has occurred due to a defect in
Letv USA materials and workmanship;
6HUYLFHSHUIRUPHGE\DQ\RQHZKRLVQRWD/HWYUHSUHVHQWDWLYHRUDQDXWKRUL]HG/HWY
service provider;
Other acts which are not the fault of Letv including damage caused by shipping;
Cosmetic damages, including but not limited to dents or scratches in decorative,
structural, or non-operative parts resulting from normal customer use;
Spillage of food or liquid, corrosion, rust or incorrect voltage; and
The defective function of the cellular system or inadequate signal reception by the
external antenna, or viruses or other software problems introduced into the Product.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Reminders
Letv Super TV displays ads upon starting up and this feature cannot be disabled.
Purchaser is advised to use the Product on a network with adequate bandwidth. If the
Product cannot be used due to network reasons, it is not covered by the after-sales
service.
1.
2.
Service quality warranty
'XULQJWKHZDUUDQW\SHULRG/HWY797HFKQRORJLHVDXWKRUL]HGVHUYLFHSURYLGHUZLOO
provide repair using the original manufacturer’s parts and components according to the
results of diagnosis. The Product that has parts or components replaced with new ones
will be covered for the rest of the warranty period or 30 days, whichever is the longer.
For accessories experiencing malfunction within the warranty period, Letv TV
7HFKQRORJLHVDXWKRUL]HGVHUYLFHSURYLGHUZLOOSURYLGHUHSODFHPHQWZLWKDFFHVVRULHVRI
WKHVDPHW\SHDQGVSHFL´FDWLRQVDQGWKRVHDFFHVVRULHVZLOOKDYHDUHQHZHGZDUUDQW\
period.
Where the Product is beyond its warranty period or its problems are outside the scope of
ZDUUDQW\/HWY797HFKQRORJLHVDXWKRUL]HGVHUYLFHSURYLGHUZLOOSURYLGHSDLGUHSDLU
VHUYLFHLQDQHI´FLHQWDQGSURIHVVLRQDOZD\7KHUHSDLUVHUYLFHZLOOEHFDUULHGRXWXVLQJ
the parts and components from the original manufacturer with a 30-day warranty period.
1.
2.
3.
Statements
This limited warranty only applies to products manufactured exclusively by or for Letv
DQGWKDWFDQEHLGHQWL´HGE\WKH/HWYWUDGHPDUNWUDGHQDPHRUORJRDI´[HGWRWKHP
The limited warranty does not apply to any non-Letv products or software.
The Warranty extends only to Products purchased in the United States of America from a
/HWYDXWKRUL]HGGHDOHURUUHWDLOHU'XULQJWKHOLPLWHGZDUUDQW\SHULRG/HWYZLOOUHSDLURU
replace, at Letv's sole option, any parts of the Product that are defective or malfunction
during normal usage. Letv reserves the right to use new or refurbished replacement parts
in repair of the Product.
This limited warranty covers only the costs of parts and labor. Other related costs such as
shipping and delivery costs may be borne by purchaser at Letv's option.
At Letv's request, Purchaser may be required to prove the date of the original purchase
RIWKH3URGXFWE\DGDWHGELOORIVDOHRUGDWHGLWHPL]HGUHFHLSW
Letv does not warrant that the operation of this product will be uninterrupted or
error-free.
1.
2.
3.
4.
5.
This warranty will also be null and void in any of the following events:6.
The serial number or warranty seal on the equipment has been altered, defaced or
removed;
$Q\WHUPFRQWDLQHGLQWKLVZDUUDQW\KDVEHHQDOWHUHGRUPRGL´HGLQDQ\ZD\ZLWKRXW
prior written consent of Letv;
/HWYKDVQRWEHHQQRWL´HGE\3XUFKDVHURIWKHDOOHJHGGHIHFWRUPDOIXQFWLRQRIWKH
Product during the applicable warranty period.
If Product is returned to Letv after the expiration of the warranty period, Letv 's normal
service policies shall apply and Purchaser will be charged accordingly.
7.
The serial number or warranty seal on the equipment has been altered, defaced or
removed;
$Q\WHUPFRQWDLQHGLQWKLVZDUUDQW\KDVEHHQDOWHUHGRUPRGL´HGLQDQ\ZD\ZLWKRXW
prior written consent of Letv;
/HWYKDVQRWEHHQQRWL´HGE\3XUFKDVHURIWKHDOOHJHGGHIHFWRUPDOIXQFWLRQRIWKH
Product during the applicable warranty period.
This limited warranty provides Purchaser's sole and exclusive remedy to be provided by
Letv. The agents, employees, distributors, and dealers of Letv products are not
DXWKRUL]HGWRPDNHPRGL´FDWLRQVWRWKLVOLPLWHGZDUUDQW\RUPDNHDGGLWLRQDOZDUUDQWLHV
binding on Letv.
8.
LIMIT OF LIABILITY
Letv 'S LIMIT OF LIABILITY UNDER THIS LIMITED WARRANTY SHALL BE THE ACTUAL CASH VALUE
OF THE PRODUCT AT THE TIME PURCHASER RETURNS THE PRODUCT FOR REPAIR, AS
DETERMINED BY THE PRICE PAID BY THE PURCHASER FOR THE PRODUCT LESS A REASONABLE
AMOUNT OF USAGE. Letv SHALL NOT BE LIABLE FOR ANY OTHER LOSSES OR DAMAGES SUCH AS
SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES (INCLUDING BUT NOT LIMITED
TO LOSS OF ANTICIPATED BENEFITS OR PROFITS, LOSS OF SAVINGS OR REVENUE, LOSS OF
DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL,
COST OF ANY SUBSTITUTE EQUIPMENT OR FACILITIES, DOWNTIME, ANY COSTS OF RECOVERING,
REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA, ANY FAILURE TO MAINTAIN THE
CONFIDENTIALITY OF DATA STORED ON THE PRODUCT, THE CLAIMS OF ANY THIRD PARTIES,
INCLUDING SUBSEQUENT PURCHASERS, AND INJURY TO PROPERTY, RESULTING FROM THE
PURCHASE OR USE OF THE PRODUCT OR ARISING FROM BREACH OF THIS WARRANTY, BREACH
OF CONTRACT, NEGLIGENCE, STRICT LIABILITY, OR ANY OTHER LEGAL OR EQUITABLE THEORY,
EVEN IF LETV KNEW OF THE LIKELIHOOD OF SUCH DAMAGES). LETV SHALL NOT BE LIABLE FOR
DELAY IN RENDERING SERVICE UNDER THE LIMITED WARRANTY, OR LOSS OF USE DURING THE
PERIOD THAT THE PRODUCT IS BEING REPAIRED.
DISCLAIMER OF WARRANTY
LETV'S LIABILITY UNDER EITHER THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THE FOREGOING LIMITED
WRITTEN WARRANTY. OTHERWISE, THE FOREGOING LIMITED WARRANTY IS PURCHASER'S SOLE
AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.
Some states do not allow exclusion or limitation of incidental, consequential, or
punitive damages, or permit limitations on the length of implied warranties, so certain
of these warranty limitations may not apply to Purchaser. This limited warranty gives
3XUFKDVHUVSHFL´FOHJDOULJKWV3XUFKDVHUPD\DOVRKDYHRWKHUULJKWVZKLFKYDU\IURP
state to state. If any term of this limited warranty is held to be illegal or unenforceable,
the legality or enforceability of the remaining terms shall not be affected or impaired.
This limited warranty allocates risk of Product failure between Purchaser and Letv,
DQG/HWYV3URGXFWSULFLQJUHµHFWVWKLVDOORFDWLRQRIULVNDQGWKHOLPLWDWLRQVRIOLDELOLW\
contained in this limited warranty.
IMPORTANT. READ CAREFULLY: This End User License Agreement (“EULA”) is a legal
agreement between you (either an individual or a single entity) and Letv USA (“Letv”) for
VRIWZDUHZKHWKHUSUHLQVWDOOHGRUGRZQORDGHGRZQHGE\/HWYDQGLWVDI´OLDWHGFRPSDQLHV
and its third party suppliers and licensors, that accompanies this EULA, which includes
computer software and may include associated media, content and data, printed materials,
or electronic documentation in connection with your use of Letv Device, which will be
GH´QHGEHORZª/HWY6RIWZDUH«%\XVLQJWKLVGHYLFHRUDQ\RWKHU/HWYSURGXFWUXQQLQJRQ
Android operating system (“Letv Device”), you accept terms of this EULA. If you do not
accept these terms, do not use the Letv Device or the Letv Software.
1.GRANT OF LICENSE.
Letv grants you a limited non-exclusive license to install, use, access, display and run one
copy of the Letv Software on a single Letv Device, local hard disk(s) or other permanent
storage media of one computer, and you may not make Letv Software available over a
network where it could be used by multiple computers at the same time. You may make one
copy of the Letv Software in machine readable form for backup purposes only; provided that
the backup copy must include all copyright or other proprietary notices contained on the
original. Certain items of the Letv Software may be subject to open source licenses. The open
source license provisions may override some of the terms of this EULA. We make the
applicable open source licenses available to you if you so request.
2.RESERVATION OF RIGHTS AND OWNERSHIP.
Letv reserves all rights not expressly granted to you in this EULA. The Software is protected
by copyright and other intellectual property laws and treaties. Letv or its suppliers own the
title, copyright and other intellectual property rights in the Software. The Software is
licensed, not sold.
3.LIMITATIONS ON END USER RIGHTS.
You may not, or enable others to, copy, reverse engineer, decompile, disassemble, or
otherwise attempt to discover the source code or algorithms of, the Software (except and
only to the extent that such activity is expressly permitted by applicable law not
withstanding this limitation), or modify, or disable any features of, the Software, or create
derivative works based on the Software. You may not rent, lease, lend, sublicense or provide
commercial hosting services with the Software. You may not transfer this EULA or the rights
to the Letv Software granted herein to any third party unless it is in connection with the sale
End User License Agreement for
Software
of the device which the Letv Software accompanied. In such event, the transfer must include
all of the Letv Software (including all component parts, the media and printed materials, any
upgrades, this EULA) and you may not retain any copies of the Letv Software. The transfer
may not be an indirect transfer, such as a consignment. Prior to the transfer, the end user
receiving the Letv Software must agree to all the EULA terms.
4.LETV SOFTWARE UPDATES.
Letv may make available to you updates, upgrades, supplements and add on components (if
DQ\ RI WKH /HWY 6RIWZDUH LQFOXGLQJ EXJ ´[HV VHUYLFH XSJUDGHV SDUWV RU ZKROH DQG
updates, enhancements and feature improvements or deletion to any Letv Software
(including entirely new versions), (collectively “Update”) after the date you obtain your initial
copy of the Letv Software. This EULA applies to all and any component of the Update, unless
we provide other terms along with such Update. To use Letv Software provided through
8SGDWH\RXPXVW´UVWEHOLFHQVHGIRUWKH/HWY6RIWZDUHLGHQWL´HGE\/HWYDVHOLJLEOHIRUWKH
Update. While the Update will be generally available, in some limited circumstances, the Letv
Software updates will only be offered by your network carrier, and such Letv Software
updates will be governed by your contractual relationship with your network carrier. With the
“Automatic Update” function enabled (as in the default setting in the System Update menu
in the Setting), your device downloads certain Updates automatically from time to time. If
you have chosen to disable the “Automatic Update” function, then you can check the
availability of new Updates by clicking on the “Check Update” menu in the Setting. Given the
importance of receiving Updates for security software in a timely manner to defend against
new threats, however, security-related Updates may be automatically downloaded and
installed without your consent, even if you have disabled the “Automatic Update” function.
We recommend that you check availability of any new Updates periodically for optimal use
of your device.
5.CONSENT TO USE OF DATA.
You agree that Letv and its third party providers of Letv Software may collect and use
technical, non-technical and related information, including but not limited to information
about your use of the Letv Software, content viewed and attached peripherals, products or
services purchased, that is gathered periodically to facilitate the provision of software
updates, product support and other services to you, including additional or different Letv
Software and to verify compliance with the terms of this EULA. Letv and its third party
providers of Letv Software and/or other providers may use this information, as long as it is in
a form that does not personally identify you, to improve our products or to provide services
or technologies to you.
6.INTERNET ACCESS.
Some features of the Letv Software may require your device to have access to the internet
and may be subject to restrictions imposed by your network or internet provider. Unless your
device is connected to the internet through Wi-Fi connection, the Letv Software will access
the internet through your mobile network, which may result in additional charges depending
on your payment plan. In addition, your enjoyment of some features of the Letv Software
may be affected by the suitability and performance of your device hardware or data access.
7. EXPORT RESTRICTIONS.
You acknowledge that the Letv Software is subject to export restrictions of various countries.
You agree to comply with all applicable international and national laws that apply to the Letv
Software, including all the applicable export restriction laws and regulations.
8. TERMINATION.
This EULA is effective until terminated. Your rights under this License will terminate
automatically without notice from Letv if you fail to comply with any of the terms and
conditions of this EULA. Upon termination of this EULA, you must cease all use of the Letv
Software and destroy all copies, full or partial, of the Letv Software. Section 5, 9,10,13,15, and
16 of this EULA shall survive any such termination.
9. DISCLAIMER OF WARRANTY.
UNLESS SEPARATELY STATED IN A WRITTEN EXPRESS LIMITED WARRANTY ACCOMPANYING YOUR
DEVICE, ALL LETV SOFTWARE PROVIDED BY LETV USA WITH THIS DEVICE ( WHETHER INCLUDED WITH
THE DEVICE, DOWNLOADED, OR OTHERWISE OBTAINED) IS PROVIDED “AS IS” AND ON AN “AS
AVAILABLE” BASIS, WITHOUT WARRANTIES OF ANY KIND FROM LETV USA, EITHER EXPRESS OR IMPLIED.
TO THE FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE LAW, LETV USA DISCLAIMS ALL
WARRANTIES EXPRESS, IMPLIED, OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED
WARRANTIES OF MERCHANTABILITY, SATISFACTORY QUALITY OR WORKMANLIKE EFFORT, FITNESS
FOR A PARTICULAR PURPOSE, RELIABILITY OR AVAILABILITY, ACCURACY, LACK OF VIRUSES, QUIET
ENJOYMENT, NON INFRINGEMENT OF THIRD PARTY RIGHTS OR OTHER VIOLATION OF RIGHTS. SOME
JURISDICTIONS DO NOT ALLOW EXCLUSIONS OR LIMITATIONS OF IMPLIED WARRANTIES, SO THE ABOVE
EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. NO ADVICE OR INFORMATION, WHETHER ORAL
OR WRITTEN, OBTAINED BY YOU FROM LETV USA OR ITS AFFILIATES SHALL BE DEEMED TO ALTER THIS
DISCLAIMER BY LETV USA OF WARRANTY REGARDING LETV SOFTWARE, OR TO CREATE ANY
WARRANTY OF ANY SORT FROM LETV USA. YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT, TO THE
EXTENT PERMITTED BY APPLICABLE LAW, USE OF THE LETV SOFTWARE AND ANY SERVICES
PERFORMED BY OR ACCESSED THROUGH THE LETV SOFTWARE IS AT YOUR SOLE RISK AND THAT THE
ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY AND EFFORT IS WITH YOU.
10. THIRD-PARTY APPLICATIONS.
Certain third party applications or services may be included with, or downloaded to your
Letv Device. Such third party applications or services may display, include or make available
content, data, information, applications or materials from third parties (“Third Party
Materials”) or provide links to certain third party websites. By using the Letv Software, you
acknowledge and agree that Letv is not responsible for the availability of such applications
and is not responsible or liable for any content, advertising, products, services, or other
materials on or available from such applications. You expressly acknowledge and agree that
use of third party applications is at your sole risk and that the entire risk of unsatisfactory
quality, performance, accuracy and effort is with you. You agree not to modify, rent, lease,
loan, sell, distribute, or create derivative works based on the services, in any manner, and you
VKDOOQRWH[SORLWWKHVHUYLFHVLQDQ\XQDXWKRUL]HGZD\ZKDWVRHYHULQFOXGLQJEXWQRWOLPLWHG
to, using the services to transmit any computer viruses, worms, Trojan horses or other
malware, or by trespassing or burdening network capacity. You further agree not to use the
services in any manner to harass, abuse, stalk, threaten, defame or otherwise infringe or
violate the rights of any other party, and that Letv is not in any way responsible for any such
use by you, nor for any harassing, threatening, defamatory, offensive, infringing or illegal
messages or transmissions that you may receive as a result of using any of the services.
References on this device to any names, marks, products, or services of any third-parties are
provided solely as a convenience to you, and do not constitute or imply an endorsement,
VSRQVRUVKLS RU UHFRPPHQGDWLRQ RI RU DI´OLDWLRQ ZLWK WKH WKLUG SDUW\ RU LWV SURGXFWV DQG
services. You acknowledge and agree that the use of any third-party application is governed
by such third party application provider’s terms of use, license agreement, privacy policy, or
other such agreement and that any information or personal data you provide, whether
knowingly or unknowingly, to such third-party application provider, will be subject to such
third party application provider’s privacy policy, if such a policy exists. LETV USA DISCLAIMS
ANY RESPONSIBILITY FOR ANY DISCLOSURE OF INFORMATION OR ANY OTHER PRACTICES OF ANY
THIRD PARTY APPLICATION PROVIDER. LETV USA EXPRESSLY DISCLAIMS ANY WARRANTY REGARDING
WHETHER YOUR PERSONAL INFORMATION IS CAPTURED BY ANY THIRD PARTY APPLICATION PROVIDER
OR THE USE TO WHICH SUCH PERSONAL INFORMATION MAY BE PUT BY SUCH THIRD PARTY
APPLICATION PROVIDER.
11. LETV SERVICES.
Certain Letv applications and services may be included with, or downloaded to, your Letv
Device. The Letv Software may enable access to Letv and third party services and web sites
(collectively and individually, “Services”). Some such Services and applications may not be
available in all languages or in all countries. Many of them may require Letv Services
membership registration (“Letv Account”), and your rights and obligations will be set forth in
separate Letv Account Terms and Conditions. There are non-Letv Account applications and
services that may require your consent to their separate terms and conditions as well. You
expressly acknowledge and agree that your use of such applications and services will be
subject to the applicable terms and conditions. Your use of a Letv Account is subject to the
latest Letv Account Terms and Conditions, which will be provided to you separately.
12. DIGITAL CERTIFICATE.
You acknowledge and agree that you are solely responsible for your decision to rely on a
GLJLWDOFHUWL´FDWHLVVXHGE\HLWKHU/HWY86$RUDWKLUGSDUW\DQG\RXUXVHRIVXFKFHUWL´FDWH
Letv USA makes no express or implied warranties or representations as to merchantability or
´WQHVV IRU DQ\ SDUWLFXODU SXUSRVH DFFXUDF\ VHFXULW\ RU QRQLQIULQJHPHQW RI WKLUG SDUW\
ULJKWVZLWKUHVSHFWWRGLJLWDOFHUWL´FDWHV
13. LIMITATION OF LIABILITY.
LETV WILL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND ARISING OUT OF OR RELATING TO THE USE
OR THE INABILITY TO USE THE LETV SOFTWARE OR ANY THIRD PARTY APPLICATION, ITS CONTENT OR
FUNCTIONALITY, INCLUDING BUT NOT LIMITED TO DAMAGES CAUSED BY OR RELATED TO ERRORS,
OMISSIONS, INTERRUPTIONS, DEFECTS, DELAY IN OPERATION OR TRANSMISSION, COMPUTER VIRUS,
FAILURE TO CONNECT, NETWORK CHARGES, IN-APP PURCHASES, AND ALL OTHER DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES EVEN IF LETV HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS OR
LIMITATIONS MAY NOT APPLY TO YOU. NOTWITHSTANDING THE FOREGOING, LETV ELECTRONIC CO.’S
TOTAL LIABILITY TO YOU FOR ALL LOSSES, DAMAGES, CAUSES OF ACTION, INCLUDING BUT NOT LIMITED
TO THOSE BASED ON CONTRACT, TORT, OR OTHERWISE, ARISING OUT OF YOUR USE OF THE LETV
SOFTWARE OR THIRD PARTY APPLICATIONS ON THIS DEVICE, OR ANY OTHER PROVISION OF THIS EULA,
SHALL NOT EXCEED THE AMOUNT PURCHASER PAID SPECIFICALLY FOR THIS DEVICE OR ANY SUCH
THIRD PARTY APPLICATION THAT WAS INCLUDED WITH THIS DEVICE. THE FOREGOING LIMITATIONS,
EXCLUSIONS, AND DISCLAIMERS (INCLUDING SECTIONS 10, 11, 12 AND 13) SHALL APPLY TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW, EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PURPOSE.
14. U.S. GOVERNMENT END USERS RESTRICTED RIGHTS.
The Letv Software is licensed only with “restricted rights” and as “commercial items”
consisting of “commercial software” and “commercial software documentation” with only
those rights as are granted to all other end users pursuant to the terms and conditions herein.
All products are provided only with “restricted rights” with only those rights as are granted
to all other end users pursuant to the terms and conditions herein. All Letv Software and
Products are provided subject to Federal Acquisition Regulation (FAR)52.227.19.
15. APPLICABLE LAW.
7KLV (8/$ LV JRYHUQHG E\ WKH ODZV RI &DOLIRUQLD ZLWKRXW UHJDUG WR LWV FRQµLFW RI ODZ
provisions. This EULA shall not be governed by the UN Convention on Contracts for the
International Sale of Goods, the application of which is expressly excluded.
16. DISPUTE RESOLUTION.
(a) Non-United States residents. If a dispute, controversy or difference arising in any way
from this EULA or your use of the Letv Software is not amicably settled, it shall be subject to
the non-exclusive jurisdiction of the courts of the jurisdiction where you are a resident.
Notwithstanding the foregoing, Letv may apply for injunctive remedies (or an equivalent
type of urgent legal relief) in any jurisdiction.
(b) United States residents. ALL DISPUTES WITH LETV USA ARISING IN ANY WAY FROM THIS EULA OR
YOUR USE OF THE SOFTWARE SHALL BE RESOLVED EXCLUSIVELY THROUGH FINAL AND BINDING
ARBITRATION, AND NOT BY A COURT OR JURY. Any such dispute shall not be combined or
FRQVROLGDWHG ZLWK DQ\ RWKHU SHUVRQV RU HQWLW\V FODLP RU GLVSXWH DQG VSHFL´FDOO\ ZLWKRXW
limitation of the foregoing, shall not under any circumstances proceed as part of a class
action. The arbitration shall be conducted before a single arbitrator, whose award may not
exceed, in form or amount, the relief allowed by the applicable law. The arbitration shall be
conducted according to the American Arbitration Association (AAA) Commercial
Arbitration Rules applicable to consumer disputes. This arbitration provision is entered
pursuant to the Federal Arbitration Act. The laws of the State of California, without reference
to its choice of laws principles, shall govern the interpretation of the EULA and all disputes
that are subject to this arbitration provision. The arbitrator shall decide all issues of
interpretation and application of this arbitration provision and the EULA. Judgment may be
entered on the arbitrator's award in any court of competent jurisdiction. This arbitration
SURYLVLRQDOVRDSSOLHVWRFODLPVDJDLQVW/HWYVHPSOR\HHVUHSUHVHQWDWLYHVDQGDI´OLDWHVLIDQ\
such claim arises from the licensing or use of the Software. You may opt out of this dispute
resolution provision by writing to Letv USA within 30 days of the initial purchase of the Letv
Device indicating you are opting out. This notice must be sent to [ADDRESS OR EMAIL
ADDRESS] and must include: (a) your name and address; (b) a dated bill of sale or dated
LWHPL]HGUHFHLSWIRUWKH/HWY'HYLFHDQGFWKH6HULDO1XPEHUIRUWKH/HWY'HYLFH2SWLQJ
out of this dispute resolution provision will not affect your use of the Letv Device or the Letv
Software, or your license to the Letv Software.
17. ENTIRE AGREEMENT; SEVERABILITY.
This EULA is the entire agreement between you and Letv USA relating to the Letv Software
and supersedes all prior or contemporaneous oral or written communications, proposals and
representations with respect to the Letv Software or any other subject matter covered by
this EULA. If any provision of this EULA is held to be void, invalid, unenforceable or illegal, the
other provisions shall continue in full force and effect.
Maintenance Card
Tips: Dear customer, this card shall be carefully preserved for the purpose of maintenance
DQGVHUYLFHDFFRXQWLGHQWL´FDWLRQ
Maintenance Card
Product Information
Product Type
MAC Address
Dealership
Date of Sales
Maintenance Record
Date Fault Symptom Fault Cause Handling Information
Notes: Please refer to the “Quick Guide” for warranty provisions.The warranty period starts
from the date of the valid certificate of purchase.
Customer Service Support
For any faults during use, do not attempt to dismantle the TV on your own. Please contact
customer service immediately.
3OHDVHFRQWDFWRXUDXWKRUL]HGVSHFLDOPDLQWHQDQFHVWDWLRQVQDWLRQZLGHRUWKHFRPSDQ\IUHH
hot line service:
Email: Lecare@letv.com
For more customer service info: www.lemall.com
This product contains build-in push ads while power on.
