Le Shi Zhi Xin Electronic Technology LEWGP-201 Letv GAMEPAD User Manual
Le Shi Zhi Xin Electronic Technology (Tian jin) Limited Letv GAMEPAD
User Manual
LeShiZhiXinElectronicTechnology(Tia
njin) Limited
2016-4-26
User Manual
Please read this manual carefully before you use the product.
Dear customer:
Thank you for choosing our product. Correct operation will approve better
performance. This gamepad with fashionable outline will meet your demand for
gaming. It is compatible with all kinds of Android games and streaming smart TV
games thus you can just enjoy the game playing at home.
LeShiZhiXinElectronicTechnology(Tia
njin) Limited
2016-4-26

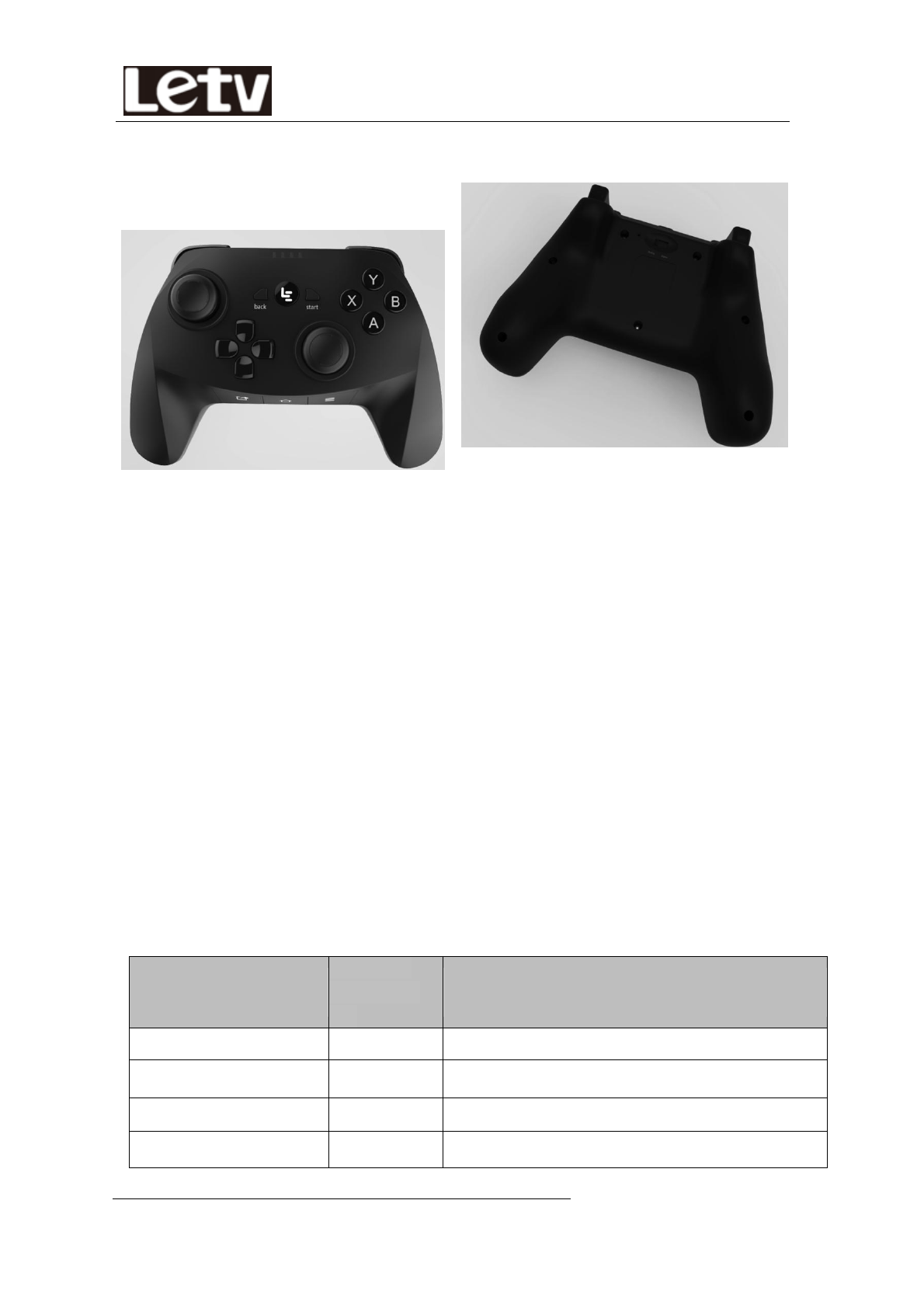

1 Outline:
·
Diagram 1
Diagram 2
2 Basic operation
2.1 Insert 2.4G RF dongle into set top box, press Home button to power on.
LED 1 is always on after successful connection with TV, and gamepad
is in Digital mode.
2.2 Switch the mode selection button at back side, LED 1 is off and LED 4 is
on, now gamepad is in Analog mode.
2.3 Use gamepad to choose any games you like and enjoy the gaming
experience.
3 LED indication
Indicator
Electricity
connecting
link
Represented Controller status
LED1-4 off
no
Sleepy or power off
LED1-4 flash in middle speed
no
Unpaired
LED1-4 flash in middle
speed
yes
Unpaired, in charging
LED1-4 always on
yes
Unpaired, fully charged
LeShiZhiXinElectronicTechnology(Tia
njin) Limited
2016-4-26
LED1-4 flash in fast
speed
no
Scan and pairing
LED1 always on
no
Paired in Digital mode
LED4 always on
no
Paired in Analog mode
LED1flash in middle
speed
yes
Paired in Digital mode and charging
LED4 flash in middle
speed
yes
Paired in Analog mode and charging
LED1 always on
yes
Paired in Digital mode and fully charged
LED4 always on
yes
Paired in Analog mode and fully charged
LED1 flash in middle
speed
no
Paired in Digital mode and low battery
LED4 flash in middle
speed
no
Paired in Analog mode and low battery
4 Mode introduction
4.1 Basic mode: upgraded from official standard Google Android mode. In this
mode, it can play Android games and connect with smart Android TV and box,
with below basic operation:
D-pad/Joystick: choose desktop icon. A button: confirm. B button: cancel/back.
LeShiZhiXinElectronicTechnology(Tia
njin) Limited
2016-4-26
4.2 Analog mode: RT and LT buttons will be switched into analog buttons.
Then you can enjoy the real car racing experience like speed and
passion.
4.3 Digital mode: RT and LT buttons will be switched into digital buttons.
Then you can enjoy the real action game like shoot.
5 Parameter
USB charging power
DC 5V
Battery
800mAh
Working temperature
-20°C ~+65°C
Working humidity
20-50%
Working power
<30mA with no vibration, <150mA
with vibration
Transmitting distance
6-8m
Main material
ABS
Dimension
152*104*62mm
Weight
220g
6 FAQ:
6.1 Unable to connect:
Please make sure right connection. Signal interruption: insert dongle first, then press
Home button and hold 3sec into pairing mode.
6.2 No response in game playing:
Make use right mode on the relative platform. Check the games support gamepad or
LeShiZhiXinElectronicTechnology(Tia
njin) Limited
2016-4-26
not.
6.3 Unable to work:
Make sure enough battery. Check the device support gamepad connection.
6.4 Unable to charge:
Make sure right charging connection. Use the USB offered.
7 Warning:
7.1 Store and use in required temperature.
7.2 Not expose in rainy and humid places.
7.3 Not throw and drop to avoid any damage.
7.4 Not dismantle, repair and remake by self.
7.5 Not throw into fire due to battery inside.
