LeEco 2.1 Channel
Sound Bar with Wireless Subwoofer
User Guide
User Guide

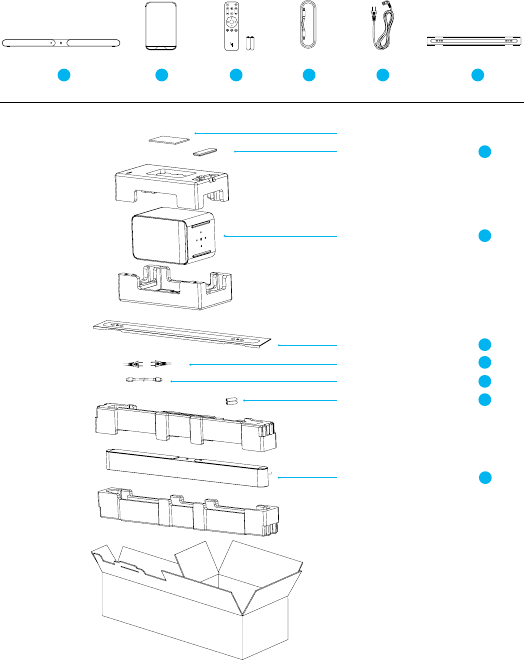

HDMI Cable
Wireless Subwoofer
Remote Control
Battery
Sound Bar
Wall Mount Bar
Power Cord x2

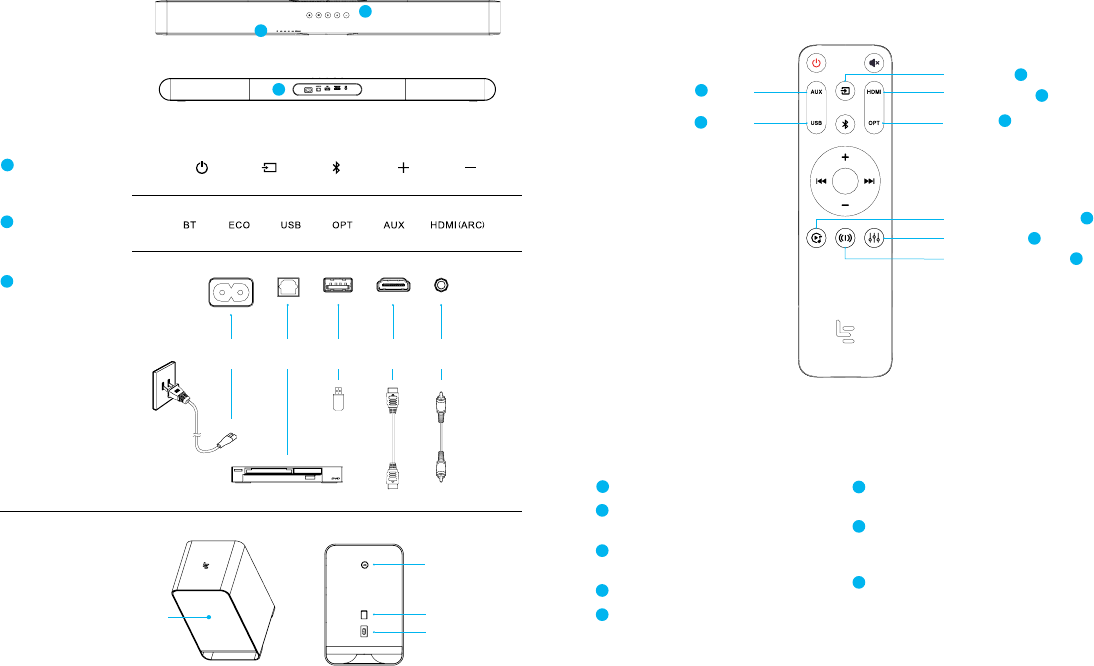

Product Layout
*Illustrations are for reference only
1 2 3 4 5 6
1
2
3
3
4
5
6
Top View
Buttons
LED
Indicator
Printing
Connections
Indicator
Link
Power Button
AC IN
AC IN USBSPDIF IN HDMI(ARC) AUX
Rear View
Subwoofer
Product Overview Remote Control Buttons and Functions
Select the 3.5mm connector
Select the USB drive (or portable
hard disk) and read the list of tracks
Switch between sources:
Bluetooth/USB/OPT/AUX/ARC
Select the HDMI (ARC) connector
Select the SPDIF (optical) connector
AUX
USB OPT
Source
Equalizer
One Key Playback
HDMI ARC
Virtual Surround
Playback music content directly
from USB drive
Bass and Treble adjustments
(for details please refer to Sound
Bar Operations)
Turn virtual surround eect on and o
1
1
2
2
3
3
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
Sound Bar
Sound Bar Operations
Initial configuration
• After you connect the sound bar and the subwoofer to power supply, the system
will turn on automatically after connection.
• The sound bar and the subwoofer has been paired. No pairing is needed.
• The recommended connection from the sound bar to the TV is HDMI(ARC).
HDMI cable is included to provide optimal audio experience with this system.
System operations
1. Surround sound mode
• Press the “ ” button on the remote control to turn the surround sound eect
on or o.
2. Adjusting volume
• Press the Volume +/- buttons on the remote control to increase/decrease the volume.
• Press the Mute button to mute volume. To unmute, press the mute button again or
press Volume +/- button.
3. Equalizier Adjustment
• Adjust the bass: press the “ ” Equalizer button on the remote to enable bass
adjustment. Please make sure the 3 left-most indicator LEDs on the sound bar
flashes 3 times simultaneously to confirm that the bass adjustment has been
enabled. Use the Volume +/- to adjust to adjust the bass up or down.
• Adjust the treble: press the “ ” Equalizer button on the remote to enable treble
adjustment. Please make sure the 3 right-most indicator LEDs on the sound bar
flashes 3 times simultaneously to confirm that the treble adjustment has been
enabled. Use the Volume +/- to adjust to adjust the treble up or down.
• Note: Please refer to the LED Indicator Light Overview for more details to
understand when bass or treble adjustments are enabled.
4. Play audio via Bluetooth
• Connect the sound bar to an external Bluetooth device (such as iPad/iPhone/
Android phone) via Bluetooth and enjoy music on the connected device using
the sound bar.
• Press the Bluetooth button on the sound bar or remote control to turn on
Bluetooth and enter pairing state. The Bluetooth indicator (white) on the sound
bar will flash quickly.
• Turn on Bluetooth on the external device, and search for and select “LHT-V16S”.
• Note: Connecting the sound bar to the TV via Bluetooth is not recommended
as it will not provide the optimal audio experience. We strongly recommend
using HDMI (ARC) connection with your TV.
• When the Bluetooth indicator on the sound bar is glowing white, the connection
is established.
5. Auto standby mode
• If the sound bar stays idle and receives no signal for 30 minutes, it will
automatically enter standby mode. (Please note: after entering auto standby
mode, press the power key to wake up)
6. Pairing with the subwoofer
• When you turn on the sound bar and subwoofer, they will pair automatically.
• Please pair the subwoofer manually if no sound is coming from the subwoofer.
• Press and hold the “Link” button on the back of the subwoofer for more than
3 seconds, to enter the pairing state.
• Then press the “Bluetooth” and the “Source” buttons on the sound bar
simultaneously for more than 2 seconds. The sound bar and the subwoofer
will connect wirelessly.
• Note: During the pairing process, the indicator light on the sound bar will change
accordingly. Please refer to the LED Indicator Light Overview for more details.
7. Restoring factory settings
• To reset the sound bar, press and hold the Source, Volume + and Volume -
buttons for more than 2 seconds, and the sound bar will automatically shut
down and restart.

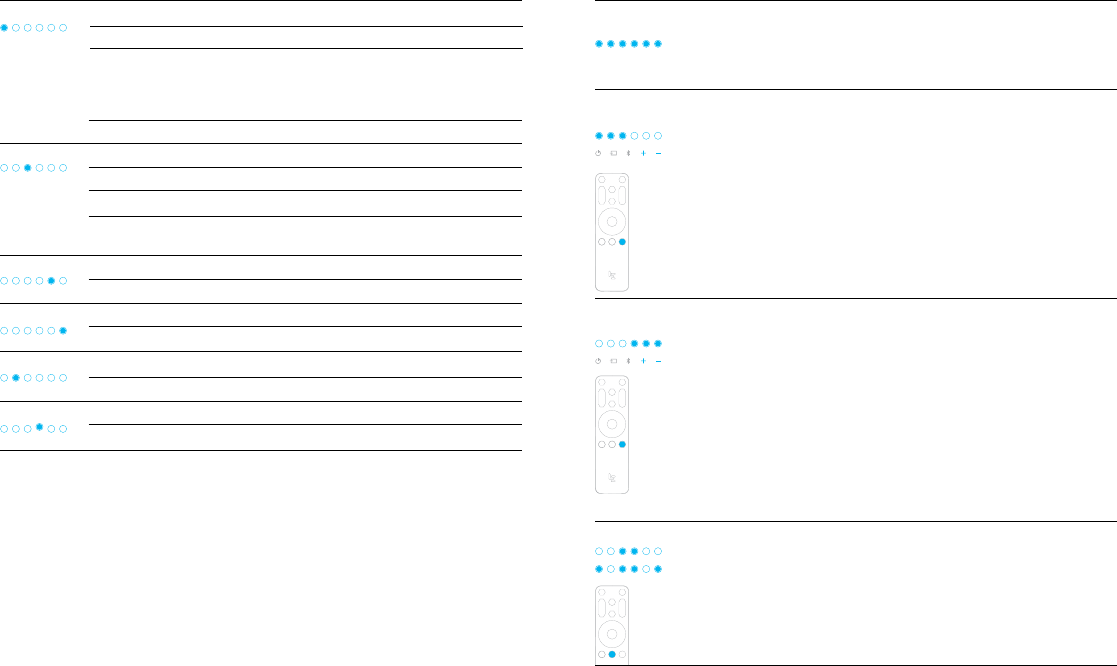

LED Indicator Lights Overview
White light on with sounds
Light o
White light flashing quickly
White light flashing slowly
White light on
White light o
White light flashing slowly
White light flashing quickly
White light on
White light o
White light on
White light o
White light on
White light o
White light on
White light o
BT
USB
AUX
HDMI
ECO
Optical
Status Display Status Display and DescriptionLED
Indicator
Lights
LED
Indicator
Lights
Status Description
Bluetooth connection active
Bluetooth connection o
Sound bar in Bluetooth pairing mode.
Enter pairing mode on the device
to be connected. Select “LHT-V16S”
and pair.
Not connected or connection failed
USB source selected
USB source deselected
Loading USB data
USB data loaded, waiting for “Play”
button to be pressed
AUX source selected
AUX source deselected
HDMI source selected
HDMI source deselected
No audio and sound bar inactive
Active audio
Optical source selected
Optical source deselected
• When pairing with other devices, all 6 LEDs will flash one by one
in sequence
• When pairing succeeds, all 6 LEDs will stay on for 3 seconds
• If pairing fails, all 6 LEDs will flash 3 times
• Press the equalizer button once to get into bass adjustment
mode. The 3 left LEDs on the sound bar will flash 3 times at the
same time (press the Equalizer button on the remote control to
enable bass adjustment mode).
• One LED will turn on when you press the Volume + button,
and one LED will turn o each time you press the Volume –
button.
• If you do not press Volume + / – button within 5 seconds, the
indicator LEDs will turn o and return to their original status.
• Press the equalizer button twice to get into treble adjustment
mode. The 3 right LEDs on the sound bar will flash 3 times at the
same time. (press the Equalizer button on the remote control to
enable the treble adjustment mode).
• One LED will turn on each time you press the Volume +
button, and one LED will turn o each time you press the
Volume – button.
• If you do not press Volume + / – button within 5 seconds, the
indicator LEDs will turn o and return to their original status.
• When turning o the surround sound eect: LEDs 3 and 4 will
flash 3 times, then return to their original state.
• When turning on the surround sound eect: LEDs 1, 3, 4 and 6
will flash 3 times, then return to their original state.
Pairing with
subwoofer
Adjusting
the bass
Adjusting
the treble
Surround sound
Specifications
Product
Sound
Connection
Sound Bar
Subwoofer
Compatible TV
Remote Control
Ambient
Feature
Enhancement
Amplifier Rated Output
HDMI (ARC) output
USB 2.0
SPDIF (optical) in
AUX in (3.5mm Stereo Audio)
W x H x D: 35.4” x 2.4” x 3.5” (900mm x 60mm x90mm)
Weight: 5.6 lbs (2.56kg)
W x H x D: 8.1” x 12.4” x 8.1” (205mm x 315mm x 205mm)
Weight: 10.5 lbs (4.76kg)
40”(1016mm)* TV and above
Yes
Temperature: 32 °F - +113 °F
Humidity: 20% - 80%
Virtual Surround
Dolby Audio & DTS
Bass & Treble
Sound Bar: 40W/CH x 2
Subwoofer: 80W
1
1
1
1
Important Safety Instructions
1. Please read, keep and follow these instructions. Keep this Guide for reference.
2. Do not use this apparatus near water.
3. Clean only with dry cloth.
4. Do not block any ventilation openings.
Install in accordance with the manufacture’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
6. Do not defeat the safety purpose of the polarized or grounding plug. A polarized
plug has two blades with one wider than the other. A grounding plug has two
blades and a third grounding prong. The wide blade or the third prong is provided
for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
7. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
8. Only use attachments/accessories specified by the manufacturer.
9. Unplug during lightning storms or when unused for long periods of time.
10. Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to
rain or moisture. The apparatus shall not be exposed to dripping or splashing and that
objects filled with liquids, such as vases, shall not be placed on apparatus.
WARNING: The mains plug/appliance coupler/direct plug-in adapter is used as
disconnect device, the disconnect device shall remain readily operable.
WARNING: The battery (battery or batteries or battery pack) shall not be exposed to
excessive heat such as sunshine, fire or the like.
WARNING: Please refer the information on exterior bottom enclosure for electrical
and safety information before installing or operating the apparatus. Do not install
this equipment in a confined or building-in space such as a book case or similar unit,
and remain a well ventilation conditions at open site. The ventilation should not be
impeded by covering the ventilation openings with items such as newspaper, table-
cloths, curtains etc.
WARNING: To prevent injury, this apparatus must be securely attached to the floor/
wall in accordance with the installation instruction.
* LeEco 2.1 Channel Sound Bar with Wireless Subwoofer is ideal for televisions 43” or larger.
Wall mounting recommended for sound bar when pairing with Super4 X43 Pro ecotv.
Electric Shock Do Not Open
Caution: to reduce the risk of electric shock, do not remove cover (or back).
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sucient magnitude to constitute
a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
CAUTION: RISK OF ELECTRIC SHOCK-DO NOT OPEN
CAUTION: To prevent electric shock do not use this polarized plug with an
extension cord, receptacle or other outlet unless the blades can be fully inserted
to prevent blade exposure.
CAUTION: These servicing instructions are for use by qualified service personnel
only. To reduce the risk of electric shock, do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
Certification Information
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS
Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS
2.0 Channel are registered trademarks or trademarks of DTS, Inc. in the United States
and/or other countries. © DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the
double-D symbol are trademarks of Dolby Laboratories.
HDMI, High-Definition Multimedia Interface and the HDMI logo are trademarks or regis-
tered trademarks of HDMI Licensing, LLC in the United States and/or other countries.
ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency
and the U.S. Department of Energy helping us all save money and protect the envi-
ronment through energy ecient products and pratices.
This product meets ENERGY STAR® guidelines for energy eciency. ENERGY STAR
and the ENERGY STAR mark are registered U.S. marks. ENERGY STAR is a registered
mark owned by the U.S. government.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by [Le Shi Zhi Xin Electronic Technology (Tian
jin) Limited ] is under license. other trademarks and trade names are those of their
respective owners.
Caution
FCC Certification
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa -
tion. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipmento and on, the user is encouraged to try to correct the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit di erent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR
TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY
TO OPERATE THE EQUIPMENT.
FCC Radiation Exposure Statement:
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment. This equipment must be installed and operated with a separation distance
of at least 20 cm from all persons.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
LeEco warrants the included hardware product and accessories against defects
in materials and workmanship for one year from the original retail purchase. LeEco
does not warrant against normal wear and tear, or damage caused by accident
or abuse. For service, contact us at +1 (855) 343.6688. Shipping charges may apply.
You may be required to provide proof of purchase in submission of your warranty
claim. If you submit a valid claim under this warranty, LeEco will at its option
repair your device or replace it with a new or refurbished device subject to the full
warranty terms and conditions located at www.lemall.com/us/warranty and any
applicable service policies at www.lemall.com. This warranty is in addition to rights
provided under local consumer laws.
One-Year Limited Warranty
LeEco & LeEco 2.1 Channel Sound Bar with Wireless Subwoofer are the marks
and registered trademarks of LeEco or its aliates. Other names, trademarks or logos
are the marks or registered trademarks of their respective holders.
7 2 - TV1 6 US - QSGB2
