Leadtek Research 8Z31 Heart Rate & Activity Monitor User Manual amor H1 ENG201406
Leadtek Research Inc Heart Rate & Activity Monitor amor H1 ENG201406
user manual
i
amor H1
Heart Rate & Activity Recorder
Manual
Rev. 1.01
Model No: 8Z31
Leadtek Research Inc.
※ Please read this instruction before using and follow the instructions to use
ii
Table of Contents
Page
Table of Contents ........................................................................................ ii
1.User Guide ............................................................................................... 1
2.Warnings and precautions ....................................................................... 1
3.Brief introduction of amor H1 ................................................................. 2
3.1 Device outlook and I/O.................................................................................... 2
3.2Parameter .......................................................................................................... 2
4.Specification ............................................................................................ 3
4.1Heart Rate ......................................................................................................... 3
4.2Activity ............................................................................................................. 3
4.3Input .................................................................................................................. 3
4.4Output ............................................................................................................... 3
4.5Display .............................................................................................................. 3
4.6Appearance ....................................................................................................... 3
4.7Classification .................................................................................................... 3
4.8Environment ..................................................................................................... 3
4.9Power Information ............................................................................................ 4
4.10 APP System Requirements ............................................................................ 4
4.11Part Lists ......................................................................................................... 4
5.Operation ................................................................................................. 5
5.1 Appearance ...................................................................................................... 5
5.2 Device screen instructions ............................................................................... 6
5.3Operation .......................................................................................................... 6
6.App Installation and brief instructions .................................................... 8
6.1 Install App ....................................................................................................... 8
6.2 App Introduction .............................................................................................. 9
6.3 Maintenance..................................................................................................... 9
6.4 Label ................................................................................................................ 9
6.5 Issues table and Solve Handling .................................................................... 10
7.Application ............................................................................................ 10
7.1 Record personal activity status ...................................................................... 10
7.2 Effective exercise tool ................................................................................... 10
8.Technical Support and Warranty ........................................................... 11
8.1Technical Support ........................................................................................... 11
8.2Warranty Policy .............................................................................................. 11
1
1.User Guide
amor H1 is a personal and portable health device that allows users to
measure and record heart rate and activity value, giving users more
efficient feedback and record parameters displayed in Mobile APP. The
input of heart rate signal is obtained through adhesive electrode patches,
Activity data is record daily movement via clip at the waist.
amor H1 has time display, measuring heartbeat (HR), activity levels,
calories and exercise time and other functions, can be quantified by the APP
via sync data.
2.Warnings and precautions
Before using amor H1, please read below information first.
Warning
Do NOT use amor H1with MRI (magnetic resonance imaging)
environment.
Do NOT use amor H1 with a defibrillator, an electro-cautery, cardiac
pacemakers or other stimulators together.
To prevent possible explosion hazard. Do not use amor H1by in the
presence of flammable anesthetics.
Follow local governing ordinances and recycling instructions regarding
disposal or recycling of the device and components.
The result is for self-feedback purpose, not as result for medical
diagnosis, do not explain or judgment by yourself.
Caution
It’s necessary to read this user’s manual carefully before using this
product.
Please handle amor H1 with care. Hitting or dropping the device may
stop it from working. If there is any damage resulting from abnormal
use, please contact service personnel.
amor H1 is Followed safety requirements for local country electrical
2
systems.
Portable and mobile wireless communications device (RF, radio
frequency) maybe affect the amor H1.
The amor H1 Life of one year. To ensure the life of the machine, please
note that the use of maintenance.
3.Brief introduction of amor H1

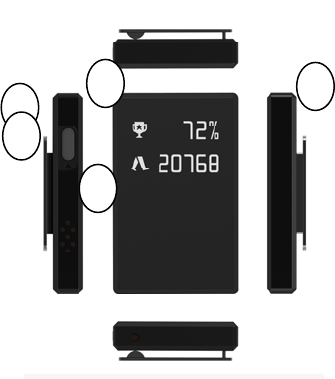

3.1 Device outlook and I/O
1. Button
2. OLED Display
3. Buzzer Hole
4. 2.5mm Plug connector
5.Clip
3.2Parameter
Relevant parameter values are defined as follows.
1.Exercise Target。
2.Heart Rate Parameter ：Heart Rate( HR) 、Heart Rate Standard
deviation(SDNN (ms))。
3.Activity Parameter：Step、Calories、Exercise intensity。
4. Autonomic nervous Index：Five Forces Index, analysis of the autonomic
nervous system can be obtained through the cloud。
1
2
3
4
5
3
4.Specification
4.1Heart Rate
Input impedance：>10M Ohm Input dynamic range：+/-2 mV
CMRR：>60 dB Analog / Digital Converters： 12 bit
ECG signal：1 Lead; Measuring frequency：0.33-40Hz;
Sampling rate：250Hz; Heart rate measurement range：40-240 bpm
4.2Activity
3-axis G-sensor, plus or minus 2G
4.3Input
2.5mm phone jack Signal cable (with electrode pads used)
4.4Output
BT4.0 BLE
4.5Display
OLED display (mono)
4.6Appearance
Size：60*38*9.5(mm); Weight：39g(With battery)
4.7Classification
amor H1
protection：Internally powered。
Protection Level：Type BF-Applied Part
Waterproof and dustproof： IP22
Operation type: Continues
4.8Environment
Operating Temperature：＋41 oF to＋104oF /＋5 oC to＋40oC
4
Storage and transport temperature：－13oF to＋158oF /－25 oC to＋70oC
Operating Relative Humidity：15 to 93% (non-condensing)
Storage and transport conditions relative humidity ：15 to 93%
(non-condensing)
Atmospheric pressure range：700 hPa to 1060 hPa
4.9Power Information
The device uses 135 mah lithium battery
4.10 APP System Requirements
Android System: 4.3or later
iOs System: iphone 4Sor later
Hardware Requirements: MCU: Quad core 1.3GHz and above
RAM: 1GB or more
Capacity: 2GB or more
4.11Part Lists
The product is shipped with the following parts as table 1.
Table1 Part lists
Device 1
Quick User Guide 1
Heart Rate Cable 1
Charging Cable 1
Sports Electrodes (4 PCS)* 1
*: Sports Electrodes are for Single Use Purpose only.
5
5.Operation
5.1 Appearance

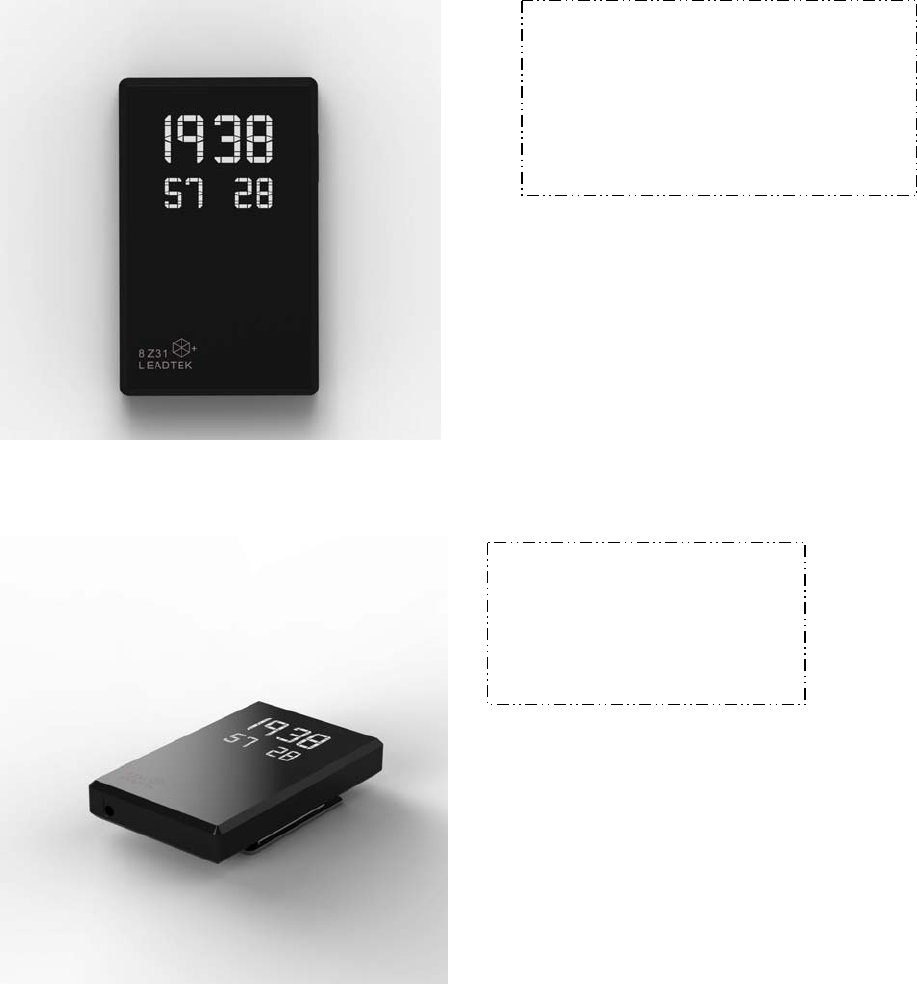

Fig.1:Top view
Fig.2:Side View
OLED Display
Long push the Button :On/Off
Short push the button: change
Interface
2.5mm hole (for connecting
HR cable or charging cable)
6
Fig.3:I/O Interface
5.2 Device screen instructions

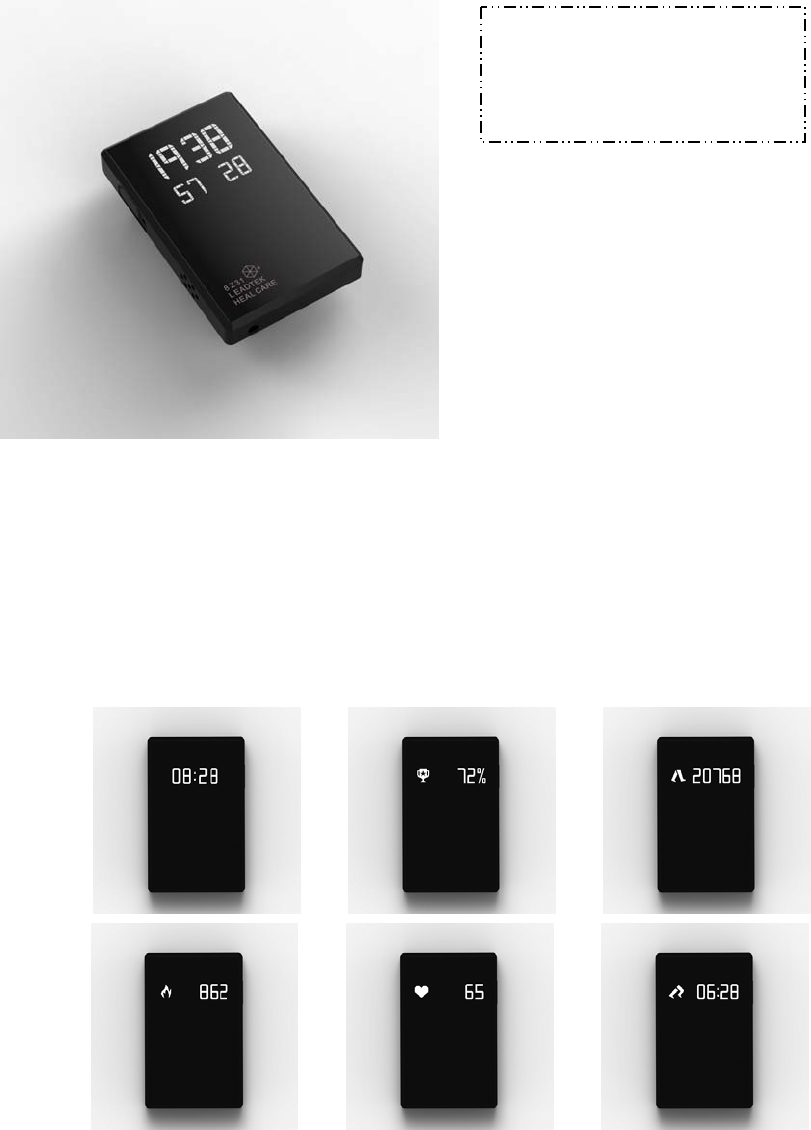

Press the device, there will be 1)Time;2)Achievement rate;3)Steps;4)
Calories;5)Heart Rate;6) Exercise Time. From 1) to 6) is cycle display, But
stay ten seconds on each picture off the screen, shown in Figure 4.
1) 2) 3)
4) 5) 6)
Fig. 4: amor H1 main function Flow
5.3Operation
From Fig.1 to Fig. 3, Turn on is long press the button, Main screen will
Buzzer hole: Notice alert
7
appear, the device signals the next hole left there, this input wire or charging
cable to ECG use. Before use, the first patch fixed on the chest, connect the
signal line deduction (about color and text segments). Finally, the product
clip fastened at the waist and connected to cable, you can start using. Signal
wire and electrode patches affixed to the suggested location, shown in
Figure 5.

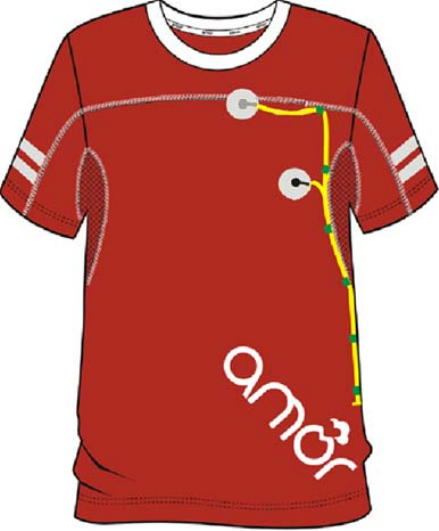

Fig. 5: The suggestion position of electrodes
The right for the R white, left for L Black. During the measurements,
the heart rate will appear on the screen, the measurement data will be
automatically saved parameters (every 10 seconds to save). Activity levels
and other parameters will be presented on the screen. After data
synchronization, and full information can present on the App.
8

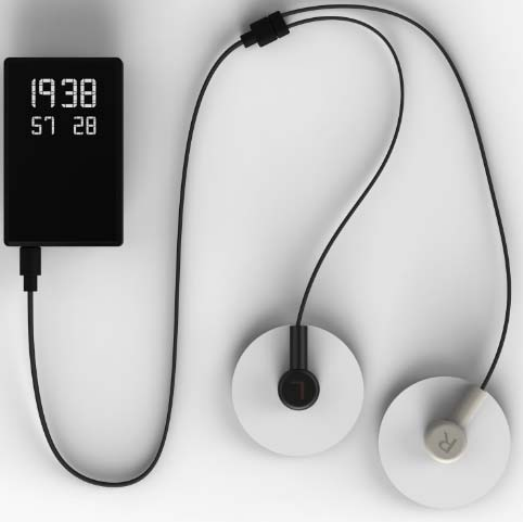

Fig. 6: amor H1use position and related picture
When the end of the exercise, or do not use heart rate function, unplug
the wire thread first, and then removed the electrodes from the body. After
removing the Heart Rate Cable, the device can still record activity and other
applications. When the device is at low battery condition(battery symbol one
grid), suggest to charging. There will be a percentage of the charging battery
while charging. When the percentage charged to 100%, the device screen
turns off to save power. When users unplug the charging cable or press the
button, the device will turn on.
6.App Installation and brief instructions
6.1 Install App
Download amor Runner App via QR code or through the official
website, Software installation will automatically display the main screen,
and then, you can click Next to proceed with the installation steps。Then the
installation progress reaches 100%, it means that the program has been
installed. Program shortcuts displayed on the phone's desktop.
9
6.2 App Introduction
Amor Runner App can be downloaded from the product
web(health.leadtek.com)or from Google Play Store，App including below
items:
1.Login
2.Data overall view
3.Sync
4. Data Display
5.Autonomic nervous system measurement
6.Setting
7.Share
6.3 Maintenance
1. When the low-voltage display symbols, please charge Immediately.
2. When measuring signal is weak, the proposed replacement electrodes.
3. Clean method of surface of the instrument is used the dry naturally or use a
clean, dry cloth.
6.4 Label
Manufacturer: Leadtek Research Inc.
Address: No. 4, Lane 5, Sec 2, Lane 327, 235 District, New Taipei City
10
6.5 Issues table and Solve Handling
Table 2 Issues and Solve
Question Reasons How to Solve
Storage space is full Memory Space is full Use the App to transmit the data
and clean the space
Can not open device 1、 Insufficient battery power
or no power
2、Device is damaged
1、Pls charge the battery
2、Please contact your local
customer service center
Can not measure the
activity values
G-senor is abnormal Please contact your local
customer service center
Abnormal heart rate
value
Signal interference 1、Follow the operation flow
2、Replace the cable
Time is not correct 1、Not sync with App
2、To long time to not use Device
Please sync with App
7.Application
7.1 Record personal activity status
Understand the self-condition to assist biofeedback by recording heart
rate and activity.
7.2 Effective exercise tool
Access to relevant information about user activities, such as: sports fat
burning, maximum heart rate, prompt, and effective exercise as a basis for
reference.
11
8.Technical Support and Warranty
8.1Technical Support
If you can not resolve your problem, please contact your dealer. You
can also contact us through the following technical support staff, information
is：
1.TEL：+886 (02)82265800#810
2.ADDRESS:18F, Chien-Yi Rd., Chung Ho Dist., Ne
23511
8.2Warranty Policy
Leadtek Research Inc. provides one year warranty, starting from the
purchasing date, to the original purchaser for repairing any product failure
due to fabrication error or defective parts. Within the limited range of the
warranty, defective products shall be fixed or replaced by Leadtek Research,
Inc. This warranty is not transferable. Damage due to negligence, accident,
abuse, misapplication, modification, mailing to the seller, or repairs not
made by Leadtek Research Inc., is not covered by the warranty. Within the
coverage of the warranty, the delivery fee for mailing to the retail seller or
the direct store is not covered within the scope of the warranty.
Reproduction or reprinting of part or all of the contents of this manual
by any means without written authorization from Leadtek Research, Inc. is
prohibited.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
12
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Leadtek Research Inc.
18 F, No. 166, Chien-Yi Rd., Chung-Ho Dist., New Taipei City 23511,
Taiwan, R. O. C.
Tel：+886 (02)82265800 Web：www.leadtek.com.tw
Product Web: QR Code
Rev.V.1.01 2014/5
