Leadtek Research LR9553D BLUETOOTH DATA LOGGER & RECEIVER User Manual LR9553D manual EN
Leadtek Research Inc BLUETOOTH DATA LOGGER & RECEIVER LR9553D manual EN
Users manual
![](/img.php?id=849455&img=bg1.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 1
Product ID: Leadtek GPS LR9553D
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
Version A
June 2007
Headquarters of Leadtek Research Inc.
18F, 166 Chien-Yi Rd., Chung Ho City, Taipei County 23511, Taiwan
TEL: +886(0)2 8226 5800
FAX: +886(0)2 8226 3087
http://www.leadtek.com
E-mail: service_gps@leadtek.com
©2007 Leadtek Research Inc. All rights reserved.
Leadtek GPS LR9553D
Bluetooth Data Logger & Receiver
![](/img.php?id=849455&img=bg2.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 2
TABLE OF CONTENTS
1. Introduction...........................................................................................................3
2. Features................................................................................................................4
3. Hardware ..............................................................................................................5
4. Package Contents...............................................................................................6
5. Install Leadtek Navigator (PC) ..........................................................................7
6. Test Leadtek GPS LR9553D...........................................................................11
7. Install the USB Driver .......................................................................................16
8. Appendix A: Limited Warranty.........................................................................19
9. Appendix B: Specifications ..............................................................................20
10. Appendix C: Safety Information ......................................................................23
11. Appendix D: GPS FAQ.....................................................................................24
![](/img.php?id=849455&img=bg3.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 3
1. Introduction
Thank you for purchasing Leadtek GPS LR9553D. Leadtek LR9553D, based on cutting
edge SiRFStar III technology, is a high performance, low power, 20-channel GPS data logger
and receiver with wireless capability. As such it is a highly compatible Bluetooth solution with
extraordinary configurability and sensitivity. Not to forget its appealing ergonomics—sleek,
round and lightweight. The innovative switch-mode design not only makes for easy activation
but also enables more power saving when LR9553D is used as a pure data logger which
records your tracking data from the received GPS signals. It provides users enough space to
store their tracking data including the altitude, GPS position, date and time- up to 240 hrs in
the continuous mode. It is not necessary to export the data until the memory is full. LR9553D
also comes equipped with mini USB interface both for easy charging and for users to be able
to export their recorded points to Google earth and Google Maps without a hitch. If using with
your digital camera and the convenient application software*, you can easily integrate your
valuable photos with the GPS data you have recorded and make them your forever sweet
memories.
*The application software enclosed in the Leadtek GPS LR9553D CD-ROM is a very complete
and easy-to-use tool for you to integrate your photos and the GPS data. Please register on line
now!
![](/img.php?id=849455&img=bg4.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 4
2. Features
20-channel all-in-view tracking
Cold/Warm/Hot Start: 42/35/1 sec. respectively
Reacquisition time: 0.1 sec.
Built-in rechargeable and power-saving battery
Operation time: 10~12 hours, in continuous mode
Built-in high WAAS for accurate navigation
Neck strap eyelet design, easy to carry
Data logging up to 240 hours
3-mode slide switch: Off/Navi & Log/ Log only
Interface: BT/USB
![](/img.php?id=849455&img=bg5.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 5
3. Hardware
1.USB connector (Charging & GPS data downloading)
2.LED indicator
LED 1 (GPS)
-Green
State Always on Quick blinking Slowly blinking
Description Memory full to stop 3D fixed GPS signal acquisition
LED 2 (Bluetooth)-Blue
State Quick blinking Slowly blinking No
Description BT on, but not connected
yet
BT connected BT off
LED 3 (Power)-Red
State Always on Quick blinking No
Description Battery is charging Low power Battery is fully charged
![](/img.php?id=849455&img=bg6.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 6
4. Package Contents
Leadtek GPS LR9553D Bluetooth data logger and receiver x 1
Leadtek Navigator & Locr PC client CD ROM x 1
Warranty Card x 1
Quick Guide x 1
Neck eyelet strap x 1
USB cable x 1
Car charger x 1
Travel charger (optional) x 1
![](/img.php?id=849455&img=bg7.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 7
5. Install Leadtek Navigator (PC)
Step 1
Before installing Leadtek Navigator, make sure that you have installed Microsoft ActiveSync to
your PC. Insert the software CD-ROM into the CD-ROM drive.

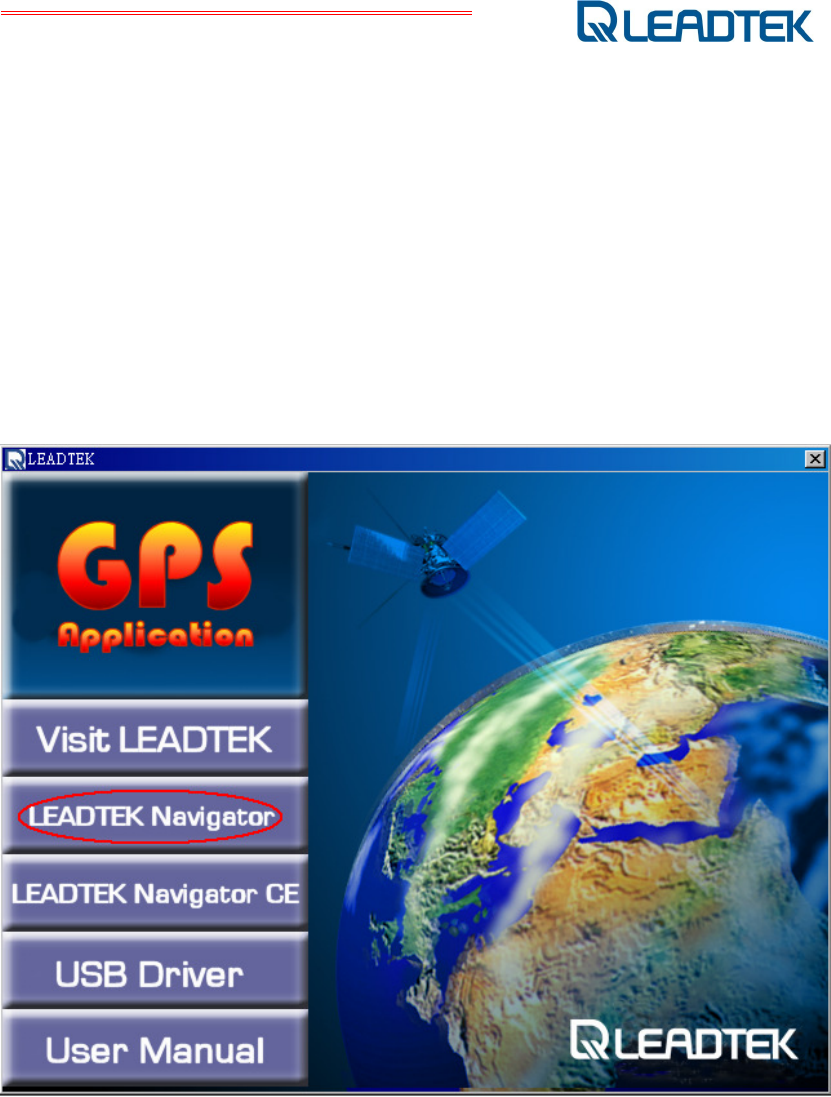

The following screen should appear automatically. If not, run “install.exe”.
Click “Leadtek Navigator” to initialize installation.
![](/img.php?id=849455&img=bg8.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 8
Step 2

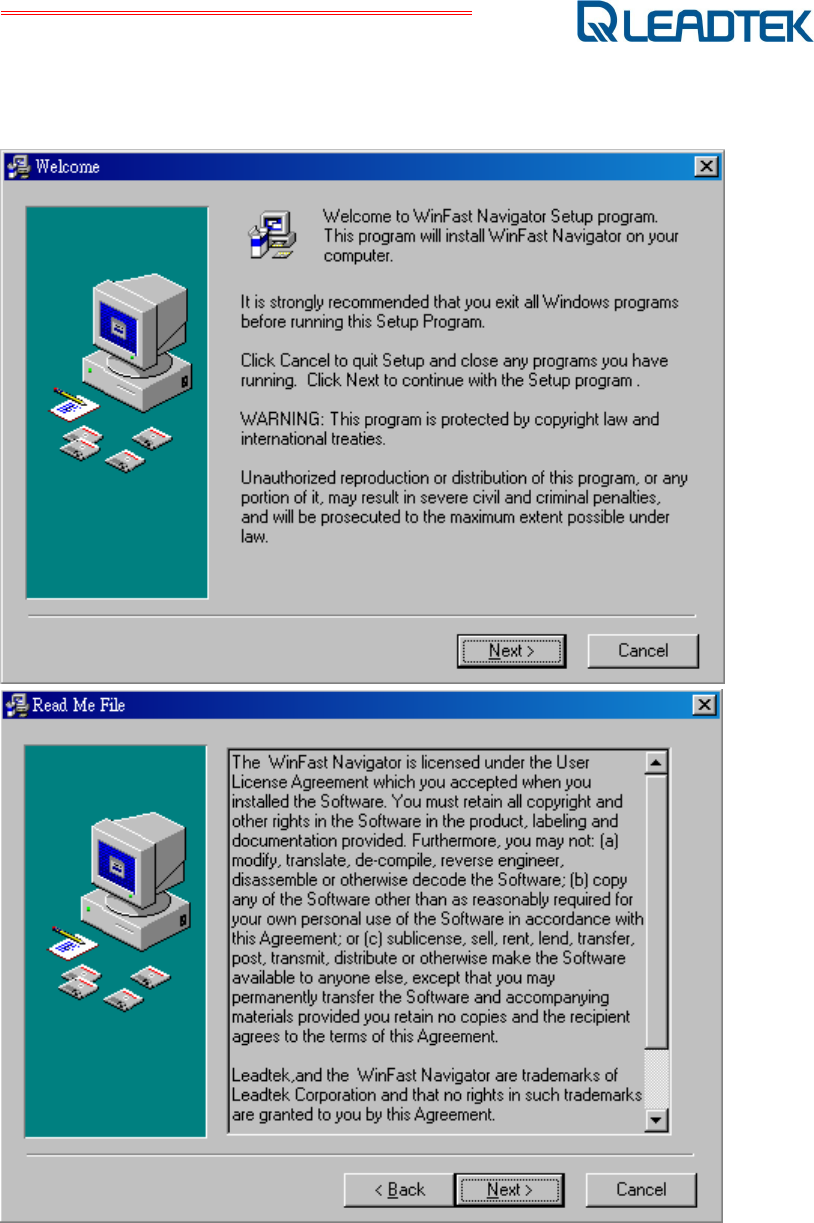

The installation dialog box and the copyright statement appear.
Click “Next”.
![](/img.php?id=849455&img=bg9.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 9

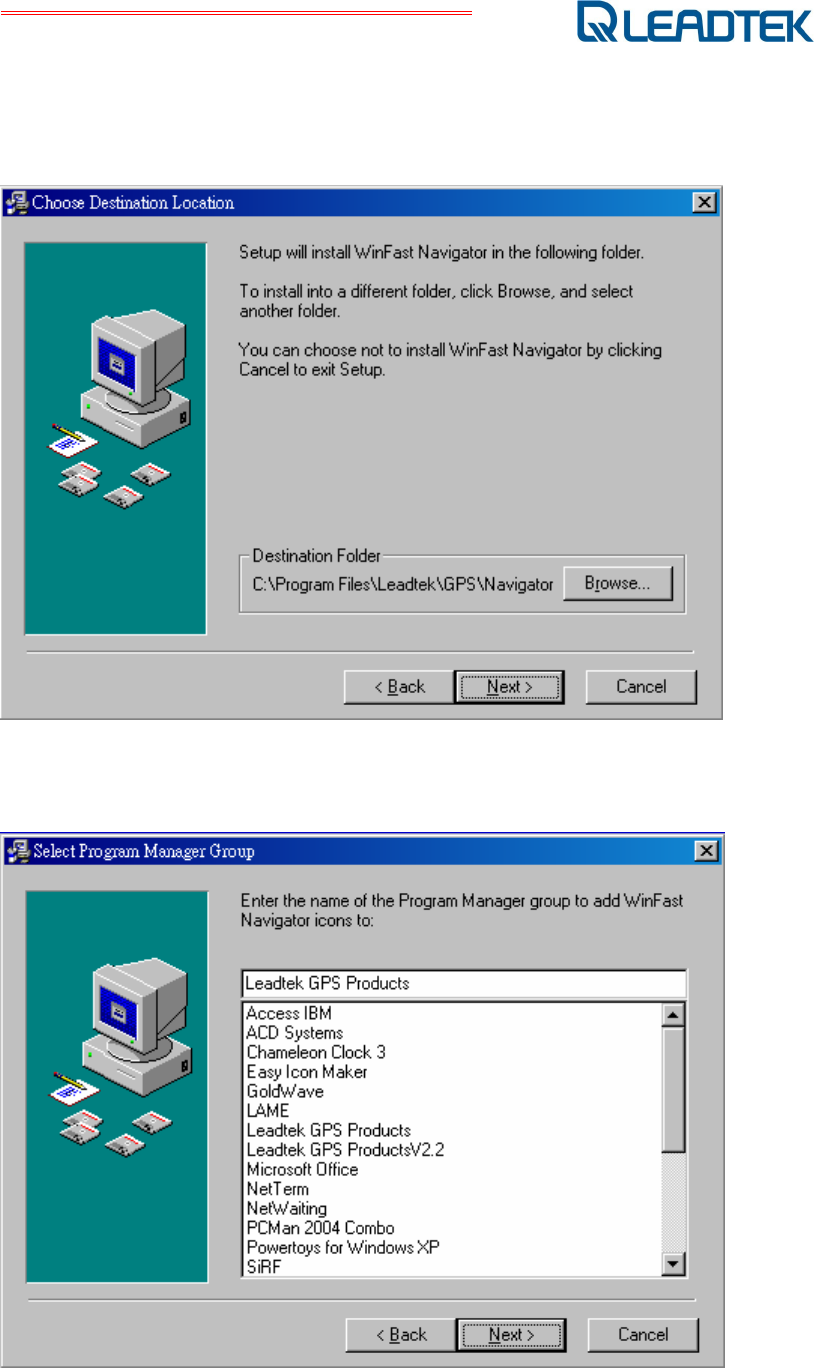

Step 3
The dialog box of Destination Location appears, showing the default destination folder. To
change it, click Browse to select a different folder for installation. If you do not wish to change
the destination folder, click "Next".
Step 4
Select ”Leadtek GPS Products”, and then click “Next”.
![](/img.php?id=849455&img=bga.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 10

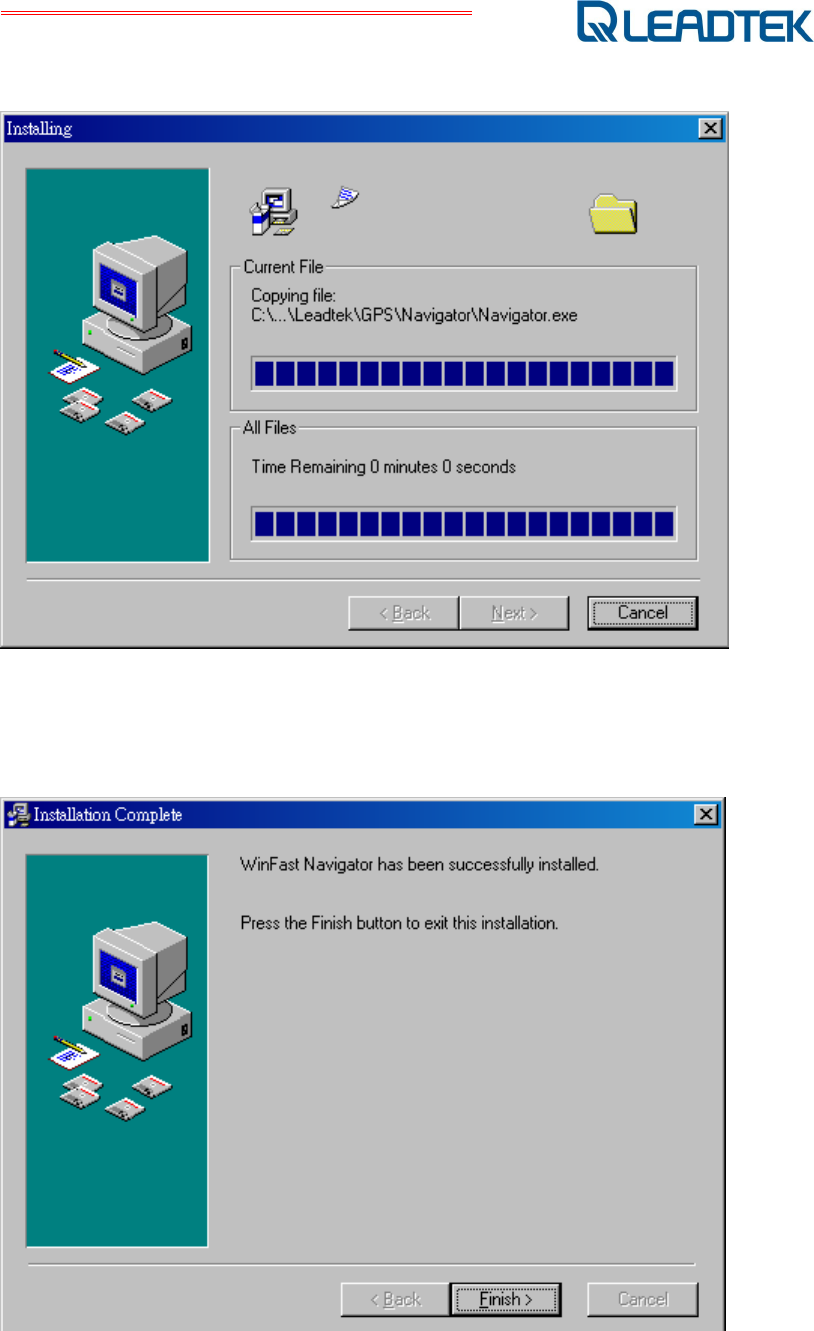

Step 5
Installation is in progress.
Step 6
Once the installation is complete, check your PC screen to see if additional steps are required
to complete the installation. Click "Finish".
![](/img.php?id=849455&img=bgb.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 11
6. Test Leadtek GPS LR9553D
Step 1
Before testing Leadtek GPS 9553D, make sure that you have charged for 3 hours till the red
light is off and installed "Leadtek Navigator” to your computer. Turn on LR9553D, and use the
USB cable to connect your computer and LR9553D. Once connected, follow the instruction as
below for testing.

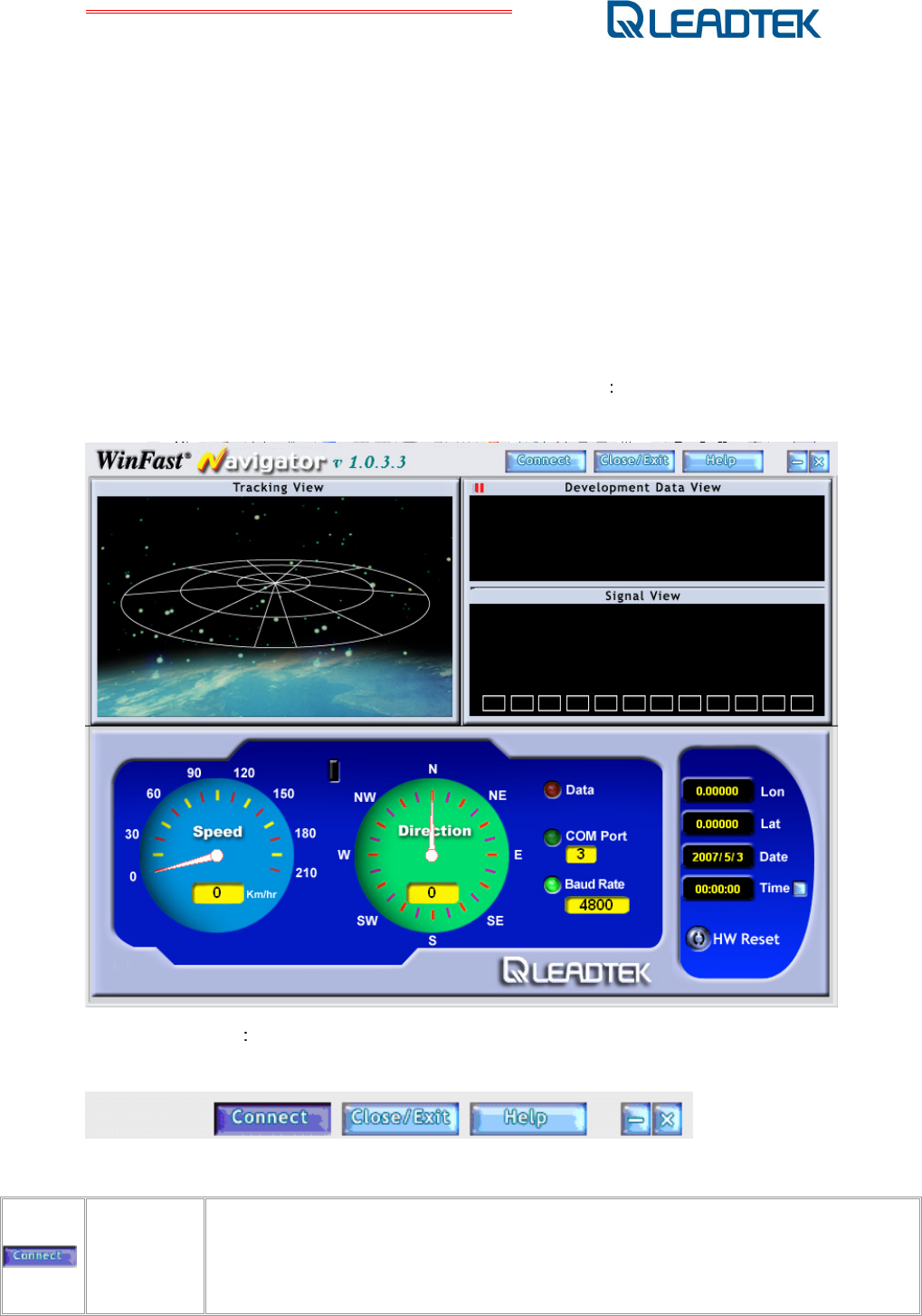

1.Open WinFast Navigator and you will see the screen showing
2.Software manual
( 1) Tool bar:
Connect
After pressing “Connect”, please choose appropriate Com Port and Baud rate. If there
remains
no response for 5 seconds, the window will pop up again. Please choose the
right Com Port and Baud rate again.
![](/img.php?id=849455&img=bgc.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 12
Close/Exit
Close WinFast Navigator.
Help
Software manual.
Minimize
Minimize WinFast Navigator.
Close/Exit
Close WinFast Navigator.

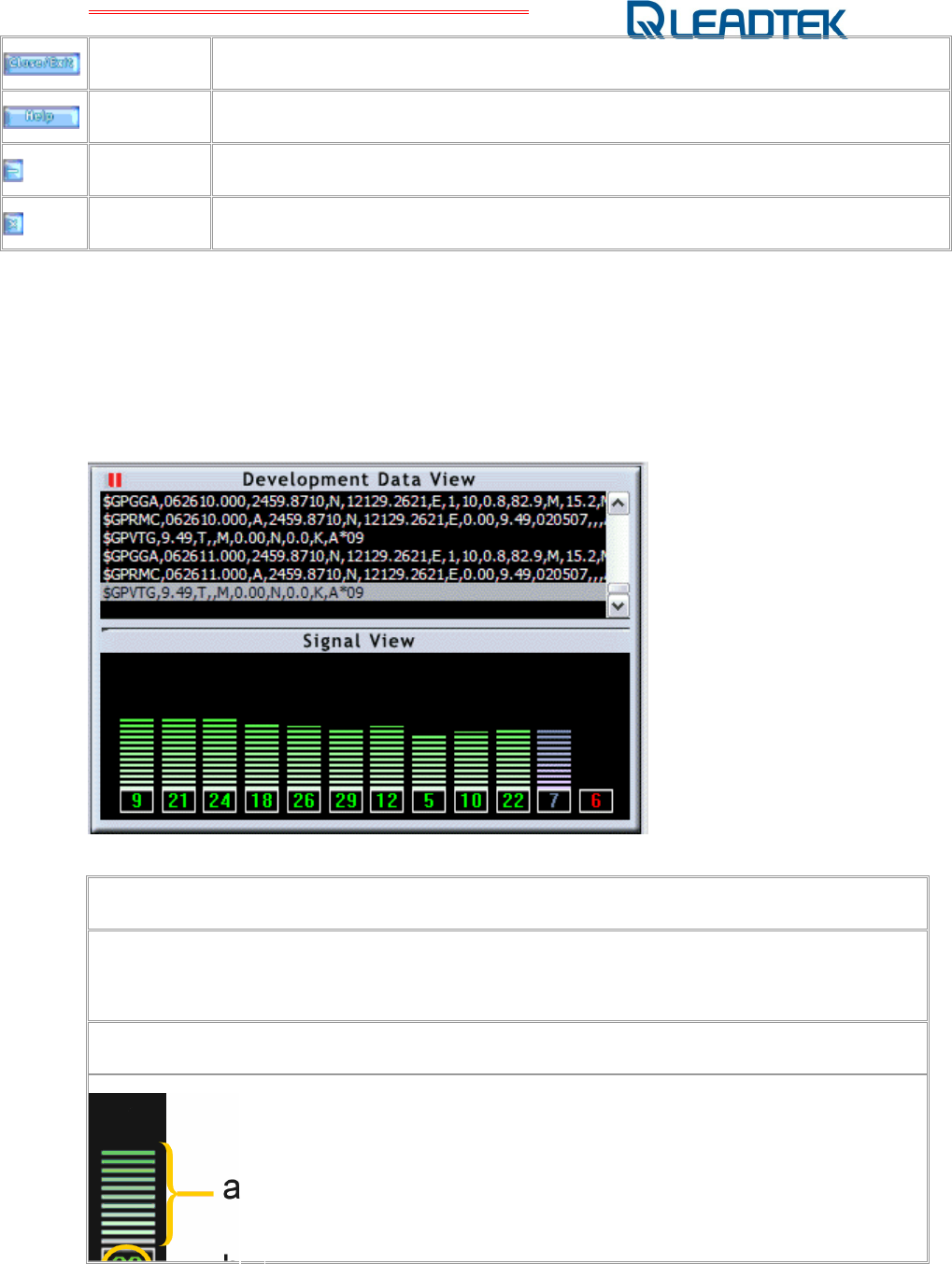

(2) GPS information and signals
When the device and the computer are correctly connected, the received GPS data will be
shown on the window of “Development Data View”. The strength of GPS signals will be
displayed on the window of “Signal View”.
Development Data View
The received data shown on this window are the standard NMEA format via RS232 transmission.
Signal View
a.
The strength of GPS signals will be presented in bar chart. From the color of the
bars, the validity can be ensured. The green color represents that the data are
stable enough to be used for positioning and the purple color means the
reception is not stabilized yet. When it shows in red color, no GPS signals can
be acquired.
![](/img.php?id=849455&img=bgd.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 13
b
.
This number represents for the code of the satellite, and the color display can be
referred to part a.

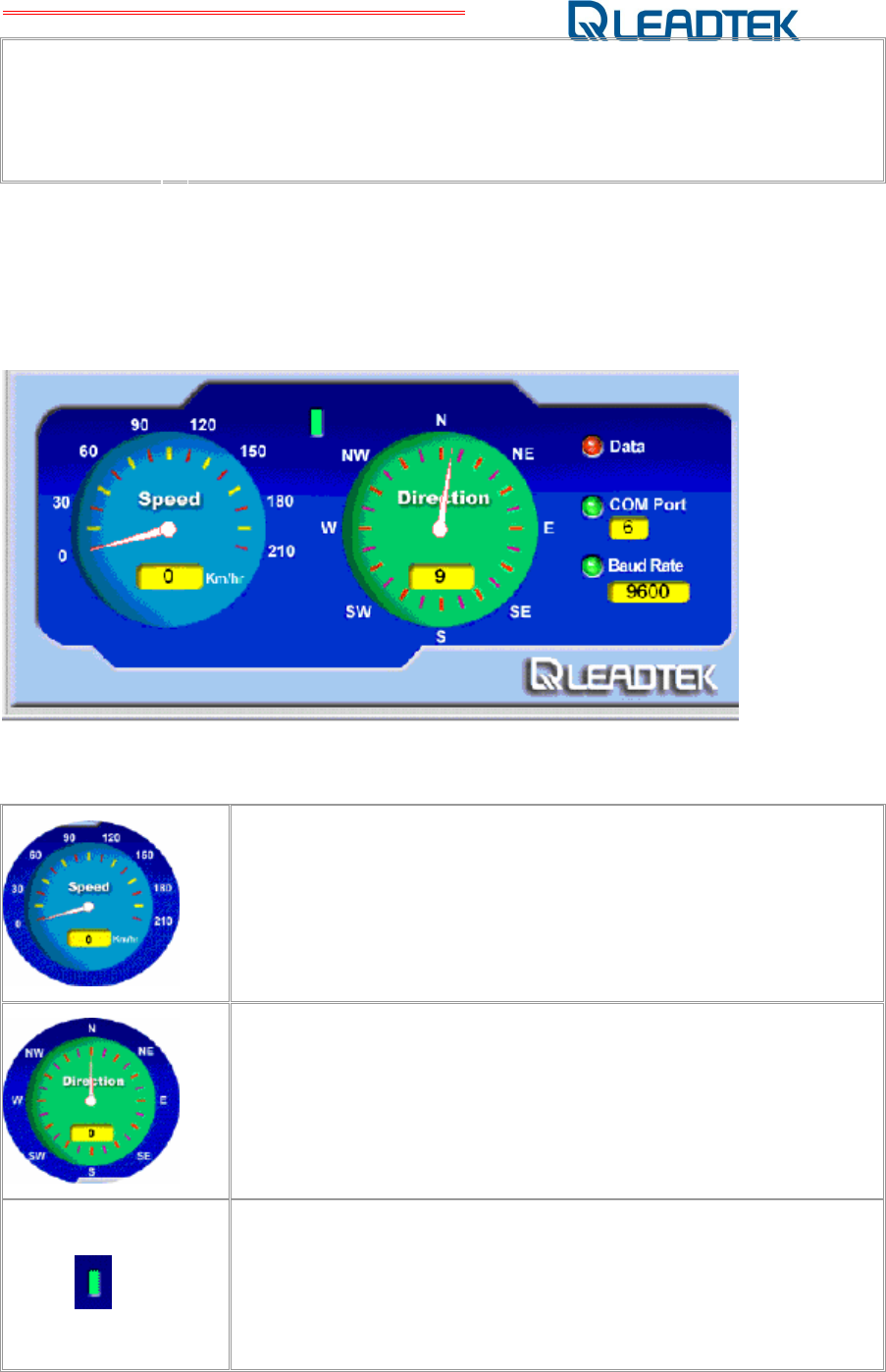

3. Connection information
This part explains the status of the speed and direction while navigating and the connection
between the device and the computer.
Speed
It shows the current speed of the navigating object, in kilometers/hour.
Direction
It shows the current direction of the navigating object.
Positioning LED
The red light means the positioning is not completed yet, and the output
data are those before being positioned. The green light means it is
positioned, and the navigation is on going.
![](/img.php?id=849455&img=bge.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 14

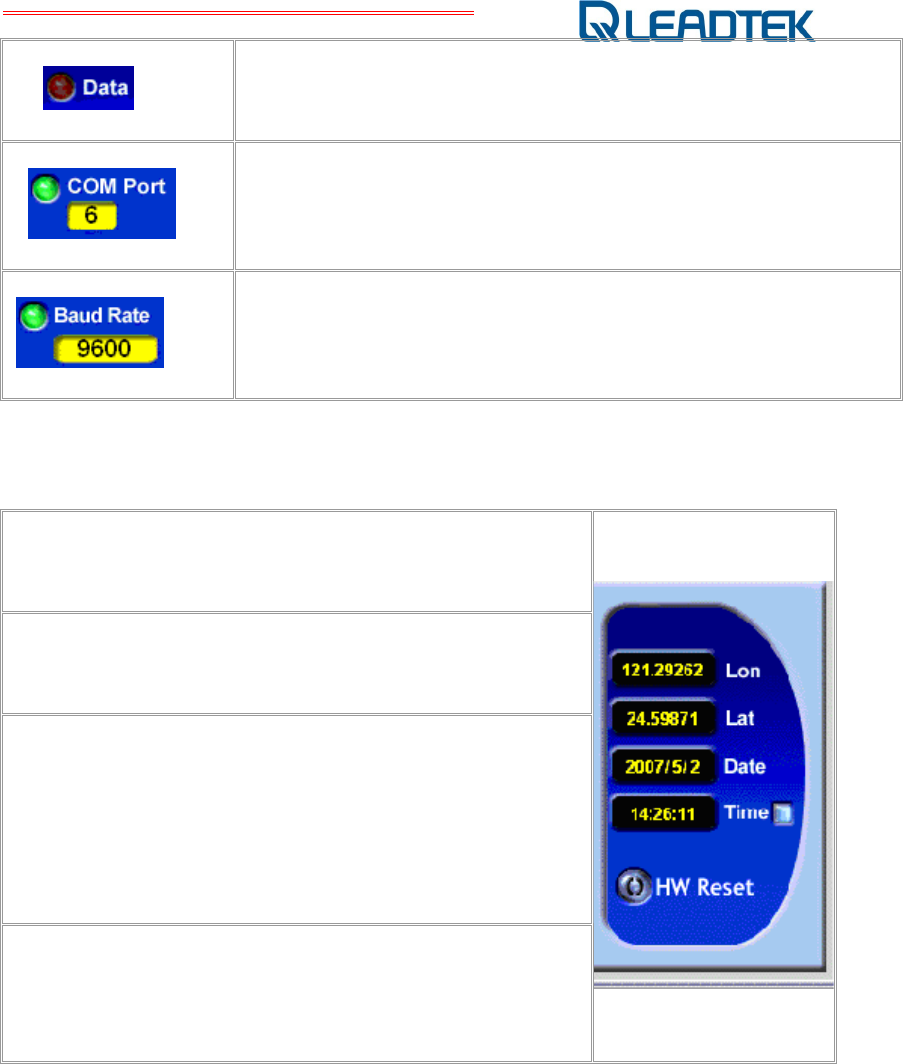

Data transmission display
When there is data flow, it will blink.
COM Port Used
It shows the number of the Com Port Used.
Baud Rate
It shows the transmission rate.
4. Positioning information
Lon
The longitude at that the user is.
Lat
The latitude at which the user is.
Date & Time
The date and time will be shown in GMT (Greenwich Mean Time)
which is calculated
by the satellites. If you want to change the
time which you are located in, just press the square button
beside “Time” to adjust the time.
HW Reset
To reset the default value, such as cold start, warm start, hot
start, factory and so on.
Step 2
Turn on the power switch, you can choose the mode of navigation and log both or the mode of
log only for more operation time.
Step 3
When the memory is full, the green light will be constantly on and the data logging will be
ceased. You should now download the data to your computer and then the data logging will
![](/img.php?id=849455&img=bgf.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 15
continue. If the red light is quickly blinking while logging, which means the power is low, you
should immediately charge for the continuous data logging.
![](/img.php?id=849455&img=bg10.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 16
7. Install the USB Driver
<Note> Install the USB driver before connecting the USB cable.
Step 1

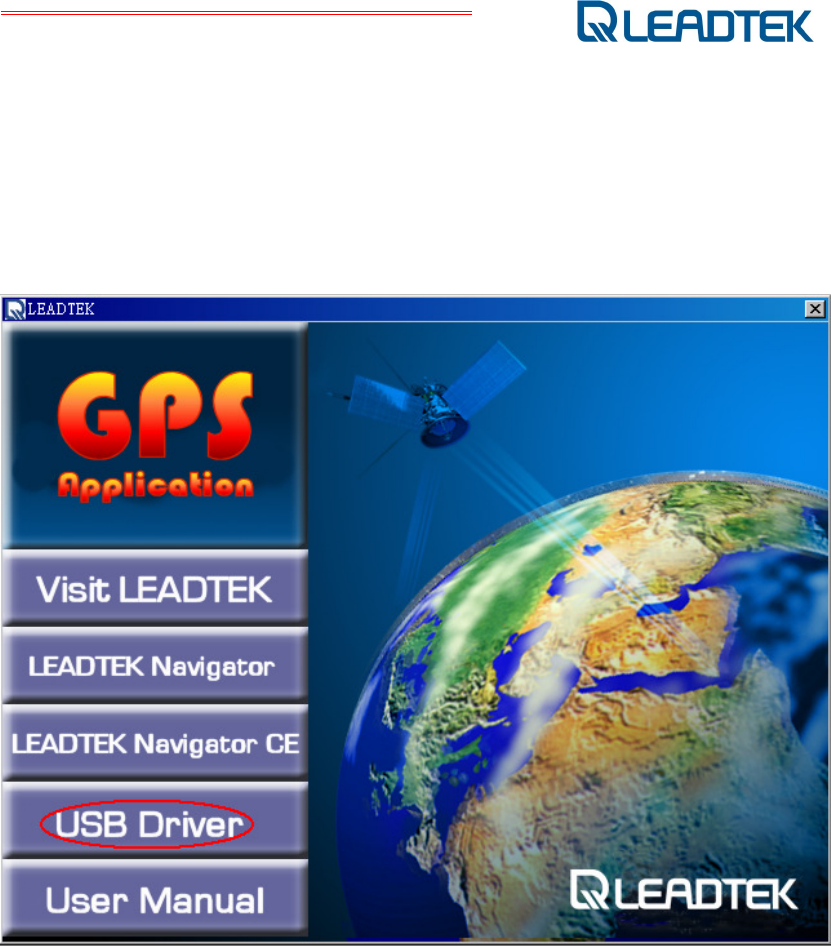

Insert the CD-ROM into the CD-ROM drive. Click “USB Driver” to proceed.
![](/img.php?id=849455&img=bg11.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 17

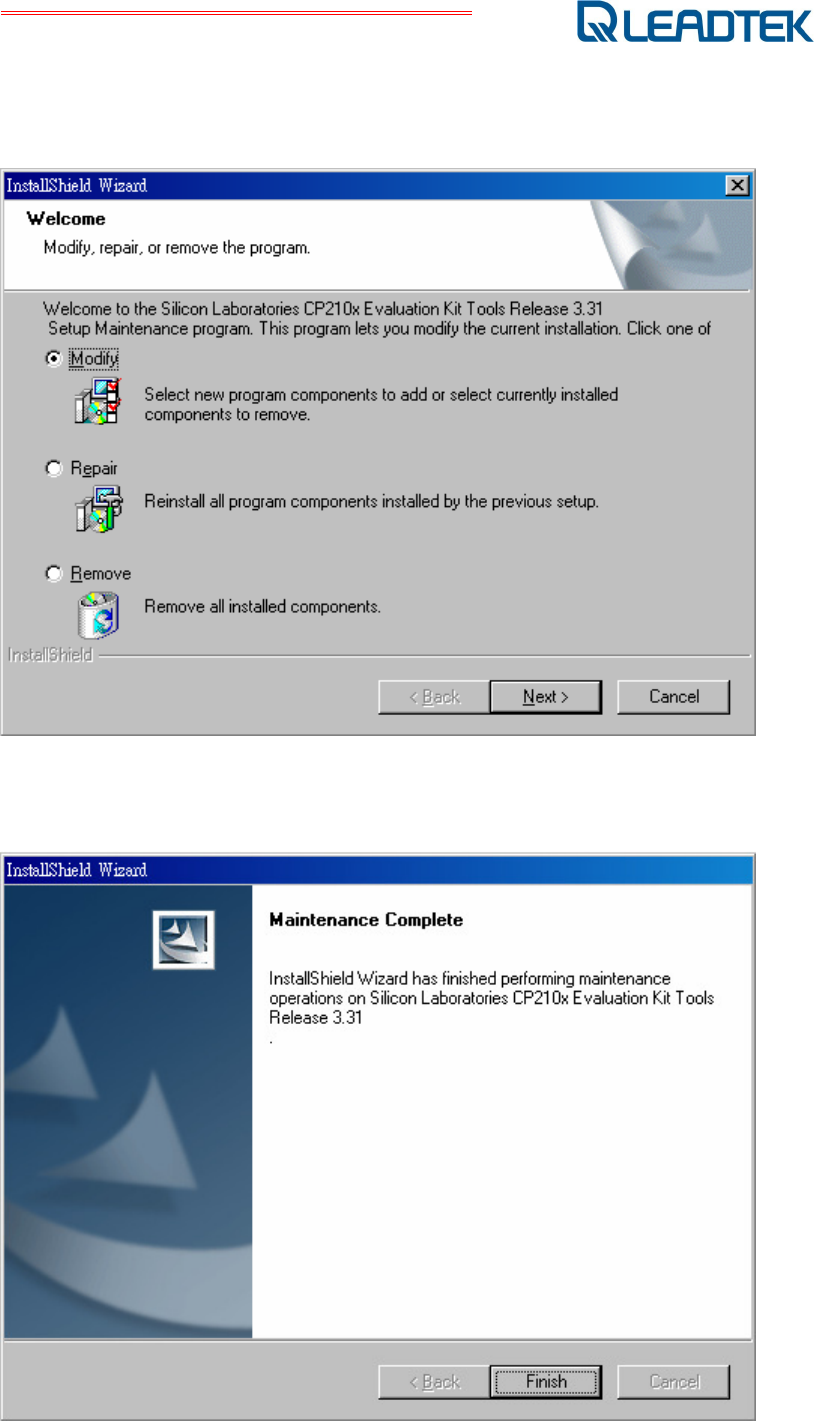

Step 2
The screen will display the following options. Click to select the option you desire. Click Next to
continue.
Step 3
Click “Finish” to finish the installation.
![](/img.php?id=849455&img=bg12.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 18
Step 4
Reboot the computer and then connect the USB cable.
![](/img.php?id=849455&img=bg13.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 19
8. Appendix A: Limited Warranty
Leadtek warrants to the original purchaser of this product that it shall be free of defects
resulting from workmanship or components for a period of one (1) year from the date of sale
(The region of Europe is exceptional, see the warranty card enclosed for the validity). Defects
covered by this Warranty shall be corrected either by repair or, at Leadtek's discretion, y
replacement. In the event of replacement, the replace unit will be warranted for the remainder
of the original one (1) year period or thirty (30) days, whichever is longer.
There are no other oral or written warranties, expressed or implied, including but not
limited to those of merchantability or fitness for a particular purpose. This Limited Warranty is
nontransferable and does not apply if the product has been damaged by negligence, accident,
abuse, misuse, unauthorized use, or shipment to the Manufacturer or service by someone
other than the Leadtek. Transportation charges to Leadtek are not covered by this Limited
Warranty. To be eligible for warranty service, a defective product must be sent to and received
by Leadtek within fifteen (15) months of the date of sale, together with proof of purchase.
Leadtek does not warrant that this product will meet your requirements; it is your sole
responsibility to determine the suitability of this product for your purposes. Leadtek does not
warrant the compatibility of this product with your computer, related peripherals, or software.
Leadtek's sole obligation and liability under this warranty is limited to the repair or replacement
of a defective product. The manufacturer shall not, in any event, be liable to the purchaser or
any third party for any incidental or consequential damages or liability in tort relating to this
product or resulting from its use or possession.
![](/img.php?id=849455&img=bg14.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 20
9. Appendix B: Specifications
Technical Performance
Feature Item Description
Chipset GSW3 SiRFStarIII LP technology
Frequency L1, 1575.42 MHz
C/A code 1.023 MHz chip rate
General
Channels 20
10 meters, 2-D RMS
5 meters 2-D RMS, WAAS corrected
Position
<5meters, 2-D RMS, DGPS corrected
Velocity 0.1 meters/second
Accuracy
Time 1 microsecond synchronized to GPS time
Datum Default WGS-84
Reacquisition 0.1 sec., average
Hot start 1 sec., average typical TTFF
Warm start 35 sec., average typical TTFF
Time to First Fix
(TTFF)
(Open Sky &
Stationary
Requirements)
Cold start 42 sec., average typical TTFF
Switch mode ON/OFF; Navi & Log; Log only
Flash Memory 4MB
Recording Interval Every 15 sec. (User can configure settings)
Waypoints 60,000 points (Position, Date, Time & Altitude)
Data Log
Duration 240 hrs (continuous usage)
Altitude 18,000 meters (60,000 feet) max.
Velocity 515 meters/second (1000 knots) max.
Dynamic
Conditions
Acceleration 4g, max.
Main power input 5±5%(10%)V DC input
Power
Power consumption ≈300 mW (continuous mode)
![](/img.php?id=849455&img=bg15.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 21
Interface Specifications
Items Description
Mini-USB connector Power Recharge & GPS data download
Bluetooth
Frequency 2.4GHz ISM Band
Compliant Bluetooth Specification v 1.2
Compliant Profile Series Port Profile (SPP)
Bluetooth Operation Range 10 M
Electrical
Main power input 5±5%(10%)V DC input
Power consumption 0.4W@3.3VDC (Full Power)
Backup Power 1.5±10%V DC input
Operation Time 12 hours (750mAh Li-Ion battery)
Battery Electrical
Battery Cell Li-ion (750mA)
Output Voltage 2.3V~4.2V ±0.025V
LED
LED 1 (GPS)-Green
State Always on Quick blinking Slowly blinking
Description Memory full to stop 3D fixed GPS signal acquisition
LED 2 (Bluetooth)-Blue
State Quick blinking Slowly blinking No
Description BT on, but not connected yet
BT connected BT off
LED 3 (Power)-Red
State Always on Quick blinking No
Description Battery is charging Low power Battery is fully charged
![](/img.php?id=849455&img=bg16.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 22
Environmental Characteristics
Items Description
Operating temperature range -10 deg. C to +50deg. C
Storage temperature range -20 deg. C to +65 deg. C
Physical Characteristics
Items Description
Length 60.2 mm (2.37 in)
Width 33.0 mm (1.30 in)
Height 17.8 mm (0.70 in)
Weight 48 g (including rechargeable battery)
![](/img.php?id=849455&img=bg17.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 23
10. Appendix C: Safety Information
GPS is operated by the US government, which is solely responsible for the system’s
accuracy and maintenance. Although Leadtek GPS LR9553D is a high precision electronic
NAVAID, it may still become unsafe under the circumstances of misuse or inaccurate reading.
Hence there is a certain degree of risks involving the use of these products. In order to reduce
the risks, please read carefully all the documentation regarding technical specifications before
using Leadtek GPS LR9553D. When in use, compare carefully the GPS results with all
navigation information available, including that from other NAVAID, naked eye view, routes,
etc. For safety reasons, it is necessary to solve all the problems before continuing to navigate.
Please DO NOT shake or clash this device, and please be aware that the dust-proof and
water-proof are NOT guaranteed. The rechargeable battery is built inside, so please DO NOT
detach it from the device arbitrarily. Meanwhile, please DO NOT use this device under the
circumstances as below:
1. In extremely hot, humid or cold environment, for example, under the direct sun or in rain
2. Near the strong magnetic field
3. In dusty weather
![](/img.php?id=849455&img=bg18.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 24
11. Appendix D: GPS FAQ
Q. Do I have to pay extra charges for receiving GPS signals?
A. No. Like listening to the radio, you only need to buy hardware (PC+GPS or PDA+GPS) to
access the service. There is no extra charge.
Q. I bought a GPS device in Taiwan. Can I use it abroad?
A. Yes. GPS signals cover 98% of Earth’s surface (except the North and South Poles), so you
can use it around the world.
Q. What datum does GPS devices use?
A. It uses WGS 84.
Q. What causes time lapses in navigation? My vehicle has arrived at a specific location, but
why did not the vehicle indicator in the navigation system reach there at the same time?
A. There are several possible causes:
1. Poor reception of GPS signals;
2. The processing speed of CPU, RAM and memory card on the PDA;
3. Time lapses are inevitable because GPS is updated once a second.
Q. What kind of navigation software can I use?
A. Generally you can use any navigation software featuring NMEA1083 as the data output
format.
Q. My device has been successfully connected, but why can’t I see GPS signals in Navigator,
and why does GPS fail to position?
A. This may be caused by errors in COM port settings. The automatic GPS scan function of
general electronic maps may lead to failure in GPS positioning. We suggest that you set the
options manually.
Q. After using Navigator for positioning, why can’t I find the GPS antenna on the electronic
map?
A. Navigator is an application developed by Leadtek to test GPS navigation. After launching
Navigator, if you press x or go to the map without disconnecting the program, it will occupy
the GPS antenna’s COM port. In that case, the map is unable to find the device. To solve
this problem, disconnect Navigator before exiting the program.
![](/img.php?id=849455&img=bg19.png)
Leadtek GPS LR9553D Bluetooth Data logger & Receiver
©2007 Leadtek Research Inc. All rights reserved. 25
Q. Why can’t I use GPS at home or near the window?
A. GPS is for outdoor navigation only, so your device cannot receive GPS signals at home.
Especially because it usually takes longer to navigate when you use GPS for the first time,
make sure that you are in an outdoor place with good signal reception.
Q. When do I need to run Cold Start?
A. We suggest that you run Cold Start in the following situations: (1) it has been two weeks
since your previous navigation; (2) the location you want to position is more than 500 km
away from that of your previous navigation.
Q. What is the pin code for the Bluetooth GPS?
A. 0000.
Q. Do I need any driver to use Bluetooth GPS?
A. No, you don’t.
Q. Could you tell me the specifications of your GPS product, such as size, chip version, initial
booting time and so on?
A. If you can’t find the information you want in this Installation Guide, please visit our website
for more details: www.leadtek.com
Product ID: Leadtek GPS LR9553D
Leadtek GPS LR9553D Bluetooth Data Logger & Receiver
Installation Guide
Version A
June 2007
Headquarters
18F, 166 Chien-Yi Rd., Chung Ho City, Taipei County 23511, Taiwan
TEL: +886(0)2 8226 5800
FAX: +886(0)2 8226 3087
http://www.leadtek.com
E-mail: service_gps@leadtek.com
Leadtek Research Inc.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
RF exposure warning ·
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
