Leadtek Research LR9821 Wireless GPS Receiver User Manual 9821 Specification 20030415
Leadtek Research Inc Wireless GPS Receiver 9821 Specification 20030415
User Manual
.
TomTom Wireless GPS Receiver
Specification
GPS 9821
Version 1.2 beta
15 April 2003
All Rights Reserved
.
i
Contents
1 MAIN FEATURES .........................................................................................................................1
2 SPECIFICATIONS.........................................................................................................................1
2.1 ELECTRICAL CHARACTERISTICS .............................................................................................1
2.2 ENVIRONMENTAL CHARACTERISTICS .....................................................................................2
2.3 PHYSICAL CHARACTERISTICS..................................................................................................3
2.4 REGULATORY STANDARDS.......................................................................................................3
3 ACCESSORIES ..............................................................................................................................3
3.1 POWER ......................................................................................................................................3
3.2 MOUNTING................................................................................................................................3
4 OPERATION ..................................................................................................................................5
4.1 HARDWARE DESCRIPTION ........................................................................................................5
4.2 TURN ON/OFF.............................................................................................................................5
4.3 CHARGING .................................................................................................................................6
4.4 BLUETOOTH COMMUNICATION ...............................................................................................6
4.5 GPS...........................................................................................................................................6
4.6 PIN CODE ...............................................................................................................................6
5. NOTICES.........................................................................................................................................7
5.1 GLOBAL POSITIONING SYSTEM ................................................................................................7
5.2 AIRCRAFT AND HOSPITALS ......................................................................................................7
5.3 HEAT REFLECTIVE SHIELDS ....................................................................................................7
5.4 IMPORTANT ...............................................................................................................................7
5.5 BATTERY ...................................................................................................................................7
5.6 FCC ...........................................................................................................................................8
.
- -
1
1 Main Features
12 Channels “All-In-View” Tracking
Position accuracy of 10 meters 2D RMS
Cold/Warm/Hot Start Time: 45/38/8 Seconds
Reacquisition Time: 0.1 seconds
RF connector for external GPS antenna
Supports Standard NMEA-0183
Supports Trickle Power mode Power Saving
Compatible with Bluetooth devices with Serial Port Profile (SPP)
Superior Sensitivity for Urban Canyon and Foliage Environment
Small, sleek, and lightweight design easily fits in your hand
Two LEDs indicating Bluetooth and GPS activity
Lithium-ion battery lasting full working day typical use
On/off push button
Dimensions: 1.81” x 3.38” x 0.75” / 46mm x 86mm x 19mm
2 Specifications
2.1 Electrical Characteristics
General
Chipset SiRF Star IIe/LP
Frequency L1, 1575.42 MHz
C/A code 1.023 MHz chip rate
Channels 12 channel all-in-view tracking
Antenna Type Built-in Ceramic patch antenna
External antenna optional
Accuracy
Position 10 meters, 2D RMS
Velocity 0.1 meters/second
Time 1 microsecond synchronized to GPS time
Datum
Default WGS-84
Acquisition Rate (Open sky, stationary)
Reacquisition 0.1 sec., average
Snap start 2 sec., average
Hot start 8 sec., average
Warm start 38 sec., average
Cold start 45 sec., average
.
- -
2
Dynamic Conditions
Altitude 18,000 meters (60,000 feet) max.
Velocity 515 meters/second (1000 knots) max.
Acceleration 4g, max.
Jerk 20 meters/second
3, max.
Power
Operational Power 3.3VDC±10% (from internal Lithium-Ion battery pack)
Charging Power 5VDC±10%
Battery Source Rechargeable 600mAh Lithium-Ion battery with 5V DC input
charging circuit
Battery Charging Full charge 2 hours
Backup Power 3.3V (internal onboard rechargeable backup battery)
Operational Current The device is enabled by Lithium-Ion battery only.
GPS position(patch) GPS not position(patch)
BT connect BT not connect BT connect BT not connect
Current
consumption
Continuous
mode
95~105 mA
Trickle-power mode
15--5sec -->65mA
65--1sec-->15mA
98~108mA 65~75mA
Remark 1. Battery is not charging state.
2. The current consumption of active antenna is 21mA
Typical Operation Typical use 6- 8 hours
GPS and Bluetooth fully active 4.5 - 6 hours
Main Interface
Connection Communication via Bluetooth Serial Port Profile (SPP)
Protocol messages NMEA-0183 Version 2.20 output protocol
Default output format: GGA(1sec), GSA(5sec),
GSV(5sec),RMC(1sec),VTG(1sec)
2.2 Environmental Characteristics
Humidity range 5% to 95% No condensing
Operating temperature range -20 C to +60 C (-4 F to 140 F)
Battery discharge -20 C to +60 C (-4 F to 140 F)
Battery charge 0 C to +40 C (32 F to 104 F)
Short period storage temperature (1 month) -20 C to +50 C (-4 F to 112
F)
.
- -
3
Long time storage temperature(>1 month) -20 C to +35 C (-4 F to 95 F)
2.3 Physical Characteristics
Length 3.38” / 86 mm
Width 1.81” / 46mm
Height 0.75” / 19 mm
Weight 2.6 oz. / 75g
Antenna connector MC plug - Note: The internal antenna will be disabled when an
external antenna is connected
Power connector 3.5mm
Cradle connector Power connector for TomTom Wireless GPS cradle with cover
2.4 Regulatory Standards
Operationl BQB
Safety CE
Electrical FCC Class B, ICES-003 Class B, E-Mark
3 Accessories
3.1 Power
Cigarette Lighter Adapter Cigarette Lighter Adapter for in-vehicle use.
Supports 12V and 24V. Inline splitter optionally allows
simultaneous charging of GPS receiver and PDA or smartphone
with the extra PDA powercable (5V, 3.5mm connector),
compatible with most PDA’s. iPaq inline converter provided.
Mains Adapter Mains Adapter for charging. Supports 110V-220V. Multiple
AC plugs provided for US, UK and Europe.
Vehicle connection TomTom Wireless GPS cradle connects to either the Cigarette
Lighter Adapter, or directly to the vehicle’s electrical system
with provided cable.
3.2 Mounting
Magnetic Strong magnets for mount on magnetic surface. Rooftop use
not advised (theft, weather, loss). Adhesive magnetic plate
for dashboard provided.

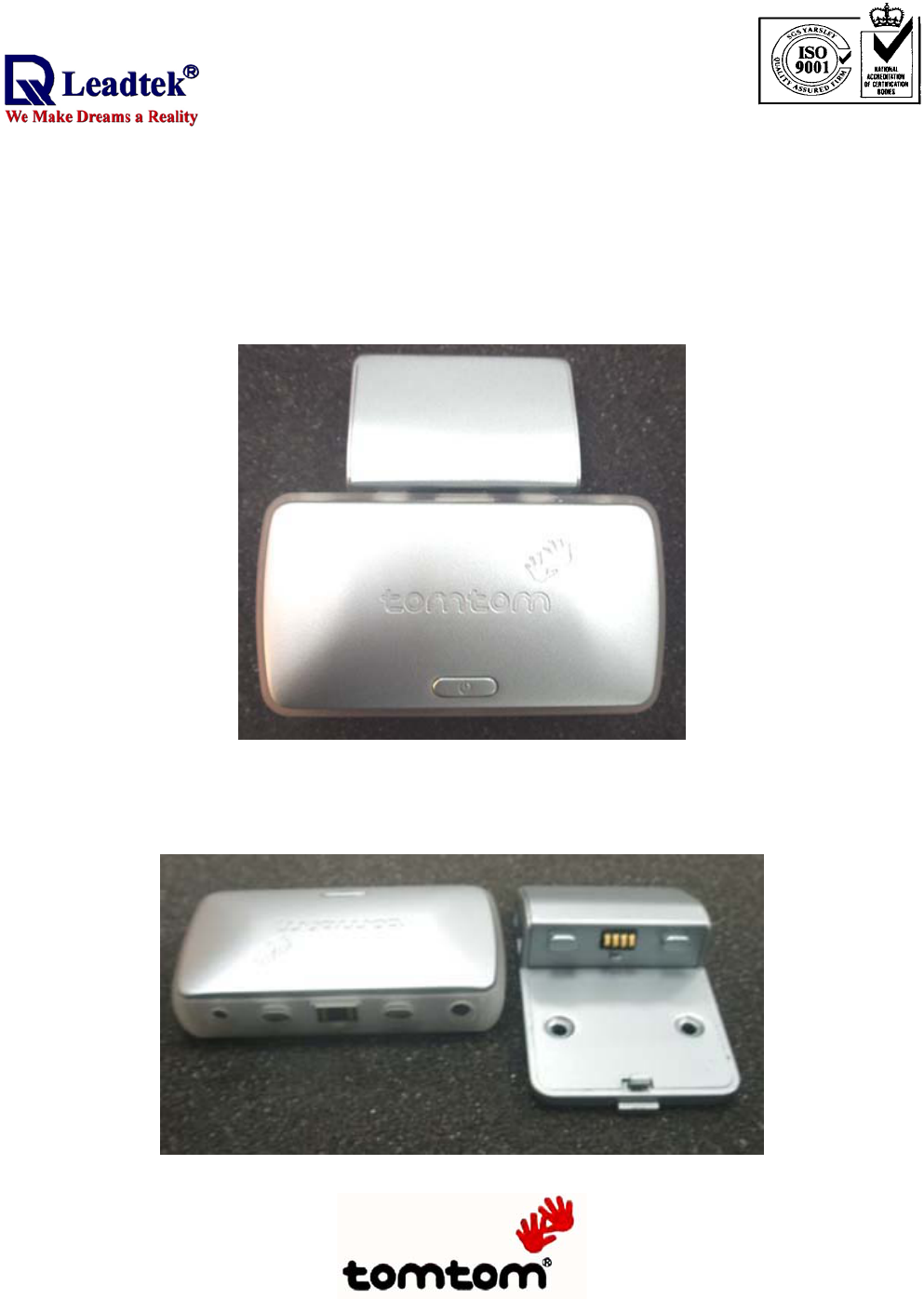

Cradle Multi-function cradle for office use (charging) or in-vehicle
mounting. Includes adhesive tape for attachment to windshield,
or screwholes for permanent mounting. Cradle powers and
charges TomTom Wireless GPS if connected to 5V supply
(Cigarette Lighter Adapter or Mains Adapter) or 12V-24V
supply (vehicle’s electrical system).
.
- -
4
.
- -
5
4 Operation
4.1 Hardware Description

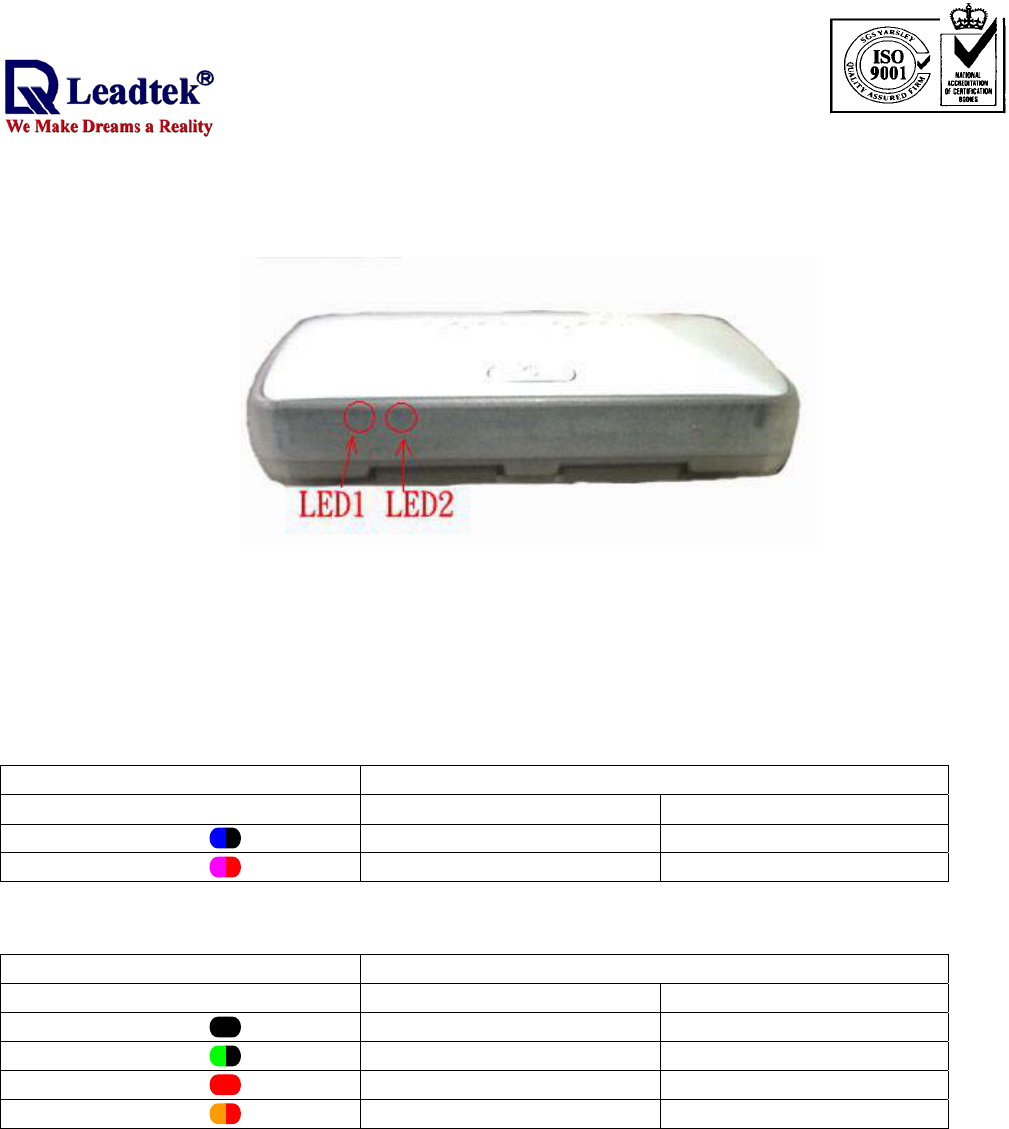

The Bluetooth GPS has two LED light which each has two colors. One is GPS & Charge status LED,
that is named LED 2, and the other is Bluetooth & low power status LED, that is named LED 1. The
status table of LED shows as follows:
<State Table of LED>
LED1
BT & Low Power LED Description
LED1 Color and Action Bluetooth Active Low Power
Blue Flash Yes No
Purple–Red Flash Yes Yes
LED2
GPS & Charge LED Description
LED2 Color and Action Battery Charged Position Fixed
Dark No No
Green Flash No Yes
Orange Yes No
Orange-Red Flash Yes Yes
4.2 Turn on/off
Turn on To turn on the receiver, press the power button on the topside
briefly (0.5 seconds). The right LED(LED 2) indicator will flash
briefly. The left LED(LED 1) indicator will start flashing. Note:
When the Receiver is in the cradle, it will switch on when power
to the cradle is switched on (to synchronize with vehicle ignition).
Turn off To turn off the receiver, press the power button on the topside for
3 seconds. The LED indicator will flash briefly before switching
.
- -
6
off the receiver. Note: When the receiver is in the cradle, the
receiver will switch off if the power to the cradle is interrupted or
switched off (to synchronize with vehicle ignition).
4.3 Charging
Low Power The left LED(LED 1) indicator will turn RED (normally BLUE)
when battery power becomes low. Connect the receiver to a
powers source to continue operation and to recharge the battery.
Charging The right LED(LED 2) indicator will turn RED (or ORANGE)
when the battery is being charged. When fully charged, the RED
indicator will switch off.
4.4 Bluetooth Communication
Waiting to connect The left LED(LED 1) indicator will flash if there is no
communication between the receiver and another device.
Connected The left LED(LED 1) indicator will turn to continuous lighting
when the receiver is connected through the wireless link with
another device.
4.5 GPS
Navigating The right LED will flash GREEN (or ORANGE when charging) if
the receiver is able to determine the current position.
4.6 PIN CODE
The PIN code means Personal Identification Number for Bluetooth device and it is also
called as Pass Key. The Bluetooth GPS receiver has the default PIN Code, and is “0000”. Generally
speaking, there are two steps in Bluetooth connecting. One is pairing process, the other is link process.
If you need PIN code to pairing and connect, you can use the default pin code, “0000” to connect
Bluetooth device. Our GPS receiver belongs to non-safety connecting, you can use in general
application to finish connecting.
.
- -
7
5. Notices
5.1 Global Positioning System
The Global Positioning System (GPS) is operated and maintained by the Government of the United
States of America who are responsible for the availability and the accuracy of the system. Changes in
the operation, availability and accuracy may affect the operation of your GPS receiver.
5.2 Aircraft and Hospitals
Use of devices with an antenna is prohibited on most aircraft and in many hospitals. The TomTom
Wireless GPS receiver is a receiving and transmitting device with two antenna’s and should not be used
in these environments.
5.3 Heat Reflective Shields
Modern vehicles may have a heat reflective shield in the windshield, preventing proper GPS signal
reception if the receiver is placed under the windshield. To get proper reception:
(a) Use an external antenna, or
(b) Place the receiver in a different position, or
(c) Attach the cradle to the windshield behind the rearview mirror, where many vehicles have an
opening in the heat reflective shield, indicated by a black outline.
5.4 Important
The information in this document is subject to change without notice. No liability shall be assumed for
technical or editorial errors or omissions contained herein; nor for incidental or consequential damages
resulting from the performance or use of this material. This document contains information protected by
copyright.
5.5 Battery
This product uses a Lithium-Ion battery. Please charge fully before first use. Operation in low (below 0
C/32 F or high (over 40 C/110 F) temperatures will affect power supply efficiency and the
ability to charge the battery. All Lithium-Ion batteries will experience power supply efficiency
deterioration over time even if not used and have a limited life expectancy. Permanently powering the
battery will reduce life expectancy. Do not use your product in a humid, wet and/or corrosive
environment. Do not put, store or leave your product in or near a heat source or in a high temperature
location and do not expose it to temperature over 60 C(140 F). Failure to follow these
guidelines may cause the Lithium-Ion battery to become hot, explode or ignite and cause
injury and/or damage. THE LITHIUM-ION BATTERY CONTAINED IN THE PRODUCT MUST BE RECYCLED
OR DISPOSED OF PROPERLY. USE ONLY WITH SUPPLIED CHARGER(s) AND SUPPLIED AC ADAPTOR FOR
.
- -
8
BATTERY CHARGING.
5.6 FCC
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Any changes or modifications not expressly approved by the grantee of this device could void the user’s
authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Leadtek Research Inc.: 18F, 166, Chien-Yi Rd., Chung Ho, Taipei Hsien, Taiwan (235)
Phone: +886-(0)2 8226 5800 Fax: +886-(0)2 8226 5801
Leadtek U.S.A.: 46721 Fremont Blvd., Fremont, CA94538, U.S.A.
Phone: +510 490 8076 Fax: +510 490 7759
Leadtek Research Europe B.V.： Antennestraat 16 1322 AB, Almere – The Netherlands
Tel:+31(0)36 536 55 78 Fax:+31(0)36 536 22 15
E-mail: service@leadtek.com.tw Home Page: www.leadtek.com.tw
Leadtek Research Inc.: 18F, 166, Chien-Yi Rd., Chung Ho, Taipei Hsien, Taiwan (235)
Phone: +886-(0)2 8226 5800 Fax: +886-(0)2 8226 5801
Leadtek U.S.A.: 46721 Fremont Blvd., Fremont, CA94538, U.S.A.
Phone: +510 490 8076 Fax: +510 490 7759
Leadtek Research Europe B.V.： Antennestraat 16 1322 AB, Almere – The Netherlands
Tel:+31(0)36 536 55 78 Fax:+31(0)36 536 22 15
E-mail: service@leadtek.com.tw Home Page: www.leadtek.com.tw
