Lectrosonics IFBT4V Low Power Auxiliary Base Station User Manual IFBT4man indd

Lectrosonics Inc Low Power Auxiliary Base Station IFBT4man indd

users manual

T4
Multi-Frequency IFB Transmitter
INSTRUCTION MANUAL
Rio Rancho, NM, USA
www.lectrosonics.com
Fill in for your records:
Serial Number:
Purchase Date:
Featuring Digital Hybrid Wireless Technology
T4
LECTROSONICS, INC.
2
Multi-Frequency IFB Transmitter
Rio Rancho, NM 3
Table of Contents
Introduction .............................................................................................................................................................................................4
General Technical Description ..............................................................................................................................................................5
Audio Input Interface .............................................................................................................................................................................5
Audio Processor ....................................................................................................................................................................................5
Compandor Noise Reduction ................................................................................................................................................................5
T4 IFB Transmitter Block Diagram ........................................................................................................................................................5
Pilot Tone ..............................................................................................................................................................................................6
Frequency Synthesizer .........................................................................................................................................................................6
Power Delay ..........................................................................................................................................................................................6
Microcontroller ......................................................................................................................................................................................6
Transmitter ............................................................................................................................................................................................6
Antenna System ....................................................................................................................................................................................6
Front Panel Controls and Functions .....................................................................................................................................................7

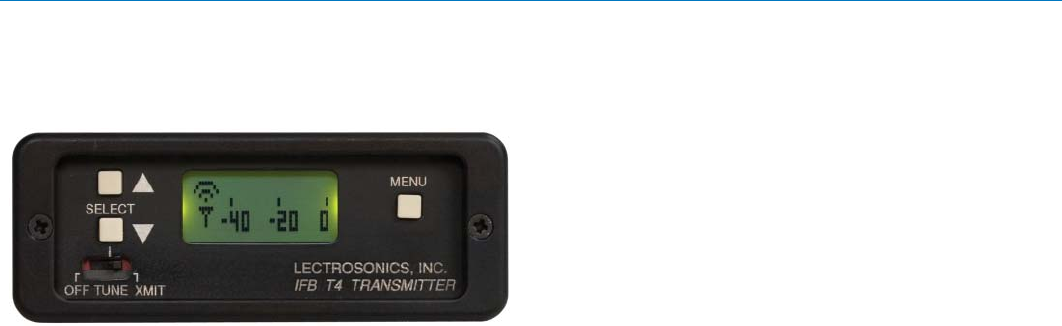

T4 Front Panel ......................................................................................................................................................................................7
OFF/TUNE/XMIT Switch .......................................................................................................................................................................7
Power Up Sequence .............................................................................................................................................................................7
LCD Display ..........................................................................................................................................................................................7
Freq Buttons (Up and Down) ................................................................................................................................................................7
Audio Level Control ...............................................................................................................................................................................7
Rear Panel Controls and Functions ......................................................................................................................................................8

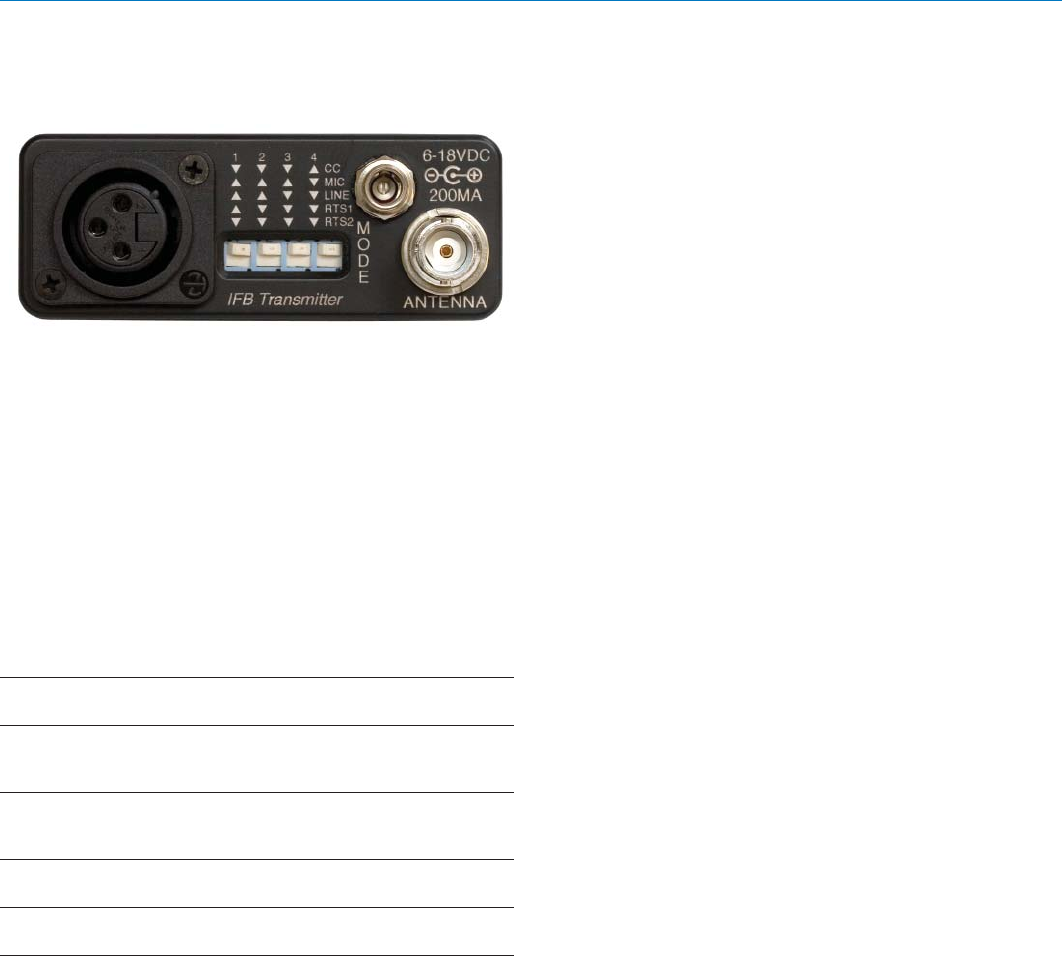

T4 Rear Panel .......................................................................................................................................................................................8
XLR Jack ...............................................................................................................................................................................................8
Mode Switches ......................................................................................................................................................................................8
12 VDC (Power Input Connector) ..........................................................................................................................................................8
Antenna .................................................................................................................................................................................................8
Installation and Operation .....................................................................................................................................................................9
Operating Notes ....................................................................................................................................................................................10

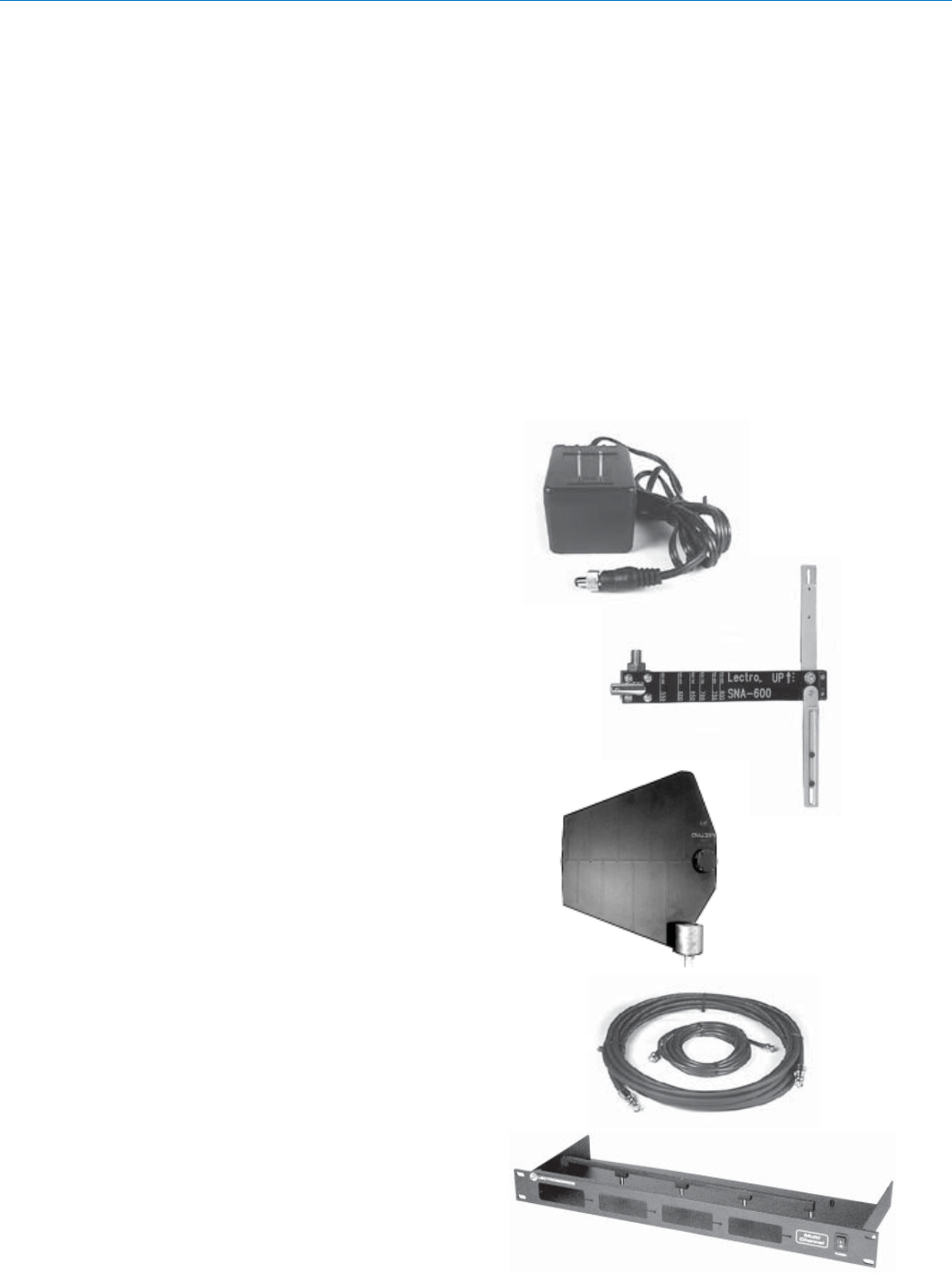

Accessories ..........................................................................................................................................................................................10
Troubleshooting ....................................................................................................................................................................................11
Frequency Blocks and Ranges ...........................................................................................................................................................12
Specifi cations .......................................................................................................................................................................................13
Service and Repair ...............................................................................................................................................................................14
Returning Units for Repair ..................................................................................................................................................................14
Introduction
Thank you for selecting the Lectrosonics frequency
agile, narrowband, T4 IFB (Interruptible Foldback) trans-
mitter. The T4 is the result of over 100 years of engi-
neering experience with the very latest components, in
a design that addresses the most demanding profes-
sional applications.
The Lectrosonics T4 IFB Transmitter along with the
companion R1 or R1a IFB Receivers allow on-air talent
to monitor program audio and receive cues from direc-
tors and other production personnel.

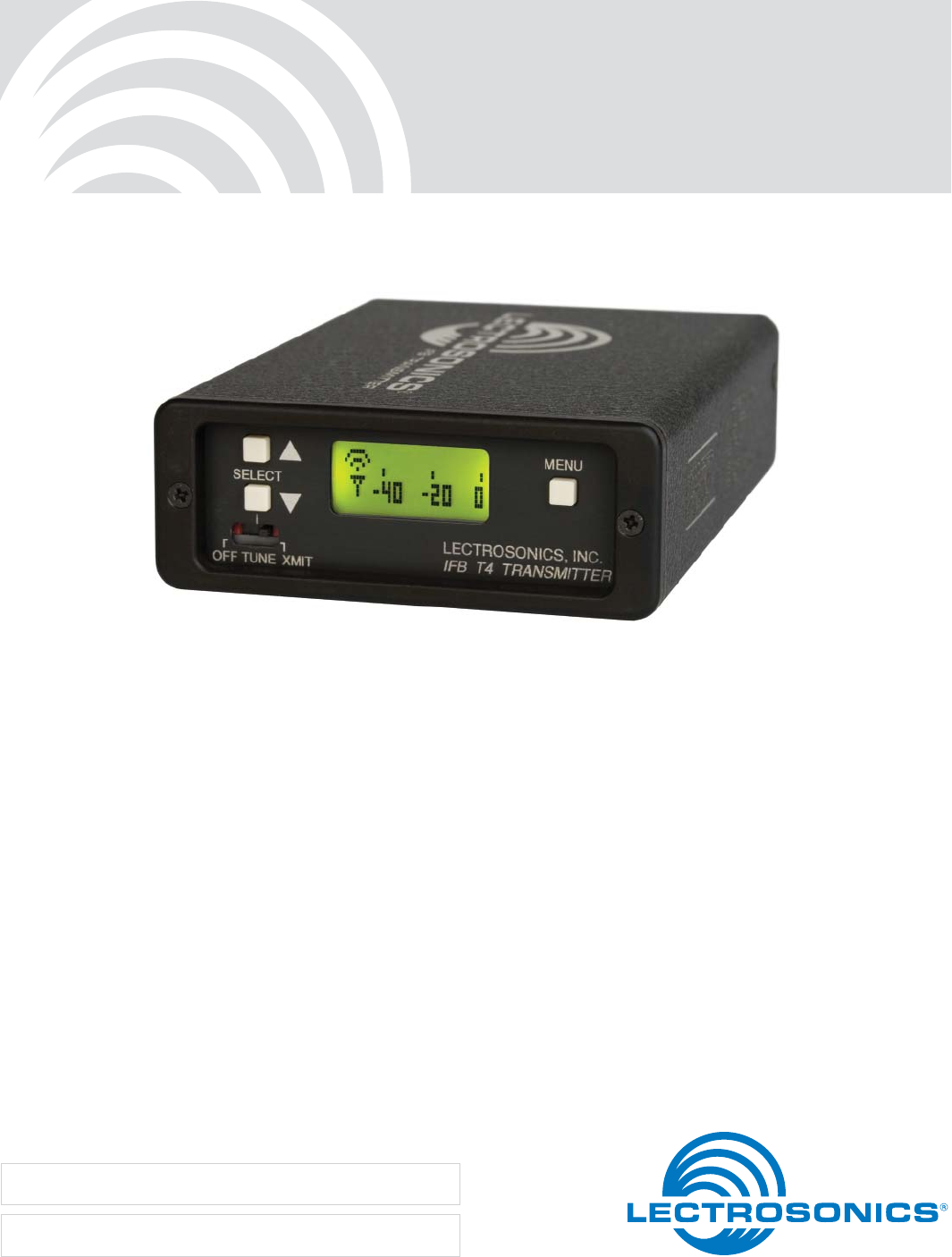

The T4 IFB Transmitter is a rugged, machined alu-
minum package. The input section is adjustable for
virtually any microphone or line level audio source. The
antenna is a detachable, locking 1/4 wavelength fl exible
bronze cable that connects to a 50 Ohm BNC connector
on the transmitter.
Only the T4 IFB Transmitter is covered in this manual.
Companion receivers are covered in separate manuals.
The T4 IFB Transmitter will operate with any Lectro-
sonics R1 or R1a IFB Receiver in the same frequency
group.
The T4 is also compatable with the Lectrosonics 100
Series, 200 Series, and 400 Series receivers as well as
several other brand systems.
T4
LECTROSONICS, INC.
4
The T4 IFB Transmitter is comprised of a number of
functional subsystems, including Audio Input Interface,
DSP Audio Processor and Pilot Tone, Frequency Syn-
thesizer, Microcontroller, Transmitter, Antenna System
and Power Supply. (See block diagram.)
The T4 is designed to operate primarily with the Lectro-
sonics R1 and R1A IFB receivers, and is also capab-
able of operating with the Lectrosonics 100 Series, 200
Series, 400 Series receivers. The T4 features micro-
processor control of 256 operating frequencies within
any one of at least nine UHF frequency bands and the
944MHz band.
The T4 uses 20 kHz deviation in the IFB and 100 series
modes for an effi cient use of bandwidth. The 200
Series and 400 Series modes use 75kHz bandwidth for
high signal to noise ratio. The transmitter circuits are all
regulated for frequency stability and high audio per-
formance. The input amplifi er is a discreet differential
circuit which can be adjusted to allow the use of many
different input sources with robust overload capability
without clipping.
Audio Input Interface
The input sensitivity and XLR pin functions can be cus-
tomized using a DIP switch located on the back panel.
Different combinations of gain and input confi gurations
are possible without rewiring the mic connector. Pin

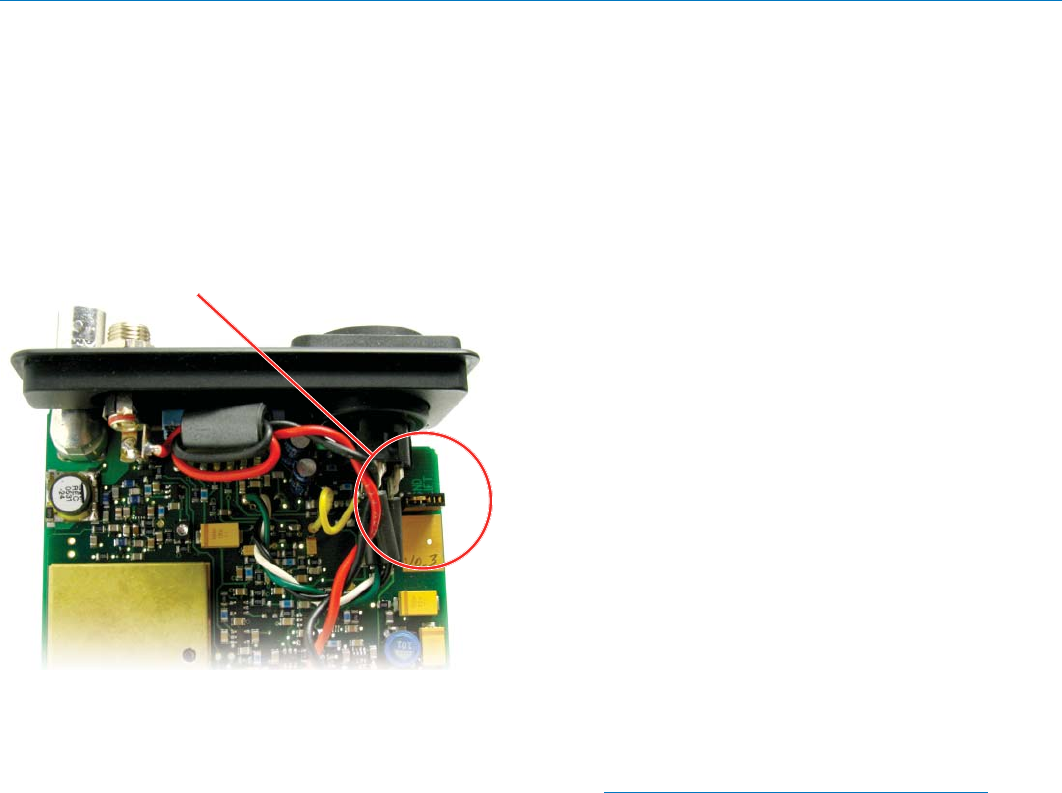

1 of the XLR input connector is normally connected
directly to ground but an internal jumper can be moved
if a fl oating input is desired.
The Audio (+) and (–) are “dry” inputs and can each
withstand +/- 50 VDC.
Audio DSP and Noise Reduction
The original Lectrosonics IFB system was designed
with single band compand ing which is an audio device
that processes (compresses) the input signal so that
the large dynamic ranges of the input signals can be
transmitted to the receiver without overload or noise. A
complementary system in the receiver recovers (de-
compresses) the original dynamics of the signal for full
audio quality. Compression and expansion ratios are
complementary at 2:1. High frequency pre-emphasis is
implemented in the transmitter to provide another 10 dB
signal to noise improvement. Matching de-emphasis is
provided in all receivers.
The IFBT4 is designed with Audio Digital Signal Proces-
sor algorithms that digitally emulate the original com-
pandor circuits in order to maintain compatability with
the IFBR1/IFBR1a, 100 Series, and 200 Series receiv-
ers using the same analog FM links. This same DSP
circuitry also provides an algorithm compatible with
the Lectosonics Digital Hybrid Wireless™ 400 Series
systems and eliminates the need for pre-emphasis and
de-emphasis.
General Technical Description

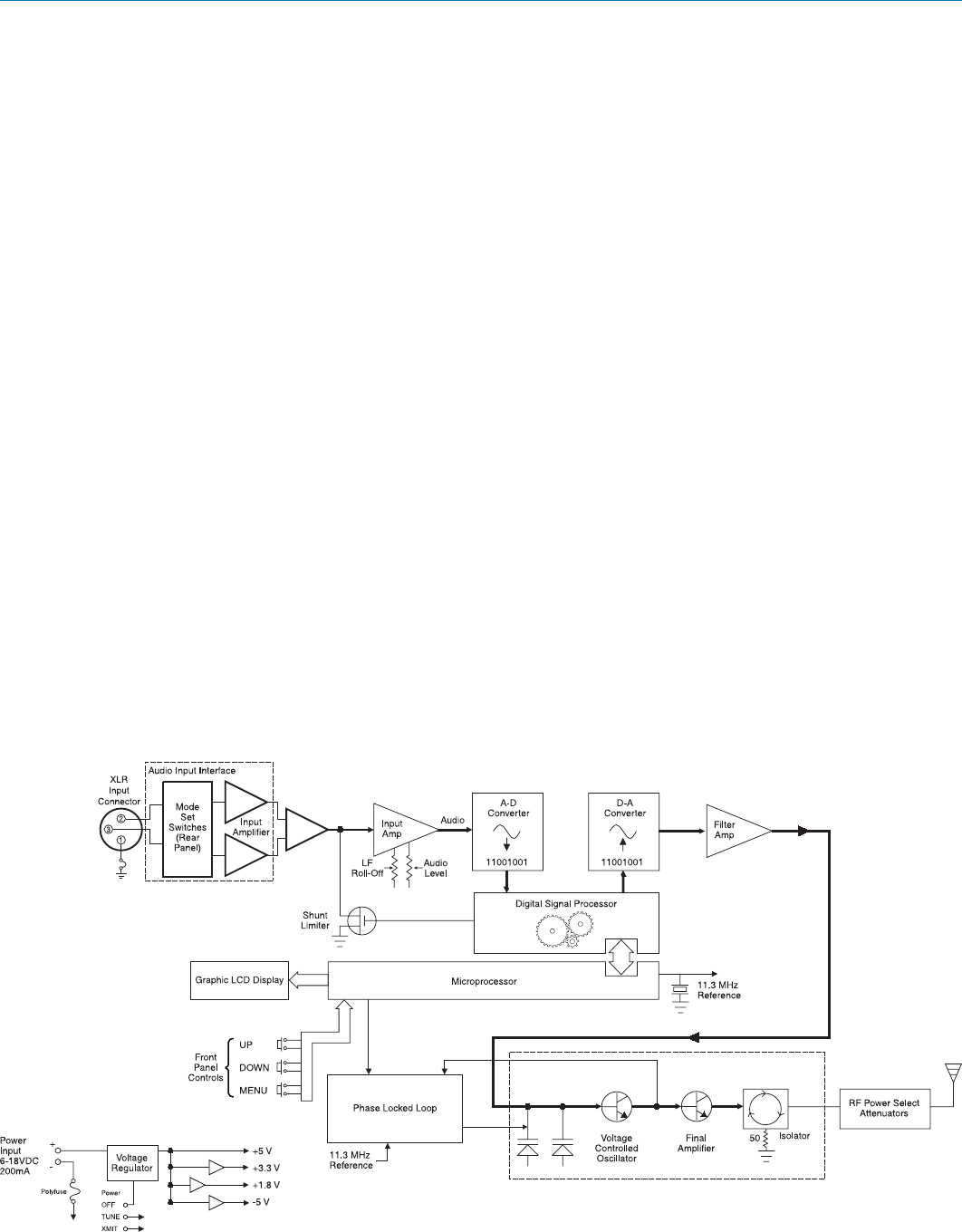

T4 IFB Transmitter Block Diagram
Multi-Frequency IFB Transmitter
Rio Rancho, NM 5
Pilot Tone
The T4/R1A system uses an ultrasonic tone modula-
tion of the carrier to operate the receiver squelch. This
“pilot tone” consists of a 29.997 kHz signal in the DSP
and is mixed with the audio signal to the FM modulator.
The pilot tone controls the audio output muting of the
receiver and is fi ltered out of the audio signal immedi-
ately after the detector in the receiver so that it does not
infl uence the compandor or various gain stages.
The benefi t of the pilot tone squelch system is that the
receiver will remain muted until it receives the pilot tone
from the matching transmitter, even if a strong RF sig-
nal is present on the carrier frequency of the system.
The T4 DSP also generates pilot tones to operate with
the 200 Series and 400 Series receivers as well as
several other popular system receivers.
Frequency Synthesizer
The transmitter uses a synthesized, frequency select-
able main oscillator. The frequency is extremely stable
over a wide temperature range and over time. The
push-button switches, located on the front panel of the
unit, provides the user access to set 256 frequencies in
100 kHz steps over a 25.5 MHz range. This signifi cantly
alleviates carrier interference problems in mobile or
traveling applications.
Power Delay
There is a fi ve second power-ON/OFF delay to prevent
audio thumps when switching from XMIT to TUNE or
from TUNE to OFF. This delay also gives the Frequency
Synthesizer time to fully stabilize. When the transmitter
is powered OFF, the Pilot Tone is fi rst turned off muting
the audio at the receiver before the rest of the transmit-
ter is powered down. This prevents clicks, thumps or
feedback from entering the sound system.
Microcontroller
Frequency adjustment and display are handled by
the microprocessor. Nonvolatile memory is provided
for holding the last frequency used, even if power is
removed from the unit for any length of time. Each time
the transmitter is powered up, it will display the last
frequency used.
Transmitter
The T4 transmitter operates at 250 mW, more power-
ful than most IFB systems on the market today. The
higher power ensures a clean signal free of dropouts
and noise. The transmitter circuits are buffered and
ltered for exceptional spectral purity. The extra clean
signal that results reduces the chances for interference
between multiple transmitter installations.
Antenna System
The antenna on the T4 consists of a fl exible 1/4 wave-
length bronze cable, detachable via a BNC connector.
The 50 ohm output connector works conveniently with a
variety of remote antennas for installation in studios and
production trucks & vans.
T4
LECTROSONICS, INC.
6
icon to indicate transmit (XMIT) mode. The MENU
button is then used to navigate to the other function
windows, see page..7? indicates the channel (or oper-
ating) frequency of the unit to the nearest 0.1 MHz (100
kHz). The LED display also indicates low input power
by blinking continuously when the input voltage drops
below 11.0 Volts.
Select Buttons (Up and Down)

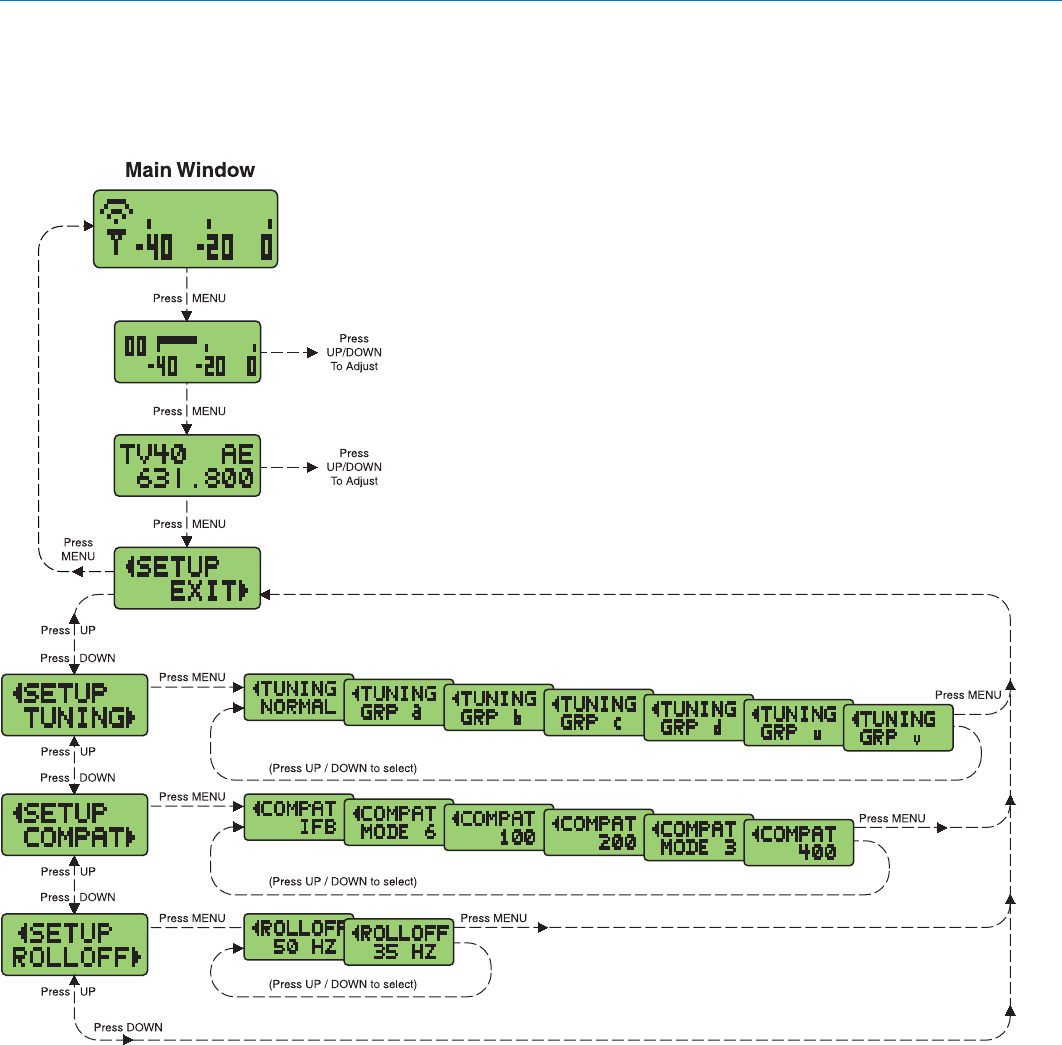

After stepping to a window using the MENU button the
UP and DOWN and MENU buttons are used to further
navigate to a selection choice. When the selection is
made the choice is entered into the processor by press-
ing the MENU again.
For example, from the MAIN window press the MENU
button once to display the Audio Input level set window.
Pressing the UP button increases the input gain and
pressing the DOWN button decreases the input gain.
Likewise, press the MENU button twice from the main
window to display the Frequency window. The transmit-
ter frequency is then changed by pressing the UP or
DOWN button. Each push will change the frequency,
up or down, in 100 kHz increments, or one channel
at a time. The FREQ buttons are enabled when the
OFF/TUNE/XMIT switch is in the TUNE position. The
frequency can be stepped a single frequency channel
at a time by a momentary push or if a selected FREQ
button is pressed for more than two seconds, the speed
of change increases to about fi ve channels per second.
Also, large increment steps can be made by holding in
the MENU button while momentarily pressing the UP or
DOWN button. The T4 will “remember” the last channel
selected when the unit is turned off, and it will set itself
to that frequency when the unit is reenergized.
When the switch is in the XMIT mode, pressing the
FREQ up/down buttons will not disturb the frequency or
the transmitter signal output.
Note: When the highest or lowest frequency is reached,
the unit will wrap around and continue in the same
direction at the other end of the range.
Rolloff
The low frequency rolloff is normally 3dB down at 35
Hz. The rolloff can be changed to 50 Hz by navigating
to the ROLLOFF window and using the UP or DOWN
button to select the desired rolloff. Pressing MENU
then enters the setting into the processor.
Audio Level Control
The Audio Level Control is used to adjust the audio
input level for proper modulation. The gain range is
+24dB to -18dB. The reference for this control can be
changed with the rear panel MODE switches. See the
INSTALLATION AND OPERATION section for more
information on the MODE switches.
T4 Front Panel
OFF/TUNE/XMIT Switch
OFF Turns the unit off.
TUNE Mutes the transmitter RF output section while
enabling all of the menus as well as the up and
down select buttons for setting the operating
frequency and all other functions of the transmit-
ter.
XMIT Normal operating position. With the switch the
XMIT position, the unit is transmitting a modu-
lated signal to the corresponding receiver except
the ability to change frequency is locked out.
The switch must be set to TUNE position in or-
der to change the frequency. In XMIT position
the buttons allow to display the transmitter HEX
switch settings, the operating frequency and the
TV channel and also allow the use of the menus
to adjust the Audio Level and Rolloff .
Power Up Sequence
When the OFF/TUNE/XMIT switch is fi rst turned on,
the front panel LCD display cycles through the following
sequences:
1. Displays Model and frequency block number:
IFBT4 BLK 25 (example)
2. Displays installed fi rmware version number: VER-
SION 1.0 (example)
3. Displays the current compatibility mode setting:
COMPAT IFB (example)
1. “TEST MODE” momentarily illuminating all
display segments (8.8.8.8.)
2. Momentarily displays fi rmware version number,
(i.e. 4.0)
3. Displays operating frequency in MHz.
LCD Display
The LCD is a backlit graphic type liquid crystal display
that is used to monitor the unit operation and to con-
gure the IFBT4 for desired settings. Upon initial
power up, the display defaults to the MAIN window that
displays an active audio VU meter and an icon in the
shape of a “T” to indicate TUNE mode or an antenna
Front Panel Controls and Functions
Multi-Frequency IFB Transmitter
Rio Rancho, NM 7
T4 Menu Diagram
T4
LECTROSONICS, INC.
8
T4 Rear Panel
XLR Jack
A standard XLR female jack accepts a variety of input
sources depending on the setting of the MODE dip
switch. XLR pin functions can be changed to suit the
source depending on the positions of the individual
switches. For detailed information on the setting of
these switches see the INSTALLATION AND OPERA-
TION section.
Mode Switches
Switch
Positions Input
Name 1 2 3 4 XLR Pins Balanced Sensitivity
CC TTTS 3 = Audio No -10 dBu
1 = Common
MIC SSST 2 = Hi Yes -42 dBu
3 = Lo
1 = Common
LINE SSTT 2 = Hi Yes 0 dBu
3 = Lo
1 = Common
RTS1 STTT 2 = Hi No 0 dBu
1 = Common
RTS2 TTTT 3 = Hi No 0 dBu
1 = Common
Rear Panel Controls and Functions
These dip switches confi gure the XLR input jack to ac-
commodate a variety of audio sources. The rear panel
is marked with the most common switch combinations.
The MODE switches allow the T4 to accommodate a
variety of input sources by changing the input sensitiv-
ity and the pin functions of the input XLR jack. Marked
on the rear panel are the most common settings. Each
setting is detailed below. Switches 1 and 2 adjust the
XLR pin functions while switches 3 and 4 adjust the
input sensitivity. (mode switch chart here)
12 VDC (Power Input Connector)
The T4 is designed to be used with the CH20 external
(or equivalent) power source, which is plugged into the
6-18 VDC external power input connector. The nominal
voltage to operate the unit is 12 VDC; although it will
operate at voltages as low as 6 VDC and as high as 18
VDC.
A suitable alternate power source must be able to
handle 200 mA continuous consumption.
Antenna
The T4’s ANTENNA connector is a standard 50 ohm
BNC confi guration, which can accept an integral whip or
a cable to a remote antenna.
Multi-Frequency IFB Transmitter
Rio Rancho, NM 9
1) The T4 transmitter is shipped with pin 1 of the XLR
input connector tied directly to ground. If a fl oating
input is desired, a Ground Lift Jumper is provided.
This jumper is located inside the unit on the PC
board near the rear panel XLR jack. If a fl oating
connection is desired, open the unit and move the
Ground Lift Jumper to the desired location.
Location of Ground Lift Jumper:
Installation and Operation
2) Set the MODE switches on the rear panel to match
the specifi c input source to be used. (See Mode
Switches.)
3) Insert the power supply plug into the 6-18 VDC jack
on the rear panel.
4) Insert the microphone XLR plug into the input jack.
Ensure the pins are aligned and that the connector
locks in.
5) Attach the antenna (or antenna cable) to the BNC
connector on the rear panel.
6) Mute the sound source connected to the T4.
7) Set the OFF/TUNE/XMIT switch to TUNE.
8) Step MENU to the frequency/channel window and
adjust the transmitter to the desired frequency with
the front panel FREQ up/down buttons.
9) Position the microphone. The microphone should
be placed in the position in which it will be used
during the program.
10) Step the MENU button to the LEVEL window. While
speaking at the same voice level that will be used
during the program, observe the display audio
meter. Using the DOWN button, set the AUDIO
LEVEL gain to a low level, -10 or -18 so that the au-
dio peaks are well below 0dB limiting on the scale.
Then gradually adjust the AUDIO LEVEL gain with
the UP button until the audio meter occasionally
peaks at the maximum of 0dB on the scale“. -There
is over 15 dB of limiting range without overload
above the “0” indication. It is desirable that the
audio peaks at or slightly above 0dB about 5-10
percent of the time during use.
11) Once the transmitter audio gain has been set, the
receiver and other components of the system can
be energized and their audio levels adjusted. Set
the power switch on the T4 transmitter to the XMIT
and adjust the associated receiver and sound sys-
tem level as required.
Note: There will be a delay between the moment
the transmitter is energized and when audio
will actually appear at the receiver output. This
intentional delay eliminates turn on thumps, and is
controlled by the pilot tone squelch control.
T4
LECTROSONICS, INC.
10
Accessories
CH20
Power supply for IFB base transmitters with locking
LZR power jacks; 110 VAC input, 12 VDC regulated
output; 400 mA max.
21586
DC16A Pigtail power cable, LZR to strip & tin
SNA600
Collapsible dipole antenna that adjusts over a wide
frequency range. Ideal for situations where a full
360 degree receiving pattern is required as op-
posed to a directional pattern.
ALP600
Shark Fin style Log Periodic Dipole Array (LPDA)
that provides a useful directional pattern over a
broad frequency bandwidth. Ideal for portable
applications including temporary setups for fi eld
production.
ALPKIT
Stainless steel kit for mounting SNA600 and
ALP600 antennas on photo and video tripods, light-
ing equipment, and standard microphone stands.
ARG15/ARG100
Coaxial cables for remote antennas available from
Lectrosonics in a variety of lengths from 2 to 100 ft.
RMP195
4 channel rack mount for up to four T4 IFB
receivers. Rocker switch installed to work as a mas-
ter power switch if desired.
Operating Notes
The AUDIO LEVEL control should not be used to
control the volume of the associated receiver. This gain
adjustment is used to match the T4 input level to the
incoming signal from the sound source to provide full
modulation and maximum dynamic range.
If the audio level is too high — the audio metering
will exceed the 0dB level too frequently. This condi-
tion may reduce the dynamic range of the audio
signal.
If the audio level is too low — the audio metering
will be too far below the 0dB level. This condition
may cause hiss and noise in the audio, or pumping
and breathing in the background noise.
The input limiter will handle peaks over 15 dB above
full modulation, regardless of the gain control setting.
The limiter uses a true absolute value circuit to detect
both positive and negative peaks. The attack time is 5
milliseconds and the release time is 200 milliseconds.
Occasional limiting is desirable, indicating that the gain
is correctly set and the transmitter is fully modulated
for optimum signal to noise ratio. Different voices will
usually require different settings of the AUDIO LEVEL
control, so check this adjustment as each new person
uses the system. If several different people will be using
the transmitter and there is not time to make the adjust-
ment for each individual, adjust it for the loudest voice.
CH20
SNA600
ALP600
ARG15/ARG100
RMP195
Multi-Frequency IFB Transmitter
Rio Rancho, NM 11
Troubleshooting
Symptom: Possible Cause:
Display Dead 1) External power supply disconnected or inadequate.
2) The External DC power input is protected by an auto-reset
polyfuse. Disconnect power and wait about 10 seconds for the
fuse to reset.
No Transmitter Modulation 1) AUDIO LEVEL turned all the way down.
2) Sound source off or malfunctioning.
3) Input cable damaged or mis-wired.
No Received Signal 1) Transmitter not turned on.
2) Receiver antenna missing or improperly positioned.
(The headset cable is the antenna.)
3) Transmitter and receiver not on same frequency.
Check on transmitter and receiver.
4) Operating range is too great.
5)T ransmitter antenna not connected.
6) Transmitter switch in the TUNE position. Switch to XMIT mode.
No Sound (or Low Sound Level), and Receiver LED is On
1) Receiver output level set too low.
2) Receiver earphone cable is defective or mis-wired.
3) Sound system or transmitter input is turned down.
Distorted Sound 1) Transmitter gain (audio level) is far too high. Check mod level lamps
on transmitter as it is being used. (Refer to Installation & Operation
section for details on gain adjustment.)
2) Receiver output may be mismatched with the headset or earphone.
Adjust output level on receiver to the correct level for the headset
or earphone.
3) Excessive wind noise or breath “pops.” Reposition microphone
and/or use a larger windscreen
Hiss, Noise, or Audible Dropouts 1) Transmitter gain (audio level) far too low.
2) Receiver antenna missing or obstructed.
(The headset cable is the antenna.)
3) Transmitter antenna missing or mismatched.
Check that the correct antenna is being used
4) Operating range too great.
5) Defective remote antenna or cable.
T4
LECTROSONICS, INC.
12
Frequency Blocks and Ranges
The table below lists the factory designated frequency
ranges available for the T4 IFB Transmitter.
Each T4 transmitter is built to cover a pre-selected
range of frequencies (a “block”) as shown below. The
transmitter will tune to any of 256 different frequencies
within this factory assigned block.
The block number is determined by this formula:
25.6 × Freq. (MHz) = Lowest freq. (MHz) in
the block
To determine a block number from a frequency:
Freq. (MHz) divided by 25.6 = Block number
It is handy to remember these formulas, in case you do
not have a copy of the table. For example, suppose you
need to know which block covers 685.500 MHz, which is
in the middle of the Block 26 frequency range.
685.500 divided by 25.6 = 26.77734375
FREQUENCY ANT SLEEVE ANTENNA
BLOCK RANGE (MHz) COLOR WHIP LENGTH
21 537.600 - 563.100 Brown 4.74”
22 563.200 - 588.700 Red 4.48”
23 588.800 - 614.300 Orange 4.24”
24 614.400 - 639.900 Yellow 4.01”
25 640.000 - 665.500 Green 3.81”
26 665.600 - 691.100 Blue 3.62”
27 691.200 - 716.700 Violet (Pink) 3.46”
28 716.800 - 742.300 Grey 3.31”
29 742.400 - 767.900 White 3.18”
944 944.100 - 951.900 Black 3.10”
The fi rst two digits left of the decimal are the block
number. In this case, 685.500 MHz falls within block 26.
Block 944 is an exception to this block numbering sys-
tem and depicts the actual frequency of the block since
it is only a 6MHz band with 78 frequency channels.
The T4 IFB transmitter antennas are color coded to
indicate the frequency block that they operate within.
The length of the antenna varies with the frequency
block. The actual length of the antenna is not as criti-
cal as it might appear in the table below. The usable
bandwidth of the detachable antenna is +/- 50 MHz
from the block’s center frequency, so it is acceptable to
use an antenna from an adjacent block above or below
the operating frequency if some loss in range can be
tolerated.
Part of block 23 is not used since it covers a 608 to 614
MHz band that is illegal for use with wireless micro-
phones.
Multi-Frequency IFB Transmitter
Rio Rancho, NM 13
Specifi cations
Operating Frequencies (MHz): Block 21 537.600 - 563.100 Block 25 640.000 - 665.500
Block 22 563.200 - 588.700 Block 26 665.600 - 691.100
Block 23 588.800 - 607.900 Block 27 691.200 - 716.700
614.100 - 614.300 Block 28 716.800 - 742.300
Block 24 614.400 - 639.900 Block 29 742.400 - 767.900
Block 944 944.100 – 951.9
Frequencies (Channels per block): 256
Channel Spacing: 100 kHz (0.1 MHz)
Spurious & Harmonic Suppression: 37 dBc above 1 GHz
Frequency Stability: ±.001% (10 ppm) @ 25° C
Temperature Stability: ±.001% (10 ppm) from -30° C to +50° C
Channel Selection: Momentary pushbutton switches, TUNE Up and Down
Compatibility Modes (6) Digital Hybrid Wireless(tm) (400 Series), 100 Series, 200 Series, Mode 3, Mode 6, and IFB
Pilot Tone: 29.997 kHz IFB & 100 MODE, 32.765kHz 200 MODE, 400 MODE step selected
Modulation: FM, ±20 kHz deviation IFB & 100 MODE, ±75kHz 200 & 400 MODE
Audio Response: 100 Hz to 10 kHz, ±1 dB, -3dB, IFB MODE system response
50Hz to 20kHz ±1dB , 200 & 400 MODE system response
Audio Compressor: 2 to 1 IFB, 100, and 200 Mode
RF Power Output: 250 mw (nominal)
Output Impedance: 50 ohms
Audio Input Levels: 0 dBu for Line, RTS1 & RTS2. -10 dBu for Clear Com, and -42 dBu for mic dry inputs, +/-50Vdc max,
Audio Input Confi g: Balanced and Unbalanced, rear panel selectable for Line, Mic. RTS 1, RTS 2, and Clear Comm
Audio Input Impedance: Greater than 2 K balanced, greater than 1 K unbalanced at any gain setting
Gain Control Range: ±20 dB, Menu selectable
Audio Input Jack: Standard XLR female connector
Input Power: 12 to 14 VDC typical, 200 ma. max.; Max. Input Range 6 to 18 VDC
Power Input Jack: Coax type, locking LZR RL26AE
Indicators: Backlit Liquid Crystal Display. Displays modulation meter, frequencies, modes, rolloff, audio level, and tuning groups.
Front panel controls: MENU momentary pushbutton switch
Power OFF-TUNE-XMIT, 3 position slide switch
Select Up momentary pushbutton switch
Select down momentary pushbutton switch
Rear panel controls: Input Mode Select, 4 section DIP switch
Weight: 9 oz.
Size: 5.25” long (including connectors) x 3.25” wide x 1.25” high
Specifi cations subject to change without notice.
Emission designator: 180KF3E
The T4 IFB transmitter is FCC type accepted under Part 74: 470 - 608MHz, 614 - 806MHz and 944.1 – 951.9MHz.
The FCC requires that the following statement be included in this manual:
This device complies with FCC radiation exposure limits as set forth for an uncontrolled environment. This device should be installed and operated so that its antenna(s) are not co-located or operating in
conjunction with any other antenna or transmitter. A separation distance of at least 20cm (8 inches) must be maintained to comply with the FCC Radio Frequency Maximum Permissible Exposure (MPE)
requirements.
T4
LECTROSONICS, INC.
14
Service and Repair
If your system malfunctions, you should attempt to correct or isolate the trouble before concluding that the equipment
needs repair. Make sure you have followed the setup procedure and operating instructions. Check the interconnect-
ing cables and then go through the Troubleshooting section in this manual.
We strongly recommend that you do not try to repair the equipment yourself and do not have the local repair shop
attempt anything other than the simplest repair. If the repair is more complicated than a broken wire or loose connec-
tion, send the unit to the factory for repair and service. Don’t attempt to adjust any controls inside the units. Once
set at the factory, the various controls and trimmers do not drift with age or vibration and never require readjustment.
There are no adjustments inside that will make a malfunctioning unit start working.
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs
are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest
at rate plus parts and shipping. Since it takes almost as much time and effort to determine what is wrong as it does
to make the repair, there is a charge for an exact quotation. We will be happy to quote approximate charges by phone
for out-of-warranty repairs.
Returning Units for Repair
For timely service, please follow the steps below:
A. DO NOT return equipment to the factory for repair without fi rst contacting us by letter or by phone. We need to
know the nature of the problem, the model number and the serial number of the equipment. We also need a
phone number where you can be reached 8 A.M. to 4 P.M. (U.S. Mountain Standard Time).
B. After receiving your request, we will issue you a return authorization number (R.A.). This number will help speed
your repair through our receiving and repair departments. The return authorization number must be clearly shown
on the outside of the shipping container.
C. Pack the equipment carefully and ship to us, shipping costs prepaid. If necessary, we can provide you with the
proper packing materials. UPS is usually the best way to ship the units. Heavy units should be “double-boxed” for
safe transport.
D. We also strongly recommend that you insure the equipment, since we cannot be responsible for loss of or dam-
age to equipment that you ship. Of course, we insure the equipment when we ship it back to you.
Mailing address: Shipping address: Telephone:
Lectrosonics, Inc. Lectrosonics, Inc. (505) 892-4501
PO Box 15900 581 Laser Rd. (800) 821-1121 Toll-free
Rio Rancho, NM 87174 Rio Rancho, NM 87124 (505) 892-6243 Fax
USA USA
Web: E-mail:
www.lectrosonics.com sales@lectrosonics.com
Multi-Frequency IFB Transmitter
Rio Rancho, NM 15
November 8, 2006
581 Laser Road NE • Rio Rancho, NM 87124 USA • www.lectrosonics.com
(505) 892-4501 • (800) 821-1121 • fax (505) 892-6243 • sales@lectrosonics.com
LIMITED ONE YEAR WARRANTY
The equipment is warranted for one year from date of purchase against defects in
materials or workmanship provided it was purchased from an authorized dealer. This
warranty does not cover equipment which has been abused or damaged by careless
handling or shipping. This warranty does not apply to used or demonstrator equipment.
Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any
defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot
correct the defect in your equipment, it will be replaced at no charge with a similar new
item. Lectrosonics, Inc. will pay for the cost of returning your equipment to you.
This warranty applies only to items returned to Lectrosonics, Inc. or an authorized
dealer, shipping costs prepaid, within one year from the date of purchase.
This Limited Warranty is governed by the laws of the State of New Mexico. It states the
entire liablility of Lectrosonics Inc. and the entire remedy of the purchaser for any
breach of warranty as outlined above. NEITHER LECTROSONICS, INC. NOR
ANYONE INVOLVED IN THE PRODUCTION OR DELIVERY OF THE EQUIPMENT
SHALL BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, CONSEQUENTIAL,
OR INCIDENTAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE
THIS EQUIPMENT EVEN IF LECTROSONICS, INC. HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL THE LIABILITY OF
LECTROSONICS, INC. EXCEED THE PURCHASE PRICE OF ANY DEFECTIVE
EQUIPMENT.
This warranty gives you specific legal rights. You may have additional legal rights which
vary from state to state.

Navigation menu
