Lectrosonics LTA1 Wireless Microphone Transmitter User Manual LTman
Lectrosonics Inc Wireless Microphone Transmitter LTman
User Manual
LT
Synthesized UHF Belt-Pack Transmitter
Featuring
Digital Hybrid Wireless®
Technology
US Patent 7,225,135
INSTRUCTION MANUAL
Rio Rancho, NM, USA
www.lectrosonics.com
Fill in for your records:
Serial Number:
Purchase Date:
Quick Start Steps
1) Install good batteries and turn power on (see pages
7 and 8).
2) Set the compatibility mode to match the receiver
(see page 10).
3) Connect the signal source and adjust input gain for
optimum modulation level (see pages 10 and 11).
4) Set Step Size and frequency to match receiver
(see page 11). Also see receiver manual for scan-
ning procedure to find a clear operating frequency.
5) Turn on the receiver and verify that solid RF and
audio signals are present (see receiver manual).
LT
LECTROSONICS, INC.
2
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM 3
Consumer Alert for US Users - FCC Order DA 10-92
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this micro-
phone system without a license is subject to certain restrictions: the system may not cause harmful interference; it
must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received
from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless mi-
crophone systems, and these rules are subject to change. For more information, call the FCC at 1-888- CALL-FCC
(TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
To operate wireless microphone systems at power greater than 50mW, you must qualify as a Part 74 user and be
licensed. If you qualify and wish to apply for a license go to: http://www.fcc.gov/Forms/Form601/601.html
Table of Contents
Introduction .............................................................................4
About Digital Hybrid Wireless® .................................................................................4
Frequency Agility...................................................................4
Wide-Band Deviation ............................................................4
Servo Bias Input and Wiring .................................................4
DSP-controlled Input Limiter .................................................5
No Pre-Emphasis/De-Emphasis ...........................................5
Pilot Tone Squelch ................................................................5

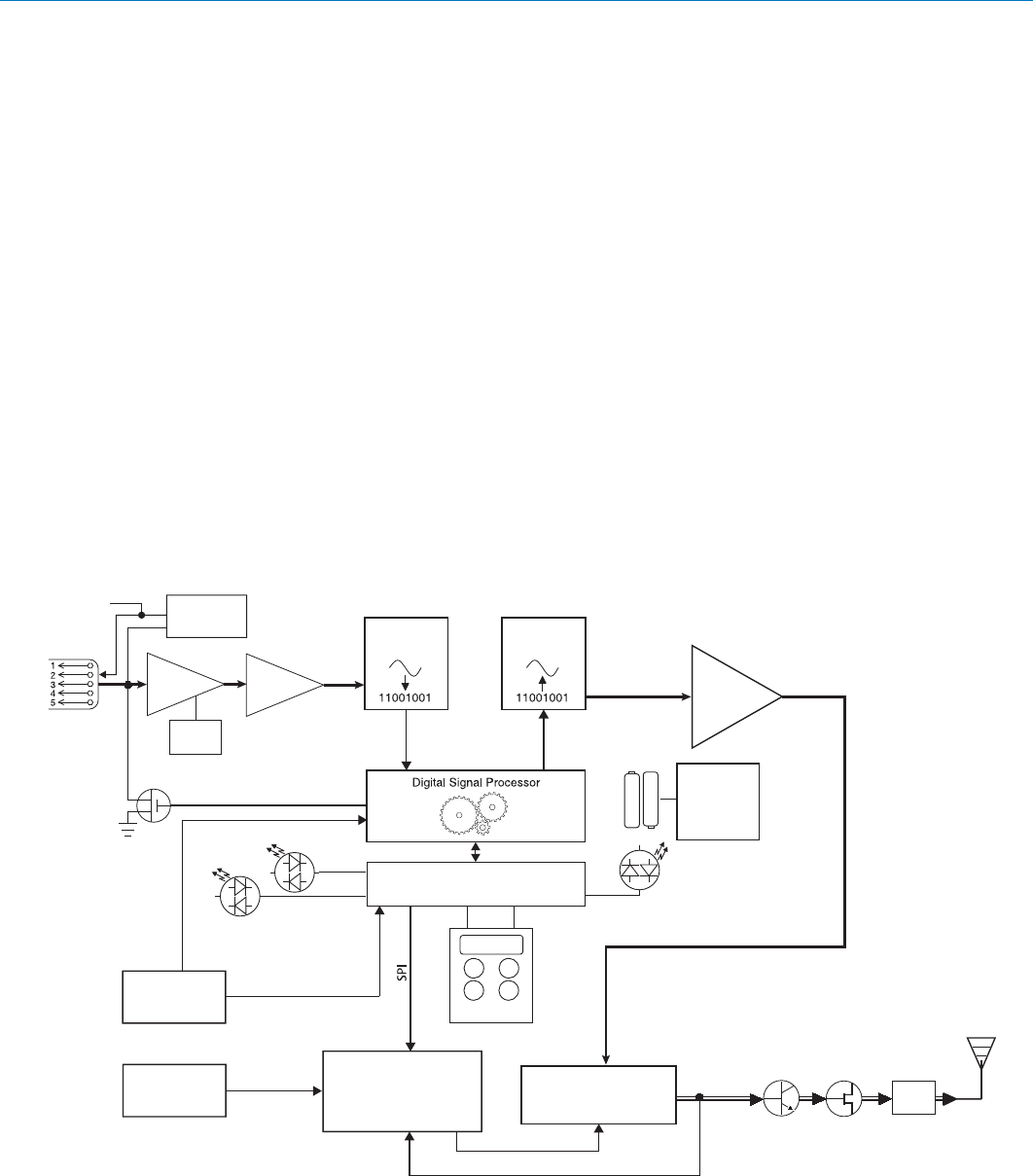

LT Block Diagram ..................................................................5

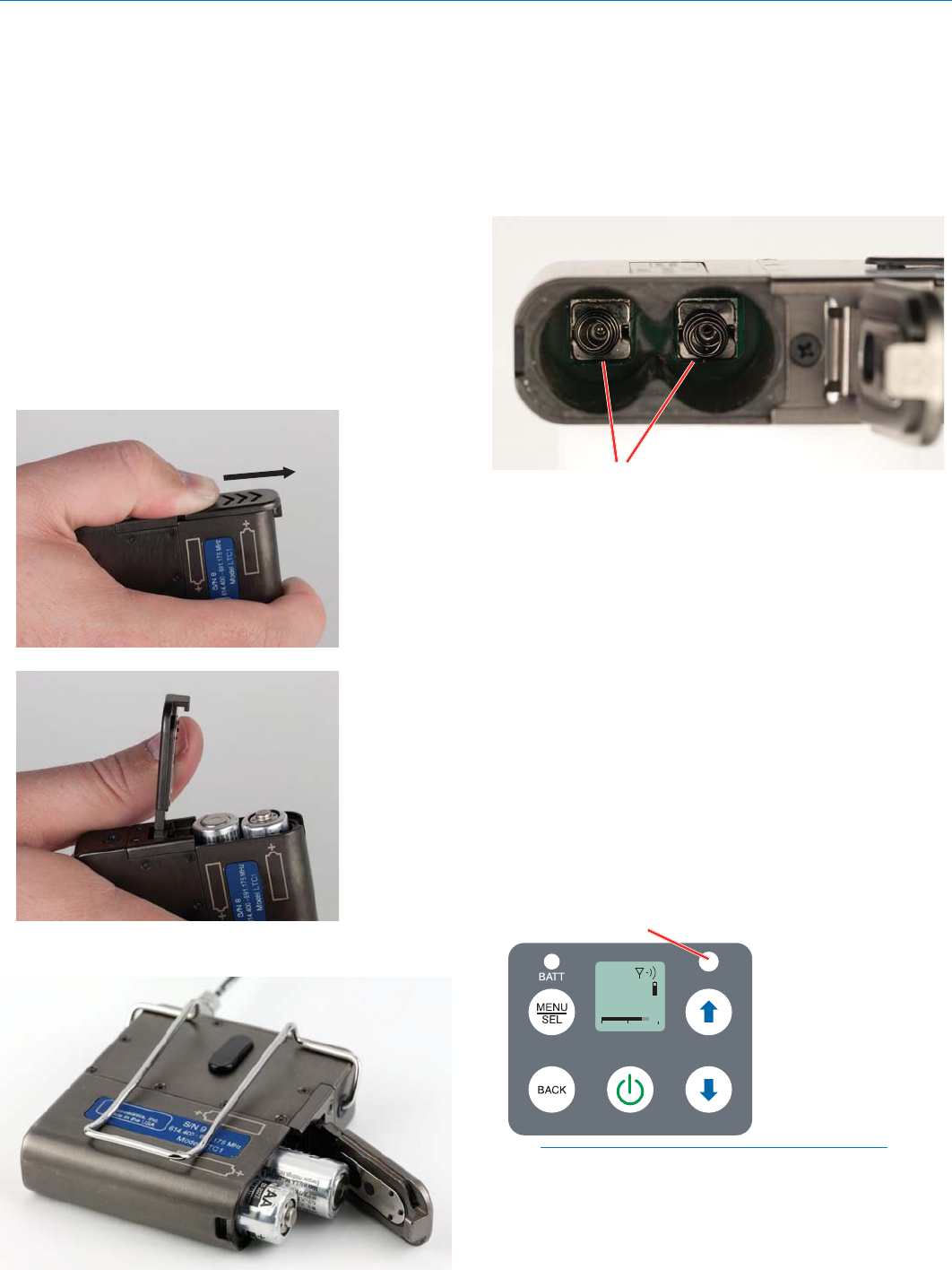

Battery Installation .................................................................6
Belt Clips .................................................................................6
IR (infrared) Sync ....................................................................6
Operating Instructions ...........................................................7

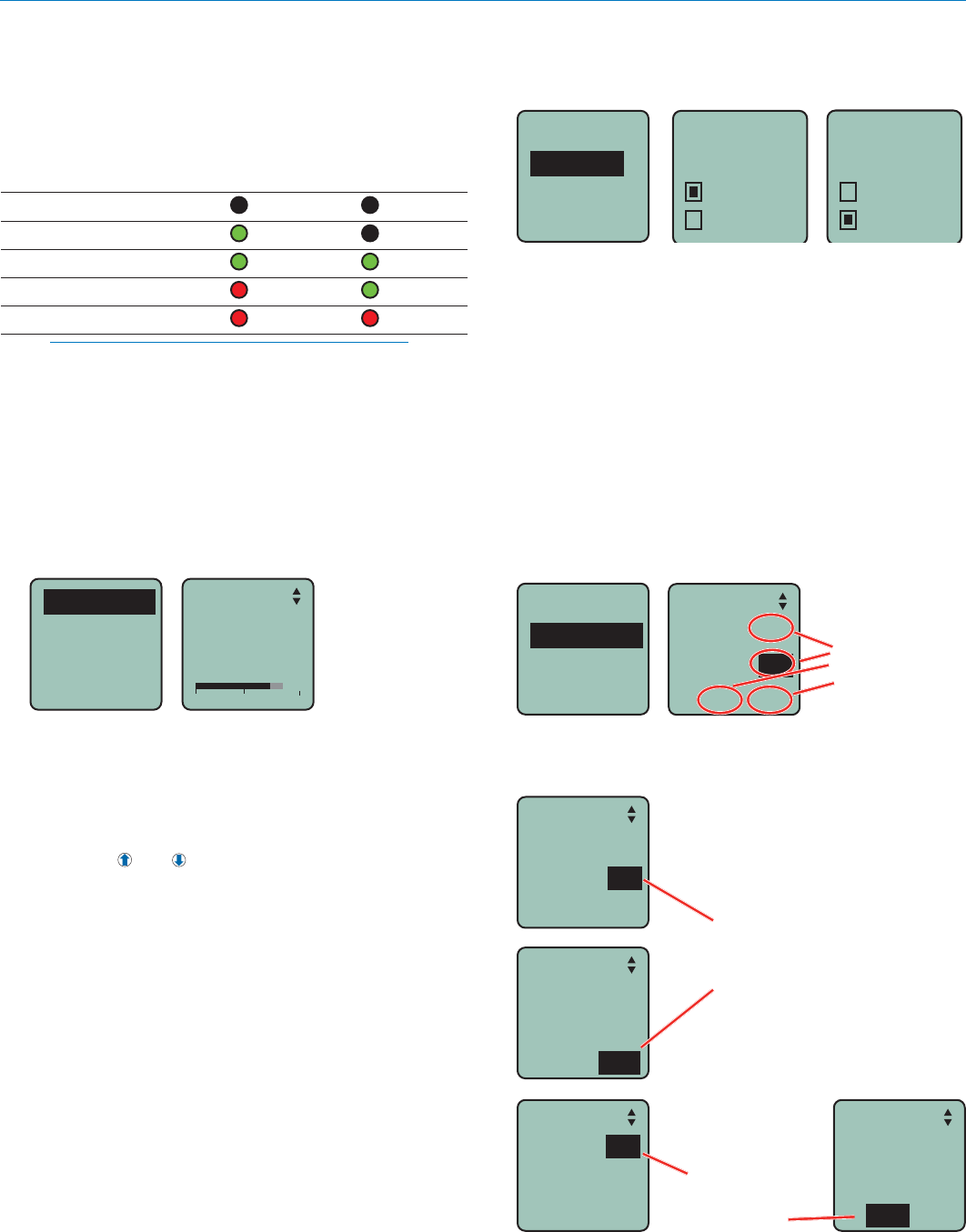

Battery Status LED Indicator ................................................7
Powering On in Operating Mode ...........................................7
Powering On in Standby Mode .............................................8
Powering Off .........................................................................8

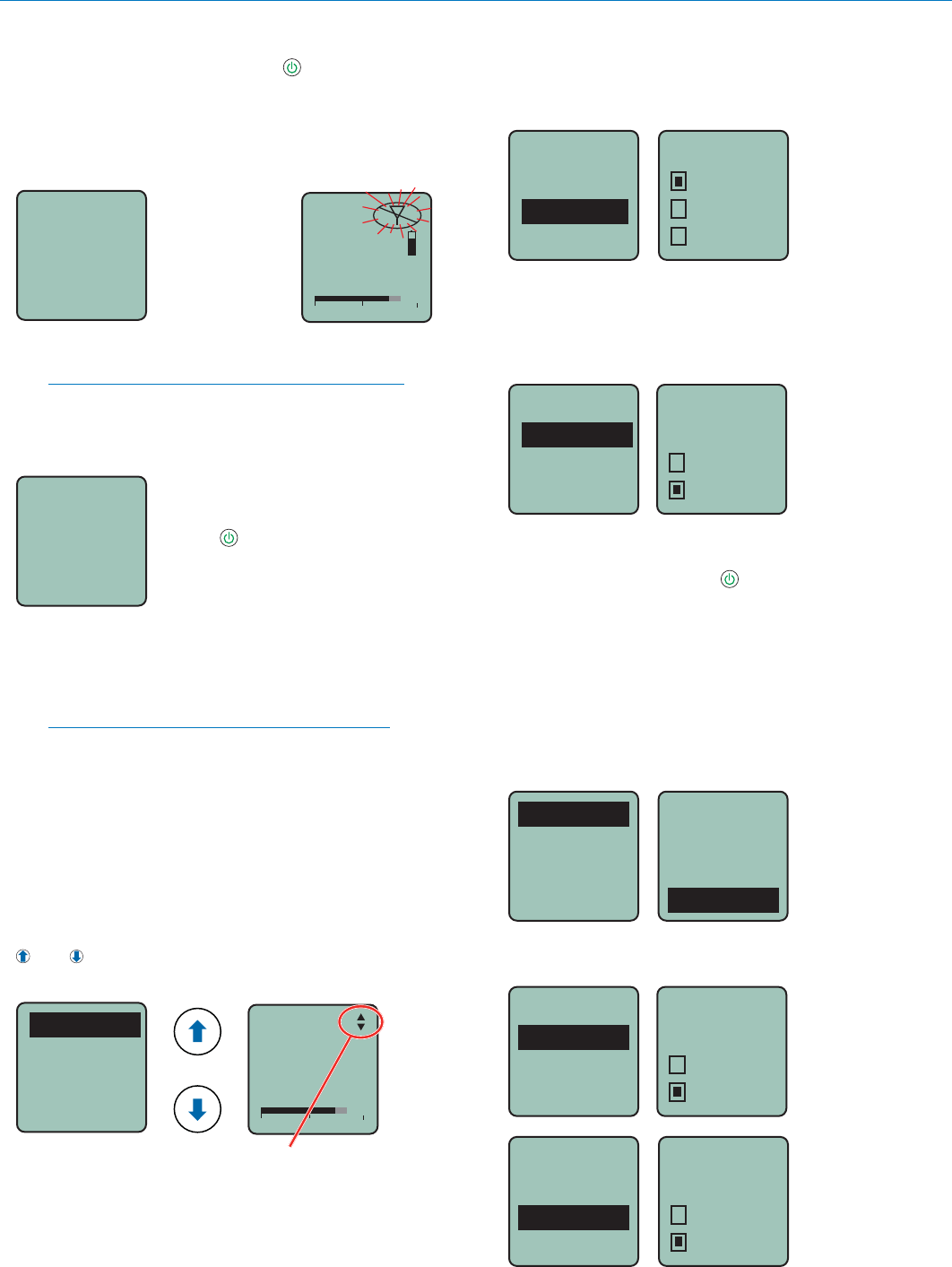

Navigating Menus .................................................................8
Adjusting LCD Backlight .......................................................8
RF ON/OFF on the Menu ......................................................8
Power Menu ..........................................................................8
Locking/Unlocking Changes to Settings................................9
Selecting Programmable Switch Functions...........................9
Main Window Indicators ........................................................9
Selecting the Compatibility (Compat) Mode ........................10
Connecting the Signal Source ............................................10
Using Line Level and Instrument Inputs .............................10
Selecting the Low Frequency Roll-off .................................10
Adjusting the Input Gain ......................................................11
Selecting Step Size .............................................................11
Selecting Frequency ...........................................................11
Selecting Frequency Using Two Buttons .............................12
Helpful Features on Receivers ............................................12
About Overlapping Frequency Blocks .................................12
Selecting Audio Polarity (Phase) .........................................12
Selecting Battery Type ........................................................12
Enabling Remote Control ....................................................13
Setting Transmitter Output Power .......................................13
Restoring Default Settings ..................................................13
5-Pin Input Jack Wiring ........................................................14

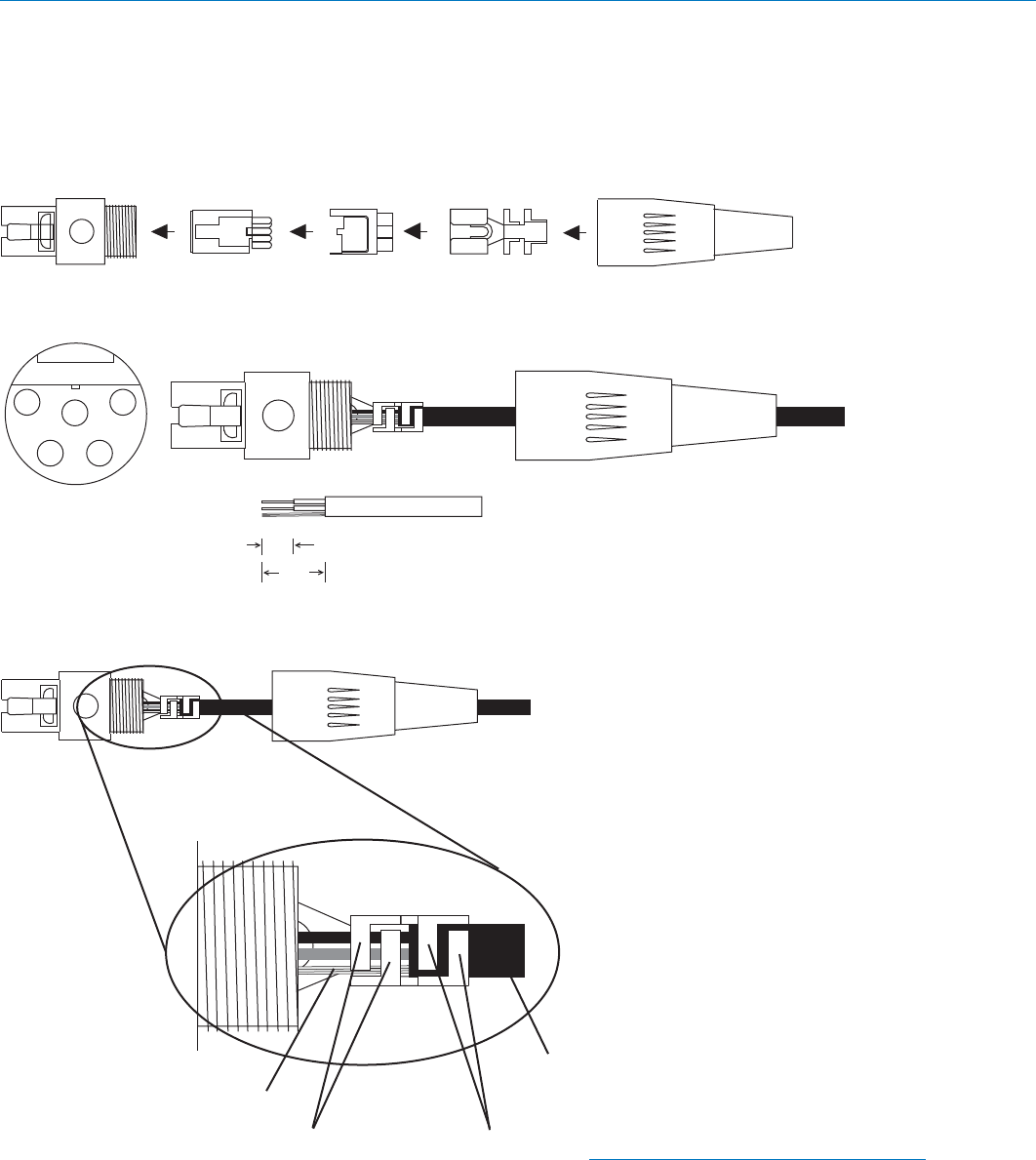

Microphone Cable Termination
for Non-Lectrosonics Microphones .............................15

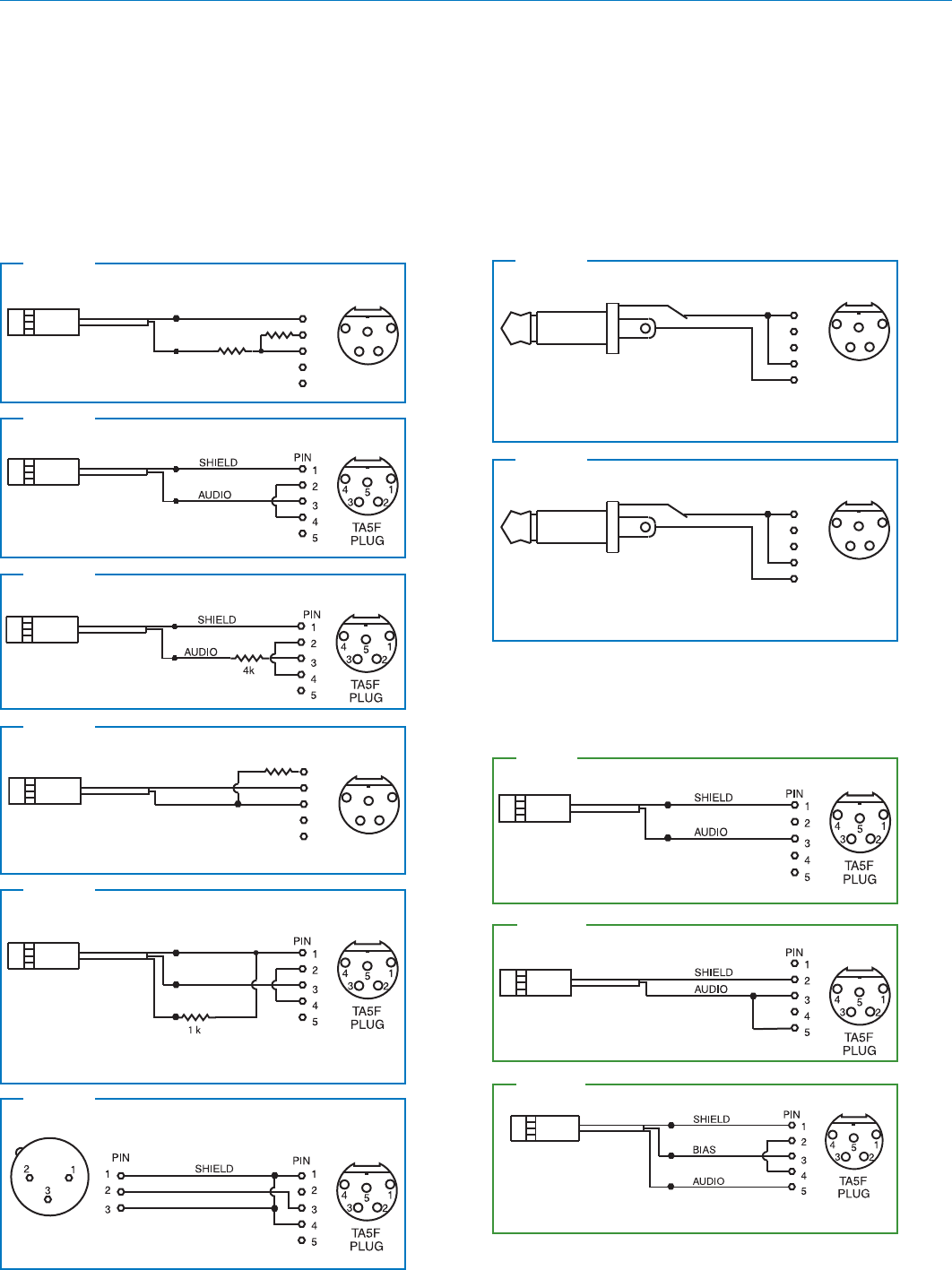

Input Jack Wiring for Different Sources .............................16
Compatible Wiring for Both Servo Bias Inputs
and Earlier Transmitters: .....................................................16
Simple Wiring - Can ONLY be used with
Servo Bias Inputs: ...............................................................16
Microphone RF Bypassing ..................................................17
Line Level Signals ...............................................................17
Wiring Diagram for MI39A Instrument Cable ......................17
RM Remote Control ..............................................................18
Powering the RM on and off ................................................18
RM Functions and Operation ..............................................18
Operating Notes ..................................................................19
RM2 Remote Control ............................................................19
Accessories ..........................................................................20
Troubleshooting ....................................................................21
Specifications and Features ................................................22
Service and Repair ...............................................................23
Returning Units for Repair ..................................................23
LT
LECTROSONICS, INC.
4
Introduction
The design of the LT transmitter delivers the advanced
technology and features of Digital Hybrid Wireless®
in a Lectrosonics belt-pack transmitter at a modest
cost. Digital Hybrid Wireless® combines a 24-bit digital
audio chain with an analog FM radio link to eliminate a
compandor and its artifacts, yet preserve the extended
operating range and noise rejection of the finest analog
wireless systems. DSP “compatibility modes” allow the
LT to also be used with a variety of analog receivers by
emulating the compandors found in earlier Lectrosonics
analog wireless and IFB receivers, and certain receiv-
ers from other manufacturers (contact the factory for
details).
The housing is a rugged, machined aluminum package
with removable, stainless steel wire belt clip. The input
jack is a standard Lectrosonics 5-pin type for use with
electret lavaliere mics, dynamic mics, musical instru-
ment pickups and line level signals. The LEDs on the
top panel allow quick and accurate level settings without
having to view the receiver. The unit is powered by two
AA batteries. The antenna port uses a standard 50 ohm
SMA connector. Straight and hinged whip antennas are
available.
The switching power supplies in the LT provide constant
voltages to the transmitter circuits from the beginning
to the end of battery life, with output power remaining
constant over the life of the battery. The input amplifier
uses an ultra low noise op amp. Input gain is adjustable
over a 44 dB range, with a DSP-controlled dual enve-
lope input limiter that will cleanly handle signal peaks
over 30 dB above full modulation.
About Digital Hybrid Wireless®
All wireless links suffer from channel noise to some
degree, and all wireless microphone systems seek to
minimize the impact of that noise on the desired signal.
Conventional analog systems use compandors for
enhanced dynamic range, at the cost of subtle artifacts
(known as “pumping” and “breathing”). Wholly digital
systems defeat the noise by sending the audio informa-
tion in digital form, at the cost of some combination of
power, bandwidth, operating range and resistance to
interference.
The Lectrosonics Digital Hybrid Wireless system over-
comes channel noise in a dramatically new way, digitally
encoding the audio in the transmitter and decoding it
in the receiver, yet still sending the encoded informa-
tion via an analog FM wireless link. This proprietary
algorithm is not a digital implementation of an analog
compandor but a technique which can be accomplished
only in the digital domain.
Since the RF link between transmitter and receiver is
FM, channel noise will increase gradually with in-
creased operating range and weak signal conditions,
however, the Digital Hybrid Wireles system handles this
situation elegantly with rarely audible audio artifacts as
the receiver approaches its squelch threshold.
In contrast, a purely digital system tends to drop the
audio suddenly during brief dropouts and weak signal
conditions. The Digital Hybrid Wireless system simply
encodes the signal to use a noisy channel as efficiently
and robustly as possible, yielding audio performance
that rivals that of purely digital systems, without the
power, noise and bandwidth problems inherent in digital
transmission. Because it uses an analog FM link, Digital
Hybrid Wireless enjoys all the benefits of conventional
FM wireless systems, such as excellent range, efficient
use of RF spectrum, and long battery life.
Frequency Agility
Frequency selection is provided in 100 kHz or 25 kHz
steps with up to 3072 channels available covering three
standard Lectrosonics 25.6 MHz blocks. Frequencies
are displayed on the LCD in MHz and in a hex code
used with earlier Lectrosonics equipment.
Wide-Band Deviation
Deviation has a direct effect on the dynamic range and
signal to noise ratio of an FM system. The greater the
deviation, the wider the dynamic range and the better
the signal to noise ratio. In the Digital Hybrid Wireless
mode, the system operates with a maximum of +/-75
kHz of deviation. The resulting 180 kHz of occupied
bandwidth just fits inside the government specified
spectral mask of 200 kHz. In order to make this pos-
sible, an advanced, DSP-controlled limiter is used to
prevent signal peaks from exceeding the maximum
allowed bandwidth, but not cause distortion.
The result of all this is that the audio quality is outstand-
ing, rivaling a hard-wired microphone. The system deliv-
ers a very wide dynamic range, and can handle loud
signal peaks without distortion.

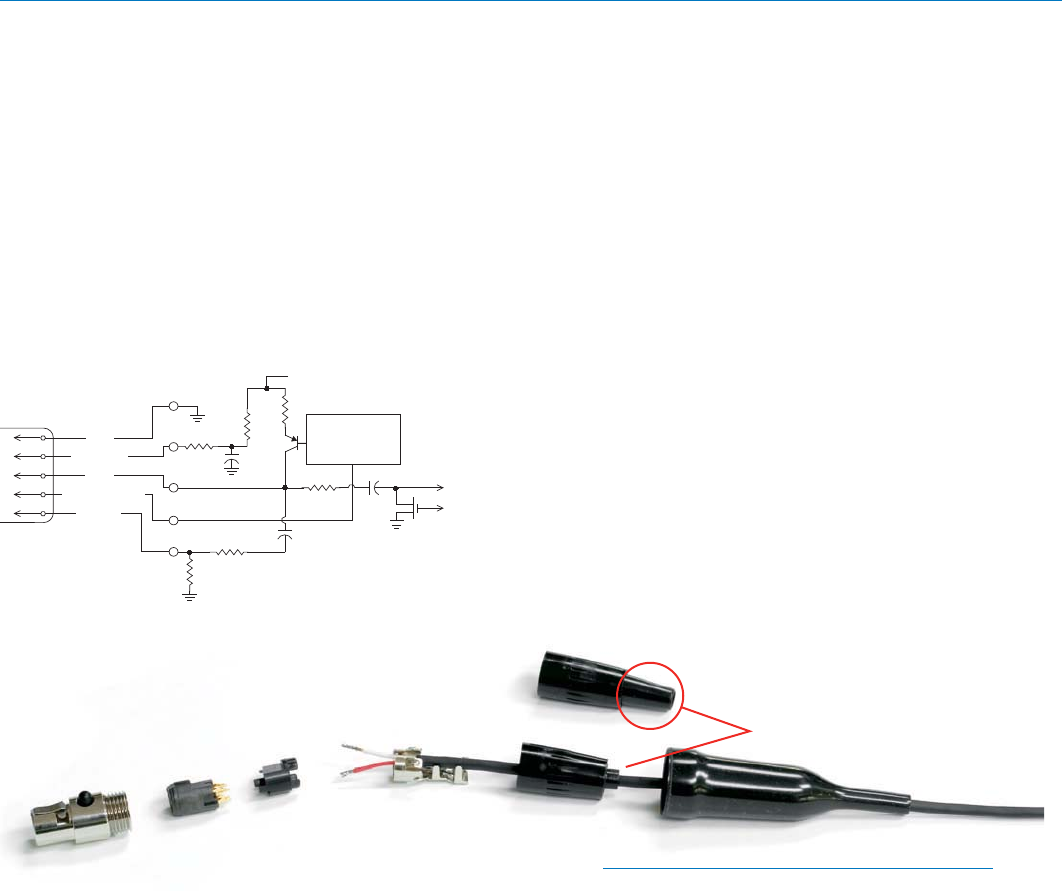

Servo Bias Input and Wiring
The LT input preamp is a unique design that delivers
audible improvements over conventional transmitter
inputs. The transmitters are easier to use and much
harder to overload. It is not necessary to introduce pads
on some mics to prevent overload of the input stage,
divide the bias voltage down for some low voltage mics,
or reduce the limiter range at minimum gain settings.
Two different microphone wiring schemes are available
to simplify and standardize the configuration. Simpli-
fied 2-wire and 3-wire configurations provide several
arrangements designed for use only with servo bias
inputs to take full advantage of the preamp circuitry.
Other wiring schemes are compatible with Servo Bias
and conventional inputs.
A line level input wiring provides an extended frequency
response with an LF roll-off at 35 Hz for use with instru-
ments and line level signal sources.
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM 5
Pilot Tone Squelch
The squelch system in a receiver is a method of muting
the audio when the RF signal conditions are too poor
to produce usable audio. While not all squelch systems
work the same way, the goal is always the same: to
discard noise and unusable audio.
The Digital Hybrid Wireless system employs a DSP-
generated supersonic tone (pilot tone), using it as a
kind of signature, so the receiver can mute even strong
signals that aren’t from the appropriate transmitter. The
pilot tone also helps to ensure that the receiver is quiet
when the transmitter is turned on and off.
256 different pilot tones provide reliable operation in
multi-channel wireless systems. A different tone is
generated every 100 kHz across the tuning range of
the system, so that a tone is not repeated until it is 25.6
MHz above or below the previous one.
DSP-controlled Input Limiter
The transmitter employs a digitally-controlled analog
audio limiter prior to the analog-to-digital converter.
The limiter has a range greater than 30 dB for excellent
overload protection. A dual release envelope makes the
limiter acoustically transparent while maintaining low
distortion. It can be thought of as two limiters in series,
connected as a fast attack and release limiter followed
by a slow attack and release limiter. The limiter recovers
quickly from brief transients, so that its action is hidden
from the listener, but recovers slowly from sustained
high levels to keep audio distortion low and preserve
short term dynamic changes in the audio.
No Pre-Emphasis/De-Emphasis
Because the signal to noise ratio of the Digital Hybrid
Wireless system is so high, there is no need for con-
ventional pre-emphasis (HF boost) in the transmitter
and de-emphasis (HF roll off) in the receiver. Thus, the
potential distortion problems associated with pre-em-
phasis and de-emphasis are eliminated.
LT Block Diagram
LT Transmitter
Filters
(3)
Keypad
(2) AA
Batteries
Oscillator
Oscillator
I2S I2S
Voltage Controlled
Oscillator
Final
Amplifier
Driver
Bicolor
Modulation
LEDs
Control
Micro Clock
PLL Ref
Encoded
Audio and
Pilot Tone Buffer Amp
and Filter
Phase Locked Loop
DSP Clock
Switching
Power
Supply
Microprocessor
Tricolor
Power
LED
AUDIO
D-A
Converter
A-D
Converter
Shunt
Limiter
Limiter Control
Gain
Adj
HI/Lo
Pass
Filter
Input
Preamp
Input
Jack
Bias Voltage
0, 2 or 4V
Servo Bias
Supply
+5V
AUDIO
LT
LECTROSONICS, INC.
6
Battery Installation
The transmitter is powered by two AA batteries. We
recommend using alkaline, lithium, or rechargeable
batteries for longest life. Standard zinc-carbon batteries
marked “heavy-duty” or “long-lasting” are not adequate.
The battery status circuitry compensates for the differ-
ence in voltage drop between alkaline and lithium bat-
teries across their usable life, so it’s important to select
the correct battery type in the menu.
Because rechargeable batteries run down quite abrupt-
ly, using the Power LED to verify battery status will not
be reliable. However, it is possible to track battery status
using the battery timer function available in Lectroson-
ics Digital Hybrid Wireless receivers.
Push outward on the battery compartment door and lift
it to open.
Insert the batteries according to the markings on the
back of the housing.
If the batteries are inserted incorrectly, the door will
close but the unit will not operate.
The battery contacts can be cleaned with alcohol and
a cotton swab, or a clean pencil eraser. Be sure not
to leave any remnants of the cotton swab or eraser
crumbs inside the compartment.
Contact springs
Belt Clips
The wire belt clip may be removed by pulling the ends
out of the holes in the sides of the case. Use pliers to
grasp the wire and avoid scratching the surface of the
housing. Pliers also help when installing the clip.
An optional spring-loaded, hinged belt clip (model num-
ber BCSLEBN) is also available. This clip is attached by
removing the plastic hole cap on the back of the hous-
ing and mounting the clip with the supplied screw.
IR (infrared) Sync
The opening on the keypad is an IR port for quick setup
using a receiver with this function available. IR Sync
will transfer the settings for frequency, step size and
compatibility mode from the receiver to the transmitter.
Refer to your page 13 of this manual and to the receiver
manual for details.
5
623.400
-40 -20 0
A
IR Port
NOTE: If a mismatch exists between the receiver
and transmitter, an error message will appear on
the transmitter LCD stating what the problem is.
See page 13 for more information.
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM 7
Operating Instructions

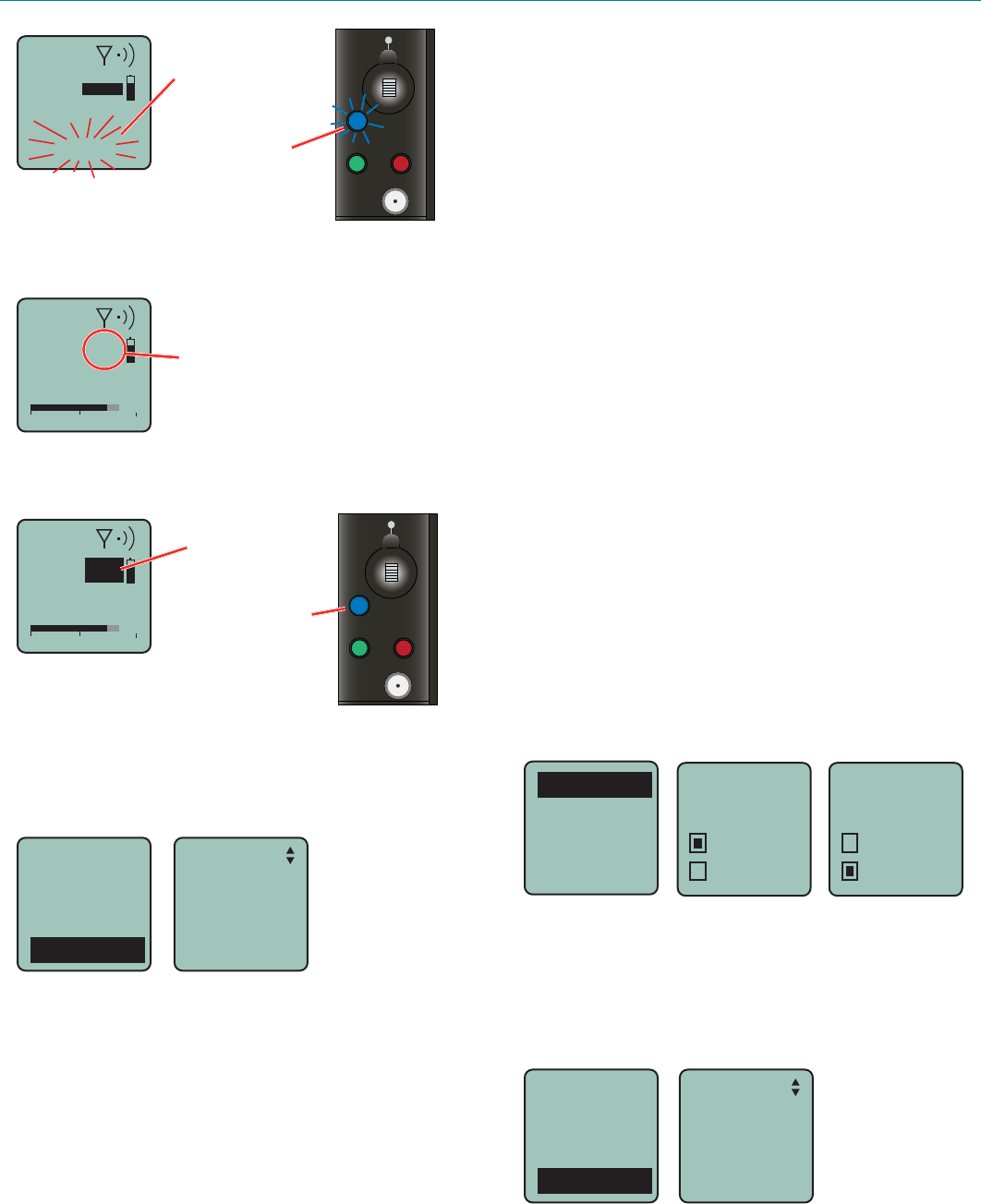

Battery Status LED Indicator
Alkaline, lithium or rechargeable batteries can be used
to power the transmitter. The type of batteries in use are
selectable in a menu on the LCD.
When alkaline or lithium batteries are being used, the
LED labeled BAT on the keypad glows green when the
batteries are good. The color changes to red when the
they are nearing the end of life. When the LED begins to
blink red, there will be only a few minutes remaining.
The Power/Function LED on the top panel will mirror the
keypad LED unless the programmable switch is set to
the Mute or Talkback mode, and the switch is turned on.
The exact point at which the LEDs turn red will vary
with battery brand and condition, temperature and
power consumption. The LEDs are intended to simply
catch your attention, not to be an exact indicator of
remaining time.
A weak battery will sometimes cause the LED to glow
green immediately after the transmitter is turned on, but
it will soon discharge to the point where the LED will
turn red or the unit will turn off completely.
Rechargeable batteries give little or no warning when
they are depleted. If you wish to use these batteries in
the transmitter, you will need to manually keep track of
the operating time to prevent interruptions caused by
dead batteries. Start with a fully charged battery, then
measure the time it takes for the Power LED to go out
completely.
NOTE: The battery timer feature in many
Lectrosonics receivers is very helpful in measuring
battery runtime when using rechargeable batteries.
Refer to the receiver instructions for details on
using the timer.
Powering On in Operating Mode
Press and hold the Power Button for several seconds
until a counter on the LCD progresses from 1 through
3, followed by a display of the model, firmware version,
frequency block and compatibility mode.
Hold
for
Rf On
...3
LT
V1.00
Blk. 19
Hybrid
5
494.500
-40 -20 0
1
b 19
When you release the button, the unit will be operation-
al with the RF output turned on and the Main Window
displayed. Only the second and third screens will ap-
pear when the programmable function switch is used to
turn on the power.

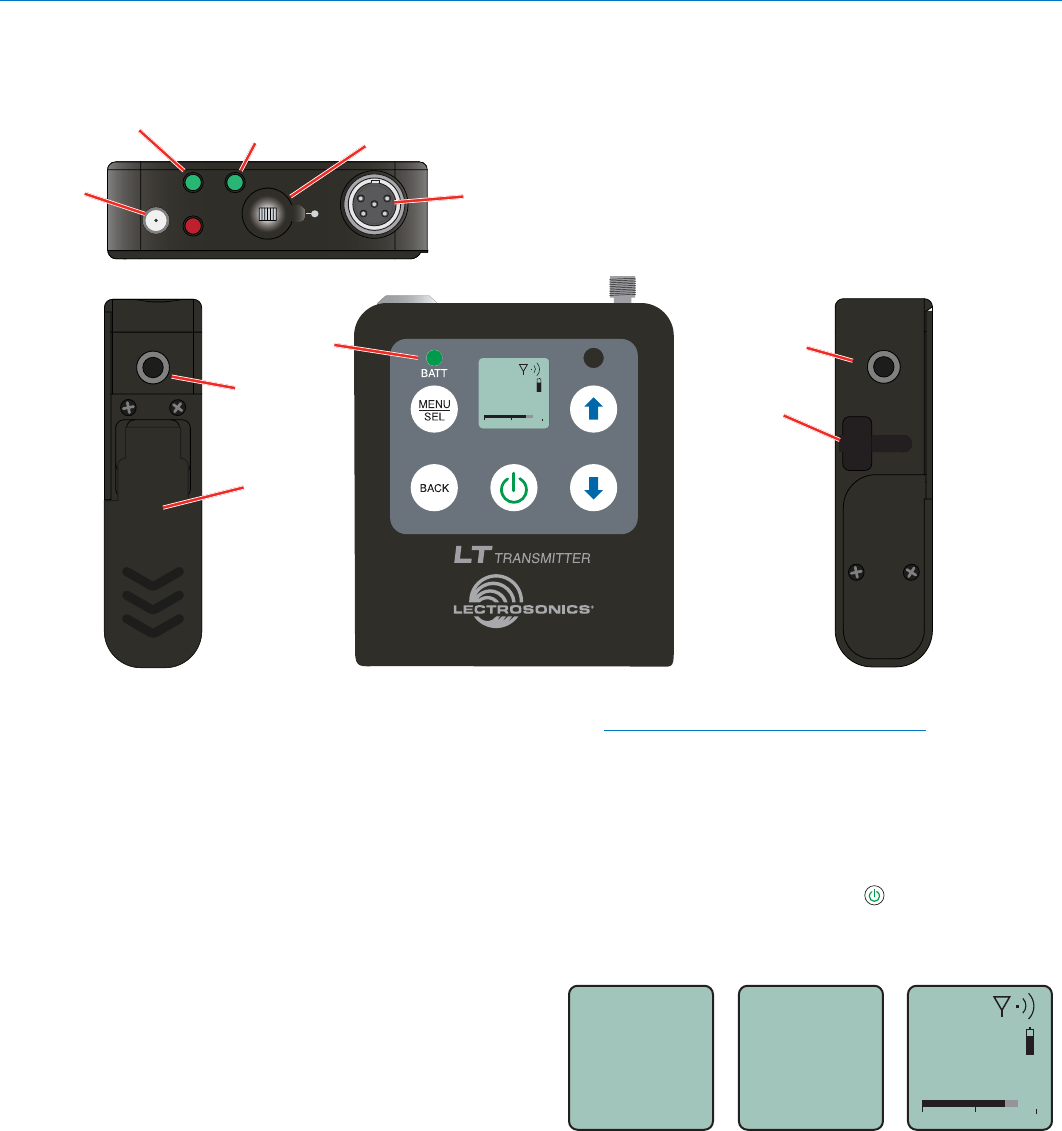

PWR/FUNC
-10
-20
AUDIO
5
623.400
-40 -20 0
A
USB Port
Belt clip
mounting hole
Modulation
Indicators
Programmable
Function Switch
Audio
Input
Jack
Antenna
Port
Belt clip
mounting hole
Battery
Status LED
Full access to all settings is provided through the key-
pad and LCD. The transmitter can also be configured
as a “one button” device by locking the ability to make
changes with the keypad, and configuring the top panel
switch as either power on/off or a mute function.
Battery
Compartment
Door
Power/Function
LED
LT
LECTROSONICS, INC.
8
Powering On in Standby Mode
A brief press of the Power Button , releasing it before
the counter has reached 3, will turn the unit on with the
RF output turned off. In this Standby Mode the menus
can be browsed to make settings and adjustments with-
out the risk of interfering with other wireless systems
nearby.
Hold
for
Rf On
...1
Release Power
Button before
the counter
reaches 3 to
enter standby
mode
5
494.500
-40 -20 0
1
b 19
RF indicator blinks
After settings and adjustments are made, press the
power button again to turn the unit off.
NOTE: Also see the section entitled Power Menu
for the AutoOn feature.
Powering Off
Powering
O . . .
1
From any screen, power can be
turned off by selecting Pwr Off in the
power menu, holding the Power
Button in and waiting for the
countdown, or with the program-
mable switch (if it is configured for
this function).
If the power button is released, or the top panel switch
is turned back on again before the countdown is com-
pleted, the unit will remain turned on and the LCD will
return to the same screen or menu that was displayed
previously.
NOTE: If the programmable switch is in the OFF
position, power can still be turned on with the
power button. If the programmable switch is then
turned on, a brief message will appear on the LCD.
Navigating Menus
The LCD and keypad interface makes it easy to browse
the menus and make the selections for the setup you
need. When the unit is powered up in either the oper-
ating or the standby mode, press MENU/SEL on the
keypad to enter a menu structure on the LCD. Use the
and arrow buttons to select the menu item. Then
press the MENU/SEL button to enter the menu.
-40 -20 0
Gain
25
The prompt in the upper right corner may
display one or both arrows, depending upon
what adjustment can be made. If the changes
are locked, a small padlock symbol will appear.
Gain
LineIn
Freq.
MuteSw
Adjusting LCD Backlight
For viewing the LCD in dimly lit conditions, the backlight
can be turned on continuously or set to turn off auto-
matically after either 30 seconds or 5 minutes.
Phase
Locked
Backlit
Rf On?
Backlit
On
30 sec
5 min
RF ON/OFF on the Menu
The RF output of the transmitter can be turned off and
on with a menu item on the LCD to switch from the
standby mode to the operating mode.
Backlit
Rf On?
BatType
Remote
Rf On?
No
Ye s

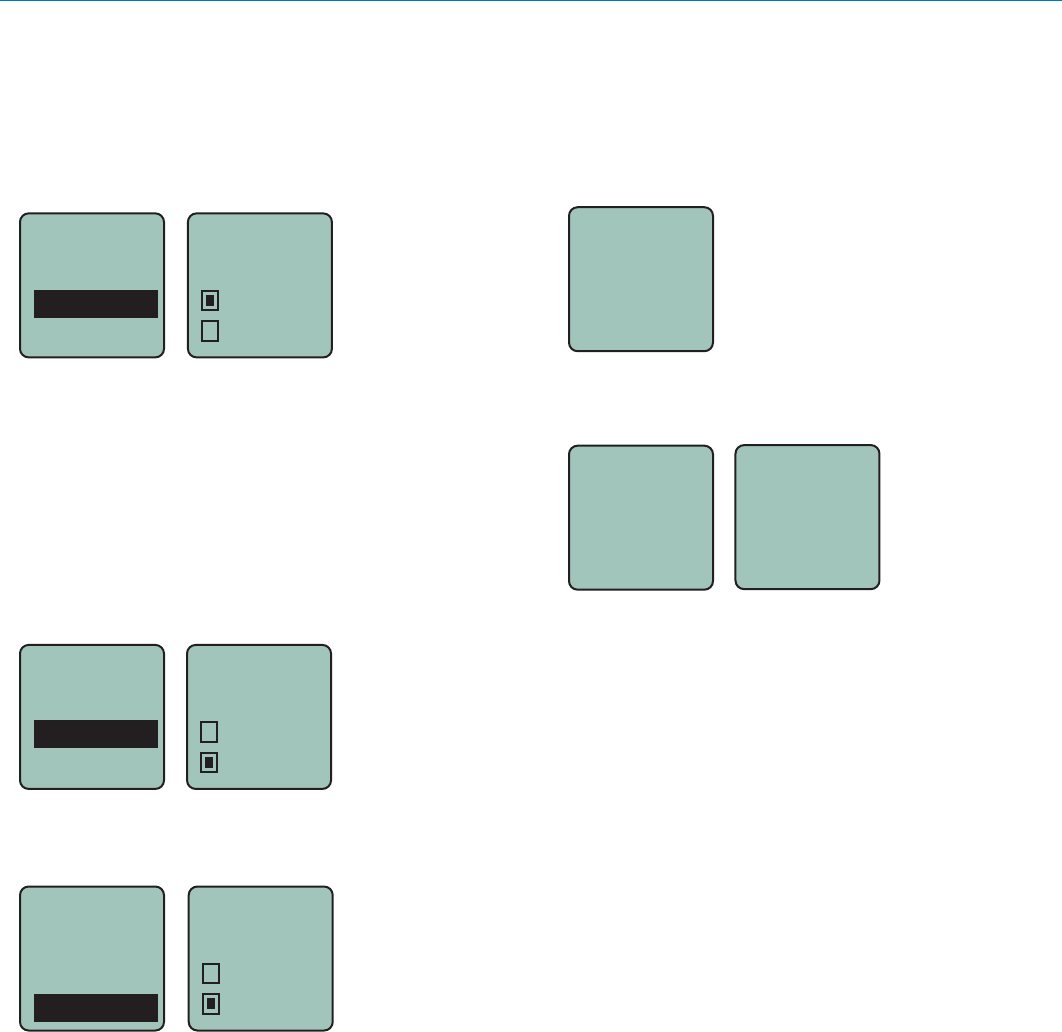

Power Menu
Pressing the power button when the unit is turned on
will display a menu with several options:
s Resume - returns to the previous mode and screen
s Rf On? - enters a screen to enable the operating or
standby modes
s AutoOn? - allows the unit to automatically power
back up after a power failure or when new batteries
are installed (works in the operating mode only)
s Pwr Off - turns the unit off irrevocably
Resume
Rf On?
AutoOn?
Pwr Off
Resume and Pwr Off
will execute
the command
immediately
Resume
Rf On?
AutoOn?
Pwr Off
The other two menu items will open a screen asking for
a Yes or No answer.
Rf On?
No
Ye s
Resume
Rf On?
AutoOn?
Pwr Off
AutoOn?
No
Ye s
Resume
Rf On?
AutoOn?
Pwr Off
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM 9

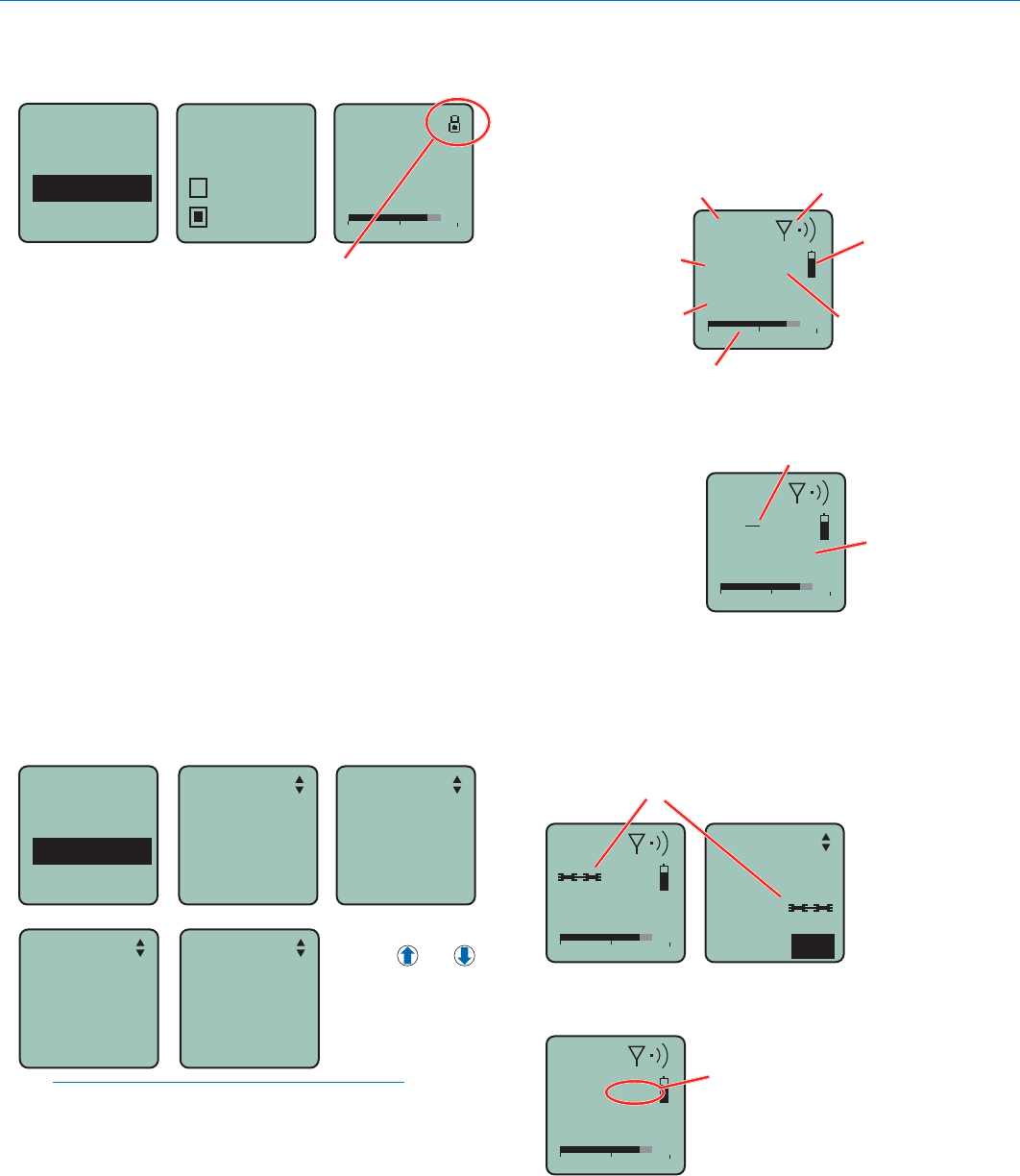

Locking/Unlocking Changes to Settings
Changes to the settings can be locked.
Locked?
No
Ye s -40 -20 0
Gain
25
A small padlock symbol will appear on adjustment
screens when changes have been locked.
StepSize
Phase
Locked
Backlit
When changes are locked, several controls and actions
can still be used:
s 3ETTINGSCANSTILLBEUNLOCKED
s -ENUSCANSTILLBEBROWSED
s 0ROGRAMMABLESWITCHSTILLWORKS
s 0OWERCANSTILLBETURNEDOFFBYUSINGTHEPOWER
menu or removing the batteries.
Selecting Programmable Switch Functions
The programmable switch on the top panel can be con-
figured using the menu to provide several functions:
s Power - turns the power on and off
s Mute - mutes the audio when switched on
s TalkBk (talkback) - redirects the audio to a different
output channel on the receiver (with receivers that
offer this function)
s (none) - disables the switch
ProgSw
Mute
ProgSw
Power
ProgSw
Mute
ProgSw
TalkBk
Use the and
arrow buttons to
select the desired
function or disable
the switch
Gain
Freq.
ProgSw
Compat
NOTE: The programmable switch will continue
to operate whether or not keypad changes are
locked.
Main Window Indicators
The Main Window displays the block number, Standby
or Operating mode, operating frequency, audio level,
battery status and programmable switch function. When
the frequency step size is set at 100 kHz, the LCD will
look like the following.
5
494.500
-40 -20 0
1
b 19
MUTE
Block number
Frequency (MHz)
Frequency
(hex setting)
Operating mode
Battery status
Programmable
switch function
Audio level
When the frequency step size is set to 25 kHz, the hex
number may include a fraction.
Note that the
frequency has
increased by 25
kHz from the upper
example.
494.525
-40 -20 0
b 19
MUTE
1
4
51
Fraction
1/4 = .025 MHz
1/2 = .050 MHz
3/4 = .075 MHz
Changing the step size never changes the frequency.
It only changes the way the user interface works. If the
frequency is set to a fractional increment between even
100 kHz steps and the step size is changed to 100 kHz,
the hex code will be replaced by two asterisks on the
main screen and the frequency screen.
494.525
-40 -20 0
b 19
MUTE
Freq.
b 19
494.525
Frequency set to fractional 25 kHz step,
but step size changed to 100 kHz.
If the programmable switch function is set for Mute, the
Main Window will indicate that the function is enabled.
51
494.500
-40 -20 0
b 19
MUTE
Mute function
enabled but
not active
When the switch is turned on, the mute icon appear-
ance will change, the word MUTE will blink at the bot-
tom of the display, and the power/function LED will blink
blue.
LT
LECTROSONICS, INC.
10
PWR/FUNC
-10
-20
AUDIO
494.500
b 19
MUTE
<–MUTE–>
51
Main Window will blink
the word MUTE when
the audio is muted
Top Panel LED will
blink blue when the
audio is muted
If the programmable switch function is set for Talkback,
the Main Window will indicate that the function is en-
abled but not active.
494.500
-40 -20 0
b 19
TB
51 Talkback
function is
enabled but
not active
When the programmable switch is turned on, the talk-
back icon appearance will change and the power/func-
tion LED will glow blue.
PWR/FUNC
-10
-20
AUDIO
494.500
-40 -20 0
b 19
TB
51
The TB icon will
change when
Talkback is active
Top Panel LED will
glow blue when
Talkback is active
Selecting the Compatibility (Compat) Mode
When used with a Lectrosonics Digital Hybrid Wireless®
receiver, the best audio quality will be achieved with the
system set to the Hybrid compatibility mode.
Freq.
MuteSw
Rolloff
Compat
Compat
Hybrid
Use the UP and DOWN arrows to select the desired
mode, then press the BACK button twice to return to
the Main Window.
Compatibility modes are as follows:
Receiver Models LCD menu item
s 3ERIES -ODE
s 3ERIES -ODE
s -ODE -ODE
s $IGITAL(YBRID7IRELESS®: Hybrid
s )&"3ERIES )&"-ODE
s -ODE -ODE
s -ODE -ODE
100 Series works with Lectrosonics UCR100 analog
receivers.
200 Series works with Lectrosonics earlier
UCR201/205/210D/211 and UCR195 analog receivers
with dual band compandors.
Mode 3* works with certain non-Lectrosonics models.
Digital Hybrid Wireless® works with all Lectrosonics
Digital Hybrid receivers. The receiver must also be set
to the Digital Hybrid compatibility mode.
IFB Series works with Lectrosonics IFB R1/R1a analog
receivers.
Mode 6* works with certain non-Lectrosonics models.
Mode 7* works with certain non-Lectrosonics models.
#ONTACTTHEFACTORYFORDETAILSOFTHESEMODES
Connecting the Signal Source
Microphones, line level audio sources and instruments
can be used with the transmitter. Refer to the section
entitled Wiring Hookups for Different Sources for
details on the correct wiring for line level sources and
microphones to take full advantage of the Servo Bias
circuitry.
Using Line Level and Instrument Inputs
Two types of high levels signals can be used with the
transmitter:
s Line Used with line level outputs from recorders,
mixers and other audio devices.
s Instr. (instrument) A special type of high imped-
ance input with an active preamp for an
optimal match with instrument pickups.
LineIn
Freq.
MuteSw
Rolloff
LineIn
Line
Instr.
LineIn
Line
Instr.
The wiring of the connector is the same for both types
of inputs.
Selecting the Low Frequency Roll-off
Low frequency audio content may be desirable or
distracting, so the point at which the roll-off takes place
can be set to 35, 50, 70, 100, 120 and 150 Hz.
Rolloff
70 Hz
LineIn
Freq.
MuteSw
Rolloff
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM 11
Adjusting the Input Gain
The two bicolor Modulation LEDs on the control panel
and keypad provide a visual indication of the audio
signal level entering the transmitter. The LEDs will glow
either red or green to indicate modulation levels as
shown in the following table.
Signal Level -20 LED -10 LED
Less than -20 dB Off Off
-20 dB to -10 dB Green Off
-10 dB to +0 dB Green Green
+0 dB to +10 dB Red Green
Greater than +10 dB Red Red
NOTE: Full modulation is achieved at 0 dB, when
the “-20” LED first turns red. The limiter can cleanly
handle peaks up to 30 dB above this point.
It is best to go through the following procedure with the
transmitter in the standby mode so that no audio will en-
ter the sound system or recorder during adjustment.
1) With fresh batteries in the transmitter, power the
unit on in the standby mode (see previous section
Powering On in Standby Mode).
2) Navigate to the Gain setup screen.
Gain
LineIn
Freq.
MuteSw -40 -20 0
Gain
25
3) Prepare the signal source. Position a microphone
the way it will be used in actual operation and have
the user speak or sing at the loudest level that oc-
cur during use, or set the output level of the instru-
ment or audio device to the maximum level that will
be used.
4) Use the and arrow buttons to adjust the gain
until the –10 dB glows green and the –20 dB LED
starts to flicker red during the loudest peaks in the
audio.
5) Once the audio gain has been set, the signal can
be sent through the sound system for overall level
adjustments, monitor settings, etc.
6) If the audio output level of the receiver is too high or
low, use only the controls on the receiver to make
adjustments. Always leave the transmitter gain ad-
justment set according to these instructions, and do
not change it to adjust the audio output level of the
receiver.
Selecting Step Size
This menu item allows frequencies to be selected in
either 100 kHz or 25 kHz increments.
Compat
StepSiz
Phase
Locked
StepSiz
100 kHz
25 kHz
StepSiz
100 kHz
25 kHz
If the desired frequency ends in .025, .050 or .075 MHz,
the 25 kHz step size must be selected.
Normally, the receiver is used to find a clear operat-
ing frequency. All Lectrosonics Digital Hybrid Wireless®
receivers provide a scanning function to quickly and
easily find prospective frequencies with little or no RF
interference. In other cases, a frequency may be speci-
fied by officials at a large event such as the Olympics
or a major league ball game. Once the frequency is
determined, set the transmitter to match the associated
receiver.
Selecting Frequency
The setup screen for frequency selection offers several
ways to browse the available frequencies.
LineIn
Freq.
MuteSw
Rolloff
Freq.
b 19
494.500
51
Press MENU/
SEL to select
one of four
fields to make
adjustments
Each field will step through the available frequencies in
a different increment. The increments are also different
in the 25 kHz mode from the 100 kHz mode.
Freq.
b 19
494.500
51
Freq.
b 19
494.500
51
These two fields step in 25 kHz
increments when the step size is 25
kHz and 100 kHz increments when
the step size is 100 kHz.
Freq.
b 19
494.500
51
Freq.
b 19
494.500
51
These two fields
always step in the
same increments
1 MHz steps
1 block steps
LT
LECTROSONICS, INC.
12

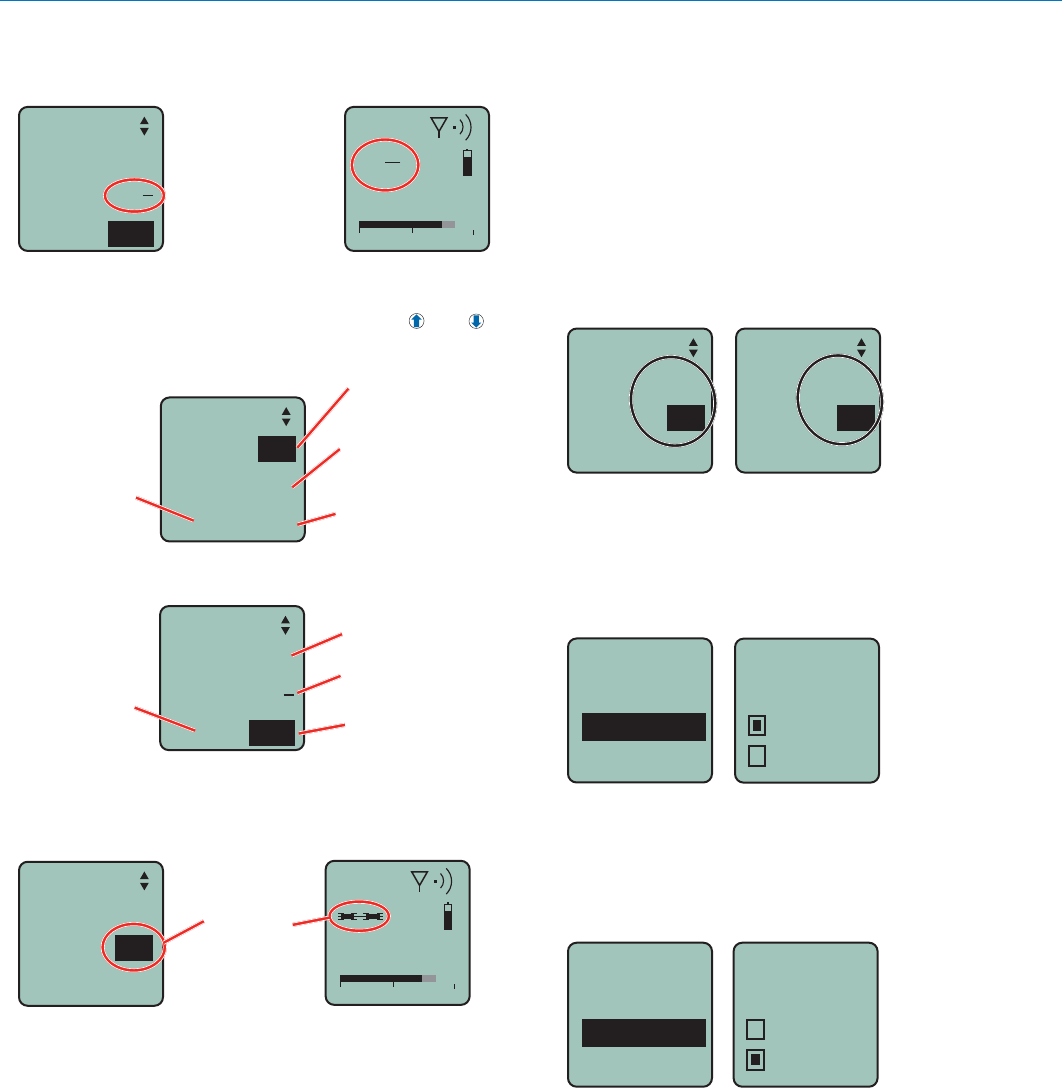

A fraction will appear next to the hex code in the setup
screen and in the main window when the frequency
ends in .025, .050 or .075 MHz.
494.525
-40 -20 0
b 19
MUTE
1
4
51
Freq.
b 19
494.525
511
4
Fraction appears
next to hex code
in 25 kHz mode
Selecting Frequency Using Two Buttons
Hold the MENU/SEL button in, then use the and
arrow buttons for alternate increments.
Freq.
b 19
494.500
51
1 block steps
1.6 MHz steps to
nearest 100 kHz
channel
10 MHz steps 100 kHz steps
to next 100 kHz
channel
100 kHz Mode
Freq.
b 19
494.525
511
4
1 block steps
1.6 MHz steps
10 MHz steps
100 kHz steps
25 kHz Mode
If the Step Size is 25 kHz with the frequency set be-
tween even 100 kHz steps and the Step Size is then
changed to 100 kHz, the mismatch will cause the hex
code to display as two asterisks.
494.525
-40 -20 0
b 19
MUTE
Freq.
b 19
494.500
**
Step Size and
Frequency
mismatch
Helpful Features on Receivers
To aid in finding clear frequencies, several Lectrosonics
receivers offer a SmartTune feature that scans the tun-
ing range of the receiver and displays a graphical report
that shows where RF signals are present at different
levels, and areas where there is little or no RF energy
present. The software then automatically selects the
best channel for operation.
Lectrosonics receivers equipped with an IR Sync func-
tion allow the receiver to set frequency, step size and
compatibility modes on the transmitter via an infrared
link between the two units.
About Overlapping Frequency Blocks
When two frequency blocks overlap, it is possible to
select the same frequency at the upper end of one and
the lower end of the other. While the frequency will be
the same, the pilot tones will be different, as indicated
by the hex codes that appear.
In the following examples, the frequency is set to
494.500 MHz, but one is in block 470 and the other in
block 19. This is done intentionally to maintain compat-
ibility with receivers that tune across a single block. The
block number and hex code must match the receiver to
enable the correct pilot tone.
Freq.
b 19
494.500
51
Freq.
b470
494.500
F4
Make sure the
block number and
hex code match
the receiver setting
Selecting Audio Polarity (Phase)
Audio polarity can be inverted at the transmitter so the
audio can be mixed with other microphones without
comb filtering. The polarity can also be inverted at the
receiver outputs.
Compat
StepSiz
Phase
Locked
Phase
Pos.
Neg.
Selecting Battery Type
The voltage drop over the life of different batteries var-
ies by type and brand. Be sure to set the correct battery
type for accurate indications and warnings. The menu
offers alkaline or lithium types.
Backlit
Rf On?
BatType
Remote
BatType
Alk.
Lith.
If you are using rechargeable batteries, it is better to
use the timer function on the receiver to monitor the
battery life rather than the indicators on the transmitter.
Rechargeable batteries maintain a fairly constant volt-
age across the operating time on each charge and stop
working abruptly, so you will have little or no warning as
they reach the end of operation. The timer is available
on all Lectrosonics Digital Hybrid Wireless® receivers.
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM 13
Enabling Remote Control
Transmitter settings can be configured using special
tones generated by Lectrosonics RM or RM2 remote
control units, or by a smartphone using a remote control
application such as Lectro RM (available on the Ap-
pStore or Google Play). Enable this feature on the
transmitter with the following menu items.
Rf On?
BatType
Remote
TxPower
Remote
Enable
Ignore
The following settings can be configured:
s 4X)NPUT'AIN
s 3LEEP5NSLEEP
s ,OCK5NLOCK
s 4XPOWEROUTPUT
s &REQUENCY
Setting Transmitter Output Power
The output power can be set to 50 mW or 100 mW.
Compat
Tuning
TxPower
Phase
TxPower
50 mW
100 mW
Restoring Default Settings
This is used to restore the factory settings.
BatType
Remote
TxPower
Default
Default
settings
No
Ye s
IR Sync Operation
A receiver with IR Sync capability can transfer the set-
tings for Frequency, Step Size and Compatibility mode
to the transmitter via the IR ports. The transfer is trig-
gered by a switch in the receiver. When the settings are
successfully transferred, an confirmation will appear on
the transmitter LCD.
IR Sync
OK
If a mismatch exists and the transfer cannot be com-
pleted, an error message will appear on the transmitter
LCD indicating what the problem is.
IR Sync
BLOCK
Mismatch
IR Sync
COMPAT
Mismatch
A BLOCK Mismatch indicates that the transmitter and
receiver are on different frequency blocks and the fre-
quency cannot be set to match. A COMPAT Mismatch
will appear when the compatibility mode in the receiver
is not available in the transmitters; for example, when
you are trying to sync a US model to work an export
model.
LT
LECTROSONICS, INC.
14
The wiring diagrams included in this section represent
the basic wiring necessary for the most common types
of microphones and other audio inputs. Some micro-
phones may require extra jumpers or a slight variation
on the diagrams shown.
It is virtually impossible to keep completely up to date
on changes that other manufacturers make to their
products, thus you may encounter a microphone that
differs from these instructions. If this occurs please call
our toll-free number listed under Service and Repair in
this manual or visit our web site at:
www.lectrosonics.com
10k
1k
5
4
3
2
1
To Audio Amplifier
5V SOURCE
MIC
VOLTAGE SELECT
LINE IN
GND
+15uF
+5 VDC
Servo Bias
Pin 4 to Pin 1 = 0 V
Pin 4 Open = 2 V
Pin 4 to Pin 2 = 4 V
+
To Limiter Control
30uF
500 Ohm
100 Ohm
2.7K
200 Ohm
+
3.3uF
5-Pin Input Jack Wiring
Audio input jack wiring:
PIN 1
Shield (ground) for positive biased electret lavaliere
microphones. Shield (ground) for dynamic microphones
and line level inputs.
PIN 2
Bias voltage source for positive biased electret lavaliere
microphones that are not using servo bias circuitry and
voltage source for 4 volt servo bias wiring.
PIN 3
Microphone level input and bias supply.
PIN 4
Bias voltage selector for Pin 3.
Pin 3 voltage depends on Pin 4 connection.
Pin 4 tied to Pin 1: 0 V
Pin 4 Open: 2 V
Pin 4 to Pin 2: 4 V
PIN 5
Line level input for tape decks, mixer outputs, musical
instruments, etc.
Installing the Connector:
1) If necessary, remove the old connector from the
microphone cable.
2) Slide the dust boot onto microphone cable with the
large end facing the connector.
3) If necessary, slide the 1/8-inch black shrink tubing
onto the mircrophone cable. This tubing is needed
for some smaller diameter cables to ensure there
is a snug fit in the dust boot.
4) Slide the backshell over the cable as shown above.
Slide the insulator over the cable before soldering
the wires to the pins on the insert.
5) Solder the wires and resistors to the pins on the
insert according to the diagrams shown in Wiring
Hookups for Different Sources. A length of .065
OD clear tubing is included if you need to insulate
the resistor leads or shield wire.
6) If necessary, remove the rubber strain relief from
the TA5F backshell by simply pulling it out.
7) Seat the insulator on the insert. Slide the cable
clamp over the and of the insulator and crimp as
shown on the next page.
8) Insert the assembled insert/insulator/clamp into
the latchlock. Make sure the tab and slot align
to allow the insert to fully seat in the latchlock.
Thread the backshell onto the latchlock.
TA5F Latchlock Insert
Insulator Cable clamp
Backshell with
strain relief
Remove strain relief
if using dust boot
Backshell
without strain
relief Dust boot (35510)
Note: If you use the dust boot, remove the rubber
strain relief that is attached to the TA5F cap, or the
boot will not fit over the assembly.
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM 15
NOTE: This termination is intended for UHF
transmitters only. VHF transmitters with 5-pin
jacks require a different termination. Lectrosonics
lavaliere microphones are terminated for
compatibility with VHF and UHF transmitters,
which is different from what is shown here.
Microphone Cable Termination
for Non-Lectrosonics Microphones
TA5F Connector Assembly
Mic Cord Stripping Instructions
1
23
4
5
VIEW FROM SOLDER
SIDE OF PINS
0.3"
0.15"
Crimping to Shield and Insulation
Shield
Insulation
Strip and position the cable so that the clamp
can be crimped to contact both the mic cable
shield and the insulation. The shield contact
reduces noise with some microphones and the
insulation clamp increases ruggedness.
Crimp these
fingers to
contact the
shield
Crimp these
fingers to
clamp the
insulation
LT
LECTROSONICS, INC.
16
Compatible Wiring for Both Servo Bias Inputs and Earlier Transmitters:
Simple Wiring - Can ONLY be used with
Servo Bias Inputs:
Input Jack Wiring for Different Sources
In addition to the microphone and line level wiring illus-
trated below, Lectrosonics makes a number of cables
and adapters for other situations such as connecting
musical instruments (guitars, bass guitars, etc.) to the
transmitter. Visit www.lectrosonics.com and click on
Accessories, or download the master catalog.
A lot of information regarding microphone wiring is also
available in the FAQ section of the web site at:
www.lectrosonics.com > SUPPORT > FAQs
Follow the instructions to search by model number or
other search options.
4 VOLT POSITIVE BIAS 2-WIRE ELECTRET
Most common type of wiring for lavaliere mics.
Fully compatible with 5-pin inputs on Lectrosonics
transmitters such as the LM and UM Series.
Fig. 2
SHIELD
TIP
PIN
5
4
3
2
1
SLEEVE
LINE LEVEL
RCA or 1/4” PLUG
A UDI O 1
2
3
4 5
T A5 F
PLUG

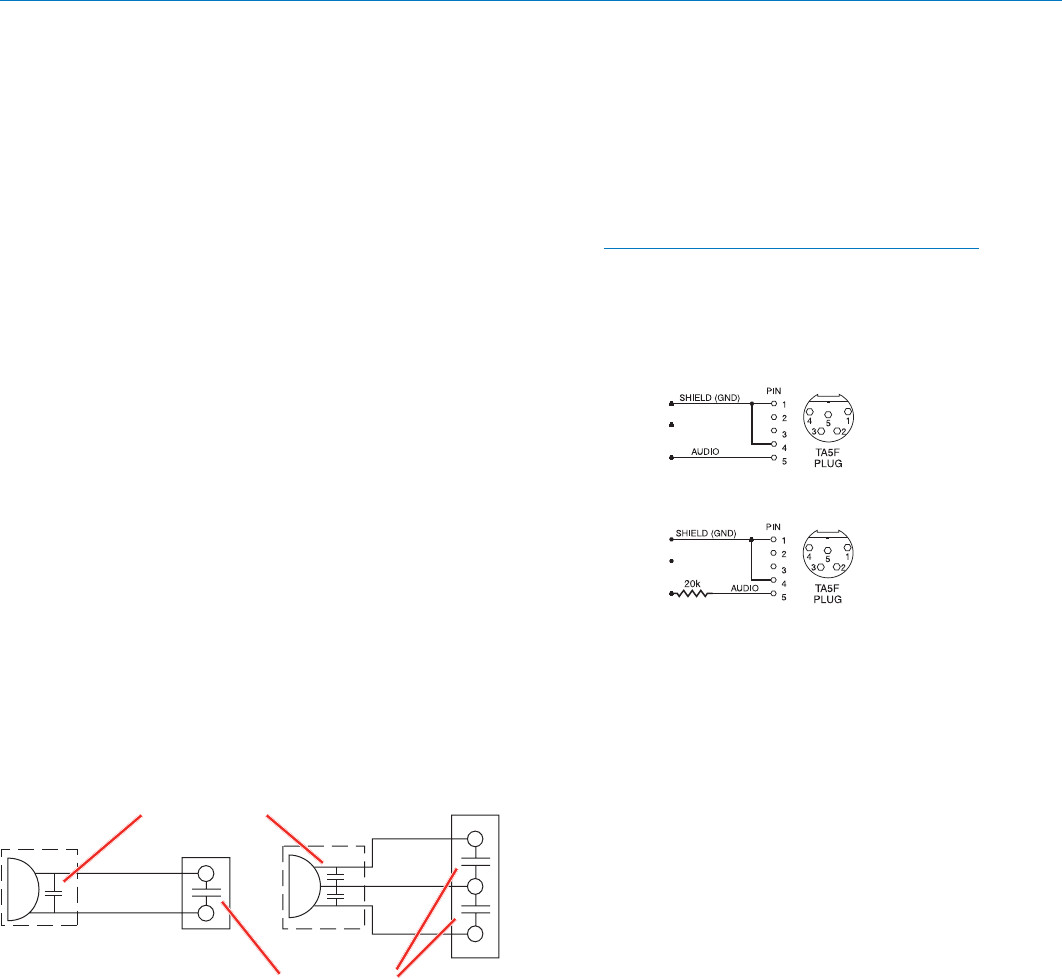

UNBALANCED LINE LEVEL SIGNALS
For signal levels up to 3V (+12 dBu) before limiting. Fully
compatible with 5-pin inputs on other Lectrosonics transmitters
such as the LM and UM Series. A 20k ohm resistor can be
inserted in series with Pin 5 for an additional 20 dB of
attenuation to handle up to 30V (+32 dBu).
Fig. 8
1
2
3
4
5
PIN
SHIELD
AUDIO
1
2
3
4 5
T A5 F
PLUG
2.7 k
2 VOLT NEGATIVE BIAS 2-WIRE ELECTRET
Compatible wiring for microphones
such as negative bias TRAM models.
NOTE: The resistor value can range from 2k to 4k ohms.
Fig. 4
DRAIN (BIAS)
SOURCE (AUDIO)
SHIELD
4 VOLT POSITIVE BIAS 3-WIRE ELECTRET
WITH EXTERNAL RESISTOR
This wiring is fully compatible with 5-pin inputs on Lectrosonics
transmitters such as the LM and UM Series. This is the wiring
for the Lectrosonics M152 lavaliere microphone.
Used for 3-wire lavaliere
microphones that require an
external resistor such as the
Sanken COS-11.
Fig. 5
Fig. 3
DPA MICROPHONES (Danish Pro Audio miniature models)
This wiring is for DPA lavalier
and headset microphones.
NOTE: The resistor value can range from 3k to 4k ohms.
Fig. 10
2 VOLT NEGATIVE BIAS 2-WIRE ELECTRET
Simplified wiring for microphones such as negative bias TRAM.
NOTE: This Servo Bias wiring is not compatible with earlier
versions of Lectrosonics transmitters. Check with the factory
to confirm which models can use this wiring.
Fig. 6
LO-Z MICROPHONE LEVEL SIGNALS
For low impedance dynamic mics or electret
mics with internal battery or power supply.
XLR JACK
Insert 1k resistor in series with pin 3 if attenuation is needed
4 VOLT POSITIVE BIAS 3-WIRE ELECTRET
NOTE: This Servo Bias wiring is not compatible with earlier
versions of Lectrosonics transmitters. Check with the factory
to confirm which models can use this wiring.
Fig. 11
1
2
3
4
5
PIN
SHIELD
A UDI O 1
2
3
4 5
T A5 F
PLUG
3.3 k
1.5 k
2 VOLT POSITIVE BIAS 2-WIRE ELECTRET
Compatible wiring for microphones such as
Countryman E6 headworn and B6 lavaliere.
Fig. 1
2 VOLT POSITIVE BIAS 2-WIRE ELECTRET
Simplified wiring for microphones
such as Countryman B6 Lavalier
and E6 Earset models and others.
NOTE: This Servo Bias wiring is not compatible with earlier
versions of Lectrosonics transmitters. Check with the factory
to confirm which models can use this wiring.
Fig. 9
SHIELD
TIP
PIN
5
4
3
2
1
SLEEVE
LINE LEVEL
RCA or 1/4” PLUG
A UDI O 1
2
3
4 5
T A5 F
PLUG
UNBALANCED LINE LEVEL SIGNALS
For signal levels up to 3V (+12 dBu) before limiting. Fully
compatible with 5-pin inputs on other Lectrosonics transmitters
such as the LM and UM Series. A 20k ohm resistor can be
inserted in series with Pin 5 for an additional 20 dB of
attenuation to handle up to 30V (+32 dBu).
Fig. 8
See Line Level
Signals on next page
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM 17
Microphone RF Bypassing
When used on a wireless transmitter, the microphone
element is in the proximity of the RF coming from the
transmitter. The nature of electret microphones makes
them sensitive to RF, which can cause problems with
microphone/transmitter compatibility. If the electret
microphone is not designed properly for use with wire-
less transmitters, it may be necessary to install a chip
capacitor in the mic capsule or connector to block the
RF from entering the electret capsule.
Some mics require RF protection to keep the radio sig-
nal from affecting the capsule, even though the trans-
mitter input circuitry is already RF bypassed.
If the mic is wired as directed, and you are having dif-
ficulty with squealing, high noise, or poor frequency
response, RF is likely to be the cause.
The best RF protection is accomplished by installing RF
bypass capacitors at the mic capsule. If this is not pos-
sible, or if you are still having problems, capacitors can
be installed on the mic pins inside the TA5F connec-
tor housing. Refer to the diagram below for the correct
locations of capacitors.
Use 330 pF capacitors. Capacitors are available from
Lectrosonics. Please specify the part number for the
desired lead style.
Leaded capacitors: P/N 15117
Leadless capacitors: P/N SCC330P
All Lectrosonics lavaliere mics are already bypassed
and do not need any additional capacitors installed for
proper operation.
CAPSULE
CAPSULE
SHIELD
AUDIO
SHIELD
AUDIO
BIAS
TA5F
CONNECTOR
TA5F
CONNECTOR
2-WIRE MIC 3-WIRE MIC
Capacitors next
to mic capsule
Capacitors in
TA5F connector
Line Level Signals
The wiring for line level and instrument signals is:
s 3IGNAL(OTTOPIN
s 3IGNAL'NDTOPIN
s 0INJUMPEDTOPIN
This allows signal levels up to 3V RMS to be applied
without limiting.
NOTE for line level inputs only (not instrument):
If more headroom is needed, insert a 20 k resistor
in series with pin 5. Put this resistor inside the
TA5F connector to minimize noise pickup. The
resistor will have little or no effect on the signal if
the input is set for instrument.
See Fig. 8 on
previous page
Line Level
Normal Wiring
Line Level
More Headroom
(20 dB)
LT
LECTROSONICS, INC.
18
Accessories
BCSLEBN Spring-loaded belt clip
LTLRBATELIM Battery eliminator; allows transmitter
to be operated from external power;
6 to 36 VDC
M152/5P Lavaliere microphone; omnidirectional
MI33PRA Instrument cable; passive type for use
with very high output pickups; right
angle 1/4” plug
MI33PST Instrument cable; passive type for us
with very high output pickups; straight
1/4” plug
MI39ARA Instrument cable; active type for use
with most instrument pickups; right
angle 1/4” plug
MI39AST Instrument cable; active type for use
with most instrument pickups; straight
1/4” plug
MC35 Line level adapter cable; XLR-F
to TA5F; 37” length
MC41 Dynamic mic level adapter cable;
XLR-F to TA5F; 37” length
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM 19
Troubleshooting
Symptom: Possible Cause:
Transmitter Battery LED off 1. Batteries are inserted incorrectly.
when Power Switch “ON” 2. Batteries are low or dead.
No Transmitter Modulation LEDs 1. Gain control turned all the way down.
when Signal Should be Present 2. Batteries are inserted incorrectly. Check power LED.
3. Mic capsule is damaged or malfunctioning.
4. Mic cable damaged or miswired.
5. Instrument Cable damaged or not plugged in.
6. Musical instrument output level set too low.
Receiver Indicates RF But No Audio 1. Audio source or cable connected to transmitter is defective. Try
using an alternate source or cable.
2. Make sure the compatibility mode is the same on transmitter and
receiver.
3. Ensure musical instrument volume control is not set to minimum.
4. Check for correct pilot tone indication on the receiver. See item on
page 11 entitled About Overlapping Frequency Blocks.
Receiver RF Indicator Off 1. Ensure that the transmitter and receiver are set to the same
frequency, and that the hex code matches.
2. Transmitter not turned on, or battery is dead.
3. Receiver antenna missing or improperly positioned.
4. Operating distance is too great.
5. Transmitter may be set to the Standby Mode. See page 7.
No Sound (Or Low Sound Level), Receiver 1. Receiver output level set too low.
Indicates Proper Audio Modulation 2. Receiver output is disconnected; cable is defective or miswired.
3. Sound system or recorder input is turned down.
Distorted Sound 1. Transmitter gain (audio level) is too high. Check Modulation
LEDs on transmitter and receiver while distortion is being heard.
2. Receiver output level may be mismatched with the sound
system or recorder input. Adjust output level on receiver to the
correct level for the recorder, mixer or sound system.
3. Transmitter and receiver may not be set to the same compatibility
mode. Some mis-matched combinations will pass audio.
4. RF interference. Reset both transmitter and receiver to a clear
channel. Use scanning function on receiver if available.
Wind Noise or Breath “Pops’” 1. Reposition microphone, or use a larger windscreen, or both.
2. Omni-directional mics produce less wind noise and breath pops
than directional types.
Hiss and Noise -- Audible Dropouts 1. Transmitter gain (audio level) far too low.
2. Receiver antenna missing or obstructed.
3. Operating distance too great.
4. RF interference. Reset both transmitter and receiver to a
clear channel. Use scanning function on receiver if available.
5. Musical instrument output set too low.
6. Microphone capsule picking up RF noise. See item on page 15
entitled Microphone RF Bypassing.
Excessive Feedback (With Microphone) 1. Transmitter gain (audio level) too high. Check gain adjustment
and/or reduce receiver output level.
2. Microphone too close to speaker system.
3. Microphone is too far from user’s mouth.
It is important that you follow these steps in the sequence listed.
LT
LECTROSONICS, INC.
20
The FCC requires that the following statement be included in this manual:
This device complies with FCC radiation exposure limits as set forth for an uncontrolled environment. This device
should be installed and operated so that its antenna(s) are not co-located or operating in conjunction with any
other antenna or transmitter.
Operating Frequencies:
Block A1: 470.100 - 537.575
Block B1: 537.600 - 614.375
Block C1: 614.400 - 691.175
Block D1: 691.200 - 767.975 (export only)
Frequency Selection Steps: Selectable; 100 kHz or 25 kHz
RF Power output: 50 or 100 mW
Pilot tone: 25 to 32 kHz; 5 kHz deviation
(Digital Hybrid mode)
Frequency Stability: ± 0.002%
Deviation: ± 75 kHz max. (Digital Hybrid mode)
Spurious radiation: 60 dB below carrier
Equivalent input noise: –120 dBV (A-weighted)
Input level: Nominal 2 mV to 300 mV, before limiting
Greater than 1V maximum, with limiting.
)NPUTIMPEDANCE s -IC/HM
s ,INEK/HM
Input limiter: DSP controlled, dual envelope “soft” limiter
with greater than 30 dB range
Gain control range: 44 dB; digital control
-ODULATIONINDICATORS s $UALBICOLOR,%$SINDICATEMODULATIONOF
-20, -10, 0 and +10 dB referenced to full
modulation
s ,#$BARGRAPH
#ONTROLS s 4OPPANELTOGGLESWITCHPROGRAMMABLEAS
power, mute, talkback or none (off) function
s 3IDEPANELMEMBRANESWITCHESWITH,#$
interface for power on/off and all setup and
configuration controls
Audio Input Jack: Switchcraft 5-pin locking (TA5F)
Antenna: Galvanized steel, flexible wire
Battery: Two AA; alkaline, lithium, NiMH rechargeable
"ATTERY,IFE s !LKALINEHOURS
s $URACELL1UANTUMHOURS
s %NELOOPM!(.I-(HOURS
new batteries fully charged
Weight: 5.8 ounces (141 grams), including lithium AA batteries
and wire belt clip
Dimensions: 3.2 x 2.4 x .9 in. (81 x 61 x 20 mm)
Emission Designator: 180KF3E
Specifications and Features
Specifications subject to change without notice
Audio Performance (Digital Hybrid mode)
Frequency Response:
Mic input: 35 Hz to 20 kHz (+/-1dB); low frequency
roll-off is selectable at 35, 50, 70, 100, 120, 180 Hz
Line/Instrument: 35 Hz to 20 kHz (+/-1dB)
THD: 0.2% (typical)
SNR at receiver output:
Note: The dual envelope “soft”
limiter provides exceptionally good
handling of transients using variable
attack and release time constants. Once activated, the limiter compresses 30+ dB
of transmitter input range into 4.5 dB of receiver output range, thus reducing the
measured figure for SNR without limiting by 4.5 dB
SmartNR No Limiting w/Limiting
OFF 103.5 108.0
NORMAL 107.0 111.5
FULL 108.5 113.0
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM 21
LT
LECTROSONICS, INC.
22
Service and Repair
If your system malfunctions, you should attempt to correct or isolate the trouble before concluding that the equipment
needs repair. Make sure you have followed the setup procedure and operating instructions. Check the interconnecting
cables and then go through the Troubleshooting section in this manual.
We strongly recommend that you do not try to repair the equipment yourself and do not have the local repair shop at-
tempt anything other than the simplest repair. If the repair is more complicated than a broken wire or loose connection,
send the unit to the factory for repair and service. Don’t attempt to adjust any controls inside the units. Once set at the
factory, the various controls and trimmers do not drift with age or vibration and never require readjustment. There are
no adjustments inside that will make a malfunctioning unit start working.
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs
are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest
flat rate plus parts and shipping. Since it takes almost as much time and effort to determine what is wrong as it does
to make the repair, there is a charge for an exact quotation. We will be happy to quote approximate charges by phone
for out-of-warranty repairs.
Returning Units for Repair
For timely service, please follow the steps below:
A. DO NOT return equipment to the factory for repair without first contacting us by email or by phone. We need
to know the nature of the problem, the model number and the serial number of the equipment. We also need a
phone number where you can be reached 8 A.M. to 4 P.M. (U.S. Mountain Standard Time).
B. After receiving your request, we will issue you a return authorization number (R.A.). This number will help speed
your repair through our receiving and repair departments. The return authorization number must be clearly shown
on the outside of the shipping container.
C. Pack the equipment carefully and ship to us, shipping costs prepaid. If necessary, we can provide you with the
proper packing materials. UPS is usually the best way to ship the units. Heavy units should be “double-boxed” for
safe transport.
D. We also strongly recommend that you insure the equipment, since we cannot be responsible for loss of or dam-
age to equipment that you ship. Of course, we insure the equipment when we ship it back to you.
Lectrosonics USA:
Mailing address: Shipping address: Telephone:
Lectrosonics, Inc. Lectrosonics, Inc. (505) 892-4501
PO Box 15900 581 Laser Rd. (800) 821-1121 Toll-free
Rio Rancho, NM 87174 Rio Rancho, NM 87124 (505) 892-6243 Fax
USA USA
Web: E-mail:
www.lectrosonics.com sales@lectrosonics.com
Lectrosonics Canada:
Mailing Address: Telephone: E-mail:
49 Spadina Avenue, (416) 596-2202 Sales: colinb@lectrosonics.com
Suite 303A (877) 753-2876 Toll-free Service: joeb@lectrosonics.com
Toronto, Ontario M5V 2J1 (877-7LECTRO)
(416) 596-6648 Fax
Digital Hybrid Wireless Belt-Pack Transmitter
Rio Rancho, NM 23
&%$* $#o,*(((!'%$&$# &$"
**)*&!&!'%$&$# &$" 12 August 2014
LTman.indd
LIMITED ONE YEAR WARRANTY
The equipment is warranted for one year from date of purchase against defects in
materials or workmanship provided it was purchased from an authorized dealer. This
warranty does not cover equipment which has been abused or damaged by careless
handling or shipping. This warranty does not apply to used or demonstrator equipment.
Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any
defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot
correct the defect in your equipment, it will be replaced at no charge with a similar new
item. Lectrosonics, Inc. will pay for the cost of returning your equipment to you.
This warranty applies only to items returned to Lectrosonics, Inc. or an authorized
dealer, shipping costs prepaid, within one year from the date of purchase.
This Limited Warranty is governed by the laws of the State of New Mexico. It states the
entire liablility of Lectrosonics Inc. and the entire remedy of the purchaser for any
breach of warranty as outlined above. NEITHER LECTROSONICS, INC. NOR
ANYONE INVOLVED IN THE PRODUCTION OR DELIVERY OF THE EQUIPMENT
SHALL BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, CONSEQUENTIAL,
OR INCIDENTAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE
THIS EQUIPMENT EVEN IF LECTROSONICS, INC. HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL THE LIABILITY OF
LECTROSONICS, INC. EXCEED THE PURCHASE PRICE OF ANY DEFECTIVE
EQUIPMENT.
This warranty gives you specific legal rights. You may have additional legal rights which
vary from state to state.
