Introduction
The design of the SMWB transmitter delivers the ad-
vanced technology and features of Digital Hybrid Wire-
less® in a Lectrosonics belt-pack transmitter at a modest
cost. Digital Hybrid Wireless® combines a 24-bit digital
audio chain with an analog FM radio link to eliminate a
compandor and its artifacts, yet preserve the extended
operating range and noise rejection of the finest ana-
log wireless systems. DSP “compatibility modes” allow
the transmitter to also be used with a variety of analog
receivers by emulating the compandors found in earlier
Lectrosonics analog wireless and IFB receivers, and
certain receivers from other manufacturers (contact the
factory for details).
The housing is a rugged, machined aluminum package.
The input jack is a standard Lectrosonics 5-pin type for
use with electret lavaliere mics, dynamic mics, musi-
cal instrument pickups and line level signals. The LEDs
on the keypad allow quick and accurate level settings
without having to view the receiver. The unit is powered
by two AA batteries. The antenna port uses a standard
50 ohm SMA connector.
The switching power supplies in the provide constant
voltages to the transmitter circuits from the beginning to
the end of battery life, with output power remaining con-
stant over the life of the battery. The input amplifier uses
an ultra low noise op amp. Input gain is adjustable over
a 44 dB range, with a DSP-controlled dual envelope
input limiter providing a clean 30 dB range to prevent
overload from signal peaks.
About Digital Hybrid Wireless®
All wireless links suffer from channel noise to some
degree, and all wireless microphone systems seek to
minimize the impact of that noise on the desired signal.
Conventional analog systems use compandors for
enhanced dynamic range, at the cost of subtle artifacts
(known as “pumping” and “breathing”). Wholly digital
systems defeat the noise by sending the audio informa-
tion in digital form, at the cost of some combination of
power, bandwidth, operating range and resistance to
interference.
The Lectrosonics Digital Hybrid Wireless system over-
comes channel noise in a dramatically new way, digitally
encoding the audio in the transmitter and decoding it
in the receiver, yet still sending the encoded informa-
tion via an analog FM wireless link. This proprietary
algorithm is not a digital implementation of an analog
compandor but a technique which can be accomplished
only in the digital domain.
Since the RF link between transmitter and receiver is
FM, channel noise will increase gradually with in-
creased operating range and weak signal conditions,
however, the Digital Hybrid Wireles system handles this
situation elegantly with rarely audible audio artifacts as
the receiver approaches its squelch threshold.
In contrast, a purely digital system tends to drop the
audio suddenly during brief dropouts and weak signal
conditions. The Digital Hybrid Wireless system simply
encodes the signal to use a noisy channel as efficiently
and robustly as possible, yielding audio performance
that rivals that of purely digital systems, without the
power, noise and bandwidth problems inherent in digital
transmission. Because it uses an analog FM link, Digital
Hybrid Wireless enjoys all the benefits of conventional
FM wireless systems, such as excellent range, efficient
use of RF spectrum, and long battery life.
Servo Bias Input and Wiring
The input preamp is a unique design that delivers
audible improvements over conventional transmitter
inputs. Two different microphone wiring schemes are
available to simplify and standardize the configuration.
Simplified 2-wire and 3-wire configurations provide sev-
eral arrangements designed for use only with servo bias
inputs to take full advantage of the preamp circuitry.
A line level input wiring provides an extended frequency
response with an LF roll-off at 35 Hz for use with instru-
ments and line level signal sources.
DSP-controlled Input Limiter
The transmitter employs a digitally-controlled analog
audio limiter prior to the analog-to-digital converter.
The limiter has a range greater than 30 dB for excellent
overload protection. A dual release envelope makes the
limiter acoustically transparent while maintaining low
distortion. It can be thought of as two limiters in series,
connected as a fast attack and release limiter followed
by a slow attack and release limiter. The limiter recovers
quickly from brief transients, so that its action is hidden
from the listener, but recovers slowly from sustained
high levels to keep audio distortion low and preserve
short term dynamic changes in the audio.
Recorder function
The SMWB has a built in recording function for use in
situations where RF may not be possible or to work as
a stand alone recorder. The record function and trans-
mit functions are exclusive of each other - you cannot
record AND transmit at the same time. The recorder
samples at 44.1kHz rate with a 24 bit sample depth.
(the rate was selected due to the required 44.1kHz rate
used for the digital hybrid algorithm). The micro SD card
also offers easy firmware update capabilities without
the need for a USB cable or driver issues.
SMWB Series
LECTROSONICS, INC.
6
Features

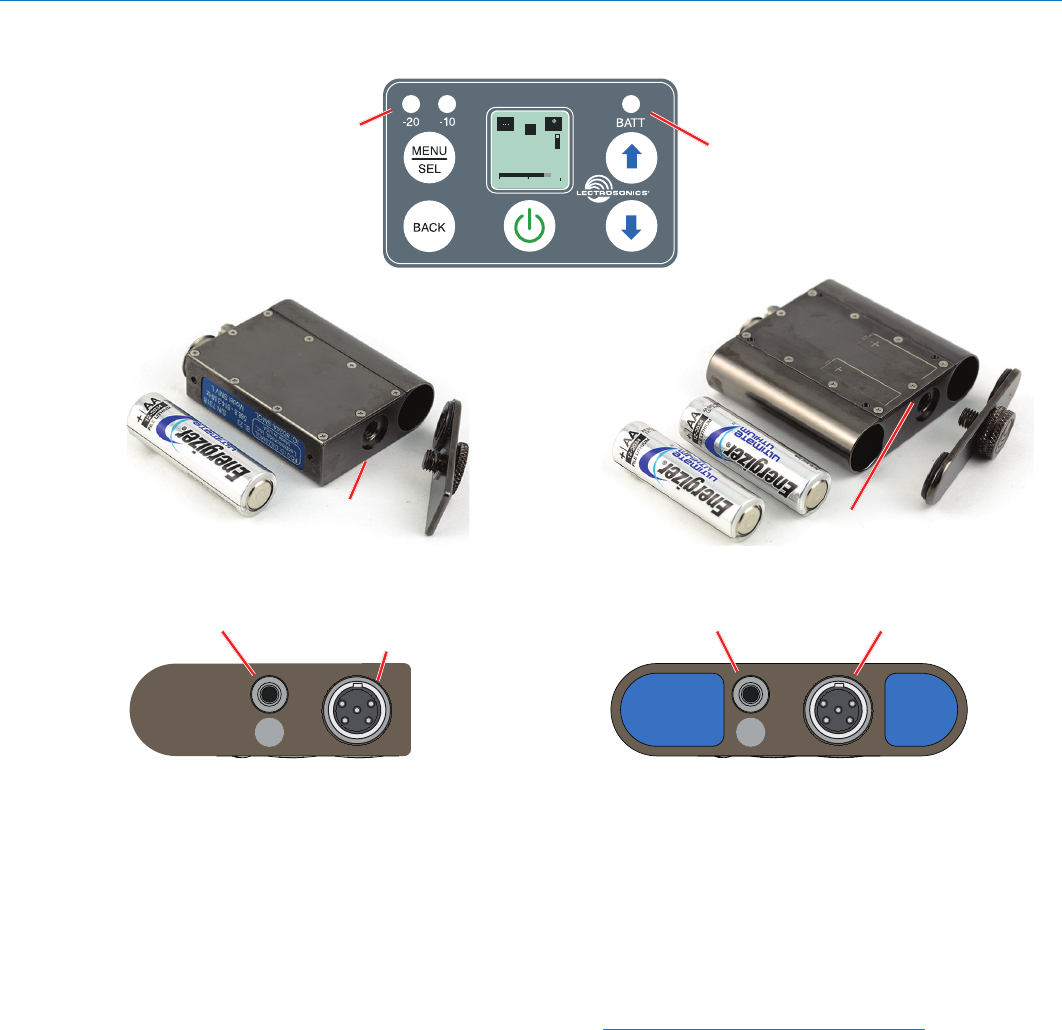

Battery Status LED Indicator
AA batteries can be used to power the transmitter.
The LED labeled BATT on the keypad glows green
when the batteries are good. The color changes to red
when the battery voltage drops down and stays red
through most of the battery life. When the LED begins
to blink red, there will be only a few minutes remaining.
The exact point at which the LEDs turn red will vary
with battery brand and condition, temperature and
power consumption. The LEDs are intended to simply
catch your attention, not to be an exact indicator of
remaining time.
A weak battery will sometimes cause the LED to glow
green immediately after the transmitter is turned on, but
it will soon discharge to the point where the LED will
turn red or the unit will turn off completely.
Some batteries give little or no warning when they
are depleted. If you wish to use these batteries in the
transmitter, you will need to manually keep track of the
operating time to prevent interruptions caused by dead
batteries.
Start with a fully charged battery, then measure the time
it takes for the Power LED to go out completely.
NOTE: The battery timer feature in many
Lectrosonics receivers is very helpful in measuring
battery runtime. Refer to the receiver instructions
for details on using the timer.
Modulation
Indicators Battery
Status LED
-40 -20 0
REC
Audio
Input
Jack
Antenna
Port
Antenna
Port
Audio
Input
Jack
microSDHC
memory card
port
microSDHC
memory card
port
Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 7
Battery Installation
The transmitter is powered by two AA batteries. We
recommend using lithium for longest life.
Because some batteries run down quite abruptly, using
the Power LED to verify battery status will not be reli-
able. However, it is possible to track battery status using
the battery timer function available in Lectrosonics
Digital Hybrid Wireless receivers.
The battery door opens by simply unscrewing the
knurled knob part way until the door will rotate. The
door is also easily removed by unscrewing the knob
completely, which is helpful when cleaning the battery
contacts. The battery contacts can be cleaned with
alcohol and a cotton swab, or a clean pencil eraser. Be
sure not to leave any remnants of the cotton swab or
eraser crumbs inside the compartment.
A small pinpoint dab of silver conductive grease* on the
thumbscrew threads can improve battery performance
and operation. Do this if you experience a drop in bat-
tery life or an increase in operating temperature.
Insert the batteries according to the markings on the
back of the housing. If the batteries are inserted incor-
rectly, the door may close but the unit will not operate.
*if you are unable to locate a supplier of this type of
grease - a local electronics shop for example - contact
the factory for a small maintenance vial.
SMWB Series
LECTROSONICS, INC.
8
Turning Power ON and OFF

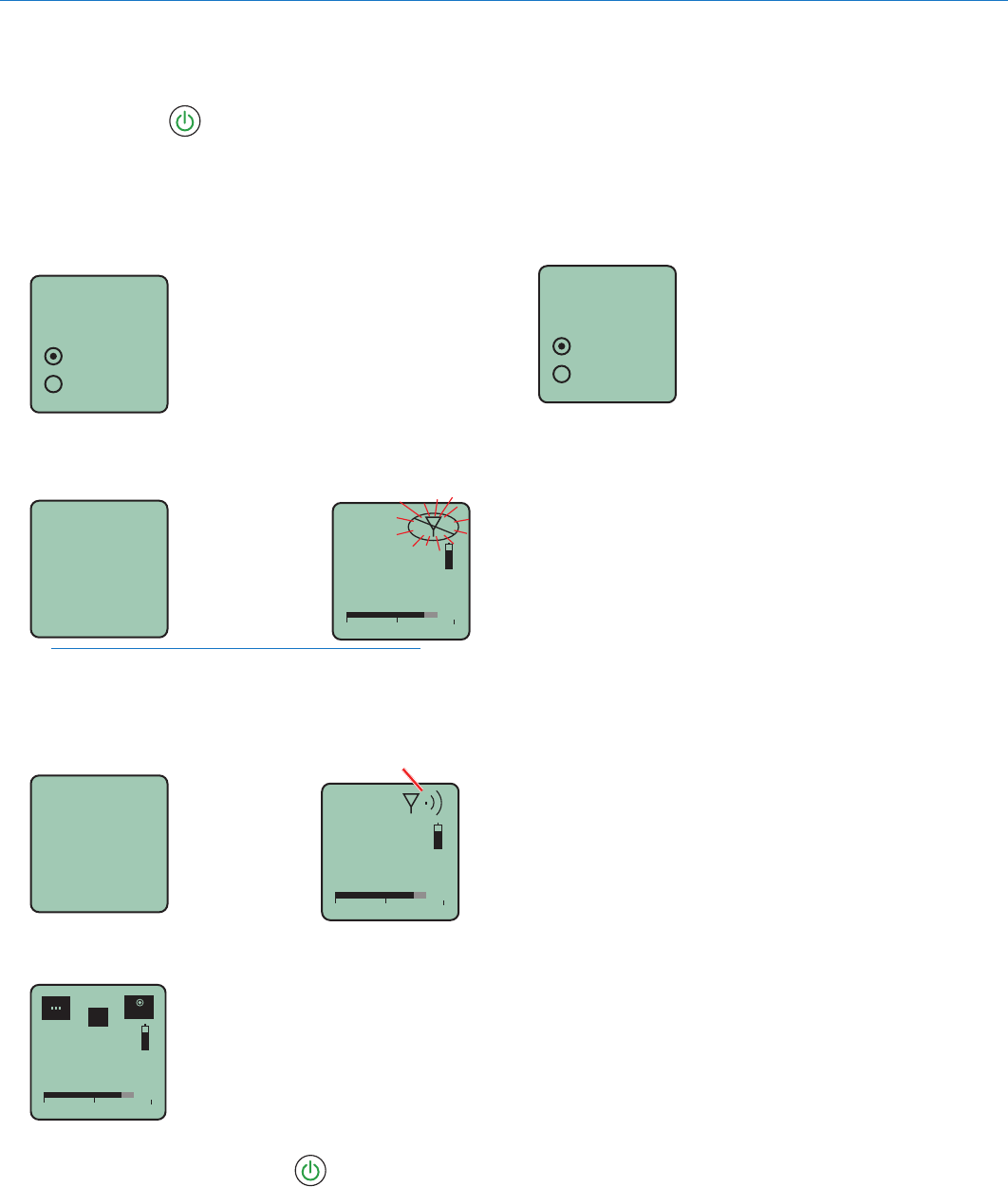

Turning the Power ON
The power button turns the unit on and off, and pro-
vides access to a secondary menu. When the button is
pressed, several different startup screens may appear
depending upon the selected operating mode.
• If no operating mode has been selected, the first
screen to appear will prompt you to select the de-
sired mode
Use UP and DOWN
arrow buttonss to
select the function
Choose
Function
Xmit
Record

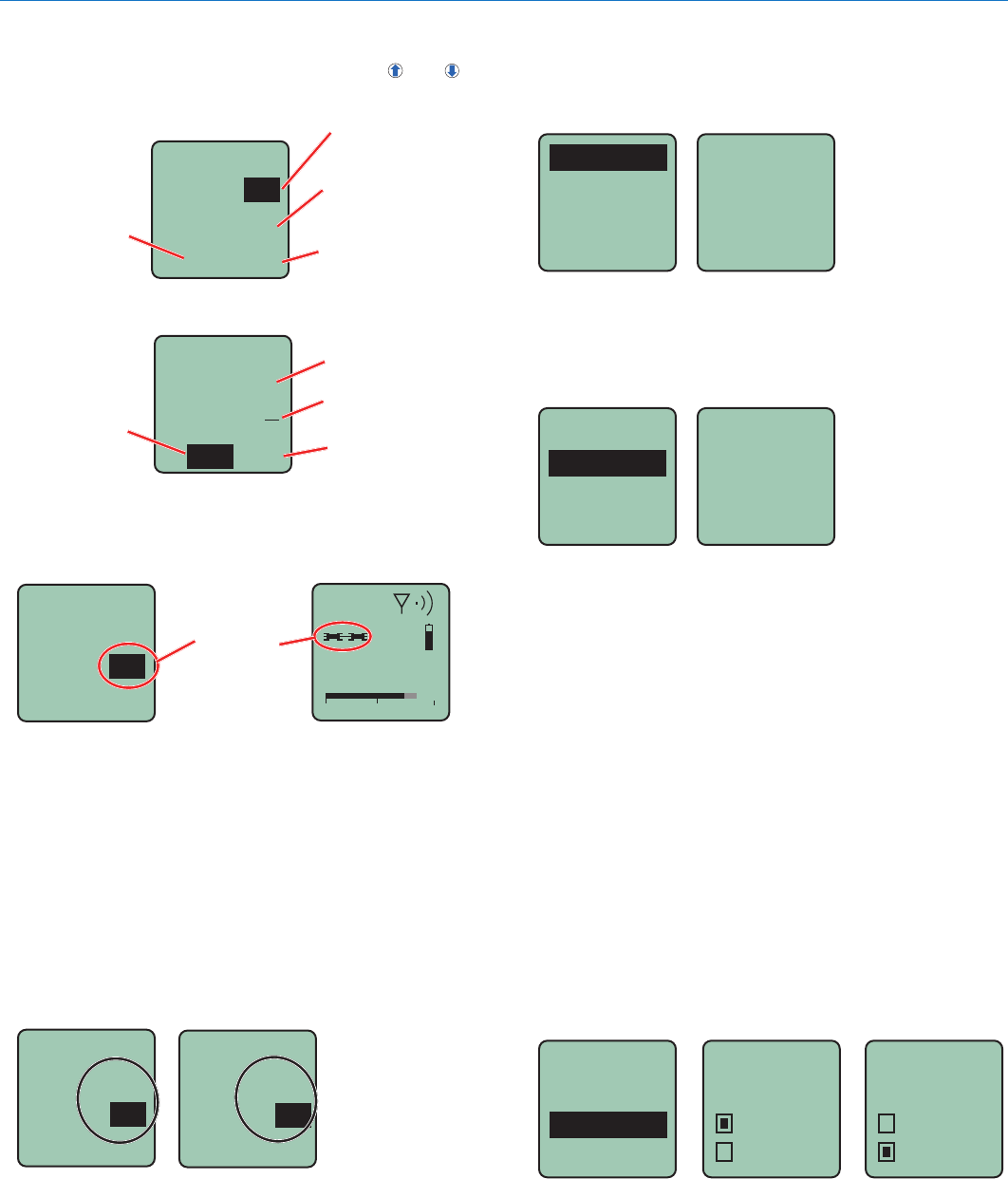

• If the mode is set to Xmit (transmitter), the first
screen will be the Xmit Main Window
Hold
for
Rf On
...1
Release Power
Button before
the counter
reaches 3 to
enter standby
mode (no
transmission)
5
494.500
-40 -20 0
1
b 19
RF indicator blinks
NOTE: A brief press of the power button will turn
the unit on in the Standby mode with the RF output
turned off. Press and hold the power button while
an on screen counter steps from 1 to 3 to turn the
unit on with the RF output turned on.
Hold
for
Rf On
...3
5
494.500
-40 -20 0
1
b 19
RF indicator not blinking
Hold power
button until
the counter
reaches 3
• If the mode is set to Record, the first screen to ap-
pear with be the Record Main Window.
-40 -20 0
REC
Turning the Power OFF
Press and hold the power button until the on screen
counter reaches 1 to turn the unit off. There is also an
item in the power menus to turn the unit off (see menu
maps in following sections).
Selecting between
Transmit and Record
Modes
The SMWB can be configured as a transmitter or as a
recorder. To select the configuration, hold the UP arrow
button in then press the power button. Use the UP and
DOWN arrow buttons to select the desire mode.
Use UP and DOWN
arrow buttonss to
select the function
Choose
Function
Xmit
Record
If the Xmit mode is selected, press the MENU/SEL
or power button to open the Xmit Main Window in the
standby mode.
If the Record mode is selected, press the MENU/SEL or
power button to open the Record Main Window.
Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 9
Transmitter Operating
Instructions
• Install battery(s)
• Set the configuration to the Xmit mode (see previ-
ous section)
• Turn power on in the Standby mode (see previous
section)
• Connect microphone and place it in the position
where it will be used.
• Have user talk or sing at the same level that will be
used in the production, and adjust the input gain so
that the -20 LED blinks red on louder peaks.
Gain
Freq
Rolloff
Compat -40 -20 0
Gain
25
Use the UP and DOWN
arrow buttons to adjust
the gain until the -20
LED blinks red on
louder peaks

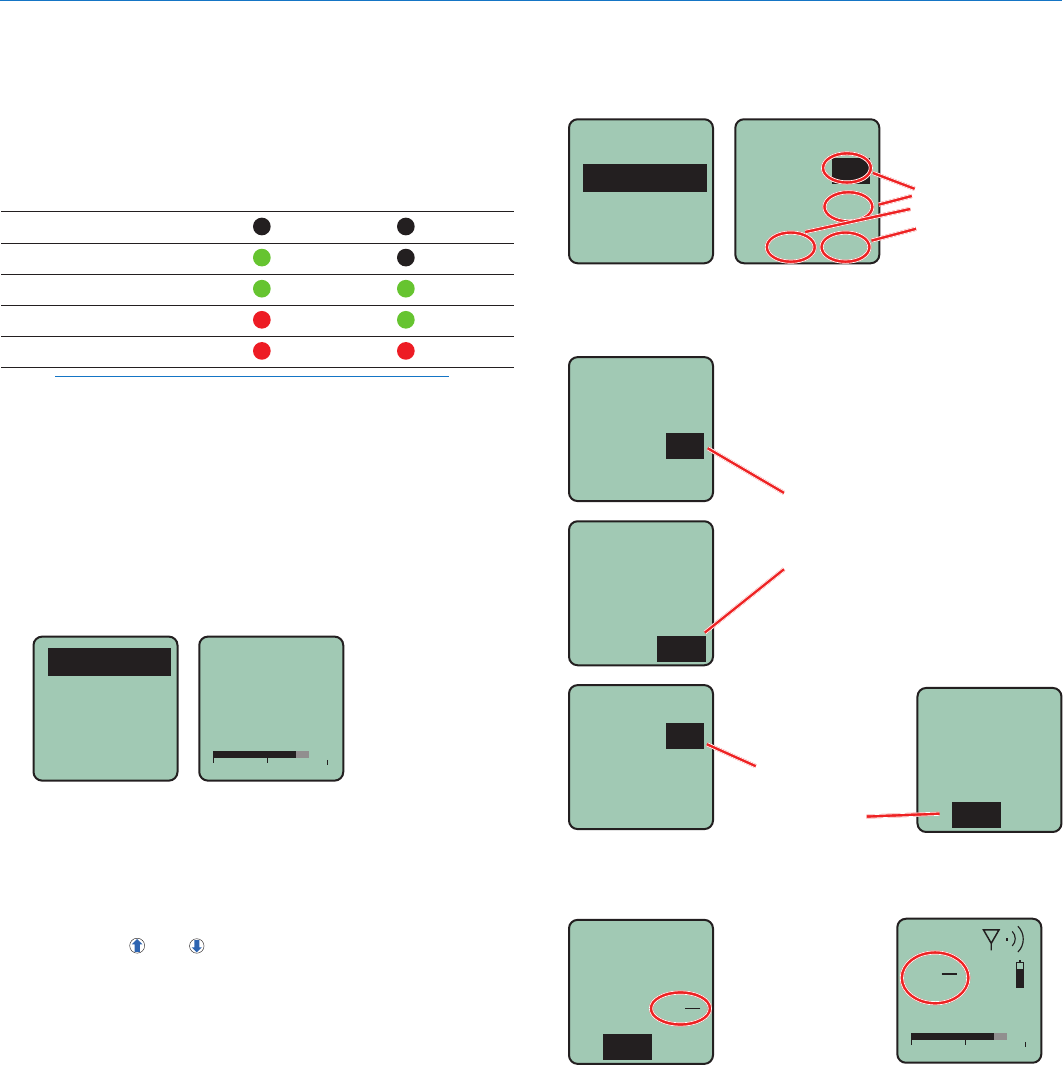

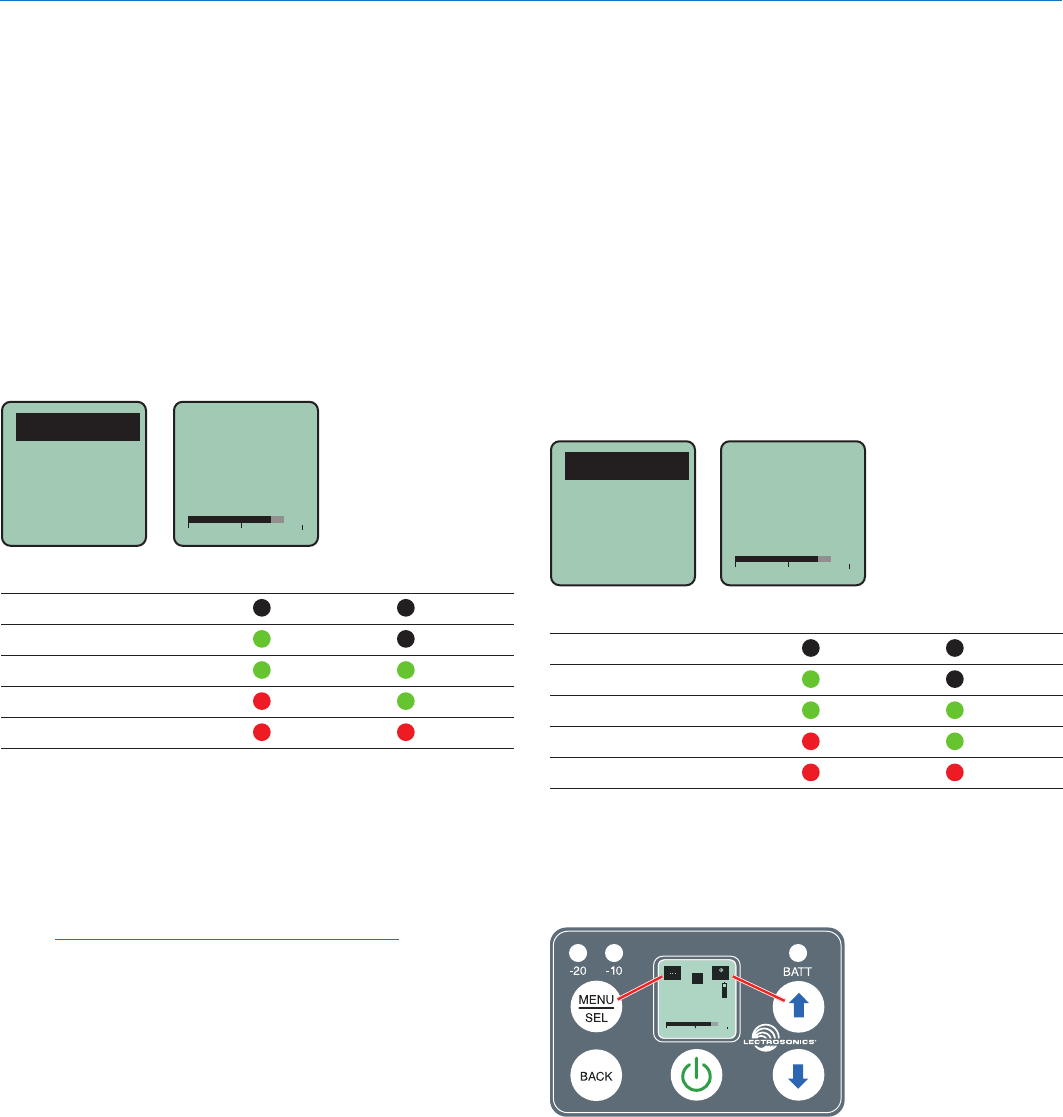

Signal Level -20 LED -10 LED
Less than -20 dB Off Off
-20 dB to -10 dB Green Off
-10 dB to +0 dB Green Green
+0 dB to +10 dB Red Green
Greater than +10 dB Red Red
• Set the frequency and compatibility mode to match
the receiver.
• Turn the RF output on with the Rf On? item in the
power menu, or by turning the power off and then
back on while holding the power button in and wait-
ing for the counter to reach 3.
NOTE: The translucent “bubble” next to the
antenna connector is an IR port that can be
used to transfer settings from an IR enabled
Lectrosonics receiver. Refer to the receiver manual
for details.
Record Mode Operating
Instructions
• Install battery(s)
• Set the configuration to the Record mode (see pre-
vious section)
• Insert microSDHC memory card
• Turn power on
• Format memory card
• Connect microphone and place it in the position
where it will be used.
• Have user talk or sing at the same level that will be
used in the production, and adjust the input gain so
that the -20 LED blinks red on louder peaks
Gain
Rolloff
Naming
SD Info-40 -20 0
Gain
25
Use the UP and DOWN
arrow buttons to adjust
the gain until the -20
LED blinks red on
louder peaks
Signal Level -20 LED -10 LED
Less than -20 dB Off Off
-20 dB to -10 dB Green Off
-10 dB to +0 dB Green Green
+0 dB to +10 dB Red Green
Greater than +10 dB Red Red
• To start recording, press the record button (UP ar-
row button)
• To stop recording, press and hold the record (UP
arrow button) until the word SAVED appears on the
screen
-40 -20 0
REC
MENU/SEL and UP
arrow buttons are
labeled by the on
screen icons
UP arrow button is
record start/stop
MENU/SEL opens
the menu
To play back the recordings, remove the memory card
and copy the files onto a computer with video or audio
editing software installed.
SMWB Series
LECTROSONICS, INC.
10

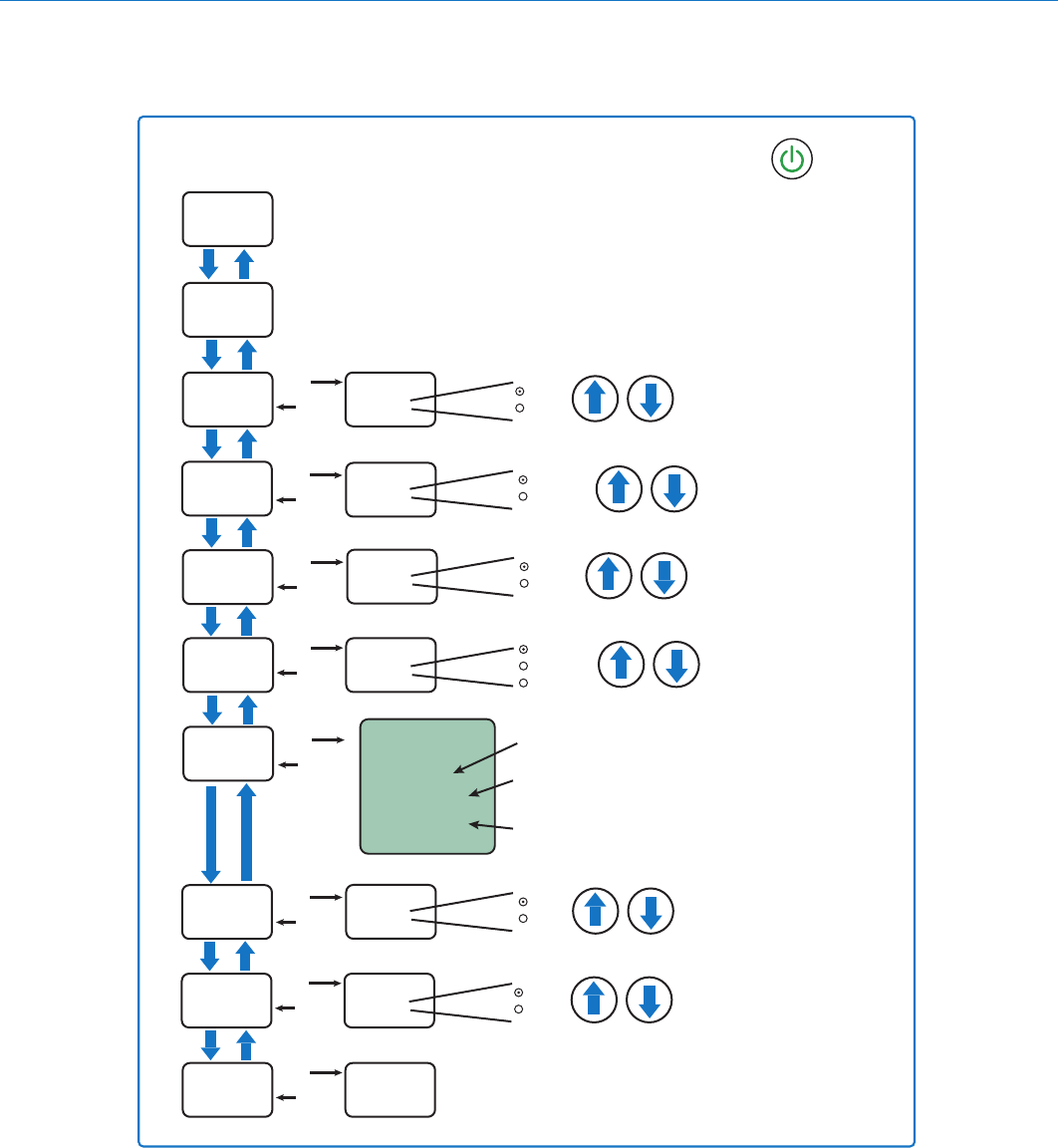

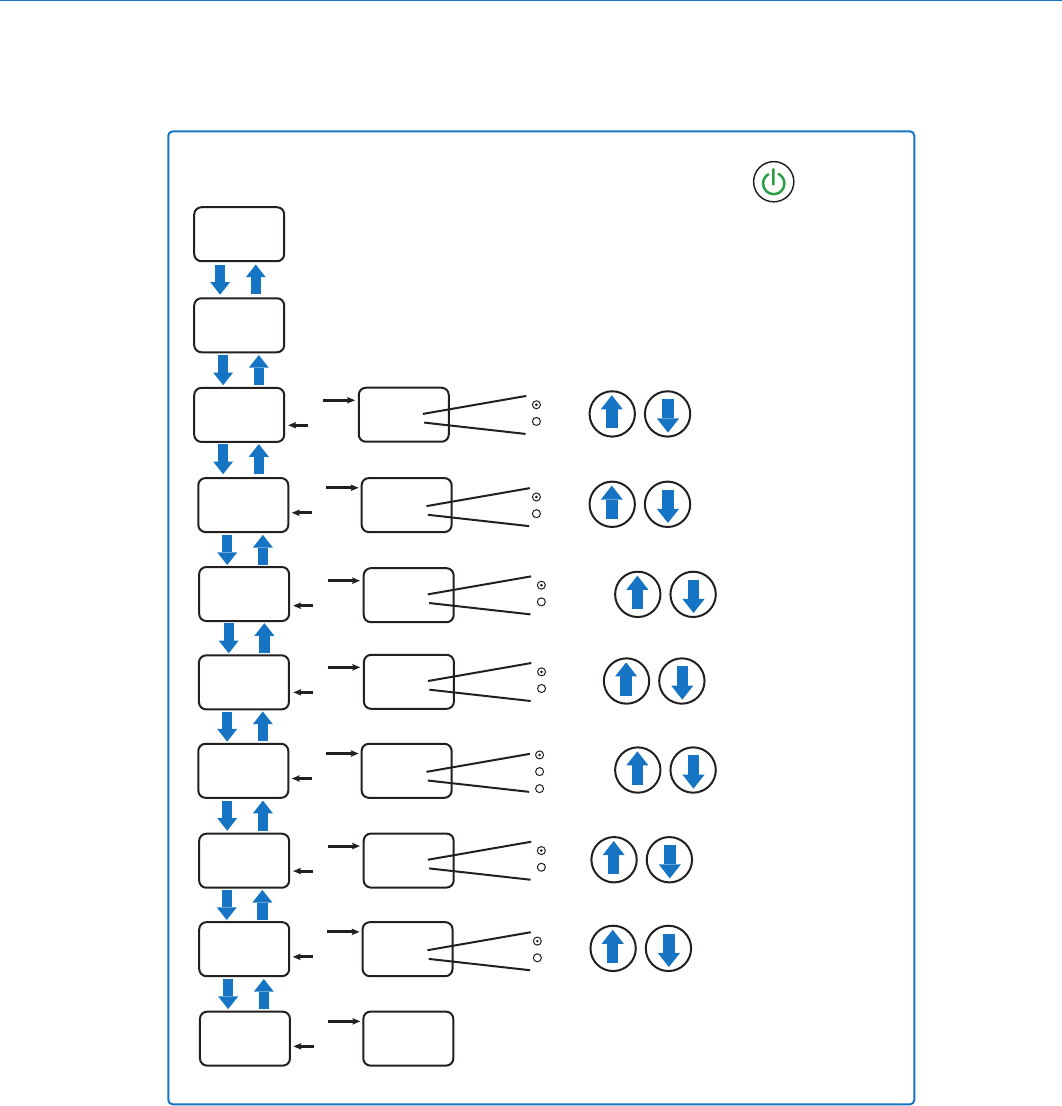

Xmit (transmitter) Mode Main Menu
Gain SEL
BACK
Gain 22 Use arrow keys to
select input gain
Freq.
Rolloff
Compat
StepSiz
Phase
TxPower
Default
SEL
BACK
Freq Press SEL to
select desired
adjustment
Use arrow keys
to select desired
frequency
SEL
BACK
SEL
BACK
Compat Select from
listing
Use arrow keys to select
compatibility mode
SEL
BACK
Use arrow keys to select
frequency step size
100 kHz
25 kHz
StepSiz
SEL
BACK
Use arrow keys to select
audio output polarity
Pos.
Neg.
Phase
SEL
BACK
Use arrow keys to select
RF power output
25mW
50 mW
100 mW
TxPower
SEL
BACK
Use arrow keys to return
transmitter to default factory
settings
No
Yes
Default
settings
Rolloff
70 Hz
Use arrow keys to
select input gain
Select from
listing
b 21
80
550.400
Select from
listing
Hybrid
Use arrow keys to
select Xmit mode
Choose
Function
Press MENU/SEL to
engage mode
Xmit
Record 474.500
-40 -20 0
2C
b 470 The Xmit Main
Window will
appear
From the Main Window press MENU/SEL:
Selecting the Xmit operating mode (enable RF transmitter):
The selected mode will persist and the unit will boot directly to the Main Window for
the selected mode until the mode is changed. To enter mode selection screen, first
turn power off, then hold UP arrow and press the power button
Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 11

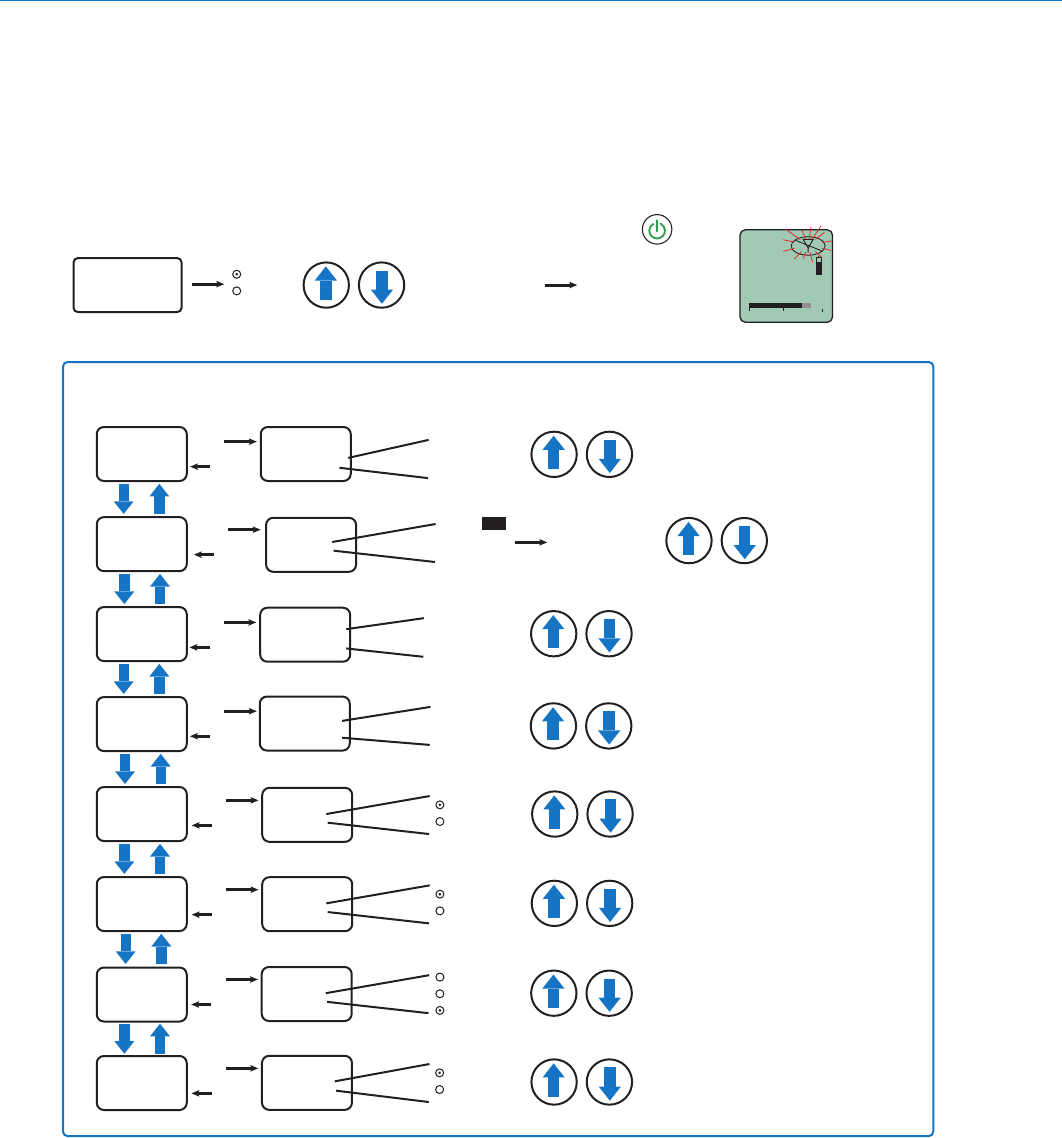

Xmit (transmitter) Mode Power Menu
About
Locked
Rf On?
BatType
Remote
Press SEL to return to
the previous screen
SEL
BACK
About
SMWB
v1.00
Displays firmware version
SEL
BACK
Use arrow keys to
lock/unlock keypad
Yes
No
Locked?
SEL
BACK
Use arrow keys to
turn RF signal on/off
No
Yes
Rf On?
SEL
BACK
Use arrow keys to
choose battery type
Alk.
Lith.
BatType
SEL
BACK
Use arrow keys to
enable/disable remote
Enable
Ignore
Remote
From the Xmit Main Window press the power button
Resume
Pwr Off Press SEL to turn the

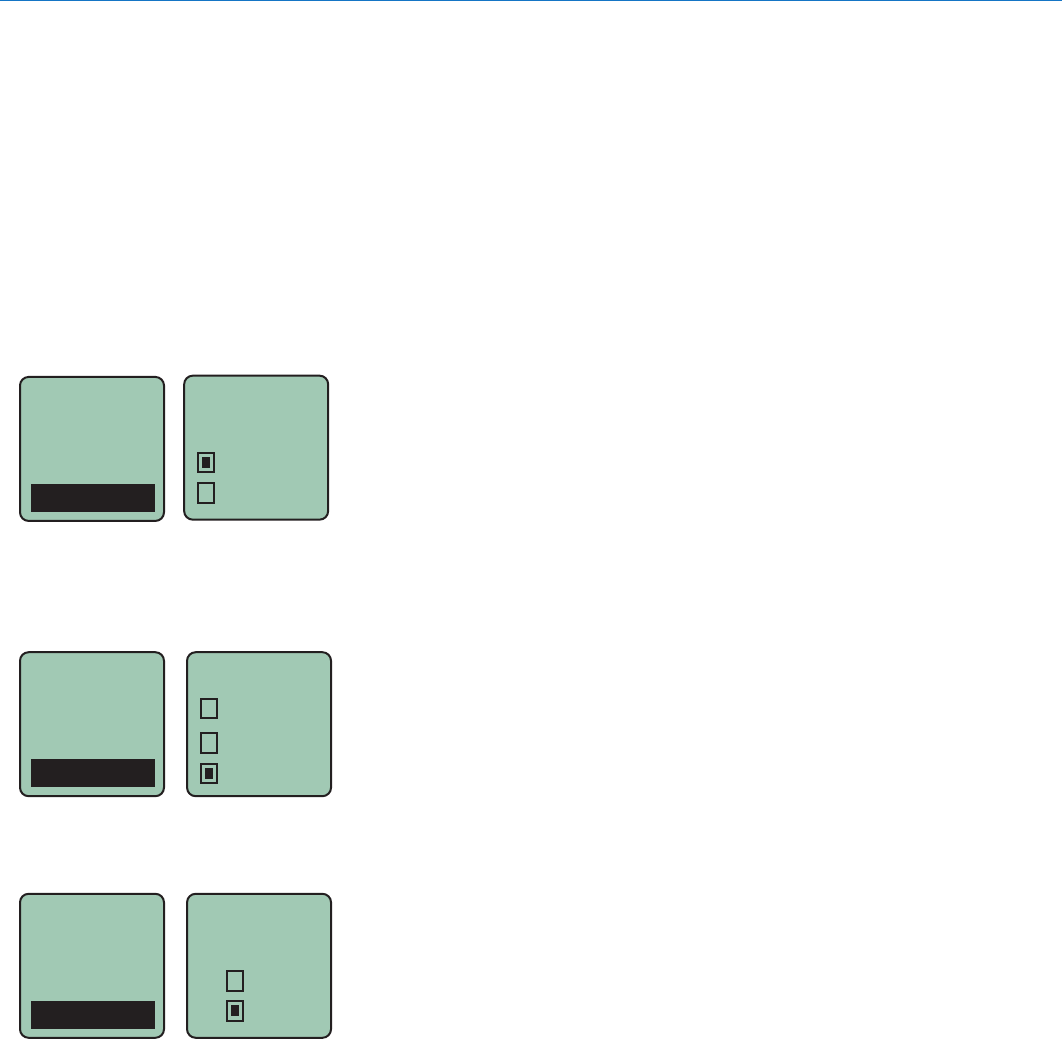

power off
AutoOn? SEL
BACK
ProgSw Use arrow keys to enable
auto power restore
No
Yes
1.5 V
Backlit SEL
BACK
Backlit Use arrow keys to select
LCD backlight duration
On
30 sec
5 min)
LED Off SEL
BACK
LEDs Use arrow keys to turn
LEDs on or off
On
Off
SMWB Series
LECTROSONICS, INC.
12

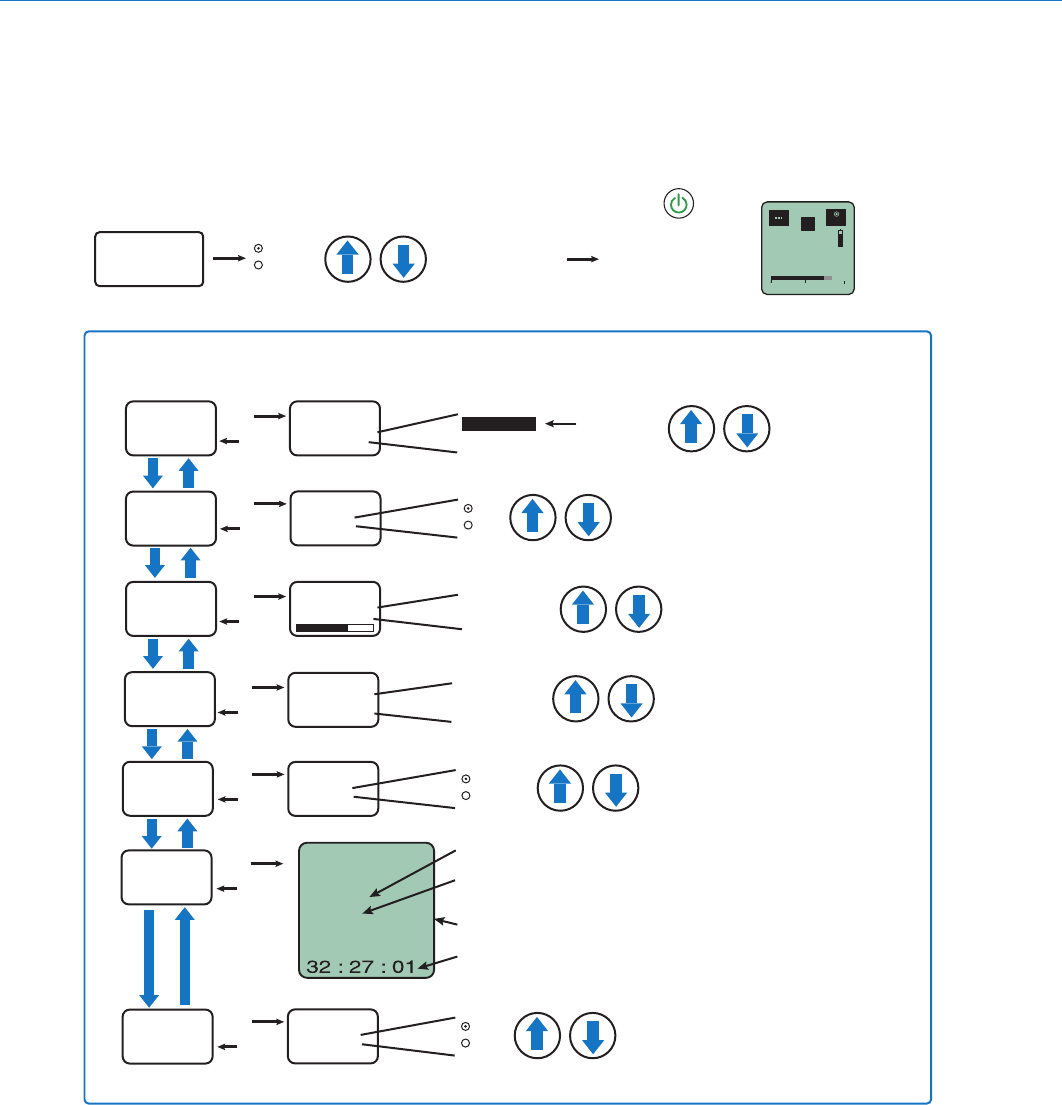

Record Mode Main Menu
Files SEL
BACK
Files 0014A000
0013A000
Use arrow keys to
select file in list
Default SEL
BACK
Use arrow keys to return recorder
to default factory settings
No
Yes
Default
settings
Select from
listing
Use arrow keys to
select Xmit mode
Choose
Function
Press MENU/SEL to
engage mode
Xmit
Record
The Recorder
Main Window will
appear
Selecting the Record operating mode:
The selected mode will persist and the unit will boot directly to the Main Window for
the selected mode until the mode is changed. To enter mode selection screen, first
turn power off, then hold UP arrow and press the power button
-40 -20 0
REC
Format SEL
BACK
Use arrow keys to initiate
formatting the memory card
No
Yes
Format?
(erases)
Gain SEL
BACK
Gain 22 Use arrow keys to
select input gain
Select value
in dB
Rolloff SEL
BACK
Rolloff
70 Hz
Use arrow keys to select
low frequency rolloff
Select from
listing
Naming SEL
BACK
Use arrow keys to select
file naming method
Seq #
Clock
Naming
SD Info SEL
BACK
[SMWB ]
Max Rec
E.........................F
0/ 14G
Fuel gauge
Storage used
Storage capacity
Available recording time (H : M : S)
From the Main Window press MENU/SEL:
Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 13
Record Mode Power Menu
Clock SEL
BACK
Clock
2017
07 / 26
17 : 19
Year
Month / Day
Hour : Minute
About
Locked
BatType
Remote
Press SEL to return to
the previous screen
SEL
BACK
About
SMWB
v1.00
Displays firmware version
SEL
BACK
Use arrow keys to
lock/unlock keypad
Yes
No
Locked?
SEL
BACK
Use arrow keys to
choose battery type
Alk.
Lith.
BatType
SEL
BACK
Use arrow keys to
enable/disable remote
Enable
Ignore
Remote
From the Record Main Window press the power button
Resume
Pwr Off Press SEL to turn the
power off
AutoOn? SEL
BACK
ProgSw Use arrow keys to enable
auto power restore
No
Yes
1.5 V
Backlit SEL
BACK
Backlit Use arrow keys to select
LCD backlight duration
On
30 sec
5 min)
LED Off SEL
BACK
LEDs Use arrow keys to turn
LEDs on or off
On
Off
SMWB Series
LECTROSONICS, INC.
14
Setup Screen Details on
Xmit Menus

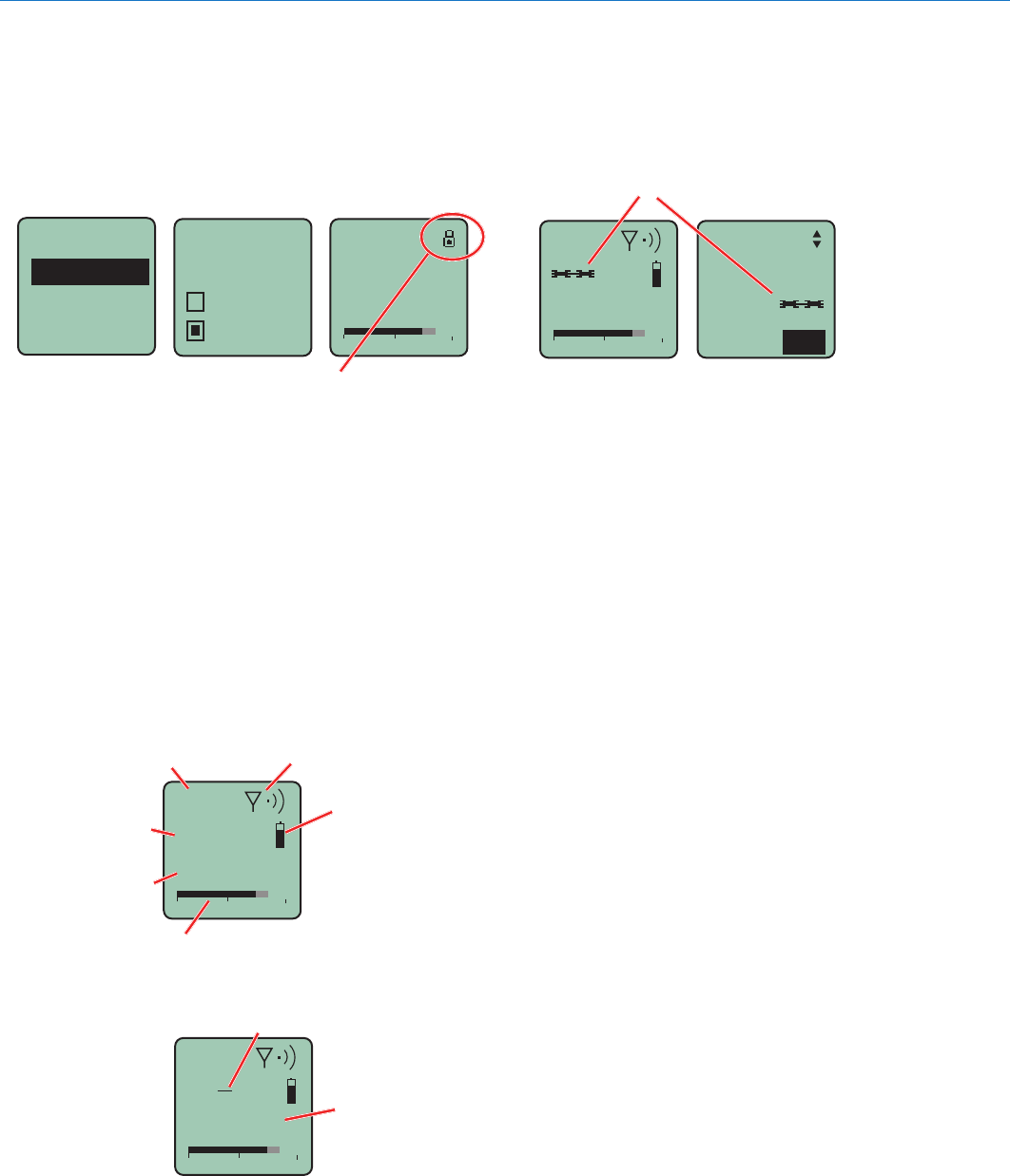

Locking/Unlocking Changes to Settings
Changes to the settings can be locked.
Locked?
No
Ye s-40 -20 0
Gain
25
A small padlock symbol will appear on adjustment
screens when changes have been locked.
Backlit
Locked
LED Off
About
When changes are locked, several controls and actions
can still be used:
• Settings can still be unlocked
• Menus can still be browsed
• Power can still be turned off by using the power
menu or removing the batteries.
Main Window Indicators
The Main Window displays the band number, Standby
or Operating mode, operating frequency, audio level,
battery status and programmable switch function. When
the frequency step size is set at 100 kHz, the LCD will
look like the following.
474.500
-40 -20 0
b 470
MUTE
2C
Block number
Frequency (MHz)
Frequency
(hex number)
Operating mode
Battery status
Audio level
When the frequency step size is set to 25 kHz, the hex
number will appear smaller and may include a fraction.
474.525
-40 -20 0
b 470
MUTE
1
4
2C Note that the
frequency has
increased by 25
kHz from the upper
example.
Fraction
1/4 = .025 MHz
1/2 = .050 MHz
3/4 = .075 MHz
Changing the step size never changes the frequency.
It only changes the way the user interface works. If the
frequency is set to a fractional increment between even
100 kHz steps and the step size is changed to 100 kHz,
the hex code will be replaced by two asterisks on the
main screen and the frequency screen.
494.525
-40 -20 0
b 19
MUTE
Freq.
b 19
494.525
Frequency set to fractional 25 kHz step,
but step size changed to 100 kHz.
Connecting the Signal Source
Microphones, line level audio sources and instruments
can be used with the transmitter. Refer to the section
entitled Input Jack Wiring for Different Sources for
details on the correct wiring for line level sources and
microphones to take full advantage of the Servo Bias
circuitry.
Using Line Level and Instrument Inputs
Line level signals can be sent to the input with the
proper wiring. Refer to the section on Input Jack Wir-
ing for Different Sources for details.
Helpful Features on Receivers
To aid in finding clear frequencies, several Lectrosonics
receivers offer a SmartTune feature that scans the tun-
ing range of the receiver and displays a graphical report
that shows where RF signals are present at different
levels, and areas where there is little or no RF energy
present. The software then automatically selects the
best channel for operation.
Lectrosonics receivers equipped with an IR Sync func-
tion allow the receiver to set frequency, step size and
compatibility modes on the transmitter via an infrared
link between the two units.
Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 15
Adjusting the Input Gain
The two bicolor Modulation LEDs on the control panel
provide a visual indication of the audio signal level
entering the transmitter. The LEDs will glow either red
or green to indicate modulation levels as shown in the
following table.
Signal Level -20 LED -10 LED
Less than -20 dB Off Off
-20 dB to -10 dB Green Off
-10 dB to +0 dB Green Green
+0 dB to +10 dB Red Green
Greater than +10 dB Red Red
NOTE: Full modulation is achieved at 0 dB, when
the “-20” LED first turns red. The limiter can cleanly
handle peaks up to 30 dB above this point.
It is best to go through the following procedure with the
transmitter in the standby mode so that no audio will en-
ter the sound system or recorder during adjustment.
1) With fresh batteries in the transmitter, power the unit
on in the standby mode (see previous section Turn-
ing Power ON and OFF).
2) Navigate to the Gain setup screen.
Gain
Freq
Rolloff
Compat -40 -20 0
Gain
25
3) Prepare the signal source. Position a microphone
the way it will be used in actual operation and have
the user speak or sing at the loudest level that will
occur during use, or set the output level of the in-
strument or audio device to the maximum level that
will be used.
4) Use the and arrow buttons to adjust the gain
until the –10 dB glows green and the –20 dB LED
starts to flicker red during the loudest peaks in the
audio.
5) Once the audio gain has been set, the signal can
be sent through the sound system for overall level
adjustments, monitor settings, etc.
6) If the audio output level of the receiver is too high or
low, use only the controls on the receiver to make
adjustments. Always leave the transmitter gain ad-
justment set according to these instructions, and do
not change it to adjust the audio output level of the
receiver.
Selecting Frequency
The setup screen for frequency selection offers several
ways to browse the available frequencies.
Freq.
b 19
494.500
51
Gain
Freq
Rolloff
Compat
Press MENU/
SEL to select
one of four
fields to make
adjustments
Each field will step through the available frequencies in
a different increment. The increments are also different
in the 25 kHz mode from the 100 kHz mode.
Freq.
b 19
494.500
51
Freq.
b 19
494.500
51
These two fields step in 25 kHz
increments when the step size is 25
kHz and 100 kHz increments when
the step size is 100 kHz.
Freq.
b 19
494.500
51
Freq.
b 19
494.500
51
These two fields
always step in the
same increments
1 MHz steps
1 block steps
A fraction will appear next to the hex code in the setup
screen and in the main window when the frequency
ends in .025, .050 or .075 MHz.
494.525
-40 -20 0
b 470
1
4
51
Freq.
b 19
494.525
511
4
Fraction appears
next to hex code
in 25 kHz mode
SMWB Series
LECTROSONICS, INC.
16
Selecting Frequency Using Two Buttons
Hold the MENU/SEL button in, then use the and
arrow buttons for alternate increments.
Freq.
b 19
494.500
51
1 block steps
1.6 MHz steps to
nearest 100 kHz
channel
10 MHz steps 100 kHz steps
to next 100 kHz
channel
100 kHz Mode
Freq.
b 19
494.525
511
4
1 block steps
1.6 MHz steps
10 MHz steps
25 kHz steps
25 kHz Mode
If the Step Size is 25 kHz with the frequency set be-
tween even 100 kHz steps and the Step Size is then
changed to 100 kHz, the mismatch will cause the hex
code to display as two asterisks.
494.525
-40 -20 0
b 19
Freq.
b 19
494.500
**
Step Size and
Frequency
mismatch
About Overlapping Frequency Bands
When two frequency bands overlap, it is possible to
select the same frequency at the upper end of one and
the lower end of the other. While the frequency will be
the same, the pilot tones will be different, as indicated
by the hex codes that appear.
In the following examples, the frequency is set to
494.500 MHz, but one is in band 470 and the other in
band 19. This is done intentionally to maintain compat-
ibility with receivers that tune across a single band. The
band number and hex code must match the receiver to
enable the correct pilot tone.
Freq.
b470
494.500
F4
Freq.
b 19
494.500
51
Make sure the
band number and
hex code match
the receiver setting
Selecting the Low Frequency Roll-off
Low frequency audio content may be desirable or
distracting, so the point at which the roll-off takes place
can be set to 35, 50, 70, 100, 120 and 150 Hz.
Rolloff
Compat
StepSiz
Phase
Rolloff
70 Hz
Selecting the Compatibility (Compat) Mode
When used with a Lectrosonics Digital Hybrid Wireless®
receiver, the best audio quality will be achieved with the
system set to the Hybrid compatibility mode.
Rolloff
Compat
StepSiz
Phase
Compat
NA Hybr
Use the UP and DOWN arrows to select the desired
mode, then press the BACK button twice to return to the
Main Window.
Compatibility modes are as follows:
Receiver Models LCD menu item
• Digital Hybrid Wireless®: NA Hybr
• Mode 3:* Mode 3
• 200 Series: 200 Mode
• 100 Series: 100 Mode
• Mode 7:* Mode 7
• Mode 6:* Mode 6
• IFB Series: IFB Mode
Modes 3, 6 and 7 work with certain non-Lectrosonics
models. Contact the factory for details.
Selecting Step Size
This menu item allows frequencies to be selected in
either 100 kHz or 25 kHz increments.
Rolloff
Compat
StepSiz
Phase
StepSiz
100 kHz
25 kHz
StepSiz
100 kHz
25 kHz
If the desired frequency ends in .025, .050 or .075 MHz,
the 25 kHz step size must be selected.
Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 17
Normally, the receiver is used to find a clear operat-
ing frequency. All Lectrosonics Digital Hybrid Wireless®
receivers provide a scanning function to quickly and
easily find prospective frequencies with little or no RF
interference. In other cases, a frequency may be speci-
fied by officials at a large event such as the Olympics
or a major league ball game. Once the frequency is
determined, set the transmitter to match the associated
receiver.
Selecting Audio Polarity (Phase)
Audio polarity can be inverted at the transmitter so the
audio can be mixed with other microphones without
comb filtering. The polarity can also be inverted at the
receiver outputs.
Rolloff
Compat
StepSiz
Phase
Phase
Pos.
Neg.
Setting Transmitter Output Power
The output power can be set to 25 mW, 50 mW or
100 mW.
Compat
StepSiz
Phase
TxPower
TxPower
25 mW
50 mW
100 mW
Restoring Default Settings
This is used to restore the factory settings.
StepSiz
Phase
TxPower
Default
Default
settings
No
Ye s
SMWB Series
LECTROSONICS, INC.
18

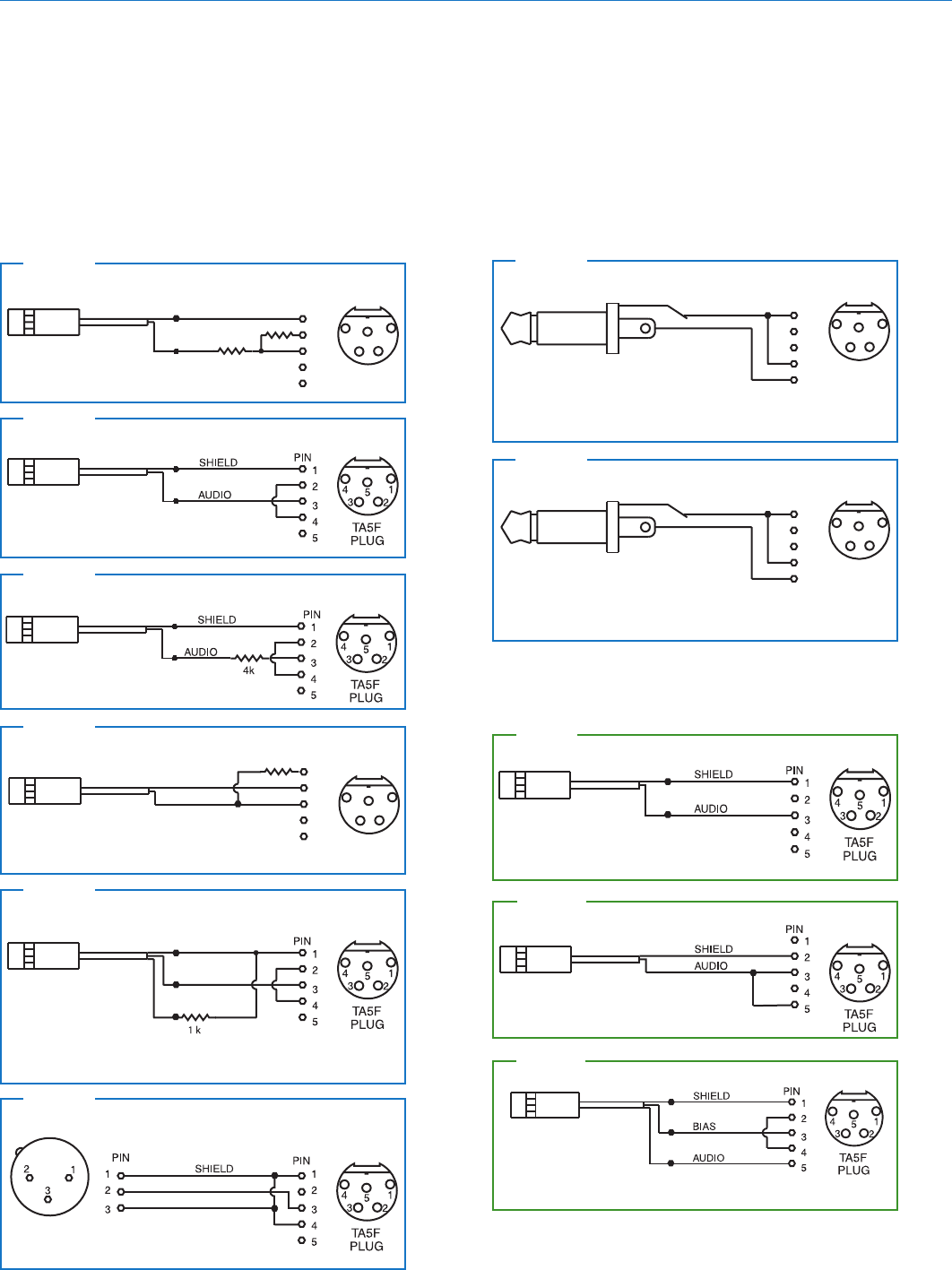

The wiring diagrams included in this section represent
the basic wiring necessary for the most common types
of microphones and other audio inputs. Some micro-
phones may require extra jumpers or a slight variation
on the diagrams shown.
It is virtually impossible to keep completely up to date
on changes that other manufacturers make to their
products, thus you may encounter a microphone that
differs from these instructions. If this occurs please call
our toll-free number listed under Service and Repair in
this manual or visit our web site at:
www.lectrosonics.com

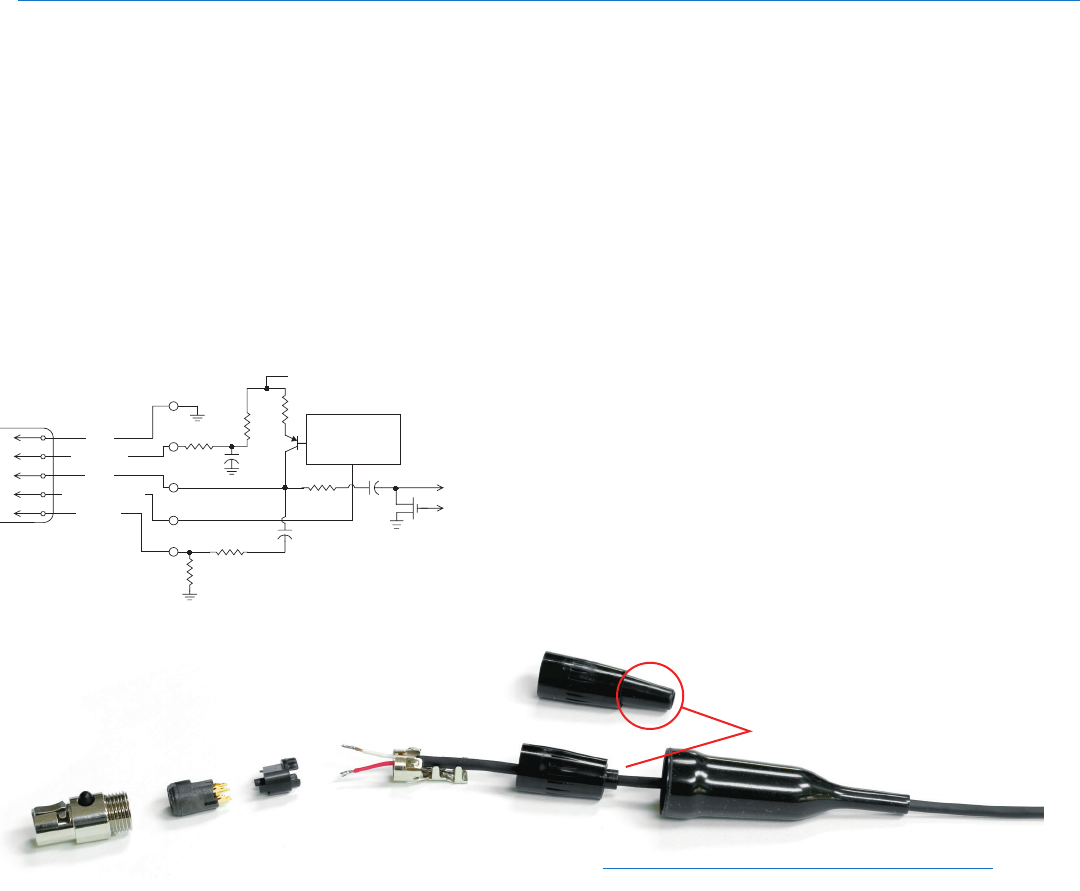

10k
1k
5
4
3
2
1
To Audio Amplifier
5V SOURCE
MIC
VOLTAGE SELECT
LINE IN
GND
+15uF
+5 VDC
Servo Bias
Pin 4 to Pin 1 = 0 V
Pin 4 Open = 2 V
Pin 4 to Pin 2 = 4 V
+
To Limiter Control
30uF
500 Ohm
100 Ohm
2.7K
200 Ohm
+
3.3uF
5-Pin Input Jack Wiring
Audio input jack wiring:
PIN 1
Shield (ground) for positive biased electret lavaliere
microphones. Shield (ground) for dynamic microphones
and line level inputs.
PIN 2
Bias voltage source for positive biased electret lavaliere
microphones that are not using servo bias circuitry and
voltage source for 4 volt servo bias wiring.
PIN 3
Microphone level input and bias supply.
PIN 4
Bias voltage selector for Pin 3.
Pin 3 voltage depends on Pin 4 connection.
Pin 4 tied to Pin 1: 0 V
Pin 4 Open: 2 V
Pin 4 to Pin 2: 4 V
PIN 5
Line level input for tape decks, mixer outputs, musical
instruments, etc.
Installing the Connector:
1) If necessary, remove the old connector from the
microphone cable.
2) Slide the dust boot onto microphone cable with the
large end facing the connector.
3) If necessary, slide the 1/8-inch black shrink tubing
onto the mircrophone cable. This tubing is needed
for some smaller diameter cables to ensure there
is a snug fit in the dust boot.
4) Slide the backshell over the cable as shown above.
Slide the insulator over the cable before soldering
the wires to the pins on the insert.
5) Solder the wires and resistors to the pins on the
insert according to the diagrams shown in Wiring
Hookups for Different Sources. A length of .065
OD clear tubing is included if you need to insulate
the resistor leads or shield wire.
6) If necessary, remove the rubber strain relief from
the TA5F backshell by simply pulling it out.
7) Seat the insulator on the insert. Slide the cable
clamp over the and of the insulator and crimp as
shown on the next page.
8) Insert the assembled insert/insulator/clamp into
the latchlock. Make sure the tab and slot align
to allow the insert to fully seat in the latchlock.
Thread the backshell onto the latchlock.
TA5F Latchlock Insert
Insulator Cable clamp
Backshell with
strain relief
Remove strain relief
if using dust boot
Backshell
without strain
relief Dust boot (35510)
Note: If you use the dust boot, remove the rubber
strain relief that is attached to the TA5F cap, or the
boot will not fit over the assembly.
Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 19
NOTE: This termination is intended for UHF
transmitters only. VHF transmitters with 5-pin
jacks require a different termination. Lectrosonics
lavaliere microphones are terminated for
compatibility with VHF and UHF transmitters,
which is different from what is shown here.
Microphone Cable Termination
for Non-Lectrosonics Microphones

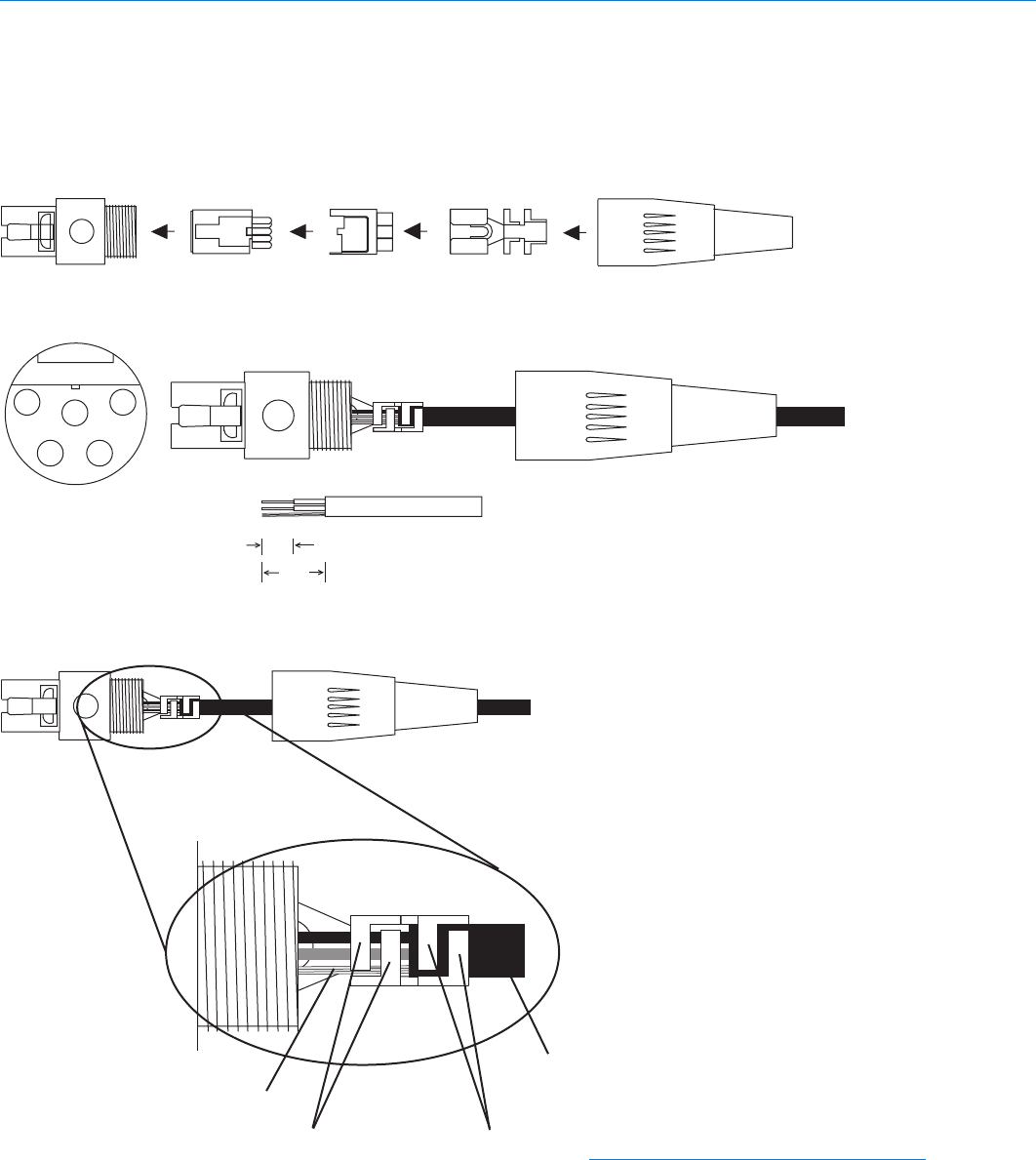

TA5F Connector Assembly
Mic Cord Stripping Instructions
1
23
4
5
VIEW FROM SOLDER
SIDE OF PINS
0.3"
0.15"
Crimping to Shield and Insulation
Shield
Insulation
Strip and position the cable so that the clamp
can be crimped to contact both the mic cable
shield and the insulation. The shield contact
reduces noise with some microphones and the
insulation clamp increases ruggedness.
Crimp these
fingers to
contact the
shield
Crimp these
fingers to
clamp the
insulation
SMWB Series
LECTROSONICS, INC.
20
Compatible Wiring for Both Servo Bias Inputs and Earlier Transmitters:
Simple Wiring for Servo Bias Inputs ONLY:
Input Jack Wiring for Different Sources
In addition to the microphone and line level wiring illus-
trated below, Lectrosonics makes a number of cables
and adapters for other situations such as connecting
musical instruments (guitars, bass guitars, etc.) to the
transmitter. Visit www.lectrosonics.com and click on
Accessories, or download the master catalog.
A lot of information regarding microphone wiring is also
available in the FAQ section of the web site at:
www.lectrosonics.com > SUPPORT > FAQs
Follow the instructions to search by model number or
other search options.
4 VOLT POSITIVE BIAS 2-WIRE ELECTRET
Most common type of wiring for lavaliere mics.
Fully compatible with 5-pin inputs on Lectrosonics
transmitters such as the LM and UM Series.
Fig. 2
SHIELD
TIP
PIN
5
4
3
2
1
SLEEVE
LINE LEVEL
RCA or 1/4” PLUG
A UDI O 1
2
3
4 5
T A5 F
PLUG
UNBALANCED LINE LEVEL SIGNALS
For signal levels up to 3V (+12 dBu) before limiting. Fully
compatible with 5-pin inputs on other Lectrosonics transmitters
such as the LM and UM Series. A 20k ohm resistor can be
inserted in series with Pin 5 for an additional 20 dB of
attenuation to handle up to 30V (+32 dBu).
Fig. 8
1
2
3
4
5
PIN
SHIELD
AUDIO
1
2
3
4 5
T A5 F
PLUG
2.7 k
2 VOLT NEGATIVE BIAS 2-WIRE ELECTRET
Compatible wiring for microphones
such as negative bias TRAM models.
NOTE: The resistor value can range from 2k to 4k ohms.
Fig. 4
DRAIN (BIAS)
SOURCE (AUDIO)
SHIELD
4 VOLT POSITIVE BIAS 3-WIRE ELECTRET
WITH EXTERNAL RESISTOR
This wiring is fully compatible with 5-pin inputs on Lectrosonics
transmitters such as the LM and UM Series. This is the wiring
for the Lectrosonics M152 lavaliere microphone.
Used for 3-wire lavaliere
microphones that require an
external resistor such as the
Sanken COS-11.
Fig. 5
Fig. 3
DPA MICROPHONES (Danish Pro Audio miniature models)
This wiring is for DPA lavalier
and headset microphones.
NOTE: The resistor value can range from 3k to 4k ohms.
Fig. 10
2 VOLT NEGATIVE BIAS 2-WIRE ELECTRET
Simplified wir
ing for microphones such as negative bias TRAM.
NOTE: This Servo Bias wiring is not compatible with earlier
versions of Lectrosonics transmitters. Check with the factory
to confirm which models can use this wiring.
Fig. 6
LO-Z MICROPHONE LEVEL SIGNALS
For low impedance dynamic mics or electret
mics with internal battery or power supply.
XLR JACK
Insert 1k resistor in series with pin 3 if attenuation is needed
4 VOLT POSITIVE BIAS 3-WIRE ELECTRET
NOTE: This Servo Bias wiring is not compatible with earlier
versions of Lectrosonics transmitters. Check with the factory
to confirm which models can use this wiring.
Fig. 11
1
2
3
4
5
PIN
SHIELD
A UDI O 1
2
3
4 5
T A5 F
PLUG
3.3 k
1.5 k
2 VOLT POSITIVE BIAS 2-WIRE ELECTRET
Compatible wiring for microphones such as
Countryman E6 headworn and B6 lavaliere.
Fig. 1
2 VOLT POSITIVE BIAS 2-WIRE ELECTRET
Simplified wiring for microphones
such as Countryman B6 Lavalier
and E6 Earset models and others.
NOTE: This Servo Bias wiring is not compatible with earlier
versions of Lectrosonics transmitters. Check with the factory
to confirm which models can use this wiring.
Fig. 9
SHIELD
TIP
PIN
5
4
3
2
1
SLEEVE
LINE LEVEL
RCA or 1/4” PLUG
A UDI O 1
2
3
4 5
T A5 F
PLUG
UNBALANCED LINE LEVEL SIGNALS
For signal levels up to 3V (+12 dBu) before limiting. Fully
compatible with 5-pin inputs on other Lectrosonics transmitters
such as the LM and UM Series. A 20k ohm resistor can be
inserted in series with Pin 5 for an additional 20 dB of
attenuation to handle up to 30V (+32 dBu).
Fig. 8
See Line Level
Signals on next page
Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 21
Microphone RF Bypassing
When used on a wireless transmitter, the microphone
element is in the proximity of the RF coming from the
transmitter. The nature of electret microphones makes
them sensitive to RF, which can cause problems with
microphone/transmitter compatibility. If the electret
microphone is not designed properly for use with wire-
less transmitters, it may be necessary to install a chip
capacitor in the mic capsule or connector to block the
RF from entering the electret capsule.
Some mics require RF protection to keep the radio sig-
nal from affecting the capsule, even though the trans-
mitter input circuitry is already RF bypassed.
If the mic is wired as directed, and you are having dif-
ficulty with squealing, high noise, or poor frequency
response, RF is likely to be the cause.
The best RF protection is accomplished by installing RF
bypass capacitors at the mic capsule. If this is not pos-
sible, or if you are still having problems, capacitors can
be installed on the mic pins inside the TA5F connec-
tor housing. Refer to the diagram below for the correct
locations of capacitors.
Use 330 pF capacitors. Capacitors are available from
Lectrosonics. Please specify the part number for the
desired lead style.
Leaded capacitors: P/N 15117
Leadless capacitors: P/N SCC330P
All Lectrosonics lavaliere mics are already bypassed
and do not need any additional capacitors installed for
proper operation.
CAPSULE
CAPSULE
SHIELD
AUDIO
SHIELD
AUDIO
BIAS
TA5F
CONNECTOR
TA5F
CONNECT
OR
2-WIRE MIC 3-WIRE MIC
Capacitors next
to mic capsule
Capacitors in
TA5F connector

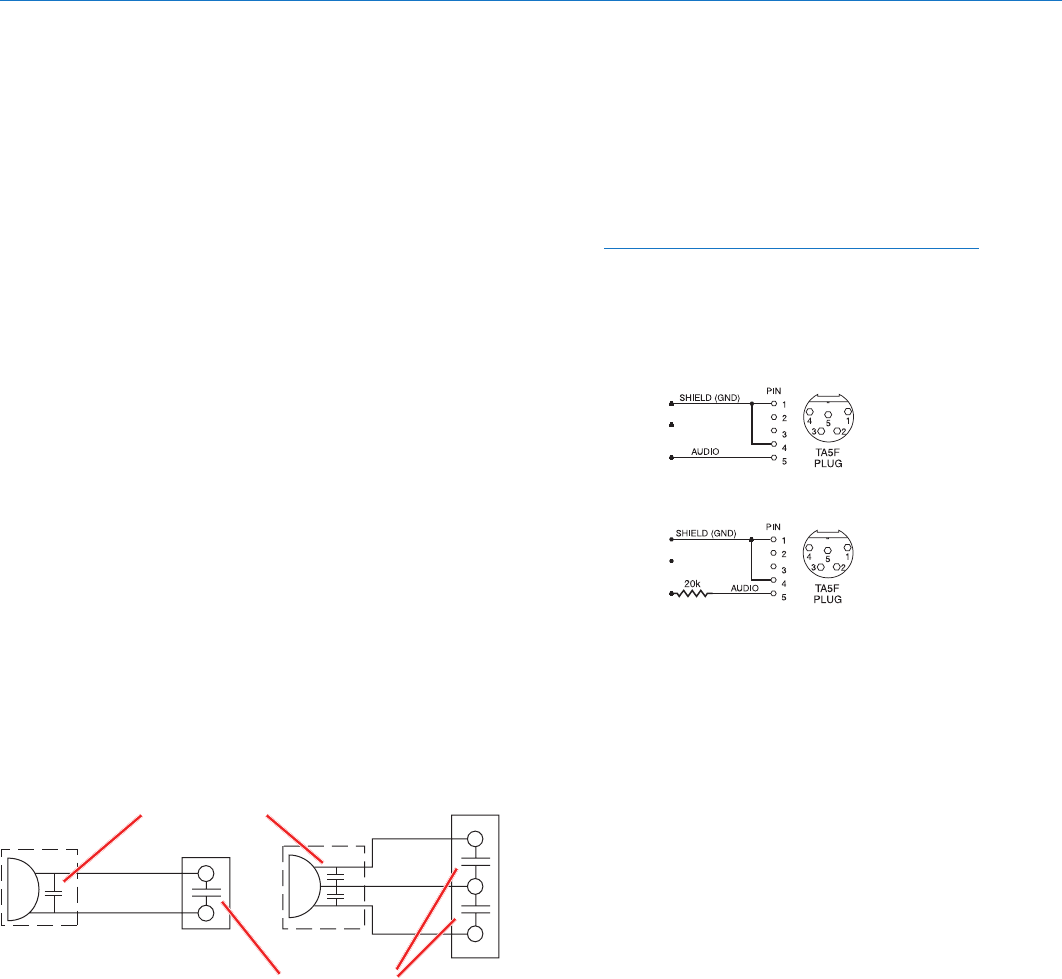

Line Level Signals
The wiring for line level and instrument signals is:
• Signal Hot to pin 5
• Signal Gnd to pin 1
• Pin 4 jumped to pin 1
This allows signal levels up to 3V RMS to be applied
without limiting.
NOTE for line level inputs only (not instrument):
If more headroom is needed, insert a 20 k resistor
in series with pin 5. Put this resistor inside the
TA5F connector to minimize noise pickup. The
resistor will have little or no effect on the signal if
the input is set for instrument.
See Fig. 8 on
previous page
Line Level
Normal Wiring
Line Level
More Headroom
(20 dB)
SMWB Series
LECTROSONICS, INC.
22
Firmware Update
Firmware updates are made using a microSDHC
memory card. Download and copy the following firm-
ware update files to a drive on your computer.
• smwb vX_xx.ldr is the firmware update file, where
“X_xx” is the revision number.
In the computer:
1) Perform a Quick Format of the card. On a Win-
dows-based system, this will automatically format
the card to the FAT32 format, which is the Windows
standard. On a Mac, you may be given several
options. If the card is already formatted in Win-
dows (FAT32) - it will be greyed out - then you do
not need to do anything. If the card is in another
format, choose Windows (FAT32) and then click
“Erase”. When the quick format on the computer is
complete, close the dialogue box and open the file
browser.
2) Copy the smwb vX_xx.ldr file to the memory card,
then safely eject the card from the computer.
In the SMWB:
1) Leave the SMWB turned off and insert the microS-
DHC memory card into the slot.
2) Hold down both the UP and DOWN arrow buttons
on the recorder and turn the power on.
3) The recorder will boot up into the firmware update
mode with the following options on the LCD:
• Update - Displays a scrollable list of the .ldr files
on the card.
• Power Off - Exits the update mode and turns the
power off.
NOTE: If the unit screen shows FORMAT CARD?,
power the unit off and repeat step 3. You were not
properly pressing UP, DOWN and Power at the
same time.
4) Use the arrow buttons to select Update. Use the
UP and DOWN arrow buttons to select the desired
file and press MENU/SEL to install the firmware.
The LCD will display status messages while the
firmware is being updated.
5) When the update is complete, the LCD will display
this message: UPDATE SUCCESSFUL REMOVE
CARD. After the card is removed, the LCD will
return to the three options shown in step 4 above.
6) Select Power Off and press MENU/SEL to finish
the update.
7) If you re-insert the update card and turn the power
back on for normal use, the LCD will display a mes-
sage prompting you to format the card:
Format Card?
(files lost)
• No
• Yes
If you wish to record audio on the card, you must
re-format it. Select Yes and press MENU/SEL to
format the card. When the process is complete, the
LCD will return to the Main Window and be ready
for normal operation.
If you choose to keep the card as is, you may re-
move the card at this time.
The firmware update process is managed by a boot-
loader program - on very rare occasion, you might need
to update the bootloader.
• smwbboot vX_xx.ldr is the bootloader file
Follow the same process as with a firmware update and
select the smwbboot file. Be forewarned, this can cor-
rupt your unit if interrupted. Don’t update the bootloader
unless advised to do so by the factory (not for the faint
of heart).
Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 23
Recovery Process
In the event of a battery failure while the unit is re-
cording, a recovery process is available to restore
the recording in proper format. When a new battery is
installed and the unit is turned back on, the recorder
will detect the missing data and prompt you to run the
recovery process. The file must be recovered or the
card will not be usable in the SMWB.
First it will read:
Interrupted Recording
Found
The LCD message will ask:
Recover?
for safe use
see manual
You will have the choice of No or Yes (No is selected
as the default). If you wish to recover the file, use the
DOWN arrow button to select Yes, then press MENU/
SEL.
The next window will give you the option to recover all
or part of the file. The default times shown are the best
guess by the processor where the file stopped record-
ing. The hours will be highlighted and you can either
accept the value shown or select a longer or shorter
time. If you are unsure, simply accept the value shown
as the default.
Press MENU/SEL and the minutes are then highlighted.
You can increase or decrease the time to be recovered.
In most cases you can simply accept the values shown
and the file will be recovered. After you have made your
time choices, press MENU/SEL again. A small GO!
symbol will appear next to the DOWN arrow button.
Pressing the button will initiate the file recovery. The
recovery will happen quickly and you will see:
Recovery
Successful
Special Note:
Files under 4 minutes long may recover with additional
data “tacked on” to the end of the file (from previous
recordings or data if the card had been used previ-
ously). This can be effectively eliminated in post with a
simple delete of the unwanted extra “noise” at the end
of the clip. The minimum recovered length will be one
minute. For example, if the recording is only 20 seconds
long, and you have selected one minute there will be
the desired 20 recorded seconds with an additional 40
seconds of other data and or artifacts in the file. If you
are uncertain about the length of the recording you can
save a longer file - there will simply be more “junk” at
the end of the clip. This “junk” may include audio data
recorded in earlier sessions that were discarded. This
“extra” information can be easily deleted in post produc-
tion editing software at a later time.
SMWB Series
LECTROSONICS, INC.
24
Troubleshooting
Symptom: Possible Cause:
Transmitter Battery LED off 1. Batteries are inserted incorrectly.
when Power Switch “ON” 2. Batteries are low or dead.
No Transmitter Modulation LEDs 1. Gain control turned all the way down.
when Signal Should be Present 2. Batteries are inserted incorrectly. Check power LED.
3. Mic capsule is damaged or malfunctioning.
4. Mic cable damaged or miswired.
5. Instrument Cable damaged or not plugged in.
6. Musical instrument output level set too low.
Receiver Indicates RF But No Audio 1. Audio source or cable connected to transmitter is defective. Try
using an alternate source or cable.
2. Make sure the compatibility mode is the same on transmitter and
receiver.
3. Ensure musical instrument volume control is not set to minimum.
4. Check for correct pilot tone indication on the receiver. See item on
page 16 entitled About Overlapping Frequency Bands.
Receiver RF Indicator Off 1. Ensure that the transmitter and receiver are set to the same
frequency, and that the hex code matches.
2. Transmitter not turned on, or battery is dead.
3. Receiver antenna missing or improperly positioned.
4. Operating distance is too great.
5. Transmitter may be set to the Standby Mode. See page 8.
No Sound (Or Low Sound Level), Receiver 1. Receiver output level set too low.
Indicates Proper Audio Modulation 2. Receiver output is disconnected; cable is defective or miswired.
3. Sound system or recorder input is turned down.
Distorted Sound 1. Transmitter gain (audio level) is too high. Check Modulation
LEDs on transmitter and receiver while distortion is being heard.
2. Receiver output level may be mismatched with the sound
system or recorder input. Adjust output level on receiver to the
correct level for the recorder, mixer or sound system.
3. Transmitter and receiver may not be set to the same compatibility
mode. Some mis-matched combinations will pass audio.
4. RF interference. Reset both transmitter and receiver to a clear
channel. Use scanning function on receiver if available.
Wind Noise or Breath “Pops’” 1. Reposition microphone, or use a larger windscreen, or both.
2. Omni-directional mics produce less wind noise and breath pops
than directional types.
Hiss and Noise -- Audible Dropouts 1. Transmitter gain (audio level) far too low.
2. Receiver antenna missing or obstructed.
3. Operating distance too great.
4. RF interference. Reset both transmitter and receiver to a
clear channel. Use scanning function on receiver if available.
5. Musical instrument output set too low.
6. Microphone capsule picking up RF noise. See item on page 21
entitled Microphone RF Bypassing.
Excessive Feedback (With Microphone) 1. Transmitter gain (audio level) too high. Check gain adjustment
and/or reduce receiver output level.
2. Microphone too close to speaker system.
3. Microphone is too far from user’s mouth.
It is important that you follow these steps in the sequence listed.
Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 25
Transmitter
Operating Frequencies:
Band A1: 470.100 - 537.575
Band B1: 537.600 - 614.375
Band C1: 614.400 - 691.175
Frequency Selection Steps: Selectable; 100 kHz or 25 kHz
RF Power output: 25, 50 or 100 mW
Pilot tone: 25 to 32 kHz; 5 kHz deviation
(Digital Hybrid mode)
Frequency Stability: ± 0.002%
Deviation: ± 75 kHz max. (Digital Hybrid mode)
Spurious radiation: 60 dB below carrier
Equivalent input noise: –120 dBV (A-weighted)
Input level: Nominal 2 mV to 300 mV, before limiting
Greater than 1V maximum, with limiting.
Input impedance: • Mic: 300 Ohm
• Line: 2k Ohm
Input limiter: DSP controlled, dual envelope “soft” limiter
with greater than 30 dB range
Gain control range: 44 dB; digital control
Modulation indicators: • Dual bicolor LEDs indicate modulation of
-20, -10, 0 and +10 dB referenced to full
modulation
• LCD bar graph
Controls: Side panel membrane switches with LCD
interface for power on/off and all setup and
configuration controls
Audio Input Jack: Switchcraft 5-pin locking (TA5F)
Audio Performance (Digital Hybrid mode)
Frequency Response:
Mic input: 35 Hz to 20 kHz (+/-1dB); low frequency
roll-off is selectable at 35, 50, 70, 100, 120, 180 Hz
Line/Instrument: 35 Hz to 20 kHz (+/-1dB)
THD: 0.2% (typical)
SNR at receiver output:
Note: The dual envelope “soft”
limiter provides exceptionally good
handling of transients using variable
attack and release time constants. Once activated, the limiter compresses 30+ dB
of transmitter input range into 4.5 dB of receiver output range, thus reducing the
measured figure for SNR without limiting by 4.5 dB
SmartNR No Limiting w/Limiting
OFF 103.5 108.0
NORMAL 107.0 111.5
FULL 108.5 113.0
Specifications subject to change without notice.
Antenna: Galvanized steel, flexible wire
Battery: Two AA lithium, disposable
Battery Life w/ Lithium AA:
SMWB 50 mW (1 AA): 7.25 hrs
SMWB 100 mW (1 AA): 5.5 hrs
SMDWB 50 mW (2 AA): 14.5 hrs
SMDWB 100 mW (2 AA): 14 hrs
Weight: 5.8 ounces (141 grams), including lithium AA batteries
Dimensions: 3.2 x 2.4 x .9 in. (81 x 61 x 20 mm)
Emission Designator: 180KF3E
Specifications subject to change without notice.
Specifications
Recorder
Recording
Storage media: microSDHC memory card*
File format: .wav files (BWF - Broadcast Wave File)
A/D converter: 24-bit (with additional 8 bits for wav format
compatibility)
Sampling rate: 44.1 kHz
Recording mode/Bit rate: HD mono mode; 24 bit - 132 kbytes/s
Input
Type: Analog mic/line level compatible;
servo bias preamp for 2V and 4V lavaliere
microphones
Input level: • Dynamic mic: 0.5 mV to 50 mV
• Electret mic: Nominal 2 mV to 300 mV
• Line level: 17 mV to 1.7 V
Input connector: TA5M 5-pin male
Audio Performance
Frequency response: 20 Hz to 20 kHz; +0.5/-1.5 dB
Dynamic range: 110 dB (A), before limiting
Distortion: < 0.035%
Operating temperature range
Celsius: -20 to 50
Fahrenheit: -5 to 122
Specifications subject to change without notice.
*microSDHC Logo is a trademark of SD-3C, LLC
SMWB Series
LECTROSONICS, INC.
26
Service and Repair
If your system malfunctions, you should attempt to correct or isolate the trouble before concluding that the equipment
needs repair. Make sure you have followed the setup procedure and operating instructions. Check the interconnecting
cables and then go through the Troubleshooting section in this manual.
We strongly recommend that you do not try to repair the equipment yourself and do not have the local repair shop at-
tempt anything other than the simplest repair. If the repair is more complicated than a broken wire or loose connection,
send the unit to the factory for repair and service. Don’t attempt to adjust any controls inside the units. Once set at the
factory, the various controls and trimmers do not drift with age or vibration and never require readjustment. There are
no adjustments inside that will make a malfunctioning unit start working.
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs
are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest
flat rate plus parts and shipping. Since it takes almost as much time and effort to determine what is wrong as it does
to make the repair, there is a charge for an exact quotation. We will be happy to quote approximate charges by phone
for out-of-warranty repairs.
Returning Units for Repair
For timely service, please follow the steps below:
A. DO NOT return equipment to the factory for repair without first contacting us by email or by phone. We need
to know the nature of the problem, the model number and the serial number of the equipment. We also need a
phone number where you can be reached 8 A.M. to 4 P.M. (U.S. Mountain Standard Time).
B. After receiving your request, we will issue you a return authorization number (R.A.). This number will help speed
your repair through our receiving and repair departments. The return authorization number must be clearly shown
on the outside of the shipping container.
C. Pack the equipment carefully and ship to us, shipping costs prepaid. If necessary, we can provide you with the
proper packing materials. UPS is usually the best way to ship the units. Heavy units should be “double-boxed” for
safe transport.
D. We also strongly recommend that you insure the equipment, since we cannot be responsible for loss of or dam-
age to equipment that you ship. Of course, we insure the equipment when we ship it back to you.
Lectrosonics USA:
Mailing address: Shipping address: Telephone:
Lectrosonics, Inc. Lectrosonics, Inc. (505) 892-4501
PO Box 15900 581 Laser Rd. (800) 821-1121 Toll-free
Rio Rancho, NM 87174 Rio Rancho, NM 87124 (505) 892-6243 Fax
USA USA
Web: E-mail:
www.lectrosonics.com sales@lectrosonics.com
Lectrosonics Canada:
Mailing Address: Telephone: E-mail:
720 Spadina Avenue, (416) 596-2202 Sales: colinb@lectrosonics.com
Suite 600 (877) 753-2876 Toll-free Service: joeb@lectrosonics.com
Toronto, Ontario M5S 2T9 (877-7LECTRO)
(416) 596-6648 Fax
Digital Hybrid Wireless Belt-Pack Transmitters
Rio Rancho, NM 27
581 Laser Road NE • Rio Rancho, NM 87124 USA • www.lectrosonics.com
(505) 892-4501 • (800) 821-1121 • fax (505) 892-6243 • sales@lectrosonics.co
m
31 July 2017
SMWB_man.indd
LIMITED ONE YEAR WARRANTY
The equipment is warranted for one year from date of purchase against defects in
materials or workmanship provided it was purchased from an authorized dealer. This
warranty does not cover equipment which has been abused or damaged by careless
handling or shipping. This warranty does not apply to used or demonstrator equipment.
Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any
defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot
correct the defect in your equipment, it will be replaced at no charge with a similar new
item. Lectrosonics, Inc. will pay for the cost of returning your equipment to you.
This warranty applies only to items returned to Lectrosonics, Inc. or an authorized
dealer, shipping costs prepaid, within one year from the date of purchase.
This Limited Warranty is governed by the laws of the State of New Mexico. It states the
entire liablility of Lectrosonics Inc. and the entire remedy of the purchaser for any
breach of warranty as outlined above. NEITHER LECTROSONICS, INC. NOR
ANYONE INVOLVED IN THE PRODUCTION OR DELIVERY OF THE EQUIPMENT
SHALL BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, CONSEQUENTIAL,
OR INCIDENTAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE
THIS EQUIPMENT EVEN IF LECTROSONICS, INC. HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL THE LIABILITY OF
LECTROSONICS, INC. EXCEED THE PURCHASE PRICE OF ANY DEFECTIVE
EQUIPMENT.
This warranty gives you specific legal rights. You may have additional legal rights which
vary from state to state.
