Lee Technology Korea LTK-1600TN TABLECALL TRANSMITTER User Manual LTK 1600TN
Lee Technology Korea Co., Ltd. TABLECALL TRANSMITTER LTK 1600TN
Users Manual
LTK-1600TN
User Manual
LEE TECHNOLOGY KOREA CO., LTD.
email sales@leetek.org
website www.leetekorea.com
KOREA HEADQUARTER US OFFICE
3rd Fl. 499-2, Sang3-dong, 530 Highland Station Drive, Suite 2004,
Wonmi-gu, Bucheon City, Sewanee, GA 30024, U.S.A.
Kyunggi-do, Korea
Tel +82-32-324-9838 Tel +1-678-714-2161
Fax +82-32-324-9840 Fax +1-678-714-2162
Tablecall Paging System User Manual
This manual, software and electronic circuitry are copyrighted. All rights reserved. Under the
copyright laws, this manual, software and electronic circuitry may not be copied, in whole or in
part without written prior consent of Lee Technology.
All information provided in this document is carefully prepared and offered in good faith as a
guide in the installation, use and servicing of our products. Installers must ensure that the final
installation operates satisfactorily within the relevant regulatory requirements. Lee Technology
accepts no responsibility for incorrect installation. Lee Technology reserves the right to change
products, specifications and installation data at any time without notice.
Lee Technology makes certain limited warranties with respect to defective diskettes, documentation
and electronic circuitry. Please see the associated information contained on this page.
LIMITED WARRANTY
With respect to the physical documentation and physical electronic circuitry enclosed herein, Lee
Technology warrants the same to be free of defects in materials and workmanship for a period of
one year from the date of purchase. In the event of notification within the warranty period of
defects in material or workmanship, Lee Technology will replace the defective diskettes,
documentation and electronic circuitry. The remedy for breach of this warranty shall be limited to
replacement and shall not encompass any other damages including but not limited to loss of profit
and special incidental, consequential, or other similar claims.
Lee Technology Korea specifically disclaims all other warranties, expressed or implied, including but
not limited to implied warranties of merchantability and fitness for a particular purpose with
respect to defects in the documentation and electronic circuitry and the program license granted
herein, in particular, and without limiting operation of the program license with respect to any
particular application, use or purpose.
NOTICE
IMPORTANT SAFETY INFORMATION
CAUTION: To comply with FCC RF exposure compliance requirements, a
separation distance of at least 20 cm must be maintained between the
antenna of this device and all persons. This device must not be co-
located or operation in conjunction with any other antenna or
transmitter.
Any changes or modifications (including the antenna) made to this
device that are not expressly approved by the manufacturer may void
the user’s authority to operate the equipment.
Tablecall Paging System User Manual
TABLE OF CONTENTS
1. SYSTEM INTRODUCTION
1) SYSTEM SUMMARY
2) SPECIFICATION
2. INSTALLATION
1) EQUIPMENT SETUP
2) PLACEMENT
3. NUMBER SETTING (CAPCODE PROGRAMMING)
1) NECESSARY THINGS TO PREPARE CAPCODE PROGRAMMING
2) AVAILABLE OPERATION SYSTEM
3) SEQUENCE TO SET PROGRAMMER SOFTWARE
4. RECEIVER SETTING
1) POWER ON / OFF
2) TABLE SETTING
5. OPERATION
6. HOW TO USE
Tablecall Paging System User Manual
1. SYSTEM INTRODUCTION
1) SYSTEM SUMMARY
LEETEK’s Tablecall Paging System was designed specifically to help guests immediately
page their servers or managers when they need anything, so they can be served
whenever they want. With this solution, it is needless guest’s are waiting for their turns for
served and servers are more convenient because it is needless to visit guest’s table twice
and it will keep servers from duplicating with each other. It will help reduce the number of
servers and also reduce the noise as well. Your restaurant will be more quiet and high-
quality. It’ll help you provide “Always Customers First” Services.
2) SPECIFICATION
FEATURE BENEFIT
TECHNOLOGY ° GFSK Technology (450~470MHz)
° Perfect for large restaurant, Café and Bar
° Wireless Paging System
TABLECALL TRANSMITTER ° POCSAG Code
° Operate in FM mode on GFSK
° 3 kinds of Version
° Output Power: 10mW
° Dimension: W(109) X D(107) X H(15)
° Weight: 120g
° PC Programmable
° Rechargeable
° SMART CHARGING (with own charger base)
TABLECALL PAGER ° POCSAG Code
° 12 Segments Display
° 2 kinds of pager (Belt Type / Watch Type)
° Belt Type – Rechargeable (with own charger base)
° Watch Type – Operated by AAA Battery
° Automatic Back Light
° Various Alert Type (Vibe / Beep / Flash) Selectable
° Auto Delete
° Waiter & Manager Pager Available
RESTAURANT SYSTEM ID ° Unique Base ID to eliminate overlapping message
APPLICATION ° Restaurant, Café and Hotel
Tablecall Paging System User Manual
2. INSTALLATION
1) EQUIPMENT SETUP
(1) Transmitter
Unwrap all sending unit components. Plug the power supply with the large tip into a
standard outlet and plug it into charger base for transmitter. Stack the transmitters on
the charger base. The red indicator will be lighted on and it means the transmitters are
charged properly. We recommend some type of surge suppressor on the power supply
for protection. Power surges are not covered under system warranty.
(2) Pager
Locate the charger base in a sturdy, out of the way location. Connect the charger base
with TX charger base using included jump wires. Be sure to plug the jump wires & power
supply jack in all the way.
Insert the pagers on the charger base. The pager number will always face top and the
red charging indicator will be lighted.
You should check a charging indicator appear on each pagers. This light indicates proper
charging is taking place.
On the top of each pager is your pager number.
2) PLACEMENT
(1) Transmitter
Place the tablecall transmitter on the proper location of table. Be sure that transmitter
will not be dropped by mistaken and check the transmitter number is match with the
table number.
(2) Pager
Attach the pager on the waiter(manager)’s belt using its belt clip. Be sure that the
message “READY” is displayed on the screen. If the message is not displayed, then the
pager is now turned off. So please press and hole the side button until it is turned on.
Tablecall Paging System User Manual
3. RECEIVER SETTING
* RECEIVER (Belt Type Pager)
1) SPEC
12 Segments Display
Battery Rechargeable
Button Switch (Side Button)
Vibe and Beep Alert
2) POWER ON/OFF
ON – Press the side button for 5 seconds.
OFF – Press the side button for 5 seconds, it will display “Set Table”. Once again,
press the side button shortly, it will show “Power Off”. It will be turned off when
you are pressing the side button for 5 seconds
3) TABLE SETTING
※ One pager can be assigned Max. 60 number of transmitters.

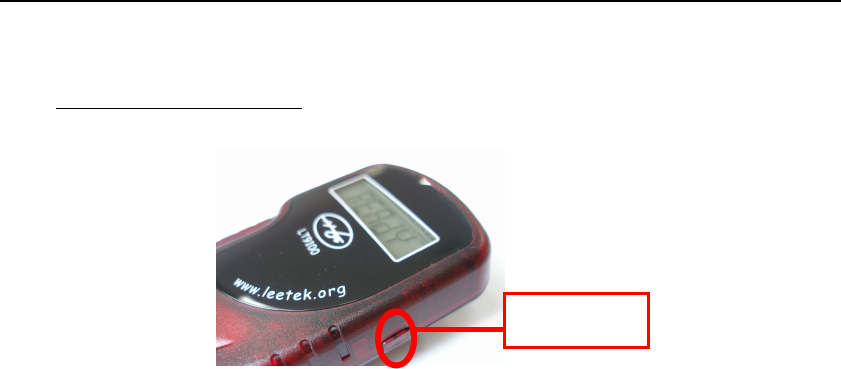

(1) Table Assignment (Belt Pager)
Press the Side Button for 5 seconds on the Belt pager. “SET TABLE” will
show on the display. Press the side button for 5 seconds, and it will be into
the Table Setting Mode (Wireless Programming Mode).
As soon as you enter the Table Setting Mode, press the “Waiter” button on
the transmitter for 5 seconds (Until you can feel the vibration from the belt
pager), and then the pager will be assigned to the transmitter.
Side Button
Tablecall Paging System User Manual
※ Be aware that you have to press the “Waiter” button as soon as you enter the
Table Setting Mede at Belt Pager. Otherwise, you will be automatically exited from
the Table Setting Mode.
(2) Table Cancellation (Belt Pager)
Press the Side Button for 5 seconds on the Belt pager. “SET TABLE” will
show on the display. Press the side button for 5 seconds, and it will be into
the Table Setting Mode (Wireless Programming Mode).
As soon as you enter the Table Setting Mode, press the “Manager” button
on the transmitter for 5 seconds (Until you can feel the vibration from the
belt pager), and then the table assignment will be canceled from the
transmitter.
※ Be aware that you have to press the “Manager” button as soon as you enter the
Table Setting Mede at Belt Pager. Otherwise, you will be automatically exited from
the Table Setting Mode.
4) PAGING
The table number will be displayed with the alert, when it is paged.
Press the side button to stop alert.
Unchecked message keeps blinking.
When it stores multiple messages, you can scroll the messages by pressing the
side button.
To delete the message, press the side button for more than 1.5 seconds when it
displays the table number.
Tablecall Paging System User Manual
* RECEIVER (Watch Type Pager)
1) SPEC
12 Segments Display
AAA Battery included
Two Buttons are available (Top & Side)
Vibe and Beep Alert
2) POWER ON/OFF
ON – Press the side button for 5 seconds.
OFF – Press the side button for 5 seconds
3) TABLE SETTING
※ One pager can be assigned Max. 60 number of transmitters.

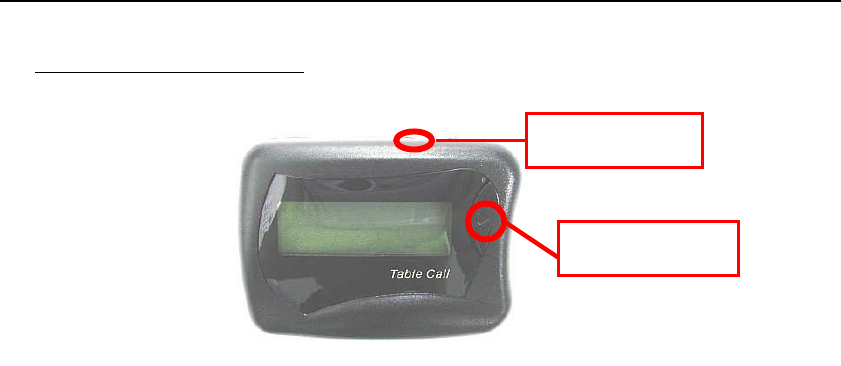

(1) Table Assignment (Watch Pager)
Press the Top Button for 5 seconds on the Watch pager, and it will be into
the Table Setting Mode (Wireless Programming Mode).
As soon as you enter the Table Setting Mode, press the “Waiter” button on
the transmitter for 5 seconds (Until you can feel the vibration from the belt
pager), and then the pager will be assigned to the transmitter.
※ Be aware that you have to press the “Waiter” button as soon as you enter the
Table Setting Mede at Belt Pager. Otherwise, you will be automatically exited from
the Table Setting Mode.
① Top Button
② Side Button
Tablecall Paging System User Manual
(2) Table Cancellation (Watch Pager)
Press the Top Button for 5 seconds on the Belt pager, and it will be into the
Table Setting Mode (Wireless Programming Mode).
As soon as you enter the Table Setting Mode, press the “Manager” button
on the transmitter for 5 seconds (Until you can feel the vibration from the
belt pager), and then the table assignment will be canceled from the
transmitter.
※ Be aware that you have to press the “Manager” button as soon as you enter the
Table Setting Mede at Belt Pager. Otherwise, you will be automatically exited from
the Table Setting Mode.
4) PAGING
The table number will be displayed with the alert, when it is paged.
Press the side button to stop alert.
Unchecked message keeps blinking.
When it stores multiple messages, you can scroll the messages by pressing the
side button.
To delete the message, press the side button for more than 1.5 seconds when it
displays the table number.
5. OPERATION
1) To page Waiter
- When you press WAITER button shortly, it transmits and displays “TABLE – Number” to
the waiter pager.
- After transmitting is finished, red LED blinks once.
2) To page Manager
- When you press MANAGER button shortly, it transmits and displays “TABLE – Number”
to the manager pager
- After transmitting is finished, red LED blinks once.
3) To cancel page
- When you press CANCEL button, it transmits and erases the previous page(Table No.).
Tablecall Paging System User Manual
5. HOW TO USE
1) Restaurant, Hotel, Café
(1) Direction for Use
- For calling staffs
(2) Process
- A guest can page to waiters by pressing the “WAITER” button on the transmitter, when
the guest needs some help to request such as receipts or menu order.
- If the guest is not satisfied by the services from waiters, he/she can page to Manager
by pressing the “MANAGER” button on the transmitter.
- After serving the services, the waiter can press the “CANCEL” button to complete the
guest’s requests.
(3) Merits
- This new premium paging system is not compared to the exited call bell systems. In
addition, it helps you to provide the high-quality services to your customers.
- It eliminates the noise from the bells, and makes customers feel more comfortable.
- It will also help reduce the number of servers.
2) Hospital, Silver Town
(1) Direction for Use
- For calling Nurses
(2) Process
- A patient can page to Nurse by pressing the “NURSE or EMERGENCY” button, when a
patient needs some help.
- A nurse can come to the patient room and serving the patients. After serving the
services, the nurse can press the “CANCEL” button to complete the patient’s requests.
(3) Merits
- When emergency occurred, the patient can immediately call to nurses.
- Nurses can check the calls from patients on real time.
3) Casino, Night Club
(1) Direction for Use
- For calling staffs
(2) Process
- A guest can page to waiters by pressing the “WAITER” button on the transmitter, when
Tablecall Paging System User Manual
the guest needs some help.
- After serving the services, the waiter can press the “CANCEL” button to complete the
guest’s requests.
(3) Merits
- This paging system can be used in a crowd place where guests are not able to call
waiters by voices.
- It will also help reduce the number of servers.
4) Pool Side
(1) Direction for Use
- For calling staffs
(2) Process
- A guest can page to waiters by pressing the “WAITER” button on the transmitter, when
the guest needs some help.
- After serving the services, the waiter can press the “CANCEL” button to complete the
guest’s requests.
(3) Merits
- It will help reduce the number of servers and also reduce the noises well.
