Users Manual

LTK-1900T
Top Button Paging System
TRANSMITTER
Instructional Manual
(Ver. 1.00)
LEE TECHNOLOGY KOREA CO., LTD.
email sales@leetek.org
website www.leetekorea.com
KOREA HEADQUARTER US OFFICE
3rd FL. #499-2, Sang3-dong, 6040 Unity Drive
Suite L,
Wonmi-gu, Pucheon-city, Norcross, GA30071,
U.S.A
Kyunggi-do, Korea
tel +82-32-324-9838 tel +1-678-218-
0990
fax +82-32-324-9840 fax +1-678-218-
0991
Top Button Paging System User
Manual
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS :
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USERS AUTHORITY
TO OPERATE THE EQUIPMENT
Top Button Paging System User
Manual

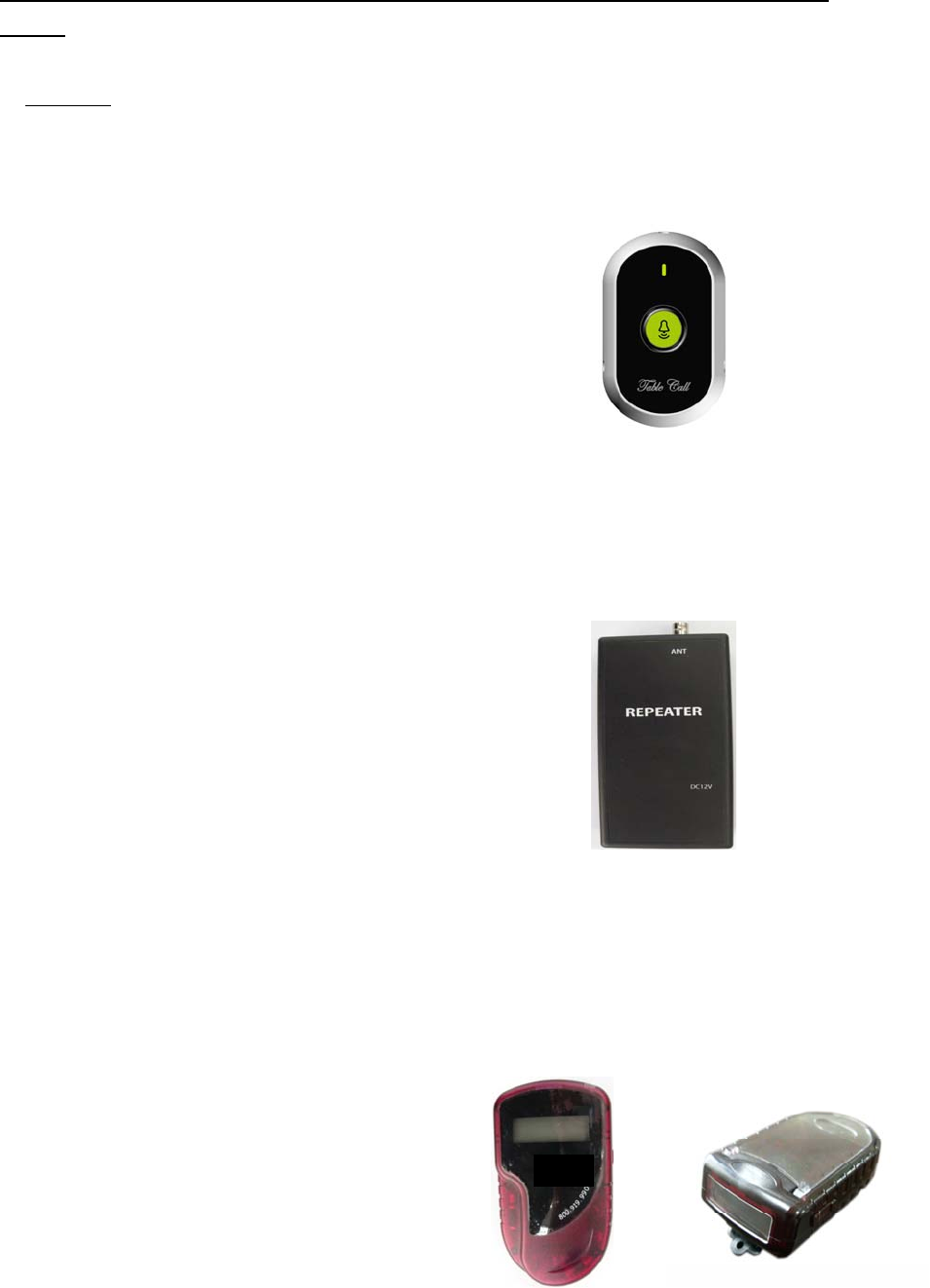

1. FEATURE
1) Top Button Transmitter( LTK-1900T)
z Dimension (mm): 40 x 63 x 14
z Frequency: 311 MHz
z Output Power: 10mW
z Modulation: AM
z Button: 3 Button
z Wireless setting available
z Battery : alkaline (TOSHIBA) 12V

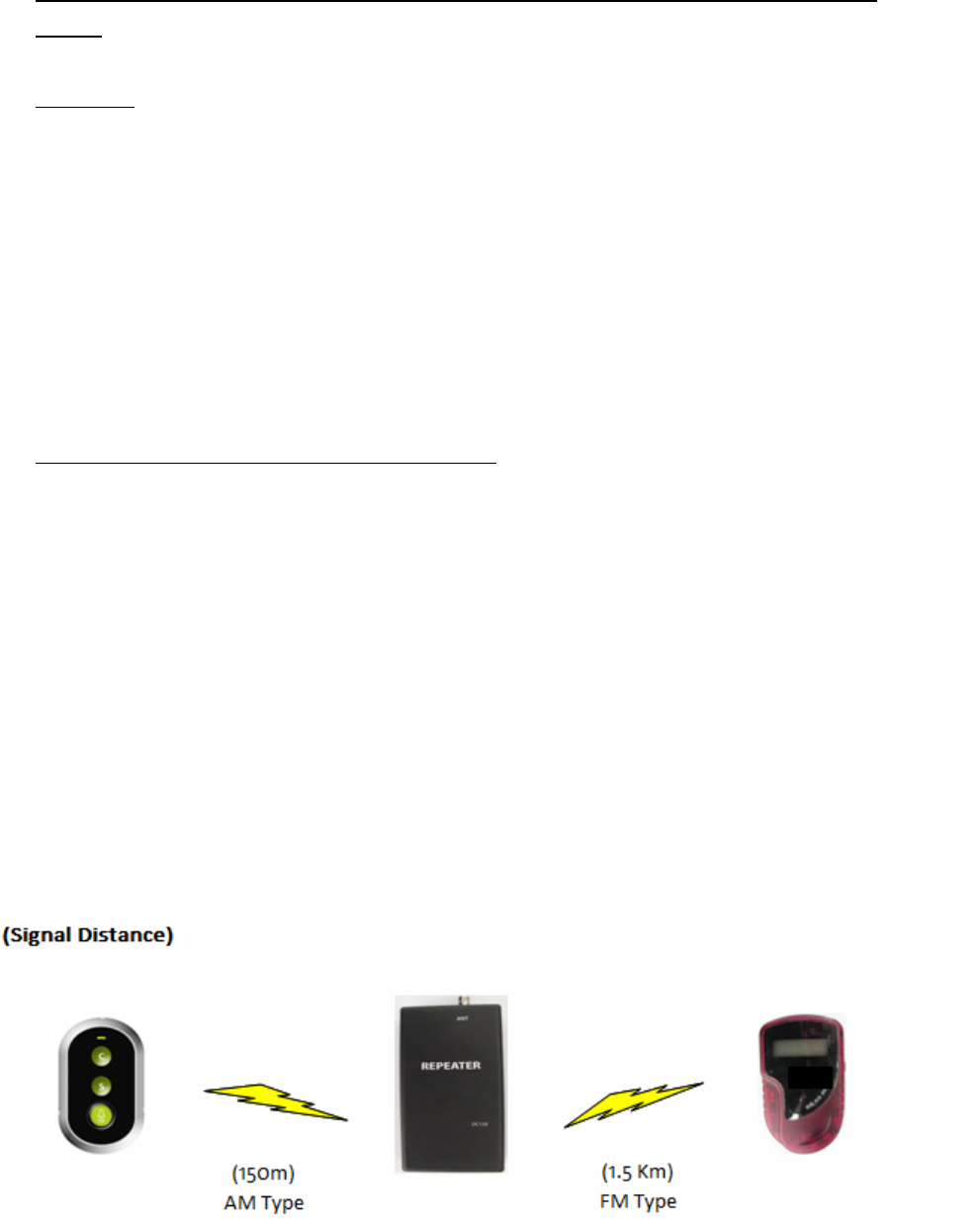

2) Repeater Transceiver (LTK-1900R)
z Dimension (mm): 76 x 155 x 254
z Frequency:
- Receiver: 311 MHz
- Transmitter: 450 MHz ~ 470 MHz
z Output Power: 0.5W
z Modulation:
- Receiver: AM
- Transmitter: FM (POCSAG)
z Compatible with LED display screen (Next Generation Version)
3) Receiver Pager
z Dimension (mm): 56 x 94 x 17
z Frequency: 450 MHz ~ 470 MHz
z Battery: Rechargeable (1/2 AAA)
z Modulation: FM (POCSAG)
dsf
z Button: 1 Button (Side)
z Belt Type
Top Button Paging System User
Manual
2. SETTING
1) Top Button Transmitter number setting (with Repeater Transmitter)
: To assign the identification number for each transmitter.
* INSTRUCTION
(1) Open the small cover on the Repeater Transmitter.
(2) Place the SETTING switch on the “ON” side, and press any buttons on the Top
Button Transmitter.
(3) The LED light on the Repeater Transmitter will flash which states the Top
Button Transmitter has been assigned to the Repeater Transmitter successfully.

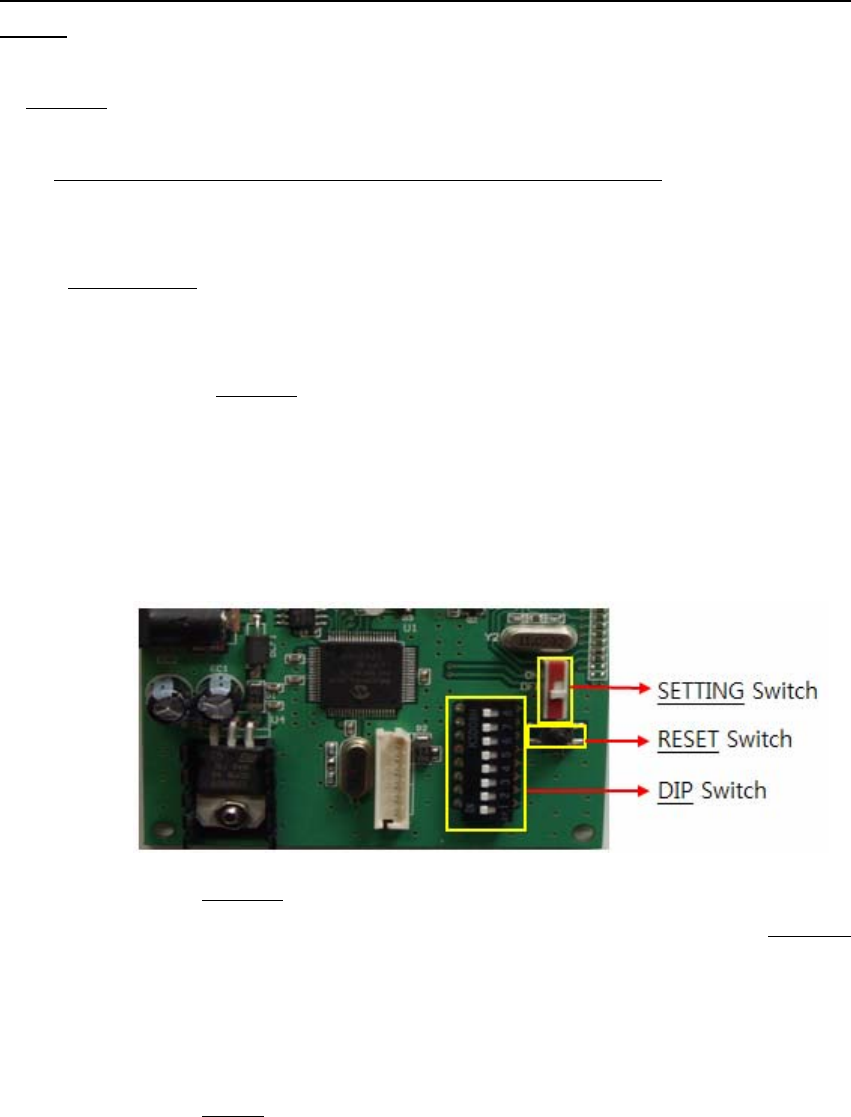

(4) Please refer to the explanation shown on the picture as below:
z SETTING Switch
- ON: To assign the top button transmitter’s numbers, the SETTING
switch has to be on the “ON”
- OFF: After setting up the number assignment, the switch has to
be on the “OFF” for proper usage as the Repeater Transmitter.
z RESET Switch
- To erase all memorized transmitter’s setting, you need to push
and hold the RESET switch for 3 seconds. (Until the LED light
flashes)
Top Button Paging System User
Manual
z DIP Switch
- To assign with the specific numbers for each Top Button
Transmitters, you can use the DIP switch. Please refer to the
Number Setting Sheet for details.
Top Button Paging System User
Manual
2) Top Button Transmitter number setting (with Receiver Pager)
: Paring the Top Button Transmitters to each Receiver pagers.
* INSTRUCTION
(1) By using the side button on the Receiver Pager, you can enter to the wireless
setting (paring) mode.
(2) While the pager is in the setting mode, press any buttons on the Top Button
Transmitter.
(3) The number of Top Button Transmitter will show on the display which states
the Top Button Transmitter has been assigned to the Receiver Pager
successfully.

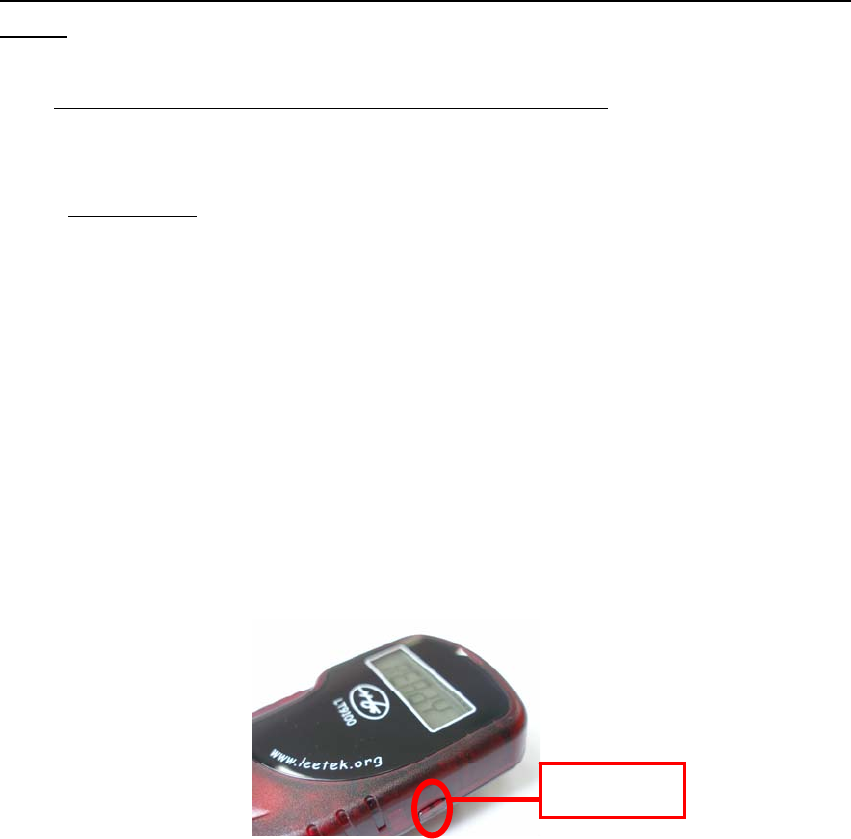

(4) Please refer to the explanation shown the picture as below:
z ON – Press the side button for 3 seconds.
z OFF Press the side button for 3 seconds, it will displaySet
Table”. Once again, press the side button shortly, it will show
Power Off. It will be turned off when you are pressing the side
button for 3 seconds
Side
z Wireless Setting Mode - Press the Side Button for 3 seconds on
the Receiver Pager. “SET TABLE” will show on the display. Press
the side button for 3 seconds, and it will be into the Table
Setting Mode (“Saved None” will show on the display if no
transmitters are assigned yet. If not, the number of transmitter
which are already assigned will show on the display)
Top Button Paging System User
Manual
3. PAGING
z The table number will be displayed with the alert, when it is paged.
z Press the side button to stop alert.
z Unchecked message keeps blinking.
z When it stores multiple messages, you can scroll the messages by pressing the
side button.
z To delete the message, press the side button for more than 1.5 seconds when
it displays the table number.
4. OPERATION (For 3 Top Button Transmitter only)
1) To page Waiter
- When you press WAITER button shortly, it transmits and displays “TABLE
Number” to the waiter pager.
- After transmitting is finished, red LED blinks once.
2) To page Manager
- When you press MANAGER Button shortly, it transmits and displaysTABLE
Number” to the manager pager.
- After transmitting is finished, red LED blinks once.
3) To cancel page
- When you press CANCEL button, it transmits and erases the corresponding page.
