Lee Technology Korea LTK-2000T FM PUSH BUTTON TX User Manual revised TK 2000T FM Push Button tx

Lee Technology Korea Co., Ltd. FM PUSH BUTTON TX revised TK 2000T FM Push Button tx

Users Manual

MODEL Name : LTK-2000T
Trade Name : FM Push buttom TX
E-mail: sales@leetek.org
Website: www.leetekorea.com
LEE TECHNOLOGY KOREA CO., LTD.
3rd Fl. 499-2, Sang3-dong, Wonmi-gu, Bucheon-city, Kyunggi-do, Korea
Tel +82-32-324-9838 / Fax +82-32-324-9840
Push Button Paging System
- User Manual
▶ FEATURES & MERITS
LTK-2000T
▶ Simple paging system ▶ Easy usage
▶ Use for paging of customers ▶ Creation of quiet atmosphere
▶ 1 ~ 90 transmitters setting per one pager ▶ Providing prompt service to customer
▶ PRODUCT SPEC
▶ OPERATION OF SYSTEM
▶ To page Staff
1) Just press CALL button of transmitter shortly.
2) Pager of staff will display “TABLE – Table No.” when it receive the signal from transmitter.
3) After transmitting is finished, red LED blinks once.
▶ To cancel page (only 3 buttons transmitter)
1) Press CANCEL button.
2) The pager will show “CANCELED – Table No.”.
Battery
Modulation
Dimension (mm)
Total Weight (g)
Frequency
Code Format
Push Button Transmitter Button 1 or 3 Button
DC 3V
FM
40 X 63 14
23
433.92
POCSAG Code
F
eatu
r
e
Merit
CUSTOME
R
STAFF
Direct Call
Immediate Service
Top-view Pager Push Button Transmitter
▶ SETTING PROCESS
1) Press the Button 1 on ‘[READY]’. (more than 3 seconds)
→ Pager will display ‘SET TABLE’.
2) Press the Button 1. (more than 3 seconds)
→ The pager will proceed to Number Setting menu
and display ‘SET NUM B001’.
* ‘B’ of B001 means that No.1 transmitter is not stored in this pager.
3) Press call button of a transmitter.
→ The pager will display 'SETTING 001'.
Then, it will change ‘SET NUM:001’ → ‘SET NUM:B002’
4) To exit Setting mode :
① Press the Button 2 on 'SET NUM:B001'. (more than 3 seconds)
→ The pager will proceed to Number Delete Menu.
② Move to 'STAND BY' menu by pressing the Button 1.
③ Press the Button 1 once for less than 1 second.
※ To move another setting number,
press the Button 1 or 2 on “SET NUM:B001”.
( ‘+’ → Button 1, ‘-‘ → Button 2 )
※ Change number setting : Delete number setting
→ Restart settin
g
for another number.
※ You can set 1 transmitter for only 1 number.
▶ DELETE PROCESS
1) Practice the No. 1, 2 of Setting Process.
→ The pager will display ‘SET NUM:001’.
2) Press the Button 2 on the display 'SET NUM:001'.
(more than 3 seconds)
→ The pager will proceed to Number Delete Menu.
3) Delete Menu consists of ‘DELETE’, ‘DELETE ALL’, ‘STAND BY’.
Press the Button 1 for less than 1 second to move another menu.
4) Press the Button 2 on the ‘DELETE’. (more than 3 seconds)
→ The pager will display ‘SET NUM:B001’
after showing ‘DELETED’.
5) If you want to delete all number in the pager,
Press the Button 2 on ‘DELETE ALL’. (more than 3 seconds)
→ The pager will show ‘SET NUM:B001’
after showing ‘DELETED’
6) To exit Delete mode :
① Press the Button 2 on 'SET NUM:B001'. (more than 3 seconds)
→ The pager will proceed to Number Delete Menu.
② Move to 'STAND BY' menu by pressing the Button 1.
③ Press the Button 1 once for less than 1 second.
Button - 1
Button - 2
LCD Display
12 Di
g
i
t
Press the Button 1 (3 seconds)
Press the Button 1 (3 seconds)
Press call button of a transmitter
com
p
leted settin
g
:
g
oin
g
on settin
g
:
Standb
mode :
1)
2)
3)
Press the Button 2
(
3 seconds
)
Move to another menu :
Press the Button 1 (1 second)
Practice the menu :
Completed “DELETE” function
Stand by mode for paging
Button - 1
B
utto
n - 2
LCD Display
NSET UM 0 01
NSTA D BY
DE L E TE
DE L E T ED
LDE L E TE A L
SET TABLE
NSET UM B0 01
SETT ING 001
001
NSET UM
NSET UM 0 02B
2)
5)
6)
4)
RE ADY
[]
12 Di
g
i
t
RE ADY
[]
NSET UM B0 01

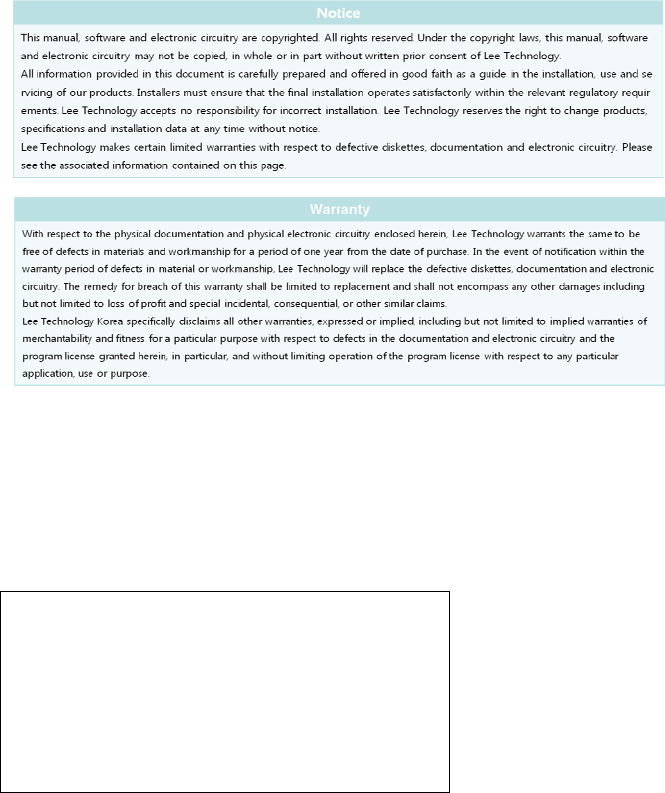

▶ NOTICE & WARRANTY
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS :
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
IMPORTANT SAFTEY INFORMATION
RF EXPOSURE STATSURE STATEMENT
Your Pager Transmitter contains a radio frequency transmitter.
When the button is pushed the transmitter sends our RF singnals.
CAUTION : To comply with FCC RF exposure compliance requirements,
A separation distance of at least 8 inches(20Cm) must be maintained
Between the antenna of this transmitter and all persons, during
Normal operation. The antenna used for this transmitter must not be co-
Located or operating in conjunction with any other antenna of transmitter.
Unauthorized antennas, modifications, of attachments could damage the
Transceiver and may violate FCC regulations.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER�S AUTHORITY TO OPERATE THE EQUIPMENT
For a Class A digital device or peripheral, the instructions frnished the user shall include
The following or similar statement, placed in a prominent location in the text of the manual:
Note : This equipment has been tested and found to comply with the limits for a Class A
Digital device. Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful in a commercial environment. This equipment generates. Uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own
expense.
