LEEDARSON LIGHTING CO., LTD. Gateway PowerPoint
user manual

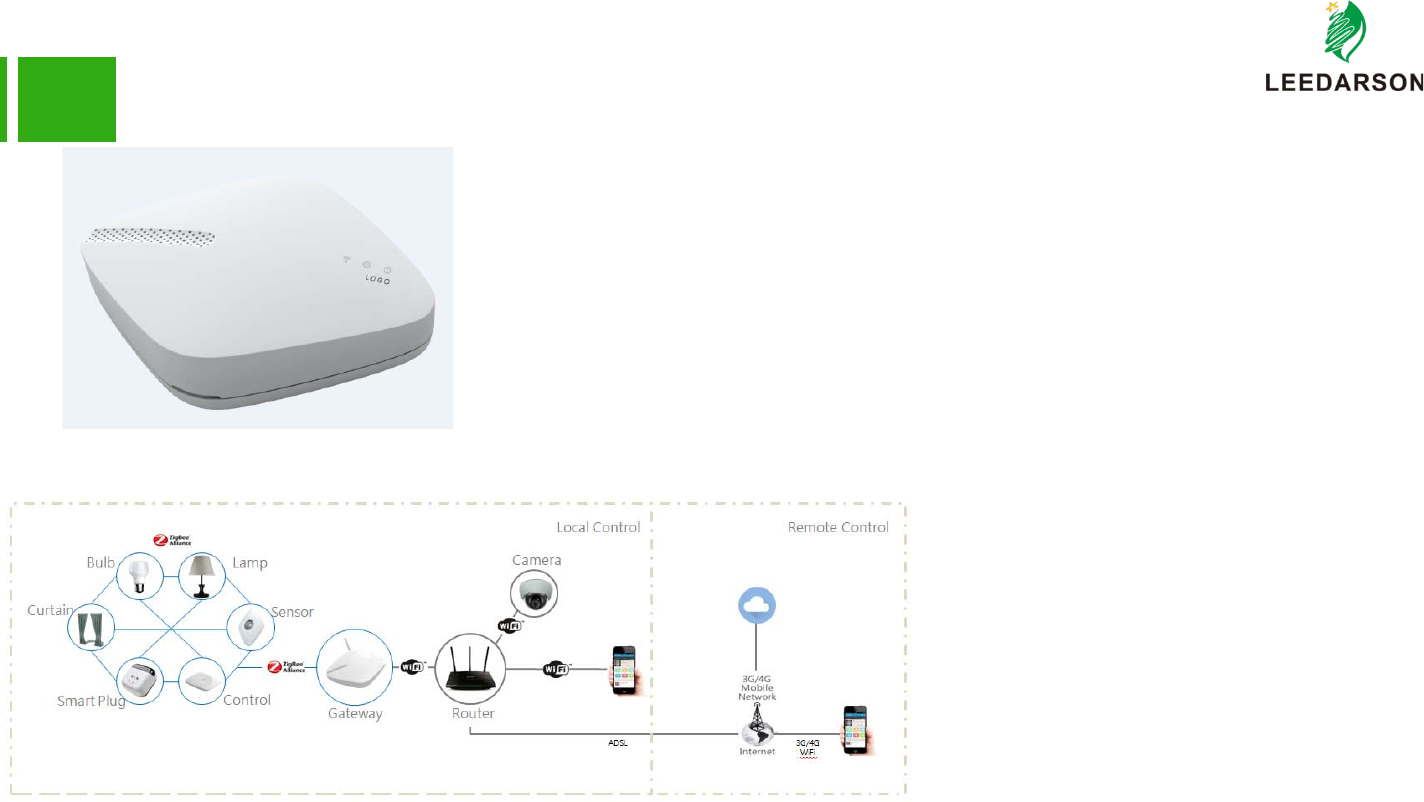

GATEWAY BAF Support Zigbee Protocol,2.4G, 802.15.4, low power consumption
Communication range up to 40 meters (Line of sight)
Connect nodes up to 32, just right for smart home application
Plug and play by RJ45 Ethernet port , network connection is very easy and
reliable
Internal buzzer makes different tone for reporting gateway status. It can
be set on/off by app to link with sensor for scenario and application.
Styling design、simple、neat, power cable and Ethernet cable are
connected inside case.
133(L)X100(W)X34.5(H)mm, Weight 108g
indoor use only
CE & FCC complied
Step 1: Please open the gateway upper cover. Connect the power adapter cable
to micro USB port. Connect the RJ45 cable from router to Gateway RJ45 port.
Step 2: Turn on power of both router and gateway. Gateway will get connection to
router upon receiving IP assignment from router automatically.
Step 3: Press pair key(or start searching by app) to launch searching and connecting
those un-pairing devices. Launch searching process before turn on ZLL bulbs.
Step 4: Gateway will open to search and add devices about 1 minute and then close
up searching process. If you press pair key again during the searching period,
Gateway will stop and close the searching process.
Note:
1. Please refer to the app user guide to down load and install app、register、login、add/delete devices、
control devices、create scenario etc..
2. Please keep gateway & mobile phone/PAD installed app to connect to the same router with internet
connection during the login in process. Once the login has been completed successfully, you can control all
devices connected to gateway by local control without internet connection.
3. If you quit the app without logout from system, you can click the app to get previous setting easily for further
control. If you logout from smart home system, please make sure gateway /router with internet connection
during the re-login process.
4. If you click the app before the gateway in right operating mode(such as power off、not at the same network),
you can not get the previous configuration and setting successfully. Please kill the app task. Make sure
gateway and network in the right mode. And then click app and refresh to start the smart home control again.

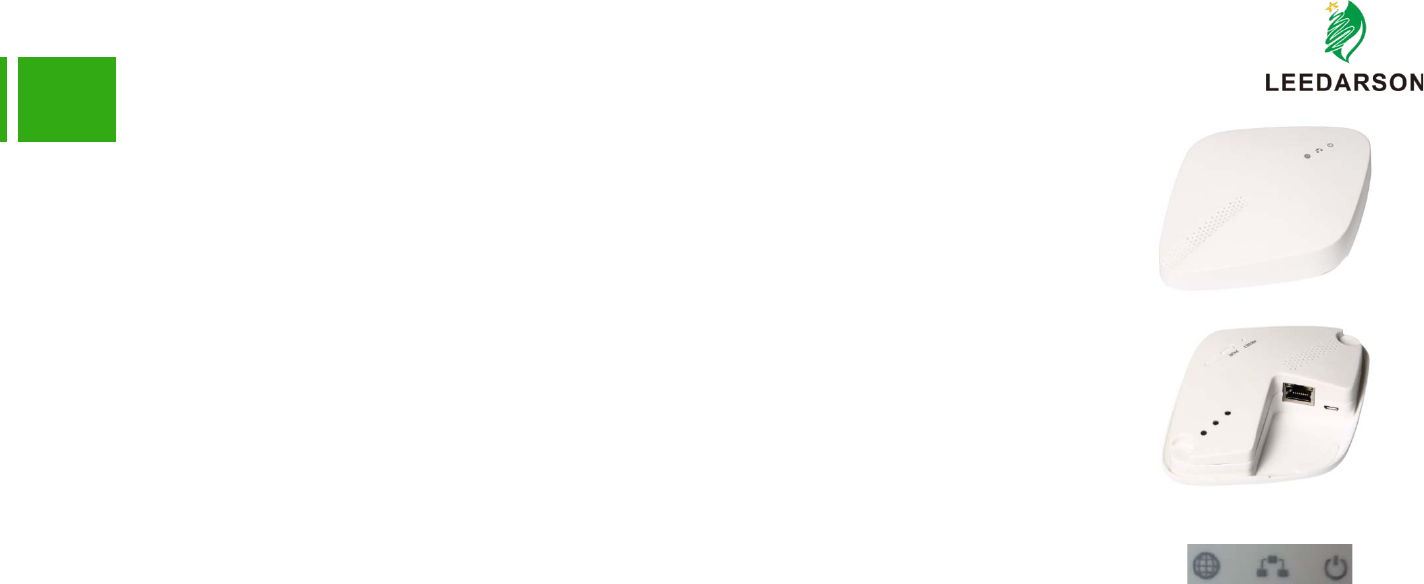

GATEWAY set up guide
RESET KEY: Press reset key to clean up all setting parameter. After
reset, you need connect gateway to router and launch searching to
add devices to gateway.
PAIR KEY: Press pair key to launch searching and connecting those
un-pairing bulb/sensor devices. Gateway will open to search and add
devices about 1 minutes. If you press pair key during the searching
step, it will stop the searching process. Please launch searching
process firstly and then turn on bulbs for ZLL bulbs.
POWER LED: Power indicator , blinking during the gateway
searching time.
LAN LED: LAN indicator, turn on upon connecting to router
successfully.
WAN LED: WAN indicator, turn on upon connecting to cloud service.
Micro USB connector: Connect to the external power adapter by
USB cable.
RJ45 Ethernet port：Connect to router by Ethernet CAT. 5E cable.
GATEWAY instruction
POWER
LED
LAN
LED
WAN
LED
Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
MPE Reminding
To satisfy FCC / IC RF exposure requirements, a separation distance of 20 cm or
more should be maintained between the antenna of this device and persons during
device operation.
To ensure compliance, operations at closer than this distance is not recommended.
