Leedarson Lighting 7ASSZABCH Sensors (4-in-1 Multi-Sensor) User Manual
LEEDARSON LIGHTING CO., LTD. Sensors (4-in-1 Multi-Sensor)
User Manual
LEEDARSON Multi-Sensor
Content:
Multi Sensor ....................................................................................................................................................... 2
1. Product Introduction ............................................................................................................................ 2
2. Product Appearance ............................................................................................................................ 2
3. Specification ......................................................................................................................................... 3
4. Features/Capabilities ........................................................................................................................... 4
5. Installation Position and Notes ............................................................................................................ 4
6. Product Installation .............................................................................................................................. 5
7. Attention .............................................................................................................................................. 6
We build your success in IoT.
2
Multi-Sensor
Quick Start Guide
1. Product Introduction
The Multi sensor is designed for using with scenes in home automation systems, integrate motion, light ,
temperature and humidity sensors, powered by CR123A battery or USB cable. The Motion Sensor lets you
know when movement is detected in a certain area and can trigger different actions in response to that
movement (or lack of movement). It also lets you know the ambient temperature and humidity to trigger
different actions to make you more comfort. This sensor integrated Zigbee communication module to
connect with Zigbee gateway.
2. Product Appearance

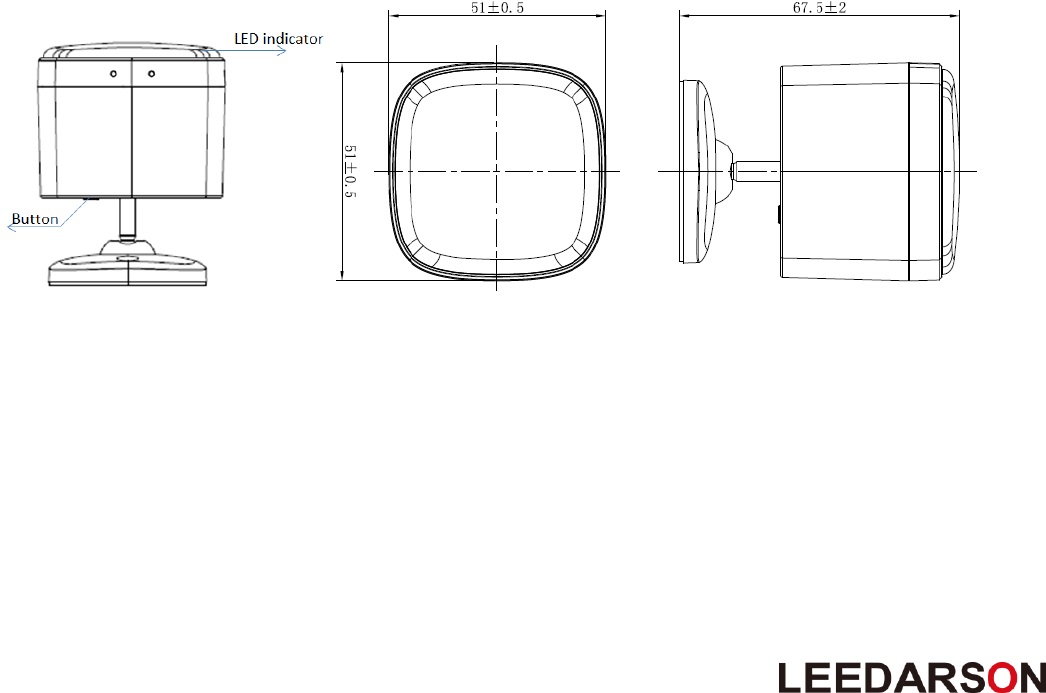

Product appearance and function overview.
① Reset : Using the pin to press the reset button for 3 seconds then release the pin to reset the sensor.
After the reset, the sensor will be found by the App or the gateway when they search for the device.
② LED Indicator: If sensor has not been added to gateway, the LED will be blinking about one time per
second. The LED will turn off when joined to gateway successfully.
3
3. Specification
Detection Technology
PIR （Passive Infrared）
Detection Angle
100°±10°
Temperature Accuracy
±1℃
Humidity Accuracy
±5%
Communication Protocol
Zigbee
Radio Frequency
2.4G (2405-2480MHz)
Wireless Range
40m (Line of sight) outdoor
About 30m indoors (depending
on building materials)
RF Output power(E.I.R.P.)
6.3 dBm
Power Source
3V, CR123A *1
Power source USB connector
5V USB port, support external 5V power adapter
Battery Life
2 years
Mounting
Screws or 3M Tape
Mounting Height (recommended)
7.22 ft to 9.19 ft (2.2m to 2.8m)
recommend 2.5 meters
Mounting Location
Wall Surface
Operating Temperature
-10°C to + 45°C
Operating Humidity
Up to 85% non-condensing
Certifications
CE/FCC
Dimensions (mm)
51(L)X51(W)X67.5(H) mm (with mounting bracket)
OTA
Yes
4
4. Features/Capabilities:
The LEEDARSON Multi Sensor is a universal Zigee Motion Sensor.
The LEEDARSON Multi Sensor detects motion / Luminance intensity/ Temperature/ Humidity.
The LEEDARSON Multi Sensor is powered by one CR123A batteries with 2 years battery life.
The LEEDARSON Multi Sensor is designed to be mounted on the wall and indoor use only.
The LEEDARSON Multi Sensor has configuration Luminance intensity/ Temperature/ Humidity Report
time interval.
The LEEDARSON Multi Sensor has detective range 5m(max.).
The LEEDARSON Multi Sensor Support low battery alarm function.
The LEEDARSON Multi Sensor Support firmware OTA.
After installation, detect direction can be adjusted by universal wheels.
5. Installation Position and Notes

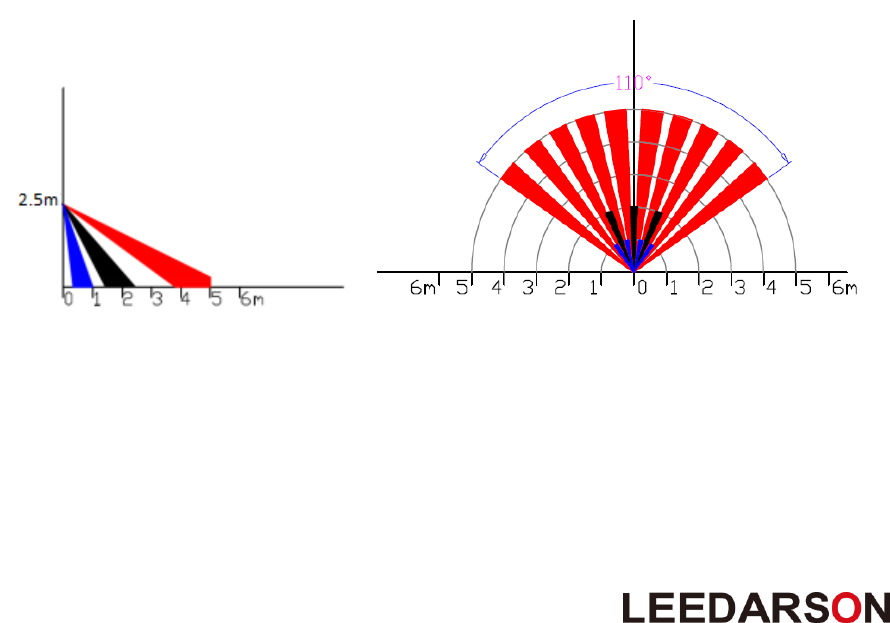

1. Installation position should be chosen at the area which the bass-by will be across, try to make the bass-
by in the detection area as below.
2. Do avoid installation near air-conditioner, electric fans, refrigerators, ovens or other places where
temperature easy change.
3. In order not to affect the detecting result, there should be no object in front of the produces lens.
4. Building (such as the wall) will shorten the distance of wireless communication.
5
6. Product Installation

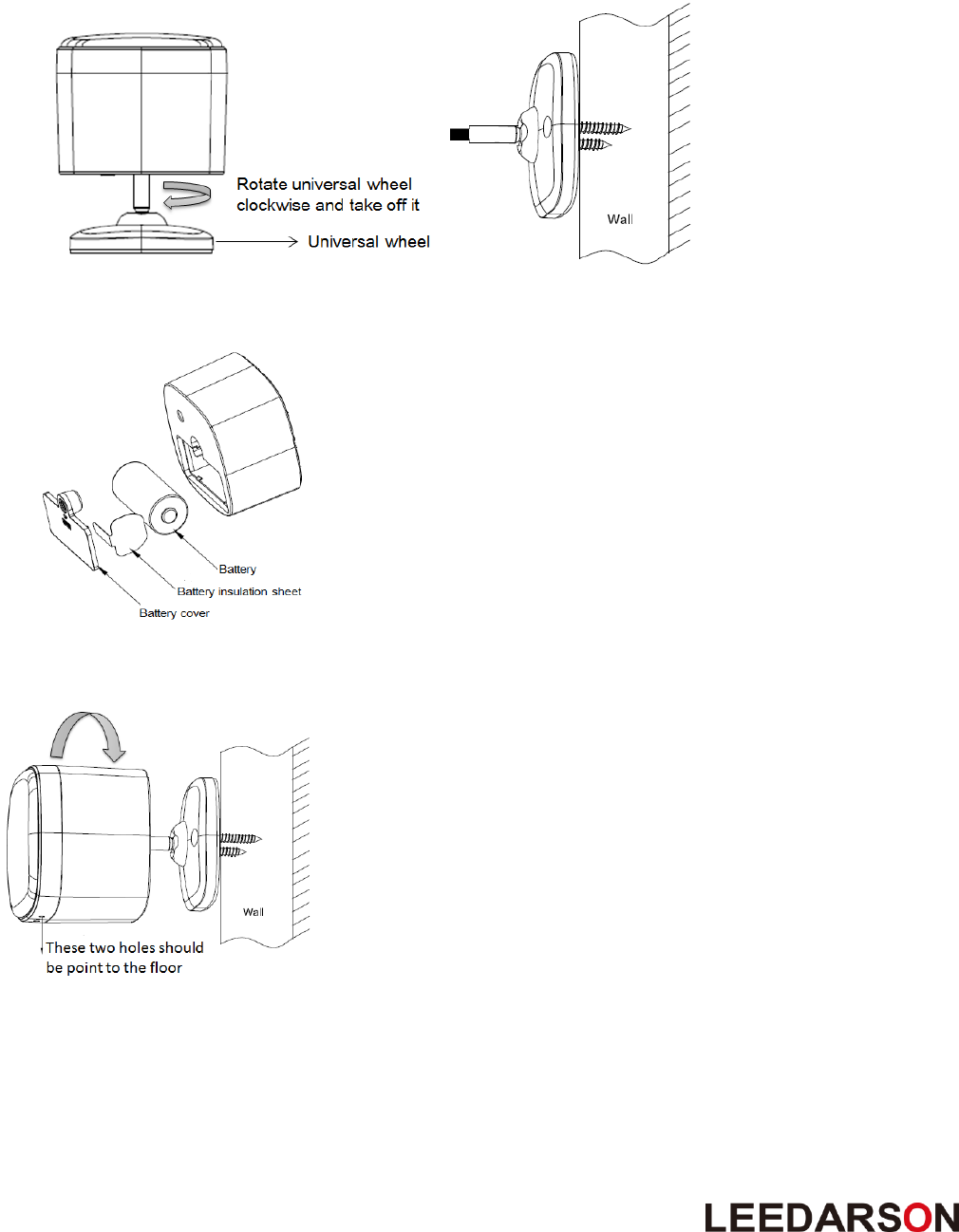

Adding the device as accessories, install it according to the diagram below:
① Choose the installation location on the wall, fix the universal wheels by screw or 3M adhesion tape
on the wall.
② Take off the bracket in the back, install battery into the body.
③ Assembly the body to the universal wheels, adjust the detection position, then installation finishes.
6
7. Attention
1. If need to clean the sensor, please use a soft cloth with a little alcohol to wipe it after you cut off the
power.
2. This product is just for indoor use.
3. Replace the battery timely on low battery warning to ensure the detector works properly. Please remove
the battery and safe keeping, if you don’t use this product for a long time.
4. This device can be mounted on the wall only, it cannot be installed on the ceiling.
5. The reference range template of PIR detection is tested at the indoor temperature (the range is 20℃～
25℃)，the target of the test is 77kg±10kg weight and 1.71m±0.3m height, the target of the test across
movement speed is 4m/s±0.15m/s.
6. In order to prevent the PIR sensor’s abnormal fault, please don’t mounting and operating sensor in the
bellow conditions,
Firstly, product mounting should prevent installed in the air flow environment such as in front of the
door, window, heater, air conditioner and so on.
Secondly, the PIR detection area should not be shielded by other screen.
Thirdly, if the operating temperature range is out of the defined range of product specification may result
in some product faults, which is not in the technique commitment of manufacturer.
Fourthly, this product has mot pet immunity function, so when some animals go through in front of the
product may trigger PIR function reported.
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS
