Leedarson Lighting 7HPLWA0 Smart Plug User Manual
LEEDARSON LIGHTING CO., LTD. Smart Plug
User Manual
User Guide

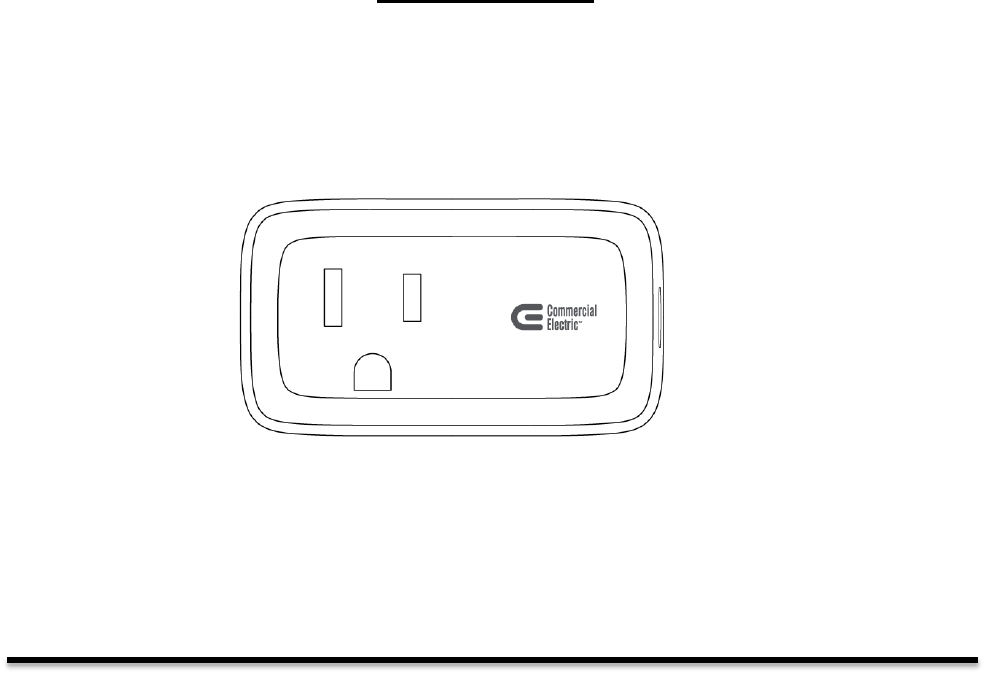

Smart Plug
THANK YOU
We appreciate the trust and confidence you have placed in Commercial ElectricTM through the
purchase of this Smart Plug. We strive to continually create quality products designed to enhance
your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Commercial ElectricTM!
Safety Information
WARNING: For indoor use only. Do not use in wet locations.
The total current limit of the device is 15A.
To avoid damage, Do not exceed the 15 A limit.
If a direct short is created on the output, the Smart Plug will be damaged and no longer function.
Do not disassemble the product, or make repairs yourself. You run the risk of electric shock and
voiding the limited warranty. If you need service, please contact the after sales services.

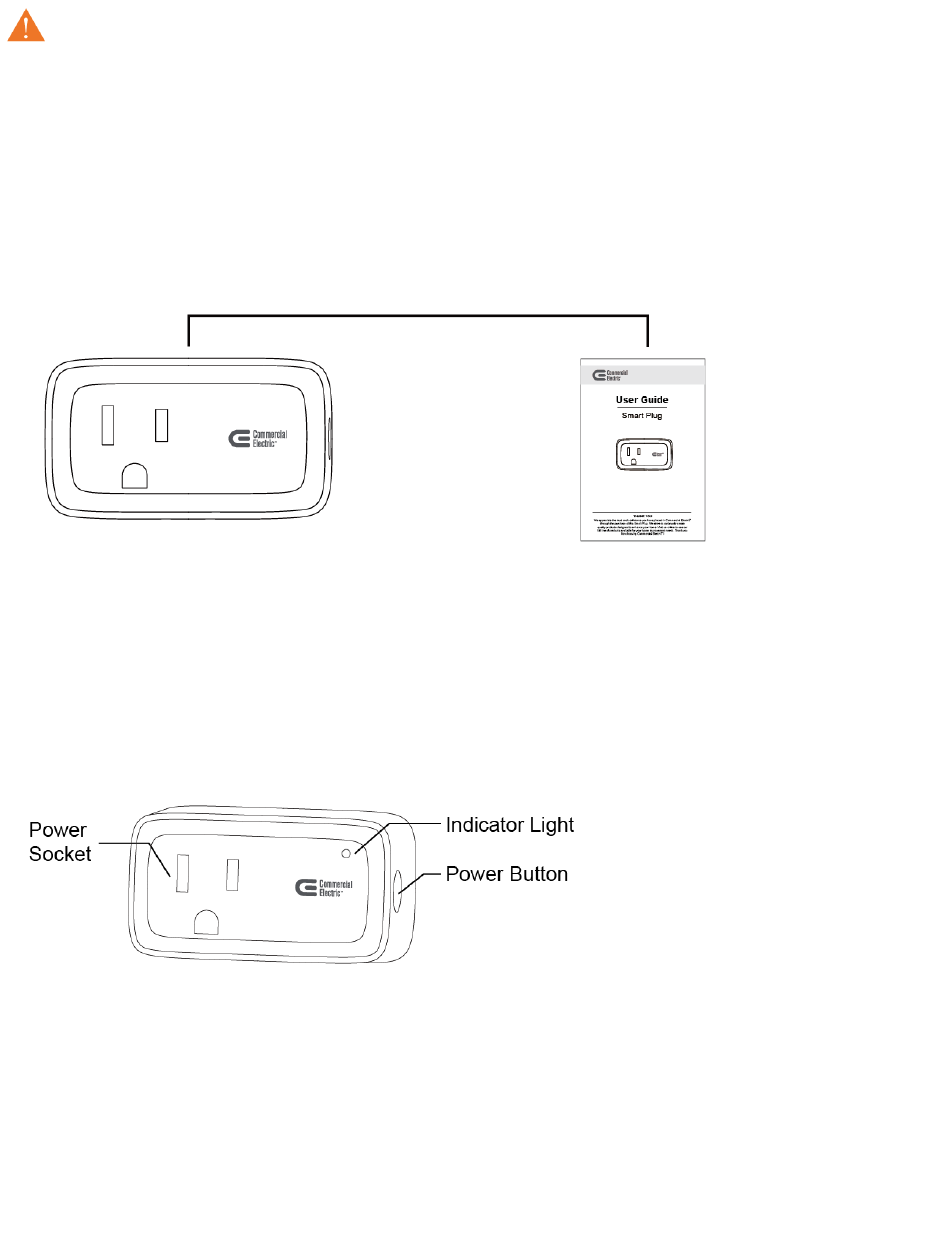

Package Contents
Product Introduction
The Smart Plug makes your appliances controllable by using the Smart Home App on your mobile
device, while you are at home or away. You can also turn appliances on or off automatically by
using the programmable timer function and monitor the energy consumption of the connected
appliance.
● LED Indicator: Under normal working state, Green-on, Red-off.
Green Slow Blink
Green Quick Blink
Green Solid
Orange Slow Red
Solid Red
Plug initiated, is ready to start plug network configuration
Connecting to the network or disconnected from a WIFI network
Connected to the network and plug is turned on
Factory reset or firmware update
The smart plug is switched off
Specification
Input
Output
Operating Temperature
Operating Humidity
Certification
Quick Start Guide
Download and Install the App
1 You can Scan the appropriate QR code below and install the App.
2 Or you can search “***”(name of the App)in Apple store or Google Play
Register and Login
When you open the App, it will guide you through creating an account and a login from the home
screen.
Add the Plug
● Connect your smartphone to a 2.4GHz WIFI network.
● Insert the Smart Plug into a grounded wall socket, the LED indicator blink slowly in green. If
not, press power key for 5s until the LED indicator blink slowly in green
● Follow the guide in app to connect the smart plug to WIFI router. You will find SSID
SmartPlug-xxxx’ during the connecting process. The number of xxxx is the last 4 number of MAC
which marked on the plug.

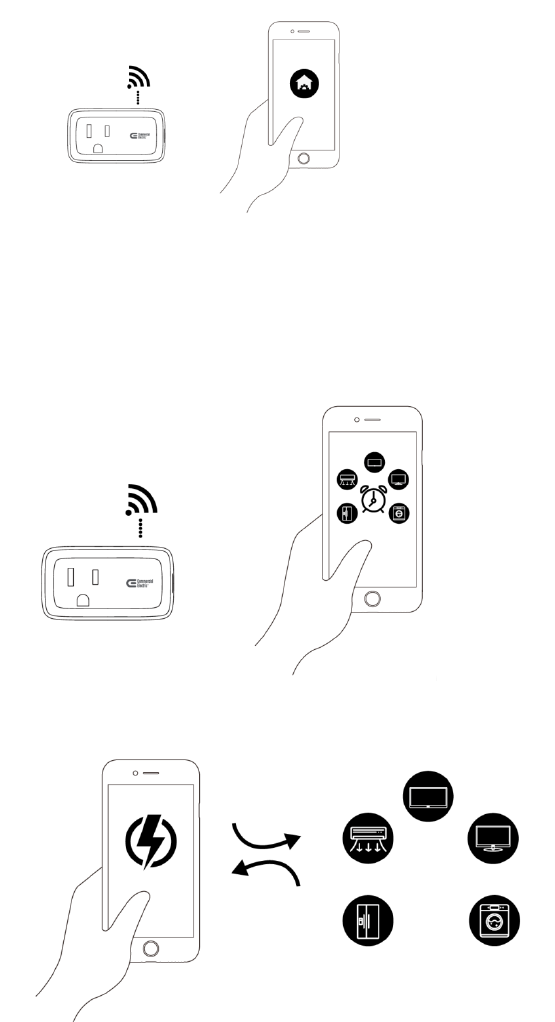

Operation
Remote Control: Turn your electronic device on and off from anywhere using the mobile App.
120VAC, 60Hz, 15A
120VAC,15A Maximum load
32° – 95° F
5 -85%RH, Non-condensing
FCC, UL
Timer: The Smart Plug has a control setting that can be set like a timer and will automatically turn
off once it reaches the programmed time.
Schedule: Set specific times for your device to turn on/off. When the Smart Plug is used with a
lamp, for example, you can program a schedule or control the on/off function from anywhere,
with your smart device.
Energy Monitor: Measures the energy consumption of the connected device.
Flexibility: The slim design fits a standard wall outlet and leaves the second outlet free.
Troubleshooting
● Q: What devices can be controlled with the Smart Plug?
A: You can control lights, fans, humidifiers, portable heaters, and any small appliances in
accordance with the Smart Plug’s specifications.
● Q: What happens if the Smart Plug configuration process fails and the LED indicator always
blinks green?
A: Check for interference or relocate the Smart Plug to another location within the signal range.
Make sure that you connect the Smart Plug to the 2.4GHz network.
● Q: How does the Smart Plug get restored to factory settings?
A: Press and hold the power key for 5 seconds or until the LED blinks green, slowly.
Compliance Information
FCC ID: 2AB2Q7HPLWA0
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20cm between the radiator
and any part of your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution:
Changes or modifications not expressly approved by the part responsible for compliance could
void the user's authority to operate the equipment.
FCC Statement:
"This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Warranty
1 YEAR LIMITED WARRANTY
This product is guaranteed to be free of defects in materials and workmanship for 1 year from the
date of purchase.
Guarantee does not include normal wear and tear, bulbs or batteries.
Contact the Customer Service Team or visit www.HOMEDEPOT.com.
