Leedarson Lighting RC4X1WN-A3 Remote User Manual 4 02
LEEDARSON LIGHTING CO., LTD. Remote 4 02
USERS MANUAL
1.Group Selection
Press the group button you want to control.
e.g. For Light 1--- Press group button 1--- Group indicator on--- Now you can play
If you want to control all bulbs please press (1-4) button.
e.g. Press (1-4) button---All group indicator on----Now you can play
Remote Control User Guide
Remote Control User Guide
Remote Control User Guide
Commission Devices
On/Off & Dim
Control Buttons
Status Indicator

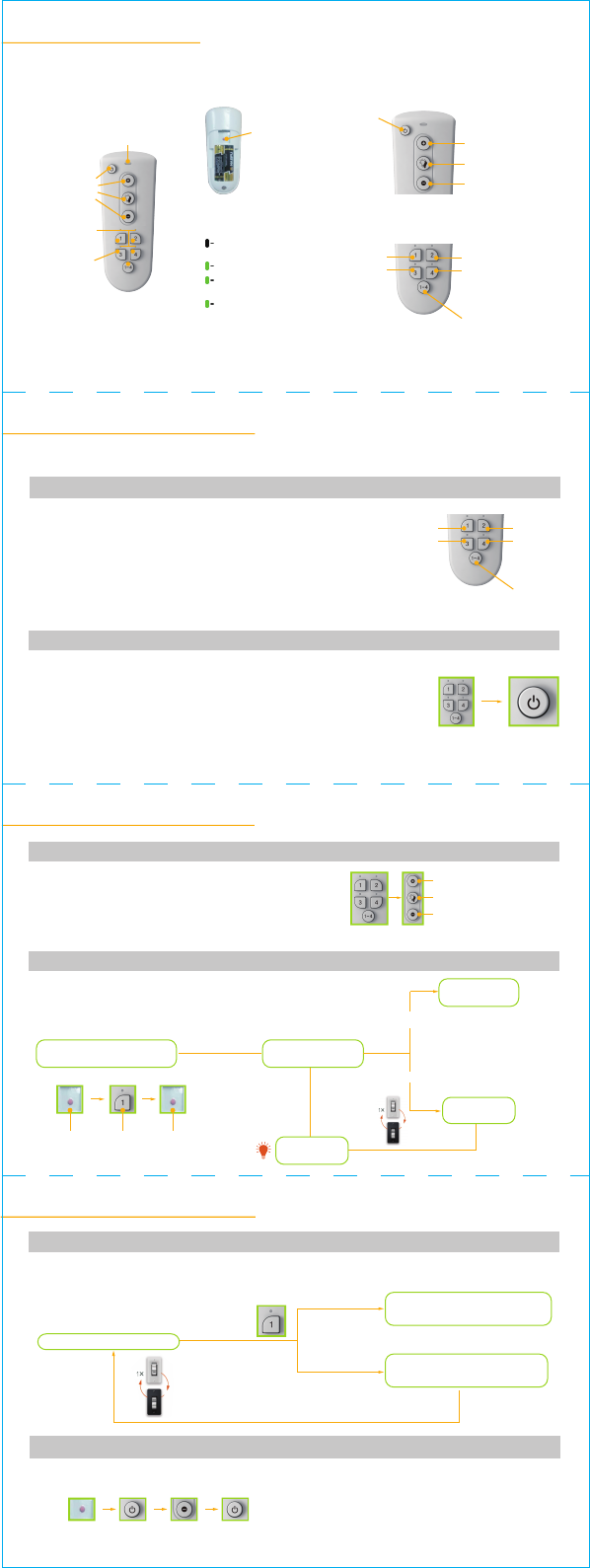

Remote Overview
Status Indicator:
ON/Off/Dim Control Buttons
Group Selection Indicators
Group Selection Buttons
Program Button
On/Off
Group 1
Group 3
Dim up
Quick toggling between highest
and lowest dimming level
Dim down
Group Selection
Indicators
Group Selection
Buttons
Remote is in Standby mode
or Selected Group is OFF
LED’s indicate selected group.
LED’s will be OFF in standby mode.
Group 2
Group 4
All Groups
(slow)
(fast)
Selected Group is ON
Finding Network Channel
(when batteries are inserted)
Commisioning a bulb
6.Reset
Reset: Set remote to factory default and delete all stored data.
Key combination: PRG->ON/OFF->DOWN->ON/OFF
After pressing all the keys in sequence above, indicator LED will flash for 5 sec and then the remote is reset done.
Group 1
Group 3
Group 2
Group 4
All Groups
4.Releasing (Un-Pairing) Lights
Releasing (Un-Pairing) Lights: To release the lights that already in the certain group.
Caution: All lights in this certain group will be released. To release a single
light, keep other lights in the same group powered off by wall switch.
Press and hold PRG-> The certain
Group ID button ->release PRG
All lights in this group
are set to factory default
User connects bulb
to new network
Or after 5 min
Light is added to
device list as new
Network close
Brightness is at 5%.
Press & hold Press once Release
Light finishes On Restarted by wall switch
Blinks twice
2.ON/OFF
ON/OFF: Every single press turns ON or OFF all the Lights in selected group(s).
3.Dimming
Dimming: Dimming the lights that already commissioned to the remote.
UP/DOWN: Every single press the light up/down in selected
group(s) by one level until max/min. Level is reached.
Remark: There are totally 16 brightness dimming levels.
Dimming(Shortcut): Every single press toggles the light in selected group(s) between max and min, Dimming level.
Dim up
Quick toggling between highest
and lowest dimming level
Dim down
5.Commissioning (Pairing) Lights
Commissioning (Pairing) Lights: Follow instruction below to commission new smart lights. In case you buy new smart lights
or the current smart lights are set to Factory Default.
Light (Factory Default) must start On
With your Remote
Restarted by wall switch
Successfully paired
to Remote
Light blinks twice,Once commissioned to a
remote, it’s no longer visible to other remotes
In case of a time-out,the bulb will turn off
the radio and become a standard
non-controllable light
Fail
Press and hold one of the group
button for 3s that you want the
light to join.
105*280mm(4折 折后尺寸105*70mm)
back
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
