Leetac Electronics Technology LEETACE5200 Bluetooth Audio Player User Manual E 5200
Zhongshan Leetac Electronics Co., Ltd. Bluetooth Audio Player E 5200
Manual.pdf
![](/img.php?id=2042647&img=bg1.png)
1

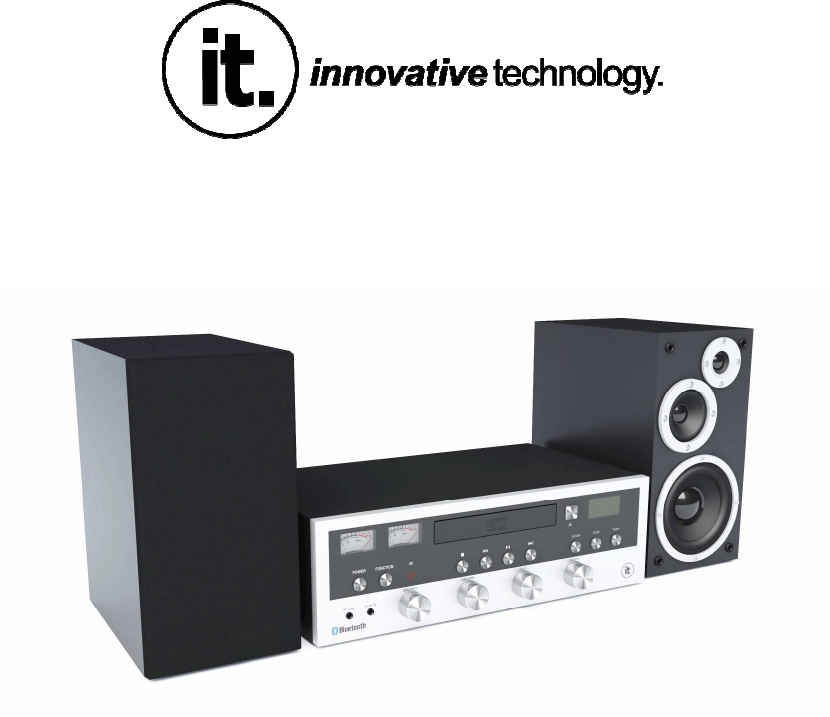

MODEL: ITCDS-5000
Digital Tuning FM / CD player w
Bluetooth/Aux-in
and External Stereo Speakers
1
CONTENT
INTRODUCTION..................................................................................................................................3
IMPORTANT SAFETY INSTRUCTIONS...................................................................错误!未定义书签。
BUTTONS AND CONTROLS .................................................................................................................5
REMOTE CONTROL UNIT ....................................................................................................................2
GET STARTED......................................................................................................................................3
CONNECTING
EXTERNAL
SPEAKERS......................................................................................................3
PRELIMINARY........................................................................................................................................3
LISTENING TO THE RADIO...................................................................................................................3
ADJUSTING THE VOLUME...................................................................................................................4
LISTENING TO A CD DISC ....................................................................................................................4
DISCS
MAINTENANCE ........................................................................................................................... 5
AUX-IN OPERATION............................................................................................................................7
USING THE REMOTE CONTROL ...........................................................................................................7
TROUBLESHOOTING GUIDE ................................................................................................................9
SPECIFICATIONS ............................................................................................................................... 10
![](/img.php?id=2042647&img=bg3.png)
1
INTRODUCTION
Thank you for buying this product.
To help you to have more fun when using this product, read these instructions thoroughly.
And then save this instruction manual for future reference.
IMPORTANT SAFETY INSTRUCTION
1. Read these instructions – All the safety and operating instructions should be read
before this product is operated.
2. Keep these instructions – The safety and operating instructions should be retained
for future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow all instructions – All operating and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water
or moisture – for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized
plug has two blades with one wider than the other. A grounding plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart or rack is used, use caution when moving
the cart/apparatus combination to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
15. Please keep the unit in a good ventilation environment.
![](/img.php?id=2042647&img=bg4.png)
1
16. Only use attachments/accessories specified or provided by the manufacturer
17. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall not be placed on apparatus.
18. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
Danger d'explosion si la batterie est remplacée de façon
incorrecte. Remplacez-la uniquement avec le même type ou équivalent
19. The battery (battery or batteries or battery pack) shall not be exposed to excessive heat
such as sunshine, fire or the like.
20. The mains plug is used as disconnect device, the disconnect device shall remain readily
operable.
21. This equipment is a Class II or double insulated electrical appliance. It has
been designed in such a way that it does not require a safety connection to
electrical earth.
22.
- This lightning flash with arrowhead symbol within an equilateral triangle is intended to
alert the user to the presence of non-insulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock.
- The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance instructions in the literature
accompanying the appliance.
23. WARNING
DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD
This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it
can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children. If the battery compartment does not close
securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
![](/img.php?id=2042647&img=bg5.png)
1
BUTTONS AND CONTROLS

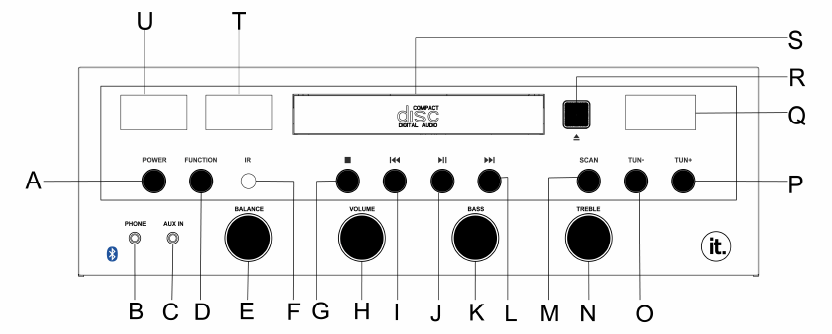

MAIN UNIT
A. POWER BUTTON
B. PHONE SOCKET
C. AUX IN SOCKET
D.FUNCTION BUTTON
E. BALANCE KNOB
F. IR
G. STOP BUTTON
H. VOLUME KNOB
I. (PREVIOUS) BUTTON
J. PLAY/PAUSE BUTTON
K. BASS BUTTON
L. (NEXT) BUTTON
M. SCAN BUTTON
N. TREBLE BUTTON
O. TUNING DOWN BUTTON
P. TUNING UP BUTTON
Q. DISPLAY
R. EJECT/ENTER BUTTON
S. CD COMPARTMENT
T&U. DISPLAY OF VOLUME
![](/img.php?id=2042647&img=bg6.png)
1

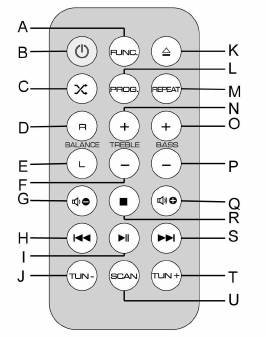

REMOTE CONTROL UNIT
A. FUNCTION BUTTON: Select a source.
B. ON/STANDBY BUTTON: Set the unit ON or STANDBY.
C. RANDOM: Select to a random playback.
D. BALANCE (RIGHT): Select the right speaker to adjust treble
or bass
E. BALANCE (LEFT): Select the left speaker to adjust treble or
bass
F & N. TREBLE(+/-): Act as “up”or “down”treble
G&Q. VOLUME + / - BUTTON: Adjust the volume level.
H&S.
(NEXT) BUTTON/
(PREVIOUS) BUTTON: skip
backward or forward.
I. PLAY/PAUSE BUTTON: Pause and resume playback.
J&T. TUN-/TUN+: in the FM mode, adjust the frequency.
K. EJECT/ENTER: In CD mode, eject and close the CD Tray.
L. PROGRAM:Set a program playback.
M. REPEAT: set a repeat playback
O&P. BASS (+/-): Act as “up” or “down”bass.
R.
(STOP) BUTTON: Stop the playback.
U. SCAN: Act as “ scan” in the menu.
1
GET STARTED
CONNECTING EXTERNAL SPEAKERS
The speaker input sockets locate at the back of the main unit.
Unwrap the speaker wire from the left speaker and plug it into the left (L) speaker socket on the
main unit.
Unwrap the speaker wire from the right speaker and plug it into the right (R) speaker socket on
the main unit.
Make sure the speaker cables will not run in areas where they could cause danger.
PRELIMINARY
Before connecting power to your audio system, the protective packing should be removed from
the CD compartment.
To remove the protective packing:
Press the EJECT/ENTER button at the front corner to open the CD door.
Remove the protective packing from the CD compartment.
Close the CD door by pressing the EJECT/ENTER button to latch it shut.
FM ANTENNA
Unwrap the FM antenna and extend it fully. You may need to adjust the position of the antenna
to get optimum reception.
CONNECTING THE POWER
Check that the mains voltage in the rating plate on the back of the main unit is the same as the
voltage in your area.
Plug the electric plug into the wall socket. Now the audio system is ready for use.
STANDBY CONTROL
To turn the main unit on:
Press the POWER button. The unit will turn on.
To turn the power off:
Press the POWER button to turn the unit off.
NOTE: When leaving the unit unattended for long period (such as holidays), please disconnect the
power plug from the mains supply.
LISTENING TO THE RADIO
1. Press the FUNCTION BUTTON to Switch to FM RADIO function and the display will show “FM”.
2. Tune to a desired radio station. The frequency is indicated on the display.
MANUAL TUNING: Press the TUNING + or TUNING button briefly and the frequency will be
tuning up or down at a step.
AUTO SEARCHING: Press the TUNING + or TUNING - button for more than 2 seconds, radio
frequency will start to change on the display. Once a station is found, the radio will stop searching
and start to broadcast immediately.
3. Re-position the antenna if necessary.
1
ADJUSTING THE VOLUME
VOLUME ADJUSTMENT
Twist the VOLUME KNOB to adjust the volume
The volume setting will be displayed briefly on a scale display on the left upper corner of the unit.
BALANCE
Twist the Balance Knob to adjust the volume between the left speaker and the right speaker. The
volume of the left speaker and right speaker is equal when the LED display shows “00” by
switching the balance knob.
TREBLE and BASS
Twist the Treble Knob and the Bass Knob to switch between treble and bass from “0” to “3”
LISTENING TO A CD DISC
PRELIMINARIES:
• Press FUNCTION button repeatedly to select CD function and the display will show “CD”.
• Press the EJECT/ENTER button to open the CD door, put a CD disc on the CD compartment
with printed label facing upside (towards you). Close the CD door and press EJECT/ENTER
button again to latch it shut.
TO PLAY A CD WHEN STOPPED: Press the PLAY/PAUSE button. The disc will play from track 1.
TO PAUSE A CD WHILE PLAYING: Press the PLAY/PAUSE button. The disc will pause and pause
indicator appears on the display. Press the PLAY/PAUSE button again to resume the playback.
TO STOP A CD WHILE PLAYING: Press the STOP button.
TO CHANGE TRACKS: Press (PREVIOUS) BUTTON or (NEXT) BUTTON.
TO SEARCH FOR A PARTICULAR PART DURING PLAY: Press and hold (PREVIOUS) BUTTON or
(NEXT) BUTTON until the desired part is located. During searching the sound will be played at
distorted speed. Play returns to normal when the button is released.
REPEATING/RANDOM PLAYBACK A TRACK OR A CD:
Press REPEAT button on the remote control to circle the play mode:
• Repeat 1---Press REPEAT button on the remote control once and the current track will be
continuously played.
• Repeat all---Press REPEAT button again and All tracks on the current disc will be played
continuously.
• Normal playback --- Press REPEAT button again to resume normal playback.
Note: Press STOP button the disc will stop playing and the play mode will be clear.
PROGRAM PLAY:
Program play must be set when the CD is stopped. You can program up-to-20 tracks in any order.
1. Press STOP button and then press PROGRAM
button on the remote control.
2. Press
(NEXT) BUTTON/
(PREVIOUS)
BUTTON to select a track.
The display shows the selected track.
![](/img.php?id=2042647&img=bg9.png)
1
3. Press the PROGRAM button on the remote
control to add the track into the program list.
4. Repeat steps 2 and 3 to till you accomplish the
programming.
You can program up to 20 tracks.
TO START THE PROGRAM PLAY
Press PLAY/PAUSE button.
TO PAUSE OR STOP A PROGRAM PLAY
Press PLAY/PAUSE or STOP button.
TO REPLAY A PROGRAM
Press PLAY/PAUSE button.
TO REVIEW THE CONTENT OF A PROGRAM
Press STOP button then keep pressing the
PROGRAM button to review the programmed
tracks.
TO CLEAR THE PRORAM
Press STOP button twice.
Open and close the CD door to clear the program
play.
After play, remove the CD.
DISCS MAINTENANCE
Depending on the quality of the disc and the condition of the recording, some CD-R/CD-RW disc
may not be playable.

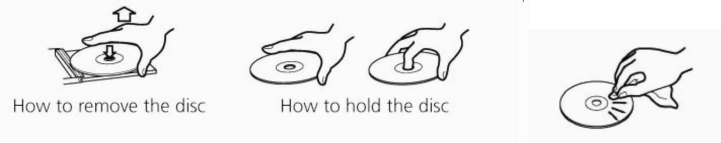

1. Always place the compact disc in the disc tray with the label facing upward. (Compact discs
can be played only on one side).
2. To move a disc from its storage case, press down on the center of the case and lift the disc out,
holding it carefully by the edges.
3. If the disc becomes dirty, wipe the surface from the center hole outward towards the outer
edge with a soft, dry cloth.
4. Never use such chemicals as record spray, antistatic sprays or fluid, benzine or thinner to
clean the discs. Such chemicals will do irreparable damage to the disc's plastic surface.
5. Discs should be returned to their cases after use to avoid serious scratches that could cause
![](/img.php?id=2042647&img=bga.png)
1
the laser pick up to skip.
6. Do not expose discs to direct sunlight or high humidity and temperature for extend periods.
Long exposure to high temperatures will wrap the disc.
7. Printable CD-R and CD-RW discs are not recommended, as the label side might be sticky and
damage the unit.
8. Use a soft oil-based felt-tipped pen to write the information on the label side. Never use a
ball-point or hard-tipped pen, as this may cause damage to the recorded side.
9. Do not use CDs with an irregular shape (octagonal, heart-shaped, business card size, etc).CDs
of this sort can damage the unit.
10. If you have any doubts of using CD-R/CD-RW disc, read the precautions supplied with the disc,
or contact the disc manufacture directly.
![](/img.php?id=2042647&img=bgb.png)
1
AUX IN OPERATION
Any external (auxiliary) audio source (i.e., personal CD player or MP3 player) connected to this
appliance can get necessary signal and channel the speaker outputs.
1. Press POWER button to turn the unit ON and then press FUNCTION button to select “AU”.
2. Set the volume level to the minimum level with the VOLUME KNOB.
3. Plug the AUX IN cable (not included) into the AUX IN socket at the rear of the unit.
4. Plug the other end of the cable into the headphone or Line Out socket of the external source.
4. Turn on the external audio device and set it play. Turn the external audio device’s volume up to
2/3. If necessary adjust the volume on the unit by switching the volume knob.
BLUETOOTH CONNECTIVITY
External devices which have a built-in Bluetooth feature can be connected to this apparatus and
play through the speakers.
GETTING CONNECTED
1. Slide FUNCTION switch to the Bluetooth position (in the middle of the function button) and
then the display shows “BT”.
2. Set the Bluetooth function of your external device ON.
3. Set to search Bluetooth device on your external device.
NOTE: The effective distance between your external device and this apparatus is 10 meters.
5. Wait for a while then find the “Fihonest” on the paired devices list on your external device.
6. If a window asks you a password. Fill in “0000”or“1234” then press “OK” on your external
device.
7. A beep sound should be heard that indicates a connection has been established.
8. A few seconds later your Bluetooth connection should be achieved.
ENJOY MUSIC FROM AN EXTERNAL DEVICE
1. Get your external device paired. (See “Getting connected”)
2. Turn on the music player program on your external device and set it play.
Normally, you can control music playback with the PLAY/PAUSE, and button on the
apparatus. However, some buttons may not work due to the variable music player program.
Now enjoy the fun.
USING THE REMOTE CONTROL
The Remote Control Unit can operate the unit from a distance. When operating the remote
control unit, point it towards the front panel of the unit.
• Even if the remote control unit is operated within the effective range, remote control
operation may be impossible if there are any obstacles between the unit and the remote
control.
• If the remote control unit is operated near other appliances which generate infrared rays, or
![](/img.php?id=2042647&img=bgc.png)
1
if other remote control devices using infrared rays are used near the unit, it may operate
incorrectly. Conversely, the other appliances may operate incorrectly.
TO ACTIVATE THE REMOTE CONTROL:
The remote control is built with cell battery before
shipment. To activate the battery, remove the transparent
plate at the bottom of the remote control.
Now the remote control is ready to use.
BATTERY REPLACEMENT: If the distance required between the remote control unit and main unit
decreases, the battery is exhausted. In this case, please replace the battery with new one.
TO REPLACE WITH A NEW BATTERY:

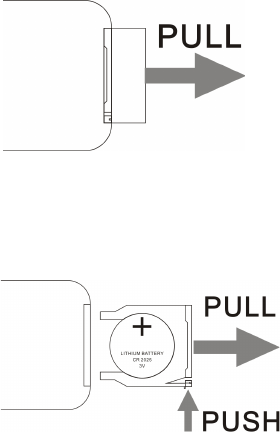

1. Remove the battery compartment cover as per
illustration on the right.
2. Observing the correct polarity and put a 3Vdc lithium
battery (CR2025, not included).
3. Close the cover.
Battery Precautions:
• Be sure to insert the battery with correct positive + and negative - polarities.
• Refer to the precautions on the battery labels.
• When the remote control unit is not to be used for a long time (more than a month), remove
the battery from the remote control unit to prevent it from leaking. If it leaks, wipe away the
liquid inside the battery compartment and replace the battery with new one.
• Do not heat or disassemble batteries and never dispose of old batteries by throwing them in
a fire.
![](/img.php?id=2042647&img=bgd.png)
1
TROUBLESHOOTING GUIDE
In case of trouble with the unit, please look through problems below and see if you can solve
them yourself before calling your dealer.
Problem Cause Solution
Power does not come
on when the power
switch is pressed.
• Unit is unplugged. • Connect the unit to the AC
power supply.
No sound comes out
of the speakers.
• The external speakers are
disconnected.
• The volume is turned down
(to MIN).
• The input selector does not
match the playback source.
• Connect the external
speakers.
• Adjust the volume.
• Re-select the desired input
source.
The sound is noisy.
• The unit is too close to a TV
set or another similar
appliance.
• Turn off the TV or other
appliance, and relocate the
unit.
THE WHOLE UNIT
The unit does not act
as expected, or
respond.
• External factors such as ESD
(Electro-static discharge)
affect the unit.
• Remove the power cord and
all power supply devices.
Then re-plug the unit after
one minute.
Cannot listen to any
station, or signal
appears weak.
• The station is not tuned-in
properly.
• A TV set is being used
nearby and is interfering with
the radio reception.
• Properly tune-in the desired
station.
• Turn-off the interfering TV
set.
TUNER UNIT
The sound is
distorted.
• The antenna is not
positioned properly.
• Re-position the antenna
until reception improves.
CD stops immediately
after starting, or unit
pauses or stops
during play.
• The CD is inserted upside
down.
• The CD is dusty or dirty or
there is condensation on the
CD.
• Insert the CD with the
printed side right-side up.
• Carefully clean and dry the
CD.
No sound. • The CD player is paused. • Press the PLAY/PAUSE
button.
CD PLAYER
Specific CD is noisy, or
playback stops or
skips.
• The CD is scratched,
damaged or warped.
• The disc is very dirty.
• The CD should be changed.
• Carefully clean the CD.
![](/img.php?id=2042647&img=bge.png)
1
SPECIFICATIONS
AMPLIFIER section
Output Power …..............................
25W + 25W
Frequency Response …..............................
60 to 20, 000 Hz
TUNER section
FM Section
Frequency Range …..............................
87.5 to 108 MHz
CD PLAYER section
Frequency Response …..............................
60 to 20, 000 Hz
Signal-to-Noise Ratio …..............................
55 dB (IEC-A)
SPEAKER SYSTEM section
Impedance …..............................
8ohms
Input Power …..............................
Max. 30W
GENERAL
Power Requirements …..............................
AC 120V ~ 60Hz
Power Consumption …..............................
60W
Dimensions (L x D x H) …..............................
360mm x206mm x 110mm (approx.)
Loudspeakers Dimensions (L x D
x H) …..............................
130mm x217mm x 250mm (approx.)
Weight …..............................
5.53 kgs (approx.)
Standard Accessories …..............................
Operating Instruction Booklet;
Remote control with battery;
A pair of external speakers;
NOTE: As a result of continual improvements, the design and specifications of this product are
subject to change without notice.
![](/img.php?id=2042647&img=bgf.png)
1
FCC STATEMENT
Warning: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
CALIFORNIA PROP 65 WARNING
"WARNING" This product contains a chemicals known to the State of California to cause birth
defects or other reproductive harm. For more information on these regulations and a list of
chemicals, log on the following website address :
http://www.oehha.ca.gov/prop65.html
1
WARRANTY
Innovative Technology Electronics Corp.
Limited Warranty: 90 Days Labor, One Year Parts
Innovative Technology Electronics Corp. (IT) warrants the product to be free from “Defects” in
materials under normal use for a period of “One Year” from the date of the original purchase. The
Warranty is “Not” transferable. IT agrees, within the initial “90 Day” period, to repair or replace the
product if it is determined to be defective at “No Charge”. It is further agreed that IT will cover the
cost to repair or replace damaged “Parts” only for a total period of “One Year” from the date of the
original purchase. The warranty does not cover cosmetic damage, antennas, AC cords, cabinets,
headbands, ear-pads, or damage due to line power surges, connection to improper voltage supply or
settings, misuse, mishandling, accident, acts of God or attempted repair by an unauthorized service
agent.
To obtain service, the purchaser MUST present an original sales receipt / proof of purchase. Please
contact us at www.ithomeproducts.com to request an RMA (Return Material Authorization)
number to return products for service or replacement. Returns without an RMA number on the
package will be refused and returned to sender. Upon receipt of the returning item and our full
inspection (IT) may issue a replacement to customer for the same item or of one that has equivalent
value and features. To return an item, supply full name, return address, phone number, item
purchased, receipt of purchase and reason for return to obtain RMA number.
All returns must be in the original packaging or reasonable substitute to prevent damage.
Customer “Must” include full name, shipping address and telephone number inside of package. No
return will be shipped back to a PO Box or APO address.
Please include your check or money order in the amount of
• USD$5.00 for items $10.00 to $39.99 (Price Paid Per Unit)
• USD$10.00 for items $40.00 to $99.99. (Price Paid Per Unit)
• USD$16.00, for items $100.00 and up. (Price Paid Per Unit)
• Shipping fees are non-refundable
to be payable to Innovative Technology Electronics Corp. (for handling and return shipping charges)
(IT) will not be responsible for delays or unprocessed claims resulting from a purchaser’s failure to
provide any / all of the necessary information.
Send all inquiries or RMA request via our website www.ithomeproducts.com/support.
Innovative Technology Electronics Corp.
1 Channel Drive
Port Washington, NY 11050
Toll free: 1-877-483-2497
Website for support: www.ithomeproducts.com/support
There are no express warranties except as listed above.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CUSTOMER, (IT) SHOULD NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the above exclusions or limitations may not
apply to you. This warranty gives you specific legal rights and you may also have other rights, which
vary from state to state.
