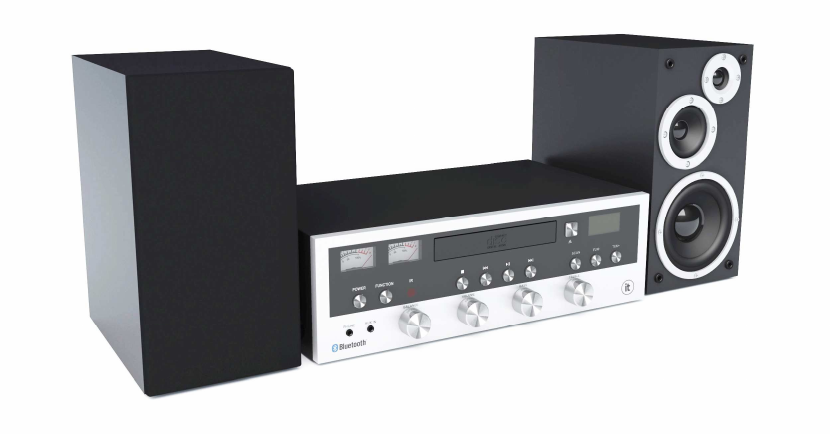

Operating Manual
Model: E-5201
CD SHELF SYSTEM
CONTENT
INTRODUCTION..................................................................................................................................3
IMPORTANT SAFETY INSTRUCTIONS...................................................................................................3
SAFETY
INFORMATIONS........................................................................................................................ 4
BEFORE
USE .......................................................................................................................................... 4
BEWARE
OF
CONDENSATION................................................................................................................ 5
BUTTONS AND CONTROLS .................................................................................................................6
REMOTE CONTROL UNIT ....................................................................................................................2
GET STARTED......................................................................................................................................3
CONNECTING
EXTERNAL
SPEAKERS......................................................................................................3
PRELIMINARY........................................................................................................................................3
LISTENING TO THE RADIO...................................................................................................................3
ADJUSTING THE VOLUME ...................................................................................................................4
LISTENING TO A CD DISC ....................................................................................................................4
DISCS
MAINTENANCE ........................................................................................................................... 5
AUX IN OPERATION ............................................................................................................................ 7
USING THE REMOTE CONTROL ...........................................................................................................8
TROUBLESHOOTING GUIDE ................................................................................................................9
SPECIFICATIONS ............................................................................................................................... 10
![](/img.php?id=2171814&img=bg3.png)
INTRODUCTION
Thank you for buying this product.
To help you to have more fun when using this product, read these instructions thoroughly.
And then save this instruction manual for future reference.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions – All the safety and operating instructions should be read before this
product is operated.
2. Keep these instructions- The safety and operating instructions should be retained for future
reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions should be
adhered to.
4. Follow all instructions – All operating and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water or
moisture – for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiations, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two
blades with one wider than the other. A grounding plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.

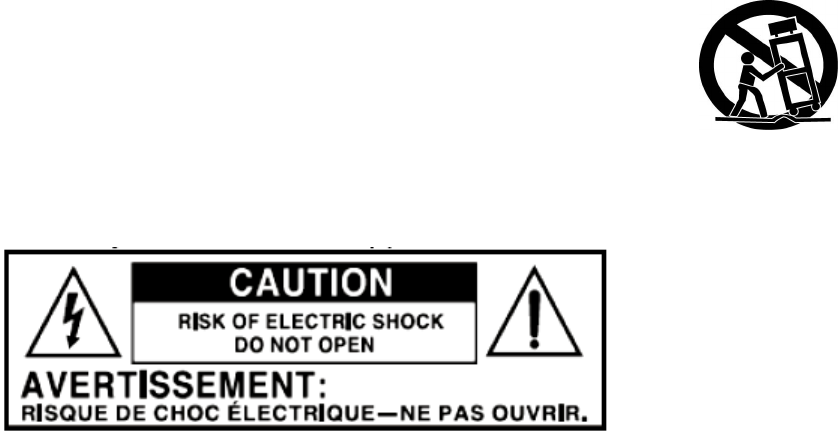

12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart or rack is used, use
caution when moving the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug the apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15.
-This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock.
-Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no
user-serviceable parts inside. Refer servicing to qualified personnel.
-The exclamation point within and equilateral triangle is intended to alert the user to the
![](/img.php?id=2171814&img=bg4.png)
presence of important operating and maintenance instructions in the literature accompanying
the appliance.
16.
This equipment is a Class Ⅱ or double insulated electrical appliance. It has been designed in such
a way that it does not require a safety connection to electrical earth.
17. The mains plug is used as disconnect device, the disconnect device shall remain readily
operable.
18. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall not be placed on apparatus.
19. The use of the equipment in moderate climate.
20. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent
type.
SAFETY INFORMATIONS
1. In order to shut off the power to this product completely, unplug the power cord from the
wall outlet. Be sure to unplug the unit if you do not intend to use it for an extended period
of time such as a vacation.
2. Use of controls and adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
3. If this product develops trouble, contact a qualified service center, and do not use the
product in a defective state.
4. WARNING: To reduce the risk of electric shock, this appliance has a polarized plug (one
blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install the proper outlet. Do not modify the plug in any way.
BEFORE USE
1. Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a
source of heat. Also avoid locations subject to vibrations and excessive dust, cold or
moisture. Keep away from sources that hum, such as transformers or motors.
2. Do not open the cabinet as this might result in damage to the circuitry or electrical shock, if
a foreign object should get into the set, contact your dealer.
3. Be sure not to handle discs with dirty fingers. Never insert a disc that has a crack on the
surface.
4. When removing the power plug from the wall outlet, always pull directly on the plug, never
pull the cord.
5. To keep the laser pickup clean, do not touch it, and do not forget to close the disc tray.
6. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use
a clean, dry cloth.
7. In order to shut off the power to this product completely, unplug the power cord from the
wall outlet. Be sure to unplug the unit if you do not intend to use it for an extended period
of time, such as a vacation.
8. Keep this manual in a safe place for future reference.
BEWARE OF CONDENSATION
When the player (or a compact disc) is moved from a cold to a warm place or is used after a
sudden temperature change, there is a danger of condensation. Water vapor in the air could
condense on the mechanism or the laser pickup. If droplets of water form on these parts, correct
playback will be impossible because the laser cannot read the information from the disc correctly.
To prevent this, if you are going to use the player in a condition where condensation could occur,
you should leave the player for 1 or 2 hours after plugging it into an AC outlet depending on the
amount of condensation. If this is done, the player will stabilize at the temperature of its
surroundings.
![](/img.php?id=2171814&img=bg6.png)
BUTTONS AND CONTROLS

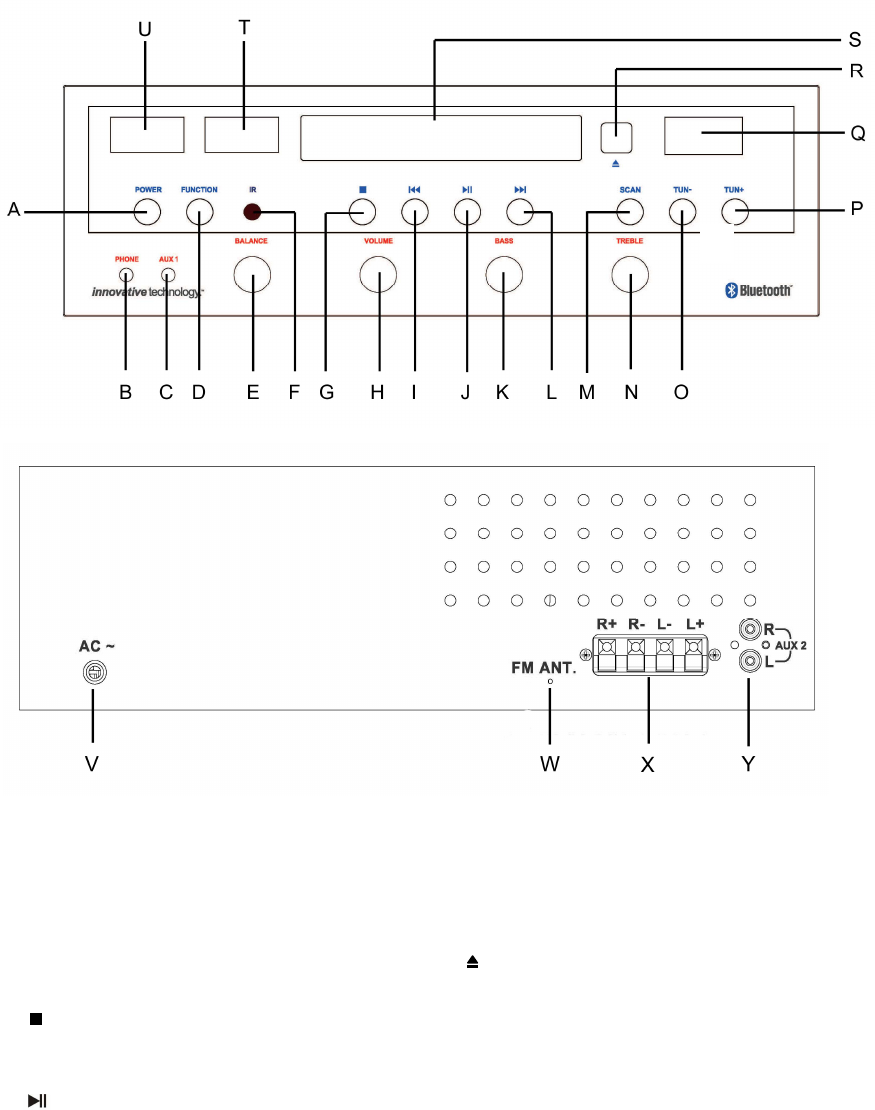

MAIN UNIT
A. POWER BUTTON
B. PHONE SOCKET
C. AUX IN 1 SOCKET
D.FUNCTION BUTTON
E. BALANCE KNOB
F. IR
G. STOP BUTTON
H. VOLUME KNOB
I. (PREVIOUS) BUTTON
J. PLAY/PAUSE BUTTON
K. BASS BUTTON
L. (NEXT) BUTTON
M. SCAN BUTTON
N. TREBLE BUTTON
O. TUNING DOWN BUTTON
P. TUNING UP BUTTON
Q. DISPLAY
R. EJECT/ENTER BUTTON
S. CD COMPARTMENT
T&U. DISPLAY OF VOLUME
V. AC POWER CORD
W. FM ANTENNA
X. SPEAKER INPUT SOCKET (LEFT&RIGHT)
Y. AUX IN 2 SOCKET (L/R)
![](/img.php?id=2171814&img=bg7.png)

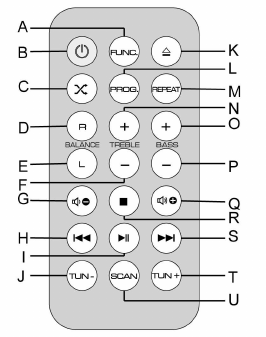

REMOTE CONTROL UNIT
A. FUNCTION BUTTON: Select a source.
B. ON/STANDBY BUTTON: Set the unit ON or STANDBY.
C. RANDOM: Select to a random playback.
D. BALANCE (RIGHT): Select the right speaker to adjust treble
or bass
E. BALANCE (LEFT): Select the left speaker to adjust treble or
bass
F & N. TREBLE(+/-): Act as “up”or “down”treble
G&Q. VOLUME + / - BUTTON: Adjust the volume level.
H&S.
(NEXT) BUTTON/
(PREVIOUS) BUTTON: skip
backward or forward.
I. PLAY/PAUSE BUTTON: Pause and resume playback.
J&T. TUN-/TUN+: in the FM mode, adjust the frequency.
K. EJECT/ENTER: In CD mode, eject and close the CD Tray.
L. PROGRAM:Set a program playback.
M. REPEAT: set a repeat playback
O&P. BASS (+/-): Act as “up” or “down”bass.
R.
(STOP) BUTTON: Stop the playback.
U. SCAN: Act as “ scan” in the menu.
GET STARTED
CONNECTING EXTERNAL SPEAKERS
The speaker input sockets locate at the back of the main unit.
Unwrap the speaker wire from the left speaker and plug it into the left (L) speaker socket on the
main unit.
Unwrap the speaker wire from the right speaker and plug it into the right (R) speaker socket on
the main unit.
Make sure the speaker cables will not run in areas where they could cause danger.
PRELIMINARY
Before connecting power to your audio system, the protective packing should be removed from
the CD compartment.
To remove the protective packing:
Press the FUNCTION button to select CD function.
Press the EJECT/ENTER button at the front corner to open the CD door.
Remove the protective packing from the CD compartment.
Close the CD door by pressing the EJECT/ENTER button to latch it shut.
FM ANTENNA
Unwrap the FM antenna and extend it fully. You may need to adjust the position of the antenna
to get optimum reception.
CONNECTING THE POWER
Check that the mains voltage in the rating plate on the back of the main unit is the same as the
voltage in your area.
Plug the electric plug into the wall socket. Now the audio system is ready for use.
STANDBY CONTROL
To turn the main unit on:
Press the POWER button. The unit will turn on.
To turn the power off:
Press the POWER button to turn the unit off.
NOTE: When leaving the unit unattended for long period (such as holidays), please disconnect the
power plug from the mains supply.
LISTENING TO THE RADIO
1. Press the FUNCTION BUTTON to Switch to FM RADIO function and the display will show “FM”.
2. Tune to a desired radio station. The frequency is indicated on the display.
MANUAL TUNING: Press the TUNING + or TUNING button briefly and the frequency will be
tuning up or down at a step.
AUTO SEARCHING: Press the TUNING + or TUNING - button for more than 2 seconds, radio
frequency will start to change on the display. Once a station is found, the radio will stop
searching , the display will show “ST” and start to broadcast immediately.
3. Re-position the antenna if necessary.
![](/img.php?id=2171814&img=bg9.png)
ADJUSTING THE VOLUME
VOLUME ADJUSTMENT
Twist the VOLUME KNOB to adjust the volume
The volume setting will be displayed briefly on a scale display on the left upper corner of the unit.
BALANCE
Twist the Balance Knob to adjust the volume between the left speaker and the right speaker. The
volume of the left speaker and right speaker is equal when the LED display shows “00” by
switching the balance knob.
TREBLE and BASS
Twist the Treble Knob and the Bass Knob to switch between treble and bass from “-3” to “3”
LISTENING TO A CD DISC
PRELIMINARIES:
• Press FUNCTION button repeatedly to select CD function and the display will show “ ”.
• Press the EJECT/ENTER button to open the CD door, put a CD disc on the CD compartment
with printed label facing upside (towards you). Close the CD door and press EJECT/ENTER
button again to latch it shut.
TO PLAY A CD WHEN STOPPED: Press the PLAY/PAUSE button. The disc will play from track 1.
TO PAUSE A CD WHILE PLAYING: Press the PLAY/PAUSE button. The disc will pause and pause
indicator appears on the display. Press the PLAY/PAUSE button again to resume the playback.
TO STOP A CD WHILE PLAYING: Press the STOP button.
TO CHANGE TRACKS: Press (PREVIOUS) BUTTON or (NEXT) BUTTON.
TO SEARCH FOR A PARTICULAR PART DURING PLAY: Press and hold (PREVIOUS) BUTTON or
(NEXT) BUTTON until the desired part is located. During searching the sound will be played at
distorted speed. Play returns to normal when the button is released.
REPEATING/RANDOM PLAYBACK A TRACK OR A CD:
Press REPEAT button on the remote control to circle the play mode:
• Repeat 1---Press REPEAT button on the remote control once and the current track will be
continuously played.
• Repeat all---Press REPEAT button again and All tracks on the current disc will be played
continuously.
• Normal playback --- Press REPEAT button again to resume normal playback.
Note: Press STOP button the disc will stop playing and the play mode will be clear.
PROGRAM PLAY:
Program play must be set when the CD is stopped. You can program up-to-20 tracks in any order.
1. Press STOP button and then press PROGRAM
button on the remote control.
![](/img.php?id=2171814&img=bga.png)
2. Press
(NEXT) BUTTON/
(PREVIOUS)
BUTTON to select a track.
The display shows the selected track.
3. Press the PROGRAM button on the remote
control to add the track into the program list.
4. Repeat steps 2 and 3 to till you accomplish the
programming.
You can program up to 20 tracks.
TO START THE PROGRAM PLAY
Press PLAY/PAUSE button.
TO PAUSE OR STOP A PROGRAM PLAY
Press PLAY/PAUSE or STOP button.
TO REPLAY A PROGRAM
Press PLAY/PAUSE button.
TO REVIEW THE CONTENT OF A PROGRAM
Press STOP button then keep pressing the
PROGRAM button to review the programmed
tracks.
TO CLEAR THE PRORAM
Press STOP button twice and the “PROG” will
disappear from the display.
Open and close the CD door to clear the program
play.
After play, remove the CD.
DISCS MAINTENANCE
Depending on the quality of the disc and the condition of the recording, some CD-R/CD-RW disc
may not be playable.
1. Always place the compact disc in the disc tray with the label facing upward. (Compact discs
can be played only on one side).
2. To move a disc from its storage case, press down on the center of the case and lift the disc out,
holding it carefully by the edges.
![](/img.php?id=2171814&img=bgb.png)
3. If the disc becomes dirty, wipe the surface from the center hole outward towards the outer
edge with a soft, dry cloth.
4. Never use such chemicals as record spray, antistatic sprays or fluid, benzine or thinner to
clean the discs. Such chemicals will do irreparable damage to the disc's plastic surface.
5. Discs should be returned to their cases after use to avoid serious scratches that could cause
the laser pick up to skip.
6. Do not expose discs to direct sunlight or high humidity and temperature for extend periods.
Long exposure to high temperatures will wrap the disc.
7. Printable CD-R and CD-RW discs are not recommended, as the label side might be sticky and
damage the unit.
8. Use a soft oil-based felt-tipped pen to write the information on the label side. Never use a
ball-point or hard-tipped pen, as this may cause damage to the recorded side.
9. Do not use CDs with an irregular shape (octagonal, heart-shaped, business card size, etc).CDs
of this sort can damage the unit.
10. If you have any doubts of using CD-R/CD-RW disc, read the precautions supplied with the disc,
or contact the disc manufacture directly.
![](/img.php?id=2171814&img=bgc.png)
AUX IN OPERATION
Any external (auxiliary) audio source (i.e., personal CD player or MP3 player) connected to this
appliance can get necessary signal and channel the speaker outputs.
The unit has 2 AUX INs. AUX IN 1 SOCKET at the front of the unit, AUX IN 2 SOCKET at the rear of
the unit.
1. Press POWER button to turn the unit ON and then press FUNCTION button to select “AUX1” or
“AUX2”.
2. Set the volume level to the minimum level with the VOLUME KNOB.
3. Plug the AUX IN cable (not included) into the AUX IN socket at the unit.
• For AUX IN 2 SOCKET, plug one end of the AUX IN cable (included) into the color coded AUX
IN sockets at rear of the unit. Always make sure the white plug is connected to the white
socket and the red plug in the red socket.
4. Plug the other end of the cable into the headphone or Line Out socket of the external source.
5. Turn on the external audio device and set it play. Turn the external audio device’s volume up to
2/3. If necessary adjust the volume on the unit by switching the volume knob.
BLUETOOTH CONNECTIVITY
External devices which have a built-in Bluetooth feature can be connected to this apparatus and
play through the speakers.
GETTING CONNECTED
1. Press FUNCTION button to select Bluetooth function and then the display shows “BLUE” and
“ ”.
2. Set the Bluetooth function of your external device ON.
3. Set to search Bluetooth device on your external device.
NOTE: The effective distance between your external device and this apparatus is 10 meters.
5. Wait for a while then find the “ITCDS-5000” on the paired devices list on your external device.
6. If a window asks you a password. Fill in “0000”or“1234” then press “OK” on your external
device.
7. A beep sound should be heard that indicates a connection has been established.
8. A few seconds later your Bluetooth connection should be achieved.
ENJOY MUSIC FROM AN EXTERNAL DEVICE
1. Get your external device paired. (See “Getting connected”)
2. Turn on the music player program on your external device and set it play.
Normally, you can control music playback with the PLAY/PAUSE, and button on the
apparatus. However, some buttons may not work due to the variable music player program.
Now enjoy the fun.
![](/img.php?id=2171814&img=bgd.png)
USING THE REMOTE CONTROL
The Remote Control Unit can operate the unit from a distance. When operating the remote
control unit, point it towards the front panel of the unit.
• Even if the remote control unit is operated within the effective range, remote control
operation may be impossible if there are any obstacles between the unit and the remote
control.
• If the remote control unit is operated near other appliances which generate infrared rays, or
if other remote control devices using infrared rays are used near the unit, it may operate
incorrectly. Conversely, the other appliances may operate incorrectly.
TO ACTIVATE THE REMOTE CONTROL:
The remote control is built with cell battery before
shipment. To activate the battery, remove the transparent
plate at the bottom of the remote control.
Now the remote control is ready to use.
BATTERY REPLACEMENT: If the distance required between the remote control unit and main unit
decreases, the battery is exhausted. In this case, please replace the battery with new one.
TO REPLACE WITH A NEW BATTERY:

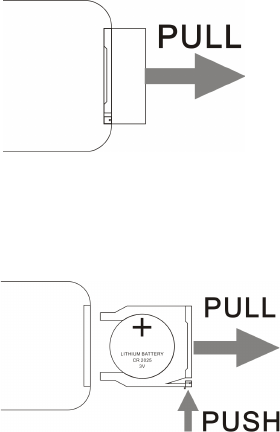

1. Remove the battery compartment cover as per
illustration on the right.
2. Observing the correct polarity and put a 3Vdc lithium
battery (CR2025).
3. Close the cover.
Battery Precautions:
• Be sure to insert the battery with correct positive + and negative - polarities.
• Refer to the precautions on the battery labels.
• When the remote control unit is not to be used for a long time (more than a month), remove
the battery from the remote control unit to prevent it from leaking. If it leaks, wipe away the
liquid inside the battery compartment and replace the battery with new one.
• Do not heat or disassemble batteries and never dispose of old batteries by throwing them in
a fire.
![](/img.php?id=2171814&img=bge.png)
TROUBLESHOOTING GUIDE
In case of trouble with the unit, please look through problems below and see if you can solve
them yourself before calling your dealer.
Problem Cause Solution
Power does not come
on when the power
switch is pressed.
• Unit is unplugged. • Connect the unit to the AC
power supply.
No sound comes out
of the speakers.
• The external speakers are
disconnected.
• The volume is turned down
(to MIN).
• The input selector does not
match the playback source.
• Connect the external
speakers.
• Adjust the volume.
• Re-select the desired input
source.
The sound is noisy.
• The unit is too close to a TV
set or another similar
appliance.
• Turn off the TV or other
appliance, and relocate the
unit.
THE WHOLE UNIT
The unit does not act
as expected, or
respond.
• External factors such as ESD
(Electro-static discharge)
affect the unit.
• Remove the power cord and
all power supply devices.
Then re-plug the unit after
one minute.
Cannot listen to any
station, or signal
appears weak.
• The station is not tuned-in
properly.
• A TV set is being used
nearby and is interfering with
the radio reception.
• Properly tune-in the desired
station.
• Turn-off the interfering TV
set.
TUNER UNIT
The sound is
distorted.
• The antenna is not
positioned properly.
• Re-position the antenna
until reception improves.
CD stops immediately
after starting, or unit
pauses or stops
during play.
• The CD is inserted upside
down.
• The CD is dusty or dirty or
there is condensation on the
CD.
• Insert the CD with the
printed side right-side up.
• Carefully clean and dry the
CD.
No sound. • The CD player is paused. • Press the PLAY/PAUSE
button.
CD PLAYER
Specific CD is noisy, or
playback stops or
skips.
• The CD is scratched,
damaged or warped.
• The disc is very dirty.
• The CD should be changed.
• Carefully clean the CD.
![](/img.php?id=2171814&img=bgf.png)
SPECIFICATIONS
AMPLIFIER section
Output Power …..............................
25W + 25W
Frequency Response …..............................
60 to 20, 000 Hz
TUNER section
FM Section
Frequency Range …..............................
87.5 to 108 MHz
CD PLAYER section
Frequency Response …..............................
60 to 20, 000 Hz
Signal-to-Noise Ratio …..............................
55 dB (IEC-A)
SPEAKER SYSTEM section
Impedance …..............................
8ohms
Input Power …..............................
Max. 30W
GENERAL
Power Requirements …..............................
AC 120V ~ 60Hz
Power Consumption …..............................
60W
Dimensions (L x D x H) …..............................
360mm x222mm x 110mm (approx.)
Loudspeakers Dimensions (L x D
x H) …..............................
130mm x217.5mm x 250mm (approx.)
Weight …..............................
5.53 kgs (approx.)
Standard Accessories …..............................
Operating Instruction Booklet;
Remote control with battery;
A pair of external speakers;
NOTE: As a result of continual improvements, the design and specifications of this product are
subject to change without notice.
FCC STATEMENT
Warning: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
