Chapter
1
1 Introduction
The SafeScout™ system is a holographic 3-D imaging portal which is used for scanning a subject for
potential hidden objects. The system uses safe, broad band radio frequency signals to actively
illuminate the subject that is located within the portal. The resulting computer-processed images are
displayed to an Operator.
This document describes SafeView Inc.’s SafeScout 100 (S-100) system operation procedures.
1.1 FCC Statement
Federal Communications Commission Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
MODIFICATIONS: System modifications or component changes not expressly approved by SafeView Inc.
could void the user's authority to operate the equipment under FCC regulations.
SHIELDED CABLES: In order to meet FCC requirements, only the cabling provided by or approved by
SafeView may be used for system interconnects.
1.2 Installation
The Scout 100 system is assembled and installed at the customer site only by SafeView factory trained
personnel. There is no user assembly and no user-assembled parts. Contact SafeView on any issues
concerning assembly or installation.
WWW.SAFEVIEWINC.COM
1
WWW.SAFEVIEWINC.COM
2 System Overview
SafeView’s system consists of two major components:
- The Scanner (S-100)
- The Operator Console
Chapter
2

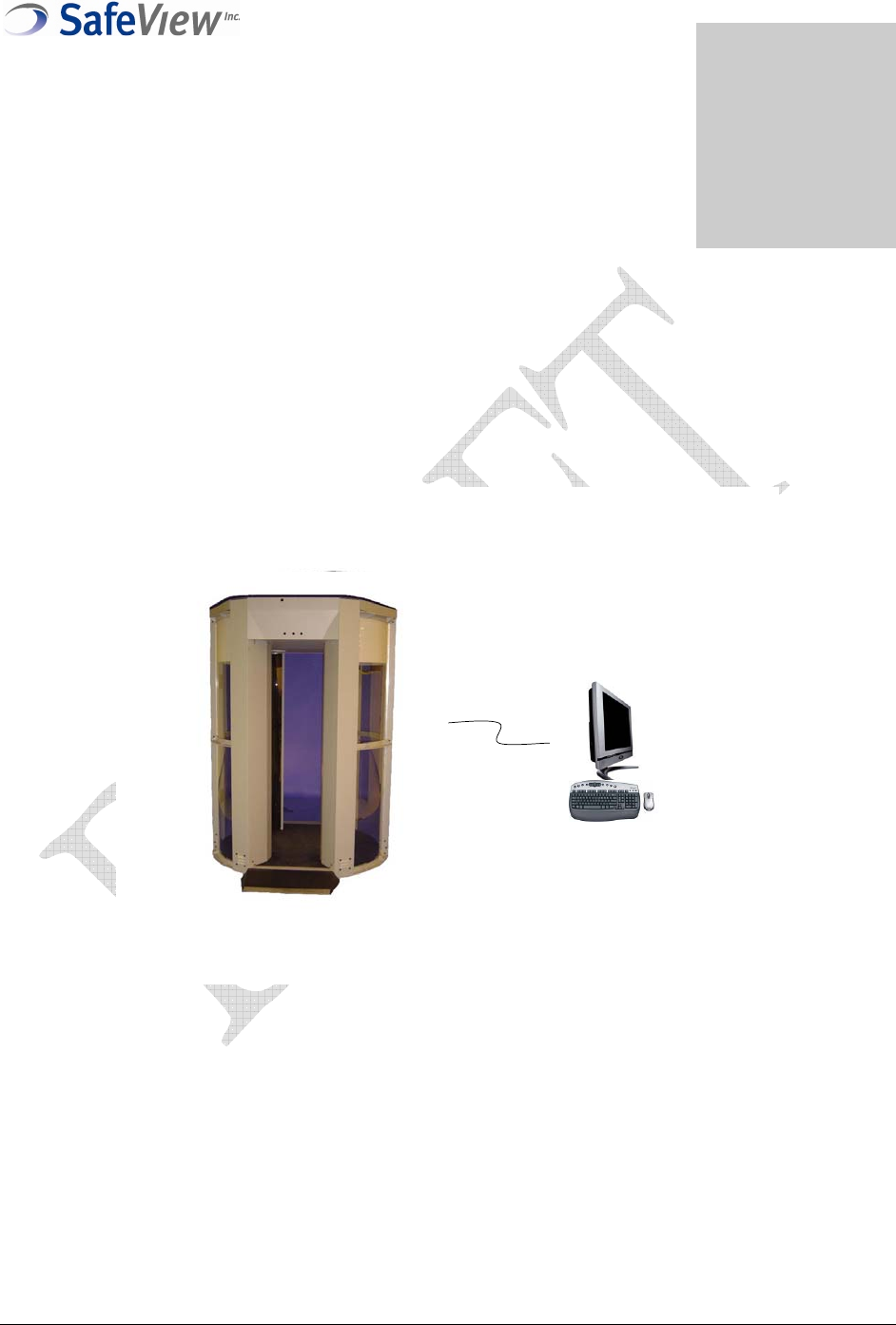

Figure 1: SafeScout System
2.1.1 SafeScout 100 (S-100)
The SafeScout 100 is designed with high throughput in mind. The person to be scanned simply enters the
scanner and stands on the designated foot markings. Once the person is in position, the Operator initiates the
scan. When the scan is completed the Operator can then analyze the data while the person exits the system.
2
2.2 Operator Console
The Operator Console consists of a standard computer and monitor that display’s the data from the Scanner.
The Operator Console can be located next to the system or remotely and displays the Graphical User Interface
(GUI) for presentation of the data from the Scanner to the Operator for analysis.
2.3 Graphical User Interface (GUI)
The Graphical User Interface (GUI) consists of two programs, the Control Operator Panel (COP) and the
Analysis Window. Both are described below.
2.3.1 Control Operator Panel (COP)
The Control Operator Panel (COP) is usually located on the lower portion of the monitor of the Operator
Console and allows Operators to control the system: perform a scan, calibrate, and reset the system.
2.3.2 Analysis Window
The Analysis Window is the largest viewable portion of the monitor that allows Operators to view various frames
(directional views) and to manipulate the views as necessary. The various functions provide easier measures
for viewing the scan.
WWW.SAFEVIEWINC.COM
3
Chapter
3
WWW.SAFEVIEWINC.COM
3 Getting Started
3.1 Power Up
Step 1: Power on the Scanner
Set the power switch on the Scanner to the “I” position to turn on the Scanner. Once the system is
powered on, the fans will turn on and the Scanner will begin to initialize automatically. For proper
operation, the Scanner must be running for approximately three (3) minutes.

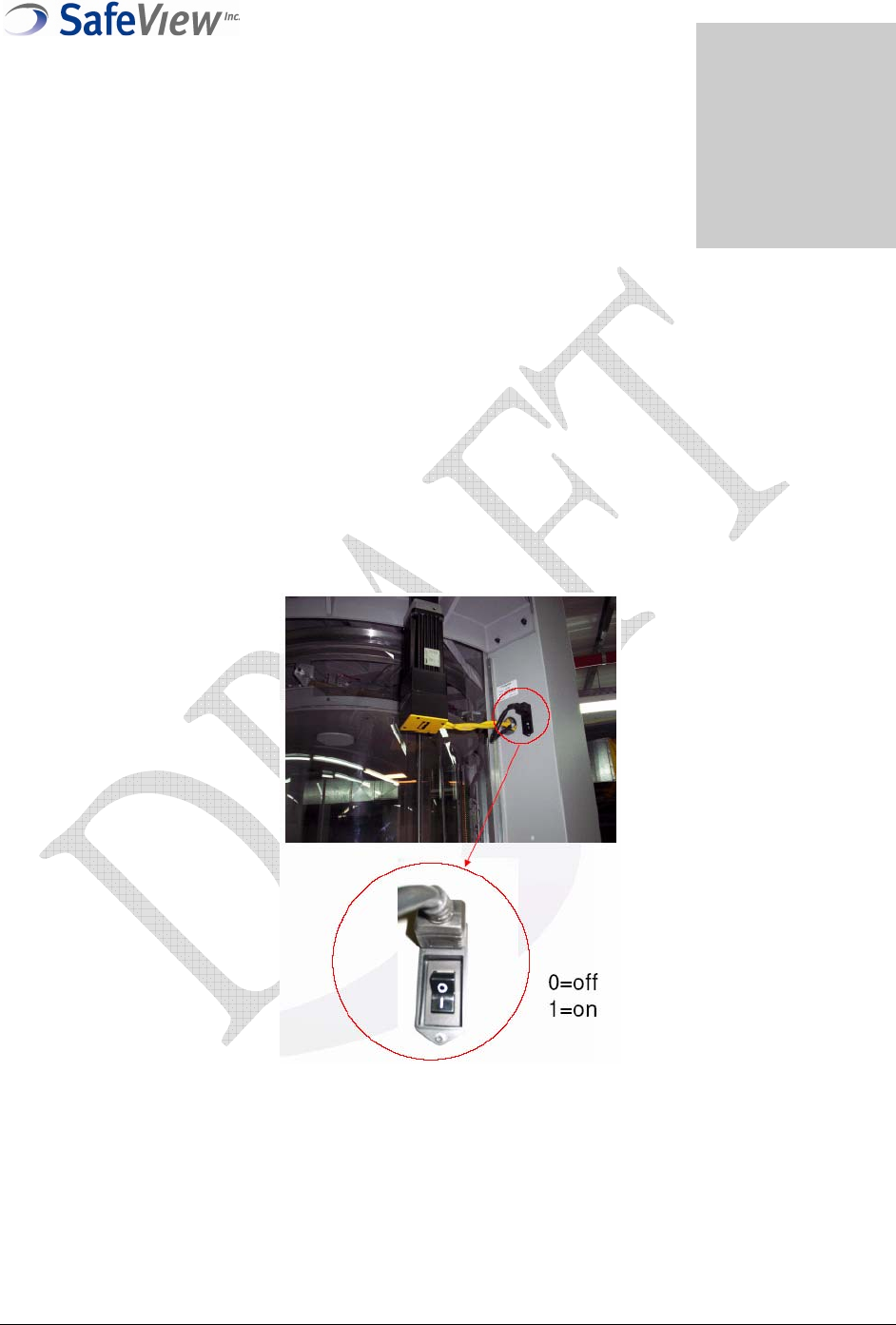

Figure 2: Scanner Power-on
Step 2: Turn on the Operator Console
After three (3) minutes, the Operator Console can be powered up. Press the on/off button on the
front of the system.
4
WWW.SAFEVIEWINC.COM

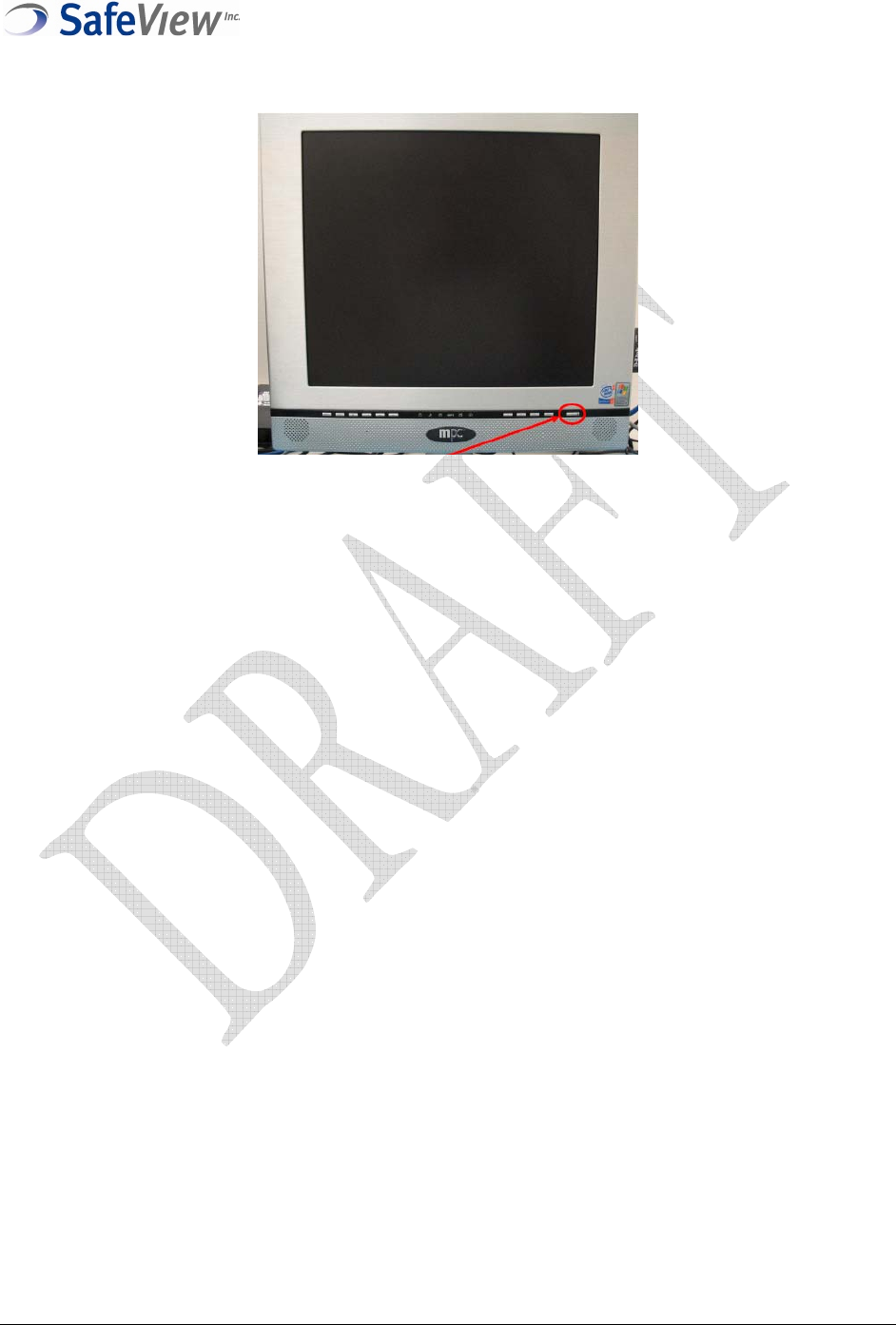

Figure 3: Example of Operator Console Power-on
Step 3: Login
At the Login prompt, enter the appropriate user name and password supplied by the administrator.
USER NAME:
PASSWORD:
Click OK to begin
Upon successful login you will be presented with the GUI which is the simultaneous display of the
Analysis Window and the COP.
Ready to scan
Once the power-up and initialization steps have been completed, the system is ready to scan
5
Chapter
4
WWW.SAFEVIEWINC.COM
4 Shutdown
4.1 Scanner Shutdown
Set the power switch on the Scanner to the “O” position to turn the Scanner off.

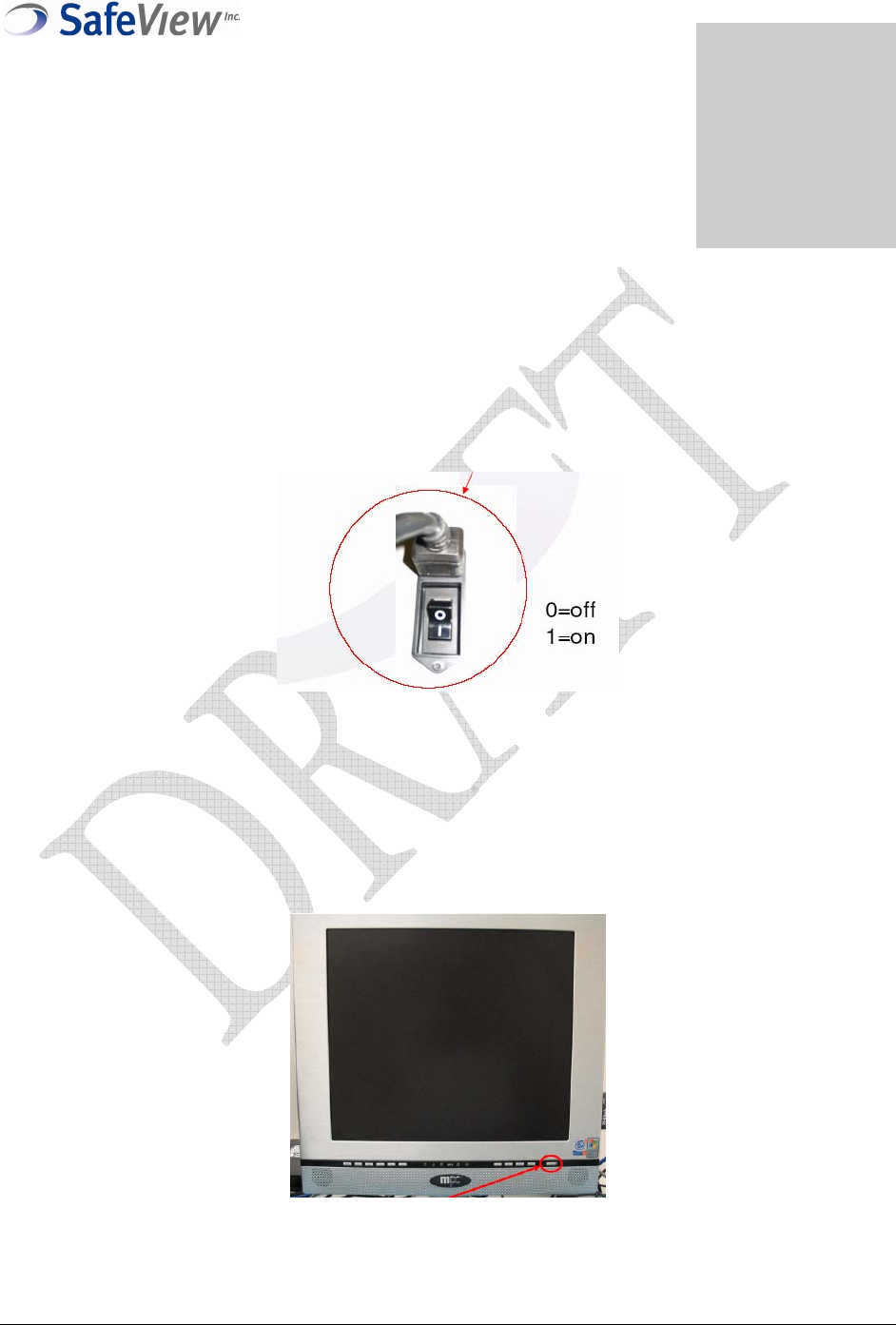

Figure 2 Scanner power switch
4.2 Operator Console Shutdown
Press and hold the on/off button for about three (3) seconds, this will cause the system to log off and shutdown
automatically.
Figure 3 Operator Console power switch
6
