Lelux Electronics Ltd Wireless Door/window Sensor 108WR homesafe manual

Manual

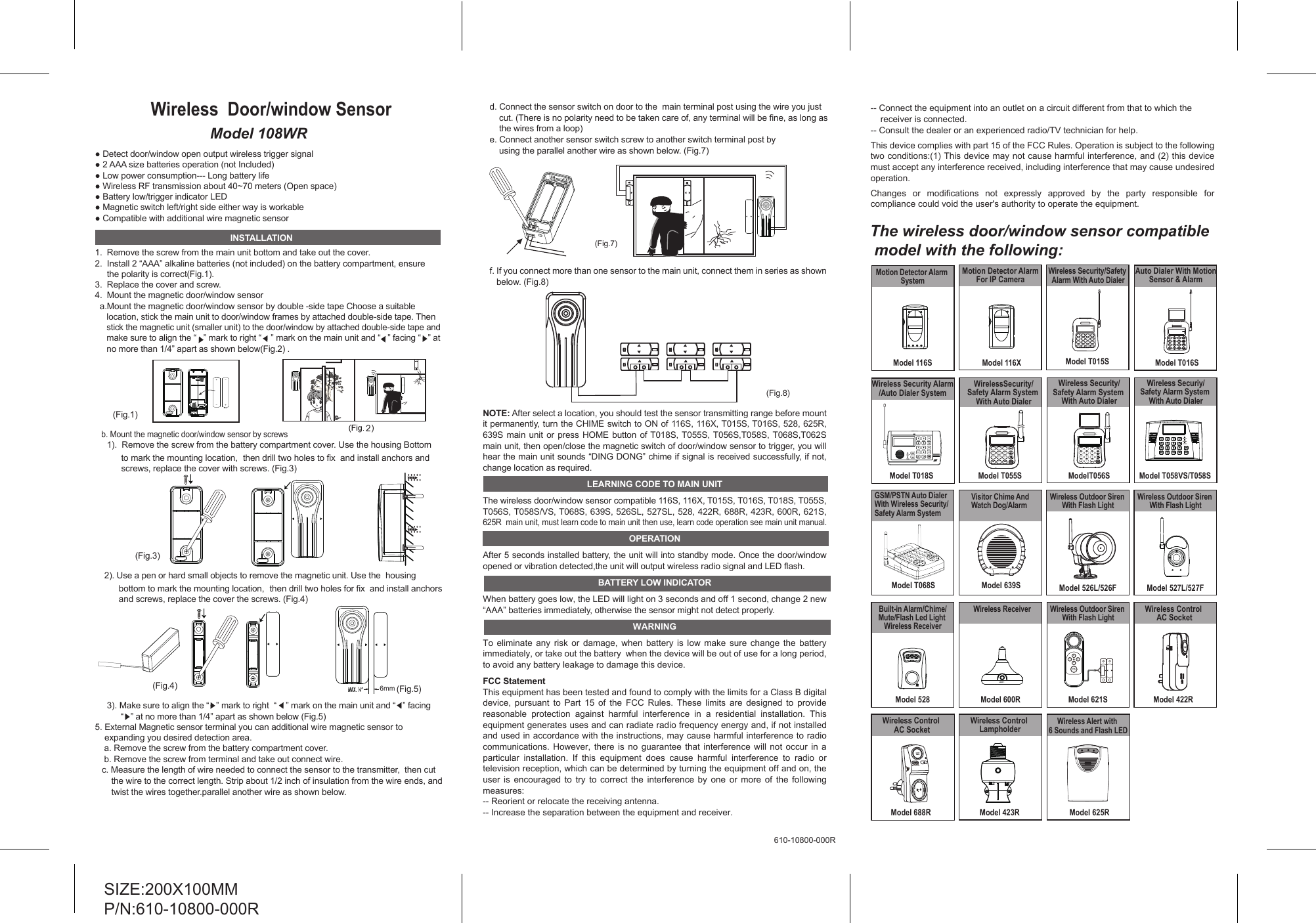

Model 108WR
Wireless Door/window Sensor

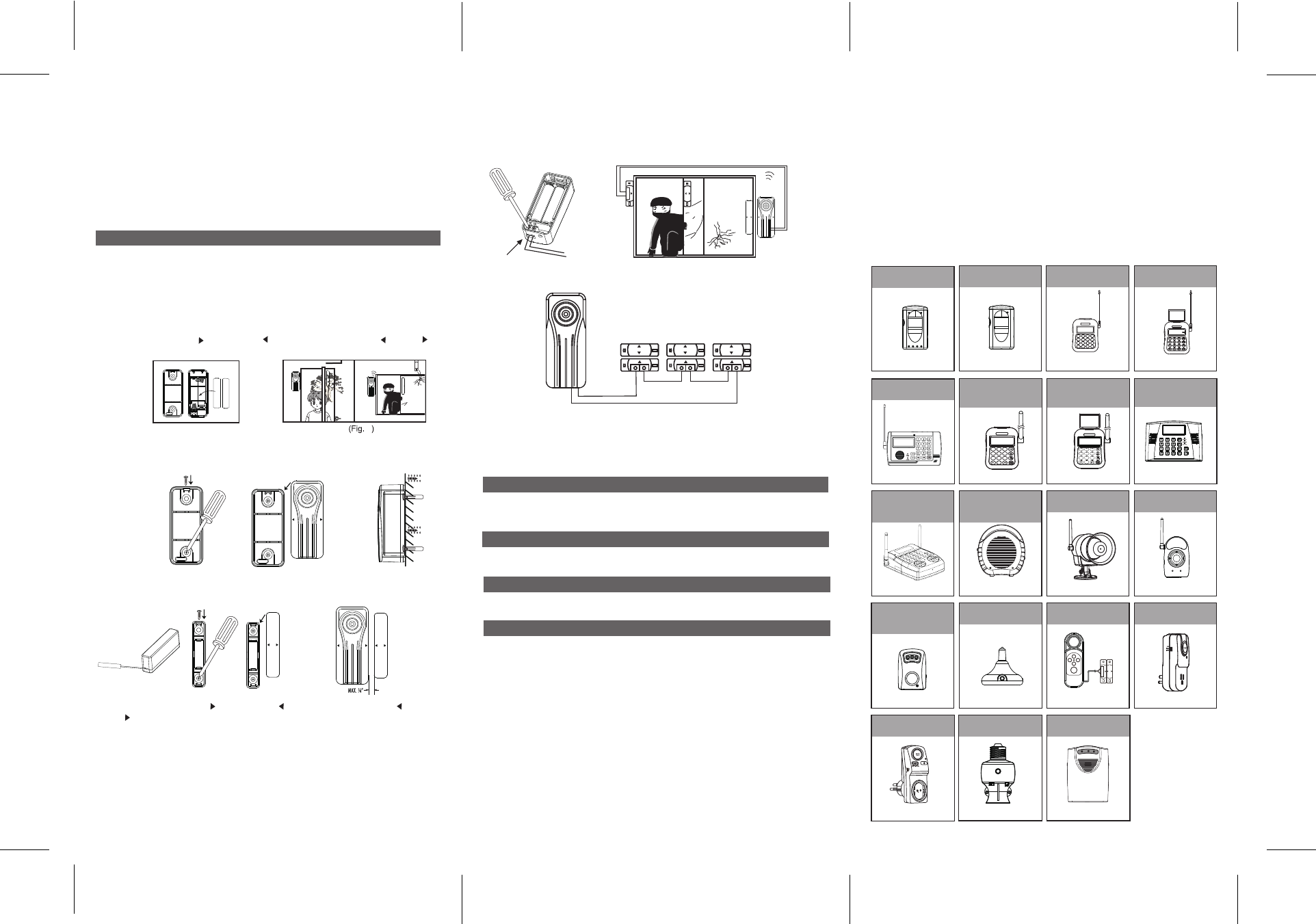

1. Remove the screw from the main unit bottom and take out the cover.
2. Install 2 “AAA” alkaline batteries (not included) on the battery compartment, ensure
the polarity is correct(Fig.1).
3. Replace the cover and screw.
4. Mount the magnetic door/window sensor
a.Mount the magnetic door/window sensor by double -side tape Choose a suitable
location, stick the main unit to door/window frames by attached double-side tape. Then
stick the magnetic unit (smaller unit) to the door/window by attached double-side tape and
make sure to align the “ ” mark to right “ ” mark on the main unit and “ ” facing “ ” at
no more than 1/4” apart as shown below(Fig.2) .
b. Mount the magnetic door/window sensor by screws
1). Remove the screw from the battery compartment cover. Use the housing Bottom
to mark the mounting location, then drill two holes to fix and install anchors and
screws, replace the cover with screws. (Fig.3)
2). Use a pen or hard small objects to remove the magnetic unit. Use the housing
bottom to mark the mounting location, then drill two holes for fix and install anchors
and screws, replace the cover the screws. (Fig.4)
3). Make sure to align the “ ” mark to right “ ” mark on the main unit and “ ” facing
“ ” at no more than 1/4” apart as shown below (Fig.5)
5. External Magnetic sensor terminal you can additional wire magnetic sensor to
expanding you desired detection area.
a. Remove the screw from the battery compartment cover.
b. Remove the screw from terminal and take out connect wire.
c. Measure the length of wire needed to connect the sensor to the transmitter, then cut
the wire to the correct length. Strip about 1/2 inch of insulation from the wire ends, and
twist the wires together.parallel another wire as shown below.
INSTALLATION
SIZE:200X100MM
P/N:610-10800-000R
(Fig.3)
6mm (Fig.5)
d. Connect the sensor switch on door to the main terminal post using the wire you just
cut. (There is no polarity need to be taken care of, any terminal will be fine, as long as
the wires from a loop)
e. Connect another sensor switch screw to another switch terminal post by
using the parallel another wire as shown below. (Fig.7)
f. If you connect more than one sensor to the main unit, connect them in series as shown
below. (Fig.8)
NOTE: After select a location, you should test the sensor transmitting range before mount
it permanently, turn the CHIME switch to ON of 116S, 116X, T015S, T016S, 528, 625R,
639S main unit or press HOME button of T018S, T055S, T056S,T058S, T068S,T062S
main unit, then open/close the magnetic switch of door/window sensor to trigger, you will
hear the main unit sounds “DING DONG” chime if signal is received successfully, if not,
change location as required.
LEARNING CODE TO MAIN UNIT
The wireless door/window sensor compatible 116S, 116X, T015S, T016S, T018S, T055S,
T056S, T058S/VS, T068S, 639S, 526SL, 527SL, 528, 422R, 688R, 423R, 600R, 621S,
625R main unit, must learn code to main unit then use, learn code operation see main unit manual.
OPERATION
After 5 seconds installed battery, the unit will into standby mode. Once the door/window
opened or vibration detected,the unit will output wireless radio signal and LED flash.
BATTERY LOW INDICATOR
When battery goes low, the LED will light on 3 seconds and off 1 second, change 2 new
“AAA” batteries immediately, otherwise the sensor might not detect properly.
WARNING
To eliminate any risk or damage, when battery is low make sure change the battery
immediately, or take out the battery when the device will be out of use for a long period,
to avoid any battery leakage to damage this device.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
610-10800-000R
(Fig.8)
+
-
(Fig.1)
+
-
(Fig.7)
(Fig.4)
2
The wireless door/window sensor compatible
model with the following:
ModelT056S
Wireless Security/
Safety Alarm System
With Auto Dialer
BATT.
LOW
1
4
7
/ UP
2
5
8
0
3
6
9
PROG
/DOWN
PANIC
AC
Model 116X
Motion Detector Alarm
For IP Camera
Model 527L/527F
Wireless Outdoor Siren
With Flash Light
Model 688R
Wireless Control
AC Socket
Model T058VS/T058S
Wireless Securiy/
Safety Alarm System
With Auto Dialer
BATT.
LOW
1
4
7
/ UP
2
5
8
0
3
6
9
PROG
PAUSE
ARM/
DISARM
PANIC
/DOWN
Model T015S
Wireless Security/Safety
Alarm With Auto Dialer
Model 528
Built-in Alarm/Chime/
Mute/Flash Led Light
Wireless Receiver
MODE
Model 423R
Wireless Control
Lampholder
Wireless Security Alarm
/Auto Dialer System
Model T018S
Model 639S
Visitor Chime And
Watch Dog/Alarm
Model 621S
Wireless Outdoor Siren
With Flash Light
1
2
3
4
ARM/
DISARM
Model T068S
GSM/PSTN Auto Dialer
With Wireless Security/
Safety Alarm System
Model 600R
Wireless Receiver
LINE 1
Model 625R
Wireless Alert with
6 Sounds and Flash LED
1
4
7
*/ UP
2
5
8
0
3
6
9
PROG
PAUSE
ARM/
DISARM
PANIC
/DOWN
Auto Dialer With Motion
Sensor & Alarm
Model T016S
Model 422R
Wireless Control
AC Socket
Model T055S
WirelessSecurity/
Safety Alarm System
With Auto Dialer
1
4
7
/ UP
2
5
8
0
3
6
9
PROG
/DOWN
BATT.
LOW
AC
PANIC
Model 116S
Motion Detector Alarm
System
Model 526L/526F
Wireless Outdoor Siren
With Flash Light
● Detect door/window open output wireless trigger signal
● 2 AAA size batteries operation (not Included)
● Low power consumption--- Long battery life
● Wireless RF transmission about 40~70 meters (Open space)
● Battery low/trigger indicator LED
● Magnetic switch left/right side either way is workable
● Compatible with additional wire magnetic sensor
