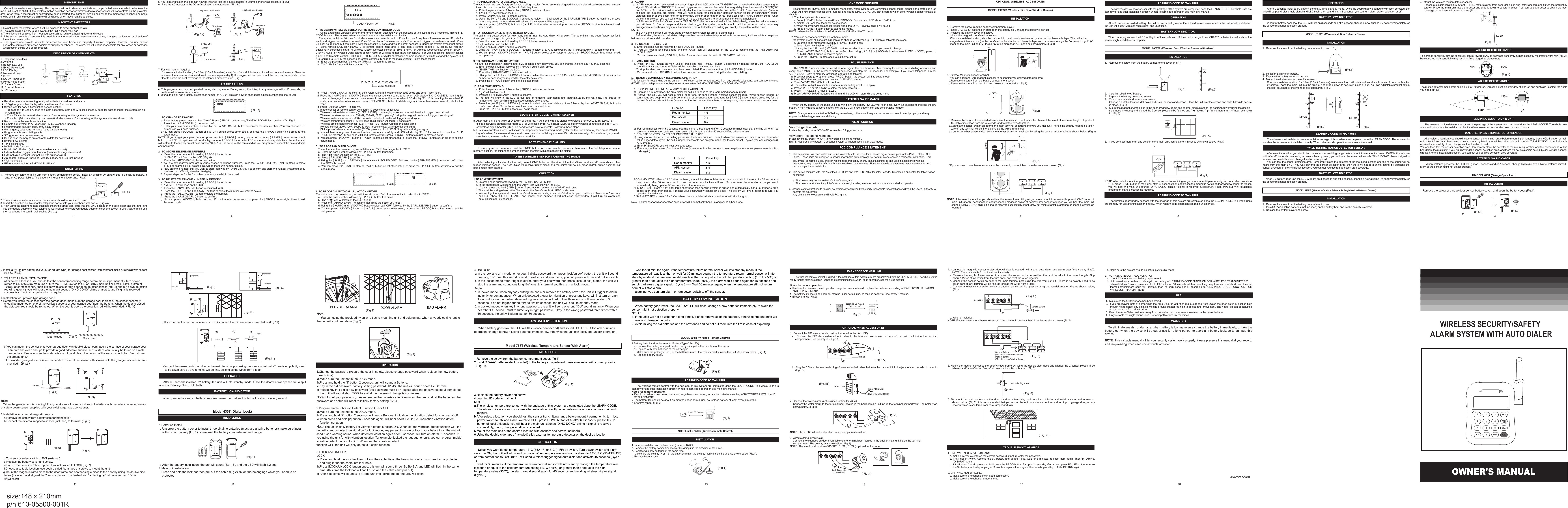

![OWNER'S MANUALWIRELESS SECURITY/SAFETY ALARM SYSTEM WITH AUTO DIALER12 3 4567811 12 13 14 15INTRODUCTIONOur unique wireless security/safety Alarm system with Auto dialer concentrate on the protected area you select. Whenever the main unit is set at ARMED, the wireless motion detection sensor or wireless door/window sensor will concentrate on the protected area. Once there is movement or door/window open detected, the alarm will turn on and call to the memorized telephone numbers one by one. In chime mode, the chime will Ding Dong when movement be detected.IMPORTANT SAFETY TIPS1. Do not install the system where it will be exposed to direct sunlight or rain.2. The system siren is very loud, never put the unit close to your ear.3. The unit should be away from heat sources such as radiators, heating ducts and stoves.4. If the system sounds at random, it is possible that the location too close to a heat source, changing the location or direction of the unit can remedy this.5. The system can provide valuable protection for your home and property if utilized properly. However, this unit cannot guarantee complete protection against to burglary or robbery. Therefore, we will not be responsible for any losses or damages which occur, during use of this product.DESCRIPTION OF COMPONENTS1. Telephone Line Jack2. Antenna3. Battery Low Led4. Ex AC Power Led5. LCD Display6. Numerical Keys7. Buzzer8. DC 9V Power Jack9. Home mode button10. Battery Cover11. External Terminal12. 9V BatteryFEATURES •• Received wireless sensor trigger signal activates auto-dialer and alarm•• 16 Digit large number display with date/time and function icon•• 9 zone icon for easy differentiating sensor location - From Zone 1 to Zone 7, each can learn seperately learn one wireless sensor ID code for each to trigger the system (While In Arm mode) - Zone 8S can learm 8 wireless sensor ID code to trigger the system in arm mode - Zone 24H (24 hours stand by) can learn 8 wireless sensor ID code to trigger the system in arm or disarm mode.•• Room monitor by telephone function•• Remote turn system to ARM or DISARM by telephone function •• Programmable security code, entry delay timing•• 5 emergency telephone numbers (up to 32 digits each)•• Programmable auto dialling cycle•• 5 Trigger recorder for alarm mode•• Built-in flash memory to protect system data for power failure•• Battery Low indicator•• Tone dialling only•• HOME mode function•• Built-in 105 dB alarm (with programmable alarm on/off)•• External extend trigger input terminal (compatible magnetic sensor)•• External siren terminal (compatible with outdoor siren)•• AC adaptor operated (included) with 9V battery back-up (not included)•• Wall mountable•• RF remote control for ARM/DISARM/PANICINSTALLATION1. Remove the screw of main unit from battery compartment cover, install an alkaline 9V battery, this is a back-up battery, in case of AC power failure. This battery will keep the unit working. (Fig.1)2. The unit with an external antenna, the antenna should be vertical for use. 3. Insert the supplied double adaptor telephone socket into your telephone wall socket. (Fig.2a)4. Now using the telephone lead supplied, insert the small clear plug into the LINE socket on the auto-dialer and the other end into the double adaptor in your telephone wall socket, or insert you double adaptor telephone socket in Line Jack of main unit, then telephone line cord in wall socket. (Fig.2b) 5. Your existing telephone lead can now be inserted into the double adaptor in your telephone wall socket. (Fig.2a/b) 6. Plug the AC adaptor to the DC 9V socket on the auto-dialer. (Fig. 2c)7. For wall mount-If required Choose a suitable location, 5 - 6 feet (1.5 - 2.0 meters) away from floor, drill holes and install anchors and screws Place the unit over the screws and slide it down to secure in place (fig 4). It is suggested that you mount the unit this distance above the floor to obtain the best coverage of the intended protected area. (Fig 3)SYSTEM SETTING •• This program can only be operated during standby mode. During setup, if not key in any message within 15 seconds, the system will auto exit setup mode.•• Your auto-dialer has a factory preset pass number of "0-0-0". This can now be changed to a pass number personal to you.1 TO CHANGE PASSWORDa. Enter factory preset pass number, "0-0-0". Press［PROG］button once,"PASSWORD" will flash on the LCD.( Fig. 5)b. Press the ［ARM/DISARM］ button to confirm.c. Enter your new pass number followed by the［ARM/DISARM］button to confirm the new number. (You can choose 3~ 6 numbers in your pass number)d.You can press［#/DOWN］button or［ /UP］button select other setup, or press the［PROG］button nine times to exit setup mode.NOTE: If you forget your pass number, press and hold［PROG］button, use a pen to touch［RESET］button once of unit bottom, the LCD will split second not display, unpress［PROG］button after LCD comeback display date time, the auto-dialer will restore to the factory preset pass number "0-0-0", all the setup will be remained as you programmed except the date and time and password.2 TO STORE TELEPHONE NUMBERSa. Enter the pass number followed by［PROG］button twice. b. "MEMORY" will flash on the LCD ( Fig. 6). c. Press the［ARM/DISARM］button to confirm.d. You are now ready to program in your 5 chosen telephone numbers. Press the［ /UP］and［#/DOWN］buttons to select 1 - 5, For example if you select 4 this will be the fourth number dialed.e. Now enter the number that you want to store, followed by［ARM/DISARM］to confirm and store the number (maximum of 32 numbers, but LCD only show last 16 digits)f. Repeat steps c-e for the four other numbers you wish to be stored.3 TO DELETE TELEPHONE NUMBER IN MEMORYa. Enter the pass number followed by［PROG］button twice.b. " MEMORY " will flash on the LCD.c. Press the［ARM/DISARM］button to confirm (Fig.6) .d. Press the［ /UP］and［#/DOWN］buttons to select the number you want to delete.e. Press the［DEL./PAUSE］button to delete the number.f. Press the［ARM/DISARM］button to confirm.g. You can press［#/DOWN］button or［ /UP］button select other setup, or press the［PROG］button eight times to exit the setup mode.( Fig. 5)PASSWORDPASSWORD4 TO LEARN WIRELESS SENSOR OR REMOTE CONTROL ID CODE All the Expanding Wireless Sensor and remote control attached with the package of this system are all completly finished ID CODE learning. The whole system are standby for use after installation directly. The system with total 10 zone for wireless sensor and remote control, Zone 1~ zone 7 only learn 1 wireless sensor ID code for each and trigger the system in armed. Zone 8S can learn 8 wireless sensor’s ID code and trigger the system in armed. Zone 24H (24 hours standby ) can learn 8 wireless sensor’s ID code and would permit sensors to trigger the system even if not armed， Zone remote (LCD icon REMOTE) is remote control zone and it can learn 8 remote control’s ID codes. So you can additionally purchased extra 16 wireless Motion Detector sensor (615PR, 616PR) or wireless Door/Window sensor (600WR, 218WR, 625T) or wireless water alarm sensor (660) or wireless temperature sensor(763T) or wireless smoke detector sensor (632T) and 8 remote control (200R, 300R, 500R, 503R) or digital photo/video camera recorder(820S) to expand the system, but it is required to LEARN the sensor’s or remote control’s ID code to the main unit first, Follow these steps:a. Enter the pass number followed by［PROG］button three times. b. The " LEARN " icon will flash on the LCD.c. Press［ARM/DISARM］to confirm, the system will turn into learning ID code setup and zone 1 icon flash.d. Press the［ /UP］and［#/DOWN］buttons to select you want setup zone, when LCD display “NO ID CODE” is meaning the zone is disengaged, you can learn new sensor id code for this zone; when LCD display “FULL” is meaning the zone had ID code, you can select other zone or press［DEL./PAUSE］button to delete original id code then relearn new id code for this zone. e. Press［ARM/DISARM］to confirm.f. Trigger sensor or remote control send learn ID code signal as follows: Wireless motion detector sensor (615PR, 616PR) : by swinging at sensor lens with hand will trigger it send signal Wireless door/window sensor (218WR, 600WR, 625T): opening/closing the magnetic switch will trigger it send signal Wireless water alarm sensor (660) : put water detector to water will trigger it send signal Wireless temperature sensor(763T): Press TEST button will trigger it send signal Wireless smoke detector sensor (632T): Press TEST button will trigger it send signa Remote control (200R,300R, 500R, 503R) : press any key will trigger it send signal Digital photo/video camera recorder (820S): press and hold “1/DEL” key will send trigger signalg. You will hear a long beep tone confirm learn code successfully and LCD will display “FULL” for zone 1 ~ zone 7 or “1 ID CODE IN” for zone 8S and zone 24H and remote control, press［PROG］button to return to previous setup.h. You can press［#/DOWN］button or［ /UP］button select other setup, or press the［PROG］button seven times to exit the setup mode. 5 TO PROGRAM SIREN ON/OFF The auto-dialer has been factory set with the siren “ON”. To change this to “OFF”:a. Enter the pass number followed by［PROG］button four times.b. The " " icon will flash on the LCD. (Fig.8)c. Press［ARM/DISARM］to confirm.d. Using the［ /UP］and［#/DOWN］buttons select “SOUND OFF”. Followed by the［ARM/DISARM］button to confirm that the SIREN is now off.e. You can press［#/DOWN］button or［ /UP］button select other setup, or press the［PROG］button six times to exit the setup mode.6 TO PROGRAM AUTO CALL FUNCTION ON/OFFThe auto-dialer has been factory set with the call option “ON”. To change this to call option to “OFF”:a. Enter the pass number followed by［PROG］button five times.b. The " " icon will flash on the LCD. (Fig.9)c. Press the［ARM/DISARM］to confirm that this is the option you need.d. Using the［ /UP］and［#/DOWN］buttons select call “OFF” followed by the［ARM/DISARM］button to confirm.e. You can press［#/DOWN］button or［ /UP］button select other setup, or press the［PROG］button five times to exit the setup mode. MEMORYMEMORY12345MEMORY LOCATION (Fig.6)(Fig.7) ZONE NUMBER(Fig.8) (Fig.9)7 TO PROGRAM AUTO DIALLING CYCLE.The auto-dialer has been factory set for auto dialling 1 cycles. (When system is triggered the auto dialer will call every stored numbers 1 times) You can change the cycle from 1 - 5 dialling times.a. Enter the pass number followed by［PROG］button six times.b. CYCLE will now flash on the LCD.c. Press［ARM/DISARM］button to confirm.d. Using the［ /UP］and［#/DOWN］buttons to select 1 - 5 followed by the［ARM/DISARM］button to confirm the cycle (how many times the Auto-dialer will call you if the system will be triggered)e. You can press［#/DOWN］button or［ /UP］button select other setup, or press the［PROG］button four times to exit setup mode.8 TO PROGRAM CALL-IN RING DETECT CYCLE.The call-in ring detect cycle for how many call-in rings the Auto-dialer will answer, The auto-dialer has been factory set for 5 times, you can change this cycle from 3, 5, 7, 10 times.a. Enter the pass number followed by［PROG］button seven times.b. “ ” will now flash on the LCD.c. Press［ARM/DISARM］button to confirm.d. Using the［ /UP］and ［#/DOWN］ buttons to select 3, 5, 7, 10 followed by the ［ARM/DISARM］ button to confirm . e. You can press［#/DOWN］button or［ /UP］button select other setup, or press the［PROG］button three times to exit set up mode.9 TO PROGRAM ENTRY DELAY TIMEThe auto-dialer has been factory set for a 20 seconds entry delay time. You can change this to 0,5,10,15, or 20 seconds:a. Enter the pass number followed by［PROG］button eight times.b. “ENTRY” will now flash on the LCD.c. Press the［ARM/DISARM］button to confirm.d. Using the［ /UP］and［#/DOWN］buttons select the seconds 0,5,10,15 or 20. Press［ARM/DISARM］to confirm the number of seconds you required for the entry delay time.e. Press the［PROG］button twice to exit setup mode.10 REAL TIME SETTINGa. Enter the pass number followed by［PROG］button seven times.b. “ ” will flash on the LCD.c. Press the［ARM/DISARM］button to confirm.d. The date will show in the LCD as five sets of numbers, year-month-date, hour-minute by the real time. The first set of numbers will flash confirming that these can now be changed.e. Press the［ /UP］and［#/DOWN］buttons to select the correct date and time followed by the［ARM/DISARM］button to confirm and store. You will now have the correct date and time.f. Press the［PROG］button once to exit setup mode.LEARN SYSTEM ID CODE TO OTHER RECEIVERa. After main unit being ARM or DISARM or triggered, it will send wireless signal to wireless siren(526L, 526F, 527SL) or digital poto/video camera recorder(820S) or wireless control AC socket(422R, 688R) or wireless control lampholder(423R), or wireless signal booster (769), but need to learn how to operate, following these steps ：b. First make wireless siren or AC socket or lampholder enter learning mode (refer the their own manual),then press PANIC key of system, for wireless siren you will hear the sound of telling you learn ID code successfully；For wireless light you will see flashing means the learn ID code successfully.TO TEST MEMORY DIALLINGIn standby mode, press and hold the PROG button for more than two seconds, then key in the test telephone number memory location, the telephone number stored in memory will automatically be dialed.TO TEST WIRELESS SENSOR TRANSMITTING RANGEAfter selecting a location for the unit, press HOME button on the side of the Auto-Dialer, and wait 60 seconds and then trigger wireless sensor, The Auto-Dialer will receive trigger signal and the chime will sound. press HOME button again to exit home mode after this test.OPERATION1 TO ARM THE SYSTEMa. Enter the pass number followed by the［ARM/DISARM］button.b. Three short beeps will sound and the "ARM" icon will show on the LCD.c. You can press and hold［ARM］button 2 seconds on remote unit to “ARM” main unit. d. There will be a single beep after 60 seconds, the Auto-Dialer is at “ARM” mode now.e. Into arming, the system will detect door/window sensor state, when door/window is open, it will sound beep tone 5 seconds and LCD show “CLOSE PLEASE” and sensor zone number, if still not close door/window it will turn on alarm and auto-dialling after 60 seconds.2 ALARMa. In ARM mode , when received wired sensor trigger signal, LCD will show TRIGGER” icon or received wireless sensor trigger signal LCD will show “TRIGGER” icon and trigger sensor zone number, after the entry delay time then sound a SIREN(30S on - 30S off - 30S on), and will automatically dial the numbers stored one by one, in the “CYCLE” you have chosen, (amount of times the numbers are dialed). You will hear a beep tone for motion detector sensor trigger or door/window sensor vibration trigger or two beep tone for door/window sensor open trigger or four beep tone for［PANIC］button trigger when the call is answered, you can call the police or make the necessary to arrangements or calling a neighbour.b. In ARM mode, if the Auto-Dialer is set at “SIREN OFF”, the numbers stored will be dialed silently, when the call is answered you will hear 1, 2 or 4 beeps and know what trigger the system, enable you to call the police or make necessary arrangements or calling a neighbour. Remember if the Auto-Dialer was calling you silently, the system will be quiet .NOTE: The 24H zone sensor is 24 hours stand by can trigger system for arm or disarm mode Before dialling, the system will detect telephone line connect, when telephone line is not connect, it will sound four beep tone before sound siren and do not dial out.3 TO DISARM THE SYSTEMa. Enter the pass number followed by the［DISARM］button.b. You will hear a long beep tone and the "ARM" icon will disappear on the LCD to confirm that the Auto-Dialer was "DISARMED".c. You can press and hold［DISARM］button 2 seconds on remote control to "DISARM" main unit.4 PANIC BUTTONa. Press［PANIC］button on main unit or press and hold［PANIC］button 2 seconds on remote control, the ALARM will sound instantly, and the Auto-Dialer will begin dialling the stored numbers.b. To stop the alarm and the stored numbers being dialed, Press password then［ARM/DISARM］button.c. Or press and hold［DISARM］button 2 seconds on remote control to stop the alarm and dialling.5． REMOTE CONTROL BY TELEPHONE OPERATIONThis function for responding during an alarm notification call or remote access from any outside telephone, you can use any tone (DTMF) dialing telephone or mobile phone to turn system “ARM” or “DISARM” or “ROOM MONITOR” .A. RESPONDING DURING AN ALARM NOTIFICATION CALLa).Upon an alarm activation, the auto-dialer will call out to each of the programmed phone numbers.b). Answer the call, you will hear a single beep tone for zone1~zone8 wireless sensor trigger(or wired sensor trigger) or continuous two beep tone for 24H zone trigger or continuous four beep tone for［PANIC］button trigger, press key for the desired function code as follows:(when enter function code not hear beep tone response, please enter function code again)c). For room monitor within 50 seconds operation time, a beep sound after 30 seconds reminds user that the time will end. You can enter the operation code you want, automatically hang up after 50 seconds if no other operation.B. REMOTE CONTROL BY TELEPHONE FOR CALL BACKa).Using mobile phone or tone dialing phone call the home number. The auto-dialer will answer and sound a beep tone after call-in ringer detect cycle (the call-in ringer detect cycle can programmable, the factory preset 5 cycles, you can change to 3, 7, 10 cycles).b). Enter PASSWORD you will hear two beep tone.c). Press key for the desired function as follows:(when enter function code not hear beep tone response, please enter function code again)ROOM MONITOR - Press “ 1 # ” after the beep, you will be able to listen to all the sounds within the room for 50 seconds, a beep sound after 30 seconds remind user the room monitor time will end. You can enter the operation code you want, automatically hang up after 50 seconds if no other operation.ARM SYSTEM – press “ 5 # ” after three short beep tone confirm system is armed and automatically hang up. If hear 5 rapid beeps atfer three short beeps, it means your door/window sensor isn’t close. The system will give 5 seconds to DISARM operation immediately.DISARM SYSTEM – press “ 6 # ” after a beep the auto-dialer will disarm and automatically hang up.Note: If enter password or operation code error will automatically hang up and sound 5 beep tone. Press key1 #3 #6 #FunctionRoom monitorEnd of callDisarm systemPress key1 #5 #6 #FunctionRoom monitorARM systemDisarm systemHOME MODE FUNCTION This function for HOME mode to monitor room state, when system receive wireless sensor trigger signal in the protected area，LCD will show trigger sensor zone number and sound DING-DONG, you can program which zone wireless sensor enable or disable.1. Turn the system to home mode:a. Press［HOME］button once will hear DING-DONG sound and LCD show HOME icon.b. Wait for 60 Seconds, there will be one beep.c. When received wireless sensor trigger signal the 'DING－DONG' chime will sound.d. Press［HOME］button again to exit home mode.NOTE: When the Auto-dialer is in ARM mode the CHIME will NOT sound.2. Wireless sensor enable/disable for home mode the system preset all zone at ON(enable), to change which zone to OFF(disable), follow these steps:a. Enter the pass number followed by［HOME］button once.b. Zone 1 icon now flash on the LCD.c. Using the［ /UP］and［#/DOWN］buttons to select the zone number you want to change.d. Press［ARM/DISARDM］button to confirm then using［ /UP］or［#/DOWN］button select ‘’ON” or “OFF”, press ［ARM/DISARM］button to confirm again.e. Press the［HOME］button once to exit home-setup.PAUSE FUNCTIONThe "PAUSE" function can be stored as one digit in the telephone number memory for some PABX dialling operation and every one "PAUSE" in the memory dialling sequence will stop for 3.6 seconds. For example, if you store telephone number "7,7,7,5,3,5,5---226" to memory location 2, operation as follows:a. Press password (0-0-0), then press "PROG" button, the system will into setup mode.b. Press PROG button to select function menu "MEMORY" icon flash.c. Press "ARM/DISARM" button to confirm. d. The system will get into first telephone number setting and LCD display.e. Press " /UP" or "#/DOWN" to select memory location 2.f. Press "7,7,7,5,3,5,5" , Pause "2,2,6".g. Press "ARM/DISARM" button to confirm and the LCD will return display setup menu.BATTERY LOW INDICATOR When the 9V battery of the main unit is running low, the battery low LED will flash once every 1.5 seconds to indicate the low battery. When wireless sensor’s battery low, the LCD will show battery icon and sensor zone number.NOTE: Change to a new alkaline 9V battery immediately, otherwise it may cause the sensor to not detect properly and may appear the false trigger alarm and dialling.VIEW FUNCTIONVIEW FUNCTIONView Trigger RecordsIn standby mode, press "#/DOWN" to view last 5 trigger records.View Store Telephone NumbersIn standby mode, press " /UP" to view stored telephone number.NOTE: Not press any button 10 seconds system will automatically exit view mode.FCC COMPLIANCE STATEMENT1. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.2. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions:a. This device may not cause harmful interference, andb. This device must accept any interference received, including interference that may cause undesired operation.3. Changes or modifications to this unit not exspressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. OPTIONAL WIRELESS ACCESSORIESMODEL 218WR (Wireless Slim Door/Window Sensor)INSTALLATIONINSTALLATION1. Remove the screw from the battery compartment cover. 2. Install 2 “CR2032” batteries (included) on the battery box, ensure the polarity is correct.3. Replace the battery cover and screw.4. Mount the magnetic door/window sensor Choose a suitable location, stick the main unit to the door/window frames by attached double – side tape. Then stick the magnetic unit (smaller unit) to the door/window by attached double-side tape and make sure to align the “ ”mark to right “ ” mark on the main unit and “ ” facing “ ” at no more than 1/4” apart as shown below. (Fig.1) 5. External Magnetic sensor terminalYou can additional wire magnetic sensor to expanding you desired detection area.a.Remove the screw from the battery compartment cover.b.Remove the screw from terminal and take out connect wire. (Fig.2)c.Measure the length of wire needed to connect the sensor to the transmitter, then cut the wire to the correct length. Strip about 1/2 inch of insulation from the wire ends, and twist the wires together.d.Connect the sensor switch on door to the main terminal post using the wire you just cut. (There is no polarity need to be taken care of, any terminal will be fine, as long as the wires from a loop)e.Connect another sensor switch screw to another switch terminal post by using the parallel another wire as shown below. (Fig.3)f.If you connect more than one sensor to the main unit, connect them in series as shown below. (Fig.4)NOTE: After select a location, you should test the sensor transmitting range before mount it permanently, press HOME button of main unit, after 60 seconds then open/close the magnetic switch of door/window sensor to trigger, you will hear the main unit sounds “DING DONG” chime if signal is received successfully, if not, draw out mini retractable antenna or change location as required.(Fig.3)(Fig.2)(Fig.4)LEARNING CODE TO MAIN UNITThe wireless door/window sensor with the package of this system are completed done the LEARN CODE. The whole units are standby for use after installation directly. When relearn code operation see main unit manual.OPERATIONAfter 60 seconds installed battery, the unit will into standby mode. Once the door/window opened or the unit vibration detected, the unit will output wireless radio signal and LED flash.BATTERY LOW INDICATORWhen battery goes low, the LED will light on 3 seconds and off 1 second, change 2 new CR2032 batteries immediately, or the sensor might not detection properly.MODEL 600WR (Wireless Door/Window Sensor with Alarm)INSTALLATION1. Remove the screw from the battery compartment cover. (Fig.1)2. Install an alkaline 9V battery.3. Replace the battery cover and screw.4. Mount the magnetic door/window sensor Choose a suitable location, drill holes and install anchors and screws. Place the unit over the screws and slide it down to secure in place. (Fig.2)5． Mount the magnetic wired piece to the door or window frame and another single piece to the door/window by using the double-side tapes (included) and aligned the 2 sensor pieces to be flushed and “ ” facing “ ” at no more than1/4” apart as shown in. (Fig.3) 6. If you connect more than one sensor to the main unit, connect them in series as shown below. (Fig.4)NOTE: After select a location, you should test the sensor transmitting range before mount it permanently, turn local alarm switch to OFF, press HOME button of main unit, after 60 seconds then open/close the magnetic switch of door/window sensor to trigger, you will hear the main unit sounds “DING DONG” chime if signal is received successfully, if not, draw out mini retractable antenna or change location as required.LEARNING CODE TO MAIN UNITThe wireless door/window sensors with the package of this system are completed done the LEARN CODE. The whole units are standby for use after installation directly. When relearn code operation see main unit manual.(Fig.1)ON OFFALARM(Fig.2)(Fig.4)(Fig.3)size:148 x 210mmp/n:610-05500-001RBATT.LOW147/ UP/ UP2580369PROGPROGDEL./DEL./PAUSEPAUSE/DOWN/DOWN PANICPANICARMARM //DISARMDISARMAC7989V9VDCDC12LINELINE ANT.ANT.3546BATT.LOW147/ UP/ UP2580369PROGPROGDEL./DEL./PAUSEPAUSE/DOWN/DOWN PANICPANICARMARM //DISARMDISARMAC.101112( Fig. 1 )( Fig. 3)1.5~2M(Fig. 2b) TelephoneTelephone Line Socket(Fig. 2a) Line jack TelephoneTelephone Line SocketLine jack( Fig. 2c )DC 9V AdaptorLINELINE ANT.ANT.LINELINE ANT.ANT.16610-05500-001Rc. Make sure the system should be setup in Auto dial mode.3. NOT REMOTE CONTROL FUNCTION a. check if battery low and battery replacement.b. If it doesn't work , re-learn code again, according to "LEARNING CODE FUNCTION FOR WIRELESS TRANSMITTERS".c. when if it doesn't work , press and hold LEARN button 18 seconds will hear one long beep tone and one short beep tone, all learned transmitters code will deleted, then re-learn code again, according to "LEARNING CODE FUNCTION FOR WIRELESS TRANSMITTERS".TIPS1. Make sure the full telephone has been stored.2. If you are leaving pets at home while the Auto-Dialer is ON, then make sure the Auto-Dialer has been set in a location high enough not to detect any animals walking around but not too high to detect other movement. The head PIR can be adjusted up and down or from side to side.3. Keep the Auto-Dialer dust free, away from cobwebs that may cause movement in the protected area.4. Only suitable for single phone lines. Not compatible with fax machines.WARNING To eliminate any risk or damage, when battery is low make sure change the battery immediately, or take the battery out when the device will be out of use for a long period, to avoid any battery leakage to damage this device.NOTE: This valuable manual will let your security system work properly. Please preserve this manual at your record, and keep reading when need some trouble obviation.( Fig. 6)arrow facing arrow( Fig. 7 )( Fig. 5)Sensor Switch(Mount the door/window frame)Magnet sensor(Mount the door/window frame)( Fig.4 )Slave UnitSensor Switch4. Connect the magnetic sensor (detect door/window is opened, will trigger auto dialer and alarm after "entry delay time"). (NOTE: The magnetic is for optional, not included)a. Measure the length of wire needed to connect the sensor to the transmitter, then cut the wire to the correct length. Strip about 1/2 inch of insulation from the wire ends, and twist the wires together.b. Connect the sensor switch on door to the main terminal post using the wire you just cut. (There is no polarity need to be taken care of, any terminal will be fine, as long as the wires from a loop).c. Connect another sensor switch screw to another switch terminal post by using the parallel another wire as shown below, (Fig.4)d. Wire not included.NOTE: If you connect more than one sensor to the main unit, connect them in series as shown below. (Fig.5)5. Mount the magnet sensor to the door/window frame by using the double-side tapes and aligned the 2 sensor pieces to be tidiness and "arrow" facing "arrow" at no more than 1/4 inch apart. (Fig.6)6. To mount the outdoor siren use the siren stand as a template, mark locations of holes and install anchors and screws as shown below. (Fig.7) It is recommended that you mount the out door siren at entrance door, top of garage door, or any location which is sheltered from easy tamper and rain.TROUBLE SHOOTING GUIDE1. UNIT WILL NOT ARMED/DISARMa. make sure you've entered the correct password, if not, re-enter the password.b. If still doesn't work. Remove the 9V battery and adaptor plug, wait for 3 minutes, replace them again. Then try "ARM"& "DISARM" again.c. If it still doesn't work, press and hold down the PROG button, for up to 2 seconds, after a beep press PAUSE button, remove the 9V battery and adaptor plug for 3 minutes, replace them again, then reset-up and try to ARM/DISARM again.2. UNIT WILL NOT DIALLINGa. Make sure the telephone line in good connection.b. Make sure the telephone number stored. (Fig.1B)Slave UnitFrom Main UnitSlave Extended Cable( Fig.1A )BlackRedWhite( Fig. 2 )( Fig.3 )Main unitBlack striped wire to negative (-)91017 18OPERATIONAfter 60 seconds installed 9V battery, the unit will into standby mode. Once the door/window opened or vibration detected, the unit will output wireless radio signal and LED flash, then sound alarm 3 seconds, you can turn alarm switch select on or off.BATTERY LOW INDICATORWhen 9V battery goes low, the LED will light on 3 seconds and off 1 second, change a new alkaline 9V battery immediately, or the sensor might not detection properly.MODEL 615PR (Wireless Motion Detector Sensor)INSTALLATION1. Remove the screw from the battery compartment cover. （Fig.1 ）2. Install an alkaline 9V battery.3. Replace the battery cover and screw.4. Mount the wireless motion detector sensor-Choose a suitable location, 5 - 6 feet (1.5 - 2.0 meters) away from floor, drill holes and install anchors and fixture the bracket by screws, Place the main unit into the bracket and slide it down to secure in place (Fig 2). You can adjustable bracket obtain the best coverage of the intended protected area. (Fig 3)LEARNING CODE TO MAIN UNITThe wireless motion detector sensors with the package of this system are completed done the LEARN CODE. The whole units are standby for use after installation directly. When relearn code operation see main unit manual.WALK TESTING MOTION DETECTOR SENSORAfter select a location, you should test the sensor transmitting range before mount it permanently, press HOME button of main unit, after 60 seconds then swing at sensor lens by hand, you will hear the main unit sounds “DING DONG” chime if signal is received successfully, if not, change location as required.You can test the sensor detection area. Temporarily place the detector at the mounting location and the chime sound will be heard from the main unit. If you walk beyond the sensor detection area, then there will not be a chime sound, by adjusting the sensor direction, or the installation location, you can get you desired detection area coverage.BATTERY LOW INDICATOR When 9V battery goes low, the LED will light on 3 seconds and off 1 second, change a new alkaline 9V battery immediately, or the sensor might not detection properly.MODEL 616PR (Wireless Outdoor Adjustable Angle Motion Detector Sensor)INSTALLATION1. Remove the screw from the battery compartment cover. 2. Install 3 “AA” alkaline batteries (not included) on the battery box, ensure the polarity is correct.3. Replace the battery cover and screw. (Fig.2) (Fig.3)1.5~2M 1.5~2M(Fig.1)4. Mount the wireless motion detector sensor-Choose a suitable location, 5~6 feet (1.5~2.0 meters) away from floor, drill holes and install anchors and fixture the bracket by screws, Place the main unit into the bracket and slide it down to secure in place. You can adjust bracket to obtain the best coverage of the intended protected area.(Fig.1)ADJUST DETECT DISTANCETo increase sensitivity turn the sensitivity control toward MAX. to decrease sensitivity, turn the sensitivity control toward MIN(Fig.2). However, too high sensitivity may result in false triggering, please note. ADJUST DETECT ANGLEThe motion detector max detect angle is up to 150 degree, you can adjust slide window of lens left and right side to select the angle you need. (Fig.3)LEARNING CODE TO MAIN UNITThe wireless motion detector sensor with the package of this system are completed done the LEARN CODE. The whole units are standby for use after installation directly. When relearn code operation see main unit manual.WALK TESTING MOTION DETECTOR SENSOR After select a location, you should test the sensor transmitting range before mount it permanently, press HOME button of main unit, after 60 seconds then swing at sensor lens by hand, you will hear the main unit sounds “DING DONG” chime if signal is received successfully, if not, change another location to test.You can then test the sensor detection area. Temporarily place the detector at the mounting location and the chime sound will be heard from the main unit. If you walk beyond the sensor detection area, and there will not be a chime sound, by adjusting the sensor direction, or the installation location, you can get you desired detection area coverage.BATTERY LOW INDICATOR When batteries goes low, the LED will light on 3 seconds and off 1 second, change 3 AA size new alkaline batteries immedi-ately, or the sensor might not detect properly.MMODEL 625T (Garage Open Alert) INSTALLATION1.Remove the screw of garage door sensor battery cover, and open the battery door.(Fig.1)(Fig.1)1.5~2M(Fig.3) MAXMIN(Fig.2)(Fig.2)(Fig.1)2.install a 3V lithium battery (CR2032 or equate type) for garage door sensor, compartment make sure install with correct polarity. (Fig.2)3. TO TEST TRANSMITION RANGE After select a location, you should test the sensor transmitting range before mount it permanently, turn power switch to ON of 625RX main unit or turn the CHIME switch to ON of T015S main unit or press HOME button of T018S, after 60 seconds, then Trigger wireless garage door open detector sensor (pull up and put down detection rob will trigger it ), you will hear the main unit sounds “DING DONG” chime or alert sound if signal is received successfully, if not , change location is required.4.Installation for up/down type garage door:a.Before you install the sensor onto the garage door, make sure the garage door is closed, the sensor assembly should be mounted on one of the vertical supports of your garage door near the bottom. When the door is closed, the detection rod should be retracted. When the door is open, the detection rod will be extended.（Fig.3）b.You can mount the sensor onto your garage door with double-sided foam tape if the surface of your garage door is smooth and clean enough to provide a good adhesive surface, such surface can usually be found on a metal garage door. Please ensure the surface is smooth and clean. the bottom of the sensor should be 15mm above the ground.(Fig.4) c.For wooden garage doors, it is recommended to mount the sensor with screws onto the garage door with screws provided. （Fig.5）Note: When the garage door is opening/closing, make sure the sensor does not interfere with the safety reversing sensor or safety beam sensor supplied with your existing garage door opener.6.Installation for external magnetic sensor :a.Remove the screw from battery compartment cover. b.Connect the external magnetic sensor (included) to terminal.(Fig.6)c.Turn sensor select switch to EXT.(external)d.Replace the battery cover and screw. e.Pull up the detection rob to top and turn lock switch to LOCK.(Fig.7) f.Choose a suitable location, use double-sided foam tape or screws to mount the unit. g.Mount the magnetic wired piece to the door frame and another single piece to the door by using the double-side tapes (included) and aligned the 2 sensor pieces to be flushed and “ ” facing “ ” at no more than 15mm. (Fig.8.9.10) h.If you connect more than one sensor to unit,connect them in series as shown below.(Fig.11)i.Connect the sensor switch on door to the main terminal post using the wire you just cut. (There is no polarity need to be taken care of, any terminal will be fine, as long as the wires from a loop) OPERATIONAfter 60 seconds installed 3V battery, the unit will into standby mode. Once the door/window opened will output wireless radio signal and LED flash. BATTERY LOW INDICATOR When garage door sensor battery goes low, sensor unit battery low led will flash once every second .Model 435T (Digital Lock)INSTALLTION1.Batteries Install a.Unscrew the battery cover to install three alkaline batteries (must use alkaline batteries),make sure install with correct polarity (Fig.1), screw well the battery compartment and hanger. b.After the battery installation, the unit will sound ‘Be…B’, and the LED will flash 1.2 sec.2.Main unit installation Press and hold the lock bar then pull out the cable (Fig.2), fix on the belongings which you need to be protected.(Fig.3)LOCKLOCK UNLOCKDoor closedLOCKLOCK UNLOCKDoor open(Fig.5)LOCKLOCK UNLOCK(Fig.4)LOCKLOCK UNLOCK15mm(Fig.6)(Fig.7)LOCKLOCK UNLOCK LOCKLOCK UNLOCKLOCKLOCK UNLOCK(Fig.10)123TapeAAAAAAAAA(Fig.1)Note: You can using the provided nylon wire ties to mounting unit and belongings, when anybody cutting cable the unit will continue alarm.(Fig.3)OPERATION1.Change the password (Assure the user in safety, please change password when replace the new battery each time) a.Make sure the unit not in the LOCK mode. b.Press and hold the [1] button 2 seconds, unit will sound a Be tone. c.Key in the old password (factory setting password ‘1234’) , the unit will sound short ‘Be Be’ tone. c.Please key in 4 digits new password (the password must be 4 digits), after the passwords input completed, the unit will sound short ‘BBB’ toremind the password change is successes.Note:If forget your password, please remove the batteries after 2 minutes, then reinstall all the batteries, the password and setup will reset to initially factory setting ‘1234’.2.Programmable Vibration Detect Function ON or OFF a.Make sure the unit not in the LOCK mode. b.Press and hold [2] button 2 seconds will hear a Be tone, indication the vibration detect function set at off. c.when press and hold [2] button 2 seconds again, will hear short ‘Be Be Be’, indication vibration detect function set at on.Note:The unit initially factory set vibration detect function ON. When set the vibration detect function ON, the unit will standby detect the vibration for lock mode, any person in move or touch your belongings, the unit will send 1 sec warning sound, when detected vibration again after 3 seconds, will turn on alarm 30 seconds. If you using the unit for with vibration location (for example: locked the luggage for car), you can programmable vibration detect function to OFF. When set the vibration detectfunction OFF, the unit will only detect cut cable function.3.LOCK and UNLOCK LOCK: a.Press and hold the lock bar then pull out the cable, fix on the belongings which you need to be protected and plug in the the cable into lock hole. b.Press [LOCK/UNLOCK] button once, this unit will sound three ‘Be Be Be’, and LED will flash in the same time. (this time the lock bar will can’t push and the cable can’t pull out) c.After 5 seconds will sound a ‘Be’ tone unit into locked mode, the LED will flash.1243BAG ALARM1243DOOR ALARMBLCYCLE ALARM12431243garage doorLOCKLOCK UNLOCKabout 600mm(Fig.8)garage doorLOCKLOCK UNLOCKabout 600mm(Fig.9)(Fig.11)(Fig.2)(Fig.3)4.UNLOCK: a.In the lock and arm mode, enter your 4 digits password then press [lock/unlock] button, the unit will sound one long ‘Be’ tone, this sound remind to exit lock and arm mode, you can press lock bar and pull out cable. b.In the locked mode after trigger to alarm, enter your password then press [lock/unlock] button, the unit will stop the alarm and sound one long ‘Be’ tone, this remind you this is in unlock mode. Note: 1.In locked mode, when anybody cutting the cable or remove the battery cover, the unit will trigger to alarm instantly for continuance；When unit detected trigger for vibration or press any keys, will first turn on alarm 1 second for warning, when detected trigger again after third to twelfth seconds, will turn on alarm 30 seconds; If do not trigger during third to twelfth seconds, the unit will back to standby mode. 2.In Locked mode, when key in wrong password, the unit will send one long “DU” sound instantly. When you hear the ‘DU’ sound , must resume key in right password. If key in the wrong password three times within 10 seconds, the unit will alarm last for 30 seconds. LOW BATTERY DETECTION When battery goes low, the LED will flash (once per-second) and sound ‘ DU DU DU’ for lock or unlock operation, change to new alkaline batteries immediately, otherwise the unit can’t lock and unlock operation.Model 763T (Wireless Temperature Sensor With Alarm)INSTALLTION1.Remove the screw from the battery compartment cover. (fig.1)2.Install 3 "AAA" batteries (Not included) to the battery compartment make sure install with correct polarity. (Fig. 1).3.Replace the battery cover and screw.4.Learning ID code to main unitNOTE: a.The wireless temperature sensor with the package of this system are completed done the LEARN CODE. The whole units are standby for use after installation directly. When relearn code operation see main unit manual..b.After select a location, you should test the sensor transmitting range before mount it permanently, turn local power switch to ON and alarm switch to OFF, press HOME button of A, after 60 seconds, press “TEST” button of local unit back, you will hear the main unit sounds “DING DONG” chime if signal is received successfully, if not , change location is required.5.Mount the main unit at the desired location with anchors and screw (included).6.Using the double-side tapes (included) stick external temperature detector on the desired location.OPERATION Select you want detect temperature 13°C (55.4 ºF) or 5°C (41ºF) by switch. Turn power switch and alarm switch to ON, the unit will into stand by mode. When temperature from normal down to 13°C/5°C (55.4ºF/41ºF) or from normal rise to 35°C (95ºF) will send wireless trigger signal auto dialer and activate 45 seconds (Cycle 1) wait for 30 minutes, if the temperature return normal sensor will into standby mode; if the temperature was less than or equal to the cold temperature setting (13°C or 5°C) or greater than or equal to the high temperature value (35°C), the alarm would sound again for 45 seconds and sending wireless trigger signal. (Cycle 2)(Fig. 1)LEARN CODE FOR MAIN UNITThe wireless remote control included in the package of this system are pre-programmed with the LEARN CODE. The whole unit is ready for use after installation . When re-programming the LEARN code operation, see main unit manual.Notes for remote operation• • If radio-linked remote control operation range become shortened, replace the batteries according to "BATTERY INSTALLATION AND REPLACEMENT".• • The battery life should be about six months under normal use, so replace battery at least every 6 months.• • Effective range (Fig.2).OPTIONAL WIRED ACCESSORIES1. Connect the PIR slave extended unit (not included, option for 113E)a. Connect the PIR slave extended unit cable to the terminal post located in back of the main unit inside the terminal compartment. See polarity in. ( Fig.1A)b. Plug the 3.5mm diameter male plug of slave extended cable that from the main unit into the jack located on side of the unit. (Fig.1B)2. Connect the water alarm. (not included, option for 760A) Connect the water alarm to the terminal post located in the back of main unit inside the terminal compartment. The polarity as shown below. (Fig.2)NOTE: Slave PIR unit and water alarm selection option alternative.3. Wired external siren install Connect the extended outdoor siren cable to the terminal post located in the back of main unit inside the terminal compartment. The polarity as shown below. (Fig.3)NOTE: The wired outdoor siren (515SK/E, 516SL, 517SL) optional, not included.(Fig.1)(Fig.1) wait for 30 minutes again, if the temperature return normal sensor will into standby mode; if the temperature still was less than or wait for 30 minutes again, if the temperature return normal sensor will into standby mode; if the temperature still was less than or equal to the cold temperature setting (13°C or 5°C) or greater than or equal to the high temperature value (35°C), the alarm would sound again for 45 seconds and sending wireless trigger signal. (Cycle 3) ---- Wait 30 minutes again, when the temperature still not return normal will stop alarm. In alarming, you can turn alarm or turn power switch to off the sensor. BATTERY LOW INDICATION When battery goes lower, the BAT.LOW LED will flash, change a new batteries immediately, to avoid the sensor might not detection properly.NOTE: 1. If the units will not be used for a long period, please remove all of the batteries, otherwise, the batteries will leak and damage the units.2. Avoid mixing the old batteries and the new ones and do not put them into the fire in case of exploding.MODEL 200R (Wireless Remote Control)1.Battery install and replacement. (Battery Type-23A 12V)a. Remove the battery compartment cover by sliding it in the direction of the arrow.b. Replace with new batteries of the same type. Make sure the polarity (+ or -) of the batteries match the polarity marks inside the unit. As shown below. (Fig. 1) c. Replace battery cover.LEARNING CODE TO MAIN UNITThe wireless remote control with the package of this system are completed done the LEARN CODE. The whole units are standby for use after installation directly. When relearn code operation see main unit manual.Notes for remote operation• • If radio linked remote control operation range become shorten, replace the batteries according to "BATTERIES INSTALL AND REPLACEMENT".• • The battery life should be about six months under normal use, so replace battery at least every 6 months.• • Effective range. (Fig. 2)MODEL 500R / 503R (Wireless Remote Control)INSTALLATION1.Battery installation and replacement (Battery CR2032)a. Remove the battery compartment cover by sliding it in the direction of the arrow.b. Replace with new batteries of the same type. Make sure the polarity (+ or -) of the batteries match the polarity marks inside the unit. As shown below (Fig.1).c. Replace battery cover. (Fig. 2)ARMPANICDISARMBATT.LOW147/ UP/ UP2580369PROGPROGDEL./DEL./PAUSEPAUSE/DOWN/DOWNPANICPANICARMARM//DISARMDISARMAC.(Fig.2)about 30 meters BATT.LOW147/ UP/ UP2580369PROGPROGDEL./DEL./PAUSEPAUSE/DOWN/DOWNPANICPANICARMARM//DISARMDISARMAC.REMOTE LEARN124H2 3 4 5 6 7 8S](https://usermanual.wiki/Lelux-Electronics/T055S/User-Guide-1393472-Page-1.png)
