Lennox Hearth Serefina Ci1500Dvf Users Manual 775148M B HO CI1500 2500DVF

CI2500DVF to the manual 583c0c6a-1665-47c6-ab0d-2fb2ea639652

2015-02-04

: Lennox-Hearth Lennox-Hearth-Serefina-Ci1500Dvf-Users-Manual-371265 lennox-hearth-serefina-ci1500dvf-users-manual-371265 lennox-hearth pdf

Open the PDF directly: View PDF .
Page Count: 20

FREESTANDING

VENTED GAS

FIRED ROOM

HEATERS

HOMEOWNERS CARE AND

OPERATION INSTRUCTIONS

Report No. 116-S-08-5 Model CI1500DVF Series Model CI2500DVF Series

Sereﬁ na Series Direct Vent Gas Stoves

P/N 775,148M Rev. B, 11/04

AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE

LES INSTRUCTIONS DONNÉ DANS CETTE NOTICE

POUR RÉDUIRE AU MINIMUM LE RISQUE D’INCENDIE

OU POUR ÉVITER TOUT DOMMAGE MATÉRIEL, TOUTE

BLESSURE OU LA MORT.

WARNING: IF THE INFORMATION IN THIS MANUAL

IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLO-

SION MAY RESULT CAUSING PROPERTY DAMAGE,

PERSONAL INJURY OR LOSS OF LIFE.

FOR YOUR SAFETY: Do not store or use gasoline

or other ﬂ ammable vapors or liquids in the vicinity

of this or any other appliance.

FOR YOUR SAFETY: What to do if you smell gas:

• DO NOT light any appliance.

• DO NOT touch any electrical switches.

• Do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s

phone. Follow your gas suppliers instructions.

• If your gas supplier cannot be reached, call

the ﬁ re department.

Installation and service must be performed by

a qualiﬁ ed installer, service agency or the gas

supplier.

POUR VOTRE SÉCURITÉ: Ne pas entreposer ni utiliser

d’essence ni d’autre vapeurs ou liquides inﬂ ammables dans

le voisinage de cet appareil ou de tout autre appareil.

POUR VOTRE SÉCURITÉ: Que faire si vous sentez une

odeur de gaz:

• Ne pas tenter d’allumer d’appareil.

• Ne touchez à aucun interrupteur. Ne pas vous servir

des téléphones se trouvant dans le batiment où vous

vous trouvez.

• Evacuez la piéce, le bâtiment ou la zone.

• Appelez immédiatement votre fournisseur de gaz

depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz,

appelez le service dos incendies.

L’installation et service doit être exécuté par un qualiﬁ é

installeur, agence de service ou le fournisseur de gaz.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

These appliances are designed to operate on

natural or propane gas only.

Input of millivolt models is variable. These rates

are shown in the following table:

INTRODUCTION

The Stove models covered in this manual are

Direct-Vent sealed combustion vented gas

stove heaters designed for residential applica-

tion. Direct-Vent appliances operate with the

combustion chamber isolated from the inside

atmosphere. All air for combustion is brought in

from the outside and exhaust gases are vented

through the same direct vent, vent system.

GENERAL INFORMATION

Note: Installation and repair should be performed

by a qualiﬁ ed service person. The appliance

should be inspected annually by a qualiﬁ ed

professional service technician. More frequent

inspections and cleanings may be required due to

excessive lint from carpeting, bedding material,

etc. It is imperative that the control compartment,

burners and circulating air passage ways of the

appliance be kept clean.

S'assurer que le brùleur et le compartiment des

commandes sont propres. Voir les instructions

d'installation et d'utilisation qui accompagnent

l'appareil.

Provide adequate clearances around air openings

and adequate accessibility clearance for service

and proper operation.

Never obstruct the front openings of the

appliance.

Due to high temperatures the appliance should

be located out of trafﬁ c and away from furniture

and draperies. Locate furniture and window

coverings accordingly. The recommended

clearance zone from the front of the appli-

ance to combustibles is 36 inches (914 mm).

Maintain all other clearances as outlined in the

Installation Manual.

These millivolt appliances are designed to

operate on either natural or propane gas. A

millivolt gas control valve with piezo ignition

system provides safe, efficient operation.

External electrical power is required to operate

the optional electrically powered components

if installed.

These appliances comply with National

Safety Standards and are tested and listed

by OMNI-Test Laboratories Inc.; Beaverton,

Oregon (Report No. 116-S-08-05) to ANSI

Z21.88-2002 (in Canada, CSA-2.33-2002),

and CAN/CGA-2.17-M91 in both USA and

Canada, as vented gas heaters.

Installation must conform to local codes. In

the absence of local codes, installation must

comply with the current National Fuel Gas Code,

ANSI Z223.1 (NFPA 54). (In Canada, the current

CAN/CGA B149 installation code.) Electrical

wiring must comply with local codes. In the

absence of local codes, installation must be in

accordance with the National Electrical Code,

NFPA 70 - (latest edition). (In Canada, the current

CSA C22.1 Canadian Electric Code.).

TABLE OF CONTENTS

Introduction ......................................page 2

General Information ..........................page 2

Operation/Care of Your Appliance .....page 3

Control Compartment Access ...........page 3

Variable Flame Adjustment ................page 4

Burn-In Period ..................................page 4

Maintenance ......................................page 4

Glass Cleaning ..................................page 4

Maintenance Schedule ......................page 5

Front Glass Enclosure Panel,

Removal and Installation .................page 6

Burner Adjustments ..........................page 6

Flame Appearance and Sooting .........page 6

Adjustment ........................................page 7

Log Placement ..................................page 8

Rockwool Placement .........................page 9

Millivolt Appliance Checkout .............page 9

Wiring Diagrams ...............................page 10

Warranty Information ........................page 10

Accessory Components ....................page 11

Lighting Instructions – Millivolt ........page 13

Troubleshooting Guide – Millivolt .....page 15

Replacement Parts List .....................page 16

Table 2 shows the units' gas oriﬁ ce size for

the elevations indicated.

WARNING: THESE STOVES ARE VENTED

HEATERS. DO NOT BURN WOOD OR OTHER

MATERIAL IN THESE APPLIANCES.

WARNING: IMPROPER INSTALLATION,

ADJUSTMENT, ALTERATION, SERVICE

OR MAINTENANCE CAN CAUSE INJURY

OR PROPERTY DAMAGE. REFER TO

THIS MANUAL. FOR ASSISTANCE OR

ADDITIONAL INFORMATION CONSULT

A QUALIFIED INSTALLER, SERVICE

AGENCY OR THE GAS SUPPLIER.

CONGRATULATIONS ON THE PURCHASE OF YOUR NEW GAS APPLIANCE MANU-

FACTURED BY LENNOX HEARTH PRODUCTS.

When you purchased your new gas ﬁ red heater, you joined the ranks of thousands of

concerned individuals whose answer to their home heating needs reﬂ ects their concern for

aesthetics, efﬁ ciency and our environment. We extend our continued support to help you

achieve the maximum beneﬁ t and enjoyment available from your new gas ﬁ red heater. It

is our goal at Lennox Hearth Products to provide you, our valued customer, with an appli-

ance that will ensure you years of trouble free warmth and pleasure.

Thank you for selecting a Lennox Hearth Products gas ﬁ red heater as the answer to

your home heating needs.

Sincerely,

All of us at Lennox Hearth Products

DO NOT ATTEMPT TO ALTER OR MODIFY

THE CONSTRUCTION OF THE APPLI-

ANCE OR ITS COMPONENTS.

ANY MODIFICATION OR ALTERA-

TION MAY VOID THE WARRANTY,

CERTIFICATION AND LISTINGS OF THIS

UNIT.

Input (BTU/HR) Manually-Modulated Gas

Valves (millivolt models)

Models Nat. Gas Propane

CI1500DVF 17,500 to

28,000

20,500 to

27,000

CI2500DVF 25,500 to

38,500

26,500 to

34,500

Table 1

Burner Oriﬁ ce Sizes

Model

No.

Nat.

Gas

Prop.

Gas

Elevation

Feet

(meters)

CI1500DVF .104" .061" 0-4500

(0-1372)

CI2500DVF .121" .068" 0-4500

(0-1372)

Table 2

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 3

TPTH TP TH

HI / LO Knob

Variable Flame Height Adjustment

Manifold Pressure Port

Inlet

Pressure

Port

Main Gas

Control Knob

Piezo Igniter

IN OUT

CARBON MONOXIDE POISONING: EARLY

SIGNS OF CARBON MONOXIDE POISONING

ARE SIMILAR TO THE FLU WITH HEADACHES,

DIZZINESS AND/OR NAUSEA. IF YOU HAVE

THESE SIGNS, OBTAIN FRESH AIR IMMEDI-

ATELY. TURN OFF THE GAS SUPPLY TO THE

APPLIANCE AND HAVE IT SERVICED BY A

QUALIFIED PROFESSIONAL, AS IT MAY NOT

BE OPERATING CORRECTLY.

Do not use these appliances if any part has

been under water. Immediately call a qualiﬁ ed,

professional service technician to inspect

the appliance and to replace any parts of the

control system and any gas controls which

have been under water.

Ne pas se servir de cet appareil s'il a été

plongé dans l'eau, complètement ou en

partie. Appeler un technicien qualiﬁ é pour

inspecter l'appareil et remplacer toute partie

du système de contrôle et toute commande

qui ont été plongés dans l'leau.

Test gage connections are provided on

the front of the millivolt gas control valve

(identiﬁ ed IN for the inlet and OUT for the

manifold side).

These appliances must be isolated from the

gas supply piping system (by closing their

individual manual shut-off valve) during any

pressure testing of the gas supply piping

system at test pressures equal to or less

than 1/2 psig (3.5 kPa).

These appliances and their individual shut-off

valves must be disconnected from the gas

supply piping system during any pressure

testing of that system at pressures in excess

of 1/2 psig (3.5 kPa).

These appliances must not be connected to a

chimney or ﬂ ue serving a separate solid fuel

burning appliance.

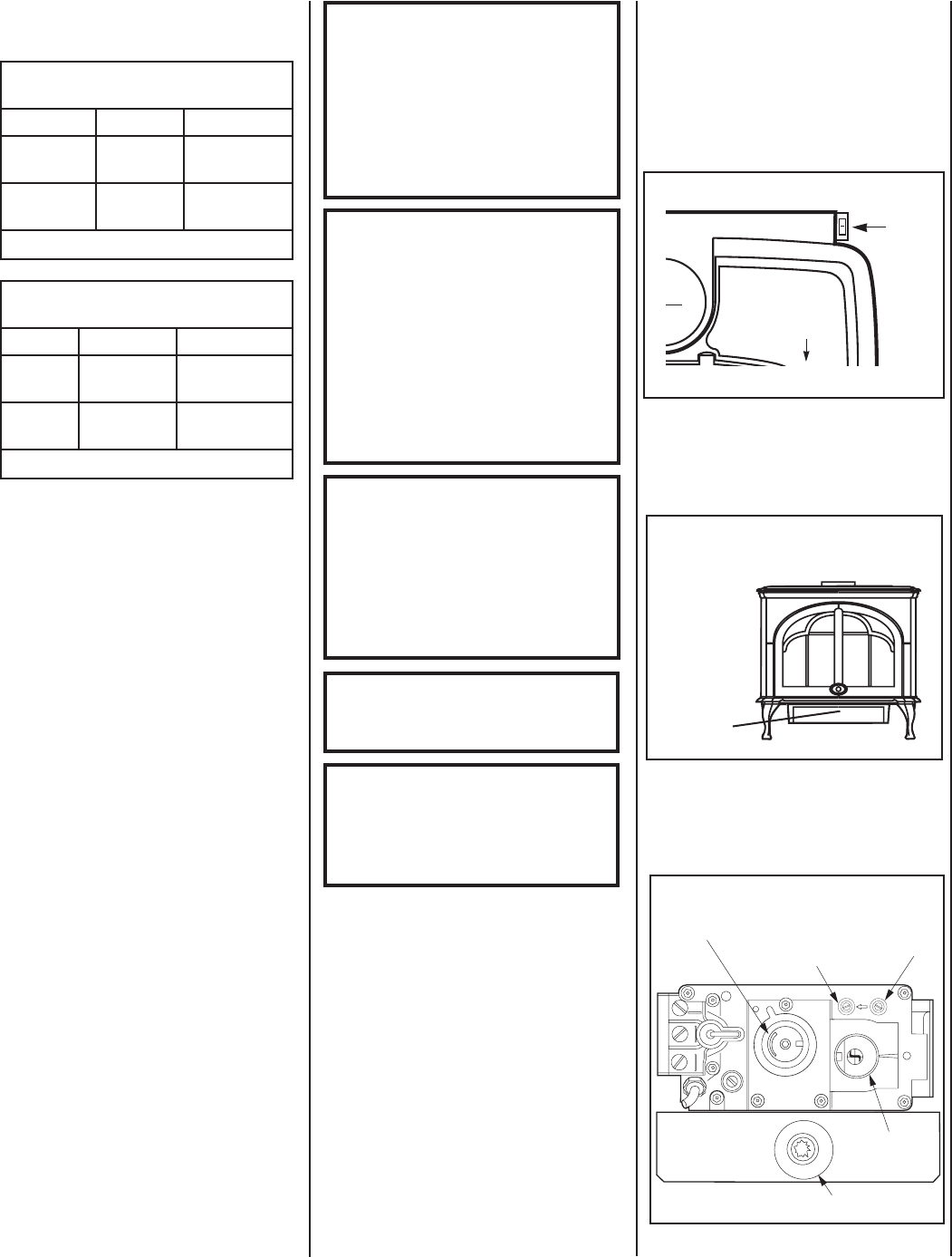

Control Compartment Access

The gas controls can be found behind the lower

access door. To access, pull the door open

(see Figure 2).

Millivolt appliances will be ﬁ tted with the gas

control valve shown in Figure 3. Familiarize

yourself with the gas control valve that your

appliance uses.

OPERATION AND CARE OF YOUR

APPLIANCE

Appliance operation may be controlled through

a remotely located optional wall thermostat or

remote control.

In lieu of remote or remote wall thermostat

operation, the appliance must be operated

directly through the on/off rocker switch located

on the upper right side of the rear shield. See

Figure 1.

If your millivolt appliance is equipped with an

optional wall thermostat kit or remote control

kit and the pilot is lit, the appliance main burner

may be turned on and off with the wall thermostat

or remote control.

WARNING: DO NOT PLACE CLOTHING OR

OTHER FLAMMABLE MATERIALS ON OR

NEAR THIS APPLIANCE.

AVERTISSEMENT: SURVEILLER LES

ENFANTS. GARDER LES VÊTEMENTS,

LES MEUBLES, L'ESSENCE OU AUTRES

LIQUIDES À VAPEUR INFLAMMABLES

LOIN DE L'APPAREIL.

WARNING: CHILDREN AND ADULTS

SHOULD BE ALERTED TO THE HAZARDS

OF HIGH SURFACE TEMPERATURES. USE

CAUTION AROUND THE APPLIANCE TO

AVOID BURNS OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CAREFULLY

SUPERVISED WHEN THEY ARE IN THE SAME

ROOM AS THE APPLIANCE.

WARNING: FAILURE TO COMPLY WITH THE

INSTALLATION AND OPERATING INSTRUC-

TIONS PROVIDED IN THIS DOCUMENT WILL

RESULT IN AN IMPROPERLY INSTALLED

AND OPERATING APPLIANCE, VOIDING ITS

WARRANTY. ANY CHANGE TO THIS APPLI-

ANCE AND/OR ITS OPERATING CONTROLS

IS DANGEROUS. IMPROPER INSTALLATION

OR USE OF THIS APPLIANCE CAN CAUSE

SERIOUS INJURY OR DEATH FROM FIRE,

BURNS, EXPLOSION OR CARBON MONOX-

IDE POISONING.

Figure 3

SIT Millivolt Gas Valve Controls

Burner

On /Off

Switch

Top View

Front

Figure 1

Tables 3 and 4 show the units' gas pressure

requirements

Burner On/Off Switch

Gas Controls

Lower Access Door

Pull open lower door to access Valve Contols

Lower Access

Door

Figure 2

Always keep the appliance area clear and free

from combustible materials, gasoline and other

ﬂ ammable liquids.

Remember, Millivolt appliances have a continu-

ous burning pilot ﬂ ame. Exercise caution when

using products with combustible vapors.

Inlet Gas Supply Pressure

(all models)

Fuel # Minimum Maximum

Natural Gas 4.5" WC

(1.12 kPa)

10.5" WC

(2.61 kPa)

Propane 11.0" WC

(2.73 kPa)

13.0" WC

(3.23 kPa)

Table 3

Manifold Gas Supply Pressure

(millivolt models)

Fuel # Low High

Natural

Gas

(Lo) 1.6" WC

(.40 kPa)

(Hi) 3.5" WC

(.87 kPa)

Propane (Lo) 6.3" WC

(1.57 kPa)

(Hi) 10.0" WC

(2.49 kPa)

Table 4

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

CAUTION: DO NOT ATTEMPT TO TOUCH

THE FRONT ENCLOSURE GLASS WITH

YOUR HANDS WHILE THE STOVE IS IN

USE.

Variable Flame Height Adjustment

All Millivolt appliances are equipped with a

variable gas control valve. Flame height for

these models may be adjusted through a range

between ﬁ xed low and high settings by rotating

the HI/LO knob on the valve (see Figure 3),

alternately, while the appliance is in opera-

tion. Adjust the ﬂ ame height as desired after

lighting the appliance by rotating the variable

adjustment control (HI/LO) knob located on the

front of the valve.

Burn-In Period:

During the ﬁ rst few burns of this appliance there

will be some odor due to the “burn-in” of paints

and lubricants (curing of the high temperature

paint and burning off of lubricants used in the

manufacturing process).

Depending on your use, the burn-in period may

take a few hours or a few days. The dwelling

should be well ventilated during these initial

burns.

WARNING: DO NOT USE ABRASIVE CLEAN-

ERS. NEVER CLEAN THE GLASS WHEN

IT IS HOT.

Maintenance

The appliance and venting system should be

thoroughly inspected before initial use and at

least annually by a qualiﬁ ed service technician.

However, more frequent periodic inspections

and cleanings should be performed by the

homeowner. Homeowner must contact a quali-

ﬁ ed service technician at once if any abnormal

condition is observed.

Refer to the maintenance schedule on page 5

for maintenance tasks, procedures, periodic-

ity and by whom they should be performed.

Always verify proper operation of the appliance

after servicing.

Always turn off gas to the pilot (millivolt appli-

ances) before cleaning. Before re-lighting,

refer to the lighting instructions in this manual.

Instructions are also found on a pull-out panel

located on the rear stove shield.

Keep lower control compartment clean by

vacuuming or brushing at least twice a year.

More frequent cleaning may be required due to

excessive lint from carpeting, bedding materials,

etc. It is important that control compartments,

burners and circulating air passageways of the

appliance be kept clean.

IMPORTANT: TURN OFF GAS AND ANY

ELECTRICAL POWER BEFORE SERVIC-

ING THE APPLIANCE.

Glass Cleaning

Note: Clean glass after ﬁ rst two weeks of opera-

tion (after Burn-In period is over).

The viewing glass should be cleaned periodi-

cally to remove any build-up caused from the

following:

• During start-up, it is normal for condensa-

tion to form on the inside of the glass (this

condensation and fog will usually disappear

in a few minutes). This can cause lint, dust

and other airborne particles to cling to the

glass surface.

VERIFY PROPER OPERATION AFTER

SERVICING.

Models with Porcelain Enamel Finish

Crazing of Porcelain Enamel: Porcelain

enamel, when heated to high temperatures,

is subject to crazing (a very ﬁ ne and random

network of hairline cracks on the surface of

the porcelain). Crazing is a normal occurrence

when enamel is exposed to high temperatures.

Your enamel ﬁ nish will not be harmed nor will

the function of the stove be impaired.

Repairing Chips: If the enamel ﬁ nish on your

stove becomes chipped, it can be touched up

using enamel touch-up paint. For ordering

information, see pages 16.

Cleaning Enamel Surfaces: To remove build-up

of dust, dirt or crud from the enamel surfaces,

combine baking soda and a little water to make a

cleaning paste. Use a soft rag to rub the surface

with the mix until the stains are removed.

Lighting Millivolt Appliances

To light millivolt appliances refer to the detailed

lighting instructions found on page 13 (English)

and page 14 (French). Millivolt appliance lighting

instructions may also be found on the pull-out

lighting instruction labels attached to the rear

stove shield. Refer to Figure 3 on page 3 for

the location of the piezo igniter.

Millivolt appliances are ﬁ tted with a burner ON/OFF

Rocker Switch, located at the right the rear stove

shield as shown in Figure 1. Once the pilot is lit,

the ON/OFF rocker switch will control the appliance

ON/OFF operation. To operate: Toggle the switch

between its ON and OFF positions.

• Initial curing of the high temperature paint

and burning off of lubricants used in the

manufacturing process may result in a ﬁ lm

on the glass.

• A white coating may form on the glass

as a result of impurities and minerals in

the fuel.

It is recommended that the glass be cleaned

two or three times during each heating season,

depending on the circumstances present.

Exterior glass may be cleaned with an non-

ammonia based household cleaner and warm

water as desired (a gas stove glass cleaner is

recommended).

(Model Sereﬁ na, Black Paint) Do not attempt to

repaint the stove until the paint is completely

cured. If the surface later becomes stained or

marred, it may be lightly sanded and touched

up with spray paint (See Small Area Paint

Touch-Up, page 9). Paint is available at your

local authorized Lennox Hearth Products dealer.

Never attempt to paint a hot stove.

If the optional Blower Kit (see page 11 for

ordering information) is installed, do not turn

on a blower during the Burn-In period. Do not

place anything on the stove surface until the

paint is completely cured.

KEEP YOUR HOUSE WELL VENTILATED

DURING THE CURING PROCESS. THE

ODOR AND HAZE EMITTED BY THE

CURING PROCESS CAN BE QUITE

NOTICEABLE AND MAY SET OFF A

SMOKE DETECTOR.

IMPORTANT: ENSURE STOVE IS COM-

PLETELY COLD PRIOR TO CLEANING OR

USING ENAMEL TOUCH UP PAINT.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 5

Maintenance Task Accomplishing Person Procedure

Inspecting/Cleaning Burner, Logs

and Controls

Qualiﬁ ed Service Technician Inspect valve and ensure it is properly operating. Check piping

for leaks. Vacuum the control compartment, ﬁ replace logs and

burner area.

Check Flame Patterns and Flame

Height

Qualiﬁ ed Service Technician Refer to Figure 7 on Page 6 and verify the ﬂ ame pattern and

height displayed by the appliance conforms to the picture. Flames

must not impinge on the logs. Ensure ﬂ ames are steady (not

lifting or ﬂ oating).

Inspecting/Cleaning Pilot and Burner Qualiﬁ ed Service Technician Refer to Figure 7 (Page 6) and Figure 18 (Page 9). Remove

any surface build-up on pilot and burner assembly. Wipe the

pilot nozzles, igniter/ﬂ ame rod and hood. Ensure the pilot ﬂ ame

engulfs the ﬂ ame sensor as shown.

Checking Vent System Qualiﬁ ed Service Technician Inspect the vent system at the top and at the base (within the

ﬁ rebox) for signs of blockage or obstruction. Look for any signs

of dislocation or deterioration of the vent components. Note:

Excessive condensation can cause corrosion of caps, pipe &

ﬁ ttings (excessive condensation can be caused by long lateral

runs, too many elbows and/or exterior portions of the system

being exposed to cold weather). Also inspect wall straps or

plumbers's tabe to ensure it is secure and in place.

Appliance Checkout Qualiﬁ ed Service Technician Perform the appropriate appliance checkout procedure detailed

in this manual.

Replacing Rockwool Ember Materials Homeowner/Qualiﬁ ed Service

Technician

Remove old ember materials and vacuum the rockwool place-

ment area. Place new rockwool as described on Page 9 (see

Figure 18).

Periodically (After the Burning Season)

Maintenance Task Accomplishing Person Procedure

Cleaning Firebox Interior Homeowner Carefully remove logs, rockwool, volcanic stone and vermiculite.

Vacuum out interior of the ﬁ rebox. Clean ﬁ rebox walls and log

grate. Replace logs, Rockwool and volcanic stone as detailed

in this manual.

Check Flame Patterns and Flame

Height

Homeowner Refer to Figure 7 on Page 6 and verify the ﬂ ame pattern and

height displayed by the appliance conforms to the picture. Flames

must not impinge on the logs.

Checking Vent System Homeowner Inspect the vent system at the top and at the base (within the

ﬁ rebox) for signs of blockage or obstruction. Look for any signs

of dislocation of the vent components.

Cleaning Front Glass Enclosure Panel Homeowner Clean as necessary following the directions provided in this

manual. DO NOT TOUCH OR ATTEMPT TO CLEAN GLASS

WHILE HOT.

Anually (Before the onset of the Burning Season)

MAINTENANCE SCHEDULE

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Front Glass Enclosure Panel, Removal

and Installation.

To install the front glass enclosure panel,

proceed as follows:

1. Retrieve the glass door frame. Visually

inspect the gasket on the backside of the

panel. The gasket surface must be clean,

free of irregularities and seated ﬁ rmly.

2. With the stove top off, position the glass

front enclosure panel into the front open-

ing with the gasket facing the relief door

(see Figure 6). Let the bottom of the door

frame gently slide down, then hook the top

ﬂ ange of the glass frame over the top of the

ﬁ rebox frame.

3. Fasten the two latches located beneath the

ﬁ rebox bottom to the glass frame vee-ﬂ ange.

Close both the latches securely.

4. Reinstall the cast iron stove top (read "Cau-

tion," at the bottom of left column).

5. Reinstall Trivet.

Sooting is caused by incomplete combustion in

the ﬂ ames and a lack of combustion air enter-

ing the air shutter opening. To achieve a warm

yellow to orange ﬂ ame with an orange body

that does not soot, the shutter opening must

be adjusted between these two extremes. No

smoke or soot should be present. Reposition the

logs to ensure they are in the proper pin locations

if the ﬂ ames impinge on any of them.

If the logs are properly positioned and soot-

ing conditions exist, the air shutter opening

on the main burner tube should be adjusted.

Normally, the more offsets in the vent system,

the greater the need for the air shutter to be

opened further.

WARNING: NEVER OPERATE THE APPLIANCE

WITHOUT THE GLASS ENCLOSURE PANEL

IN PLACE AND SECURE. DO NOT OPERATE

APPLIANCE WITH THE FRONT GLASS PANEL

CRACKED, BROKEN OR MISSING. REPLACE-

MENT PANELS ARE AVAILABLE THROUGH YOUR

LOCAL LENNOX HEARTH PRODUCTS DEALER

AND MUST BE INSTALLED BY A LICENSED OR

QUALIFIED SERVICE TECHNICIAN.

These are direct-vent appliances. They are

designed to operate only with the front glass

enclosure panel properly installed. Generally, the

glass enclosure panel should not be removed

except to gain access to the components within

the ﬁ rebox, and the appliance may only be oper-

ated without the front glass enclosure panel in

place for very brief periods of time during initial

appliance checkout and adjustment.

During this appliance checkout and adjust-

ment period, a potential safety hazard exists

- EXERCISE EXTREME CAUTION to prevent

the occurrence of any burn injuries from the

exposed ﬂ ames or hot surfaces. Also note,

that while the front glass enclosure panel is

removed, the ﬂ ame will appear to be smaller

than normal.

WARNING: DO NOT ATTEMPT TO SUBSTITUTE

THE MATERIALS USED ON THIS DOOR, OR

REPLACE CRACKED OR BROKEN GLASS WITH

ANY MATERIALS OTHER THAN THOSE PRO-

VIDED BY THE APPLIANCE MANUFACTURER.

THE GLASS DOOR OF THIS APPLIANCE MUST

ONLY BE REPLACED AS A COMPLETE UNIT AS

PROVIDED BY THE MANUFACTURER. DO NOT

ATTEMPT TO REPLACE BROKEN, CRACKED

OR CHIPPED GLASS SEPARATELY.

WARNING: AIR SHUTTER ADJUSTMENT

SHOULD ONLY BE PERFORMED BY A

QUALIFIED PROFESSIONAL SERVICE

TECHNICIAN.

WARNING: HANDLE THE GLASS WITH

EXTREME CARE! CERAMIC GLASS IS

SUSCEPTIBLE TO DAMAGE (SCRATCHES,

FOR EXAMPLE) – HANDLE GLASS DOOR

(GLASS ENCLOSURE PANEL) GENTLY WHILE

REINSTALLING IT.

Burner Adjustments

The following paragraphs address burner

adjustment concerns and procedures.

Flame Appearance and Sooting:

Generally most people prefer the warm glow of

a yellow to orange ﬂ ame. Appliances operated

with air shutter openings that are too large will

exhibit ﬂ ames that are blue and transparent.

These weak, blue and transparent ﬂ ames are

termed anemic. If the air shutter opening is too

small sooting may develop.

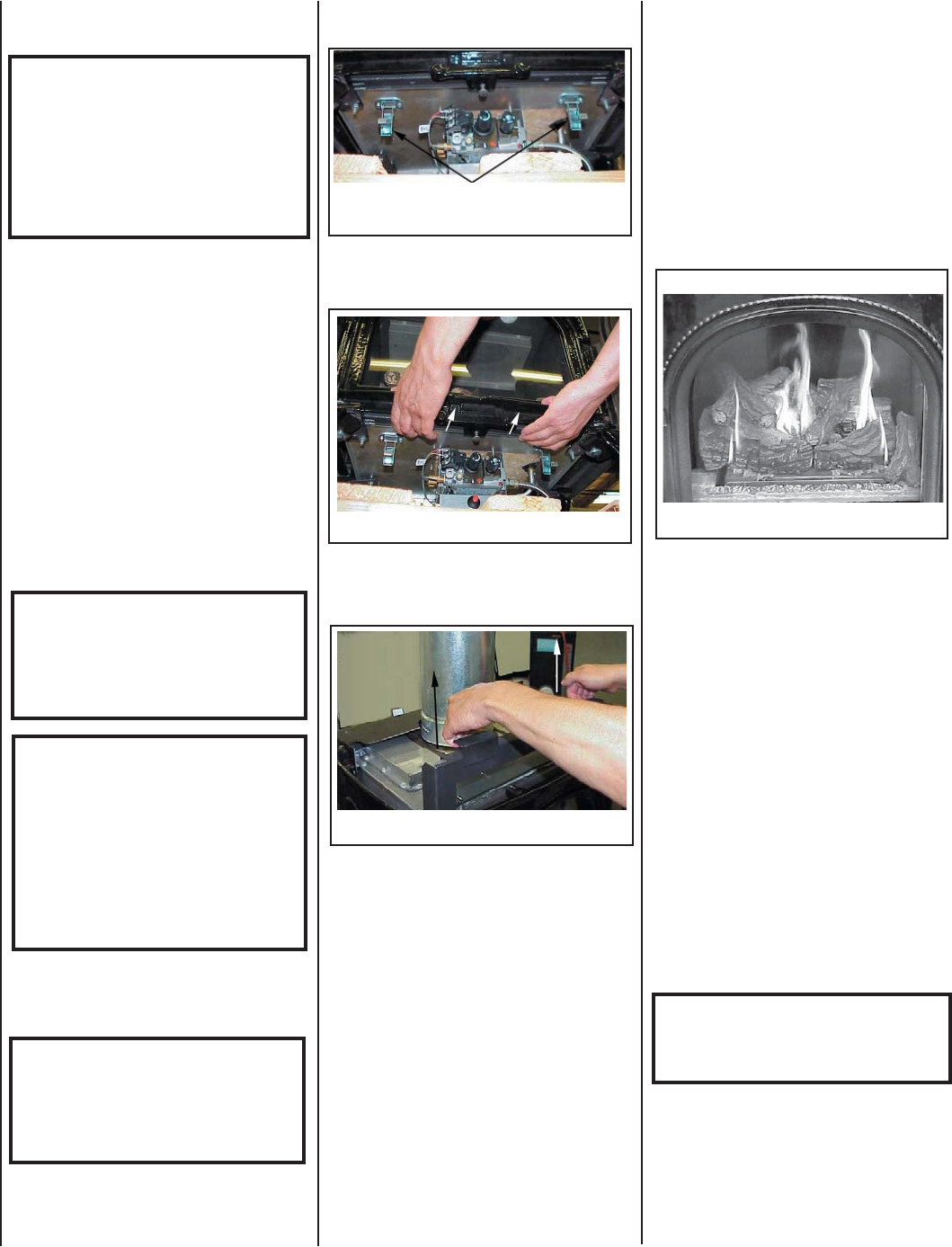

Open both Latches as shown.

Figure 4

3. Reach under the bottom front of the front

glass enclosure and pull it forward as shown

in ﬁ gure 5.

Figure 5

4. Lift glass assembly up and out and carefully

set aside in a safe place (see ﬁ gure 6).

Figure 6

1. Remove the trivet, then the cast iron stove top

by carefully lifting them up and off and setting

them aside (READ CAUTION BELOW).

Sooting is indicated by black puffs developing

at the tips of very long orange ﬂ ames. Sooting

may result in black deposits forming on the

logs, appliance inside surfaces and on exterior

surfaces adjacent to the vent termination.

Burner Flame Appearance

Figure 7

2. Locate and open the 2 latches as shown in

Figure 4 (locate below the stove body).

CAUTION: THE CAST IRON STOVE TOP IS VERY

HEAVY AND MAY REQUIRE A MINIMUM OF

TWO PEOPLE TO LIFT; ONE PERSON ON EACH

SIDE (THE CI1500 SERIES CAST TOP WEIGHS

~20 POUNDS AND THE CI2500 SERIES CAST

TOP WEIGHS ~40 POUNDS).

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 7

ENSURE THAT THE FRONT GLASS PANEL IS IN

PLACE AND SEALED DURING ADJUSTMENT.

Adjustment

CAUTION: THE ADJUSTMENT ROD AND

NEARBY APPLIANCE SURFACES ARE HOT.

EXERCISE CAUTION TO AVOID INJURY WHILE

ADJUSTING FLAME APPEARANCE.

Initially, always position the air shutter to the

factory setting as shown in Figure 8 (adjust-

ment rod is located in the lower control area).

This can be done by moving the adjustment

rod up or down accordingly. Allow the burner

to operate for at least 15 minutes. Observe

the ﬂ ame continuously. If it appears weak

or sooty as previously described, adjust the

air shutter to a more open position until the

desired ﬂ ame appearance is achieved.

The adjustment rod and associated adjustable

air shutter is patented technology. Flame adjust-

ments can be made quickly and accurately to

taste without the need of disassembling the

appliance and waiting for 30 minutes after

each adjustment.

Propane models may exhibit a ﬂ ame pattern

that may candle or appear stringy. If this is

problematic or persists as the appliance is

continually operated, adjust the air shutter

open as described in the previous paragraphs.

Operate the appliance for a period of time as the

effect diminishes, ensuring that the appliance

does not develop sooty ﬂ ames.

Adjustment Rod Up

(1/8" Open Position)

Air Shutter

Burner Tube

Adjusting Set Screw

Adjustment Rod Down

(full open position)

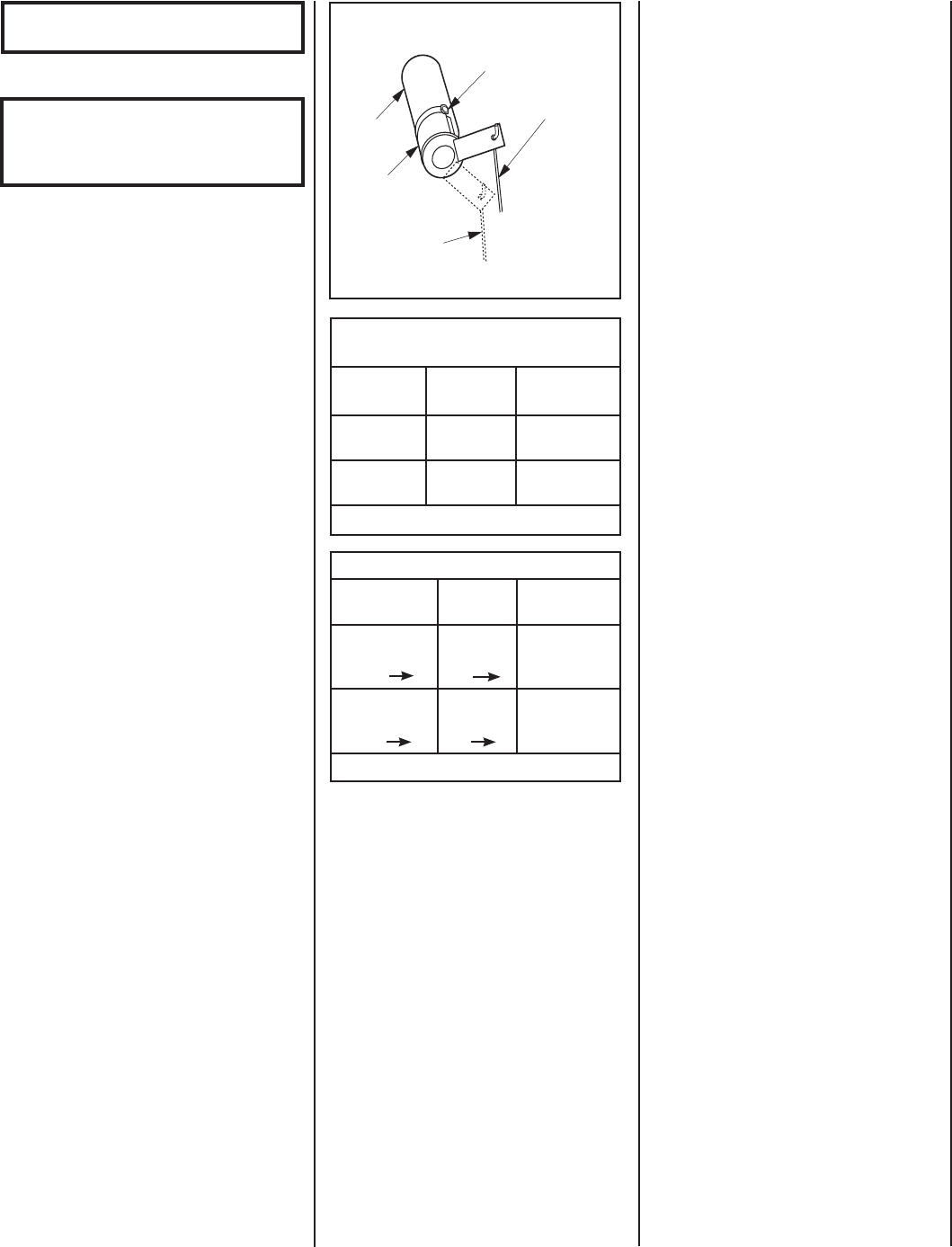

Burner Air Shutter Adjustment Air Shutter Adjustment Guidelines:

If the burner ﬂ ame appearance differs greatly

from what is shown on page 6 (see Burner

Flame Appearance), some adjustment from

the factory setting for the air shutter gap may

be necessary (to compensate for variables in

the installation and fuel such as, BTU value /

composition, gas pressure, speciﬁ c gravity

of gas, altitude, etc.).

Table #6 is provided to aid you in achieving

the correct air shutter adjustment for your

installation.

When satisﬁ ed that the appliance operates

properly, proceed to ﬁ nish the installation.

Leave the control knob in the ON position

and the ON/OFF switch in the OFF position.

Close the lower access door.

Figure 8

Main Burner Factory Air Shutter

Opening Setting - Inches (millimeter)

Model Natural

Gas

Propane

Gas

CI1500DVF 5/16"

(7.93 mm)

5/8"

(15.9 mm)

CI2500DVF 1/2"

(12.7 mm)

5/8"

(15.9 mm)

Table 5

Air Shutter Adjustment Guidelines:

Amount of

Primary Air

Flame

Color

Air Shutter

Adjustment

If air shutter is

closed too far Flame will

be yellow Air shutter

gap should be

increased

If air shutter is

open too far Flame will

be blue Air shutter

gap should be

decreased

Table 6

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

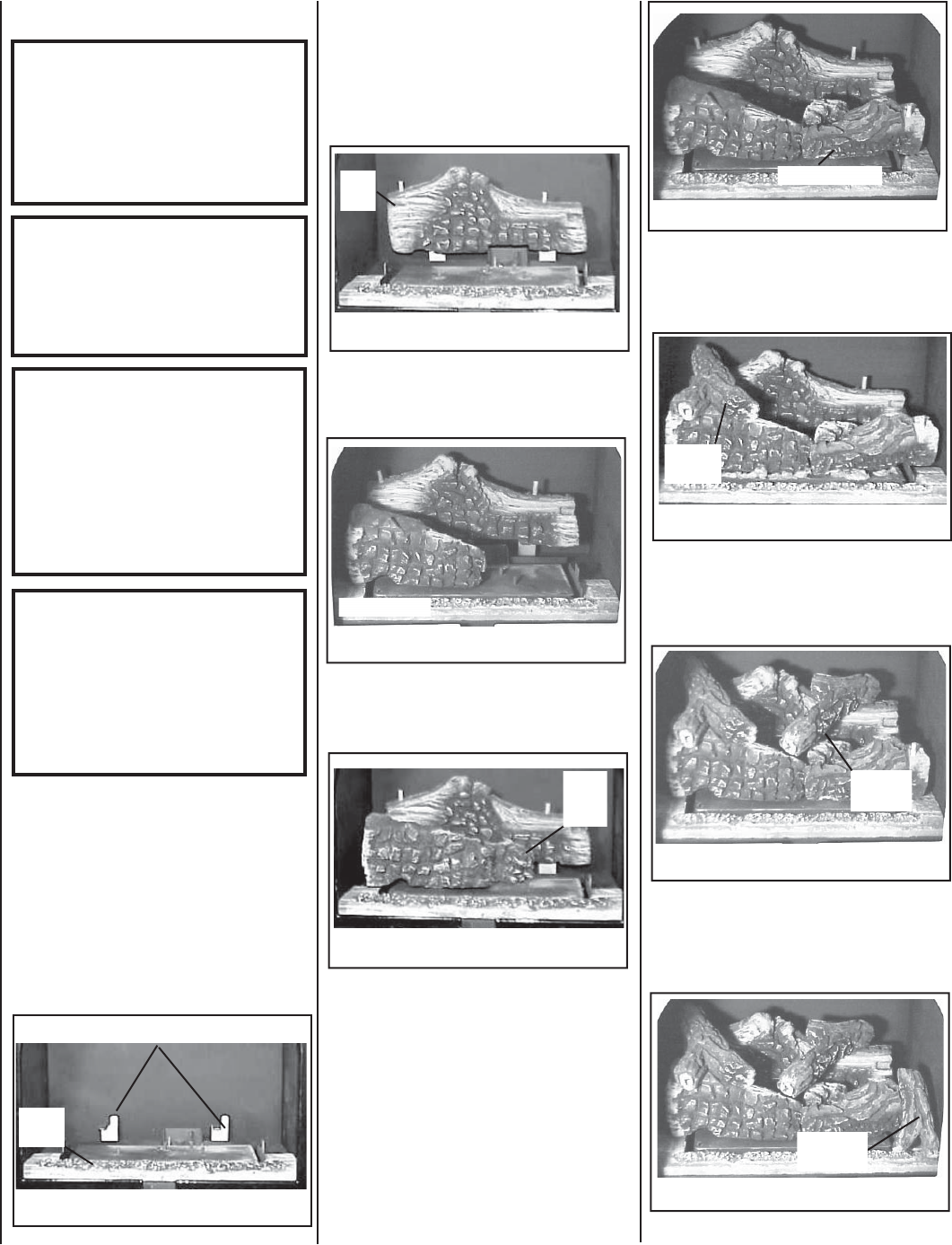

Log Placement

WARNING: THE SIZE AND POSITION ON

THE LOG SET WAS ENGINEERED TO GIVE

YOUR APPLIANCE A SAFE, RELIABLE

AND ATTRACTIVE FLAME PATTERN.

ANY ATTEMPT TO USE A DIFFERENT

LOG SET IN THE STOVE WILL VOID

THE WARRANTY AND WILL RESULT IN

INCOMPLETE COMBUSTION, SOOTING,

AND POOR FLAME QUALITY.

WARNING: LOGS GET VERY HOT AND

WILL REMAIN HOT UP TO ONE HOUR

AFTER GAS SUPPLY IS TURNED OFF.

HANDLE ONLY WHEN LOGS ARE COOL.

TURN OFF ALL ELECTRICITY TO THE

APPLIANCE BEFORE YOU INSTALL

LOGS.

WARNING: THIS APPLIANCE IS NOT

MEANT TO BURN WOOD. ANY ATTEMPT

TO DO SO COULD CAUSE IRREPA-

RABLE DAMAGE TO YOUR APPLIANCE

AND PROVE HAZARDOUS TO YOUR

SAFETY.

WARNING: IF LOGS ARE NOT INSTALLED

ACCORDING TO THE DIRECTIONS

SHOWN HERE, FLAME IMPINGEMENT

AND IMPROPER COMBUSTION COULD

OCCUR AND RESULT IN SOOT AND/OR

EXCESSIVE PRODUCTION OF CARBON

MONOXIDE (CO), A COLORLESS, ODOR-

LESS, TOXIC GAS.

Figure 9

Ember

Strip

Rear Log Stoppers

Rear

Log

Figure 10

2. Place the largest log onto the rear log

stoppers (see Figure 9). Ensure that the

grooves on the bottom of the log aligns

onto the corresponding places on the rear

log stoppers. Push the log back so that it

is against the back of the rear log stoppers

(see Figure 10).

Left Front Log

Figure 11

Center

Log

Piece

Figure 12

4. Place the center log piece over the cor-

responding pins next to the front left log as

shown in ﬁ gure 12.

3. Place the left front log onto the corre-

sponding burner pin and sub-ﬂ oor left tab

as shown in Figure 11.

5. Install the right front log onto the cor-

responding burner pin and sub-ﬂ oor right

tab as shown in ﬁ gure 13.

Right Front Log

Figure 13

Figure 14

Left Top

Twig

6. Install the left top twig onto the correspond-

ing pin on the rear log and align it with the

indentation on the front left log as shown in

ﬁ gure 14.

Center

Top Twig

Right

Front Twig

7. Install the center top twig onto the cor-

responding pin on the rear log and align it

with the indentation on front left log as shown

in ﬁ gure 15.

8. Install the front right twig onto the cor-

responding pin on the right front log. Align

the twig with the indentation on the front right

log as shown in ﬁ gure 16.

Figure 15

Figure 16

Carefully install this seven-piece log set into

the ﬁ rebox as shown in these instructions.

All logs should ﬁ t onto corresponding pins

and/or log stoppers. This will ensure a proper

ﬂ ame and safe combustion.

1. Place the ember strip in front of the burner

as shown in Figure 9. It should be positioned

all the way back (toward the sub-ﬂ oor front

ﬂ ange).

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 9

With proper care and maintenance, your appli-

ance will provide many years of enjoyment. If

you should experience any problem, ﬁ rst refer

to the troubleshooting guide in this manual.

If problem persists, contact your Lennox

distributor.

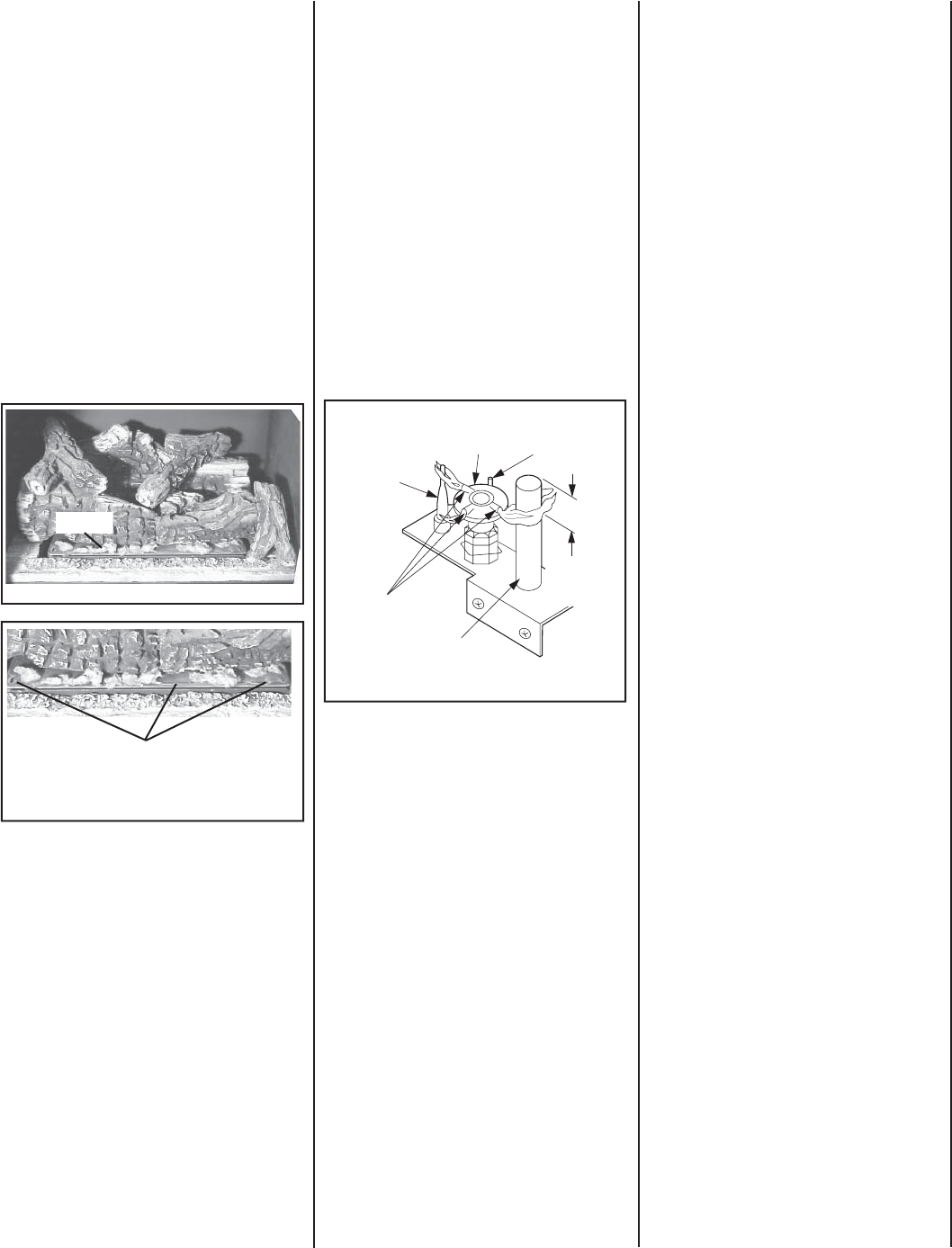

Embers

Figure 17

9. Place the glowing embers on the burner

as shown in ﬁ gures 17 & 18.

One package of ember material has been

included with this log set You will not need

to use the entire bag.

IMPORTANT: The quantity and placement of the

ember material can affect stove performance

therefore it is very important that it be placed

as shown in ﬁ gures 17 & 18.

a. Unpackage and divide the ﬁ ne ember material

(mineral wool) into dime-sized ﬂ uffy pieces.

b. Distribute the pieces over the top of the

front burner ports. Avoid covering the slots

and ﬁ lling the area in front of the forward logs

(see ﬁ gure 18).

DO NOT PLACE EMBERS ON TOP OF THE

BURNER SLOTS.

Figure 18

Proper Pilot Flame Appearance

SIT Millivolt Appliance Checkout

The pilot ﬂ ame should be steady, not lifting

or ﬂ oating. Flame should be blue in color with

traces of orange at the outer edge. The top 3/8"

(10 mm) at the pilot generator (thermopile)

and the top 1/8" minimum (tip) of the quick

drop out thermocouple should be engulfed

in the pilot ﬂ ame. The ﬂ ame should project 1"

(25 mm) beyond the hood at all three ports

(Figure 19).

Replace logs if removed for pilot inspec-

tion.

To light the burner, rotate the gas valve control

knob counterclockwise to the “ON” position

then turn “ON” the on/off rocker switch.

MILLIVOLT

Thermocouple

Hood Igniter Rod

3/8" Min.

(9 mm)

Thermopile

Pilot

Nozzels

Figure 19

Small Area Paint Touch-up

(Black Painted Stoves Only)

The stove body is painted with a quality high-

temperature stove paint. Only use factory sup-

plied Stove Paint for touch-ups (70K99).

Using one small piece of 320 grit sand paper

and lightly sand the blemish so that the edges

are “feathered” or smooth to the touch between

the painted and bare sur-faces. Do not let the

sand paper gum up with paint, as this will

cause scratches on the metal surface. If there

are any scratches, use 600 grit sandpaper

instead. Mask off surfaces you do not want

painted. Paint lightly over the bare surface

ﬁ rst as this will act as an under-coat. Then

paint over a larger area in smooth even strokes

to blend.

See Burn-In Period on page 4 for information

on curing the paint.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

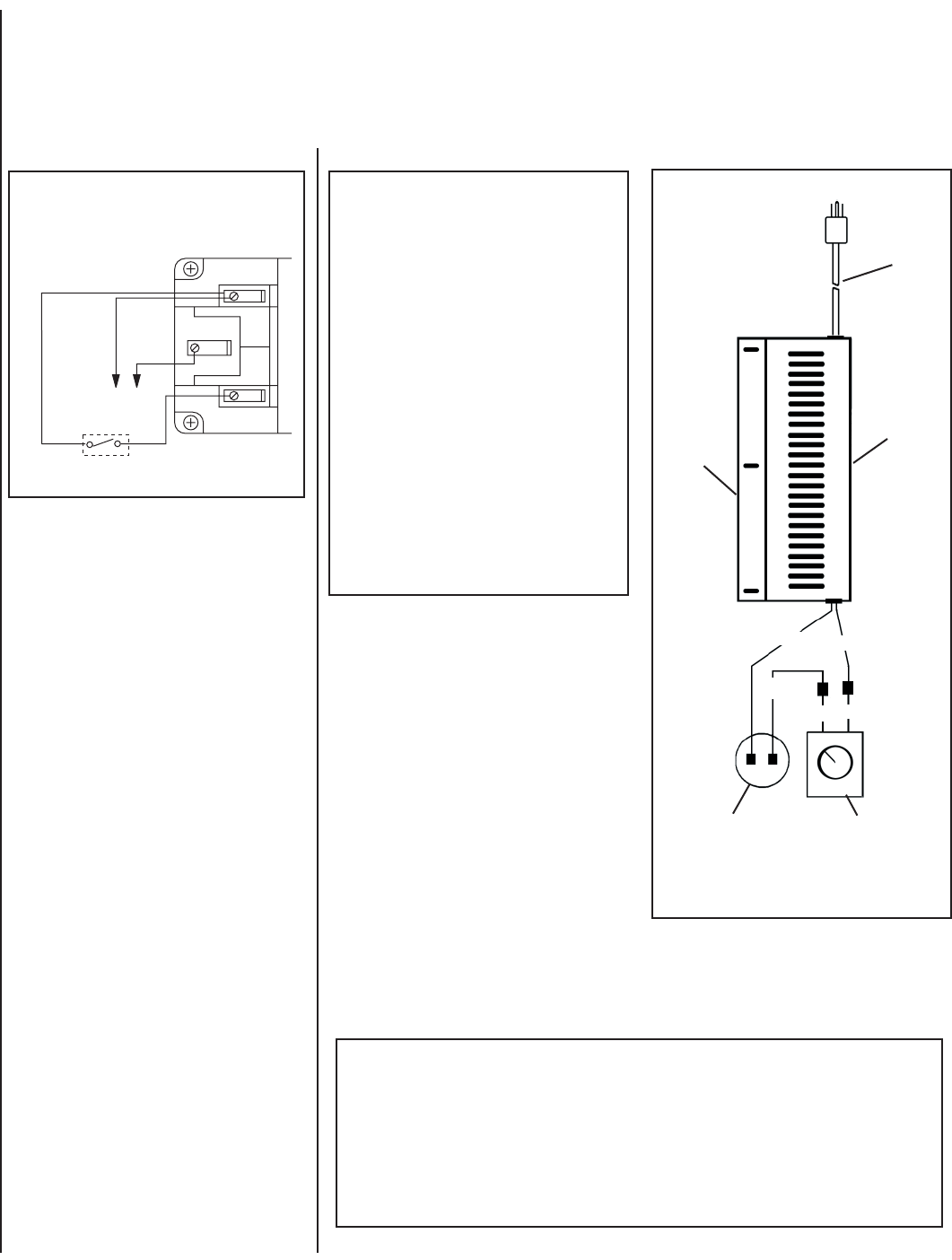

WIRING DIAGRAMS

Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance

on a pullout panel located within the control compartment.

CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DAN-

GEROUS APPLIANCE OPERATION.

WARRANTY INFORMATION

Your gas appliance is covered by a limited twenty

year warranty. You will ﬁ nd a copy of the war-

ranty accompanying this manual. Please read

the warranty to be familiar with its coverage.

Retain this manual. File it with your other docu-

ments for future reference.

REPLACEMENT PARTS

A complete parts list is found at the end of

this manual. Use only parts supplied from the

manufacturer.

Normally, all parts should be ordered through

your Lennox Hearth Products Distributor or

Dealer. Parts will be shipped at prevailing prices

at time of order.

PRODUCT REFERENCE INFORMATION

We recommend that you record the following important information about your stove. Please

contact your Lennox Hearth Products Dealer for any questions or concerns. For the number of

your nearest Lennox Hearth Products Dealer, please call 800-731-8101

Your Stove's Model Number __________________________________________

Your Stove's Serial Number ___________________________________________

The Date On Which Your Stove Was Installed _____________________________

The Type of Gas Your Stove Uses ______________________________________

Your Dealer's Name ________________________________________________

If you encounter any problems or have any ques-

tions concerning the installation or application

of this system, please contact your distributor,

or Lennox directly:

LHP

1110 West Taft Avenue

Orange, CA 92865

Visit us at www.LennoxHearthProducts.com

When ordering repair parts, always give the

following information:

1. The model number of the appliance.

2. The serial number of the appliance.

3. The part number.

4. The description of the part.

5. The quantity required.

6. The installation date of the appliance.

If any of the original wire as supplied must be replaced,

it must be replaced with Type AWM105°C – 18 GA. wire.

Thermopile

TP TH

* ON/OFF SWITCH, OPTIONAL

THERMOSTAT

OR REMOTE

* SWITCH

CONTROL RECEIVER

Figure 20

Blower

Mounting

Bracket

Black

White

Fan Disc Rheostat

Blower

Assembly

(Shown

Rotated 90

Degrees CCW)

Black

Power Cord

Blower Wiring Diagram

IMPORTANT: Ground supply wire must be

connected to the green wire attached to

the green ground screw. Failure to do so

will result in a potential safety hazard. The

appliance must be electrically grounded

in accordance with local codes or, in

the absence of local codes, the National

Electrical Code, ANSI/NFPA 70 - latest

edition. (In Canada, the current CSA C22-1

Canadian Electrical Code - latest edition.

WARNING: The power cord MUST BE

PLUGGED DIRECTLY INTO A PROPERLY

GROUNDED THREE-PRONG 120 VOLT, 60

HZ WALL RECEPTACLE. Do not cut or

remove the grounding prong from this

plug. Do not route power cord under or in

front of appliance.

Optional Room Air Blower

SIT Millivolt Wiring Diagram

Figure 21

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 11

Firescreen Kits

These ﬁ rescreens can be installed on the glass

enclosure panel to provide protection from

the hot glass surface.

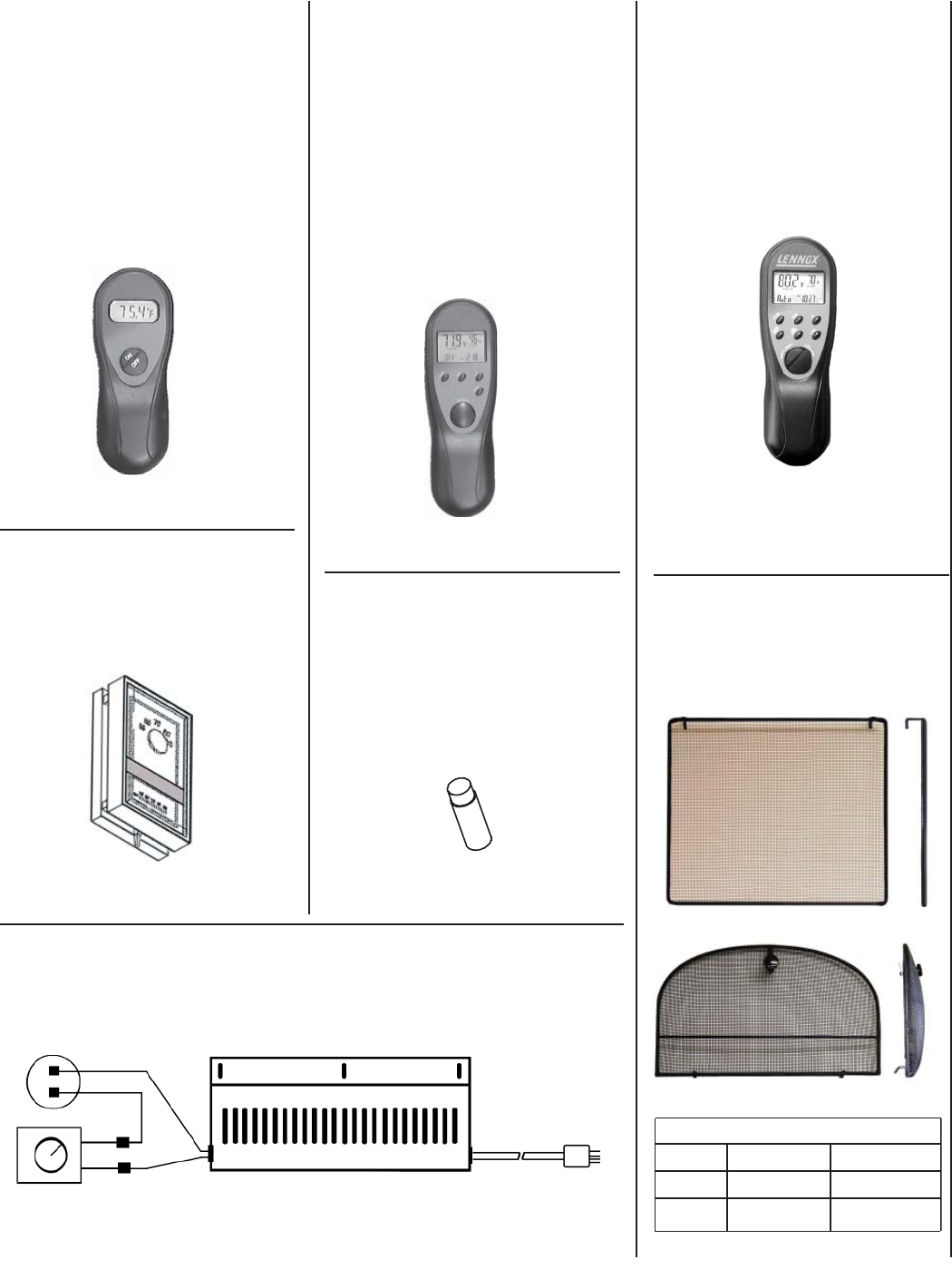

ACCESSORY COMPONENTS

H0249 RCL Remote Control System (Standard)

Standard Remote Control System

The Model RCL (Standard) Remote Control

System, features a simple On/Off control

function for the stove. This model includes a

hand-held transmitter, a remote receiver with

wall-mount coverplate and all hardware required

to install the unit. The remote receiver can be

wall or hearth mounted.

Deluxe Remote Control System

The Model RCL-T (Deluxe) Remote Control

System has all of the features of the standard

system along with an added easy to read LCD

screen which presents access to many enhance-

ments, including; battery power level indicator,

timer, mode of operation, thermostatic display

including room temperature in either metric

or English units, ﬂ ame indicator and clock.

Fully programmable, the Model RCL-T allows

for command over nearly all operational and

temperature variables, using the hand held

remote control transmitter.

H0251 RCL-T Remote Control System (Deluxe)

Touch-Up Paint Kit (painted models

only)

Repair of minor scratches and discoloration

of the appliance's painted surfaces may be

accomplished with the use of these touch-up

paint kits.

70K99, Touch-Up Paint (Black) Kit

Room Air Blower Kit

The BK-CI blower provides constant velocity forced air circulation. It includes a variable speed

control rheostat and a thermally activated fan disc.

.oNledoM . (model)oNat.C

CI1500DVF

CI2500DVF

H0768 (FSF-CI15)

Flat Bubble

H0769 (FSB-CI15)

H0770 (FSF-CI25) H0771 (FSB-CI25)

Firescreen Kits

. (model)oNat.C

Variable Speed Control Rheostat

Thermally Activated Switch

H0767 BK-CI Blower Kit CI1500 & CI2500

Flat Firescreen

Bubble Firescreen

Flame Modulating Remote Control

System

The Model RCL-MN & RCL-ML remote controls

have on and off burner control, ﬂ ame height

adjustment, thermostat operation and a timer

to shut unit down automatically. This system

also provides blower on/off and speed control

(if optional BK-CI Blower Kit is installed).

Flame Modulating Remote Control

H0301 RCL-MN Natural Gas

H0302 RCL-ML LP/Propane Gas

89L36 WTK Wall Thermostat KiT

Wall Thermostat

The wall thermostat kit provides temperature

control for optimum comfort.

Blower

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Side View of Warming Shelf

ACCESSORY COMPONENTS CONTINUED

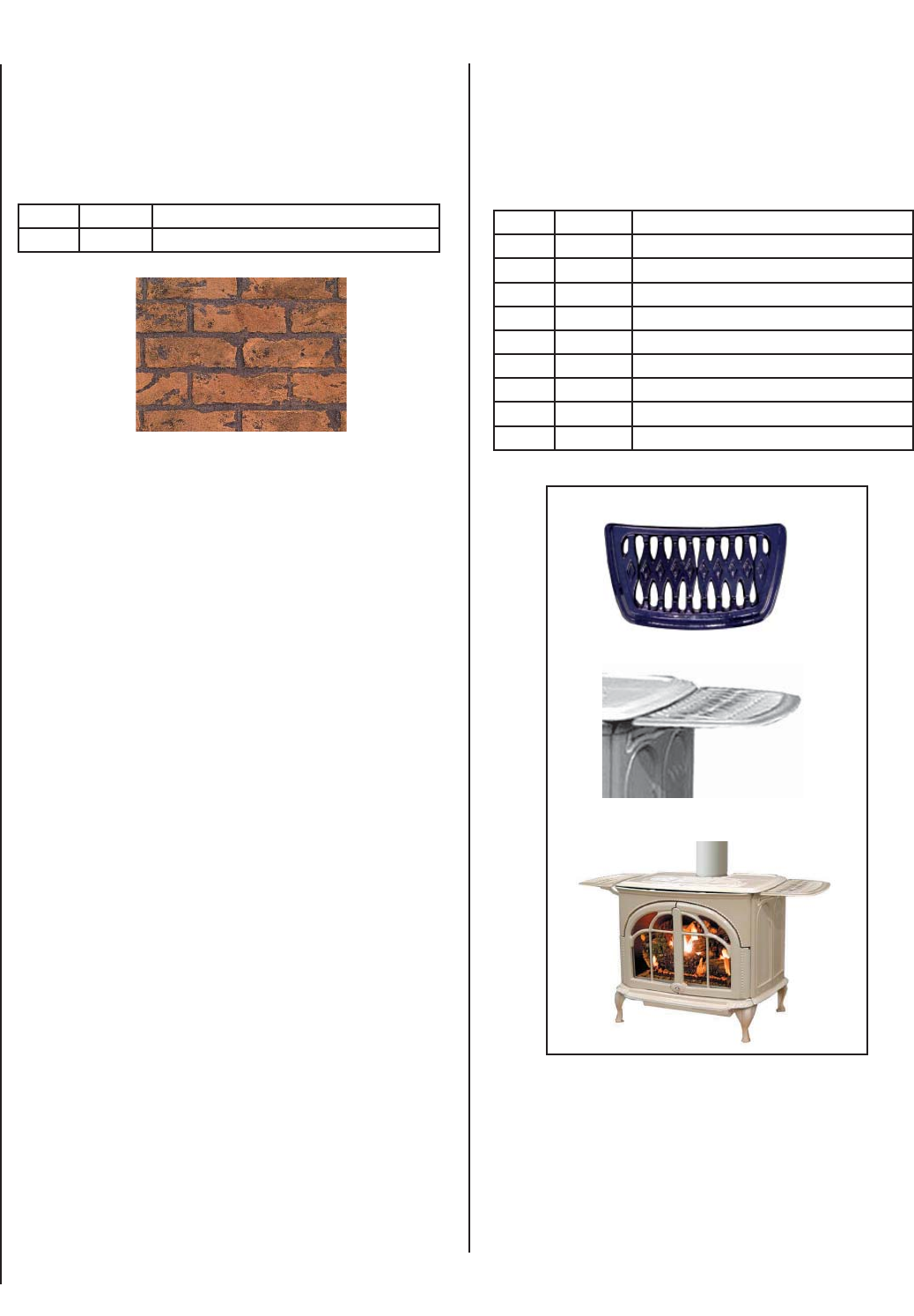

Brickaded Liner Kits

The brickade liner kits include panels for the rear and side walls of the

ﬁ rebox. The panels have brick-like features in relief. These kits can be

retroﬁ tted into previously installed appliances.

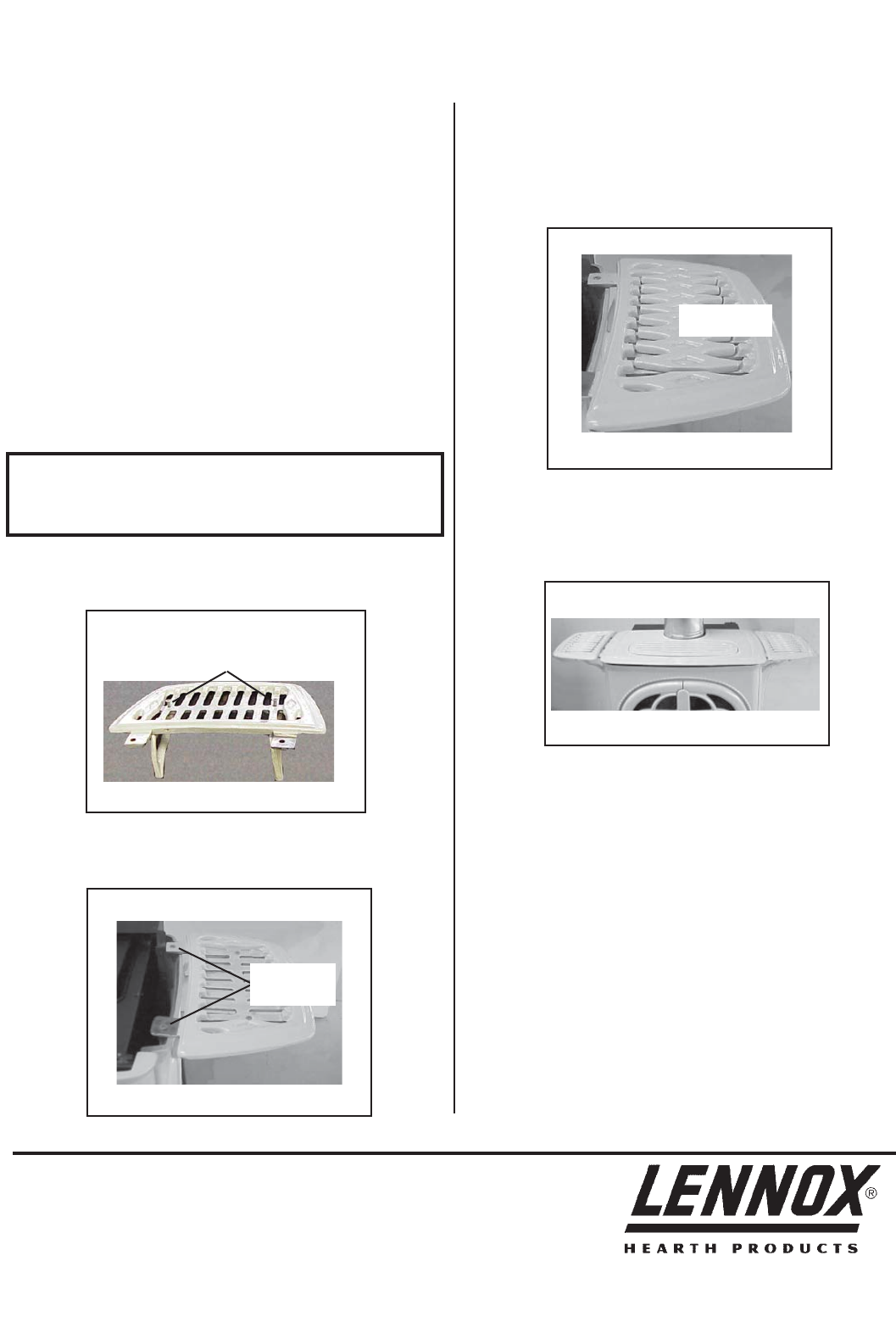

Warming Shelves

These attactive warming shelves are designed to be functional for

placing food to stay warm. The shelves extend on both sides of the

stove top and add an attractive accent. See back page for installation

instructions.

Top View of Warming Shelf

Full View Showing Warming Shelves Installed

H0757 WS-CI150 Warming Shelves, CI1500 Black

H0758 WS-CI152 Warming Shelves, CI1502 Mid Blu

H0759 WS-CI154 Warming Shelves, CI1504 Maj Bwn

H0760 WS-CI156 Warming Shelves, CI1506 Hu Grn

H2159 WS-CI158-2 Warming Shelves, CI1508-2 Ivory White

H0762 WS-CI250 Warming Shelves, CI2500 Black

H0763 WS-CI252 Warming Shelves, CI2502 Mid Blu

H0764 WS-CI254 Warming Shelves, CI2504 Maj Bwn

H0765 WS-CI256 Warming Shelves, CI2506 Hu Grn

H2158 WS-CI258-2 Warming Shelves, CI2508-2 Ivory White

H0773 BLK-CI15 Brick Liner Kit CI1500DVF Series

H0774 BLK-CI25 Brick Liner Kit CI2500DVF Series

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 13

6. Wait ﬁ ve (5) minutes to clear out any gas. If you then smell gas,

STOP! Follow “B” in the safety information above on this page. If you

do not smell gas, go to the next step.

7. Push in gas control knob slightly and turn counterclockwise

to “PILOT.”

8. Push in control knob all the way and hold in. Immediately light the

pilot by triggering the spark igniter (pushing the button) until pilot

lights. Continue to hold the control knob in for about 1 1/2 minutes

after the pilot is lit. Release knob and it will pop back up. Pilot should

remain lit. If it goes out, repeat steps 5 through 8.

• If knob does not pop up when released,

stop and immediately call your service

technician or gas supplier.

• If pilot will not stay lit after several

tries, turn the control knob to “OFF”

and call your service technician or gas

supplier.

9. Turn gas control knob counterclockwise

to “ON.”

10. Close lower control compartment.

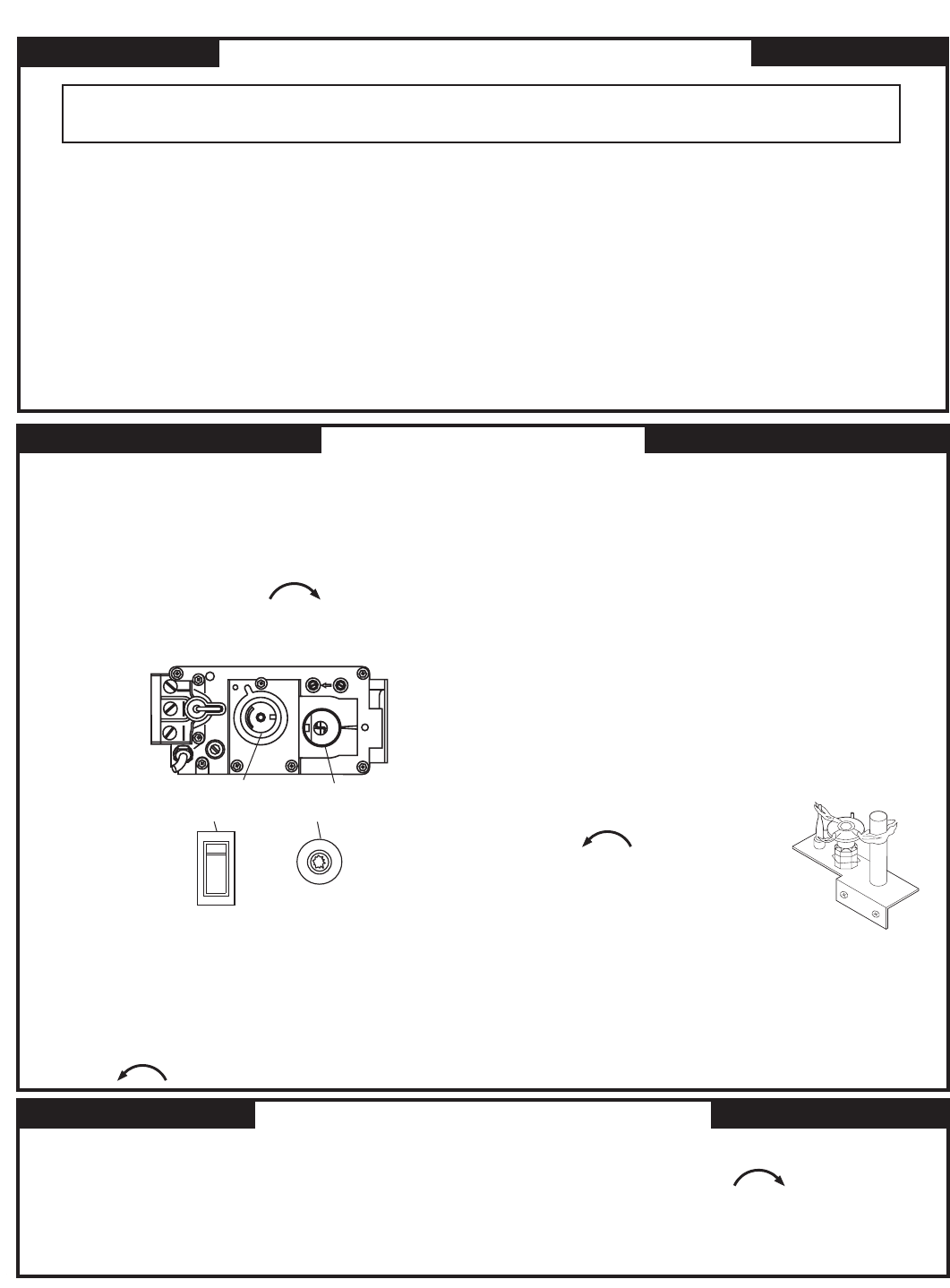

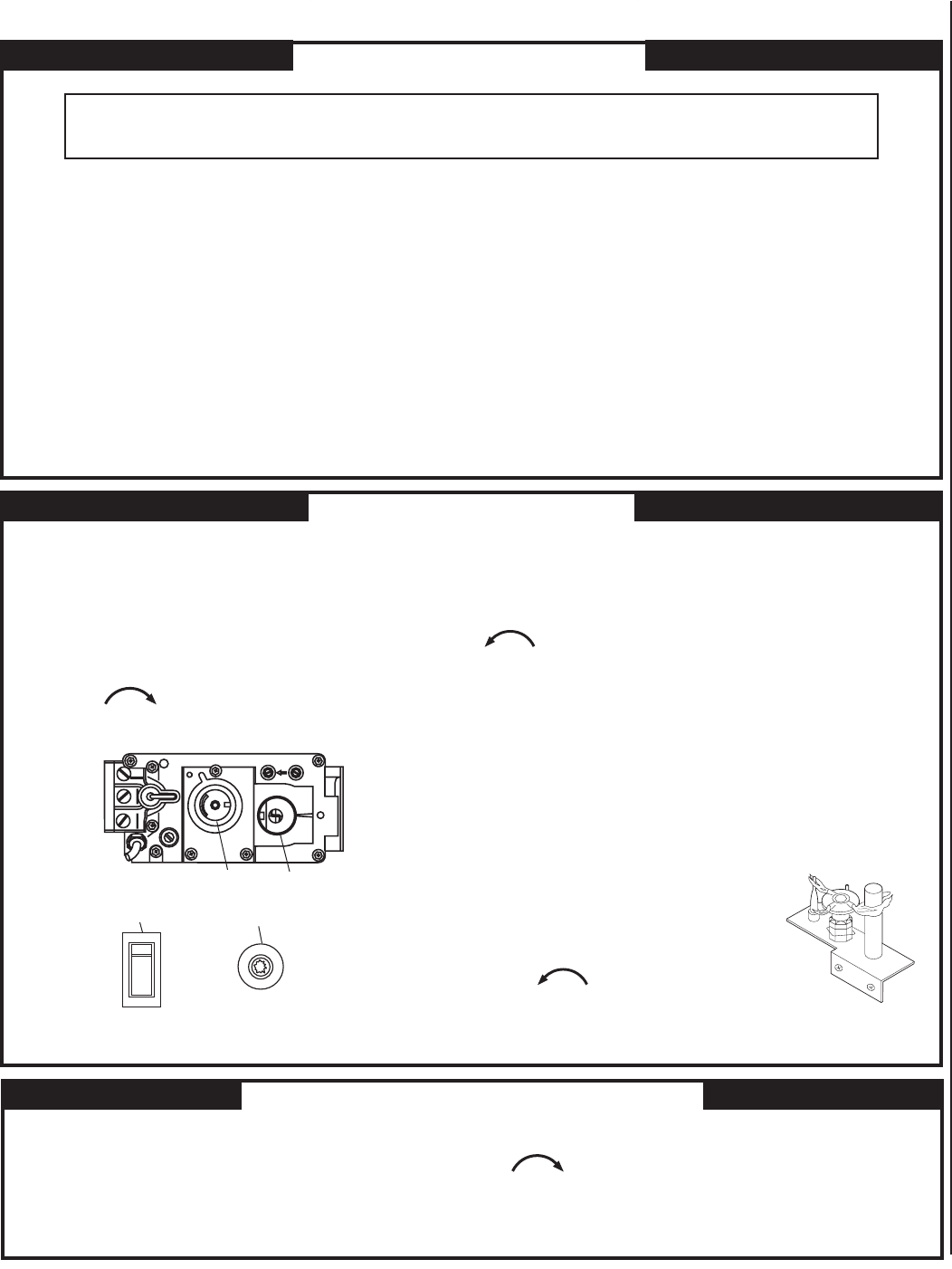

LIGHTING INSTRUCTIONS – SIT MILLIVOLT GAS VALVE

WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION

MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

FOR YOUR SAFETY READ BEFORE LIGHTING

A. This appliance has a pilot which must be lighted with a

piezo igniter. When lighting the pilot, follow these instructions

exactly.

B. BEFORE OPERATING smell all around the appliance area for

gas. Be sure to smell next to the ﬂ oor because some gas is

heavier than air and will settle on the ﬂ oor.

WHAT TO DO IF YOU SMELL GAS

• Extinguish any open ﬂ ame.

• Open windows.

• Do not light any appliance.

• Do not touch any electrical switches.

TO TURN OFF GAS TO APPLIANCE

1. Turn remote wall switch “OFF.” The pilot will remain lit for

normal service.

2. For complete shutdown, turn remote wall switch to “OFF.”

3. Access the lower control compartment.

4. Depress gas control knob slightly and turn clockwise

to “OFF.” Do not force.

5. Close lower control compartment.

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information above on this page.

2. Access the lower control compartment.

3. Turn remote wall switch to “OFF.”

4. Verify main line shut-off valve is open.

5. Push in gas control knob slightly and turn clockwise

to “OFF.”

• Do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s

phone.

• If your gas supplier cannot be reached, call the ﬁ re depart-

ment.

C. Use only your hand to push in or turn the gas control knob.

Never use tools. If the knob will not push in or turn by hand,

do not try to repair it, call a qualiﬁ ed service technician. Force

or attempted repair may result in a ﬁ re or an explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualiﬁ ed service technician to inspect the

appliance and to replace any part of the control system and

any gas control which has been under water.

Note: Knob cannot be turned from “PILOT” to “OFF”

unless the knob is pushed in slightly. Do not force.

SIT

MILLIVOLT PILOT

TPTH TP TH

OUT

SIT Millivolt Gas Valve

- LO / HI + GAS CONTROL

KNOB

TP/TH

PIEZO

IGNITER

BURNER

ON/OFF SWITCH

OFF

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

INSTRUCTIONS D’ALLUMAGE – VANNE GAZ MILLIVOLT SIT

INSTRUCTIONS D'ALLUMAGE

8. Enfoncez le bouton de réglage jusqu’au fond et gardez-le enfoncé.

Allumez immédiatement la veilleuse en déclenchant l’allume-gaz

à étincelle (en poussant le bouton) jusqu’à ce que la veilleuse

s’enﬂ amme. Continuez de tenir le bouton de réglage enfoncé

pendant environ 90 secondes après l’allumage de la veilleuse.

Relâchez le bouton et il sortira subitement. La veilleuse devrait

rester allumée. Si elle s’éteint, répétez les étapes 5 à 8 inclusive-

ment.

• Si le bouton ne sort pas automatiquement après avoir été relâché,

arrêtez immédiatement et téléphonez à votre technicien de service

ou à votre fournisseur de gaz.

• Si la veilleuse refuse de rester allumée après plusieurs tentatives,

tournez le bouton de réglage jusqu’à sa position d’arrêt “OFF” et

téléphonez à votre technicien de service

ou à votre fournisseur de gaz.

9. Tournez le bouton de réglage du gaz

en sens inverse des aiguilles d’une

montre jusqu’à sa

position de marche “ON”.

10. Fermez le compartiment de contrôle

du bas.

11. Au besoin, rebrancher l’appareil

au courant électrique et remettre

l’interrupteur du brûleur principal à la

position “ON” ou régler le thermostat à

la température désirée.

12. Si l’appareil ne fonctionne pas, suivre les instructions intitulées

“Pour fermer le gaz qui alimente l’appareil” et appeler un tech-

nicien ou le fournisseur de gaz.

AVERTISSEMENT : SI VOUS NE SUIVEZ PAS CES INSTRUCTIONS À LA LETTRE, IL POURRAIT S’EN SUIVRE UN INCENDIE OU

UNE EXPLOSION CAUSANT DES DOMMAGES MATÉRIELS, DES BLESSURES CORPORELLES OU MÊME DES PERTES DE VIE.

POUR VOTRE SÉCURITÉ, LISEZ CES INSTRUCTIONS AVANT L’ALLUMAGE

A. Cet appareil est muni d’une veilleuse qui doit être allumée avec un

allumeur piézo-électrique. Lorsque vous allumez la veilleuse, suivre

exactement ces instructions.

B. AVANT L’ALLUMAGE: Assurez-vous que vous ne détectez aucune odeur

de gaz autour de l’apareil ainsi que près du sol; certains gaz, étant plus

lourds que l’air, descendent au niveau du sol.

VOICI CE QUE VOUS DEVEZ FAIRE SI VOUS DÉCELEZ UNE ODEUR

DE GAZ:

• Éteignez toute ﬂ amme visible.

• Ouvrez les fenêtres.

• N’allumez aucun appareil.

• Ne touchez à aucun commutateur électrique.

• Ne vous servez d’aucun téléphone dans votre édiﬁ ce.

• Appelez immédiatement votre compagnie de gaz en utilisant le télé-

phone du voisin.

• S’il vous est impossible de contacter votre compagnie de gaz, appelez

le service des incendies.

C. N’utilisez que votre main pour manipuler le bouton de réglage du gaz.

N’utilisez jamais d’outils. Si le bouton refuse de tourner ou de bouger,

n’essayez pas de le réparer. Communiquez immédiatement avec un

technicien de service qualiﬁ é. Toute tentative pour le forcer ou le

réparer, risquerait de provoquer un incendie ou une explosion.

D. Ne vous servez pas de cet appareil si l’un de ses éléments a été

immergé dans l’eau. Appelez immédiatement un technicien compétent

pour faire inspecter l’appareil et remplacer toute pièce du système de

réglage ou commande du gaz qui a été sous l’eau.

1. ARRÊTEZ! Lisez les consignes de sécurité au verso de cette plaque.

2. Ouvrez le compartiment de contrôle du bas.

3. Tournez l’interrupteur mural à la position d’arrêt “OFF”.

4. Assurez-vous que la soupape d’arrêt de la canalisation principale

est ouverte.

5. Enfoncez légèrement le bouton de réglage du gaz et tournez-le dans

le sens des aiguilles d’une montre jusqu’à la

position d’arrêt “OFF”.

Remarque: Il est impossible de tourner le bouton de “PILOT” à “OFF” à

moins qu’il ne soit légèrement enfoncé. Ne le forcez pas.

6. Attendez cinq (5) minutes pour l’evacuation du gaz. Si vous décelez

une odeur de gaz, ARRÊTEZ ! Retournez au point “B” des consignes

de sécurité au verso de cette plaque. Si vous ne remarquez aucune

odeur de gaz, passez à l’étape suivante.

7. Enfoncez légèrement le bouton de réglage du gaz et tournez-le

en sens inverse des aiguilles d’une montre jusqu’à la position de

veilleuse “PILOT”.

1. Tournez l’interrupteur mural à la position d’arrêt “OFF”. La veilleuse

restera allumée jusqu’au retour du service normal.

2. Pour une fermeture complète, tournez l’interrupteur mural à la posi-

tion d’arrêt “OFF”.

3. Ouvrez le compartiment de contrôle du bas.

POUR FERMER LE GAZ QUI ALIMENTE L’APPAREIL

4. Enfoncez légèrement le bouton de réglage du gaz et tournez-le dans

le sens des aiguilles d’une montre jusqu’à la position

d’arrêt “OFF”. Ne forcez pas le bouton.

5. Fermez le compartiment de contrôle du bas.

SIT

MILLIVOLT PILOT

VANNE GAZ MILLIVOLT SIT

TPTH TP TH

OUT

TP/TH

ON/OFF

OFF

BOUTON DE RÉGLAGE DU GAZ

- LO / HI + (COMMANDE

DE TAILLE DE FLAMME)

ALLUMEUR

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 15

TROUBLESHOOTING THE MILLIVOLT GAS CONTROL SYSTEM

Note: Before troubleshooting the gas control system, be sure external gas shut off valve (located at gas supply

inlet) is in the “ON” position.

Important: Valve system troubleshooting should only be accomplished by a qualiﬁ ed service technician.

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

1. Spark igniter will not light pilot after

repeated triggering of igniter button. A. Defective igniter

(no spark at electrode). Check the gap between the electrode and pilot. It should

be between 1/8” and 3/16." If the gap is out of this

range, adjust the gap or replace the pilot.

B. Defective or misaligned electrode at pilot

(spark at electrode). Using a match, light pilot. If pilot lights, turn off pilot

and trigger the igniter button again. If pilot lights, an

improper gas mixture caused the bad lighting and a

longer purge period is recommended. If pilot will not

light – check gap at electrode and pilot – It should

be between 1/8” and 3/16." If the gap is out of this

range, adjust the gap or replace the pilot. (Figure 18

on page 9 ).

C. Gas supply pressure errant. Check inlet gas pressure. It should be within the limits

as marked on the rating plate.

D. Pilot oriﬁ ce plugged. Clean or replace pilot oriﬁ ce.

2. Pilot will not stay lit after

carefully following the lighting

instructions.

A. Defective pilot generator

(thermocouple). Check pilot ﬂ ame, it must impinge on thermocouple

(Figure 18 on page 9 ). Clean and/or adjust pilot for

maximum ﬂ ame impingement on thermocouple.

Ensure that the connection between the valve and

thermocouple are tight and secure.

3. Pilot burning, no gas to burner, Valve

knob “ON,” Wall Switch “ON.” A. Wall switch or wires defective. Check wall switch and wires for proper connections.

Jumper wire across terminals at wall switch, if burner

comes on, replace defective wall switch. If okay, jumper

wires across wall switch wires at valve, if burner comes

on, wires are faulty or connections are bad.

B. Thermopile may not be generating suf-

ﬁ cient millivoltage. Check thermopile with millivolt meter. Take reading

at thermopile terminals of gas valve. Should read

325 millivolts minimum with optional wall switch

“OFF.” Replace faulty thermopile if reading is below

speciﬁ ed minimum.

C. Plugged burner oriﬁ ce. Check burner oriﬁ ce for stoppage and remove.

4. Frequent pilot/burner outage prob-

lem. A. Pilot ﬂ ame may be too low or blowing (high)

causing the pilot/valve safety to drop out. Clean and/or adjust pilot ﬂ ame for maximum ﬂ ame

impingement on thermocouple (Figure 18 on page

9 ).

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Gas Controls

Item # Part/Cat. No. Description Where Used

1 H1657 Valve Assembly – Natural Gas, SIT All

30 H2211 Gas Train Assembly, MV, Natural Gas (LP units will also require LB-102158A) CI1500DVF Series

30 H2212 Gas Train Assembly, MV, Natural Gas (LP units will also require LB-102158B) CI2500DVF Series

2 111061 Piezo Igniter, Push Button All

3 69L1701 Pilot Assembly, Natural Gas All

5 LB-92706 Pilot Shield All

6 74L5601 Pilot Tube All

45135 RB Regulator (Hi/Lo)- Natural Gas, SIT (H1656) – Converts LP Valve to NG All

45136 RB Regulator (Hi/Lo)- Propane Gas, SIT – Converts NG Valve to LP All

7 74L5701 Thermocouple All

8 60J79 Thermopile (pilot generator) All

LB-101432 Tube, Gas Valve All

H1061 Wire Harness, Valve All

15 74L5801 Electrode and Cable All

Miscellaneous Parts

4 55M91 Bracket, Corner, Black Painted, 1 ea. CI1500DVF Series

4 66M03 Bracket, Corner, Black Painted, 1 ea. CI2500DVF Series

9 42M72 Burner Assembly CI1500DVF Series

10 42M73 Burner Assembly CI2500DVF Series

LB-102158A Conversion Kit, NG to LP (RB Reg., Pilot Orifice, Burner Orifice & Label) CI1500DVF Series

LB-102158B Conversion Kit, NG to LP (RB Reg., Pilot Orifice, Burner Orifice & Label) CI2500DVF Series

11 93L32 Gas Line Connector, Flexible, With Shut-Off Valve, 1 ea. All

12 LB-101425A Glass Panel Enclosure Assembly, Complete CI1500DVF Series

12 LB-101425B Glass Panel Enclosure Assembly, Complete CI2500DVF Series

29b 527 Knob, Rheostat, 1 ea. All

69L21 Latch, 1 ea. All

13 24M1001 Orifice, Main Burner, #37, Natural Gas, 1 ea. CI1500DVF Series

13 H1073 Orifice, Main Burner, .121", Natural Gas, 1 ea. CI2500DVF Series

55M62 Paint, Touch-up for enamel, 1/2 oz Bottle - Hunter Green, 1 ea. CI1506DVF & CI2506DVF

H2162 Paint, Touch-up for enamel, 1/2 oz Bottle - Ivory White, 1 ea. CI1508DVF-2 & CI2508DVF-2

55M61 Paint, Touch-up for enamel, 1/2 oz Bottle - Maj. Brown, 1 ea. CI1504DVF & CI2504DVF

55M60 Paint, Touch-up for enamel, 1/2 oz Bottle - Mid. Blue, 1 ea. CI1502DVF & CI2502DVF

14 27K30 Switch, ON/OFF (Rocker Switch), 1 ea. All

74L5801 Wire, Igniter Electrode (includes electrode), 1 ea. All

Log Sets

16 35M66 Ember Strip (bottom front refractory), 1 ea. CI1500DVF Series

16 42M61 Ember Strip (bottom front refractory), 1 ea. CI2500DVF Series

17 88L53 Embers, Bag of (1 oz. rockwool), 1 ea. All

18 H1065 Log Set, 7 pc. CI1500DVF Series

18 H1075 Log Set, 7 pc. CI2500DVF Series

Cast Body Components

19 66M53 Ash Lip, Enamel Hunter Green, 1 ea. CI1506DVF

19 66M93 Ash Lip, Enamel Hunter Green, 1 ea. CI2506DVF

19 H2163 Ash Lip, Enamel Ivory White, 1 ea. CI1508DVF-2

19 H2164 Ash Lip, Enamel Ivory White, 1 ea. CI2508DVF-2

19 66M52 Ash Lip, Enamel Maj. Brown, 1 ea. CI1504DVF

19 66M92 Ash Lip, Enamel Maj. Brown, 1 ea. CI2504DVF

19 66M51 Ash Lip, Enamel Mid. Blue, 1 ea. CI1502DVF

19 66M91 Ash Lip, Enamel Mid. Blue, 1 ea. CI2502DVF

19 55M89 Ash Lip, Painted Black, 1 ea. CI1500DVF

19 66M01 Ash Lip, Painted Black, 1 ea. CI2500DVF

REPLACEMENT PARTS LIST

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 17

REPLACEMENT PARTS LIST

Cast Body Components (continued)

Item # Part/Cat. No. Description Where Used

20 66M69 Door Casting, Left Front - Enamel Hunter Green, 1 ea. CI1506DVF

20 H1015 Door Casting, Left Front - Enamel Hunter Green, 1 ea. CI2506DVF

20 H2165 Door Casting, Left Front - Enamel Ivory White, 1 ea. CI1508DVF-2

20 H2166 Door Casting, Left Front - Enamel Ivory White, 1 ea. CI2508DVF-2

20 66M68 Door Casting, Left Front - Enamel Maj. Brown, 1 ea. CI1504DVF

20 H1014 Door Casting, Left Front - Enamel Maj. Brown, 1 ea. CI2504DVF

20 66M67 Door Casting, Left Front - Enamel Mid. Blue, 1 ea. CI1502DVF

20 H1013 Door Casting, Left Front - Enamel Mid. Blue, 1 ea. CI2502DVF

20 55M93 Door Casting, Left Front - Painted Black, 1 ea. CI1500DVF

20 66M06 Door Casting, Left Front - Painted Black, 1 ea. CI2500DVF

21 66M73 Door Casting, Right Front - Enamel Hunter Green, 1 ea. CI1506DVF

21 H1019 Door Casting, Right Front - Enamel Hunter Green, 1 ea. CI2506DVF

21 H2167 Door Casting, Right Front - Enamel Ivory White, 1 ea. CI1508DVF-2

21 H2168 Door Casting, Right Front - Enamel Ivory White, 1 ea. CI2508DVF-2

21 66M72 Door Casting, Right Front - Enamel Maj. Brown, 1 ea. CI1504DVF

21 H1018 Door Casting, Right Front - Enamel Maj. Brown, 1 ea. CI2504DVF

21 66M71 Door Casting, Right Front - Enamel Mid. Blue, 1 ea. CI1502DVF

21 H1017 Door Casting, Right Front - Enamel Mid. Blue, 1 ea. CI2502DVF

21 55M94 Door Casting, Right Front - Painted Black, 1 ea. CI1500DVF

21 66M07 Door Casting, Right Front - Painted Black, 1 ea. CI2500DVF

22 66M57 Door Casting, Lower Access - Enamel Hunter Green, 1 ea. CI1506DVF

22 66M97 Door Casting, Lower Access - Enamel Hunter Green, 1 ea. CI2506DVF

22 H2169 Door Casting, Lower Access - Enamel Ivory White, 1 ea. CI1508DVF-2

22 H2170 Door Casting, Lower Access - Enamel Ivory White, 1 ea. CI2508DVF-2

22 66M56 Door Casting, Lower Access - Enamel Maj. Brown, 1 ea. CI1504DVF

22 66M96 Door Casting, Lower Access - Enamel Maj. Brown, 1 ea. CI2504DVF

22 66M55 Door Casting, Lower Access - Enamel Mid. Blue, 1 ea. CI1502DVF

22 66M95 Door Casting, Lower Access - Enamel Mid. Blue, 1 ea. CI2502DVF

22 55M90 Door Casting, Lower Access - Painted Black, 1 ea. CI1500DVF

22 66M02 Door Casting, Lower Access - Painted Black, 1 ea. CI2500DVF

23 66M77 Front Casting, Enamel Hunter Green, 1 ea. CI1506DVF

23 H1027 Front Casting, Enamel Hunter Green, 1 ea. CI2506DVF

23 H2171 Front Casting, Enamel Ivory White, 1 ea. CI1508DVF-2

23 H2172 Front Casting, Enamel Ivory White, 1 ea. CI2508DVF-2

23 66M76 Front Casting, Enamel Maj. Brown, 1 ea. CI1504DVF

23 H1026 Front Casting, Enamel Maj. Brown, 1 ea. CI2504DVF

23 66M75 Front Casting, Enamel Mid. Blue, 1 ea. CI1502DVF

23 H1025 Front Casting, Enamel Mid. Blue, 1 ea. CI2502DVF

23 55M95 Front Casting, Painted Black, 1 ea. CI1500DVF

23 66M09 Front Casting, Painted Black, 1 ea. CI2500DVF

24 H1023 Leg Casting, Enamel Hunter Green, 1 ea. CI1506DVF & CI2506DVF

24 H2173 Leg Casting, Enamel Ivory White, 1 ea. CI1508DVF-2 & CI2508DVF-2

24 H1022 Leg Casting, Enamel Maj. Brown, 1 ea. CI1504DVF & CI2504DVF

24 H1021 Leg Casting, Enamel Mid. Blue, 1 ea. CI1502DVF & CI2502DVF

24 66M08 Leg Casting, Painted Black, 1 ea. CI1500DVF & CI2500DVF

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Cast Body Components (continued)

Item # Part/Cat. No. Description Where Used

25 H1007 Side Casting, Left - Enamel Hunter Green, 1 ea. CI1506DVF

25 H1031 Side Casting, Left - Enamel Hunter Green, 1 ea. CI2506DVF

25 H2174 Side Casting, Left - Enamel Ivory White, 1 ea. CI1508DVF-2

25 H2175 Side Casting, Left - Enamel Ivory White, 1 ea. CI2508DVF-2

25 H1006 Side Casting, Left - Enamel Maj. Brown, 1 ea. CI1504DVF

25 H1030 Side Casting, Left - Enamel Maj. Brown, 1 ea. CI2504DVF

25 H1005 Side Casting, Left - Enamel Mid. Blue, 1 ea. CI1502DVF

25 H1029 Side Casting, Left - Enamel Mid. Blue, 1 ea. CI2502DVF

25 66M04 Side Casting, Left - Painted Black, 1 ea. CI1500DVF

25 66M14 Side Casting, Left - Painted Black, 1 ea. CI2500DVF

26 H1011 Side Casting, Right, Enamel Hunter Green, 1 ea. CI1506DVF

26 H1035 Side Casting, Right, Enamel Hunter Green, 1 ea. CI2506DVF

26 H2176 Side Casting, Right, Enamel Ivory White, 1 ea. CI1508DVF-2

26 H2177 Side Casting, Right, Enamel Ivory White, 1 ea. CI2508DVF-2

26 H1010 Side Casting, Right, Enamel Maj. Brown, 1 ea. CI1504DVF

26 H1034 Side Casting, Right, Enamel Maj. Brown, 1 ea. CI2504DVF

26 H1009 Side Casting, Right, Enamel Mid. Blue, 1 ea. CI1502DVF

26 H1033 Side Casting, Right, Enamel Mid. Blue, 1 ea. CI2502DVF

26 66M05 Side Casting, Right, Painted Black, 1 ea. CI1500DVF

26 66M15 Side Casting, Right, Painted Black, 1 ea. CI2500DVF

27 66M81 Top Casting, Stove, Enamel Hunter Green, 1 ea. CI1506DVF

27 H1043 Top Casting, Stove, Enamel Hunter Green, 1 ea. CI2506DVF

27 H2178 Top Casting, Stove, Enamel Ivory White, 1 ea. CI1508DVF-2

27 H2179 Top Casting, Stove, Enamel Ivory White, 1 ea. CI2508DVF-2

27 66M80 Top Casting, Stove, Enamel Maj. Brown, 1 ea. CI1504DVF

27 H1042 Top Casting, Stove, Enamel Maj. Brown, 1 ea. CI2504DVF

27 66M79 Top Casting, Stove, Enamel Mid. Blue, 1 ea. CI1502DVF

27 H1041 Top Casting, Stove, Enamel Mid. Blue, 1 ea. CI2502DVF

27 55M97 Top Casting, Stove, Painted Black, 1 ea. CI1500DVF

27 66M18 Top Casting, Stove, Painted Black, 1 ea. CI2500DVF

28 66M85 Trivet, Enamel Hunter Green, 1 ea. CI1506DVF

28 H1047 Trivet, Enamel Hunter Green, 1 ea. CI2506DVF

28 H2180 Trivet, Enamel Ivory White, 1 ea. CI1508DVF-2

28 H2183 Trivet, Enamel Ivory White, 1 ea. CI2508DVF-2

28 66M84 Trivet, Enamel Maj. Brown, 1 ea. CI1504DVF

28 H1046 Trivet, Enamel Maj. Brown, 1 ea. CI2504DVF

28 66M83 Trivet, Enamel Mid. Blue, 1 ea. CI1502DVF

28 H1045 Trivet, Enamel Mid. Blue, 1 ea. CI2502DVF

28 55M98 Trivet, Painted Black, 1 ea. CI1500DVF

28 66M19 Trivet, Painted Black, 1 ea. CI2500DVF

Room Air Blower System (Optional Kit)

H0767 Blower Kit (BK-CI), Complete All

29 528 Rheostat, Blower Speed Control (knob not included) All

42M60 Switch, Temperature Control (thermally activated fan disc) All

REPLACEMENT PARTS

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 19

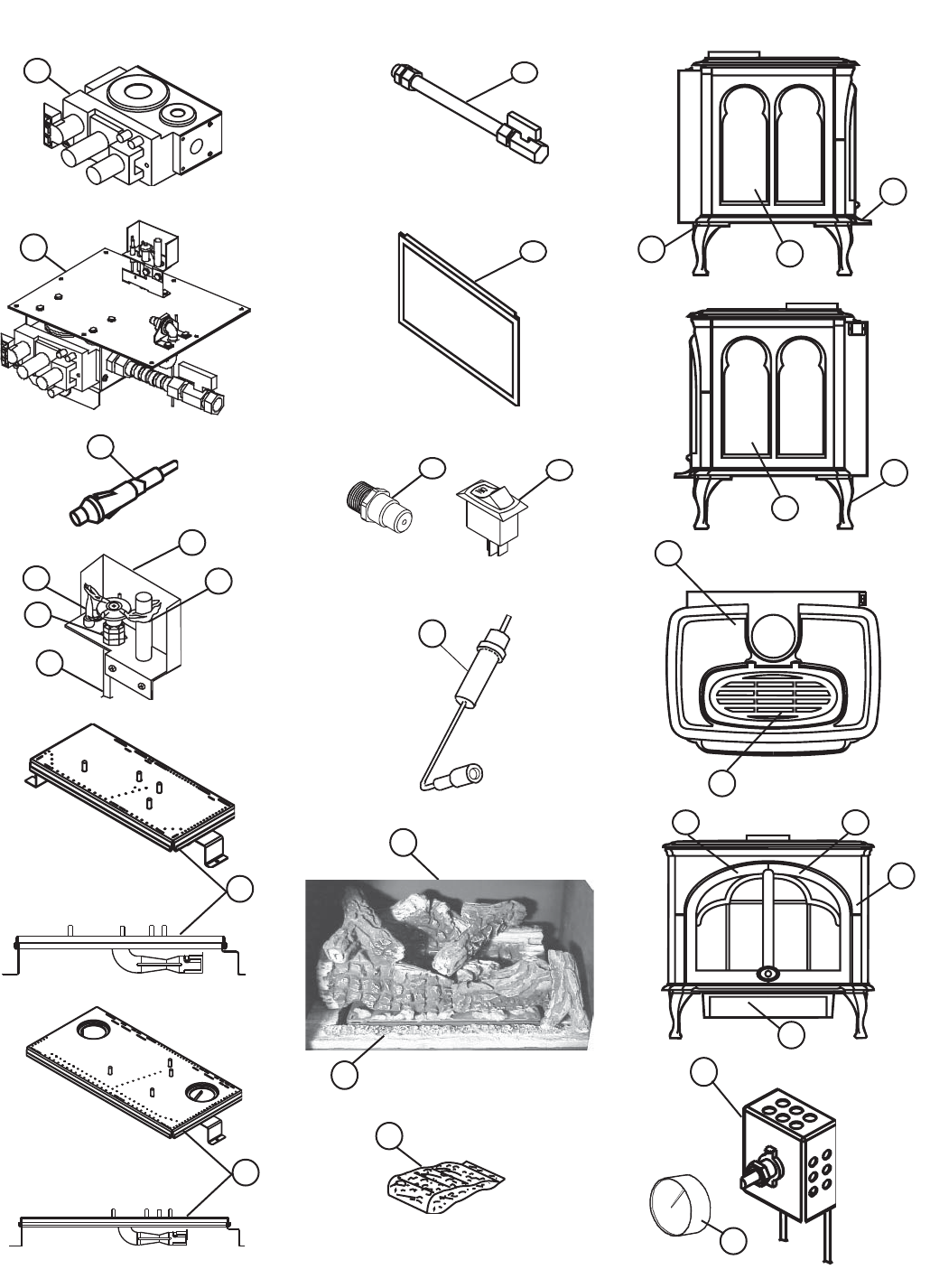

REPLACEMENT PARTS

L E N N O X

13 14

L E N N O X

* *

Front View

******

Front View

16 Log Set Does Not Include Ember Strip (purchased

separately)

29b

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

P/N 775,148M REV. B 11/2004

REFERENCE INFORMATION

If Optional Warming Shelves are purchased, install as follows:

Optional Warming Shelves Kit

Kit Contents:

2 ea. Warming Shelves

4 ea. Decorative Brackets

4 ea. Insets (CI1500 Series)

6 ea. Insets (CI2500 Series)

4 ea. Screws, 6mm x 20mm

1 ea. Instruction Sheet

Tools Required:

Phillips Screwdriver

Installation Instructions:

1. Lift off trivet, then stove top and set aside.

3. Using the existing screws on the stove body, install both warming

shelve assemblies as shown in Figure 22. Tighten screws just enough

to level shelves.

Install Screws Provided

Install, using

the existing

screws.

Figure 21

Figure 22

4. Place the insets (4 ea. for the CI1500 series or 6 ea. for the CI2500

series) into the recessed areas on both warming shelves as shown in

Figures 23 & 24. Note: Common ceramic tiles (4 ¼” square) can be

used in place of insets on the warming shelves (available at most

home improvement stores).

Install Insets

Place insets as

shown here.

Top View of Warming Shelves Installed

5. Reinstall stove top into position (see Figure 24).

Figure 23

Figure 24

Proper Use Instructions:

These attractive shelves are designed to be functional for placing

food to stay warm. For cleaning instructions see Cleaning Enamel

Surfaces on page 4.

IMPORTANT NOTES:

• NEVER PLACE ANYTHING ON THE SHELVES WHICH EXCEEDS 80

POUNDS (36 KILOGRAMS).

• NEVER PLACE FOOD CONTAINERS OR OTHER MATERIALS ON THE

SHELVES THAT MAY BE SUBJECT TO MELTING.

1110 West Taft Avenue • Orange, CA 92865

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Lennox reserves the right to make changes at any time, without notice, in design,

materials, speciﬁ cations, prices and also to discontinue colors, styles and products.

Consult your local distributor for ﬁ replace code information.

Installing onto Stove Body

Assemble Shelves to Brackets

2. Install decorative brackets to both warming shelves using the screws

provided (see Figure 21).

CAUTION: THE CAST IRON STOVE TOP IS VERY HEAVY AND MAY REQUIRE

A MINIMUM OF TWO PEOPLE TO LIFT; ONE PERSON ON EACH SIDE (THE

CI1500 SERIES CAST TOP WEIGHS ~20 POUNDS AND THE CI2500 SERIES

CAST TOP WEIGHS ~40 POUNDS).

Lennox Hearth Serefina Ci1500Dvf Users Manual 775148M B HO CI1500 2500DVF

CI2500DVF to the manual 583c0c6a-1665-47c6-ab0d-2fb2ea639652

Navigation menu

Versions of this User Manual:

Views

Navigation
