Lenovo Mobile Communication Technology A2016A40 Mobile Phone User Manual
Lenovo Mobile Communication Technology Ltd. Mobile Phone
User manual
Quick Start Guide
Read this guide carefully before using your smartphone.
Lenovo B
Lenovo A2016a40
Reading before using your smartphone
Reading rst — regulatory information
Be sure to read the Regulatory Notice for your country or region
before using the wireless devices contained in your Lenovo Mobile
Phone. To obtain a PDF version of the Regulatory Notice, see the
“Downloading publications” section.
Getting support
To get support on network service and billing, contact your wireless
network operator. To learn how to use your smartphone and view its
technical specications, go to http://support.lenovo.com.
Downloading publications
To obtain the latest smartphone manuals, go to:
http://support.lenovo.com
Accessing your User Guide
Your User Guide contains detailed information about your
smartphone. To access your User Guide, go to
http://support.lenovo.com and follow the instructions on the screen.
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the United
States, other countries, or both.
Other company, product, or service names may be trademarks or
service marks of others.
First glance.......................................................................1
Preparing your smartphone ..............................................2
Charging the battery.........................................................3
Important safety and handling information ........................ 4
Service, support, and warranty information.......................6
Recycling and environmental information ..........................7
European Union compliance statement ........................... 10
Specific Absorption Rate information ................................13
Contents
1
Volume buttons
3
1Receiver
2
Touch screen 6
Front-facing camera
4On/Off button 5
Multitask button 9
Back button
7Home button 8
Speaker
12
Headset connector
10 Micro USB connector 11 Flash
13 Microphone
14
Rear-facing camera
12
11
First glance
9
13
14
7
86
5
4
3
1210
2
Preparing your smartphone
You must insert the Micro-SIM card provided by your carrier to use
cellular services. Set up your smartphone as shown.

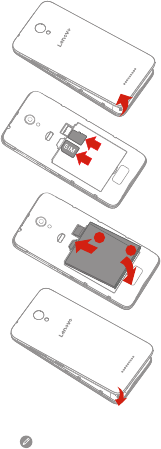

Step 1. Open the back cover.
Step 2. Insert the Micro-SIM card
and the microSD card.
Step 3. Install the battery.
a. Align the battery
connectors on the battery
with the pins in the
battery compartment.
b. Push the battery down
into place.
Step 4. Install the back cover.
Always turn off your smartphone rst before you insert or remove a
Micro-
SIM card. Insert or remove a
Micro-
SIM card with your
smartphone on may damage your
Micro-
SIM card or smartphone
permanently.
microSD
b
a
3
2
1
Low battery power Fully charged Charging
Charge the battery as shown.
Turning on or turning off your smartphone
Turn on: Press and hold the On/Off button until
the Lenovo logo appears.
Tur n of f: Press and hold the On/Off button for a
few seconds, then tap Power off and OK.
Method 1.
Method 2.
Connect your smartphone to a power outlet using the
cable and USB power adapter that come with your
smartphone.
Connect your smartphone to a computer using the cable
that comes with your smartphone.
Charging the battery
Your smartphone has a rechargeable battery. For more information
about battery safety, see the “Rechargeable battery notice” section.
4
Important safety and handling information
This section contains important safety and handling information for
Lenovo smartphones. Additional safety and handling information is
provided in the User Guide. See the “Accessing your User Guide”
section for details.
Operating temperature
Use the Lenovo Phone only in the temperature range of -10°C (14 °F)
— 35°C (95 °F) to avoid damage.
Plastic bag notice
DANGER: Plastic bags can be dangerous. Keep plastic bags away
from babies and children to avoid danger of suffocation.
General battery notice
The original batteries supplied with your product have been tested
for compatibility and should only be replaced with approved parts.
Risk of explosion if the battery is replaced with an incorrect type.
Dispose of used batteries according to the instructions.
Rechargeable battery notice
CAUTION: Risk of explosion if the battery is replaced with an
incorrect type.
When replacing the lithium battery, use only the same or an equivalent
type that is recommended by the manufacturer. The battery contains
lithium and can explode if not properly used, handled, or disposed of.
Dispose of used batteries according to the instructions.
Do not:
Throw or immerse into water
Heat to more than 100°C (212°F)
Repair or disassemble
Built-in rechargeable battery notice
CAUTION: Do not attempt to replace the internal rechargeable
lithium ion battery. Contact Lenovo Support for factory
replacement.
Charging
Lenovo, and its afliates are not responsible for the performance or
safety of products not manufactured or approved by Lenovo, or its
afliates. Use only approved Lenovo ac adapters and batteries.
Adapter shall be installed near the equipment and shall be easily
accessible.
Preventing hearing damage
To prevent possible hearing damage when using headsets,
earphones, or earbuds with this device, do not listen at high volume
levels for long periods.
Disposing according to local laws and regulations
When the Lenovo Phone reaches the end of its useful life, do not
crush, incinerate, immerse in water, or dispose of the Lenovo Phone
in any manner contrary to local laws and regulations. Some internal
parts contain substances that can explode, leak, or have an adverse
environmental effect if disposed of incorrectly. See “Recycling and
environmental information” for additional information.
5
Important safety and handling information
This section contains important safety and handling information for
Lenovo smartphones. Additional safety and handling information is
provided in the User Guide. See the “Accessing your User Guide”
section for details.
Operating temperature
Use the Lenovo Phone only in the temperature range of -10°C (14 °F)
— 35°C (95 °F) to avoid damage.
Plastic bag notice
DANGER: Plastic bags can be dangerous. Keep plastic bags away
from babies and children to avoid danger of suffocation.
General battery notice
The original batteries supplied with your product have been tested
for compatibility and should only be replaced with approved parts.
Risk of explosion if the battery is replaced with an incorrect type.
Dispose of used batteries according to the instructions.
Rechargeable battery notice
CAUTION: Risk of explosion if the battery is replaced with an
incorrect type.
When replacing the lithium battery, use only the same or an equivalent
type that is recommended by the manufacturer. The battery contains
lithium and can explode if not properly used, handled, or disposed of.
Dispose of used batteries according to the instructions.
Do not:
Throw or immerse into water
Heat to more than 100°C (212°F)
Repair or disassemble
Built-in rechargeable battery notice
CAUTION: Do not attempt to replace the internal rechargeable
lithium ion battery. Contact Lenovo Support for factory
replacement.
Charging
Lenovo, and its afliates are not responsible for the performance or
safety of products not manufactured or approved by Lenovo, or its
afliates. Use only approved Lenovo ac adapters and batteries.
Adapter shall be installed near the equipment and shall be easily
accessible.
Preventing hearing damage
To prevent possible hearing damage when using headsets,
earphones, or earbuds with this device, do not listen at high volume
levels for long periods.
Disposing according to local laws and regulations
When the Lenovo Phone reaches the end of its useful life, do not
crush, incinerate, immerse in water, or dispose of the Lenovo Phone
in any manner contrary to local laws and regulations. Some internal
parts contain substances that can explode, leak, or have an adverse
environmental effect if disposed of incorrectly. See “Recycling and
environmental information” for additional information.
6
Service, support, and warranty information
The following information describes the technical support that is
available for your product, during the warranty period or throughout
the life of your product. Refer to the Lenovo Limited Warranty for a full
explanation of Lenovo warranty terms.
Online technical support
Online technical support is available during the lifetime of a product at:
http://www.lenovo.com/support
Telephone technical support
Where applicable, you can get help and information from the
Customer Support Center by telephone. Before contacting a Lenovo
technical support representative, please have the following information
available: model and serial number, the exact wording of any error
message, and a description of the problem.
Your technical support representative might want to walk you through
the problem while you are at your phone during the call.
Worldwide Lenovo Support telephone list
IMPORTANT: Telephone numbers are subject to change without
notice. The most up-to-date telephone list for the Customer
Support Center is always available at:
http://support.lenovo.com/supportphonelist
The Customer Support Center phone number is subject to change.
For the latest phone number, go to the e-support website. If the
telephone number for your country or region is not listed, contact your
Lenovo reseller or Lenovo marketing representative.
Lenovo Limited Warranty (LLW) notice
Read the full LLW at http://support.lenovo.com/smartphone-llw. You
can view the LLW in a number of languages from this Web site. If you
cannot view the LLW either from the Web site or from your phone,
contact your local Lenovo ofce or reseller to obtain a printed version
of the full LLW.
IMPORTANT: Lenovo Smartphone Products do not have
International Warranty Services.
7
Vietnam
Lenovo products sold in Vietnam, on or after September 23, 2011,
meet the requirements of the Vietnam Circular 30/2011/TT-BCT
(“Vietnam RoHS”).
Ukraine
Цим підтверджуємо, що продукція Леново відповідає вимогам
нормативних актів України, які обмежують вміст небезпечних
речовин
Turkey
The Lenovo product meets the requirements of the Republic of Turkey
Directive on the Restriction of the Use of Certain Hazardous
Substances in Waste Electrical and Electronic Equipment (WEEE).
Türkiye AEEE Yönetmeliğine Uygunluk Beyanı
Bu Lenovo ürünü, T.C. Çevre ve Orman Bakanlığı’nın “Atık Elektrikli ve
Elektronik Eşya Bazı Zararlı Maddelerin Kullanımının Sınırlandırılmasına
Dair Yönetmelik (AEEE)” direktierine uygundur.
AEEE Yönetmeliğine Uygundur.
Recycling and environmental information
General recycling statement
Lenovo encourages owners of information technology (IT) equipment
to responsibly recycle their equipment when it is no longer needed.
Lenovo offers a variety of programs and services to assist equipment
owners in recycling their IT products. For information on recycling
Lenovo products, go to http://www.lenovo.com/recycling.
Important battery and WEEE information
Recycling information for India
Recycling and disposal information for India is available at:
http://www.lenovo.com/social_responsibility/us/en/sustainability/ptb_india.html
Battery recycling information for the European Union
Batteries and electrical and electronic equipment marked
with the symbol of a crossed-out wheeled bin may not be
disposed as unsorted municipal waste. Batteries and waste
of electrical and electronic equipment (WEEE) shall be
treated separately using the collection framework available
to customers for the return, recycling, and treatment of
batteries and WEEE. When possible, remove and isolate
batteries from WEEE prior to placing WEEE in the waste
collection stream. Batteries are to be collected separately
using the framework available for the return, recycling, and
treatment of batteries and accumulators.
Country-specic information is available at:
http://www.lenovo.com/recycling
Batteries or packaging for batteries are labeled in accordance with
European Directive 2006/66/EC concerning batteries and
accumulators and waste batteries and accumulators. The Directive
determines the framework for the return and recycling of used
batteries and accumulators as applicable throughout the European
Union. This label is applied to various batteries to indicate that the
battery is not to be thrown away, but rather reclaimed upon end of life
per this Directive.
In accordance with the European Directive 2006/66/EC, batteries and
accumulators are labeled to indicate that they are to be collected
separately and recycled at end of life. The label on the battery may
also include a chemical symbol for the metal concerned in the battery
(Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries
and accumulators must not dispose of batteries and accumulators as
unsorted municipal waste, but use the collection framework available
to customers for the return, recycling, and treatment of batteries and
accumulators. Customer participation is important to minimize any
potential effects of batteries and accumulators on the environment
and human health due to the potential presence of hazardous
substances. For proper collection and treatment, go to:
http://www.lenovo.com/recycling
Restriction of Hazardous Substances Directive (RoHS)
European Union
Lenovo products sold in the European Union, on or after 3 January
2013 meet the requirements of Directive 2011/65/EU on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment (“RoHS recast” or “RoHS 2”).
For more information about Lenovo progress on RoHS, go to:
http://www.lenovo.com/social_responsibility/us/en/RoHS_Communication.pdf
India
RoHS compliant as per E-Waste (Management & Handling) Rules,
2011.
8
Vietnam
Lenovo products sold in Vietnam, on or after September 23, 2011,
meet the requirements of the Vietnam Circular 30/2011/TT-BCT
(“Vietnam RoHS”).
Ukraine
Цим підтверджуємо, що продукція Леново відповідає вимогам
нормативних актів України, які обмежують вміст небезпечних
речовин
Turkey
The Lenovo product meets the requirements of the Republic of Turkey
Directive on the Restriction of the Use of Certain Hazardous
Substances in Waste Electrical and Electronic Equipment (WEEE).
Türkiye AEEE Yönetmeliğine Uygunluk Beyanı
Bu Lenovo ürünü, T.C. Çevre ve Orman Bakanlığı’nın “Atık Elektrikli ve
Elektronik Eşya Bazı Zararlı Maddelerin Kullanımının Sınırlandırılmasına
Dair Yönetmelik (AEEE)” direktierine uygundur.
AEEE Yönetmeliğine Uygundur.
Recycling and environmental information
General recycling statement
Lenovo encourages owners of information technology (IT) equipment
to responsibly recycle their equipment when it is no longer needed.
Lenovo offers a variety of programs and services to assist equipment
owners in recycling their IT products. For information on recycling
Lenovo products, go to http://www.lenovo.com/recycling.
Important battery and WEEE information
Recycling information for India
Recycling and disposal information for India is available at:
http://www.lenovo.com/social_responsibility/us/en/sustainability/ptb_india.html
Battery recycling information for the European Union
Batteries or packaging for batteries are labeled in accordance with
European Directive 2006/66/EC concerning batteries and
accumulators and waste batteries and accumulators. The Directive
determines the framework for the return and recycling of used
batteries and accumulators as applicable throughout the European
Union. This label is applied to various batteries to indicate that the
battery is not to be thrown away, but rather reclaimed upon end of life
per this Directive.
In accordance with the European Directive 2006/66/EC, batteries and
accumulators are labeled to indicate that they are to be collected
separately and recycled at end of life. The label on the battery may
also include a chemical symbol for the metal concerned in the battery
(Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries
and accumulators must not dispose of batteries and accumulators as
unsorted municipal waste, but use the collection framework available
to customers for the return, recycling, and treatment of batteries and
accumulators. Customer participation is important to minimize any
potential effects of batteries and accumulators on the environment
and human health due to the potential presence of hazardous
substances. For proper collection and treatment, go to:
http://www.lenovo.com/recycling
Restriction of Hazardous Substances Directive (RoHS)
European Union
Lenovo products sold in the European Union, on or after 3 January
2013 meet the requirements of Directive 2011/65/EU on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment (“RoHS recast” or “RoHS 2”).
For more information about Lenovo progress on RoHS, go to:
http://www.lenovo.com/social_responsibility/us/en/RoHS_Communication.pdf
India
RoHS compliant as per E-Waste (Management & Handling) Rules,
2011.
9
Vietnam
Lenovo products sold in Vietnam, on or after September 23, 2011,
meet the requirements of the Vietnam Circular 30/2011/TT-BCT
(“Vietnam RoHS”).
Ukraine
Цим підтверджуємо, що продукція Леново відповідає вимогам
нормативних актів України, які обмежують вміст небезпечних
речовин
Turkey
The Lenovo product meets the requirements of the Republic of Turkey
Directive on the Restriction of the Use of Certain Hazardous
Substances in Waste Electrical and Electronic Equipment (WEEE).
Türkiye AEEE Yönetmeliğine Uygunluk Beyanı
Bu Lenovo ürünü, T.C. Çevre ve Orman Bakanlığı’nın “Atık Elektrikli ve
Elektronik Eşya Bazı Zararlı Maddelerin Kullanımının Sınırlandırılmasına
Dair Yönetmelik (AEEE)” direktierine uygundur.
AEEE Yönetmeliğine Uygundur.
Recycling and environmental information
General recycling statement
Lenovo encourages owners of information technology (IT) equipment
to responsibly recycle their equipment when it is no longer needed.
Lenovo offers a variety of programs and services to assist equipment
owners in recycling their IT products. For information on recycling
Lenovo products, go to http://www.lenovo.com/recycling.
Important battery and WEEE information
Recycling information for India
Recycling and disposal information for India is available at:
http://www.lenovo.com/social_responsibility/us/en/sustainability/ptb_india.html
Battery recycling information for the European Union
Batteries or packaging for batteries are labeled in accordance with
European Directive 2006/66/EC concerning batteries and
accumulators and waste batteries and accumulators. The Directive
determines the framework for the return and recycling of used
batteries and accumulators as applicable throughout the European
Union. This label is applied to various batteries to indicate that the
battery is not to be thrown away, but rather reclaimed upon end of life
per this Directive.
In accordance with the European Directive 2006/66/EC, batteries and
accumulators are labeled to indicate that they are to be collected
separately and recycled at end of life. The label on the battery may
also include a chemical symbol for the metal concerned in the battery
(Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries
and accumulators must not dispose of batteries and accumulators as
unsorted municipal waste, but use the collection framework available
to customers for the return, recycling, and treatment of batteries and
accumulators. Customer participation is important to minimize any
potential effects of batteries and accumulators on the environment
and human health due to the potential presence of hazardous
substances. For proper collection and treatment, go to:
http://www.lenovo.com/recycling
Restriction of Hazardous Substances Directive (RoHS)
European Union
Lenovo products sold in the European Union, on or after 3 January
2013 meet the requirements of Directive 2011/65/EU on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment (“RoHS recast” or “RoHS 2”).
For more information about Lenovo progress on RoHS, go to:
http://www.lenovo.com/social_responsibility/us/en/RoHS_Communication.pdf
India
RoHS compliant as per E-Waste (Management & Handling) Rules,
2011.
10
2200
European Union compliance statement
European Union conformity
EU contact: Lenovo, Einsteinova 21, 851 01 Bratislava, Slovakia
Compliance with the R&TTE Directive
This product is in compliance with the essential requirements and
other relevant provisions of the EU Council Radio and
Telecommunications Terminal Equipment (R&TTE) Directive,
1999/5/EC. The Declaration of Conformity information is located in the
Regulatory Notices, which you can download from the Lenovo
Support Web site. See “Downloading publications” in this document
for additional information.
NOTE: R&TTE 1999/5/EC remains in force during the transition
period of Radio Equipment Directive (RED) 2014/53/EU until 12
June, 2017. After then, RED 2014/53/EU will take the place of
R&TTE 1999/5/EC.
Federal Communication Commission Interference Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
The country code selection is for non-US model only and is not available to
all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US
operation channels only.
11
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of measurement known as
the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests
for SAR are conducted using standard operating positions accepted by the FCC with
the device transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR
level of the device while operating can be well below the maximum value. This is
because the device is designed to operate at multiple power levels so as to use only the
poser required to reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
The highest SAR value for the model device as reported to the FCC when tested for use
at the ear is 0.93 W/kg and when worn on the body, as described in this user guide, is
1.24 W/kg (Body-worn measurements differ among device models, depending upon
available accessories and FCC requirements.)
While there may be differences between the SAR levels of various devices and at
various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model device with all
reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this model device is on file with the FCC and can be found
under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC
ID: YCNA2016A40.
For body worn operation, this device has been tested and meets the FCC RF exposure
guidelines for use with an accessory that contains no metal and be positioned a
minimum of 1.0cm from the body. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines. If you do not use a body-worn
accessory and are not holding the device at the ear, position the handset a minimum of
1.0cm from your body when the device is switched on.
12
13
Specic Absorption Rate information
This mobile device meets the government’s requirements for exposure
to radio waves. Your mobile device is a radio transmitter and receiver.
The exposure standard for mobile devices employs a unit of
measurement known as the Specic Absorption Rate, or SAR.
The SAR limit adopted by Europe is 2.0 W/kg averaged over 10
grams of tissue. Tests for SAR are conducted using standard
operating positions with the device transmitting at its highest certied
power level in all tested frequency bands.
The highest SAR value for your Lenovo device when tested for use at
the head and body is outlined as follows:
Europe 10g SAR Limit (2.0 W/kg)
Position Regulation
Europe 10g SAR Limit (2.0 W/kg)
Head
Body-worn
The highest SAR value
1.557
1.714
During use, the actual SAR values for this device are usually well
below the values stated above. This is because, for purposes of
system efciency and to minimize interference on the network, the
operating power of your mobile devices is automatically decreased
when full power is not needed for the call. The lower the power output
of the device, the lower its SAR value.
To meet RF exposure guidelines during body-worn operation, the
device must be positioned at least 0.5cm away from your body.
XXXXXXXXXX
Printed in China
© Copyright Lenovo 2016. V1.0_20160523
