Users Manual

Read this guide carefully before using your smartphone. Quick Start GuideLenovo A6020l36

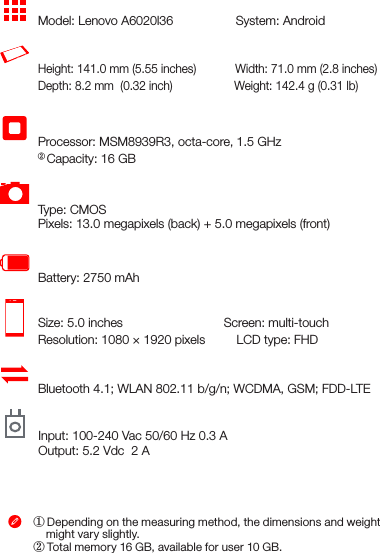

Model: Lenovo A6020l36 System: AndroidModel and systemDisplayBatteryProcessor ①Dimensions and weightCameraWireless CommunicationHeight: 141.0 mm (5.55 inches) Width: 71.0 mm (2.8 inches) Depth: 8.2 mm (0.32 inch) Weight: 142.4 g (0.31 lb)Processor: MSM8939R3, octa-core, 1.5 GHzType: CMOSPixels: 13.0 megapixels (back) + 5.0 megapixels (front)Battery: 2750 mAh Size: 5.0 inches Screen: multi-touch Resolution: 1080 × 1920 pixels LCD type: FHDBluetooth 4.1; WLAN 802.11 b/g/n; WCDMA, GSM; FDD-LTE① Depending on the measuring method, the dimensions and weight might vary slightly.② Total memory 16 GB, available for user 10 GB.Technical speciﬁcationsAC/DC adapter② Capacity: 16 GBInput: 100-240 Vac 50/60 Hz 0.3 A Output: 5.2 Vdc 2 A

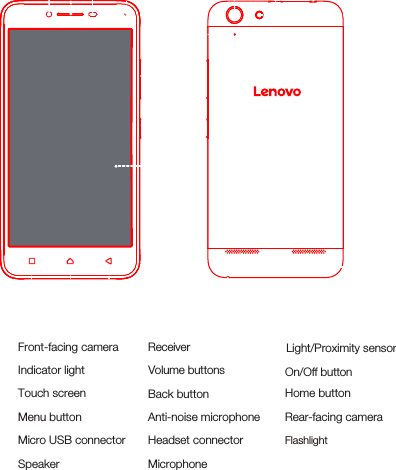

3Front-facing camera1Receiver2On/Off button6Indicator light4Volume buttons5Home button9Touch screen7Back button8Rear-facing camera 12Menu button10 Anti-noise microphone11Speaker15Headset connector13 Flashlight1416 17 MicrophoneMicro USB connector810 179234156111215713 1416Light/Proximity sensorHeight: 141.0 mm (5.55 inches) Width: 71.0 mm (2.8 inches) Depth: 8.2 mm (0.32 inch) Weight: 142.4 g (0.31 lb)First glance

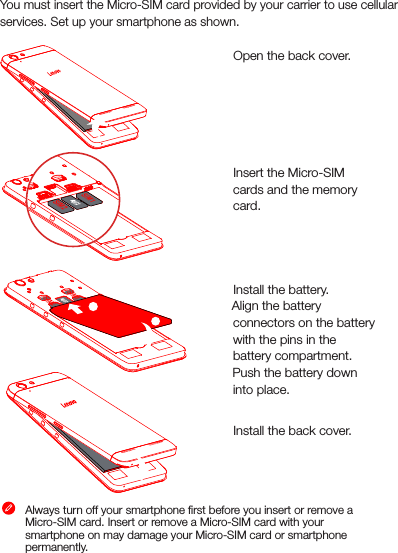

Preparing your smartphoneYou must insert the Micro-SIM card provided by your carrier to use cellularservices. Set up your smartphone as shown. Step 1. Open the back cover. Step 2. Insert the Micro-SIM cards and the memory card. Step 3. Install the battery. a. Align the battery connectors on the battery with the pins in the battery compartment. b. Push the battery down into place.Step 4. Install the back cover.Always turn off your smartphone ﬁrst before you insert or remove a Micro-SIM card. Insert or remove a Micro-SIM card with your smartphone on may damage your Micro-SIM card or smartphone permanently. SIM2 SIM1 SIM2 SIM1 SIM2 SIM1ba

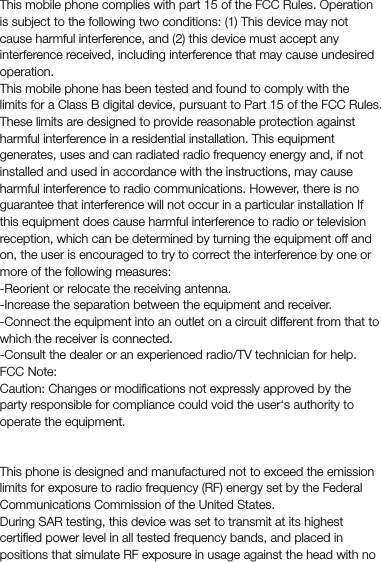

FCC regulationsThis mobile phone complies with part 15 of the FCC Rules. Operationis subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.FCC Note:Caution: Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.RF exposure information (SAR)This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States.During SAR testing, this device was set to transmit at its highest certiﬁed power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage against the head with no

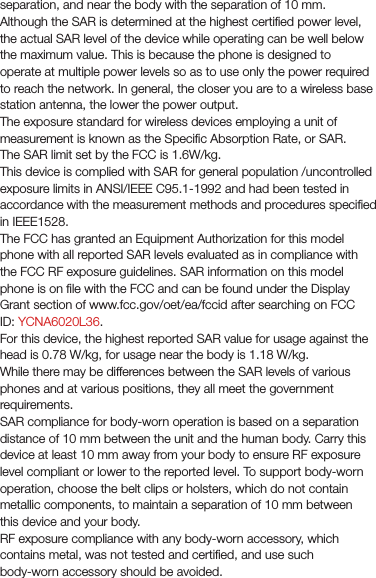

separation, and near the body with the separation of 10 mm. Although the SAR is determined at the highest certiﬁed power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.The exposure standard for wireless devices employing a unit of measurement is known as the Speciﬁc Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.This device is complied with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and had been tested in accordance with the measurement methods and procedures speciﬁed in IEEE1528.The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on ﬁle with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: YCNA6020L36.For this device, the highest reported SAR value for usage against the head is 0.78 W/kg, for usage near the body is 1.18 W/kg.While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirements.SAR compliance for body-worn operation is based on a separation distance of 10 mm between the unit and the human body. Carry this device at least 10 mm away from your body to ensure RF exposure level compliant or lower to the reported level. To support body-worn operation, choose the belt clips or holsters, which do not contain metallic components, to maintain a separation of 10 mm between this device and your body.RF exposure compliance with any body-worn accessory, which contains metal, was not tested and certiﬁed, and use such body-worn accessory should be avoided.
