Users Manual
Read this guide carefully before using your smartphone.
Quick Start Guide v1.0
Lenovo A606
Type: CMOS
Pixels: 8 megapixels (back) + 2 megapixels (front)
Processor: MTK MT6582m
,
Quad Core
,
1.3 GHz
Size: 5 inches Screen: 2-touch
Resolution: 480 × 854 pixels LCD type: IPS
Model: Lenovo A606 System: Android
Bluetooth 4.0; WLAN 802.11 b/g/n; WCDMA, GSM; GPS
Battery: 2000 mAh
Height: 141.5 mm (5.6 inches) Width: 73.2 mm (2.9 inches)
Depth: 9.2 mm (0.36 inch) Weight: 152 g (0.3 lb)
Model and system
① Depending on the measuring method, the dimensions and weight
might vary slightly.
Display
Battery
Processor
①Dimensions and weight
Camera
Wireless Communication
Technical specifications
Light/Proximity
sensor Back key
Micro USB
connector
Rear-facing
camera
Menu key Display
1
4
7
10
2
5
8
3
6
9
Front-facing
camera
Receiver
Headset
connector
On/Off button
11 Volume buttons
12
Home key
7 6 5
1
9
8
2 3
12
10
11
13
4
13 Speaker
First glance

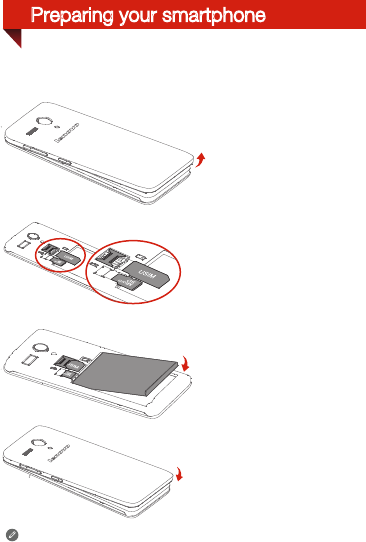

You must insert the USIM card provided by your carrier to use cellular
services. Set up your smartphone as shown.
Step 1. Open the back cover.
Step 2. Insert the USIM card and
the memory card.
Step 3. Install the battery.
a. Align the battery connectors
on the battery with the
pins in the battery
compartment.
b. Push the battery down into
place.
Step 4. Install the back cover.
Always turn off your smartphone first before you insert or remove a
USIM card. Insert or remove a USIM card with your smartphone on
may damage your USIM card or smartphone permanently.
Preparing your smartphone
Turning on or turning off your smartphone
Turn on: Press and hold the On/Off button until
the Lenovo logo appears.
Turn of f: Press and hold the On/Off button for a
few seconds, then tap Power off.
Restart: Press and hold the On/Off button for
about 10 seconds.
Your smartphone has a rechargeable battery. For more information
about battery safety, see the “Rechargeable battery notice” in the
Important Product Information Guide shipped with your smartphone.
Low battery power Fully charged Charging
2
1
Charge the battery as shown.
Method 1.
Method 2.
Connect your smartphone to a power outlet using the
cable and USB power adapter that come with your
smartphone.
Connect your smartphone to a computer using the cable
that comes with your smartphone.
Charging the battery
Radio and Telecommunications Terminal Equipment
Directive
This product is in compliance with the essential requirements
and other relevant provisions of the Radio and Telecommuni-
cations Terminal Equipment Directive, 1999/5/EC.
European Union conformity
XXXXXXXXXX
Printed in China
First Edition (Jul y 2014) © Copyright Lenovo 2014
Learning more
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the
United States, other countries, or both.
Other company, product, or service names may be
trademarks or service marks of others.
To learn more information about your Lenovo smartphone and
obtain the latest smartphone manuals, go to:
http://support.lenovo.com/.
Getting support
For support on network service and billing, contact your
wireless network operator. For instructions on how to use your
device, go to: http://support.lenovo.com/.
Content
Read first-Regulatory information ...................................................................... 1
Important safety and handling information ......................................................... 2
Service and Support information ..................................................................... 10
Warranty information ...................................................................................... 12
Environmental, recycling, and disposal information ......................................... 17
Restriction of Hazardous Substances Directive (RoHS)................................... 19
Specific Absorption Rate information............................................................... 20
Read first-Regulatory information
1
Read
first-Regulatory
information
Be sure to read the Regulatory Notice for your country or region before using
the wireless devices contained in your Lenovo Mobile Phone. To obtain a PDF
version of the Regulatory Notice, refer to the “Downloading publications”
section below.
Downloading publications
Electronic versions of your publications are available from the
http://support.lenovo.com. To download the publications for your Lenovo Mobile
Phone, go to:
http://support.lenovo.com and follow the instructions on the screen.
Advertensia para Mexico
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es
posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este
equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que
pueda causar su operación no deseada.
Important safety and handling information
2
Important safety
and handling
information
Important safety information
CAUTION
To avoid personal injury, property damage, or accidental damage to the product, read
all of the information in this section before using the product.
Handling
Handle Lenovo Phone with care
Do not drop, bend, or puncture Lenovo Phone; do not insert foreign objects into
or place heavy objects on Lenovo Phone. Sensitive components inside might
become damaged.
Prevent Lenovo Phone and adapter from getting wet
Do not immerse Lenovo Phone in water or leave Lenovo Phone in a location
where it can get saturated with water or other liquids.
Repairing
Do not disassemble or modify Lenovo Phone. Lenovo Phone is a sealed unit.
There are no end-user serviceable parts inside. All internal repairs must be done
by a Lenovo-authorized repair facility or a Lenovo-authorized technician.
Attempting to open or modify Lenovo Phone will void the warranty.
Lenovo Phone screen is made of glass. The glass might break if Lenovo Phone
is dropped on a hard surface, is the subject of a high impact, or is crushed by a
heavy object. If the glass chips or cracks, do not touch the broken glass or
attempt to remove it from Lenovo Phone. Stop using Lenovo Phone immediately
and contact Lenovo technical support for repair, replacement, or disposal
information.
Important safety and handling information
3
General battery notice
Batteries supplied by Lenovo for use with your product have been tested for
compatibility and should only be replaced with approved parts.
Risk of explosion if the battery is replaced with an incorrect type.
Dispose of used batteries according to the instructions.
Rechargeable battery
notice
CAUTION
Risk of explosion if the battery is replaced with an incorrect type.
When replacing the lithium battery, use only the same or an equivalent type that
is recommended by the manufacturer. The battery contains lithium and can
explode if not properly used, handled, or disposed of.
Dispose of used batteries according to the instructions
Do not:
Throw or immerse into water
Heat to more than 100°C (212°F)
Repair or disassemble
Built-in rechargeable
battery notice
CAUTION
Do not attempt to replace the internal rechargeable lithium ion battery. Contact
Lenovo Support for factory replacement.
Charging
Charge Lenovo Phone in the temperature range of 0°C (32 °F)—45°C (113°F).
You can use any of the following charging methods to safely recharge the
Important safety and handling information
4
internal battery of Lenovo Phone:
Charging method
Display on
Display off
ac adapter
Supported, but the
battery will charge
slowly.
Supported
USB connection between
the dc-in connector on
Lenovo Phone and a USB
connector on a personal
computer or other devices
that comply with the USB
2.0 standards
Supported, but will
compensate power
consumption and the
battery will charge more
slowly than usual.
Supported, but the battery
will charge slowly.
Notes:
Display on: Lenovo Phone on
Display off: Lenovo Phone off or in screen lock mode
Charging devices might become warm during normal use. Ensure that you have
adequate ventilation around the charging device. Unplug the charging device if
any of the following occurs:
The charging device has been exposed to rain, liquid, or excessive moisture.
The charging device shows signs of physical damage.
You want to clean the charging device.
Lenovo is not responsible for the performance or safety of products not
manufactured or approved by Lenovo. Use only approved Lenovo ac adapters
and batteries.
NOTE
Adapter shall be installed near the equipment and shall be easily accessible. Users
have to use the connection to USB interfaces with USB 2.0 version or higher.
Important safety and handling information
5
Distraction
Take care when using Lenovo Phone in a motor vehicle or on a bicycle. Always
prioritize your safety and the safety of others. Follow the law. Local laws and
regulations might govern how you can use mobile electronic devices, such as
Lenovo Phone, while you drive a motor vehicle or ride a bicycle.
Choking hazard
Keep Lenovo Phone and accessories away from small children. Lenovo Phone
contains small parts that can be a choking hazard to small children. Additionally,
the glass screen can break or crack if dropped on or thrown against a hard
surface.
Plastic bag notice
DANGER
Plastic bags can be dangerous. Keep plastic bags away from babies and children to
avoid danger of suffocation.
Prevent hearing
damage
Lenovo Phone has a headphone connector. Always use the headphone
connector for headphones (also called a headset) or earphones.
CAUTION
Excessive sound pressure from earphones and headphones can cause hearing loss.
Adjustment of the equalizer to maximum increases the earphone and headphone
output voltage and the sound pressure level. Therefore, to protect your hearing,
adjust the equalizer to an appropriate level.
Excessive use of headphones or earphones for a long period of time at high
volume can be dangerous if the output of the headphone or earphone connectors
do not comply with specifications of EN 50332-2.
Important safety and handling information
6
The headphone output connector of Lenovo Phone complies with EN 50332-2
Sub clause 7. This specification limits Lenovo Phone's maximum wide band true
RMS output voltage to 150 mV. To help protect against hearing loss, ensure that
the headphones or earphones you use also comply with EN 50332-2 (Clause 7
limits) for a wide band characteristic voltage of 75 mV. Using headphones that do
not comply with EN 50332-2 can be dangerous due to excessive sound pressure
levels.
If Lenovo Phone came with headphones or earphones in the package, as a set,
the combination of the headphones or earphones and Lenovo Phone already
complies with the specifications of EN 50332-1. If different headphones or
earphones are used, ensure that they comply with EN 50332-1 (Clause 6.5
Limitation Values). Using headphones that do not comply with EN 50332-1 can
be dangerous due to excessive sound pressure levels.
Sound pressure
warning statement
For the device that is tested in accordance with EN 60950-1:
2006+A11:2009:+A1:2010+A12:2011, it is mandatory to perform audio tests for
EN50332.
This device has been tested to comply with the Sound Pressure Level
requirement in the applicable EN 50332-1 and/or EN 50332-2 standards.
Permanent hearing loss may occur if earphones or headphones are used at high
volume for prolonged periods of time.
Warning statement:
Important safety and handling information
7
To prevent possible hearing damage, do not listen at high volume levels for long
periods.
Explosive atmospheres
Do not charge or use Lenovo Phone in any area with a potentially explosive
atmosphere, such as at a fueling area, or in areas where the air contains
chemicals or particles (such as grain, dust, or metal powders). Obey all signs and
instructions.
Radio frequency
interference
Observe signs and notices that prohibit or restrict the use of mobile phones (for
example, in healthcare facilities or blasting areas). Although Lenovo Phone is
designed, tested, and manufactured to comply with regulations governing radio
frequency emissions, such emissions from Lenovo Phone can negatively affect
the operation of other electronic equipment, causing them to malfunction. Turn
off Lenovo Phone or use Airplane Mode to turn off Lenovo Phone wireless
transmitters when use is prohibited, such as while traveling in aircraft, or when
asked to do so by authorities.
Medical devices
Lenovo Phone contains radios that emit electromagnetic fields. These
electromagnetic fields may interfere with pacemakers or other medical devices. If
you wear a pacemaker, maintain at least 15 cm (6 inches) of separation between
your pacemaker and Lenovo Phone. If you suspect Lenovo Phone is interfering
with your pacemaker or any other medical device, stop using Lenovo Phone and
consult your physician for information specific to your medical device.
Important handling information
Cleaning
Clean Lenovo Phone immediately if it comes in contact with anything that may
Important safety and handling information
8
cause stains, such as dirt, ink, makeup, or lotions. To clean:
Disconnect all cables and turn off Lenovo Phone (press and hold the
Sleep/Wake button, then slide the on-screen slider).
Use a soft, lint-free cloth.
Avoid getting moisture in openings.
Do not use cleaning products or compressed air.
Operating temperature
Be aware of heat generated by Lenovo Phone. When using Lenovo Phone, keep
it away from hot or high-voltage environments, such as electric appliances,
electric heating equipment, or electric cooking equipment. Use Lenovo Phone
only in the temperature range of -10°C (14°F)—45°C (113°F) to avoid damage.
When Lenovo Phone is turned on or the battery is charging, some parts might
become hot. The temperature that they reach depends on the amount of system
activity and the battery charge level. Extended contact with your body, even
through clothing, could cause discomfort or even a skin burn. Avoid keeping your
hands, your lap, or any other part of your body in contact with a hot section of
Lenovo Phone for any extended time.
Protecting your data
and software
Do not delete unknown files or change the name of files or directories that were
not created by you; otherwise, Lenovo Phone software might fail to work.
Be aware that accessing network resources can leave Lenovo Phone vulnerable
to computer viruses, hackers, spyware, and other malicious activities that might
damage Lenovo Phone, software, or data. It is your responsibility to ensure that
you have adequate protection in the form of firewalls, antivirus software, and
anti-spyware software and keep such software up to date.
Keep electrical appliances away from Lenovo Phone, such as an electric fan, a
radio, high-powered speakers, an air conditioner, and a microwave oven. The
Important safety and handling information
9
strong magnetic fields generated by electrical appliances can damage the screen
and the data on Lenovo Phone.
Polyvinyl Chloride
(PVC) cable and cord
notice
WARNING
Handling the cord on this product or cords associated with accessories sold with this
product will expose you to lead, a chemical known to the State of California to cause
cancer, and birth defects or other reproductive harm. Wash hands after handling.
Disposing according to
local laws and
regulations
When Lenovo Phone reaches the end of its useful life, do not crush, incinerate,
immerse in water, or dispose of Lenovo Phone in any manner contrary to local
laws and regulations. Some internal parts contain substances that can explode,
leak, or have an adverse environmental effect if disposed of incorrectly.
See “Environmental, recycling, and disposal information” for additional
information.
Service and Support information
10
Service and
Support
information
The following information describes the technical support that is available for
your product, during the warranty period or throughout the life of your product.
Refer to the Lenovo Limited Warranty for a full explanation of Lenovo warranty
terms. See “Lenovo Limited Warranty notice” later in this document for details
on accessing the full warranty.
Online technical support
Online technical support is available during the lifetime of a product at
http://www.lenovo.com/support.
Telephone technical support
Where applicable, you can get help and information from the Customer Support
Center by telephone. Before contacting a Lenovo technical support
representative, please have the following information available: model and serial
number, the exact wording of any error message, and a description of the
problem.
Your technical support representative might want to walk you through the
problem while you are at your phone during the call.
Worldwide Lenovo Support telephone list
IMPORTANT
Telephone numbers are subject to change without notice. The most up-to-date
telephone list for the Customer Support Center is always available at
http://support.lenovo.com/serviceproviders.
The Customer Support Center phone number is subjected to be change, and
please go to the e-support website for the latest phone number. If the telephone
Service and Support information
11
number for your country or region is not listed, contact your Lenovo reseller or
Lenovo marketing representative.
Warranty information
12
Warranty
information
Lenovo Limited Warranty notice
Read the full Lenovo Limited Warranty (LLW) at
http://support.lenovo.com/smartphone-llw. You can view the LLW in a number of
languages from this Web site. If you cannot view the LLW either from the Web
site or from your phone, contact your local Lenovo office or reseller to obtain a
printed version of the full LLW.
IMPORTANT
Lenovo Smartphone Products do not have International Warranty Services.
Warranty period and type of Warranty service
Country or Region of
Purchase
Warranty Period
Type of Warranty
Service
India
Product / Charger - 1 year
Battery pack - 6 months
Earphone - 3 months
4
Indonesia
4
Philippines
4
Vietnam
4
Russia
4
Malaysia
4
Thailand
4
Ukraine
4
Kazakhstan
4
Belarus
4
Moldova
4
Georgia
4
Armenia
4
Warranty information
13
Country or Region of
Purchase
Warranty Period
Type of Warranty
Service
Romania
Product / Charger - 1 year
Battery pack/Earphone - 6
months
4
Serbia
4
Montenegro
4
Bulgaria
4
Hungary
4
Greece
4
Egypt
Product - 1 year
Charger/Battery
pack/Earphone - 6 months
4
Pakistan
4
Venezuela
4
Chile
4
Peru
4
Mexico
4
Colombia
4
Saudi Arabia
4
United Arab Emirates
4
Nigeria
4
Taiwan
4
Turkey
Product - 2 years
Charger/ Earphone - 1
year
Battery pack - 6 months
3
Czech
3
Singapore
Product - 1 year
Charger/Battery pack- 6
months
Earphone - 3 months
4
Hong Kong
4
Warranty information
14
Types of Warranty Service
1
Customer Replaceable Unit (“CRU”) Service
2
On-site Service
3
Courier or Depot Service
4
Customer Carry-In Service
5
Mail-in Service
6
Customer Two-Way Mail-in Service
7
Product Exchange Service
For a full explanation of the types of warranty service, refer to the full warranty.
See “Lenovo Limited Warranty notice” for details on accessing the full
warranty.
Suplemento de Garantía para México
Este Suplemento se considera parte integrante de la Garantía Limitada de
Lenovo y será efectivo única y exclusivamente para los productos distribuidos y
comercializados dentro del Territorio de los Estados Unidos Mexicanos. En caso
de conflicto, se aplicarán los términos de este Suplemento.
El comercializador responsable del producto es Lenovo México S de R L de CV y
para efectos de esta garantía su domicilio es Paseo de Tamarindos No.400-A
Piso 27 Arcos Torre Poniente Bosques de Las Lomas C.P. 05120 México, D.F.
En el caso de que se precise una reparación cubierta por la garantía o precise de
partes, componentes, consumibles o accesorios diríjase a este domicilio.
Otra opción es llamar al Centro de soporte al cliente al 01-800-9253-6686, donde
le dirigirán al Centro de servicio autorizado más cercano. Si no existiese ningún
Centro de servicio autorizado en su ciudad, población o en un radio de 70
kilómetros de su ciudad o población, la garantía incluirá cualquier gasto de
entrega razonable relacionado con el transporte del producto a su Centro de
servicio autorizado más cercano. Por favor, llame al Centro de servicio
autorizado más cercano para obtener las aprobaciones necesarias o la
Warranty information
15
información relacionada con el envío del producto y la dirección de envío.
Esta garantía ampara todas las piezas de hardware del producto e incluye mano
de obra.
El procedimiento para hacer efectiva la garantía consiste en la presentación del
producto, acompañado de la póliza correspondiente, debidamente sellada por el
establecimiento que lo vendió, o la factura, o recibo o comprobante, en el que
consten los datos específicos del producto objeto de la compraventa.
Lenovo sólo pueden eximirse de hacer efectiva la garantía en los siguientes
casos: a) Cuando el producto se hubiese utilizado en condiciones distintas a las
normales. b) Cuando el producto no hubiese sido operado de acuerdo con el
instructivo de uso que se le acompaña. c) Cuando el producto hubiese sido
alterado o reparado por personas no autorizadas por el fabricante nacional,
importador o comercializador responsable respectivo.
Todos los programas de software precargados en el equipo sólo tendrán una
garantía dentro de noventa (90) días por defectos de instalación desde la fecha
de compra. Lenovo no es responsable de la información incluida en dichos
programas de software y /o cualquier programa de software adicional instalado
por Usted o instalado después de la compra del producto.
La garantía cubre la atención, revisión y corrección de errores, defectos o
inconsistencias que impidan el desempeño normal de un equipo en cuanto a su
hardware y software. Los servicios no cubiertos por la garantía se cargarán al
usuario final, previa obtención de una autorización.
Esta garantía tiene una duración de un año a partir del momento de la compra e
incluye la mano de obra, por lo que en caso de aplicarse la garantía, esta no
causara ningún gasto o costo para el cliente.
Para obtener una lista de los Centros de servicio autorizados, por favor, visite:
http://support.lenovo.com/serviceproviders.
Fabricado por: Lenovo PC HK Limited
23/F, Lincoln House, Taikoo Place 979 King's Road, Quarry Bay, Hong Kong
Warranty information
16
Modelo del producto: __________________
Fecha en que el consumidor recibió el producto: __________________
Environmental, recycling, and disposal information
17
Environmental,
recycling, and
disposal
information
General recycling statement
Lenovo encourages owners of information technology (IT) equipment to
responsibly recycle their equipment when it is no longer needed. Lenovo offers a
variety of programs and services to assist equipment owners in recycling their IT
products. For information on recycling Lenovo products, go to:
http://www.lenovo.com/recycling.
Important WEEE information
Electrical and electronic equipment marked with the
symbol of a crossed-out wheeled bin may not be disposed
as unsorted municipal waste. Waste of electrical and
electronic equipment (WEEE) shall be treated separately
using the collection framework available to customers for
the return, recycling, and treatment of WEEE.
Country-specific information is available at:
http://www.lenovo.com/recycling
Recycling information for China
Recycling information for India
Recycling and disposal information for India is available at:
Environmental, recycling, and disposal information
18
http://www.lenovo.com/social_responsibility/us/en/sustainability/ptb_india.html.
Restriction of Hazardous Substances Directive (RoHS)
19
Restriction of
Hazardous
Substances
Directive (RoHS)
Turkish
The Lenovo product meets the requirements of the Republic of Turkey Directive
on the Restriction of the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment (EEE).
Ukraine
India
RoHS compliant as per E-Waste (Management & Handling) Rules, 2011.
Specific Absorption Rate information
20
Specific
Absorption Rate
information
This mobile device meets the government’s requirements for exposure to radio
waves.
Your mobile device is a radio transmitter and receiver.
The exposure standard for mobile devices employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The Chile SAR limit for mobile
devices is 1.6 W/kg averaged over 1 grams of tissue. Tests for SAR are
conducted using standard operating positions with the device transmitting at its
highest certified power level in all tested frequency bands. The highest SAR
value for your Lenovo device when tested for use at the head and body is
outlined as follows:
Position
The highest SAR
value
Regulation
Head
X.XXX
Chile 1g SAR Limit(1.6W/kg)
Body-worn
X.XXX
During use, the actual SAR values for this device are usually well below the
values stated above. This is because, for purposes of system efficiency and to
minimize interference on the network, the operating power of your mobile devices
is automatically decreased when full power is not needed for the call. The lower
the power output of the device, the lower its SAR value.
To meet RF exposure guidelines during body-worn operation, the device must be
positioned at least 1.5cm away from your body.
Specific Absorption Rate information
21
Federal Communication Commission
Interference Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy, and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Specific Absorption Rate information
22
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Note: The country code selection is for non-US model only and is not available to
all US model. Per FCC regulation, all WiFi product marketed in US must fixed to
US operation channels only.
Specific Absorption Rate information
23
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is
1.6W/kg. *Tests for SAR are conducted using standard operating positions
accepted by the FCC with the device transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the device while operating
can be well below the maximum value. This is because the device is designed to
operate at multiple power levels so as to use only the poser required to reach the
network. In general, the closer you are to a wireless base station antenna, the
lower the power output.
The highest SAR value for the model device as reported to the FCC when tested
for use at the ear is 0.46 W/kg and when worn on the body, as described in this
user guide, is 1.44 W/kg (Body-worn measurements differ among device models,
depending upon available accessories and FCC requirements.)
While there may be differences between the SAR levels of various devices and at
various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model device with all
reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this model device is on file with the FCC and can
be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after
Specific Absorption Rate information
24
searching on FCC ID: YCNA606.
For body worn operation, this device has been tested and meets the FCC RF
exposure guidelines for use with an accessory that contains no metal and be
positioned a minimum of 1.0cm from the body. Use of other accessories may not
ensure compliance with FCC RF exposure guidelines. If you do not use a
body-worn accessory and are not holding the device at the ear, position the
handset a minimum of 1.0cm from your body when the device is switched on.
