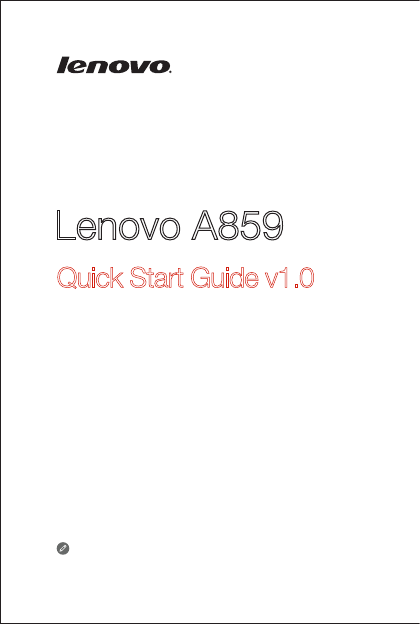

Lenovo A859
Quick Start Guide v1.0
Read this guide carefully before using your phone.
Type: CMOS
Pixels: 8.0 MP (back) + 1.6 MP (front)
GPS
Height: 144.71 mm Width: 73.8 mm Depth: 9.04 mm
Weight: 126 g
CPU: MT6582 Quad Core 1.3 GHz
Size: 5.0 inches (diagonal)
Resolution: HD 720P LCD type: IPS
Model: Lenovo A859 System: Android 4.2
*Bluetooth 3.0 WLAN WCDMA, GSM
Battery: 2250 mAh (Built-in rechargeable lithium-ion battery)
Wireless communication
Display
Model and system
Power and battery
CPU
① Size and weight
Camera
① Based on actual measurements.
* You must be within about 30 feet (10 meters) of a Bluetooth device
for it to be connected to the device.
Technical specifications
Micro USB
Microphone
Speaker
Front cameraReceiver
Back camera
Earphone jack
5
On/Off button2
6
3
789
4
1
1
Volume key
3
2
4
56
7
8
9
First Glance
You need to insert the SIM card provided by your carrier to use cellular
services. Install your phone as shown.
DO NOT insert or remove the SIM cards while your phone is turned on.
Doing so can permanently damage your SIM card or your phone.
Step 3. Install the battery.
Step 1. Open the back cover.
Step 2. Insert the SIM cards and
the memory card.
Tip: Insert (U)SIM card into
SIM 1 slot and SIM card
into SIM 2 slot.
Step 4. Install the back cover.
3
12
Preparing your phone
SIM 2
microSD
SIM 1
Method 1. Connect your phone to a power outlet using the included
cable and USB power adapter.
Method 2. Charge the battery using a computer.
Low battery Fully charged Charging
For more information about battery safety, see the Important Product
Information Guide.
2
1
Charge the battery as shown.
Charging the battery
Learn more
Legal notices
Lenovo, the Lenovo logo are trademarks of Lenovo in the
United States, other countries, or both.
Other company, product, or service names may be
trademarks or service marks of others.
For more information about Lenovo Mobile Phone functions，
Regulatory Notices and other useful manuals,
go to
http://support.lenovo.com/.
Getting support
For support on network service and billing, please contact
your wireless network operator. For instructions on how to use
your device, go to
http://support.lenovo.com/.
First Edition (January 2014) © Copyright Lenovo 2014.
5SC9A466WM
