User Manual
Model: Lenovo E160C
Please read this manual carefully
before operating this product.
Lenovo Mobile Phone
2
Thank you for choosing Lenovo products.
Lenovo Mobile follows the policy of continuous development. Therefore, Lenovo
Mobile reserves the right to modify and improve any products described in this
document without notice in advance.
Under any circumstance, Lenovo Mobile bears no responsibility for any data or
income loss or any special, incidental, special or consequential loss, regardless of
the reasons of such loss.
Content of this document is provided to users on “as is” basis. Unless otherwise
stipulated in applicable laws, no guarantee of any nature, whether express or
implied, is made concerning the accuracy, reliability and content of this document,
including without limitation to merchantability or suitability for a specific purpose.
Lenovo Mobile reserves the right to revise or withdraw this document without
notice in advance. For the information of the newest documents, please refer to
http://www.lenovomobile.com.
This manual aims to help you correctly use Lenovo products, but does not include
any instructions for software and hardware configuration of the product. For
configuration of the product, please refer to contract related to this product (if any)
or consult your dealer. Images in this manual are for reference only. If some
images are not consistent with actual products, the latter are seen as standard.
Many network functions described in this manual are special services provided by
network provider. It depends on the network provider whether these network
functions can be used or not.
Content of this manual is protected by copyright laws and regulations. You are not
allowed to copy or transcribe this manual in any form or transfer this manual via
any wireless or cable network in any form, or translate this manual into any
language.
“Lenovo” is registered trademark authorized by Lenovo (Beijing) Ltd. to Lenovo
Mobile Communication Technology Ltd. All other names and products are or may
be trademarks or registered trademarks of Lenovo and other companies.
“Lenovo” is registered trademark authorized by Lenovo (Beijing) Ltd. to Lenovo
Mobile Communication Technology Ltd. “Dolby” and “double-D” are registered
trademark or trademark of and authorized by Dolby Laboratories Inc. to Lenovo
Mobile Communication Technology Ltd. All other names and products mentioned
in this Manual are or may be registered trademarks or trademarks of Lenovo or
other companies.
3
目录
1. Safety and Maintenance ---------------------------------------------------------------------- 4
2. Installation and Charging -------------------------------------------------------------------- 8
2.1 INSTALL THE BATTERY .......................................................................................... 8
2.2 CHARGE THE BATTERY ......................................................................................... 8
2.3 INSTALL THE UIM CARD ........................................................................................ 9
2.4 HOW TO POWER ON/OFF ...................................................................................... 9
2.5 SECURITY PASSWORD ........................................................................................ 10
2.5.1 PIN code .................................................................................................... 10
2.5.2 PUK code .................................................................................................. 10
3. Phone Layout and Key Functions ------------------------------------------------------- 11
3.1 KEY DESCRIPTION .............................................................................................. 11
4. Main Function Guide ------------------------------------------------------------------------- 12
4.1 MAKING A CALL .................................................................................................. 12
4.2 DIALING AN EMERGENCY NUMBER ...................................................................... 12
5. Input Methods ---------------------------------------------------------------------------------- 13
5.1 PINYIN INPUT METHOD ....................................................................................... 13
5.2 STROKE INPUT METHOD ..................................................................................... 13
5.3 LETTER INPUT METHOD ...................................................................................... 13
5.4 NUMBER AND SYMBOL INPUT METHOD ................................................................ 13
5.5 SMART ENGLISH INPUT METHOD ......................................................................... 13
6. Function List ------------------------------------------------------------------------------------ 14
7. Technical Parameters ----------------------------------------------------------------------- 15
8. Important Security Information —Electromagnetic Radiation
Performance Index (SAR) -------------------------------------------------------------------------- 16
9. Important Security Information —Medical Equipment --------------------------- 17
4
1. Safety and Maintenance
Please follow the precautions below to use your phone:
•Please read this manual carefully before using this phone.
•If use of mobile phone is prohibited or will lead to interference or danger, do
not power on your phone.
•You are prohibited to use a mobile phone on board an aircraft, so keep it
powered off. If the alarming and calendar features of your mobile phone can
automatically power on your phone, check and disable these features before
boarding an aircraft.
•When using your mobile phone, please keep it away from heat sources or
high-voltage environment, such as electric appliances and electric-heated cooking
appliances. Please use your mobile phone under normal temperature, because
extreme temperature (over 55℃ or below -10℃) is harmful to your phone.
•Guard against fire. Power off your mobile phone in gas stations, fuel storage
facilities and other places where there are combustible goods.
•Do not hold the mobile phone while driving. Please do not place the mobile
phone above the airbag or within the reach of the airbag after it pops, because the
mobile phone may hurt you severely when it is impelled by strong external force as
the airbag inflates.
•Use only the standard batteries, charger and accessories approved by
Lenovo. Lenovo bears no responsibility for any consequences resulting from the
use of third-party accessories.
•Your mobile phone may interfere with other electronic devices around it.
Keep it away from such electronic devices as TV, PC, cardiac pacemaker and
hearing aids. Do not place your phone in the vicinity of any credit card or magnetic
field. Observe relevant rules and regulations when using your mobile phone in
hospitals or other special places.
•Mechanical vibration or shaking of the phone is strictly prohibited, and it is
also not allowed to strike the screen of the phone with a sharp object.
•Using any cell phone cover or plastic phone cover may damage the coating
of the phone housing.
5
•Do not disassemble your mobile phone.
•Do not clean mobile housing with any dissolved matter, such as benzene,
thinner or alcohol. Don’t expose your phone to corrosive chemicals, such as
cleaning agents. Use only clean, soft cloth to clean your phone gently.
•Never expose your mobile phone to direct sunlight or heavy smog or dust.
•You mobile phone is not waterproof, so keep it dry. Never use your battery in
a high humidity environment, such as in a bathroom. Keep it away from rain or
damp.
•Use headsets and other accessories carefully. If your phone has an external
antenna, do not touch the antenna when not necessary. Use only an original
antenna. Use of unauthorized antennas may cause damage to your phone.
•When you want to unplug the charger from your mobile phone or disconnect
power, please hold firm the connector and then pull it out. •Do not pull the power
cord.
•Do not rely on your mobile phone as the only emergency (such as medical
aid) communication tool.
Keep your mobile phone in a safe place out of the reach of children to avoid
any danger.
Please follow the precautions below to use the battery:
•Please read carefully the instructions and labels on the surface of the battery
before using it.
•Charge your battery in a cool and well-ventilated room. Charging at overheat
ambient temperature may make the battery heat, fume, burn, deform or even
explode.
•The battery features special protection circuits and devices. Do not
disassemble battery, or short-circuit or electrolyte leakage may occur. If electrolyte
splashes into your eyes, you may have the risk of getting blind. In this case, rinse
your eyes with clean water (never rub the eyes) and see a doctor immediately.
•Squeezing of battery, mechanical vibration or shaking of battery or use of
short-circuited battery is strictly prohibited, because such vehavior will damage the
battery or components connected with it. Short circuit may result from direct
connection of the positive pole and the negative pole of the battery by metal
6
objects, such as a coin, pen, or paper clip, so keep the battery away from metal
objects.
•Keep metal contacts and the battery clean.
•Never use damaged or exhausted batteries.
•Replace the battery when it fails to meet the performance requirements. A
battery can be recharged for hundreds of times until replacement is necessary. As
consumer goods, a battery can be charged and discharged for hundreds of times,
but its capacity will decrease gradually. If you notice a significant decrease in
operation time (talk time and standby time), it is probably time to buy a new battery.
•Never expose your battery to direct sunlight or heavy smog or dust. Never
use your battery in a high humidity environment, such as in a bathroom. The
device is not waterproof, so keep your phone away from rain or damp.
•Do not place the battery places where temperatures is too high or too low.
Temperature above 55℃ or below -10℃ will affect battery performance.
•Never dispose of batteries in a fire to avoid explosion.
•Do not throw your battery into water, otherwise internal short circuit may
occur, which will make the battery heat, fume, deform, damage or even explode.
•Dispose of batteries (e.g. recycling) in line with regulations. Do not dispose of
batteries as household garbage to avoid explosion or pollution.
•The battery can only use a dedicated charger, and time for continuous
charging is not allowed to exceed 12 hours.
•Keep your battery in a safe place out of the reach of children to avoid any
danger.
Please follow the precautions below to use the charger.
•Please read the instructions and the labels on the surface of the charger carefully
before using it.
•Do not try to disassemble or modify the charger. Never use the charger when
power cord is damaged, otherwise, electric shock, fire and charger damage may
occur.
•Never touch the charger with a wet hand. If your charger comes into contact
with water or other liquids, switch off the power immediately.
7
•Do not short-circuit your charger. Mechanical vibration or shaking of your
charger is prohibited. Do not exposure your battery to strong sunlight. It is
prohibited to use your phone under high humidity environments, such as in the
bathroom. The device is not waterproof, so keep your phone away from rain or
damp.
•Do not use your charger in the vicinity of electronic devices such as TV or
radio.
•Hold firm the charger to unplug. Never pull the wire, otherwise the wire might
be damaged.
•Keep your charger in a safe place out of the reach of children to avoid any
danger.
Please follow the precautions below to use the headset (you may need
to buy a headset separately).
•Please keep appropriate volume when using the headset to avoid damage to
your hearing.
•Do not pull the headset wire forcefully to avoid any crack.
•Long term use of headset in places with high temperature or high humidity
can easily lead to headset damage or shorter service life.
•Do not use headset while driving, riding a bike or walking on the road in case
of any traffic accident.
•Keep the headset in a safe place out of the reach of children to avoid any
danger.
8
2. Installation and Charging
2.1 Install the battery
1. Align the metal contact of the battery with the groove at the bottom of the
cabinet.
2. Press the battery towards the mobile phone and press down until it is
buckled.

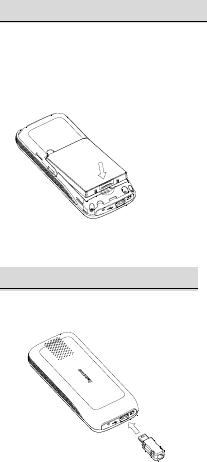

Refer to the following figure:
2.2 Charge the battery
Hold the connector of the charger and plug the charger into the charging slot
of the mobile phone as follows:
9
Note: Please handle carefully. Do not pull out the charging interface by
force. This may damage your mobile phone or charger.
• Before use, battery supplied with your mobile phone should be completely
charged.
• While charging, do not remove the battery or UIM card.
• Once the battery is used up, the mobile phone will shutdown automatically.
2.3 Install the UIM card
Power off the phone and then remove the back cover and the battery.
Insert the UIM card along the card slot direction with the chip side facing
downwards.
Install the battery and the back cover.
When the phone card is locked, the phone will prompt you to input PIN info to
unlock the phone. If you do not know the PIN, please contact the network operator
that sells the UIM card. Do not input PIN several times when you are uncertain, or
the UIM card will be damaged.
Prevent the phone card from static, scratch or bend when installing the phone
card. Put the phone card out of children’s reach after removing the phone card.
Note: When the UIM card is not installed, wrongly installed or damaged, the
screen will display “Please insert the UIM card”. The UIM card is a computer
chip containing protocol details, security information and personal
phonebook, etc.
2.4 How to power on/off
When the phone is off, make sure the battery is properly installed. Hold the
[End key] until the boot screen appears to power on the phone. If you have set up
power-on PIN authentication, the phone will prompt you to input PIN. Input the
correct PIN and press OK key to enter normal boot screen.
Under the power on situation, to power off the phone, hold the [End key] until
the shutdown screen appears.
10
2.5 Security password
You can use access password to prevent unauthorized use of your phone.
2.5.1 PIN code
PIN code is used to prevent illegal use of user’s UIM card. If your phone has
enabled PIN code protection, there will be prompt for entering PIN code after boot.
If wrong PIN codes is entered for three times, the UIM card will be automatically
locked. You should input PUK code to unlock the key. PIN code can be obtained
from your network operator.
2.5.2 PUK code
PUK code, referring to personal unlock code, is used to unlock UIM card that
is locked because of wrong inputs of PIN code. PUK code is made of 8 words to
protect your UIM card. If wrong input of PUK code amounts to ten times, the UIM
card becomes invalid. You will have to purchase a new UIM card from your
network service provider.
11
3. Phone Layout and Key Functions

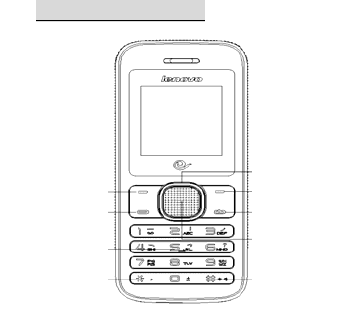

3.1 Key description
The four-way navigation key is used to quickly enter 4 fixed menus and select
menu items in menu operation.
Left soft key
Dial key
Number key
* key
Direction key
Right soft key
End key
OK key
# key
12
4. Main Function Guide
4.1 Making a call
When logo of network service provider appears on the screen, you can dial or
answer calls. Signal bars at upper left corner of the screen show intensity of
network signal. Since quality of call is greatly affected by barriers, movement in
small range can effectively improve quality of calls.
Dialing international numbers
To dial international numbers, hold the number key 0 until pre-fix “+” for
international long-distance call appears on the screen.
You can input numbers in the following order to dial international numbers:
+ Country code Complete phone number Dial key
Note: In some networks, it is not allowed to use “+” to dial international
numbers.
4.2 Dialing an emergency number
As long as you are within coverage of network, you can dial emergency calls.
Even if you phone does not have a UIM card or you have not registered to local
network, you can still make an emergency call. Enter 112 and press dial key to dial
an emergency call.
13
5. Input Methods
In text input area, press # key to switch input methods: pinyin input method,
stroke input method, Abc / ABC/ abc input method, 123 number input method and
smart English input method.
5.1 Pinyin input method
Provide Chinese input. Press corresponding keys of pinyin letters, the
input line will automatically list all possible pinyin combinations and
candidate characters.
5.2 Stroke input method
Press corresponding key of the stroke constitute the Chinese character in the
standard stroke order of the Chinese character. If you have any doubt/uncertainty
about a stroke, substitute with “?”.
5.3 Letter input method
Letter input methods includes Abc, ABC and abc input method. Each key is
used to input several characters. Quickly press a key repeatedly until the character
you need appears.
5.4 Number and symbol input method
Press corresponding number with number keys 0-9; in edit state, press * key to
invoke symbol input.
5.5 Smart English input method
Provide smart English input. The system will automatically list all possible English
combinations according to the English letter.
14
6. Function List
1 Scene Mode
2 Call Logs
3 QQ
4 Messages
5 Tianyi
6 Settings
7 Customer Service
8 Phonebook
9 Tools
Note: For menu options of “UIM card applications”, the displayed
content is related to the network service provider of the UIM card.
15
7. Technical Parameters
Standard
Product: CDMA 1X digital mobile
phone
Model: Lenovo E160C
System: CDMA 800
Ambient Temperature
Highest: +55°C
Lowest: -10°C
Basic Parameters
Weight(including standard
battery): around 77.8g
Dimension(Length × width ×
thickness): around 104 X 43.3 X
16.3mm
Talk time: 120-240min*
Pure standby time:100-150h*
* Depending on local network signal environment.
16
8. RF Exposure Information
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram
of tissue. This model (FCC ID: YCNE160C) has also been tested
against this SAR limit. The highest SAR value reported under this
standard during product certification for use at the ear is 1.443 W/kg
and when properly worn on the body is 1.272 W/kg. This device was
tested for typical body-worn operations with the back of the handset
kept 1.5cm from the body. To maintain compliance with FCC RF
exposure requirements, use accessories that maintain a 1.5cm
separation distance between the user's body and the back of the
handset. The use of belt clips, holsters and similar accessories should
not contain metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not comply
with FCC RF exposure requirements, and should be avoided.
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate the
equipment.
* Absorption ratio may differ depending on country or region, testing
environment, network band and testing unit. Accessories or attachments
used may also lead to different absorption ratio.
17
9. Important Security Information —
Medical Equipment
Any radio transition equipment (including this equipment) may
interrupt medical equipment improperly protected. If you have any
question or if you are not sure if the medical equipment can screen
external RF energy, please consult medical staff or manufacturers.
Please observe relevant regulations in places where electronic device
or wireless transmission function of mobile phone is prohibited.
Heart pacemakers
Please refer to following suggestions for people relying on heart
pacemaker when using this product:
﹡Always keep the mobile phone at least 15.3cm (about 6 inches)
away from the heart pacemaker;
﹡Do not put the mobile phone in chest pocket;
﹡Use the ear at the different side of the heart peacemaker to
answer the call to reduce potential factors of interruption.
Names and Contents of Toxic or Hazardous Substances or Elements
Part Name
Contents of Toxic or Hazardous Substances Environmental
protection
user period
and recycling
of the part
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr VI)
Poly
Brominated
Biphenyls
(PBB)
Poly
Brominated
Diphenyl
Ethers
(PBDE)
Mobile
phone
Main
board O O O O O O
Housing O O O O O O
18
Chip
componentsx O O O O O
A
ssembled
componentsx O O O O O
Charger x O O O O O
Battery x O O O O O
Headset x O O O O O
Data cable x O O O O O
Packing
accessories O O O O O O
Notes
Note 1: The contents of lead in chip electronic components (such as
high voltage resistor, ceramic resistor and diode) for special purposes
in the mobile pone, the battery and the charger may be ≥0.1%. The
contents of lead in the bolts and bolt bases of the mobile phone, the
plug of the headset, and the core of the data cable, which use superio
r
alloy, may also be ≥0.1%. These components are all subject to EU
RoHS Exemptions, and are currently technically irreplaceable.
Note 2: Lenovo is committed to minimizing and replacing toxic o
r
hazardous substances as long as it is technically applicable.
Note 3: Some models may not be provided with headset, data cable o
r
charger. Please find out the contents of substances according to the
actual configuration of the product when referring to this table.
Environmental
protection
user period
and recycling
of the mobile
phone
(excluding
battery)
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous
materials for this part is below the limit requirement in SJ/T11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the
homogeneous materials used for this part is above the limit requirement in SJ/T11363-2006.
Version: V0.1
