Lenovo Mobile Communication Technology S960 Lenovo Mobile Phone User Manual

Lenovo Mobile Communication Technology Ltd. Lenovo Mobile Phone

User manual

Lenovo S960Quick Start Guide v1.0Read this guide carefully before using your phone.

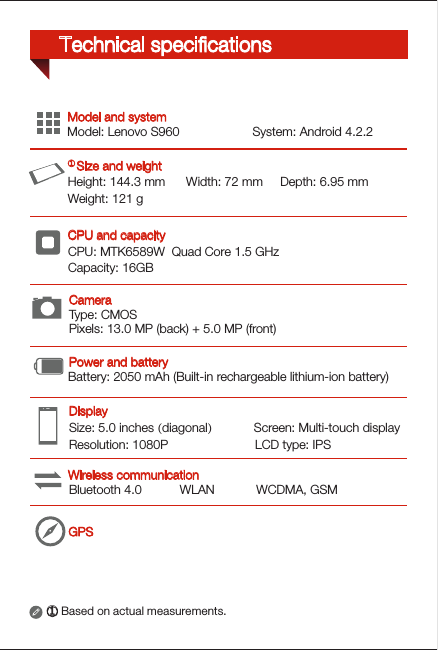

Type: CMOSPixels: 13.0 MP (back) + 5.0 MP (front)GPSHeight: 144.3 mm Width: 72 mm Depth: 6.95 mmWeight: 121 gCPU: MTK6589W Quad Core 1.5 GHzCapacity: 16GBSize: 5.0 inches (diagonal) Screen: Multi-touch displayResolution: 1080P LCD type: IPSModel: Lenovo S960 System: Android 4.2.2Bluetooth 4.0 WLAN WCDMA, GSM① Based on actual measurements.Battery: 2050 mAh (Built-in rechargeable lithium-ion battery)Wireless communicationDisplayModel and systemPower and batteryCPU and capacity① Size and weightCameraTechnical specifications

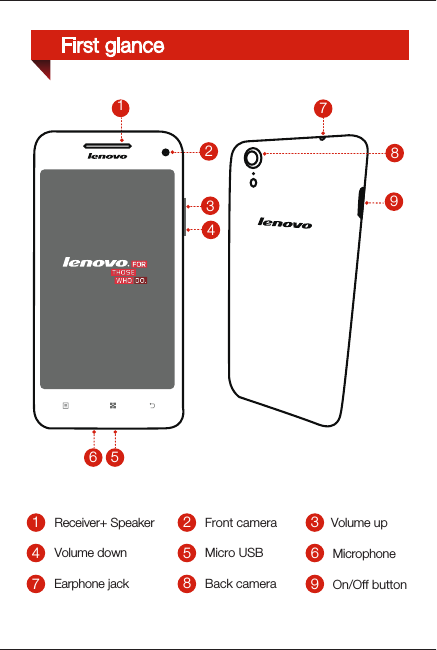

MicrophoneMicro USBOn/Off buttonFront camera Earphone jackVolume upBack camera5Receiver+ Speaker 26378941Volume down234567First glance98 1

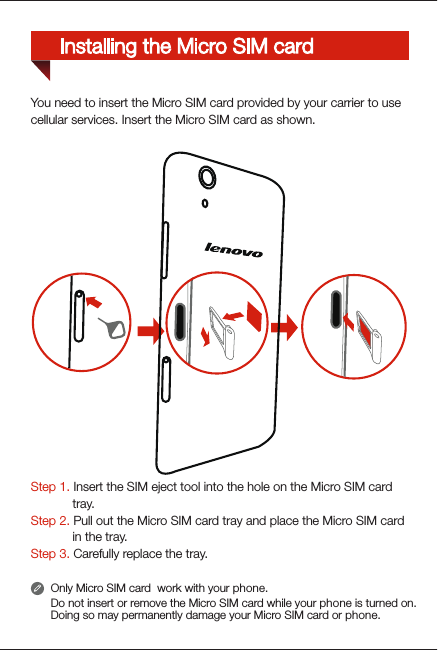

Step 1. Insert the SIM eject tool into the hole on the Micro SIM card tray. Step 2. Pull out the Micro SIM card tray and place the Micro SIM card in the tray. Step 3. Carefully replace the tray.You need to insert the Micro SIM card provided by your carrier to usecellular services. Insert the Micro SIM card as shown.Only Micro SIM card work with your phone.Do not insert or remove the Micro SIM card while your phone is turned on. Doing so may permanently damage your Micro SIM card or phone.Installing the Micro SIM card

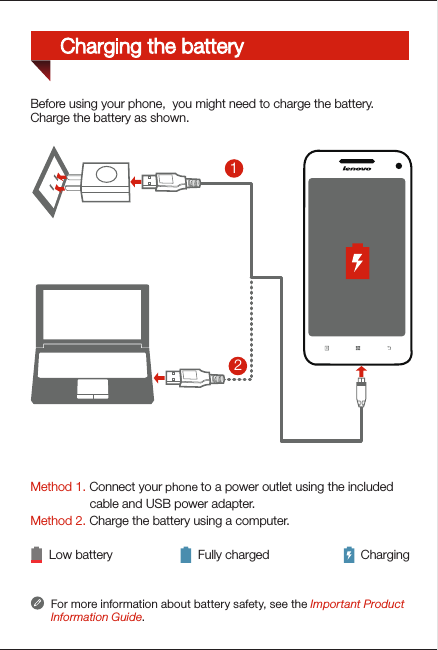

Method 1. Connect your phone to a power outlet using the included cable and USB power adapter. Method 2. Charge the battery using a computer.Low battery Fully charged ChargingFor more information about battery safety, see the Important Product Information Guide.21Before using your phone, you might need to charge the battery.Charge the battery as shown.Charging the battery

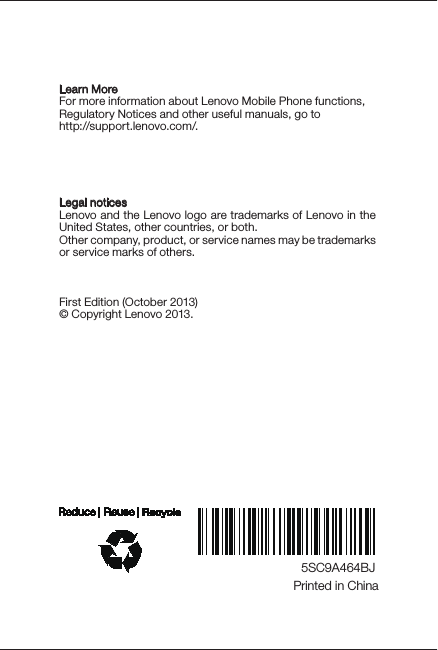

5SC9A464BJPrinted in China Legal noticesLenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others. First Edition (October 2013)© Copyright Lenovo 2013.Learn MoreFor more information about Lenovo Mobile Phone functions,Regulatory Notices and other useful manuals, go tohttp://support.lenovo.com/.
Lenovo S960 Important Product Information Guide v1.0

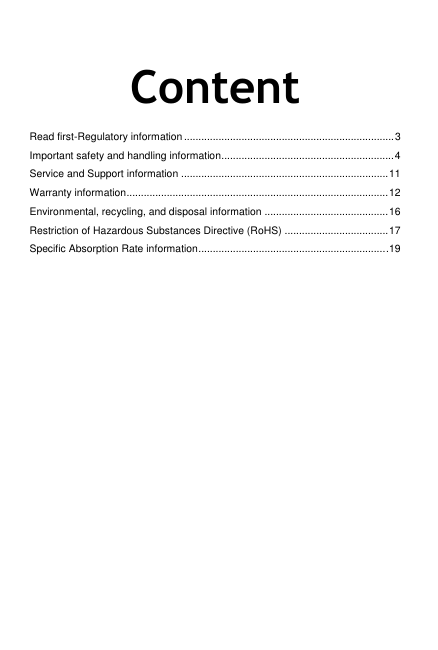

Content Read first-Regulatory information ......................................................................... 3 Important safety and handling information ............................................................ 4 Service and Support information ........................................................................ 11 Warranty information ........................................................................................... 12 Environmental, recycling, and disposal information ........................................... 16 Restriction of Hazardous Substances Directive (RoHS) .................................... 17 Specific Absorption Rate information ................................................................. .19

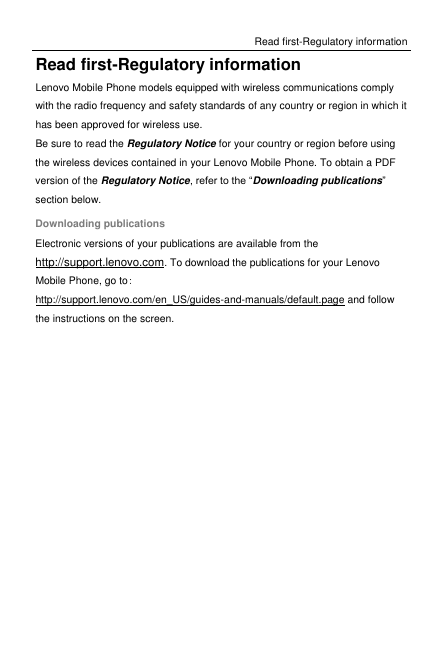

Read first-Regulatory information Read first-Regulatory information Lenovo Mobile Phone models equipped with wireless communications comply with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Be sure to read the Regulatory Notice for your country or region before using the wireless devices contained in your Lenovo Mobile Phone. To obtain a PDF version of the Regulatory Notice, refer to the “Downloading publications” section below. Downloading publications Electronic versions of your publications are available from the http://support.lenovo.com. To download the publications for your Lenovo Mobile Phone, go to: http://support.lenovo.com/en_US/guides-and-manuals/default.page and follow the instructions on the screen.

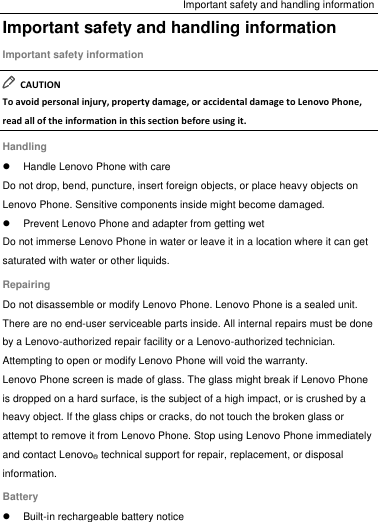

Important safety and handling information Important safety and handling information Important safety information CAUTION To avoid personal injury, property damage, or accidental damage to Lenovo Phone, read all of the information in this section before using it. Handling  Handle Lenovo Phone with care Do not drop, bend, puncture, insert foreign objects, or place heavy objects on Lenovo Phone. Sensitive components inside might become damaged.  Prevent Lenovo Phone and adapter from getting wet Do not immerse Lenovo Phone in water or leave it in a location where it can get saturated with water or other liquids. Repairing Do not disassemble or modify Lenovo Phone. Lenovo Phone is a sealed unit. There are no end-user serviceable parts inside. All internal repairs must be done by a Lenovo-authorized repair facility or a Lenovo-authorized technician. Attempting to open or modify Lenovo Phone will void the warranty. Lenovo Phone screen is made of glass. The glass might break if Lenovo Phone is dropped on a hard surface, is the subject of a high impact, or is crushed by a heavy object. If the glass chips or cracks, do not touch the broken glass or attempt to remove it from Lenovo Phone. Stop using Lenovo Phone immediately and contact Lenovo® technical support for repair, replacement, or disposal information. Battery  Built-in rechargeable battery notice

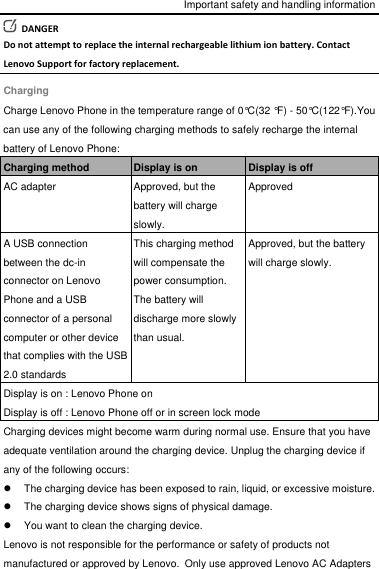

Important safety and handling information DANGER Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo Support for factory replacement. Charging Charge Lenovo Phone in the temperature range of 0°C(32 °F) - 50°C(122°F).You can use any of the following charging methods to safely recharge the internal battery of Lenovo Phone: Charging method Display is on Display is off AC adapter Approved, but the battery will charge slowly. Approved A USB connection between the dc-in connector on Lenovo Phone and a USB connector of a personal computer or other device that complies with the USB 2.0 standards This charging method will compensate the power consumption. The battery will discharge more slowly than usual. Approved, but the battery will charge slowly. Display is on : Lenovo Phone on Display is off : Lenovo Phone off or in screen lock mode Charging devices might become warm during normal use. Ensure that you have adequate ventilation around the charging device. Unplug the charging device if any of the following occurs:  The charging device has been exposed to rain, liquid, or excessive moisture.  The charging device shows signs of physical damage.  You want to clean the charging device. Lenovo is not responsible for the performance or safety of products not manufactured or approved by Lenovo. Only use approved Lenovo AC Adapters
Important safety and handling information and batteries. Distraction Take care when using Lenovo Phone in a motor vehicle or on a bicycle. Always prioritize your safety and the safety of others. Follow the law. Local laws and regulations might govern how you can use mobile electronic devices, such as Lenovo Phone, while you drive a motor vehicle or ride a bicycle. Choking hazard Keep Lenovo Phone and accessories away from small children. Lenovo Phone contains small parts that can be a choking hazard to small children. Additionally, the glass screen can break or crack if dropped on or thrown against a hard surface. Plastic bag notice CAUTION Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation. Prevent hearing damage Lenovo Phone has a headphone connector. Always use the headphone connector for headphones (also called a headset) or earphones. CAUTION Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to maximum increases the earphone and headphone output voltage and the sound pressure level. Therefore, to protect your hearing, adjust the equalizer to an appropriate level. Excessive use of headphones or earphones for a long period of time at high volume can be dangerous if the output of the headphone or earphone connectors do not comply with specifications of EN 50332-2. The headphone output connector of Lenovo Phone complies with EN 50332-2

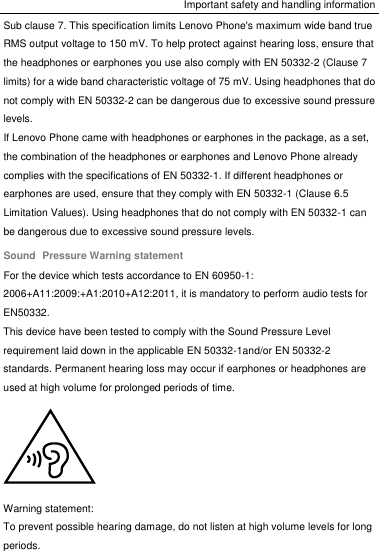

Important safety and handling information Sub clause 7. This specification limits Lenovo Phone's maximum wide band true RMS output voltage to 150 mV. To help protect against hearing loss, ensure that the headphones or earphones you use also comply with EN 50332-2 (Clause 7 limits) for a wide band characteristic voltage of 75 mV. Using headphones that do not comply with EN 50332-2 can be dangerous due to excessive sound pressure levels. If Lenovo Phone came with headphones or earphones in the package, as a set, the combination of the headphones or earphones and Lenovo Phone already complies with the specifications of EN 50332-1. If different headphones or earphones are used, ensure that they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using headphones that do not comply with EN 50332-1 can be dangerous due to excessive sound pressure levels. Sound Pressure Warning statement For the device which tests accordance to EN 60950-1: 2006+A11:2009:+A1:2010+A12:2011, it is mandatory to perform audio tests for EN50332. This device have been tested to comply with the Sound Pressure Level requirement laid down in the applicable EN 50332-1and/or EN 50332-2 standards. Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Warning statement: To prevent possible hearing damage, do not listen at high volume levels for long periods.

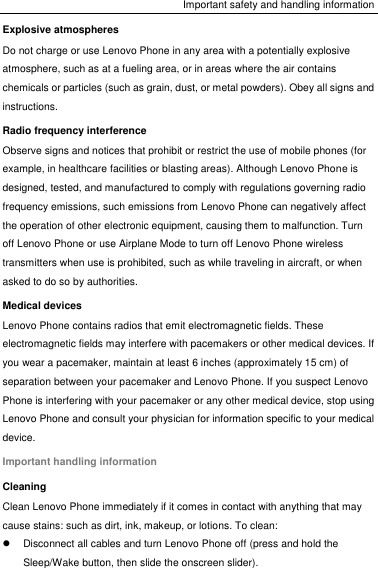

Important safety and handling information Explosive atmospheres Do not charge or use Lenovo Phone in any area with a potentially explosive atmosphere, such as at a fueling area, or in areas where the air contains chemicals or particles (such as grain, dust, or metal powders). Obey all signs and instructions. Radio frequency interference Observe signs and notices that prohibit or restrict the use of mobile phones (for example, in healthcare facilities or blasting areas). Although Lenovo Phone is designed, tested, and manufactured to comply with regulations governing radio frequency emissions, such emissions from Lenovo Phone can negatively affect the operation of other electronic equipment, causing them to malfunction. Turn off Lenovo Phone or use Airplane Mode to turn off Lenovo Phone wireless transmitters when use is prohibited, such as while traveling in aircraft, or when asked to do so by authorities. Medical devices Lenovo Phone contains radios that emit electromagnetic fields. These electromagnetic fields may interfere with pacemakers or other medical devices. If you wear a pacemaker, maintain at least 6 inches (approximately 15 cm) of separation between your pacemaker and Lenovo Phone. If you suspect Lenovo Phone is interfering with your pacemaker or any other medical device, stop using Lenovo Phone and consult your physician for information specific to your medical device. Important handling information Cleaning Clean Lenovo Phone immediately if it comes in contact with anything that may cause stains: such as dirt, ink, makeup, or lotions. To clean:  Disconnect all cables and turn Lenovo Phone off (press and hold the Sleep/Wake button, then slide the onscreen slider).

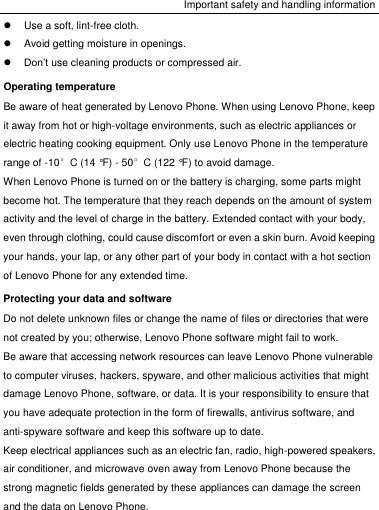

Important safety and handling information  Use a soft, lint-free cloth.  Avoid getting moisture in openings.  Don’t use cleaning products or compressed air. Operating temperature Be aware of heat generated by Lenovo Phone. When using Lenovo Phone, keep it away from hot or high-voltage environments, such as electric appliances or electric heating cooking equipment. Only use Lenovo Phone in the temperature range of -10°C (14 °F) - 50°C (122 °F) to avoid damage. When Lenovo Phone is turned on or the battery is charging, some parts might become hot. The temperature that they reach depends on the amount of system activity and the level of charge in the battery. Extended contact with your body, even through clothing, could cause discomfort or even a skin burn. Avoid keeping your hands, your lap, or any other part of your body in contact with a hot section of Lenovo Phone for any extended time. Protecting your data and software Do not delete unknown files or change the name of files or directories that were not created by you; otherwise, Lenovo Phone software might fail to work. Be aware that accessing network resources can leave Lenovo Phone vulnerable to computer viruses, hackers, spyware, and other malicious activities that might damage Lenovo Phone, software, or data. It is your responsibility to ensure that you have adequate protection in the form of firewalls, antivirus software, and anti-spyware software and keep this software up to date. Keep electrical appliances such as an electric fan, radio, high-powered speakers, air conditioner, and microwave oven away from Lenovo Phone because the strong magnetic fields generated by these appliances can damage the screen and the data on Lenovo Phone.

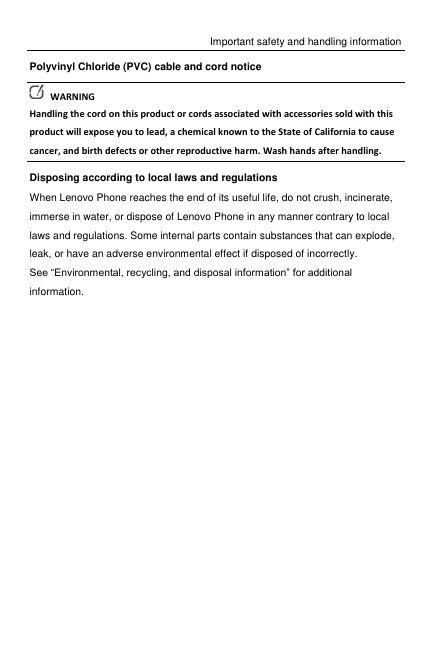

Important safety and handling information Polyvinyl Chloride (PVC) cable and cord notice WARNING Handling the cord on this product or cords associated with accessories sold with this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Disposing according to local laws and regulations When Lenovo Phone reaches the end of its useful life, do not crush, incinerate, immerse in water, or dispose of Lenovo Phone in any manner contrary to local laws and regulations. Some internal parts contain substances that can explode, leak, or have an adverse environmental effect if disposed of incorrectly. See “Environmental, recycling, and disposal information” for additional information.

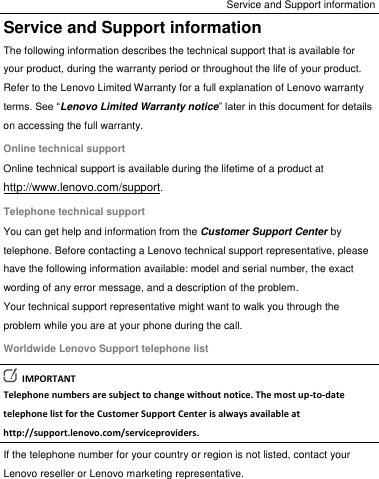

Service and Support information Service and Support information The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. See “Lenovo Limited Warranty notice” later in this document for details on accessing the full warranty. Online technical support Online technical support is available during the lifetime of a product at http://www.lenovo.com/support. Telephone technical support You can get help and information from the Customer Support Center by telephone. Before contacting a Lenovo technical support representative, please have the following information available: model and serial number, the exact wording of any error message, and a description of the problem. Your technical support representative might want to walk you through the problem while you are at your phone during the call. Worldwide Lenovo Support telephone list IMPORTANT Telephone numbers are subject to change without notice. The most up-to-date telephone list for the Customer Support Center is always available at http://support.lenovo.com/serviceproviders. If the telephone number for your country or region is not listed, contact your Lenovo reseller or Lenovo marketing representative.

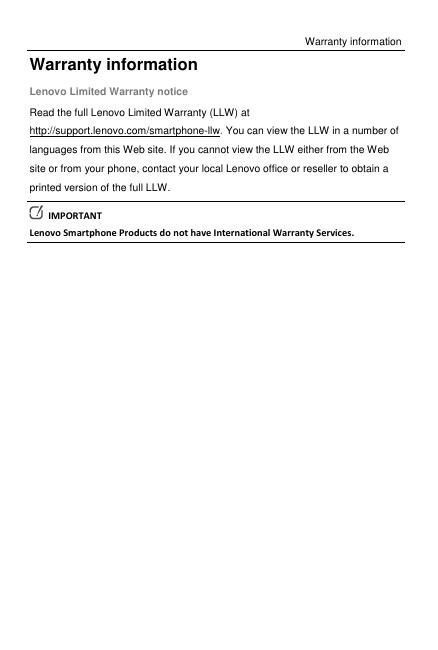

Warranty information Warranty information Lenovo Limited Warranty notice Read the full Lenovo Limited Warranty (LLW) at http://support.lenovo.com/smartphone-llw. You can view the LLW in a number of languages from this Web site. If you cannot view the LLW either from the Web site or from your phone, contact your local Lenovo office or reseller to obtain a printed version of the full LLW. IMPORTANT Lenovo Smartphone Products do not have International Warranty Services.

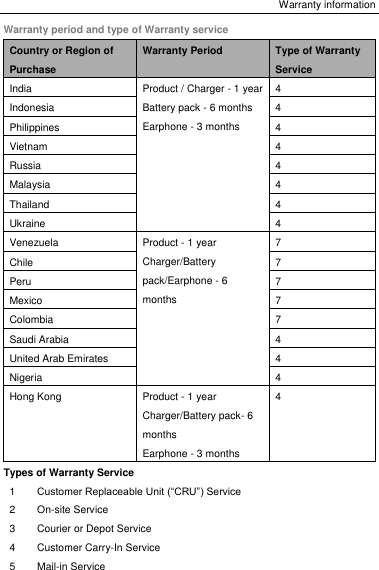

Warranty information Warranty period and type of Warranty service Country or Region of Purchase Warranty Period Type of Warranty Service India Product / Charger - 1 year Battery pack - 6 months Earphone - 3 months 4 Indonesia 4 Philippines 4 Vietnam 4 Russia 4 Malaysia 4 Thailand 4 Ukraine 4 Venezuela Product - 1 year Charger/Battery pack/Earphone - 6 months 7 Chile 7 Peru 7 Mexico 7 Colombia 7 Saudi Arabia 4 United Arab Emirates 4 Nigeria 4 Hong Kong Product - 1 year Charger/Battery pack- 6 months Earphone - 3 months 4 Types of Warranty Service 1 Customer Replaceable Unit (“CRU”) Service 2 On-site Service 3 Courier or Depot Service 4 Customer Carry-In Service 5 Mail-in Service

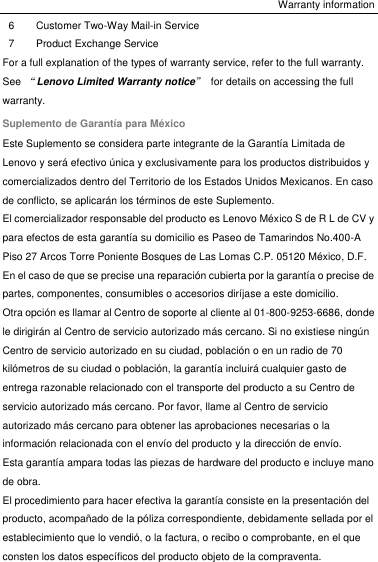

Warranty information 6 Customer Two-Way Mail-in Service 7 Product Exchange Service For a full explanation of the types of warranty service, refer to the full warranty. See “Lenovo Limited Warranty notice” for details on accessing the full warranty. Suplemento de Garantía para México Este Suplemento se considera parte integrante de la Garantía Limitada de Lenovo y será efectivo única y exclusivamente para los productos distribuidos y comercializados dentro del Territorio de los Estados Unidos Mexicanos. En caso de conflicto, se aplicarán los términos de este Suplemento. El comercializador responsable del producto es Lenovo México S de R L de CV y para efectos de esta garantía su domicilio es Paseo de Tamarindos No.400-A Piso 27 Arcos Torre Poniente Bosques de Las Lomas C.P. 05120 México, D.F. En el caso de que se precise una reparación cubierta por la garantía o precise de partes, componentes, consumibles o accesorios diríjase a este domicilio. Otra opción es llamar al Centro de soporte al cliente al 01-800-9253-6686, donde le dirigirán al Centro de servicio autorizado más cercano. Si no existiese ningún Centro de servicio autorizado en su ciudad, población o en un radio de 70 kilómetros de su ciudad o población, la garantía incluirá cualquier gasto de entrega razonable relacionado con el transporte del producto a su Centro de servicio autorizado más cercano. Por favor, llame al Centro de servicio autorizado más cercano para obtener las aprobaciones necesarias o la información relacionada con el envío del producto y la dirección de envío. Esta garantía ampara todas las piezas de hardware del producto e incluye mano de obra. El procedimiento para hacer efectiva la garantía consiste en la presentación del producto, acompañado de la póliza correspondiente, debidamente sellada por el establecimiento que lo vendió, o la factura, o recibo o comprobante, en el que consten los datos específicos del producto objeto de la compraventa.

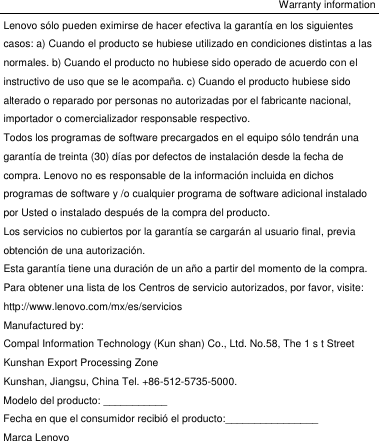

Warranty information Lenovo sólo pueden eximirse de hacer efectiva la garantía en los siguientes casos: a) Cuando el producto se hubiese utilizado en condiciones distintas a las normales. b) Cuando el producto no hubiese sido operado de acuerdo con el instructivo de uso que se le acompaña. c) Cuando el producto hubiese sido alterado o reparado por personas no autorizadas por el fabricante nacional, importador o comercializador responsable respectivo. Todos los programas de software precargados en el equipo sólo tendrán una garantía de treinta (30) días por defectos de instalación desde la fecha de compra. Lenovo no es responsable de la información incluida en dichos programas de software y /o cualquier programa de software adicional instalado por Usted o instalado después de la compra del producto. Los servicios no cubiertos por la garantía se cargarán al usuario final, previa obtención de una autorización. Esta garantía tiene una duración de un año a partir del momento de la compra. Para obtener una lista de los Centros de servicio autorizados, por favor, visite: http://www.lenovo.com/mx/es/servicios Manufactured by: Compal Information Technology (Kun shan) Co., Ltd. No.58, The 1 s t Street Kunshan Export Processing Zone Kunshan, Jiangsu, China Tel. +86-512-5735-5000. Modelo del producto: ___________ Fecha en que el consumidor recibió el producto:________________ Marca Lenovo

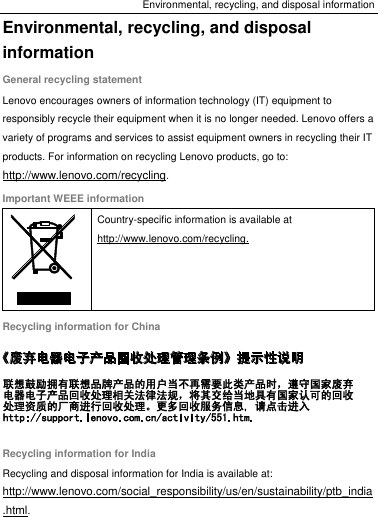

Environmental, recycling, and disposal information Environmental, recycling, and disposal information General recycling statement Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information on recycling Lenovo products, go to: http://www.lenovo.com/recycling. Important WEEE information Country-specific information is available at http://www.lenovo.com/recycling. Recycling information for China Recycling information for India Recycling and disposal information for India is available at: http://www.lenovo.com/social_responsibility/us/en/sustainability/ptb_india.html.

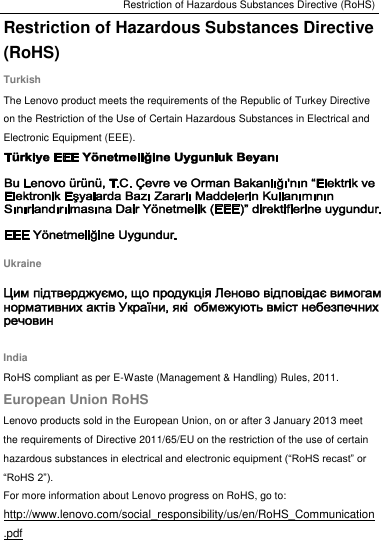

Restriction of Hazardous Substances Directive (RoHS) Restriction of Hazardous Substances Directive (RoHS) Turkish The Lenovo product meets the requirements of the Republic of Turkey Directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (EEE). Ukraine India RoHS compliant as per E-Waste (Management & Handling) Rules, 2011. European Union RoHS Lenovo products sold in the European Union, on or after 3 January 2013 meet the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS recast” or “RoHS 2”). For more information about Lenovo progress on RoHS, go to: http://www.lenovo.com/social_responsibility/us/en/RoHS_Communication.pdf

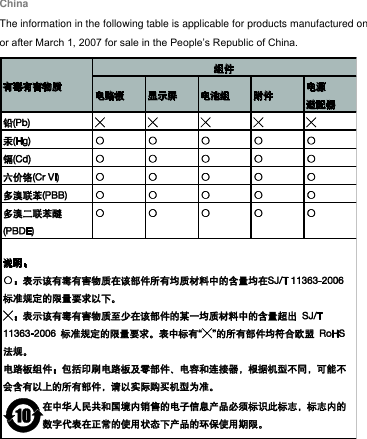

China The information in the following table is applicable for products manufactured on or after March 1, 2007 for sale in the People’s Republic of China.
Restriction of Hazardous Substances Directive (RoHS) Electronic emission notices FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC(Federal Communications Commission) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult an authorized dealer or service representative for help. Lenovo is not responsible for any radio or television interference caused by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Restriction of Hazardous Substances Directive (RoHS) Responsible Party: Lenovo (United States) Incorporated 1009 Think Place - Building One Morrisville, NC 27560 Telephone: 1-919-294-5900 FCC Caution Any Changes or modifications not expressly approved by the party responsible for compliance void the user’s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all Wi-Fi product marketed in US must fixed to US operation channels only.

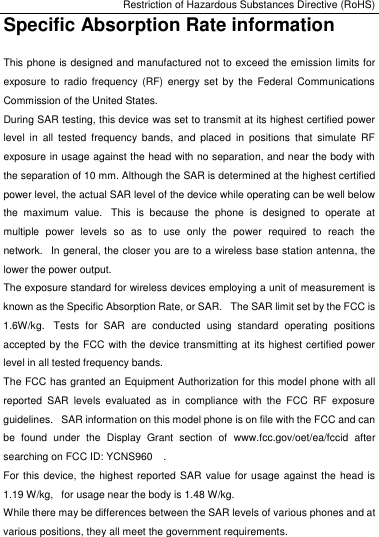

Restriction of Hazardous Substances Directive (RoHS) Specific Absorption Rate information This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and near the body with the separation of 10 mm. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The exposure standard for wireless devices employing a unit of measurement is known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: YCNS960 . For this device, the highest reported SAR value for usage against the head is 1.19 W/kg, for usage near the body is 1.48 W/kg. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirements.

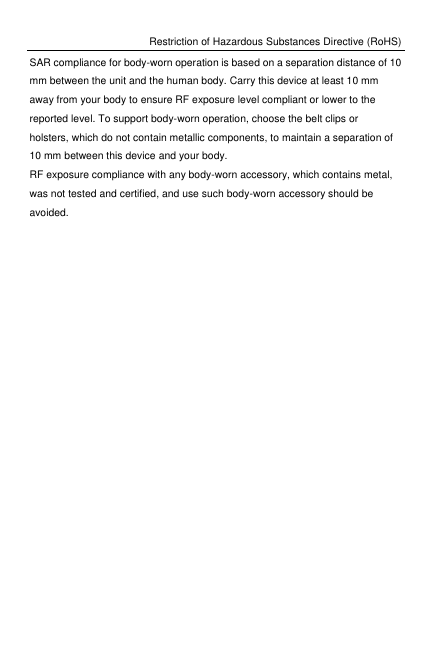

Restriction of Hazardous Substances Directive (RoHS) SAR compliance for body-worn operation is based on a separation distance of 10 mm between the unit and the human body. Carry this device at least 10 mm away from your body to ensure RF exposure level compliant or lower to the reported level. To support body-worn operation, choose the belt clips or holsters, which do not contain metallic components, to maintain a separation of 10 mm between this device and your body. RF exposure compliance with any body-worn accessory, which contains metal, was not tested and certified, and use such body-worn accessory should be avoided.
