Lenovo ideapad 330

ideapad 330-14IKB/ideapad 330E-14IKB D/

ideapad 330E-14IKB U/ideapad 330-14IKB D/

ideapad 330-14IKB U/ideapad 330H-14IKB/

ideapad 330L-14IKB/ideapad 330E-14IKB/

ideapad 330R-14IKB/ideapad 330-15IKB/

ideapad 330E-15IKB D/ideapad 330E-15IKB U/

ideapad 330-15IKB D/ideapad 330-15IKB U/

ideapad 330H-15IKB/ideapad 330L-15IKB/

ideapad 330E-15IKB/ideapad 330R-15IKB/

ideapad 330-15IKB Touch

Hardware

Maintenance

Manual

Note:

• Before using this information and the product it supports, be sure to read the general information under

“Notices” on page 97.

First Edition (March 2018)

© Copyright Lenovo 2018. All rights reserved.

LIMITEDANDRESTRICTEDRIGHTSNOTICE:IfdataorsoftwareisdeliveredpursuantaGeneral

ServicesAdministration“GSA”contract,use,reproduction,ordisclosureissubjecttorestrictionsset

forthinContractNo.GS-35F-05925.

©2018Lenovo

iii

Contents

About this manual ....................................... iv

Safety information ........................................ 1

Generalsafety................................................ 2

Electricalsafety.............................................. 3

Safetyinspectionguide.................................. 5

Handlingdevicesthataresensitiveto

electrostaticdischarge.................................... 6

Groundingrequirements................................. 6

Safetynotices:multilingualtranslations.......... 7

Lasercompliancestatement......................... 14

Important service information ................... 16

StrategyforreplacingFRUs......................... 16

Strategyforreplacingaharddiskdrive............17

Importantnoticeforreplacingasystem

board................................................................17

Importantinformationaboutreplacing

RoHScompliantFRUs................................. 18

General checkout ...................................... 19

Whattodorst............................................. 20

Powersystemcheckout................................ 21

CheckingtheACadapter.................................21

Checkingoperationalcharging.........................21

Checkingthebatterypack................................22

Related service information ...................... 23

Restoringthefactorycontentsbyusing

OneKeyRecovery........................................ 23

Restoreoffactorydefault.................................23

Passwords.................................................... 24

Power-onpassword.......................................... 24

Hard-diskpassword.......................................... 24

Administratorpassword....................................24

Powermanagement..................................... 25

Screenblankstate............................................25

Puttingthecomputertosleeporshuttingit

down.................................................................25

Puttingyourcomputertosleep......................... 25

Shuttingdownthecomputer.............................26

Lenovo ideapad 330-14IKB/ideapad

330E-14IKB D/ideapad 330E-14IKB U/ideapad

330-14IKB D/ideapad 330-14IKB U/ideapad

330H-14IKB/ideapad 330L-14IKB/ideapad

330E-14IKB/ideapad 330R-14IKB/ideapad

330-15IKB/ideapad 330E-15IKB D/ideapad

330E-15IKB U/ideapad 330-15IKB D/ideapad

330-15IKB U/ideapad 330H-15IKB/ideapad

330L-15IKB/ideapad 330E-15IKB/ideapad

330R-15IKB/ideapad 330-15IKB Touch ..... 27

Specications............................................... 27

Statusindicators........................................... 29

Hotkeys......................................................... 30

FRUreplacementnotices............................. 31

Screwnotices..................................................31

RemovingandreplacinganFRU................. 32

1010Opticaldrive.............................................33

1020Basecover...............................................34

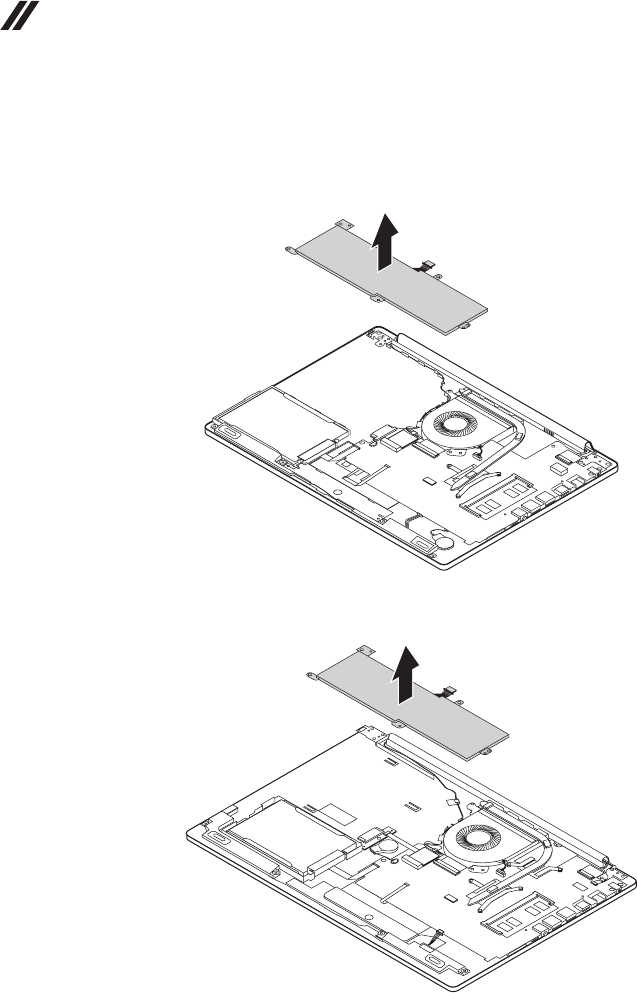

1030Batterypack.............................................37

1040PCIExpressMiniCardforwireless

LAN...................................................................39

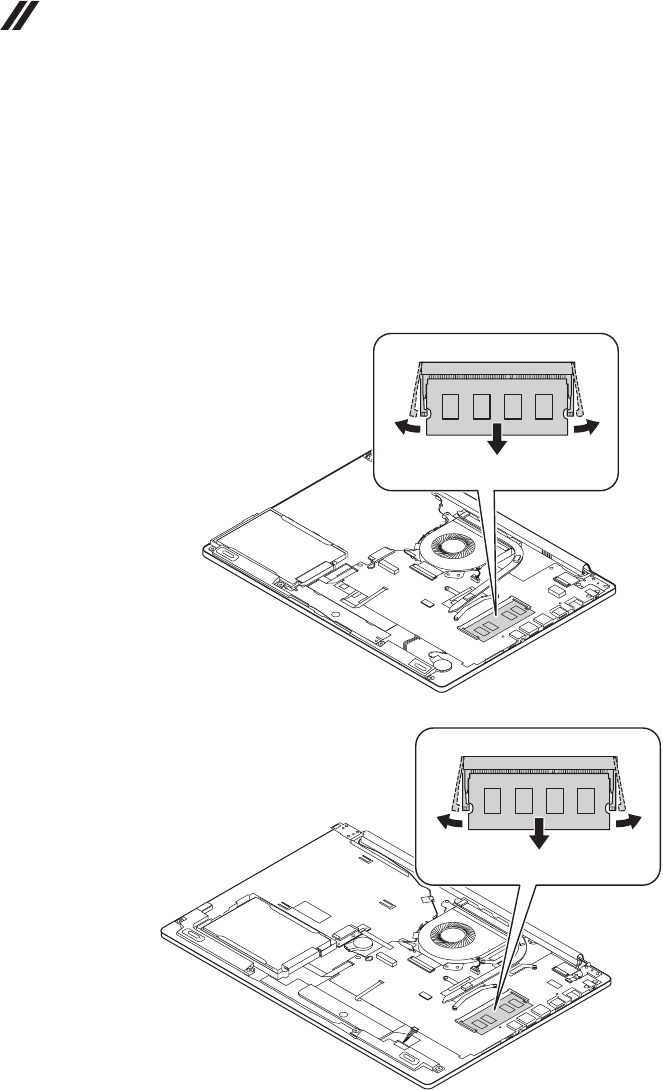

1050DIMM.......................................................42

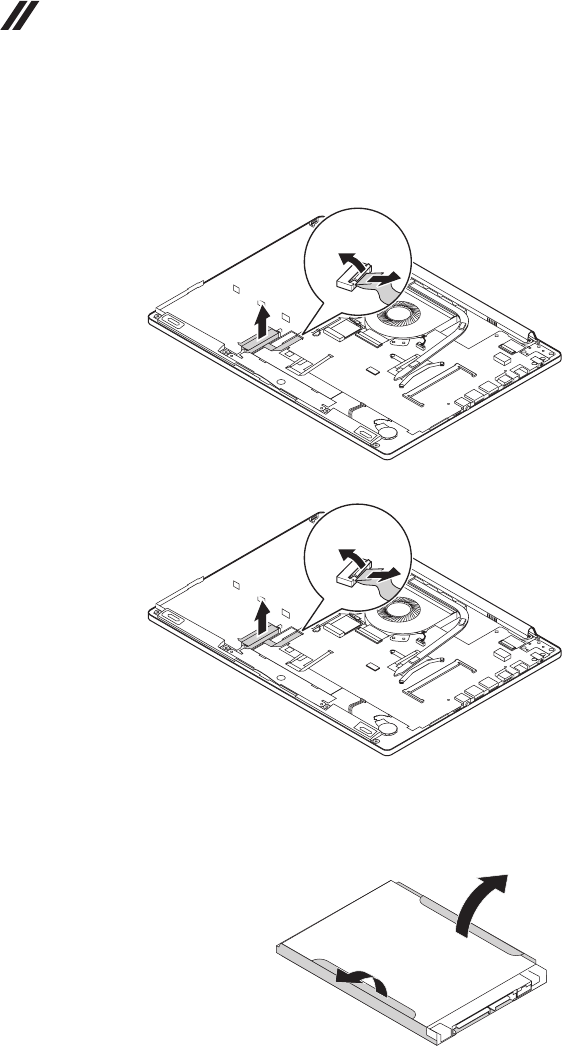

1060Harddiskdrive.........................................43

1070Speakers.................................................45

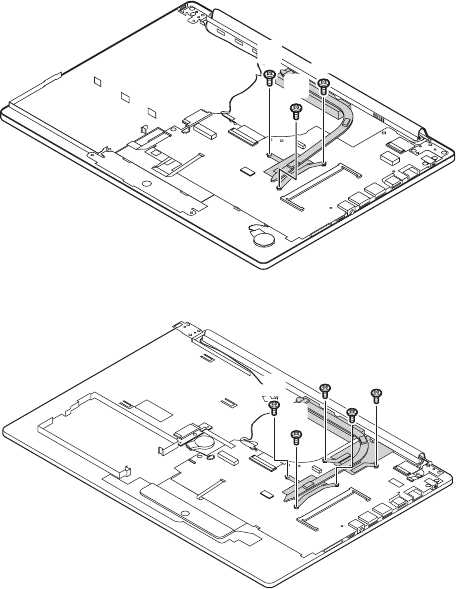

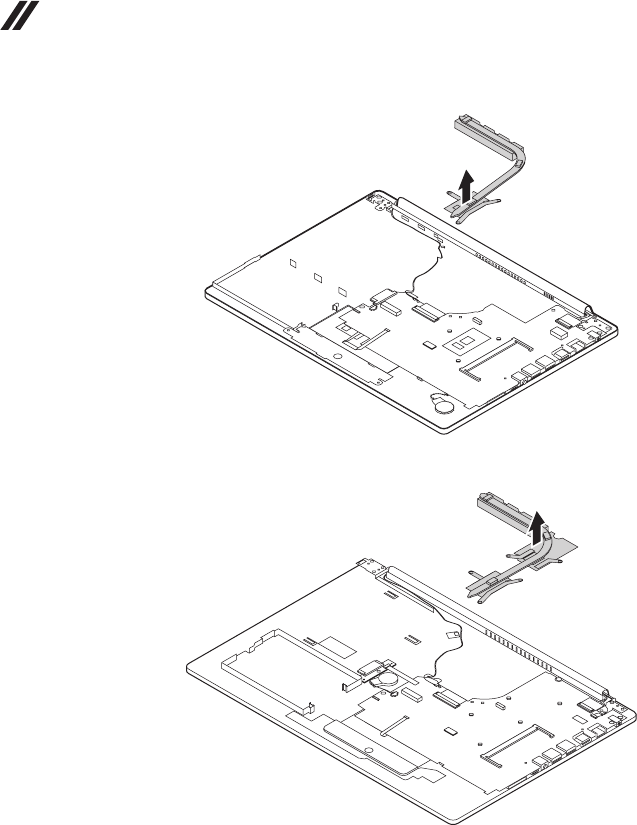

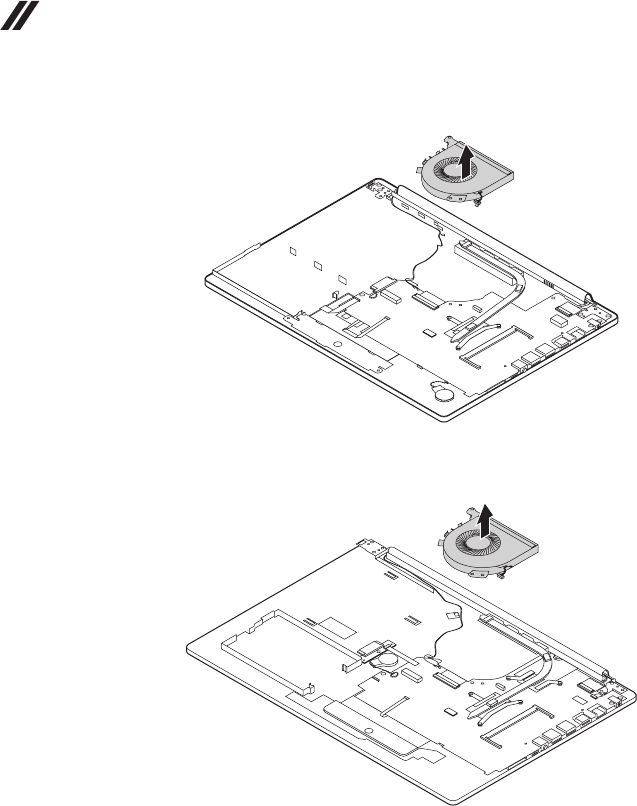

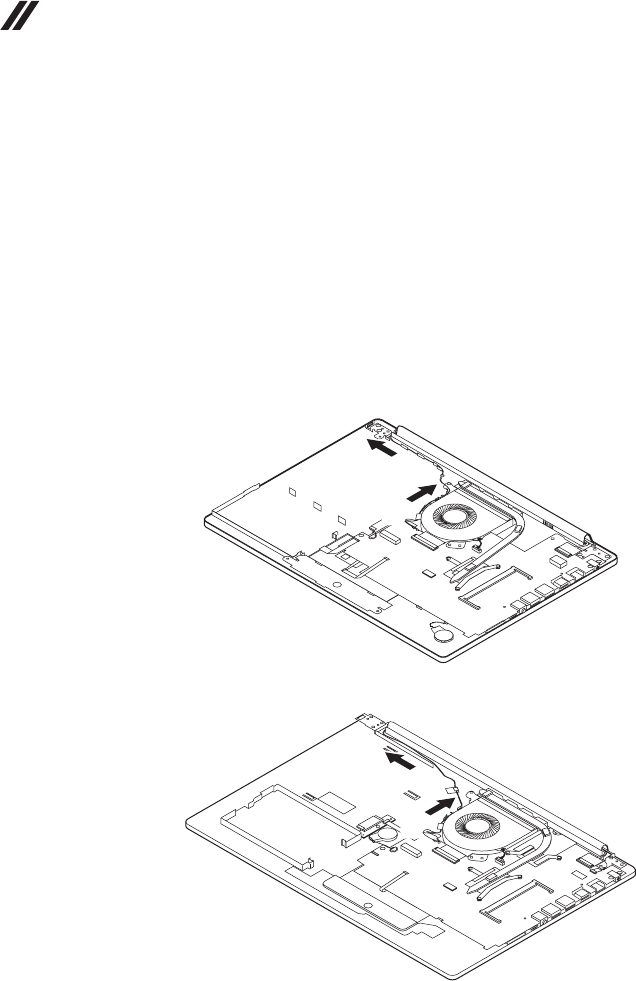

1080FanassemblyandHeatSink

assembly...........................................................46

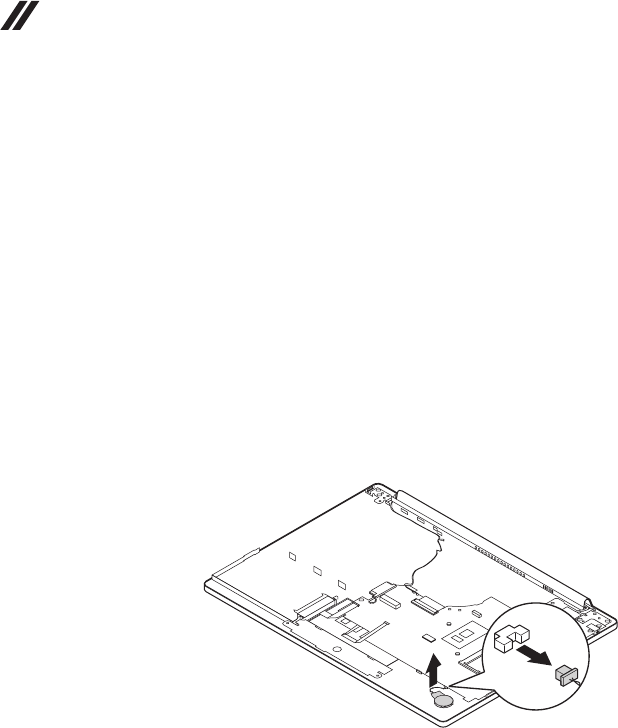

1090ODDtransferboard(ideapad330-15IKB/

ideapad330-15IKBTouch)andbackup

battery...............................................................52

1100Uppercase...............................................54

1110

Systemboard............................................ 59

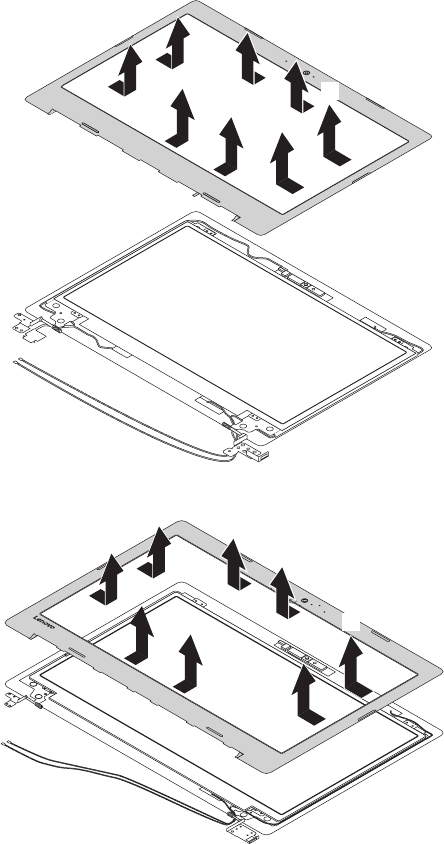

1120LCDunit...................................................62

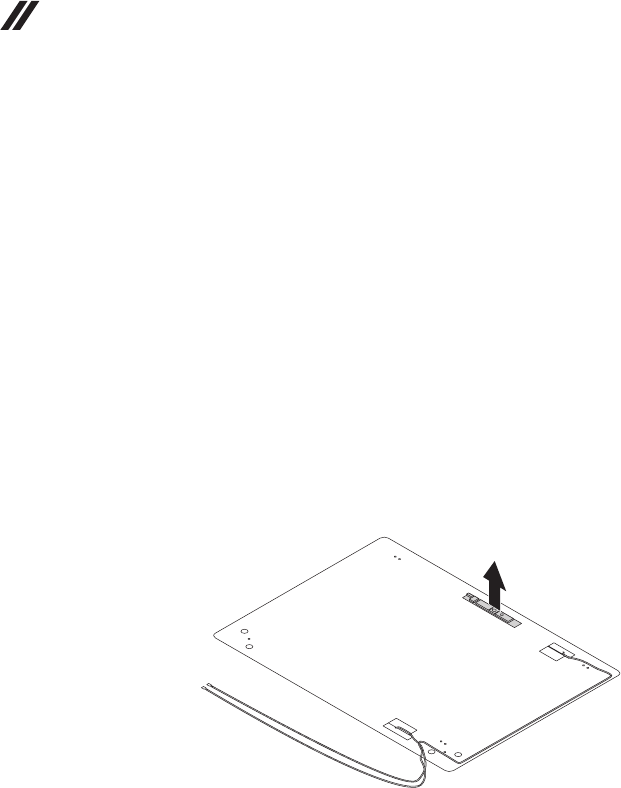

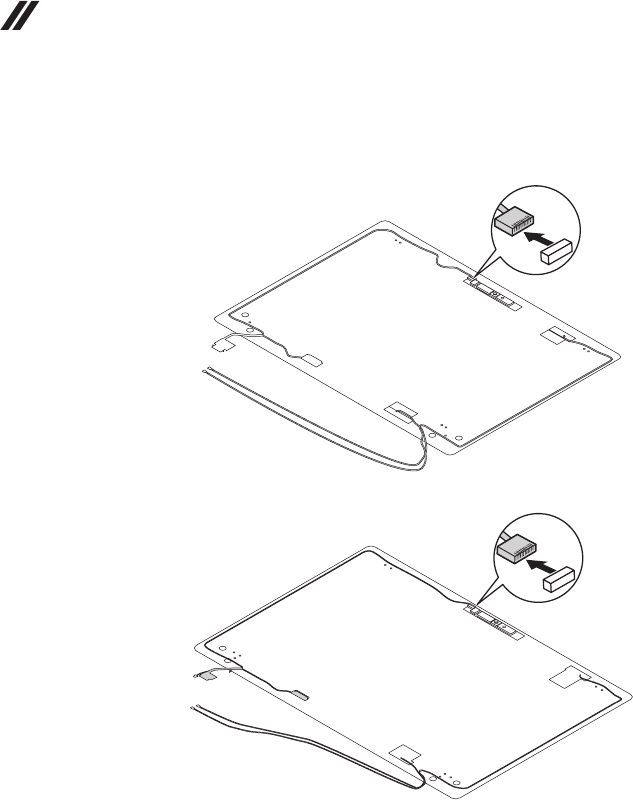

1130Integratedcameraandantenna

assembly...........................................................70

Locations...................................................... 72

Frontviewandright-sideview..........................72

BottomandLeft-sideview...............................74

Partslist........................................................ 75

Overall..............................................................76

LCDFRUs........................................................90

Miscellaneousparts.......................................... 94

ACadapters......................................................95

Screws..............................................................96

Notices......................................................... 97

Trademarks.................................................. 98

iv

About this manual

Thismanualcontainsserviceandreferenceinformation forthefollowing

Lenovoproduct:

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/

ideapad 330E-14IKB U/ideapad 330-14IKB D/

ideapad 330-14IKB U/ideapad 330H-14IKB/

ideapad 330L-14IKB/ideapad 330E-14IKB/

ideapad 330R-14IKB/ideapad 330-15IKB/

ideapad 330E-15IKB D/ideapad 330E-15IKB U/

ideapad 330-15IKB D/ideapad 330-15IKB U/

ideapad 330H-15IKB/ideapad 330L-15IKB/

ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Usethismanualtotroubleshootproblems.

Themanualisdividedintothefollowingsections:

• Thecommonsectionsprovidegeneralinformation,guidelines,and safety

informationrequiredforservicingcomputers.

• Theproduct-specicsectionincludesservice,reference,andproduct-specic

partsinformation.

Important:

This manual is intended only for trained servicers who are familiar with Lenovo

products. Use this manual to troubleshoot problems effectively.

Before servicing a Lenovo product, make sure to read all the information under

“Safety information” on page 1 and “Important service information” on page 16.

1

Safety information

Safety information

Thischapterpresentsthefollowingsafetyinformationthatyouneedto

getfamiliarwithbeforeyou serviceaLenovoideapad330-14IKB/ideapad

330E-14IKBD/ideapad330E-14IKBU/ideapad330-14IKBD/ideapad330-

14IKBU/ideapad 330H-14IKB/ideapad330L-14IKB/ideapad 330E-14IKB/

ideapad330R-14IKB/ideapad 330-15IKB/ideapad330E-15IKB D/ideapad

330E-15IKBU/ideapad330-15IKBD/ideapad330-15IKBU/ideapad

330H-15IKB/ideapad330L-15IKB/ideapad 330E-15IKB/ideapad330R-15IKB/

ideapad330-15IKBTouchcomputer:

• “Generalsafety”onpage2

• “Electricalsafety”onpage3

• “Safetyinspectionguide”onpage5

• “Handlingdevicesthataresensitivetoelectrostaticdischarge”onpage6

• “Groundingrequirements”onpage6

• “Safetynotices:multilingualtranslations”onpage7

• “Lasercompliancestatement”onpage14

2

Hardware Maintenance Manual

General safety

Followtheserulesbelowtoensuregeneralsafety:

• Observeagoodhousekeepingintheareawherethemachinesareput

duringandafterthemaintenance.

• Whenliftinganyheavyobject:

1. Makesurethatyoucanstandsafelywithoutslipping.

2. Distributetheweightoftheobjectequallybetweenyourfeet.

3. Useaslowliftingforce.Nevermovesuddenlyortwistwhenyouattempt

toliftit.

4. Liftitbystandingorpushingupwithyourlegmuscles;thisactioncould

avoidthestrainfromthemusclesinyourback.Donotattempttoliftany

objectthatweighsmorethan16kg(35lb)orthatyouthinkistooheavy

foryou.

• Donotperformanyactionthatcauseshazardstothecustomer,or that

makesthemachineunsafe.

• Beforeyou startthemachine,makesurethatotherservicerepresentatives

andthecustomerarenotinahazardousposition.

• Pleaseremovecoversandotherpartsinasafeplace,away fromall

personnel,whileyouareservicingthemachine.

• Keepyourtoolcaseawayfrom walkareassothatotherpeoplewill nottrip

overit.

• Donotwearlooseclothingthatcanbetrappedinthemovingpartsofthe

machine.Makesurethatyoursleevesarefastenedorrolledupaboveyour

elbows.Ifyourhairislong,fastenit.

• Inserttheendsofyour necktieorscarfinsideclothingorfastenitwiththe

nonconductiveclip,about8centimeters(3inches)fromtheend.

• Donotwearjewelry,chains,metal-frameeyeglasses,ormetalfastenersfor

yourclothing.

Attention:Metalobjectsaregoodelectricalconductors.

• Wearsafetyglasses whenyou arehammering, drilling,soldering, cutting

wire,attachingsprings,usingsolvents,orworking inanyotherconditions

thatmaybehazardoustoyoureyes.

• Afterservice, reinstallall safetyshields, guards,labels, andgroundwires.

Replaceanysafetydevicethatiswornordefective.

• Reinstallallcoverscorrectlybeforereturningthemachinetothecustomer.

• Fanlouversonthemachinehelptopreventthe overheatingof internal

components.Donotobstructfanlouversorcoverthem withlabels or

stickers.

3

Safety information

Electrical safety

Observethefollowingruleswhenworkingonelectricalequipments.

Important:

Use only approved tools and test equipments. Some hand tools have handles

covered with a soft material that does not insulate you when working with live

electrical currents.

Many customers have rubber floor mats near their machines that contain small

conductive bers to decrease electrostatic discharges. Do not use such kind of mat

to protect yourself from electrical shock.

• Findtheroomemergencypower-off(EPO)switch,disconnectingswitchor

electricaloutlet.Ifanelectricalaccidentoccurs,youcan thenoperate the

switchorunplugthepowercordquickly.

• Donotworkaloneunderhazardousconditionsorneartheequipmentthat

hashazardousvoltages.

• Disconnectallpowerbefore:

– Performingamechanicalinspection

– Workingnearpowersupplies

– Removingorinstallingmainunits

• Beforeyoustarttowork onthemachine,unplugthe powercord.Ifyou

cannotunplugit,askthe customertopower-off thewallboxthatsupplies

powertothemachine,andtolockthewallboxintheoffposition.

• Ifyouneedtoworkona machinethathasexposedelectricalcircuits,

observethefollowingprecautions:

– Ensurethatanotherperson,familiarwiththepower-offcontrols,isnear

you.

Attention:Anotherperson mustbe thereto switchoffthe power,if

necessary.

– Useonlyonehandwhenworkingwithpowered-onelectricalequipment;

keeptheotherhandinyourpocketorbehindyourback.

Attention:Anelectricalshockcanoccuronlywhenthereisacomplete

circuit.Byobservingtheaboverule,youmaypreventacurrentfrom

passingthroughyourbody.

– Whenusingtesters,setthecontrolscorrectlyandusetheapproved

probeleadsandaccessoriesforthattester.

– Standonsuitablerubbermats(obtainedlocally,ifnecessary)toinsulate

youfromgroundssuchasmetaloorstripsandmachineframes.

Observethespecialsafetyprecautionswhenyouworkwithveryhighvoltages;

instructionsfortheseprecautionsare inthesafetysectionsof maintenance

information.Beextremelycarefulwhenyoumeasurethehighvoltages.

• Regularlyinspectandmaintainyourelectricalhandtoolsforsafeoperational

condition.

• Donotusewornorbrokentoolsandtesters.

• Neverassumethatpowerhasbeendisconnectedfromacircuit.First,check

ittomakesurethatithasbeenpoweredoff.

Safety information

4

Hardware Maintenance Manual

• Alwayslookcarefullyforpossiblehazardsin yourworkarea.Examplesof

thesehazardsaremoistoors,nongroundedpowerextensioncables,power

surges,andmissingsafetygrounds.

• Donottouchliveelectricalcircuitswiththereflective surfaceof aplastic

dentalmirror.Thesurfaceisconductive;suchtouchingcan causepersonal

injuryandmachinedamage.

• Donotservicethefollowingpartswiththepoweronwhentheyareremoved

fromtheirnormaloperatingplacesinamachine:

– Powersupplyunits

– Pumps

– Blowersandfans

– Motorgenerators

andsimilarunits.(Thispracticeensurescorrectgroundingoftheunits.)

• Ifanelectricalaccidentoccurs:

– Caution:donotbecomeavictimyourself.

– Switchoffthepower.

– Sendthevictimtogetmedicalaid.

5

Safety information

Safety inspection guide

Thepurpose ofthisinspectionguideistoassistyouinidentifyingpotential

unsafeconditions.Aseachmachinewasdesignedandbuilt,required safety

itemswereinstalledtoprotectusersand servicepersonnel frominjury.This

guideaddressesonlythoseitems.Youshould usegoodjudgmenttoidentify

potentialsafetyhazardsaccordingtotheattachmentofnon-Lenovofeaturesor

optionsnotcoveredbythisinspectionguide.

Ifanyunsafeconditionsare present,youmustdeterminehow seriousthe

apparenthazardcouldbeandwhetheryoucancontinuewithoutrstcorrecting

theproblem.

Considertheseconditionsandthesafetyhazardstheypresent:

• Electricalhazards,especiallyprimarypower(primaryvoltageontheframe

cancauseseriousorfatalelectricalshock)

• Explosivehazards,suchasadamagedCRTfaceorabulgingcapacitor

• Mechanicalhazards,suchaslooseormissinghardware

Todeterminewhetherthereare anypotentialunsafeconditions,use the

followingchecklistatthebeginningofeveryservicetask.Beginthecheckswith

thepoweroff,andthepowercorddisconnected.

Checklist:

1. Checkexteriorcoversfordamage(loose,broken,orsharpedges).

2. Turnoffthecomputer.Disconnectthepowercord.

3. Checkthepowercordfor:

a. Athird-wiregroundconnectoringoodcondition.Useametertomeasure

third-wiregroundcontinuityfor0.1ohmor lessbetweentheexternal

groundpinandtheframeground.

b. Thepowercordshouldbethetypespeciedinthepartslist.

c. Insulationmustnotbefrayedorworn.

4. Checkforcrackedorbulgingbatteries.

5. Removethecover.

6. Checkforanyobviousnon-Lenovoalterations.Usegoodjudgmentastothe

safetyofanynon-Lenovoalterations.

7. Checkinsidetheunitforany obviousunsafeconditions,suchasmetal

filings,contamination,waterorotherliquids,or signsoffireorsmoke

damage.

8. Checkforworn,frayed,orpinchedcables.

9. Checkthatthepower-supplycoverfasteners(screwsorrivets)havenot

beenremovedortamperedwith.

6

Hardware Maintenance Manual

Handling devices that are sensitive to electrostatic discharge

Anycomputerpartcontainingtransistorsorintegrated circuits(ICs)shouldbe

consideredsensitivetoelectrostaticdischarge(ESD).ESDdamagecanoccur

whenthere isadifferenceincharge betweenobjects. Protectagainst ESD

damagebyequalizingthechargesothatthemachine,thepart,theworkmat,

andthepersonhandlingthepartareallatthesamecharge.

Notes:

1. Use product-specic ESD procedures when they exceed the requirements noted

here.

2. Make sure that the ESD protective devices you use have been certied (ISO

9000) as fully effective.

WhenhandlingESD-sensitiveparts:

• Keepthepartsinprotectivepackagesuntiltheyareinsertedintotheproduct.

• Avoidcontactwithotherpeople.

• Wearagroundedwriststrapagainst yourskintoeliminatestaticonyour

body.

• Preventthepartfromtouchingyourclothing.Mostclothingisinsulativeand

retainsachargeevenwhenyouarewearingawriststrap.

• Usetheblacksideofagroundedworkmattoprovidea static-freework

surface.ThematisespeciallyusefulwhenhandlingESD-sensitivedevices.

• Selectagroundingsystem,suchasthoselistedbelow,toprovideprotection

thatmeetsthespecicservicerequirement.

Note:

The use of a grounding system to guard against ESD damage is desirable but not

necessary.

– AttachtheESDgroundcliptoanyframeground,groundbraid,orgreen-

wireground.

– Whenworkingonadouble-insulatedorbattery-operatedsystem,usean

ESDcommongroundorreferencepoint.Youcanusecoaxorconnector-

outsideshellsonthesesystems.

– Usetheroundgroundprongoftheacplugonac-operatedcomputers.

Grounding requirements

Electricalgroundingofthecomputerisrequiredforoperatorsafetyandcorrect

systemfunction.Propergroundingoftheelectrical outletcanbeveriedbya

certiedelectrician.

7

Safety information

Safety notices: multilingual translations

ThesafetynoticesinthissectionareprovidedinEnglish,French,German,

Hebrew,Italian,Japanese,andSpanish.

Safety notice 1

Before the computer is powered on after FRU replacement, make sure all screws,

springs, and other small parts are in place and are not left loose inside the computer.

Verify this by shaking the computer and listening for rattling sounds. Metallic parts

or metal akes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement d’une unité en

clientèle, vériez que tous les ressorts, vis et autres pièces sont bien en place et

bien xées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun bruit suspect ne

se produit. Des pièces métalliques ou des copeaux de métal pourraient causer un

court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird,

muß sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile

fehlen oder im Gehäuse vergessen wurden. Der Computer muß geschüttelt und auf

Klappergeräusche geprüft werden. Metallteile oder-splitter können Kurzschlüsse

erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di una

FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole dimensioni

siano nella corretta posizione e non siano sparse all’interno dell’elaboratore.

Vericare ciò scuotendo l’elaboratore e prestando attenzione ad eventuali rumori;

eventuali parti o pezzetti metallici possono provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que

todos los tornillos, muelles y demás piezas pequeñas se encuentran en su sitio

y no se encuentran sueltas dentro del sistema. Compruébelo agitando el sistema

y escuchando los posibles ruidos que provocarían. Las piezas metálicas pueden

causar cortocircuitos eléctricos.

8

Hardware Maintenance Manual

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and cadmium. Do not

disassemble a standby battery, recharge it, throw it into fire or water, or short-

circuit it. Dispose of the battery as required by local ordinances or regulations.

Use only the battery in the appropriate parts listing. Use of an incorrect battery can

result in ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les

démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne

les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à la

réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde ou celle

de l’horloge temps réel, veillez à n’utiliser que les modèles cités dans la liste de

pièces détachées adéquate. Une batterie ou une pile inappropriée risque de prendre

feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet,

kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Bei

der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen

der Bereitschafts-oder Systembatterie nur Batterien des Typs verwenden, der in der

Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder

Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e cadmio. Non

smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né cortocircuitarle. Smaltirle

secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni

locali). Quando si sostituisce la batteria dell’RTC (real time clock) o la batteria di

supporto, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego

di una batteria non adatta potrebbe determinare l’incendio o l’esplosione della

batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio.

No las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite.

Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se

encuentren en la lista de piezas. La utilización de una batería no apropiada puede

provocar la ignición o explosión de la misma.

9

Safety information

Safety notice 3

DANGER

The battery pack contains small amounts of nickel. Do not disassemble it, throw

it into re or water, or short-circuit it. Dispose of the battery pack as required by

local ordinances or regulations. Use only the battery in the appropriate parts listing

when replacing the battery pack. Use of an incorrect battery can result in ignition

or explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni à l’eau.

Ne la mettez pas en court-circuit. Pour la mettre au rebut, conformez-vous à la

réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n’utiliser

que les modèles cités dans la liste de pièces détachées adéquate. En effet, une

batterie inappropriée risque de prendre feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden.

Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim

Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste

aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion

führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel fuoco

o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in vigore (DPR

915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la

batteria, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego

di una batteria non adatta potrebbe determinare l’incendio o l’esplosione della

batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni

recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como

dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de

piezas al sustituir la batería. La utilización de una batería no apropiada puede

provocar la ignición o explosión de la misma.

10

Hardware Maintenance Manual

Safety notice 4

DANGER

The lithium battery can cause a re, an explosion, or a severe burn. Do not recharge

it, remove its polarized connector, disassemble it, heat it above 100°C (212°F),

incinerate it, or expose its cell contents to water. Dispose of the battery as required

by local ordinances or regulations. Use only the battery in the appropriate parts

listing. Use of an incorrect battery can result in ignition or explosion of the battery.

La pile de sauvegarde contient du lithium. Elle présente des risques d’incendie,

d’explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son

connecteur polarisé et ne la démontez pas. Ne l’exposez pas à une temperature

supérieure à 100°C, ne la faites pas brûler et n’en exposez pas le contenu à l’eau.

Mettez la pile au rebut conformément à la réglementation en vigueur. Une pile

inappropriée risque de prendre feu ou d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden, explodieren

oder schwere Verbrennungen hervorrufen. Batterien dieses Typs dürfen nicht

aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden. Auch darf ihr Inhalt

nicht mit Wasser in Verbindung gebracht oder der zur richtigen Polung angebrachte

Verbindungsstecker entfernt werden. Bei der Entsorgung die örtlichen Bestimmungen

für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien des Typs

verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien

kann zu Entzündung oder Explosion führen.

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o

procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore polarizzato,

smontarla, riscaldarla ad una temperatura superiore ai 100 gradi centigradi,

incendiarla o gettarla in acqua. Smaltirla secondo la normativa in vigore (DPR

915/82, successive disposizioni e disposizioni locali). L’impiego di una batteria

non adatta potrebbe determinare l’incendio o l’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y puede provocar incendios,

explosiones o quemaduras graves. No la recargue, ni quite el conector polarizado,

ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la incinere ni

exponga el contenido de sus celdas al agua. Deséchela tal como dispone la

normativa local.

11

Safety information

Safety notice 5

If the LCD breaks and the uid from inside the LCD gets into your eyes or on your

hands, immediately wash the affected areas with water at least for 15 minutes. Seek

medical care if any symptoms caused by the uid are present after washing.

Si le panneau d’afchage à cristaux liquides se brise et que vous recevez dans les

yeux ou sur les mains une partie du fluide, rincez-les abondamment pendant au

moins quinze minutes. Consultez un médecin si des symptômes persistent après le

lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der Entsorgung

die örtlichen Bestimmungen für Sondermüll beachten. Der LCD-Bildschirm

besteht aus Glas und kann zerbrechen, wenn er unsachgemäß behandelt wird

oder der Computer auf den Boden fällt. Wenn der Bildschirm beschädigt ist und

die darin befindliche Flüssigkeit in Kontakt mit Haut und Augen gerät, sollten

die betroffenen Stellen mindestens 15 Minuten mit Wasser abgespült und bei

Beschwerden anschließend ein Arzt aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto

entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti

interessate con acqua corrente per almeno 15 minuti; poi consultare un medico se i

sintomi dovessero permanere.

Si la LCD se rompe y el uido de su interior entra en contacto con sus ojos o sus

manos, lave inmediatamente las áreas afectadas con agua durante 15 minutos como

mínimo. Obtenga atención medica si se presenta algún síntoma del uido despues

de lavarse.

12

Hardware Maintenance Manual

Safety notice 6

DANGER

To avoid shock, do not remove the plastic cover that protects the lower part of the

inverter card.

An d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique

protégeant la partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der

Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che avvolge la

parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la

tarjeta invertida.

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or grounded battery can

produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la

mise à la masse d’une batterie peut produire sufsamment de courant pour brûler

des matériaux combustibles ou causer des brûlures corporelles graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei

Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu

entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in

corto circuito o a massa può fornire corrente sufficiente da bruciare materiali

combustibili o provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada

o con contacto a tierra puede producir la corriente suciente como para quemar

material combustible o provocar quemaduras en el personal.

13

Safety information

Safety notice 8

DANGER

Before removing any FRU, turn off the computer, unplug all power cords from

electrical outlets, remove the battery pack, and then disconnect any interconnecting

cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension,

débranchez tous les cordons d’alimentation des socles de prise de courant, retirez la

batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose gezogen,

der Akku entfernt und alle Verbindungskabel abgenommen sein, bevor eine FRU

entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese

elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare i cavi

di interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de las

tomas de corriente eléctrica, quite la batería y, a continuación, desconecte cualquier

cable de conexión entre dispositivos.

14

Hardware Maintenance Manual

Laser compliance statement

SomemodelsofLenovocomputerareequippedfromthefactorywithan

opticalstorage devicesuch asa CD-ROMdrive oraDVD-ROMdrive.Such

devicesarealsosoldseparatelyasoptions.Ifoneofthesedrivesisinstalled,

itiscertiedinthe U.S.toconformtothe requirementsoftheDepartmentof

HealthandHumanServices21CodeofFederalRegulations(DHHS21CFR)

SubchapterJforClass1 laserproducts.Elsewhere,thedrive iscertifiedto

conformtotherequirementsoftheInternationalElectrotechnicalCommission

(IEC)825andCENELECEN60825forClass1laserproducts.

IfaCD-ROMdrive,aDVD-ROMdrive,oranotherlaserdeviceisinstalled,note

thefollowing:

CAUTION

Use of controls or adjustments or performance of procedures other than those

specied herein might result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de procedimentos diferentes daqueles

aqui especicados pode resultar em perigosa exposição à radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes de

réglage et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet, kann

gefährliche Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da quelle

specicate possono provocare l’esposizione a.

El uso de controles o ajustes o la ejecución de procedimientos distintos de los aquí

especicados puede provocar la exposición a radiaciones peligrosas.

OpeningtheCD-ROMdrive,theDVD-ROMdrive,oranyotheropticalstorage

devicecouldresultinexposuretohazardouslaserradiation.Thereareno

serviceablepartsinsidethosedrives.Do not open.

15

Safety information

ACD-ROMdrive,aDVD-ROMdrive,oranyotherstoragedeviceinstalledmay

containanembeddedClass3AorClass3Blaserdiode.Notethefollowing:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the beam,

do not view directly with optical instruments, and avoid direct exposure to the

beam.

Radiação por raio laser ao abrir. Não olhe xo no feixe de luz, não olhe diretamente

por meio de instrumentos óticos e evite exposição direta com o feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder

directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische Instrumente

in den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai

eszközökkel. Kerülje a sugárnyalábbal való érintkezést!

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non

guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al fascio.

Radiación láser al abrir. No mire jamente ni examine con instrumental óptico el

haz de luz. Evite la exposición directa al haz.

16

Hardware Maintenance Manual

Important service information

Thischapterpresentsthefollowingimportantserviceinformation:

• “StrategyforreplacingFRUs”onpage16

– “Strategyforreplacingaharddiskdrive”onpage17

– “Importantnoticeforreplacingasystemboard”onpage17

• “ImportantinformationaboutreplacingRoHScompliantFRUs”onpage18

Important:

BIOS and device driver xes are customer-installable. The BIOS and device

drivers are posted on the customer support site:

http://support.lenovo.com.



Strategy for replacing FRUs

Before replacing parts:

Makesurethatallsoftwarexes,drivers,andBIOSdownloadsareinstalled

beforereplacinganyFRUslistedinthismanual.

Afterasystemboardisreplaced,ensurethatthelatestBIOSisloadedtothe

systemboardbeforecompletingtheserviceaction.

Todownloadsoftwarexes,drivers,andBIOS,followthestepsbelow:

1. Gotohttp://support.lenovo.com.

2. Entertheserialnumberorselecta productoruseLenovosmart

downloading.

3. SelecttheBIOS/Driver/Applicationsanddownload.

4. Followthedirectionsonthescreenandinstallthenecessarysoftware.

17

Important service information

Usethefollowingstrategytopreventunnecessary expenseforreplacingand

servicingFRUs:

• IfyouareinstructedtoreplaceanFRU,butthereplacementdoesnotsolve

theproblem,reinstalltheoriginalFRUbeforeyoucontinue.

• Somecomputers haveboth aprocessor boardand asystem board.If you

areinstructedtoreplaceeitherofthem,andreplacingoneofthemdoesnot

solvetheproblem,reinstallthatboard,andthenreplacetheotherone.

• IfanadapteroradeviceconsistsofmorethanoneFRU,anyoftheFRUs

maybethecauseoftheerror.Beforereplacingtheadapterordevice,

removetheFRUsonebyonetoseeifthesymptomschange.Replaceonly

theFRUthatchangedthesymptoms.

Attention:Thesetup configurationonthecomputeryouareservicingmay

havebeencustomized.RunningAutomatic Configurationmay alterthe

settings.Notethecurrentcongurationsettings(usingtheViewConguration

option);then,whenservicehasbeencompleted,verifythatthosesettings

remainineffect.

Strategy for replacing a hard disk drive

Alwaystrytorunalow-levelformatbeforereplacingaharddiskdrive.This

willcauseallcustomerdata ontheharddiskto belost.Makesurethatthe

customerhasacurrentbackupofthedatabeforeperformingthisaction.

Attention:Thedrivestartupsequenceinthecomputeryouareservicingmay

havebeenchanged.Beextremelycarefulduringwriteoperations suchas

copying,saving,orformatting.Ifyouselectanincorrectdrive,dataorprograms

canbeoverwritten.

Important notice for replacing a system board

Somecomponentsmountedonasystemboardarevery sensitive.Improper

handlingcancausedamagetothosecomponents, andmaycauseasystem

malfunction.

Attention:Whenhandlingasystemboard:

• Donotdropthesystemboardorapplyanyexcessiveforcetoit.

• Avoidroughhandlingofanykind.

• Avoidbendingthe systemboard andhard pushingtopreventcrackingat

eachBGA(BallGridArray)chipset.

18

Hardware Maintenance Manual

Important information about replacing RoHS compliant FRUs

RoHS, The Restriction of Hazardous Substances in Electrical and

Electronic Equipment Directive (2002/95/EC) is a European Union legal

requirement affecting the global electronics industry. RoHS requirements

must be implemented on Lenovo products placed on the market after

June 2006. Products on the market before June 2006 are not required to

have RoHS compliant parts. If the original FRU parts are non-compliant,

replacement parts can also be non-compliant. In all cases if the original

FRU parts are RoHS compliant, the replacement part must also be RoHS

compliant.

Note:RoHSandnon-RoHSFRUpartnumberswiththesametandfunction

areidentiedwithuniqueFRUpartnumbers.

Lenovoplans totransit toRoHScompliancewell beforethe implementation

dateandexpectsitssupplierstobereadytosupportLenovo’srequirements

andscheduleintheEU.Productssold in2005and2006willcontainsome

RoHScompliantFRUs.Thefollowingstatementpertainstotheseproductsand

anyproductLenovoproducescontainingRoHScompliantFRUs.

RoHScompliant FRUshave uniqueFRU partnumbers. Beforeor afterthe

RoHSimplementationdate,failedRoHScompliantparts mustalwaysbe

replacedwithRoHScompliantones,soonlytheFRUsidentiedascompliant

inthesystemHMMordirectsubstitutionsforthoseFRUsmaybeused.

Products marketed before June 2006 Products marketed after June 2006

Current or

original part

Replacement FRU Current or

original part

Replacement FRU

Non-RoHS CanbeNon-RoHS

MustbeRoHS MustbeRoHS

Non-RoHS CanbeRoHS

Non-RoHS CansubtoRoHS

RoHS MustbeRoHS

Note:Adirectsubstitutionis apartwithadifferentFRUpartnumberthatis

automaticallyshippedbythedistributioncenteratthetimeoftheorder.

19

General checkout

General checkout

Thischapterpresentsthefollowinginformation:

• “Whattodorst”onpage20

• “Powersystemcheckout”onpage21

Beforeyougotothecheckout,makesuretoreadthefollowingimportantnotes:

Important notes:

• Onlycertiedtrainedpersonnelcanservicethecomputer.

• BeforereplacinganyFRU,readtheentirepageon removingandreplacing

FRUs.

• CarefullyremovescrewsforreusewhenreplacingFRUs.

• Beextremelycarefulduringsuch writeoperationsascopying,saving,or

formatting. Drives in the computer that you are servicing sequence might

have been altered. If you select an incorrect drive, data or programs might be

overwritten.

• ReplaceanFRUonlywithanotherFRU ofthecorrectmodel. When you

replace an FRU, make sure that the machine model and the FRU part number are

correct by referring to the FRU parts list.

• AnFRUshouldnotbereplacedjustbecauseofasingle,unreproduciblefailure.

Single failures can occur for a variety of reasons that have nothing to do with a

hardware defect, such as cosmic radiation, electrostatic discharge, or software

errors. Consider replacing an FRU only when a problem recurs. If you suspect that

an FRU is defective, clear the error logs and run the test again. If the error does

not recur, do not replace the FRU.

• BecarefulnottoreplaceanondefectiveFRU.

20

Hardware Maintenance Manual

What to do rst

WhenyoudoreturnanFRU,youmustincludethefollowinginformationinthe

partsexchangeformorpartsreturnformthatyouattachtoit:

1. Nameandphonenumberofservicer

2. Dateofservice

3. Dateonwhichthemachinefailed

4. Dateofpurchase

5. ProcedureindexandpagenumberinwhichthefailingFRUwasdetected

6. FailingFRUnameandpartnumber

7. Machinetype,modelnumber,andserialnumber

8. Customer’snameandaddress

Note for warranty:During thewarranty period,the customermay be

responsiblefor repaircostsifthecomputerdamagewascausedbymisuse,

accident,modification,unsuitablephysicaloroperatingenvironment, or

impropermaintenancebythecustomer.

Thefollowingisalistofsomecommonitemsthatare notcovered under

warrantyandsomesymptomsthatmightindicatethatthesystemwas

subjectedtostressbeyondnormaluse.

Beforecheckingproblemswiththecomputer,determinewhetherthedamageis

coveredunderthewarrantybyreferringtothefollowinglist:

The following are not covered under warranty:

• LCDpanelcrackedfromtheapplicationofexcessiveforce orfrombeing

dropped

• Scratched(cosmetic)parts

• Distortion,deformation,ordiscolorationofthecosmeticparts

• Plasticparts,latches,pins,orconnectorsthathavebeencrackedorbroken

byexcessiveforce

• Damagecausedbyliquidspilledintothesystem

• DamagecausedbytheimproperinsertionofaPCCardortheinstallationof

anincompatiblecard

• Improperdiskinsertionoruseofanopticaldrive

• Diskettedrivedamagecausedbypressureonthediskette drivecover,

foreignmaterialinthedrive,ortheinsertionofadiskettewithmultiplelabels

• Damagedorbentdisketteejectbutton

• Fusesblownbyattachmentofanonsupporteddevice

• Forgottencomputerpassword(makingthecomputerunusable)

• Stickykeyscausedbyspillingaliquidontothekeyboard

• UseofanincorrectACadapteronlaptopproducts

The following symptoms might indicate damage caused by nonwarranted

activities:

• Missingpartsmightbeasymptomofunauthorizedserviceormodication.

• Ifthespindleofaharddiskdrivebecomesnoisy,itmayhavebeensubjected

toexcessiveforce,ordropped.

21

General checkout

Power system checkout

Toverifyasymptom,followthestepsbelow:

1. Turnoffthecomputer.

2. Removethebatterypack.

3. ConnecttheACadapter.

4. Makesurethatpowerissuppliedwhenyouturnonthecomputer.

5. Turnoffthecomputer.

6. DisconnecttheACadapterandinstallthechargedbatterypack.

7.

Makesurethatthebatterypacksuppliespowerwhenyouturnonthecomputer.

Ifyoususpectapowerproblem,seetheappropriateoneofthefollowingpower

supplycheckouts:

• “CheckingtheACadapter”onpage21

• “Checkingoperationalcharging”onpage21

• “Checkingthebatterypack”onpage22

Checking the AC adapter

YouareherebecausethecomputerfailsonlywhentheACadapterisused.

• Ifthepower-onindicatordoesnotturnon,checkthepowercordoftheAC

adapterforcorrectcontinuityandinstallation.

• Ifthecomputerdoesnotchargeduringoperation,goto“Checking

operationalcharging”.

TochecktheACadapter,followthestepsbelow:

1. UnplugtheACadaptercablefromthecomputer.

2. MeasuretheoutputvoltageattheplugoftheAC adaptercable.Seethe

followinggure:

2

1

Voltage (V DC)

+20

0

Pin

1

2

Note:OutputvoltagefortheACadapterpinNo.2maydifferfromtheoneyou

areservicing.

3. Ifthevoltageisnotcorrect,replacetheACadapter.

4. Ifthevoltageisacceptable,dothefollowing:

• Replacethesystemboard.

• Iftheproblempersists,goto“Lenovoideapad330-14IKB/ideapad330E-14IKB

D/ideapad330E-14IKBU/ideapad330-14IKBD/ideapad330-14IKBU/ideapad

330H-14IKB/ideapad330L-14IKB/ideapad330E-14IKB/ideapad330R-14IKB/

ideapad330-15IKB/ideapad330E-15IKBD/ideapad330E-15IKBU/ideapad330-

15IKBD/ideapad330-15IKBU/ideapad330H-15IKB/ideapad330L-15IKB/ideapad

330E-15IKB/ideapad330R-15IKB/ideapad330-15IKBTouch”onpage27.

Note:NoisefromtheACadapterdoesnotalwaysindicateadefect.

Checking operational charging

Tocheckwhetherthebattery chargesproperlyduringoperation,usea

dischargedbatterypackorabatterypack thathaslessthan50%ofthe total

powerremainingwheninstalledinthecomputer.

22

Hardware Maintenance Manual

Performoperationalcharging.Ifthe batterystatusindicatororicon doesnot

lighton,removethebatterypackandletitreturntoroomtemperature.Reinstall

thebatterypack.Ifthe chargeindicatororiconis stilloff,replacethebattery

pack.

Ifthechargeindicatorstilldoesnotlighton,replacethesystemboard.Then

reinstallthebatterypack.Ifitisstillnotcharged,gotothenextsection.

Checking the battery pack

BatterychargingdoesnotstartuntilthePowerMetershowsthatlessthan95%

ofthetotalpowerremains;underthisconditionthebatterypackcanchargeto

100%ofitscapacity.Thisprotectsthebatterypackfrombeingoverchargedor

fromhavingashortenedlife.

Tocheckyourbattery,moveyourcursortothePowerMetericonintheicon

trayoftheWindows®taskbarandwaitforamoment(butdonotclickit),andthe

percentageofbatterypowerremainingisdisplayed.Togetdetailedinformation

aboutthebattery,double-clickthePowerMetericon.

Note:Ifthebatterypack becomeshot,itmaynotbeable tobecharged.

Removeitfromthecomputerandleaveitatroomtemperatureforawhile.After

itcoolsdown,reinstallandrechargeit.

23

Related service information

Related service information

Thischapterpresentsthefollowinginformation:

• “RestoringthefactorycontentsbyusingOneKeyRecovery”onpage23

• “Passwords”onpage24

• “Powermanagement”onpage25

Restoring the factory contents by using OneKey Recovery

Restore of factory default

TheLenovoideapad330-14IKB/ideapad330E-14IKBD/ideapad330E-14IKB

U/ideapad330-14IKB D/ideapad330-14IKB U/ideapad330H-14IKB/

ideapad330L-14IKB/ideapad 330E-14IKB/ideapad330R-14IKB/ideapad

330-15IKB/ideapad330E-15IKB D/ideapad330E-15IKBU/ideapad330-

15IKBD/ideapad 330-15IKBU/ideapad330H-15IKB/ideapad330L-15IKB/

ideapad330E-15IKB/ideapad330R-15IKB/ideapad330-15IKBTouch

computerscome withpre-installed Push-buttonreset.Inordertosave

applicationfilesandtheinitialbackedupfilesofthe system,theharddisk

inaLenovocomputerincludesahidden partitionwhenitisshipped.If

youneedtorestorethe systemtothepointof yourfirstbootup,pressthe

NovobuttonandrunSystem Recovery. Fordetailsof“Push-buttonreset”,

seethe Recovery system inthe User Guide.

Note: This will delete all the new data on the system partition (C drive), which

is not recoverable. Make sure to back up your critical data before you perform this

action.

Whenyouusetherecoverydiscstobootyourcomputer,thesystemwillenter

theuserinterfaceforsystemrecoveryautomatically.Pleasefollowtheprompt

toinsertthebackupdiscstocompletethewholerecoveryprocess.

Note:The recovery process might take up to 2 hours.

24

Hardware Maintenance Manual

Passwords

Asmany asthreepasswordsmaybeneededforanyLenovocomputer:

thepower-onpassword(POP),theharddiskpassword(HDP),andthe

administratorpassword.

Ifanyofthesepasswordshasbeenset,apromptforitappearsonthescreen

wheneverthecomputeristurnedon.Thecomputer doesnotstartuntilthe

passwordisentered.

Power-on password

Apower-onpassword(POP) protectsthesystemfrombeingpoweredonby

anunauthorized person.Thepasswordmustbeenteredbeforeanoperating

systemcanbebooted.

Hard-disk password

Therearetwohard-diskpasswords(HDPs):

+UserHDP-fortheuser

+MasterHDP-forthesystemadministrator,who canuse ittogetaccessto

theharddiskdriveeveniftheuserhaschangedtheuserHDP

Attention:IftheuserHDPhas beenforgotten,checkwhetheramasterHDP

hasbeenset.Ifithas,itcanbeusedforaccess totheharddiskdrive.If

nomasterHDPisavailable,neitherLenovonorLenovoauthorizedservice

techniciansprovideanyservicestoreseteithertheuserorthemasterHDP,or

torecoverdatafromthe harddiskdrive.Theharddiskdrivecanbereplaced

forascheduledfee.

Administrator password

Administratorpasswordcontrolstheaccess ofthewholesetuputility. Only

aftertheAdministratorpasswordhasbeensetcantheUserpasswordbeset.If

Administratorpasswordwascleared,theUserpasswordwasclearedtoo.

25

Related service information

Power management

Note:PowermanagementmodesarenotsupportedforAPMoperatingsystem.

Toreduce powerconsumption, thecomputer hasthree powermanagement

modes:screenblank,sleep(standby),andhibernation.

Screen blank state

Ifthetimeseton the“Turnoffmonitor”timerintheoperating systemexpires,

theLCDbacklightturnsoff.YoucanalsoturnofftheLCDbacklight by

pressing .

Toendscreenblankstateandresumenormaloperation,pressanykeyonthe

keyboard.

Putting the computer to sleep or shutting it down

Whenyouhavenishedworkingwithyourcomputer,youcanputittosleepor

shutitdown.

Putting your computer to sleep

Ifyouwillbeawayfromyourcomputerforonlyashorttime,putthecomputer

tosleep.

Whenthecomputerisin sleepmode,youcanquicklywakeittoresumeuse,

bypassingthestartupprocess.

Toputthecomputertosleep,dooneofthefollowing:

• Closethedisplaylid.

• Pressthepowerbutton.

• Move the cursor to the lower-left corner, and then select the Start

button. Select Power → Sleep.

Note:Putyourcomputertosleepbeforeyoumoveit.Movingyourcomputer

whiletheharddiskdriveisspinningcandamagetheharddisk,causing

lossofdata.

Towakeupthecomputer,performthefollowing:

• Pressanykeyonthekeyboard.

• Pressthepowerbutton.

26

Hardware Maintenance Manual

• Right-clicktheStartbuttoninthelower-leftcornerandselectShut down or

sign out→Shut down.

Shutting down the computer

Ifyouarenotgoingtouseyourcomputerforalongtime,shutitdown.

Toshutdownyourcomputer,dooneofthefollowing:

• Movethe cursortothelower-leftcorner,andthenselecttheStartbutton.

Select Power → Shut down.

27

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/

ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad

330-14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/

ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/

ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/

ideapad 330R-15IKB/ideapad 330-15IKB Touch

Thischapter presentsthe followingproduct-specific servicereferencesand

product-specicpartsinformation:

• “Specications”onpage27

• “Statusindicators”onpage29

• “Hotkeys”onpage30

• “FRUreplacementnotices”onpage31

• “RemovingandreplacinganFRU”onpage32

• “Locations”onpage72

• “Partslist”onpage75

Specications

Thefollowingtableliststhespecificationsof theLenovoideapad330-

14IKB/ideapad330E-14IKBD/ideapad330E-14IKBU/ideapad330-14IKB

D/ideapad330-14IKBU/ideapad330H-14IKB/ideapad330L-14IKB/ideapad

330E-14IKB/ideapad330R-14IKB/ideapad330-15IKB/ideapad330E-15IKB

D/ideapad330E-15IKBU/ideapad330-15IKBD/ideapad330-15IKBU/

ideapad330H-15IKB/ideapad 330L-15IKB/ideapad330E-15IKB/ideapad

330R-15IKB/ideapad330-15IKBTouch:

Table 1. Specications

Lenovo ideapad

330-14IKB

Lenovo ideapad

330-15IKB

Lenovo ideapad

330-15IKB Touch

Form Factor

Dimensions Appr.338.3mm×

249.9mm×22.7mm Appr.378mm×260mm×22.9mm

Weight Appr.2.1kgwith

battery Appr.2.2kgwithbattery

LCDsize 14.0-inch 15.6-inch

Processor

Seethesystempropertiesofyourcomputer,youcandothisasfollows:

ClickControl Panel,thenclickHardware and Sound,clickDevice Manager

underDevices and PrintersanddoubleclickProcessors.

28

Hardware Maintenance Manual

Table 1. Specications (continued)

Memory

Typeandspeed DDR4-2133MHz

Capacity /

Optane(onselect

models):16GB

(Onlysupporti7+

DIS)

/

Maximum

supported

capacity

16GB

Slots SODIMM×1,Onboard×1

SSD

Interface SATA3 SATA3/PCIE SATA3

Capacity SATA3:128GB/

256GB

PCIE:128GB(on

selectmodels)SATA

3:128GB/256GB

SATA3:128GB/

256GB

Hard disk drive

Formfactor 2.5-inch,7mm

Capacity

500GB/1TB/2TB,5400rpm

SSD+HDD

(onselectmodels)

Interface SATA3/SATA2

Optical Drive (on select models)

Formfactor 9.0mm

Type Writer

Display

Display

resolution(LCD)

1366×768pixelsHD/

1920×1080pixelsFHD

1366×768pixels

HD

LCDbacklight LED

I/O Ports

USB USB3.0×2,Type-C×1

(supportUSB3.0Gen1,Output5VDC,0.9ADC)

Audio Comboaudiojack×1

Video/Audio HDMIslot×1

Ethernet RJ-45×1

Memorycardslot 4in1slot×1(SD/SDHC/SDXC/MMC)

Battery pack

Type Polymer

Cells/Capacity 2Cell,30Wh/35Wh

Note: Thecapacitygivenhereisthetypicaloraveragecapacityasmeasuredina

specictestenvironment.Capacitiesmeasuredinotherenvironmentsmay

differbutarenolowerthantheratedcapacity(seeproductlabel).

AC power adapter

Input 100-240V,50-60HzAC

Outputvoltage 20VDC

Power DIS65W,UMA45W

Miscellaneous

Camera 0.3M/HD

Security Kensingtonslot×1

29

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Status indicators

Thesystemstatusindicatorsbelowshowthecomputerstatus:

ba

Table 2. Status indicators

AC power

adapter status

Indicator status Meaning

Disconnected

Off

Thecomputerisinsleepmodeor

turnedoff;Thebatteryhasmorethan

20%charge.

Solidamber Thebatteryhasbetween5%and

20%charge.

Fastblinkingamber Thebatteryhasbetween1%and5%

charge.

Connected

Slowblinkingamber

Thebatteryisbeingcharged.When

batterychargereaches20%,the

blinkingcolorchangestowhite.

Slowblinkingwhite

Thebatteryhasbetween20%and

80%chargeandisstillcharging.

Whenthebatteryreaches80%

chargethelightwillstopblinking.

Solidwhite

Thebatteryhasmorethan80%

charge,chargingwillcontinueuntil

thebatteryisfullycharged.

Indicator Indicator status Meaning

Power status

indicator

On(solidwhite) Thecomputerispoweredon.

Blinking Thecomputerisinsleepmode.

Off Thecomputerispoweredoff.

30

Hardware Maintenance Manual

Hotkeys

Youcanaccesscertainsystemsettingsquicklybypressingtheappropriate

hotkeys.

Table 3. Hotkeys

:

Mutes/unmutesthesound.

:Enables/disablesairplane

mode.

:

Decreasesthevolumelevel.

: Enables/disablescamera.

:

Increasesthevolumelevel.

:Locks/unlockstheLCD

screen.

:

Enables/disables

microphone.

:

Enablestheexternal

projectorordanglesthe

externaldisplay.

:

Refreshespage.

:Decreasesdisplay

brightness.

:

Enables/disablesthetouch

pad.

:Increasesdisplay

brightness.

31

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

FRU replacement notices

Thissection presentsnotices relatedto removingand replacingparts. Read

thissectioncarefullybeforereplacinganyFRU.

Screw notices

Loosescrewscancauseareliabilityproblem.IntheLenovocomputer,this

problemisaddressedwithspecialnylon-coatedscrewsthathavethefollowing

characteristics:

• Theymaintaintightconnections.

• Theydonoteasilycomeloose,evenwithshockorvibration.

• Theyarehardertotighten.

• Eachoneshouldbeusedonlyonce.

Dothefollowingwhenyouservicethismachine:

• Keepthescrewkitinyourtoolbag.

• CarefullyremovescrewsforreusewhenreplacingFRUs.

• Useatorquescrewdriverifyouhaveone.

Tightenscrewsasfollows:

• Plastic to plastic

 Turn anadditional 90°afterthescrewheadtouchesthe surfaceof the

plasticpart:

more than 90°

(Cross-section)

• Logic card to plastic

 Turn anadditional180°afterthescrewheadtouchesthesurfaceofthe

logiccard:

more than 180°

(Cross-section)

• Torque driver

 Ifyouhaveatorquescrewdriver,refertothe“Torque”columnforeachstep.

• Makesurethatyouusethecorrectscrews.Ifyouhaveatorquescrewdriver,

tightenallscrewsrmlytothetorqueshowninthetable.Carefully remove

screws for reuse when replacing FRUs. Make sure that all screws are

tightened rmly.

• Ensuretorque screwdriversare calibratedcorrectly followingcountry

specications.

32

Hardware Maintenance Manual

Removing and replacing an FRU

Thissectionpresentsexplodedgureswiththeinstructions toindicatehowto

removeandreplacetheFRU.Makesuretoobservethefollowinggeneralrules:

1. Donotattempttoserviceanycomputerunlessyouhavebeentrainedand

certied.Anuntrainedpersonrunstheriskofdamagingparts.

2. BeforereplacinganyFRU,review“FRUreplacementnotices”onpage31.

3. Beginby removinganyFRUsthathavetobe removedbeforethefailing

FRU.AnyofsuchFRUsarelistedatthetopofthepage.Removethemin

theorderinwhichtheyarelisted.

4. FollowthecorrectsequenceinthestepstoremovetheFRU,asgiveninthe

guresbythenumbersinsquarecallouts.

5. WhenturningascrewtoreplaceanFRU,turnitinthedirectionasgivenby

thearrowinthegure.

6. WhenremovingtheFRU,moveitinthe directionasgivenbythearrowin

thegure.

7. Toputthe newFRUinplace,reverse theremovalproceduresandfollow

anyofthenotesthatpertaintoreplacement.For informationabout

connectingandarranginginternalcables,see“Locations”onpage72.

8. WhenreplacinganFRU,usethecorrectscrewasshownintheprocedures.

DANGER

Before removing any FRU, turn off the computer, unplug all power cords from

electrical outlets, remove the battery pack, and then disconnect any of the

interconnecting cables.

Attention:AfterreplacinganFRU,donotturnonthecomputeruntilyouhave

madesurethatallscrews,springs,andothersmallpartsareinplaceandnone

areloose insidethe computer.Verifythis byshaking thecomputer gentlyand

listeningforrattlingsounds.Metallicpartsormetal akescancauseelectrical

shortcircuits.

Attention:Thesystem boardis sensitiveto, andcan bedamaged by,

electrostaticdischarge. Beforetouching it,establish personalgrounding by

touchingagroundpointwithonehandorusinganelectrostaticdischarge(ESD)

strap(P/N6405959)toremovepotentialshockreasons.

33

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

1010 Optical drive

Figure 1. Removal steps of optical drive

Removethescrew1.Thenpulltheopticaldriveoutinthedirectionshownby

arrow2.

a

b

Step Screw (quantity) Color Torque

1M2.5×7mm,Phillipshead,nylok-coated(1) Black/

Silver

3.0+/-0.3kgf/cm

Removethescrew3,thencarefullyremovetheopticaldrivebracketandbezel

inthedirectionsshownbyarrows4and5.

d

c

e

ideapad 330-14IKB

Step Screw (quantity) Color Torque

3M2×3mm,Phillipshead,nylok-coated(1)

ODDBRKTOODDMODULE

Silver 1.85+/-0.15kgf/

cm

ideapad 330-15IKB/ideapad 330-15IKB Touch

Step Screw (quantity) Color Torque

3M2×3mm,Phillipshead,nylok-coated(1)

ODDBRKTOODDMODULE

Black 1.85+/-0.15kgf/

cm

34

Hardware Maintenance Manual

1020 Base cover

Foraccess,removethisFRU:

• “1010Opticaldrive”onpage33

Figure 2. Removal steps of base cover

Removethescrews1.

a

a

a

a

a

a

a

a

a

a

a

a

Step Screw (quantity) Color Torque

1M2.5×7mm,Phillips-head,nylok-coated

(12)loglow---logup&loglow---ioboard---

logup&loglow---mb---logup&loglow---

rightsidehinge---logup&loglow---leftside

hinge---klockbracket---logup

Black/

Silver

3.0+/-0.3kgf/cm

35

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Figure 2. Removal steps of base cover (continued)

Removethebasecoverinthedirectionsshownbyarrows2and3.

b

b

b

b

c

36

Hardware Maintenance Manual

Note: Applying labels to the base cover

ThenewbasecoverFRUisshippedwitha kitcontaininglabelsofseveral

kinds.Whenyoureplacethebasecover,youneedtoapplythefollowing

labels:

Thefollowinglabelsneedtobepeeledofffromtheoldbasecoverandputon

thenewbasecover.

a Ratinglabel

b Ratinglabelforprint

c OSLabel

d Ofcelabel

e Adapterlabel65×20mm

f Argentinalabel68×6mm

g KCClabel50×16mm

h Indonesialabel32×10mm

i TWlabel70×10mm

j BISlabel22×30mm

k WL/BTlabel35×15mm

Forsomemodels,youalsoneedtoapplyoneortwoFCClabels.Checkthe

oldbasecover;ifithasoneortwoFCClabels,ndduplicatesoftheminthe

labelkitandapplythemtothenewbasecover.

Forthelocationofeachlabel,refertothefollowinggures:

efg h

ij k

ab

c d

37

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

1030 Battery pack

DANGER

Only use the battery specied in the parts list for your computer. Any other battery

could ignite or explode.

Foraccess,removetheseFRUsinorder:

• “1010Opticaldrive”onpage33

• “1020Basecover”onpage34

Figure 3. Removal steps of battery pack

Detachthebatterypackconnectorinthedirectionshownbyarrow1,remove

thescrews2.

ideapad 330-14IKB

b

b

b

b

a

Step Screw (quantity) Color Torque

2M2×6mm,Phillips-head,nylok-coated(3)

battery---logup

Black 1.85+/-0.15kgf/

cm

ideapad 330-15IKB/ideapad 330-15IKB Touch

b

b

b

b

b

a

Step Screw (quantity) Color Torque

2M2×6mm,Phillips-head,nylok-coated(4)

battery---logup

Black 1.85+/-0.15kgf/

cm

38

Hardware Maintenance Manual

Figure 3. Removal steps of battery pack (continued)

Removethebatterypackinthedirectionshownbyarrow3.

ideapad 330-14IKB

c

ideapad 330-15IKB/ideapad 330-15IKB Touch

c

39

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

1040 PCI Express Mini Card for wireless LAN

Foraccess,removetheseFRUsinorder:

• “1010Opticaldrive”onpage33

• “1020Basecover”onpage34

• “1030Batterypack”onpage37

Important:

The preinstalled WLAN module may only be replaced with a Lenovo approved

module in order to comply with FCC and IC regulations. Refer to Table 4 “Parts

list—Overall” on page 76 for Lenovo part numbers for the approved modules.

Figure 4. Removal steps of PCI Express Mini Card for wireless LAN

DisconnectthetwowirelessLANcables(black,gray)1,andthenremovethe

screw2.

ideapad 330-14IKB

aa b

Instep 1,unplugthejacksbyusingtheremovaltoolantennaRFconnector

(P/N:08K7159),orpickuptheconnectorswithyourngersandgentlyunplug

theminthedirectionshownbythearrows.

Notes:ThewirelessLANcardhas2cablesinstep1.

 ThewirelessLANcardinsomemodelsmighthave3cablesinstep1.

Step Screw (quantity) Color Torque

2M2×3mm,Phillips-head,nylok-coated(1)

wirelesscard---logup

Silver 1.85+/-0.15kgf/

cm

40

Hardware Maintenance Manual

ideapad 330-15IKB/ideapad 330-15IKB Touch

aa b

Step Screw (quantity) Color Torque

2M2×3mm,Phillips-head,nylok-coated(1)

wirelesscard---logup

Black 1.85+/-0.15kgf/

cm

Figure 4. Removal steps of PCI Express Mini Card for wireless LAN (continued)

Removethecardinthedirectionshownbyarrow3.

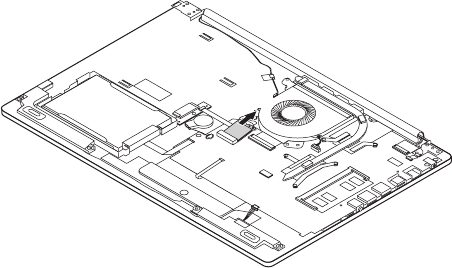

ideapad 330-14IKB

c

41

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

ideapad 330-15IKB/ideapad 330-15IKB Touch

c

When installing:

• Inmodelswithawireless LANcardthathastwo antennaconnectors,plug

theblackcable(1st)(MAIN)intothejacklabeledMAIN,andthegreycable

(2nd)(AUX)intothejacklabeledAUXonthecard.

• InmodelswithawirelessLANcardthathasthreeantennaconnectors,plug

theblackcable(1st)(MAIN)intothejacklabeled1,thegreycable(3rd)into

thejacklabeled3,andthewhitecable(2nd)(AUX)intothejacklabeled2on

thecard.

42

Hardware Maintenance Manual

1050 DIMM

Foraccess,removetheseFRUsinorder:

• “1010Opticaldrive”onpage33

• “1020Basecover”onpage34

• “1030Batterypack”onpage37

• “1040PCIExpressMiniCardforwirelessLAN”onpage39

Figure 5. Removal steps of DIMM

Releasethetwolatcheson bothedgesofthesocketatthesametimeinthe

directionsshownbyarrows1,andthenunplugthe DIMMinthedirection

shownbyarrow2.

ideapad 330-14IKB

a

a

b

ideapad 330-15IKB/ideapad 330-15IKB Touch

a

a

b

43

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

1060 Hard disk drive

Foraccess,removetheseFRUsinorder:

• “1010Opticaldrive”onpage33

• “1020Basecover”onpage34

• “1030Batterypack”onpage37

• “1040PCIExpressMiniCardforwirelessLAN”onpage39

• “1050DIMM”onpage42

Attention:

• Donotdroptheharddiskdriveorapplyanyphysicalshockto it. The hard

disk drive is sensitive to physical shock. Improper handling can cause damage and

permanent loss of data.

• Before removing the drive, suggest the customer to backup all the information on

it if possible.

• Never remove the drive while the system is operating or in suspend mode.

Figure 6. Removal steps of hard disk drive

Removetheharddiskdrivefromtheslotinthedirectionshownbyarrow1.

ideapad 330-14IKB

a

ideapad 330-15IKB/ideapad 330-15IKB Touch

a

44

Hardware Maintenance Manual

Figure 6. Removal steps of hard disk drive (continued)

DetachtheHDDboardconnectorinthedirectionshownbyarrows2and3.

RemovetheHDDboard4.

ideapad 330-14IKB

c

b

d

ideapad 330-15IKB/ideapad 330-15IKB Touch

c

b

d

When installing:MakesurethattheHDDconnectorisattachedrmly.

Detachthebracketfromtheharddiskdrive.

e

e

45

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

1070 Speakers

Foraccess,removetheseFRUsinorder:

• “1010Opticaldrive”onpage33

• “1020Basecover”onpage34

• “1030Batterypack”onpage37

• “1040PCIExpressMiniCardforwirelessLAN”onpage39

• “1050DIMM”onpage42

• “1060Harddiskdrive”onpage43

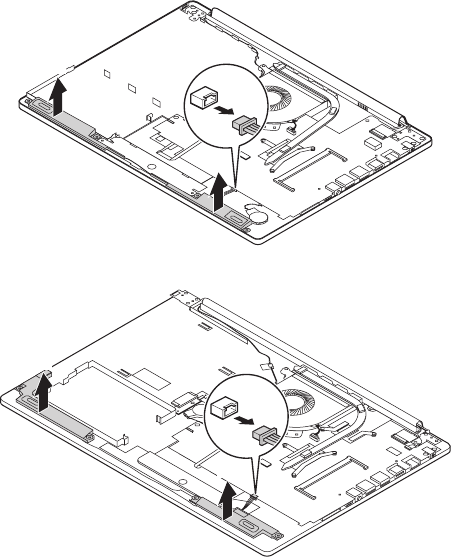

Figure 7. Removal steps of speakers

Unplugthespeakerconnector1.Thenremovethespeakers2.

ideapad 330-14IKB

b

b

a

ideapad 330-15IKB/ideapad 330-15IKB Touch

b

b

a

46

Hardware Maintenance Manual

1080 Fan assembly and Heat Sink assembly

Foraccess,removetheseFRUsinorder:

• “1010Opticaldrive”onpage33

• “1020Basecover”onpage34

• “1030Batterypack”onpage37

• “1040PCIExpressMiniCardforwirelessLAN”onpage39

• “1050DIMM”onpage42

• “1060Harddiskdrive”onpage43

• “1070Speakers”onpage45

Figure 8. Removal steps of fan assembly and Heat Sink assembly

Releasethecablesfromthecableguidesinthedirectionshownbyarrows1.

ideapad 330-14IKB

a

a

ideapad 330-15IKB/ideapad 330-15IKB Touch

a

a

When installing:Route theantenna cablesalong thecable guides.Asyou

routethecables,makesurethattheyarenotsubjectedtoanytension.Tension

couldcausethecablesto bedamagedbythecableguides,or awiretobe

broken.

47

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Figure 8. Removal steps of fan assembly and Heat Sink assembly (continued)

Unplugthefanconnectorinthedirection shownby arrow2.Removethe

screw3.

ideapad 330-14IKB

c

b

ideapad 330-15IKB/ideapad 330-15IKB Touch

c

b

Step Screw (quantity) Color Torque

3M2×6mm,Phillipshead,nylok-coated(1)

fan---mb---logup&fan---logup

Black 1.85+/-0.15kgf/

cm

When installing:Makesurethattheconnectorisattachedrmly.

Removethefaninthedirectionshownbyarrow4.Becarefulnottodamage

theconnector.

48

Hardware Maintenance Manual

ideapad 330-14IKB

d

ideapad 330-15IKB/ideapad 330-15IKB Touch

d

49

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Figure 8. Removal steps of fan assembly and Heat Sink assembly (continued)

Loosenthescrews5.

ideapad 330-14IKB

e

e

e

ideapad 330-15IKB/ideapad 330-15IKB Touch

e

e

e

e

e

Lifttheheatsinkinthedirectionshownbyarrows6.

50

Hardware Maintenance Manual

ideapad 330-14IKB

f

ideapad 330-15IKB/ideapad 330-15IKB Touch

f

51

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Figure 8. Removal steps of fan assembly and Heat Sink assembly (continued)

ideapad 330-14IKB

a

ideapad 330-15IKB/ideapad 330-15IKB Touch

a

b

When installing:Beforeyouattachthefanassemblytothecomputer,apply

thermalgrease,atanamountof0.2grams,tothe partshowninthegure

above.Eithertoomuchortoolittle greaseapplicationcancauseathermal

problemduetoimperfectcontactwithacomponent.

52

Hardware Maintenance Manual

1090 ODD transfer board (ideapad 330-15IKB/ideapad 330-

15IKB Touch) and backup battery

Foraccess,removetheseFRUsinorder:

• “1010Opticaldrive”onpage33

• “1020Basecover”onpage34

• “1030Batterypack”onpage37

• “1040PCIExpressMiniCardforwirelessLAN”onpage39

• “1050DIMM”onpage42

• “1060Harddiskdrive”onpage43

• “1070Speakers”onpage45

• “1080FanassemblyandHeatSinkassembly”onpage46

Figure 9. Removal steps of backup battery

ideapad 330-14IKB

Unplugthebackupbatteryconnectorinthedirectionshownbyarrow1.

Removethebackupbatteryinthedirectionshownbyarrow2.

a

b

When installing:Makesurethattheconnectorisattachedrmly.

53

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

ideapad 330-15IKB/ideapad 330-15IKB Touch

Detachthesystemboardconnectorinthedirectionsshownbyarrows1and2.

Unplugthebackupbatteryconnectorinthedirectionshownbyarrow3.

Removethescrew4.RemovetheODDtransferboardinthedirectionshown

byarrow5.

e

d

b

a

c

Step Screw (quantity) Color Torque

4M2×3mm,Phillips-head,nylok-coated(1) Black 1.85+/-0.15kgf/cm

When installing:Makesurethattheconnectorsareattachedrmly.

Removethebackupbatteryinthedirectionshownbyarrow6.

f

When installing:Makesurethattheconnectorisattachedrmly.

54

Hardware Maintenance Manual

1100 Upper case

Foraccess,removetheseFRUsinorder:

• “1010Opticaldrive”onpage33

• “1020Basecover”onpage34

• “1030Batterypack”onpage37

• “1040PCIExpressMiniCardforwirelessLAN”onpage39

• “1050DIMM”onpage42

• “1060Harddiskdrive”onpage43

• “1070Speakers”onpage45

• “1080FanassemblyandHeatSinkassembly”onpage46

• “1090ODDtransferboard(ideapad330-15IKB/ideapad330-15IKBTouch)

andbackupbattery”onpage52

Figure 10. Removal steps of upper case

Removethescrews1.

ideapad 330-14IKB

aa

aa

Step Screw (quantity) Color Torque

1M2.5×5mm,Phillips-head,nylok-coated(4)

leftsidehinge---logup&rightsidehinge---log

up

Black

3+/-0.3kgf/cm

55

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

ideapad 330-15IKB/ideapad 330-15IKB Touch

aa

aa

Step Screw (quantity) Color Torque

1M2.5×5mm,Phillips-head,nylok-coated(4)

leftsidehinge---logup&rightsidehinge---logup Silver 3+/-0.3kgf/cm

56

Hardware Maintenance Manual

Figure 10. Removal steps of upper case (continued)

DetachtheLCDconnectorinthedirectionshownbyarrows2to4.

ideapad 330-14IKB

c

b

ideapad 330-15IKB/ideapad 330-15IKB Touch

d

c

b

57

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Openthehingeinthedirectionshownbyarrows4or5.

ideapad 330-14IKB

d

d

ideapad 330-15IKB/ideapad 330-15IKB Touch

e

e

58

Hardware Maintenance Manual

Figure 10. Removal steps of upper case (continued)

RemovetheuppercasefromtheLCDmoduleinthedirectionsshownbyarrow

5or6.

ideapad 330-14IKB

e

ideapad 330-15IKB/ideapad 330-15IKB Touch

f

59

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

1110

System board

Important notices for handling the system board:

When handling the system board, bear the following in mind.

• Be careful not to drop the system board on a bench top that has a hard surface,

such as metal, wood, or composite.

• Avoid rough handling of any kind.

• During the whole process, make sure not to drop or stack the system board.

• If you put a system board down, make sure to put it only on a padded surface such

as an ESD mat or conductive corrugated material.

Foraccess,removetheseFRUsinorder:

• “1010Opticaldrive”onpage33

• “1020Basecover”onpage34

• “1030Batterypack”onpage37

• “1040PCIExpressMiniCardforwirelessLAN”onpage39

• “1050DIMM”onpage42

• “1060Harddiskdrive”onpage43

• “1070Speakers”onpage45

• “1080FanassemblyandHeatSinkassembly”onpage46

• “1090ODDtransferboard(ideapad 330-15IKB/ideapad330-15IKBTouch)

andbackupbattery”onpage52

• “1100Uppercase”onpage54

Figure 11. Removal steps of system board

Disconnecttheconnectorsinthedirectionsshownbyarrows1and2.

Thenremovethescrews3.

ideapad 330-14IKB

b

c

c

c

a

Step Screw (quantity) Color Torque

3M2×3mm,Phillips-head,nylok-coated(3)

M/B---logup

Silver 1.85+/-0.15kgf/

cm

60

Hardware Maintenance Manual

ideapad 330-15IKB/ideapad 330-15IKB Touch

b

c

c

c

a

Step Screw (quantity) Color Torque

3M2×3mm,Phillips-head,nylok-coated(3)

M/B---logup

Black 1.85+/-0.15kgf/

cm

Figure 11. Removal steps of system board (continued)

Removethesystemboardinthedirectionshownbyarrow4.

ideapad 330-14IKB

d

61

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

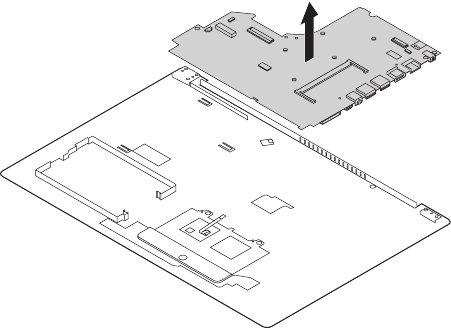

ideapad 330-15IKB/ideapad 330-15IKB Touch

d

62

Hardware Maintenance Manual

1120 LCD unit

Foraccess,removetheseFRUsinorder:

• “1010Opticaldrive”onpage54

• “1020Basecover”onpage54

• “1030Batterypack”onpage54

• “1040PCIExpressMiniCardforwirelessLAN”onpage54

• “1050DIMM”onpage54

• “1060Harddiskdrive”onpage54

• “1070Speakers”onpage54

• “1080FanassemblyandHeatSinkassembly”onpage54

• “1090ODDtransferboardandbackupbattery”onpage54

• “1100Uppercase”onpage54

• “1110Systemboard”onpage54

Figure 12. Removal steps of LCD unit

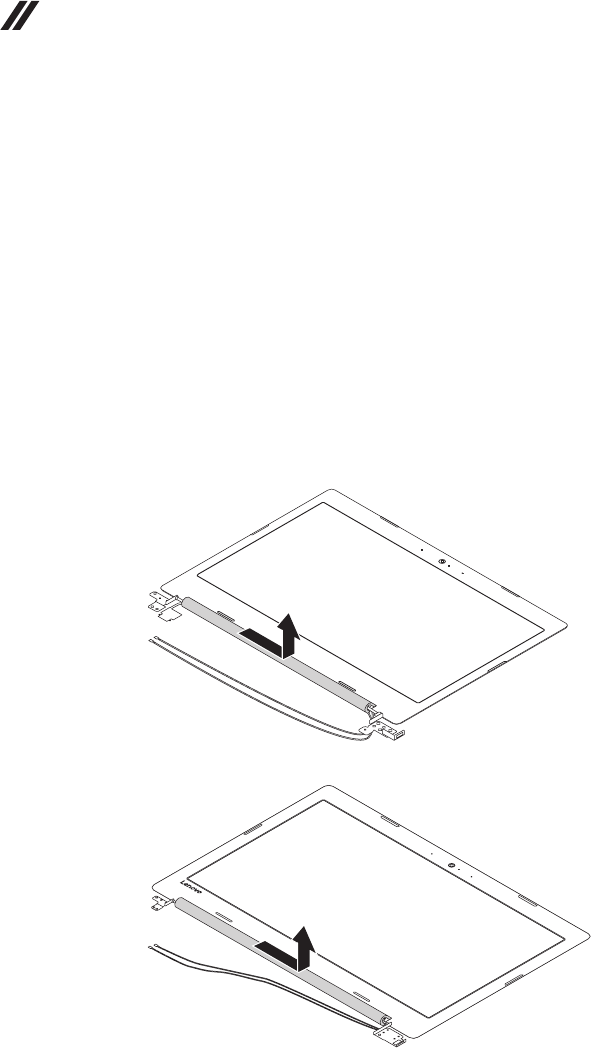

Pullthehingecaptotherightsidetoreleasethehooks.

ideapad 330-14IKB

ideapad 330-15IKB/ideapad 330-15IKB Touch

63

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Figure 12. Removal steps of LCD unit (continued)

RemovetheLCDfrontbezelinthedirectionshownbyarrows1.

ideapad 330-14IKB

a

a

a

a

a

a

a

a

ideapad 330-15IKB/ideapad 330-15IKB Touch

a

a

a

a

a

a

a

a

64

Hardware Maintenance Manual

Figure 12. Removal steps of LCD unit (continued)

Removethescrews2.LifttheLCDmoduleslightly3.Disconnecttheconnectorin

thedirectionshownbyarrow4.ThenremovetheLCDmodule.

ideapad 330-14IKB

d

b

b

b

b

c

Step Screw (quantity) Color Torque

2M2×3mm,Phillips-head,nylok-coated(4)

lcdpanel---lcdcover

Silver 1.85+/-0.15kgf/cm

65

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

ideapad 330-15IKB/ideapad 330-15IKB Touch

c

b

b

b

b

d

Step Screw (quantity) Color Torque

2M2×3mm,Phillips-head,nylok-coated(4)

lcdpanel---lcdcover

Black 1.85+/-0.15kgf/cm

66

Hardware Maintenance Manual

Figure 12. Removal steps of LCD unit (continued)

Removethescrews1.

ideapad 330-14IKB

a

aa

a

Step Screw (quantity) Color Torque

1M2.5×2.5mm,Phillips-head,nylok-coated(4)

lcdbrk---lcdcover

Silver 3+/-0.3kgf/cm

ideapad 330-15IKB/ideapad 330-15IKB Touch

a

a

aa

Step Screw (quantity) Color Torque

1M2.5×2.5mm,Phillips-head,nylok-coated(4)

lcdbrk---lcdcover

Black 3+/-0.3kgf/cm

67

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

RemovetheLCDhingesinthedirectionshownbyarrows2.

ideapad 330-14IKB

b

b

ideapad 330-15IKB/ideapad 330-15IKB Touch

b

b

68

Hardware Maintenance Manual

Figure 12. Removal steps of LCD unit (continued)

Detachthecameraconnectorinthedirectionshownbyarrow1.

ideapad 330-14IKB

a

ideapad 330-15IKB/ideapad 330-15IKB Touch

a

69

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

RemovetheLCDcableinthedirectionshownbyarrows2.

ideapad 330-14IKB

b

b

ideapad 330-15IKB/ideapad 330-15IKB Touch

b

b

When installing:Makesurethattheconnectorisattachedrmlyandthatyou

donotpinchtheantennacableswhenyouattachtheLCDassembly.Routethe

LCDcablealongthecableguides.

70

Hardware Maintenance Manual

1130 Integrated camera and antenna assembly

Foraccess,removetheseFRUsinorder:

• “1010Opticaldrive”onpage33

• “1020Basecover”onpage34

• “1030Batterypack”onpage37

• “1040PCIExpressMiniCardforwirelessLAN”onpage39

• “1050DIMM”onpage42

• “1060Harddiskdrive”onpage43

• “1070Speakers”onpage45

• “1080FanassemblyandHeatSinkassembly”onpage46

• “1090ODDtransferboard(ideapad 330-15IKB/ideapad330-15IKBTouch)

andbackupbattery”onpage52

• “1100Uppercase”onpage54

• “1110Systemboard”onpage59

• “1120LCDunit”onpage62

Figure 13. Removal steps of integrated camera and antenna assembly

Note:TheintegratedcameraisstuckonthetopcenteroftheLCDcover.

Removetheintegratedcamerainthedirectionshownbyarrow1.

a

When installing:Sticktheintegratedcameratothe topcenteroftheLCD

coverandadjustitsplacementtomakesuretheconnectorisattachedrmly.

71

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Figure 13. Removal steps of integrated camera and antenna assembly

(continued)

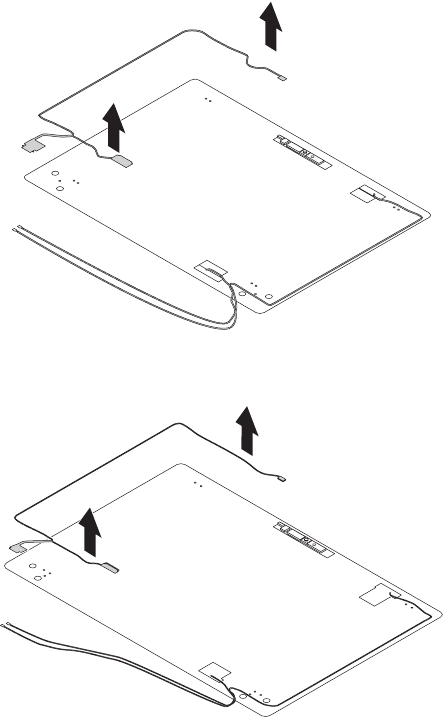

Peeloffthe adhesivetapesecuringtheantennaboards,releasethecables

fromthecableguide,andthenremove theantennaassemblyinthedirection

shownbyarrows2.

b

b

72

Hardware Maintenance Manual

Locations

Front view and right-side view

1 Integratedcamera

2 Built-inmicrophone

3 Computerdisplay

4 WirelessLANantennas

5 PowerKey

6 Touchpad

7 Fingerprintreader(onselectmodels)

8 Opticaldiscdrive

9 KensingtonSecurityslot

ideapad 330-14IKB

f

c

e

i

h

d

a

b

73

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

ideapad 330-15IKB/ideapad 330-15IKB Touch

f

g

c

e

i

h

d

a

b

74

Hardware Maintenance Manual

Bottom and Left-side view

1 Speakers

2 Ventilationslots

3 ACpoweradapterjack

4 Battery/Chargingstatusindicator

5 RJ-45port

6 HDMIport

7 USB3.0port

8 Comboaudiojack

9 Type-Cport

0 Memorycardslot

K Novobutton

L Powerstatusindicator

b

c

d

f

e

g

hi

a

jkl

75

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Parts list

Thissectionpresentsthefollowingserviceparts:

• “Overall”onpage76

• “LCDFRUs”onpage90

• “Miscellaneousparts”onpage94

• “ACadapters”onpage95

• “Screws”onpage96

Note:

Each FRU is available for all types or models, unless specic types or models are

specied.

Attention:

DonotattempttoreplaceanFRUonyourown.IfanFRUisdamaged,contact

aLenovoauthorizedserviceroramarketing representative forreplacement

orrepair.Onlyqualiedtechnicianscaninspectorrepairthisproduct.

76

Hardware Maintenance Manual

Overall

ideapad 330-14IKB

1

2

3

5

7

11

8

6

9

10

b

a

c

14

13

12

4

77

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Table 4. Parts list—Overall

ideapad 330-14IKB

No. FRU FRU no. CRU

ID.

a-c See“Miscellaneousparts”onpage94.

1 LCDunit(see“LCDFRUs”onpage90).

2 UpCaseASMW/KBL81DAPGENG 5CB0R13833

N

2 UpCaseASMW/KBL81DAPGGRE 5CB0R13894

2 UpCaseASMW/KBL81DAPGEUROENG 5CB0R13847

2 UpCaseASMW/KBL81DAPGKOR 5CB0R13855

2 UpCaseASMW/KBL81DAPGTC 5CB0R13848

2 UpCaseASMW/KBL81DAPGRUS 5CB0R13896

2 UpCaseASMW/KBL81DAPGARA 5CB0R13876

2 UpCaseASMW/KBL81DAPGHBW 5CB0R13863

2 UpCaseASMW/KBL81DAPGTHAI 5CB0R13880

2 UpCaseASMW/KBL81DAPGHIN 5CB0R13867

2 UpCaseASMW/KBL81DAPGUKE 5CB0R13827

2 UpCaseASMW/KBL81DAPGITA 5CB0R13842

2 UpCaseASMW/KBL81DAPGSPA 5CB0R13830

2 UpCaseASMW/KBL81DAPGTUR 5CB0R13818

2 UpCaseASMW/KBL81DAPGPOR 5CB0R13895

2 UpCaseASMW/KBL81DAPGLASPA 5CB0R13824

2 UpCaseASMW/KBL81DAPGFRA/ENG 5CB0R13860

2 UpCaseASMW/KBL81DAPGNORDIC 5CB0R13816

2 UpCaseASMW/KBL81DAPGFRA 5CB0R13899

2 UpCaseASMW/KBL81DAPGGER 5CB0R13828

2 UpCaseASMW/KBL81DAPGHUN 5CB0R13850

2 UpCaseASMW/KBL81DAPGBEL 5CB0R13897

2 UpCaseASMW/KBL81DAPGILD 5CB0R13889

2 UpCaseASMW/KBL81DAPGSLV 5CB0R13892

2 UpCaseASMW/KBL81DAPGSWS 5CB0R13886

2 UpCaseASMW/KBL81DAPGBUL 5CB0R13865

2 UpCaseASMW/KBL81DAPGCZE/SLK 5CB0R13837

2 UpCaseASMW/KBL81DAPGBRL 5CB0R13857

2 UpCaseASMW/KBL81DAPGFRA/ARA 5CB0R13901

2 UpCaseASMW/KBL81DAPGJPN 5CB0R13832

2 UpCaseASMW/KBL81DAPGUKR 5CB0R13888

2 UpCaseASMW/KBL81DAMGENG 5CB0R13819

2 UpCaseASMW/KBL81DAMGGRE 5CB0R13904

2 UpCaseASMW/KBL81DAMGEUROENG 5CB0R13852

2 UpCaseASMW/KBL81DAMGKOR 5CB0R13874

2 UpCaseASMW/KBL81DAMGTC 5CB0R13831

2 UpCaseASMW/KBL81DAMGRUS 5CB0R13878

2 UpCaseASMW/KBL81DAMGARA 5CB0R13835

2 UpCaseASMW/KBL81DAMGHBW 5CB0R13849

2 UpCaseASMW/KBL81DAMGTHAI 5CB0R13836

2 UpCaseASMW/KBL81DAMGHIN 5CB0R13829

2 UpCaseASMW/KBL81DAMGUKE 5CB0R13838

2 UpCaseASMW/KBL81DAMGITA 5CB0R13817

78

Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ID.

2 UpCaseASMW/KBL81DAMGSPA 5CB0R13851

N

2 UpCaseASMW/KBL81DAMGTUR 5CB0R13822

2 UpCaseASMW/KBL81DAMGPOR 5CB0R13882

2 UpCaseASMW/KBL81DAMGLASPA 5CB0R13823

2 UpCaseASMW/KBL81DAMGFRA/ENG 5CB0R13825

2 UpCaseASMW/KBL81DAMGNORDIC 5CB0R13813

2 UpCaseASMW/KBL81DAMGFRA 5CB0R13872

2 UpCaseASMW/KBL81DAMGGER 5CB0R13890

2 UpCaseASMW/KBL81DAMGHUN 5CB0R13856

2 UpCaseASMW/KBL81DAMGBEL 5CB0R13843

2 UpCaseASMW/KBL81DAMGILD 5CB0R13866

2 UpCaseASMW/KBL81DAMGSLV 5CB0R13845

2 UpCaseASMW/KBL81DAMGSWS 5CB0R13858

2 UpCaseASMW/KBL81DAMGBUL 5CB0R13875

2 UpCaseASMW/KBL81DAMGCZE/SLK 5CB0R13861

2 UpCaseASMW/KBL81DAMGBRL 5CB0R13859

2 UpCaseASMW/KBL81DAMGFRA/ARA 5CB0R13820

2 UpCaseASMW/KBL81DAMGJPN 5CB0R13902

2 UpCaseASMW/KBL81DAMGUKR 5CB0R13839

2 UpCaseASMW/KBL81DALBUENG 5CB0R13873

2 UpCaseASMW/KBL81DALBUGRE 5CB0R13900

2 UpCaseASMW/KBL81DALBUEUROENG 5CB0R13891

2 UpCaseASMW/KBL81DALBUKOR 5CB0R13868

2 UpCaseASMW/KBL81DALBUTC 5CB0R13893

2 UpCaseASMW/KBL81DALBURUS 5CB0R13834

2 UpCaseASMW/KBL81DALBUARA 5CB0R13870

2 UpCaseASMW/KBL81DALBUHBW 5CB0R13905

2 UpCaseASMW/KBL81DALBUTHAI 5CB0R13862

2 UpCaseASMW/KBL81DALBUHIN 5CB0R13877

2 UpCaseASMW/KBL81DALBUUKE 5CB0R13871

2 UpCaseASMW/KBL81DALBUITA 5CB0R13815

2 UpCaseASMW/KBL81DALBUSPA 5CB0R13840

2 UpCaseASMW/KBL81DALBUTUR 5CB0R13821

2 UpCaseASMW/KBL81DALBUPOR 5CB0R13885

2 UpCaseASMW/KBL81DALBULASPA 5CB0R13826

2 UpCaseASMW/KBL81DALBUFRA/ENG 5CB0R13846

2 UpCaseASMW/KBL81DALBUNORDIC 5CB0R13903

2 UpCaseASMW/KBL81DALBUFRA 5CB0R13841

2 UpCaseASMW/KBL81DALBUGER 5CB0R13844

2 UpCaseASMW/KBL81DALBUHUN 5CB0R13869

2 UpCaseASMW/KBL81DALBUBEL 5CB0R13884

2 UpCaseASMW/KBL81DALBUILD 5CB0R13864

2 UpCaseASMW/KBL81DALBUSLV 5CB0R13887

2 UpCaseASMW/KBL81DALBUSWS 5CB0R13853

2 UpCaseASMW/KBL81DALBUBUL 5CB0R13854

2 UpCaseASMW/KBL81DALBUCZE/SLK 5CB0R13814

79

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

No. FRU FRU no. CRU

ID.

2 UpCaseASMW/KBL81DALBUBRL 5CB0R13883

N

2 UpCaseASMW/KBL81DALBUFRA/ARA 5CB0R13879

2 UpCaseASMW/KBL81DALBUJPN 5CB0R13881

2 UpCaseASMW/KBL81DALBUUKR 5CB0R13898

3 MBL81DAI57200UN530V4GD4GNOK 5B20R13355

3 MBL81DAI77500UN530V2GD4GWIN 5B20R13351

3 MBL81DAI77500UN530V2GD4GNOK 5B20R13339

3 MBL81DAI77500UX110V2GWIN 5B20R13350

3 MBL81DAI77500UX110V2GNOK 5B20R13342

3 MBL81DAI77500UX110V2GD4GWIN 5B20R13334

3 MBL81DAI77500UX110V2GD4GNOK 5B20R13349

3 MBL81DAI77500UX130V2GWIN 5B20R13330

3 MBL81DAI77500UX130V2GNOK 5B20R13357

3 MBL81DAI77500UN530V2GWIN 5B20R13333

3 MBL81DAI77500UN530V2GNOK 5B20R13336

3 MBL81DAI77500UUMAD4GWIN 5B20R13343

3 MBL81DAI77500UUMAD4GNOK 5B20R13347

3 MBL81DAI77500UUMAWIN 5B20R13338

3 MBL81DAI77500UUMANOK 5B20R13348

3 MBL81DAI77500UX130V2GD4GWIN 5B20R13340

3 MBL81DAI77500UX130V2GD4GNOK 5B20R13331

3 MBL81DAI77500UN530V4GD4GWIN 5B20R13352

3 MBL81DAI77500UN530V4GD4GNOK 5B20R13345

3 MBL81DAI77500UN530V4GWIN 5B20R13346

3 MBL81DAI77500UN530V4GNOK 5B20R13335

3 MBL81G2I37020UUMAD4GWIN 5B20R18557

3 MBL81G2I37020UUMAD4GNOK 5B20R18556

3 MBL81G2I37020UUMAWIN 5B20R18562

3 MBL81G2I37020UUMANOK 5B20R18561

3 MBL81G2I37020UN530_2GWIN 5B20R18558

3 MBL81G2I37020UN530_2GNOK 5B20R18559

3 MBL81G2I37020UN530_2GD4GWIN 5B20R18560

3 MBL81G2I37020UN530_2GD4GNOK 5B20R18563

3 MBL81G2I78550UUMAD4GWIN 5B20R16827

3 MBL81G2I78550UUMAD4GNOK 5B20R16817

3 MBL81G2I78550UN530_2GD4GWIN 5B20R16824

3 MBL81G2I78550UN530_2GD4GNOK 5B20R16809

3 MBL81G2I78550UN530_2GWIN 5B20R16825

3 MBL81G2I78550UN530_2GNOK 5B20R16815

3 MBL81G2I78550UUMAWIN 5B20R16818

3 MBL81G2I78550UUMANOK 5B20R16819

3 MBL81G2I58250UUMAWIN 5B20R16828

3 MBL81G2I58250UUMANOK 5B20R16807

3 MBL81G2I58250UUMAD4GWIN 5B20R16821

3 MBL81G2I58250UUMAD4GNOK 5B20R16810

3 MBL81G2I58250UN530_2GWIN 5B20R16829

3 MBL81G2I58250UN530_2GNOK 5B20R16808

Table 4. Parts list—Overall (continued)

80

Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ID.

3 MBL81G2I58250UN530_2GD4GWIN 5B20R16823

N

3 MBL81G2I58250UN530_2GD4GNOK 5B20R16812

4 THERMALMODULEDISL80XK 5H40N82364

4 THERMALMODULEDISL80YD 5H40N91273

4 THERMALMODULEUMAL80XK 5H40N82349

4 THERMALMODULEDISL81BT 5H40Q11186

4 THERMALMODULEUMAL81BJ 5H40Q11452

5 8Gbx16D426CPK4A8G165WC-BCTD SM30N76502

5 H5AN8G6NAFR-UHC SM30L08875

5 MT40A512M16LY-075:E SM30N76490

5 MTA4ATF25664HZ-2G3B1 SM30G16502

5 RMSA3270MB76H8F-2400 SM30G16503

5 HMA425S6BJR6N-UHN0 SM30K25304

5 4GBDDR426SM471A5244CB0-CTD SM30N76487

5 4GBD426SHMA851S6CJR6N-VKN0 SM30K25310

5 4GBD426SMTA4ATF51264HZ-2G6E1 SM30K25318

5 4GBD426SRMSA3270ME86H9F-2666 SM30K25316

5 8GBDDR426SM471A1K43CB1-CTD SM30N76488

5 8GBD426SHMA81GS6CJR8N-VKN0 SM30K25311

5 8GBD426SMTA8ATF1G64HZ-2G6E1 SM30N76493

5 RMSA3260ME78HAF-2666 SM30N76498

5 16GBDDR426SM471A2K43CB1-CTD SM30N76489

5 16GBD426SMTA16ATF2G64HZ-2G6E1 SM30N76494

5 16GBD426SRMSA3300ME78HBF-2666 SM30N76499

5 HMA82GS6CJR8N-VKN0 SM30K25312

6FANDC5VL80XK 5F10N82225

7Intel31651x1AC+BTPCIEM.2WLAN SW10H24486

7RTL8821CE1x1AC+BT4.2ComboM.2BS SW10K97462

7LtnNFA435A1x1AC+BTPCIEM.2WLAN SW10K97461

8 RTCBATTERYL80XK 5B10N82213

9 320SP/AL16M2PB17.5V30Wh2cellbty 5B10M86148

9 320CP/CL16C2PB27.6V30Wh2cellbty 5B10M88058

9 320SP/BL17M2PB77.56V30Wh2cellbty 5B10Q71253

9 330GLGL17L2PF17.56V30Wh2cellbty 5B10Q41213

9 320SP/AL16M2PB27.5V35Wh2cellbty 5B10M86149

9 320CP/CL16C2PB17.6V35Wh2cellbty 5B10M88059

9 320SYL16S2PB17.6V35Wh2cellbty 5B10M90490

9 320LGL16L2PB37.6V35Wh2cellbty 5B10M91443

10 SPEAKERINTL80XKL+RFOR14T 5SB0P38021

11 LOWERCASE81DAGRAPHITEGREY 5CB0R13439

11 LOWERCASE81DALIGHTMINTGREEN 5CB0R13444

11 LOWERCASE81DALIGHTBLUE 5CB0R13438

12 DUMMYODD81DAPG 5M20R13432

12 DUMMYODD81DAMG 5M20R13428

12 DUMMYODD81DAMN-BU 5M20R13442

12 DUMMYODDFor2ndHDD81DAPG 5M20R13443

81

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

No. FRU FRU no. CRU

ID.

12 DUMMYODDFor2ndHDD81DAMG 5M20R13429

N

12 DUMMYODDFor2ndHDD81DAMN-BU 5M20R13440

12 HLDSGUE0N9.0mmSlimTrayRamboODD 5DX0J46488

12 HLGUE1N9.0mmDVDWriterWOB SDX0K84177

12 PLDSDA-8AESH9.0mmSlimTrayRamboODD 5DX0L08424

13 HDDBOARDFOR2NDHDDL80U7 5B40N82219

14 SeagateST500LM030500GB2.5"SATA7mm5400rpmHDD SH20P18518

14 MQ01ABF0506G7mm5.4K500GHDD 5H20L34560

14 WD5000LPCX-24VHAT07mm5400rpm500GHDD 5H20J35762

14 SeagateST1000LM0351T2.5"7mm5400rpmHDD 5H20L22184

14 WD10SPZX-24Z10T02.5"1THDD SH20P18627

14 MQ04ABF1001TB2.5"SATA7mm5400rpmHDD SHD0P03171

14 STRosewood2D7mm2TBHDD 5H20M37521

—ACadapter(see“ACadapters”onpage95).

82

Hardware Maintenance Manual

ideapad 330-15IKB/ideapad 330-15IKB Touch

1

2

3

5

7

11

8

6

9

10

13

b

a

c

15

14

12

4

83

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Table 5. Parts list—Overall

ideapad 330-15IKB/ideapad 330-15IKB Touch

No. FRU FRU no. CRU

ID.

a-c See“Miscellaneousparts”onpage94.

1 LCDunit(see“LCDFRUs”onpage90).

2 UpCaseASMW/KBL81DCWHENG 5CB0R16732

N

2 UpCaseASMW/KBL81DCWHGRE 5CB0R16693

2 UpCaseASMW/KBL81DCWHEUROENG 5CB0R16547

2 UpCaseASMW/KBL81DCWHKOR 5CB0R16637

2 UpCaseASMW/KBL81DCWHTC 5CB0R16530

2 UpCaseASMW/KBL81DCWHRUS 5CB0R16529

2 UpCaseASMW/KBL81DCWHARA 5CB0R16543

2 UpCaseASMW/KBL81DCWHHBW 5CB0R16629

2 UpCaseASMW/KBL81DCWHTHAI 5CB0R16643

2 UpCaseASMW/KBL81DCWHHIN 5CB0R16606

2 UpCaseASMW/KBL81DCWHUKE 5CB0R16581

2 UpCaseASMW/KBL81DCWHITA 5CB0R16687

2 UpCaseASMW/KBL81DCWHSPA 5CB0R16657

2 UpCaseASMW/KBL81DCWHTUR 5CB0R16634

2 UpCaseASMW/KBL81DCWHPOR 5CB0R16616

2 UpCaseASMW/KBL81DCWHLASPA 5CB0R16591

2 UpCaseASMW/KBL81DCWHFRA/ENG 5CB0R16667

2 UpCaseASMW/KBL81DCWHNORDIC 5CB0R16588

2 UpCaseASMW/KBL81DCWHFRA 5CB0R16648

2 UpCaseASMW/KBL81DCWHGER 5CB0R16574

2 UpCaseASMW/KBL81DCWHHUN 5CB0R16516

2 UpCaseASMW/KBL81DCWHBEL 5CB0R16676

2 UpCaseASMW/KBL81DCWHILD 5CB0R16617

2 UpCaseASMW/KBL81DCWHSLV 5CB0R16652

2 UpCaseASMW/KBL81DCWHSWS 5CB0R16706

2 UpCaseASMW/KBL81DCWHBUL 5CB0R16626

2 UpCaseASMW/KBL81DCWHCZE/SLK 5CB0R16660

2 UpCaseASMW/KBL81DCWHBRL 5CB0R16712

2 UpCaseASMW/KBL81DCWHFRA/ARA 5CB0R16718

2 UpCaseASMW/KBL81DCWHJPN 5CB0R16669

2 UpCaseASMW/KBL81DCWHUKR 5CB0R16710

2 UpCaseASMW/KBL81DCPGENG 5CB0R16703

2 UpCaseASMW/KBL81DCPGGRE 5CB0R16644

2 UpCaseASMW/KBL81DCPGEUROENG 5CB0R16651

2 UpCaseASMW/KBL81DCPGKOR 5CB0R16690

2 UpCaseASMW/KBL81DCPGTC 5CB0R16518

2 UpCaseASMW/KBL81DCPGRUS 5CB0R16655

2 UpCaseASMW/KBL81DCPGARA 5CB0R16531

2 UpCaseASMW/KBL81DCPGHBW 5CB0R16665

2 UpCaseASMW/KBL81DCPGTHAI 5CB0R16609

2 UpCaseASMW/KBL81DCPGHIN 5CB0R16556

2 UpCaseASMW/KBL81DCPGUKE 5CB0R16565

2 UpCaseASMW/KBL81DCPGITA 5CB0R16513

84

Hardware Maintenance Manual

No. FRU FRU no. CRU

ID.

2 UpCaseASMW/KBL81DCPGSPA 5CB0R16661

N

2 UpCaseASMW/KBL81DCPGTUR 5CB0R16631

2 UpCaseASMW/KBL81DCPGPOR 5CB0R16662

2 UpCaseASMW/KBL81DCPGLASPA 5CB0R16659

2 UpCaseASMW/KBL81DCPGFRA/ENG 5CB0R16550

2 UpCaseASMW/KBL81DCPGNORDIC 5CB0R16679

2 UpCaseASMW/KBL81DCPGFRA 5CB0R16645

2 UpCaseASMW/KBL81DCPGGER 5CB0R16524

2 UpCaseASMW/KBL81DCPGHUN 5CB0R16507

2 UpCaseASMW/KBL81DCPGBEL 5CB0R16576

2 UpCaseASMW/KBL81DCPGILD 5CB0R16555

2 UpCaseASMW/KBL81DCPGSLV 5CB0R16649

2 UpCaseASMW/KBL81DCPGSWS 5CB0R16578

2 UpCaseASMW/KBL81DCPGBUL 5CB0R16520

2 UpCaseASMW/KBL81DCPGCZE/SLK 5CB0R16674

2 UpCaseASMW/KBL81DCPGBRL 5CB0R16523

2 UpCaseASMW/KBL81DCPGFRA/ARA 5CB0R16575

2 UpCaseASMW/KBL81DCPGJPN 5CB0R16642

2 UpCaseASMW/KBL81DCPGUKR 5CB0R16595

2 UpCaseASMW/KBL81DCIGENG 5CB0R16726

2 UpCaseASMW/KBL81DCIGGRE 5CB0R16722

2 UpCaseASMW/KBL81DCIGEUROENG 5CB0R16716

2 UpCaseASMW/KBL81DCIGKOR 5CB0R16567

2 UpCaseASMW/KBL81DCIGTC 5CB0R16704

2 UpCaseASMW/KBL81DCIGRUS 5CB0R16685

2 UpCaseASMW/KBL81DCIGARA 5CB0R16590

2 UpCaseASMW/KBL81DCIGHBW 5CB0R16545

2 UpCaseASMW/KBL81DCIGTHAI 5CB0R16713

2 UpCaseASMW/KBL81DCIGHIN 5CB0R16535

2 UpCaseASMW/KBL81DCIGUKE 5CB0R16723

2 UpCaseASMW/KBL81DCIGITA 5CB0R16677

2 UpCaseASMW/KBL81DCIGSPA 5CB0R16509

2 UpCaseASMW/KBL81DCIGTUR 5CB0R16670

2 UpCaseASMW/KBL81DCIGPOR 5CB0R16627

2 UpCaseASMW/KBL81DCIGLASPA 5CB0R16600

2 UpCaseASMW/KBL81DCIGFRA/ENG 5CB0R16587

2 UpCaseASMW/KBL81DCIGNORDIC 5CB0R16697

2 UpCaseASMW/KBL81DCIGFRA 5CB0R16729

2 UpCaseASMW/KBL81DCIGGER 5CB0R16692

2 UpCaseASMW/KBL81DCIGHUN 5CB0R16678

2 UpCaseASMW/KBL81DCIGBEL 5CB0R16582

2 UpCaseASMW/KBL81DCIGILD 5CB0R16512

2 UpCaseASMW/KBL81DCIGSLV 5CB0R16709

2 UpCaseASMW/KBL81DCIGSWS 5CB0R16623

2 UpCaseASMW/KBL81DCIGBUL 5CB0R16734

2 UpCaseASMW/KBL81DCIGCZE/SLK 5CB0R16658

2 UpCaseASMW/KBL81DCIGBRL 5CB0R16510

Table 5. Parts list—Overall (continued)

85

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Table 5. Parts list—Overall (continued)

No. FRU FRU no. CRU

ID.

2 UpCaseASMW/KBL81DCIGFRA/ARA 5CB0R16624

N

2 UpCaseASMW/KBL81DCIGJPN 5CB0R16541

2 UpCaseASMW/KBL81DCIGUKR 5CB0R16639

2 UpCaseASMW/KBL81DCLBUENG 5CB0R16728

2 UpCaseASMW/KBL81DCLBUGRE 5CB0R16688

2 UpCaseASMW/KBL81DCLBUEUROENG 5CB0R16646

2 UpCaseASMW/KBL81DCLBUKOR 5CB0R16618

2 UpCaseASMW/KBL81DCLBUTC 5CB0R16694

2 UpCaseASMW/KBL81DCLBURUS 5CB0R16620

2 UpCaseASMW/KBL81DCLBUARA 5CB0R16612

2 UpCaseASMW/KBL81DCLBUHBW 5CB0R16721

2 UpCaseASMW/KBL81DCLBUTHAI 5CB0R16607

2 UpCaseASMW/KBL81DCLBUHIN 5CB0R16700

2 UpCaseASMW/KBL81DCLBUUKE 5CB0R16539

2 UpCaseASMW/KBL81DCLBUITA 5CB0R16511

2 UpCaseASMW/KBL81DCLBUSPA 5CB0R16563

2 UpCaseASMW/KBL81DCLBUTUR 5CB0R16701

2 UpCaseASMW/KBL81DCLBUPOR 5CB0R16635

2 UpCaseASMW/KBL81DCLBULASPA 5CB0R16597

2 UpCaseASMW/KBL81DCLBUFRA/ENG 5CB0R16672

2 UpCaseASMW/KBL81DCLBUNORDIC 5CB0R16640

2 UpCaseASMW/KBL81DCLBUFRA 5CB0R16717

2 UpCaseASMW/KBL81DCLBUGER 5CB0R16656

2 UpCaseASMW/KBL81DCLBUHUN 5CB0R16653

2 UpCaseASMW/KBL81DCLBUBEL 5CB0R16727

2 UpCaseASMW/KBL81DCLBUILD 5CB0R16564

2 UpCaseASMW/KBL81DCLBUSLV 5CB0R16628

2 UpCaseASMW/KBL81DCLBUSWS 5CB0R16619

2 UpCaseASMW/KBL81DCLBUBUL 5CB0R16577

2 UpCaseASMW/KBL81DCLBUCZE/SLK 5CB0R16534

2 UpCaseASMW/KBL81DCLBUBRL 5CB0R16569

2 UpCaseASMW/KBL81DCLBUFRA/ARA 5CB0R16593

2 UpCaseASMW/KBL81DCLBUJPN 5CB0R16521

2 UpCaseASMW/KBL81DCLBUUKR 5CB0R16615

2 UpCaseASMW/KBL81DCCHCOENG 5CB0R16696

2 UpCaseASMW/KBL81DCCHCOGRE 5CB0R16614

2 UpCaseASMW/KBL81DCCHCOEUROENG 5CB0R16705

2 UpCaseASMW/KBL81DCCHCOKOR 5CB0R16537

2 UpCaseASMW/KBL81DCCHCOTC 5CB0R16604

2 UpCaseASMW/KBL81DCCHCORUS 5CB0R16560

2 UpCaseASMW/KBL81DCCHCOARA 5CB0R16558

2 UpCaseASMW/KBL81DCCHCOHBW 5CB0R16647

2 UpCaseASMW/KBL81DCCHCOTHAI 5CB0R16605

2 UpCaseASMW/KBL81DCCHCOHIN 5CB0R16514

2 UpCaseASMW/KBL81DCCHCOUKE 5CB0R16711

2 UpCaseASMW/KBL81DCCHCOITA 5CB0R16601

86

Hardware Maintenance Manual

No. FRU FRU no. CRU

ID.

2 UpCaseASMW/KBL81DCCHCOSPA 5CB0R16622

N

2 UpCaseASMW/KBL81DCCHCOTUR 5CB0R16504

2 UpCaseASMW/KBL81DCCHCOPOR 5CB0R16668

2 UpCaseASMW/KBL81DCCHCOLASPA 5CB0R16519

2 UpCaseASMW/KBL81DCCHCOFRA/ENG 5CB0R16625

2 UpCaseASMW/KBL81DCCHCONORDIC 5CB0R16570

2 UpCaseASMW/KBL81DCCHCOFRA 5CB0R16666

2 UpCaseASMW/KBL81DCCHCOGER 5CB0R16546

2 UpCaseASMW/KBL81DCCHCOHUN 5CB0R16675

2 UpCaseASMW/KBL81DCCHCOBEL 5CB0R16561

2 UpCaseASMW/KBL81DCCHCOILD 5CB0R16633

2 UpCaseASMW/KBL81DCCHCOSLV 5CB0R16551

2 UpCaseASMW/KBL81DCCHCOSWS 5CB0R16583

2 UpCaseASMW/KBL81DCCHCOBUL 5CB0R16572

2 UpCaseASMW/KBL81DCCHCOCZE/SLK 5CB0R16538

2 UpCaseASMW/KBL81DCCHCOBRL 5CB0R16720

2 UpCaseASMW/KBL81DCCHCOFRA/ARA 5CB0R16557

2 UpCaseASMW/KBL81DCCHCOJPN 5CB0R16632

2 UpCaseASMW/KBL81DCCHCOUKR 5CB0R16542

3 MBL81DEI38130UUMAD4GWIN 5B20R19898

3 MBL81DEI38130UUMAD4GNOK 5B20R19917

3 MBL81DEI38130UX150_2GD4GWIN 5B20R19924

3 MBL81DEI38130UX150_2GD4GNOK 5B20R19902

3 MBL81DEI38130UN530_2GD4GWIN 5B20R19904

3 MBL81DEI38130UN530_2GD4GNOK 5B20R19884

3 MBL81DEI37020UN530_2GD4GWIN 5B20R19905

3 MBL81DEI37020UN530_2GD4GNOK 5B20R19865

3 MBL81DEI37020UUMAD4GWIN 5B20R19926

3 MBL81DEI37020UUMAD4GNOK 5B20R19918

3 MBL81DEI37020UX150_2GD4GWIN 5B20R19868

3 MBL81DEI37020UX150_2GD4GNOK 5B20R19881

3 MBL81DEI58250UX150_2GD4GOPWIN 5B20R19921

3 MBL81DEI58250UX150_2GD4GOPNOK 5B20R19890

3 MBL81DEI58250UN530_2GD4GOPWIN 5B20R19891

3 MBL81DEI58250UN530_2GD4GOPNOK 5B20R19912

3 MBL81DEI58250UX150_2GD4GWIN 5B20R19909

3 MBL81DEI58250UX150_2GD4GNOK 5B20R19876

3 MBL81DEI58250UUMAD4GWIN 5B20R19914

3 MBL81DEI58250UUMAD4GNOK 5B20R19867

3 MBL81DEI58250UN530_2GD4GWIN 5B20R19919

3 MBL81DEI58250UN530_2GD4GNOK 5B20R19899

3 MBL81DEI58250UN530_4GD4GOPWIN 5B20R19863

3 MBL81DEI58250UN530_4GD4GOPNOK 5B20R19913

3 MBL81DEI58250UN530_4GD4GWIN 5B20R19860

3 MBL81DEI58250UN530_4GD4GNOK 5B20R19920

3 MBL81DEI58250UUMAD4GOPWIN 5B20R19869

Table 5. Parts list—Overall (continued)

87

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Table 5. Parts list—Overall (continued)

No. FRU FRU no. CRU

ID.

3 MBL81DEI58250UUMAD4GOPNOK 5B20R19870

N

3 MBL81DEI58250UX150_4GD4GWIN 5B20R19894

3 MBL81DEI58250UX150_4GD4GNOK 5B20R19866

3 MBL81DEI58250UX150_4GD4GOPWIN 5B20R19911

3 MBL81DEI58250UX150_4GD4GOPNOK 5B20R19903

3 MBL81DEI78550UN530_2GD4GWIN 5B20R19908

3 MBL81DEI78550UN530_2GD4GNOK 5B20R19889

3 MBL81DEI78550UN530_4GD4GOPWIN 5B20R19901

3 MBL81DEI78550UN530_4GD4GOPNOK 5B20R19927

3 MBL81DEI78550UN530_4GNRWIN 5B20R19873

3 MBL81DEI78550UN530_4GNRNOK 5B20R19922

3 MBL81DEI78550UX150_2GNROPWIN 5B20R19877

3 MBL81DEI78550UX150_2GNROPNOK 5B20R19910

3 MBL81DEI78550UN530_2GD4GOPWIN 5B20R19886

3 MBL81DEI78550UN530_2GD4GOPNOK 5B20R19895

3 MBL81DEI78550UUMAD4GWIN 5B20R19864

3 MBL81DEI78550UUMAD4GNOK 5B20R19897

3 MBL81DEI78550UN530_2GNROPWIN 5B20R19916

3 MBL81DEI78550UN530_2GNROPNOK 5B20R19878

3 MBL81DEI78550UN530_4GNROPWIN 5B20R19896

3 MBL81DEI78550UN530_4GNROPNOK 5B20R19906

3 MBL81DEI78550UX150_2GD4GWIN 5B20R19887

3 MBL81DEI78550UX150_2GD4GNOK 5B20R19925

3 MBL81DEI78550UN530_2GNRWIN 5B20R19872

3 MBL81DEI78550UN530_2GNRNOK 5B20R19907

3 MBL81DEI78550UX150_2GD4GOPWIN 5B20R19900

3 MBL81DEI78550UX150_2GD4GOPNOK 5B20R19871

3 MBL81DEI78550UX150_2GNRWIN 5B20R19888

3 MBL81DEI78550UX150_2GNRNOK 5B20R19861

3 MBL81DEI78550UN530_4GD4GWIN 5B20R19885

3 MBL81DEI78550UN530_4GD4GNOK 5B20R19892

3 MBL81DEI78550UUMAD4GOPWIN 5B20R19923

3 MBL81DEI78550UUMAD4GOPNOK 5B20R19879

3 MBL81DEI78550UX150_4GD4GOPWIN 5B20R19874

3 MBL81DEI78550UX150_4GD4GOPNOK 5B20R19893

3 MBL81DEI78550UX150_4GNROPWIN 5B20R19880

3 MBL81DEI78550UX150_4GNROPNOK 5B20R19875

3 MBL81DEI78550UX150_4GNRWIN 5B20R19883

3 MBL81DEI78550UX150_4GNRNOK 5B20R19862

3 MBL81DEI78550UX150_4GD4GWIN 5B20R19882

3 MBL81DEI78550UX150_4GD4GNOK 5B20R19915

3 MBL81DJI38130UUMAD4GWIN 5B20R20241

3 MBL81DJI38130UUMAD4GNOK 5B20R20232

3 MBL81DJI38130UMX150_2GD4GWIN 5B20R20242

3 MBL81DJI38130UMX150_2GD4GNOK 5B20R20244

3 MBL81DJI58250UMX150_4GD4GWIN 5B20R20231

88

Hardware Maintenance Manual

No. FRU FRU no. CRU

ID.

3 MBL81DJI58250UMX150_4GD4GNOK 5B20R20233

N

3 MBL81DJI58250UUMAD4GWIN 5B20R20238

3 MBL81DJI58250UUMAD4GNOK 5B20R20235

3 MBL81DJI58250UMX150_2GD4GWIN 5B20R20246

3 MBL81DJI58250UMX150_2GD4GNOK 5B20R20248

3 MBL81DJI78550UUMAD4GWIN 5B20R20245

3 MBL81DJI78550UUMAD4GNOK 5B20R20247

3 MBL81DJI78550UMX150_2GD4GWIN 5B20R20236

3 MBL81DJI78550UMX150_2GD4GNOK 5B20R20234

3 MBL81DJI78550UMX150_2GNRWIN 5B20R20239

3 MBL81DJI78550UMX150_2GNRNOK 5B20R20249

3 MBL81DJI78550UMX150_4GD4GWIN 5B20R20230

3 MBL81DJI78550UMX150_4GD4GNOK 5B20R20240

3 MBL81DJI78550UMX150_4GNRWIN 5B20R20237

3 MBL81DJI78550UMX150_4GNRNOK 5B20R20243

4 THERMALMODULEDISL81BJ 5H40Q11451

4 THERMALMODULEDISL81BT 5H40Q11186

4 THERMALMODULEUMAL81BJ 5H40Q11452

5 8Gbx16D426CPK4A8G165WC-BCTD SM30N76502

5 H5AN8G6NAFR-UHC SM30L08875

5 MT40A512M16LY-075:E SM30N76490

5 MTA4ATF25664HZ-2G3B1 SM30G16502

5 RMSA3270MB76H8F-2400 SM30G16503

5 HMA425S6BJR6N-UHN0 SM30K25304

5 4GBDDR426SM471A5244CB0-CTD SM30N76487

5 4GBD426SHMA851S6CJR6N-VKN0 SM30K25310

5 4GBD426SMTA4ATF51264HZ-2G6E1 SM30K25318

5 4GBD426SRMSA3270ME86H9F-2666 SM30K25316

5 8GBDDR426SM471A1K43CB1-CTD SM30N76488

5 8GBD426SHMA81GS6CJR8N-VKN0 SM30K25311

5 8GBD426SMTA8ATF1G64HZ-2G6E1 SM30N76493

5 RMSA3260ME78HAF-2666 SM30N76498

5 16GBDDR426SM471A2K43CB1-CTD SM30N76489

5 16GBD426SMTA16ATF2G64HZ-2G6E1 SM30N76494

5 16GBD426SRMSA3300ME78HBF-2666 SM30N76499

5 HMA82GS6CJR8N-VKN0 SM30K25312

5 IntelM.2PCIe2242-S3-B-MOptanememoryStonyBeach216GB SSS0L25101

6FANDC5VL80XK 5F10N82225

7Intel31651x1AC+BTPCIEM.2WLAN SW10H24486

7RTL8821CE1x1AC+BT4.2ComboM.2BS SW10K97462

7LtnNFA435A1x1AC+BTPCIEM.2WLAN SW10K97461

8 RTCBatteryLY700-15ACZ 5B10K26870

9 320SP/AL16M2PB17.5V30Wh2cellbty 5B10M86148

9 320CP/CL16C2PB27.6V30Wh2cellbty 5B10M88058

9 320SP/BL17M2PB77.56V30Wh2cellbty 5B10Q71253

9 330GLGL17L2PF17.56V30Wh2cellbty 5B10Q41213

9 320SP/AL16M2PB27.5V35Wh2cellbty 5B10M86149

Table 5. Parts list—Overall (continued)

89

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

No. FRU FRU no. CRU

ID.

9 320CP/CL16C2PB17.6V35Wh2cellbty 5B10M88059

N

9 320SYL16S2PB17.6V35Wh2cellbty 5B10M90490

9 320LGL16L2PB37.6V35Wh2cellbty 5B10M91443

10 SPEAKERINTL80XLL+RFOR15T 5SB0P38019

11 LOWERCASEL80XLTEXWH 5CB0N86419

11 LOWERCASEL81DC15TGRAPHITEGREY 5CB0R16586

11 LOWERCASEL81DC15TLIGHTBLUE 5CB0R16549

11 LOWERCASEL81DC15TCHOC 5CB0R16630

12 DUMMYODD81DAPG 5M20R13432

12 DUMMYODDWHL80XK 5M20N82196

12 DUMMYODDL81DCMNBU 5M20R16682

12 DUMMYODDL81DCCHOC 5M20R16715

12 DUMMYODDFor2ndHDD81DAPG 5M20R13443

12 DUMMYODDFor2ndHDDL81DCMNBU 5M20R16522

12 DUMMYODDFor2ndHDDL81DCCHOC 5M20R16515

12 DUMMYODDfor2ndHDDWHL80XK 5M20N82228

12 HLDSGUE0N9.0mmSlimTrayRamboODD 5DX0J46488

12 HLGUE1N9.0mmDVDWriterWOB SDX0K84177

12 PLDSDA-8AESH9.0mmSlimTrayRamboODD 5DX0L08424

13 ODDBOARDNSB241L80XL 5C50N86565

14 HDDBOARDFOR2NDHDDL80U7 5B40N82219

15 SeagateST500LM030500GB2.5"SATA7mm5400rpmHDD SH20P18518

15 MQ01ABF0506G7mm5.4K500GHDD 5H20L34560

15 WD5000LPCX-24VHAT07mm5400rpm500GHDD 5H20J35762

15 SeagateST1000LM0351T2.5"7mm5400rpmHDD 5H20L22184

15 WD10SPZX-24Z10T02.5"1THDD SH20P18627

15 MQ04ABF1001TB2.5"SATA7mm5400rpmHDD SHD0P03171

15 STRosewood2D7mm2TBHDD 5H20M37521

—ACadapter(see“ACadapters”onpage95).

90

Hardware Maintenance Manual

LCD FRUs

ideapad 330-14IKB

InLenovoideapad330-14IKB/ideapad330E-14IKBD/ideapad330E-14IKB

U/ideapad330-14IKBD/ideapad330-14IKBU/ideapad330H-14IKB/ideapad

330L-14IKB/ideapad330E-14IKB/ideapad330R-14IKB,thereis followingtype

ofLCD.

• “14.0-in.HDLED”

1

2

5

4

6

3

7

91

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Table 6. Parts list—LCD FRUs

ideapad 330-14IKB

No. FRU FRU no. CRU

ID.

1 LCDBUEZELL80XKTEX14TBKWCAMMYMAGNET 5B30N82311

N

2 HINGECAP81DA14TMG 5CB0R13435

2 HINGECAP81DA14TMN-BU 5CB0R13433

2 HINGECAP14TL80XKPGPT 5CB0N82240

3 HINGELR14TL80XK 5H50N82309

4 AUB140XTN02.EHWCAHDAGSNB 5D10P54235

4 INXN140BGA-EA3C1HDAGSNB 5D10K85755

4 IVM140NWR6R1HDTAGSNB 5D10K81644

4 BONT140WHM-N41HDTAGSNB 5D10K81099

4 AUB140HTN01.E2AFHDTAGSNB 5D10L08701

4 INN140HGE-EAAC4FHDTAGSNB 5D10K93439

4 BONT140FHM-N41FHDTAGSNB 5D10L01874

5 CAMERA81DA720PW/MIC 5C20R13441

5 CAMERAL80XK0.3MW1MIC 5C20N82280

5 BISBNCR1NKSKHDNBcamera SC20M52085

5 CCYCNFGH41HDNBcamera SC20M52089

5 LTN6SF111N2HDNBcamera SC20M52114

5 AVCHAA-8F4A03HDNBcamera SC20M52087

5 BISBNCRVTKTL0.3MNBcamera SC20M52088

5 CCYCNFG0200.3MNBcamera SC20M52082

5 AWAAM-6SF5A020.3MNBcamera SC20M52079

5 AVCHAA-93C5010.3MNBcamera SC20M52080

6EDPCableL80XKFOR14T 5C10P38018

7LCDCOVERL80XK14TPGPTANTEEDP 5CB0N82367

7LCDCover81DA14TMG 5CB0R13430

7LCDCover81DA14TMN-BU 5CB0R13434

92

Hardware Maintenance Manual

LCD FRUs

ideapad 330-15IKB/ideapad 330-15IKB Touch

Inideapad330-15IKB/ideapad330E-15IKBD/ideapad 330E-15IKBU/ideapad

330-15IKBD/ideapad330-15IKBU/ideapad330H-15IKB/ideapad330L-15IKB/

ideapad330E-15IKB/ideapad330R-15IKB/ideapad330-15IKBTouch,thereis

followingtypeofLCD.

• “15.6-in.HDLED”

1

2

5

4

6

3

7

93

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

Table 7. Parts list—LCD FRUs

ideapad 330-15IKB/ideapad 330-15IKB Touch

No. FRU FRU no. CRU

ID.

1 LCDBUEZELL80XLTEX15TBKWCAMMYMAGNET 5B30N86341

N

2 HINGECAP15TL80XLBWPT 5CB0N86453

2 HINGECAP15TL80XLPGPT 5CB0N86380

2 HINGECAP15TL80XLOBPT 5CB0N86462

2 HINGECAPL81DC15TMNBU 5CB0R16699

2 HINGECAPL81DC15TCHOC 5CB0R16636

3 HINGELR15TL80XL 5H50N86361

4 AUB156XTN07.13AHDTAGSNB 5D10H52713

4 INXN156BGA-EA2HDTAGSNB 5D10K81086

4 BONT156WHM-N42V8.1HDTAGSNB 5D10R26920

4 AUB156HTN03.80CFHDTAGSNB 5D10L08702

4 INN156HGA-EABFHDTAGSNB 5D10K93435

4 BONT156FHM-N41FHDTAGSNB 5D10K93434

5 CAMERA81DA720PW/MIC 5C20R13441

5 CAMERAL80XK0.3MW1MIC 5C20N82280

5 BISBNCR1NKSKHDNBcamera SC20M52085

5 CCYCNFGH41HDNBcamera SC20M52089

5 LTN6SF111N2HDNBcamera SC20M52114

5 AVCHAA-8F4A03HDNBcamera SC20M52087

5 BISBNCRVTKTL0.3MNBcamera SC20M52088

5 CCYCNFG0200.3MNBcamera SC20M52082

5 AWAAM-6SF5A020.3MNBcamera SC20M52079

5 AVCHAA-93C5010.3MNBcamera SC20M52080

6EDPCableL80XLFOR15T 5C10P38020

6EDPCableL80XNFOR15TTOUCH 5C10P38017

7LCDCOVERL80XL15TBWPTANTEEDP 5CB0N86561

7LCDCOVERL80XL15TPGPTANTEEDP 5CB0N86313

7LCDCOVERL80XL15TOBPTANTEEDP 5CB0N86327

7LCDCoverL81DC15TMNBU 5CB0R16544

7LCDCoverL81DC15TCHOC 5CB0R16599

7LCDCOVERL80XNTOUCHOBPTANTEEDP 5CB0N86888

7LCDCOVERL80XNTOUCHPGPTANTEEDP 5CB0N86847

7LCDCOVERL80XNTOUCHBWPTANTEEDP 5CB0N86850

7LCDCoverL81DH15TMNBUTH 5CB0R19785

7LCDCoverL81DH15TCHOCTH 5CB0R19796

94

Hardware Maintenance Manual

Miscellaneous parts

Table 8. Parts list—Miscellaneous parts

ideapad 330-14IKB

FRU P/N CRU

ID.

Systemmiscellaneousparts:

N

• (a)ODDBRACKETL80SL 5B40L35764

• (b)ODDBezel81DAPG 5B30R13437

• (b)ODDBezel81DAMG 5B30R13431

• (b)ODDBezel81DAMN-BU 5B30R13436

• (c)HDDBRACKETL80XK 5B40N82219

Note:Italicizedlettersinparenthesesare referencestotheexploded viewin

“Overall”onpage76.

Table 9. Parts list—Miscellaneous parts

ideapad 330-15IKB/ideapad 330-15IKB Touch

FRU P/N CRU

ID.

Systemmiscellaneousparts:

N

• (a)ODDBRACKETL80SL 5B40L35764

• (b)ODDBEZELL80XKWH 5B30N82354

• (b)ODDBezel81DAPG 5B30R13437

• (b)ODDBezelL81DCMNBU 5B30R16536

• (b)ODDBezelL81DCCHOC 5B30R16580

• (c)HDDBRACKETL80XK 5B40N82219

Note:Italicizedlettersinparenthesesare referencestotheexploded viewin

“Overall”onpage76.

95

Lenovo ideapad 330-14IKB/ideapad 330E-14IKB D/ideapad 330E-14IKB U/ideapad 330-14IKB D/ideapad 330-

14IKB U/ideapad 330H-14IKB/ideapad 330L-14IKB/ideapad 330E-14IKB/ideapad 330R-14IKB/ideapad 330-

15IKB/ideapad 330E-15IKB D/ideapad 330E-15IKB U/ideapad 330-15IKB D/ideapad 330-15IKB U/ideapad

330H-15IKB/ideapad 330L-15IKB/ideapad 330E-15IKB/ideapad 330R-15IKB/ideapad 330-15IKB Touch

AC adapters

Table 10. Parts list—AC adapters

FRU P/N CRU

ID.

DeltaADP-45DWA20V2.25ACOO SA10M42800

*

DeltaADP-45DWJ20V2.25ACOO SA10M42721

DeltaADP-45DWB20V2.25ACOO SA10M42785

DeltaADP-45DWD20V2.25ACOO SA10M42696

DeltaADP-45DWH20V2.25ACOO SA10M42699

DeltaADP-45DWG20V2.25ACOO SA10M42774

DeltaADP-45DWE20V2.25ACOO SA10M42748

DeltaADP-45DWC20V2.25ACOO SA10M42700

DeltaADP-45DWK20V2.25ACOO SA10M42804

LiteonPA-1450-55LN20V2.25ACOO SA10M42711

LiteonPA-1450-55LG20V2.25ACOO SA10M42709

LiteonPA-1450-55LL20V2.25ACOO SA10M42742

LiteonPA-1450-55LK20V2.25ACOO SA10M42530

LiteonPA-1450-55LI20V2.25ACOO SA10M42734

LiteonPA-1450-55LR20V2.25ACOO SA10M42701

LiteonPA-1450-55LS20V2.25ACOO SA10M42736

*

LiteonPA-1450-55LU20V2.25ACOO SA10M42743

LiteonPA-1450-55LZ20V2.25ACOO SA10M42752

ChiconyADL45WCA20V2.25ACOO SA10M42726

ChiconyADL45WCB20V2.25ACOO SA10M42737

ChiconyADL45WCC20V2.25ACOO SA10M42697

ChiconyADL45WCD20V2.25ACOO SA10M42790

ChiconyADL45WCK20V2.25ACOO SA10M42768

ChiconyADL45WCE20V2.25ACOO SA10M42706

ChiconyADL45WCF20V2.25ACOO SA10M42746

ChiconyADL45WCG20V2.25ACOO SA10M42792

ChiconyADL45WCH20V2.25ACOO SA10M42786

DeltaADLX65CDGC2A20V3.25ACOO SA10M42764

DeltaADLX65CDGG2A20V3.25ACOO SA10M42758

DeltaADLX65CDGU2A20V3.25ACOO SA10M42765

DeltaADLX65CDGK2A20V3.25ACOO SA10M42745

DeltaADLX65CDGI2A20V3.25ACOO SA10M42796

DeltaADLX65CDGR2A20V3.25ACOO SA10M42775

DeltaADLX65CDGA2A20V3.25ACOO SA10M42718

DeltaADLX65CDGE2A20V3.25ACOO SA10M42794

DeltaADLX65CDGB2A20V3.25ACOO SA10M42769

LiteonADLX65CLGC2A20V3.25ACOO SA10M42791

LiteonADLX65CLGG2A20V3.25ACOO SA10M42714

LiteonADLX65CLGU2A20V3.25ACOO SA10M42725

LiteonADLX65CLGK2A20V3.25ACOO SA10M42531

LiteonADLX65CLGI2A20V3.25ACOO SA10M42753

LiteonADLX65CLGR2A20V3.25ACOO SA10M42738

LiteonADLX65CLGA2A20V3.25ACOO SA10M42793

LiteonADLX65CLGE2A20V3.25ACOO SA10M42740

LiteonADLX65CLGB2A20V3.25ACOO SA10M42817

96

Hardware Maintenance Manual

Table 10. Parts list—AC adapters (continued)

FRU P/N CRU

ID.

ChiconyADLX65CCGC2A20V3.25ACOO SA10M42805

*

ChiconyADLX65CCGG2A20V3.25ACOO SA10M42815

ChiconyADLX65CCGU2A20V3.25ACOO SA10M42762

ChiconyADLX65CCGK2A20V3.25ACOO SA10M42735

ChiconyADLX65CCGI2A20V3.25ACOO SA10M42751

ChiconyADLX65CCGR2A20V3.25ACOO SA10M42704

ChiconyADLX65CCGA2A20V3.25ACOO SA10M42766

ChiconyADLX65CCGE2A20V3.25ACOO SA10M42760

ChiconyADLX65CCGB2A20V3.25ACOO SA10M42707

Screws

Table 11. Parts list—screws

ideapad 330-14IKB

FRU P/N CRU

ID.

SCREWL80T6MM2.5D2.5LK8.0DNI 5S10L45749

N

SCREWLMM1.98D3LK4.5DNINL0.4T 5S10K25435

AILZAScrewMM3.0D3.0LK4.9D 90203986

SCREWL80XKMM2.5D7.0LK4.5D0.8TZKNL 5S10N82242

ScrewLY700-15ACZHingebase 5S10K26861

ACLU1ScrewD-C/D-KB/ODD-D-MB-KB/FAN 90205118

Table 12. Parts list—screws

ideapad 330-15IKB/ideapad 330-15IKB Touch

FRU P/N CRU

ID.

SCREWL80T6MM2.5D2.5LK8.0DNI 5S10L45749

N

SCREWLMM1.98D3LK4.5DNINL0.4T 5S10K25435

AILZAScrewMM3.0D3.0LK4.9D 90203986

SCREWL80XKMM2.5D7.0LK4.5D0.8TZKNL 5S10N82242

ScrewLY700-15ACZHingebase 5S10K26861

ACLU1ScrewD-C/D-KB/ODD-D-MB-KB/FAN 90205118

SCREWL80XKMM2.5D7.0LK4.5D0.8TNINL 5S10N82325

97

Notices

Notices

Lenovomaynotoffertheproducts,services,or featuresdiscussedinthis

documentinallcountries.Consultyourlocal Lenovorepresentativefor

informationontheproductsandservicescurrentlyavailableinyourarea.Any

referencetoaLenovoproduct,program,orserviceisnotintendedtostateor

implythatonlythatLenovoproduct,program, orservicemaybeused.Any

functionallyequivalent product,program,orservicethatdoesnotinfringe

anyLenovo intellectualproperty rightmay beused instead.However,itisthe

user’sresponsibilitytoevaluateandverifytheoperationofanyotherproduct,

program,orservice.

Lenovomayhavepatentsorpendingpatentapplicationscoveringsubjectmatter

describedinthisdocument.Thefurnishingofthisdocumentdoesnotgiveyou

anylicensetothesepatents.

LENOVOGROUPLTD.PROVIDESTHISPUBLICATION “ASIS”

WITHOUTWARRANTYOFANYKIND,EITHEREXPRESSORIMPLIED,

INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOFNON-

INFRINGEMENT,MERCHANTABILITYORFITNESSFORAPARTICULAR

PURPOSE.Somejurisdictionsdonot allowdisclaimerofexpressorimplied

warrantiesincertaintransactions,therefore,thisstatementmaynotapplytoyou.

Thisinformation couldinclude technicalinaccuracies ortypographical errors.

Changesareperiodicallymadetotheinformationherein;thesechanges

willbeincorporatedinneweditionsofthepublication.Lenovomay make

improvementsand/or changesintheproduct(s)and/ortheprogram(s)

describedinthispublicationatanytimewithoutnotice.

Theproductsdescribedinthisdocumentarenotintendedforuse in

implantationorotherlifesupport applicationswheremalfunctionmayresult in

injuryordeathtopersons.Theinformationcontainedinthisdocumentdoesnot

affectorchange Lenovoproductspecicationsorwarranties.Nothinginthis

documentshalloperateasanexpressorimpliedlicenseorindemnityunderthe

intellectualpropertyrightsofLenovoorthirdparties.Allinformationcontained

inthisdocumentwasobtainedinspecicenvironmentsandispresentedasan

illustration.Theresultobtainedinotheroperatingenvironmentsmayvary.

Lenovomayuseordistributeanyof theinformationyousupplyinanyway it

believesappropriatewithoutincurringanyobligationtoyou.

Anyreferencesinthispublication tonon-LenovoWebsites areprovidedfor

convenienceonlyanddonotinanymannerserveasanendorsementofthose

Websites.Thematerials atthose Websitesare notpartofthematerialsfor

thisLenovoproduct,anduseofthoseWebsitesisatyourownrisk.

98

Hardware Maintenance Manual

Anyperformance datacontained hereinwas determinedin acontrolled

environment.Therefore,theresultobtainedinotheroperatingenvironments

mayvarysignificantly.Somemeasurementsmayhavebeenmadeon

development-levelsystemsandthereisnoguaranteethatthesemeasurements

willbethesameongenerallyavailablesystems.Furthermore,some

measurementsmayhavebeenestimatedthroughextrapolation.Actualresults

mayvary.Usersofthisdocumentshould verifytheapplicabledatafortheir

specicenvironment.

Trademarks

ThefollowingtermsaretrademarksorregisteredtrademarksofLenovointhe

UnitedStates,othercountries,orboth.

Lenovo

MicrosoftandWindowsaretrademarks ofMicrosoftCorporationintheUnited

States,othercountries,orboth.

Othercompany,products,orservicenamesmaybetrademarks orservice

marksofothers.
