Lenovo 332110U Lenovo ConstantConnect ExpressCard User Manual Lenovo ConstantConnect ExpressCard User Guide
Lenovo (United States) Incorporated Lenovo ConstantConnect ExpressCard Lenovo ConstantConnect ExpressCard User Guide
Lenovo >
User Manual
Lenovo ConstantConnect ExpressCard
User Guide
Lenovo ConstantConnect ExpressCard
User Guide
Note
Before using this information and the product it supports, read the information in Appendix A, “Service and Support,” on
page 7 and Appendix B, “Lenovo Limited Warranty,” on page 11.
Important
For tips to help you use your computer safely, go to:
http://www-307.ibm.com/pc/support/site.wss/document.do?lndocid=MIGR-45709
First Edition (March 2009)
© Copyright Lenovo 2009. All rights reserved.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted
rights to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant a General Services Administration ″GSA″ contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.
Contents
About the Lenovo ConstantConnect
ExpressCard . . . . . . . . . . . . .1
Product description . . . . . . . . . . . .1
Hardware and software requirements . . . . . .1
Before you begin . . . . . . . . . . . . .2
Installing the device driver and software . . . . .2
Installing and using the ExpressCard . . . . . .3
Uninstalling the device driver and software . . . .3
Troubleshooting . . . . . . . . . . . . .4
Appendix A. Service and Support . . . .7
Registering your option . . . . . . . . . . .7
Online technical support . . . . . . . . . .7
Telephone technical support . . . . . . . . .7
Appendix B. Lenovo Limited Warranty 11
Warranty Information . . . . . . . . . . .14
Suplemento de Garantía para México . . . . . .15
Appendix C. Electronic emission
notices . . . . . . . . . . . . . . .17
Federal Communications Commission (FCC)
Declaration of Conformity . . . . . . . . .17
Appendix D. Notices . . . . . . . . .19

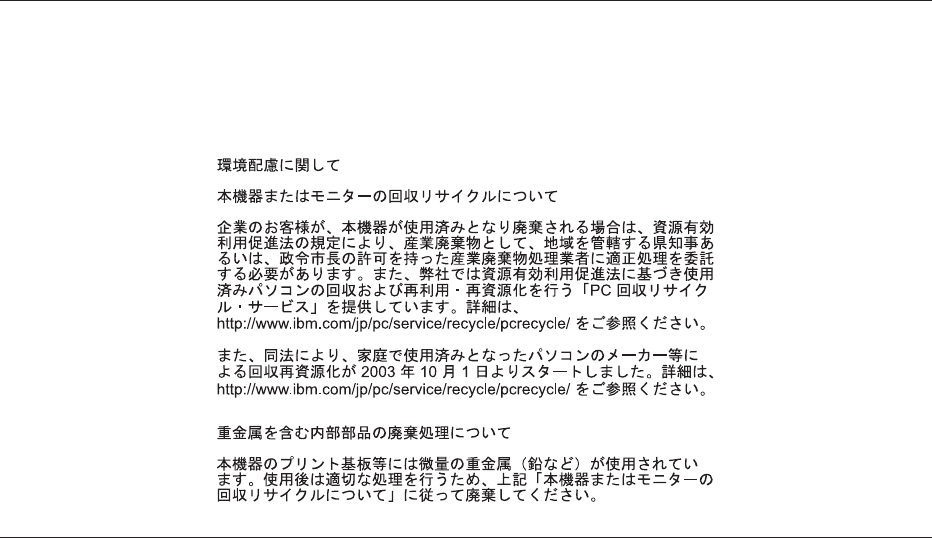

Recycling information . . . . . . . . . . .20
Trademarks . . . . . . . . . . . . . .20

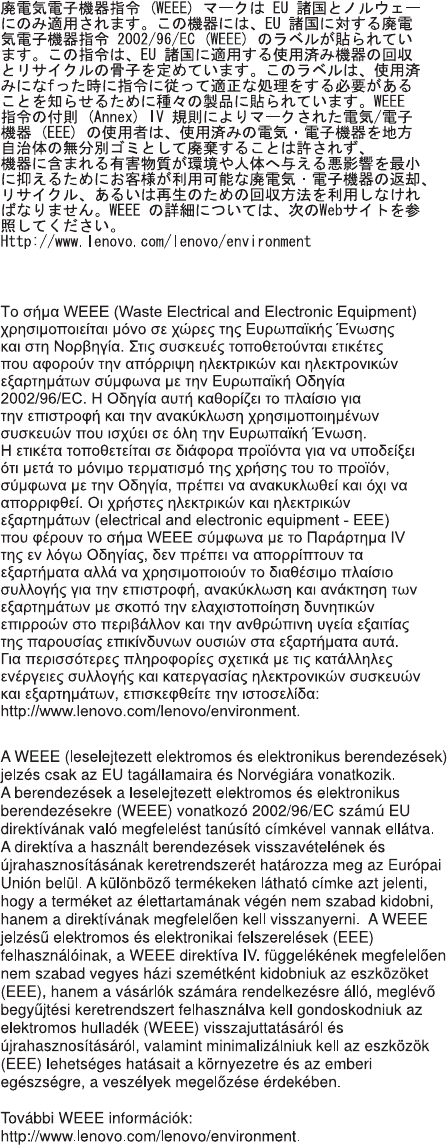

Appendix E. Important information for
the European Directive 2002/96/EC . .21

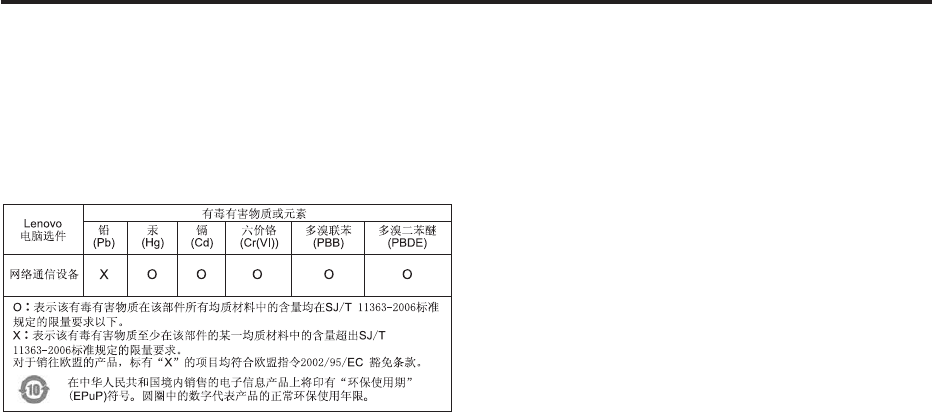

Appendix F. China RoHS . . . . . . .25
© Copyright Lenovo 2009 iii
iv Lenovo ConstantConnect ExpressCard User Guide
About the Lenovo ConstantConnect ExpressCard
This chapter contains the product description and instructions for installing and using the Lenovo®
ConstantConnect ExpressCard (hereafter referred to as ExpressCard). It also includes instructions for
installing and uninstalling the device drivers, as well as some troubleshooting information.
Product description
The Lenovo ConstantConnect ExpressCard is designed to support specified ThinkPad® computer models
that have been customized to support the ConstantConnect application. The ConstantConnect application
is a software and hardware solution that uses the Bluetooth technology to synchronize data between your
ThinkPad mail client (Microsoft® Outlook® 2007) and your BlackBerry Smartphone. The ExpressCard
provides the communication support to send and receive complete e-mails and attachments. The two
LEDs (light-emitting diode) on the ExpressCard indicate the current state of your ExpressCard and the
Inbox of your mail client. For more information on the LEDs, refer to the ConstantConnect Help.
This ExpressCard uses the Freescale i.MX27L processor, which is a high-performance, low-power
processor up to 400MHz based on the ARM926EJ-S microprocessor core. Also, this ExpressCard takes the
Windows® CE 6.0 operating system as the software platform to provide exciting user experiences.
Note: This ExpressCard can only work with specified ThinkPad computer models. See “Hardware and
software requirements” on page 1 for supported ThinkPad computer models.
Your option package contains:
v Lenovo ConstantConstant ExpressCard
v Software and User Guide CD
v Warranty book
Hardware and software requirements
To use the option, your computer must meet the following hardware and software requirements:
v A ThinkPad computer that has been customized to support the ConstantConnect application
The following ThinkPad computer models have been customized to support the ConstantConnect
application:
– T400
– T500
– X200
– X200s
– X200t
– W500
v Microsoft Windows XP (SP2+) or Microsoft Windows Vista® (SP1+) (32-bit) operating system
v Microsoft Outlook 2007
v Basic Input/Output System (BIOS) and Embedded Controller (EC) programs that support the
ConstantConnect application
v BlackBerry Desktop Manager Version 4.6 or later
v A BlackBerry Smartphone
© Copyright Lenovo 2009 1
Note: Currently, the following models of BlackBerry Smartphones are supported.
Model Carrier(s) Data Mode
8100 ATT, T-Mobile GPRS/EDGE
8110 ATT GPRS/EDGE
8120 ATT, T-Mobile GPRS/EDGE
8130 Verizon Wireless, Sprint 1xEVDO
8300 ATT GPRS/EDGE
8310 ATT GPRS/EDGE
8320 T-Mobile GPRS/EDGE
8330 Verizon Wireless, Sprint 1xEVDO
8800 ATT, T-Mobile GPRS/EDGE
8820 ATT, T-Mobile GPRS/EDGE
8830 Verizon Wireless, Sprint GPRS/EDGE, 1xEVDO
Before you begin
Note: It is recommended to check the appropriate support Web sites for the latest updates for your BIOS,
EC, and the ConstantConnect application. Follow the instructions provided by your Service
Provider for downloading and installing updates.
Online technical support is available through the Lenovo Support Web site at:
http://www.lenovo.com/support
Installing the device driver and software
Attention: Make sure you have read instructions in “Before you begin” on page 2.
To install the device driver and software in Windows XP or Windows Vista, do the following:
1. Save any open documents and exit all applications.
2. Insert the Software and User Guide CD into the CD or DVD drive of your computer. A welcome
window opens.
3. Do one of the following:
Procedure 1
a. Click Software and Device Driver on the left panel of the window.
b. Follow the steps in each dialog window and click Next to continue.
Note: During the process, the installation wizard will notify you to do the following:
v Connect your BlackBerry to your computer with the USB cable
v Insert the ConstantConnect Card into the ExpressCard slot
Just follow the installation wizard to proceed with the installation. After the installation is
complete, the InstallShield Wizard Completed window displays, asking if you would like to
configure the settings immediately, so that your BlackBerry Smartphone can synchronize
with the ExpressCard. It is recommended that you select the I'd like to configure my
synchronization settings now (Recommended) checkbox and proceed with the
configuration. For detailed instructions on configuring the ConstantConnect application,
refer to the ConstantConnect Help.
c. Click Finish.
2 Lenovo ConstantConnect ExpressCard User Guide
Procedure 2
a. Click Start → Run.
b. Click Browse and navigate to your computer CD or DVD drive, then double-click the SETUP.EXE
file in the XPVISTA subdirectory on the Software and User Guide CD.
c. Click OK.
Attention: If there is a network client firewall installed on your computer, be sure to remove its
protocols from the ExpressCard after installing the device driver and software. See “Troubleshooting” on
page 4 for detailed instructions on how to remove network client firewall protocols.
Installing and using the ExpressCard
To install and use the ExpressCard, refer to the ConstantConnect Help. To view the ConstantConnect Help,
do the following:
1. Click Start → Programs → ThinkVantage → ConstantConnect.
2. The ConstantConnect Configuration window opens. Click Help. The ConstantConnect Help opens.

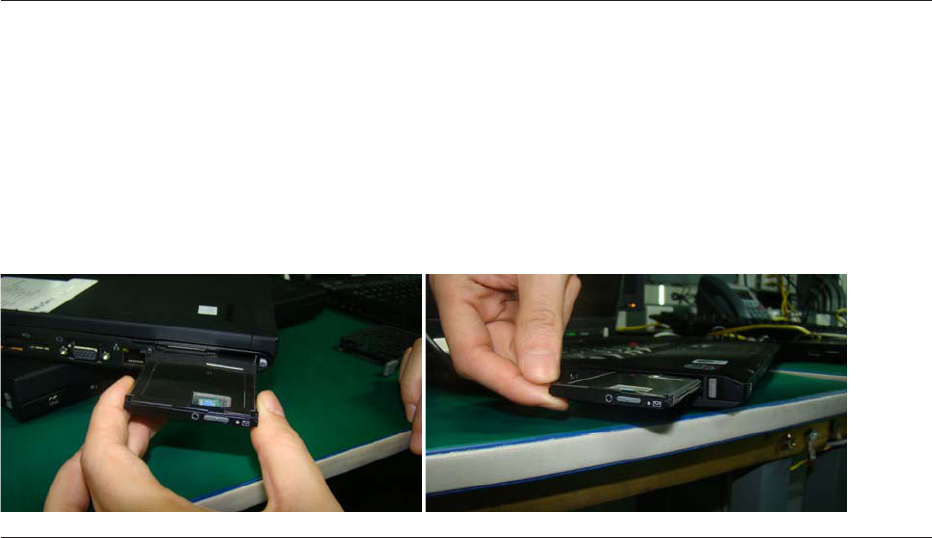

The ExpressCard slot might vary from computer models. Refer to the following two figures when you
insert the ExpressCard into the ExpressCard slot on your computer following instructions in the
ConstantConnect Help.
Uninstalling the device driver and software
This section provides instructions on uninstalling the device driver and software from your computer.
Depending on your computer operating system, do one of the following to uninstall the device driver
and software.
For Windows XP:
1. Depending on your Start menu mode, click Start → Control Panel or Start → Settings → Control Panel.
2. Double-click Add/Remove Programs.
3. Select ConstantConnect and then click Remove.
4. When prompted, click Yes to confirm that you want to uninstall the ConstantConnet application.
5. When prompted, click Yes to confirm that your want to uninstall the software on BlackBerry.
6. When prompted, click Yes to restart your computer to complete the uninstall process.
For Windows Vista:
1. Click Start → Control Panel.
2. Depending on your Start menu mode, double-click Programs and Features or the Uninstall a
program option under the Programs menu.
3. Select ConstantConnect and then right-click your mouse. The Uninstall option displays.
About the Lenovo ConstantConnect ExpressCard 3
4. Click Uninstall.
5. When prompted, click Yes to confirm that you want to uninstall the ConstantConnect application.
6. When prompted, click Yes to confirm that your want to uninstall the software on BlackBerry.
7. When prompted, click Yes to restart your computer to complete the uninstall process.
Troubleshooting
The following information provides some troubleshooting hints and tips to assist you if you experience
any problems with the ExpressCard.
Problem: If you have installed a network client firewall such as the AT&T program on your computer
before using the ExpressCard, or if you are going to install a network client firewall such as the AT&T
program after installing the ExpressCard on your computer, your will encounter a bluescreen of your
system. How to avoid the happening of the bluescreen?
Solution: Remove the network filter or network protocol of your network client firewall from the
ExpressCard by doing the following:
1. Depending on your computer operating system, do one of the following:
For Windows XP:
a. Depending on your Start menu mode, click Start → Control Panel or Start → Settings → Control
Panel.
b. ClickNetwork and Internet Connections.
c. Click Network Connections.
For Windows Vista:
a. Click Start → Control Panel.
b. Double-click Network and Sharing Center.
c. From the left panel, click Manage network connections.
2. Right-click the connection for Lenovo ConstantConnect Card.
3. Click Properties in the pop-up window.
4. Under the Networking tab, deselect all the items in the This connection uses the following items
drop-down list box except the following four:
v Client for Microsoft Networks
v File and Printer Sharing for Microsoft Networks
v QoS Packet Scheduler
v Internet Protocol (TCP/IP)
5. Click OK.
Problem: The device driver and software installation process stops halfway. The Next button becomes
grey and users cannot click it. The installation wizard displays a notification.
Solution: This problem indicates that the device driver and software installation process is blocked. To
solve the problem, follow the notification in the installation wizard.
The following are some possible reasons that halt the device driver and software installation process:
v The ConstantConnect ExpressCard is not inserted into the computer.
v The BlackBerry Smartphone is not attached to the USB port of the computer.
v The BIOS and EC programs do not support the ConstantConnect application. Refer to the Lenovo
support web site at http://www.lenovo.com/support to update the BIOS and EC programs of your
computer. Also, see “Before you begin” on page 2.
v The Broadcom bluetooth module driver version is lower than 6.1. Update it to 6.1 or later version.
4 Lenovo ConstantConnect ExpressCard User Guide
v The ThinkPad integrated camera driver version is improper. The ThinkPad integrated camera driver
should be Version 1.25.500.0 or above if the camera is from Ricoh.
About the Lenovo ConstantConnect ExpressCard 5
6 Lenovo ConstantConnect ExpressCard User Guide
Appendix A. Service and Support
The following information describes the technical support that is available for your product, during the
warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty for a full
explanation of Lenovo warranty terms.
Registering your option
Register to receive product service and support updates, as well as free and discounted computer
accessories and content. Go to:
http://www.lenovo.com/register
Online technical support
Online technical support is available during the lifetime of a product at:
http://www.lenovo.com/support
Product replacement assistance or exchange of defective components also is available during the
warranty period. In addition, if your option is installed in a Lenovo computer, you might be entitled to
service at your location. A Lenovo technical support representative can help you determine the best
alternative.
Telephone technical support
Installation and configuration support through the Customer Support Center will be available until 90
days after the option has been withdrawn from marketing. After that time, the support is cancelled, or
made available for a fee, at Lenovo’s discretion. Additional support is also available for a nominal fee.
Before contacting a Lenovo technical support representative, please have the following information
available: option name and number, proof of purchase, computer manufacturer, model, serial number and
manual, the exact wording of any error message, description of the problem, and the hardware and
software configuration information for your system.
Your technical support representative might want to walk you through the problem while you are at your
computer during the call.
Telephone numbers are subject to change without notice. The most up-to-date telephone list for Lenovo
Support is always available at:
http://www.lenovo.com/support/phone
Country or Region Telephone Number
Africa Africa: +44 (0)1475-555-055
South Africa: +27-11-3028888 and 0800110756
Central Africa: Contact the nearest Lenovo
Business Partner
Argentina 0800-666-0011 (Spanish)
Australia 131-426 (English)
Austria Warranty service and support: 01-211-454-610 (German)
Belgium Warranty service and support: 02-225-3611 (Dutch, French)
Bolivia 0800-10-0189 (Spanish)
© Copyright Lenovo 2009 7
Country or Region Telephone Number
Brazil Sao Paulo region: (11) 3889-8986
Outside Sao Paulo region: 0800-701-4815
(Brazilian Portuguese)
Brunei 801-1041 (English, Bahasa Melayu)
Canada Toronto: 416-383-3344
Outside Toronto: 1-800-565-3344
(English, French)
Chile Toll Free: 188-800-442-488
800-361-213
(Spanish)
China 86-10-58851110
800-990-8888
(Mandarin)
China
(Hong Kong S.A.R.)
ThinkCentre® Commercial PC: 8205-0333
Multimedia Home PC: 800-938-228
(Cantonese, English, Mandarin)
China
(Macau S.A.R.)
ThinkCentre Commercial PC: 795-9892
Multimedia Home PC: 0800-336
(Cantonese, English, Mandarin)
Colombia 1-800-912-3021 (Spanish)
Costa Rica 0-800-011-1029 (Spanish)
Croatia 0800-0426
Cyprus +357-22-841100
Czech Republic +420-2-7213-1316
Denmark Warranty service and support: 7010-5150 (Danish)
Dominican Republic 1-866-434-2080 (Spanish)
Ecuador 1-800-426911 (Spanish)
Egypt +202-35362525
El Salvador 800-6264 (Spanish)
Estonia +372 6776793
+372 66 00 800
Finland Warranty service and support: +358-800-1-4260 (Finnish)
France Warranty service and support (hardware): 0810-631-213
Warranty service and support (software): 0810-631-020
(French)
Germany Warranty service and support: 01805-25-35-58 (German)
Greece +30-210-680-1700
Guatemala 1800-624-0051 (Spanish)
Honduras Tegucigalpa: 232-4222
San Pedro Sula: 552-2234
(Spanish)
Hungary +36-1-382-5716
+36-1-382-5720
(English, Hungarian)
India 1800-425-2666
+91-80-2535-9182
(English)
8 Lenovo ConstantConnect ExpressCard User Guide
Country or Region Telephone Number
Indonesia 021 5238 823
Local number only: 001-803-606-282
DID (Direct Inward Dialing): +603 8315 6859
(English, Bahasa Indonesia)
Ireland Warranty service and support: 01-881-1444 (English)
Israel Givat Shmuel Service Center: +972-3-531-3900
(Hebrew, English)
Italy Warranty service and support: +39-800-820094 (Italian)
Japan Toll Free: 0120-20-5550
International: +81-46-266-4716
The above numbers will be answered with a Japanese language voice prompt. For
telephone support in English, please wait for the Japanese voice prompt to end, and an
operator will answer. Please say ″English support please,″ and your call will be
transferred to an English-speaking operator.
PC software: 0120-558-695
Overseas calls: +81-44-200-8666
(Japanese)
Korea 1588-6782 (Korean)
Latvia +371 7070360
Lithuania +370 5 278 66 00
Luxembourg +352-360-385-343 (French)
Malaysia Local number only: 1800-88-1889
DID: +603 8315 6855
(English, Bahasa Melayu)
Malta +35621445566
Mexico 001-866-434-2080 (Spanish)
Middle East +44 (0)1475-555-055
Netherlands +31-20-514-5770 (Dutch)
New Zealand 0800-733-222 (English)
Nicaragua 001-800-220-1830 (Spanish)
Norway Warranty service and support: 8152-1550 (Norwegian)
Panama Lenovo Customer Support Center: 001-866-434-2080 (Toll Free)
206-6047
(Spanish)
Peru 0-800-50-866 (Spanish)
Philippines 1800-1601-0033 (English, Filipino)
Poland +48-22-878-6999 (Polski)
Portugal +351-21-892-7046 (Portuguese)
Romania +4-021-224-4015
Russia Moscow: +7-(495)-258-6300
Toll Free: +8-800-200-6300
(Russian)
Singapore Local number only: 800-6011-343
DID: +603 8315 6859 (English)
Slovakia +421-2-4954-5555
Appendix A. Service and Support 9
Country or Region Telephone Number
Slovenia +386-1-200-50-60 (Slovenian)
Spain 91-714-7983
0901-100-000
(Spanish)
Sri Lanka +9411 2493547
+9411 2493548
(English)
Sweden Warranty service and support: 077-117-1040 (Swedish)
Switzerland Warranty service and support: 0800-55-54-54
(German, French, Italian)
Taiwan 886-2-8723-9799
0800-000-700
(Mandarin)
Thailand Local number only: 1-800-060-066
66 2273 4088
DID: +603 8315 6857 (Thai, English)
Turkey 00800-4463-2041 (Turkish)
United Kingdom Standard warranty support: 08705-500-900 (English)
United States 1-800-426-7378 (English)
Uruguay 000-411-005-6649 (Spanish)
Venezuela 0-800-100-2011 (Spanish)
Vietnam For Northern Area and Hanoi City:
844 3 946 2000 or 844 3 942 6457
For Southern Area and Ho Chi Minh City:
848 3 829 5160 or 844 3 942 6457
(Vietnamese, English)
10 Lenovo ConstantConnect ExpressCard User Guide
Appendix B. Lenovo Limited Warranty
L505-0010-01 04/2008
This Lenovo Limited Warranty applies only to Lenovo branded hardware products you purchased for
your own use and not for resale. This Lenovo Limited Warranty is available in other languages at
www.lenovo.com/warranty.
What this Warranty Covers
Lenovo warrants that each hardware product that you purchase is free from defects in materials and
workmanship under normal use during the warranty period. The warranty period for the product starts
on the original date of purchase specified on your sales receipt or invoice unless Lenovo informs you
otherwise in writing. The warranty period and type of warranty service that apply to your product are
designated below under the section titled ″Warranty Information.″
THIS WARRANTY IS YOUR EXCLUSIVE WARRANTY AND REPLACES ALL OTHER
WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION
OF EXPRESS OR IMPLIED WARRANTIES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO
YOU. IN THAT EVENT, SUCH WARRANTIES APPLY ONLY TO THE EXTENT REQUIRED BY LAW
AND ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO WARRANTIES APPLY
AFTER THAT PERIOD. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION ON DURATION
MAY NOT APPLY TO YOU.
How to Obtain Warranty Service
If the product does not function as warranted during the warranty period, you may obtain warranty
service by contacting Lenovo or an approved service provider. Each of them is referred to as a ″Service
Provider.″ A list of Service Providers and their telephone numbers is available at www.lenovo.com/
support/phone.
Warranty service may not be available in all locations and may differ from location to location. Charges
may apply outside a Service Provider’s normal service area. Contact a local Service Provider for
location-specific information.
What Your Service Provider Will Do to Correct Problems
When you contact a Service Provider, you must follow the problem determination and resolution
procedures specified.
Your Service Provider will attempt to diagnose and resolve your problem over the telephone, e-mail, or
through remote assistance. Your Service Provider may direct you to download and install designated
software updates.
Some problems can be resolved with a replacement part that you can install yourself called a ″Customer
Replaceable Unit″ or ″CRU.″ If so, your Service Provider will ship the CRU to you for you to install.
If your problem cannot be resolved over the telephone or remotely, through your application of software
updates or the installation of a CRU by you, your Service Provider will arrange for service under the
type of warranty service designated for the product under the section titled ″Warranty Information.″
© Copyright Lenovo 2009 11
If your Service Provider determines that it is unable to repair your product, your Service Provider will
replace it with one that is at least functionally equivalent.
If your Service Provider determines that it is unable to either repair or replace your product, your sole
remedy is to return the product to your place of purchase or to Lenovo for a refund of your purchase
price.
Replacement of a Product or Part
When the warranty service involves the replacement of a product or part, the replaced product or part
becomes Lenovo’s property and the replacement product or part becomes your property. Only unaltered
Lenovo products and parts are eligible for replacement. The replacement product or part provided by
Lenovo may not be new, but it will be in good working order and at least functionally equivalent to the
original product or part. The replacement product or part shall be warranted for the balance of the period
remaining on the original product.
Before your Service Provider replaces a product or part, you agree to:
1. remove all features, parts, options, alterations, and attachments not under warranty service;
2. ensure that the product or part is free of any legal obligations or restrictions that prevent its
replacement; and
3. obtain authorization from the owner to have your Service Provider service a product or part if you do
not own it.
Your Additional Responsibilities
Where applicable, before service is provided, you agree to:
1. follow the service request procedures that your Service Provider specifies;
2. backup or secure all programs and data contained in the product;
3. provide your Service Provider with all system keys or passwords and sufficient, free, and safe access
to your facilities to perform service; and
4. ensure that all information about identified or identifiable individuals (″Personal Data″) is deleted
from the product or that, with respect to any Personal Data that you did not delete, you are in
compliance with all applicable laws.
Use of Personal Information
If you obtain service under this warranty, Lenovo will store, use, and process information about your
warranty service and your contact information, including name, phone numbers, address, and e-mail
address. Lenovo will use this information to perform service under this warranty and to improve our
business relationship with you. We may contact you to inquire about your satisfaction regarding our
warranty service or to notify you about any product recalls or safety issues. In accomplishing these
purposes, we may transfer your information to any country where we do business and may provide it to
entities acting on our behalf. We may also disclose it where required by law.
What this Warranty Does not Cover
This warranty does not cover the following:
v uninterrupted or error-free operation of a product;
v loss of, or damage to, your data;
v any software programs, whether provided with the product or installed subsequently;
v failure or damage resulting from misuse, accident, modification, unsuitable physical or operating
environment, natural disasters, power surges, or improper maintenance by you;
v damage caused by a non-authorized service provider;
v failure of, or damage caused by, any third party products, including those that Lenovo may provide or
integrate into the Lenovo product at your request; and
12 Lenovo ConstantConnect ExpressCard User Guide
v any technical or other support, such as assistance with ″how-to″ questions and those regarding product
set-up and installation.
This warranty is voided by removal or alteration of identification labels on the product or its parts.
Limitation of Liability
Lenovo is responsible for loss or damage to your product only while it is: 1) in your Service Provider’s
possession; or 2) in transit in those cases where the Service Provider is responsible for the transportation.
Neither Lenovo nor your Service Provider is responsible for any of your data including confidential,
proprietary, or personal data contained in a product. You should remove and/or backup all such
information from the product prior to its service or return.
Circumstances may arise where, because of a default on Lenovo’s part or other liability, you may be
entitled to recover damages from Lenovo. In each such instance, regardless of the basis of your claim
against Lenovo (including breach, negligence, misrepresentation, or other contract or tort claim), except
and to the extent that liability cannot be waived or limited by applicable laws, Lenovo shall not be liable
for more than the amount of actual direct damages suffered by you, up to the amount you paid for the
product. This limit does not apply to damages for bodily injury (including death) and damage to real
property or tangible personal property for which Lenovo is liable under law.
This limit also applies to Lenovo’s suppliers, resellers, and your Service Provider. It is the maximum
amount for which Lenovo, its suppliers, resellers, and your Service Provider are collectively responsible.
UNDER NO CIRCUMSTANCES SHALL LENOVO, ITS SUPPLIERS, RESELLERS, OR SERVICE
PROVIDERS BE LIABLE FOR ANY OF THE FOLLOWING EVEN IF INFORMED OF THEIR
POSSIBILITY: 1) THIRD PARTY CLAIMS AGAINST YOU FOR DAMAGES; 2) LOSS OR DAMAGE
TO YOUR DATA; OR 3) SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES,
INCLUDING LOST PROFITS, BUSINESS REVENUE, GOODWILL OR ANTICIPATED SAVINGS. AS
SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, THE ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU.
Dispute Resolution
If you acquired the product in Cambodia, Indonesia, Philippines, Vietnam or Sri Lanka, disputes
arising out of or in connection with this warranty shall be finally settled by arbitration held in Singapore
and this warranty shall be governed, construed and enforced in accordance with the laws of Singapore,
without regard to conflict of laws. If you acquired the product in India, disputes arising out of or in
connection with this warranty shall be finally settled by arbitration held in Bangalore, India. Arbitration
in Singapore shall be held in accordance with the Arbitration Rules of Singapore International Arbitration
Center (″SIAC Rules″) then in effect. Arbitration in India shall be held in accordance with the laws of
India then in effect. The arbitration award shall be final and binding on the parties without appeal. Any
award shall be in writing and set forth the findings of fact and the conclusions of law. All arbitration
proceedings, including all documents presented in such proceedings, shall be conducted in the English
language, and the English language version of this warranty prevails over any other language version in
such proceedings.
Other Rights
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY HAVE OTHER RIGHTS
WHICH VA RY FROM STATE TO STATE OR JURISDICTION TO JURISDICTION. YOU MAY ALSO
HAVE OTHER RIGHTS UNDER APPLICABLE LAW OR WRITTEN AGREEMENT WITH LENOVO.
NOTHING IN THIS WARRANTY AFFECTS STATUTORY RIGHTS, INCLUDING RIGHTS OF
Appendix B. Lenovo Limited Warranty 13
CONSUMERS UNDER NATIONAL LEGISLATION GOVERNING THE SALE OF CONSUMER
GOODS THAT CANNOT BE WAIVED OR LIMITED BY CONTRACT.
European Economic Area (EEA)
Customers in the EEA may contact Lenovo at the following address: EMEA Service Organisation, Lenovo
(International) B.V., Floor 2, Einsteinova 21, 851 01, Bratislava, Slovakia. Service under this warranty for
Lenovo hardware products purchased in EEA countries may be obtained in any EEA country in which
the product has been announced and made available by Lenovo.
Warranty Information
Product Type
Country or Region of
Purchase Warranty Period Type of Warranty Service
Lenovo ConstantConnect
ExpressCard
United States 1 year 1, 4
If required, your Service Provider will provide repair or exchange service depending on the type of
warranty service specified for your product and the available service. Scheduling of service will depend
upon the time of your call, parts availability, and other factors.
A warranty period of three (3) years on parts and one (1) year on labor means that Lenovo will provide
warranty service without charge for:
a. parts and labor during the first year of the warranty period (or a longer period as required by law);
and
b. parts only, on an exchange basis, in the second and third years of the warranty period. Your Service
Provider will charge you for any labor provided in performance of the repair or replacement in the
second and third years of the warranty period.
Types of Warranty Service
1. Customer Replaceable Unit (″CRU″) Service
Under CRU Service, your Service Provider will ship CRUs to you for installation by you. CRU
information and replacement instructions are shipped with your product and are available from Lenovo
at any time upon request. CRUs that are easily installed by you are called Self-service CRUs, while
Optional-service CRUs may require some technical skill and tools. Installation of Self-service CRUs is
your responsibility. You may request that a Service Provider install Optional-service CRUs under one of
the other types of warranty service designated for your product. An optional service offering may be
available for purchase from Lenovo to have Lenovo install Self-service CRUs for you. You may find a list
of CRUs and their designation in the publication that ships with your product or at www.lenovocom/
CRUs. The requirement to return a defective CRU, if any, will be specified in the materials shipped with
a replacement CRU. When return is required: 1) return instructions, a prepaid return shipping label, and
a container will be included with the replacement CRU; and 2) you may be charged for the replacement
CRU if your Service Provider does not receive the defective CRU within thirty (30) days of your receipt
of the replacement.
2. On-site Service
Under On-Site Service, your Service Provider will either repair or exchange the product at your location.
You must provide a suitable working area to allow disassembly and reassembly of the Lenovo product.
For some products, certain repairs may require your Service Provider to send the product to a designated
service center.
14 Lenovo ConstantConnect ExpressCard User Guide
3. Courier or Depot Service
Under Courier or Depot Service, your product will be repaired or exchanged at a designated service
center, with shipping arranged by your Service Provider. You are responsible for disconnecting the
product. A shipping container will be provided to you for you to return your product to a designated
service center. A courier will pick up your product and deliver it to the designated service center.
Following its repair or exchange, the service center will arrange the return delivery of the product to you.
4. Customer Carry-In or Mail-In Service
Under Customer Carry-In or Mail-In Service, your product will be repaired or exchanged at a designated
service center, with delivery or shipping arranged by you. You are responsible to deliver or mail, as your
Service Provider specifies, (prepaid by you unless specified otherwise) the product, suitably packaged to
a designated location. After the product has been repaired or exchanged, it will be made available for
your collection. Failure to collect the product may result in your Service Provider disposing of the
product as it sees fit. For Mail-in Service, the product will be returned to you at Lenovo’s expense, unless
your Service Provider specifies otherwise.
5. Product Exchange Service
Under Product Exchange Service, Lenovo will ship a replacement product to your location. You are
responsible for its installation and verification of its operation. The replacement product becomes your
property in exchange for the failed product, which becomes the property of Lenovo. You must pack the
failed product in the shipping carton used to ship the replacement product and return it to Lenovo.
Transportation charges, both ways, are paid by Lenovo. Failure to use the carton in which the
replacement product was received may result in your responsibility for damage to the failed product
during shipment. You may be charged for the replacement product if Lenovo does not receive the failed
product within thirty (30) days of your receipt of the replacement product.
Suplemento de Garantía para México
Este Suplemento se considera parte integrante de la Garantía Limitada de Lenovo y será efectivo única y
exclusivamente para los productos distribuidos y comercializados dentro del Territorio de los Estados
Unidos Mexicanos. En caso de conflicto, se aplicarán los términos de este Suplemento.
Todos los programas de software precargados en el equipo sólo tendrán una garantía de treinta (30) días
por defectos de instalación desde la fecha de compra. Lenovo no es responsable de la información
incluida en dichos programas de software y/o cualquier programa de software adicional instalado por
Usted o instalado después de la compra del producto.
Los servicios no cubiertos por la garantía se cargarán al usuario final, previa obtención de una
autorización.
En el caso de que se precise una reparación cubierta por la garantía, por favor, llame al Centro de soporte
al cliente al 001-866-434-2080, donde le dirigirán al Centro de servicio autorizado más cercano. Si no
existiese ningún Centro de servicio autorizado en su ciudad, población o en un radio de 70 kilómetros de
su ciudad o población, la garantía incluirá cualquier gasto de entrega razonable relacionado con el
transporte del producto a su Centro de servicio autorizado más cercano. Por favor, llame al Centro de
servicio autorizado más cercano para obtener las aprobaciones necesarias o la información relacionada
con el envío del producto y la dirección de envío.
Para obtener una lista de los Centros de servicio autorizados, por favor, visite:
http://www.lenovo.com/mx/es/servicios
Appendix B. Lenovo Limited Warranty 15
Manufactured by:
Lenovo Centro Tecnológico S. de R.L. de C.V.
Apodaca Technology Park
Boulevar Escobedo #316
Apodaca, Nuevo León, México
C.P. 66601
Marketing by:
Lenovo México S. de R.L. de C.V.
Av. Santa Fe 505, Piso 15
Col. Cruz Manca
Cuajimalpa, D.F., México
C.P. 05349
Tel. (55) 5000 8500
16 Lenovo ConstantConnect ExpressCard User Guide
Appendix C. Electronic emission notices
The following information refers to the Lenovo ConstantConnect ExpressCard.
Federal Communications Commission (FCC) Declaration of Conformity
Lenovo ConstantConnect ExpressCard- (332110U)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
v Reorient or relocate the receiving antenna.
v Increase the separation between the equipment and receiver.
v Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
v Consult an authorized dealer or service representative for help.
Lenovo is not responsible for any radio or television interference caused by using other than
recommended cables and connectors or by unauthorized changes or modifications to this equipment.
Unauthorized changes or modifications could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
© Copyright Lenovo 2009 17
18 Lenovo ConstantConnect ExpressCard User Guide
Appendix D. Notices
Lenovo may not offer the products, services, or features discussed in this document in all countries.
Consult your local Lenovo representative for information on the products and services currently available
in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply
that only that Lenovo product, program, or service may be used. Any functionally equivalent product,
program, or service that does not infringe any Lenovo intellectual property right may be used instead.
However, it is the user’s responsibility to evaluate and verify the operation of any other product,
program, or service.
Lenovo may have patents or pending patent applications covering subject matter described in this
document. The furnishing of this document does not give you any license to these patents. You can send
license inquiries, in writing, to:
Lenovo (United States), Inc.
1009 Think Place - Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some
jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore,
this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically
made to the information herein; these changes will be incorporated in new editions of the publication.
Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in
this publication at any time without notice.
The products described in this document are not intended for use in implantation or other life support
applications where malfunction may result in injury or death to persons. The information contained in
this document does not affect or change Lenovo product specifications or warranties. Nothing in this
document shall operate as an express or implied license or indemnity under the intellectual property
rights of Lenovo or third parties. All information contained in this document was obtained in specific
environments and is presented as an illustration. The result obtained in other operating environments
may vary.
Lenovo may use or distribute any of the information you supply in any way it believes appropriate
without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not
in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part
of the materials for this Lenovo product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled environment. Therefore, the
result obtained in other operating environments may vary significantly. Some measurements may have
been made on development-level systems and there is no guarantee that these measurements will be the
same on generally available systems. Furthermore, some measurements may have been estimated through
extrapolation. Actual results may vary. Users of this document should verify the applicable data for their
specific environment.
© Copyright Lenovo 2009 19
Recycling information
Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their
equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist
equipment owners in recycling their IT products. For information on recycling Lenovo products, go to:
http://www.lenovo.com/lenovo/environment/recycling
Trademarks
The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo
The Lenovo logo
ThinkCentre
ThinkPad
ThinkVantage
Microsoft, Outlook, Windows, and Windows Vista are trademarks of the Microsoft group of companies.
Other company, product, or service names may be trademarks or service marks of others.
20 Lenovo ConstantConnect ExpressCard User Guide
Appendix E. Important information for the European Directive
2002/96/EC
EU Only
The Waste Electrical and Electronic Equipment (WEEE) mark applies only to countries within the
European Union (EU) and Norway. Appliances are labeled in accordance with European Directive
2002/96/EC concerning waste electrical and electronic equipment (WEEE). The Directive determines the
framework for the return and recycling of used appliances as applicable throughout the European Union.
This label is applied to various products to indicate that the product is not to be thrown away, but rather
reclaimed upon end of life per this Directive. Users of electrical and electronic equipment (EEE) with the
WEEE marking per Annex IV of the WEEE Directive must not dispose of end of life EEE as unsorted
municipal waste, but use the collection framework available to them for the return, recycle, recovery of
WEEE and minimize any potential effects of EEE on the environment and human health due to the
presence of hazardous substances. For additional WEEE information go to: http://www.lenovo.com/
lenovo/environment.
Le marquage des déchets d’équipements électriques et électroniques (DEEE) s’applique uniquement aux
pays de l’Union européenne (EU) et à la Norvège. Les appareils sont marqués conformément à la
Directive 2002/96/CE du Conseil Européen relative aux déchets d’équipements électriques et
électroniques (DEEE). Cette directive, applicable à l’ensemble des pays de l’Union européenne, concerne
la collecte et le recyclage des appareils usagés. Ce marquage est apposé sur différents produits pour
indiquer que ces derniers ne doivent pas être jetés, mais récupérés en fin de vie, conformément à cette
directive. Les utilisateurs d’équipements électriques et électroniques portant le marquage DEEE,
conformément à l’Annexe IV de la Directive DEEE, ne doivent pas mettre au rebut ces équipements
comme des déchets municipaux non triés, mais ils doivent utiliser la structure de collecte mise à
disposition des clients pour le retour, le recyclage et la récupération des déchets d’équipements
électriques et électroniques, afin de réduire tout effet potentiel des équipements électriques et
électroniques sur l’environnement et la santé en raison de la présence possible de substances dangereuses
dans ces équipements. Pour plus d’informations sur les équipements électriques et électroniques,
consultez le site http://www.lenovo.com/lenovo/environment.
Die WEEE-Kennzeichnung gilt nur in Ländern der Europäischen Union und in Norwegen. Geräte werden
gemäß der Richtlinie 2002/96/EC der Europäischen Union über Elektro- und Elektronikaltgeräte (WEEE)
gekennzeichnet. Die Richtlinie regelt die Rückgabe und Wiederverwertung von Altgeräten innerhalb der
Europäischen Union. Mit dieser Kennzeichnung versehene Altgeräte dürfen gemäß dieser Richtlinie nicht
weggeworfen werden, sondern müssen zurückgegeben werden. Anwender von Elektro- und
Elektronikgeräten mit der WEEE-Kennzeichnung dürfen diese gemäß Annex IV der WEEE-Richtlinie nach
ihrem Gebrauch nicht als allgemeinen Hausmüll entsorgen. Stattdessen müssen diese Geräte im
verfügbaren Sammelsystem zurückgegeben werden und damit einem Recycling- oder
Wiederherstellungsprozess zugeführt werden, bei dem mögliche Auswirkungen der Geräte auf die
© Copyright Lenovo 2009 21
Umwelt und den menschlichen Organismus aufgrund gefährlicher Substanzen minimiert werden. Weitere
Informationen zur Entsorgung von Elektro- und Elektronikaltgeräten finden Sie unter der Adresse:
http://www.lenovo.com/lenovo/environment.
La marca de Residuos de equipos eléctricos y electrónicos (WEEE) se aplica sólo a los países
pertenecientes a la Unión Europea (UE) y a Noruega. Los aparatos se etiquetan conforme a la Directiva
Europea 2002/96/EC relativa a los residuos de equipos eléctricos y electrónicos (WEEE). La directiva
determina el marco para devolver y reciclar los aparatos usados según sea aplicable en toda la Unión
Europea. Esta etiqueta se aplica a varios productos para indicar que el producto no se va a desechar, sino
que va ser reclamado por esta Directiva, una vez termine su ciclo de vida. Los usuarios de los equipos
eléctricos y electrónicos (EEE) con la marca WEEE por el Anexo IV de la Directiva WEEE no deben tratar
los EEE como desperdicios municipales no clasificados, una vez terminado su ciclo de vida, sino que
deben utilizar el marco de recogida disponible para devolver, reciclar y recuperar los WEEE y minimizar
los posibles efectos de los EEE en el medio ambiente y en la salud debidos a la presencia de substancias
peligrosas. Para obtener información adicional acerca de WEEE consulte el sitio: http://
www.lenovo.com/lenovo/environment.
Il marchio WEEE (Waste Electrical and Electronic Equipment) viene applicato soltanto ai paesi all’interno
dell’unione europea (EU) e norvegia. Le apparecchiature vengono etichettate in accordo con la direttiva
europea 2002/96/EC riguardande lo smaltimento di apparecchiatura elettrica ed alettronica (WEEE). Le
direttive determinano la procedura di restituzione e di riciclaggio delle apparecchiature usate in
conformità con le normative dell’unione europea. Questa classificazione viene applicata a vari prodotti
per indicare che il prodotto stesso non deve essere gettato ma riscattato al termine dell’utilizzo per quasta
direttiva. Gli utenti di apparecchiature elettriche o elettroniche (EEE) marchiate WEEE secondo Annex IV
della direttiva WEEE non devono disporre di fine utilizzo EEE come rifiuto, municipale non classificato,
ma deve essere utilizzata la procedura di classificazione disponibile per il riscatto, riciclo, recupero del
WEEE e minimizzare qualsiasi potenziale effetto della EEE sull’ambiente e sulla salute umana dovuto alla
presenza di sostanze pericolose. Per ulteriori informazioni sulla WEEE visitare il sito:
http://www.lenovo.com/lenovo/environment.
A marca REEE (Resíduos de Equipamentos Eléctricos e Electrónicos) aplica-se apenas aos Estados
Membros da União Europeia e à Noruega. Os aparelhos eléctricos deverão ser identificados em
conformidade com a Directiva Europeia 2002/96/CE relativa a REEE (Resíduos de Equipamentos
Eléctricos e Electrónicos). A Directiva determina o enquadramento normativo relativamente à devolução e
reciclagem de aparelhos eléctricos utilizados, conforme aplicável no espaço da União Europeia. Esta
etiqueta deverá ser aposta em diversos produtos para indicar que os mesmos não poderão ser deitados
fora, mas sim recuperados no final da respectiva vida útil, de acordo com a referida Directiva. Os
utilizadores de equipamentos eléctricos e electrónicos (EEE) com a marca REEE em conformidade com o
Anexo IV da Directiva REEE não poderão deitar fora os EEE no final da respectiva vida útil como lixo
municipal não separado, devendo sim utilizar a estrutura de recolha que lhes tenha sido disponibilizada
para efeitos de devolução, reciclagem e recuperação de REEE, por forma a minimizar potenciais efeitos
dos EEE sobre o ambiente e saúde pública resultantes da presença de substâncias perigosas. Para obter
informações adicionais acerca da REEE consulte o sítio da web: http://www.lenovo.com/lenovo/
environment.
Het WEEE-merkteken (Waste Electrical and Electronic Equipment) geldt alleen voor landen binnen de
Europese Unie (EU) en Noorwegen. Apparaten worden van een merkteken voorzien overeenkomstig
Europese Richtlijn 2002/96/EC inzake afgedankte elektrische en elektronische apparatuur (waste
electrical and electronic equipment, WEEE). Deze richtlijn bepaalt het raamwerk voor het retourneren en
recyclen van gebruikte apparatuur, zoals van toepassing binnen de Europese Unie. Dit merkteken wordt
aangebracht op diverse producten om aan te geven dat het product in kwestie niet dient te worden
weggegooid, maar dat het aan het eind van de levenscyclus krachtens deze Richtlijn dient te worden
geretourneerd. Gebruikers van elektrische en elektronische apparaten (EEE) welke zijn voorzien van het
WEEE-merkteken zijn gehouden aan Annex IV van de WEEE Richtlijn en mogen gebruikte EEE niet
weggooien als ongesorteerd afval, maar dienen gebruik te maken van het inzamelproces voor het
teruggeven, recyclen en terugwinnen van WEEE dat voor hen beschikbaar is, en dienen de mogelijke
22 Lenovo ConstantConnect ExpressCard User Guide
effecten die EEE ten gevolge van de aanwezigheid van schadelijke stoffen kunnen hebben op het milieu
en de volksgezondheid, tot een minimum te beperken. Voor meer informatie over WEEE gaat u naar:
http://www.lenovo.com/lenovo/environment.
WEEE-mærkningen (Waste Electrical and Electronic Equipment) gælder kun for lande i EU samt Norge.
Udstyr mærkes i henhold til EU’s direktiv 2002/96/EF om affald af elektrisk og elektronisk udstyr
(WEEE). Direktivet fastlægger de rammer, der gælder for returnering og genbrug af brugt udstyr i EU.
Mærkaten påsættes forskellige produkter for at angive, at produktet ikke må smides væk, når det er
udtjent, men skal genvindes i henhold til dette direktiv. Brugere af elektrisk og elektronisk udstyr (EEE),
der er mærket med WEEE-mærket som angivet i Bilag IV til WEEE-direktivet, må ikke bortskaffe brugt
EEE som usorteret husholdningsaffald, men skal bruge den indsamlingsordning, der er etableret, så
WEEE kan returneres, genbruges eller genvindes. Formålet er at minimere den eventuelle påvirkning af
miljøet og menneskers sundhed som følge af tilstedeværelsen af skadelige stoffer. Der er flere oplysninger
om affald af elektrisk og elektronisk udstyr på adressen http://www.lenovo.com/lenovo/environment.
Sähkö- ja elektroniikkalaiteromu (Waste electrical and electronic equipment, WEEE) -merkintä koskee vain
Euroopan unionin (EU) jäsenmaita ja Norjaa. Sähkö- ja elektroniikkalaitteet merkitään Euroopan
parlamentin ja neuvoston direktiivin 2002/96/EY mukaisesti. Kyseinen direktiivi määrittää Euroopan
Unionin alueella käytössä olevat palautus- ja kierrätyskäytännöt. WEEE-merkintä laitteessa osoittaa, että
direktiivin ohjeiden mukaan tuotetta ei tulisi hävittää sen elinkaaren päässä, vaan se tulee toimittaa
uusiokäyttöön. Käyttäjien, joiden sähkö- ja elektroniikkalaitteissa on tämä sähkö- ja
elektroniikkalaiteromun direktiivin liitteen IV mukainen merkintä, tulee kierrättää kyseiset laitteet
käytettävissä olevien resurssien mukaan ja varmistaa, että niistä tai niissä käytetyistä materiaaleista ei
aiheudu haittaa ympäristölle tai ihmisten terveydelle. Sähkö- ja elektroniikkalaitteita ei saa hävittää
sekajätteen mukana. Lisätietoja sähkö- ja elektroniikkalaiteromun uusiokäytöstä on WWW-sivustossa
http://www.lenovo.com/lenovo/environment.
WEEE-merket (Waste Electrical and Electronic Equipment) gjelder bare for land i Den europeiske union
(EU) og Norge. Utstyr merkes i henhold til EU-direktiv 2002/96/EF om avfall fra elektrisk og elektronisk
utstyr (WEEE). Direktivet fastsetter rammene for retur og resirkulering av brukt utstyr innenfor EU. Dette
merket benyttes på forskjellige produkter for å angi at produktet ikke må kastes, men må behandles i
henhold til dette direktivet ved slutten av produktets levetid. Brukere av elektrisk og elektronisk utstyr
(EEE) som er merket med WEEE-merket ifølge vedlegg IV i WEEE-direktivet, må ikke kaste utstyret som
usortert husholdningsavfall, men må bruke de tilgjengelige innsamlingssystemene for retur, resirkulering
og gjenvinning av kassert elektrisk og elektronisk utstyr for å redusere en eventuell skadelig virkning av
elektrisk og elektronisk utstyr på miljø og helse, som skyldes skadelige stoffer. Du finner mer informasjon
om WEEE på denne adressen: http://www.lenovo.com/lenovo/environment.
Appendix E. Important information for the European Directive 2002/96/EC 23
24 Lenovo ConstantConnect ExpressCard User Guide
Appendix F. China RoHS
The information in the following table is applicable for products manufactured on or after March 1, 2007
for sale in the People’s Republic of China.
© Copyright Lenovo 2009 25
26 Lenovo ConstantConnect ExpressCard User Guide
Part Number: 45K1896
Printed in China
(1P) P/N: 45K1896
