Lenovo A2107AF Tablet PC (WIFI) User Manual
Lenovo (Shanghai) Electronics Technology Co., Ltd Tablet PC (WIFI)
Lenovo >
User Manual
Lenovo IdeaTab
A2107A
Read the safety notic es and important tips in the
included manuals before using your computer.
©Lenovo China 2012
New World. New Thinking.TM
www.lenovo.com
60015/2298
V1.0_en-US
User Guide V1.0
First Edition (August 2012)
© Copyright Lenovo 2012.
Before using the product, be sure to read Important safety and handling
information first.
The features described in this guide are common to most models.
Some features may not be available on your computer and/or your
computer may include features that are not described in this user
guide.
Some instructions in this guide may assume that you are using
Android. If you are using other Windows operating system, some
operations may be slightly different. If you are using other operating
systems, some operations may not apply to you.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.
Notes
•
•
•
The illustrations in this manual may differ from the product you are
using.
•
To refer to it, go to http://support.lenovo.com and click User guides
and manuals.
Regulatory Notice
•
i
Chapter 1. Getting to know your computer .......................................... 1
Front view ....................................................................................................................1
Right-side view............................................................................................................2
Top view.......................................................................................................................2
Rear view......................................................................................................................3
Chapter 2. Learning the basics..............................................................4
First use.........................................................................................................................4
Using AC adapter and battery ..................................................................................7
Connecting external devices......................................................................................7
Chapter 3. Connecting to the Internet................................................... 8
Wireless connection ....................................................................................................8
Specifications.......................................................................................... 9
FCC Compliance Statement................................................................. 11
Appendix................................................................................................ 13
Contents
1
Chapter 1. Getting to know your computer

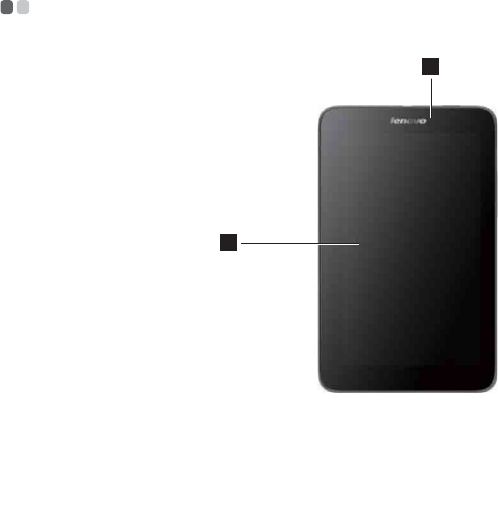

Front view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Integrated
camera
Use the camera for video communication.
Multi-touch
screen
Functions as both the primary output and the primary
input component.
1
2
a
b
2
Chapter 1. Getting to know your computer

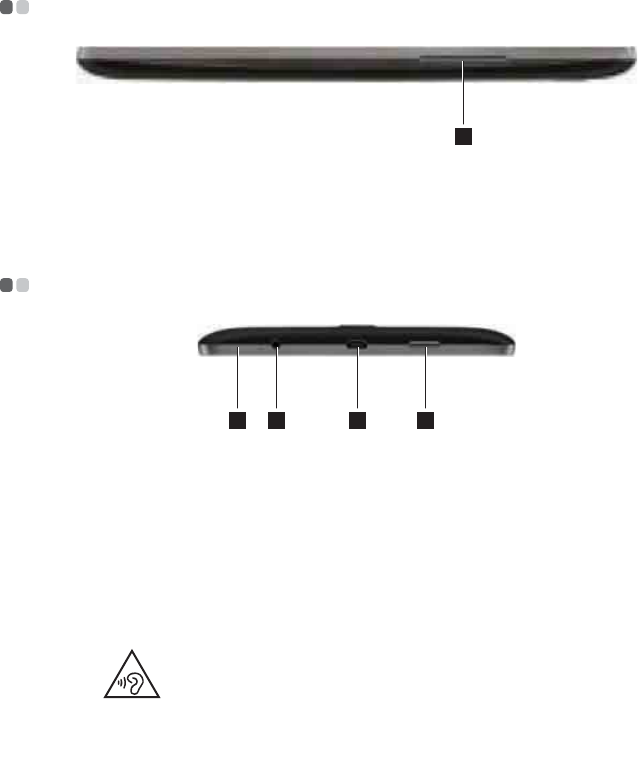

Right-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Top view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Volume up/down Adjusts system sound.
Built-in
microphone
Captures sound and can be used for video conferencing,
voice narration, or audio recording.
Composite audio
jack
Accommodates headsets or headphones. This jack does
not support conventional microphones.
Attention:
•Listening to music at high volume over extended periods of time may damage your
hearing.
•
Micro USB port
Power button
Powers on the tablet.
1
a
21 34
a
b
c
d
Chapter 1. Getting to know your computer
3

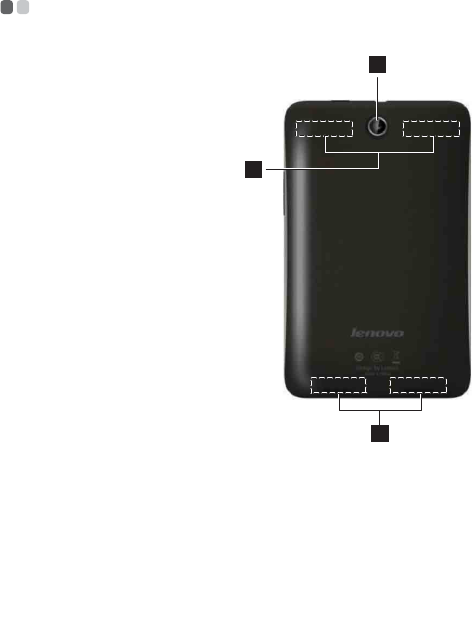

Rear view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Integrated
camera
Use the camera for video communication.
WLAN/Bluetooth
antennas
Connected to the WLAN/Bluetooth adapter and are used
for sending and receiving wireless signals.
Speaker
Provides audio output.
3
2
1
a
b
c
4
Chapter 2. Learning the basics
First use
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Reading the manuals
Read the supplied manuals before using your computer.
Turning on the computer
Press the power button to turn on the computer.
Configuring the operating system
You may need to configure the operating system when it is first used. The
configuration process may include the procedures below.
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
User safety information
• Please carefully read the user manual before use.
• Please do not switch on the tablet when using the tablet is prohibited or
using the tablet could lead to interference or hazards.
• Please keep the tablet switched off on airplanes. If the tablet is equipped
with functionality which automatically activates the device such as an
alarm clock or calendar function, please check and remove this before
boarding.
• When using the tablet, keep away from hot or high-voltage environments,
such as electronic appliances or cooking equipment.
• Prevent fires. Please switch off the tablet in areas containing flammable
objects such as petrol stations and fuel stores.
• Using a tablet case or plastic case could cause damage to the tablet’s
exterior paint.
• The use of solvents such as benzene, diluents or alcohol to wipe the
exterior casing of the tablet is strictly forbidden. Bringing your tablet into
contact with corrosive chemicals such as detergents is strictly forbidden.
Only clean, soft cloth may be used to gently wipe the tablet.
Chapter 2. Learning the basics
5
• Leaving the tablet under the sun, or placing it in a smoky or dusty
environment is strictly forbidden.
• Your tablet is not water proof; please keep it dry. Use in humid areas such
as bathrooms is strictly forbidden. Causing the tablet to be exposed to rain
or moistness is strictly forbidden.
Do not attempt to replace the internal battery
Replacement of the internal rechargeable battery or internal coin-cell battery
must be done by a Lenovo-authorized repair facility. The Lenovo-authorized
repair facilities recycle Lenovo batteries according to local laws and
regulations.
The following statement applies to users in the state of California, U.S.A.:
Products containing CR (manganese dioxide) lithium coin cell batteries may
contain perchlorate.
Perchlorate Material - special handling may apply. Go to:
http://www.dtsc.ca.gov/hazardouswaste/perchlorate.
Because the internal lithium coin cell battery is not an end-user accessible
part, no special handling is required by the end user other than disposing of
the tablet in a manner consistent with local law when the tablet is at the end
of its useful life.
Use approved charging methods only
Please only use the power adapter provided with your tablet for charging the
battery.
When using chargers, please abide by the following.
• Before use, please carefully read the user manual and labels on the charger.
• Please do not disassemble or refit the charger, using the charger when the
cable is damaged is strictly prohibited, otherwise this could cause
electrocution, fire or charger damage.
• Touching the charger with wet hands is strictly prohibited. If the charger
comes into contact with water or other liquids, cut the power immediately.
• Short circuiting the charger is strictly prohibited; mechanically vibrating or
shaking the device is strictly forbidden; exposure to direct sunlight is
directly prohibited; using the charger in humid locations such as
bathrooms is strictly forbidden. This device is not water-resistance, it is
strictly forbidden to expose the device to rain or moisture.
• Please do not use the charger near devices such as televisions or radios.
6
Chapter 2. Learning the basics
• When unplugging, hold the charger firmly; pulling the cord could damage
it.
• To prevent hazards, please place the charger in a safe location out of reach
of children.
Charging devices might become warm during normal use. Allow for
adequate ventilation around the charging device. Unplug the charging
device if any of the following occur:
• The power cord for the charging device is frayed or damaged.
• The charging device has been exposed to rain, liquid, or excessive
moisture.
• The charging device shows signs of physical damage.
• You want to clean the charging device.
Lenovo is not responsible for the performance or safety of products not
manufactured or approved by Lenovo.
Prevent hearing damage
Caution:
Excessive sound pressure from earphones and headphones can cause
hearing loss. Adjustment of the equalizer to maximum increases the
earphones and headphones output voltage and therefore the sound
pressure level.
Chapter 2. Learning the basics
7
Using AC adapter and battery
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Checking battery status
You can determine the percentage of battery power remaining by checking
the battery icon in the notification area.
Charging the battery
When you find that the battery power is low, you need to charge the battery
or replace it with a fully charged one.
You need to charge the battery in any of the following situations:
• If the battery status indicator starts blinking
• If the battery has not been used for a long time
Connecting external devices
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer has a wide range of built-in features and connection
capabilities.
Connecting Bluetooth enabled devices (on select models)
If your computer has an integrated Bluetooth adapter card, it can connect to
and transfer data wirelessly with other Bluetooth enabled devices, such as
notebook computers, PDAs and cell phones. You can transfer data between
these devices without cables and up to 10 meters range in open space.
Notes:
•To increase the life of the battery pack, the computer does not start recharging the
battery immediately after it drops from fully charged.
•Charge the battery at a temperature between 50 °F and 86 °F (10 °C-30 °C).
•Full charge or discharge is not required.
Note: The actual maximum range may vary due to interference and transmission barriers.
To get the best possible connection speed, place the device as near your computer as
possible.
8
Chapter 3. Connecting to the Internet
As a global network, the Internet connects computers worldwide, providing
services such as e-mailing, information searching, electronic commerce, Web
browsing and entertainment.
You can connect the computer to the Internet in the following ways:
Wireless network technology: connect without wiring.
Wireless connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Wireless connections provide mobile access to the Internet, allowing you to
stay online anywhere the wireless signal covers.
Divided by the signal scales, wireless connection to the Internet can be built
based on the following standards.

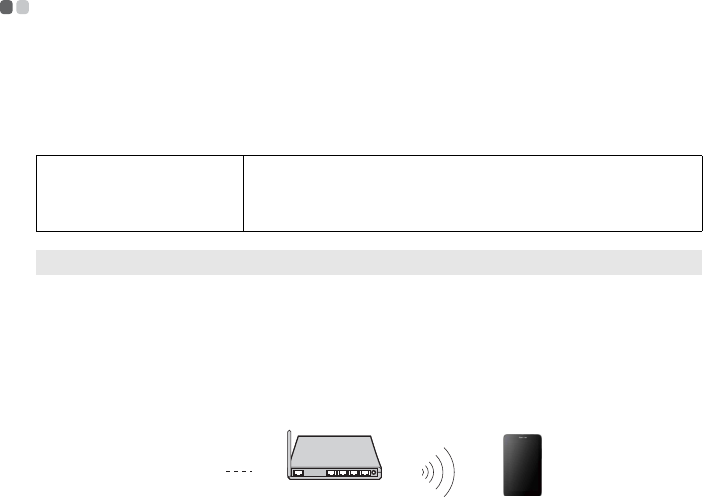

Using Wi-Fi (on select models)
Hardware connection
Wi-Fi Wi-Fi networks cover a small physical area, like a home,
office, or small group of buildings. An access point is
necessary for the connection.
Note: Your computer may not support all wireless connection methods.
Access point *
Wi-Fi network
* Not supplied
9
Specifications
Model Name: Lenovo IdeaTab A2107A
Machine Type: 60015, 2298
Note:
The following specifications may contain technical inaccuracies or typographical errors.
Lenovo reserves the right to improve and/or change specifications at any time without notice.
Form Factor
Dimensions
Weight Appr. 400 g
LCD size 7.0” (1,024 × 600 Widescreen view)
Platform
Platform MTK 6575 1GHz
Memory
Type and speed DDR3L
Maximum
supported
capacity
1 GB
eMMC
Capacity 8 GB / 16 GB
Display
Display
resolution
(LCD)
1,024 × 600 pixels
LCD backlight LED
I/O Ports
USB Micro USB port × 1
Audio Combo audio jack × 1
Communication WLAN (802.11 b/g/n)
Bluetooth 3.0
Appr. 192mm × 121.8mm × 11.5mm
10
Specifications
Battery pack
Cells/Capacity 1-cell Li-polymer battery
AC adapter
AC adapter 5 V / 1.5 A AC
Miscellaneous
Camera 0.3M on front/2.0M on back
11
FCC Compliance Statement
Federal Communications Commission Declaration of Conformity
Lenovo Tablet PC and Model: 60015; 2298
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult an authorized dealer or service representative for help.
Lenovo is not responsible for any radio or television interference caused by
using other than recommended cables and connectors or by unauthorized
changes or modifications to this equipment. Unauthorized changes or
modifications could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Responsible Party:
Lenovo (United States) Incorporated
1009 Think Place-Building One
Morrisville, NC 27560
Telephone: 1-919-294-5900
12
FCC Compliance Statement
FCC Caution:
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
The antenna(s) used for this transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
RF Exposure Information (SAR)
The exposure standard for wireless device employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC
,&LV:NJ7HVWVIRU6AR are conducted using standard operating positions
accepted by the FCC,& with the device transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is determined at
the highest certified power level, the actual SAR level of the device while
operating can be well below the maximum value. This is because the device
is designed to operate at multiple power levels so as to use only the poser
required to reach the network. In general, the closer you are to a wireless
base station antenna, the lower the power output.
The highest SAR value for the device as reported to the )&&,& when tested for
worn on the body, as described in this user guide, is 1.34 W/kg (Body- worn
measurements differ among device models, depending upon available
accessories and FCC,& requirements.)
While there may be differences between the SAR levels of various devices
and at various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model device
with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model device is on file with
the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: O57A2107AF.
Note: The country code selection is for non-US model only and is not available to all US
model. Per FCC regulation, all WiFi product marketed in US must fixed to US
operation channels only.
European Community Compliance Statement
This equipment is marked with the 0700 symbol and can be used
throughout the European community.
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the R&TTE
Directive 1999/5/EC:
EN 300 328 V1.7.1: 2006
- Electromagnetic compatibility and Radio spectrum Matters (ERM);
Wideband Transmission Systems; Data transmission equipment operating
in the 2,4GHz ISM band and using spread spectrum modulation
techniques; Harmonized EN covering essential requirements under article
3.2 of the R&TTE directive.
EN 300 440-1 V1.6.1: 2010
- Electromagnetic compatibility and Radio spectrum Matters (ERM); Short
range devices; Radio equipment to be used in the 1 GHz to 40 GHz
frequency range; Part 1: Technical characteristics and test methods.
EN 300 440-2 V1.4.1:2010
- Electromagnetic compatibility and Radio spectrum Matters (ERM); Short
range devices; Radio equipment to be used in the 1 GHz to 40 GHz
frequency range; Part 2: Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive.
EN 301 489-1 V1.8.1: 2008-04
- Electromagnetic compatibility and Radio spectrum Matters (ERM),
Electromagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements.
EN 301 489-3 V1.4.1: 2002-08
- Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 3: Specific conditions for Short-Range Devices (SRD)
operating on frequencies between 9 kHz and 40 GHz.
13
European Community Compliance Statement
EN 301 489-17 V2.1.1: 2009-05
-Electromagnetic Compatibility and Radio Spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17 Specific Conditions for 2.4GHZ Wideband Data and 5GHz
high performance RLAN Equipment.
EN 60950-1:2006+A11:2009:+A1:2010+A12:2011
-Safety of Information Technology Equipment.-Safety-Part 1: General
requirements.
EN 50332-2:2003
- Sound system equipment: Headphones and earphones associated with
portable audio equipment - Maximum sound pressure level measurement
methodology and limit considerations - Part 2: Matching of sets with
headphones if either or both are offered separately.
EN 62311:2008
- Assessment of electronic and electrical equipment related to human
exposure restrictions for electromagnetic fields (0 Hz - 300 GHz).
EN 62209-2:2010
- Human exposure to radio frequency fields from handheld and
bodymounted wireless communication devices - Human models,
instrumentation, and procedures Part 2: Procedure to determine the
specific absorption rate (SAR) for wireless communication devices used in
close proximity to the human body (frequency range of 30 MHz to 6 GHz)
(IEC62209-2:2010)
EN 62479:2010
- Assessment of the compliance of low power electronic and electrical
equipment with the basic restrictions related to human exposure to
electromagnetic fields (10 MHz to 300 GHz)
14
European Community Compliance Statement
Marking by the symbol indicates that usage restrictions apply. This device
is a 2.4 GHz wideband transmission system (transceiver), intended for use in
all EU member states and EFTA countries, except in France and Italy where
restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum
authorities in order to obtain authorization to use the device for setting up
outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and
in some areas the RF output power may be limited to 10 mW EIRP in the
frequency range of 2454 - 2483.5 MHz. For detailed information the end-user
should contact the national spectrum authority in France.
For the device which tests accordance to EN 60950-1:
2006+A11:2009:+A1:2010+A12:2011, it is mandatory to perform audio tests
for EN50332.
This device have been tested to comply with the Sound Pressure Level
requirement laid down in the applicable EN 50332-1and/or EN 50332-2
standards. Permanent hearing loss may occur if earphones or headphones
are used at high volume for prolonged periods of time.
Warning statement:
A pleine puissance, l'écoute prolongée du baladeur peut endommager
l'oreille de l'utilisateur.
15
European Community Compliance Statement
CE SAR Information
THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO
WAVES. Your mobile device is a radio transmitter and receiver. It is designed
not to exceed the limits for exposure to radio waves recommended by
international guidelines. These guidelines were developed by the
independent scientific organization ICNIRP and include safety margins
designed to assure the protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of measurement
known as the Specific Absorption Rate or SAR. The SAR limit stated in the
ICNIRP guidelines is 2.0 W/kg averaged over 10 grams of tissue. Tests for
SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands.
The actual SAR level of an operating device can be below the maximum
value because the device is designed to use only the power required to reach
the network. That amount changes depending on a number of factors such as
how close you are to a network base station. The highest SAR value under
the ICNIRP guidelines for use of the device at the body is 0.369 W/kg. Use of
device accessories and enhancements may result in different SAR values.
SAR values may vary depending on national reporting and testing
requirements and the network band. The device could be used with a
separation distance of 0 cm to the human body.
16
Appendix
WEEE Notice
Recycling and environmental information
Lenovo encourages owners of information technology (IT) equipment to
responsibly recycle their equipment when it is no longer needed. Lenovo
offers a variety of programs and services to assist equipment owners in
recycling their IT products. For information on recycling Lenovo products,
go to:
http://www.lenovo.com/recycling
Important WEEE information
Restriction of Hazardous Substances Directive (RoHS)
The Lenovo product meets the requirements of the EU Directive (2011/65/
EU) on the Restriction of the Use of Certain Hazardous Substances in
Electrical and Electronic Equipment (EEE).
Country-specific information is available at:
http://www.lenovo.com/recycling
17
ICCaution:
ThisdevicecomplieswithIndustryCanadalicence‐exemptRSSstandard(s).
Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynot
causeinterference,and(2)thisdevicemustacceptanyinterference,including
interferencethatmaycauseundesiredoperationofthedevice.
CetappareilestconformelanormedʹIndustrieCanadaexemptsdelicenceRSS(s).
Sonfonctionnementestsoumisauxdeuxconditionssuivantes:(1)cetappareil
nepeutpascauserdʹinterférences,et(2)cetappareildoitacceptertouteinterférence,
ycomprislesinterférencesquipeuventcauserunmauvaisfonctionnementdelʹappareil.
First Edition (August 2012)
© Copyright Lenovo 2012.
Before using the product, be sure to read Important safety and handling
information first.
The features described in this guide are common to most models.
Some features may not be available on your computer and/or your
computer may include features that are not described in this user
guide.
Some instructions in this guide may assume that you are using
Android. If you are using other Windows operating system, some
operations may be slightly different. If you are using other operating
systems, some operations may not apply to you.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.
Notes
•
•
•
The illustrations in this manual may differ from the product you are
using.
•
To refer to it, go to http://support.lenovo.com and click User guides
and manuals.
Regulatory Notice
•
Lenovo IdeaTab
A2107A
Read the safety notic es and important tips in the
included manuals before using your computer.
©Lenovo China 2012
New World. New Thinking.TM
www.lenovo.com
60015/2298
V1.0_en-US
User Guide V1.0
