LenovoAll-In-One300ComputerHardware

MaintenanceManual

MachineTypes:F0BC[AIO300-23ACL/EnergyStar]/F0BW[AIO

300-22ACL/EnergyStar]F0BY[AIO300-23ISU/EnergyStar]/F0BX

[AIO300-22ISU/EnergyStar]F0BV[AIO300-20ISH/EnergyStar]

LenovoAll-In-One300Computer

HardwareMaintenanceManual

MachineTypes:F0BC[AIO300-23ACL/EnergyStar]/F0BW[AIO

300-22ACL/EnergyStar]F0BY[AIO300-23ISU/EnergyStar]/F0BX

[AIO300-22ISU/EnergyStar]F0BV[AIO300-20ISH/EnergyStar]

ThirdEdition(June2016)08th

©CopyrightLenovo2015.

LIMITEDANDRESTRICTEDRIGHTSNOTICE:IfdataorsoftwarearedeliveredpursuantaGeneralServices

Administration“GSA”contract,use,reproduction,ordisclosureissubjecttorestrictionssetforthinContractNo.

GS-35F-05925

Contents

Chapter1.Aboutthismanual.....1

ImportantSafetyInformation.........1

Chapter2.Safetyinformation.....3

Generalsafety...............3

Electricalsafety..............3

Safetyinspectionguide...........5

Handlingelectrostaticdischarge-sensitive

devices.................5

Groundingrequirements...........6

Safetynotices...............6

Chapter3.Generalinformation....9

Speciﬁcations...............9

Chapter4.GeneralCheckout.....11

Chapter5.UsingtheSetupUtility...13

StartingtheLenovoBIOSSetupUtilityprogram.13

Viewingandchangingsettings........13

Usingpasswords..............13

Enablingordisablingadevice........15

Selectingastartupdevice..........16

ExitingtheLenovoBIOSSetupUtilityprogram..17

Chapter6.Symptom-to-FRUIndex..19

Harddiskdrivebooterror..........19

PowerSupplyProblems...........19

POSTerrorcodes.............20

Undeterminedproblems...........20

Chapter7.Locatingconnectors,

controlsandcomponents......21

Chapter8.Replacinghardware....27

Generalinformation.............27

Replacingthekeyboardandmouse......28

Replacingtheadapter............28

Removingthestandbase..........29

Removingthefootcover...........30

Replacingtheharddiskdrive.........30

Replacingtheopticaldrive..........31

Removingthestandholder..........33

Removingtherearcover...........34

RemovingtheEMIcover...........37

Replacingthepowerswitchboard.......38

Replacingtheconverterboard........39

Replacingthememorymodule........40

Replacingthesystemfan..........41

Replacingtheheat-sink...........42

Replacingthespeakersystem........43

ReplacingtheWi-Ficard...........44

Replacingthemotherboard..........45

Replacingthecamera............47

ReplacingtheLCDpanelmodule.......48

ReplacingtheLCDpanelmodule-NoneTouch..52

Chapter9.FRUlists..........55

Chapter10.FRUlists.........63

Chapter11.FRUlists.........71

Chapter12.FRUlists.........79

Chapter13.Generalinformation...87

AdditionalServiceInformation........87

©CopyrightLenovo2015iii

ivLenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter1.Aboutthismanual

ThismanualcontainsserviceandreferenceinformationforLenovoAll-In-One300computerslistedonthe

cover.ItisintendedonlyfortrainedservicerswhoarefamiliarwithLenovocomputerproducts.

BeforeservicingaLenovoproduct,besuretoreadtheSafetyInformation.

ThedescriptionoftheTV-tunercardinthismanualappliesonlytocomputerswithaTV-tunercardinstalled.

ItdoesnotapplytocomputerswithoutaTV-tunercard.

ImportantSafetyInformation

BesuretoreadallCAUTIONandDANGERsectionsinthismanualbeforefollowinganyoftheinstructions.

VeuillezliretouteslesconsignesdetypeDANGERetATTENTIONduprésentdocumentavantd’exécuter

lesinstructions.

LesenSieunbedingtalleHinweisevomT yp“ACHTUNG”oder“VORSICHT”indieserDokumentation,bevor

SieirgendwelcheVorgängedurchführen

LeggereleistruzioniintrodottedaATTENZIONEePERICOLOpresentinelmanualeprimadieseguireuna

qualsiasidelleistruzioni

Certiﬁque-sedelertodasasinstruçõesdecuidadoeperigonestemanualantesdeexecutarqualquer

umadasinstruções

Esimportantequeleatodaslasdeclaracionesdeprecauciónydepeligrodeestemanualantesdeseguir

lasinstrucciones.

©CopyrightLenovo20151

2LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter2.Safetyinformation

Thischaptercontainsthesafetyinformationthatyouneedtobefamiliarwithbeforeservicingacomputer.

Generalsafety

Followtheserulestoensuregeneralsafety:

•Keeptheareasaroundthecomputerclearandcleanduringandaftermaintenance.

•Whenliftinganyheavyobject:

1.Ensureyoucanstandsafelywithoutslipping.

2.Distributetheweightoftheobjectequallyacrossbothfeet.

3.Liftslowly.Nevermovesuddenlyortwistwhenyouattempttolift.

4.Liftbystandingorbypushingupwithyourlegmuscles;thisactionremovesthestrainfromthe

musclesinyourback.

Donotattempttoliftanyobjectsthatweighmorethan16kg(35lb)orobjectsthatyouthinkare

tooheavyforyou.

•Donotperformanyactionthatwouldcreateahazardforthecustomer,orwouldmakethecomputer

unsafe.

•Beforeyoustartthecomputer,ensurethatotherservicerepresentativesandcustomerpersonnelarenot

inapositionthatwouldcreateahazardforthem.

•Placeremovedcoversandotherpartsinasafeplace,awayfromallpersonnel,whileyouareservicingthe

computer.

•Keepyourtoolcaseawayfromareasthatpeoplemaywalkthroughtoensureno-onetripsoverit.

•Donotwearlooseclothingthatcanbetrappedinthemovingpartsofamachine.Ensurethatyoursleeves

arefastenedorrolledupaboveyourelbows.Ifyourhairislong,tieorfastenitback.

•Inserttheendsofyournecktieorscarfinsideclothingorfastenitwithanon-conductiveclip,

approximately8centimeters(3inches)fromtheend.

•Donotwearjewelry,chains,metal-frameeyeglasses,ormetalfastenersforyourclothing.

Remember:Metalobjectsaregoodelectricalconductors.

•Wearsafetyglasseswhenyouare:hammering,drillingsoldering,cuttingwire,attachingsprings,using

solvents,orworkinginanyotherconditionsthatmightbehazardoustoyoureyes.

•Afterservice,reinstallallsafetyshields,guards,labels,andgroundwires.Replaceanysafetydevice

thatiswornordefective.

•Reattachallcoverscorrectlybeforereturningthecomputertothecustomer.

Electricalsafety

CAUTION:

Electricalcurrentfrompower,telephone,andcommunicationcablescanbehazardous.Toavoid

personalinjuryorequipmentdamage,disconnectanyattachedpowercords,telecommunication

cables,networkcables,andmodemcablesbeforeyouopenthecomputercovers,unlessinstructed

otherwiseintheinstallationandconﬁgurationprocedures.

©CopyrightLenovo20153

Observethefollowingruleswhenworkingonelectricalequipment.

Important:Useonlyapprovedtoolsandtestequipment.Somehandtoolshavehandlescoveredwithasoft

materialthatdoesnotinsulateyouwhenworkingwithliveelectricalcurrents.Manycustomershaverubber

ﬂoormatsneartheirequipmentthatcontainsmallconductiveﬁberstodecreaseelectrostaticdischarge.

•Findtheroomemergencypower-off(EPO)switch,disconnectingswitch,orelectricaloutlet.Ifanelectrical

accidentoccurs,youcanthenoperatetheswitchorunplugthepowercordquickly.

•Donotworkaloneunderhazardousconditionsornearequipmentthathashazardousvoltages.

•Disconnectallpowerbefore:

–Performingamechanicalinspection

–Workingnearpowersupplies

–RemovingorinstallingFieldReplaceableUnits(FRUs)

•Beforeyoustarttoworkonthecomputer,unplugthepowercord.Ifyoucannotunplugit,askthe

customertopower-offtheelectricaloutletthatsuppliespowertothemachineandtolocktheelectrical

outletintheoffposition.

•Ifyouneedtoworkonacomputerthathasexposedelectricalcircuits,observethefollowingprecautions:

–Ensurethatanotherperson,familiarwiththepower-offcontrols,isnearyou.

Remember:Anotherpersonmustbetheretoswitchoffthepower,ifnecessary.

–Useonlyonehandwhenworkingwithpowered-onelectricalequipment;keeptheotherhandinyour

pocketorbehindyourback.

Remember:Theremustbeacompletecircuittocauseelectricalshock.Byobservingtheaboverule,

youmaypreventacurrentfrompassingthroughyourbody.

–Whenusingatester,setthecontrolscorrectlyandusetheapprovedprobeleadsandaccessoriesfor

thattester.

–Standonsuitablerubbermats(obtainedlocally,ifnecessary)toinsulateyoufromgroundssuchas

metalﬂoorstripsandmachineframes.

Observethespecialsafetyprecautionswhenyouworkwithveryhighvoltages;theseinstructionsarein

thesafetysectionsofthemaintenanceinformation.Useextremecarewhenmeasuringhighvoltages.

•Regularlyinspectandmaintainyourelectricalhandtoolstoensuretheyaresafetouse.

•Donotusewornorbrokentoolsandtesters.

•Neverassumethatpowerhasbeendisconnectedfromacircuit.First,checkthatithasbeenpoweredoff.

•Alwayslookcarefullyforpossiblehazardsinyourworkarea.Examplesofthesehazardsarewetﬂoors,

non-groundedpowerextensioncables,conditionsthatmaycauseorallowpowersurges,andmissing

safetygrounds.

•Donottouchliveelectricalcircuitswiththereﬂectivesurfaceofaplasticdentalmirror.Thissurfaceis

conductive,andtouchingalivecircuitcancausepersonalinjuryanddamagetothecomputer.

•Donotservicethefollowingpartswiththepoweronwhentheyareremovedfromtheirnormaloperating

positionsinacomputer:

–Powersupplyunits

–Pumps

–Blowersandfans

–Motorgenerators

andsimilarunits.(Thispracticeensurescorrectgroundingoftheunits.)

•Ifanelectricalaccidentoccurs:

–Usecaution;donotbecomeavictimyourself.

4LenovoAll-In-One300ComputerHardwareMaintenanceManual

–Switchoffpower.

–Sendanotherpersontogetmedicalaid.

Safetyinspectionguide

Theintentofthisinspectionguideistoassistyouinidentifyingpotentialhazardsposedbytheseproducts.

Eachcomputer,asitwasdesignedandbuilt,hadrequiredsafetyitemsinstalledtoprotectusersand

servicepersonnelfrominjury.Thisguideaddressesonlythoseitems.However,goodjudgmentshouldbe

usedtoidentifypotentialsafetyhazardsduetoattachmentoffeaturesoroptionsnotcoveredbythis

inspectionguide.

Ifanyhazardsarepresent,youmustdeterminehowserioustheapparenthazardcouldbeandwhetheryou

cancontinuewithoutﬁrstresolvingtheproblem.

Considerthefollowingitemsandthesafetyhazardstheypresent:

•Electricalhazards,especiallyprimarypower(primaryvoltageontheframecancauseseriousorfatal

electricalshock).

•Explosivehazards,suchasadamagedCRTfaceorbulgingcapacitor

•Mechanicalhazards,suchaslooseormissinghardware

Theguideconsistsofaseriesofstepspresentedasachecklist.Beginthecheckswiththepoweroff,and

thepowercorddisconnected.

Checklist:

1.Checkexteriorcoversfordamage(loose,broken,orsharpedges).

2.Power-offthecomputer.Disconnectthepowercord.

3.Checkthepowercordfor:

a.Athird-wiregroundconnectoringoodcondition.Useametertomeasurethird-wireground

continuityfor0.1ohmorlessbetweentheexternalgroundpinandframeground.

b.Thepowercordshouldbetheappropriatetypeasspeciﬁedinthepartslistings.

c.Insulationmustnotbefrayedorworn.

4.Removethecover.

5.Checkforanyobviousalterations.Usegoodjudgmentastothesafetyofanyalterations.

6.Checkinsidetheunitforanyobvioushazards,suchasmetalﬁlings,contamination,waterorother

liquids,orsignsofﬁreorsmokedamage.

7.Checkforworn,frayed,orpinchedcables.

8.Checkthatthepower-supplycoverfasteners(screwsorrivets)havenotbeenremovedortamperedwith.

Handlingelectrostaticdischarge-sensitivedevices

Anycomputerpartcontainingtransistorsorintegratedcircuits(ICs)shouldbeconsideredsensitiveto

electrostaticdischarge(ESD).ESDdamagecanoccurwhenthereisadifferenceinchargebetweenobjects.

ProtectagainstESDdamagebyequalizingthechargesothatthecomputer,thepart,theworkmat,andthe

personhandlingthepartareallatthesamecharge.

Notes:

1.Useproduct-speciﬁcESDprocedureswhentheyexceedtherequirementsnotedhere.

2.MakesurethattheESDprotectivedevicesyouusehavebeencertiﬁed(ISO9000)asfullyeffective.

WhenhandlingESD-sensitiveparts:

Chapter2.Safetyinformation5

•Keepthepartsinprotectivepackagesuntiltheyareinsertedintotheproduct.

•Avoidcontactwithotherpeoplewhilehandlingthepart.

•Wearagroundedwriststrapagainstyourskintoeliminatestaticonyourbody.

•Preventthepartfromtouchingyourclothing.Mostclothingisinsulativeandretainsachargeeven

whenyouarewearingawriststrap.

•Usetheblacksideofagroundedworkmattoprovideastatic-freeworksurface.Thematisespecially

usefulwhenhandlingESD-sensitivedevices.

•Selectagroundingsystem,suchasthoselistedbelow,toprovideprotectionthatmeetsthespeciﬁc

servicerequirement.

Note:TheuseofagroundingsystemisdesirablebutnotrequiredtoprotectagainstESDdamage.

–AttachtheESDgroundcliptoanyframeground,groundbraid,orgreen-wireground.

–UseanESDcommongroundorreferencepointwhenworkingonadouble-insulatedor

battery-operatedsystem.Youcanusecoaxorconnector-outsideshellsonthesesystems.

–Usetheroundground-prongoftheACplugonAC-operatedcomputers.

Groundingrequirements

Electricalgroundingofthecomputerisrequiredforoperatorsafetyandcorrectsystemfunction.Proper

groundingoftheelectricaloutletcanbeveriﬁedbyacertiﬁedelectrician.

Safetynotices

TheCAUTIONandDANGERsafetynoticesinthissectionareprovidedinthelanguageofEnglish.

DANGER

Electricalcurrentfrompower,telephoneandcommunicationcablesishazardous.

Toavoidashockhazard:

•Donotconnectordisconnectanycablesorperforminstallation,maintenance,orreconﬁguration

ofthisproductduringanelectricalstorm.

•Connectallpowercordstoaproperlywiredandgroundedelectricaloutlet.

•Connectanyequipmentthatwillbeattachedtothisproducttoaproperlywiredoutlet.

•Whenpossible,useonehandonlytoconnectordisconnectsignalcables.

•Neverturnonanyequipmentwhenthereisevidenceofﬁre,water,orstructuraldamage.

•Disconnecttheattachedpowercords,telecommunicationscables,networkcables,andmodem

cablesbeforeyouopenthedevicecovers,unlessinstructedotherwiseintheinstallationand

conﬁgurationprocedures.

•Connectanddisconnectcablesasdescribedinthefollowingtablewheninstalling,moving,or

openingcoversonthisproductorattacheddevices.

6LenovoAll-In-One300ComputerHardwareMaintenanceManual

ToConnectToDisconnect

1.TurneverythingOFF .

2.First,attachallcablestodevices.

3.Attachsignalcablestoconnectors.

4.Attachpowercordstooutlet.

5.TurndeviceON.

1.TurneverythingOFF .

2.First,removepowercordsfromoutlets.

3.Removesignalcablesfromconnectors.

4.Removeallcablesfromdevices.

CAUTION:

Whenreplacingthelithiumbattery,useonlyPartNumber45C1566oranequivalenttypebattery

recommendedbythemanufacturer.Ifyoursystemhasamodulecontainingalithiumbattery,replace

itonlywiththesamemoduletypemadebythesamemanufacturer.Thebatterycontainslithiumand

canexplodeifnotproperlyused,handled,ordisposedof.

Donot:

•Throwintoorimmerseinwater

•Heattomorethan100°C(212°F)

•Repairordisassemble

Disposeofthebatteryasrequiredbylocalordinancesorregulations.

CAUTION:

Whenlaserproducts(suchasCD-ROMs,DVD-ROMdrives,ﬁberopticdevices,ortransmitters)are

installed,notethefollowing:

•Donotremovethecovers.Removingthecoversofthelaserproductcouldresultinexposureto

hazardouslaserradiation.Therearenoserviceablepartsinsidethedevice.

•Useofcontrolsoradjustmentsorperformanceofproceduresotherthanthosespeciﬁedherein

mightresultinhazardousradiationexposure.

DANGER

SomelaserproductscontainanembeddedClass3AorClass3Blaserdiode.Notethefollowing:

Thesediodesemitradiationwhenopen.Donotstareintothebeam,donotviewdirectlywith

opticalinstruments,andavoiddirectexposuretothebeam.

Chapter2.Safetyinformation7

≥18kg(37lbs)≥32kg(70.5lbs)≥55kg(121.2lbs)

CAUTION:

Usesafepracticeswhenlifting.

CAUTION:

Thepowercontrolbuttononthedeviceandthepowerswitchonthepowersupplydonotturnoff

theelectricalcurrentsuppliedtothedevice.Thedevicealsomighthavemorethanonepower

cord.Toremoveallelectricalcurrentfromthedevice,ensurethatallpowercordsaredisconnected

fromthepowersource.

CAUTION:

Donotplaceanyobjectweighingmorethan82kg(180lbs.)ontopofrack-mounteddevices.

8LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter3.Generalinformation

Thischapterprovidesgeneralinformationthatappliestoallcomputermodelscoveredbythismanual.

Speciﬁcations

Thissectionliststhephysicalspeciﬁcationsforyourcomputer.

TypeLenovoAll-In-One300

Thissectionliststhephysicalspeciﬁcations.

Environment

Airtemperature:

Operating:10°to35°C

Transit:-20°to55°C

Humidity:

Operating:35%to80%

Transit:20%to90%(40°C)

Altitude:86KPato106KPa

Electricalinput:

Inputvoltage:90V-264V(AC)

Inputfrequency:47Hz-63Hz

©CopyrightLenovo20159

10LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter4.GeneralCheckout

Attention:Thedrivesinthecomputeryouareservicingmighthavebeenrearrangedorthedrivestartup

sequencemayhavebeenchanged.Beextremelycarefulduringwriteoperationssuchascopying,saving,or

formatting.Dataorprogramscanbeoverwrittenifyouselectanincorrectdrive.

Generalerrormessagesappearifaproblemorconﬂictisfoundbyanapplication,theoperatingsystem,or

both.Foranexplanationofthesemessages,refertotheinformationsuppliedwiththatsoftwarepackage.

Usethefollowingproceduretohelpdeterminethecauseoftheproblem:

1.Power-offthecomputerandallexternaldevices.

2.Checkallcablesandpowercords.

3.Setalldisplaycontrolstothemiddleposition.

4.Power-onallexternaldevices.

5.Power-onthecomputer.

•Lookfordisplayederrorcodes.

•Lookforreadableinstructionsoramainmenuonthedisplay.

Ifyoudidnotreceivethecorrectresponse,proceedtostep6.

Ifyoudidreceivethecorrectresponse,proceedtostep7.

6.Ifoneofthefollowinghappens,followtheinstructiongiven:

•IfthecomputerdisplaysaPOSTerror,goto“POSTerrorcodes” .

•Ifthecomputerhangsandnoerrorisdisplayed,continueatstep7.

7.Iftheteststopsandyoucannotcontinue,replacethelastdevicetested.

©CopyrightLenovo201511

12LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter5.UsingtheSetupUtility

TheSetupUtilityprogramisusedtoviewandchangetheconﬁgurationsettingsofyourcomputer,regardless

ofwhichoperatingsystemyouareusing.However,theoperatingsystemsettingsmightoverrideanysimilar

settingsintheSetupUtilityprogram.

StartingtheLenovoBIOSSetupUtilityprogram

TostarttheLenovoBIOSSetupUtilityprogram,dothefollowing:

1.Ifyourcomputerisalreadyonwhenyoustartthisprocedure,shutdowntheoperatingsystemand

turnoffthecomputer.

2.PressandholdtheF1keythenturnonthecomputer.WhentheLenovoBIOSSetupUtilityprogramis

displayed,releasetheF1key.

Note:IfaPower-OnPasswordoranAdministratorPasswordhasbeenset,theSetupUtilityprogrammenu

willnotbedisplayeduntilyoutypeyourpassword.Formoreinformation,see“Usingpasswords.”

Viewingandchangingsettings

SystemconﬁgurationoptionsarelistedintheLenovoBIOSSetupUtilityprogrammenu.Tovieworchange

settings,see“StartingtheSetupUtilityprogram.”

YoumustusethekeyboardwhenusingtheLenovoBIOSSetupUtilitymenu.Thekeysusedtoperform

varioustasksaredisplayedonthebottomofeachscreen.

Usingpasswords

YoucanusetheLenovoBIOSSetupUtilityprogramtosetpasswordstopreventunauthorizedpersons

fromgainingaccesstoyourcomputeranddata.See“StartingtheSetupUtilityprogram.”Thefollowing

typesofpasswordsareavailable:

•AdministratorPassword

•Power-OnPassword

Youdonothavetosetanypasswordstouseyourcomputer.However,ifyoudecidetosetpasswords,read

thefollowingsections.

Passwordconsiderations

Apasswordcanbeanycombinationoflettersandnumbersupto16characters(a-zand0-9).Forsecurity

reasons,itisagoodideatouseastrongpasswordthatcannotbeeasilycompromised.Wesuggestthat

passwordsshouldfollowtheserules:

•Forastrongpassword,use7-16charactersandamixoflettersandnumbers.

•Donotuseyournameoryourusername.

•Donotuseacommonwordoracommonname.

•Usesomethingsigniﬁcantlydifferentfromyourpreviouspassword.

Attention:AdministratorandPower-Onpasswordsarenotcasesensitive.

©CopyrightLenovo201513

AdministratorPassword

SettinganAdministratorPassworddetersunauthorizedpersonsfromchangingconﬁgurationsettings.You

mightwanttosetanAdministratorPasswordifyouareresponsibleformaintainingthesettingsofseveral

computers.

AfteryousetanAdministratorPassword,apasswordpromptisdisplayedeverytimeyouaccesstheLenovo

BIOSSetupUtilityprogram.

IfboththeAdministratorandPower-OnPasswordareset,youcantypeeitherpassword.However,youmust

useyourAdministratorPasswordtochangeanyconﬁgurationsettings.

Setting,changing,ordeletinganAdministratorpassword

TosetanAdministratorPassword,dothefollowing:

Note:Apasswordcanbeanycombinationoflettersandnumbersupto16characters(a-zand0-9).For

moreinformation,see“Passwordconsiderations”onpage13.

1.StarttheLenovoBIOSSetupUtilityprogram(see“StartingtheLenovoBIOSSetupUtilityprogram”on

page13).

2.FromtheSecuritymenu,selectSetAdministratorPasswordandpresstheEnterkey.

3.Thepassworddialogboxwillbedisplayed.TypethepasswordthenpresstheEnterkey.

4.Re-typethepasswordtoconﬁrm,thenpresstheEnterkey.Ifyoutypedthepasswordcorrectly,

thepasswordwillbeinstalled.

TochangeanAdministratorPassword,dothefollowing:

1.StarttheLenovoBIOSSetupUtilityprogram(see“StartingtheLenovoBIOSSetupUtilityprogram”on

page13).

2.FromtheSecuritymenu,selectSetAdministratorPasswordandpresstheEnterkey.

3.Thepassworddialogboxwillbedisplayed.TypethecurrentpasswordthenpresstheEnterkey.

4.Typethenewpassword,thenpresstheEnterkey.Re-typethepasswordtoconﬁrmthenewpassword.

Ifyoutypedthenewpasswordcorrectly,thenewpasswordwillbeinstalled.ASetupNoticedconﬁrming

thatchangeshavebeensavedwillbedisplayed.

TodeleteapreviouslysetAdministratorPassword,dothefollowing:

1.FromtheSecuritymenu,selectSetAdministratorPasswordandpresstheEnterkey.

2.Thepassworddialogboxwillbedisplayed.TypethecurrentpasswordandpresstheEnterkey.

3.TodeleteanAdministratorPassword,leaveeachnewpasswordlineitemblank,thenpresstheEnter

key.ASetupNoticeconﬁrmingthatchangeshavebeensavedwillbedisplayed.

4.ReturntotheLenovoBIOSSetupUtilityprogrammenuandselecttheExitoption.

5.SelectSavechangesandExitfromthemenu.

Power-OnPassword

WhenaPower-OnPasswordisset,youcannotstarttheLenovoBIOSSetupUtilityprogramuntilavalid

passwordistypedfromthekeyboard.

Setting,changing,ordeletingaPower-OnPassword

Note:Apasswordcanbeanycombinationoflettersandnumbersupto16characters(a-zand0-9).

14LenovoAll-In-One300ComputerHardwareMaintenanceManual

TosetaPower-OnPassword,dothefollowing:

1.StarttheLenovoBIOSSetupUtilityprogram(See”StartingtheLenovoBIOSSetupUtilityprogram”on

page13.)

2.FromtheSecuritymenu,selectSetPower-OnPasswordandpresstheEnterkey.

3.Thepassworddialogboxwillbedisplayed.T ypethepassword,thenpresstheEnterkey.

4.Re-typethepasswordtoconﬁrm.Ifyoutypedthepasswordcorrectly,thepasswordwillbeinstalled.

TochangeaPower-OnPassword,dothefollowing:

1.StarttheLenovoBIOSSetupUtilityprogram(See”StartingtheLenovoBIOSSetupUtilityprogram”on

page13.)

2.FromtheSecuritymenu,selectSetPower-OnPasswordandpresstheEnterkey.

3.Thepassworddialogboxwillbedisplayed.TypethecurrentpasswordthenpresstheEnterkey.

4.Typethenewpassword,thenpresstheEnterkey.Re-typethepasswordtoconﬁrmthenewpassword.

Ifyoutypedthenewpasswordcorrectly,thenewpasswordwillbeinstalled.ASetupNoticedconﬁrming

thatchangeshavebeensavedwillbedisplayed.

TodeleteapreviouslysetPower-OnPassword,dothefollowing:

1.FromtheSecuritymenu,selectSetPower-OnPasswordandpresstheEnterkey.

2.Thepassworddialogboxwillbedisplayed.TypethecurrentpasswordandpresstheEnterkey.

3.TodeletethePower-OnPassword,leaveeachnewpasswordlineitemblank,thenpressEnter.ASetup

Noticeconﬁrmingthatchangeshavebeensavedwillbedisplayed.

4.ReturntotheLenovoBIOSSetupUtilityprogrammenuandselecttheExitoption.

5.SelectSavechangesandExitfromthemenu.

Enablingordisablingadevice

TheDevicesoptionsisusedtoenableordisableuseraccesstothefollowingdevices:

USBFunctionsSelectwhethertoenableordisableUSB(UniversalSerial

Bus)functions.Ifthefunctionsaredisabled,noUSB

devicescanbeused.

SATAModeWhenthisfeatureissettoDisabled,alldevices

connectedtotheSATAconnectors(e.g.harddiskdrives

ortheopticaldiskdrive)aredisabledandcannotbe

accessed.

OnboardAudioControllerSelectwhethertoenableordisabletheOnboard

AudioController.WhenthisfeatureissettoDisabled

alldevicesconnectedtotheaudioconnectors(e.g.

headphonesoramicrophone)aredisabledandcannot

beused.

OnboardEthernetControllerorLANBootAgentSelectwhethertoenableordisabletheOnboardEthernet

Controller,orselectwhethertoenableordisableload

onboardPXE(PrebootExecutionEnvironment).

Toenableordisableadevice,dothefollowing:

1.StarttheSetupUtilityprogram(see“StartingtheSetupUtilityprogram”onpage13).

2.FromtheSetupUtilityprogrammenu,selectDevices.

3.Selectanoptionasfollows:

SelectUSBSetup,presstheEnterkey,thenselectUSBFunctions.

Chapter5.UsingtheSetupUtility15

SelectATADeviceSetup,presstheEnterkey,thenselectSATAMode.

SelectAudioSetup,presstheEnterkey,thenselectOnboardAudioController.

SelectNetworkSetup,presstheEnterkey,thenselectOnboardEthernetSupportorLANBoot

Agent.

4.SelectDisabledorEnabledandpresstheEnterkey.

5.ReturntotheLenovoBIOSSetupUtilityprogrammenuandselecttheExitoption.

6.SelectSavechangesandExitfromthemenu.

Notes:

a.Ifyoudonotwanttosavethesettings,selectDiscardchangesandExitfromthemenu.

b.SelectIDE/AHCIMode:DevicedriversupportisrequiredforACHI.Dependingonhowtheharddisk

imagewasinstalled,changingthissettingmaypreventthesystemfrombooting.

Selectingastartupdevice

IfyourcomputerdoesnotbootfromadevicesuchastheCD/DVD-ROMdrivediskorharddiskasexpected,

followoneoftheproceduresbelow.

Selectingatemporarystartupdevice

Usethisproceduretostartupfromanybootdevice.

Note:NotallCDs,DVDsorharddiskdrivesarebootable.

1.Turnoffyourcomputer.

2.PressandholdtheF12keythenturnonthecomputer.WhentheStartupDeviceMenuappears,

releasetheF12key.

Note:IftheStartupDeviceMenudoesnotdisplayusingthesesteps,repeatedlypressandreleasethe

F12keyratherthankeepingitpressedwhenturningonthecomputer.

3.Use↑and↓arrowstoselectthedesiredstartupdevicefromtheStartupDeviceMenuandpress

theEnterkeytobegin.

Note:SelectingastartupdevicefromtheStartupDeviceMenudoesnotpermanentlychangethe

startupsequence.

Selectingorchangingthestartupdevicesequence

Tovieworpermanentlychangetheconﬁguredstartupdevicesequence,dothefollowing:

1.StarttheLenovoBIOSSetupUtilityprogram(see“StartingtheLenovoBIOSSetupUtilityprogram”on

page13).

2.FromtheLenovoBIOSSetupUtilityprogrammainmenu,selecttheStartupoption.

3.PresstheEnterkey,andselectthedevicesforthePrimaryBootSequence.Readtheinformation

displayedontherightsideofthescreen.

4.Use↑and↓arrowstoselectadevice.Usethe<+>or<->keystomoveadeviceupordown.Usethe

<×>keytoexcludethedevicefromorincludethedeviceinthebootsequence.

5.ReturntotheLenovoBIOSSetupUtilityprogrammenuandselecttheExitoption.

6.SelectSavechangesandExitfromthemenu.

Notes:

16LenovoAll-In-One300ComputerHardwareMaintenanceManual

a.Ifyoudonotwanttosavethesettings,selectDiscardchangesandExitfromthemenu.

b.Ifyouhavechangedthesesettingsandwanttoreturntothedefaultsettings,selectLoadOptimal

Defaultsfromthemenu.

ExitingtheLenovoBIOSSetupUtilityprogram

Afteryouﬁnishviewingorchangingsettings,presstheEsckeytoreturntotheLenovoBIOSSetupUtility

programmainmenu.Y oumighthavetopresstheEsckeyseveraltimes.Dooneofthefollowing:

•Ifyouwanttosavethenewsettings,selectSavechangesandExitfromthemenu.WhentheSave&

resetwindowshows,selecttheYesbutton,andthenpresstheEnterkeytoexittheLenovoBIOS

SetupUtilityprogram.

•Ifyoudonotwanttosavethesettings,selectDiscardchangesandExitfromthemenu.Whenthe

ResetWithoutSavingwindowshows,selecttheY esbutton,andthenpresstheEnterkeytoexitthe

LenovoBIOSSetupUtilityprogram.

Chapter5.UsingtheSetupUtility17

18LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter6.Symptom-to-FRUIndex

TheSymptom-to-FRUindexlistserrorsymptomsandpossiblecauses.Themostlikelycauseislistedﬁrst.

AlwaysbeginwithChapter4,“GeneralCheckout,”onpage11.Thisindexcanalsobeusedtohelpyou

decidewhichFRUstohaveavailablewhenservicingacomputer.Ifyouareunabletocorrecttheproblem

usingthisindex,goto“Undeterminedproblems”onpage20.

Notes:

•Ifyouhavebothanerrormessageandanincorrectaudioresponse,diagnosetheerrormessageﬁrst.

•Ifyoucannotrunthediagnostictestsoryougetadiagnosticerrorcodewhenrunningatestbutdid

receiveaPOSTerrormessage,diagnosethePOSTerrormessageﬁrst.

•Ifyoudidnotreceiveanyerrormessagelookforadescriptionofyourerrorsymptomsintheﬁrstpartof

thisindex.

Harddiskdrivebooterror

Aharddiskdrivebooterrorcanbecausedbythefollowing.

ErrorFRU/Action

Thestartupdriveisnotincludedinthebootsequence

conﬁguration.

Checktheconﬁgurationandensurethestartupdriveis

inthebootsequence.

Nooperatingsystemisinstalledonthebootdrive.Installanoperatingsystemonthebootdrive.

Thebootsectoronthestartupdriveiscorrupted.Thedrivemustbeformatted.Dothefollowing:

1.Attempttobackupthedataonthefailingharddisk

drive.

2.Usetheoperatingsystemtoformattheharddisk

drive.

Thedriveisdefective.Replacetheharddiskdrive.

PowerSupplyProblems

Followtheseproceduresifyoususpectthereisapowersupplyproblem.

Check/VerifyFRU/Action

Checkthatthefollowingareproperlyinstalled:

•PowerCord

•On/OffSwitchconnector

•SystemBoardPowerSupplyconnectors

•Microprocessorconnections

Reseatconnectors

Checkthepowercord.PowerCord

Checkthepower-onswitch.Power-onSwitch

©CopyrightLenovo201519

POSTerrorcodes

Eachtimeyouturnthecomputeron,itperformsaseriesofteststocheckthatthesystemisoperating

correctlyandthatcertainoptionsareset.ThisseriesoftestsiscalledthePower-OnSelf-Test,orPOST.

POSTdoesthefollowing:

•Checkssomebasicmotherboardoperations

•Checksthatthememoryisworkingcorrectly

•Startsvideooperations

•Veriﬁesthatthebootdriveisworking

POSTErrorMessageDescription/Action

KeyboarderrorCannotinitializethekeyboard.Makesurethekeyboard

isproperlyconnectedtothecomputerandthatnokeys

areheldpressedduringPOST.T opurposelyconﬁgure

thecomputerwithoutakeyboard,selectKeyboardless

operationinStartupandsettheoptiontoEnabled.The

BIOSthenignoresthemissingkeyboardduringPOST.

RebootandSelectproperBootdeviceorInsertBoot

MediainselectedBootdevice

TheBIOSwasunabletoﬁndasuitablebootdevice.Make

surethebootdriveisproperlyconnectedtothecomputer.

Makesureyouhavebootablemediainthebootdevice.

Undeterminedproblems

1.Power-offthecomputer.

2.Removeordisconnectthefollowingcomponents(ifconnectedorinstalled)oneatatime.

a.Externaldevices(modem,printer,ormouse)

b.Extendedvideomemory

c.ExternalCache

d.ExternalCacheRAM

e.Harddiskdrive

f.Diskdrive

3.Power-onthecomputertore-testthesystem.

4.Repeatsteps1through3untilyouﬁndthefailingdeviceorcomponent.

Ifalldevicesandcomponentshavebeenremovedandtheproblemcontinues,replacethesystemboard.

20LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter7.Locatingconnectors,controlsandcomponents

Thissectionprovidesillustrationstohelplocatethevariousconnectors,controlsandcomponentsofthe

computer.

Fontview

Thefollowingillustrationshowsthelocationofcontrolsandcomponentsonthefrontofthecomputer.

Attention:Becarefulnottoblockanyairventsonthecomputer.Blockedairventscancauseoverheating.

1.Built-inmicrophones(2)3.Built-incamera

2.CameraLEDindicator

©CopyrightLenovo201521

Leftandrightview

Thefollowingillustrationshowsthelocationofconnectors,controlsandcomponentsontheleftandright

sideofthecomputer.

1.Harddiskdriveindicator5.Opticaldrive

2.USB3.0connectors6.PCmode/HDMI-inswitch

3.Memorycardreader7.Powerbutton

4.Comboaudiojack

Attention:Donotinsert3-inchdiscsintotheopticaldrive.

22LenovoAll-In-One300ComputerHardwareMaintenanceManual

Rearview

Thefollowingillustrationshowsthelocationofconnectorsandcomponentsontherearofthecomputer.

1.Securitycableslot5.USB2.0connector

2.Powerconnector6.HDMI-inconnector

3.Ethernetconnector7.Airvents

4.HDMI-outconnector

Chapter7.Locatingconnectors,controlsandcomponents23

Hardwarecomponents

Thefollowingillustrationshowsthecomponentsthatmakeupyourcomputer.

1.Footcover10.Speakers

2.Computerstand11.EMIcover

3.Rearcover12.Motherboard

4.Harddiskdrive13.Camera

5.Heat-sink14.Memorymodule

6.Systemfan15.Chassis

7.Opticaldrive16.LCDpanel

8.Powerswitchboard17.Frontbezel

9.Wi-Ficard

24LenovoAll-In-One300ComputerHardwareMaintenanceManual

Identifyingpartsonthemotherboard

Themotherboard(sometimescalledtheplanarorsystemboard)isthemaincircuitboardinyourcomputer.

Itprovidesbasiccomputingfunctionsandsupportsavarietyofdevicesthatarefactory-installedorthat

youcaninstalllater.Thefollowingillustrationshowsthelocationofconnectorsandcomponentsonthe

frontofthemotherboard.

141310111215

2221

1.Wi-Ficonnector12.USB2.0connector

2.Battery13.USB2.0connector

3.Systemfanconnector14.USB2.0connector

4.HDD/ODDpowerconnector15.HDMI-inconnector

5.HDDSATAconnector16.Memorysocket

6.Powerswitchconnector17.Comboaudiojack

7.Speakerconnector18.SDcardreader

8.Converterconnector19.USB3.0connector

9.Powerconnector20.USB3.0connector

10.Ethernetconnector21.LVDSconnector

11.HDMI-outconnector22.Cameraconnector

Chapter7.Locatingconnectors,controlsandcomponents25

26LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter8.Replacinghardware

Attention:Donotremovethecomputercoverorattemptanyrepairbeforereadingthe“Importantsafetyinformation”

intheSafetyandWarrantyGuidethatwasincludedwithyourcomputer.ToobtaincopiesoftheSafetyandWarranty

Guide,gototheSupportWebsiteat:http://consumersupport.lenovo.com.

Note:UseonlypartsprovidedbyLenovo.

Generalinformation

Pre-disassemblyinstructions

Beforestartingthedisassemblyprocedure,makesurethatyoudothefollowing:

1.Turnoffthepowertothesystemandallperipherals.

2.Unplugallpowerandsignalcablesfromthecomputer.

3.Placethesystemonaﬂat,stablesurface.

©CopyrightLenovo201527

Replacingthekeyboardandmouse

Note:YourkeyboardwillbeconnectedtoaUSBconnectorateithersideorattherearofthecomputer.

Toreplacethekeyboard:

Step1.Removeanymedia(disks,CDs,ormemorycards)fromthedrives,shutdownthecomputer,and

turnoffallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Locatetheconnectorforthekeyboard.Referto“Sideviewofthecomputer”and“Rearviewof

thecomputer”.

Step4.Disconnectthedefectivekeyboardcablefromthecomputerandconnectthenewkeyboardcable

tothesameconnector.

Step5.Themousecanbereplacedusingthesamemethod.

Replacingtheadapter

Attention:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Step1.Removeanymedia(disks,CDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Disconnecttheadapterfromtheconnectoronthecomputer,thenunplugtheadapterfrom

electricaloutlet.

28LenovoAll-In-One300ComputerHardwareMaintenanceManual

Step3.Connectthenewadapterasshown.

Removingthestandbase

Attention:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthetouchscreenfromscratches

orotherdamage.

Step1.Removeanymedia(disks,CDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightviews”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Twistthehandscrewringcounter-clockwiseuntilthebasecomesloosetoreleasethestandbase

fromthestandholder.12

Step5.Slidethestandbaseoutfromtheholderthenputitaside.3

Step6.Referto“Installingthecomputerstand”toreinstallthestandbase.

Chapter8.Replacinghardware29

Removingthefootcover

Attention:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthetouchscreenfromscratches

orotherdamage.

Step1.Removeanymedia(disks,CDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightviews”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethefootbase.Referto“Removingthefootbase” .

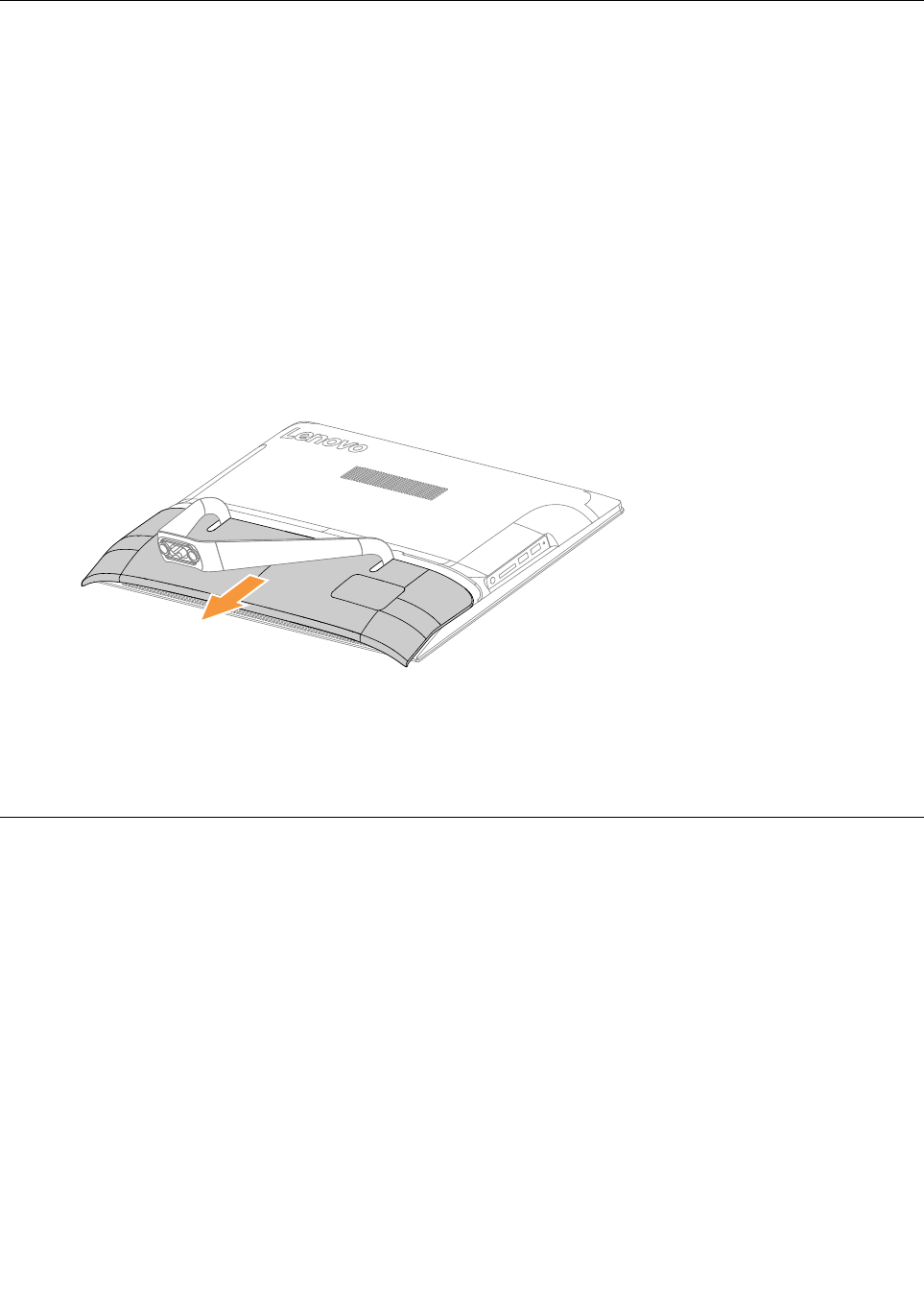

Step5.Liftupthestandholderthenslideoutthefootcoverasshown.

Step6.Toreattachthefootcover:

a.Liftupthestandholder.

b.Lineupthefootcoverwithmountingholesonthebackofthecomputer,thenslideitbackinto

position.

Replacingtheharddiskdrive

Attention:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthetouchscreenfromscratches

orotherdamage.

Step1.Removeanymedia(disks,CDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightviews”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

30LenovoAll-In-One300ComputerHardwareMaintenanceManual

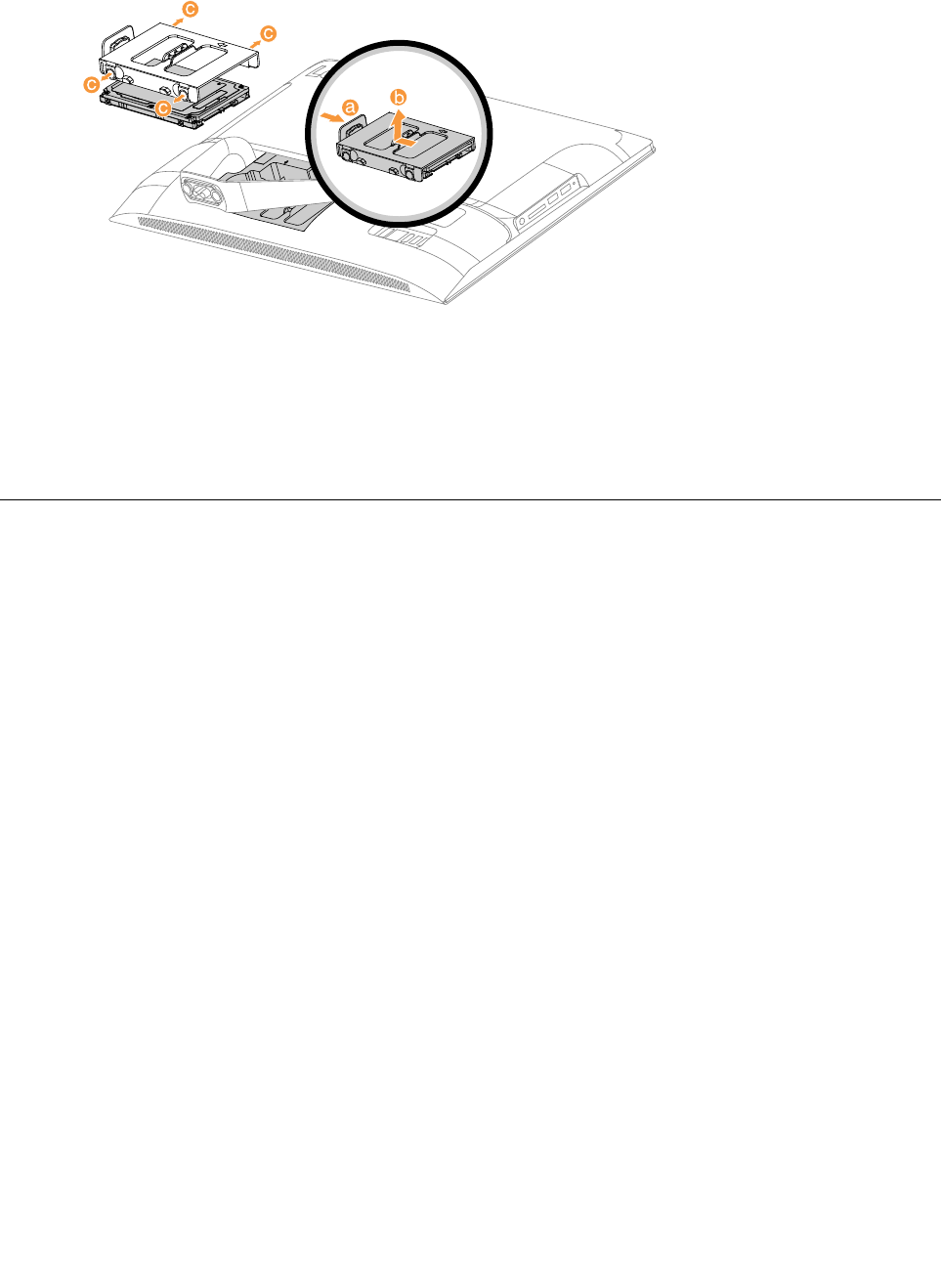

Step6.Liftouttheharddiskdriveandbracketasshown.Pushthelockpinsoutwardtoreleasethehard

diskdrivefromthebracket.

Step7.Toinstallthenewharddiskdrive:

a.Lineupthenewharddiskdrivewiththebracketandsecureitwiththepins.

b.Connectthedataandpowercablestothenewharddiskdrive.

c.Slidetheharddiskdriveandbracketbackintoposition.

Step8.Reattachthefootcoverandstandbase.

Replacingtheopticaldrive

Attention:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthetouchscreenfromscratches

orotherdamage.

Step1.Removeanymedia(disks,CDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightviews”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Chapter8.Replacinghardware31

Step6.Locatetheopticalremovalnotch,andthenuseascrewdriverpushtheopticaldriveout.

Step7.Pushasmallironstick(paperclip)intothesmallholeontheopticaldrivecoversothatthedisk

springsoutasshown.

Step8.Removethe2screwsthatsecuretheopticaldrivetothemetalbracket.1

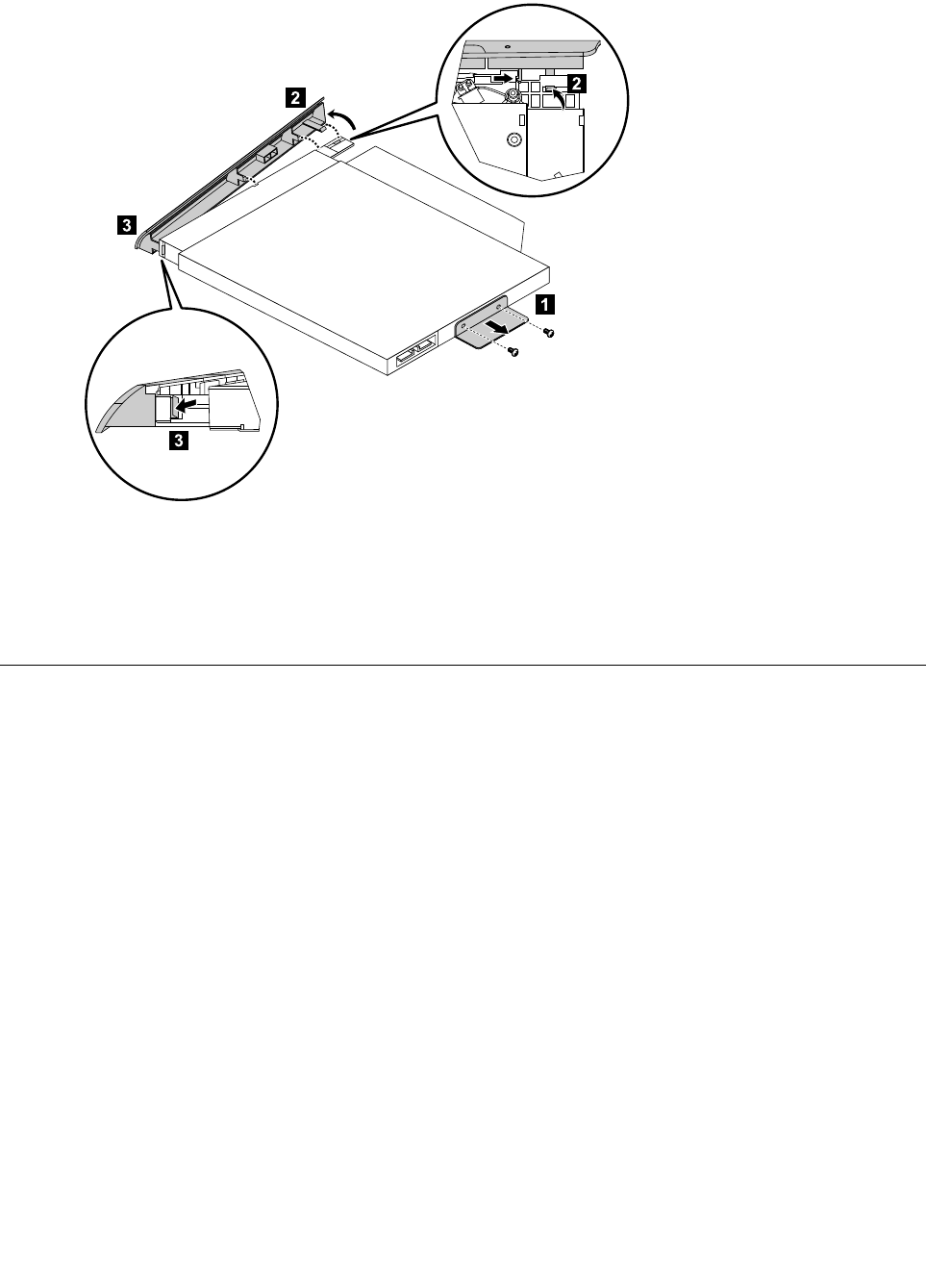

Step9.Useasmallﬂatheadscrewdrivertopressandpushoutthepinsthatsecurethecovertothe

disk.23

32LenovoAll-In-One300ComputerHardwareMaintenanceManual

Step10.Separatethecoverfromthedefectiveopticaldrive.

Step11.Toinstallthenewopticaldrive:

a.Alignthenewopticaldrivewiththecover,andthenpushthecoverbackintoposition.

b.Slidethenewopticaldriveintothedrivebay.

Step12.Reattachthefootcoverandstandbase.

Removingthestandholder

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

Toremovethestandholder:

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethefourscrewsthatsecurethestandholdertothechassis,thenliftupthestandholderto

removeit.

Chapter8.Replacinghardware33

Step7.Toreattachthestandholder:

a.Aligntheholesonthestandholderwithmountingholesonthechassis,placethestand

holderbackintoposition.

b.Securethestandholdertothechassiswiththefourscrews.

Step8.Lineupthefootcoverwithmountingholesonthebackofthecomputer,thenslideitbackinto

position.

Step9.Reattachthestandbase.

Removingtherearcover

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

Toremovetherearcover:

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethehinge.Referto“Removingthehinge” .

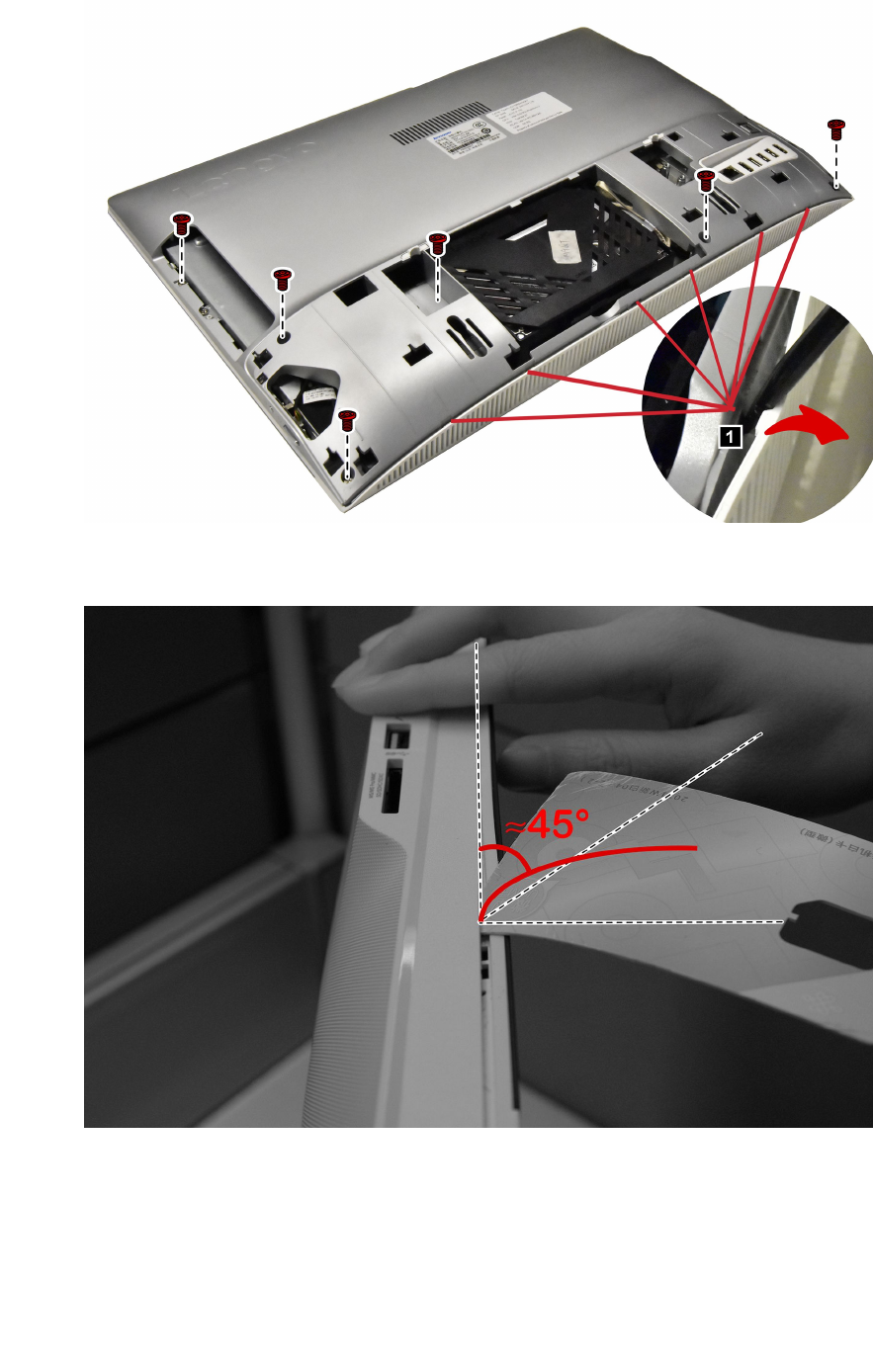

Step7.Removethesixscrewsthatsecuretherearcovertothechassis.Usetheﬂatheadofaspudgerto

priesoutthemiddlecoverasshown.1

34LenovoAll-In-One300ComputerHardwareMaintenanceManual

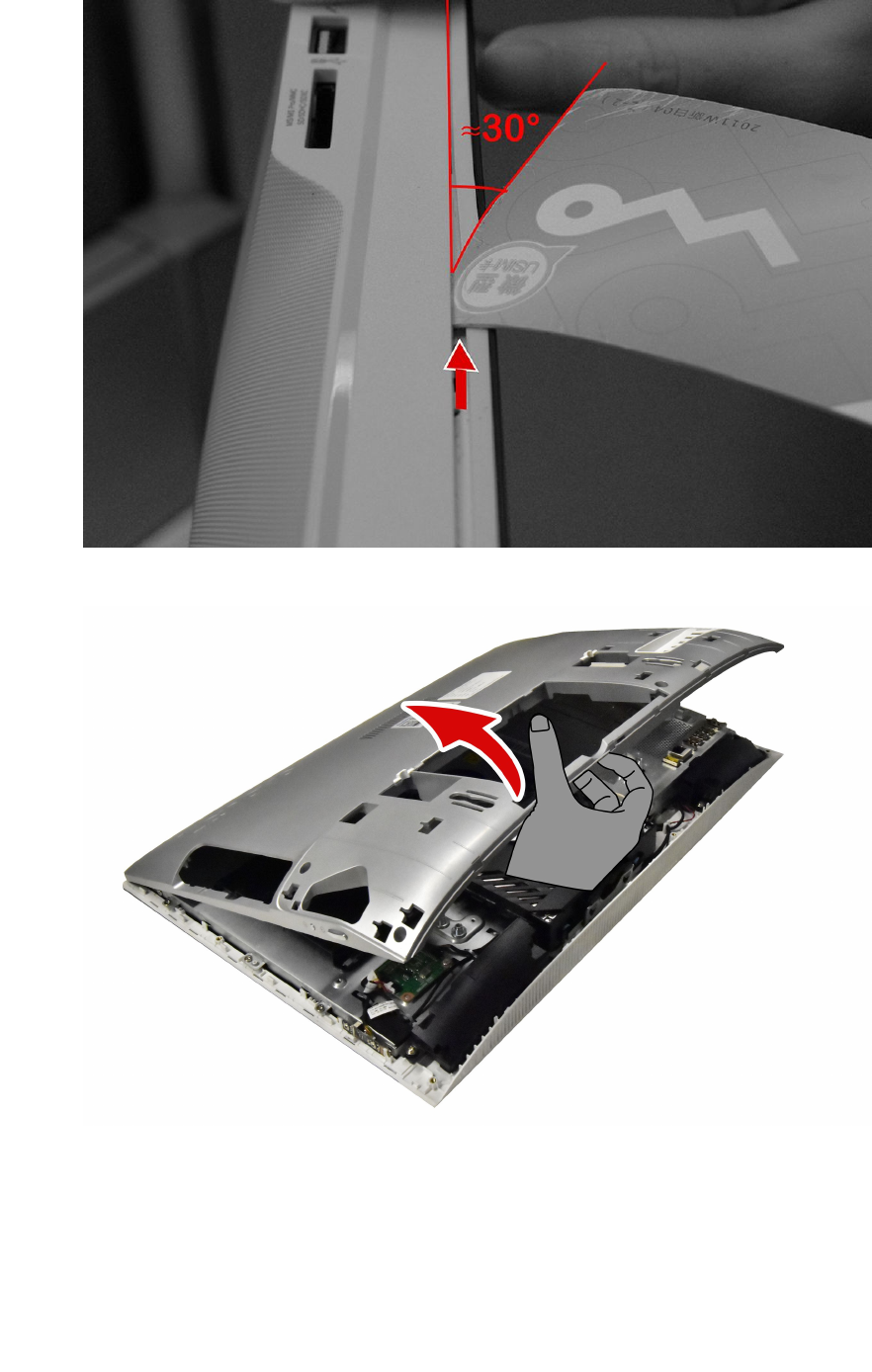

Step8.Useamylarsheetinsertintotheslotin-betweentherearcoverandfrontbezel,bestpractice

insertangelis45°angelasshown.

Step9.Sweepalongtheside,bestpracticesweepangeliskeepthesidelineofthemylarsheetand

theslotlineina30°angelasshown.

Chapter8.Replacinghardware35

Step10.Liftupthemiddlecoverasshowntoremoveit.

Step11.Toreattachtherearcover:

a.Lineuptherearcoverwithchassis,thenplacetherearcoverback.

b.Securetherearcovertothechassiswiththesixscrews.

Step12.Reattachthehinge,footcoverandstandbase.

36LenovoAll-In-One300ComputerHardwareMaintenanceManual

RemovingtheEMIcover

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

ToreplacetheEMIcover

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethehinge.Referto“Removingthehinge” .

Step7.Removetherearcover.Referto“Removingtherearcover” .

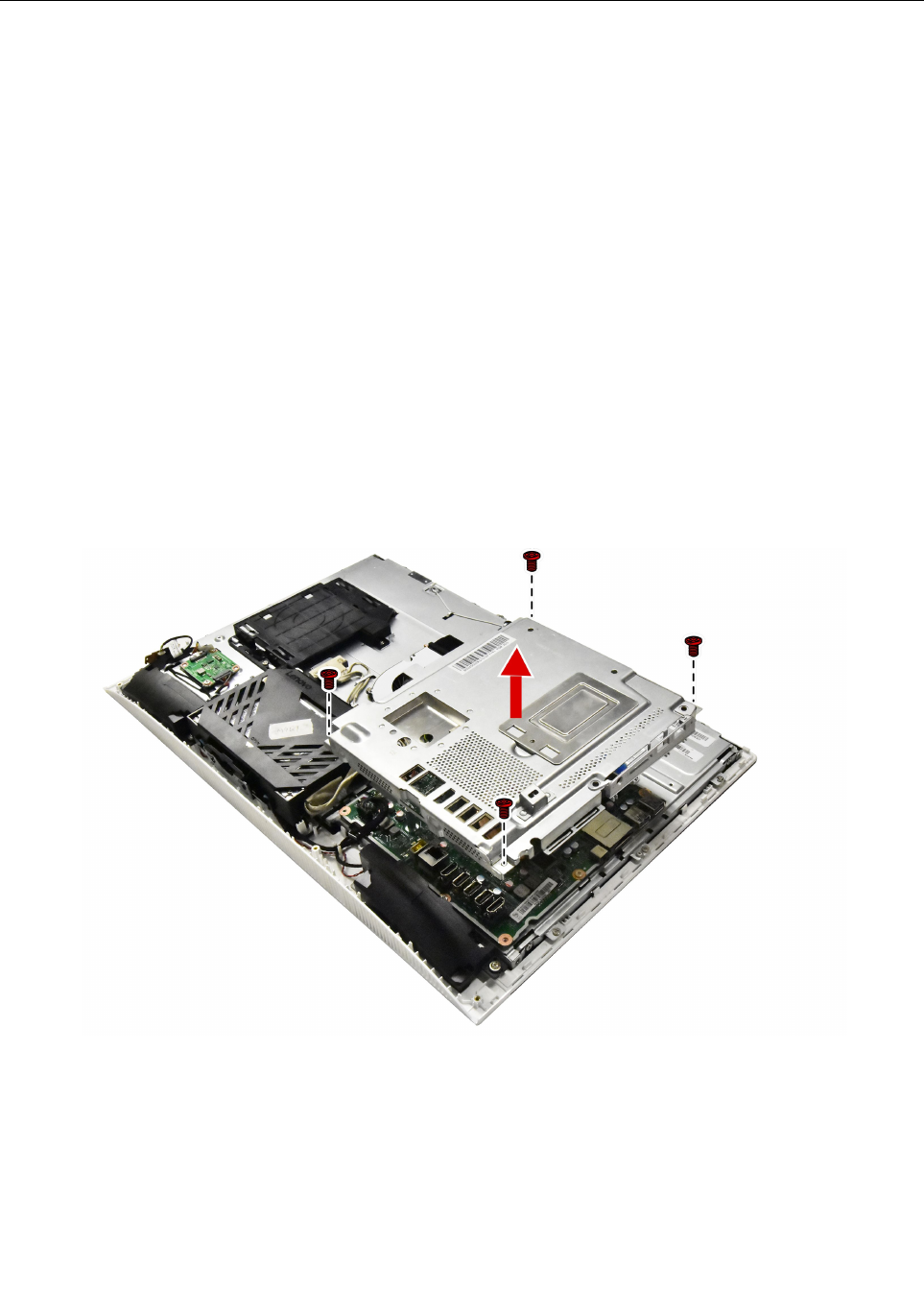

Step8.RemovethefourscrewsthatsecuretheEMIcovertothechassis,andthenliftitup.

Step9.ToreattachtheEMIcover:

a.LineuptheholesontheEMIcoverwithmountingholesonthechassis,thenplaceEMIcover

backintoposition.

b.SecuretheEMIcovertothechassiswithfourscrews.

Step10.Reattachtherearcover,hinge,footcoverandstandbase.

Chapter8.Replacinghardware37

Replacingthepowerswitchboard

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

Toreplacethepowerswitchboard

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethehinge.Referto“Removingthehinge” .

Step7.Removetherearcover.Referto“Removingtherearcover” .

Step8.Pushthelockingpinoutwardtoreleasethepowerswitchboard,thenliftupthepowerswitch

boardtoremoveit.

Step9.Disconnectthedatacablefromthepowerswitchboard.

Step10.Toinstallthepowerswitchboard:

a.Connectthecabletothenewpowerswitchboard.

b.Attachthenewpowerswitchboardtothechassis.

c.Securethepowerswitchboardwiththelockingpins.

Step11.Reattachtherearcover,hinge,footcoverandstandbase.

38LenovoAll-In-One300ComputerHardwareMaintenanceManual

Replacingtheconverterboard

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

Toreplacetheconverterboard:

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethehinge.Referto“Removingthehinge” .

Step7.Removetherearcover.Referto“Removingtherearcover” .

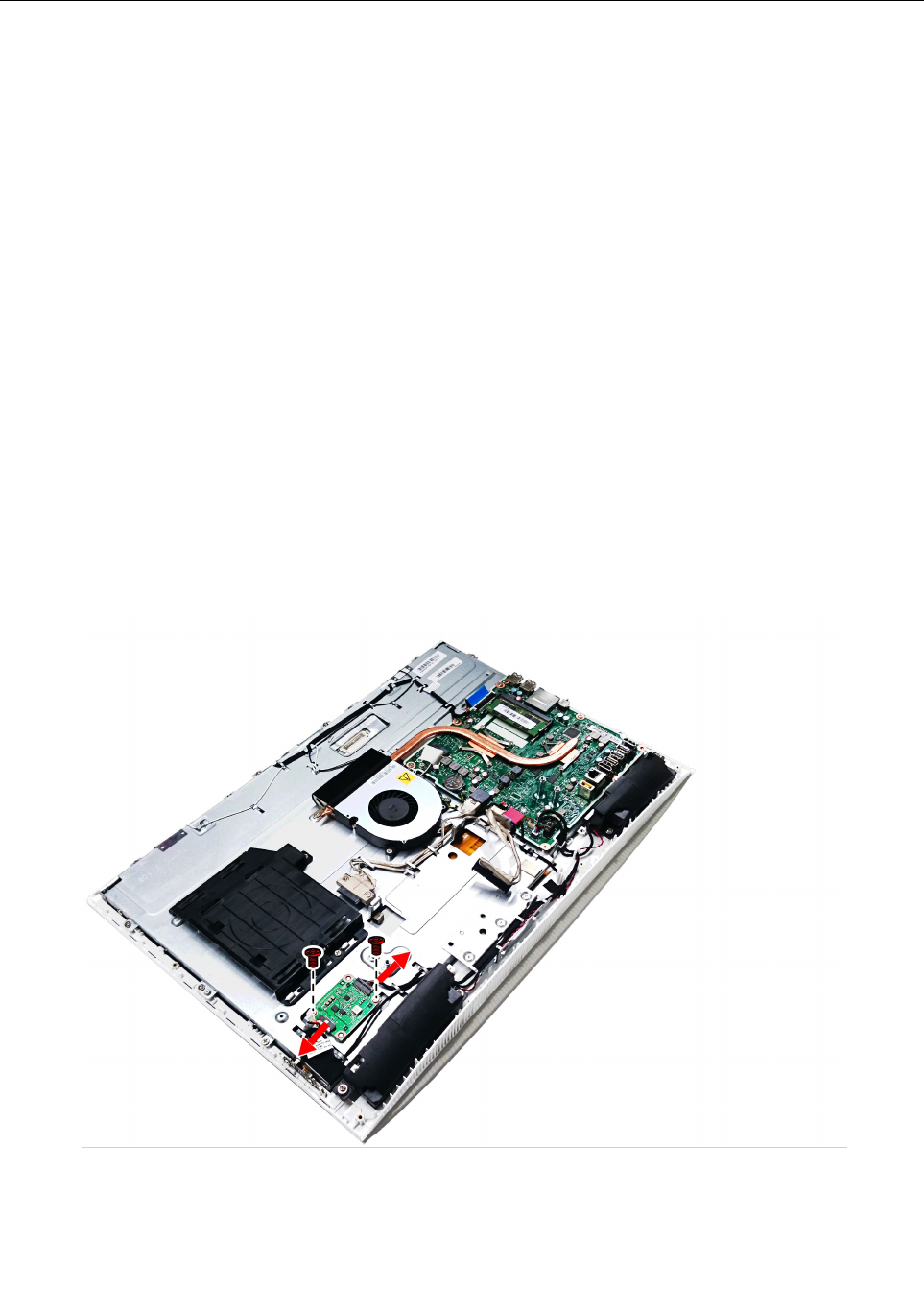

Step8.Disconnectthetwocablesfromtheconverter,andthenremovethetwoscrewsthatsecurethe

converterboardtothechassis.

Step9.Liftuptheconverterboardtoremoveit.

Step10.Toinstallthenewconverterboard:

a.Connectthetwocablestothenewconverterboard.

b.Alignthenslidethenewconverterboardintoposition.

Chapter8.Replacinghardware39

c.Securethenewconverterboardwiththetwoscrews.

Step11.Reattachtherearcover,hinge,footcoverandstandbase.

Replacingthememorymodule

Attention:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthetouchscreenfromscratches

orotherdamage.

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethehinge.Referto“Removingthehinge” .

Step7.Removetherearcover.Referto“Removingtherearcover” .

Step8.RemovetheEMIcover.Referto“RemovingtheEMIcover” .

Step9.Pushoutthelatchesonbothsidesofthememorysockettoreleasethememorymoduleandgently

pullthememorymoduleupwardtoremoveitfromitssocket.

Step10.Toinstallthenewmemorymodule:

a.Alignthenewmemorymodulewiththememorysocket,theninsertitandpushdownonthe

topedge.Makesurethelatcheslockthememorymoduleinplace.

40LenovoAll-In-One300ComputerHardwareMaintenanceManual

Step11.ReattachtheEMIcover,rearcover,hinge,footcoverandstandbase.

Replacingthesystemfan

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

Toreplacethesystemfan

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethehinge.Referto“Removingthehinge” .

Step7.Removetherearcover.Referto“Removingtherearcover” .

Step8.RemovetheEMIcover.Referto“RemovingtheEMIcover” .

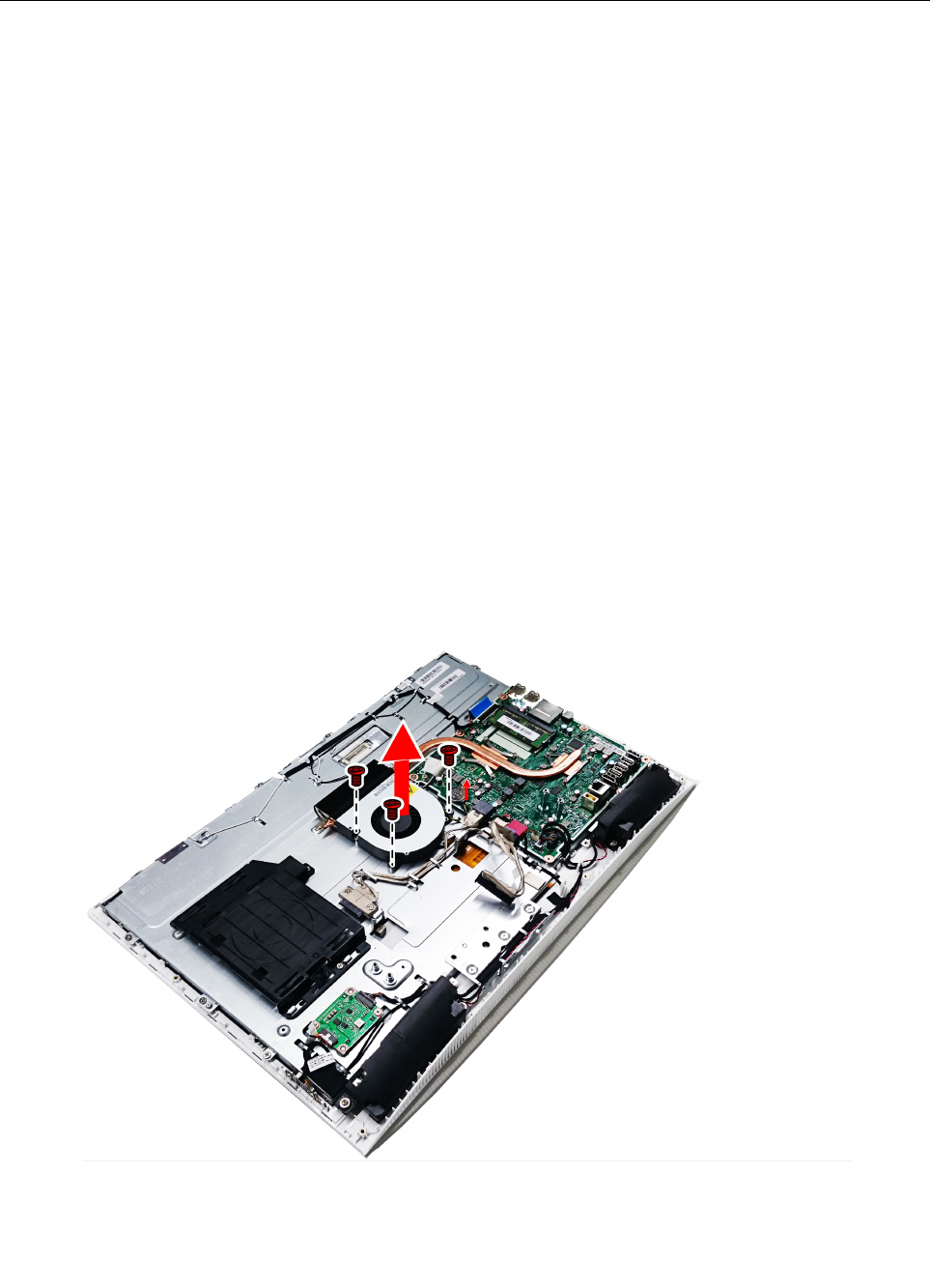

Step9.Removethethreescrewsthatsecurethesystemfantothechassis.

Step10.Disconnectthepowercablefromthemotherboard.

Step11.Liftupthesystemfantoremoveit.

Step12.Toinstallthenewsystemfan:

a.Placethenewsystemfanintoposition,andthensecureittothechassiswiththreescrews.

Chapter8.Replacinghardware41

b.Connectthesystemfanpowercabletotheconnectoronthemotherboard.

Step13.ReattachtheEMIcover,rearcover,hinge,footcoverandstandbase.

Replacingtheheat-sink

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

Toreplacetheheat-sink:

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethehinge.Referto“Removingthehinge” .

Step7.Removetherearcover.Referto“Removingtherearcover” .

Step8.RemovetheEMIcover.Referto“RemovingtheEMIcover” .

42LenovoAll-In-One300ComputerHardwareMaintenanceManual

Step9.Removethescrewsthatsecuretheheat-sinktothemotherboardandchassis.

Step10.Slidethenliftuptheheat-sinktoremoveit.

Attention:Placetheheat-sinkupsidedownonaﬂatsurfacetopreventthermalgreasefromcontaminating

othercomponents.

Attention:UseanalcoholpadtowipethethermalgreaseofftheCPU.

Step11.Toinstallthenewheat-sink:

a.Lineupthenewheat-sinkwithmountingholesonthemotherboard,thenplaceitintoposition.

b.Followthenumbersprintedonthenewheat-sinktosecureitinorderusingthescrews.

c.Usethesealingtapetosealthegapin-betweenthesystemfanandheat-sink.

Step12.ReattachtheEMIcover,rearcover,hinge,footcoverandstandbase.

Replacingthespeakersystem

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

Toreplacethespeakersystem:

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Chapter8.Replacinghardware43

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethehinge.Referto“Removingthehinge” .

Step7.Removetherearcover.Referto“Removingtherearcover” .

Step8.RemovetheEMIcover.Referto“RemovingtheEMIcover” .

Step9.Disconnectthespeakercablesfromtheconnectoronthemotherboard.

Step10.Removethefourscrewsthatsecurethespeakersystemtothechassis,thenliftupthespeaker

systemtoremoveit.

Step11.Toinstallthenewspeakersystem:

a.Placethenewspeakersystemintoposition,thensecureitwithfourscrews.

b.Connectthenewspeakercablestotheconnectoronthemotherboard.

Step12.ReattachtheEMIcover,rearcover,hinge,footcoverandstandbase.

ReplacingtheWi-Ficard

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

ToreplacetheWi-Ficard:

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

44LenovoAll-In-One300ComputerHardwareMaintenanceManual

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethehinge.Referto“Removingthehinge” .

Step7.Removetherearcover.Referto“Removingtherearcover” .

Step8.RemovetheEMIcover.Referto“RemovingtheEMIcover” .

Step9.DisconnecttheantennacablesfromtheWi-Ficard.

Step10.RemovethescrewthatsecurestheWi-Ficardtothemotherboard.

Step11.LiftuptheWi-Ficardtoremoveitfromthesocket.

Step12.ToinstallthenewWi-Ficard:

a.InsertthenotchedendoftheWi-Ficardintothecardportonthemotherboard.

b.SecurenewtheWi-Ficardtothemotherboardwiththescrew.

c.ConnecttheantennacablestothenewWi-Ficard.

Step13.ReattachtheEMIcover,rearcover,hinge,footcoverandstandbase.

Replacingthemotherboard

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

Chapter8.Replacinghardware45

Toreplacethemotherboard:

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethefootcover.Referto“Removingthefootcover” .

Step5.Removethehinge.Referto“Removingthehinge” .

Step6.Removetheopticaldrive.Referto“Replacingtheopticaldrive” .

Step7.Removetherearcover.Referto“Removingtherearcover” .

Step8.RemovetheEMIcover.Referto“RemovingtheEMIcover” .

Step9.Removethememorymodules.Referto“Replacingamemorymodule” .

Step10.Removetheheat-sink.Referto“Replacingtheheat-sink” .

Step11.RemovetheWi-Ficard.Referto“ReplacingtheWi-Ficard” .

Step12.Removeallthecablesfromthemotherboard.

46LenovoAll-In-One300ComputerHardwareMaintenanceManual

Step13.Removetheﬁvescrewsthatsecurethemotherboardtothechassisandliftthemotherboard

uptoremoveit.

Step14.Toinstallthenewmotherboard:

a.Lineuptheholesonthenewmotherboardwiththemountingholeschassisandplacethenew

motherboardintoposition.

b.Usethescrewstosecurethenewmotherboardtothechassis.

c.Connectallthecablestothenewmotherboard.

Step15.Installthefollowingpartstothenewmotherboard:

•Wi-Ficard

•Heat-sink

•Memorymodule

Step16.ReattachtheEMIcover,rearcover,hinge,footcoverandstandbase.

Replacingthecamera

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

Toreplacethecamera:

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Chapter8.Replacinghardware47

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removetheopticaldrive.Referto“Replacingtheopticaldrive” .

Step7.Removethehinge.Referto“Removingthehinge” .

Step8.Removetherearcover.Referto“Removingtherearcover” .

Step9.Removethetwoscrewsthatsecurecameratothefrontbezel.

Step10.Disconnectthecameradatacablefromtheconnectoronthecamera.

Step11.Toinstallthenewcamera:

a.Connectthedatacabletothenewcamera.

b.Placethenewcameraintoposition,securethecameratothefrontbezelwiththetwoscrews.

Step12.Reattachtherearcover,opticaldrive,hinge,footcoverandstandbase.

ReplacingtheLCDpanelmodule

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

ToreplacetheLCDpanelmodule:

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

48LenovoAll-In-One300ComputerHardwareMaintenanceManual

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethehinge.Referto“Removingthestandhinge” .

Step7.Removetheharddiskdrive.Referto“Replacingharddiskdrive”.

Step8.Removetheopticaldrive.Referto“Replacingtheopticaldrive” .

Step9.Removetherearcover.Referto“Removingtherearcover” .

Step10.Removetheopticaldrivehousing.Referto“Removingtheopticaldrivehousing”.

Step11.Removethepowerswitchboard.Referto“Replacingthepowerswitchboard”.

Step12.Removetheconverterboard.Referto“Replacingtheconverterboard”.

Step13.RemovetheEMIcover.Referto“RemovingtheEMIcover” .

Step14.Removethememorymodule.Referto“Replacingamemorymodule”.

Step15.RemovetheWi-Ficard.Referto“ReplacingtheWi-Ficard”.

Step16.Removetheheat-sink.Referto“Replacingtheheat-sink”.

Step17.Removethesystemfan.Referto“Replacingthesystemfan”.

Step18.Removethespeakersystem.Referto“Replacingthespeakersystem” .

Step19.Removethemotherboard.Referto“Replacingthemotherboard”.

Step20.Removethecamera.Referto“Replacingthecamera” .

Step21.Removetheopticalandharddiskdriveconnectorasshown.

Step22.RemovetheWi-Fiantennaasshown.

Chapter8.Replacinghardware49

Step23.Removethetouchcontrolcableasshown.

Step24.RemovetheLCDmoduleasshown.

50LenovoAll-In-One300ComputerHardwareMaintenanceManual

Step25.ToinstallthenewtheLCDpanelmodule:

ThenewLEDpanelmoduleincluding:1.LEDpanel

2.LVDScable

3.Touchcontrolboard(Touchmodelonly)

4.LCDtoconvertercable

5.Panelglass

6.Frontbezel

a.AttachthemotherboardtothenewLCDmodule.

b.Attachtheheat-sinktothemotherboard,andsecuretheheat-sinkwiththeeightscrews.

c.Lineuptheopticaldriveconnectorwithmountingholesonthechassis,andthensecure

connectorwiththetwoscrews.

d.ConnecttheopticaldriveandharddiskdriveSATAcableandpowercabletotheconnectors

onthemotherboard.

e.AttachtheWi-FiAntennatothenewLCDmodule,andconnecttotheWi-Ficard.

f.AttachthecameratothenewLCDmodule.

g.Connectthecameracabletotheconnectoronthemotherboard.

h.AttachtheconvertertothenewLCDmodule.

i.Connecttheconvertercabletotheconnectoronthemotherboard.

j.AttachthefantothenewLCDmodule,andconnectthefanpowercabletotheconnector

onthemotherboard.

k.AttachthepowerswitchboardtothenewLCDmodule,andconnectthepowercableto

theconnectoronthemotherboard.

l.AttachthespeakertothenewLCDmodule,andconnectthespeakercabletothemotherboard.

m.Connectthetouchcabletotheconnectorsonthemotherboardandtouchcontrolboardon

thenewLCDpanel.

Chapter8.Replacinghardware51

n.ConnecttheLVDScabletotheconnectoronthemotherboard.

o.AttachtheEMIcovertothenewLCDmodule.

p.LineuptheopticalhousingwiththeguidetrackontheLCDmodule,thenslidethehousing

intopositionandsecurethehousingwiththethreescrews.

q.AttachtheharddiskdrivetothenewLCDmodule.

r.SecuretherearcovertothenewLEDmodulewiththesixscrews.

s.Attachthehingetothechassisandsecureitwiththefourscrews.

t.Lineupthefootcoverwithrearcover,thenslidethefootcoverintoposition.

Step26.Reattachthestandbasewithhinge.

ReplacingtheLCDpanelmodule-NoneT ouch

Note:Turnoffthecomputerandwait3to5minutestoletitcooldownbeforeremovingthecover.

Note:Itmaybehelpfultoplacethecomputerface-downonasoftﬂatsurfaceforthisprocedure.Lenovo

recommendsthatyouuseablanket,towel,orothersoftclothtoprotectthecomputerscreenfromscratches

orotherdamage.

ToreplacetheLCDpanelmodule:

Step1.Removeanymedia(disks,CDs,DVDs,ormemorycards)fromthedrives,shutdowntheoperating

system,andturnoffthecomputerandallattacheddevices.

Step2.Unplugallpowercordsfromelectricaloutlets.

Step3.Disconnectallcablesattachedtothecomputer.Thisincludespowercords,input/output(I/O)

cables,andanyothercablesthatareconnectedtothecomputer.Referto“Leftandrightview”

and“Rearview”forhelpwithlocatingthevariousconnectors.

Step4.Removethestandbase.Referto“Removingthestandbase” .

Step5.Removethefootcover.Referto“Removingthefootcover” .

Step6.Removethehinge.Referto“Removingthestandhinge” .

Step7.Removetheharddiskdrive.Referto“Replacingharddiskdrive”.

Step8.Removetheopticaldrive.Referto“Replacingtheopticaldrive” .

Step9.Removetherearcover.Referto“Removingtherearcover” .

Step10.Removethepowerswitchboard.Referto“Replacingthepowerswitchboard”.

Step11.Removetheconverterboard.Referto“Replacingtheconverterboard”.

Step12.RemovetheEMIcover.Referto“RemovingtheEMIcover” .

Step13.Removethespeakersystem.Referto“Replacingthespeakersystem” .

Step14.Removethecamera.Referto“Replacingthecamera” .

Step15.Removetheseventeenscrewsthatsecurethechassistothefrontbezel.

52LenovoAll-In-One300ComputerHardwareMaintenanceManual

Step16.RemovethefourscrewsthatsecuretheLCDpaneltothechassis,disconnecttheLVDScablefrom

themotherboard,thenliftupthechassistoremoveit.

Chapter8.Replacinghardware53

Step17.RemovetheLVDScablefromtheconnectorontheLCD,thenliftuptheLCDpanelfromthe

frontbezel.

Step18.ToinstallthenewtheLCDpanelmodule:

ThenewLEDpanelmoduleincluding:1.LEDpanel

2.Convertercable

a.AlignthenewLCDpanelwithfrontbezel,thenplacethenewLCDintoposition.

b.AttachtheLVDScabletotheconnectoronthenewLCDpanel.

c.Alignthechassiswiththefrontbezel,thenplacethechassisintopositionandsecureitwith

seventeenscrews.

d.ConnecttheLVDScabletothemotherboard.

e.Reattachthecameratothefrontbezel.

f.Reattachtheconvertertothefrontbezel.

g.Reattachthepowerswitchboardtothefrontbezel.

h.AttachtheEMIcovertothechassis.

i.Reatherearcovertothechassiswiththesixscrews.

j.Attachtheharddiskdrivetothechassis.

k.Attachthehingetothechassisandsecureitwiththefourscrews.

l.Lineupthefootcoverwithrearcover,andslidethefootcoverintoposition.

Step19.Reattachthestandbasewithhinge.

54LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter9.FRUlists

Thischapterliststheinformationontheﬁeldreplaceableunits(FRUs)forideacentreAll-In-One300–22ACL

desktopcomputer.

Attention:BesuretoreadandunderstandallthesafetyinformationbeforereplacinganyFRUs.

Notes:FRUsthathavea1or2intheCRUcolumnareCustomerReplaceableUnits(CRUs).

•1–identiﬁespartsthatarefairlysimpletoreplace,requiringfewornotools.

•2–identiﬁespartsthatareslightlymoredifﬁculttoreplace.

•N-identiﬁespartsthatarenottobereplacedbythecustomer.

FruP/NDescriptionBasicName

54Y8917CRU,CMN90WCommonadapterAC_ADAPTER

54Y8966AC_ADAPTER,90W,100-240V,3PAC_ADAPTER

54Y8925AC_ADAPTER,120W,100-240V,3PAC_ADAPTER

00XD116WLAN,AIO300-23ACLANTENNA

00UW123MB,A4,UMA,HDMIIN,WINDPKBDPLANAR

00UW124MB,E1,UMA,HDMIIN,NODPKBDPLANAR

00UW125MB,E1,UMA,HDMIIN,WINDPKBDPLANAR

00UW113MBA6UMAWINDPKBDPLANAR

00UW114MBA4UMANODPKBDPLANAR

00UW126MB,A6,1G,NODPKBDPLANAR

00UW112MBA6UMANODPKBDPLANAR

00UW135MB,A6,2G,WINDPKBDPLANAR

00UW134MB,A6,2G,NODPKBDPLANAR

00UW131MB,E2,1G,WINDPKBDPLANAR

00UW133MB,A8,2G,WINDPKBDPLANAR

00UW132MB,A8,2G,NODPKBDPLANAR

00UW119MBE1UMAWINDPKBDPLANAR

00UW118MBE1UMANODPKBDPLANAR

00UW117MBE2UMAWINDPKBDPLANAR

00UW116MBE2UMANODPKBDPLANAR

00UW122MB,A4,UMA,HDMIIN,NODPKBDPLANAR

00UW121MB,A6,UMA,HDMIIN,WINDPKBDPLANAR

00UW120MB,A6,UMA,HDMIIN,NODPKBDPLANAR

00UW128MB,A4,1G,NODPKBDPLANAR

00UW127MB,A6,1G,WINDPKBDPLANAR

00UW130MB,E2,1G,NODPKBDPLANAR

00UW129MB,A4,1G,WINDPKBDPLANAR

©CopyrightLenovo201555

FruP/NDescriptionBasicName

00UW115MBA4UMAWINDPKBDPLANAR

31038885LWBLK1.0mTaiwanC5powercord(R)CABLE

31049498Volex1.0MC5KORpowercordCABLE

00XD574CVTER_MB_C51CABLE

31049499Volex1.0MC5TWpowercordCABLE

31033857LWBLK1.0m3wireULCSApowercord(R)CABLE

31035828LWBLK1.0mBrazilpowercord(R)CABLE

31049501Volex1.0MC5SApowercordCABLE

00XD617CVTER_MB_C41CABLE

31049502Volex1.0MC5ISIpowercordCABLE

31039103LWBLK1.0mSwitzerlandC5powercord(R)CABLE

00XD616CVTER_PANEL_LG_IPS,C41CABLE

31049504Volex1.0MC5ITYpowercordCABLE

31039100LWBLK1.0mArgentinaC5powercord(R)CABLE

31035395LWBLK1.0mIndiapowercord(R)CABLE

31033858VLBLK1.0m3wireULCSApowercord(R)CABLE

31049496Volex1.0MC5UKpowercordCABLE

31049500Volex1.0MC5ANZpowercordCABLE

00XD620LVDS_LG_IPS,C41CABLE

31049517LX(ASAP)1.0MC5ULpowercordCABLE

31039105LWBLK1.0mSAC5powercord(R)CABLE

00XD613CVTER_PANEL_LGE,C41CABLE

00XD618LVDS_LG,C41CABLE

31049518LX(ASAP)1.0MC5EUpowercordCABLE

00XD619LVDS_Samsung_AUO,C41CABLE

31049497Volex1.0MC5EUpowercordCABLE

31039101LWBLK1.0mDenmarkC5powercord(R)CABLE

31039104LWBLK1.0mItalyC5powercord(R)CABLE

31035397LWBLK1.0mANZpowercord(R)CABLE

31035396LWBLK1.0mUKpowercord(R)CABLE

31045147LX(ASAP)1.0MC5CCCpowercordCABLE

31039106LWBLK1.0mKoreaC5powercord(R)CABLE

31032953GSBLK1.0m3wireCCCpowercord(R)CABLE

00XD169POWERSWITCHCABLE,C51CABLE

31049520LX(ASAP)1.0MC5ANZpowercordCABLE

00XD105SATA_HDD_ODD_PowerCABLE

31049508Volex1.0MC5SWIpowercordCABLE

31049507Volex1.0MC5LApowercordCABLE

31039107LWBLK1.0mIsraelC5powercord(R)CABLE

56LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

31049505Volex1.0MC5BRpowercordCABLE

00XD614CVTER_PANEL_SAMSUNG,C41CABLE

31049503Volex1.0MC5DENpowercordCABLE

31035332LWBLK1.0mVDEpowercord(R)CABLE

00XD615CVTER_PANEL_AUO,C41CABLE

01AH311AVCC5130720P1MICZCAMCAMERA

00PC416BisonCM720P5838Hi16512D1DMCAMERA

00PC412AVCCM720P5838Hi16512D1DMCAMERA

00PC420LTCM720P5840Hi162C12D1DMCAMERA

01AJ763SwitchboardwithHDMIINC51CARDPOP

01AJ750SwithBoardC5105CARDPOP

01AJ751SSDCONNECTBOARDMPCARDPOP

00XD579SliderCoverBlack,nHDMIIn,C41COVER

00XD580SliderCoverWhite,nHDMIIn,C41COVER

00XD581SliderCoverBlack,HDMIIn,C41COVER

00XD582SliderCoverWhite,HDMIIn,C41COVER

18200835AUOM215HTN01.1DISPLAY

00PC202DT_KYB,DOK5321(US)W-SilkUSB,USDT_KYB

00PC201DT_KYB,DOK5321(US)B-SilkUSB,USDT_KYB

00PC723FAN90x15mmSysfanforS5130FAN

16200688STGrenadaBP2ST1000DM0031TBHDDHDD_ASM

16200544WDXL500AWD5000AAKX-08U6AA0500GHDD-LHHDD_ASM

45K0629HDD,500G,7200,DT3,SATA3,STDHDD_ASM

45K0623HDD,1TB,7200,DT3,SATA3,STDHDD_ASM

16200613WDXL1000BWD10EZEX-08M2NA01TBHDDHDD_ASM

16200674STPharaoh4KNon-MCST500DM002500GHDDHDD_ASM

16200513TSBMars4K1TBDT01ACA100-LHHDD_ASM

16200512TSBMars4K500GDT01ACA050-LHHDD_ASM

00XD072HEATSINKAMDDISHEATSINK

00XD073HEATSINKAMDUMAHEATSINK

25210994LiteonSK-8861(GB)2.4GKB-White8KYB_MOUSE

25209112PrimaxKB4721(US)B-SilkUSBKB-LVT8KYB_MOUSE

25209201LiteonSK-8861(PT)2.4GKB-Black8KYB_MOUSE

25209194LiteonSK-8861(FR)2.4GKB-Black8KYB_MOUSE

25209151SunrexEKB-10YA(RU)W-SilkUSBKB-LVT8KYB_MOUSE

25209127SunrexEKB-10YA(SL)B-SilkUSBKB-LVT8KYB_MOUSE

25211011LiteonSK-8861(JP)2.4GKB-White8KYB_MOUSE

25209162SunrexEKB-10YA(HB)W-SilkUSBKB-LVT8KYB_MOUSE

25209149SunrexEKB-10YA(CZ-SL)W-SUSBKB-LVT8KYB_MOUSE

Chapter9.FRUlists57

FruP/NDescriptionBasicName

25211009LiteonSK-8861(BG)2.4GKB-White8KYB_MOUSE

25211002LiteonSK-8861(ES)2.4GKB-White8KYB_MOUSE

25209130SunrexEKB-10YA(FR)B-SilkUSBKB-LVT8KYB_MOUSE

25209153SunrexEKB-10YA(Nordic)W-SUSBKB-LVT8KYB_MOUSE

25209161SunrexEKB-10YA(IT)W-SilkUSBKB-LVT8KYB_MOUSE

25209182LiteonSK-8861(GB)2.4GKB-Black8KYB_MOUSE

25209172SunrexEKB-10YA(US-EU)W-SUSBKB-LVT8KYB_MOUSE

25209185LiteonSK-8861(LA-AR)2.4GKB-Black8KYB_MOUSE

25209192LiteonSK-8861(IT)2.4GKB-Black8KYB_MOUSE

25201068LiteonLXH-SM-8825W-SilkMouseKYB_MOUSE

25209155SunrexEKB-10YA(AR)W-SilkUSBKB-LVT8KYB_MOUSE

25209148SunrexEKB-10YA(TH)W-SilkUSBKB-LVT8KYB_MOUSE

25209159SunrexEKB-10YA(SP)W-SilkUSBKB-LVT8KYB_MOUSE

25211001LiteonSK-8861(TR)2.4GKB-White8KYB_MOUSE

25209200LiteonSK-8861(EN-FR)2.4GKB-Black8KYB_MOUSE

25209135SunrexEKB-10YA(JP)B-SilkUSBKB-LVT8KYB_MOUSE

25209128SunrexEKB-10YA(IT)B-SilkUSBKB-LVT8KYB_MOUSE

25211007LiteonSK-8861(GR)2.4GKB-White8KYB_MOUSE

25209157SunrexEKB-10YA(GE)W-SilkUSBKB-LVT8KYB_MOUSE

25210998LiteonSK-8861(SA)2.4GKB-White8KYB_MOUSE

25211014LiteonSK-8861(BE-EN)2.4GKB-White8KYB_MOUSE

25210995LiteonSK-8861(Nordic)2.4GKB-White8KYB_MOUSE

25203464LiteonSM-8861(WW)MouseBlackKYB_MOUSE

25211015LiteonSK-8861(US-EU)2.4GKB-White8KYB_MOUSE

25211016LiteonSM-8861(WW)2.4GMouseWhiteKYB_MOUSE

25209132SunrexEKB-10YA(HG)B-SilkUSBKB-LVT8KYB_MOUSE

25209123SunrexEKB-10YA(SW)B-SilkUSBKB-LVT8KYB_MOUSE

25209195LiteonSK-8861(GR)2.4GKB-Black8KYB_MOUSE

25209111SunrexEKB-10YA(US)B-SilkUSBKB-LVT8KYB_MOUSE

25201322SunrexLXH-EMS-10ZAW-SilkMouseKYB_MOUSE

25209203LiteonSK-8861(US-EU)2.4GKB-Black8KYB_MOUSE

25209116SunrexEKB-10YA(CZ-SL)B-SUSBKB-LVT8KYB_MOUSE

25211003LiteonSK-8861(SL)2.4GKB-White8KYB_MOUSE

25209154SunrexEKB-10YA(LA)W-SilkUSBKB-LVT8KYB_MOUSE

25211004LiteonSK-8861(IT)2.4GKB-White8KYB_MOUSE

25209145SunrexEKB-10YA(US)W-SilkUSBKB-LVT8KYB_MOUSE

25209170SunrexEKB-10YA(PT)W-SilkUSBKB-LVT8KYB_MOUSE

25209179LiteonSK-8861(CS-SK)2.4GKB-Black8KYB_MOUSE

25209171SunrexEKB-10YA(BE-EN)W-SUSBKB-LVT8KYB_MOUSE

58LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

25209181LiteonSK-8861(RU)2.4GKB-Black8KYB_MOUSE

25210987LiteonSK-8861(US)2.4GKB-White8KYB_MOUSE

25209199LiteonSK-8861(JP)2.4GKB-Black8KYB_MOUSE

25209180LiteonSK-8861(US-IN)2.4GKB-Black8KYB_MOUSE

25210988LiteonSK-8861(US-MY)2.4GKB-White8KYB_MOUSE

25211006LiteonSK-8861(FR)2.4GKB-White8KYB_MOUSE

25209118SunrexEKB-10YA(RU)B-SilkUSBKB-LVT8KYB_MOUSE

25209115SunrexEKB-10YA(TH)B-SilkUSBKB-LVT8KYB_MOUSE

25210993LiteonSK-8861(RU)2.4GKB-White8KYB_MOUSE

25209190LiteonSK-8861(ES)2.4GKB-Black8KYB_MOUSE

25210992LiteonSK-8861(US-IN)2.4GKB-White8KYB_MOUSE

25209131SunrexEKB-10YA(GK)B-SilkUSBKB-LVT8KYB_MOUSE

25209146PrimaxKB4721(US)W-SilkUSBKB-LVT8KYB_MOUSE

25209167SunrexEKB-10YA(KR)W-SilkUSBKB-LVT8KYB_MOUSE

25210991LiteonSK-8861(CS-SK)2.4GKB-White8KYB_MOUSE

25209121SunrexEKB-10YA(LA)B-SilkUSBKB-LVT8KYB_MOUSE

25210990LiteonSK-8861(TH)2.4GKB-White8KYB_MOUSE

25209126SunrexEKB-10YA(SP)B-SilkUSBKB-LVT8KYB_MOUSE

25209196LiteonSK-8861(HU)2.4GKB-Black8KYB_MOUSE

25209156SunrexEKB-10YA(SW)W-SilkUSBKB-LVT8KYB_MOUSE

25209136SunrexEKB-10YA(EN-FR)B-SUSBKB-LVT8KYB_MOUSE

25209164SunrexEKB-10YA(GK)W-SilkUSBKB-LVT8KYB_MOUSE

25209188LiteonSK-8861(DE)2.4GKB-Black8KYB_MOUSE

25209184LiteonSK-8861(LA)2.4GKB-Black8KYB_MOUSE

25209152SunrexEKB-10YA(UK)W-SilkUSBKB-LVT8KYB_MOUSE

25209175LiteonSK-8861(US)2.4GKB-Black8KYB_MOUSE

25209165SunrexEKB-10YA(HG)W-SilkUSBKB-LVT8KYB_MOUSE

25209166SunrexEKB-10YA(BG)W-SilkUSBKB-LVT8KYB_MOUSE

25209117SunrexEKB-10YA(IN)B-SilkUSBKB-LVT8KYB_MOUSE

25210999LiteonSK-8861(CH)2.4GKB-White8KYB_MOUSE

25209137SunrexEKB-10YA(PT)B-SilkUSBKB-LVT8KYB_MOUSE

25209186LiteonSK-8861(SA)2.4GKB-Black8KYB_MOUSE

25209168SunrexEKB-10YA(JP)W-SilkUSBKB-LVT8KYB_MOUSE

25211013LiteonSK-8861(PT)2.4GKB-White8KYB_MOUSE

25209160SunrexEKB-10YA(SL)W-SilkUSBKB-LVT8KYB_MOUSE

25209119SunrexEKB-10YA(UK)B-SilkUSBKB-LVT8KYB_MOUSE

25209187LiteonSK-8861(CH)2.4GKB-Black8KYB_MOUSE

25209177LiteonSK-8861(TW)2.4GKB-Black8KYB_MOUSE

25209122SunrexEKB-10YA(AR)B-SilkUSBKB-LVT8KYB_MOUSE

Chapter9.FRUlists59

FruP/NDescriptionBasicName

25209138SunrexEKB-10YA(BE-EN)B-SUSBKB-LVT8KYB_MOUSE

25209120SunrexEKB-10YA(Nordic)B-SUSBKB-LVT8KYB_MOUSE

25209147SunrexEKB-10YA(TW)W-SilkUSBKB-LVT8KYB_MOUSE

25209134SunrexEKB-10YA(KR)B-SilkUSBKB-LVT8KYB_MOUSE

25209193LiteonSK-8861(IL)2.4GKB-Black8KYB_MOUSE

25209176LiteonSK-8861(US-MY)2.4GKB-Black8KYB_MOUSE

25209139SunrexEKB-10YA(US-EU)B-SUSBKB-LVT8KYB_MOUSE

25209191LiteonSK-8861(SL)2.4GKB-Black8KYB_MOUSE

25209197LiteonSK-8861(BG)2.4GKB-Black8KYB_MOUSE

25209183LiteonSK-8861(Nordic)2.4GKB-Black8KYB_MOUSE

25210996LiteonSK-8861(LA)2.4GKB-White8KYB_MOUSE

25209129SunrexEKB-10YA(HB)B-SilkUSBKB-LVT8KYB_MOUSE

25209198LiteonSK-8861(KR)2.4GKB-Black8KYB_MOUSE

25211012LiteonSK-8861(EN-FR)2.4GKB-White8KYB_MOUSE

25209178LiteonSK-8861(TH)2.4GKB-Black8KYB_MOUSE

25211010LiteonSK-8861(KR)2.4GKB-White8KYB_MOUSE

25209169SunrexEKB-10YA(EN-FR)W-SUSBKB-LVT8KYB_MOUSE

25211008LiteonSK-8861(HU)2.4GKB-White8KYB_MOUSE

25209158SunrexEKB-10YA(TR)W-SilkUSBKB-LVT8KYB_MOUSE

25210997LiteonSK-8861(LA-AR)2.4GKB-White8KYB_MOUSE

25210989LiteonSK-8861(TW)2.4GKB-White8KYB_MOUSE

25211005LiteonSK-8861(IL)2.4GKB-White8KYB_MOUSE

25209150SunrexEKB-10YA(IN)W-SilkUSBKB-LVT8KYB_MOUSE

25209163SunrexEKB-10YA(FR)W-SilkUSBKB-LVT8KYB_MOUSE

25209133SunrexEKB-10YA(BG)B-SilkUSBKB-LVT8KYB_MOUSE

25211000LiteonSK-8861(DE)2.4GKB-White8KYB_MOUSE

25209124SunrexEKB-10YA(GE)B-SilkUSBKB-LVT8KYB_MOUSE

25209202LiteonSK-8861(BE-EN)2.4GKB-Black8KYB_MOUSE

25209189LiteonSK-8861(TR)2.4GKB-Black8KYB_MOUSE

25209125SunrexEKB-10YA(TR)B-SilkUSBKB-LVT8KYB_MOUSE

25209114SunrexEKB-10YA(TW)B-SilkUSBKB-LVT8KYB_MOUSE

31503355LX(ASAP)1.0MC5SouthAfricapowercordLINECORD

31503424Volex1.0MC52pinJapanpowercordLINECORD

31503356LX(ASAP)1.0MC5ArgentinapowercordLINECORD

31503423Longwell1.0MC52pinJapanpowercordLINECORD

31503353LX(ASAP)1.0MC5IndiapowercordLINECORD

31503358LX(ASAP)1.0MC5KoreapowercordLINECORD

31503354LX(ASAP)1.0MC5TaiwanpowercordLINECORD

31503362LX(ASAP)1.0MC5IsraelpowercordLINECORD

60LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

31503352LX(ASAP)1.0MC5UKpowercordLINECORD

31503359LX(ASAP)1.0MC5ItalypowercordLINECORD

31503425LS1.0MC52pinJapanpowercordLINECORD

31503360LX(ASAP)1.0MC5DanmarkpowercordLINECORD

31503357LX(ASAP)1.0MC5BrazilpowercordLINECORD

5L60J33143lux0014+H03VV-F0.75/3C+0011LINECORD

31503361LX(ASAP)1.0MC5SwitzerlandpowercordLINECORD

00XD111CAMERA720PMECH_ASM

00XD109MBShielding,HDMI-IN,C51MECH_ASM

00XD108MBShielding,nHDMIIN,C51MECH_ASM

00XD606MAINFRAME,SSDNTIPSC41MECH_ASM

00XD602MAINFRAME,SSDNTLGC41MECH_ASM

00XD601LGIPSPanel,White,T,C41MECH_ASM

00XD596SAMSUNGPanel,Black,T,C41MECH_ASM

00XD608FRONTBEZEL,NTBlackC41MECH_ASM

00XD590ODDBezelWhite,C41MECH_ASM

00XD586BackCVR,nHDMIIn,White,C41MECH_ASM

00XD588BackCVR,HDMIIN,White,C41MECH_ASM

00XD585BackCVR,nHDMIIn,Black,C41MECH_ASM

00XD607MAINFRAME,NonSSDNTIPSC41MECH_ASM

00XD604MAINFRAME,SSDNTSAMC41MECH_ASM

00XD603MAINFRAME,NonSSDNTLGC41MECH_ASM

00XD597SAMSUNGPanel,White,T,C41MECH_ASM

00XD609FRONTBEZEL,NTWhiteC41MECH_ASM

00XD599AUOPanel,White,T,C41MECH_ASM

00XD612SIDEIOCOVER,WHITE,C41MECH_ASM

00XD595LGPanel,White,T,C41MECH_ASM

00XD610LCDPanel,NONTOUCH,C41MECH_ASM

00XD592MBShielding,HDMI-IN,C41MECH_ASM

00XD611SIDEIOCOVER,BLACK,C41MECH_ASM

00XD591MBShielding,nHDMIIN,C41MECH_ASM

00XD115POWERBOARDMECH_ASM

00XD104HDDCAGEMECH_ASM

00XD600LGIPSPanel,Black,T,C41MECH_ASM

00XD589ODDBezelBlack,C41MECH_ASM

00XD605MAINFRAME,NonSSDNTSAMC41MECH_ASM

00XD594LGPanel,Black,T,C41MECH_ASM

00XD598AUOPanel,Black,T,C41MECH_ASM

00XD587BackCVR,HDMIIN,Black,C41MECH_ASM

Chapter9.FRUlists61

FruP/NDescriptionBasicName

1100986HMT41GS6BFR8A-PB8GBDDR3L1600SodimmMEMORY

1100635MT16KTF1G64HZ-1G6E18GD3L-1600SMEMORYMEMORY

1100957MT8KTF51264HZ-1G6E14GB1600SodimmMEMORY

03T7117SODIMM,4G,DDR3L,1600MEMORY

1100985HMT451S6BFR8A-PB4GBDDR3L1600SodimmMEMORY

1100983M471B5674QH0-YK02GBDDR3L1600SodimmMEMORY

1100956MT4KTF25664HZ-1G6E12GB1600SodimmMEMORY

03T7116SODIMM,2G,DDR3L,1600MEMORY

1101012Mic_RD9QBJ?8GBD3L-1600SodimmMEMORY

03T7118SODIMM,8G,DDR3L,1600MEMORY

00PC593DokingM680BW-SilkUSBMCWHTMOUSE

00PC592DokingM680BB-SilkUSBMCBLKMOUSE

25200528LiteonLXH-SM-8825B-SilkMouseMOUSE

25200530SunrexLXH-EMS-10ZAB-SilkMouseMOUSE

00FC442SMD,DT,SATA,9.5mm,x8,w/obezelOPT_DRIVE

00XD170RAMSHIELDING,C51SHIELD

00XD593Speaker,C41SPEAKERINT

00JT08132G,M.2,2242,SATA6G,LTON,STDSSD_ASM

00XD583HINGESTAND,DEEPSILVERSTAND

00XD584HINGESTAND,LIGHTSILVERSTAND

00XD092BASESTAND,DEEPSILVERSTAND

00XD093BASESTAND,LIGHTSILVERSTAND

11203056TNICaboconverterboardSUBCARD

00JT461Wireless,CMB,CBT,43162V2WIRELESS

00JT527Wireless,CMB,LTN,8821AEAGNWIRELESS

00JT454Wireless,CMB,LTN,8821AEWIRELESS

00JT529Wireless,CMB,LTN,8821AEIndoWIRELESS

62LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter10.FRUlists

Thischapterliststheinformationontheﬁeldreplaceableunits(FRUs)forideacentreAll-In-One300–22ISU

desktopcomputer.

Attention:BesuretoreadandunderstandallthesafetyinformationbeforereplacinganyFRUs.

Notes:FRUsthathavea1or2intheCRUcolumnareCustomerReplaceableUnits(CRUs).

•1–identiﬁespartsthatarefairlysimpletoreplace,requiringfewornotools.

•2–identiﬁespartsthatareslightlymoredifﬁculttoreplace.

•N-identiﬁespartsthatarenottobereplacedbythecustomer.

FruP/NDescriptionBasicName

54Y8917CRU,CMN90WCommonadapterAC_ADAPTER

54Y8966AC_ADAPTER,90W,100-240V,3PAC_ADAPTER

54Y8925AC_ADAPTER,120W,100-240V,3PAC_ADAPTER

00XD116WLAN,AIO300-23ACLANTENNA

00UW089MB,C_3855U,UMA,WINDPKBDPLANAR

00UW090I5-6200U,UMA,HDMIIN,NODPKBDPLANAR

00UW091I5-6200U,UMA,HDMIIN,WINDPKBDPLANAR

00UW092I3-6100U,UMA,HDMIIN,NODPKBDPLANAR

00UW100MB,P_4405U,GF920A1G,NODPKBDPLANAR

00UW098MB,I3-6100U,GF920A1G,NODPKBDPLANAR

00UW099MB,I3-6100U,GF920A1G,WINDPKBDPLANAR

00UW103MB,C_3855U,GF920A1G,WINDPKBDPLANAR

00UW104MB,I5-6200U,GF920A2G,NODPKBDPLANAR

00UW105MB,I5-6200U,GF920A2G,WINDPKBDPLANAR

00UW101MB,P_4405U,GF920A1G,WINDPKBDPLANAR

00UW102MB,C_3855U,GF920A1G,NODPKBDPLANAR

00UW109MB,P_4405U,GF920A2G,WINDPKBDPLANAR

00UW106MB,I3-6100U,GF920A2G,NODPKBDPLANAR

00UW107MB,I3-6100U,GF920A2G,WINDPKBDPLANAR

00UW108MB,P_4405U,GF920A2G,NODPKBDPLANAR

00UW084MB,I3-6100U,UMA,NODPKBDPLANAR

00UW086MB,P_4405U,UMA,NODPKBDPLANAR

00UW085MB,I3-6100U,UMA,WINDPKBDPLANAR

00UW082MB,I5-6200U,UMA,NODPKBDPLANAR

00UW087MB,P_4405U,UMA,WINDPKBDPLANAR

00UW088MB,C_3855U,UMA,NODPKBDPLANAR

00UW083MB,I5-6200U,UMA,WINDPKBDPLANAR

©CopyrightLenovo201563

FruP/NDescriptionBasicName

00UW093I3-6100U,UMA,HDMIIN,WINDPKBDPLANAR

00UW094P_4405U,UMA,HDMIIN,NODPKBDPLANAR

00UW095P_4405U,UMA,HDMIIN,WINDPKBDPLANAR

00UW096C_3855U,UMA,HDMIIN,NODPKBDPLANAR

00UW097C_3855U,UMA,HDMIIN,WINDPKBDPLANAR

00UW111MB,C_3855U,GF920A2G,WINDPKBDPLANAR

00UW110MB,C_3855U,GF920A2G,NODPKBDPLANAR

31038885LWBLK1.0mTaiwanC5powercord(R)CABLE

31049498Volex1.0MC5KORpowercordCABLE

00XD574CVTER_MB_C51CABLE

31049499Volex1.0MC5TWpowercordCABLE

31033857LWBLK1.0m3wireULCSApowercord(R)CABLE

31035828LWBLK1.0mBrazilpowercord(R)CABLE

31049501Volex1.0MC5SApowercordCABLE

00XD617CVTER_MB_C41CABLE

31049502Volex1.0MC5ISIpowercordCABLE

31039103LWBLK1.0mSwitzerlandC5powercord(R)CABLE

00XD616CVTER_PANEL_LG_IPS,C41CABLE

31049504Volex1.0MC5ITYpowercordCABLE

31039100LWBLK1.0mArgentinaC5powercord(R)CABLE

31035395LWBLK1.0mIndiapowercord(R)CABLE

31033858VLBLK1.0m3wireULCSApowercord(R)CABLE

31049496Volex1.0MC5UKpowercordCABLE

31049500Volex1.0MC5ANZpowercordCABLE

00XD620LVDS_LG_IPS,C41CABLE

31049517LX(ASAP)1.0MC5ULpowercordCABLE

31039105LWBLK1.0mSAC5powercord(R)CABLE

00XD613CVTER_PANEL_LGE,C41CABLE

00XD618LVDS_LG,C41CABLE

31049518LX(ASAP)1.0MC5EUpowercordCABLE

00XD619LVDS_Samsung_AUO,C41CABLE

31049497Volex1.0MC5EUpowercordCABLE

31039101LWBLK1.0mDenmarkC5powercord(R)CABLE

31039104LWBLK1.0mItalyC5powercord(R)CABLE

31035397LWBLK1.0mANZpowercord(R)CABLE

31035396LWBLK1.0mUKpowercord(R)CABLE

31045147LX(ASAP)1.0MC5CCCpowercordCABLE

31039106LWBLK1.0mKoreaC5powercord(R)CABLE

31032953GSBLK1.0m3wireCCCpowercord(R)CABLE

64LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

00XD169POWERSWITCHCABLE,C51CABLE

31049520LX(ASAP)1.0MC5ANZpowercordCABLE

00XD105SATA_HDD_ODD_PowerCABLE

31049508Volex1.0MC5SWIpowercordCABLE

31049507Volex1.0MC5LApowercordCABLE

31039107LWBLK1.0mIsraelC5powercord(R)CABLE

31049505Volex1.0MC5BRpowercordCABLE

00XD614CVTER_PANEL_SAMSUNG,C41CABLE

31049503Volex1.0MC5DENpowercordCABLE

31035332LWBLK1.0mVDEpowercord(R)CABLE

00XD615CVTER_PANEL_AUO,C41CABLE

01AH311AVCC5130720P1MICZCAMCAMERA

00PC416BisonCM720P5838Hi16512D1DMCAMERA

00PC412AVCCM720P5838Hi16512D1DMCAMERA

00PC420LTCM720P5840Hi162C12D1DMCAMERA

01AJ763SwitchboardwithHDMIINC51CARDPOP

01AJ750SwithBoardC5105CARDPOP

00XD579SliderCoverBlack,nHDMIIn,C41COVER

00XD580SliderCoverWhite,nHDMIIn,C41COVER

00XD581SliderCoverBlack,HDMIIn,C41COVER

00XD582SliderCoverWhite,HDMIIn,C41COVER

18200835AUOM215HTN01.1DISPLAY

00PC202DT_KYB,DOK5321(US)W-SilkUSB,USDT_KYB

00PC201DT_KYB,DOK5321(US)B-SilkUSB,USDT_KYB

00PC723FAN90x15mmSysfanforS5130FAN

16200689STGrenadaBP2ST2000DM0012TBHDDHDD_ASM

16200688STGrenadaBP2ST1000DM0031TBHDDHDD_ASM

16200544WDXL500AWD5000AAKX-08U6AA0500GHDD-LHHDD_ASM

00PC554SSHS,1TB,7200,DT3,SATA3,STDHDD_ASM

16200514TSBMars4K2TBDT01ACA200-LHHDD_ASM

45K0629HDD,500G,7200,DT3,SATA3,STDHDD_ASM

45K0623HDD,1TB,7200,DT3,SATA3,STDHDD_ASM

16200613WDXL1000BWD10EZEX-08M2NA01TBHDDHDD_ASM

16200674STPharaoh4KNon-MCST500DM002500GHDDHDD_ASM

16200513TSBMars4K1TBDT01ACA100-LHHDD_ASM

16200512TSBMars4K500GDT01ACA050-LHHDD_ASM

45K0625HDD,2TB,7200,DT3,SATA3,STDHDD_ASM

00XD075HEATSINKIntelUMAHEATSINK

00XD074HEATSINKIntelDISHEATSINK

Chapter10.FRUlists65

FruP/NDescriptionBasicName

25210994LiteonSK-8861(GB)2.4GKB-White8KYB_MOUSE

25209112PrimaxKB4721(US)B-SilkUSBKB-LVT8KYB_MOUSE

25209201LiteonSK-8861(PT)2.4GKB-Black8KYB_MOUSE

25209194LiteonSK-8861(FR)2.4GKB-Black8KYB_MOUSE

25209151SunrexEKB-10YA(RU)W-SilkUSBKB-LVT8KYB_MOUSE

25209127SunrexEKB-10YA(SL)B-SilkUSBKB-LVT8KYB_MOUSE

25211011LiteonSK-8861(JP)2.4GKB-White8KYB_MOUSE

25209162SunrexEKB-10YA(HB)W-SilkUSBKB-LVT8KYB_MOUSE

25209149SunrexEKB-10YA(CZ-SL)W-SUSBKB-LVT8KYB_MOUSE

25211009LiteonSK-8861(BG)2.4GKB-White8KYB_MOUSE

25211002LiteonSK-8861(ES)2.4GKB-White8KYB_MOUSE

25209130SunrexEKB-10YA(FR)B-SilkUSBKB-LVT8KYB_MOUSE

25209153SunrexEKB-10YA(Nordic)W-SUSBKB-LVT8KYB_MOUSE

25209161SunrexEKB-10YA(IT)W-SilkUSBKB-LVT8KYB_MOUSE

25209182LiteonSK-8861(GB)2.4GKB-Black8KYB_MOUSE

25209172SunrexEKB-10YA(US-EU)W-SUSBKB-LVT8KYB_MOUSE

25209185LiteonSK-8861(LA-AR)2.4GKB-Black8KYB_MOUSE

25209192LiteonSK-8861(IT)2.4GKB-Black8KYB_MOUSE

25201068LiteonLXH-SM-8825W-SilkMouseKYB_MOUSE

25209155SunrexEKB-10YA(AR)W-SilkUSBKB-LVT8KYB_MOUSE

25209148SunrexEKB-10YA(TH)W-SilkUSBKB-LVT8KYB_MOUSE

25209159SunrexEKB-10YA(SP)W-SilkUSBKB-LVT8KYB_MOUSE

25211001LiteonSK-8861(TR)2.4GKB-White8KYB_MOUSE

25209200LiteonSK-8861(EN-FR)2.4GKB-Black8KYB_MOUSE

25209135SunrexEKB-10YA(JP)B-SilkUSBKB-LVT8KYB_MOUSE

25209128SunrexEKB-10YA(IT)B-SilkUSBKB-LVT8KYB_MOUSE

25211007LiteonSK-8861(GR)2.4GKB-White8KYB_MOUSE

25209157SunrexEKB-10YA(GE)W-SilkUSBKB-LVT8KYB_MOUSE

25210998LiteonSK-8861(SA)2.4GKB-White8KYB_MOUSE

25211014LiteonSK-8861(BE-EN)2.4GKB-White8KYB_MOUSE

25210995LiteonSK-8861(Nordic)2.4GKB-White8KYB_MOUSE

25203464LiteonSM-8861(WW)MouseBlackKYB_MOUSE

25211015LiteonSK-8861(US-EU)2.4GKB-White8KYB_MOUSE

25211016LiteonSM-8861(WW)2.4GMouseWhiteKYB_MOUSE

25209132SunrexEKB-10YA(HG)B-SilkUSBKB-LVT8KYB_MOUSE

25209123SunrexEKB-10YA(SW)B-SilkUSBKB-LVT8KYB_MOUSE

25209195LiteonSK-8861(GR)2.4GKB-Black8KYB_MOUSE

25209111SunrexEKB-10YA(US)B-SilkUSBKB-LVT8KYB_MOUSE

25201322SunrexLXH-EMS-10ZAW-SilkMouseKYB_MOUSE

66LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

25209203LiteonSK-8861(US-EU)2.4GKB-Black8KYB_MOUSE

25209116SunrexEKB-10YA(CZ-SL)B-SUSBKB-LVT8KYB_MOUSE

25211003LiteonSK-8861(SL)2.4GKB-White8KYB_MOUSE

25209154SunrexEKB-10YA(LA)W-SilkUSBKB-LVT8KYB_MOUSE

25211017LiteonSM-88612.4GMouse(NoBattery)WTEKYB_MOUSE

25211004LiteonSK-8861(IT)2.4GKB-White8KYB_MOUSE

25209145SunrexEKB-10YA(US)W-SilkUSBKB-LVT8KYB_MOUSE

25211018LiteonSM-88612.4GMouse(MY)WhiteKYB_MOUSE

25209170SunrexEKB-10YA(PT)W-SilkUSBKB-LVT8KYB_MOUSE

25209179LiteonSK-8861(CS-SK)2.4GKB-Black8KYB_MOUSE

25209171SunrexEKB-10YA(BE-EN)W-SUSBKB-LVT8KYB_MOUSE

25209181LiteonSK-8861(RU)2.4GKB-Black8KYB_MOUSE

25210987LiteonSK-8861(US)2.4GKB-White8KYB_MOUSE

25209199LiteonSK-8861(JP)2.4GKB-Black8KYB_MOUSE

25209180LiteonSK-8861(US-IN)2.4GKB-Black8KYB_MOUSE

25210988LiteonSK-8861(US-MY)2.4GKB-White8KYB_MOUSE

25211006LiteonSK-8861(FR)2.4GKB-White8KYB_MOUSE

25203466LiteonSM-8861Mouse(MY)BlackKYB_MOUSE

25209118SunrexEKB-10YA(RU)B-SilkUSBKB-LVT8KYB_MOUSE

25211019LiteonSM-88612.4GMouse(JP)WhiteKYB_MOUSE

25209115SunrexEKB-10YA(TH)B-SilkUSBKB-LVT8KYB_MOUSE

25210993LiteonSK-8861(RU)2.4GKB-White8KYB_MOUSE

25209190LiteonSK-8861(ES)2.4GKB-Black8KYB_MOUSE

25210992LiteonSK-8861(US-IN)2.4GKB-White8KYB_MOUSE

25209131SunrexEKB-10YA(GK)B-SilkUSBKB-LVT8KYB_MOUSE

25209146PrimaxKB4721(US)W-SilkUSBKB-LVT8KYB_MOUSE

25209167SunrexEKB-10YA(KR)W-SilkUSBKB-LVT8KYB_MOUSE

25210991LiteonSK-8861(CS-SK)2.4GKB-White8KYB_MOUSE

25209121SunrexEKB-10YA(LA)B-SilkUSBKB-LVT8KYB_MOUSE

25210990LiteonSK-8861(TH)2.4GKB-White8KYB_MOUSE

25209126SunrexEKB-10YA(SP)B-SilkUSBKB-LVT8KYB_MOUSE

25209196LiteonSK-8861(HU)2.4GKB-Black8KYB_MOUSE

25209156SunrexEKB-10YA(SW)W-SilkUSBKB-LVT8KYB_MOUSE

25205773LiteonSM-8861(JP)Mouse-BlackKYB_MOUSE

25209136SunrexEKB-10YA(EN-FR)B-SUSBKB-LVT8KYB_MOUSE

25209164SunrexEKB-10YA(GK)W-SilkUSBKB-LVT8KYB_MOUSE

25209188LiteonSK-8861(DE)2.4GKB-Black8KYB_MOUSE

25209184LiteonSK-8861(LA)2.4GKB-Black8KYB_MOUSE

25209152SunrexEKB-10YA(UK)W-SilkUSBKB-LVT8KYB_MOUSE

Chapter10.FRUlists67

FruP/NDescriptionBasicName

25209175LiteonSK-8861(US)2.4GKB-Black8KYB_MOUSE

25209165SunrexEKB-10YA(HG)W-SilkUSBKB-LVT8KYB_MOUSE

25209166SunrexEKB-10YA(BG)W-SilkUSBKB-LVT8KYB_MOUSE

25209117SunrexEKB-10YA(IN)B-SilkUSBKB-LVT8KYB_MOUSE

25210999LiteonSK-8861(CH)2.4GKB-White8KYB_MOUSE

25209137SunrexEKB-10YA(PT)B-SilkUSBKB-LVT8KYB_MOUSE

25209186LiteonSK-8861(SA)2.4GKB-Black8KYB_MOUSE

25209168SunrexEKB-10YA(JP)W-SilkUSBKB-LVT8KYB_MOUSE

25211013LiteonSK-8861(PT)2.4GKB-White8KYB_MOUSE

25209160SunrexEKB-10YA(SL)W-SilkUSBKB-LVT8KYB_MOUSE

25209119SunrexEKB-10YA(UK)B-SilkUSBKB-LVT8KYB_MOUSE

25209187LiteonSK-8861(CH)2.4GKB-Black8KYB_MOUSE

25209177LiteonSK-8861(TW)2.4GKB-Black8KYB_MOUSE

25209122SunrexEKB-10YA(AR)B-SilkUSBKB-LVT8KYB_MOUSE

25209138SunrexEKB-10YA(BE-EN)B-SUSBKB-LVT8KYB_MOUSE

25209120SunrexEKB-10YA(Nordic)B-SUSBKB-LVT8KYB_MOUSE

25209147SunrexEKB-10YA(TW)W-SilkUSBKB-LVT8KYB_MOUSE

25209134SunrexEKB-10YA(KR)B-SilkUSBKB-LVT8KYB_MOUSE

25209193LiteonSK-8861(IL)2.4GKB-Black8KYB_MOUSE

25209176LiteonSK-8861(US-MY)2.4GKB-Black8KYB_MOUSE

25209139SunrexEKB-10YA(US-EU)B-SUSBKB-LVT8KYB_MOUSE

25209191LiteonSK-8861(SL)2.4GKB-Black8KYB_MOUSE

25209183LiteonSK-8861(Nordic)2.4GKB-Black8KYB_MOUSE

25209197LiteonSK-8861(BG)2.4GKB-Black8KYB_MOUSE

25210996LiteonSK-8861(LA)2.4GKB-White8KYB_MOUSE

25209129SunrexEKB-10YA(HB)B-SilkUSBKB-LVT8KYB_MOUSE

25209198LiteonSK-8861(KR)2.4GKB-Black8KYB_MOUSE

25211012LiteonSK-8861(EN-FR)2.4GKB-White8KYB_MOUSE

25203465LiteonSM-8861Mouse(NoBattery)BlackKYB_MOUSE

25209178LiteonSK-8861(TH)2.4GKB-Black8KYB_MOUSE

25211010LiteonSK-8861(KR)2.4GKB-White8KYB_MOUSE

25209169SunrexEKB-10YA(EN-FR)W-SUSBKB-LVT8KYB_MOUSE

25211008LiteonSK-8861(HU)2.4GKB-White8KYB_MOUSE

25209158SunrexEKB-10YA(TR)W-SilkUSBKB-LVT8KYB_MOUSE

25210997LiteonSK-8861(LA-AR)2.4GKB-White8KYB_MOUSE

25210989LiteonSK-8861(TW)2.4GKB-White8KYB_MOUSE

25211005LiteonSK-8861(IL)2.4GKB-White8KYB_MOUSE

25209150SunrexEKB-10YA(IN)W-SilkUSBKB-LVT8KYB_MOUSE

25209163SunrexEKB-10YA(FR)W-SilkUSBKB-LVT8KYB_MOUSE

68LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

25209133SunrexEKB-10YA(BG)B-SilkUSBKB-LVT8KYB_MOUSE

25211000LiteonSK-8861(DE)2.4GKB-White8KYB_MOUSE

25209124SunrexEKB-10YA(GE)B-SilkUSBKB-LVT8KYB_MOUSE

25209202LiteonSK-8861(BE-EN)2.4GKB-Black8KYB_MOUSE

25209189LiteonSK-8861(TR)2.4GKB-Black8KYB_MOUSE

25209125SunrexEKB-10YA(TR)B-SilkUSBKB-LVT8KYB_MOUSE

25209114SunrexEKB-10YA(TW)B-SilkUSBKB-LVT8KYB_MOUSE

31503355LX(ASAP)1.0MC5SouthAfricapowercordLINECORD

31503424Volex1.0MC52pinJapanpowercordLINECORD

31503356LX(ASAP)1.0MC5ArgentinapowercordLINECORD

31503423Longwell1.0MC52pinJapanpowercordLINECORD

31503353LX(ASAP)1.0MC5IndiapowercordLINECORD

31503358LX(ASAP)1.0MC5KoreapowercordLINECORD

31503354LX(ASAP)1.0MC5TaiwanpowercordLINECORD

31503362LX(ASAP)1.0MC5IsraelpowercordLINECORD

31503352LX(ASAP)1.0MC5UKpowercordLINECORD

31503359LX(ASAP)1.0MC5ItalypowercordLINECORD

31503425LS1.0MC52pinJapanpowercordLINECORD

31503360LX(ASAP)1.0MC5DanmarkpowercordLINECORD

31503357LX(ASAP)1.0MC5BrazilpowercordLINECORD

5L60J33143lux0014+H03VV-F0.75/3C+0011LINECORD

31503361LX(ASAP)1.0MC5SwitzerlandpowercordLINECORD

00XD111CAMERA720PMECH_ASM

00XD109MBShielding,HDMI-IN,C51MECH_ASM

00XD108MBShielding,nHDMIIN,C51MECH_ASM

00XD601LGIPSPanel,White,T,C41MECH_ASM

00XD596SAMSUNGPanel,Black,T,C41MECH_ASM

00XD608FRONTBEZEL,NTBlackC41MECH_ASM

00XD590ODDBezelWhite,C41MECH_ASM

00XD586BackCVR,nHDMIIn,White,C41MECH_ASM

00XD588BackCVR,HDMIIN,White,C41MECH_ASM

00XD585BackCVR,nHDMIIn,Black,C41MECH_ASM

00XD607MAINFRAME,NonSSDNTIPSC41MECH_ASM

00XD603MAINFRAME,NonSSDNTLGC41MECH_ASM

00XD597SAMSUNGPanel,White,T,C41MECH_ASM

00XD609FRONTBEZEL,NTWhiteC41MECH_ASM

00XD599AUOPanel,White,T,C41MECH_ASM

00XD612SIDEIOCOVER,WHITE,C41MECH_ASM

00XD595LGPanel,White,T,C41MECH_ASM

Chapter10.FRUlists69

FruP/NDescriptionBasicName

00XD592MBShielding,HDMI-IN,C41MECH_ASM

00XD611SIDEIOCOVER,BLACK,C41MECH_ASM

00XD591MBShielding,nHDMIIN,C41MECH_ASM

00XD115POWERBOARDMECH_ASM

00XD651LCDPanel,NONTOUCH,C4130MECH_ASM

00XD104HDDCAGEMECH_ASM

00XD600LGIPSPanel,Black,T,C41MECH_ASM

00XD589ODDBezelBlack,C41MECH_ASM

00XD605MAINFRAME,NonSSDNTSAMC41MECH_ASM

00XD594LGPanel,Black,T,C41MECH_ASM

00XD598AUOPanel,Black,T,C41MECH_ASM

00XD587BackCVR,HDMIIN,Black,C41MECH_ASM

01EF071IPSPanel,White,T,C4MECH_ASM

01EF069TNPanel,White,T,C4MECH_ASM

01EF072IPSPanel,Black,T,C4MECH_ASM

01EF070TNPanel,Black,T,C4MECH_ASM

03T74134G,SODIMM,DDR4,2133MHzMEMORY

03T74148G,SODIMM,DDR4,2133MHzMEMORY

00PC593DokingM680BW-SilkUSBMCWHTMOUSE

00PC592DokingM680BB-SilkUSBMCBLKMOUSE

25200528LiteonLXH-SM-8825B-SilkMouseMOUSE

25200530SunrexLXH-EMS-10ZAB-SilkMouseMOUSE

00FC442SMD,DT,SATA,9.5mm,x8,w/obezelOPT_DRIVE

00XD170RAMSHIELDING,C51SHIELD

00XD593Speaker,C41SPEAKERINT

00XD583HINGESTAND,DEEPSILVERSTAND

00XD584HINGESTAND,LIGHTSILVERSTAND

00XD092BASESTAND,DEEPSILVERSTAND

00XD093BASESTAND,LIGHTSILVERSTAND

11203056TNICaboconverterboardSUBCARD

00JT507Wireless,CMB,IN,3165acIndWIRELESS

00JT497Wireless,CMB,IN,3165acWIRELESS

00JT454Wireless,CMB,LTN,8821AEWIRELESS

70LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter11.FRUlists

Thischapterliststheinformationontheﬁeldreplaceableunits(FRUs)forideacentreAll-In-One300–23ACL

desktopcomputer.

Attention:BesuretoreadandunderstandallthesafetyinformationbeforereplacinganyFRUs.

Notes:FRUsthathavea1or2intheCRUcolumnareCustomerReplaceableUnits(CRUs).

•1–identiﬁespartsthatarefairlysimpletoreplace,requiringfewornotools.

•2–identiﬁespartsthatareslightlymoredifﬁculttoreplace.

•N-identiﬁespartsthatarenottobereplacedbythecustomer.

FruP/NDescriptionBasicName

54Y8917CRU,CMN90WCommonadapterAC_ADAPTER

54Y8966AC_ADAPTER,90W,100-240V,3PAC_ADAPTER

54Y8925AC_ADAPTER,120W,100-240V,3PAC_ADAPTER

00XD116WLAN,AIO300-23ACLANTENNA

00XG126MB,A8,2G,HDMIIN,NODPKBDPLANAR

00XG125MB,A8,2G,HDMIIN,WINDPKBDPLANAR

00XG069MB,E2,1G,HDMIOUT,WINDPKBDPLANAR

00XG064MB,A8,UMA,HDMIIN,NODPKBDPLANAR

00XG061MB,A6,UMA,HDMIIN,WINDPKBDPLANAR

00XG062MB,A6,UMA,HDMIIN,NODPKBDPLANAR

00XG063MB,A8,UMA,HDMIIN,WINDPKBDPLANAR

00XG073MB,A4,UMA,HDMIOUT,WINDPKBDPLANAR

00XG072MB,A6,2G,HDMIOUT,NODPKBDPLANAR

00XG068MB,E2,UMA,HDMIOUT,NODPKBDPLANAR

00XG065MB,A4,UMA,HDMIIN,WINDPKBDPLANAR

00XG066MB,A4,UMA,HDMIIN,NODPKBDPLANAR

00XG071MB,A6,2G,HDMIOUT,WINDPKBDPLANAR

00XG067MB,E2,UMA,HDMIOUT,WINDPKBDPLANAR

00XG079MB,A4,1G,HDMIOUT,WINDPKBDPLANAR

00XG075MB,A6,UMA,HDMIOUT,WINDPKBDPLANAR

00XG074MB,A4,UMA,HDMIOUT,NODPKBDPLANAR

00XG080MB,A4,1G,HDMIOUT,NODPKBDPLANAR

00XG078MB,A8,2G,HDMIOUT,NODPKBDPLANAR

00XG070MB,E2,1G,HDMIOUT,NODPKBDPLANAR

00XG077MB,A8,2G,HDMIOUT,WINDPKBDPLANAR

00XG076MB,A6,UMA,HDMIOUT,NODPKBDPLANAR

31038885LWBLK1.0mT aiwanC5powercord(R)CABLE

FruP/NDescriptionBasicName

00XD575LVDS_LG,C51CABLE

31049498Volex1.0MC5KORpowercordCABLE

00XD574CVTER_MB_C51CABLE

31049499Volex1.0MC5TWpowercordCABLE

00XD576LVDS_Samsung,C51CABLE

31033857LWBLK1.0m3wireULCSApowercord(R)CABLE

31035828LWBLK1.0mBrazilpowercord(R)CABLE

31049501Volex1.0MC5SApowercordCABLE

00XD617CVTER_MB_C41CABLE

31049502Volex1.0MC5ISIpowercordCABLE

31039103LWBLK1.0mSwitzerlandC5powercord(R)CABLE

00XD571CVTER_PANEL_LGE,C51CABLE

31049504Volex1.0MC5ITYpowercordCABLE

00XD573CVTER_PANEL_LG_IPS,C51CABLE

00XD572CVTER_PANEL_SAMSUNG,C51CABLE

31039100LWBLK1.0mArgentinaC5powercord(R)CABLE

31035395LWBLK1.0mIndiapowercord(R)CABLE

31033858VLBLK1.0m3wireULCSApowercord(R)CABLE

31049496Volex1.0MC5UKpowercordCABLE

31049500Volex1.0MC5ANZpowercordCABLE

31049517LX(ASAP)1.0MC5ULpowercordCABLE

31039105LWBLK1.0mSAC5powercord(R)CABLE

31049518LX(ASAP)1.0MC5EUpowercordCABLE

00XD577LVDS_LG_IPS,C51CABLE

31049497Volex1.0MC5EUpowercordCABLE

31039101LWBLK1.0mDenmarkC5powercord(R)CABLE

31039104LWBLK1.0mItalyC5powercord(R)CABLE

31035397LWBLK1.0mANZpowercord(R)CABLE

31035396LWBLK1.0mUKpowercord(R)CABLE

31045147LX(ASAP)1.0MC5CCCpowercordCABLE

31039106LWBLK1.0mKoreaC5powercord(R)CABLE

31032953GSBLK1.0m3wireCCCpowercord(R)CABLE

00XD169POWERSWITCHCABLE,C51CABLE

31049520LX(ASAP)1.0MC5ANZpowercordCABLE

00XD105SATA_HDD_ODD_PowerCABLE

31049508Volex1.0MC5SWIpowercordCABLE

31049507Volex1.0MC5LApowercordCABLE

31039107LWBLK1.0mIsraelC5powercord(R)CABLE

31049505Volex1.0MC5BRpowercordCABLE

72LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

31049503Volex1.0MC5DENpowercordCABLE

31035332LWBLK1.0mVDEpowercord(R)CABLE

01AH311AVCC5130720P1MICZCAMCAMERA

00PC416BisonCM720P5838Hi16512D1DMCAMERA

00PC412AVCCM720P5838Hi16512D1DMCAMERA

00PC420LTCM720P5840Hi162C12D1DMCAMERA

01AJ763SwitchboardwithHDMIINC51CARDPOP

01AJ750SwithBoardC5105CARDPOP

01AJ751SSDCONNECTBOARDMPCARDPOP

00XD097SliderCoverWhite,HDMIIn,C51COVER

00XD096SliderCoverBlack,HDMIIn,C51COVER

00XD094SliderCoverBlack,nHDMIIn,C51COVER

00XD095SliderCoverWhite,nHDMIIn,C51COVER

5D10G75091LGpanel23_LM230WF5-TLF1DISPLAY

00PC202DT_KYB,DOK5321(US)W-SilkUSB,USDT_KYB

00PC201DT_KYB,DOK5321(US)B-SilkUSB,USDT_KYB

00PC723FAN90x15mmSysfanforS5130FAN

16200689STGrenadaBP2ST2000DM0012TBHDDHDD_ASM

16200688STGrenadaBP2ST1000DM0031TBHDDHDD_ASM

16200544WDXL500AWD5000AAKX-08U6AA0500GHDD-LHHDD_ASM

16200514TSBMars4K2TBDT01ACA200-LHHDD_ASM

45K0629HDD,500G,7200,DT3,SATA3,STDHDD_ASM

45K0623HDD,1TB,7200,DT3,SATA3,STDHDD_ASM

16200613WDXL1000BWD10EZEX-08M2NA01TBHDDHDD_ASM

16200674STPharaoh4KNon-MCST500DM002500GHDDHDD_ASM

16200513TSBMars4K1TBDT01ACA100-LHHDD_ASM

16200512TSBMars4K500GDT01ACA050-LHHDD_ASM

45K0625HDD,2TB,7200,DT3,SATA3,STDHDD_ASM

00PC725HEATSINKAMDUMAC5105HEATSINK

00PC724HEATSINKAMDDISC5105HEATSINK

25210994LiteonSK-8861(GB)2.4GKB-White8KYB_MOUSE

25209112PrimaxKB4721(US)B-SilkUSBKB-LVT8KYB_MOUSE

25209201LiteonSK-8861(PT)2.4GKB-Black8KYB_MOUSE

25209194LiteonSK-8861(FR)2.4GKB-Black8KYB_MOUSE

25209151SunrexEKB-10YA(RU)W-SilkUSBKB-LVT8KYB_MOUSE

25209127SunrexEKB-10YA(SL)B-SilkUSBKB-LVT8KYB_MOUSE

25211011LiteonSK-8861(JP)2.4GKB-White8KYB_MOUSE

25209162SunrexEKB-10YA(HB)W-SilkUSBKB-LVT8KYB_MOUSE

25209149SunrexEKB-10YA(CZ-SL)W-SUSBKB-LVT8KYB_MOUSE

Chapter11.FRUlists73

FruP/NDescriptionBasicName

25211009LiteonSK-8861(BG)2.4GKB-White8KYB_MOUSE

25211002LiteonSK-8861(ES)2.4GKB-White8KYB_MOUSE

25209130SunrexEKB-10YA(FR)B-SilkUSBKB-LVT8KYB_MOUSE

25209153SunrexEKB-10YA(Nordic)W-SUSBKB-LVT8KYB_MOUSE

25209161SunrexEKB-10YA(IT)W-SilkUSBKB-LVT8KYB_MOUSE

25209182LiteonSK-8861(GB)2.4GKB-Black8KYB_MOUSE

25209172SunrexEKB-10YA(US-EU)W-SUSBKB-LVT8KYB_MOUSE

25209185LiteonSK-8861(LA-AR)2.4GKB-Black8KYB_MOUSE

25209192LiteonSK-8861(IT)2.4GKB-Black8KYB_MOUSE

25201068LiteonLXH-SM-8825W-SilkMouseKYB_MOUSE

25209155SunrexEKB-10YA(AR)W-SilkUSBKB-LVT8KYB_MOUSE

25209148SunrexEKB-10YA(TH)W-SilkUSBKB-LVT8KYB_MOUSE

25209159SunrexEKB-10YA(SP)W-SilkUSBKB-LVT8KYB_MOUSE

25211001LiteonSK-8861(TR)2.4GKB-White8KYB_MOUSE

25209200LiteonSK-8861(EN-FR)2.4GKB-Black8KYB_MOUSE

25209135SunrexEKB-10YA(JP)B-SilkUSBKB-LVT8KYB_MOUSE

25209128SunrexEKB-10YA(IT)B-SilkUSBKB-LVT8KYB_MOUSE

25211007LiteonSK-8861(GR)2.4GKB-White8KYB_MOUSE

25209157SunrexEKB-10YA(GE)W-SilkUSBKB-LVT8KYB_MOUSE

25210998LiteonSK-8861(SA)2.4GKB-White8KYB_MOUSE

25211014LiteonSK-8861(BE-EN)2.4GKB-White8KYB_MOUSE

25210995LiteonSK-8861(Nordic)2.4GKB-White8KYB_MOUSE

25203464LiteonSM-8861(WW)MouseBlackKYB_MOUSE

25211015LiteonSK-8861(US-EU)2.4GKB-White8KYB_MOUSE

25211016LiteonSM-8861(WW)2.4GMouseWhiteKYB_MOUSE

25209132SunrexEKB-10YA(HG)B-SilkUSBKB-LVT8KYB_MOUSE

25209123SunrexEKB-10YA(SW)B-SilkUSBKB-LVT8KYB_MOUSE

25209195LiteonSK-8861(GR)2.4GKB-Black8KYB_MOUSE

25209111SunrexEKB-10YA(US)B-SilkUSBKB-LVT8KYB_MOUSE

25201322SunrexLXH-EMS-10ZAW-SilkMouseKYB_MOUSE

25209203LiteonSK-8861(US-EU)2.4GKB-Black8KYB_MOUSE

25209116SunrexEKB-10YA(CZ-SL)B-SUSBKB-LVT8KYB_MOUSE

25211003LiteonSK-8861(SL)2.4GKB-White8KYB_MOUSE

25209154SunrexEKB-10YA(LA)W-SilkUSBKB-LVT8KYB_MOUSE

25211004LiteonSK-8861(IT)2.4GKB-White8KYB_MOUSE

25209145SunrexEKB-10YA(US)W-SilkUSBKB-LVT8KYB_MOUSE

25209170SunrexEKB-10YA(PT)W-SilkUSBKB-LVT8KYB_MOUSE

25209179LiteonSK-8861(CS-SK)2.4GKB-Black8KYB_MOUSE

25209171SunrexEKB-10YA(BE-EN)W-SUSBKB-LVT8KYB_MOUSE

74LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

25209181LiteonSK-8861(RU)2.4GKB-Black8KYB_MOUSE

25210987LiteonSK-8861(US)2.4GKB-White8KYB_MOUSE

25209199LiteonSK-8861(JP)2.4GKB-Black8KYB_MOUSE

25209180LiteonSK-8861(US-IN)2.4GKB-Black8KYB_MOUSE

25210988LiteonSK-8861(US-MY)2.4GKB-White8KYB_MOUSE

25211006LiteonSK-8861(FR)2.4GKB-White8KYB_MOUSE

25209118SunrexEKB-10YA(RU)B-SilkUSBKB-LVT8KYB_MOUSE

25209115SunrexEKB-10YA(TH)B-SilkUSBKB-LVT8KYB_MOUSE

25210993LiteonSK-8861(RU)2.4GKB-White8KYB_MOUSE

25209190LiteonSK-8861(ES)2.4GKB-Black8KYB_MOUSE

25210992LiteonSK-8861(US-IN)2.4GKB-White8KYB_MOUSE

25209131SunrexEKB-10YA(GK)B-SilkUSBKB-LVT8KYB_MOUSE

25209146PrimaxKB4721(US)W-SilkUSBKB-LVT8KYB_MOUSE

25209167SunrexEKB-10YA(KR)W-SilkUSBKB-LVT8KYB_MOUSE

25210991LiteonSK-8861(CS-SK)2.4GKB-White8KYB_MOUSE

25209121SunrexEKB-10YA(LA)B-SilkUSBKB-LVT8KYB_MOUSE

25210990LiteonSK-8861(TH)2.4GKB-White8KYB_MOUSE

25209126SunrexEKB-10YA(SP)B-SilkUSBKB-LVT8KYB_MOUSE

25209156SunrexEKB-10YA(SW)W-SilkUSBKB-LVT8KYB_MOUSE

25209196LiteonSK-8861(HU)2.4GKB-Black8KYB_MOUSE

25209136SunrexEKB-10YA(EN-FR)B-SUSBKB-LVT8KYB_MOUSE

25209164SunrexEKB-10YA(GK)W-SilkUSBKB-LVT8KYB_MOUSE

25209188LiteonSK-8861(DE)2.4GKB-Black8KYB_MOUSE

25209184LiteonSK-8861(LA)2.4GKB-Black8KYB_MOUSE

25209152SunrexEKB-10YA(UK)W-SilkUSBKB-LVT8KYB_MOUSE

25209175LiteonSK-8861(US)2.4GKB-Black8KYB_MOUSE

25209165SunrexEKB-10YA(HG)W-SilkUSBKB-LVT8KYB_MOUSE

25209166SunrexEKB-10YA(BG)W-SilkUSBKB-LVT8KYB_MOUSE

25209117SunrexEKB-10YA(IN)B-SilkUSBKB-LVT8KYB_MOUSE

25210999LiteonSK-8861(CH)2.4GKB-White8KYB_MOUSE

25209137SunrexEKB-10YA(PT)B-SilkUSBKB-LVT8KYB_MOUSE

25209186LiteonSK-8861(SA)2.4GKB-Black8KYB_MOUSE

25209168SunrexEKB-10YA(JP)W-SilkUSBKB-LVT8KYB_MOUSE

25211013LiteonSK-8861(PT)2.4GKB-White8KYB_MOUSE

25209160SunrexEKB-10YA(SL)W-SilkUSBKB-LVT8KYB_MOUSE

25209119SunrexEKB-10YA(UK)B-SilkUSBKB-LVT8KYB_MOUSE

25209187LiteonSK-8861(CH)2.4GKB-Black8KYB_MOUSE

25209177LiteonSK-8861(TW)2.4GKB-Black8KYB_MOUSE

25209122SunrexEKB-10YA(AR)B-SilkUSBKB-LVT8KYB_MOUSE

Chapter11.FRUlists75

FruP/NDescriptionBasicName

25209138SunrexEKB-10YA(BE-EN)B-SUSBKB-LVT8KYB_MOUSE

25209120SunrexEKB-10YA(Nordic)B-SUSBKB-LVT8KYB_MOUSE

25209147SunrexEKB-10YA(TW)W-SilkUSBKB-LVT8KYB_MOUSE

25209134SunrexEKB-10YA(KR)B-SilkUSBKB-LVT8KYB_MOUSE

25209193LiteonSK-8861(IL)2.4GKB-Black8KYB_MOUSE

25209176LiteonSK-8861(US-MY)2.4GKB-Black8KYB_MOUSE

25209139SunrexEKB-10YA(US-EU)B-SUSBKB-LVT8KYB_MOUSE

25209191LiteonSK-8861(SL)2.4GKB-Black8KYB_MOUSE

25209197LiteonSK-8861(BG)2.4GKB-Black8KYB_MOUSE

25209183LiteonSK-8861(Nordic)2.4GKB-Black8KYB_MOUSE

25210996LiteonSK-8861(LA)2.4GKB-White8KYB_MOUSE

25209129SunrexEKB-10YA(HB)B-SilkUSBKB-LVT8KYB_MOUSE

25209198LiteonSK-8861(KR)2.4GKB-Black8KYB_MOUSE

25211012LiteonSK-8861(EN-FR)2.4GKB-White8KYB_MOUSE

25209178LiteonSK-8861(TH)2.4GKB-Black8KYB_MOUSE

25211010LiteonSK-8861(KR)2.4GKB-White8KYB_MOUSE

25209169SunrexEKB-10YA(EN-FR)W-SUSBKB-LVT8KYB_MOUSE

25211008LiteonSK-8861(HU)2.4GKB-White8KYB_MOUSE

25209158SunrexEKB-10YA(TR)W-SilkUSBKB-LVT8KYB_MOUSE

25210997LiteonSK-8861(LA-AR)2.4GKB-White8KYB_MOUSE

25210989LiteonSK-8861(TW)2.4GKB-White8KYB_MOUSE

25211005LiteonSK-8861(IL)2.4GKB-White8KYB_MOUSE

25209150SunrexEKB-10YA(IN)W-SilkUSBKB-LVT8KYB_MOUSE

25209163SunrexEKB-10YA(FR)W-SilkUSBKB-LVT8KYB_MOUSE

25209133SunrexEKB-10YA(BG)B-SilkUSBKB-LVT8KYB_MOUSE

25211000LiteonSK-8861(DE)2.4GKB-White8KYB_MOUSE

25209124SunrexEKB-10YA(GE)B-SilkUSBKB-LVT8KYB_MOUSE

25209202LiteonSK-8861(BE-EN)2.4GKB-Black8KYB_MOUSE

25209189LiteonSK-8861(TR)2.4GKB-Black8KYB_MOUSE

25209125SunrexEKB-10YA(TR)B-SilkUSBKB-LVT8KYB_MOUSE

25209114SunrexEKB-10YA(TW)B-SilkUSBKB-LVT8KYB_MOUSE

31503355LX(ASAP)1.0MC5SouthAfricapowercordLINECORD

31503424Volex1.0MC52pinJapanpowercordLINECORD

31503356LX(ASAP)1.0MC5ArgentinapowercordLINECORD

31503423Longwell1.0MC52pinJapanpowercordLINECORD

31503353LX(ASAP)1.0MC5IndiapowercordLINECORD

31503358LX(ASAP)1.0MC5KoreapowercordLINECORD

31503354LX(ASAP)1.0MC5TaiwanpowercordLINECORD

31503362LX(ASAP)1.0MC5IsraelpowercordLINECORD

76LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

31503352LX(ASAP)1.0MC5UKpowercordLINECORD

31503359LX(ASAP)1.0MC5ItalypowercordLINECORD

31503425LS1.0MC52pinJapanpowercordLINECORD

31503360LX(ASAP)1.0MC5DanmarkpowercordLINECORD

31503357LX(ASAP)1.0MC5BrazilpowercordLINECORD

5L60J33143lux0014+H03VV-F0.75/3C+0011LINECORD

31503361LX(ASAP)1.0MC5SwitzerlandpowercordLINECORD

00XD568MAINFRAME,NonSSDNTIPSC51MECH_ASM

00XD567MAINFRAME,SSDNTIPSC51MECH_ASM

00XD111CAMERA720PMECH_ASM

00XD566MAINFRAME,NonSSDNTSAMC51MECH_ASM

00XD109MBShielding,HDMI-IN,C51MECH_ASM

00XD565MAINFRAME,SSDNTSAMC51MECH_ASM

00XD108MBShielding,nHDMIIN,C51MECH_ASM

00XD107ODDBezelWhite,C51MECH_ASM

00XD118SIDEIOCOVER,WHITE,C51MECH_ASM

00XD117SIDEIOCOVER,BLACK,C51MECH_ASM

00XD103BackCVR,HDMIIN,White,C51MECH_ASM

00XD102BackCVR,HDMIIN,Black,C51MECH_ASM

00XD101BackCVR,nHDMIIn,White,C51MECH_ASM

00XD100BackCVR,nHDMIIn,Black,C51MECH_ASM

00XD592MBShielding,HDMI-IN,C41MECH_ASM

00XD591MBShielding,nHDMIIN,C41MECH_ASM

00XD570FRONTBEZEL,NTWhiteC51MECH_ASM

00XD115POWERBOARDMECH_ASM

00XD114LCDPanel,NONTOUCH,C51MECH_ASM

00XD569FRONTBEZEL,NTBlackC51MECH_ASM

00XD112LGPanel,Black,T,C51MECH_ASM

00XD113LGPanel,White,T,C51MECH_ASM

00XD121SAMSUNGPanel,Black,T,C51MECH_ASM

00XD564MAINFRAME,NonSSDNTLGC51MECH_ASM

00XD563MAINFRAME,SSDNTLGC51MECH_ASM

00XD562IPSLGPanel,White,T,C51MECH_ASM

00XD561IPSLGPanel,Black,T,C51MECH_ASM

00XD104HDDCAGEMECH_ASM

00XD122SAMSUNGPanel,White,T,C51MECH_ASM

00XD106ODDBezelBlack,C51MECH_ASM

01EF055TNPanel,White,T,C5MECH_ASM

01EF056TNPanel,Black,T,C5MECH_ASM

Chapter11.FRUlists77

FruP/NDescriptionBasicName

01EF060IPSPanel,Black,T,C5MECH_ASM

01EF059IPSPanel,White,T,C5MECH_ASM

1100986HMT41GS6BFR8A-PB8GBDDR3L1600SodimmMEMORY

1100635MT16KTF1G64HZ-1G6E18GD3L-1600SMEMORYMEMORY

1100957MT8KTF51264HZ-1G6E14GB1600SodimmMEMORY

03T7117SODIMM,4G,DDR3L,1600MEMORY

1100985HMT451S6BFR8A-PB4GBDDR3L1600SodimmMEMORY

1100983M471B5674QH0-YK02GBDDR3L1600SodimmMEMORY

1100956MT4KTF25664HZ-1G6E12GB1600SodimmMEMORY

03T7116SODIMM,2G,DDR3L,1600MEMORY

1101012Mic_RD9QBJ?8GBD3L-1600SodimmMEMORY

03T7118SODIMM,8G,DDR3L,1600MEMORY

00PC593DokingM680BW-SilkUSBMCWHTMOUSE

00PC592DokingM680BB-SilkUSBMCBLKMOUSE

25200528LiteonLXH-SM-8825B-SilkMouseMOUSE

25200530SunrexLXH-EMS-10ZAB-SilkMouseMOUSE

00FC442SMD,DT,SATA,9.5mm,x8,w/obezelOPT_DRIVE

00XD170RAMSHIELDING,C51SHIELD

00XD110AIO300-23ACLSPEAKERINT

00JT08132G,M.2,2242,SATA6G,LTON,STDSSD_ASM

11203056TNICaboconverterboardSUBCARD

00JT461Wireless,CMB,CBT,43162V2WIRELESS

00JT527Wireless,CMB,LTN,8821AEAGNWIRELESS

00JT454Wireless,CMB,LTN,8821AEWIRELESS

78LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter12.FRUlists

Thischapterliststheinformationontheﬁeldreplaceableunits(FRUs)forLenovoAll-In-One300-23ISU

desktopcomputer.

Attention:BesuretoreadandunderstandallthesafetyinformationbeforereplacinganyFRUs.

Notes:FRUsthathavea1or2intheCRUcolumnareCustomerReplaceableUnits(CRUs).

•1–identiﬁespartsthatarefairlysimpletoreplace,requiringfewornotools.

•2–identiﬁespartsthatareslightlymoredifﬁculttoreplace.

•N-identiﬁespartsthatarenottobereplacedbythecustomer.

FruP/NDescriptionBasicName

54Y8917CRU,CMN90WCommonadapterAC_ADAPTER

54Y8966AC_ADAPTER,90W,100-240V,3PAC_ADAPTER

54Y8925AC_ADAPTER,120W,100-240V,3PAC_ADAPTER

00XD116WLAN,AIO300-23ACLANTENNA

00UW089MB,C_3855U,UMA,WINDPKBDPLANAR

00UW090I5-6200U,UMA,HDMIIN,NODPKBDPLANAR

00UW091I5-6200U,UMA,HDMIIN,WINDPKBDPLANAR

00UW092I3-6100U,UMA,HDMIIN,NODPKBDPLANAR

00UW100MB,P_4405U,GF920A1G,NODPKBDPLANAR

00UW098MB,I3-6100U,GF920A1G,NODPKBDPLANAR

00UW099MB,I3-6100U,GF920A1G,WINDPKBDPLANAR

00UW103MB,C_3855U,GF920A1G,WINDPKBDPLANAR

00UW104MB,I5-6200U,GF920A2G,NODPKBDPLANAR

00UW105MB,I5-6200U,GF920A2G,WINDPKBDPLANAR

00UW101MB,P_4405U,GF920A1G,WINDPKBDPLANAR

00UW102MB,C_3855U,GF920A1G,NODPKBDPLANAR

00UW109MB,P_4405U,GF920A2G,WINDPKBDPLANAR

00UW106MB,I3-6100U,GF920A2G,NODPKBDPLANAR

00UW107MB,I3-6100U,GF920A2G,WINDPKBDPLANAR

00UW108MB,P_4405U,GF920A2G,NODPKBDPLANAR

00UW084MB,I3-6100U,UMA,NODPKBDPLANAR

00UW086MB,P_4405U,UMA,NODPKBDPLANAR

00UW085MB,I3-6100U,UMA,WINDPKBDPLANAR

00UW082MB,I5-6200U,UMA,NODPKBDPLANAR

00UW087MB,P_4405U,UMA,WINDPKBDPLANAR

00UW088MB,C_3855U,UMA,NODPKBDPLANAR

00UW083MB,I5-6200U,UMA,WINDPKBDPLANAR

FruP/NDescriptionBasicName

00UW093I3-6100U,UMA,HDMIIN,WINDPKBDPLANAR

00UW094P_4405U,UMA,HDMIIN,NODPKBDPLANAR

00UW095P_4405U,UMA,HDMIIN,WINDPKBDPLANAR

00UW096C_3855U,UMA,HDMIIN,NODPKBDPLANAR

00UW097C_3855U,UMA,HDMIIN,WINDPKBDPLANAR

00UW111MB,C_3855U,GF920A2G,WINDPKBDPLANAR

00UW110MB,C_3855U,GF920A2G,NODPKBDPLANAR

31038885LWBLK1.0mTaiwanC5powercord(R)CABLE

31049498Volex1.0MC5KORpowercordCABLE

00XD574CVTER_MB_C51CABLE

31049499Volex1.0MC5TWpowercordCABLE

31033857LWBLK1.0m3wireULCSApowercord(R)CABLE

31035828LWBLK1.0mBrazilpowercord(R)CABLE

31049501Volex1.0MC5SApowercordCABLE

00XD617CVTER_MB_C41CABLE

31049502Volex1.0MC5ISIpowercordCABLE

31039103LWBLK1.0mSwitzerlandC5powercord(R)CABLE

00XD616CVTER_PANEL_LG_IPS,C41CABLE

31049504Volex1.0MC5ITYpowercordCABLE

31039100LWBLK1.0mArgentinaC5powercord(R)CABLE

31035395LWBLK1.0mIndiapowercord(R)CABLE

31033858VLBLK1.0m3wireULCSApowercord(R)CABLE

31049496Volex1.0MC5UKpowercordCABLE

31049500Volex1.0MC5ANZpowercordCABLE

00XD620LVDS_LG_IPS,C41CABLE

31049517LX(ASAP)1.0MC5ULpowercordCABLE

31039105LWBLK1.0mSAC5powercord(R)CABLE

00XD613CVTER_PANEL_LGE,C41CABLE

00XD618LVDS_LG,C41CABLE

31049518LX(ASAP)1.0MC5EUpowercordCABLE

00XD619LVDS_Samsung_AUO,C41CABLE

31049497Volex1.0MC5EUpowercordCABLE

31039101LWBLK1.0mDenmarkC5powercord(R)CABLE

31039104LWBLK1.0mItalyC5powercord(R)CABLE

31035397LWBLK1.0mANZpowercord(R)CABLE

31035396LWBLK1.0mUKpowercord(R)CABLE

31045147LX(ASAP)1.0MC5CCCpowercordCABLE

31039106LWBLK1.0mKoreaC5powercord(R)CABLE

31032953GSBLK1.0m3wireCCCpowercord(R)CABLE

80LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

00XD169POWERSWITCHCABLE,C51CABLE

31049520LX(ASAP)1.0MC5ANZpowercordCABLE

00XD105SATA_HDD_ODD_PowerCABLE

31049508Volex1.0MC5SWIpowercordCABLE

31049507Volex1.0MC5LApowercordCABLE

31039107LWBLK1.0mIsraelC5powercord(R)CABLE

31049505Volex1.0MC5BRpowercordCABLE

00XD614CVTER_PANEL_SAMSUNG,C41CABLE

31049503Volex1.0MC5DENpowercordCABLE

31035332LWBLK1.0mVDEpowercord(R)CABLE

00XD615CVTER_PANEL_AUO,C41CABLE

01AH311AVCC5130720P1MICZCAMCAMERA

00PC416BisonCM720P5838Hi16512D1DMCAMERA

00PC412AVCCM720P5838Hi16512D1DMCAMERA

00PC420LTCM720P5840Hi162C12D1DMCAMERA

01AJ763SwitchboardwithHDMIINC51CARDPOP

01AJ750SwithBoardC5105CARDPOP

00XD579SliderCoverBlack,nHDMIIn,C41COVER

00XD580SliderCoverWhite,nHDMIIn,C41COVER

00XD581SliderCoverBlack,HDMIIn,C41COVER

00XD582SliderCoverWhite,HDMIIn,C41COVER

18200835AUOM215HTN01.1DISPLAY

00PC202DT_KYB,DOK5321(US)W-SilkUSB,USDT_KYB

00PC201DT_KYB,DOK5321(US)B-SilkUSB,USDT_KYB

00PC723FAN90x15mmSysfanforS5130FAN

16200689STGrenadaBP2ST2000DM0012TBHDDHDD_ASM

16200688STGrenadaBP2ST1000DM0031TBHDDHDD_ASM

16200544WDXL500AWD5000AAKX-08U6AA0500GHDD-LHHDD_ASM

00PC554SSHS,1TB,7200,DT3,SATA3,STDHDD_ASM

16200514TSBMars4K2TBDT01ACA200-LHHDD_ASM

45K0629HDD,500G,7200,DT3,SATA3,STDHDD_ASM

45K0623HDD,1TB,7200,DT3,SATA3,STDHDD_ASM

16200613WDXL1000BWD10EZEX-08M2NA01TBHDDHDD_ASM

16200674STPharaoh4KNon-MCST500DM002500GHDDHDD_ASM

16200513TSBMars4K1TBDT01ACA100-LHHDD_ASM

16200512TSBMars4K500GDT01ACA050-LHHDD_ASM

45K0625HDD,2TB,7200,DT3,SATA3,STDHDD_ASM

00XD075HEATSINKIntelUMAHEATSINK

00XD074HEATSINKIntelDISHEATSINK

Chapter12.FRUlists81

FruP/NDescriptionBasicName

25210994LiteonSK-8861(GB)2.4GKB-White8KYB_MOUSE

25209112PrimaxKB4721(US)B-SilkUSBKB-LVT8KYB_MOUSE

25209201LiteonSK-8861(PT)2.4GKB-Black8KYB_MOUSE

25209194LiteonSK-8861(FR)2.4GKB-Black8KYB_MOUSE

25209151SunrexEKB-10YA(RU)W-SilkUSBKB-LVT8KYB_MOUSE

25209127SunrexEKB-10YA(SL)B-SilkUSBKB-LVT8KYB_MOUSE

25211011LiteonSK-8861(JP)2.4GKB-White8KYB_MOUSE

25209162SunrexEKB-10YA(HB)W-SilkUSBKB-LVT8KYB_MOUSE

25209149SunrexEKB-10YA(CZ-SL)W-SUSBKB-LVT8KYB_MOUSE

25211009LiteonSK-8861(BG)2.4GKB-White8KYB_MOUSE

25211002LiteonSK-8861(ES)2.4GKB-White8KYB_MOUSE

25209130SunrexEKB-10YA(FR)B-SilkUSBKB-LVT8KYB_MOUSE

25209153SunrexEKB-10YA(Nordic)W-SUSBKB-LVT8KYB_MOUSE

25209161SunrexEKB-10YA(IT)W-SilkUSBKB-LVT8KYB_MOUSE

25209182LiteonSK-8861(GB)2.4GKB-Black8KYB_MOUSE

25209172SunrexEKB-10YA(US-EU)W-SUSBKB-LVT8KYB_MOUSE

25209185LiteonSK-8861(LA-AR)2.4GKB-Black8KYB_MOUSE

25209192LiteonSK-8861(IT)2.4GKB-Black8KYB_MOUSE

25201068LiteonLXH-SM-8825W-SilkMouseKYB_MOUSE

25209155SunrexEKB-10YA(AR)W-SilkUSBKB-LVT8KYB_MOUSE

25209148SunrexEKB-10YA(TH)W-SilkUSBKB-LVT8KYB_MOUSE

25209159SunrexEKB-10YA(SP)W-SilkUSBKB-LVT8KYB_MOUSE

25211001LiteonSK-8861(TR)2.4GKB-White8KYB_MOUSE

25209200LiteonSK-8861(EN-FR)2.4GKB-Black8KYB_MOUSE

25209135SunrexEKB-10YA(JP)B-SilkUSBKB-LVT8KYB_MOUSE

25209128SunrexEKB-10YA(IT)B-SilkUSBKB-LVT8KYB_MOUSE

25211007LiteonSK-8861(GR)2.4GKB-White8KYB_MOUSE

25209157SunrexEKB-10YA(GE)W-SilkUSBKB-LVT8KYB_MOUSE

25210998LiteonSK-8861(SA)2.4GKB-White8KYB_MOUSE

25211014LiteonSK-8861(BE-EN)2.4GKB-White8KYB_MOUSE

25210995LiteonSK-8861(Nordic)2.4GKB-White8KYB_MOUSE

25203464LiteonSM-8861(WW)MouseBlackKYB_MOUSE

25211015LiteonSK-8861(US-EU)2.4GKB-White8KYB_MOUSE

25211016LiteonSM-8861(WW)2.4GMouseWhiteKYB_MOUSE

25209132SunrexEKB-10YA(HG)B-SilkUSBKB-LVT8KYB_MOUSE

25209123SunrexEKB-10YA(SW)B-SilkUSBKB-LVT8KYB_MOUSE

25209195LiteonSK-8861(GR)2.4GKB-Black8KYB_MOUSE

25209111SunrexEKB-10YA(US)B-SilkUSBKB-LVT8KYB_MOUSE

25201322SunrexLXH-EMS-10ZAW-SilkMouseKYB_MOUSE

82LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

25209203LiteonSK-8861(US-EU)2.4GKB-Black8KYB_MOUSE

25209116SunrexEKB-10YA(CZ-SL)B-SUSBKB-LVT8KYB_MOUSE

25211003LiteonSK-8861(SL)2.4GKB-White8KYB_MOUSE

25209154SunrexEKB-10YA(LA)W-SilkUSBKB-LVT8KYB_MOUSE

25211017LiteonSM-88612.4GMouse(NoBattery)WTEKYB_MOUSE

25211004LiteonSK-8861(IT)2.4GKB-White8KYB_MOUSE

25209145SunrexEKB-10YA(US)W-SilkUSBKB-LVT8KYB_MOUSE

25211018LiteonSM-88612.4GMouse(MY)WhiteKYB_MOUSE

25209170SunrexEKB-10YA(PT)W-SilkUSBKB-LVT8KYB_MOUSE

25209179LiteonSK-8861(CS-SK)2.4GKB-Black8KYB_MOUSE

25209171SunrexEKB-10YA(BE-EN)W-SUSBKB-LVT8KYB_MOUSE

25209181LiteonSK-8861(RU)2.4GKB-Black8KYB_MOUSE

25210987LiteonSK-8861(US)2.4GKB-White8KYB_MOUSE

25209199LiteonSK-8861(JP)2.4GKB-Black8KYB_MOUSE

25209180LiteonSK-8861(US-IN)2.4GKB-Black8KYB_MOUSE

25210988LiteonSK-8861(US-MY)2.4GKB-White8KYB_MOUSE

25211006LiteonSK-8861(FR)2.4GKB-White8KYB_MOUSE

25203466LiteonSM-8861Mouse(MY)BlackKYB_MOUSE

25209118SunrexEKB-10YA(RU)B-SilkUSBKB-LVT8KYB_MOUSE

25211019LiteonSM-88612.4GMouse(JP)WhiteKYB_MOUSE

25209115SunrexEKB-10YA(TH)B-SilkUSBKB-LVT8KYB_MOUSE

25210993LiteonSK-8861(RU)2.4GKB-White8KYB_MOUSE

25209190LiteonSK-8861(ES)2.4GKB-Black8KYB_MOUSE

25210992LiteonSK-8861(US-IN)2.4GKB-White8KYB_MOUSE

25209131SunrexEKB-10YA(GK)B-SilkUSBKB-LVT8KYB_MOUSE

25209146PrimaxKB4721(US)W-SilkUSBKB-LVT8KYB_MOUSE

25209167SunrexEKB-10YA(KR)W-SilkUSBKB-LVT8KYB_MOUSE

25210991LiteonSK-8861(CS-SK)2.4GKB-White8KYB_MOUSE

25209121SunrexEKB-10YA(LA)B-SilkUSBKB-LVT8KYB_MOUSE

25210990LiteonSK-8861(TH)2.4GKB-White8KYB_MOUSE

25209126SunrexEKB-10YA(SP)B-SilkUSBKB-LVT8KYB_MOUSE

25209196LiteonSK-8861(HU)2.4GKB-Black8KYB_MOUSE

25209156SunrexEKB-10YA(SW)W-SilkUSBKB-LVT8KYB_MOUSE

25205773LiteonSM-8861(JP)Mouse-BlackKYB_MOUSE

25209136SunrexEKB-10YA(EN-FR)B-SUSBKB-LVT8KYB_MOUSE

25209164SunrexEKB-10YA(GK)W-SilkUSBKB-LVT8KYB_MOUSE

25209188LiteonSK-8861(DE)2.4GKB-Black8KYB_MOUSE

25209184LiteonSK-8861(LA)2.4GKB-Black8KYB_MOUSE

25209152SunrexEKB-10YA(UK)W-SilkUSBKB-LVT8KYB_MOUSE

Chapter12.FRUlists83

FruP/NDescriptionBasicName

25209175LiteonSK-8861(US)2.4GKB-Black8KYB_MOUSE

25209165SunrexEKB-10YA(HG)W-SilkUSBKB-LVT8KYB_MOUSE

25209166SunrexEKB-10YA(BG)W-SilkUSBKB-LVT8KYB_MOUSE

25209117SunrexEKB-10YA(IN)B-SilkUSBKB-LVT8KYB_MOUSE

25210999LiteonSK-8861(CH)2.4GKB-White8KYB_MOUSE

25209137SunrexEKB-10YA(PT)B-SilkUSBKB-LVT8KYB_MOUSE

25209186LiteonSK-8861(SA)2.4GKB-Black8KYB_MOUSE

25209168SunrexEKB-10YA(JP)W-SilkUSBKB-LVT8KYB_MOUSE

25211013LiteonSK-8861(PT)2.4GKB-White8KYB_MOUSE

25209160SunrexEKB-10YA(SL)W-SilkUSBKB-LVT8KYB_MOUSE

25209119SunrexEKB-10YA(UK)B-SilkUSBKB-LVT8KYB_MOUSE

25209187LiteonSK-8861(CH)2.4GKB-Black8KYB_MOUSE

25209177LiteonSK-8861(TW)2.4GKB-Black8KYB_MOUSE

25209122SunrexEKB-10YA(AR)B-SilkUSBKB-LVT8KYB_MOUSE

25209138SunrexEKB-10YA(BE-EN)B-SUSBKB-LVT8KYB_MOUSE

25209120SunrexEKB-10YA(Nordic)B-SUSBKB-LVT8KYB_MOUSE

25209147SunrexEKB-10YA(TW)W-SilkUSBKB-LVT8KYB_MOUSE

25209134SunrexEKB-10YA(KR)B-SilkUSBKB-LVT8KYB_MOUSE

25209193LiteonSK-8861(IL)2.4GKB-Black8KYB_MOUSE

25209176LiteonSK-8861(US-MY)2.4GKB-Black8KYB_MOUSE

25209139SunrexEKB-10YA(US-EU)B-SUSBKB-LVT8KYB_MOUSE

25209191LiteonSK-8861(SL)2.4GKB-Black8KYB_MOUSE

25209183LiteonSK-8861(Nordic)2.4GKB-Black8KYB_MOUSE

25209197LiteonSK-8861(BG)2.4GKB-Black8KYB_MOUSE

25210996LiteonSK-8861(LA)2.4GKB-White8KYB_MOUSE

25209129SunrexEKB-10YA(HB)B-SilkUSBKB-LVT8KYB_MOUSE

25209198LiteonSK-8861(KR)2.4GKB-Black8KYB_MOUSE

25211012LiteonSK-8861(EN-FR)2.4GKB-White8KYB_MOUSE

25203465LiteonSM-8861Mouse(NoBattery)BlackKYB_MOUSE

25209178LiteonSK-8861(TH)2.4GKB-Black8KYB_MOUSE

25211010LiteonSK-8861(KR)2.4GKB-White8KYB_MOUSE

25209169SunrexEKB-10YA(EN-FR)W-SUSBKB-LVT8KYB_MOUSE

25211008LiteonSK-8861(HU)2.4GKB-White8KYB_MOUSE

25209158SunrexEKB-10YA(TR)W-SilkUSBKB-LVT8KYB_MOUSE

25210997LiteonSK-8861(LA-AR)2.4GKB-White8KYB_MOUSE

25210989LiteonSK-8861(TW)2.4GKB-White8KYB_MOUSE

25211005LiteonSK-8861(IL)2.4GKB-White8KYB_MOUSE

25209150SunrexEKB-10YA(IN)W-SilkUSBKB-LVT8KYB_MOUSE

25209163SunrexEKB-10YA(FR)W-SilkUSBKB-LVT8KYB_MOUSE

84LenovoAll-In-One300ComputerHardwareMaintenanceManual

FruP/NDescriptionBasicName

25209133SunrexEKB-10YA(BG)B-SilkUSBKB-LVT8KYB_MOUSE

25211000LiteonSK-8861(DE)2.4GKB-White8KYB_MOUSE

25209124SunrexEKB-10YA(GE)B-SilkUSBKB-LVT8KYB_MOUSE

25209202LiteonSK-8861(BE-EN)2.4GKB-Black8KYB_MOUSE

25209189LiteonSK-8861(TR)2.4GKB-Black8KYB_MOUSE

25209125SunrexEKB-10YA(TR)B-SilkUSBKB-LVT8KYB_MOUSE

25209114SunrexEKB-10YA(TW)B-SilkUSBKB-LVT8KYB_MOUSE

31503355LX(ASAP)1.0MC5SouthAfricapowercordLINECORD

31503424Volex1.0MC52pinJapanpowercordLINECORD

31503356LX(ASAP)1.0MC5ArgentinapowercordLINECORD

31503423Longwell1.0MC52pinJapanpowercordLINECORD

31503353LX(ASAP)1.0MC5IndiapowercordLINECORD

31503358LX(ASAP)1.0MC5KoreapowercordLINECORD

31503354LX(ASAP)1.0MC5TaiwanpowercordLINECORD

31503362LX(ASAP)1.0MC5IsraelpowercordLINECORD

31503352LX(ASAP)1.0MC5UKpowercordLINECORD

31503359LX(ASAP)1.0MC5ItalypowercordLINECORD

31503425LS1.0MC52pinJapanpowercordLINECORD

31503360LX(ASAP)1.0MC5DanmarkpowercordLINECORD

31503357LX(ASAP)1.0MC5BrazilpowercordLINECORD

5L60J33143lux0014+H03VV-F0.75/3C+0011LINECORD

31503361LX(ASAP)1.0MC5SwitzerlandpowercordLINECORD

00XD111CAMERA720PMECH_ASM

00XD109MBShielding,HDMI-IN,C51MECH_ASM

00XD108MBShielding,nHDMIIN,C51MECH_ASM

00XD601LGIPSPanel,White,T,C41MECH_ASM

00XD596SAMSUNGPanel,Black,T,C41MECH_ASM

00XD608FRONTBEZEL,NTBlackC41MECH_ASM

00XD590ODDBezelWhite,C41MECH_ASM

00XD586BackCVR,nHDMIIn,White,C41MECH_ASM

00XD588BackCVR,HDMIIN,White,C41MECH_ASM

00XD585BackCVR,nHDMIIn,Black,C41MECH_ASM

00XD607MAINFRAME,NonSSDNTIPSC41MECH_ASM

00XD603MAINFRAME,NonSSDNTLGC41MECH_ASM

00XD597SAMSUNGPanel,White,T,C41MECH_ASM

00XD609FRONTBEZEL,NTWhiteC41MECH_ASM

00XD599AUOPanel,White,T,C41MECH_ASM

00XD612SIDEIOCOVER,WHITE,C41MECH_ASM

00XD595LGPanel,White,T,C41MECH_ASM

Chapter12.FRUlists85

FruP/NDescriptionBasicName

00XD592MBShielding,HDMI-IN,C41MECH_ASM

00XD611SIDEIOCOVER,BLACK,C41MECH_ASM

00XD591MBShielding,nHDMIIN,C41MECH_ASM

00XD115POWERBOARDMECH_ASM

00XD651LCDPanel,NONTOUCH,C4130MECH_ASM

00XD104HDDCAGEMECH_ASM

00XD600LGIPSPanel,Black,T,C41MECH_ASM

00XD589ODDBezelBlack,C41MECH_ASM

00XD605MAINFRAME,NonSSDNTSAMC41MECH_ASM

00XD594LGPanel,Black,T,C41MECH_ASM

00XD598AUOPanel,Black,T,C41MECH_ASM

00XD587BackCVR,HDMIIN,Black,C41MECH_ASM

01EF071IPSPanel,White,T,C4MECH_ASM

01EF069TNPanel,White,T,C4MECH_ASM

01EF072IPSPanel,Black,T,C4MECH_ASM

01EF070TNPanel,Black,T,C4MECH_ASM

03T74134G,SODIMM,DDR4,2133MHzMEMORY

03T74148G,SODIMM,DDR4,2133MHzMEMORY

00PC593DokingM680BW-SilkUSBMCWHTMOUSE

00PC592DokingM680BB-SilkUSBMCBLKMOUSE

25200528LiteonLXH-SM-8825B-SilkMouseMOUSE

25200530SunrexLXH-EMS-10ZAB-SilkMouseMOUSE

00FC442SMD,DT,SATA,9.5mm,x8,w/obezelOPT_DRIVE

00XD170RAMSHIELDING,C51SHIELD

00XD593Speaker,C41SPEAKERINT

00XD583HINGESTAND,DEEPSILVERSTAND

00XD584HINGESTAND,LIGHTSILVERSTAND

00XD092BASESTAND,DEEPSILVERSTAND

00XD093BASESTAND,LIGHTSILVERSTAND

11203056TNICaboconverterboardSUBCARD

00JT507Wireless,CMB,IN,3165acIndWIRELESS

00JT497Wireless,CMB,IN,3165acWIRELESS

00JT454Wireless,CMB,LTN,8821AEWIRELESS

86LenovoAll-In-One300ComputerHardwareMaintenanceManual

Chapter13.Generalinformation

Thischapterprovidesgeneralinformationthatappliestoallcomputermodelscoveredbythismanual.

AdditionalServiceInformation

Thischapterprovidesadditionalinformationthattheservicerepresentativemightﬁndhelpful.

Powermanagement

Powermanagementreducesthepowerconsumptionofcertaincomponentsofthecomputersuchasthe

systempowersupply,processor,harddiskdrives,andsomemonitors.

Advancedconﬁgurationandpowerinterface(ACPI)BIOS

AsthiscomputerhasanACPIBIOSsystem,theoperatingsystemisallowedtocontrolthepower

managementfeaturesofthecomputerandthesettingsforAdvancedPowerManagement(APM)BIOSmode

isignored.NotalloperatingsystemssupportACPIBIOSmode.

AutomaticPower-Onfeatures

TheAutomaticPower-OnfeatureswithinthePowerManagementmenuallowyoutoenableanddisable

featuresthatturnonthecomputerautomatically.

•WakeUponAlarm:Youcanspecifyadateandtimeatwhichthecomputerwillbeturnedonautomatically.

Thiscanbeeitherasingleevent,adailyeventoraweeklyevent.

•WakeUponLAN:ThisfeatureallowsLANadaptercardtowaketheSystem.

Lenovo Aio 300 Hmm 20151117 User Manual All In One Computer Hardware Maintenance 22ACL (ideacentre) Type F0BW

Navigation menu

Versions of this User Manual:

Views

Navigation
