About this manual
Chapter 1. Safety information
Chapter 2. Important service information
- Strategy for replacing FRUs
  - Strategy for replacing a hard disk drive
  - Important notice for replacing a system board
- Important information about replacing RoHS compliant FRUs
Chapter 3. General checkout
- What to do first
- Power system checkout
Chapter 4. Related service information
Chapter 5. Lenovo product information
Chapter 6. FRU replacement notices
- Screw notices
Chapter 7. Removing and replacing a FRU
Chapter 8. Locations
Chapter 9. Parts list
Appendix A. Notices
- Electronic emissions notices
- Trademarks

HardwareMaintenanceManual

LenovoB490,B4301,B4302,B4303,B4305,B4306,B4307,B4308,

B4309,B4310,B4311,B4312,B4315,B4316,B4317,B4318,B4319,

B4320,B4321,B4322,B4323,B4325,B4326,B4327,B4328,B4329,

B4330,B4331,B4332,B4333,B4335,B4336,B4337,B4338,B4339,

B4360,B4361,B4362,B4363,B4365,B4366,B4367,B4368,B4369,

B4370,B4371,B4372,B4375,B4376,B4377,andB4378

Note:Beforeusingthisinformationandtheproductitsupports,besuretoreadthegeneralinformation

underAppendixA“Notices”onpage95.

FourthEdition(April2013)

©CopyrightLenovo2012,2013.

LIMITEDANDRESTRICTEDRIGHTSNOTICE:IfdataorsoftwareisdeliveredpursuantaGeneralServicesAdministration

“GSA”contract,use,reproduction,ordisclosureissubjecttorestrictionssetforthinContractNo.GS-35F-05925.

Contents

Aboutthismanual...........iii

Chapter1.Safetyinformation......1

Generalsafety................1

Electricalsafety...............2

Safetyinspectionguide............3

Handlingdevicesthataresensitivetoelectrostatic

discharge..................3

Groundingrequirements............4

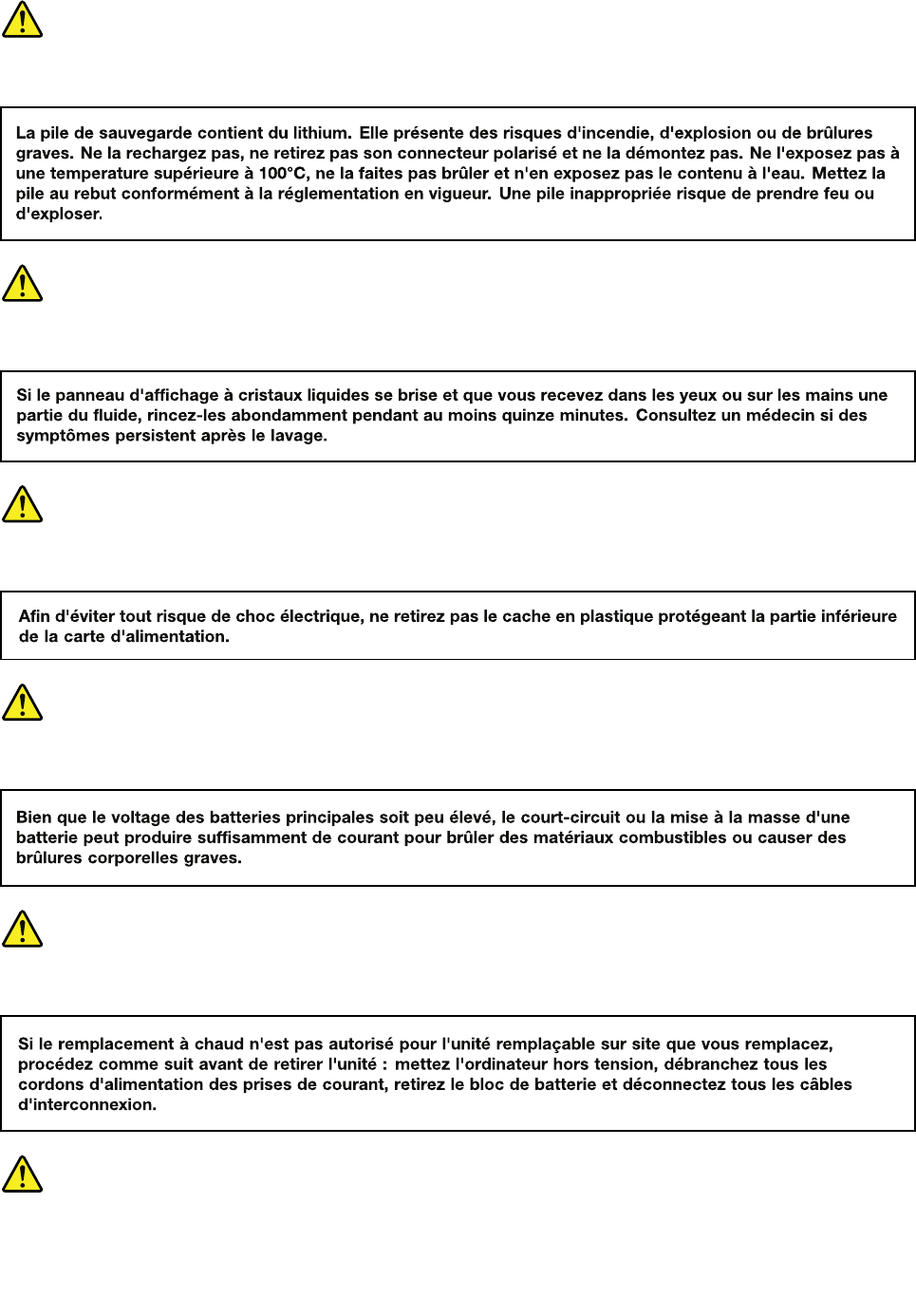

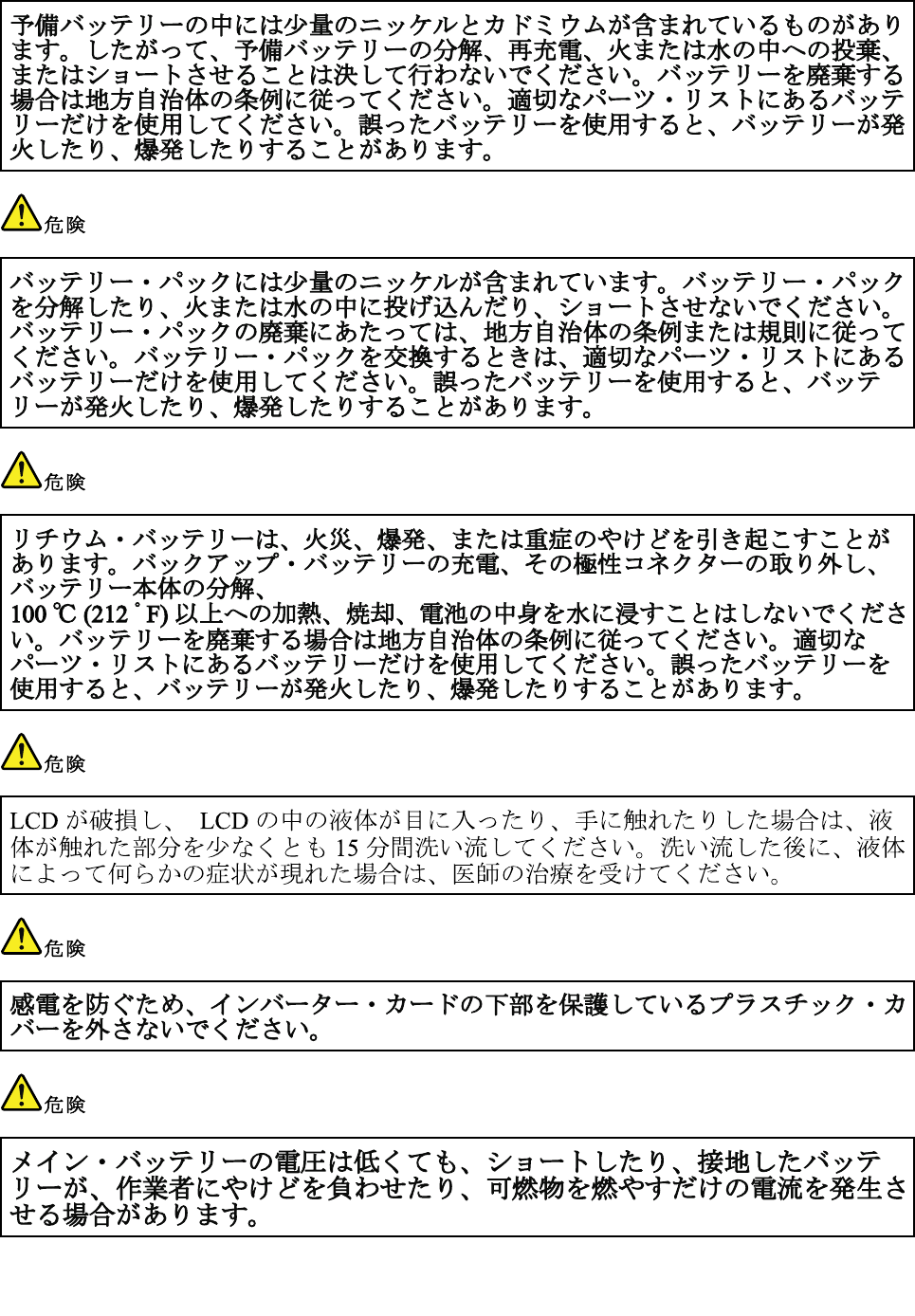

Safetynotices(multilingualtranslations)......4

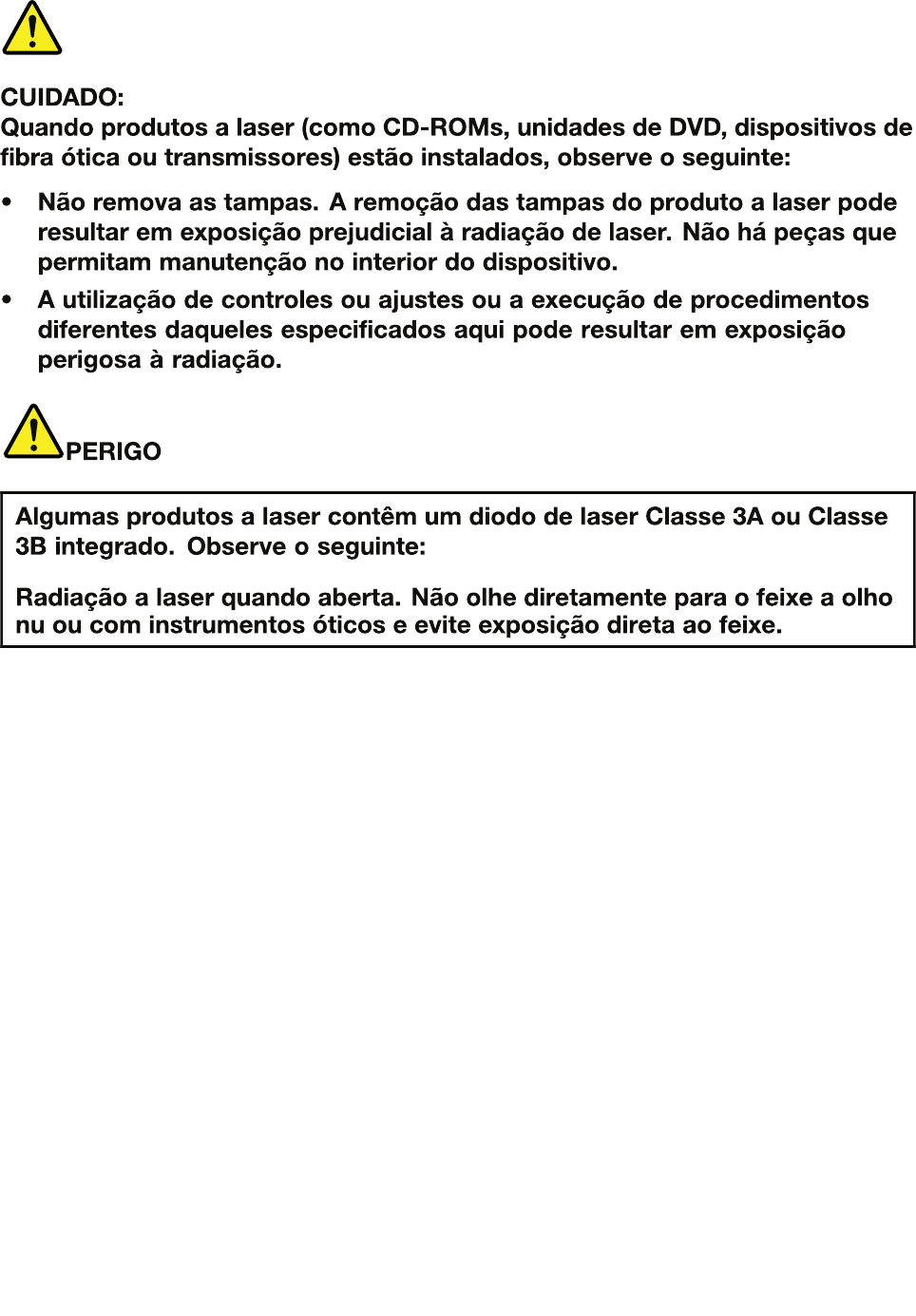

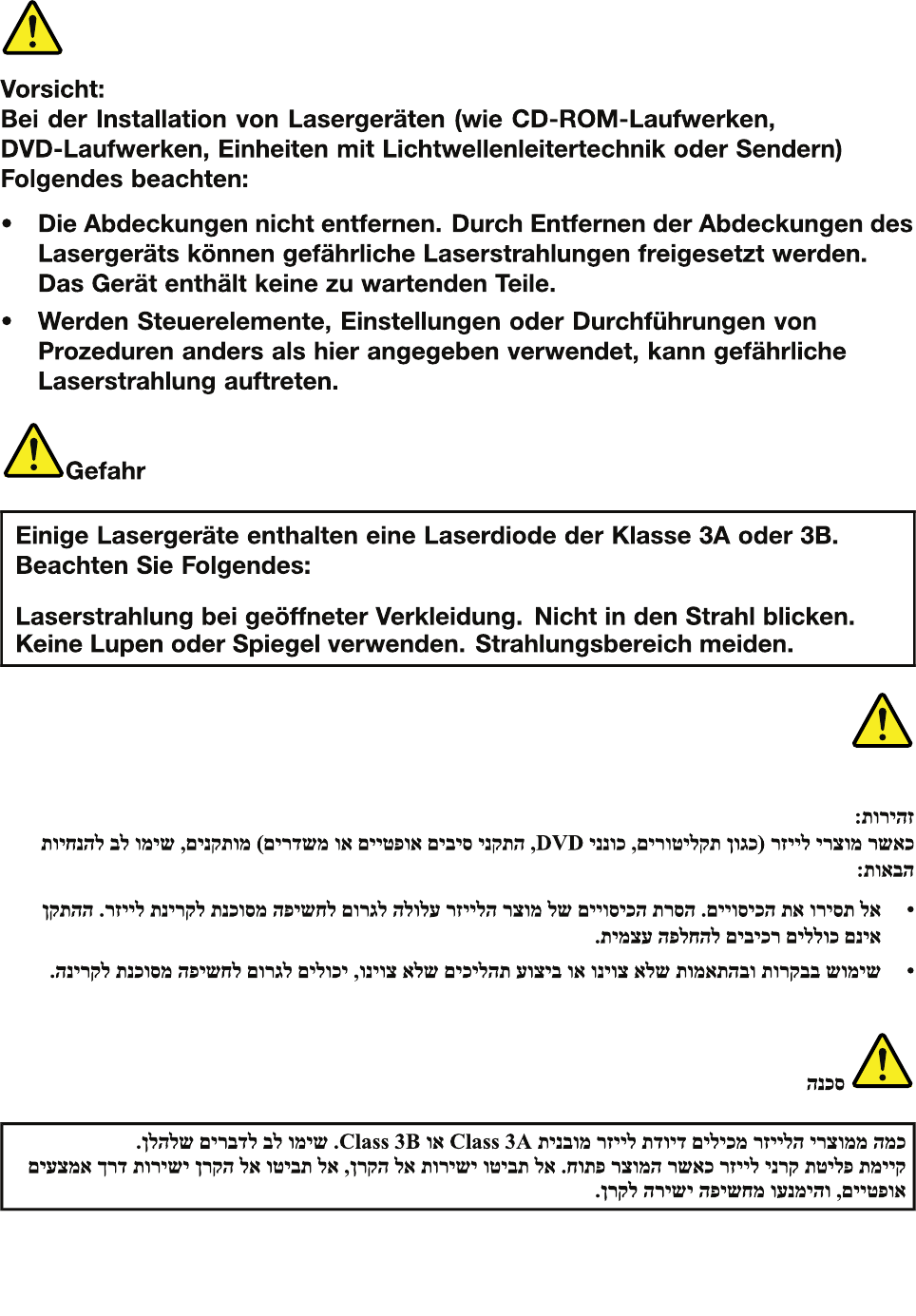

Lasercompliancestatement(multilingual

translations)................19

Chapter2.Importantservice

information..............27

StrategyforreplacingFRUs.........27

Strategyforreplacingaharddiskdrive...28

Importantnoticeforreplacingasystem

board................28

ImportantinformationaboutreplacingRoHS

compliantFRUs..............28

Chapter3.Generalcheckout.....29

Whattodorst..............29

Powersystemcheckout...........30

Checkingtheacpoweradapter......30

Checkingoperationalcharging......31

Checkingthebatterypack........31

Chapter4.Relatedservice

information..............33

Recoveringthecomputersettings.......33

Passwords................33

Power-onpassword...........34

Supervisorpassword..........34

Powermanagement............34

Screenblankmode...........34

Sleepmode..............34

Hibernationmode...........35

Chapter5.Lenovoproduct

information..............37

Specications...............37

Statusindicators..............38

Fnkeycombinations............39

Chapter6.FRUreplacement

notices................41

Screwnotices...............41

Chapter7.Removingandreplacinga

FRU..................43

Generalguidelines.............43

1010Batterypack.............44

1020Bottomslotcover...........44

1030Opticaldrive.............45

1040Memorymodules...........46

1050Harddiskdriveassembly........47

1060PCIExpressMiniCardforwirelessLAN..49

1070mSATAsolid-statedrive.........50

1080Backupbattery............51

1090Keyboard..............51

1100Keyboardbezel............54

1110LEDboard..............56

1120Powerboard.............57

1130Microphoneassembly.........58

1140Mediacardreaderslotboard.......59

1150SystemboardassemblyandUSBboard..60

1160Thermalmodule............62

1170Microprocessor............65

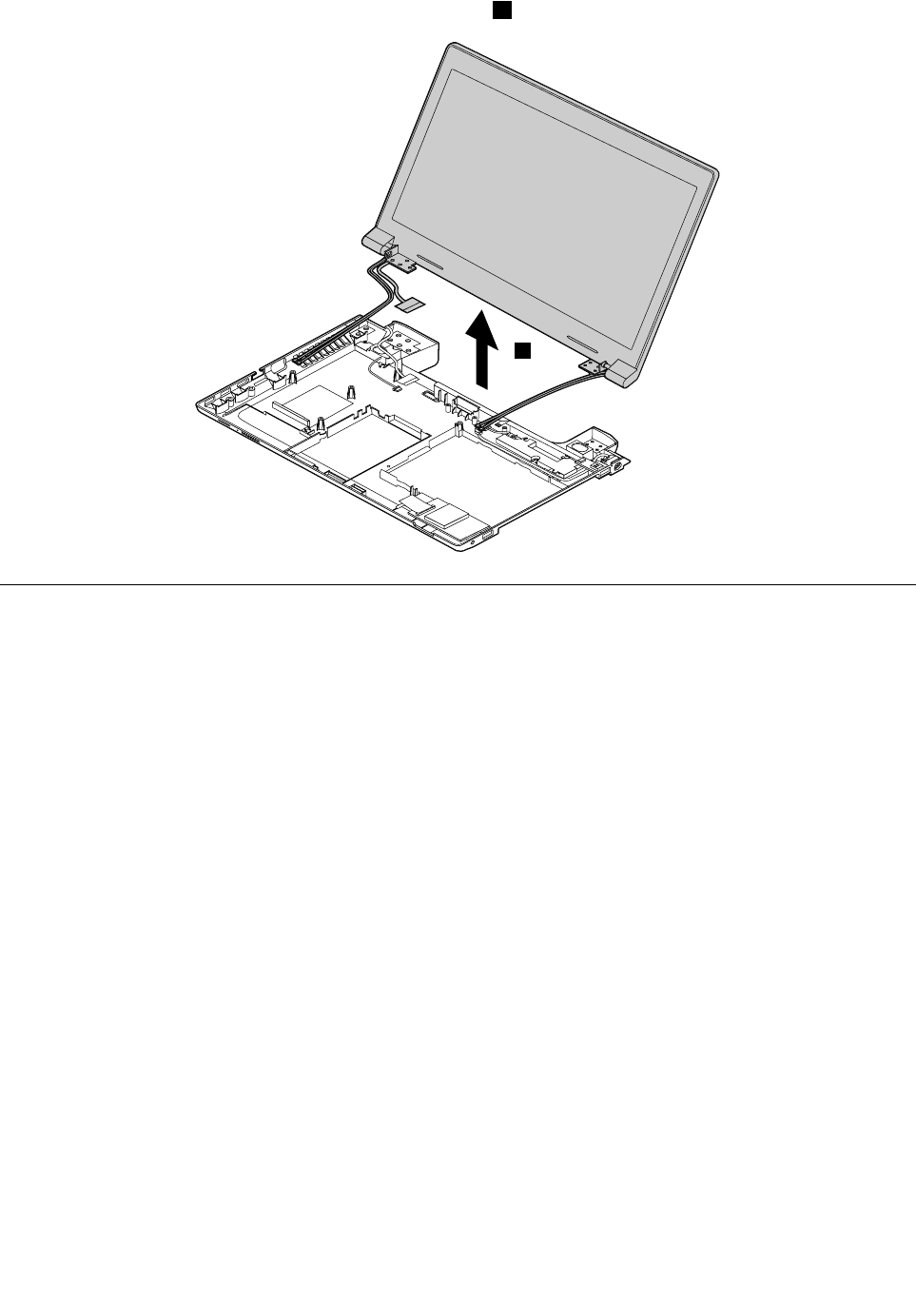

1180LCDunit...............66

1190Speakerassembly...........68

1200DC-inconnectorandbasecover.....69

2010LCDfrontbezel............71

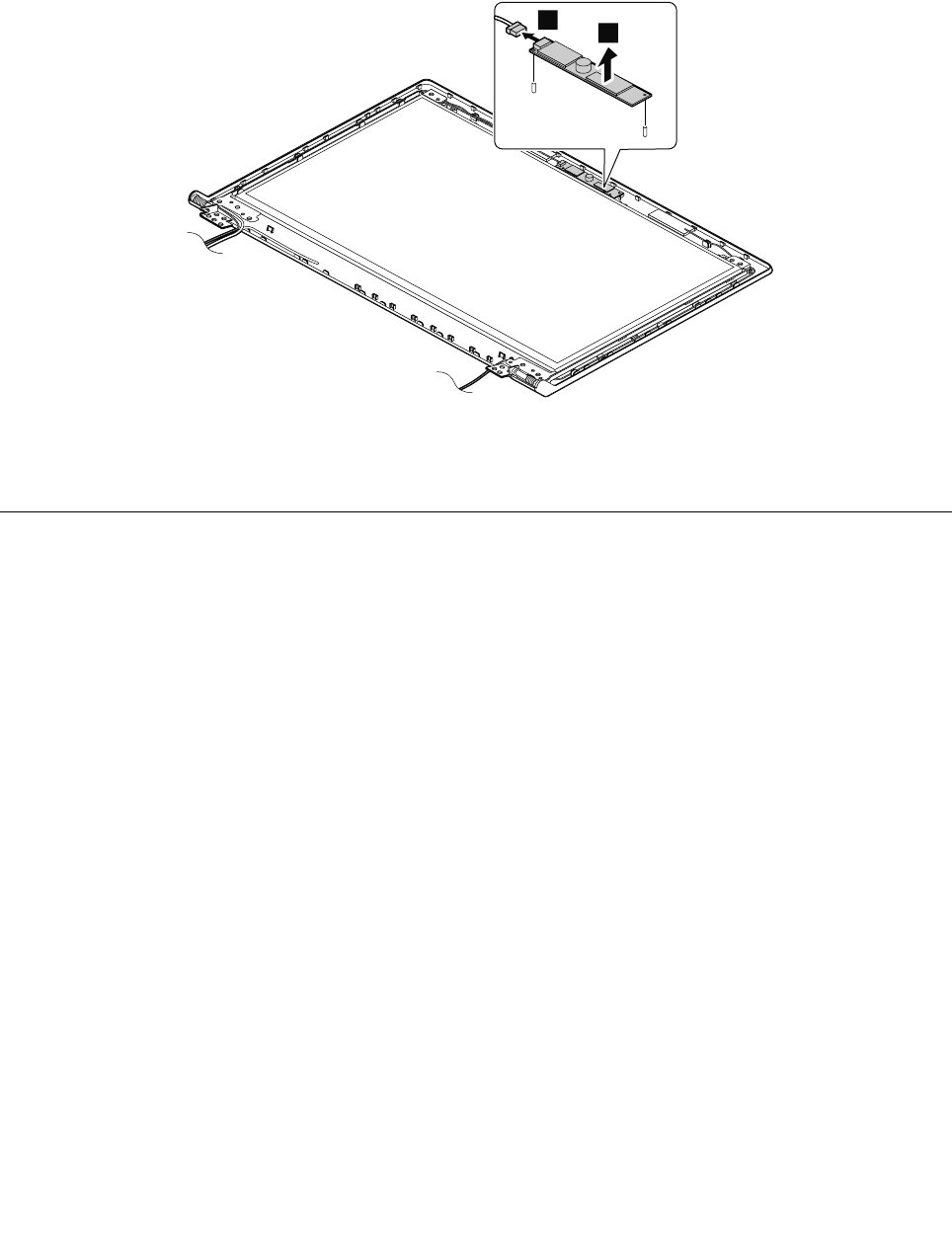

2020Camera...............72

2030LCDpanel,LCDcable,andhinges....73

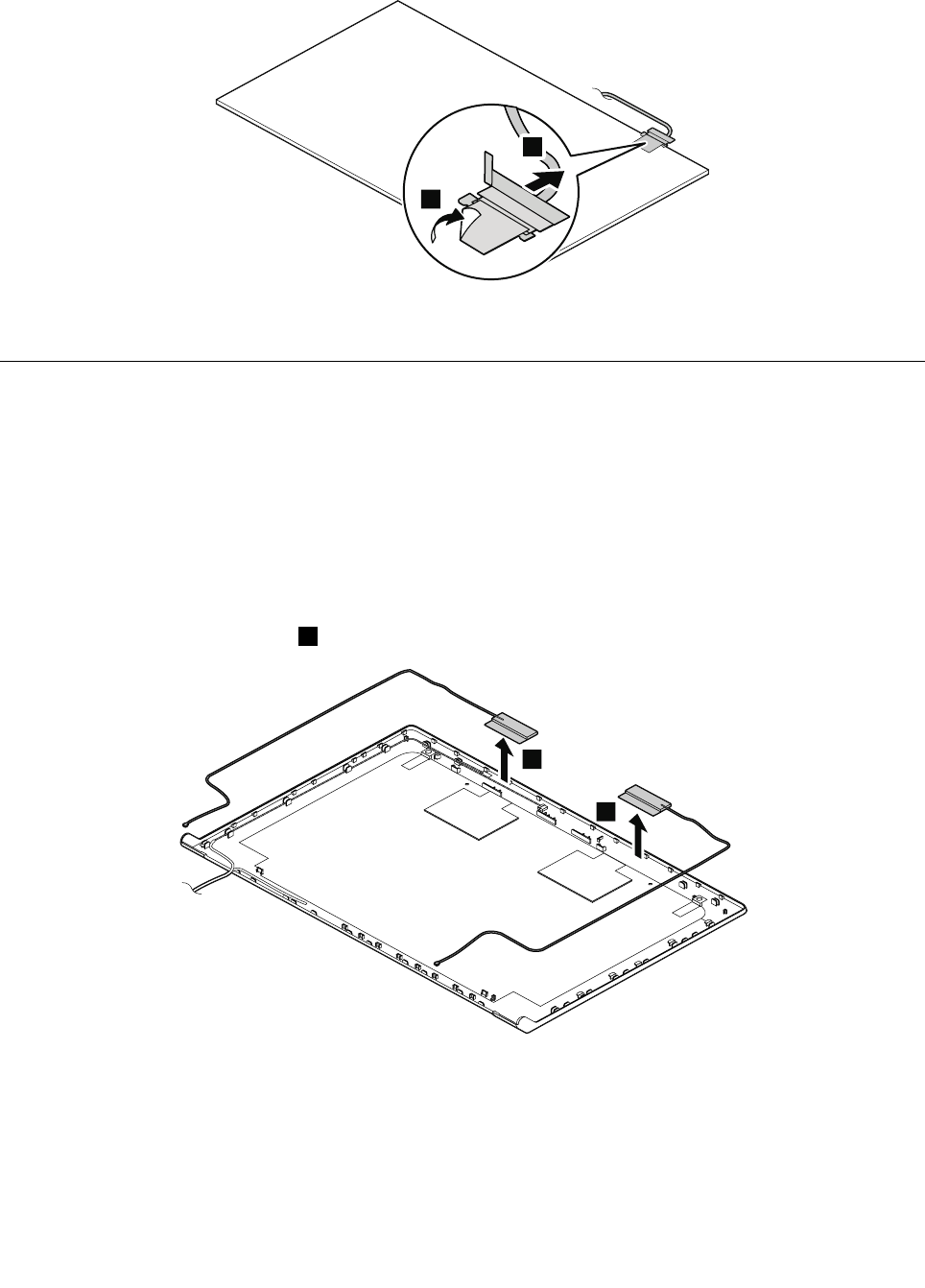

2040AntennaassemblyandLCDrearcover...75

Chapter8.Locations.........77

Frontview................77

Right-sideview..............78

Bottomandleft-sideview..........78

Chapter9.Partslist..........79

Overall..................80

LCDFRUs................84

Keyboard.................86

Miscellaneousparts............89

acpoweradapters.............89

Powercords...............91

AppendixA.Notices..........95

Electronicemissionsnotices.........96

Trademarks................96

©CopyrightLenovo2012,2013i

iiHardwareMaintenanceManual

Aboutthismanual

ThismanualprovidesserviceandreferenceinformationforthefollowingLenovo®products.

MachineMachinetype(MT)

LenovoB490,B4301,B4302,B4303,B4305,B4306,

B4307,B4308,B4309,B4310,B4311,B4312,B4315,

B4316,B4317,B4318,B4319,B4320,B4321,B4322,

B4323,B4325,B4326,B4327,B4328,B4329,B4330,

B4331,B4332,B4333,B4335,B4336,B4337,B4338,

B4339,B4360,B4361,B4362,B4363,B4365,B4366,

B4367,B4368,B4369,B4370,B4371,B4372,B4375,

B4376,B4377,andB4378

3756,3772,20205,20207

Usethismanualtotroubleshootproblems.

Themanualisdividedintothefollowingsections:

•Thecommonsectionsprovidegeneralinformation,guidelines,andsafetyinformationrequiredfor

servicingcomputers.

•Theproduct-specicsectionincludesservice,reference,andproduct-specicpartsinformation.

Important:

•ThismanualisintendedonlyfortrainedservicetechnicianswhoarefamiliarwithLenovoproducts.Use

thismanualtotroubleshootproblemseffectively.

•BeforeservicingaLenovoproduct,besuretoreadalltheinformationunderChapter1“Safety

information”onpage1andChapter2“Importantserviceinformation”onpage27.

©CopyrightLenovo2012,2013iii

ivHardwareMaintenanceManual

Chapter1.Safetyinformation

Thischapterpresentsfollowingsafetyinformationthatyouneedtobefamiliarwithbeforeyouservicea

LenovoNotebook.

•“Generalsafety”onpage1

•“Electricalsafety”onpage2

•“Safetyinspectionguide”onpage3

•“Handlingdevicesthataresensitivetoelectrostaticdischarge”onpage3

•“Groundingrequirements”onpage4

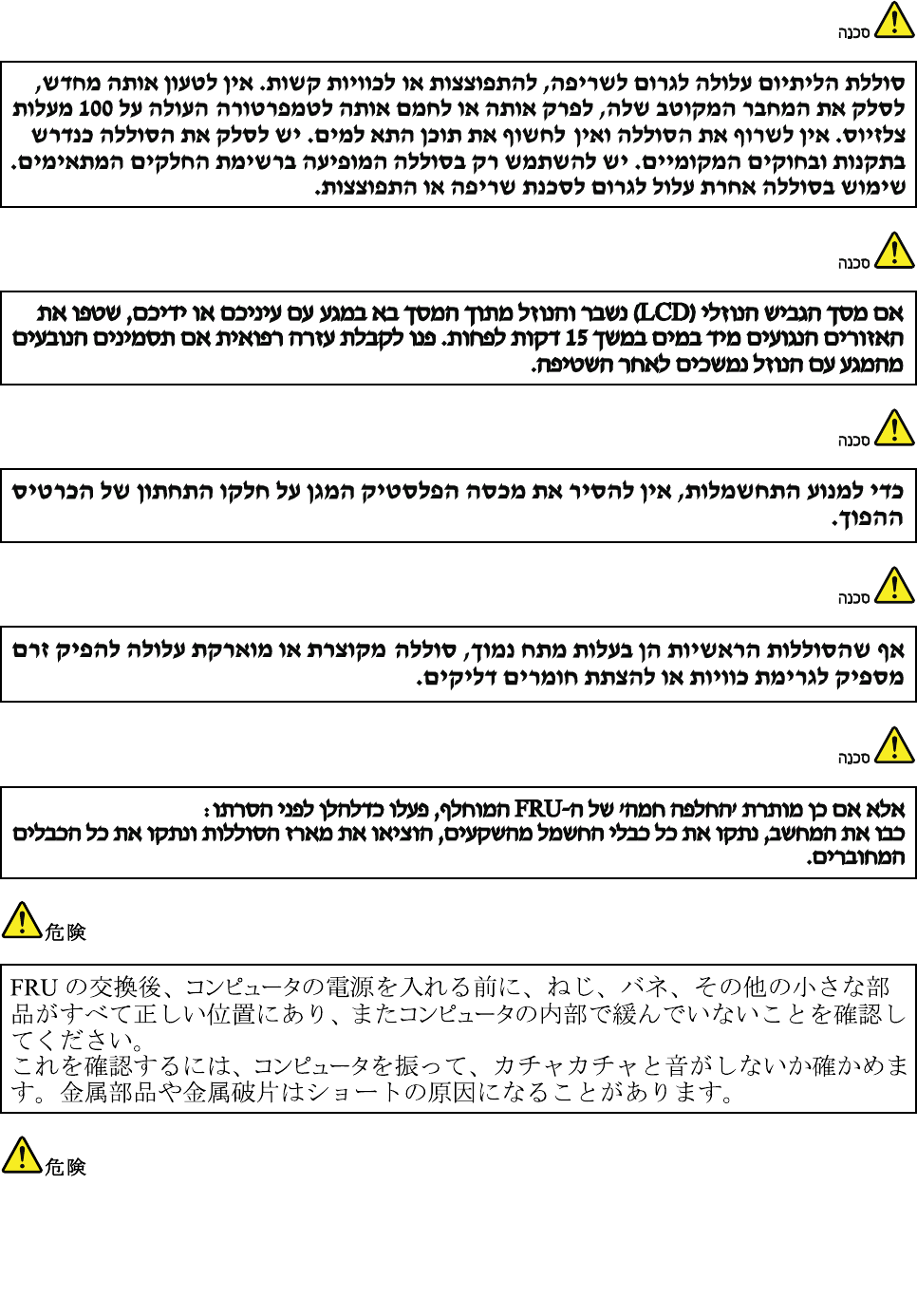

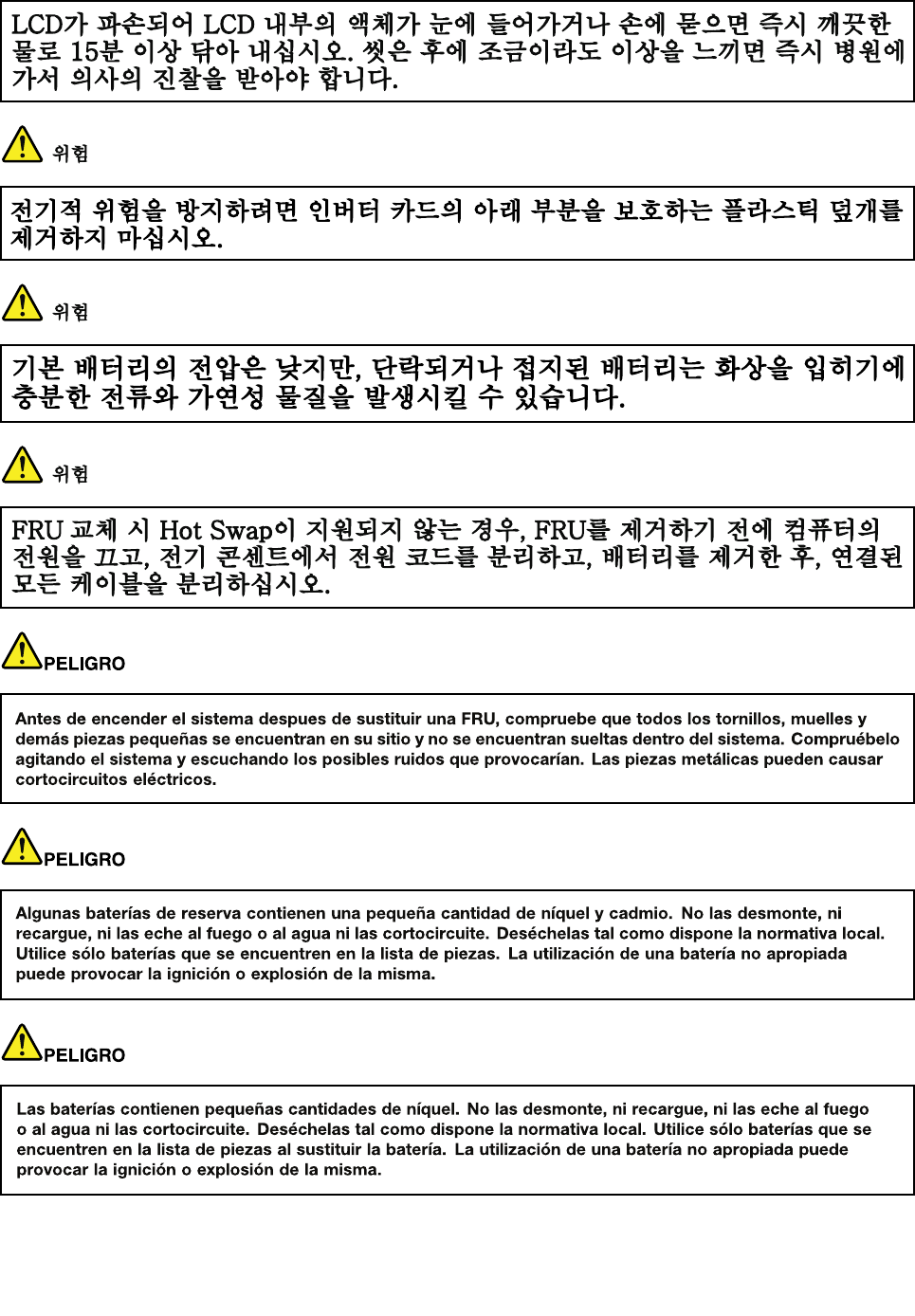

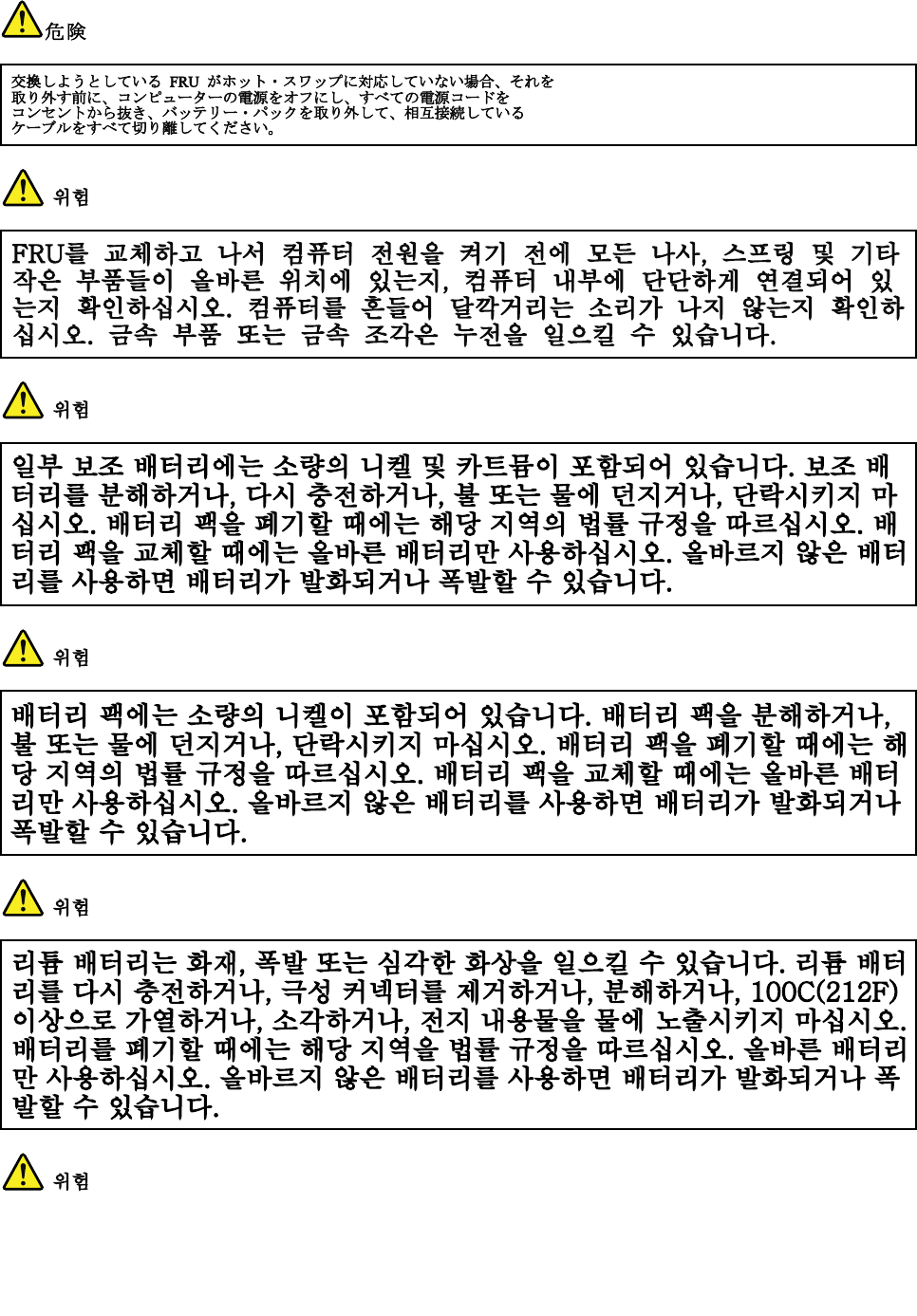

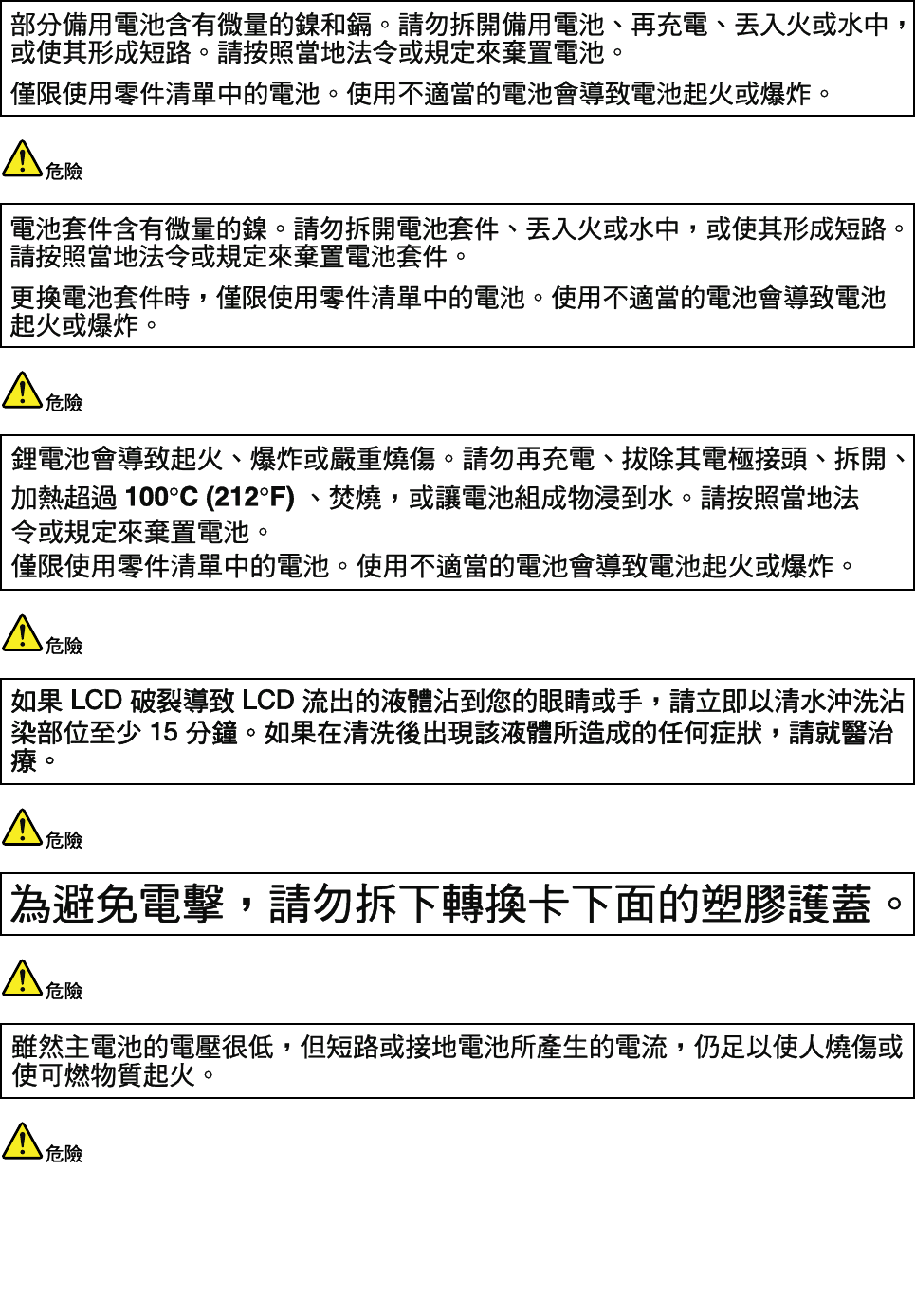

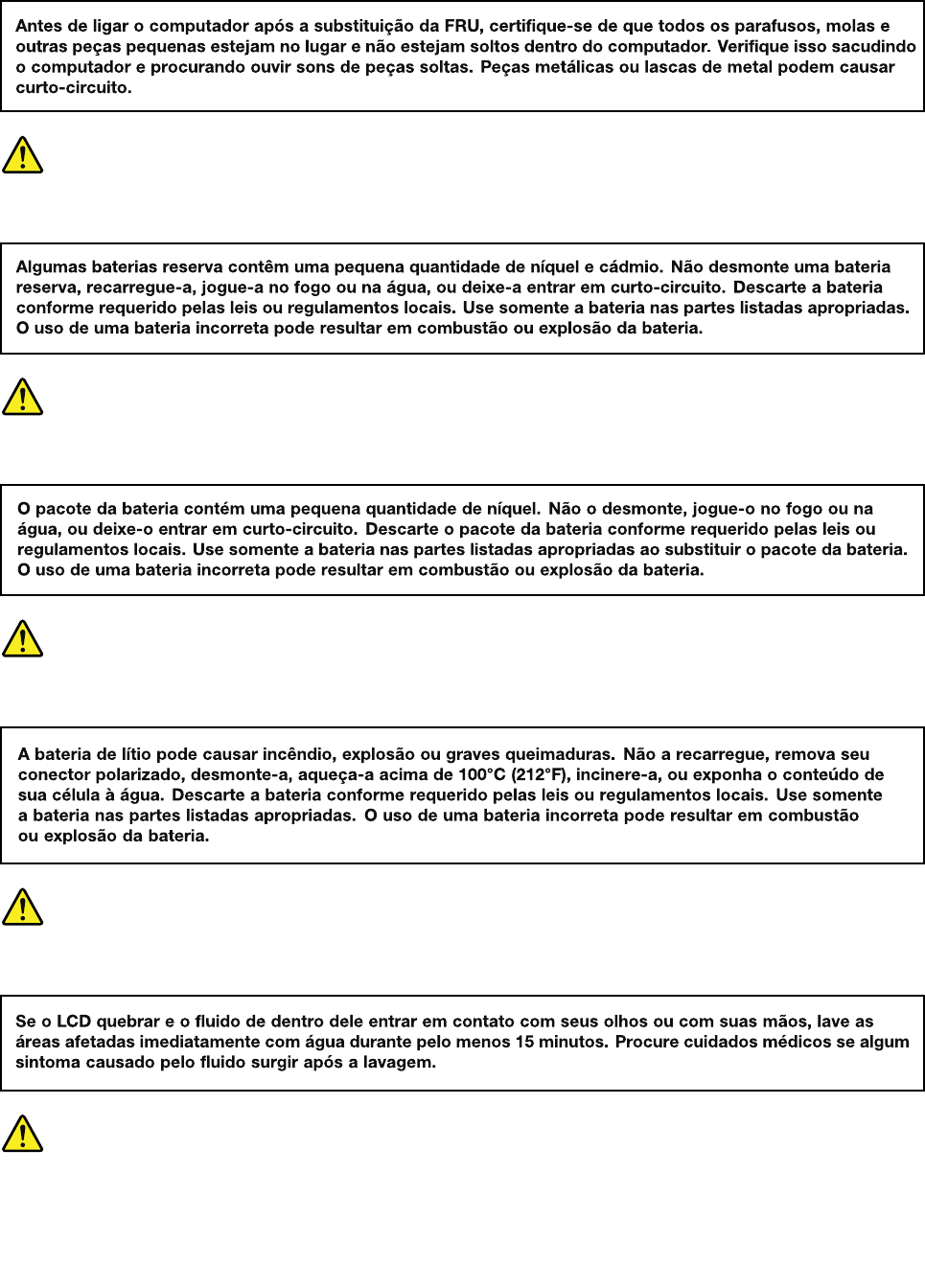

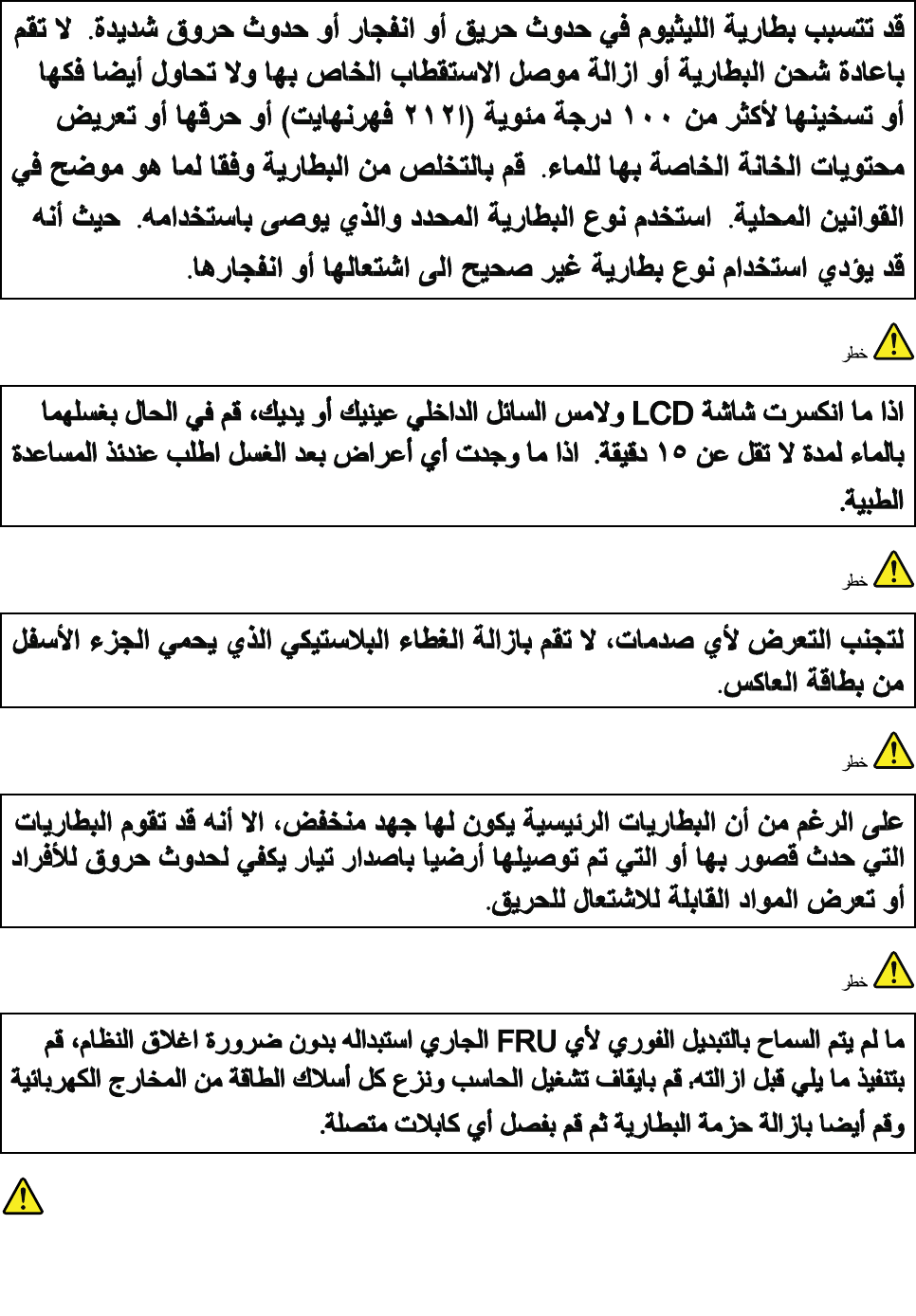

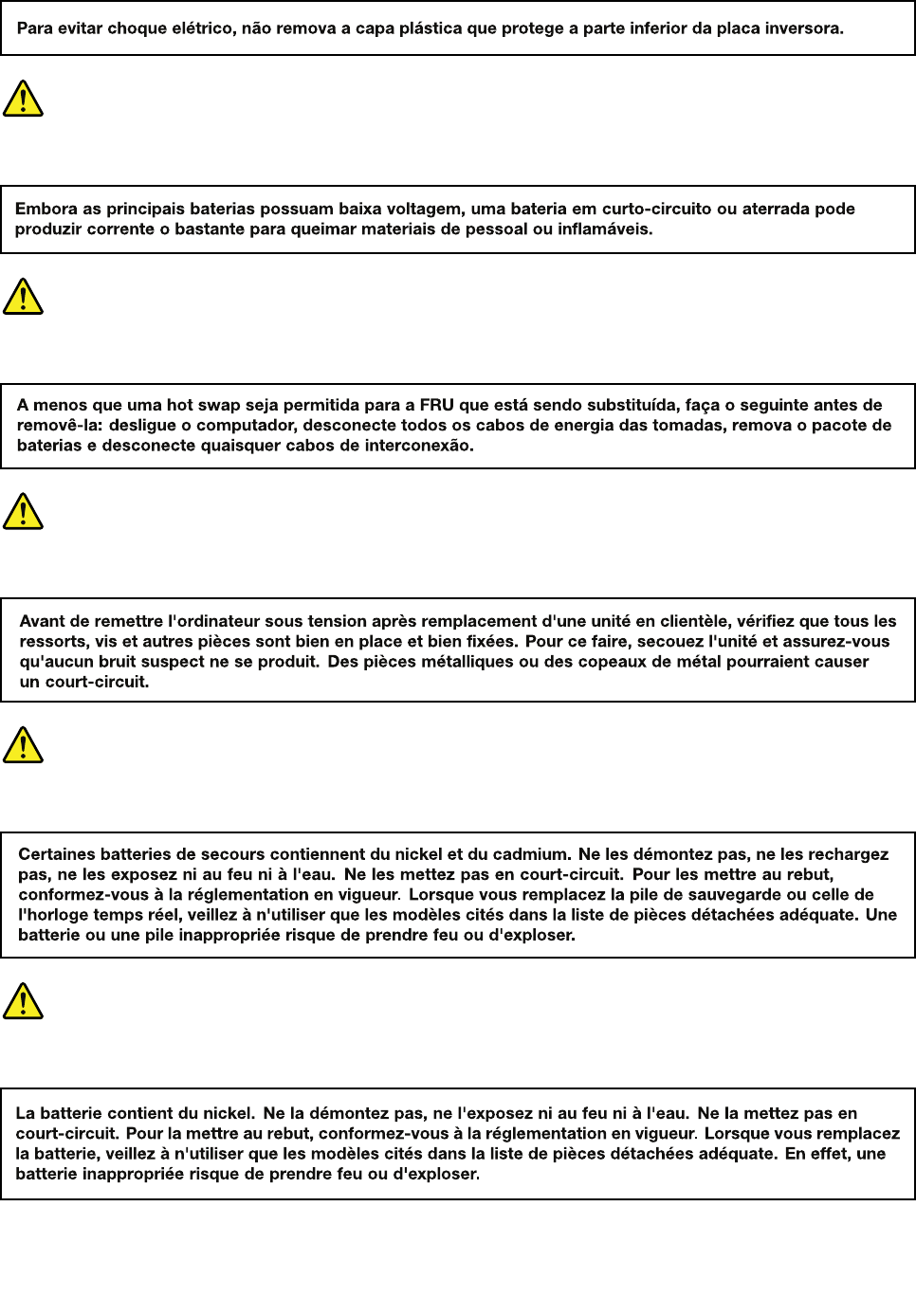

•“Safetynotices(multilingualtranslations)”onpage4

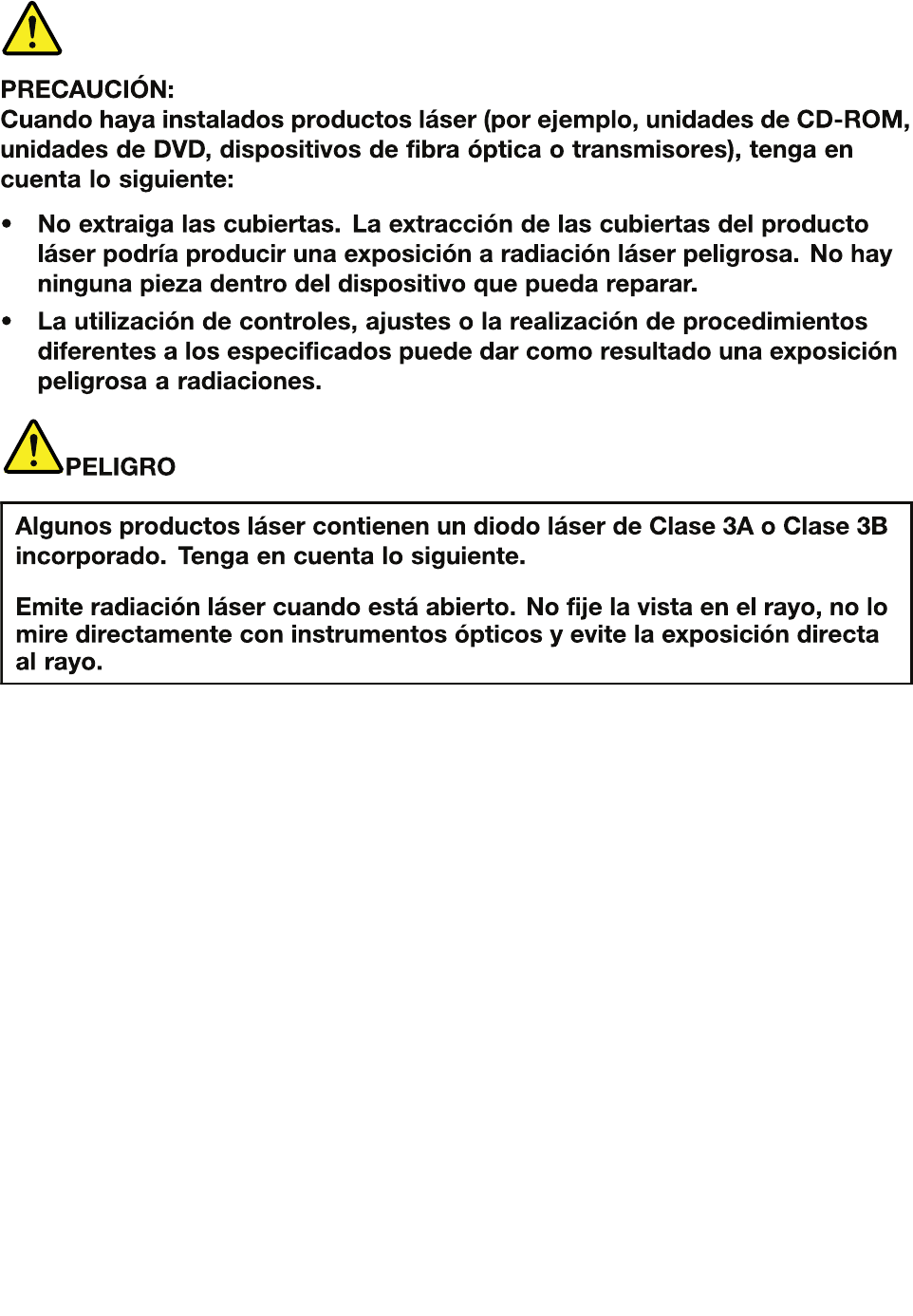

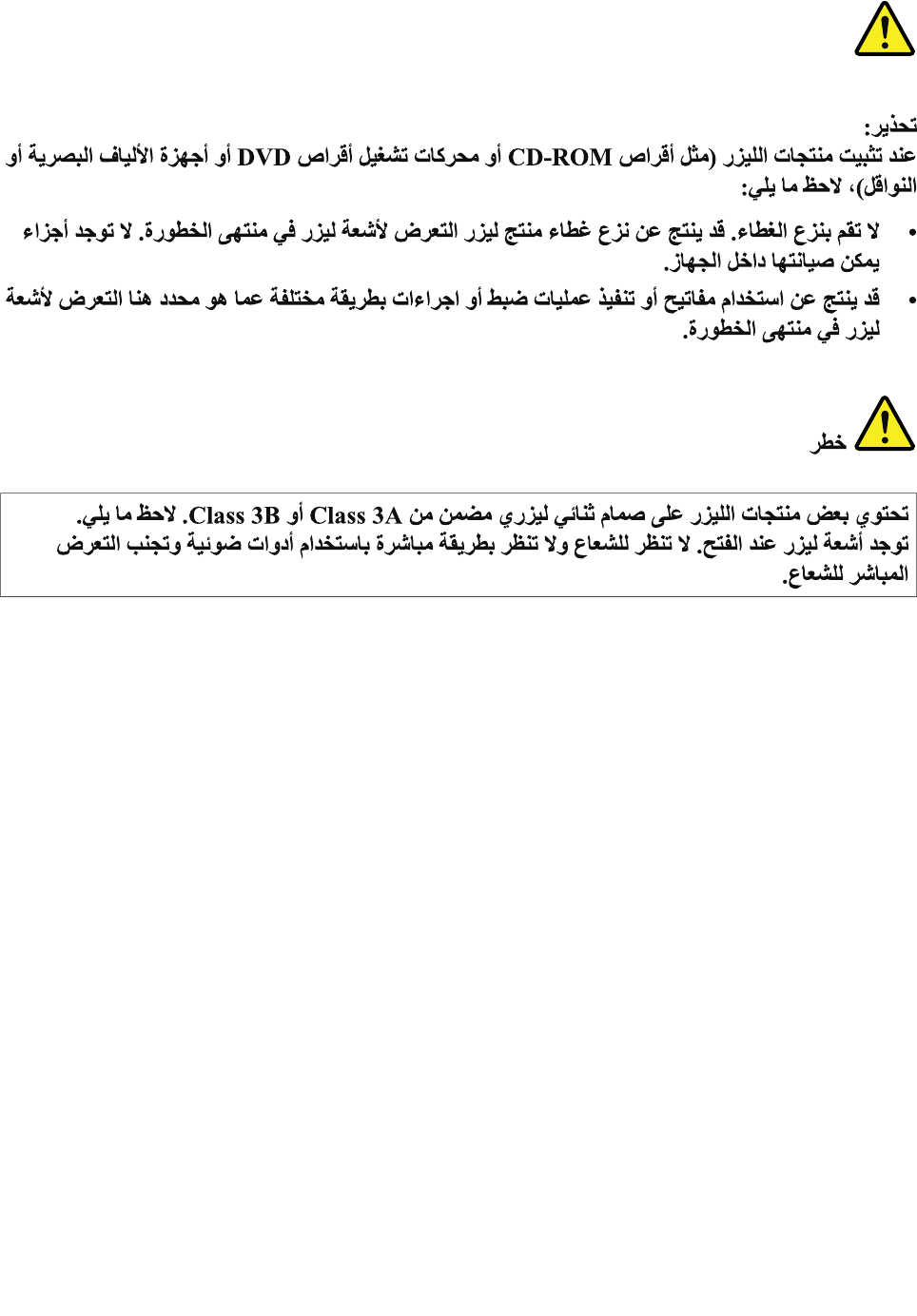

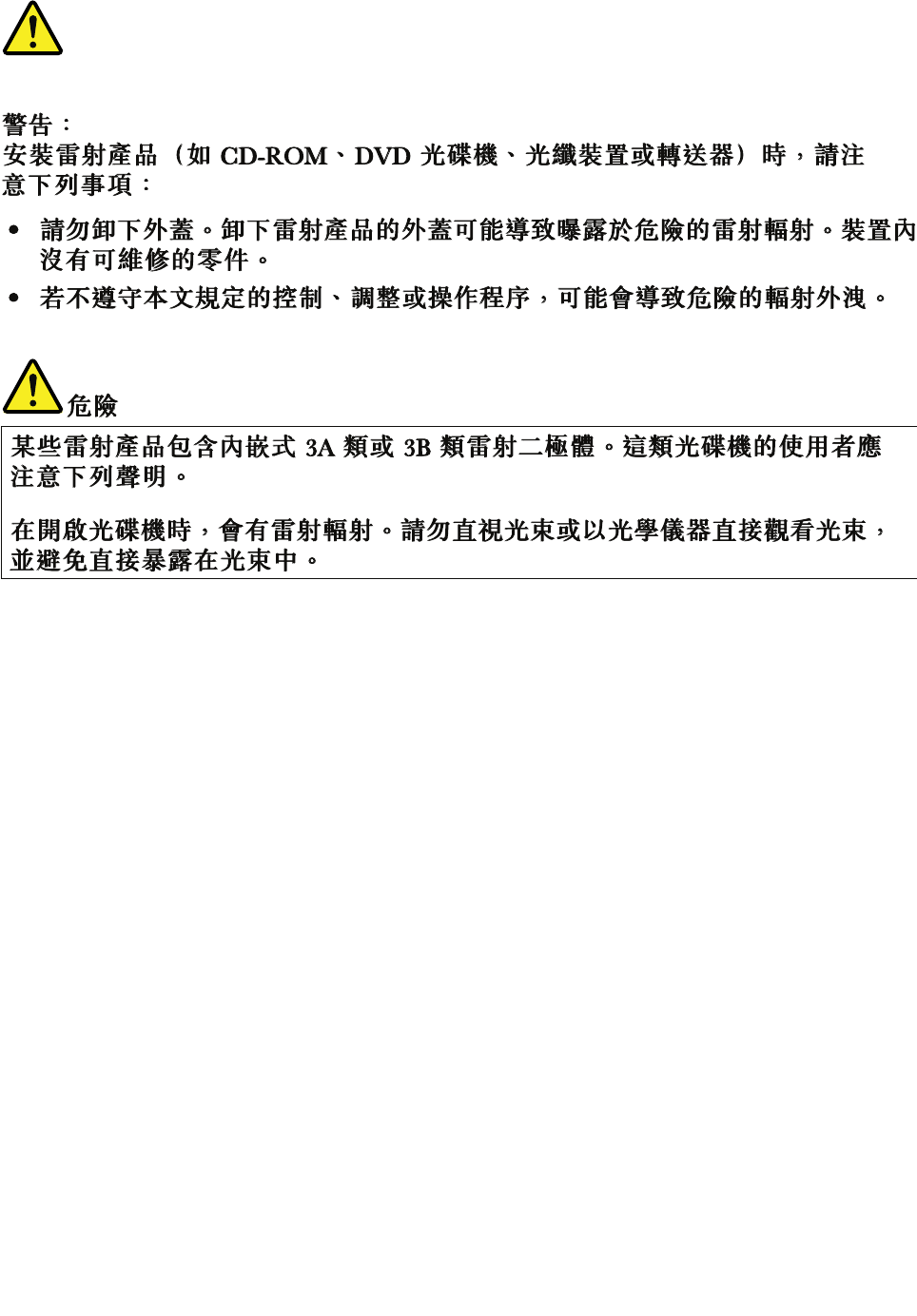

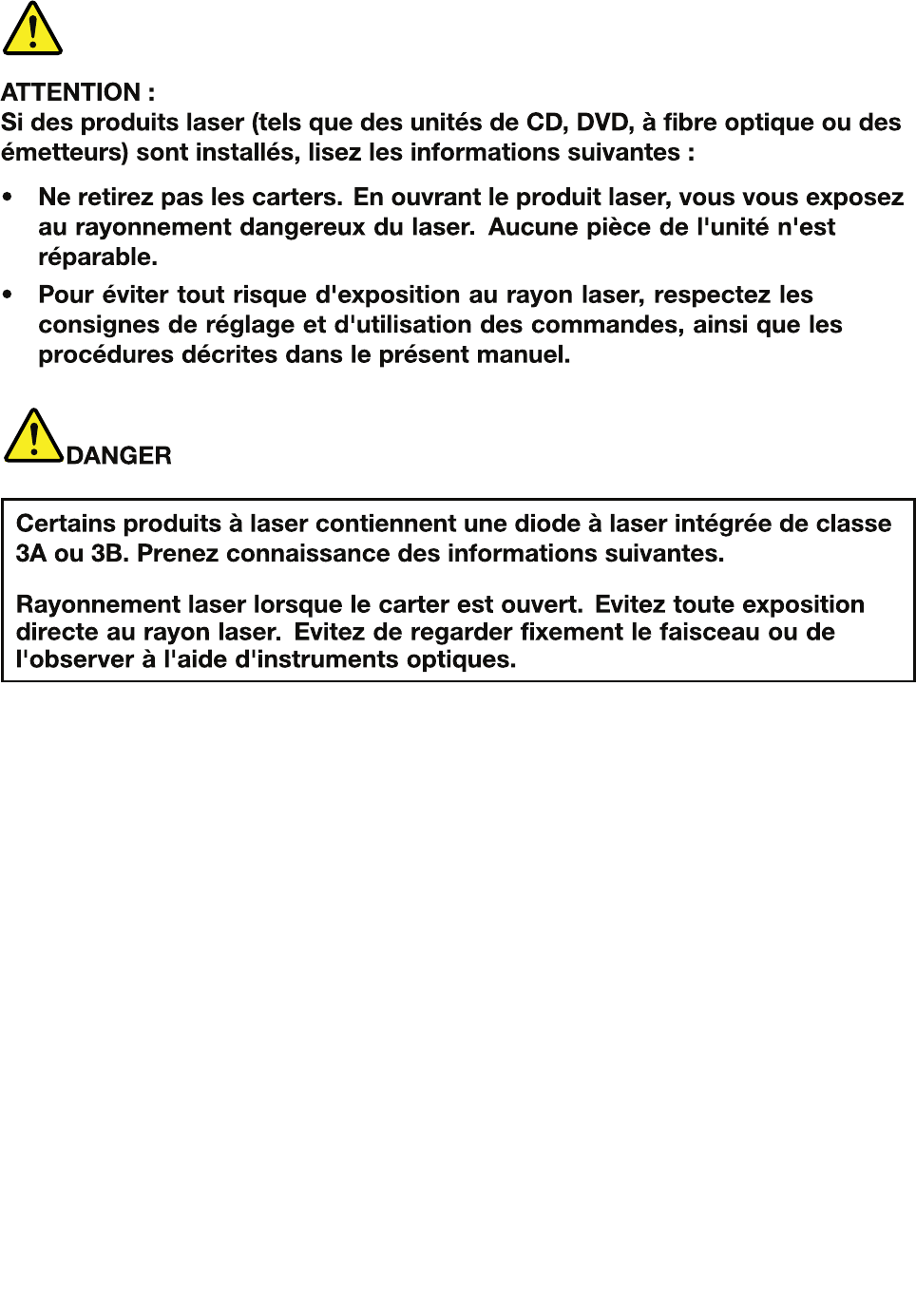

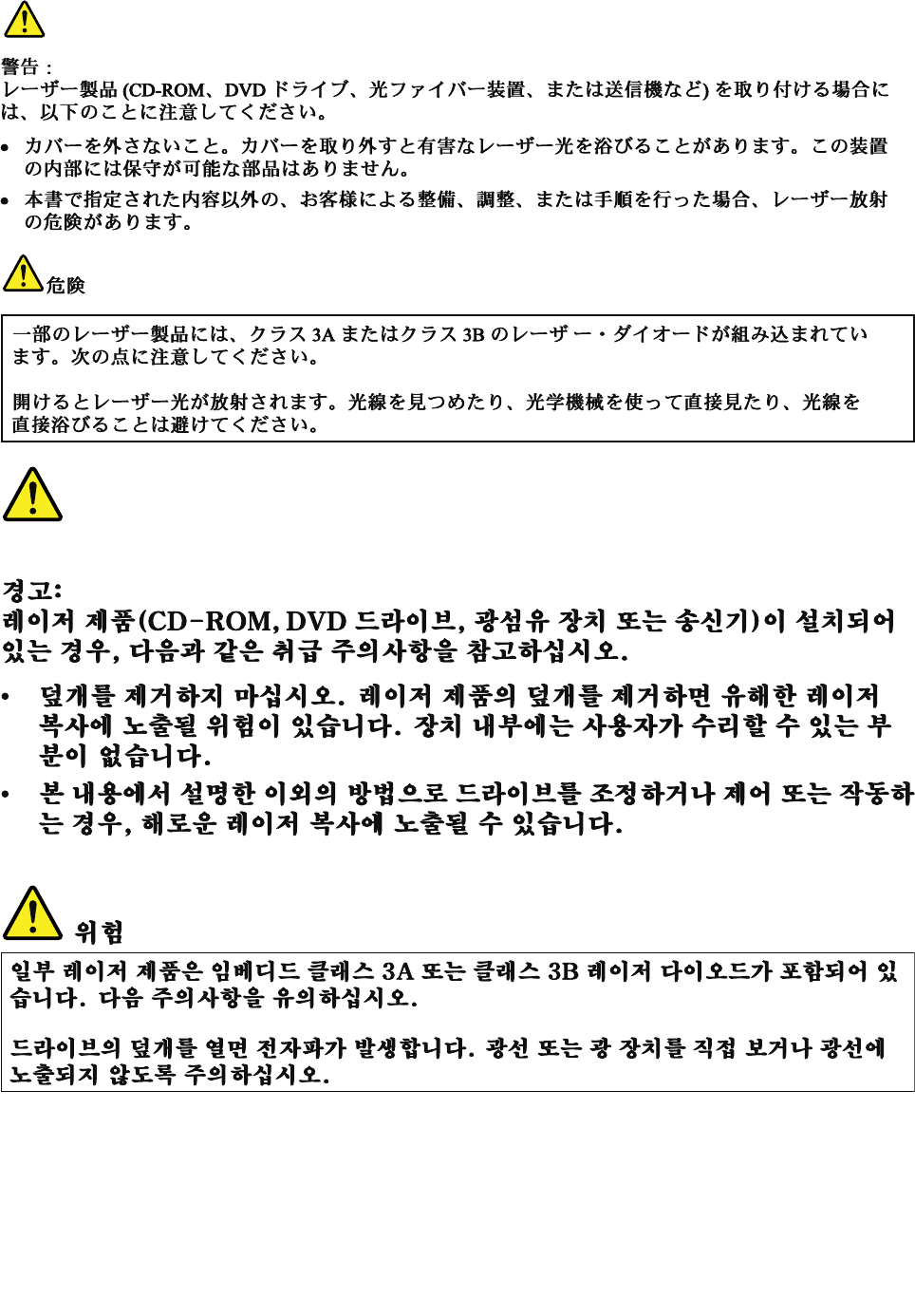

•“Lasercompliancestatement(multilingualtranslations)”onpage19

Generalsafety

Followtheserulestoensuregeneralsafety:

•Observegoodhousekeepingintheareaofthemachinesduringandaftermaintenance.

•Whenliftinganyheavyobject:

1.Makesurethatyoucanstandsafelywithoutslipping.

2.Distributetheweightoftheobjectequallybetweenyourfeet.

3.Useaslowliftingforce.Nevermovesuddenlyortwistwhenyouattempttolift.

4.Liftbystandingorbypushingupwithyourlegmuscles;thisactionremovesthestrainfromthe

musclesinyourback.Donotattempttoliftanyobjectthatweighsmorethan16kg(35lb)orthatyou

thinkistooheavyforyou.

•Donotperformanyactionthatcauseshazardstothecustomer,orthatmakestheequipmentunsafe.

•Beforeyoustartthemachine,makesurethatotherservicetechniciansandthecustomer'spersonnelare

notinahazardousposition.

•Placeremovedcoversandotherpartsinasafeplace,awayfromallpersonnel,whileyouareservicing

themachine.

•Keepyourtoolcaseawayfromwalkareassothatotherpeoplewillnottripoverit.

•Donotwearlooseclothingthatcanbetrappedinthemovingpartsofamachine.Makesurethatyour

sleevesarefastenedorrolledupaboveyourelbows.Ifyourhairislong,fastenit.

•Inserttheendsofyournecktieorscarfinsideclothingorfastenitwithanonconductiveclip,about8

centimeters(3inches)fromtheend.

•Donotwearjewelry,chains,metal-frameeyeglasses,ormetalfastenersforyourclothing,becausemetal

objectsaregoodelectricalconductors.

•Wearsafetyglasseswhenyouarehammering,drilling,soldering,cuttingwire,attachingsprings,using

solvents,orworkinginanyotherconditionsthatmightbehazardoustoyoureyes.

•Afterservice,reinstallallsafetyshields,guards,labels,andgroundwires.Replaceanysafetydevice

thatiswornordefective.

•Reinstallallcoverscorrectlybeforereturningthemachinetothecustomer.

•Fanlouversonthemachinehelptopreventoverheatingofinternalcomponents.Donotobstructfan

louversorcoverthemwithlabelsorstickers.

©CopyrightLenovo2012,20131

Electricalsafety

Observethefollowingruleswhenworkingonelectricalequipment.

Important:

Useonlyapprovedtoolsandtestequipment.Somehandtoolshavehandlescoveredwithasoftmaterial

thatdoesnotinsulateyouwhenworkingwithliveelectricalcurrents.

Manycustomershave,neartheirequipment,rubberoormatsthatcontainsmallconductivebersto

decreaseelectrostaticdischarges.Donotusethistypeofmattoprotectyourselffromelectricalshock.

•Findtheroomemergencypower-off(EPO)switch,disconnectingswitch,orelectricaloutlet.Ifanelectrical

accidentoccurs,youcanthenoperatetheswitchorunplugthepowercordquickly.

•Donotworkaloneunderhazardousconditionsornearequipmentthathashazardousvoltages.

•Disconnectallpowerbefore:

–Performingamechanicalinspection

–Workingnearpowersupplies

–Removingorinstallingmainunits

•Beforeyoustarttoworkonthemachine,unplugthepowercord.Ifyoucannotunplugit,askthecustomer

topower-offthewallboxthatsuppliespowertothemachine,andtolockthewallboxintheoffposition.

•Ifyouneedtoworkonamachinethathasexposedelectricalcircuits,observethefollowingprecautions:

–Ensurethatanotherperson,familiarwiththepower-offcontrols,isnearyou.

Attention:Anotherpersonmustbetheretoswitchoffthepower,ifnecessary.

–Useonlyonehandwhenworkingwithpowered-onelectricalequipment;keeptheotherhandinyour

pocketorbehindyourback.

Attention:Anelectricalshockcanoccuronlywhenthereisacompletecircuit.Byobservingtheabove

rule,youmaypreventacurrentfrompassingthroughyourbody.

–Whenusingtesters,setthecontrolscorrectlyandusetheapprovedprobeleadsandaccessoriesfor

thattester.

–Standonsuitablerubbermats(obtainedlocally,ifnecessary)toinsulateyoufromgroundssuchas

metaloorstripsandmachineframes.

Observethespecialsafetyprecautionswhenyouworkwithveryhighvoltages;Instructionsforthese

precautionsareinthesafetysectionsofmaintenanceinformation.Useextremecarewhenmeasuring

highvoltages.

•Regularlyinspectandmaintainyourelectricalhandtoolsforsafeoperationalcondition.

•Donotusewornorbrokentoolsandtesters.

•Neverassumethatpowerhasbeendisconnectedfromacircuit.First,checkthatithasbeenpoweredoff.

•Alwayslookcarefullyforpossiblehazardsinyourworkarea.Examplesofthesehazardsaremoistoors,

nongroundedpowerextensioncables,powersurges,andmissingsafetygrounds.

•Donottouchliveelectricalcircuitswiththereectivesurfaceofaplasticdentalmirror.Thesurfaceis

conductive;suchtouchingcancausepersonalinjuryandmachinedamage.

•Donotservicethefollowingpartswiththepoweronwhentheyareremovedfromtheirnormaloperating

placesinamachine:

–Powersupplyunits

–Pumps

–Blowersandfans

–Motorgenerators

–Similarunitstolistedabove

Thispracticeensurescorrectgroundingoftheunits.

•Ifanelectricalaccidentoccurs:

2HardwareMaintenanceManual

–Usecaution;donotbecomeavictimyourself.

–Switchoffpower.

–Sendanotherpersontogetmedicalaid.

Safetyinspectionguide

Thepurposeofthisinspectionguideistoassistyouinidentifyingpotentiallyunsafeconditions.Aseach

machinewasdesignedandbuilt,requiredsafetyitemswereinstalledtoprotectusersandservicetechnicians

frominjury.Thisguideaddressesonlythoseitems.Youshouldusegoodjudgmenttoidentifypotential

safetyhazardsduetoattachmentofnon-Lenovofeaturesoroptionsnotcoveredbythisinspectionguide.

Ifanyunsafeconditionsarepresent,youmustdeterminehowserioustheapparenthazardcouldbeand

whetheryoucancontinuewithoutrstcorrectingtheproblem.

Considertheseconditionsandthesafetyhazardstheypresent:

•Electricalhazards,especiallyprimarypower(primaryvoltageontheframecancauseseriousorfatal

electricalshock)

•Explosivehazards,suchasadamagedCRTfaceorabulgingcapacitor

•Mechanicalhazards,suchaslooseormissinghardware

Todeterminewhetherthereareanypotentiallyunsafeconditions,usethefollowingchecklistatthebeginning

ofeveryservicetask.Beginthecheckswiththepoweroff,andthepowercorddisconnected.

Checklist:

1.Checkexteriorcoversfordamage(loose,broken,orsharpedges).

2.Poweroffthecomputer.Disconnectthepowercord.

3.Checkthepowercordfor:

a.Athird-wiregroundconnectoringoodcondition.Useametertomeasurethird-wireground

continuityfor0.1ohmorlessbetweentheexternalgroundpinandtheframeground.

b.Thepowercordshouldbethetypespeciedinthepartslist.

c.Insulationmustnotbefrayedorworn.

4.Checkforcrackedorbulgingbatteries.

5.Removethecover.

6.Checkforanyobviousnon-Lenovoalterations.Usegoodjudgmentastothesafetyofanynon-Lenovo

alterations.

7.Checkinsidetheunitforanyobviousunsafeconditions,suchasmetallings,contamination,wateror

otherliquids,orsignsofreorsmokedamage.

8.Checkforworn,frayed,orpinchedcables.

9.Checkthatthepower-supplycoverfasteners(screwsorrivets)havenotbeenremovedortamperedwith.

Handlingdevicesthataresensitivetoelectrostaticdischarge

Anycomputerpartcontainingtransistorsorintegratedcircuits(ICs)shouldbeconsideredsensitiveto

electrostaticdischarge(ESD.)ESDdamagecanoccurwhenthereisadifferenceinchargebetweenobjects.

ProtectagainstESDdamagebyequalizingthechargesothatthemachine,thepart,theworkmat,andthe

personhandlingthepartareallatthesamecharge.

Notes:

1.Useproduct-specicESDprocedureswhentheyexceedtherequirementsnotedhere.

Chapter1.Safetyinformation3

2.MakesurethattheESDprotectivedevicesyouusehavebeencertied(ISO9000)asfullyeffective.

WhenhandlingESD-sensitiveparts:

•Keepthepartsinprotectivepackagesuntiltheyareinsertedintotheproduct.

•Avoidcontactwithotherpeople.

•Wearagroundedwriststrapagainstyourskintoeliminatestaticonyourbody.

•Preventthepartfromtouchingyourclothing.Mostclothingisinsulativeandretainsachargeevenwhen

youarewearingawriststrap.

•Useagroundedworkmattoprovideastatic-freeworksurface.Thematisespeciallyusefulwhen

handlingESD-sensitivedevices.

•Selectagroundingsystem,suchasthoselistedbelow,toprovideprotectionthatmeetsthespecic

servicerequirement.

Note:TheuseofagroundingsystemtoguardagainstESDdamageisdesirablebutnotnecessary.

–AttachtheESDgroundcliptoanyframeground,groundbraid,orgreen-wireground.

–Whenworkingonadouble-insulatedorbattery-operatedsystem,useanESDcommongroundor

referencepoint.Youcanusecoaxorconnector-outsideshellsonthesesystems.

–Usetheroundgroundprongoftheacplugonac-operatedcomputers.

Groundingrequirements

Electricalgroundingofthecomputerisrequiredforoperatorsafetyandcorrectsystemfunction.Proper

groundingoftheelectricaloutletcanbeveriedbyacertiedelectrician.

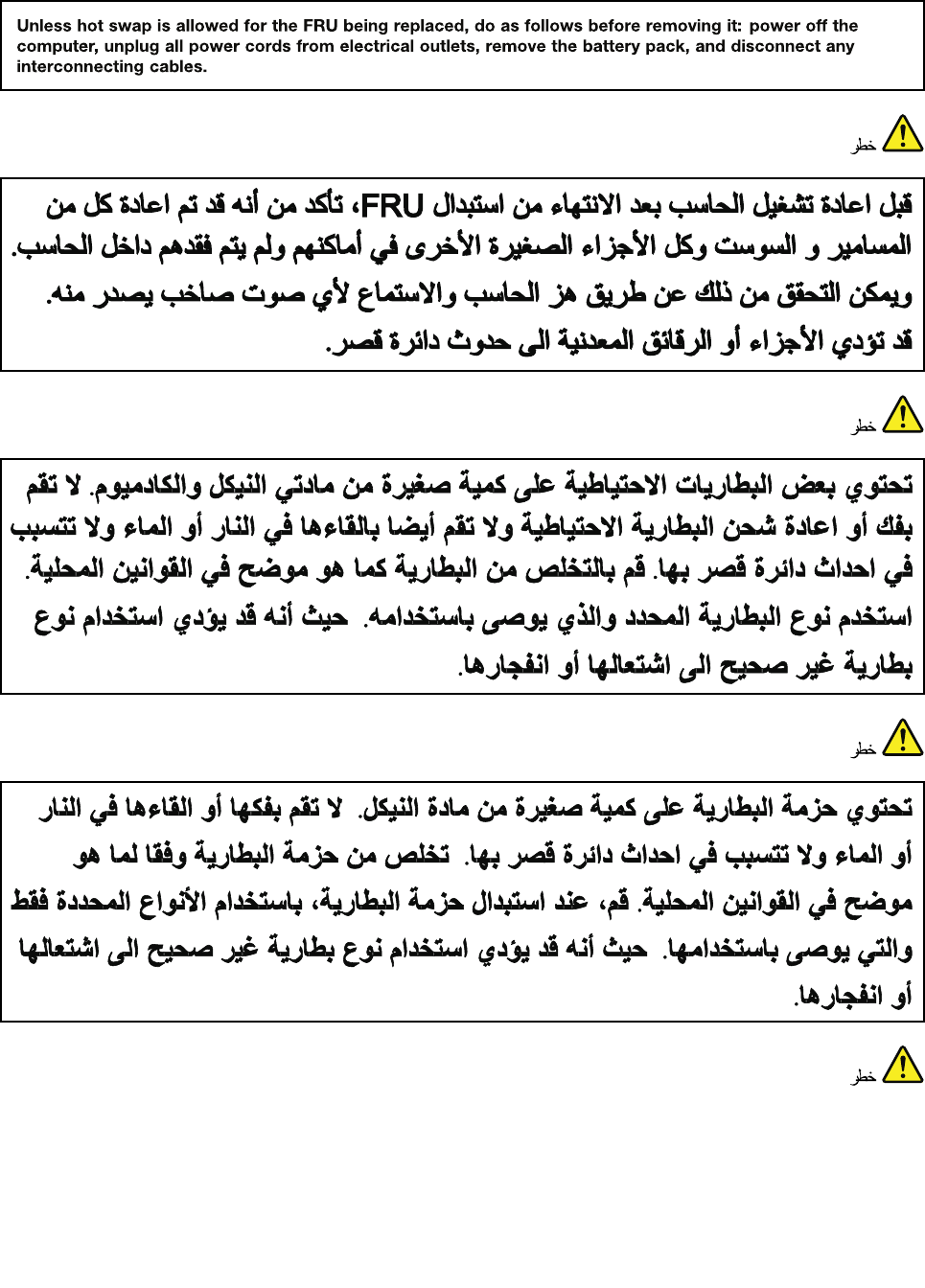

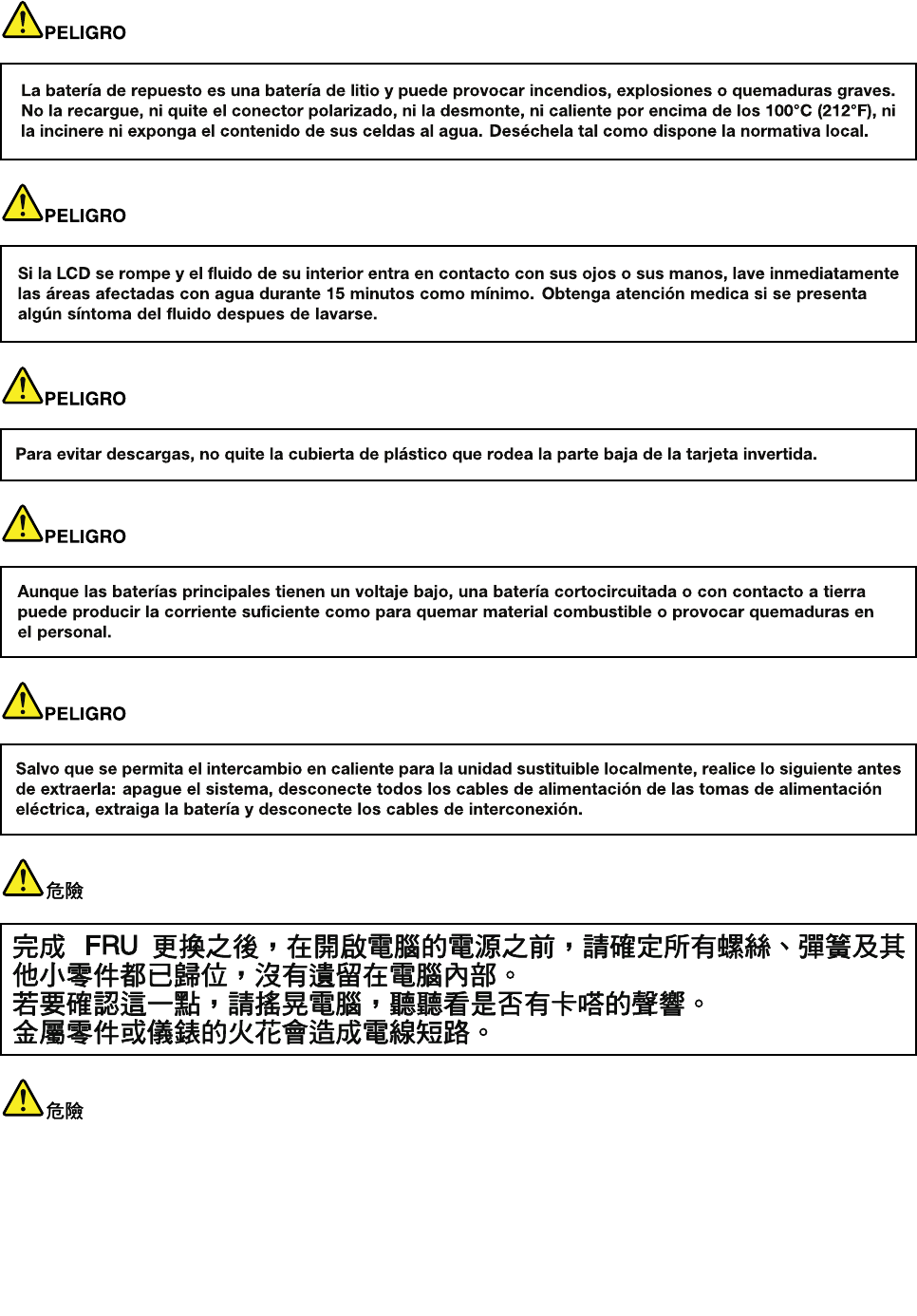

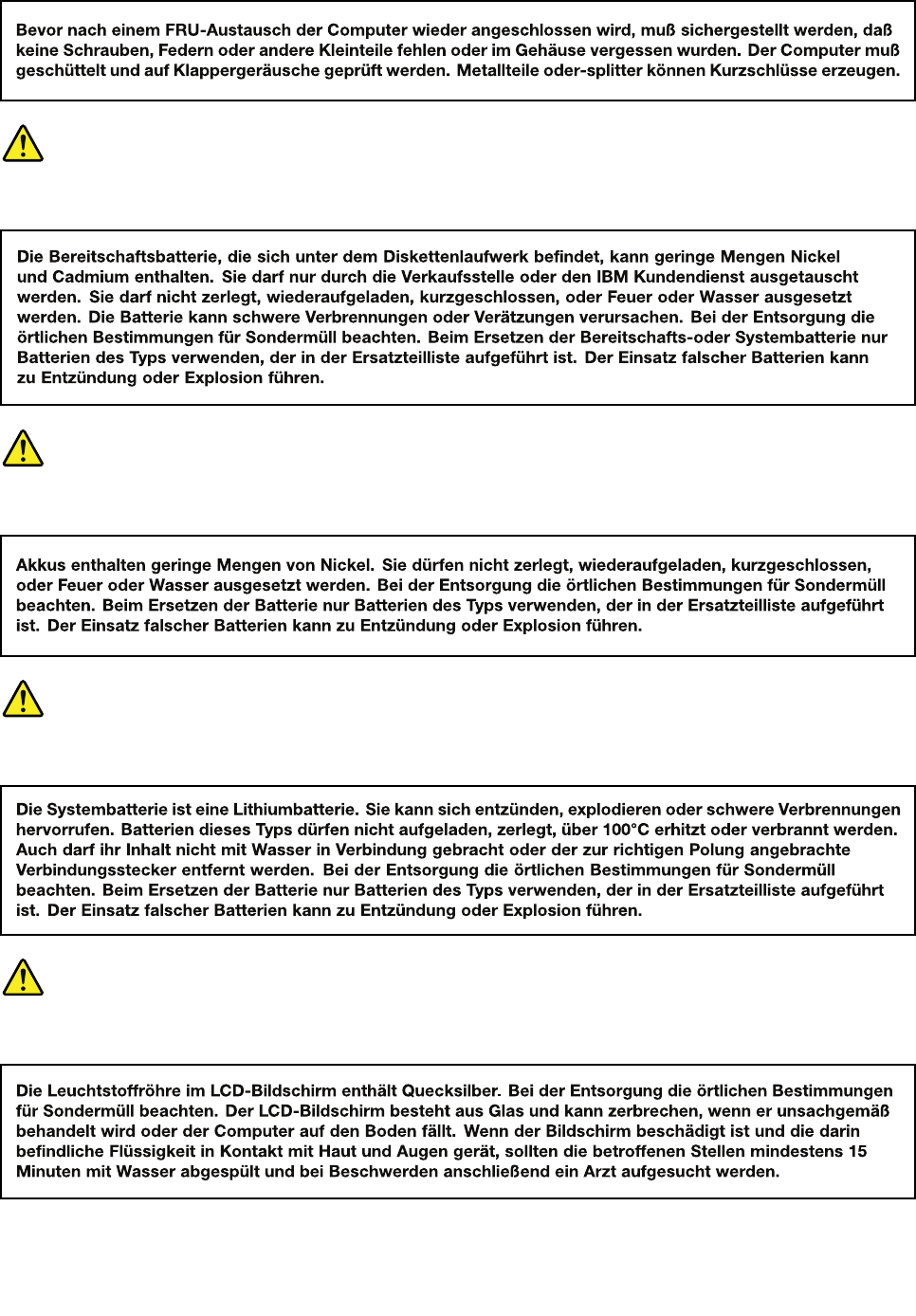

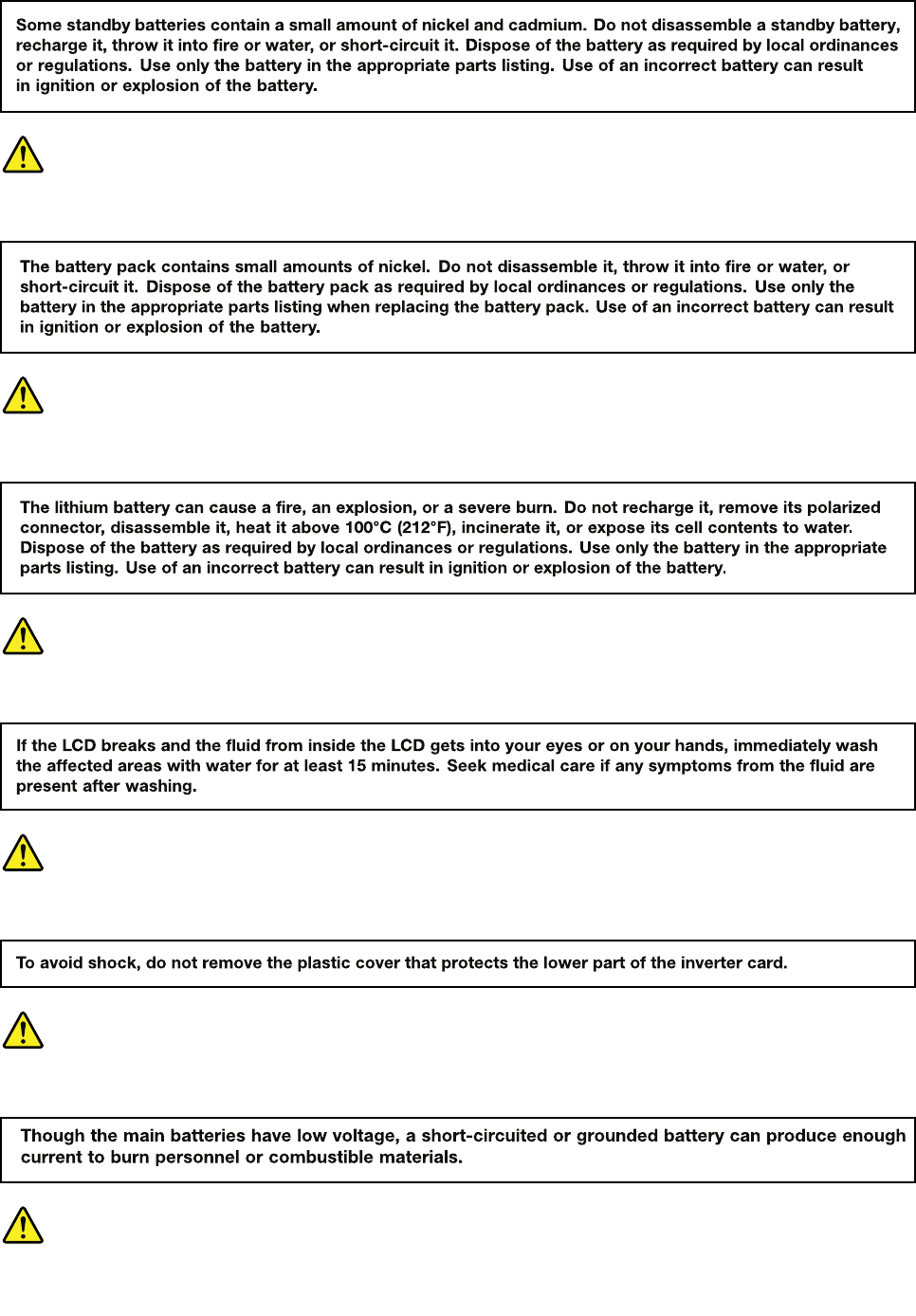

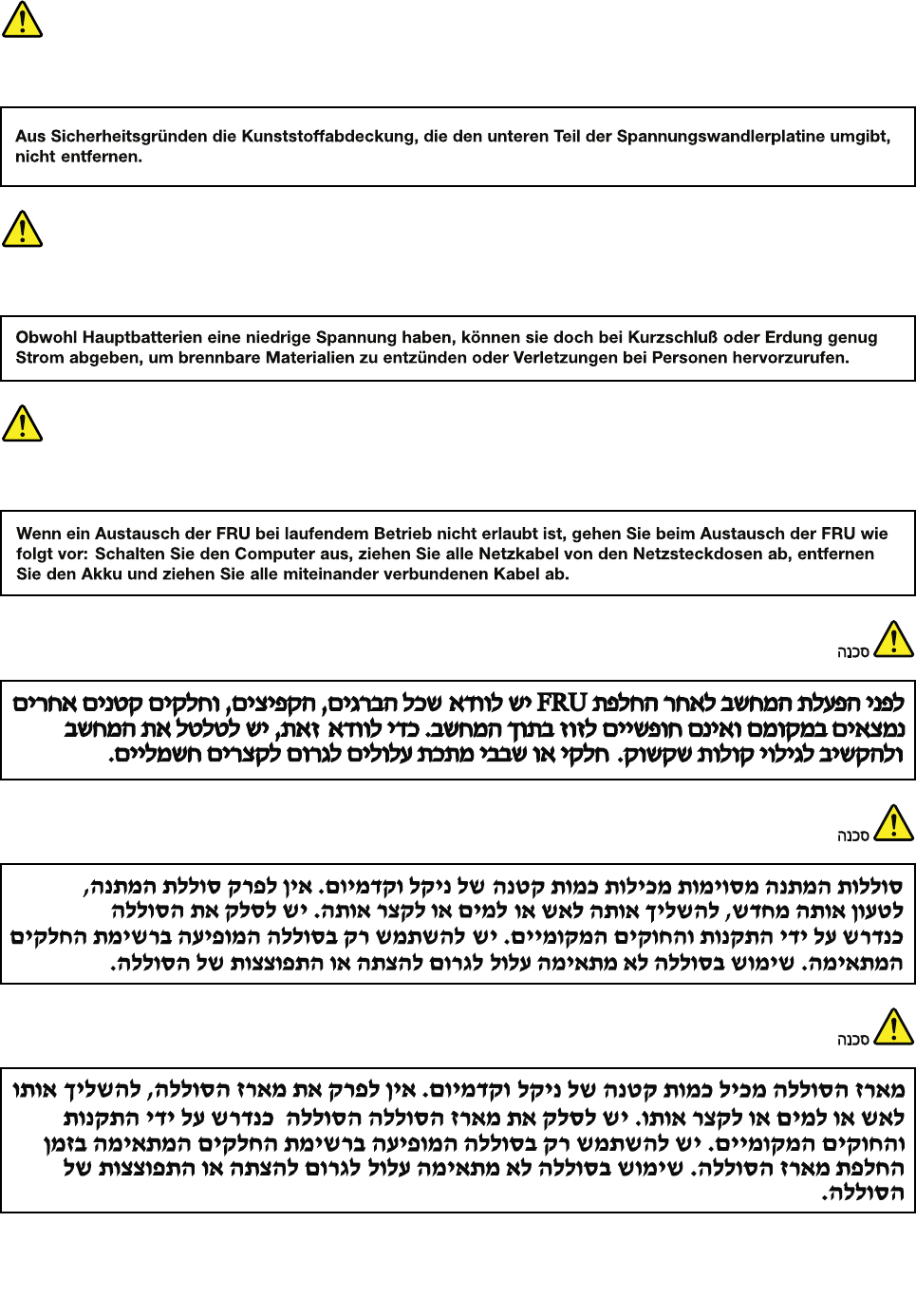

Safetynotices(multilingualtranslations)

Thesafetynoticesinthissectionareprovidedinthefollowinglanguages:

•English

•Arabic

•BrazilianPortuguese

•French

•German

•Hebrew

•Japanese

•Korean

•Spanish

•TraditionalChinese

DANGER

4HardwareMaintenanceManual

DANGER

Chapter1.Safetyinformation5

DANGER

6HardwareMaintenanceManual

Chapter1.Safetyinformation7

PERIGO

8HardwareMaintenanceManual

PERIGO

DANGER

Chapter1.Safetyinformation9

DANGER

VORSICHT

10HardwareMaintenanceManual

VORSICHT

Chapter1.Safetyinformation11

VORSICHT

12HardwareMaintenanceManual

Chapter1.Safetyinformation13

14HardwareMaintenanceManual

Chapter1.Safetyinformation15

16HardwareMaintenanceManual

Chapter1.Safetyinformation17

18HardwareMaintenanceManual

Lasercompliancestatement(multilingualtranslations)

Thelasercompliancestatementsinthissectionareprovidedinthefollowinglanguages:

•English

•Arabic

•BrazilianPortuguese

•French

•German

•Hebrew

•Japanese

•Korean

•Spanish

•TraditionalChinese

Chapter1.Safetyinformation19

20HardwareMaintenanceManual

Chapter1.Safetyinformation21

22HardwareMaintenanceManual

Chapter1.Safetyinformation23

24HardwareMaintenanceManual

Chapter1.Safetyinformation25

26HardwareMaintenanceManual

Chapter2.Importantserviceinformation

Thischapterpresentsthefollowingimportantserviceinformationthatappliestoallmachinetypessupported

bythismanual:

•“StrategyforreplacingFRUs”onpage27

–“Strategyforreplacingaharddiskdrive”onpage28

–“Importantnoticeforreplacingasystemboard”onpage28

•“ImportantinformationaboutreplacingRoHScompliantFRUs”onpage28

Important:BIOSanddevicedriverxesarecustomer-installable.TheBIOSanddevicedriversareavailable

athttp://www.lenovo.com/support.

StrategyforreplacingFRUs

Beforereplacingparts:

Makesurethatallsoftwarexes,drivers,andBIOSdownloadsareinstalledbeforereplacinganyFRUs

listedinthismanual.

Afterasystemboardisreplaced,ensurethatthelatestBIOSisinstalledtothesystemboardbefore

completingtheserviceaction.

Todownloadsoftwarexes,drivers,andBIOS,dothefollowing:

1.Gotohttp://www.lenovo.com/support.

2.ClickDownloadDrivers&Software.TheWebsiteoffersthreeoptionstobeginyoursearch:

•Searchbyproductnumber

•Searchthroughtheproductauto-detectfunction

•Searchbyproductcategory

3.Followthedirectionsonthescreenandinstallthenecessarysoftware.

Notes:Ifyouneedtoimprovethecomputerperformance,youalsocoulddownloadandinstallthelatest

BIOSutilityfromtheSupportWebsite.

•DonottrytoupdatetheBIOSsettingsforanycomputerunlessyouhavebeentrainedandcertied.An

untrainedpersonrunstheriskofdamagingthecomputer.

•Beforeinstallingthelatestutility,makesurethatthebatteryisfullychargedandanacpoweradapteris

connected.

•Donotturnofforputyourcomputerintosleeporhibernationuntiltheupdatehasbeencompleted.

Otherwise,thesystemboardmightbedamaged.

UsethefollowingstrategytopreventunnecessaryexpenseforreplacingandservicingFRUs:

•IfyouareinstructedtoreplaceaFRUbutthereplacementdoesnotcorrecttheproblem,reinstall

theoriginalFRUbeforeyoucontinue.

•Somecomputershavebothaprocessorboardandasystemboard.Ifyouareinstructedtoreplaceeither

theprocessorboardorthesystemboard,andreplacingoneofthemdoesnotcorrecttheproblem,

reinstallthatboard,andthenreplacetheotherone.

©CopyrightLenovo2012,201327

•IfanadapteroradeviceconsistsofmorethanoneFRU,anyoftheFRUsmaybethecauseoftheerror.

Beforereplacingtheadapterordevice,removetheFRUs,onebyone,toseeifthesymptomschange.

ReplaceonlytheFRUthatchangedthesymptoms.

Strategyforreplacingaharddiskdrive

Alwaystrytorunalow-levelformatbeforereplacingaharddiskdrive(HDD).Thiswillcauseallcustomerdata

ontheharddisktobelost.Besurethatthecustomerhasacurrentbackupofthedatabeforedoingthistask.

Attention:Thedrivestartupsequenceinthecomputeryouareservicingmayhavebeenchanged.Be

extremelycarefulduringwriteoperationssuchascopying,saving,orformatting.Ifyouselectanincorrect

drive,dataorprogramscanbeoverwritten.

Importantnoticeforreplacingasystemboard

Somecomponentsmountedonasystemboardareverysensitive.Improperhandlingofasystemboardcan

causedamagetothosecomponents,andmaycauseasystemmalfunction.

Attention:Whenhandlingasystemboard:

•Donotdropasystemboardorapplyanyexcessiveforcetoit.

•Avoidroughhandlingofanykind.

•AvoidbendingasystemboardandhardpushingtopreventcrackingateachBGA(BallGridArray)chipset.

ImportantinformationaboutreplacingRoHScompliantFRUs

RoHS,TheRestrictionofHazardousSubstancesinElectricalandElectronicEquipmentDirective

(2002/95/EC)isaEuropeanUnionlegalrequirementaffectingtheglobalelectronicsindustry.RoHS

requirementsmustbeimplementedonLenovoproductsplacedonthemarketafterJune2006.Products

onthemarketbeforeJune2006arenotrequiredtohaveRoHScompliantparts.IftheoriginalFRUparts

arenon-compliant,thereplacementpartsalsocanbenon-compliant.Thatis,iftheoriginalFRUpartsare

RoHScompliant,thereplacementpartalsomustbeRoHScompliant.

Note:RoHSandnon-RoHSFRUpartnumberswiththesametandfunctionareidentiedbytheunique

FRUpartnumbers.

LenovoplanstotransittoRoHScompliancebeforetheimplementationdateandexpectsitssupplierstobe

readytomeetLenovo’srequirementsandscheduleintheEuropeanUnion.Productssoldbetween2005

and2006mightcontainsomeRoHScompliantFRUs.Thefollowingstatementpertainstotheproducts

withRoHScompliantFRUs.

RoHScompliantFRUshaveuniqueFRUpartnumbers.BeforeoraftertheRoHSimplementationdate,the

failedRoHScompliantpartsmustbereplacedwithcompliantpartsandonlythefollowingFRUscanbe

used:identiedascompliantintheHardwareMaintenanceManualordirectsubstitutionscanbeused.

•CompliantFRUsidentiedinHardwareMaintenanceManual

•DirectsubstitutionswithdifferentFRUpartnumbersautomaticallyshippedbythedistributioncenterat

thetimeoforder

ForproductsshippedafterJune2006

CurrentororiginalpartReplacementFRU

MustbeRoHSMustbeRoHS

28HardwareMaintenanceManual

Chapter3.Generalcheckout

Thischapterpresentsfollowinginformation:

•“Whattodorst”onpage29

•“Powersystemcheckout”onpage30

Beforeyougotothecheckoutguide,besuretoreadthefollowingimportantnotes.

Importantnotes:

•Onlycertiedtrainedpersonnelshouldservicethecomputer.

•BeforereplacinganyFRU,readtheentirepageonremovingandreplacingFRUs.

•WhenyoureplaceFRUs,itisrecommendedtousenewnylon-coatedscrews.

•Beextremelycarefulduringsuchwriteoperationsascopying,saving,orformatting.Drivesinthecomputer

thatyouareservicingsequencemighthavebeenaltered.Ifyouselectanincorrectdrive,dataorprograms

mightbeoverwritten.

•ReplaceaFRUonlywithanotherFRUofthecorrectmodel.WhenyoureplaceaFRU,makesurethatthemodel

ofthemachineandtheFRUpartnumberarecorrectbyreferringtotheFRUpartslist.

•AFRUshouldnotbereplacedbecauseofasingle,unreproduciblefailure.Singlefailurescanoccurfora

varietyofreasonsthathavenothingtodowithahardwaredefect,suchascosmicradiation,electrostaticdischarge,

orsoftwareerrors.ConsiderreplacingaFRUonlywhenaproblemrecurs.IfyoususpectthataFRUisdefective,

cleartheerrorlogandrunthetestagain.Iftheerrordoesnotrecur,donotreplacetheFRU.

•BecarefulnottoreplaceanondefectiveFRU.

Whattodorst

WhenyoudoreturnaFRU,youmustincludethefollowinginformationinthepartsexchangeformor

partsreturnformthatyouattachtoit:

1.Nameandphonenumberofservicetechnician

2.Dateofservice

3.Dateonwhichthemachinefailed

4.Dateofpurchase

5.ProcedureindexandpagenumberinwhichthefailingFRUwasdetected

6.FailingFRUnameandpartnumber

7.Machinetype,modelnumber,andserialnumber

8.Customer'snameandaddress

Note:Duringthewarrantyperiod,thecustomermayberesponsibleforrepaircostsifthecomputerdamage

wascausedbymisuse,accident,modication,unsuitablephysicaloroperatingenvironment,orimproper

maintenancebythecustomer.Followingisalistofsomecommonitemsthatarenotcoveredunderwarranty

andsomesymptomsthatmightindicatethatthesystemwassubjectedtostressbeyondnormaluse.

Beforecheckingproblemswiththecomputer,determinewhetherthedamageiscoveredunderthewarranty

byreferringtothefollowinglist:

Thefollowingarenotcoveredunderwarranty:

•LCDpanelcrackedfromtheapplicationofexcessiveforceorfrombeingdropped

•Scratched(cosmetic)parts

•Distortion,deformation,ordiscolorationofthecosmeticparts

•Plasticparts,latches,pins,orconnectorsthathavebeencrackedorbrokenbyexcessiveforce

•Damagecausedbyliquidspilledintothesystem

•DamagecausedbytheimproperinsertionofaPCCardortheinstallationofanincompatiblecard

•Improperdiscinsertionoruseofanopticaldrive

©CopyrightLenovo2012,201329

•Diskettedrivedamagecausedbypressureonthediskettedrivecover,foreignmaterialinthedrive,

ortheinsertionofadiskettewithmultiplelabels

•Damagedorbentdisketteejectbutton

•Fusesblownbyattachmentofanonsupporteddevice

•Forgottencomputerpassword(makingthecomputerunusable)

•Stickykeyscausedbyspillingaliquidontothekeyboard

•Useofanincorrectacpoweradapteronlaptopproducts

Thefollowingsymptomsmightindicatedamagecausedbynonwarrantedactivities:

•Missingpartsmightbeasymptomofunauthorizedserviceormodication.

•Ifthespindleofaharddiskdrivebecomesnoisy,itmayhavebeensubjectedtoexcessiveforce,

ordropped.

Powersystemcheckout

Toverifyasymptom,dothefollowing:

1.Turnoffthecomputer.

2.Removethebatterypack.

3.Connecttheacpoweradapter.

4.Checkthatpowerissuppliedwhenyouturnonthecomputer.

5.Turnoffthecomputer.

6.Disconnecttheacpoweradapterandinstallthechargedbatterypack.

7.Checkthatthebatterypacksuppliespowerwhenyouturnonthecomputer.

Ifyoususpectapowerproblem,seetheappropriateoneofthefollowingpowersupplycheckouts:

•“Checkingtheacpoweradapter”onpage30

•“Checkingoperationalcharging”onpage31

•“Checkingthebatterypack”onpage31

Checkingtheacpoweradapter

Youareherebecausethecomputerfailsonlywhentheacpoweradapterisused.

•Ifthepower-onindicatordoesnotturnon,checkthepowercordoftheacpoweradapterforcorrect

continuityandinstallation.

•Ifthecomputerdoesnotchargeduringoperation,goto“Checkingoperationalcharging”onpage31

Tochecktheacpoweradapter,dothefollowing:

1.Unplugtheacpoweradaptercablefromthecomputer.

2.Measuretheoutputvoltageattheplugoftheacpoweradaptercable.Seethefollowinggure:

PinVoltage(Vdc)

1+20

(20V)

Note:Outputvoltageofpinno.2oftheacpoweradaptermaydifferentfromtheoneyouareservicing.

3.Ifthevoltageisnotcorrect,replacetheacpoweradapter.

4.Ifthevoltageisacceptable,dothefollowing:

•Replacethesystemboard.

•Iftheproblempersists,gotoChapter5“Lenovoproductinformation”onpage37.

30HardwareMaintenanceManual

Note:Noisefromtheacpoweradapterdoesnotalwaysindicateadefect.

Checkingoperationalcharging

Tocheckwhetherthebatterychargesproperlyduringoperation,useadischargedbatterypackorabattery

packthathaslessthan50%ofthetotalpowerremainingwheninstalledinthecomputer.

Performoperationalcharging.Ifthebatterystatusindicatororicondoesnotturnon,removethebattery

packandletitreturntoroomtemperature.Reinstallthebatterypack.Ifthechargeindicatororiconstilldoes

notturnon,replacethebatterypack.

Ifthechargeindicatorstilldoesnotturnon,replacethesystemboard.Thenreinstallthebatterypack.Ifitis

stillnotcharged,gotothenextsection.

Checkingthebatterypack

Batterychargingdoesnotstartuntilthepowermetershowsthatlessthan95%ofthetotalpowerremains;

underthisconditionthebatterypackcanchargeto100%ofitscapacity.Thisprotectsthebatterypackfrom

beingoverchargedorfromhavingashortenedlife.

Tocheckyourbattery,dependingontheoperatingsystemyouareusing,dothefollowing:

•Windows7:LaunchthePowerManagerprogramandclicktheBatterytab.

•Windows8:

–PresstherecoverybuttontolaunchtheLenovoSolutionCenterprogram,andthenclickSystem

➙Battery.

–OpentheLenovoSettingsprogramfromtheStartscreen,andthenclickPower.

Note:Ifthebatterypackbecomeshot,itmaynotbeabletobecharged.Removeitfromthecomputerand

leaveitatroomtemperatureforawhile.Afteritcoolsdown,reinstallandrechargeit.

Tocheckthebatterypack,dothefollowing:

1.Poweroffthecomputer.

2.Removethebatterypackandmeasurethevoltagebetweenbatteryterminals1(+)and7(-).Seethe

followinggure:

TerminalVoltage(Vdc)

1+0to+14

7Ground(-)

1(+) 2(+)

3456(-) 7(-)

3.Ifthevoltageislessthan+11.0Vdc,thebatterypackhasbeendischarged.

Note:Rechargingwilltakeatleast3hours,eveniftheindicatordoesnotturnon.

Ifthevoltageisstilllessthan+11.0Vdcafterrecharging,replacethebattery.

4.Ifthevoltageismorethan+11.0Vdc,measuretheresistancebetweenbatteryterminals5and7.

Theresistancemustbe4to30KΩ.

Chapter3.Generalcheckout31

Iftheresistanceisnotcorrect,replacethebatterypack.Iftheresistanceiscorrect,replacethesystem

board.

32HardwareMaintenanceManual

Chapter4.Relatedserviceinformation

Thischapterpresentsthefollowinginformation:

•“Recoveringthecomputersettings”onpage33

•“Passwords”onpage33

•“Powermanagement”onpage34

Recoveringthecomputersettings

Thistopicprovidesinformationabouttherecoveryprogramsthatareavailableforyoutorecoverthe

computersettings.

•Windows7:ThefollowingrecoveryprogramsareavailableoncomputerswithaWindows7operating

system:

–OneKey®RecoveryPro

TheOneKeyRecoveryProprogramenablesyoutobackupallyourharddiskdrivecontents,including

theoperatingsystem,datales,softwareprograms,andpersonalsettings.Youcandesignatewhere

theOneKeyRecoveryProprogramstoresthebackup.Afteryouhavebackedupthecontentsonthe

harddiskdrive,youcanrestorethecompletecontentsoftheharddiskdrive,restoreonlythedesired

les,orrestoreonlytheWindowsoperatingsystemandapplications.

–ProductRecovery

TheProductRecoveryprogramenablesyoutorestorethecomputersettingstothefactorydefault

settingsthroughrecoverymedia.

Attention:WhenyouusetheProductRecoveryprogramtorestorethecomputersettings,allthedata

youhavestoredontheharddiskdrivewillbedeletedandthecomputersettingswillberestoredtothe

factorydefaultsettings.Duringtherestoringprocess,youwillbegiventheoptiontosaveoneormore

lescurrentlyontheharddiskdrivetoothermediabeforethedataisdeleted.

•Windows8:ThepreinstalledWindowsrecoveryprogramenablesyoutodothefollowing:

–Refreshingthecomputerwithoutlosingpersonalles

–Restoringthecomputertothefactorydefaultsettings

Attention:WhenyouusetheWindowsrecoveryprogramtorestorethecomputersettings,allthedata

youhavestoredontheharddiskdrivewillbedeletedandthecomputerwillberestoredtothefactory

defaultsettings.Toavoiddataloss,backupyourdatainadvance.

–Conguringtheadvancedstartupoptions

Theadvancedstartupoptionsenableyoutodothefollowing:

–ChangingthestartupsettingsoftheWindowsoperatingsystem

–RestoringtheWindowsoperatingsystemfromasystemimage

–Startingupfromanexternaldevice

Formoreinformationabouttherecoverysolutions,refertothehelpinformationsystemoftheprograms.

Passwords

AsmanyastwopasswordsmightbeneededforaLenovonotebookcomputer:thepower-onpassword

andthesupervisorpassword.

©CopyrightLenovo2012,201333

Ifanyofthesepasswordshasbeenset,apromptforitwillbedisplayedonthescreenwheneverthe

computeristurnedon.Thecomputerdoesnotstartuntilthepasswordisentered.

Note:Ifonlyasupervisorpasswordisset,thepasswordpromptwillnotbedisplayedwhentheoperating

systemisstarted.

Power-onpassword

Apower-onpasswordprotectsthesystemfrombeingturnedonbyanunauthorizedperson.Thepassword

mustbeenteredbeforeanoperatingsystemcanbestarted.

Supervisorpassword

AsupervisorpasswordprotectsthesysteminformationstoredintheBIOS.Theusermustenterthe

supervisorpasswordtogetaccesstotheBIOSandchangethesystemconguration.

Attention:Ifyouforgetthepassword,thereisnoserviceproceduretoresetthepassword.Thesystem

boardmustbereplacedforascheduledfee.

Powermanagement

Note:PowermanagementmodesarenotsupportedforAPMoperatingsystem.

Toreducepowerconsumption,thecomputerhasthreepowermanagementmodes:screenblank,sleep,

andhibernation.

Screenblankmode

Ifthetimesetonthe“Turnoffmonitor”timerintheoperatingsystemexpires,theLCDbacklightturnsoff.

YoualsocanturnofftheLCDbacklightbypressingFn+F2.

Toendscreenblankmodeandresumenormaloperation,pressanykey.

Sleepmode

Whenthecomputerenterssleepmode,thefollowingeventsoccurinadditiontowhatoccursinscreen

blankmode:

•TheLCDispoweredoff.

•Theharddiskdriveispoweredoff.

•TheCPUstops.

Toentersleepmode,pressFn+F1.

Incertaincircumstances,thecomputergoesintosleepmodeautomatically:

•Ifa“suspendtime”hasbeensetonthetimer,andtheuserdoesnotdoanyoperationwiththekeyboard,

theharddiskdrive,theparallelconnector,orthediskettedrivewithinthattime.

•Ifthebatteryindicatorblinksorange,indicatingthatthebatterypowerislow.

Tocausethecomputertoreturnfromsleepmodeandresumetheoperation,dooneofthefollowing:

•PresstheFnkey.

•OpentheLCDcover.

•Turnonthepowerbutton.

Also,whenthetimesetontheresumetimerelapses,thecomputerautomaticallyreturnsfromsleepmode

andresumesoperation.

34HardwareMaintenanceManual

Note:Thecomputerdoesnotacceptanyinputimmediatelyafteritenterssleepmode.Waitafewseconds

beforetakinganyactiontoreenteroperationmode.

Hibernationmode

Inhibernationmode,thefollowingoccurs:

•Thesystemstatus,RAM,VRAM,andsetupdataarestoredontheharddiskdrive.

•Thesystemispoweredoff.

Ifyouhavedenedoneofthefollowingactionsastheeventthatcausesthesystemtogointohibernation

mode,performthataction.

•Closingthelid.

•Pressingthepowerbutton.

Also,thecomputergoesintohibernationmodeautomaticallyineitherofthefollowingconditions:

•Ifa“hibernationtime”hasbeensetonthetimer,andiftheuserdoesnotdoanyoperationwiththe

keyboard,theharddiskdrive,theparallelconnector,orthediskettedrivewithinthattime.

•Ifthetimerconditionsaresatisedinsuspendmode.

Whenthepoweristurnedon,thecomputerreturnsfromhibernationmodeandresumesoperation.The

hibernationleinthebootrecordontheharddiskdriveisread,andsystemstatusisrestoredfromthe

harddiskdrive.

Chapter4.Relatedserviceinformation35

36HardwareMaintenanceManual

Chapter5.Lenovoproductinformation

Thischapterpresentstheproduct-specicservicereferencesandpartsinformationforthecomputer.

•“Specications”onpage37

•“Statusindicators”onpage38

•“Fnkeycombinations”onpage39

Specications

Thistopicliststhephysicalfeaturesforthecomputer.

Processor

•Windows7:T oviewthesystempropertiesofyourcomputer,clickStart,right-clickComputer;then

clickProperties.

•Windows8:Fromthedesktop,movethecursortothetop-rightorbottom-rightcornerofthescreento

displaythecharms.ThenclickSettings➙PCinfo.

Memory

•Doubledatarate3(DDR3)synchronousdynamicrandomaccessmemory(SDRAM)

Storagedevice

•2.5-inch(7mmheightor9.5mmheight)harddiskdrive

•mSATAsolidstatedrive(onsomemodelsforcacheonly)

Display

•Size:14.0inches(356mm)

•Resolution:

–LCD:1366-by-768

–Externalmonitor:Maximum2048-by-1536

•Camera

Keyboard

•6-rowLenovokeyboard

•Recoverybutton

Interface

•Comboaudiojack(stereoheadphoneorheadset)

•TwoUSB2.0connectors

•TwoUSB3.0connectors

•RJ45Ethernetconnector

•HDMIport

•Externalmonitorconnector

•4-in-1digitalmediacardreaderslot

©CopyrightLenovo2012,201337

Opticaldrive

•12.7mmRamboopticaldrive

Wirelessfeatures

•IntegratedwirelessLAN

•100/1000MbpsEthernetcommunication

Statusindicators

Thischapterpresentsthesystemstatusindicatorsthatshowthestatusofthecomputer.

123

Table1.Statusindicators

IndicatorMeaning

1Capslockstatus

indicator

White:CapsLockmodeisenabled.Youcantypeallalphabeticcharacters(A-Z)in

uppercasedirectly.ToenableordisableCapsLockmode,presstheCapsLockkey.

2Numericlockstatus

indicator

White:Theseparatenumerickeypadonthekeyboardisenabled.Toenableordisable

thenumerickeypad,presstheNumericLockkey.

38HardwareMaintenanceManual

Table1.Statusindicators(continued)

IndicatorMeaning

3Deviceaccess

statusindicator

On:Theharddiskdriveoropticaldriveisreadingorwritingdata.

Attention:

•Whentheindicatorison,donotputthecomputerintosleepmodeorturnoffthe

computer.

•Whentheindicatorison,donotmovethecomputer.Suddenphysicalshockmight

causedriveerrors.

4Powerandbattery

statusindicator

•Solidgreen:Thebatterychargelevelisbetween80%and100%,orthebattery

dischargelevelisbetween20%and100%.

•Slowblinkinggreen:Thebatterychargelevelisbetween20%and80%,and

chargingiscontinuing.Whenthebatterychargelevelreaches80%,thebatterystatus

indicatorstopsblinking,butthechargingmightcontinueuntilthebatteryis100%

charged.

•Slowblinkingorange:Thebatterychargelevelisbetween5%and20%,andthe

chargingiscontinuing.Whenthebatterychargelevelreaches20%,theblinking

colorchangestogreen.

•Solidorange:Thebatterydischargelevelisbetween5%and20%.

•Fastblinkingorange:Thebatterychargeordischargelevelis5%orless.

•Off:Thebatteryisdetachedorthecomputerispoweredoff.

Fnkeycombinations

ThefollowingtabledescribesthefunctionsofFnkeycombinations.

Table2.Functionkeycombinations

KeycombinationDescription

Fn+Esc•Windows7:Changethecameraandaudiosettings

•Windows8:Turnsonoroffthecamera

Fn+F1Putsthecomputerintosleepmode.Toresumenormaloperation,press

theFnkeyonly.

Fn+F2Enablesthebacklightfeatureofthecomputerscreen.Todisablethefeature,

pressFn+F2.

Fn+F3Switchesbetweenthecomputerdisplayandanexternalmonitor.Note:You

alsocanusetheWindows+Pcombinationtoswitchbetweenthecomputer

displayandanexternalmonitor.

Fn+F5Enablesordisablesthebuilt-inwirelessnetworkingfeatures.

Fn+F6Enablesordisablesthetouchpad.

Fn+F8Enablesordisablesthenumerickeypad.

Fn+F9Multimediacontrol:Start/Pause

Fn+F10Multimediacontrol:Stop

Fn+F11Multimediacontrol:Skiptotheprevioustrack

Fn+F12Multimediacontrol:Skiptothenexttrack

Fn+PgUpHasthesamefunctionastheScrLkkeyonaconventionalkeyboard.

Fn+PrtScHasthesamefunctionastheSysRqkeyonaconventionalkeyboard.

Chapter5.Lenovoproductinformation39

Table2.Functionkeycombinations(continued)

KeycombinationDescription

Fn+HomeHasthesamefunctionasthePausekeyonaconventionalkeyboard.

Fn+EndHasthesamefunctionastheBreakkeyonaconventionalkeyboard.

Fn+PgDnHasthesamefunctionastheInsertkeyonaconventionalkeyboard.

Fn+up/downarrowIncreasesordecreasesthedisplaybrightnesslevel.

Fn+left/rightarrowDecreasesorincreasesthesoundvolume.

40HardwareMaintenanceManual

Chapter6.FRUreplacementnotices

Thischapterpresentsnoticesrelatedtoremovingandreplacingparts.Readthischaptercarefullybefore

replacinganyFRU.

CRUstatementforcustomers:

Youcanresolvesomeproblemswithyourproductwithareplacementpartyoucaninstallyourself,called

a“CustomerReplaceableUnit”or“CRU”.SomeCRUsaredesignatedasself-serviceCRUsandothers

aredesignatedasoptional-serviceCRUs.Installationofself-serviceCRUsisyourresponsibility.For

optional-serviceCRUs,youcaneitherinstalltheCRUyourselforyoucanrequestthataServiceProvider

installtheCRUaccordingtothewarrantyserviceforyourproduct.IfyouintendoninstallingtheCRU,

LenovowillshiptheCRUtoyou.CRUinformationandreplacementinstructionsareshippedwithyour

productandareavailablefromLenovoatanytimeuponrequest.Y oucanndalistofCRUsforyour

productinthisHardwareMaintenanceManual.Anelectronicversionofthismanualcanbefoundat

http://www.lenovo.com/UserManuals.Followtheon-screeninstructionstondthemanualforyourproduct.

YoumightberequiredtoreturnthedefectiveCRU.Whenreturnisrequired:(1)returninstructions,aprepaid

shippinglabel,andacontainerwillbeincludedwiththereplacementCRU;and(2)youmightbechargedfor

thereplacementCRUifLenovodoesnotreceivethedefectiveCRUwithinthirty(30)daysofyourreceiptof

thereplacementCRU.SeeyourLenovoLimitedWarrantydocumentationforfulldetails.

Screwnotices

Loosescrewscancauseareliabilityproblem.IntheLenovonotebookcomputer,thisproblemisaddressed

withspecialnylon-coatedscrewsthathavethefollowingcharacteristics:

•Theymaintaintightconnections.

•Theydonoteasilycomeloose,evenwithshockorvibration.

•Theyarehardertotighten.

Dothefollowingwhenyouservicethismachine:

•Keepthescrewkitinyourtoolbag.

•Itisrecommendedtousenewscrews.

•Itrecommendedtouseeachscrewonlyonce.

•Useatorquescrewdriverifyouhaveone.

Tightenscrewsasfollows:

•Plastictoplastic

Turnanadditional90degreesafterthescrewheadtouchesthesurfaceoftheplasticpart:

•Logiccardtoplastic

Turnanadditional180degreesafterthescrewheadtouchesthesurfaceofthelogiccard:

©CopyrightLenovo2012,201341

•T orquedriver

Ifyouhaveatorquescrewdriver,refertotheTorquecolumninthescrewinformationtableforeachstep.

•Makesurethatyouusethecorrectscrew.Itisrecommendedtousenewscrewsforreplacements.If

youhaveatorquescrewdriver,tightenallscrewsrmlytothetorquespeciedinthescrewinformation

tableforeachstep.

•Ensuretorquescrewdriversarecalibratedcorrectlyfollowingcountryspecications.

42HardwareMaintenanceManual

Chapter7.RemovingandreplacingaFRU

ThischapterprovidesinstructionsonhowtoremoveorreplaceaFRU.
