Lenovo BKC510 Bluetooth Keyboard User Manual Alex manual Rev1 0 US 1

Lenovo (Shanghai) Electronics Technology Co., Ltd Bluetooth Keyboard Alex manual Rev1 0 US 1

Contents

User Manual.pdf

Bluetooth Keyboard Cover for TAB A10
* For reference only, please refer to our actual product.
Printed in China
Learn more
Legal notices
First Edition (March 2014)
© Copyright Lenovo 2014.
For more information about tablet functions and useful manuals, go to
http://support.lenovo.com/.
To read this manual on your tablet, please access “User
Guide” from the Browser favorites in your tablet.
Getting support
For support on network service and billing, please contact your wireless network operator.
For instructions on how to use your tablet, go to
http://support.lenovo.com/
.
Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries,
or both.
Other company, product, or service names may be trademarks or service marks of others.
252-01401L-A01US
Special function keys
Lock screen
Open web browser
Mute Turn volume down Turn volume up
Menu
Play/Pause
Next
Display home screen
Previous
Application & Access
Display input selection
screen
Calculated by 2 hours in normal daily use.
Using sym to switch input methods: Press sym key on the keyboard at the same
time and then select the required input method from the popup Choose input
method screen.
Save screen image
Specications
Bluetooth version
Battery capacity
Charging voltage
Battery life
Charging current 120 mA
Wireless range
On-screen display (OSD)
Volume
Media controls
prtsc sym
3.0
10 m
75 days
220 mAh
5 V
Introduction
The Bluetooth Keyboard Cover can be used to control a tablet with combination
keys in orange legend color (for details, see special function keys) . The keyboard
and the tablet can be combined for easy carrying.
It takes approximately three hours to fully charge the Bluetooth Keyboard Cover for therst
time, or after the battery has been fully depleted. To charge the Bluetooth Keyboard Cover,
connect the USB end of the charging cable to the USB port on a computer or on the
charger, and correctly attach the other end of the charging cable to the charging port. When
the status indicator glows constant red, this indicates that the Bluetooth Keyboard Cover is
charging. Use the dedicated USB charging cable or else the Bluetooth Keyboard Cover might
become damaged.
Charging the Bluetooth Keyboard Cover
Charging port
Pairing switch
Power switch
Status indicator
*
Connecting to a tablet
First time pairing
While using this keyboard rst time, please set the power switch to "on" position. The
keyboard will enter into pairing status to pair with the tablet.
Pairing with other tablets
While pairing with other tables, please set pairing switch to Bluetooth logo position
for more than 1 second to enter into pairing mode for pairing with other tablets.
Combining with a tablet
To pack it up, carefully place the tablet screen down onto the Bluetooth Keyboard Cover
and gently push the edge of the tablet until it slides into the Bluetooth Keyboard Cover.
When using the tablet, slide it out in the opposite direction.
Status indicator
Flashing red The battery capacity is insufcient.
Constant red The Bluetooth Keyboard Cover is charging. When
charging is complete, the indicator turns off.
Flashing blue slowly
Attempting to connect to last connected device. If it
connects successfully, the indicator turns off after on for
two seconds.
Flashing blue
quickly
The keyboard is in the pairing state and can be discovered by
other devices. If the pairing is successful, the indicator turns
off after one for two seconds.
Connecting to a tablet
Before using the Bluetooth Keyboard Cover for the rst time, connect it to the tablet.
Turn the keyboard's power switch on.
The status indicator on the keyboard will ash quickly, and the keyboard can be
discovered by other devices.

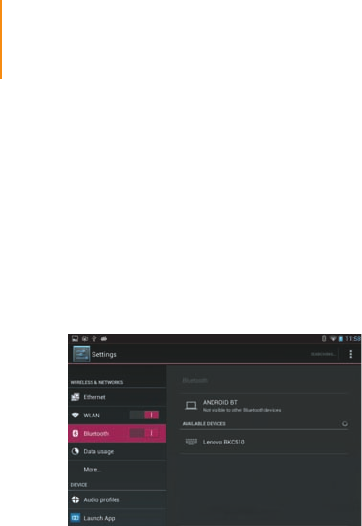

On the tablet, choose Settings > Bluetooth and set Bluetooth to “On” .
Select Lenovo BKC510 from the list of available devices on the tablet screen.
When the prompt indicating that the Lenovo BKC510 has been connected is
displayed, it means that the keyboard has successfully connected to the tablet.
A prompt indicating that the keyboard is SEARCHING is displayed in the upper
right corner of the tablet screen. If no prompt is displayed, select SEARCH FOR
DEVICE in the upper right corner of the tablet screen.
If the Bluetooth Keyboard Cover has successfully connected to the tablet in the past, it
will automatically connect to the tablet via Bluetooth after turned on. If the connection
fails, check the tablet to see if Bluetooth is set to ON and then reconnect using the
previous four steps.
Step1:
Step 2:
Step 3:
Step 4:
