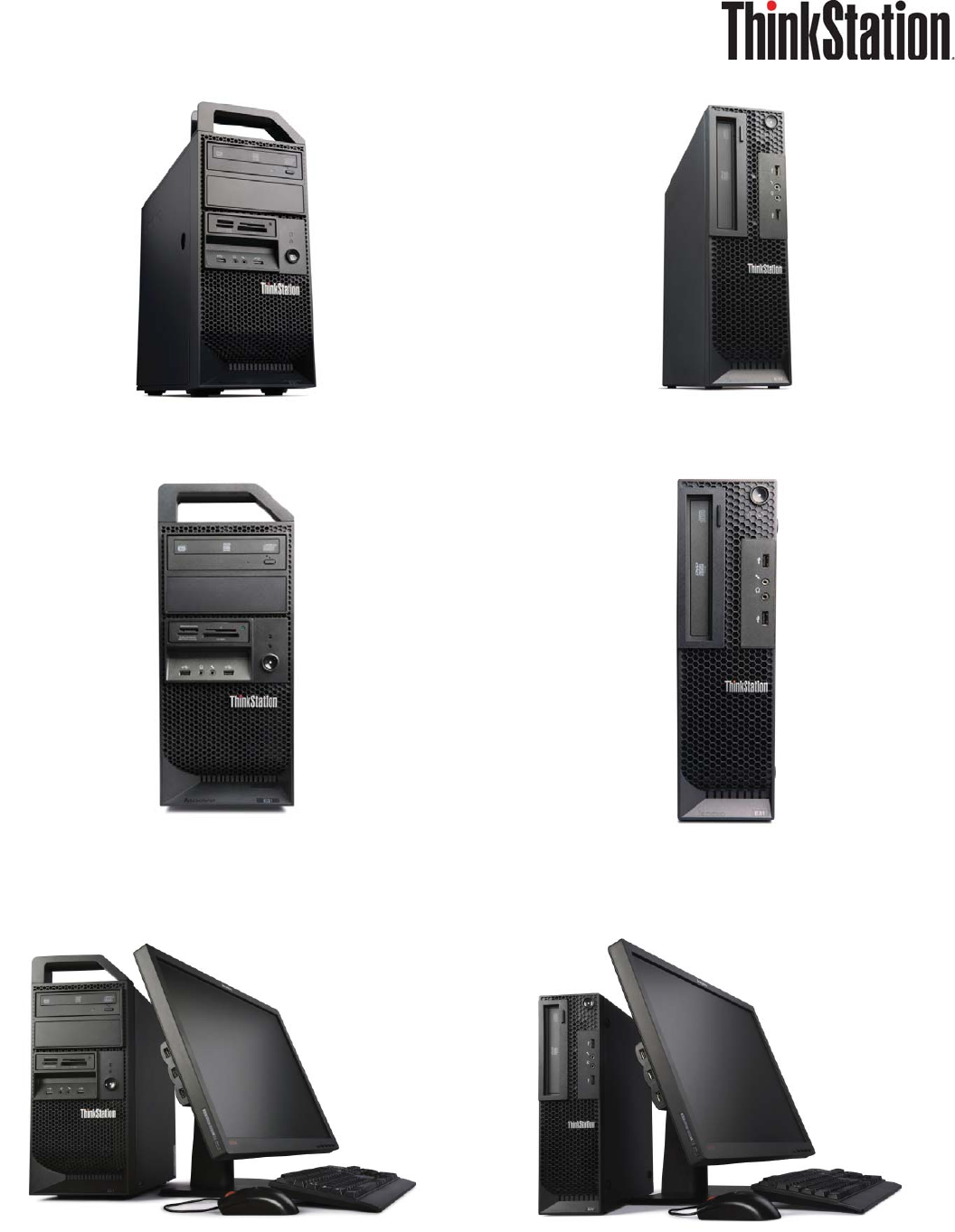

Lenovo ThinkStation E31 SFFLenovo ThinkStation E31 Tower

Lenovo ThinkStation E31 Tower

Lenovo ThinkStation E31 SFF

Lenovo ThinkStation E31 Tower

Lenovo ThinkStation E31 SFF

Processor Intel® CoreTM i3-2120 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Core i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Some: NVIDIA Quadro 2000, PCIe x16 adapter, 1GB,

two DisplayPort, one dual-link DVI-I, 62W

Media reader Media: 29-in-1 Media card reader, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i3-2120/2130, Pentium, and

Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced May 15, 2012

© Lenovo

(DEM1-1) May 2012

ThinkStation® E31 Tower (2555) - TopSeller Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

More compatible accessories, please see O-DEM sheet

②

optical

disk

⑤

③

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear I/O

Win7

preload

2555-31U Core i3-2120 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Intel HD 2000 No No Switch No Pro 64

2555-32U Core i3-2120 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 400 No No Switch No Pro 64

2555-33U Core i3-2120 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 600 No No Switch No Pro 64

2555-34U Core i3-2130 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 600 No No Switch No Pro 64

2555-35U Core i3-2130 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 2000 No No Switch No Pro 64

2555-45U Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 400 No No Switch No Pro 64

2555-46U Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 600 No No Switch No Pro 64

2555-47U Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 600 No No Switch No Pro 64

2555-48U Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 2000 No No Switch No Pro 64

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

Processor Intel® CoreTM i5-3450 processor (4C/4T, 3.1GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.5GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i5-3550 processor (4C/4T, 3.3GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i7-3770: Intel HD Graphics 4000

Core i5-3450/3470/3550: Intel HD Graphics 2500

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Some: NVIDIA Quadro 2000, PCIe x16 adapter, 1GB,

two DisplayPort, one dual-link DVI-I, 62W

Media reader Media: 29-in-1 Media card reader, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770, Core i5-3450/3550,

Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced June 5, 2012

© Lenovo

(DEM2-1) June 2012

ThinkStation® E31 Tower (2555) - TopSeller (June 5, 2012) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

More compatible accessories, please see O-DEM sheet

②

optical

disk

⑤

③

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear I/O

Win7

preload

2555-36U Core i5-3450 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Intel HD 2500 No No Switch No Pro 64

2555-37U Core i5-3450 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 400 No No Switch No Pro 64

2555-38U Core i5-3450 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 600 No No Switch No Pro 64

2555-39U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 600 No No Switch No Pro 64

2555-41U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 2000 No No Switch No Pro 64

2555-42U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Intel HD 4000 No No Switch No Pro 64

2555-43U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 400 No No Switch No Pro 64

2555-44U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 600 No No Switch No Pro 64

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

Processor Intel® CoreTM i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz))

Intel Xeon® E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i7-3770: Intel HD Graphics 4000

Core i5-3450/3470/3550: Intel HD Graphics 2500

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Media reader Media: 29-in-1 Media card reader, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770, Core i5-3450/3550,

Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced September 18, 2012

© Lenovo

(DEM3-1) September 2012

ThinkStation® E31 Tower (2555) - TopSeller (September 2012) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

More compatible accessories, please see O-DEM sheet

②

optical

disk

⑤

③

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear I/O

Win7

preload

2555-ALU Core i3-2130 1600MHz Non-ECC 1x4GB No 1x128GB SSD Media DVD±RW Intel HD 2000 No No Switch No Pro 64

2555-AMU E3-1245V2 1600MHz Non-ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro 400 No No Switch No Pro 64

2555-ANU E3-1275V2 1600MHz Non-ECC 1x4GB No 1x256GB SSD Media DVD±RW Quadro 600 No No Switch No Pro 64

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

Processor Intel® CoreTM i3-2120 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Core i5-3470 processor (4C/4T, 3.2GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.6GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i7-3770: Intel HD Graphics 4000

Core i5-3450/3470/3550: Intel HD Graphics 2500

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 38W

Media reader Media: 29-in-1 Media card reader, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770, Core i5-3450/3550,

Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

See footnotes for important warranty information

US model(s) announced October 30, 2012

© Lenovo

(DEM4-1) November 2012

ThinkStation® E31 Tower (2555) - TopSeller (October 2012) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear I/O

Preload

OS

2555-APU Core i3-2120 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 410 No No Switch No Win8 Pro64

2555-AQU Core i5-3470 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 410 No No Switch No Win8 Pro64

2555-ASU Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 410 No No Switch No Win8 Pro64

2555-ATU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 410 No No Switch No Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Intel AppUp®

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

Processor Intel® CoreTM i3-3220 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i3-3240 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM5-1) March 2013

ThinkStation® E31 Tower (2555) - TopSeller (March 2013) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2555-DQU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win7 Pro64(DG)

2555-DRU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win8 Pro64

2555-DSU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2555-DTU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2555-DUU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2555-DVU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2555-DWU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i3-3220 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i5-3470 processor (4C/4T, 3.2GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.6GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM6-1) March 2013

ThinkStation® E31 Tower (2555) - TopSeller (March 2013) - II Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2555-DYU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2555-DZU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2555-E1U Core i5-3470 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win8 Pro64

2555-E2U Core i5-3470 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win7 Pro64(DG)

2555-E3U Core i5-3470 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2555-E4U Core i5-3470 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2555-E5U Core i5-3470 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i5-3550 processor (4C/4T, 3.3GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM7-1) March 2013

ThinkStation® E31 Tower (2555) - TopSeller (March 2013) - III Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2555-E6U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2555-E7U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2555-E8U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2555-E9U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2555-EAU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 4000 No No Switch Win7 Pro64(DG)

2555-EBU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 4000 No No Switch Win8 Pro64

2555-ECU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader Media: 29-in-1 Media card reader on selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM8-1) March 2013

ThinkStation® E31 Tower (2555) - TopSeller (March 2013) - IV Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2555-EDU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2555-EEU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2555-EFU Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2555-EGU Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2555-EHU Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2555-EJU Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2555-EKU Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i3-3220 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM9-1) March 2013

ThinkStation® E31 Tower (2555) - TopSeller (March 2013) - V Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2555-ELU Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2555-EMU Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2555-ENU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x128GB SSD Media DVD±RW Intel HD 2500 No No Switch Win7 Pro64(DG)

2555-EPU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x128GB SSD Media DVD±RW Intel HD 2500 No No Switch Win8 Pro64

2555-EQU Xeon E3-1245V2 1600MHz Non-ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2555-ERU Xeon E3-1275V2 1600MHz Non-ECC 1x4GB No 1x256GB SSD Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2555-ESU Xeon E3-1275V2 1600MHz Non-ECC 1x4GB No 1x256GB SSD Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2555-ETU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: NVIDIA® Quadro® K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM10-1) March 2013

ThinkStation® E31 Tower (2555) - TopSeller (March 2013) - VI Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2555-EUU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2555-EVU Xeon E3-1275V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2555-EWU Xeon E3-1275V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2555-EYU Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x128GB SSD Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2555-EZU Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x128GB SSD Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2555-F1U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2555-F2U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® Xeon® E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1280V2 processor (4C/8T, 3.6GHz, 8MB Cache),

Turbo Boost 2.0 (up to 4.0GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1290V2 processor (4C/8T, 3.7GHz, 8MB Cache),

Turbo Boost 2.0 (up to 4.1GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced May 21, 2013

© Lenovo

(DEM11-1) June 2013

ThinkStation® E31 Tower (2555) - TopSeller (May 2013) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2555-F3U Xeon E3-1280V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2555-F4U Xeon E3-1280V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2555-F5U Xeon E3-1245V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2555-F6U Xeon E3-1245V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win7 Pro64(DG)

2555-F7U Xeon E3-1280V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2555-F8U Xeon E3-1280V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2555-F9U Xeon E3-1290V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2555-FAU Xeon E3-1290V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i3-2120 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Core i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Some: NVIDIA Quadro 2000, PCIe x16 adapter, 1GB,

two DisplayPort, one dual-link DVI-I, 62W

Media reader Media: 29-in-1 Media card reader, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i3-2120/2130, Pentium, and

Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced May 15, 2012

© Lenovo

(DEM1-2) May 2012

ThinkStation® E31 Tower (2552) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

Tower

②

optical

disk

⑤

③

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear I/O

Win7

preload

2552-15U Core i3-2120 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 2000 No No Switch Pro 64

2552-16U Core i3-2130 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Intel HD 2000 No No Switch Pro 64

2552-23U Xeon E3-1225V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Intel HD P4000 No No Switch Pro 64

2552-24U Xeon E3-1225V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 2000 No No Switch Pro 64

2552-25U Xeon E3-1230V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 400 No No Switch Pro 64

2552-26U Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Intel HD P4000 No No Switch Pro 64

2552-27U Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 400 No No Switch Pro 64

2552-29U Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 2000 No No Switch Pro 64

2552-31U Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Intel HD P4000 No No Switch Pro 64

2552-32U Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 400 No No Switch Pro 64

2552-33U Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 600 No No Switch Pro 64

2552-34U Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 2000 No No PS/2 Pro 64

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-DEM sheet

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

Processor Intel® CoreTM i5-3450 processor (4C/4T, 3.1GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.5GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i5-3550 processor (4C/4T, 3.3GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i7-3770: Intel HD Graphics 4000

Core i5-3450/3470/3550: Intel HD Graphics 2500

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Some: NVIDIA Quadro 2000, PCIe x16 adapter, 1GB,

two DisplayPort, one dual-link DVI-I, 62W

Media reader Media: 29-in-1 Media card reader, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770, Core i5-3450/3550,

Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced June 5, 2012

© Lenovo

(DEM2-2) June 2012

ThinkStation® E31 Tower (2552) - June 5, 2012 Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

Tower

②

optical

disk

⑤

③

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear I/O

Win7

preload

2552-14U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x1TB SATA DVD±RW Quadro 600 No No PS/2 Pro 64

2552-18U Core i5-3450 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 2000 No No Switch Pro 64

2552-19U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Intel HD 2500 No No Switch Pro 64

2552-21U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 400 No No Switch Pro 64

2552-22U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 2000 No No Switch Pro 64

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-DEM sheet

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

Processor Intel® CoreTM i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Core i5-3550 processor (4C/4T, 3.3GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i7-3770: Intel HD Graphics 4000

Core i5-3450/3470/3550: Intel HD Graphics 2500

Core i3-3220/3240: Intel HD Graphics 2500

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Media reader Media: 29-in-1 Media card reader, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770, Core i5-3450/3550,

Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced September 18, 2012

© Lenovo

(DEM3-2) September 2012

ThinkStation® E31 Tower (2552) - September 2012 Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

Tower

②

optical

disk

⑤

③

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear I/O

Win7

preload

2552-B6U Core i3-2130 1600MHz ECC 1x4GB No 1x128GB SSD Media DVD±RW Intel HD 2000 No No Switch No Pro 64

2552-B7U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro 400 No No Switch No Pro 64

2552-B8U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro 600 No No Switch No Pro 64

2552-B9U E3-1230V2 1600MHz ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro 400 No No Switch No Pro 64

2552-BAU E3-1245V2 1600MHz ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro 400 No No Switch No Pro 64

2552-BBU E3-1275V2 1600MHz ECC 1x4GB No 1x256GB SSD Media DVD±RW Quadro 600 No No Switch No Pro 64

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-DEM sheet

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

Processor Intel® CoreTM i3-3220 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i3-3240 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i5-3470 processor (4C/4T, 3.2GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.6GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i5-3550 processor (4C/4T, 3.3GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM4-2) March 2013

ThinkStation® E31 Tower (2552) - March 2013 Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2552-CVU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2552-CWU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win7 Pro64(DG)

2552-CYU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2552-CZU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win7 Pro64(DG)

2552-D1U Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win7 Pro64(DG)

2552-D2U Core i5-3470 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2552-D3U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win7 Pro64(DG)

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i5-3570 processor (4C/4T, 3.4GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.8GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM5-2) March 2013

ThinkStation® E31 Tower (2552) - March 2013 - II Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2552-D4U Core i5-3570 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win7 Pro64(DG)

2552-D5U Core i5-3570 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win7 Pro64(DG)

2552-D6U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2552-D7U Xeon E3-1225V2 1600MHz ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD P4000 No No Switch Win7 Pro64(DG)

2552-D8U Xeon E3-1225V2 1600MHz ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2552-D9U Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2552-DAU Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Core i3-3220 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM6-2) March 2013

ThinkStation® E31 Tower (2552) - March 2013 - III Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2552-DBU Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2552-DCU Core i3-2130 1600MHz Non-ECC 1x4GB No 1x128GB SSD Media DVD±RW Intel HD 2000 No No Switch Win7 Pro64(DG)

2552-DDU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2552-DEU Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x256GB SSD Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2552-DFU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2552-DGU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win8 Pro64

2552-DHU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i3-3240 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i5-3470 processor (4C/4T, 3.2GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.6GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i5-3550 processor (4C/4T, 3.3GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM7-2) March 2013

ThinkStation® E31 Tower (2552) - March 2013 - IV Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2552-DJU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2552-DKU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win8 Pro64

2552-DLU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2552-DMU Core i5-3470 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2552-DNU Core i5-3470 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2552-DPU Core i5-3550 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win8 Pro64

2552-DQU Core i5-3550 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i5-3570 processor (4C/4T, 3.4GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.8GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM8-2) March 2013

ThinkStation® E31 Tower (2552) - March 2013 - V Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2552-DRU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD 2500 No No Switch Win8 Pro64

2552-DSU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2552-DTU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2552-DUU Xeon E3-1225V2 1600MHz ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Intel HD P4000 No No Switch Win8 Pro64

2552-DVU Xeon E3-1225V2 1600MHz ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2552-DWU Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2552-DYU Xeon E3-1245V2 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Core i5-3550 processor (4C/4T, 3.3GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM9-2) March 2013

ThinkStation® E31 Tower (2552) - March 2013 - VI Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2552-DZU Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2552-E1U Xeon E3-1275V2 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2552-E2U Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

2552-E3U Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2552-E4U Core i3-2130 1600MHz Non-ECC 1x4GB No 1x128GB SSD Media DVD±RW Intel HD 2000 No No Switch Win8 Pro64

2552-E5U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2552-E6U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro K600 No No Switch Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® Xeon® E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM10-2) March 2013

ThinkStation® E31 Tower (2552) - March 2013 - VII Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2552-E7U Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2552-E8U Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x180GB SSD Media DVD±RW Quadro 410 No No Switch Win8 Pro64

2552-E9U Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x256GB SSD Media DVD±RW Quadro K600 No No Switch Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® Xeon® E3-1280V2 processor (4C/8T, 3.6GHz, 8MB Cache),

Turbo Boost 2.0 (up to 4.0GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1290V2 processor (4C/8T, 3.7GHz, 8MB Cache),

Turbo Boost 2.0 (up to 4.1GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics NVIDIA® Quadro® K2000, PCIe x16 adapter, 2GB,

two DisplayPortTM, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced May 21, 2013

© Lenovo

(DEM11-2) June 2013

ThinkStation® E31 Tower (2552) - May 2013 Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2552-EAU Xeon E3-1290V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2552-EBU Xeon E3-1290V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2552-ECU Xeon E3-1280V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2552-EDU Xeon E3-1280V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

Processor Intel® CoreTM i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1240V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1270V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1290V2 processor (4C/8T, 3.7GHz, 8MB Cache),

Turbo Boost 2.0 (up to 4.1GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Some: NVIDIA Quadro 2000, PCIe x16 adapter, 1GB,

two DisplayPort, one dual-link DVI-I, 62W

Media reader Media: 29-in-1 Media card reader, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i3-2120/2130, Pentium, and

Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor; more Lenovo® services see on S-TS sheet

See footnotes for important warranty information

US model(s) announced May 15 (18U/21U) or June 26 (11U/12U/13U/14U/15U), 2012

© Lenovo

(DEM1-3) July 2012

ThinkStation® E31 Tower (2553) - GMP Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear I/O

Win7

preload

2553-11U Xeon E3-1240V2 1600MHz ECC 2x2GB No 1x1TB SATA Media DVD±RW Quadro 600 No Global PS/2 Pro 64

2553-12U Xeon E3-1225V2 1600MHz ECC 2x2GB No 1x1TB SATA Media DVD±RW Quadro 600 No Global Switch Pro 64

2553-13U Xeon E3-1270V2 1600MHz ECC 2x2GB No 1x2TB SATA Media DVD±RW Quadro 2000 No Global Pro 64

2553-14U Xeon E3-1275V2 1600MHz ECC 2x2GB No 1x256GB SSD Media DVD±RW Intel HD P4000 No Global Switch Pro 64

2553-15U Xeon E3-1290V2 1600MHz ECC 2x2GB No 1x256GB SSD Media DVD±RW Quadro 2000 No Global Switch Pro 64

2553-18U Core i3-2130 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 400 No Global Switch PS/2 Pro 64

2553-21U Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 600 No Global Switch PS/2 Pro 64

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

● Part of the Global Models Plus (GMP) program with limited onsite service 3-year limited warranty

ISV certifi cations

Please visit www.lenovo.com/support/ISV

More compatible accessories, please see O-DEM sheet

Processor Intel® CoreTM i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i7-3770: Intel HD Graphics 4000

Core i5-3450/3470/3550: Intel HD Graphics 2500

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 2000, PCIe x16 adapter, 1GB,

two DisplayPortTM, one dual-link DVI-I, 62W

Media reader Media: 29-in-1 Media card reader, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770, Core i5-3450/3550,

Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor; more Lenovo® services see on S-TS sheet

See footnotes for important warranty information

US model(s) announced June 5 (19U) or June 26 (16U/17U), 2012

© Lenovo

(DEM2-3) July 2012

ThinkStation® E31 Tower (2553) - GMP II Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

Tower

②

optical

disk

⑤

③

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear I/O

Win7

preload

2553-16U Core i7-3770 1600MHz Non-ECC 1x4GB No 180GB SSD+1TB SATA Media DVD±RW Intel HD 4000 No Global Switch Pro 64

2553-17U Xeon E3-1225V2 1600MHz ECC 1x4GB No 1x500GB SATA DVD±RW Intel HD P4000 No Global Switch Pro 64

2553-19U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW Quadro 2000 No Global Switch PS/2 Pro 64

● Part of the Global Models Plus (GMP) program with limited onsite service 3-year limited warranty

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

More compatible accessories, please see O-DEM sheet

Processor Intel® CoreTM i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i7-3770: Intel HD Graphics 4000

Core i5-3450/3470/3550: Intel HD Graphics 2500

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 38W

Media reader Media: 29-in-1 Media card reader, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770, Core i5-3450/3550,

Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

See footnotes for important warranty information

US model(s) announced October 30, 2012

© Lenovo

(DEM3-3) November 2012

ThinkStation® E31 Tower (2553) - GMP (October 2012) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear I/O

Preload

OS

2553-A4U Core i3-2130 1600MHz ECC 1x4GB No 1x500GB SATA No DVD±RW Quadro 410 No Global Switch No Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Intel AppUp®

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

Processor Intel® CoreTM i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: NVIDIA® Quadro® K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Some: NVIDIA Quadro K2000, PCIe x16 adapter, 2GB,

two DisplayPort, one dual-link DVI-I, 51W

Media reader 29-in-1 Media card reader in selected models, internal USB 2.0

Optical DVD, DVD±RW, or Blu-ray, depending on model

Drive(s) 3.5" SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15 connector,

one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

ThinkVantage Supports ThinkVantage® technologies

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(DEM4-3) March 2013

ThinkStation® E31 Tower (2553) - GMP (March 2013) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

•27.56 lb (12.5kg) max confi guration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical

Bay 2: 5.25", 1.6" high, access, open

Bay 3: 3.5", 1" high, access, for media reader

Bay 4: 3.5", 1" high, internal, for disk

Bay 5: 3.5", 1" high, internal, for disk

Slot 1: half-length, full-height, PCIe

*

x16

(75w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon/Core i5/Core i7

models

Slot 2: half-length, full-height, PCIe 2.0 x1

Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3

SECURITY

• Security chip (see information on left)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

Tower

②

optical

disk

⑤

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Drive(s)

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

PS/2

rear I/O

Chassis

intrusion

switch

Preload

OS2

2553-A7U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win7 Pro64(DG)

2553-A8U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K2000 No No Switch Win8 Pro64

2553-A9U Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win7 Pro64(DG)

2553-AAU Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x500GB 3.5" SATA Media DVD±RW Quadro K600 No No Switch Win8 Pro64

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

More compatible accessories, please see O-DEM sheet

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

See footnotes for important warranty information

US model(s) announced May 15, 2012

© Lenovo

(ROC1-1) May 2012

ThinkStation® E31 SFF (3695) - TopSeller Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

Processor Intel® CoreTM i3-2120 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Core i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID only work on models with 2nd

disk bay)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i3-2120/2130, Pentium, and

Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

optical

disk

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

2nd

Disk

bay

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear

I/O

Vertical

stand

Win7

preload

3695-G3U Core i3-2120 1600MHz Non-ECC 1x4GB No 1x250GB SATA Media DVD±RW No Intel HD 2000 No No No No Stand Pro 64

3695-G4U Core i3-2120 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 400 No No No No Stand Pro 64

3695-G5U Core i3-2120 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 600 No No No No Stand Pro 64

3695-G6U Core i3-2130 1600MHz Non-ECC 1x4GB No 1x1TB SATA Media DVD±RW No Quadro 600 No No No No Stand Pro 64

3695-H5U Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x250GB SATA Media DVD±RW No Intel HD P4000 No No No No Stand Pro 64

3695-H6U Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 400 No No No No Stand Pro 64

3695-H7U Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x1TB SATA Media DVD±RW No Quadro 600 No No No No Stand Pro 64

②

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

③

See footnotes for important warranty information

US model(s) announced June 5, 2012

© Lenovo

(ROC2-1) June 2012

ThinkStation® E31 SFF (3695) - TopSeller (June 5, 2012) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

Processor Intel® CoreTM i5-3450 processor (4C/4T, 3.1GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.5GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i5-3550 processor (4C/4T, 3.3GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i7-3770: Intel HD Graphics 4000

Core i5-3450/3470/3550: Intel HD Graphics 2500

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID only work on models with 2nd

disk bay)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770,

Core i5-3450/3550, Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

optical

disk

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

2nd

Disk

bay

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear

I/O

Vertical

stand

Win7

preload

3695-G7U Core i5-3450 1600MHz Non-ECC 1x4GB No 1x250GB SATA Media DVD±RW No Intel HD 2500 No No No No Stand Pro 64

3695-G8U Core i5-3450 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 400 No No No No Stand Pro 64

3695-G9U Core i5-3450 1600MHz Non-ECC 1x4GB No 1x1TB SATA Media DVD±RW No Quadro 600 No No No No Stand Pro 64

3695-H1U Core i5-3550 1600MHz Non-ECC 2x4GB No 1x500GB SATA Media DVD±RW No Intel HD 2500 No No No No Stand Pro 64

3695-H2U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW No Intel HD 4000 No No No No Stand Pro 64

3695-H3U Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 400 No No No No Stand Pro 64

3695-H4U Core i7-3770 1600MHz Non-ECC 2x4GB No 1x1TB SATA Media DVD±RW No Quadro 600 No No No No Stand Pro 64

②

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

③

See footnotes for important warranty information

US model(s) announced October 30, 2012

© Lenovo

(ROC4-1) November 2012

ThinkStation® E31 SFF (3695) - TopSeller (October 2012) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

Processor Intel® CoreTM i3-2120 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Core i5-3470 processor (4C/4T, 3.2GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.6GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i7-3770: Intel HD Graphics 4000

Core i5-3450/3470/3550: Intel HD Graphics 2500

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 38W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID only work on models with 2nd

disk bay)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770,

Core i5-3450/3550, Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

optical

disk

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Intel AppUp®

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

③

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

2nd

Disk

bay

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear

I/O

Vertical

stand

Preload

OS

3695-P8U Core i3-2120 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 410 No No Switch No Stand Win8 Pro64

3695-P9U Core i5-3470 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 410 No No Switch No Stand Win8 Pro64

3695-PAU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 410 No No Switch No Stand Win8 Pro64

3695-PBU Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 410 No No Switch No Stand Win8 Pro64

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(ROC5-1) March 2013

ThinkStation® E31 SFF (3695) - TopSeller (March 2013) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

Processor Intel® CoreTM i3-3220 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i3-3240 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical DVD, slim DVD, DVD±RW, slim DVD±RW, or Blu-ray, depending on model

SATA drive(s) 3.5": SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5": SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID can work on models with 2nd

drive bay only)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

Intel AMT Intel AMT supported on model(s) with Xeon processor

optical

disk

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID

SATA

drive(s)

2nd

drive

bay

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Chassis

intrusion

switch

Vertical

stand

Preload

OS2

3695-RNU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win7 Pro64(DG)

3695-RPU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win8 Pro64

3695-RQU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win8 Pro64

3695-RRU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win7 Pro64(DG)

3695-RSU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3695-RTU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3695-RUU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Quadro 410 No Switch Stand Win8 Pro64

3695-RVU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3695-RWU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3695-RYU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(ROC6-1) March 2013

ThinkStation® E31 SFF (3695) - TopSeller (March 2013) - II Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

Processor Intel® CoreTM i5-3470 processor (4C/4T, 3.2GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.6GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i5-3570 processor (4C/4T, 3.4GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.8GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical DVD, slim DVD, DVD±RW, slim DVD±RW, or Blu-ray, depending on model

SATA drive(s) 3.5": SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5": SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID can work on models with 2nd

drive bay only)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

Intel AMT Intel AMT supported on model(s) with Xeon processor

optical

disk

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID

SATA

drive(s)

2nd

drive

bay

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Chassis

intrusion

switch

Vertical

stand

Preload

OS2

3695-RZU Core i5-3470 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win7 Pro64(DG)

3695-QAU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Quadro 410 No Switch Stand Win7 Pro64(DG)

3695-QBU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3695-QCU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win7 Pro64(DG)

3695-QDU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 4000 No Switch Stand Win7 Pro64(DG)

3695-QEU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3695-QFU Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD P4000 No Switch Stand Win7 Pro64(DG)

3695-QGU Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3695-QHU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x180GB SSD No Media DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(ROC7-1) March 2013

ThinkStation® E31 SFF (3695) - TopSeller (March 2013) - III Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

Processor Intel® CoreTM i3-3220 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i3-3240 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i5-3470 processor (4C/4T, 3.2GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.6GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i5-3570 processor (4C/4T, 3.4GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.8GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical DVD, slim DVD, DVD±RW, slim DVD±RW, or Blu-ray, depending on model

SATA drive(s) 3.5": SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5": SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID can work on models with 2nd

drive bay only)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

Intel AMT Intel AMT supported on model(s) with Xeon processor

optical

disk

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID

SATA

drive(s)

2nd

drive

bay

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Chassis

intrusion

switch

Vertical

stand

Preload

OS2

3695-QJU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3695-QKU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3695-QLU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3695-QMU Core i5-3470 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win8 Pro64

3695-QNU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win8 Pro64

3695-QPU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Quadro 410 No Switch Stand Win8 Pro64

3695-QQU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3695-QRU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 4000 No Switch Stand Win8 Pro64

3695-QSU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Quadro 410 No Switch Stand Win8 Pro64

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(ROC8-1) March 2013

ThinkStation® E31 SFF (3695) - TopSeller (March 2013) - IV Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

Processor Intel® CoreTM i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical DVD, slim DVD, DVD±RW, slim DVD±RW, or Blu-ray, depending on model

SATA drive(s) 3.5": SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5": SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID can work on models with 2nd

drive bay only)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

Intel AMT Intel AMT supported on model(s) with Xeon processor

optical

disk

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID

SATA

drive(s)

2nd

drive

bay

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Chassis

intrusion

switch

Vertical

stand

Preload

OS2

3695-QTU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3695-QUU Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD P4000 No Switch Stand Win8 Pro64

3695-QVU Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Quadro 410 No Switch Stand Win8 Pro64

3695-QWU Xeon E3-1230V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Media DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3695-QYU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x180GB SSD No Media DVD±RW Quadro K600 No Switch Stand Win8 Pro64

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

See footnotes for important warranty information

US model(s) announced May 21, 2013

© Lenovo

(ROC9-1) June 2013

ThinkStation® E31 SFF (3695) - TopSeller (May 2013) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

Processor Intel® Xeon® E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1280V2 processor (4C/8T, 3.6GHz, 8MB Cache),

Turbo Boost 2.0 (up to 4.0GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical DVD, slim DVD, DVD±RW, slim DVD±RW, or Blu-ray, depending on model

SATA drive(s) 3.5": SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5": SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID can work on models with 2nd

drive bay only)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

Intel AMT Intel AMT supported on model(s) with Xeon processor

optical

disk

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID

SATA

drive(s)

2nd

drive

bay

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Chassis

intrusion

switch

Vertical

stand

Preload

OS2

3695-T2U Xeon E3-1280V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA No No DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3695-T3U Xeon E3-1280V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA No No DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3695-T4U Xeon E3-1245V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA No No DVD±RW Quadro 410 No Switch Stand Win8 Pro64

3695-T5U Xeon E3-1245V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA No No DVD±RW Quadro 410 No Switch Stand Win7 Pro64(DG)

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

See footnotes for important warranty information

US model(s) announced May 15, 2012

© Lenovo

(ROC1-2) May 2012

ThinkStation® E31 SFF (3690) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Processor Intel® CoreTM i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Xeon® E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID only work on models with 2nd

disk bay)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i3-2120/2130, Pentium, and

Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

2nd

Disk

bay

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear

I/O

Vertical

stand

Win7

preload

3690-E6U Core i3-2130 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 400 No No No No No Pro 64

3690-E9U Xeon E3-1230V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 400 No No No No No Pro 64

3690-F1U Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW No Intel HD P4000 No No No No No Pro 64

3690-F2U Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 400 No No No No No Pro 64

3690-F3U Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x1TB SATA Media DVD±RW No Quadro 600 No No No No No Pro 64

3690-F4U Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW No Intel HD P4000 No No No No No Pro 64

3690-F5U Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 400 No No No No No Pro 64

3690-F6U Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x1TB SATA Media DVD±RW No Quadro 600 No No No No No Pro 64

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

Small Desktop

optical

disk

②

③

See footnotes for important warranty information

US model(s) announced June 5, 2012

© Lenovo

(ROC2-2) June 2012

ThinkStation® E31 SFF (3690) - June 5, 2012 Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Processor Intel® CoreTM i5-3550 processor (4C/4T, 3.3GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID only work on models with 2nd

disk bay)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770,

Core i5-3450/3550, Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

2nd

Disk

bay

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear

I/O

Vertical

stand

Win7

preload

3690-E7U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x500GB SATA Media DVD±RW No Quadro 400 No No No No No Pro 64

3690-E8U Core i5-3550 1600MHz Non-ECC 1x4GB No 1x1TB SATA Media DVD±RW No Quadro 600 No No No No No Pro 64

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

Small Desktop

optical

disk

②

③

See footnotes for important warranty information

US model(s) announced August 14, 2012

© Lenovo

(ROC3-2) August 2012

ThinkStation® E31 SFF (3690) - August 2012 Personal Systems Reference (PSREF)

Processor Intel® CoreTM i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Core i5-3550 processor (4C/4T, 3.3GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1230V2 processor (4C/8T, 3.3GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.7GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i7-3770: Intel HD Graphics 4000

Core i5-3450/3470/3550: Intel HD Graphics 2500

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 400, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 32W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical Some: DVD±RW, SATA, slim

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID only work on models with 2nd

disk bay)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770,

Core i5-3450/3550, Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

Intel AMT Intel AMT supported on model(s) with Xeon processor

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

2nd

Disk

bay

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear

I/O

Vertical

stand

3690-KQU Core i3-2130 1600MHz ECC 1x4GB No 1x128GB SSD No Slim DVD±RW 2nd Intel HD 2000 No No Switch No Stand

3690-KRU Core i5-3550 1600MHz Non-ECC 1x4GB No 1x180GB SSD No Slim DVD±RW 2nd Quadro 400 No No Switch No Stand

3690-KSU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x180GB SSD No Slim DVD±RW 2nd Quadro 600 No No Switch No Stand

3690-KTU Xeon E3-1230V2 1600MHz ECC 1x4GB No 1x180GB SSD No Slim DVD±RW 2nd Quadro 400 No No Switch No Stand

3690-KUU Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x180GB SSD No Slim DVD±RW 2nd Quadro 400 No No Switch No Stand

3690-KVU Xeon E3-1275V2 1600MHz ECC 1x4GB No 1x256GB SSD No Slim DVD±RW 2nd Quadro 600 No No Switch No Stand

3690-KWU Core i3-2130 1600MHz ECC 1x4GB No 1x500GB SATA No 2nd Intel HD 2000 No No Switch No Stand

3690-KYU Core i5-3550 1600MHz Non-ECC 1x4GB No 1x1TB SATA No 2nd Quadro 400 No No Switch No Stand

3690-KZU Xeon E3-1230V2 1600MHz ECC 1x4GB No 1x500GB SATA No 2nd Quadro 400 No No Switch No Stand

3690-J1U Xeon E3-1245V2 1600MHz ECC 1x4GB No 1x1TB SATA No 2nd Quadro 600 No No Switch No Stand

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, supports one of the following:

(1) optional 5.25", 1.6" high optical, access

(2) 5.25" slim optical (access) and 3.5" 2nd disk

drive bay (internal)

(3) 3.5" 2nd disk drive bay, internal

Bay 2: 3.5", 0.5" high, access, for optional media reader

(not available on slim optical models)

Bay 3: 3.5", 1" high, internal, for disk drive

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon/Core i5/Core i7

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

optical

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on and administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

③ disk

③ disk 2nd disk

②

(1) Optional 1.6" high optical (2) Slim optical + 2nd disk

(3) 2nd disk

slim optical

2nd disk

③ disk

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(ROC4-2) March 2013

ThinkStation® E31 SFF (3690) - March 2013 Personal Systems Reference (PSREF)

Processor Intel® CoreTM i3-3220 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i5-3570 processor (4C/4T, 3.4GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.8GHz), DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical DVD, slim DVD, DVD±RW, slim DVD±RW, or Blu-ray, depending on model

SATA drive(s) 3.5": SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5": SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID can work on models with 2nd

drive bay only)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

Intel AMT Intel AMT supported on model(s) with Xeon processor

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID

SATA

drive(s)

2nd

drive

bay

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Chassis

intrusion

switch

Vertical

stand

Preload

OS2

3690-QGU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" Media DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3690-QHU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" Media DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3690-QJU Xeon E3-1245V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" Media DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3690-QKU Xeon E3-1245V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" Media DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3690-QLU Xeon E3-1275V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" Media DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3690-QMU Xeon E3-1275V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" Media DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3690-QNU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x128GB SSD 2nd Slim DVD±RW Intel HD 2500 No Switch Stand Win7 Pro64(DG)

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, supports one of the following:

(1) optional 5.25", 1.6" high optical, access

(2) 5.25" slim optical (access) and 3.5" 2nd disk

drive bay (internal)

(3) 3.5" 2nd disk drive bay, internal

Bay 2: 3.5", 0.5" high, access, for optional media reader

(not available on slim optical models)

Bay 3: 3.5", 1" high, internal, for disk drive

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon/Core i5/Core i7

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

optical

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on and administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

③ disk

③ disk 2nd disk

②

(1) Optional 1.6" high optical (2) Slim optical + 2nd disk

(3) 2nd disk

slim optical

2nd disk

③ disk

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(ROC5-2) March 2013

ThinkStation® E31 SFF (3690) - March 2013 - II Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, supports one of the following:

(1) optional 5.25", 1.6" high optical, access

(2) 5.25" slim optical (access) and 3.5" 2nd disk

drive bay (internal)

(3) 3.5" 2nd disk drive bay, internal

Bay 2: 3.5", 0.5" high, access, for optional media reader

(not available on slim optical models)

Bay 3: 3.5", 1" high, internal, for disk drive

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon/Core i5/Core i7

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

Processor Intel® CoreTM i3-3220 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i3-3240 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i5-3570 processor (4C/4T, 3.4GHz, 6MB Cache),

integrated Intel HD Graphics 2500,

Turbo Boost 2.0 (up to 3.8GHz), DDR3 memory controller (up to 1600MHz)

Intel Core i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPort, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical DVD, slim DVD, DVD±RW, slim DVD±RW, or Blu-ray, depending on model

SATA drive(s) 3.5": SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5": SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID can work on models with 2nd

drive bay only)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

Intel AMT Intel AMT supported on model(s) with Xeon processor

optical

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on and administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

③ disk

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID

SATA

drive(s)

2nd

drive

bay

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Chassis

intrusion

switch

Vertical

stand

Preload

OS2

3690-QPU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x128GB SSD 2nd No Slim DVD±RW Intel HD 2500 No Switch Stand Win7 Pro64(DG)

3690-QQU Core i3-3240 1600MHz Non-ECC 1x4GB No 1x128GB SSD 2nd No Slim DVD±RW Intel HD 2500 No Switch Stand Win8 Pro64

3690-QRU Core i3-3220 1600MHz Non-ECC 1x4GB No 1x128GB SSD 2nd No Slim DVD±RW Intel HD 2500 No Switch Stand Win8 Pro64

3690-QSU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x180GB SSD 2nd No Slim DVD±RW Quadro 410 No Switch Stand Win7 Pro64(DG)

3690-QTU Core i5-3570 1600MHz Non-ECC 1x4GB No 1x180GB SSD 2nd No Slim DVD±RW Quadro 410 No Switch Stand Win8 Pro64

3690-QUU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x180GB SSD 2nd No Slim DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3690-QVU Core i7-3770 1600MHz Non-ECC 1x4GB No 1x180GB SSD 2nd No Slim DVD±RW Quadro K600 No Switch Stand Win8 Pro64

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

slim optical

2nd disk

③ disk 2nd disk

②

(1) Optional 1.6" high optical (2) Slim optical + 2nd disk

(3) 2nd disk

③ disk

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(ROC6-2) March 2013

ThinkStation® E31 SFF (3690) - March 2013 - III Personal Systems Reference (PSREF)

Processor Intel® Xeon® E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1275V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical DVD, slim DVD, DVD±RW, slim DVD±RW, or Blu-ray, depending on model

SATA drive(s) 3.5": SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5": SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID can work on models with 2nd

drive bay only)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

Intel AMT Intel AMT supported on model(s) with Xeon processor

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID

SATA

drive(s)

2nd

drive

bay

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Chassis

intrusion

switch

Vertical

stand

Preload

OS2

3690-QWU Xeon E3-1275V2 1600MHz Non-ECC 1x4GB No 1x256GB SSD 2nd No Slim DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

3690-QYU Xeon E3-1275V2 1600MHz Non-ECC 1x4GB No 1x256GB SSD 2nd No Slim DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3690-QZU Xeon E3-1245V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Quadro K600 No Switch Stand Win7 Pro64(DG)

3690-R1U Xeon E3-1245V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Quadro K600 No Switch Stand Win8 Pro64

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, supports one of the following:

(1) optional 5.25", 1.6" high optical, access

(2) 5.25" slim optical (access) and 3.5" 2nd disk

drive bay (internal)

(3) 3.5" 2nd disk drive bay, internal

Bay 2: 3.5", 0.5" high, access, for optional media reader

(not available on slim optical models)

Bay 3: 3.5", 1" high, internal, for disk drive

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon/Core i5/Core i7

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

optical

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on and administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

③ disk

③ disk 2nd disk

②

(1) Optional 1.6" high optical (2) Slim optical + 2nd disk

(3) 2nd disk

slim optical

2nd disk

③ disk

See footnotes for important warranty information

US model(s) announced May 21, 2013

© Lenovo

(ROC7-2) June 2013

ThinkStation® E31 SFF (3690) - May 2013 Personal Systems Reference (PSREF)

Processor Intel® Xeon® E3-1245V2 processor (4C/8T, 3.4GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.8GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Intel Xeon E3-1280V2 processor (4C/8T, 3.6GHz, 8MB Cache),

Turbo Boost 2.0 (up to 4.0GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 37W

Some: NVIDIA Quadro K600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 41W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical DVD, slim DVD, DVD±RW, slim DVD±RW, or Blu-ray, depending on model

SATA drive(s) 3.5": SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5": SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID can work on models with 2nd

drive bay only)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

Intel AMT Intel AMT supported on model(s) with Xeon processor

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID

SATA

drive(s)

2nd

drive

bay

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Chassis

intrusion

switch

Vertical

stand

Preload

OS2

3690-R2U Xeon E3-1245V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA No No DVD±RW Quadro 410 No Switch Stand Win7 Pro64(DG)

3690-R3U Xeon E3-1245V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA No No DVD±RW Quadro 410 No Switch Stand Win8 Pro64

3690-R4U Xeon E3-1280V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA No No DVD±RW Quadro K600 No Switch Stand Win8 Pro64

3690-R5U Xeon E3-1280V2 1600MHz ECC 8GBx1 No 1x1TB 3.5" SATA No No DVD±RW Quadro K600 No Switch Stand Win7 Pro64(DG)

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, supports one of the following:

(1) optional 5.25", 1.6" high optical, access

(2) 5.25" slim optical (access) and 3.5" 2nd disk

drive bay (internal)

(3) 3.5" 2nd disk drive bay, internal

Bay 2: 3.5", 0.5" high, access, for optional media reader

(not available on slim optical models)

Bay 3: 3.5", 1" high, internal, for disk drive

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon/Core i5/Core i7

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

optical

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on and administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

③ disk

③ disk 2nd disk

②

(1) Optional 1.6" high optical (2) Slim optical + 2nd disk

(3) 2nd disk

slim optical

2nd disk

③ disk

See footnotes for important warranty information

US model(s) announced May 15, 2012

© Lenovo

(ROC1-3) May 2012

ThinkStation® E31 SFF (3691) - GMP Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Processor Intel® CoreTM i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Intel HD Graphics in processor, uses main memory, can work along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID only work on models with 2nd

disk bay)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i3-2120/2130, Pentium, and

Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

2nd

Disk

bay

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear

I/O

Vertical

stand

Win7

preload

3691-B2U Core i3-2130 1600MHz ECC 1x4GB No 1x500GB SATA Media DVD±RW No Intel HD 2000 No Global No No No Pro 64

3691-B3U Xeon E3-1225V2 1600MHz ECC 1x4GB No 1x1TB SATA Media DVD±RW No Intel HD P4000 No Global No No No Pro 64

● Part of the Global Models Plus (GMP) program with limited onsite service 3-year limited warranty

ISV certifi cations

Please visit www.lenovo.com/support/ISV

Small Desktop

optical

disk

②

③

See footnotes for important warranty information

US model(s) announced October 30, 2012

© Lenovo

(ROC2-3) November 2012

ThinkStation® E31 SFF (3691) - GMP (October 2012) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Processor Intel® CoreTM i3-2130 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2000, DDR3 memory controller (up to 1333MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

Xeon E3-1225V2/1245V2/1275V2: Intel HD Graphics P4000

Core i7-3770: Intel HD Graphics 4000

Core i5-3450/3470/3550: Intel HD Graphics 2500

Core i3-3220/3240: Intel HD Graphics 2500

Core i3-2120/2130: Intel HD Graphics 2000

Pentium/Celeron: Intel HD Graphics

(connector information please see Rear ports section)

Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 38W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID only work on models with 2nd

disk bay)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i3-2120/2130, Pentium, and

Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Intel AppUp®

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

2nd

Disk

bay

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear

I/O

Vertical

stand

Preload

OS

3691-AAU Core i3-2130 1600MHz ECC 1x4GB No 1x500GB SATA No DVD±RW No Quadro 410 No Global Switch No Stand Win8 Pro64

● Part of the Global Models Plus (GMP) program with limited onsite service 3-year limited warranty

Small Desktop

optical

disk

②

③

See footnotes for important warranty information

US model(s) announced February 19, 2013

© Lenovo

(ROC3-3) February 2013

ThinkStation® E31 SFF (3691) - GMP (February 2013) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Processor Intel® Xeon® E3-1270V2 processor (4C/8T, 3.5GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Some: NVIDIA® Quadro® 410, PCIe x16 adapter, 512MB,

one DisplayPortTM, one dual-link DVI-I, 38W

Some: NVIDIA Quadro 600, PCIe x16 adapter, 1GB,

one DisplayPort, one dual-link DVI-I, 40W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID only work on models with 2nd

disk bay)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i3-2120/2130, Pentium, and

Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Intel AppUp®

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Hard drive(s)

Media

reader

SATA

optical

2nd

Disk

bay

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear

I/O

Preload

OS

3691-C4U Xeon E3-1270V2 1600MHz Non-ECC 2x4GB No 1x180GB SSD Media DVD±RW No Quadro 600 No Global Switch No Win7 Pro64

3691-C5U Xeon E3-1270V2 1600MHz Non-ECC 2x4GB No 1x180GB SSD Media DVD±RW No Quadro 410 No Global Switch No Win7 Pro64(DG)*

● Part of the Global Models Plus (GMP) program with limited onsite service 3-year limited warranty

Small Desktop

optical

disk

②

③

* Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

See footnotes for important warranty information

US model(s) announced March 19, 2013

© Lenovo

(ROC4-3) March 2013

ThinkStation® E31 SFF (3691) - GMP (March 2013) Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0

x16 on Xeon

models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Small Desktop

Processor Intel® CoreTM i3-3220 processor (2C/4T, 3.3GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Core i3-3240 processor (2C/4T, 3.4GHz, 3MB Cache),

integrated Intel HD Graphics 2500, DDR3 memory controller (up to 1600MHz)

Intel Xeon® E3-1225V2 processor (4C/4T, 3.2GHz, 8MB Cache),

Turbo Boost 2.0 (up to 3.6GHz), integrated Intel HD Graphics P4000,

DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics Intel HD Graphics in processor, uses main memory, works along with

discrete graphics to support multi-display;

(detailed graphics model name please see Processor section,

connector information please see Rear ports section)

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical DVD, slim DVD, DVD±RW, slim DVD±RW, or Blu-ray, depending on model

SATA drive(s) 3.5": SATA 6.0Gb/s, 7200 rpm, 3.5"

2.5": SATA 6.0Gb/s, 10000 rpm, 2.5"

SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID can work on models with 2nd

drive bay only)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPortTM are functional when the following processors

are used: Xeon E3-12X5V2, Core i7, i5, i3, Pentium, and Celeron processors)

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 3-year parts and labor, more Lenovo® services see S-TS sheet

Eco-Label and

environmental

certifi cations

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

ISV certifi cations See the latest list of ISV certifi cations at www.lenovo.com/support/ISV

optical

disk

②

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

Some: Windows® 7 Professional 64

Some: Windows 7 Professional 64

preinstalled through downgrade

rights in Windows 8 Pro 64-bit

Some: Windows 8 Pro 64-bit

Preloaded applications5 (only some listed)

-Windows 7 models

• Rescue and Recovery®

• Norton™ Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

-Windows 8 models

• Evernote®

• Norton Internet Security (30 days of virus defi nitions)

• Norton Studio

• Skype™

• Microsoft Offi ce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

③

Type-

model1Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID

SATA

drive(s)

2nd

drive

bay

Media

reader

SATA

optical

Graphics

adapter(s)

1394

adptr

Chassis

intrusion

switch

Vertical

stand

Preload

OS2

3691-C6U Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win7 Pro64(DG)

3691-C7U Core i3-3220 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win8 Pro64

3691-C8U Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win8 Pro64

3691-C9U Core i3-3240 1600MHz Non-ECC 1x4GB No 1x500GB 3.5" No Media DVD±RW Intel HD 2500 No Switch Stand Win7 Pro64(DG)

3691-CAU Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Media DVD±RW Intel HD P4000 No Switch Stand Win7 Pro64(DG)

3691-CBU Xeon E3-1225V2 1600MHz Non-ECC 1x4GB No 1x1TB 3.5" No Media DVD±RW Intel HD P4000 No Switch Stand Win8 Pro64

1 Model in italics shows that this is a Global Model

2 Win7 Pro64(DG) = Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

See footnotes for important warranty information

US model(s) announced June 5, 2012

© Lenovo

(ROC2-4) June 2012

ThinkStation® E31 SFF (3688) - June 5, 2012 Personal Systems Reference (PSREF)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 339mm W x 381.1mm D x 99.7mm H

•16.53 lb (7.5kg) max confi guration

• 11-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Recessed power button

Bay 1: 5.25", 1.6" high, access, for optical/2nd disk

Bay 2: 3.5", 0.5" high, access, for media reader

Bay 3: 3.5", 1" high, internal, for disk

Slot 1: Low Profi le, PCIe* x16

(45w max, near CPU)

* PCIe 2.0 x16 on Core i3/Pentium/

Celeron models,

PCIe 3.0 x16 on Xeon

/Core i5/Core i7 models

Slot 2: Low Profi le, PCIe 2.0 x1

Slot 3: Low Profi le, 32-bit PCI 2.3

Slot 4: Low Profi le, 32-bit PCI 2.3

Processor Intel® CoreTM i7-3770 processor (4C/8T, 3.4GHz, 8MB Cache),

integrated Intel HD Graphics 4000,

Turbo Boost 2.0 (up to 3.9GHz), DDR3 memory controller (up to 1600MHz)

Implementation One LGA1155 socket

Memory 32GB max, UDIMM, PC3-12800 1600MHz DDR3, ECC or non-ECC,

four 240-pin DIMM sockets;

Additional memory

disclaimers

● Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

● Mixing of ECC and non-ECC memory is not supported

Graphics NVIDIA® Quadro® 600, PCIe x16 adapter, 1GB,

one DisplayPortTM, one dual-link DVI-I, 40W

Media reader Media: 29-in-1 Media card reader, slim, internal USB 2.0

Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Disk(s) 250GB/500GB/1TB/2TB/3TB SATA: SATA 6.0Gb/s, 7200 rpm, 3.5"

150GB/300GB/600GB SATA: SATA 6.0Gb/s, 10000 rpm, 2.5"

128GB/180GB/256GB SSD: Solid State Drive, SATA 6.0Gb/s, 2.5"

Onboard SATA Two SATA 6.0Gb/s connectors (red), two SATA 3.0Gb/s connectors (orange),

RAID 0, 1 support via Intel C216 Chipset (RAID only work on models with 2nd

disk bay)

Onboard SAS None

Chipset Intel C216 Chipset

Front ports Two USB 2.0, microphone (3.5mm), headphone (3.5mm)

Rear ports Two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in), one analog VGA DB-15

connector, one DisplayPort connector

(Onboard VGA and DisplayPort are functional when the following processors

are used: Xeon E3-1225V2/1245V2/1275V2, Core i7-3770,

Core i5-3450/3550, Core i3-2120/2130, Pentium, and Celeron processors)

PS/2 models: additional PS/2 keyboard and mouse connectors

via PS/2 rear I/O cable

IEEE 1394 adptr No onboard 1394 ports;

1394 models: additional FireWire PCIe adapter, 1394a-2000,

400Mbps, two 6-pin ports on rear

Audio High Defi nition (HD) Audio, Realtek® ALC662 codec

Speaker Internal speaker for business audio

Ethernet One onboard gigabit ethernet, Intel 82579

Security chip STMicroelectronics ST33ZP24 Trusted Platform Module (TPM),

TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black

Mouse Optical Wheel Mouse (USB connector), black

Vertical Stand Some: Vertical stand with retractable tongue for vertical orientation

Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualifi ed

Limited Warranty 1-year parts and labor, more Lenovo® services see S-TS sheet

Type-

model Processor

Memory

(MHz/ECC)

Memory

DIMMs

Pre-conf

RAID Disk(s)

Media

reader

SATA

optical

2nd

Disk

bay

Graphics

adapter(s)

1394

adptr

Global

Chassis

intrusion

switch

PS/2

rear

I/O

Vertical

stand

Win7

preload

3688-B7U Core i7-3770 1600MHz Non-ECC 2x4GB No 1x1TB SATA Media DVD±RW No Quadro 600 No No No No No Pro 64

GREENGUARD® certifi ed

RoHS-compliant

EPEAT™ Gold rating

ENERGY STAR 5.2-compliant

SECURITY

• Security chip (see information on left)

• Security slot (in rear for optional

Kensington® Microsaver® cable;

prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected model(s)

More compatible accessories, please see O-ROC sheet

Preloaded operating system20

• Windows® 7 Professional 64

Preloaded applications5 (only some listed)

• Rescue and Recovery®

• Norton® Internet Security (30 days of virus defi nitions)

• Adobe® Reader®

• Microsoft® Offi ce 2013 preloaded;

purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

Intel AMT

Intel AMT supported on model(s) with Xeon processor

ISV certifi cations

Please visit www.lenovo.com/support/ISV

Small Desktop

optical

disk

②

③

Partial list of accessories supported on ThinkStation E31 Tower

© Lenovo

(O-DEM) February 2013

ThinkStation® E31 Tower Accessories Personal Systems Reference (PSREF)

Memory53

2GB PC3-12800 DDR3-1600 non-ECC UDIMM54 0A65728

4GB PC3-12800 DDR3-1600 non-ECC UDIMM 0A65729

8GB PC3-12800 DDR3-1600 non-ECC UDIMM 0A65730

2GB PC3-12800 DDR3-1600 ECC UDIMM 0B47376

4GB PC3-12800 DDR3-1600 ECC UDIMM 0B47377

8GB PC3-12800 DDR3-1600 ECC UDIMM 0B47378

2GB PC3-10600 DDR3-1333 ECC UDIMM 43R2033

4GB PC3-10600 DDR3-1333 ECC UDIMM 57Y4138

8GB PC3-10600 DDR3-1333 ECC UDIMM 0A65718

More information on memory and processor confi guration, operation and

limitation, please visit:

www.lenovo.com/support/thinkstationaccessories

Optical

DVD-ROM DL SATA1.5Gb/s 16X-48X Max441N5618

Lenovo® Super Multi-Burner SATA Drive 0A65618

Blu-ray™ Burner SATA1.5Gb/s 45K1675

Storage and removable storage

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990

1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918

ThinkStation 180GB Solid State Drive 0B47308

USB 2.0 Portable 500GB Hard Disk 45K1690

Keyboard

Preferred Pro USB Keyboard 73P5220

Enhanced Performance USB Keyboard 73P2620

Lenovo USB Fingerprint Keyboard 73P4730

Lenovo USB Smartcard Keyboard 51J0155

Ultraslim Plus Wireless Keyboard and Mouse52 0A34032

More information at www.lenovo.com/support/keyboards

Mouse

Lenovo Optical Mouse (USB) 06P4069

Lenovo ScrollPoint Mouse (USB, Optical) 31P7405

Lenovo Laser Mouse (USB) 41U3074

Lenovo Wireless Laser Mouse52 0A36188

More information at www.lenovo.com/support/mice

Monitors - ThinkVision®

L1711p 17" (VGA, DVI-D) 5047HB2

LT1952p Wide 19" (VGA, DP, DVI-D)69 2448MB6

L2250p Wide 22" (VGA, DVI-D) 2572HB6

L2251x Wide 22" (VGA, DP) 2578HB6

LT2252p Wide 22" (VGA, DP, DVI-D)69 2572MB6

LT2452p Wide 24" (VGA, DP, DVI-D)69 4420MB2

More information at www.lenovo.com/support/monitors

Monitor accessories46

Kensington®MicroSaver® Cable Lock 73P2582

Kensington Twin Head Cable Lock 45K1620

More information at www.lenovo.com/support/monitoraccessories

Graphics

DisplayPortTM to Single-link DVI-D Cable50 45J7915

DisplayPort to DisplayPort Monitor Cable50 0A36537

NVIDIA® NVSTM 300 512MB DMS5965 0A36528

NVIDIA NVS 310 512MB 0B47074

NVIDIA NVS 510 2GB Graphics Card by Lenovo 0B47077

NVIDIA Quadro 1GB 600 0A36183

NVIDIA Quadro 1GB 2000 57Y4479

More information at www.lenovo.com/support/graphiccards

Security

Kensington MicroSaver Cable Lock 73P2582

Kensington Twin Head Cable Lock 45K1620

Lenovo Security Cable Lock 57Y4303

USB Gemplus GemPC Smart Card Reader 41N3040

46 Compatible on selected Lenovo and ThinkVision monitors.

50 Attaches to selected DisplayPort graphics cards.

52 Wireless via 2.4GHz technology using a micro-size USB receiver.

54 Actual memory operating speed depend on processor memory

controller speed, installed memory speed, and quantity of memory

DIMMs.

65 Contains DMS59 to dual-DVI cable and DMS59 to dual-VGA

cable.

69 DisplayPort cable is not included; use optional

DisplayPort to DisplayPort Monitor Cable (0A36537).

For more information on accessories:

www.lenovo.com/accessories

Purchase Lenovo accessories

www.lenovo.com/support/accessories

Product specifi cations on Lenovo Support

www.lenovo.com/accessoriesguide

Option Compatibility Matrix (OCM) and accessory brochures

www.lenovoquickpick.com

An Options Compatibility Confi gurator for Lenovo systems

Partial list of accessories supported on ThinkStation E31 SFF

© Lenovo

(O-ROC) July 2012

ThinkStation® E31 SFF Accessories Personal Systems Reference (PSREF)

Memory53

2GB PC3-12800 DDR3-1600 non-ECC UDIMM54 0A65728

4GB PC3-12800 DDR3-1600 non-ECC UDIMM 0A65729

8GB PC3-12800 DDR3-1600 non-ECC UDIMM 0A65730

2GB PC3-12800 DDR3-1600 ECC UDIMM 0B47376

4GB PC3-12800 DDR3-1600 ECC UDIMM 0B47377

8GB PC3-12800 DDR3-1600 ECC UDIMM 0B47378

2GB PC3-10600 DDR3-1333 ECC UDIMM 43R2033

4GB PC3-10600 DDR3-1333 ECC UDIMM 57Y4138

8GB PC3-10600 DDR3-1333 ECC UDIMM 0A65718

More information on memory and processor confi guration, operation and

limitation, please visit:

www.lenovo.com/support/thinkstationaccessories

Optical

DVD-ROM DL SATA1.5Gb/s 16X-48X Max441N5618

Lenovo® Super Multi-Burner SATA Drive 0A65618

Blu-ray™ Burner SATA1.5Gb/s 45K1675

Storage and removable storage

Lenovo 500GB 7200 rpm Serial ATA Hard Drive 43R1990

Lenovo 1TB 7200 rpm Serial ATA Hard Drive 45J7918

ThinkStation 180GB Solid State Drive 0B47308

Keyboard

Preferred Pro USB Keyboard 73P5220

Enhanced Performance USB Keyboard 73P2620

Lenovo USB Fingerprint Keyboard 73P4730

Lenovo USB Smartcard Keyboard 51J0155

Ultraslim Plus Wireless Keyboard and Mouse52 0A34032

More information at www.lenovo.com/support/keyboards

Mouse

Lenovo Optical Mouse (USB) 06P4069

Lenovo ScrollPoint Mouse (USB, Optical) 31P7405

Lenovo Laser Mouse (USB) 41U3074

Lenovo Wireless Laser Mouse52 0A36188

More information at www.lenovo.com/support/mice

Monitors - ThinkVision®

L1711p 17" (VGA, DVI-D) 5047HB2

LT1952p Wide 19" (VGA, DP, DVI-D)69 2448MB6

L2250p Wide 22" (VGA, DVI-D) 2572HB6

L2251x Wide 22" (VGA, DP) 2578HB6

LT2252p Wide 22" (VGA, DP, DVI-D)69 2572MB6

LT2452p Wide 24" (VGA, DP, DVI-D)69 4420MB2

More information at www.lenovo.com/support/monitors

Monitor accessories46

Kensington®MicroSaver® Cable Lock 73P2582

Kensington Twin Head Cable Lock 45K1620

More information at www.lenovo.com/support/monitoraccessories

Graphics

DisplayPortTM to Single-link DVI-D Cable50 45J7915

DisplayPort to DisplayPort Monitor Cable50 0A36537

NVIDIA®NVSTM 310 512MB 0B47074

NVIDIA NVS 510 2GB Graphics Card by Lenovo 0B47077

NVIDIA Quadro 1GB 600 0A36183

More information at www.lenovo.com/support/graphiccards

Security

Kensington MicroSaver Cable Lock 73P2582

Kensington Twin Head Cable Lock 45K1620

Lenovo Security Cable Lock 57Y4303

USB Gemplus GemPC Smart Card Reader 41N3040

46 Compatible on selected Lenovo and ThinkVision monitors.

50 Attaches to selected DisplayPort graphics cards.

52 Wireless via 2.4GHz technology using a micro-size USB receiver.

54 Actual memory operating speed depend on processor memory

controller speed, installed memory speed, and quantity of memory

DIMMs.

65 Contains DMS59 to dual-DVI cable and DMS59 to dual-VGA

cable.

69 DisplayPort cable is not included; use optional

DisplayPort to DisplayPort Monitor Cable (0A36537).

For more information on accessories:

www.lenovo.com/accessories

Purchase Lenovo accessories

www.lenovo.com/support/accessories

Product specifi cations on Lenovo Support

www.lenovo.com/accessoriesguide

Option Compatibility Matrix (OCM) and accessory brochures

www.lenovoquickpick.com

An Options Compatibility Confi gurator for Lenovo systems
