Lenovo

Ideapad 100 15IBD

Hardware

Maintenance

Manual

Note:

Before using this information and the product it supports, be sure to read the general information

under “Notices” on page 75.

First Edition (August 2015)

© Copyright Lenovo 2015. All rights reserved.

LENOVO products, data, computer software, and services have been developed exclusively at private

expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with

limited and restricted rights to use, reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are

delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclo-

sure is subject to restrictions set forth in Contract No. GS-35F-05925.

© 2015 Lenovo

iii

About this manual........................................iv

Safety information.........................................1

General safety ...................................................... 2

Electrical safety .................................................... 3

Safety inspection guide ...................................... 5

Handling devices that are sensitive to

electrostatic discharge......................................... 6

Grounding requirements ................................... 6

Safety notices: multilingual translations.......... 7

Laser compliance statement............................. 14

Important service information ...................16

Strategy for replacing FRUs............................. 16

Strategy for replacing a hard disk

drive .............................................................. 17

Important notice for replacing a system

board ............................................................. 17

Important information about replacing RoHS

compliant FRUs ................................................. 18

General checkout........................................19

What to do first.................................................. 20

Power system checkout .................................... 21

Checking the AC adapter........................... 21

Checking operational charging ................. 21

Checking the battery pack ......................... 22

Related service information.......................23

Restoring the factory contents by using

Recovery Disc Set .............................................. 23

Passwords........................................................... 24

Power-on password .................................... 24

Hard-disk password ................................... 24

Supervisor password .................................. 24

Power management .......................................... 25

Screen blank state........................................ 25

Lenovo Ideapad 100 15IBD.........................26

Specifications ..................................................... 26

Status indicators ................................................ 28

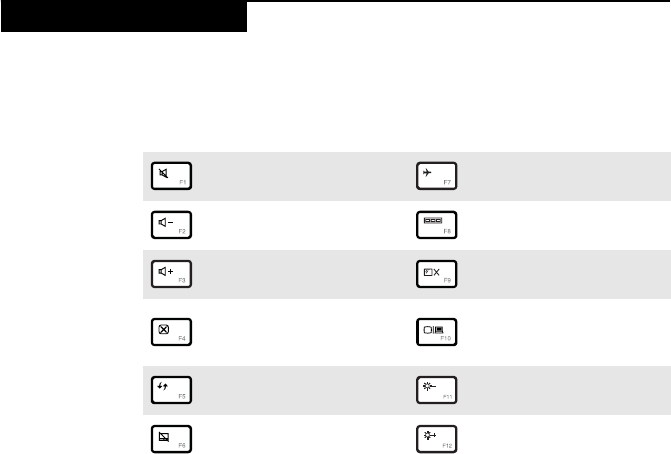

Hotkeys............................................................... 29

FRU replacement notices.................................. 30

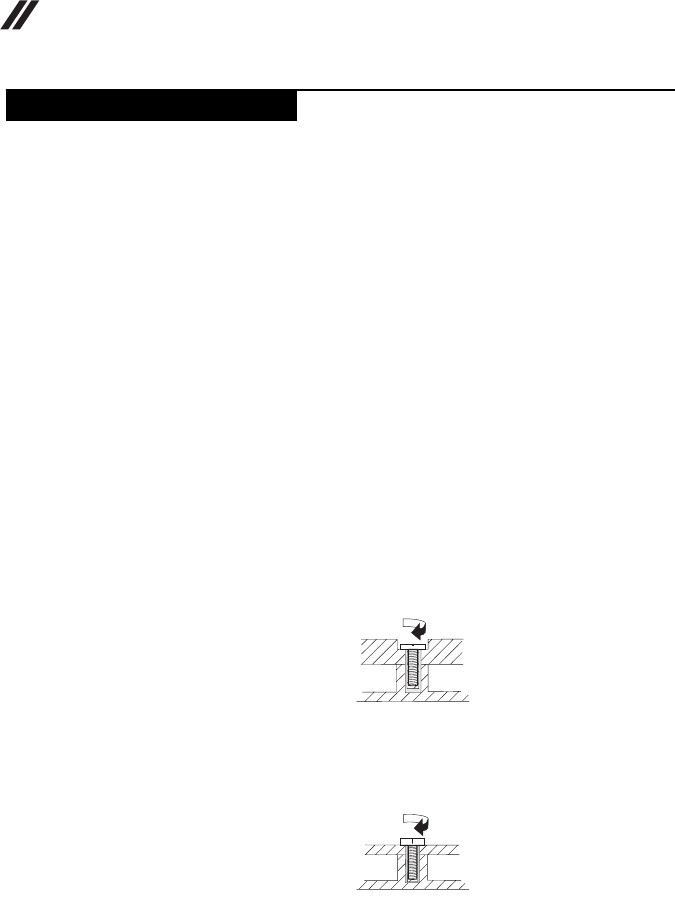

Screw notices................................................ 30

Removing and replacing an FRU.................... 31

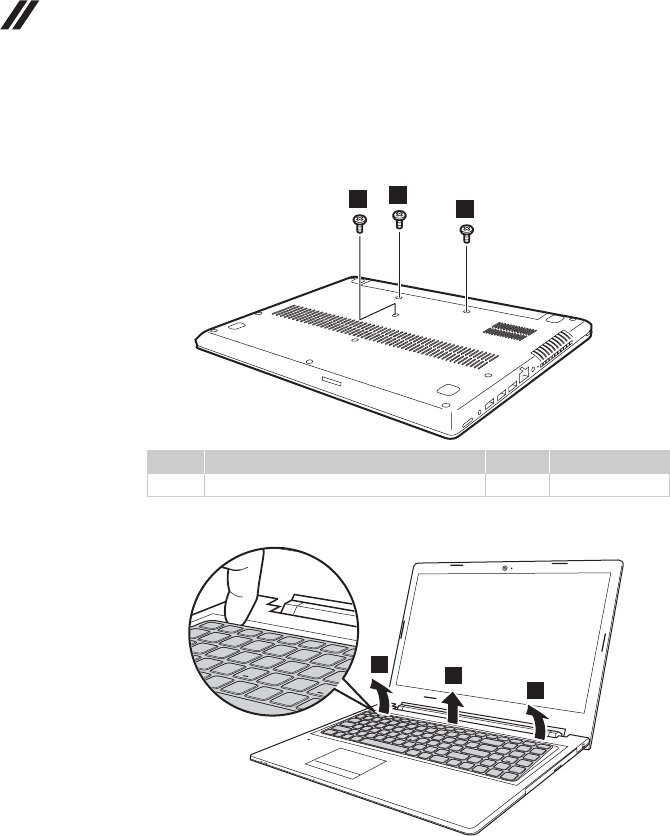

1010 Keyboard ............................................. 32

1020 Optical drive ....................................... 34

1030 Base cover............................................ 36

1040 Battery pack......................................... 38

1050 Hard disk drive................................... 39

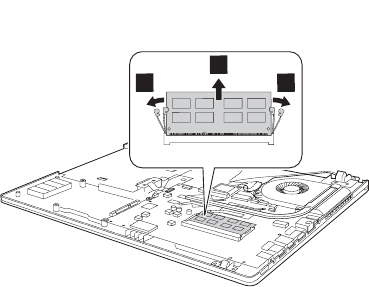

1060 DIMM ................................................... 41

1070 PCI Express Mini Card for wireless

LAN/WAN.................................................... 42

1080 Fan and heat sink assembly ..............44

1090 System board.......................................45

1100 ODD transfer board............................ 47

1110 LCD unit and upper cover ................48

1120 LCD front bezel...................................51

1130 LCD panel............................................52

1140 LCD hinges ..........................................54

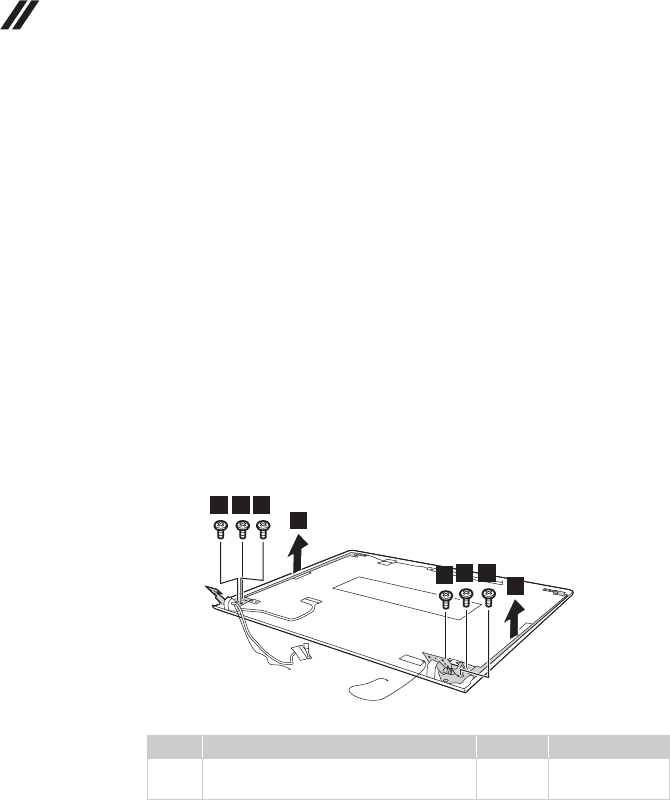

1150 Antenna, LCD cable, and integrated

camera ........................................................... 55

Locations ............................................................. 57

Top and front view......................................57

Right-side view ............................................58

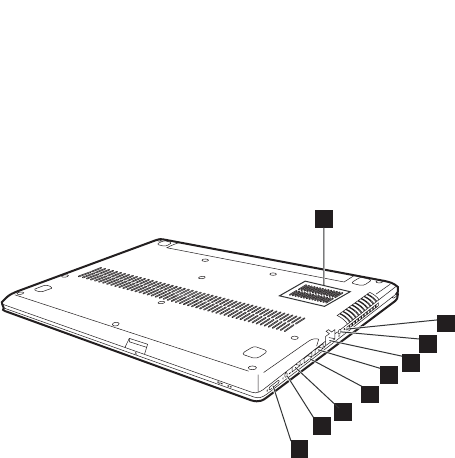

Bottom and left-side view .......................... 59

Parts list............................................................... 60

Overall........................................................... 61

LCD FRUs .....................................................65

Keyboard.......................................................67

Miscellaneous parts.....................................69

AC adapters.................................................. 70

Screws............................................................ 71

Power cords ..................................................72

Notices .........................................................75

Trademarks.........................................................76

Contents

iv

This manual contains service and reference information for the following

Lenovo product:

Lenovo Ideapad 100 15IBD

Use this manual to troubleshoot problems.

The manual is divided into the following sections:

•The common sections provide general information, guidelines, and safety

information required for servicing computers.

•The product-specific section includes service, reference, and product-specific

parts information.

About this manual

Important:

This manual is intended only for trained servicers who are familiar with

Lenovo products. Use this manual to troubleshoot problems effectively.

Before servicing a Lenovo product, make sure to read all the information

under “Safety information” on page 1 and “Important service information”

on page 16.

Lenovo Ideapad 100 15IBD

1

This chapter presents the following safety information that you need to get

familiar with before you service a Lenovo computer:

•“General safety” on page 2

•“Electrical safety” on page 3

•“Safety inspection guide” on page 5

•“Handling devices that are sensitive to electrostatic discharge” on page 6

•“Grounding requirements” on page 6

•“Safety notices: multilingual translations” on page 7

•“Laser compliance statement” on page 14

Safety information

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

2

Follow the following rules to ensure general safety:

•Observe a good housekeeping in the area where the machines are put during

and after the maintenance.

•When lifting any heavy object:

1. Make sure that you can stand safely without slipping.

2. Distribute the weight of the object equally between your feet.

3. Use a slow lifting force. Never move suddenly or twist when you attempt

to lift it.

4. Lift it by standing or pushing up with your leg muscles; this action could

avoid the strain from the muscles in your back. Do not attempt to lift any

object that weighs more than 16 kg (35 lb) or that you think is too heavy for

you.

•Do not perform any action that causes hazards to the customer, or that makes

the machine unsafe.

•Before you start the machine, make sure that other service representatives

and the customer are not in a hazardous position.

•Please remove covers and other parts in a safe place, away from all personnel,

while you are servicing the machine.

•Keep your tool case away from walk areas so that other people will not trip it

over.

•Do not wear loose clothing that can be trapped in the moving parts of the

machine. Make sure that your sleeves are fastened or rolled up above your

elbows. If your hair is long, fasten it.

•Insert the ends of your necktie or scarf inside clothing or fasten it with the

nonconductive clip, about 8 centimeters (3 inches) from the end.

•Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for

your clothing.

Attention: Metal objects are good electrical conductors.

•Wear safety glasses when you are hammering, drilling, soldering, cutting

wire, attaching springs, using solvents, or working in any other conditions

that may be hazardous to your eyes.

•After service, reinstall all safety shields, guards, labels, and ground wires.

Replace any safety device that is worn or defective.

•Reinstall all covers correctly before returning the machine to the customer.

•Fan louvers on the machine help to prevent the overheating of internal

components. Do not obstruct fan louvers or cover them with labels or

stickers.

General safety

Lenovo Ideapad 100 15IBD

3

Observe the following rules when working on electrical equipments.

•Find the room emergency power-off (EPO) switch, disconnecting switch, or

electrical outlet. If an electrical accident occurs, you can then operate the

switch or unplug the power cord quickly.

•Do not work alone under hazardous conditions or near the equipment that

has hazardous voltages.

•Disconnect all power before:

–Performing a mechanical inspection

–Working near power supplies

–Removing or installing main units

•Before you start to work on the machine, unplug the power cord. If you

cannot unplug it, ask the customer to power-off the wall box that supplies

power to the machine, and to lock the wall box in the off position.

•If you need to work on a machine that has exposed electrical circuits, observe

the following precautions:

–Ensure that another person, familiar with the power-off controls, is near

you.

Attention: Another person must be there to switch off the power, if

necessary.

–Use only one hand when working with powered-on electrical equipment;

keep the other hand in your pocket or behind your back.

Attention: An electrical shock can occur only when there is a complete

circuit. By observing the above rule, you may prevent a current from

passing through your body.

–When using testers, set the controls correctly and use the approved probe

leads and accessories for that tester.

–Stand on suitable rubber mats (obtained locally, if necessary) to insulate

you from grounds such as metal floor strips and machine frames.

Observe the special safety precautions when you work with very high voltages;

instructions for these precautions are in the safety sections of maintenance

information. Be extremely careful when you measure the high voltages.

•Regularly inspect and maintain your electrical hand tools for safe operational

condition.

•Do not use worn or broken tools and testers.

•Never assume that power has been disconnected from a circuit. First, check it

to make sure that it has been powered off.

Electrical safety

Important:

Use only approved tools and test equipments. Some hand tools have

handles covered with a soft material that does not insulate you when

working with live electrical currents.

Many customers have rubber floor mats near their machines that contain

small conductive fibers to decrease electrostatic discharges. Do not use such

kind of mat to protect yourself from electrical shock.

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

4

•Always look carefully for possible hazards in your work area. Examples of

these hazards are moist floors, nongrounded power extension cables, power

surges, and missing safety grounds.

•Do not touch live electrical circuits with the reflective surface of a plastic

dental mirror. The surface is conductive; such touching can cause personal

injury and machine damage.

•Do not service the following parts with the power on when they are removed

from their normal operating places in a machine:

–Power supply units

–Pumps

–Blowers and fans

–Motor generators

and similar units. (This practice ensures correct grounding of the units.)

•If an electrical accident occurs:

–Use caution: do not become a victim yourself.

–Switch off the power.

–Send the victim to get medical aid.

Lenovo Ideapad 100 15IBD

5

The purpose of this inspection guide is to assist you in identifying potential

unsafe conditions. As each machine was designed and built, required safety

items were installed to protect users and service personnel from injury. This

guide addresses only those items. You should use good judgment to identify

potential safety hazards due to attachment of non-Lenovo features or options not

covered by this inspection guide.

If any unsafe conditions are present, you must determine how serious the

apparent hazard could be and whether you can continue without first correcting

the problem.

Consider these conditions and the safety hazards they present:

•Electrical hazards, especially primary power (primary voltage on the frame

can cause serious or fatal electrical shock)

•Explosive hazards, such as a damaged CRT face or a bulging capacitor

•Mechanical hazards, such as loose or missing hardware

To determine whether there are any potential unsafe conditions, use the

following checklist at the beginning of every service task. Begin the checks with

the power off, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).

2. Turn off the computer. Disconnect the power cord.

3. Check the power cord for:

a. A third-wire ground connector in good condition. Use a meter to measure

third-wire ground continuity for 0.1 ohm or less between the external

ground pin and the frame ground.

b. The power cord should be the type specified in the parts list.

c. Insulation must not be frayed or worn.

4. Check for cracked or bulging batteries.

5. Remove the cover.

6. Check for any obvious non-Lenovo alterations. Use good judgment as to the

safety of any non-Lenovo alterations.

7. Check inside the unit for any obvious unsafe conditions, such as metal filings,

contamination, water or other liquids, or signs of fire or smoke damage.

8. Check for worn, frayed, or pinched cables.

9. Check that the power-supply cover fasteners (screws or rivets) have not been

removed or tampered with.

Safety inspection guide

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

6

Any computer part containing transistors or integrated circuits (ICs) should be

considered sensitive to electrostatic discharge (ESD). ESD damage can occur

when there is a difference in charge between objects. Protect against ESD damage

by equalizing the charge so that the machine, the part, the work mat, and the

person handling the part are all at the same charge.

When handling ESD-sensitive parts:

•Keep the parts in protective packages until they are inserted into the product.

•Avoid contact with other people.

•Wear a grounded wrist strap against your skin to eliminate static on your

body.

•Prevent the part from touching your clothing. Most clothing is insulative and

retains a charge even when you are wearing a wrist strap.

•Use the black side of a grounded work mat to provide a static-free work

surface. The mat is especially useful when handling ESD-sensitive devices.

•Select a grounding system, such as those listed below, to provide protection

that meets the specific service requirement.

–Attach the ESD ground clip to any frame ground, ground braid, or green-

wire ground.

–When working on a double-insulated or battery-operated system, use an

ESD common ground or reference point. You can use coax or connector-

outside shells on these systems.

–Use the round ground prong of the ac plug on ac-operated computers.

Electrical grounding of the computer is required for operator safety and correct

system function. Proper grounding of the electrical outlet can be verified by a

certified electrician.

Handling devices that are sensitive to electrostatic discharge

Notes:

1. Use product-specific ESD procedures when they exceed the

requirements noted here.

2. Make sure that the ESD protective devices you use have been certified

(ISO 9000) as fully effective.

Notes:

The use of a grounding system to guard against ESD damage is desirable but

not necessary.

Grounding requirements

Lenovo Ideapad 100 15IBD

7

The safety notices in this section are provided in English, French, German,

Hebrew, Italian, Japanese, and Spanish.

Safety notices: multilingual translations

Safety notice 1

Before the computer is powered on after FRU replacement, make sure all

screws, springs, and other small parts are in place and are not left loose

inside the computer. Verify this by shaking the computer and listening for

rattling sounds. Metallic parts or metal flakes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement d’une unité

en clientèle, vérifiez que tous les ressorts, vis et autres pièces sont bien en

place et bien fixées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun

bruit suspect ne se produit. Des pièces métalliques ou des copeaux de métal

pourraient causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen

wird, muß sichergestellt werden, daß keine Schrauben, Federn oder andere

Kleinteile fehlen oder im Gehäuse vergessen wurden. Der Computer muß

geschüttelt und auf Klappergeräusche geprüft werden. Metallteile oder-

splitter können Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di

una FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole

dimensioni siano nella corretta posizione e non siano sparse all’interno

dell’elaboratore. Verificare ciò scuotendo l’elaboratore e prestando

attenzione ad eventuali rumori; eventuali parti o pezzetti metallici possono

provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que

todos los tornillos, muelles y demás piezas pequeñas se encuentran en su

sitio y no se encuentran sueltas dentro del sistema. Compruébelo agitando el

sistema y escuchando los posibles ruidos que provocarían. Las piezas

metálicas pueden causar cortocircuitos eléctricos.

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

8

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and cadmium. Do

not disassemble a standby battery, recharge it, throw it into fire or water, or

short-circuit it. Dispose of the battery as required by local ordinances or

regulations. Use only the battery in the appropriate parts listing. Use of an

incorrect battery can result in ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les

démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne

les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à

la réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde

ou celle de l’horloge temps réel, veillez à n’utiliser que les modèles cités dans

la liste de pièces détachées adéquate. Une batterie ou une pile inappropriée

risque de prendre feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet,

kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nicht

zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser

ausgesetzt werden. Bei der Entsorgung die örtlichen Bestimmungen für

Sondermüll beachten. Beim Ersetzen der Bereitschafts-oder Systembatterie

nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist.

Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e

cadmio. Non smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né

cortocircuitarle. Smaltirle secondo la normativa in vigore (DPR 915/82,

successive disposizioni e disposizioni locali). Quando si sostituisce la

batteria dell’RTC (real time clock) o la batteria di supporto, utilizzare

soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di una

batteria non adatta potrebbe determinare l’incendio o l’esplosione della

batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y

cadmio. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las

cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo

baterías que se encuentren en la lista de piezas. La utilización de una batería

no apropiada puede provocar la ignición o explosión de la misma.

Lenovo Ideapad 100 15IBD

9

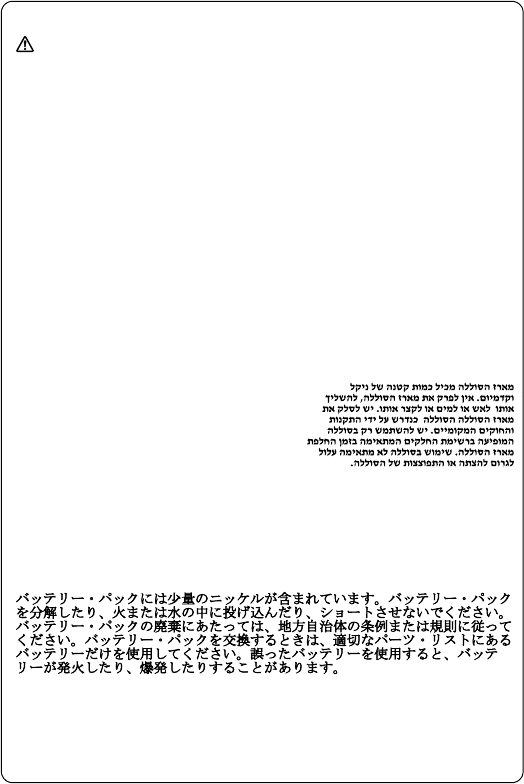

Safety notice 3

DANGER

The battery pack contains small amounts of nickel. Do not disassemble it,

throw it into fire or water, or short-circuit it. Dispose of the battery pack as

required by local ordinances or regulations. Use only the battery in the

appropriate parts listing when replacing the battery pack. Use of an

incorrect battery can result in ignition or explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni

à l’eau. Ne la mettez pas en court-circuit. Pour la mettre au rebut,

conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la

batterie, veillez à n’utiliser que les modèles cités dans la liste de pièces

détachées adéquate. En effet, une batterie inappropriée risque de prendre

feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt

werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll

beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der

in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu

Entzündung oder Explosion führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel

fuoco o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in

vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando si

sostituisce la batteria, utilizzare soltanto i tipi inseriti nell’appropriato

Catalogo parti. L’impiego di una batteria non adatta potrebbe determinare

l’incendio o l’esplosione della batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni

recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal

como dispone la normativa local. Utilice sólo baterías que se encuentren en

la lista de piezas al sustituir la batería. La utilización de una batería no

apropiada puede provocar la ignición o explosión de la misma.

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

10

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion, or a severe burn. Do not

recharge it, remove its polarized connector, disassemble it, heat it above

100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of

the battery as required by local ordinances or regulations. Use only the

battery in the appropriate parts listing. Use of an incorrect battery can result

in ignition or explosion of the battery.

La pile de sauvegarde contient du lithium. Elle présente des risques

d’incendie, d’explosion ou de brûlures graves. Ne la rechargez pas, ne

retirez pas son connecteur polarisé et ne la démontez pas. Ne l’exposez pas

à une temperature supérieure à 100°C, ne la faites pas brûler et n’en exposez

pas le contenu à l’eau. Mettez la pile au rebut conformément à la

réglementation en vigueur. Une pile inappropriée risque de prendre feu ou

d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden,

explodieren oder schwere Verbrennungen hervorrufen. Batterien dieses

Typs dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt

werden. Auch darf ihr Inhalt nicht mit Wasser in Verbindung gebracht oder

der zur richtigen Polung angebrachte Verbindungsstecker entfernt werden.

Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten.

Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der

Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu

Entzündung oder Explosion führen.

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o

procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore

polarizzato, smontarla, riscaldarla ad una temperatura superiore ai 100

gradi centigradi, incendiarla o gettarla in acqua. Smaltirla secondo la

normativa in vigore (DPR 915/82, successive disposizioni e disposizioni

locali). L’impiego di una batteria non adatta potrebbe determinare

l’incendio o l’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y puede provocar incendios,

explosiones o quemaduras graves. No la recargue, ni quite el conector

polarizado, ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la

incinere ni exponga el contenido de sus celdas al agua. Deséchela tal como

dispone la normativa local.

Lenovo Ideapad 100 15IBD

11

Safety notice 5

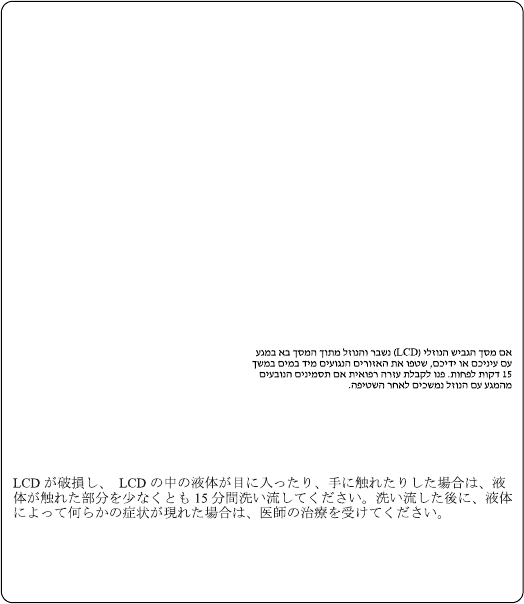

If the LCD breaks and the fluid from inside the LCD gets into your eyes or

on your hands, immediately wash the affected areas with water at least for

15 minutes. Seek medical care if any symptoms caused by the fluid are

present after washing.

Si le panneau d’affichage à cristaux liquides se brise et que vous recevez dans

les yeux ou sur les mains une partie du fluide, rincez-les abondamment

pendant au moins quinze minutes. Consultez un médecin si des symptômes

persistent après le lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der

Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Der

LCD-Bildschirm besteht aus Glas und kann zerbrechen, wenn er

unsachgemäß behandelt wird oder der Computer auf den Boden fällt. Wenn

der Bildschirm beschädigt ist und die darin befindliche Flüssigkeit in

Kontakt mit Haut und Augen gerät, sollten die betroffenen Stellen

mindestens 15 Minuten mit Wasser abgespült und bei Beschwerden

anschließend ein Arzt aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto

entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti

interessate con acqua corrente per almeno 15 minuti; poi consultare un

medico se i sintomi dovessero permanere.

Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o

sus manos, lave inmediatamente las áreas afectadas con agua durante

15 minutos como mínimo. Obtenga atención medica si se presenta algún

síntoma del fluido despues de lavarse.

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

12

Safety notice 6

DANGER

To avoid shock, do not remove the plastic cover that protects the lower part

of the inverter card.

Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en

plastique protégeant la partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der

Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che

avvolge la parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja

de la tarjeta invertida.

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or grounded battery

can produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou

la mise à la masse d’une batterie peut produire suffisamment de courant

pour brûler des matériaux combustibles ou causer des brûlures corporelles

graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei

Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien

zu entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in

corto circuito o a massa può fornire corrente sufficiente da bruciare materiali

combustibili o provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería

cortocircuitada o con contacto a tierra puede producir la corriente suficiente

como para quemar material combustible o provocar quemaduras en el

personal.

Lenovo Ideapad 100 15IBD

13

Safety notice 8

DANGER

Before removing any FRU, turn off the computer, unplug all power cords

from electrical outlets, remove the battery pack, and then disconnect any

interconnecting cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors

tension, débranchez tous les cordons d’alimentation des socles de prise de

courant, retirez la batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose

gezogen, der Akku entfernt und alle Verbindungskabel abgenommen sein,

bevor eine FRU entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese

elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare

i cavi di interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de

las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte

cualquier cable de conexión entre dispositivos.

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

14

Some models of Lenovo computer are equipped from the factory with an optical

storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are

also sold separately as options. If one of these drives is installed, it is certified in

the U.S. to conform to the requirements of the Department of Health and Human

Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class

1 laser products. Elsewhere, the drive is certified to conform to the requirements

of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60

825 for Class 1 laser products.

If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note

the following:

Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage

device could result in exposure to hazardous laser radiation. There are no

serviceable parts inside those drives. Do not open.

Laser compliance statement

CAUTION

Use of controls or adjustments or performance of procedures other than

those specified herein might result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de procedimentos diferentes

daqueles aqui especificados pode resultar em perigosa exposição à radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes

de réglage et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet,

kann gefährliche Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da

quelle specificate possono provocare l’esposizione a.

El uso de controles o ajustes o la ejecución de procedimientos distintos de los

aquí especificados puede provocar la exposición a radiaciones peligrosas.

Lenovo Ideapad 100 15IBD

15

A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may

contain an embedded Class 3A or Class 3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the

beam, do not view directly with optical instruments, and avoid direct

exposure to the beam.

Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe

diretamente por meio de instrumentos óticos e evite exposição direta com o

feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder

directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische

Instrumente in den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai

eszközökkel. Kerülje a sugárnyalábbal való érintkezést!

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non

guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al

fascio.

Radiación láser al abrir. No mire fijamente ni examine con instrumental

óptico el haz de luz. Evite la exposición directa al haz.

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

16

This chapter presents the following important service information:

•“Strategy for replacing FRUs” on page 16

–“Strategy for replacing a hard disk drive” on page 17

–“Important notice for replacing a system board” on page 17

•“Important information about replacing RoHS compliant FRUs” on page 18

Before replacing parts:

Make sure that all software fixes, drivers, and BIOS downloads are installed

before replacing any FRUs listed in this manual.

After a system board is replaced, ensure that the latest BIOS is loaded to the

system board before completing the service action.

To download software fixes, drivers, and BIOS, follow the steps below:

1. Go to http://consumersupport.lenovo.com/

2. Enter the serial number or select a product or use Lenovo smart

downloading.

3. Select the BIOS/Driver/Applications and download.

4. Follow the directions on the screen and install the necessary software.

Important service information

Important:

BIOS and device driver fixes are customer-installable. The BIOS and device

drivers are posted on the customer support site:

http://consumersupport.lenovo.com/.

Strategy for replacing FRUs

Lenovo Ideapad 100 15IBD

17

Use the following strategy to prevent unnecessary expense for replacing and

servicing FRUs:

•If you are instructed to replace an FRU, but the replacement does not solve

the problem, reinstall the original FRU before you continue.

•Some computers have both a processor board and a system board. If you are

instructed to replace either of them, and replacing one of them does not solve

the problem, reinstall that board, and then replace the other one.

•If an adapter or a device consists of more than one FRU, any of the FRUs may

be the cause of the error. Before replacing the adapter or device, remove the

FRUs one by one to see if the symptoms change. Replace only the FRU that

changed the symptoms.

Attention: The setup configuration on the computer you are servicing may have

been customized. Running Automatic Configuration may alter the settings. Note

the current configuration settings (using the View Configuration option); then,

when service has been completed, verify that those settings remain in effect.

Strategy for replacing a hard disk drive

Always try to run a low-level format before replacing a hard disk drive. This will

cause all customer data on the hard disk to be lost. Make sure that the customer

has a current backup of the data before performing this action.

Attention: The drive startup sequence in the computer you are servicing may

have been changed. Be extremely careful during write operations such as

copying, saving, or formatting. If you select an incorrect drive, data or programs

can be overwritten.

Important notice for replacing a system board

Some components mounted on a system board are very sensitive. Improper

handling can cause damage to those components, and may cause a system

malfunction.

Attention: When handling a system board:

•Do not drop the system board or apply any excessive force to it.

•Avoid rough handling of any kind.

•Avoid bending the system board and hard pushing to prevent cracking at

each BGA (Ball Grid Array) chipset.

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

18

RoHS, The Restriction of Hazardous Substances in Electrical and

Electronic Equipment Directive (2002/95/EC) is a European Union legal

requirement affecting the global electronics industry. RoHS requirements

must be implemented on Lenovo products placed on the market after June

2006. Products on the market before June 2006 are not required to have

RoHS compliant parts. If the original FRU parts are non-compliant,

replacement parts can also be non-compliant. In all cases if the original

FRU parts are RoHS compliant, the replacement part must also be RoHS

compliant.

Note: RoHS and non-RoHS FRU part numbers with the same fit and function are

identified with unique FRU part numbers.

Lenovo plans to transit to RoHS compliance well before the implementation date

and expects its suppliers to be ready to support Lenovo’s requirements and

schedule in the EU. Products sold in 2005 and 2006 will contain some RoHS

compliant FRUs. The following statement pertains to these products and any

product Lenovo produces containing RoHS compliant FRUs.

RoHS compliant FRUs have unique FRU part numbers. Before or after the RoHS

implementation date, failed RoHS compliant parts must always be replaced with

RoHS compliant ones, so only the FRUs identified as compliant in the system

HMM or direct substitutions for those FRUs may be used.

Note: A direct substitution is a part with a different FRU part number that is

automatically shipped by the distribution center at the time of the order.

Products marketed before June 2006 Products marketed after June 2006

Current or

original part

Replacement

FRU

Current or

original part

Replacement

FRU

Non-RoHS Can be Non-RoHS

Must be RoHS Must be RoHS

Non-RoHS Can be RoHS

Non-RoHS Can sub to RoHS

RoHS Must be RoHS

Important information about replacing RoHS compliant FRUs

Lenovo Ideapad 100 15IBD

19

This chapter presents the following information:

•“What to do first” on page 20

•“Power system checkout” on page 21

Before you go to the checkout, make sure to read the following important notes:

General checkout

Important notes:

•Only certified trained personnel can service the computer.

•Before replacing any FRU, read the entire page on removing and

replacing FRUs.

•When you replace FRUs, use new nylon-coated screws.

•Be extremely careful during such write operations as copying,

saving, or formatting. Drives in the computer that you are servicing

sequence might have been altered. If you select an incorrect drive, data

or programs might be overwritten.

•Replace an FRU only with another FRU of the correct model. When

you replace an FRU, make sure that the machine model and the FRU part

number are correct by referring to the FRU parts list.

•An FRU should not be replaced just because of a single,

unreproducible failure. Single failures can occur for a variety of reasons

that have nothing to do with a hardware defect, such as cosmic radiation,

electrostatic discharge, or software errors. Consider replacing an FRU

only when a problem recurs. If you suspect that an FRU is defective,

clear the error logs and run the test again. If the error does not recur, do

not replace the FRU.

•Be careful not to replace a nondefective FRU.

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

20

When you do return an FRU, you must include the following information in the

parts exchange form or parts return form that you attach to it:

1. Name and phone number of servicer

2. Date of service

3. Date on which the machine failed

4. Date of purchase

5. Procedure index and page number in which the failing FRU was detected

6. Failing FRU name and part number

7. Machine type, model number, and serial number

8. Customer’s name and address

Note for warranty: During the warranty period, the customer may be

responsible for repair costs if the computer damage was caused by misuse,

accident, modification, unsuitable physical or operating environment, or

improper maintenance by the customer.

The following is a list of some common items that are not covered under

warranty and some symptoms that might indicate that the system was subjected

to stress beyond normal use.

Before checking problems with the computer, determine whether the damage is

covered under the warranty by referring to the following list:

The following are not covered under warranty:

•LCD panel cracked from the application of excessive force or from being

dropped

•Scratched (cosmetic) parts

•Distortion, deformation, or discoloration of the cosmetic parts

•Plastic parts, latches, pins, or connectors that have been cracked or broken by

excessive force

•Damage caused by liquid spilled into the system

•Damage caused by the improper insertion of a PC Card or the installation of

an incompatible card

•Improper disk insertion or use of an optical drive

•Diskette drive damage caused by pressure on the diskette drive cover,

foreign material in the drive, or the insertion of a diskette with multiple

labels

•Damaged or bent diskette eject button

•Fuses blown by attachment of a nonsupported device

•Forgotten computer password (making the computer unusable)

•Sticky keys caused by spilling a liquid onto the keyboard

•Use of an incorrect AC adapter on laptop products

The following symptoms might indicate damage caused by nonwarranted

activities:

•Missing parts might be a symptom of unauthorized service or modification.

•If the spindle of a hard disk drive becomes noisy, it may have been subjected

to excessive force, or dropped.

What to do first

Lenovo Ideapad 100 15IBD

21

To verify a symptom, follow the steps below:

1. Turn off the computer.

2. Remove the battery pack.

3. Connect the AC adapter.

4. Make sure that power is supplied when you turn on the computer.

5. Turn off the computer.

6. Disconnect the AC adapter and install the charged battery pack.

7. Make sure that the battery pack supplies power when you turn on the

computer.

If you suspect a power problem, see the appropriate one of the following power

supply checkouts:

•“Checking the AC adapter” on page 21

•“Checking operational charging” on page 21

•“Checking the battery pack” on page 22

Checking the AC adapter

You are here because the computer fails only when the AC adapter is used.

•If the power-on indicator does not turn on, check the power cord of the AC

adapter for correct continuity and installation.

•If the computer does not charge during operation, go to “Checking

operational charging” on page 21.

To check the AC adapter, follow the steps below:

1. Unplug the AC adapter cable from the computer.

2. Measure the output voltage at the plug of the AC adapter cable. See the

following figure:

Note: Output voltage for the AC adapter pin No. 2 may differ from the one you

are servicing.

3. If the voltage is not correct, replace the AC adapter.

4. If the voltage is acceptable, do the following:

•Replace the system board.

•If the problem persists, go to “Lenovo Ideapad 100 15IBD” on page 26.

Note: Noise from the AC adapter does not always indicate a defect.

Checking operational charging

To check whether the battery charges properly during operation, use a

discharged battery pack or a battery pack that has less than 50% of the total

power remaining when installed in the computer.

Power system checkout

Voltage (V DC)

+20

0

Pin

1

2

21

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

22

Perform operational charging. If the battery status indicator or icon does not

light on, remove the battery pack and let it return to room temperature. Reinstall

the battery pack. If the charge indicator or icon is still off, replace the battery

pack.

If the charge indicator still does not light on, replace the system board. Then

reinstall the battery pack. If it is still not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter shows that less than 95%

of the total power remains; under this condition the battery pack can charge to

100% of its capacity. This protects the battery pack from being overcharged or

from having a shortened life.

To check your battery, move your cursor to the Power Meter icon in the icon tray

of the Windows® taskbar and wait for a moment (but do not click it), and the

percentage of battery power remaining is displayed. To get detailed information

about the battery, double-click the Power Meter icon.

Note: If the battery pack becomes hot, it may not be able to be charged. Remove

it from the computer and leave it at room temperature for a while. After it cools

down, reinstall and recharge it.

Lenovo Ideapad 100 15IBD

23

This chapter presents the following information:

•“Restoring the factory contents by using Recovery Disc Set” on page 23

•“Passwords” on page 24

•“Power management” on page 25

Restore of factory default

This topic provides information about the recovery programs that are available

for you to recover the computer settings.

•Windows 7: The following recovery programs are available on computers

with a Windows 7 operating system:

–OneKey Recovery Pro

The OneKey Recovery Pro program enables you to back up all your hard disk

drive contents, including the operating system, data files, software programs,

and personal settings. You can designate where the OneKey Recovery Pro

program stores the backup. After you have backed up the contents on the hard

disk drive, you can restore the complete contents of the hard disk drive,

restore only the desired files, or restore only the Windows operating system

and applications.

–Product Recovery

The Product Recovery program enables you to restore the computer settings

to the factory default settings through recovery media.

Attention: When you use the Product Recovery program to restore the

computer settings, all the data you have stored on the hard disk drive will be

deleted and the computer settings will be restored to the factory default

settings. During the restoring process, you will be given the option to save one

or more files currently on the hard disk drive to other media before the data is

deleted.

•Windows 8: The preinstalled Windows recovery program enables you to do

the following:

–Refresh the computer without losing personal files

–Restore the computer to the factory default settings

Attention:When you use the Windows recovery program to restore the

computer settings, all the data you have stored on the hard disk drive will be

deleted and the computer will be restored to the factory default settings. To

avoid data loss, back up your data in advance.

–Configure the advanced startup options

The advanced startup options enable you to do the following:

–Change the startup settings of the Windows operating system

–Restore the Windows operating system from a system image

–Change the startup settings of the Windows operating system

For more information about the recovery solutions, refer to the help information

system of the programs.

Related service information

Restoring the factory contents by using Recovery Disc Set

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

24

As many as three passwords may be needed for any Lenovo computer: the

power-on password (POP), the hard disk password (HDP), and the supervisor

password (SVP).

If any of these passwords has been set, a prompt for it appears on the screen

whenever the computer is turned on. The computer does not start until the

password is entered.

Exception: If only an SVP is installed, the password prompt does not appear

when the operating system is booted.

Power-on password

A power-on password (POP) protects the system from being powered on by an

unauthorized person. The password must be entered before an operating system

can be booted.

Hard-disk password

There are two hard-disk passwords (HDPs):

+ User HDP - for the user

+ Master HDP - for the system administrator, who can use it to get access to the

hard disk drive even if the user has changed the user HDP

Attention: If the user HDP has been forgotten, check whether a master HDP has

been set. If it has, it can be used for access to the hard disk drive. If no master

HDP is available, neither Lenovo nor Lenovo authorized service technicians

provide any services to reset either the user or the master HDP, or to recover data

from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

Supervisor password

A supervisor password (SVP) protects the system information stored in the BIOS

Setup Utility. The user must enter the SVP in order to get access to the BIOS

Setup Utility and change the system configuration.

Attention: If the SVP has been forgotten and cannot be made available to the

servicer, there is no service procedure to reset the password. The system board

must be replaced for a scheduled fee.

Passwords

Lenovo Ideapad 100 15IBD

25

Note: Power management modes are not supported for APM operating system.

To reduce power consumption, the computer has three power management

modes: screen blank, sleep (standby), and hibernation.

Screen blank state

If the time set on the “Turn off monitor” timer in the operating system expires,

the LCD backlight turns off. You can also turn off the LCD backlight by pressing

F9 .

To end screen blank state and resume normal operation, press F9 .

Power management

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

26

This chapter presents the following product-specific service references and

product-specific parts information:

•“Specifications” on page 26

•“Status indicators” on page 28

•“FRU replacement notices” on page 30

•“Removing and replacing an FRU” on page 31

•“Locations” on page 57

•“Parts list” on page 60

The following table lists the specifications of the Lenovo Ideapad 100 15IBD:

Table 1. Specifications

Feature Description

Processor See the system properties of your computer, you can

do this as follows:

Click Control Panel, then click Hardware and

Sound, click Device Manager under Devices and

Printers and double click Processors.

Core Chipset NA

Graphic Chipset nvidia N16V-GM

Display •15.6", 1,366 × 768 pixels HD

•15.6", 1,920 × 1,080 pixels

Standard memory •DDR3L-1333 MHz/1600 MHz

•8 GB

•SODIMM × 2

Hard disk drive •2.5-inch, 9.5 mm (7mm compatible)

Optical drive Internal, 9.0mm&Dummy ODD

Lenovo Ideapad 100 15IBD

Specifications

Lenovo Ideapad 100 15IBD

27

Table 1. Specifications (continued)

Feature Description

I/O ports •Combo audio jack × 1

•RJ45 × 1

•HDMI port × 1

•USB 2.0 × 1, USB 3.0 × 1

•4 in 1 slot × 1 (SD, SDHC, SDXC, MMC)

Audio •Combo audio jack × 1

•Speaker × 1

•Built-in microphone × 1 (on select models)

Video HDMI port × 1

WLAN Non-Intel Wifi 1x1 bgn, mini-PCIE

WWAN NA

Bluetooth Option

Keyboard 6-row Lenovo Keyboard

Touch pad One piece touch pad

Integrated camera 640 × 480 pixels

Battery Li-Cyllinder

AC adapter •45W, 20V for integrated graphic model

•65W, 20V for discrete graphic model

Pre-installed

operating system

•Win 10 64bits

•Free-DOS

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

28

The system status indicators below show the computer status:

Table 2. Status indicators

Indicator Indicator

status

Meaning

Battery

status

indicator

On (solid

white) The battery has more than 20% charge.

Solid

amber The battery has between 5% and 20% charge.

Fast

blinking

amber The battery has less than 5% charge.

Slow

blinking

amber

The battery is being charged. When battery charge

reaches 20%, the blinking color changes to white.

Slow

blinking

white

The battery has between 20% and 80% charge and is

still charging. When the battery reaches 80% charge

the light will stop blinking, but charging will

continue until the battery is fully charged.

Power

status

indicator

On (solid

white) The computer is powered on.

Blinking The computer is in sleep mode.

Off The computer is powered off.

Status indicators

1 2

Lenovo Ideapad 100 15IBD

29

The hotkeys are located in the function key row of the keyboard. By pressing the

appropriate hotkey, you can change system settings instantly.

The following describes the function of each hotkey.

Table 3. Hotkeys

: Mutes/unmutes the sound. : Enables/disables Airplane

mode.

: Decreases the volume level. : Displays all currently active

apps.

: Increases the volume level. : Turns on/off the backlight

of the LCD screen.

:

Closes the currently active

window. :

Toggles the display

between the computer and

an external device.

: Refreshes the desktop or the

currently active window. : Decreases display

brightness.

: Enables/disables the

touchpad. : Increases display

brightness.

Hotkeys

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

30

This section presents notices related to removing and replacing parts. Read this

section carefully before replacing any FRU.

Screw notices

Loose screws can cause a reliability problem. In the Lenovo computer, this

problem is addressed with special nylon-coated screws that have the following

characteristics:

•They maintain tight connections.

•They do not easily come loose, even with shock or vibration.

•They are harder to tighten.

•Each one should be used only once.

Do the following when you service this machine:

•Keep the screw kit in your tool bag.

•Remove screws carefully for reuse.

•Use a torque screwdriver if you have one.

Tighten screws as follows:

•Plastic to plastic

Turn an additional 90° after the screw head touches the surface of the plastic

part:

•Logic card to plastic

Turn an additional 180° after the screw head touches the surface of the logic

card:

•Torque driver

If you have a torque screwdriver, refer to the “Torque” column for each step.

•Make sure that you use the correct screws. If you have a torque screwdriver,

tighten all screws firmly to the torque shown in the table. Never use a screw

that you removed. Use a new one. Make sure that all screws are

tightened firmly.

•Ensure torque screwdrivers are calibrated correctly following country

specifications.

FRU replacement notices

more than 90°

(Cross-section)

more than 180°

(Cross-section)

Lenovo Ideapad 100 15IBD

31

This section presents exploded figures with the instructions to indicate how to

remove and replace the FRU. Make sure to observe the following general rules:

1. Do not attempt to service any computer unless you have been trained and

certified. An untrained person runs the risk of damaging parts.

2. Before replacing any FRU, review “FRU replacement notices” on page 30.

3. Begin by removing any FRUs that have to be removed before the failing FRU.

Any of such FRUs are listed at the top of the page. Remove them in the order

in which they are listed.

4. Follow the correct sequence in the steps to remove the FRU, as given in the

figures by the numbers in square callouts.

5. When turning a screw to replace an FRU, turn it in the direction as given by

the arrow in the figure.

6. When removing the FRU, move it in the direction as given by the arrow in the

figure.

7. To put the new FRU in place, reverse the removal procedures and follow any

of the notes that pertain to replacement. For information about connecting

and arranging internal cables, see “Locations” on page 57.

8. When replacing an FRU, use the correct screw as shown in the procedures.

Attention: After replacing an FRU, do not turn on the computer until you have

made sure that all screws, springs, and other small parts are in place and none

are loose inside the computer. Verify this by shaking the computer gently and

listening for rattling sounds. Metallic parts or metal flakes can cause electrical

short circuits.

Attention: The system board is sensitive to, and can be damaged by, electrostatic

discharge. Before touching it, establish personal grounding by touching a

ground point with one hand or using an electrostatic discharge (ESD) strap

(P/N 6405959) to remove potential shock reasons.

Removing and replacing an FRU

DANGER

Before removing any FRU, turn off the computer, unplug all power cords

from electrical outlets, remove the battery pack, and then disconnect any of

the interconnecting cables.

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

32

1010 Keyboard

Figure 1. Removal steps of keyboard

Remove three screws .

Pull to unsnap the keyboard in the direction by arrows .

Step Screw (quantity) Color Torque

M2 x 5 mm, flat-head, nylok-coated (3) Black 1.85±0.15kgf.cm

a

11

1

a

b

c

3

2

2

Lenovo Ideapad 100 15IBD

33

Figure 1. Removal steps of keyboard (continued)

Lift up the keyboard and disconnect the connector in the direction shown by

arrows . Be careful not to damage the connector.

.

When installing: Make sure that the keyboard connector is attached firmly to

the system board.

d

e f

4

5

6

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

34

1020 Optical drive

For access, remove this FRU:

“1010 Keyboard” on page 32

Figure 2. Removal steps of optical drive

Remove the screw . Then remove the optical drive by arrow .

Remove the screw and remove the optical drive bracket in the direction by

arrow .

Step Screw (quantity) Color Torque

M2 x 8 mm, flat-head, nylok-coated (1) Black 1.85±0.15kgf.cm

Step Screw (quantity) Color Torque

M2 x 3 mm, flat-head, nylok-coated (1) Silver 1.85±0.15kgf.cm

ab

1

2

a

c

d

3

4

c

Lenovo Ideapad 100 15IBD

35

Figure 2. Removal steps of optical drive (continued)

Unsnap to remove the optical drive bezel in the direction by arrow .

e

5

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

36

1030 Base cover

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

Figure 3. Removal steps of base cover

Remove eight screws .

Step Screw (quantity) Color Torque

M2 x 5 mm, flat-head, nylok-coated (8) Black 1.85±0.15kgf.cm

a

1

1

1

1

1

1

11

a

Lenovo Ideapad 100 15IBD

37

Figure 3. Removal steps of base cover (continued)

Remove the two screws .

Remove the base cover in the direction shown by arrow .

When installing: Make sure that all the connectors are attached firmly.

Step Screw (quantity) Color Torque

M2 x 8 mm, flat-head, nylok-coated (2) Black 1.85±0.15kgf.cm

b

2

2

a

c

3

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

38

1040 Battery pack

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

Figure 4. Removal steps of battery pack

Remove screws , then remove the battery pack in the direction shown by

arrow .

Step Screw (quantity) Color Torque

M2 x 8 mm, flat-head, nylok-coated (2) Black 1.85±0.15kgf.cm

DANGER

•Only use the battery specified in the parts list for your computer. Any

other battery could ignite or explode.

a

b

1

1

2

b

Lenovo Ideapad 100 15IBD

39

1050 Hard disk drive

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

•“1040 Battery pack” on page 38

Figure 5. Removal steps of hard disk drive

Remove the four frame fixing screws . Remove the hard disk drive in the

direction by arrow .

Step Screw (quantity) Color Torque

M2 x 5 mm, flat-head, nylok-coated (4) Black 1.85±0.15kgf.cm

Attention:

•Do not drop the hard disk drive or apply any physical shock to it.

The hard disk drive is sensitive to physical shock. Improper handling

can cause damages and permanent loss of data.

•Before removing the drive, suggest the customer to backup all the

information on it if possible.

•Never remove the drive while the system is operating or in suspend

mode.

a

b

2

1

1

1

1

a

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

40

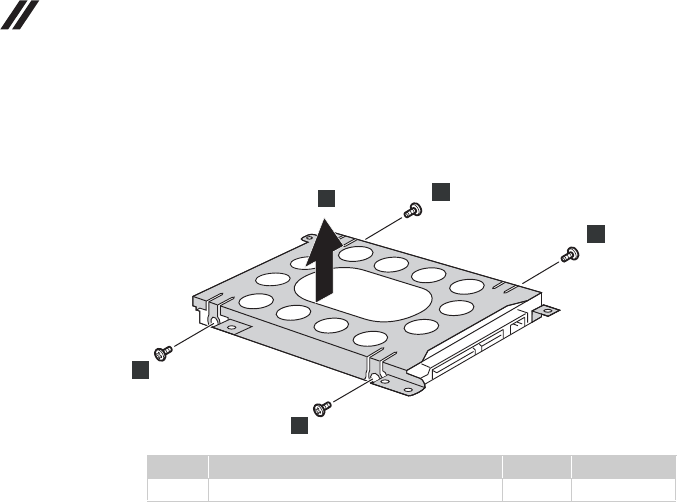

Figure 5. Removal steps of hard disk drive (continued)

Remove four screws and detach the hard disk drive from the metal frame in

the direction shown by arrow .

When installing: Make sure that the HDD connector is attached firmly.

Step Screw (quantity) Color Torque

M3 x 3 mm, flat-head, nylok-coated (4) Silver 3.0±0.3kgf.cm

ec

ed

3

3

3

3

4

e

c

Lenovo Ideapad 100 15IBD

41

1060 DIMM

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

•“1040 Battery pack” on page 38

•“1050 Hard disk drive” on page 39

Figure 6. Removal steps of DIMM

Release the two latches on both edges of the socket at the same time in the

direction shown by arrows , and then unplug the DIMM in the direction

shown by arrow .

When installing:

•Insert the notched end of the DIMM into the socket. Push the DIMM firmly,

and pivot it until it snaps into the place. Make sure that it is firmly fixed in

the slot and difficult to be moved.

a

b

21

21

22

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

42

1070 PCI Express Mini Card for wireless LAN/WAN

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

•“1040 Battery pack” on page 38

•“1050 Hard disk drive” on page 39

•“1060 DIMM” on page 41

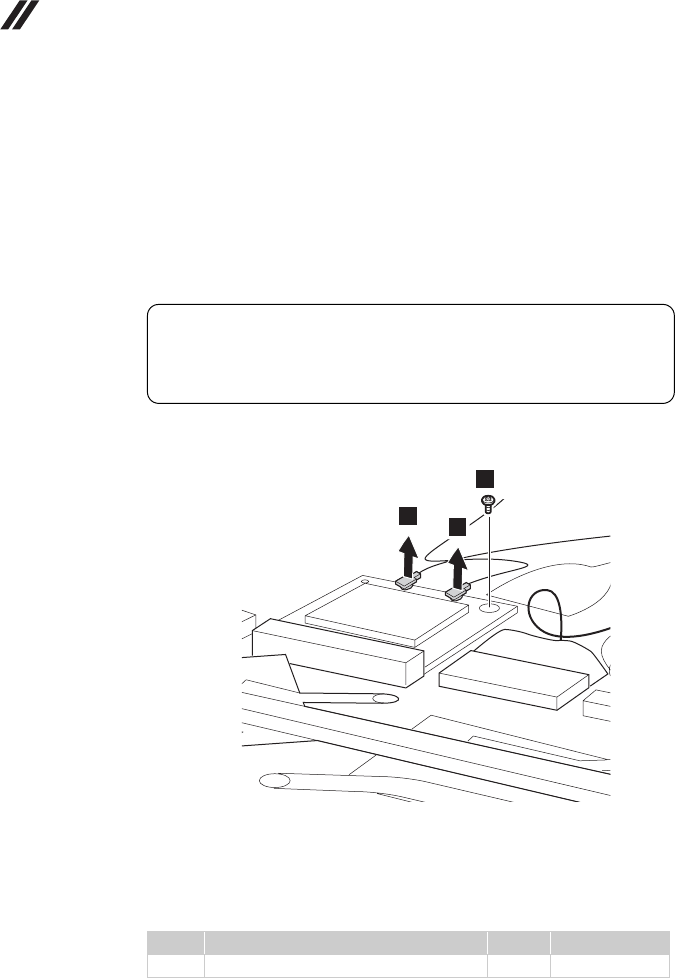

Figure 7. Removal steps of PCI Express Mini Card for wireless LAN/WAN

Disconnect the two wireless LAN cables (black, white) , and then remove the screws .

In step , unplug the jacks by using the removal tool antenna RF connector

(P/N: 08K7159), or pick up the connectors with your fingers and gently unplug

them in the direction shown by arrows.

Notes: wireless LAN card has 2 cables in step .

Wireless LAN card in some models may have 3 cables in step .

Step Screw (quantity) Color Torque

M2 x 5 mm, flat-head, nylok-coated (1) Black 1.85±0.15kgf.cm

Important:

The preinstalled WLAN module may only be replaced with a

Lenovo approved module in order to comply with FCC and IC regulations.

Refer to Table 4. Parts list—Overall on page 62 for Lenovo part numbers for the

approved modules.

ab

2

1

1

a

a

a

b

Lenovo Ideapad 100 15IBD

43

Figure 7. Removal steps of PCI Express Mini Card for wireless LAN/WAN (continued)

Remove the card in the direction shown by arrow .

When installing: Plug the black cable into the jack labeled AUX and the white

cable into the jack labeled MAIN.

c

3

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

44

1080 Fan and heat sink assembly

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

•“1040 Battery pack” on page 38

•“1050 Hard disk drive” on page 39

•“1060 DIMM” on page 41

•“1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

Figure 8. Removal steps of fan and heat sink assembly

Disconnect the fan connector in the direction by arrow . Remove the screws

and four screws . Then remove the fan and heat sink in the direction as

shown by arrow .

When installing: Make sure that the fan connector is attached firmly.

Step Screw (quantity) Color Torque

M2 x 5 mm, flat-head, nylok-coated (2) Black 1.85±0.15kgf.cm

M2 x 3 mm, flat-head, nylok-coated (4) Silver 1.85±0.15kgf.cm

a

b c

d

3

34

32

2

3

1

7

db

7

dc

Lenovo Ideapad 100 15IBD

45

1090 System board

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

•“1040 Battery pack” on page 38

•“1050 Hard disk drive” on page 39

•“1060 DIMM” on page 41

•“1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

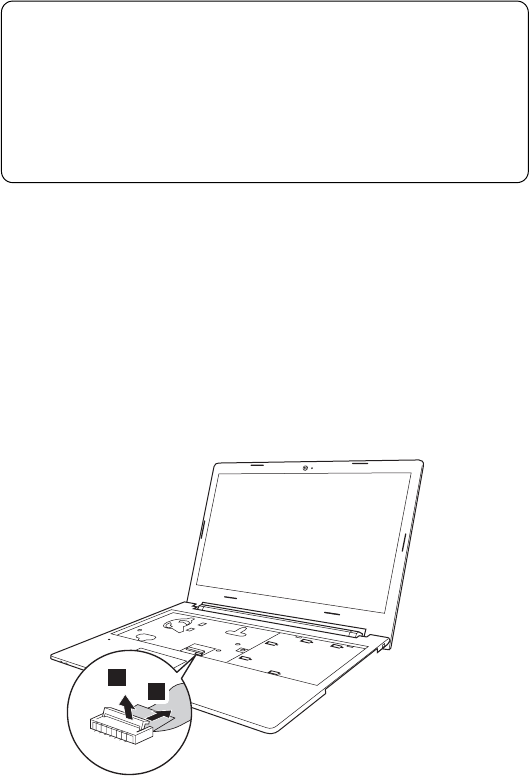

Figure 9. Removal steps of system board

Detach the touch pad connector in the direction by arrows and .

Important notices for handling the system board:

When handling the system board, bear the following in mind.

•Be careful not to drop the system board on a bench top that has a hard

surface, such as metal, wood, or composite.

•Avoid rough handling of any kind.

•In the whole process, make sure not to drop or stack the system board.

•If you put a system board down, make sure to put it only on a padded

surface such as an ESD mat or conductive corrugated material.

a b

3

2

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

46

Figure 9. Removal steps of system board (continued)

Detach the ODD transfer board connector in the direction shown by arrows

and , disconnect the EDP connector in the direction shown by arrow ,

then unplug backup battery connector and speaker connector in the direction

shown by arrow .

Remove two screws .

Step Screw (quantity) Color Torque

M2 x 3 mm, flat-head, nylok-coated (2) Silver 1.85±0.15kgf.cm

c

d e

f

e

f

d

c

f

6

6

7

dd

Lenovo Ideapad 100 15IBD

47

1100 ODD transfer board

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

•“1040 Battery pack” on page 38

•“1050 Hard disk drive” on page 39

•“1060 DIMM” on page 41

•“1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

•“1080 Fan and heat sink assembly” on page 44

•“1090 System board” on page 45

Figure 10. Removal steps of ODD transfer board

Remove the screw . Then remove the ODD transfer board in the direction

shown by arrow .

When installing: Make sure that the ODD transfer board connector is attached

firmly.

Step Screw (quantity) Color Torque

M2 x 5 mm, flat-head, nylok-coated (1) Black 1.85±0.15kgf.cm

a

b

2

1

a

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

48

1110 LCD unit and upper cover

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

•“1040 Battery pack” on page 38

•“1050 Hard disk drive” on page 39

•“1060 DIMM” on page 41

•“1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

•“1080 Fan and heat sink assembly” on page 44

•“1090 System board” on page 45

•“1100 ODD transfer board” on page 47

Figure 11. Removal steps of LCD unit and upper cover

Release the two antenna cables from the cable guides by arrows. Remove four

screws .

Step Screw (quantity) Color Torque

M2 x 5 mm, flat-head, nylok-coated (4) Black 1.85±0.15kgf.cm

ba

1

11

1

ba

Lenovo Ideapad 100 15IBD

49

Figure 11. Removal steps of LCD unit and upper cover (continued)

Open the hinges. Remove the upper case from the LCD unit in the direction by

arrow .

bb

b

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

50

Note: Applying labels to the base cover

The new base cover FRU is shipped with a kit containing labels of several

kinds. When you replace the base cover, you need to apply the following

labels:

The following labels need to be peeled off from the old base cover, and put

on the new base cover.

WLAN & BT Label

KCC label and BIS label

Indonesia label

Rating label

Rating print label

OS label

For some models, you also need to apply one or two FCC labels. Check the

old base cover; if it has one or two FCC labels, find duplicates of them in the

label kit and apply them to the new base cover.

For the location of each label, refer to the following figure:

a

bc

de f

Lenovo Ideapad 100 15IBD

51

1120 LCD front bezel

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

•“1040 Battery pack” on page 38

•“1050 Hard disk drive” on page 39

•“1060 DIMM” on page 41

•“1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

•“1080 Fan and heat sink assembly” on page 44

•“1090 System board” on page 45

•“1100 ODD transfer board” on page 47

•“1110 LCD unit and upper cover” on page 48

Figure 12. Removal steps of LCD front bezel

Remove the LCD front bezel in the direction by arrows .

a

1

1

1

1

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

52

1130 LCD panel

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

•“1040 Battery pack” on page 38

•“1050 Hard disk drive” on page 39

•“1060 DIMM” on page 41

•“1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

•“1080 Fan and heat sink assembly” on page 44

•“1090 System board” on page 45

•“1100 ODD transfer board” on page 47

•“1110 LCD unit and upper cover” on page 48

•“1120 LCD front bezel” on page 51

Figure 13. Removal steps of LCD panel

Remove four screws .

.

Step Screw (quantity) Color Torque

M2 x 3 mm, flat-head, nylok-coated (4) Silver 1.85±0.15kgf.cm

a

1

1

1

1

a

Lenovo Ideapad 100 15IBD

53

Figure 13. Removal steps of LCD panel (continued)

Turn over the LCD module in the direction as shown by arrow . Disconnect

the connector by arrow to remove the LCD panel.

When installing: Make sure that the LCD panel connector is attached firmly.

b

c

2

3

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

54

1140 LCD hinges

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

•“1040 Battery pack” on page 38

•“1050 Hard disk drive” on page 39

•“1060 DIMM” on page 41

•“1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

•“1080 Fan and heat sink assembly” on page 44

•“1090 System board” on page 45

•“1100 ODD transfer board” on page 47

•“1110 LCD unit and upper cover” on page 48

•“1120 LCD front bezel” on page 51

•“1130 LCD panel” on page 52

Figure 14. Removal steps of hinges

Remove six screws . Remove the hinges in the direction shown by arrows .

Step Screw (quantity) Color Torque

M2.5 x 2.5 mm, flat-head, nylok-coated

(6) Black 1.85±0.15kgf.cm

a b

2

1 1

1

11 1

2

a

Lenovo Ideapad 100 15IBD

55

1150 Antenna, LCD cable, and integrated camera

For access, remove these FRUs in order:

•“1010 Keyboard” on page 32

•“1020 Optical drive” on page 34

•“1030 Base cover” on page 36

•“1040 Battery pack” on page 38

•“1050 Hard disk drive” on page 39

•“1060 DIMM” on page 41

•“1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

•“1080 Fan and heat sink assembly” on page 44

•“1090 System board” on page 45

•“1100 ODD transfer board” on page 47

•“1110 LCD unit and upper cover” on page 48

•“1120 LCD front bezel” on page 51

•“1130 LCD panel” on page 52

•“1140 LCD hinges” on page 54

Figure 15. Removal steps of Antenna, LCD cable, and integrated camera

Unplug the camera connector in the direction shown by arrow . Remove the

camera from the LCD cover in the direction by arrow .

a

b

1

2

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

56

Figure 15. Removal steps of Antenna, LCD cable, and integrated camera (continued)

Release two antenna cables and one LCD cable from the cable guide. Detach the

adhesive of the antenna to remove them in the direction by arrows .

When installing:

•Route the antenna cables along the cable guides and secure the antenna

boards with adhesive tapes. As you route the cables, make sure that they are

not subjected to any tension. Tension can cause the cables to be damaged by

the cable guides, or a wire to be broken.

•Make sure that the camera connector is attached firmly.

c

3

3

Lenovo Ideapad 100 15IBD

57

Top and front view

Integrated camera

Wireless antennas

Computer display

Speakers

Built-in microphone

Touch pad

Power status indicator

Battery status indicator

Memory card slot

Locations

a

b

c

d

e

f

7

h

i

d

f

a

c

b

e

g

h

i

b

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

58

Right-side view

Optical disc drive

Kingston lock slot

a

b

1

2

Lenovo Ideapad 100 15IBD

59

Bottom and left-side view

Power button

Combo audio jack

USB 3.0 port

USB 2.0 port

HDMI port

RJ-45 port

AC power adapter jack

Novo button

Ventilation slots

a

b

c

d

e

f

7

h

i

1

2

4

3

5

6

7

8

9

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

60

This section presents the following service parts:

•“Overall” on page 61

•“LCD FRUs” on page 65

•“Keyboard” on page 67

•“Miscellaneous parts” on page 69

•“AC adapters” on page 70

•“Screws” on page 71

•“Power cords” on page 72

Parts list

Notes:

Each FRU is available for all types or models, unless specific types or

models are specified.

Lenovo Ideapad 100 15IBD

61

Overall

3

4

5

6

(c)

7

8

2

1

9

10

11

12

(a)

(b)

14

13

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

62

Table 4. Parts list—Overall

No. FRU FRU no. CRU ID

1LCD unit (see “LCD FRUs” on page 74)

2Keyboard (see “Keyboard” on page 76)

3Upper CoverLW/79SPEAKER100-15IBD 5CB0K25447 N

4RTC BATTERYL5W/CDB 100-15IBD 5B10K25422 N

5ODD BOARD LW/FFC 100-15IBD 5C50K25457 **

6HDD, 250G 5400rpm, WD WD2500LPCX-

24VHAT0

5H20J35763 N

6HDD, 500G 5400rpm, ST500LT012 6G

7mm 5.4K 500G HDD

16200383 N

6HDD, 500G 5400rpm, WD WD5000LPCX-

24VHAT0

5H20J35762 N

6HDD, 500G 5400rpm, MQ01ABF050 6G

7mm 5.4K 500G HDD

16200433 N

6HDD, 500G 5400rpm, HTS545050A7E660

6G 7mm 5.4K 500G HDD

5H20H14223 N

6HDD, 1T 5400rpm, ST1000LM024 6G

9.5mm 5.4K 1T HDD

16200385 N

6HDD, 1T 5400rpm, WD10JPCX-24UE4T0

6G 9.5mm 5.4K 1T HDD

16200393 N

6HDD, 1T 5400rpm, TSB MQ01ABD100 6G

9.5mm 5.4K 1T HDD

16200429 N

6HDD, 1T 5400rpm, HTS541010A9E660 6G

9.5mm 5.4K 1T HDD

16200400 N

6SSD, 128G 2.5'' SATA(low cost), Samsung

MZYLF128HCHP 2.5‘’ 5mm 128GB SSD

5SD0H45117 N

7RAM on board, 4Gb x16 DDR3L 1600

SDRAM, K4B4G1646Q-HYK0

1100918 N

7RAM on board, 4Gb x16 DDR3L 1600

SDRAM, H5TC4G63CFR-PBA

5M30G99882 N

7RAM on board, 4Gb x16 DDR3L 1600

SDRAM, MT41K256M16LY-107 :N

SM30G54784 N

7RAM, DDR3L 1600 4GB, M471B5173EB0-

YK0 4GB DDR3L 1600

5M30G18425 N

7RAM, DDR3L 1600 4GB,

HMT451S6BFR8A-PB/RD 4GB DDR3L

1600

11202706 N

7RAM, DDR3L 1600 4GB,

RMT3170MN68F9F-1600 4GB DDR3L

1600

5M30G75129 N

7RAM, DDR3L 1600 4GB,

MT8KTF51264HZ-1G6E1 4GB DDR3L

1600

11202125 N

7RAM, DDR3L 1600 8GB, M471B1G73EB0-

YK0 8GB DDR3L 1600

5M30G18424 N

7RAM, DDR3L 1600 8GB,

HMT41GS6BFR8A-PB/RD 8GB DDR3L

1600

11202707 N

Lenovo Ideapad 100 15IBD

63

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU ID

7RAM, DDR3L 1600 8GB,

RMT3160ME68FAF-1600 8GB DDR3L

1600

11202450 N

7RAM, DDR3L 1600 8GB,

MT16KTF1G64HZ-1G6E1 8GB DDR3L

1600

11201304 N

8Lower Cover L 100-15IBD 5CB0K25439 N

9Battery, 4cell 32Wh Li-Cylinder, Gx1 SY

L15S4A01 14.4V32Wh4cell btyC

5B10K02215 N

9Battery, 4cell 32Wh Li-Cylinder, Gx1 SP/L

L15M4A01 14.4V32Wh4cell btyC

5B10K02219 N

9Battery, 4cell 32Wh Li-Cylinder, Gx1 LG

L15L4A01 14.4V32Wh4cell btyC

5B10K02218 N

10 Wlan, WiFi 1x1 BGN only, PW AR5B125

1x1BGN HMC wireless

SA80J78642 N

10 Wlan, WiFi 1x1 BGN only, AW RTL8188EE

1x1BGN HMC wireless

SA80J78605 N

10 Wlan, WiFi 1x1 BGN+BT4.0, AW

RTL8723BE-CG HMC wireless

SA80J78641 N

10 Wlan, WiFi 1x1 BGN+BT4.0, cybertan

RTL8723BE HMC wireless

20200440 N

10 WLAN 1X1 BGN 100-14IBD 5W10K27044 N

10 WLAN 1x1 BGN+BT4.0 100-14IBD 5W10K27043 N

11 MBLI5-5200UV1G WIN10015IBD 5B20K25442 N

11 MBL3825UV1G WIN10015IBD 5B20K25456 N

11 MBL3825UD2G WIN10015IBD 5B20K25427 N

11 MBLI3-5005UPD2G WIN10015IBD 5B20K25409 N

11 MBLI5-5200UD2GV1G WIN10015IBD 5B20K25400 N

11 MBLI3-5005UPV1G WIN10015IBD 5B20K25385 N

11 MBLI3-5005UPD2GV1G WIN10015IBD 5B20K25460 N

11 MBLI5-5200UWIN10015IBD 5B20K25458 N

11 MBLI5-5200UD2G WIN10015IBD 5B20K25433 N

11 MBLI3-5005UPWIN10015IBD 5B20K25407 N

11 MBL3825U WIN10015IBD 5B20K25382 N

11 MBL3825UD2G V1G WIN10015IBD 5B20K25446 N

11 MBL3215UD2G V1G WIN10015IBD 5B20K25429 N

11 MBL3215UD2G WIN10015IBD 5B20K25426 N

11 MBL3215UWIN10015IBD 5B20K25397 N

11 MBL3215UV1G WIN10015IBD 5B20K25453 N

11 MBLI5-5200UV1G NOK10015IBD 5B20K25432 N

11 MBL3825UV1G NOK10015IBD 5B20K25403 N

11 MBL3825UD2G NOK10015IBD 5B20K25384 N

11 MBLI3-5005UPD2G NOK10015IBD 5B20K25449 N

11 MBLI5-5200UD2G V1G NOK10015IBD 5B20K25438 N

11 MBLI3-5005UPV1G NOK10015IBD 5B20K25421 N

11 MBLI3-5005UPD2G V1G NOK10015IBD 5B20K25412 N

11 MBLI5-5200UNOK10015IBD 5B20K25391 N

11 MBLI5-5200UD2G NOK10015IBD 5B20K25450 N

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

64

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU ID

11 MBLI3-5005UPNOK10015IBD 5B20K25381 N

11 MBL3825UNOK10015IBD 5B20K25428 N

11 MBL3825UD2G V1G NOK10015IBD 5B20K25411 N

11 MBL3215UD2G V1G NOK10015IBD 5B20K25398 N

11 MBL3215UD2G NOK10015IBD 5B20K25454 N

11 MBL3215UNOK10015IBD 5B20K25424 N

11 MBL3215UV1G NOK10015IBD 5B20K25401 N

12 ODD, 9.0 Rambo, HLDS GUC0N 9.0mm

Slim Tray Rambo ODD

5DX0F85915 **

12 ODD, 9.0 Rambo, HLDS GUE0N DVD RW 5DX0J46488 **

12 ODD, 9.0 Rambo, PLDS DA-8A6SH

9.0mm Slim Tray Rambo ODD

5DX0F86404 **

12 ODD, 9.0 Rambo, PSN UJ8HC 9.0mm

Slim Tray Rambo ODD

5DX0G86787 **

12 ODD, 9.0 Rambo, TSST SU-228GB 9.0

Rambo ODD

5DX0H14227 **

13 FAN L 100-15IBD 5F10K25451 N

14 THERMAL L DIS 100-15IBD 5H40K25440 N

14 THERMAL L UMA 100-15IBD 5H40K25413 N

Lenovo Ideapad 100 15IBD

65

LCD FRUs

In Lenovo Ideapad 100 15IBD, the type of LCD is 15.6-inch high definition (HD).

1

3

2

4

5

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

66

Table 5. Parts list—15.6-in. HD TFT

No. FRU FRU no. CRU ID

1LCD BEZEL L100-15IBD 5B30K25383 N

2Panel, HD-G eDP 3.8t BOE N156WHM-N12 HD G F

NB

5D10G74897 N

2Panel, HD-G edp 3.8t CMI N156BGE-EB2 HD G S

NB

5D10H13020 N

2Panel, HD-G edp 3.8t LG LP156WHB-TPGA HDT G

F NB

5D10H91342 N

2Panel, HD-G edp 3.8t SDC LTN156AT39-L01 HD G

F NB

5D10H13022 N

2Panel, HD-G edp 3.8t AUO B156XTN04.5 1A HD G

F NB

5D10H15253 N

3HINGE L+R L100-15IBD 5H50K25393 N

4Camera, 0.3M 30W EA(wisepower) Wisepower ZB-

A022-ZY 0.3M NB Camera

SC20J78640 N

4Camera, 0.3M 30W EA(Azurewave) AzureWave

AM-VS078 0.3M NB Camera

SC20J99033 N

4CAMERA L 0.3M 100-15IBD 5C20K25455 N

5LCD COVER LW/2ANTENNA 100-15IBD 5CB0K25436 N

5LCD COVER LW/1ANTENNA 100-15IBD 5CB0K25419 N

Lenovo Ideapad 100 15IBD

67

Keyboard

Table 6. Parts list—Keyboard

Language P/N CRU ID

EA

(Docking)

Black Keyboard

English SN20J78609 **

U.K. English SN20J78579

Italian SN20J78620

Spanish SN20J78593

Turkish SN20J78624

Thailand SN20J78600

Portugue SN20J78633

Latin SN20J78594

Canada English &French SN20J78639

Korean SN20J78599

Tradational Chinese SN20J78632

Russian SN20J78592

French SN20J78628

German SN20J78598

Arabic SN20J78627

Brazilian SN20J78597

Japanese SN20J78631

Dutch SN20J78587

Greek SN20J78619

Hebrew SN20J78591

Hungarian SN20J78635

Four Nordic countries SN20J78601

Belgian SN20J78625

Iceland SN20J78595

Slovenian SN20J78636

Swiss SN20J78588

International English SN20J78623

Czechoslovakian SN20J78602

Bulgarian SN20J78637

India SN20J78606

French-Arabic SN20J78607

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

68

Table 6. Parts list—Keyboard (continued)

Language P/N CRU ID

Backlight

Keyboard

English 5N20K25394 **

U.K. English 5N20K25408

Italian 5N20K25395

Spanish 5N20K25452

Turkish 5N20K25430

Thailand 5N20K25416

Portugue 5N20K25399

Latin 5N20K25406

Canada English &French 5N20K25392

Korean 5N20K25448

Tradational Chinese 5N20K25434

Russian 5N20K25414

French 5N20K25396

German 5N20K25459

Arabic 5N20K25431

Brazilian 5N20K25415

Japanese 5N20K25410

Dutch 5N20K25390

Greek 5N20K25441

Hebrew 5N20K25420

Hungarian 5N20K25402

Four Nordic countries 5N20K25388

Belgian 5N20K25445

Iceland 5N20K25425

Slovenian 5N20K25405

Swiss 5N20K25387

International English 5N20K25444

Czechoslovakian 5N20K25423

Bulgarian 5N20K25404

India 5N20K25386

French-Arabic 5N20K25443

Lenovo Ideapad 100 15IBD

69

Miscellaneous parts

Table 7. Parts list—Miscellaneous parts

No. FRU FRU no. CRU ID

System miscellaneous parts:

(a) ODD BRACKET L 100-15IBD

(b) ODD BEZEL L 100-15IBD

(c) HDD BRACKET L100IBD 7mm

(c) HDD BRACKET L100IBD 9.5 mm

5B40K25389

5B30K25417

5B40K41693

5B40K41694

N

N

N

N

Cable miscellaneous parts:

Note: Italicized letters in parentheses are

references to the exploded view in “Overall” on

page 61.

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

70

AC adapters

Table 8. Parts list—3-pin AC adapters

FRU P/N CRU ID

Adapter, 45W wall mount with round plug,

Delta ADP-45DW AA 20V2.25A adapter

5A10H43620 *

Adapter, 45W wall mount with round plug,

Delta ADP-45DW JA 20V2.25A adapter

5A10H43623 *

Adapter, 45W wall mount with round plug,

Delta ADP-45DW BA 20V2.25A adapter

5A10H43630 *

Adapter, 45W wall mount with round plug,

Delta ADP-45DW DA 20V2.25A adapter

5A10H43621 *

Adapter, 45W wall mount with round plug,

Delta ADP-45DW HA 20V2.25A adapter

5A10H43627 *

Adapter, 45W wall mount with round plug,

Delta ADP-45DW GA 20V2.25A adapter

5A10H43617 *

Adapter, 45W wall mount with round plug,

Delta ADP-45DW EA 20V2.25A adapter

5A10H43626 *

Adapter, 45W wall mount with round plug,

Delta ADP-45DW CA 20V2.25A adapter

5A10H43632 *

Adapter, 45W wall mount with round plug,

Delta ADP-45DW KA 20V2.25A adapter,

5A10H43624 *

Adapter, 45W wall mount with round plug,

Liteon PA-1450-55LN 20V2.25A adapter

5A10H42921 *

Adapter, 45W wall mount with round plug,

Liteon PA-1450-55LG 20V2.25A adapter

5A10H42920 *

Adapter, 45W wall mount with round plug,

Liteon PA-1450-55LL 20V2.25A adapter

5A10H42923 *

Adapter, 45W wall mount with round plug,

Liteon PA-1450-55LK 20V2.25A adapter

5A10H42917 *

Adapter, 45W wall mount with round plug,

Liteon PA-1450-55LI 20V2.25A adapter

5A10H42926 *

Adapter, 45W wall mount with round plug,

Liteon PA-1450-55LR 20V2.25A adapter

5A10H42919 *

Adapter, 45W wall mount with round plug,

Liteon PA-1450-55LS 20V2.25A adapter

5A10H42922 *

Adapter, 45W wall mount with round plug,

Liteon PA-1450-55LU 20V2.25A adapter

5A10H42925 *

Adapter, 45W wall mount with round plug,

Liteon PA-1450-55LZ 20V2.25A adapter

5A10H42918 *

Adapter, 45W wall mount with round plug,

Chicony ADL45WCA 20V2.25A adapter

5A10H43629 *

Adapter, 45W wall mount with round plug,

Chicony ADL45WCB 20V2.25A adapter

5A10H43618 *

Adapter, 45W wall mount with round plug,

Chicony ADL45WCC 20V2.25A adapter

5A10H43625 *

Adapter, 45W wall mount with round plug,

Chicony ADL45WCD 20V2.25A adapter

5A10H43631 *

Lenovo Ideapad 100 15IBD

71

Table 8. Parts list—3-pin AC adapters (continued)

Screws

Table 9. Screw list

FRU P/N CRU ID

Adapter, 45W wall mount with round plug,

Chicony ADL45WCK 20V2.25A adapter

5A10H43619 *

Adapter, 45W wall mount with round plug,

Chicony ADL45WCE 20V2.25A adapter

5A10H43633 *

Adapter, 45W wall mount with round plug,

Chicony ADL45WCF 20V2.25A adapter

5A10H43622 *

Adapter, 45W wall mount with round plug,

Chicony ADL45WCG 20V2.25A adapter

5A10H43628 *

Adapter, 45W wall mount with round plug,

Chicony ADL45WCH 20V2.25A adapter

5A10H43616 *

Adapter, 65W with round plug, Chicony

ADLX65NCC3A 20V3.25A R

5A10J40450 *

Adapter, 65W with round plug, Liteon

ADLX65NLC3A 20V3.25A R

5A10J40449 *

Adapter, 65W with round plug, Delta

ADLX65NDC3A 20V3.25A R

5A10J40451 *

FRU P/N CRU ID

SCREW L MM1.98D3LK4.5DNINL0.4T

5S10K25435

N

SCREW L MM2D5LK4.6D ZKNL CR3+

5S10K25418

N

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

72

Power cords

A Lenovo power cord for a specific country or region is usually available only in that country

or region:

Table 10. Parts list—3-pin power cords

Region P/N CRU ID

Brazil

•LINETEK LS15 H03VV-F LP26A 1m

145-000596 *

Brazil

•Longwell LP-46+H03VV-F+LS-18 1m

145-000564

Brazil

•VOLEX CH10S3+H03VV-F+VAC5S 1m

145-000527

Brazil

•lux 0034+H03VV-F 0.75/3C+0011 1m

145-500011

Israel

•LINETEK LS15+H03VV-F+LP-41 1m

145-000595

Israel

•Longwell LP-41+H03VV-F+LS-18 1m

145-000563

Israel

•VOLEX SI16S3+H03VV-F+VAC5S 1m

145-000526

Israel

•lux 0041+H03VV-F 0.75/3C+0011 1m

145-500012

CE

•LINETEK LP-34+H03VV-F + LS15 1m

145-000585

CE

•Longwell LP-34A+H03VV-F+LS-18 1m

145-000553

CE

•VOLEX M2511+HO3VV-F+VAC5S 1m

145-000525

CE

•lux 0033+H03VV-F 0.75/3C+0011 1m

145-500001

Switzerland

•LINETEK LS15+H03VV-F+LP-37 1m

145-000597

Switzerland

•Longwell LP-37+H03VV-F+LS-18 1m

145-000565

Switzerland

•VOLEX MP232+H03VV-F+VAC5S 1m

145-000524

Switzerland

•lux 0027+H03VV-F 0.75/3C+0011 1m

145-500013

UK

•LINETEK LP-61L+ H03VV-F+ LS15 1m

145-000593

UK

•Longwell LP-61L+H03VV-F+LS-18 1m

145-000561

UK

•VOLEX MP5004+H03VV-F+VAC5S 1m

145-000605

UK

•lux 0031+H03VV-F 0.75/3C+0011 1m

145-500000

Lenovo Ideapad 100 15IBD

73

Table 10. Parts list—3-pin power cords (continued)

Region P/N CRU ID

UL

•LINETEK LP-30B + SPT-2 + LS15 1m

145-000594 *

UL

•

Longwell LP-30B+SPT-2 18AWG+LS-18 1m

145-000562 *

UL

•Volex US15S3+SPT-2 +VAC5S 1m

145-000537 *

UL

•lux 0014+SPT-2 60°C 18/3C+0016 1m

145-500002 *

CCC

•LINETEK PC323+RVV300/300+LS15 1m

145-000600 *

CCC

•

Longwell LSG-31+RVV300/300+LS-18 1m

145-000568 *

CCC

•

VOLEX GB10S3+RVV 300/500+VAC5S 1m

145-000538 *

CCC

•lux 0036+RVV 300/300 0.75/3C+0002 1m

145-500003 *

India

•LINETEK PE-361+ H05VV-F+ LS15 1m

145-000592 *

India

•Longwell LP-67+BIS+LS-18 1m

145-000560 *

India

•lux 0046+IS694 0.75/3C+0011 1m

145-500004 *

Japan

•LINETEK LS15+VCTF+LP-54 1m

145-000587 *

Japan

•Longwell LP-54+VCTF+LS-18 1m

145-000555 *

Japan

•VOLEX VAC5S+VCTF+M755 1m

145-000530 *

Japan

•lux 0018(E)+VCTF 0.75/3C+0021 1m

145-500005 *

Australia

•LINETEK LS15+H03VV-F+LP-23A 1m

145-000589 *

Australia

•Longwell LP-23A+LFC-3R+LS-18 1m

145-000557 *

Australia

•VOLEX AU10S3+H03VV-F+VAC5S 1m

145-000532 *

Australia

•lux 0038+H03VV-F 0.75/3C+0011 1m

145-500006 *

Taiwan

•LINETEK LS15+VCTF+LP-53 1m

145-000588 *

Taiwan

•Longwell LP-71+VCTF+LS-33 1m

145-000556 *

Taiwan

•VOLEX TW15CS3+VCTF+VAC5S 1m

145-000531 *

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

74

Table 10. Parts list—3-pin power cords (continued)

Region P/N CRU ID

Taiwan

•lux 0019+VCTF 0.75/3C+0021 1m

145-500007 *

Korea

•LINETEK LS15+H05VV-F+LP-E04A 1m

145-000590

Korea

•Longwell LP-486+KTLH03VV-F+LS-5 1m

145-000558

Korea

•VOLEX M2511+KETI IEC+VAC5S 1m

145-000533

Korea

•lux 0033+H03VV-F 0.75/3C+0011 1m

145-500008

Italy

•LINETEK LS15+H03VV-F+PE-336 1m

145-000591

Italy

•Longwell LP-22+H03VV-F+LS-18 1m

145-000559

Italy

•VOLEX IT10S3+HO3VV-F+VAC5S 1m

145-000535

Italy

•lux 0029+H03VV-F 0.75/3C+0011 1m

145-500009

South Africa

•LINETEK LS15+H03VV-F+PE-364 1m

145-000586

South Africa

•Longwell LP-39+H03VV-F+LS-18 1m

145-000554

South Africa

•lux 0044+H03VV-F 0.75/3C+0011 1m

145-500010

Denmark

•LINETEK LS15+H03VV-F+LP-38 1m

145-000598

Denmark

•Longwell LP-40+H03VV-F+LS-18 1m

145-000566

Denmark

•VOLEX MP233D+H03VV-F+VAC5S 1m

145-000534

Denmark

•lux 0048+H03VV-F 0.75/3C+0011 1m

145-500014

Argentina

•LINETEK LS15+H03VV-F+LP39 1m

145-000599

Argentina

•Longwell LP-24+H03VV-F+LS-18 1m

145-000567

Argentina

•VOLEX VA2073+H03VV-F+VAC5S 1m

145-000528

Argentina

•lux 0040+H03VV-F 0.75/3C+0011 1m

145-500015

Thailand

•lux 0014+H03VV-F 0.75/3C+0011 1m

5L60J33143

Lenovo Ideapad 100 15IBD

75

Lenovo may not offer the products, services, or features discussed in this

document in all countries. Consult your local Lenovo representative for

information on the products and services currently available in your area. Any

reference to a Lenovo product, program, or service is not intended to state or

imply that only that Lenovo product, program, or service may be used. Any

functionally equivalent product, program, or service that does not infringe any

Lenovo intellectual property right may be used instead. However, it is the user’s

responsibility to evaluate and verify the operation of any other product,

program, or service.

Lenovo may have patents or pending patent applications covering subject

matter described in this document. The furnishing of this document does not

give you any license to these patents.

LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS” WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-

INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. Some jurisdictions do not allow disclaimer of express or implied

warranties in certain transactions, therefore, this statement may not apply to

you.

This information could include technical inaccuracies or typographical errors.

Changes are periodically made to the information herein; these changes will be

incorporated in new editions of the publication. Lenovo may make

improvements and/or changes in the product(s) and/or the program(s) described

in this publication at any time without notice.

The products described in this document are not intended for use in

implantation or other life support applications where malfunction may result in

injury or death to persons. The information contained in this document does not

affect or change Lenovo product specifications or warranties. Nothing in this

document shall operate as an express or implied license or indemnity under the

intellectual property rights of Lenovo or third parties. All information contained

in this document was obtained in specific environments and is presented as an

illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it

believes appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for

convenience only and do not in any manner serve as an endorsement of those

Web sites. The materials at those Web sites are not part of the materials for this

Lenovo product, and use of those Web sites is at your own risk.

Notices

Lenovo Ideapad 100 15IBD

Hardware Maintenance Manual

76

Any performance data contained herein was determined in a controlled

environment. Therefore, the result obtained in other operating environments

may vary significantly. Some measurements may have been made on

development-level systems and there is no guarantee that these measurements

will be the same on generally available systems. Furthermore, some

measurements may have been estimated through extrapolation. Actual results

may vary. Users of this document should verify the applicable data for their

specific environment.

The following terms are trademarks or registered trademarks of Lenovo in the

United States, other countries, or both.

Lenovo

OneKey

Microsoft and Windows are trademarks of Microsoft Corporation in the

United States, other countries, or both.

Other company, products, or service names may be trademarks or service

marks of others.

Trademarks
