Lenovo Ideapad 310 14Isk 15Isk 310Touch 15Abr Hmm 201606 User Manual Hardware Maintenance Notebook Laptop (ideapad) Type 80ST

2016-06-29

User Manual: Lenovo Ideapad 310-14Isk 310-15Isk 310Touch-15Isk 310-15Abr Hmm 201606 Hardware Maintenance Manual - Notebook 310-15ABR Laptop (ideapad) - Type 80ST 80ST

Open the PDF directly: View PDF .
Page Count: 112 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Contents

ideapad 310

ideapad 310-14ISK

ideapad 310-15ISK

ideapad 310 Touch-15ISK

ideapad 310-15ABR

Hardware

Maintenance

Manual

Note:

Before using this information and the product it supports, be sure to read the general information

under “Notices” on page 107.

First Edition (June 2016)

LENOVO products, data, computer software, and services have been developed exclusively at private

expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with

limited and restricted rights to use, reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are

delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclo-

sure is subject to restrictions set forth in Contract No. GS-35F-05925.

iii

About this manual........................................iv

Safety information.........................................1

General safety ...................................................... 2

Electrical safety.................................................... 3

Safety inspection guide ...................................... 5

Handling devices that are sensitive to

electrostatic discharge......................................... 6

Grounding requirements ................................... 6

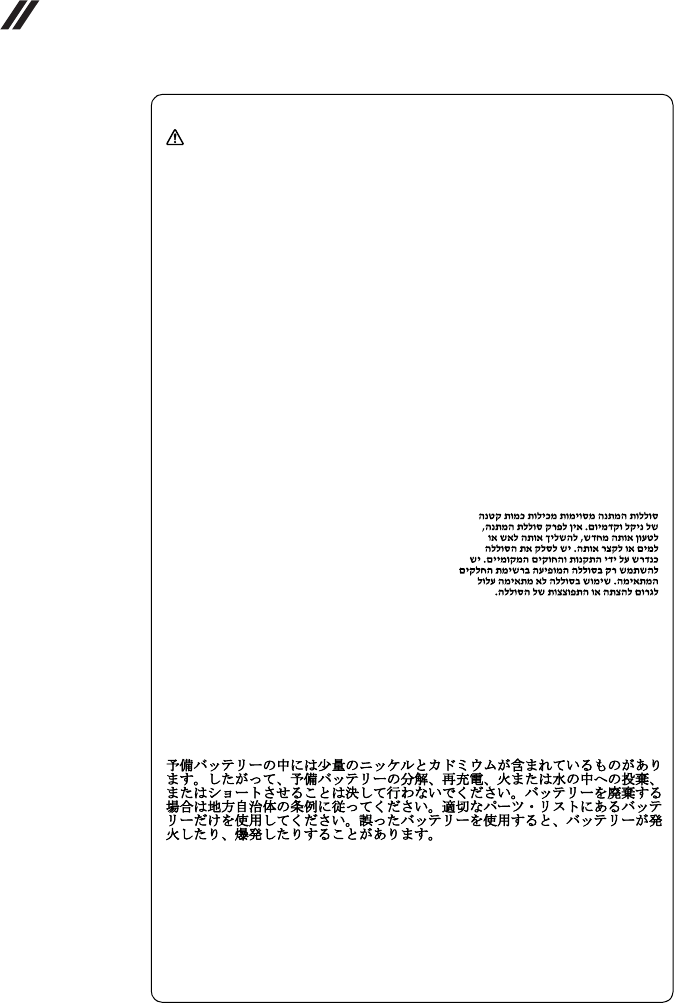

Safety notices: multilingual translations.......... 7

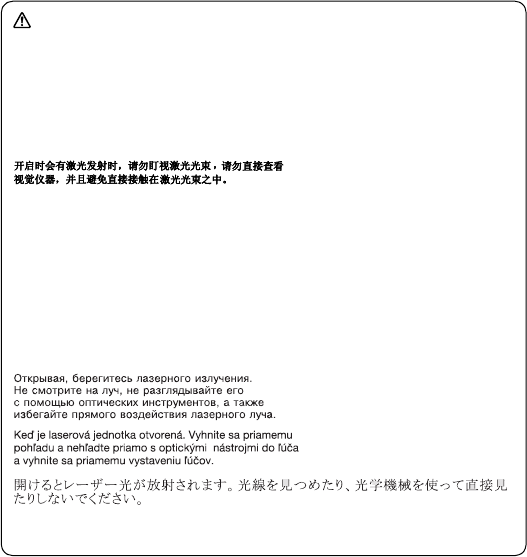

Laser compliance statement............................. 14

Important service information ...................16

Strategy for replacing FRUs............................. 16

Strategy for replacing a hard disk

drive .............................................................. 17

Important notice for replacing a system

board ............................................................. 17

Important information about replacing RoHS

compliant FRUs ................................................. 18

General checkout ........................................19

What to do first.................................................. 20

Power system checkout.................................... 21

Checking the AC adapter........................... 21

Checking operational charging................. 22

Checking the battery pack ......................... 22

Related service information.......................23

Restoring the factory contents by using

Recovery Disc Set.............................................. 23

Start Recovery Disc (one disc)................... 23

Operating System Recovery Disc (one or

more discs) ................................................... 23

Applications and Drivers Recovery Disc

(one or more discs)...................................... 23

Supplemental Recovery Disc..................... 23

Passwords........................................................... 24

Power-on password.................................... 24

Hard-disk password ................................... 24

Supervisor password.................................. 24

Power management .......................................... 25

Screen blank state........................................ 25

Putting your computer to sleep................. 25

Shutting down the computer..................... 26

Lenovo ideapad 310-14ISK/ideapad 310-

15ISK/ideapad 310 Touch-15ISK/ideapad

310-15ABR ...................................................27

Specifications......................................................27

Status indicators.................................................30

Hotkeys ...............................................................32

FRU replacement notices..................................33

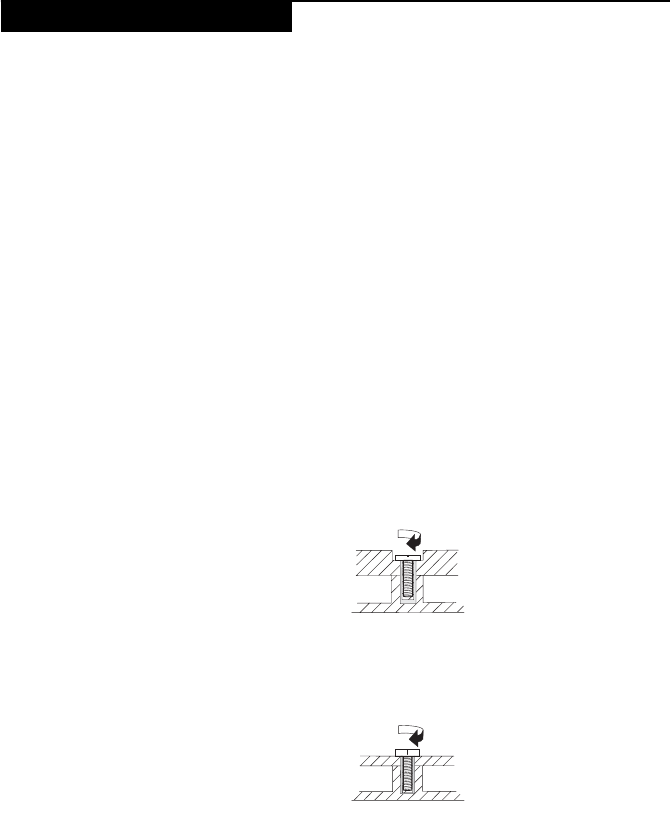

Screw notices................................................33

Removing and replacing an FRU ....................34

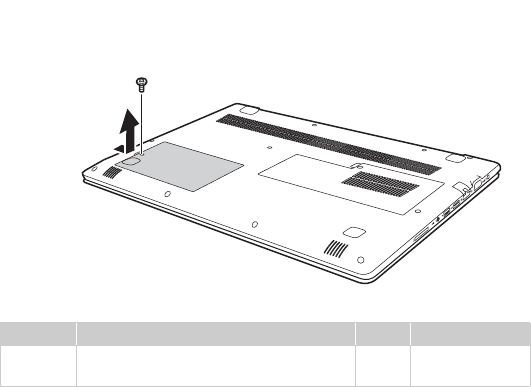

1010 Hard disk drive(HDD) slot

compartment cover......................................35

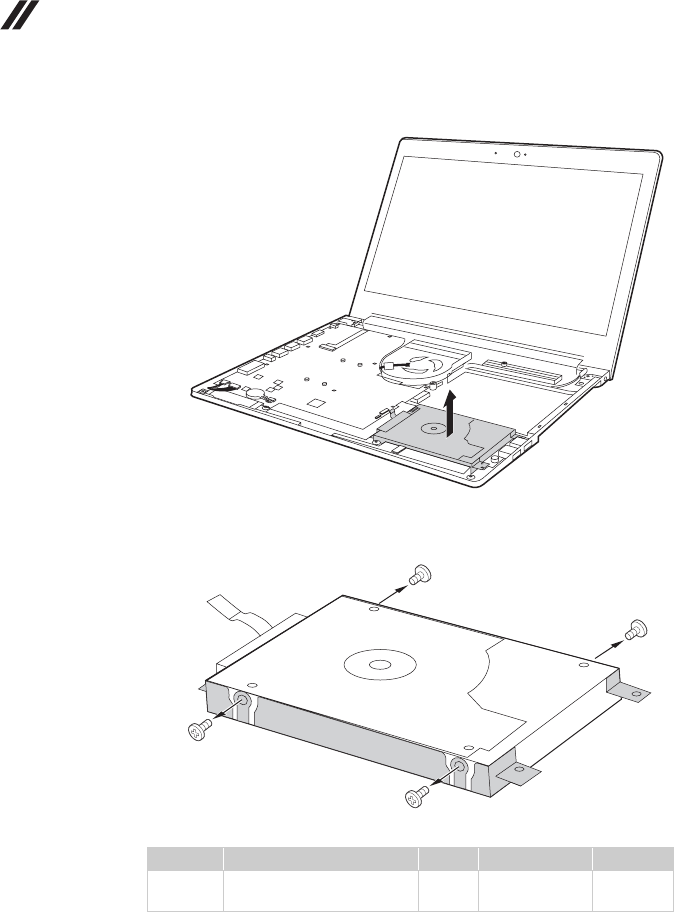

1020 Hard disk drive...................................36

1030 Memory/Mini PCI Express Card slot

compartment cover and DIMM.................39

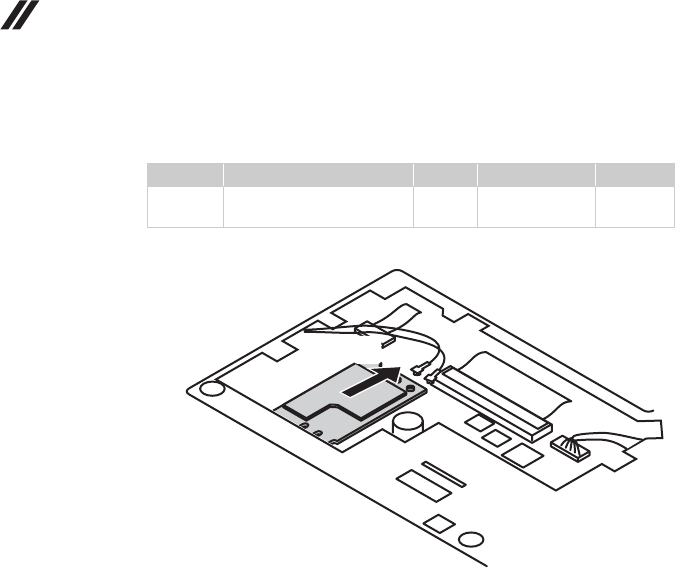

1040 PCI Express Mini Card for wireless

LAN/WAN ..................................................41

1050 Optical drive........................................43

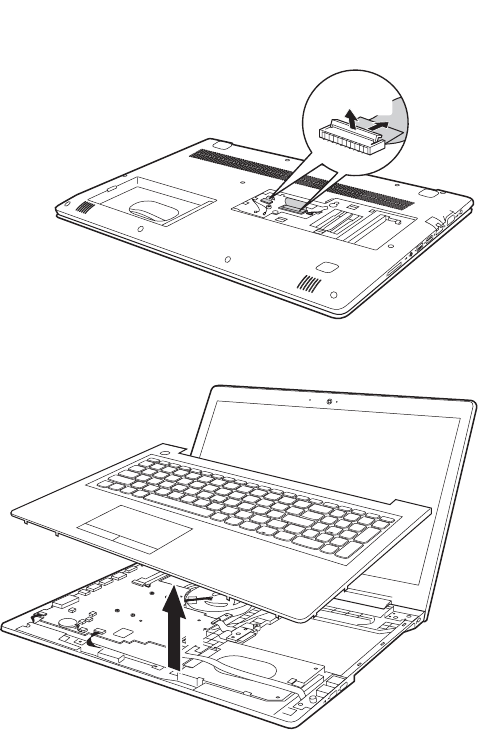

1060 Keyboard bezel ...................................44

1070 System board.......................................46

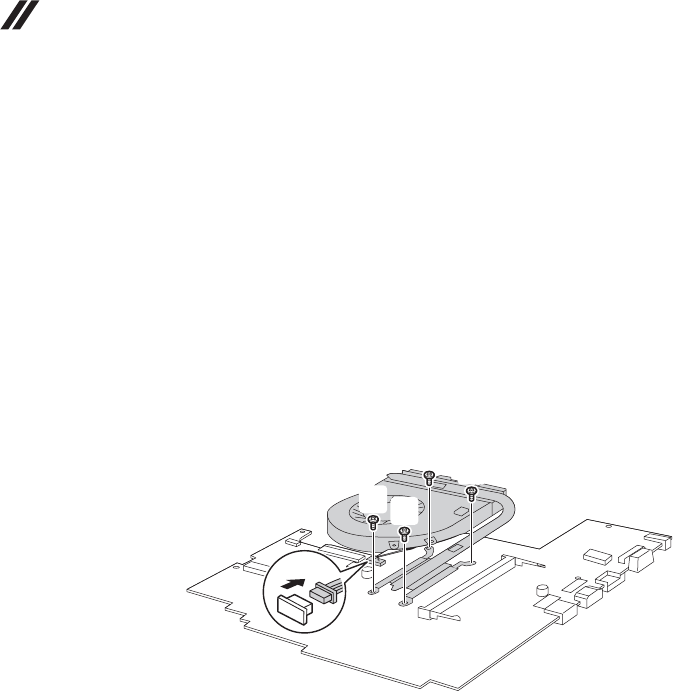

1080 Fan assembly and Heat Sink

assembly........................................................50

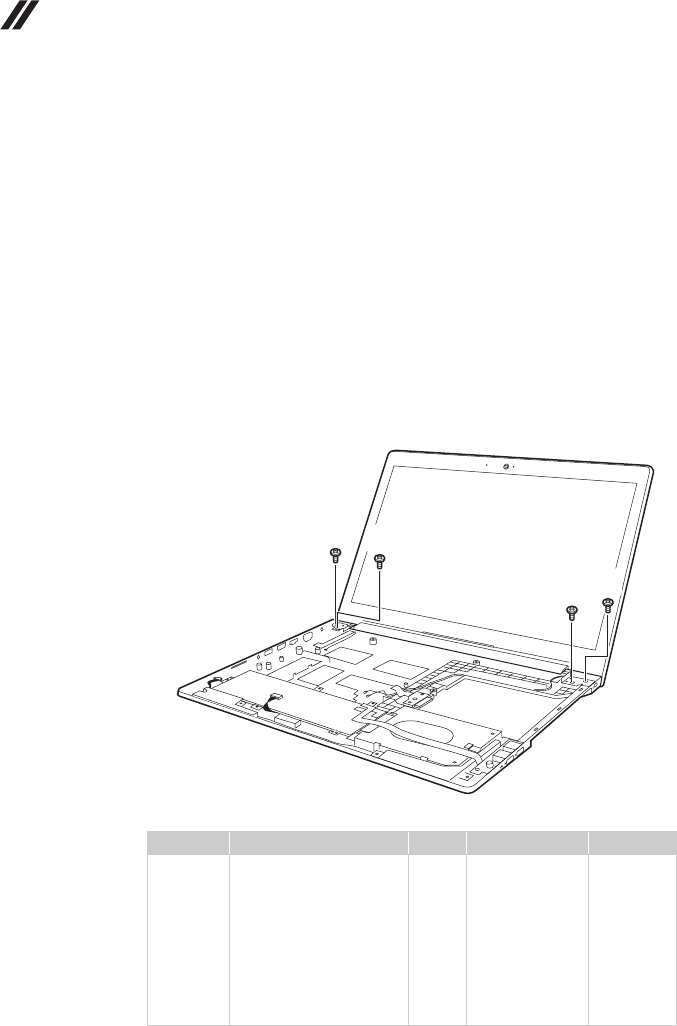

1090 LCD unit...............................................52

1100 Battery pack.........................................54

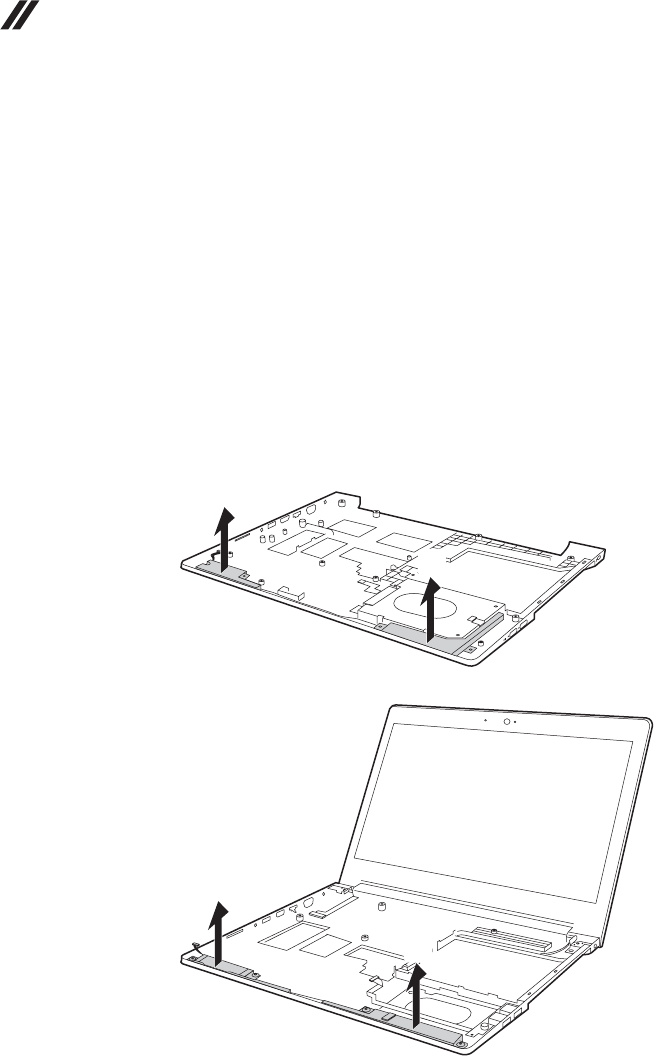

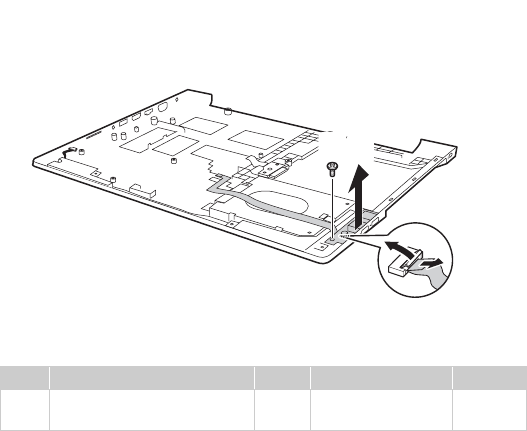

1110 Speakers, base cover, USB board and

ODD transfer board.....................................56

1120 LCD front bezel...................................62

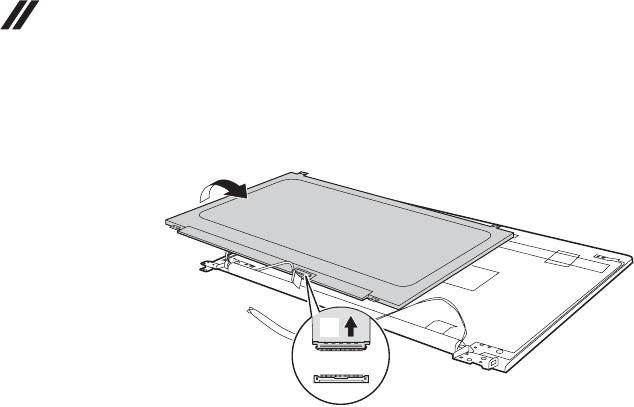

1130 LCD panel and LCD cable.................63

1140 LCD hinges..........................................65

1150 Integrated camera...............................66

1160 Antenna assembly and LCD

cover ..............................................................67

Locations.............................................................68

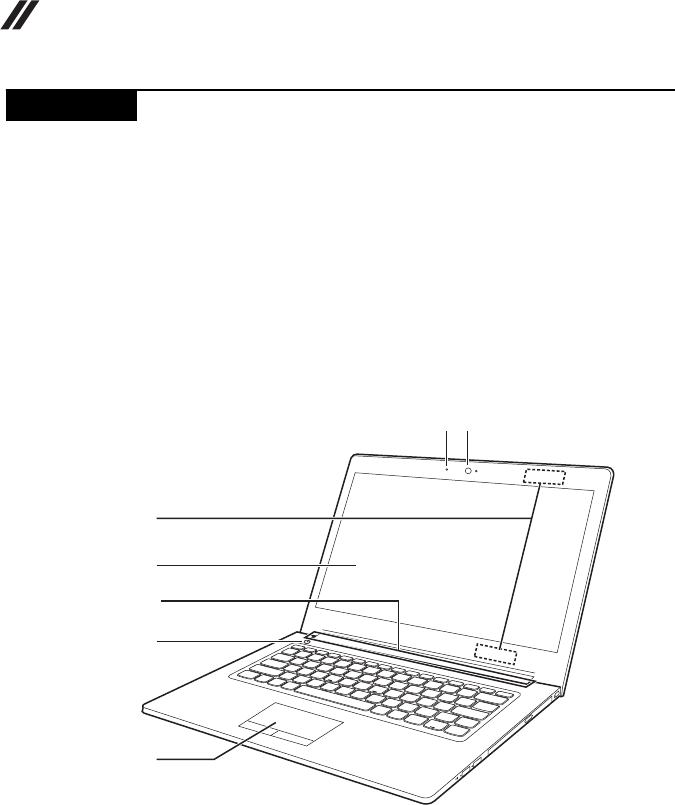

Front view.....................................................68

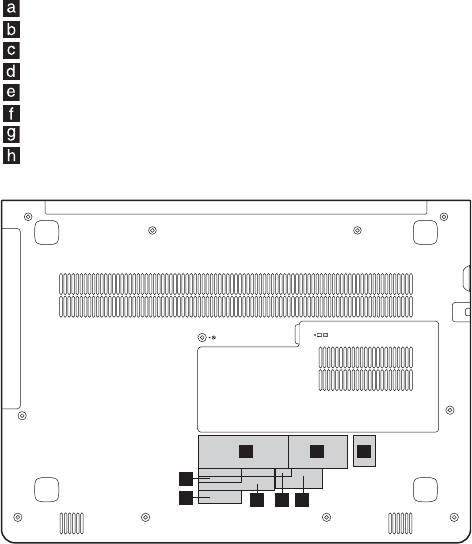

Bottom and Left-side view .........................70

Right-side view ............................................71

Parts list...............................................................72

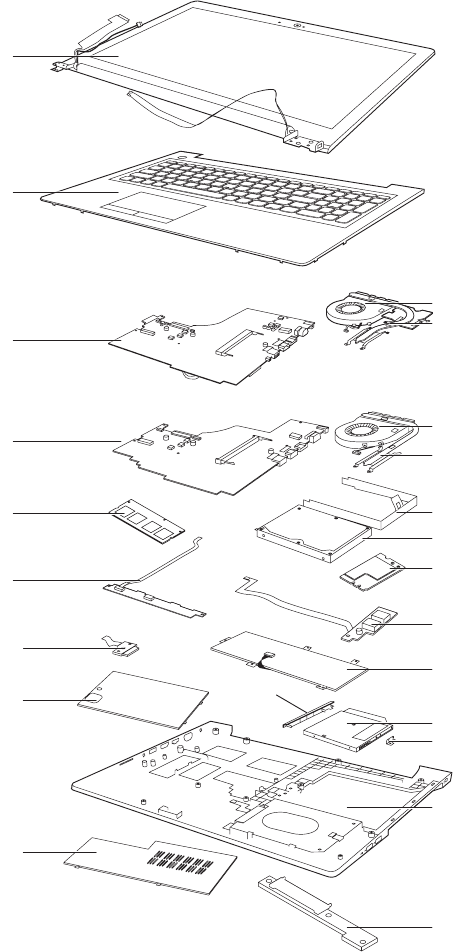

Overall...........................................................73

LCD FRUs.....................................................94

Miscellaneous parts.....................................98

Screws............................................................99

AC adapters................................................100

Notices .......................................................107

Trademarks.......................................................108

Contents

This manual contains service and reference information for the following

Lenovo product:

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR

Use this manual to troubleshoot problems.

The manual is divided into the following sections:

• The common sections provide general information, guidelines, and safety

information required for servicing computers.

• The product-specific section includes service, reference, and product-specific

parts information.

About this manual

Important:

This manual is intended only for trained servicers who are familiar with

Lenovo products. Use this manual to troubleshoot problems effectively.

Before servicing a Lenovo product, make sure to read all the information

under “Safety information” on page 1 and “Important service information”

on page 16.

Safety information

This chapter presents the following safety information that you need to get

familiar with before you service a Lenovo computer:

• “General safety” on page 2

•“Electrical safety” on page 3

•“Safety inspection guide” on page 5

•“Handling devices that are sensitive to electrostatic discharge” on page 6

•“Grounding requirements” on page 6

•“Safety notices: multilingual translations” on page 7

•“Laser compliance statement” on page 14

Safety information

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Follow these rules below to ensure general safety:

• Observe a good housekeeping in the area where the machines are put during

and after the maintenance.

• When lifting any heavy object:

1. Make sure that you can stand safely without slipping.

2. Distribute the weight of the object equally between your feet.

3. Use a slow lifting force. Never move suddenly or twist when you attempt

to lift it.

4. Lift it by standing or pushing up with your leg muscles; this action could

avoid the strain from the muscles in your back. Do not attempt to lift any

object that weighs more than 16 kg (35 lb) or that you think is too heavy for

you.

• Do not perform any action that causes hazards to the customer, or that makes

the machine unsafe.

• Before you start the machine, make sure that other service representatives

and the customer are not in a hazardous position.

• Please remove covers and other parts in a safe place, away from all

personnel, while you are servicing the machine.

• Keep your toolcase away from walk areas so that other people will not trip it

over.

• Do not wear loose clothing that can be trapped in the moving parts of the

machine. Make sure that your sleeves are fastened or rolled up above your

elbows. If your hair is long, fasten it.

• Insert the ends of your necktie or scarf inside clothing or fasten it with the

nonconductive clip, about 8 centimeters (3 inches) from the end.

• Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for

your clothing.

Attention: Metal objects are good electrical conductors.

• Wear safety glasses when you are hammering, drilling, soldering, cutting

wire, attaching springs, using solvents, or working in any other conditions

that may be hazardous to your eyes.

• After service, reinstall all safety shields, guards, labels, and ground wires.

Replace any safety device that is worn or defective.

• Reinstall all covers correctly before returning the machine to the customer.

• Fan louvers on the machine help to prevent the overheating of internal

components. Do not obstruct fan louvers or cover them with labels or

stickers.

General safety

Safety information

Observe the following rules when working on electrical equipments.

• Find the room emergency power-off (EPO) switch, disconnecting switch, or

electrical outlet. If an electrical accident occurs, you can then operate the

switch or unplug the power cord quickly.

• Do not work alone under hazardous conditions or near the equipment that

has hazardous voltages.

• Disconnect all power before:

– Performing a mechanical inspection

– Working near power supplies

– Removing or installing main units

• Before you start to work on the machine, unplug the power cord. If you

cannot unplug it, ask the customer to power-off the wall box that supplies

power to the machine, and to lock the wall box in the off position.

• If you need to work on a machine that has exposed electrical circuits, observe

the following precautions:

– Ensure that another person, familiar with the power-off controls, is near

you.

Attention: Another person must be there to switch off the power, if

necessary.

– Use only one hand when working with powered-on electrical equipment;

keep the other hand in your pocket or behind your back.

Attention: An electrical shock can occur only when there is a complete

circuit. By observing the above rule, you may prevent a current from

passing through your body.

– When using testers, set the controls correctly and use the approved probe

leads and accessories for that tester.

– Stand on suitable rubber mats (obtained locally, if necessary) to insulate

you from grounds such as metal floor strips and machine frames.

Observe the special safety precautions when you work with very high voltages;

instructions for these precautions are in the safety sections of maintenance

information. Be extremely careful when you measure the high voltages.

• Regularly inspect and maintain your electrical hand tools for safe operational

condition.

• Do not use worn or broken tools and testers.

• Never assume that power has been disconnected from a circuit. First, check it

to make sure that it has been powered off.

Electrical safety

Important:

Use only approved tools and test equipments. Some hand tools have

handles covered with a soft material that does not insulate you when

working with live electrical currents.

Many customers have rubber floor mats near their machines that contain

small conductive fibers to decrease electrostatic discharges. Do not use such

kind of mat to protect yourself from electrical shock.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

• Always look carefully for possible hazards in your work area. Examples of

these hazards are moist floors, nongrounded power extension cables, power

surges, and missing safety grounds.

• Do not touch live electrical circuits with the reflective surface of a plastic

dental mirror. The surface is conductive; such touching can cause personal

injury and machine damage.

• Do not service the following parts with the power on when they are removed

from their normal operating places in a machine:

– Power supply units

–Pumps

–Blowers and fans

– Motor generators

and similar units. (This practice ensures correct grounding of the units.)

• If an electrical accident occurs:

– Use caution: do not become a victim yourself.

–Switch off the power.

– Send the victim to get medical aid.

Safety information

The purpose of this inspection guide is to assist you in identifying potential

unsafe conditions. As each machine was designed and built, required safety

items were installed to protect users and service personnel from injury. This

guide addresses only those items. You should use good judgment to identify

potential safety hazards due to attachment of non-Lenovo features or options not

covered by this inspection guide.

If any unsafe conditions are present, you must determine how serious the

apparent hazard could be and whether you can continue without first correcting

the problem.

Consider these conditions and the safety hazards they present:

• Electrical hazards, especially primary power (primary voltage on the frame

can cause serious or fatal electrical shock)

• Explosive hazards, such as a damaged CRT face or a bulging capacitor

• Mechanical hazards, such as loose or missing hardware

To determine whether there are any potential unsafe conditions, use the

following checklist at the beginning of every service task. Begin the checks with

the power off, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).

2. Turn off the computer. Disconnect the power cord.

3. Check the power cord for:

a. A third-wire ground connector in good condition. Use a meter to measure

third-wire ground continuity for 0.1 ohm or less between the external

ground pin and the frame ground.

b. The power cord should be the type specified in the parts list.

c. Insulation must not be frayed or worn.

4. Check for cracked or bulging batteries.

5. Remove the cover.

6. Check for any obvious non-Lenovo alterations. Use good judgment as to the

safety of any non-Lenovo alterations.

7. Check inside the unit for any obvious unsafe conditions, such as metal filings,

contamination, water or other liquids, or signs of fire or smoke damage.

8. Check for worn, frayed, or pinched cables.

9. Check that the power-supply cover fasteners (screws or rivets) have not been

removed or tampered with.

Safety inspection guide

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Any computer part containing transistors or integrated circuits (ICs) should be

considered sensitive to electrostatic discharge (ESD). ESD damage can occur

when there is a difference in charge between objects. Protect against ESD damage

by equalizing the charge so that the machine, the part, the work mat, and the

person handling the part are all at the same charge.

When handling ESD-sensitive parts:

• Keep the parts in protective packages until they are inserted into the product.

• Avoid contact with other people.

• Wear a grounded wrist strap against your skin to eliminate static on your

body.

• Prevent the part from touching your clothing. Most clothing is insulative and

retains a charge even when you are wearing a wrist strap.

• Use the black side of a grounded work mat to provide a static-free work

surface. The mat is especially useful when handling ESD-sensitive devices.

• Select a grounding system, such as those listed below, to provide protection

that meets the specific service requirement.

– Attach the ESD ground clip to any frame ground, ground braid, or green-

wire ground.

– When working on a double-insulated or battery-operated system, use an

ESD common ground or reference point. You can use coax or connector-

outside shells on these systems.

– Use the round ground prong of the ac plug on ac-operated computers.

Electrical grounding of the computer is required for operator safety and correct

system function. Proper grounding of the electrical outlet can be verified by a

certified electrician.

Handling devices that are sensitive to electrostatic discharge

Notes:

1. Use product-specific ESD procedures when they exceed the

requirements noted here.

2. Make sure that the ESD protective devices you use have been certified

(ISO 9000) as fully effective.

Notes:

The use of a grounding system to guard against ESD damage is desirable but

not necessary.

Grounding requirements

Safety information

The safety notices in this section are provided in English, French, German,

Hebrew, Italian, Japanese, and Spanish.

Safety notices: multilingual translations

Safety notice 1

Before the computer is powered on after FRU replacement, make sure all

screws, springs, and other small parts are in place and are not left loose

inside the computer. Verify this by shaking the computer and listening for

rattling sounds. Metallic parts or metal flakes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement d’une unité

en clientèle, vérifiez que tous les ressorts, vis et autres pièces sont bien en

place et bien fixées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun

bruit suspect ne se produit. Des pièces métalliques ou des copeaux de métal

pourraient causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen

wird, muß sichergestellt werden, daß keine Schrauben, Federn oder andere

Kleinteile fehlen oder im Gehäuse vergessen wurden. Der Computer muß

geschüttelt und auf Klappergeräusche geprüft werden. Metallteile oder-

splitter können Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di

una FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole

dimensioni siano nella corretta posizione e non siano sparse all’interno

dell’elaboratore. Verificare ciò scuotendo l’elaboratore e prestando

attenzione ad eventuali rumori; eventuali parti o pezzetti metallici possono

provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que

todos los tornillos, muelles y demás piezas pequeñas se encuentran en su

sitio y no se encuentran sueltas dentro del sistema. Compruébelo agitando el

sistema y escuchando los posibles ruidos que provocarían. Las piezas

metálicas pueden causar cortocircuitos eléctricos.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and cadmium. Do

not disassemble a standby battery, recharge it, throw it into fire or water, or

short-circuit it. Dispose of the battery as required by local ordinances or

regulations. Use only the battery in the appropriate parts listing. Use of an

incorrect battery can result in ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les

démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne

les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à

la réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde

ou celle de l’horloge temps réel, veillez à n’utiliser que les modèles cités dans

la liste de pièces détachées adéquate. Une batterie ou une pile inappropriée

risque de prendre feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet,

kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nicht

zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser

ausgesetzt werden. Bei der Entsorgung die örtlichen Bestimmungen für

Sondermüll beachten. Beim Ersetzen der Bereitschafts-oder Systembatterie

nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist.

Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e

cadmio. Non smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né

cortocircuitarle. Smaltirle secondo la normativa in vigore (DPR 915/82,

successive disposizioni e disposizioni locali). Quando si sostituisce la

batteria dell’RTC (real time clock) o la batteria di supporto, utilizzare

soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di una

batteria non adatta potrebbe determinare l’incendio o l’esplosione della

batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y

cadmio. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las

cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo

baterías que se encuentren en la lista de piezas. La utilización de una batería

no apropiada puede provocar la ignición o explosión de la misma.

Safety information

Safety notice 3

DANGER

The battery pack contains small amounts of nickel. Do not disassemble it,

throw it into fire or water, or short-circuit it. Dispose of the battery pack as

required by local ordinances or regulations. Use only the battery in the

appropriate parts listing when replacing the battery pack. Use of an

incorrect battery can result in ignition or explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni

à l’eau. Ne la mettez pas en court-circuit. Pour la mettre au rebut,

conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la

batterie, veillez à n’utiliser que les modèles cités dans la liste de pièces

détachées adéquate. En effet, une batterie inappropriée risque de prendre

feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt

werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll

beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der

in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu

Entzündung oder Explosion führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel

fuoco o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in

vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando

si sostituisce la batteria, utilizzare soltanto i tipi inseriti nell’appropriato

Catalogo parti. L’impiego di una batteria non adatta potrebbe determinare

l’incendio o l’esplosione della batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni

recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal

como dispone la normativa local. Utilice sólo baterías que se encuentren en

la lista de piezas al sustituir la batería. La utilización de una batería no

apropiada puede provocar la ignición o explosión de la misma.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion, or a severe burn. Do not

recharge it, remove its polarized connector, disassemble it, heat it above

100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of

the battery as required by local ordinances or regulations. Use only the

battery in the appropriate parts listing. Use of an incorrect battery can result

in ignition or explosion of the battery.

La pile de sauvegarde contient du lithium. Elle présente des risques

d’incendie, d’explosion ou de brûlures graves. Ne la rechargez pas, ne

retirez pas son connecteur polarisé et ne la démontez pas. Ne l’exposez pas

à une temperature supérieure à 100°C, ne la faites pas brûler et n’en exposez

pas le contenu à l’eau. Mettez la pile au rebut conformément à la

réglementation en vigueur. Une pile inappropriée risque de prendre feu ou

d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden,

explodieren oder schwere Verbrennungen hervorrufen. Batterien dieses

Typs dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt

werden. Auch darf ihr Inhalt nicht mit Wasser in Verbindung gebracht oder

der zur richtigen Polung angebrachte Verbindungsstecker entfernt werden.

Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten.

Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der

Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu

Entzündung oder Explosion führen.

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o

procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore

polarizzato, smontarla, riscaldarla ad una temperatura superiore ai 100

gradi centigradi, incendiarla o gettarla in acqua. Smaltirla secondo la

normativa in vigore (DPR 915/82, successive disposizioni e disposizioni

locali). L’impiego di una batteria non adatta potrebbe determinare

l’incendio o l’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y puede provocar incendios,

explosiones o quemaduras graves. No la recargue, ni quite el conector

polarizado, ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la

incinere ni exponga el contenido de sus celdas al agua. Deséchela tal como

dispone la normativa local.

Safety information

Safety notice 5

If the LCD breaks and the fluid from inside the LCD gets into your eyes or

on your hands, immediately wash the affected areas with water at least for

15 minutes. Seek medical care if any symptoms caused by the fluid are

present after washing.

Si le panneau d’affichage à cristaux liquides se brise et que vous recevez dans

les yeux ou sur les mains une partie du fluide, rincez-les abondamment

pendant au moins quinze minutes. Consultez un médecin si des symptômes

persistent après le lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der

Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Der

LCD-Bildschirm besteht aus Glas und kann zerbrechen, wenn er

unsachgemäß behandelt wird oder der Computer auf den Boden fällt. Wenn

der Bildschirm beschädigt ist und die darin befindliche Flüssigkeit in

Kontakt mit Haut und Augen gerät, sollten die betroffenen Stellen

mindestens 15 Minuten mit Wasser abgespült und bei Beschwerden

anschließend ein Arzt aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto

entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti

interessate con acqua corrente per almeno 15 minuti; poi consultare un

medico se i sintomi dovessero permanere.

Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o

sus manos, lave inmediatamente las áreas afectadas con agua durante

15 minutos como mínimo. Obtenga atención medica si se presenta algún

síntoma del fluido despues de lavarse.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Safety notice 6

DANGER

To avoid shock, do not remove the plastic cover that protects the lower part

of the inverter card.

Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en

plastique protégeant la partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der

Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che

avvolge la parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja

de la tarjeta invertida.

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or grounded battery

can produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou

la mise à la masse d’une batterie peut produire suffisamment de courant

pour brûler des matériaux combustibles ou causer des brûlures corporelles

graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei

Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien

zu entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in

corto circuito o a massa può fornire corrente sufficiente da bruciare materiali

combustibili o provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería

cortocircuitada o con contacto a tierra puede producir la corriente suficiente

como para quemar material combustible o provocar quemaduras en el

personal.

Safety information

Safety notice 8

DANGER

Before removing any FRU, turn off the computer, unplug all power cords

from electrical outlets, remove the battery pack, and then disconnect any

interconnecting cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors

tension, débranchez tous les cordons d’alimentation des socles de prise de

courant, retirez la batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose

gezogen, der Akku entfernt und alle Verbindungskabel abgenommen sein,

bevor eine FRU entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese

elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare

i cavi di interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de

las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte

cualquier cable de conexión entre dispositivos.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Some models of Lenovo computer are equipped from the factory with an optical

storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are

also sold separately as options. If one of these drives is installed, it is certified in

the U.S. to conform to the requirements of the Department of Health and Human

Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class

1 laser products. Elsewhere, the drive is certified to conform to the requirements

of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60

825 for Class 1 laser products.

If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note

the following:

Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage

device could result in exposure to hazardous laser radiation. There are no

serviceable parts inside those drives. Do not open.

Laser compliance statement

CAUTION

Use of controls or adjustments or performance of procedures other than

those specified herein might result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de procedimentos diferentes

daqueles aqui especificados pode resultar em perigosa exposição à radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes

de réglage et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet,

kann gefährliche Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da

quelle specificate possono provocare l’esposizione a.

El uso de controles o ajustes o la ejecución de procedimientos distintos de los

aquí especificados puede provocar la exposición a radiaciones peligrosas.

Safety information

A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may

contain an embedded Class 3A or Class 3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the

beam, do not view directly with optical instruments, and avoid direct

exposure to the beam.

Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe

diretamente por meio de instrumentos óticos e evite exposição direta com o

feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder

directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische

Instrumente in den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai

eszközökkel. Kerülje a sugárnyalábbal való érintkezést!

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non

guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al

fascio.

Radiación láser al abrir. No mire fijamente ni examine con instrumental

óptico el haz de luz. Evite la exposición directa al haz.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

This chapter presents the following important service information:

•“Strategy for replacing FRUs” on page 16

–“Strategy for replacing a hard disk drive” on page 17

–“Important notice for replacing a system board” on page 17

•“Important information about replacing RoHS compliant FRUs” on page 18

Before replacing parts:

Make sure that all software fixes, drivers, and BIOS downloads are installed

before replacing any FRUs listed in this manual.

After a system board is replaced, ensure that the latest BIOS is loaded to the

system board before completing the service action.

To download software fixes, drivers, and BIOS, follow the steps below:

1. Go to http://support.lenovo.com.

2. Enter the serial number or select a product or use Lenovo smart

downloading.

3. Select the BIOS/Driver/Applications and download.

4. Follow the directions on the screen and install the necessary software.

Important service information

Important:

BIOS and device driver fixes are customer-installable. The BIOS and device

drivers are posted on the customer support site:

http://support.lenovo.com.

Strategy for replacing FRUs

Important service information

Use the following strategy to prevent unnecessary expense for replacing and

servicing FRUs:

• If you are instructed to replace an FRU, but the replacement does not solve

the problem, reinstall the original FRU before you continue.

• Some computers have both a processor board and a system board. If you are

instructed to replace either of them, and replacing one of them does not solve

the problem, reinstall that board, and then replace the other one.

• If an adapter or a device consists of more than one FRU, any of the FRUs may

be the cause of the error. Before replacing the adapter or device, remove the

FRUs one by one to see if the symptoms change. Replace only the FRU that

changed the symptoms.

Attention: The setup configuration on the computer you are servicing may have

been customized. Running Automatic Configuration may alter the settings. Note

the current configuration settings (using the View Configuration option); then,

when service has been completed, verify that those settings remain in effect.

Strategy for replacing a hard disk drive

Always try to run a low-level format before replacing a hard disk drive. This will

cause all customer data on the hard disk to be lost. Make sure that the customer

has a current backup of the data before performing this action.

Attention: The drive startup sequence in the computer you are servicing may

have been changed. Be extremely careful during write operations such as

copying, saving, or formatting. If you select an incorrect drive, data or programs

can be overwritten.

Important notice for replacing a system board

Some components mounted on a system board are very sensitive. Improper

handling can cause damage to those components, and may cause a system

malfunction.

Attention: When handling a system board:

• Do not drop the system board or apply any excessive force to it.

• Avoid rough handling of any kind.

• Avoid bending the system board and hard pushing to prevent cracking at

each BGA (Ball Grid Array) chipset.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

RoHS, The Restriction of Hazardous Substances in Electrical and

Electronic Equipment Directive (2002/95/EC) is a European Union legal

requirement affecting the global electronics industry. RoHS requirements

must be implemented on Lenovo products placed on the market after June

2006. Products on the market before June 2006 are not required to have

RoHS compliant parts. If the original FRU parts are non-compliant,

replacement parts can also be non-compliant. In all cases if the original

FRU parts are RoHS compliant, the replacement part must also be RoHS

compliant.

Note: RoHS and non-RoHS FRU part numbers with the same fit and function are

identified with unique FRU part numbers.

Lenovo plans to transit to RoHS compliance well before the implementation date

and expects its suppliers to be ready to support Lenovo’s requirements and

schedule in the EU. Products sold in 2005 and 2006 will contain some RoHS

compliant FRUs. The following statement pertains to these products and any

product Lenovo produces containing RoHS compliant FRUs.

RoHS compliant FRUs have unique FRU part numbers. Before or after the RoHS

implementation date, failed RoHS compliant parts must always be replaced with

RoHS compliant ones, so only the FRUs identified as compliant in the system

HMM or direct substitutions for those FRUs may be used.

Note: A direct substitution is a part with a different FRU part number that is

automatically shipped by the distribution center at the time of the order.

Products marketed before June 2006 Products marketed after June 2006

Current or

original part

Replacement

FRU

Current or

original part

Replacement

FRU

Non-RoHS Can be Non-RoHS

Must be RoHS Must be RoHS

Non-RoHS Can be RoHS

Non-RoHS Can sub to RoHS

RoHS Must be RoHS

Important information about replacing RoHS compliant FRUs

General checkout

This chapter presents the following information:

•“What to do first” on page 20

•“Power system checkout” on page 21

Before you go to the checkout, make sure to read the following important notes:

General checkout

Important notes:

•Only certified trained personnel can service the computer.

•Before replacing any FRU, read the entire page on removing and

replacing FRUs.

•When you replace FRUs, use new nylon-coated screws.

•Be extremely careful during such write operations as copying,

saving, or formatting. Drives in the computer that you are servicing

sequence might have been altered. If you select an incorrect drive, data

or programs might be overwritten.

•Replace an FRU only with another FRU of the correct model. When

you replace an FRU, make sure that the machine model and the FRU part

number are correct by referring to the FRU parts list.

•An FRU should not be replaced just because of a single,

unreproducible failure. Single failures can occur for a variety of reasons

that have nothing to do with a hardware defect, such as cosmic radiation,

electrostatic discharge, or software errors. Consider replacing an FRU

only when a problem recurs. If you suspect that an FRU is defective,

clear the error logs and run the test again. If the error does not recur, do

not replace the FRU.

•Be careful not to replace a nondefective FRU.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

When you do return an FRU, you must include the following information in the

parts exchange form or parts return form that you attach to it:

1. Name and phone number of servicer

2. Date of service

3. Date on which the machine failed

4. Date of purchase

5. Procedure index and page number in which the failing FRU was detected

6. Failing FRU name and part number

7. Machine type, model number, and serial number

8. Customer’s name and address

Note for warranty: During the warranty period, the customer may be

responsible for repair costs if the computer damage was caused by misuse,

accident, modification, unsuitable physical or operating environment, or

improper maintenance by the customer.

The following is a list of some common items that are not covered under

warranty and some symptoms that might indicate that the system was subjected

to stress beyond normal use.

Before checking problems with the computer, determine whether the damage is

covered under the warranty by referring to the following list:

The following are not covered under warranty:

• LCD panel cracked from the application of excessive force or from being

dropped

• Scratched (cosmetic) parts

• Distortion, deformation, or discoloration of the cosmetic parts

• Plastic parts, latches, pins, or connectors that have been cracked or broken by

excessive force

• Damage caused by liquid spilled into the system

• Damage caused by the improper insertion of a PC Card or the installation of

an incompatible card

• Improper disk insertion or use of an optical drive

• Diskette drive damage caused by pressure on the diskette drive cover, foreign

material in the drive, or the insertion of a diskette with multiple labels

• Damaged or bent diskette eject button

• Fuses blown by attachment of a nonsupported device

• Forgotten computer password (making the computer unusable)

• Sticky keys caused by spilling a liquid onto the keyboard

• Use of an incorrect AC adapter on laptop products

The following symptoms might indicate damage caused by nonwarranted

activities:

• Missing parts might be a symptom of unauthorized service or modification.

• If the spindle of a hard disk drive becomes noisy, it may have been subjected

to excessive force, or dropped.

What to do first

General checkout

To verify a symptom, follow the steps below:

1. Turn off the computer.

2. Remove the battery pack.

3. Connect the AC adapter.

4. Make sure that power is supplied when you turn on the computer.

5. Turn off the computer.

6. Disconnect the AC adapter and install the charged battery pack.

7. Make sure that the battery pack supplies power when you turn on the

computer.

If you suspect a power problem, see the appropriate one of the following power

supply checkouts:

•“Checking the AC adapter” on page 21

•“Checking operational charging” on page 22

•“Checking the battery pack” on page 22

Checking the AC adapter

You are here because the computer fails only when the AC adapter is used.

• If the power-on indicator does not turn on, check the power cord of the AC

adapter for correct continuity and installation.

• If the computer does not charge during operation, go to “Checking

operational charging”.

To check the AC adapter, follow the steps below:

1. Unplug the AC adapter cable from the computer.

2. Measure the output voltage at the plug of the AC adapter cable. See the

following figure:

Note: Output voltage for the AC adapter pin No. 2 may differ from the one you

are servicing.

3. If the voltage is not correct, replace the AC adapter.

4. If the voltage is acceptable, do the following:

• Replace the system board.

• If the problem persists, go to “Lenovo ideapad 310-14ISK/ideapad 310-

15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR” on page 27.

Note: Noise from the AC adapter does not always indicate a defect.

Power system checkout

Voltage (V DC)

+20

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Checking operational charging

To check whether the battery charges properly during operation, use a

discharged battery pack or a battery pack that has less than 50% of the total

power remaining when installed in the computer.

Perform operational charging. If the battery status indicator or icon does not

light on, remove the battery pack and let it return to room temperature. Reinstall

the battery pack. If the charge indicator or icon is still off, replace the battery

pack.

If the charge indicator still does not light on, replace the system board. Then

reinstall the battery pack. If it is still not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter shows that less than 95%

of the total power remains; under this condition the battery pack can charge to

100% of its capacity. This protects the battery pack from being overcharged or

from having a shortened life.

To check your battery, move your cursor to the Power Meter icon in the icon tray

of the Windows® taskbar and wait for a moment (but do not click it), and the

percentage of battery power remaining is displayed. To get detailed information

about the battery, double-click the Power Meter icon.

Note: If the battery pack becomes hot, it may not be able to be charged. Remove

it from the computer and leave it at room temperature for a while. After it cools

down, reinstall and recharge it.

Related service information

This chapter presents the following information:

•“Restoring the factory contents by using Recovery Disc Set” on page 23

•“Passwords” on page 24

•“Power management” on page 25

When the hard disk drive or solid state drive is replaced because of a failure, no

product recovery program is on the new drive. In this case, you must use the

Recovery Disc Set for the computer. Order the Recovery Disc Set and the drive at

the same time so that you can recover the new drive with the pre-installed

software when they arrive.

The Recovery Disc Set consists of the following set of DVDs to restore the

computer to the original factory configuration.

Start Recovery Disc (one disc)

This disc is used to format the hard disk drive and initiate the recovery process.

Operating System Recovery Disc (one or more discs)

This disc restores the Microsoft Windows operating system.

Applications and Drivers Recovery Disc (one or more discs)

This disc restores the pre-installed applications and drivers on the computer.

Supplemental Recovery Disc

This disc contains additional content, such as software for specific models and

updates to the software that was preloaded on the computer. Not all recovery

disc sets come with a Supplemental Recovery Disc.

To restore the computer to the original factory configuration using the recovery

disc set, do the following:

1. Insert the bootable Start Recovery Disc into the optical drive.

2. Start the computer. When the Lenovo logo comes up, immediately press F12;

on the boot sequence menu, select the optical drive as the first boot-up device.

The computer will boot from the Start Recovery Disc. Follow the on-screen

instructions to begin the recovery process.

3. Read the license. If you agree with the terms, select I accept these terms and

conditions and then click Next.

4. Insert the Operating System Recovery Disc when prompted and click Yes to

begin the operating system recovery process.

5. Insert the Applications and Drivers Recovery Disc when prompted and then

click OK to begin the applications and drivers recovery process.

6. If you have a Supplemental Recovery Disc, insert it when prompted and click

Yes. If you do not have a Supplemental Recovery Disc, click No.

Related service information

Restoring the factory contents by using Recovery Disc Set

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

7. When all of the data has been copied from the last disc in the set, remove the

disc and restart the computer.

8. When the recovery process is complete, the Welcome to the Microsoft

Windows screen is displayed. Follow the instructions on the screen to

complete the Windows setup.

As many as three passwords may be needed for any Lenovo computer: the

power-on password (POP), the hard disk password (HDP), and the supervisor

password (SVP).

If any of these passwords has been set, a prompt for it appears on the screen

whenever the computer is turned on. The computer does not start until the

password is entered.

Exception: If only an SVP is installed, the password prompt does not appear

when the operating system is booted.

Power-on password

A power-on password (POP) protects the system from being powered on by an

unauthorized person. The password must be entered before an operating system

can be booted.

Hard-disk password

There are two hard-disk passwords (HDPs):

+ User HDP - for the user

+ Master HDP - for the system administrator, who can use it to get access to the

hard disk drive even if the user has changed the user HDP

Attention: If the user HDP has been forgotten, check whether a master HDP has

been set. If it has, it can be used for access to the hard disk drive. If no master

HDP is available, neither Lenovo nor Lenovo authorized service technicians

provide any services to reset either the user or the master HDP, or to recover data

from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

Supervisor password

A supervisor password (SVP) protects the system information stored in the BIOS

Setup Utility. The user must enter the SVP in order to get access to the BIOS

Setup Utility and change the system configuration.

Attention: If the SVP has been forgotten and cannot be made available to the

servicer, there is no service procedure to reset the password. The system board

must be replaced for a scheduled fee.

Note: The remainder of the recovery process is fully automated and no

action is required by you. The computer will restart into the Windows

desktop several times and you might experience periods when no activity is

apparent on the screen for several minutes at a time. This is normal.

Passwords

Related service information

Note: Power management modes are not supported for APM operating system.

To reduce power consumption, the computer has three power management

modes: screen blank, sleep (standby), and hibernation.

Screen blank state

If the time set on the “Turn off monitor” timer in the operating system expires,

the LCD backlight turns off. You can also turn off the LCD backlight by pressing

To end screen blank state and resume normal operation, press .

Putting your computer to sleep

If you will be away from your computer for only a short time, put the computer

to sleep.

When the computer is in sleep mode, you can quickly wake it to resume use,

bypassing the startup process.

To put the computer to sleep, do one of the following:

• Close the display lid.

• Press the power button.

• Select the Start button, then select Power → Sleep.

Note: Put your computer to sleep before you move it. Moving your computer

while the hard disk drive is spinning can damage the hard disk, causing loss of

data.

To wake the computer, do one of the following:

• Press any key on the keyboard.

• Press the power button.

Power management

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Shutting down the computer

If you are not going to use your computer for a long time, shut it down.

To shut down your computer, do one of the following:

• Select the Start button, then select Power → Shut down.

• Right-click or press the Start button in the lower-left corner and select Shut

down or sign out → Shut down.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

This chapter presents the following product-specific service references and

product-specific parts information:

•“Specifications” on page 27

•“Status indicators” on page 30

•“Hotkeys” on page 32

•“FRU replacement notices” on page 33

•“Removing and replacing an FRU” on page 34

•“Locations” on page 68

•“Parts list” on page 72

The following table lists the specifications of the Lenovo ideapad 310-14ISK/

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR:

Table 1. Specifications

ideapad 310-14ISK

ideapad 310-15ISK/

ideapad 310 Touch-15ISK/

ideapad 310-15ABR

Form Factor

Dimensions Appr. 341.8 mm ×

249.9 mm × 22.7 mm

Appr. 379 mm × 260 mm ×

22.9 mm

Weight Appr. 2.1 kg with

battery

Appr. 2.2 kg with battery

LCD size 14.0-inch 15.6-inch

Processor

See the system properties of your computer, you can do this as follows:

Click Control Panel, then click Hardware and Sound, click Device

Manager under Devices and Printers and double click Processors.

Memory

Type and speed DDR4-2133 MHz

Maximum

supported

capacity

8 GB

Slots SODIMM × 1, on board × 1

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/

ideapad 310 Touch-15ISK/ideapad 310-15ABR

Specifications

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Hard disk drive

Form factor 2.5-inch, 9.5/7 mm

Capacity

HDD: 500 GB/1 TB

SSHD: 500 GB+8 GB/1 TB+8 GB

SSD: 128 GB/256 GB

Interface SATA 3

Optical drive

Form factor 9.0 mm

Typ e RAMBO

Display

resolution (LCD)

16:9 (1,366 × 768/1,920 × 1,080 pixels)

LCD backlight LED

I/O Ports

USB USB 3.0 × 1, USB 2.0 × 2

Audio Combo audio jack × 1

Communication RJ-45 × 1

Video/Audio HDMI slot × 1

Memory card

slot

4 in 1 slot × 1 (SD/SDHC/SDXC/MMC)

Battery pack

Type Li-ion battery pack

Cells/Capacity 2 Cells, 30/39 Wh

Note:

The capacity given here is the typical or average capacity as measured in a

specific test environment. Capacities measured in other environments

may differ but are no lower than the rated capacity (see product label).

AC power adapter

Input 100-240 V, 50-60 Hz

Output voltage 20 V DC

Power 45/65 W

Miscellaneous

Camera 0.3 M/HD

Security Kensington slot × 1

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Bus architecture

2133MHz DDR4

PCIE

SATA

USB

LPC

HDA

EDP

HDMI

SPI

CMOS RAM

Embedded in PCH

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

The system status indicators below show the computer status:

Status indicators

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Table 2. Status indicators

Battery/Charging status indicator

AC power

adapter status

Indicator status Meaning

Disconnected

Off The computer is in sleep mode or turned

off; The battery has more than 20%

charge.

Solid amber The battery has between 5% and 20%

charge.

Fast blinking

amber

The battery has between 1% and 5%

charge.

Connected

Slow blinking

amber

The battery is being charged. When

battery charge reaches 20%, the blinking

color changes to white.

Slow blinking

white

The battery has between 20% and 80%

charge and is still charging. When the

battery reaches 80% charge the light will

stop blinking.

Solid white The battery has more than 80% charge,

charging will continue until the battery is

fully charged.

Power status indicator

Indicator Indicator status Meaning

Power status

indicator

On (solid white) The computer is powered on.

Blinking The computer is in sleep mode.

Off The computer is powered off.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

The hotkeys are located in the function key row of the keyboard.By pressing the

appropriate hotkey, you can change system settings instantly.

The following describes the function of each hotkey.

Table 3. Hotkeys

:Mutes/unmutes the sound. :Enables/disables airplane

mode.

:Decreases the volume level. :Enables/disables camera.

:Increases the volume level. :Locks/unlocks the LCD

screen.

:Enables/disables

microphone. :

Enables the external

projector or dangles the

external display.

:Refreshes page. :Decreases display

brightness.

:Enables/disables the touch

pad. :Increases display

brightness.

Hotkeys

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

This section presents notices related to removing and replacing parts. Read this

section carefully before replacing any FRU.

Screw notices

Loose screws can cause a reliability problem. In the Lenovo computer, this

problem is addressed with special nylon-coated screws that have the following

characteristics:

• They maintain tight connections.

• They do not easily come loose, even with shock or vibration.

• They are harder to tighten.

• Each one should be used only once.

Do the following when you service this machine:

• Keep the screw kit in your tool bag.

• Remove screws carefully for reuse.

• Use a torque screwdriver if you have one.

Tighten screws as follows:

•Plastic to plastic

Turn an additional 90° after the screw head touches the surface of the plastic

part:

•Logic card to plastic

Turn an additional 180° after the screw head touches the surface of the logic

card:

•Torque driver

If you have a torque screwdriver , refer to the “Torque” column for each step.

• Make sure that you use the correct screws. If you have a torque screwdriver,

tighten all screws firmly to the torque shown in the table. Never use a screw

that you removed. Use a new one. Make sure that all screws are

tightened firmly.

• Ensure torque screwdrivers are calibrated correctly following country

specifications.

FRU replacement notices

more than 90°

(Cross-section)

more than 180°

(Cross-section)

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

This section presents exploded figures with the instructions to indicate how to

remove and replace the FRU. Make sure to observe the following general rules:

1. Do not attempt to service any computer unless you have been trained and

certified. An untrained person runs the risk of damaging parts.

2. Before replacing any FRU, review “FRU replacement notices” on page 33.

3. Begin by removing any FRUs that have to be removed before the failing FRU.

Any of such FRUs are listed at the top of the page. Remove them in the order

in which they are listed.

4. Follow the correct sequence in the steps to remove the FRU, as given in the

figures by the numbers in square callouts.

5. When turning a screw to replace an FRU, turn it in the direction as given by

the arrow in the figure.

6. When removing the FRU, move it in the direction as given by the arrow in the

figure.

7. To put the new FRU in place, reverse the removal procedures and follow any

of the notes that pertain to replacement. For information about connecting

and arranging internal cables, see “Locations” on page 68.

8. When replacing an FRU, use the correct screw as shown in the procedures.

Attention: After replacing an FRU, do not turn on the computer until you have

made sure that all screws, springs, and other small parts are in place and none

are loose inside the computer. Verify this by shaking the computer gently and

listening for rattling sounds. Metallic parts or metal flakes can cause electrical

short circuits.

Attention: The system board is sensitive to, and can be damaged by, electrostatic

discharge. Before touching it, establish personal grounding by touching a

ground point with one hand or using an electrostatic discharge (ESD) strap

(P/N 6405959) to remove potential shock reasons.

Note: The illustrations used in this section are of the Lenovo ideapad 310-15ISK,

unless otherwise stated.

Removing and replacing an FRU

DANGER

Before removing any FRU, turn off the computer, unplug all power cords

from electrical outlets, remove the battery pack, and then disconnect any of

the interconnecting cables.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

1010 Hard disk drive(HDD) slot compartment cover

Figure 1. Removal steps of HDD slot compartment cover

Remove the screw that secure the compartment cover. Remove the

compartment cover .

Step Screw (quantity) Color Torque

M2.5 × 6 mm, flat-head, nylok-coated

(1)

Black 3.0±0.3 kgfcm

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

1020 Hard disk drive

For access, remove this FRU:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

Figure 2. Removal steps of hard disk drive

ideapad 310-14ISK: Remove the frame fixing screws 1.

Step Screw (quantity) Color Torque

M2 × 6 mm, flat-head, nylok-coated (3)

(ideapad 310-14ISK)

Black

1.85+/-0.15 kgfcm

Attention:

•Do not drop the hard disk drive or apply any physical shock to it.

The hard disk drive is sensitive to physical shock. Improper handling

can cause damages and permanent loss of data.

• Before removing the drive, suggest the customer to backup all the

information on it if possible.

• Never remove the drive while the system is operating or is in suspend

mode.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Figure 2. Removal steps of hard disk drive (continued)

ideapad 310-14ISK: Detach the hard disk drive connector shown by arrows

and .

Take out the hard disk drive secured in a metal frame in the direction shown by

arrow .

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR:

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Figure 2. Removal steps of hard disk drive (continued)

ideapad 310-14ISK:

Remove the hard disk drive by gently pulling it in the direction of the arrow .

Take out the hard disk drive secured in a metal frame.

When installing: Make sure that the HDD connector is attached firmly.

Step Screw (quantity) Color Torque PN

M3.0 × 3 mm, flat-head,

nylok-coated (4)

Silver 3.0±0.3 kgfcm 90203986

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

1030 Memory/Mini PCI Express Card slot compartment cover

and DIMM

For access, remove these FRUs in order

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

Figure 3. Removal steps of Memory/Mini PCI Express Card slot compartment cover and

DIMM

Remove the screw that secure the compartment cover . Remove the

compartment cover .

Step Screw (quantity) Color Torque

M2.5 × 6 mm, flat-head, nylok-coated

(1)

Black 3.0±0.3 kgfcm

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Figure 3. Removal steps of Memory/Mini PCI Express Card slot compartment cover and

DIMM (continued)

Release the two latches on both edges of the socket at the same time in the

direction shown by arrows , and then unplug the DIMM in the direction

shown by arrow .

When installing: Insert the notched end of the DIMM into the socket. Push the

DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly

fixed in the slot and difficult to be moved.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

1040 PCI Express Mini Card for wireless LAN/WAN

For access, remove these FRUs in order

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

Figure 4. Removal steps of PCI Express Mini Card for wireless LAN/WAN

Disconnect the two wireless LAN cables (black, white) , and then remove the

screw .

In step , unplug the jacks by using the removal tool antenna RF connector

(P/N: 08K7159), or pick up the connectors with your fingers and gently unplug

them in the direction shown by arrows.

Important:

• The preinstalled WLAN module may only be replaced with a Lenovo

approved module in order to comply with FCC and IC regulations. Refer

to “Overall” on page 73 for Lenovo part numbers for the approved

modules.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Figure 4. Removal steps of PCI Express Mini Card for wireless LAN/WAN (continued)

Notes: wireless LAN card has 2 cables in step .

wireless LAN card in some models may have 3 cables in step .

Remove the card in the direction shown by arrow .

When installing:

• In models with a wireless LAN card that has two antenna connectors, plug

the black cable (1st) (MAIN) into the jack labeled 1, and the white cable (2nd)

(AUX) into jack labeled 2 on the card.

• In models with a wireless LAN card that has three antenna connectors, plug

the black cable (1st) (MAIN) into the jack labeled 1, the grey cable (3rd) into

jack labeled 3, and the white cable (2nd) (AUX) into jack labeled 2 on the

card.

Step Screw (quantity) Color Torque PN

M2 × 3.0 mm, flat-head,

nylok-coated (1)

Silver 1.85±0.15 kgfcm 90001118

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

1050 Optical drive

For access, remove these FRUs in order:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

Figure 5. Removal steps of optical drive

Remove the screw , Pull the optical drive out in the direction shown by arrow

Step Screw (quantity) Color Torque PN

M2.5 × 6 mm, flat-head,

nylokcoated (1)

Black 3+/-0.3 kgfcm 90205118

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

1060 Keyboard bezel

For access, remove these FRUs in order:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

•“1050 Optical drive” on page 43

Figure 6. Removal steps of keyboard bezel

Remove screws .

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR:

Step Screw (quantity) Color Torque PN

M2.5 x 6 mm, flat-head,

nylok-coated (11)

M2 x 6 mm, flat-head,

nylok-coated (3)

Black

3±0.3 kgf.cm

1.85±0.15 kgf.cm

90205118

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Figure 6. Removal steps of keyboard bezel (continued)

Pull the touch pad connector and keyboard connector slot cover upward as

shown by arrow , and detach the touch pad board cable and keyboard cable

from the touch pad board connector and keyboard connector in the direction

shown by arrow .

When installing: Make sure that the FPC connectors are attached firmly.

Remove the keyboard bezel in the direction shown by arrow .

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

1070 System board

For access, remove these FRUs in order:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

•“1050 Optical drive” on page 43

•“1060 Keyboard bezel” on page 44

Important notices for handling the system board:

When handling the system board, bear the following in mind.

• Be careful not to drop the system board on a bench top that has a hard

surface, such as metal, wood, or composite.

• Avoid rough handling of any kind.

• In the whole process, make sure not to drop or stack the system board.

• If you put a system board down, make sure to put it only on a padded

surface such as an ESD mat or conductive corrugated material.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Figure 7. Removal steps of system board

Remove screws and screw .

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR:

ideapad 310-14ISK:

Step Screw (quantity) Color Torque PN

M2 × 3 mm, flat-head, nylok-

coated (4)

Silver 1.85±0.15 kgfcm 90205117

M2 × 6 mm, flat-head, nylok-

coated(1)

Black 1.85±0.15 kgfcm 90205118

a b

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Figure 7. Removal steps of system board (continued)

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR:

Unplug

speakers connector in the direction shown by arrow , detach HDD connector in

the direction shown by arrow , detach ODD transfer board connector in the

direction shown by arrow , detach USB board connector in the direction shown

by arrow , disconnect battery connector in the direction shown by arrow ,

disconnect camera connector in the direction shown by arrow , detach LCD

connector in the direction shown by arrow .

ideapad 310-14ISK:

Unplug speakers connector in the direction shown by arrow

, detach USB board connector in the direction shown by arrow , disconnect

battery connector in the direction shown by arrow , disconnect LCD connector

in the direction shown by arrow .

When installing: Make sure that all the connectors are attached firmly.

f d

c e

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Figure 7. Removal steps of system board (continued)

Remove the system board in the direction shown by arrow .

When installing: When attaching the system board to the base cover, adjust the

placement of the USB, HDMI, RJ-45 ports as shown in , and make sure

that they are attached to the holes on the base cover as shown. Improper

placement of those jacks might cause a damage.

abc

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

1080 Fan assembly and Heat Sink assembly

For access, remove these FRUs in order:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

•“1050 Optical drive” on page 43

•“1060 Keyboard bezel” on page 44

•“1070 System board” on page 46

Figure 8. Removal steps of fan assembly and heat sink assembly

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR: Unplug the

fan connector in the direction shown by arrow and loosen screws to lift

the fan assembly.

a b

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Figure 8. Removal steps of fan assembly and heat sink assembly (continued)

ideapad 310-14ISK: Unplug the fan connector in the direction shown by arrow

and loosen seven screws to lift the fan assembly.

When installing: Make sure that the fan connector is attached firmly to the

system board.

a b

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

1090 LCD unit

For access, remove these FRUs in order

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

•“1050 Optical drive” on page 43

•“1060 Keyboard bezel” on page 44

•“1070 System board” on page 46

•“1080 Fan assembly and Heat Sink assembly” on page 50

Figure 9. Removal steps of LCD unit

Remove the four screws .

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR:

Step Screw (quantity) Color Torque PN

M2.5 × 3.5 mm, flat-head,

nylok-coated (4)

(ideapad 310-14ISK)

M2.5×4 mm, flat-head,

nylok-coated (4)

(ideapad 310-15ISK/

ideapad 310 Touch-

15ISK/ideapad 310-

15ABR)

Silver

Black

3±0.3 kgfcm

5S10K14049

90205119

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Figure 9. Removal steps of LCD unit (continued)

Detach the LCD unit from the lower case.

When installing:

• Route the antenna cables along the cable guides. As you route the cables,

make sure that they are not subjected to any tension. Tension could cause the

cables to be damaged by the cable guides, or a wire to be broken.

• Make sure that the LCD connector is attached firmly and make sure that you

do not pinch the antenna cables when you attach the LCD assembly. Route

the LCD cable along the cable guides.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

1100 Battery pack

For access, remove these FRUs in order:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

•“1050 Optical drive” on page 43

•“1060 Keyboard bezel” on page 44

•“1070 System board” on page 46

•“1080 Fan assembly and Heat Sink assembly” on page 50

•“1090 LCD unit” on page 52

Figure 10. Removal steps of battery pack

Remove the screws . Remove the battery pack in the direction shown by

arrow .

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR:

DANGER

Only use the battery specified in the parts list for your computer. Any other

battery could ignite or explode.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

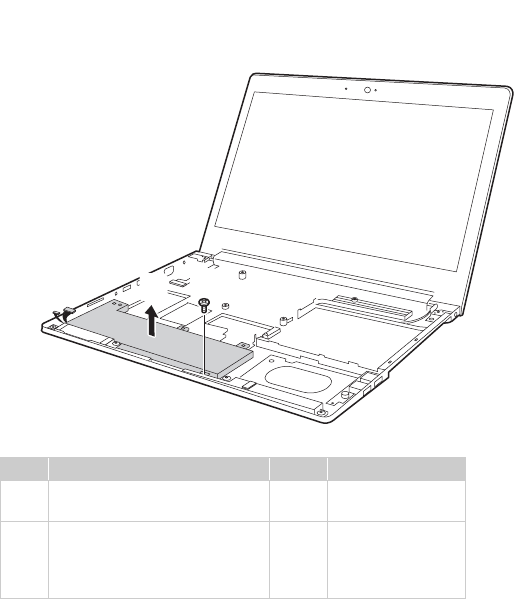

Figure 10. Removal steps of battery pack (continued)

Remove the screw . Remove the battery pack in the direction shown by arrow

ideapad 310-14ISK:

When installing: Make sure that the battery connector is attached firmly.

Step Screw (quantity) Color Torque

M2 × 6 mm, flat-head, nylok-

coated (1) ideapad 310-14ISK

Black 1.85±0.15 kgfcm

M2 × 3 mm, flat-head, nylok-

coated(3) ideapad 310-15ISK/

ideapad 310 Touch-15ISK/

ideapad 310-15ABR

Silver 1.85±0.15 kgfcm

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

1110 Speakers, base cover, USB board and ODD transfer board

For access, remove these FRUs in order:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

•“1050 Optical drive” on page 43

•“1060 Keyboard bezel” on page 44

•“1070 System board” on page 46

•“1080 Fan assembly and Heat Sink assembly” on page 50

•“1090 LCD unit” on page 52

•“1100 Battery pack” on page 54

Figure 11. Speakers, base cover, USB board and ODD transfer board

Remove the speakers in the direction shown by arrows .

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR:

ideapad 310-14ISK:

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Figure 11. Speakers, base cover, USB board and ODD transfer board (continued)

Remove the screw . Pull the USB board connector slot cover upward as shown

by arrow , detach the USB board cable from the keyboard connector in the

direction shown by arrow . Remove the USB board in the direction shown by

arrow .

When installing: Make sure that the USB board connector is attached firmly.

Step Screw (quantity) Color Torque PN

M2.0 × 3 mm, flat-head,

nylok-coated (1)

Silver 1.85+/-0.15 kgfcm 90205117

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Figure 11. Speakers, base cover, USB board and ODD transfer board (continued)

Remove screws , lift the touch pad board in the direction shown by arrow

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR:

ideapad 310-14ISK:

When installing: Make sure that the touch pad board connector is attached

firmly.

Step Screw (quantity) Color Torque PN

M2.0 × 3 mm, flat-head,

nylok-coated (2)

Silver 1.85+/-0.15 kgfcm 90001118

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

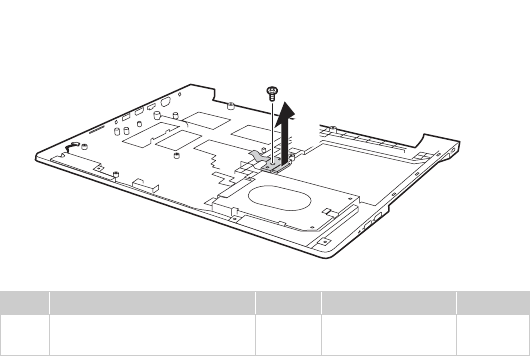

Figure 11. Speakers, base cover, USB board and ODD transfer board (continued)

Remove the screw to lift the ODD transfer board in the direction shown by

arrow .

When installing: Make sure that the ODD transfer board connector is attached

firmly.

Step Screw (quantity) Color Torque PN

M2.0 × 3 mm, flat-head,

nylok-coated (1)

Silver 1.85+/-0.15 kgfcm 90001118

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Applying labels to the base cover

The new base cover FRU is shipped with a kit containing labels of several kinds.

Apply those labels when you replace the base cover. For labels which are not

shipped with the new base cover, peel them from the replaced base cover and

adhere them to the new one.

Note: If the Certificate of Authenticity (COA) label (b) is attached to a replaced

part, return the replaced part to the customer, or provide a letter to the customer

stating the original label part number, serial number, and product key.

The following letter shows the correct location of each label. Not all labels are

attached on the part you are servicing.

Rating label (66 × 24 mm)

Rating label for print (43 × 24 mm)

OS label

BIS Label

KCC Label

Argentina label

WL/BT Label

Indonesia label

ideapad 310-14ISK:

a b

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Applying labels to the base cover

The new base cover FRU is shipped with a kit containing labels of several kinds.

Apply those labels when you replace the base cover. For labels which are not

shipped with the new base cover, peel them from the replaced base cover and

adhere them to the new one.

Note: If the Certificate of Authenticity (COA) label (b) is attached to a replaced

part, return the replaced part to the customer, or provide a letter to the customer

stating the original label part number, serial number, and product key.

The following letter shows the correct location of each label. Not all labels are

attached on the part you are servicing.

Rating label (66 × 24 mm)

Rating label for print (43 × 24 mm)

OS label

BIS Label

KCC Label

Argentina label

Indonesia label

WL/BT Label

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR:

a b

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

1120 LCD front bezel

For access, remove these FRUs in order:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

•“1050 Optical drive” on page 43

•“1060 Keyboard bezel” on page 44

•“1070 System board” on page 46

•“1080 Fan assembly and Heat Sink assembly” on page 50

•“1090 LCD unit” on page 52

•“1100 Battery pack” on page 54

•“1110 Speakers, base cover, USB board and ODD transfer board” on page 56

Figure 12. Removal steps of LCD front bezel

Remove the LCD front bezel in the direction by arrows .

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

1130 LCD panel and LCD cable

For access, remove these FRUs in order:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

•“1050 Optical drive” on page 43

•“1060 Keyboard bezel” on page 44

•“1070 System board” on page 46

•“1080 Fan assembly and Heat Sink assembly” on page 50

•“1090 LCD unit” on page 52

•“1100 Battery pack” on page 54

•“1110 Speakers, base cover, USB board and ODD transfer board” on page 56

•“1120 LCD front bezel” on page 62

Figure 13. LCD panel and LCD cable

Remove four screws .

Step Screw (quantity) Color Torque PN

M2.0 × 3 mm, flat-head,

nylok-coated (4)

Silver

1.85±0.15 kgfcm

90205117

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Figure 13. LCD panel and LCD cable (continued)

Turn over the LCD module in the direction as shown by arrow . Disconnect

the connector by arrow to remove the LCD panel.

When installing: Make sure that the LCD panel connector is attached firmly.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

1140 LCD hinges

For access, remove these FRUs in order:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

•“1050 Optical drive” on page 43

•“1060 Keyboard bezel” on page 44

•“1070 System board” on page 46

•“1080 Fan assembly and Heat Sink assembly” on page 50

•“1090 LCD unit” on page 52

•“1100 Battery pack” on page 54

•“1110 Speakers, base cover, USB board and ODD transfer board” on page 56

•“1120 LCD front bezel” on page 62

•“1130 LCD panel and LCD cable” on page 63

Figure 14. Removal steps of hinges

Remove screws . Remove the hinges in the direction shown by arrows .

Step Screw (quantity) Color Torque PN

M2.5 × 2.5 mm, flat-head,

nylok-coated (4)

Black

3 ± 0.3 kgfcm

5S10K26863

a b

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

1150 Integrated camera

For access, remove these FRUs in order:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

•“1050 Optical drive” on page 43

•“1060 Keyboard bezel” on page 44

•“1070 System board” on page 46

•“1080 Fan assembly and Heat Sink assembly” on page 50

•“1090 LCD unit” on page 52

•“1100 Battery pack” on page 54

•“1110 Speakers, base cover, USB board and ODD transfer board” on page 56

•“1120 LCD front bezel” on page 62

•“1130 LCD panel and LCD cable” on page 63

•“1140 LCD hinges” on page 65

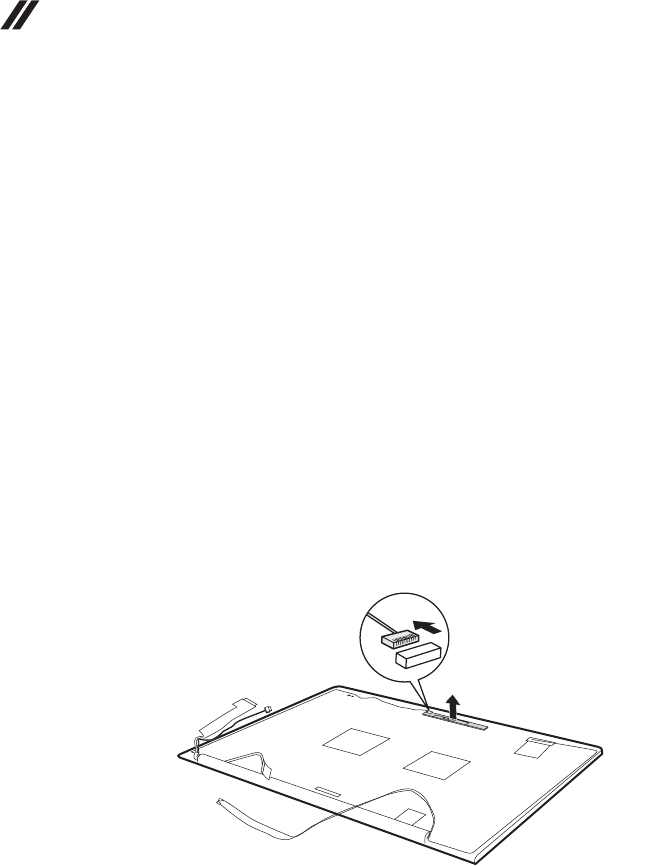

Figure 15. Removal steps of integrated camera

Note: The integrated camera is stuck on the top center of the LCD cover.

Unplug the connector in the direction shown by arrow , remove the

integrated camera from the LCD cover in the direction shown by arrow .

When installing: Stick the integrated camera to the top center of the LCD cover

and adjust the placement of it to make sure the connector is attached firmly.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

1160 Antenna assembly and LCD cover

For access, remove these FRUs in order:

•“1010 Hard disk drive(HDD) slot compartment cover” on page 35

•“1020 Hard disk drive” on page 36

•“1030 Memory/Mini PCI Express Card slot compartment cover and DIMM”

on page 39

•“1040 PCI Express Mini Card for wireless LAN/WAN” on page 41

•“1050 Optical drive” on page 43

•“1060 Keyboard bezel” on page 44

•“1070 System board” on page 46

•“1080 Fan assembly and Heat Sink assembly” on page 50

•“1090 LCD unit” on page 52

•“1100 Battery pack” on page 54

•“1110 Speakers, base cover, USB board and ODD transfer board” on page 56

•“1120 LCD front bezel” on page 62

•“1130 LCD panel and LCD cable” on page 63

•“1140 LCD hinges” on page 65

•“1150 Integrated camera” on page 66

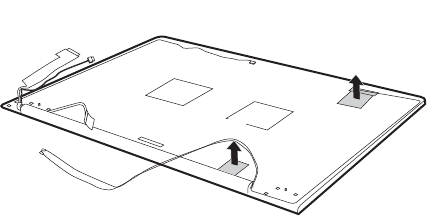

Figure 16. Removal steps of antenna assembly and LCD cover

Peel off the adhesive tapes securing the antenna boards, release the cables from

the cable guide, and then remove the antenna assembly in the direction shown

by arrows .

When installing: Route the antenna cables along the cable guides and secure the

antenna boards with adhesive tapes. As you route the cables, make sure that they

are not subjected to any tension. Tension could cause the cables to be damaged

by the cable guides, or a wire to be broken.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Front view

Integrated camera

Built-in microphone

Wireless LAN antennas

Computer display (ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310-

15ABR) /Multi-touch screen (ideapad 310 Touch-15ISK)

Power button

Ventilation slots

Touch pad

Numeric keypad

ideapad 310-14ISK:

Locations

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR:

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Bottom and Left-side view

Ventilation slots

Bottom slot cover

Speakers

AC power adapter jack

Battery/Charging status indicator

VGA port

RJ-45 port

HDMI port

USB 3.0 port

Combo audio jack

Novo button

Memory card slot

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR

ideapad 310-14ISK

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Right-side view

Power status indicator

USB port

Optical disc drive

Kensington slot

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

This section presents the following service parts:

•“Overall” on page 73

•“LCD FRUs” on page 94

•“Miscellaneous parts” on page 98

•“AC adapters” on page 100

•“Power cords” on page 105

Parts list

Notes:

• Each FRU is available for all types or models, unless specific types or

models are specified.

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Overall

ideapad 310-14ISK

(Optional)

ideapad 310-15ISK/ideapad 310 Touch-15ISK/ideapad 310-15ABR

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Table 4. Parts list—Overall

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

a-f see “Miscellaneous parts” on page 98.

1LCD unit (see “LCD FRUs” on page 94.)

2Upper Case

ASML80SLREDIMR US

5CB0L35749 N●

2Upper Case

ASML80SLREDIMR UK

5CB0L35798 N●

2Upper Case

ASML80SLREDIMR ITA

5CB0L35684 N●

2Upper Case

ASML80SLREDIMR SPA

5CB0L35788 N●

2Upper Case

ASML80SLREDIMR TUR

5CB0L35758 N●

2Upper

CaseASML80SLREDIMR

THAI KB

5CB0L35771 N●

2Upper

CaseASML80SLREDIMR

POR KB

5CB0L35753 N●

2Upper

CaseASML80SLREDIMR

LASPA KB

5CB0L35711 N●

2Upper

CaseASML80SLREDIMR

CFEN KB

5CB0L35687 N●

2Upper

CaseASML80SLREDIMR

KOR KB

5CB0L35752 N●

2Upper

CaseASML80SLREDIMR

TC KB

5CB0L35748 N●

2Upper

CaseASML80SLREDIMR

RUS KB

5CB0L35723 N●

2Upper

CaseASML80SLREDIMR

FRA KB

5CB0L35724 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper

CaseASML80SLREDIMR

GER KB

5CB0L35700 N●

2Upper

CaseASML80SLREDIMR

ARA KB

5CB0L35710 N●

2Upper

CaseASML80SLREDIMR

BRL KB

5CB0L35719 N●

2Upper

CaseASML80SLREDIMR

JP KB

5CB0L35780 N●

2Upper

CaseASML80SLREDIMR

DUTCH KB

5CB0L35754 N●

2Upper

CaseASML80SLREDIMR

GRE KB

5CB0L35715 N●

2Upper

CaseASML80SLREDIMR

HBW KB

5CB0L35721 N●

2Upper

CaseASML80SLREDIMR

HUN KB

5CB0L35717 N●

2Upper

CaseASML80SLREDIMR

NORDIC KB

5CB0L35730 N●

2Upper

CaseASML80SLREDIMR

BEL KB

5CB0L35703 N●

2Upper

CaseASML80SLREDIMR

ILD KB

5CB0L35778 N●

2Upper

CaseASML80SLREDIMR

SLV KB

5CB0L35702 N●

2Upper

CaseASML80SLREDIMR

SWS KB

5CB0L35785 N●

2Upper

CaseASML80SLREDIMR

USINTERKB

5CB0L35777 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper

CaseASML80SLREDIMR

CZE_SLK KB

5CB0L35807 N●

2Upper

CaseASML80SLREDIMR

BUL KB

5CB0L35736 N●

2Upper

CaseASML80SLREDIMR

IND KB

5CB0L35770 N●

2Upper

CaseASML80SLREDIMR

FRA/ARA KB

5CB0L35691 N●

2Upper

CaseASML80SLBKIMR

US KB

5CB0L35792 N●

2Upper

CaseASML80SLBKIMR

UK KB

5CB0L35779 N●

2Upper

CaseASML80SLBKIMR

ITA KB

5CB0L35686 N●

2Upper

CaseASML80SLBKIMR

SPA KB

5CB0L35774 N●

2Upper

CaseASML80SLBKIMR

TUR KB

5CB0L35794 N●

2Upper

CaseASML80SLBKIMR

THAI KB

5CB0L35793 N●

2Upper

CaseASML80SLBKIMR

POR KB

5CB0L35694 N●

2Upper

CaseASML80SLBKIMR

LASPA KB

5CB0L35776 N●

2Upper

CaseASML80SLBKIMR

CFEN KB

5CB0L35786 N●

2Upper

CaseASML80SLBKIMR

KOR KB

5CB0L35808 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper

CaseASML80SLBKIMR

TC KB

5CB0L35697 N●

2Upper

CaseASML80SLBKIMR

RUS KB

5CB0L35760 N●

2Upper

CaseASML80SLBKIMR

FRA KB

5CB0L35763 N●

2Upper

CaseASML80SLBKIMR

GER KB

5CB0L35787 N●

2Upper

CaseASML80SLBKIMR

ARA KB

5CB0L35692 N●

2Upper

CaseASML80SLBKIMR

BRL KB

5CB0L35761 N●

2Upper

CaseASML80SLBKIMR

JP KB

5CB0L35722 N●

2Upper

CaseASML80SLBKIMR

DUTCH KB

5CB0L35746 N●

2Upper

CaseASML80SLBKIMR

GRE KB

5CB0L35701 N●

2Upper

CaseASML80SLBKIMR

HBW KB

5CB0L35783 N●

2Upper

CaseASML80SLBKIMR

HUN KB

5CB0L35693 N●

2Upper

CaseASML80SLBKIMR

NORDIC KB

5CB0L35728 N●

2Upper

CaseASML80SLBKIMR

BEL KB

5CB0L35805 N●

2Upper

CaseASML80SLBKIMR

ILD KB

5CB0L35759 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper

CaseASML80SLBKIMR

SLV KB

5CB0L35747 N●

2Upper

CaseASML80SLBKIMR

SWS KB

5CB0L35732 N●

2Upper

CaseASML80SLBKIMRU

SINTERKB

5CB0L35689 N●

2Upper

CaseASML80SLBKIMR

CZE_SLK KB

5CB0L35712 N●

2Upper

CaseASML80SLBKIMR

BUL KB

5CB0L35695 N●

2Upper

CaseASML80SLBKIMR

IND KB

5CB0L35708 N●

2Upper

CaseASML80SLBKIMR

FRA/ARA KB

5CB0L35756 N●

2Upper

CaseASML80SLSRIMR

US KB

5CB0L35757 N●

2Upper

CaseASML80SLSRIMR

UK KB

5CB0L35685 N●

2Upper

CaseASML80SLSRIMR

ITA KB

5CB0L35789 N●

2Upper

CaseASML80SLSRIMR

SPA KB

5CB0L35768 N●

2Upper

CaseASML80SLSRIMR

TUR KB

5CB0L35706 N●

2Upper

CaseASML80SLSRIMR

THAI KB

5CB0L35705 N●

2Upper

CaseASML80SLSRIMR

POR KB

5CB0L35790 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper

CaseASML80SLSRIMR

LASPA KB

5CB0L35688 N●

2Upper

CaseASML80SLSRIMR

CFEN KB

5CB0L35716 N●

2Upper

CaseASML80SLSRIMR

KOR KB

5CB0L35769 N●

2Upper

CaseASML80SLSRIMR

TC KB

5CB0L35690 N●

2Upper

CaseASML80SLSRIMR

RUS KB

5CB0L35735 N●

2Upper

CaseASML80SLSRIMR

FRA KB

5CB0L35772 N●

2Upper

CaseASML80SLSRIMR

GER KB

5CB0L35801 N●

2Upper

CaseASML80SLSRIMR

ARA KB

5CB0L35714 N●

2Upper

CaseASML80SLSRIMR

BRL KB

5CB0L35696 N●

2Upper

CaseASML80SLSRIMR

JP KB

5CB0L35744 N●

2Upper

CaseASML80SLSRIMR

DUTCH KB

5CB0L35733 N●

2Upper

CaseASML80SLSRIMR

GRE KB

5CB0L35806 N●

2Upper

CaseASML80SLSRIMR

HBW KB

5CB0L35720 N●

2Upper

CaseASML80SLSRIMR

HUN KB

5CB0L35762 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper

CaseASML80SLSRIMR

NORDIC KB

5CB0L35781 N●

2Upper

CaseASML80SLSRIMR

BEL KB

5CB0L35784 N●

2Upper

CaseASML80SLSRIMR

ILD KB

5CB0L35750 N●

2Upper

CaseASML80SLSRIMR

SLV KB

5CB0L35755 N●

2Upper

CaseASML80SLSRIMR

SWS KB

5CB0L35797 N●

2Upper

CaseASML80SLSRIMRU

SINTERKB

5CB0L35795 N●

2Upper

CaseASML80SLSRIMR

CZE_SLK KB

5CB0L35740 N●

2Upper

CaseASML80SLSRIMR

BUL KB

5CB0L35726 N●

2Upper

CaseASML80SLSRIMR

IND KB

5CB0L35739 N●

2Upper

CaseASML80SLSRIMR

FRA/ARA KB

5CB0L35796 N●

2Lower

CaseASML80SLBK TEX

W/SPEAKER

5CB0L35698 N●

2Upper Case ASM

L80SMREDIMR US KB

5CB0L35876 N●

2Upper Case ASM

L80SMREDIMR UK KB

5CB0L35850 N●

2Upper Case ASM

L80SMREDIMR ITA KB

5CB0L35902 N●

2Upper Case ASM

L80SMREDIMR SPA KB

5CB0L35915 N●

2Upper Case ASM

L80SMREDIMR TUR KB

5CB0L35911 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper Case ASM

L80SMREDIMR THAI

5CB0L35861 N●

2Upper Case ASM

L80SMREDIMR POR KB

5CB0L35908 N●

2Upper Case ASM

L80SMREDIMR LASPA

5CB0L35843 N●

2Upper Case ASM

L80SMREDIMR CFEN

5CB0L35932 N●

2Upper Case ASM

L80SMREDIMR KOR KB

5CB0L35886 N●

2Upper Case ASM

L80SMREDIMR TC KB

5CB0L35881 N●

2Upper Case ASM

L80SMREDIMR RUS KB

5CB0L35892 N●

2Upper Case ASM

L80SMREDIMR FRA KB

5CB0L35866 N●

2Upper Case ASM

L80SMREDIMR GER KB

5CB0L35910 N●

2Upper Case ASM

L80SMREDIMR ARA KB

5CB0L35891 N●

2Upper Case ASM

L80SMREDIMR BRL KB

5CB0L35912 N●

2Upper Case ASM

L80SMREDIMR JP KB

5CB0L35868 N●

2Upper Case ASM

L80SMREDIMR DUTCH

5CB0L35849 N●

2Upper Case ASM

L80SMREDIMR GRE KB

5CB0L35916 N●

2Upper Case ASM

L80SMREDIMR HBW KB

5CB0L35819 N●

2Upper Case ASM

L80SMREDIMR HUN KB

5CB0L35832 N●

2Upper Case ASM

L80SMREDIMR

NORDIC KB

5CB0L35924 N●

2Upper Case ASM

L80SMREDIMR BEL KB

5CB0L35835 N●

2Upper Case ASM

L80SMREDIMR ILD KB

5CB0L35863 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper Case ASM

L80SMREDIMR SLV KB

5CB0L35903 N●

2Upper Case ASM

L80SMREDIMR SWS KB

5CB0L35817 N●

2Upper Case ASM

L80SMREDIMRUSINTE

RKB

5CB0L35834 N●

2Upper Case ASM

L80SMREDIMR

CZE_SLK KB

5CB0L35882 N●

2Upper Case ASM

L80SMREDIMR BUL KB

5CB0L35836 N●

2Upper Case ASM

L80SMREDIMR IND KB

5CB0L35906 N●

2Upper Case ASM

L80SMREDIMR FRA/

ARA KB

5CB0L35885 N●

2Upper Case ASM

L80SMBKIMR US KB

5CB0L35842 N●

2Upper Case ASM

L80SMBKIMR UK KB

5CB0L35894 N●

2Upper Case ASM

L80SMBKIMR ITA KB

5CB0L35824 N●

2Upper Case ASM

L80SMBKIMR SPA KB

5CB0L35853 N●

2Upper Case ASM

L80SMBKIMR TUR KB

5CB0L35878 N●

2Upper Case ASM

L80SMBKIMR THAI KB

5CB0L35830 N●

2Upper Case ASM

L80SMBKIMR POR KB

5CB0L35919 N●

2Upper Case ASM

L80SMBKIMR LASPA

5CB0L35828 N●

2Upper Case ASM

L80SMBKIMR CFEN KB

5CB0L35920 N●

2Upper Case ASM

L80SMBKIMR KOR KB

5CB0L35838 N●

2Upper Case ASM

L80SMBKIMR TC KB

5CB0L35918 N●

2Upper Case ASM

L80SMBKIMR RUS KB

5CB0L35825 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper Case ASM

L80SMBKIMR FRA KB

5CB0L35845 N●

2Upper Case ASM

L80SMBKIMR GER KB

5CB0L35826 N●

2Upper Case ASM

L80SMBKIMR ARA KB

5CB0L35829 N●

2Upper Case ASM

L80SMBKIMR BRL KB

5CB0L35827 N●

2Upper Case ASM

L80SMBKIMR JP KB

5CB0L35884 N●

2Upper Case ASM

L80SMBKIMR DUTCH

5CB0L35872 N●

2Upper Case ASM

L80SMBKIMR GRE KB

5CB0L35895 N●

2Upper Case ASM

L80SMBKIMR HBW KB

5CB0L35905 N●

2Upper Case ASM

L80SMBKIMR HUN KB

5CB0L35837 N●

2Upper Case ASM

L80SMBKIMR NORDIC

5CB0L35921 N●

2Upper Case ASM

L80SMBKIMR BEL KB

5CB0L35814 N●

2Upper Case ASM

L80SMBKIMR ILD KB

5CB0L35855 N●

2Upper Case ASM

L80SMBKIMR SLV KB

5CB0L35841 N●

2Upper Case ASM

L80SMBKIMR SWS KB

5CB0L35869 N●

2Upper Case ASM

L80SMBKIMRUSINTER

5CB0L35820 N●

2Upper Case ASM

L80SMBKIMR CZE_SLK

5CB0L35909 N●

2Upper Case ASM

L80SMBKIMR BUL KB

5CB0L35821 N●

2Upper Case ASM

L80SMBKIMR IND KB

5CB0L35926 N●

2Upper Case ASM

L80SMBKIMR FRA/

ARA KB

5CB0L35867 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper Case ASM

L80SMSRIMR US KB

5CB0L35874 N●

2Upper Case ASM

L80SMSRIMR UK KB

5CB0L35852 N●

2Upper Case ASM

L80SMSRIMR ITA KB

5CB0L35877 N●

2Upper Case ASM

L80SMSRIMR SPA KB

5CB0L35862 N●

2Upper Case ASM

L80SMSRIMR TUR KB

5CB0L35904 N●

2Upper Case ASM

L80SMSRIMR THAI KB

5CB0L35848 N●

2Upper Case ASM

L80SMSRIMR POR KB

5CB0L35923 N●

2Upper Case ASM

L80SMSRIMR LASPA KB

5CB0L35851 N●

2Upper Case ASM

L80SMSRIMR CFEN KB

5CB0L35813 N●

2Upper Case ASM

L80SMSRIMR KOR KB

5CB0L35907 N●

2Upper Case ASM

L80SMSRIMR TC KB

5CB0L35839 N●

2Upper Case ASM

L80SMSRIMR RUS KB

5CB0L35925 N●

2Upper Case ASM

L80SMSRIMR FRA KB

5CB0L35818 N●

2Upper Case ASM

L80SMSRIMR GER KB

5CB0L35840 N●

2Upper Case ASM

L80SMSRIMR ARA KB

5CB0L35879 N●

2Upper Case ASM

L80SMSRIMR BRL KB

5CB0L35900 N●

2Upper Case ASM

L80SMSRIMR JP KB

5CB0L35816 N●

2Upper Case ASM

L80SMSRIMR DUTCH

5CB0L35854 N●

2Upper Case ASM

L80SMSRIMR GRE KB

5CB0L35871 N●

2Upper Case ASM

L80SMSRIMR HBW KB

5CB0L35922 N●

2Upper Case ASM

L80SMSRIMR HUN KB

5CB0L35893 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper Case ASM

L80SMSRIMR NORDIC

5CB0L35857 N●

2Upper Case ASM

L80SMSRIMR BEL KB

5CB0L35889 N●

2Upper Case ASM

L80SMSRIMR ILD KB

5CB0L35880 N●

2Upper Case ASM

L80SMSRIMR SLV KB

5CB0L35844 N●

2Upper Case ASM

L80SMSRIMR SWS KB

5CB0L35823 N●

2Upper Case ASM

L80SMSRIMRUSINTER

5CB0L35883 N●

2Upper Case ASM

L80SMSRIMR CZE_SLK

5CB0L35913 N●

2Upper Case ASM

L80SMSRIMR BUL KB

5CB0L35931 N●

2Upper Case ASM

L80SMSRIMR IND KB

5CB0L35875 N●

2Upper Case ASM

L80SMSRIMR FRA/ARA

5CB0L35887 N●

2Upper Case ASM

L80SMPLIMR US KB

5CB0L46871 N●

2Upper Case ASM

L80SMPLIMR UK KB

5CB0L46874 N●

2Upper Case ASM

L80SMPLIMR ITA KB

5CB0L46872 N●

2Upper Case ASM

L80SMPLIMR SPA KB

5CB0L46886 N●

2Upper Case ASM

L80SMPLIMR TUR KB

5CB0L46866 N●

2Upper Case ASM

L80SMPLIMR THAI KB

5CB0L46879 N●

2Upper Case ASM

L80SMPLIMR POR KB

5CB0L46896 N●

2Upper Case ASM

L80SMPLIMR LASPA KB

5CB0L46875 N●

2Upper Case ASM

L80SMPLIMR CFEN KB

5CB0L46893 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper Case ASM

L80SMPLIMR KOR KB

5CB0L46892 N●

2Upper Case ASM

L80SMPLIMR TC KB

5CB0L46882 N●

2Upper Case ASM

L80SMPLIMR RUS KB

5CB0L46890 N●

2Upper Case ASM

L80SMPLIMR FRA KB

5CB0L46867 N●

2Upper Case ASM

L80SMPLIMR GER KB

5CB0L46880 N●

2Upper Case ASM

L80SMPLIMR ARA KB

5CB0L46883 N●

2Upper Case ASM

L80SMPLIMR BRL KB

5CB0L46897 N●

2Upper Case ASM

L80SMPLIMR JP KB

5CB0L46884 N●

2Upper Case ASM

L80SMPLIMR DUTCH

5CB0L46895 N●

2Upper Case ASM

L80SMPLIMR GRE KB

5CB0L46873 N●

2Upper Case ASM

L80SMPLIMR HBW KB

5CB0L46894 N●

2Upper Case ASM

L80SMPLIMR HUN KB

5CB0L46887 N●

2Upper Case ASM

L80SMPLIMR NORDIC

5CB0L46881 N●

2Upper Case ASM

L80SMPLIMR BEL KB

5CB0L46885 N●

2Upper Case ASM

L80SMPLIMR ILD KB

5CB0L46877 N●

2Upper Case ASM

L80SMPLIMR SLV KB

5CB0L46869 N●

2Upper Case ASM

L80SMPLIMR SWS KB

5CB0L46891 N●

2Upper Case ASM

L80SMPLIMRUSINTER

5CB0L46888 N●

2Upper Case ASM

L80SMPLIMR CZE_SLK

5CB0L46878 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

2Upper Case ASM

L80SMPLIMR BUL KB

5CB0L46870 N●

2Upper Case ASM

L80SMPLIMR IND KB

5CB0L46889 N●

2Upper Case ASM

L80SMPLIMR FRA/ARA

5CB0L46868 N●

2Upper Case ASM

L80SMBKIMR US KB

5CB0L35842 N●

2Upper Case ASM

L80SMBKIMR CFEN KB

5CB0L35920 N●

3MB

L80SLI76500UN16V_V2

GD4GWINRTC

5B20L35707 N ●

3MB

L80SLI76500UN16V_V2

GD4GNOKRTC

5B20L35802 N ●

3MB

L80SLI56200UN16V_V2

GD4GWINRTC

5B20L35782 N ●

3MB

L80SLI56200UN16V_V2

GD4GNOKRTC

5B20L35713 N ●

3MB

L80SLI36100UN16V_V2

GD4GWINRTC

5B20L35729 N ●

3MB

L80SLI36100UN16V_V2

GD4GNOKRTC

5B20L35766 N ●

3MB L80SLI76500U UMA

D4G WINRTC

5B20L35731 N ●

3MB L80SLI76500U UMA

D4G NOKRTC

5B20L35791 N ●

3MB L80SLI56200U UMA

D4G WINRTC

5B20L35751 N ●

3MB L80SLI56200U UMA

D4G NOKRTC

5B20L35737 N ●

3MB L80SLI36100U UMA

D4G WINRTC

5B20L35767 N ●

3MB L80SLI36100U UMA

D4G NOKRTC

5B20L35809 N ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

Note: For ideapad 310-15 ISK/ideapad 310 Touch-15 ISK/ideapad 310-15ABR,

the HDD CRU ID is *.

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

3MB

L80SMI76500UN16V_V2

GD4GWINRTC

5B20L35929 N ●

3MB

L80SMI76500UN16V_V2

GD4GNOKRTC

5B20L35914 N ●

3MB

L80SMI56200UN16V_V2

GD4GWINRTC

5B20L35873 N ●

3MB

L80SMI56200UN16V_V2

GD4GNOKRTC

5B20L35898 N ●

3MB

L80SMI36100UN16V_V2

GD4GWINRTC

5B20L35890 N ●

3MB

L80SMI36100UN16V_V2

GD4GNOKRTC

5B20L35888 N ●

3MB L80SMI76500U UMA

D4G WINRTC

5B20L35847 N ●

3MB L80SMI76500U UMA

D4G NOKRTC

5B20L35901 N ●

3MB L80SMI56200U UMA

D4G WINRTC

5B20L35897 N ●

3MB L80SMI56200U UMA

D4G NOKRTC

5B20L35927 N ●

3MB L80SMI36100U UMA

D4G WINRTC

5B20L35833 N ●

3MB L80SMI36100U UMA

D4G NOKRTC

5B20L35917 N ●

3MB L80SNI56200U UMA

D4G WINRTC

5B20L35937 N ●

3MB L80SNI56200U UMA

D4G NOKRTC

5B20L35940 N ●

3MB L80SNI36100U UMA

D4G WINRTC

5B20L35939 N ●

3MB L80SNI36100U UMA

D4G NOKRTC

5B20L35942 N ●

4FAN DC 5V L80SL 5F10L35775 N● ● ●

5HEATSINK DIS L80SL 5H40L35745 N● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Table 4. Parts list—Overall (continued)

Note: For ideapad 310-15 ISK/ideapad 310 Touch-15 ISK/ideapad 310-15ABR,

the HDD CRU ID is *.

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

5HEATSINK UMA L80SL 5H40L35743 N● ● ●

6DDR4 Memroy, DDR4

Slot Memory 2G,

M471A5644EB0-CPB

5M30K59788 *● ●

6DDR4 Memroy, DDR4

Slot Memory 2G,

HMA425S6AFR6N-TFN0

5M30K59787 *● ●

6DDR4 Memroy, DDR4

Slot Memory 4G,

M471A5143EB0-CPB

5M30K59778 *● ● ●

6DDR4 Memroy, DDR4

Slot Memory 4G,

MTA8ATF51264HZ-

2G1A2

5M30K59777 *● ● ●

6DDR4 Memroy, DDR4

Slot Memory 4G,

HMA451S6AFR8N-TFN0

5M30H35732 *● ● ●

6DDR4 Memroy, DDR4

Slot Memory 4G,

RMSA3230KE68H9F-

2133

5M30K62038 *● ● ●

7HDD (7mm & 9.5mm),

2TB 5400RPM(9.5mm),

ST2000LM003 9.5mm

5400rpm 2T HDD

5H20K10149 *●

7SSD, 128G, Samsung

MZYLF128HCHP 2.5”

5mm 128GB SSD

5SD0H45117 *●

7SSD, 128G, Hynix

HFS128G3BMND-3210A

5SD0K44056 * ●

7HDD (7mm & 9.5mm),

500G 5400RPM(7mm),

ST500LT012 6G 7mm

5.4K 500G HDD

16200383 N ● ● ●

7HDD (7mm & 9.5mm),

500G 5400RPM(7mm),

HTS545050A7E660 6G

7mm 5.4K 500G HDD

5H20H14223 N● ● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

7HDD (7mm & 9.5mm),

500G 5400RPM(7mm),

MQ01ABF050 6G 7mm

5.4K 500G HDD

16200433 N ● ● ●

7HDD (7mm & 9.5mm),

500G 5400RPM(7mm),

WD5000LPCX-24VHAT0

7mm 5400rpm 500G

HDD

5H20J35762 N● ● ●

7HDD (7mm & 9.5mm),

1TB 5400RPM(9.5mm),

ST1000LM024 6G 9.5mm

5.4K 1T HDD

16200385 N ● ● ●

7HDD (7mm & 9.5mm),

1TB 5400RPM(9.5mm),

WD10JPCX-24UE4T0 6G

9.5mm 5.4K 1T HDD

16200393 N ● ● ●

7HDD (7mm & 9.5mm),

1TB 5400RPM(9.5mm),

TSB MQ01ABD100 6G

9.5mm 5.4K 1T HDD

16200429 N ● ● ●

7HDD (7mm & 9.5mm),

1TB 5400RPM(9.5mm),

HTS541010A9E660 6G

9.5mm 5.4K 1T HDD

16200400 N ● ● ●

7SSHD, 500G+8G (7mm),

ST500LM000 6G 7mm

500G+8G SSHD

5H20H24608 N● ●

7SSHD, 500G+8G (7mm),

Toshiba MQ02ABF050H

7mm 5.4k 500GB+8GB

SSHD

5H20H12631 N● ●

8WLAN, Wifi 1X1 AC+ BT

4.0, Intel 3165 1x1AC+BT

PCIE M.2 WLAN

SW10H24486

*● ● ●

8WLAN, Wifi 1X1 AC+ BT

4.0, Cbt RTL8821AE

1x1AC+BT4.0 PCIE M.2

WLAN

SW10A11648 *● ● ●

8WLAN, Wifi 1X1 AC+ BT

4.0, Ltn NFA435

1x1AC+BT4.0 PCIE M.2

WLAN

SW10A11641 *● ● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

9USB BOARD W/FFC

L80SL

5C50L35765 N● ● ●

10 ODD BOARD W/FFC

L80SM

5C50L35865 N● ●

11 Battery, 2cell Polymer

30W, G14 LG L15L2PB2

7.6V30Wh2cell bty

5B10K90803 N●

11 Battery, 2cell Polymer

30W, G14 SP/A

L15M2PB2

7.5V30Wh2cell bty

5B10K87714 N●

11 Battery, 2cell Polymer

30W, G14 CP/C

L15C2PB2 7.6V30Wh2cell

bty

5B10K90785 N●

11 Battery, 2cell Polymer

30W, G14 SP/A

L15M2PB2

7.4V30Wh2cell bty

5B10K87712 N●

11 Battery, 2cell Polymer

30W, G14 CP/C

L15C2PB2 7.4V30Wh2cell

bty

5B10K90784 N●

11 Battery, 2cell Polymer

39W, G14 LG L15L2PB3

7.72V39Wh2cell bty

5B10K90806 N●

11 Battery, 2cell Polymer

39W, G14 CP/C

L15C2PB6 7.7V39Wh2cell

bty

5B10L13961 N ●

11 Battery, 2cell Polymer

39W, G14 SP/A

L15M2PB4

7.68V39Wh2cell bty

5B10K87713 N●

11 Battery, 2cell Polymer

30W, G15 LG L15L2PB4

7.6V30Wh2cell bty

5B10K90804 N● ●

11 Battery, 2cell Polymer

30W, G15 SP/A

L15M2PB3

7.5V30Wh2cell bty

5B10K87722 N● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

11 Battery, 2cell Polymer

30W, G15 CP/C

L15C2PB3 7.6V30Wh2cell

bty

5B10K90787 N● ●

11 Battery, 2cell Polymer

30W, G15 SY L15S2TB0

7.3V30Wh2cell bty

5B10K88299 N● ●

11 Battery, 2cell Polymer

30W, G15 SP/A

L15M2PB3

7.4V30Wh2cell bty

5B10K87721 N● ●

11 Battery, 2cell Polymer

30W, G15CP/C

L15C2PB3 7.4V30Wh2cell

bty

5B10K90786 N● ●

11 Battery, 2cell Polymer

39W, G15 SP/A

L15M2PB5

7.68V39Wh2cell bty

5B10K87720 N● ●

11 Battery, 2cell Polymer

39W, G15 CP/C

L15C2PB7 7.7V39Wh2cell

bty

5B10L13960 N ● ●

11 Battery, 2cell Polymer

39W, G15 LG L15L2PB5

7.72V39Wh2cell bty

5B10K90805 N● ●

12 DUMMY ODD L80SL

BLACK

5M20L35727 *● ● ●

12 DUMMY ODD L80SM

BAY BLACK

5M20L35859 *● ●

12 ODD, 9.0mm Rambo

ODD, HLDS GUE0N

9.0mm Slim Tray Rambo

ODD

5DX0J46488 *● ● ●

12 ODD, 9.0mm Rambo

ODD, PLDS DA-8AESH

9.0 mm Slim Tray Rambo

ODD

5DX0L08424 *● ● ●

12 ODD, 9.0mm Rambo

ODD, TSST SU-228HB

9.0mm Slim Tray Rambo

ODD

5DX0L08425 *● ● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310-

15ISK

Touch

13 Lower Case ASM

L80SMBK TEX W/SPE/

FFC

5CB0L35822 N● ●

14 HDD BOARD FOR 2ND

HDD

5C50L67280 N●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

LCD FRUs

In Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

ideapad 310-15ABR, there are following types of LCDs.

• “14.0 -in. HD TFT”

• “15.6 -in. HD TFT”

• “15.6 Touch-in. HD TFT”

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

14.0-in. HD TFT

Table 5. Parts list—14.0-in. HD TFT

No. FRU FRU no. CRU

1LCD BEZELL80SL BK TEX W/CAMMYLAR 5B30L35741 N

1LCD BEZELL80SL BK IMR W/CAMMYLAR 5B30L35725 N

2Panel, 14.0'' HD TN Slim GL (3.0mm), AUO

B140XTN02.D 2A HD G S NB

5D10H13021 N

2Panel, 14.0'' HD TN Slim GL (3.0mm), IN N140BGA-

EB3 HDT G S NB

5D10K85754 N

2Panel, 14.0'' HD TN Slim GL (3.0mm), BO NT140WHM-

N31 HDT G S NB

5D10K81083 N

2Panel, 14.0'' HD TN Slim GL (3.0mm), LG LP140WHU-

TPG1 HDT G S NB

5D10K81460 N

2Panel, 14.0'' HD TN Slim GL (3.0mm), IV M140NWR6-

R0 HDT G S NB

5D10K81642 N

2Panel, 14.0'' HD TN Slim GL (3.0mm), SD

LTN140AT39-L01 HDT G S NB

5D10K81457 N

2Panel, 14.0 FHD TN Slim GL (3.0mm), AU

B140HTN01.F 0A FHDT G S NB

5D10L08703 N

2Panel, 14.0 FHD TN Slim GL (3.0mm), IN N140HGE-

EBA C4 FHDT G S NB

5D10K93438 N

2Panel, 14.0 FHD TN Slim GL (3.0mm), BO HB140FH1-

301 V4.1 FHDT G S NB

5D10H56753 N

3CAMERA L80SL HD W/1MIC 5C20L35738 N

3CAMERA L80SL 0.3M W/1MIC 5C20L35699 N

3Camera, HD W /Single MIC, BIS BNCF1NKTK HD NB

camera

SC20K75690 N

3Camera, HD W /Single MIC, CCY CNFFH42 HD NB

camera

SC20K75697 N

3Camera, HD W /Single MIC, LTN 5SF128N2 HD NB

camera

SC20K76291 N

3Camera, HD W /Single MIC, AVC HAA-8F4A02 HD

NB camera

SC20K75696 N

3Camera, 0.3M W/ Single MIC, BIS BNCGVTKTL 0.3M

NB camera

SC20K75693 N

3Camera, 0.3M W/ Single MIC, CCY CNFF024 0.3M NB

camera

SC20K75687 N

3Camera, 0.3M W/ Single MIC, LTN 5SF009N2 0.3M NB

camera

SC20K76289 N

3Camera, 0.3M W/ Single MIC, AVC HAA-584B03 0.3M

NB camera

SC20K84861 N

4HINGE L+R L80SL 5H50L35704 N

5LCD Cover L80SL SR IMR W/ANTE EDP 5CB0L35803 N

5LCD Cover L80SL RED IMR W/ANTE EDP 5CB0L35734 N

5LCD Cover L80SL BK TEX W/ANTE EDP 5CB0L35804 N

6EDP CABLE L80SL 5C10L35718 N

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

15.6-in. HD TFT

Table 6. Parts list—15.6-in. HD TFT

No. FRU FRU no. CRU

1LCD BEZEL L80SM BK TEX W/CAMMYLAR

5B30L35831

1LCD BEZEL L80SM BK IMR W/CAMMYLAR

5B30L35928

2Panel, 15.6'' HD TN Slim GL (3.2mm), AU

B156XTN07.0 1A HDT G S NB

5D10K90419 N

2Panel, 15.6'' HD TN Slim GL (3.2mm), INX N156BGA-

EB2 HDT G S NB

5D10K81084 N

2Panel, 15.6'' HD TN Slim GL (3.2mm), BO

NT156WHM-N32 V8 HDT G S NB

5D10K81087

2Panel, 15.6'' HD TN Slim GL (3.2mm), SD

LTN156AT38-L02 HDT G S NB

5D10K81459 N

2Panel, 15.6'' HD TN Slim GL (3.2mm), LG LP156WHU-

TPG1 HDT G S NB

5D10K81458 N

2Panel, 15.6'' FHD TN Slim GL (3.2mm), AU

B156HTN03.9 0B FHDT G S NB

5D10K81095 N

2Panel, 15.6'' FHD TN Slim GL (3.2mm), IN N156HGA-

EBB FHDT G S NB

5D10K93436 N

2Panel, 15.6'' FHD TN Slim GL (3.2mm), BO NT156FHM-

N31 FHDT G S NB

5D10K93437 N

3CAMERA L80SL HD W/1MIC 5C20L35738 N

3CAMERA L80SL 0.3M W/1MIC 5C20L35699 N

3Camera, HD W /Single MIC, BIS BNCF1NKTK HD NB

camera

SC20K75690

3Camera, HD W /Single MIC, CCY CNFFH42 HD NB

camera

SC20K75697

3Camera, HD W /Single MIC, LTN 5SF128N2 HD NB

camera

SC20K76291

3Camera, HD W /Single MIC, AVC HAA-8F4A02 HD

NB camera

SC20K75696 N

3Camera, 0.3M W/ Single MIC, BIS BNCGVTKTL 0.3M

NB camera

SC20K75693 N

3Camera, 0.3M W/ Single MIC, CCY CNFF024 0.3M NB

camera

SC20K75687

3Camera, 0.3M W/ Single MIC, LTN 5SF009N2 0.3M NB

camera

SC20K76289

3Camera, 0.3M W/ Single MIC, AVC HAA-584B03 0.3M

NB camera

SC20K84861

4HINGE L+R L80SM

5H50L35870

5LCD Cover L80SM BK TEX W/ANTE EDP

5CB0L35815

5LCD Cover L80SM BK IMR W/ANTE EDP

5CB0L35899

5LCD Cover L80SM RED IMR W/ANTE EDP

5CB0L35860

5LCD Cover L80SM SR IMR W/ANTE EDP 5CB0L35856 N

5LCD Cover L80SM PL IMR W/ANTE EDP

5CB0L46876

5EDP CABLE L80SM 5C10L35864 N

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

15.6 Touch-in. HD TFT

Table 7. Parts list—15.6 Touch-in. HD TFT

No. FRU FRU no. CRU

1LCD BEZEL L80SM BK TEX W/CAMMYLAR 5B30L35831 N

2On cell Touch LCD, 15.6' On-cell HD TN GL Slim

Touch LCD, AU B156XTK01.0 HDT G S NB(T)

5D10K81094 N

2On cell Touch LCD, 15.6' On-cell HD TN GL Slim

Touch LCD, IN N156BGN-E41 HDT G S NB(T)

5D10K81098 N

3Camera, HD W /Single MIC, BIS BNCF1NKTK HD NB

camera

SC20K75690 N

3Camera, HD W /Single MIC, CCY CNFFH42 HD NB

camera

SC20K75697 N

3Camera, HD W /Single MIC, LTN 5SF128N2 HD NB

camera

SC20K76291 N

3Camera, HD W /Single MIC, AVC HAA-8F4A02 HD

NB camera

SC20K75696 N

3CAMERA L80SL HD W/1MIC 5C20L35738 N

5LCD COVER ASSY 15TS BLACK-TEX 5CB0L35938 N

6EDP CABLE L80SN 5C10L35941 N

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

Miscellaneous parts

Table 8. Parts list—Miscellaneous parts

FRU P/N CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310

Touch -

15ISK

System miscellaneous parts:

• (a) ODD BRACKET L80SL

• (b) ODD BEZEL L80SL

BLACK

• (c) HDD BRACKET L80SL

7MM W/SPONGE

• (c) HDD BRACKET L80SL

9.5MM W/SPONGE

• (c) HDD BRACKET L80SM

W/SPONGE

• (d) HDD DOOR L80SM

FOR 7MM HDD

• (d) HDD DOOR L80SM

FOR 9.5MM HDD

• (e) RAM Cover L80SL

Cable miscellaneous parts:

• (f) HDD FFC L80SL

CONNECT HDD AND

• (f) HDD FFC L80SM

CONNECT HDD AND

Note: Italicized letters in

parentheses are references to

the exploded view in “Overall”

on page 73.

5B40L35764

5B30L35799

5B40L35742

5B40L35773

5B40L35846

5CB0L35896

5CB0L35930

5CB0L35709

5C10L35800

5C10L35858

●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

Screws

Table 9. Parts list—Screws

FRU P/N CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310

Touch-

15ISK

ACLU1 Screw D-C/D-KB/

ODD-D-MB-KB/FAN

90205118 N ● ● ●

Screw L Y700-15ACZ Hinge

5S10K26863 N● ● ●

AILZA Screw

MM2D7.4+4.6LK3.5D1T

90203992 N ● ● ●

AILZA Screw M M 3.0D 3.0L

K 4.9D

90203986 N ● ● ●

ACLU1 Screw Panel-A/

MB-D/IO BD-D

90205117 N ● ● ●

Screw L300-IBR

2.5D3.5LK5.3D0.5T

5S10K14049 N●

QIQY5 SCREW

2D3LK4.5DZKNL+CR3+0.4T

90001118 N ● ● ●

ACLU1 Screw Hinge-D 90205119 N ● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

100

AC adapters

Table 10. Parts list—3-pin AC adapters

FRU P/N CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310

Touch-

15ISK

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Delta ADP-

45DW AA 20V2.25A adapter

5A10H43620 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Delta ADP-

45DW JA 20V2.25A adapter

5A10H43623 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Delta ADP-

45DW BA 20V2.25A adapter

5A10H43630 *●●●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Delta ADP-

45DW DA 20V2.25A adapter

5A10H43621 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Delta ADP-

45DW HA 20V2.25A adapter

5A10H43627 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Delta ADP-

45DW GA 20V2.25A adapter

5A10H43617 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Delta ADP-

45DW EA 20V2.25A adapter

5A10H43626 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Delta ADP-

45DW CA 20V2.25A adapter

5A10H43632 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Delta ADP-

45DW KA 20V2.25A adapter

5A10H43624 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Liteon PA-

1450-55LN 20V2.25A

adapter

5A10H42921 *● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

101

Table 10. Parts list—3-pin AC adapters (continued)

FRU P/N CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310

Touch-

15ISK

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Liteon PA-

1450-55LG 20V2.25A adapter

5A10H42920 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Liteon PA-

1450-55LL 20V2.25A adapter

5A10H42923 *●●●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Liteon PA-

1450-55LK 20V2.25A adapter

5A10H42917 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Liteon PA-

1450-55LI 20V2.25A adapter

5A10H42926 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Liteon PA-

1450-55LR 20V2.25A adapter

5A10H42919 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Liteon PA-

1450-55LS 20V2.25A adapter

5A10H42922 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Liteon PA-

1450-55LU 20V2.25A adapter

5A10H42925 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Liteon PA-

1450-55LZ 20V2.25A adapter

5A10H42918 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Chicony

ADL45WCA 20V2.25A

adapter

5A10H43629 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Chicony

ADL45WCB 20V2.25A

adapter

5A10H43618 *● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

102

Table 10. Parts list—3-pin AC adapters (continued)

FRU P/N CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310

Touch-

15ISK

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Chicony

ADL45WCC 20V2.25A

adapter

5A10H43625 *●●●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Chicony

ADL45WCD 20V2.25A

adapter

5A10H43631 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Chicony

ADL45WCK 20V2.25A

adapter

5A10H43619 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Chicony

ADL45WCE 20V2.25A

adapter

5A10H43633 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Chicony

ADL45WCF 20V2.25A

adapter

5A10H43622 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Chicony

ADL45WCG 20V2.25A

adapter

5A10H43628 *● ●

Adapter, 45W wall mount

with round plug ( Low cost

45w Adapter), Chicony

ADL45WCH 20V2.25A

adapter

5A10H43616 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Delta

ADLX65CDGC2A 20V3.25A

adapter

5A10K78762 *● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

103

Table 10. Parts list—3-pin AC adapters (continued)

FRU P/N CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310

Touch-

15ISK

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Delta

ADLX65CDGG2A 20V3.25A

adapter

5A10K78739 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Delta

ADLX65CDGU2A 20V3.25A

adapter

5A10K78742 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Delta

ADLX65CDGK2A 20V3.25A

adapter

5A10K78743 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Delta

ADLX65CDGI2A 20V3.25A

adapter

5A10K78759 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Delta

ADLX65CDGR2A 20V3.25A

adapter

5A10K78748 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Delta

ADLX65CDGA2A 20V3.25A

adapter

5A10K78741 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Delta

ADLX65CDGE2A 20V3.25A

adapter

5A10K78753 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Delta

ADLX65CDGB2A 20V3.25A

adapter

5A10K78754 *● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

104

Table 10. Parts list—3-pin AC adapters (continued)

FRU P/N CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310

Touch-

15ISK

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Liteon

ADLX65CLGC2A 20V3.25A

adapter

5A10K78736 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Liteon

ADLX65CLGG2A 20V3.25A

adapter

5A10K78749 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Liteon

ADLX65CLGU2A 20V3.25A

adapter

5A10K78745 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Liteon

ADLX65CLGK2A 20V3.25A

adapter

5A10K78750 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Liteon

ADLX65CLGI2A 20V3.25A

adapter

5A10K78740 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Liteon

ADLX65CLGR2A 20V3.25A

adapter

5A10K78746 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Liteon

ADLX65CLGA2A 20V3.25A

adapter

5A10K78758 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Liteon

ADLX65CLGE2A 20V3.25A

adapter

5A10K78752 *● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-15ISK/

105

Table 10. Parts list—3-pin AC adapters (continued)

FRU P/N CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310

Touch-

15ISK

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Liteon

ADLX65CLGB2A 20V3.25A

adapter

5A10K78755 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Chicony

ADLX65CCGC2A 20V3.25A

adapter

5A10K78744 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Chicony

ADLX65CCGG2A 20V3.25A

adapter

5A10K78756 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Chicony

ADLX65CCGU2A 20V3.25A

adapter

5A10K78761 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Chicony

ADLX65CCGK2A 20V3.25A

adapter

5A10K78757 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Chicony

ADLX65CCGI2A 20V3.25A

adapter

5A10K78760 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Chicony

ADLX65CCGR2A 20V3.25A

adapter

5A10K78747 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Chicony

ADLX65CCGA2A 20V3.25A

adapter

5A10K78737 *● ●

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

106

Table 10. Parts list—3-pin AC adapters (continued)

FRU P/N CRU

ideapad

310-

14ISK

ideapad

310-

15ISK/

ideapad

310-

15ABR

ideapad

310

Touch-

15ISK

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Chicony

ADLX65CCGE2A 20V3.25A

adapter

5A10K78751 *● ●

Adapter, 65W wall mount

with round plug (Low cost

65W Adapter), Chicony

ADLX65CCGB2A 20V3.25A

adapter

5A10K78738 *● ●

Notices

107

Lenovo may not offer the products, services, or features discussed in this

document in all countries. Consult your local Lenovo representative for

information on the products and services currently available in your area. Any

reference to a Lenovo product, program, or service is not intended to state or

imply that only that Lenovo product, program, or service may be used. Any

functionally equivalent product, program, or service that does not infringe any

Lenovo intellectual property right may be used instead. However, it is the user’s

responsibility to evaluate and verify the operation of any other product,

program, or service.

Lenovo may have patents or pending patent applications covering subject

matter described in this document. The furnishing of this document does not

give you any license to these patents.

LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS” WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-

INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. Some jurisdictions do not allow disclaimer of express or implied

warranties in certain transactions, therefore, this statement may not apply to

you.

This information could include technical inaccuracies or typographical errors.

Changes are periodically made to the information herein; these changes will be

incorporated in new editions of the publication. Lenovo may make

improvements and/or changes in the product(s) and/or the program(s)

described in this publication at any time without notice.

The products described in this document are not intended for use in

implantation or other life support applications where malfunction may result in

injury or death to persons. The information contained in this document does not

affect or change Lenovo product specifications or warranties. Nothing in this

document shall operate as an express or implied license or indemnity under the

intellectual property rights of Lenovo or third parties. All information contained

in this document was obtained in specific environments and is presented as an

illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it

believes appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for

convenience only and do not in any manner serve as an endorsement of those

Web sites. The materials at those Web sites are not part of the materials for this

Lenovo product, and use of those Web sites is at your own risk.

Notices

Lenovo ideapad 310-14ISK/ideapad 310-15ISK/ideapad 310 Touch-

15ISK/ideapad 310-15ABR Hardware Maintenance Manual

108

Any performance data contained herein was determined in a controlled

environment. Therefore, the result obtained in other operating environments

may vary significantly. Some measurements may have been made on

development-level systems and there is no guarantee that these measurements

will be the same on generally available systems. Furthermore, some

measurements may have been estimated through extrapolation. Actual results

may vary. Users of this document should verify the applicable data for their

specific environment.

The following terms are trademarks or registered trademarks of Lenovo in the

United States, other countries, or both.

Lenovo

OneKey

Microsoft and Windows are trademarks of Microsoft Corporation in the United

States, other countries, or both.

Other company, products, or service names may be trademarks or service marks

of others.

Trademarks

Lenovo Ideapad 310 14Isk 15Isk 310Touch 15Abr Hmm 201606 User Manual Hardware Maintenance Notebook Laptop (ideapad) Type 80ST

Navigation menu

Versions of this User Manual:

Views

Navigation
