Lenovo IdeaPad
Yoga 11S
Hardware
Maintenance
Manual
Note:
Before using this information and the product it supports, be sure to read the general information under
“Notices” on page 72.
First Edition (April. 2013)
© Copyright Lenovo 2013. All rights reserved.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.
© 2013 Lenovo
iii
Contents
About this manual ....................................... iv
Safety information ........................................ 1
General safety ................................................ 2
Electrical safety .............................................. 3
Safety inspection guide .................................. 5
Handling devices that are sensitive to
electrostatic discharge .................................... 6
Grounding requirements ................................. 6

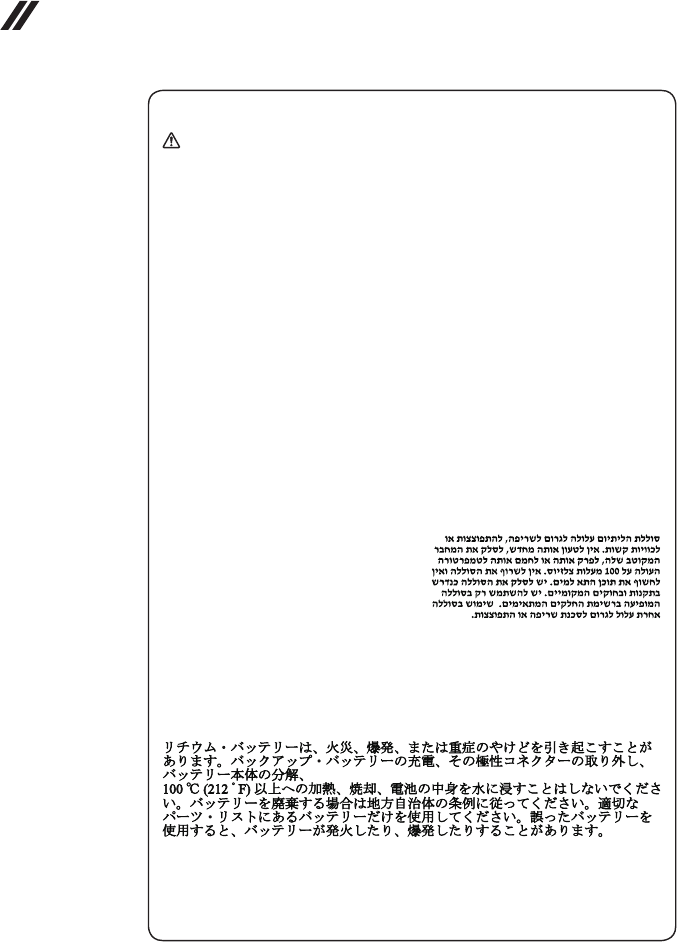

Safety notices: multilingual translations.......... 7

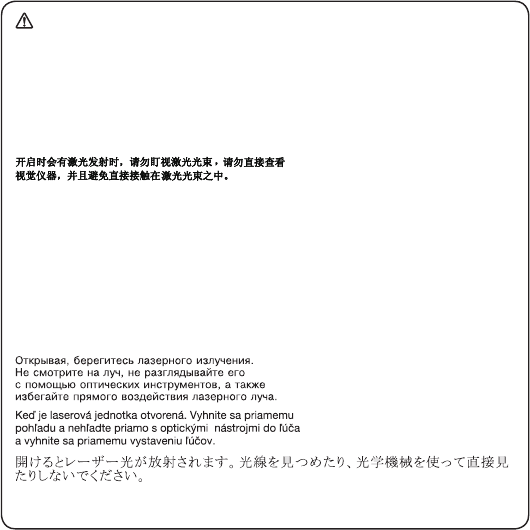

Laser compliance statement......................... 14
Important service information ................... 16
Strategy for replacing FRUs ......................... 16
Important notice for replacing a system board 17
Important information about replacing RoHS
compliant FRUs ............................................ 18
General checkout ...................................... 19
What to do rst ............................................. 20
Power system checkout................................ 21

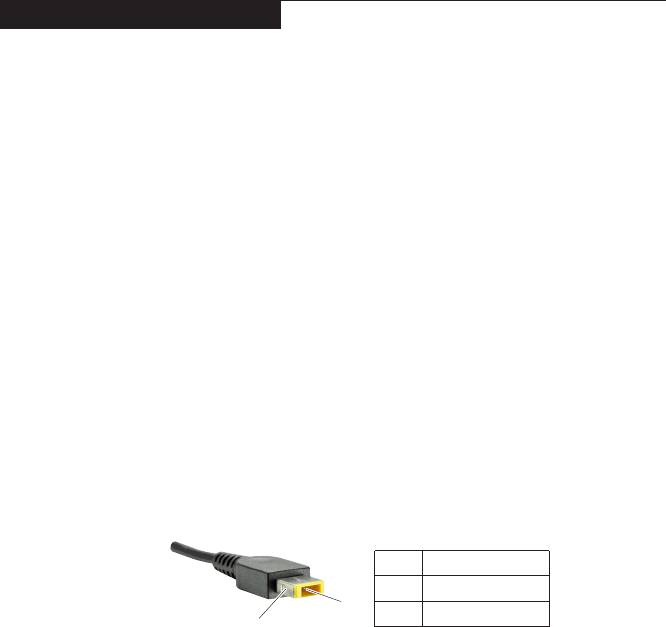

Checking the AC adapter .................................21
Checking operational charging .........................21
Related service information ...................... 23
Restoring the factory contents by using OneKey
Recovery ...................................................... 23
Restore of factory default .................................23
Passwords .................................................... 24
Power-on password .......................................... 24
Supervisor password .......................................24
Power management ..................................... 25
Screen blank mode ...........................................25
Sleep (standby) mode ......................................25
Lenovo IdeaPad Yoga 11S ......................... 26
Specications ............................................... 26
Status indicators ........................................... 28
Function key combinations ........................... 29
FRU replacement notices ............................. 30
Screw notices ..................................................30
Removing and replacing an FRU ................. 31

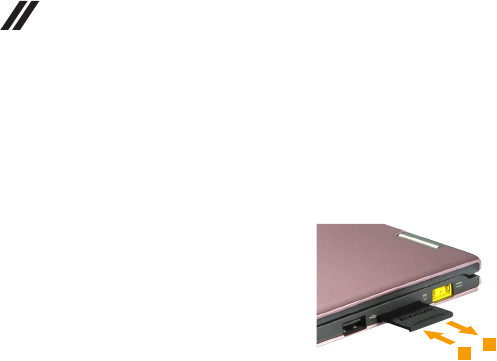

1010 Dummy card ............................................32
1020 Keyboard .................................................33

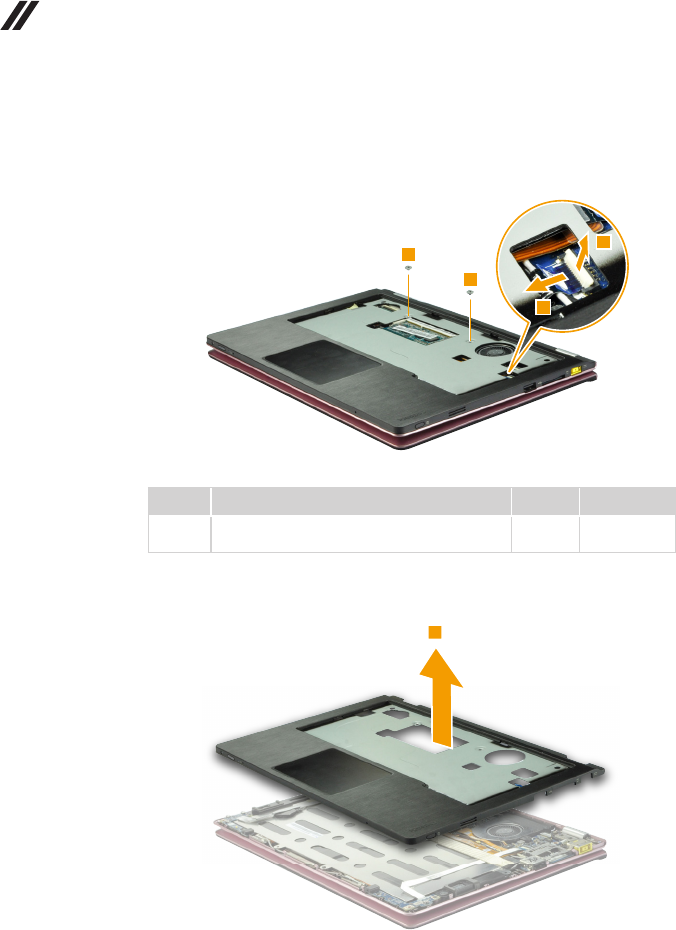

1030 Keyboard bezel ........................................35
1040 Power board and rotation button board ...37

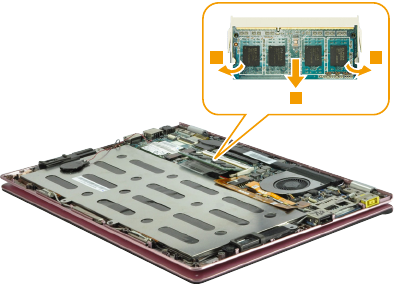

1050 DIMM .......................................................39
1060 Battery pack .............................................40

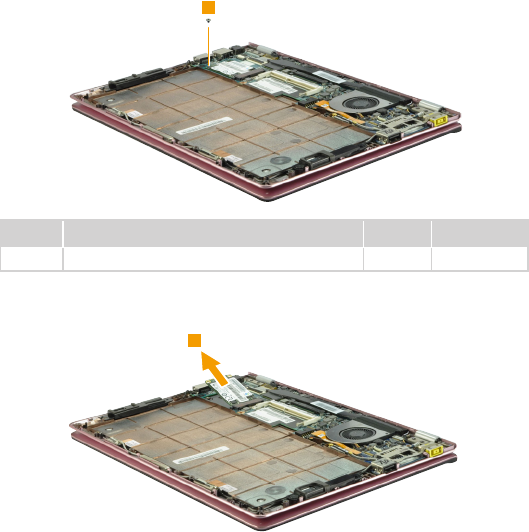

1070 SSD .........................................................43
1080 PCI Express Mini Card for wireless LAN .44

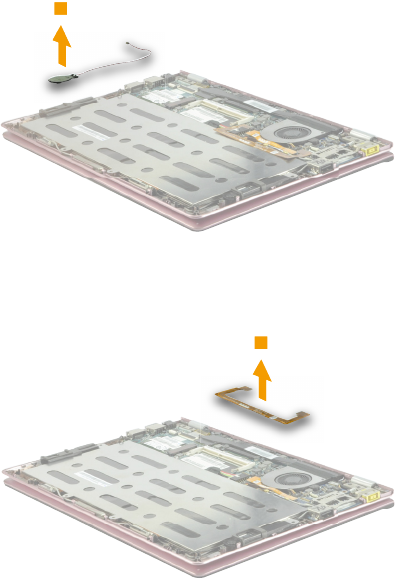

1090 Speakers .................................................46

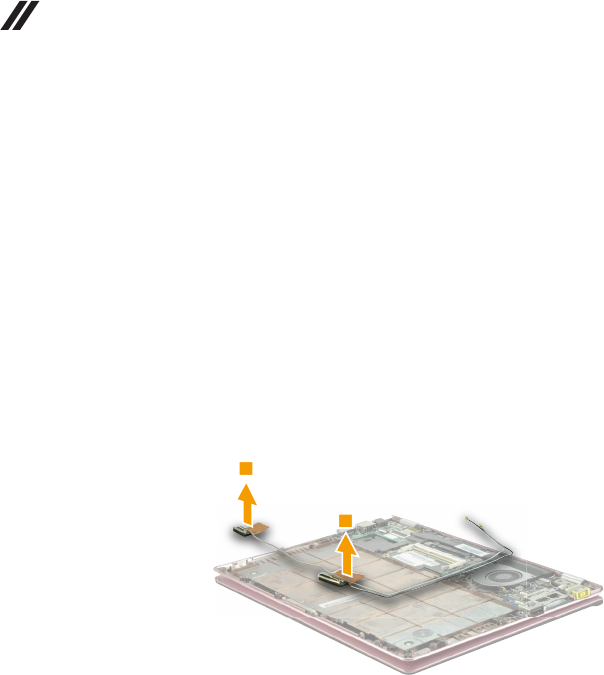

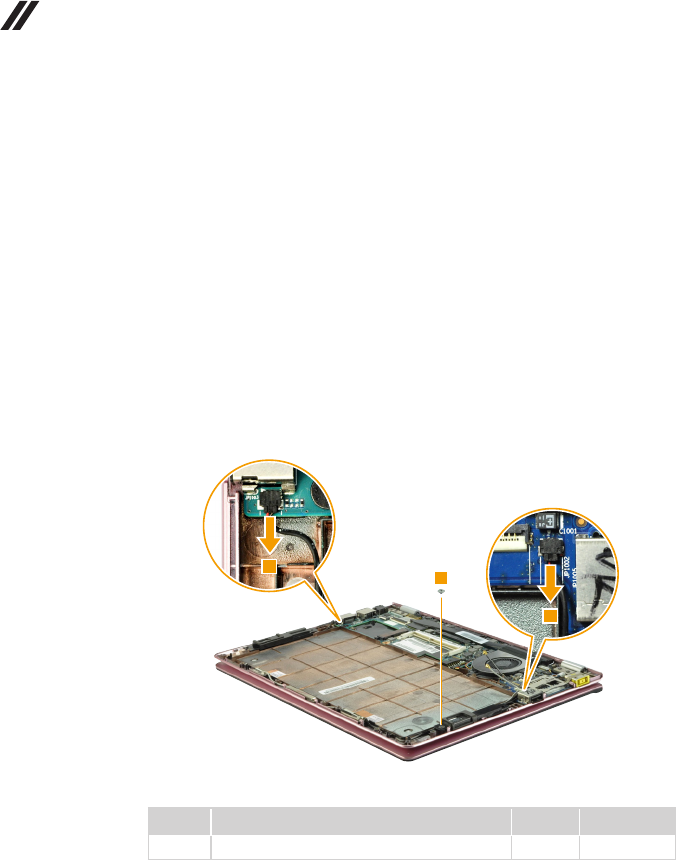

1100 Antenna assembly....................................48
1110 Fan and Heat Sink assembly ...................49
1120

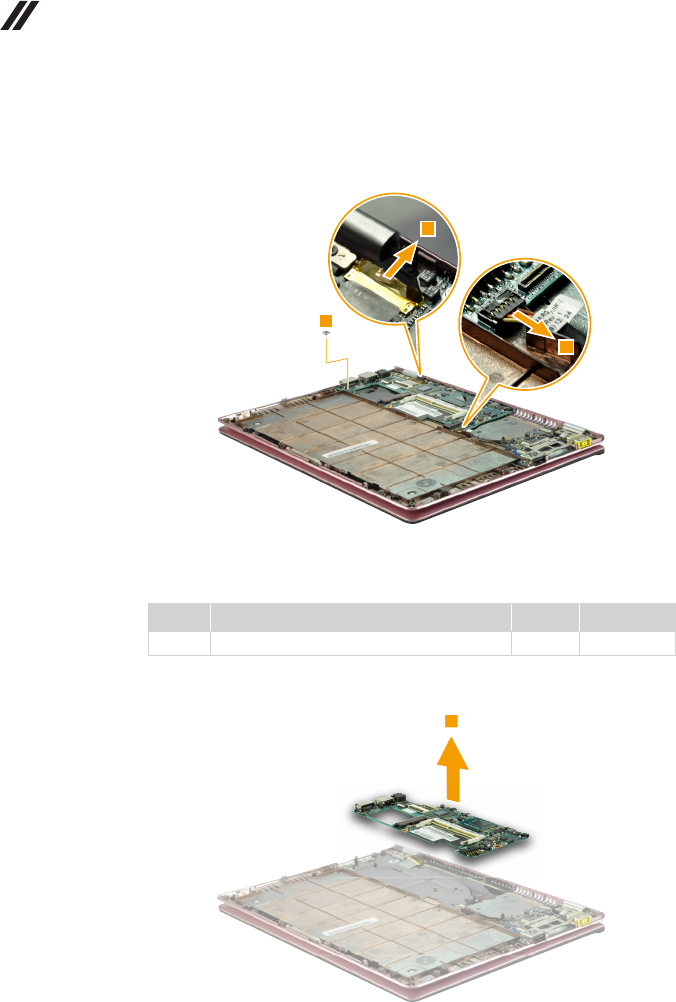

System board ............................................ 51
1130
IO board and DC-in board ......................... 53
1140 LCD unit ................................................... 55
Locations ...................................................... 58

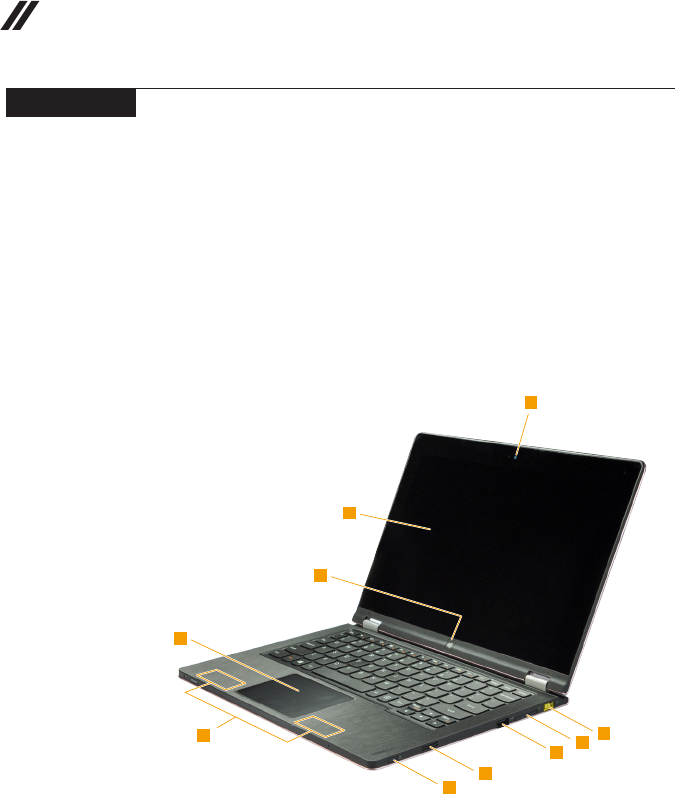

Front view and right-side view ..........................58

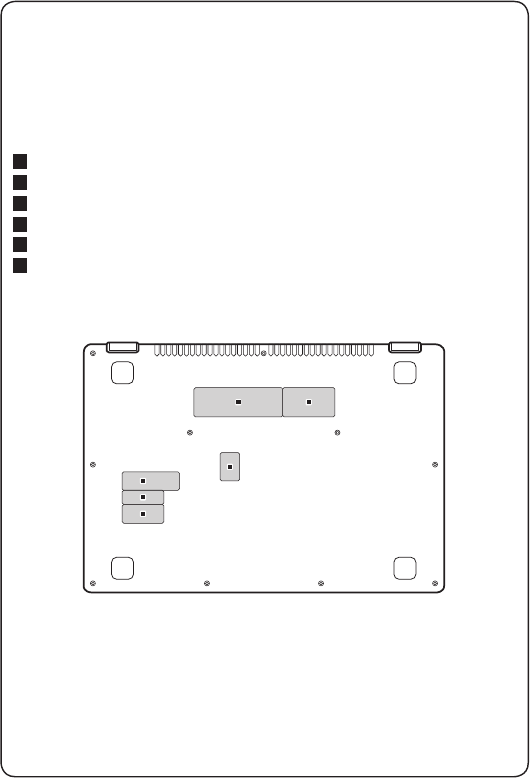

Bottom and Left-side view ...............................59
Parts list ........................................................ 60
Overall ..............................................................61
Keyboard ..........................................................64
Miscellaneous parts .......................................... 66
Screws .............................................................. 67
AC adapters ......................................................68
Table 9. Parts list—Miscellaneous parts ......... 68
Power cords ......................................................69
Notices......................................................... 72
Trademarks .................................................. 73
iv
About this manual
This manual contains service and reference information for the following
Lenovo IdeaPad product:
Lenovo IdeaPad Yoga 11S
Use this manual to troubleshoot problems.
The manual is divided into the following sections:
• The common sections provide general information, guidelines, and safety
information required for servicing computers.
• The product-specic section includes service, reference, and product-specic
parts information.
Important:
This manual is intended only for trained servicers who are familiar with Lenovo
IdeaPad products. Use this manual to troubleshoot problems effectively.
Before servicing a Lenovo IdeaPad product, make sure to read all the information
under “Safety information” on page 1 and “Important service information” on page
16.
1
Safety information
Safety information
This chapter presents the following safety information that you need to get
familiar with before you service an Lenovo IdeaPad Yoga 11S computer:
• “General safety” on page 2
• “Electrical safety” on page 3
• “Safety inspection guide” on page 5
• “Handling devices that are sensitive to electrostatic discharge” on page 6
• “Grounding requirements” on page 6
• “Safety notices: multilingual translations” on page 7
• “Laser compliance statement” on page 14
2
IdeaPad Yoga 11S Hardware Maintenance Manual
General safety
Follow these rules below to ensure general safety:
• Observe a good housekeeping in the area where the machines are put
during and after the maintenance.
• When lifting any heavy object:
1. Make sure that you can stand safely without slipping.
2. Distribute the weight of the object equally between your feet.
3. Use a slow lifting force. Never move suddenly or twist when you attempt
to lift it.
4. Lift it by standing or pushing up with your leg muscles; this action could
avoid the strain from the muscles in your back. Do not attempt to lift any
object that weighs more than 16 kg (35 lb) or that you think is too heavy
for you.
• Do not perform any action that causes hazards to the customer, or that
makes the machine unsafe.
• Before you start the machine, make sure that other service representatives
and the customer are not in a hazardous position.
• Place removed covers and other parts in a safe place, keeping them away
from all personnel, while you are servicing the machine.
• Keep your toolcase away from walk areas so that other people will not trip it
over.
• Do not wear loose clothing that can be trapped in the moving parts of the
machine. Make sure that your sleeves are fastened or rolled up above your
elbows. If your hair is long, fasten it.
• Insert the ends of your necktie or scarf inside clothing or fasten it with the
nonconductive clip, about 8 centimeters (3 inches) from the end.
• Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for
your clothing.
Attention: Metal objects are good electrical conductors.
• Wear safety glasses when you are hammering, drilling, soldering, cutting
wire, attaching springs, using solvents, or working in any other conditions
that may be hazardous to your eyes.
• After service, reinstall all safety shields, guards, labels, and ground wires.
Replace any safety device that is worn or defective.
• Reinstall all covers correctly before returning the machine to the customer.
• Fan louvers on the machine help to prevent the overheating of internal
components. Do not obstruct fan louvers or cover them with labels or
stickers.
3
Safety information
Electrical safety
Observe the following rules when working on electrical equipments.
Important:
Use only approved tools and test equipments. Some hand tools have handles
covered with a soft material that does not insulate you when working with live
electrical currents.
Many customers have rubber floor mats near their machines that contain small
conductive bers to decrease electrostatic discharges. Do not use such kind of mat
to protect yourself from electrical shock.
• Find the room emergency power-off (EPO) switch, disconnecting the switch
or electrical outlet. If an electrical accident occurs, you can then operate the
switch or unplug the power cord quickly.
• Do not work alone under hazardous conditions or near the equipment that
has hazardous voltages.
• Disconnect all power before:
– Performing a mechanical inspection
– Working near power supplies
– Removing or installing main units
• Before you start to work on the machine, unplug the power cord. If you
cannot unplug it, ask the customer to power-off the wall box that supplies
power to the machine, and to lock the wall box in the off position.
• If you need to work on a machine that has exposed electrical circuits,
observe the following precautions:
– Ensure that another person, familiar with the power-off controls, is near
you.
Attention: Another person must be there to switch off the power, if
necessary.
– Use only one hand when working with powered-on electrical equipment;
keep the other hand in your pocket or behind your back.
Attention: An electrical shock can occur only when there is a complete
circuit. By observing the above rule, you may prevent a current from
passing through your body.
– When using testers, set the controls correctly and use the approved
probe leads and accessories for that tester.
– Stand on suitable rubber mats (obtained locally, if necessary) to insulate
you from grounds such as metal oor strips and machine frames.
Observe the special safety precautions when you work with very high voltages;
instructions for these precautions are in the safety sections of maintenance
information. Be extremely careful when you measure the high voltages.
• Regularly inspect and maintain your electrical hand tools for safe operational
condition.
• Do not use worn or broken tools and testers.
• Never assume that power has been disconnected from a circuit. First, check
it to make sure that it has been powered off.
4
IdeaPad Yoga 11S Hardware Maintenance Manual
• Always look carefully for possible hazards in your work area. Examples of
these hazards are moist oors, nongrounded power extension cables, power
surges, and missing safety grounds.
• Do not touch live electrical circuits with the reflective surface of a plastic
dental mirror. The surface is conductive; such touching can cause personal
injury and machine damage.
• Do not service the following parts with the power on when they are removed
from their normal operating places in a machine:
– Power supply units
– Pumps
– Blowers and fans
– Motor generators
and similar units. (This practice ensures correct grounding of the units.)
• If an electrical accident occurs:
– Caution: do not become a victim yourself.
– Switch off the power.
– Send the victim to get medical aid.
5
Safety information
Safety inspection guide
The purpose of this inspection guide is to assist you in identifying potential
unsafe conditions. As each machine was designed and built, required safety
items were installed to protect users and service personnel from injury. This
guide addresses only those items. You should use good judgment to identify
potential safety hazards according to the attachment of non-Lenovo IdeaPad
features or options not covered by this inspection guide.
If any unsafe conditions are present, you must determine how serious the
apparent hazard could be and whether you can continue without rst correcting
the problem.
Consider these conditions and the safety hazards they present:
• Electrical hazards, especially primary power (primary voltage on the frame
can cause serious or fatal electrical shock)
• Explosive hazards, such as a damaged CRT face or a bulging capacitor
• Mechanical hazards, such as loose or missing hardware
To determine whether there are any potential unsafe conditions, use the
following checklist at the beginning of every service task. Begin the checks with
the power off, and the power cord disconnected.
Checklist:
1. Check exterior covers for damage (loose, broken, or sharp edges).
2. Turn off the computer. Disconnect the power cord.
3. Check the power cord for:
a. A third-wire ground connector in good condition. Use a meter to measure
third-wire ground continuity for 0.1 ohm or less between the external
ground pin and the frame ground.
b. The power cord should be the type specied in the parts list.
c. Insulation must not be frayed or worn.
4. Check for cracked or bulging batteries.
5. Remove the cover.
6. Check for any obvious non-Lenovo IdeaPad alterations. Use good judgment
as to the safety of any non-Lenovo IdeaPad alterations.
7. Check inside the unit for any obvious unsafe conditions, such as metal
filings, contamination, water or other liquids, or signs of fire or smoke
damage.
8. Check for worn, frayed, or pinched cables.
9. Check that the power-supply cover fasteners (screws or rivets) have not
been removed or tampered with.
6
IdeaPad Yoga 11S Hardware Maintenance Manual
Handling devices that are sensitive to electrostatic discharge
Any computer part containing transistors or integrated circuits (ICs) should be
considered sensitive to electrostatic discharge (ESD). ESD damage can occur
when there is a difference in charge between objects. Protect against ESD
damage by equalizing the charge so that the machine, the part, the work mat,
and the person handling the part are all at the same charge.
Notes:
1. Use product-specific ESD procedures when they exceed the requirements
noted here.
2. Make sure that the ESD protective devices you use have been certied (ISO
9000) as fully effective.
When handling ESD-sensitive parts:
• Keep the parts in protective packages until they are inserted into the product.
• Avoid contact with other people.
• Wear a grounded wrist strap against your skin to eliminate static on your
body.
• Prevent the part from touching your clothing. Most clothing is insulative and
retains a charge even when you are wearing a wrist strap.
• Use the black side of a grounded work mat to provide a static-free work
surface. The mat is especially useful when handling ESD-sensitive devices.
• Select a grounding system, such as those listed below, to provide protection
that meets the specic service requirement.
Note:
The use of a grounding system to guard against ESD damage is desirable but not
necessary.
– Attach the ESD ground clip to any frame ground, ground braid, or green-
wire ground.
– When working on a double-insulated or battery-operated system, use an
ESD common ground or reference point. You can use coax or connector-
outside shells on these systems.
– Use the round ground prong of the ac plug on ac-operated computers.
Grounding requirements
Electrical grounding of the computer is required for operator safety and correct
system function. Proper grounding of the electrical outlet can be veried by a
certied electrician.
7
Safety information
Safety notices: multilingual translations
The safety notices in this section are provided in English, French, German,
Hebrew, Italian, Japanese, and Spanish.
Safety notice 1
Before the computer is powered on after FRU replacement, make sure all screws,
springs, and other small parts are in place and are not left loose inside the
computer. Verify this by shaking the computer and listening for rattling sounds.
Metallic parts or metal akes can cause electrical shorts.
Avant de remettre l’ordinateur sous tension après remplacement d’une unité en
clientèle, vériez que tous les ressorts, vis et autres pièces sont bien en place et
bien xées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun bruit suspect
ne se produit. Des pièces métalliques ou des copeaux de métal pourraient causer
un court-circuit.
Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird,
muß sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile
fehlen oder im Gehäuse vergessen wurden. Der Computer muß geschüttelt und auf
Klappergeräusche geprüft werden. Metallteile oder-splitter können Kurzschlüsse
erzeugen.
Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di una
FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole dimensioni
siano nella corretta posizione e non siano sparse all’interno dell’elaboratore.
Vericare ciò scuotendo l’elaboratore e prestando attenzione ad eventuali rumori;
eventuali parti o pezzetti metallici possono provocare cortocircuiti pericolosi.
Antes de encender el sistema despues de sustituir una FRU, compruebe que
todos los tornillos, muelles y demás piezas pequeñas se encuentran en su sitio
y no se encuentran sueltas dentro del sistema. Compruébelo agitando el sistema
y escuchando los posibles ruidos que provocarían. Las piezas metálicas pueden
causar cortocircuitos eléctricos.
8
IdeaPad Yoga 11S Hardware Maintenance Manual
Safety notice 2
DANGER
Some standby batteries contain a small amount of nickel and cadmium. Do not
disassemble a standby battery, recharge it, throw it into fire or water, or short-
circuit it. Dispose of the battery as required by local ordinances or regulations.
Use only the battery in the appropriate parts listing. Use of an incorrect battery can
result in ignition or explosion of the battery.
Certaines batteries de secours contiennent du nickel et du cadmium. Ne les
démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne
les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à la
réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde ou celle
de l’horloge temps réel, veillez à n’utiliser que les modèles cités dans la liste de
pièces détachées adéquate. Une batterie ou une pile inappropriée risque de prendre
feu ou d’exploser.
Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet,
kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nicht zerlegt,
wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden.
Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim
Ersetzen der Bereitschafts-oder Systembatterie nur Batterien des Typs verwenden,
der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu
Entzündung oder Explosion führen.
Alcune batterie di riserva contengono una piccola quantità di nichel e cadmio.
Non smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né cortocircuitarle.
Smaltirle secondo la normativa in vigore (DPR 915/82, successive disposizioni e
disposizioni locali). Quando si sostituisce la batteria dell’RTC (real time clock) o
la batteria di supporto, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo
parti. L’impiego di una batteria non adatta potrebbe determinare l’incendio o
l’esplosione della batteria stessa.
Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio.
No las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite.
Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se
encuentren en la lista de piezas. La utilización de una batería no apropiada puede
provocar la ignición o explosión de la misma.
9
Safety information
Safety notice 3
DANGER
The battery pack contains small amounts of nickel. Do not disassemble it, throw
it into re or water, or short-circuit it. Dispose of the battery pack as required by
local ordinances or regulations. Use only the battery in the appropriate parts listing
when replacing the battery pack. Use of an incorrect battery can result in ignition
or explosion of the battery.
La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni à l’eau.
Ne la mettez pas en court-circuit. Pour la mettre au rebut, conformez-vous à la
réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n’utiliser
que les modèles cités dans la liste de pièces détachées adéquate. En effet, une
batterie inappropriée risque de prendre feu ou d’exploser.
Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,
wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden.
Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim
Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste
aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion
führen.
La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel fuoco
o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in vigore (DPR
915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la
batteria, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego
di una batteria non adatta potrebbe determinare l’incendio o l’esplosione della
batteria stessa.
Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni
recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como
dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de
piezas al sustituir la batería. La utilización de una batería no apropiada puede
provocar la ignición o explosión de la misma.
10
IdeaPad Yoga 11S Hardware Maintenance Manual
Safety notice 4
DANGER
The lithium battery can cause a fire, an explosion, or a severe burn. Do not
recharge it, remove its polarized connector, disassemble it, heat it above 100°C
(212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as
required by local ordinances or regulations. Use only the battery in the appropriate
parts listing. Use of an incorrect battery can result in ignition or explosion of the
battery.
La pile de sauvegarde contient du lithium. Elle présente des risques d’incendie,
d’explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son
connecteur polarisé et ne la démontez pas. Ne l’exposez pas à une temperature
supérieure à 100°C, ne la faites pas brûler et n’en exposez pas le contenu à l’eau.
Mettez la pile au rebut conformément à la réglementation en vigueur. Une pile
inappropriée risque de prendre feu ou d’exploser.
Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden, explodieren
oder schwere Verbrennungen hervorrufen. Batterien dieses Typs dürfen nicht
aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden. Auch darf ihr
Inhalt nicht mit Wasser in Verbindung gebracht oder der zur richtigen Polung
angebrachte Verbindungsstecker entfernt werden. Bei der Entsorgung die örtlichen
Bestimmungen für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien
des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher
Batterien kann zu Entzündung oder Explosion führen.
La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o
procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore polarizzato,
smontarla, riscaldarla ad una temperatura superiore ai 100 gradi centigradi,
incendiarla o gettarla in acqua. Smaltirla secondo la normativa in vigore (DPR
915/82, successive disposizioni e disposizioni locali). L’impiego di una batteria
non adatta potrebbe determinare l’incendio o l’esplosione della batteria stessa.
La batería de repuesto es una batería de litio y puede provocar incendios,
explosiones o quemaduras graves. No la recargue, ni quite el conector polarizado,
ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la incinere ni
exponga el contenido de sus celdas al agua. Deséchela tal como dispone la
normativa local.
11
Safety information
Safety notice 5
If the LCD breaks and the uid from inside the LCD gets into your eyes or on your
hands, immediately wash the affected areas with water at least for 15 minutes.
Seek medical care if any symptoms caused by the uid are present after washing.
Si le panneau d’afchage à cristaux liquides se brise et que vous recevez dans les
yeux ou sur les mains une partie du uide, rincez-les abondamment pendant au
moins quinze minutes. Consultez un médecin si des symptômes persistent après le
lavage.
Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der Entsorgung
die örtlichen Bestimmungen für Sondermüll beachten. Der LCD-Bildschirm
besteht aus Glas und kann zerbrechen, wenn er unsachgemäß behandelt wird
oder der Computer auf den Boden fällt. Wenn der Bildschirm beschädigt ist und
die darin befindliche Flüssigkeit in Kontakt mit Haut und Augen gerät, sollten
die betroffenen Stellen mindestens 15 Minuten mit Wasser abgespült und bei
Beschwerden anschließend ein Arzt aufgesucht werden.
Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto
entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti
interessate con acqua corrente per almeno 15 minuti; poi consultare un medico se i
sintomi dovessero permanere.
Si la LCD se rompe y el uido de su interior entra en contacto con sus ojos o sus
manos, lave inmediatamente las áreas afectadas con agua durante 15 minutos
como mínimo. Obtenga atención medica si se presenta algún síntoma del uido
despues de lavarse.
12
IdeaPad Yoga 11S Hardware Maintenance Manual
Safety notice 6
DANGER
To avoid shock, do not remove the plastic cover that protects the lower part of the
inverter card.
An d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique
protégeant la partie inférieure de la carte d’alimentation.
Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der
Spannungswandlerplatine umgibt, nicht entfernen.
Per evitare scosse elettriche, non rimuovere la copertura in plastica che avvolge la
parte inferiore della scheda invertitore.
Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la
tarjeta invertida.
Safety notice 7
DANGER
Though the main batteries have low voltage, a shorted or grounded battery can
produce enough current to burn personnel or combustible materials.
Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la
mise à la masse d’une batterie peut produire sufsamment de courant pour brûler
des matériaux combustibles ou causer des brûlures corporelles graves.
Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei
Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu
entzünden oder Verletzungen bei Personen hervorzurufen.
Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in
corto circuito o a massa può fornire corrente sufficiente da bruciare materiali
combustibili o provocare ustioni ai tecnici di manutenzione.
Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada
o con contacto a tierra puede producir la corriente suciente como para quemar
material combustible o provocar quemaduras en el personal.
13
Safety information
Safety notice 8
DANGER
Before removing any FRU, turn off the computer, unplug all power cords from
electrical outlets, remove the battery pack, and then disconnect any interconnecting
cables.
Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension,
débranchez tous les cordons d’alimentation des socles de prise de courant, retirez
la batterie et déconnectez tous les cordons d’interface.
Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose gezogen,
der Akku entfernt und alle Verbindungskabel abgenommen sein, bevor eine FRU
entfernt wird.
Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese
elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare i cavi
di interconnessione.
Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de
las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte
cualquier cable de conexión entre dispositivos.
14
IdeaPad Yoga 11S Hardware Maintenance Manual
Laser compliance statement
Some models of Lenovo IdeaPad computer are equipped from the factory with
an optical storage device such as a CD-ROM drive or a DVD-ROM drive. Such
devices are also sold separately as options. If one of these drives is installed,
it is certied in the U.S. to conform to the requirements of the Department of
Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR)
Subchapter J for Class 1 laser products. Elsewhere, the drive is certified to
conform to the requirements of the International Electrotechnical Commission
(IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.
If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note
the following:
CAUTION
Use of controls or adjustments or performance of procedures other than those
specied herein might result in hazardous radiation exposure.
O uso de controles, ajustes ou desempenho de procedimentos diferentes daqueles
aqui especicados pode resultar em perigosa exposição à radiação.
Pour éviter tout risque d’exposition au rayon laser, respectez les consignes de
réglage et d’utilisation des commandes, ainsi que les procédures décrites.
Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet, kann
gefährliche Laserstrahlung auftreten.
L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da quelle
specicate possono provocare l’esposizione a.
El uso de controles o ajustes o la ejecución de procedimientos distintos de los aquí
especicados puede provocar la exposición a radiaciones peligrosas.
Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage
device could result in exposure to hazardous laser radiation. There are no
serviceable parts inside those drives. Do not open.
15
Safety information
A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may
contain an embedded Class 3A or Class 3B laser diode. Note the following:
DANGER
Emits visible and invisible laser radiation when open. Do not stare into the beam,
do not view directly with optical instruments, and avoid direct exposure to the
beam.
Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe
diretamente por meio de instrumentos óticos e evite exposição direta com o feixe
de luz.
Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder
directement avec des instruments optiques, ou de vous exposer au rayon.
Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische Instrumente
in den Laserstrahl sehen und den Strahlungsbereich meiden.
Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai
eszközökkel. Kerülje a sugárnyalábbal való érintkezést!
Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non
guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al fascio.
Radiación láser al abrir. No mire jamente ni examine con instrumental óptico el
haz de luz. Evite la exposición directa al haz.
16
IdeaPad Yoga 11S Hardware Maintenance Manual
Important service information
This chapter presents the following important service information:
• “Strategy for replacing FRUs” on page 16
– “Important notice for replacing a system board” on page 17
• “Important information about replacing RoHS compliant FRUs” on page 18
Important:
BIOS and device driver xes are customer-installable. The BIOS and device drivers
are posted on the customer support site:
http://support.lenovo.com.
Strategy for replacing FRUs
Before replacing parts:
Makesure thatallsoftware xes,drivers,and BIOSdownloadsare installed
before replacing any FRUs listed in this manual.
Afterasystemboardisreplaced,ensurethatthelatestBIOSisloadedtothe
system board before completing the service action.
Todownloadsoftwarexes,drivers,andBIOS,followthestepsbelow:
1. Go to http://support.lenovo.com.
2. Enter a serial number or select a product or use Lenovo smart downloading.
3. SelecttheBIOS/Driver/Applicationsanddownload.
4. Follow the directions on the screen and install the necessary software.
17
Important service information
Use the following strategy to prevent unnecessary expense for replacing and
servicing FRUs:
• If you are instructed to replace an FRU, but the replacement does not solve
the problem, reinstall the original FRU before you continue.
• Some computers have both a processor board and a system board. If you
are instructed to replace either of them, and replacing one of them does not
solve the problem, reinstall that board, and then replace the other one.
• If an adapter or a device consists of more than one FRU, any of the FRUs
may be the cause of the error. Before replacing the adapter or device,
remove the FRUs one by one to see if the symptoms change. Replace only
the FRU that changed the symptoms.
Attention: The setup configuration on the computer you are servicing may
have been customized. Running Automatic Configuration may alter the
settings. Note the current conguration settings (using the View Conguration
option); then, when service has been completed, verify that those settings
remain in effect.
Important notice for replacing a system board
Some components mounted on a system board are very sensitive. Improper
handling can cause damage to those components, and may cause a system
malfunction.
Attention: When handling a system board:
• Do not drop the system board or apply any excessive force to it.
• Avoid rough handling of any kind.
• Avoid bending the system board and hard pushing to prevent cracking at
each BGA (Ball Grid Array) chipset.
18
IdeaPad Yoga 11S Hardware Maintenance Manual
Important information about replacing RoHS compliant FRUs
RoHS, The Restriction of Hazardous Substances in Electrical and
Electronic Equipment Directive (2002/95/EC) is a European Union legal
requirement affecting the global electronics industry. RoHS requirements
must be implemented on Lenovo products placed on the market after
June 2006. Products on the market before June 2006 are not required to
have RoHS compliant parts. If the original FRU parts are non-compliant,
replacement parts can also be non-compliant. In all cases if the original
FRU parts are RoHS compliant, the replacement part must also be RoHS
compliant.
Note: RoHS and non-RoHS FRU part numbers with the same t and function
are identied with unique FRU part numbers.
Lenovo plans to transit to RoHS compliance well before the implementation
date and expects its suppliers to be ready to support Lenovo’s requirements
and schedule in the EU. Products sold in 2005 and 2006 will contain some
RoHS compliant FRUs. The following statement pertains to these products and
any product Lenovo produces containing RoHS compliant FRUs.
RoHS compliant FRUs have unique FRU part numbers. Before or after the
RoHS implementation date, failed RoHS compliant parts must always be
replaced with RoHS compliant ones, so only the FRUs identied as compliant
in the system HMM or direct substitutions for those FRUs may be used.
Products marketed before June 2006 Products marketed after June 2006
Current or
original part
Replacement FRU Current or
original part
Replacement FRU
Non-RoHS Can be Non-RoHS
Must be RoHS Must be RoHS
Non-RoHS Can be RoHS
Non-RoHS Can sub to RoHS
RoHS Must be RoHS
Note: A direct substitution is a part with a different FRU part number that is
automatically shipped by the distribution center at the time of the order.
19
General checkout
General checkout
This chapter presents the following information:
• “Whattodorst”onpage20
• “Powersystemcheckout”onpage21
Before you go to the checkout, make sure to read the following important notes:
Important notes:
• Onlycertiedtrainedpersonnelcanservicethecomputer.
• BeforereplacinganyFRU,readtheentirepageonremovingandreplacing
FRUs.
• CarefullyremovescrewsforreusewhenreplacingFRUs.
• Beextremelycarefulduringsuchwriteoperationsascopying,saving,or
formatting. Drives in the computer that you are servicing sequence might
have been altered. If you select an incorrect drive, data or programs might be
overwritten.
• ReplaceanFRUonlywithanotherFRUofthecorrectmodel. When you
replace an FRU, make sure that the machine model and the FRU part number are
correct by referring to the FRU parts list.
• AnFRUshouldnotbereplacedjustbecauseofasingle,unreproduciblefailure.
Single failures can occur for a variety of reasons that have nothing to do with a
hardware defect, such as cosmic radiation, electrostatic discharge, or software
errors. Consider replacing an FRU only when a problem recurs. If you suspect that
an FRU is defective, clear the error logs and run the test again. If the error does
not recur, do not replace the FRU.
• BecarefulnottoreplaceanondefectiveFRU.
20
IdeaPad Yoga 11S Hardware Maintenance Manual
What to do rst
When you do return an FRU, you must include the following information in the
parts exchange form or parts return form that you attach to it:
1. Name and phone number of servicer
2. Date of service
3. Date on which the machine failed
4. Date of purchase
5. Procedure index and page number in which the failing FRU was detected
6. Failing FRU name and part number
7. Machine type, model number, and serial number
8. Customer’s name and address
Note for warranty: During the warranty period, the customer may be
responsible for repair costs if the computer damage was caused by misuse,
accident, modification, unsuitable physical or operating environment, or
improper maintenance by the customer.
The following is a list of some common items that are not covered under
warranty and some symptoms that might indicate that the system was
subjected to stress beyond normal use.
Before checking problems with the computer, determine whether the damage is
covered under the warranty by referring to the following list:
The following are not covered under warranty:
• LCD panel cracked from the application of excessive force or from being
dropped
• Scratched (cosmetic) parts
• Distortion, deformation, or discoloration of the cosmetic parts
• Plastic parts, latches, pins, or connectors that have been cracked or broken
by excessive force
• Damage caused by liquid spilled into the system
• Damage caused by the improper insertion of a PC Card or the installation of
an incompatible card
• Improper disc insertion or use of an optical drive
• Diskette drive damage caused by pressure on the diskette drive cover,
foreign material in the drive, or the insertion of a diskette with multiple labels
• Damaged or bent diskette eject button
• Fuses blown by attachment of a nonsupported device
• Forgotten computer password (making the computer unusable)
• Sticky keys caused by spilling a liquid onto the keyboard
• Use of an incorrect AC adapter on laptop products
The following symptoms might indicate damage caused by nonwarranted
activities:
• Missing parts might be a symptom of unauthorized service or modication.
• If the spindle of a hard disk drive becomes noisy, it may have been subjected
to excessive force, or dropped.
21
General checkout
Power system checkout
To verify a symptom, follow the steps below:
1. Turn off the computer.
2. Connect the AC adapter.
3. Make sure that power is supplied when you turn on the computer.
4. Turn off the computer.
5. Disconnect the AC adapter.
6. Make sure that the battery pack supplies power when you turn on the
computer.
If you suspect a power problem, see the appropriate one of the following power
supply checkouts:
• “Checking the AC adapter” on page 21
• “Checking operational charging” on page 21
Checking the AC adapter
You are here because the computer fails only when the AC adapter is used.
• If the power-on indicator does not turn on, check the power cord of the AC
adapter for correct continuity and installation.
• If the computer does not charge during operation, go to “Checking
operational charging”.
To check the AC adapter, follow the steps below:
1. Unplug the AC adapter cable from the computer.
2. Measure the output voltage at the plug of the AC adapter cable. See the
following gure:
Voltage (V DC)
+20
0
Pin
1
2
1
2
Note: Output voltage for the AC adapter pin No. 2 may differ from the one you
are servicing.
3. If the voltage is not correct, replace the AC adapter.
4. If the voltage is acceptable, do the following:
• Replace the system board.
• If the problem continues, go to “Lenovo IdeaPad Yoga 11S” on page 26.
Note: Noise from the AC adapter does not always indicate a defect.
Checking operational charging
To check whether the battery charges properly during operation, use a
discharged battery pack or a battery pack that has less than 50% of the total
power remaining when installed in the computer.
22
IdeaPad Yoga 11S Hardware Maintenance Manual
Perform operational charging. If the battery status indicator or icon does not
light on, remove the battery pack and let it return to room temperature. Reinstall
the battery pack. If the charge indicator or icon is still off, replace the battery
pack.
If the charge indicator still does not light on, replace the system board. Then
reinstall the battery pack.
23
Related service information
Related service information
This chapter presents the following information:
• “Restoring the factory contents by using OneKey Recovery” on page 23
• “Passwords” on page 24
• “Power management” on page 25
Restoring the factory contents by using OneKey Recovery
Restore of factory default
The Lenovo IdeaPad Yoga 11S computers come with pre-installed OneKey
Recovery System.In order to save application files and the initial backed up
files of the system, the hard disk in a Lenovo computer includes a hidden
partition when it is shipped. If you need to restore the system to the point of
your rst boot up, just enter Lenovo OneKey Recovery System and run System
Recovery. For details of OneKey Recovery System, see the User Guide for
Lenovo OneKey Recovery system.
Note: This will delete all the new data on the system partition (C drive), which
is not recoverable. Make sure to back up your critical data before you perform this
action.
24
IdeaPad Yoga 11S Hardware Maintenance Manual
When you use the recovery discs to boot your computer, the system will enter
the user interface for system recovery automatically. Please follow the prompt
to insert the backup discs to complete the whole recovery process.
Note: The recovery process might take up to 2 hours.
Passwords
As many as two passwords may be needed for any Lenovo IdeaPad computer:
the power-on password (POP) and the supervisor password (SVP).
If any of these passwords has been set, a prompt for it appears on the screen
whenever the computer is turned on. The computer does not start until the
password is entered.
Exception: If only an SVP is installed, the password prompt does not appear
when the operating system is booted.
Power-on password
A power-on password (POP) protects the system from being powered on by
an unauthorized person. The password must be entered before an operating
system can be booted.
Supervisor password
A supervisor password (SVP) protects the system information stored in the
BIOS Setup Utility. The user must enter the SVP in order to get access to the
BIOS Setup Utility and change the system conguration.
Attention: If the SVP has been forgotten and cannot be made available to
the servicer, there is no service procedure to reset the password. The system
board must be replaced for a scheduled fee.
25
Related service information
Power management
Note: Power management modes are not supported for APM operating system.
To reduce power consumption, the computer has three power management
modes: screen blank, sleep (standby), and hibernation.
Screen blank mode
If the time set on the “Turn off monitor” timer in the operating system expires,
the LCD backlight turns off.
To end screen blank mode and resume normal operation, press any key.
Sleep (standby) mode
When the computer enters sleep (standby) mode, the following events occur in
addition to what occurs in screen blank mode:
• The LCD is powered off.
• The hard disk drive is powered off.
• The CPU stops.
To enter sleep (standby) mode, To put the computer to sleep, do one of the
following:
• Close the display panel.
• Press the power button.
• Open the Charms and then select Settings → Power → Sleep.
In certain circumstances, the computer goes into sleep (standby) mode
automatically:
• If a “suspend time” has been set on the timer, and the user does not do any
operation with the keyboard, the hard disk, the parallel connector, or the
diskette drive within that time.
• If the battery indicator is amber, indicating that the battery power is low.
To cause the computer to return from sleep (standby) mode and resume the
operation, do one of the following:
• Press the Fn key.
• Press the power button.
• Press the Windows button.
Also, in the following event, the computer automatically returns from sleep
(standby) mode and resumes the operation:
• The time set on the resume timer elapses.
Note: The computer does not accept any input immediately after it enters
sleep (standby) mode. Wait a few seconds before taking any action to reenter
operation mode.
26
IdeaPad Yoga 11S Hardware Maintenance Manual
Lenovo IdeaPad Yoga 11S
This chapter presents the following product-specific service references and
product-specic parts information:
• “Specications” on page 26
• “Status indicators” on page 28
• “Function key combinations” on page 29
• “FRU replacement notices” on page 30
• “Removing and replacing an FRU” on page 31
• “Locations” on page 58
• “Parts list” on page 60
Specications
The following table lists the specications of the Lenovo IdeaPad Yoga 11S :
Table 1. Specications
Feature Description
Processor • Intel Chief River ULX Platform Pentium, Core i3, Core i5 and
Core i7
Core Chipset • Intel Chief River ULX Platform
Graphic Chipset • Intel Embedded
Display • 11.6' HD Glare 350nit 800:1 Flat eDP
• Multi-touch screen
Standard
memory • DDR3L up to 1600 (max 8 GB)
CMOS • 256 bytes
SSD • 64 GB, 128 GB, 256 GB or 512GB
I/O port • USB 2.0 × 1, USB 3.0 × 1
• HDMI × 1
• 2 in 1 card reader(SD/MMC)
Audio • Combo audio jack × 1
• Speakers × 2
• Internal digital Microphone × 2
Bluetooth
wireless • WIFI/BT hybrid, BT4.0
Keyboard • 6 Row, ISO Full Size Keyboard
27
Lenovo IdeaPad Yoga 11S
Table 1. Specications (continued)
Feature Description
Touch pad • Multi-touch type
Integrated
camera • 1.0 Mega or 720P HD
Battery • 4 cell 4S1P 42Wh, Li-polymer battery
• 8 cell 4S2P 42Wh, Li-ion battery
AC adapter • 20 V, 45 W
Pre-installed
operating
system
• Win8
28
IdeaPad Yoga 11S Hardware Maintenance Manual
Status indicators
The system status indicators below show the computer status:
Table 2. Status indicators
Indicator Indicator
status
Indicator
status Meaning
Power
status
indicator
On (white) --- The computer is on.
Blinking --- The computer is in sleep mode.
Off --- The computer is off.
Battery
status
indicator
On (white) Charging The battery’s charge is greater than
80%.
On (white) Discharging The battery’s charge is greater than
20%.
On (amber) Discharging The battery’s charge is less than
20%, but above 5%.
Blinking (white) Charging The battery’s charge is less than
80%, but above 20%.
Blinking slowly
(amber) Charging The battery’s charge is less than
20%, but above 5%.
Blinking quickly
(amber)
Discharging/
Charging The battery’s charge is less than 5%.
Off Discharging The computer is off.
29
Lenovo IdeaPad Yoga 11S
Function key combinations
The following table shows the function of each combination of function key.
Table 3. Function keys
: Mutes/unmutes the sound.
: Decreases the volume level.
: Increases the volume level.
: Closes the currently active window.
: Refreshes the desktop or the currently active window.
: Enables/disables the touchpad.
:Enables/disables Airplane mode.
: Displays all currently active apps.
:Turns on/off the backlight of the LCD screen.
:Toggles the display between the computer and an external
device.
: Decreases display brightness.
: Increases display brightness.
30
IdeaPad Yoga 11S Hardware Maintenance Manual
FRU replacement notices
This section presents notices related to removing and replacing parts. Read
this section carefully before replacing any FRU.
Screw notices
Loose screws can cause a reliability problem. In the Lenovo IdeaPad computer,
this problem is addressed with special nylon-coated screws that have the
following characteristics:
• They maintain tight connections.
• They do not easily come loose, even with shock or vibration.
• They are harder to tighten.
• Each one should be used only once.
Do the following when you service this machine:
• Keep the screw kit in your tool bag.
• Carefully remove screws for reuse when replacing FRUs.
• Use a torque screwdriver if you have one.
Tighten screws as follows:
• Plastic to plastic
Turn an additional 90° after the screw head touches the surface of the
plastic part:
more than 90°
(Cross-section)
• Logic card to plastic
Turn an additional 180° after the screw head touches the surface of the
logic card:
more than 180°
(Cross-section)
• Torque driver
If you have a torque screwdriver , refer to the “Torque” column for each step.
• Make sure that you use the correct screws. If you have a torque screwdriver,
tightenallscrewsrmlytothetorqueshowninthetable.Carefully remove
screws for reuse when replacing FRUs. Make sure that all screws are
tightened rmly.
• Ensure torque screwdrivers are calibrated correctly following country
specications.
31
Lenovo IdeaPad Yoga 11S
Removing and replacing an FRU
This section presents exploded gures with the instructions to indicate how to
remove and replace the FRU. Make sure to observe the following general rules:
1. Do not attempt to service any computer unless you have been trained and
certied. An untrained person runs the risk of damaging parts.
2. Before replacing any FRU, review “FRU replacement notices” on page 30.
3. Begin by removing any FRUs that have to be removed before the failing
FRU. Any of such FRUs are listed at the top of the page. Remove them in
the order in which they are listed.
4. Follow the correct sequence in the steps to remove the FRU, as given in the
gures by the numbers in square callouts.
5. When turning a screw to replace an FRU, turn it in the direction as given by
the arrow in the gure.
6. When removing the FRU, move it in the direction as given by the arrow in
the gure.
7. To put the new FRU in place, reverse the removal procedures and follow
any of the notes that pertain to replacement. For information about
connecting and arranging internal cables, see “Locations” on page 58.
8. When replacing an FRU, use the correct screw as shown in the procedures.
DANGER
Before removing any FRU, turn off the computer, unplug all power cords from
electrical outlets, and then disconnect any of the interconnecting cables.
Attention: After replacing an FRU, do not turn on the computer until you have
made sure that all screws, springs, and other small parts are in place and none
are loose inside the computer. Verify this by shaking the computer gently and
listening for rattling sounds. Metallic parts or metal akes can cause electrical
short circuits.
Attention: The system board is sensitive to, and can be damaged by,
electrostatic discharge. Before touching it, establish personal grounding by
touching a ground point with one hand or using an electrostatic discharge (ESD)
strap (P/N 6405959) to remove potential shock reasons.
32
IdeaPad Yoga 11S Hardware Maintenance Manual
1010 Dummy card
Figure 1. Removal step of dummy card
Remove the dummy card in the direction shown by arrows 1 2.
1
2
33
Lenovo IdeaPad Yoga 11S
1020 Keyboard
For access, remove this FRU:
• “1010 Dummy card” on page 32
Figure 2. Removal steps of keyboard
Remove the two rubber feet in the direction shown by arrows 1, and then
remove the two screws 2 and two screws 3.
12
3
12
3
Step Screw (quantity) Color Torque
2M2.0 × 4L 3.5D 0.5T, D_cover to MB to KB (2) Black 1.5-2.0 kg-cm
3M2.0 × 6L 3.5D 0.8T, D_cover to Top_cover (2) Sliver 1.5-2.0 kg-cm
34
IdeaPad Yoga 11S Hardware Maintenance Manual
Figure 2. Removal steps of keyboard (continued)
Lift the keyboard a little 4 and detach the connector in the direction shown by
arrows 5 6, then remove the keyboard.
4
6
5
When installing: Make sure that the FPC connector is attached rmly.
35
Lenovo IdeaPad Yoga 11S
1030 Keyboard bezel
For access, remove these FRU:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
Figure 3. Removal steps of keyboard bezel
Remove the nine screws 1.
1
1
1
1
1
1
11
1
Step Screw (quantity) Color Torque
1M2.0 × 6L 3.5D 0.8T, D_cover to Top_cover (9) Sliver 1.5-2.0 kg-cm
36
IdeaPad Yoga 11S Hardware Maintenance Manual
Figure 3. Removal steps of keyboard bezel (continued)
Detach the touch pad connector in the direction shown by arrows 2 3.
Remove the two screws 4.
4
4
3
2
Step Screw (quantity) Color Torque
4M2.0 × 2.5L 4.5D 0.5T, KB_brk to MB to
D_cover (2)
Black 1.5-2.0 kg-cm
Remove the base cover in the direction shown by arrow 5.
5
37
Lenovo IdeaPad Yoga 11S
1040 Power board and rotation button board
For access, remove these FRUs in order:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35

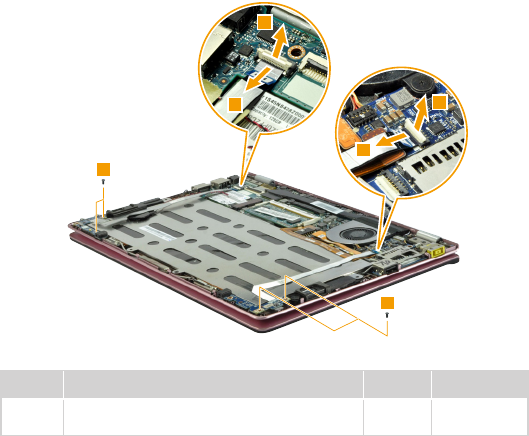

Figure 4. Removal steps of power board and rotation button board
Detach the two FPC connectors in the direction shown by arrows 1 2.
Remove the four screws 3.
3
3
2
1
1
2
Step Screw (quantity) Color Torque
3M2.0 × 2.5L 4.5D 0.5T, Power_B to C_
cover&Rotation_B to C_cover (4)
black 1.5-2.0 kg-cm
When installing: Make sure the FPC connectors is attached rmly.
38
IdeaPad Yoga 11S Hardware Maintenance Manual
Figure 4. Removal steps of power board and rotation button board (continued)
Remove the power board and the rotation button board in the direction shown
by arrows 4.
4
4
39
Lenovo IdeaPad Yoga 11S
1050 DIMM
For access, remove these FRUs in order:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35
• “1040 Power board and rotation button board” on page 37
Figure 5. Removal steps of DIMM
Release the two latches on both edges of the socket at the same time in the
direction shown by arrows 1, and then unplug the DIMM in the direction shown
by arrow 2.
11
2
When installing: Insert the notched end of the DIMM into the socket. Push the
DIMM rmly, and pivot it until it snaps into the place. Make sure that it is rmly
xed in the slot and difcult to be moved.
40
IdeaPad Yoga 11S Hardware Maintenance Manual
1060 Battery pack
For access, remove these FRUs in order:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35
• “1040 Power board and rotation button board” on page 37
• “1050 DIMM” on page 39
DANGER
Only use the battery specied in the parts list for your computer. Any other battery
could ignite or explode.
Figure 6. Removal steps of battery pack
Detach the RTC battery connector in the directions shown by arow 1.
1
41
Lenovo IdeaPad Yoga 11S
Figure 6. Removal steps of battery pack (continued)
Remove the RTC battery 2.
2
Remove the IO board FPC 3.
3
42
IdeaPad Yoga 11S Hardware Maintenance Manual
Figure 6. Removal steps of battery pack (continued)
Detach the battery pack connector in the direction shown by arrow 4, remove
the screw 5.
5
4
Step Screw (quantity) Color Torque
5M2.0 × 4L 3.5D 0.5T, Battery to D_cover (1) black 1.5-2.0 kg-cm
Remove the battery pack in the direction shown by arrow 6.
6
When installing: Make sure the battery pack connector is attached rmly.
43
Lenovo IdeaPad Yoga 11S
1070 SSD
For access, remove these FRUs in order:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35
• “1040 Power board and rotation button board” on page 37
• “1050 DIMM” on page 39
• “1060 Battery pack” on page 40
Figure 7. Removal steps of SSD
Remove the screw 1.
1
Step Screw (quantity) Color Torque
1M2.0 × 2.5L 4.5D 0.5T, M-SATA To D cover (1) Black 1.5-2.0 kg-cm
Remove the SSD in the directions shown by arow 2.
2
44
IdeaPad Yoga 11S Hardware Maintenance Manual
1080 PCI Express Mini Card for wireless LAN
For access, remove these FRUs in order:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35
• “1040 Power board and rotation button board” on page 37
• “1050 DIMM” on page 39
• “1060 Battery pack” on page 40
• “1070 SSD” on page 43
Figure 8. Removal steps of PCI Express Mini Card for wireless LAN
Remove the Wlan FPC 1.
1
Disconnect the two wireless LAN cables (black, grey) 2.
2
In step 2, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159), or pick up the connectors with your ngers and gently unplug
them in the direction shown by arrows.
When installing:
• In models with a wireless LAN card that has two antenna connectors, plug
the black cable (1st) (MAIN) into the jack labeled 1, and the grey cable (2nd)
(AUX) into jack labeled 2 on the card.
45
Lenovo IdeaPad Yoga 11S
Figure 8. Removal steps of PCI Express Mini Card for wireless LAN (continued)
Remove the card in the direction shown by arrow 3.
3
46
IdeaPad Yoga 11S Hardware Maintenance Manual
1090 Speakers
For access, remove these FRUs in order:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35
• “1040 Power board and rotation button board” on page 37
• “1050 DIMM” on page 39
• “1060 Battery pack” on page 40
• “1070 SSD” on page 43
• “1080 PCI Express Mini Card for wireless LAN” on page 44
Figure 9. Removal steps of speakers
Unplug the two speaker connectors in the direction shown by arrows 1.
Remove the screw 2.
1
1
2
Step Screw (quantity) Color Torque
2M2.0 × 2.0L 6.5D 0.5T, SPKR to D_cover (1) Black 1.5-2.0 kg-cm
When installing: Make sure that the speaker connectors are attached rmly.
47
Lenovo IdeaPad Yoga 11S
Figure 9. Removal steps of speakers (continued)
Remove the speakers in the direction shown by arrows 3.
3
3
48
IdeaPad Yoga 11S Hardware Maintenance Manual
1100 Antenna assembly
For access, remove these FRUs in order:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35
• “1040 Power board and rotation button board” on page 37
• “1050 DIMM” on page 39
• “1060 Battery pack” on page 40
• “1070 SSD” on page 43
• “1080 PCI Express Mini Card for wireless LAN” on page 44
• “1090 Speakers” on page 46
Figure 10. Removal steps of antenna assembly
Remove the antennas in the direction shown by arrows 1.
1
1
49
Lenovo IdeaPad Yoga 11S
1110 Fan and Heat Sink assembly
For access, remove these FRUs in order:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35
• “1040 Power board and rotation button board” on page 37
• “1050 DIMM” on page 39
• “1060 Battery pack” on page 40
• “1070 SSD” on page 43
• “1080 PCI Express Mini Card for wireless LAN” on page 44
• “1090 Speakers” on page 46
• “1100 Antenna assembly” on page 48
Figure 11. Removal steps of fan and heat sink assembly
Detach the fan connector in the direction shown by arrow 1 and remove the
ve screws 2.
2
2
1
Step Screw (quantity) Color Torque
2M2.0 × 2.0L 6.5D 0.5T, Fan to IO board to D
cover&Thermal to MB&PCH BRK TO MB (5)
Black 1.5-2.0 kg-cm
50
IdeaPad Yoga 11S Hardware Maintenance Manual
Figure 11. Removal steps of fan and heat sink assembly (continued)
Remove the fan and heat sink assembly 3.
3
51
Lenovo IdeaPad Yoga 11S
1120
System board
Important notices for handling the system board:
When handling the system board, bear the following in mind.
• Be careful not to drop the system board on a bench top that has a hard surface,
such as metal, wood, or composite.
• Avoid rough handling of any kind.
• In the whole process, make sure not to drop or stack the system board.
• If you put a system board down, make sure to put it only on a padded surface such
as an ESD mat or conductive corrugated material.
For access, remove these FRUs in order:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35
• “1040 Power board and rotation button board” on page 37
• “1050 DIMM” on page 39
• “1060 Battery pack” on page 40
• “1070 SSD” on page 43
• “1080 PCI Express Mini Card for wireless LAN” on page 44
• “1090 Speakers” on page 46
• “1100 Antenna assembly” on page 48
• “1110 Fan and Heat Sink assembly” on page 49
52
IdeaPad Yoga 11S Hardware Maintenance Manual
Figure 12. Removal steps of system board
Unplug the LCD connector and IO board connector in the direction shown by
arrows 1. Remove the screw 2.
2
1
1
When installing: Make sure that all the connectors are attached rmly.
Step Screw (quantity) Color Torque
2M2.0 × 2.0L 6.5D 0.5T, MB to D_cover(1) Black 1.5-2.0 kg-cm
Remove the system board in the direction shown by arrows 3.
3
53
Lenovo IdeaPad Yoga 11S
1130
IO board and DC-in board
For access, remove these FRUs in order:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35
• “1040 Power board and rotation button board” on page 37
• “1050 DIMM” on page 39
• “1060 Battery pack” on page 40
• “1070 SSD” on page 43
• “1080 PCI Express Mini Card for wireless LAN” on page 44
• “1090 Speakers” on page 46
• “1100 Antenna assembly” on page 48
• “1110 Fan and Heat Sink assembly” on page 49
• “1120 System board” on page 51
Figure 13. Removal steps of IO board and DC-in board
Unplug the camera and DC-in connectors in the direction shown by arrows 1.
Remove the screw 2.
2
1
Step Screw (quantity) Color Torque
2M2.0 × 2.0L 6.5D 0.5T, IO BOARD TO
D_COVER (1)
Black 1.5-2.0 kg-cm
54
IdeaPad Yoga 11S Hardware Maintenance Manual
Figure 13. Removal steps of IO board and DC-in board (continued)
Remove the IO board and DC-in board in the direction shown by arrows 3.
3
3
55
Lenovo IdeaPad Yoga 11S
1140 LCD unit
For access, remove these FRUs in order:
• “1010 Dummy card” on page 32
• “1020 Keyboard” on page 33
• “1030 Keyboard bezel” on page 35
• “1040 Power board and rotation button board” on page 37
• “1050 DIMM” on page 39
• “1060 Battery pack” on page 40
• “1070 SSD” on page 43
• “1080 PCI Express Mini Card for wireless LAN” on page 44
• “1090 Speakers” on page 46
• “1100 Antenna assembly” on page 48
• “1110 Fan and Heat Sink assembly” on page 49
• “1120 System board” on page 51
• “1130 IO board and DC-in board” on page 53
Figure 14. Removal steps of LCD unit
Remove the four screws 1.
1
1
Step Screw (quantity) Color Torque
1M2.0 × 4L 3.5D 0.5T, Hinge to D_cover (4) Black 1.5-2.0 kg-cm
56
IdeaPad Yoga 11S Hardware Maintenance Manual
Figure 14. Removal steps of LCD unit (continued)
Open the base cover in the direction shown by arrow 2. Remove the base
cover from the LCD unit 3.
2
3
57
Lenovo IdeaPad Yoga 11S
Note: Applying labels to the base cover
The new base cover FRU is shipped with a kit containing labels of several
kinds. When you replace the base cover, you need to apply the following
label:
The following labels need to be peeled off from the old base cover, and need
to be put on the new base cover.
a Rating label (ww or China)
b Rating label print
c KCC label
d Indonesia D side label
e BT WL label for US/CA/TW/Brzail/Indonesia/Isarael
f Win8 OS label
For the location of each label, refer to the following gure:
a
f
c
e
d
b
58
IdeaPad Yoga 11S Hardware Maintenance Manual
Locations
Front view and right-side view
1 Integrated camera (select models only)
2 Multi-touch screen
3 Windows button
4 Touchpad
5 Wireless LAN antennas
6 Screen rotation lock button
7 Speaker
8 USB port
9 Memory card slot
J AC power adapter jack
1
2
3
4
5
6
7
8
9
10
59
Lenovo IdeaPad Yoga 11S
Bottom and Left-side view
1 Built-in microphones
2 Battery status indicator
3 Power button
4 Novo button
5 Volume button
6 Speaker
7 HDMI port
8 USB port
9 Combo audio jack
5
2
34
6
7
8
9
1
60
IdeaPad Yoga 11S Hardware Maintenance Manual
Parts list
This section presents the following service parts:
• “Overall” on page 61
• “Keyboard” on page 64
• “Miscellaneous parts” on page 66
• “Screws” on page 67
• “AC adapters” on page 68
• “Power cords” on page 69
Notes:
• Each FRU is available for all types or models, unless specic types or models
are specied.
61
Lenovo IdeaPad Yoga 11S
Overall
1
2
3
a
4
5
6
7
10
11
13
14
16
19
c
d
8
9
e
b
12
f
15
13
9
17
h
18
20
21
62
IdeaPad Yoga 11S Hardware Maintenance Manual
Table 5. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID.
a-h See “Miscellaneous parts” on page 66.
N
1 LCD unit
2 Keyboard(see “Keyboard” on page 64)
3 VIUU4 Upper Case W/TP 90202804
4Venus 2 SMP/ATL L11M4P13 4S1P 42Wh bty 121500157
5VIUU4 RTC Battery(MB) 90202810
6SSD, Samsung PM830 64GB mSATA SSD 16200109
6SSD, Samsung PM841 128GB mSATA
SSD(TLC)
16200317
6SSD, Toshiba THNSNH128GMCT 128GB
mSATA
16200350
6 SSD, Samsung PM841-256GB mSATA SSD 16200318
6SSD, Toshiba THNSNH256GMCT 256GB
mSATA
16200351
6SSD, Samsung MZMTD512HAGL 512G
mSATA
16200355
7 Memory, Samsung, M471B5773DH0-YK0
2GB DDR3L 1600
11200502
7 Memory, SK hynix, HMT425S6AFR6A-PB
2GB DDR3L 1600
11201299
7 Memory, Ramaxel, RMT3170ED58F8W-1600
2GB DDR3L 1600
11201835
7 Memory, Micron, MT8KTF25664HZ-1G6M1
2GB DDR3L 1600
11200346
7 Memory, Samsung, M471B5273DH0-YK0
4GB DDR3L 1600
11200503
7 Memory, SK hynix, HMT451S6AFR8A-PB
4GB DDR3L 1600
11201300
7Memory, Ramaxel, RMT3170EB68F9W-1600
4GB DDR3L 1600
11201512
7Memory, Sharetronic, SM321NQ08ICF 4GB
DDR3L 1600
11201834
7Memory, Micron, MT8KTF51264HZ-1G6J1
4GB DDR3L 1600
11201342
7Memory, Samsung, M471B1G73BH0-YK0
8GB DDR3L 1600
11200504
7Memory, SK hynix, HMT41GS6AFR8A-PB
8GB DDR3L 1600
11201301
7Memory, Sharetronic, SM322NW08IAF 8GB
DDR3L 1600
11201514
7Memory, Micron, MT16KTF1G64HZ-1G6E1
8GB DDR3L 1600
11201304
8WLAN&BT, Hybrid, USB, Liteon, RTL8723
BGN USB + USB BT
20200052
9 VIUU4 Speaker Left 90202818
9 VIUU4 Speaker Right 90202819
10 VIUU4 Antenna*2 90202820
63
Lenovo IdeaPad Yoga 11S
Table 5. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID.
11 VIUU4 Power Board FFC 90202814
N
12 VIUU4 Thermal Module 90202816
13 VIUU4 MIC 90202813
14 VIUU4 MIC Rubber 90202811
15 VIUU4 Rotation button Board 90003050
16 VIUU4 MB UMA 2129 90003054
16 VIUU4 MB UMA 2129 W8P 90003055
16 VIUU4 MB UMA 2129 W8S 90003056
16 VIUU4 MB UMA I3-3229 1.4G 90003057
16 VIUU4 MB UMA I3-3229 1.4G W8P 90003058
16 VIUU4 MB UMA I3-3229 1.4G W8S 90003059
16 VIUU4 MB UMA I5-3339 1.5G 90003060
16 VIUU4 MB UMA I5-3339 1.5G W8P 90003061
16 VIUU4 MB UMA I5-3339 1.5G W8S 90003062
16 VIUU4 MB UMA I7-3689 1.5G 90003063
16 VIUU4 MB UMA I7-3689 1.5G W8P 90003064
16 VIUU4 MB UMA I7-3689 1.5G W8S 90003065
17 VIUU4 DC-IN Board 90202808
18 VIUU4 I/O Board 90003051
19 VIUU4 Lower Case Orange 90202821
19 VIUU4 Lower Case Gray 90202822
20 VIUU4 SD Dummy Card 90202834
21 VIUU4 Rubber Foot Orange 90202802
20 VIUU4 Rubber Foot Gray 90202803
_AC power adapter (see “AC adapters” on page 68). *
64
IdeaPad Yoga 11S Hardware Maintenance Manual
Keyboard
Table 6. Parts list—Keyboard (continued)
Language P/N CRU ID.
Chicony
English 25210801
N
U.K. English 25210802
Italian 25210803
Spanish 25210804
Turkish 25210805
Thai 25210806
Portuguese 25210807
Latin 25210808
Canadian Bilingual (En+Fr) 25210809
Korean 25210810
Traditional Chinese 25210811
Russian 25210812
French 25210813
German 25210814
Arabic 25210815
Brazilian 25210816
Japanese 25210817
Dutch 25210818
Greek 25210819
Hebrew 25210820
Hungarian 25210821
Nordic 25210822
Belgian 25210823
Icelandic 25210824
Slovenian 25210825
Swiss 25210826
US international 25210827
Czech&Slovak 25210828
Bulgarian 25210829
Indic 25210830
Sunrex
English 25210831
U.K. English 25210832
Italian 25210833
Spanish 25210834
Turkish 25210835
Thai 25210836
Portuguese 25210837
Latin 25210838
Canadian Bilingual (En+Fr) 25210839
Korean 25210840
Traditional Chinese 25210841
Russian 25210842
French 25210843
German 25210844
Arabic 25210845
65
Lenovo IdeaPad Yoga 11S
Table 6. Parts list—Keyboard (continued)
Language P/N CRU ID.
Sunrex
(continued)
Brazilian 25210846
N
Japanese 25210847
Dutch 25210848
Greek 25210849
Hebrew 25210850
Hungarian 25210851
Nordic 25210852
Belgian 25210853
Icelandic 25210854
Slovenian 25210855
Swiss 25210856
US international 25210857
Czech&Slovak 25210858
Bulgarian 25210859
Indic 25210860
Darfon
English 25210861
U.K. English 25210862
Italian 25210863
Spanish 25210864
Turkish 25210865
Thai 25210866
Portuguese 25210867
Latin 25210868
Canadian Bilingual (En+Fr) 25210869
Korean 25210870
Traditional Chinese 25210871
Russian 25210872
French 25210873
German 25210874
Arabic 25210875
Brazilian 25210876
Japanese 25210877
Dutch 25210878
Greek 25210879
Hebrew 25210880
Hungarian 25210881
Nordic 25210882
Belgian 25210883
Icelandic 25210884
Slovenian 25210885
Swiss 25210886
US international 25210887
Czech&Slovak 25210888
Bulgarian 25210889
Indic 25210890
66
IdeaPad Yoga 11S Hardware Maintenance Manual
Miscellaneous parts
Table 7. Parts list—Miscellaneous parts
FRU P/N CRU ID.
System miscellaneous parts:
• (
a
) VIUU4 Battery AL Foil
• (
b
) VIUU4 WIFI Gasket
90202835
90202809
N
Cable miscellaneous parts:
• (
c
) VIUU4 IO/B FPC
• (
d
) VIUU4 WIFI FPC
• (
e
) VIUU4 Power Board FFC
• (
f
) VIUU4 Rotation button Board FFC
• (
g
) VIUU4 DC-IN Cable
• (
h
) VIUU4 I/O Cable
Note: Italicized letters in parentheses are references to
the exploded view in “Overall” on page 61 .
90202805
90202806
90202814
90202815
90202807
90202817
67
Lenovo IdeaPad Yoga 11S
Screws
Table 8. Parts list—Screws
FRU P/N CRU ID.
VIUU4 Screw 2D 2.5LK 4.5D 0.5T ZK NL+ 90202836
N
VIUU4 Screw 1.6D 2.5LK3.5D 0.3T ZKNL+ 90202837
VIUU4 Screw 2D 2.5LK 6.5D 0.5T ZK NL+ 90202838
VIUU4 Screw 2D 4.0LK 3.5D 0.5T ZK NL+ 90202839
VIUU4 Screw 2D 4.5LK 3.5D 0.5T NI NL+ 90202840
VIUU4 Screw 1.6D 1.7LK4.5D 0.5T ZKNL+ 90202841
VIUU4 Screw 2D 6.0LK 3.5D NONE NL* 90202843
68
IdeaPad Yoga 11S Hardware Maintenance Manual
AC adapters
Table 9. Parts list—Miscellaneous parts
FRU P/N CRU ID.
Adapter, 45W 3pin, Delta ADLX45NDC3X 20V2.25A 36200245
*
Adapter, 45W 3pin, Liteon ADLX45NLC3X 20V2.25A 36200246
Adapter, 45W 3pin, Chicony ADLX45NCC3A 20V2.25A 36200247
69
Lenovo IdeaPad Yoga 11S
Power cords
A Lenovo IdeaPad power cord for a specific country or region is usually
available only in that country or region:
Table 10. Parts list—3-pin power cords (continued)
Region P/N CRU ID.
CCC
• LINETEK PC323+RVV300/300+LS15 1m 145000600
*
Argentina
• LINETEK LS15+H03VV-F+LP39 1m 145000599
Denmark
• LINETEK LS15+H03VV-F+LP-38 1m 145000598
Switzerland
• LINETEK LS15+H03VV-F+LP-37 1m 145000597
Brazil
• LINETEK LS15 H03VV-F LP26A 1m 145000596
Israel
• LINETEK LS15+H03VV-F+LP-41 1m 145000595
UL
• LINETEK LP-30B + SPT-2 + LS15 1m 145000594
UK
• LINETEK LP-61L+ H03VV-F+ LS15 1m 145000593
Indian
• LINETEK PE-361+ H05VV-F+ LS15 1m 145000592
Italy
• LINETEK LS15+H03VV-F+PE-336 1m 145000591
Korea
• LINETEK LS15+H05VV-F+LP-E04A 1m 145000590
Australia
• LINETEK LS15+H03VV-F+LP-23A 1m 145000589
Taiwan
• LINETEK LS15+VCTF+LP-53 1m 145000588
Japan
• LINETEK LS15+VCTF+LP-54 1m 145000587
Africa
• LINETEK LS15+H03VV-F+PE-364 1m 145000586
CE
• LINETEK LP-34+H03VV-F + LS15 1m 145000585
CCC
• Longwell LSG-31+RVV300/300+LS-18 1m 145000568
Argentina
• Longwell LP-24+H03VV-F+LS-18 1m 145000567
Denmark
• Longwell LP-40+H03VV-F+LS-18 1m 145000566
Switzerland
• Longwell LP-37+H03VV-F+LS-18 1m 145000565
70
IdeaPad Yoga 11S Hardware Maintenance Manual
Table 10. Parts list—3-pin power cords (continued)
Region P/N CRU ID.
Brazil
• Longwell LP-46+H03VV-F+LS-18 1m 145000564
*
Israel
• Longwell LP-41+H03VV-F+LS-18 1m 145000563
UL
• Longwell LP-30B+SPT-2 18AWG+LS-18 1m 145000562
UK
• Longwell LP-61L+H03VV-F+LS-18 1m 145000561
Indian
• Longwell LP-67+BIS+LS-18 1m 145000560
Italy
• Longwell LP-22+H03VV-F+LS-18 1m 145000559
Korea
• Longwell LP-486+KTLH03VV-F+LS-5 1m 145000558
Australia
• Longwell LP-23A+LFC-3R+LS-18 1m 145000557
Taiwan
• Longwell LP-71+VCTF+LS-33 1m 145000556
Japan
• Longwell LP-54+VCTF+LS-18 1m 145000555
Africa
• Longwell LP-39+H03VV-F+LS-18 1m 145000554
CE
• Longwell LP-34A+H03VV-F+LS-18 1m 145000553
CCC
• VOLEX GB10S3+RVV 300/500+VAC5S 1m 145000538
UL
• Volex US15S3+SPT-2 +VAC5S 1m 145000537
UK
• VOLEX MP5004+H03VV-F+VAC5S 1m 145000605
Indian
• VOLEX IA6A3+IS694+VAC5S 1m 145000536
Switzerland
• VOLEX MP232+H03VV-F+VAC5S 1m 145000524
Italy
• VOLEX IT10S3+HO3VV-F+VAC5S 1m 145000535
Denmark
• VOLEX MP233D+H03VV-F+VAC5S 1m 145000534
Korea
• VOLEX M2511+KETI IEC+VAC5S 1m 145000533
Australia
• VOLEX AU10S3+H03VV-F+VAC5S 1m 145000532
Taiwan
• VOLEX TW15CS3+VCTF+VAC5S 1m 145000531
71
Lenovo IdeaPad Yoga 11S
Table 10. Parts list—3-pin power cords (continued)
Region P/N CRU ID.
Japan
• VOLEX VAC5S+VCTF+M755 1m 145000530
*
Argentina
• VOLEX VA2073+H03VV-F+VAC5S 1m 145000528
Brazil
• VOLEX CH10S3+H03VV-F+VAC5S 1m 145000527
Israel
• VOLEX SI16S3+H03VV-F+VAC5S 1m 145000526
CE
• VOLEX M2511+HO3VV-F+VAC5S 1m 145000525
CCC
• lux 0036+RVV 300/300 0.75/3C+0002 1m 145500003
Argentina
• lux 0040+H03VV-F 0.75/3C+0011 1m 145500015
Denmark
• lux 0048+H03VV-F 0.75/3C+0011 1m 145500014
Switzerland
• lux 0027+H03VV-F 0.75/3C+0011 1m 145500013
Brazil
• lux 0034+H03VV-F 0.75/3C+0011 1m 145500011
Israel
• lux 0041+H03VV-F 0.75/3C+0011 1m 145500012
UL
• lux 0014+SPT-2 60°C 18/3C+0016 1m 145500002
UK
• lux 0031+H03VV-F 0.75/3C+0011 1m 145500000
Indian
• lux 0046+IS694 0.75/3C+0011 1m 145500004
Italy
• lux 0029+H03VV-F 0.75/3C+0011 1m 145500009
Korea
• lux 0033+H03VV-F 0.75/3C+0011 1m 145500008
Australia
• lux 0038+H03VV-F 0.75/3C+0011 1m 145500006
Taiwan
• lux 0019+VCTF 0.75/3C+0021 1m 145500007
Japan
• lux 0018(E)+VCTF 0.75/3C+0021 1m 145500005
• Africa
• lux 0044+H03VV-F 0.75/3C+0011 1m 145500010
• CE
• lux 0033+H03VV-F 0.75/3C+0011 1m 145500001
72
IdeaPad Yoga 11S Hardware Maintenance Manual
Notices
Lenovo may not offer the products, services, or features discussed in this
document in all countries. Consult your local Lenovo representative for
information on the products and services currently available in your area. Any
reference to a Lenovo product, program, or service is not intended to state or
imply that only that Lenovo product, program, or service may be used. Any
functionally equivalent product, program, or service that does not infringe
any Lenovo intellectual property right may be used instead. However, it is the
user’s responsibility to evaluate and verify the operation of any other product,
program, or service.
Lenovo may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you
any license to these patents.
LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS”
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. Some jurisdictions do not allow disclaimer of express or implied
warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes
will be incorporated in new editions of the publication. Lenovo may make
improvements and/or changes in the product(s) and/or the program(s)
described in this publication at any time without notice.
The products described in this document are not intended for use in
implantation or other life support applications where malfunction may result in
injury or death to persons. The information contained in this document does not
affect or change Lenovo product specications or warranties. Nothing in this
document shall operate as an express or implied license or indemnity under the
intellectual property rights of Lenovo or third parties. All information contained
in this document was obtained in specic environments and is presented as an
illustration. The result obtained in other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those
Web sites. The materials at those Web sites are not part of the materials for
this Lenovo product, and use of those Web sites is at your own risk.
73
Notices
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments
may vary significantly. Some measurements may have been made on
development-level systems and there is no guarantee that these measurements
will be the same on generally available systems. Furthermore, some
measurements may have been estimated through extrapolation. Actual results
may vary. Users of this document should verify the applicable data for their
specic environment.
Trademarks
The following terms are either registered trademarks or trademarks of Lenovo
in the United States and/or other countries:
Lenovo®
Lenovo logo®
IdeaPad®
VeriFace®
OneKey Recovery®
APS®
Power Express®
Energy Management and ReadyComm®
The following terms are trademarks of Microsoft Corporation in the United
States, other countries, or both:
Windows®
Windows Vista®
Windows® 7
Windows® 8
The following are trademarks of Intel Corporation or its subsidiaries in the
United States, other countries, or both:
Intel®
Intel® Core™ 2 Duo
Other company, product, or service names may be the trademarks or service
marks of others.

Navigation menu
