Lenovo IdeaPad Z380/

Z480/Z485/Z580/Z585

Hardware

Maintenance

Manual

Note:

Before using this information and the product it supports, be sure to read the general information

under “Notices” on page 127.

First Edition (February 2012)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General

Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set

forth in Contract No. GS-35F-05925.

iii

About this manual........................................iv

Safety information.........................................1

General safety ...................................................... 2

Electrical safety .................................................... 3

Safety inspection guide ...................................... 5

Handling devices that are sensitive to

electrostatic discharge......................................... 6

Grounding requirements ................................... 6

Safety notices: multilingual translations.......... 7

Laser compliance statement............................. 14

Important service information ...................16

Strategy for replacing FRUs............................. 16

Strategy for replacing a hard disk

drive .............................................................. 17

Important notice for replacing a system

board ............................................................. 17

Important information about replacing

RoHS compliant FRUs...................................... 18

General checkout........................................19

What to do first.................................................. 20

Power system checkout .................................... 21

Checking the AC adapter........................... 21

Checking operational charging ................. 22

Checking the battery pack ......................... 22

Related service information.......................23

Restoring the factory contents by using

Recovery Disc Set .............................................. 23

Start Recovery Disc (one disc)................... 23

Operating System Recovery Disc

(one or more discs)...................................... 23

Applications and Drivers Recovery Disc

(one or more discs)...................................... 23

Supplemental Recovery Disc..................... 23

Passwords........................................................... 24

Power-on password .................................... 24

Hard-disk password ................................... 24

Supervisor password .................................. 24

Power management .......................................... 25

Screen blank mode ...................................... 25

Sleep (standby) mode ................................. 25

Hibernation mode ....................................... 26

Lenovo IdeaPad Z380/Z480/Z485/

Z580/Z585.....................................................27

Specifications ..................................................... 27

Status indicators ................................................ 29

Fn key combinations ......................................... 30

FRU replacement notices.................................. 31

Screw notices ................................................ 31

Removing and replacing an FRU ....................32

1010 Battery pack ......................................... 33

1020 Dummy card........................................ 34

1030 Optical drive/Hard disk drive

(HDD)/Memory/Central

processing unit/Mini PCI Express Card

slot compartment cover .............................. 35

1040 Hard disk drive...................................37

1050 Optical drive........................................ 40

1060 DIMM ................................................... 41

1070 PCI Express Mini Card for

wireless LAN/WAN................................... 42

1080 Keyboard..............................................44

1090 Keyboard bezel ...................................47

1100 System board.......................................57

1110 LCD unit...............................................61

1120 Fan assembly and Heat Sink

assembly........................................................ 65

1130 CPU....................................................... 71

1140 Base cover, speakers and bluetooth

card (Z580/Z585)......................................... 72

1150 LCD front bezel...................................74

1160 LCD panel, LCD cable and

hinges............................................................. 75

1170 Integrated camera...............................79

1180 Antenna assembly and

LCD cover ..................................................... 80

Locations ............................................................. 81

Front view..................................................... 81

Right-side view ............................................ 82

Bottom and Left-side view ......................... 83

Parts list............................................................... 84

Overall........................................................... 85

LCD FRUs ..................................................... 90

Keyboard.......................................................94

Miscellaneous parts...................................122

AC adapters................................................ 123

Power cords ................................................124

Notices .......................................................127

Trademarks....................................................... 128

Contents

This manual contains service and reference information for the following

Lenovo product:

IdeaPad Z380/Z480/Z485/Z580/Z585

Use this manual to troubleshoot problems.

The manual is divided into the following sections:

• The common sections provide general information, guidelines, and safety

information required for servicing computers.

• The product-specific section includes service, reference, and product-specific

parts information.

About this manual

Important:

This manual is intended only for trained servicers who are familiar with

Lenovo products. Use this manual to troubleshoot problems effectively.

Before servicing a Lenovo product, make sure to read all the information

under “Safety information” on page 1 and “Important service information”

on page 16.

Safety information

This chapter presents the following safety information that you need to get

familiar with before you service a Lenovo computer:

• “General safety” on page 2

• “Electrical safety” on page 3

• “Safety inspection guide” on page 5

• “Handling devices that are sensitive to electrostatic discharge” on page 6

• “Grounding requirements” on page 6

• “Safety notices: multilingual translations” on page 7

• “Laser compliance statement” on page 14

Safety information

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Follow these rules below to ensure general safety:

• Observe a good housekeeping in the area where the machines are put during

and after the maintenance.

• When lifting any heavy object:

1. Make sure that you can stand safely without slipping.

2. Distribute the weight of the object equally between your feet.

3. Use a slow lifting force. Never move suddenly or twist when you attempt

to lift it.

4. Lift it by standing or pushing up with your leg muscles; this action could

avoid the strain from the muscles in your back. Do not attempt to lift any

object that weighs more than 16 kg (35 lb) or that you think is too heavy for

you.

• Do not perform any action that causes hazards to the customer, or that makes

the machine unsafe.

• Before you start the machine, make sure that other service representatives

and the customer are not in a hazardous position.

• Please remove covers and other parts in a safe place, away from all

personnel, while you are servicing the machine.

• Keep your toolcase away from walk areas so that other people will not trip it

over.

• Do not wear loose clothing that can be trapped in the moving parts of the

machine. Make sure that your sleeves are fastened or rolled up above your

elbows. If your hair is long, fasten it.

• Insert the ends of your necktie or scarf inside clothing or fasten it with the

nonconductive clip, about 8 centimeters (3 inches) from the end.

• Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for

your clothing.

Attention: Metal objects are good electrical conductors.

• Wear safety glasses when you are hammering, drilling, soldering, cutting

wire, attaching springs, using solvents, or working in any other conditions

that may be hazardous to your eyes.

• After service, reinstall all safety shields, guards, labels, and ground wires.

Replace any safety device that is worn or defective.

• Reinstall all covers correctly before returning the machine to the customer.

• Fan louvers on the machine help to prevent the overheating of internal

components. Do not obstruct fan louvers or cover them with labels or

stickers.

General safety

Safety information

Observe the following rules when working on electrical equipments.

• Find the room emergency power-off (EPO) switch, disconnecting switch, or

electrical outlet. If an electrical accident occurs, you can then operate the

switch or unplug the power cord quickly.

• Do not work alone under hazardous conditions or near the equipment that

has hazardous voltages.

• Disconnect all power before:

– Performing a mechanical inspection

– Working near power supplies

– Removing or installing main units

• Before you start to work on the machine, unplug the power cord. If you

cannot unplug it, ask the customer to power-off the wall box that supplies

power to the machine, and to lock the wall box in the off position.

• If you need to work on a machine that has exposed electrical circuits, observe

the following precautions:

– Ensure that another person, familiar with the power-off controls, is near

you.

Attention: Another person must be there to switch off the power, if

necessary.

– Use only one hand when working with powered-on electrical equipment;

keep the other hand in your pocket or behind your back.

Attention: An electrical shock can occur only when there is a complete

circuit. By observing the above rule, you may prevent a current from

passing through your body.

– When using testers, set the controls correctly and use the approved probe

leads and accessories for that tester.

– Stand on suitable rubber mats (obtained locally, if necessary) to insulate

you from grounds such as metal floor strips and machine frames.

Observe the special safety precautions when you work with very high voltages;

instructions for these precautions are in the safety sections of maintenance

information. Be extremely careful when you measure the high voltages.

• Regularly inspect and maintain your electrical hand tools for safe operational

condition.

• Do not use worn or broken tools and testers.

• Never assume that power has been disconnected from a circuit. First, check it

to make sure that it has been powered off.

Electrical safety

Important:

Use only approved tools and test equipments. Some hand tools have

handles covered with a soft material that does not insulate you when

working with live electrical currents.

Many customers have rubber floor mats near their machines that contain

small conductive fibers to decrease electrostatic discharges. Do not use such

kind of mat to protect yourself from electrical shock.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

• Always look carefully for possible hazards in your work area. Examples of

these hazards are moist floors, nongrounded power extension cables, power

surges, and missing safety grounds.

• Do not touch live electrical circuits with the reflective surface of a plastic

dental mirror. The surface is conductive; such touching can cause personal

injury and machine damage.

• Do not service the following parts with the power on when they are removed

from their normal operating places in a machine:

– Power supply units

–Pumps

– Blowers and fans

– Motor generators

and similar units. (This practice ensures correct grounding of the units.)

• If an electrical accident occurs:

– Use caution: do not become a victim yourself.

– Switch off the power.

– Send the victim to get medical aid.

Safety information

The purpose of this inspection guide is to assist you in identifying potential

unsafe conditions. As each machine was designed and built, required safety

items were installed to protect users and service personnel from injury. This

guide addresses only those items. You should use good judgment to identify

potential safety hazards due to attachment of non-Lenovo features or options not

covered by this inspection guide.

If any unsafe conditions are present, you must determine how serious the

apparent hazard could be and whether you can continue without first correcting

the problem.

Consider these conditions and the safety hazards they present:

• Electrical hazards, especially primary power (primary voltage on the frame

can cause serious or fatal electrical shock)

• Explosive hazards, such as a damaged CRT face or a bulging capacitor

• Mechanical hazards, such as loose or missing hardware

To determine whether there are any potential unsafe conditions, use the

following checklist at the beginning of every service task. Begin the checks with

the power off, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).

2. Turn off the computer. Disconnect the power cord.

3. Check the power cord for:

a. A third-wire ground connector in good condition. Use a meter to measure

third-wire ground continuity for 0.1 ohm or less between the external

ground pin and the frame ground.

b. The power cord should be the type specified in the parts list.

c. Insulation must not be frayed or worn.

4. Check for cracked or bulging batteries.

5. Remove the cover.

6. Check for any obvious non-Lenovo alterations. Use good judgment as to the

safety of any non-Lenovo alterations.

7. Check inside the unit for any obvious unsafe conditions, such as metal filings,

contamination, water or other liquids, or signs of fire or smoke damage.

8. Check for worn, frayed, or pinched cables.

9. Check that the power-supply cover fasteners (screws or rivets) have not been

removed or tampered with.

Safety inspection guide

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Any computer part containing transistors or integrated circuits (ICs) should be

considered sensitive to electrostatic discharge (ESD). ESD damage can occur

when there is a difference in charge between objects. Protect against ESD damage

by equalizing the charge so that the machine, the part, the work mat, and the

person handling the part are all at the same charge.

When handling ESD-sensitive parts:

• Keep the parts in protective packages until they are inserted into the product.

• Avoid contact with other people.

• Wear a grounded wrist strap against your skin to eliminate static on your

body.

• Prevent the part from touching your clothing. Most clothing is insulative and

retains a charge even when you are wearing a wrist strap.

• Use the black side of a grounded work mat to provide a static-free work

surface. The mat is especially useful when handling ESD-sensitive devices.

• Select a grounding system, such as those listed below, to provide protection

that meets the specific service requirement.

– Attach the ESD ground clip to any frame ground, ground braid, or green-

wire ground.

– When working on a double-insulated or battery-operated system, use an

ESD common ground or reference point. You can use coax or connector-

outside shells on these systems.

– Use the round ground prong of the ac plug on ac-operated computers.

Electrical grounding of the computer is required for operator safety and correct

system function. Proper grounding of the electrical outlet can be verified by a

certified electrician.

Handling devices that are sensitive to electrostatic discharge

Notes:

1. Use product-specific ESD procedures when they exceed the

requirements noted here.

2. Make sure that the ESD protective devices you use have been certified

(ISO 9000) as fully effective.

Notes:

The use of a grounding system to guard against ESD damage is desirable but

not necessary.

Grounding requirements

Safety information

The safety notices in this section are provided in English, French, German,

Hebrew, Italian, Japanese, and Spanish.

Safety notices: multilingual translations

Safety notice 1

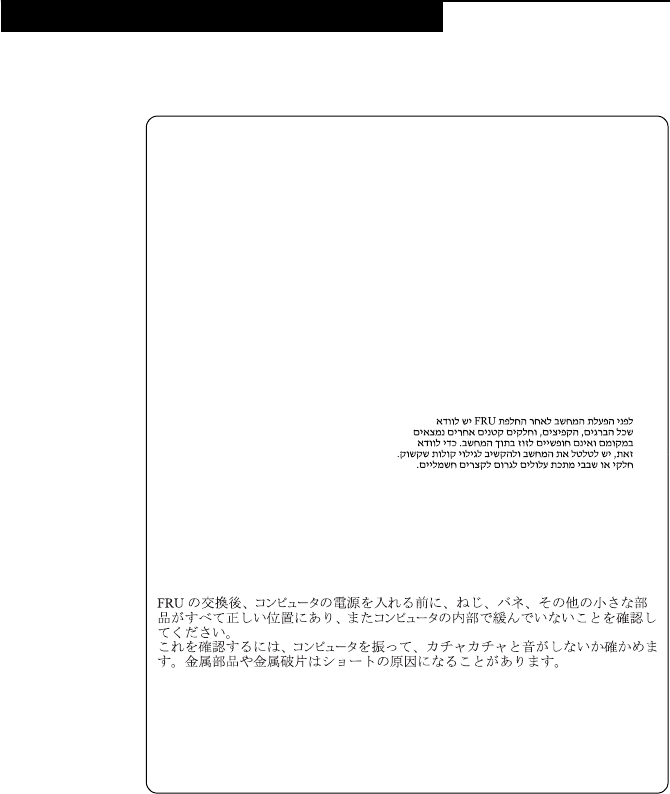

Before the computer is powered on after FRU replacement, make sure all

screws, springs, and other small parts are in place and are not left loose

inside the computer. Verify this by shaking the computer and listening for

rattling sounds. Metallic parts or metal flakes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement d’une unité

en clientèle, vérifiez que tous les ressorts, vis et autres pièces sont bien en

place et bien fixées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun

bruit suspect ne se produit. Des pièces métalliques ou des copeaux de métal

pourraient causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen

wird, muß sichergestellt werden, daß keine Schrauben, Federn oder andere

Kleinteile fehlen oder im Gehäuse vergessen wurden. Der Computer muß

geschüttelt und auf Klappergeräusche geprüft werden. Metallteile oder-

splitter können Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di

una FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole

dimensioni siano nella corretta posizione e non siano sparse all’interno

dell’elaboratore. Verificare ciò scuotendo l’elaboratore e prestando

attenzione ad eventuali rumori; eventuali parti o pezzetti metallici possono

provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que

todos los tornillos, muelles y demás piezas pequeñas se encuentran en su

sitio y no se encuentran sueltas dentro del sistema. Compruébelo agitando el

sistema y escuchando los posibles ruidos que provocarían. Las piezas

metálicas pueden causar cortocircuitos eléctricos.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and cadmium. Do

not disassemble a standby battery, recharge it, throw it into fire or water, or

short-circuit it. Dispose of the battery as required by local ordinances or

regulations. Use only the battery in the appropriate parts listing. Use of an

incorrect battery can result in ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les

démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne

les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à

la réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde

ou celle de l’horloge temps réel, veillez à n’utiliser que les modèles cités dans

la liste de pièces détachées adéquate. Une batterie ou une pile inappropriée

risque de prendre feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet,

kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nicht

zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser

ausgesetzt werden. Bei der Entsorgung die örtlichen Bestimmungen für

Sondermüll beachten. Beim Ersetzen der Bereitschafts-oder Systembatterie

nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist.

Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e

cadmio. Non smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né

cortocircuitarle. Smaltirle secondo la normativa in vigore (DPR 915/82,

successive disposizioni e disposizioni locali). Quando si sostituisce la

batteria dell’RTC (real time clock) o la batteria di supporto, utilizzare

soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di una

batteria non adatta potrebbe determinare l’incendio o l’esplosione della

batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y

cadmio. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las

cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo

baterías que se encuentren en la lista de piezas. La utilización de una batería

no apropiada puede provocar la ignición o explosión de la misma.

Safety information

Safety notice 3

DANGER

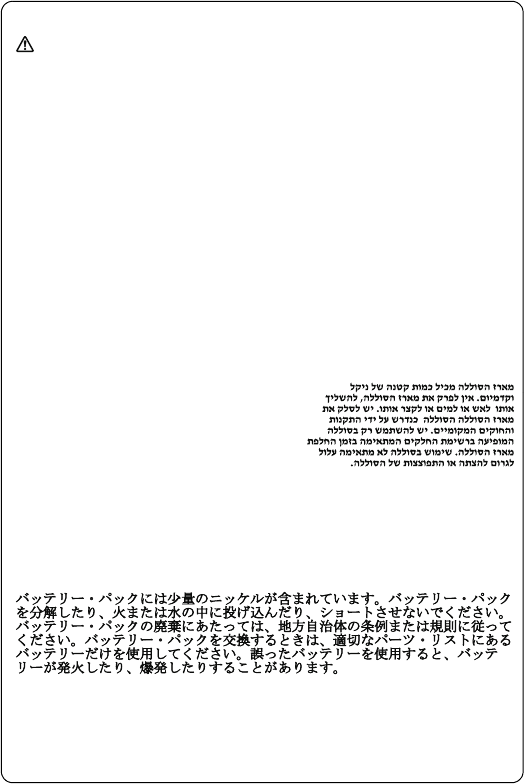

The battery pack contains small amounts of nickel. Do not disassemble it,

throw it into fire or water, or short-circuit it. Dispose of the battery pack as

required by local ordinances or regulations. Use only the battery in the

appropriate parts listing when replacing the battery pack. Use of an

incorrect battery can result in ignition or explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni

à l’eau. Ne la mettez pas en court-circuit. Pour la mettre au rebut,

conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la

batterie, veillez à n’utiliser que les modèles cités dans la liste de pièces

détachées adéquate. En effet, une batterie inappropriée risque de prendre

feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt

werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll

beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der

in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu

Entzündung oder Explosion führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel

fuoco o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in

vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando

si sostituisce la batteria, utilizzare soltanto i tipi inseriti nell’appropriato

Catalogo parti. L’impiego di una batteria non adatta potrebbe determinare

l’incendio o l’esplosione della batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni

recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal

como dispone la normativa local. Utilice sólo baterías que se encuentren en

la lista de piezas al sustituir la batería. La utilización de una batería no

apropiada puede provocar la ignición o explosión de la misma.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

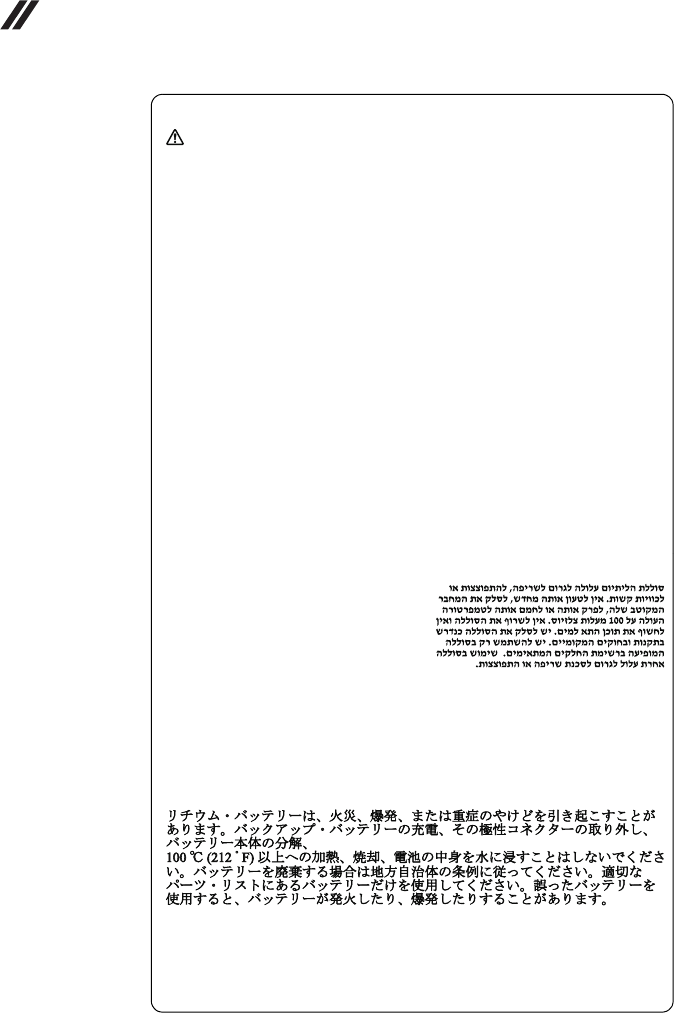

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion, or a severe burn. Do not

recharge it, remove its polarized connector, disassemble it, heat it above

100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of

the battery as required by local ordinances or regulations. Use only the

battery in the appropriate parts listing. Use of an incorrect battery can result

in ignition or explosion of the battery.

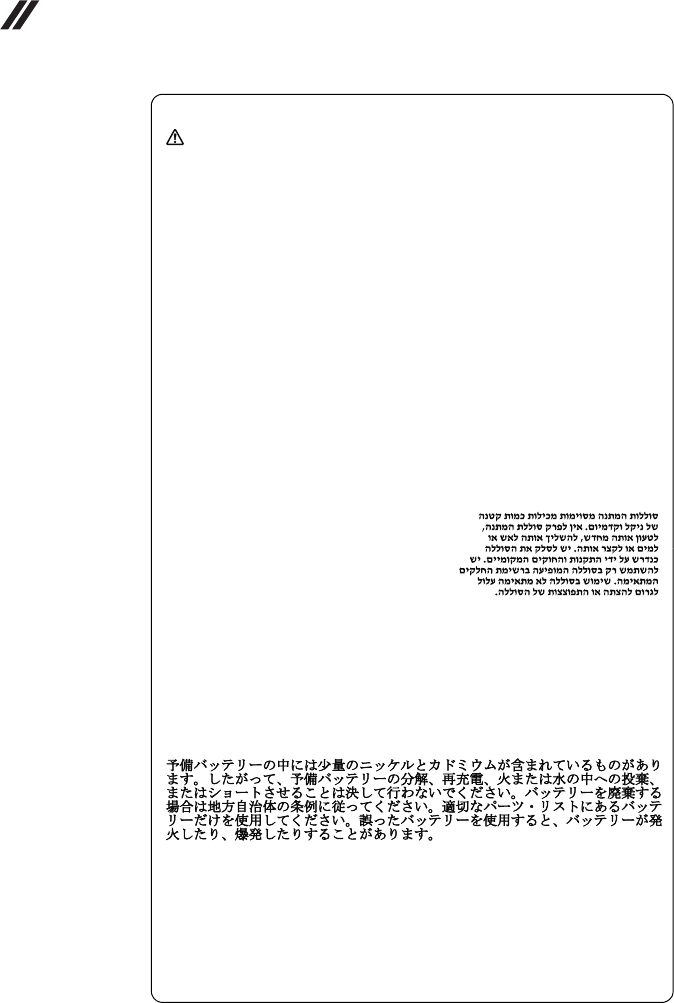

La pile de sauvegarde contient du lithium. Elle présente des risques

d’incendie, d’explosion ou de brûlures graves. Ne la rechargez pas, ne

retirez pas son connecteur polarisé et ne la démontez pas. Ne l’exposez pas

à une temperature supérieure à 100°C, ne la faites pas brûler et n’en exposez

pas le contenu à l’eau. Mettez la pile au rebut conformément à la

réglementation en vigueur. Une pile inappropriée risque de prendre feu ou

d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden,

explodieren oder schwere Verbrennungen hervorrufen. Batterien dieses

Typs dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt

werden. Auch darf ihr Inhalt nicht mit Wasser in Verbindung gebracht oder

der zur richtigen Polung angebrachte Verbindungsstecker entfernt werden.

Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten.

Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der

Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu

Entzündung oder Explosion führen.

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o

procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore

polarizzato, smontarla, riscaldarla ad una temperatura superiore ai 100

gradi centigradi, incendiarla o gettarla in acqua. Smaltirla secondo la

normativa in vigore (DPR 915/82, successive disposizioni e disposizioni

locali). L’impiego di una batteria non adatta potrebbe determinare

l’incendio o l’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y puede provocar incendios,

explosiones o quemaduras graves. No la recargue, ni quite el conector

polarizado, ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la

incinere ni exponga el contenido de sus celdas al agua. Deséchela tal como

dispone la normativa local.

Safety information

Safety notice 5

If the LCD breaks and the fluid from inside the LCD gets into your eyes or

on your hands, immediately wash the affected areas with water at least for

15 minutes. Seek medical care if any symptoms caused by the fluid are

present after washing.

Si le panneau d’affichage à cristaux liquides se brise et que vous recevez dans

les yeux ou sur les mains une partie du fluide, rincez-les abondamment

pendant au moins quinze minutes. Consultez un médecin si des symptômes

persistent après le lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der

Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Der

LCD-Bildschirm besteht aus Glas und kann zerbrechen, wenn er

unsachgemäß behandelt wird oder der Computer auf den Boden fällt. Wenn

der Bildschirm beschädigt ist und die darin befindliche Flüssigkeit in

Kontakt mit Haut und Augen gerät, sollten die betroffenen Stellen

mindestens 15 Minuten mit Wasser abgespült und bei Beschwerden

anschließend ein Arzt aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto

entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti

interessate con acqua corrente per almeno 15 minuti; poi consultare un

medico se i sintomi dovessero permanere.

Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o

sus manos, lave inmediatamente las áreas afectadas con agua durante

15 minutos como mínimo. Obtenga atención medica si se presenta algún

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Safety notice 6

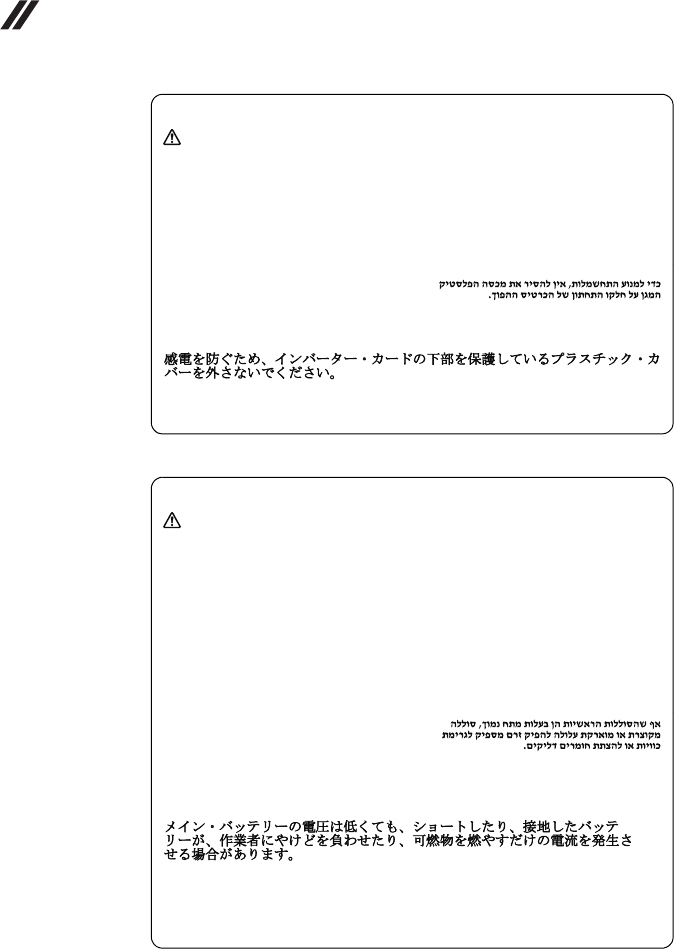

DANGER

To avoid shock, do not remove the plastic cover that protects the lower part

of the inverter card.

Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en

plastique protégeant la partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der

Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che

avvolge la parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja

de la tarjeta invertida.

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or grounded battery

can produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou

la mise à la masse d’une batterie peut produire suffisamment de courant

pour brûler des matériaux combustibles ou causer des brûlures corporelles

graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei

Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien

zu entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in

corto circuito o a massa può fornire corrente sufficiente da bruciare materiali

combustibili o provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería

cortocircuitada o con contacto a tierra puede producir la corriente suficiente

como para quemar material combustible o provocar quemaduras en el

personal.

Safety information

Safety notice 8

DANGER

Before removing any FRU, turn off the computer, unplug all power cords

from electrical outlets, remove the battery pack, and then disconnect any

interconnecting cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors

tension, débranchez tous les cordons d’alimentation des socles de prise de

courant, retirez la batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose

gezogen, der Akku entfernt und alle Verbindungskabel abgenommen sein,

bevor eine FRU entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese

elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare

i cavi di interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de

las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte

cualquier cable de conexión entre dispositivos.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Some models of Lenovo computer are equipped from the factory with an optical

storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are

also sold separately as options. If one of these drives is installed, it is certified in

the U.S. to conform to the requirements of the Department of Health and Human

Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class

1 laser products. Elsewhere, the drive is certified to conform to the requirements

of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60

825 for Class 1 laser products.

If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note

the following:

Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage

device could result in exposure to hazardous laser radiation. There are no

serviceable parts inside those drives. Do not open.

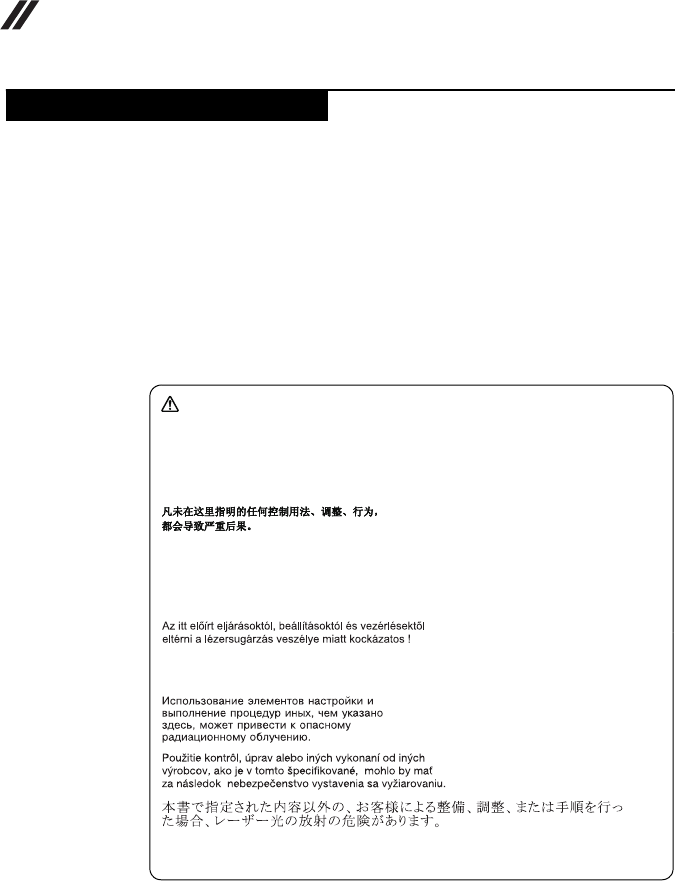

Laser compliance statement

CAUTION

Use of controls or adjustments or performance of procedures other than

those specified herein might result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de procedimentos diferentes

daqueles aqui especificados pode resultar em perigosa exposição à radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes

de réglage et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet,

kann gefährliche Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da

quelle specificate possono provocare l’esposizione a.

El uso de controles o ajustes o la ejecución de procedimientos distintos de los

aquí especificados puede provocar la exposición a radiaciones peligrosas.

Safety information

A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may

contain an embedded Class 3A or Class 3B laser diode. Note the following:

DANGER

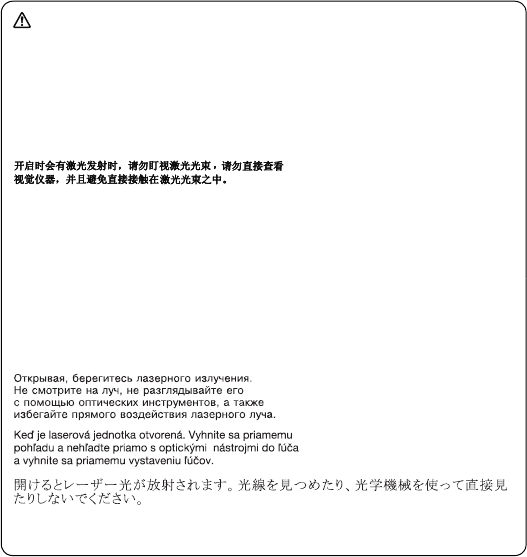

Emits visible and invisible laser radiation when open. Do not stare into the

beam, do not view directly with optical instruments, and avoid direct

exposure to the beam.

Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe

diretamente por meio de instrumentos óticos e evite exposição direta com o

feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder

directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische

Instrumente in den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai

eszközökkel. Kerülje a sugárnyalábbal való érintkezést!

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non

guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al

fascio.

Radiación láser al abrir. No mire fijamente ni examine con instrumental

óptico el haz de luz. Evite la exposición directa al haz.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

This chapter presents the following important service information:

• “Strategy for replacing FRUs” on page 16

– “Strategy for replacing a hard disk drive” on page 17

– “Important notice for replacing a system board” on page 17

• “Important information about replacing RoHS compliant FRUs” on page 18

Before replacing parts:

Make sure that all software fixes, drivers, and BIOS downloads are installed

before replacing any FRUs listed in this manual.

After a system board is replaced, ensure that the latest BIOS is loaded to the

system board before completing the service action.

To download software fixes, drivers, and BIOS, follow the steps below:

1. Go to http://consumersupport.lenovo.com/.

2. Enter the serial number or select a product or use Lenovo smart

downloading.

3. Select the BIOS/Driver/Applications and download.

4. Follow the directions on the screen and install the necessary software.

Important service information

Important:

BIOS and device driver fixes are customer-installable. The BIOS and device

drivers are posted on the customer support site:

http://consumersupport.lenovo.com/.

Strategy for replacing FRUs

Important service information

Use the following strategy to prevent unnecessary expense for replacing and

servicing FRUs:

• If you are instructed to replace an FRU, but the replacement does not solve

the problem, reinstall the original FRU before you continue.

• Some computers have both a processor board and a system board. If you are

instructed to replace either of them, and replacing one of them does not solve

the problem, reinstall that board, and then replace the other one.

• If an adapter or a device consists of more than one FRU, any of the FRUs may

be the cause of the error. Before replacing the adapter or device, remove the

FRUs one by one to see if the symptoms change. Replace only the FRU that

changed the symptoms.

Attention: The setup configuration on the computer you are servicing may have

been customized. Running Automatic Configuration may alter the settings. Note

the current configuration settings (using the View Configuration option); then,

when service has been completed, verify that those settings remain in effect.

Strategy for replacing a hard disk drive

Always try to run a low-level format before replacing a hard disk drive. This will

cause all customer data on the hard disk to be lost. Make sure that the customer

has a current backup of the data before performing this action.

Attention: The drive startup sequence in the computer you are servicing may

have been changed. Be extremely careful during write operations such as

copying, saving, or formatting. If you select an incorrect drive, data or programs

can be overwritten.

Important notice for replacing a system board

Some components mounted on a system board are very sensitive. Improper

handling can cause damage to those components, and may cause a system

malfunction.

Attention: When handling a system board:

• Do not drop the system board or apply any excessive force to it.

• Avoid rough handling of any kind.

• Avoid bending the system board and hard pushing to prevent cracking at

each BGA (Ball Grid Array) chipset.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

RoHS, The Restriction of Hazardous Substances in Electrical and

Electronic Equipment Directive (2002/95/EC) is a European Union legal

requirement affecting the global electronics industry. RoHS requirements

must be implemented on Lenovo products placed on the market after June

2006. Products on the market before June 2006 are not required to have

RoHS compliant parts. If the original FRU parts are non-compliant,

replacement parts can also be non-compliant. In all cases if the original

FRU parts are RoHS compliant, the replacement part must also be RoHS

compliant.

Note: RoHS and non-RoHS FRU part numbers with the same fit and function are

identified with unique FRU part numbers.

Lenovo plans to transit to RoHS compliance well before the implementation date

and expects its suppliers to be ready to support Lenovo’s requirements and

schedule in the EU. Products sold in 2005 and 2006 will contain some RoHS

compliant FRUs. The following statement pertains to these products and any

product Lenovo produces containing RoHS compliant FRUs.

RoHS compliant FRUs have unique FRU part numbers. Before or after the RoHS

implementation date, failed RoHS compliant parts must always be replaced with

RoHS compliant ones, so only the FRUs identified as compliant in the system

HMM or direct substitutions for those FRUs may be used.

Note: A direct substitution is a part with a different FRU part number that is

automatically shipped by the distribution center at the time of the order.

Products marketed before June 2006 Products marketed after June 2006

Current or

original part

Replacement

FRU

Current or

original part

Replacement

FRU

Non-RoHS Can be Non-RoHS

Must be RoHS Must be RoHS

Non-RoHS Can be RoHS

Non-RoHS Can sub to RoHS

RoHS Must be RoHS

Important information about replacing RoHS compliant FRUs

General checkout

This chapter presents the following information:

• “What to do first” on page 20

• “Power system checkout” on page 21

Before you go to the checkout, make sure to read the following important notes:

General checkout

Important notes:

•Only certified trained personnel can service the computer.

•Before replacing any FRU, read the entire page on removing and

replacing FRUs.

•When you replace FRUs, use new nylon-coated screws.

•Be extremely careful during such write operations as copying,

saving, or formatting. Drives in the computer that you are servicing

sequence might have been altered. If you select an incorrect drive, data

or programs might be overwritten.

•Replace an FRU only with another FRU of the correct model. When

you replace an FRU, make sure that the machine model and the FRU part

number are correct by referring to the FRU parts list.

•An FRU should not be replaced just because of a single,

unreproducible failure. Single failures can occur for a variety of reasons

that have nothing to do with a hardware defect, such as cosmic radiation,

electrostatic discharge, or software errors. Consider replacing an FRU

only when a problem recurs. If you suspect that an FRU is defective,

clear the error logs and run the test again. If the error does not recur, do

not replace the FRU.

•Be careful not to replace a nondefective FRU.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

When you do return an FRU, you must include the following information in the

parts exchange form or parts return form that you attach to it:

1. Name and phone number of servicer

2. Date of service

3. Date on which the machine failed

4. Date of purchase

5. Procedure index and page number in which the failing FRU was detected

6. Failing FRU name and part number

7. Machine type, model number, and serial number

8. Customer’s name and address

Note for warranty: During the warranty period, the customer may be

responsible for repair costs if the computer damage was caused by misuse,

accident, modification, unsuitable physical or operating environment, or

improper maintenance by the customer.

The following is a list of some common items that are not covered under

warranty and some symptoms that might indicate that the system was subjected

to stress beyond normal use.

Before checking problems with the computer, determine whether the damage is

covered under the warranty by referring to the following list:

The following are not covered under warranty:

• LCD panel cracked from the application of excessive force or from being

dropped

• Scratched (cosmetic) parts

• Distortion, deformation, or discoloration of the cosmetic parts

• Plastic parts, latches, pins, or connectors that have been cracked or broken by

excessive force

• Damage caused by liquid spilled into the system

• Damage caused by the improper insertion of a PC Card or the installation of

an incompatible card

• Improper disk insertion or use of an optical drive

• Diskette drive damage caused by pressure on the diskette drive cover, foreign

material in the drive, or the insertion of a diskette with multiple labels

• Damaged or bent diskette eject button

• Fuses blown by attachment of a nonsupported device

• Forgotten computer password (making the computer unusable)

• Sticky keys caused by spilling a liquid onto the keyboard

• Use of an incorrect AC adapter on laptop products

The following symptoms might indicate damage caused by nonwarranted

activities:

• Missing parts might be a symptom of unauthorized service or modification.

• If the spindle of a hard disk drive becomes noisy, it may have been subjected

to excessive force, or dropped.

What to do first

General checkout

To verify a symptom, follow the steps below:

1. Turn off the computer.

2. Remove the battery pack.

3. Connect the AC adapter.

4. Make sure that power is supplied when you turn on the computer.

5. Turn off the computer.

6. Disconnect the AC adapter and install the charged battery pack.

7. Make sure that the battery pack supplies power when you turn on the

computer.

If you suspect a power problem, see the appropriate one of the following power

supply checkouts:

• “Checking the AC adapter” on page 21

• “Checking operational charging” on page 22

• “Checking the battery pack” on page 22

Checking the AC adapter

You are here because the computer fails only when the AC adapter is used.

• If the power-on indicator does not turn on, check the power cord of the AC

adapter for correct continuity and installation.

• If the computer does not charge during operation, go to “Checking

operational charging”.

To check the AC adapter, follow the steps below:

1. Unplug the AC adapter cable from the computer.

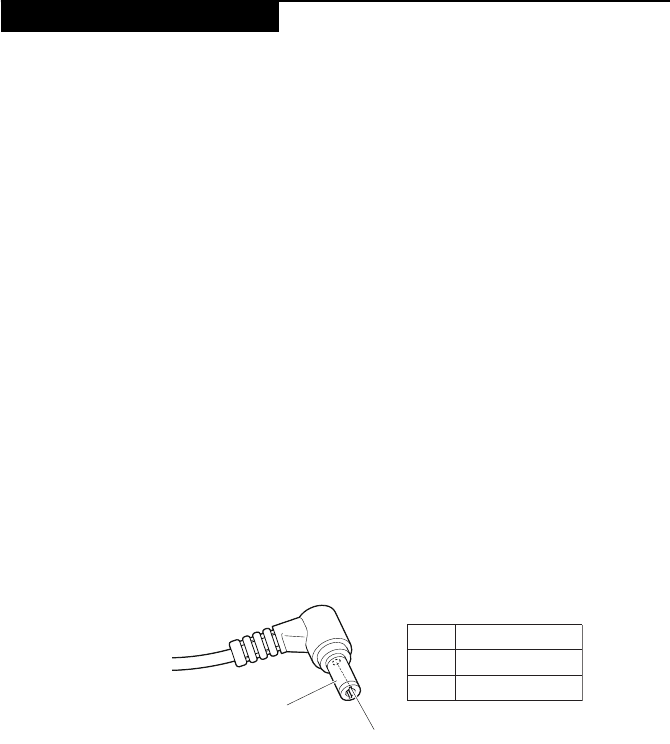

2. Measure the output voltage at the plug of the AC adapter cable. See the

following figure:

Note: Output voltage for the AC adapter pin No. 2 may differ from the one you

are servicing.

3. If the voltage is not correct, replace the AC adapter.

4. If the voltage is acceptable, do the following:

• Replace the system board.

• If the problem persists, go to “Lenovo IdeaPad Z380/Z480/Z485/Z580/

Z585” on page 27.

Note: Noise from the AC adapter does not always indicate a defect.

Power system checkout

Voltage (V DC)

+20

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Checking operational charging

To check whether the battery charges properly during operation, use a

discharged battery pack or a battery pack that has less than 50% of the total

power remaining when installed in the computer.

Perform operational charging. If the battery status indicator or icon does not

light on, remove the battery pack and let it return to room temperature. Reinstall

the battery pack. If the charge indicator or icon is still off, replace the battery

pack.

If the charge indicator still does not light on, replace the system board. Then

reinstall the battery pack. If it is still not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter shows that less than 95%

of the total power remains; under this condition the battery pack can charge to

100% of its capacity. This protects the battery pack from being overcharged or

from having a shortened life.

To check your battery, move your cursor to the Power Meter icon in the icon tray

of the Windows® taskbar and wait for a moment (but do not click it), and the

percentage of battery power remaining is displayed. To get detailed information

about the battery, double-click the Power Meter icon.

Note: If the battery pack becomes hot, it may not be able to be charged. Remove

it from the computer and leave it at room temperature for a while. After it cools

down, reinstall and recharge it.

To check the battery pack, follow the steps below:

1. Turn off the computer.

2. Remove the battery pack and measure the voltage between battery terminals

1 (+) and 7 (-). See the following figure:

3. If battery output voltage is less than +3.9V DC, the battery is damaged,

replace it.

If battery output voltage is less than +9V DC, perhaps the battery has entered

into overdischarge protection mode, pre-charge the battery with AC, please

replace the battery if battery capacity can not be charged over 0% within 2

hours.

4. If the battery output voltage is more than +9V DC, measure the resistance

between battery terminals 5 and 7. The resistance should be 4 to 30 KΩ.

If the resistance is not correct, replace the battery pack. If the resistance is

correct, check the system board function.

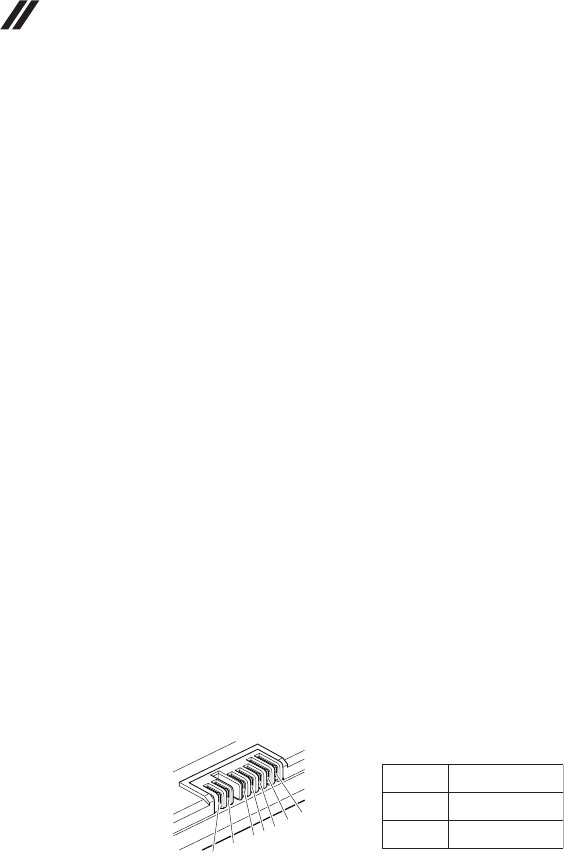

1(+)2(+) 3456(-)7(-)

Terminal

1 +0 to +12.6

7 Ground (-)

Voltage (V DC)

Related service information

This chapter presents the following information:

• “Restoring the factory contents by using Recovery Disc Set” on page 23

• “Passwords” on page 24

• “Power management” on page 25

When the hard disk drive or solid state drive is replaced because of a failure, no

product recovery program is on the new drive. In this case, you must use the

Recovery Disc Set for the computer. Order the Recovery Disc Set and the drive at

the same time so that you can recover the new drive with the pre-installed

software when they arrive.

The Recovery Disc Set consists of the following set of DVDs to restore the

computer to the original factory configuration.

Start Recovery Disc (one disc)

This disc is used to format the hard disk drive and initiate the recovery process.

Operating System Recovery Disc (one or more discs)

This disc restores the Microsoft Windows operating system.

Applications and Drivers Recovery Disc (one or more discs)

This disc restores the pre-installed applications and drivers on the computer.

Supplemental Recovery Disc

This disc contains additional content, such as software for specific models and

updates to the software that was preloaded on the computer. Not all recovery

disc sets come with a Supplemental Recovery Disc.

To restore the computer to the original factory configuration using the recovery

disc set, do the following:

1. Insert the bootable Start Recovery Disc into the optical drive.

2. Start the computer. When the Lenovo logo comes up, immediately press F12;

on the boot sequence menu, select the optical drive as the first boot-up device.

The computer will boot from the Start Recovery Disc. Follow the on-screen

instructions to begin the recovery process.

3. Read the license. If you agree with the terms, select I accept these terms and

conditions and then click Next.

4. Insert the Operating System Recovery Disc when prompted and click Yes to

begin the operating system recovery process.

5. Insert the Applications and Drivers Recovery Disc when prompted and then

click OK to begin the applications and drivers recovery process.

6. If you have a Supplemental Recovery Disc, insert it when prompted and click

Yes. If you do not have a Supplemental Recovery Disc, click No.

Related service information

Restoring the factory contents by using Recovery Disc Set

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

7. When all of the data has been copied from the last disc in the set, remove the

disc and restart the computer.

8. When the recovery process is complete, the Welcome to the Microsoft

Windows screen is displayed. Follow the instructions on the screen to

complete the Windows setup.

As many as three passwords may be needed for any Lenovo computer: the

power-on password (POP), the hard disk password (HDP), and the supervisor

password (SVP).

If any of these passwords has been set, a prompt for it appears on the screen

whenever the computer is turned on. The computer does not start until the

password is entered.

Exception: If only an SVP is installed, the password prompt does not appear

when the operating system is booted.

Power-on password

A power-on password (POP) protects the system from being powered on by an

unauthorized person. The password must be entered before an operating system

can be booted.

Hard-disk password

There are two hard-disk passwords (HDPs):

+ User HDP - for the user

+ Master HDP - for the system administrator, who can use it to get access to the

hard disk drive even if the user has changed the user HDP

Attention: If the user HDP has been forgotten, check whether a master HDP has

been set. If it has, it can be used for access to the hard disk drive. If no master

HDP is available, neither Lenovo nor Lenov authorized service technicians

provide any services to reset either the user or the master HDP, or to recover data

from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

Supervisor password

A supervisor password (SVP) protects the system information stored in the BIOS

Setup Utility. The user must enter the SVP in order to get access to the BIOS

Setup Utility and change the system configuration.

Attention: If the SVP has been forgotten and cannot be made available to the

servicer, there is no service procedure to reset the password. The system board

must be replaced for a scheduled fee.

Note: The remainder of the recovery process is fully automated and no

action is required by you. The computer will restart into the Windows

desktop several times and you might experience periods when no activity is

apparent on the screen for several minutes at a time. This is normal.

Passwords

Related service information

Note: Power management modes are not supported for APM operating system.

To reduce power consumption, the computer has three power management

modes: screen blank, sleep (standby), and hibernation.

Screen blank mode

If the time set on the “Turn off monitor” timer in the operating system expires,

the LCD backlight turns off. You can also turn off the LCD backlight by pressing

Fn+F2.

To end screen blank mode and resume normal operation, press any key.

Sleep (standby) mode

When the computer enters sleep (standby) mode, the following events occur in

addition to what occurs in screen blank mode:

• The LCD is powered off.

• The hard disk drive is powered off.

• The CPU stops.

To enter sleep (standby) mode, press Fn+F1.

In certain circumstances, the computer goes into sleep (standby) mode

automatically:

• If a “suspend time” has been set on the timer, and the user does not do any

operation with the keyboard, the hard disk, the parallel connector, or the

diskette drive within that time.

• If the battery indicator is amber, indicating that the battery power is low.

(Alternatively, if Hibernate when battery becomes low has been selected in

the “Power Management Properties” window, the computer goes into

hibernation mode.)

To cause the computer to return from sleep (standby) mode and resume the

operation, do one of the following:

• Press the Fn key.

• Open the lid.

• Turn on the power switch.

Also, in the following event, the computer automatically returns from sleep

(standby) mode and resumes the operation:

• The time set on the resume timer elapses.

Note: The computer does not accept any input immediately after it enters sleep

(standby) mode. Wait a few seconds before taking any action to reenter

operation mode.

Power management

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Hibernation mode

In hibernation mode, the following occurs:

• The system status, RAM, VRAM, and setup data are stored on the hard disk.

• The system is powered off.

To cause the computer to enter hibernation mode, follow the steps below:

• If you are using the ACPI operating system and have defined one of the

following actions as the event that causes the system to go into hibernation

mode, perform that action:

– Closing the lid.

– Pressing the power button.

Also, the computer goes into hibernation mode automatically in either of the

following conditions:

• If a “hibernation time” has been set on the timer, and if the user does not do

any operation with the keyboard, the hard disk drive, the parallel connector,

or the diskette drive within that time.

• If the timer conditions are satisfied in suspend mode.

When the power is turned on, the computer returns from hibernation mode and

resumes operation. The hibernation file in the boot record on the hard disk drive

is read, and system status is restored from the hard disk drive.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

This chapter presents the following product-specific service references and

product-specific parts information:

• “Specifications” on page 27

• “Status indicators” on page 29

• “Fn key combinations” on page 30

• “FRU replacement notices” on page 31

• “Removing and replacing an FRU” on page 32

• “Locations” on page 81

• “Parts list” on page 84

The following table lists the specifications of the Lenovo IdeaPad Z380/Z480/

Z485/Z580/Z585:

Table 1. Specifications

Feature Description

Processor • Intel Chief River (Lenovo IdeaPad Z380/Z480/Z580)

• AMD Trinity A4/A6/A8/A10/E2 series APU

(Lenovo IdeaPad Z485/Z585)

Core Chipset • Intel Panther Point HM76 (Lenovo IdeaPad Z380/

Z480/Z580)

• AMD A70M FCH M3 (Lenovo IdeaPad Z485/Z585)

Bus architecture • DDR3 1066, 1333, 1600 MT/s for Ivy Bridge Dual and

Quad Core CPU

• DDR3 1066, 1333 MT/s for Sandy Bridge Dual Core CPU

• DMI × 4, 4Gb/s

• FDI 8 lanes (2channels), 2.7Gb/s

•PCI Express

Graphic Chipset • Intel intergrated or N13M-GE1 (Lenovo IdeaPad Z380)

• Intel intergrated or Nvidia N13P-GL, N13P-GS,N13M-

GE1 (Lenovo IdeaPad Z480)

• AMD Seymour XTX (Lenovo IdeaPad Z485)

• Intel intergrated or Nvidia N13P-GL

(Lenovo IdeaPad Z580)

• AMD Thames XT (Lenovo IdeaPad Z585)

Display • 13.3 HD LED Panel, Flat type, 1366 × 768 pixels, 200 nit

(Lenovo IdeaPad Z380)

• 14.0 HD LED Panel, Flat type, 1366 × 768 pixels, 200 nit

(Lenovo IdeaPad Z480/Z485)

• 15.6 HD LED Panel, Flat type, 1366 × 768 pixels, 200 nit

(Lenovo IdeaPad Z580/Z585)

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Specifications

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Table 1. Specifications (continued)

Feature Description

Standard

memory • DDR3 up to 1600 SODIMM (× 2)

CMOS RAM • 256 bytes

Hard disk drive • 2.5" , 9.5 mm / 7.0 mm Height SATA 500 GB / 750 GB /

1 TB (5400 rpm)

• 2.5" , 9.5 mm / 7.0 mm Height SATA 500 GB (7200 rpm)

Optical drive • Rambo/Blu-ray combo/Blu-ray Rambo

I/O port • External monitor connector

• Stereo headphone jack

• Microphone jack

•RJ45 × 1

• HDMI port

• USB 2.0 × 1, USB 3.0 × 2 (Lenovo IdeaPad Z380)

USB 2.0 × 2, USB 3.0 × 2 (Lenovo IdeaPad Z480/Z485/

Z580/Z585)

• 5-in-1 memory card reader

MODEM slot • N/A

Audio • 1/8" Stereo Headphone Output Jack

• 1/8" Microphone Input Combo Jack

• Built-in stereo speakers

• Built-in microphone

Video • CRT port × 1, HDMI port × 1

Ethernet (on the

system board) • 10/100 M or 10/100/1000 M Ethernet

PCI Express Mini

Card slot • 1 slot for WLAN card (half size)

WLAN • Intel 802.11 a/b/g/n & WiMax combo

• Broadcom/Atheros b/g/n

Bluetooth

wireless • BT2.1 + EDR CyberTan/USI module (option)

Keyboard • 6 Row, Lenovo Keyboard

Touch pad • Two clicks with Dome

Integrated

camera • HD1.0 Mega or 0.3 Mega

Battery • 48 Wh, 6 cell cylindrical Li-ion Battery

AC adapter • 65 W or 90 W

Pre-installed

operating system •Win 7

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

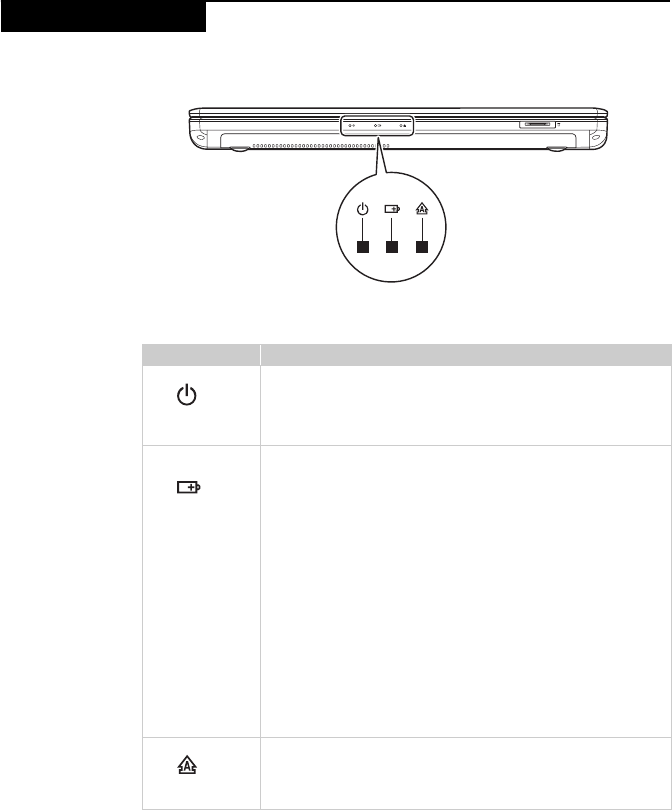

The system status indicators below show the computer status:

Table 2. Status indicators

Indicator Meaning

Power on White: System is enabled.

Blinking white:

System is in sleep mode.

off: System is in hibernate mode or shut down.

Battery

status

Blinking amber: (500ms off/1s on)

The remaining power of the battery is less than 5% of

its capacity.

Blinking amber: (100ms off/3.2s on)

The battery is being charged with the remaining

power between 5% and 20% of its capacity.

Amber: The computer is operating on battery power with the

remaining power between 5% and 20% of its

capacity.

Blinking white:

The battery is being charged with the remaining

power between 20% and 80% of its capacity.

White: The remaining power of the battery is more than 80%

of its capacity, or the computer is operating on

battery power with the remaining power between

20% and 80% of its capacity.

Caps lock White: Caps Lock mode is enabled. You can enter all

alphabetic characters (A-Z) in uppercase without

pressing the Shift key. To enable or disable Caps

Lock mode, press the CapsLk key.

Status indicators

1 2 3

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

The following table shows the function of each combination of Fn with a function

key.

Table 3. Fn key combinations

Key combination Description

Fn + Esc: Turn on/off the integrated camera.

Fn + F1: Enter sleep mode.

Fn + F2: Turn on/off the backlight of the LCD screen.

Fn + F3: Open the interface for the display device switch to

select this notebook or an external display.

Fn + F4: Open the interface for display resolution settings.

Fn + F5: Open the interface for integrated wireless devices

settings (On/Off).

Fn + F6: Enable/Disable the touchpad.

Fn + F8 (Lenovo IdeaPad

Z380/Z480/Z485): Enable/Disable the numeric keypad.

Fn + F9: Start/Pause playback of Windows Media Player.

Fn + F10: Stop playback of Windows Media Player.

Fn + F11: Skip to the previous track.

Fn + F12: Skip to the next track.

Fn + Insert (Lenovo

IdeaPad Z580/Z585):

Fn + PgUp (Lenovo

IdeaPad Z380/ Z480/

Z485):

Enable/Disable the scroll lock.

Fn + PrtSc: Activate the system request.

Fn + Home: Activate the pause function.

Fn + End: Activate the break function.

Fn + PgDn (Lenovo

IdeaPad Z380/Z480/

Z485):

Activate the insert function.

Fn + : Increase/Decrease display brightness.

Fn + : Increase/Decrease sound volume.

Fn key combinations

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

This section presents notices related to removing and replacing parts. Read this

section carefully before replacing any FRU.

Screw notices

Loose screws can cause a reliability problem. In the Lenovo computer, this

problem is addressed with special nylon-coated screws that have the following

characteristics:

• They maintain tight connections.

• They do not easily come loose, even with shock or vibration.

• They are harder to tighten.

• Each one should be used only once.

Do the following when you service this machine:

• Keep the screw kit in your tool bag.

• Always use new screws.

• Use a torque screwdriver if you have one.

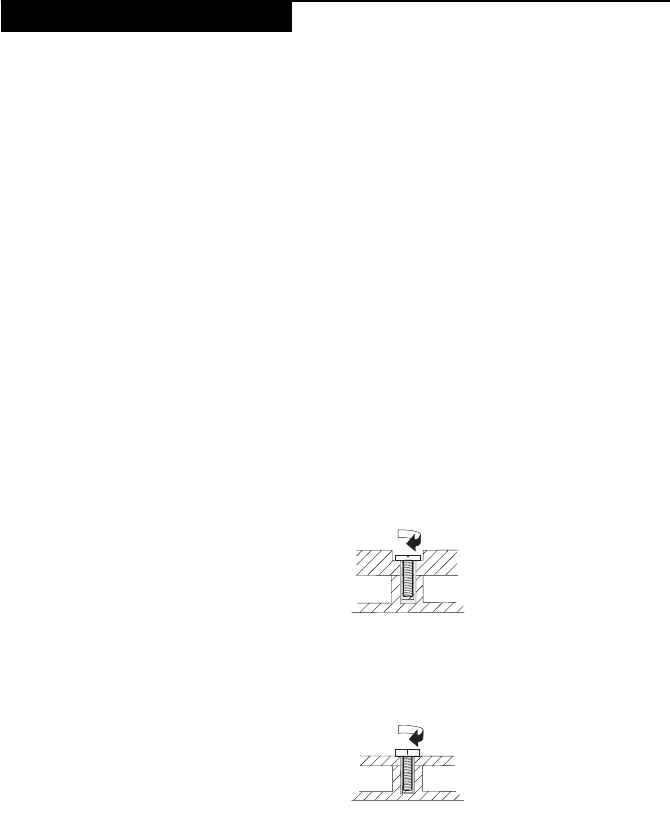

Tighten screws as follows:

•Plastic to plastic

Turn an additional 90° after the screw head touches the surface of the plastic

part:

•Logic card to plastic

Turn an additional 180° after the screw head touches the surface of the logic

card:

•Torque driver

If you have a torque screwdriver , refer to the “Torque” column for each step.

• Make sure that you use the correct screws. If you have a torque screwdriver,

tighten all screws firmly to the torque shown in the table. Never use a screw

that you removed. Use a new one. Make sure that all screws are

tightened firmly.

• Ensure torque screwdrivers are calibrated correctly following country

specifications.

FRU replacement notices

more than 90°

(Cross-section)

more than 180°

(Cross-section)

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

This section presents exploded figures with the instructions to indicate how to

remove and replace the FRU. Make sure to observe the following general rules:

1. Do not attempt to service any computer unless you have been trained and

certified. An untrained person runs the risk of damaging parts.

2. Before replacing any FRU, review “FRU replacement notices” on page 31.

3. Begin by removing any FRUs that have to be removed before the failing FRU.

Any of such FRUs are listed at the top of the page. Remove them in the order

in which they are listed.

4. Follow the correct sequence in the steps to remove the FRU, as given in the

figures by the numbers in square callouts.

5. When turning a screw to replace an FRU, turn it in the direction as given by

the arrow in the figure.

6. When removing the FRU, move it in the direction as given by the arrow in the

figure.

7. To put the new FRU in place, reverse the removal procedures and follow any

of the notes that pertain to replacement. For information about connecting

and arranging internal cables, see “Locations” on page 81.

8. When replacing an FRU, use the correct screw as shown in the procedures.

Attention: After replacing an FRU, do not turn on the computer until you have

made sure that all screws, springs, and other small parts are in place and none

are loose inside the computer. Verify this by shaking the computer gently and

listening for rattling sounds. Metallic parts or metal flakes can cause electrical

short circuits.

Attention: The system board is sensitive to, and can be damaged by, electrostatic

discharge. Before touching it, establish personal grounding by touching a

ground point with one hand or using an electrostatic discharge (ESD) strap

(P/N 6405959) to remove potential shock reasons.

Removing and replacing an FRU

DANGER

Before removing any FRU, turn off the computer, unplug all power cords

from electrical outlets, remove the battery pack, and then disconnect any of

the interconnecting cables.

Note:

• The illustrations used in this section are of the Lenovo IdeaPad Z480,

unless otherwise stated.

• The procedures listed below (for removing components) are the same for

the Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585.

• The illustrations in this manual may differ from the actual product. Please

refer to the actual product.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

1010 Battery pack

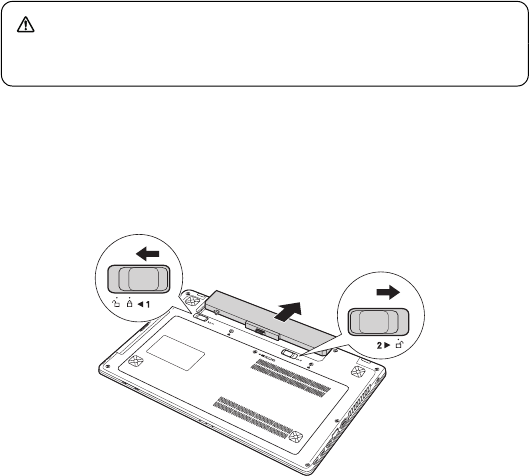

Figure 1. Removal steps of battery pack

Unlock the manual battery latch . Holding the spring-loaded battery latch in

the unlocked position , remove the battery pack in the direction shown by the

arrow .

When installing: Install the battery pack along the slide rails of the slot. Then

make sure that the battery release lever is in the locked position.

DANGER

Only use the battery specified in the parts list for your computer. Any other

battery could ignite or explode.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

1020 Dummy card

For access, remove this FRU:

• “1010 Battery pack” on page 33

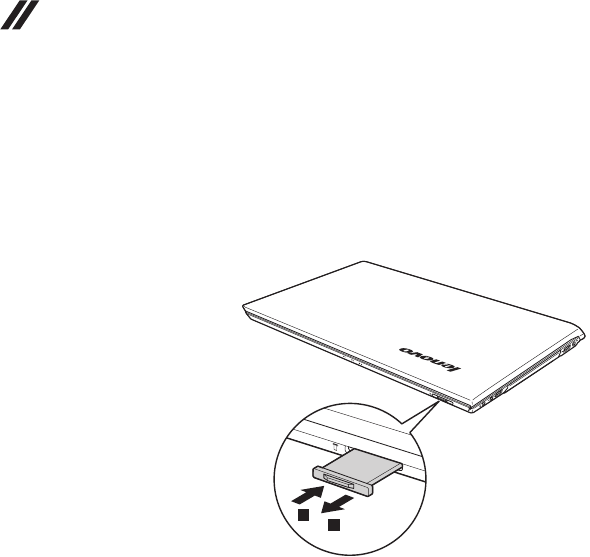

Figure 2. Removal steps of dummy cards

Remove the dummy card in the direction shown by arrows .

a b

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

1030 Optical drive/Hard disk drive (HDD)/Memory/Central

processing unit/Mini PCI Express Card slot

compartment cover

For access, remove this FRU:

• “1010 Battery pack” on page 33

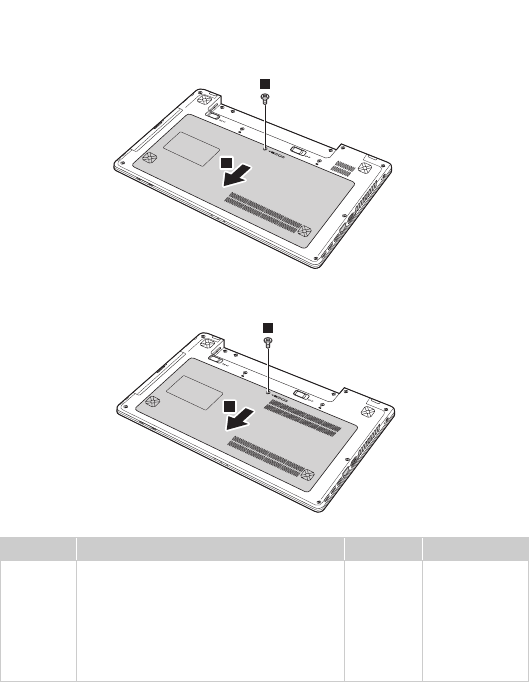

Figure 3. Removal steps of Optical drive/Hard disk drive (HDD)/Memory/Central

processing unit/Mini PCI Express Card slot compartment cover

Remove the screw , then remove the compartment cover in the direction

shown by the arrow .

Lenovo IdeaPad Z380

Lenovo IdeaPad Z480/Z485/Z580/Z585

Step Screw (quantity) Color Torque

Z380: M2.5×3.0 mm, flat-head,

nylok-coated (1)

Z480/Z485: M2.5×3.0 mm, flat-head,

nylok-coated (1)

Z580/Z585: M2.5×3.0 mm, flat-head,

nylok-coated (1)

Black

3.0±0.3 kgfcm

2.5±0.2 kgfcm

2.5 kgfcm

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

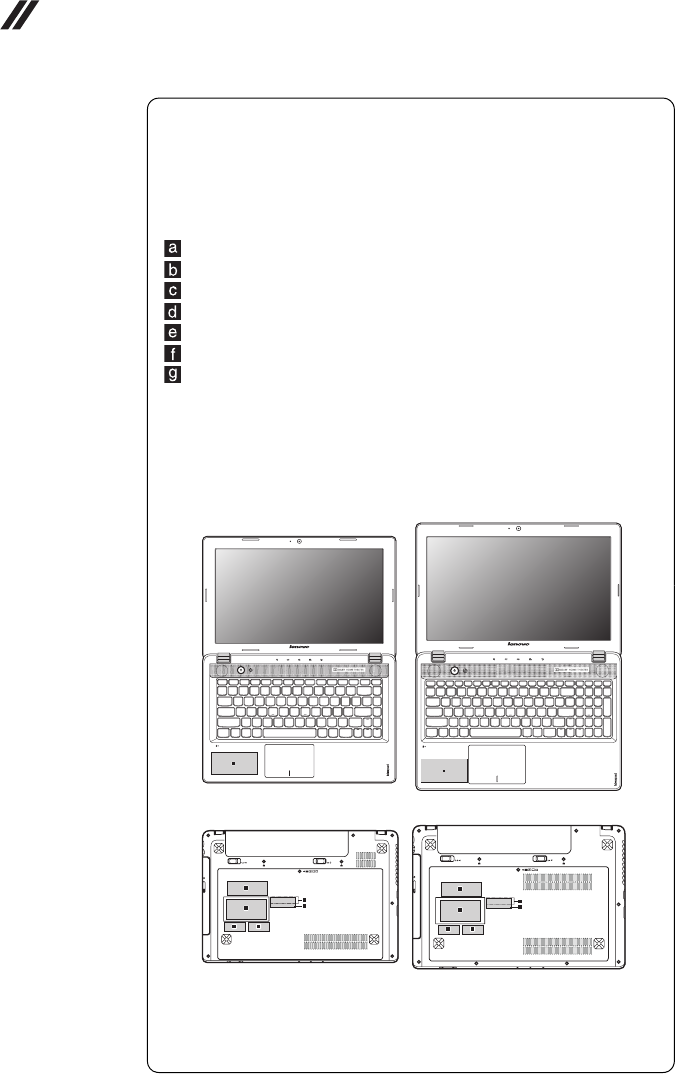

Note: Applying labels to the base cover

The new base cover FRU is shipped with a kit containing labels of several

kinds. When you replace the base cover, you need to apply the following

label:

The following labels need to be peeled off from the old base cover, and need

to be put on the new base cover.

Palmrst Label

COA Label

Rating Label (print)

BT Label

WL Label

Israel Label

Rating Label (print) for CN/US/CA/TW/Indonisia/Korea

For some models, you also need to apply one or two FCC labels. Check the

old base cover; if it has one or two FCC labels, find duplicates of them in the

label kit and apply them to the new base cover.

For the location of each label, refer to the following figure:

Lenovo IdeaPad Z380 Lenovo IdeaPad Z480/Z485/Z580/Z585

Lenovo IdeaPad Z380/Z480/Z485 Lenovo IdeaPad Z580/Z585

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

1040 Hard disk drive

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

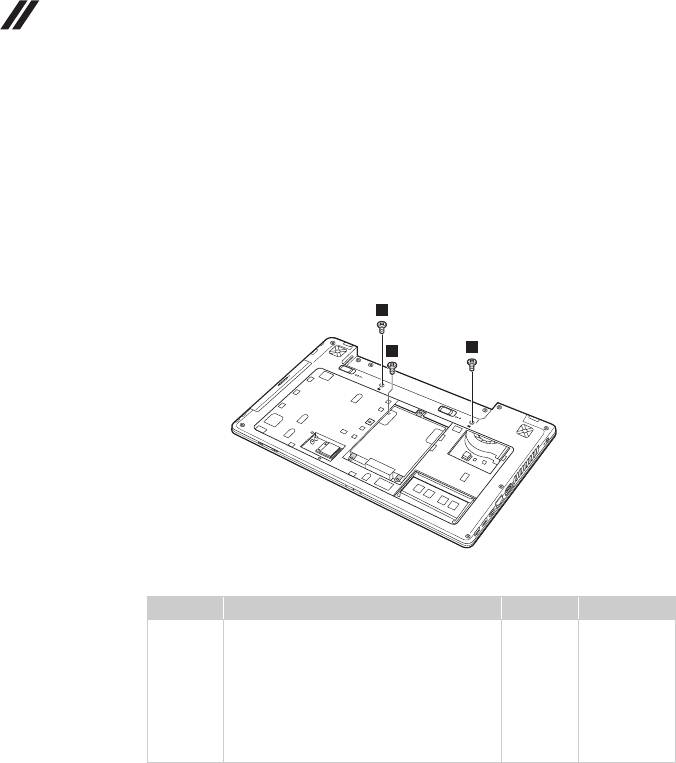

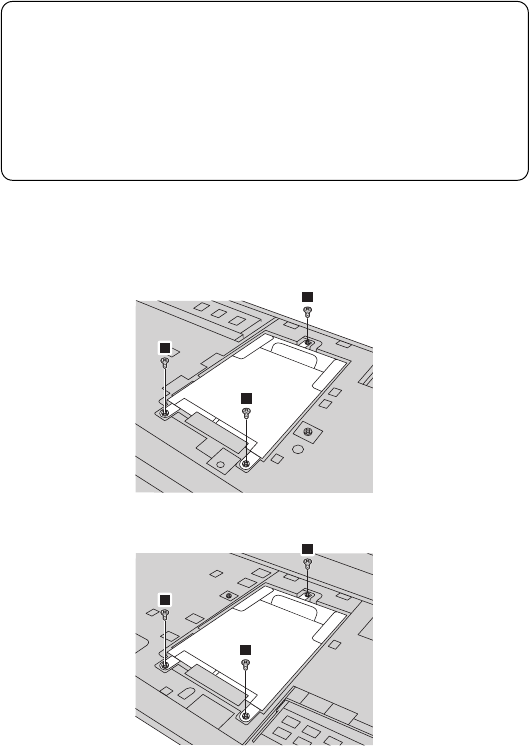

Figure 4. Removal steps of hard disk drive

Remove the three screws .

Lenovo IdeaPad Z380

Lenovo IdeaPad Z480/Z485/Z580/Z585

Attention:

•Do not drop the hard disk drive or apply any physical shock to it.

The hard disk drive is sensitive to physical shock. Improper handling

can cause damages and permanent loss of data.

• Before removing the drive, suggest the customer to backup all the

information on it if possible.

• Never remove the drive while the system is operating or is in suspend

mode.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

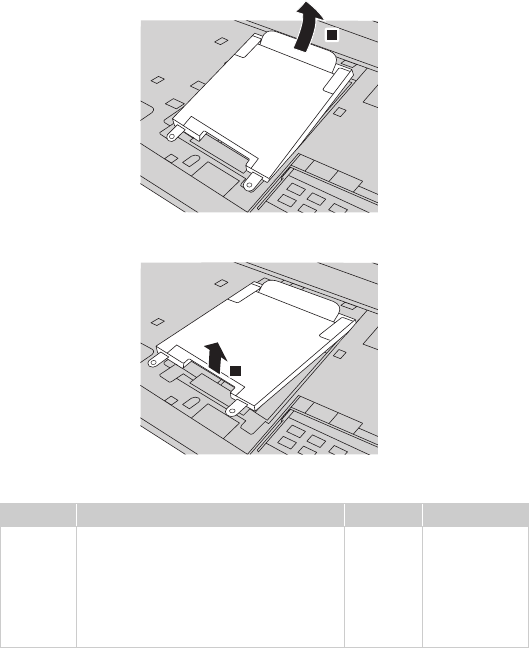

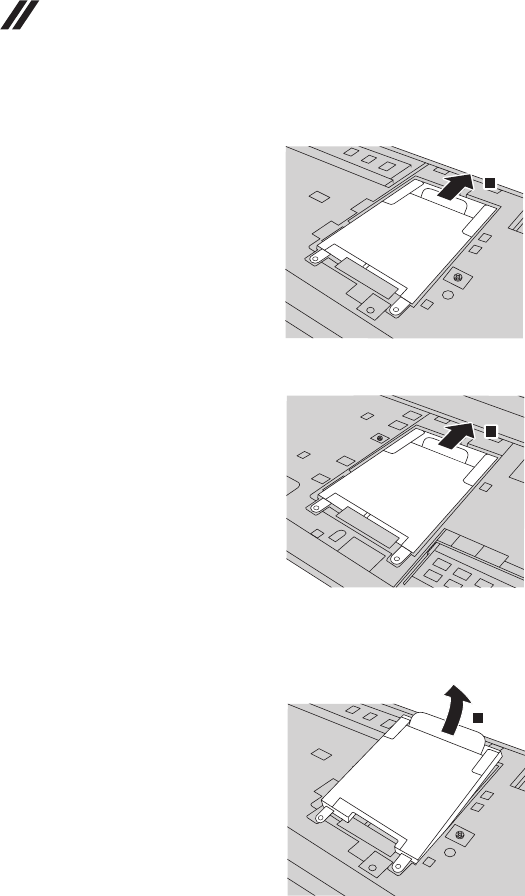

Then pull the tab in the direction shown by arrow .

Lenovo IdeaPad Z380

Lenovo IdeaPad Z480/Z485/Z580/Z585

Remove the hard disk drive (secured in the metal frame) in the direction shown

by arrow .

Lenovo IdeaPad Z380

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Lenovo IdeaPad Z480/Z485

Lenovo IdeaPad Z580/Z585

When installing: Make sure that the HDD connector is attached firmly.

Step Screw (quantity) Color Torque

Z380: M2.5×3.0 mm, flat-head,

nylok-coated (3)

Z480/Z485: M2.5×3.0 mm, flat-head,

nylok-coated (3)

Z580/Z585: M2.5×3.0 mm, flat-head,

nylok-coated (3)

Black

3.0±0.3 kgfcm

2.5±0.2 kgfcm

2.5 kgfcm

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

1050 Optical drive

For access, remove this FRU:

• “1010 Battery pack” on page 33

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

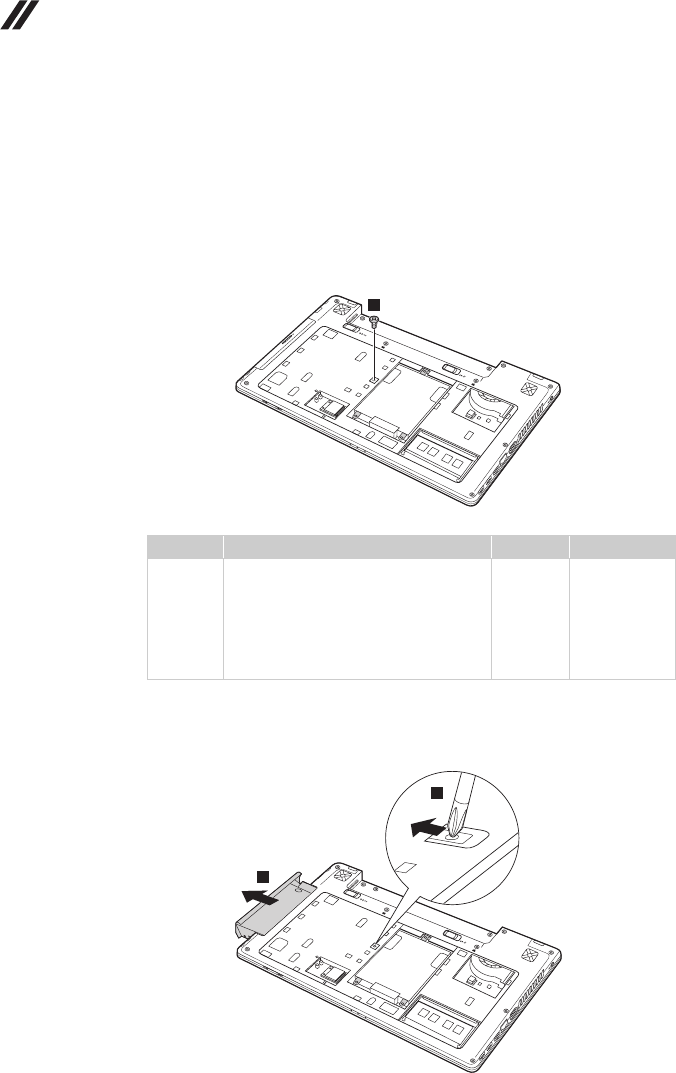

Figure 5. Removal steps of optical drive

Remove the screw .

Insert a screwdriver into the screw hole and push the optical drive in the

direction shown by arrow . Pull the optical drive out in the direction shown

by arrow .

Step Screw (quantity) Color Torque

Z380: M2.0×3.0 mm, flat-head,

nylok-coated (1)

Z480/Z485: M2.0 × 3.0 mm, flat-head,

nylok-coated (1)

Z580/Z585: M2.0×3.0 mm, flat-head,

nylok-coated (1)

Black

1.85±0.15

kgfcm

2.0±0.2 kgfcm

2.0 kgfcm

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

1060 DIMM

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

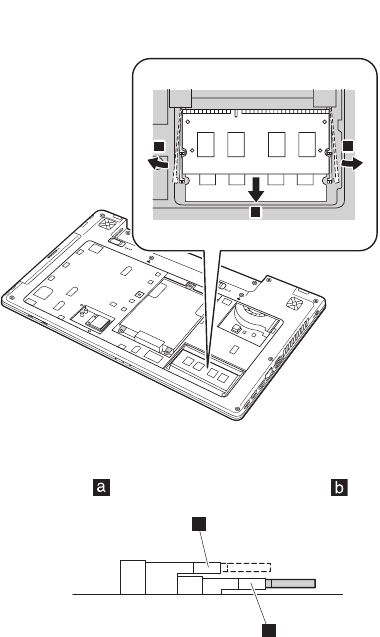

Figure 6. Removal steps of DIMM

Release the two latches on both edges of the socket at the same time in the

direction shown by arrows , and then unplug the DIMM in the direction

shown by arrow .

Note: If only one DIMM is used on the computer you are servicing, the card must

be installed in SLOT-0 ( : lower slot), but not in SLOT-1 ( : upper slot).

When installing: Insert the notched end of the DIMM into the socket. Push the

DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly

fixed in the slot and difficult to be moved.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

1070 PCI Express Mini Card for wireless LAN/WAN

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

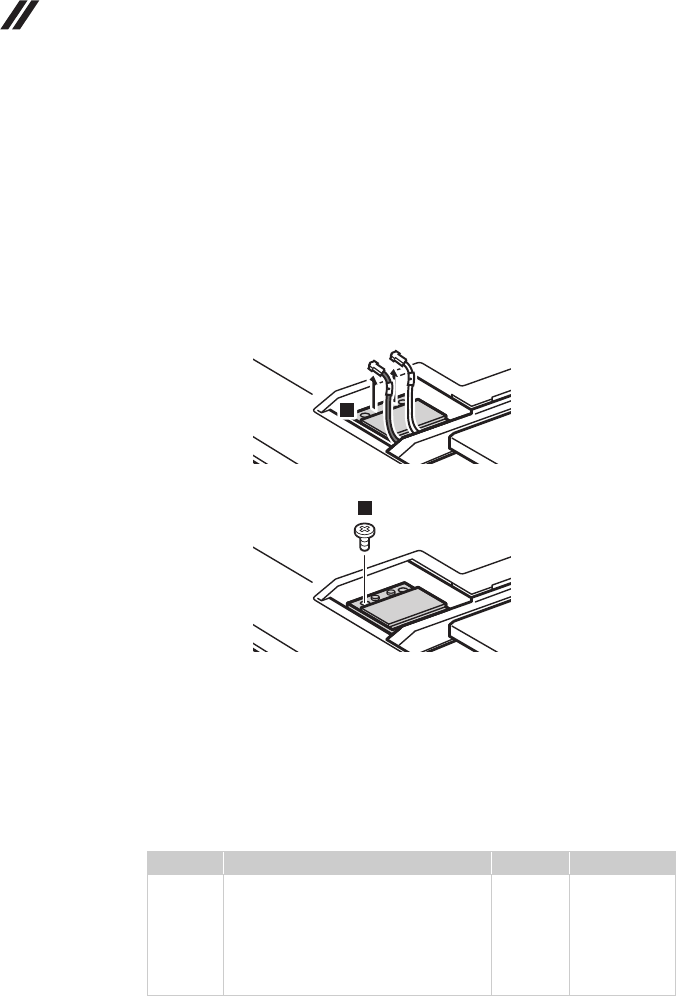

Figure 7. Removal steps of PCI Express Mini Card for wireless LAN/WAN

Disconnect the two wireless LAN cables (black, white) , and then remove the

screw .

In step , unplug the jacks by using the removal tool antenna RF connector

(P/N: 08K7159), or pick up the connectors with your fingers and gently unplug

them in the direction shown by arrows.

Notes: wireless LAN card has 2 cables in step .

wireless LAN card in some models may have 3 cables in step .

Step Screw (quantity) Color Torque

Z380: M2.0×3.0 mm, flat-head,

nylok-coated (1)

Z480/Z485: M2.0×3.0 mm, flat-head,

nylok-coated (1)

Z580/Z585: M2.0×3.0 mm, flat-head,

nylok-coated (1)

Black

1.85±0.15

kgfcm

2.0±0.2 kgfcm

2.0 kgfcm

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Figure 7. Removal steps of PCI Express Mini Card for wireless LAN/WAN (continued)

Remove the card in the direction shown by arrow .

When installing:

• In models with a wireless LAN card that has two antenna connectors, plug

the black cable (1st) (MAIN) into the jack labeled 1, and the white cable (2nd)

(AUX) into jack labeled 2 on the card.

• In models with a wireless LAN card that has three antenna connectors, plug

the black cable (1st) (MAIN) into the jack labeled 1, the grey cable (3rd) into

jack labeled 3, and the white cable (2nd) (AUX) into jack labeled 2 on the card.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

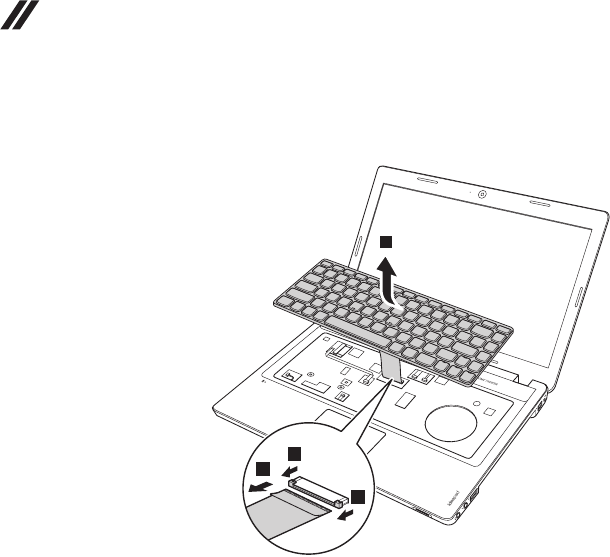

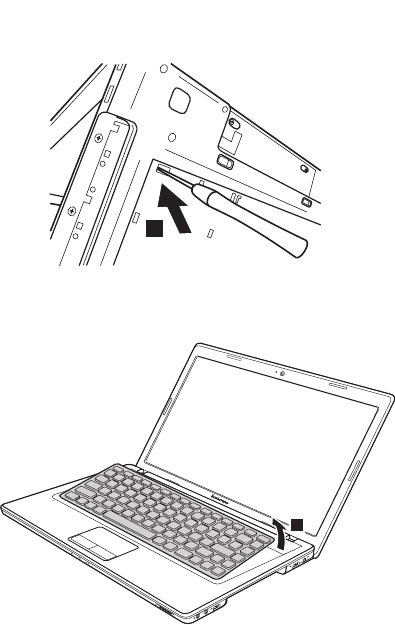

1080 Keyboard

For access, remove this FRU:

• “1010 Battery pack” on page 33

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

Figure 8. Removal steps of keyboard

Remove the three screws .

Step Screw (quantity) Color Torque

Z380: M2.0×4.0 mm, flat-head,

nylok-coated (3)

Z480/Z485: M2.0×5.0 mm, flat-head,

nylok-coated (2)

M2.0×4.0 mm, flat-head, nylok-coated (1)

Z580/Z585: M2.0×5.0 mm, flat-head,

nylok-coated (3)

Black

White

Black

1.85±0.15

kgfcm

2.0±0.2

kgfcm

2.0±0.2

kgfcm

2.0 kgfcm

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Figure 8. Removal steps of keyboard (continued)

Insert a screwdriver into the hole on the bottom of the notebook (as shown in the

illustration below) and push in the direction shown by arrow until the

keyboard pops out.

Remove the keyboard in the direction shown by arrow .

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Figure 8. Removal steps of keyboard (continued)

Lift the keyboard a little , and then detach the connector in the direction

shown by arrows .

When installing: Make sure that the FPC connector is attached firmly.

e f

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

1090 Keyboard bezel

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

• “1050 Optical drive” on page 40

• “1080 Keyboard” on page 44

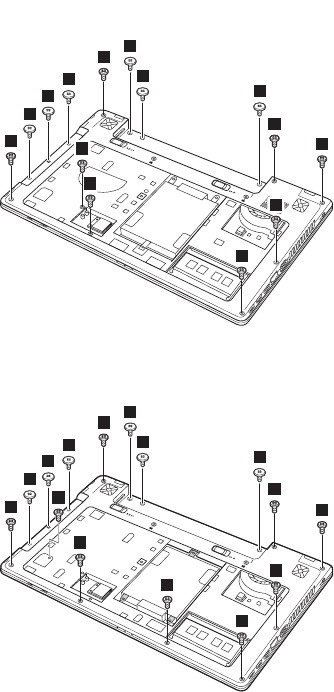

Figure 9. Removal steps of keyboard bezel

Lenovo IdeaPad Z380

Remove eight screws and six screws on the bottom.

Lenovo IdeaPad Z480/Z485

Remove nine screws and six screws on the bottom.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

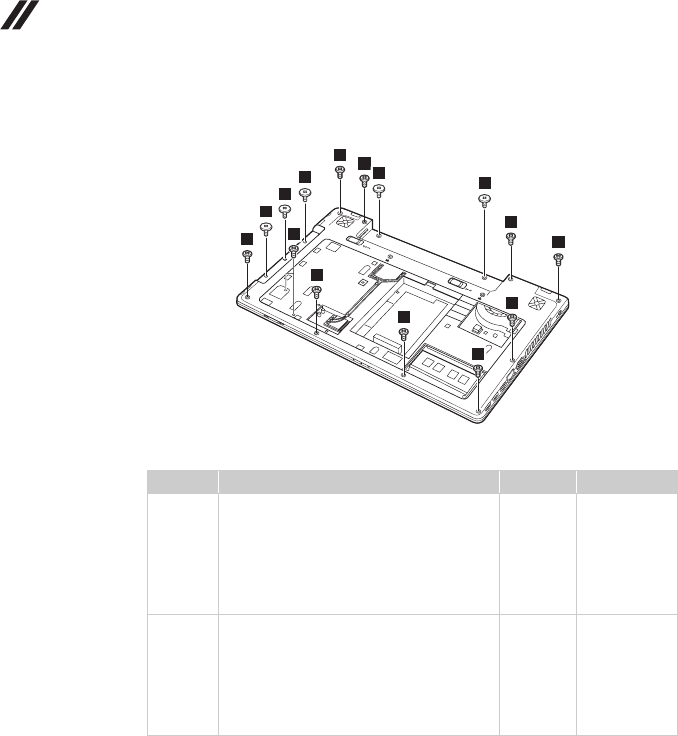

Lenovo IdeaPad Z580/Z585

Remove eleven screws and five screws on the bottom.

Step Screw (quantity) Color Torque

Z380: M2.5×5.0 mm, flat-head,

nylok-coated (8)

Z480/Z485: M2.5×5.0 mm, flat-head,

nylok-coated (9)

Z580/Z585: M2.5×5.0 mm, flat-head,

nylok-coated (11)

Black

3.0±0.3

kgfcm

2.5±0.2

kgfcm

2.5 kgfcm

Z380: M2.0×0.4 mm, flat-head,

nylok-coated (6)

Z480/Z485: M2.0×0.4 mm, flat-head,

nylok-coated (6)

Z580/Z585: M2.0×0.4 mm, flat-head,

nylok-coated (5)

Black

1.85±0.15

kgfcm

2.0±0.2

kgfcm

2.0 kgfcm

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Figure 9. Removal steps of keyboard bezel (continued)

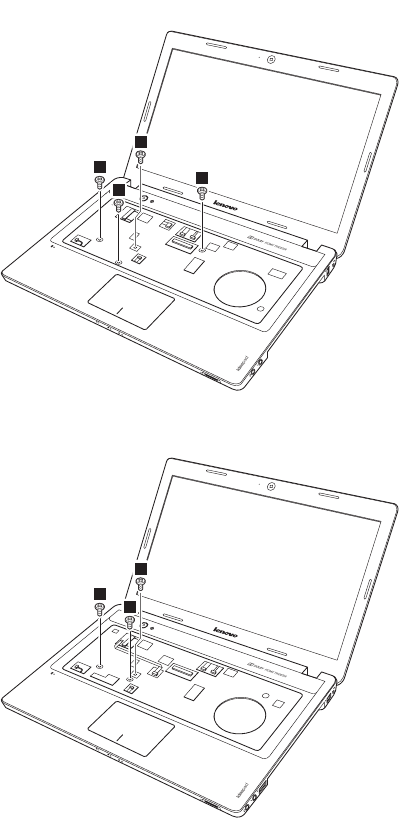

Lenovo IdeaPad Z380

Remove the four screws .

Lenovo IdeaPad Z480/Z485

Remove the three screws .

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

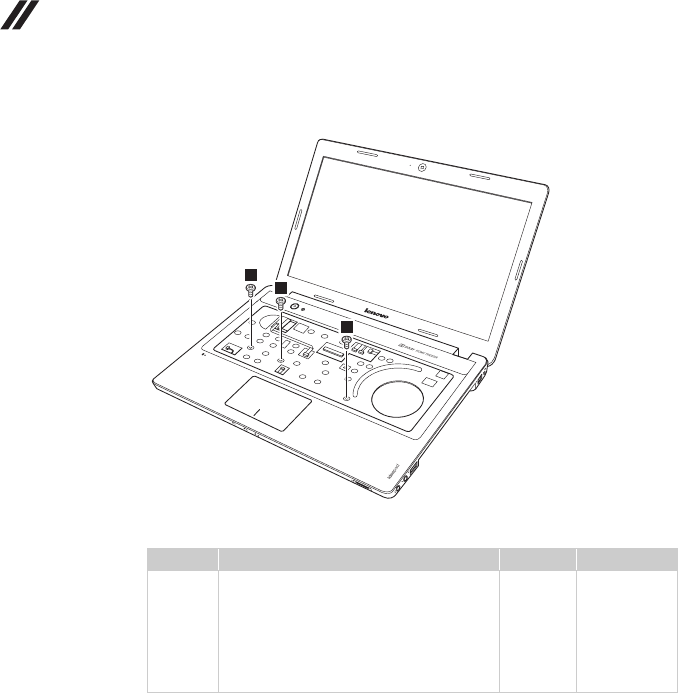

Lenovo IdeaPad Z580/Z585

Remove the three screws .

Step Screw (quantity) Color Torque

Z380: M2.0×3.0 mm, flat-head,

nylok-coated (4)

Z480/Z485: M2.0×2.5 mm, flat-head,

nylok-coated (3)

Z580/Z585: M2.0×3.0 mm, flat-head,

nylok-coated (3)

Black

White

Black

1.85±0.15

kgfcm

2.0±0.2

kgfcm

2.0 kgfcm

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Figure 9. Removal steps of keyboard bezel (continued)

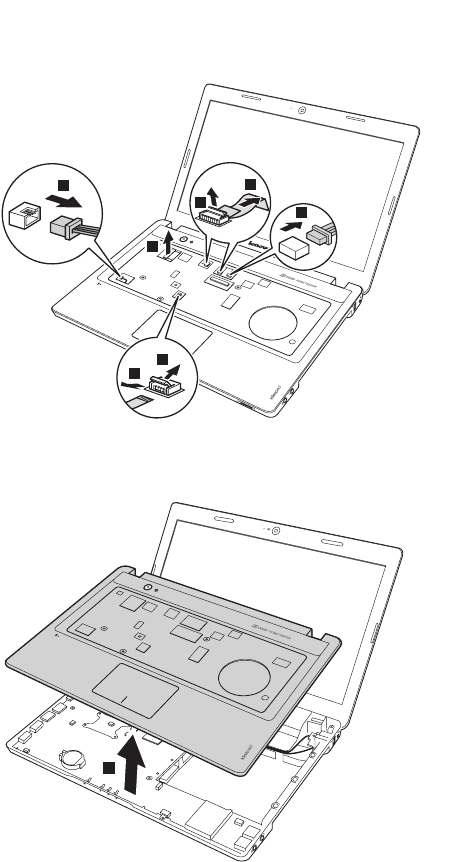

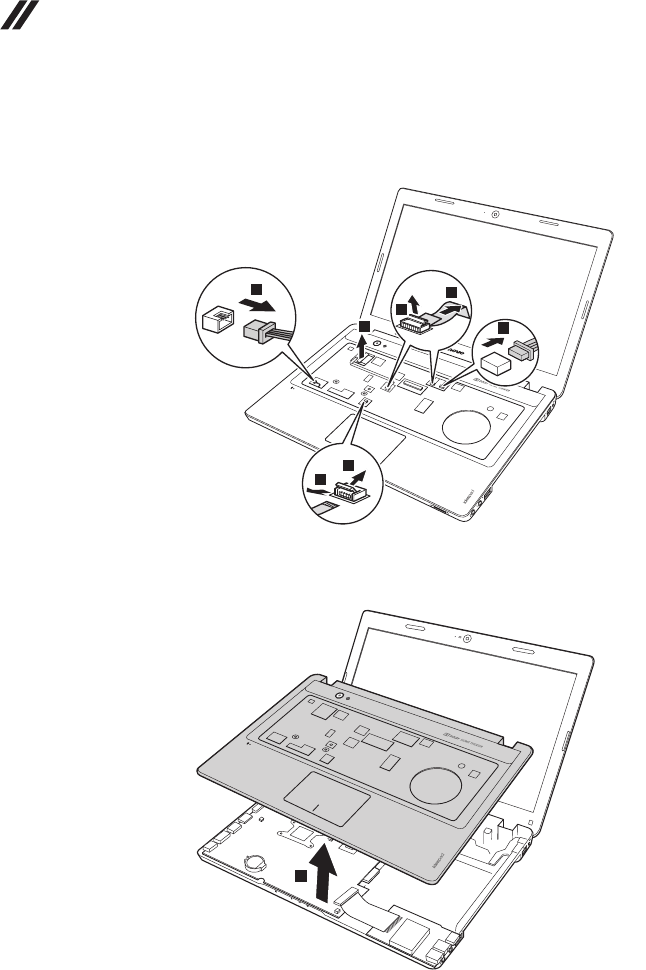

Lenovo IdeaPad Z380

Detach the three FPC connectors in the direction shown by arrows .

Unplug the LCD connector in the direction shown by arrow and the

microphone & the speakers connector in the direction shown by arrows .

Remove the keyboard bezel in the direction shown by arrow .

d e

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Lenovo IdeaPad Z480/Z485

Detach the three FPC connectors in the direction shown by arrows .

Unplug the LCD connector in the direction shown by arrow and the

microphone & the speakers connector in the direction shown by arrows .

Remove the keyboard bezel in the direction shown by arrow .

d e

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

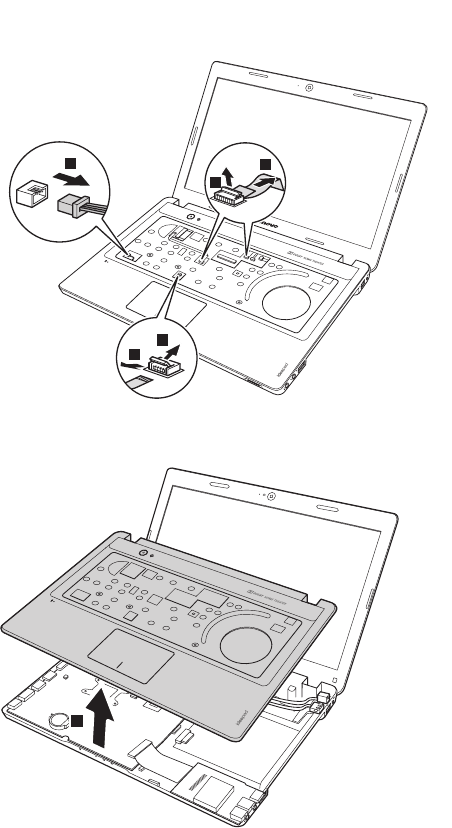

Lenovo IdeaPad Z580/Z585

Detach the three FPC connectors in the direction shown by arrows .

Unplug the microphone connector in the direction shown by arrow .

Then remove the keyboard bezel in the direction shown by arrow .

When installing: Make sure that all the connectors are attached firmly.

d e

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Lenovo IdeaPad Z380/Z480/Z485

Remove the four screws to remove the speakers & microphone in the direction

shown by arrows . Then remove the screw to remove the power board in the

direction shown by arrow .

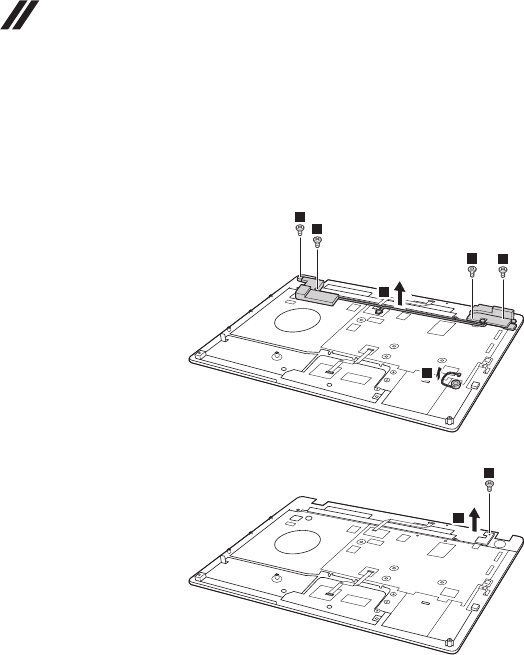

Lenovo IdeaPad Z380

i j

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

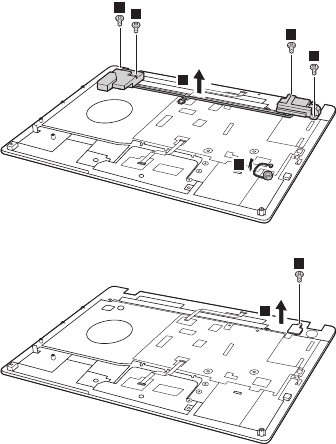

Lenovo IdeaPad Z480/Z485

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

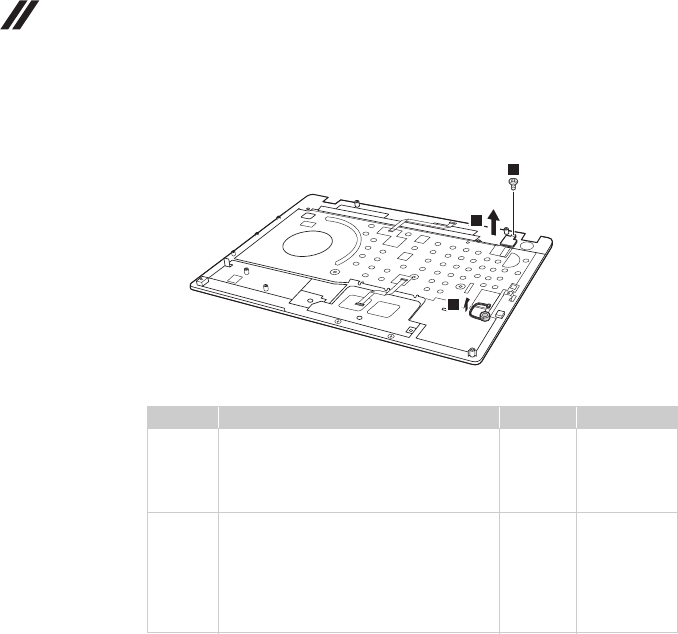

Lenovo IdeaPad Z580/Z585

Remove the microphone in the direction shown by arrow . Remove the screw

, and then remove the power board .

Step Screw (quantity) Color Torque

Z380: M2.0×6.8 mm, flat-head,

nylok-coated (4)

Z480/Z485: M2.0×6.8 mm, flat-head,

nylok-coated (4)

Black

1.85±0.15

kgfcm

2.0±0.2

kgfcm

Z380: M2.0×3.0 mm, flat-head,

nylok-coated (1)

Z480/Z485: M2.0×2.5 mm, flat-head,

nylok-coated (1)

Z580/Z585: M2.0×3.0 mm, flat-head,

nylok-coated (1)

Black

White

Black

1.85±0.15

kgfcm

2.0±0.2

kgfcm

2.0 kgfcm

j k

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

1100 System board

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Dummy card” on page 34

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Keyboard bezel” on page 47

Important notices for handling the system board:

When handling the system board, bear the following in mind.

• Be careful not to drop the system board on a bench top that has a hard

surface, such as metal, wood, or composite.

• Avoid rough handling of any kind.

• In the whole process, make sure not to drop or stack the system board.

• If you put a system board down, make sure to put it only on a padded

surface such as an ESD mat or conductive corrugated material.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

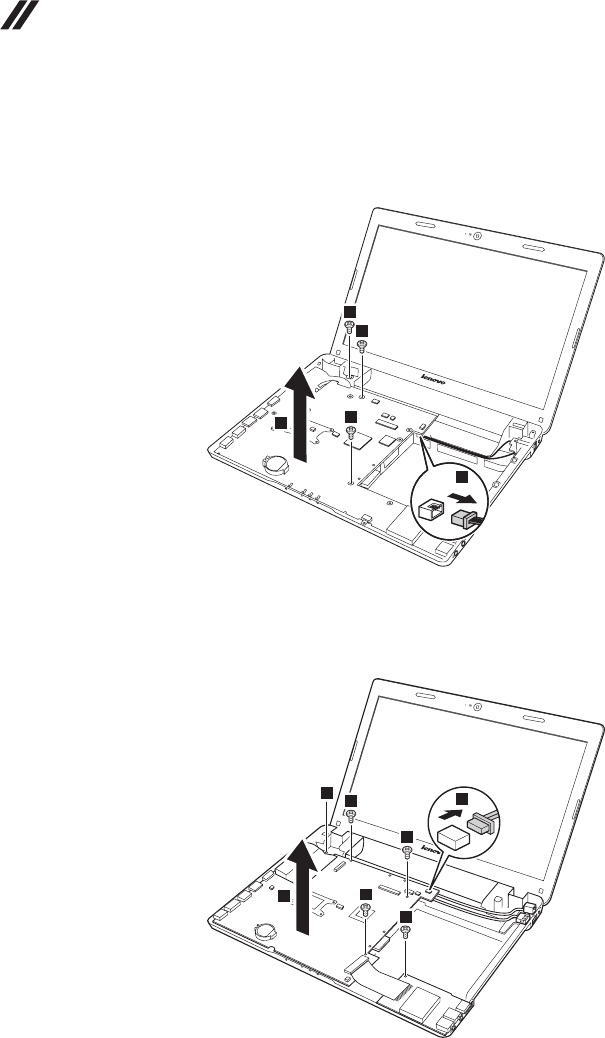

Figure 10. Removal steps of system board

Lenovo IdeaPad Z380

Remove the two screws and the screw . Unplug the camera connector in

the direction shown by arrow . Then carefully remove the system board in the

direction shown by arrow .

Lenovo IdeaPad Z480/Z485

Remove the four screws and loose the screw . Unplug the camera

connector in the direction shown by arrow . Then carefully remove the system

board in the direction shown by arrow .

a b

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

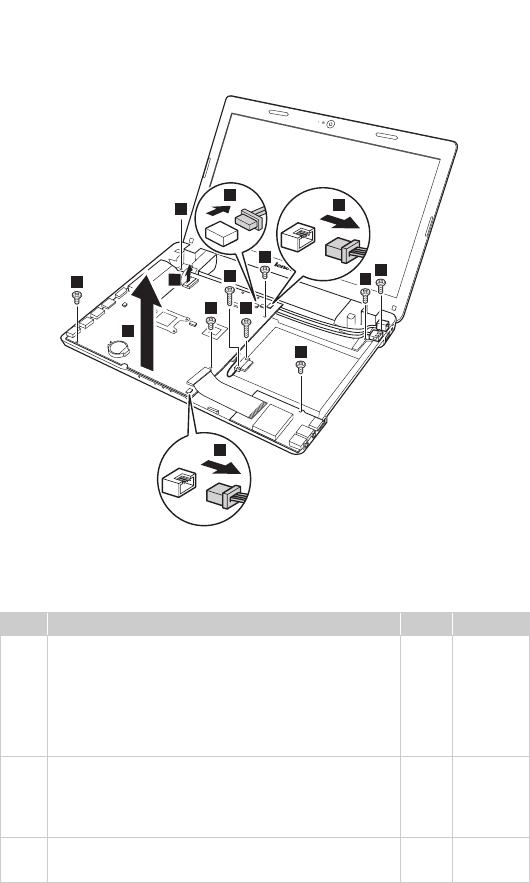

Lenovo IdeaPad Z580/Z585

Remove two screws , four screws and two screws . then loose the screw

. Unplug camera connector, speakers connector, LCD connector and

bluetooth connector in the direction shown by arrows . Then carefully

remove the system board in the direction shown by arrow .

When installing: Make sure that all the connectors are attached firmly.

Step Screw (quantity) Color Torque

Z380: M2.5×5.0 mm, flat-head,

nylok-coated (2)

Z480/Z485: M2.5×5.0 mm, flat-head,

nylok-coated (4)

Z580/Z585: M2.0×3.0 mm, flat-head,

nylok-coated (2)

Black

3.0±0.3

kgfcm

2.5±0.2

kgfcm

2.0 kgfcm

Z380: M2.0×3.0 mm, flat-head,

nylok-coated (1)

Z580/Z585: M2.5×5.0 mm, flat-head,

nylok-coated (4)

Black

1.85±0.15

kgfcm

2.5 kgfcm

Z580/Z585: M2.0×6.0 mm, flat-head,

nylok-coated (2)

Black 2.0 kgfcm

a b c

e f

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

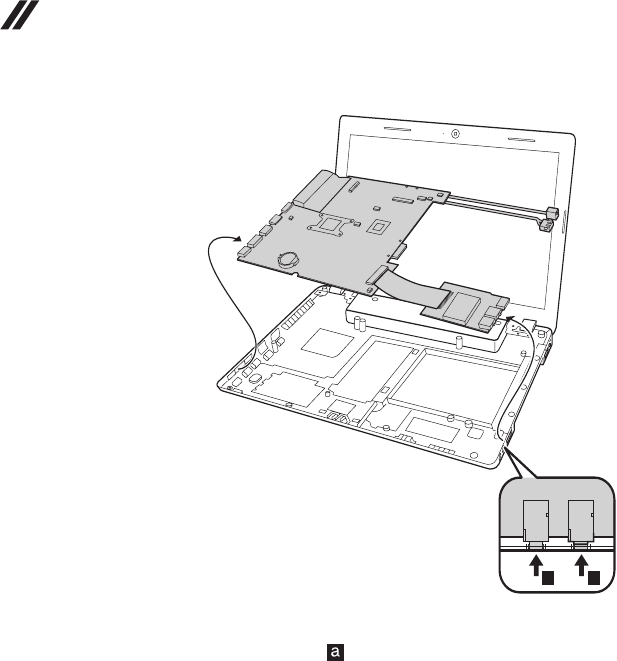

Figure 10. Removal steps of system board (continued)

When installing: When attaching the system board to the base cover, make sure

that both of the audio jack and the microphone jack are attached to the holes on

the base cover as shown in . Improper placement of those jacks might cause a

damage.

a a

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

1110 LCD unit

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Dummy card” on page 34

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Keyboard bezel” on page 47

• “1100 System board” on page 57

Figure 11. Removal steps of LCD unit

Release the antenna cables from the cable guides in the direction shown by

arrows .

Lenovo IdeaPad Z380

Remove the five screws .

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

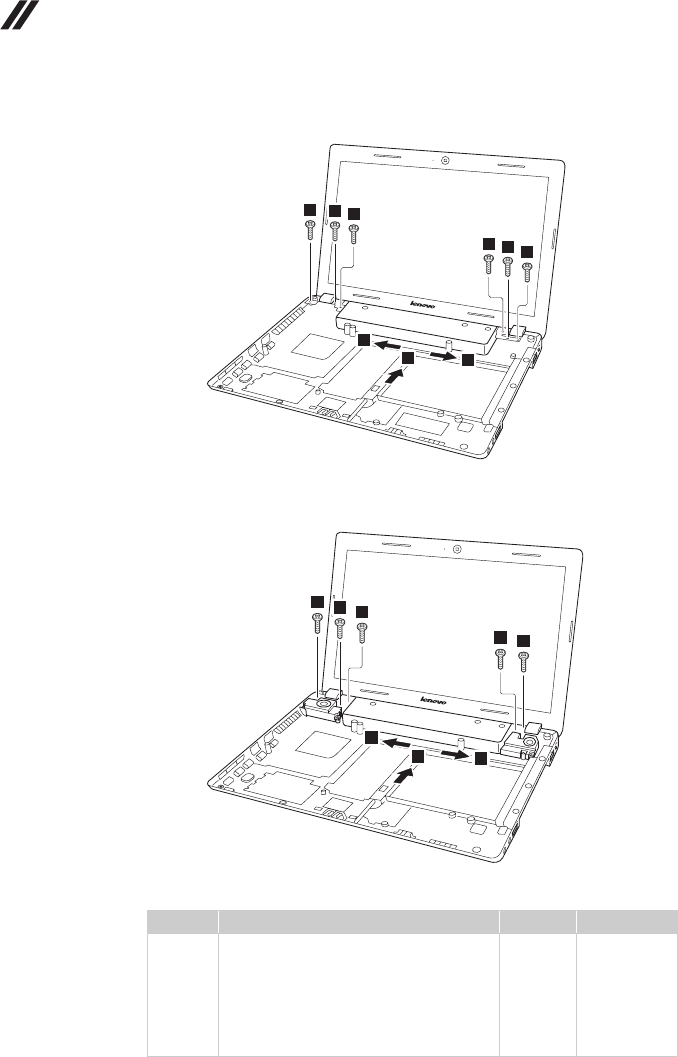

Lenovo IdeaPad Z480/Z485

Remove the six screws .

Lenovo IdeaPad Z580/Z585

Remove the five screws .

Step Screw (quantity) Color Torque

Z380: M2.5×5.0 mm, flat-head,

nylok-coated (5)

Z480/Z485: M2.5×5.0 mm, flat-head,

nylok-coated (6)

Z580/Z585: M2.5×5.0 mm, flat-head,

nylok-coated (5)

Black

3.0±0.3

kgfcm

2.5±0.2

kgfcm

2.5 kgfcm

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

When installing:

• Route the antenna cables along the cable guides. As you route the cables,

make sure that they are not subjected to any tension. Tension could cause the

cables to be damaged by the cable guides, or a wire to be broken.

• Make sure that the LCD connector is attached firmly and make sure that you

do not pinch the antenna cables when you attach the LCD assembly. Route

the LCD cable along the cable guides.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

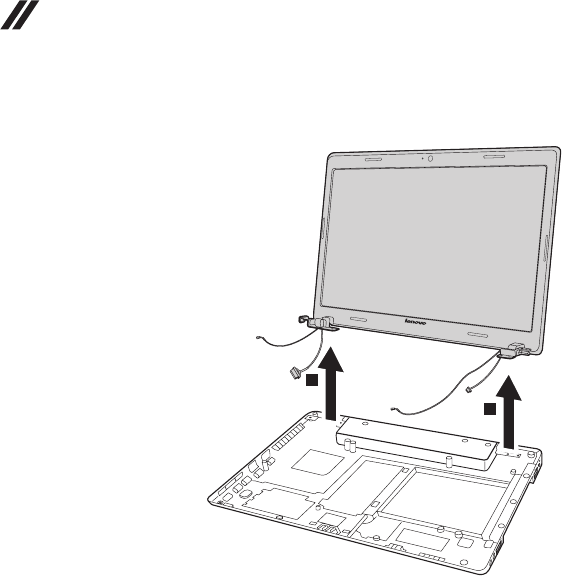

Figure 11. Removal steps of LCD unit (continued)

Remove the LCD unit in the direction shown by arrows .

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

1120 Fan assembly and Heat Sink assembly

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Dummy card” on page 34

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Keyboard bezel” on page 47

• “1100 System board” on page 57

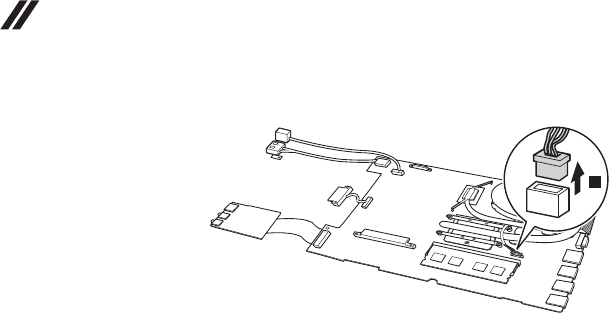

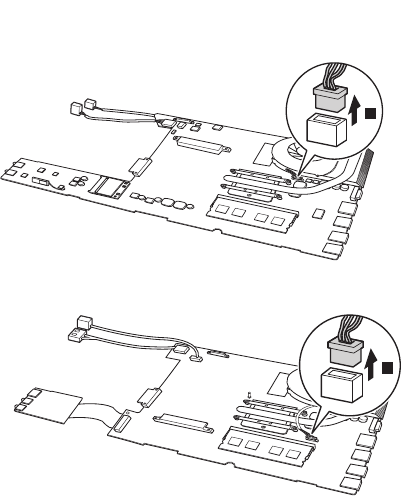

Figure 12. Removal steps of fan assembly and heat sink assembly

Detach the fan connector in the direction shown by arrow .

Lenovo IdeaPad Z380

Lenovo IdeaPad Z480/Z485

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Lenovo IdeaPad Z580/Z585

When installing: Make sure that the fan connector is attached firmly to the

system board.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Figure 12. Removal steps of fan assembly and heat sink assembly (continued)

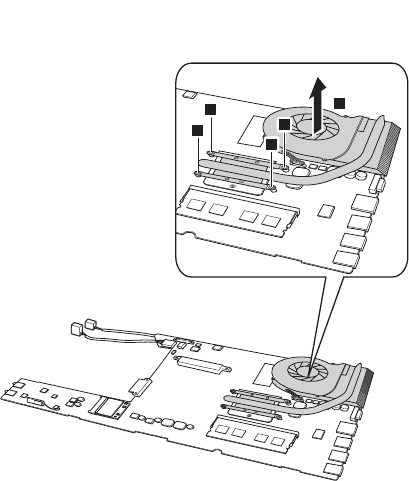

Lenovo IdeaPad Z380

Loosen the four screws . Lift the fan assembly and heat sink assembly in the

direction shown by arrow . Be careful not to damage the connector.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Lenovo IdeaPad Z480/Z485

Loosen the four screws . Lift the fan assembly and heat sink assembly in the

direction shown by arrow . Be careful not to damage the connector.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

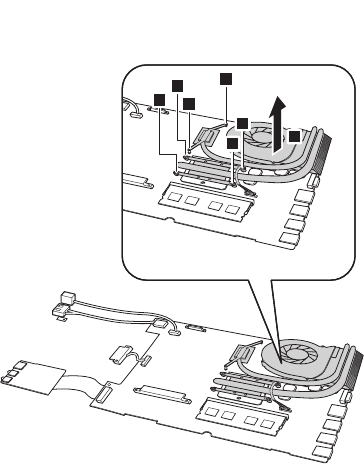

Lenovo IdeaPad Z580/Z585

Loosen the six screws . Lift the fan assembly and heat sink assembly in the

direction shown by arrow . Be careful not to damage the connector.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

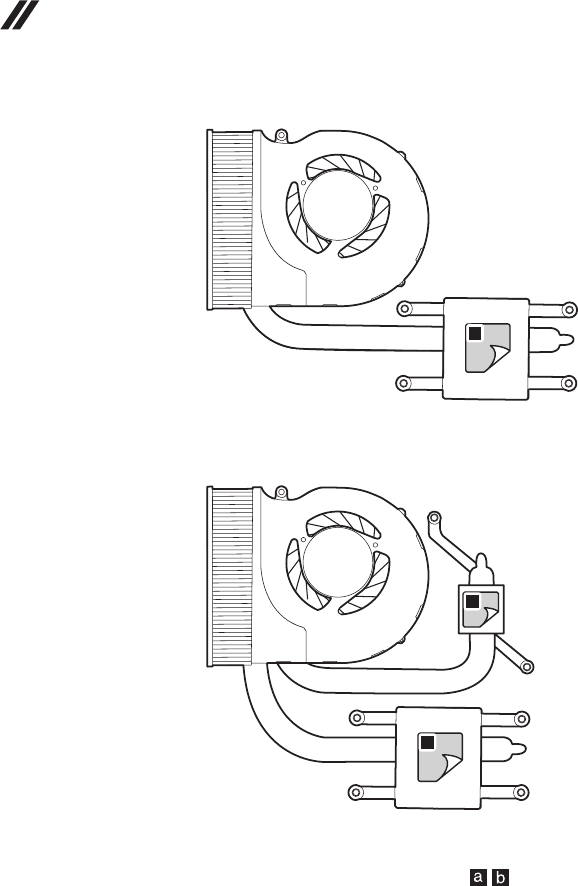

Lenovo IdeaPad Z380/Z480/Z485

Lenovo IdeaPad Z580/Z585

When installing: Before you attach the fan assembly to the computer, apply

thermal grease, at an amount of 0.2 grams, to the part shown in the figure

above. Either too much or too less grease application can cause a thermal

problem due to imperfect contact with a component.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

1130 CPU

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Dummy card” on page 34

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Keyboard bezel” on page 47

• “1100 System board” on page 57

• “1120 Fan assembly and Heat Sink assembly” on page 65

Attention: CPU is extremely sensitive. When you service the CPU, avoid any

kind of rough handling.

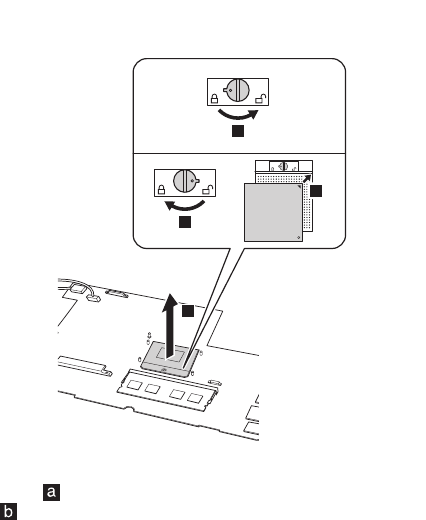

Figure 13. Removal steps of CPU

Rotate the head of the screw in the direction shown by arrow to release the

lock, then remove the CPU in the direction shown by arrow .

When installing: Place the CPU on the CPU socket in the direction shown by

arrow , and then rotate the head of the screw in the direction shown by arrow

to secure the CPU.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

1140 Base cover, speakers and bluetooth card (Z580/Z585)

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Dummy card” on page 34

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Keyboard bezel” on page 47

• “1100 System board” on page 57

• “1110 LCD unit” on page 61

Figure 14. Removal steps of base cover, speakers and bluetooth card

Remove the four screws , and then remove the speakers in the direction

shown by arrows .

Step Screw (quantity) Color Torque

M2.0×4.8 mm, flat-head, nylok-coated (4) Black 2.0 kgfcm

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

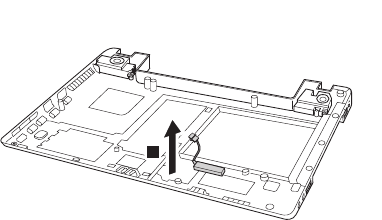

Remove the bluetooth card in the direction shown by arrow .

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

1150 LCD front bezel

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Dummy card” on page 34

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Keyboard bezel” on page 47

• “1100 System board” on page 57

• “1110 LCD unit” on page 61

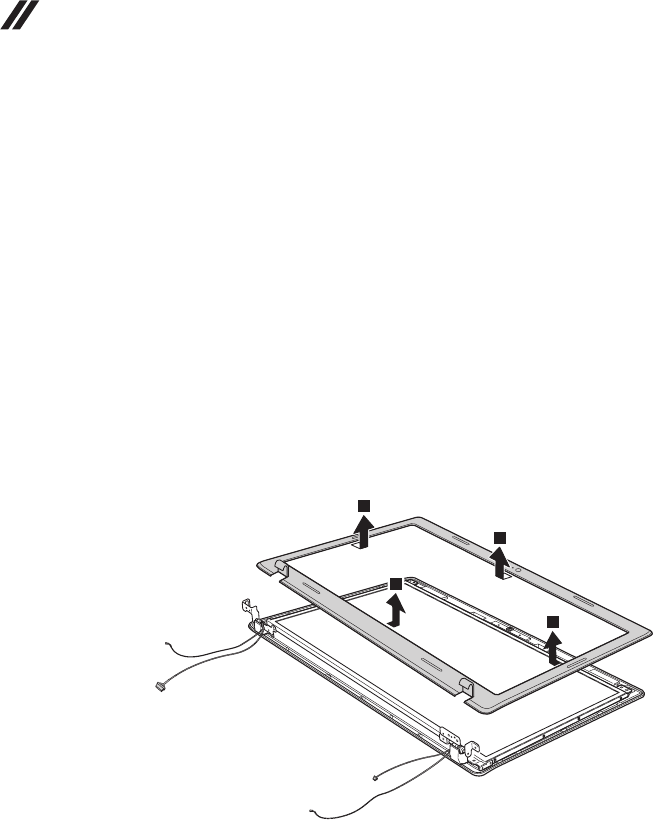

Figure 15. Removal steps of LCD front bezel

Remove the LCD front bezel in the direction shown by arrows .

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

1160 LCD panel, LCD cable and hinges

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Dummy card” on page 34

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Keyboard bezel” on page 47

• “1100 System board” on page 57

• “1110 LCD unit” on page 61

• “1150 LCD front bezel” on page 74

Figure 16. Removal steps of LCD panel, LCD cable and hinges

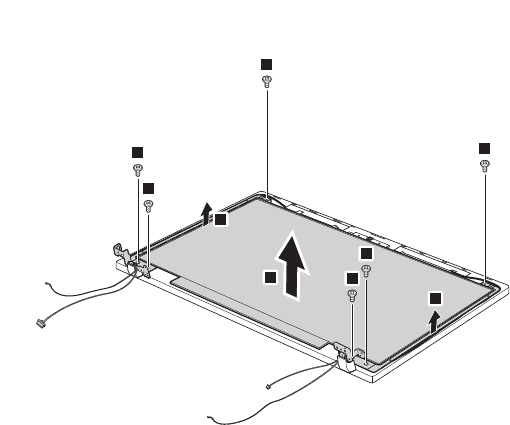

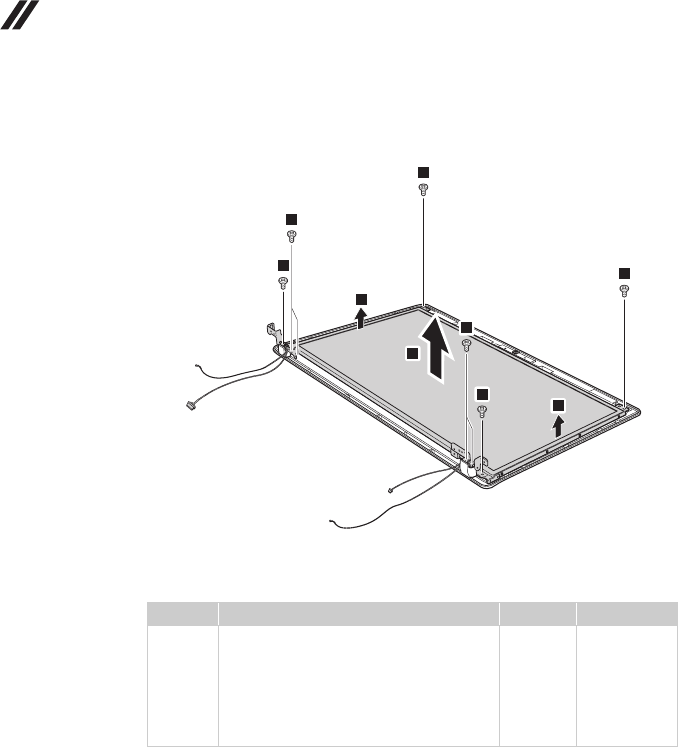

Lenovo IdeaPad Z380

Remove the six screws . Lift the LCD panel in the direction shown by arrows

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Lenovo IdeaPad Z480/Z485/Z580/Z585

Remove the eight screws . Lift the LCD panel with the hinges in the direction

shown by arrows .

Step Screw (quantity) Color Torque

Z380: M2.5×3.0 mm, flat-head,

nylok-coated (6)

Z480/Z485: M2.5×3.5 mm, flat-head,

nylok-coated (8)

Z580/Z585: M2.5×3.5 mm, flat-head,

nylok-coated (8)

Black

White

Black

3.0±0.3

kgfcm

2.5±0.2

kgfcm

2.0 kgfcm

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

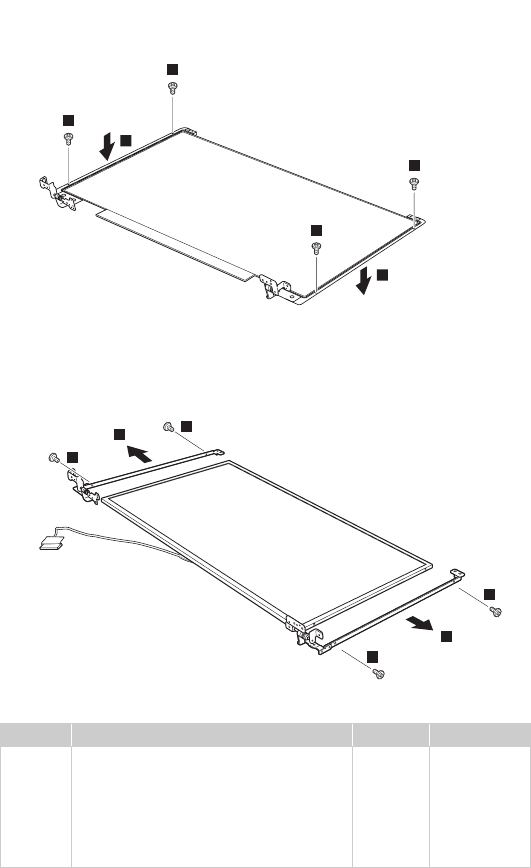

Figure 16. Removal steps of LCD panel, LCD cable and hinges (continued)

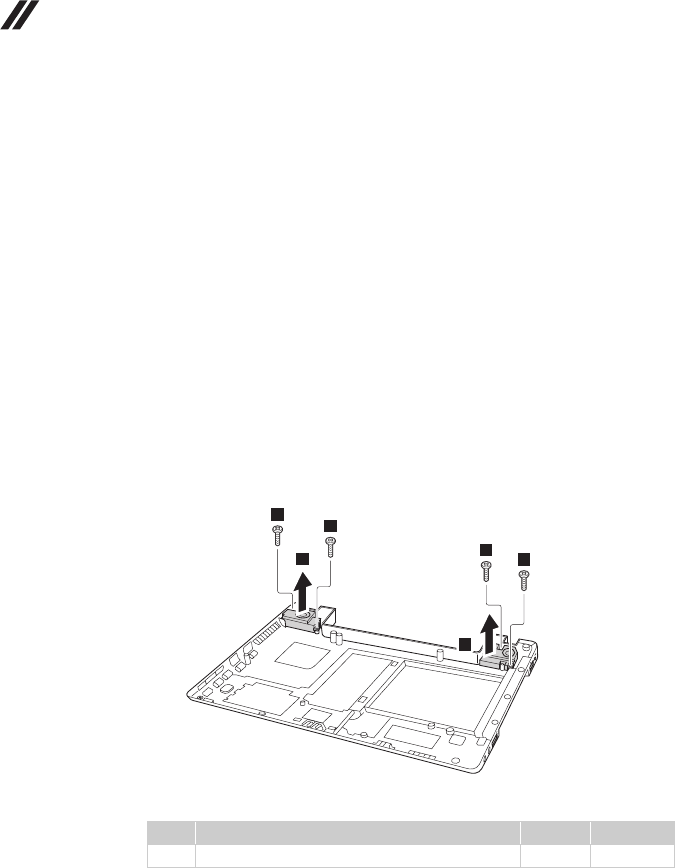

Lenovo IdeaPad Z380

Remove the four screws , then remove the hinges in the direction shown by

arrows .

Lenovo IdeaPad Z480/Z485/Z580/Z585

Remove the four screws and remove the hinges in the direction shown by arrows

Step Screw (quantity) Color Torque

Z380: M1.7×3.0 mm, flat-head,

nylok-coated (4)

Z480/Z485: M2.0×2.5 mm, flat-head,

nylok-coated (4)

Z580/Z585: M2.0×3.0 mm, flat-head,

nylok-coated (4)

White

Black

3.0±0.3

kgfcm

2.0±0.2

kgfcm

2.0 kgfcm

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Figure 16. Removal steps of LCD panel, LCD cable and hinges (continued)

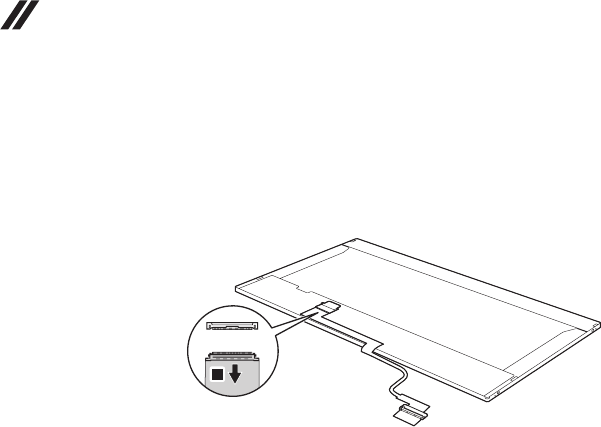

Note: The LCD cables are attached to the LCD panel by a metal connector.

Peel off the adhesive tape and detach the connector in the direction shown by

arrow .

When installing: Make sure that the metal connector is attached firmly.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

1170 Integrated camera

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Dummy card” on page 34

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Keyboard bezel” on page 47

• “1100 System board” on page 57

• “1110 LCD unit” on page 61

• “1150 LCD front bezel” on page 74

• “1160 LCD panel, LCD cable and hinges” on page 75

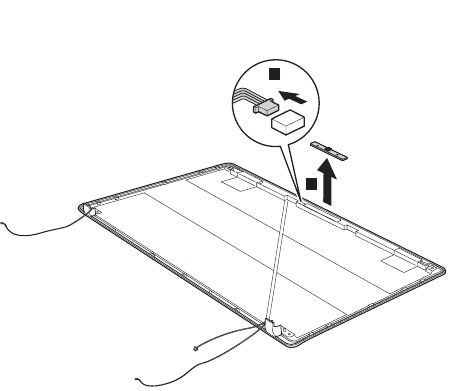

Figure 17. Removal steps of integrated camera

Note: The integrated camera is stuck on the top center of the LCD cover.

Unplug the integrated camera connector in the direction shown by arrow .

Remove the integrated camera from the LCD cover .

When installing: Stick the integrated camera to the top center of the LCD cover

and ajust the placement of it to make sure the connector is attached firmly.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

1180 Antenna assembly and LCD cover

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Dummy card” on page 34

• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing

unit/Mini PCI Express Card slot compartment cover” on page 35

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Keyboard bezel” on page 47

• “1100 System board” on page 57

• “1110 LCD unit” on page 61

• “1150 LCD front bezel” on page 74

• “1160 LCD panel, LCD cable and hinges” on page 75

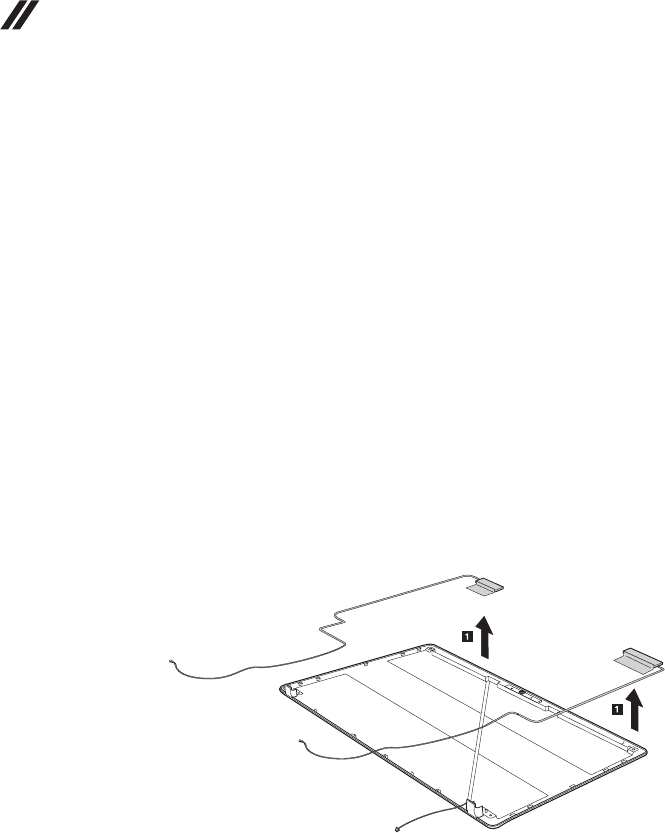

Figure 18. Removal steps of antenna assembly and LCD cover

Peel off the adhesive tapes securing the antenna boards, release the

cables from the cable guide, and then remove the antenna assembly in the

direction shown by arrows .

When installing: Route the antenna cables along the cable guides and secure the

antenna boards with adhesive tapes. As you route the cables, make sure that they

are not subjected to any tension. Tension could cause the cables to be damaged

by the cable guides, or a wire to be broken.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Front view

Integrated camera

Wireless module antennas

Note: Wireless module antennas may be placed in different positions (2a/2b)

depending on different configurations.

Computer display

Speaker

Power button

OneKey Rescue System button

Cap sensor buttons

Built-in microphone

Touchpad

System status indicators

Memory card slot

Locations

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

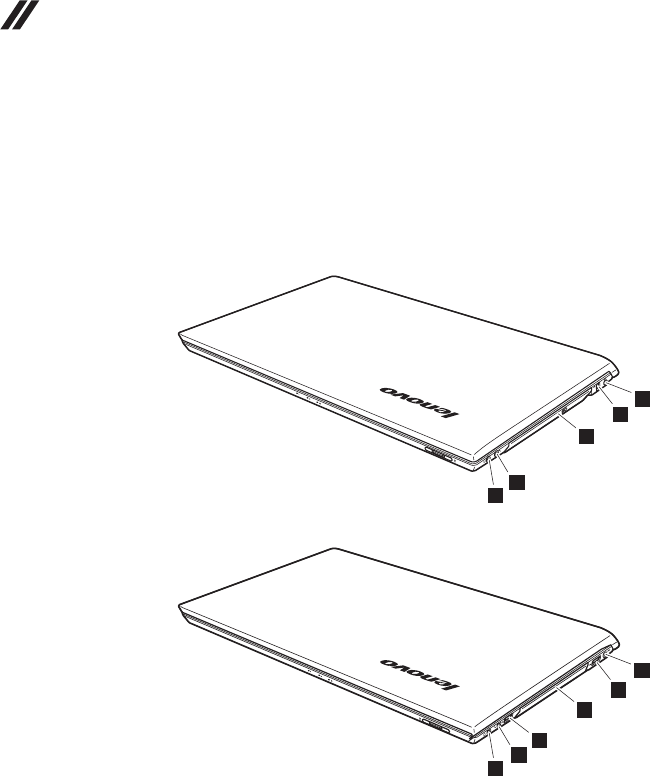

Right-side view

Headphone jack

Microphone jack

Optical drive

USB port

AC power adapter jack

Lenovo IdeaPad Z380

Lenovo IdeaPad Z480/Z485/Z580/Z585

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

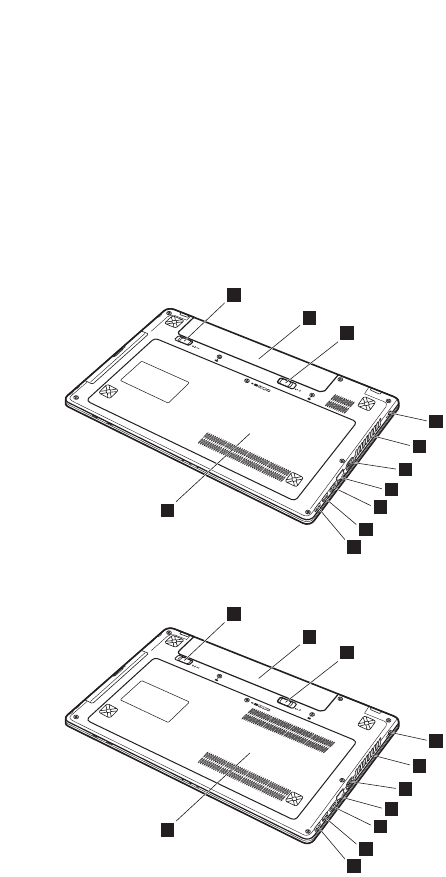

Bottom and Left-side view

Kensington slot

Fan louvers

VGA port

RJ-45 port

HDMI port

USB 3.0 port

Battery latch - manual

Battery pack

Battery latch - spring loaded

Optical drive/Hard disk drive(HDD)/Memory/Central processing unit/

Mini PCI Express Card slot compartment

Lenovo IdeaPad Z380

Lenovo IdeaPad Z480/Z485/Z580/Z585

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

This section presents the following service parts:

• “Overall” on page 85

• “LCD FRUs” on page 90

• “Keyboard” on page 94

• “Miscellaneous parts” on page 122

• “AC adapters” on page 123

• “Power cords” on page 124

Parts list

Notes:

• Each FRU is available for all types or models, unless specific types or

models are specified.

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

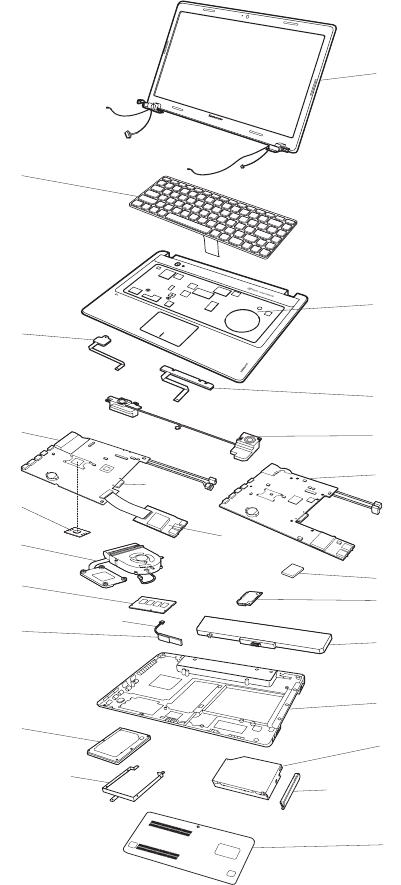

Overall

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Table 4. Parts list—Overall

No. FRU FRU no.

1 LCD unit (see “LCD FRUs” on page 90.)

2 Keyboard (see “Keyboard” on page 94.)

3 LZ1 Upper Case Grey (Z380) 90200601

3 LZ1 Upper Case White (Z380) 90200599

3 LZ1 Upper Case Pink (Z380) 90200600

3 LZ2 Upper Case Blue (Z480/Z485) 90200621

3 LZ2 Upper Case Red (Z480/Z485) 90200620

3 LZ2 Upper Case Grey (Z480/Z485) 90200622

3 LZ3 Upper Case White (Z580/Z585) 90200639

3 LZ3 Upper Case Red (Z580/Z585) 90200638

3 LZ3 Upper Case Grey (Z580/Z585) 90200640

4 LZ1 Power Board (Z380) 90000196

4 LZ2 Power Board (Z480/Z485) 90000199

4 LZ3 Power Board (Z580/Z585) 90000202

5 LZ1 TP Function Board (Z380) 90000197

5 LZ2 TP Function Board (Z480/Z485) 90000200

5 LZ3 TP Function Board (Z580/Z585) 90000203

6 LZ1 Speaker Module L+R (Z380) 90200611

6 LZ2 Speaker Module L+R (Z480/Z485) 90200630

7 LZ1 MB UMA 100M (Z380) 90000127

7 LZ1 MB DIS GE 1G 100M (Z380) 90000128

7 LZ2 MB UMA 100M (Z480/Z485) 90000123

7 LZ2A MB DIS GL 1G 100M (Z480/Z485) 90000124

7 LZ2A MB DIS GL 2G 100M (Z480/Z485) 90000125

7 LZ2A MB DIS GE 1G 100M (Z480/Z485) 90000126

7 LZ2A MB DIS GS 1G 100M 90000271

7 LZ3A MB DIS GS 1G 100M 90000272

7 LZ3A MB DIS GS 2G 100M 90000273

7 LZ3A MB DIS GL 1G 100M (Z580/Z585) 90000108

7 LZ3A MB DIS GL 2G 100M (Z580/Z585) 90000109

7 LZ3 MB UMA 100M (Z580/Z585) 90000107

8 Intel, Ivy bridge core Quad-Core 35W, Intel IVB 1.8G C0 6M

4cPGA ES2 Processor(Z480/Z580)

102500119

8 Intel, Ivy bridge core Quad-Core 35W, Intel IVB 1.7G C0 6M

35W 4cPGA ES2 Processor(Z480/Z580)

102500164

8 Intel, Ivy bridge core Quad-Core 35W, Intel I7-3612QM 2.1G

E1 6M 4cPGA Processor(Z480/Z580)

102500290

8 Intel, Ivy bridge core Dual-core 35W, Intel IVB 2.6G K0 4M

2cPGA ES2 Processor(Z380/Z480/Z580)

102500213

8 Intel, Ivy bridge core Dual-core 35W, Intel IVB 2.3G K0 3M

2cPGA ES2 Processor(Z380/Z480/Z580)

102500207

8 Intel, Ivy bridge core Dual-core 35W, Intel IVB K0 SV 35W

2cPGA ES2 Processor(Z380/Z480/Z580)

102500126

8 Intel, Ivy bridge core Dual-core 35W, Intel IVB 1.8G C0 4M

2cPGA ES2 Processor(Z380/Z480/Z580)

102500169

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Table 4. Parts list—Overall (continued)

No. FRU FRU no.

8 Intel, Ivy bridge core Dual-core 35W, Intel I7-3520M 2.9G L1

4M 2cPGA Processor(Z380/Z480/Z580)

102500295

8 Intel, Ivy bridge core Dual-core 35W, Intel I5-3360M 2.8G L1

3M 2cPGA Processor(Z380/Z480/Z580)

102500297

8 Intel, Ivy bridge core Dual-core 35W, Intel I5-3320M 2.6G L1

3M 2cPGA Processor(Z380/Z480/Z580)

102500299

8 Intel, Ivy bridge core Dual-core 35W, Intel I5-3210M 2.5G L1

3M 2cPGA Processor(Z380/Z480/Z580)

102500301

8 Intel, Ivy bridge core Dual-core 35W, Intel I3-3110M 2.4G L1

3M 2cPGA Processor(Z380/Z480/Z580)

102500303

8 Intel, Sandy bridge core Dual-core 35W, Intel I7-2620M 2.7G

4M 2c J1 PGA Processor(Z380/Z480/Z580)

102001069

8 Intel, Sandy bridge core Dual-core 35W, Intel I5-2540M 2.6G

3M 2c J1 PGA Processor(Z380/Z480/Z580)

102001068

8 Intel, Sandy bridge core Dual-core 35W, Intel I5-2520M 2.5G

3M 2c J1 PGA Processor(Z380/Z480/Z580)

102001067

8 Intel, Sandy bridge core Dual-core 35W, I5-2430M rPGA DC

(2.4GHz) 35W Processor(Z380/Z480/Z580)

102500019

8 Intel, Sandy bridge core Dual-core 35W, Intel I5-2410M 2.3G

3M 2c J1 PGA Processor(Z380/Z480/Z580)

102001066

8 Intel, Sandy bridge core Dual-core 35W, Intel B970 2.3G Q0

2M 2cPGA Processor(Z380/Z480/Z580)

102500230

8 Intel, Sandy bridge core Dual-core 35W, Intel B960 2.20G 2M

35W SNB PGA Processor(Z380/Z480/Z580)

102500133

8 Intel, Sandy bridge core Dual-core 35W, Intel I5-2450M 2.5G

J1 3M 2cPGA Processor(Z380/Z480/Z580)

102500226

8 Intel, Sandy bridge core Dual-core 35W, Intel I3-2370M 2.4G

J1 3M 2cPGA Processor(Z380/Z480/Z580)

102500228

8 Intel, Sandy bridge core Dual-core 35W, Intel SNB I3-2350M

2.3G 3M J1 PGA Processor(Z380/Z480/Z580)

102500018

8 AMD, Comal QC, AMD A10-4600M 2.3G/3.2G 4M 4C A1

PGA CPU(Z485/Z585)

102500318

8 AMD, Comal QC, AMD A8-4500M 2.1G/3.0G 4M 4C A1

PGA CPU(Z485/Z585)

102500317

8 AMD, Comal QC, AMD A6-4400M 2.7G/3.2G 1M 2C A1

PGA CPU(Z485/Z585)

102500316

8 AMD, Comal QC, A4-4300M(Z485/Z585) TBD

9 LZ2 CardReader Board 90000198

9 LZ3 CardReader Board 90000201

10 LZ1 Thermal Module UMA 35W (Z380) 90200596

10 LZ1 Thermal Module DIS 35W (Z380) 90200617

10 LZ2 Thermal Module DIS 35W (Z480/Z485/Z580/Z585) 90200618

10 LZ2 Thermal Module UMA 35W (Z480/Z485/Z580/Z585) 90200635

11 LZ3 SD Dummy Card 90200634

12 RAM, Samsung, M471B5773DH0-CK0 DDR3 1600 2GB 11200340

12 RAM, Hynix, HMT325S6CFR8C-PB DDR3 1600 2GB 11200343

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no.

12 RAM, Micron, MT8KTF25664HZ-1G6M1 DDR3 1600 2GB 11200346

12 RAM, Ramaxel, RMT3150ED58E8W-1600 DDR3 1600 2GB 11200392

12 RAM, Sharetronic(Micron), SM321NH08IAF DDR3 1600 2GB 11200396

12 RAM, Samsung, M471B5273DH0-CK0 DDR3 1600 4GB 11200341

12 RAM, Micron, MT16KTF51264HZ-1G6M1 DDR3 1600 4GB 11200347

12 RAM, Hynix, HMT351S6CFR8C-PB DDR3 1600 4GB 11200344

12 RAM, Ramaxel, RMT3160ED58E9W-1600 DDR3 1600 4GB 11200393

12 RAM, Sharetronic(Micron), SM322NQ08IAF DDR3 1600 4GB 11200397

13 WLAN, WiFi 1x2 BGN + WiMAX, Intel 6150NX MOW M

PCIE NB HMC (LI) (Z380/Z480/Z580)

20002484

13 WLAN, WiFi 1x2 BGN + WiMAX, Intel 6150NX BSB M PCIE

NB HMC (LI) (Z380/Z480/Z580)

20002543

13 WLAN, WiFi 2x2 BGN, WLAN, WiFi 2x2 BGN, Intel 2200N

MOW M PCIE NB HMC (Z380/Z480/Z580)

20200048

13 WLAN, WiFi 1x1 BGN, Cbt BCM4313 MOW M PCIE NB

HMC

20002505

13 WLAN, WiFi 1x1 BGN, Liteon AR9285 HB95 BGN MOW NB 20002357

13 WLAN, WiFi 2x2 BGN+BT4.0, Cbt BCM43227HMB BGN+BT

HMC (Z585)

20200045

13 WLAN, WiFi 2x2 BGN+BT3.0, Liteon WB197 BGN+BT HMC

(Z585)

20002520

13 WLAN, WiFi 1x1 BGN+BT4.0, Cbt BCM4313HMGB

BGN+BT HMC

20002501

13 WLAN, WiFi 1x1 BGN+BT3.0, Liteon WB195 BGN+BT HMC 20002524

14 BT4.0, Cbt BCM920702 BT4.0 EDR Flash U NB 20200056

14 BT4.0, Ltn BCM920702 BT4.0 EDR Flash U NB 20200057

15 Battery, 6cell, Sanyo L11S6Y01 3S2P 48Wh battery Comm02 121500040

15 Battery, 6cell, Sony L11N6Y01 3S2P 48Wh battery Comm02 121500041

15 Battery, 6cell, LG L11L6Y01 3S2P 48Wh battery Comm02 121500042

16 LZ1 Lower Case (Z380) 90200598

16 LZ2 Lower Case (Z480/Z485) 90200656

17 HDD, WD ML320-AF2, WD WD3200BPVT 5400RPM 320G

HDD

16200022

17 HDD, HGST(Jaquar B7), HGST HTS545032A7E380

5400PRM7mm 320G HDD

16200068

17 HDD, Seagate Sapta 15, Seagate ST320LT020 5400RPM 7MM

320G

16005211

17 HDD, Seagate Yarra, ST320LT012 5.4K 7mm 320G HDD

(except Z585)

16200212

17 HDD, Toshiba Capricorn BS (H6sp), Toshiba MK3265GSX

5400RPM 320G

16004642

17 HDD, WD (ML375M), WD WD5000BPVT-24HXZ 5400RPM

500G HDD

16004846

17 HDD, Seagate Waytt, Seagate ST9500325AS 500G 9NB 16004189

17 HDD, Seagate, ST500LM012 5.4K RPM 9.5mm 500G 16200210

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Table 4. Parts list—Overall (continued)

No. FRU FRU no.

17 HDD, Seagate Yarra, ST500LT012 5.4K 7mm 500G

HDD(except Z585)

16200211

17 HDD, HGST (Jaquar B7), HGST HTS545050A7E380

5400PRM7mm 500G HDD

16200067

17 HDD, Toshiba Capricorn BS (H6sp), Toshiba MK5065GSX

5400RPM 500G

16004643

17 HDD, WD (ML500M), WD WD5000BPVT-24A1YT0

5400PRM 9.5mm 500 HDD

16200089

17 HDD, WD(ML375M), WD7500BPVT-24HXZ 5400RPM 750G

HDD

16004848

17 HDD, HGST Jaquar B, HTS541075A9E680 9.5 5.4K 750G HDD 16200192

17 HDD, Seagate, ST750LM022 5.4K RPM 9.5mm 750G 16200209

17 HDD, Toshiba(Capricorn 3 BS), Toshiba MK7575GSX

5400RPM 750G HDD

16005334

17 HDD, WD (ML500M), WD WD7500BPVT-24A1YT0

5400PRM 9.5mm 750 HDD

16200088

17 HDD, WD ML500M, WD WD10JPVT-24A1YT0 5400PRM

9.5mm 1T HDD

16200071

17 HDD, HGST Jaquar B, HTS541010A9E680 9.5 5.4K 1T HDD 16200193

17 HDD, Seagate, ST1000LM024 5.4K RPM 9.5mm 1T 16200208

17 HDD, HGST Jaquar C7, HTS725032A7E630 7 7.2K 320G HDD 16200194

17 HDD, Seagate Julius 1 4K, Seagate ST320LT007 7200RPM

7MM 320G

16005030

17 HDD, WD (MX320S-1), WD WD3200BEKT 7200RPM 320G 16005212

17 HDD, Toshiba Capricorn CS, TSB MK3261GSY 7200PRM

9.5mm 320G HDD

16200087

17 HDD, Seagate Desaru, Seagate ST9500423AS 7200RPM 500G 16200020

17 HDD, HGST Jaquar C7, HTS725050A7E630 7 7.2K 500G HDD 16200195

17 HDD, WD MX375M, WD WD5000BPKT 7200RPM 500G 16200004

17 HDD, Toshiba Capricorn CS, TSB MK5061GSY 7200PRM

9.5mm 500G HDD

16200086

18 ODD, 12.7MM Rambo, PLDS DS-8A8SH Tray in Rambo 25201487

18 ODD, 12.7MM Rambo, PSN UJ8C1 Tray in Rambo 25201499

18 ODD, 12.7MM Rambo, Optiarc AD-7740H Tray in Rambo 25201106

18 ODD, 12.7MM Rambo, TSST SN-208AB Tray in Rambo 25201108

18 ODD, BD Rambo, PSN UJ260 Tray in BD Rombo 25201633

18 ODD, BD Rambo, Optiarc BD-5750H-L8 Tray in BD Rombo 25201494

18 ODD, BD Rambo, HLDS BT20N Tray in BD Rombo 25201634

18 ODD, BD Combo, HLDS CT40N Tray in BD Combo 25201493

18 ODD, BD Combo, Optiarc BC-5550H-L8 Tray in BD Combo 25204159

19 LZ1 HDD Door (Z380) 90200607

19 LZ2 HDD Door (Z480/Z485) 90200627

19 LZ3 HDD Door (Z580/Z585) 90200646

-AC adapter (see “AC adapters” on page 123.)

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

LCD FRUs

In Lenovo Z380/Z480/Z485/Z580/Z585, there are following types of LCDs.

• “13.3-in. HD TFT” (Z380)

• “14.0-in. HD TFT” (Z480/Z485)

• “15.6-in. HD TFT” (Z580/Z585)

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

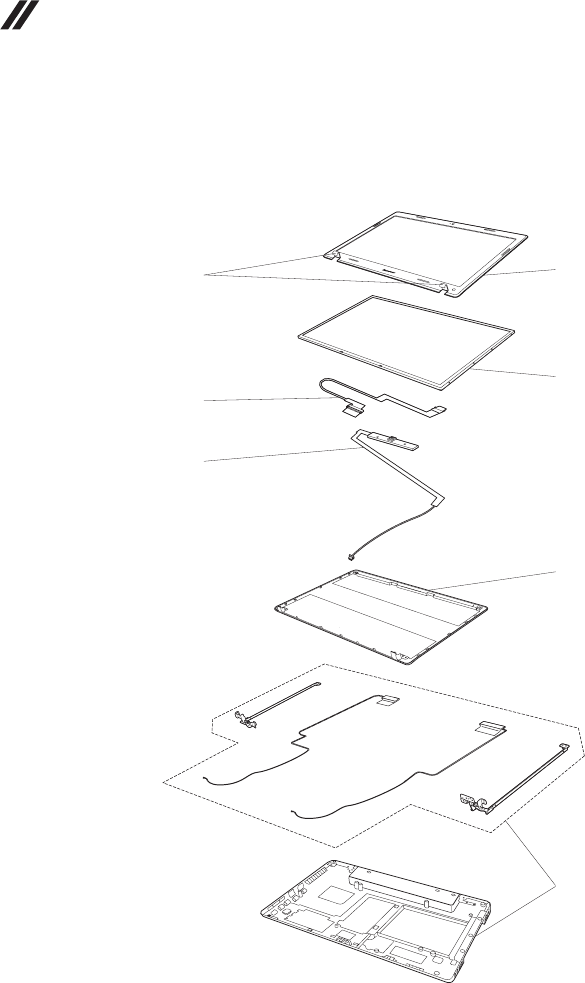

13.3-in. HD TFT

Table 5. Parts list—13.3-in. HD TFT

No. FRU FRU no.

1 LZ1 LCD Bezel Black 90200605

1 LZ1 LCD Bezel White 90200606

2 LZ1 Hinge Cover R+L 90200652

3 Panel, 14.0" Wedge, LGD LP140WH4-TLN1 HD G W LED1

NB LCD

18200156

3 Panel, 14.0" Wedge, SEC LTN140AT26-L01 HD G W LED1

NB LCD

18200229

3 Panel, 14.0" Wedge, AUO B140XW01 V8 3A HD G W LED1

NB LCD

18200207

3 Panel, 14.0" Wedge, CMI N140BGE-L22 HD G W LED1 NB

LCD

18200155

3 Panel, 14.0" Wedge, BOE HB140WX1-100 HD G W LED1 NB

LCD

18200154

3 Panel, 14.0" Wedge, M140NWR2 R1 HW23 18200636

4 LZ1 LCD Cable 90200615

5 LZ1 Camera Board HD 90200612

5 LZ1 Camera Board 0.3M 90200613

6 LZ1 LCD Cover White 90200602

6 LZ1 LCD Cover Grey 90200604

6 LZ1 LCD Cover Pink 90200603

7 LZ1 Lower Case 90200597

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

14.0-in. HD TFT

Table 5. Parts list—14.0-in. HD TFT

No. FRU FRU no.

1 LZ2 LCD Bezel Black 90200626

2 LZ2 Hinge Cover R+L 90200653

3 Panel, 14.0" Wedge, LGD LP140WH4-TLN1 HD G W LED1

NB LCD

18200156

3 Panel, 14.0" Wedge, SEC LTN140AT26-L01 HD G W LED1

NB LCD

18200229

3 Panel, 14.0" Wedge, AUO B140XW01 V8 3A HD G W LED1

NB LCD

18200207

3 Panel, 14.0" Wedge, CMI N140BGE-L22 HD G W LED1 NB

LCD

18200155

3 Panel, 14.0" Wedge, BOE HB140WX1-100 HD G W LED1 NB

LCD

18200154

3 Panel, 14.0" Wedge, M140NWR2 R1 HW23 18200636

4 LZ2 LCD Cable 90200632

5 LZ1 Camera Board HD 90200612

5 LZ1 Camera Board 0.3M 90200613

6 LZ2 LCD Cover Grey 90200625

6 LZ2 LCD Cover Red 90200623

6 LZ2 LCD Cover Blue 90200624

7 LZ2 Lower Case to Hinge Antenna 90200655

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

15.6-in. HD TFT

Table 5. Parts list—13.3-in. HD TFT

No. FRU FRU no.

1 LZ3 LCD Bezel Black 90200644

3 Panel, 15.6" Wedge, LGD LP156WH4-TLN1 HD G W LED1

NB LCD

18200158

3 Panel, 15.6" Wedge, SEC LTN156AT24-L01 HD G W LED1

NB LCD

18200114

3 Panel, 15.6" Wedge, AUO B156XTN02.0 HD G W LED1 NB

LCD

18200157

3 Panel, 15.6" Wedge, CMI N156BGE-L21 HD G W LED1 NB

LCD

18004787

4 LZ3 LCD Cable 90200651

5 LZ1 Camera Board HD 90200612

5 LZ1 Camera Board 0.3M 90200613

6 LZ3 LCD Cover Red 90200641

6 LZ3 LCD Cover White 90200642

6 LZ3 LCD Cover Grey 90200643

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Keyboard

Table 6. Parts list—Keyboard

Language P/N

Z380

Chicony

(Black/

Green)

English 25203975

U.K. English 25203976

Italian 25203977

Spanish 25203978

Turkish 25203979

Thai 25203980

Portuguese 25203981

Latin 25203982

Canadian English&French 25203983

Korean 25203984

Traditional Chinese 25203985

Russian 25203986

French 25203987

German 25203988

Arabic 25203989

Brazilian 25203990

Japanese 25203991

Dutch 25203992

Greek 25203993

Hebrew 25203994

Hungarian 25203995

Four Nordic countries 25203996

Belgian 25203997

Icelandic 25203998

Slovenian 25203999

Swiss 25204000

International English 25204001

Czechoslovakian 25204002

Bulgarian 25204003

Indic 25204004

Sunrex

(Black/

Green)

English 25204005

U.K. English 25204006

Italian 25204007

Spanish 25204008

Turkish 25204009

Thai 25204010

Portuguese 25204011

Latin 25204012

Canadian English&French 25204013

Korean 25204014

Traditional Chinese 25204015

Russian 25204016

French 25204017

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380

(continued)

Sunrex

(Black/

Green)

(continued)

German 25204018

Arabic 25204019

Brazilian 25204020

Japanese 25204021

Dutch 25204022

Greek 25204023

Hebrew 25204024

Hungarian 25204025

Four Nordic countries 25204026

Belgian 25204027

Icelandic 25204028

Slovenian 25204029

Swiss 25204030

International English 25204031

Czechoslovakian 25204032

Bulgarian 25204033

Indic 25204034

Darfon

(Black/

Green)

English 25204035

U.K. English 25204036

Italian 25204037

Spanish 25204038

Turkish 25204039

Thai 25204040

Portuguese 25204041

Latin 25204042

Canadian English&French 25204043

Korean 25204044

Traditional Chinese 25204045

Russian 25204046

French 25204047

German 25204048

Arabic 25204049

Brazilian 25204050

Japanese 25204051

Dutch 25204052

Greek 25204053

Hebrew 25204054

Hungarian 25204055

Four Nordic countries 25204056

Belgian 25204057

Icelandic 25204058

Slovenian 25204059

Swiss 25204060

International English 25204061

Czechoslovakian 25204062

Bulgarian 25204063

Indic 25204064

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Table 6. Parts list—Keyboard (continued)

Language P/N

Z480

Chicony

(Black/

Orange)

English 25204065

U.K. English 25204066

Italian 25204067

Spanish 25204068

Turkish 25204069

Thai 25204070

Portuguese 25204071

Latin 25204072

Canadian English&French 25204073

Korean 25204074

Traditional Chinese 25204075

Russian 25204076

French 25204077

German 25204078

Arabic 25204079

Brazilian 25204080

Japanese 25204081

Dutch 25204082

Greek 25204083

Hebrew 25204084

Hungarian 25204085

Four Nordic countries 25204086

Belgian 25204087

Icelandic 25204088

Slovenian 25204089

Swiss 25204090

International English 25204091

Czechoslovakian 25204092

Bulgarian 25204093

Indic 25204094

Sunrex

(Black/

Orange)

English 25204095

U.K. English 25204096

Italian 25204097

Spanish 25204098

Turkish 25204099

Thai 25204100

Portuguese 25204101

Latin 25204102

Canadian English&French 25204103

Korean 25204104

Traditional Chinese 25204105

Russian 25204106

French 25204107

German 25204108

Arabic 25204109

Brazilian 25204110

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Table 6. Parts list—Keyboard (continued)

Language P/N

Z480

(continued)

Sunrex

(Black/

Orange)

(continued)

Japanese 25204111

Dutch 25204112

Greek 25204113

Hebrew 25204114

Hungarian 25204115

Four Nordic countries 25204116

Belgian 25204117

Icelandic 25204118

Slovenian 25204119

Swiss 25204120

International English 25204121

Czechoslovakian 25204122

Bulgarian 25204123

Indic 25204124

Darfon

(Black/

Orange)

English 25204125

U.K. English 25204126

Italian 25204127

Spanish 25204128

Turkish 25204129

Thai 25204130

Portuguese 25204131

Latin 25204132

Canadian English&French 25204133

Korean 25204134

Traditional Chinese 25204135

Russian 25204136

French 25204137

German 25204138

Arabic 25204139

Brazilian 25204140

Japanese 25204141

Dutch 25204142

Greek 25204143

Hebrew 25204144

Hungarian 25204145

Four Nordic countries 25204146

Belgian 25204147

Icelandic 25204148

Slovenian 25204149

Swiss 25204150

International English 25204151

Czechoslovakian 25204152

Bulgarian 25204153

Indic 25204154

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

Chicony

(Black/

Gray)

English 25201906

U.K. English 25201907

Italian 25201908

Spanish 25201909

Turkish 25201910

Thai 25201911

Portuguese 25201912

Latin 25201913

Canadian English&French 25201914

Korean 25201915

Traditional Chinese 25201916

Russian 25201917

French 25201918

German 25201919

Arabic 25201920

Brazilian 25201921

Japanese 25201922

Dutch 25201923

Greek 25201924

Hebrew 25201925

Hungarian 25201926

Four Nordic countries 25201927

Belgian 25201928

Icelandic 25201929

Slovenian 25201930

Swiss 25201931

International English 25201932

Czechoslovakian 25201933

Bulgarian 25201934

Indic 25201935

Chicony

(Black/Blue)

English 25201999

U.K. English 25202001

Italian 25202003

Spanish 25202004

Turkish 25202006

Thai 25202009

Portuguese 25202010

Latin 25202012

Canadian English&French 25202015

Korean 25202016

Traditional Chinese 25202018

Russian 25202020

French 25202022

German 25202024

Arabic 25202026

Brazilian 25202027

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

(continued)

Chicony

(Black/Blue)

(continued)

Japanese 25202029

Dutch 25202031

Greek 25202033

Hebrew 25202036

Hungarian 25202037

Four Nordic countries 25202040

Belgian 25202042

Icelandic 25202044

Slovenian 25202045

Swiss 25202047

International English 25202049

Czechoslovakian 25202051

Bulgarian 25202053

Indic 25202055

Chicony

(Black/Pink)

English 25202175

U.K. English 25202177

Italian 25202178

Spanish 25202179

Turkish 25202180

Thai 25202181

Portuguese 25202182

Latin 25202183

Canadian English&French 25202184

Korean 25202185

Traditional Chinese 25202186

Russian 25202187

French 25202188

German 25202189

Arabic 25202190

Brazilian 25202191

Japanese 25202192

Dutch 25202193

Greek 25202194

Hebrew 25202195

Hungarian 25202196

Four Nordic countries 25202197

Belgian 25202198

Icelandic 25202199

Slovenian 25202200

Swiss 25202201

International English 25202202

Czechoslovakian 25202203

Bulgarian 25202204

Indic 25202205

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

100

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

(continued)

Chicony

(Black/

Black)

English 25201993

U.K. English 25201996

Italian 25201998

Spanish 25202000

Turkish 25202002

Thai 25202005

Portuguese 25202007

Latin 25202008

Canadian English&French 25202011

Korean 25202013

Traditional Chinese 25202014

Russian 25202017

French 25202019

German 25202021

Arabic 25202023

Brazilian 25202025

Japanese 25202028

Dutch 25202030

Greek 25202032

Hebrew 25202034

Hungarian 25202035

Four Nordic countries 25202038

Belgian 25202039

Icelandic 25202041

Slovenian 25202043

Swiss 25202046

International English 25202048

Czechoslovakian 25202050

Bulgarian 25202052

Indic 25202054

Chicony

(Black/Red)

English 25202266

U.K. English 25202267

Italian 25202268

Spanish 25202269

Turkish 25202270

Thai 25202271

Portuguese 25202272

Latin 25202273

Canadian English&French 25202274

Korean 25202275

Traditional Chinese 25202276

Russian 25202277

French 25202278

German 25202279

Arabic 25202280

Brazilian 25202281

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

101

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

(continued)

Chicony

(Black/Red)

(continued)

Japanese 25202282

Dutch 25202283

Greek 25202284

Hebrew 25202285

Hungarian 25202286

Four Nordic countries 25202287

Belgian 25202288

Icelandic 25202289

Slovenian 25202290

Swiss 25202291

International English 25202292

Czechoslovakian 25202293

Bulgarian 25202294

Indic 25202295

Chicony

(Black/

White)

English 25202356

U.K. English 25202357

Italian 25202358

Spanish 25202359

Turkish 25202360

Thai 25202361

Portuguese 25202362

Latin 25202363

Canadian English&French 25202364

Korean 25202365

Traditional Chinese 25202366

Russian 25202367

French 25202368

German 25202369

Arabic 25202370

Brazilian 25202371

Japanese 25202372

Dutch 25202373

Greek 25202374

Hebrew 25202375

Hungarian 25202376

Four Nordic countries 25202377

Belgian 25202378

Icelandic 25202379

Slovenian 25202380

Swiss 25202381

International English 25202382

Czechoslovakian 25202383

Bulgarian 25202384

Indic 25202385

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

102

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

(continued)

Sunrex

(Black/

Gray)

English 25201936

U.K. English 25201937

Italian 25201938

Spanish 25201939

Turkish 25201940

Thai 25201941

Portuguese 25201942

Latin 25201943

Canadian English&French 25201944

Korean 25201945

Traditional Chinese 25201946

Russian 25201947

French 25201948

German 25201949

Arabic 25201950

Brazilian 25201951

Japanese 25201952

Dutch 25201953

Greek 25201954

Hebrew 25201955

Hungarian 25201956

Four Nordic countries 25201957

Belgian 25201958

Icelandic 25201959

Slovenian 25201960

Swiss 25201961

International English 25201962

Czechoslovakian 25201963

Bulgarian 25201964

Indic 25201965

Sunrex

(Black/Blue)

English 25202057

U.K. English 25202060

Italian 25202062

Spanish 25202064

Turkish 25202066

Thai 25202067

Portuguese 25202069

Latin 25202071

Canadian English&French 25202073

Korean 25202075

Traditional Chinese 25202077

Russian 25202079

French 25202081

German 25202083

Arabic 25202084

Brazilian 25202086

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

103

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

(continued)

Sunrex

(Black/Blue)

(continued)

Japanese 25202088

Dutch 25202090

Greek 25202093

Hebrew 25202095

Hungarian 25202096

Four Nordic countries 25202098

Belgian 25202100

Icelandic 25202102

Slovenian 25202104

Swiss 25202106

International English 25202108

Czechoslovakian 25202109

Bulgarian 25202111

Indic 25202113

Sunrex

(Black/Pink)

English 25202206

U.K. English 25202207

Italian 25202208

Spanish 25202209

Turkish 25202210

Thai 25202211

Portuguese 25202212

Latin 25202213

Canadian English&French 25202214

Korean 25202215

Traditional Chinese 25202216

Russian 25202217

French 25202218

German 25202219

Arabic 25202220

Brazilian 25202221

Japanese 25202222

Dutch 25202223

Greek 25202224

Hebrew 25202225

Hungarian 25202226

Four Nordic countries 25202227

Belgian 25202228

Icelandic 25202229

Slovenian 25202230

Swiss 25202231

International English 25202232

Czechoslovakian 25202233

Bulgarian 25202234

Indic 25202235

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

104

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

(continued)

Sunrex

(Black/

Black)

English 25202056

U.K. English 25202058

Italian 25202059

Spanish 25202061

Turkish 25202063

Thai 25202065

Portuguese 25202068

Latin 25202070

Canadian English&French 25202072

Korean 25202074

Traditional Chinese 25202076

Russian 25202078

French 25202080

German 25202082

Arabic 25202085

Brazilian 25202087

Japanese 25202089

Dutch 25202091

Greek 25202092

Hebrew 25202094

Hungarian 25202097

Four Nordic countries 25202099

Belgian 25202101

Icelandic 25202103

Slovenian 25202105

Swiss 25202107

International English 25202110

Czechoslovakian 25202112

Bulgarian 25202114

Indic 25202116

Sunrex

(Black/Red)

English 25202296

U.K. English 25202297

Italian 25202298

Spanish 25202299

Turkish 25202300

Thai 25202301

Portuguese 25202302

Latin 25202303

Canadian English&French 25202304

Korean 25202305

Traditional Chinese 25202306

Russian 25202307

French 25202308

German 25202309

Arabic 25202310

Brazilian 25202311

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

105

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

(continued)

Sunrex

(Black/Red)

(continued)

Japanese 25202312

Dutch 25202313

Greek 25202314

Hebrew 25202315

Hungarian 25202316

Four Nordic countries 25202317

Belgian 25202318

Icelandic 25202319

Slovenian 25202320

Swiss 25202321

International English 25202322

Czechoslovakian 25202323

Bulgarian 25202324

Indic 25202325

Sunrex

(Black/

White)

English 25202386

U.K. English 25202387

Italian 25202388

Spanish 25202389

Turkish 25202390

Thai 25202391

Portuguese 25202392

Latin 25202393

Canadian English&French 25202394

Korean 25202395

Traditional Chinese 25202396

Russian 25202397

French 25202398

German 25202399

Arabic 25202400

Brazilian 25202401

Japanese 25202402

Dutch 25202403

Greek 25202404

Hebrew 25202405

Hungarian 25202406

Four Nordic countries 25202407

Belgian 25202408

Icelandic 25202409

Slovenian 25202410

Swiss 25202411

International English 25202412

Czechoslovakian 25202413

Bulgarian 25202414

Indic 25202415

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

106

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

(continued)

Darfon

(Black/

Gray)

English 25201966

U.K. English 25201967

Italian 25201968

Spanish 25201969

Turkish 25201970

Thai 25201971

Portuguese 25201972

Latin 25201973

Canadian English&French 25201974

Korean 25201975

Traditional Chinese 25201976

Russian 25201977

French 25201978

German 25201979

Arabic 25201980

Brazilian 25201981

Japanese 25201982

Dutch 25201983

Greek 25201984

Hebrew 25201985

Hungarian 25201986

Four Nordic countries 25201987

Belgian 25201988

Icelandic 25201989

Slovenian 25201990

Swiss 25201991

International English 25201992

Czechoslovakian 25201994

Bulgarian 25201995

Indic 25201997

Darfon

(Black/Blue)

English 25202115

U.K. English 25202117

Italian 25202119

Spanish 25202121

Turkish 25202123

Thai 25202125

Portuguese 25202127

Latin 25202129

Canadian English&French 25202131

Korean 25202132

Traditional Chinese 25202135

Russian 25202137

French 25202138

German 25202140

Arabic 25202142

Brazilian 25202144

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

107

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

(continued)

Darfon

(Black/Blue)

(continued)

Japanese 25202146

Dutch 25202148

Greek 25202151

Hebrew 25202152

Hungarian 25202154

Four Nordic countries 25202157

Belgian 25202159

Icelandic 25202161

Slovenian 25202163

Swiss 25202164

International English 25202167

Czechoslovakian 25202169

Bulgarian 25202171

Indic 25202173

Darfon

(Black/Pink)

English 25202236

U.K. English 25202237

Italian 25202238

Spanish 25202239

Turkish 25202240

Thai 25202241

Portuguese 25202242

Latin 25202243

Canadian English&French 25202244

Korean 25202245

Traditional Chinese 25202246

Russian 25202247

French 25202248

German 25202249

Arabic 25202250

Brazilian 25202251

Japanese 25202252

Dutch 25202253

Greek 25202254

Hebrew 25202255

Hungarian 25202256

Four Nordic countries 25202257

Belgian 25202258

Icelandic 25202259

Slovenian 25202260

Swiss 25202261

International English 25202262

Czechoslovakian 25202263

Bulgarian 25202264

Indic 25202265

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

108

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

(continued)

Darfon

(Black/

Black)

English 25202118

U.K. English 25202120

Italian 25202122

Spanish 25202124

Turkish 25202126

Thai 25202128

Portuguese 25202130

Latin 25202133

Canadian English&French 25202134

Korean 25202136

Traditional Chinese 25202139

Russian 25202141

French 25202143

German 25202145

Arabic 25202147

Brazilian 25202149

Japanese 25202150

Dutch 25202153

Greek 25202155

Hebrew 25202156

Hungarian 25202158

Four Nordic countries 25202160

Belgian 25202162

Icelandic 25202165

Slovenian 25202166

Swiss 25202168

International English 25202170

Czechoslovakian 25202172

Bulgarian 25202174

Indic 25202176

Darfon

(Black/Red)

English 25202326

U.K. English 25202327

Italian 25202328

Spanish 25202329

Turkish 25202330

Thai 25202331

Portuguese 25202332

Latin 25202333

Canadian English&French 25202334

Korean 25202335

Traditional Chinese 25202336

Russian 25202337

French 25202338

German 25202339

Arabic 25202340

Brazilian 25202341

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

109

Table 6. Parts list—Keyboard (continued)

Language P/N

Z380/Z480/

Z485

(continued)

Darfon

(Black/Red)

(continued)

Japanese 25202342

Dutch 25202343

Greek 25202344

Hebrew 25202345

Hungarian 25202346

Four Nordic countries 25202347

Belgian 25202348

Icelandic 25202349

Slovenian 25202350

Swiss 25202351

International English 25202352

Czechoslovakian 25202353

Bulgarian 25202354

Indic 25202355

Darfon

(Black/

White)

English 25202416

U.K. English 25202417

Italian 25202418

Spanish 25202419

Turkish 25202420

Thai 25202421

Portuguese 25202422

Latin 25202423

Canadian English&French 25202424

Korean 25202425

Traditional Chinese 25202426

Russian 25202427

French 25202428

German 25202429

Arabic 25202430

Brazilian 25202431

Japanese 25202432

Dutch 25202433

Greek 25202434

Hebrew 25202435

Hungarian 25202436

Four Nordic countries 25202437

Belgian 25202438

Icelandic 25202439

Slovenian 25202440

Swiss 25202441

International English 25202442

Czechoslovakian 25202443

Bulgarian 25202444

Indic 25202445

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

110

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

Chicony

(Black/

Gray)

English 25202446

U.K. English 25202447

Italian 25202448

Spanish 25202449

Turkish 25202450

Thai 25202451

Portuguese 25202452

Latin 25202453

Canadian English&French 25202454

Korean 25202455

Traditional Chinese 25202456

Russian 25202457

French 25202458

German 25202459

Arabic 25202460

Brazilian 25202461

Japanese 25202462

Dutch 25202463

Greek 25202464

Hebrew 25202465

Hungarian 25202466

Four Nordic countries 25202467

Belgian 25202468

Icelandic 25202469

Slovenian 25202470

Swiss 25202471

International English 25202472

Czechoslovakian 25202473

Bulgarian 25202474

Indic 25202475

Chicony

(Black/Blue)

English 25202536

U.K. English 25202537

Italian 25202538

Spanish 25202539

Turkish 25202540

Thai 25202541

Portuguese 25202542

Latin 25202543

Canadian English&French 25202544

Korean 25202545

Traditional Chinese 25202546

Russian 25202547

French 25202548

German 25202549

Arabic 25202550

Brazilian 25202551

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

111

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

(continued)

Chicony

(Black/Blue)

(continued)

Japanese 25202552

Dutch 25202553

Greek 25202554

Hebrew 25202555

Hungarian 25202556

Four Nordic countries 25202557

Belgian 25202558

Icelandic 25202559

Slovenian 25202560

Swiss 25202561

International English 25202562

Czechoslovakian 25202563

Bulgarian 25202564

Indic 25202565

Chicony

(Black/Pink)

English 25202626

U.K. English 25202627

Italian 25202628

Spanish 25202629

Turkish 25202630

Thai 25202631

Portuguese 25202632

Latin 25202633

Canadian English&French 25202634

Korean 25202635

Traditional Chinese 25202636

Russian 25202637

French 25202638

German 25202639

Arabic 25202640

Brazilian 25202641

Japanese 25202642

Dutch 25202643

Greek 25202644

Hebrew 25202645

Hungarian 25202646

Four Nordic countries 25202647

Belgian 25202648

Icelandic 25202649

Slovenian 25202650

Swiss 25202651

International English 25202652

Czechoslovakian 25202653

Bulgarian 25202654

Indic 25202655

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

112

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

(continued)

Chicony

(Black/

Black)

English 25201816

U.K. English 25201817

Italian 25201818

Spanish 25201819

Turkish 25201820

Thai 25201821

Portuguese 25201822

Latin 25201823

Canadian English&French 25201824

Korean 25201825

Traditional Chinese 25201826

Russian 25201827

French 25201828

German 25201829

Arabic 25201830

Brazilian 25201831

Japanese 25201832

Dutch 25201833

Greek 25201834

Hebrew 25201835

Hungarian 25201836

Four Nordic countries 25201837

Belgian 25201838

Icelandic 25201839

Slovenian 25201840

Swiss 25201841

International English 25201842

Czechoslovakian 25201843

Bulgarian 25201844

Indic 25201845

Chicony

(Black/Red)

English 25202716

U.K. English 25202717

Italian 25202718

Spanish 25202719

Turkish 25202720

Thai 25202721

Portuguese 25202722

Latin 25202723

Canadian English&French 25202724

Korean 25202725

Traditional Chinese 25202726

Russian 25202727

French 25202728

German 25202729

Arabic 25202730

Brazilian 25202731

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

113

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

(continued)

Chicony

(Black/Red)

(continued)

Japanese 25202732

Dutch 25202733

Greek 25202734

Hebrew 25202735

Hungarian 25202736

Four Nordic countries 25202737

Belgian 25202738

Icelandic 25202739

Slovenian 25202740

Swiss 25202741

International English 25202742

Czechoslovakian 25202743

Bulgarian 25202744

Indic 25202745

Chicony

(Black/

White)

English 25202806

U.K. English 25202807

Italian 25202808

Spanish 25202809

Turkish 25202810

Thai 25202811

Portuguese 25202812

Latin 25202813

Canadian English&French 25202814

Korean 25202815

Traditional Chinese 25202816

Russian 25202817

French 25202818

German 25202819

Arabic 25202820

Brazilian 25202821

Japanese 25202822

Dutch 25202823

Greek 25202824

Hebrew 25202825

Hungarian 25202826

Four Nordic countries 25202827

Belgian 25202828

Icelandic 25202829

Slovenian 25202830

Swiss 25202831

International English 25202832

Czechoslovakian 25202833

Bulgarian 25202834

Indic 25202835

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

114

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

(continued)

Sunrex

(Black/

Gray)

English 25202476

U.K. English 25202477

Italian 25202478

Spanish 25202479

Turkish 25202480

Thai 25202481

Portuguese 25202482

Latin 25202483

Canadian English&French 25202484

Korean 25202485

Traditional Chinese 25202486

Russian 25202487

French 25202488

German 25202489

Arabic 25202490

Brazilian 25202491

Japanese 25202492

Dutch 25202493

Greek 25202494

Hebrew 25202495

Hungarian 25202496

Four Nordic countries 25202497

Belgian 25202498

Icelandic 25202499

Slovenian 25202500

Swiss 25202501

International English 25202502

Czechoslovakian 25202503

Bulgarian 25202504

Indic 25202505

Sunrex

(Black/Blue)

English 25202566

U.K. English 25202567

Italian 25202568

Spanish 25202569

Turkish 25202570

Thai 25202571

Portuguese 25202572

Latin 25202573

Canadian English&French 25202574

Korean 25202575

Traditional Chinese 25202576

Russian 25202577

French 25202578

German 25202579

Arabic 25202580

Brazilian 25202581

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

115

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

(continued)

Sunrex

(Black/Blue)

(continued)

Japanese 25202582

Dutch 25202583

Greek 25202584

Hebrew 25202585

Hungarian 25202586

Four Nordic countries 25202587

Belgian 25202588

Icelandic 25202589

Slovenian 25202590

Swiss 25202591

International English 25202592

Czechoslovakian 25202593

Bulgarian 25202594

Indic 25202595

Sunrex

(Black/Pink)

English 25202656

U.K. English 25202657

Italian 25202658

Spanish 25202659

Turkish 25202660

Thai 25202661

Portuguese 25202662

Latin 25202663

Canadian English&French 25202664

Korean 25202665

Traditional Chinese 25202666

Russian 25202667

French 25202668

German 25202669

Arabic 25202670

Brazilian 25202671

Japanese 25202672

Dutch 25202673

Greek 25202674

Hebrew 25202675

Hungarian 25202676

Four Nordic countries 25202677

Belgian 25202678

Icelandic 25202679

Slovenian 25202680

Swiss 25202681

International English 25202682

Czechoslovakian 25202683

Bulgarian 25202684

Indic 25202685

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

116

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

(continued)

Sunrex

(Black/

Black)

English 25201846

U.K. English 25201847

Italian 25201848

Spanish 25201849

Turkish 25201850

Thai 25201851

Portuguese 25201852

Latin 25201853

Canadian English&French 25201854

Korean 25201855

Traditional Chinese 25201856

Russian 25201857

French 25201858

German 25201859

Arabic 25201860

Brazilian 25201861

Japanese 25201862

Dutch 25201863

Greek 25201864

Hebrew 25201865

Hungarian 25201866

Four Nordic countries 25201867

Belgian 25201868

Icelandic 25201869

Slovenian 25201870

Swiss 25201871

International English 25201872

Czechoslovakian 25201873

Bulgarian 25201874

Indic 25201875

Sunrex

(Black/Red)

English 25202746

U.K. English 25202747

Italian 25202748

Spanish 25202749

Turkish 25202750

Thai 25202751

Portuguese 25202752

Latin 25202753

Canadian English&French 25202754

Korean 25202755

Traditional Chinese 25202756

Russian 25202757

French 25202758

German 25202759

Arabic 25202760

Brazilian 25202761

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

117

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

(continued)

Sunrex

(Black/Red)

(continued)

Japanese 25202762

Dutch 25202763

Greek 25202764

Hebrew 25202765

Hungarian 25202766

Four Nordic countries 25202767

Belgian 25202768

Icelandic 25202769

Slovenian 25202770

Swiss 25202771

International English 25202772

Czechoslovakian 25202773

Bulgarian 25202774

Indic 25202775

Sunrex

(Black/

White)

English 25202836

U.K. English 25202837

Italian 25202838

Spanish 25202839

Turkish 25202840

Thai 25202841

Portuguese 25202842

Latin 25202843

Canadian English&French 25202844

Korean 25202845

Traditional Chinese 25202846

Russian 25202847

French 25202848

German 25202849

Arabic 25202850

Brazilian 25202851

Japanese 25202852

Dutch 25202853

Greek 25202854

Hebrew 25202855

Hungarian 25202856

Four Nordic countries 25202857

Belgian 25202858

Icelandic 25202859

Slovenian 25202860

Swiss 25202861

International English 25202862

Czechoslovakian 25202863

Bulgarian 25202864

Indic 25202865

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

118

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

(continued)

Darfon

(Black/

Gray)

English 25202506

U.K. English 25202507

Italian 25202508

Spanish 25202509

Turkish 25202510

Thai 25202511

Portuguese 25202512

Latin 25202513

Canadian English&French 25202514

Korean 25202515

Traditional Chinese 25202516

Russian 25202517

French 25202518

German 25202519

Arabic 25202520

Brazilian 25202521

Japanese 25202522

Dutch 25202523

Greek 25202524

Hebrew 25202525

Hungarian 25202526

Four Nordic countries 25202527

Belgian 25202528

Icelandic 25202529

Slovenian 25202530

Swiss 25202531

International English 25202532

Czechoslovakian 25202533

Bulgarian 25202534

Indic 25202535

Darfon

(Black/Blue)

English 25202596

U.K. English 25202597

Italian 25202598

Spanish 25202599

Turkish 25202600

Thai 25202601

Portuguese 25202602

Latin 25202603

Canadian English&French 25202604

Korean 25202605

Traditional Chinese 25202606

Russian 25202607

French 25202608

German 25202609

Arabic 25202610

Brazilian 25202611

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

119

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

(continued)

Darfon

(Black/Blue)

(continued)

Japanese 25202612

Dutch 25202613

Greek 25202614

Hebrew 25202615

Hungarian 25202616

Four Nordic countries 25202617

Belgian 25202618

Icelandic 25202619

Slovenian 25202620

Swiss 25202621

International English 25202622

Czechoslovakian 25202623

Bulgarian 25202624

Indic 25202625

Darfon

(Black/Pink)

English 25202686

U.K. English 25202687

Italian 25202688

Spanish 25202689

Turkish 25202690

Thai 25202691

Portuguese 25202692

Latin 25202693

Canadian English&French 25202694

Korean 25202695

Traditional Chinese 25202696

Russian 25202697

French 25202698

German 25202699

Arabic 25202700

Brazilian 25202701

Japanese 25202702

Dutch 25202703

Greek 25202704

Hebrew 25202705

Hungarian 25202706

Four Nordic countries 25202707

Belgian 25202708

Icelandic 25202709

Slovenian 25202710

Swiss 25202711

International English 25202712

Czechoslovakian 25202713

Bulgarian 25202714

Indic 25202715

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

120

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

(continued)

Darfon

(Black/

Black)

English 25201876

U.K. English 25201877

Italian 25201878

Spanish 25201879

Turkish 25201880

Thai 25201881

Portuguese 25201882

Latin 25201883

Canadian English&French 25201884

Korean 25201885

Traditional Chinese 25201886

Russian 25201887

French 25201888

German 25201889

Arabic 25201890

Brazilian 25201891

Japanese 25201892

Dutch 25201893

Greek 25201894

Hebrew 25201895

Hungarian 25201896

Four Nordic countries 25201897

Belgian 25201898

Icelandic 25201899

Slovenian 25201900

Swiss 25201901

International English 25201902

Czechoslovakian 25201903

Bulgarian 25201904

Indic 25201905

Darfon

(Black/Red)

English 25202776

U.K. English 25202777

Italian 25202778

Spanish 25202779

Turkish 25202780

Thai 25202781

Portuguese 25202782

Latin 25202783

Canadian English&French 25202784

Korean 25202785

Traditional Chinese 25202786

Russian 25202787

French 25202788

German 25202789

Arabic 25202790

Brazilian 25202791

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

121

Table 6. Parts list—Keyboard (continued)

Language P/N

Z580/Z585

(continued)

Darfon

(Black/Red)

(continued)

Japanese 25202792

Dutch 25202793

Greek 25202794

Hebrew 25202795

Hungarian 25202796

Four Nordic countries 25202797

Belgian 25202798

Icelandic 25202799

Slovenian 25202800

Swiss 25202801

International English 25202802

Czechoslovakian 25202803

Bulgarian 25202804

Indic 25202805

Darfon

(Black/

White)

English 25202866

U.K. English 25202867

Italian 25202868

Spanish 25202869

Turkish 25202870

Thai 25202871

Portuguese 25202872

Latin 25202873

Canadian English&French 25202874

Korean 25202875

Traditional Chinese 25202876

Russian 25202877

French 25202878

German 25202879

Arabic 25202880

Brazilian 25202881

Japanese 25202882

Dutch 25202883

Greek 25202884

Hebrew 25202885

Hungarian 25202886

Four Nordic countries 25202887

Belgian 25202888

Icelandic 25202889

Slovenian 25202890

Swiss 25202891

International English 25202892

Czechoslovakian 25202893

Bulgarian 25202894

Indic 25202895

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

122

Miscellaneous parts

Table 7. Parts list—Miscellaneous parts

FRU P/N

System miscellaneous parts:

•(a) LZ1 ODD Bezel(Z380)

•(a) LZ1 ODD Bezel BT(Z380)

•(a) LZ2 ODD Bezel(Z480/Z485)

•(a) LZ2 ODD Bezel BT(Z480/Z485)

•(a) LZ3 ODD Bezel(Z580/Z585)

•(a) LZ3 ODD Bezel BT(Z580/Z585)

•(b) LZ1 HDD Bracket

•(b) LZ2 HDD Bracket

•(b) LZ3 HDD Bracket

90200608

90200609

90200628

90200629

90200647

90200648

90200610

90200631

90200649

Cable miscellaneous parts:

•(c) LZ1 BT Cable

•(c) LZ2 BT Cable

•(d) LZ3 ODD Cable

Note: Italicized letters in parentheses are references to the exploded

view in “Overall” on page 85.

90200614

90200633

90200650

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

123

AC adapters

Table 8. Parts list—3-pin AC adapters

FRU P/N

Adapter, 65W, Delta ADP-65KH BD 20V/3.25A 36-001929

Adapter, 65W, Liteon PA-1650-56LC 36-001651

Adapter, 65W, Brazil PA-1650-52LB 36-001714

Adapter, 65W, Delta ADP-65KH B 20V,3.25A 36-002066

Adapter, 65W, Chicony CPA-A065 20V3.25A(330PF) 36-001943

Adapter, 90W, Delta ADP-90DD BD 20V4.5A 36-001941

Adapter, 90W, Liteon PA-1900-56LC 20V4.5A (330PF) 36-001927

Adapter, 90W, Chicony CPA-A090 20V4.5A (330PF) 36-001942

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

124

Power cords

A Lenovo power cord for a specific country or region is usually available only in

that country or region:

Table 9. Parts list—3-pin power cords

Region P/N

CCC

•LINETEK PC323+RVV300/300+LS15 1m

145000600

Argentina

•LINETEK LS15+H03VV-F+LP39 1m

145000599

Danmark

•LINETEK LS15+H03VV-F+LP-38 1m

145000598

Switzerland

•LINETEK LS15+H03VV-F+LP-37 1m

145000597

Brazil

•LINETEK LS15 H03VV-F LP26A 1m

145000596

Israel

•LINETEK LS15+H03VV-F+LP-41 1m

145000595

•LINETEK LP-30B + SPT-2 + LS15 1m

145000594

•LINETEK LP-61L+ H03VV-F+ LS15 1m

145000593

Indian

•LINETEK PE-361+ H05VV-F+ LS15 1m

145000592

Italy

•LINETEK LS15+H03VV-F+PE-336 1m

145000591

Korea

•LINETEK LS15+H05VV-F+LP-E04A 1m

145000590

Australia

•LINETEK LS15+H03VV-F+LP-23A 1m

145000589

Taiwan

•LINETEK LS15+VCTF+LP-53 1m

145000588

Japan

•LINETEK LS15+VCTF+LP-54 1m

145000587

Africa

•LINETEK LS15+H03VV-F+PE-364 1m

145000586

•LINETEK LP-34+H03VV-F + LS15 1m

145000585

CCC

•Longwell LSG-31+RVV300/300+LS-18 1m

145000568

Argentina

•Longwell LP-24+H03VV-F+LS-18 1m

145000567

Danmark

•Longwell LP-40+H03VV-F+LS-18 1m

145000566

Switzerland

•Longwell LP-37+H03VV-F+LS-18 1m

145000565

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585

125

Table 9. Parts list—3-pin power cords (continued)

Region P/N

Brazil

•Longwell LP-46+H03VV-F+LS-18 1m

145000564

Israel

•Longwell LP-41+H03VV-F+LS-18 1m

145000563

•Longwell LP-30B+SPT-2 18AWG+LS-18 1m

145000562

•Longwell LP-61L+H03VV-F+LS-18 1m

145000561

Indian

•Longwell LP-67+BIS+LS-18 1m

145000560

Italy

•Longwell LP-22+H03VV-F+LS-18 1m

145000559

Korea

•Longwell LP-486+KTLH03VV-F+LS-5 1m

145000558

Australia

•Longwell LP-23A+LFC-3R+LS-18 1m

145000557

Taiwan

•Longwell LP-71+VCTF+LS-33 1m

145000556

Japan

•Longwell LP-54+VCTF+LS-18 1m

145000555

Africa

•Longwell LP-39+H03VV-F+LS-18 1m

145000554

•Longwell LP-34A+H03VV-F+LS-18 1m

145000553

CCC

•Volex LSG-31+RVV300/300+LS-18 1m

145000538

•Volex LP-30B+SPT-2 18AWG+LS-18 1m

145000537

•Volex LP-61L+H03VV-F+LS-18 1m

145000605

Indian

•Volex LP-67+BIS+LS-18 1m

145000536

Switzerland

•VOLEX MP232+H03VV-F+VAC5S 1m

145000524

Italy

•Volex LP-22+H03VV-F+LS-18 1m

145000535

Denmark

•VOLEX MP233D+H03VV-F+VAC5S 1m

145000534

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

126

Table 9. Parts list—3-pin power cords (continued)

Region P/N

Korea

•Volex LP-486+KTLH03VV-F+LS-5 1m

145000533

Australia

•Volex LP-23A+LFC-3R+LS-18 1m

145000532

Taiwan

•Volex LP-71+VCTF+LS-33 1m

145000531

Japan

•Volex LP-54+VCTF+LS-18 1m

145000530

Argentina

•VOLEX VA2073+H03VV-F+VAC5S 1m

145000528

Brazil

•VOLEX CH10S3+H03VV-F+VAC5S 1m

145000527

Israel

•VOLEX SI16S3+H03VV-F+VAC5S 1m

145000526

•Volex LP-34A+H03VV-F+LS-18 1m

145000525

Notices

127

Lenovo may not offer the products, services, or features discussed in this

document in all countries. Consult your local Lenovo representative for

information on the products and services currently available in your area. Any

reference to a Lenovo product, program, or service is not intended to state or

imply that only that Lenovo product, program, or service may be used. Any

functionally equivalent product, program, or service that does not infringe any

Lenovo intellectual property right may be used instead. However, it is the user’s

responsibility to evaluate and verify the operation of any other product,

program, or service.

Lenovo may have patents or pending patent applications covering subject

matter described in this document. The furnishing of this document does not

give you any license to these patents.

LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS” WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-

INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. Some jurisdictions do not allow disclaimer of express or implied

warranties in certain transactions, therefore, this statement may not apply to

you.

This information could include technical inaccuracies or typographical errors.

Changes are periodically made to the information herein; these changes will be

incorporated in new editions of the publication. Lenovo may make

improvements and/or changes in the product(s) and/or the program(s)

described in this publication at any time without notice.

The products described in this document are not intended for use in

implantation or other life support applications where malfunction may result in

injury or death to persons. The information contained in this document does not

affect or change Lenovo product specifications or warranties. Nothing in this

document shall operate as an express or implied license or indemnity under the

intellectual property rights of Lenovo or third parties. All information contained

in this document was obtained in specific environments and is presented as an

illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it

believes appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for

convenience only and do not in any manner serve as an endorsement of those

Web sites. The materials at those Web sites are not part of the materials for this

Lenovo product, and use of those Web sites is at your own risk.

Notices

Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585 Hardware

Maintenance Manual

128

Any performance data contained herein was determined in a controlled

environment. Therefore, the result obtained in other operating environments

may vary significantly. Some measurements may have been made on

development-level systems and there is no guarantee that these measurements

will be the same on generally available systems. Furthermore, some

measurements may have been estimated through extrapolation. Actual results

may vary. Users of this document should verify the applicable data for their

specific environment.

The following terms are either registered trademarks or trademarks of Lenovo in

the United States and/or other countries:

Lenovo®

Lenovo logo®

IdeaPad®

VeriFace®

OneKey Rescue® (OneKey Recovery, OneKey Antivirus)

APS®

Power Express®

Energy Management and ReadyComm®

The following terms are trademarks of Microsoft Corporation in the United

States, other countries, or both:

Windows®

Windows® 7

The following are trademarks of Intel Corporation or its subsidiaries in the

United States, other countries, or both:

Intel®

Intel®Core™ 2 Duo

Other company, product, or service names may be the trademarks or service

marks of others.

Trademarks

Lenovo Ideapad Z380 Z480 Z485 Z580 Z585 Hmm 1St Edition Feb 2012 English Z380&Z480&Z485&Z580&Z585 User Manual Idea Pad Z380, Z480, Z485, Z580, Hardware Maintenance Laptop (ideapad) Type 2151

Navigation menu

Versions of this User Manual:

Views

Navigation
