Lenovo Z710

Hardware

Maintenance

Manual

Note:

Before using this information and the product it supports, be sure to read the general information

under “Notices” on page 90.

First Edition (August 2013)

© Copyright Lenovo 2013. All rights reserved.

LENOVO products, data, computer software, and services have been developed exclusively at private

expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with

limited and restricted rights to use, reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are

delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclo-

sure is subject to restrictions set forth in Contract No. GS-35F-05925.

© 2013 Lenovo

iii

About this manual........................................iv

Safety information.........................................1

General safety ...................................................... 2

Electrical safety.................................................... 3

Safety inspection guide ...................................... 5

Handling devices that are sensitive to

electrostatic discharge......................................... 6

Grounding requirements ................................... 6

Safety notices: multilingual translations.......... 7

Laser compliance statement............................. 14

Important service information ...................16

Strategy for replacing FRUs............................. 16

Strategy for replacing a hard disk

drive .............................................................. 17

Important notice for replacing a system

board ............................................................. 17

Important information about replacing RoHS

compliant FRUs ................................................. 18

General checkout ........................................19

What to do first.................................................. 20

Power system checkout.................................... 21

Checking the AC adapter........................... 21

Checking operational charging................. 21

Checking the battery pack ......................... 22

Related service information.......................23

Restoring the factory contents by using

Recovery Disc Set.............................................. 23

Start Recovery Disc (one disc)................... 23

Operating System Recovery Disc (one or

more discs) ................................................... 23

Applications and Drivers Recovery Disc

(one or more discs)...................................... 23

Supplemental Recovery Disc..................... 23

Passwords........................................................... 24

Power-on password.................................... 24

Hard-disk password ................................... 24

Supervisor password.................................. 24

Power management .......................................... 25

Screen blank mode ...................................... 25

Putting the computer to sleep or shutting it

down ............................................................. 25

Lenovo Z710 ................................................27

Specifications ..................................................... 27

Status indicators ................................................ 29

Fn key combinations......................................... 31

FRU replacement notices.................................. 32

Screw notices................................................32

Removing and replacing an FRU ....................33

1010 Battery pack.........................................34

1020 Dummy card (Optional) ....................35

1030 Hard disk drive(HDD)/Memory/

Mini PCI Express Card slot compartment

cover ..............................................................36

1040 Hard disk drive...................................37

1050 Optical drive........................................40

1060 DIMM...................................................41

1070 PCI Express Mini Card for wireless

LAN/WAN ..................................................42

1080 Keyboard..............................................44

1090 Fan assembly .......................................46

1100 Keyboard bezel ...................................47

1110 System board.......................................50

1120 LCD unit...............................................54

1130 CPU.......................................................56

1140 Base cover, speakers, audio board,

power board, power assembly and heat sink

assembly........................................................57

1150 LCD front bezel...................................62

1160 LCD panel, LCD cable and hinges ... 64

1170 Integrated camera...............................66

1180 Antenna assembly and LCD cover... 67

Locations.............................................................68

Front view.....................................................68

Right-side view ............................................69

Bottom and Left-side view .........................70

Parts list...............................................................71

Overall...........................................................72

LCD FRUs.....................................................75

Keyboard.......................................................77

Miscellaneous parts.....................................82

AC adapters..................................................83

Screws............................................................83

Power cords..................................................84

Notices ......................................................... 90

Trademarks.........................................................91

Contents

iv

This manual contains service and reference information for the following

Lenovo product:

IdeaPad Z710

Use this manual to troubleshoot problems.

The manual is divided into the following sections:

• The common sections provide general information, guidelines, and safety

information required for servicing computers.

• The product-specific section includes service, reference, and product-specific

parts information.

About this manual

Important:

This manual is intended only for trained servicers who are familiar with

Lenovo products. Use this manual to troubleshoot problems effectively.

Before servicing a Lenovo product, make sure to read all the information

under “Safety information” on page 1 and “Important service information”

on page 16.

Safety information

1

This chapter presents the following safety information that you need to get

familiar with before you service a Lenovo computer:

• “General safety” on page 2

• “Electrical safety” on page 3

• “Safety inspection guide” on page 5

• “Handling devices that are sensitive to electrostatic discharge” on page 6

• “Grounding requirements” on page 6

• “Safety notices: multilingual translations” on page 7

• “Laser compliance statement” on page 14

Safety information

Lenovo Z710 Hardware Maintenance Manual

2

Follow these rules below to ensure general safety:

• Observe a good housekeeping in the area where the machines are put during

and after the maintenance.

• When lifting any heavy object:

1. Make sure that you can stand safely without slipping.

2. Distribute the weight of the object equally between your feet.

3. Use a slow lifting force. Never move suddenly or twist when you attempt

to lift it.

4. Lift it by standing or pushing up with your leg muscles; this action could

avoid the strain from the muscles in your back. Do not attempt to lift any

object that weighs more than 16 kg (35 lb) or that you think is too heavy for

you.

• Do not perform any action that causes hazards to the customer, or that makes

the machine unsafe.

• Before you start the machine, make sure that other service representatives

and the customer are not in a hazardous position.

• Please remove covers and other parts in a safe place, away from all

personnel, while you are servicing the machine.

• Keep your toolcase away from walk areas so that other people will not trip it

over.

• Do not wear loose clothing that can be trapped in the moving parts of the

machine. Make sure that your sleeves are fastened or rolled up above your

elbows. If your hair is long, fasten it.

• Insert the ends of your necktie or scarf inside clothing or fasten it with the

nonconductive clip, about 8 centimeters (3 inches) from the end.

• Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for

your clothing.

Attention: Metal objects are good electrical conductors.

• Wear safety glasses when you are hammering, drilling, soldering, cutting

wire, attaching springs, using solvents, or working in any other conditions

that may be hazardous to your eyes.

• After service, reinstall all safety shields, guards, labels, and ground wires.

Replace any safety device that is worn or defective.

• Reinstall all covers correctly before returning the machine to the customer.

• Fan louvers on the machine help to prevent the overheating of internal

components. Do not obstruct fan louvers or cover them with labels or

stickers.

General safety

Safety information

3

Observe the following rules when working on electrical equipments.

• Find the room emergency power-off (EPO) switch, disconnecting switch, or

electrical outlet. If an electrical accident occurs, you can then operate the

switch or unplug the power cord quickly.

• Do not work alone under hazardous conditions or near the equipment that

has hazardous voltages.

• Disconnect all power before:

– Performing a mechanical inspection

– Working near power supplies

– Removing or installing main units

• Before you start to work on the machine, unplug the power cord. If you

cannot unplug it, ask the customer to power-off the wall box that supplies

power to the machine, and to lock the wall box in the off position.

• If you need to work on a machine that has exposed electrical circuits, observe

the following precautions:

– Ensure that another person, familiar with the power-off controls, is near

you.

Attention: Another person must be there to switch off the power, if

necessary.

– Use only one hand when working with powered-on electrical equipment;

keep the other hand in your pocket or behind your back.

Attention: An electrical shock can occur only when there is a complete

circuit. By observing the above rule, you may prevent a current from

passing through your body.

– When using testers, set the controls correctly and use the approved probe

leads and accessories for that tester.

– Stand on suitable rubber mats (obtained locally, if necessary) to insulate

you from grounds such as metal floor strips and machine frames.

Observe the special safety precautions when you work with very high voltages;

instructions for these precautions are in the safety sections of maintenance

information. Be extremely careful when you measure the high voltages.

• Regularly inspect and maintain your electrical hand tools for safe operational

condition.

• Do not use worn or broken tools and testers.

• Never assume that power has been disconnected from a circuit. First, check it

to make sure that it has been powered off.

Electrical safety

Important:

Use only approved tools and test equipments. Some hand tools have

handles covered with a soft material that does not insulate you when

working with live electrical currents.

Many customers have rubber floor mats near their machines that contain

small conductive fibers to decrease electrostatic discharges. Do not use such

kind of mat to protect yourself from electrical shock.

Lenovo Z710 Hardware Maintenance Manual

4

• Always look carefully for possible hazards in your work area. Examples of

these hazards are moist floors, nongrounded power extension cables, power

surges, and missing safety grounds.

• Do not touch live electrical circuits with the reflective surface of a plastic

dental mirror. The surface is conductive; such touching can cause personal

injury and machine damage.

• Do not service the following parts with the power on when they are removed

from their normal operating places in a machine:

– Power supply units

–Pumps

–Blowers and fans

– Motor generators

and similar units. (This practice ensures correct grounding of the units.)

• If an electrical accident occurs:

– Use caution: do not become a victim yourself.

–Switch off the power.

– Send the victim to get medical aid.

Safety information

5

The purpose of this inspection guide is to assist you in identifying potential

unsafe conditions. As each machine was designed and built, required safety

items were installed to protect users and service personnel from injury. This

guide addresses only those items. You should use good judgment to identify

potential safety hazards due to attachment of non-Lenovo features or options not

covered by this inspection guide.

If any unsafe conditions are present, you must determine how serious the

apparent hazard could be and whether you can continue without first correcting

the problem.

Consider these conditions and the safety hazards they present:

• Electrical hazards, especially primary power (primary voltage on the frame

can cause serious or fatal electrical shock)

• Explosive hazards, such as a damaged CRT face or a bulging capacitor

• Mechanical hazards, such as loose or missing hardware

To determine whether there are any potential unsafe conditions, use the

following checklist at the beginning of every service task. Begin the checks with

the power off, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).

2. Turn off the computer. Disconnect the power cord.

3. Check the power cord for:

a. A third-wire ground connector in good condition. Use a meter to measure

third-wire ground continuity for 0.1 ohm or less between the external

ground pin and the frame ground.

b. The power cord should be the type specified in the parts list.

c. Insulation must not be frayed or worn.

4. Check for cracked or bulging batteries.

5. Remove the cover.

6. Check for any obvious non-Lenovo alterations. Use good judgment as to the

safety of any non-Lenovo alterations.

7. Check inside the unit for any obvious unsafe conditions, such as metal filings,

contamination, water or other liquids, or signs of fire or smoke damage.

8. Check for worn, frayed, or pinched cables.

9. Check that the power-supply cover fasteners (screws or rivets) have not been

removed or tampered with.

Safety inspection guide

Lenovo Z710 Hardware Maintenance Manual

6

Any computer part containing transistors or integrated circuits (ICs) should be

considered sensitive to electrostatic discharge (ESD). ESD damage can occur

when there is a difference in charge between objects. Protect against ESD damage

by equalizing the charge so that the machine, the part, the work mat, and the

person handling the part are all at the same charge.

When handling ESD-sensitive parts:

• Keep the parts in protective packages until they are inserted into the product.

• Avoid contact with other people.

• Wear a grounded wrist strap against your skin to eliminate static on your

body.

• Prevent the part from touching your clothing. Most clothing is insulative and

retains a charge even when you are wearing a wrist strap.

• Use the black side of a grounded work mat to provide a static-free work

surface. The mat is especially useful when handling ESD-sensitive devices.

• Select a grounding system, such as those listed below, to provide protection

that meets the specific service requirement.

– Attach the ESD ground clip to any frame ground, ground braid, or green-

wire ground.

– When working on a double-insulated or battery-operated system, use an

ESD common ground or reference point. You can use coax or connector-

outside shells on these systems.

– Use the round ground prong of the ac plug on ac-operated computers.

Electrical grounding of the computer is required for operator safety and correct

system function. Proper grounding of the electrical outlet can be verified by a

certified electrician.

Handling devices that are sensitive to electrostatic discharge

Notes:

1. Use product-specific ESD procedures when they exceed the

requirements noted here.

2. Make sure that the ESD protective devices you use have been certified

(ISO 9000) as fully effective.

Notes:

The use of a grounding system to guard against ESD damage is desirable but

not necessary.

Grounding requirements

Safety information

7

The safety notices in this section are provided in English, French, German,

Hebrew, Italian, Japanese, and Spanish.

Safety notices: multilingual translations

Safety notice 1

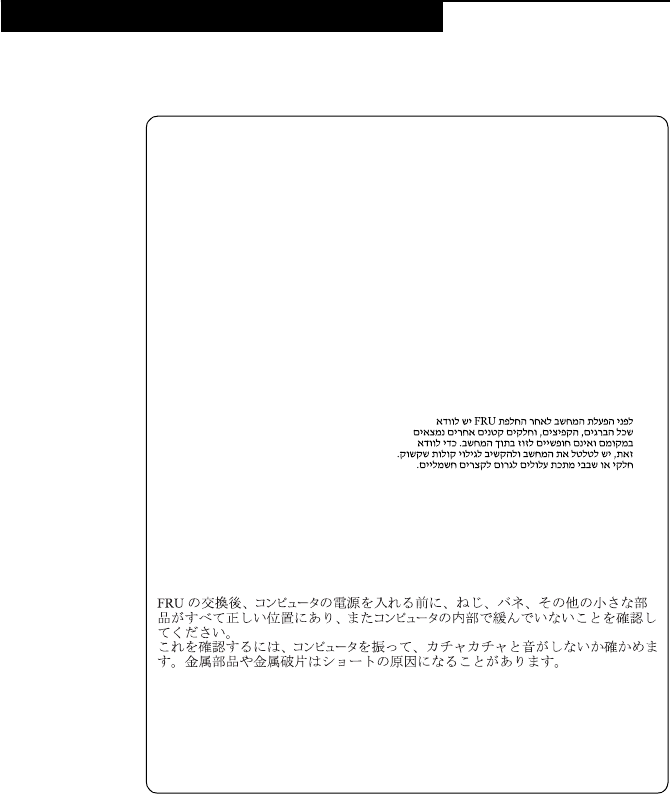

Before the computer is powered on after FRU replacement, make sure all

screws, springs, and other small parts are in place and are not left loose

inside the computer. Verify this by shaking the computer and listening for

rattling sounds. Metallic parts or metal flakes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement d’une unité

en clientèle, vérifiez que tous les ressorts, vis et autres pièces sont bien en

place et bien fixées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun

bruit suspect ne se produit. Des pièces métalliques ou des copeaux de métal

pourraient causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen

wird, muß sichergestellt werden, daß keine Schrauben, Federn oder andere

Kleinteile fehlen oder im Gehäuse vergessen wurden. Der Computer muß

geschüttelt und auf Klappergeräusche geprüft werden. Metallteile oder-

splitter können Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di

una FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole

dimensioni siano nella corretta posizione e non siano sparse all’interno

dell’elaboratore. Verificare ciò scuotendo l’elaboratore e prestando

attenzione ad eventuali rumori; eventuali parti o pezzetti metallici possono

provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que

todos los tornillos, muelles y demás piezas pequeñas se encuentran en su

sitio y no se encuentran sueltas dentro del sistema. Compruébelo agitando el

sistema y escuchando los posibles ruidos que provocarían. Las piezas

metálicas pueden causar cortocircuitos eléctricos.

Lenovo Z710 Hardware Maintenance Manual

8

Safety notice 2

DANGER

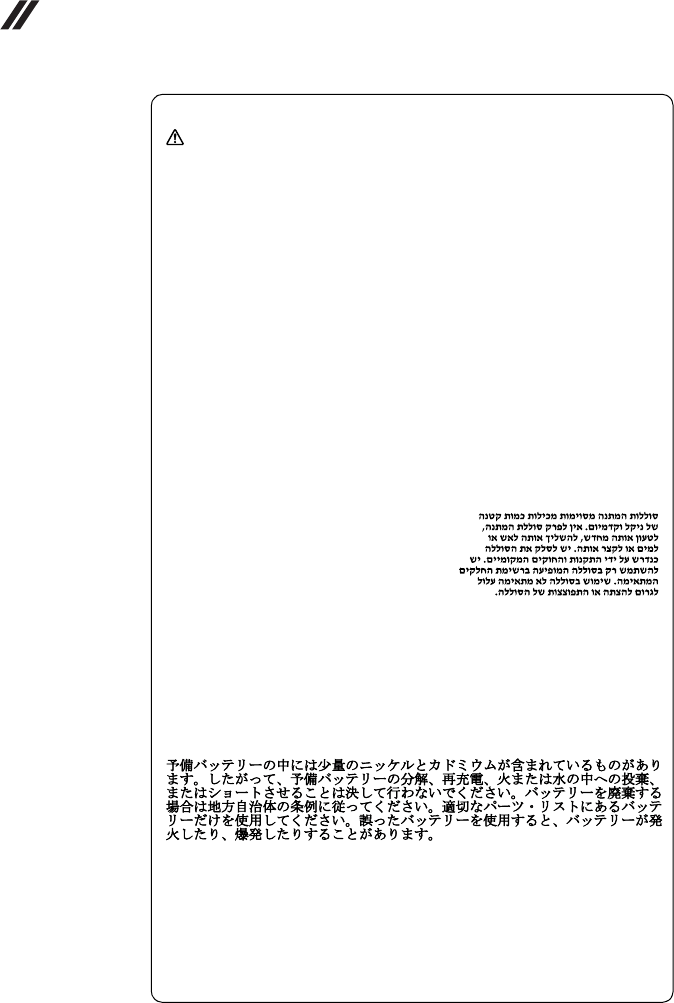

Some standby batteries contain a small amount of nickel and cadmium. Do

not disassemble a standby battery, recharge it, throw it into fire or water, or

short-circuit it. Dispose of the battery as required by local ordinances or

regulations. Use only the battery in the appropriate parts listing. Use of an

incorrect battery can result in ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les

démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne

les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à

la réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde

ou celle de l’horloge temps réel, veillez à n’utiliser que les modèles cités dans

la liste de pièces détachées adéquate. Une batterie ou une pile inappropriée

risque de prendre feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet,

kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nicht

zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser

ausgesetzt werden. Bei der Entsorgung die örtlichen Bestimmungen für

Sondermüll beachten. Beim Ersetzen der Bereitschafts-oder Systembatterie

nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist.

Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e

cadmio. Non smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né

cortocircuitarle. Smaltirle secondo la normativa in vigore (DPR 915/82,

successive disposizioni e disposizioni locali). Quando si sostituisce la

batteria dell’RTC (real time clock) o la batteria di supporto, utilizzare

soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di una

batteria non adatta potrebbe determinare l’incendio o l’esplosione della

batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y

cadmio. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las

cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo

baterías que se encuentren en la lista de piezas. La utilización de una batería

no apropiada puede provocar la ignición o explosión de la misma.

Safety information

9

Safety notice 3

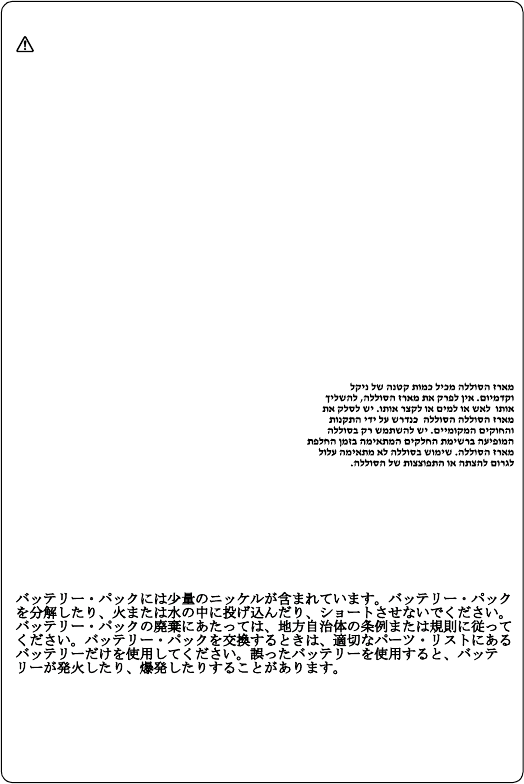

DANGER

The battery pack contains small amounts of nickel. Do not disassemble it,

throw it into fire or water, or short-circuit it. Dispose of the battery pack as

required by local ordinances or regulations. Use only the battery in the

appropriate parts listing when replacing the battery pack. Use of an

incorrect battery can result in ignition or explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni

à l’eau. Ne la mettez pas en court-circuit. Pour la mettre au rebut,

conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la

batterie, veillez à n’utiliser que les modèles cités dans la liste de pièces

détachées adéquate. En effet, une batterie inappropriée risque de prendre

feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt

werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll

beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der

in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu

Entzündung oder Explosion führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel

fuoco o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in

vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando

si sostituisce la batteria, utilizzare soltanto i tipi inseriti nell’appropriato

Catalogo parti. L’impiego di una batteria non adatta potrebbe determinare

l’incendio o l’esplosione della batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni

recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal

como dispone la normativa local. Utilice sólo baterías que se encuentren en

la lista de piezas al sustituir la batería. La utilización de una batería no

apropiada puede provocar la ignición o explosión de la misma.

Lenovo Z710 Hardware Maintenance Manual

10

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion, or a severe burn. Do not

recharge it, remove its polarized connector, disassemble it, heat it above

100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of

the battery as required by local ordinances or regulations. Use only the

battery in the appropriate parts listing. Use of an incorrect battery can result

in ignition or explosion of the battery.

La pile de sauvegarde contient du lithium. Elle présente des risques

d’incendie, d’explosion ou de brûlures graves. Ne la rechargez pas, ne

retirez pas son connecteur polarisé et ne la démontez pas. Ne l’exposez pas

à une temperature supérieure à 100°C, ne la faites pas brûler et n’en exposez

pas le contenu à l’eau. Mettez la pile au rebut conformément à la

réglementation en vigueur. Une pile inappropriée risque de prendre feu ou

d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden,

explodieren oder schwere Verbrennungen hervorrufen. Batterien dieses

Typs dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt

werden. Auch darf ihr Inhalt nicht mit Wasser in Verbindung gebracht oder

der zur richtigen Polung angebrachte Verbindungsstecker entfernt werden.

Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten.

Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der

Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu

Entzündung oder Explosion führen.

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o

procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore

polarizzato, smontarla, riscaldarla ad una temperatura superiore ai 100

gradi centigradi, incendiarla o gettarla in acqua. Smaltirla secondo la

normativa in vigore (DPR 915/82, successive disposizioni e disposizioni

locali). L’impiego di una batteria non adatta potrebbe determinare

l’incendio o l’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y puede provocar incendios,

explosiones o quemaduras graves. No la recargue, ni quite el conector

polarizado, ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la

incinere ni exponga el contenido de sus celdas al agua. Deséchela tal como

dispone la normativa local.

Safety information

11

Safety notice 5

If the LCD breaks and the fluid from inside the LCD gets into your eyes or

on your hands, immediately wash the affected areas with water at least for

15 minutes. Seek medical care if any symptoms caused by the fluid are

present after washing.

Si le panneau d’affichage à cristaux liquides se brise et que vous recevez dans

les yeux ou sur les mains une partie du fluide, rincez-les abondamment

pendant au moins quinze minutes. Consultez un médecin si des symptômes

persistent après le lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der

Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Der

LCD-Bildschirm besteht aus Glas und kann zerbrechen, wenn er

unsachgemäß behandelt wird oder der Computer auf den Boden fällt. Wenn

der Bildschirm beschädigt ist und die darin befindliche Flüssigkeit in

Kontakt mit Haut und Augen gerät, sollten die betroffenen Stellen

mindestens 15 Minuten mit Wasser abgespült und bei Beschwerden

anschließend ein Arzt aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto

entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti

interessate con acqua corrente per almeno 15 minuti; poi consultare un

medico se i sintomi dovessero permanere.

Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o

sus manos, lave inmediatamente las áreas afectadas con agua durante

15 minutos como mínimo. Obtenga atención medica si se presenta algún

Lenovo Z710 Hardware Maintenance Manual

12

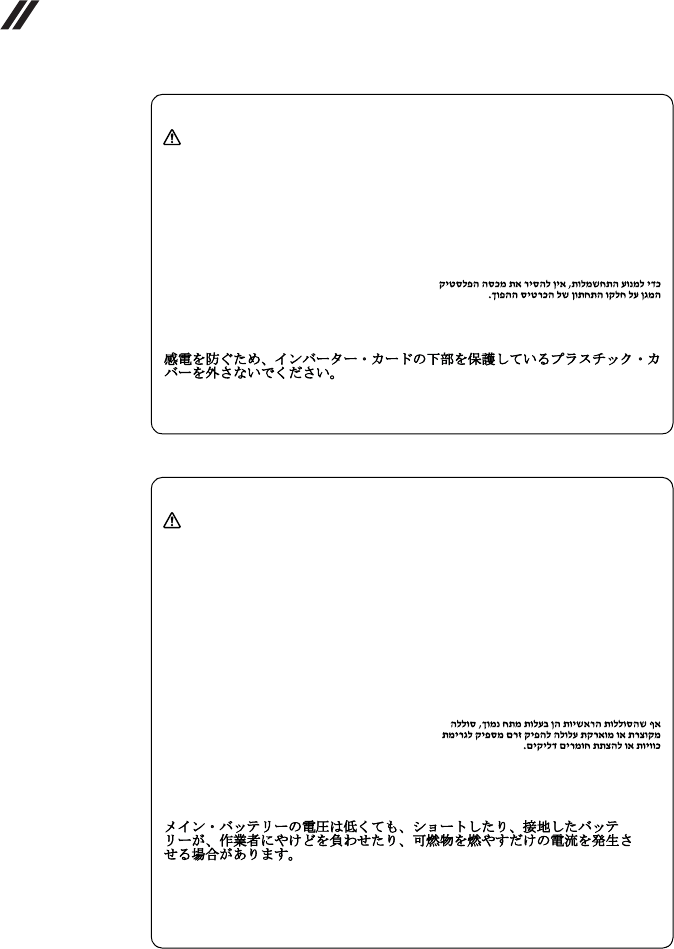

Safety notice 6

DANGER

To avoid shock, do not remove the plastic cover that protects the lower part

of the inverter card.

Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en

plastique protégeant la partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der

Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che

avvolge la parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja

de la tarjeta invertida.

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or grounded battery

can produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou

la mise à la masse d’une batterie peut produire suffisamment de courant

pour brûler des matériaux combustibles ou causer des brûlures corporelles

graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei

Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien

zu entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in

corto circuito o a massa può fornire corrente sufficiente da bruciare materiali

combustibili o provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería

cortocircuitada o con contacto a tierra puede producir la corriente suficiente

como para quemar material combustible o provocar quemaduras en el

personal.

Safety information

13

Safety notice 8

DANGER

Before removing any FRU, turn off the computer, unplug all power cords

from electrical outlets, remove the battery pack, and then disconnect any

interconnecting cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors

tension, débranchez tous les cordons d’alimentation des socles de prise de

courant, retirez la batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose

gezogen, der Akku entfernt und alle Verbindungskabel abgenommen sein,

bevor eine FRU entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese

elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare

i cavi di interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de

las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte

cualquier cable de conexión entre dispositivos.

Lenovo Z710 Hardware Maintenance Manual

14

Some models of Lenovo computer are equipped from the factory with an optical

storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are

also sold separately as options. If one of these drives is installed, it is certified in

the U.S. to conform to the requirements of the Department of Health and Human

Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class

1 laser products. Elsewhere, the drive is certified to conform to the requirements

of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60

825 for Class 1 laser products.

If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note

the following:

Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage

device could result in exposure to hazardous laser radiation. There are no

serviceable parts inside those drives. Do not open.

Laser compliance statement

CAUTION

Use of controls or adjustments or performance of procedures other than

those specified herein might result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de procedimentos diferentes

daqueles aqui especificados pode resultar em perigosa exposição à radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes

de réglage et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet,

kann gefährliche Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da

quelle specificate possono provocare l’esposizione a.

El uso de controles o ajustes o la ejecución de procedimientos distintos de los

aquí especificados puede provocar la exposición a radiaciones peligrosas.

Safety information

15

A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may

contain an embedded Class 3A or Class 3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the

beam, do not view directly with optical instruments, and avoid direct

exposure to the beam.

Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe

diretamente por meio de instrumentos óticos e evite exposição direta com o

feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder

directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische

Instrumente in den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai

eszközökkel. Kerülje a sugárnyalábbal való érintkezést!

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non

guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al

fascio.

Radiación láser al abrir. No mire fijamente ni examine con instrumental

óptico el haz de luz. Evite la exposición directa al haz.

Lenovo Z710 Hardware Maintenance Manual

16

This chapter presents the following important service information:

• “Strategy for replacing FRUs” on page 16

– “Strategy for replacing a hard disk drive” on page 17

– “Important notice for replacing a system board” on page 17

• “Important information about replacing RoHS compliant FRUs” on page 18

Before replacing parts:

Make sure that all software fixes, drivers, and BIOS downloads are installed

before replacing any FRUs listed in this manual.

After a system board is replaced, ensure that the latest BIOS is loaded to the

system board before completing the service action.

To download software fixes, drivers, and BIOS, follow the steps below:

1. Go to http://consumersupport.lenovo.com/.

2. Enter the serial number or select a product or use Lenovo smart

downloading.

3. Select the BIOS/Driver/Applications and download.

4. Follow the directions on the screen and install the necessary software.

Important service information

Important:

BIOS and device driver fixes are customer-installable. The BIOS and device

drivers are posted on the customer support site:

http://consumersupport.lenovo.com/.

Strategy for replacing FRUs

Important service information

17

Use the following strategy to prevent unnecessary expense for replacing and

servicing FRUs:

• If you are instructed to replace an FRU, but the replacement does not solve

the problem, reinstall the original FRU before you continue.

• Some computers have both a processor board and a system board. If you are

instructed to replace either of them, and replacing one of them does not solve

the problem, reinstall that board, and then replace the other one.

• If an adapter or a device consists of more than one FRU, any of the FRUs may

be the cause of the error. Before replacing the adapter or device, remove the

FRUs one by one to see if the symptoms change. Replace only the FRU that

changed the symptoms.

Attention: The setup configuration on the computer you are servicing may have

been customized. Running Automatic Configuration may alter the settings. Note

the current configuration settings (using the View Configuration option); then,

when service has been completed, verify that those settings remain in effect.

Strategy for replacing a hard disk drive

Always try to run a low-level format before replacing a hard disk drive. This will

cause all customer data on the hard disk to be lost. Make sure that the customer

has a current backup of the data before performing this action.

Attention: The drive startup sequence in the computer you are servicing may

have been changed. Be extremely careful during write operations such as

copying, saving, or formatting. If you select an incorrect drive, data or programs

can be overwritten.

Important notice for replacing a system board

Some components mounted on a system board are very sensitive. Improper

handling can cause damage to those components, and may cause a system

malfunction.

Attention: When handling a system board:

• Do not drop the system board or apply any excessive force to it.

• Avoid rough handling of any kind.

• Avoid bending the system board and hard pushing to prevent cracking at

each BGA (Ball Grid Array) chipset.

Lenovo Z710 Hardware Maintenance Manual

18

RoHS, The Restriction of Hazardous Substances in Electrical and

Electronic Equipment Directive (2002/95/EC) is a European Union legal

requirement affecting the global electronics industry. RoHS requirements

must be implemented on Lenovo products placed on the market after June

2006. Products on the market before June 2006 are not required to have

RoHS compliant parts. If the original FRU parts are non-compliant,

replacement parts can also be non-compliant. In all cases if the original

FRU parts are RoHS compliant, the replacement part must also be RoHS

compliant.

Note: RoHS and non-RoHS FRU part numbers with the same fit and function are

identified with unique FRU part numbers.

Lenovo plans to transit to RoHS compliance well before the implementation date

and expects its suppliers to be ready to support Lenovo’s requirements and

schedule in the EU. Products sold in 2005 and 2006 will contain some RoHS

compliant FRUs. The following statement pertains to these products and any

product Lenovo produces containing RoHS compliant FRUs.

RoHS compliant FRUs have unique FRU part numbers. Before or after the RoHS

implementation date, failed RoHS compliant parts must always be replaced with

RoHS compliant ones, so only the FRUs identified as compliant in the system

HMM or direct substitutions for those FRUs may be used.

Note: A direct substitution is a part with a different FRU part number that is

automatically shipped by the distribution center at the time of the order.

Products marketed before June 2006 Products marketed after June 2006

Current or

original part

Replacement

FRU

Current or

original part

Replacement

FRU

Non-RoHS Can be Non-RoHS

Must be RoHS Must be RoHS

Non-RoHS Can be RoHS

Non-RoHS Can sub to RoHS

RoHS Must be RoHS

Important information about replacing RoHS compliant FRUs

General checkout

19

This chapter presents the following information:

• “What to do first” on page 20

• “Power system checkout” on page 21

Before you go to the checkout, make sure to read the following important notes:

General checkout

Important notes:

•Only certified trained personnel can service the computer.

•Before replacing any FRU, read the entire page on removing and

replacing FRUs.

•When you replace FRUs, use new nylon-coated screws.

•Be extremely careful during such write operations as copying,

saving, or formatting. Drives in the computer that you are servicing

sequence might have been altered. If you select an incorrect drive, data

or programs might be overwritten.

•Replace an FRU only with another FRU of the correct model. When

you replace an FRU, make sure that the machine model and the FRU part

number are correct by referring to the FRU parts list.

•An FRU should not be replaced just because of a single,

unreproducible failure. Single failures can occur for a variety of reasons

that have nothing to do with a hardware defect, such as cosmic radiation,

electrostatic discharge, or software errors. Consider replacing an FRU

only when a problem recurs. If you suspect that an FRU is defective,

clear the error logs and run the test again. If the error does not recur, do

not replace the FRU.

•Be careful not to replace a nondefective FRU.

Lenovo Z710 Hardware Maintenance Manual

20

When you do return an FRU, you must include the following information in the

parts exchange form or parts return form that you attach to it:

1. Name and phone number of servicer

2. Date of service

3. Date on which the machine failed

4. Date of purchase

5. Procedure index and page number in which the failing FRU was detected

6. Failing FRU name and part number

7. Machine type, model number, and serial number

8. Customer’s name and address

Note for warranty: During the warranty period, the customer may be

responsible for repair costs if the computer damage was caused by misuse,

accident, modification, unsuitable physical or operating environment, or

improper maintenance by the customer.

The following is a list of some common items that are not covered under

warranty and some symptoms that might indicate that the system was subjected

to stress beyond normal use.

Before checking problems with the computer, determine whether the damage is

covered under the warranty by referring to the following list:

The following are not covered under warranty:

• LCD panel cracked from the application of excessive force or from being

dropped

• Scratched (cosmetic) parts

• Distortion, deformation, or discoloration of the cosmetic parts

• Plastic parts, latches, pins, or connectors that have been cracked or broken by

excessive force

• Damage caused by liquid spilled into the system

• Damage caused by the improper insertion of a PC Card or the installation of

an incompatible card

• Improper disk insertion or use of an optical drive

• Diskette drive damage caused by pressure on the diskette drive cover, foreign

material in the drive, or the insertion of a diskette with multiple labels

• Damaged or bent diskette eject button

• Fuses blown by attachment of a nonsupported device

• Forgotten computer password (making the computer unusable)

• Sticky keys caused by spilling a liquid onto the keyboard

• Use of an incorrect AC adapter on laptop products

The following symptoms might indicate damage caused by nonwarranted

activities:

• Missing parts might be a symptom of unauthorized service or modification.

• If the spindle of a hard disk drive becomes noisy, it may have been subjected

to excessive force, or dropped.

What to do first

General checkout

21

To verify a symptom, follow the steps below:

1. Turn off the computer.

2. Remove the battery pack.

3. Connect the AC adapter.

4. Make sure that power is supplied when you turn on the computer.

5. Turn off the computer.

6. Disconnect the AC adapter and install the charged battery pack.

7. Make sure that the battery pack supplies power when you turn on the

computer.

If you suspect a power problem, see the appropriate one of the following power

supply checkouts:

• “Checking the AC adapter” on page 21

• “Checking operational charging” on page 21

• “Checking the battery pack” on page 22

Checking the AC adapter

You are here because the computer fails only when the AC adapter is used.

• If the power-on indicator does not turn on, check the power cord of the AC

adapter for correct continuity and installation.

• If the computer does not charge during operation, go to “Checking

operational charging”.

To check the AC adapter, follow the steps below:

1. Unplug the AC adapter cable from the computer.

2. Measure the output voltage at the plug of the AC adapter cable. See the

following figure:

Note: Output voltage for the AC adapter pin No. 2 may differ from the one you

are servicing.

3. If the voltage is not correct, replace the AC adapter.

4. If the voltage is acceptable, do the following:

• Replace the system board.

• If the problem persists, go to “Lenovo Z710” on page 27.

Note: Noise from the AC adapter does not always indicate a defect.

Checking operational charging

To check whether the battery charges properly during operation, use a

discharged battery pack or a battery pack that has less than 50% of the total

power remaining when installed in the computer.

Power system checkout

Voltage (V DC)

+20

0

Pin

1

2

21

Lenovo Z710 Hardware Maintenance Manual

22

Perform operational charging. If the battery status indicator or icon does not

light on, remove the battery pack and let it return to room temperature. Reinstall

the battery pack. If the charge indicator or icon is still off, replace the battery

pack.

If the charge indicator still does not light on, replace the system board. Then

reinstall the battery pack. If it is still not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter shows that less than 95%

of the total power remains; under this condition the battery pack can charge to

100% of its capacity. This protects the battery pack from being overcharged or

from having a shortened life.

To check your battery, move your cursor to the Power Meter icon in the icon tray

of the Windows® taskbar and wait for a moment (but do not click it), and the

percentage of battery power remaining is displayed. To get detailed information

about the battery, double-click the Power Meter icon.

Note: If the battery pack becomes hot, it may not be able to be charged. Remove

it from the computer and leave it at room temperature for a while. After it cools

down, reinstall and recharge it.

To check the battery pack, follow the steps below:

1. Turn off the computer.

2. Remove the battery pack and measure the voltage between battery terminals

1 (+) and 7 (-). See the following figure:

3. If the voltage is less than +11.0 V DC, the battery pack has been discharged.

Note: Recharging will be continued for at least 3 hours, even though the

indicator does not light on.

If the voltage is still less than +11.0 V DC after recharging, replace the battery.

4. If the voltage is more than +11.0 V DC, measure the resistance between

battery terminals 5 and 7. The resistance must be 4 to 30 KΩ.

If the resistance is not correct, replace the battery pack. If the resistance is

correct, replace the system board.

1(+)2(+) 3456(-)7(-)

Terminal

1 +0 to +14

7 Ground (-)

Voltage (V DC)

Related service information

23

This chapter presents the following information:

• “Restoring the factory contents by using Recovery Disc Set” on page 23

•“Passwords” on page24

• “Power management” on page 25

When the hard disk drive or solid state drive is replaced because of a failure, no

product recovery program is on the new drive. In this case, you must use the

Recovery Disc Set for the computer. Order the Recovery Disc Set and the drive at

the same time so that you can recover the new drive with the pre-installed

software when they arrive.

The Recovery Disc Set consists of the following set of DVDs to restore the

computer to the original factory configuration.

Start Recovery Disc (one disc)

This disc is used to format the hard disk drive and initiate the recovery process.

Operating System Recovery Disc (one or more discs)

This disc restores the Microsoft Windows operating system.

Applications and Drivers Recovery Disc (one or more discs)

This disc restores the pre-installed applications and drivers on the computer.

Supplemental Recovery Disc

This disc contains additional content, such as software for specific models and

updates to the software that was preloaded on the computer. Not all recovery

disc sets come with a Supplemental Recovery Disc.

To restore the computer to the original factory configuration using the recovery

disc set, do the following:

1. Insert the bootable Start Recovery Disc into the optical drive.

2. Start the computer. When the Lenovo logo comes up, immediately press F12;

on the boot sequence menu, select the optical drive as the first boot-up device.

The computer will boot from the Start Recovery Disc. Follow the on-screen

instructions to begin the recovery process.

3. Read the license. If you agree with the terms, select I accept these terms and

conditions and then click Next.

4. Insert the Operating System Recovery Disc when prompted and click Yes to

begin the operating system recovery process.

5. Insert the Applications and Drivers Recovery Disc when prompted and then

click OK to begin the applications and drivers recovery process.

6. If you have a Supplemental Recovery Disc, insert it when prompted and click

Yes. If you do not have a Supplemental Recovery Disc, click No.

Related service information

Restoring the factory contents by using Recovery Disc Set

Lenovo Z710 Hardware Maintenance Manual

24

7. When all of the data has been copied from the last disc in the set, remove the

disc and restart the computer.

8. When the recovery process is complete, the Welcome to the Microsoft

Windows screen is displayed. Follow the instructions on the screen to

complete the Windows setup.

As many as three passwords may be needed for any Lenovo computer: the

power-on password (POP), the hard disk password (HDP), and the supervisor

password (SVP).

If any of these passwords has been set, a prompt for it appears on the screen

whenever the computer is turned on. The computer does not start until the

password is entered.

Exception: If only an SVP is installed, the password prompt does not appear

when the operating system is booted.

Power-on password

A power-on password (POP) protects the system from being powered on by an

unauthorized person. The password must be entered before an operating system

can be booted.

Hard-disk password

There are two hard-disk passwords (HDPs):

+ User HDP - for the user

+ Master HDP - for the system administrator, who can use it to get access to the

hard disk drive even if the user has changed the user HDP

Attention: If the user HDP has been forgotten, check whether a master HDP has

been set. If it has, it can be used for access to the hard disk drive. If no master

HDP is available, neither Lenovo nor Lenovo authorized service technicians

provide any services to reset either the user or the master HDP, or to recover data

from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

Supervisor password

A supervisor password (SVP) protects the system information stored in the BIOS

Setup Utility. The user must enter the SVP in order to get access to the BIOS

Setup Utility and change the system configuration.

Attention: If the SVP has been forgotten and cannot be made available to the

servicer, there is no service procedure to reset the password. The system board

must be replaced for a scheduled fee.

Note: The remainder of the recovery process is fully automated and no

action is required by you. The computer will restart into the Windows

desktop several times and you might experience periods when no activity is

apparent on the screen for several minutes at a time. This is normal.

Passwords

Related service information

25

Note: Power management modes are not supported for APM operating system.

To reduce power consumption, the computer has three power management

modes: screen blank, sleep (standby), and hibernation.

Screen blank mode

If the time set on the “Turn off monitor” timer in the operating system expires,

the LCD backlight turns off. You can also turn off the LCD backlight by pressing

Fn+F2.

To end screen blank mode and resume normal operation, press any key.

Putting the computer to sleep or shutting it down

When you have finished working with your computer, you can put it to sleep or

shut it down.

Putting your computer to sleep

If you will be away from your computer for only a short time, put the computer

to sleep. When the computer is in sleep mode, you can quickly wake it to resume

use, bypassing the startup process. To put the computer to sleep, do one of the

following:

• Close the display panel.

• Press the power button.

• Open the charms bar, then select Settings → Power → Sleep.

Attention: Wait until the power indicator light starts blinking (indicating that

the computer is in sleep mode) before you move your computer. Moving your

computer while the hard disk is spinning can damage the hard disk, causing loss

of data.

To wake the computer, do one of the following:

• Press any key on the keyboard.

• Press the power button.

Power management

Lenovo Z710 Hardware Maintenance Manual

26

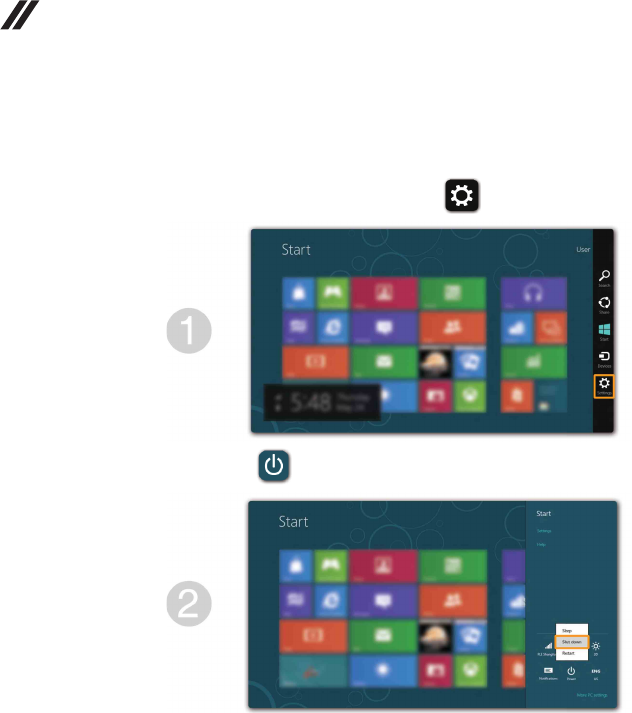

Shutting down the computer

If you are not going to use your computer for a long time, shut it down. To shut

down your computer:

• Open the charms bar, then select Settings .

• Select Power → Shut down.

Lenovo Z710

27

This chapter presents the following product-specific service references and

product-specific parts information:

• “Specifications” on page 27

• “Status indicators” on page 29

• “FRU tests” on page 31

• “Fn key combinations” on page 31

• “FRU replacement notices” on page 32

• “Removing and replacing an FRU” on page 33

•“Locations” on page68

• “Parts list” on page 71

The following table lists the specifications of the Lenovo Z710:

Table 1. Specifications

Feature Description

Processor See the system properties of your computer, you can do

this as follows:

Click Start, right-click Computer; then from the pull down

menu select Properties.

Core Chipset • Intel HM86

Graphic Chipset • Nvidia graphics card

• N14P-GS/N14P-GV2

•Integrated (UMA)

Display • 1600x900 pixels HD+/220nit, 1920x1080 pixels FHD/

220nit

Standard

memory

• DDR3L-1600MHz

CMOS RAM • 256 bytes

Hard disk drive • 2.5-inch, 7.0 mm/9.5 mm

• SATA II /SATA III

Optical drive • 9.5 mm tray-in Rambo/Blue Ray Rambo

Lenovo Z710

Specifications

Lenovo Z710 Hardware Maintenance Manual

28

Table 1. Specifications (continued)

Feature Description

I/O port • External monitor connector

• Stereo headphone jack

•Microphone jack

• RJ45 × 1

• USB 2.0 × 2, USB 3.0 × 2

• 2 in 1 slot × 1 (SD/MMC)

MODEM slot • N/A

TV • N/A

Audio • 1/8" Stereo Headphone and Microphone combo jack

• Array Mic with voice control(Voice control option)

• Built-in stereo speakers

• Built-in microphone

Video • CRT port × 1

•HDMI port × 1

Ethernet (on the

system board) • 10/100M/1G

PCI Express Mini

Card slot • WIFI × 1

WLAN • Intel 2x2 BGN+ BT 4.0(support WIDI)

• Non-Intel Wifi BGN 1x1

• Non-Intel Wifi BGN 1x1+ BT4.0

WWAN • N/A

Bluetooth

wireless •Option

Keyboard • Numberic Keyboard

Touch pad • Multi-touch touchpad

Finger Print

Reader •N/A

Integrated

camera • 1280 × 720 pixels

Battery • Li-Cylinder,4 cell, 41Wh

AC adapter • 65 W/90 W/135 W

Pre-installed

operating system

• Linpus lite/DOS, mini Support Win7, Win8

Lenovo Z710

29

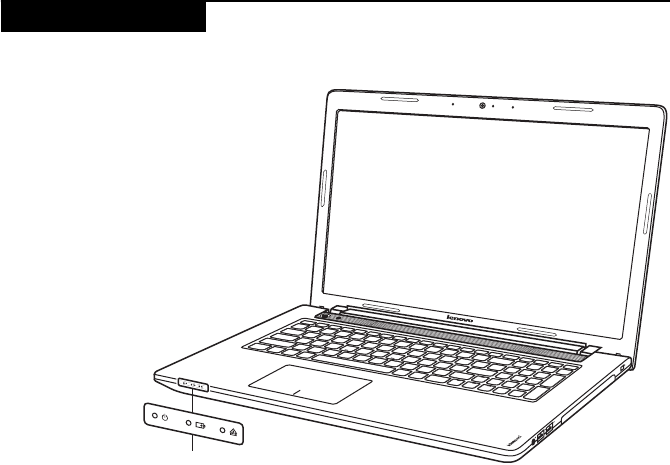

The system status indicators below show the computer status:

Status indicators

a

Lenovo Z710 Hardware Maintenance Manual

30

Table 2. Status indicators

Symbol Indicator status Meaning

On (solid white) The computer is powered on.

Blinking The computer is in sleep mode.

Off The computer is powered off.

On (solid white) The battery has more than 20% charge.

Solid amber The battery has between 5% and 20%

charge.

Fast blinking amber There is a problem with the battery or the

battery connection.

Slow blinking amber The battery is being charged. When

battery charge reaches 20%, the blinking

color changes to white.

Slow blinking white The battery has between 20% and 80%

charge and is still charging. When the

battery reaches 80% charge, the light will

stop blinking, but charging will continue

until the battery is fully charged.

Lenovo Z710

31

The following describes the features of each function key.

Table 3. Fn key combinations

Fn + Home: Activates the pause function.

Fn + End: Activates the break function.

Fn + PgUp: Enables/disables the scroll lock.

Fn + PgDn: Activates the system request.

Fn key combinations

Lenovo Z710 Hardware Maintenance Manual

32

This section presents notices related to removing and replacing parts. Read this

section carefully before replacing any FRU.

Screw notices

Loose screws can cause a reliability problem. In the Lenovo computer, this

problem is addressed with special nylon-coated screws that have the following

characteristics:

• They maintain tight connections.

• They do not easily come loose, even with shock or vibration.

• They are harder to tighten.

• Each one should be used only once.

Do the following when you service this machine:

• Keep the screw kit in your tool bag.

• Always use new screws.

• Use a torque screwdriver if you have one.

Tighten screws as follows:

•Plastic to plastic

Turn an additional 90° after the screw head touches the surface of the plastic

part:

•Logic card to plastic

Turn an additional 180° after the screw head touches the surface of the logic

card:

•Torque driver

If you have a torque screwdriver , refer to the “Torque” column for each step.

• Make sure that you use the correct screws. If you have a torque screwdriver,

tighten all screws firmly to the torque shown in the table. Never use a screw

that you removed. Use a new one. Make sure that all screws are

tightened firmly.

• Ensure torque screwdrivers are calibrated correctly following country

specifications.

FRU replacement notices

more than 90°

(Cross-section)

more than 180°

(Cross-section)

Lenovo Z710

33

This section presents exploded figures with the instructions to indicate how to

remove and replace the FRU. Make sure to observe the following general rules:

1. Do not attempt to service any computer unless you have been trained and

certified. An untrained person runs the risk of damaging parts.

2. Before replacing any FRU, review “FRU replacement notices” on page 32.

3. Begin by removing any FRUs that have to be removed before the failing FRU.

Any of such FRUs are listed at the top of the page. Remove them in the order

in which they are listed.

4. Follow the correct sequence in the steps to remove the FRU, as given in the

figures by the numbers in square callouts.

5. When turning a screw to replace an FRU, turn it in the direction as given by

the arrow in the figure.

6. When removing the FRU, move it in the direction as given by the arrow in the

figure.

7. To put the new FRU in place, reverse the removal procedures and follow any

of the notes that pertain to replacement. For information about connecting

and arranging internal cables, see “Locations” on page 68.

8. When replacing an FRU, use the correct screw as shown in the procedures.

Attention: After replacing an FRU, do not turn on the computer until you have

made sure that all screws, springs, and other small parts are in place and none

are loose inside the computer. Verify this by shaking the computer gently and

listening for rattling sounds. Metallic parts or metal flakes can cause electrical

short circuits.

Attention: The system board is sensitive to, and can be damaged by, electrostatic

discharge. Before touching it, establish personal grounding by touching a

ground point with one hand or using an electrostatic discharge (ESD) strap

(P/N 6405959) to remove potential shock reasons.

Removing and replacing an FRU

DANGER

Before removing any FRU, turn off the computer, unplug all power cords

from electrical outlets, remove the battery pack, and then disconnect any of

the interconnecting cables.

Lenovo Z710 Hardware Maintenance Manual

34

1010 Battery pack

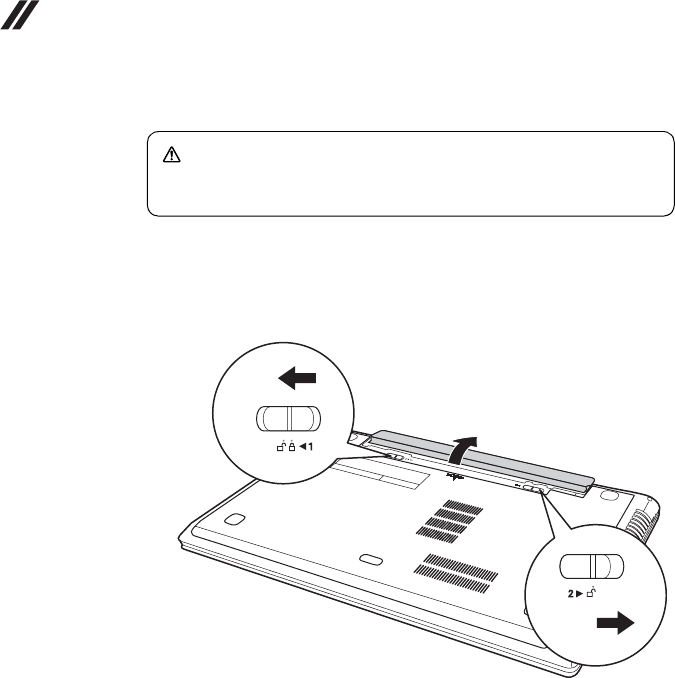

Figure 1. Removal steps of battery pack

Unlock the manual battery latch . Holding the spring-loaded battery latch in

the unlocked position , remove the battery pack in the direction shown by the

arrow .

When installing: Install the battery pack along the slide rails of the slot. Then

make sure that the battery release lever is in the locked position.

DANGER

Only use the battery specified in the parts list for your computer. Any other

battery could ignite or explode.

a

b

c

c

a

b

Lenovo Z710

35

1020 Dummy card (Optional)

Figure 2. Removal steps of dummy cards

Remove the dummy card in the direction shown by arrows .

a b

1

2

Lenovo Z710 Hardware Maintenance Manual

36

1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card

slot compartment cover

For access, remove this FRU:

• “1010 Battery pack” on page 34

Figure 3. Removal steps of Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover

Loosen the screws that secure the compartment cover. Remove the

compartment cover .

Step Screw (quantity) Color Torque

M2 × 6 mm, flat-head, nylok-coated (3) Black 1.5 ~ 2.0 kgfcm

a

b

b

a

a

a

a

Lenovo Z710

37

1040 Hard disk drive

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

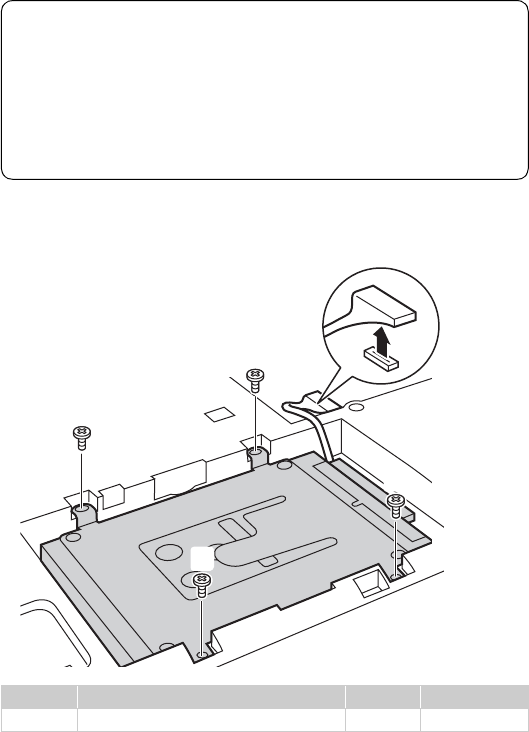

Figure 4. Removal steps of hard disk drive

Detach connector . Remove the frame fixing screws .

Step Screw (quantity) Color Torque

M2 × 6 mm, flat-head, nylok-coated (4) Black 1.5 ~ 2.0 kgfcm

Attention:

•Do not drop the hard disk drive or apply any physical shock to it.

The hard disk drive is sensitive to physical shock. Improper handling

can cause damages and permanent loss of data.

• Before removing the drive, suggest the customer to backup all the

information on it if possible.

• Never remove the drive while the system is operating or is in suspend

mode.

a b

b

b

b

b

a

a

Lenovo Z710 Hardware Maintenance Manual

38

Figure 4. Removal steps of hard disk drive (continued)

Pull the tab up in the direction shown by arrow to remove the hard disk drive

from the slot.

Hold the SATA receptacle connector with one hand and pull the hard disk drive

(secured in the metal frame) in the direction shown below to detach the

connector.

When installing: Make sure that the HDD connector is attached firmly.

c

c

Lenovo Z710

39

Figure 4. Removal steps of hard disk drive (continued)

Remove four screws and detach the metal frame from the hard disk drive.

Step Screw (quantity) Color Torque P/N

M3 × 3 mm, flat-head, nylokcoated

(1)

Black 1.5 ~ 2.0 kgfcm 90202769

d

dd

d

d

e

Lenovo Z710 Hardware Maintenance Manual

40

1050 Optical drive

For access, remove this FRU:

• “1010 Battery pack” on page 34

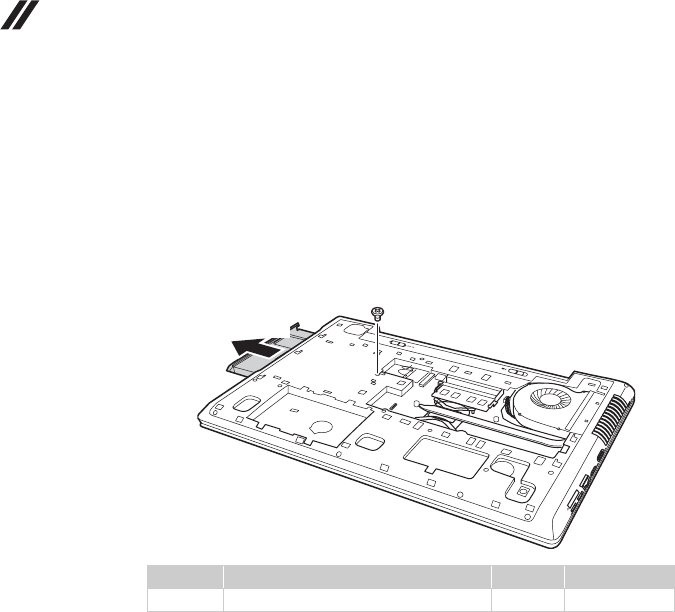

Figure 5. Removal steps of optical drive

Remove the screw . Pull the optical drive out in the direction shown by arrow

.

Step Screw (quantity) Color Torque

M2 × 6 mm, flat-head, nylokcoated (1) Black 2.0 ~ 2.5 kgfcm

a

b

a

b

a

Lenovo Z710

41

1060 DIMM

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

Figure 6. Removal steps of DIMM

Release the two latches on both edges of the socket at the same time in the

direction shown by arrows , and then unplug the DIMM in the direction

shown by arrow .

Note: If only one DIMM is used on the computer you are servicing, the card must

be installed in SLOT-0 ( : lower slot), but not in SLOT-1 ( : upper slot).

z

When installing: Insert the notched end of the DIMM into the socket. Push the

DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly

fixed in the slot and difficult to be moved.

a

b

b

aa

a

b

Lenovo Z710 Hardware Maintenance Manual

42

1070 PCI Express Mini Card for wireless LAN/WAN

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

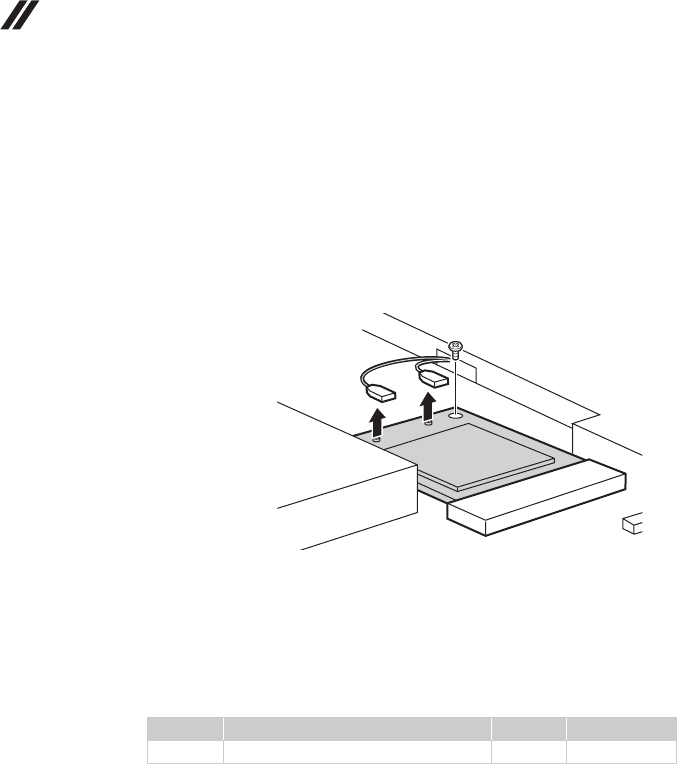

Figure 7. Removal steps of PCI Express Mini Card for wireless LAN/WAN

Disconnect the two wireless LAN cables (black, white) , and then remove the

screw .

In step , unplug the jacks by using the removal tool antenna RF connector

(P/N: 08K7159), or pick up the connectors with your fingers and gently unplug

them in the direction shown by arrows.

Notes: wireless LAN card has 2 cables in step .

Wireless LAN card in some models may have 3 cables in step .

Step Screw (quantity) Color Torque

M2 × 3 mm, flat-head, nylok-coated (1) Black 1.5 ~ 2.0 kgfcm

a

b

b

aa

a

a

a

b

Lenovo Z710

43

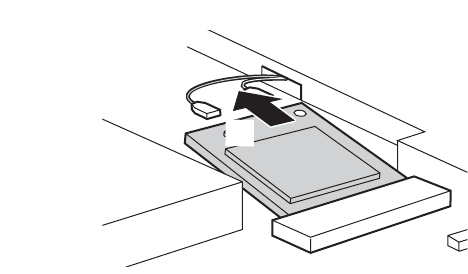

Figure 7. Removal steps of PCI Express Mini Card for wireless LAN/WAN (continued)

Remove the card in the direction shown by arrow .

When installing:

• In models with a wireless LAN card that has two antenna connectors, plug

the black cable (1st) (MAIN) into the jack labeled 1, and the white cable (2nd)

(AUX) into jack labeled 2 on the card.

• In models with a wireless LAN card that has three antenna connectors, plug

the black cable (1st) (MAIN) into the jack labeled 1, the grey cable (3rd) into

jack labeled 3, and the white cable (2nd) (AUX) into jack labeled 2 on the

card.

c

c

Lenovo Z710 Hardware Maintenance Manual

44

1080 Keyboard

For access, remove this FRU:

• “1010 Battery pack” on page 34

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

Figure 8. Removal steps of keyboard

Push the back of the keyboard in the direction shown by arrow .

a

a

Lenovo Z710

45

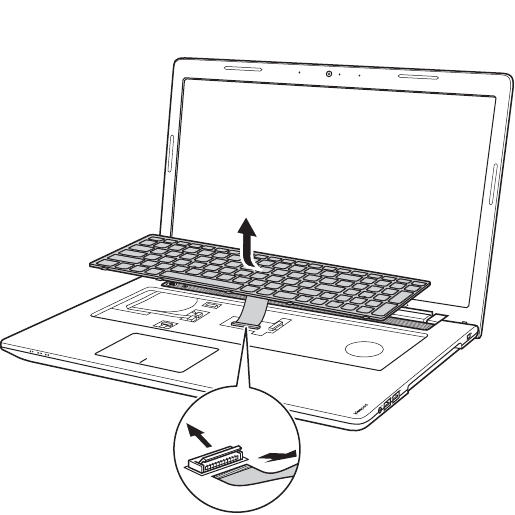

Figure 8. Removal steps of keyboard (continued)

Lift the keyboard a little , and then detach the connector in the direction

shown by arrows .b

c

d

b

c

d

Lenovo Z710 Hardware Maintenance Manual

46

1090 Fan assembly

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card (Optional)” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

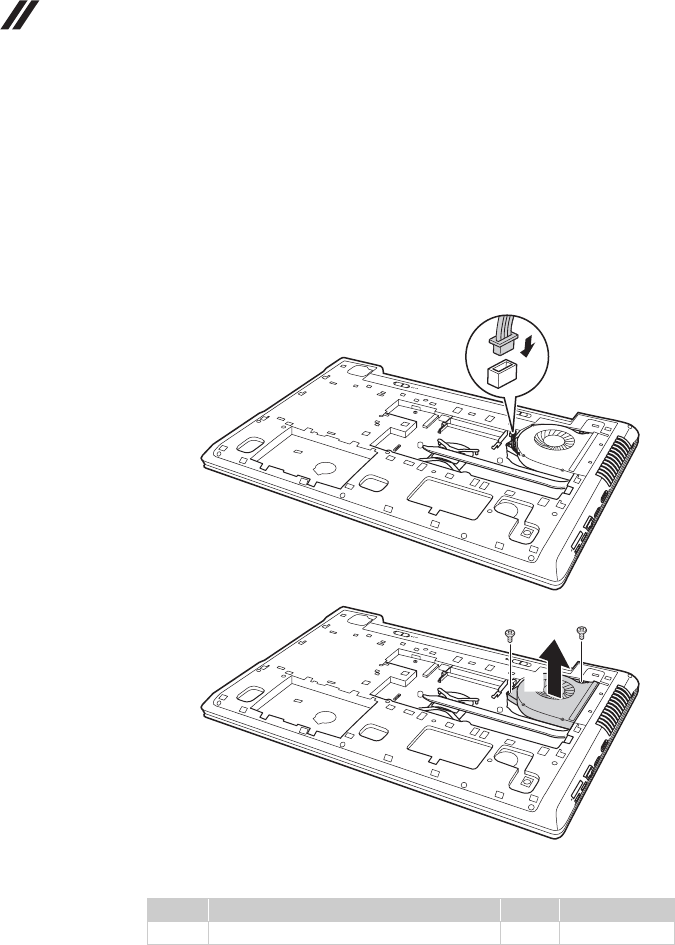

Figure 9. Removal steps of fan assembly

Detach the fan connector in the direction shown by arrow and loosen two

screws to lift the fan assembly.

When installing: Make sure that the fan connector is attached firmly to the

system board.

Step Screw (quantity) Color Torque

M2.0 × 6 mm, flat-head, nylok-coated (2) Black 1.5 ~ 2.0 kgfcm

a

b

a

b

b

c

b

Lenovo Z710

47

1100 Keyboard bezel

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1050 Optical drive” on page 40

• “1080 Keyboard” on page 44

• “1090 Fan assembly” on page 46

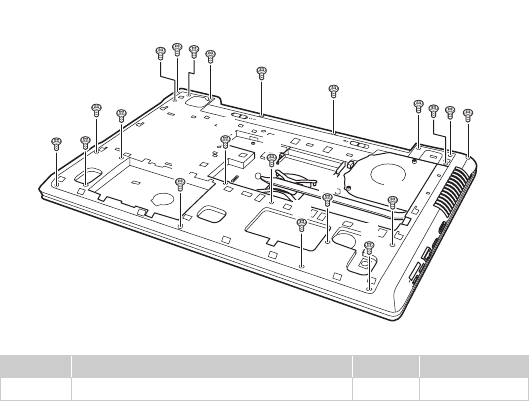

Figure 10. Removal steps of keyboard bezel

Remove twenty-one screws on the bottom.

Step Screw (quantity) Color Torque

M2 × 6 mm, flat-head, nylokcoated (21) Black 1.5 ~ 2.0 kgfcm

a

a

aa

a

a

a

a

a

a

a

a

a

a

a

a

aa

a

a

aa

a

Lenovo Z710 Hardware Maintenance Manual

48

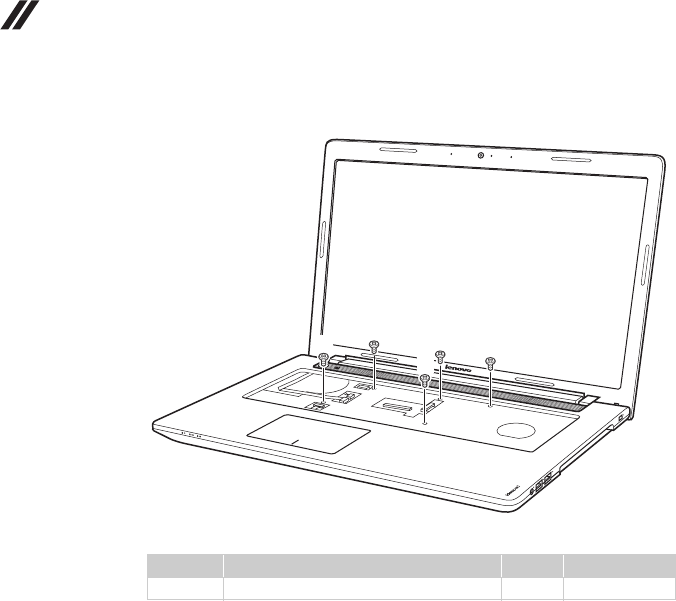

Figure 10. Removal steps of keyboard bezel (continued)

Remove five screws .

Step Screw (quantity) Color Torque

M2 × 6 mm, flat-head, nylokcoated(5) Black 1.5 ~ 2.0 kgfcm

b

b

bb

b

b

a

Lenovo Z710

49

Figure 10. Removal steps of keyboard bezel (continued)

Detach the touch pad connector in the direction shown by arrows , power

board connector in the direction shown by arrows ,unplug speakers

connector in the direction shown by arrow .

When installing: Make sure that all the FPC connectors, speakers connectors

and power board connector are attached firmly.

Remove the keyboard bezel in the direction shown by arrow .

c

d

c d

e

d

c

e

f

f

Lenovo Z710 Hardware Maintenance Manual

50

1110 System board

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card (Optional)” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Fan assembly” on page 46

• “1100 Keyboard bezel” on page 47

Important notices for handling the system board:

When handling the system board, bear the following in mind.

• Be careful not to drop the system board on a bench top that has a hard

surface, such as metal, wood, or composite.

• Avoid rough handling of any kind.

• In the whole process, make sure not to drop or stack the system board.

• If you put a system board down, make sure to put it only on a padded

surface such as an ESD mat or conductive corrugated material.

Lenovo Z710

51

Figure 11. Removal steps of system board

Loosen screws .

Step Screw (quantity) Color Torque

M2.0 × 6 mm, flat-head, nylok-coated (3) Black 2.0 ~ 2.5 kgfcm

a

a

a

a

a

Lenovo Z710 Hardware Maintenance Manual

52

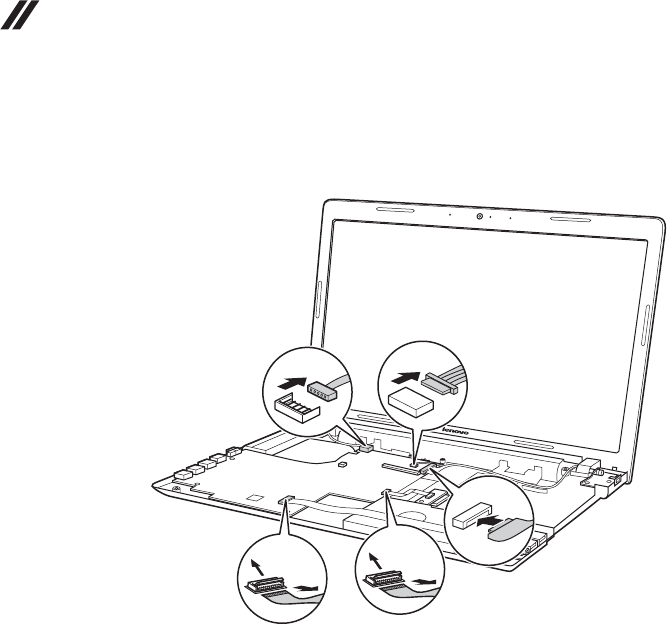

Figure 11. Removal steps of system board (continued)

Unplug DC-IN cable connector , camera connector in the direction shown by

arrow , LCD connector in the direction shown by arrow , detach IO board

connector in the direction shown by arrow ,optical drive board connector

in the direction shown by arrow .

When installing: Make sure that all the connectors are attached firmly.

g

f e

a b

c d

b

a

e

g

f

d

c

Lenovo Z710

53

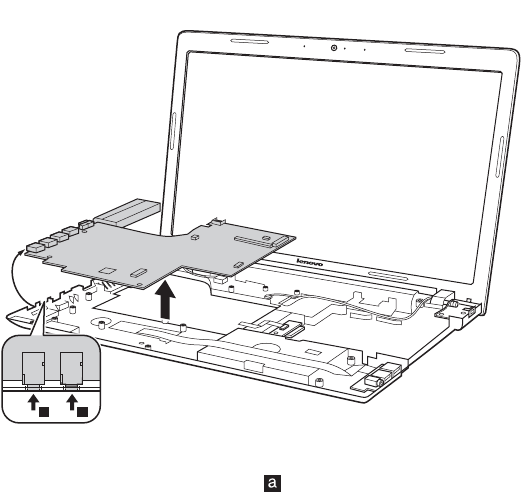

Figure 11. Removal steps of system board (continued)

Remove the system board in the direction shown by arrow .

When installing: When attaching the system board to the base cover, adjust the

placement of the jacks, and make sure that both of the USB jacks are attached to

the holes on the base cover as shown in . Improper placement of those jacks

might cause a damage.

f

h

a a

Lenovo Z710 Hardware Maintenance Manual

54

1120 LCD unit

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card (Optional)” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Fan assembly” on page 46

• “1110 System board” on page 50

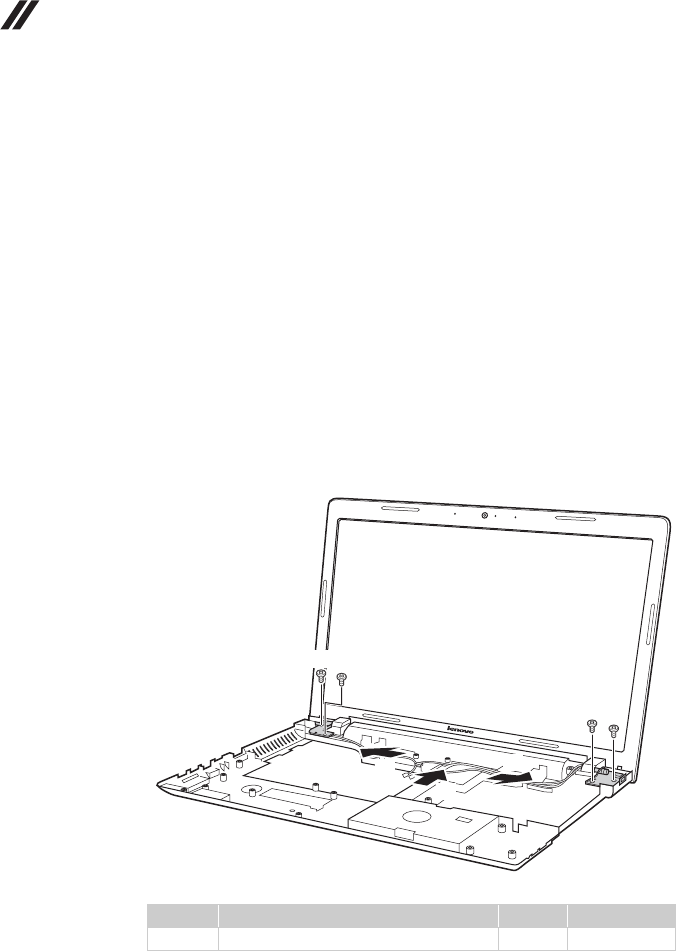

Figure 12. Removal steps of LCD unit

Release the antenna cables from the cable guides in the direction shown by

arrows . Remove four screws .

When installing:

• Route the antenna cables along the cable guides. As you route the cables,

make sure that they are not subjected to any tension. Tension could cause the

cables to be damaged by the cable guides, or a wire to be broken.

Step Screw (quantity) Color Torque

M2.5 × 5 mm, flat-head, nylok-coated (4) Black 1.5 ~ 2.0 kgfcm

a b

b

b

a

a

a

bb

b

Lenovo Z710

55

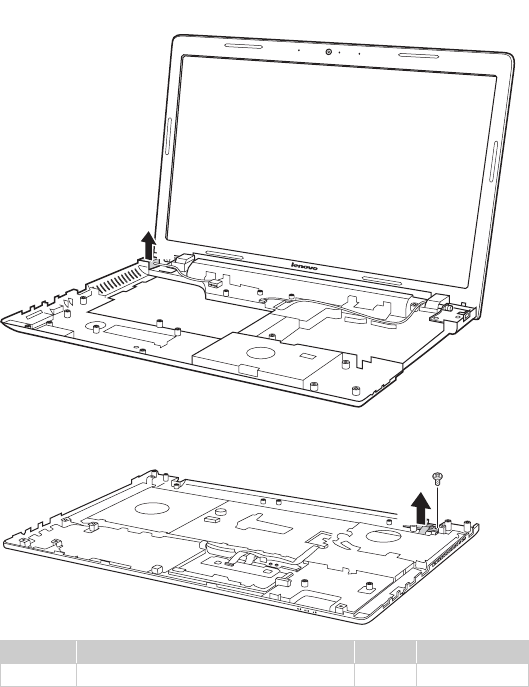

Figure 12. Removal steps of LCD unit (continued)

• Make sure that the LCD connector is attached firmly and make sure that you

do not pinch the antenna cables when you attach the LCD assembly. Route

the LCD cable along the cable guides.

Remove the LCD unit in the direction shown by arrows .

c

c

c

Lenovo Z710 Hardware Maintenance Manual

56

1130 CPU

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card (Optional)” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Fan assembly” on page 46

• “1110 System board” on page 50

• “1120 LCD unit” on page 54

Attention: CPU is extremely sensitive. When you service the CPU, avoid any

kind of rough handling.

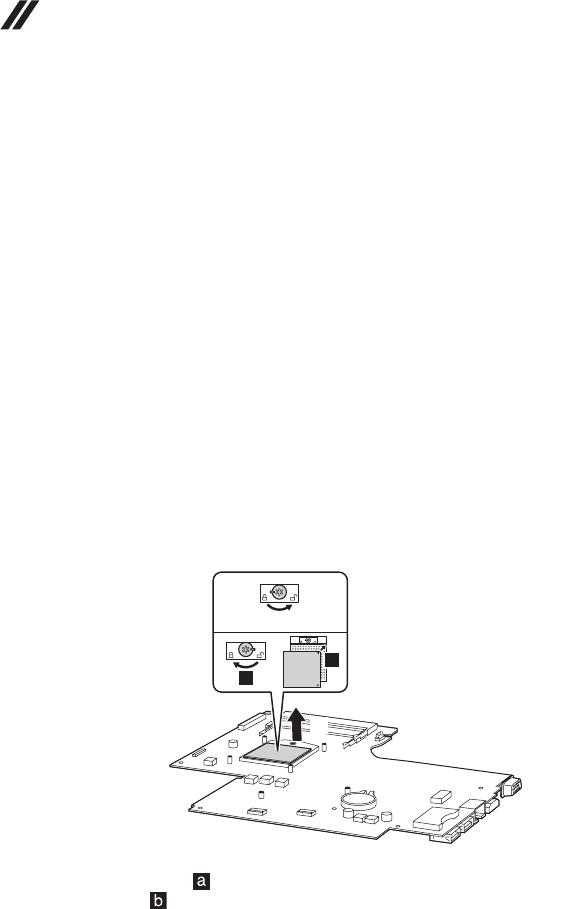

Figure 13. Removal steps of CPU

Rotate the head of the screw in the direction shown by arrow to release the

lock, then remove the CPU in the direction shown by arrow .

When installing: Place the CPU on the CPU socket in the direction shown by

arrow , and then rotate the head of the screw in the direction shown by arrow

to secure the CPU.

a

b

a

b

a

b

Lenovo Z710

57

1140 Base cover, speakers, audio board, power board, power

assembly and heat sink assembly

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card (Optional)” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Fan assembly” on page 46

• “1100 Keyboard bezel” on page 47

• “1110 System board” on page 50

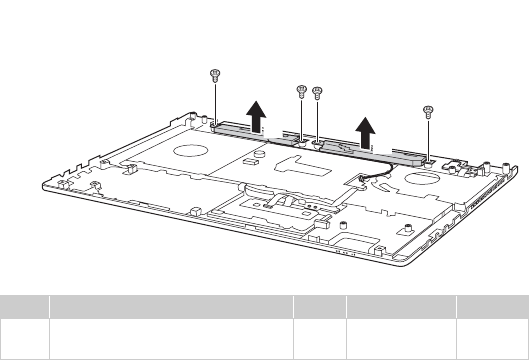

Figure 14. Removal steps of base cover, speakers, audio board, power board, power

assembly and heat sink assembly

Loosen four screws , and then remove the speakers in the direction shown by

arrows .

Step Screw (quantity) Color Torque P/N

M2 × 2 + 4.8 flat-head, nylok-coated

(4)

Black 1.5 ~ 2.0 kgfcm 90204137

a

b

a

a

a

a

b

b

a

Lenovo Z710 Hardware Maintenance Manual

58

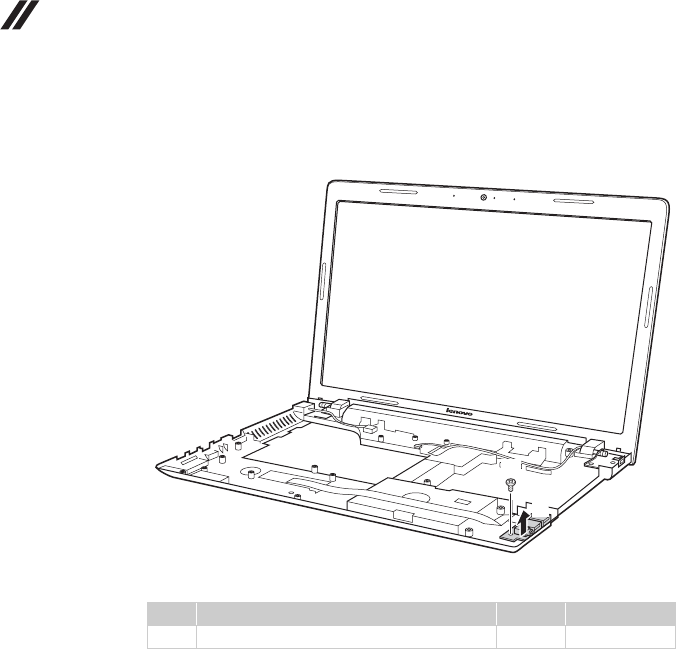

Figure 14. Removal steps of base cover, speakers, audio board, power board, power

assembly and heat sink assembly (continued)

Loosen the screw , then remove the audio board in the direction shown by

arrow .

When installing: Make sure that the power connector is attached firmly.

Step Screw (quantity) Color Torque

M2.0 × 6 mm, flat-head, nylok-coated (1) Black 1.5 ~ 2.0 kgfcm

a

b

a

b

a

Lenovo Z710

59

Figure 14. Removal steps of base cover, speakers, audio board, power board, power

assembly and heat sink assembly (continued)

Remove the power assembly in the direction shown by arrow .

Loosen screw to lift the power board in the direction shown by arrow .

Step Screw (quantity) Color Torque

M2 × 3 mm, flat-head, nylok-coated (1) Black 1.5 ~ 2.0 kgfcm

a

a

a b

a

b

a

Lenovo Z710 Hardware Maintenance Manual

60

Figure 14. Removal steps of base cover, speakers, audio board, power board, power

assembly and heat sink assembly (continued)

Loosen four screws to lift the heat sink assembly in the direction shown by

arrow .

Step Screw (quantity) Color Torque

M2 × 3 mm, flat-head, nylok-coated (4) Black 1.0 ~1.5 kgfcm

a

b

a

aa

a

b

a

Lenovo Z710

61

Note: Applying labels to the base cover

The new base cover FRU is shipped with a kit containing labels of several

kinds. When you replace the base cover, you need to apply the following

label:

The following labels need to be peeled off from the old base cover, and need

to be put on the new base cover.

Rating label

On line print rating label

3G Label

KCC Label

GML Label

WLAN Label for Malaysia

WLAN Label for CA\US\TW\Indonesia\Israel

WLAN Label for BRAZIL

WLAN Label for ISRAEL

Indonesia D side label

For some models, you also need to apply one or two FCC labels. Check the

old base cover; if it has one or two FCC labels, find duplicates of them in the

label kit and apply them to the new base cover.

For the location of each label, refer to the following figure:

ec

d

ab

f

g

hij

Lenovo Z710 Hardware Maintenance Manual

62

1150 LCD front bezel

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card (Optional)” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Fan assembly” on page 46

• “1100 Keyboard bezel” on page 47

• “1110 System board” on page 50

Figure 15. Removal steps of LCD front bezel

Remove two screws .

Step Screw (quantity) Color Torque

M2.5 × 5 mm, flat-head, nylokcoated

(2)

Black 1.5 ~ 2.0 kgfcm

a

a

a

a

Lenovo Z710

63

Figure 15. Removal steps of LCD front bezel (Continued)

Remove the LCD front bezel in the direction shown by arrows .

b

b

b

b

b

Lenovo Z710 Hardware Maintenance Manual

64

1160 LCD panel, LCD cable and hinges

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card (Optional)” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Fan assembly” on page 46

• “1100 Keyboard bezel” on page 47

• “1110 System board” on page 50

• “1150 LCD front bezel” on page 62

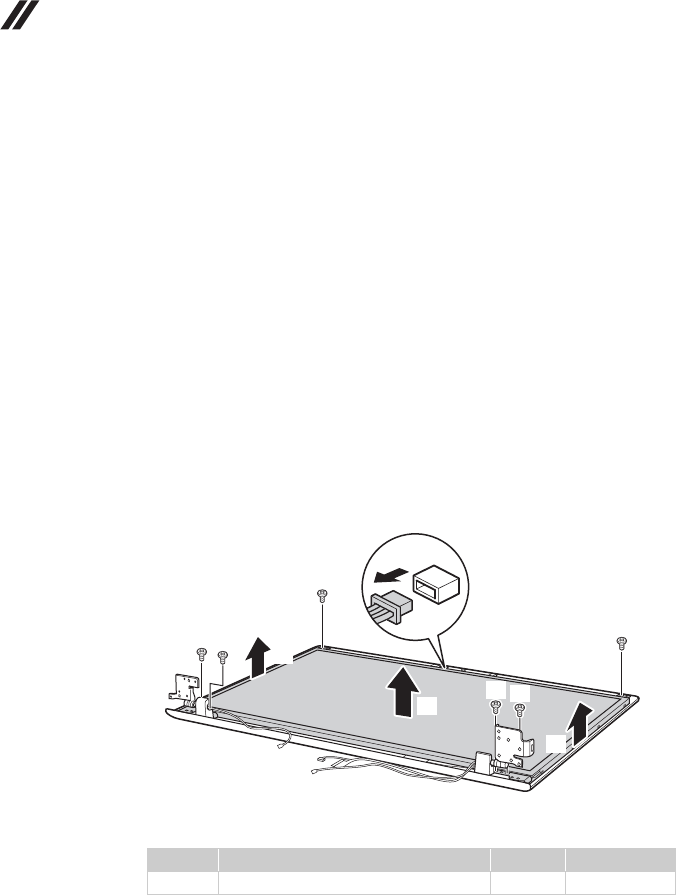

Figure 16. Removal steps of LCD panel, LCD cable and hinges

Remove six screws . Unplug the integrated camera connector in the direction

shown by arrow . Lift the LCD panel in the direction shown by arrows .

When installing: Make sure that the connector is attached firmly.

Step Screw (quantity) Color Torque

M2.5 × 5 mm, flat-head, nylokcoated (6) Black 1.5 ~ 2.0 kgfcm

a

b

c

a

a

a

c

c

c

aa

a

b

a

Lenovo Z710

65

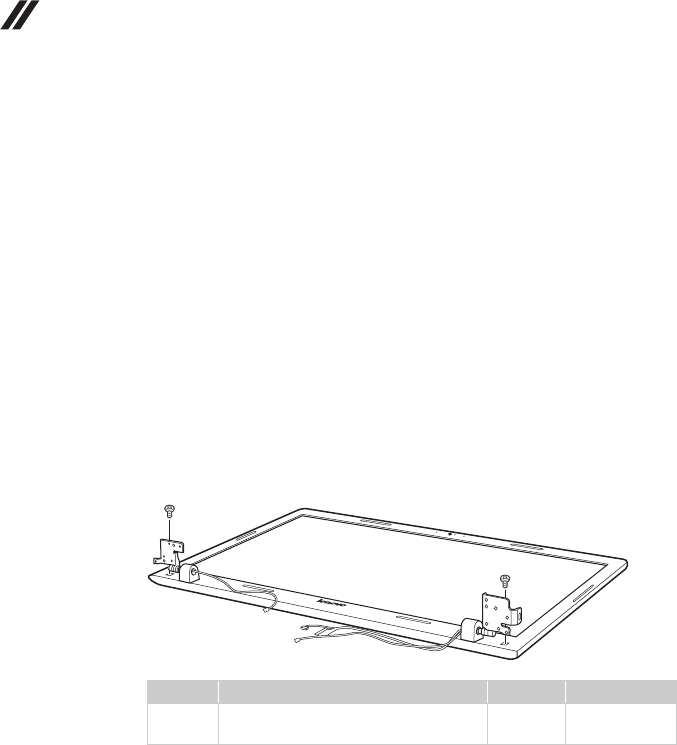

Figure 16. Removal steps of LCD panel, LCD cable and hinges (continued)

Remove six screws . Lift the LCD panel with hinges in the direction shown by

arrows .

Note: The LCD cables are attached to the LCD panel by a metal connector.

Peel off the adhesive tape and detach the connector in the direction shown by

arrow .

When installing: Make sure that the metal connector is attached firmly.

Step Screw (quantity) Color Torque

M2.0 × 3 mm, flat-head, nylokcoated (6) Black 1.0 ~ 1.5 kgfcm

d

e

d

d

d

d

d

d

e

e

d

f

f

Lenovo Z710 Hardware Maintenance Manual

66

1170 Integrated camera

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card (Optional)” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Fan assembly” on page 46

• “1100 Keyboard bezel” on page 47

• “1110 System board” on page 50

• “1150 LCD front bezel” on page 62

• “1160 LCD panel, LCD cable and hinges” on page 64

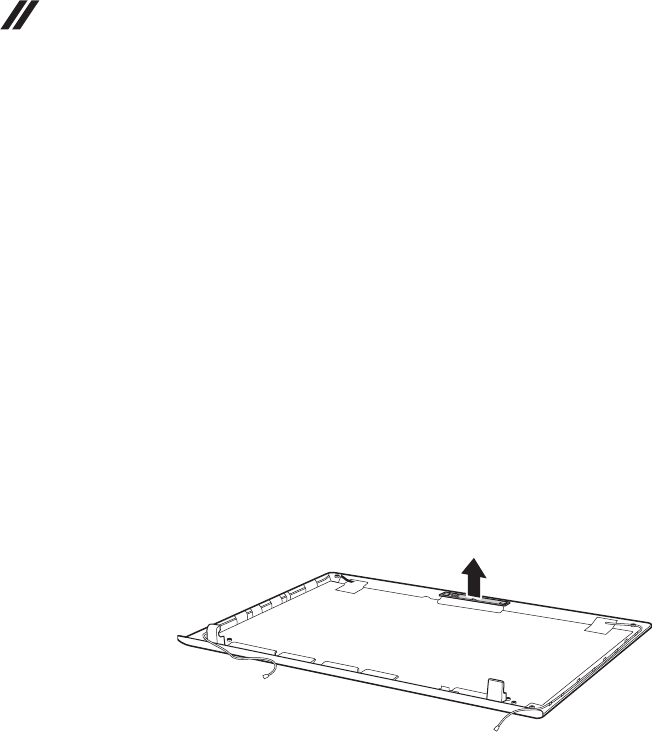

Figure 17. Removal steps of integrated camera

Note: The integrated camera is stuck on the top center of the LCD cover.

Remove the integrated camera from the LCD cover .

When installing: Stick the integrated camera to the top center of the LCD cover

and adjust the placement of it to make sure the connector is attached firmly.

a

a

Lenovo Z710

67

1180 Antenna assembly and LCD cover

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card (Optional)” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 40

• “1060 DIMM” on page 41

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42

• “1080 Keyboard” on page 44

• “1090 Fan assembly” on page 46

• “1100 Keyboard bezel” on page 47

• “1110 System board” on page 50

• “1150 LCD front bezel” on page 62

• “1160 LCD panel, LCD cable and hinges” on page 64

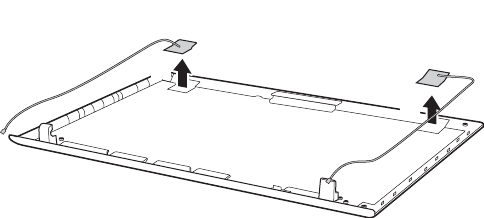

Figure 18. Removal steps of antenna assembly and LCD cover

Peel off the adhesive tapes securing the antenna boards, release the

cables from the cable guide, and then remove the antenna assembly in the

direction shown by arrows .

When installing: Route the antenna cables along the cable guides and secure the

antenna boards with adhesive tapes. As you route the cables, make sure that they

are not subjected to any tension. Tension could cause the cables to be damaged

by the cable guides, or a wire to be broken.

a

a

a

Lenovo Z710 Hardware Maintenance Manual

68

Front view

Integrated camera

Wireless antennas

Built-in microphone

Computer display

Speakers

Power button

Novo button

Touch pad

System status indicators

Locations

a

b

c

d

e

f

g

h

i

ab

b

c

d

e

h

f

g

i

Lenovo Z710

69

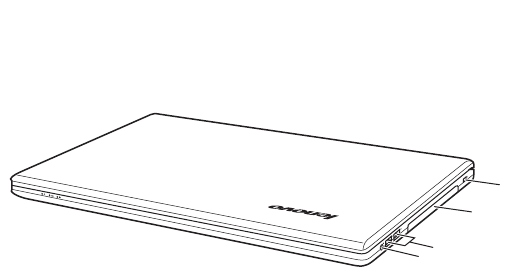

Right-side view

Combo audio jack

USB port

Optical disc drive

Kensington slot

a

b

c

d

d

c

b

a

Lenovo Z710 Hardware Maintenance Manual

70

Bottom and Left-side view

AC power adapter jack

Ventilation slots

VGA port

HDMI port

RJ-45 port

USB ports

Memory card slot

Battery latch - manual

Battery pack

Louvers

Battery latch - spring loaded

Hard disk drive /Memory /Mini PCI Express Card slot compartment

a

b

c

d

e

f

g

h

i

j

k

l

h

a

b

c

d

e

l

ijk

f

g

Lenovo Z710

71

This section presents the following service parts:

• “Overall” on page 72

• “LCD FRUs” on page 75

• “Keyboard” on page 77

• “Miscellaneous parts” on page 82

• “AC adapters” on page 83

•“Power cords” on page84

Parts list

Notes:

• Each FRU is available for all types or models, unless specific types or

models are specified.

Lenovo Z710 Hardware Maintenance Manual

72

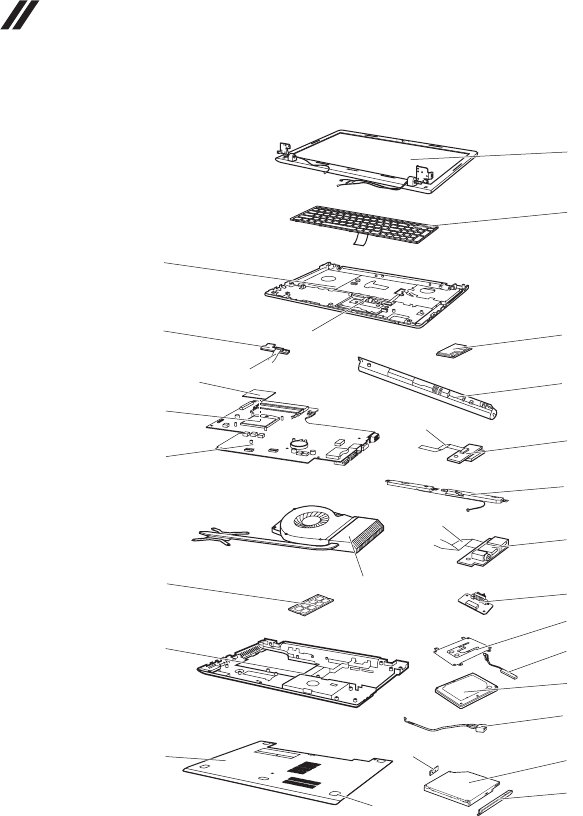

Overall

2

5

19

16

20

21

9

14

1

6

17

a

e

(11)12

c

15

b

18

7

10

13

d

3

4d

f

8

g

h

Lenovo Z710

73

Table 4. Parts list—Overall

No. FRU FRU no. CRU ID

1 LCD unit (see “LCD FRUs” on page 75.)

2 Keyboard (see “Keyboard” on page 77.) **

3 DUMBO2 Upper Case 90204156 N

4 DUMBO2 Power Board 90005019 N

5 Wlan, Intel 7260BN 2x2BN+BT PCIE HMC WLAN 20200412 **

5 Wlan, Cbt BCM94313HMG 1x1BGN HMC WLAN 20200102 **

5 Wlan, Liteon HB125 1x1BGN HMC WLAN 20200223 **

5 Wlan, Cbt BCM943142HM 1x1BGN+BT4.0 HMC

WLAN

20200222 **

5 Wlan, Liteon WB225 1x1BGN+BT4.0 HMC WLAN 20200224 **

5 Wlan, Liteon WB335 1x1BGN+BT4.0 HMC WLAN 20200437 **

6 SY L12S4E01 14.4V41Wh 4cell bty 121500171 N

6 SP/L L12M4E01 14.88V41Wh 4cell bty 121500172 N

6 LG L12L4E01 14.8V41Wh 4cell bty 121500173 N

7 Intel I7-4702MQ 2.2G 4cPGA CPU 102500541 N

7 Intel I7-4700MQ 2.4G 4cPGA CPU 102500540 N

7 Intel I5-4200M 2.6G D0 2cPGA QS CPU 102500644 N

7 Intel I3-4100M 2.6G D0 2cPGA QS CPU 102500645 N

7 Intel I3-4000M 2.4G D0 2cPGA QS CPU 102500594 N

8 DUMBO2 ODD Board 90005018 N

9 DUMBO2 Speaker 90204136 N

9 Z710 GGEC 1624 Speaker 101500386 N

10 DUMBO2 MB DIS GV2 2G 90004560 N

10 DUMBO2 MB W8P DIS GV2 2G 90004561 N

10 DUMBO2 MB W8S DIS GV2 2G 90004562 N

10 DUMBO2 MB DIS GS 2G 90004563 N

10 DUMBO2 MB W8P DIS GS 2G 90004564 N

10 DUMBO2 MB W8S DIS GS 2G 90004565 N

11 DUMBO2 Thermal Model W/FAN 90204147 N

13 HMT425S6AFR6A-PB 2GB DDR3L 1600 11201299 *

13 RMT3190EB76F8W-1600 2GB DDR3L 1600 11201835 *

13 M471B5173QH0-YK0 4GB DDR3L 1600 11202079 *

13 HMT451S6AFR8A-PB 4GB DDR3L 1600 11201300 *

13 SM321NQ08ICF 4GB DDR3L 1600 11201834 *

13 RMT3170EB68F9W-1600 4GB DDR3L 1600 11201512 *

13 M471B5773DH0-YK0 2GB DDR3L 1600 11200502 *

13 M471B5173BH0-YK0 4GB DDR3L 1600 11201966 *

Lenovo Z710 Hardware Maintenance Manual

74

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU ID

13 MT4KTF25664HZ-1G6E1 2GB DDR3L 1600 11201967 *

13 MT8KTF51264HZ-1G6J1 4GB DDR3L 1600 11201342 *

13 M471B1G73QH0-YK0 8GB DDR3L 1600 11202080 *

13 HMT41GS6AFR8A-PB 8GB DDR3L 1600 11201301 *

13 SM322NW08IAF 8GB DDR3L 1600 11201514 *

13 MT16KTF1G64HZ-1G6E1 8GB DDR3L 1600 11201304 *

14 BAMBI2 Audio Board 90004368 N

15 DUMBO2 Lower Case 90204143 N

16 DUMBO2 Battery Switch Board 90004559 N

17 HDD, ST320LT012 6G 7mm 5.4K 320G HDD 16200384 **

17 HDD, ST320LM001 6G 9.5mm 5.4K 320G HDD 16200388 **

17 HDD, WD3200LPCX-24C6HT0 6G 7mm 5.4K 320G

HDD

16200551 **

17 HDD, HTS545032A7E660 6G 7mm 5.4K 320G HDD 16200405 **

17 HDD, ST500LM012 6G 9.5mm 5.4K 500G HDD 16200387 **

17 HDD, ST500LT012 6G 7mm 5.4K 500G HDD 16200383 **

17 HDD, HTS545050A7E660 6G 7mm 5.4K 500G HDD 16200404 **

17 HDD, MQ01ABF050 6G 7mm 5.4K 500G HDD 16200433 **

17 HDD, WD5000LPCX-24C6HT0 6G 7mm 5.4K 500G

HDD

16200395 **

17 HDD, ST1000LM024 6G 9.5mm 5.4K 1T HDD 16200385 **

17 HDD, HTS541010A9E660 6G 9.5mm 5.4K 1T HDD 16200400 **

17 HDD, TSB MQ01ABD100 6G 9.5mm 5.4K 1T HDD 16200429 **

17 HDD, WD10JPCX-24UE4T0 6G 9.5mm 5.4K 1T HDD 16200393 **

17 HDD, ST1000LM014 6G 9.5mm 1T SSHD 16200389 **

17 HDD, ST500LM000 6G 7mm 500G SSHD 16200391 **

18 DUMBO2 Lower Case Door 90204140 N

19 BAMBI DC-IN Cable 90202793 N

20 ODD, HLDS GU70N 9.5 Rambo ODD 25205807 **

20 ODD, PLDS DU-8A5SH 9.5 Rambo ODD 25205806 **

20 ODD, PSN UJ8DB Slim Tray Rambo w/o bezel 25212030 **

20 ODD, HLDS BU10N 9.5 BD Rambo ODD 25209260 **

20 ODD, Panasonic UJ262 9.5 BD Rambo ODD 25209259 **

21 DUMBO2 ODD Bezel Rambo 90204142 N

Lenovo Z710

75

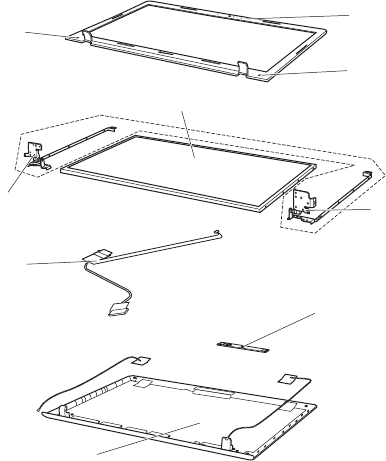

LCD FRUs

In Lenovo Z710, there are following types of LCDs.

• “17.3-in. HD TFT”

4

3

5

2

1

2

6

7

8

Lenovo Z710 Hardware Maintenance Manual

76

17.3-in. HD TFT

Table 5. Parts list—17.3-in. HD TFT

No. FRU FRU no. CRU ID

1 DUMBO2 LCD Bezel 90204144 N

2 DUMBO2 LCD Bezel Screw Pack 90204149 N

3 AUO B173RW01 V5 HD+ G W LED1 NB LCD 18200208 N

3 CMI N173FGE-L23 HD+ G W LED1 NB LCD 18200384 N

3 SEC LTN173KT02-L01 HD+ G W LED1 NB LCD 18200159 N

3 LGD LP173WD1-TLE1 HD+ G W LED1 NB LCD 18201051 N

3 LGD LP173WF1-TLA2 FHD G W LED1 NB LCD 18201052 N

3 CMI N173HGE L21 FHD G W LED1 NB LCD 18201053 N

4 DUMBO2 Hinge L 90204145 N

5 DUMBO2 Hinge R 90204146 N

6 DUMBO2 LCD Cable 90204155 N

7 DUMBO2 Camera 90004558 N

8 DUMBO2 LCD Cover 90204148 N

Lenovo Z710

77

Keyboard

Table 6. Parts list—Keyboard

Language P/N CRU ID

Z710

OKI

English 25211262 **

U.K. English 25211263 **

Italian 25211264 **

Spanish 25211265 **

Turkish 25211266 **

Thai 25211267 **

Portuguese 25211268 **

Latin 25211269 **

Canadian English&French 25211270 **

Korean 25211271 **

Traditional Chinese 25211272 **

Russian 25211273 **

French 25211274 **

German 25211275 **

Arabic 25211276 **

Brazilian 25211277 **

Dutch 25211279 **

Greek 25211280 **

Hebrew 25211281 **

Hungarian 25211282 **

Four Nordic countries 25211283 **

Belgian 25211284 **

Icelandic 25211285 **

Slovenian 25211286 **

Swiss 25211287 **

International English 25211288 **

Czechoslovakian 25211289 **

Bulgarian 25211290 **

Indian 25211291 **

OKI

(Black)

English 25211354 **

U.S. English 25211355 **

U.K. English 25211356 **

Italian 25211357 **

Spanish 25211358 **

Turkish 25211359 **

Thai 25211360 **

Portuguese 25211361 **

Latin 25211362 **

Canadian English&French 25211363 **

Korean 25211364 **

Traditional Chinese 25211365 **

Russian 25211366 **

French 25211367 **

German 25211368 **

Arabic 25211369 **

Lenovo Z710 Hardware Maintenance Manual

78

Table 6. Parts list—Keyboard

Language P/N CRU ID

Z710

(continued)

OKI (Black)

(continued)

Brazilian 25211370 **

Dutch 25211372 **

Greek 25211373 **

Hebrew 25211374 **

Hungarian 25211375 **

Four Nordic countries 25211376 **

Belgian 25211377 **

Icelandic 25211378 **

Slovenian 25211379 **

Swiss 25211380 **

International English 25211381 **

Czechoslovakian 25211382 **

Bulgarian 25211383 **

Indian 25211384 **

Darfon

English 25211202 **

U.K. English 25211203 **

Italian 25211204 **

Spanish 25211205 **

Turkish 25211206 **

Thai 25211207 **

Portuguese 25211208 **

Latin 25211209 **

Canadian English&French 25211210 **

Korean 25211211 **

Traditional Chinese 25211212 **

Russian 25211213 **

French 25211214 **

German 25211215 **

Arabic 25211216 **

Brazilian 25211217 **

Japanese 25211218 **

Dutch 25211219 **

Greek 25211220 **

Hebrew 25211221 **

Hungarian 25211222 **

Four Nordic countries 25211223 **

Belgian 25211224 **

Icelandic 25211225 **

Slovenian 25211226 **

Swiss 25211227 **

International English 25211228 **

Czechoslovakian 25211229 **

Bulgarian 25211230 **

Indian 25211231 **

Lenovo Z710

79

Table 6. Parts list—Keyboard (continued)

Language P/N CRU ID

Z710

(continued)

Darfon

(Black)

Indian 25211322 **

Bulgarian 25211321 **

Czechoslovakian 25211320 **

International English 25211319 **

Swiss 25211318 **

Slovenian 25211317 **

Icelandic 25211316 **

Italian 25211295 **

Four Nordic countries 25211314 **

Hungarian 25211313 **

Hebrew 25211312 **

Greek 25211311 **

Dutch 25211310 **

Japanese 25211309 **

Brazilian 25211308 **

Arabic 25211307 **

German 25211306 **

French 25211305 **

Russian 25211304 **

Traditional Chinese 25211303 **

Korean 25211302 **

Canadian English&French 25211301 **

Latin 25211300 **

Portuguese 25211299 **

Thai 25211298 **

Turkish 25211297 **

Spanish 25211296 **

Belgian 25211315 **

U.K. English 25211294 **

English 25211292 **

U.S. English 25211293 **

Lenovo Z710 Hardware Maintenance Manual

80

Table 6. Parts list—Keyboard

Language P/N CRU ID

Z710

(continued)

JME

English 25211232 **

U.K. English 25211233 **

Italian 25211234 **

Spanish 25211235 **

Turkish 25211236 **

Thai 25211237 **

Portuguese 25211238 **

Latin 25211239 **

Canadian English&French 25211240 **

Korean 25211241 **

Traditional Chinese 25211242 **

Russian 25211243 **

French 25211244 **

German 25211245 **

Arabic 25211246 **

Brazilian 25211247 **

Dutch 25211249 **

Greek 25211250 **

Hebrew 25211251 **

Hungarian 25211252 **

Four Nordic countries 25211253 **

Belgian 25211254 **

Icelandic 25211255 **

Slovenian 25211256 **

Swiss 25211257 **

International English 25211258 **

Czechoslovakian 25211259 **

Bulgarian 25211260 **

Indian 25211261 **

JME

(Black)

English 25211323 **

U.S. English 25211324 **

U.K. English 25211325 **

Italian 25211326 **

Spanish 25211327 **

Turkish 25211328 **

Thai 25211329 **

Portuguese 25211330 **

Latin 25211331 **

Canadian English&French 25211332 **

Korean 25211333 **

Traditional Chinese 25211334 **

Russian 25211335 **

French 25211336 **

German 25211337 **

Arabic 25211338 **

Lenovo Z710

81

Table 6. Parts list—Keyboard

Language P/N CRU ID

Z710

(continued)

JME (Black)

(continued)

Brazilian 25211339 **

Dutch 25211341 **

Greek 25211342 **

Hebrew 25211343 **

Hungarian 25211344 **

Four Nordic countries 25211345 **

Belgian 25211346 **

Icelandic 25211347 **

Slovenian 25211348 **

Swiss 25211349 **

International English 25211350 **

Czechoslovakian 25211351 **

Bulgarian 25211352 **

Indian 25211353 **

Lenovo Z710 Hardware Maintenance Manual

82

Miscellaneous parts

Table 7. Parts list—Miscellaneous parts

FRU P/N CRU ID

System miscellaneous parts:

•(a) BAMBI HDD Bracket

•(b) DUMBO2 ODD Bezel BD

•(c) BAMBI2 CPU Mylar

90202778

90204141

90203934

N

Cable miscellaneous parts:

•(d) DUMBO2 TP Cable

•(e) DUMBO2 HDD Cable

•(f) DUMBO2 Power Board Cable

•(g) DUMBO2 ODD Cable

•(h) DUMBO2 IO Cable

Note: Italicized letters in parentheses are references to the

exploded view in “Overall” on page 71.

90204153

90204154

90204150

90204151

90204152

N

Lenovo Z710

83

AC adapters

Table 8. Parts list—3-pin AC adapters

Screws

Table 9. Parts list—screws

FRU P/N CRU ID

65W, Delta ADLX65NDC3A 20V3.25A adapter 36200249 *

65W, Liteon ADLX65NLC3A 20V3.25A adapter 36200251 *

65W, Chicony ADLX65NCC3A 20V3.25A adapter 36200253 *

90W, Chicony ADLX90NCC3A 20V4.5A adapter 36200254 *

90W, Delta ADLX90NDC3A 20V4.5A adapter 36200250 *

90W, Liteon ADLX90NLC3A 20V4.5A adapter 36200252 *

135W, Delta ADL135NDC3A 20V6.75A adapter 36200314 *

135W, Liteon ADL135NLC3A 20V6.75A adapter 36200318 *

FRU P/N CRU ID

BAMBI Screw M3*3L (K) B-NI 90202769 N

BAMBI Screw M2.5*5L(K)B-NI,NY 90202770 N

BAMBI Screw M2*6L(K,D4.6) B-ZN #1 NY 90202771 N

DUMBO2 SCREW M2*2L+4.8 K B-ZN NY 90204137 N

Lenovo Z710 Hardware Maintenance Manual

84

Power cords

A Lenovo power cord for a specific country or region is usually available only in

that country or region:

Table 10. Parts list—3-pin power cords

Region P/N CRU ID

CCC

•SSD YD-118-1+IEC53RVV+SSD-3-2B-1 1m

145000602 *

CCC

•LINETEK PC323+RVV300/300+LS15 1m

145000600 *

Argentina

•LINETEK LS15+H03VV-F+LP39 1m

145000599 *

Denmark

•LINETEK LS15+H03VV-F+LP-38 1m

145000598 *

Switzerland

•LINETEK LS15+H03VV-F+LP-37 1m

145000597 *

Brazil

•LINETEK LS15 H03VV-F LP26A 1m

145000596 *

Israel

•LINETEK LS15+H03VV-F+LP-41 1m

145000595 *

UL

•LINETEK LP-30B + SPT-2 + LS15 1m

145000594 *

UK

•LINETEK LP-61L+ H03VV-F+ LS15 1m

145000593 *

India

•LINETEK PE-361+ H05VV-F+ LS15 1m

145000592 *

Italy

•LINETEK LS15+H03VV-F+PE-336 1m

145000591 *

Korea

•LINETEK LS15+H05VV-F+LP-E04A 1m

145000590 *

Australia

•LINETEK LS15+H03VV-F+LP-23A 1m

145000589 *

Taiwan

•LINETEK LS15+VCTF+LP-53 1m

145000588 *

Japan

•LINETEK LS15+VCTF+LP-54 1m

145000587 *

Africa

•LINETEK LS15+H03VV-F+PE-364 1m

145000586 *

CE

•LINETEK LP-34+H03VV-F + LS15 1m

145000585 *

CCC

•Longwell LSG-31+RVV300/300+LS-18 1m

145000568 *

Argentina

•Longwell LP-24+H03VV-F+LS-18 1m

145000567 *

Denmark

•Longwell LP-40+H03VV-F+LS-18 1m

145000566 *

Switzerland

•Longwell LP-37+H03VV-F+LS-18 1m

145000565 *

Lenovo Z710

85

Table 10. Parts list—3-pin power cords (continued)

Region P/N CRU ID

Brazil

•Longwell LP-46+H03VV-F+LS-18 1m

145000564 *

Israel

•Longwell LP-41+H03VV-F+LS-18 1m

145000563 *

UL

•Longwell LP-30B+SPT-2 18AWG+LS-18 1m

145000562 *

UK

•Longwell LP-61L+H03VV-F+LS-18 1m

145000561 *

India

•Longwell LP-67+BIS+LS-18 1m

145000560 *

Italy

•Longwell LP-22+H03VV-F+LS-18 1m

145000559 *

Korea

•Longwell LP-486+KTLH03VV-F+LS-5 1m

145000558 *

Australia

•Longwell LP-23A+LFC-3R+LS-18 1m

145000557 *

Taiwan

•Longwell LP-71+VCTF+LS-33 1m

145000556 *

Japan

•Longwell LP-54+VCTF+LS-18 1m

145000555 *

Africa

•Longwell LP-39+H03VV-F+LS-18 1m

145000554 *

CE

•Longwell LP-34A+H03VV-F+LS-18 1m

145000553 *

CCC

•VOLEX GB10S3+RVV 300/500+VAC5S 1m

145000538 *

Argentina

•VOLEX VA2073+H03VV-F+VAC5S 1m

145000528 *

Denmark

•VOLEX MP233D+H03VV-F+VAC5S 1m

145000534 *

Switzerland

•VOLEX MP232+H03VV-F+VAC5S 1m

145000524 *

Brazil

•VOLEX CH10S3+H03VV-F+VAC5S 1m

145000527 *

Israel

•VOLEX SI16S3+H03VV-F+VAC5S 1m

145000526 *

UL

•Volex US15S3+SPT-2 ?VAC5S 1m

145000537 *

UK

•VOLEX MP5004+H03VV-F+VAC5S 1m

145000605 *

India

•VOLEX IA6A3+IS694+VAC5S 1m

145000536 *

Italy

•VOLEX IT10S3+HO3VV-F+VAC5S 1m

145000535 *

Lenovo Z710 Hardware Maintenance Manual

86

Table 10. Parts list—3-pin power cords (continued)

Region P/N CRU ID

Korea

•VOLEX M2511+KETI IEC+VAC5S 1m

145000533 *

Australia

•VOLEX AU10S3+H03VV-F+VAC5S 1m

145000532 *

Taiwan

•VOLEX TW15CS3+VCTF+VAC5S 1m

145000531 *

Japan

•VOLEX VAC5S+VCTF+M755 1m

145000530 *

CE

•VOLEX M2511+HO3VV-F+VAC5S 1m

145000525 *

CCC

•lux 0036+RVV 300/300 0.75/3C+0002 1m

145500003 *

Argentina

•lux 0040+H03VV-F 0.75/3C+0011 1m

145500015 *

Denmark

•lux 0048+H03VV-F 0.75/3C+0011 1m

145500014 *

Switzerland

•lux 0027+H03VV-F 0.75/3C+0011 1m

145500013 *

Brazil

•lux 0034+H03VV-F 0.75/3C+0011 1m

145500011 *

Israel

•lux 0041+H03VV-F 0.75/3C+0011 1m

145500012 *

UL

•lux 0014+SPT-2 60ºC 18/3C+0016 1m

145500002 *

UK

•lux 0031+H03VV-F 0.75/3C+0011 1m

145500000 *

India

•lux 0046+IS694 0.75/3C+0011 1m

145500004 *

Italy

•lux 0029+H03VV-F 0.75/3C+0011 1m

145500009 *

Korea

•lux 0033+H03VV-F 0.75/3C+0011 1m

145500008 *

Australia

•lux 0038+H03VV-F 0.75/3C+0011 1m

145500006 *

Taiwan

•lux 0019+VCTF 0.75/3C+0021 1m

145500007 *

Japan

•lux 0018(E)+VCTF 0.75/3C+0021 1m

145500005 *

Africa

•lux 0044+H03VV-F 0.75/3C+0011 1m

145500010 *

CE

•lux 0033+H03VV-F 0.75/3C+0011 1m

145500001 *

CCC

•LINETEK PC323+RVV300/300+LS15 1m white

145000579 *

Lenovo Z710

87

Table 10. Parts list—3-pin power cords (continued)

Region P/N CRU ID

Argentina

•LINETEK LS15+H03VV-F+LP39 1m white

145000584 *

Denmark

•LINETEK LS15+H03VV-F+LP-38 1m white

145000583 *

Switzerland

•LINETEK LS15+H03VV-F+LP-37 1m white

145000582 *

Brazil

•LINETEK LS15 H03VV-F LP26A 1m white

145000581 *

Israel

•LINETEK LS15+H03VV-F+LP-41 1m white

145000580 *

UL

•LINETEK LS15+SPT-2+LP-30B 1m white

145000578 *

UK

•LINETEK LS15+H03VV-F3+LP-61L 1m white

145000577 *

India

•LINETEK LS15+H05VV-F3*0.75+PE-361 1m white

145000576 *

Italy

•LINETEK LS15+H03VV-F+PE-336 1m white

145000575 *

Korea

•LINETEK LS15+H05VV-F+LP-E04A 1m white

145000574 *

Australia

•LINETEK LS15+H03VV-F+LP-23A 1m white

145000573 *

Taiwan

•LINETEK LS15+VCTF+LP-53 1m white

145000572 *

Japan

•LINETEK LS15+VCTF+LP-54 1m white

145000571 *

Africa

•LINETEK LS15+H03VV-F+PE-364 1m white

145000570 *

CE

•LINETEK LS15+H03VV-F+LP-34 1m white

145000569 *

Lenovo Z710 Hardware Maintenance Manual

88

Table 11. Parts list—2-pin power cords

Region P/N CRU ID

CCC

•LINETEK PC205+RVV 0.75/2C+LS7H 1m

145500018 *

ARGENTINA

•LINETEK LP40+H03VVH2-F+LS7H 1m

145500030 *

BRAZIL

•LINETEK LP25+H03VVH2-F+LS7H 1m

145500028 *

ISRAEL

•LINETEK LP45+H03VV-F+LS7H 1m

145500029 *

UL

•LINETEK LP5+SPT-2 #18/2C+ LS7H 1m

145500021 *

UK

•LINETEK LP61L+H03VVH2-F+ LS7H 1m

145500019 *

India

•LINETEK LP28+IS:694 0.75/2C+ LS7H 1m

145500020 *

Korea

•LINETEK LPE03A+H03VVH2-F+LS7H 1m

145500025 *

Australia

•LINETEK LP15A+H03VVH2-F+LS7H 1m

145500023 *

Taiwan

•LINETEK LP51A+VCTFK 0.75/2C+LS7H 1m

145500027 *

Japan

•LINETEK LP51A+HVCTFK 0.75/2C+LS7H 1m

145500026 *

Africa

•LINETEK PE364(“O”)+H03VVH2-F+LS7H 1m

145500024 *

CE

•LINETEK LP21+H03VVH2-F+ LS7H 1m

145500022 *

CCC

•Longwell LSG-21+RVV300/300+LS-72 1m

145500069 *

ARGENTINA

•Longwell LP-16+H03VVH2-F+LS-7 1m

145500070 *

BRAZIL

•Longwell LP-18A+H03VVH2-F+LS-18 1m

145500071 *

ISRAEL

•Longwell LP-55+H03VVH2-F+LS-7 1m

145500072 *

UL

•Longwell LP-11+SPT-2+LS-7C/7J 1m

145500073 *

UK

•Longwell LP-61L+H03VVH2-F+ LS-7 1m

145500074 *

India

•Longwell LP-77+Longwell-p 2X+LS-7 1m

145500075 *

Korea

•Longwell LP-57+H03VVH2-F+LS-7KS 1m

145500076 *

Australia

•Longwell LP-15A+LFC-2F+LS-7 1m

145500077 *

Lenovo Z710

89

Table 11. Parts list—2-pin power cords (continued)

Region P/N CRU ID

Taiwan

•Longwell LP-70+VCTFK+LS-31 1m

145500078 *

Japan

•Longwell LP-51A+VCTFK+LS-7C/7J 1m

145500079 *

Africa

•Longwell LP-39+H03VVH2-F+LS-7 1m

145500080 *

CE

•Longwell LP-21+ H03VVH2-F+LS-7 1m

145500081 *

Lenovo Z710 Hardware Maintenance Manual

90

Lenovo may not offer the products, services, or features discussed in this

document in all countries. Consult your local Lenovo representative for

information on the products and services currently available in your area. Any

reference to a Lenovo product, program, or service is not intended to state or

imply that only that Lenovo product, program, or service may be used. Any

functionally equivalent product, program, or service that does not infringe any

Lenovo intellectual property right may be used instead. However, it is the user’s

responsibility to evaluate and verify the operation of any other product,

program, or service.

Lenovo may have patents or pending patent applications covering subject

matter described in this document. The furnishing of this document does not

give you any license to these patents.

LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS” WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-

INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. Some jurisdictions do not allow disclaimer of express or implied

warranties in certain transactions, therefore, this statement may not apply to

you.

This information could include technical inaccuracies or typographical errors.

Changes are periodically made to the information herein; these changes will be

incorporated in new editions of the publication. Lenovo may make

improvements and/or changes in the product(s) and/or the program(s)

described in this publication at any time without notice.

The products described in this document are not intended for use in

implantation or other life support applications where malfunction may result in

injury or death to persons. The information contained in this document does not

affect or change Lenovo product specifications or warranties. Nothing in this

document shall operate as an express or implied license or indemnity under the

intellectual property rights of Lenovo or third parties. All information contained

in this document was obtained in specific environments and is presented as an

illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it

believes appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for

convenience only and do not in any manner serve as an endorsement of those

Web sites. The materials at those Web sites are not part of the materials for this

Lenovo product, and use of those Web sites is at your own risk.

Notices

Notices

91

Any performance data contained herein was determined in a controlled

environment. Therefore, the result obtained in other operating environments

may vary significantly. Some measurements may have been made on

development-level systems and there is no guarantee that these measurements

will be the same on generally available systems. Furthermore, some

measurements may have been estimated through extrapolation. Actual results

may vary. Users of this document should verify the applicable data for their

specific environment.

The following terms are trademarks or registered trademarks of Lenovo in the

United States, other countries, or both.

Lenovo

IdeaPad

OneKey

Microsoft and Windows are trademarks of Microsoft Corporation in the United

States, other countries, or both.

Other company, products, or service names may be trademarks or service marks

of others.

Trademarks
