Lenovo 500 Multimedia
Remote Controller User Guide
① Introduction
The Lenovo® 500 Multimedia Remote Controller is a compact and ergonomic remote
controller. It has an integrated touch pad on keys to support up to three-finger touch
gestures.
The remote controller is supported on the following Microsoft® Windows® operating systems:
Windows 7
Windows 8
Windows 8.1
Windows 10
The remote controller package includes the following items:
Remote controller
Universal Serial Bus (USB) receiver
Two AAA batteries
Extension cable
Warranty poster
Quick start guide

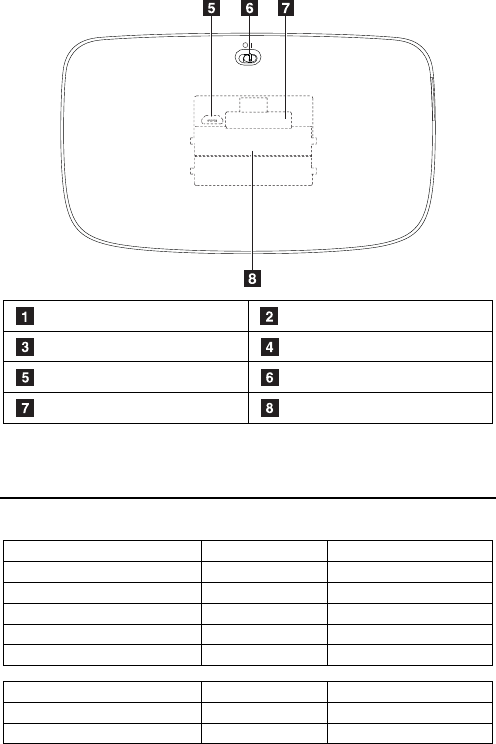

② Parts and locations

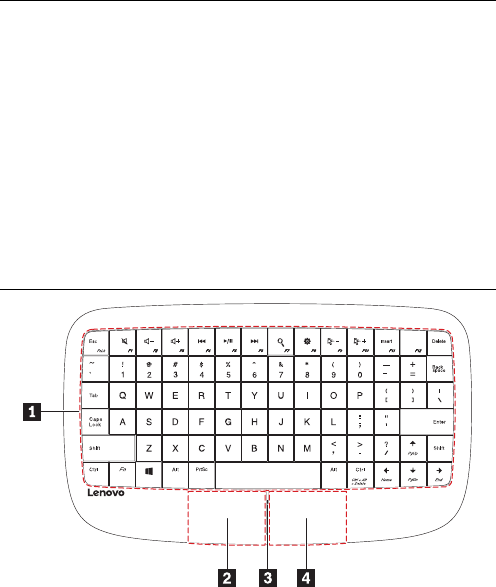

Keys with an integrated touch pad Left button
Light-emitting diode (LED) indicator Right button
Firmware update connector Power switch
USB receiver compartment* Battery compartment
USB receiver compartment*: Store the USB receiver when the remote controller is not in
use.
③ LED indicator
The LED indicator shows the battery power status, Caps Lock status, and DPI level of the
remote controller.
Remote controller status LED color LED activity
Power on White Solid on for five seconds
Power off Not applicable (NA) Off
Battery power 15%-100% NA Off
Battery power 5%-15% Orange Blinking slowly
Battery power 0%-5% Orange Blinking quickly
Caps Lock status LED color LED activity
Caps Lock enabled White Solid on for five seconds
Caps Lock disabled NA Off
DPI level LED color LED activity
Level 1 (150 DPI) White Blinking for one time
Level 2 (250 DPI) White Blinking for two times
Level 3 (350 DPI) (default level) White Blinking for three times
Level 4 (450 DPI) White Blinking for four times

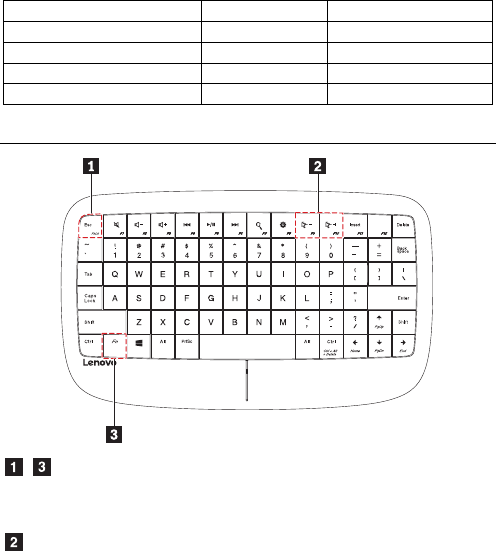

④ Fn key, Fn Lock key, and DPI keys
+ Fn Lock key + Fn key: Switch the key function between the standard F1-F12
function and the special function printed as an icon on each key. When the Fn Lock function
is disabled, you can use the default function of function keys. You can change the default
function in the Keyboard Properties window from your computer.
Dots Per Inch (DPI) keys: Decrease or increase the DPI level. The DPI level is used to
measure the remote controller sensitivity. The higher the DPI level, the higher the remote
controller sensitivity.
⑤ Connecting the remote controller to your computer
Extension cable
The extension cable is 50 cm (19.69 inches) long. It enables you to increase the distance
between the remote controller and your computer.

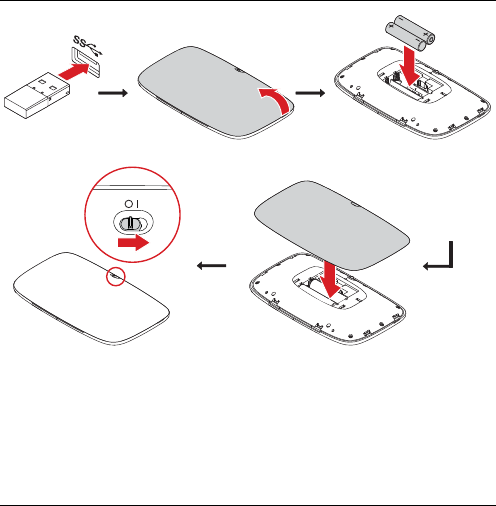

To use the extension cable, connect one end of the cable to the USB receiver and connect
the other end of the cable to your computer.
Note: For optimal signal, do not place any obstacles between you and the USB receiver.
⑥ Using the touch gestures

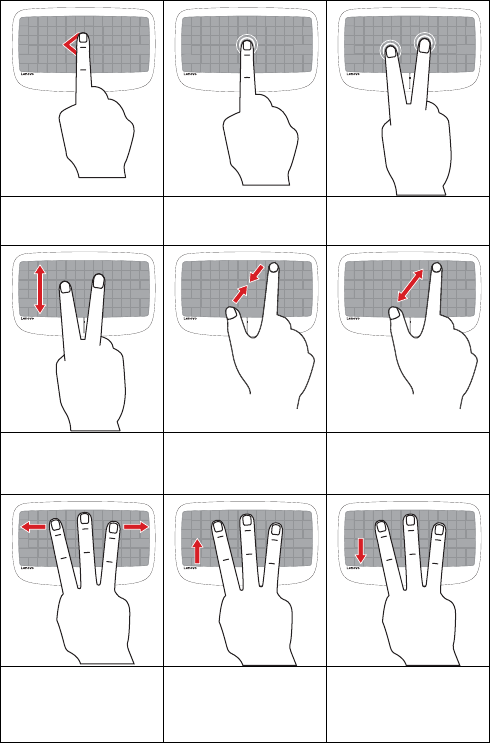

The keys are sensitive to finger touch and movement. You can perform the following touch
gestures depending on the operating system.
Notes:
Position your fingers slightly apart when using two or more fingers.
Some gestures are only available when you are using certain apps.
Move on the keys to move
the cursor. Tap to click an item.
Double tap to open an
item.
Tap with two fingers to
display a shortcut menu.
Wipe two fingers up or
down to scroll through the
document, Web site, or
apps.
Place two fingers on the
keys and pinch in to zoom
out.
Place two fingers on the
keys and stretch out to
zoom in.
For Windows 8 and 10
only: Swipe three fingers
left or right to switch
between your open
windows.
For Windows 10 only:
Swipe three fingers up to
open the task view to see
all your open windows.
Swipe three fingers down
to show the desktop.
⑦ Troubleshooting
Lenovo, Einsteinova 21, 851 01 Bratislava, Slovakia
First Edition (June 2017)
© Copyright Lenovo 2017.
Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both.
Microsoft and Windows are trademarks of the Microsoft group of companies.
Other company, product, or service names may be trademarks or service marks of others.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a
General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to
restrictions set forth in Contract No. GS-35F-05925.
SP40N73619
SP40N73619
LenovoRegulatoryNotice
Aboutthisdocument
ThisdocumentprovidesregulatoryinformationabouttheLenovo®
500Multimedia Controllerandthedongle.
FederalCommunicationsCommissionDeclarationof
Conformity
Lenovo500MultimediaController–L500-C(FCCID:A5ML500-C) Dongle–RG202(FCCID:OO9RG202)
Note:
TheLenovo500MultimediaController(Model:L500-C)andthedongle(Model: RG202)underwentcertificationprocessfortheFCCPart15SubpartBcompliance underitsFCCIDnumber.
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesigned toprovidereasonableprotectionagainstharmfulinterferenceinaresidential installation.Thisequipmentgenerates,uses,andcanradiateradiofrequency energyand,ifnotinstalledandusedinaccordancewiththeinstructions,may causeharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis equipmentdoescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedto trytocorrecttheinterferencebyoneormoreofthefollowingmeasures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich
thereceiverisconnected.
•Consultanauthorizeddealerorservicerepresentativeforhelp.
Lenovoisnotresponsibleforanyradioortelevisioninterferencecausedby usingotherthanspecifiedorrecommendedcablesandconnectorsorby unauthorizedchangesormodificationstothisequipment.Unauthorizedchanges ormodificationscouldvoidtheuser'sauthoritytooperatetheequipment.This devicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat maycauseundesiredoperation.
