ThinkCentre
Hardware Maintenance Manual
Note: Before using this information and the product it supports, be sure to read the
information under “Notices,” on page 789.
Tenth Edition (August 2009)
© Copyright Lenovo 2005, 2008.
Portions © Copyright International Business Machines Corporation 2005.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted
rights to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant a General Services Administration ″GSA″contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.
Contents
Chapter 1. About this manual .....1
Important Safety Information .........1
Important information about replacing RoHS
compliant FRUs .............2
Chapter 2. Safety information .....3
General safety ..............3
Electrical safety .............3
Voltage-selection switch...........5
Safety inspection guide ...........5
Handling electrostatic discharge-sensitive devices . . 6
Grounding requirements ..........7
Safety notices (multi-lingual translations) .....7
Chapter 3. General information ....39
The ThinkVantage Productivity Center program . . 39
Additional information resources .......39
Specifications ..............40
Types 7066, 7098, 9352, 9359, 9482, 9487, 9622,
9704, 9794, 9859, 9785, 9807, 9952 ......40
Types 7065, 7096, 9351, 9358, 9438, 9481, 9489,
9703, 9784, 9788, 9792, 9853, 9949 ......40
Types 7064, 7094, 9349, 9356, 9357, 9439, 9488,
9702, 9708, 9709, 9789, 9851, 9948 ......40
Chapter 4. General Checkout .....43
Problem determination tips .........43
Chapter 5. Diagnostics ........45
PC-Doctor for Windows ..........45
PC-Doctor for Windows PE .........45
Running diagnostics from the Rescue and
Recovery workspace ..........45
PC-Doctor for DOS ............46
Creating a diagnostic CD image ......46
Creating diagnostic diskettes .......46
Running diagnostics from the CD or diskettes . . 47
Navigating through the diagnostics programs . . 47
Running tests.............47
Viewing the test log ..........49
Chapter 6. Using the Setup Utility . . . 51
Starting the Setup Utility program.......51
Viewing and changing settings ........51
Using passwords ............51
Password considerations .........51
User Password ............52
Administrator Password .........52
Setting, changing, and deleting a password. . . 52
Selecting a startup device..........52
Selecting a temporary startup device .....52
Selecting or changing the startup device sequence 53
Advanced settings ............53
Exiting from the Setup Utility program .....53
Chapter 7. Symptom-to-FRU Index . . . 55
Hard disk drive boot error .........55
Power Supply Problems ..........55
Diagnostic error codes...........56
Beep symptoms .............78
POST error codes ............79
Miscellaneous error messages ........81
Undetermined problems ..........82
Chapter 8. Replacing FRUs (Types
7065, 7096, 9351, 9358, 9438, 9481,
9489, 9703, 9784, 9788, 9792, 9853,
9949) ...............85
Locations ...............86

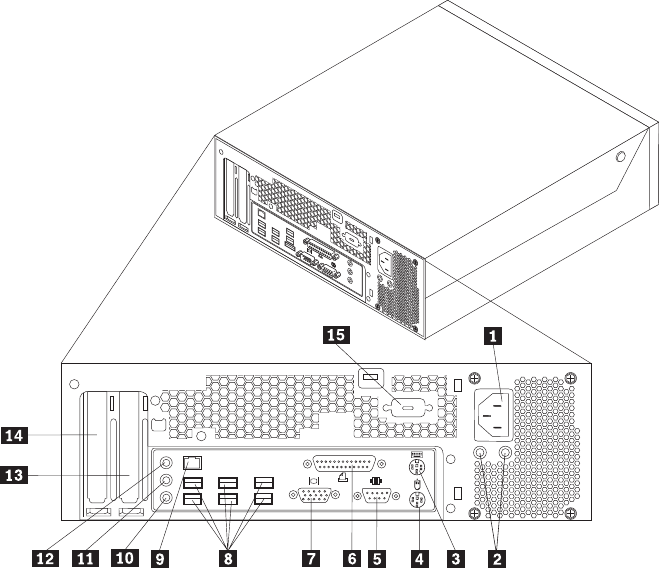

Rear connectors ............86
Computer components .........87

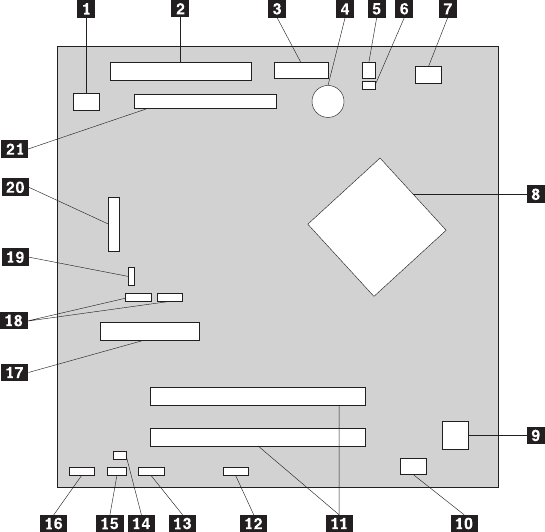

System board connectors .........88
Removing the cover ...........89
Accessing system board components and drives . . 90
Replacing a memory module ........92
Replacing the CMOS battery.........93
Replacing the power supply .........94
Replacing the system board .........96
Replacing the microprocessor ........99
Replacing the hard disk drive ........103
Replacing an optical drive .........105
Replacing the diskette drive ........106
Replacing the power switch/LED assembly . . . 107
Replacing the front panel card........108
Replacing the system fan assembly ......109
Replacing a PCI adapter ..........110
Completing the FRU replacement.......111
Chapter 9. Replacing FRUs (Types
7064, 7094, 9349, 9356, 9357, 9439,
9488, 9702, 9708, 9709, 9789, 9851,
9948) ...............113
Locations ...............114
Rear connectors ...........114
Computer components .........115
System board connectors ........116
Removing the cover ...........117
Removing and replacing the front bezel ....118
Replacing the power supply ........119
Replacing the system board ........120
Replacing the microprocessor ........124
Replacing a memory module ........128
Replacing a PCI adapter..........129
Replacing the primary hard disk drive .....131
Replacing the secondary hard disk drive ....134
Replacing an optical drive .........138
Replacing the diskette drive ........139
Replacing the rear fan assembly .......140
Replacing the front fan assembly .......142
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. iii
Replacing the front audio/USB assembly ....144
Replacing the power switch/LED assembly . . . 145
Replacing the CMOS battery ........146
Completing the FRU replacement ......147
Chapter 10. Replacing FRUs (Types
7066, 7098, 9352, 9359, 9482, 9487,
9622, 9704, 9785, 9794, 9807, 9859,
9952) ...............149
Locations...............150
Front connectors ...........150
Rear connectors ...........151
Computer components .........152
System board connectors ........153
Opening the cover............154
Accessing system board components and drives 155
Replacing an adapter card .........156
Replacing a memory module ........157
Replacing the battery ...........159
Replacing the power supply ........160
Replacing the system board ........163
Replacing the microprocessor ........167
Replacing the hard disk drive ........171
Replacing an optical drive .........173
Replacing the diskette drive ........175
Replacing the fan assembly.........177
Completing the FRU replacement ......179
Chapter 11. FRU lists ........181
Machine Type 6176 ...........181
Machine Type 6177 ...........196
Machine Type 6178 ...........210
Machine Type 6179 ...........224
Machine Type 6305 ...........239
Machine Type 7064 ...........254
Machine Type 7065 ...........269
Machine Type 7066 ...........284
Machine Type 7094 ...........299
Machine Type 7096 ...........314
Machine Type 7098 ...........329
Machine Type 9349 ...........344
Machine Type 9352 ...........360
Machine Type 9356 ...........374
Machine Type 9357 ...........390
Machine Type 9358 ...........404
Machine Type 9359 ...........419
Machine Type 9438 ...........434
Machine Type 9439 ...........450
Machine Type 9481 ...........470
Machine Type 9482 ...........490
Machine Type 9487 ...........512
Machine Type 9488 ...........528
Machine Type 9489 ...........543
Machine Type 9622 ...........557
Machine Type 9702 ...........570
Machine Type 9703 ...........589
Machine Type 9704 ...........605
Machine Type 9708 ...........621
Machine Type 9788 ...........636
Machine Type 9789 ...........651
Machine Type 9794 ...........666
Machine Type 9807 ...........681
Machine Type 9851 ...........695
Machine Type 9853 ...........713
Machine Type 9859 ...........727
Machine Type 9948 ...........742
Machine Type 9949 ...........756
Machine Type 9952 ...........770
Chapter 12. Additional Service
Information ............785
Security features ............785
Hardware controlled Passwords ......785
Operating system password .......785
Vital product data ...........785
BIOS levels ..............785
Updating (flashing) BIOS from a CD-ROM or
diskette ...............786
Recovering from a POST/BIOS update failure . . 786
Power management ...........787
Automatic configuration and power interface
(ACPI) BIOS.............787
Automatic Power-On features .......787
Appendix. Notices .........789
Television output notice ..........790
Trademarks ..............790
iv Hardware Maintenance Manual
Chapter 1. About this manual
This manual contains service and reference information for ThinkCentre®
computers listed on the cover. It is intended only for trained servicers who are
familiar with Lenovo®computer products.
Before servicing a Lenovo product, be sure to read the Safety Information. See
Chapter 2, “Safety information,” on page 3.
The Symptom-to-FRU Index and Additional Service Information chapters are not
specific to any machine type and are applicable to all ThinkCentre computers.
This manual includes a complete FRU part number listing for each machine type
and model listed on the cover. If you have internet access, FRU part numbers are
also available at:
http:/www.lenovo.com/support
Important Safety Information
Be sure to read all caution and danger statements in this book before performing
any of the instructions.
Veuillez lire toutes les consignes de type DANGER et ATTENTION du présent
document avant d’exécuter les instructions.
Lesen Sie unbedingt alle Hinweise vom Typ ″ACHTUNG″oder ″VORSICHT″in
dieser Dokumentation, bevor Sie irgendwelche Vorgänge durchführen
Leggere le istruzioni introdotte da ATTENZIONE e PERICOLO presenti nel
manuale prima di eseguire una qualsiasi delle istruzioni
Certifique-se de ler todas as instruções de cuidado e perigo neste manual antes de
executar qualquer uma das instruções
Es importante que lea todas las declaraciones de precaución y de peligro de este
manual antes de seguir las instrucciones.
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 1
Important information about replacing RoHS compliant FRUs
RoHS, The Restriction of Hazardous Substances in Electrical and Electronic
Equipment Directive (2002/95/EC) is a European Union legal requirement
affecting the global electronics industry. RoHS requirements must be
implemented on Lenovo products placed on the market and sold in the
European Union after June 2006. Products on the market before June 2006 are
not required to have RoHS compliant parts. If the parts are not compliant
originally, replacement parts can also be noncompliant, but in all cases, if the
parts are compliant, the replacement parts must also be compliant.
Note: RoHS and non-RoHS FRU part numbers with the same fit and function are
identified with unique FRU part numbers.
Lenovo plans to transition to RoHS compliance well before the implementation
date and expects its suppliers to be ready to support Lenovo’s requirements and
schedule in the EU. Products sold in 2005, will contain some RoHS compliant
FRUs. The following statement pertains to these products and any product Lenovo
produces containing RoHS compliant parts.
RoHS compliant ThinkCentre parts have unique FRU part numbers. Before or after
June, 2006, failed RoHS compliant parts must always be replaced using RoHS
compliant FRUs, so only the FRUs identified as compliant in the system HMM or
direct substitutions for those FRUs can be used.
Products marketed before June 2006 Products marketed after June 2006
Current or original
part
Replacement FRU Current or original
part
Replacement FRU
Non-RoHS Can be Non-RoHS Must be RoHS Must be RoHS
Non-RoHS Can be RoHS
Non-RoHS Can sub to RoHS
RoHS Must be RoHS
Note: A direct substitution is a part with a different FRU part number that is
automatically shipped by the distribution center at the time of order.
2Hardware Maintenance Manual
Chapter 2. Safety information
This chapter contains the safety information that you need to be familiar with
before servicing a computer.
General safety
Follow these rules to ensure general safety:
vObserve good housekeeping in the area of the machines during and after
maintenance.
vWhen lifting any heavy object:
1. Ensure you can stand safely without slipping.
2. Distribute the weight of the object equally between your feet.
3. Use a slow lifting force. Never move suddenly or twist when you attempt to
lift.
4. Lift by standing or by pushing up with your leg muscles; this action removes
the strain from the muscles in your back. Do not attempt to lift any objects that
weigh more than 16 kg (35 lb) or objects that you think are too heavy for you.
vDo not perform any action that causes hazards to the customer, or that makes
the equipment unsafe.
vBefore you start the machine, ensure that other service representatives and the
customer’s personnel are not in a hazardous position.
vPlace removed covers and other parts in a safe place, away from all personnel,
while you are servicing the machine.
vKeep your tool case away from walk areas so that other people will not trip over
it.
vDo not wear loose clothing that can be trapped in the moving parts of a
machine. Ensure that your sleeves are fastened or rolled up above your elbows.
If your hair is long, fasten it.
vInsert the ends of your necktie or scarf inside clothing or fasten it with a
nonconductive clip, approximately 8 centimeters (3 inches) from the end.
vDo not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for your
clothing.
Remember: Metal objects are good electrical conductors.
vWear safety glasses when you are: hammering, drilling soldering, cutting wire,
attaching springs, using solvents, or working in any other conditions that might
be hazardous to your eyes.
vAfter service, reinstall all safety shields, guards, labels, and ground wires.
Replace any safety device that is worn or defective.
vReinstall all covers correctly before returning the machine to the customer.
Electrical safety
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 3
CAUTION:
Electrical current from power, telephone, and communication cables can be
hazardous. To avoid personal injury or equipment damage, disconnect the
attached power cords, telecommunication systems, networks, and modems before
you open the server/workstation covers, unless instructed otherwise in the
installation and configuration procedures.
Observe the following rules when working on electrical equipment.
Important: Use only approved tools and test equipment. Some hand tools have
handles covered with a soft material that does not insulate you when
working with live electrical currents.
Many customers have, near their equipment, rubber floor mats that
contain small conductive fibers to decrease electrostatic discharges. Do
not use this type of mat to protect yourself from electrical shock.
vFind the room emergency power-off (EPO) switch, disconnecting switch, or
electrical outlet. If an electrical accident occurs, you can then operate the switch
or unplug the power cord quickly.
vDo not work alone under hazardous conditions or near equipment that has
hazardous voltages.
vDisconnect all power before:
– Performing a mechanical inspection
– Working near power supplies
– Removing or installing Field Replaceable Units
vBefore you start to work on the machine, unplug the power cord. If you cannot
unplug it, ask the customer to power-off the wall box that supplies power to the
machine and to lock the wall box in the off position.
vIf you need to work on a machine that has exposed electrical circuits, observe
the following precautions:
– Ensure that another person, familiar with the power-off controls, is near you.
Remember: Another person must be there to switch off the power, if
necessary.
– Use only one hand when working with powered-on electrical equipment;
keep the other hand in your pocket or behind your back.
Remember: There must be a complete circuit to cause electrical shock. By
observing the above rule, you may prevent a current from passing through
your body.
– When using testers, set the controls correctly and use the approved probe
leads and accessories for that tester.
– Stand on suitable rubber mats (obtained locally, if necessary) to insulate you
from grounds such as metal floor strips and machine frames.
Observe the special safety precautions when you work with very high voltages;
these instructions are in the safety sections of maintenance information. Use
extreme care when measuring high voltages.
vRegularly inspect and maintain your electrical hand tools for safe operational
condition.
vDo not use worn or broken tools and testers.
vNever assume that power has been disconnected from a circuit. First, check that it
has been powered-off.
4Hardware Maintenance Manual
vAlways look carefully for possible hazards in your work area. Examples of these
hazards are moist floors, nongrounded power extension cables, power surges,
and missing safety grounds.
vDo not touch live electrical circuits with the reflective surface of a plastic dental
mirror. The surface is conductive; such touching can cause personal injury and
machine damage.
vDo not service the following parts with the power on when they are removed
from their normal operating places in a machine:
– Power supply units
– Pumps
– Blowers and fans
– Motor generators
and similar units. (This practice ensures correct grounding of the units.)
vIf an electrical accident occurs:
– Use caution; do not become a victim yourself.
– Switch off power.
– Send another person to get medical aid.
Voltage-selection switch
Some computers are equipped with a voltage-selection switch located near the
power-cord connection point on the computer. If your computer has a
voltage-selection switch, ensure that you set the switch to match the voltage
available at your electrical outlet. Setting the voltage-selection switch incorrectly
can cause permanent damage to the computer.
If your computer does not have a voltage-selection switch, your computer is
designed to operate only at the voltage provided in the country or region where
the computer was originally purchased.
If you relocate your computer to another country, be aware of the following:
vIf your computer does not have a voltage-selection switch, do not connect the
computer to an electrical outlet until you have verified that the voltage provided
is the same as it was in the country or region where the computer was originally
purchased.
vIf your computer has a voltage selection switch, do not connect the computer to
an electrical outlet until you have verified that the voltage-selection switch is set
to match the voltage provided in that country or region.
If you are not sure of the voltage provided at your electrical outlet, contact your
local electric company or refer to official Web sites or other literature for travelers
to the country or region where you are located.
Safety inspection guide
The intent of this inspection guide is to assist you in identifying potentially unsafe
conditions on these products. Each machine, as it was designed and built, had
required safety items installed to protect users and service personnel from injury.
This guide addresses only those items. However, good judgment should be used to
identify potential safety hazards due to attachment of features or options not
covered by this inspection guide.
Chapter 2. Safety information 5
If any unsafe conditions are present, you must determine how serious the apparent
hazard could be and whether you can continue without first correcting the
problem.
Consider these conditions and the safety hazards they present:
vElectrical hazards, especially primary power (primary voltage on the frame can
cause serious or fatal electrical shock).
vExplosive hazards, such as a damaged CRT face or bulging capacitor
vMechanical hazards, such as loose or missing hardware
The guide consists of a series of steps presented in a checklist. Begin the checks
with the power off, and the power cord disconnected.
Checklist:
1. Check exterior covers for damage (loose, broken, or sharp edges).
2. Power-off the computer. Disconnect the power cord.
3. Check the power cord for:
a. A third-wire ground connector in good condition. Use a meter to measure
third-wire ground continuity for 0.1 ohm or less between the external
ground pin and frame ground.
b. The power cord should be the appropriate type as specified in the parts
listings.
c. Insulation must not be frayed or worn.
4. Remove the cover.
5. Check for any obvious alterations. Use good judgment as to the safety of any
alterations.
6. Check inside the unit for any obvious unsafe conditions, such as metal filings,
contamination, water or other liquids, or signs of fire or smoke damage.
7. Check for worn, frayed, or pinched cables.
8. Check that the power-supply cover fasteners (screws or rivets) have not been
removed or tampered with.
Handling electrostatic discharge-sensitive devices
Any computer part containing transistors or integrated circuits (ICs) should be
considered sensitive to electrostatic discharge (ESD). ESD damage can occur when
there is a difference in charge between objects. Protect against ESD damage by
equalizing the charge so that the machine, the part, the work mat, and the person
handling the part are all at the same charge.
Notes:
1. Use product-specific ESD procedures when they exceed the requirements noted
here.
2. Make sure that the ESD protective devices you use have been certified (ISO
9000) as fully effective.
When handling ESD-sensitive parts:
vKeep the parts in protective packages until they are inserted into the product.
vAvoid contact with other people while handling the part.
vWear a grounded wrist strap against your skin to eliminate static on your body.
6Hardware Maintenance Manual
vPrevent the part from touching your clothing. Most clothing is insulative and
retains a charge even when you are wearing a wrist strap.
vUse the black side of a grounded work mat to provide a static-free work surface.
The mat is especially useful when handling ESD-sensitive devices.
vSelect a grounding system, such as those listed below, to provide protection that
meets the specific service requirement.
Note: The use of a grounding system is desirable but not required to protect
against ESD damage.
– Attach the ESD ground clip to any frame ground, ground braid, or green-wire
ground.
– Use an ESD common ground or reference point when working on a
double-insulated or battery-operated system. You can use coax or
connector-outside shells on these systems.
– Use the round ground-prong of the ac plug on ac-operated computers.
Grounding requirements
Electrical grounding of the computer is required for operator safety and correct
system function. Proper grounding of the electrical outlet can be verified by a
certified electrician.
Safety notices (multi-lingual translations)
The caution and danger safety notices in this section are provided in the following
languages:
vEnglish
vArabic
vBrazilian/Portuguese
vChinese (simplified)
vChinese (traditional)
vFrench
vGerman
vHebrew
vItalian
vKorean
vSpanish
DANGER
Electrical current from power, telephone and communication cables is hazardous.
To avoid a shock hazard:
vDo not connect or disconnect any cables or perform installation, maintenance,
or reconfiguration of this product during an electrical storm.
vConnect all power cords to a properly wired and grounded electrical outlet.
Chapter 2. Safety information 7
vConnect to properly wired outlets any equipment that will be attached to this
product.
vWhen possible, use one hand only to connect or disconnect signal cables.
vNever turn on any equipment when there is evidence of fire, water, or
structural damage.
vDisconnect the attached power cords, telecommunications systems, networks,
and modems before you open the device covers, unless instructed otherwise
in the installation and configuration procedures.
vConnect and disconnect cables as described in the following tables when
installing, moving, or opening covers on this product or attached devices.
To Connect To Disconnect
1. Turn everything OFF.
2. First, attach all cables to devices.
3. Attach signal cables to connectors.
4. Attach power cords to outlet.
5. Turn device ON.
1. Turn everything OFF.
2. First, remove power cords from outlet.
3. Remove signal cables from connectors.
4. Remove all cables from devices.
8Hardware Maintenance Manual
CAUTION:
When replacing the lithium battery, use only Part Number 33F8354 or an
equivalent type battery recommended by the manufacturer. If your system has a
module containing a lithium battery, replace it only with the same module type
made by the same manufacturer. The battery contains lithium and can explode if
not properly used, handled, or disposed of.
Do not:
vThrow or immerse into water
vHeat to more than 100°C (212°F)
vRepair or disassemble
Dispose of the battery as required by local ordinances or regulations.
CAUTION:
When laser products (such as CD-ROMs, DVD-ROM drives, fiber optic devices,
or transmitters) are installed, note the following:
vDo not remove the covers. Removing the covers of the laser product could
result in exposure to hazardous laser radiation. There are no serviceable parts
inside the device.
vUse of controls or adjustments or performance of procedures other than those
specified herein might result in hazardous radiation exposure.
DANGER: Some laser products contain an embedded Class 3A or Class 3B laser
diode. Note the following:
Laser radiation when open. Do not stare into the beam, do not view
directly with optical instruments, and avoid direct exposure to the
beam.
≥18 kg (37 lbs) ≥32 kg (70.5 lbs) ≥55 kg (121.2 lbs)
CAUTION:
Use safe practices when lifting.
Chapter 2. Safety information 9
CAUTION:
The power control button on the device and the power switch on the power
supply do not turn off the electrical current supplied to the device. The device
also might have more than one power cord. To remove all electrical current from
the device, ensure that all power cords are disconnected from the power source.
1
2
10 Hardware Maintenance Manual
Chapter 2. Safety information 11
12 Hardware Maintenance Manual
≥18 kg (37 lbs) ≥32 kg (70.5 lbs) ≥55 kg (121.2 lbs)
1
2
Chapter 2. Safety information 13
PERIGO
A corrente elétrica proveniente de cabos de alimentação, de telefone e de
comunicações é perigosa.
Para evitar risco de choque elétrico:
vNão conecte nem desconecte nenhum cabo ou execute instalação, manutenção
ou reconfiguração deste produto durante uma tempestade com raios.
vConecte todos os cabos de alimentação a tomadas elétricas corretamente
instaladas e aterradas.
vTodo equipamento que for conectado a este produto deve ser conectado a
tomadas corretamente instaladas.
vQuando possível, utilize apenas uma das mãos para conectar ou desconectar
cabos de sinal.
vNunca ligue nenhum equipamento quando houver evidência de fogo, água ou
danos estruturais.
vAntes de abrir tampas de dispositivos, desconecte cabos de alimentação,
sistemas de telecomunicação, redes e modems conectados, a menos que
especificado de maneira diferente nos procedimentos de instalação e
configuração.
vConecte e desconecte os cabos conforme descrito na tabela apresentada a seguir
ao instalar, mover ou abrir tampas deste produto ou de dispositivos conectados.
Para Conectar: Para Desconectar:
1. DESLIGUE Tudo.
2. Primeiramente, conecte todos os cabos
aos dispositivos.
3. Conecte os cabos de sinal aos
conectores.
4. Conecte os cabos de alimentação às
tomadas.
5. LIGUE os dispositivos.
1. DESLIGUE Tudo.
2. Primeiramente, remova os cabos de
alimentação das tomadas.
3. Remova os cabos de sinal dos conectores.
4. Remova todos os cabos dos dispositivos.
14 Hardware Maintenance Manual
CUIDADO:
Ao substituir a bateria de lítio, utilize apenas uma bateria com Número de Peça
33F8354 ou um tipo de bateria equivalente recomendado pelo Se o seu sistema
possui um módulo com uma bateria de lítio, substitua-o apenas por um módulo
do mesmo tipo e do mesmo fabricante. A bateria contém lítio e pode explodir se
não for utilizada, manuseada ou descartada de maneira correta.
Não:
vJogue ou coloque na água
vAqueça a mais de 100°C (212°F)
vConserte nem desmonte
Descarte a bateria conforme requerido pelas leis ou regulamentos locais.
PRECAUCIÓN:
Quando produtos a laser (como unidades de CD-ROMs, unidades de DVD-ROM,
dispositivos de fibra ótica ou transmissores) estiverem instalados, observe o
seguinte:
vNão remova as tampas. A remoção das tampas de um produto a laser pode
resultar em exposição prejudicial à radiação de laser. Não existem peças que
podem ser consertadas no interior do dispositivo.
vA utilização de controles ou ajustes ou a execução de procedimentos diferentes
dos especificados aqui pode resultar em exposição prejudicial à radiação.
PERIGO
Alguns produtos a laser contêm diodo de laser integrado da Classe 3A ou da
Classe 3B. Observe o seguinte:
Radiação a laser quando aberto. Não olhe diretamente para o feixe a olho nu ou
com instrumentos ópticos e evite exposição direta ao feixe.
≥18 kg (37 lbs) ≥32 kg (70.5 lbs) ≥55 kg (121.2 lbs)
CUIDADO:
Utilize procedimentos de segurança para levantar equipamentos.
Chapter 2. Safety information 15
CUIDADO:
O botão de controle de alimentação do dispositivo e o botão para ligar/desligar da
fonte de alimentação não desligam a corrente elétrica fornecida ao dispositivo. O
dispositivo também pode ter mais de um cabo de alimentação. Para remover toda
a corrente elétrica do dispositivo, assegure que todos os cabos de alimentação
estejam desconectados da fonte de alimentação.
1
2
16 Hardware Maintenance Manual
Chapter 2. Safety information 17
1
2
18 Hardware Maintenance Manual
Chapter 2. Safety information 19
1
2
20 Hardware Maintenance Manual
DANGER
Le courant électrique provenant de l’alimentation, du téléphone et des câbles de
transmission peut présenter un danger.
Pour éviter tout risque de choc électrique :
vNe manipulez aucun câble et n’effectuez aucune opération d’installation,
d’entretien ou de reconfiguration de ce produit au cours d’un orage.
vBranchez tous les cordons d’alimentation sur un socle de prise de courant
correctement câblé et mis à la terre.
vBranchez sur des socles de prise de courant correctement câblés tout équipement
connecté à ce produit.
vLorsque cela est possible, n’utilisez qu’une seule main pour connecter ou
déconnecter les câbles d’interface.
vNe mettez jamais un équipement sous tension en cas d’incendie ou d’inondation,
ou en présence de dommages matériels.
vAvant de retirer les carters de l’unité, mettez celle-ci hors tension et déconnectez
ses cordons d’alimentation, ainsi que les câbles qui la relient aux réseaux, aux
systèmes de télécommunication et aux modems (sauf instruction contraire
mentionnée dans les procédures d’installation et de configuration).
vLorsque vous installez, que vous déplacez, ou que vous manipulez le présent
produit ou des périphériques qui lui sont raccordés, reportez-vous aux
instructions ci-dessous pour connecter et déconnecter les différents cordons.
Connexion Déconnexion
1. Mettez les unités HORS TENSION.
2. Commencez par brancher tous les
cordons sur les unités.
3. Branchez les câbles d’interface sur des
connecteurs.
4. Branchez les cordons d’alimentation sur
des prises.
5. Mettez les unités SOUS TENSION.
1. Mettez les unités HORS TENSION.
2. Débranchez les cordons d’alimentation
des prises.
3. Débranchez les câbles d’interface des
connecteurs.
4. Débranchez tous les câbles des unités.
Chapter 2. Safety information 21
ATTENTION:
Remplacer la pile au lithium usagée par une pile de référence identique
exclusivement, (référence 33F8354), ou suivre les instructions du fabricant qui en
définit les équivalences. Si votre système est doté d’un module contenant une
pile au lithium, vous devez le remplacer uniquement par un module identique,
produit par le même fabricant. La pile contient du lithium et peut exploser en
cas de mauvaise utilisation, de mauvaise manipulation ou de mise au rebut
inappropriée.
Ne pas :
vla jeter à l’eau,
vl’exposer à des températures supérieures à 100°C,
vchercher à la réparer ou à la démonter.
Ne pas mettre la pile à la poubelle. Pour la mise au rebut, se reporter à la
réglementation en vigueur.
ATTENTION:
Si des produits à laser (tels que des unités de CD-ROM, de DVD-ROM, des
unités à fibres optiques, ou des émetteurs) sont installés, prenez connaissance
des informations suivantes :
vNe retirez pas le carter. En ouvrant l’unité de CD-ROM ou de DVD-ROM,
vous vous exposez au rayonnement dangereux du laser. Aucune pièce de
l’unité n’est réparable.
vPour éviter tout risque d’exposition au rayon laser, respectez les consignes de
réglage et d’utilisation des commandes, ainsi que les procédures décrites dans
le présent manuel.
DANGER
Certains produits à laser contiennent une diode à laser intégrée de classe 3A ou
3B. Prenez connaissance des informations suivantes:
Rayonnement laser lorsque le carter est ouvert. Evitez toute expositiondirecte au
rayon laser. Evitez de regarder fixement le faisceau ou del’observer à l’aide
d’instruments optiques.
22 Hardware Maintenance Manual
≥18 kg (37 lbs) ≥32 kg (70.5 lbs) ≥55 kg (121.2 lbs)
ATTENTION:
Soulevez la machine avec précaution.
ATTENTION:
L’interrupteur de contrôle d’alimentation de l’unité et l’interrupteur dubloc
d’alimentation ne coupent pas le courant électrique alimentantl’unité. En outre,
le système peut être équipé de plusieurs cordonsd’alimentation. Pour mettre
l’unité hors tension, vous devez déconnectertous les cordons de la source
d’alimentation.
1
2
Chapter 2. Safety information 23
VORSICHT
An Netz-, Telefon- und Datenleitungen können gefährliche Spannungen anliegen.
Aus Sicherheitsgründen:
vBei Gewitter an diesem Gerät keine Kabel anschließen oder lösen. Ferner
keine Installations-, Wartungs- oder Rekonfigurationsarbeiten durchführen.
vGerät nur an eine Schutzkontaktsteckdose mit ordnungsgemäß geerdetem
Schutzkontakt anschließen.
vAlle angeschlossenen Geräte ebenfalls an Schutzkontaktsteckdosen mit
ordnungsgemäß geerdetem Schutzkontakt anschließen.
vDie Signalkabel nach Möglichkeit einhändig anschließen oder lösen, um
einen Stromschlag durch Berühren von Oberflächen mit unterschiedlichem
elektrischem Potenzial zu vermeiden.
vGeräte niemals einschalten, wenn Hinweise auf Feuer, Wasser oder
Gebäudeschäden vorliegen.
vDie Verbindung zu den angeschlossenen Netzkabeln,
Telekommunikationssystemen, Netzwerken und Modems ist vor dem Öffnen
des Gehäuses zu unterbrechen, sofern in den Installations- und
Konfigurationsprozeduren keine anders lautenden Anweisungen enthalten
sind.
vZum Installieren, Transportieren und Öffnen der Abdeckungen des
Computers oder der angeschlossenen Einheiten die Kabel gemäß der
folgenden Tabelle anschließen und abziehen.
Zum Anschließen der Kabel gehen Sie
wie folgt vor
Zum Abziehen der Kabel gehen Sie wie
folgt vor
1. Schalten Sie alle Einheiten AUS.
2. Schließen Sie erst alle Kabel an die
Einheiten an.
3. Schließen Sie die Signalkabel an die
Buchsen an.
4. Schließen Sie die Netzkabel an die
Steckdose an.
5. Schalten Sie die Einheit EIN.
1. Schalten Sie alle Einheiten AUS.
2. Ziehen Sie zuerst alle Netzkabel aus den
Netzsteckdosen.
3. Ziehen Sie die Signalkabel aus den
Buchsen.
4. Ziehen Sie alle Kabel von den Einheiten
ab.
24 Hardware Maintenance Manual
CAUTION:
Eine verbrauchte Lithiumbatterie nur durch eine Batterie mit der Teilenummer
33F8354 oder eine gleichwertige, vom Hersteller empfohlene Batterie ersetzen.
Enthält das System ein Modul mit einer Lithiumbatterie, dieses nur durch ein
Modul desselben Typs und von demselben Hersteller ersetzen. Die Batterie enthält
Lithium und kann bei unsachgemäßer Verwendung, Handhabung oder Entsorgung
explodieren.
Die Batterie nicht:
vmit Wasser in Berührung bringen.
vüber 100 C erhitzen.
vreparieren oder zerlegen.
Die örtlichen Bestimmungen für die Entsorgung von Sondermüll beachten.
ACHTUNG:
Bei der Installation von Lasergeräten (wie CD-ROM-Laufwerken, DVD-
aufwerken, Einheiten mit Lichtwellenleitertechnik oder Sendern) Folgendes
beachten:
vDie Abdeckungen nicht entfernen. Durch Entfernen der Abdeckungen des
Lasergeräts können gefährliche Laserstrahlungen freigesetzt werden. Das
Gerät enthält keine zu wartenden Teile.
vWerden Steuerelemente, Einstellungen oder Durchführungen von Prozeduren
anders als hier angegeben verwendet, kann gefährliche Laserstrahlung
auftreten.
VORSICHT
Einige Lasergeräte enthalten eine Laserdiode der Klasse 3A oder 3B. Beachten
Sie Folgendes:
Laserstrahlung bei geöffneter Verkleidung. Nicht in den Strahl blicken. Keine
Lupen oder Spiegel verwenden. Strahlungsbereich meiden.
Chapter 2. Safety information 25
≥18 kg ≥32 kg ≥55 kg
ACHTUNG:
Arbeitsschutzrichtlinien beim Anheben der Maschine beachten.
ACHTUNG:
Mit dem Netzschalter an der Einheit und am Netzteil wird die Stromversorgung
für die Einheit nicht unterbrochen. Die Einheit kann auch mit mehreren
Netzkabeln ausgestattet sein. Um die Stromversorgung für die Einheit
vollständig zu unterbrechen, müssen alle zum Gerät führenden Netzkabel vom
Netz getrennt werden.
1
2
26 Hardware Maintenance Manual
Chapter 2. Safety information 27
28 Hardware Maintenance Manual
1
2
Chapter 2. Safety information 29
PERICOLO
La corrente elettrica proveniente dai cavi di alimentazione, del telefono e di
comunicazione può essere pericolosa.
Per evitare il rischio di scosse elettriche:
vNon collegare o scollegare qualsiasi cavo oppure effettuare l’installazione, la
manutenzione o la riconfigurazione del prodotto durante un temporale.
vCollegare tutti i fili elettrici a una presa di alimentazione correttamente
cablata e dotata di messa a terra.
vCollegare alle prese elettriche appropriate tutte le apparecchiature che
verranno utilizzate per questo prodotto.
vSe possibile, utilizzare solo una mano per collegare o scollegare i cavi di
segnale.
vNon accendere assolutamente apparecchiature in presenza di incendi, perdite
d’acqua o danno strutturale.
vScollegare i cavi di alimentazione, i sistemi di telecomunicazione, le reti e il
modem prima di aprire i coperchi del dispositivo, salvo istruzioni contrarie
relative alle procedure di installazione e configurazione.
vCollegare e scollegare i cavi come descritto nella seguente tabella quando
vengono effettuate operazioni di installazione, spostamento o apertura dei
coperchi di questo prodotto o delle unità collegate.
Per collegarsi Per scollegarsi
1. SPEGNERE le apparecchiature.
2. Innanzitutto, collegare tutti i cavi alle
unità.
3. Collegare i cavi di segnale ai connettori.
4. Collegare i cavi di alimentazione alla
presa.
5. Accendere l’unità.
1. SPEGNERE le apparecchiature.
2. Innanzitutto, rimuovere i cavi di
alimentazione dalla presa.
3. Rimuovere i cavi di segnale dai
connettori.
4. Rimuovere tutti i cavi dalle unità.
30 Hardware Maintenance Manual
ATTENZIONE:
Quando si sostituisce la batteria al litio, utilizzare solo il Numero parte 33F8354
o un tipo di batteria equivalente consigliato dal produttore. Se sul sistema è
presente un modulo che contiene una batteria al litio, sostituirlo solo con un
tipo di modulo dello stesso tipo della stessa casa di produzione. La batteria
contiene litio e può esplodere se usata, maneggiata o smaltita in modo non
corretto.
Non:
vGettare o immergere la batteria nell’acqua
vRiscaldarla ad una temperatura superiore ai 100 gradi C (212 gradi F)
vSmontarla, ricaricarla o tentare di ripararla
Le batterie usate vanno smaltite in accordo alla normativa in vigore (DPR 915/82
e successive disposizioni e disposizioni locali).
ATTENZIONE:
Quando vengono installati prodotti laser (quali CD-ROM, unità DVD-ROM,
unità a fibre ottiche o trasmittenti), tener presente quanto segue:
vNon rimuovere gli sportelli. L’apertura di un’unità laser può determinare
l’esposizione a radiazioni laser pericolose. All’interno dell’unità non vi sono
parti su cui effettuare l’assistenza tecnica.
vL’utilizzo di controlli, regolazioni o l’esecuzione di procedure non descritti nel
presente manuale possono provocare l’esposizione a radiazioni pericolose.
PERICOLO
Alcune unità laser contengono un diodo laser di Classe 3A o Classe 3B. Tener
presente quanto segue:
Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non
guardarlo direttamente con strumenti ottici ed evitare l’esposizione al fascio.
Chapter 2. Safety information 31
≥18 kg ≥32 kg ≥55 kg
ATTENZIONE:
Prestare attenzione nel sollevare l’apparecchiatura.
ATTENZIONE:
Il pulsante di controllo dell’alimentazione presente sull’unità e l’interruttore
dell’alimentatore non disattivano l’alimentazione corrente fornita all’unità. E’
possibile che l’unità disponga di più cavi di alimentazione. Per disattivare
l’alimentazione dall’unità, accertarsi che tutti i cavi di alimentazione siano
scollegati dalla fonte di alimentazione.
1
2
32 Hardware Maintenance Manual
Chapter 2. Safety information 33
1
2
34 Hardware Maintenance Manual
PELIGRO
La corriente eléctrica procedente de cables de alimentación, teléfonos y cables de
comunicación puede ser peligrosa.
Para evitar el riesgo de descarga eléctrica:
vNo conecte ni desconecte los cables ni realice ninguna tarea de instalación,
mantenimiento o reconfiguración de este producto durante una tormenta
eléctrica.
vConecte todos los cables de alimentación a tomas de corriente debidamente
cableadas y conectadas a tierra.
vCualquier equipo que se conecte a este producto también debe conectarse a
tomas de corriente debidamente cableadas.
vSiempre que sea posible, utilice una sola mano para conectar o desconectar los
cables de señal.
vNo encienda nunca un equipo cuando hay señales de fuego, agua o daños
estructurales.
vDesconecte los cables de alimentación, los sistemas de telecomunicaciones, las
redes y los módems conectados antes de abrir las cubiertas de los dispositivos,
a menos que se indique lo contrario en los procedimientos de instalación y
configuración.
vConecte y desconecte los cables, como se describe en la tabla siguiente,
cuando instale, mueva o abra las cubiertas de este producto o de los
dispositivos conectados.
Para conectar Para desconectar
1. APÁGUELO todo.
2. En primer lugar, conecte todos los
cables a los dispositivos.
3. Conecte los cables de señal a los
conectores.
4. Enchufe los cables de alimentación a las
tomas de corriente.
5. Encienda el dispositivo.
1. APÁGUELO todo.
2. En primer lugar, desenchufe los cables de
alimentación de las tomas de corriente.
3. Desconecte los cables de señal de los
conectores.
4. Desconecte todos los cables de los
dispositivos.
Chapter 2. Safety information 35
PRECAUCIÓN:
Cuando sustituya una batería de litio, utilice solamente una batería número de
pieza 33F8354 u otra de tipo equivalente recomendada por el fabricante. Si su
sistema dispone de un módulo que contiene una batería de litio, reemplácelo
sólo con el mismo tipo de módulo, del mismo fabricante. La batería contiene
litio y puede explotar si no se utiliza, manipula o desecha correctamente.
No debe:
vArrojarla al agua o sumergirla en ella
vExponerla a temperaturas superiores a 100°C (212°F)
vRepararla o desmontarla
Deshágase de la batería según especifiquen las leyes o normas locales.
PRECAUCIÓN:
Cuando haya productos láser (como unidades de CD-ROM, unidades de DVD,
dispositivos de fibra óptica o transmisores) instalados, tenga en cuenta lo
siguiente:
vNo quite las cubiertas. Si quita las cubiertas del producto láser, podría quedar
expuesto a radiación láser peligrosa. Dentro del dispositivo no existe ninguna
pieza que requiera servicio técnico.
vSi usa controles o ajustes o realiza procedimientos que no sean los
especificados aquí, podría exponerse a radiaciones peligrosas.
PELIGRO
Algunos productos láser tienen incorporado un diodo láser de clase 3A o clase
3B. Tenga en cuenta lo siguiente:
Cuando se abre, queda expuesto a radiación láser. No mire directamente al rayo
láser, ni siquiera con instrumentos ópticos, y evite exponerse directamente al
rayo láser.
36 Hardware Maintenance Manual
≥18 kg ≥32 kg ≥55 kg
PRECAUCIÓN:
Adopte procedimientos seguros al levantar el equipo.
PRECAUCIÓN:
El botón de control de alimentación del dispositivo y el interruptor de
alimentación de la fuente de alimentación no desconectan la corriente eléctrica
suministrada al dispositivo. Además, el dispositivo podría tener más de un cable
de alimentación. Para suprimir toda la corriente eléctrica del dispositivo,
asegúrese de que todos los cables de alimentación estén desconectados de la
toma de corriente.
1
2
Chapter 2. Safety information 37
38 Hardware Maintenance Manual
Chapter 3. General information
This chapter provides general information that applies to all machine types
supported by this publication.
The ThinkVantage Productivity Center program
Use the ThinkVantage®Productivity Center program for general information about
the use, operation, and maintenance of the computer. The ThinkVantage
Productivity Center program also contains information to help solve problems and
get repair service or other technical assistance. The ThinkVantage Productivity
Center program is preinstalled on most ThinkCentre products.
Additional information resources
If you have Internet access, the most up-to-date information for your computer is
available from the World Wide Web.
You can find the following information:
vCRU removal and installation instructions
vPublications
vTroubleshooting information
vParts information
vDownloads and drivers
vLinks to other useful sources of information
To access this information, go to http://www.lenovo.com/support/.
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 39
Specifications
This section lists the physical specifications for your computer.
Types 7066, 7098, 9352, 9359, 9482, 9487, 9622, 9704, 9794,
9859, 9785, 9807, 9952
This section lists the physical specifications for your computer.
Dimensions
Width: 325 mm (12.8 in.)
Height: 107 mm (4.21in.)
Depth: 410 mm (16.14 in.)
Weight
Maximum configuration as shipped: 7.3 kg (16 lbs)
Types 7065, 7096, 9351, 9358, 9438, 9481, 9489, 9703, 9784,
9788, 9792, 9853, 9949
This section lists the physical specifications.
Dimensions
Width: 331 mm (13 in.)
Height: 104 mm (4.1in.)
Depth: 412 mm (16.2 in.)
Weight
Maximum configuration as shipped: 8.8 kg (19.4 lbs)
Types 7064, 7094, 9349, 9356, 9357, 9439, 9488, 9702, 9708,
9709, 9789, 9851, 9948
This section lists the physical specifications.
Dimensions
Width: 175mm (6.9 in.)
Height: 402 mm (15.8in.)
Depth: 440 mm (17.3 in.)
Weight
Maximum configuration as shipped: 11 kg (24 lbs)
40 Hardware Maintenance Manual
For all machine types
Environment
Air temperature:
Operating: 10° to 35°C (50° to 95°F)
Non-operating: 10° to 60°C (50° to 140°F)
Humidity:
Operating: 10% to 80% (10% per hour, non condensing)
Non-operating: 10% to 90% (10% per hour)
Transit: 0% to 90% (10% per hour)
Maximum altitude:
Operating: -50 to 10,000 ft (-15.2 to 3048 m)
Non-operating: -50 to 35,000 ft (-15.2 to 10,668)
Electrical input
Input voltage:
Low range:
Minimum: 100 V ac
Maximum: 127 V ac
Input frequency range: 50/60 Hz
Voltage switch setting: 115 V ac
High range:
Minimum: 200 V ac
Maximum: 240 V ac
Input frequency range: 50/60 Hz
Voltage switch setting: 230 V ac
Chapter 3. General information 41
42 Hardware Maintenance Manual
Chapter 4. General Checkout
Attention
The drives in the computer you are servicing might have been rearranged or
the drive startup sequence changed. Be extremely careful during write
operations such as copying, saving, or formatting. Data or programs can be
overwritten if you select an incorrect drive.
General error messages appear if a problem or conflict is found by an application
program, the operating system, or both. For an explanation of these messages, refer
to the information supplied with that software package.
Before replacing any FRUs, ensure that the latest level of BIOS is installed on the
system. A down-level BIOS might cause false errors and unnecessary replacement
of the system board. For more information on how to determine and obtain the
latest level BIOS, see “BIOS levels” on page 785.
Use the following procedure to help determine the cause of the problem:
1. Power-off the computer and all external devices.
2. Check all cables and power cords.
3. Set all display controls to the middle position.
4. Power-on all external devices.
5. Power-on the computer.
vLook for displayed error codes
vListen for beep codes
vLook for readable instructions or a main menu on the display.
If you did not receive the correct response, proceed to step 6.
If you do receive the correct response, proceed to step 7.
6. Look at the following conditions and follow the instructions:
vIf you hear beep codes during POST, go to “Beep symptoms” on page 78.
vIf the computer displays a POST error, go to “POST error codes” on page 79.
vIf the computer hangs and no error is displayed, continue at step 7.
7. Run the Diagnostic programs. See Chapter 5, “Diagnostics,” on page 45.
vIf you receive an error, replace the part that the diagnostic program calls out
or go to “Diagnostic error codes” on page 56.
vIf the test stops and you cannot continue, replace the last device tested.
Problem determination tips
Due to the variety of hardware and software combinations that can be
encountered, use the following information to assist you in problem determination.
If possible, have this information available when requesting assistance from Service
Support and Engineering functions.
vMachine type and model
vProcessor or hard disk upgrades
vFailure symptom
– Do diagnostics indicate a failure?
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 43
– What, when, where, single, or multiple systems?
– Is the failure repeatable?
– Has this configuration ever worked?
– If it has been working, what changes were made prior to it failing?
– Is this the original reported failure?
vDiagnostics version
– Type and version level
vHardware configuration
– Print (print screen) configuration currently in use
– BIOS level
vOperating system software
– Type and version level
Note: To eliminate confusion, identical systems are considered identical only if
they:
1. Are the exact machine type and models
2. Have the same BIOS level
3. Have the same adapters/attachments in the same locations
4. Have the same address jumpers/terminators/cabling
5. Have the same software versions and levels
6. Have the same Diagnostic Diskettes (version)
7. Have the same configuration options set in the system
8. Have the same setup for the operating system control files
Comparing the configuration and software set-up between “working and
non-working” systems will often lead to problem resolution.
44 Hardware Maintenance Manual
Chapter 5. Diagnostics
Diagnostic programs are used to test hardware components of your computer and
report operating-system-controlled settings that can cause hardware failures. There
are two diagnostic programs preinstalled on your computer to help you diagnose
problems:
vPC-Doctor for Windows (used when diagnosing problems while running the
Windows operating system)
vPC-Doctor for Windows PE (used when your Windows operating system will
not start)
Notes:
1. You can also download the latest version of the PC-Doctor for Windows and
PC-Doctor for DOS diagnostic programs from http://www.lenovo.com/
support/.
2. If you are unable to isolate and repair the problem yourself by running the
applicable version of PC-Doctor, click the Save Button in the PC-Doctor-log-file
display. You will need to have all problem-related log files available when you
speak to a Lenovo technical support representative.
PC-Doctor for Windows
PC-Doctor for Windows is a diagnostic program that works through the Windows
operating system. The PC-Doctor for Windows diagnostic program enables you to
view symptoms and solutions for computer problems, access the Lenovo
troubleshooting center, update system drivers, and review system information.
To run PC-Doctor for Windows, open the Start menu from the Windows desktop,
select All Programs, select PC-Doctor for Windows, and click PC-Doctor for
Windows. Follow the instructions on the screen. For additional information about
running the diagnostic program, refer to the PC-Doctor for Windows help system.
If you still suspect a problem after PC-Doctor for Windows runs successfully, run
PC-Doctor for DOS or PC-Doctor for Windows PE to help you diagnose the
computer problem.
PC Doctor for Windows also has problem determination aids that determine
software and usage problems.
PC-Doctor for Windows PE
The PC-Doctor for Windows PE diagnostic program is part of the Rescue and
Recovery®workspace on each Lenovo computer. Use PC-Doctor for Windows PE,
if you are unable to start the Windows operating system or if PC-Doctor for
Windows has not been successful in isolating a possible problem.
Running diagnostics from the Rescue and Recovery
workspace
You can run the PC-Doctor for Windows PE diagnostic program from the Rescue
and Recovery workspace. To run diagnostics from the Rescue and Recovery
workspace, use the following procedure:
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 45
1. Shut down the operating system and turn off the computer.
2. Repeatedly press and release the F11 key as you turn on the computer.
3. When you hear beeps or see a logo screen, stop pressing the F11 key. The
Rescue and Recovery workspace opens.
4. From the Rescue and Recovery workspace, select Diagnose hardware.
5. The diagnostic program opens automatically. Select the diagnostic test you
want to run. Press the F1 key for additional help.
6. Follow the instructions on the screen.
Note: Rescue media includes PC-Doctor for Windows PE. For more information
about rescue media, see the User Guide for the computer.
PC-Doctor for DOS
Use PC-Doctor for DOS, if you are unable to start the Windows operating system
or if PC-Doctor for Windows has not been successful in isolating a possible
problem. You can run PC-Doctor for DOS from a diagnostic CD image or
diagnostic diskettes that have been created.
Note: It is important to create a diagnostic CD image or diagnostic diskettes in
case PC-Doctor for Windows PE cannot be run from the Rescue and
Recovery workspace.
Creating a diagnostic CD image
To create a diagnostic CD image, download a self-starting bootable CD image
(known as an .iso image) of the diagnostic program from http://
www.lenovo.com/support/. After you download the image, you can create the CD
using any CD burning software.
If the computer does not have a CD burner or you do not have Internet access, see
“Creating diagnostic diskettes.”
Creating diagnostic diskettes
To create diagnostic diskettes, download the PC-Doctor for DOS diagnostic
program from http://www.lenovo.com/support/ onto two blank, formatted
diskettes.
If you do not have Internet access, create the diagnostic diskettes using the
following procedure:
Note: You will need a diskette drive on the computer or a USB diskette drive to
complete this procedure.
1. Shut down the operating system and turn off the computer.
2. If you are using a USB diskette drive, plug it into the computer.
3. Repeatedly press and release the F11 key as you turn on the computer.
4. When you hear beeps or see a logo screen, stop pressing the F11 key. The
Rescue and Recovery workspace opens.
Note: For some models, press the Esc key to enter Rescue and Recovery.
5. From the Rescue and Recovery workspace, select Create diagnostic disks.
6. Follow the instructions on the screen.
46 Hardware Maintenance Manual
7. When prompted, insert a blank, formatted diskette into the diskette drive and
continue to follow the instructions on the screen.
8. When the operation is complete, remove the diskette and click Quit.
9. Insert another blank, formatted diskette into the diskette drive and continue to
follow the instructions on the screen.
10. When the operation is complete, remove the diskette and click Quit.
Running diagnostics from the CD or diskettes
To run diagnostics from the diagnostic CD image or diagnostic diskettes that you
created, use the following procedure:
1. Make sure the computer is turned off.
2. If you are running diagnostics from diskettes using a USB diskette drive, plug
in the USB device.
3. Insert the CD into the optical drive or the first diagnostic diskette into the
diskette drive.
4. Restart the computer.
Note: If the diagnostic program does not start, you might not have your optical
drive or diskette drive set as a startable device. See “Selecting a startup
device” on page 52 for instructions on how to change the startup device.
5. When the diagnostics program opens, follow the instructions on the screen.
Note: If you are running diagnostics from a diskette, when prompted, remove
the first diskette and insert the second diskette.
6. When the program finishes, be sure to remove the CD or diskette from the
drive.
7. Select the diagnostic test you want to run. Press the F1 key for additional help.
Navigating through the diagnostics programs
Use the cursor movement keys to navigate within the menus.
vThe Enter key is used to select a menu item.
vThe Esc key is used to back up to the previous menu.
vFor online help select F1.
Running tests
There are four ways to run the diagnostic tests.
vUsing the cursor movement keys, highlight Run Normal Test or Run Quick Test
from the Diagnostics menu and then press Enter.
This automatically runs a pre-defined group of tests from each test category.
Run Normal Test runs a more extensive set of tests than does Run Quick Test
and takes longer to complete.
vPress F5 to automatically run all selected tests in all categories.
vFrom within a test category, press Ctrl-Enter to automatically run only the
selected tests in that category.
vUsing the cursor movement keys, highlight a single test within a test category,
and then press Enter. This runs only that test.
Press Esc at any time to stop the testing process.
Chapter 5. Diagnostics 47
Test results (N/A, PASSED, FAILED, ABORTED) are displayed in the field beside
the test description and in the test log. See “Viewing the test log” on page 49.
To select one or more tests, use the following procedure.
1. Open the corresponding test category.
2. Using the cursor movement keys, highlight the desired test.
3. Press the space bar.
A selected test is marked by >>. Pressing the space bar again de-selects a test
and removes the >>.
4. Repeat steps 2 and 3 above to select all desired tests.
Test results
Diagnostics test results produce the following error code format:
Function
Code
Failure Type DeviceID Date ChkDigits Text
vFunction Code:
Represents the feature or function within the PC.
vFailure Type:
Represents the type of error encountered.
vDeviceID:
Contains the component’s unit-ID which corresponds to either a fixed disk
drive, removable media drive, serial or parallel port, processor, specific RIMM,
or a device on the PCI bus.
vDate:
Contains the date when the diagnostic test was run. The date is retrieved from
CMOS and displayed using the YYYYMMDD format.
vChkDigits:
Contains a 2-digit check-digit value to ensure the following:
– Diagnostics were run on the specified date.
– Diagnostics were run on the specified computer.
– The diagnostic error code is recorded correctly.
vText:
Description of the error.
Note: See “Diagnostic error codes” on page 56 for error code listings.
Quick and Full erase - hard drive
The diagnostics program offers two hard drive format utilities:
vQuick Erase Hard Drive
vFull Erase Hard Drive
The Quick Erase Hard Drive provides a DOS utility that performs the following:
vDestroys the Master Boot Record (MBR) on the hard drive.
vDestroys all copies of the FAT Table on all partitions (both the master and
backup).
vDestroys the partition table.
vProvides messages that warn the user that this is a non-recoverable process.
48 Hardware Maintenance Manual
The Full Erase Hard Drive provides a DOS utility that performs the following:
vPerforms all the steps in Quick Erase.
vProvides a DOS utility that writes random data to all sectors of the hard drive.
vProvides an estimate of time to completion along with a visual representation of
completion status.
vProvides messages that warn the user about non-recoverable process.
Important: Make sure that all data is backed up before using the Quick or Full Erase
functions.
To select the Quick Erase or Full Erase Hard Drive utility, use the following
procedure:
1. Select the UTILITY option on the toolbar and press Enter.
2. Select either the QUICK ERASE or FULL ERASE HARD DISK option and
follow the instructions.
Viewing the test log
Errors reported by the diagnostic test will be displayed by the program as a failed
test.
To view details of a failure or to view a list of test results, use the following
procedure from any test category screen:
1. Press F3 to activate the log file.
2. Press F3 again to save the file to diskette or press F2 to print the file.
Chapter 5. Diagnostics 49
50 Hardware Maintenance Manual
Chapter 6. Using the Setup Utility
The Setup Utility program is used to view and change the configuration settings of
the computer, regardless of which operating system you are using. However, the
operating-system settings might override any similar settings in the Setup Utility
program.
Starting the Setup Utility program
To start the Setup Utility program, do the following:
1. If the computer is already on when you start this procedure, shut down the
operating system and turn off the computer.
2. Press and hold the F1 key then turn on the computer. When you hear multiple
beeps, release the F1 key.
Notes:
a. If you are using a USB keyboard and the Setup Utility program does not
display using this method, repeatedly press and release the F1 key rather
than leaving it pressed when turning on the computer.
b. If a user password or an administrator password has been set, the Setup
Utility program menu is not displayed until you type your password. For
more information, see “Using passwords.”
The Setup Utility might start automatically when POST detects that hardware has
been removed or new hardware has been installed in the computer.
Viewing and changing settings
The Setup Utility program menu lists items that identify system configuration
topics. To view or change settings, see “Starting the Setup Utility program.”
When working with the Setup Utility program menu, you must use the keyboard.
The keys used to perform various tasks are displayed at the bottom of each screen.
Using passwords
By using the Setup Utility program, you can set passwords to prevent
unauthorized persons from gaining access to the computer and data. See “Starting
the Setup Utility program.” The following types of passwords are available:
vUser Password
vAdministrator Password
You do not have to set any passwords to use the computer. However, if you decide
to set any passwords, read the following sections.
Password considerations
A password can be any combination of up to twelve characters (a-z and 0-9) and
symbols. For security reasons, it is a good idea to use a strong password that
cannot be easily compromised. Passwords should adhere to the following rules:
vHave at least seven characters in length
vContain at least one alphabetic character, one numeric character, and one symbol
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 51
vContain at least one of the following symbols:,./`;'[]
vYou can also use the space bar
vSetup Utility program and hard disk drive passwords are not case sensitive
vNot be your name or your user name
vNot be a common word or a common name
vBe significantly different from your previous password
User Password
When a User Password is set, the computer cannot be used until a valid password
is typed from the keyboard.
Administrator Password
When an Administrator Password is set, it deters unauthorized persons from
changing configuration settings. If you are responsible for maintaining the settings
of several computers, you might want to set an Administrator Password.
After you set an Administrator Password, a password prompt is displayed each
time you try to access the Setup Utility program.
If both the user and administrator passwords are set, you can type either
password. However, to change any configuration settings, you must use your
administrator password.
Setting, changing, and deleting a password
To set, change, or delete a password, do the following:
Note: A password can be any combination of up to twelve characters (A- Z, a-z,
and 0-9). For more information, see “Password considerations” on page 51.
1. Start the Setup Utility program (see “Starting the Setup Utility program” on
page 51).
2. From the Setup Utility program menu, select Security.
3. Select Set Passwords. Read the information displayed on the right side of the
screen.
Selecting a startup device
If the computer does not start up (boot) from a device such as the CD-ROM,
diskette, or hard disk as expected, use one of the following procedures to select a
startup device.
Selecting a temporary startup device
Use this procedure to startup from any boot device.
Note: Not all CDs, hard disks, and diskettes are bootable.
1. Turn off the computer.
2. Press and hold the F12 key then turn on the computer. When the Startup
Device Menu appears, release the F12 key.
Note: If you are using a USB keyboard and the Startup Device Menu does not
display using this method, repeatedly press and release the F12 key
rather than leaving it pressed when turning on the computer.
52 Hardware Maintenance Manual
3. Select the desired startup device from the Startup Device Menu and press Enter
to begin.
Note: Selecting a startup device from the Startup Device menu does not
permanently change the startup sequence.
Selecting or changing the startup device sequence
To view or permanently change the configured startup device sequence, do the
following:
1. Start the Setup Utility program (see “Starting the Setup Utility program” on
page 51).
2. Select Startup.
3. Select Startup Sequence. See the information displayed on the right side of the
screen.
4. Select the devices for the Primary Startup Sequence, the Automatic Startup
Sequence, and the Error Startup Sequence.
5. Select Exit from the Setup Utility menu and then Save Settings or Save and
exit the Setup Utility.
If you have changed these settings and want to return to the default settings, select
Load Default Settings on the Exit menu.
Advanced settings
On some computer models the Advanced settings menu includes a setting to
Enable/Disable HyperThreading. This feature works only with
HyperThreading-aware operating systems, such as Microsoft Windows XP and
Windows Vista™. The default setting for HyperThreading is Enabled. However, if
you select Set Defaults and are using an operating system other than Windows XP
or Windows Vista, the computer performance might be degraded. Therefore, you
should always set HyperThreading to Disabled unless you are sure your operating
system supports HyperThreading.
Exiting from the Setup Utility program
When you finish viewing or changing settings, press Esc to return to the Setup
Utility program menu (you might have to press Esc several times). If you want to
save the new settings, select Save & Exit Setup before you exit. Otherwise, your
changes will not be saved.
Chapter 6. Using the Setup Utility 53
54 Hardware Maintenance Manual
Chapter 7. Symptom-to-FRU Index
The Symptom-to-FRU index lists error symptoms and possible causes. The most
likely cause is listed first. Always begin with Chapter 4, “General Checkout,” on
page 43. This index can also be used to help you decide which FRUs to have
available when servicing a computer. If you are unable to correct the problem
using this index, go to “Undetermined problems” on page 82.
Notes:
vIf you have both an error message and an incorrect audio response, diagnose the error
message first.
vIf you cannot run the diagnostic tests or you get a diagnostic error code when running a
test, but did receive a POST error message, diagnose the POST error message first.
vIf you did not receive any error message, look for a description of your error symptoms
in the first part of this index.
Hard disk drive boot error
A hard disk drive boot error (error codes 1962 and I999030X) can have the
following causes.
Error FRU/Action
The start-up drive is not in the boot
sequence in configuration.
Check the configuration and ensure the
start-up drive is in the boot sequence.
No operating system installed on the boot
drive.
Install an operating system on the boot
drive.
The boot sector on the start-up drive is
corrupted.
The drive must be formatted, do the
following:
1. Attempt to back-up the data on the
failing hard disk drive.
2. Using the operating systems programs,
format the hard disk drive.
The drive is defective. Replace the hard disk drive.
Power Supply Problems
If you suspect a power problem, use the following procedures.
Check/Verify FRU/Action
Check the following for proper installation.
vPower Cord
vOn/Off Switch connector
vOn/Off Switch Power Supply connector
vSystem Board Power Supply connectors
vMicroprocessor(s) connection
Reseat connectors
Check the power cord for continuity. Power Cord
Check the power-on switch for continuity. Power-on Switch
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 55
Diagnostic error codes
Refer to the following diagnostic error codes when using the diagnostic tests. See
“Running tests” on page 47 for the specific type for information about the
Diagnostic programs.
In the following index, Xcan represent any number.
Diagnostic Error Code FRU/Action
000-000-XXX
BIOS Test Passed
No action
000-002-XXX
BIOS Timeout 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
000-024-XXX
BIOS Addressing test failure 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
000-025-XXX
BIOS Checksum Value error 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
000-026-XXX
FLASH data error 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
000-027-XXX
BIOS Configuration/Setup error 1. Run Setup
2. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
3. System board
000-034-XXX
BIOS Buffer Allocation failure 1. Reboot the system
2. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
3. Run memory test
4. System board
000-035-XXX
BIOS Reset Condition detected 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
000-036-XXX
BIOS Register error 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
56 Hardware Maintenance Manual
Diagnostic Error Code FRU/Action
000-038-XXX
BIOS Extension failure 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. Adapter card
3. System board
000-039-XXX
BIOS DMI data error 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
000-195-XXX
BIOS Test aborted by user
Information only
Re-start the test, if necessary
000-196-XXX
BIOS test halt, error threshold exceeded 1. Press F3 to review the log file
2. Re-start the test to reset the log file
000-197-XXX
BIOS test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
000-198-XXX
BIOS test aborted 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and retest. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
000-199-XXX
BIOS test failed, cause unknown 1. Go to “Undetermined problems” on page
82
2. Flash the system and re-test
3. Replace component under function test
000-250-XXX
BIOS APM failure 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
000-270-XXX
BIOS ACPI failure 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
001-000-XXX
System Test Passed
No action
001-00X-XXX
System Error
System board
001-01X-XXX
System Error
System board
Chapter 7. Symptom-to-FRU Index 57
Diagnostic Error Code FRU/Action
001-024-XXX
System Addressing test failure
System board
001-025-XXX
System Checksum Value error 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
001-026-XXX
System FLASH data error 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
001-027-XXX
System Configuration/Setup error 1. Run Setup
2. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
3. System board
001-032-XXX
System Device Controller failure
System board
001-034-XXX
System Device Buffer Allocation failure 1. Reboot the system
2. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
3. Run memory test
4. System board
001-035-XXX
System Device Reset condition detected
System board
001-036-XXX
System Register error
System board
001-038-XXX
System Extension failure 1. Adapter card
2. System board
001-039-XXX
System DMI data structure error 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
001-040-XXX
System IRQ failure 1. Power-off/on system and re-test
2. System board
001-041-XXX
System DMA failure 1. Power-off/on system and re-test
2. System board
001-195-XXX
System Test aborted by user
Information only
Re-start the test, if necessary
001-196-XXX
System test halt, error threshold exceeded 1. Press F3 to review the log file
2. Re-start the test to reset the log file
58 Hardware Maintenance Manual
Diagnostic Error Code FRU/Action
001-197-XXX
System test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
001-198-XXX
System test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and retest. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
001-199-XXX
System test failed, cause unknown 1. Go to “Undetermined problems” on page
82
2. Flash the system and re-test
3. Replace component under function test
001-250-XXX
System ECC error
System board
001-254-XXX
001-255-XXX
001-256-XXX
001-257-XXX
System DMA error
System board
001-260-XXX
001-264-XXX
System IRQ error
System board
001-268-XXX
System IRQ1 failure 1. Device on IRQ1
2. System board
001-269-XXX
System IRQ2 failure 1. Device on IRQ2
2. System board
001-270-XXX
System IRQ3 failure 1. Device on IRQ3
2. System board
001-271-XXX
System IRQ4 failure 1. Device on IRQ4
2. System board
001-272-XXX
System IRQ5 failure 1. Device on IRQ5
2. System board
001-273-XXX
System IRQ6
(diskette drive) failure
1. Diskette Cable
2. Diskette drive
3. System board
001-274-XXX
System IRQ7 failure 1. Device on IRQ7
2. System board
Chapter 7. Symptom-to-FRU Index 59
Diagnostic Error Code FRU/Action
001-275-XXX
System IRQ8 failure 1. Device on IRQ8
2. System board
001-276-XXX
System IRQ9 failure 1. Device on IRQ9
2. System board
001-277-XXX
System IRQ10 failure 1. Device on IRQ10
2. System board
001-278-XXX
System IRQ11 failure 1. Device on IRQ11
2. System board
001-279-XXX
System IRQ12 failure 1. Device on IRQ12
2. System board
001-280-XXX
System IRQ13 failure 1. Device on IRQ13
2. System board
001-281-XXX
System IRQ14
(hard disk drive) failure
1. Hard disk drive cable
2. Hard disk drive
3. System board
001-282-XXX
System IRQ15 failure 1. Device on IRQ15
2. System board
001-286-XXX
001-287-XXX
001-288-XXX
System Timer failure
System board
001-292-XXX
System CMOS
RAM error
1. Run Setup and re-test
2. System board
001-293-XXX
System CMOS Battery 1. CMOS Battery
2. System board
001-298-XXX
System RTC date/time update failure 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
001-299-XXX
System RTC periodic interrupt failure
System board
001-300-XXX
System RTC Alarm failure
System board
001-301-XXX
System RTC Century byte error 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
005-000-XXX
Video Test Passed
No action
005-00X-XXX
Video error 1. Video card, if installed
2. System board
60 Hardware Maintenance Manual
Diagnostic Error Code FRU/Action
005-010-XXX
005-011-XXX
005-012-XXX
005-013-XXX
Video Signal failure
1. Video card, if installed
2. System board
005-016-XXX
Video Simple Pattern
test failure
1. Video Ram
2. Video card, if installed
3. System board
005-024-XXX
Video Addressing test failure 1. Video card, if installed
2. System board
005-025-XXX
Video Checksum Value error 1. Video card, if installed
2. System board
005-027-XXX
Video Configuration/Setup error 1. Run Setup
2. Video drivers update
3. Video card, if installed
4. System board
005-031-XXX
Video Device Cable failure 1. Video cable
2. Monitor
3. Video card, if installed
4. System board
005-032-XXX
Video Device Controller failure 1. Video card, if installed
2. System board
005-036-XXX
Video Register error 1. Video card, if installed
2. System board
005-038-XXX
System BIOS extension failure 1. Video card, if installed
2. System board
005-040-XXX
Video IRQ failure 1. Video card, if installed
2. System board
005-195-XXX
Video Test aborted by user
Information only
Re-start the test, if necessary
005-196-XXX
Video test halt, error threshold exceeded 1. Press F3 to review the log file
2. Re-start the test to reset the log file
005-197-XXX
Video test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component called out in
warning statement
4. Replace the component under test
Chapter 7. Symptom-to-FRU Index 61
Diagnostic Error Code FRU/Action
005-198-XXX
Video test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
005-199-XXX
Video test failed, cause unknown 1. Go to “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
005-2XX-XXX
005-3XX-XXX
Video subsystem error
1. Video card, if installed
2. System board
006-000-XXX
Diskette interface Test Passed
No action
006-0XX-XXX
Diskette interface error 1. Diskette drive Cable
2. Diskette drive
3. System board
006-195-XXX
Diskette interface Test aborted by user
Information only
Re-start the test, if necessary
006-196-XXX
Diskette interface test halt, error threshold
exceeded
1. Press F3 to review the log file
2. Re-start the test to reset the log file
006-197-XXX
Diskette interface test warning 1. If a component is called out, make sure
it is connected and/or enabled
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
006-198-XXX
Diskette interface test aborted 1. If a component is called out, make sure
it is connected and/or enabled
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
006-199-XXX
Diskette interface test failed, cause unknown 1. Go to “Undetermined problems” on page
82
2. Flash the system and re-test
3. Replace component under function test
006-25X-XXX
Diskette interface Error 1. Diskette drive cable
2. Diskette drive
3. System board
62 Hardware Maintenance Manual
Diagnostic Error Code FRU/Action
011-000-XXX
Serial port Interface Test Passed
No action
011-001-XXX
Serial port Presence 1. Remove external serial device, if
present
2. Run setup, enable port
3. System board
011-002-XXX
011-003-XXX
Serial port Timeout/Parity error
System board
011-013-XXX
011-014-XXX
Serial port Control Signal/Loopback test
failure
System board
011-015-XXX
Serial port External Loopback failure 1. Wrap plug
2. System board
011-027-XXX
Serial port Configuration/Setup error 1. Run Setup, enable port
2. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
3. System board
011-03X-XXX
011-04X-XXX
Serial port failure
System board
011-195-XXX
Serial port Test aborted by user
Information only
Re-start the test, if necessary
011-196-XXX
Serial port test halt, error threshold exceeded 1. Press F3 to review the log file
2. Re-start the test to reset the log file
011-197-XXX
Serial port test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
011-198-XXX
Serial port test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
Chapter 7. Symptom-to-FRU Index 63
Diagnostic Error Code FRU/Action
011-199-XXX
Serial port test failed, cause unknown 1. Go to “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
011-2XX-XXX
Serial port signal failure 1. External serial device
2. System board
014-000-XXX
Parallel port Interface Test Passed
No action
014-001-XXX
Parallel port Presence 1. Remove external parallel device, if
present
2. Run setup, enable port
3. System board
014-002-XXX
014-003-XXX
Parallel port Timeout/Parity error
System board
014-013-XXX
014-014-XXX
Parallel port Control Signal/Loopback test
failure
System board
014-015-XXX
Parallel port External Loopback failure 1. Wrap plug
2. System board
014-027-XXX
Parallel port Configuration/Setup error 1. Run Setup, enable port
2. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
3. System board
014-03X-XXX
014-04X-XXX
Parallel port failure
System board
014-195-XXX
Parallel port Test aborted by user
Information only
Re-start the test, if necessary
014-196-XXX
Parallel port test halt, error threshold
exceeded
1. Press F3 to review the log file
2. Re-start the test to reset the log file
014-197-XXX
Parallel port test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
64 Hardware Maintenance Manual
Diagnostic Error Code FRU/Action
014-198-XXX
Parallel port test aborted 1. If a component is called out, make sure
it is connected and/or enabled
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
014-199-XXX
Parallel port test failed, cause unknown 1. Go to “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
014-2XX-XXX
014-3XX-XXX
Parallel port failure
1. External parallel device
2. System board
015-000-XXX
USB port Interface Test Passed
No action
015-001-XXX
USB port Presence 1. Remove USB device(s) and re-test
2. System board
015-002-XXX
USB port Timeout 1. Remove USB device(s) and re-test
2. System board
015-015-XXX
USB port External Loopback failure 1. Remove USB device(s) and re-test
2. System board
015-027-XXX
USB port Configuration/Setup error 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. System board
015-032-XXX
USB port Device Controller failure
System board
015-034-XXX
USB port buffer
allocation failure
1. Reboot the system
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Run memory test
4. System board
015-035-XXX
USB port Reset condition detected 1. Remove USB device(s) and re-test
2. System board
015-036-XXX
USB port Register error
System board
015-040-XXX
USB port IRQ failure 1. Run setup and check for conflicts
2. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
3. System board
015-195-XXX
USB port Test aborted by user
Information only
Re-start the test, if necessary
Chapter 7. Symptom-to-FRU Index 65
Diagnostic Error Code FRU/Action
015-196-XXX
USB port test halt, error threshold exceeded 1. Press F3 to review the log file
2. Re-start the test to reset the log file
015-197-XXX
USB port test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
015-198-XXX
USB port test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
015-199-XXX
USB port test failed, cause unknown 1. Go to “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
018-000-XXX
PCI Card Test Passed
No action
018-0XX-XXX
PCI Card Failure 1. Riser card, if installed
2. System board
018-195-XXX
PCI Card Test aborted by user 1. PCI card
2. Information only
Re-start the test, if necessary
018-196-XXX
PCI Card test halt, error threshold exceeded 1. Press F3 to review the log file
2. Re-start the test to reset the log file
018-197-XXX
PCI Card test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
66 Hardware Maintenance Manual
Diagnostic Error Code FRU/Action
018-198-XXX
PCI Card test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
018-199-XXX
PCI Card test failed, cause unknown 1. Go to “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
018-250-XXX
PCI Card Services error 1. PCI card
2. Riser card, if installed
3. System board
020-000-XXX
PCI Interface Test Passed
No action
020-0XX-XXX
PCI Interface error 1. PCI card
2. Riser card, if installed
3. System board
020-195-XXX
PCI Test aborted by user
Information only
Re-start the test, if necessary
020-196-XXX
PCI test halt, error threshold exceeded 1. Press F3 to review the log file
2. Re-start the test to reset the log file
020-197-XXX
PCI test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
020-198-XXX
PCI test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
Chapter 7. Symptom-to-FRU Index 67
Diagnostic Error Code FRU/Action
020-199-XXX
PCI test failed, cause unknown 1. Go to “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
020-262-XXX
PCI system error 1. PCI card
2. Riser card, if installed
3. System board
025-000-XXX
IDE interface Test Passed
No action
025-00X-XXX
025-01X-XXX
IDE interface failure
1. IDE signal cable
2. Check power supply voltages
3. Reseat IDE signal cable
4. IDE device
5. System board
025-027-XXX
IDE interface Configuration/Setup error 1. IDE signal cable
2. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
3. Reseat IDE signal cable
4. IDE device
5. System board
025-02X-XXX
025-03X-XXX
025-04X-XXX
IDE Interface failure
1. IDE signal cable
2. Check power supply
3. Reseat IDE signal cable
4. IDE device
5. System board
025-195-XXX
IDE interface Test aborted by user
Information only
Re-start the test, if necessary
025-196-XXX
IDE interface test halt, error threshold
exceeded
1. Press F3 to review the log file
2. Re-start the test to reset the log file
025-197-XXX
IDE interface test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
68 Hardware Maintenance Manual
Diagnostic Error Code FRU/Action
025-198-XXX
IDE interface test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
025-199-XXX
IDE interface test failed, cause unknown 1. Go to “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
030-000-XXX
SCSI interface Test Passed
No action
030-00X-XXX
030-01X-XXX
SCSI interface failure
1. SCSI signal cable
2. Check power supply
3. SCSI device
4. SCSI adapter card, if installed
5. System board
030-027-XXX
SCSI interface Configuration/Setup error 1. SCSI signal cable
2. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
3. SCSI device
4. SCSI adapter card, if installed
5. System board
030-03X-XXX
030-04X-XXX
SCSI interface error
1. SCSI signal cable
2. Check power supply
3. SCSI device
4. SCSI adapter card, if installed
5. System board
030-195-XXX
SCSI interface Test aborted by user
Information only
Re-start the test, if necessary
030-196-XXX
SCSI interface test halt, error threshold
exceeded
1. Press F3 to review the log file
2. Re-start the test to reset the log file
030-197-XXX
SCSI interface test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
Chapter 7. Symptom-to-FRU Index 69
Diagnostic Error Code FRU/Action
030-198-XXX
SCSI interface test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
030-199-XXX
SCSI interface test failed, cause unknown 1. Go to “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
035-000-XXX
RAID interface Test Passed
No action
035-0XX-XXX
RAID interface Failure 1. RAID signal cable
2. RAID device
3. RAID adapter card, if installed
4. System board
035-195-XXX
RAID interface Test aborted by user
Information only
Re-start the test, if necessary
035-196-XXX
RAID interface test halt, error threshold
exceeded
1. Press F3 to review the log file
2. Re-start the test to reset the log file
035-197-XXX
RAID interface test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
035-198-XXX
RAID interface test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
035-199-XXX
RAID interface test failed, cause unknown 1. See “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
70 Hardware Maintenance Manual
Diagnostic Error Code FRU/Action
071-000-XXX
Audio port Interface Test Passed
No action
071-00X-XXX
071-01X-XXX
071-02X-XXX
Audio port error
1. Run Setup
2. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
3. System board
071-03X-XXX
Audio port failure 1. Speakers
2. Microphone
3. Audio card, if installed
4. System board
071-04X-XXX
Audio port failure 1. Run Setup
2. Audio card, if installed
3. System board
071-195-XXX
Audio port Test aborted by user
Information only
Re-start the test, if necessary
071-196-XXX
Audio port test halt, error threshold
exceeded
1. Press F3 to review the log file
2. Re-start the test to reset the log file
071-197-XXX
Audio port test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
071-198-XXX
Audio port test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
071-199-XXX
Audio port test failed, cause unknown 1. See “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
071-25X-XXX
Audio port failure 1. Speakers
2. Audio card, if installed
3. System board
080-000-XXX
Game Port interface Test Passed
No action
Chapter 7. Symptom-to-FRU Index 71
Diagnostic Error Code FRU/Action
080-XXX-XXX
Game Port interface Error 1. Remove the game port device and
re-test the system
080-195-XXX
Game Port interface Test aborted by user
Information only
Re-start the test, if necessary
080-196-XXX
Game Port interface test halt, error threshold
exceeded
1. Press F3 to review the log file
2. Re-start the test to reset the log file
080-197-XXX
Game Port interface test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
080-198-XXX
Game Port interface test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
080-199-XXX
Game Port interface test failed, cause
unknown
1. See “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
086-000-XXX
Mouse Port interface Test Passed
No action
086-001-XXX
Mouse Port interface Presence 1. Mouse
2. System board
086-032-XXX
Mouse Port interface Device controller
failure
1. Mouse
2. System board
086-035-XXX
Mouse Port interface Reset 1. Mouse
2. System board
086-040-XXX
Mouse Port interface IRQ failure 1. Run Setup
2. Mouse
3. System board
086-195-XXX
Mouse Port interface Test aborted by user
Information only
Re-start the test, if necessary
086-196-XXX
Mouse Port interface test halt, error
threshold exceeded
1. Press F3 to review the log file
2. Re-start the test to reset the log file
72 Hardware Maintenance Manual
Diagnostic Error Code FRU/Action
086-197-XXX
Mouse Port interface test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
086-198-XXX
Mouse Port interface test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
086-199-XXX
Mouse Port interface test failed, cause
unknown
1. See “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
089-000-XXX
Microprocessor Test Passed
No action
089-XXX-XXX
Microprocessor failure 1. Microprocessor(s)
2. System board
089-195-XXX
Microprocessor Test aborted by user
Information only
Re-start the test, if necessary
089-196-XXX
Microprocessor test halt, error threshold
exceeded
1. Press F3 to review the log file
2. Re-start the test to reset the log file
089-197-XXX
Microprocessor test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
089-198-XXX
Microprocessor test aborted 1. Flash the system. See “Updating
(flashing) BIOS from a CD-ROM or
diskette” on page 786
2. Go to “Undetermined problems” on page
82
Chapter 7. Symptom-to-FRU Index 73
Diagnostic Error Code FRU/Action
089-199-XXX
Microprocessor test failed, cause unknown 1. See “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
170-000-XXX
Voltage Sensor(s) Test Passed
No action
170-0XX-XXX
Voltage Sensor(s) failure 1. Flash system
2. System board
170-195-XXX
Voltage Sensor(s) Test aborted by user
Information only
Re-start the test, if necessary
170-196-XXX
Voltage Sensor(s) test halt, error threshold
exceeded
1. Press F3 to review the log file
2. Re-start the test to reset the log file
170-197-XXX
Voltage Sensor(s) test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
170-198-XXX
Voltage Sensor(s) test aborted 1. If a component is called out, make sure
it is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
170-199-XXX
Voltage Sensor(s) test failed, cause unknown 1. See “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
170-250-XXX
170-251-XXX
Voltage Sensor(s) Voltage limit error
1. Power supply
2. System board
170-254-XXX
Voltage Sensor(s) Voltage Regulator Module
error
1. Voltage Regulator Module (VRM)
2. Microprocessor
3. System board
175-000-XXX
Thermal Sensor(s) Test Passed
No action
175-0XX-XXX
Thermal Sensor(s) failure 1. Flash system
2. System board
74 Hardware Maintenance Manual
Diagnostic Error Code FRU/Action
175-195-XXX
Thermal Sensor(s) Test aborted by user
Information only
Re-start the test, if necessary
175-196-XXX
Thermal Sensor(s) test halt, error threshold
exceeded
1. Press F3 to review the log file
2. Re-start the test to reset the log file
175-197-XXX
Thermal Sensor(s) test warning 1. Make sure the component that is called
out is connected and/or enabled. See
Chapter 6, “Using the Setup Utility,” on
page 51
2. Re-run test
3. Replace the component that is called out
in warning statement
4. Replace the component under test
175-198-XXX
Thermal Sensor(s) test aborted 1. If a component is called out, make sure
it is connected and/or enabled
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Go to “Undetermined problems” on page
82
175-199-XXX
Thermal Sensor(s) test failed, cause
unknown
1. See “Undetermined problems” on page
82
2. Flash the system and re-test. See
“Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786
3. Replace component under function test
175-250-XXX
175-251-XXX
Thermal Sensor(s) limit error
1. Check fans
2. Check Power supply voltages
3. Microprocessor
4. System board
185-000-XXX
Asset Security Test Passed
No action
185-XXX-XXX
Asset Security failure 1. Flash system
2. System board
185-278-XXX
Asset Security Chassis Intrusion 1. Assure Asset Security Enabled
2. C2 Cover Switch
3. System board
201-000-XXX
System Memory Test Passed
No action
201-XXX-XXX
System Memory error 1. Replace the memory module called out
by the test
2. System board
202-000-XXX
System Cache Test Passed
No action
202-XXX-XXX
System Cache error 1. Cache, if removable
2. System board
3. Microprocessor
Chapter 7. Symptom-to-FRU Index 75
Diagnostic Error Code FRU/Action
206-000-XXX
Diskette Drive Test Passed
No action
206-XXX-XXX
Diskette Drive error 1. Diskette Drive Cable
2. Check power supply voltages
3. Diskette drive
4. System board
215-000-XXX
CD-ROM Drive Test Passed
No action
215-XXX-XXX
CD-ROM Drive error 1. CD-ROM Drive Cable
2. Check power supply voltages
3. CD-ROM drive
4. System board
217-000-XXX
Hard Disk Drive Test Passed
No action
217-25X-XXX
217-26X-XXX
Hard Disk Drive (IDE) error
1. Hard Disk Drive Cable
2. Check power supply voltages
3. Reseat the hard disk drive cable
4. Hard Disk drive (IDE)
5. System board
217-28X-XXX
217-29X-XXX
Hard Disk Drive (SCSI) error
1. Hard Disk Drive Cable
2. Check power supply voltages
3. Reseat the hard disk drive cable
4. Hard Disk drive (SCSI)
5. SCSI adapter card
6. System board
220-000-XXX
Hi-Capacity Cartridge Drive Test Passed
No action
220-XXX-XXX
Hi-Capacity Cartridge Drive error 1. Remove the Hi-Capacity Cartridge
Drive and re-test the system
301-XXX-XXX
Keyboard error 1. Keyboard
2. Check and test mouse
3. System board
301-000-XXX
Keyboard Test Passed
No action
302-000-XXX
Mouse Test Passed
No action
302-XXX-XXX
Mouse error 1. Mouse
2. Check and test Keyboard
3. System board
303-000-XXX
Joystick Test Passed
No action
303-XXX-XXX
Joystick error
Remove the Joystick and re-test the system
305-000-XXX
Monitor DDC Test Passed
No action
76 Hardware Maintenance Manual
Diagnostic Error Code FRU/Action
305-250-XXX
Monitor DDC self test failure 1. Run Setup to enable DDC
2. Cable
3. Monitor
4. Video card
5. System board
415-000-XXX
Modem Test Passed
No action
415-XXX-XXX
Modem error
Remove the Modem and re-test the system
Chapter 7. Symptom-to-FRU Index 77
Beep symptoms
Beep symptoms are tones or a series of tones separated by pauses (intervals
without sound) during POST.
The following tables describes beep symptoms.
Beep Symptom FRU/Action
2 short beeps
CMOS setting error
Perform the following actions in order.
1. Start the Setup Utility program and press
F10 to Save and exit. See Chapter 6,
“Using the Setup Utility,” on page 51.
2. Start the Setup Utility program and press
F7 to load defaults and then press F10 to
Save and exit.
3. Perform a Boot block recovery. See
“Recovering from a POST/BIOS update
failure” on page 786.
1 long and 2 short beeps
Monitor or video adapter card error
Perform the following actions in order.
1. Make sure the monitor is properly
connected to the computer.
2. Replace the video adapter card (if
present).
3. Replace the system board.
1 long and 3 short beeps
Keyboard error
Perform the following actions in order.
1. Make sure the keyboard is properly
connected to the keyboard connector.
2. Replace the keyboard.
3. Replace the system board.
1 long and 9 short beeps BIOS ROM error Perform the following actions in order.
1. Start the Setup Utility program and press
F7 to load defaults and then press F10 to
Save and exit. See Chapter 6, “Using the
Setup Utility,” on page 51.
2. Perform a Boot block recovery. See
“Recovering from a POST/BIOS update
failure” on page 786.
3. Replace the system board.
Continuos long beeps
DRAM memory error
Perform the following actions in order.
1. Make sure the memory module(s) are
properly seated in the connector(s).
2. Replace the memory module(s).
3. Replace the system board.
78 Hardware Maintenance Manual
POST error codes
Each time you power-on the system, it performs a series of tests that check the
operation of the system and some options. This series of tests is called the
Power-On Self-Test,orPOST. POST does the following operations.
vChecks some basic system-board operations
vChecks the memory operation
vStarts the video operation
vVerifies that the boot drive is working
If the POST detects a problem, an error message appears on the screen. A single
problem can cause several error messages to appear. When you correct the cause of
the first error message, the other error messages probably will not appear on the
screen the next time you turn on the system.
POST Error Message Description/Action
CMOS battery failed The CMOS battery is no longer functional.
Replace the battery.
CMOS checksum error - defaults loaded Checksum of CMOS is incorrect.
The computer loads the default
configuration settings. This error might
indicate that CMOS has become corrupt due
to a weak CMOS battery.
CPU at nnnn nnnn is the running speed of the
microprocessor.
Press Esc to skip memory test Pressing Esc skips the full memory test
HARD DISK INSTALL FAILURE Cannot find or initialize the hard disk drive
controller or the drive.
Make sure the hard disk drive is correctly
installed.
If no hard disk drives are installed, make
sure the hard disk drive selection in Setup is
set to NONE.
Keyboard error or no keyboard present Cannot initialize the keyboard.
Make sure the keyboard is properly
connected to the computer and that no keys
are held pressed during POST.
To purposely configure the computer
without a keyboard, set the error halt
condition in Setup to HALT ON ALL, BUT
KEYBOARD. The BIOS then ignores the
missing keyboard during POST.
Memory Test: This message displays during a full memory
test, counting down the memory areas being
tested.
Memory test fail If POST detects an error during memory
testing, additional information appears. This
information gives specifics about the type
and location of the memory error.
Chapter 7. Symptom-to-FRU Index 79
POST Error Message Description/Action
Press TAB to show POST screen Pressing the TAB key permits the user to
toggle between the default POST display
screen and a custom POST display screen.
Error: Non-System disk or disk error
Replace and press any key when ready
The BIOS was unable to find a suitable boot
device.
Make sure the boot drive is properly
connected to the computer.
Make sure you have bootable media.
80 Hardware Maintenance Manual
Miscellaneous error messages
Message/Symptom FRU/Action
Changing display colors Display/Monitor
Computer will not power-off. See “Power
Supply Problems” on page 55. 1. Power Switch
2. System Board
3. Riser card, if installed
Computer will not RPL from server 1. Ensure that network is in startup
sequence as first device or first device
after diskette
2. Ensure that network adapter is enabled
for RPL
3. Network adapter (Advise network
administrator of new MAC address)
Computer will not perform a Wake On
LAN®(if applicable) 1. Check power supply and signal cable
connections to network adapter
2. Ensure that the operating system settings
are set to enable Wake on LAN®
3. Ensure Wake On LAN feature is enabled
in Setup/Configuration (see “Starting the
Setup Utility program” on page 51)
4. Ensure network administrator is using
correct MAC address
5. Ensure no interrupt or I/O address
conflicts
6. Network adapter (advise network
administrator of new MAC address)
Dead computer. See “Power Supply
Problems” on page 55. 1. Power Supply
2. System Board
Diskette drive in-use light remains on or
does not light when drive is active. 1. Diskette Drive
2. System Board
3. Diskette Drive Cable
Flashing cursor with an otherwise blank
display. 1. System Board
2. Primary Hard Disk Drive
3. Hard Disk Drive Cable
Incorrect memory size during POST 1. Run the Memory tests
2. Memory Module
3. System Board
″Insert a Diskette″icon appears with a
known-good diagnostics diskette in the first
3.5-inch diskette drive.
1. System Board
2. Diskette Drive Cable
3. Network Adapter
Intensity or color varies from left to right of
characters and color bars 1. Display
2. Video adapter (if present)
3. System Board
No power or fan not running 1. See “Power Supply Problems” on page
55.
Chapter 7. Symptom-to-FRU Index 81
Message/Symptom FRU/Action
Non-system disk or disk error-type message
with a known-good diagnostic diskette. 1. Diskette Drive
2. System Board
3. Diskette Drive Cable
Other display symptoms not listed above
(including blank or illegible display) 1. Display
2. System Board
Power-on indicator or hard disk drive in-use
light not on, but computer works correctly 1. Power switch/LED assembly
2. System Board
Printer problems 1. Printer
2. System Board
Program loads from the hard disk with a
known-good diagnostics diskette in the first
3.5-inch diskette drive
1. Run Setup and check Startup sequence.
2. Diskette Drive
3. Diskette Drive Cable
4. System Board
5. Power Supply
RPL computer cannot access programs from
its own hard disk. 1. If network administrator is using
LCCM Hybrid RPL, check startup
sequence:
a. First device - network
b. Second device - hard disk
2. Hard disk drive
RPL computer does not RPL from server 1. Check startup sequence
2. Check the network adapter LED status
Serial or parallel port device failure (system
board port) 1. External Device Self-Test OK?
2. External Device
3. Cable
4. System Board
Serial or parallel port device failure (adapter
port) 1. External Device Self-Test OK?
2. External Device
3. Cable
4. Alternate Adapter
5. System Board
Some or all keys on the keyboard do not
work 1. Keyboard
2. Keyboard Cable
3. System Board
Undetermined problems
If this computer has a parallel ATA hard disk drive, make sure that the hard disk
drive is jumpered as a master and the optical drive is jumpered as a slave.
1. Power-off the computer.
2. Remove or disconnect the following components (if installed) one at a time.
a. External devices (modem, printer, or mouse)
b. Any adapters
82 Hardware Maintenance Manual
c. Memory modules
d. Extended video memory
e. External Cache
f. External Cache RAM
g. Hard disk drive
h. Diskette drive
3. Power-on the computer to re-test the system.
4. Repeat steps 1 through 3 until you find the failing device or adapter.
If all devices and adapters have been removed, and the problem continues, replace
the system board.
Chapter 7. Symptom-to-FRU Index 83
84 Hardware Maintenance Manual
Chapter 8. Replacing FRUs (Types 7065, 7096, 9351, 9358,
9438, 9481, 9489, 9703, 9784, 9788, 9792, 9853, 9949)
Important
Before you replace any FRU, read Chapter 2, “Safety information,” on page 3.
These precautions and guidelines will help you work safely.
FRU replacements are to be done by trained service technicians only.
This chapter does not contain a remove and replace procedure for all FRUs. Only
the major FRUs are documented.
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 85
Locations
The following illustrations will help when locating connectors, controls and
components of the computer.
Rear connectors
The following illustration shows the locations of the connectors on the rear of the
computer.
1 Standard mouse connector 9 PCI Express x16 adapter connector or )
PCI Express x1 adapter connector (some
models)
2 Parallel connector 10 Audio line out connector
3 Ethernet connector 11 Microphone connector
4 Audio line in connector 12 USB connectors (2)
5 Power cord connector 13 USB connectors (2)
6 Voltage selection switch (some
models)
14 VGA monitor connector
7 PCI adapter connectors 15 Serial connector
8 PCI Express x16 adapter connector
or ) PCI Express x1 adapter
connector (some models)
16 Standard keyboard connector
86 Hardware Maintenance Manual
Computer components
The following illustration will help you locate the major FRUs in the computer.
1Fan plenum, fan, and heat sink 6Diskette drive
2Microprocessor 7Front panel card
3Optical drive 8Memory modules
4Power switch/LED assembly 9System board
5Hard disk drive 10Power supply
Chapter 8. Replacing FRUs- Rocky computers 87
System board connectors
This illustration is to help locate the various system board connectors.
1 Microprocessor and heat sink 13 Front USB connector
2 Microprocessor fan connector 14 TCM header connector
3 Memory connector 1 15 Serial (COM) connector
4 Memory connector 2 16 Internal speaker connector
5 Power connector 17 Front audio connector
6 Diskette drive connector 18 CD_IN connector
7 IDE connector 19 PCI adapter connectors (2)
8 Power fan connector 20 PCI Express x1 adapter connector
9 Serial ATA connectors (4) 21 Battery
10 Clear CMOS/Recovery jumper 22 PCI Express x16 graphics adapter
connector
11 Front panel connector 23 12 V power connector
12 Front USB connector 24 System fan connector
88 Hardware Maintenance Manual
Removing the cover
Important
Read Chapter 2, “Safety information,” on page 3 and “Handling electrostatic
discharge-sensitive devices” on page 6 before opening the cover.
This procedure describes how to remove the cover.
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down the
operating system, and turn off all attached devices.
2. Unplug all power cords from electrical outlets.
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer.
4. Remove any locking devices such as a padlock that secure the cover.
5. If the cover is secured with thumbscrews, remove them.
6. Press the button near the front of the computer cover and slide the cover to the
rear.
Chapter 8. Replacing FRUs- Rocky computers 89
Accessing system board components and drives
You might need to remove the drive bay assembly to access system board
components such as memory, the battery, and CMOS.
To access system board components and the drives:
1. Remove the computer cover. See “Removing the cover” on page 89.
2. Remove the front bezel by releasing the three tabs and pivoting the bezel
forward to remove completely.
3. In some models, you might have to remove the PCI adapter in order to gain
access to the battery.
90 Hardware Maintenance Manual
4. Using the blue handle1, lift and slide the drive bay assembly forward until
the locating studs in the drive bay assembly are aligned with the slots on the
sides of the chassis. Pull upward on the handle to remove the drive bay
assembly completely from the chassis. Depending on what component of the
computer you want to remove, you can either disconnect the cables from the
rear of the drives or leave them connected.
Chapter 8. Replacing FRUs- Rocky computers 91
Replacing a memory module
This procedure describes how to remove and replace a memory module.
1. Remove the cover. See “Removing the cover” on page 89.
2. You might have to remove the drive bay assembly to access the memory
connectors. See “Accessing system board components and drives” on page 90.
3. Remove the memory module being replaced by opening the retaining clips as
shown.
4. Position the replacement memory module over the memory connector. Make
sure that the notch 1on the memory module aligns correctly with the
connector key2 on the system board. Push the memory module straight
down into the memory connector until the retaining clips close.
5. Slide the drive bay assembly towards the rear of the chassis until it snaps into
position.
6. Reinstall the front bezel.
7. Go to “Completing the FRU replacement” on page 111.
92 Hardware Maintenance Manual
Replacing the CMOS battery
If the CMOS battery fails, the date, time, and configuration information (including
passwords) are lost. An error message is displayed when you turn on the
computer.
Important
Refer to “Safety notices (multi-lingual translations)” on page 7 for information
about replacing and disposing of the battery.
CAUTION:
When replacing the lithium battery, use only Part Number 33F8354 or an
equivalent type battery recommended by the manufacturer.
This procedure describes how to remove and replace the CMOS battery.
1. Remove the cover. See “Removing the cover” on page 89.
2. Locate the battery. See the system board illustration for your machine type at
“System board connectors” on page 88.
3. You might have to remove any PCI adapters that impede access to the battery.
4. Remove the old battery.
5. Install the new battery.
6. Replace any PCI adapters that were removed.
Note: When the computer is turned on for the first time after battery
replacement, an error message might be displayed. This is normal after
replacing the battery.
7. Go to “Completing the FRU replacement” on page 111.
Chapter 8. Replacing FRUs- Rocky computers 93
Replacing the power supply
Attention
Never remove the cover on a power supply or any part that has the
following label attached.
Hazardous voltage, current, and energy levels are present inside any
component that has this label attached. There are no serviceable parts inside
these components.
This procedure describes how to remove and replace the power supply.
1. Remove the cover. See “Removing the cover” on page 89.
2. Remove the drive bay assembly. See “Accessing system board components
and drives” on page 90.
3. Disconnect all power supply cables from the system board. See the system
board diagram for your machine type at “System board connectors” on page
88.
4. Remove the hard disk drive. See “Replacing the hard disk drive” on page 103.
Note: Observe the power supply cable routing underneath the hard disk
drive.
5. The system board must be moved out of the way to remove the power supply.
Remove the screws that secure the system board to the chassis and slide the
system board away from the power supply.
Note: You do not have to remove the system board from the chassis to
remove the power supply.
6. At the rear of the chassis, remove the three screws that secure the power
supply. Also remove the screw that secures the power supply at the front.
94 Hardware Maintenance Manual
7. Lift the power supply out of the chassis.
8. If the power supply has a voltage-selection switch, ensure that it is set to
match the voltage available at the electrical outlet.
vIf the voltage supply range in your local country or region is 100-127 V ac,
set the switch to 115 V.
vIf the voltage supply range in your local country or region is 200-240 V ac,
set the switch to 230 V.
9. Install the new power supply and install the three screws that secure the
power supply at the rear of the chassis and install the screw that secures the
power supply at the front.
10. Position the system board so that the screws holes are properly aligned and
install the system board screws.
11. Route the power supply cable through the cable clamps underneath the hard
disk drive and reconnect all power supply cables to the system board.
12. Install the hard disk drive. See “Replacing the hard disk drive” on page 103.
13. Align the drive bay assembly studs with the two slots on the sides of the
chassis and place it into position. Reconnect any diskette drive and optical
drive cables that were disconnected.
14. Using the blue handle, slide the drive bay assembly towards the rear of the
chassis until it snaps into position.
15. Reinstall the front bezel.
16. Go to “Completing the FRU replacement” on page 111.
Chapter 8. Replacing FRUs- Rocky computers 95
Replacing the system board
This procedure describes how to remove and replace a system board. The
procedure varies depending upon the machine type.
Important
The heat sink and microprocessor might be very hot. Make sure these
components are cool enough to safely handle before continuing this
procedure.
Note: When replacing the system board you must also order a new retention
module for the new system board. Make sure you have a retention module
for the new system board before continuing with this procedure.
1. Remove the cover. See “Removing the cover” on page 89.
2. Lift the fan duct off the heat sink fan.
3. Remove any adapter cards installed in the PCI connectors.
4. You might have to remove the drive bay assembly to access the system board.
See “Accessing system board components and drives” on page 90.
5. Take note of the location of all cable connections on the system board and
disconnect all cables. See the system board illustration for your machine type
at “System board connectors” on page 88.
6. Remove the hard disk drive. See “Replacing the hard disk drive” on page 103.
7. Remove the screws that secure the system board to the chassis.
8. Lift the system board out of the chassis.
9. Remove the memory modules from the failing system board and install them
in the same location on the new system board.
10. Disconnect the heat sink and fan assembly cable from the system board. See
the system board illustration for your machine type at “System board
connectors” on page 88.
11. Remove the four screws 1 securing the heat sink and fan assembly to the
system board.
96 Hardware Maintenance Manual
12. Lift the heat sink and fan assembly off the failing system board. Place the heat
sink on its side so that the thermal grease does not come in contact with
anything.
Note: You might have to gently twist the heat sink to free it from the
microprocessor.
13. Remove the microprocessor from the failing system board. See “Replacing the
microprocessor” on page 99.
14. Remove the microprocessor socket cover from the new system board.
15. The failing system board must be returned with a microprocessor socket cover
to protect the pins during shipping and handling. Install the microprocessor
socket cover removed from the new system board on the failing system board.
To install the microprocessor socket cover:
a. Make sure the microprocessor has been removed from the microprocessor
socket, and then close the microprocessor retainer and lock it into position
with the small handle.
b. Insert the tabs 1 of the socket cover into the hinged side of the socket,
and then press the other side of the socket cover downward until the tabs
2 snap into position.
16. Install the new system board into the chassis and align the screw holes with
those in the chassis. Insert and tighten the screws that secure the system
board.
17. On the new system board, release the lever securing the microprocessor
retainer and then pivot the retainer until it is fully open.
Note: There will be a black plastic cover on the microprocessor retainer to
protect the socket on the new system board. Remove the black plastic
Chapter 8. Replacing FRUs- Rocky computers 97
cover and place it on the microprocessor socket of the failing system
board when you complete this procedure.
18. Holding the microprocessor with your fingers, position the microprocessor so
that the notches on the microprocessor are aligned with the tabs in the
microprocessor socket on the new system board.
Important
To avoid damaging the microprocessor contacts, do not tilt the
microprocessor when installing it into the socket.
19. Lower the microprocessor straight down into the system board socket of the
new system board.
20. To secure the microprocessor in the socket, close the microprocessor retainer
and lock it into position with the small handle.
21. Install the new retention module (if required) on the new system board.
22. Install the heat sink and fan assembly on the new system board.
23. Reconnect the heat sink and fan assembly cable to the system board. See the
system board illustration for your machine type at “System board connectors”
on page 88.
24. Install the new system board into the chassis and align the screw holes with
those in the chassis. Insert and tighten the screws that secure the system
board.
25. Reconnect all cables that were disconnected from the system board.
26. Reinstall the hard disk drive. See “Replacing the hard disk drive” on page
103.
27. Align the drive bay assembly with the two slots and rails on the sides of the
chassis, reconnect the drive cables on the system board, and then slide the
drive bay assembly towards the rear of the chassis until it snaps into position.
28. Reinstall the front bezel.
29. Reinstall any PCI adapter cards that were removed.
30. Position the fan duct on the heat sink fan.
31. Go to “Completing the FRU replacement” on page 111.
98 Hardware Maintenance Manual
Replacing the microprocessor
This procedure describes how to remove and replace the microprocessor. The
procedure varies depending upon the machine type.
Important
The heat sink and microprocessor might be very hot. Make sure these
components are cool enough to safely handle before continuing this
procedure.
1. Remove the cover. See “Removing the cover” on page 89.
2. Lift the fan duct off the heat sink fan.
3. Disconnect the heat sink and fan assembly cable from the system board. See
the system board illustration for your machine type at “System board
connectors” on page 88.
4. Remove the four screws 1securing the heat sink and fan assembly to the
system board.
5. Lift the heat sink and fan assembly off the system board. Place the heat sink
on its side so that the thermal grease does not come in contact with anything.
Note: You might have to gently twist the heat sink to free it from the
microprocessor.
Chapter 8. Replacing FRUs- Rocky computers 99
6. To remove the microprocessor 2 from the system board, lift the small handle
3 and open the retainer 1.
Important
Touch only the sides of the microprocessor. Do not touch the gold
contacts on the bottom.
7. Lift the microprocessor straight up and out of the socket.
100 Hardware Maintenance Manual
Notes:
a. Note the orientation of the notches 1 on the microprocessor. This is
important when reinstalling the microprocessor on the system board.
b. Do not drop anything onto the microprocessor socket while it is exposed.
The socket pins must be kept as clean as possible.
8. Make sure that the microprocessor retainer is fully open.
9. Holding the microprocessor with your fingers, remove the protective cover
2 that protects the gold contacts on the new microprocessor 1 .
10. Holding the microprocessor with your fingers, align the notches on the
microprocessor with the tabs in the microprocessor socket
11. Lower the microprocessor straight down into the socket.
12. To secure the microprocessor in the socket, close the microprocessor retainer
and lock it into position with the small handle.
Chapter 8. Replacing FRUs- Rocky computers 101
13. Use the thermal grease syringe to place five drops of grease on the top of the
microprocessor. Each drop of grease should be 0.03ml (3 tick marks on the
grease syringe).
14. Install the heat sink and fan assembly on the system board.
15. Connect the heat sink and fan assembly cable to the system board. See the
system board illustration for your machine type at “System board connectors”
on page 88.
16. Position the fan duct on the heat sink fan.
17. Go to “Completing the FRU replacement” on page 111.
102 Hardware Maintenance Manual
Replacing the hard disk drive
Important
When a new hard disk drive is installed, a set of Product Recovery discs might
be required. The set of Product Recovery discs enable the contents of the hard
disk to be restored to the same state as when the computer was originally
shipped from the factory. For more information on recovering
factory-installed software, refer to ″Recovering Software″in the User Guide.
This procedure describes how to remove and replace the hard disk drive.
1. Remove the cover. See “Removing the cover” on page 89.
2. Remove the drive bay assembly. See “Accessing system board components
and drives” on page 90.
3. Use the blue handle to pivot the hard disk drive and bracket upward, slide
the hard drive to the left until it is free of the retaining clips in the bottom of
the chassis, and then completely remove it from the chassis.
4. Disconnect the signal and power cables from the rear of the hard disk drive.
5. Remove the blue bracket from the failing hard disk drive by flexing the
bracket.
Chapter 8. Replacing FRUs- Rocky computers 103
6. Install the new drive into the blue bracket, flex the bracket, and align the pins
1 through 4on the bracket with the holes in the hard disk drive. Do not
touch the circuit board 5 on the bottom of the hard disk drive.
7. Connect the signal and power cables to the rear of the hard disk drive.
8. Position the hard disk drive and bracket so that it engages the retaining clips
in the bottom of the chassis when you slide the bracket to the right.
9. Slide the hard disk drive and bracket to the right until it snaps into position.
10. Align the drive bay assembly studs with the two slots on each side of the
chassis and reconnect the diskette drive and optical drive cables (if
disconnected).
11. Slide the drive bay assembly towards the rear of the chassis until it snaps into
position.
12. Reinstall the front bezel.
13. Go to “Completing the FRU replacement” on page 111.
104 Hardware Maintenance Manual
Replacing an optical drive
This procedure describes how to remove and replace an optical drive.
1. Remove the cover. See “Removing the cover” on page 89.
2. To access system board components. See “Accessing system board components
and drives” on page 90.
3. Release the optical drive from the drive bay assembly by pressing inward on
the blue retainer at the side of the drive.
4. Slide the optical drive being replaced out the front of the drive bay assembly.
5. Remove the retainer bracket from the failing drive and install it on the new
drive.
6. Install the new optical drive into the bay until it snaps into position.
7. Reconnect the signal and power cables to the rear of the optical drive.
8. Align the drive bay assembly with the two slots and rails on the sides of the
chassis and slide the drive bay assembly towards the rear of the chassis until
it snaps into position.
9. Reinstall the front bezel.
10. Go to “Completing the FRU replacement” on page 111.
Chapter 8. Replacing FRUs- Rocky computers 105
Replacing the diskette drive
This procedure describes how to remove and replace a diskette drive.
1. Remove the cover. See “Removing the cover” on page 89.
2. To access system board components. See “Accessing system board components
and drives” on page 90.
3. Release the diskette drive by pressing inward on the blue retainer at the side
of the drive.
4. Remove the failing diskette drive by sliding it out the front of the drive bay
assembly.
5. Remove the retainer bracket from the failing drive and install it on the new
drive.
6. Install the new diskette drive into the drive bay from the front until it snaps
into position.
7. Reconnect the signal and power cables to the rear of the diskette drive.
8. Align the drive bay assembly with the two slots and rails on the sides of the
chassis and slide the drive bay assembly towards the rear of the chassis until
it snaps into position.
9. Reinstall the front bezel.
10. Go to “Completing the FRU replacement” on page 111.
106 Hardware Maintenance Manual
Replacing the power switch/LED assembly
This procedure describes how to remove and replace the power switch/LED
assembly.
1. Remove cover. See “Removing the cover” on page 89.
2. To access system board components. See “Accessing system board components
and drives” on page 90.
3. Remove the hard disk drive. See “Replacing the hard disk drive” on page 103.
4. Disconnect the power switch/LED assembly cable from the system board. See
the system board illustration for your machine type at “System board
connectors” on page 88.
5. Remove the screw that secures the power switch/LED assembly to the chassis.
6. Note the power switch/LED assembly cable routing and remove the assembly
from the chassis.
7. Route the cable for the new power switch/LED assembly through the hole in
the chassis and to the system board.
8. Install the power switch/LED assembly into the chassis and secure the
assembly with the screw.
9. Connect the power switch/LED cable to the system board.
10. Reinstall the hard disk drive. See “Replacing the hard disk drive” on page
103.
11. Align the drive bay assembly with the two slots and rails on the sides of the
chassis slide the drive bay assembly towards the rear of the chassis until it
snaps into position.
12. Reinstall the front bezel.
13. Go to “Completing the FRU replacement” on page 111.
Chapter 8. Replacing FRUs- Rocky computers 107
Replacing the front panel card
This procedure describes how to remove and replace the front panel card.
1. Remove cover. See “Removing the cover” on page 89.
2. To access system board components. See “Accessing system board components
and drives” on page 90.
3. Disconnect the front panel assembly cables from the system board. See the
system board illustration for your machine type at “System board connectors”
on page 88.
4. Remove the screw that secures the front panel card assembly to the chassis.
5. Note the front panel assembly cable routing and remove the assembly from
the chassis.
6. Route the cable for the new front panel card assembly through the hole in the
chassis and to the system board.
7. Install the front panel card assembly into the chassis and secure it with the
screw.
8. Connect the front panel assembly cables to the system board.
9. Align the drive bay assembly with the two slots and rails on the sides of the
chassis and slide the drive bay assembly towards the rear of the chassis until
it snaps into position.
10. Reinstall the front bezel.
11. Go to “Completing the FRU replacement” on page 111.
108 Hardware Maintenance Manual
Replacing the system fan assembly
This procedure describes how to remove and replace the system fan assembly.
1. Remove cover. See “Removing the cover” on page 89.
2. To access system board components. See “Accessing system board components
and drives” on page 90.
3. Remove the hard disk drive. See “Replacing the hard disk drive” on page 103.
4. Disconnect the system fan cable from the system board. See “System board
connectors” on page 88.
5. Remove the two screws securing the system fan assembly.
6. Remove the system fan assembly by pulling the bracket outward and lifting it
up from the system board to remove completely.
7. Install the new system fan assembly and install the two screws that secure the
fan assembly.
8. Connect the system fan cable to the system fan connector on the system
board.
9. Reinstall the hard disk drive. See “Replacing the hard disk drive” on page
103.
10. Align the drive bay assembly with the two slots and rails on the sides of the
chassis and slide the drive bay assembly towards the rear of the chassis until
it snaps into position.
11. Reinstall the front bezel.
12. Go to “Completing the FRU replacement” on page 111.
Chapter 8. Replacing FRUs- Rocky computers 109
Replacing a PCI adapter
This procedure describes how to remove and replace a PCI adapter.
1. Remove cover. See “Removing the cover” on page 89.
2. Open the adapter latch and remove the failing adapter.
3. Remove the new adapter from its static-protective package.
4. Install the new adapter into the appropriate connector on the system and close
the adapter latch.
5. Go to “Completing the FRU replacement” on page 111.
110 Hardware Maintenance Manual
Completing the FRU replacement
After replacing FRUs, you need to install any removed parts, replace the cover, and
reconnect any cables, including telephone lines and power cords. Also, depending
on the FRU that is replaced, you might need to confirm the updated information in
the Setup Utility program.
Note: When the power cord is first plugged in, the computer might appear to turn
on for a few seconds and then turn off. This is a normal sequence to enable
the computer to initialize.
1. Ensure that all components have been reassembled correctly and that no tools
or loose screws are left inside your computer.
2. Reposition any cables that might impede the replacement of the computer
cover.
Important
Correctly route all power supply cables to avoid interference with the
drive bay assembly. Keep cables clear of the hinges and sides of the
computer chassis.
3. Position the computer cover on the chassis so that the rail guides on the sides
of the cover engage the rails and push the cover to the closed position until it
snaps into position.
4. If the cover is secured with thumbscrews, install them.
5. Reconnect the external cables and power cords to the computer. See “Rear
connectors” on page 86.
6. If you have replaced the system board, you must update (flash) the BIOS. See
“Updating (flashing) BIOS from a CD-ROM or diskette” on page 786.
7. Some FRU replacements require the configuration to be updated. See Chapter 6,
“Using the Setup Utility,” on page 51.
Chapter 8. Replacing FRUs- Rocky computers 111
112 Hardware Maintenance Manual
Chapter 9. Replacing FRUs (Types 7064, 7094, 9349, 9356,
9357, 9439, 9488, 9702, 9708, 9709, 9789, 9851, 9948)
Important
Before you replace any FRU, read “Important Safety Information” on page 1.
These precautions and guidelines will help you work safely.
FRU replacements are to be done by trained service technicians only.
This chapter does not contain a remove and replace procedure for all FRUs. Only
the major FRUs are documented.
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 113
Locations
The following illustrations help you locate the various connectors, controls. and
components of the computer.
Rear connectors
The following illustration shows the locations of the connectors on the rear of the
computer.
1 Power supply diagnostic
LEDs (some models)
10 Ethernet connector
2 Voltage selection switch
(some models)
11 USB connectors (2)
3 Power connector 12 Microphone connector
4 Standard mouse connector 13 Audio line out connector
5 Standard keyboard connector 14 Audio line in connector
6 Serial connector 15 PCI Express x16 graphics adapter connector
7 Parallel connector 16 PCI Express x1 adapter connector
8 VGA monitor connector 17 PCI adapter connectors (2)
9 USB connectors (2)
114 Hardware Maintenance Manual
Computer components
The following illustration will help you locate the major FRUs in the computer.
1 Microprocessor fan and heat
sink
6 PCI adapter connector
2 Memory modules (2) 7 PCI Express x16 graphics adapter
connector
3 Battery 8 Cover presence (Intrusion) switch
4 PCI Express x1 adapter
connector
9 Rear fan assembly
5 PCI adapter card 10 Power supply
Chapter 9. Replacing FRUs - Tower Computers 115
System board connectors
This illustration is to help locate the various components and connectors on the
system board.
1 Microprocessor and heat sink 13 Front USB connector
2 Microprocessor fan connector 14 TCM header connector
3 Memory connector 1 15 Serial (COM) connector
4 Memory connector 2 16 Internal speaker connector
5 Power connector 17 Front audio connector
6 Diskette drive connector 18 CD_IN connector
7 IDE connector 19 PCI adapter connectors (2)
8 Power fan connector 20 PCI Express x1 adapter connector
9 Serial ATA connectors (4) 21 Battery
10 Clear CMOS/Recovery jumper 22 PCI Express x16 graphics adapter
connector
11 Front panel connector 23 12 V power connector
12 Front USB connector 24 System fan connector
116 Hardware Maintenance Manual
Removing the cover
Important
Read Chapter 2, “Safety information,” on page 3 and “Handling electrostatic
discharge-sensitive devices” on page 6 before opening the cover.
This procedure describes how to remove the cover.
1. Shut down the operating system, remove any media (DVDs, CDs, or tapes)
from the drives, and turn off all attached devices.
2. Unplug all power cords from electrical outlets.
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer.
4. If there are thumb screws securing the cover, remove them.
5. Press the button on the left-side cover and slide the cover to the rear to remove.
Chapter 9. Replacing FRUs - Tower Computers 117
Removing and replacing the front bezel
This procedure describes how to remove and replace the front bezel.
1. Remove the computer cover. See “Removing the cover” on page 117.
2. Remove the front bezel by releasing the three plastic tabs inside the chassis and
pivoting the bezel outward. Carefully set the bezel to the side without
disconnecting the power switch and LED assembly cable.
3. To reinstall the bezel, align the plastic tabs on the right side of the bezel with
the corresponding holes in the chassis, then pivot it inward until it snaps into
position on the left side.
4. Go to “Completing the FRU replacement” on page 147.
118 Hardware Maintenance Manual
Replacing the power supply
This procedure describes how to remove and replace the power supply.
1. Remove the computer cover. See “Removing the cover” on page 117.
Note: For this procedure, it helps to lay the computer on its side.
2. Disconnect the power supply cables from the system board and from all
drives.
3. Remove the four screws that secure the power supply at the rear of the
chassis.
4. Lift the power supply out of the chassis.
5. If the power supply has a voltage-selection switch, ensure that it is set to
match the voltage available at the electrical outlet.
vIf the voltage supply range in your local country or region is 100-127 V ac,
set the switch to 115 V.
vIf the voltage supply range in your local country or region is 200-240 V ac,
set the switch to 230 V.
6. Install the new power supply into the chassis so that the screw holes in the
power supply align with those in the chassis.
7. Install the four screws to secure the power supply.
Note: Use only the screws provided by Lenovo.
8. Reconnect the power supply connectors to the system board. See “System
board connectors” on page 116.
9. Reconnect a power supply connector to each of the drives.
10. Go to “Completing the FRU replacement” on page 147.
Chapter 9. Replacing FRUs - Tower Computers 119
Replacing the system board
This procedure describes how to remove and replace the system board. The
procedure varies depending upon the machine type.
Important
The heat sink and microprocessor might be very hot. Make sure these
components are cool enough to safely handle before continuing this
procedure.
Note: When replacing the system board you must also order a new retention
module for the new system board. Make sure you have a retention module
for the new system board before continuing with this procedure.
1. Remove the cover. See “Removing the cover” on page 117.
2. Place the computer on its right side to help make the system board more
accessible.
3. Remove any adapter cards installed in the PCI connectors.
4. Disconnect the signal and power cables from the hard disk drive.
5. Press the release tab 1 down, slide the hard drive cage 2 back, and pivot
the hard disk drive outward as shown.
6. Carefully take note of the location of all cable connections on the system
board and disconnect all cables. See the system board illustration for your
machine type at “System board connectors” on page 116.
7. Remove the screws that secure the system board to the chassis.
8. Lift the system board out of the chassis.
9. Remove the memory modules from the failing system board and install them
in the same location on the new system board.
10. Disconnect the heat sink and fan assembly cable from the system board. See
the system board illustration for your machine type at “System board
connectors” on page 116.
120 Hardware Maintenance Manual
11. Remove the four screws 1 securing the heat sink and fan assembly to the
system board.
12. Lift the heat sink and fan assembly off the failing system board. Place the heat
sink on its side so that the thermal grease does not come in contact with
anything.
Chapter 9. Replacing FRUs - Tower Computers 121
13. Remove the microprocessor from the failing system board. See “Replacing the
microprocessor” on page 124.
14. The failing system board must be returned with a microprocessor socket cover
to protect the pins during shipping and handling. Install the microprocessor
socket cover removed from the new system board on the failing system board.
To install the microprocessor socket cover:
a. Make sure the microprocessor has been removed from the microprocessor
socket, and then close the microprocessor retainer and lock it into position
with the small handle.
b. Insert the tabs 1 of the socket cover into the hinged side of the socket,
and then press the other side of the socket cover downward until the tabs
2 snap into position.
15. On the new system board, release the lever securing the microprocessor
retainer and then pivot the retainer until it is fully open.
Note: There will be a black plastic cover on the microprocessor retainer to
protect the socket on the new system board. Remove the black plastic
cover and place it on the microprocessor socket of the failing system
board.
16. Holding the microprocessor with your fingers, position the microprocessor so
that the notches on the microprocessor are aligned with the tabs in the
microprocessor socket.
Important
To avoid damaging the microprocessor contacts, do not tilt the
microprocessor when installing it into the socket.
122 Hardware Maintenance Manual
17. Lower the microprocessor straight down into the system board socket of the
new system board.
18. To secure the microprocessor in the socket, close the microprocessor retainer
and lock it into position with the small handle.
19. Install the new retention module (if required) on the new system board.
20. Install the heat sink and fan assembly on the system board.
21. Connect the heat sink and fan assembly cable to the new system board. See
the system board illustration for your machine type at “System board
connectors” on page 116.
22. Install the new system board into the chassis and align the screw holes with
those in the chassis. Insert and tighten the screws that secure the system
board.
23. Pivot the hard disk drive back into position.
24. Connect the power and signal cables to the hard disk drive.
25. Connect all cables to the system board. See the system board illustration for
your machine type at “System board connectors” on page 116.
26. Go to “Completing the FRU replacement” on page 147.
Chapter 9. Replacing FRUs - Tower Computers 123
Replacing the microprocessor
This procedure describes how to remove and replace the microprocessor. The
procedure varies depending upon the machine type.
Important
The heat sink and microprocessor might be very hot. Make sure these
components are cool enough to safely handle before continuing this
procedure.
1. Remove the side cover. See “Removing the cover” on page 117.
2. Place the computer on its right side to help make the microprocessor more
accessible.
3. Disconnect the heat sink and fan assembly cable from the system board. See
the system board illustration for your machine type at “System board
connectors” on page 116.
4. Remove the four screws 1securing the heat sink and fan assembly to the
system board.
124 Hardware Maintenance Manual
5. Lift the heat sink and fan assembly off the failing system board. Place the heat
sink on its side so that the thermal grease does not come in contact with
anything.
6. To remove the microprocessor 2 from the system board, lift the small handle
3 and open the retainer 1.
Important
Touch only the sides of the microprocessor. Do not touch the gold
contacts on the bottom.
7. Lift the microprocessor straight up and out of the socket.
Chapter 9. Replacing FRUs - Tower Computers 125
Notes:
a. Note the orientation of the notches 1 on the microprocessor. This is
important when reinstalling the microprocessor on the new system board.
b. Do not drop anything onto the microprocessor socket while it is exposed.
The socket pins must be kept as clean as possible.
8. Make sure that the microprocessor retainer is fully open.
9. Holding the microprocessor with your fingers, remove the protective cover
2 that protects the gold contacts on the new microprocessor 1 .
10. Holding the microprocessor with your fingers, position the microprocessor so
that the notches on the microprocessor are aligned with the tabs in the
microprocessor socket.
Important
To avoid damaging the microprocessor contacts, do not tilt the
microprocessor when installing it into the socket.
126 Hardware Maintenance Manual
11. Lower the microprocessor straight down into the system board socket of the
system board.
12. To secure the microprocessor in the socket, close the microprocessor retainer
and lock it into position with the small handle.
13. Use the thermal grease syringe to place five drops of grease on the top of the
microprocessor. Each drop of grease should be 0.03ml (3 tick marks on the
grease syringe).
14. Install the heat sink and fan assembly on the system board.
15. Connect the heat sink and fan assembly cable to the system board. See the
system board illustration for your machine type at “System board connectors”
on page 116.
16. Go to “Completing the FRU replacement” on page 147.
Chapter 9. Replacing FRUs - Tower Computers 127
Replacing a memory module
This procedure describes how to remove and replace a memory module.
1. Remove the computer cover. See “Removing the cover” on page 117.
Note: For this procedure, it helps to lay the computer on its side.
2. Locate the memory module connectors. See “System board connectors” on page
116.
3. Remove the memory module being replaced by opening the retaining clips as
shown.
4. Position the new memory module over the memory connector. Make sure the
notch 1 on the memory aligns correctly with the connector key 2 on the
system board. Push the memory module straight down into the connector until
the retaining clips close.
5. Go to “Completing the FRU replacement” on page 147.
128 Hardware Maintenance Manual
Replacing a PCI adapter
This procedure describes how to remove and replace a PCI adapter.
1. Remove the computer cover. See “Removing the cover” on page 117.
2. At the rear of the computer, press the release button 1to open the adapter
latch 2 and remove the adapter by pulling it straight out of the adapter
connector.
Chapter 9. Replacing FRUs - Tower Computers 129
3. Install the new adapter into the same adapter connector.
4. Ensure the adapter is fully seated into the adapter connector.
5. At the rear of the computer, pivot the adapter latch to the closed position to
secure the adapter.
6. Go to “Completing the FRU replacement” on page 147.
130 Hardware Maintenance Manual
Replacing the primary hard disk drive
Important
When a new hard disk drive is installed, a set of Product Recovery discs might
be required. The set of Product Recovery discs enable the contents of the hard
disk to be restored to the same state as when the computer was originally
shipped from the factory. For more information on recovering
factory-installed software, refer to ″Recovering Software″in the User Guide.
This procedure describes how to remove and replace the primary hard disk drive.
1. Remove the computer cover. See “Removing the cover” on page 117.
Note: For this procedure, it helps to lay the computer on its side.
2. Disconnect the signal and power cables from the hard disk drive.
3. Press the release tab 1 down, slide the hard drive cage 2 back, and pivot
the hard disk drive outward as shown.
4. Remove the hard disk drive cage from the chassis by simply sliding it
outward.
5. Pull on the blue handle 3 to remove hard disk drive from the drive cage.
6. Remove the failing hard disk drive from the blue plastic bracket from by
flexing the sides of the bracket enough to free it from the hard disk drive.
Chapter 9. Replacing FRUs - Tower Computers 131
7. To install the new drive into the blue bracket, flex the bracket, and align the
pins 1 through 4on the bracket with the holes in the hard disk drive. Do
not touch the circuit board 5 on the bottom of the hard disk drive.
8. Slide the new hard disk drive into the drive cage until it snaps into position.
132 Hardware Maintenance Manual
9. Align the drive cage pivot pin with the slot 1 in the upper drive cage and
slide the hard disk drive into the chassis.
10. Press down on the metal latch 2 and pivot in the drive cage into place. Slide
it forward until it snaps into position.
Note: There are two arrows, one on the upper drive cage and one on the hard
disk drive cage, that are aligned when the hard disk drive is in the
proper position.
11. Connect the power and signal cables to the hard disk drive.
12. Go to “Completing the FRU replacement” on page 147.
Chapter 9. Replacing FRUs - Tower Computers 133
Replacing the secondary hard disk drive
This procedure provides instructions on how to replace the secondary hard disk
drive.
Important
When a new hard disk drive is installed, a set of Product Recovery discs might
be required. The set of Product Recovery discs enable the contents of the hard
disk to be restored to the same state as when the computer was originally
shipped from the factory. For more information on recovering
factory-installed software, refer to ″Recovering Software″in the User Guide.
To replace the secondary hard disk drive:
1. Remove the computer cover. See “Removing the cover” on page 117.
2. Locate the secondary hard disk drive 5.
3. Disconnect the signal and power cables from the hard disk drive.
134 Hardware Maintenance Manual
4. Press the blue release button to release the hard drive cage from the chassis.
5. Remove the hard drive cage from the chassis by simply sliding it outward.
6. Pull on the blue handle to release and remove the hard disk drive from the
hard drive cage.
7. Remove the hard disk drive from the blue plastic bracket by flexing the sides
of the bracket enough to slide it free of the hard disk drive.
Chapter 9. Replacing FRUs - Tower Computers 135
8. To install the new hard disk drive into the blue bracket, flex the bracket and
align the pins 1 through 4 on the bracket with the holes in the hard disk
drive. Do not touch the circuit board 5 on the bottom of the hard disk drive.
9. Slide the new hard disk drive into the hard drive cage until it snaps into
position.
136 Hardware Maintenance Manual
10. Install the hard drive cage into the chassis until it snaps into position
underneath the metal tab. Make sure that the hard drive cage is secure in the
chassis.
11. Connect the signal and power cables to the rear of the new hard disk drive.
12. Go to “Completing the FRU replacement” on page 147.
Chapter 9. Replacing FRUs - Tower Computers 137
Replacing an optical drive
This procedure describes how to remove and replace an optical drive.
1. Remove the computer cover. See “Removing the cover” on page 117.
2. Disconnect the signal and power cables from the rear of the optical drive.
3. Press the release button and remove the optical drive out the front of the
computer.
Note: Notice that there is a spare retainer bracket 1 attached to the upper
drive cage.
4. Remove the retainer bracket from the drive being replaced and install it on the
new drive.
5. Slide the new optical drive into the bay from the front until it snaps into
position.
6. Connect the signal and power cables to the drive.
7. Go to “Completing the FRU replacement” on page 147.
138 Hardware Maintenance Manual
Replacing the diskette drive
This procedure describes how to remove and replace the diskette drive.
1. Remove the computer cover. See “Removing the cover” on page 117.
2. Remove the front bezel. See “Removing and replacing the front bezel” on page
118.
3. Disconnect the signal and power cables from the rear of the diskette drive.
4. Press the release button and slide the diskette drive out the front of the
computer.
5. Remove the retainer bracket from the failing diskette drive and install it on the
new diskette drive.
6. Slide the new diskette drive into the drive bay until it snaps into position.
7. Connect the signal and power cables to the drive.
8. Go to “Completing the FRU replacement” on page 147.
Chapter 9. Replacing FRUs - Tower Computers 139
Replacing the rear fan assembly
This procedure describes how to remove and replace the system fan.
1. Remove the computer cover. See “Removing the cover” on page 117.
2. Note the routing of the rear fan cable to the system board. Disconnect the rear
fan cable from the system fan connector on the system board. See “System
board connectors” on page 116.
3. The fan assembly is mounted with four rubber mounts that protrude through
the rear of the chassis. Remove the fan assembly by pulling the rubber mounts
back through the chassis.
140 Hardware Maintenance Manual
4. Install the new rear fan assembly by aligning the rubber mounts of the system
fan assembly with the holes on the chassis and push the rubber mounts
through the holes.
5. Pull on the tips of the rubber mounts until the fan assembly is in place.
6. Route the fan cable to the system board and connect the cable to the system
board. See “System board connectors” on page 116.
7. Go to “Completing the FRU replacement” on page 147.
Chapter 9. Replacing FRUs - Tower Computers 141
Replacing the front fan assembly
This procedure describes how to remove and replace the front fan assembly.
1. Remove the computer cover. See “Removing the cover” on page 117.
2. Remove the front bezel. See “Removing and replacing the front bezel” on page
118.
3. Note the routing of the front fan cable to the system board. Disconnect the
front fan assembly cable from the system board. See “System board connectors”
on page 116.
4. The fan assembly is mounted with four rubber mounts that protrude through
the front of the chassis. Remove the fan assembly by pulling the rubber mounts
back through the chassis.
5. Install the new front fan assembly by aligning the rubber mounts of the front
fan assembly with the holes on the chassis and push the rubber mounts
through the holes.
142 Hardware Maintenance Manual
6. Pull on the tips of the rubber mounts until the fan assembly is in place.
7. Route the fan cable to the system board and connect the cable to the system
board. See “System board connectors” on page 116.
8. Replace the front bezel.
9. Go to “Completing the FRU replacement” on page 111.
Chapter 9. Replacing FRUs - Tower Computers 143
Replacing the front audio/USB assembly
This procedure describes how to remove and replace the front audio/USB
assembly.
1. Remove the computer cover. See “Removing the cover” on page 117.
2. Remove the front bezel. See “Removing and replacing the front bezel” on
page 118
3. Disconnect the front audio/USB assembly cable from the system board. See
the system board illustration for your machine type at “System board
connectors” on page 116.
4. Note the front audio/USB assembly cable routing and remove the screw that
secures the assembly to the chassis.
5. Remove the front audio/USB assembly.
6. Route the cable for the new front audio/USB assembly through the hole in the
chassis and to the system board.
7. Install the front audio/USB assembly into the chassis and secure it with the
screw.
8. Connect the front audio/USB assembly cable to the system board.
9. Reinstall the front bezel.
10. Go to “Completing the FRU replacement” on page 147.
144 Hardware Maintenance Manual
Replacing the power switch/LED assembly
This procedure describes how to remove and replace the power switch/LED
assembly.
1. Remove the computer cover. See “Removing the cover” on page 117.
2. Remove the front bezel. See “Removing and replacing the front bezel” on
page 118
3. Disconnect the power switch/LED assembly cable from the system board. See
the system board illustration for your machine type at “System board
connectors” on page 116.
4. Note the power switch/LED assembly cable routing and the position of the
two LEDs.
5. Remove the switch/LED from the bezel.
6. Route the cable for the new power switch/LED assembly through the hole in
the chassis and to the system board.
7. Install the new power switch/LED assembly into the bezel. Make sure that the
LEDs are in the correct position.
8. Connect the power switch/LED cable to the system board.
9. Reinstall the front bezel.
10. Go to “Completing the FRU replacement” on page 147.
Chapter 9. Replacing FRUs - Tower Computers 145
Replacing the CMOS battery
This procedure describes how to remove and replace the CMOS battery.
If the CMOS battery fails, the date, time, and configuration information (including
passwords) are lost. An error message is displayed when you turn on the
computer.
Important
Refer to “Safety notices (multi-lingual translations)” on page 7 for information
about replacing and disposing of the battery.
CAUTION:
When replacing the lithium battery, use only Part Number 33F8354 or an
equivalent type battery recommended by the manufacturer.
1. Remove the computer cover. See “Removing the cover” on page 117.
2. Locate the battery. See the system board illustration for your machine type at
“System board connectors” on page 116.
3. You might have to remove any PCI adapters that impede access to the battery.
4. Remove the old battery.
5. Install the new battery.
6. Replace any PCI adapters that were removed.
Note: When the computer is turned on for the first time after battery
replacement, an error message might be displayed. This is normal after
replacing the battery.
7. Go to “Completing the FRU replacement” on page 147.
146 Hardware Maintenance Manual
Completing the FRU replacement
After replacing FRUs, you need to install any removed parts, replace the cover, and
reconnect any cables, including telephone lines and power cords. Also, depending
on the FRU that is replaced, you might need to confirm the updated information in
the Setup Utility program.
Note: When the power cord is first plugged in, the computer might appear to turn
on for a few seconds and then turn off. This is a normal sequence to enable
the computer to initialize.
1. Ensure that all components have been reassembled correctly and that no tools
or loose screws are left inside your computer.
2. Replace the cover.
3. Reconnect the external cables and power cords to the computer. See “Rear
connectors” on page 114.
4. If you have replaced the system board, you must update (flash) the BIOS. See
“Updating (flashing) BIOS from a CD-ROM or diskette” on page 786.
5. Some FRU replacements require the configuration to be updated. See Chapter 6,
“Using the Setup Utility,” on page 51.
Chapter 9. Replacing FRUs - Tower Computers 147
148 Hardware Maintenance Manual
Chapter 10. Replacing FRUs (Types 7066, 7098, 9352, 9359,
9482, 9487, 9622, 9704, 9785, 9794, 9807, 9859, 9952)
Important
Before you replace any FRU, read Chapter 2, “Safety information,” on page 3.
These precautions and guidelines will help you work safely.
FRU replacements are to be done by trained service technicians only.
This chapter does not contain a remove and replace procedure for all FRUs. Only
the major FRUs are documented.
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 149
Locations
This section provides illustrations to help locate the various connectors, controls,
and components of the computer.
Front connectors
Note: Not all computer models will have the following controls and connections.
1 Diskette drive (some models) 6 USB connector
2 Power button 7 Microphone connector
3 Hard-disk-drive activity indicator 8 Headphone connector
4 Power-on indicator 9 USB connector
5 Optical drive (some models)
150 Hardware Maintenance Manual
Rear connectors
This illustration shows the location of connectors on the rear of your computer.
Some connectors on the rear of your computer are color-coded to help you
determine where to connect the cables on your computer.
1 Power cord connector 9 Ethernet connector
2 Power-supply-diagnostic LEDs
(some models)
10 Microphone
3 Keyboard connector 11 Audio-line-out connector
4 Mouse connector 12 Audio-line-in connector
5 Serial connector 13 PCI Express x16 graphics adapter
connector
6 Parallel connector 14 PCI adapter connector
7 VGA-monitor connector 15 Serial connector (some models)
8 USB connectors (6)
Chapter 10. Replacing FRUs - Desktop computers 151
Computer components
This illustration shows the location of the various components in your computer.
1 Hard disk drive 5 Memory connectors (2)
2 Microprocessor and heat sink 6 Battery
3 Optical drive (such as a CD or
DVD drive)
7 Power-supply assembly
4 Diskette drive
152 Hardware Maintenance Manual
System board connectors
This illustration shows the location of parts on the system board.
1 CD in connector 12 Front USB2 connector
2 PCI connector 13 Front USB1 connector
3 Diskette Drive connector 14 BIOSWP
4 Battery 15 SPI debug connector
5 Speaker connector 16 COM2 connector
6 Cover presence switch (Tamper
switch) connector
17 PSU Connector (2x12)
7 Microprocessor fan connector 18 SATA connector (2)
8 Microprocessor and heat sink 19 Clear CMOS/Recovery jumper
9 PSU connector (2x2) 20 Front Audio connector
10 Fan connector 21 PCI Express connector - Labeled on
system board
11 Memory connectors (2)
Chapter 10. Replacing FRUs - Desktop computers 153
Opening the cover
Important
Turn off your computer and wait 3 to 5 minutes to let the computer cool
before opening the computer cover.
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your
operating system, and turn off all attached devices and the computer.
2. Unplug all power cords from electrical outlets.
3. Disconnect the cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer. See “Front connectors” on page 150 and “Rear connectors” on page
151.
4. Remove any locking devices, such as a cable lock that secures the computer
cover.
5. Press the buttons on the sides of the computer and pivot the cover upward to
open the computer.
154 Hardware Maintenance Manual
Accessing system board components and drives
1. Open the computer cover. See “Opening the cover” on page 154.
2. On some models, you might need to pivot the drive-bay assembly upward and
pivot the hard disk drive upward to access the internal components.
Note: Make sure you note the location of any cables that you disconnect from
the drives or the system board.
Attention: You must return the hard disk drive assembly to the latched
position before you close the cover to prevent damage to the hard disk drive
assembly.
Chapter 10. Replacing FRUs - Desktop computers 155
Replacing an adapter card
This section provides instructions on how to replace an adapter card.
1. Open the computer cover. See “Opening the cover” on page 154.
2. Rotate the adapter card retainer 1 to the open position.
3. Remove the adapter card 2.
4. Remove the new adapter from its static-protective package.
5. Install the new adapter card in the adapter card connector.
6. Ensure the adapter is fully seated into the adapter connector.
7. Close the adapter card retainer.
8. Go to “Completing the FRU replacement” on page 179.
156 Hardware Maintenance Manual
Replacing a memory module
This section provides instructions on how to replace a memory module.
1. Open the computer cover. See “Opening the cover” on page 154.
2. Pivot the drive-bay assembly upward to gain access to the system board.
3. Locate the memory connectors. See “System board connectors” on page 153.
4. Remove the memory module being replaced by opening the retaining clips as
shown.
Chapter 10. Replacing FRUs - Desktop computers 157
5. Position the replacement memory module over the memory connector. Make
sure the notch 1 on the memory module aligns correctly with the connector
key 2 on the system board. Push the memory module straight down into the
connector until the retaining clips close.
6. Go to “Completing the FRU replacement” on page 179.
158 Hardware Maintenance Manual
Replacing the battery
This procedure describes how to remove and replace the battery.
If the CMOS battery fails, the date, time, and configuration information (including
passwords) are lost. An error message is displayed when you turn on the
computer.
Important
Refer to “Safety notices (multi-lingual translations)” on page 7 for information
about replacing and disposing of the battery.
CAUTION:
When replacing the lithium battery, use only Part Number 33F8354 or an
equivalent type battery recommended by the manufacturer.
1. Turn off the computer and disconnect the power cord from the electrical outlet
and from the computer.
2. Open the computer cover. See “Opening the cover” on page 154.
3. Access the system board. See “Accessing system board components and drives”
on page 155.
4. Locate the battery. See “System board connectors” on page 153.
5. Remove the old battery.
6. Install the new battery.
7. Close the computer cover, and connect the cables. See “Completing the FRU
replacement” on page 179.
Note: When the computer is turned on for the first time after battery
replacement, an error message might be displayed. This is normal after
replacing the battery.
8. Use the Setup Utility program to set the date and time and any passwords. See
“Starting the Setup Utility program” on page 51.
9. Go to “Completing the FRU replacement” on page 179.
Chapter 10. Replacing FRUs - Desktop computers 159
Replacing the power supply
Attention
Never remove the cover on a power supply or any part that has the
following label attached.
Hazardous voltage, current, and energy levels are present inside any
component that has this label attached. There are no servicable parts inside
these components.
This procedure describes how to remove and replace the power supply.
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your
operating system, and turn off all attached devices and the computer.
2. Unplug all power cords from electrical outlets.
3. Disconnect the cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer. See “Front connectors” on page 150 and “Rear connectors” on page
151.
4. Remove the four screws at the rear of the chassis that secure the power
supply.
5. Open the computer cover. See “Opening the cover” on page 154.
160 Hardware Maintenance Manual
6. Pivot the drive bay assembly upward to gain access to the system board.
7. Locate the power-supply assembly. See “Computer components” on page 152.
8. Disconnect the power supply cables 1and 2 from the system-board
connectors and from all drives.
9. Remove the power-supply cables from the cable clips and ties.
Chapter 10. Replacing FRUs - Desktop computers 161
10. Slide the power-supply assembly toward the front of the chassis and remove
it from the computer.
11. Install the new power-supply assembly into the chassis so that the screw holes
in the power-supply assembly align with those in the chassis.
Note: Use only the screws provided by Lenovo.
12. Install and tighten the four screws at the rear of the chassis to secure the
power-supply assembly.
13. Check the position of the voltage-selection switch on the rear of the computer.
Use a ballpoint pen to slide the switch, if necessary.
Note: Some computers do not have a voltage switch. These computers
automatically control the voltage.
vIf the voltage supply range is 100–127 V ac, set the switch to 115 V.
vIf the voltage supply range is 200–240 V ac, set the switch to 230 V.
14. Reconnect all the power supply cables to the drives and the system board.
15. Go to “Completing the FRU replacement” on page 179.
162 Hardware Maintenance Manual
Replacing the system board
Important
The heat sink and microprocessor might be very hot. Make sure these
components are cool enough to safely handle before continuing this
procedure.
Note: When replacing the system board you must also order a new retention
module for the new system board or remove the retention module from the
failing system board and install it on the new system board.
This procedure describes how to remove and replace the system board.
1. Open the computer cover. See “Opening the cover” on page 154.
2. Pivot the drive-bay assembly upward to gain access to the heat sink.
3. Remove the hard disk drive and disconnect it from the system board. See
“Replacing the hard disk drive” on page 171.
4. Remove any PCI adapters installed. See “Replacing an adapter card” on page
156.
5. Disconnect all cables connected to the system board. See “System board
connectors” on page 153.
6. Pull up on the blue strap at the front of the system board to release it from
the chassis.
Chapter 10. Replacing FRUs - Desktop computers 163
7. Slide the system board toward the front until it can be lifted out of the
chassis.
8. Remove the heat sink and microprocessor from the failing system board and
install them on the new system board. See “Replacing the microprocessor” on
page 167.
9. Remove the memory modules from the failing system board and install them
into the same position on the new system board. See “Replacing a memory
module” on page 157.
10. Install a new retention module or move the retention module from the failing
system board to the new system board.
11. The failing system board must be returned with a microprocessor socket cover
to protect the pins during shipping and handling. Install the microprocessor
socket cover removed from the new system board on the failing system board.
To install the microprocessor socket cover:
a. Make sure the microprocessor has been removed from the microprocessor
socket, and then close the microprocessor retainer and lock it into position
with the small handle.
b. Insert the tabs 1 of the socket cover into the hinged side of the socket,
and then press the other side of the socket cover downward until the tabs
2 snap into position.
164 Hardware Maintenance Manual
Chapter 10. Replacing FRUs - Desktop computers 165
12. Position the new system board so that it is aligned with the mounting studs
then slide it to the rear of the chassis until it is fully seated.
13. Reinstall any PCI adapters that were removed. See “Replacing an adapter
card” on page 156.
14. Reconnect all cables that were disconnected from the system board. See
“System board connectors” on page 153.
15. Go to “Completing the FRU replacement” on page 179.
166 Hardware Maintenance Manual
Replacing the microprocessor
Important
Leave your computer turned off for at least one hour before removing the
microprocessor to allow the thermal interface between the microprocessor and
the heat sink time to cool down.
This procedure describes how to remove and replace the microprocessor.
1. Open the computer cover. See “Opening the cover” on page 154.
2. Pivot the drive-bay assembly upward to gain access to the heat sink.
3. Remove the heat sink from the system board by pivoting lever 1 until is in
the vertical position.
Chapter 10. Replacing FRUs - Desktop computers 167
4. To remove the microprocessor from the failing system board, release the lever
1 securing the microprocessor 2 then pivot the microprocessor retainer 3
until it is fully open.
5. Remove the microprocessor from the system board socket by lifting it out of
the socket.
Important
Do not touch the gold contacts on the bottom of the microprocessor. If
you must touch the microprocessor, touch only the sides.
168 Hardware Maintenance Manual
a. Take notice of the orientation of the notches 1 on the microprocessor.
This is important when installing the microprocessor on the system board.
b. Do not drop anything on the socket while it is open. Keep all contacts as
clean as possible.
6. Make sure that the microprocessor retainer is fully open.
7. Position the microprocessor so that the notches on the microprocessor are
aligned with the tabs in the microprocessor socket.
Important
To avoid damaging the microprocessor contacts, do not tilt the
microprocessor when installing it into the socket.
8. Lower the microprocessor straight down into the system board socket.
Chapter 10. Replacing FRUs - Desktop computers 169
9. Lower the microprocessor retainer 3 and then lower the lever 1 to secure
the retainer. Make sure the lever is securely locked into position.
10. Place the heat sink into position and lower the lever 1to secure the heat
sink.
11. Go to “Completing the FRU replacement” on page 179.
170 Hardware Maintenance Manual
Replacing the hard disk drive
Important
When a new hard disk drive is installed, a set of Product Recovery discs might
be required. The set of Product Recovery discs enable the contents of the hard
disk to be restored to the same state as when the computer was originally
shipped from the factory. For more information on recovering
factory-installed software, refer to ″Recovering Software″in the User Guide.
This procedure describes how to remove and replace the hard disk drive.
1. Open the computer cover. See “Opening the cover” on page 154.
2. Locate the hard disk drive.
3. Unlatch the hard disk drive front retainers 1 and rotate the hard disk drive
upwards.
Chapter 10. Replacing FRUs - Desktop computers 171
4. Disconnect the signal and power cables from the rear of the hard disk drive
and remove the hard disk drive from the computer.
5. Remove the failing hard disk drive from the bracket by flexing the bracket as
shown.
6. To install the new drive, flex the bracket and align the pins on the bracket with
the recesses in the hard disk drive bracket.
Important
Do not touch the circuit board on the bottom of the hard disk drive.
7. Connect the signal and power cables to the rear of the new hard disk drive.
8. Position the hard disk drive and bracket into the rear pivots and rotate
downward until the hard disk drive bracket latches into place.
9. Go to “Completing the FRU replacement” on page 179.
172 Hardware Maintenance Manual
Replacing an optical drive
This procedure describes how to remove and replace the optical drive.
1. Open the computer cover. See “Opening the cover” on page 154.
2. Pivot the drive-bay-assembly upward to gain access to the optical drive.
3. Disconnect the signal and power cables from the rear of the optical drive.
4. Press the optical-drive lock 1 and slide the optical drive up 3 out the drive
bay assembly.
Chapter 10. Replacing FRUs - Desktop computers 173
5. Remove the lock bracket from the drive being replaced and install it on the
new drive.
6. Install the new optical drive into the bay and slide it to the locked position.
7. Connect the signal and power cables to the rear of the optical drive.
8. Go to “Completing the FRU replacement” on page 179.
174 Hardware Maintenance Manual
Replacing the diskette drive
This procedure describes how to remove and replace the diskette drive.
1. Open the computer cover. See “Opening the cover” on page 154.
2. Pivot the drive-bay-assembly upward to gain access to the diskette drive.
3. Press the diskette-drive lock 1 at the side of the drive.
4. Slide the diskette drive 1up and out of the drive bay assembly.
Chapter 10. Replacing FRUs - Desktop computers 175
5. Disconnect the flat cable from the rear of the failing diskette drive.
6. Connect the flat cable to the new diskette drive.
7. Remove the lock bracket from the drive being replaced and install it on the
new drive.
8. Install the new diskette drive into the bay and slide it to the locked position.
9. Go to “Completing the FRU replacement” on page 179.
176 Hardware Maintenance Manual
Replacing the fan assembly
This procedure describes how to remove and replace the fan.
1. Open the computer cover. See “Opening the cover” on page 154.
2. Pivot the drive-bay assembly upward to gain access to the fan assembly.
3. Disconnect the fan cable, power switch or LED cable, and temperature sensor
cable from the system board. See “System board connectors” on page 153.
Note: Make sure you note the location of the fan cables when you disconnect
the cables from the system board.
Chapter 10. Replacing FRUs - Desktop computers 177
4. Remove the plastic fan mount behind the bezel by releasing the retaining tabs
with your fingers and sliding the fan mount out of the chassis.
5. The fan assembly is mounted with four rubber mounts that protrude through
the plastic mounting bracket and the fan housing. Remove the fan assembly
by pulling the rubber mounts back through the holes in the fan housing.
6. Pull the rubber mounts loose from the mounting bracket. New rubber mounts
might come with the new fan.
7. Install the rubber mounts back into the mounting bracket.
8. Install the new fan assembly by aligning the rubber mounts in the mounting
bracket with the holes in the fan housing and pulling the rubber mounts
through the holes with your fingers.
9. Reinstall the fan mounting bracket into the chassis.
10. Reconnect the fan cable, power switch or LED cable, and temperature sensor
cable to the system board. See “System board connectors” on page 153.
11. Go to “Completing the FRU replacement” on page 179.
178 Hardware Maintenance Manual
Completing the FRU replacement
After replacing the parts, you need to close the cover and reconnect cables,
including telephone lines and power cords. Also, depending on the part that was
replaced, you might need to confirm the updated information in the Setup Utility
program. Refer to Chapter 6, “Using the Setup Utility,” on page 51.
1. Ensure that all components have been reassembled correctly and that no tools
or loose screws are left inside your computer. See “Computer components” on
page 152 for the location of various components.
2. Make sure that the cables are routed correctly before lowering the drive-bay
assembly.
Important
Correctly route all power supply cables to avoid interference with the
drive bay assembly. Keep cables clear of the hinges and sides of the
computer chassis.
3. Lower the drive-bay assembly and position the drive locks to the locked
position. Otherwise, you cannot close the computer cover.
4. Close the computer cover.
5. If a cover lock is installed, lock the cover.
6. Reconnect the external cables and power cords to the computer. See “Rear
connectors” on page 151.
7. If you are replacing the system board or microprocessor, you must update
(flash) the BIOS. See “Updating (flashing) BIOS from a CD-ROM or diskette”
on page 786.
8. To update your configuration, see Chapter 6, “Using the Setup Utility,” on page
51.
Chapter 10. Replacing FRUs - Desktop computers 179
180 Hardware Maintenance Manual
Chapter 11. FRU lists
Attention: Read “Important information about replacing RoHS compliant FRUs”
on page 2 before replacing any FRUs.
Note: In the following tables, a CRU (Customer Replaceable Unit) is identified as
either ″1″,″2″,or″N″in the CRU column. ″N″means that the part is not a
CRU, ″1″means that the part is a Self-service CRU, and ″2″means that the
part is an Optional-service CRU.
Machine Type 6176
Item # 6176 FRUs FRU# CRU Tier
1 Intel 65W/95W Heatsink Kit (Tower) (all models) 41R6429 N
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 181
Item # 6176 FRUs FRU# CRU Tier
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
182 Hardware Maintenance Manual
Item # 6176 FRUs FRU# CRU Tier
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models B1U B1F B1S
B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J)
41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models)
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models
B1U B1F B1S B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R
B1E )
43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9105 2
6 Bezel assembly without IBM mark (all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (all models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models B1U B1F B1S B1P B1D
B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E )
40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
11 System board , Intel G31 mATX GA Level (models B1U B1F B1S B1P B1D B1Y B1G
B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J)
53Y3282 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models B1U B1F B1S B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V
B1K B1R B1E )
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models B1U B1F
B1S B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J )
41A9665 2
13 Power supply, ATX 310W Power supply Robust; for all countries (models B1U B1F
B1S B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J )
41A9726 2
The FRUs listed in the following tables are not illustrated.
6176 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Cable, SATA 457mm (RoHs) (all models) 43N9013 2
Cable, SATA 250mm (RoHs) (all models) 43N9012 2
Shield, diskette drive EMC (all models) 41N8078 2
Chapter 11. FRU lists 183
6176 FRUs FRU# CRU Tier
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Hard disk drive tray (all models) 41R6291 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Asm Chassis Without IBM Mark (all models) 41R6408 2
Card reader retainer (all models) 43N9351 2
Blank 5.25″Bezel (all models) 41N8077 3
BATTERY 3V-LITHIUM (models B1U B1F B1S B1P B1D B1Y B1G B1M B1A B1Q B1T B1C
B1B B1H B1V B1K B1R B1E B1J)
45C1566 N
Cable Clip, FW-6D (all models) 43N9462 N
Battery 3V- Lithium (models B1U B1F B1S B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B
B1H B1V B1K B1R B1E B1J)
45C1566 1
Chassis primary HDD cage (all models) 45K6272 1
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
184 Hardware Maintenance Manual
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models B1U B1M B1A B1Q B1H B1R B1E) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models B1G) 41A5291 1
Belgian/French (models B1G) 41A5292 1
Belgian/UK (models B1G) 41A5293 1
Brazilian Portuguese (models B1P) 41A5294 1
Bulgarian (models B1G) 41A5295 1
Chinese/US (models B1B B1V) 41A5296 1
Czech (models B1G) 41A5297 1
Danish (models B1G) 41A5298 1
Dutch (models B1G) 41A5299 1
French (models B1G) 41A5300 1
French Canadian (models B1F) 41A5301 1
French Canadian (models B1F) 41A5302 1
German (models B1G) 41A5303 1
Greek (models B1G) 41A5304 1
Greek/US (models B1G) 41A5305 1
Hebrew (models B1G) 41A5306 1
Hungarian (models B1G) 41A5307 1
Iceland (models B1G) 41A5308 1
Chapter 11. FRU lists 185
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Italian (models B1G) 41A5309 1
Japanese (models B1J) 41A5310 1
Korean (models B1K) 41A5311 1
LA Spanish (models B1S B1D B1Y) 41A5312 1
Norwegian (models B1G) 41A5313 1
Polish (models B1G) 41A5314 1
Portuguese (models B1G) 41A5315 1
Romanian (models B1G) 41A5317 1
Russian/Cyrillic (models B1G) 41A5318 1
Serbian/Cyrillic (models B1G) 41A5319 1
Slovak (models B1G) 41A5320 1
Spanish (models B1G) 41A5321 1
Swedish/Finnish (models B1G) 41A5322 1
Swiss (models B1G) 41A5323 1
Thailand (models B1T) 41A5324 1
Turkish (models B1G) 41A5325 1
Turkish (models B1G) 41A5326 1
UK English (models B1G) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models B1G) 41A5329 1
Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
186 Hardware Maintenance Manual
Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Chapter 11. FRU lists 187
Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
6176 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (models B1U B1F B1S B1P B1D B1Y B1G B1M B1A
B1Q B1T B1C B1B B1H B1V B1K B1R B1E )
41U3013 1
Optical Wheel Mouse (400DPI, USB) (models B1U B1F B1S B1P B1D B1Y B1G B1M B1A
B1Q B1T B1C B1B B1H B1V B1K B1R B1E )
41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
6176 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 25 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
USB Memory Key - 1G RoW (models) 41U4978 1
ADD2 DVI Adapter,FH (HDCP) (models) 43C0258 2
188 Hardware Maintenance Manual
6176 Adapters and miscellaneous FRUs FRU# CRU
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models B1U B1S B1A ) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models B1D) 89P8575 1
Speaker Power brick - China, Thailand (models B1T B1C) 89P8581 1
Speaker Power brick - Japan (models B1J) 89P8577 1
Speaker Power brick - Brazil (models B1P) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (modes B1M) 89P8579 1
Speaker Brick - Korea (models B1K) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models B1H B1B B1G) 89P8573 1
Speaker Brick - Taiwan (models B1V ) 41A4905 1
Speaker Power brick - India, South Africa (models B1Q) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
6176 Line Cords FRU# CRU
Line cord - US (models B1U B1F B1S B1D B1L B1A B1T) 41R3184 1
Line cord - US (models B1U B1F B1S B1D B1L B1A B1T) 41R3185 1
Line cord - China (models B1C) 41R3256 1
Line cord - China (models B1C) 41R3257 1
Line cord - Brazil (models B1P) 41R3270 1
Line cord - Brazil (models B1P) 41R3271 1
Line cord - LA High Volt APU (models B1Y B1L ) 41R3176 1
Line Cord - LA High Volt APU (models B1Y B1L ) 41R3177 1
Line Cord - Korea (models B1K) 41R3260 1
Line Cord - Korea (models B1K) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models B1G B1A ) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models B1G B1A ) 41R3225 1
Line Cord - Taiwan (models B1V) 41R3278 1
Line Cord - Taiwan (models B1V) 41R3279 1
Line Cord - Italy (models B1S B1Y B1L B1G ) 41R3232 1
Line Cord - Italy (models B1S B1Y B1L B1G ) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models B1G B1A ) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models B1G B1A ) 41R3209 1
Line Cord - Denmark (models B1G) 41R3212 1
Line Cord - Denmark (models B1G) 41R3213 1
Line Cord - Switzerland (models B1G) 41R3228 1
Chapter 11. FRU lists 189
6176 Line Cords FRU# CRU
Line Cord - Switzerland (models B1G) 41R3229 1
Line Cord - Israel (models B1G) 41R3236 1
Line Cord - Israel (models B1G) 41R3237 1
Line Cord - South Africa (models B1G B1A B1M) 41R3220 1
Line Cord - South Africa (models B1G B1A B1M) 41R3221 1
Line Cord - India (models B1Q) 41R3341 1
Line Cord - India (models B1Q) 41R3175 1
Line Cord - Japan (models B1J ) 41R3248 1
Line Cord - Japan (models B1J ) 41R3249 1
Line Cord - ANZ (models B1M) 41R3196 1
Line Cord - ANZ (models B1M) 41R3197 1
Line Cord - Hong Kong (models B1B B1H ) 41R3224 1
Line Cord - Hong Kong (models B1B B1H ) 41R3225 1
6176 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
190 Hardware Maintenance Manual
6176 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
6176 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Chapter 11. FRU lists 191
6176 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
6176 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models B1U B1M B1A B1Q B1H B1R B1E) 46R7287 1
Japanese (models B1J) 46R7288 1
Simplified Chinese (models B1C) 46R7289 1
French (models B1G) 46R7290 1
German (models B1G) 46R7291 1
Spanish (models B1G) 46R7292 1
Italian (models B1G) 46R7293 1
Brazilian Portuguese (models B1P) 46R7294 1
Danish (models B1G) 46R7295 1
Swedish (models B1G) 45R9786 1
Finland (models B1G) 45R9787 1
Dutch (models B1G) 45R9788 1
Traditional Chinese (models B1V) 46R7296 1
Hong Kong (models B1B) 46R7297 1
Norwegian (models B1G) 46R7298 1
Korean (models B1K) 45R9792 1
Slovenian (models B1G) 45R9793 1
Greek (models B1G) 45R9794 1
Russian (models B1G) 46R7299 1
Portuguese (models B1G) 45R9796 1
192 Hardware Maintenance Manual
6176 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Turkish (models B1G) 45R9797 1
Czech (models B1G) 45R9798 1
Polish (models B1G) 45R9799 1
Russian English (models B1G) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models B1G) 45R9802 1
Romanian (models B1G) 45R9803 1
Hungarian (models B1G) 45R9804 1
Slovakian (models B1G) 45R9805 1
Serbian-Latin (models) 45R9806 1
6176 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Chapter 11. FRU lists 193
6176 Vista VHP SP1 Recovery DVDs FRU# CRU
Serbian-Latin (models) 45R9864 1
6176 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Russian English (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
6176 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
194 Hardware Maintenance Manual
6176 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
6176 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 195
Machine Type 6177
Item # 6177 FRUs FRU# CRU
1 Heat Sink Intel 65W/95W Heatsink Kit (all models) 41R6429 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
196 Hardware Maintenance Manual
Item # 6177 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models)
42Y9353 2
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models B1U B1F B1S B1P
B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E )
43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
5 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models B1U B1F B1S B1P B1D
B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E )
40Y9035 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9107 2
7 Front USB/Audio with bracket (all models) 41N8212 2
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
Chapter 11. FRU lists 197
Item # 6177 FRUs FRU# CRU
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models B1U B1F B1S
B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J )
41X4256 2
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board,Intel G31 mATX GA Level (models) 53Y3282 N
10 Power supply, 220 Watt Power Supply - Robust; for all countries except for JP
(models B1U B1F B1S B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V
B1K B1R B1E )
41A9689 N
10 Power supply, 220 Watt Power Supply - Japan;only for JP (models B1J ) 41A9697 2
10 Power supply, 220W 80% Power supply-for all countries (models B1U B1F B1S
B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J )
41A9670 2
10 Power supply, 280W TFX Active PFC,for all countries (models B1U B1F B1S B1P
B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J )
41A9705 2
The FRUs listed in the following tables are not illustrated.
6177 FRUs FRU# CRU
Planer shield, Atx 946,G31 with usb number (all models) 41R6384 N
Cabel, SATA 250mm (RoHS) (all models) 43N9012 2
Shield, EMC , Blank 5.25 (all models) 41N8271 2
Shield, EMC , Blank diskette drive (all models) 41N8273 2
Cover (all models) 41N8204 2
Mechanical shell kit (all models) 41R6387 N
Bezel kit, without IBM logo (all models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
Hard disk drive bracket assembly (plastic and grommets) (all models) 41N8210 2
Hard disk drive fan and bracket asm (all models) 41R6325 2
Speaker cable assembly, 600 mm cable length (all models) 41N8217 2
Fan duct assembly (all models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (all models) 42Y8006 2
Retention module assembly, Intel (all models) 41A7139 N
Intrusion switch assembly (all models) 41R6208 2
Foot stand (all models) 41R4813 1
Cable, diskette drive (all models) 41A7147 2
Cable, serial ATA, 250 mm (all models) 41A7145 2
Planer shield, Atx 946, with usb number (all modes) 41R6378 N
Rear Com2 cable , Rohs (all models) 41R6198 2
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (all models) 42Y8008 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models B1U B1F B1S B1P B1D B1Y
B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
198 Hardware Maintenance Manual
6177 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
Chapter 11. FRU lists 199
6177 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models B1U B1M B1A B1Q B1H B1R B1E) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models B1G) 41A5291 1
Belgian/French (models B1G) 41A5292 1
Belgian/UK (models B1G) 41A5293 1
Brazilian Portuguese (models B1P) 41A5294 1
Bulgarian (models B1G) 41A5295 1
Chinese/US (models B1B B1V) 41A5296 1
Czech(ABB) (models B1G) 41A5297 1
Danish (models B1G) 41A5298 1
Dutch (models B1G) 41A5299 1
French (models B1G) 41A5300 1
French Canadian (models B1F) 41A5301 1
French Canadian (models B1F) 41A5302 1
German (models B1G) 41A5303 1
Greek (models B1G) 41A5304 1
Greek/US (models B1G) 41A5305 1
Hebrew (models B1G) 41A5306 1
Hungarian (models B1G) 41A5307 1
Iceland (models B1G) 41A5308 1
Italian (models B1G) 41A5309 1
Japanese (models B1J) 41A5310 1
Korean (models B1K) 41A5311 1
LA Spanish (models B1S B1D B1Y) 41A5312 1
Norwegian (models B1G) 41A5313 1
Polish (models B1G) 41A5314 1
Portuguese (models B1G) 41A5315 1
Romanian (models B1G) 41A5317 1
Russian/Cyrillic (models B1G) 41A5318 1
Serbian/Cyrillic (models B1G) 41A5319 1
Slovak (models B1G) 41A5320 1
Spanish (models B1G) 41A5321 1
Swedish/Finnish (models B1G) 41A5322 1
Swiss French/German (models B1G) 41A5323 1
Thailand (models B1T) 41A5324 1
Turkish (models B1G) 41A5325 1
Turkish (models B1G) 41A5326 1
UK English (models B1G) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models B1G) 41A5329 1
200 Hardware Maintenance Manual
6177 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgian/UK (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech(ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
Chapter 11. FRU lists 201
6177 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/UK (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech(ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
202 Hardware Maintenance Manual
6177 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models B1U B1F B1S B1P B1D B1Y B1G B1M B1A
B1Q B1T B1C B1B B1H B1V B1K B1R B1E )
41U3013 1
Optical Wheel Mouse (400DPI, USB) (models B1U B1F B1S B1P B1D B1Y B1G B1M B1A
B1Q B1T B1C B1B B1H B1V B1K B1R B1E )
41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
6177 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 25 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
USB Memory Key - 1G RoW (models) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage,ASEAN (models B1U B1S B1A) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models B1D) 89P8575 1
Speaker Power brick - China, Thailand (models B1T B1C) 89P8581 1
Speaker Power brick - Japan (models B1J) 89P8577 1
Speaker Power brick - Brazil (models B1P) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models B1M) 89P8579 1
Speaker Brick - Korea (models B1K) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models B1H B1B B1G) 89P8573 1
Speaker Brick - Taiwan (models B1V ) 41A4905 1
Speaker Power brick - India, South Africa (models B1Q) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
6177 Line Cords FRU# CRU
Line cord - US (models B1U B1F B1S B1D B1L B1A B1T ) 41R3184 1
Line cord - US (models B1U B1F B1S B1D B1L B1A B1T ) 41R3185 1
Line cord - China (models B1C) 41R3256 1
Line cord - China (models B1C) 41R3257 1
Line cord - Brazil (models B1P) 41R3270 1
Line cord - Brazil (models B1P) 41R3271 1
Line cord - LA High Volt APU (models B1Y B1L ) 41R3176 1
Chapter 11. FRU lists 203
6177 Line Cords FRU# CRU
Line Cord - LA High Volt APU (models B1Y B1L ) 41R3177 1
Line Cord - Korea (models B1K) 41R3260 1
Line Cord - Korea (models B1K) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models B1G B1A ) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models B1G B1A ) 41R3225 1
Line Cord - Taiwan (models B1V) 41R3278 1
Line Cord - Taiwan (models B1V) 41R3279 1
Line Cord - Italy (models B1S B1Y B1L B1G ) 41R3232 1
Line Cord - Italy (models B1S B1Y B1L B1G ) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models B1G B1A ) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models B1G B1A ) 41R3209 1
Line Cord - Denmark (models B1G) 41R3212 1
Line Cord - Denmark (models B1G) 41R3213 1
Line Cord - Switzerland (models B1G) 41R3228 1
Line Cord - Switzerland (models B1G) 41R3229 1
Line Cord - Israel (models B1G) 41R3236 1
Line Cord - Israel (models B1G) 41R3237 1
Line Cord - South Africa (models B1G B1A B1M) 41R3220 1
Line Cord - South Africa (models B1G B1A B1M) 41R3221 1
Line Cord - India (models B1Q) 41R3341 1
Line Cord - India (models B1Q) 41R3175 1
Line Cord - Japan (models B1J ) 41R3248 1
Line Cord - Japan (models B1J ) 41R3249 1
Line Cord - ANZ (models B1M) 41R3196 1
Line Cord - ANZ (models B1M) 41R3197 1
Line Cord - Hong Kong (models B1B B1H ) 41R3224 1
Line Cord - Hong Kong (models B1B B1H ) 41R3225 1
6177 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
204 Hardware Maintenance Manual
6177 Windows XP Home Recovery CDs FRU# CRU
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korea (models) TBD 1
6177 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Chapter 11. FRU lists 205
6177 Windows XP Pro Recovery CDs FRU# CRU
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
6177 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models) 45R9751 1
English (models) 46R7273 1
Japanese (models) 46R7274 1
French (models) 46R7275 1
German (models) 46R7276 1
Spanish (models) 46R7277 1
English (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
6177 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models B1C) 45R9779 1
English (models B1U B1M B1A B1Q B1H B1R B1E) 46R7287 1
Japanese (models B1J) 46R7288 1
French (models B1G) 46R7289 1
206 Hardware Maintenance Manual
6177 Vista Business 32 SP1 Recovery DVDs FRU# CRU
German (models B1G) 46R7290 1
Spanish (models B1G) 46R7291 1
Russian English (models B1G) 46R7292 1
Italian (models B1G) 46R7293 1
Brazilian Portuguese (models B1P) 46R7294 1
Danish (models B1G) 46R7295 1
Swedish (models B1G) 45R9786 1
Finland (models B1G) 45R9787 1
Dutch (models B1G) 45R9788 1
Traditional Chinese (models B1V) 46R7296 1
Hong Kong (models B1B) 46R7297 1
Norwegian (models B1G) 46R7298 1
Korean (models B1K) 45R9792 1
Slovenian (models B1G) 45R9793 1
Greek (models B1G) 45R9794 1
Russian (models B1G) 46R7299 1
Portuguese (models B1G) 45R9796 1
Turkish (models B1G) 45R9797 1
Czech (models B1G) 45R9798 1
Polish (models B1G) 45R9799 1
Russian English (models B1G) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models B1G) 45R9802 1
Romanian (models B1G) 45R9803 1
Hungarian (models B1G) 45R9804 1
Slovakian (models B1G) 45R9805 1
Serbian-Latin (models) 45R9806 1
6177 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Chapter 11. FRU lists 207
6177 Vista VHP SP1 Recovery DVDs FRU# CRU
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian (models) 46R7327 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
6177 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Japanese (models) 46R7302 1
Simplified Chinese (models) 46R7303 1
French (models) 46R7304 1
German (models) 46R7305 1
Spanish (models) 46R7306 1
Italian (models) 46R7307 1
Brazilian Portuguese (models) 46R7308 1
Danish (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Traditional Chinese (models) 46R7310 1
Hong Kong (models) 46R7311 1
Norwegian (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Russian (models) 46R7313 1
Taiwan (models) 45R9827 1
208 Hardware Maintenance Manual
6177 Vista Business 64 SP1 Recovery DVDs FRU# CRU
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Russian English (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
6177 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
6177 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 209
Machine Type 6178
Item # 6178 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models B1U B1F B1S B1P B1D
B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E)
40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models B1U
B1F B1S B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E )
43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T(models) 43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T(models) 43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T(models) 43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA,
EM64T(models)
43C2056 N
5 Microprocessor,Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models B1U B1F B1S
B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J )
41X4256 2
210 Hardware Maintenance Manual
Item # 6178 FRUs FRU# CRU
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models B1U B1F B1S B1P B1D B1Y
B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J)
53Y3195 N
7 System board, Intel G31 nano-BTX GA Level (models B1U B1F B1S B1P B1D B1Y
B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J)
53Y5125 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models B1U
B1F B1S B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E
B1J )
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models B1U B1F
B1S B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B B1H B1V B1K B1R B1E B1J )
41A9717 2
The FRUs listed in the following tables are not illustrated.
6178 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temperature Sense cable (460 mm) (all models) 41R2509 2
System Fan (all models) 41R6042 2
System Fan assembly (all models) 41R6249 2
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
L1-C2 intrusion switch (all models) 39K5022 2
Fan for SFF (all models) 41R6042 2
Rell IO shield BTX atlantic (all models) 41R6381 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
C2 Intrusion Switch (all models) 39K5022 2
Intel 95W/65W heatsink Kit (all models) 41R6039 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE (models) 43N9015 2
Cabel-SATA 700mm (RoHS) (all models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (all models) 43N9361 2
ODD mounting kit (all models) 43N9362 2
Cardreader Bezel Kit (all models) 43N9363 2
Chapter 11. FRU lists 211
6178 FRUs FRU# CRU
Battery 3V- Lithium (models B1U B1F B1S B1P B1D B1Y B1G B1M B1A B1Q B1T B1C B1B
B1H B1V B1K B1R B1E B1J)
45C1566 1
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
Internal USB 25 in 1 Memory Card Reader Slim (SFF) (models CTO) 53Y3347 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
Chassis primary HDD cage (all models) 45K6272 1
6178 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
212 Hardware Maintenance Manual
6178 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
6178 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models B1U B1M B1A B1Q B1H B1R B1E) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models B1G) 41A5291 1
Belgian French (models B1G) 41A5292 1
Belgium English (models B1G) 41A5293 1
Brazilian Portuguese (models B1P) 41A5294 1
Bulgarian (models B1G) 41A5295 1
Chinese/US (models B1B B1V) 41A5296 1
Czech (ABB) (models B1G) 41A5297 1
Danish (models B1G) 41A5298 1
Dutch (models B1G) 41A5299 1
French (models B1G) 41A5300 1
French Canadian (models B1F) 41A5301 1
French Canadian (models B1F) 41A5302 1
German (models B1G) 41A5303 1
Greek (models B1G) 41A5304 1
Greek/US (models B1G) 41A5305 1
Hebrew (models B1G) 41A5306 1
Hungarian (models B1G) 41A5307 1
Iceland (models B1G) 41A5308 1
Japanese (models B1J) 41A5310 1
Korean (models B1K) 41A5311 1
LA Spanish (models B1S B1D B1Y) 41A5312 1
Italian (models B1G) 41A5309 1
Norwegian (models B1G) 41A5313 1
Polish (models B1G) 41A5314 1
Portuguese (models B1G) 41A5315 1
Romanian (models B1G) 41A5317 1
Russian/Cyrillic (models B1G) 41A5318 1
Serbian/Cyrillic (models B1G) 41A5319 1
Chapter 11. FRU lists 213
6178 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Slovak (models B1G) 41A5320 1
Spanish (models B1G) 41A5321 1
Swedish/Finnish (models B1G) 41A5322 1
Swiss French/German (models B1G) 41A5323 1
Thailand (models B1T) 41A5324 1
Turkish (models B1G) 41A5325 1
Turkish (models B1G) 41A5326 1
UK English (models B1G) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models B1G) 41A5329 1
6178 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
214 Hardware Maintenance Manual
6178 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
6178 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Chapter 11. FRU lists 215
6178 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
6178 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models B1U B1F B1S B1P B1D B1Y B1G B1M B1A
B1Q B1T B1C B1B B1H B1V B1K B1R B1E )
41U3013 1
Optical Wheel Mouse (400DPI, USB) (models B1U B1F B1S B1P B1D B1Y B1G B1M B1A
B1Q B1T B1C B1B B1H B1V B1K B1R B1E )
41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
6178 Adapters and miscellaneous FRUs FRU# CRU
USB Memory Key - 1G RoW (models) 41U4978 1
USB Memory Key (models) 43R2296 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models B1U B1S B1A) 89P8571 1
Internal USB Memory Card Reader Slim (LX-607) (models) 45R1885 1
Speaker Power brick - LA high voltage (non-APU) (models B1D) 89P8575 1
Speaker Power brick - China, Thailand (models B1T B1C) 89P8581 1
Speaker Power brick - Japan (models B1J) 89P8577 1
Speaker Power brick - Brazil (models B1P) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models B1M) 89P8579 1
Speaker Brick - Korea (models B1K) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models B1H B1B B1G) 89P8573 1
Speaker Brick - Taiwan (models B1V ) 41A4905 1
216 Hardware Maintenance Manual
6178 Adapters and miscellaneous FRUs FRU# CRU
Speaker Power brick - India, South Africa (models B1Q) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable(models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
6178 Line Cords FRU# CRU
Line cord - US (models B1U B1F B1S B1D B1L B1A B1T ) 41R3184 1
Line cord - US (models B1U B1F B1S B1D B1L B1A B1T ) 41R3185 1
Line cord - China (models B1C) 41R3256 1
Line cord - China (models B1C) 41R3257 1
Line cord - Brazil (models B1P) 41R3270 1
Line cord - Brazil (models B1P) 41R3271 1
Line cord - LA High Volt APU (models B1Y B1L ) 41R3176 1
Line Cord - LA High Volt APU (models B1Y B1L ) 41R3177 1
Line Cord - Korea (models B1K) 41R3260 1
Line Cord - Korea (models B1K) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models B1G B1A ) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models B1G B1A ) 41R3225 1
Line Cord - Taiwan (models B1V) 41R3278 1
Line Cord - Taiwan (models B1V) 41R3279 1
Line Cord - Italy (models B1S B1Y B1L B1G ) 41R3232 1
Line Cord - Italy (models B1S B1Y B1L B1G ) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models B1G B1A ) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models B1G B1A ) 41R3209 1
Line Cord - Denmark (models B1G) 41R3212 1
Line Cord - Denmark (models B1G) 41R3213 1
Line Cord - Switzerland (models B1G) 41R3228 1
Line Cord - Switzerland (models B1G) 41R3229 1
Line Cord - Israel (models B1G) 41R3236 1
Line Cord - Israel (models B1G) 41R3237 1
Line Cord - South Africa (models B1G B1A B1M) 41R3220 1
Line Cord - South Africa (models B1G B1A B1M) 41R3221 1
Line Cord - India (models B1Q) 41R3341 1
Line Cord - India (models B1Q) 41R3175 1
Line Cord - Japan (models B1J ) 41R3248 1
Line Cord - Japan (models B1J ) 41R3249 1
Line Cord - ANZ (models B1M) 41R3196 1
Line Cord - ANZ (models B1M) 41R3197 1
Line Cord - Hong Kong (models B1B B1H) 41R3224 1
Line Cord - Hong Kong (models B1B B1H) 41R3225 1
Chapter 11. FRU lists 217
6178 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (Swedish)(models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
6178 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
218 Hardware Maintenance Manual
6178 Windows XP Pro Recovery CDs FRU# CRU
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
6178 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Chapter 11. FRU lists 219
6178 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
6178 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models B1U B1M B1A B1Q B1H B1R B1E ) 46R7287 1
Japanese (models B1J) 46R7288 1
Simplified Chinese (models B1C) 46R7289 1
French (models B1G) 46R7290 1
German (models B1G) 46R7291 1
Spanish (models B1G) 46R7292 1
Italian (models B1G) 46R7293 1
Brazilian Portuguese (models B1P) 46R7294 1
Danish (models B1G) 46R7295 1
Swedish (models B1G) 45R9786 1
Finland (models B1G) 45R9787 1
Dutch (models B1G) 45R9788 1
Traditional Chinese (models B1V) 46R7296 1
Hong Kong (models B1B) 46R7297 1
Norwegian (models B1G) 46R7298 1
Korean (models B1K) 45R9792 1
Slovenian (models B1G) 45R9793 1
Greek (models B1G) 45R9794 1
Russian (models B1G) 46R7299 1
Portuguese (models B1G) 45R9796 1
Turkish (models B1G) 45R9797 1
Czech (models B1G) 45R9798 1
Polish (models B1G) 45R9799 1
Russian English (models B1G) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models B1G) 45R9802 1
Romanian (models B1G) 45R9803 1
Hungarian (models B1G) 45R9804 1
Slovakian (models B1G) 45R9805 1
Serbian-Latin (models) 45R9806 1
6178 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
220 Hardware Maintenance Manual
6178 Vista VHP SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
6178 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
Simplified Chinese (models) 46R7303 1
French (models) 46R7304 1
German (models) 46R7305 1
Spanish (models) 46R7306 1
Italian (models) 46R7307 1
Brazilian Portuguese (models) 46R7308 1
Danish (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Chapter 11. FRU lists 221
6178 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Dutch (models) 45R9818 1
Traditional Chinese (models) 46R7310 1
Hong Kong (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Russian (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Russian English (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
6178 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7338 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
222 Hardware Maintenance Manual
6178 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 45R9889 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
6178 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 223
Machine Type 6179
Item # 6179 FRUs FRU# CRU Tier
1 System board , Intel G31 mATX GA Level (models B1U B1F B2U B2F B3U B3F
B4U B4F B5U B5F B6U B6F BFU BFF BBU BBF BCU BCF BDU BDF)
53Y3282 N
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
224 Hardware Maintenance Manual
Item # 6179 FRUs FRU# CRU Tier
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models B1U B1F B2U
B2F B3U B3F B4U B4F B5U B5F B6U B6F BFU BFF BBU BBF)
41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models BCU BCF BDU
BDF)
41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
Chapter 11. FRU lists 225
Item # 6179 FRUs FRU# CRU Tier
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models B2U B2F B3U B3F
B5U B5F BFU BFF BBU BBF)
41N3325 2
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models)
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models
B1U B1F B4U B4F B6U B6F BCU BCF BDU BDF)
43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9105 2
6 Bezel assembly without IBM mark (all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (all models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models B1U B1F B2U B2F
B3U B3F B4U B4F B5U B5F B6U B6F BCU BCF BDU BDF BFU BFF BBU BBF)
40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
11 System board , Intel G31 mATX GA Level (models B1U B1F B2U B2F B3U B3F
B4U B4F B5U B5F B6U B6F)
45C2882 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models B1U B1F B2U B2F B3U B3F B4U B4F B5U B5F B6U B6F BCU BCF BDU
BDF BFU BFF BBU BBF)
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models B1U B1F
B2U B2F B3U B3F B4U B4F B5U B5F B6U B6F BCU BCF BDU BDF BFU BFF BBU
BBF)
41A9665 2
13 Power supply, ATX 310W Power supply Robust; for all countries (models B1U B1F
B2U B2F B3U B3F B4U B4F B5U B5F B6U B6F BCU BCF BDU BDF BFU BFF BBU
BBF)
41A9726 2
The FRUs listed in the following tables are not illustrated.
6179 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Cable, SATA 457mm (RoHs) (all models) 43N9013 2
Cable, SATA 250mm (RoHs) (all models) 43N9012 2
Shield, diskette drive EMC (all models) 41N8078 2
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Hard disk drive tray (all models) 41R6291 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
226 Hardware Maintenance Manual
6179 FRUs FRU# CRU Tier
Asm Chassis Without IBM Mark (all models) 41R6408 2
Card reader retainer (models) 43N9351 2
Blank 5.25″Bezel (models) 41N8077 3
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models B1U B1F B2U B2F B3U B3F
B4U B4F B5U B5F B6U B6F BFU BFF BBU BBF BCU BCF BDU BDF)
45C1566 3
Blank 5.25″Bezel (all models) 41N8077 2
Cable clip, FW-6D (all models) 43N9462 2
Intel 65W/95W heat sink Kit (Tower) (all models) 41R6429 2
Chassis primary HDD cage (all models) 45K6272 1
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Chapter 11. FRU lists 227
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models B1U B2U B3U B4U B5U B6U BCU BDU BFU BBU) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models) 41A5292 1
Belgian/UK (models) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models) 41A5296 1
Czech (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models B1F B2F B3F B4F B5F B6F BCF BDF BFF BBF) 41A5301 1
French Canadian (models B1F B2F B3F B4F B5F B6F BCF BDF BFF BBF) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Italian (models) 41A5309 1
Japanese (models) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
228 Hardware Maintenance Manual
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss (models) 41A5323 1
Thailand (models) 41A5324 1
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Chapter 11. FRU lists 229
Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
230 Hardware Maintenance Manual
Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
6179 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (models B1U B1F B2U B2F B3U B3F B4U B4F B5U
B6U B5F B6F BCU BCF BDU BDF BFU BFF BBU BBF)
41U3013 1
Optical Wheel Mouse (400DPI, USB) (models B1U B1F B2U B2F B3U B3F B4U B4F B5U
B6U B5F B6F BCU BCF BDU BDF BFU BFF BBU BBF)
41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
6179 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
USB Memory Key - 1G RoW (models) 41U4978 1
ADD2 DVI Adapter,FH (HDCP) (models) 43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models B1U B2U B3U B4U
B5U B6U BCU BDU BFU BBU)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Chapter 11. FRU lists 231
6179 Adapters and miscellaneous FRUs FRU# CRU
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (modes) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
6179 Line Cords FRU# CRU
Line cord - US (models B1U B2U B3U B4U B1F B2F B3F B4F B5U B6U B5F B6F BCU BCF
BDU BDF BFU BFF BBU BBF)
41R3184 1
Line cord - US (models B1U B2U B3U B4U B1F B2F B3F B4F B5U B6U B5F B6F BCU BCF
BDU BDF BFU BFF BBU BBF)
41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models) 41R3232 1
Line Cord - Italy (models) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models) 41R3220 1
Line Cord - South Africa (models) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
232 Hardware Maintenance Manual
6179 Line Cords FRU# CRU
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
6179 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
6179 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models B5U B6U BCU BDU BFU BBU) 45R0756 1
FR/CF (models B5F B6F BCF BDF BFF BBF) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
Chapter 11. FRU lists 233
6179 Windows XP Pro Recovery CDs FRU# CRU
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
6179 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
234 Hardware Maintenance Manual
6179 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
6179 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models B1U B2U B3U B4U B5U B6U BCU BDU BFU BBU) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models B1F B2F B3F B4F B5F B6F BCF BDF BFF BBF) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Chapter 11. FRU lists 235
6179 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
6179 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 45R9847 1
Hong Kong (models) 45R9848 1
Norwegian (models) 45R9849 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
6179 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Japanese (models) 46R7302 1
Simplified Chinese (models) 46R7303 1
236 Hardware Maintenance Manual
6179 Vista Business 64 SP1 Recovery DVDs FRU# CRU
French (models) 46R7304 1
German (models) 46R7305 1
Spanish (models) 46R7306 1
Italian (models) 46R7307 1
Brazilian Portuguese (models) 46R7308 1
Danish (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Traditional Chinese (models) 46R7310 1
Hong Kong (models) 46R7311 1
Polish (models) 46R7312 1
Norwegian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Russian (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Russian English (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
6179 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Chapter 11. FRU lists 237
6179 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
6179 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
238 Hardware Maintenance Manual
Machine Type 6305
Item # 6305 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models B1U B1F B2U B2F B3U
B3F B4U B4F B5U B5F B6U B6F B7U B7F B8U B8F B9U B9F BDU BDF BEU BEF
BBU BBF BCU BCF)
40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models B1U
B1F B4U B4F B7U B7F BEU BEF BBU BBF)
41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models B2U
B2F B3U B3F B5U B5F B6U B6F B8U B8F B9U B9F BDU BDF BCU BCF)
43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T(models) 43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T(models) 43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T(models) 43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA,
EM64T(models)
43C2056 N
5 Microprocessor,Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
Chapter 11. FRU lists 239
Item # 6305 FRUs FRU# CRU
5 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
5 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
5 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
5 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
5 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
5 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
5 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
5 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
5 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
5 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
5 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
5 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
5 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
5 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
5 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
5 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
5 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
5 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
5 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
5 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
5 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
5 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
5 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
5 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
5 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
240 Hardware Maintenance Manual
Item # 6305 FRUs FRU# CRU
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models B1U B1F B2U
B2F B3U B3F B4U B4F B5U B5F B6U B6F B7U B7F B8U B8F B9U B9F BEU BEF
BBU BBF)
41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models BDU BDF BCU
BCF)
41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models B1U B1F B2U B2F B3U B3F
B4U B4F B5U B5F B6U B6F B7U B7F B8U B8F B9U B9F BDU BDF BEU BEF BBU
BBF BCU BCF)
53Y5125 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models B1U
B1F B2U B2F B3U B3F B4U B4F B5U B5F B6U B6F B7U B7F B8U B8F B9U B9F
BDU BDF BEU BEF BBU BBF BCU BCF)
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models B1U B1F
B2U B2F B3U B3F B4U B4F B5U B5F B6U B6F B7U B7F B8U B8F B9U B9F BDU
BDF BEU BEF BBU BBF BCU BCF)
41A9717 2
The FRUs listed in the following tables are not illustrated.
6305 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temperature Sense cable (460 mm) (all models) 41R2509 2
System Fan (all models) 41R6042 2
System Fan assembly (all models) 41R6249 2
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
L1-C2 intrusion switch (all models) 39K5022 2
Fan for SFF (all models) 41R6042 2
Rell IO shield BTX atlantic (all models) 41R6381 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
C2 Intrusion Switch (all models) 39K5022 2
Intel 95W/65W heatsink Kit (all models) 41R6039 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE (models) 43N9015 2
Cabel-SATA 700mm (RoHS) (all models) 43N9011 2
Chapter 11. FRU lists 241
6305 FRUs FRU# CRU
Universal Adapter Bracket 5.25 to 3.5 (all models) 43N9361 2
ODD mounting kit (all models) 43N9362 2
Cardreader Bezel Kit (all models) 43N9363 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models B1U B1F B2U B2F B3U B3F
B4U B4F B5U B5F B6U B6F B7U B7F B8U B8F B9U B9F BDU BDF BEU BEF BBU BBF BCU
BCF)
45C1566 N
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
Chassis primary HDD cage (all models) 45K6272 1
6305 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
242 Hardware Maintenance Manual
6305 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
6305 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models B1U B2U B3U B4U B5U B6U B7U B8U B9U BDU BEU BBU BCU) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian French (models) 41A5292 1
Belgium English (models) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models) 41A5296 1
Czech (ABB) (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models B1F B2F B3F B4F B5F B6F B7F B8F B9F BDF BEF BBF BCF) 41A5301 1
French Canadian (models B1F B2F B3F B4F B5F B6F B7F B8F B9F BDF BEF BBF BCF) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Japanese (models) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Italian (models) 41A5309 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Chapter 11. FRU lists 243
6305 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss French/German (models) 41A5323 1
Thailand (models) 41A5324 1
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
6305 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
244 Hardware Maintenance Manual
6305 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
6305 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Chapter 11. FRU lists 245
6305 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
6305 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models B1U B1F B2U B2F B3U B3F B4U B4F B5U
B5F B6U B6F B7U B7F B8U B8F B9U B9F BDU BDF BEU BEF BBU BBF BCU BCF)
41U3013 1
Optical Wheel Mouse (400DPI, USB) (models B1U B1F B2U B2F B3U B3F B4U B4F B5U
B5F B6U B6F B7U B7F B8U B8F B9U B9F BDU BDF BEU BEF BBU BBF BCU BCF)
41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
6305 Adapters and miscellaneous FRUs FRU# CRU
USB Memory Key - 1G RoW (models) 41U4978 1
USB Memory Key (models) 43R2296 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
Internal USB Memory Card Reader Slim (LX-607) (models) 45R1885 1
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models B1U B2U B3U B4U
B5U B6U B7U B8U B9U BDU BEU BBU BCU)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models) 89P8579 1
246 Hardware Maintenance Manual
6305 Adapters and miscellaneous FRUs FRU# CRU
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable(models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9356 Line Cords FRU# CRU
Line cord - US (models B1U B1F B2U B2F B3U B3F B4U B4F B5U B5F B6U B6F B7U B7F
B8U B8F B9U B9F BDU BDF BEU BEF BBU BBF BCU BCF)
41R3184 1
Line cord - US (models B1U B1F B2U B2F B3U B3F B4U B4F B5U B5F B6U B6F B7U B7F
B8U B8F B9U B9F BDU BDF BEU BEF BBU BBF BCU BCF)
41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models) 41R3232 1
Line Cord - Italy (models) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models) 41R3220 1
Line Cord - South Africa (models) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Chapter 11. FRU lists 247
9356 Line Cords FRU# CRU
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
6305 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (Swedish)(models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
6305 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models B7U B8U B9U BDU BEU BBU BCU) 45R0756 1
FR/CF (models B7F B8F B9F BDF BEF BBF BCF) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
248 Hardware Maintenance Manual
6305 Windows XP Pro Recovery CDs FRU# CRU
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
6305 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Chapter 11. FRU lists 249
6305 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
6305 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models B1U B2U B3U B4U B5U B6U B7U B8U B9U BDU BEU BBU BCU) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models B1F B2F B3F B4F B5F B6F B7F B8F B9F BDF BEF BBF BCF) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
250 Hardware Maintenance Manual
6305 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Serbian-Latin (models) 45R9806 1
6305 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
6305 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Japanese (models) 46R7302 1
Simplified Chinese (models) 46R7303 1
French (models) 46R7304 1
German (models) 46R7305 1
Spanish (models) 46R7306 1
Chapter 11. FRU lists 251
6305 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Italian (models) 46R7307 1
Brazilian Portuguese (models) 46R7308 1
Danish (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Traditional Chinese (models) 46R7310 1
Hong Kong (models) 46R7311 1
Norwegian (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Russian (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Russian English (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
6305 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
252 Hardware Maintenance Manual
6305 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R7342 1
Arabic Localized (models) 45R9889 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
6305 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 253
Machine Type 7064
Item # 7064 FRUs FRU# CRU Tier
1 Intel 65W/95W Heatsink Kit (Tower) (all models) 41R6429 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
254 Hardware Maintenance Manual
Item # 7064 FRUs FRU# CRU Tier
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models AAU AAF AAS
AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK
AAR AAE AAJ)
41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
Chapter 11. FRU lists 255
Item # 7064 FRUs FRU# CRU Tier
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA
AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9105 2
6 Bezel assembly without IBM mark(all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (all models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models AAU AAF AAS AAP
AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR
AAE AAJ)
40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
11 System board , Intel G31 mATX GA Level (models AAU AAF AAS AAP AAL
AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE
AAJ)
53Y3282 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC
AAB AAH AAV AAK AAR AAE AAJ)
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models) 41A9665 2
13 Power supply, ATX 310W Power supply Robust; for all countries (models AAU
AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV
AAK AAR AAE AAJ)
41A9726 2
The FRUs listed in the following tables are not illustrated.
7064 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Cable, SATA 457mm (RoHs) (all models) 43N9013 2
Cable, SATA 250mm (RoHs) (all models) 43N9012 2
Shield, diskette drive EMC (all models) 41N8078 2
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Hard disk drive tray (all models) 41R6291 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Asm Chassis Without IBM Mark (all models) 41R6408 2
256 Hardware Maintenance Manual
7064 FRUs FRU# CRU Tier
Card reader retainer (models) 43N9351 2
Blank 5.25″Bezel (models) 41N8077 3
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models AAU AAF AAS AAP AAL
AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Chapter 11. FRU lists 257
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAU AAG AAM AAA AAQ AAH AAR AAE) 41A5289 1
Arabic (models AAG) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models AAG) 41A5292 1
Belgian/UK (models AAG) 41A5293 1
Brazilian Portuguese (models AAP) 41A5294 1
Bulgarian (models AAG) 41A5295 1
Chinese/US (models AAB AAV) 41A5296 1
Czech (models AAG) 41A5297 1
Danish (models AAG) 41A5298 1
Dutch (models AAG) 41A5299 1
French (models AAG) 41A5300 1
French Canadian (models AAF) 41A5301 1
French Canadian (models AAF) 41A5302 1
German (models AAG) 41A5303 1
Greek (models AAG) 41A5304 1
Greek/US (models AAG) 41A5305 1
Hebrew (models AAG) 41A5306 1
Hungarian (models AAG) 41A5307 1
Iceland (models AAG) 41A5308 1
Italian (models AAG) 41A5309 1
Japanese (models AAJ) 41A5310 1
Korean (models AAK) 41A5311 1
LA Spanish (models AAS AAD AAY) 41A5312 1
Norwegian (models AAG) 41A5313 1
Polish (models AAG) 41A5314 1
Portuguese (models AAG) 41A5315 1
Romanian (models AAG) 41A5317 1
Russian/Cyrillic (models AAG) 41A5318 1
Serbian/Cyrillic (models AAG) 41A5319 1
Slovak (models AAG) 41A5320 1
Spanish (models AAG) 41A5321 1
Swedish/Finnish (models AAG) 41A5322 1
258 Hardware Maintenance Manual
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Swiss (models AAT) 41A5323 1
Thailand (models AAG) 41A5324 1
Turkish (models AAG) 41A5325 1
Turkish (models AAG) 41A5326 1
UK English (models AAG) 41A5327 1
US Euro (models AAG) 41A5328 1
Slovenian (models AAG) 41A5329 1
Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Chapter 11. FRU lists 259
Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
260 Hardware Maintenance Manual
Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
7064 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (models AAU AAF AAS AAP AAL AAD AAY AAG
AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
41U3013 1
Optical Wheel Mouse (400DPI, USB) (models AAU AAF AAS AAP AAL AAD AAY AAG
AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
7064 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
USB Memory Key - 1G RoW (models) 41U4978 1
ADD2 DVI Adapter,FH (HDCP) (models) 43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
DVI-I connection Adapter Full Height(models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models AAU AAS AAA) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models AAD AAY) 89P8575 1
Speaker Power brick - China, Thailand (models AAC AAT) 89P8581 1
Speaker Power brick - Japan (models AAJ) 89P8577 1
Speaker Power brick - Brazil (models AAP) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (modes AAM ) 89P8579 1
Speaker Brick - Korea (models AAK) 41A4903 1
Chapter 11. FRU lists 261
7064 Adapters and miscellaneous FRUs FRU# CRU
Speaker Brick - Hong Kong, EMEA (models AAB AAH) 89P8573 1
Speaker Brick - Taiwan (models AAV) 41A4905 1
Speaker Power brick - India, South Africa (models AAQ) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
7064 Line Cords FRU# CRU
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT) 41R3184 1
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT) 41R3185 1
Line cord - China (models AAC) 41R3256 1
Line cord - China (models AAC) 41R3257 1
Line cord - Brazil (models AAP) 41R3270 1
Line cord - Brazil (models AAP) 41R3271 1
Line cord - LA High Volt APU (models AAS) 41R3176 1
Line Cord - LA High Volt APU (models AAS) 41R3177 1
Line Cord - Korea (models AAK) 41R3260 1
Line Cord - Korea (models AAK) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG AAA) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG AAA) 41R3225 1
Line Cord - Taiwan (models AAV) 41R3278 1
Line Cord - Taiwan (models AAV) 41R3279 1
Line Cord - Italy (models AAS AAY AAL AAG) 41R3232 1
Line Cord - Italy (models AAS AAY AAL AAG) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA) 41R3209 1
Line Cord - Denmark (models AAG ) 41R3212 1
Line Cord - Denmark (models AAG ) 41R3213 1
Line Cord - Switzerland (models AAG ) 41R3228 1
Line Cord - Switzerland (models AAG) 41R3229 1
Line Cord - Israel (models AAG) 41R3236 1
Line Cord - Israel (models AAG) 41R3237 1
Line Cord - South Africa (models AAG AAM AAA) 41R3220 1
Line Cord - South Africa (models AAG AAM AAA) 41R3221 1
Line Cord - India (models AAQ) 41R3341 1
Line Cord - India (models AAQ) 41R3175 1
Line Cord - Japan (models AAJ) 41R3248 1
Line Cord - Japan (models AAJ) 41R3249 1
Line Cord - ANZ (models AAM ) 41R3196 1
Line Cord - ANZ (models AAM ) 41R3197 1
Line Cord - Hong Kong (models AAB AAH) 41R3224 1
Line Cord - Hong Kong (models AAB AAH) 41R3225 1
262 Hardware Maintenance Manual
7064 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
7064 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
Chapter 11. FRU lists 263
7064 Windows XP Pro Recovery CDs FRU# CRU
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
7064 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
264 Hardware Maintenance Manual
7064 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
7064 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAU AAG AAM AAQ AAA AAH AAR AAE) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models AAG AAF) 46R7290 1
German (models AAG) 46R7291 1
Spanish (models AAG) 46R7292 1
Italian (models AAG) 46R7293 1
Brazilian Portuguese (models AAP) 46R7294 1
Danish (models AAG) 46R7295 1
Swedish (models AAG) 45R9786 1
Finland (models AAG) 45R9787 1
Dutch (models AAG) 45R9788 1
Traditional Chinese (models AAV) 46R7296 1
Hong Kong (models AAB) 46R7297 1
Norwegian (models AAG) 46R7298 1
Korean (models AAK) 45R9792 1
Slovenian (models AAG) 45R9793 1
Greek (models AAG) 45R9794 1
Russian (models AAG) 46R7299 1
Portuguese (models AAG) 45R9796 1
Turkish (models AAG) 45R9797 1
Czech (models AAG) 45R9798 1
Polish (models AAG) 45R9799 1
Russian English (models AAG) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models AAG) 45R9802 1
Romanian (models AAG) 45R9803 1
Hungarian (models AAG) 45R9804 1
Slovakian (models AAG) 45R9805 1
Serbian-Latin (models) 45R9806 1
7064 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Chapter 11. FRU lists 265
7064 Vista VHP SP1 Recovery DVDs FRU# CRU
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
7064 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
266 Hardware Maintenance Manual
7064 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
7064 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Chapter 11. FRU lists 267
7064 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
7064 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
268 Hardware Maintenance Manual
Machine Type 7065
Item # 7065 FRUs FRU# CRU
1 Heat Sink/RM Kit Intel (all models) 41R6022 N
1 Heat Sink/RM Kit Intel (all models) 41N8261 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
Chapter 11. FRU lists 269
Item # 7065 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC
AAB AAH AAV AAK AAR AAE AAJ ABU ABF ABS ABP ABL ABD ABY ABG
ABM ABA ABQ ABT ABC ABB ABH ABV ABK ABR ABE ABJ ACU ACF ACS
ACP ACL ACD ACY ACG ACM ACA ACQ ACT ACC ACB ACH ACV ACK ACR
ACE ACJ)
42Y9353 2
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
270 Hardware Maintenance Manual
Item # 7065 FRUs FRU# CRU
5 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models AAU AAF AAS AAP
AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR
AAE AAJ ABU ABF ABS ABP ABL ABD ABY ABG ABM ABA ABQ ABT ABC ABB
ABH ABV ABK ABR ABE ABJ ACU ACF ACS ACP ACL ACD ACY ACG ACM
ACA ACQ ACT ACC ACB ACH ACV ACK ACR ACE ACJ)
40Y9035 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9107 2
7 Front USB/Audio with bracket (all models) 41N8212 2
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models AAU AAF AAS
AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK
AAR AAE AAJ ABU ABF ABS ABP ABL ABD ABY ABG ABM ABA ABQ ABT
ABC ABB ABH ABV ABK ABR ABE ABJ ACU ACF ACS ACP ACL ACD ACY
ACG ACM ACA ACQ ACT ACC ACB ACH ACV ACK ACR ACE ACJ)
41X4256 2
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board,Intel G31 mATX GA Level (models AAU AAF AAS AAP AAL AAD
AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ ABU
ABF ABS ABP ABL ABD ABY ABG ABM ABA ABQ ABT ABC ABB ABH ABV
ABK ABR ABE ABJ ACU ACF ACS ACP ACL ACD ACY ACG ACM ACA ACQ
ACT ACC ACB ACH ACV ACK ACR ACE ACJ)
45C2882 N
9 System board,Intel G31 mATX GA Level (models AAU AAF AAS AAP AAL AAD
AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ ABU
ABF ABS ABP ABL ABD ABY ABG ABM ABA ABQ ABT ABC ABB ABH ABV
ABK ABR ABE ABJ ACU ACF ACS ACP ACL ACD ACY ACG ACM ACA ACQ
ACT ACC ACB ACH ACV ACK ACR ACE ACJ)
53Y3282 N
10 Power supply, 220 Watt Power Supply - Robust; for all countries except for JP
(ROCKYS) (models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ
AAT AAC AAB AAH AAV AAK AAR AAE ABU ABF ABS ABP ABL ABD ABY
ABG ABM ABA ABQ ABT ABC ABB ABH ABV ABK ABR ABE ACU ACF ACS
ACP ACL ACD ACY ACG ACM ACA ACQ ACT ACC ACB ACH ACV ACK ACR
ACE)
41A9689 N
10 Power supply, 220 Watt Power Supply - Japan;only for JP (ROCKYS) (models AAJ
ABJ ACJ)
41A9697 N
10 Power supply, 220W 80% Power supply-for all countries (ROCKYS) (models AAU
AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV
AAK AAR AAE AAJ ABU ABF ABS ABP ABL ABD ABY ABG ABM ABA ABQ
ABT ABC ABB ABH ABV ABK ABR ABE ABJ ACU ACF ACS ACP ACL ACD
ACY ACG ACM ACA ACQ ACT ACC ACB ACH ACV ACK ACR ACE ACJ)
41A9670 N
10 Power supply, 280W TFX 280W PS ,Active PFC,for RockyS-for all countries
(ROCKYS) (models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ
AAT AAC AAB AAH AAV AAK AAR AAE AAJ ABU ABF ABS ABP ABL ABD
ABY ABG ABM ABA ABQ ABT ABC ABB ABH ABV ABK ABR ABE ABJ ACU
ACF ACS ACP ACL ACD ACY ACG ACM ACA ACQ ACT ACC ACB ACH ACV
ACK ACR ACE ACJ)
41A9705 N
The FRUs listed in the following tables are not illustrated.
Chapter 11. FRU lists 271
7065 FRUs FRU# CRU
Planer shield, Atx 946,G31 with usb number (all models) 41R6384 N
Cabel, SATA 250mm (RoHS) (all models) 43N9012 2
Shield, EMC , Blank 5.25 (all models) 41N8271 2
Shield, EMC , Blank diskette drive (all models) 41N8273 2
Cover (all models) 41N8204 2
Mechanical shell kit (all models) 41R6387 N
Bezel kit, without IBM logo (all models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
Hard disk drive bracket assembly (plastic and grommets) (all models) 41N8210 2
Hard disk drive fan and bracket asm (all models) 41R6325 2
Speaker cable assembly, 600 mm cable length (all models) 41N8217 2
Fan duct assembly (all models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (all models) 42Y8006 2
Retention module assembly, Intel (all models) 41A7139 N
Intrusion switch assembly (all models) 41R6208 2
Foot stand (all models) 41R4813 1
Cable, diskette drive (all models) 41A7147 2
Cable, serial ATA, 250 mm (all models) 41A7145 2
Planer shield, Atx 946, with usb number (all modes) 41R6378 N
Rear Com2 cable , Rohs (all models) 41R6198 2
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (all models) 42Y8008 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models AAU AAF AAS AAP AAL
AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ ABU
ABF ABS ABP ABL ABD ABY ABG ABM ABA ABQ ABT ABC ABB ABH ABV ABK ABR
ABE ABJ ACU ACF ACS ACP ACL ACD ACY ACG ACM ACA ACQ ACT ACC ACB
ACH ACV ACK ACR ACE ACJ)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
7065 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
272 Hardware Maintenance Manual
7065 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
7065 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAU AAG AAM AAA AAQ AAH AAR AAE ABU ABG ABM ABA
ABQ ABH ABR ABE ACU ACG ACM ACA ACQ ABCH ACR ACE)
41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models AAG ABG ACG ) 41A5291 1
Belgian/French (models AAG ABG ACG ) 41A5292 1
Belgian/UK (models AAG ABG ACG ) 41A5293 1
Brazilian Portuguese (models AAP ABP ACP) 41A5294 1
Bulgarian (models AAG ABG ACG ) 41A5295 1
Chinese/US (models AAB ABB ACB AAV ABV ACV) 41A5296 1
Czech(ABB) (models AAG ABG ACG ) 41A5297 1
Danish (models AAG ABG ACG ) 41A5298 1
Dutch (models AAG ABG ACG ) 41A5299 1
Chapter 11. FRU lists 273
7065 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
French (models AAG ABG ACG ) 41A5300 1
French Canadian (models AAF ABF ACF ) 41A5301 1
French Canadian (models AAF ABF ACF ) 41A5302 1
German (models AAG ABG ACG ) 41A5303 1
Greek (models AAG ABG ACG) 41A5304 1
Greek/US (models AAG ABG ACG) 41A5305 1
Hebrew (models AAG ABG ACG) 41A5306 1
Hungarian (models AAG ABG ACG) 41A5307 1
Iceland (models AAG ABG ACG) 41A5308 1
Italian (models AAG ABG ACG) 41A5309 1
Japanese (models AAJ ABJ ACJ) 41A5310 1
Korean (models AAK ABK ACK) 41A5311 1
LA Spanish (models AAS AAD AAY ABS ABD ABY ACS ACD ACY) 41A5312 1
Norwegian (models AAG ABG ACG ) 41A5313 1
Polish (models AAG ABG ACG) 41A5314 1
Portuguese (models AAG ABG ACG) 41A5315 1
Romanian (models AAG ABG ACG) 41A5317 1
Russian/Cyrillic (models AAG ABG ACG) 41A5318 1
Serbian/Cyrillic (models AAG ABG ACG) 41A5319 1
Slovak (models AAG ABG ACG) 41A5320 1
Spanish (mmodels AAG ABG ACGodels) 41A5321 1
Swedish/Finnish (models AAG ABG ACG) 41A5322 1
Swiss French/German (models AAG ABG ACG) 41A5323 1
Thailand (models AAT ABT ACT ) 41A5324 1
Turkish (models AAG ABG ACG) 41A5325 1
Turkish (models AAG ABG ACG) 41A5326 1
UK English (models AAG ABG ACG) 41A5327 1
US Euro (models AAG ABG ACG) 41A5328 1
Slovenian (models AAG ABG ACG) 41A5329 1
7065 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgian/UK (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech(ABB) (models) 41A4969 1
Danish (models) 41A4970 1
274 Hardware Maintenance Manual
7065 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
7065 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/UK (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech(ABB) (models) 41A5256 1
Chapter 11. FRU lists 275
7065 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
7065 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
7065 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
276 Hardware Maintenance Manual
7065 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
USB Memory Key - 1G RoW (models) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage,ASEAN (models AAU ABU ACU ABS
AAS ACS AAA ABA ACA)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models AAD ABD ACD) 89P8575 1
Speaker Power brick - China, Thailand (models AAT AAC ABT ABC ACT ACC) 89P8581 1
Speaker Power brick - Japan (models AAJ ABJ ACJ) 89P8577 1
Speaker Power brick - Brazil (models AAP ABP ACP) 89P8583 1
Speaker Power brick - Argentina (models AAY ABY ACY) 41A4901 1
Speaker Power brick - ANZ (models AAM ABM ACM) 89P8579 1
Speaker Brick - Korea (models AAK ABK ACK) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models AAG AAH AAB ABG ABH ABB ACG ACG
ACH)
89P8573 1
Speaker Brick - Taiwan (models AAV ABV ACV) 41A4905 1
Speaker Power brick - India, South Africa (models AAQ ABQ ACQ) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
7065 Line Cords FRU# CRU
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT ABU ABF ABS ABD ABL
ABA ABT ACU ACF ACS ACD ACL ACA ACT)
41R3184 1
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT ABU ABF ABS ABD ABL
ABA ABT ACU ACF ACS ACD ACL ACA ACT)
41R3185 1
Line cord - China (models AAC ABC ACC) 41R3256 1
Line cord - China (models AAC ABC ACC) 41R3257 1
Line cord - Brazil (models AAP ABP ACP) 41R3270 1
Line cord - Brazil (models AAP ABP ACP) 41R3271 1
Line cord - LA High Volt APU (models AAY ABY ACY) 41R3176 1
Line Cord - LA High Volt APU (models AAY ABY ACY) 41R3177 1
Line Cord - Korea (models AAK ABK ACK) 41R3260 1
Line Cord - Korea (models AAK ABK ACK) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG ABG ACG) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG ABG ACG) 41R3225 1
Line Cord - Taiwan (models AAV ABV ACV) 41R3278 1
Line Cord - Taiwan (models AAV ABV ACV) 41R3279 1
Chapter 11. FRU lists 277
7065 Line Cords FRU# CRU
Line Cord - Italy (models AAS AAY AAL AAG ABS ABY ABL ACS ACY ACL ) 41R3232 1
Line Cord - Italy (models AAS AAY AAL AAG ABS ABY ABL ACS ACY ACL ) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA ABG ABA ACG
ACA)
41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA ABG ABA ACG
ACA)
41R3209 1
Line Cord - Denmark (models AAG ABG ACG ) 41R3212 1
Line Cord - Denmark (models AAG ABG ACG) 41R3213 1
Line Cord - Switzerland (models AAG ABG ACG) 41R3228 1
Line Cord - Switzerland (models AAG ABG ACG) 41R3229 1
Line Cord - Israel (models AAG ABG ACG) 41R3236 1
Line Cord - Israel (models AAG ABG ACG) 41R3237 1
Line Cord - South Africa (models AAM ABM ACM) 41R3220 1
Line Cord - South Africa (models AAM ABM ACM) 41R3221 1
Line Cord - India (models AAQ ABQ ACQ) 41R3341 1
Line Cord - India (models AAQ ABQ ACQ) 41R3175 1
Line Cord - Japan (models AAJ ABJ ACJ) 41R3248 1
Line Cord - Japan (models AAJ ABJ ACJ) 41R3249 1
Line Cord - ANZ (models AAM ABM ACM) 41R3196 1
Line Cord - ANZ (models AAM ABM ACM) 41R3197 1
Line Cord - Hong Kong (models AAB AAH ACB ACH ABH ABB) 41R3224 1
Line Cord - Hong Kong (models AAB AAH ACB ACH ABH ABB) 41R3225 1
7065 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
278 Hardware Maintenance Manual
7065 Windows XP Home Recovery CDs FRU# CRU
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korea (models) TBD 1
7065 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
Chapter 11. FRU lists 279
7065 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models) 45R9751 1
English (models) 46R7273 1
Japanese (models) 46R7274 1
French (models) 46R7275 1
German (models) 46R7276 1
Spanish (models) 46R7277 1
English (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
7065 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models AAC ABC ACC) 45R9779 1
English (models AAU AAG AAM AAA AAQ AAH AAR AAE) 46R7287 1
Japanese (models AAJ ABJ ACJ) 46R7288 1
French (models AAG AAF ABG ABF ACG ACF) 46R7289 1
German (models AAG ABG ACG) 46R7290 1
Spanish (models AAG ABG ACG) 46R7291 1
Russian English (models AAG ABG ACG) 46R7292 1
Italian (models AAG ABG ACG) 46R7293 1
Brazilian Portuguese (models AAP ABP ACP) 46R7294 1
Danish (models AAG ABG ACG) 46R7295 1
Swedish (models AAG ABG ACG) 45R9786 1
280 Hardware Maintenance Manual
7065 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Finland (models AAG ABG ACG) 45R9787 1
Dutch (models AAG ABG ACG) 45R9788 1
Traditional Chinese (models AAB AAV ABB ABV ACB ACV) 46R7296 1
Hong Kong (models AAB AAV ABB ABV ACB ACV) 46R7297 1
Norwegian (models AAG ABG ACG) 46R7298 1
Korean (models AAK ABK ACK) 45R9792 1
Slovenian (models AAG ABG ACG) 45R9793 1
Greek (models AAG ABG ACG) 45R9794 1
Russian (models AAG ABG ACG) 46R7299 1
Portuguese (models AAG ABG ACG) 45R9796 1
Turkish (models AAG ABG ACG ) 45R9797 1
Czech (models AAG ABG ACG) 45R9798 1
Polish (models AAG ABG ACG) 45R9799 1
Russian English (models AAG ABG ACG) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models AAG ABG ACG) 45R9802 1
Romanian (models AAG ABG ACG) 45R9803 1
Hungarian (models AAG ABG ACG) 45R9804 1
Slovakian (models AAG ABG ACG) 45R9805 1
Serbian-Latin (models AAG ABG ACG) 45R9806 1
7065 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Chapter 11. FRU lists 281
7065 Vista VHP SP1 Recovery DVDs FRU# CRU
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
7065 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Japanese (models) 46R7302 1
Simplified Chinese (models) 46R7303 1
French (models) 46R7304 1
German (models) 46R7305 1
Spanish (models) 46R7306 1
Italian (models) 46R7307 1
Brazilian Portuguese (models) 46R7308 1
Danish (models) 46R7309 1
Norwegian (models) 46R7310 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Traditional Chinese (models) 46R7310 1
Hong Kong (models) 46R7311 1
Norwegian (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Russian (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Russian English (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
282 Hardware Maintenance Manual
7065 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Slovakian (models) 45R9834 1
7065 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
7065 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 283
Machine Type 7066
Item # 7066 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models AAU AAF AAS AAP
AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR
AAE AAJ)
40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ
AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T(models) 43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T(models) 43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T(models) 43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA,
EM64T(models)
43C2056 N
5 Microprocessor,Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
284 Hardware Maintenance Manual
Item # 7066 FRUs FRU# CRU
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
Chapter 11. FRU lists 285
Item # 7066 FRUs FRU# CRU
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models AAU AAF AAS
AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK
AAR AAE AAJ)
41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models AAU AAF AAS AAP AAL
AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE
AAJ)
53Y5125 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models AAU
AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV
AAK AAR AAE AAJ)
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models AAU AAF
AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV
AAK AAR AAE AAJ)
41A9717 2
The FRUs listed in the following tables are not illustrated.
7066 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temperature Sense cable (460 mm) (all models) 41R2509 2
System Fan (all models) 41R6042 2
System Fan assembly (all models) 41R6249 2
Floor Stand and Vertical Deflector (all models) 41R6251 1
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
L1-C2 intrusion switch (all models) 39K5022 2
Rell IO shield BTX atlantic (all models) 41R6381 N
C2 Intrusion Switch (all models) 39K5022 2
Intel 95W/65W heatsink Kit (all models) 41R6039 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE (models) 43N9015 2
Cabel-SATA 700mm (RoHS) (models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (models) 43N9361 2
ODD mounting kit (models) 43N9362 2
286 Hardware Maintenance Manual
7066 FRUs FRU# CRU
Cardreader Bezel Kit (models) 43N9363 2
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models AAU AAF AAS AAP AAL
AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
7066 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Chapter 11. FRU lists 287
7066 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
7066 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAU AAG AAM AAA AAQ AAH AAR AAE) 41A5289 1
Arabic (models AAG) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian French (models AAG) 41A5292 1
Belgium English (models AAG) 41A5293 1
Brazilian Portuguese (models AAP) 41A5294 1
Bulgarian (models AAG) 41A5295 1
Chinese/US (models AAB AAV) 41A5296 1
Czech (ABB) (models AAG) 41A5297 1
Danish (models AAG) 41A5298 1
Dutch (models AAG) 41A5299 1
French (models AAG) 41A5300 1
French Canadian (models AAF) 41A5301 1
French Canadian (models AAF) 41A5302 1
German (models AAG) 41A5303 1
Greek (models AAG) 41A5304 1
Greek/US (models AAG) 41A5305 1
Hebrew (models AAG) 41A5306 1
Hungarian (models AAG) 41A5307 1
Iceland (models AAG) 41A5308 1
Italian (models AAG) 41A5309 1
Japanese (models AAJ) 41A5310 1
Korean (models AAK) 41A5311 1
LA Spanish (models AAS AAD AAY) 41A5312 1
Norwegian (models AAG) 41A5313 1
Polish (models AAG) 41A5314 1
Portuguese (models AAG) 41A5315 1
Romanian (models AAG) 41A5317 1
Russian/Cyrillic (models AAG) 41A5318 1
Serbian/Cyrillic (models AAG) 41A5319 1
288 Hardware Maintenance Manual
7066 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Slovak (models AAG) 41A5320 1
Spanish (models AAG) 41A5321 1
Swedish/Finnish (models AAG) 41A5322 1
Swiss French/German (models AAG) 41A5323 1
Thailand (models AAT) 41A5324 1
Turkish (models AAG) 41A5325 1
Turkish (models AAG) 41A5326 1
UK English (models AAG) 41A5327 1
US Euro (models AAG) 41A5328 1
Slovenian (models AAG) 41A5329 1
7066 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Chapter 11. FRU lists 289
7066 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
7066 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
290 Hardware Maintenance Manual
7066 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
7066 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models AAU AAF AAS AAP AAL AAD AAY AAG
AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
41U3013 1
Optical Wheel Mouse (400DPI, USB) (models AAU AAF AAS AAP AAL AAD AAY AAG
AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
7066 Adapters and miscellaneous FRUs FRU# CRU
USB Memory Key (models) 43R2296 2
USB Memory Key - 1G RoW (models) 41U4978 1
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 45R1885 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models AAU AAS AAA) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models AAD AAY) 89P8575 1
Speaker Power brick - China, Thailand (models AAC AAT) 89P8581 1
Speaker Power brick - Japan (models AAJ) 89P8577 1
Speaker Power brick - Brazil (models AAP) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models AAM ) 89P8579 1
Speaker Brick - Korea (models AAK) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models AAB AAH) 89P8573 1
Speaker Brick - Taiwan (models AAV) 41A4905 1
Speaker Power brick - India, South Africa (models AAQ) 89P8585 1
Chapter 11. FRU lists 291
7066 Adapters and miscellaneous FRUs FRU# CRU
Dongle DMS Dule DMS-59 to dual VGA Cable(models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9356 Line Cords FRU# CRU
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT) 41R3184 1
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT) 41R3185 1
Line cord - China (models AAC) 41R3256 1
Line cord - China (models AAC) 41R3257 1
Line cord - Brazil (models AAP) 41R3270 1
Line cord - Brazil (models AAP) 41R3271 1
Line cord - LA High Volt APU (models AAS) 41R3176 1
Line Cord - LA High Volt APU (models AAS) 41R3177 1
Line Cord - Korea (models AAK ) 41R3260 1
Line Cord - Korea (models AAK) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG AAA) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG AAA) 41R3225 1
Line Cord - Taiwan (models AAV) 41R3278 1
Line Cord - Taiwan (models AAV) 41R3279 1
Line Cord - Italy (models AAS AAY AAL AAG) 41R3232 1
Line Cord - Italy (models AAS AAY AAL AAG) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA) 41R3209 1
Line Cord - Denmark (models AAG ) 41R3212 1
Line Cord - Denmark (models AAG ) 41R3213 1
Line Cord - Switzerland (models AAG ) 41R3228 1
Line Cord - Switzerland (models AAG ) 41R3229 1
Line Cord - Israel (models AAG ) 41R3236 1
Line Cord - Israel (models AAG ) 41R3237 1
Line Cord - South Africa (models AAG AAM AAA) 41R3220 1
Line Cord - South Africa (models AAG AAM AAA) 41R3221 1
Line Cord - India (models AAQ) 41R3341 1
Line Cord - India (models AAQ) 41R3175 1
Line Cord - Japan (models AAJ) 41R3248 1
Line Cord - Japan (models AAJ) 41R3249 1
Line Cord - ANZ (models AAM ) 41R3196 1
Line Cord - ANZ (models AAM ) 41R3197 1
Line Cord - Hong Kong (models AAB AAH) 41R3224 1
Line Cord - Hong Kong (models AAB AAH) 41R3225 1
7066 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
292 Hardware Maintenance Manual
7066 Windows XP Home Recovery CDs FRU# CRU
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (Swedish)(models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
7066 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
Chapter 11. FRU lists 293
7066 Windows XP Pro Recovery CDs FRU# CRU
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
7066 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
294 Hardware Maintenance Manual
7066 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
7066 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAU AAG AAM AAQ AAA AAH AAR AAE) 46R7287 1
Japanese (models AAJ) 46R7288 1
Simplified Chinese (models AAC) 46R7289 1
French (models AAG AAF) 46R7290 1
German (models AAG) 46R7291 1
Spanish (models AAG) 46R7292 1
Italian (models AAG) 46R7293 1
Brazilian Portuguese (models AAP) 46R7294 1
Danish (models AAG) 46R7295 1
Swedish (models AAG) 45R9786 1
Finland (models AAG) 45R9787 1
Dutch (models AAG) 45R9788 1
Traditional Chinese (models AAV) 46R7296 1
Hong Kong (models AAB) 46R7297 1
Norwegian (models AAG) 46R7298 1
Korean (models AAK) 45R9792 1
Slovenian (models AAG) 45R9793 1
Greek (models AAG) 45R9794 1
Russian (models AAG) 46R7299 1
Portuguese (models AAG) 45R9796 1
Turkish (models AAG) 45R9797 1
Czech (models AAG) 45R9798 1
Polish (models AAG) 45R9799 1
Russian English (models AAG) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models AAG) 45R9802 1
Romanian (models AAG) 45R9803 1
Hungarian (models AAG) 45R9804 1
Slovakian (models AAG) 45R9805 1
Serbian-Latin (models) 45R9806 1
7066 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
Chapter 11. FRU lists 295
7066 Vista VHP SP1 Recovery DVDs FRU# CRU
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
7066 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
296 Hardware Maintenance Manual
7066 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
7066 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Chapter 11. FRU lists 297
7066 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
7066 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
298 Hardware Maintenance Manual
Machine Type 7094
Item # 7094 FRUs FRU# CRU Tier
1 Intel 65W/95W Heatsink Kit (Tower) (all models) 41R6429 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
Chapter 11. FRU lists 299
Item # 7094 FRUs FRU# CRU Tier
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models AAU AAF AAS
AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK
AAR AAE AAJ)
41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
300 Hardware Maintenance Manual
Item # 7094 FRUs FRU# CRU Tier
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA
AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9105 2
6 Bezel assembly without IBM mark(all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (all models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models AAU AAF AAS AAP
AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR
AAE AAJ)
40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
11 System board , Intel G31 mATX GA Level (models AAU AAF AAS AAP AAL
AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE
AAJ)
53Y3282 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC
AAB AAH AAV AAK AAR AAE AAJ)
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models) 41A9665 2
13 Power supply, ATX 310W Power supply Robust; for all countries (models AAU
AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV
AAK AAR AAE AAJ)
41A9726 2
The FRUs listed in the following tables are not illustrated.
7094 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Cable, SATA 457mm (RoHs) (all models) 43N9013 2
Cable, SATA 250mm (RoHs) (all models) 43N9012 2
Shield, diskette drive EMC (all models) 41N8078 2
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Hard disk drive tray (all models) 41R6291 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Asm Chassis Without IBM Mark (all models) 41R6408 2
Chapter 11. FRU lists 301
7094 FRUs FRU# CRU Tier
Card reader retainer (models) 43N9351 2
Blank 5.25″Bezel (models) 41N8077 3
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models AAU AAF AAS AAP AAL
AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
302 Hardware Maintenance Manual
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAU AAG AAM AAA AAQ AAH AAR AAE) 41A5289 1
Arabic (models AAG) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models AAG) 41A5292 1
Belgian/UK (models AAG) 41A5293 1
Brazilian Portuguese (models AAP) 41A5294 1
Bulgarian (models AAG) 41A5295 1
Chinese/US (models AAB AAV) 41A5296 1
Czech (models AAG) 41A5297 1
Danish (models AAG) 41A5298 1
Dutch (models AAG) 41A5299 1
French (models AAG) 41A5300 1
French Canadian (models AAF) 41A5301 1
French Canadian (models AAF) 41A5302 1
German (models AAG) 41A5303 1
Greek (models AAG) 41A5304 1
Greek/US (models AAG) 41A5305 1
Hebrew (models AAG) 41A5306 1
Hungarian (models AAG) 41A5307 1
Iceland (models AAG) 41A5308 1
Italian (models AAG) 41A5309 1
Japanese (models AAJ) 41A5310 1
Korean (models AAK) 41A5311 1
LA Spanish (models AAS AAD AAY) 41A5312 1
Norwegian (models AAG) 41A5313 1
Polish (models AAG) 41A5314 1
Portuguese (models AAG) 41A5315 1
Romanian (models AAG) 41A5317 1
Russian/Cyrillic (models AAG) 41A5318 1
Serbian/Cyrillic (models AAG) 41A5319 1
Slovak (models AAG) 41A5320 1
Spanish (models AAG) 41A5321 1
Swedish/Finnish (models AAG) 41A5322 1
Chapter 11. FRU lists 303
Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Swiss (models AAG) 41A5323 1
Thailand (models AAT) 41A5324 1
Turkish (models AAG) 41A5325 1
Turkish (models AAG) 41A5326 1
UK English (models AAG) 41A5327 1
US Euro (models AAG) 41A5328 1
Slovenian (models AAG) 41A5329 1
Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
304 Hardware Maintenance Manual
Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Chapter 11. FRU lists 305
Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
7094 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (models AAU AAF AAS AAP AAL AAD AAY AAG
AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
41U3013 1
Optical Wheel Mouse (400DPI, USB) (models AAU AAF AAS AAP AAL AAD AAY AAG
AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
7094 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
USB Memory Key - 1G RoW (models) 41U4978 1
ADD2 DVI Adapter,FH (HDCP) (models) 43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
DVI-I connection Adapter Full Height(models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models AAU AAS AAA) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models AAD AAY) 89P8575 1
Speaker Power brick - China, Thailand (models AAD AAY) 89P8581 1
Speaker Power brick - Japan (models AAJ) 89P8577 1
Speaker Power brick - Brazil (models AAP) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (modes AAM ) 89P8579 1
Speaker Brick - Korea (models AAK) 41A4903 1
306 Hardware Maintenance Manual
7094 Adapters and miscellaneous FRUs FRU# CRU
Speaker Brick - Hong Kong, EMEA (models AAB AAH) 89P8573 1
Speaker Brick - Taiwan (models AAV) 41A4905 1
Speaker Power brick - India, South Africa (models AAQ) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
7094 Line Cords FRU# CRU
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT) 41R3184 1
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT) 41R3185 1
Line cord - China (models AAC) 41R3256 1
Line cord - China (models AAC) 41R3257 1
Line cord - Brazil (models AAP) 41R3270 1
Line cord - Brazil (models AAP) 41R3271 1
Line cord - LA High Volt APU (models AAS) 41R3176 1
Line Cord - LA High Volt APU (models AAS) 41R3177 1
Line Cord - Korea (models AAK) 41R3260 1
Line Cord - Korea (models AAK) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG AAA) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG AAA) 41R3225 1
Line Cord - Taiwan (models AAV) 41R3278 1
Line Cord - Taiwan (models AAV) 41R3279 1
Line Cord - Italy (models AAS AAY AAL AAG) 41R3232 1
Line Cord - Italy (models AAS AAY AAL AAG) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA) 41R3209 1
Line Cord - Denmark (models AAG) 41R3212 1
Line Cord - Denmark (models AAG) 41R3213 1
Line Cord - Switzerland (models AAG) 41R3228 1
Line Cord - Switzerland (models AAG) 41R3229 1
Line Cord - Israel (models AAG) 41R3236 1
Line Cord - Israel (models AAG) 41R3237 1
Line Cord - South Africa (models AAG AAM AAA) 41R3220 1
Line Cord - South Africa (models AAG AAM AAA) 41R3221 1
Line Cord - India (models AAQ) 41R3341 1
Line Cord - India (models AAQ) 41R3175 1
Line Cord - Japan (models AAJ) 41R3248 1
Line Cord - Japan (models AAJ) 41R3249 1
Line Cord - ANZ (models AAM ) 41R3196 1
Line Cord - ANZ (models AAM ) 41R3197 1
Line Cord - Hong Kong (models AAB AAH) 41R3224 1
Line Cord - Hong Kong (models AAB AAH) 41R3225 1
Chapter 11. FRU lists 307
7094 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
7094 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
308 Hardware Maintenance Manual
7094 Windows XP Pro Recovery CDs FRU# CRU
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
7094 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Russian English (models) 46R7286 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Chapter 11. FRU lists 309
7094 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
7094 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAU AAG AAM AAQ AAA AAH AAR AAE) 46R7287 1
Japanese (models AAJ) 46R7288 1
French (models AAG) 46R7290 1
German (models AAG) 46R7291 1
Spanish (models AAG) 46R7292 1
Russian English (models AAG) 46R7300 1
Simplified Chinese (models AAC) 46R7289 1
Italian (models AAG) 46R7293 1
Brazilian Portuguese (models AAP) 46R7294 1
Danish (models AAG) 46R7295 1
Swedish (models AAG) 45R9786 1
Finland (models AAG) 45R9787 1
Dutch (models AAG) 45R9788 1
Traditional Chinese (models AAV) 46R7296 1
Hong Kong (models AAB) 46R7297 1
Norwegian (models AAG) 46R7298 1
Korean (models AAK) 45R9792 1
Slovenian (models AAG) 45R9793 1
Greek (models AAG) 45R9794 1
Russian (models AAG) 46R7299 1
Portuguese (models AAG) 45R9796 1
Turkish (models AAG) 45R9797 1
Czech (models AAG) 45R9798 1
Polish (models AAG) 45R9799 1
Arabic Localized (models) 45R9801 1
Hebrew (models AAG) 45R9802 1
Romanian (models AAG) 45R9803 1
Hungarian (models AAG) 45R9804 1
Slovakian (models AAG) 45R9805 1
Serbian-Latin (models) 45R9806 1
7094 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
310 Hardware Maintenance Manual
7094 Vista VHP SP1 Recovery DVDs FRU# CRU
Japanese (models) 46R7316 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Russian English (models) 46R7328 1
Simplified Chinese (models) 46R7317 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 45R9858 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
7094 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7314 1
German (models) 46R7305 1
Spanish (models) 46R7306 1
Brazilian Portuguese (models) 46R7308 1
French (models) 46R7304 1
Italian (models) 46R7307 1
Japanese (models) 46R7302 1
Norwegian (models) 46R7301 1
Chapter 11. FRU lists 311
7094 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Swedish (models) 45R9816 1
Danish (models) 46R7309 1
Dutch (models) 45R9818 1
Traditional Chinese (models) 46R7310 1
Hong Kong (models) 46R7311 1
Norwegian (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
7094 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Russian English (models) 46R5089 1
Simplified Chinese (models) 46R7331 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
312 Hardware Maintenance Manual
7094 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
7094 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 313
Machine Type 7096
Item # 7096 FRUs FRU# CRU
1 Heat Sink/RM Kit Intel (all models) 41R6022 N
1 Heat Sink/RM Kit Intel (all models) 41N8261 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
314 Hardware Maintenance Manual
Item # 7096 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC
AAB AAH AAV AAK AAR AAE AAJ )
42Y9353 2
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
5 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models AAU AAF AAS AAP
AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR
AAE AAJ )
40Y9035 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9107 2
7 Front USB/Audio with bracket (all models) 41N8212 2
Chapter 11. FRU lists 315
Item # 7096 FRUs FRU# CRU
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models AAU AAF AAS
AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK
AAR AAE AAJ )
41X4256 2
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board,Intel G31 mATX GA Level (models AAU AAF AAS AAP AAL AAD
AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
53Y3282 N
10 Power supply, 220 Watt Power Supply - Robust; for all countries except for JP
(ROCKYS) (models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ
AAT AAC AAB AAH AAV AAK AAR AAE)
41A9689 N
10 Power supply, 220 Watt Power Supply - Japan;only for JP (ROCKYS) (models AAJ) 41A9697 N
10 Power supply, 220W 80% Power supply-for all countries (ROCKYS) (models AAU
AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH
AAV AAK AAR AAE AAJ)
41A9670 N
10 Power supply, 280W TFX 280W PS ,Active PFC,for RockyS-for all countries
(ROCKYS) (models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ
AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
41A9705 N
The FRUs listed in the following tables are not illustrated.
7096 FRUs FRU# CRU
Planer shield, Atx 946,G31 with usb number (all models) 41R6384 N
Cabel, SATA 250mm (RoHS) (all models) 43N9012 2
Shield, EMC , Blank 5.25 (all models) 41N8271 2
Shield, EMC , Blank diskette drive (all models) 41N8273 2
Cover (all models) 41N8204 2
Mechanical shell kit (all models) 41R6387 N
Bezel kit, without IBM logo (all models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
Hard disk drive bracket assembly (plastic and grommets) (all models) 41N8210 2
Hard disk drive fan and bracket asm (all models) 41R6325 2
Speaker cable assembly, 600 mm cable length (all models) 41N8217 2
Fan duct assembly (all models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (all models) 42Y8006 2
Retention module assembly, Intel (all models) 41A7139 N
Intrusion switch assembly (all models) 41R6208 2
Foot stand (all models) 41R4813 1
Cable, diskette drive (all models) 41A7147 2
Cable, serial ATA, 250 mm (all models) 41A7145 2
Planer shield, Atx 946, with usb number (all modes) 41R6378 N
Rear Com2 cable , Rohs (all models) 41R6198 2
316 Hardware Maintenance Manual
7096 FRUs FRU# CRU
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (all models) 42Y8008 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models AAU AAF AAS AAP AAL
AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
7096 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Chapter 11. FRU lists 317
7096 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
7096 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAU AAG AAM AAA AAQ AAH AAR AAE ) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models AAG ) 41A5291 1
Belgian/French (models AAG ) 41A5292 1
Belgian/UK (models AAG ) 41A5293 1
Brazilian Portuguese (models AAP ) 41A5294 1
Bulgarian (models AAG ) 41A5295 1
Chinese/US (models AAB AAV) 41A5296 1
Czech(ABB) (models AAG ) 41A5297 1
Danish (models AAG ) 41A5298 1
Dutch (models AAG ) 41A5299 1
French (models AAG ) 41A5300 1
French Canadian (models AAF ) 41A5301 1
French Canadian (models AAF ) 41A5302 1
German (models AAG) 41A5303 1
Greek (models AAG) 41A5304 1
Greek/US (models AAG) 41A5305 1
Hebrew (models AAG) 41A5306 1
Hungarian (models AAG) 41A5307 1
Iceland (models AAG) 41A5308 1
Italian (models AAG) 41A5309 1
Japanese (models AAJ) 41A5310 1
Korean (models AAK) 41A5311 1
LA Spanish (models AAS AAD AAY) 41A5312 1
Norwegian (models AAG) 41A5313 1
Polish (models AAG) 41A5314 1
Portuguese (models AAG) 41A5315 1
Romanian (models AAG) 41A5317 1
Russian/Cyrillic (models AAG) 41A5318 1
Serbian/Cyrillic (models AAG) 41A5319 1
Slovak (models AAG) 41A5320 1
Spanish (models AAG) 41A5321 1
Swedish/Finnish (models AAG) 41A5322 1
Swiss French/German (models AAG) 41A5323 1
318 Hardware Maintenance Manual
7096 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Thailand (models AAT) 41A5324 1
Turkish (models AAG) 41A5325 1
Turkish (models AAG) 41A5326 1
UK English (models AAG) 41A5327 1
US Euro (models AAG) 41A5328 1
Slovenian (models AAG) 41A5329 1
7096 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgian/UK (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech(ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Chapter 11. FRU lists 319
7096 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
7096 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/UK (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech(ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
320 Hardware Maintenance Manual
7096 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
7096 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
7096 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
USB Memory Key - 1G RoW (models) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage,ASEAN (models AAU AAS AAA ) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models AAD) 89P8575 1
Speaker Power brick - China, Thailand (models AAT AAC ) 89P8581 1
Speaker Power brick - Japan (models AAJ ) 89P8577 1
Speaker Power brick - Brazil (models AAP) 89P8583 1
Speaker Power brick - Argentina (models AAY ) 41A4901 1
Speaker Power brick - ANZ (models AAM ) 89P8579 1
Speaker Brick - Korea (models AAK ) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models AAG AAH AAB ) 89P8573 1
Speaker Brick - Taiwan (models AAV) 41A4905 1
Speaker Power brick - India, South Africa (models AAQ ) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
Chapter 11. FRU lists 321
7096 Line Cords FRU# CRU
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT) 41R3184 1
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT) 41R3185 1
Line cord - China (models AAC ) 41R3256 1
Line cord - China (models AAC ) 41R3257 1
Line cord - Brazil (models AAP ) 41R3270 1
Line cord - Brazil (models AAP ) 41R3271 1
Line cord - LA High Volt APU (models AAY ) 41R3176 1
Line Cord - LA High Volt APU (models AAY ) 41R3177 1
Line Cord - Korea (models AAK ) 41R3260 1
Line Cord - Korea (models AAK ) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG ) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG ) 41R3225 1
Line Cord - Taiwan (models AAV) 41R3278 1
Line Cord - Taiwan (models AAV) 41R3279 1
Line Cord - Italy (models AAS AAY AAL AAG ) 41R3232 1
Line Cord - Italy (models AAS AAY AAL AAG ) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA) 41R3209 1
Line Cord - Denmark (models AAG ) 41R3212 1
Line Cord - Denmark (models AAG ) 41R3213 1
Line Cord - Switzerland (models AAG ) 41R3228 1
Line Cord - Switzerland (models AAG ) 41R3229 1
Line Cord - Israel (models AAG ) 41R3236 1
Line Cord - Israel (models AAG ) 41R3237 1
Line Cord - South Africa (models AAM) 41R3220 1
Line Cord - South Africa (models AAM) 41R3221 1
Line Cord - India (models AAQ ) 41R3341 1
Line Cord - India (models AAQ ) 41R3175 1
Line Cord - Japan (models AAJ ) 41R3248 1
Line Cord - Japan (models AAJ ) 41R3249 1
Line Cord - ANZ (models AAM ) 41R3196 1
Line Cord - ANZ (models AAM ) 41R3197 1
Line Cord - Hong Kong (models AAB AAH) 41R3224 1
Line Cord - Hong Kong (models AAB AAH) 41R3225 1
7096 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
322 Hardware Maintenance Manual
7096 Windows XP Home Recovery CDs FRU# CRU
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korea (models) TBD 1
7096 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
Chapter 11. FRU lists 323
7096 Windows XP Pro Recovery CDs FRU# CRU
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
7096 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 45R9772 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
324 Hardware Maintenance Manual
7096 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAU AAG AAM AAA AAQ AAH AAR AAE) 46R7287 1
Japanese (models AAJ ABJ ACJ) 46R7288 1
Simplified Chinese (models AAC) 46R7289 1
French (models AAG AAF) 46R7290 1
German (models AAG) 46R7291 1
Spanish (models AAG) 46R7292 1
Italian (models AAG) 46R7293 1
Brazilian Portuguese (models AAG) 46R7294 1
Danish (models AAG) 46R7295 1
Swedish (models AAG) 45R9786 1
Finland (models AAG) 45R9787 1
Dutch (models AAG) 45R9788 1
Traditional Chinese (models AAB AAV) 46R7296 1
Hong Kong (models AAB AAV) 46R7297 1
Norwegian (models AAG) 46R7298 1
Korean (models AAK) 45R9792 1
Slovenian (models AAG) 45R9793 1
Greek (models AAG) 45R9794 1
Russian (models AAG) 46R7299 1
Portuguese (models AAG) 45R9796 1
Turkish (models AAG) 45R9797 1
Czech (models AAG) 45R9798 1
Polish (models AAG) 45R9799 1
Russian English (models AAG) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models AAG) 45R9802 1
Romanian (models ) 45R9803 1
Hungarian (models AAG) 45R9804 1
Slovakian (models AAG) 45R9805 1
Serbian-Latin (models) 45R9806 1
7096 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Chapter 11. FRU lists 325
7096 Vista VHP SP1 Recovery DVDs FRU# CRU
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
7096 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
326 Hardware Maintenance Manual
7096 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
7096 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
Chapter 11. FRU lists 327
7096 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
328 Hardware Maintenance Manual
Machine Type 7098
Item # 7098 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models AAU AAF AAS AAP
AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR
AAE AAJ)
40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ
AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T(models) 43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T(models) 43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T(models) 43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA,
EM64T(models)
43C2056 N
5 Microprocessor,Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
5 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
Chapter 11. FRU lists 329
Item # 7098 FRUs FRU# CRU
5 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
5 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
5 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
5 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
5 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
5 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
5 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
5 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
5 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
5 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
5 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
5 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
5 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
5 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
5 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
5 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
5 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
5 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
5 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
5 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
5 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
5 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
5 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
5 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
330 Hardware Maintenance Manual
Item # 7098 FRUs FRU# CRU
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models AAU AAF AAS
AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK
AAR AAE AAJ)
41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models AAU AAF AAS AAP AAL
AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE
AAJ)
53Y5125 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models AAU
AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV
AAK AAR AAE AAJ)
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models AAU AAF
AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV
AAK AAR AAE AAJ)
41A9717 2
The FRUs listed in the following tables are not illustrated.
7098 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temperature Sense cable (460 mm) (all models) 41R2509 2
System Fan (all models) 41R6042 2
System Fan assembly (all models) 41R6249 2
Floor Stand and Vertical Deflector (all models) 41R6251 1
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
L1-C2 intrusion switch (all models) 39K5022 2
Rell IO shield BTX atlantic (all models) 41R6381 N
C2 Intrusion Switch (all models) 39K5022 2
Intel 95W/65W heatsink Kit (all models) 41R6039 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE (models) 43N9015 2
Cabel-SATA 700mm (RoHS) (models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (models) 43N9361 2
ODD mounting kit (models) 43N9362 2
Chapter 11. FRU lists 331
7098 FRUs FRU# CRU
Cardreader Bezel Kit (models) 43N9363 2
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models AAU AAF AAS AAP AAL
AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
7098 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
332 Hardware Maintenance Manual
7098 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
7098 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAU AAG AAM AAA AAQ AAH AAR AAE) 41A5289 1
Arabic (models AAG) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian French (models AAG) 41A5292 1
Belgium English (models AAG) 41A5293 1
Brazilian Portuguese (models AAP) 41A5294 1
Bulgarian (models AAG) 41A5295 1
Chinese/US (models AAB AAV) 41A5296 1
Czech (ABB) (models AAG) 41A5297 1
Danish (models AAG) 41A5298 1
Dutch (models AAG) 41A5299 1
French (models AAG) 41A5300 1
French Canadian (models AAF) 41A5301 1
French Canadian (models AAF) 41A5302 1
German (models AAG) 41A5303 1
Greek (models AAG) 41A5304 1
Greek/US (models AAG) 41A5305 1
Hebrew (models AAG) 41A5306 1
Hungarian (models AAG) 41A5307 1
Iceland (models AAG) 41A5308 1
Italian (models AAG) 41A5309 1
Japanese (models AAJ) 41A5310 1
Korean (models AAK) 41A5311 1
LA Spanish (models AAS AAD AAY) 41A5312 1
Norwegian (models AAG) 41A5313 1
Polish (models AAG) 41A5314 1
Portuguese (models AAG) 41A5315 1
Romanian (models AAG) 41A5317 1
Russian/Cyrillic (models AAG) 41A5318 1
Serbian/Cyrillic (models AAG) 41A5319 1
Chapter 11. FRU lists 333
7098 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Slovak (models AAG) 41A5320 1
Spanish (models AAG) 41A5321 1
Swedish/Finnish (models AAG) 41A5322 1
Swiss French/German (models AAG) 41A5323 1
Thailand (models AAT) 41A5324 1
Turkish (models AAG) 41A5325 1
Turkish (models AAG) 41A5326 1
UK English (models AAG) 41A5327 1
US Euro (models AAG) 41A5328 1
Slovenian (models AAG) 41A5329 1
7098 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
334 Hardware Maintenance Manual
7098 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
7098 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Chapter 11. FRU lists 335
7098 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
7098 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models AAU AAF AAS AAP AAL AAD AAY AAG
AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
41U3013 1
Optical Wheel Mouse (400DPI, USB) (models AAU AAF AAS AAP AAL AAD AAY AAG
AAM AAA AAQ AAT AAC AAB AAH AAV AAK AAR AAE AAJ)
41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
7098 Adapters and miscellaneous FRUs FRU# CRU
USB Memory Key (models) 43R2296 1
USB Memory Key - 1G RoW (models) 41U4978 1
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 45R1885 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models AAU AAS AAA) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models AAD AAY) 89P8575 1
Speaker Power brick - China, Thailand (models AAC AAT) 89P8581 1
Speaker Power brick - Japan (models AAJ) 89P8577 1
Speaker Power brick - Brazil (models AAP) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models AAM ) 89P8579 1
Speaker Brick - Korea (models AAK) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models AAB AAH) 89P8573 1
Speaker Brick - Taiwan (models AAV) 41A4905 1
Speaker Power brick - India, South Africa (models AAQ) 89P8585 1
336 Hardware Maintenance Manual
7098 Adapters and miscellaneous FRUs FRU# CRU
Dongle DMS Dule DMS-59 to dual VGA Cable(models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9356 Line Cords FRU# CRU
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT) 41R3184 1
Line cord - US (models AAU AAF AAS AAD AAL AAA AAT) 41R3185 1
Line cord - China (models AAC) 41R3256 1
Line cord - China (models AAC) 41R3257 1
Line cord - Brazil (models AAP) 41R3270 1
Line cord - Brazil (models AAP) 41R3271 1
Line cord - LA High Volt APU (models AAS) 41R3176 1
Line Cord - LA High Volt APU (models AAS) 41R3177 1
Line Cord - Korea (models AAK ) 41R3260 1
Line Cord - Korea (models AAK) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG AAA) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG AAA) 41R3225 1
Line Cord - Taiwan (models AAV) 41R3278 1
Line Cord - Taiwan (models AAV) 41R3279 1
Line Cord - Italy (models AAS AAY AAL AAG) 41R3232 1
Line Cord - Italy (models AAS AAY AAL AAG) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAG AAA) 41R3209 1
Line Cord - Denmark (models AAG ) 41R3212 1
Line Cord - Denmark (models AAG ) 41R3213 1
Line Cord - Switzerland (models AAG ) 41R3228 1
Line Cord - Switzerland (models AAG ) 41R3229 1
Line Cord - Israel (models AAG ) 41R3236 1
Line Cord - Israel (models AAG ) 41R3237 1
Line Cord - South Africa (models AAG AAM AAA) 41R3220 1
Line Cord - South Africa (models AAG AAM AAA) 41R3221 1
Line Cord - India (models AAQ) 41R3341 1
Line Cord - India (models AAQ) 41R3175 1
Line Cord - Japan (models AAJ) 41R3248 1
Line Cord - Japan (models AAJ) 41R3249 1
Line Cord - ANZ (models AAM ) 41R3196 1
Line Cord - ANZ (models AAM ) 41R3197 1
Line Cord - Hong Kong (models AAB AAH) 41R3224 1
Line Cord - Hong Kong (models AAB AAH) 41R3225 1
7098 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
Chapter 11. FRU lists 337
7098 Windows XP Home Recovery CDs FRU# CRU
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (Swedish)(models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
7098 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
338 Hardware Maintenance Manual
7098 Windows XP Pro Recovery CDs FRU# CRU
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
7098 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Chapter 11. FRU lists 339
7098 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
7098 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAU AAG AAM AAQ AAA AAH AAR AAE) 46R7287 1
Japanese (models AAJ) 46R7288 1
Simplified Chinese (models AAC) 46R7289 1
French (models AAG AAF) 46R7290 1
German (models AAG) 46R7291 1
Spanish (models AAG) 46R7292 1
Italian (models AAG) 46R7293 1
Brazilian Portuguese (models AAP) 46R7294 1
Danish (models AAG) 46R7295 1
Swedish (models AAG) 45R9786 1
Finland (models AAG) 45R9787 1
Dutch (models AAG) 45R9788 1
Traditional Chinese (models AAC) 46R7296 1
Hong Kong (models AAB) 46R7297 1
Norwegian (models AAG) 46R7298 1
Korean (models AAK) 45R9792 1
Slovenian (models AAG) 45R9793 1
Greek (models AAG) 45R9794 1
Russian (models AAG) 46R7299 1
Portuguese (models AAG) 45R9796 1
Turkish (models AAG) 45R9797 1
Czech (models AAG) 45R9798 1
Polish (models AAG) 45R9799 1
Russian English (models AAG) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models AAG) 45R9802 1
Romanian (models AAG) 45R9803 1
Hungarian (models AAG) 45R9804 1
Slovakian (models AAG) 45R9805 1
Serbian-Latin (models) 45R9806 1
7098 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
340 Hardware Maintenance Manual
7098 Vista VHP SP1 Recovery DVDs FRU# CRU
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
7098 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Chapter 11. FRU lists 341
7098 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
7098 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
342 Hardware Maintenance Manual
7098 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
7098 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 343
Machine Type 9349
Item # 9349 FRUs FRU# CRU
1 Heat Sink/RM Kit Intel (all models) 41R6022 N
1 Heat Sink/RM Kit Intel (all models) 41N8261 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
344 Hardware Maintenance Manual
Item # 9349 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models)
42Y9353 2
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models B1S B1P B1D B1Y ) 43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
5 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models B1S B1P B1D B1Y ) 40Y9035 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9107 2
7 Front USB/Audio with bracket (all models) 41N8212 2
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models B1S B1P B1D
B1Y )
41X4256 2
Chapter 11. FRU lists 345
Item # 9349 FRUs FRU# CRU
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board,Intel G31 mATX GA Level (models B1S B1P B1D B1Y) 53Y3282 N
10 Power supply, 220 Watt Power Supply - Robust; for all countries except for JP
(models B1S B1P B1D B1Y)
41A9689 N
10 Power supply, 220 Watt Power Supply - Japan (models) 41A9697 2
10 Power supply, 220W 80% Power supply-for all countries (models B1S B1P B1D
B1Y)
41A9670 2
10 Power supply, 280W TFX 280W PS, Active PFC,for RockyS-for all countries
(models B1S B1P B1D B1Y)
41A9705 2
The FRUs listed in the following tables are not illustrated.
9349 FRUs FRU# CRU
Planer shield, Atx 946,G31 with usb number (all models) 41R6384 N
Cabel, SATA 250mm (RoHS) (all models) 43N9012 2
Shield, EMC , Blank 5.25 (all models) 41N8271 2
Shield, EMC , Blank diskette drive (all models) 41N8273 2
Cover (all models) 41N8204 2
Mechanical shell kit (all models) 41R6387 N
Bezel kit, without IBM logo (all models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
Hard disk drive bracket assembly (plastic and grommets) (all models) 41N8210 2
Hard disk drive fan and bracket asm (all models) 41R6325 2
Speaker cable assembly, 600 mm cable length (all models) 41N8217 2
Fan duct assembly (all models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (all models) 42Y8006 2
Retention module assembly, Intel (all models) 41A7139 N
Intrusion switch assembly (all models) 41R6208 2
Foot stand (all models) 41R4813 1
Cable, diskette drive (all models) 41A7147 2
Cable, serial ATA, 250 mm (all models) 41A7145 2
Planer shield, Atx 946, with usb number (all modes) 41R6378 N
Rear Com2 cable , Rohs (all models) 41R6198 2
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (all models) 42Y8008 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models B1S B1P B1D B1Y) 45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
9349 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
346 Hardware Maintenance Manual
9349 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
Chapter 11. FRU lists 347
9349 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAU ABU ACU ADU AGM AGA AHM AHA AJM AJA AVG AWG
B2G B1U APU AQU ARU ASU ATU AUU B8U B9U BAU A2U BCM BCA BCQ BDM
BDA BDQ BEM BEA BEQ BWH A4M A4A A4Q BZG A3U BBM BFM BGA BGQ BHA
BHQ BJM BKM BMA BMQ BPM BQA BQQ BSM BTM BUM BVM DDMDEM DEA DAM
DAA DBM DBA DCA BYM BBA BBQ BFA BFQ BJA BJQ BKA BKQ BPA BPQ BSA BSQ
BTA BTQ BUA BVA BVQ DEQ DBQ DCQ BLA BLQ DFM DFA DFQ DGU DGG DGM
DGA DGQ DHU DHG DHM DHA DHQ DJU DJG DJM DJQ DJA DKG AAU ABU ACU
ADU D8A D8Q D9A D9Q E1M E1A E1Q E2M E2A E2Q D6U EKM EKA EKQ ELM ELA
ELQ EMM EMA EMQ ENM ENA ENQ EGM EGA EGQ EHM EHA EHQ EJA EJQ EFM
EFA EFQ EBU E5U E6U E7U E8U E9U AWU F5M F5A F5Q F6M F6A F6Q F1U F2U F8A
F8Q F9A F9Q FBM FBA FBQ F7G)
41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G ) 41A5291 1
Belgian/French (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5292 1
Belgian/UK (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5295 1
Chinese/US (models) 41A5296 1
Czech(ABB) (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5297 1
Danish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5298 1
Dutch (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G ) 41A5299 1
French (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5303 1
Greek (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5304 1
Greek/US (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5305 1
Hebrew (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5306 1
Hungarian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5307 1
Iceland (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5308 1
Italian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5309 1
Japanese (models BDJ BEJ A4J BFJ BKJ BPJ BSJ BTJ DEJ DBJ DGJ DHJ DJJ E1J E2J EKJ ELJ
EGJ F5J F6J)
41A5310 1
Korean (models BEK A4K BBK BFK BKK BPK BSK BTK DEK DBK BLK DGK DHK DJK
E1K E2K EMK ENK EGK F5K F6K FBK)
41A5311 1
LA Spanish (models AES AEY AFS AFY B4S B4D B4Y B6S B6D B6Y B7S B7D B7Y B5S
B5D B5Y A5S A5D A5Y A6S A6D A6Y A8S A9S A9D A9Y DGS DGL DGD SGY DGS DGD
DGY DHS DHD DHY DJS DJD DJY DQS DQD DQY DRS DSS DSD DSY ECS ECD ECY
EDS EDD EDY F3S F3Y)
41A5312 1
Norwegian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5313 1
Polish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5314 1
Portuguese (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5315 1
Romanian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5317 1
Russian/Cyrillic (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5318 1
Serbian/Cyrillic (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5319 1
348 Hardware Maintenance Manual
9349 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Slovak (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5320 1
Spanish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G ) 41A5321 1
Swedish/Finnish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5322 1
Swiss French/German (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G ) 41A5323 1
Thailand (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5324 1
Turkish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5325 1
Turkish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5326 1
UK English (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5327 1
US Euro (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5328 1
Slovenian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41A5329 1
9349 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgian/UK (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech(ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Chapter 11. FRU lists 349
9349 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9349 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/UK (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech(ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
350 Hardware Maintenance Manual
9349 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9349 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
9349 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
USB Memory Key - 1G RoW (models) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage,ASEAN (models AAU ABU ACU ADU
AES AFS AGA AHA B1U APU AQU ARU ASU ATU AUU B4S B6S B7S B8U B9U BAU
B5S A5S A6S BCA BDA BEA A4A A3U A8S A9S BGA BHA BQA DEA DAA DBA DCA
DGU DHU DJU DGS DHS DJS DGA DHA DJA DQS DRS DSS AAU ABU ACU ADU D8A
D9A E1A E2A D6U EBU E5U E6U E7U E8U E9U ECS EDS EKA ELA EMA ENA EGA
EHA EJA EFA F5A F6A F1U F2U F3S F8A F9A FBA)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models B1D) 89P8575 1
Speaker Power brick - China, Thailand (models AKC ALC AMC BCC BDC BEC A4C BCT
BDT BET A4T DGT DGC DHT DHC DJC DJT DPC DTT D8T D9T E1T E2T E3T D2C D3C
EKT ELT EMT ENT EGT EHT EJT EFT F5T F6T F8T F9T FBT)
89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Chapter 11. FRU lists 351
9349 Adapters and miscellaneous FRUs FRU# CRU
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models BWH DGH DHH DJH DHG DGG DJG DKG
F4G F7G)
89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models BCQ BDQ BEQ A4Q BGQ BHQ BMQ
BQQ BBQ BFQ BJQ BKQ BPQ BSQ BTQ BVQ DEQ DBQ DCQ BLQ DFQ DGQ DHQ DJQ
D8Q D9Q E1Q E2Q EKQ ELQ EMQ ENQ EGQ EHQ EJQ EFQ F5Q F6Q F8Q F9Q FBQ)
89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9349 Line Cords FRU# CRU
Line cord - US (models AAU ABU ACU ADU AGA AGT AHA AHT AJA B1U APU AQU
ARU ASU ATU AUU B1F APF AQF ARF ASF ATF AUF B4S B6S B7S B4D B6D B7D B8U
B8F B9U B9F BAU BAF B5S B5D A5S A5D A6S A6D BCA BCT BDA BDT BEA BET A4A
A4T A3U A3F A8S A9S A9D BBA BBT BFA BFT BJA BKA BKT BPA BPT BSA BST BTA
BTT BUA BVA DET DBT DCQ BLA BLT DFA DFT DGU DGF DGS DGL DGA DGT DHU
DHF DHG DHS DHL DHA DHT DJU DJF DJG DJS DJL DJA DJT DTT AAU ABU ACU
ADU D8A D9A E1A E2A D8T D9T E1T E2T E3T D6U D6F EKA ELA EMA ENA EGA
EHA EJA EFA EKT EKT ELT EMT ENT EGT EHT EJT EFT EBU E5U E6U E7U E8U E9U
EBF E5F E6F E7F E8F E9F ECS EDS ECD EDD F1U F1F F2U F2F F3S F5A F5T F6A F6T
F8A F9A FBA F8T F9T FBT)
41R3184 1
Line cord - US (models AAU ABU ACU ADU AGA AGT AHA AHT AJA B1U APU AQU
ARU ASU ATU AUU B1F APF AQF ARF ASF ATF AUF B4S B6S B7S B4D B6D B7D B8U
B8F B9U B9F BAU BAF B5S B5D A5S A5D A6S A6D BCA BCT BDA BDT BEA BET A4A
A4T A3U A3F A8S A9S A9D BBA BBT BFA BFT BJA BKA BKT BPA BPT BSA BST BTA
BTT BUA BVA DET DBT DCQ BLA BLT DFA DFT DGU DGF DGS DGL DGA DGT DHU
DHF DHG DHS DHL DHA DHT DJU DJF DJG DJS DJL DJA DJT DTT AAU ABU ACU
ADU D8A D9A E1A E2A D8T D9T E1T E2T E3T D6U D6F EKA ELA EMA ENA EGA
EHA EJA EFA EKT EKT ELT EMT ENT EGT EHT EJT EFT EBU E5U E6U E7U E8U E9U
EBF E5F E6F E7F E8F E9F ECS EDS ECD EDD F1U F1F F2U F2F F3S F5A F5T F6A F6T
F8A F9A FBA F8T F9T FBT)
41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models B1P) 41R3270 1
Line cord - Brazil (models B1P) 41R3271 1
Line cord - LA High Volt APU (models B1Y) 41R3176 1
Line Cord - LA High Volt APU (models B1Y) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models B1Y) 41R3232 1
Line Cord - Italy (models B1Y) 41R3233 1
352 Hardware Maintenance Manual
9349 Line Cords FRU# CRU
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AGA AHA AJA AVG AWG
B2G BCA BDA BEA A4A BZG BCA BDA BEA A4A BBA BFA BJA BKA BPA BSA BTA BUA
BVA BLA DFA DGG DGA DKG D8A D9A E1A E2A EKA ELA EMA ENA EGA EHA EJA
EFA F4G F5A F6A F7G)
41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AGA AHA AJA AVG AWG
B2G BCA BDA BEA A4A BZG BCA BDA BEA A4A BBA BFA BJA BKA BPA BSA BTA BUA
BVA BLA DFA DGG DGA DKG D8A D9A E1A E2A EKA ELA EMA ENA EGA EHA EJA
EFA F4G F5A F6A F7G)
41R3209 1
Line Cord - Denmark (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41R3212 1
Line Cord - Denmark (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41R3213 1
Line Cord - Switzerland (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41R3228 1
Line Cord - Switzerland (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41R3229 1
Line Cord - Israel (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41R3236 1
Line Cord - Israel (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 41R3237 1
Line Cord - South Africa (models) 41R3220 1
Line Cord - South Africa (models) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
China (models) 43N9033 1
Japan (models) 43N9034 1
ANZ (models) 43N9035 1
Hong Kong Singapore, Malaysia, Brunei, Ireland (models) 43N9036 1
Taiwan (models) 43N9037 1
Italy (models B1Y) 43N9038 1
Indonesia, Laos, Cambodia, and Vietnam, Austria, Belgium, Croatia Czechoslovakia,
Finland, France, Germany, Hungary, Netherlands, Norway, Poland, Portugal, Romania,
Spain, Sweden (models)
43N9039 1
Denmark (models) 43N9040 1
Switzerland (models) 43N9041 1
India (models) 43N9042 1
9349 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
Chapter 11. FRU lists 353
9349 Windows XP Home Recovery CDs FRU# CRU
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korea (models) TBD 1
9349 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models B8U B9U BAU BCM BCA BCQ BDM BDA BDQ BEM BEA BEQ
DLA DLQ EKM EKA EKQ EMM EMA EMQ EFM EFA EFQ EBU E5U E6U E7U E8U E9U
F5M F5A F5Q FBM FBA FBQ)
45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
354 Hardware Maintenance Manual
9349 Windows XP Pro Recovery CDs FRU# CRU
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models BEK DLK EMK F5K FBK) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9349 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models) 45R9751 1
English (models) 46R7273 1
Japanese (models) 46R7274 1
French (models) 46R7275 1
German (models) 46R7276 1
Spanish (models) 46R7277 1
English (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Chapter 11. FRU lists 355
9349 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9349 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models) 45R9779 1
English (models AAU ABU ACU ADU AGM AGA AHM AHA AJM AJA AVG AWG B2G
B1U APU AQU ARU ASU ATU AUU A4M A4A A4Q BZG A3U A3F BBM BFM BJM BKM
BPM BSM BTM BUM BVM DDM DEM DAM DBM BYM BPM DEA DAA DBA DCA BBA
BBQ BFA BFQ BJA BJQ BKA BKQ BPA BPQ BSA BSQ BTA BTQ BUA BVA BVQ DEQ DBQ
DCQ DFM DFA DFQ DGU DGG DGM DGQ DGA DGH DGR DGE DHU DHG DJM DJA
DJQ DJH DJR DJE DKG DTT AAU ABU ACU ADU E1Q E2M E2A E2Q D6U ELM ELA
ELQ EMM EMA EMQ ENM ENA ENQ EGM EGA EGQ EHM EHA EHQ AWU F6M F6A
F6Q F1U F2U F4G FBM FBA FBQ F7G)
46R7287 1
Japanese (models) 46R7288 1
French (models) 46R7289 1
German (models) 46R7290 1
Spanish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 46R7291 1
Russian English (models) 46R7292 1
Italian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 46R7293 1
Brazilian Portuguese (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 46R7294 1
Danish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 46R7295 1
Swedish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9786 1
Finland (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9787 1
Dutch (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 46R7298 1
Korean (models BBK BFK BKK BPK BSK BTK DEK DGK DHK DJK E1K E2K EMK ENK
EGK F6K FBK)
45R9792 1
Slovenian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9793 1
Greek (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9794 1
Russian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 46R7299 1
Portuguese (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9796 1
Turkish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9797 1
Czech (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9798 1
Polish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9799 1
Russian English (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9802 1
Romanian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9803 1
Hungarian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9804 1
Slovakian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G F7G) 45R9805 1
356 Hardware Maintenance Manual
9349 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Serbian-Latin (models) 45R9806 1
9349 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
French (models) 46R7317 1
German (models) 46R7318 1
Spanish (models) 46R7319 1
Russian English (models) 46R7320 1
Simplified Chinese (models) 46R7321 1
Italian (models) 46R7322 1
Brazilian Portuguese (models) 46R7323 1
Danish (models) 46R7315 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9349 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Japanese (models) 46R7302 1
Simplified Chinese (models) 46R7303 1
French (models) 46R7304 1
German (models) 46R7305 1
Chapter 11. FRU lists 357
9349 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Spanish (models) 46R7306 1
Italian (models) 46R7307 1
Brazilian Portuguese (models) 46R7308 1
Danish (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Traditional Chinese (models) 46R7310 1
Hong Kong (models) 46R7311 1
Norwegian (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Russian (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Russian English (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9349 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
358 Hardware Maintenance Manual
9349 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9349 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 359
Machine Type 9352
Item # 9352 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models CTO) 40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models CTO) 40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models CTO) 87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models CTO) 41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models CTO)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models CTO) 43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T (models
CTO)
43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T (models
CTO)
43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T (models
CTO)
43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models CTO)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models CTO)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models CTO)
43C2056 N
5 Microprocessor,Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models CTO)
41X2496 N
5 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
360 Hardware Maintenance Manual
Item # 9352 FRUs FRU# CRU
5 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
5 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
5 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
5 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
5 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
5 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
5 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
5 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
5 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
5 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
5 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
5 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
5 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
5 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
5 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
5 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
5 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
5 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
5 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
5 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
5 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
5 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
5 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
5 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models CTO) 41X4255 2
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models CTO) 41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models CTO) 41X4257 2
Chapter 11. FRU lists 361
Item # 9352 FRUs FRU# CRU
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models CTO) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models CTO) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models CTO) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models CTO) 53Y5125 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models
CTO)
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models CTO) 41A9717 2
The FRUs listed in the following tables are not illustrated.
9352 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temperature Sense cable (460 mm) (all models) 41R2509 2
System Fan (all models) 41R6042 2
System Fan assembly (all models) 41R6249 2
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
L1-C2 intrusion switch (all models) 39K5022 2
Fan for SFF (all models) 41R6042 2
Rell IO shield BTX atlantic (all models) 41R6381 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
C2 Intrusion Switch (all models) 39K5022 2
Intel 95W/65W heatsink Kit (all models) 41R6039 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE (models) 43N9015 2
Cabel-SATA 700mm (RoHS) (all models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (all models) 43N9361 2
ODD mounting kit (all models) 43N9362 2
Cardreader Bezel Kit (all models) 43N9363 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models CTO) 45C1566 N
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
362 Hardware Maintenance Manual
9352 FRUs FRU# CRU
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
Chassis primary HDD cage (all models) 45K6272 1
9352 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models CTO) 41A5039 1
Arabic (models CTO) 41A5040 1
Arabic/French (models CTO) 41A5041 1
Belgian/French (models CTO) 41A5042 1
Belgian/English (models CTO) 41A5043 1
Brazilian Portuguese (models CTO) 41A5044 1
Bulgarian (models CTO) 41A5045 1
Chinese/US (models CTO) 41A5046 1
Czech (models CTO) 41A5047 1
Danish (models CTO) 41A5048 1
Dutch (models CTO) 41A5049 1
French (models CTO) 41A5050 1
French Canadian (models CTO) 41A5051 1
French Canadian (models CTO) 41A5052 1
German (models CTO) 41A5053 1
Greek (models CTO) 41A5054 1
Greek/US (models CTO) 41A5080 1
Hebrew (models CTO) 41A5055 1
Hungarian (models CTO) 41A5056 1
Iceland (models CTO) 41A5057 1
Italian (models CTO) 41A5058 1
Japanese (models CTO) 41A5059 1
Korean (models CTO) 41A5060 1
LA Spanish (models CTO) 41A5061 1
Norwegian (models CTO) 41A5062 1
Polish (models CTO) 41A5063 1
Portuguese (models CTO) 41A5064 1
Romanian (models CTO) 41A5065 1
Russian/Cyrillic (models CTO) 41A5066 1
Serbian/Cyrillic (models CTO) 41A5067 1
Slovak (models CTO) 41A5068 1
Spanish (models CTO) 41A5069 1
Swedish/Finnish (models CTO) 41A5070 1
Swiss (models CTO) 41A5071 1
Thailand (models CTO) 41A5072 1
Turkish (models CTO) 41A5073 1
Turkish (models CTO) 41A5074 1
Chapter 11. FRU lists 363
9352 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
UK English (models CTO) 41A5075 1
US Euro (models CTO) 41A5076 1
Slovenian (models CTO) 41A5077 1
9352 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models CTO) 41A5289 1
Arabic (models CTO) 41A5290 1
Arabic/French (models CTO) 41A5291 1
Belgian French (models CTO) 41A5292 1
Belgium English (models CTO) 41A5293 1
Brazilian Portuguese (models CTO) 41A5294 1
Bulgarian (models CTO) 41A5295 1
Chinese/US (models CTO) 41A5296 1
Czech (ABB) (models CTO) 41A5297 1
Danish (models CTO) 41A5298 1
Dutch (models CTO) 41A5299 1
French (models CTO) 41A5300 1
French Canadian (models CTO) 41A5301 1
French Canadian (models CTO) 41A5302 1
German (models CTO) 41A5303 1
Greek (models CTO) 41A5304 1
Greek/US (models CTO) 41A5305 1
Hebrew (models CTO) 41A5306 1
Hungarian (models CTO) 41A5307 1
Iceland (models CTO) 41A5308 1
Japanese (models CTO) 41A5310 1
Korean (models CTO) 41A5311 1
LA Spanish (models CTO) 41A5312 1
Italian (models CTO) 41A5309 1
Norwegian (models CTO) 41A5313 1
Polish (models CTO) 41A5314 1
Portuguese (models CTO) 41A5315 1
Romanian (models CTO) 41A5317 1
Russian/Cyrillic (models CTO) 41A5318 1
Serbian/Cyrillic (models CTO) 41A5319 1
Slovak (models CTO) 41A5320 1
Spanish (models CTO) 41A5321 1
Swedish/Finnish (models CTO) 41A5322 1
Swiss French/German (models CTO) 41A5323 1
Thailand (models CTO) 41A5324 1
Turkish (models CTO) 41A5325 1
364 Hardware Maintenance Manual
9352 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Turkish (models CTO) 41A5326 1
UK English (models CTO CTO) 41A5327 1
US Euro (models CTO) 41A5328 1
Slovenian (models CTO) 41A5329 1
9352 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models CTO) 41A4961 1
Arabic (models CTO) 41A4962 1
Arabic/French (models CTO) 41A4963 1
Belgian/French (models CTO) 41A4964 1
Belgium English (models CTO) 41A4965 1
Brazilian Portuguese (models CTO) 41A4966 1
Bulgarian (models CTO) 41A4967 1
Chinese/US (models CTO) 41A4968 1
Czech (ABB) (models CTO) 41A4969 1
Danish (models CTO) 41A4970 1
Dutch (models CTO) 41A4971 1
French (models CTO) 41A4972 1
French Canadian (models CTO) 41A4973 1
French Canadian (models CTO) 41A4974 1
German (models CTO) 41A4975 1
Greek (models CTO) 41A4976 1
Greek/US (models CTO) 41A5078 1
Hebrew (models CTO) 41A4977 1
Hungarian (models CTO) 41A4978 1
Iceland (models CTO) 41A4979 1
Italy (models CTO) 41A4980 1
Japanese (models CTO) 41A4981 1
Korean (models CTO) 41A4982 1
LA Spanish (models CTO) 41A4983 1
Norwegian (models CTO) 41A4984 1
Polish (models CTO) 41A4985 1
Portuguese (models CTO) 41A4986 1
Romanian (models CTO) 41A4987 1
Russian/Cyrillic (models CTO) 41A4988 1
Serbian/Cyrillic (models CTO) 41A4989 1
Slovak (models CTO) 41A4990 1
Spanish (models CTO) 41A4991 1
Swedish/Finnish (models CTO) 41A4992 1
Swiss French/German (models CTO) 41A4993 1
Thailand (models CTO) 41A4994 1
Chapter 11. FRU lists 365
9352 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Turkish (models CTO) 41A4995 1
Turkish (models CTO) 41A4996 1
UK English (models CTO CTO) 41A4997 1
US Euro (models CTO) 41A4998 1
Slovenian (models CTO) 41A4999 1
9352 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models CTO) 41A5248 1
Arabic (models CTO) 41A5249 1
Arabic/French (models CTO) 41A5250 1
Belgian French (models CTO) 41A5251 1
Belgium English (models CTO) 41A5252 1
Brazilian Portuguese (models CTO) 41A5253 1
Bulgarian (models CTO) 41A5254 1
Chinese/US (models CTO) 41A5255 1
Czech (ABB) (models CTO) 41A5256 1
Danish (models CTO) 41A5257 1
Dutch (models CTO) 41A5258 1
French (models CTO) 41A5259 1
French Canadian (models CTO) 41A5260 1
French Canadian (models CTO) 41A5261 1
German (models CTO) 41A5262 1
Greek (models CTO) 41A5263 1
Greek/US (models CTO) 41A5264 1
Hebrew (models CTO) 41A5265 1
Hungarian (models CTO) 41A5266 1
Iceland (models CTO) 41A5267 1
Italy (models CTO) 41A5268 1
Japanese (models CTO) 41A5269 1
Korean (models CTO) 41A5270 1
LA Spanish (models CTO) 41A5271 1
Norwegian (models CTO) 41A5272 1
Polish (models CTO) 41A5273 1
Portuguese (models CTO) 41A5274 1
Romanian (models CTO) 41A5276 1
Russian/Cyrillic (models CTO) 41A5277 1
Serbian/Cyrillic (models CTO) 41A5278 1
Slovak (models CTO) 41A5279 1
Spanish (models CTO) 41A5280 1
Swedish/Finnish (models CTO) 41A5281 1
Swiss French/German (models CTO) 41A5282 1
366 Hardware Maintenance Manual
9352 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Thailand (models CTO) 41A5283 1
Turkish (models CTO) 41A5284 1
Turkish (models CTO) 41A5285 1
UK English (models CTO) 41A5286 1
US Euro (models CTO) 41A5287 1
Slovenian (models CTO) 41A5288 1
9352 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models CTO) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (models CTO) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models CTO) 41R0018 1
9352 Adapters and miscellaneous FRUs FRU# CRU
USB Memory Key - 1G RoW (models CTO) 41U4978 1
USB Memory Key (models CTO) 43R2296 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
IEEE 1394 Firewire Adapter SFF (models CTO) 41D2781 2
Internal USB Memory Card Reader Slim (models CTO) 45R1885 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models CTO) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models CTO) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models CTO) 43C0258 2
DVI-I connection Adapter Full Height (models CTO) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models CTO) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models CTO) 89P8575 1
Speaker Power brick - China, Thailand (models CTO) 89P8581 1
Speaker Power brick - Japan (models CTO) 89P8577 1
Speaker Power brick - Brazil (models CTO) 89P8583 1
Speaker Power brick - Argentina (models CTO) 41A4901 1
Speaker Power brick - ANZ (models CTO) 89P8579 1
Speaker Brick - Korea (models CTO) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models CTO) 89P8573 1
Speaker Brick - Taiwan (models CTO) 41A4905 1
Speaker Power brick - India, South Africa (models CTO) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA cable (models CTO) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models CTO) 41X6398 2
9352 Line Cords FRU# CRU
Line cord - US (models CTO) 41R3184 1
Line cord - US (models CTO) 41R3185 1
Line cord - China (models CTO) 41R3256 1
Line cord - China (models CTO) 41R3257 1
Chapter 11. FRU lists 367
9352 Line Cords FRU# CRU
Line cord - Brazil (models CTO) 41R3270 1
Line cord - Brazil (models CTO) 41R3271 1
Line cord - LA High Volt APU (models CTO) 41R3176 1
Line Cord - LA High Volt APU (models CTO) 41R3177 1
Line Cord - Korea (models CTO) 41R3260 1
Line Cord - Korea (models CTO) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models CTO) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models CTO) 41R3225 1
Line Cord - Taiwan (models CTO) 41R3278 1
Line Cord - Taiwan (models CTO) 41R3279 1
Line Cord - Italy (models CTO) 41R3232 1
Line Cord - Italy (models CTO) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models CTO) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models CTO) 41R3209 1
Line Cord - Denmark (models CTO) 41R3212 1
Line Cord - Denmark (models CTO) 41R3213 1
Line Cord - Switzerland (models CTO) 41R3228 1
Line Cord - Switzerland (models CTO) 41R3229 1
Line Cord - Israel (models CTO) 41R3236 1
Line Cord - Israel (models CTO) 41R3237 1
Line Cord - South Africa (models CTO) 41R3220 1
Line Cord - South Africa (models CTO) 41R3221 1
Line Cord - India (models CTO) 41R3341 1
Line Cord - India (models CTO) 41R3175 1
Line Cord - Japan (models CTO) 41R3248 1
Line Cord - Japan (models CTO) 41R3249 1
Line Cord - ANZ (models CTO) 41R3196 1
Line Cord - ANZ (models CTO) 41R3197 1
Line Cord - Hong Kong (models CTO) 41R3224 1
Line Cord - Hong Kong (models CTO) 41R3225 1
9352 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
368 Hardware Maintenance Manual
9352 Windows XP Home Recovery CDs FRU# CRU
SV (Swedish) (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9352 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models CTO) 45R0756 1
FR/CF (models CTO) 45R0759 1
GR (models CTO) 45R0760 1
IT (models CTO) 45R0762 1
BR (models CTO) 45R0763 1
SP/LA (models CTO) 45R0761 1
DK (models CTO) 45R0764 1
NL (models CTO) 45R0767 1
AE (models CTO) 45R2342 1
SV (Swedish) (models CTO) 45R0765 1
HE (models CTO) 45R2334 1
FI (models CTO) 45R0766 1
NO (models CTO) 45R0770 1
PL (models CTO) 45R0777 1
PO (models CTO) 45R0774 1
RU (models CTO) 45R0773 1
RE (models CTO) 45R2318 1
HU (models CTO) 45R0780 1
CZ (models CTO) 45R0776 1
TR (models CTO) 45R0775 1
GK (models CTO) 45R0772 1
SL (models CTO) 45R2326 1
Chapter 11. FRU lists 369
9352 Windows XP Pro Recovery CDs FRU# CRU
Japanese (models CTO) 45R0757 1
Simplified Chinese (models CTO) 45R0758 1
Taiwan-TC (models CTO) 45R0768 1
Hong Kong-TC (models CTO) 45R0769 1
Korean (models CTO) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models CTO) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models CTO) 45R8247 1
9352 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models CTO) 46R7273 1
Japanese (models CTO) 46R7274 1
Simplified Chinese (models CTO) 46R7275 1
French (models CTO) 46R7276 1
German (models CTO) 46R7277 1
Spanish (models CTO) 46R7278 1
Italian (models CTO) 46R7279 1
Brazilian Portuguese (models CTO) 46R7280 1
Danish (models CTO) 46R7281 1
Swedish (models CTO) 45R9758 1
Finland (models CTO) 45R9759 1
Dutch (models CTO) 45R9760 1
Traditional Chinese (models CTO) 46R7282 1
Hong Kong (models CTO) 46R7283 1
Norwegian (models CTO) 46R7284 1
Korean (models CTO) 45R9764 1
Slovenian (models CTO) 45R9765 1
Greek (models CTO) 45R9766 1
Russian (models CTO) 46R7285 1
Portuguese (models CTO) 45R9768 1
Turkish (models CTO) 45R9769 1
Czech (models CTO) 45R9770 1
Polish (models CTO) 45R9771 1
Russian English (models CTO) 46R7286 1
Arabic Localized (models CTO) 45R9773 1
Hebrew (models CTO) 45R9774 1
Hungarian (models CTO) 45R9775 1
Slovakian (models CTO) 45R9776 1
9352 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models CTO) 46R7287 1
Japanese (models CTO) 46R7288 1
370 Hardware Maintenance Manual
9352 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models CTO) 46R7289 1
French (models CTO) 46R7290 1
German (models CTO) 46R7291 1
Spanish (models CTO) 46R7292 1
Italian (models CTO) 46R7293 1
Brazilian Portuguese (models CTO) 46R7294 1
Danish (models CTO) 46R7295 1
Swedish (models CTO) 45R9786 1
Finland (models CTO) 45R9787 1
Dutch (models CTO) 45R9788 1
Traditional Chinese (models CTO) 46R7296 1
Hong Kong (models CTO) 46R7297 1
Norwegian (models CTO) 46R7298 1
Korean (models CTO) 45R9792 1
Slovenian (models CTO) 45R9793 1
Greek (models CTO) 45R9794 1
Russian (models CTO) 46R7299 1
Portuguese (models CTO) 45R9796 1
Turkish (models CTO) 45R9797 1
Czech (models CTO) 45R9798 1
Polish (models CTO) 45R9799 1
Russian English (models CTO) 46R7300 1
Arabic Localized (models CTO) 45R9801 1
Hebrew (models CTO) 45R9802 1
Romanian (models CTO) 45R9803 1
Hungarian (models CTO) 45R9804 1
Slovakian (models CTO) 45R9805 1
Serbian-Latin (models CTO) 45R9806 1
9352 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models CTO) 46R7315 1
Japanese (models CTO) 46R7316 1
Simplified Chinese (models CTO) 46R7317 1
French (models CTO) 46R7318 1
German (models CTO) 46R7319 1
Spanish (models CTO) 46R7320 1
Italian (models CTO) 46R7321 1
Brazilian Portuguese (models CTO) 46R7322 1
Danish (models CTO) 46R7323 1
Swedish (models CTO) 45R9844 1
Finland (models CTO) 45R9845 1
Chapter 11. FRU lists 371
9352 Vista VHP SP1 Recovery DVDs FRU# CRU
Dutch (models CTO) 45R9846 1
Traditional Chinese (models CTO) 46R7324 1
Hong Kong (models CTO) 46R7325 1
Norwegian (models CTO) 46R7326 1
Korean (models CTO) 45R9850 1
Slovenian (models CTO) 45R9851 1
Greek (models CTO) 45R9852 1
Russian (models CTO) 46R7327 1
Portuguese (models CTO) 45R9854 1
Turkish (models CTO) 45R9855 1
Czech (models CTO) 45R9856 1
Polish (models CTO) 45R9857 1
Russian English (models CTO) 46R7328 1
Arabic Localized (models CTO) 45R9859 1
Hebrew (models CTO) 45R9860 1
Romanian (models CTO) 45R9861 1
Hungarian (models CTO) 45R9862 1
Slovakian (models CTO) 45R9863 1
Serbian-Latin (models CTO) 45R9864 1
9352 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models CTO) 46R7301 1
Japanese (models CTO) 46R7302 1
Simplified Chinese (models CTO) 46R7303 1
French (models CTO) 46R7304 1
German (models CTO) 46R7305 1
Spanish (models CTO) 46R7306 1
Italian (models CTO) 46R7307 1
Brazilian Portuguese (models CTO) 46R7308 1
Danish (models CTO) 46R7309 1
Swedish (models CTO) 45R9816 1
Danish (models CTO) 45R9817 1
Dutch (models CTO) 45R9818 1
Traditional Chinese (models CTO) 46R7310 1
HongKong (models CTO) 46R7311 1
Norwegian (models CTO) 46R7312 1
Russian (models CTO) 45R9822 1
Turkish (models CTO) 45R9823 1
Hungarian (models CTO) 45R9824 1
Greek (models CTO) 45R9825 1
Russian (models CTO) 46R7313 1
372 Hardware Maintenance Manual
9352 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Taiwan (models CTO) 45R9827 1
HongKong (models CTO) 45R9828 1
Korea (models CTO) 45R9829 1
Russian English (models CTO) 46R7314 1
Portuguese (models CTO) 45R9831 1
Arabic Localized (models CTO) 45R9832 1
Hebrew (models CTO) 45R9833 1
Slovakian (models CTO) 45R9834 1
9352 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models CTO) 46R7329 1
Japanese (models CTO) 46R7330 1
Simplified Chinese (models CTO) 46R7331 1
French (models CTO) 46R7332 1
German (models CTO) 46R7333 1
Spanish (models CTO) 46R7334 1
Italian (models CTO) 46R7335 1
Brazilian Portuguese (models CTO) 46R7336 1
Danish (models CTO) 46R7337 1
Swedish (models CTO) 45R9874 1
Finland (models CTO) 45R9875 1
Dutch (models CTO) 45R9876 1
Traditional Chinese (models CTO) 46R7338 1
Hong Kong (models CTO) 46R7339 1
Norwegian (models CTO) 46R7340 1
Korean (models CTO) 45R9880 1
Slovenian (models CTO) 45R9881 1
Greek (models CTO) 45R9882 1
Russian (models CTO) 46R7341 1
Portuguese (models CTO) 45R9884 1
Turkish (models CTO) 45R9885 1
Czech (models CTO) 45R9886 1
Polish (models CTO) 45R9887 1
Russian English (models CTO) 46R5089 1
Arabic Localized (models CTO) 46R7342 1
Hebrew (models CTO) 45R9890 1
Hungarian (models CTO) 45R9891 1
Slovakian (models CTO) 45R9892 1
9352 Vista Starter 32 Recovery DVDs FRU# CRU
English (models CTO) 46R5059 1
Chapter 11. FRU lists 373
Machine Type 9356
Item # 9356 FRUs FRU# CRU Tier
1 Intel 65W/95W Heatsink Kit (Tower) (all models) 41R6429 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
374 Hardware Maintenance Manual
Item # 9356 FRUs FRU# CRU Tier
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models ADU ADF ADS
ADP ADL ADD ADY ADG ADM ADA ADQ ADT ADC ADB ADH ADV ADK
ADR ADE ADJ AEU AEF AES AEP AEL AED AEY AEG AEM AEA AEQ AET
AEC AEB AEB AEH AEV AEK AER AEE AEJ AFU AFF AFS AFD AFL AFD AFY
AFG AFM AFA AFQ AFT AFC AFB AFH AFV AFK AFR AFE AFJ AGU AGF AGS
AGP AGL AGD AGY AGG AGM AGA AGQ AGT AGC AGB AGH AGV AGK
AGR AGE AGJ B1U B1F B7U B7F B5U B5F B6G)
41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models ACM AAM
AAA AAK ABM ABA ABJ B2M BCM BCA BCQ BCT BCK BCJ BBG)
41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
Chapter 11. FRU lists 375
Item # 9356 FRUs FRU# CRU Tier
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models B3M B3A B3Q
B3T B3K B3J B4M B4A)
41X1081 2
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models)
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models
ACM B2M B1U B1F B7U B7F B5U B5F B6G BCM BCA BCQ BCT BCK BCJ BBG)
43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9105 2
6 Bezel assembly without IBM mark (all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (all models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models ADU ADF ADS ADP
ADL ADD ADY ADG ADM ADA ADQ ADT ADC ADB ADH ADV ADK ADR
ADE AEU AEF AES AEP AEL AED AEY AEG AEM AEA AEQ AET AEC AEB
AEB AEH AEV AEK AER AEE AFU AFF AFS AFD AFL AFD AFY AFG AFM AFA
AFQ AFT AFC AFB AFH AFV AFK AFR AFE B1U B1F B7U B7F B5U B5F BCM
BCA BCQ BCT BCK BCJ)
40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models ACM B2M B6G BBG) 87H4891 2
11 System board , Intel G31 mATX GA Level (models ACM AAM AAA AAK ABM
ABA ABJ ADU ADF ADS ADP ADL ADD ADY ADG ADM ADA ADQ ADT ADC
ADB ADH ADV ADK ADR ADE ADJ AEU AEF AES AEP AEL AED AEY AEG
AEM AEA AEQ AET AEC AEB AEB AEH AEV AEK AER AEE AEJ AFU AFF AFS
AFD AFL AFD AFY AFG AFM AFA AFQ AFT AFC AFB AFH AFV AFK AFR AFE
AFJ AGU AGF AGS AGP AGL AGD AGY AGG AGM AGA AGQ AGT AGC AGB
AGH AGV AGK AGR AGE AGJ B2M B1U B1F B7U B7F B5U B5F B6G BCM BCA
BCQ BCT BCK BCJ BBG)
53Y3282 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models ACM AAM AAA AAK ABM ABA ADU ADF ADS ADP ADL ADD ADY
ADG ADM ADA ADQ ADT ADC ADB ADH ADV ADK ADR ADE AEU AEF AES
AEP AEL AED AEY AEG AEM AEA AEQ AET AEC AEB AEB AEH AEV AEK
AER AEE AFU AFF AFS AFD AFL AFD AFY AFG AFM AFA AFQ AFT AFC AFB
AFH AFV AFK AFR AFE AGU AGF AGS AGP AGL AGD AGY AGG AGM AGA
AGQ AGT AGC AGB AGH AGV AGK AGR AGE B2M B1U B1F B7U B7F B5U B5F
B6G BCM BCA BCQ BCT BCK BBG)
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models ACM AAM
AAA AAK ABM ABA ADU ADF ADS ADP ADL ADD ADY ADG ADM ADA
ADQ ADT ADC ADB ADH ADV ADK ADR ADE AEU AEF AES AEP AEL AED
AEY AEG AEM AEA AEQ AET AEC AEB AEB AEH AEV AEK AER AEE AFU
AFF AFS AFD AFL AFD AFY AFG AFM AFA AFQ AFT AFC AFB AFH AFV AFK
AFR AFE AGU AGF AGS AGP AGL AGD AGY AGG AGM AGA AGQ AGT AGC
AGB AGH AGV AGK AGR AGE B2M B1U B1F B7U B7F B5U B5F B6G BCM BCA
BCQ BCT BCK BCJ BBG)
41A9665 2
376 Hardware Maintenance Manual
Item # 9356 FRUs FRU# CRU Tier
13 Power supply, ATX 310W Power supply Robust; for all countries (models ACM
AAM AAA AAK ABM ABA ADU ADF ADS ADP ADL ADD ADY ADG ADM
ADA ADQ ADT ADC ADB ADH ADV ADK ADR ADE AEU AEF AES AEP AEL
AED AEY AEG AEM AEA AEQ AET AEC AEB AEB AEH AEV AEK AER AEE
AFU AFF AFS AFD AFL AFD AFY AFG AFM AFA AFQ AFT AFC AFB AFH AFV
AFK AFR AFE AGU AGF AGS AGP AGL AGD AGY AGG AGM AGA AGQ AGT
AGC AGB AGH AGV AGK AGR AGE B2M B1U B1F B7U B7F B5U B5F B6G BCM
BCA BCQ BCT BCK BCJ BBG)
41A9726 2
The FRUs listed in the following tables are not illustrated.
9356 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Cable, SATA 457mm (RoHs) (all models) 43N9013 2
Cable, SATA 250mm (RoHs) (all models) 43N9012 2
Shield, diskette drive EMC (all models) 41N8078 2
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Hard disk drive tray (all models) 41R6291 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Asm Chassis Without IBM Mark (all models) 41R6408 2
Card reader retainer (all models) 43N9351 2
Blank 5.25″Bezel (models) 41N8077 3
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models ACM AAM AAA AAK ABM
ABA ABJ ADU ADF ADS ADP ADL ADD ADY ADG ADM ADA ADQ ADT ADC ADB
ADH ADV ADK ADR ADE ADJ AEU AEF AES AEP AEL AED AEY AEG AEM AEA AEQ
AET AEC AEB AEB AEH AEV AEK AER AEE AEJ AFU AFF AFS AFD AFL AFD AFY
AFG AFM AFA AFQ AFT AFC AFB AFH AFV AFK AFR AFE AFJ AGU AGF AGS AGP
AGL AGD AGY AGG AGM AGA AGQ AGT AGC AGB AGH AGV AGK AGR AGE AGJ
B2M B1U B1F B7U B7F B5U B5F B6G BCM BCA BCQ BCT BCK BCJ BBG)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
9356 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chapter 11. FRU lists 377
9356 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9356 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models ACM AAM AAA ABM ABA ADU ADG ADM ADA ADQ ADH ADR
ADE AEU AEG AEM AEA AEQ AEH AER AEE AFU AFG AFM AFA AFQ AFH AFR AFE
AFU AFG AFM AFA AFQ AFH AFR AFE AGU AGG AGM AGA AGQ AGH AGR AGE
B2M B1U B7U B5U B6G BCM BCA BCQ BBG)
41A5289 1
Arabic (models ADG AEG AFG AGG B6G BBG) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models ADG AEG AFG AGG B6G BBG) 41A5292 1
378 Hardware Maintenance Manual
9356 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Belgian/UK (models ADG AEG AFG AGG B6G BBG) 41A5293 1
Brazilian Portuguese (models ADP AEP AFP AGP) 41A5294 1
Bulgarian (models ADG AEG AFG AGG B6G BBG) 41A5295 1
Chinese/US (models ADB ADV AEB AEV AFB AFV AGB AGV) 41A5296 1
Czech (models ADG AEG AFG AGG B6G BBG) 41A5297 1
Danish (models ADG AEG AFG AGG B6G BBG) 41A5298 1
Dutch (models ADG AEG AFG AGG B6G BBG) 41A5299 1
French (models ADG AEG AFG AGG B6G BBG) 41A5300 1
French Canadian (models ADF AEF AFF AGF B1F B7F B5F) 41A5301 1
French Canadian (models ADF AEF AFF AGF B1F B7F B5F) 41A5302 1
German (models ADG AEG AFG AGG B6G BBG) 41A5303 1
Greek (models ADG AEG AFG AGG B6G BBG) 41A5304 1
Greek/US (models ADG AEG AFG AGG B6G BBG) 41A5305 1
Hebrew (models ADG AEG AFG AGG B6G BBG) 41A5306 1
Hungarian (models ADG AEG AFG AGG B6G BBG) 41A5307 1
Iceland (models ADG AEG AFG AGG B6G BBG) 41A5308 1
Italian (models ADG AEG AFG AGG B6G BBG) 41A5309 1
Japanese (models ABJ ADJ AEJ AFJ AGJ) 41A5310 1
Korean (models AAK ADK AEK AFK AGK BCK) 41A5311 1
LA Spanish (models ADS ADD ADY AES AED AEY AFS AFD AFY AGS AGD AGY) 41A5312 1
Norwegian (models ADG AEG AFG AGG B6G BBG) 41A5313 1
Polish (models ADG AEG AFG AGG B6G BBG) 41A5314 1
Portuguese (models ADG AEG AFG AGG B6G BBG) 41A5315 1
Romanian (models ADG AEG AFG AGG B6G BBG) 41A5317 1
Russian/Cyrillic (models ADG AEG AFG AGG B6G BBG) 41A5318 1
Serbian/Cyrillic (models ADG AEG AFG AGG B6G BBG) 41A5319 1
Slovak (models ADG AEG AFG AGG B6G BBG) 41A5320 1
Spanish (models ADG AEG AFG AGG B6G BBG) 41A5321 1
Swedish/Finnish (models ADG AEG AFG AGG B6G BBG) 41A5322 1
Swiss (models ADG AEG AFG AGG B6G BBG) 41A5323 1
Thailand (models ADT AET AFT AGT BCT) 41A5324 1
Turkish (models ADG AEG AFG AGG B6G BBG) 41A5325 1
Turkish (models ADG AEG AFG AGG B6G BBG) 41A5326 1
UK English (models ADG AEG AFG AGG B6G BBG) 41A5327 1
US Euro (models ADG AEG AFG AGG B6G BBG) 41A5328 1
Slovenian (models ADG AEG AFG AGG B6G BBG) 41A5329 1
9356 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Chapter 11. FRU lists 379
9356 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9356 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
380 Hardware Maintenance Manual
9356 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9356 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Chapter 11. FRU lists 381
9356 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9356 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
USB Memory Key - 1G RoW (models) 41U4978 1
ADD2 DVI Adapter,FH (HDCP) (models) 43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
DVI-I connection Adapter Full Height (models ACM AFU AFF AFS AFD AFL AFD AFY
AFG AFM AFA AFQ AFT AFC AFB AFH AFV AFK AFR AFE AFJ AGU AGF AGS AGP
AGL AGD AGY AGG AGM AGA AGQ AGT AGC AGB AGH AGV AGK AGR AGE AGJ
B2M)
39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models AAA ABA ADA AEA
AFA AGA ADS AES AFS AGS ADU AEU AFU AGU B1U B7U B5U BCA)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models ADD AED AFD AGD) 89P8575 1
Speaker Power brick - China, Thailand (models ADT ADC AET AEC AFT AFC AGT AGC
BCT)
89P8581 1
Speaker Power brick - Japan (models ABJ ADJ AEJ AFJ AGJ BCJ) 89P8577 1
Speaker Power brick - Brazil (models ADP AEP AFP AGP ) 89P8583 1
Speaker Power brick - Argentina (models ADY AEY AFY AGY) 41A4901 1
Speaker Power brick - ANZ (modes ACM AAM ABM ADM AEM AFM AGM B2M BCM) 89P8579 1
Speaker Brick - Korea (models AAK ADK AEK AFK AGK BCK) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models ADB ADH ADG AEB AEH AEG AFB AFH
AFG AGB AGH AGG B6G BBG)
89P8573 1
Speaker Brick - Taiwan (models ADV AEV AFV AGV) 41A4905 1
Speaker Power brick - India, South Africa (models ADQ AEQ AFQ AGQ BCQ) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9356 Line Cords FRU# CRU
Line cord - US (models AAA ABA ADU ADF ADS ADD ADL ADA ADT AEU AEF AES
AED AEL AEA AET AFU AFF AFS AFD AFL AFA AFT AGU AGF AGS AGD AGL AGA
AGT B1U B1F B7U B7F B5U B5F BCA BCT)
41R3184 1
382 Hardware Maintenance Manual
9356 Line Cords FRU# CRU
Line cord - US (models AAA ABA ADU ADF ADS ADD ADL ADA ADT AEU AEF AES
AED AEL AEA AET AFU AFF AFS AFD AFL AFA AFT AGU AGF AGS AGD AGL AGA
AGT B1U B1F B7U B7F B5U B5F BCA BCT)
41R3185 1
Line cord - China (models ADC AEC AFC AGC) 41R3256 1
Line cord - China (models ADC AEC AFC AGC) 41R3257 1
Line cord - Brazil (models ADP AEP AFP AGP) 41R3270 1
Line cord - Brazil (models ADP AEP AFP AGP) 41R3271 1
Line cord - LA High Volt APU (models ADY AEY AFY AGY) 41R3176 1
Line Cord - LA High Volt APU (models ADY AEY AFY AGY) 41R3177 1
Line Cord - Korea (models AAK ADK AEK AFK AGK BCK) 41R3260 1
Line Cord - Korea (models AAK ADK AEK AFK AGK BCK) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAA ABA ADA AEA AFA
AGA ADY AEY AFY AGY)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAA ABA ADA AEA AFA
AGA ADY AEY AFY AGY)
41R3225 1
Line Cord - Taiwan (models ADV AEV AFV AGV) 41R3278 1
Line Cord - Taiwan (models ADV AEV AFV AGV) 41R3279 1
Line Cord - Italy (models ADG AEG AFG AGG B6G BBG) 41R3232 1
Line Cord - Italy (models ADG AEG AFG AGG B6G BBG) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAA ABA ADA AEA AFA
AGA BCA)
41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAA ABA ADA AEA AFA
AGA BCA)
41R3209 1
Line Cord - Denmark (models ADG AEG AFG AGG B6G BBG) 41R3212 1
Line Cord - Denmark (models ADG AEG AFG AGG B6G BBG) 41R3213 1
Line Cord - Switzerland (models ADG AEG AFG AGG B6G BBG) 41R3228 1
Line Cord - Switzerland (models ADG AEG AFG AGG B6G BBG) 41R3229 1
Line Cord - Israel (models ADG AEG AFG AGG B6G BBG) 41R3236 1
Line Cord - Israel (models ADG AEG AFG AGG B6G BBG) 41R3237 1
Line Cord - South Africa (models ACM AAM AAA ABM ABA ADA AEA AFA AGA ADM
AEM AFM AGM B2M BCM BCA)
41R3220 1
Line Cord - South Africa (models ACM AAM AAA ABM ABA ADA AEA AFA AGA ADM
AEM AFM AGM B2M BCM BCA)
41R3221 1
Line Cord - India (models ADQ AEQ AFQ AGQ B3Q BCQ) 41R3341 1
Line Cord - India (models ADQ AEQ AFQ AGQ B3Q BCQ) 41R3175 1
Line Cord - Japan (models ABJ ADJ AEJ AFJ AGJ BCJ) 41R3248 1
Line Cord - Japan (models ABJ ADJ AEJ AFJ AGJ BCJ) 41R3249 1
Line Cord - ANZ (models AAM ABM ADM AEM AFM AGM B2M BCM) 41R3196 1
Line Cord - ANZ (models AAM ABM ADM AEM AFM AGM B2M BCM) 41R3197 1
Line Cord - Hong Kong (models ADB ADH AEB AEH AFB AFH AGB AGH ) 41R3224 1
Line Cord - Hong Kong (models ADB ADH AEB AEH AFB AFH AGB AGH ) 41R3225 1
Chapter 11. FRU lists 383
9356 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9356 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models B5U B6G) 45R0756 1
FR/CF (models B5U B6G) 45R0759 1
GR (models B6G) 45R0760 1
IT (models B6G) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models B6G) 45R0764 1
NL (models B6G) 45R0767 1
AE (models B6G) 45R2342 1
SV (Swedish) (models B6G) 45R0765 1
HE (models B6G) 45R2334 1
FI (models B6G) 45R0766 1
NO (models B6G) 45R0770 1
384 Hardware Maintenance Manual
9356 Windows XP Pro Recovery CDs FRU# CRU
PL (models B6G) 45R0777 1
PO (models B6G) 45R0774 1
RU (models B6G) 45R0773 1
RE (models B6G) 45R2318 1
HU (models B6G) 45R0780 1
CZ (models B6G) 45R0776 1
TR (models B6G) 45R0775 1
GK (models B6G) 45R0772 1
SL (models B6G) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models B6G) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models B6G) 45R8247 1
9356 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Chapter 11. FRU lists 385
9356 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9356 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models ACM AAM AAA ABM ABA ADU ADG ADM ADA ADQ ADH ADR
ADE AEU AEG AEM AEA AEQ AEH AER AEE AFU AFG AFM AFA AFQ AFH AFR AFE
AGU AGG AGM AGA AGQ AGH AGR AGE B2M B1U B7U BCM BCA BCQ BBG)
46R7287 1
Japanese (models ABJ ADJ AEJ AFJ AGJ BCJ ) 46R7288 1
Simplified Chinese (models ADC AEC AFC AGC) 46R7289 1
French (models ADG ADF AEG AEF AFG AFFAGG AGF B1F B7F BBG) 46R7290 1
German (models ADG AEG AFG AGG BBG) 46R7291 1
Spanish (models ADG AEG AFG AGG BBG) 46R7292 1
Italian (models ADG AEG AFG AGG BBG) 46R7293 1
Brazilian Portuguese (models ADP AEP AFP AGP) 46R7294 1
Danish (models ADG AEG AFG AGG BBG) 46R7295 1
Swedish (models ADG AEG AFG AGG BBG) 45R9786 1
Finland (models ADG AEG AFG AGG BBG) 45R9787 1
Dutch (models ADG AEG AFG AGG BBG) 45R9788 1
Traditional Chinese (models ADV AEV AFV AGV) 46R7296 1
Hong Kong (models ADB AEB AFB AGB) 46R7297 1
Norwegian (models ADG AEG AFG AGG BBG) 46R7298 1
Korean (models AAK ADK AEK AFK AGK BCK) 45R9792 1
Slovenian (models ADG AEG AFG AGG BBG) 45R9793 1
Greek (models ADG AEG AFG AGG BBG) 45R9794 1
Russian (models ADG AEG AFG AGG BBG) 46R7299 1
Portuguese (models ADG AEG AFG AGG BBG) 45R9796 1
Turkish (models) 45R9797 1
Czech (models ADG AEG AFG AGG BBG) 45R9798 1
Polish (models ADG AEG AFG AGG BBG) 45R9799 1
Russian English (models ADG AEG AFG AGG BBG) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models ADG AEG AFG AGG BBG) 45R9802 1
Romanian (models ADG AEG AFG AGG BBG) 45R9803 1
Hungarian (models ADG AEG AFG AGG BBG) 45R9804 1
Slovakian (models ADG AEG AFG AGG BBG) 45R9805 1
Serbian-Latin (models) 45R9806 1
386 Hardware Maintenance Manual
9356 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9356 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Japanese (models) 46R7302 1
Simplified Chinese (models) 46R7303 1
French (models) 46R7304 1
German (models) 46R7305 1
Spanish (models) 46R7306 1
Italian (models) 46R7307 1
Brazilian Portuguese (models) 46R7308 1
Danish (models) 46R7309 1
Chapter 11. FRU lists 387
9356 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Traditional Chinese (models) 46R7310 1
Hong Kong (models) 46R7311 1
Norwegian (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Russian (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Russian English (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9356 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 45R9877 1
Hong Kong (models) 45R9878 1
Norwegian (models) 45R9879 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
388 Hardware Maintenance Manual
9356 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9356 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 389
Machine Type 9357
Item # 9357 FRUs FRU# CRU Tier
1 Intel 84W heatsink kit (all models) 41R4803 2
1 Intel 65W/95W Heatsink Kit (Tower) (all models) 41R6429 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T (models
AAQ)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models ABQ)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
390 Hardware Maintenance Manual
Item # 9357 FRUs FRU# CRU Tier
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models AAQ) 41X4255 2
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models ABQ) 41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AAQ ABQ ) 41N3325 2
Chapter 11. FRU lists 391
Item # 9357 FRUs FRU# CRU Tier
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models)
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9105 2
6 Bezel assembly without IBM mark (all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (all models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models AAQ ABQ) 40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
11 System board , Intel G31 mATX GA Level (models AAQ ABQ) 53Y3282 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models AAQ ABQ)
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models AAQ ABQ) 41A9665 2
13 Power supply, ATX 310W Power supply Robust; for all countries (models AAQ
ABQ)
41A9726 2
The FRUs listed in the following tables are not illustrated.
9357 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Shield, diskette drive EMC (all models) 41N8078 2
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cable, SATA 457mm (RoHS) (TOWER) (all models) 43N9013 2
Cable, SATA 250mm (RoHS) (all models) 43N9012 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Hard disk drive tray (all models) 41R6291 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Asm Chassis Without IBM Mark Atlantic (all models) 41R6408 N
Card reader retainers (models) 43N9351 2
Blank 5.25″Bezel (models) 41N8077 3
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models AAQ ABQ) 45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
392 Hardware Maintenance Manual
9357 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
Chapter 11. FRU lists 393
9357 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAQ ABQ) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models) 41A5292 1
Belgian/English (models) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models) 41A5296 1
Czech (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Italian (models) 41A5309 1
Japanese (models) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss (models) 41A5323 1
Thailand (models) 41A5324 1
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
394 Hardware Maintenance Manual
9357 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US European (models) 41A4998 1
Slovenian (models) 41A4999 1
Chapter 11. FRU lists 395
9357 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US European (models) 41A5287 1
Slovenian (models) 41A5288 1
396 Hardware Maintenance Manual
9357 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (models AAQ ABQ) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (models AAQ ABQ) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9357 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models CTO) 43C9207 1
USB Memory Key - 1G RoW (models) 41U4978 1
ADD2 DVI Adapter,FH (HDCP) (models) 43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
DVI-I connection Adapter Full Height(models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (modes) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models AAQ ABQ) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9357 Line Cords FRU# CRU
Line cord - US (models) 41R3184 1
Line cord - US (models) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Chapter 11. FRU lists 397
9357 Line Cords FRU# CRU
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models) 41R3232 1
Line Cord - Italy (models) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models) 41R3220 1
Line Cord - South Africa (models) 41R3221 1
Line Cord - India (models AAQ ABQ) 41R3341 1
Line Cord - India (models AAQ ABQ) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
9357 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
398 Hardware Maintenance Manual
9357 Windows XP Home Recovery CDs FRU# CRU
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9357 Windows XP Pro Recovery CDs FRU# CRU
US English (models) 45R0779 1
French (models) 45R0766 1
German (models) 45R0770 1
IT (models) 45R0777 1
Brazilian Portuguese (models) 45R0774 1
Spanish (models) 45R0773 1
Danish (models) TBD 1
Dutch (models) 45R0780 1
Arabic English (models) 45R0776 1
Swedish (models) 45R0775 1
Hebrew (models) 45R0772 1
Finish (models) TBD 1
Norwegian (models) 45R0757 1
Polish (models) 45R0758 1
Portuguese (models) 45R0768 1
Russian (models) 45R0769 1
Russian English (models) 45R0771 1
Hungarian (models) 45R0778 1
Czech (models) TBD 1
Turkish (models) TBD 1
Greek (models) 45R0772 1
Slovakian (models) TBD 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Chapter 11. FRU lists 399
9357 Windows XP Pro Recovery CDs FRU# CRU
Traditional Chinese (models) 45R0768 1
Hong Kong Traditional Chinese (models) 45R0769 1
Korea (models) 45R0771 1
Arabic Localized (models) 45R0778 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9357 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9357 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAQ ABQ) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
400 Hardware Maintenance Manual
9357 Vista Business 32 SP1 Recovery DVDs FRU# CRU
French (models) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
9357 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Chapter 11. FRU lists 401
9357 Vista VHP SP1 Recovery DVDs FRU# CRU
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9357 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Japanese (models) 46R7302 1
Simplified Chinese (models) 46R7303 1
French (models) 46R7304 1
German (models) 46R7305 1
Spanish (models) 46R7306 1
Italian (models) 46R7307 1
Brazilian Portuguese (models) 46R7308 1
Danish (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Traditional Chinese (models) 46R7310 1
Hong Kong (models) 46R7311 1
Norwegian (models) 46R7312 1
Russian (models) 45R9822 1
Russian (models) 46R7313 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Taiwan (models) 45R9827 1
402 Hardware Maintenance Manual
9357 Vista Business 64 SP1 Recovery DVDs FRU# CRU
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Russian English (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9357 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9357 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 403
Machine Type 9358
Item # 9358 FRUs FRU# CRU
1 Heat Sink/RM Kit Intel (all models) 41R6022 N
1 Heat Sink/RM Kit Intel (all models) 41N8261 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models)
43C1694 N
404 Hardware Maintenance Manual
Item # 9358 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models) 46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
91M 91A 91Q 91C 91B 91H 91V 91K 91R)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models)
46R8640 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models 91M 91A 91Q 91C
91B 91H 91V 91K 91R)
41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models)
42Y9353 2
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
5 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models 91M 91A 91Q 91C 91B
91H 91V 91K 91R)
40Y9035 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9107 2
7 Front USB/Audio with bracket (all models) 41N8212 2
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
Chapter 11. FRU lists 405
Item # 9358 FRUs FRU# CRU
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models 91M 91A 91Q
91C 91B 91H 91V 91K 91R)
41X4256 2
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board,Intel G31 mATX GA Level (models 91M 91A 91Q 91C 91B 91H 91V
91K 91R)
53Y3282 N
10 Power supply, 220 Watt Power Supply - Robust; for all countries except for JP
(ROCKYS) (models 91M 91A 91Q 91C 91B 91H 91V 91K 91R)
41A9689 N
10 Power supply, 220 Watt Power Supply - Japan;only for JP (ROCKYS) (models) 41A9697 N
10 Power supply, 220W 80% Power supply-for all countries (ROCKYS) (models 91M
91A 91Q 91C 91B 91H 91V 91K 91R)
41A9670 N
10 Power supply, 280W TFX 280W PS ,Active PFC,for RockyS-for all countries
(ROCKYS) (models 91M 91A 91Q 91C 91B 91H 91V 91K 91R)
41A9705 N
The FRUs listed in the following tables are not illustrated.
9358 FRUs FRU# CRU
Planer shield, Atx 946,G31 with usb number (all models) 41R6384 N
Cabel, SATA 250mm (RoHS) (all models) 43N9012 2
Shield, EMC , Blank 5.25 (all models) 41N8271 2
Shield, EMC , Blank diskette drive (all models) 41N8273 2
Cover (all models) 41N8204 2
Mechanical shell kit (all models) 41R6387 N
Bezel kit, without IBM logo (all models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
Hard disk drive bracket assembly (plastic and grommets) (all models) 41N8210 2
Hard disk drive fan and bracket asm (all models) 41R6325 2
Speaker cable assembly, 600 mm cable length (all models) 41N8217 2
Fan duct assembly (all models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (all models) 42Y8006 2
Retention module assembly, Intel (all models) 41A7139 N
Intrusion switch assembly (all models) 41R6208 2
Temp Sense Cable (165 mm) (all models) 43N9079 2
Intel 65W/95W Heatsink Kit (ROCKYS) (all models) 41R6429 2
Foot stand (all models) 41R4813 1
Cable, diskette drive (all models) 41A7147 2
Cable, serial ATA, 250 mm (all models) 41A7145 2
Planer shield, Atx 946, with usb number (all modes) 41R6378 N
Rear Com2 cable , Rohs (all models) 41R6198 2
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (all models) 42Y8008 2
406 Hardware Maintenance Manual
9358 FRUs FRU# CRU
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models 91M 91A 91Q 91C 91B 91H
91V 91K 91R)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
9358 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Chapter 11. FRU lists 407
9358 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9358 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models 91M 91A 91Q 91H 91R) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models) 41A5292 1
Belgian/UK (models) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models 91B 91V) 41A5296 1
Czech(ABB) (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Italian (models) 41A5309 1
Japanese (models) 41A5310 1
Korean (models 91K) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss French/German (models) 41A5323 1
Thailand (models) 41A5324 1
408 Hardware Maintenance Manual
9358 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
9358 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgian/UK (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech(ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Chapter 11. FRU lists 409
9358 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9358 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/UK (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech(ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
410 Hardware Maintenance Manual
9358 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9358 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models 91M 91A 91Q 91C 91B 91H 91V 91K 91R) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (models 91M 91A 91Q 91C 91B 91H 91V 91K 91R) 41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
9358 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 46R4159 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 46R4160 2
Soft Modem V.90/V.44 SFF (models) 46R4220 2
USB Memory Key - 1G RoW (models) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage,ASEAN (models 91A) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models 91C) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models 91M ) 89P8579 1
Speaker Brick - Korea (models 91K 91R ) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models 91B 91H) 89P8573 1
Speaker Brick - Taiwan (models 91V) 41A4905 1
Speaker Power brick - India, South Africa (models 91Q) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
Chapter 11. FRU lists 411
9358 Line Cords FRU# CRU
Line cord - US (models 91A) 41R3184 1
Line cord - US (models 91A) 41R3185 1
Line cord - China (models 91C) 41R3256 1
Line cord - China (models 91C) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models 91K 91R) 41R3260 1
Line Cord - Korea (models 91K 91R) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG) 41R3225 1
Line Cord - Taiwan (models 91V) 41R3278 1
Line Cord - Taiwan (models 91V) 41R3279 1
Line Cord - Italy (models) 41R3232 1
Line Cord - Italy (models) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models 91A) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models 91A) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models 91M 91A) 41R3220 1
Line Cord - South Africa (models 91M 91A) 41R3221 1
Line Cord - India (models 91Q) 41R3341 1
Line Cord - India (models 91Q) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models 91M) 41R3196 1
Line Cord - ANZ (models 91M) 41R3197 1
Line Cord - Hong Kong (models 91B 91H) 41R3224 1
Line Cord - Hong Kong (models 91B 91H) 41R3225 1
9358 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
412 Hardware Maintenance Manual
9358 Windows XP Home Recovery CDs FRU# CRU
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korea (models) TBD 1
9358 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
Chapter 11. FRU lists 413
9358 Windows XP Pro Recovery CDs FRU# CRU
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9358 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 45R9772 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
414 Hardware Maintenance Manual
9358 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Slovakian (models) 45R9776 1
9358 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
9358 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Chapter 11. FRU lists 415
9358 Vista VHP SP1 Recovery DVDs FRU# CRU
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9358 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
416 Hardware Maintenance Manual
9358 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9358 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Chapter 11. FRU lists 417
9358 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9358 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
418 Hardware Maintenance Manual
Machine Type 9359
Item # 9359 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models 91M 91A 91Q 91C 91B
91H 91V 91K 91R)
40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models 91M
91A 91Q 91C 91B 91H 91V 91K 91R)
41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
5 Microprocessor,Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
Chapter 11. FRU lists 419
Item # 9359 FRUs FRU# CRU
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models) 46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
91M 91A 91Q 91C 91B 91H 91V 91K 91R)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models)
46R9512 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
420 Hardware Maintenance Manual
Item # 9359 FRUs FRU# CRU
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models AAU AAF AAS
AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV AAK
AAR AAE AAJ)
41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models 91M 91A 91Q 91C 91B 91H
91V 91K 91R)
53Y5125 N
8 Power supply, 280W Active PFC power supply for 10L---all countries (models
AAU AAF AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB
AAH AAV AAK AAR AAE AAJ)
41A9701 2
8 Power supply, 280W 80+ power supply for 10L---all countries (models AAU AAF
AAS AAP AAL AAD AAY AAG AAM AAA AAQ AAT AAC AAB AAH AAV
AAK AAR AAE AAJ)
41A9717 2
8 Power supply, 280W Active PFC power supply for 10L---all countries ( LX-607)
(models 91M 91A 91Q 91C 91B 91H 91V 91K 91R)
45J9418 2
8 Power supply, 280W 80+ power supply for 10L---all countries ( LX-607) (models
91M 91A 91Q 91C 91B 91H 91V 91K 91R)
45J9427 2
The FRUs listed in the following tables are not illustrated.
9359 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temperature Sense cable (460 mm) (all models) 41R2509 2
System Fan (all models) 41R6042 2
System Fan assembly (all models) 41R6249 2
Floor Stand and Vertical Deflector (all models) 41R6251 1
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
L1-C2 intrusion switch (all models) 39K5022 2
Rell IO shield BTX atlantic (all models) 41R6381 N
C2 Intrusion Switch (all models) 39K5022 2
Intel 95W/65W heatsink Kit (all models) 41R6039 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE (models) 43N9015 2
Chapter 11. FRU lists 421
9359 FRUs FRU# CRU
Cabel-SATA 700mm (RoHS) (models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (models) 43N9361 2
ODD mounting kit (models) 43N9362 2
Cardreader Bezel Kit (models) 43N9363 2
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models 91M 91A 91Q 91C 91B 91H
91V 91K 91R)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
9359 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
422 Hardware Maintenance Manual
9359 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9359 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models 91M 91A 91Q 91H 91R) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian French (models) 41A5292 1
Belgium English (models) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models 91B 91V) 41A5296 1
Czech (ABB) (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Italian (models) 41A5309 1
Japanese (models) 41A5310 1
Korean (models 91K) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Chapter 11. FRU lists 423
9359 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss French/German (models) 41A5323 1
Thailand (models) 41A5324 1
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
9359 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
424 Hardware Maintenance Manual
9359 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9359 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Chapter 11. FRU lists 425
9359 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9359 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9359 Adapters and miscellaneous FRUs FRU# CRU
Internal USB 25 in 1 Memory Card Reader Slim (models) 53Y3347 2
Internal USB Memory Card Reader floppy bay (TOWER &ROCKYS) (models) 41R3378 2
ATI HD 2600XT 512MB 128BIT ATX (TOWER) (models) 43C0261 2
USB Memory Key (models) 43R2296 2
USB Memory Key - 1G RoW (models) 41U4978 1
Soft Modem V.90/V.44 SFF (models) 46R4220 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 45R1885 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP ( ROCKYS &LX-607) (models) 46R4159 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (LX607 & ROCKYS ) (models) 46R4160 2
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models 91A 91A) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models 91C) 89P8581 1
Speaker Power brick - Japan (models AAJ) 89P8577 1
Speaker Power brick - Brazil (models AAP) 89P8583 1
426 Hardware Maintenance Manual
9359 Adapters and miscellaneous FRUs FRU# CRU
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models 91M) 89P8579 1
Speaker Brick - Korea (models 91K 91R) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models 91B 91H) 89P8573 1
Speaker Brick - Taiwan (models 91V) 41A4905 1
Speaker Power brick - India, South Africa (models 91Q) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9356 Line Cords FRU# CRU
Line cord - US (models 91A) 41R3184 1
Line cord - US (models 91A) 41R3185 1
Line cord - China (models 91C) 41R3256 1
Line cord - China (models 91C) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models 91K 91R) 41R3260 1
Line Cord - Korea (models 91K 91R) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3225 1
Line Cord - Taiwan (models 91V) 41R3278 1
Line Cord - Taiwan (models 91V) 41R3279 1
Line Cord - Italy (models) 41R3232 1
Line Cord - Italy (models) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models 91A) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models 91A) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models 91M 91A) 41R3220 1
Line Cord - South Africa (models 91M 91A) 41R3221 1
Line Cord - India (models 91Q) 41R3341 1
Line Cord - India (models 91Q) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models 91M) 41R3196 1
Chapter 11. FRU lists 427
9356 Line Cords FRU# CRU
Line Cord - ANZ (models 91M) 41R3197 1
Line Cord - Hong Kong (models 91B 91H) 41R3224 1
Line Cord - Hong Kong (models 91B 91H) 41R3225 1
9359 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (Swedish)(models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9359 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
428 Hardware Maintenance Manual
9359 Windows XP Pro Recovery CDs FRU# CRU
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9359 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Chapter 11. FRU lists 429
9359 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9359 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
430 Hardware Maintenance Manual
9359 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Serbian-Latin (models) 45R9806 1
9359 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9359 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Chapter 11. FRU lists 431
9359 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9359 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
432 Hardware Maintenance Manual
9359 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9359 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 433
Machine Type 9438
Item # 9438 FRUs FRU# CRU
1 Heat Sink/RM Kit Intel (all models) 41R6022 N
1 Heat Sink/RM Kit Intel (all models) 41N8261 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
434 Hardware Maintenance Manual
Item # 9438 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AMU AMF) 41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models)
42Y9353 2
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models AAM AAA AAQ
AAT AAK AAJ ABM ABA ABQ ABT ABJ ACM ACA ACQ ACT ACJ ADM ADA
ADQ ADT ADK ADJ AEM AEA AEQ AET AEK AEJ AFM AHM AHA AHQ AHK
AHJ AGM AGA AGQ AGT AGK AGJ B1U B1F B2G ANU ANF AJU AJF AKU
AKF ALU ALF APG ARM ARA ARQ ART ARK ARJ AQG)
43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
5 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models ABM ABA ABQ ABT
ABJ AFM AHM AHA AHQ AHK AHJ B1U B1F B2G ANU ANF AJU AJF AKU
AKF ALU ALF AMU AMF ARM ARA ARQ ART ARK ARJ)
40Y9035 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models ACM ACA ACQ ACT
ACJ)
87H4891 2
Chapter 11. FRU lists 435
Item # 9438 FRUs FRU# CRU
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9107 2
7 Front USB/Audio with bracket (all models) 41N8212 2
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models AFM) 41X4255 2
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models B1U B1F B2G
ANU ANF AJU AJF ALU ALF APG)
41X4256 2
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models AAM AAA
AAQ AAT AAK AAJ ABM ABA ABQ ABT ABJ ACM ACA ACQ ACT ACJ ADM
ADA ADQ ADT ADK ADJ AEM AEA AEQ AET AEK AEJ AHM AHA AHQ AHK
AHJ AGM AGA AGQ AGT AGK AGJ AKU AKF AMU AMF ARM ARA ARQ ART
ARK ARJ AQG)
41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board,Intel G31 mATX GA Level (models AAM AAA AAQ AAT AAK AAJ
ABM ABA ABQ ABT ABJ ACM ACA ACQ ACT ACJ ADM ADA ADQ ADT ADK
ADJ AEM AEA AEQ AET AEK AEJ AFM AHM AHA AHQ AHK AHJ AGM AGA
AGQ AGT AGK AGJ B1U B1F B2G ANU ANF AJU AJF AKU AKF ALU ALF
AMU AMF APG ARM ARA ARQ ART ARK ARJ AQG)
53Y3282 N
10 Power supply, 220 Watt Power Supply - Robust; for all countries except for JP
(ROCKYS) (models AAM AAA AAQ AAT AAK ABM ABA ABQ ABT ACM ACA
ACQ ACT ADM ADA ADQ ADT ADK AEM AEA AEQ AET AEK AFM AHM
AHA AHQ AHK AGM AGA AGQ AGT AGK B1U B1F B2G ANU ANF AJU AJF
AKU AKF ALU ALF AMU AMF APG ARM ARA ARQ ART ARK AQG))
41A9689 N
10 Power supply, 220 Watt Power Supply - Japan;only for JP (ROCKYS) (models
ARJ))
41A9697 N
10 Power supply, 220W 80% Power supply-for all countries (ROCKYS) (models AAM
AAA AAQ AAT AAK ABM ABA ABQ ABT ACM ACA ACQ ACT ADM ADA
ADQ ADT ADK AEM AEA AEQ AET AEK AFM AHM AHA AHQ AHK AGM
AGA AGQ AGT AGK B1U B1F B2G ANU ANF AJU AJF AKU AKF ALU ALF
AMU AMF APG ARM ARA ARQ ART ARK ARJ AQG)
41A9670 N
10 Power supply, 280W TFX 280W PS ,Active PFC,for RockyS-for all countries
(ROCKYS) (models AAM AAA AAQ AAT AAK ABM ABA ABQ ABT ACM ACA
ACQ ACT ADM ADA ADQ ADT ADK AEM AEA AEQ AET AEK AFM AHM
AHA AHQ AHK AGM AGA AGQ AGT AGK B1U B1F B2G ANU ANF AJU AJF
AKU AKF ALU ALF AMU AMF APG ARM ARA ARQ ART ARK ARJ AQG)
41A9705 N
The FRUs listed in the following tables are not illustrated.
9438 FRUs FRU# CRU
Planer shield, Atx 946,G31 with usb number (all models) 41R6384 N
Cabel, SATA 250mm (RoHS) (all models) 43N9012 2
Shield, EMC , Blank 5.25 (all models) 41N8271 2
Shield, EMC , Blank diskette drive (all models) 41N8273 2
Cover (all models) 41N8204 2
Mechanical shell kit (all models) 41R6387 N
Bezel kit, without IBM logo (all models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
436 Hardware Maintenance Manual
9438 FRUs FRU# CRU
Hard disk drive bracket assembly (plastic and grommets) (all models) 41N8210 2
Hard disk drive fan and bracket asm (all models) 41R6325 2
Speaker cable assembly, 600 mm cable length (all models) 41N8217 2
Fan duct assembly (all models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (all models) 42Y8006 2
Retention module assembly, Intel (all models) 41A7139 N
Intrusion switch assembly (all models) 41R6208 2
Foot stand (all models) 41R4813 1
Cable, diskette drive (all models) 41A7147 2
Cable, serial ATA, 250 mm (all models) 41A7145 2
Planer shield, Atx 946, with usb number (all modes) 41R6378 N
Rear Com2 cable , Rohs (all models) 41R6198 2
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (all models) 42Y8008 2
Rear USB 2Ports II LP(R), low profile I/O, 350mm (all models) 43N9124 2
Temp Sense Cable (165 mm) (all models) 43N9079 2
BATTERY 3V-LITHIUM (models AAM AAA AAQ AAT AAK AAJ ABM ABA ABQ ABT
ABJ ACM ACA ACQ ACT ACJ ADM ADA ADQ ADT ADK ADJ AEM AEA AEQ AET
AEK AEJ AFM AHM AHA AHQ AHK AHJ AGM AGA AGQ AGT AGK AGJ B1U B1F
B2G ANU ANF AJU AJF AKU AKF ALU ALF AMU AMF APG ARM ARA ARQ ART ARK
ARJ AQG)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
9438 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Chapter 11. FRU lists 437
9438 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9438 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAM AAA AAQ ABM ABA ABQ ACM ACA ACQ ADM ADA ADQ
AEM AEA AEQ AFM AHM AHA AHQ AGM AGA AGQ B1U ANU AJU AKU ALU AMU
APG ARM ARA ARQ AQG)
41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models B2G APG AQG) 41A5291 1
Belgian/French (models B2G APG AQG) 41A5292 1
Belgian/UK (models B2G APG AQG) 41A5293 1
Brazilian Portuguese (models B2G APG AQG) 41A5294 1
Bulgarian (models B2G APG AQG) 41A5295 1
Chinese/US (models) 41A5296 1
Czech(ABB) (models B2G APG AQG) 41A5297 1
Danish (models B2G APG AQG) 41A5298 1
Dutch (models B2G APG AQG) 41A5299 1
French (models B2G APG AQG) 41A5300 1
French Canadian (models B1F ANF AJF AKF ALF AMF) 41A5301 1
French Canadian (models B1F ANF AJF AKF ALF AMF) 41A5302 1
German (models B2G APG AQG) 41A5303 1
Greek (models B2G APG AQG) 41A5304 1
438 Hardware Maintenance Manual
9438 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Greek/US (models B2G APG AQG) 41A5305 1
Hebrew (models B2G APG AQG) 41A5306 1
Hungarian (models B2G APG AQG) 41A5307 1
Iceland (models B2G APG AQG) 41A5308 1
Italian (models B2G APG AQG) 41A5309 1
Japanese (models AAJ ABJ ACJ ADJ AEJ AHJ AGJ ARJ) 41A5310 1
Korean (models AAK ADK AEK AHK AGK ARK) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models B2G APG AQG) 41A5313 1
Polish (models B2G APG AQG) 41A5314 1
Portuguese (models B2G APG AQG) 41A5315 1
Romanian (models B2G APG AQG) 41A5317 1
Russian/Cyrillic (models B2G APG AQG) 41A5318 1
Serbian/Cyrillic (models B2G APG AQG) 41A5319 1
Slovak (models B2G APG AQG) 41A5320 1
Spanish (models B2G APG AQG) 41A5321 1
Swedish/Finnish (models B2G APG AQG) 41A5322 1
Swiss French/German (models B2G APG AQG) 41A5323 1
Thailand (models AAT ABT ACT ADT AGT AET ) 41A5324 1
Turkish (models B2G APG AQG) 41A5325 1
Turkish (models B2G APG AQG) 41A5326 1
UK English (models B2G APG AQG) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models B2G APG AQG) 41A5329 1
9438 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgian/UK (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech(ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Chapter 11. FRU lists 439
9438 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9438 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/UK (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech(ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
440 Hardware Maintenance Manual
9438 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9438 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
9438 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
USB Memory Key - 1G RoW (models) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models ACM ACA ACQ ACT ACJ) 43C0259 2
Chapter 11. FRU lists 441
9438 Adapters and miscellaneous FRUs FRU# CRU
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models AMU AMF) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage,ASEAN (models AAA ABA ACA ADA
AEAAHA AGA ANU AJU AKU ALU AMU)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models AAT ABT ACT ADT AET AGT ART) 89P8581 1
Speaker Power brick - Japan (models AAJ ABJ ACJ ADJ AEJ AHJ AGJ ARJ) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models AAM ABM ACM ADM AEM AFM AHM AGM
ARM)
89P8579 1
Speaker Brick - Korea (models AAK ADK AEK AHK AGK ARK) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models B2G APG AQG) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models AAQ ABQ ACQ ADQ AEQ AGQ ARQ) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9438 Line Cords FRU# CRU
Line cord - US (models AAA ABA ACA ADA AEA AHA AGA AAT ABT ACT ADT AET
AGT B1U B1F ANU ANF AJU AJF AKU AKF ALU ALF AMU AMF ARA ART)
41R3184 1
Line cord - US (models AAA ABA ACA ADA AEA AHA AGA AAT ABT ACT ADT AET
AGT B1U B1F ANU ANF AJU AJF AKU AKF ALU ALF AMU AMF ARA ART)
41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models AAK ADK AEK AHK AGK ARK) 41R3260 1
Line Cord - Korea (models AAK ADK AEK AHK AGK ARK) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAA ABA ACA ADA
AEAAHA AGA B2G APG ARA)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAA ABA ACA ADA
AEAAHA AGA B2G APG ARA)
41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models B2G APG AQG) 41R3232 1
Line Cord - Italy (models B2G APG AQG) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAA ABA ACA ADA AEA
AHA AGA ARA )
41R3208 1
442 Hardware Maintenance Manual
9438 Line Cords FRU# CRU
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAA ABA ACA ADA AEA
AHA AGA ARA )
41R3209 1
Line Cord - Denmark (models B2G APG AQG) 41R3212 1
Line Cord - Denmark (models B2G APG AQG) 41R3213 1
Line Cord - Switzerland (models B2G APG AQG) 41R3228 1
Line Cord - Switzerland (models B2G APG AQG) 41R3229 1
Line Cord - Israel (models B2G APG AQG) 41R3236 1
Line Cord - Israel (models B2G APG AQG) 41R3237 1
Line Cord - South Africa (models AAM ABM ACM ADM AEM AFM AHM AGM AAA
ABA ACA ADA AEAAHA AGA B2G APG ARM)
41R3220 1
Line Cord - South Africa (models AAM ABM ACM ADM AEM AFM AHM AGM AAA
ABA ACA ADA AEAAHA AGA B2G APG ARM)
41R3221 1
Line Cord - India (models AAQ ABQ ACQ ADQ AEQ AGQ ARQ) 41R3341 1
Line Cord - India (models AAQ ABQ ACQ ADQ AEQ AGQ ARQ) 41R3175 1
Line Cord - Japan (models AAJ ABJ ACJ ADJ AEJ AHJ AGJ ARJ) 41R3248 1
Line Cord - Japan (models AAJ ABJ ACJ ADJ AEJ AHJ AGJ ARJ) 41R3249 1
Line Cord - ANZ (models AAM ABM ACM ADM AEM AFM AHM AGM ARM) 41R3196 1
Line Cord - ANZ (models AAM ABM ACM ADM AEM AFM AHM AGM ARM) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
Line Cord - US (models AAA ABA ACA ADA AEA AHA AGA AAT ABT ACT ADT AET
AGT B1U B1F)
43N9032 1
Line Cord - China (models) 43N9033 1
Line Cord - Japan (models AAJ ABJ ACJ ADJ AEJ AHJ AGJ) 43N9034 1
Line Cord - ANZ (models AAM ABM ACM ADM AEM AFM AHM AGM) 43N9035 1
Line Cord - Hong Kong Singapore, Malaysia, Brunei,Ireland (models AAA ABA ACA ADA
AEAAHA AGA)
43N9036 1
Line Cord - Taiwan (models) 43N9037 1
Line Cord - Italy (models B1G) 43N9038 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam,Austria, Belgium, Croatia
Czechoslovakia, Finland, France, Germany, Hungary, Netherlands, Norway ,Poland,
Portugal, Romania, Spain, Sweden (models AAA ABA ACA ADA AEAAHA AGA)
43N9039 1
Line Cord - Denmark (models B1G) 43N9040 1
Line Cord - Switzerland (models B1G) 43N9041 1
Line Cord - India (models AAQ ABQ ACQ ADQ AEQ AGQ) 43N9042 1
9438 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
Chapter 11. FRU lists 443
9438 Windows XP Home Recovery CDs FRU# CRU
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korea (models) TBD 1
9438 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models ANU AJU AKU ALU AMU) 45R0756 1
FR/CF (models ANF AJF AKF ALF AMF) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
444 Hardware Maintenance Manual
9438 Windows XP Pro Recovery CDs FRU# CRU
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9438 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
Chapter 11. FRU lists 445
9438 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAM AAA AAQ ABM ABA ABQ ACM ACA ACQ ADM ADA ADQ ADJ
AEM AEA AEQ AFM AHM AHA AHQ AGM AGA AGQ AGJ B1U APG ARM ARA ARQ
AQG)
46R7287 1
Japanese (models AAJ ABJ ACJ AEJ AHJ ARJ) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models B1F) 46R7290 1
German (models B2G APG AQG) 46R7291 1
Spanish (models B2G APG AQG) 46R7292 1
Italian (models B2G APG AQG) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models B2G APG AQG) 46R7295 1
Swedish (models B2G APG AQG) 45R9786 1
Finland (models B2G APG AQG) 45R9787 1
Dutch (models B2G APG AQG) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models B2G APG AQG) 46R7298 1
Korean (models AAK ADK AEK AHK AGK ARK) 45R9792 1
Slovenian (models B2G APG AQG) 45R9793 1
Greek (models B2G APG AQG) 45R9794 1
Russian (models B2G APG AQG) 46R7299 1
Portuguese (models B2G APG AQG) 45R9796 1
Turkish (models B2G APG AQG) 45R9797 1
Czech (models B2G APG AQG) 45R9798 1
Polish (models B2G APG AQG) 45R9799 1
Russian English (models B2G APG AQG) 46R7300 1
Arabic Localized (models B2G APG AQG) 45R9801 1
Hebrew (models B2G APG AQG) 45R9802 1
Romanian (models B2G APG AQG) 45R9803 1
Hungarian (models B2G APG AQG) 45R9804 1
Slovakian (models B2G APG AQG) 45R9805 1
Serbian-Latin (models) 45R9806 1
9438 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
446 Hardware Maintenance Manual
9438 Vista VHP SP1 Recovery DVDs FRU# CRU
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9438 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Japanese (models) 46R7302 1
Simplified Chinese (models) 46R7303 1
French (models) 46R7304 1
German (models) 46R7305 1
Spanish (models) 46R7306 1
Italian (models) 46R7307 1
Brazilian Portuguese (models) 46R7308 1
Danish (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Traditional Chinese (models) 46R7310 1
HongKong (models) 46R7311 1
Norwegian (models) 46R7312 1
Russian (models) 45R9822 1
Chapter 11. FRU lists 447
9438 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Russian (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Russian English (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9438 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5084 1
Arabic Localized (models) 45R9889 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
448 Hardware Maintenance Manual
9438 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Slovakian (models) 45R9892 1
9438 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 449
Machine Type 9439
Item # 9439 FRUs FRU# CRU Tier
1 Intel 65W/95W Heatsink Kit (Tower) (all models) 41R6429 2
1 Intel 65W/95W heatsink Kit (TOWER) (all models) 41R4803 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T (models
B1U B1F)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T (models
AAU AAF AVG B4S B4D B4Y A5S A5D A5Y BCM BCA BCQ BCT BBM DAM
DAA DBM DBA DBK DBJ BBA BBQ BBT DBQ DBT DQS DQD DQY AAU)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T (models
F8A F8Q F8T)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models ABU ABF AES AEP AEY APU APF AQU AQF B8U B8F B5S B5D
B5Y BDM BDA BDQ BDT BDJ BEM BEA BEQ BET BEK BEJ BFM BFK BFJ BGA
BGQ BHA BHQ DCA BFA BFQ BFT)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
450 Hardware Maintenance Manual
Item # 9439 FRUs FRU# CRU Tier
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO F9A F9Q F9T FBM FBA FBQ FBK F7G)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models AKC ALC
B4S B4D B4Y B6S B6P B6D B6Y B7S B7D B7Y B5S B5D B5Y A5S A5D A5Y A6S
A6D A6Y BCM BCQ BCA BCT BDM BDA BDQ BDT BDJ BUM DAA BUA DQS
DQD DQY DRS )
41X4255 2
Chapter 11. FRU lists 451
Item # 9439 FRUs FRU# CRU Tier
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models ANV AGM
AGA AGT AHM AHA AHT AJM AJA AAU AAF ABU ABF ACU ACF ADU ADF
AES AEP AEY AFS AFY AMC AVG AWG B2G B1U B1F APU APF AQU AQF ARU
ARF ASU ASF ATU ATF AUU AUF B8U B8F B9U B9F BAU BAF A2U A2F BEM
BEA BEQ BET BEK BEJ BWH A4M A4A A4Q A4T A4V A4K A4J BZG A3U A3F
A8SA9S A9D A9Y BBM BBK BFM BFK BFJ BGA BGQ BHA BHQ BJM BKM BKK
BKJ BMA BMQ BPM BPK BPJ BQA BQQ BTM BTK BTJ BVM DDM DBM DBA
DBK DBJ DCA BYM BBA BBQ BBT BFA BFQ BFT BJA BJQ BKA BKQ BKT BPA
BPQ BPT BTA BTQ BTT BVA BVQ DBQ DBT DCQ BLA BLQ BLT BLK DFM DFA
DFQ DFT DGU DGF DGS DGP DGL DGD SGY DGG DGM DGA DGQ DGT DGC
DGB DGH DGV DGK DGR DGE DGJ DHU DHF DHS DHP DHL DHD DHY
DHG DHM DHA DHQ DHT DHC DHB DHH DHV DHK DHR DHE DHJ DJU
DJF DJS DJP DJL DJD DJY DJG DJM DJA DJQ DJT DJC DJB DJH DJV DJK DJR
DJE DJJ DKG DTA DTQ DTT DMV DNV DSS DSD DSY DPC AAU ABU ACU
ADU D6U D6F D2C D3C EKM EKA EKQ EKT EKJ ELM ELA ELQ ELT ELJ EGM
EGA EGQ EGT EGK EGJ EJA EJQ EJT EFM EFA EFQ EFT EBU EBF E5U E5F E7U
E7F ECS ECP ECD ECY EDS EDP EDD EDY AWU AWF F5M F5A F5Q F5T F5K
F5J F6M F6A F6Q F6T F6K F6J F1U F1F F2U F2F F3S F3P F3Y F8A F8Q F8T F9A
F9Q F9T FBM FBA FBQ FBK F7G)
41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models BSM BSK BSJ
DEM DEA DEV DEK DEJ BSA BSQ BST DEQ DET E2M E2A E2Q E2T E2K E2J
EMM EMA EMQ EMT EMK ENM ENA ENQ ENT ENK EHM EHA EHQ EHT
E6U E6F E8U E8F E9U E9F F4G)
41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models ANV AGM AGA
AGT AAU AAF ABU ABF ACU ACF AES AEP AEY AKC ALC AQU AQF ARU
ARF AUU AUF B4S B4D B4Y BCM BCQ BCA BCT BDM BDA BDQ BDT BDJ
BWH A4M A4A A4Q A4T A4V A4K A4J BHA BHQ BJM BTK BTJ DAM DAA BJA
BJQ BTA BTQ BTT AAU ABU ACU D8A D8Q D8T D2C EGM EGA EGQ EGT
EGK EGJ EJA EJQ EJT EFM EFA EFQ EFT EBU EBF E5U E5F E9U E9F ECS ECP
ECD ECY F1U F1F)
41N3325 2
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models ADU ADF AFS AFY AVG B1U B1F APU APF ASU ASF
ATU ATF B6S B6P B6D B6Y B8U B8F B9U B9F BAU BAF B5S B5D B5Y A2U A2F
A5S A5D A5Y A6S A6D A6Y A3U A3F A8S DCA DCQ DGU DGF DGS DGP DGL
DGD SGY DGG DGM DGA DGQ DGT DGC DGB DGH DGV DGK DGR DGE
DGJ DHU DHF DHS DHP DHL DHD DHY DHG DHM DHA DHQ DHT DHC
DHB DHH DHV DHK DHR DHE DHJ ADU)
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models
AHA AHT AJM AJA AMC AWG B2G B7S B7D B7Y BEM BEA BEQ BET BEK BEJ
BZG A9S A9D A9Y BBM BBK BFM BFK BFJ BGA BGQ BKM BKK BKJ BMA BMQ
BPM BPK BPJ BQA BQQ BSM BSK BSJ BUM BVM DDM DEM DEA DEV DEK
DEJ DBM DBA DBK DBJ BYM BBA BBQ BBT BFA BFQ BFT BKA BKQ BKT BPA
BPQ BPT BSA BSQ BST BUA BVA BVQ DEQ DET DBQ DBT BLA BLQ BLT BLK
DFM DFA DFQ DFT DJU DJF DJS DJP DJL DJD DJY DJG DJM DJA DJQ DJT DJC
DJB DJH DJV DJK DJR DJE DJJ DKG D9A D9Q D9T E1M E1A E1Q E1T E1K E1J
E2M E2A E2Q E2T E2K E2J D6U D6F D3C EKM EKA EKQ EKT EKJ ELM ELA
ELQ ELT ELJ EMM EMA EMQ EMT EMK ENM ENA ENQ ENT ENK EHM EHA
EHQ EHT E6U E6F E7U E7F E8U E8F EDS EDP EDD EDY AWU AWF F5M F5A
F5Q F5T F5K F5J F6M F6A F6Q F6T F6K F6J F2U F2F F4G F3S F3P F3Y)
43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models B4S B4D
B4Y B6S B6P B6D B6Y B5S B5D B5Y A6S A6D A6Y)
40Y9107 2
452 Hardware Maintenance Manual
Item # 9439 FRUs FRU# CRU Tier
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models B4S B4D
B4Y B6S B6P B6D B6Y B5S B5D B5Y A6S A6D A6Y)
40Y9105 2
6 Bezel assembly without IBM mark (all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models AAU AAF ABU ABF
ACU ACF B4S B4D B4Y B5S B5D B5Y A5S A5D A5Y BCM BCQ BCA BCT BDM
BDA BDQ BDT BDJ BBM BBK BHA BHQ DAA BBA BBQ BBT BLA BLQ BLT)
40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models ANV AGM AGA AGT
ADU ADF AES AEP AEY AFS AFY AKC ALC AMC AVG AWG B2G B1U B1F
APU APF AQU AQF ARU ARF ASU ASF ATU ATF AUU AUF B6S B6P B6D B6Y
B7S B7D B7Y B8U B8F B9U B9F BAU BAF A2U A2F A6S A6D A6Y BEM BEA BEQ
BET BEK BEJ BWH A4M A4A A4Q A4T A4V A4K A4J BZG A3U A3F A8S A9S
A9D A9Y BFM BFK BFJ BGA BGQ BJM BKM BKK BKJ BMA BMQ BPM BPK BPJ
BQA BQQ BTJ BUM BVM DBM DBA DBK DBJ DCA BFA BFQ BFT BJA BJQ BKA
BKQ BKT BPA BPQ BPT BTA BTQ BTT BUA BVA BVQ DBQ DBT DCQ DFM DFA
DFQ DFT DGU DGF DGS DGP DGL DGD SGY DGG DGM DGA DGQ DGT DGC
DGB DGH DGV DGK DGR DGE DGJ DHU DHF DHS DHP DHL DHD DHY
DHG DHM DHA DHQ DHT DHC DHB DHH DHV DHK DHR DHE DHJ DTT
DMV DNV DQS DQD DQY DRS DSS DSD DSY DPC AAU ABU ACU ADU D8A
D8Q D8T D9A D9Q D9T E1M E1A E1Q E1T E1K E1J D6U D6F D2C D3C EKM
EKA EKQ EKT EKJ ELM ELA ELQ ELT ELJ EGM EGA EGQ EGT EGK EGJ EJA
EJQ EJT EFM EFA EFQ EFT EBU EBF E5U E5F E6U E6F E7U E7F E8U E8F E9U
E9F ECS ECP ECD ECY EDS AWU AWF F5M F5A F5Q F5T F5K F5J F6M F6A F6Q
F6T F6K F6J F1U F1F F3S F3P F3Y F8A F8Q F8T F9A F9Q F9T FBM FBA FBQ
FBK)
40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models AHM AHA AHT AJM
AJA BSM BSK BSJ DDM BYM BSA BSQ BST E2M E2A E2Q E2T E2K E2J F4G)
87H4891 2
11 System board , Intel G31 mATX GA Level (models ANV AGM AGA AGT AHM
AHA AHT AJM AJA AAU AAF ABU ABF ACU ACF ADU ADF AES AEP AEY
AFS AFY AKC ALC AMC AVG AWG B2G B1U B1F APU APF AQU AQF ARU
ARF ASU ASF ATU ATF AUU AUF B4S B4D B4Y B6S B6P B6D B6Y B7S B7D B7Y
B8U B8F B9U B9F BAU BAF B5S B5D B5Y A2U A2F A5S A5D A5Y A6S A6D A6Y
BCM BCQ BCA BCT BDM BDA BDQ BDT BDJ BEM BEA BEQ BET BEK BEJ BWH
A4M A4A A4Q A4T A4V A4K A4J BZG A3U A3F A8S A9S A9D A9Y BBM BBK
BFM BFK BFJ BGA BGQ BHA BHQ BJM BKM BKK BKJ BMA BMQ BPM BPK BPJ
BQA BQQ BSM BSK BSJ BTM BTK BTJ BUM BVM DDM DEM DEA DEV DEK
DEJ DAM DAA DBM DBA DBK DBJ DCA BYM BBA BBQ BBT BFA BFQ BFT BJA
BJQ BKA BKQ BKT BPA BPQ BPT BSA BSQ BST BTA BTQ BTT BUA BVA BVQ
DEQ DET DBQ DBT DCQ BLA BLQ BLT BLK DFM DFA DFQ DFT DGU DGF
DGS DGP DGL DGD SGY DGG DGM DGA DGQ DGT DGC DGB DGH DGV
DGK DGR DGE DGJ DHU DHF DHS DHP DHL DHD DHY DHG DHM DHA
DHQ DHT DHC DHB DHH DHV DHK DHR DHE DHJ DJU DJF DJS DJP DJL
DJD DJY DJG DJM DJA DJQ DJT DJC DJB DJH DJV DJK DJR DJE DJJ DKG DTA
DTQ DTT DMV DNV DQS DQD DQY DRS DSS DSD DSY DPC AAU AAA ABU
ACU ADU D8A D8Q D8T D9A D9Q D9T E1M E1A E1Q E1T E1K E1J E2M E2A
E2Q E2T E2K E2J D6U D6F D2C D3C EKM EKA EKQ EKT EKJ ELM ELA ELQ
ELT ELJ EMM EMA EMQ EMT EMK ENM ENA ENQ ENT ENK EGM EGA EGQ
EGT EGK EGJ EHM EHA EHQ EHT EJA EJQ EJT EFM EFA EFQ EFT EBU EBF
E5U E5F E6U E6F E7U E7F E8U E8F E9U E9F ECS ECP ECD ECY EDS EDP EDD
EDY AWU AWF F5M F5A F5Q F5T F5K F5J F6M F6A F6Q F6T F6K F6J F1U F1F
F2U F2F F4G F3S F3P F3Y F8A F8Q F8T F9A F9Q F9T FBM FBA FBQ FBK F7G)
53Y3282 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
Chapter 11. FRU lists 453
Item # 9439 FRUs FRU# CRU Tier
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models ANV AGM AGA AGT AHM AHA AHT AJM AJA AAU AAF ABU ABF
ACU ACF ADU ADF AES AEP AEY AFS AFY AKC ALC AMC AVG AWG B2G
B1U B1F APU APF AQU AQF ARU ARF ASU ASF ATU ATF AUU AUF B4S B4D
B4Y B6S B6P B6D B6Y B7S B7D B7Y B8U B8F B9U B9F BAU BAF B5S B5D B5Y
A2U A2F A5S A5D A5Y A6S A6D A6Y BCM BCQ BCA BCT BDM BDA BDQ BDT
BEM BEA BEQ BET BEK BEJ BWH A4M A4A A4Q A4T A4V A4K BZG A3U A3F
A8S A9S A9D A9Y BBM BBK BFM BFK BGA BGQ BHA BHQ BJM BKM BKK
BMA BMQ BPM BPK BQA BQQ BSM BSK BTM BTK BUM BVM DDM DEM DEA
DEV DEK DAM DAA DBM DBA DBK DCA BYM BBA BBQ BBT BFA BFQ BFT
BJA BJQ BKA BKQ BKT BPA BPQ BPT BSA BSQ BST BTA BTQ BTT BUA BVA
BVQ DEQ DET DBQ DBT DCQ BLA BLQ BLT BLK DFM DFA DFQ DFT DGU
DGF DGS DGP DGL DGD SGY DGG DGM DGA DGQ DGT DGC DGB DGH
DGV DGK DGR DGE DHU DHF DHS DHP DHL DHD DHY DHG DHM DHA
DHQ DHT DHC DHB DHH DHV DHK DHR DHE DJU DJF DJS DJP DJL DJD
DJY DJG DJM DJA DJQ DJT DJC DJB DJH DJV DJK DJR DJE DKG DTT DMV
DNV DQS DQD DQY DRS DSS DSD DSY DPC AAU ABU ACU ADU D8A D8Q
D8T D9A D9Q D9T E1M E1A E1Q E1T E1K E2M E2A E2Q E2T E2K D6U D6F
D2C D3C EKM EKA EKQ EKT ELM ELA ELQ ELT EMM EMA EMQ EMT EMK
ENM ENA ENQ ENT ENK EGM EGA EGQ EGT EGK EHM EHA EHQ EHT EJA
EJQ EJT EFM EFA EFQ EFT EBU EBF E5U E5F E6U E6F E7U E7F E8U E8F E9U
E9F ECS ECP ECD ECY EDS EDP EDD EDY AWU AWF F5M F5A F5Q F5T F5K
F1U F1F F2U F2F F4G F3S F3P F3Y F8A F8Q F8T F9A F9Q F9T FBM FBA FBQ
FBK F7G)
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models ANV AGM
AGA AGT AHM AHA AHT AJM AJA AAU AAF ABU ABF ACU ACF ADU ADF
AES AEP AEY AFS AFY AKC ALC AMC AVG AWG B2G B1U B1F APU APF AQU
AQF ARU ARF ASU ASF ATU ATF AUU AUF B4S B4D B4Y B6S B6P B6D B6Y
B7S B7D B7Y B8U B8F B9U B9F BAU BAF B5S B5D B5Y A2U A2F A5S A5D A5Y
A6S A6D A6Y BCM BCQ BCA BCT BDM BDA BDQ BDT BEM BEA BEQ BET BEK
BEJ BWH A4M A4A A4Q A4T A4V A4K BZG A3U A3F A8S A9S A9D A9Y BBM
BBK BFM BFK BGA BGQ BHA BHQ BJM BKM BKK BMA BMQ BPM BPK BQA
BQQ BSM BSK BTM BTK BUM BVM DDM DEM DEA DEV DEK DAM DAA
DBM DBA DBK DCA BYM BBA BBQ BBT BFA BFQ BFT BJA BJQ BKA BKQ BKT
BPA BPQ BPT BSA BSQ BST BTA BTQ BTT BUA BVA BVQ DEQ DET DBQ DBT
DCQ BLA BLQ BLT BLK DFM DFA DFQ DFT DGU DGF DGS DGP DGL DGD
SGY DGG DGM DGA DGQ DGT DGC DGB DGH DGV DGK DGR DGE DHU
DHF DHS DHP DHL DHD DHY DHG DHM DHA DHQ DHT DHC DHB DHH
DHV DHK DHR DHE DJU DJF DJS DJP DJL DJD DJY DJG DJM DJA DJQ DJT
DJC DJB DJH DJV DJK DJR DJE DKG DTT DMV DNV DQS DQD DQY DRS DSS
DSD DSY DPC AAU ABU ACU ADU D8A D8Q D8T D9A D9Q D9T E1M E1A
E1Q E1T E1K E2M E2A E2Q E2T E2K D6U D6F D2C D3C EKM EKA EKQ EKT
EKJ ELM ELA ELQ ELT ELJ EMM EMA EMQ EMT EMK ENM ENA ENQ ENT
ENK EGM EGA EGQ EGT EGK EGJ EHM EHA EHQ EHT EJA EJQ EJT EFM EFA
EFQ EFT EBU EBF E5U E5F E6U E6F E7U E7F E8U E8F E9U E9F ECS ECP ECD
ECY EDS EDP EDD EDY AWU AWF F5M F5A F5Q F5T F5K F5J F6M F6A F6Q
F6T F6K F6J F1U F1F F2U F2F F4G F3S F3P F3Y F8A F8Q F8T F9A F9Q F9T FBM
FBA FBQ FBK F7G)
41A9665 2
454 Hardware Maintenance Manual
Item # 9439 FRUs FRU# CRU Tier
13 Power supply, ATX 310W Power supply Robust; for all countries (models ANV
AGM AGA AGT AHM AHA AHT AJM AJA AAU AAF ABU ABF ACU ACF ADU
ADF AES AEP AEY AFS AFY AKC ALC AMC AVG AWG B2G B1U B1F APU APF
AQU AQF ARU ARF ASU ASF ATU ATF AUU AUF B4S B4D B4Y B6S B6P B6D
B6Y B7S B7D B7Y B8U B8F B9U B9F BAU BAF B5S B5D B5Y A2U A2F A5S A5D
A5Y A6S A6D A6Y BCM BCQ BCA BCT BDM BDA BDQ BDT BEM BEA BEQ BET
BEK BEJ BWH A4M A4A A4Q A4T A4V A4K BZG A3U A3F A8S A9S A9D A9Y
BBM BBK BFM BFK BGA BGQ BHA BHQ BJM BKM BKK BMA BMQ BPM BPK
BQA BQQ BSM BSK BTM BTK BUM BVM DDM DEM DEA DEV DEK DAM
DAA DBM DBA DBK DCA BYM BBA BBQ BBT BFA BFQ BFT BJA BJQ BKA BKQ
BKT BPA BPQ BPT BSA BSQ BST BTA BTQ BTT BUA BVA BVQ DEQ DET DBQ
DBT DCQ BLA BLQ BLT BLK DFM DFA DFQ DFT DGU DGF DGS DGP DGL
DGD SGY DGG DGM DGA DGQ DGT DGC DGB DGH DGV DGK DGR DGE
DHU DHF DHS DHP DHL DHD DHY DHG DHM DHA DHQ DHT DHC DHB
DHH DHV DHK DHR DHE DJU DJF DJS DJP DJL DJD DJY DJG DJM DJA DJQ
DJT DJC DJB DJH DJV DJK DJR DJE DKG DTT DMV DNV DQS DQD DQY DRS
DSS DSD DSY DPC AAU ABU ACU ADU D8A D8Q D8T D9A D9Q D9T E1M
E1A E1Q E1T E1K E2M E2A E2Q E2T E2K D6U D6F D2C D3C EKM EKA EKQ
EKT EKJ ELM ELA ELQ ELT ELJ EMM EMA EMQ EMT EMK ENM ENA ENQ
ENT ENK EGM EGA EGQ EGT EGK EGJ EHM EHA EHQ EHT EJA EJQ EJT EFM
EFA EFQ EFT EBU EBF E5U E5F E6U E6F E7U E7F E8U E8F E9U E9F ECS ECP
ECD ECY EDS EDP EDD EDY AWU AWF F5M F5A F5Q F5T F5K F5J F6M F6A
F6Q F6T F6K F6J F1U F1F F2U F2F F4G F3S F3P F3Y F8A F8Q F8T F9A F9Q F9T
FBM FBA FBQ FBK F7G)
41A9726 2
The FRUs listed in the following tables are not illustrated.
9439 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Shield, diskette drive EMC (all models) 41N8078 2
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cabel SATA 457mm (RoHS)(TOWER) (all models) 43N9013 2
Cabel ,SATA 250mm (RoHS)(TOWER) (all models) 43N9012 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Hard disk drive tray (all models) 41R6291 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Asm Chassis Without IBM Mark Atlantic (all models) 41R6408 N
Card reader retainer (all models) 43N9351 2
Blank 5.25″Bezel (all models) 41N8077 2
Cable Clip, FW-6D (all models) 43N9462 2
Chapter 11. FRU lists 455
9439 FRUs FRU# CRU Tier
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models ANV AGM AGA AGT AHM
AHA AHT AJM AJA AAU AAF ABU ABF ACU ACF ADU ADF AES AEP AEY AFS AFY
AKC ALC AMC AVG AWG B2G B1U B1F APU APF AQU AQF ARU ARF ASU ASF ATU
ATF AUU AUF B4S B4D B4Y B6S B6P B6D B6Y B7S B7D B7Y B8U B8F B9U B9F BAU BAF
B5S B5D B5Y A2U A2F A5S A5D A5Y A6S A6D A6Y BCM BCQ BCA BCT BDM BDA BDQ
BDT BDJ BEM BEA BEQ BET BEK BEJ BWH A4M A4A A4Q A4T A4V A4K A4J BZG A3U
A3F A8S A9S A9D A9Y BBM BBK BFM BFK BFJ BGA BGQ BHA BHQ BJM BKM BKK BKJ
BMA BMQ BPM BPK BPJ BQA BQQ BSM BSK BSJ BTM BTK BTJ BUM BVM DDM DEM
DEA DEV DEK DEJ DAM DAA DBM DBA DBK DBJ DCA BYM BBA BBQ BBT BFA BFQ
BFT BJA BJQ BKA BKQ BKT BPA BPQ BPT BSA BSQ BST BTA BTQ BTT BUA BVA BVQ
DEQ DET DBQ DBT DCQ BLA BLQ BLT BLK DFM DFA DFQ DFT DGU DGF DGS DGP
DGL DGD SGY DGG DGM DGA DGQ DGT DGC DGB DGH DGV DGK DGR DGE DGJ
DHU DHF DHS DHP DHL DHD DHY DHG DHM DHA DHQ DHT DHC DHB DHH
DHV DHK DHR DHE DHJ DJU DJF DJS DJP DJL DJD DJY DJG DJM DJA DJQ DJT DJC
DJB DJH DJV DJK DJR DJE DJJ DKG DTA DTQ DTT DMV DNV DQS DQD DQY DRS
DSS DSD DSY DPC AAU AAA ABU ACU ADU D8A D8Q D8T D9A D9Q D9T E1M E1A
E1Q E1T E1K E1J E2M E2A E2Q E2T E2K E2J D6U D6F D2C D3C EKM EKA EKQ EKT
EKJ ELM ELA ELQ ELT ELJ EMM EMA EMQ EMT EMK ENM ENA ENQ ENT ENK
EGM EGA EGQ EGT EGK EGJ EHM EHA EHQ EHT EJA EJQ EJT EFM EFA EFQ EFT
EBU EBF E5U E5F E6U E6F E7U E7F E8U E8F E9U E9F ECS ECP ECD ECY EDS EDP
EDD EDY AWU AWF F5M F5A F5Q F5T F5K F5J F6M F6A F6Q F6T F6K F6J F1U F1F F2U
F2F F4G F3S F3P F3Y F8A F8Q F8T F9A F9Q F9T FBM FBA FBQ FBK F7G)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
9439 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
456 Hardware Maintenance Manual
9439 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9439 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAU ABU ACU ADU AGM AGA AHM AHA AJM AJA AVG AWG
B2G B1U APU AQU ARU ASU ATU AUU B8U B9U BAU A2U BCM BCA BCQ BDM
BDA BDQ BEM BEA BEQ BWH A4M A4A A4Q BZG A3U BBM BFM BGA BGQ BHA
BHQ BJM BKM BMA BMQ BPM BQA BQQ BSM BTM BUM BVM DDMDEM DEA DAM
DAA DBM DBA DCA BYM BBA BBQ BFA BFQ BJA BJQ BKA BKQ BPA BPQ BSA BSQ
BTA BTQ BUA BVA BVQ DEQ DBQ DCQ BLA BLQ DFM DFA DFQ DGU DGG DGM
DGA DGQ DHU DHG DHM DHA DHQ DJU DJG DJM DJQ DJA DKG AAU ABU ACU
ADU D8A D8Q D9A D9Q E1M E1A E1Q E2M E2A E2Q D6U EKM EKA EKQ ELM ELA
ELQ EMM EMA EMQ ENM ENA ENQ EGM EGA EGQ EHM EHA EHQ EJA EJQ EFM
EFA EFQ EBU E5U E6U E7U E8U E9U AWU F5M F5A F5Q F6M F6A F6Q F1U F2U)
41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models AVG AWG B2G BZG DGG DHG DJG DKG F4G ) 41A5291 1
Belgian/French (models AVG AWG B2G BZG DGG DHG DJG DKG F4G ) 41A5292 1
Belgian/UK (models AVG AWG B2G BZG DGG DHG DJG DKG F4G ) 41A5293 1
Brazilian Portuguese (models B6P AEP DGP DHP DJP ECP EDP F3P) 41A5294 1
Bulgarian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5295 1
Chinese/US (models B6P AEP DGP DHP DJP ECP EDP) 41A5296 1
Czech (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5297 1
Danish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5298 1
Dutch (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5299 1
French (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5300 1
French Canadian (models AAF ABF ACF ADF B1F APF AQF ARF ASF ATF AUF B8F B9F
BAF A2F A3F DGF DHF DJF D6F EBF E5F E6F E7F E8F E9F AWF F1F F2F)
41A5301 1
Chapter 11. FRU lists 457
9439 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
French Canadian (models AAF ABF ACF ADF B1F APF AQF ARF ASF ATF AUF B8F B9F
BAF A2F A3F DGF DHF DJF D6F EBF E5F E6F E7F E8F E9F AWF F1F F2F)
41A5302 1
German (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5303 1
Greek (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5304 1
Greek/US (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5305 1
Hebrew (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5306 1
Hungarian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5307 1
Iceland (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5308 1
Italian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5309 1
Japanese (models BDJ BEJ A4J BFJ BKJ BPJ BSJ BTJ DEJ DBJ DGJ DHJ DJJ E1J E2J EKJ ELJ
EGJ F5J F6J)
41A5310 1
Korean (models BEK A4K BBK BFK BKK BPK BSK BTK DEK DBK BLK DGK DHK DJK
E1K E2K EMK ENK EGK F5K F6K)
41A5311 1
LA Spanish (models AES AEY AFS AFY B4S B4D B4Y B6S B6D B6Y B7S B7D B7Y B5S
B5D B5Y A5S A5D A5Y A6S A6D A6Y A8S A9S A9D A9Y DGS DGL DGD SGY DGS DGD
DGY DHS DHD DHY DJS DJD DJY DQS DQD DQY DRS DSS DSD DSY ECS ECD ECY
EDS EDD EDY F3S F3Y)
41A5312 1
Norwegian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5313 1
Polish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5314 1
Portuguese (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5315 1
Romanian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5317 1
Russian/Cyrillic (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5318 1
Serbian/Cyrillic (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5319 1
Slovak (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5320 1
Spanish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5321 1
Swedish/Finnish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5322 1
Swiss (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5323 1
Thailand (models AHT AGT BCT BDT BET A4T BBT BFT BKT BPT BST BTT DET DBT
BLT DFT DGT DHT DJT DTT D8T D9T E1T E2T E3T EKT ELT EMT ENT EGT EHT EJT
EFT F5T F6T)
41A5324 1
Turkish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5325 1
Turkish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5326 1
UK English (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5327 1
US Euro (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5328 1
Slovenian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41A5329 1
9439 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
458 Hardware Maintenance Manual
9439 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9439 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Chapter 11. FRU lists 459
9439 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9439 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
460 Hardware Maintenance Manual
9439 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
USB Memory Key - 1G RoW (models AES AEP AEY AES AEY) 41U4978 1
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models BSM BSK BSJ BSA BSQ BST) 46R4159 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models BYM ) 46R4160 2
ADD2 DVI Adapter,FH (HDCP) (models BUA DKG) 43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models BSM BSK BSJ BSA BSQ BST) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models BYM) 43C0260 2
DVI-I connection Adapter Full Height(models BUM DHU DHF DHS DHP DHL DHD
DHY DHG DHM DHA DHQ DHT DHC DHB DHH DHV DHK DHR DHE DHJ DJU DJF
DJS DJP DJL DJD DJY DJG DJM DJA DJQ DJT DJC DJB DJH DJV DJK DJR DJE DJJ E2M
E2A E2Q E2T E2K E2J EBU EBF E9U E9F )
39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models AAU ABU ACU
ADU AES AFS AGA AHA B1U APU AQU ARU ASU ATU AUU B4S B6S B7S B8U B9U
BAU B5S A5S A6S BCA BDA BEA A4A A3U A8S A9S BGA BHA BQA DEA DAA DBA
DCA DGU DHU DJU DGS DHS DJS DGA DHA DJA DQS DRS DSS AAU ABU ACU
ADU D8A D9A E1A E2A D6U EBU E5U E6U E7U E8U E9U ECS EDS EKA ELA EMA
ENA EGA EHA EJA EFA F5A F6A F1U F2U F3S F8A F9A FBA)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models B4D B6D B7D B5D A5D A6D
A9D A9D DGD DHD DJD DQD ECD EDD)
89P8575 1
Speaker Power brick - China, Thailand (models AKC ALC AMC BCC BDC BEC A4C BCT
BDT BET A4T DGT DGC DHT DHC DJC DJT DPC DTT D8T D9T E1T E2T E3T D2C D3C
EKT ELT EMT ENT EGT EHT EJT EFT F5T F6T F9T FBT)
89P8581 1
Speaker Power brick - Japan (models BDJ BEJ A4J DGJ DHJ DJJ E1J E2J EKJ ELJ EGJ F5J
F6J)
89P8577 1
Speaker Power brick - Brazil (models B6P DGP DHP DJP ECP EDP F3P) 89P8583 1
Speaker Power brick - Argentina (models B4Y B6Y B7Y B5Y A5Y A6Y A9Y DGY DHY DJY
DQY DSY ECY EDY)
41A4901 1
Speaker Power brick - ANZ (modes AGM AHM AJM BCM BDM BEM A4M BBM BFM
BJM BKM BPM BSM BTM BUM BVM DDM DEM DAM DBM BYM DFM DGM DHM
DJM E1M E2M EKM ELM ENM EMM ENM EGM EHM EFM EFM F5M F6M)
89P8579 1
Speaker Brick - Korea (models BEK A4K BBK BFK BKK BPK BSK BTK DEK DBK DGK
DHK DJK E1K E2K EMK ENK EGK F5K F6K)
41A4903 1
Speaker Brick - Hong Kong, EMEA (models BWH DGH DHH DJH DHG DGG DJG DKG
F4G F7G)
89P8573 1
Speaker Brick - Taiwan (models DGV DHV DJV DMV DNV ) 41A4905 1
Speaker Power brick - India, South Africa (models BCQ BDQ BEQ A4Q BGQ BHQ BMQ
BQQ BBQ BFQ BJQ BKQ BPQ BSQ BTQ BVQ DEQ DBQ DCQ BLQ DFQ DGQ DHQ DJQ
D8Q D9Q E1Q E2Q EKQ ELQ EMQ ENQ EGQ EHQ EJQ EFQ F5Q F6Q F8Q F9Q FBQ)
89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
Chapter 11. FRU lists 461
9439 Line Cords FRU# CRU
Line cord - US (models AAU ABU ACU ADU AGA AGT AHA AHT AJA B1U APU AQU
ARU ASU ATU AUU B1F APF AQF ARF ASF ATF AUF B4S B6S B7S B4D B6D B7D B8U
B8F B9U B9F BAU BAF B5S B5D A5S A5D A6S A6D BCA BCT BDA BDT BEA BET A4A
A4T A3U A3F A8S A9S A9D BBA BBT BFA BFT BJA BKA BKT BPA BPT BSA BST BTA
BTT BUA BVA DET DBT DCQ BLA BLT DFA DFT DGU DGF DGS DGL DGA DGT DHU
DHF DHG DHS DHL DHA DHT DJU DJF DJG DJS DJL DJA DJT DTT AAU ABU ACU
ADU D8A D9A E1A E2A D8T D9T E1T E2T E3T D6U D6F EKA ELA EMA ENA EGA
EHA EJA EFA EKT EKT ELT EMT ENT EGT EHT EJT EFT EBU E5U E6U E7U E8U E9U
EBF E5F E6F E7F E8F E9F ECS EDS ECD EDD F1U F1F F2U F2F F3S F5A F5T F6A F6T
F8A F9A FBA F8T F9T)
41R3184 1
Line cord - US (models AAU ABU ACU ADU AGA AGT AHA AHT AJA B1U APU AQU
ARU ASU ATU AUU B1F APF AQF ARF ASF ATF AUF B4S B6S B7S B4D B6D B7D B8U
B8F B9U B9F BAU BAF B5S B5D A5S A5D A6S A6D BCA BCT BDA BDT BEA BET A4A
A4T A3U A3F A8S A9S A9D BBA BBT BFA BFT BJA BKA BKT BPA BPT BSA BST BTA
BTT BUA BVA DET DBT DCQ BLA BLT DFA DFT DGU DGF DGS DGL DGA DGT DHU
DHF DHG DHS DHL DHA DHT DJU DJF DJG DJS DJL DJA DJT DTT AAU ABU ACU
ADU D8A D9A E1A E2A D8T D9T E1T E2T E3T D6U D6F EKA ELA EMA ENA EGA
EHA EJA EFA EKT EKT ELT EMT ENT EGT EHT EJT EFT EBU E5U E6U E7U E8U E9U
EBF E5F E6F E7F E8F E9F ECS EDS ECD EDD F1U F1F F2U F2F F3S F5A F5T F6A F6T
F8A F9A FBA F8T F9T)
41R3185 1
Line cord - China (models AKC ALC AMC DGC DHC DJC DPC D2C D3C ) 41R3256 1
Line cord - China (models AKC ALC AMC DGC DHC DJC DPC D2C D3C ) 41R3257 1
Line cord - Brazil (models AEP B6P DGP DHP DJP ECP EDP F3P) 41R3270 1
Line cord - Brazil (models AEP B6P DGP DHP DJP ECP EDP F3P) 41R3271 1
Line cord - LA High Volt APU (models AEY AFY B4Y B6Y B7Y B5Y A5Y A6Y A9Y DGY
DHY DJY ECY EDY F3Y)
41R3176 1
Line Cord - LA High Volt APU (models AEY AFY B4Y B6Y B7Y B5Y A5Y A6Y A9Y DGY
DHY DJY ECY EDY F3Y)
41R3177 1
Line Cord - Korea (models BEK A4K BBK BFK BKK BPK BSK DEK DEK BLK DGK DGR
DHR DHK DJR DJK E1K E2K EMK ENK EGK F5K F6K)
41R3260 1
Line Cord - Korea (models BEK A4K BBK BFK BKK BPK BSK DEK DEK BLK DGK DGR
DHR DHK DJR DJK E1K E2K EMK ENK EGK F5K F6K)
41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AGA AHA AJA AVG AWG
B2G BCA BDA BEA A4A BZG BBA BFA BJA BKA BPA BSA BTA BUA BVA BLA DFA DGG
DGA DHA DHG DJA DJG DKG D8A D9A E1A E2A EKA ELA EMA ENA EGA EHA EJA
EFA F4G F5A F6A)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AGA AHA AJA AVG AWG
B2G BCA BDA BEA A4A BZG BBA BFA BJA BKA BPA BSA BTA BUA BVA BLA DFA DGG
DGA DHA DHG DJA DJG DKG D8A D9A E1A E2A EKA ELA EMA ENA EGA EHA EJA
EFA F4G F5A F6A)
41R3225 1
Line Cord - Taiwan (models ANV A4V DGV DMV DNV) 41R3278 1
Line Cord - Taiwan (models ANV A4V DGV DMV DNV) 41R3279 1
Line Cord - Italy (models AES AEY AFS B4S B6S B7S B4Y B6Y B7Y B5S B5D B5Y A5S A5D
A5Y A6S A6D A6Y DGS DGY DHS DHY DJS DJY DQS DQD DQY DRS DSS DSD DSY
ECS EDS ECY EDY F3S F3Y)
41R3232 1
Line Cord - Italy (models AES AEY AFS B4S B6S B7S B4Y B6Y B7Y B5S B5D B5Y A5S A5D
A5Y A6S A6D A6Y DGS DGY DHS DHY DJS DJY DQS DQD DQY DRS DSS DSD DSY
ECS EDS ECY EDY F3S F3Y)
41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AGA AHA AJA AVG AWG
B2G BCA BDA BEA A4A BZG BCA BDA BEA A4A BBA BFA BJA BKA BPA BSA BTA BUA
BVA BLA DFA DGG DGA DKG D8A D9A E1A E2A EKA ELA EMA ENA EGA EHA EJA
EFA F4G F5A F6A)
41R3208 1
462 Hardware Maintenance Manual
9439 Line Cords FRU# CRU
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AGA AHA AJA AVG AWG
B2G BCA BDA BEA A4A BZG BCA BDA BEA A4A BBA BFA BJA BKA BPA BSA BTA BUA
BVA BLA DFA DGG DGA DKG D8A D9A E1A E2A EKA ELA EMA ENA EGA EHA EJA
EFA F4G F5A F6A)
41R3209 1
Line Cord - Denmark (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41R3212 1
Line Cord - Denmark (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41R3213 1
Line Cord - Switzerland (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41R3228 1
Line Cord - Switzerland (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41R3229 1
Line Cord - Israel (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41R3236 1
Line Cord - Israel (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 41R3237 1
Line Cord - South Africa (models AGM AHM AJM AGA AHA AJA BCA BDA BEA A4A
BCA BDA BEA A4A BBM BJM BKM BPM BSM BTM BUM BVM DDM DEM DAM DBM
BYM BBA BFA BJA BKA BPA BTA BUA BVA BLA DFM DFA DGM DGA DHM DHA DJM
DJA E1M E2M D8A D9A E1A E2A EKM EKA EKA ELA EMA ENA EGA EHA EJA EFA
F5M F5A F6M F6A)
41R3220 1
Line Cord - South Africa (models AGM AHM AJM AGA AHA AJA BCA BDA BEA A4A
BCA BDA BEA A4A BBM BJM BKM BPM BSM BTM BUM BVM DDM DEM DAM DBM
BYM BBA BFA BJA BKA BPA BTA BUA BVA BLA DFM DFA DGM DGA DHM DHA DJM
DJA E1M E2M D8A D9A E1A E2A EKM EKA EKA ELA EMA ENA EGA EHA EJA EFA
F5M F5A F6M F6A)
41R3221 1
Line Cord - India (models BGQ BHQ BMQ BQQ BBQ BFQ BJQ BKQ BPQ BSQ BTQ BVQ
DEQ DBQ BLQ DFQ DGQ DJQ D8Q D9Q E1Q E2Q EKQ ELQ EMQ ENQ EGQ EHQ EJQ
EFQ F5Q F6Q)
41R3341 1
Line Cord - India (models BGQ BHQ BMQ BQQ BBQ BFQ BJQ BKQ BPQ BSQ BTQ BVQ
DEQ DBQ BLQ DFQ DGQ DJQ D8Q D9Q E1Q E2Q EKQ ELQ EMQ ENQ EGQ EHQ EJQ
EFQ F5Q F6Q)
41R3175 1
Line Cord - Japan (models DGE DGJ E1J E2J EKJ ELJ EGJ F5J F6J ) 41R3248 1
Line Cord - Japan (models DGE DGJ E1J E2J EKJ ELJ EGJ F5J F6J ) 41R3249 1
Line Cord - ANZ (models DFM DGM DHM DJM E1M E2M EKM F5M F6M ) 41R3196 1
Line Cord - ANZ (models DFM DGM DHM DJM E1M E2M EKM F5M F6M ) 41R3197 1
Line Cord - Hong Kong (models DGB DGH DHB DHH DJB DJH) 41R3224 1
Line Cord - Hong Kong (models DGB DGH DHB DHH DJB DJH) 41R3225 1
9439 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
Chapter 11. FRU lists 463
9439 Windows XP Home Recovery CDs FRU# CRU
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9439 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models B8U B9U BAU BCM BCA BCQ BDM BDA BDQ BEM BEA BEQ
DLA DLQ EKM EKA EKQ EMM EMA EMQ EFM EFA EFQ EBU E5U E6U E7U E8U E9U
F5M F5A F5Q)
45R0756 1
FR/CF (models B8F B9F BAF A2F EBF E5F E6F E7F E8F E9F ) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models ECP F3P) 45R0763 1
SP/LA (models B5S A5S A6S DRS ECS ECD ECY F3S F3Y) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
464 Hardware Maintenance Manual
9439 Windows XP Pro Recovery CDs FRU# CRU
Japanese (models BDJ BEJ EKJ F5J) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models BEK DLK EMK F5K) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9439 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models BWH EJA EJQ) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
Chapter 11. FRU lists 465
9439 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAU ABU ACU ADU AGM AGA AHM AHA AJM AJA AVG AWG B2G
B1U APU AQU ARU ASU ATU AUU A4M A4A A4Q BZG A3U A3F BBM BFM BJM BKM
BPM BSM BTM BUM BVM DDM DEM DAM DBM BYM BPM DEA DAA DBA DCA BBA
BBQ BFA BFQ BJA BJQ BKA BKQ BPA BPQ BSA BSQ BTA BTQ BUA BVA BVQ DEQ DBQ
DCQ DFM DFA DFQ DGU DGG DGM DGQ DGA DGH DGR DGE DHU DHG DJM DJA
DJQ DJH DJR DJE DKG DTT AAU ABU ACU ADU E1Q E2M E2A E2Q D6U ELM ELA
ELQ EMM EMA EMQ ENM ENA ENQ EGM EGA EGQ EHM EHA EHQ AWU F6M F6A
F6Q F1U F2U F4G)
46R7287 1
Japanese (models A4J BFJ BKJ BPJ BSJ BTJ DEJ DBJ DGJ DHJ DJJ E1J E2J ELJ EGJ F6J) 46R7288 1
Simplified Chinese (models AMC DGC DHC DJC ) 46R7289 1
French (models AAF ABF ACF ADF AVG AWG B2G B1F APF AQF ARF ASF ATF AUF
DGF DGG DHF DHG DJG DJF DKG D6F AWF F1F F2F F4G)
46R7290 1
German (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 46R7291 1
Spanish (models AES AEP AEY AFS AFY AVG AWG B2G B6S B6D B6Y B7S B7D B7Y A8S
A9S A9D A9Y DGS DGD DGY DHD DHS DHY DJS DJD DJY DSS DSD DSY EDS EDD
EDY)
46R7292 1
Italian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 46R7293 1
Brazilian Portuguese (models AVG AWG B2G BZG DGG DHG DJG DKG EDP) 46R7294 1
Danish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 46R7295 1
Swedish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9786 1
Finland (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9787 1
Dutch (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9788 1
Traditional Chinese (models ANV A4V DGV DHV DJV DMV DNV ) 46R7296 1
Hong Kong (models ANV A4V DGV DHV DJV DMV DNV ) 46R7297 1
Norwegian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 46R7298 1
Korean (models BBK BFK BKK BPK BSK BTK DEK DGK DHK DJK E1K E2K EMK ENK
EGK F6K)
45R9792 1
Slovenian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9793 1
Greek (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9794 1
Russian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 46R7299 1
Portuguese (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9796 1
Turkish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9797 1
Czech (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9798 1
Polish (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9799 1
Russian English (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9802 1
Romanian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9803 1
Hungarian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9804 1
Slovakian (models AVG AWG B2G BZG DGG DHG DJG DKG F4G) 45R9805 1
Serbian-Latin (models) 45R9806 1
9439 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
466 Hardware Maintenance Manual
9439 Vista VHP SP1 Recovery DVDs FRU# CRU
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9439 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Chapter 11. FRU lists 467
9439 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9439 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
468 Hardware Maintenance Manual
9439 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9439 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 469
Machine Type 9481
Item # 9481 FRUs FRU# CRU
1 Heat Sink/RM Kit Intel Prescott (all models) 41N8261 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T (models
A1U A1F A5U BCP)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T (models
ANG ARS ARD ARY BDP BEP DMJ DNJ DLM DLA DLQ DLT DLK DLJ DMJ
DNJ DPJ DQJ BSM BUM BUA BUQ BUT BUK BUJ BTM BTA BTQ BTT BTJ E2P
E3P E4P)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T (models
JRS JRY)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models ACA ADK AAS AAP AAY ASS ASD ASY A6U A6F BJP BKP B2M
B2Q D1J A4U A4F BGP BHP BLP B3M B3Q B3K B3J B4A B4Q D4J B2A B2T B3A
B3T B5A B5Q D4J BVM BVA BVQ BVT )
43C1968 N
2 Microprocessor, Core 2 DuoE4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
470 Hardware Maintenance Manual
Item # 9481 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO JMG JNS JNY JPS JPP JPY JQS JQP JQY)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AMV ACA ADK
AKK AAS AAP AAY ALC ARS ARD ARY AVS AVP AVD AVY AWS AWD AWY
ASS ASD ASY A1U A1F BDP BPP BBM BBQ BBV BWH A5U A5F BCP BFP BGP
DAM DAQ DAK DAJ D4J DMJ BBA BBT DAA DAT B5A B5Q B9A B9Q DFM DFA
DFQ DFT DFK DFJ DVJ D4J DMJ DQJ BSM BVM BVA BVQ BVT E7P E6P E1C
F8A F8Q F8T F6C J1U J1F J3U J3F J6U J6F J8S J8P J8Y J9S J9P J9D J9Y JCU JCF JJS
JJP JJY JPS JPP JPY JRS JRY)
41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models ABS ABY ANG ATA ATP ATD ATY A2U A2F A6U A6F BAU BAF BEP
BJP BKP BQP A3U A3F A4U A4F A9U A9F BHP BLP BMP A9U A9F A9S A9P A9L
A9D A9Y A9G A9M A9A A9Q A9T A9C A9B A9H A9V A9K A9R A9E A9J D6U
D6F D6S D6P D6L D6D D6Y D6G D6M D6A D6Q D6T D6C D6B D6H D6V D6K
D6R D6E D6J D5U D5F D5S D5P D5L D5D D5Y D5G D5M D5A D5Q D5T D5C
D5B D5H D5V D5K D5R D5E D5J)
42Y9353 2
Chapter 11. FRU lists 471
Item # 9481 FRUs FRU# CRU
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models AEM AEA AFT AFJ
AGM AGJ AHK B1G APG AUS AUD AUY A7U A7F B2M B2Q B6M B6Q D1J D2J
DKG A8U A8F BNP BRP B3M B3Q B3K B3J B4A B4Q B8A B8Q DBM DBQ DBJ
DCA DCQ DDM DDQ DEA DEQ DHM DJM DNJ B2A B2T B6A B6T B3A B3T
DBA DBT DDA DDT DLM DLA DLQ DLT DLK DLJ B7M B7A DGM DGA DGQ
DGT DGJ DRM DRA DRQ DRT DRK DRJ DWJ D3J DSM DSA DSJ DTM DTA DTJ
DUM DUA DUQ DUT DUK DUJ DNJ DPJ BUM BUA BUQ BUT BUK BUJ BTM
BTA BTQ BTT BTJ E3P E4P E5P E6P E8S F9M F9A F9Q F9T F9K F9J H1M H1J
F2U F2F F7G F1S F1P F1D F1Y F3S F3D F3Y F4S F4P F4D F4Y F5S F5P F5D F5Y
J2U J2F J4U J4F J5U J5F J7U J7F JBS JBP JBD JBY JKM JKA JKQ JKT JKK JKJ JLM
JLA JLQ JLT JLK JLJ JDU JDF JFG JGS JGP JGY JHS JHP JHY JMG JQS JQP JQY)
43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models AAS AAP AAY ARS
ARD ARY AVS AVP AVD AVY AWS AWD AWY ASS ASD ASY BCP D4J DMJ DNJ
B5A B5Q B9A B9Q D4J DMJ DNJ BSM BUM BUA BUQ BUT BUK BUJ BTM BTA
BTQ BTT BTJ BVM BVA BVQ BVT)
40Y9034 2
5 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models AMV ACA ADK ABS
ABY ALC ANG B1G APG ATS ATP ATD ATY AUS AUD AUY A1U A1F A2U A2F
A6U A6F A7U A7F BAU BAF BDP BEP BJP BKP BPP BQP B2M B2Q B6M B6Q
D1J D2J BWH BBM BBQ BBV DKG A5U A5F A3U A3F A4U A4F A8U A8F A9U
A9F BFP BGP BHP BLP BMP BNP BRP B3M B3Q B3K B3J B4A B4Q B8A B8Q
DAM DAQ DAK DAJ DBM DBQ DBJ DCA DCQ DDM DDQ DEA DEQ B2A B2T
B6A B6T BBA BBT B3A B3T DAA DAT DBA DBT DDA DDT DLM DLA DLQ DLT
DLK DLJ B7M B7A DFM DFA DFQ DFT DFK DFJ DGM DGA DGQ DGT DGJ
DRM DRA DRQ DRT DRK DRJ DVJ D3J DSM DSA DSJ DTM DTA DTJ DUM
DUA DUQ DUT DUK DUJ DPJ DQJ A9U A9F A9S A9P A9L A9D A9Y A9G A9M
A9A A9Q A9T A9C A9B A9H A9V A9K A9R A9E A9J D6U D6F D6S D6P D6L
D6D D6Y D6G D6M D6A D6Q D6T D6C D6B D6H D6V D6K D6R D6E D6J D5U
D5F D5S D5P D5L D5D D5Y D5G D5M D5A D5Q D5T D5C D5B D5H D5V D5K
D5R D5E D5J E3P E4P E5P E6P E7P E1T F8A F8Q F8T F9M F9A F9Q F9T F9K F9J
F2U F2F F7G F1S F1P F1D F1Y F3S F3D F3Y F4S F4P F4D F4Y F5S F5P F5D F5Y
J1U J1F J2U J2F J3U J3F J4U J4F J5U J5F J6U J6F J7U J7F J8S J8P J8Y J9S J9P J9D
J9Y JKM JKA JKQ JKT JKK JKJ JLM JLA JLQ JLT JLK JLJ JCU JCF JGS JGP JGY
JHS JHP JHY JJS JJP JJY JMG JNP JNY JPS JPP JPY JQS JQP JQY JRS JRY)
40Y9035 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models AEM AEA AFT AFJ
AGM AGJ AHK AKK DHM DJM DWJ H1M H1J)
87H4891 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models AFT AFJ ARS ARD ARY
ATS ATP ATD ATY AWS AWD AWY ASS ASD ASY BDP BEP BJP BKP BPP BQP
D1J D2J BCP BFP BGP BHP BLP BMP BNP BRP)
40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models AFT AFJ ARS ARD ARY
ATS ATP ATD ATY AWS AWD AWY ASS ASD ASY BDP BEP BJP BKP BPP BQP
D1J D2J BCP BFP BGP BHP BLP BMP BNP BRP)
40Y9107 2
7 Front USB/Audio with bracket (all models) 41N8212 2
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models ALC ARS
ARD ARY AWS AWD AWY ASS ASD ASY BDP BEP BJP BCP BFP BGP BHP D4J
DMJ DNJ B7M B7A D4J DTM DTA DTJ DMJ DNJ BSM BVM BVA BVQ BVT E2P
E3P E4P )
41X4255 2
472 Hardware Maintenance Manual
Item # 9481 FRUs FRU# CRU
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models AMV ACA
ADK AEM AEA AFT AFJ AGM AGJ AHK AKK AAS AAP AAY ABS ABY ANG
B1G APG ATS ATP ATD ATY AUS AUD AUY A1U A1F A2U A2F A6U A6F A7U
A7F BAU BAF BKP BPP BQP B2M B2Q B6M B6Q D1J D2J BWH BBM BBQ BBV
DKG DKG A5U A5F A3U A3F A4U A4F A8U A8F A9U A9F BLP BMP BNP BRP
B3M B3Q B3K B3J B4A B4Q B8A B8Q DAM DAQ DAK DAJ DBM DBQ DBJ DCA
DCQ DDM DDQ DEA DEQ DHM DJM B2A B2T B6A B6T BBA BBT B3A B3T
DAA DAT DBA DBT DDA DDT DLM DLA DLQ DLT DLK DLJ B5A B5Q B9A
B9Q DFM DFA DFQ DFT DFK DFJ DGM DGA DGQ DGT DGJ DRM DRA DRQ
DRT DRK DRJ DVJ DWJ D3J DSM DSA DSJ DUM DUA DUQ DUT DUK DUJ DPJ
DQJ BUM BUA BUQ BUT BUK BUJ BTM BTA BTQ BTT BTJ A9U A9F A9S A9P
A9L A9D A9Y A9G A9M A9A A9Q A9T A9C A9B A9H A9V A9K A9R A9E A9J
D6U D6F D6S D6P D6L D6D D6Y D6G D6M D6A D6Q D6T D6C D6B D6H D6V
D6K D6R D6E D6J D5U D5F D5S D5P D5L D5D D5Y D5G D5M D5A D5Q D5T
D5C D5B D5H D5V D5K D5R D5E D5J E5P E6P E7P E8S E1T F8A F8Q F8T F2U
F2F F7G F1S F1P F1D F1Y F3S F3D F3Y F4S F4P F4D F4Y F5S F5P F5D F5Y F6C
J1U J1F J2U J2F J3U J3F J7F J8S J8P J8Y J9S J9P J9D J9Y JBS JBP JBD JBY JKM JKA
JKQ JKT JKK JKJ JLM JLA JLQ JLT JLK JLJ JCU JCF JDU JDF JGS JGP JGY JHS
JHP JHY JJS JJP JJY JMG)
41X4256 2
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models F9M F9A F9Q
F9T F9K F9J H1M H1J J4U J4F J5U J5F J6U J6F JFG)
41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models JNP JNY JPS
JPP JPY JQS JQP JQY JRS JRY)
41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board, Intel G31 mATX GA Level (models AMV ACA ADK AEM AEA
AFT AFJ AGM AGJ AHK AKK AAS AAP AAY ABS ABY ALC ANG B1G APG
ARS ARD ARY ATS ATP ATD ATY AUS AUD AUY AVS AVP AVD AVY AWS
AWD AWY ASS ASD ASY A1U A1F A2U A2F A6U A6F A7U A7F BAU BAF BDP
BEP BJP BKP BPP BQP B2M B2Q B6M B6Q D1J D2J BWH BBM BBQ BBV DKG
A5U A5F A3U A3F A4U A4F A8U A8F A9U A9F BCP BFP BGP BHP BLP BMP
BNP BRP B3M B3Q B3K B3J B4A B4Q B8A B8Q DAM DAQ DAK DAJ DBM DBQ
DBJ DCA DCQ DDM DDQ DEA DEQ DHM DJM D4J DMJ DNJ B2A B2T B6A
B6T BBA BBT B3A B3T DAA DAT DBA DBT DDA DDT DLM DLA DLQ DLT
DLK DLJ B5A B5Q B7M B7A B9A B9Q DFM DFA DFQ DFT DFK DFJ DGM DGA
DGQ DGT DGJ DRM DRA DRQ DRT DRK DRJ DVJ DWJ D3J D4J DSM DSA DSJ
DTM DTA DTJ DUM DUA DUQ DUT DUK DUJ DMJ DNJ DPJ DQJ BSM BUM
BUA BUQ BUT BUK BUJ BTM BTA BTQ BTT BTJ BVM BVA BVQ BVT A9U A9F
A9S A9P A9L A9D A9Y A9G A9M A9A A9Q A9T A9C A9B A9H A9V A9K A9R
A9E A9J D6U D6F D6S D6P D6L D6D D6Y D6G D6M D6A D6Q D6T D6C D6B
D6H D6V D6K D6R D6E D6J D5U D5F D5S D5P D5L D5D D5Y D5G D5M D5A
D5Q D5T D5C D5B D5H D5V D5K D5R D5E D5J E2P E3P E4P E5P E6P E7P E8S
E1T F8A F8Q F8T F9M F9A F9Q F9T F9K F9J H1M H1J F2U F2F F7G F1S F1P F1D
F1Y F3S F3D F3Y F4S F4P F4D F4Y F5S F5P F5D F5Y F6C J1U J1F J2U J2F J3U J3F
J4U J4F J5U J5F J6U J6F J7U J7F J8S J8P J8Y J9S J9P J9D J9Y JBS JBP JBD JBY JKM
JKA JKQ JKT JKK JKJ JLM JLA JLQ JLT JLK JLJ JCU JCF JDU JDF JFG JGS JGP
JGY JHS JHP JHY JJS JJP JJY JMG JNP JNY JPS JPP JPY JQS JQP JQY JRS JRY)
53Y3282 N
Chapter 11. FRU lists 473
Item # 9481 FRUs FRU# CRU
10 Power supply, 220 Watt Power Supply - Robust; for all countries except for JP
(models AMV ACA ADK AEM AEA AFT AGM AHK AKK AAS AAP AAY ABS
ABY ALC ANG B1G APG ARS ARD ARY ATS ATP ATD ATY AUS AUD AUY
AVS AVP AVD AVY AWS AWD AWY ASS ASD ASY A1U A1F A2U A2F A6U A6F
A7U A7F BAU BAF BDP BEP BJP BKP BPP BQP B2M B2Q B6M B6Q BWH BBM
BBQ BBV DKG A5U DKG A5U A5F A3U A3F A4U A4F A8U A8F A9U A9F BCP
BFP BGP BHP BLP BMP BNP BRP B3M B3Q B3K B4A B4Q B8A B8Q DAM DAQ
DAK DAJ DBM DBQ DCA DCQ DDM DDQ DEA DEQ DHM DJM B2A B2T B6A
B6T BBA BBT B3A B3T DAA DAT DBA DBT DDA DDT DLM DLA DLQ DLT
DLK B5A B5Q B7M B7A B9A B9Q DFM DFA DFQ DFT DFK DGM DGA DGQ
DGT DRM DRA DRQ DRT DRK DSM DSA DTM DTA DUM DUA DUQ DUT
DUK BSM BUM BUA BUQ BUT BUK BTM BTA BTQ BTT BVM BVA BVQ BVT
A9U A9F A9S A9P A9L A9D A9Y A9G A9M A9A A9Q A9T A9C A9B A9H A9V
A9K A9R A9E D6U D6F D6S D6P D6L D6D D6Y D6G D6M D6A D6Q D6T D6C
D6B D6H D6V D6K D6R D6E D5U D5F D5S D5P D5L D5D D5Y D5G D5M D5A
D5Q D5T D5C D5B D5H D5V D5K D5R D5E E2P E3P E4P E5P E6P E7P E8S E1T
F8A F8Q F8T F9M F9A F9Q F9T F9K F9J H1M F2U F2F F7G F1S F1P F1D F1Y F3S
F3D F3Y F4S F4P F4D F4Y F5S F5P F5D F5Y F6C J1U J1F J2U J2F J3U J3F J4U J4F
J5U J5F J6U J6F J7U J7F J8S J8P J8Y J9S J9P J9D J9Y JBS JBP JBD JBY JKM JKA JKQ
JKT JKK JLM JLA JLQ JLT JLK JCU JCF JDU JDF JFG JGS JGP JGY JHS JHP JHY
JJS JJP JJY JMG JNP JNY JPS JPP JPY JQS JQP JQY JRS JRY)
41A9689 N
10 Power supply, 220 Watt Power Supply - Japan;only for JP (models AMV ACA
ADK AEM AEA AFT AGM AHK AKK AAS AAP AAY ABS ABY ALC ANG B1G
APG ARS ARD ARY ATS ATP ATD ATY AUS AUD AUY AVS AVP AVD AVY AWS
AWD AWY ASS ASD ASY A1U A1F A2U A2F A6U A6F A7U A7F BAU BAF BDP
BEP BJP BKP BPP BQP B2M B2Q B6M B6Q BWH BBM BBQ BBV DKG A5U DKG
A5U A5F A3U A3F A4U A4F A8U A8F A9U A9F BCP BFP BGP BHP BLP BMP
BNP BRP B3M B3Q B3K B4A B4Q B8A B8Q DAM DAQ DAK DAJ DBM DBQ
DCA DCQ DDM DDQ DEA DEQ DHM DJM B2A B2T B6A B6T BBA BBT B3A
B3T DAA DAT DBA DBT DDA DDT DLM DLA DLQ DLT DLK B5A B5Q B7M
B7A B9A B9Q DFM DFA DFQ DFT DFK DGM DGA DGQ DGT DRM DRA DRQ
DRT DRK DSM DSA DTM DTA DUM DUA DUQ DUT DUK BSM BUM BUA
BUQ BUT BUK BTM BTA BTQ BTT BVM BVA BVQ BVT A9U A9F A9S A9P A9L
A9D A9Y A9G A9M A9A A9Q A9T A9C A9B A9H A9V A9K A9R A9E D6U D6F
D6S D6P D6L D6D D6Y D6G D6M D6A D6Q D6T D6C D6B D6H D6V D6K D6R
D6E D5U D5F D5S D5P D5L D5D D5Y D5G D5M D5A D5Q D5T D5C D5B D5H
D5V D5K D5R D5E E2P E3P E4P E5P E6P E7P E8S E1T F8A F8Q F8T F9M F9A
F9Q F9T F9K F9J H1M F2U F2F F7G F1S F1P F1D F1Y F3S F3D F3Y F4S F4P F4D
F4Y F5S F5P F5D F5Y F6C J1U J1F J2U J2F J3U J3F J4U J4F J5U J5F J6U J6F J7U J7F
J8S J8P J8Y J9S J9P J9D J9Y JBS JBP JBD JBY)
41A9697 N
474 Hardware Maintenance Manual
Item # 9481 FRUs FRU# CRU
10 Power supply, 220W 80% Power supply-for all countries (models AMV ACA ADK
AEM AEA AFT AGM AHK AKK AAS AAP AAY ABS ABY ALC ANG B1G APG
ARS ARD ARY ATS ATP ATD ATY AUS AUD AUY AVS AVP AVD AVY AWS
AWD AWY ASS ASD ASY A1U A1F A2U A2F A6U A6F A7U A7F BAU BAF BDP
BEP BJP BKP BPP BQP B2M B2Q B6M B6Q BWH BBM BBQ BBV DKG A5U DKG
A5U A5F A3U A3F A4U A4F A8U A8F A9U A9F BCP BFP BGP BHP BLP BMP
BNP BRP B3M B3Q B3K B4A B4Q B8A B8Q DAM DAQ DAK DAJ DBM DBQ
DCA DCQ DDM DDQ DEA DEQ DHM DJM B2A B2T B6A B6T BBA BBT B3A
B3T DAA DAT DBA DBT DDA DDT DLM DLA DLQ DLT DLK B5A B5Q B7M
B7A B9A B9Q DFM DFA DFQ DFT DFK DGM DGA DGQ DGT DRM DRA DRQ
DRT DRK DSM DSA DTM DTA DUM DUA DUQ DUT DUK BSM BUM BUA
BUQ BUT BUK BTM BTA BTQ BTT BVM BVA BVQ BVT A9U A9F A9S A9P A9L
A9D A9Y A9G A9M A9A A9Q A9T A9C A9B A9H A9V A9K A9R A9E D6U D6F
D6S D6P D6L D6D D6Y D6G D6M D6A D6Q D6T D6C D6B D6H D6V D6K D6R
D6E D5U D5F D5S D5P D5L D5D D5Y D5G D5M D5A D5Q D5T D5C D5B D5H
D5V D5K D5R D5E E2P E3P E4P E5P E6P E7P E8S E1T F8A F8Q F8T F9M F9A
F9Q F9T F9K F9J H1M F2U F2F F7G F1S F1P F1D F1Y F3S F3D F3Y F4S F4P F4D
F4Y F5S F5P F5D F5Y F6C J1U J1F J2U J2F J3U J3F J4U J4F J5U J5F J6U J6F J7U J7F
J8S J8P J8Y J9S J9P J9D J9Y JBS JBP JBD JBY JKM JKA JKQ JKT JKK JKJ JLM JLA
JLQ JLT JLK JLJ JCU JCF JDU JDF JFG JGS JGP JGY JHS JHP JHY JJS JJP JJY JMG
JNP JNY JPS JPP JPY JQS JQP JQY JRS JRY)
41A9670 N
10 Power supply, 280W TFX 280W PS ,Active PFC,for RockyS-for all countries
(models AMV ACA ADK AEM AEA AFT AGM AHK AKK AAS AAP AAY ABS
ABY ALC ANG B1G APG ARS ARD ARY ATS ATP ATD ATY AUS AUD AUY
AVS AVP AVD AVY AWS AWD AWY ASS ASD ASY A1U A1F A2U A2F A6U A6F
A7U A7F BAU BAF BDP BEP BJP BKP BPP BQP B2M B2Q B6M B6Q BWH BBM
BBQ BBV DKG A5U DKG A5U A5F A3U A3F A4U A4F A8U A8F A9U A9F BCP
BFP BGP BHP BLP BMP BNP BRP B3M B3Q B3K B4A B4Q B8A B8Q DAM DAQ
DAK DAJ DBM DBQ DCA DCQ DDM DDQ DEA DEQ DHM DJM B2A B2T B6A
B6T BBA BBT B3A B3T DAA DAT DBA DBT DDA DDT DLM DLA DLQ DLT
DLK B5A B5Q B7M B7A B9A B9Q DFM DFA DFQ DFT DFK DGM DGA DGQ
DGT DRM DRA DRQ DRT DRK DSM DSA DTM DTA DUM DUA DUQ DUT
DUK BSM BUM BUA BUQ BUT BUK BTM BTA BTQ BTT BVM BVA BVQ BVT
A9U A9F A9S A9P A9L A9D A9Y A9G A9M A9A A9Q A9T A9C A9B A9H A9V
A9K A9R A9E D6U D6F D6S D6P D6L D6D D6Y D6G D6M D6A D6Q D6T D6C
D6B D6H D6V D6K D6R D6E D5U D5F D5S D5P D5L D5D D5Y D5G D5M D5A
D5Q D5T D5C D5B D5H D5V D5K D5R D5E E2P E3P E4P E5P E6P E7P E8S E1T
F8A F8Q F8T F9M F9A F9Q F9T F9K F9J H1M F2U F2F F7G F1S F1P F1D F1Y F3S
F3D F3Y F4S F4P F4D F4Y F5S F5P F5D F5Y F6C J1U J1F J2U J2F J3U J3F J4U J4F
J5U J5F J6U J6F J7U J7F J8S J8P J8Y J9S J9P J9D J9Y JBS JBP JBD JBY JKM JKA JKQ
JKT JKK JKJ JLM JLA JLQ JLT JLK JLJ JCU JCF JDU JDF JFG JGS JGP JGY JHS
JHP JHY JJS JJP JJY JMG JNP JNY JPS JPP JPY JQS JQP JQY JRS JRY)
41A9705 N
The FRUs listed in the following tables are not illustrated.
9481 FRUs FRU# CRU
Planer shield, Atx 946,G31 with usb number (all models) 41R6384 N
Shield, EMC, Blank 5.25 (all models) 41N8271 2
Shield, EMC, Blank diskette drive (all models) 41N8273 2
Cover (all models) 41N8204 2
Mechanical shell kit (all models) 41R6387 N
Bezel kit, without IBM logo (all models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
Hard disk drive bracket assembly (plastic and grommets) (all models) 41N8210 2
Chapter 11. FRU lists 475
9481 FRUs FRU# CRU
Hard disk drive fan and bracket asm (all models) 41R6325 2
Speaker cable assembly, 600 mm cable length (all models) 41N8217 2
Fan duct assembly (all models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (all models) 42Y8006 2
Retention module assembly, Intel (all models) 41A7139 N
Intrusion switch assembly (all models) 41R6208 2
Foot stand (all models) 41R4813 1
Cable, diskette drive (all models) 41A7147 2
Cabel-SATA 250mm (RoHS) (all models) 43N9012 2
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (all models) 42Y8008 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models AMV ACA ADK AEM AEA
AFT AFJ AGM AGJ AHK AKK AAS AAP AAY ABS ABY ALC ANG B1G APG ARS ARD
ARY ATS ATP ATD ATY AUS AUD AUY AVS AVP AVD AVY AWS AWD AWY ASS ASD
ASY A1U A1F A2U A2F A6U A6F A7U A7F BAU BAF BDP BEP BJP BKP BPP BQP B2M
B2Q B6M B6Q D1J D2J BWH BBM BBQ BBV DKG A5U A5F A3U A3F A4U A4F A8U A8F
A9U A9F BCP BFP BGP BHP BLP BMP BNP BRP B3M B3Q B3K B3J B4A B4Q B8A B8Q
DAM DAQ DAK DAJ DBM DBQ DBJ DCA DCQ DDM DDQ DEA DEQ DHM DJM D4J
DMJ DNJ B2A B2T B6A B6T BBA BBT B3A B3T DAA DAT DBA DBT DDA DDT DLM
DLA DLQ DLT DLK DLJ B5A B5Q B7M B7A B9A B9Q DFM DFA DFQ DFT DFK DFJ
DGM DGA DGQ DGT DGJ DRM DRA DRQ DRT DRK DRJ DVJ DWJ D3J D4J DSM DSA
DSJ DTM DTA DTJ DUM DUA DUQ DUT DUK DUJ DMJ DNJ DPJ DQJ BSM BUM BUA
BUQ BUT BUK BUJ BTM BTA BTQ BTT BTJ BVM BVA BVQ BVT A9U A9F A9S A9P A9L
A9D A9Y A9G A9M A9A A9Q A9T A9C A9B A9H A9V A9K A9R A9E A9J D6U D6F D6S
D6P D6L D6D D6Y D6G D6M D6A D6Q D6T D6C D6B D6H D6V D6K D6R D6E D6J D5U
D5F D5S D5P D5L D5D D5Y D5G D5M D5A D5Q D5T D5C D5B D5H D5V D5K D5R D5E
D5J E2P E3P E4P E5P E6P E7P E8S E1T F8A F8Q F8T F9M F9A F9Q F9T F9K F9J H1M
H1J F2U F2F F7G F1S F1P F1D F1Y F3S F3D F3Y F4S F4P F4D F4Y F5S F5P F5D F5Y F6C
J1U J1F J2U J2F J3U J3F J4U J4F J5U J5F J6U J6F J7U J7F J8S J8P J8Y J9S J9P J9D J9Y JBS
JBP JBD JBY JKM JKA JKQ JKT JKK JKJ JLM JLA JLQ JLT JLK JLJ JCU JCF JDU JDF JFG
JGS JGP JGY JHS JHP JHY JJS JJP JJY JMG JNP JNY JPS JPP JPY JQS JQP JQY JRS JRY)
45C1566 N
Rear USB 2Ports II LP(R), low profile I/O, 350mm, Rohs (all models) 43N9124 2
Temp Sense Cable (165 mm) (all models) 43N9079 2
Chassis primary HDD cage (all models) 45K6272 1
9481 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
476 Hardware Maintenance Manual
9481 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9481 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AEM AEA ACA AGM ANG B1G APG A1U A2U A6U A7U BAU B2M
B6M BBM B2Q B6Q BWH BBM BBQ BWH DKG A5U A3U A4U A8U A9U B3M B3Q B4A
B4Q B8A B8Q DAM DAQ DBM DBQ DCA DCQ DDM DDQ DEA DEQ DHM DJM B2A
B6A BBA B3A DAA DBA DDA DLM DLA DLQ B5A B5Q B7M B7A B9A B9Q DFM DFA
DFQ DGM DGA DGQ DRM DRA DRQ DSM DSA DTM DTA DUM DUA DUQ BSM
BUM BUA BUQ BTM BTA BTQ BVM BVA BVQ A9U A9G A9A A9Q A9H A9R A9E A6U
A6G A6A A6Q A6H A6R A6E A5U A5G A5A A5Q A5H A5R A5E F8A F8Q F9M F9A F9Q
H1M F2U F7G J1U J2U J3U J4U J5U J6U J7U JKM JKA JKQ JLM JLA JLQ JCU JDU JFG
JMG)
41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models ANG B1G APG DKG A9G D6G D5G F7G JFG JMG) 41A5291 1
Belgian/French (models ANG B1G APG DKG A9G D6G D5G F7G JFG JMG) 41A5292 1
Belgian/English (models ANG B1G APG DKG A9G D6G D5G F7G JFG JMG) 41A5293 1
Chapter 11. FRU lists 477
9481 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Brazilian Portuguese (models ATP AVP AAP BDP BEP BJP BKP BPP BQP BCP BFP BGP
BHP BLP JGP BMP BNP BRP A9P D6P D5P E2P E3P E4P E5P E6P E7P F1P F4P F5P J8P
J9P JBP JHP JJP JNP JPP JQP)
41A5294 1
Bulgarian (models ANG B1G APG DKG A9G D6G D5G F7G JFG JMG) 41A5295 1
Chinese/US (models AMV BBV) 41A5296 1
Czech(ABB) (models ANG B1G APG DKG A9G D6G D5G F7G JFG JMG) 41A5297 1
Danish (models ANG B1G APG DKG F7G JFG JMG) 41A5298 1
Dutch (models ANG B1G APG DKG F7G JFG JMG) 41A5299 1
French (models ANG B1G APG DKG F7G JFG JMG) 41A5300 1
French Canadian (models A1F A2F A6F A7F BAF A5F A3F A4F A8F A9F A9F A6F A5F
F2F J1F J2F J3F J4F J5F J6F J7F JCF JDF)
41A5301 1
French Canadian (models A1F A2F A6F A7F BAF A5F A3F A4F A8F A9F A9F A6F A5F
F2F J1F J2F J3F J4F J5F J6F J7F JCF JDF)
41A5302 1
German (models ANG B1G APG DKG F7G JFG) 41A5303 1
Greek (models ANG B1G APG DKG F7G JFG JMG) 41A5304 1
Greek/US (models ANG B1G APG DKG F7G JFG JMG) 41A5305 1
Hebrew (models ANG B1G APG DKG F7G JFG JMG) 41A5306 1
Hungarian (models ANG B1G APG DKG F7G JFG JMG) 41A5307 1
Iceland (models ANG B1G APG DKG F7G JFG JMG) 41A5308 1
Italy (models ANG B1G APG DKG F7G JFG JMG) 41A5309 1
Japanese (models AFJ AGJ D1J D2J B3J DAJ DBJ D4J DMJ DNJ DLJ DFJ DGJ DRJ DVJ
DWJ D3J D4J DSJ DTJ DUJ DMJ DNJ DPJ DQJ BUJ BTJ A9J A6J A5J F9J H1J JKJ JLJ)
41A5310 1
Korean (models AHK AKK ADK DAK B3K DLK DFK DRK DUK BUK A9K A6K A5K
F9K JKK JLK)
41A5311 1
LA Spanish (models AAS AAY ABS ABY ARS ARD ARY ATS ATD ATY AUS AUD AUY
AVS AVD AVY A9S A9D A9Y A6S A6D A6Y A5S A5D A5Y F1S F1D F1Y F3S F3D F3Y F4S
F4D F4Y F5S F5D F5Y J8S J8Y J9S J9YJ9D JBS JBY JBD JGS JGY JHS HY JJS JJY JNY JPS
JPY JQS JQY JRS JRY)
41A5312 1
Norwegian (models ANG B1G APG DKG F7G JFG JMG) 41A5313 1
Polish (models ANG B1G APG DKG F7G JFG JMG) 41A5314 1
Portuguese (models ANG B1G APG DKG F7G JFG JMG) 41A5315 1
Romanian (models ANG B1G APG DKG F7G JFG JMG) 41A5317 1
Russian/Cyrillic (models ANG B1G APG DKG F7G JFG JMG) 41A5318 1
Serbian/Cyrillic (models ANG B1G APG DKG F7G JFG JMG) 41A5319 1
Slovak (models ANG B1G APG DKG F7G JFG JMG) 41A5320 1
Spanish (models ANG B1G APG AWS AWD AWY ASS ASD ASY DKG A9GD6G D5G A9S
A6S A5S A9D D6D D5D A9Y D6Y D5Y E8S JFG JMG)
41A5321 1
Swedish/Finnish (models ANG B1G APG DKG F7G JFG JMG) 41A5322 1
Swiss French/German (models ANG B1G APG DKG F7G JFG JMG) 41A5323 1
Thailand (models AFT B2T B6T BBT B3T DAT DBT DDT DLT DFT DGT DRT DUT BUT
BTT BVT A9T D6T D5T F8T F9T JKT JLT)
41A5324 1
Turkish (models ANG B1G APG DKG F7G JFG JMG) 41A5325 1
Turkish (models ANG B1G APG DKG F7G JFG JMG) 41A5326 1
UK English (models ANG B1G APG DKG F7G JFG JMG) 41A5327 1
478 Hardware Maintenance Manual
9481 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US Euro (models ANG B1G APG DKG F7G JFG JMG) 41A5328 1
Slovenian (models ANG B1G APG DKG F7G JFG JMG) 41A5329 1
9481 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgian/English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech(ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
Chapter 11. FRU lists 479
9481 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
UK English (models) 41A4997 1
US European (models) 41A4998 1
Slovenian (models) 41A4999 1
9481 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
480 Hardware Maintenance Manual
9481 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US European (models) 41A5287 1
Slovenian (models) 41A5288 1
9481 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
9481 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
Internal USB Memory Card Reader Slim (models CTO) 43C9207 1
USB Memory Key - 1G RoW (models) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 43C0260 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models J2U J2F J5U J5F ) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models AAS ABS ACA AEA
ARS ATS AUS AVS AWS ASS A1U A2U A6U A7U BAU A5U A3U A4U A8U A9U B4A
B8A DCA DEA B2A A9S D6S D5S A9U D6U D5U B6A BBA B3A DAA DBA DDA DLA
B5A B7A B9A DFA DGA DRA DSA DTA DUA BUA BTA BVA A9A D6A D5A E8S F8A F9A
F2U F1S F3S F4S F5S J1U J2U J3U J4U J5U J6U J7U J8S J9S JBS JKA JLA JCU JDU JGS JHS
JJS JPS JQS JRS)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models ARD ATD AUD AVD AWD
ASD A9D D6D D5D F3D F4D F5D J9D JBD)
89P8575 1
Speaker Power brick - China, Thailand (models AFT ALC B2T B2T B6T BBT B3T DAT
DBT DDT DLT DFT DGT DRT DUT BUT BTT BVT A9T D6T D5T A9C D6C D5C E1C F8T
F9T F6C JKT JLT)
89P8581 1
Speaker Power brick - Japan (models AFJ AGJ D1J D2J B3J DAJ DBJ D4J DMJ DNJ DLJ
DFJ DGJ DRJ DVJ DWJ D3J D4J DSJ DTJ DUJ DMJ DNJ DPJ DQJ BUJ BTJ A9J D6J D5J F9J
H1J JKJ JLJ)
89P8577 1
Speaker Power brick - Brazil (models BDP BEP BJP BKP BPP BQP BCP BFP BGP BHP BLP
BMP BNP BRP A9P D6P D5P E2P E3P E4P E5P E6P E7P F1P F4P F5P J8P J9P JBP JGP JJP
JNP JPP JQP)
89P8583 1
Speaker Power brick - Argentina (models J8Y J9Y JBY JJY JHY JGY JNY JPY JQY JRY) 41A4901 1
Speaker Power brick - ANZ (models AEM AGM B2M B6M BBM B3M DAM DBM DDM
DHM DJM DLM B7M DFM DGM DRM DSM DTM DUM BSM BUM BTM BVM A9M
D6M D5M F9M H1M JKM JLM)
89P8579 1
Chapter 11. FRU lists 481
9481 Adapters and miscellaneous FRUs FRU# CRU
Speaker Brick - Korea (models ADK AHK AKK B3K DAK DLK DFK DRK DUK BUK A9K
D6K D5K F9K JKK JLK)
41A4903 1
Speaker Brick - Hong Kong, EMEA (models ANG B1G APG BWH DKG A9G D6G D5G
F7G JFG JMG)
89P8573 1
Speaker Brick - Taiwan (models BBV A9V A6V A5V A9V A5V A6V ) 41A4905 1
Speaker Power brick - India, South Africa (models B2Q B6Q BBQ B3Q B4Q B8Q DAQ
DBQ DCQ DDQ DEQ DLQ B5Q B9Q DFQ DGQ DRQ DUQ BUQ BTQ BVQ A9Q D6Q
D5Q F8Q F9Q JKQ JLQ)
89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9481 Line Cords FRU# CRU
Line cord - US (models ARS ATS AUS AVS ARD ATD AUD AVD AWS AWD ASS ASD
A1U A1F A2U A2F A6U A6F A7U A7F BAU BAF A5U A5F A3U A3F A4U A4F A8U A8F
B2A B2T B6A B6T BBA BBT B3A B2T B2T B6T BBT B3T DAT DBT DDT DLT DFT DGT
DRT DUT BUT BTT BVT A9T D6T D5T B3A DAA DBA DDA DLA B5A B7A B9A DFA
DGA DRA DSA DTA DUA BUA BTA BVA A9A D6A D5A A9D D6D D5D A9S D6S D5S
A9L D6L D5L A9U D6U D5U A9F D6F D5F E8S F8A F9A F8T F9T F2U F2F F1S F1D F4S
F3S F4D J1U J1F J2U J2F J3U J3F J4U J4F J5U J5F J6U J6F J7U J7F J8S J9S JBS J9D JBD JCU
JCF JDU JDF JGS JHS JJS JKA JKT JLA JLT JPS JQS JRS)
41R3184 1
Line cord - US (models ARS ATS AUS AVS ARD ATD AUD AVD AWS AWD ASS ASD
A1U A1F A2U A2F A6U A6F A7U A7F BAU BAF A5U A5F A3U A3F A4U A4F A8U A8F
B2A B2T B6A B6T BBA BBT B3A B2T B2T B6T BBT B3T DAT DBT DDT DLT DFT DGT
DRT DUT BUT BTT BVT A9T D6T D5T B3A DAA DBA DDA DLA B5A B7A B9A DFA
DGA DRA DSA DTA DUA BUA BTA BVA A9A D6A D5A A9D D6D D5D A9S D6S D5S
A9L D6L D5L A9U D6U D5U A9F D6F D5F E8S F8A F9A F8T F9T F2U F2F F1S F1D F4S
F3S F4D J1U J1F J2U J2F J3U J3F J4U J4F J5U J5F J6U J6F J7U J7F J8S J9S JBS J9D JBD JCU
JCF JDU JDF JGS JHS JJS JKA JKT JLA JLT)
41R3185 1
Line cord - China (models A9C D6C D5C F6C ) 41R3256 1
Line cord - China (models A9C D6C D5C F6C ) 41R3257 1
Line cord - Brazil (models ATP AVP BDP BEP BJP BKP BPP BQP BCP BFP BGP BHP BLP
BMP BNP BRP A9P D6P D5P E2P E3P E4P E5P E6P E7P F1P F4P JGP JHP JJP JNP JPP
JQP)
41R3270 1
Line cord - Brazil (models ATP AVP BDP BEP BJP BKP BPP BQP BCP BFP BGP BHP BLP
BMP BNP BRP A9P D6P D5P E2P E3P E4P E5P E6P E7P F1P F4P JGP JHP JJP)
41R3271 1
Line cord - LA High Volt APU (models ARY ATY AUY AVY AWY ASY A9Y D6Y D5Y F3Y
F1Y J8Y J9Y JBY JGY JHY JJY JNY JPY JQY JRY)
41R3176 1
Line Cord - LA High Volt APU (models ARY ATY AUY AVY AWY ASY A9Y D6Y D5Y F3Y
F1Y J8Y J9Y JBY JGY JHY JJY)
41R3177 1
Line Cord - Korea (models DLK DFK DRK DUK BUK A9K D6K D5K F9K JKK JLK) 41R3260 1
Line Cord - Korea (models DLK DFK DRK DUK BUK A9K D6K D5K F9K JKK JLK) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ANG B1G APG DKG B2A
B6A BBA B3A DAA DBA DDA DLA B5A B7A B9A DFA DGA DRA DSA DTA DUA BUA
BTA BVA A9A D6A D5A A9G D6G D5G F8A F9A F7G JFG JKA JLA)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ANG B1G APG DKG B2A
B6A BBA B3A DAA DBA DDA DLA B5A B7A B9A DFA DGA DRA DSA DTA DUA BUA
BTA BVA A9A D6A D5A A9G D6G D5G F8A F9A F7G JFG JKA JLA)
41R3225 1
Line Cord - Taiwan (models A9V D6V D5V ) 41R3278 1
Line Cord - Taiwan (models A9V D6V D5V ) 41R3279 1
482 Hardware Maintenance Manual
9481 Line Cords FRU# CRU
Line Cord - Italy (models ARS ATS AUS AVS ARY ATY AUY AVY A9S D6S D5S A9Y D6Y
D5Y F1S F1Y F3S F3Y F4Y F4S J8S J9S JBS J8Y J9Y JBY JGS JGY JHS JHY JJS JJY JNY JPY
JQY JPS JQS JRS)
41R3232 1
Line Cord - Italy (models ARS ATS AUS AVS ARY ATY AUY AVY A9S D6S D5S A9Y D6Y
D5Y F1S F1Y F3S F3Y F4Y F4S J8S J9S JBS J8Y J9Y JBY JGS JGY JHS JHY JJS JJY)
41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models ANG B1G APG DKG B2A
B6A BBA B3A DAA DBA DDA DLA B5A B7A B9A DFA DGA DRA DSA DTA DUA BUA
BTA BVA A9A D6A D5A A9G D6G D5G F8A F9A F7G JFG JKA JLA)
41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models ANG B1G APG DKG B2A
B6A BBA B3A DAA DBA DDA DLA B5A B7A B9A DFA DGA DRA DSA DTA DUA BUA
BTA BVA A9A D6A D5A A9G D6G D5G F8A F9A F7G JFG JKA JLA)
41R3209 1
Line Cord - Denmark (models ANG B1G APG DKG A9G D6G D5G F7G JFG JMG) 41R3212 1
Line Cord - Denmark (models ANG B1G APG DKG A9G D6G D5G F7G JFG JMG ) 41R3213 1
Line Cord - Switzerland (models ANG B1G APG DKG A9G D6G D5G F7G JFG JMG) 41R3228 1
Line Cord - Switzerland (models ANG B1G APG DKG A9G D6G D5G F7G JFG JMG) 41R3229 1
Line Cord - Israel (models ANG B1G APG DKG A9G D6G D5G F7G JFG JMG) 41R3236 1
Line Cord - Israel (models ANG B1G APG DKG A9G D6G D5G F7G JFG JMG) 41R3237 1
Line Cord - South Africa (models ANG B1G APG B6M BBM DKG B2A B6A BBA B3A
DAA DBA DDA DLA B5A B7A B9A DFA DGA DRA DSA DTA DUA BUA BTA BVA A9A
D6A D5A A9G D6G D5G F8A F9A F7G JFG JKA JLA JKM JLM JMG)
41R3220 1
Line Cord - South Africa (models ANG B1G APG B6M BBM DKG B2A B6A BBA B3A
DAA DBA DDA DLA B5A B7A B9A DFA DGA DRA DSA DTA DUA BUA BTA BVA A9A
D6A D5A A9G D6G D5G F8A F9A F7G JFG JKA JLA JKM JLM JMG)
41R3221 1
Line Cord - India (models B2Q B6Q BBQ B3Q B4Q B8Q DAQ DBQ DCQ DDQ DEQ DLQ
B5Q B9Q DFQ DGQ DRQ DUQ BUQ BTQ BVQ A9Q D6Q D5Q F8Q F9Q JKQ JLQ)
41R3341 1
Line Cord - India (models B2Q B6Q BBQ B3Q B4Q B8Q DAQ DBQ DCQ DDQ DEQ DLQ
B5Q B9Q DFQ DGQ DRQ DUQ BUQ BTQ BVQ A9Q D6Q D5Q F8Q F9Q JKQ JLQ)
41R3175 1
Line Cord - Japan (models DLJ DFJ DGJ DRJ DVJ DWJ D3J D4J DSJ DTJ DUJ DMJ DNJ
DPJ DQJ BUJ BTJ A9J D6J D5J F9J H1J JKJ JLJ)
41R3248 1
Line Cord - Japan (models DLJ DFJ DGJ DRJ DVJ DWJ D3J D4J DSJ DTJ DUJ DMJ DNJ
DPJ DQJ BUJ BTJ A9J D6J D5J F9J H1J JKJ JLJ)
41R3249 1
Line Cord - ANZ (models DLM B7M DFM DGM DRM DSM DTM DUM BSM BUM BTM
BVM A9M D6M D5M F9M H1M JLM JKM)
41R3196 1
Line Cord - ANZ (models DLM B7M DFM DGM DRM DSM DTM DUM BSM BUM BTM
BVM A9M D6M D5M F9M H1M JLM JKM)
41R3197 1
Line Cord - Hong Kong (models A9B D6B D5H A9H D6H D5H) 41R3224 1
Line Cord - Hong Kong (models A9B D6B D5H A9H D6H D5H) 41R3225 1
9481 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
Chapter 11. FRU lists 483
9481 Windows XP Home Recovery CDs FRU# CRU
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korea (models) TBD 1
9481 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models A1U A2U A6U A7U BAU B2M B2Q B6M B6Q BWH BBM BBQ
B2A B6A DGM DGA DGQ DSM DSA BTM BTA BTQ BVM BVA BVQ J1U J2U J3U J4U J5U
J6U J7U JKM JKA JKQ)
45R0756 1
FR/CF (models A1F A2F A6F A7F BAF J1F J2FJ3F J4F J5F J6F J7F ) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models BDP BEP BJP BKP BPP BQP J8P J9P JBP JGP JHP) 45R0763 1
SP/LA (models AWS AWD AWY ASS ASD ASY J8S J8Y J9S J9D J9Y JGS JGY JHS JHY) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
484 Hardware Maintenance Manual
9481 Windows XP Pro Recovery CDs FRU# CRU
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models D1J D2J D4J DMJ DNJ DGJ D4J DMJ DNJ DPJ DQJ BTJ JKJ) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models BBV) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korea (models JKK) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9481 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models F1S F1D F1Y) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models A5P F1P) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
Chapter 11. FRU lists 485
9481 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models ACA AEM AEA AGM ANG B1G APG DKG A5U A3U A4U A8U A9U
B3M B3Q B4A B4Q B8A B8Q DAM DAQ DBM DBQ DCA DCQ DDM DDQ DEA DEQ
DHM DJM BBA B3A DAA DBA DDA DLM DLA DLQ B7M B7A DFM DFA DFQ DRM
DRA DRQ DTM DTA DUM DUA DUQ BSM BUM BUA BUQ A9M A9A A9Q A9U A9G
A9H A9R A9E D5U D5G D5M D5A D5Q D5H D5R D5E D6U D6G D6M D6A D6Q D6H
D6R D6E D5U D5G D5M D5A D5Q D5H D5R D5E F9M F9A F9Q H1M F2U F7G JLA JLQ
JCU JDU JFG JMG)
46R7287 1
Japanese (models AFJ AGJ B3J DAJ DBJ DLJ DFJ DRJ DVJ DWJ D3J DTJ DUJ BUJ H1J) 46R7288 1
Simplified Chinese (models A9C D5C D6C) 46R7289 1
French (models ANG B1G APG DKG A5F A3F A4F A8F A9F D5F D6F F2F JCF JDF JMG) 46R7290 1
German (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 46R7291 1
Spanish (models ANG B1G APG ATS ATD ATY AUS AUD AUY DKG A9G D5G D6G A9S
D5S D6S A9D D5D D6D A9Y D5Y D6Y E8S F7G F3S F3D F3Y F4S F4D F4Y F5S F5D F5Y
JBS JBD JBY)
46R7292 1
Italian (models ANG B1G APG DKG A9G D5G D6G F7G JFG JPS JPY JQS JQY JRS JRY) 46R7293 1
Brazilian Portuguese (models JPP JQP) 46R7294 1
Danish (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 46R7295 1
Swedish (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9786 1
Finland (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9787 1
Dutch (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9788 1
Traditional Chinese (models AMV A9V D5V D6V) 46R7296 1
Hong Kong (models AMV A9V D5V D6V) 46R7297 1
Norwegian (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 46R7298 1
Korean (models B3K DAK DLK DFK DRK DUK BUK A9K D5K D6K JLK) 45R9792 1
Slovenian (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9793 1
Greek (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9794 1
Russian (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 46R7299 1
Portuguese (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9796 1
Turkish (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9797 1
Czech (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9798 1
Polish (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9799 1
Russian English (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9802 1
Romanian (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9803 1
Hungarian (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9804 1
Slovakian (models ANG B1G APG DKG A9G D5G D6G F7G JFG JMG) 45R9805 1
Serbian-Latin (models) 45R9806 1
9481 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
486 Hardware Maintenance Manual
9481 Vista VHP SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9481 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Chapter 11. FRU lists 487
9481 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9481 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
488 Hardware Maintenance Manual
9481 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9481 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 489
Machine Type 9482
Item # 9482 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models AAU AAF ABU ABF
ACU ACF ADU ADF AEU AEF AFU AFF AGU AGF AHS AHP AHY BBS BBD
BBY BCS BCD BCY DDS DDD DDY DES DGS DGD DGY BRS BTM BTA BTQ BTT
BTJ DLM DLA DLQ DLJ E3M E3A E3Q E3T E3J DKA DKQ DNM DNA DNQ
DNT DNK DNJ DPA DPQ EDJ EFJ BSM BUM BUA BUQ BUJ D6M EHJ EDJ EFJ
EGJ ADU AEU AFU AGU )
40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models ARV AKM AKJ ALM
ALJ AJS AJY AQC B7G B8G B9G AUU AUF AVU AVF AWU AWF B1U B1F B2U
B2F B3U B3F B4U B4F B5U B5F B6U B6F BDS BDP BDD BDY BES BED BEY BFS
BFD BFY BGU BGF BHU BHF BJU BJF BKU BKF BNU BNF BPU BPF DAU DAF
DFS DFD DFY BVM BVA BVQ BVT BVJ DMM DMA DMQ DMT DMK DMJ EBM
ECM EKJ ELJ E5M D4H D5H DCV EWG DBU DBF DHS DHD DHY BQS BQD
BQY BWM BWA BWQ BWT BWK BWJ DJA DJQ DQM DQA DQQ DQT DQJ
DRM DRA DRJ DTM DTA DTQ DTT DTJ D2M D2A D2Q D2T D2J D3A D3Q
D7M DUM DUA DUQ DUT DVA DVQ D9M EAM E6M E6A E6Q E6T E6J EJJ
FLU FLF DTM DTA DTQ DTT DTJ DUM DUA DUQ DUT D2M D2A D2Q D2T
D2J E2M E2A E2Q E2T E2J E8M E8A E8Q E8T E8K E8J EJJ BLU BLF BMU BMF
F9U F9F F9S F9P F9L F9D F9Y F9G F9M F9A F9Q F9T F9C F9B F9H F9V F9K F9R
F9E F9J FAU FAF FAS FAP FAL FAD FAY FAG FAM FAQ FAT FAC FAB FAH FAV
FAK FAR FAE FAJ FLU FLF F8A F8Q F8T H2M H2A H2Q H2T H2K H2J H6A
H6Q H6T H1U H1F F9U H9F F5G F4S F4P F4Y HDB HDH HRM HRA HRQ HRT
HRK HRJ HUM HUA HUQ HUT HUK HUJ HVM HVA HVQ HVT HVK HVJ
HPM HPA HPQ HPT HPK HPJ HQM HQA HQQ HQT HQK HQJ HBU HBF
HCU HCF HJU HJF HKU HKF HLU HLF HKU HKF HLU HLF HFU HFF HGU
HGF HHU HHF HMS HMD HMY HNS HNY D5M D5A D5Q D5T D5K D5J B8U
B8F J5M J5A J5Q J5T J5K J5J J6M J6A J6Q J6T J6K J6J H8U H8F H9U H9F J1U J2S
J2P J2Y J4S J4Y J3S J3Y J9M J9A J9J JBM JBA JBT JBJ JCA JCQ JCT JDM JDA JDQ
JDT JDK JDJ JFM JFA JFQ JFT JFK JFJ JGM JGA JGQ JGT JGK JGJ J8G JHS JHY
JKS JKY FHS FHD FHY FJS FJD FJY)
40Y9035 2
490 Hardware Maintenance Manual
Item # 9482 FRUs FRU# CRU
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models ASK ATK AMM AMJ
ANM ANJ APM D8M EUJ ERJ ESJ ETJ E4M H3M H3A H3K H3J H5M)
87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models ARV
AKM AKJ ALM ALJ AAU AAF ABU ABF ADU ADF AHS AHP AHY AQC AUU
AUF AVU AVF B1U B1F B6U B6F BBS BBD BBY BGU BGF BKU BKF BPU BPF
DLM DLA DLQ DLJ EBM ECM EKJ EMJ E5M E3M E3A E3Q E3T E3J D4H DCV
DKA DKQ DPA DPQ DQM DQA DQQ DQT DQJ DRM DRA DRJ D7M EPJ E6M
E6A E6Q E6T E6J EDJ EJJ BSM D6M ERJ DTM DTA DTQ DTT DTJ EDJ EGJ EJJ
ADU F8A F8Q F8T F6C HDB HDH HPM HPA HPQ HPT HPK HPJ HQM HQA
HQQ HQT HQK HQJ HJU HJF HKU HKF HGU HGF HHU HHF HMS HMD
HMY H7H H8U H8F J9M J9A J9J JBM JBA JBT JBJ JCA JCQ JCT JDM JDA JDQ
JDT JDK JDJ JFM JFA JFQ JFT JFK JFJ)
41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models ASK ATK ACU ACF AEU AEF AFU AFF AJS AJY B7G AWU
AWF B2U B2F B3U B3F B4U B4F B5U B5FBDS BDP BDD BDY BFS BFD BFY BHU
BHF BJU BJF BNU BNF BCS BCD BCY DAU DAF DDS DDD DDY DES DFS DFD
DFY DGS DGD DGY BRS DBU DBF DHS DHD DHY FLU FLF BLU BLF BMU
BMF F9U F9F F9S F9P F9L F9D F9Y F9G F9M F9A F9Q F9T F9C F9B F9H F9V
F9K F9R F9E F9J FAU FAF FAS FAP FAL FAD FAY FAG FAM FAQ FAT FAC FAB
FAH FAV FAK FAR FAE FAJ FLU FLF AEU AFU)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models AMM
AMJ ANM ANJ APM AGU AGF B8G B9G BAU BAF BES BED BEY BTT BTJ BVM
BVA BVQ BVT BVJ DMM DMA DMQ DMT DMK DMJ ELJ ENJ D5H EVG EWG
BQS BQD BQY BWM BWA BWQ BWT BWK BWJ DJA DJQ DNM DNA DNQ
DNT DNK DNJ DSM DSA DSQ DST DSJ DTM DTA DTQ DTT DTJ DUM DUA
DUQ DUT DVA DVQ DWM DWA DWQ DWT D2M D2A D2Q D2T D2J D3A D3Q
D8M D9M EAM EQJ EUJ E7M E7A E7Q E7T E7K E7J EFJ DSM DSA DSQ DST
DSJ DTM DTA DTQ DTT DTJ DUM DUA DUQ DUT DWM DWA DWQ DWT
D2M D2A D2Q D2T D2J BUM BUA BUQ BUJ ESJ E4M E2M E2A E2Q E2T E2J
E8M E8A E8Q E8T E8K E8J EFJ FBU FBF FBS FBP FBL FBD FBY FBG FBM FBQ
FBT FBC FBB FBH FBV FBK FBR FBE FBJ AGU H2M H2A H2Q H2T H2K H2J
H3M H3A H3K H3J H6A H6Q H6T H1U H1F F9U H9F F5G F1S F1P F1Y F4S F4P
HRM HRA HRQ HRT HRK HRJ HSM HSA HSK HSJ HUM HUA HUQ HUT
HUK HUJ HVM HVA HVQ HVT HVK HVJ HBU HBF HCU HCF HLU HLF HFU
HFF HNS HNY D5M D5A D5Q D5T D5K D5J B8U B8F J5M J5A J5Q J5T J5K J5J
J6M J6A J6Q J6T J6K J6J H9U H9F J1U J2S J2P J2Y J4S J4Y J3S J3Y JGM JGA JGQ
JGT JGK JGJ J8G JHS JHY JJS JKS JKY FHS FHD FHY FJS FJD FJY)
43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T (models
AUU AUF DDD DDY)
43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T(models
AKM AKJ AAU AAF B7G BBS BBD BBY BTM BTA BTQ BTT BTJ EDJ EFJ BSM
BUM BUA BUQ BUJ D6M EHJ E2M E2A E2Q E2T E2J EDJ EFJ EGJ )
43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T (models
J9M J9A J9J JBM JBA JBT JBJ JKS JKY)
43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models ALJ ABU ABF ACU ACF AHS AHP AHY AVU AVF AWU AWF
BGU BGF BHU BHF BCS BCD BCY BVM BVA BVQ BVT BVJ EBM E3M E3A E3Q
E3T E3J BWM BWA BWQ BWT BWK BWJ DJA DJQ DKA DKQ)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
Chapter 11. FRU lists 491
Item # 9482 FRUs FRU# CRU
5 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
5 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
5 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
5 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
5 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO FHS FHD FHY)
45C5282 N
5 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
5 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
5 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
5 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
5 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
5 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
5 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
5 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
5 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
5 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
5 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
5 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
5 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
5 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
5 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
5 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
5 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
5 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
5 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO JCA JCQ JCT JDM JDA JDQ JDT JDK JDJ JFM
JFA JFQ JFT JFK JFJ JGM JGA JGQ JGT JGK JGJ J8G JHS JHY JJS)
45R8341 N
5 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
492 Hardware Maintenance Manual
Item # 9482 FRUs FRU# CRU
5 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
6 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models AKM AKJ
AQC BCS BCD BCY DDS DDD DDY DES DFS DFD DFY DGS DGD DGY BRS
DLM DLA DLQ DLJ E3Q E3T E3J DRM DRA DRJ EDJ EFJ BSM D6M EDJ EFJ)
41X4255 2
6 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models ARV ASK ATK
ALM ALJ AMM AMJ ANM ANJ APM AAU AAF ABU ABF ACU ACF ADU ADF
AEU AEF AFU AFF AGU AGF AHS AHP AHY AJS AJY B7G B8G B9G AUU AUF
AVU AVF AWU AWF B1U B1F B2U B2F B3U B3F B4U B4F B5U B5F B6U B6F BBS
BBD BBY BDS BDP BDD BDY BES BED BEY BFS BFD BFY BGU BGF BHU BHF
BJU BJF BKU BKF BNU BNF BPU BPF DAU DAF BTM BTA BTQ BTT BTJ BVM
BVA BVQ BVT BVJ DMM DMA DMQ DMT DMK DMJ EBM ECM EKJ ELJ EMJ
ENJ E5M E3M E3A E3Q E3T E3J D4H D5H D4H D5H DCV EVG EWG DBU DBF
DHS DHD DHY BQS BQD BQY BWM BWA BWQ BWT BWK BWJ DJA DJQ DKA
DKQ DNM DNA DNQ DNT DNK DNJ DPA DPQ DQM DQA DQQ DQT DQJ
DTM DTA DTQ DTT DTJ DUM DUA DUQ DUT DVA DVQ D2M D2A D2Q D2T
D2J D3A D3Q D7M D8M D9M EAM EPJ EQJ EUJ E6M E6A E6Q E6T E6J EJJ FLU
FLF DTM DTA DTQ DTT DTJ DUM DUA DUQ DUT D2A D2Q D2T D2J BUM
BUA BUQ BUJ EHJ ERJ ESJ ETJ E4M E2M E2A E2Q E2T E2J E8M E8A E8Q E8T
E8K E8J EGJ EJJ BLU BLF BMU BMF F9U F9F F9S F9P F9L F9D F9Y F9G F9M
F9A F9Q F9T F9C F9B F9H F9V F9K F9R F9E F9J FAU FAF FAS FAP FAL FAD
FAY FAG FAM FAQ FAT FAC FAB FAH FAV FAK FAR FAE FAJ FBU FBF FAS
FBP FBL FBD FBY FBG FBM FBQ FBT FBC FBB FBH FBV FBK FBR FBE FBJ FLU
FLF ADU AEU AFU AGU F8A F8Q F8T H2M H2A H2Q H2T H2K H2J H1U H1F
F9U H9F F5G F4S F4P F4Y F6C HDB HDH HRM HRA HRQ HRT HRK HRJ HUM
HUA HUQ HUT HUK HUJ HVM HVA HVQ HVT HVK HVJ HPM HPA HPQ
HPT HPK HPJ HQM HQA HQQ HQT HQK HQJ HBU HBF HCU HCF HJU HJF
HKU HKF HFU HFF HMS HMD HMY HNS HNY D5M D5A D5Q D5T D5K D5J
B8U B8F H7H J5M J5A J5Q J5T J5K J5J J6M J6A J6Q J6T J6K J6J H8U H8F H9U
H9F J2S J2P J2Y J4S J4Y J3S J3Y J9M J9A J9J JBM JBA JBT JBJ JCA JCQ JCT JDM
JDA JDQ JDT JDK JDJ JFM JFA JFQ JFT JFK JFJ JGM JGA JGQ JGT JGK JGJ J8G
JHS JHY JJS JKS JKY FHS FHD FHY FJS FJD FJY)
41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models DSM DSA DSQ
DST DSJ DWM DWA DWQ E7M E7A E7Q E7T E7K E7J DSM DSA DSQ DST DSJ
DWM DWA DWQ DWT H3M H3A H3K H3J H4Q H4T H4K H4J HSM HSA HSK
HSJ HLU HLF HGU HGF HHU HHF J1U)
41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
Chapter 11. FRU lists 493
Item # 9482 FRUs FRU# CRU
7 System board, Intel G31 nano-BTX GA Level (models ARV ASK ATK AKM AKJ
ALM ALJ AMM AMJ ANM ANJ APM AAU AAF ABU ABF ACU ACF ADU ADF
AEU AEF AFU AFF AGU AGF AHS AHP AHY AJS AJY AQC B7G B8G B9G AUU
AUF AVU AVF AWU AWF B1U B1F B2U B2F B3U B3F B4U B4F B5U B5F B6U B6F
BBS BBD BBY BDS BDP BDD BDY BES BED BEY BFS BFD BFY BGU BGF BHU
BHF BJU BJF BKU BKF BNU BNF BPU BPF BCS BCD BCY DAU DAF DDS DDD
DDY DES DFS DFD DFY DGS DGD DGY BRS BTM BTA BTQ BTT BTJ BVM BVA
BVQ BVT BVJ DLM DLA DLQ DLJ DMM DMA DMQ DMT DMK DMJ EBM
ECM EKJ ELJ EMJ ENJ E5M E3M E3A E3Q E3T E3J D4H D5H DCV EVG EWG
DBU DBF DHS DHD DHY BQS BQD BQY BWM BWA BWQ BWT BWK BWJ DJA
DJQ DKA DKQ DNM DNA DNQ DNT DNK DNJ DPA DPQ DQM DQA DQQ
DQT DQJ DRM DRA DRJ DSM DSA DSQ DST DSJ DTM DTA DTQ DTT DTJ
DUM DUA DUQ DUT DVA DVQ DWM DWA DWQ DWT D2M D2A D2Q D2T
D2J D3A D3Q D7M D8M D9M EAM EPJ EQJ EUJ E6M E6A E6Q E6T E6J E7M
E7A E7Q E7T E7K E7J EDJ EFJ EJJ FLU FLF DSK DTK DUK DWK D2K BSM BUM
BUA BUQ BUJ D6M EHJ ERJ ESJ ETJ E4M E2M E2A E2Q E2T E2J E8M E8A E8Q
E8T E8K E8J EDJ EFJ EGJ EJJ BLU BLF BMU BMF F9U F9F F9S F9P F9L F9D F9Y
F9G F9M F9A F9Q F9T F9C F9B F9H F9V F9K F9R F9E F9J FAU FAF FAS FAP
FAL FAD FAY FAG FAM FAQ FAT FAC FAB FAH FAV FAK FAR FAE FAJ FBU
FBF FAS FBP FBL FBD FBY FBG FBM FBQ FBT FBC FBB FBH FBV FBK FBR FBE
FBJ FLU FLF ADU AEU AFU AGU F8A F8Q F8T H2M H2A H2Q H2T H2K H2J
H3M H3A H3K H3J H6A H6Q H6T H1U H1F F9U H9F F5G F4S F4P F4Y F6C
HDB HDH HRM HRA HRQ HRT HRK HRJ HSM HSA MSK MSJ HUM HUA
HUQ HUT HUK HUJ HVM HVA HVQ HVT HVK HVJ HPM HPA HPQ HPT
HPK HPJ HQM HQA HQQ HQT HQK HQJ HBU HBF HCU HCF HJU HJF HKU
HKF HLU HLF HKU HKF HLU HLF HFU HFF HGU HGF HHU HHF HMS
HMD HMY HNS HNY D5M D5A D5Q D5T D5K D5J B8U B8F H7H J5M J5A J5Q
J5T J5K J5J J6M J6A J6Q J6T J6K J6J H8U H8F H9U H9F J1U J2S J2P J2Y J4S J4Y
J3S J3Y J9M J9A J9J JBM JBA JBT JBJ JCA JCQ JCT JDM JDA JDQ JDT JDK JDJ JFM
JFA JFQ JFT JFK JFJ JGM JGA JGQ JGT JGK JGJ J8G JHS JHY JJS JKS JKY FHS
FHD FHY FJS FJD FJY)
53Y5125 N
494 Hardware Maintenance Manual
Item # 9482 FRUs FRU# CRU
8 Power supply,280W Active PFC power supply for 10L---all countries (models ARV
ASK ATK AKM AKJ ALM ALJ AMM AMJ ANM ANJ APM AAU AAF ABU ABF
ACU ACF ADU ADF AEU AEF AFU AFF AGU AGF AHS AHP AHY AJS AJY
AQC B7G B8G B9G AUU AUF AVU AVF AWU AWF B1U B1F B2U B2F B3U B3F
B4U B4F B5U B5F B6U B6F BBS BBD BBY BDS BDP BDD BDY BES BED BEY BFS
BFD BFY BGU BGF BHU BHF BJU BJF BKU BKF BNU BNF BPU BPF BCS BCD
BCY DAU DAF DDS DDD DDY DES DFS DFD DFY DGS DGD DGY BRS BTM
BTA BTQ BTT BTJ BVM BVA BVQ BVT BVJ DLM DLA DLQ DLJ DMM DMA
DMQ DMT DMK DMJ EBM ECM EKJ ELJ EMJ ENJ E5M E3M E3A E3Q E3T E3J
D4H D5H DCV EVG EWG DBU DBF DHS DHD DHY BQS BQD BQY BWM BWA
BWQ BWT BWK BWJ DJA DJQ DKA DKQ DNM DNA DNQ DNT DNK DNJ
DPA DPQ DQM DQA DQQ DQT DQJ DRM DRA DRJ DSM DSA DSQ DST DSJ
DTM DTA DTQ DTT DTJ DUM DUA DUQ DUT DVA DVQ DWM DWA DWQ
DWT D2M D2A D2Q D2T D2J D3A D3Q D7M D8M D9M EAM EPJ EQJ EUJ E6M
E6A E6Q E6T E6J E7M E7A E7Q E7T E7K E7J EDJ EFJ EJJ FLU FLF DSM DSA
DSQ DST DSJ DTM DTA DTQ DTT DTJ DUM DUA DUQ DUT DVA DVQ DWM
DWA DWQ DWT D2M D2A D2Q D2T D2J D3A D3Q D7M D8M D9M EAM EPJ
EQJ EUJ E6M E6A E6Q E6T E6J E7M E7A E7Q E7T E7K E7J EDJ EFJ EJJ FLU FLF
DSK DTK DUK DWK D2K BSM BUM BUA BUQ BUJ D6M EHJ ERJ ESJ ETJ E4M
E2M E2A E2Q E2T E2J E8M E8A E8Q E8T E8K E8J EDJ EFJ EGJ EJJ BLU BLF
BMU BMF F9U F9F F9S F9P F9L F9D F9Y F9G F9M F9A F9Q F9T F9C F9B F9H
F9V F9K F9R F9E F9J FAU FAF FAS FAP FAL FAD FAY FAG FAM FAQ FAT FAC
FAB FAH FAV FAK FAR FAE FAJ FBU FBF FAS FBP FBL FBD FBY FBG FBM FBQ
FBT FBC FBB FBH FBV FBK FBR FBE FBJ FLU FLF ADU AEU AFU AGU F8A
F8Q F8T H2M H2A H2Q H2T H2K H2J H3M H3A H3K H3J H6A H6Q H6T H1U
H1F F9U H9F F5GF4S F4P F4Y F6C HDB HDH HRM HRA HRQ HRT HRK HRJ
HSM HSA MSK MSJ HUM HUA HUQ HUT HUK HUJ HVM HVA HVQ HVT
HVK HVJ HPM HPA HPQ HPT HPK HPJ HQM HQA HQQ HQT HQK HQJ HBU
HBF HCU HCF HJU HJF HKU HKF HLU HLF HKU HKF HLU HLF HFU HFF
HGU HGF HHU HHF HMS HMD HMY HNS HNY D5M D5A D5Q D5T D5K D5J
B8U B8F H7H J5M J5A J5Q J5T J5K J5J J6M J6A J6Q J6T J6K J6J H8U H8F H9U
H9F J1U J2S J2P J2Y J4S J4Y J3S J3Y J9M J9A J9J JBM JBA JBT JBJ JCA JCQ JCT
JDM JDA JDQ JDT JDK JDJ JFM JFA JFQ JFT JFK JFJ JGM JGA JGQ JGT JGK JGJ
J8G JHS JHY JJS JKS JKY FHS FHD FHY FJS FJD FJY)
41A9701 2
Chapter 11. FRU lists 495
Item # 9482 FRUs FRU# CRU
8 Power supply,280W 80+ power supply for 10L---all countries (models ARV ASK
ATK AKM AKJ ALM ALJ AMM AMJ ANM ANJ APM AAU AAF ABU ABF ACU
ACF ADU ADF AEU AEF AFU AFF AGU AGF AHS AHP AHY AJS AJY AQC
B7G B8G B9G AUU AUF AVU AVF AWU AWF B1U B1F B2U B2F B3U B3F B4U
B4F B5U B5F B6U B6F BBS BBD BBY BDS BDP BDD BDY BES BED BEY BFS BFD
BFY BGU BGF BHU BHF BJU BJF BKU BKF BNU BNF BPU BPF BCS BCD BCY
DAU DAF DDS DDD DDY DES DFS DFD DFY DGS DGD DGY BRS BTM BTA
BTQ BTT BTJ BVM BVA BVQ BVT BVJ DLM DLA DLQ DLJ DMM DMA DMQ
DMT DMK DMJ EBM ECM EKJ ELJ EMJ ENJ E5M E3M E3A E3Q E3T E3J D4H
D5H DCV EVG EWG DBU DBF DHS DHD DHY BQS BQD BQY BWM BWA
BWQ BWT BWK BWJ DJA DJQ DKA DKQ DNM DNA DNQ DNT DNK DNJ
DPA DPQ DQM DQA DQQ DQT DQJ DRM DRA DRJ DSM DSA DSQ DST DSJ
DTM DTA DTQ DTT DTJ DUM DUA DUQ DUT DVA DVQ DWM DWA DWQ
DWT D2M D2A D2Q D2T D2J D3A D3Q D7M D8M D9M EAM EPJ EQJ EUJ E6M
E6A E6Q E6T E6J E7M E7A E7Q E7T E7K E7J EDJ EFJ EJJ FLU FLF DSM DSA
DSQ DST DSJ DTM DTA DTQ DTT DTJ DUM DUA DUQ DUT DVA DVQ DWM
DWA DWQ DWT D2M D2A D2Q D2T D2J D3A D3Q D7M D8M D9M EAM EPJ
EQJ EUJ E6M E6A E6Q E6T E6J E7M E7A E7Q E7T E7K E7J EDJ EFJ EJJ FLU FLF
DSK DTK DUK DWK D2K BSM BUM BUA BUQ BUJ D6M EHJ ERJ ESJ ETJ E4M
E2M E2A E2Q E2T E2J E8M E8A E8Q E8T E8K E8J EDJ EFJ EGJ EJJ BLU BLF
BMU BMF F9U F9F F9S F9P F9L F9D F9Y F9G F9M F9A F9Q F9T F9C F9B F9H
F9V F9K F9R F9E F9J FAU FAF FAS FAP FAL FAD FAY FAG FAM FAQ FAT FAC
FAB FAH FAV FAK FAR FAE FAJ FBU FBF FAS FBP FBL FBD FBY FBG FBM FBQ
FBT FBC FBB FBH FBV FBK FBR FBE FBJ FLU FLF ADU AEU AFU AGU F8A
F8Q F8T H2M H2A H2Q H2T H2K H2J H3M H3A H3K H3J H6A H6Q H6T H1U
H1F F9U H9F F5GF4S F4P F4Y F6C HDB HDH HRM HRA HRQ HRT HRK HRJ
HSM HSA MSK MSJ HUM HUA HUQ HUT HUK HUJ HVM HVA HVQ HVT
HVK HVJ HPM HPA HPQ HPT HPK HPJ HQM HQA HQQ HQT HQK HQJ HBU
HBF HCU HCF HJU HJF HKU HKF HLU HLF HKU HKF HLU HLF HFU HFF
HGU HGF HHU HHF HMS HMD HMY HNS HNY D5M D5A D5Q D5T D5K D5J
B8U B8F H7H J5M J5A J5Q J5T J5K J5J J6M J6A J6Q J6T J6K J6J H8U H8F H9U
H9F J1U J2S J2P J2Y J4S J4Y J3S J3Y J9M J9A J9J JBM JBA JBT JBJ JCA JCQ JCT
JDM JDA JDQ JDT JDK JDJ JFM JFA JFQ JFT JFK JFJ JGM JGA JGQ JGT JGK JGJ
J8G JHS JHY JJS JKS JKY)
41A9717 2
The FRUs listed in the following tables are not illustrated.
9482 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
System Fan (all models) 41R6042 2
System Fan assembly (all models) 41R6249 2
Floor Stand and Vertical Deflector (all models) 41R6251 1
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
496 Hardware Maintenance Manual
9482 FRUs FRU# CRU
Top cover assembly (all models) 41R6257 2
Rell IO shield BTX atlantic (all models) 41R6381 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
C2 Intrusion Switch (all models) 39K5022 2
Chassis Atlantic (all models) 41R6275 N
10L FRONT I/O CABLE (all models) 43N9015 2
Cabel-SATA 700mm (RoHS) (all models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (all models) 43N9361 2
ODD mounting kit, 607AT (all models) 43N9362 2
Cardreader Bezel Kit (all models) 43N9363 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models ARV ASK ATK AKM AKJ
ALM ALJ AMM AMJ ANM ANJ APM AAU AAF ABU ABF ACU ACF ADU ADF AEU
AEF AFU AFF AGU AGF AHS AHP AHY AJS AJY AQC B7G B8G B9G AUU AUF AVU
AVF AWU AWF B1U B1F B2U B2F B3U B3F B4U B4F B5U B5F B6U B6F BBS BBD BBY
BDS BDP BDD BDY BES BED BEY BFS BFD BFY BGU BGF BHU BHF BJU BJF BKU BKF
BNU BNF BPU BPF BCS BCD BCY DAU DAF DDS DDD DDY DES DFS DFD DFY DGS
DGD DGY BRS BTM BTA BTQ BTT BTJ BVM BVA BVQ BVT BVJ DLM DLA DLQ DLJ
DMM DMA DMQ DMT DMK DMJ EBM ECM EKJ ELJ EMJ ENJ E5M E3M E3A E3Q E3T
E3J D4H D5H DCV EVG EWG DBU DBF DHS DHD DHY BQS BQD BQY BWM BWA
BWQ BWT BWK BWJ DJA DJQ DKA DKQ DNM DNA DNQ DNT DNK DNJ DPA DPQ
DQM DQA DQQ DQT DQJ DRM DRA DRJ DSM DSA DSQ DST DSJ DTM DTA DTQ
DTT DTJ DUM DUA DUQ DUT DVA DVQ DWM DWA DWQ DWT D2M D2A D2Q D2T
D2J D3A D3Q D7M D8M D9M EAM EPJ EQJ EUJ E6M E6A E6Q E6T E6J E7M E7A E7Q
E7T E7K E7J EDJ EFJ EJJ FLU FLF DSK DTK DUK DWK D2K BSM BUM BUA BUQ BUJ
D6M EHJ ERJ ESJ ETJ E4M E2M E2A E2Q E2T E2J E8M E8A E8Q E8T E8K E8J EDJ EFJ
EGJ EJJ BLU BLF BMU BMF F9U F9F F9S F9P F9L F9D F9Y F9G F9M F9A F9Q F9T F9C
F9B F9H F9V F9K F9R F9E F9J FAU FAF FAS FAP FAL FAD FAY FAG FAM FAQ FAT FAC
FAB FAH FAV FAK FAR FAE FAJ FBU FBF FAS FBP FBL FBD FBY FBG FBM FBQ FBT
FBC FBB FBH FBV FBK FBR FBE FBJ FLU FLF ADU AEU AFU AGU F8A F8Q F8T H2M
H2A H2Q H2T H2K H2J H3M H3A H3K H3J H6A H6Q H6T H1U H1F F9U H9F F5G F4S
F4P F4Y F6C HDB HDH HRM HRA HRQ HRT HRK HRJ HSM HSA MSK MSJ HUM
HUA HUQ HUT HUK HUJ HVM HVA HVQ HVT HVK HVJ HPM HPA HPQ HPT HPK
HPJ HQM HQA HQQ HQT HQK HQJ HBU HBF HCU HCF HJU HJF HKU HKF HLU
HLF HKU HKF HLU HLF HFU HFF HGU HGF HHU HHF HMS HMD HMY HNS HNY
D5M D5A D5Q D5T D5K D5J B8U B8F H7H J5M J5A J5Q J5T J5K J5J J6M J6A J6Q J6T J6K
J6J H8U H8F H9U H9F J1U J2S J2P J2Y J4S J4Y J3S J3Y J9M J9A J9J JBM JBA JBT JBJ JCA
JCQ JCT JDM JDA JDQ JDT JDK JDJ JFM JFA JFQ JFT JFK JFJ JGM JGA JGQ JGT JGK JGJ
J8G JHS JHY JJS JKS JKY FHS FHD FHY FJS FJD FJY)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
9482 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Chapter 11. FRU lists 497
9482 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
498 Hardware Maintenance Manual
9482 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAU ABU ACU ADU AEU AFU AGU AKM ALM AMM ANM APM
B7G B8G B9G AUU AVU AWU B1U B2U B3U B4U B5U B6U BGU BHU BJU BKU BNU
BPU DAU BTM BTA BTQ BVM BVA BVQ DLM DLA DLQ DMM DMA DMQ EBM ECM
E5M E3M E3A E3Q D4H D5H EVG EWG DBU BWM BWA BWQ DJA DJQ DKA DKQ
DNM DNA DNQ DPA DPQ DQM DQA DQQ DRM DRA DSM DSA DSQ DTM DTA
DTQ DUM DUA DUQ DVA DVQ DWM DWA DWQ D2M D2A D2Q D3A D3Q D7M
D8M D9M EAM E6M E6A E6Q E7M E7A E7Q FLU DSM DSA DSQ DTM DTA DTQ
DUM DUA DUQ VA DVQ DWM DWA DWQ 2M D2A D2Q D3A D3Q D7M D8M D9M
EAM E6M E6A E6Q E7M E7A E7Q FLU BSM BUM BUA BUQ D6M BLU F9U F9G F9M
F9A F9Q F9H F9R F9E FAU FAG FAM FAA FAQ FAH FAR FAE FBU FBG FBM FBA FBQ
FBH FBR FBE FLU ADU AEU AFU AGU F8A F8Q H2M H2A H2Q H3M H3A H6A H6Q
H1U F5G HRM HRA HRQ HSM HSA HUM HUA HUQ HVM HVA HVQ HPM HPA
HPQ HQM HQA HQQ HBU HCU HJU HKU HLU HFU HGU HHU B8U D5M D5A D5Q
H7H J5M J5A J5Q J6M J6A J6Q H8U H9U J1U J9M J9A JBM JBA JCA JCQ JDM JDA JDQ
JFM JFA JFQ JGM JGA JGQ J8G)
41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5291 1
Belgian French (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5292 1
Belgium English (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5293 1
Brazilian Portuguese (models AHP BDP F9P FAP FBP F4P J2P) 41A5294 1
Bulgarian (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5295 1
Chinese/US (models ARV DCV F9V FAV FBV HDB) 41A5296 1
Czech (ABB) (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5297 1
Danish (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5298 1
Dutch (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5299 1
French (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5300 1
French Canadian (models AAF ABF ACF ADF AEF AFF AGF AUF AVF AWF B1F B2F B3F
B4F B5F B6F BGF BHF BJF BKF BNF BPF DAF DBF FLF BLF F9F FAF FBF FLF H1F HBF
HCF HJF HKF HLF HFF HGF HHF B8F H8F H9F)
41A5301 1
French Canadian (models AAF ABF ACF ADF AEF AFF AGF AUF AVF AWF B1F B2F B3F
B4F B5F B6F BGF BHF BJF BKF BNF BPF DAF DBF FLF BLF F9F FAF FBF FLF H1F HBF
HCF HJF HKF HLF HFF HGF HHF B8F H8F H9F)
41A5302 1
German (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5303 1
Greek (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5304 1
Greek/US (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5305 1
Hebrew (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5306 1
Hungarian (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5307 1
Iceland (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5308 1
Italian (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G ) 41A5309 1
Japanese (models AKJ ALJ AMJ ANJ BTJ BVJ DLJ DMJ EKJ ELJ EMJ ENJ E3J BWJ DQJ
DRJ DSJ DTJ D2J EPJ EQJ EUJ E6J E7J EDJ EFJ EJJ DSJ DTJ D2J EPJ EQJ EUJ E6J E7J EDJ
EFJ EJJ BUJ EHJ ERJ ESJ ETJ F9J FAJ FBJ H2J H3J HRJ HSJ HUJ HVJ HPJ HQJ D5J J5J J6J
J9J JBJ JDJ JFJ JGJ)
41A5310 1
Korean (models ASK ATK DMK BWK DNK E7K DSK DTK DUK DWK D2K H2K H3K
HRK HSK HUK HVK HPK HQK D5K J5K J6K JDK JFK JGK)
41A5311 1
Chapter 11. FRU lists 499
9482 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
LA Spanish (models AHS AHY AJS AJY BBS BBD BBY BDS BDD BDY BES BED BEY BFS
BFD BFY BCS BCD BCY DDS DDD DDY DES DFS DFD DFY DGS DGD DGY BRS DHS
DHD DHY BQS BQD BQY F9S F9D F9Y FAS FAD FAY FBS FBD FBY F4Y HMS HMD
HMY HNS HNY J2S J2Y J4S J4Y J3S J3Y JHS JHY JJS JKS JKY FHS FHD FHY FJS FJD FJY)
41A5312 1
Norwegian (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5313 1
Polish (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5314 1
Portuguese (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5315 1
Romanian (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5317 1
Russian/Cyrillic (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5318 1
Serbian/Cyrillic (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5319 1
Slovak (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5320 1
Spanish (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5321 1
Swedish/Finnish (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5322 1
Swiss French/German (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5323 1
Thailand (models BTT BVT E3T BWT DNT DQT DST DTT DUT DWT D2T E6T E7T DST
DTT DUT DWT E6T E7T F9T FAT FBT F8T H2T H4T H5T H6T HRT HUT HVT HPT
HQT D5T J5T J6T JBT JCT JDT JFT JGT)
41A5324 1
Turkish (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5325 1
Turkish (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5326 1
UK English (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5327 1
US Euro (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5328 1
Slovenian (models B7G B8G B9G EVG EWG F9G FAG FBG F5G J8G) 41A5329 1
9482 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
500 Hardware Maintenance Manual
9482 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9482 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Chapter 11. FRU lists 501
9482 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9482 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9482 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
USB Memory Key (models) 43R2296 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
Internal USB Memory Card Reader Slim (models CTO) 45R1885 1
USB Memory Key - 1G RoW (models) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models EVG DRM DRA DRJ D8M D9M HFU HFF) 43C0258 2
502 Hardware Maintenance Manual
9482 Adapters and miscellaneous FRUs FRU# CRU
DVI-I connection Adapter Full Height (models E5M FAU FAF FAS FAP FAL FAD FAY
FAG FAM FAQ FAT FAC FAB FAH FAV FAK FAR FAE FAJ FBU FBF FBS FBP FBL FBD
FBY FBG FBM FBQ FBT FBC FBB FBH FBV FBK FBR FBE FBJ)
39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models AAU ABU ACU
ADU AEU AFU AGU AHS AJS AUU AVU AWU B1U B2U B3U B4U B5U B6U BBS BDS
BES BFS BGU BHU BJU BKU BNU BPU BCS DAU DDS DES DFS DGS BRS DBU DHS
BQS BWA DKADNA DPA DQA DRA DSA DTA DUA DVA DWA D2A D3A E6A E7A FLU
BLU BMU F9U FAU FBU F9S FAS FBS BUA E2A E8A E9A FAA FBA FLU ADU AEU AFU
AGU F8A H2A H3A H6A H1U F4S HBU HCU HJU HKU HLU HFU HGU HHU B8U
HMS HNS HRA HSA HUA HVA HPA HQA D5A J5A J6A H8U H9U J2S J4S J3S J9A JBA
JCA JDA JFA JGA JHS JJS JKS FHS FJS )
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models BBD BDD BED BFD DHD
BQD E9D FAD FBD HMD)
89P8575 1
Speaker Power brick - China, Thailand (models AQC E9C FAC FBC F6C F7C HRT HUT
HVT HPT HQT D5T J5T J6T JBT JCT JDT JFT JGT)
89P8581 1
Speaker Power brick - Japan (models AKJ ALJ AMJ ANJ BTJ BVJ DLJ DMJ EKJ ELJ EMJ
ENJ E3J BWJDNJ DQJ DRJ DSJ DTJ DUJ D2J EPJ EQJ EUJ E6J E7J EDJ EFJ EJJ BUJ EHJ
ERJ ESJ ETJ E2J E8J EDJ EFJ EGJ EJJ E9J FAJ FBJ H2J HRJ HSJ HUJ HVJ HPJ HQJ D5J J5J
J6J J9J JBJ JDJ JFJ JGJ)
89P8577 1
Speaker Power brick - Brazil (models BDP E9P FAP FBP F1P J2P) 89P8583 1
Speaker Power brick - Argentina (models BBY BDY BEY BFY BCY DDY DFY DGY E9Y
FAY FBY F4Y HMY HNY J2Y J4Y J3Y JHY JKY FHD FHY FJD FJY)
41A4901 1
Speaker Power brick - ANZ (models AKM ALM AMM ANM APM AAM BTM BVM DLM
DMM EBM ECM E5M E3M BWM DNM DQM DRM DSM DTM DUM DWM D2M D7M
D8M D9M EAM E6M E7M BSM BUN D6M E4M E2M E8M E9M FAM FBM H2M H3M
HRM HSM HUM HVM HPM HQM D5M J5M J6M J9M JBM JDM JFM JGM)
89P8579 1
Speaker Brick - Korea (models ASK ATK DMK BTK BWK DNK E7K DSK DTK DUK
DWK D2K E9K FAK FBK H2K H3K HRK HSK HUK HVK HPK HQK D5K J5K J6K)
41A4903 1
Speaker Brick - Hong Kong, EMEA (models B7G B8G B9G EVG EWG E9G FAG FBG F5G
HDB HDH H7H)
89P8573 1
Speaker Brick - Taiwan (models E9V FAV FBV) 41A4905 1
Speaker Power brick - India, South Africa (models E9Q FAQ FBQ H2Q H6Q HRQ HUQ
HVQ HPQ HQQ D5Q J5Q J6Q JCQ JDQ JFQ JGQ)
89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9482 Line Cords FRU# CRU
Line cord - US (models AAU ABU ACU ADU AEU AFU AGU AAF ABF ACF ADF AEF
AFF AGF AHS AJS AUU AUF AVU AVF AWU AWF B1U B1F B2U B2F B3U B3F B4U B4F
B5U B5F B6U B6F BBS BDS BES BFS BBD BDD BED BFD BGU BGF BHU BHF BJU BJF
BKU BKF BNU BNF BPU BPF BCS BCD DAU DAF DDS DDD DES DFS DFD DGS DGD
BRS BTA BVA DLA DMA E3A DBU DBF DHS BQS BQD BWA BWT DJA DKA DNA DNT
DPA DQT DRA DSA DST DTT DUA DUT DVA DWA DWT D2A D2T D3A E6A E6T E7A
E7T DTA FLU FLF BLU BLF BMU BMF E9U E9F FAU FAF FBU FBF E9S FAS FBS E9D
FAD FBD E9L FAL FBL E9A FAA FBA E9T FAT FBT FLU FLF ADU AEU AFU AGU F8A
H2A H3A H6A H1U H1F F9U H9F F4S HRA HSA HUA HVA HPA HQA D5A HRT HUT
HVT HPT HQT D5T H8U H9U H8F H9F J2S J4S J3S J5A J6A J5T J6T J9A JBA JCA JDA JFA
JGA JBT JCT JDT JFT JGT FHS FHD FJS FJD)
41R3184 1
Chapter 11. FRU lists 503
9482 Line Cords FRU# CRU
Line cord - US (models AAU ABU ACU ADU AEU AFU AGU AAF ABF ACF ADF AEF
AFF AGF AHS AJS AUU AUF AVU AVF AWU AWF B1U B1F B2U B2F B3U B3F B4U B4F
B5U B5F B6U B6F BBS BDS BES BFS BBD BDD BED BFD BGU BGF BHU BHF BJU BJF
BKU BKF BNU BNF BPU BPF BCS BCD DAU DAF DDS DDD DES DFS DFD DGS DGD
BRS BTA BVA DLA DMA E3A DBU DBF DHS BQS BQD BWA BWT DJA DKA DNA DNT
DPA DQT DRA DSA DST DTT DUA DUT DVA DWA DWT D2A D2T D3A E6A E6T E7A
E7T DTA FLU FLF BLU BLF BMU BMF E9U E9F FAU FAF FBU FBF E9S FAS FBS E9D
FAD FBD E9L FAL FBL E9A FAA FBA E9T FAT FBT FLU FLF ADU AEU AFU AGU F8A
H2A H3A H6A H1U H1F F9U H9F F4S HRA HSA HUA HVA HPA HQA D5A HRT HUT
HVT HPT HQT D5T H8U H9U H8F H9F J2S J4S J3S J5A J6A J5T J6T J9A JBA JCA JDA JFA
JGA JBT JCT JDT JFT JGT FHS FHD FJS FJD)
41R3185 1
Line cord - China (models AQC E9C FAC FBC F6C F7C) 41R3256 1
Line cord - China (models AQC E9C FAC FBC F6C F7C) 41R3257 1
Line cord - Brazil (models AHP BDP E9P FAP FBP F1P F4P J2P) 41R3270 1
Line cord - Brazil (models AHP BDP E9P FAP FBP F1P F4P J2P) 41R3271 1
Line cord - LA High Volt APU (models AHY AJY BBY BDY BEY BFY BCY DDY DFY DGY
DHY BQY E9Y FAY FBY J2Y J4Y J3Y JHY JKY FHY FJY)
41R3176 1
Line Cord - LA High Volt APU (models AHY AJY BBY BDY BEY BFY BCY DDY DFY DGY
DHY BQY E9Y FAY FBY J2Y J4Y J3Y JHY JKY FHY FJY)
41R3177 1
Line Cord - Korea (models ASK ATK BTK BWK DNK E7K DSK DTK DUK DWK D2K
E9K FAK FBK H2K H3K HRK HSK HUK HVK HPK HQK D5K J5K J6K)
41R3260 1
Line Cord - Korea (models ASK ATK BTK BWK DNK E7K DSK DTK DUK DWK D2K
E9K FAK FBK H2K H3K HRK HSK HUK HVK HPK HQK D5K J5K J6K)
41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models B7G B8G B9G EVG EWG
DJA DKA DNA DPA DRA DSA DTA DUA DVA DWA D2A D3A E6A E7A DTA E9A FAA
FBA E9G FAG FBG F8A H2A H3A H6A F5G HRA HSA HUA HVA HPA HQA D5A J5A
J6A)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models B7G B8G B9G EVG EWG
DJA DKA DNA DPA DRA DSA DTA DUA DVA DWA D2A D3A E6A E7A DTA E9A FAA
FBA E9G FAG FBG F8A H2A H3A H6A F5G HRA HSA HUA HVA HPA HQA D5A J5A
J6A)
41R3225 1
Line Cord - Taiwan (models ARV E9V FAV FBV) 41R3278 1
Line Cord - Taiwan (models ARV E9V FAV FBV) 41R3279 1
Line Cord - Italy (models AHS AHY AJS AJY B7G B8G B9G BBS BDS BES BFS BBY BDY
BEY BFY BCY DDY DFY DGY DDS DES DFS DGS BRS EVG EWG E9G FAG FBG E9S FAS
FBS E9Y FAY FBY F4S F5G J4S J3S J2Y J4Y J3Y J8G JHS JHY JJS JKS JKY)
41R3232 1
Line Cord - Italy (models AHS AHY AJS AJY B7G B8G B9G BBS BDS BES BFS BBY BDY
BEY BFY BCY DDY DFY DGY DDS DES DFS DGS BRS EVG EWG E9G FAG FBG E9S FAS
FBS E9Y FAY FBY F4S F5G J4S J3S J2Y J4Y J3Y J8G JHS JHY JJS JKS JKY)
41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models B7G B8G B9G EVG EWG
DJA DKA DNA DPA DRA DSA DTA DUA DVA DWA D2A D3A E6A E7A DTA BUA E2A
E8A E9A FAA FBA E9G FAG FBG F8A H2A H3A H4A H5A H6A HRA HSA HUA HVA
HPA HQA D5A J5A J6A J9A JBA JCA JDA JFA JGA J8G)
41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models B7G B8G B9G EVG EWG
DJA DKA DNA DPA DRA DSA DTA DUA DVA DWA D2A D3A E6A E7A DTA BUA E2A
E8A E9A FAA FBA E9G FAG FBG F8A H2A H3A H4A H5A H6A HRA HSA HUA HVA
HPA HQA D5A J5A J6A J9A JBA JCA JDA JFA JGA J8G)
41R3209 1
Line Cord - Denmark (models B7G B8G B9G EVG EWG E9G FAG FBG F5G J8G) 41R3212 1
Line Cord - Denmark (models B7G B8G B9G EVG EWG E9G FAG FBG F5G J8G) 41R3213 1
Line Cord - Switzerland (models B7G B8G B9G EVG EWG E9G FAG FBG F5G J8G) 41R3228 1
504 Hardware Maintenance Manual
9482 Line Cords FRU# CRU
Line Cord - Switzerland (models B7G B8G B9G EVG EWG E9G FAG FBG F5G J8G) 41R3229 1
Line Cord - Israel (models B7G B8G B9G EVG EWG E9G FAG FBG F5G J8G) 41R3236 1
Line Cord - Israel (models B7G B8G B9G EVG EWG E9G FAG FBG F5G J8G) 41R3237 1
Line Cord - South Africa (models AKM ALM AMM ANM APM B7G B8G B9G BTM BVM
DLM DMM EBM ECM E5M E3M EVG EWG BWM DNM DJA DKA DNA DPA DQM
DRM DSM DTM DUM DWM D2M D7M D8M D9M EAM E6M E6A DRA DSA DTA DUA
DVA DWA D2A D3A E6A E7M E7A DTA E9G FAG FBG BSM BUM D6M E4M E2M E8M
E9M FAM FBM BUA E2A E8A E9A FBA FAA H2M H3M H4M H5M F8A H2A H3A H6A
HRM HSM HUM HVM HPM HQM D5M HRA HSA HUA HVA HPA HQA D5A J5M J6M
J5A J6A J9M JBM JDM JFM JGM J9A JBA JCA JDA JFA JGA J8G)
41R3220 1
Line Cord - South Africa (models AKM ALM AMM ANM APM B7G B8G B9G BTM BVM
DLM DMM EBM ECM E5M E3M EVG EWG BWM DNM DJA DKA DNA DPA DQM
DRM DSM DTM DUM DWM D2M D7M D8M D9M EAM E6M E6A DRA DSA DTA DUA
DVA DWA D2A D3A E6A E7M E7A DTA E9G FAG FBG BSM BUM D6M E4M E2M E8M
E9M FAM FBM BUA E2A E8A E9A FBA FAA H2M H3M H4M H5M F8A H2A H3A H6A
HRM HSM HUM HVM HPM HQM D5M HRA HSA HUA HVA HPA HQA D5A J5M J6M
J5A J6A J9M JBM JDM JFM JGM J9A JBA JCA JDA JFA JGA J8G)
41R3221 1
Line Cord - India (models BTQ BVQ DLQ DMQ EBQ ECQ E5Q E3Q BWQ DJQ DKQ
DNQ DPQ DQQ DSQ DSQ DUQ DVQ DWQ D2Q D3Q E6Q E7Q BUQ E2Q E8Q E9Q
FAQ FBQ H2Q H4Q H5Q H6Q HRQ HUQ HVQ HPQ HQQ D5Q J5Q J6Q JCQ JDQ JFQ
JGQ)
41R3341 1
Line Cord - India (models BTQ BVQ DLQ DMQ EBQ ECQ E5Q E3Q BWQ DJQ DKQ
DNQ DPQ DQQ DSQ DSQ DUQ DVQ DWQ D2Q D3Q E6Q E7Q BUQ E2Q E8Q E9Q
FAQ FBQ H2Q H4Q H5Q H6Q HRQ HUQ HVQ HPQ HQQ D5Q J5Q J6Q JCQ JDQ JFQ
JGQ)
41R3175 1
Line Cord - Japan (models BUJ EHJ ERJ ESJ ETJ E2J E8J EDJ EFJ EGJ EJJ E9J FAJ FBJ H2J
HRJ HSJ HUJ HVJ HPJ HQJ D5J J9J JBJ JDJ JFJ JGJ)
41R3248 1
Line Cord - Japan (models BUJ EHJ ERJ ESJ ETJ E2J E8J EDJ EFJ EGJ EJJ E9J FAJ FBJ H2J
HRJ HSJ HUJ HVJ HPJ HQJ D5J J9J JBJ JDJ JFJ JGJ)
41R3249 1
Line Cord - ANZ (models BSM BUM D6M E4M E2M E8M E9M FAM FBM H2M H3M
HRM HSM HUM HVM HPM HQM D5M J5M J6M J9M JBM JDM JFM JGM)
41R3196 1
Line Cord - ANZ (models BSM BUM D6M E4M E2M E8M E9M FAM FBM H2M H3M
HRM HSM HUM HVM HPM HQM D5M J5M J6M J9M JBM JDM JFM JGM)
41R3197 1
Line Cord - Hong Kong (models E9B E9H FAB FAH FBB FBH HDB HDH H7H) 41R3224 1
Line Cord - Hong Kong (models E9B E9H FAB FAH FBB FBH HDB HDH H7H) 41R3225 1
9482 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (Swedish) (models) TBD 1
Chapter 11. FRU lists 505
9482 Windows XP Home Recovery CDs FRU# CRU
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9482 Windows XP Pro Recovery CDs FRU# CRU
US English (models BGU BHU BJU BKU BNU BPU BTM BTA BTQ BVM BVA BVQ DLM
DLA DLQ MM DMA DMQ EBM ECM E5M E3M E3A E3Q D4H D5H D6M BLU BMU
HDH HRM HRA HRQ HSM HSA HUM HUA HUQ HQM HQA HQQ HJU HKU HLU
HFU HGU HHU H7H J5M J5A J5Q J9M J9A JDM JDA JDQ)
45R0756 1
French (models BGF BHF BJF BKF BNF BPF BLF BMF HJF HKF HLF HFF HGF HHF) 45R0759 1
German (models) 45R0760 1
Italian (models) 45R0762 1
Brazilian Portuguese (models J2P) 45R0763 1
Spanish (models BCS BCD BCY DAU DAF DDS DDD DDY DES DFS DFD DFY DGS
DGD DGY BRS J3S J3Y J2S J2Y)
45R0761 1
Danish (models) 45R0764 1
Dutch (models) 45R0767 1
Arabic English (models) 45R2342 1
Swedish (models) 45R0765 1
Hebrew (models) 45R2334 1
Finish (models) 45R0766 1
Norwegian (models) 45R0770 1
Polish (models) 45R0777 1
Portuguese (models) 45R0774 1
Russian (models) 45R0773 1
Russian English (models) 45R2318 1
Hungarian (models) 45R0780 1
Czech (models) 45R0776 1
Turkish (models) 45R0775 1
506 Hardware Maintenance Manual
9482 Windows XP Pro Recovery CDs FRU# CRU
Greek (models) 45R0772 1
Slovakian (models) 45R2326 1
Japanese (models BTJ BVJ DLJ DMJ EKJ ELJ EMJ ENJ E3J EDJ EFJ EJJ HRJ HSJ HUJ HQJ
J5J J9J JDJ)
45R0757 1
Simplified Chinese (models) 45R0758 1
Traditional Chinese (models DCV) 45R0768 1
Hong Kong Traditional Chinese (models HDB) 45R0769 1
Korea (models DMK HRK HSK HUK HQK J5K JDK) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9482 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
Chapter 11. FRU lists 507
9482 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models HVM HVA HVQ HPM HPA HPQ HBU HCU D5M D5A D5Q B8U H7H
J6M J6A J6Q H8U H9U J1U J9M J9A JBM JBA JDM JDA JDQ JFM JFA JFQ JGM JGA JGQ
J8G)
46R7287 1
Japanese (models HVJ HPJ D5J J6J J9J JBJ JDJ JFJ JGJ) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models HBF HCF B8F H8F H9F J8G) 46R7290 1
German (models J8G) 46R7291 1
Spanish (models HNS HNS J4S J4Y JHS JHY JJS JKS JKY FHS FHD FHY FJS FJD FJY) 46R7292 1
Italian (models J8G) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models J8G) 46R7295 1
Swedish (models J8G) 45R9786 1
Finland (models J8G) 45R9787 1
Dutch (models J8G) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models J8G) 46R7298 1
Korean (models HVK HPK D5K J6K JDK JFK JGK) 45R9792 1
Slovenian (models J8G) 45R9793 1
Greek (models J8G) 45R9794 1
Russian (models J8G) 46R7299 1
Portuguese (models J8G) 45R9796 1
Turkish (models J8G) 45R9797 1
Czech (models J8G) 45R9798 1
Polish (models J8G) 45R9799 1
Russian English (models J8G) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models J8G) 45R9802 1
Romanian (models J8G) 45R9803 1
Hungarian (models J8G) 45R9804 1
Slovakian (models J8G) 45R9805 1
Serbian-Latin (models) 45R9806 1
9482 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
508 Hardware Maintenance Manual
9482 Vista VHP SP1 Recovery DVDs FRU# CRU
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9482 Vista Business 64 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Chapter 11. FRU lists 509
9482 Vista Business 64 Recovery DVDs FRU# CRU
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Traditional Chinese (models) 45R9827 1
HongKong Traditional Chinese (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9482 Vista Ultimate 32 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
510 Hardware Maintenance Manual
9482 Vista Ultimate 32 Recovery DVDs FRU# CRU
Slovakian (models) 45R9892 1
9482 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 511
Machine Type 9487
Item # 9487 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models AAM AAA AAQ AAK
AAJ ABM ADU ADF ADS ADP ADL ADD ADY ADG ADM ADA ADQ ADT ADC
ADB ADH ADV ADK ADR ADE ADJ AEU AEF AES AEP AEL AED AEY AEG
AEM AEA AEQ AET AEC AEB AEH AEV AEK AER AEE AEJ AFU AFF AFS AFP
AFL AFD AFY AFG AFM AFA AFQ AFT AFC AFB AFH AFV AFK AFR AFE AFJ
B1U B1F B7U B7F B3U B3F B4U B4F B5U B5F B6U B6F B8G)
40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models B2M B2J) 87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models B6U
B6F)
41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models ADU ADF ADS ADP ADL ADD ADY ADG ADM ADA ADQ
ADT ADC ADB ADH ADV ADK ADR ADE ADJ AEU AEF AES AEP AEL AED
AEY AEG AEM AEA AEQ AET AEC AEB AEH AEV AEK AER AEE AEJ AFU
AFF AFS AFP AFL AFD AFY AFG AFM AFA AFQ AFT AFC AFB AFH AFV AFK
AFR AFE AFJ )
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models AAM
AAA AAQ AAK AAJ ABM ACM ACA ACQ ACT ACK ACJ AGU AGF AGS AGP
AGL AGD AGY AGG AGM AGA AGQ AGT AGC AGB AGH AGV AGK AGR
AGE AGJ B2M B2J B1U B1F B7U B7F B3U B3F B4U B4F B5U B5F B8G J8M J8A
J8Q J8T J8K J8J J7G)
43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T(models) 43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T(models) 43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T(models) 43C1965 N
512 Hardware Maintenance Manual
Item # 9487 FRUs FRU# CRU
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA,
EM64T(models)
43C2056 N
5 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
Chapter 11. FRU lists 513
Item # 9487 FRUs FRU# CRU
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models ABM) 41X4255 2
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models ADU ADF ADS
ADP ADL ADD ADY ADG ADM ADA ADQ ADT ADC ADB ADH ADV ADK
ADR ADE ADJ AEU AEF AES AEP AEL AED AEY AEG AEM AEA AEQ AET
AEC AEB AEH AEV AEK AER AEE AEJ AFU AFF AFS AFP AFL AFD AFY AFG
AFM AFA AFQ AFT AFC AFB AFH AFV AFK AFR AFE AFJ AGU AGF AGS AGP
AGL AGD AGY AGG AGM AGA AGQ AGT AGC AGB AGH AGV AGK AGR
AGE AGJ B1U B1F B7U B7F B3U B3F B5U B5F B6U B6F B8G)
41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models AAM AAA
AAQ AAK AAJ ABM ACM ACA ACQ ACT ACK ACJ B2M B2J B4U B4F J8M J8A
J8Q J8T J8K J8J J7G)
41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models AAM AAA AAQ AAK AAJ
ABM ACM ACA ACQ ACT ACK ACJ ADU ADF ADS ADP ADL ADD ADY ADG
ADM ADA ADQ ADT ADC ADB ADH ADV ADK ADR ADE ADJ AEU AEF AES
AEP AEL AED AEY AEG AEM AEA AEQ AET AEC AEB AEH AEV AEK AER
AEE AEJ AFU AFF AFS AFP AFL AFD AFY AFG AFM AFA AFQ AFT AFC AFB
AFH AFV AFK AFR AFE AFJ AGU AGF AGS AGP AGL AGD AGY AGG AGM
AGA AGQ AGT AGC AGB AGH AGV AGK AGR AGE AGJ B2M B2J B1U B1F
B7U B7F B3U B3F B4U B4F B5U B5F B6U B6F B8G J8M J8A J8Q J8T J8K J8J J7G)
53Y5125 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models
AAM AAA AAQ AAK AAJ ABM ACM ACA ACQ ACT ACK ACJ ADU ADF ADS
ADP ADL ADD ADY ADG ADM ADA ADQ ADT ADC ADB ADH ADV ADK
ADR ADE ADJ AEU AEF AES AEP AEL AED AEY AEG AEM AEA AEQ AET
AEC AEB AEH AEV AEK AER AEE AEJ AFU AFF AFS AFP AFL AFD AFY AFG
AFM AFA AFQ AFT AFC AFB AFH AFV AFK AFR AFE AFJ AGU AGF AGS AGP
AGL AGD AGY AGG AGM AGA AGQ AGT AGC AGB AGH AGV AGK AGR
AGE AGJ B2M B2J B1U B1F B7U B7F B3U B3F B4U B4F B5U B5F B6U B6F B8G
J8M J8A J8Q J8T J8K J8J J7G)
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models AAM AAA
AAQ AAK AAJ ABM ACM ACA ACQ ACT ACK ACJ ADU ADF ADS ADP ADL
ADD ADY ADG ADM ADA ADQ ADT ADC ADB ADH ADV ADK ADR ADE
ADJ AEU AEF AES AEP AEL AED AEY AEG AEM AEA AEQ AET AEC AEB
AEH AEV AEK AER AEE AEJ AFU AFF AFS AFP AFL AFD AFY AFG AFM AFA
AFQ AFT AFC AFB AFH AFV AFK AFR AFE AFJ AGU AGF AGS AGP AGL AGD
AGY AGG AGM AGA AGQ AGT AGC AGB AGH AGV AGK AGR AGE AGJ B2M
B2J B1U B1F B7U B7F B3U B3F B4U B4F B5U B5F B6U B6F B8G J8M J8A J8Q J8T
J8K J8J J7G)
41A9717 2
The FRUs listed in the following tables are not illustrated.
514 Hardware Maintenance Manual
9487 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temperature Sense cable (460 mm) (all models) 41R2509 2
System Fan (all models) 41R6042 2
System Fan assembly (all models) 41R6249 2
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
L1-C2 intrusion switch (all models) 39K5022 2
Fan for SFF (all models) 41R6042 2
Rell IO shield BTX atlantic (all models) 41R6381 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
C2 Intrusion Switch (all models) 39K5022 2
Intel 95W/65W heatsink Kit (all models) 41R6039 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE (models) 43N9015 2
Cabel-SATA 700mm (RoHS) (all models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (all models) 43N9361 2
ODD mounting kit (all models) 43N9362 2
Cardreader Bezel Kit (all models) 43N9363 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models AAM AAA AAQ AAK AAJ
ABM ACM ACA ACQ ACT ACK ACJ ADU ADF ADS ADP ADL ADD ADY ADG ADM
ADA ADQ ADT ADC ADB ADH ADV ADK ADR ADE ADJ AEU AEF AES AEP AEL
AED AEY AEG AEM AEA AEQ AET AEC AEB AEH AEV AEK AER AEE AEJ AFU AFF
AFS AFP AFL AFD AFY AFG AFM AFA AFQ AFT AFC AFB AFH AFV AFK AFR AFE AFJ
AGU AGF AGS AGP AGL AGD AGY AGG AGM AGA AGQ AGT AGC AGB AGH AGV
AGK AGR AGE AGJ B2M B2J B1U B1F B7U B7F B3U B3F B4U B4F B5U B5F B6U B6F B8G
J8M J8A J8Q J8T J8K J8J J7G)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
9487 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Chapter 11. FRU lists 515
9487 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
516 Hardware Maintenance Manual
9487 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAM AAA AAQ ABM ACM ACA ACQ ADU ADG ADM ADA ADQ
ADH ADR ADE AEU AEG AEM AEA AEQ AEH AER AEE AFU AFG AFM AFA AFQ
AFH AFR AFE AGU AGG AGM AGA AGQ AGH AGR AGE B2M B1U B7U B3U B4U
B5U B6U B8G J8M J8A J8Q J7G)
41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models ADG AEG AFG AGG B8G J7G) 41A5291 1
Belgian French (models ADG AEG AFG AGG B8G J7G) 41A5292 1
Belgium English (models ADG AEG AFG AGG B8G J7G) 41A5293 1
Brazilian Portuguese (models ADG AEP AFP AGP) 41A5294 1
Bulgarian (models ADG AEG AFG AGG B8G J7G) 41A5295 1
Chinese/US (models ADB ADH AEB AEH AFB AFH AGB AGH) 41A5296 1
Czech (ABB) (models ADG AEG AFG AGG B8G J7G) 41A5297 1
Danish (models ADG AEG AFG AGG B8G J7G) 41A5298 1
Dutch (models ADG AEG AFG AGG B8G J7G) 41A5299 1
French (models ADG AEG AFG AGG B8G J7G) 41A5300 1
French Canadian (models ADF AEF AFF AGF B1F B7F B3F B4F B5F B6F) 41A5301 1
French Canadian (models ADF AEF AFF AGF B1F B7F B3F B4F B5F B6F) 41A5302 1
German (models ADG AEG AFG AGG B8G J7G) 41A5303 1
Greek (models ADG AEG AFG AGG B8G J7G) 41A5304 1
Greek/US (models ADG AEG AFG AGG B8G J7G) 41A5305 1
Hebrew (models ADG AEG AFG AGG B8G J7G) 41A5306 1
Hungarian (models ADG AEG AFG AGG B8G J7G) 41A5307 1
Iceland (models ADG AEG AFG AGG B8G J7G) 41A5308 1
Italy (models ADG AEG AFG AGG B8G J7G) 41A5309 1
Japanese (models AAJ ACJ ADJ AEJ AFJ AGJ B2J J8J) 41A5310 1
Korean (models AAK ACK ADK AEK AFK AGK J8K) 41A5311 1
LA Spanish (models ADS ADD ADY AES AED AEY AFS AFD AFY AGS AGD AGY ) 41A5312 1
Norwegian (models ADG AEG AFG AGG B8G J7G) 41A5313 1
Polish (models ADG AEG AFG AGG B8G J7G) 41A5314 1
Portuguese (models ADG AEG AFG AGG B8G J7G) 41A5315 1
Romanian (models ADG AEG AFG AGG B8G J7G) 41A5317 1
Russian/Cyrillic (models ADG AEG AFG AGG B8G J7G) 41A5318 1
Serbian/Cyrillic (models ADG AEG AFG AGG B8G J7G) 41A5319 1
Slovak (models ADG AEG AFG AGG B8G J7G) 41A5320 1
Spanish (models ADG AEG AFG AGG B8G J7G) 41A5321 1
Swedish/Finnish (models ADG AEG AFG AGG B8G J7G) 41A5322 1
Swiss French/German (models ADG AEG AFG AGG B8G J7G) 41A5323 1
Thailand (models ACT ADT AET AFT AGT J8T) 41A5324 1
Turkish (models ADG AEG AFG AGG B8G J7G) 41A5325 1
Turkish (models ADG AEG AFG AGG B8G J7G) 41A5326 1
UK English (models ADG AEG AFG AGG B8G J7G) 41A5327 1
US Euro (models ADG AEG AFG AGG B8G J7G) 41A5328 1
Chapter 11. FRU lists 517
9487 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Slovenian (models ADG AEG AFG AGG B8G J7G) 41A5329 1
9487 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
518 Hardware Maintenance Manual
9487 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9487 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
Chapter 11. FRU lists 519
9487 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9487 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models AAM AAA AAQ AAK AAJ ABM ACM ACA
ACQ ACT ACK ACJ ADU ADF ADS ADP ADL ADD ADY ADG ADM ADA ADQ ADT
ADC ADB ADH ADV ADK ADR ADE ADJ AEU AEF AES AEP AEL AED AEY AEG AEM
AEA AEQ AET AEC AEB AEH AEV AEK AER AEE AEJ AFU AFF AFS AFP AFL AFD
AFY AFG AFM AFA AFQ AFT AFC AFB AFH AFV AFK AFR AFE AFJ AGU AGF AGS
AGP AGL AGD AGY AGG AGM AGA AGQ AGT AGC AGB AGH AGV AGK AGR AGE
AGJ B2M B2J B1U B1F B7U B7F B3U B3F B4U B4F B5U B5F B6U B6F B8G J8M J8A J8Q
J8T J8K J8J J7G)
41U3013 1
Optical Wheel Mouse (400DPI, USB) (models AAM AAA AAQ AAK AAJ ABM ACM ACA
ACQ ACT ACK ACJ ADU ADF ADS ADP ADL ADD ADY ADG ADM ADA ADQ ADT
ADC ADB ADH ADV ADK ADR ADE ADJ AEU AEF AES AEP AEL AED AEY AEG AEM
AEA AEQ AET AEC AEB AEH AEV AEK AER AEE AEJ AFU AFF AFS AFP AFL AFD
AFY AFG AFM AFA AFQ AFT AFC AFB AFH AFV AFK AFR AFE AFJ AGU AGF AGS
AGP AGL AGD AGY AGG AGM AGA AGQ AGT AGC AGB AGH AGV AGK AGR AGE
AGJ B2M B2J B1U B1F B7U B7F B3U B3F B4U B4F B5U B5F B6U B6F B8G J8M J8A J8Q
J8T J8K J8J J7G)
41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9487 Adapters and miscellaneous FRUs FRU# CRU
USB Memory Key - 1G RoW (models) 41U4978 1
USB Memory Key (models) 43R2296 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 45R1885 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models ABM AFU AFF AFS AFP AFL AFD AFY
AFG AFM AFA AFQ AFT AFC AFB AFH AFV AFK AFR AFE AFJ AGU AGF AGS AGP
AGL AGD AGY AGG AGM AGA AGQ AGT AGC AGB AGH AGV AGK AGR AGE AGJ
B2M B2J)
39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models AAA ADU AEU AFU
AGU ADS AES AFS AGS ADA AEA AFA AGA B1U B7U B3U B4U B5U B6U J8A)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models ADD AED AFD AGD) 89P8575 1
Speaker Power brick - China, Thailand (models ADT ADC AET AEC AFT AFC AGT AGC
J8T)
89P8581 1
Speaker Power brick - Japan (models AAJ ADJ AEJ AFJ AGJ B2J J8J) 89P8577 1
Speaker Power brick - Brazil (models AAP ADP AEP AFP AGP) 89P8583 1
Speaker Power brick - Argentina (models AAY ADY AEY AFY AGY) 41A4901 1
Speaker Power brick - ANZ (models AAM ABM ACM ADM AEM AFM AGM B2M J8M) 89P8579 1
Speaker Brick - Korea (models AAK ACK ADK AEK AFK AGK J8K) 41A4903 1
520 Hardware Maintenance Manual
9487 Adapters and miscellaneous FRUs FRU# CRU
Speaker Brick - Hong Kong, EMEA (models ADB AEB AFB AGB ADH AEH AFH AGH
B8G J7G)
89P8573 1
Speaker Brick - Taiwan (models ADV AEV AFV AGV) 41A4905 1
Speaker Power brick - India, South Africa (models AAQ ADQ AEQ AFQ AGQ J8Q) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable(models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9356 Line Cords FRU# CRU
Line cord - US (models AAA ACA ACT ADU ADF ADS ADD ADL ADA ADT AEU AEF
AES AED AEL AEA AET AFU AFF AFS AFD AFL AFA AFT AGU AGF AGS AGD AGL
AGA AGT B1U B1F B7U B7F B3U B3F B4U B4F B5U B5F B6U B6F J8A J8T)
41R3184 1
Line cord - US (models AAA ACA ACT ADU ADF ADS ADD ADL ADA ADT AEU AEF
AES AED AEL AEA AET AFU AFF AFS AFD AFL AFA AFT AGU AGF AGS AGD AGL
AGA AGT B1U B1F B7U B7F B3U B3F B4U B4F B5U B5F B6U B6F J8A J8T)
41R3185 1
Line cord - China (models ADC AEC AFC AGC) 41R3256 1
Line cord - China (models ADC AEC AFC AGC) 41R3257 1
Line cord - Brazil (models ADP AEP AFP AGP) 41R3270 1
Line cord - Brazil (models ADP AEP AFP AGP) 41R3271 1
Line cord - LA High Volt APU (models ADD AED AFD AGD) 41R3176 1
Line Cord - LA High Volt APU (models ADD AED AFD AGD) 41R3177 1
Line Cord - Korea (models AAK ACK ADK AEK AFK AGK ) 41R3260 1
Line Cord - Korea (models AAK ACK ADK AEK AFK AGK ) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAA ACA ADA AEA AFA
AGA J8A)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAA ACA ADA AEA AFA
AGA J8A)
41R3225 1
Line Cord - Taiwan (models ADV AEV AFV AGV) 41R3278 1
Line Cord - Taiwan (models ADV AEV AFV AGV) 41R3279 1
Line Cord - Italy (models ADS SDY ADL ADG AES AEY AEL AED AFS AFY AFL AFG
AGS AGY AGL AGD B8G J7G)
41R3232 1
Line Cord - Italy (models ADS SDY ADL ADG AES AEY AEL AED AFS AFY AFL AFG
AGS AGY AGL AGD B8G J7G)
41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAA ACA ADA AEA AFA
AGA J8A)
41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models AAA ACA ADA AEA AFA
AGA J8A)
41R3209 1
Line Cord - Denmark (models ADG AEG AFG AGG B8G) 41R3212 1
Line Cord - Denmark (models ADG AEG AFG AGG B8G) 41R3213 1
Line Cord - Switzerland (models ADG AEG AFG AGG B8G) 41R3228 1
Line Cord - Switzerland (models ADG AEG AFG AGG B8G) 41R3229 1
Line Cord - Israel (models ADG AEG AFG AGG B8G) 41R3236 1
Line Cord - Israel (models ADG AEG AFG AGG B8G) 41R3237 1
Line Cord - South Africa (models AAM AAA ACM ACA ADA AEA AFA AGA ACG ADG
AEG AFG AGG AGM ACM ADM AEM AFM AGM B2M B8G J8M J8A)
41R3220 1
Chapter 11. FRU lists 521
9356 Line Cords FRU# CRU
Line Cord - South Africa (models AAM AAA ACM ACA ADA AEA AFA AGA ACG ADG
AEG AFG AGG AGM ACM ADM AEM AFM AGM B2M B8G J8M J8A)
41R3221 1
Line Cord - India (models ACQ ADQ AEQ AFQ AGQ ) 41R3341 1
Line Cord - India (models ACQ ADQ AEQ AFQ AGQ ) 41R3175 1
Line Cord - Japan (models ACJ ADJ AEJ AFJ AGJ B2J) 41R3248 1
Line Cord - Japan (models ACJ ADJ AEJ AFJ AGJ B2J) 41R3249 1
Line Cord - ANZ (models AAM ACM ADM AEM AFM AGM B2M J8M) 41R3196 1
Line Cord - ANZ (models AAM ACM ADM AEM AFM AGM B2M J8M) 41R3197 1
Line Cord - Hong Kong (models ADB ADH AEB AEH AFB AEH AGB AGH ) 41R3224 1
Line Cord - Hong Kong (models ADB ADH AEB AEH AFB AEH AGB AGH ) 41R3225 1
9487 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (Swedish)(models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9487 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models B7U B3U B4U B5U B6U) 45R0756 1
522 Hardware Maintenance Manual
9487 Windows XP Pro Recovery CDs FRU# CRU
FR/CF (models B7F B3F B4F B5F B6F) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9487 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Chapter 11. FRU lists 523
9487 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9487 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAM AAA AAQ ABM ACM ACA ACQ ADU ADG ADM ADA ADQ
ADH ADR ADE AEU AEG AEM AEA AEQ AEH AER AEE AFU AFG AFM AFA AFQ
AFH AFR AFE AGU AGG AGM AGA AGQ AGH AGR AGE B2M B1U B8G J8M J8A J8Q
J7G)
46R7287 1
Japanese (models AAJ ACJ ADJ AEJ AFJ AGJ B2J J8J ) 46R7288 1
Simplified Chinese (models ADC AEC AFC AGC) 46R7289 1
French (models ADF AEF AGF AFF B1F B8G J7G) 46R7290 1
German (models ADG AEG AFG AGG) 46R7291 1
Spanish (models ADS ADD ADY AES AED AEY AFS AFD AFY AGS AGD AGY ) 46R7292 1
Italian (models ADG AEG AFG AGG B8G J7G) 46R7293 1
Brazilian Portuguese (models ADP AEP AFP AGP) 46R7294 1
Danish (models ADG AEG AFG AGG B8G J7G) 46R7295 1
Swedish (models ADG AEG AFG AGG B8G J7G) 45R9786 1
Finland (models ADG AEG AFG AGG B8G J7G) 45R9787 1
Dutch (models ADG AEG AFG AGG B8G J7G) 45R9788 1
Traditional Chinese (models ADB ADV AEB AEV AFB AFV AGB AGV) 46R7296 1
Hong Kong (models ADB ADV AEB AEV AFB AFV AGB AGV) 46R7297 1
Norwegian (models ADG AEG AFG AGG B8G J7G) 46R7298 1
Korean (models AAK ACK J8K) 45R9792 1
Slovenian (models ADG AEG AFG AGG B8G J7G) 45R9793 1
Greek (models ADG AEG AFG AGG B8G J7G) 45R9794 1
Russian (models ADG AEG AFG AGG B8G J7G) 46R7299 1
Portuguese (models ADG AEG AFG AGG B8G J7G) 45R9796 1
524 Hardware Maintenance Manual
9487 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Turkish (models ADG AEG AFG AGG B8G J7G) 45R9797 1
Czech (models ADG AEG AFG AGG B8G J7G) 45R9798 1
Polish (models ADG AEG AFG AGG B8G J7G) 45R9799 1
Russian English (models ADG AEG AFG AGG B8G J7G) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models ADG AEG AFG AGG B8G J7G) 45R9802 1
Romanian (models ADG AEG AFG AGG B8G J7G) 45R9803 1
Hungarian (models ADG AEG AFG AGG B8G J7G) 45R9804 1
Slovakian (models ADG AEG AFG AGG B8G J7G) 45R9805 1
Serbian-Latin (models) 45R9806 1
9487 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Chapter 11. FRU lists 525
9487 Vista VHP SP1 Recovery DVDs FRU# CRU
Serbian-Latin (models) 45R9864 1
9487 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9487 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
526 Hardware Maintenance Manual
9487 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9487 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 527
Machine Type 9488
Item # 9488 FRUs FRU# CRU
1 Intel 65W/95W heatsink Kit (all models) 41R4803 2
1 Intel 65W/95W Heatsink Kit (Tower) (all models) 41R6429 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T (models
ABG)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
528 Hardware Maintenance Manual
Item # 9488 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO B8G)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models AAG ACG
ADG ABG B8G)
41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models B6G B7G) 41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models B1G) 41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models ABG B6G B8G) 41N3325 2
Chapter 11. FRU lists 529
Item # 9488 FRUs FRU# CRU
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models AAG ACG)
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models
ADG B1G B7G)
43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9105 2
6 Bezel assembly without IBM mark (all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (all models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models ABG) 40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models AAG ACG B1G B6G
B8G)
40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models B7G) 87H4891 2
11 System board , Intel G31 mATX GA Level (models AAG ACG ADG ABG B1G B6G
B7G B8G)
53Y3282 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models AAG ACG ADG ABG B1G B6G B7G B8G)
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models AAG ACG
ADG ABG B1G B6G B7G B8G)
41A9665 2
13 Power supply, ATX 310W Power supply Robust; for all countries (models AAG
ACG ADG ABG B1G B6G B7G B8G)
41A9726 2
The FRUs listed in the following tables are not illustrated.
9488 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Shield, FDD EMC (all models) 41N8078 2
Cable, FDD (RoHs) (all models) 41A7182 2
Cable, SATA 457mm (RoHS) (all models) 43N9013 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Cable , SATA 250mm (RoHS) (all models) 43N9012 2
Hard disk drive tray (all models) 41R6291 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Planer shield, Atx 946, with usb number (all models) 41R6384 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Assembly Chassis Without IBM Mark Atlantic (all models) 41R6408 N
ODD/FDD/Card reader retainers (models) 43N9351 2
530 Hardware Maintenance Manual
9488 FRUs FRU# CRU Tier
Blank 5.25″Bezel (models) 41N8077 3
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models AAG ACG ADG ABG B1G
B6G B7G B8G)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
9488 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Chapter 11. FRU lists 531
9488 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9488 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU
US English (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5289 1
Arabic (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5292 1
Belgian/UK (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5295 1
Chinese/US (models) 41A5296 1
Czech (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5297 1
Danish (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5298 1
Dutch (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5299 1
French (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5303 1
Greek (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5304 1
Greek/US (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5305 1
Hebrew (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5306 1
Hungarian (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5307 1
Iceland (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5308 1
Italy (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5309 1
Japanese (models) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5313 1
Polish (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5314 1
Portuguese (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5315 1
Romanian (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5317 1
Russian/Cyrillic (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5318 1
Serbian/Cyrillic (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5319 1
Slovak (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5320 1
Spanish (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5321 1
Swedish/Finnish (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5322 1
Swiss French/German(models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5323 1
532 Hardware Maintenance Manual
9488 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU
Thailand (models) 41A5324 1
Turkish (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5325 1
Turkish (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5326 1
UK English (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models AAG ACG ADG ABG B1G B6G B7G B8G ) 41A5329 1
9488 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Chapter 11. FRU lists 533
9488 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9488 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
534 Hardware Maintenance Manual
9488 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9488 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models AAG ACG ADG B1G B6G B7G) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (models AAG ACG ADG B1G B6G B7G) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9488 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Lenovo USB2.0 Trust Key TGE YT300 1GB (models) 45R2281 1
Lenovo USB2.0 Trust Key TGE YT300 2GB (models) 45R2283 1
Soft Modem V.90/V.44 ATX (models AAG) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models AAG) 41D2781 2
USB Memory Key - 1G RoW (models AAG) 41U4978 1
ADD2 DVI Adapter,FH (HDCP) (models ACG ADG) 43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (modes) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models AAG ACG ADG ABG B1G B6G B7G B8G) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Chapter 11. FRU lists 535
9488 Adapters and miscellaneous FRUs FRU# CRU
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9488 Line Cords FRU# CRU
Line cord - US (models) 41R3184 1
Line cord - US (models) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG ACG ADG ABG B1G
B6G B7G B8G)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG ACG ADG ABG B1G
B6G B7G B8G)
41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models AAG ACG ADG ABG B1G B6G B7G B8G) 41R3232 1
Line Cord - Italy (models AAG ACG ADG ABG B1G B6G B7G B8G) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models AAG ACG ADG ABG B1G B6G B7G B8G) 41R3212 1
Line Cord - Denmark (models AAG ACG ADG ABG B1G B6G B7G B8G) 41R3213 1
Line Cord - Switzerland (models AAG ACG ADG ABG B1G B6G B7G B8G) 41R3228 1
Line Cord - Switzerland (models AAG ACG ADG ABG B1G B6G B7G B8G) 41R3229 1
Line Cord - Israel (models AAG ACG ADG ABG B1G B6G B7G B8G) 41R3236 1
Line Cord - Israel (models AAG ACG ADG ABG B1G B6G B7G B8G) 41R3237 1
Line Cord - South Africa (models AAG ACG ADG ABG B1G B6G B7G B8G) 41R3220 1
Line Cord - South Africa (models AAG ACG ADG ABG B1G B6G B7G B8G) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
536 Hardware Maintenance Manual
9488 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9488 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models ABG) 45R0756 1
FR/CF (models ABG) 45R0759 1
GR (models ABG) 45R0760 1
IT (models ABG) 45R0762 1
BR (models) 45R0763 1
SP/LA (models ABG) 45R0761 1
DK (models ABG) 45R0764 1
NL (models ABG) 45R0767 1
AE (models ABG) 45R2342 1
SV (models ABG) 45R0765 1
HE (models ABG) 45R2334 1
FI (models ABG) 45R0766 1
NO (models ABG) 45R0770 1
Chapter 11. FRU lists 537
9488 Windows XP Pro Recovery CDs FRU# CRU
PL (models ABG) 45R0777 1
PO (models ABG) 45R0774 1
RU (models ABG) 45R0773 1
RE (models ABG) 45R2318 1
HU (models ABG) 45R0780 1
CZ (models ABG) 45R0776 1
TR (models ABG) 45R0775 1
GK (models ABG) 45R0772 1
SL (models ABG) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korea (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models ABG) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models ABG) 45R8247 1
9488 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
538 Hardware Maintenance Manual
9488 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9488 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAG ACG ADG B1G B6G B7G B8G) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models AAG ACG ADG B1G B6G B7G B8G) 46R7290 1
German (models AAG ACG ADG B1G B6G B7G B8G) 46R7291 1
Spanish (models AAG ACG ADG B1G B6G B7G B8G) 46R7292 1
Italian (models AAG ACG ADG B1G B6G B7G B8G) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models AAG ACG ADG B1G B6G B7G B8G) 46R7295 1
Swedish (models AAG ACG ADG B1G B6G B7G B8G) 45R9786 1
Finland (models AAG ACG ADG B1G B6G B7G B8G) 45R9787 1
Dutch (models AAG ACG ADG B1G B6G B7G B8G) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models AAG ACG ADG B1G B6G B7G B8G) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models AAG ACG ADG B1G B6G B7G B8G) 45R9793 1
Greek (models AAG ACG ADG B1G B6G B7G B8G) 45R9794 1
Russian (models AAG ACG ADG B1G B6G B7G B8G) 46R7299 1
Portuguese (models AAG ACG ADG B1G B6G B7G B8G) 45R9796 1
Turkish (models AAG ACG ADG B1G B6G B7G B8G) 45R9797 1
Czech (models AAG ACG ADG B1G B6G B7G B8G) 45R9798 1
Polish (models AAG ACG ADG B1G B6G B7G B8G) 45R9799 1
Russian English (models AAG ACG ADG B1G B6G B7G B8G) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models AAG ACG ADG B1G B6G B7G B8G) 45R9802 1
Romanian (models AAG ACG ADG B1G B6G B7G B8G) 45R9803 1
Hungarian (models AAG ACG ADG B1G B6G B7G B8G) 45R9804 1
Slovakian (models AAG ACG ADG B1G B6G B7G B8G) 45R9805 1
Serbian-Latin (models) 45R9806 1
9488 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Chapter 11. FRU lists 539
9488 Vista VHP SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9488 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
540 Hardware Maintenance Manual
9488 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9488 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Chapter 11. FRU lists 541
9488 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9488 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
542 Hardware Maintenance Manual
Machine Type 9489
Item # 9489 FRUs FRU# CRU
1 Intel 65W/95W Heatsink Kit (all models) 41R6429 2
1 Heat Sink/RM Kit Intel Prescott (models) 41N8261 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T (models
AAG)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
Chapter 11. FRU lists 543
Item # 9489 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO B1G)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models B1G) 41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models AAG)
42Y9353 2
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
5 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models AAG B1G) 40Y9035 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9107 2
7 Front USB/Audio with bracket (all models) 41N8212 2
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
544 Hardware Maintenance Manual
Item # 9489 FRUs FRU# CRU
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models AAG B1G) 41X4256 2
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board, Intel G31 nano-BTX GA Level (models AAG B1G) 53Y5125 N
10 Power supply, 220 Watt Power Supply - Robust; for all countries except for JP
(models AAG B1G)
41A9689 N
10 Power supply, 220 Watt Power Supply - Japan;only for JP (models AAG B1G) 41A9697 N
10 Power supply, 220W 80% Power supply-for all countries (models AAG B1G) 41A9670 N
10 Power supply, 280W TFX 280W PS ,Active PFC,for RockyS-for all countries
(models AAG B1G)
41A9705 N
The FRUs listed in the following tables are not illustrated.
9489 FRUs FRU# CRU
Planer shield, Atx 946,G31 with usb number (all models) 41R6384 N
Shield, EMC , Blank 5.25 (all models) 41N8271 2
Shield, EMC , Blank diskette drive (all models) 41N8273 2
Cover (all models) 41N8204 2
Mechanical shell kit (all models) 41R6387 N
Bezel kit, without IBM logo (all models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
Hard disk drive bracket assembly (plastic and grommets) (all models) 41N8210 2
Hard disk drive fan and bracket asm (all models) 41R6325 2
Speaker cable assembly, 600 mm cable length (all models) 41N8217 2
Fan duct assembly (all models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (all models) 42Y8006 2
Retention module assembly, Intel (all models) 41A7139 N
Intrusion switch assembly (all models) 41R6208 2
Foot stand (all models) 41R4813 1
Cable, diskette drive (all models) 41A7147 2
Cable, serial ATA, 250 mm (all models) 43N9012 2
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (all models) 42Y8008 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models AAG B1G) 45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
9489 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Chapter 11. FRU lists 545
9489 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9489 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAG B1G) 41A5289 1
Arabic (models AAG B1G) 41A5290 1
Arabic/French (models) 41A5291 1
546 Hardware Maintenance Manual
9489 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Belgian/French (models AAG B1G) 41A5292 1
Belgian/UK (models AAG B1G) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models AAG B1G) 41A5295 1
Chinese/US (models) 41A5296 1
Czech(ABB) (models AAG B1G) 41A5297 1
Danish (models AAG B1G) 41A5298 1
Dutch (models AAG B1G) 41A5299 1
French (models AAG B1G) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models AAG B1G) 41A5303 1
Greek (models AAG B1G) 41A5304 1
Greek/US (models AAG B1G) 41A5305 1
Hebrew (models AAG B1G) 41A5306 1
Hungarian (models AAG B1G) 41A5307 1
Iceland (models AAG B1G) 41A5308 1
Italian (models AAG B1G) 41A5309 1
Japanese (models) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models AAG B1G) 41A5313 1
Polish (models AAG B1G) 41A5314 1
Portuguese (models AAG B1G) 41A5315 1
Romanian (models AAG B1G) 41A5317 1
Russian/Cyrillic (models AAG B1G) 41A5318 1
Serbian/Cyrillic (models AAG B1G) 41A5319 1
Slovak (models AAG B1G) 41A5320 1
Spanish (models AAG B1G) 41A5321 1
Swedish/Finnish (models AAG B1G) 41A5322 1
Swiss French/German (models AAG B1G) 41A5323 1
Thailand (models) 41A5324 1
Turkish (models AAG B1G) 41A5325 1
Turkish (models AAG B1G) 41A5326 1
UK English (models AAG B1G) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models AAG B1G) 41A5329 1
9489 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Chapter 11. FRU lists 547
9489 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgian/UK (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech(ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9489 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
548 Hardware Maintenance Manual
9489 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/UK (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech(ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
Chapter 11. FRU lists 549
9489 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models AAG B1G) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (models AAG B1G) 41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
9489 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
USB Memory Key (models) 43R2296 2
IEEE 1394 Firewire Adapter SFF (models AAG) 41D2781 2
Soft Modem V.90/V.44 SFF (models AAG) 46R4220 2
USB Memory Key - 1G RoW (models AAG) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
Internal USB Memory Card Reader Slim (LX-607) (models) 45R1885 1
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage,ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models AAG B1G) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9489 Line Cords FRU# CRU
Line cord - US (models) 41R3184 1
Line cord - US (models) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
550 Hardware Maintenance Manual
9489 Line Cords FRU# CRU
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG B1G) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AAG B1G) 41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models AAG B1G) 41R3232 1
Line Cord - Italy (models AAG B1G) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models AAG B1G) 41R3212 1
Line Cord - Denmark (models AAG B1G) 41R3213 1
Line Cord - Switzerland (models AAG B1G) 41R3228 1
Line Cord - Switzerland (models AAG B1G) 41R3229 1
Line Cord - Israel (models AAG B1G) 41R3236 1
Line Cord - Israel (models AAG B1G) 41R3237 1
Line Cord - South Africa (models AAG B1G) 41R3220 1
Line Cord - South Africa (models AAG B1G) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
9489 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
Chapter 11. FRU lists 551
9489 Windows XP Home Recovery CDs FRU# CRU
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korea (models) TBD 1
9489 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korea (models) 45R0771 1
Multilingual 1 XP-P -- EN, NL, FR, GR, IT (models) 45R8246 1
552 Hardware Maintenance Manual
9489 Windows XP Pro Recovery CDs FRU# CRU
Multilingual 2 XP-P -- EN, DK, FI, NO, SV (models) 45R8247 1
9489 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9489 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAG B1G) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models AAG B1G) 46R7290 1
German (models AAG B1G) 46R7291 1
Spanish (models AAG B1G) 46R7292 1
Italian (models AAG B1G) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Chapter 11. FRU lists 553
9489 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Danish (models AAG B1G) 46R7295 1
Swedish (models AAG B1G) 45R9786 1
Finland (models AAG B1G) 45R9787 1
Dutch (models AAG B1G) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models AAG B1G) 46R7298 1
Korean (models AAG B1G) 45R9792 1
Slovenian (models AAG B1G) 45R9793 1
Greek (models AAG B1G) 45R9794 1
Russian (models AAG B1G) 46R7299 1
Portuguese (models AAG B1G) 45R9796 1
Turkish (models AAG B1G) 45R9797 1
Czech (models AAG B1G) 45R9798 1
Polish (models AAG B1G) 45R9799 1
Russian English (models AAG B1G) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models AAG B1G) 45R9802 1
Romanian (models AAG B1G) 45R9803 1
Hungarian (models AAG B1G) 45R9804 1
Slovakian (models AAG B1G) 45R9805 1
Serbian-Latin (models) 45R9806 1
9489 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
554 Hardware Maintenance Manual
9489 Vista VHP SP1 Recovery DVDs FRU# CRU
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9489 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Chapter 11. FRU lists 555
9489 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9489 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9489 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
556 Hardware Maintenance Manual
Machine Type 9622
Item # 9622 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models A1G) 40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models A2G B1G B2G B4G) 40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models B3G) 87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models A1G
B2G B4G)
41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models A2G)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models A3G
B1G B3G)
43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T(models) 43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T (models
A1G)
43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T(models) 43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA,
EM64T(models)
43C2056 N
5 Microprocessor,Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
5 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
Chapter 11. FRU lists 557
Item # 9622 FRUs FRU# CRU
5 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
5 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
5 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
5 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
5 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
5 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
5 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
5 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
5 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
5 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
5 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
5 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
5 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
5 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
5 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
5 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
5 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
5 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
5 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
5 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
5 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
5 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO B4G)
45R8341 N
5 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
5 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models A2G A3G A1G
B4G)
41X4256 2
558 Hardware Maintenance Manual
Item # 9622 FRUs FRU# CRU
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models B2G B3G) 41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models B1G ) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models A2G A3G A1G B1G B2G
B3G B4G)
53Y5125 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models A2G
A3G A1G B1G B2G B3G B4G)
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models A2G A3G
A1G B1G B2G B3G B4G)
41A9717 2
The FRUs listed in the following tables are not illustrated.
9622 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
System Fan assembly (all models) 41R6249 2
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
fan for SFF (all models) 41R6042 2
Rell IO shield BTX atlantic (all models) 41R6381 N
C2 Intrusion Switch (all models) 39K5022 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE (all models) 43N9015 2
Cabel-SATA 700mm (RoHS) (all models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (all models) 43N9361 2
ODD mounting kit (all models) 43N9362 2
Cardreader Bezel Kit (all models) 43N9363 2
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models A2G A3G A1G B1G B2G B3G
B4G)
45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
Chapter 11. FRU lists 559
9622 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models A2G A3G A1G B1G B2G B3G B4G) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models A2G A3G A1G B1G B2G B3G B4G) 41A5291 1
Belgian French (models A2G A3G A1G B1G B2G B3G B4G) 41A5292 1
Belgium English (models A2G A3G A1G B1G B2G B3G B4G) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models A2G A3G A1G B1G B2G B3G B4G) 41A5295 1
Chinese/US (models) 41A5296 1
Czech (ABB) (models A2G A3G A1G B1G B2G B3G B4G) 41A5297 1
Danish (models A2G A3G A1G B1G B2G B3G B4G) 41A5298 1
Dutch (models A2G A3G A1G B1G B2G B3G B4G) 41A5299 1
French (models A2G A3G A1G B1G B2G B3G B4G) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models A2G A3G A1G B1G B2G B3G B4G) 41A5303 1
Greek (models A2G A3G A1G B1G B2G B3G B4G) 41A5304 1
Greek/US (models A2G A3G A1G B1G B2G B3G B4G) 41A5305 1
Hebrew (models A2G A3G A1G B1G B2G B3G B4G) 41A5306 1
Hungarian (models A2G A3G A1G B1G B2G B3G B4G) 41A5307 1
Iceland (models A2G A3G A1G B1G B2G B3G B4G) 41A5308 1
Japanese (models ) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Italian (models A2G A3G A1G B1G B2G B3G B4G) 41A5309 1
Norwegian (models A2G A3G A1G B1G B2G B3G B4G) 41A5313 1
Polish (models A2G A3G A1G B1G B2G B3G B4G) 41A5314 1
Portuguese (models A2G A3G A1G B1G B2G B3G B4G) 41A5315 1
Romanian (models A2G A3G A1G B1G B2G B3G B4G) 41A5317 1
Russian/Cyrillic (models A2G A3G A1G B1G B2G B3G B4G) 41A5318 1
Serbian/Cyrillic (models A2G A3G A1G B1G B2G B3G B4G) 41A5319 1
Slovak (models A2G A3G A1G B1G B2G B3G B4G) 41A5320 1
Spanish (models A2G A3G A1G B1G B2G B3G B4G) 41A5321 1
Swedish/Finnish (models A2G A3G A1G B1G B2G B3G B4G) 41A5322 1
Swiss French/German (models A2G A3G A1G B1G B2G B3G B4G) 41A5323 1
Thailand (models) 41A5324 1
Turkish (models A2G A3G A1G B1G B2G B3G B4G) 41A5325 1
Turkish (models A2G A3G A1G B1G B2G B3G B4G) 41A5326 1
UK English (models A2G A3G A1G B1G B2G B3G B4G) 41A5327 1
US Euro (models A2G A3G A1G B1G B2G B3G B4G) 41A5328 1
Slovenian (models A2G A3G A1G B1G B2G B3G B4G) 41A5329 1
560 Hardware Maintenance Manual
9622 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
Chapter 11. FRU lists 561
9622 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
562 Hardware Maintenance Manual
9622 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models A2G A3G A1G B1G B2G B3G B4G) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (models A2G A3G A1G B1G B2G B3G B4G) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9622 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
USB Memory Key (models) 43R2296 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
Internal USB Memory Card Reader Slim (models) 45R1885 1
USB Memory Key - 1G RoW (models) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models A1G) 43C0258 2
DVI-I connection Adapter Full Height (models A2G A3G A1G B4G) 39J9334 2
DVI-I connection Adapter Low Profile (models A2G A3G A1G) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models A2G A3G A1G B1G B2G B3G B4G) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable(models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9622 Line Cords FRU# CRU
Line cord - US (models) 41R3184 1
Line cord - US (models) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Chapter 11. FRU lists 563
9622 Line Cords FRU# CRU
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models A2G A3G A1G B1G B2G
B3G B4G)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models A2G A3G A1G B1G B2G
B3G B4G)
41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models A2G A3G A1G B1G B2G B3G B4G) 41R3232 1
Line Cord - Italy (models A2G A3G A1G B1G B2G B3G B4G) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models A2G A3G A1G B1G B2G
B3G B4G)
41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models A2G A3G A1G B1G B2G
B3G B4G)
41R3209 1
Line Cord - Denmark (models A2G A3G A1G B1G B2G B3G B4G) 41R3212 1
Line Cord - Denmark (models A2G A3G A1G B1G B2G B3G B4G) 41R3213 1
Line Cord - Switzerland (models A2G A3G A1G B1G B2G B3G B4G) 41R3228 1
Line Cord - Switzerland (models A2G A3G A1G B1G B2G B3G B4G) 41R3229 1
Line Cord - Israel (models A2G A3G A1G B1G B2G B3G B4G) 41R3236 1
Line Cord - Israel (models A2G A3G A1G B1G B2G B3G B4G) 41R3237 1
Line Cord - South Africa (models A2G A3G A1G B1G B2G B3G B4G) 41R3220 1
Line Cord - South Africa (models A2G A3G A1G B1G B2G B3G B4G) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
9622 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (Swedish)(models) TBD 1
564 Hardware Maintenance Manual
9622 Windows XP Home Recovery CDs FRU# CRU
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9622 Windows XP Pro Recovery CDs FRU# CRU
US English (models A1G) 45R0756 1
French (models A1G) 45R0759 1
German (models A1G) 45R0760 1
Italian (models A1G) 45R0762 1
Brazilian Portuguese (models) 45R0763 1
Spanish (models A1G) 45R0761 1
Danish (models A1G) 45R0764 1
Dutch (models A1G) 45R0767 1
Arabic English (models A1G) 45R2342 1
Swedish (models A1G) 45R0765 1
Hebrew (models A1G) 45R2334 1
Finish (models A1G) 45R0766 1
Norwegian (models A1G) 45R0770 1
Polish (models A1G) 45R0777 1
Portuguese (models A1G) 45R0774 1
Russian (models A1G) 45R0773 1
Russian English (models) 45R2318 1
Hungarian (models A1G) 45R0780 1
Czech (models A1G) 45R0776 1
Turkish (models A1G) 45R0775 1
Greek (models A1G) 45R0772 1
Slovakian (models A1G) 45R2326 1
Japanese (models A1G) 45R0757 1
Chapter 11. FRU lists 565
9622 Windows XP Pro Recovery CDs FRU# CRU
Simplified Chinese (models A1G) 45R0758 1
Traditional Chinese (models A1G) 45R0768 1
Hong Kong Traditional Chinese (models A1G) 45R0769 1
Korea (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models A1G) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models A1G) 45R8247 1
9622 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9622 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models A2G A3G B1G B2G B3G B4G) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
566 Hardware Maintenance Manual
9622 Vista Business 32 SP1 Recovery DVDs FRU# CRU
French (models A2G A3G B1G B2G B3G B4G) 46R7290 1
German (models A2G A3G B1G B2G B3G B4G) 46R7291 1
Spanish (models A2G A3G B1G B2G B3G B4G) 46R7292 1
Italian (models A2G A3G B1G B2G B3G B4G) 46R7293 1
Brazilian Portuguese (models A2G A3G B1G B2G B3G B4G) 46R7294 1
Danish (models A2G A3G B1G B2G B3G B4G) 46R7295 1
Swedish (models A2G A3G B1G B2G B3G B4G) 45R9786 1
Finland (models A2G A3G B1G B2G B3G B4G) 45R9787 1
Dutch (models A2G A3G B1G B2G B3G B4G) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models A2G A3G B1G B2G B3G B4G) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models A2G A3G B1G B2G B3G B4G) 45R9793 1
Greek (models A2G A3G B1G B2G B3G B4G) 45R9794 1
Russian (models A2G A3G B1G B2G B3G B4G) 46R7299 1
Portuguese (models A2G A3G B1G B2G B3G B4G) 45R9796 1
Turkish (models A2G A3G B1G B2G B3G B4G) 45R9797 1
Czech (models A2G A3G B1G B2G B3G B4G) 45R9798 1
Polish (models A2G A3G B1G B2G B3G B4G) 45R9799 1
Russian English (models A2G A3G B1G B2G B3G B4G) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models A2G A3G B1G B2G B3G B4G) 45R9802 1
Romanian (models A2G A3G B1G B2G B3G B4G) 45R9803 1
Hungarian (models A2G A3G B1G B2G B3G B4G) 45R9804 1
Slovakian (models A2G A3G B1G B2G B3G B4G) 45R9805 1
Serbian-Latin (models) 45R9806 1
9622 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Chapter 11. FRU lists 567
9622 Vista VHP SP1 Recovery DVDs FRU# CRU
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9622 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
568 Hardware Maintenance Manual
9622 Vista Business 64 SP1 Recovery DVDs FRU# CRU
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9622 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9622 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 569
Machine Type 9702
Item # 9702 FRUs FRU# CRU Tier
1 Heat Sink/RM Kit Intel Prescott, Cedar Mill, Smithfield, Presler (all models) 41R6022 N
1 Intel 65W/95W Heatsink Kit (Tower) (all models) 41R6429 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K, LGA, EM64T
(models A3S A3D A3Y A7A A7Q A7T)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K, LGA, EM64T
(models ACU ACF B1S B1P B1D B1Y APS APD APY B4U B4F B3U B3F 7FG 7SG)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T (models
H7S H7Y)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models 7AG B2S B2P B2D B2Y AQS AQP AQD AQY ASS ASD ASY ARS
ARD ARY B5U B5F B6U B6F B6A B6Q B6T B7U B7F B7A B7Q B7T BEA BEQ BET
BEK A8A A8Q A8T A9K BBK BCA BCQ BCT BCK BDA BDQ BDT BNA BNQ BNT
BPM BPA BPQ BPT BPJ A9A A9Q A9T BAM BBM BBA BBQ BPK D8M D8A D8Q
D8T D8J)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO FCS FCP FCY FDU FDF F9U F9F)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
570 Hardware Maintenance Manual
Item # 9702 FRUs FRU# CRU Tier
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO 8CG 8DG)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO H1P H1Y H2P H3P H4S H4P H4Y H5S H6S)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO 8EG 8FG)
46R9512 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models AJC B1S B1P
B1D B1Y AQS AQP AQD AQY B4U B4F APS APD APY ARS ARD ARY B3U B3F
B5U B5F B6U B6F B6A B6Q B6T A2V A7A A7Q A7T A8A A8Q A8T BDA BDQ
BDT BNA BNQ BNT DAU DAF FDU FDF)
41X4255 2
Chapter 11. FRU lists 571
Item # 9702 FRUs FRU# CRU Tier
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models 7AG 7BG 7BM
7BA 7BQ 7BJ AAP AKP ACU ACF ALS ALY AMU ANS ANY ASS ASD ASY ATS
ATP ATD ATY AUS AUD AUY AVS AVD AVY AWS AWD AWY B2S B2P B2D B2Y
7CG 7DG 7EG B7U B7F B7A B7Q B7T A4U A4F A5U A5F BEA BEQ BET BEK A3S
A3D A3Y A9K BBK BCA BCQ BCT BCK BGA BGQ BGT BHA BHQ BHT BJA BJQ
BJT BKA BKQ BKT BLM BLA BLQ BLT BLJ BWQ BWA BWT BPM BPA BPQ BPT
BPJ BRM BRA BRQ BSM BSA BST BSJ BUM A9A A9Q A9T BAM BBM BBA BBQ
BLK BPK BVM AMF 7FG 7HG 7JG D4A D4Q D4T D5M D5A D5J D6M D6A D6T
D6J D7M D9U D9F D8M D8A D8Q D8T D8J D2A D2Q D2T D3M D3A D3T D1U
D1F D3U D3F 7MG 7PG 7QG 7RG E3A E3T E4A E4T 7SG E9C 7UG 7VG 7WG
71G F1S F1P F1D F1Y F2S F2P F2D F2Y F3S F3P F3D F3Y FBS FBP FBY FCS FCP
FCY F9U F9F)
41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models BMQ BMK E5A
E5T E5J E6M E7A E7T E8M E8A E8T E8J E1M E1A E1T E1K E1J 8CG 8EG 8FG)
41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models H1P H1Y H2P
H3P H4S H4P H4Y H5S H6S H7S H7Y)
41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models 8DG) 41X1081 2
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models ACU ACF AJC ASS
ASD ASY B4U B4F APS APD APY ARS ARD ARY B3U B3F B5U B5F A2V BBK
BGA BGQ BGT BHA BHQ BHT BNA BNQ BNT BBM BBA BBQ 7FG DAU DAF
E3A E3T E9C FDU FDF H2P H3P)
41N3325 2
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models 7BG 7BM 7BA 7BQ 7BJ AAP AKP ALS ALY AMU ANS
ANY B2S B2P B2D B2Y ATS ATP ATD ATY AWS AWD AWY B6U B6F B6A B6Q
B6T A4U A4F BEA BEQ BET BEK A7A A7Q A7T A8A A8Q A8T A9K BCA BCQ
BCT BCK BKA BKQ BKT BWQ BWA BWT A9A A9Q A9T AMF D4A D4Q D4T
D2A D2Q D2T D3M D3A D3T )
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models
7AG AUS AUD AUY AVS AVD AVY 7CG 7DG 7EG B7U B7F B7A B7Q B7T A5U
A5F A3S A3D A3Y BLM BLA BLQ BLT BLJ BPM BPA BPQ BPT BPJ BRM BRA
BRQ BSM BSA BST BSJ BUM BPK BMQ BMK BVM 7HG 7JG D5M D5A D5J D6M
D6A D6T D6J D7M D9U D9F D8M D8A D8Q D8T D8J D1U D1F 7MG 7PG 7QG
7RG E4A E4T E5A E5T E5J E6M E1M E1A E1T E1K E1J 7SG 7UG 7VG 7WG 71G
F1S F1P F1D F1Y F2S F2P F2D F2Y F3S F3P F3D F3Y FBS FBP FBY FCS FCP FCY
F9U F9F H4S H4P H4Y H5S H6S H7S H7Y 8CG 8DG 8EG 8FG)
43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models B2S B2P
B2D B2Y)
40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models B2S B2P
B2D B2Y)
40Y9105 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models AAP ACU ACF ANS
ANY B1S B1P B1D B1Y AQS AQP AQD AQY B4U B4F APS APD APY ARS ARD
ARY B3U B3F B5U B5F A7A A7Q A7T BNA BNQ BNT DAU DAF)
40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models 7BG 7BM 7BA 7BQ
AKP AJC ALS ALY AMU B2S B2P B2D B2Y ASS ASD ASY ATS ATP ATD ATY
AUS AUD AUY AVS AVD AVY AWS AWD AWY 7DG 7EG B6U B6F B6A B6Q B6T
B7U B7F B7A B7Q B7T A4U A4F A5U A5F BEA BEQ BET BEK A2V A3S A3D A3Y
A8A A8Q A8T A9K BBK BCA BCQ BCT BCK BDA BDQ BDT BGA BGQ BGT
BHA BHQ BHT BJA BJQ BJT BWQ BWA BWT BPM BPA BPQ BPT BPJ BRM BRA
BRQ BSM BSA BST BSJ A9A A9Q A9T BAM BBM BBA BBQ BPK AMF 7FG D6M
D6A D6T D6J D9U D9F D8M D8A D8Q D8T D8J D2A D2Q D2T D3M D3A D3T
D1U D1F D3U D3F 7MG E3A E3T E4A E4T 7SG E9C 7UG F1S F1P F1D F1Y F2S
F2P F2D F2Y F3S F3P F3D F3Y FBS FBP FBY FCS FCP FCY FDU FDY F9U F9Y
H1P H1Y H2P H3P H4S H4P H4Y H5S H7S H7Y)
40Y9035 2
572 Hardware Maintenance Manual
Item # 9702 FRUs FRU# CRU Tier
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models BUM D7M 7PG 7QG
7RG E5T E5J E6M E1M E1A E1T E1K E1J 7VG 7WG 71G 8CG 8DG)
87H4891 2
11 System board , Intel G31 mATX GA Level (models 7AG 7BG 7BM 7BA 7BQ 7BJ
AAP AKP ACU ACF AJC ALS ALY AMU ANS ANY B2S B2P B2D B2Y B1S B1P
B1D B1Y AQS AQP AQD AQY ASS ASD ASY ATS ATP ATD ATY AUS AUD AUY
AVS AVD AVY AWS AWD AWY B4U B4F 7CG 7DG 7EG APS APD APY ARS ARD
ARY B3U B3F B5U B5F B6U B6F B6A B6Q B6T B7U B7F B7A B7Q B7T A4U A4F
A5U A5F BEA BEQ BET BEK A2V A3S A3D A3Y A7A A7Q A7T A8A A8Q A8T
A9K BBK BCA BCQ BCT BCK BDA BDQ BDT BGA BGQ BGT BHA BHQ BHT
BJA BJQ BJT BKA BKQ BKT BLM BLA BLQ BLT BLJ BWQ BWA BWT BNA BNQ
BNT BPM BPA BPQ BPT BPJ BRM BRA BRQ BSM BSA BST BSJ BUM A9A A9Q
A9T BAM BBM BBA BBQ BLK BPK BMQ BMK BVM AMF 7FG 7HG 7JG D4A
D4Q D4T D5M D5A D5J D6M D6A D6T D6J D7M D9U D9F D8M D8A D8Q D8T
D8J D2A D2Q D2T D3M D3A D3T D1U D1F DAU DAF D3U D3F 7MG 7PG 7QG
7RG E3A E3T E4A E4T E5A E5T E5J E6ME1M E1A E1T E1K E1J 7SG E9C 7UG
7VG 7WG 71G F1S F1P F1D F1Y F2S F2P F2D F2Y F3S F3P F3D F3Y FBS FBP FBY
FCS FCP FCY FDU FDF F9U F9F H1P H1Y H2P H3P H4S H4P H4Y H5S H6S H7S
H7Y 8CG 8DG 8EG 8FG)
53Y3282 N
12 Fan, System Fan (all models) 41R6272 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models 7AG 7BG 7BM 7BA 7BQ AAP AKP ACU ACF AJC ALS ALY AMU ANS
ANY B2S B2P B2D B2Y B1S B1P B1D B1Y AQS AQP AQD AQY ASS ASD ASY
ATS ATP ATD ATY AUS AUD AUY AVS AVD AVY AWS AWD AWY B4U B4F
7CG 7DG 7EG APS APD APY ARS ARD ARY B3U B3F B5U B5F B6U B6F B6A
B6Q B6T B7U B7F B7A B7Q B7T A4U A4F A5U A5F BEA BEQ BET BEK A2V A3S
A3D A3Y A7A A7Q A7T A8A A8Q A8T A9K BBK BCA BCQ BCT BCK BDA BDQ
BDT BGA BGQ BGT BHA BHQ BHT BJA BJQ BJT BKA BKQ BKT BLM BLA 7FG
7HG 7JG BLQ BLT BWQ BWA BWT BNA BNQ BNT BPM BPA BPQ BPT BRM
BRA BRQ BSM BSA BST BUM A9A A9Q A9T BAM BBM BBA BBQ BLK BPK
BMQ BMK BVM AMF D4A D4Q D4T D5M D5A D6M D6A D6T D7M D9U D9F
D8M D8A D8Q D8T D2A D2Q D2T D3M D3A D3T D1U D1F DAU DAF D3U D3F
7MG 7PG 7QG 7RG E3A E3T E4A E4T E5A E5T E6M E1M E1A E1T E1K 7SG E9C
7UG 7VG 7WG 71G F1S F1P F1D F1Y F2S F2P F2D F2Y F3S F3P F3D F3Y FBS FBP
FBY FCS FCP FCY FDU FDF F9U F9F H1P H1Y H2P H3P H4S H4P H4Y H5S H6S
H7S H7Y 8CG 8DG 8EG 8FG)
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models 7BJ 7AG
7BG 7BM 7BA 7BQ AAP AKP ACU ACF AJC ALS ALY AMU ANS ANY B2S B2P
B2D B2Y B1S B1P B1D B1Y AQS AQP AQD AQY ASS ASD ASY ATS ATP ATD
ATY AUS AUD AUY AVS AVD AVY AWS AWD AWY B4U B4F 7CG 7DG 7EG
APS APD APY ARS ARD ARY B3U B3F B5U B5F B6U B6F B6A B6Q B6T B7U B7F
B7A B7Q B7T A4U A4F A5U A5F BEA BEQ BET BEK A2V A3S A3D A3Y A7A
A7Q A7T A8A A8Q A8T A9K BBK BCA BCQ BCT BCK BDA BDQ BDT BGA BGQ
BGT BHA BHQ BHT BJA BJQ BJT BKA BKQ BKT BLM BLA BLQ BLT BLJ BWQ
BWA BWT BNA BNQ BNT BPM BPA BPQ BPT BPJ BRM BRA BRQ BSM BSA BST
BSJ BUM A9A A9Q A9T BAM BBM BBA BBQ BLK BPK BMQ BMK BVM AMF
7FG 7HG 7JG D4A D4Q D4T D5M D5A D5J D6M D6A D6T D6J D7M D9U D9F
D8M D8A D8Q D8T D8J D2A D2Q D2T D3M D3A D3T D1U D1F DAU DAF D3U
D3F E3A E3T E4A E4T E5A E5T E5J E6M E1M E1A E1T E1K E1J 7SG E9C 7UG
7VG 7WG 71G F1S F1P F1D F1Y F2S F2P F2D F2Y F3S F3P F3D F3Y FBS FBP FBY
FCS FCP FCY FDU FDY F9U F9Y H1P H1Y H2P H3P H4S H4P H4Y H5S H6S H7S
H7Y 8CG 8DG 8EG 8FG)
41A9665 2
Chapter 11. FRU lists 573
Item # 9702 FRUs FRU# CRU Tier
13 Power supply, ATX 310W Power supply Robust; for all countries (models 7BJ 7AG
7BG 7BM 7BA 7BQ AAP AKP ACU ACF AJC ALS ALY AMU ANS ANY B2S B2P
B2D B2Y B1S B1P B1D B1Y AQS AQP AQD AQY ASS ASD ASY ATS ATP ATD
ATY AUS AUD AUY AVS AVD AVY AWS AWD AWY B4U B4F 7CG 7DG 7EG
APS APD APY ARS ARD ARY B3U B3F B5U B5F B6U B6F B6A B6Q B6T B7U B7F
B7A B7Q B7T A4U A4F A5U A5F BEA BEQ BET BEK A2V A3S A3D A3Y A7A
A7Q A7T A8A A8Q A8T A9K BBK BCA BCQ BCT BCK BDA BDQ BDT BGA BGQ
BGT BHA BHQ BHT BJA BJQ BJT BKA BKQ BKT BLM BLA BLQ BLT BLJ BWQ
BWA BWT BNA BNQ BNT BPM BPA BPQ BPT BPJ BRM BRA BRQ BSM BSA BST
BSJ BUM A9A A9Q A9T BAM BBM BBA BBQ BLK BPK BMQ BMK BVM AMF
7FG 7HG 7JG D4A D4Q D4T D5M D5A D5J D6M D6A D6T D6J D7M D9U D9F
D8M D8A D8Q D8T D8J D2A D2Q D2T D3M D3A D3T D1U D1F DAU DAF D3U
D3F 7MG 7PG 7QG 7RG E3A E3T E4A E4T E5A E5T E5J E6M E1M E1A E1T E1K
E1J 7SG E9C 7UG 7VG 7WG 71G F1S F1P F1D F1Y F2S F2P F2D F2Y F3S F3P F3D
F3Y FBS FBP FBY FCS FCP FCY FDU FDY F9U F9Y H1P H1Y H2P H3P H4S H4P
H4Y H5S H6S H7S H7Y 8CG 8DG 8EG 8FG)
41A9726 2
The FRUs listed in the following tables are not illustrated.
9702 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Shield, diskette drive EMC (all models) 41N8078 2
Cabel -SATA 457mm (RoHS) (all models) 43N9013 2
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cover, left side (all models) 41N8050 2
Asm, Speaker, Soldered Terminals (all models) 39P5023 2
Asm, Power Switch/LED (all models) 41N5284 2
Front Audio/USB Asm (all models) 41N8054 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Asm bezel, without IBM mark (all models) 41R6243 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Cable-SATA 250mm (RoHS) (all models) 43N9012 2
Hard disk drive tray (all models) 41R6291 2
System fan (all models) 41R6269 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Asm Chassis Without IBM Mark Atlantic (all models) 41R6408 2
ODD/FDD/Card reader (all models) 43N9351 2
Blank 5.25″Bezel (all models) 41N8077 2
Cable Clip, FW-6D (all models) 43N9462 2
574 Hardware Maintenance Manual
9702 FRUs FRU# CRU Tier
Battery 3V- Lithium (models 7AG 7BG 7BM 7BA 7BQ 7BJ AAP AKP ACU ACF AJC ALS
ALY AMU ANS ANY B2S B2P B2D B2Y B1S B1P B1D B1Y AQS AQP AQD AQY ASS ASD
ASY ATS ATP ATD ATY AUS AUD AUY AVS AVD AVY AWS AWD AWY B4U B4F 7CG
7DG 7EG APS APD APY ARS ARD ARY B3U B3F B5U B5F B6U B6F B6A B6Q B6T B7U
B7F B7A B7Q B7T A4U A4F A5U A5F BEA BEQ BET BEK A2V A3S A3D A3Y A7A A7Q
A7T A8A A8Q A8T A9K BBK BCA BCQ BCT BCK BDA BDQ BDT BGA BGQ BGT BHA
BHQ BHT BJA BJQ BJT BKA BKQ BKT BLM BLA BLQ BLT BLJ BWQ BWA BWT BNA
BNQ BNT BPM BPA BPQ BPT BPJ BRM BRA BRQ BSM BSA BST BSJ BUM A9A A9Q A9T
BAM BBM BBA BBQ BLK BPK BMQ BMK BVM AMF 7FG 7HG 7JG D4A D4Q D4T D5M
D5A D5J D6M D6A D6T D6J D7M D9U D9F D8M D8A D8Q D8T D8J D2A D2Q D2T D3M
D3A D3T D1U D1F DAU DAF D3U D3F 7MG 7PG 7QG 7RG E3A E3T E4A E4T E5A E5T
E5J E6M E1M E1A E1T E1K E1J 7SG E9C 7UG 7VG 7WG 71G F1S F1P F1D F1Y F2S F2P
F2D F2Y F3S F3P F3D F3Y FBS FBP FBY FCS FCP FCY FDU FDF F9U F9F H1P H1Y H2P
H3P H4S H4P H4Y H5S H6S H7S H7Y 8CG 8DG 8EG 8FG)
45C1566 1
9702 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Chapter 11. FRU lists 575
9702 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9702 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models ACU 7AG 7BG 7BM 7BA 7BQ AMU B4U 7CG 7DG 7EG B3U B5U
B6U B6A B6Q B7U B7A B7Q A4U A5U BEA BEQ A7A A7Q BLM BLA BLQ BGA
BGQA8A A8Q BCA BCQ BDA BDQ BGA BGQ BHA BHQ BJA BJQ BKA BKQ BLM BLA
BLQ BKA BKQ BWQ BNA BNQ BPM BPA BPQ BRM BRA BRQ BSM BSA BUM A9A A9Q
AM BBM BBA BBQ BMQ BVM 7FG 7HG 7JG D4A D4Q D5M D5A D6M D6A D7M D9U
D8M D8A D8Q D2A D2Q D3M D3A D1U DAU D3U 7MG 7PG 7QG 7RG E3A E4A E5A
E6M E1M E1A 7SG 7UG 7VG 7WG 71G FDU F9U 8CG 8DG 8EG 8FG)
41A5289 1
Arabic (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG
7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5292 1
Belgian/UK (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG
7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5293 1
Brazilian Portuguese (models AAP AKP B2P B1P AQP ATP F1P F2P F3P FBP FCP H1P
H2P H3P H4P)
41A5294 1
Bulgarian (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5295 1
Chinese/US (models A2V) 41A5296 1
Czech (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG 7VG
7WG 71G 8CG 8DG 8EG 8FG)
41A5297 1
Danish (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5298 1
Dutch (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG 7VG
7WG 71G 8CG 8DG 8EG 8FG)
41A5299 1
French (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5300 1
French Canadian (models FDF F9F) 41A5301 1
French Canadian (models FDF F9F) 41A5302 1
German (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5303 1
Greek (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG 7VG
7WG 71G 8CG 8DG 8EG 8FG)
41A5304 1
576 Hardware Maintenance Manual
9702 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Greek/US (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5305 1
Hebrew (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5306 1
Hungarian (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5307 1
Iceland (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5308 1
Italian (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG 7VG
7WG 71G 8CG 8DG 8EG 8FG)
41A5309 1
Japanese (models 7BJ BLJ BPJ BSJ D5J D6J D8J E5J E1J) 41A5310 1
Korean (models BEK A9K BBK BCK BLK BPK BMK E1K) 41A5311 1
LA Spanish (models ALS ALY ANS ANY B2S B2D B2Y B1S B1D B1Y AQS AQD AQY ASS
ASD ASY ATS ATD ATY AUS AUD AUY AVS AVD AVY AWS AWD AWY APS APD APY
ARS ARD ARY A3S A3D A3Y F1S F1D F1Y F2S F2D F2Y F3S F3D F3Y FBS FBY FCS FCY
H1Y H4S H4Y H5S H6S H7S H7Y)
41A5312 1
Norwegian (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5313 1
Polish (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG 7VG
7WG 71G 8CG 8DG 8EG 8FG)
41A5314 1
Portuguese (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5315 1
Romanian (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5317 1
Russian/Cyrillic (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG
7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5318 1
Serbian/Cyrillic (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG
7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5319 1
Slovak (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5320 1
Spanish (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5321 1
Swedish/Finnish (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG
7SG 7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5322 1
Swiss (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG 7VG
7WG 71G 8CG 8DG 8EG 8FG)
41A5323 1
Thailand (models B6T B7T BET AQT A7T A8T BCT BDT BGT BHT BJT BKT BLT BKT
BWT BNT BPT BST A9T D4T D6T D8T D2T D3T E3T E4T E5T E7T E8T E1T 8CG 8DG
8EG 8FG)
41A5324 1
Turkish (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5325 1
Turkish (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5326 1
UK English (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5327 1
US Euro (models) 41A5328 1
Slovenian (models 7AG 7BG 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
41A5329 1
Chapter 11. FRU lists 577
9702 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
578 Hardware Maintenance Manual
9702 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
Chapter 11. FRU lists 579
9702 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9702 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models 7AG) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models B6U B6F B6A B6Q B6T BTM BUM) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
USB Memory Key - 1G RoW (models 7BG 7BM 7BA 7BQ 7BJ) 41U4978 1
ADD2 DVI Adapter,FH (HDCP) (models 7MG 7PG 7QG 7RG E6M E7A E7T E1M E1A E1T
E1K E1J)
43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 46R4159 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models BUM BVM) 46R4160 2
DVI-I connection Adapter Full Height(models 7HG 7JG 7VG 7WG 71G 8CG 8DG 8EG 8FG
)
39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models ACU 7BS AMU ALS
ANS B4U B2S B1S AQS ASS ATS AUS AVS APS APY ARS ARY B3U B5U B6U B7U A4U
A5U A3S A3Y D4A D5A D6A D9U D8A D2A D3A D1U DAU D3U E3A E4A E5A E1A F1S
F2S F3S FBS FCS FDU F9U H4S H5S H6S H7S)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models B2D B1D AQD ASD ATD AUD
AVD APD ARD A3D F1D F2D F3D)
89P8575 1
Speaker Power brick - China, Thailand (models AJC B6T B7T BET A8T BCT BDT BGT
BHT BJT BKT BLT BWT BNT BPT BST D4T D6T D8T D2T D3T E3T E4T E5T E1T E9C)
89P8581 1
Speaker Power brick - Japan (models 7BJ BLJ BPJ BSJ D5J D6J D8J E5J E8J E1J) 89P8577 1
Speaker Power brick - Brazil (models B2P B1P AQP ATP FBP FCP H1P H2P H3P H4P) 89P8583 1
Speaker Power brick - Argentina (models B2Y B1Y AQY ASY ATY AUY AVY F1D F2D F3D
FBY FCY H1Y H4Y H7Y )
41A4901 1
Speaker Power brick - ANZ (modes 7BM BLM BPM BRM BSM BUM BAM BBM BVM
D5M D6M D7M D8M D3M E6M E1M )
89P8579 1
Speaker Brick - Korea (models BEK A9K BBK BCK BLK BPK BMK E1K) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 7UG
7VG 7WG 71G 8CG 8DG 8EG 8FG)
89P8573 1
Speaker Brick - Taiwan (models A2V) 41A4905 1
Speaker Power brick - India, South Africa (models 7BQ B6Q B7Q BEQ A8Q BCQ BDQ
BGQ BHQ BJQ BKQ BLQ BWQ BNQ BPQ BRQ A9Q BAQ BBQ BMQ)
89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
580 Hardware Maintenance Manual
9702 Line Cords FRU# CRU
Line cord - US (models ACU ACF 7BA AMU ALS ANS B4U B4F B2S B1S AQS ASS ATS
AUS AVS B2D B1D AQD ASD ATD AUD AVD APS APD B3U B3F B5U B5F B6U B6F B6A
B6T B7U B7F B7T A4U A4F A5U A5F BET A3S A3D A7A A8A BDA BGA BHA BJA A9A
BBA AMF D4A D5A D6A D4T D6T D8T D2T D3T D1U DAU D1F DAF D3U D3F E4A
E5A E1A E3T E4T E5T E1T F1S F2S F3S F1D F2D F3D FBS FCS H4S H5S H6S H7S FDU
FDF F9U F9F)
41R3184 1
Line cord - US (models ACU ACF 7BA AMU ALS ANS B4U B4F B2S B1S AQS ASS ATS
AUS AVS B2D B1D AQD ASD ATD AUD AVD APS APD B3U B3F B5U B5F B6U B6F B6A
B6T B7U B7F B7T A4U A4F A5U A5F BET A3S A3D A7A A8A BDA BGA BHA BJA A9A
BBA AMF D4A D5A D6A D4T D6T D8T D2T D3T D1U DAU D1F DAF D3U D3F E4A
E5A E1A E3T E4T E5T E1T F1S F2S F3S F1D F2D F3D FBS FCS H4S H5S H6S H7S FDU
FDF F9U F9F)
41R3185 1
Line cord - China (models AJC E9C) 41R3256 1
Line cord - China (models AJC E9C) 41R3257 1
Line cord - Brazil (models AAP AKP B2P B1P AQP ATP FBP FCP H2P H3P ) 41R3270 1
Line cord - Brazil (models AAP AKP B2P B1P AQP ATP FBP FCP H2P H3P ) 41R3271 1
Line cord - LA High Volt APU (models ALS ALY ANS ANY B2S B1S AQS ASS ATS AUS
AVS B2Y B1Y AQY ASY ATY AUY AVY ARS ARY A3S A3Y F1S F2S F3S F1Y F2Y F3Y FBS
FCS H4S H5S H6S H7S FBY FCY H1Y H4Y H7Y)
41R3176 1
Line Cord - LA High Volt APU (models ALS ALY ANS ANY B2S B1S AQS ASS ATS AUS
AVS B2Y B1Y AQY ASY ATY AUY AVY ARS ARY A3S A3Y F1S F2S F3S F1Y F2Y F3Y FBS
FCS H4S H5S H6S H7S FBY FCY H1Y H4Y H7Y)
41R3177 1
Line Cord - Korea (models BEK A9K BBK BCK BLK BPK) 41R3260 1
Line Cord - Korea (models BEK A9K BBK BCK BLK BPK) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models 7AG 7BG 7BA 7CG 7DG
7EG B6A BEA A7A A8A BDA BGA BHA BJA BLA BWA BNA BPA BRA BSA A9A BBA
D4A D5A D6A 7MG 7PG 7QG 7RG E4A E5A E1A 7SG 7UG 7VG 7WG 71G 8CG 8DG 8EG
8FG)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models 7AG 7BG 7BA 7CG 7DG
7EG B6A BEA A7A A8A BDA BGA BHA BJA BLA BWA BNA BPA BRA BSA A9A BBA
D4A D5A D6A 7MG 7PG 7QG 7RG E4A E5A E1A 7SG 7UG 7VG 7WG 71G 8CG 8DG 8EG
8FG)
41R3225 1
Line Cord - Taiwan (models A2V) 41R3278 1
Line Cord - Taiwan (models A2V) 41R3279 1
Line Cord - Italy (models 7AG 7BG 7BA 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG
7UG 7VG 7WG 71G F1Y F2Y F3Y 8CG 8DG 8EG 8FG)
41R3232 1
Line Cord - Italy (models 7AG 7BG 7BA 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG
7UG 7VG 7WG 71G F1Y F2Y F3Y 8CG 8DG 8EG 8FG)
41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models 7AG 7BG 7BA 7CG 7DG
7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models 7AG 7BG 7BA 7CG 7DG
7EG 7FG 7HG 7JG 7MG 7PG 7QG 7RG 7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41R3209 1
Line Cord - Denmark (models 7AG 7BG 7BA 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG
7RG 7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41R3212 1
Line Cord - Denmark (models 7AG 7BG 7BA 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG
7RG 7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41R3213 1
Line Cord - Switzerland (models 7AG 7BG 7BA 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG
7QG 7RG 7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41R3228 1
Chapter 11. FRU lists 581
9702 Line Cords FRU# CRU
Line Cord - Switzerland (models 7AG 7BG 7BA 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG
7QG 7RG 7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41R3229 1
Line Cord - Israel (models 7AG 7BG 7BA 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG
7RG 7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41R3236 1
Line Cord - Israel (models 7AG 7BG 7BA 7CG 7DG 7EG 7FG 7HG 7JG 7MG 7PG 7QG
7RG 7UG 7VG 7WG 71G 8CG 8DG 8EG 8FG)
41R3237 1
Line Cord - South Africa (models 7AG 7BG 7BA 7CG 7DG 7EG B6A BEA A7A A8A BDA
BGA BHA BJA BLA BWA BNA BPA BRA BSA A9A BBA 7FG 7HG 7JG D4A D5A D6A
7MG 7PG 7QG 7RG E6M E1M E4A E5A E1A 7SG 7UG 7VG 7WG 71G 8CG 8DG 8EG
8FG)
41R3220 1
Line Cord - South Africa (models 7AG 7BG 7BA 7CG 7DG 7EG B6A BEA A7A A8A BDA
BGA BHA BJA BLA BWA BNA BPA BRA BSA A9A BBA 7FG 7HG 7JG D4A D5A D6A
7MG 7PG 7QG 7RG E6M E1M E4A E5A E1A 7SG 7UG 7VG 7WG 71G )
41R3221 1
Line Cord - India (models 7BQ B6Q B7Q BEQ A7Q A8Q BCQ BDQ BGQ BHQ BKQ BLQ
BWQ BNQ BPQ BRQ A9Q BBQ BMQ D4Q D8Q D2Q)
41R3341 1
Line Cord - India (models 7BQ B6Q B7Q BEQ A7Q A8Q BCQ BDQ BGQ BHQ BKQ BLQ
BWQ BNQ BPQ BRQ A9Q BBQ BMQ D4Q D8Q D2Q)
41R3175 1
Line Cord - Japan (models D5J D6J D8J E5J E1J) 41R3248 1
Line Cord - Japan (models D5J D6J D8J E5J E1J) 41R3249 1
Line Cord - ANZ (models BAM BLM BPM BRM BSM BUM BVM D5M D6M D7M D8M
D3M E6M E1M )
41R3196 1
Line Cord - ANZ (models BAM BLM BPM BRM BSM BUM BVM D5M D6M D7M D8M
D3M E6M E1M )
41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
9702 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
582 Hardware Maintenance Manual
9702 Windows XP Home Recovery CDs FRU# CRU
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9702 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models 7DG 7EG B3U B5U B6U B6A B6Q B7U B7A B7Q A4U A5U BEA
BEQ 7FG 7HG 7JG 7UG 7VG 7WG 71G )
45R0756 1
FR/CF (models 7DG 7EG B3F B5F B6F B7F A4F A5F 7FG 7HG 7JG 7UG 7VG 7WG 71G) 45R0759 1
GR (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0760 1
IT (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0762 1
BR (models F1P F2P 3P) 45R0763 1
SP/LA (models 7DG 7EG APS APD APY ARS ARD ARY 7FG 7HG 7JG 7UG 7VG 7WG
71G F1S F1D F1Y F2S F2D F2Y F3S F3D F3Y )
45R0761 1
DK (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0764 1
NL (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0767 1
AE (models) 45R2342 1
SV (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0765 1
HE (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R2334 1
FI (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0766 1
NO (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0770 1
PL (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0777 1
PO (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0774 1
RU (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0773 1
RE (models) 45R2318 1
HU (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0780 1
CZ (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0776 1
TR (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0775 1
GK (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R0772 1
SL (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G ) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models BEK) 45R0771 1
Multilingual 1 – EN, NL, FR, GR, IT (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G
)
45R8246 1
Chapter 11. FRU lists 583
9702 Windows XP Pro Recovery CDs FRU# CRU
Multilingual 2 – EN, DK, FI, NO, SV (models 7DG 7EG 7FG 7HG 7JG 7UG 7VG 7WG 71G
)
45R8247 1
9702 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models E1A) 46R7273 1
Japanese (models E1J ) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models B4F) 46R7276 1
German (models) 46R7277 1
Spanish (models H6S) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models A9K BBK E1K) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9702 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models 7AG 7BG 7BM 7BA 7BQ AMU 7CG 7DG 7EG B3U B5U B6U B6A B6Q
B7U B7A B7Q A4U A5U BEA BEQ A7A A7Q A8A A8Q BCA BCQ BDA BDQ BHA BHQ
BJA BJQ BKA BKQ BLM BLA BLQ BWQ BWA BNA BNQ BPM BPA BPQ BRM BRA BRQ
BSM BSA BMQ D4A D4Q D5M D5A D7M D9U D8M D8A D8Q D1U DAU D3U 7MG 7PG
7QG 7RG E5A E6M 7SG FDU F9U 8CG 8DG 8EG 8FG)
46R7287 1
Japanese (models 7BJ BLJ BPJ BSJ D5J D6J D8J E5J ) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models D3F FDF F9F) 46R7290 1
584 Hardware Maintenance Manual
9702 Vista Business 32 SP1 Recovery DVDs FRU# CRU
German (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 46R7291 1
Spanish (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG FBS FBY FCS FCY
H1Y H4S H7S H7Y 8CG 8DG 8EG 8FG)
46R7292 1
Italian (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 46R7293 1
Brazilian Portuguese (models AKP AAP AAP AKP B2P AQP ATP FBP FCP H1P H2P H3P) 46R7294 1
Danish (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 46R7295 1
Swedish (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9786 1
Finland (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9787 1
Dutch (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9788 1
Traditional Chinese (models A2V ) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG
8FG)
46R7298 1
Korean (models BEK BCK BLK BPK BMK E5K E8K) 45R9792 1
Slovenian (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9793 1
Greek (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9794 1
Russian (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 46R7299 1
Portuguese (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG
8FG)
45R9796 1
Turkish (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9797 1
Czech (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9798 1
Polish (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG
8EG 8FG)
45R9801 1
Hebrew (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9802 1
Romanian (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9803 1
Hungarian (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9804 1
Slovakian (models 7AG 7BG 7CG 7DG 7EG 7MG 7PG 7QG 7RG 7SG 8CG 8DG 8EG 8FG) 45R9805 1
Serbian-Latin (models) 45R9806 1
9702 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Chapter 11. FRU lists 585
9702 Vista VHP SP1 Recovery DVDs FRU# CRU
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9702 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
586 Hardware Maintenance Manual
9702 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9702 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
Chapter 11. FRU lists 587
9702 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
588 Hardware Maintenance Manual
Machine Type 9703
Item # 9703 FRUs FRU# CRU
1 Intel 65W/95W Heatsink Kit (all models) 41R6429 2
1 Heat Sink/RM Kit Intel Prescott (all models) 41N8261 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T (models
AMM AMA AMQ AMK AMJ)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models 7AG AAP ACS ACY AES AED AEY AFS AFD AFY AJS AJD AJY
ACS ACY ADS ADD ADY BGJ BJJ A5J A6M A6A A6J A9J ANA ANT BHJ APA
AUA A7J A8J A6Q A6T A6K ANQ APQ APT AUQ AUT AUK C1M C1A C1Q C1J)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AES AED AEY AFS
AFD AFY AJS AJD AJY BPJ ADS ADD ADY A5J ALV ANA ANT A7J)
41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models 7BG 7BM 7BA 7BQ 7BT 7BJ AAP ACS ACY AGS AGD AGY ABU ACS
ACY ABF B8A B8T B8Q B9M B9A B9T B1S B1D B1Y)
42Y9353 2
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models 7AG AHS AHD
AHY AKS AKD AKY BNJ BQJ BSJ BGJ BJJ A6M A6A A6J A9J BHJ APA AUA A8J
B4M B4A B4Q B4T C1M C1A C1Q C1J C2M C3M C3A C3Q C3T C3J B5M B5A
B5T B6A B6T B7A B7T B3S B3D B3Y B2S B2D B2Y D1A D1T D1J)
43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models AAP ACS ACY AES
AED AEY AFS AFD AFY ACS ACY ADS ADD ADY BCJ BDJ BFJ BEJ)
40Y9034 2
Chapter 11. FRU lists 589
Item # 9703 FRUs FRU# CRU
5 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models 7BG 7BM 7BA 7BQ
7BT 7BJ AGS AGD AGY AHS AHD AHY AKS AKD AKY AJS AJD AJY ABU BGJ
BJJ A5J A6M A6A A6J A9J ALV ANA ANT BHJ APA AUA A7J A8J A6Q A6T A6K
ANQ APQ APT AUQ AUT AUK AMM AMA AMQ AMK AMJ ARA ARQ ART
ASA ASQ AWA AWQ AWT AWK A2A A2Q A2T A2K BAJ BBA BBQ BBT BBJ ABF
C1M C1A C1Q C1J B5M B5A B5T B7A B7T B8A B8T B8Q B3S B3D B3Y B1S B1D
B1Y B2S B2D B2Y)
40Y9035 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models BPJ BQJ BSJ) 87H4891 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models AJS AJD AJY BNJ BPJ BQJ
BSJ BGJ BJJ A5J A8J)
40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models AJS AJD AJY BNJ BPJ BQJ
BSJ BGJ BJJ A5J A8J)
40Y9107 2
7 Front USB/Audio with bracket (all models) 41N8212 2
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models AES AED
AEY AFS AFD AFY ADD ADY BGJ BJJ A5J ALV BHJ A7J A8J)
41X4255 2
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models 7BG 7BM 7BA
7BQ 7BT 7BJ 7AG AAP ACS ACY AGS AGD AGY AHS AHD AHY AKS AKD
AKY AJS AJD AJY BNJ BPJ BQJ BSJ ABU ACS ACY A6M A6A A6J A9J ANA ANT
APA AUA ABF B4M B4A B4Q B4T C1M C1A C1Q C1J C2M C3M C3A C3Q C3T
C3J B5M B5A B5T B6A B6T B7A B7T B8A B8T B8Q B9M B9A B9T B3S B3D B3Y
B1S B1D B1Y B2S B2D B2Y)
41X4256 2
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models D1A D1T D1J ) 41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board, Intel G31 nano-BTX GA Level (models 7BG 7BM 7BA 7BQ 7BT 7BJ
7AG AAP ACS ACY AES AED AEY AFS AFD AFY AGS AGD AGY AHS AHD
AHY AKS AKD AKY AJS AJD AJY BNJ BPJ BQJ BSJ ABU ACS ACY ADS ADD
ADY BGJ BJJ A5J A6M A6A A6J A9J ALV ANA ANT BHJ APA AUA A7J A8J A6Q
A6T A6K ANQ APQ APT AUQ AUT AUK AMM AMA AMQ AMK AMJ BCJ BDJ
BFJ BEJ BKJ BLJ BNJ BPJ BQJ BSJ BMJ BRJ ARA ARQ ARTASA ASQ AWA AWQ
AWT AWK A2A A2Q A2T A2K A3M A3A A3Q A3T A3K A3J A4M A4A A4Q A4T
A4K A4J BAJ BBA BBQ BBT BBJ ABF B4M B4A B4Q B4T C1M C1A C1Q C1J C2M
C3M C3A C3Q C3T C3J B5M B5A B5T B6A B6T B7A B7T B8A B8T B8Q B9M B9A
B9T B3S B3D B3Y B1S B1D B1Y B2S B2D B2Y D1A D1T D1J)
53Y3282 N
10 Power supply, 220 Watt - Robust; for all countries except for JP (models 7BG 7BM
7BA 7BQ 7BT 7AG AAP ACS ACY AES AED AEY AFS AFD AFY AGS AGD AGY
AHS AHD AHY AKS AKD AKY AJS AJD AJY ABU ACS ACY ADS ADD ADY
A6M A6A ALV ANA ANT APA AUA A6Q A6T A6K ANQ APQ APT AUQ AUT
AUK AMM AMA AMQ AMK ARA ARQ ARTASA ASQ AWA AWQ AWT AWK
A2A A2Q A2T A2K A3M A3A A3Q A3T A3K A4M A4A A4Q A4T A4K BBA BBQ
BBT ABF B4M B4A B4Q B4T C1M C1A C1Q C2M C3M C3A C3Q C3T B5M B5A
B5T B6A B6T B7A B7T B8A B8T B8Q B9M B9A B9T B3S B3D B3Y B1S B1D B1Y
B2S B2D B2Y D1A D1T)
41A9689 N
10 Power supply, 220 Watt Power Supply - Japan;only for JP (models 7BJ BNJ BPJ
BQJ BSJ BGJ BJJ A5J A6J A9J BHJ A7J A8J AMJ BCJ BDJ BFJ BEJ BKJ BLJ BNJ BPJ
BQJ BSJ BMJ BRJ A3J A4J BAJ BBJ C1J C3J D1J)
41A9697 N
590 Hardware Maintenance Manual
Item # 9703 FRUs FRU# CRU
10 Power supply, 220W 80% Power supply-for all countries (models 7BG 7BM 7BA
7BQ 7BT 7AG AAP ACS ACY AES AED AEY AFS AFD AFY AGS AGD AGY AHS
AHD AHY AKS AKD AKY AJS AJD AJY ABU ACS ACY ADS ADD ADY A6M
A6A ALV ANA ANT APA AUA A6Q A6T A6K ANQ APQ APT AUQ AUT AUK
AMM AMA AMQ AMK ARA ARQ ARTASA ASQ AWA AWQ AWT AWK A2A
A2Q A2T A2K A3M A3A A3Q A3T A3K A4M A4A A4Q A4T A4K BBA BBQ BBT
ABF B4M B4A B4Q B4T C1M C1A C1Q C2M C3M C3A C3Q C3T B5M B5A B5T
B6A B6T B7A B7T B8A B8T B8Q B9M B9A B9T B3S B3D B3Y B1S B1D B1Y B2S
B2D B2Y C1J C3J D1A D1T D1J)
41A9670 N
10 Power supply, 280W TFX 280W PS, Active PFC, for all countries (models 7BG 7BM
7BA 7BQ 7BT 7AG AAP ACS ACY AES AED AEY AFS AFD AFY AGS AGD AGY
AHS AHD AHY AKS AKD AKY AJS AJD AJY ABU ACS ACY ADS ADD ADY
A6M A6A ALV ANA ANT APA AUA A6Q A6T A6K ANQ APQ APT AUQ AUT
AUK AMM AMA AMQ AMK ARA ARQ ARTASA ASQ AWA AWQ AWT AWK
A2A A2Q A2T A2K A3M A3A A3Q A3T A3K A4M A4A A4Q A4T A4K BBA BBQ
BBT ABF B4M B4A B4Q B4T C1M C1A C1Q C2M C3M C3A C3Q C3T B5M B5A
B5T B6A B6T B7A B7T B8A B8T B8Q B9M B9A B9T B3S B3D B3Y B1S B1D B1Y
B2S B2D B2Y C1J C3J D1A D1T D1J)
41A9705 N
The FRUs listed in the following tables are not illustrated.
9703 FRUs FRU# CRU
Planer shield, Atx 946, G31 with usb number (all models) 41R6384 N
Shield, EMC, Blank 5.25 (all models) 41N8271 2
Shield, EMC, Blank diskette drive (all models) 41N8273 2
Cover (all models) 41N8204 2
Mechanical shell kit (all models) 41R6387 N
Bezel kit, without IBM logo (all models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
Hard disk drive bracket assembly (plastic and grommets) (all models) 41N8210 2
Hard disk drive fan and bracket asm (all models) 41R6325 2
Speaker cable assembly, 600 mm cable length (all models) 41N8217 2
Fan duct assembly (all models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (all models) 42Y8006 2
Retention module assembly, Intel (all models) 41A7139 N
Intrusion switch assembly (all models) 41R6208 2
Foot stand (all models) 41R4813 1
Cable, diskette drive (all models) 41A7147 2
Cable, SATA Cable, 250 mm (all models) 43N9012 2
Rear IO shield ATX (all models) 41R6383 N
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (all models) 42Y8008 2
Chapter 11. FRU lists 591
9703 FRUs FRU# CRU
Battery 3V- Lithium (models 7BG 7BM 7BA 7BQ 7BT 7BJ 7AG AAP ACS ACY AES AED
AEY AFS AFD AFY AGS AGD AGY AHS AHD AHY AKS AKD AKY AJS AJD AJY BNJ
BPJ BQJ BSJ ABU ACS ACY ADS ADD ADY BGJ BJJ A5J A6M A6A A6J A9J ALV ANA
ANT BHJ APA AUA A7J A8J A6Q A6T A6K ANQ APQ APT AUQ AUT AUK AMM AMA
AMQ AMK AMJ BCJ BDJ BFJ BEJ BKJ BLJ BNJ BPJ BQJ BSJ BMJ BRJ ARA ARQ ARTASA
ASQ AWA AWQ AWT AWK A2A A2Q A2T A2K A3M A3A A3Q A3T A3K A3J A4M A4A
A4Q A4T A4K A4J BAJ BBA BBQ BBT BBJ ABF B4M B4A B4Q B4T C1M C1A C1Q C1J
C2M C3M C3A C3Q C3T C3J B5M B5A B5T B6A B6T B7A B7T B8A B8T B8Q B9M B9A
B9T B3S B3D B3Y B1S B1D B1Y B2S B2D B2Y D1A D1T D1J)
45C1566 1
9703 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
592 Hardware Maintenance Manual
9703 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9703 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models 7BG 7BM 7BA 7BQ 7AG ABU A6M A6A ANA APA AUA A6Q ANQ
APQ AUQ AMQ ARQ ASQ AWQ A2Q A3Q A4Q BBQ AMM AMA ARA ASA AWA AWQ
A2A A3M A3A A4M A4A BBA B4M B4A B4Q C1M C1A C1Q C2M C3M C3A C3Q B5M
B5A B6A B7A B8A B8Q B9M B9A D1A)
41A5289 1
Arabic (models 7AG 7BG) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models 7AG 7BG) 41A5292 1
Belgian/UK (models 7AG 7BG) 41A5293 1
Brazilian Portuguese (models AAP) 41A5294 1
Bulgarian (models 7AG 7BG) 41A5295 1
Chinese/US (models ALV ) 41A5296 1
Czech (ABB) (models 7AG 7BG) 41A5297 1
Danish (models 7AG 7BG) 41A5298 1
Dutch (models 7AG 7BG) 41A5299 1
French (models 7AG 7BG) 41A5300 1
French Canadian (models ABF) 41A5301 1
French Canadian (models ABF) 41A5302 1
German (models 7AG 7BG) 41A5303 1
Greek (models 7AG 7BG) 41A5304 1
Greek/US (models 7AG 7BG) 41A5305 1
Hebrew (models 7AG 7BG) 41A5306 1
Hungarian (models 7AG 7BG) 41A5307 1
Iceland (models 7AG 7BG) 41A5308 1
Italian (models 7AG 7BG) 41A5309 1
Japanese (models 7BJ BNJ BPJ BQJ BSJ BGJ BJJ A5J A6J A9J BHJ A7J A8J AMJ BCJ BDJ BFJ
BEJ BKJ BLJ BNJ BPJ BQJ BSJ BMJ BRJ C1J C3J D1J)
41A5310 1
Korean (models A6K AUK AMK AWK A2K A3K A4K) 41A5311 1
LA Spanish (models ACS ACY AES AED AEY AFS AFD AFY AGS AGD AGY AHS AHD
AHY AKS AKD AKY AJS AJD AJY ACS ACY ADS ADD ADY B3S B3D B3Y B1S B1D B1Y
B2S B2D B2Y)
41A5312 1
Norwegian (models 7AG 7BG) 41A5313 1
Polish (models 7AG 7BG) 41A5314 1
Chapter 11. FRU lists 593
9703 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Portuguese (models 7AG 7BG) 41A5315 1
Romanian (models 7AG 7BG) 41A5317 1
Russian/Cyrillic (models 7AG 7BG) 41A5318 1
Serbian/Cyrillic (models 7AG 7BG) 41A5319 1
Slovak (models 7AG 7BG) 41A5320 1
Spanish (models 7AG 7BG) 41A5321 1
Swedish/Finnish (models 7AG 7BG) 41A5322 1
Swiss French/German (models 7AG 7BG) 41A5323 1
Thailand (models 7BT ANT A6T APT AUT AWT A2T A3T A4T B4T C3T B5T B6T B7T
B8T B9T D1T )
41A5324 1
Turkish (models 7AG 7BG) 41A5325 1
Turkish (models 7AG 7BG) 41A5326 1
UK English (models 7AG 7BG) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models 7AG 7BG) 41A5329 1
9703 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgian/English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
594 Hardware Maintenance Manual
9703 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US European (models) 41A4998 1
Slovenian (models) 41A4999 1
9703 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
Chapter 11. FRU lists 595
9703 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9703 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
9703 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models 7AG ) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
USB Memory Key - 1G RoW (models 7BG 7BM 7BA 7BQ 7BT 7BJ) 41U4978 1
Internal USB Memory Card Reader Slim (models) 43C9207 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models ACS AES AFS AGS
AHS AKS AJS ABU ACS ADS ADD A6A ANA APA AUA AMA ARA ASA AWA A2A A3A
A4A BBA B4A C1A C3A B5A B6A B7A B8A B9A B3S B1S B2S D1A)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models AED AFD AGD AHD AKD
AJD B3D B2D B1D )
89P8575 1
596 Hardware Maintenance Manual
9703 Adapters and miscellaneous FRUs FRU# CRU
Speaker Power brick - China, Thailand (models B4T C3T B5T B6T B7T B8T B9T D1T) 89P8581 1
Speaker Power brick - Japan (models 7BJ BNJ BPJ BQJ BSJ BGJ BJJ A5J A6J A9J BHJ A7J
A8J BHJ A7J A8J AMJ BCJ BDJ BFJ BEJ BKJ BLJ BNJ BPJ BQJ BSJ BMJ BRJ C1J C3J D1J)
89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models AEY AFY AGY AHY AKY AJY ACY ADY B1Y
B2Y B3Y)
41A4901 1
Speaker Power brick - ANZ (models A6M AMM A3M A4M B4M C1M C2M C3M B5M
B9M)
89P8579 1
Speaker Brick - Korea (models A6K AUK AMK AWK A2K A3K A4K) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models) 89P8573 1
Speaker Brick - Taiwan (models ALV) 41A4905 1
Speaker Power brick - India, South Africa (models 7BQ A6Q ANQ APQ AQQ AUQ AMQ
ARQ ASQ AWQ A2Q A3Q A4Q BBQ)
89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9703 Line Cords FRU# CRU
Line cord - US (models 7BA 7BT ACS AES AFS AGS AHS AKS AJS AJS AED AFD AGD
AHD AKD AJD ABU ACS ADD ANT A6T APT AUT AWT A2T A3T A4T AMA ARA ASA
AWA A3A A4A ABF B4A C1A C3A B5A B6A B7A B8A B9A B4T C3T B5T B6T B7T B8T
B9T C1S C2S C3S D1A D1T )
41R3184 1
Line cord - US (models 7BA 7BT ACS AES AFS AGS AHS AKS AJS AJS AED AFD AGD
AHD AKD AJD ABU ACS ADD ANT A6T APT AUT AWT A2T A3T A4T AMA ARA ASA
AWA A3A A4A ABF B4A C1A C3A B5A B6A B7A B8A B9A B4T C3T B5T B6T B7T B8T
B9T C1S C2S C3S D1A D1T )
41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models AAP) 41R3270 1
Line cord - Brazil (models AAP) 41R3271 1
Line cord - LA High Volt APU (models ACY ADY) 41R3176 1
Line Cord - LA High Volt APU (models ACY ADY) 41R3177 1
Line Cord - Korea (models A6K AUK AMK AWK A2K A3K A4K) 41R3260 1
Line Cord - Korea (models A6K AUK AMK AWK A2K A3K A4K) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models 7BG 7AG 7BA A6A ANA
APA AUA AMA ARA ASA AWA A3A A4A B5A B6A B7A B8A B9A )
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models 7BG 7AG 7BA A6A ANA
APA AUA AMA ARA ASA AWA A3A A4A B5A B6A B7A B8A B9A )
41R3225 1
Line Cord - Taiwan (models ALV) 41R3278 1
Line Cord - Taiwan (models ALV) 41R3279 1
Line Cord - Italy (models 7AG 7BG ACS ACY AES AFS AGS AHS AKS AEY AFY AGY
AHY AKY ACS ACY ADS ADY C1S C2S C3S C1Y C2Y C3Y)
41R3232 1
Line Cord - Italy (models 7AG 7BG ACS ACY AES AFS AGS AHS AKS AEY AFY AGY
AHY AKY ACS ACY ADS ADY C1S C2S C3S C1Y C2Y C3Y)
41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models 7BA A6A ANA APA AQA
AUA AMA ARA ASA AWA A3A A4A)
41R3208 1
Chapter 11. FRU lists 597
9703 Line Cords FRU# CRU
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models 7BA A6A ANA APA AQA
AUA AMA ARA ASA AWA A3A A4A)
41R3209 1
Line Cord - Denmark (models 7BG 7AG) 41R3212 1
Line Cord - Denmark (models 7BG 7AG) 41R3213 1
Line Cord - Switzerland (models 7BG 7AG) 41R3228 1
Line Cord - Switzerland (models 7BG 7AG) 41R3229 1
Line Cord - Israel (models 7BG 7AG) 41R3236 1
Line Cord - Israel (models 7BG 7AG) 41R3237 1
Line Cord - South Africa (models 7BG 7AG AMM A3M A4M A6A ANA APA AUA AMA
ARA ASA AWA A3A A4A B4M C1M C2M C3M B5M B9M)
41R3220 1
Line Cord - South Africa (models 7BG 7AG AMM A3M A4M A6A ANA APA AUA AMA
ARA ASA AWA A3A A4A B4M C1M C2M C3M B5M B9M)
41R3221 1
Line Cord - India (models 7BQ A6Q ANQ APQ AUQ AMQ ARQ ASQ AWQ A2Q A3Q
A4Q BBQ B4Q C1Q C3Q B8Q)
41R3341 1
Line Cord - India (models 7BQ A6Q ANQ APQ AUQ AMQ ARQ ASQ AWQ A2Q A3Q
A4Q BBQ B4Q C1Q C3Q B8Q)
41R3175 1
Line Cord - Japan (models BGJ BJJ A5J A6J A9J BHJ A7J A8J AMJ BCJ BDJ BFJ BEJ BKJ
BLJ BNJ BPJ BQJ BSJ BMJ BRJ C1J C3J D1J)
41R3248 1
Line Cord - Japan (models BGJ BJJ A5J A6J A9J BHJ A7J A8J AMJ BCJ BDJ BFJ BEJ BKJ
BLJ BNJ BPJ BQJ BSJ BMJ BRJ C1J C3J D1J)
41R3249 1
Line Cord - ANZ (models A6M AMM A3M A4M B4M C1M C2M C3M B5M B9M) 41R3196 1
Line Cord - ANZ (models A6M AMM A3M A4M B4M C1M C2M C3M B5M B9M) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
Line Cord - US (models 7BA 7BT ACS AES AFS AGS AHS AKS AJS AJS AED AFD AGD
AHD AKD AJD ABU ACS ADD ANT A6T APT AUT AWT A2T A3T A4T AMA ARA ASA
AWA A3A A4A ABF B4A C1A C3A B5A B6A B7A B8A B9A B4T C3T B5T B6T B7T B8T
B9T C1S C2S C3S )
43N9032 1
Line Cord - China (models) 43N9033 1
Line Cord - Japan (models BGJ BJJ A5J A6J A9J BHJ A7J A8J AMJ BCJ BDJ BFJ BEJ BKJ
BLJ BNJ BPJ BQJ BSJ BMJ BRJ C1J C3J)
43N9034 1
Line Cord - ANZ (models A6M AMM A3M A4M B4M C1M C2M C3M B5M B9M) 43N9035 1
Line Cord - Hong Kong Singapore, Malaysia, Brunei, Ireland (models 7BG 7AG 7BA A6A
ANA APA AUA AMA ARA ASA AWA A3A A4A B5A B6A B7A B8A B9A )
43N9036 1
Line Cord - Taiwan (models ALV) 43N9037 1
Line Cord - Italy (models 7AG 7BG ACS ACY AES AFS AGS AHS AKS AEY AFY AGY
AHY AKY ACS ACY ADS ADY C1S C2S C3S C1Y C2Y C3Y)
43N9038 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam, Austria, Belgium, Croatia
Czechoslovakia, Finland, France, Germany, Hungary, Netherlands, Norway, Poland,
Portugal, Romania, Spain, Sweden (models 7BA A6A ANA APA AUA AMA ARA ASA
AWA A3A A4A B5A B6A B7A B8A B9A )
43N9039 1
Line Cord - Denmark (models 7BG 7AG) 43N9040 1
Line Cord - Switzerland (models 7BG 7AG) 43N9041 1
Line Cord - India (models 7BQ A6Q ANQ APQ AUQ AMQ ARQ ASQ AWQ A2Q A3Q
A4Q BBQ B4Q C1Q C3Q B8Q)
43N9042 1
598 Hardware Maintenance Manual
9703 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9703 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models ABU A6M A6A A6Q AMM AMA AMQ ARA ARQ D1A) 45R0756 1
FR/CF (models ABF) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models ACS ACY ADS ADD ADY B3S B3D B3Y B1S B1D B1Y B2S B2D B2Y ACS) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
Chapter 11. FRU lists 599
9703 Windows XP Pro Recovery CDs FRU# CRU
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models BNJ BPJ BQJ BSJ BGJ BJJ A5J A6J A9J AMJ BCJ BDJ BFJ BKJ BLJ BNJ BPJ
BQJ BSJ BAJ D1J )
45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models A6K AMK) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9703 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models AUA AWA AWQ A2A A2Q AUQ) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models AWK A2K AUK) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
600 Hardware Maintenance Manual
9703 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Polish (models) 45R9771 1
Russian English (models) 46R5065 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9703 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models 7AG 7BG 7BM 7BA 7BQ ABU ASA ASQ A4M A4A A4Q BBA BBQ B4M
B4A B4Q C1M C1A C1Q C2M C3M C3A C3Q B5M B5A A4A B6A B7A B8A B9A B8Q B9M
D1A)
46R7287 1
Japanese (models 7AJ BHJ A7J A8J BEJ BMJ BRJ A4J BBJ C1J C3J D1J) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models ABF) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models ACS ACY AFS AFD AFY AGS AGD AGY AHS AHD AHY AKS AKD AKY
AJS AJD AJY ACS ACY B3S B3D B3Y B1S B1D B1Y B2S B2D B2Y)
46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models A4K) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
Chapter 11. FRU lists 601
9703 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9703 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
602 Hardware Maintenance Manual
9703 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9703 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Chapter 11. FRU lists 603
9703 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9703 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
604 Hardware Maintenance Manual
Machine Type 9704
Item # 9704 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models AFP AHS AHY ALU
ALF BRU BRF )
40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models 7AG 7AM 7AQ 7AT
7AJ AGP ABU AEC AJS AJY 7BG 7CG AMU AMF ANU ANF BDU BDF APU APF
AVM AVJ A2M A2A A2T A4M A4A A4T BAM BEV AQA AQQ AQT ASQ AST ASJ
7FG ASM ASA ASK AWJ A3J A5J A8J A9A A9Q A9T A9J AKF B2M B2A B2QB2T
B2J BHM BHA BHT BLA BLT BFU BFF BGC BSU BSF 7QG 8SM 8SA 8SQ 8ST 8SJ
71G)
40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models B1M 7NG 7PG 72G
73G)
87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AEC
ALU ALF BEV A5J A7J A9A A9Q A9T A9J BGC BRU BRF)
41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models 7AG 7AM 7AQ 7AT 7AJ AFP AGP ABU 7AA AHS AHY AJS
AJY AMU AMF APU APF BAM 7FG A8J AKF BSU BSF)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models 7BG
7CG ANU ANF BDU BDF AVM AVJ A2M A2A A2T A4M A4A A4T A6M A6A A6T
BBM AQA AQQ AQT ASQ AST ASJ AUQ AUT AUJ ASM ASA ASK AUM AUA
AUK AWJ A3J B1M B2M B2A B2QB2T B2J B3M B3A B3Q B3J BMJ BPJ BQJ BHM
BHA BHT BJM BJA BJT BKM BKA BKT BLA BLT BFU BFF 7QG 7NG 7PG 8SM
8SA 8SQ 8ST 8SJ 71G 72G 73G 8GG 8HG)
43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T(models
A8J A9A A9Q A9T A9J)
43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T(models) 43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T(models) 43C1965 N
Chapter 11. FRU lists 605
Item # 9704 FRUs FRU# CRU
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models ABU ALU ALF AMU AMF ANU ANF A2M A2A A2T AQA AQQ
AQT AWJ)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
5 Microprocessor,Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
5 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
5 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
5 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
5 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
5 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
5 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
5 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
5 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
5 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
5 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
5 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
5 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
5 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
5 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
5 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
5 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
5 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
5 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
5 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
5 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
5 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
606 Hardware Maintenance Manual
Item # 9704 FRUs FRU# CRU
5 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
5 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
5 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
5 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO 8GG 8HG)
46R9512 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models AEC ALU
ALF AMU AMF BAM BRU BRF)
41X4255 2
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models 7AG 7AM 7AQ
7AT 7AJ AFP AGP ABU 7AA AHS AHY AJS AJY 7BG 7CG ANU ANF BDU BDF
APU APF AVM AVJ A2M A2A A2T A4M ASM ASA ASK AUM AUA AUK AWJ
A3J A5J A7J A8J A9A A9Q A9T A9JA4A A4T A6M A6A A6T BBM BEV AQA AQQ
AQT ASQ AST ASJ AUQ AUT AUJ 7FG AKF B1M B2M B2A B2QB2T B2J B3M
B3A B3Q B3J BMJ BPJ BQJ BHM BHA BHT BJM BJA BJT BLA BLT BFU BFF BGC
BSU BSF 7QG 7NG 7PG 8SM 8SA 8ST 8SQ 8SJ 71G 72G 73G)
41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models BKM BKA BKT
8GG 8HG)
41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models 8TM 8TA 8TT
8TQ 8TJ )
41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models 7AG 7AM 7AA 7AQ 7AT
7AJ AFP AGP ABU AEC AHS AHY AJS AJY 7BG 7CG ALU ALF AMU AMF ANU
ANF BDU BDF APU APF AVM AVJ A2M A2A A2T A4M A4A A4T A6M A6A A6T
BAM BBM BEV AQA AQQ AQT ASQ AST ASJ AUQ AUT AUJ 7FG ASM ASA
ASK AUM AUA AUK AWJ A3J A5J A7J A8J A9A A9Q A9T A9J AKF B1M B2M
B2A B2QB2T B2J B3M B3A B3Q B3J BMJ BPJ BQJ BHM BHA BHT BJM BJA BJT
BKM BKA BKT BLA BLT BFU BFF BGC BRU BRF BSU BSF 7QG 7NG 7PG 8SM
8SA 8SQ 8ST 8SJ 71G 72G 73G 8GG 8HG)
53Y5125 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models 7AG
7AM 7AQ 7AT 7AJ AFP AGP ABU AEC 7AA AHS AHY AJS AJY 7BG 7CG ALU
ALF AMU AMF ANU ANF BDU BDF APU APF AVM AVJ A2M A2A A2T A4M
A4A A4T A6M A6A A6T BAM BBM BEV AQA AQQ AQT ASQ AST ASJ AUQ
AUT AUJ 7FG ASM ASA ASK AUM AUA AUK AWJ A3J A5J A7J A8J A9A A9Q
A9T A9J AKF B1M B2M B2A B2QB2T B2J B3M B3A B3Q B3J BMJ BPJ BQJ BHM
BHA BHT BJM BJA BJT BKM BKA BKT BLA BLT BFU BFF BGC BRU BRF BSU
BSF 7QG 7NG 7PG 8SM 8SA 8SQ 8ST 8SJ 71G 72G 73G 8GG 8HG)
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models 7AG 7AM
7AQ 7AT 7AJ AFP AGP ABU AEC 7AA AHS AHY AJS AJY 7BG 7CG ALU ALF
AMU AMF ANU ANF BDU BDF APU APF AVM AVJ A2M A2A A2T A4M A4A
A4T A6M A6A A6T BAM BBM BEV AQA AQQ AQT ASQ AST ASJ AUQ AUT
AUJ 7FG ASM ASA ASK AUM AUA AUK AWJ A3J A5J A7J A8J A9A A9Q A9T
A9J AKF B1M B2M B2A B2QB2T B2J B3M B3A B3Q B3J BMJ BPJ BQJ BHM BHA
BHT BJM BJA BJT BKM BKA BKT BLA BLT BFU BFF BGC BRU BRF BSU BSF
7QG 7NG 7PG 8SM 8SA 8SQ 8ST 8SJ 71G 72G 73G 8GG 8HG)
41A9717 2
The FRUs listed in the following tables are not illustrated.
9704 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
Chapter 11. FRU lists 607
9704 FRUs FRU# CRU
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temp Sense cable (460 mm) (all models) 41R2509 2
System Fan assembly (all models) 41R6249 2
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
L1-C2 intrusion switch (all models) 39K5022 2
Fan for SFF (all models) 41R6042 2
Rell IO shield BTX atlantic (all models) 41R6381 N
C2 Intrusion Switch (all models) 39K5022 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE RoHS (all models) 41R6054 2
10L FRONT I/O CABLE RoHS (all models) 43N9015 2
Cabel-SATA 700mm (RoHS) (all models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (all models) 43N9361 2
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
ODD mounting kit, 607AT (all models) 43N9362 2
Cardreader Bezel Kit, 607AT (all models) 43N9363 2
Slim FDD (all models) 40Y9109 2
Battery 3V- Lithium (models 7AG 7AM 7AA 7AQ 7AT 7AJ AFP AGP ABU AEC AHS AHY
AJS AJY 7BG 7CG ALU ALF AMU AMF ANU ANF BDU BDF APU APF AVM AVJ A2M
A2A A2T A4M A4A A4T A6M A6A A6T BAM BBM BEV AQA AQQ AQT ASQ AST ASJ
AUQ AUT AUJ 7FG ASM ASA ASK AUM AUA AUK AWJ A3J A5J A7J A8J A9A A9Q A9T
A9J AKF B1M B2M B2A B2QB2T B2J B3M B3A B3Q B3J BMJ BPJ BQJ BHM BHA BHT
BJM BJA BJT BKM BKA BKT BLA BLT BFU BFF BGC BRU BRF BSU BSF 7QG 7NG 7PG
8SM 8SA 8SQ 8ST 8SJ 71G 72G 73G 8GG 8HG)
45C1566 1
9704 Keyboard (Preferred Pro Fullsize PS/2) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian French (models) 41A5042 1
Belgium English (models) 41A5043 1
608 Hardware Maintenance Manual
9704 Keyboard (Preferred Pro Fullsize PS/2) FRU# CRU Tier
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (ABB) (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Japanese (models) 41A5058 1
Korean (models) 41A5059 1
LA Spanish (models) 41A5060 1
Italian (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss French/German (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5074 1
US Euro (models) 41A5075 1
Slovenian (models) 41A5077 1
9704 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models ABU 7AM 7AQ 7AG 7BG 7CG ALU AMU ANU BDU APU AVM
A2M A2A A4M A4A A6M A6A BAM BBM AQA AQQ ASQ AUQ 7FG ASM ASA AUM
AUA A9A A9Q B1M B2M B2A B2Q B3M B3A B3Q BHM BHA BJM BJA BKM BKA BLA
BFU BRU BSU 7QG 7NG 7PG 8SM 8SA 8SQ 71G 72G 73G 8GG 8HG)
41A5289 1
Arabic (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG ) 41A5290 1
Chapter 11. FRU lists 609
9704 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Arabic/French (models) 41A5291 1
Belgian French (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5292 1
Belgium English (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5293 1
Brazilian Portuguese (models AFP AGP) 41A5294 1
Bulgarian (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5295 1
Chinese/US (models BEV) 41A5296 1
Czech (ABB) (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5297 1
Danish (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5298 1
Dutch (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5299 1
French (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5300 1
French Canadian (models ALF AMF ANF APF BDF AKF BFF BRF BSF) 41A5301 1
French Canadian (models ALF AMF ANF APF BDF AKF BFF BRF BSF) 41A5302 1
German (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5303 1
Greek (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5304 1
Greek/US (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5305 1
Hebrew (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5306 1
Hungarian (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5307 1
Iceland (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5308 1
Japanese (models 7AJ AVJ ASJ AUJ AWJ A3J A5J A7J A8J A9J B3J BMJ BPJ BQJ BSJ BTJ) 41A5310 1
Korean (models ASK AUK) 41A5311 1
LA Spanish (models AHS AHY AJS AJY) 41A5312 1
Italian (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5309 1
Norwegian (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5313 1
Polish (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5314 1
Portuguese (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5315 1
Romanian (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5317 1
Russian/Cyrillic (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5318 1
Serbian/Cyrillic (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5319 1
Slovak (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5320 1
Spanish (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5321 1
Swedish/Finnish (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5322 1
Swiss French/German (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG
8HG)
41A5323 1
Thailand (models A2T A4T A6T AQT AST AUT B2T BHT BJT BKT BLT BST BTT) 41A5324 1
Turkish (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5325 1
Turkish (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models 7AG 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 41A5329 1
610 Hardware Maintenance Manual
9704 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
Chapter 11. FRU lists 611
9704 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
612 Hardware Maintenance Manual
9704 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9704 Adapters and miscellaneous FRUs FRU# CRU
USB Memory Key (models) 43R2296 2
USB Memory Key - 1G RoW (models 7AG 7AM 7AA 7AQ 7AT 7AJ AFP AGP) 41U4978 1
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
Internal USB Memory Card Reader Slim (models CTO) 45R1885 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 46R4159 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 46R4160 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models 7NG 7PG 72G 73G) 39J9334 2
DVI-I connection Adapter Low Profile (models 7NG 7PG 8TM 8TA 8TQ 8TT 8TJ 72G 73G) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models ABU AEC AHS AJS
ALU AMU ANU BDU APU ASA AUA A9A B2A B3A BHA BJA BKA BLA BFU BRU BSU
8SA )
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models AEC 7AT A2T A4T A6T AQT AST AUT
BGC B2T BHT BJT BKT BLT 8ST )
89P8581 1
Speaker Power brick - Japan (models 7AJ AVJ ASJ AUJ AWJ A3J A5J A7J A8J A9J B2J B3J
BMJ BPJ BQJ 8TJ 8SJ)
89P8577 1
Speaker Power brick - Brazil (models ) 89P8583 1
Speaker Power brick - Argentina (models ) 41A4901 1
Speaker Power brick - ANZ (models AVM A2M A4M A6M BAM BBM ASM AUM B1M
B2M B3M BHM BJM BKM 8SM)
89P8579 1
Speaker Brick - Korea (models ASK AUK) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models 7QG 7NG 7PG 71G 72G 73G 8GG 8HG) 89P8573 1
Speaker Brick - Taiwan (models BEV) 41A4905 1
Speaker Power brick - India, South Africa (models 7AQ AQQ ASQ AUQ B2Q B3Q 8SQ
8TQ)
89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9704 Line Cords FRU# CRU
Line cord - US (models ABU 7AA 7AT AJS AHS 7BG 7CG ALU ALF AMU AMF ANU
ANF BDU BDF APU APF ASA AUA A9A A2A AQA AKF B2A B3A BHA BJA BKA BLA
BFU BRU BSU B2T BHT BJT BKT BLT B1M B2M B3M BHM BJM BKM BGC 7QG 7NG
7PG 8SM 8SA 8ST 71G 72G 73G 8GG 8HG )
41R3184 1
Line cord - US (models ABU 7AA 7AT AJS AHS 7BG 7CG ALU ALF AMU AMF ANU
ANF BDU BDF APU APF ASA AUA A9A A2A AQA AKF B2A B3A BHA BJA BKA BLA
BFU BRU BSU B2T BHT BJT BKT BLT B1M B2M B3M BHM BJM BKM BGC 7QG 7NG
7PG 8SM 8SA 8ST 71G 72G 73G 8GG 8HG )
41R3185 1
Line cord - China (models AEC) 41R3256 1
Chapter 11. FRU lists 613
9704 Line Cords FRU# CRU
Line cord - China (models AEC) 41R3257 1
Line cord - Brazil (models AFP AGP) 41R3270 1
Line cord - Brazil (models AFP AGP) 41R3271 1
Line cord - LA High Volt APU (models AJY AHY) 41R3176 1
Line Cord - LA High Volt APU (models AJY AHY) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ABU 7AA A2A AQA ASA
AUA A9A B2A B3A BHA BJA BKA BLA)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ABU 7AA A2A AQA ASA
AUA A9A B2A B3A BHA BJA BKA BLA)
41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models 7AG AJS AHS ASA AUA A9A A2A AQA B2A B3A BHA BJA
BKA BLA 7QG 7NG 7PG 71G 72G 73G)
41R3232 1
Line Cord - Italy (models 7AG AJS AHS ASA AUA A9A A2A AQA B2A B3A BHA BJA
BKA BLA 7QG 7NG 7PG 71G 72G 73G)
41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models 7AA 7BG 7CG 7FG 7QG
7NG 7PG 71G 72G 73G 8GG 8HG )
41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models 7AA 7BG 7CG 7FG 7QG
7NG 7PG 71G 72G 73G 8GG 8HG )
41R3209 1
Line Cord - Denmark (models 7AA 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG
)
41R3212 1
Line Cord - Denmark (models 7AA 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG
)
41R3213 1
Line Cord - Switzerland (models 7AA 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG
8HG )
41R3228 1
Line Cord - Switzerland (models 7AA 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG
8HG )
41R3229 1
Line Cord - Israel (models 7AA 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG ) 41R3236 1
Line Cord - Israel (models 7AA 7BG 7CG 7FG 7QG 7NG 7PG 71G 72G 73G 8GG 8HG ) 41R3237 1
Line Cord - South Africa (models 7AG 7AM 7AA AVM A2M A2A A4M A4A A6M A6A
BAM BBM AQA ASM AUM ASA AUA A9A B1M B2M B3M BHM BJM B2A B3A BHA BJA
BKA BLA 7QG 7NG 7PG 71G 72G 73G)
41R3220 1
Line Cord - South Africa (models 7AG 7AM 7AA AVM A2M A2A A4M A4A A6M A6A
BAM BBM AQA ASM AUM ASA AUA A9A B1M B2M B3M BHM BJM B2A B3A BHA BJA
BKA BLA 7QG 7NG 7PG 71G 72G 73G)
41R3221 1
Line Cord - India (models 7AQ AQQ ASQ B2Q B3Q 8SQ 8TQ) 41R3341 1
Line Cord - Japan (models AVJ ASJ AUQ AUJ B2J B3J BMJ BPJ BQJ 8SJ 8TJ) 41R3248 1
Line Cord - ANZ (models AVM A2M A4M A6M BAM BBM ASM AUM B1M B2M B3M
BHM BJM )
41R3196 1
Line Cord - Japan (models AVJ ASJ AUQ AUJ B2J B3J BMJ BPJ BQJ 8SJ 8TJ) 41R3249 1
Line Cord - ANZ (models AVM A2M A4M A6M BAM BBM ASM AUM B1M B2M B3M
BHM BJM )
41R3197 1
Line Cord - India (models 7AQ AQQ ASQ B2Q B3Q 8SQ 8TQ) 41R3175 1
614 Hardware Maintenance Manual
9704 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models ) TBD 1
IT (models ) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models ) TBD 1
NL (models ) TBD 1
AE (models ) TBD 1
SV (models ) TBD 1
HE (models ) TBD 1
FI (models ) TBD 1
NO (models ) TBD 1
PL (models ) TBD 1
PO (models ) TBD 1
RU (models ) TBD 1
RE (models) TBD 1
HU (models ) TBD 1
CZ (models ) TBD 1
TR (models ) TBD 1
GK (models ) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9704 Windows XP Pro Recovery CDs FRU# CRU
US English (models 7BG 7CG ALU AMU ANU BDU APU AVM A2M A2A A4M A4A A6M
A6A BAM BBM 7FG AKF 71G 72G 73G)
45R0756 1
French (models 7BG 7CG AMF ANF BDF APF 7FG) 45R0759 1
German (models 7BG 7CG 7FG 71G 72G 73G) 45R0760 1
Italian (models 7BG 7CG 7FG 71G 72G 73G) 45R0762 1
Brazilian Portuguese (models) 45R0763 1
Spanish (models 7BG 7CG 7FG 71G 72G 73G) 45R0761 1
Dutch (models 7BG 7CG 7FG 71G 72G 73G) 45R0767 1
Swedish (models 7BG 7CG 7FG 71G 72G 73G) 45R0765 1
Hebrew (models 7BG 7CG 7FG 71G 72G 73G) 45R2334 1
Norwegian (models 7BG 7CG 7FG 71G 72G 73G) 45R0770 1
Polish (models 7BG 7CG 7FG 71G 72G 73G) 45R0777 1
Portuguese (models 7BG 7CG 7FG 71G 72G 73G ) 45R0774 1
Chapter 11. FRU lists 615
9704 Windows XP Pro Recovery CDs FRU# CRU
Russian (models 7BG 7CG 7FG 71G 72G 73G) 45R0773 1
Russian English (models) 45R2318 1
Hungarian (models 7BG 7CG 7FG 71G 72G 73G) 45R0780 1
DK (models 7BG 7CG 7FG 71G 72G 73G) 45R0764 1
FI (models 7BG 7CG 7FG 71G 72G 73G) 45R0766 1
CZ (models 7BG 7CG 7FG 71G 72G 73G) 45R0776 1
TR (models 7BG 7CG 7FG 71G 72G 73G) 45R0775 1
GK (models 7BG 7CG 7FG 71G 72G 73G) 45R0772 1
SL (models 7BG 7CG 7FG 71G 72G 73G) 45R2326 1
Japanese (models AVJ AWJ A3J A5J A7J A8J BMJ BQJ) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models 7BG 7CG 7FG 71G 72G 73G) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models 7BG 7CG 7FG 71G 72G 73G) 45R8247 1
9704 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
616 Hardware Maintenance Manual
9704 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9704 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models 7QG 7NG 7PG 8SM 8SA 8SQ 8GG 8HG ) 46R7287 1
Japanese (models 8SJ) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models 7QG 7NG 7PG 8GG 8HG ) 46R7290 1
German (models 7QG 7NG 7PG 8GG 8HG ) 46R7291 1
Spanish (models 7QG 7NG 7PG 8GG 8HG ) 46R7292 1
Italian (models 7QG 7NG 7PG 8GG 8HG ) 46R7293 1
Brazilian Portuguese (models AFP AGP) 46R7294 1
Danish (models 7QG 7NG 7PG 8GG 8HG ) 46R7295 1
Swedish (models 7QG 7NG 7PG 8GG 8HG ) 45R9786 1
Finland (models 7QG 7NG 7PG 8GG 8HG ) 45R9787 1
Dutch (models 7QG 7NG 7PG 8GG 8HG ) 45R9788 1
Traditional Chinese (models BEV) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models 7QG 7NG 7PG 8GG 8HG ) 46R7298 1
Korean (models ASK AUK) 45R9792 1
Slovenian (models 7QG 7NG 7PG 8GG 8HG ) 45R9793 1
Greek (models 7QG 7NG 7PG 8GG 8HG ) 45R9794 1
Russian (models 7QG 7NG 7PG 8GG 8HG ) 45R9795 1
Portuguese (models 7QG 7NG 7PG 8GG 8HG ) 45R9796 1
Turkish (models 7QG 7NG 7PG 8GG 8HG ) 45R9797 1
Czech (models 7QG 7NG 7PG 8GG 8HG ) 45R9798 1
Polish (models 7QG 7NG 7PG 8GG 8HG ) 45R9799 1
Russian English (models 7QG 7NG 7PG 8GG 8HG ) 46R7300 1
Arabic Localized (models 7QG 7NG 7PG 8GG 8HG ) 45R9801 1
Hebrew (models 7QG 7NG 7PG 8GG 8HG ) 45R9802 1
Romanian (models 7QG 7NG 7PG 8GG 8HG ) 45R9803 1
Hungarian (models 7QG 7NG 7PG 8GG 8HG ) 45R9804 1
Slovakian (models 7QG 7NG 7PG 8GG 8HG ) 45R9805 1
Serbian-Latin (models 7QG 7NG 7PG 8GG 8HG ) 45R9806 1
9704 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Chapter 11. FRU lists 617
9704 Vista VHP SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9704 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
618 Hardware Maintenance Manual
9704 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9704 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Chapter 11. FRU lists 619
9704 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Polish (models) 45R9887 1
Russian English (models) 46R7342 1
Arabic Localized (models) 45R9889 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9704 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
620 Hardware Maintenance Manual
Machine Type 9708
Item # 9708 FRUs FRU# CRU Tier
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA, EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA, EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA, EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models)
45C5282 N
Chapter 11. FRU lists 621
Item # 9708 FRUs FRU# CRU Tier
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models) 46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models) 45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models)
46R9512 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models)
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
622 Hardware Maintenance Manual
Item # 9708 FRUs FRU# CRU Tier
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9105 2
6 Bezel assembly without IBM mark (all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (all models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models) 40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
11 System board , Intel G31 mATX GA Level (models) 53Y3282 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models)
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models) 41A9665 2
13 Power supply, ATX 310W Power supply Robust; for all countries (models) 41A9726 2
The FRUs listed in the following tables are not illustrated.
9708 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Shield, diskette drive EMC (all models) 41N8078 2
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Cable, SATA 250mm (RoHS) (all models) 43N9012 2
Cable, SATA 457mm (RoHS) (all models) 43N9013 2
Hard disk drive tray (all models) 41R6291 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Assembly Chassis Without IBM Mark Atlantic (all models) 41R6408 N
ODD/FDD/Card reader (all models) 43N9351 2
9708 Keyboard (Preferred Pro Fullsize PS/2) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian French (models) 41A5042 1
Belgium English (models) 41A5043 1
Chapter 11. FRU lists 623
9708 Keyboard (Preferred Pro Fullsize PS/2) FRU# CRU Tier
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (ABB) (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Japanese (models) 41A5058 1
Korean (models) 41A5059 1
LA Spanish (models) 41A5060 1
Italian (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss French/German (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5074 1
US Euro (models) 41A5075 1
Slovenian (models) 41A5077 1
9708 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAH ABH ACH) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
624 Hardware Maintenance Manual
9708 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models AAB ABB ACB) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9708 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Chapter 11. FRU lists 625
9708 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Belgian/French (models) 41A5292 1
Belgian/English (models) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models) 41A5296 1
Czech (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Italy (models) 41A5309 1
Japanese (models) 41A5310 1
Korean (models ACK ADK) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss French/German (models) 41A5323 1
Thailand (models ACT ADT) 41A5324 1
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
9708 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
626 Hardware Maintenance Manual
9708 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9708 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Chapter 11. FRU lists 627
9708 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
628 Hardware Maintenance Manual
9708 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9708 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
USB Memory Key - 1G RoW (models) 41U4978 1
ADD2 DVI Adapter,FH (HDCP) (models) 43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 46R4159 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 46R4160 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (modes) 89P8579 1
Speaker Brick - Korea (models ACK ADK) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9708 Power Cords FRU# CRU
Line cord - US (models) 41R3184 1
Line cord - US (models) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Chapter 11. FRU lists 629
9708 Power Cords FRU# CRU
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models) 41R3232 1
Line Cord - Italy (models) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models) 41R3220 1
Line Cord - South Africa(models) 41R3221 1
Line Cord - India(models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
9708 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
630 Hardware Maintenance Manual
9708 Windows XP Home Recovery CDs FRU# CRU
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9708 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
Slovakian (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Chapter 11. FRU lists 631
9708 Windows XP Pro Recovery CDs FRU# CRU
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9708 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9708 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
632 Hardware Maintenance Manual
9708 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
9708 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Chapter 11. FRU lists 633
9708 Vista VHP SP1 Recovery DVDs FRU# CRU
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9708 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
634 Hardware Maintenance Manual
9708 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9708 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9708 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 635
Machine Type 9788
Item # 9788 FRUs FRU# CRU
1 Heat Sink/RM Kit 65W/95W Intel (models) 41R6429 2
1 Heat Sink/RM Kit Intel (models) 41N8261 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
636 Hardware Maintenance Manual
Item # 9788 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AAV) 41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models)
42Y9353 2
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
5 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models) 40Y9035 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9107 2
7 Front USB/Audio with bracket (all models) 41N8212 2
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
Chapter 11. FRU lists 637
Item # 9788 FRUs FRU# CRU
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4256 2
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board,Intel G31 mATX GA Level (models) 53Y3282 N
10 Power supply, 220 Watt Power Supply - Robust; for all countries except for JP
(models)
41A9689 N
10 Power supply, 220 Watt Power Supply - Japan;only for JP (models AEJ) 41A9697 2
10 Power supply, 220W 80% Power supply-for all countries (models) 41A9670 2
10 Power supply, 280W TFX 280W PS ,Active PFC,for RockyS-for all countries
(models)
41A9705 2
The FRUs listed in the following tables are not illustrated.
9788 FRUs FRU# CRU
Planer shield, Atx 946,G31 with usb number (models) 41R6384 N
Cabel, SATA 250mm (RoHS) (models) 43N9012 2
Shield, EMC , Blank 5.25 (models) 41N8271 2
Shield, EMC , Blank diskette drive (models) 41N8273 2
Cover (models) 41N8204 2
Mechanical shell kit (models) 41R6387 N
Bezel kit, without IBM logo (models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
Hard disk drive bracket assembly (plastic and grommets) (models) 41N8210 2
Hard disk drive fan and bracket asm (models) 41R6325 2
Speaker cable assembly, 600 mm cable length (models) 41N8217 2
Fan duct assembly (models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (models) 42Y8006 2
Retention module assembly, Intel (models) 41A7139 N
Intrusion switch assembly (models) 41R6208 2
Foot stand (models) 41R4813 1
Cable, diskette drive (models) 41A7147 2
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (models) 42Y8008 2
9788 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
638 Hardware Maintenance Manual
9788 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9788 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Chapter 11. FRU lists 639
9788 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9788 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models) 41A5292 1
640 Hardware Maintenance Manual
9788 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Belgian/UK (models) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models) 41A5296 1
Czech(ABB) (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Italian (models) 41A5309 1
Japanese (models) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss French/German (models) 41A5323 1
Thailand (models AET) 41A5324 1
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
9788 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Chapter 11. FRU lists 641
9788 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Belgian/French (models) 41A4964 1
Belgian/UK (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech(ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9788 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
642 Hardware Maintenance Manual
9788 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/UK (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech(ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9788 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Chapter 11. FRU lists 643
9788 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
9788 Adapters and miscellaneous FRUs FRU# CRU
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
USB Memory Key - 1G RoW (models) 41U4978 1
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage,ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9788 Line Cords FRU# CRU
Line cord - US (models) 41R3184 1
Line cord - US (models) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3225 1
644 Hardware Maintenance Manual
9788 Line Cords FRU# CRU
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models) 41R3232 1
Line Cord - Italy (models) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models) 41R3220 1
Line Cord - South Africa (models) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
9788 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
Chapter 11. FRU lists 645
9788 Windows XP Home Recovery CDs FRU# CRU
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korea (models) TBD 1
9788 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
646 Hardware Maintenance Manual
9788 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9788 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Chapter 11. FRU lists 647
9788 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Dutch (models) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
9788 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
648 Hardware Maintenance Manual
9788 Vista VHP SP1 Recovery DVDs FRU# CRU
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9788 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 46R7314 1
Slovenian (models) 45R9830 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
Chapter 11. FRU lists 649
9788 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 45R9888 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9788 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 45R9748 1
650 Hardware Maintenance Manual
Machine Type 9789
Item # 9789 FRUs FRU# CRU Tier
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T (models
AAQ ACA ACQ ACT )
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models ABQ)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
Chapter 11. FRU lists 651
Item # 9789 FRUs FRU# CRU Tier
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models AAQ ACA
ACQ ACT ADA ADQ ADT AGQ )
41X4255 2
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models ABQ AEM
AEA AEQ AET AFQ AJQ AKQ B1Q B2Q B3Q)
41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models AHQ E4Q) 41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
652 Hardware Maintenance Manual
Item # 9789 FRUs FRU# CRU Tier
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models ACA ACQ ACT
ADA ADQ ADT AFQ)
41N3325 2
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models AAQ ABQ)
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models
AEM AEA AEQ AET AHQ AJQ AKQ)
43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9105 2
6 Bezel assembly without IBM mark (all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (all models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models B1Q B2Q) 40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models B3Q) 87H4891 2
11 System board , Intel G31 mATX GA Level (models AAQ ABQ ACA ACQ ACT
ADA ADQ ADT AEM AEA AEQ AET AFQ AGQ AHQ AJQ AKQ B1Q B2Q B3Q )
53Y3282 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models AAQ ABQ ACA ACQ ACT ADA ADQ ADT AEM AEA AEQ AET AFQ
AGQ AHQ AJQ AKQ B1Q B2Q B3Q )
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models AAQ ABQ
ACA ACQ ACT ADA ADQ ADT AEM AEA AEQ AET AFQ AGQ AHQ AJQ AKQ
B1Q B2Q B3Q )
41A9665 2
13 Power supply, ATX 310W Power supply Robust; for all countries (models AAQ
ABQ ACA ACQ ACT ADA ADQ ADT AEM AEA AEQ AET AFQ AGQ AHQ AJQ
AKQ B1Q B2Q B3Q)
41A9726 2
The FRUs listed in the following tables are not illustrated.
9789 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Cable SATA 457mm (RoHS) (all models) 43N9013 2
Shield, diskette drive EMC (all models) 41N8078 2
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Cable l-SATA 250mm (RoHS)(TOWER)(all models) 43N9012 2
Hard disk drive tray (all models) 41R6291 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Chapter 11. FRU lists 653
9789 FRUs FRU# CRU Tier
Asm Chassis Without IBM Mark Atlantic (all models) 41R6408 N
ODD/FDD/Cardreader Retainers (models) 43N9351 2
9789 Keyboard (Preferred Pro Fullsize PS/2) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian French (models) 41A5042 1
Belgium English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (ABB) (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Japanese (models) 41A5058 1
Korean (models) 41A5059 1
LA Spanish (models) 41A5060 1
Italian (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss French/German (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
654 Hardware Maintenance Manual
9789 Keyboard (Preferred Pro Fullsize PS/2) FRU# CRU Tier
UK English (models) 41A5074 1
US Euro (models) 41A5075 1
Slovenian (models) 41A5077 1
9789 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAQ ABQ ACA ACQ ADA ADQ AEM AEA AEQ AFQ AGQ AHQ
AJQ AKQ B1Q B2Q B3Q )
41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models) 41A5292 1
Belgian/UK (models) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models) 41A5296 1
Czech (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Italian (models) 41A5309 1
Japanese (models) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss French/German (models) 41A5323 1
Thailand (models ACT ADT AET) 41A5324 1
Chapter 11. FRU lists 655
9789 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
9789 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
656 Hardware Maintenance Manual
9789 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9789 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Chapter 11. FRU lists 657
9789 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9789 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9789 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
USB Memory Key - 1G RoW (models) 41U4978 1
ADD2 DVI Adapter,FH (HDCP) (models) 43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
DVI-I connection Adapter Full Height (models B4Q) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models ACA ADA AEA) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models ACT ADT AET) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (modes) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models AAQ ABQ ACQ ADQ AEQ AFQ AGQ
AHQ AJQ AKQ B1Q B2Q B3Q)
89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
658 Hardware Maintenance Manual
9789 Line Cords FRU# CRU
Line cord - US (models ACA ADA AEA ACT ADT AET) 41R3184 1
Line cord - US (models ACA ADA AEA ACT ADT AET) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ACA ADA AEA) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ACA ADA AEA) 41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models) 41R3232 1
Line Cord - Italy (models) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models ACA ADA AEA) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models ACA ADA AEA) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models ACA ADA AEA AEM) 41R3220 1
Line Cord - South Africa (models ACA ADA AEA AEM) 41R3221 1
Line Cord - India (models AAQ ABQ ACQ ADQ AEQ AFQ AGQ AHQ AJQ AKQ B1Q
B2Q B3Q )
41R3341 1
Line Cord - India (models AAQ ABQ ACQ ADQ AEQ AFQ AGQ AHQ AJQ AKQ B1Q
B2Q B3Q )
41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models AEM) 41R3196 1
Line Cord - ANZ (models AEM) 41R3197 1
Line Cord - US (models ACA ADA AEA ACT ADT AET) 43N9032 1
Line Cord - China (models) 43N9033 1
Line Cord - Japan (models) 43N9034 1
Line Cord - ANZ (models AEM) 43N9035 1
Line Cord - Hong Kong Singapore, Malaysia, Brunei, Ireland (models ACA ADA AEA) 43N9036 1
Line Cord - Taiwan (models) 43N9037 1
Line Cord - Italy (models) 43N9038 1
Chapter 11. FRU lists 659
9789 Line Cords FRU# CRU
Line Cord - Indonesia, Laos, Cambodia, and Vietnam, Austria, Belgium, Croatia
Czechoslovakia, Finland, France, Germany, Hungary, Netherlands, Norway, Poland,
Portugal, Romania, Spain, Sweden (models ACA ADA AEA)
43N9039 1
Line Cord - Denmark (models) 43N9040 1
Line Cord - Switzerland (models) 43N9041 1
Line Cord - India (models) 43N9042 1
9789 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9789 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models B3Q) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
660 Hardware Maintenance Manual
9789 Windows XP Pro Recovery CDs FRU# CRU
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9789 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Chapter 11. FRU lists 661
9789 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9789 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAQ ABQ AEM AEA AEQ AET AFQ AHQ AJQ B3Q ) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
662 Hardware Maintenance Manual
9789 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
9789 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9789 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
Chapter 11. FRU lists 663
9789 Vista Business 64 SP1 Recovery DVDs FRU# CRU
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9789 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
664 Hardware Maintenance Manual
9789 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9789 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 665
Machine Type 9794
Item # 9794 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models AAM) 40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATAVista &
non-Vista (models AAM)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models ABM
ACM ADM 7HG 7KG )
43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models AAM)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
5 Microprocessor,Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
666 Hardware Maintenance Manual
Item # 9794 FRUs FRU# CRU
5 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
5 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
5 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
5 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
5 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
5 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
5 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
5 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
5 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
5 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
5 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
5 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
5 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
5 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
5 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
5 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
5 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
5 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
5 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
5 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
5 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
5 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
5 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
5 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
5 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
Chapter 11. FRU lists 667
Item # 9794 FRUs FRU# CRU
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models AAM ABM
ACM ADM 7HG 7KG)
41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models AAM ABM ACM ADM 7HG
7KG)
53Y5125 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models
AAM ABM ACM ADM 7HG 7KG )
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models AAM ABM
ACM ADM 7HG 7KG )
41A9717 2
The FRUs listed in the following tables are not illustrated.
9794 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
C2 switch cable (all models) 39K5022 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temp Sense cable (all models) 41R2509 2
System Fan assembly (all models) 41R6249 2
Floor Stand and Vertical Deflector (all models) 41R6251 2
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
L1-C2 intrusion switch (all models) 39K5022 2
Fan for SFF (all models) 41R6042 2
Rell IO shield BTX atlantic (all models) 41R6381 N
C2 Intrusion Switch (all models) 39K5022 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE (models) 43N9015 2
Cabel-SATA 700mm (RoHS) (models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (models) 43N9361 2
ODD mounting kit, 607AT (models) 43N9362 2
Cardreader Bezel Kit, 607AT (models) 43N9363 2
Slim FDD (models) 40Y9109 2
668 Hardware Maintenance Manual
9794 FRUs FRU# CRU
Battery 3V- Lithium (models AAM ABM ACM ADM 7HG 7KG) 45C1566 1
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
9794 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Chapter 11. FRU lists 669
9794 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9794 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAM ABM ACM ADM 7HG 7KG ) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models 7HG 7KG ) 41A5291 1
Belgian French (models 7HG 7KG) 41A5292 1
Belgium English (models 7HG 7KG) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models 7HG 7KG) 41A5295 1
Chinese/US (models) 41A5296 1
Czech (ABB) (models 7HG 7KG) 41A5297 1
Danish (models 7HG 7KG) 41A5298 1
Dutch (models 7HG 7KG) 41A5299 1
French (models 7HG 7KG) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models 7HG 7KG) 41A5303 1
Greek (models 7HG 7KG) 41A5304 1
Greek/US (models 7HG 7KG) 41A5305 1
Hebrew (models 7HG 7KG) 41A5306 1
Hungarian (models 7HG 7KG) 41A5307 1
Iceland (models) 41A5308 1
Japanese (models) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Italian (models 7HG 7KG) 41A5309 1
Norwegian (models 7HG 7KG) 41A5313 1
Polish (models 7HG 7KG) 41A5314 1
Portuguese (models 7HG 7KG) 41A5315 1
Romanian (models 7HG 7KG) 41A5317 1
Russian/Cyrillic (models 7HG 7KG) 41A5318 1
Serbian/Cyrillic (models 7HG 7KG) 41A5319 1
Slovak (models 7HG 7KG) 41A5320 1
Spanish (models 7HG 7KG) 41A5321 1
Swedish/Finnish (models 7HG 7KG) 41A5322 1
670 Hardware Maintenance Manual
9794 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Swiss French/German (models 7HG 7KG) 41A5323 1
Thailand (models) 41A5324 1
Turkish (models 7HG 7KG) 41A5325 1
Turkish (models 7HG 7KG) 41A5326 1
UK English (models 7HG 7KG) 41A5327 1
US Euro (models 7HG 7KG) 41A5328 1
Slovenian (models 7HG 7KG) 41A5329 1
9794 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Chapter 11. FRU lists 671
9794 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9794 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
672 Hardware Maintenance Manual
9794 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9794 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9794 Adapters and miscellaneous FRUs FRU# CRU
USB Memory Key (models) 43R2296 1
USB Memory Key - 1G RoW (models) 41U4978 1
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models CTO) 45R1885 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 46R4159 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models ADM) 46R4160 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models 7HG 7KG) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models ) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models ) 89P8583 1
Speaker Power brick - Argentina (models ) 41A4901 1
Speaker Power brick - ANZ (models ABM ACM ADM AAM) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models ) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
Line Cord - US (models) 43N9032 1
Line Cord - China (models) 43N9033 1
Line Cord - Japan (models) 43N9034 1
Chapter 11. FRU lists 673
9794 Adapters and miscellaneous FRUs FRU# CRU
Line Cord - ANZ (models) 43N9035 1
Line Cord - Hong Kong Singapore, Malaysia, Brunei, Ireland (models 7HG 7KG) 43N9036 1
Line Cord - Taiwan (models) 43N9037 1
Line Cord - Italy (models 7HG 7KG) 43N9038 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam, Austria, Belgium, Croatia
Czechoslovakia, Finland, France, Germany, Hungary, Netherlands, Norway, Poland,
Portugal, Romania, Spain, Sweden (models)
43N9039 1
Line Cord - Denmark (models 7HG 7KG) 43N9040 1
Line Cord - Switzerland (models 7HG 7KG) 43N9041 1
Line Cord - India (models) 43N9042 1
9794 Line Cords FRU# CRU
Line cord - US (models) 41R3184 1
Line cord - US (models) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models 7HG 7KG ) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models 7HG 7KG) 41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models 7HG 7KG) 41R3232 1
Line Cord - Italy (models 7HG 7KG) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models 7HG 7KG) 41R3212 1
Line Cord - Denmark (models 7HG 7KG) 41R3213 1
Line Cord - Switzerland (models 7HG 7KG) 41R3228 1
Line Cord - Switzerland (models 7HG 7KG) 41R3229 1
Line Cord - Israel (models 7HG 7KG) 41R3236 1
Line Cord - Israel (models 7HG 7KG) 41R3237 1
Line Cord - South Africa (models AAM ABM ACM ADM 7HG 7KG ) 41R3220 1
Line Cord - South Africa (models AAM ABM ACM ADM 7HG 7KG ) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
674 Hardware Maintenance Manual
9794 Line Cords FRU# CRU
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
9794 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models ) TBD 1
IT (models ) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models ) TBD 1
NL (models ) TBD 1
AE (models ) TBD 1
SV (Swedish)(models ) TBD 1
HE (models ) TBD 1
FI (models ) TBD 1
NO (models ) TBD 1
PL (models ) TBD 1
PO (models ) TBD 1
RU (models ) TBD 1
RE (models) TBD
HU (models ) TBD 1
CZ (models ) TBD 1
TR (models ) TBD 1
GK (models ) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9794 Windows XP Pro Recovery CDs FRU# CRU
US English (models 7HG 7KG ) 45R0756 1
French (models 7HG 7KG) 45R0759 1
German (models 7HG 7KG) 45R0760 1
Italian (models 7HG 7KG) 45R0762 1
Brazilian Portuguese (models) 45R0763 1
Spanish (models 7HG 7KG) 45R0761 1
Chapter 11. FRU lists 675
9794 Windows XP Pro Recovery CDs FRU# CRU
Danish (models 7HG 7KG) 45R0764 1
Finland (models 7HG 7KG) 45R0766 1
Norwegian (models 7HG 7KG) 45R0770 1
Polish (models 7HG 7KG) 45R0777 1
Portuguese (models 7HG 7KG) 45R0774 1
Russian (models 7HG 7KG) 45R0773 1
Dutch (models 7HG 7KG) 45R0767 1
Arabic English (models 7HG 7KG) 45R2342 1
Swedish (models 7HG 7KG) 45R0765 1
Hebrew (models 7HG 7KG) 45R2334 1
Russian English (models 7HG 7KG) 45R2318 1
Hungarian (models 7HG 7KG) 45R0780 1
Czech (models 7HG 7KG) 45R0776 1
Turkish (models 7HG 7KG) 45R0775 1
Slovakian (models 7HG 7KG) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Traditional Chinese (models) 45R0768 1
Hong Kong Traditional Chinese (models) 45R0769 1
Korea (models) 45R0771 1
Greek (models) 45R0772 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models 7HG 7KG) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models 7HG 7KG) 45R8247 1
9794 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
676 Hardware Maintenance Manual
9794 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9794 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAM ABM ACM ADM) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Chapter 11. FRU lists 677
9794 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
9794 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9794 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
678 Hardware Maintenance Manual
9794 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9794 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Chapter 11. FRU lists 679
9794 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9794 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
680 Hardware Maintenance Manual
Machine Type 9807
Item # 9807 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models AFM AFA AFQ AFT
AFK AFJ)
40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models) 41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models AFM
AFA AFQ AFT AFK AFJ)
43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T(models) 43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T(models) 43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T(models) 43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
5 Microprocessor,Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
5 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models)
45C5349 N
Chapter 11. FRU lists 681
Item # 9807 FRUs FRU# CRU
5 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models)
45C1773 N
5 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models)
45C1774 N
5 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models)
45C5282 N
5 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models)
43C6305 N
5 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models)
43C1694 N
5 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models)
43C1693 N
5 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models)
43C3833 N
5 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models)
43C6309 N
5 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models)
43C1695 N
5 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models) 45C7735 N
5 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models) 45C7736 N
5 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models) 45C7738 N
5 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models)
45R2568 N
5 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models)
45C7739 N
5 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models)
45C7740 N
5 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models)
45C7741 N
5 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models)
45C7737 N
5 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models) 46R1622 N
5 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models) 45R8337 N
5 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models) 45R5786 N
5 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models)
45R8339 N
5 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models)
45R8341 N
5 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models)
46R8640 N
5 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models)
46R9512 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models AFM AFA
AFQ AFT AFK AFJ)
41X4255 2
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
682 Hardware Maintenance Manual
Item # 9807 FRUs FRU# CRU
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models AFM AFA AFQ AFT AFK
AFJ)
53Y3195 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models AFM
AFA AFQ AFT AFK AFJ)
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models AFM AFA
AFQ AFT AFK AFJ)
41A9717 2
The FRUs listed in the following tables are not illustrated.
9807 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temp Sense cable (460 mm) (all models) 41R2509 2
System Fan assembly (all models) 41R6249 2
Floor Stand and Vertical Deflector (all models) 41R6251 2
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
L1-C2 intrusion switch (all models) 39K5022 2
Fan for SFF (all models) 41R6042 2
Rell IO shield BTX atlantic (all models) 41R6381 N
C2 Intrusion Switch (all models) 39K5022 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE RoHS (all models) 43N9015 2
Cabel-SATA 700mm (RoHS) (models) 43N9011 2
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
Universal Adapter Bracket 5.25 to 3.5 (models) 43N9361 2
ODD mounting kit, 607AT (models) 43N9362 2
Cardreader Bezel Kit, 607AT (models) 43N9363 2
Slim FDD (models) 40Y9109 2
Chapter 11. FRU lists 683
9807 Keyboard (Preferred Pro Fullsize PS/2) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian French (models) 41A5042 1
Belgium English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (ABB) (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Japanese (models) 41A5058 1
Korean (models) 41A5059 1
LA Spanish (models) 41A5060 1
Italian (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss French/German (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5074 1
US Euro (models) 41A5075 1
Slovenian (models) 41A5077 1
684 Hardware Maintenance Manual
9807 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AFM AFA AFQ) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian French (models) 41A5292 1
Belgium English (models) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models) 41A5296 1
Czech (ABB) (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Japanese (models AFJ) 41A5310 1
Korean (models AFK) 41A5311 1
LA Spanish (models) 41A5312 1
Italian (models) 41A5309 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss French/German (models) 41A5323 1
Thailand (models AFT) 41A5324 1
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
Chapter 11. FRU lists 685
9807 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
686 Hardware Maintenance Manual
9807 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
Chapter 11. FRU lists 687
9807 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9807 Adapters and miscellaneous FRUs FRU# CRU
USB Memory Key - 1G RoW (models) 41U4978 1
USB Memory Key (models) 43R2296 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
Internal USB Memory Card Reader Slim (models) 45R1885 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models ) 89P8583 1
Speaker Power brick - Argentina (models ) 41A4901 1
Speaker Power brick - ANZ (models ) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models ) 89P8573 1
Speaker Brick - Taiwan (models) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9807 Line Cords FRU# CRU
Line cord - US (models AFA AFT) 41R3184 1
Line cord - US (models AFA AFT) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models AFK ) 41R3260 1
Line Cord - Korea (models AFK ) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AFA) 41R3224 1
688 Hardware Maintenance Manual
9807 Line Cords FRU# CRU
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models AFA ) 41R3225 1
Line Cord - Taiwan (models) 41R3278 1
Line Cord - Taiwan (models) 41R3279 1
Line Cord - Italy (models AFA) 41R3232 1
Line Cord - Italy (models AFA) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models AFM AFA) 41R3220 1
Line Cord - South Africa (models AFM AFA) 41R3221 1
Line Cord - India (models AFQ) 41R3341 1
Line Cord - Japan (models AFJ) 41R3248 1
Line Cord - ANZ (models AFM) 41R3196 1
Line Cord - Japan (models AFJ) 41R3249 1
Line Cord - ANZ (models AFM) 41R3197 1
Line Cord - India (models AFQ) 41R3175 1
9807 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models ) TBD 1
IT (models ) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models ) TBD 1
NL (models ) TBD 1
AE (models ) TBD 1
SV (models ) TBD 1
HE (models ) TBD 1
FI (models ) TBD 1
NO (models ) TBD 1
PL (models ) TBD 1
PO (models ) TBD 1
RU (models ) TBD 1
RE (models) TBD 1
HU (models ) TBD 1
Chapter 11. FRU lists 689
9807 Windows XP Home Recovery CDs FRU# CRU
CZ (models ) TBD 1
TR (models ) TBD 1
GK (models ) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9807 Windows XP Pro Recovery CDs FRU# CRU
US English (models) 45R0756 1
French (models) 45R0759 1
German (models) 45R0760 1
Italian (models) 45R0762 1
Spanish (models) 45R0761 1
Dutch (models) 45R0767 1
Swedish (models) 45R0765 1
Hebrew (models) 45R2334 1
Norwegian (models) 45R0770 1
Polish (models) 45R0777 1
Portuguese (models) 45R0774 1
Russian (models) 45R0773 1
Hungarian (models) 45R0780 1
DK (models) 45R0764 1
FI (models) 45R0766 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9807 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
690 Hardware Maintenance Manual
9807 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9807 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AFM AFA AFQ ) 46R7287 1
Japanese (models AFJ) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Chapter 11. FRU lists 691
9807 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Norwegian (models) 46R7298 1
Korean (models AFK) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
9807 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
692 Hardware Maintenance Manual
9807 Vista VHP SP1 Recovery DVDs FRU# CRU
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9807 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9807 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Chapter 11. FRU lists 693
9807 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 45R9888 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9807 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 45R9748 1
694 Hardware Maintenance Manual
Machine Type 9851
Item # 9851 FRUs FRU# CRU Tier
1 Intel 65W/95W Heatsink Kit (Tower) (all models) 41R6429 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA, EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA, EM64T
(models BEP BFP BDP BGP BHP 7AG C6P C2P 7UG)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA, EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models AAB AAH AQV ASA AST ATP AEA AET AVS AVY AXU AXF
B1U B1F B2U B2F B3U B3F BLP BMP BJP BKP BNP)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO 8LG)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
Chapter 11. FRU lists 695
Item # 9851 FRUs FRU# CRU Tier
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO 8KG 8JG)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO 8MG)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO 8BG 8UG)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models AAB AAH
ABB ABH AQV B1U B1F B2U B2F BEP BFP BLP BBH BDP BGP BJP BKP BVV
BWV C6P C2P)
41X4255 2
696 Hardware Maintenance Manual
Item # 9851 FRUs FRU# CRU Tier
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models ACB ACH APV
ARA ART ASA AST AKM AKA AKT ALM ALA ALT ALK AMK ATP AUP AEA
AET AHM AHA AHT AHJ ANC AVS AVY AWS AWY B3U B3F B5U B5F BMP
BPP A2P A6U A6F A7U A7F BAU BAF A5H BCV BHP BNP BQP BRP A3P A4S
A4D A4Y B4U B4F BSU BSF 7GG 7HG 7AG 7BG 7CG 7DG BTH BUH BZS BZD
BZY C3P C4P C5P C7P C8P C9P CAS CAD CAY CBS CBP CBD CBY BYU BYF
CCU CCF CDU CDF C4U C4F C9U C9F 7PG 7RG 7KG 7LG 7MG 7NG 7UG 8WC
71G 72G 73G 74G F4B F4H 86G 87G 8AG 8BG 8UG)
41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models 88G 89G) 41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AAB AAH ABB
ABH APV ATP AVS AVY B1U B1F BEP BPP BBH BCV BDP BGP BJP 7AG BTH
BVV BWV C5P C7P 8SH 7UG 8WC F4B F4H)
41N3325 2
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models ASA AST AUP AHM AHA AHT AHJ AWS AWY B2U
B2F B4U B4F BFP BLP BMP A2P A6U A6F BHP BKP BNP BQP C4P C9P )
42Y9353 2
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models
ACB ACH AQV ARA ART AKM AKA AKT ALM ALA ALT ALK AMK AKM AKA
AKT ALM ALA ALT ALK AMK ANC B3U B3F B5U B5F BAU BAF A5H BRP A3P
A4S A4D A4Y A7U A7F 7GG 7HG 7BG 7CG 7DG BUH BZS BZD BZY C2P C3P
C8P CAS CAD CAY CBS CBP CBD CBY BYU BYF CCU CCF CDU CDF 7PG 7RG
7KG 7LG 7MG 7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG
8MG 8JG 8PG 8NG 8UG)
43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models ASA AST
BEP BFP BLP BMP BPP A2P BDP BGP BHP BJP BKP BNP BQP BRP A3P)
40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models ASA AST
BEP BFP BLP BMP BPP A2P BDP BGP BHP BJP BKP BNP BQP BRP A3P)
40Y9105 2
6 Bezel assembly without IBM mark (all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (all models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models AAB B1U B1F BDP ) 40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models ABB ABH ACB ACH
APV AQV ASA AST ATP AUP AEA AET AHM AHA AHT AHJ ANC AVS AVY
B2U B2F B3U B3F B4U B4F B5U B5F BEP BFP BLP BMP BPP A2P A6U A6F A7U
A7F A9U A9F BSU BSF BBH BCV BGP BHP BJP BKP BJP BNP BQP BRP A3P A4S
A4D A4Y 7RG 7NG 8SH 7UG 8WC 7UG 72G F4B F4H 8AG 8BG 8UG )
40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models ARA ART AKM AKA
AKT ALM ALA ALT AMK A8U A8F BAU BAF 7PG 7LG 7KG 71G 73G 74G 86G
87G 88G 89G)
87H4891 2
Chapter 11. FRU lists 697
Item # 9851 FRUs FRU# CRU Tier
11 System board , Intel G31 mATX GA Level (models AAB AAH ABB ABH ACB
ACH APV AQV ARA ART ASA AST AKM AKA AKT ALM ALA ALT ALK AMK
ATP AUP AEA AET AHM AHA AHT AHJ ANC AVS AVY AWS AWY B1U B1F
B2U B2F B3U B3F B4U B4F B5U B5F BEP BFP BLP BMP BPP A2P A6U A6F A7U
A7F BAU BAF BBH A5H BCV BDP BGP BHP BJP BKP BNP BQP BRP A3P A4S
A4D A4Y BSU BSF 7GG 7HG 7AG 7BG 7CG 7DG BTH BUH BVV BWV BZS BZD
BZY C6P C2P C3P C4P C5P C7P C8P C9P CAS CAD CAY CBS CBP CBD CBY
BYU BYF CCU CCF CDU CDF C4U C4F C9U C9F 7PG 7RG 7KG 7LG 7MG 7NG
8SH 8TH 7UG 8WC 71G 72G 73G 74G F4B F4H 86G 87G 88G 89G 8AG 8BG 8KG
8LG 8MG 8JG 8PG 8NG 8UG )
53Y3282 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models ACB ACH APV ARA ART ASA AST AKM AKA AKT ALM ALA ALT
ALK AMK ATP AUP AEA AET AHM AHA AHT ANC AVS AVY AWS AWY B1U
B1F B2U B2F B3U B3F B4U B4F B5U B5F BEP BFP BLP BMP BPP A2P A6U A6F
A7U A7F BAU BAF BBH A5H BCV BDP BGP BHP BJP BKP BNP BQP BRP A3P
A4S A4D A4Y BSU BSF 7GG 7HG 7AG 7BG 7CG 7DG BTH BUH BVV BWV BZS
BZD BZY C6P C2P C3P C4P C5P C7P C8P C9P CAS CAD CAY CBS CBP CBD
CBY BYU BYF CCU CCF CDU CDF C4U C4F C9U C9F 7PG 7RG 7KG 7LG 7MG
7NG 8SH 8TH 7UG 8WC 71G 72G 73G 74G F4B F4H 86G 87G 88G 89G 8AG 8BG
8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models ACB ACH
APV ARA ART ASA AST AKM AKA AKT ALM ALA ALT ALK AMK ATP AUP
AEA AET AHM AHA AHT ANC AVS AVY AWS AWY B1U B1F B2U B2F B3U B3F
B4U B4F B5U B5F BEP BFP BLP BMP BPP A2P A6U A6F A7U A7F BAU BAF BBH
A5H BCV BDP BGP BHP BJP BKP BNP BQP BRP A3P A4S A4D A4Y BSU BSF
7GG 7HG 7AG 7BG 7CG 7DG BTH BUH BVV BWV BZS BZD BZY C6P C2P C3P
C4P C5P C7P C8P C9P CAS CAD CAY CBS CBP CBD CBY BYU BYF CCU CCF
CDU CDF C4U C4F C9U C9F 7PG 7RG 7KG 7LG 7MG 7NG 8SH 8TH 7UG 8WC
71G 72G 73G 74G F4B F4H 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG
8NG 8UG)
41A9665 2
13 Power supply, ATX 310W Power supply Robust; for all countries (models ACB
ACH APV ARA ART ASA AST AKM AKA AKT ALM ALA ALT ALK AMK ATP
AUP AEA AET AHM AHA AHT ANC AVS AVY AWS AWY B1U B1F B2U B2F
B3U B3F B4U B4F B5U B5F BEP BFP BLP BMP BPP A2P A6U A6F A7U A7F BAU
BAF BBH A5H BCV BDP BGP BHP BJP BKP BNP BQP BRP A3P A4S A4D A4Y
BSU BSF 7GG 7HG 7AG 7BG 7CG 7DG BTH BUH BVV BWV BZS BZD BZY C6P
C2P C3P C4P C5P C7P C8P C9P CAS CAD CAY CBS CBP CBD CBY BYU BYF
CCU CCF CDU CDF C4U C4F C9U C9F 7PG 7RG 7KG 7LG 7MG 7NG 8SH 8TH
7UG 8WC 71G 72G 73G 74G F4B F4H 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG
8JG 8PG 8NG 8UG)
41A9726 2
The FRUs listed in the following tables are not illustrated.
9851 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Shield, diskette drive EMC (all models) 41N8078 2
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
698 Hardware Maintenance Manual
9851 FRUs FRU# CRU Tier
Intrusion Switch asm (all models) 41R6116 2
Cable, SATA 250mm (RoHS) (all models) 43N9012 2
Cable, SATA 457mm (RoHS) (all models) 43N9013 2
Hard disk drive tray (all models) 41R6291 2
Rear IO shield, ATX, (all models) 41R6383 N
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Temp Sense cable for Armstrong (460 mm) (TOWER) (all models) 41R2509 2
FRU - Blank 5.25″Bezel (all models) 41N8077 2
FRU, Cable Clip, FW-6D (all models) 43N9462 2
Assembly Chassis Without IBM Mark Atlantic (all models) 41R6408 N
ODD/FDD/Card reader (all models) 43N9351 2
Battery 3V- Lithium (models AAB AAH ABB ABH ACB ACH APV AQV ARA ART ASA
AST AKM AKA AKT ALM ALA ALT ALK AMK ATP AUP AEA AET AHM AHA AHT
AHJ ANC AVS AVY AWS AWY B1U B1F B2U B2F B3U B3F B4U B4F B5U B5F BEP BFP
BLP BMP BPP A2P A6U A6F A7U A7F BAU BAF BBH A5H BCV BDP BGP BHP BJP BKP
BNP BQP BRP A3P A4S A4D A4Y BSU BSF 7GG 7HG 7AG 7BG 7CG 7DG BTH BUH BVV
BWV BZS BZD BZY C6P C2P C3P C4P C5P C7P C8P C9P CAS CAD CAY CBS CBP CBD
CBY BYU BYF CCU CCF CDU CDF C4U C4F C9U C9F 7PG 7RG 7KG 7LG 7MG 7NG
8SH 8TH 7UG 8WC 71G 72G 73G 74G F4B F4H 86G 87G 88G 89G 8AG 8BG 8KG 8LG
8MG 8JG 8PG 8NG 8UG)
45C1566 1
9851 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAH ABH ACH) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models AAB ABB ACB) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Chapter 11. FRU lists 699
9851 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9851 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models ARA AKM AKA ALM ALA AAH ABH ACH AEA AHM AHA AHA
B1U B2U B3U B4U B5U A6U A7U BAU BBH A5H BSU 7GG 7HG 7AG 7BG 7CG 7DG
BTH BUH BYU CCU CDU C4U C9U 7PG 7RG 7KG 7LG 7MG 7NG 8SH 8TH 7UG 71G
72G 73G 74G F4H 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5289 1
Arabic (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8UG)
41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG
7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG
8UG)
41A5292 1
Belgian/English (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG
7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG
8UG)
41A5293 1
Brazilian Portuguese (models ATP AUP BEP BFP BLP BMP BPP A2P DP BGP BHP BJP
BKP BNP BQP BRP A3P C6P C2P C3P C4P C5P C7P C8P C9P CBP C9P )
41A5294 1
Bulgarian (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5295 1
Chinese/US (models AAB ABB ACB APV AQV BVV BWV F4B) 41A5296 1
Czech (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5297 1
Danish (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5298 1
700 Hardware Maintenance Manual
9851 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Dutch (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5299 1
French (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5300 1
French Canadian (models B1F B2F B3F B4F B5F A6F A7F BAF BSF BYF CCF CDF ) 41A5301 1
French Canadian (models B1F B2F B3F B4F B5F A6F A7F BAF BSF BYF CCF CDF ) 41A5302 1
German (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5303 1
Greek (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5304 1
Greek/US (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG
7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5305 1
Hebrew (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5306 1
Hungarian (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG
7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5307 1
Iceland (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5308 1
Italy (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG 71G
72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5309 1
Japanese (models AHJ) 41A5310 1
Korean (models ALK AMK) 41A5311 1
LA Spanish (models AVS AVY AWS AWY A4S A4D A4Y BZS BZD BZY CAS CAD CAY
CBS CBD CBY)
41A5312 1
Norwegian (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG
7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5313 1
Polish (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5314 1
Portuguese (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG
7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5315 1
Romanian (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG
7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5317 1
Russian/Cyrillic (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG
7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG
8UG)
41A5318 1
Serbian/Cyrillic (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG
7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG
8UG )
41A5319 1
Slovak (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5320 1
Spanish (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5321 1
Swedish/Finnish (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG
7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG
8UG)
41A5322 1
Swiss French/German (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG
7MG 7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG
8NG 8UG)
41A5323 1
Chapter 11. FRU lists 701
9851 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Thailand (models) 41A5324 1
Turkish (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5325 1
Turkish (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5326 1
UK English (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG
7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5327 1
US Euro (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5328 1
Slovenian (models 7GG 7HG 7AG 7BG 7CG 7DG 7CG 7PG 7RG 7KG 7LG 7MG 7NG 7UG
71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41A5329 1
9851 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
702 Hardware Maintenance Manual
9851 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
9851 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Chapter 11. FRU lists 703
9851 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9851 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9851 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models AQV) 41R3378 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
USB Memory Key - 1G RoW (models) 41U4978 1
ADD2 DVI Adapter,FH (HDCP) (models) 43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
DVI-I connection Adapter Full Height (models 7CG 7DG 7PG 7KG 7LG 71G 73G 74G 86G
87G 88G 89G)
39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models AVS AWS B1U B2U
B3U B4U B5U A6U A7U BAU A4S BSU BZS CAS CBS BYU CCU CDU)
89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models A4D BZD CAD CBD) 89P8575 1
Speaker Power brick - China, Thailand (models ANC ART AST AKT ALT AET AHT 8WC) 89P8581 1
Speaker Power brick - Japan (models AHJ) 89P8577 1
Speaker Power brick - Brazil (models BEP BFP BLP BMP BPP A2P BDP BGP BHP BJP BKP
BNP BQP BRP A3P C6P C2P C3P C4P C5P C7P C8P C9P CBP )
89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (modes) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
704 Hardware Maintenance Manual
9851 Adapters and miscellaneous FRUs FRU# CRU
Speaker Brick - Hong Kong, EMEA (models AAB AAH ABB ABH ACB ACH BBH A5H
BTH BUH 7PG 7RG 7KG 7LG 7MG 7NG 8SH 8TH 7UG 71G 72G 73G 74G F4H F4B 86G
87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
89P8573 1
Speaker Brick - Taiwan (models APV AQV BCV BVV BWV) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9851 Power Cords FRU# CRU
Line cord - US (models AEA AET ARA ASA AKA ALA AEA AHA AVS AWS B1U B1F B2U
B2F B3U B3F B4U B4F B5U B5F A6U A6F A7U A7F BAU BAF A4S A4D BSU BSF BZS
BZD CAS CAD CBS CBD BYU BYF CCU CCF CDU CDF)
41R3184 1
Line cord - US (models AEA AET ARA ASA AKA ALA AEA AHA AVS AWS B1U B1F B2U
B2F B3U B3F B4U B4F B5U B5F A6U A6F A7U A7F BAU BAF A4S A4D BSU BSF BZS
BZD CAS CAD CBS CBD BYU BYF CCU CCF CDU CDF)
41R3185 1
Line cord - China (models ANC 8WC) 41R3256 1
Line cord - China (models ANC 8WC) 41R3257 1
Line cord - Brazil (models ATP AUP BEP BFP BLP BMP BPP A2P BDP BGP BHP BJP BKP
BNP BQP BRP A3P C6P C2P C3P C4P C5P C7P C8P C9P CBP)
41R3270 1
Line cord - Brazil (models ATP AUP BEP BFP BLP BMP BPP A2P BDP BGP BHP BJP BKP
BNP BQP BRP A3P C6P C2P C3P C4P C5P C7P C8P C9P CBP)
41R3271 1
Line cord - LA High Volt APU (models AVY AWY A4Y CAY CBY ) 41R3176 1
Line Cord - LA High Volt APU (models AVY AWY A4Y CAY CBY ) 41R3177 1
Line Cord - Korea (models ALK AMK) 41R3260 1
Line Cord - Korea (models ALK AMK) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ARA ASA AKA ALA AEA
AHA 7GG 7HG 7AG 7BG 7CG 7DG 7PG 7RG 7KG 7LG 7MG 7NG 7UG 71G 72G 73G 74G
86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ARA ASA AKA ALA AEA
AHA 7GG 7HG 7AG 7BG 7CG 7DG 7PG 7RG 7KG 7LG 7MG 7NG 7UG 71G 72G 73G 74G
86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41R3225 1
Line Cord - Taiwan (models APV AQV BCV) 41R3278 1
Line Cord - Taiwan (models APV AQV BCV) 41R3279 1
Line Cord - Italy (models AWS A4S A4Y 7GG 7HG 7AG 7BG 7CG 7DG BZS BZY CAS
CBS 7PG 7RG 7KG 7LG 7MG 7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG
8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41R3232 1
Line Cord - Italy (models AWS A4S A4Y 7GG 7HG 7AG 7BG 7CG 7DG BZS BZY CAS
CBS 7PG 7RG 7KG 7LG 7MG 7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG
8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models ARA ASA AKA ALA AEA
AHA)
41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models ARA ASA AKA ALA AEA
AHA)
41R3209 1
Line Cord - Denmark (models 7GG 7HG 7AG 7BG 7CG 7DG 7PG 7RG 7KG 7LG 7MG
7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG
8UG)
41R3212 1
Chapter 11. FRU lists 705
9851 Power Cords FRU# CRU
Line Cord - Denmark (models 7GG 7HG 7AG 7BG 7CG 7DG 7PG 7RG 7KG 7LG 7MG
7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG
8UG)
41R3213 1
Line Cord - Switzerland (models 7GG 7HG 7AG 7BG 7CG 7DG 7PG 7RG 7KG 7LG 7MG
7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG
8UG)
41R3228 1
Line Cord - Switzerland (models 7GG 7HG 7AG 7BG 7CG 7DG 7PG 7RG 7KG 7LG 7MG
7NG 7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG
8UG)
41R3229 1
Line Cord - Israel (models 7GG 7HG 7AG 7BG 7CG 7DG 7PG 7RG 7KG 7LG 7MG 7NG
7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG )
41R3236 1
Line Cord - Israel (models 7GG 7HG 7AG 7BG 7CG 7DG 7PG 7RG 7KG 7LG 7MG 7NG
7UG 71G 72G 73G 74G 86G 87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG )
41R3237 1
Line Cord - South Africa (models AKM AHM ALM ARA ASA AKA ALA AEA AHA 7GG
7HG 7AG 7BG 7CG 7DG 7PG 7RG 7KG 7LG 7MG 7NG 7UG 7UG 71G 72G 73G 74G 86G
87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41R3220 1
Line Cord - South Africa (models AKM AHM ALM ARA ASA AKA ALA AEA AHA 7GG
7HG 7AG 7BG 7CG 7DG 7PG 7RG 7KG 7LG 7MG 7NG 7UG 7UG 71G 72G 73G 74G 86G
87G 88G 89G 8AG 8BG 8KG 8LG 8MG 8JG 8PG 8NG 8UG)
41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models BBH A5H BTH BUH 8SH 8TH) 41R3224 1
Line Cord - Hong Kong (models BBH A5H BTH BUH 8SH 8TH) 41R3225 1
9851 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
706 Hardware Maintenance Manual
9851 Windows XP Home Recovery CDs FRU# CRU
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9851 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models B1U B2U B3U B4U B5U A6U A7U BAU BSU 7AG 7BG 7CG 7DG
71G 72G 73G 74G F4H 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G B1U B2U B3U
B4U B5U A6U A7U BSU 8AG 8BG 8JG 8PG 8NG )
45R0756 1
FR/CF (models B1F B2F B3F B4F B5F A6F A7F BAF BSF 7AG 7BG 7CG 7DG 71G 72G 73G
74G 8UG)
45R0759 1
GR (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG) 45R0760 1
IT (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G
88G 89G 8AG 8BG 8JG 8PG 8NG)
45R0762 1
BR (models BEP BFP BLP BMP BPP A2P C2P C3P C4P C7P C8P C9P CBP C9P) 45R0763 1
SP/LA (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG CAS CAD CAY CBS CBD
CBY AVS AVY AWS AWY)
45R0761 1
DK (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G
88G 89G 8AG 8BG 8JG 8PG 8NG)
45R0764 1
NL (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G
88G 89G 8AG 8BG 8JG 8PG 8NG )
45R0767 1
AE (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG) 45R2342 1
SV (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G
88G 89G 8AG 8BG 8JG 8PG 8NG)
45R0765 1
HE (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG) 45R2334 1
FI (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG) 45R0766 1
NO (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG) 45R0770 1
PL (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG) 45R0777 1
PO (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G
88G 89G 8AG 8BG 8JG 8PG 8NG)
45R0774 1
RU (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G
88G 89G 8AG 8BG 8JG 8PG 8NG)
45R0773 1
RE (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G
88G 89G 8AG 8BG 8JG 8PG 8NG)
45R2318 1
HU (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G
88G 89G 8AG 8BG 8JG 8PG 8NG)
45R0780 1
CZ (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G
88G 89G 8AG 8BG 8JG 8PG 8NG)
45R0776 1
Chapter 11. FRU lists 707
9851 Windows XP Pro Recovery CDs FRU# CRU
TR (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G
88G 89G 8AG 8BG 8JG 8PG 8NG)
45R0775 1
GK (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG 86G 87G
88G 89G 8AG 8BG 8JG 8PG 8NG)
45R0772 1
Slovakian (models 7AG 7BG 7CG 7DG 71G 72G 73G 74G 8UG 7PG 7RG 7KG 7LG 7UG
86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG)
45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models F4B) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models 7AG 7BG 7CG 7DG 71G 72G 73G
74G 8UG)
45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models 7AG 7BG 7CG 7DG 71G 72G 73G
74G 8UG)
45R8247 1
9851 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
708 Hardware Maintenance Manual
9851 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9851 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAH ABH ACH ARA ASA AKA AKM ALM ALA AEA AHM AHA BTH
BUH BYU CDU C4U C9U 7PG 7RG 7KG 7LG 8SH 8TH 7UG 86G 87G 88G 89G 8AG 8BG
8JG 8PG 8NG 8UG)
46R7287 1
Japanese (models AHJ ) 46R7288 1
Simplified Chinese (models ANC) 46R7289 1
French (models BYF CDF C4F C9F) 46R7290 1
German (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG 8UG) 46R7291 1
Spanish (models AVS AVY AWS AWY A4S A4D A4Y BZS BZD BZY CAS CAD CAY CBS
CAS CAD CAY CBS CBD CBY)
46R7292 1
Italian (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG 8UG) 46R7293 1
Brazilian Portuguese (models C6P C2P C3P C4P C5P C7P C8P C9P CBP C9P 8AG 8BG 8JG
8PG 8NG 8UG)
46R7294 1
Danish (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG 8UG) 46R7295 1
Swedish (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG
8UG)
45R9786 1
Finland (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG 8UG) 45R9787 1
Dutch (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8JG 8PG 8NG 8UG) 45R9788 1
Traditional Chinese (models AAB ABB ACB APV BVV BWV) 46R7296 1
Hong Kong (models AAB ABB ACB APV BVV BWV) 46R7297 1
Norwegian (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG
8UG)
46R7298 1
Korean (models ALK) 45R9792 1
Slovenian (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG
8UG)
45R9793 1
Greek (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG 8UG) 45R9794 1
Russian (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG 8UG) 46R7299 1
Portuguese (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG
8UG)
45R9796 1
Turkish (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG 8UG) 45R9797 1
Czech (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG 8UG) 45R9798 1
Polish (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG 8UG) 45R9799 1
Russian English (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG
8NG 8UG)
46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG 8UG) 45R9802 1
Romanian (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG
8UG)
45R9803 1
Hungarian (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG
8UG)
45R9804 1
Chapter 11. FRU lists 709
9851 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Slovakian (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG
8UG)
45R9805 1
Serbian-Latin (models 7PG 7RG 7KG 7LG 7UG 86G 87G 88G 89G 8AG 8BG 8JG 8PG 8NG
8UG)
45R9806 1
9851 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9851 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
710 Hardware Maintenance Manual
9851 Vista Business 64 SP1 Recovery DVDs FRU# CRU
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9851 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Chapter 11. FRU lists 711
9851 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9851 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
712 Hardware Maintenance Manual
Machine Type 9853
Item # 9853 FRUs FRU# CRU
1 Heatsink Intel 65W/95W (all models) 41R6429 2
1 Heatsink Intel 65W/95W (all models) 41R4803 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T (models
AAJ)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models AFK ABA ABT ABJ)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
Chapter 11. FRU lists 713
Item # 9853 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
2 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AKS AHP AKY
AEC ALH AMV ANH)
41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models AFK AAJ ABA ABT ABJ ACA ACT ACJ AJS AJY)
42Y9353 2
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models AGK ADA ADT
APS APD APY )
43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
5 Hard disk drive, SATA 250GB 7200RPM/3Gb/8MB (models) 40Y9036 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models AGK ADA ADT) 87H4891 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9107 2
714 Hardware Maintenance Manual
Item # 9853 FRUs FRU# CRU
7 Front USB/Audio with bracket (all models) 41N8212 2
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models AAJ AEC
ALH)
41X4255 2
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models AFK AGK ABA
ABT ABJ ACA ACT ACJ ADA ADT AKS AHP AKY AJS AJY AMV ANH APS APD
APY )
41X4256 2
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board, Intel G31 mATX GA Level (models AFK AGK AAJ ABA ABT ABJ
ACA ACT ACJ ADA ADT AKS AHP AKY AJS AJY AEC ALH AMV ANH APS
APD APY )
53Y3282 N
10 Power supply, 220 Watt Power Supply - Japan; only for JP (models AAJ ACJ ABJ) 41A9697 N
10 Power supply, 220W 80% Power supply-for all countries (models AFK AGK AAJ
ABA ABT ABJ ACA ACT ACJ ADA ADT AKS AHP AKY AJS AJY AEC ALH
AMV)
41A9670 N
10 Power supply, 280W TFX 280W PS ,Active PFC, for RockyS-for all countries
(models AFK AGK AAJ ABA ABT ABJ ACA ACT ACJ ADA ADT AKS AHP AKY
AJS AJY AEC ALH AMV)
41A9705 N
The FRUs listed in the following tables are not illustrated.
9853 FRUs FRU# CRU
Planer shield, Atx 946,G31 with usb number (all models) 41R6384 N
Shield, EMC , Blank 5.25 (all models) 41N8271 2
Shield, EMC , Blank diskette drive (all models) 41N8273 2
Cover (all models) 41N8204 2
Mechanical shell kit (all models) 41R6387 N
Bezel kit, without IBM logo (all models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
Hard disk drive bracket assembly (plastic and grommets) (all models) 41N8210 2
Hard disk drive fan and bracket asm (all models) 41R6325 2
Speaker cable assembly, 600 mm cable length (all models) 41N8217 2
Fan duct assembly (all models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (all models) 42Y8006 2
Retention module assembly, Intel (all models) 41A7139 N
Intrusion switch assembly (all models) 41R6208 2
Foot stand (all models) 41R4813 1
Cable, diskette drive (all models) 41A7147 2
Cable, serial ATA cable, 250 mm (all models) 43N9012 2
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (all models) 42Y8008 2
Rear USB 2Ports II LP(R), low profile I/O, 350mm, Rohs (all models) 43N9124 2
Temp Sense Cable (165 mm) (all models) 43N9079 2
Chapter 11. FRU lists 715
9853 Keyboard (Preferred Pro Fullsize PS/2) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian French (models) 41A5042 1
Belgium English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (ABB) (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Japanese (models) 41A5058 1
Korean (models) 41A5059 1
LA Spanish (models) 41A5060 1
Italian (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss French/German (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5074 1
US Euro (models) 41A5075 1
Slovenian (models) 41A5077 1
716 Hardware Maintenance Manual
9853 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models ABA ACA ADA ALH ANH) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models) 41A5292 1
Belgian/English (models) 41A5293 1
Brazilian Portuguese (models AHP) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models AMV) 41A5296 1
Czech (ABB) (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Italian (models) 41A5309 1
Japanese (models AAJ ABJ ACJ ) 41A5310 1
Korean (models AFK AGK) 41A5311 1
LA Spanish (models AKS AHP AKY AJS AJY APS APD APY ) 41A5312 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss French/German (models) 41A5323 1
Thailand (models ACT ADT) 41A5324 1
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
Chapter 11. FRU lists 717
9853 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgian/UK (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
718 Hardware Maintenance Manual
9853 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
Chapter 11. FRU lists 719
9853 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
9853 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
USB Memory Key - 1G RoW (models) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 46R4159 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 46R4160 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models AKS AJS APS) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models APY) 89P8575 1
Speaker Power brick - China, Thailand (models AEC) 89P8581 1
Speaker Power brick - Japan (models AAJ ABJ ACJ) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models) 89P8579 1
Speaker Brick - Korea (models AFK AGK) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models ALH ANH) 89P8573 1
Speaker Brick - Taiwan (models AMV) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9853 Line Cords FRU# CRU
Line cord - US (models AKS AJS ABA ACA ABT ACT ADT APS APD ANH) 41R3184 1
Line cord - US (models AKS AJS ABA ACA ABT ACT ADT APS APD ANH) 41R3185 1
Line cord - China (models AEC) 41R3256 1
Line cord - China (models AEC) 41R3257 1
Line cord - Brazil (models AHP) 41R3270 1
Line cord - Brazil (models AHP) 41R3271 1
Line cord - LA High Volt APU (models APY) 41R3176 1
Line Cord - LA High Volt APU (models APY) 41R3177 1
Line Cord - Korea (models AFK AGK) 41R3260 1
Line Cord - Korea (models AFK AGK) 41R3261 1
720 Hardware Maintenance Manual
9853 Line Cords FRU# CRU
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ALH) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ALH) 41R3225 1
Line Cord - Taiwan (models AMV) 41R3278 1
Line Cord - Taiwan (models AMV) 41R3279 1
Line Cord - Italy (models) 41R3232 1
Line Cord - Italy (models) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models ABA ACA ADA) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models ABA ACA ADA) 41R3220 1
Line Cord - South Africa (models ABA ACA ADA) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3197 1
9853 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
Chapter 11. FRU lists 721
9853 Windows XP Home Recovery CDs FRU# CRU
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9853 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models ANS AND ANY AJS AKS) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
722 Hardware Maintenance Manual
9853 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R5060 1
Japanese (models) 46R5061 1
Simplified Chinese (models) 45R9751 1
French (models) 46R5062 1
German (models) 46R5063 1
Spanish (models) 46R5064 1
Italian (models) 45R9755 1
Brazilian Portuguese (models) 45R9756 1
Danish (models) 45R9757 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 45R9761 1
Hong Kong (models) 45R9762 1
Norwegian (models) 45R9763 1
Korean (models AFK AGK) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 45R9767 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R5065 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9853 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models ABA ACA ADA ALH ANH) 46R7287 1
Japanese (models AAJ ABJ ACJ) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models) 46R7290 1
German (models) 46R7291 1
Spanish (models APS APD APY) 46R7292 1
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Chapter 11. FRU lists 723
9853 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Dutch (models) 45R9788 1
Traditional Chinese (models AMV) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
9853 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
724 Hardware Maintenance Manual
9853 Vista VHP SP1 Recovery DVDs FRU# CRU
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9853 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
Chapter 11. FRU lists 725
9853 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9853 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
726 Hardware Maintenance Manual
Machine Type 9859
Item # 9859 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models AAB AAH AHS AGP
AHY)
40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models ABB ABH ACJ AFC
AJH AJV 7AG AKH 7GG 8LH 71G F5B F5H 82G)
40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models ADJ AEJ 7HG 7JG 72G
73G 81G 83G)
87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AAB
AAH ABB ABH AJH AJV AKH 8LH F5B F5H)
41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models ACJ ADJ AHS AGP AHY)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models AEJ
AFC 7CG 7BG 7AG AKH 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG)
43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T(models) 43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T(models) 43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T(models) 43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models AAB AAH ACJ AHS AGP AHY )
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA,
EM64T(models)
43C2056 N
5 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
Chapter 11. FRU lists 727
Item # 9859 FRUs FRU# CRU
5 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
5 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
5 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
5 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
5 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
5 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
5 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
5 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
5 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
5 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
5 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
5 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
5 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
5 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
5 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
5 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
5 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
5 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
5 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
5 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
5 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
5 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
5 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
5 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
5 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO 8QG 8RG)
46R9512 N
728 Hardware Maintenance Manual
Item # 9859 FRUs FRU# CRU
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models AAB AAH
ABB ABH)
41X4255 2
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models ACJ ADJ AEJ
AHS AGP AHY AFC AJH AJV 7CG 7BG 7AG AKH AKH 7GG 7HG 7JG 71G 72G
73G F5B F5H 82G)
41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models 81G 83G 8QG
8RG 8QG 8RG)
41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models 8LH) 41X1080 2
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board,Intel G31 nano-BTX GA Level (models AAB AAH ABB ABH ACJ
ADJ AEJ AHS AGP AHY AFC AJH AJV 7CG 7BG 7AG AKH 7GG 7HG 7JG 8LH
71G 72G 73G F5B F5H 81G 82G 83G 8QG 8RG )
53Y5125 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models AAB
AAH ABB ABH ACJ ADJ AEJ AHS AGP AHY AFC AJH AJV 7CG 7BG 7AG AKH
AKH 7GG 7HG 7JG 8LH 71G 72G 73G F5B F5H 81G 82G 83G 8QG 8RG)
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models AAB AAH
ABB ABH ACJ ADJ AEJ AHS AGP AHY AFC AJH AJV 7CG 7BG 7AG AKH AKH
7GG 7HG 7JG 8LH 71G 72G 73G F5B F5H 81G 82G 83G 8QG 8RG)
41A9717 2
The FRUs listed in the following tables are not illustrated.
9859 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
C2 switch cable (all models) 39K5022 2
SATA cable,120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temp Sense cable (all models) 41R2509 2
System Fan assembly (all models) 41R6249 2
Floor Stand and Vertical Deflector (LX-607) (all models) 41R6251 1
Cpu Support Module (all models) 41R6252 N
HDD Tray Asm w/bumpper (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage asm (all models) 41R6256 N
Top cover Asm (all models) 41R6257 2
Fan for SFF (all models) 41R6042 2
Rell IO shield BTX atlantic (all models) 41R6381 N
Rear USB 2Ports II LP(R), low profile I/O, 200mm (all models) 42Y8006 2
Rear Com2 cable (all models) 41R6198 2
C2 Intrusion Switch (all models) 39K5022 2
Chassis atlantic (all models) 41R6275 N
Chapter 11. FRU lists 729
9859 FRUs FRU# CRU
10L FRONT I/O CABLE RoHS (all models) 41R6054 2
10L FRONT I/O CABLE RoHS (all models) 43N9015 2
Cabel-SATA 700mm (RoHS) (all models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (all models) 43N9361 2
ODD mounting kit, 607AT (all models) 43N9362 2
Cardreader Bezel Kit, 607AT (all models) 43N9363 2
Slim FDD (all models) 40Y9109 2
Battery 3V- Lithium (models AAB AAH ABB ABH ACJ ADJ AEJ AHS AGP AHY AFC AJH
AJV 7CG 7BG 7AG AKH 7GG 7HG 7JG 8LH 71G 72G 73G F5B F5H 81G 82G 83G 8QG
8RG)
45C1566 1
FDD Retainer, 607AT, SFF (LX-607) (all models) 43N9681 2
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
9859 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models AAH ABH AJH 7CG 7BG 7AG AKH AKH 7GG 7HG 7JG 8LH 71G
72G 73G F5H 81G 82G 83G 8QG 8RG )
41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG
8RG)
41A5291 1
Belgian French (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG
8RG)
41A5292 1
Belgium English (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG
8RG)
41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5295 1
Chinese/US (models AAB ABB AJV) 41A5296 1
Czech (ABB) (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5297 1
Danish (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5298 1
Dutch (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5299 1
French (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5303 1
Greek (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5304 1
Greek/US (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5305 1
Hebrew (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5306 1
Hungarian (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5307 1
Iceland (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5308 1
Japanese (models ACJ ADJ AEJ) 41A5310 1
Korean (models) 41A5311 1
730 Hardware Maintenance Manual
9859 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
LA Spanish (models AHS AGP AHY) 41A5312 1
Italian (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5309 1
Norwegian (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5313 1
Polish (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5314 1
Portuguese (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5315 1
Romanian (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5317 1
Russian/Cyrillic (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG
8RG)
41A5318 1
Serbian/Cyrillic (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG
8RG)
41A5319 1
Slovak (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5320 1
Spanish (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5321 1
Swedish/Finnish (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG
8RG)
41A5322 1
Swiss French/German (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G
8QG 8RG)
41A5323 1
Thailand (models) 41A5324 1
Turkish (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5325 1
Turkish (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5326 1
UK English (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5327 1
US Euro (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5328 1
Slovenian (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 82G 83G 8QG 8RG) 41A5329 1
9859 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Chapter 11. FRU lists 731
9859 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9859 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
732 Hardware Maintenance Manual
9859 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US European (models) 41A4998 1
Slovenian (models) 41A4999 1
9859 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Chapter 11. FRU lists 733
9859 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
9859 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models ACJ ADJ AEJ AHS AGP AHY AFC AJH AJV
7CG 7BG 7AG AKH 7GG 7HG 7JG 8LH F5B F5H 81G 82G 83G 8QG 8RG )
41U3013 1
Optical Wheel Mouse (400DPI, USB) (models ACJ ADJ AEJ AHS AGP AHY AFC AJH AJV
7CG 7BG 7AG AKH 7GG 7HG 7JG 8LH F5B F5H 81G 82G 83G 8QG 8RG )
41U3030 1
PS/2 Three Button ball mouse (41R0017) (models AAB AAH ABB ABH) 41R0018 1
9859 Adapters and miscellaneous FRUs FRU# CRU
USB Memory Key (models) 43R2296 1
USB Memory Key - 1G RoW (models) 41U4978 1
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
Internal USB Memory Card Reader Slim (models CTO) 45R1885 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models 7HG 7JG 72G 73G 81G 83G) 39J9334 2
734 Hardware Maintenance Manual
9859 Adapters and miscellaneous FRUs FRU# CRU
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models AHS) 89P8575 1
Speaker Power brick - China, Thailand (models AFC) 89P8581 1
Speaker Power brick - Japan (models ACJ ADJ AEJ) 89P8577 1
Speaker Power brick - Brazil (models ) 89P8583 1
Speaker Power brick - Argentina (models ) 41A4901 1
Speaker Power brick - ANZ (models ) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models AAH ABH AJH AKH 7GG 7HG 7JG 8LH 71G
72G 73G F5H 81G 83G 82G 8QG 8RG)
89P8573 1
Speaker Brick - Taiwan (models AJV) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable(models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9859 Line Cords FRU# CRU
Line cord - US (models) 41R3184 1
Line cord - US (models) 41R3185 1
Line cord - China (models AFC) 41R3256 1
Line cord - China (models AFC) 41R3257 1
Line cord - Brazil (models AGP) 41R3270 1
Line cord - Brazil (models AGP) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models 7CG 7BG 7AG 7GG 7HG
7JG 71G 72G 73G 81G 83G 82G 8QG 8RG)
41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models 7CG 7BG 7AG 7GG 7HG
7JG 71G 72G 73G 81G 83G 82G 8QG 8RG)
41R3225 1
Line Cord - Taiwan (models AJV) 41R3278 1
Line Cord - Taiwan (models AJV) 41R3279 1
Line Cord - Italy (models AHS AHY) 41R3232 1
Line Cord - Italy (models AHS AHY) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 83G 82G
8QG 8RG)
41R3212 1
Line Cord - Denmark (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 83G 82G
8QG 8RG)
41R3213 1
Line Cord - Switzerland (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 83G 82G
8QG 8RG)
41R3228 1
Chapter 11. FRU lists 735
9859 Line Cords FRU# CRU
Line Cord - Switzerland (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 83G 82G
8QG 8RG)
41R3229 1
Line Cord - Israel (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 83G 82G 8QG
8RG)
41R3236 1
Line Cord - Israel (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 83G 82G 8QG
8RG)
41R3237 1
Line Cord - South Africa (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 83G
82G 8QG 8RG)
41R3220 1
Line Cord - South Africa (models 7CG 7BG 7AG 7GG 7HG 7JG 71G 72G 73G 81G 83G
82G 8QG 8RG)
41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models AJH AKH 8LH) 41R3224 1
Line Cord - Hong Kong (models AJH AKH 8LH) 41R3225 1
9859 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models ) TBD 1
IT (models ) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models ) TBD 1
NL (models ) TBD 1
AE (models ) TBD 1
SV (Swedish) (models ) TBD 1
HE (models ) TBD 1
FI (models ) TBD 1
NO (models ) TBD 1
PL (models ) TBD 1
PO (models ) TBD 1
RU (models ) TBD 1
RE (models) TBD
HU (models ) TBD 1
CZ (models ) TBD 1
TR (models ) TBD 1
GK (models ) TBD 1
Japanese (models) TBD 1
736 Hardware Maintenance Manual
9859 Windows XP Home Recovery CDs FRU# CRU
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9859 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models 7CG 7BG 7AG 71G 72G 73G F5H) 45R0756 1
FR/CF (models 7CG 7BG 7AG 71G 72G 73G) 45R0759 1
GR (models 7CG 7BG 7AG 71G 72G 73G) 45R0760 1
IT (models 7CG 7BG 7AG 71G 72G 73G) 45R0762 1
BR (models) 45R0763 1
SP/LA (models 7CG 7BG 7AG 71G 72G 73G) 45R0761 1
DK (models 7CG 7BG 7AG 71G 72G 73G) 45R0764 1
NL (models 7CG 7BG 7AG 71G 72G 73G) 45R0767 1
AE (models 7CG 7BG 7AG 71G 72G 73G) 45R2342 1
SV (Swedish) (models 7CG 7BG 7AG 71G 72G 73G) 45R0765 1
HE (models 7CG 7BG 7AG 71G 72G 73G) 45R2334 1
FI (models 7CG 7BG 7AG 71G 72G 73G) 45R0766 1
NO (models 7CG 7BG 7AG 71G 72G 73G) 45R0770 1
PL (models 7CG 7BG 7AG 71G 72G 73G) 45R0777 1
PO (models 7CG 7BG 7AG 71G 72G 73G) 45R0774 1
RU (models 7CG 7BG 7AG 71G 72G 73G) 45R0773 1
RE (models 7CG 7BG 7AG 71G 72G 73G) 45R2318 1
HU (models 7CG 7BG 7AG 71G 72G 73G) 45R0780 1
CZ (models 7CG 7BG 7AG 71G 72G 73G) 45R0776 1
TR (models 7CG 7BG 7AG 71G 72G 73G) 45R0775 1
GK (models 7CG 7BG 7AG 71G 72G 73G) 45R0772 1
SL (models 7CG 7BG 7AG 71G 72G 73G) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models F5B) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models 7CG 7BG 7AG 71G 72G 73G) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models 7CG 7BG 7AG 71G 72G 73G) 45R8247 1
9859 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
Chapter 11. FRU lists 737
9859 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9859 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAH ABH AJH AKH 7GG 7HG 7JG 8LH 81G 83G 82G 8QG 8RG) 46R7287 1
Japanese (models ACJ ADJ AEJ ) 46R7288 1
Simplified Chinese (models AFC) 46R7289 1
French (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 46R7290 1
German (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 46R7291 1
Spanish (models AHS AGP AHY) 46R7292 1
Italian (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 46R7295 1
Swedish (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9786 1
Finland (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9787 1
Dutch (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9788 1
Traditional Chinese (models AAB ABB AJV) 46R7296 1
Hong Kong (models AAB ABB AJV) 46R7297 1
Norwegian (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 46R7298 1
738 Hardware Maintenance Manual
9859 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Korean (models) 45R9792 1
Slovenian (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9793 1
Greek (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9794 1
Russian (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 46R7299 1
Portuguese (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9796 1
Turkish (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9797 1
Czech (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9798 1
Polish (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9799 1
Russian English (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 46R7300 1
Arabic Localized (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9801 1
Hebrew (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9802 1
Romanian (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9803 1
Hungarian (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9804 1
Slovakian (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9805 1
Serbian-Latin (models 7GG 7HG 7JG 81G 83G 82G 8QG 8RG) 45R9806 1
9859 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Chapter 11. FRU lists 739
9859 Vista VHP SP1 Recovery DVDs FRU# CRU
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9859 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Russian English (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9859 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
740 Hardware Maintenance Manual
9859 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9859 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 741
Machine Type 9948
Item # 9948 FRUs FRU# CRU Tier
1 Intel 65W/95W Heatsink Kit (Tower) (all models) 41R6429 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
742 Hardware Maintenance Manual
Item # 9948 FRUs FRU# CRU Tier
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models AAV) 41X4255 2
3 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models ABG) 41X4256 2
3 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
3 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
3 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
3 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
4 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AAV) 41N3325 2
4 DVD-ROM Drive - DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA
Vista & non-Vista (models)
42Y9353 2
Chapter 11. FRU lists 743
Item # 9948 FRUs FRU# CRU Tier
4 DVD-ROM Drive - DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models
ABG)
43C1042 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9107 2
5 Diskette drive, 3.5″1.44MB 2 Mode FDD with Bezel and cable (models) 40Y9105 2
6 Bezel assembly without IBM mark(all models) 41R6243 2
7 Power switch/LED assembly (all models) 41N5284 2
8 Speaker assembly, soldered terminals (models) 39P5023 2
9 Front audio/USB assembly (all models) 41N8054 2
10 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
10 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models AAV) 40Y9035 2
10 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
11 System board , Intel G31 mATX GA Level (models) 53Y3282 N
12 Fan, 4 Pin System Fan (all models) 41R6269 2
13 Power supply, ATX 280W Power supply; Robust; for all countries except for JP
(models AAV ABG)
41A9684 2
13 Power supply, ATX 280W 80% power supply;for all countries (models AAV ABG) 41A9665 2
13 Power supply, ATX 310W Power supply Robust; for all countries (models AAV
ABG)
41A9726 2
The FRUs listed in the following tables are not illustrated.
9948 FRUs FRU# CRU Tier
Shield, 5.25 EMC (all models) 41N8080 2
Shield, diskette drive EMC (all models) 41N8078 2
Cabel, SATA 457mm (RoHS) (all models) 43N9013 2
Cabel,SATA 250mm (RoHS) (all models) 43N9012 2
Cable, Diskette drive (RoHs) (all models) 41A7182 2
Cover, left side (all models) 41N8050 2
Retainer, Card Reader (all models) 41R2913 2
Fan, front (all models) 41R4791 2
Optional HDD Bracket Asm, without 4Pin cable (all models) 41R6106 2
Intrusion Switch asm (all models) 41R6116 2
Hard disk drive tray (all models) 41R6291 2
Planer shield, Atx 946, with usb number (all models) 41R6378 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Asm Chassis Without IBM Mark (all models) 41R6408 2
Card reader retainer (models) 43N9351 2
Blank 5.25″Bezel (models) 41N8077 3
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models ABG AAV) 45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
744 Hardware Maintenance Manual
9948 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
Chapter 11. FRU lists 745
9948 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models ABG) 41A5289 1
Arabic (models ABG) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models ABG) 41A5292 1
Belgian/UK (models ABG) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models ABG) 41A5295 1
Chinese/US (models AAV) 41A5296 1
Czech (models ABG) 41A5297 1
Danish (models ABG) 41A5298 1
Dutch (models ABG) 41A5299 1
French (models ABG) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models ABG) 41A5303 1
Greek (models ABG) 41A5304 1
Greek/US (models ABG) 41A5305 1
Hebrew (models ABG) 41A5306 1
Hungarian (models ABG) 41A5307 1
Iceland (models ABG) 41A5308 1
Italian (models ABG) 41A5309 1
Japanese (models) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models ABG) 41A5313 1
Polish (models ABG) 41A5314 1
Portuguese (models ABG) 41A5315 1
Romanian (models ABG) 41A5317 1
Russian/Cyrillic (models ABG) 41A5318 1
Serbian/Cyrillic (models ABG) 41A5319 1
Slovak (models ABG) 41A5320 1
Spanish (models ABG) 41A5321 1
Swedish/Finnish (models ABG) 41A5322 1
Swiss (models ABG) 41A5323 1
Thailand (models) 41A5324 1
Turkish (models ABG) 41A5325 1
Turkish (models ABG) 41A5326 1
UK English (models ABG) 41A5327 1
US Euro (models ABG) 41A5328 1
Slovenian (models ABG) 41A5329 1
746 Hardware Maintenance Manual
9948 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrilic (models) 41A4988 1
Serbian/Cyrilic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
Chapter 11. FRU lists 747
9948 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrilic (models) 41A5277 1
Serbian/Cyrilic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
748 Hardware Maintenance Manual
9948 mice FRU# CRU Tier
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9948 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
Soft Modem V.90/V.44 ATX (models CTO) 46R4220 2
ATI HD 2600XT 512MB 128BIT ATX (models) 43C0261 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models) 43C9207 1
ADD2 DVI Adapter,FH (HDCP) (models) 43C0258 2
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400PRO 128MB 64BIT DMS59 ATX (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
DVI-I connection Adapter Full Height(models) 39J9334 2
DVI-I connection Adapter Low Profile (models ABG) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (modes) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models ABG) 89P8573 1
Speaker Brick - Taiwan (models AAV) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9948 Line Cords FRU# CRU
Line cord - US (models) 41R3184 1
Line cord - US (models) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models ABG) 41R3176 1
Line Cord - LA High Volt APU (models ABG) 41R3177 1
Chapter 11. FRU lists 749
9948 Line Cords FRU# CRU
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ABG) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models ABG) 41R3225 1
Line Cord - Taiwan (models AAV) 41R3278 1
Line Cord - Taiwan (models AAV) 41R3279 1
Line Cord - Italy (models ABG) 41R3232 1
Line Cord - Italy (models ABG) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models ABG) 41R3212 1
Line Cord - Denmark (models ABG) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models ABG) 41R3236 1
Line Cord - Israel (models ABG) 41R3237 1
Line Cord - South Africa (models ABG) 41R3220 1
Line Cord - South Africa (models ABG) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
9948 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
750 Hardware Maintenance Manual
9948 Windows XP Home Recovery CDs FRU# CRU
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9948 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Chapter 11. FRU lists 751
9948 Windows XP Pro Recovery CDs FRU# CRU
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9948 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9948 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models AAG) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models AAG) 46R7290 1
German (models AAG) 46R7291 1
Spanish (models AAG) 46R7292 1
752 Hardware Maintenance Manual
9948 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Italian (models AAG) 46R7293 1
Brazilian Portuguese (models AAG) 46R7294 1
Danish (models AAG) 46R7295 1
Swedish (models AAG) 45R9786 1
Finland (models AAG) 45R9787 1
Dutch (models AAG) 45R9788 1
Traditional Chinese (models) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models AAG) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models AAG) 45R9793 1
Greek (models AAG) 45R9794 1
Russian (models AAG) 46R7299 1
Portuguese (models AAG) 45R9796 1
Turkish (models AAG) 45R9797 1
Czech (models AAG) 45R9798 1
Polish (models AAG) 45R9799 1
Russian English (models AAG) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models AAG) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models AAG) 45R9804 1
Slovakian (models AAG) 45R9805 1
Serbian-Latin (models) 45R9806 1
9948 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Chapter 11. FRU lists 753
9948 Vista VHP SP1 Recovery DVDs FRU# CRU
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9948 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
754 Hardware Maintenance Manual
9948 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9948 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9948 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 755
Machine Type 9949
Item # 9949 FRUs FRU# CRU
1 Heat Sink/RM Kit Intel (all models) 41R6022 N
1 Heat Sink/RM Kit Intel (models) 41N8261 2
2 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T
(models)
43C3835 N
2 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T
(models)
43C1964 N
2 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T
(models)
43C1965 N
2 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
2 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
2 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA, EM64T
(models)
43C2056 N
2 Microprocessor, Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
2 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
2 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
2 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
2 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
2 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
2 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
756 Hardware Maintenance Manual
Item # 9949 FRUs FRU# CRU
2 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
2 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
2 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
2 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
2 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
2 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
2 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
2 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
2 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
2 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
2 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
2 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
2 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
2 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
2 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
2 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
2 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
2 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
3 DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AAV) 41N3325 2
3 DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista & non-Vista
(models)
42Y9353 2
3 DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
4 Front Power/LED PC, bracket, and cable (all models) 41N8213 2
5 Hard disk drive, SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
5 Hard disk drive, SATA 160GB 7200RPM/3Gb/8MB (models AAV) 40Y9035 2
5 Hard disk drive, SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9105 2
6 Diskette drive, 3,5″, 1.44MB, 2-mode, (w/bezel) (models) 40Y9107 2
7 Front USB/Audio with bracket (all models) 41N8212 2
8 Memory module, 512 MB PC-5300 (667MHz) DDR2 SDRAM (models AAV) 41X4255 2
8 Memory module, 1 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4256 2
Chapter 11. FRU lists 757
Item # 9949 FRUs FRU# CRU
8 Memory module, 2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
8 Memory module, 512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
8 Memory module, 1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
8 Memory module, 2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
9 System board,Intel G31 mATX GA Level (models AAV) 53Y3282 N
10 Power supply, 220 Watt Power Supply - Robust; for all countries except for JP
(ROCKYS) (models AAV)
41A9689 N
10 Power supply, 220 Watt Power Supply - Japan;only for JP (ROCKYS) (models) 41A9697 N
10 Power supply, 220W 80% Power supply-for all countries (ROCKYS) (models AAV) 41A9670 N
10 Power supply, 280W TFX 280W PS ,Active PFC,for RockyS-for all countries
(ROCKYS) (models AAV)
41A9705 N
The FRUs listed in the following tables are not illustrated.
9949 FRUs FRU# CRU
Planer shield, Atx 946,G31 with usb number (all models) 41R6384 N
Cabel, SATA 250mm (RoHS) (all models) 43N9012 2
Shield, EMC , Blank 5.25 (all models) 41N8271 2
Shield, EMC , Blank diskette drive (all models) 41N8273 2
Cover (all models) 41N8204 2
Mechanical shell kit (all models) 41R6387 N
Bezel kit, without IBM logo (all models) 41R6238 2
Miscellaneous hardware kit (all models) 41N8209 2
Hard disk drive bracket assembly (plastic and grommets) (all models) 41N8210 2
Hard disk drive fan and bracket asm (all models) 41R6325 2
Speaker cable assembly, 600 mm cable length (all models) 41N8217 2
Fan duct assembly (all models) 41R4808 2
Rear USB 2Ports II LP (R), low profile I/O, 200mm, Rohs (all models) 42Y8006 2
Retention module assembly, Intel (all models) 41A7139 N
Intrusion switch assembly (all models) 41R6208 2
Foot stand (all models) 41R4813 1
Cable, diskette drive (all models) 41A7147 2
Cable, serial ATA, 250 mm (all models) 41A7145 2
Planer shield, Atx 946, with usb number (all modes) 41R6378 N
Rear Com2 cable , Rohs (all models) 41R6198 2
Rear Com2 cable II LP(R), low profile I/O, 250mm, Rohs (all models) 42Y8008 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607) (models AAV) 45C1566 N
Chassis primary HDD cage (all models) 45K6272 1
9949 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
758 Hardware Maintenance Manual
9949 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
9949 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5289 1
Chapter 11. FRU lists 759
9949 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian/French (models) 41A5292 1
Belgian/UK (models) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models AAV) 41A5296 1
Czech(ABB) (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Italian (models) 41A5309 1
Japanese (models) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss French/German (models) 41A5323 1
Thailand (models) 41A5324 1
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
760 Hardware Maintenance Manual
9949 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgian/UK (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech(ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italian (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
Chapter 11. FRU lists 761
9949 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian/French (models) 41A5251 1
Belgian/UK (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech(ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italian (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
762 Hardware Maintenance Manual
9949 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (all models) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (all models) 41U3030 1
PS/2 2 Button Ball Mouse (models) 41R0018 1
9949 Adapters and miscellaneous FRUs FRU# CRU
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Internal USB 20 in 1 Memory CardReader floppy bay (models) 45R8139 2
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3376 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
USB Memory Key - 1G RoW (models) 41U4978 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 LP (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
DVI-I connection Adapter Low Profile (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage,ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models) 89P8573 1
Speaker Brick - Taiwan (models AAV) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable (models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9949 Line Cords FRU# CRU
Line cord - US (models) 41R3184 1
Line cord - US (models) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Chapter 11. FRU lists 763
9949 Line Cords FRU# CRU
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3224 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3225 1
Line Cord - Taiwan (models AAV) 41R3278 1
Line Cord - Taiwan (models AAV) 41R3279 1
Line Cord - Italy (models) 41R3232 1
Line Cord - Italy (models) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models) 41R3220 1
Line Cord - South Africa (models) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
9949 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
764 Hardware Maintenance Manual
9949 Windows XP Home Recovery CDs FRU# CRU
PO (models) TBD 1
RU (models) TBD 1
RE (models) TBD 1
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korea (models) TBD 1
9949 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Chapter 11. FRU lists 765
9949 Windows XP Pro Recovery CDs FRU# CRU
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
9949 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9949 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models) 46R7293 1
766 Hardware Maintenance Manual
9949 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models AAV) 46R7296 1
Hong Kong (models AAV) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
9949 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Chapter 11. FRU lists 767
9949 Vista VHP SP1 Recovery DVDs FRU# CRU
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 46R7327 1
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9949 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
768 Hardware Maintenance Manual
9949 Vista Business 64 SP1 Recovery DVDs FRU# CRU
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
9949 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9949 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 769
Machine Type 9952
Item # 9952 FRUs FRU# CRU
1 Hard disk drive,SATA 80GB 7200RPM/3Gb/8MB (models) 40Y9034 2
1 Hard disk drive,SATA 160GB 7200RPM/3Gb/8MB (models AAV) 40Y9035 2
1 Hard disk drive,SATA 320GB 7200rpm SATA/8MB (models) 87H4891 2
2 Thermal kit (all models) 41R6039 2
3 Optical drive,DVD-ROM Drive - 16x/48x - SATA Vista & non-Vista (models AAV) 41N3325 2
3 Optical drive,DVD-ROM/CD-RW Combo Drive - 48x/32x/48x/16x - SATA Vista
& non-Vista (models)
42Y9353 2
3 Optical drive,DVD-RW/CD-RW Rambo8-SATAVista & non-Vista (models) 43C1042 2
5 Microprocessor, Celeron 420 CONROE-L 800/1600MHZ-512K,LGA,EM64T(models) 43C3835 N
5 Microprocessor, Celeron 430 CONROE-L 800/1800MHZ-512K,LGA,EM64T(models) 43C1964 N
5 Microprocessor, Celeron 440 CONROE-L 800/2000MHZ-512K,LGA,EM64T(models) 43C1965 N
5 Microprocessor, Pentium Dual-core E2140 CONROE-L 800/1600MHZ-1M, LGA,
EM64T (models)
43C1967 N
5 Microprocessor, Pentium Dual-core E2160 CONROE-L 800/1800MHZ-1M, LGA,
EM64T (models)
43C1968 N
5 Microprocessor, Core 2 Duo E4400 L2 CONROE 800/2000MHZ-2M, LGA,
EM64T(models)
43C2056 N
5 Microprocessor,Core 2 Duo E6400 B2 CONROE 1066/2130MHZ-2M, LGA, EM64T
L2 Value (models)
41X2496 N
5 Microprocessor, Pentium Dual-core E2200 CONROE-L 800/2200MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C5349 N
5 Microprocessor, Pentium Dual-core E2180 CONROE-L 800/2000MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1773 N
770 Hardware Maintenance Manual
Item # 9952 FRUs FRU# CRU
5 Microprocessor, Pentium Dual-core E2220 CONROE-L 800/2400MHZ-1M, LGA,
EM64T - NPI (models CTO)
45C1774 N
5 Microprocessor, Core 2 Duo E4600 M0 CONROE 800/2400MHZ-2M, LGA, EM64T
- NPI (models CTO)
45C5282 N
5 Microprocessor, Core 2 Duo E4500 M0 CONROE 800/2200MHZ-2M, LGA, EM64T
(models CTO)
43C6305 N
5 Microprocessor, Core 2 Duo E6850 G0 CONROE 1333/3000MHZ-4M, LGA, EM64T
(models CTO)
43C1694 N
5 Microprocessor, Core 2 Duo E6750 G0 CONROE 1333/2660MHZ-4M, LGA, EM64T
(models CTO)
43C1693 N
5 Microprocessor, Core 2 Duo E6550 G0 CONROE 1333/2330MHZ-4M, LGA, EM64T
(models CTO)
43C3833 N
5 Microprocessor, Core 2 Quad G-0 Q6700 KENTSFIELD 1066/2660MHZ-8M
(models CTO)
43C6309 N
5 Microprocessor, Core 2 Quad G-0 Q6600 KENTSFIELD 1066/2400MHZ-8M
(models CTO)
43C1695 N
5 Microprocessor, Core 2 Duo E8500 WOLFDALE 1333/3160MHZ-6M (models CTO) 45C7735 N
5 Microprocessor, Core 2 Duo E8400 WOLFDALE 1333/3000MHZ-6M (models CTO) 45C7736 N
5 Microprocessor, Core 2 Duo E8200 WOLFDALE 1333/2660MHZ-6M (models CTO) 45C7738 N
5 Microprocessor, Core 2 Duo E8190 WOLFDALE 1333/2660MHZ-6M - NON
VT/Vpro (models CTO)
45R2568 N
5 Microprocessor, Core 2 Quad Q9550 C-1 YORKFIELD 2.83GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7739 N
5 Microprocessor, Core 2 Quad Q9450 C-1 YORKFIELD 2.66GHz 1333MHZ FSB 12M
L2 (models CTO)
45C7740 N
5 Microprocessor, Core 2 Quad Q9300 M-1 YORKFIELD 2.5GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7741 N
5 Microprocessor, Core 2 Duo E8300 C-0 WOLFDALE 2.83GHz 1333MHZ FSB 6M
L2 (models CTO)
45C7737 N
5 Microprocessor, Core 2 Duo E7300 M-0 2.66GHz 1066MHz FSB 3M L2 (models
CTO)
46R1622 N
5 Microprocessor, Core 2 Duo E7200 M-0 2.53GHz 1066MHz FSB 3M L2 (models
CTO)
45R8337 N
5 Microprocessor, Core 2 Duo E4700 G-0 2.6GHz 800MHz FSB 2M L2 (models CTO) 45R5786 N
5 Microprocessor, Celeron Dual Core E1400 M-0 2.0GHz 800MHz FSB 512K L2
(models CTO)
45R8339 N
5 Microprocessor, Celeron Dual Core E1200 M-0 1.6GHz 800MHz FSB 512K L2,
LGA, EM64T - NPI (models CTO)
45R8341 N
5 Microprocessor, Core 2 Duo E8600 E-0 WOLFDALE 3.33GHz 1333MHZ FSB 6M L2
(models CTO)
46R8640 N
5 Microprocessor, Pentiun Dual Core E5200 M-0 WOLFDALE 2.5GHz 800MHZ FSB
2M L2 (models CTO)
46R9512 N
6 Memory module,512 MB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4255 2
6 Memory module,1 GB PC-5300 (667MHz) DDR2 SDRAM (models AAV) 41X4256 2
6 Memory module,2 GB PC-5300 (667MHz) DDR2 SDRAM (models) 41X4257 2
6 Memory module,512 MB PC2-6400 (800MHz) DDR2 SDRAM (models) 41X1079 2
6 Memory module,1GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1080 2
Chapter 11. FRU lists 771
Item # 9952 FRUs FRU# CRU
6 Memory module,2GB PC-6400 (800MHz) DDR2 SDRAM (models) 41X1081 2
7 System board, Intel G31 nano-BTX GA Level (models A1V) 53Y5125 N
8 Power supply,280W Active PFC power supply for 10L---all countries (models
AAV)
41A9701 2
8 Power supply,280W 80+ power supply for 10L---all countries (models AAV) 41A9717 2
The FRUs listed in the following tables are not illustrated.
9952 FRUs FRU# CRU
Power switch/LED cable assembly (all models) 41R3391 2
USB cable assembly (all models) 41R3392 2
SATA cable, 120mm (all models) 41R3328 2
SATA cable, 700mm (all models) 39K5026 2
Speaker/Cable assembly (all models) 39K5012 2
Temperature Sense cable (460 mm) (all models) 41R2509 2
System Fan (all models) 41R6042 2
System Fan assembly (all models) 41R6249 2
Cpu Support Module (all models) 41R6252 N
HDD Tray assembly (all models) 41R6253 2
Internal Plastic (all models) 41R6254 2
Bezel, Plastic (all models) 41R6255 2
Front rotating cage assembly (all models) 41R6256 N
Top cover assembly (all models) 41R6257 2
L1-C2 intrusion switch (all models) 39K5022 2
Fan for SFF (all models) 41R6042 2
Rell IO shield BTX atlantic (all models) 41R6381 N
Temperature Sense cable (460 mm) (all models) 41R2509 2
Intel 95W/65W heatsink Kit (all models) 41R6039 2
Chassis atlantic (all models) 41R6275 N
10L FRONT I/O CABLE (models) 43N9015 2
Cabel-SATA 700mm (RoHS) (models) 43N9011 2
Universal Adapter Bracket 5.25 to 3.5 (models) 43N9361 2
ODD mounting kit (models) 43N9362 2
Cardreader Bezel Kit (models) 43N9363 2
FDD Retainer, 607AT, SFF (LX-607) 43N9681 2
BATTERY 3V-LITHIUM (TOWER,ROCKYS,LX-607 ) (models A1V) 45C1566 N
Vertical Stand, Tampa/607CT (all models) 43N9644 N
HDD bracket ASM (all models) 43N9690 2
HDD bracket with cover b, for Toyota, Flex (all models) 43N9691 2
Chassis primary HDD cage (all models) 45K6272 1
772 Hardware Maintenance Manual
9952 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5039 1
Arabic (models) 41A5040 1
Arabic/French (models) 41A5041 1
Belgian/French (models) 41A5042 1
Belgian/English (models) 41A5043 1
Brazilian Portuguese (models) 41A5044 1
Bulgarian (models) 41A5045 1
Chinese/US (models) 41A5046 1
Czech (models) 41A5047 1
Danish (models) 41A5048 1
Dutch (models) 41A5049 1
French (models) 41A5050 1
French Canadian (models) 41A5051 1
French Canadian (models) 41A5052 1
German (models) 41A5053 1
Greek (models) 41A5054 1
Greek/US (models) 41A5080 1
Hebrew (models) 41A5055 1
Hungarian (models) 41A5056 1
Iceland (models) 41A5057 1
Italian (models) 41A5058 1
Japanese (models) 41A5059 1
Korean (models) 41A5060 1
LA Spanish (models) 41A5061 1
Norwegian (models) 41A5062 1
Polish (models) 41A5063 1
Portuguese (models) 41A5064 1
Romanian (models) 41A5065 1
Russian/Cyrillic (models) 41A5066 1
Serbian/Cyrillic (models) 41A5067 1
Slovak (models) 41A5068 1
Spanish (models) 41A5069 1
Swedish/Finnish (models) 41A5070 1
Swiss (models) 41A5071 1
Thailand (models) 41A5072 1
Turkish (models) 41A5073 1
Turkish (models) 41A5074 1
UK English (models) 41A5075 1
US Euro (models) 41A5076 1
Slovenian (models) 41A5077 1
Chapter 11. FRU lists 773
9952 Keyboard (Lenovo USB Preferred -- without hub) FRU# CRU Tier
US English (models) 41A5289 1
Arabic (models) 41A5290 1
Arabic/French (models) 41A5291 1
Belgian French (models) 41A5292 1
Belgium English (models) 41A5293 1
Brazilian Portuguese (models) 41A5294 1
Bulgarian (models) 41A5295 1
Chinese/US (models AAV) 41A5296 1
Czech (ABB) (models) 41A5297 1
Danish (models) 41A5298 1
Dutch (models) 41A5299 1
French (models) 41A5300 1
French Canadian (models) 41A5301 1
French Canadian (models) 41A5302 1
German (models) 41A5303 1
Greek (models) 41A5304 1
Greek/US (models) 41A5305 1
Hebrew (models) 41A5306 1
Hungarian (models) 41A5307 1
Iceland (models) 41A5308 1
Japanese (models) 41A5310 1
Korean (models) 41A5311 1
LA Spanish (models) 41A5312 1
Italian (models) 41A5309 1
Norwegian (models) 41A5313 1
Polish (models) 41A5314 1
Portuguese (models) 41A5315 1
Romanian (models) 41A5317 1
Russian/Cyrillic (models) 41A5318 1
Serbian/Cyrillic (models) 41A5319 1
Slovak (models) 41A5320 1
Spanish (models) 41A5321 1
Swedish/Finnish (models) 41A5322 1
Swiss French/German (models) 41A5323 1
Thailand (models) 41A5324 1
Turkish (models) 41A5325 1
Turkish (models) 41A5326 1
UK English (models) 41A5327 1
US Euro (models) 41A5328 1
Slovenian (models) 41A5329 1
774 Hardware Maintenance Manual
9952 Keyboard (Lenovo Enhanced Perf, USB Preferred -- with hub) FRU# CRU Tier
US English (models) 41A4961 1
Arabic (models) 41A4962 1
Arabic/French (models) 41A4963 1
Belgian/French (models) 41A4964 1
Belgium English (models) 41A4965 1
Brazilian Portuguese (models) 41A4966 1
Bulgarian (models) 41A4967 1
Chinese/US (models) 41A4968 1
Czech (ABB) (models) 41A4969 1
Danish (models) 41A4970 1
Dutch (models) 41A4971 1
French (models) 41A4972 1
French Canadian (models) 41A4973 1
French Canadian (models) 41A4974 1
German (models) 41A4975 1
Greek (models) 41A4976 1
Greek/US (models) 41A5078 1
Hebrew (models) 41A4977 1
Hungarian (models) 41A4978 1
Iceland (models) 41A4979 1
Italy (models) 41A4980 1
Japanese (models) 41A4981 1
Korean (models) 41A4982 1
LA Spanish (models) 41A4983 1
Norwegian (models) 41A4984 1
Polish (models) 41A4985 1
Portuguese (models) 41A4986 1
Romanian (models) 41A4987 1
Russian/Cyrillic (models) 41A4988 1
Serbian/Cyrillic (models) 41A4989 1
Slovak (models) 41A4990 1
Spanish (models) 41A4991 1
Swedish/Finnish (models) 41A4992 1
Swiss French/German (models) 41A4993 1
Thailand (models) 41A4994 1
Turkish (models) 41A4995 1
Turkish (models) 41A4996 1
UK English (models) 41A4997 1
US Euro (models) 41A4998 1
Slovenian (models) 41A4999 1
Chapter 11. FRU lists 775
9952 Keyboard (Lenovo Fingerprint Reader USB) FRU# CRU Tier
US English (models) 41A5248 1
Arabic (models) 41A5249 1
Arabic/French (models) 41A5250 1
Belgian French (models) 41A5251 1
Belgium English (models) 41A5252 1
Brazilian Portuguese (models) 41A5253 1
Bulgarian (models) 41A5254 1
Chinese/US (models) 41A5255 1
Czech (ABB) (models) 41A5256 1
Danish (models) 41A5257 1
Dutch (models) 41A5258 1
French (models) 41A5259 1
French Canadian (models) 41A5260 1
French Canadian (models) 41A5261 1
German (models) 41A5262 1
Greek (models) 41A5263 1
Greek/US (models) 41A5264 1
Hebrew (models) 41A5265 1
Hungarian (models) 41A5266 1
Iceland (models) 41A5267 1
Italy (models) 41A5268 1
Japanese (models) 41A5269 1
Korean (models) 41A5270 1
LA Spanish (models) 41A5271 1
Norwegian (models) 41A5272 1
Polish (models) 41A5273 1
Portuguese (models) 41A5274 1
Romanian (models) 41A5276 1
Russian/Cyrillic (models) 41A5277 1
Serbian/Cyrillic (models) 41A5278 1
Slovak (models) 41A5279 1
Spanish (models) 41A5280 1
Swedish/Finnish (models) 41A5281 1
Swiss French/German (models) 41A5282 1
Thailand (models) 41A5283 1
Turkish (models) 41A5284 1
Turkish (models) 41A5285 1
UK English (models) 41A5286 1
US Euro (models) 41A5287 1
Slovenian (models) 41A5288 1
776 Hardware Maintenance Manual
9952 mice FRU# CRU
Optical Wheel Mouse (400DPI, USB) (models AAV) 41U3013 1
Optical Wheel Mouse (400DPI, USB) (models AAV) 41U3030 1
PS/2 Three Button ball mouse (41R0017) (models) 41R0018 1
9952 Adapters and miscellaneous FRUs FRU# CRU
USB Memory Key - 1G RoW (models) 41U4978 1
USB Memory Key (models) 43R2296 2
Internal USB Memory Card Reader floppy bay (models) 41R3378 2
Soft Modem V.90/V.44 SFF (models CTO) 46R4220 2
IEEE 1394 Firewire Adapter SFF (models) 41D2781 2
Internal USB Memory Card Reader Slim (models CTO) 45R1885 1
ATI HD 2400PRO 128MB 64BIT DMS59 LP (models) 43C0259 2
ATI HD 2400XT 256MB 64BIT DMS59 ATX (models) 43C0260 2
ADD2 DVI Adapter,LP (HDCP) (models) 43C0258 2
DVI-I connection Adapter Full Height (models) 39J9334 2
Speaker Power brick - US, Canada, LA low voltage, ASEAN (models) 89P8571 1
Speaker Power brick - LA high voltage (non-APU) (models) 89P8575 1
Speaker Power brick - China, Thailand (models) 89P8581 1
Speaker Power brick - Japan (models) 89P8577 1
Speaker Power brick - Brazil (models) 89P8583 1
Speaker Power brick - Argentina (models) 41A4901 1
Speaker Power brick - ANZ (models) 89P8579 1
Speaker Brick - Korea (models) 41A4903 1
Speaker Brick - Hong Kong, EMEA (models) 89P8573 1
Speaker Brick - Taiwan (models AAV) 41A4905 1
Speaker Power brick - India, South Africa (models) 89P8585 1
Dongle DMS Dule DMS-59 to dual VGA Cable(models) 42Y8181 2
Dongle DMS Dule DMS-59 to dual DVI Cable (models) 41X6398 2
9952 Line Cords FRU# CRU
Line cord - US (models) 41R3184 1
Line cord - US (models) 41R3185 1
Line cord - China (models) 41R3256 1
Line cord - China (models) 41R3257 1
Line cord - Brazil (models) 41R3270 1
Line cord - Brazil (models) 41R3271 1
Line cord - LA High Volt APU (models) 41R3176 1
Line Cord - LA High Volt APU (models) 41R3177 1
Line Cord - Korea (models) 41R3260 1
Line Cord - Korea (models) 41R3261 1
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3224 1
Chapter 11. FRU lists 777
9952 Line Cords FRU# CRU
Line Cord - UK, Ireland, Singapore, Malaysia, Brunei (models) 41R3225 1
Line Cord - Taiwan (models AAV) 41R3278 1
Line Cord - Taiwan (models AAV) 41R3279 1
Line Cord - Italy (models) 41R3232 1
Line Cord - Italy (models) 41R3233 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3208 1
Line Cord - Indonesia, Laos, Cambodia, and Vietnam (models) 41R3209 1
Line Cord - Denmark (models) 41R3212 1
Line Cord - Denmark (models) 41R3213 1
Line Cord - Switzerland (models) 41R3228 1
Line Cord - Switzerland (models) 41R3229 1
Line Cord - Israel (models) 41R3236 1
Line Cord - Israel (models) 41R3237 1
Line Cord - South Africa (models) 41R3220 1
Line Cord - South Africa (models) 41R3221 1
Line Cord - India (models) 41R3341 1
Line Cord - India (models) 41R3175 1
Line Cord - Japan (models) 41R3248 1
Line Cord - Japan (models) 41R3249 1
Line Cord - ANZ (models) 41R3196 1
Line Cord - ANZ (models) 41R3197 1
Line Cord - Hong Kong (models) 41R3224 1
Line Cord - Hong Kong (models) 41R3225 1
9952 Windows XP Home Recovery CDs FRU# CRU
US/UK/AP/TH (models) TBD 1
FR/CF (models) TBD 1
GR (models) TBD 1
IT (models) TBD 1
BR (models) TBD 1
SP/LA (models) TBD 1
DK (models) TBD 1
NL (models) TBD 1
AE (models) TBD 1
SV (Swedish)(models) TBD 1
HE (models) TBD 1
FI (models) TBD 1
NO (models) TBD 1
PL (models) TBD 1
PO (models) TBD 1
RU (models) TBD 1
778 Hardware Maintenance Manual
9952 Windows XP Home Recovery CDs FRU# CRU
RE (models) TBD
HU (models) TBD 1
CZ (models) TBD 1
TR (models) TBD 1
GK (models) TBD 1
Japanese (models) TBD 1
Simplified Chinese (models) TBD 1
Taiwan-TC (models) TBD 1
Hong Kong-TC (models) TBD 1
Korean (models) TBD 1
9952 Windows XP Pro Recovery CDs FRU# CRU
US/UK/AP/TH (models) 45R0756 1
FR/CF (models) 45R0759 1
GR (models) 45R0760 1
IT (models) 45R0762 1
BR (models) 45R0763 1
SP/LA (models) 45R0761 1
DK (models) 45R0764 1
NL (models) 45R0767 1
AE (models) 45R2342 1
SV (Swedish) (models) 45R0765 1
HE (models) 45R2334 1
FI (models) 45R0766 1
NO (models) 45R0770 1
PL (models) 45R0777 1
PO (models) 45R0774 1
RU (models) 45R0773 1
RE (models) 45R2318 1
HU (models) 45R0780 1
CZ (models) 45R0776 1
TR (models) 45R0775 1
GK (models) 45R0772 1
SL (models) 45R2326 1
Japanese (models) 45R0757 1
Simplified Chinese (models) 45R0758 1
Taiwan-TC (models) 45R0768 1
Hong Kong-TC (models) 45R0769 1
Korean (models) 45R0771 1
Multilingual 1 XP-Pro -- EN, NL, FR, GR, IT (models) 45R8246 1
Multilingual 2 XP-Pro -- EN, DK, FI, NO, SV (models) 45R8247 1
Chapter 11. FRU lists 779
9952 Vista Home Basic 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7273 1
Japanese (models) 46R7274 1
Simplified Chinese (models) 46R7275 1
French (models) 46R7276 1
German (models) 46R7277 1
Spanish (models) 46R7278 1
Italian (models) 46R7279 1
Brazilian Portuguese (models) 46R7280 1
Danish (models) 46R7281 1
Swedish (models) 45R9758 1
Finland (models) 45R9759 1
Dutch (models) 45R9760 1
Traditional Chinese (models) 46R7282 1
Hong Kong (models) 46R7283 1
Norwegian (models) 46R7284 1
Korean (models) 45R9764 1
Slovenian (models) 45R9765 1
Greek (models) 45R9766 1
Russian (models) 46R7285 1
Portuguese (models) 45R9768 1
Turkish (models) 45R9769 1
Czech (models) 45R9770 1
Polish (models) 45R9771 1
Russian English (models) 46R7286 1
Arabic Localized (models) 45R9773 1
Hebrew (models) 45R9774 1
Hungarian (models) 45R9775 1
Slovakian (models) 45R9776 1
9952 Vista Business 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7287 1
Japanese (models) 46R7288 1
Simplified Chinese (models) 46R7289 1
French (models) 46R7290 1
German (models) 46R7291 1
Spanish (models) 46R7292 1
Italian (models) 46R7293 1
Brazilian Portuguese (models) 46R7294 1
Danish (models) 46R7295 1
Swedish (models) 45R9786 1
780 Hardware Maintenance Manual
9952 Vista Business 32 SP1 Recovery DVDs FRU# CRU
Finland (models) 45R9787 1
Dutch (models) 45R9788 1
Traditional Chinese (models AAV) 46R7296 1
Hong Kong (models) 46R7297 1
Norwegian (models) 46R7298 1
Korean (models) 45R9792 1
Slovenian (models) 45R9793 1
Greek (models) 45R9794 1
Russian (models) 46R7299 1
Portuguese (models) 45R9796 1
Turkish (models) 45R9797 1
Czech (models) 45R9798 1
Polish (models) 45R9799 1
Russian English (models) 46R7300 1
Arabic Localized (models) 45R9801 1
Hebrew (models) 45R9802 1
Romanian (models) 45R9803 1
Hungarian (models) 45R9804 1
Slovakian (models) 45R9805 1
Serbian-Latin (models) 45R9806 1
9952 Vista VHP SP1 Recovery DVDs FRU# CRU
English (models) 46R7315 1
Japanese (models) 46R7316 1
Simplified Chinese (models) 46R7317 1
French (models) 46R7318 1
German (models) 46R7319 1
Spanish (models) 46R7320 1
Italian (models) 46R7321 1
Brazilian Portuguese (models) 46R7322 1
Danish (models) 46R7323 1
Swedish (models) 45R9844 1
Finland (models) 45R9845 1
Dutch (models) 45R9846 1
Traditional Chinese (models) 46R7324 1
Hong Kong (models) 46R7325 1
Norwegian (models) 46R7326 1
Korean (models) 45R9850 1
Slovenian (models) 45R9851 1
Greek (models) 45R9852 1
Russian (models) 45R9853 1
Chapter 11. FRU lists 781
9952 Vista VHP SP1 Recovery DVDs FRU# CRU
Portuguese (models) 45R9854 1
Turkish (models) 45R9855 1
Czech (models) 45R9856 1
Polish (models) 45R9857 1
Russian English (models) 46R7328 1
Arabic Localized (models) 45R9859 1
Hebrew (models) 45R9860 1
Romanian (models) 45R9861 1
Hungarian (models) 45R9862 1
Slovakian (models) 45R9863 1
Serbian-Latin (models) 45R9864 1
9952 Vista Business 64 SP1 Recovery DVDs FRU# CRU
English (models) 46R7301 1
Russian English (models) 46R7302 1
French (models) 46R7303 1
German (models) 46R7304 1
Spanish (models) 46R7305 1
Brazilian Portuguese (models) 46R7306 1
Italian (models) 46R7307 1
Japanese (models) 46R7308 1
Norwegian (models) 46R7309 1
Swedish (models) 45R9816 1
Danish (models) 45R9817 1
Dutch (models) 45R9818 1
Czech (models) 46R7310 1
Finnish (models) 46R7311 1
Polish (models) 46R7312 1
Russian (models) 45R9822 1
Turkish (models) 45R9823 1
Hungarian (models) 45R9824 1
Greek (models) 45R9825 1
Simplified Chinese (models) 46R7313 1
Taiwan (models) 45R9827 1
HongKong (models) 45R9828 1
Korea (models) 45R9829 1
Slovenian (models) 46R7314 1
Portuguese (models) 45R9831 1
Arabic Localized (models) 45R9832 1
Hebrew (models) 45R9833 1
Slovakian (models) 45R9834 1
782 Hardware Maintenance Manual
9952 Vista Ultimate 32 SP1 Recovery DVDs FRU# CRU
English (models) 46R7329 1
Japanese (models) 46R7330 1
Simplified Chinese (models) 46R7331 1
French (models) 46R7332 1
German (models) 46R7333 1
Spanish (models) 46R7334 1
Italian (models) 46R7335 1
Brazilian Portuguese (models) 46R7336 1
Danish (models) 46R7337 1
Swedish (models) 45R9874 1
Finland (models) 45R9875 1
Dutch (models) 45R9876 1
Traditional Chinese (models) 46R7338 1
Hong Kong (models) 46R7339 1
Norwegian (models) 46R7340 1
Korean (models) 45R9880 1
Slovenian (models) 45R9881 1
Greek (models) 45R9882 1
Russian (models) 46R7341 1
Portuguese (models) 45R9884 1
Turkish (models) 45R9885 1
Czech (models) 45R9886 1
Polish (models) 45R9887 1
Russian English (models) 46R5089 1
Arabic Localized (models) 46R7342 1
Hebrew (models) 45R9890 1
Hungarian (models) 45R9891 1
Slovakian (models) 45R9892 1
9952 Vista Starter 32 Recovery DVDs FRU# CRU
English (models) 46R5059 1
Chapter 11. FRU lists 783
784 Hardware Maintenance Manual
Chapter 12. Additional Service Information
This chapter provides additional information that the service representative might
find helpful.
Security features
Security features in this section include the following:
vPasswords
vVital Product Data
vManagement Information Format (MIF)
Hardware controlled Passwords
Hardware controlled passwords are set using the Setup Utility program. For more
information about passwords, see “Using passwords” on page 51.
Operating system password
An operating system password is very similar to a power-on password and denies
access to the computer by an unauthorized user when the password is activated.
The computer is unusable until the password is entered and recognized by the
computer.
Vital product data
Each computer has a unique Vital Product Data (VPD) code stored in the
nonvolatile memory on the system board. After you replace the system board, the
VPD must be updated. To update the VPD, see “Updating (flashing) BIOS from a
CD-ROM or diskette” on page 786.
BIOS levels
An incorrect level of BIOS can cause false errors and unnecessary FRU
replacement. Use the following information to determine the current level of BIOS
installed in the computer, the latest BIOS available for the computer, and where to
obtain the latest level of BIOS.
vTo determine the current Level of BIOS:
– Start the Setup Utility.
– Select Standard CMOS Features.
vSources for obtaining the latest level BIOS available
1. Lenovo support web site:
http://www.lenovo.com/support/
2. Lenovo Customer Support Center
3. Levels 1 and 2 Support
To update (flash) the BIOS, see “Updating (flashing) BIOS from a CD-ROM or
diskette” on page 786.
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 785
Updating (flashing) BIOS from a CD-ROM or diskette
This section describes how to update (flash) the BIOS using a CD-ROM or diskette.
system program updates are available at
http://www.lenovo.com/support on the World Wide Web.
1. To update (flash) the BIOS:
vIf using a CD-ROM, make sure the computer is turned on. Insert the system
program update (flash) CD-ROM into the optical drive. The update begins.
vIf using a diskette, make sure the computer is turned off. Insert the system
program update (flash) diskette and turn on the computer. The update
begins.
2. When prompted to change the serial number, press Y.
3. Type the seven-character serial number of your computer and then press Enter.
4. When prompted to change the machine type/model, press Y.
5. Type the seven-character machine type/model of your computer and then press
Enter.
6. Follow the instructions on the screen to complete the update.
Recovering from a POST/BIOS update failure
Attention: If an interruption occurs during a POST/BIOS update (flash update),
the computer might not restart correctly. If this occurs, perform the following
procedure (also known as a Boot-block recovery).
Note: If your computer has no internal diskette drive, an optional USB diskette
drive must be connected to use the BIOS flash diskette.
1. Turn the computer off and insert the BIOS flash diskette in the diskette drive.
2. Turn the computer on and immediately during startup, press Ctrl and Home
keys (Ctrl + Home) at the same time.
3. The computer will automatically begin recovering the BIOS. During this time,
you will see a screen indicating that Flash recovery has started. After the
update session completes, the computer automatically reboots.
4. Remove the BIOS flash diskette from the diskette drive.
786 Hardware Maintenance Manual
Power management
Power management reduces the power consumption of certain components of the
computer such as the system power supply, processor, hard disk drives, and some
monitors.
Automatic configuration and power interface (ACPI) BIOS
Being an ACPI BIOS system, the operating system is allowed to control the power
management features of the computer and the setting for Advanced Power
Management (APM) BIOS mode is ignored. Not all operating systems support
ACPI BIOS mode.
Automatic Power-On features
The Automatic Power-On features within the Power Management menu allow you
to enable and disable features that turn on the computer automatically.
vSerial Port A Ring Detect: With this feature set to Enabled and an external
modem connected to serial port (COM1), the computer will turn on
automatically when a ring is detected on the modem.
vPCI Modem Ring Detect: With this feature set to Enabled, the computer will
turn on automatically when a ring is detected on the internal modem.
vPCI Wake Up: This feature allows PCI cards that support this capability to wake
the system.
vWake Up on Alarm: You can specify a date and time at which the computer will
be turned on automatically. This can be either a single event or a daily event.
vWake on LAN: If the computer has a properly configured token-ring or Ethernet
LAN adapter card that is Wake on LAN-enabled and there is remote network
management software, you can use the Wake on LAN feature. When you set
Wake on LAN to Enabled, the computer will turn on when it receives a specific
signal from another computer on the local area network (LAN).
Chapter 12. Additional Service Information 787
788 Hardware Maintenance Manual
Appendix. Notices
Lenovo may not offer the products, services, or features discussed in this
document in all countries. Consult your local Lenovo representative for
information on the products and services currently available in your area. Any
reference to a Lenovo product, program, or service is not intended to state or
imply that only that Lenovo product, program, or service may be used. Any
functionally equivalent product, program, or service that does not infringe any
Lenovo intellectual property right may be used instead. However, it is the user’s
responsibility to evaluate and verify the operation of any other product, program,
or service.
Lenovo may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you
any license to these patents. You can send license inquiries, in writing, to:
Lenovo (United States), Inc.
1009 Think Place - Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some
jurisdictions do not allow disclaimer of express or implied warranties in certain
transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. Lenovo may make improvements
and/or changes in the product(s) and/or the program(s) described in this
publication at any time without notice.
The products described in this document are not intended for use in implantation
or other life support applications where malfunction may result in injury or death
to persons. The information contained in this document does not affect or change
Lenovo product specifications or warranties. Nothing in this document shall
operate as an express or implied license or indemnity under the intellectual
property rights of Lenovo or third parties. All information contained in this
document was obtained in specific environments and is presented as an
illustration. The result obtained in other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those Web
sites. The materials at those Web sites are not part of the materials for this Lenovo
product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments may
© Lenovo 2005, 2008. Portions © IBM Corp. 2005. 789
vary significantly. Some measurements may have been made on development-level
systems and there is no guarantee that these measurements will be the same on
generally available systems. Furthermore, some measurements may have been
estimated through extrapolation. Actual results may vary. Users of this document
should verify the applicable data for their specific environment.
Television output notice
The following notice applies to models that have the factory-installed
television-output feature.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
Trademarks
The following terms are trademarks of Lenovo in the United States, other
countries, or both:
Lenovo
ThinkCentre
PS/2
Rescue and Recovery
The following terms are trademarks of International Business Machines
Corporation in the United States, other countries, or both:
IBM (used under license)
Wake on LAN
Intel, Pentium and Celeron are trademarks of Intel Corporation in the United
States, other countries, or both.
Microsoft, Windows, and Windows Vista are trademarks of the Microsoft group of
companies.
Other company, product, or service names may be trademarks or service marks of
others.
790 Hardware Maintenance Manual
Part Number: 45C6545
Printed in USA
(1P) P/N: 45C6545
