P/N: 147003341

Printed in China

IdeaPad Z460/

Z465/

Z560/

Z565

Read the safety notices and important tips in the

included manuals before using your computer.

©Lenovo China 2010

New World. New Thinking.TM

www.lenovo.com

User Guide V1.0

If your product is not working correctly,

DO NOT RETURN IT TO THE STORE.

For technical assistance, contact a Lenovo

support specialist 24 hours a day by calling toll

free 1-877-4 LENOVO (1-877-453-6686).

Additionally, you can find support information

and updates on the Lenovo Web site located at

http://consumersupport.lenovo.com.

* Only for the users from the United States.

First Edition (February 2010)

Before using the product, be sure to read Lenovo Safety and General

Information Guide first.

The features described in this guide are common to most models.

Some features may not be available on your computer and/or your

computer may include features that are not described in this user

guide.

Some instructions in this guide may assume that you are using

Windows® 7. If you are using other Windows operating system, some

operations may be slightly different. If you are using other operating

systems, some operations may not apply to you.

LENOVO products, data, computer software, and services have been developed exclusively at private

expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with

limited and restricted rights to use, reproduction and disclosure. LIMITED AND RESTRICTED

RIGHTS NOTICE: If products, data, computer software, or services are delivered pursuant a General

Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set

forth in Contract No. GS-35F-05925.

Notes

•

The illustrations in this manual may differ from the actual product.

Please refer to the actual product.

The illustrations used in this manual are for Lenovo IdeaPad Z560

unless otherwise stated.

•

Chapter 1. Getting to know your

computer................................... 1

Top view..........................................1

Left-side view .................................4

Right-side view...............................5

Front view .......................................6

Bottom view....................................7

Chapter 2. Learning the

basics......................................11

First use..........................................11

Using AC adapter and battery ...13

Using the touchpad......................15

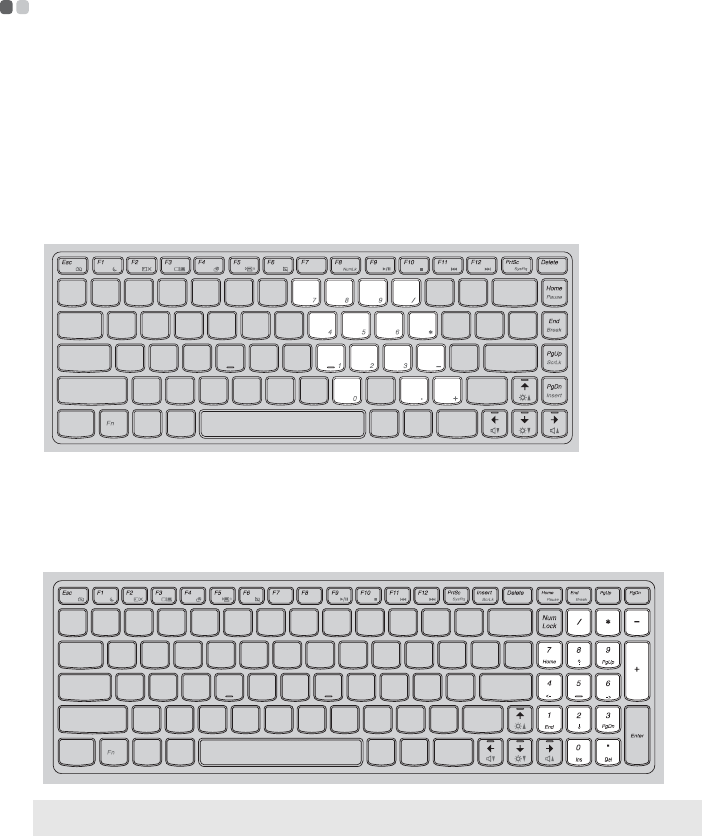

Using the keyboard......................16

Connecting external devices.......19

Special keys and buttons.............22

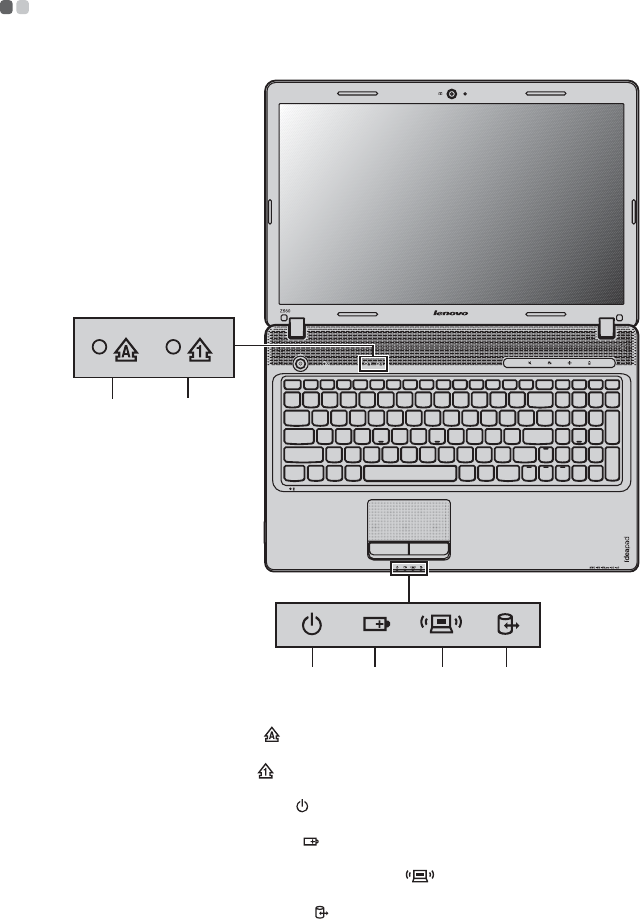

System status indicators..............26

Securing your computer..............27

Chapter 3. Connecting to the

Internet....................................29

Wired connection .........................29

Wireless connection .....................31

Chapter 4. OneKey Rescue

system..................................... 36

OneKey Rescue system ...............36

Appendix A. CRU

instructions.............................38

Replacing the battery ..................38

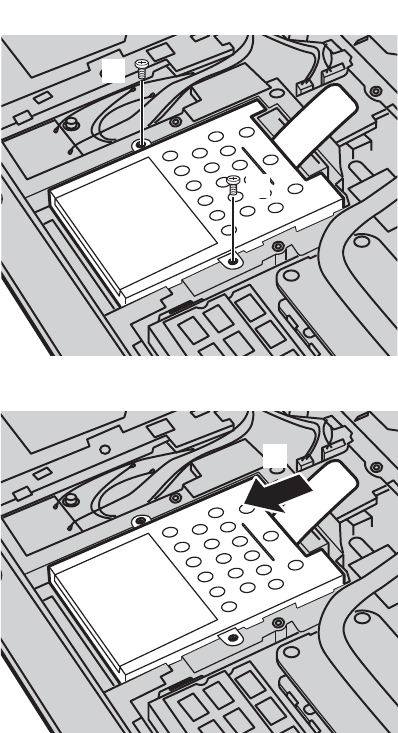

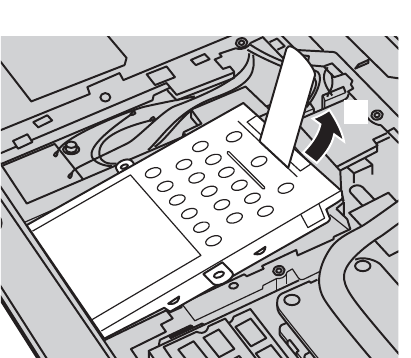

Replacing the hard disk drive.... 40

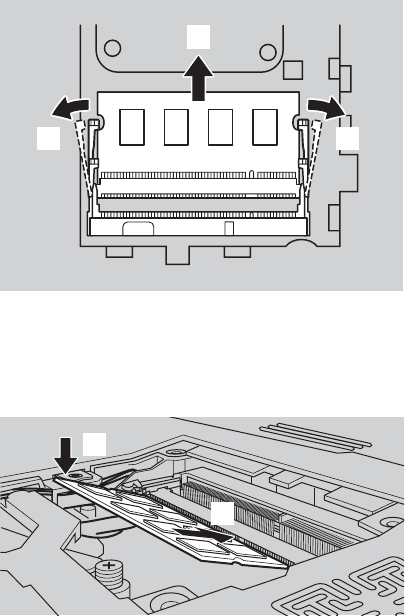

Replacing memory.......................44

Removing the optical drive........47

Appendix B. Lenovo limited

warranty ..................................49

Warranty information.................55

Appendix C. Product specific

Notices ....................................58

Energy star information.............. 58

Electronic emissions notices.......60

Appendix D. Specifications...64

Index........................................66

Contents

Chapter 1. Getting to know your computer

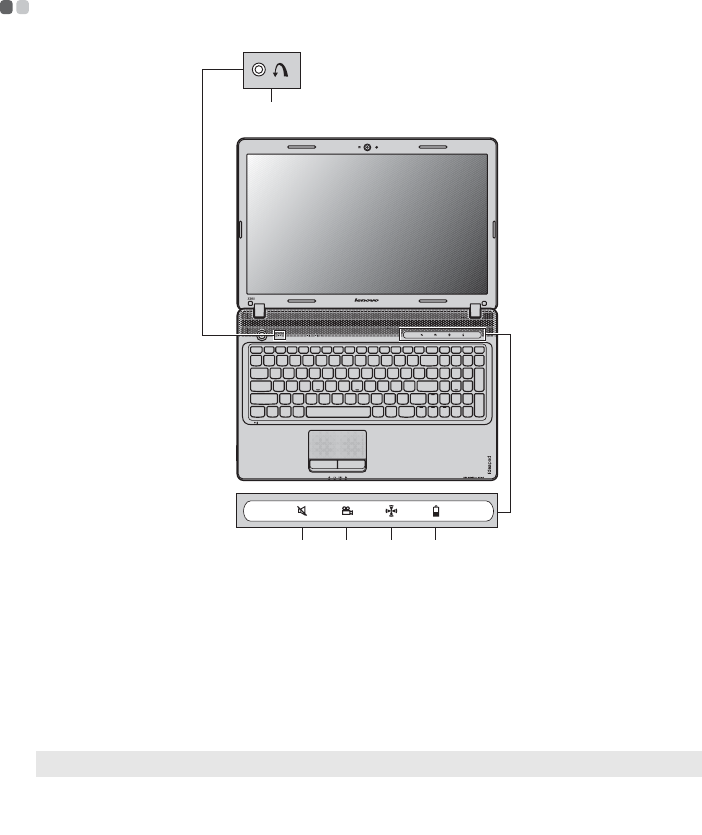

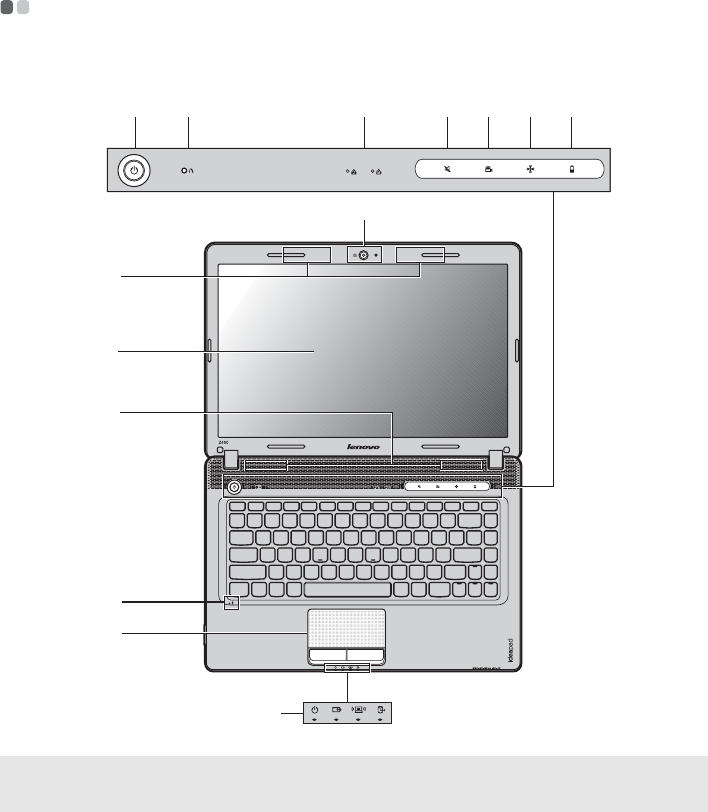

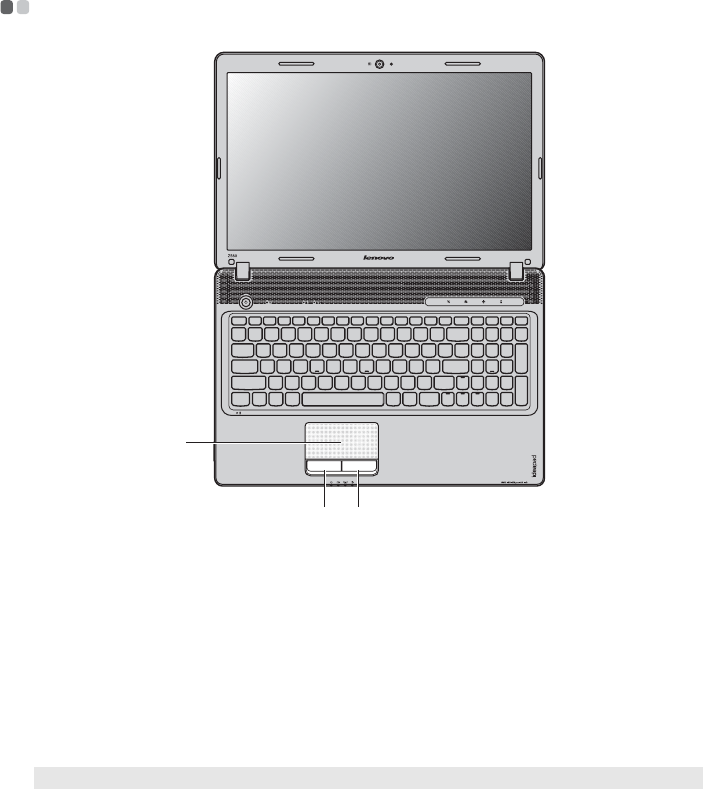

Top view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Z460/Z465

Note: The illustrations in this manual may differ from the actual product. Please refer to the

actual product.

Attention:

•Do NOT open the display panel beyond 130 degrees. When closing the display panel, be

careful NOT to leave pens or any other objects in between the display panel and the

keyboard. Otherwise, the display panel may be damaged.

gfed hij



Chapter 1. Getting to know your computer

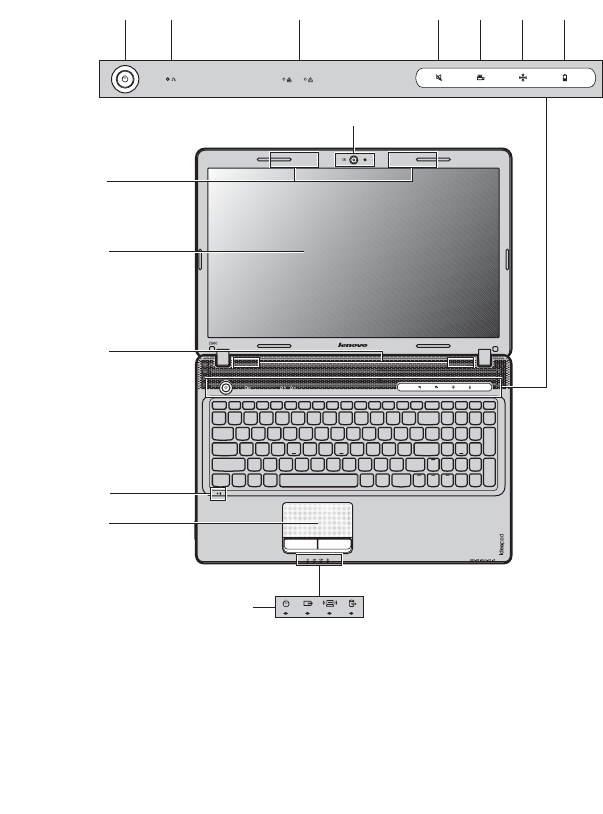

Z560/Z565

Integrated

camera

Use the camera for video communication.

Wireless module

antennas (Select

models only)

The built-in antennas ensure optimal reception of wireless

radio.

Computer display The LCD display with LED backlight provides brilliant

visual output.

gfed hij

Chapter 1. Getting to know your computer

Power button Press this button to turn on the computer.

OneKey Rescue

system button

Press this button to open OneKey Rescue system (If

OneKey Rescue system has been preinstalled) when the

computer is powered off.

Note: For details, see “OneKey Rescue system” on page 36.

System status

indicators

For details, see “System status indicators” on page 26.

Mute/Unmute

button

Touch this button to mute/unmute system sound.

OneKey Theater

button

Touch this button to select a preferred scenario mode.

Note: For details, see "OneKey Theater button" on page 23.

Smart noise

control button

Touch this button to control fan speed. Touch and hold

this button for three seconds to activate dust cleaning

feature.

Note: For details, see “Smart noise control button” on page 24.

Energy

Management

button

Touch this button to launch Lenovo Energy Management.

Note: For details, see “Energy Management button” on page 25.

Speakers The stereo speakers provide rich and powerful sound.

Built-in

microphone

The built-in microphone (with noise reduction) can be

used for video conferencing, voice narration, or simple

audio recordings.

Touchpad The touchpad functions as a conventional mouse.

Note: For details, see “Using the touchpad” on page 15.

Chapter 1. Getting to know your computer

Left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Kensington slot

Attach a security lock (not supplied) here.

Note: For details, see “Attaching a security lock (not supplied)” on page 27.

Fan louvers

Dissipate internal heat.

Note: Make sure that none of the fan louvers are blocked or else overheating of the

computer may occur.

RJ-45 port

This port connects the computer to an Ethernet network.

Note: For details, see “Wired connection” on page 29.

VGA port Connects to external display devices.

USB port Connect to USB devices.

Note: For details, see “Connecting a universal serial bus (USB) device” on page 20.

USB port or

eSATA/USB

combo port

Connect to eSATA or USB devices.

Note: For details, see “Connecting a universal serial bus (USB) device” on page 20.

HDMI port Connects to devices with HDMI input such as a TV or a

display.

ExpressCard®

slot (Select

models only)

Insert ExpressCard devices here.

Note: For details, see “Connecting an ExpressCard device (Select models only)” on page 20.

e hfd gcab

Chapter 1. Getting to know your computer

Right-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Microphone jack Connects to external microphones.

Headphone jack Connects to external headphones.

Attention:

•Listening to music at high volume over extended periods of time may damage your

hearing.

Optical drive Reads/Burns optical disks.

USB port Connects to USB devices.

Note: For details, see “Connecting a universal serial bus (USB) device” on page 20.

AC power adapter

jack

Connect the AC adapter here.

Note: For details, see “Using AC adapter and battery” on page 13.

eab



Chapter 1. Getting to know your computer

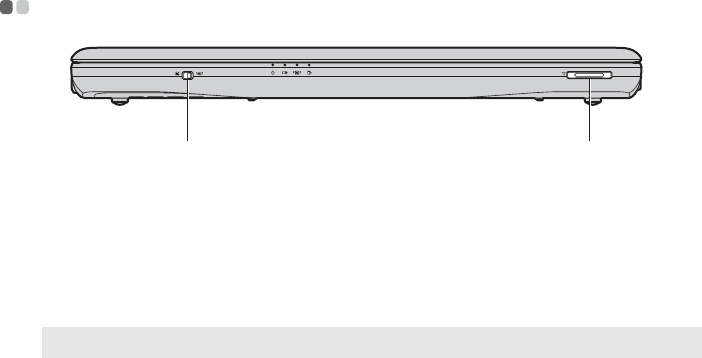

Front view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Integrated

wireless device

switch (Select

models only)

Use this switch to turn on/off the wireless radio of all

wireless devices on your computer.

Memory card slot

Insert memory cards (not supplied) here.

Note: For details, see “Using memory cards (not supplied)” on page 19.

a b

Chapter 1. Getting to know your computer

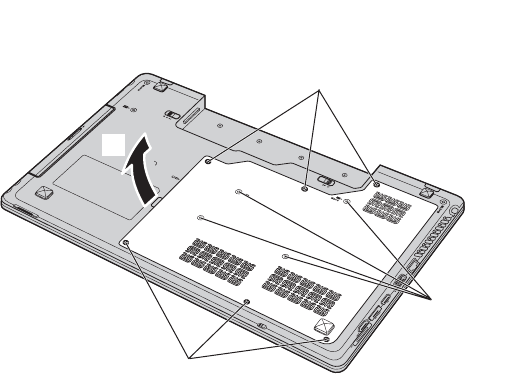

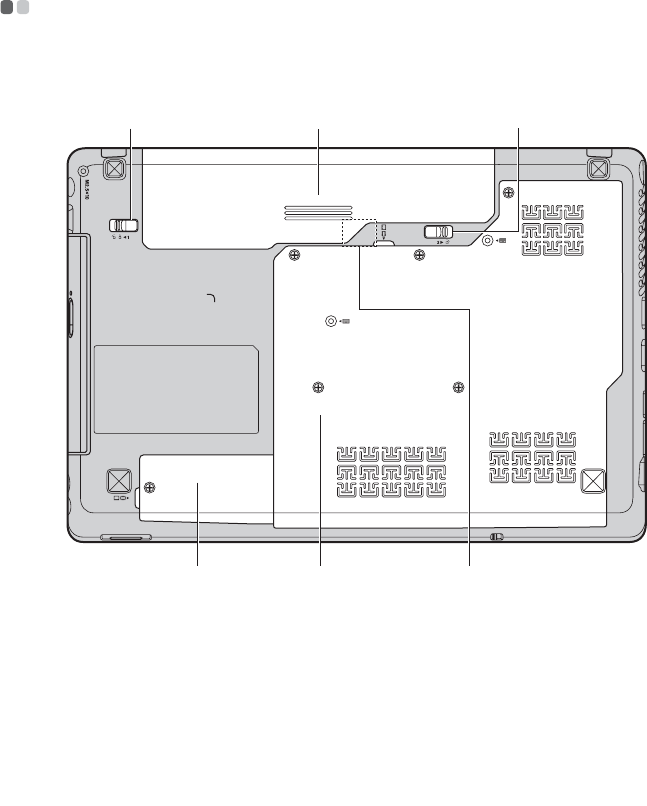

Bottom view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

 Z460/Z465

Battery latch -

manual

The manual battery latch is used to keep the battery pack

secured in place.

Battery pack

For details, see “Using AC adapter and battery” on page

13.

Battery latch -

spring loaded

The spring-loaded battery latch keeps the battery pack

secured in place.

Mini PCI Express

Card slot

compartment

def

Chapter 1. Getting to know your computer

Hard disk drive

(HDD)/Memory/

CPU (Central

processing unit)

compartment

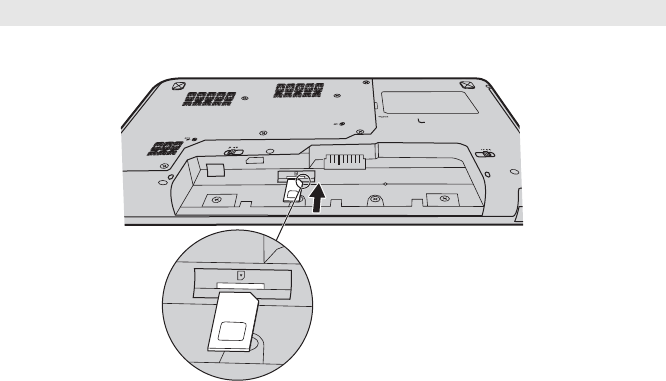

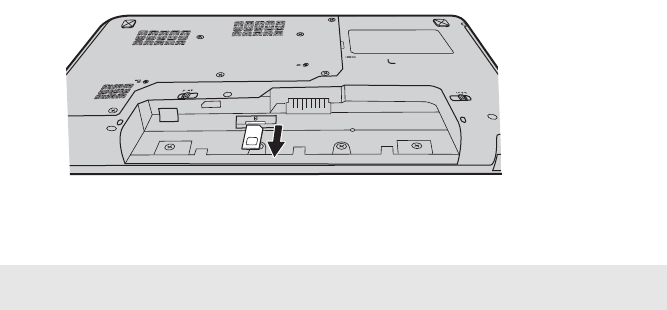

SIM card slot

(Select models

only)

Insert a SIM card (not supplied) for using Mobile

Broadband.

Notes:

•In order to be able to insert a SIM card into this slot, you must first disconnect the AC

adapter and remove the battery pack.

•For details, see “Using Mobile Broadband (Select models only)” on page 33.

Chapter 1. Getting to know your computer

Z560/Z565

Battery latch -

manual

The manual battery latch is used to keep the battery pack

secured in place.

Battery pack

For details, see “Using AC adapter and battery” on page

13.

Battery latch -

spring loaded

The spring-loaded battery latch keeps the battery pack

secured in place.

Hard disk drive

(HDD)/Memory/

CPU (Central

processing unit)/

Mini PCI Express

Card slot

compartment

Chapter 1. Getting to know your computer

SIM card slot

(Select models

only)

Insert a SIM card (not supplied) for using Mobile

Broadband.

Notes:

•In order to be able to insert a SIM card into this slot, you must first disconnect the AC

adapter and remove the battery pack.

•For details, see “Using Mobile Broadband (Select models only)” on page 33.

Chapter 2. Learning the basics

First use

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Reading the manuals

Read the supplied manuals before using your computer.

Conncting to the power

The supplied battery pack is not fully charged at purchase.

To charge the battery and begin using your computer, insert the battery pack

and connect the computer to an electrical outlet. The battery is automatically

charged while the computer is running on AC power.

Installing the battery pack

Refer to the supplied Setup Poster to install the battery pack.

Connecting the computer to an electrical outlet

Connect the power cord to the AC adapter.

Connect the AC adapter to the AC power adapter jack of the computer

firmly.

Plug the power cord into an electrical outlet.

Turning on the computer

Press the power button to turn on the computer.

Configuring the operating system

You may need to configure the operating system when it is first used. The

configuration process may include the procedures below.

• Accepting the end user license agreement

• Configuring the Internet connection

• Registering the operating system

• Creating a user account

Chapter 2. Learning the basics

Putting your computer into sleep state or shutting it down

When you finish working with your computer, you can put it into sleep state

or shut it down.

Putting your computer into sleep state

If you will be away from your computer for only a short time, put the

computer into sleep state.

When the computer is in sleep state, you can quickly wake it to resume use,

and bypass the startup process.

To put the computer into sleep state, do one of the following.

• Click and select Sleep from the Start menu.

• Press Fn + F1.

To wake the computer, do one of the following.

• Press the power button.

• Press any key on the keyboard.

Shutting down your computer

If you are not going to use your computer for a day or two, shut it down.

To shut down your computer, click and select Shut down from the Start

menu.

Note: Wait until the power indicator light starts blinking (indicating that the computer is in

sleep state) before you move your computer. Moving your computer while the hard

disk is spinning can damage the hard disk, causing loss of data.

Chapter 2. Learning the basics

Using AC adapter and battery

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Checking battery status

You can determine the percentage of battery power remaining by checking

the battery icon in the notification area.

Charging the battery

When you find that the battery power is low, you need to charge the battery

or replace it with a fully charged one.

You need to charge the battery in any of the following situations:

• When you purchase a new battery

• If the battery status indicator starts blinking

• If the battery has not been used for a long time

Note: As each computer user has different habits and needs, it is difficult to predict how

long a battery charge will last. There are two main factors:

• The amount of energy stored in the battery when you commence work.

• The way you use your computer: for example, how often you access the hard

disk drive and how bright you make the computer display.

Notes:

•You are advised to insert the battery pack when using your computer to prevent small

particles from entering the inside of your computer.

•To increase the life of the battery pack, the computer does not start recharging the

battery immediately after it drops from fully charged.

•Charge the battery at a temperature between 50 °F and 86 °F (10 °C-30 °C).

•Full charge or discharge is not required.

Chapter 2. Learning the basics

Removing the battery pack

If you are not going to use the computer for an extended period of time, or if

you need to send your computer to Lenovo for service, etc. remove the

battery pack from the computer. Before removing the battery pack, make

sure the computer has been shut down.

Handling the battery

If the rechargeable battery pack is replaced with an incorrect type, there may

be danger of an explosion. The battery pack contains a small amount of

harmful substances. To avoid possible injury and detriment to the

environment, pay attention to the following points:

• Replace only with a battery of the type recommended by Lenovo.

• Keep the battery pack away from fire.

• Do not expose the battery pack to water or rain.

• Do not attempt to disassemble the battery pack.

• Do not short-circuit the battery pack.

• Keep the battery pack away from children.

• Do not put the battery pack in trash that is disposed of in landfills. When

disposing of the battery, comply with local ordinances or regulations and

your company’s safety standards.

Chapter 2. Learning the basics

Using the touchpad

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Touchpad To move the cursor on the screen, slide your

fingertip over the pad in the direction in which

you want the cursor to move.

Left click button The function corresponds to that of the left

mouse button on a conventional mouse.

Right click button The function corresponds to that of the right

mouse button on a conventional mouse.

Note: You can enable/disable the touchpad using Fn+F6.

Chapter 2. Learning the basics

Using the keyboard

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Your computer has a numeric keypad and function keys incorporated in its

standard keyboard.

Numeric keypad

Z460/Z465

The keyboard has keys that, when enabled, work as a 10-key numeric

keypad. To enable or disable the numeric keypad, press Fn+F8 .

Z560/Z565

The keyboard has a separate numeric keypad. To enable or disable the

numeric keypad, press the Num Lock key.

Note: The Num lock indicator will light on if the numeric keypad is enabled.

Chapter 2. Learning the basics

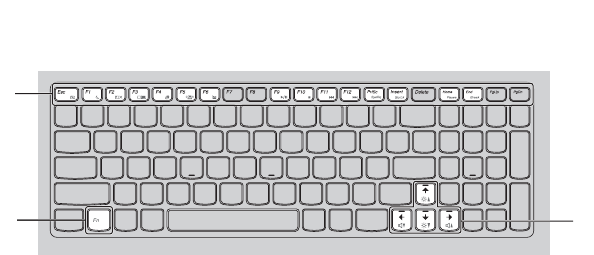

Function key combinations

Through the use of the function keys, you can change operational features

instantly. To use this function, press and hold Fn ; then press one of the

function keys .

Chapter 2. Learning the basics

The following describes the features of each function key.

Fn + Esc: Turn on/off the integrated camera.

Fn + F1: Enter sleep mode.

Fn + F2: Turn on/off the backlight of the LCD screen.

Fn + F3: Open the interface for the display device switch

to select this notebook or an external display.

Fn + F4: Open the interface for display resolution

settings.

Fn + F5: Open the interface for integrated wireless

devices settings (on/off).

Fn + F6: Enable/Disable the touchpad.

Fn + F8 (Z460/Z465): Enable/Disable the numeric keypad.

Fn + F9: Start/Pause playback of Windows Media Player.

Fn + F10: Stop playback of Windows Media Player.

Fn + F11: Skip to the previous track.

Fn + F12: Skip to the next track.

Fn + Insert (Z560/Z565):

Fn + PgUp (Z460/Z465): Enable/Disable the scroll lock.

Fn + PrtSc: Activate the system request.

Fn + Home: Activate the pause function.

Fn + End: Activate the break function.

Fn + PgDn (Z460/Z465): Activate the insert function.

Fn + ↑ / ↓:Increase/Decrease display brightness.

Fn + → / ←:Increase/Decrease sound volume.

Chapter 2. Learning the basics

Connecting external devices

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Your computer has a wide range of built-in features and connection

capabilities.

Using memory cards (not supplied)

Your computer supports the following types of memory cards:

• Secure Digital (SD) card

• MultiMediaCard (MMC)

• Memory Stick (MS)

• Memory Stick PRO (MS PRO)

• xD-Picture (xD) card

Inserting a memory card

Push the dummy card until you hear a click. Gently pull the dummy card

out of the memory card slot.

Slide the memory card in until it clicks into place.

Removing a memory card

Push the memory card until you hear a click.

Gently pull the memory card out of the memory card slot.

Notes:

•Insert ONLY one card in the slot at a time.

•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).

Note: The dummy card is used for preventing dust and small particles from entering the

inside of your computer when the memory card slot is not in use. Retain the dummy

card for future use.

Note: Before removing the memory card, disable it via Windows safely remove hardware

and eject media utility to avoid data corruption.

Chapter 2. Learning the basics

Connecting a universal serial bus (USB) device

Your computer comes with two USB ports and an eSATA/USB port

compatible with USB devices or three USB ports compatible with USB

devices.

Connecting an ExpressCard device (Select models only)

Your computer comes with an ExpressCard/34 slot used for connecting

ExpressCard devices.

Inserting an ExpressCard/34 device

Push the dummy card until you hear a click. Gently pull the dummy card

out of the ExpressCard slot.

Slide the ExpressCard device in with the front label facing upward until it

clicks into place.

Removing an ExpressCard/34 device

Push the ExpressCard device until you hear a click.

Gently pull the ExpressCard device out of the ExpressCard slot.

Note: When using a high power consumption USB device such as USB ODD, use the

external device’s power adapter. Otherwise, the device may not be recognized, and

system shut down may result.

Note: Only use the ExpressCard/34 devices.

Note: The dummy card is used for preventing dust and small particles from entering the

inside of your computer when the ExpressCard slot is not in use. Retain the dummy

card for future use.

Note: Before removing the ExpressCard/34 device, unable it by Windows safely remove

hardware and eject media utility.

Chapter 2. Learning the basics

Connecting a Bluetooth device (Select models only)

If your computer has an integrated Bluetooth adapter card, it can connect to

and transfer data wirelessly to other Bluetooth enabled devices, such as

notebook computers, PDAs and cell phones. You can transfer data between

these devices without cables and up to 10 meters range in open space.

Enabling Bluetooth communications on your computer

Slide the integrated wireless device switch from to .

Press Fn + F5 to make configuration.

Note: The actual maximum range may vary due to interference and transmission barriers.

To get the best possible connection speed, place the device as near your computer as

possible.

Notes:

•When you do not need to use the Bluetooth function, turn it off to save battery power.

•You need to pair the Bluetooth enabled device with your computer before you can transfer

data between them. Read the documentation supplied with the Bluetooth enabled device

for details on how to pair the device with your computer.

Chapter 2. Learning the basics

Special keys and buttons

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

OneKey Rescue system button

• When the computer is powered-off, press this button to enter the OneKey

Rescue system if Lenovo OneKey Rescue system has been preinstalled.

• In Windows operating system, press this button to start Lenovo OneKey

Recovery.

Mute/Unmute button

Mute/unmute the sound from the computer.

Note: For details, see “OneKey Rescue system” on page 36.

Chapter 2. Learning the basics

OneKey Theater button

Lenovo OneKey Theater provides five scenario modes for using your

computer in different ways: normal mode, movie mode, music mode, picture

mode, and intelligent mode. These modes are preset enhancements by

Lenovo to improve visual and aural experiences via your computer in

different usage scenarios. You can manually choose between normal, movie

and intelligent mode. Picture or music mode is automatically selected if your

computer is in intelligent mode.

To manually select a desired mode:

• Press and release the OneKey Theater button to display the on-screen

menu;

• Keep pressing and releasing the button until the icon of your desired

mode is highlighted.

The computer switches to the selected mode after 2 seconds.

Normal mode

The default mode.

Movie mode

Provides enhanced visual and audio output.

Music mode

Provides enhanced audio output.

Picture mode

Provides enhanced contrast and color saturation.

Intelligent mode

Lenovo OneKey Theater switches intelligently between movie mode, music

mode, and picture mode according to the application you are using.

Notes:

•You can enable or disable the OneKey Theater feature via the Start menu.

•Some applications may not be compatible with intelligent mode.

Chapter 2. Learning the basics

Smart noise control button

Smart noise control button enables you to control fan speed during computer

operation. You can choose between normal or silent mode by a touch of this

button; you can also activate the dust cleaning feature by touching and

holding this button for three seconds.

Switching to silent mode

If your computer is not running large applications and you want a silent

work environment, you can switch the computer to silent mode. The icon

is displayed on the computer screen for a few seconds and the touch-

sensitive button is illuminated, indicating that the computer has been

switched to silent mode.

Switching to normal mode

For high system performance when running large applications, you can

switch the computer to normal mode by touching this button. The icon is

displayed on the computer screen for a few seconds and the touch-sensitive

button illumination turns off, indicating the computer has been switched to

normal mode. The fan spins at higher speeds when the computer is

operating in normal mode.

Note: The fan of the computer is spinning at relatively low speeds in silent mode, and thus

dissipates less heat than in normal mode. If large applications are running, the system

may lower the voltage of the central processing unit (CPU) automatically to decrease

the heat produced by the CPU. You might experience lower system performance

when the computer is running in silent mode, especially in the case of graphics-

intensive applications.

Chapter 2. Learning the basics

Activating dust cleaning feature

Dust tends to build up around the heat-sink of a computer’s CPU over time.

Accumulated dust can reduce the dissipation capability of a heat-sink,

resulting in an increase in batter power consumption. You can activate the

dust cleaning feature by touching and holding the touch-sensitive button for

three seconds. The touch-sensitive button will flash, indicating that the dust

cleaning feature has been activated. The fan will spin at high speed and then

stop alternately for about two minutes to discharge the accumulated dust.

Upon completion of dust cleaning, the computer will revert back to the

previously-selected mode.

Energy Management button

Lenovo Energy Management provides you control over the performance and

power consumption for each component of your notebook through the

collaboration of software and hardware, thus extends battery life and

improves battery runtime.

Notes:

•When using the dust cleaning feature, make sure your computer is placed in a clean work

area with good ventilation.

•We recommend that you perform dust cleaning at least once a month to prevent dust

accumulation.

Chapter 2. Learning the basics

System status indicators

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

These indicators inform you of the computer status.

Caps lock indicator

Num lock indicator

Power status indicator

Battery status indicator

Wireless communication indicator

Hard disk drive indicator

Chapter 2. Learning the basics

Securing your computer

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

This section provides information about how to help protect your computer

from theft and unauthorized use.

Attaching a security lock (not supplied)

You can attach a security lock to your computer to help prevent it from being

removed without your permission. For details on installing the security lock,

please refer to the instructions shipped with the security lock that you have

purchased.

Refer to the “Left-side view” on page 4 for the location of the Kensington

slot.

Using VeriFace™

VeriFace is a face recognition software which takes a digital snapshot,

extracts key features of your face, and creates a digital map that becomes the

system’s “password”.

If you want to activate VeriFace for the first time, click the VeriFace icon on

the desktop to register your facial image.

For more details on VeriFace, see the software help.

Notes:

•Before purchasing any security product, verify that it is compatible with this type of

security keyhole.

•You are responsible for evaluating, selecting, and implementing the locking devices and

security features. Lenovo offers no comment judgement or warranty regarding the

function, quality or performance of locking devices and security features.

Notes:

•The face registration and verification works best in an environment with steady and even

light.

•You can determine whether to use this function when you log on the system.

Chapter 2. Learning the basics

Using passwords

Using passwords helps prevent your computer from being used by others.

Once you set a password and enable it, a prompt appears on the screen each

time you power on the computer. Enter your password at the prompt. The

computer cannot be used unless you enter the correct password.

For details about how to set the password, see the Help to the right of the

screen in BIOS setup utility.

Note: This password can be from one to seven alphanumeric characters in any combination.

Note: To enter BIOS setup utility, press F2 when the Lenovo logo appears on the screen while

the computer is starting up.

Chapter 3. Connecting to the Internet

As a global network, the Internet connects computers worldwide, providing

services such as e-mailing, information searching, electronic commerce, Web

browsing and entertainment.

You can connect the computer to the Internet in the following ways:

Wired connection: use physical wiring to connect.

Wireless network technology: connect without wiring.

Wired connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Wired connections are a reliable and safe way to connect the computer to the

Internet.

Cable Cable Internet services use a cable modem connected to

the residential cable TV line.

DSL DSL is a family of related technologies that bring high-

speed network access to homes and small businesses

over ordinary telephone lines.

Chapter 3. Connecting to the Internet

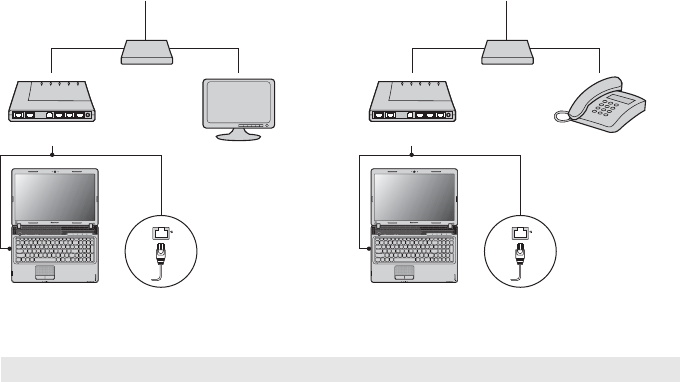

Hardware connection:

Cable DSL

Software configuration

Consult your Internet Service Provider (ISP) for details on how to configure

your computer.

Note: The above diagrams are for reference only. Actual connection method may vary.

TV cable

Splitter *

Cable modem *

* Not supplied.

Telephone line

Splitter *

DSL modem *

Chapter 3. Connecting to the Internet

Wireless connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Wireless connections provide mobile access to the Internet, allowing you to

stay online anywhere the wireless signal covers.

Divided by the signal scales, wireless connection to the Internet can be built

based on the following standards.

Wi-Fi Wi-Fi networks cover a small physical area, like a home,

office, or small group of buildings. An access point is

necessary for the connection.

WiMAX WiMAX networks connect several Wireless LAN

systems to cover a metropolitan area, providing high-

speed broadband access without the need for cables.

Mobile Broadband The Mobile Broadband network provides Internet access

to computers, cell phones and other devices over a large

geographic area. Mobile networks are used for data

transmission, and access is usually provided by a mobile

network operator. A Mobile Broadband SIM card is

necessary for the connection.

Note: Your computer may not support all wireless connection methods.

Chapter 3. Connecting to the Internet

Using Wi-Fi/WiMAX (Select models only)

Enabling wireless connection

To enable wireless communications, do the following:

Slide the integrated wireless device switch from to .

Press Fn + F5 to make configuration.

Hardware connection

Software configuration

Consult your Internet Service Provider (ISP) and search Windows Help and

Support Center for details on how to configure your computer.

Access point *

Wi-Fi/WiMAX network

* Not supplied

Chapter 3. Connecting to the Internet

Using Mobile Broadband (Select models only)

Before getting started with Mobile Broadband, you first need to choose a

mobile network operator and make sure you are in the coverage area of the

network. After that, you also need:

• To activate the Mobile Broadband service through your local mobile

network operator. You will get a Subscriber Identity Module (SIM) card

after activation. For instructions on inserting the SIM card, refer to For

details, see “Inserting the SIM card” on page 34.

• A connection management utility to connect/disconnect to your Mobile

Broadband network.

Notes:

•Various standards are in use by mobile operators to provide Mobile Broadband services.

The Lenovo Mobile Broadband module may support one or more of the following

standards:

GSM (Global System for Mobile Communications)

TD-SCDMA (Time Division-Synchronous Code Division Multiple Access)

SCDMA (Synchronous Code Division Multiple Access)

EV-DO (Evolution Data Optimized)

HSPA (High Speed Packet Access)

•Mobile Broadband is a subscription service. Refer to your local mobile network operator

for availability, cost and other information.

•A SIM card is a type of smart card used by mobile network operators to identify their

service subscribers on the mobile network. You will get the SIM card from your mobile

network operator after you have activated the Mobile Broadband service.

Note: In general, your mobile service provider provides this utility.

Chapter 3. Connecting to the Internet

Inserting the SIM card

To insert the SIM card:

Turn off the computer; then disconnect the AC adapter and all cables

from the computer.

Close the computer display and turn it over.

Remove the battery.

Insert the SIM card in the card slot until it clicks into place as shown in

the illustration.

Put the battery back in place. Turn the computer over and reconnect the

cables.

Note: Inserting the SIM card in the wrong direction may damage the SIM card slot.

Notched Corner

Chapter 3. Connecting to the Internet

Removing the SIM card

To remove the SIM card:

Turn off the computer, then disconnect the AC adapter and all cables

from the computer.

Close the computer display and turn it over.

Remove the battery.

Push the SIM card in until you hear a click, and then pull the SIM card out.

Put the battery back in place. Turn the computer over and reconnect the

cables.

Note: Never insert or remove the SIM card while the computer is on. Doing so may cause

permanent damage to the SIM card as well as the SIM card reader.

Chapter 4. OneKey Rescue system

OneKey Rescue system

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Introduction

The Lenovo OneKey Rescue system is an easy-to-use application that can be

used to back up the data on your system partition (C drive) for easy restore

when required. You can run Lenovo OneKey Recovery under the Windows

operating system, and the OneKey Rescue system without starting the

Windows operating system.

Attention:

In order to utilize the features of the OneKey Rescue system, your hard disk

already includes a hidden partition by default to store the system image file

and OneKey Rescue system program files. This default partition is hidden

for security reasons and is the reason the available disk space is less than it

claims. The exact available hard disk space depends on the file size of the

mirror image file (based on the size of operating system and preinstalled

software).

Using Lenovo OneKey Recovery (within Windows operating

system)

In Windows operating system, double click the OneKey Recovery system

Icon on the desktop to launch Lenovo OneKey Recovery.

Within the program, you can back up the system partition on the hard disk

drive, other storage devices, or by creating recovery discs.

For more instructions, see the Help file of Lenovo OneKey Recovery.

Notes:

•The backup process and creation of recovery discs may take some time, connect the AC

adapter and battery pack to your computer.

•After the recovery discs are burned, please number them so that you can use them in the

correct order.

•Computers without an integrated optical drive support the creation of recovery discs;

however an appropriate external optical drive is needed to physically create the recovery

discs.



Chapter 4. OneKey Rescue system

Using Lenovo OneKey Rescue system (without Windows

operating system)

In the event that the operating system cannot be loaded, follow the steps

below to access OneKey Rescue system.

• Shut down your computer.

• Press the key to launch OneKey Rescue system.

Within the program, you can choose to restore your system partition to the

original factory status, or to a previously generated backup.

Note: The recovery process is irreversible. Make sure to back up any critical data before

using the recovery feature.

Appendix A. CRU instructions

Replacing the battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

To replace the battery, do the following:

Turn off the computer, or enter hibernation mode. Disconnect the AC

adapter and all cables from the computer.

Close the computer display, and turn the computer over.

Unlock the manual battery latch . Holding the spring-loaded battery

latch in the unlocked position , remove the battery pack in the direc-

tion shown by the arrow .

Notes:

•The illustrations used in this chapter are of the Lenovo IdeaPad Z560, unless otherwise stated.

•The following steps about upgrading and replacing devices are the same for the Z460, Z465, Z560

and Z565.

Note: Use only the battery provided by Lenovo. Any other battery could ignite or explode.

Note: If you are using an ExpressCard device, the computer might not be able to enter

hibernation mode. If this happens, turn off the computer.

Appendix A. CRU instructions

Install a fully charged battery.

Slide the manual battery latch to the locked position.

Turn the computer over again. Connect the AC adapter and the cables to

the computer again.

Appendix A. CRU instructions

Replacing the hard disk drive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

You can increase the storage capacity of your computer by replacing the hard

disk drive with one of greater capacity. You can purchase a new hard disk

drive from your reseller or Lenovo marketing representative.

The drive is very sensitive. Incorrect handling can cause damage and perma-

nent loss of data on the hard disk. Before removing the hard disk drive, make

a backup copy of all the information on the hard disk, and then turn the com-

puter off. Never remove the drive while the system is operating, in sleep

mode, or in hibernation mode.

Notes:

•Replace the hard disk drive only if you upgrade it or have it repaired. The connectors and

bay of the hard disk drive were not designed for frequent changes, or drive swapping.

•The preinstalled softwares are not included on an optional hard disk drive.

Handling a hard disk drive

•Do not drop the drive or subject it to physical shocks. Put the drive on a material,

such as soft cloth, that absorbs the physical shock.

•Do not apply pressure to the cover of the drive.

•Do not touch the connector.

Appendix A. CRU instructions

To replace the hard disk drive, do the following:

Turn off the computer; then disconnect the AC adapter and all cables

from the computer.

Close the computer display, and then turn the computer over.

Remove the battery pack.

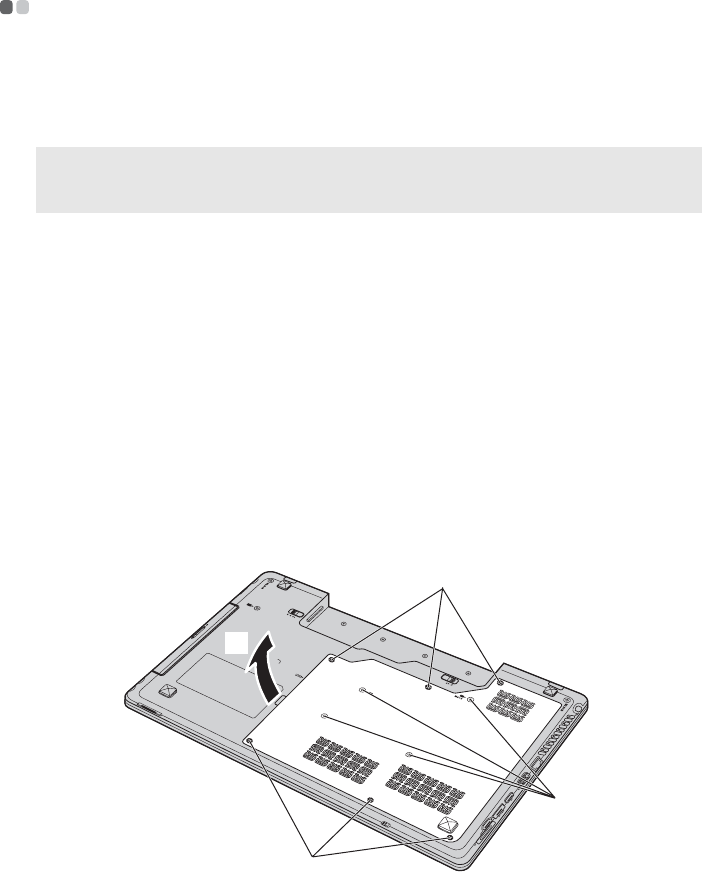

Remove the Hard disk drive (HDD)/Memory/CPU (Central processing

unit)/Mini PCI Express Card slot compartment cover.

a.Remove the four screws , and then loosen the other screws .

b.Remove the compartment cover .

Appendix A. CRU instructions

Remove the frame fixing screws .

Pull the tab in the direction shown by arrow .

Appendix A. CRU instructions

Take out the hard disk drive secured in a metal frame .

Remove the screws and detach the metal frame from the hard disk drive.

Attach the metal frame to a new hard disk drive and tighten the screws.

Put the hard disk drive gently into the hard disk drive bay with the tab

facing upwards and the connectors facing each other; then push it firmly

into space.

Reinstall the frame fixing screw.

After aligning the attachment clips with their matching gaps, reinstall the

compartment cover.

Tighten the screws.

Reinstall the battery pack.

Turn the computer over again. Connect the AC adapter and the cables to

the computer again.

Appendix A. CRU instructions

Replacing memory - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

You can increase the amount of memory in your computer by installing a

double-data-rate three synchronous dynamic random access memory (DDR3

SDRAM)-available as an option-in the memory slot of your computer. DDR3

SDRAMs are available in various capacities.

To install a DDR3 SDRAM, do the following:

Touch a metal table or a grounded metal object to reduce any static elec-

tricity in your body, which could damage the DDR3 SDRAM. Do not

touch the contact edge of the DDR3 SDRAM.

Turn off the computer. Disconnect the AC adapter and all cables from the

computer.

Close the computer display, and turn the computer over.

Remove the battery again.

Remove the Hard disk drive (HDD)/Memory/CPU (Central processing

unit)/Mini PCI Express Card slot compartment cover.

a.Remove the four screws , and then loosen the other screws .

b.Remove the compartment cover .

Note: Use only the memory types supported by your computer. If you incorrectly install

optional memory, or install an unsupported memory type, a warning beep will sound

when you try to start the computer.

Appendix A. CRU instructions

If two DDR3 SDRAMs are already installed in the memory slot, remove

one of them to make room for the new one by pressing out on the latches

on both edges of the socket at the same time. Be sure to save the old

DDR3 SDRAM for future use.

Align the notch of the DDR3 SDRAM with the protrusion of the socket

and gently insert the DDR3 SDRAM into the socket at a 30-45° angle.

Push the DDR3 SDRAM inward toward the socket until the latches on

both edges of the socket are pushed into the closed position.

After aligning the attachment clips with their matching gaps, reinstall the

compartment cover.

Reinstall and tighten the screws.

Reinstall the battery.

Turn the computer over again. Connect the AC adapter and the cables to

the computer again.

Appendix A. CRU instructions

To make sure that the DDR3 SDRAM is installed correctly, do as follows:

Turn the computer on.

Hold F2 during startup. The BIOS setup utility screen opens. The

System Memory item shows the total amount of memory installed in

your computer.

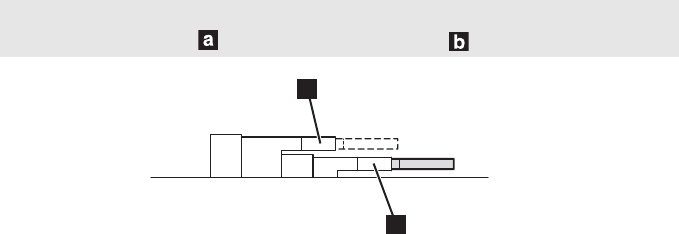

Note: If only one DDR3 SDRAM is used on the computer you are servicing, the card must be

installed in SLOT-0 ( : lower slot), but not in SLOT-1 ( : upper slot).

Appendix A. CRU instructions

Removing the optical drive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

To remove the optical drive, do the following:

Remove the Hard disk drive (HDD)/Memory/CPU (Central processing

unit)/Mini PCI Express Card slot compartment cover.

Remove the screw shown in the illustration .

Gently pull the optical drive out

Appendix A. CRU instructions

The following table provides a list of CRUs (Customer Replaceable Units) for

your computer, and informs you of where to find replacement instructions.

Setup Poster User Guide

AC adapter O

Power cord for AC adapter O

Battery O O

Bottom access doors O

Hard disk drive O

Memory O

Optical drive O

Appendix B. Lenovo limited warranty

This Lenovo Limited Warranty applies only to Lenovo branded hardware

products you purchased for your own use and not for resale.

This Lenovo Limited Warranty is available in other languages at

www.lenovo.com/warranty.

What this warranty covers

Lenovo warrants that each hardware product that you purchase is free from

defects in materials and workmanship under normal use during the warranty

period. The warranty period for the product starts on the original date of

purchase specified on your sales receipt or invoice unless Lenovo informs you

otherwise in writing. The warranty period and type of warranty service that

apply to your product are designated below under the section titled “

Warranty

information

”.

THIS WARRANTY IS YOUR EXCLUSIVE WARRANTY AND REPLACES

ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OR

CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. SOME STATES OR JURISDICTIONS DO NOT

ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED WARRANTIES, SO

THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN THAT EVENT,

SUCH WARRANTIES APPLY ONLY TO THE EXTENT REQUIRED BY LAW

AND ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO

WARRANTIES APPLY AFTER THAT PERIOD. SOME STATES OR

JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN

IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION ON

DURATION MAY NOT APPLY TO YOU.

L505-0010-01 04/2008

Appendix B. Lenovo limited warranty

How to obtain warranty service

If the product does not function as warranted during the warranty period, you

may obtain warranty service by contacting Lenovo or an approved service

provider. Each of them is referred to as a “Service Provider.” A list of Service

Providers and their telephone numbers is available at

www.lenovo.com/support/phone.

Warranty service may not be available in all locations and may differ from

location to location. Charges may apply outside a Service Provider’s normal

service area. Contact a local Service Provider for location-specific information.

What your service provider will do to correct problems

When you contact a Service Provider, you must follow the problem

determination and resolution procedures specified.

Your Service Provider will attempt to diagnose and resolve your problem over

the telephone, e-mail or through remote assistance. Your Service Provider may

direct you to download and install designated software updates.

Some problems can be resolved with a replacement part that you can install

yourself called a “Customer Replaceable Unit” or “CRU.” If so, your Service

Provider will ship the CRU to you to install.

If your problem cannot be resolved over the telephone or remotely, through

your application of software updates or the installation of a CRU by you, your

Service Provider will arrange for service under the type of warranty service

designated for the product under the section titled “

Warranty information

”.

If your Service Provider determines that it is unable to repair your product,

your Service Provider will replace it with one that is at least functionally

equivalent.

If your Service Provider determines that it is unable to either repair or replace

your product, your sole remedy is to return the product to your place of

purchase or to Lenovo for a refund of your purchase price.

Appendix B. Lenovo limited warranty

Replacement of a product or part

When the warranty service involves the replacement of a product or part, the

replaced product or part becomes Lenovo’s property and the replacement

product or part becomes your property. Only unaltered Lenovo products and

parts are eligible for replacement. The replacement product or part provided by

Lenovo may not be new, but it will be in good working order and at least

functionally equivalent to the original product or part. The replacement

product or part shall be warranted for the balance of the period remaining on

the original product.

Before your Service Provider replaces a product or part, you agree to:

remove all features, parts, options, alterations, and attachments not under

warranty service;

ensure that the product or part is free of any legal obligations or restrictions

that prevent its replacement; and

obtain authorization from the owner to have your Service Provider service a

product or part if you do not own it.

Your additional responsibilities

Where applicable, before service is provided, you agree to:

follow the service request procedures that your Service Provider specifies;

backup or secure all programs and data contained in the product;

provide your Service Provider with all system keys or passwords and

sufficient, free, and safe access to your facilities to perform service; and

ensure that all information about identified or identifiable individuals

(“Personal Data”) is deleted from the product or that, with respect to any

Personal Data that you did not delete, you are in compliance with all

applicable laws.

Appendix B. Lenovo limited warranty

Use of personal information

If you obtain service under this warranty, Lenovo will store, use and process

information about your warranty service and your contact information,

including name, phone numbers, address, and e-mail address. Lenovo will use

this information to perform service under this warranty and to improve our

business relationship with you. We may contact you to inquire about your

satisfaction regarding our warranty service or to notify you about any product

recalls or safety issues. In accomplishing these purposes, we may transfer your

information to any country where we do business and may provide it to entities

acting on our behalf. We may also disclose it where required by law.

What this warranty does not cover

This warranty does not cover the following:

• uninterrupted or error-free operation of a product;

• loss of, or damage to, your data;

• any software programs, whether provided with the product or installed

subsequently;

• failure or damage resulting from misuse, accident, modification, unsuitable

physical or operating environment, natural disasters, power surges, or

improper maintenance by you;

• damage caused by a non-authorized service provider;

• failure of, or damage caused by, any third party products, including those

that Lenovo may provide or integrate into the Lenovo product at your

request; and

• any technical or other support, such as assistance with “how-to” questions

and those regarding product set-up and installation.

This warranty is voided by removal or alteration of identification labels on the

product or its parts.

Appendix B. Lenovo limited warranty

Limitation of liability

Lenovo is responsible for loss or damage to your product only while it is: 1) in

your Service Provider’s possession; or 2) in transit in those cases where the

Service Provider is responsible for the transportation.

Neither Lenovo nor your Service Provider is responsible for any of your data

including confidential, proprietary, or personal data contained in a product.

You should remove and/or backup all such information from the product prior

to its service or return.

Circumstances may arise where, because of a default on Lenovo’s part or other

liability, you may be entitled to recover damages from Lenovo. In each such

instance, regardless of the basis of your claim against Lenovo (including

breach, negligence, misrepresentation, or other contract or tort claim), except

and to the extent that liability cannot be waived or limited by applicable laws,

Lenovo shall not be liable for more than the amount of actual direct damages

suffered by you, up to the amount you paid for the product. This limit does not

apply to damages for bodily injury (including death) and damage to real

property or tangible personal property for which Lenovo is liable under law.

This limit also applies to Lenovo’s suppliers, resellers, and your Service

Provider. It is the maximum amount for which Lenovo, its suppliers, resellers,

and your Service Provider are collectively responsible.

UNDER NO CIRCUMSTANCES SHALL LENOVO, ITS SUPPLIERS,

RESELLERS, OR SERVICE PROVIDERS BE LIABLE FOR ANY OF THE

FOLLOWING EVEN IF INFORMED OF THEIR POSSIBILITY: 1) THIRD

PARTY CLAIMS AGAINST YOU FOR DAMAGES; 2) LOSS OR DAMAGE

TO YOUR DATA; OR 3) SPECIAL, INCIDENTAL, INDIRECT OR

CONSEQUENTIAL DAMAGES, INCLUDING LOST PROFITS, BUSINESS

REVENUE, GOODWILL OR ANTICIPATED SAVINGS. AS SOME STATES

OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, THE

ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

Appendix B. Lenovo limited warranty

Dispute resolution

If you acquired the product in

Cambodia

Indonesia

Philippines

Vietnam or

Sri Lanka

, disputes arising out of or in connection with this warranty shall be

finally settled by arbitration held in Singapore and this warranty shall be

governed, construed and enforced in accordance with the laws of Singapore,

without regard to conflict of laws. If you acquired the product in

India

disputes arising out of or in connection with this warranty shall be finally

settled by arbitration held in Bangalore, India. Arbitration in Singapore shall be

held in accordance with the Arbitration Rules of Singapore International

Arbitration Center (“SIAC Rules”) then in effect. Arbitration in India shall be

held in accordance with the laws of India then in effect. The arbitration award

shall be final and binding on the parties without appeal. Any award shall be in

writing and set forth the findings of fact and the conclusions of law. All

arbitration proceedings, including all documents presented in such

proceedings, shall be conducted in the English language, and the English

language version of this warranty prevails over any other language version in

such proceedings.

Other rights

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY

HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR

JURISDICTION TO JURISDICTION. YOU MAY ALSO HAVE OTHER

RIGHTS UNDER APPLICABLE LAW OR WRITTEN AGREEMENT WITH

LENOVO. NOTHING IN THIS WARRANTY AFFECTS STATUTORY RIGHTS,

INCLUDING RIGHTS OF CONSUMERS UNDER NATIONAL LEGISLATION

GOVERNING THE SALE OF CONSUMER GOODS THAT CANNOT BE

WAIVED OR LIMITED BY CONTRACT.

European Economic Area (EEA)

Customers in the EEA may contact Lenovo at the following address: EMEA

Service Organisation, Lenovo (International) B.V., Floor 2, Einsteinova 21, 851

01, Bratislava, Slovakia. Service under this warranty for Lenovo hardware

products purchased in EEA countries may be obtained in any EEA country in

which the product has been announced and made available by Lenovo.

Appendix B. Lenovo limited warranty

Warranty information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

If required, your Service Provider will provide repair or exchange service

depending on the type of warranty service specified for your product and the

available service. Scheduling of service will depend upon the time of your call,

parts availability, and other factors.

Product or

machine

type

Country or region of

purchase

Warranty

period

Type of

warranty

service

notebook:

20059, 0913

20065, 4309

20060, 0914

20066, 4311

China (Hong Kong S.A.R.), China

(Macau S.A.R.), India, Indonesia,

Malaysia, Thailand, Philippines,

Vietnam, Egypt, South Africa,

Saudi Arabia, UAE

parts and labor - 1 year

battery pack - 1 year

1, 4

Austria, Belgium, Croatia, Cyprus,

Denmark, Estonia, France, Finland,

Germany, Greece, Iceland, Israel,

Ireland, Italy, Latvia, Lithuania,

Luxembourg, Netherlands, Norway,

Romania, Slovenia, Spain, Sweden,

Switzerland, the United Kingdom

United States of America,

Canada, Mexico, Brazil,

Argentina, Colombia, Peru,

Venezuela, Bolivia, Uruguay,

Chile, Paraguay, Ecuador

Singapore 1, 3, 4

Australia, New Zealand, Japan 1, 3

Taiwan, Korea 3, 4

Russia, Ukraine, the Republic of

Kazakhstan, Belarus, Sri Lanka 4

Poland, Turkey, Czech Republic,

Hungary, Slovakia, Bulgaria

parts and labor -

2 years

battery pack - 1 year

1, 4

Appendix B. Lenovo limited warranty

Types of warranty service

Customer Replaceable Unit (“CRU”) Service

Under CRU Service, your Service Provider will ship CRUs to you for

installation by you. CRU information and replacement instructions are

shipped with your product and are available from Lenovo at any time upon

request. CRUs that are easily installed by you are called Self-service CRUs,

while Optional-service CRUs may require some technical skill and tools.

Installation of Self-service CRUs is your responsibility. You may request that

a Service Provider install Optional-service CRUs under one of the other

types of warranty service designated for your product. An optional service

offering may be available for purchase from Lenovo to have Lenovo install

Self-service CRUs for you. You may find a list of CRUs and their designation

in the publication that ships with your product or at

www.lenovo.com/CRUs. The requirement to return a defective CRU, if any,

will be specified in the materials shipped with a replacement CRU. When

return is required: 1) return instructions, a prepaid return shipping label,

and a container will be included with the replacement CRU; and 2) you may

be charged for the replacement CRU if your Service Provider does not

receive the defective CRU within thirty (30) days of your receipt of the

replacement.

On-site Service

Under On-Site Service, your Service Provider will either repair or exchange

the product at your location. You must provide a suitable working area to

allow disassembly and reassembly of the Lenovo product. For some

products, certain repairs may require your Service Provider to send the

product to a designated service center.

Courier or Depot Service

Under Courier or Depot Service, your product will be repaired or

exchanged at a designated service center, with shipping arranged by your

Service Provider. You are responsible for disconnecting the product. A

shipping container will be provided to you for you to return your product to

a designated service center. A courier will pick up your product and deliver

it to the designated service center. Following its repair or exchange, the

service center will arrange the return delivery of the product to you.

Appendix B. Lenovo limited warranty

Customer Carry-In or Mail-In Service

Under Customer Carry-In or Mail-In Service, your product will be repaired

or exchanged at a designated service center, with delivery or shipping

arranged by you. You are responsible to deliver or mail, as your Service

Provider specifies, (prepaid by you unless specified otherwise) the product,

suitably packaged to a designated location. After the product has been

repaired or exchanged, it will be made available for your collection. Failure

to collect the product may result in your Service Provider disposing of the

product as it sees fit. For Mail-in Service, the product will be returned to you

at Lenovo’s expense, unless your Service Provider specifies otherwise.

Product Exchange Service

Under Product Exchange Service, Lenovo will ship a replacement product

to your location. You are responsible for its installation and verification of

its operation. The replacement product becomes your property in exchange

for the failed product, which becomes the property of Lenovo. You must

pack the failed product in the shipping carton used to ship the replacement

product and return it to Lenovo. Transportation charges, both ways, are

paid by Lenovo. Failure to use the carton in which the replacement product

was received may result in your responsibility for damage to the failed

product during shipment. You may be charged for the replacement product

if Lenovo does not receive the failed product within thirty (30) days of your

receipt of the replacement product.

Appendix C. Product specific Notices

The notices in this appendix are specific to the product with the given MT

number. Notices that are common for most Lenovo products are included in

“Appendix A. Notices” of the

Lenovo Safety and General Information Guide

Energy star information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

ENERGY STAR

is a joint program of the U.S. Environmental Protection

Agency and the U.S. Department of Energy aimed at saving money and

protecting the environment through energy efficient products and practices.

Lenovo

is proud to offer our customers products with an ENERGY STAR

compliant designation. Lenovo computers of the following machine types, if

the ENERGY STAR mark is affixed, have been designed and tested to conform

to the ENERGY STAR 5.0 program requirements for computers.

• 20059, 0913

• 20065, 4309

• 20060, 0914

• 20066, 4311

By using ENERGY STAR compliant products and taking advantage of the

power-management features of your computer, you reduce the consumption

of electricity. Reduced electrical consumption contributes to potential financial

savings, a cleaner environment, and the reduction of greenhouse gas

emissions.

For more information about ENERGY STAR, visit

http://www.energystar.gov.

Lenovo encourages you to make efficient use of energy an integral part of your

day-to-day operations. To help in this endeavor, Lenovo has preset the

following power-management features to take effect when your computer has

been inactive for a specified duration:

Appendix C. Product specific Notices

To awaken your computer from a Sleep mode, press any key on your

keyboard. For more information about these settings, refer to your Windows

Help and Support information system.

Table 1. ENERGY STAR power-management features

Windows® 7

Power plan: Energy Star

•Turn off the display:

After 10 minutes

• Put the computer to sleep:

After 25 minutes

• Advanced power settings:

- Turn off hard disks:

After 20 minutes

- Hibernate: After 1 hour

Appendix C. Product specific Notices

Electronic emissions notices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The following information refers to Lenovo IdeaPad Z460 / Z465 / Z560 /

Z565, machine type 20059, 0913 / 20065, 4309 / 20060, 0914 / 20066, 4311.

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee the interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more

of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult an authorized dealer or service representative for help.

Properly shielded and grounded cables and connectors must be used in order

to meet FCC emission limits. Proper cables and connectors are available from

Lenovo authorized dealers. Lenovo is not responsible for any radio or

television interference caused by using other than recommended cables or

connectors or by unauthorized changes or modifications to this equipment.

Unauthorized changes or modifications could void the user’s authority to

operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Appendix C. Product specific Notices

Responsible party:

Lenovo (United States) Incorporated

1009 Think Place - Building One

Morrisville, NC 27560

U.S.A.

Telephone: (919) 294-5900

Industry Canada Class B Emission Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Avis de conformité à la réglementation d’Industrie Canada

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du

Canada.

German Class B Compliance Statement

Deutschsprachiger EU Hinweis:

Hinweis für Geräte der Klasse B EU-Richtlinie zur Elektromagnetischen

Verträglichkeit

Dieses Produkt entspricht den Schutzanforderungen der EU-Richtlinie 2004/

108/EG (früher 89/336/EWG) zur Angleichung der Rechtsvorschriften über

die elektromagnetische Verträglichkeit in den EU-Mitgliedsstaaten und hält

die Grenzwerte der EN 55022 Klasse B ein.

Um dieses sicherzustellen, sind die Geräte wie in den Handbüchern

beschrieben zu installieren und zu betreiben. Des Weiteren dürfen auch nur

von der Lenovo empfohlene Kabel angeschlossen werden. Lenovo übernimmt

keine Verantwortung für die Einhaltung der Schutzanforderungen, wenn das

Produkt ohne Zustimmung der Lenovo verändert bzw. wenn

Erweiterungskomponenten von Fremdherstellern ohne Empfehlung der

Lenovo gesteckt/eingebaut werden.

Appendix C. Product specific Notices

Deutschland:

Einhaltung des Gesetzes über die elektromagnetische Verträglichkeit von

Betriebsmittein

Dieses Produkt entspricht dem “Gesetz über die elektromagnetische

Verträglichkeit von Betriebsmitteln” EMVG (früher “Gesetz über die

elektromagnetische Verträglichkeit von Geräten”). Dies ist die Umsetzung der

EU-Richtlinie 2004/108/EG (früher 89/336/EWG) in der Bundesrepublik

Deutschland.

Zulassungsbescheinigung laut dem Deutschen Gesetz über die

elektromagnetische Verträglichkeit von Betriebsmitteln, EMVG vom 20. Juli

2007 (früher Gesetz über die elektromagnetische Verträglichkeit von

Geräten), bzw. der EMV EG Richtlinie 2004/108/EC (früher 89/336/EWG), für

Geräte der Klasse B.

Dieses Gerät ist berechtigt, in Übereinstimmung mit dem Deutschen EMVG

das EG-Konformitätszeichen - CE - zu führen. Verantwortlich für die

Konformitätserklärung nach Paragraf 5 des EMVG ist die Lenovo

(Deutschland) GmbH, Gropiusplatz 10, D-70563 Stuttgart.

Informationen in Hinsicht EMVG Paragraf 4 Abs. (1) 4:

Das Gerät erfüllt die Schutzanforderungen nach EN 55024 und EN 55022

Klasse B.

Appendix C. Product specific Notices

European Union Compliance Statement Class B Compliance

European Union - Compliance to the Electromagnetic Compatibility Directive

This product is in conformity with the protection requirements of EU Council

Directive 2004/108/EC on the approximation of the laws of the Member States

relating to electromagnetic compatibility. Lenovo cannot accept responsibility

for any failure to satisfy the protection requirements resulting from a non-

recommended modification of the product, including the installation of option

cards from other manufacturers.

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN

55022. The limits for Class B equipment were derived for typical residential

environments to provide reasonable protection against interference with

licensed communication devices.

Properly shielded and grounded cables and connectors must be used in order

to reduce the potential for causing interference to radio and TV

communications and to other electrical or electronic equipment. Such cables

and connectors are available from Lenovo authorized dealers. Lenovo cannot

accept responsibility for any interference caused by using other than

recommended cables and connectors.

Appendix D. Specifications

Model Name: IdeaPad Z460 / Z465 / Z560 / Z565

Machine Type: 20059, 0913 / 20065, 4309 / 20060, 0914 / 20066,

4311

Note:

The following specifications may contain technical inaccuracies or typographical errors.

Lenovo reserves the right to improve and/or change specifications at any time without notice.

Z460/Z465 Z560/Z565

Form Factor

Size Appr. 340 mm × 231.8 mm ×

17.2~34.4 mm

Appr. 376.8 mm × 249.8 mm ×

17.3~34.9 mm

Weight Appr. 2.2 kg with 6 cell

battery

Appr. 2.6 kg with 6 cell

battery

System

Platform Intel Calpella / AMD Danube

Memory DDR3, 2 × SODIMM slot

LCD 14-inch LED HD 15.6-inch LED HD

HDD 2.5-inch, 9.5mm SATA

Keyboard 6-row Lenovo Keyboard

Integrated Camera 0.3/1.3 mega pixel camera

Battery 48Wh, 6 cells Li-ion battery

AC Adapter 20 V, 65 W/20 V, 90 W

I/O Ports

HDMI HDMI × 1

USB USB 2.0 port × 2, eSATA/USB port × 1

USB 2.0 port × 3

Communication 10/100 Mb

10/100/1000 Mb

Audio Headphone/Mic-in jack

Video VGA × 1

ExpressCard Slot

(Select models only) 34mm width × 1

Media Slot 5 in 1 slot × 1 (MMC/ SD/ MS/ MS PRO/xD)

Appendix D. Specifications

Others

Kensington slot Yes

Index

AC adapter

Using......................................... 13

Battery

Charging.................................... 13

Bluetooth

Connecting ................................ 21

Camera...................................... 2, 18

ExpressCard/34 slot ............... 4, 20

Function key combinations........ 17

Keyboard

Using......................................... 16

Lenovo Limited Warranty ......... 49

Meomory card reader ................. 19

Microphone

Built-in ........................................ 3

Notice

Electronic emissions ....................60

OneKey Rescue system

button ............................................36

Password

Using.........................................28

Security..........................................27

SIM card........................................34

Touchpad ......................................15

USB port....................................4, 20

VeriFace

Using.........................................27

Warranty information.................55

If your product is not working correctly,

DO NOT RETURN IT TO THE STORE.

For technical assistance, contact a Lenovo

support specialist 24 hours a day by calling toll

free 1-877-4 LENOVO (1-877-453-6686).

Additionally, you can find support information

and updates on the Lenovo Web site located at

http://consumersupport.lenovo.com.

* Only for the users from the United States.

First Edition (February 2010)

Before using the product, be sure to read Lenovo Safety and General

Information Guide first.

The features described in this guide are common to most models.

Some features may not be available on your computer and/or your

computer may include features that are not described in this user

guide.

Some instructions in this guide may assume that you are using

Windows® 7. If you are using other Windows operating system, some

operations may be slightly different. If you are using other operating

systems, some operations may not apply to you.

LENOVO products, data, computer software, and services have been developed exclusively at private

expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with

limited and restricted rights to use, reproduction and disclosure. LIMITED AND RESTRICTED

RIGHTS NOTICE: If products, data, computer software, or services are delivered pursuant a General

Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set

forth in Contract No. GS-35F-05925.

Notes

•

The illustrations in this manual may differ from the actual product.

Please refer to the actual product.

The illustrations used in this manual are for Lenovo IdeaPad Z560

unless otherwise stated.

•

P/N: 147003341

Printed in China

IdeaPad Z460/

Z465/

Z560/

Z565

Read the safety notices and important tips in the

included manuals before using your computer.

New World. New Thinking.TM

www.lenovo.com

User Guide V1.0

Lenovo Ideapad Z460 Users Manual

Z460 to the manual e34d4859-97f0-493d-8512-0a0fd05837ae

Navigation menu

Versions of this User Manual:

Views

Navigation
