Contents
About this manual
Introduction
General descriptions
ThinkPad R60, R60e, R61, and R61i

ThinkPad® R60, R60e, R61, and R61i

Hardware Maintenance Manual

November 2007

This manual supports:

ThinkPad R60

(MT 9455, 9456, 9457, 9458, 9459, 9444, 9445, 9460, 9461, 9462,

9463, 9464, 9446, and 9447)

ThinkPad R60e

(MT 0656, 0657, 0658, and 0659)

ThinkPad R61

(MT 8942, 8943, 8944, 8945, 8947, 8948, and 8949)

ThinkPad R61i

(MT 0656, 0657, 0658, 0659, 9455, 9456, 9457, 9458, 9459, 9444,

9445, 9460, 9461, 9462, 9463, 9464, 9446, 9447, 8942, 8943, 8944,

8945, 8947, 8948, and 8949)

ThinkPad® R60, R60e, R61, and R61i

Hardware Maintenance Manual

Note

Before using this information and the product it supports, be sure to read the general information under “Notices” on page

260.

Third Edition (November 2007)

LENOVO products, data, computer software, and services have been developed exclusively at private expense and

are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted

rights to use, reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered

pursuant a General Services Administration ″GSA″ contract, use, reproduction, or disclosure is subject to restrictions

set forth in Contract No. GS-35F-05925.

Contents

About this manual . . . . . . . . . .1

Introduction . . . . . . . . . . . . .3

Important service information . . . . . . . .3

Strategy for replacing FRUs . . . . . . . . .3

Strategy for replacing a hard disk drive . . . .4

Important notice for replacing a system board . .4

How to use error messages . . . . . . . .4

Strategy for replacing FRUs for CTO, CMV, and GAV 4

Product definition . . . . . . . . . . .4

FRU identification for CTO, CMV, and GAV

products . . . . . . . . . . . . . . .5

Important information about replacing RoHS

compliant FRUs . . . . . . . . . . . . .6

Diskette compatibility matrix . . . . . . . . .7

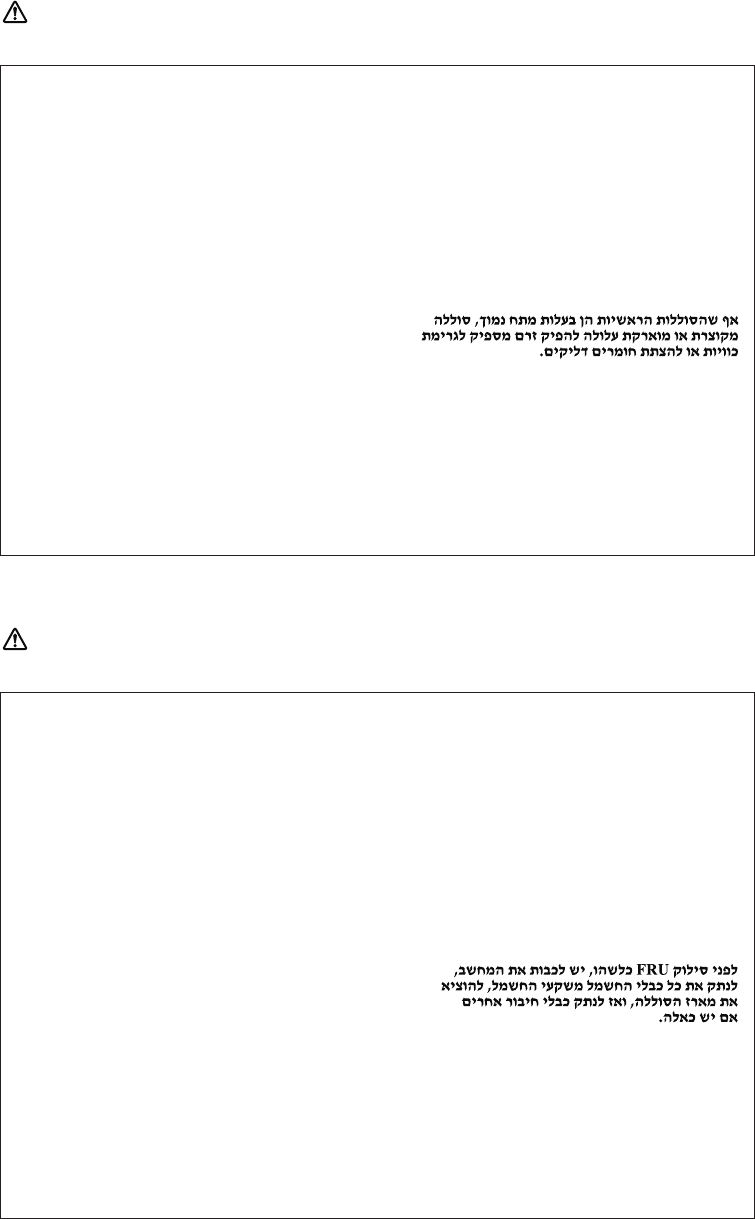

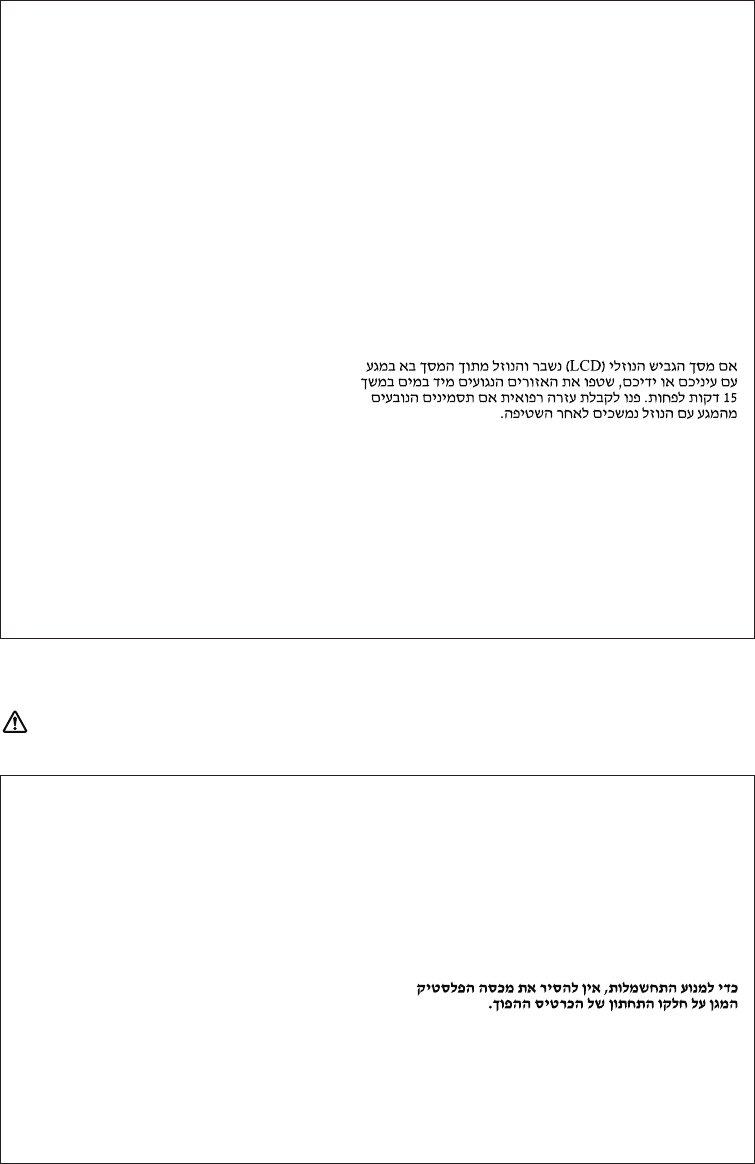

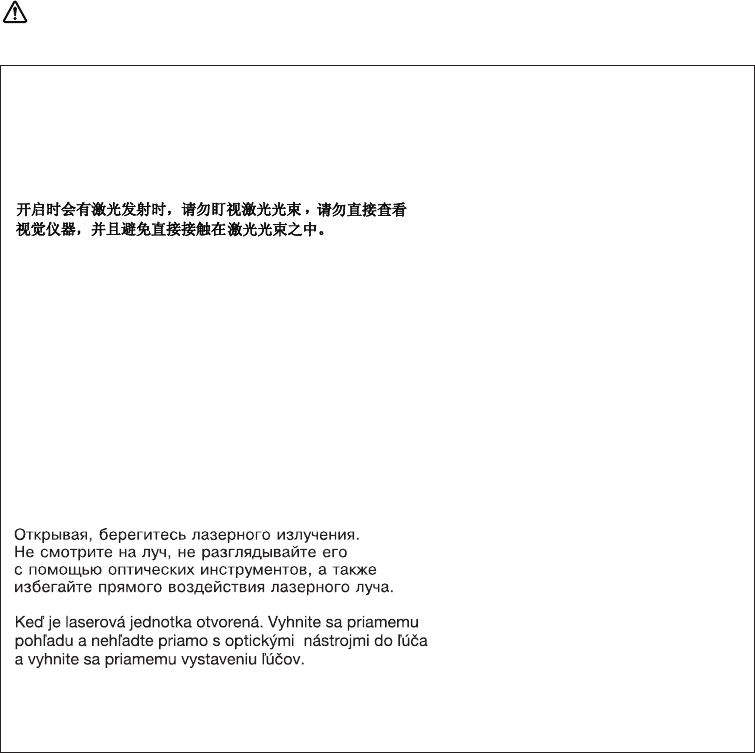

Safety notices: multilingual translations . . . . .7

Safety information . . . . . . . . . . . .13

General safety . . . . . . . . . . . .13

Electrical safety . . . . . . . . . . . .13

Safety inspection guide . . . . . . . . .15

Handling devices that are sensitive to

electrostatic discharge . . . . . . . . . .16

Grounding requirements . . . . . . . . .16

Laser compliance statement . . . . . . . . .17

General descriptions . . . . . . . . .19

Read this first . . . . . . . . . . . . .19

What to do first . . . . . . . . . . . .19

Related service information . . . . . . . . .21

Service Web site . . . . . . . . . . . .21

Restoring the factory contents by using Product

Recovery discs . . . . . . . . . . . .21

Passwords . . . . . . . . . . . . . .23

Power management . . . . . . . . . .25

Checkout guide . . . . . . . . . . . . .27

Testing the computer . . . . . . . . . .27

Detecting system information with PC-Doctor . .30

Power system checkout . . . . . . . . .30

ThinkPad R60, R60e, R61, and R61i . .33

Product overview . . . . . . . . . . . .34

Specifications . . . . . . . . . . . . .34

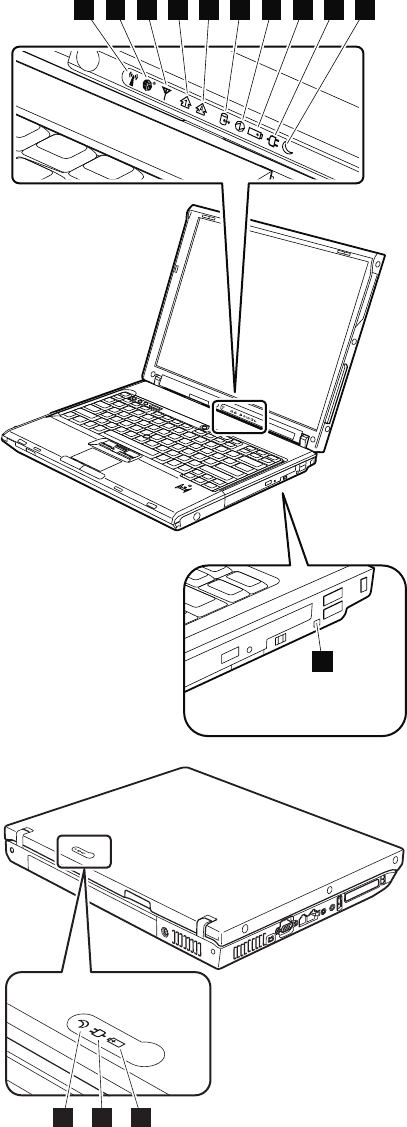

Status indicators . . . . . . . . . . . .38

FRU tests . . . . . . . . . . . . . .41

Fn key combinations . . . . . . . . . .43

Symptom-to-FRU index . . . . . . . . . .46

Numeric error codes . . . . . . . . . .46

Error messages . . . . . . . . . . . .50

Beep symptoms . . . . . . . . . . . .51

No-beep symptoms . . . . . . . . . . .51

LCD-related symptoms . . . . . . . . .52

Intermittent problems . . . . . . . . . .53

Undetermined problems . . . . . . . . .53

FRU replacement notices . . . . . . . . . .54

Screw notices . . . . . . . . . . . . .54

Retaining serial numbers . . . . . . . . .54

Removing and replacing a FRU . . . . . . . .57

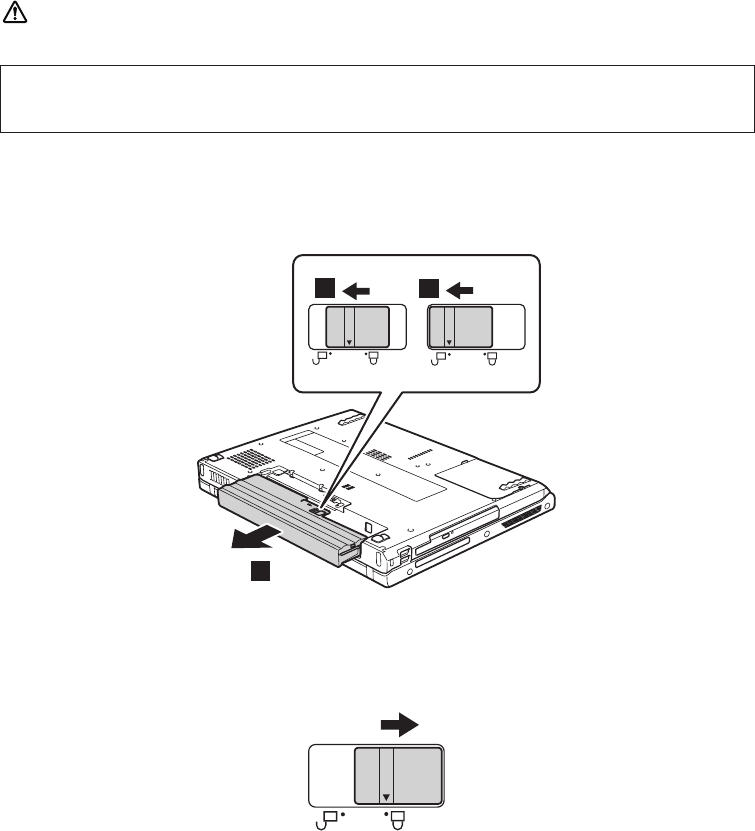

1010 Battery pack . . . . . . . . . . .58

1020 Ultrabay Enhanced device for R60, R61, and

R61i . . . . . . . . . . . . . . . .59

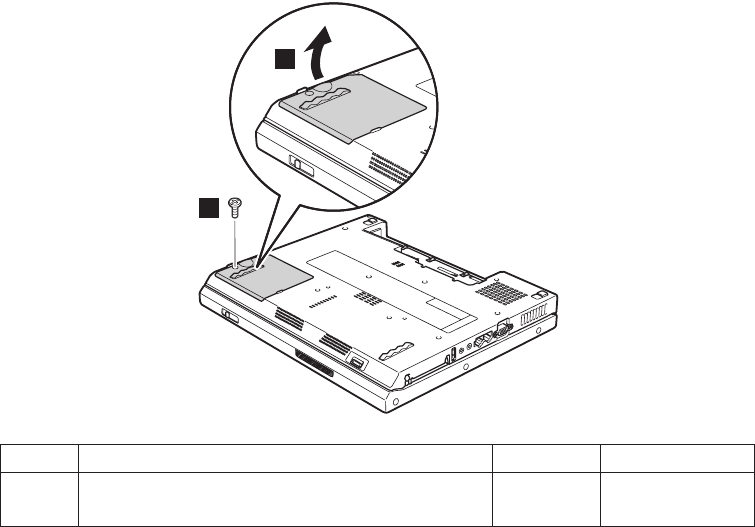

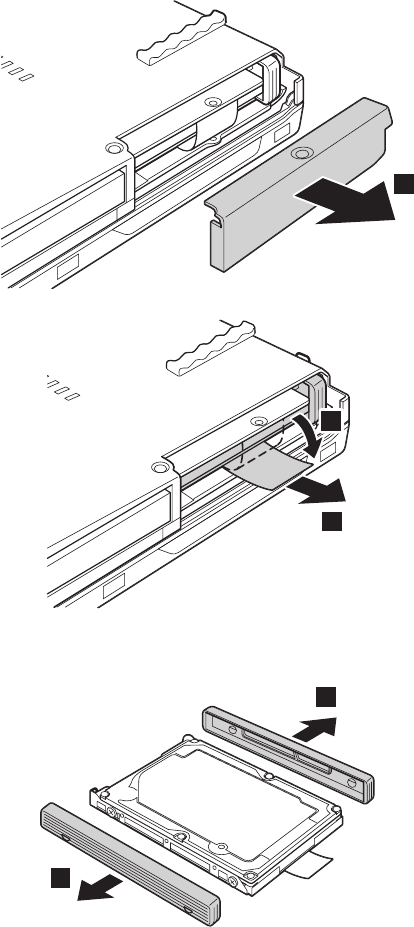

1030 Hard disk drive cover, hard disk drive, and

hard disk drive rubber rails . . . . . . . .60

1040 Palm rest or palm rest with fingerprint

reader . . . . . . . . . . . . . . .64

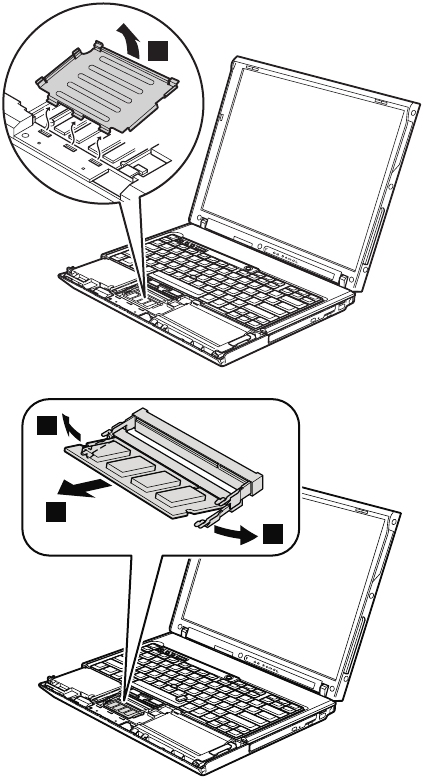

1050 DIMM and DIMM cover . . . . . . .67

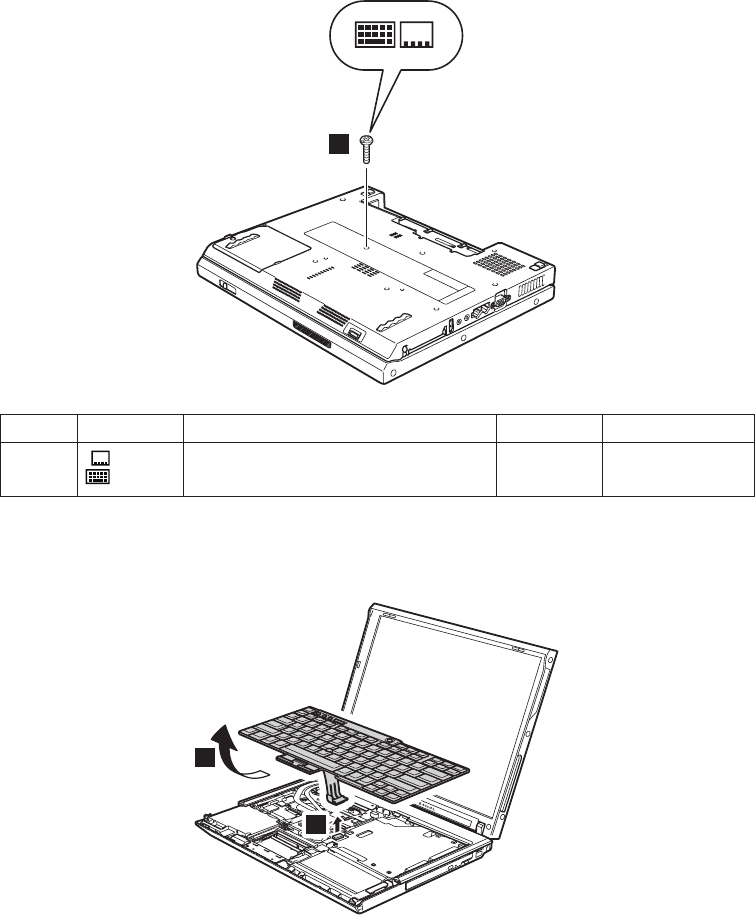

1060 Keyboard . . . . . . . . . . . .68

1070 Optical drive for R60e and R61i . . . . .70

1080 Heat sink plate and Modem daughter card

(MDC-1.5) . . . . . . . . . . . . . .71

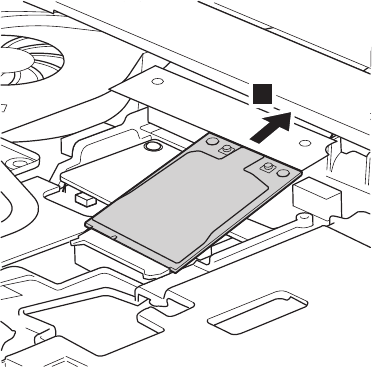

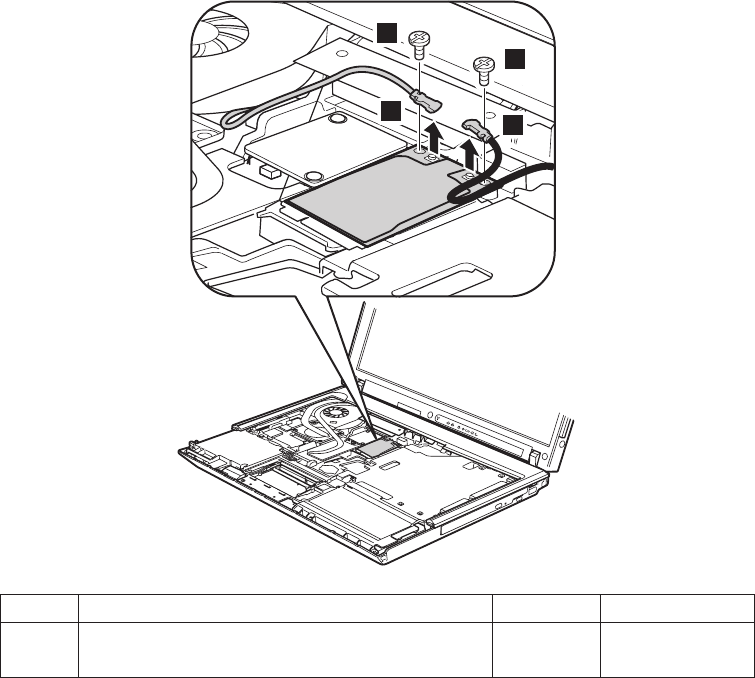

1090 PCI Express Mini Card for 802.11 a/b/g

wireless LAN . . . . . . . . . . . . .74

1100 PCI Express Mini Card for 802.11 a/b/g/n

wireless LAN . . . . . . . . . . . . .76

1110 PCI Express Mini Card for wireless WAN

for R60 and R61i . . . . . . . . . . .78

1120 Backup battery . . . . . . . . . .79

1130 Keyboard bezel and wireless WAN antenna

cable (AUX) . . . . . . . . . . . . .80

1140 SIM card slot . . . . . . . . . . .82

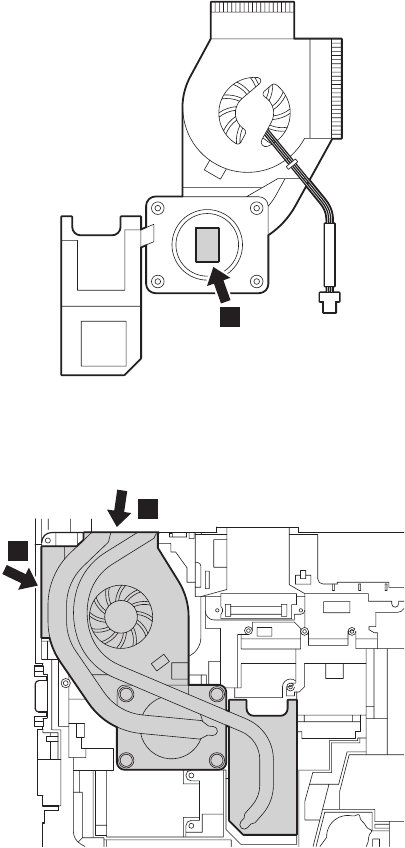

1150 Fan assembly . . . . . . . . . . .83

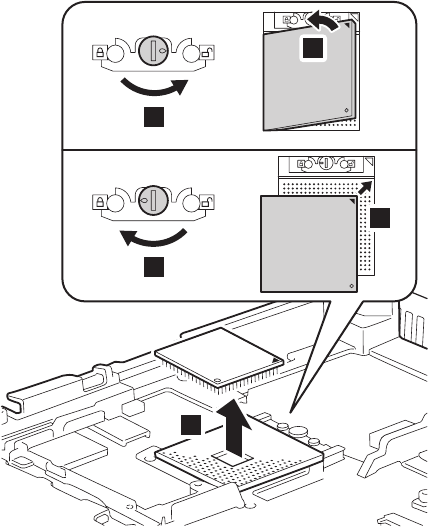

1160 CPU . . . . . . . . . . . . . .86

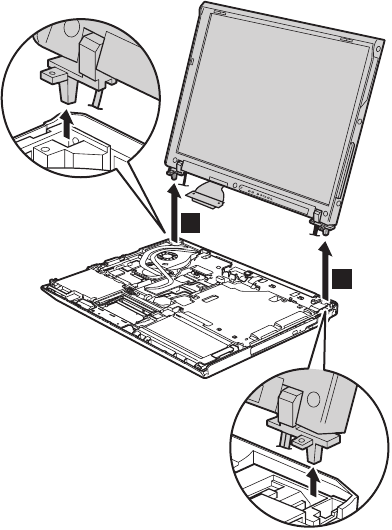

1170 LCD assembly . . . . . . . . . . .88

1180 Base cover . . . . . . . . . . . .91

1190 Speaker assembly . . . . . . . . .94

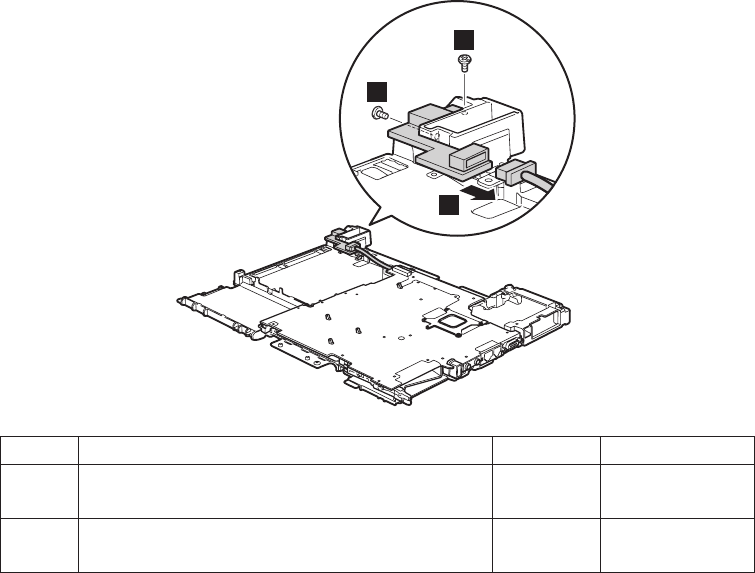

1200 Video connector sub card and FFC cable for

15.0-in. LCD models in R60, R61, and R61i . . .96

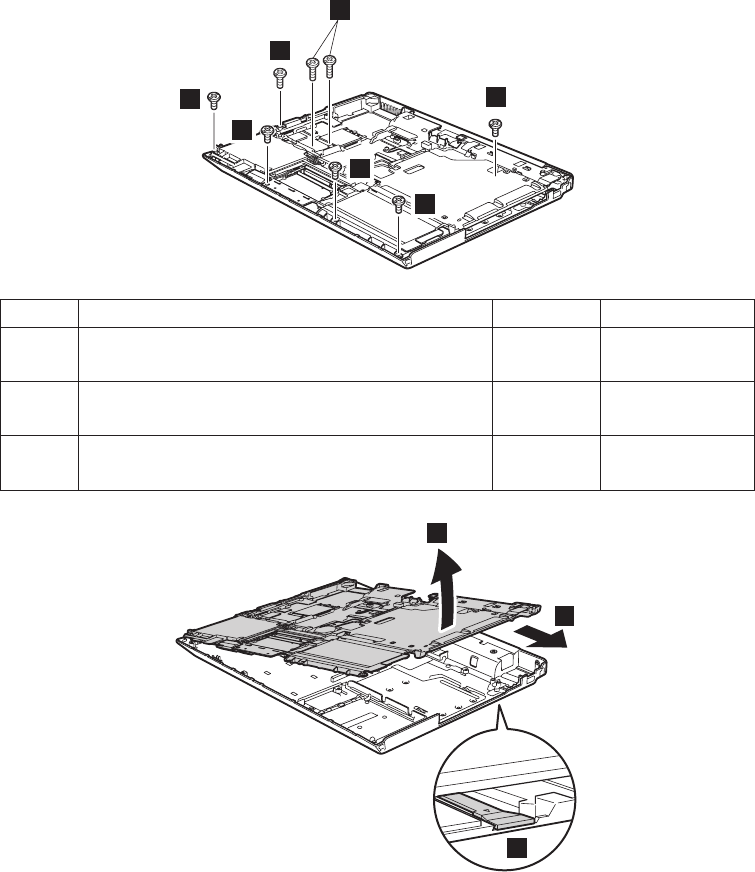

1210 Structure frame and IEEE1394 cable . . .98

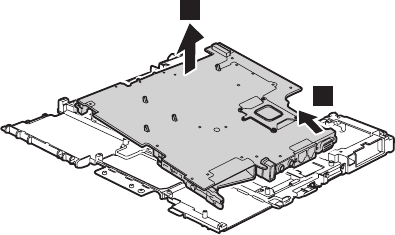

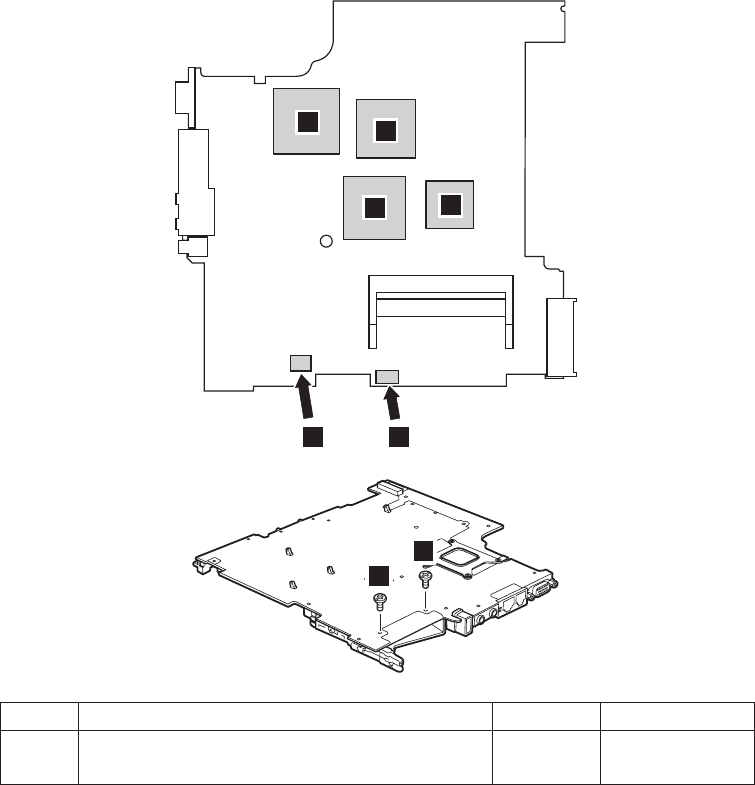

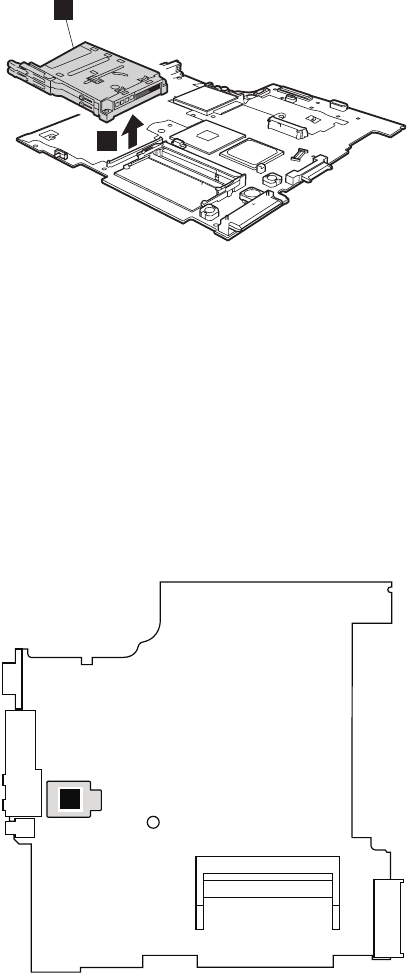

1220 System board and PC Card/ExpressCard

slots assembly . . . . . . . . . . . . 103

2010 LCD front bezel . . . . . . . . . . 106

2020 Inverter card . . . . . . . . . . . 107

2030 Bluetooth daughter card (BDC-2) . . . . 108

2040 Wireless WAN antenna cable (MAIN) . . 109

2050 LCD panel, LCD cable, and hinges . . .110

2060 LCD rear cover and wireless LAN antenna

cables . . . . . . . . . . . . . . .113

Locations . . . . . . . . . . . . . . .114

Front view . . . . . . . . . . . . .114

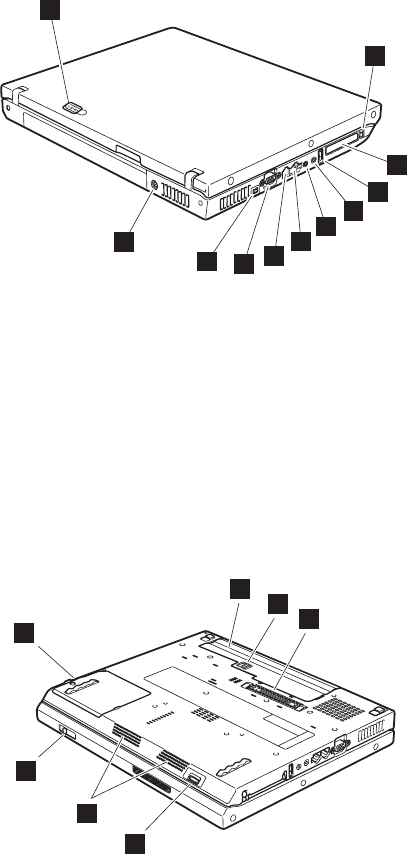

Rear view . . . . . . . . . . . . .115

Bottom view . . . . . . . . . . . . .115

Parts list . . . . . . . . . . . . . . .116

Overall . . . . . . . . . . . . . .117

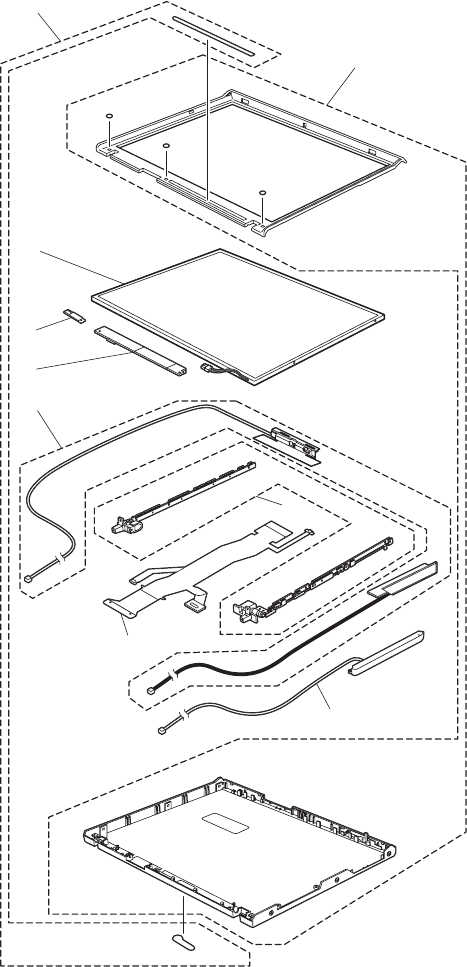

LCD FRUs . . . . . . . . . . . . . 197

Keyboard . . . . . . . . . . . . . . 229

Recovery discs . . . . . . . . . . . . 233

Miscellaneous parts . . . . . . . . . . 255

AC adapters . . . . . . . . . . . . . 257

Common parts list . . . . . . . . . . . 258

Notices . . . . . . . . . . . . . . . 260

Trademarks . . . . . . . . . . . . . . 261

iv MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

About this manual

This manual contains service and reference information for ThinkPad® R60, R60e,

R61, and R61i (MT 0656, 0657, 0658, 0659, 9455, 9456, 9457, 9458, 9459, 9444, 9445,

9460, 9461, 9462, 9463, 9464, 9446, 9447, 8942, 8943, 8944, 8945, 8947, 8948, and

8949) products. Use this manual along with the advanced diagnostic tests to

troubleshoot problems.

The manual is divided into sections as follows:

v The common sections provide general information, guidelines, and safety

information required in servicing computers.

v The product-specific section includes service, reference, and product-specific

parts information.

Important

This manual is intended for trained service personnel who are familiar with

ThinkPad products. Use this manual along with the advanced diagnostic tests

to troubleshoot problems effectively.

Before servicing a ThinkPad product, be sure to review the safety information

under “Safety notices: multilingual translations” on page 7, “Safety

information” on page 13, and “Laser compliance statement” on page 17.

2 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Introduction

Important service information

Important

BIOS and device driver fixes are customer-installable. The BIOS and device

drivers are posted on the customer support site http://www.lenovo.com/

support

Advise customers to contact the Customer Support Center at 800-426-7378 if

they need assistance in obtaining or installing any software fixes, drivers, and

BIOS downloads.

Customers in Canada should call the Customer Support Center at

800-565-3344 for assistance or download information.

Strategy for replacing FRUs

Before replacing parts

Make sure that all software fixes, drivers, and BIOS downloads are installed

before replacing any FRUs listed in this manual.

After a system board is replaced, ensure that the latest BIOS is loaded to the

system board before completing the service action.

To download software fixes, drivers, and BIOS, do as follows:

1. Go to http://www.lenovo.com/support

2. Enter the product number of the computer or press Auto-detect button on

the screen.

3. Select Downloads and drivers.

4. Follow the directions on the screen and install the necessary software.

Use the following strategy to prevent unnecessary expense for replacing and

servicing FRUs:

v If you are instructed to replace a FRU but the replacement does not correct the

problem, reinstall the original FRU before you continue.

v Some computers have both a processor board and a system board. If you are

instructed to replace either the processor board or the system board, and

replacing one of them does not correct the problem, reinstall that board, and

then replace the other one.

v If an adapter or a device consists of more than one FRU, any of the FRUs may

be the cause of the error. Before replacing the adapter or device, remove the

FRUs, one by one, to see if the symptoms change. Replace only the FRU that

changed the symptoms.

Attention: The setup configuration on the computer you are servicing may have

been customized. Running Automatic Configuration may alter the settings. Note

the current configuration settings (using the View Configuration option); then,

when service has been completed, verify that those settings remain in effect.

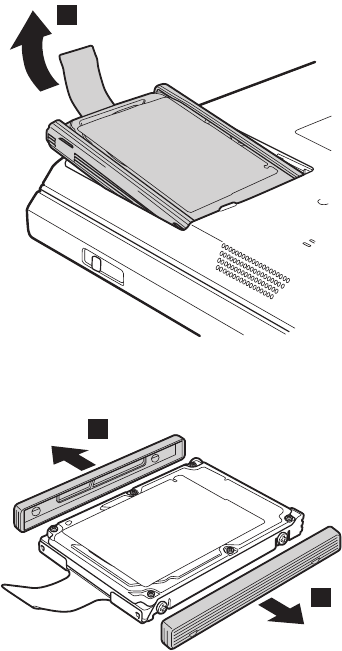

Strategy for replacing a hard disk drive

Always try to run a low-level format before replacing a hard disk drive. This will

cause all customer data on the hard disk to be lost. Be sure that the customer has a

current backup of the data before doing this task.

Attention: The drive startup sequence in the computer you are servicing may

have been changed. Be extremely careful during write operations such as copying,

saving, or formatting. If you select an incorrect drive, data or programs can be

overwritten.

Important notice for replacing a system board

Some components mounted on a system board are very sensitive. Improper

handling of a system board can cause damage to those components, and may

cause a system malfunction.

Attention: When handling a system board:

v Do not drop a system board or apply any excessive force to it.

v Avoid rough handling of any kind.

v Avoid bending a system board and hard pushing to prevent cracking at each

BGA (Ball Grid Array) chipset.

How to use error messages

Use the error codes displayed on the screen to diagnose failures. If more than one

error code is displayed, begin the diagnosis with the first error code. Whatever

causes the first error code may also cause false error codes. If no error code is

displayed, see whether the error symptom is listed in the Symptom-to-FRU Index

for the computer you are servicing.

Strategy for replacing FRUs for CTO, CMV, and GAV

Product definition

Dynamic Configure To Order (CTO)

This provides the ability for a customer to configure an IBM® or a LenovoTM

solution from an eSite, and have this configuration sent to fulfillment, where it is

built and shipped directly to the customer. The machine label, Product Entitlement

Warehouse (PEW), eSupport, and the HMM will load these products as the 4-digit

MT and 3-digit model, where model = “CTO” (Example: 1829-CTO).

Custom Model Variant (CMV)

This is a unique configuration that has been negotiated between IBM or Lenovo

and the customer. A unique 4-digit MT and 3-digit model is provided to the

customer to place orders (Example: 1829-W15). A CMV is a special bid offering.

Therefore, it is NOT generally announced.

v The MTM portion of the machine label is the 4-digit MT and 3-digit model,

where model = “CTO” (Example: 1829-CTO). The PRODUCT ID portion of the

machine label is the 4-digit MT and 3-digit CMV model (Example: 1829-W15).

Important service information

4 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

v The PEW record is the 4-digit MT and 3-digit model, where model = “CTO”

(Example: 1829-CTO).

v eSupport will show both the CTO and CMV machine type models (Example:

1829-CTO and 1829-W15 will be found on the eSupport site.)

v The HMM will have the 4-digit MT and 3-digit CTO model only (Example:

1829-CTO). Again, CMVs are custom models and are not found in the HMM.

General Announce Variant (GAV)

This is a standard model (fixed configuration). GAVs are announced and offered to

all customers. The MTM portion of the machine label is a 4-digit MT and 3-digit

model, where model = a “fixed part number”, not “CTO” (Example: 1829-F1U).

Also, PEW, eSupport, and the HMM will list these products under the same fixed

model number.

FRU identification for CTO, CMV, and GAV products

There are three information resources to identify which FRUs are used to support

CTO, CMV, and GAV products. These sources are PEW, eSupport, and the HMM.

Using PEW

v PEW is the primary source for identifying FRU part numbers and FRU

descriptions for the key commodities for CTO, CMV and GAV products at a MT

- serial number level. An example of key commodities are hard disk drives,

system boards, microprocessors, Liquid Crystal Displays (LCDs), and memory.

v Remember, all CTO and CMV products are loaded in PEW under the 4-digit MT

and 3-digit model, where model = “CTO” (Example: 1829-CTO). GAVs are

loaded in PEW under the 4-digit MT and 3-digit model, where model = a “fixed

part number”, not “CTO” (Example: 1829-F1U).

v PEW can be accessed at the following Web site:

http://w3-3.ibm.com/pc/entitle

Customers can also access PEW via

http://www-307.ibm.com/pc/support/site.wss/product.do?template=/warranty/

warranty.vm&sitestyle=lenovo

Select Warranty lookup. Input the MT and the Serial number and the list of key

commodities will be returned in the PEW record under COMPONENT

INFORMATION.

v Business Partners using Eclaim will access PEW when performing Entitlement

Lookup. Business Partners will enter Loc ID, MT and Serial, and the key

commodities will be returned in the Eclaim record under SYSTEM DETAILS.

v Authorized IBM Business Partners can access Eclaim at the following Web site:

https://wca.eclaim.com

Using eSupport

For Key Commodities (Examples - hard disk drive, system board,

microprocessor, LCD, and memory)

v eSupport can be used to view the list of key commodities built in a particular

machine serial (this is the same record found in PEW).

v eSupport can be accessed at the following Web site: http://www.lenovo.com/

support

v To view the key commodities, click on PARTS INFORMATION, then PARTS

LOOKUP. Type in the model type and serial number. The key commodities will

be returned in the eSupport record under PARTS SHIPPED WITH YOUR

SYSTEM.

Important service information

Introduction 5

For the Remaining FRUs (the complete list of FRUs at the MT Model level)

v eSupport can be used to view the complete list of FRUs for a machine type and

model.

v To view the complete list of FRUs, type in the machine type and model

(Example: 1829-CTO) under QUICK PATH. Under “View by Document Type”

select PARTS INFORMATION. Under “Filter by Category” select SERVICE

PARTS. Under “Parts Information by Date” select SYSTEM SERVICE PARTS. The

list of service parts by description, with applicable machine type model and FRU

will be displayed.

Using the HMM

Use the HMM as a back-up to PEW and eSupport to view the complete list of

FRUs at the MT Model level.

Important information about replacing RoHS compliant FRUs

RoHS, The Restriction of Hazardous Substances in Electrical and Electronic

Equipment Directive (2002/95/EC) is a European Union legal requirement

affecting the global electronics industry. RoHS requirements must be

implemented on Lenovo products placed on the market and sold in the

European Union after June 2006. Products on the market before June 2006 are

not required to have RoHS compliant parts. If the original FRU parts are non

compliant, replacement parts can also be non compliant. In all cases if the

original FRU parts are RoHS compliant the replacement part must also be RoHS

compliant.

Note: RoHS and non-RoHS FRU part numbers with the same fit and function are

identified with unique FRU part numbers.

Lenovo plans to transition to RoHS compliance well before the implementation

date and expects its suppliers to be ready to support Lenovo's requirements and

schedule in the EU. Products sold in 2005 and 2006, will contain some RoHS

compliant FRUs. The following statement pertains to these products and any

product Lenovo produces containing RoHS compliant FRUs.

RoHS compliant FRUs have unique FRU part numbers. Before or after the RoHS

implementation date, failed RoHS compliant parts must always be replaced using

RoHS compliant FRUs, so only the FRUs identified as compliant in the system

HMM or direct substitutions for those FRUs may be used.

Products marketed before June 2006 Products marketed after June 2006

Current or original

part

Replacement FRU Current or original

part

Replacement FRU

Non-RoHS Can be Non-RoHS Must be RoHS Must be RoHS

Non-RoHS Can be RoHS

Non-RoHS Can sub to RoHS

RoHS Must be RoHS

Note: A direct substitution is a part with a different FRU part number that is

automatically shipped by the distribution center at the time of the order.

Important service information

6 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Diskette compatibility matrix

The compatibility of each of the drives with the diskettes for it is as follows:

Diskette

drive

Diskette

capacity

Compatibility

3.5-inch 1.0 MB Read and write

2.0 MB Read and write

4.0 MB Not compatible

Safety notices: multilingual translations

In this manual, safety notices appear in English with a page number reference to

the appropriate multilingual, translated safety notice found in this section.

The following safety notices are provided in English, French, German, Hebrew,

Italian, and Spanish.

Safety notice 1

Before the computer is powered on after FRU replacement, make sure all screws, springs,

and other small parts are in place and are not left loose inside the computer. Verify this

by shaking the computer and listening for rattling sounds. Metallic parts or metal flakes

can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement d’une unité en clientèle,

vérifiez que tous les ressorts, vis et autres pièces sont bien en place et bien fixées. Pour

ce faire, secouez l’unité et assurez-vous qu’aucun bruit suspect ne se produit. Des pièces

métalliques ou des copeaux de métal pourraient causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird, muß

sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile fehlen oder im

Gehäuse vergessen wurden. Der Computer muß geschüttelt und auf Klappergeräusche

geprüft werden. Metallteile oder-splitter können Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di una FRU,

accertarsi che tutte le viti, le molle e tutte le altri parti di piccole dimensioni siano nella

corretta posizione e non siano sparse all’interno dell’elaboratore. Verificare ciò scuotendo

l’elaboratore e prestando attenzione ad eventuali rumori; eventuali parti o pezzetti

metallici possono provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que todos los

tornillos, muelles y demás piezas pequeñas se encuentran en su sitio y no se encuentran

sueltas dentro del sistema. Compruébelo agitando el sistema y escuchando los posibles

ruidos que provocarían. Las piezas metálicas pueden causar cortocircuitos eléctricos.

Diskette compatibility matrix

Introduction 7

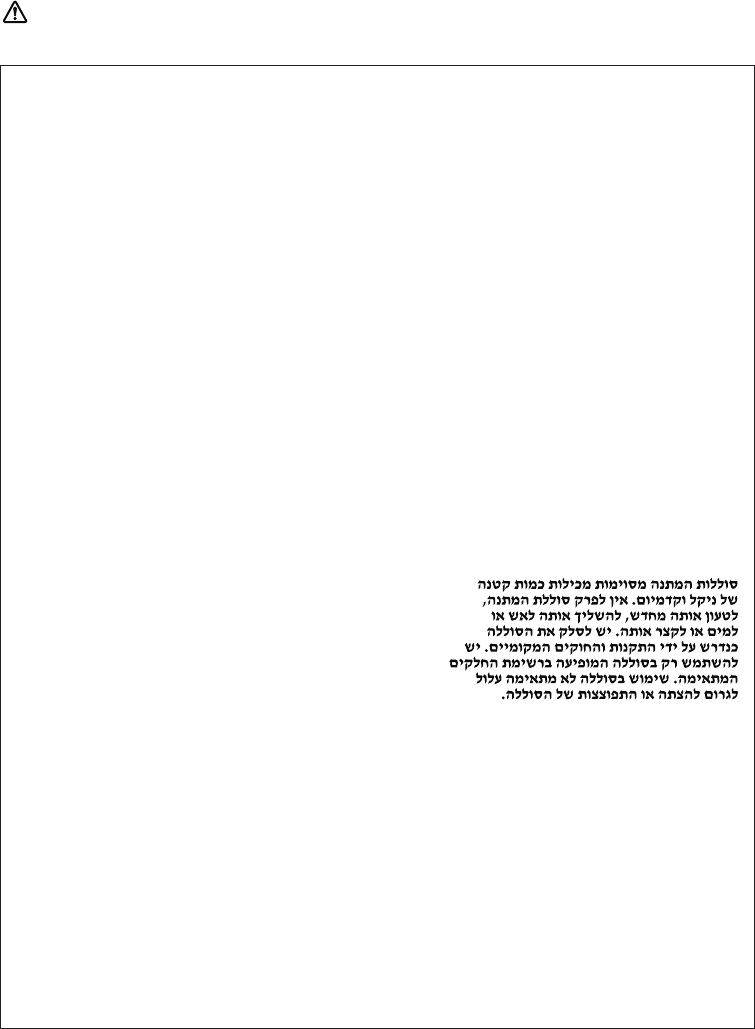

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and cadmium. Do not

disassemble a standby battery, recharge it, throw it into fire or water, or short-circuit it.

Dispose of the battery as required by local ordinances or regulations. Use only the

battery in the appropriate parts listing. Use of an incorrect battery can result in

ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les démontez

pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne les mettez pas en

court-circuit. Pour les mettre au rebut, conformez-vous à la réglementation en vigueur.

Lorsque vous remplacez la pile de sauvegarde ou celle de l’horloge temps réel, veillez

à n’utiliser que les modèles cités dans la liste de pièces détachées adéquate. Une

batterie ou une pile inappropriée risque de prendre feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet, kann

geringe Mengen Nickel und Cadmium enthalten. Sie darf nur durch die Verkaufsstelle

oder den IBM Kundendienst ausgetauscht werden. Sie darf nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Die

Batterie kann schwere Verbrennungen oder Verätzungen verursachen. Bei der

Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der

Bereitschafts-oder Systembatterie nur Batterien des Typs verwenden, der in der

Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder

Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e cadmio. Non

smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né cortocircuitarle. Smaltirle

secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni

locali). Quando si sostituisce la batteria dell’RTC (real time clock) o la batteria di

supporto, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di

una batteria non adatta potrebbe determinare l’incendio o l’esplosione della batteria

stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio. No

las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite.

Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se

encuentren en la lista de piezas. La utilización de una batería no apropiada puede

provocar la ignición o explosión de la misma.

Safety notices

8 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Safety notice 3

DANGER

The battery pack contains small amounts of nickel. Do not disassemble it, throw it

into fire or water, or short-circuit it. Dispose of the battery pack as required by local

ordinances or regulations. Use only the battery in the appropriate parts listing when

replacing the battery pack. Use of an incorrect battery can result in ignition or

explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni à l’eau.

Ne la mettez pas en court-circuit. Pour la mettre au rebut, conformez-vous à la

réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n’utiliser que

les modèles cités dans la liste de pièces détachées adéquate. En effet, une batterie

inappropriée risque de prendre feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Bei

der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen

der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist.

Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel fuoco o

nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in vigore (DPR 915/82,

successive disposizioni e disposizioni locali). Quando si sostituisce la batteria,

utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di una

batteria non adatta potrebbe determinare l’incendio o l’esplosione della batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni recargue,

ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como dispone la

normativa local. Utilice sólo baterías que se encuentren en la lista de piezas al

sustituir la batería. La utilización de una batería no apropiada puede provocar la

ignición o explosión de la misma.

Safety notices

Introduction 9

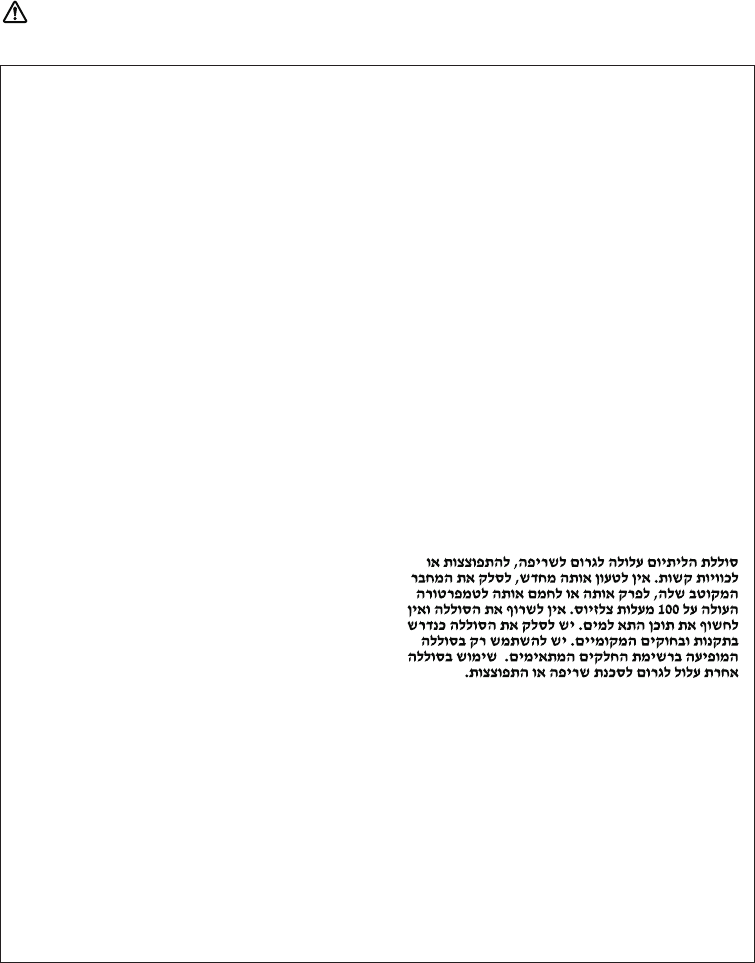

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion, or a severe burn. Do not recharge it,

remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate

it, or expose its cell contents to water. Dispose of the battery as required by local

ordinances or regulations. Use only the battery in the appropriate parts listing. Use of

an incorrect battery can result in ignition or explosion of the battery.

La pile de sauvegarde contient du lithium. Elle présente des risques d’incendie,

d’explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son connecteur

polarisé et ne la démontez pas. Ne l’exposez pas à une temperature supérieure à 100°C,

ne la faites pas brûler et n’en exposez pas le contenu à l’eau. Mettez la pile au rebut

conformément à la réglementation en vigueur. Une pile inappropriée risque de

prendre feu ou d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden, explodieren

oder schwere Verbrennungen hervorrufen. Batterien dieses Typs dürfen nicht

aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden. Auch darf ihr Inhalt

nicht mit Wasser in Verbindung gebracht oder der zur richtigen Polung angebrachte

Verbindungsstecker entfernt werden. Bei der Entsorgung die örtlichen Bestimmungen

für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien des Typs

verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien

kann zu Entzündung oder Explosion führen.

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o procurare

gravi ustioni. Evitare di ricaricarla, smontarne il connettore polarizzato, smontarla,

riscaldarla ad una temperatura superiore ai 100 gradi centigradi, incendiarla o gettarla

in acqua. Smaltirla secondo la normativa in vigore (DPR 915/82, successive

disposizioni e disposizioni locali). L’impiego di una batteria non adatta potrebbe

determinare l’incendio o l’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y puede provocar incendios, explosiones

o quemaduras graves. No la recargue, ni quite el conector polarizado, ni la desmonte,

ni caliente por encima de los 100°C (212°F), ni la incinere ni exponga el contenido de

sus celdas al agua. Deséchela tal como dispone la normativa local.

Safety notices

10 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Safety notice 5

Safety notice 6

DANGER

If the LCD breaks and the fluid from inside the LCD gets into your eyes or on your

hands, immediately wash the affected areas with water for at least 15 minutes. Seek

medical care if any symptoms from the fluid are present after washing.

Si le panneau d’affichage à cristaux liquides se brise et que vous recevez dans les yeux

ou sur les mains une partie du fluide, rincez-les abondamment pendant au moins quinze

minutes. Consultez un médecin si des symptômes persistent après le lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der Entsorgung die

örtlichen Bestimmungen für Sondermüll beachten. Der LCD-Bildschirm besteht aus Glas

und kann zerbrechen, wenn er unsachgemäß behandelt wird oder der Computer auf den

Boden fällt. Wenn der Bildschirm beschädigt ist und die darin befindliche Flüssigkeit in

Kontakt mit Haut und Augen gerät, sollten die betroffenen Stellen mindestens 15

Minuten mit Wasser abgespült und bei Beschwerden anschließend ein Arzt aufgesucht

werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto entrasse in

contatto con gli occhi o le mani, lavare immediatamente le parti interessate con acqua

corrente per almeno 15 minuti; poi consultare un medico se i sintomi dovessero

permanere.

Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o sus manos,

lave inmediatamente las áreas afectadas con agua durante 15 minutos como mínimo.

Obtenga atención medica si se presenta algún síntoma del fluido despues de lavarse.

To avoid shock, do not remove the plastic cover that protects the lower part of the

inverter card.

Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique

protégeant la partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der

Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che avvolge la

parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la

tarjeta invertida.

Safety notices

Introduction 11

Safety notice 7

DANGER

Safety notice 8

DANGER

Though the main batteries have low voltage, a shorted or grounded battery can

produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la mise

à la masse d’une batterie peut produire suffisamment de courant pour brûler des

matériaux combustibles ou causer des brûlures corporelles graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei

Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu

entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in corto

circuito o a massa può fornire corrente sufficiente da bruciare materiali combustibili o

provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada o

con contacto a tierra puede producir la corriente suficiente como para quemar material

combustible o provocar quemaduras en el personal.

Before removing any FRU, power off the computer, unplug all power cords from

electrical outlets, remove the battery pack, and then disconnect any interconnecting

cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension,

débranchez tous les cordons d’alimentation des socles de prise de courant, retirez la

batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose gezogen, der

Akku entfernt und alle Verbindungskabel abgenommen sein, bevor eine FRU entfernt

wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese elettriche

tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare i cavi di

interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de las tomas

de corriente eléctrica, quite la batería y, a continuación, desconecte cualquier cable de

conexión entre dispositivos.

Safety notices

12 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Safety information

The following section presents safety information with which you need to be

familiar before you service a ThinkPad computer.

General safety

Follow these rules to ensure general safety:

v Observe good housekeeping in the area of the machines during and after

maintenance.

v When lifting any heavy object:

1. Make sure that you can stand safely without slipping.

2. Distribute the weight of the object equally between your feet.

3. Use a slow lifting force. Never move suddenly or twist when you attempt to

lift.

4. Lift by standing or by pushing up with your leg muscles; this action removes

the strain from the muscles in your back. Do not attempt to lift any object that

weighs more than 16 kg (35 lb) or that you think is too heavy for you.

Do not perform any action that causes hazards to the customer, or that makes

the equipment unsafe.

v Before you start the machine, make sure that other service representatives and

the customer’s personnel are not in a hazardous position.

v Place removed covers and other parts in a safe place, away from all personnel,

while you are servicing the machine.

v Keep your toolcase away from walk areas so that other people will not trip over

it.

v Do not wear loose clothing that can be trapped in the moving parts of a

machine. Make sure that your sleeves are fastened or rolled up above your

elbows. If your hair is long, fasten it.

v Insert the ends of your necktie or scarf inside clothing or fasten it with a

nonconductive clip, about 8 centimeters (3 inches) from the end.

v Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for your

clothing.

Attention: Metal objects are good electrical conductors.

v Wear safety glasses when you are hammering, drilling, soldering, cutting wire,

attaching springs, using solvents, or working in any other conditions that might

be hazardous to your eyes.

v After service, reinstall all safety shields, guards, labels, and ground wires.

Replace any safety device that is worn or defective.

v Reinstall all covers correctly before returning the machine to the customer.

v Fan louvers on the machine help to prevent overheating of internal components.

Do not obstruct fan louvers or cover them with labels or stickers.

Electrical safety

Observe the following rules when working on electrical equipment.

Safety information

Introduction 13

Important

Use only approved tools and test equipment. Some hand tools have handles

covered with a soft material that does not insulate you when working with

live electrical currents.

Many customers have, near their equipment, rubber floor mats that contain

small conductive fibers to decrease electrostatic discharges. Do not use this

type of mat to protect yourself from electrical shock.

v Find the room emergency power-off (EPO) switch, disconnecting switch, or

electrical outlet. If an electrical accident occurs, you can then operate the switch

or unplug the power cord quickly.

v Do not work alone under hazardous conditions or near equipment that has

hazardous voltages.

v Disconnect all power before:

– Performing a mechanical inspection

– Working near power supplies

– Removing or installing Field Replaceable Units (FRUs)

Before you start to work on the machine, unplug the power cord. If you cannot

unplug it, ask the customer to power-off the wall box that supplies power to the

machine, and to lock the wall box in the off position.

v If you need to work on a machine that has exposed electrical circuits, observe the

following precautions:

– Ensure that another person, familiar with the power-off controls, is near you.

Attention: Another person must be there to switch off the power, if

necessary.

– Use only one hand when working with powered-on electrical equipment;

keep the other hand in your pocket or behind your back.

Attention: An electrical shock can occur only when there is a complete

circuit. By observing the above rule, you may prevent a current from passing

through your body.

– When using testers, set the controls correctly and use the approved probe

leads and accessories for that tester.

– Stand on suitable rubber mats (obtained locally, if necessary) to insulate you

from grounds such as metal floor strips and machine frames.

Observe the special safety precautions when you work with very high voltages;

Instructions for these precautions are in the safety sections of maintenance

information. Use extreme care when measuring high voltages.

v Regularly inspect and maintain your electrical hand tools for safe operational

condition.

v Do not use worn or broken tools and testers.

v Never assume that power has been disconnected from a circuit. First, check that it

has been powered off.

v Always look carefully for possible hazards in your work area. Examples of these

hazards are moist floors, nongrounded power extension cables, power surges,

and missing safety grounds.

v Do not touch live electrical circuits with the reflective surface of a plastic dental

mirror. The surface is conductive; such touching can cause personal injury and

machine damage.

Safety information

14 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

v Do not service the following parts with the power on when they are removed

from their normal operating places in a machine:

– Power supply units

– Pumps

– Blowers and fans

– Motor generators

and similar units. (This practice ensures correct grounding of the units.)

v If an electrical accident occurs:

– Use caution; do not become a victim yourself.

– Switch off power.

– Send another person to get medical aid.

Safety inspection guide

The purpose of this inspection guide is to assist you in identifying potentially

unsafe conditions. As each machine was designed and built, required safety items

were installed to protect users and service personnel from injury. This guide

addresses only those items. You should use good judgment to identify potential

safety hazards due to attachment of non-ThinkPad features or options not covered

by this inspection guide.

If any unsafe conditions are present, you must determine how serious the apparent

hazard could be and whether you can continue without first correcting the

problem.

Consider these conditions and the safety hazards they present:

v Electrical hazards, especially primary power (primary voltage on the frame can

cause serious or fatal electrical shock)

v Explosive hazards, such as a damaged CRT face or a bulging capacitor

v Mechanical hazards, such as loose or missing hardware

To determine whether there are any potentially unsafe conditions, use the

following checklist at the beginning of every service task. Begin the checks with

the power off, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).

2. Power off the computer. Disconnect the power cord.

3. Check the power cord for:

a. A third-wire ground connector in good condition. Use a meter to measure

third-wire ground continuity for 0.1 ohm or less between the external

ground pin and the frame ground.

b. The power cord should be the type specified in the parts list.

c. Insulation must not be frayed or worn.

4. Check for cracked or bulging batteries.

5. Remove the cover.

6. Check for any obvious non-ThinkPad alterations. Use good judgment as to the

safety of any non-ThinkPad alterations.

7. Check inside the unit for any obvious unsafe conditions, such as metal filings,

contamination, water or other liquids, or signs of fire or smoke damage.

8. Check for worn, frayed, or pinched cables.

Safety information

Introduction 15

9. Check that the power-supply cover fasteners (screws or rivets) have not been

removed or tampered with.

Handling devices that are sensitive to electrostatic discharge

Any computer part containing transistors or integrated circuits (ICs) should be

considered sensitive to electrostatic discharge (ESD.) ESD damage can occur when

there is a difference in charge between objects. Protect against ESD damage by

equalizing the charge so that the machine, the part, the work mat, and the person

handling the part are all at the same charge.

Notes

1. Use product-specific ESD procedures when they exceed the requirements

noted here.

2. Make sure that the ESD protective devices you use have been certified

(ISO 9000) as fully effective.

When handling ESD-sensitive parts:

v Keep the parts in protective packages until they are inserted into the product.

v Avoid contact with other people while handling the part.

v Wear a grounded wrist strap against your skin to eliminate static on your body.

v Prevent the part from touching your clothing. Most clothing is insulative and

retains a charge even when you are wearing a wrist strap.

v Use the black side of a grounded work mat to provide a static-free work surface.

The mat is especially useful when handling ESD-sensitive devices.

v Select a grounding system, such as those listed below, to provide protection that

meets the specific service requirement.

Note

The use of a grounding system to guard against ESD damage is desirable

but not necessary.

– Attach the ESD ground clip to any frame ground, ground braid, or green-wire

ground.

– When working on a double-insulated or battery-operated system, use an ESD

common ground or reference point. You can use coax or connector-outside

shells on these systems.

– Use the round ground prong of the ac plug on ac-operated computers.

Grounding requirements

Electrical grounding of the computer is required for operator safety and correct

system function. Proper grounding of the electrical outlet can be verified by a

certified electrician.

Safety information

16 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Laser compliance statement

Some models of ThinkPad computer are equipped from the factory with an optical

storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are

also sold separately as options. If one of these drives is installed, it is certified in

the U.S. to conform to the requirements of the Department of Health and Human

Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1

laser products. Elsewhere, the drive is certified to conform to the requirements of

the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60 825

for Class 1 laser products.

If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note

the following:

CAUTION:

Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage

device could result in exposure to hazardous laser radiation. There are no

serviceable parts inside those drives. Do not open.

Use of controls or adjustments or performance of procedures other than those

specified herein might result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de procedimentos diferentes daqueles aqui

especificados pode resultar em perigosa exposição à radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes de réglage

et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet, kann

gefährliche Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da quelle

specificate possono provocare l’esposizione a.

El uso de controles o ajustes o la ejecución de procedimientos distintos de los aquí

especificados puede provocar la exposición a radiaciones peligrosas.

Laser compliance statement

Introduction 17

A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may

contain an embedded Class 3A or Class 3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the beam, do

not view directly with optical instruments, and avoid direct exposure to the beam.

Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe diretamente

por meio de instrumentos óticos e evite exposição direta com o feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder

directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische Instrumente in

den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai eszközökkel.

Kerülje a sugárnyalábbal való érintkezést !

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non guardarlo

direttamente con strumenti ottici e evitare l’esposizione diretta al fascio.

Radiación láser al abrir. No mire fijamente ni examine con instrumental óptico el haz

de luz. Evite la exposición directa al haz.

Laser compliance statement

18 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

General descriptions

The descriptions in this chapter apply to any ThinkPad model that has the

PC-Doctor® for DOS diagnostics program. Some descriptions might not apply to

your particular computer.

Read this first

Before you go to the checkout guide, be sure to read this section.

Important notes

v Only certified trained personnel should service the computer.

v Before replacing any FRU, read the entire page on removing and

replacing FRUs.

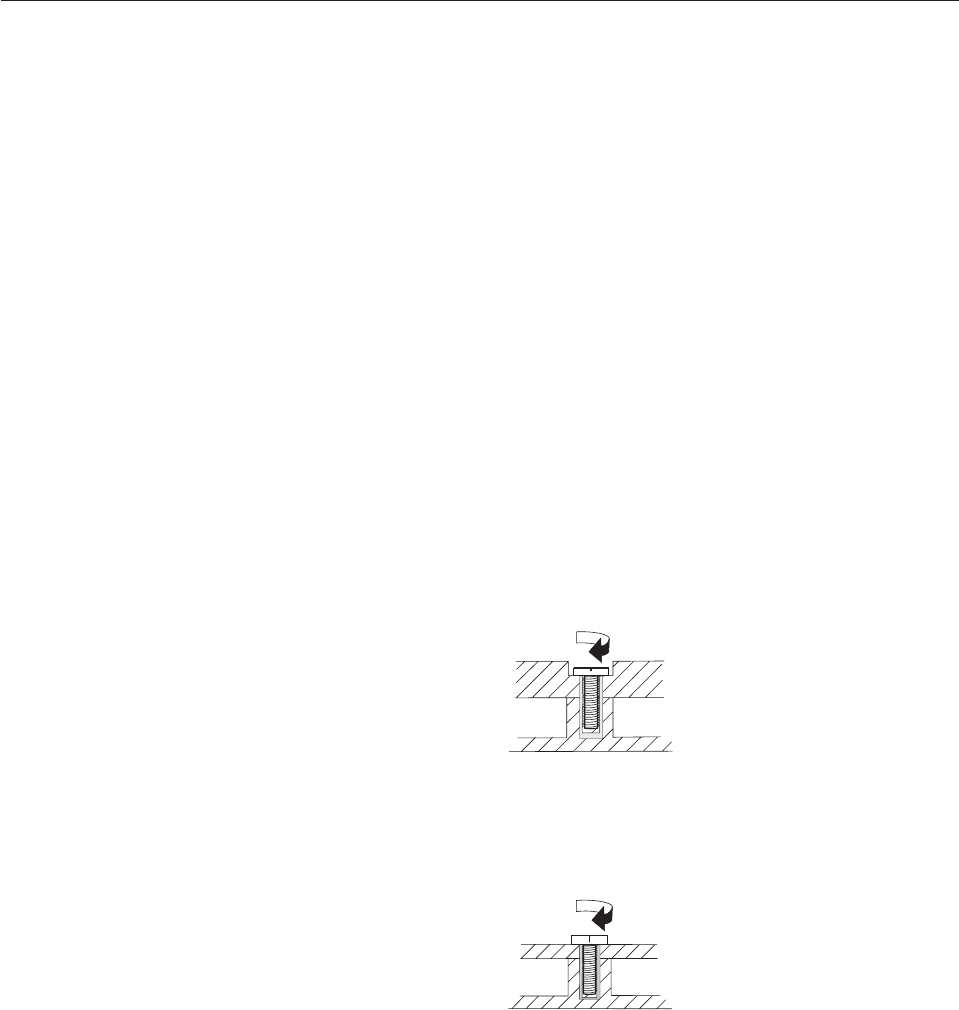

v When you replace FRUs, use new nylon-coated screws.

v Be extremely careful during such write operations as copying, saving, or

formatting. Drives in the computer that you are servicing sequence might

have been altered. If you select an incorrect drive, data or programs might

be overwritten.

v Replace a FRU only with another FRU of the correct model. When you

replace a FRU, make sure that the model of the machine and the FRU part

number are correct by referring to the FRU parts list.

v A FRU should not be replaced because of a single, unreproducible

failure. Single failures can occur for a variety of reasons that have nothing

to do with a hardware defect, such as cosmic radiation, electrostatic

discharge, or software errors. Consider replacing a FRU only when a

problem recurs. If you suspect that a FRU is defective, clear the error log

and run the test again. If the error does not recur, do not replace the FRU.

v Be careful not to replace a nondefective FRU.

What to do first

When you do return a FRU, you must include the following information in the

parts exchange form or parts return form that you attach to it:

__ 1. Name and phone number of servicer

__ 2. Date of service

__ 3. Date on which the machine failed

__ 4. Date of purchase

__ 5. Failure symptoms, error codes appearing on the display, and beep

symptoms

__ 6. Procedure index and page number in which the failing FRU was detected

__ 7. Failing FRU name and part number

__ 8. Machine type, model number, and serial number

__ 9. Customer’s name and address

Note for warranty:

During the warranty period, the customer may be responsible for repair costs if the

computer damage was caused by misuse, accident, modification, unsuitable

physical or operating environment, or improper maintenance by the customer.

Following is a list of some common items that are not covered under warranty and

some symptoms that might indicate that the system was subjected to stress beyond

normal use.

Before checking problems with the computer, determine whether the damage is

covered under the warranty by referring to the following list:

The following are not covered under warranty:

v LCD panel cracked from the application of excessive force or from being

dropped

v Scratched (cosmetic) parts

v Distortion, deformation, or discoloration of the cosmetic parts

v Plastic parts, latches, pins, or connectors that have been cracked or broken by

excessive force

v Damage caused by liquid spilled into the system

v Damage caused by the improper insertion of a PC Card or the installation of an

incompatible card

v Improper disc insertion or use of an optical drive

v Diskette drive damage caused by pressure on the diskette drive cover, foreign

material in the drive, or the insertion of a diskette with multiple labels

v Damaged or bent diskette eject button

v Fuses blown by attachment of a nonsupported device

v Forgotten computer password (making the computer unusable)

v Sticky keys caused by spilling a liquid onto the keyboard

v Use of an incorrect ac adapter on laptop products

The following symptoms might indicate damage caused by nonwarranted

activities:

v Missing parts might be a symptom of unauthorized service or modification.

v If the spindle of a hard disk drive becomes noisy, it may have been subjected to

excessive force, or dropped.

Read this first

20 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Related service information

This section provides information about the following:

v “Service Web site”

v “Restoring the factory contents by using Product Recovery discs”

v “Passwords” on page 23

v “Power management” on page 25

Service Web site

When the latest maintenance diskette and the system program service diskette

become available, they will be posted on http://www.lenovo.com/spm

Restoring the factory contents by using Product Recovery

discs

When the hard disk drive is replaced because of a failure, no Product Recovery

program is on the new hard disk. In this case, you must use the recovery discs for

the computer. Order the recovery discs and the hard disk drive at the same time so

that you can recover the new hard disk drive with the pre-installed software when

they arrive. For information on which discs to order, see “Recovery discs” on page

233.

To install the factory contents by using Product Recovery discs, do the following:

Note

The recovery process might take up to 2 hours.

1. Insert the Rescue and Recovery™ Disk1 of 1 into the optical drive, then restart

the computer. This will take several minutes.

2. When the “Welcome to Rescue and Recovery” screen is displayed, press

Continue. In the Rescue and Recovery menu, select Restore Your System. A

message giving a warning that USB devices used in recovery must be

connected when the computer is turned on appears. Click OK.

3. “Restore Your System” window appears. Select Restore my hard drive to the

original factory state, and click Next. A warning appears, click Yes. Then next

menu appears. Select I do not want to save any files and click Next. Following

menu appears with a warning, select Next. A warning appears not to power

down the computer during the recovery process. Click OK. One more warning

appears saying that recovery is intended only for unrecoverable system

problems. Click OK.

4. The Terms and Conditions window appears, select I accept these terms and

conditions and press OK. Previous menus may remain on the screen, but the

Predesktop installer begins copying files. When this completes, the computer

will restart and a window will ask you to insert a Product Recovery

Supplemental Disk, if you have one. Press No.

5. You will then be prompted to insert Product Recovery Disk 1 into the optical

drive. Insert the Product Recovery Disk 1 into the optical drive, and press OK.

In similar fashion, you will be prompted to insert the remaining recovery discs

until all the files are copied.

6. After all the files are copied, the computer will restart and return to the

“Welcome to Rescue and Recovery” screen where a window “Recovering your

system, this may take several minutes” appears and .IMZ files are processed.

Related service information

General descriptions 21

A total progress bar allows you to audit this process, which will take about 8

minutes. The final recovery disc may be safely removed during this time, but

may also be left in the optical drive since it is not bootable.

7. You will then be prompted to restart the computer. Select Yes. A warning

window appears, giving you one last chance to stop the restart, but disappears

automatically after about 5 seconds. File processing continues in DOS full

screen mode for about two minutes and the computer restarts to the Windows®

desktop. No user intervention is required (and should be avoided) after this

point.

8. Windows setup continues on the desktop and DOS window for IBM system

setup, with progress measured by a Factory Preinstallation window on the right

side of the screen. The processes are updating installed softwares.

A warning that antivirus software is not installed appears repeatedly in the

system tray, but this should be ignored. The entire process at desktop takes

about 25 minutes.

9. Then the computer restarts, does some more DOS full screen processing, and

restarts again to a Windows desktop where factory preinstallation continues for

about 12 more minutes, another restart to a DOS screen and then back to the

Windows splash screen and back to the desktop for more preinstallation.

This lasts about 10 more minutes and the computer restarts to do NTFS

conversion and then restarts to the OOBE (Out of Box Experience)

environment.

Related service information

22 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Passwords

As many as three passwords may be needed for any ThinkPad computer: the

power-on password (POP), the hard-disk password (HDP), and the supervisor

password (SVP).

If any of these passwords has been set, a prompt for it appears on the screen

whenever the computer is turned on. The computer does not start until the

password is entered.

Exception: If only an SVP is installed, the password prompt does not appear when

the operating system is booted.

Power-on password:

A power-on password (POP) protects the system from being powered on by an

unauthorized person. The password must be entered before an operating system

can be booted.

Hard-disk password:

There are two hard-disk passwords (HDPs):

v User HDP—for the user

v Master HDP—for the system administrator, who can use it to get access to the

hard disk even if the user has changed the user HDP

Note: There are two modes for the HDP: User only and Master + User. The

Master + User mode requires two HDPs; the system administrator enters

both in the same operation. The system administrator then provides the user

HDP to the system user.

Attention: If the user HDP has been forgotten, check whether a master HDP has

been set. If it has, it can be used for access to the hard disk drive. If no master

HDP is available, neither Lenovo nor Lenovo authorized servicers provide any

services to reset either the user or the master HDP, or to recover data from the

hard disk drive. The hard disk drive can be replaced for a scheduled fee.

Supervisor password:

A supervisor password (SVP) protects the system information stored in the BIOS

Setup Utility. The user must enter the SVP in order to get access to the BIOS Setup

Utility and change the system configuration.

Attention: If the SVP has been forgotten and cannot be made available to the

servicer, there is no service procedure to reset the password. The system board

must be replaced for a scheduled fee.

How to remove the power-on password

To remove a POP that you have forgotten, do the following:

(A) If no SVP has been set:

1. Turn off the computer.

2. Remove the battery pack.

For how to remove the battery pack, see “1010 Battery pack” on page 58.

3. Remove the backup battery.

For how to remove the backup battery, see “1120 Backup battery” on page 79.

4. Turn on the computer and wait until the POST ends.

Related service information

General descriptions 23

After the POST ends, the password prompt does not appear. The POP has been

removed.

5. Reinstall the backup battery and the battery pack.

(B) If an SVP has been set and is known by the servicer:

1. Turn on the computer; then, while the “To interrupt normal startup, press the

blue ThinkVantage® button” message is displayed at the lower-left of the

screen, press the ThinkVantage button. The Rescue and Recovery screen opens.

For models supporting the Passphrase function, press F1 while the POP icon is

appearing on the screen; then enter the POP. For the other models, enter the

POP.

Note: To check whether the ThinkPad computer supports the Passphrase

function, enter the BIOS Setup Utility and go to Security --> Password.

If the Using Passphrase item is displayed in the menu, this function is

available on the ThinkPad computer.

2. Click Access BIOS. The system Restart Required window is displayed.

3. Click Yes. The computer restarts, and the BIOS Setup Utility screen opens.

4. Select Security, using the cursor directional keys to move down the menu.

5. Select Password.

6. Select Power-On Password.

7. Type the current SVP in the Enter Current Password field. then leave the Enter

New Password field blank, and press Enter twice.

8. In the Changes have been saved window, press Enter.

9. Press F10; then, in the Setup confirmation window, select Yes .

How to remove the hard-disk password

Attention: If User only mode is selected and the user HDP has been forgotten

and cannot be made available to the servicer, neither Lenovo nor Lenovo

authorized servicers provide any services to reset the user HDPs or to recover data

from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

To remove a user HDP that has been forgotten, when the SVP and the master HDP

are known, do the following:

1. Turn on the computer; then, while the “To interrupt normal startup, press the

blue ThinkVantage button” message is displayed at the lower-left of the

screen, press the ThinkVantage button. The Rescue and Recovery screen

opens.

For models supporting the Passphrase function, press F1 while HDP icon is

appearing on the screen; then enter the master HDP. For the other models,

enter the master HDP.

Note: To check whether the ThinkPad computer supports the Passphrase

function, enter the BIOS Setup Utility and go to Security --> Password.

If Using Passphrase item is displayed in the menu, this function is

available on the ThinkPad computer.

2. Click Access BIOS. The system Restart Required window is displayed.

3. Click Yes. The computer restarts, and the BIOS Setup Utility screen opens.

4. Select Security, using the cursor directional keys to move down the menu.

5. Select Password.

6. Select Hard-disk x password, where x is the letter of the hard disk drive. A

pop-up window opens.

Related service information

24 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

7. Select Master HDP.

8. Type the current master HDP in the Enter Current Password field. then leave

the Enter New Password field blank, and press Enter twice.

9. Press F10.

10. Select Yes in the Setup Configuration window.

Both user HDP and master HDP will have been removed.

Power management

To reduce power consumption, the computer has three power management modes:

screen blank, standby, and hibernation.

Screen blank mode

If the time set on the “Turn off monitor” timer in the operating system expires, the

LCD backlight turns off.

To put the computer into screen blank mode, press the ThinkVantage button and

use the ThinkVantage Productivity Center.

To end screen blank mode and resume normal operation, press any key.

Standby mode

When the computer enters standby mode, the following events occur in addition to

what occurs in screen blank mode:

v The LCD is powered off.

v The hard disk drive is powered off.

v The CPU stops.

To enter standby mode, press Fn+F4.

Note: If you are using the ACPI operating system, you can change the action of

Fn+F4.

In certain circumstances, the computer goes into standby mode automatically:

v If a “suspend time” has been set on the timer, and the user does not do any

operation with the keyboard, the TrackPoint®, the hard disk, the parallel

connector, or the diskette drive within that time.

v If the battery indicator blinks orange, indicating that the battery power is low.

(Alternatively, if Hibernate when battery becomes low has been selected in the

“Power Management Properties” window, the computer goes into hibernation

mode.)

Note for the APM operating system:

Even if you do not set the low-battery alarm, the charge indicator notifies you

when the battery is low, and then the computer enters the power-saving mode

automatically. This default low-battery behavior is independent of the operating

system; so if you have set the low-battery alarm, the computer may not do what

you specified. It chooses either your setting or the default setting, whichever is

appropriate.

If you are using the ACPI operating system, only the low-battery alarm is

available.

Related service information

General descriptions 25

To cause the computer to return from standby mode and resume operation, do one

of the following:

v Press the Fn key.

v Open the LCD cover.

v Turn on the power switch.

Also, in either of the following events, the computer automatically returns from

standby mode and resumes operation:

v The ring indicator (RI) is signaled by a serial device or a PC Card device.

v The time set on the resume timer elapses.

Note: The computer does not accept any input immediately after it enters

standby mode. Wait a few seconds before taking any action to reenter

operation mode.

Hibernation mode

In hibernation mode, the following occurs:

v The system status, RAM, VRAM, and setup data are stored on the hard disk.

v The system is powered off.

Note: If the computer enters the hibernation mode while it is docked to the

ThinkPad Advanced Dock or ThinkPad Advanced Mini Dock, do not

undock it before resuming normal operation. If you do undock it and then

try to resume normal operation, you will get an error message, and you will

have to restart the system.

To cause the computer to enter hibernation mode, do any of the following:

v Press the Fn+F12 keys.

v If you are using the APM operating system and have set the mode to Power

switch mode [Hibernation], turn off the power switch.

v If you are using the ACPI operating system and have defined one of the

following actions as the event that causes the system to go into hibernation

mode, perform that action.

– Closing the lid.

– Pressing the power button.

– Pressing Fn+F4 keys.

Also, the computer goes into hibernation mode automatically in either of the

following conditions:

If a “hibernation time” has been set on the timer, and if the user does not do

any operation with the keyboard, the TrackPoint, the hard disk drive, the

parallel connector, or the diskette drive within that time.

v If the timer conditions are satisfied in suspend mode.

v If you are using the APM operating system and have set the mode to Hibernate

when battery becomes low, and the battery charge becomes critically low.

When the power is turned on, the computer returns from hibernation mode and

resumes operation. The hibernation file in the boot record on the hard disk drive is

read, and system status is restored from the hard disk drive.

Related service information

26 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Checkout guide

Use the following procedures as a guide in identifying and correcting problems

with the ThinkPad computer.

Note: The diagnostic tests are intended to test only ThinkPad products. The use of

non-ThinkPad products, prototype cards, or modified options can lead to

false indications of errors and invalid system responses.

1. Identify the failing symptoms in as much detail as possible.

2. Verify the symptoms. Try to re-create the failure by running the diagnostic test

or by repeating the operation.

Testing the computer

The ThinkPad computer has a test program called PC-Doctor for DOS (hereafter

called PC-Doctor.) You can detect errors by running the diagnostics test included in

PC-Doctor. This section is an overview of the procedure. For details that depend

on model-unique functions, refer to “Product overview” on page 34.

For some possible configurations of the computer, PC-Doctor might not run

correctly. To avoid this problem, you need to initialize the computer setup by use

of the BIOS Setup Utility before you run PC-Doctor. On the BIOS Setup Utility

screen, press F9, Enter, F10, and then Enter.

Note: When you initialize the computer configuration, some devices are disabled,

such as the serial port. If you test one of these devices, you will need to

enable it by using Configuration utility for DOS. The utility is available on

the following Web site: http://www.lenovo.com/support

PC-Doctor cannot be used to test a device that is in the ThinkPad Advanced Dock,

even if the computer supports the ThinkPad Advanced Dock. To test a USB device,

connect it to the USB connector of the computer.

Creating the PC-Doctor diagnostics diskette

To create the PC-Doctor disk from the Rescue and Recovery workspace, do as

follows:

1. Enter the Rescue and Recovery workspace by pressing the ThinkVantage button

during POST.

2. When the Rescue and Recovery workspace finishes loading, click Diagnostic

Diskette.

3. Authenticating the digital signature takes about 15 seconds; then the ThinkPad

computer will reboot into PC-DOS.

4. A batch file automatically starts up to prompt you through the process of

creating diskettes. You are notified of how many diskettes you will need.

a. You are prompted to insert each diskette in sequence.

b. Typically, all you need to do is to press the Enter key for the floppy drive;

the system then formats and creates the diskette.

c. Each diskette is erased and formatted with the PC-Doctor for DOS boot

image.

5. Once all the diskettes have been created, the ThinkPad computer will reboot.

The user is asked to remove all diskettes from the drive, or to insert the first

diskette created if it is desired to run the diagnostics.

Checkout guide

General descriptions 27

To run the test, do as follows:

Note: In the following procedure, you can select an item not only with the arrow

keys, but also with the TrackPoint pointer. Instead of pressing Enter, click

the left button.

1. Insert the PC-Doctor disk into the diskette drive; then power on the computer.

If the computer cannot be powered on, go to “Power system checkout” on page

30, and check the power sources.

If an error code appears, go to “Symptom-to-FRU index” on page 46.

On the first screen, select the model and press Enter. Follow the instructions on

the screen.

2. The main panel of PC-Doctor appears.

3. Select Diagnostics with the arrow keys, and press Enter.

A pull-down menu appears. (Its exact form depends on the model.)

Note: PC-Doctor menu does not mean the formal support device list. Some

unsupported device names may appear in the PC-Doctor menu.

Diagnostics

Run Normal Test

Run Quick Test

CPU/Coprocessor

Systemboard

Video Adapter

Serial Ports

Parallel Ports

Fixed Disks

Diskette Drives

Other Devices

Communication

Memory Test - Full

Memory Test - Quick

Interactive Tests Hardware Info Utility Quit F1=Help

Use the cursor keys and ESC to move in menus. Press ENTER to select.

Wireless LAN

Checkout guide

28 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

The options on the test menu are as follows:

Diagnostics Interactive Tests

v Run Normal Test

v Run Quick Test

v CPU/Coprocessor

v Systemboard

v Video Adapter

v Serial Ports*1

v Parallel Ports*1

v Fixed Disks

v Diskette Drives

v Other Devices

v ThinkPad Devices

v Communication

v Wireless LAN

v Memory Test – Full

v Memory Test – Quick

v Keyboard

v Video

v Internal Speaker

v Mouse

v Diskette

v System Load

v Optical Drive Test

v Intel® Wireless Radio

Notes:

v In the Keyboard test in Interactive Tests, the Fn key should be held down for

at least 2 seconds; otherwise, it cannot be sensed.

v Video Adapter test supports only the LCD display on the ThinkPad computer.

If you have an external monitor attached to your computer, detach it before

running PC-Doctor for DOS.

v To test Digital Signature Chip, the security chip must be set to Active.

v The options marked *1 are only for R60.

v To test Serial Ports or Parallel Ports, the ThinkPad computer must be attached

to the ThinkPad Advanced Dock or ThinkPad Advanced Mini Dock.

4. Run the applicable function test.

5. Follow the instructions on the screen. If there is a problem, PC-Doctor shows

messages describing it.

6. To exit the test, select Quit — Exit Diag.

To cancel the test, press Esc.

Note: After running PC-Doctor, check the time and date on the system and reset

them if they are incorrect.

Checkout guide

General descriptions 29

Detecting system information with PC-Doctor

PC-Doctor can detect the following system information:

Hardware Info

v System Configuration

v Memory Contents

v Physical Disk Drives

v Logical Disk Drives

v VGA Information

v IDE Drive Info

v PCI Information

v PNPISA Info

v SMBIOS Info

v VESA LCD Info

v Hardware Events Log

Utility

v Run External Tests

v Surface Scan Hard Disk

v Benchmark System

v DOS Shell

v Tech Support Form

v Battery Rundown

v View Test Log

v Print Log

v Save Log

v Full Erase Hard Drive

v Quick Erase Hard Drive

PC-Doctor for Windows

This product is designed to help you troubleshoot and resolve problems related to

your computer. Select one of the categories listed below to display symptoms and

solutions:

v CHECK SYSTEM HEALTH

v SYSTEM AND DEVICE TESTS

v LENOVO TROUBLESHOOTING

v CENTER

v SYSTEM REPORTS

v UPDATES AND SUPPORT

Power system checkout

To verify a symptom, do the following:

1. Turn off the computer.

2. Remove the battery pack.

3. Connect the ac adapter.

4. Check that power is supplied when you turn on the computer.

5. Turn off the computer.

6. Disconnect the ac adapter and install the charged battery pack.

7. Check that the battery pack supplies power when you turn on the computer.

If you suspect a power problem, see the appropriate one of the following power

supply checkouts:

v “Checking the ac adapter” on page 31

v “Checking operational charging” on page 31

v “Checking the battery pack” on page 31

v “Checking the backup battery” on page 32

Checkout guide

30 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Checking the ac adapter

You are here because the computer fails only when the ac adapter is used.

v If the power problem occurs only when the ThinkPad Essential Port Replicator

is used, replace the port replicator.

v If the power-on indicator does not turn on, check the power cord of the ac

adapter for correct continuity and installation.

v If the computer does not charge during operation, go to ″Checking operational

charging.″

To check the ac adapter, do the following:

1. Unplug the ac adapter cable from the computer.

2. Measure the output voltage at the plug of the ac adapter cable. See the

following figure:

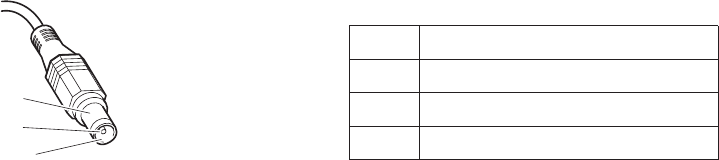

(20V)

Pin Voltage (V dc)

1 +20

2 0

3 Ground

Note: Output voltage of pin no.2 of the ac adapter may different from the one

you are servicing.

3. If the voltage is not correct, replace the ac adapter.

4. If the voltage is acceptable, do the following:

v Replace the system board.

v If the problem persists, go to “Product overview” on page 34.

Note: Noise from the ac adapter does not always indicate a defect.

Checking operational charging

To check whether the battery charges properly during operation, use a discharged

battery pack or a battery pack that has less than 50% of the total power remaining

when installed in the computer.

Perform operational charging. If the battery status indicator or icon does not turn

on, remove the battery pack and let it return to room temperature. Reinstall the

battery pack. If the charge indicator or icon still does not turn on, replace the

battery pack.

If the charge indicator still does not turn on, replace the system board. Then

reinstall the battery pack. If it is still not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter shows that less than 95% of

the total power remains; under this condition the battery pack can charge to 100%

of its capacity. This protects the battery pack from being overcharged or from

having a shortened life.

To check your battery, move your cursor to the Power Meter icon in the icon tray

of the Windows taskbar and wait for a moment (but do not click), and the

percentage of battery power remaining is displayed. To get detailed information

about the battery, double-click the Power Meter icon.

Checkout guide

General descriptions 31

Note: If the battery pack becomes hot, it may not be able to charge. Remove it

from the computer and leave it at room temperature for a while. After it

cools down, reinstall and recharge it.

To check the battery pack, do the following:

1. Power off the computer.

2. Remove the battery pack and measure the voltage between battery terminals 1

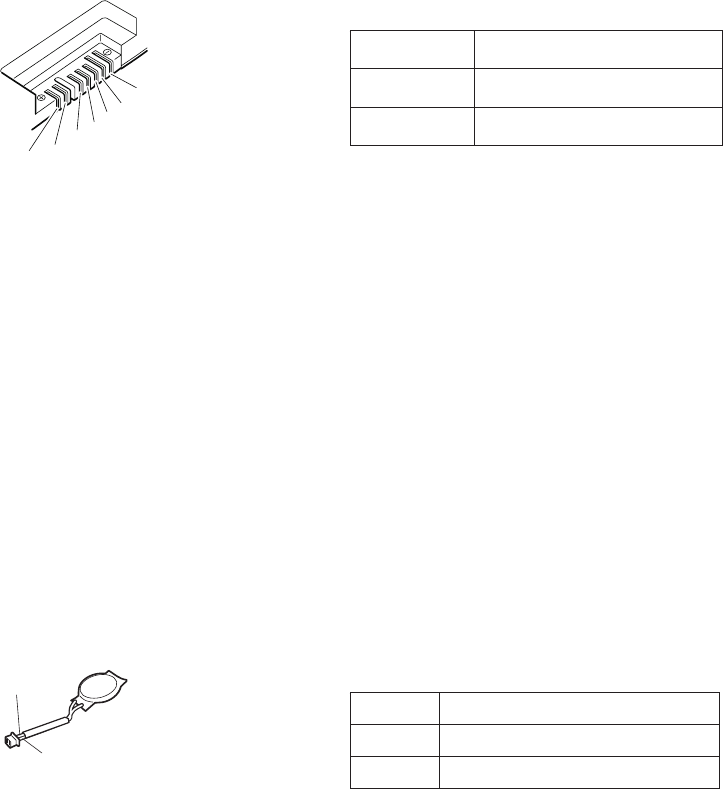

(+) and 7 (−). See the following figure:

6(-)

1(+) 2(+)3

7(-)

Terminal Voltage (V dc)

1 + 0 to + 12.6

7 Ground (−)

3. If the voltage is less than +11.0 V dc, the battery pack has been discharged.

Note: Recharging will take at least 3 hours, even if the indicator does not turn

on.

If the voltage is still less than +11.0 V dc after recharging, replace the battery.

4. If the voltage is more than +11.0 V dc, measure the resistance between battery

terminals 5 and 7. The resistance must be 4 to 30 K .

If the resistance is not correct, replace the battery pack. If the resistance is

correct, replace the system board.

Checking the backup battery

Do the following:

1. Power off the computer, and unplug the ac adapter from it.

2. Turn the computer upside down.

3. Remove the battery pack (see “1010 Battery pack” on page 58).

4. Remove the backup battery (see “1120 Backup battery” on page 79).

5. Measure the voltage of the backup battery. See the following figure.

Red (+)

Black (-)

Wire Voltage (V dc)

Red +2.5 to +3.2

Black Ground

v If the voltage is correct, replace the system board.

v If the voltage is not correct, replace the backup battery.

v If the backup battery discharges quickly after replacement, replace the system

board.

Checkout guide

32 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

ThinkPad R60, R60e, R61, and R61i

Product overview . . . . . . . . . . . .34

Specifications . . . . . . . . . . . . .34

Status indicators . . . . . . . . . . . .38

FRU tests . . . . . . . . . . . . . .41

Fn key combinations . . . . . . . . . .43

Symptom-to-FRU index . . . . . . . . . .46

Numeric error codes . . . . . . . . . .46

Error messages . . . . . . . . . . . .50

Beep symptoms . . . . . . . . . . . .51

No-beep symptoms . . . . . . . . . . .51

LCD-related symptoms . . . . . . . . .52

Intermittent problems . . . . . . . . . .53

Undetermined problems . . . . . . . . .53

FRU replacement notices . . . . . . . . . .54

Screw notices . . . . . . . . . . . . .54

Retaining serial numbers . . . . . . . . .54

Restoring the serial number of the system unit 55

Retaining the UUID . . . . . . . . .55

Reading or writing the ECA information . .55

Removing and replacing a FRU . . . . . . . .57

1010 Battery pack . . . . . . . . . . .58

1020 Ultrabay Enhanced device for R60, R61, and

R61i . . . . . . . . . . . . . . . .59

1030 Hard disk drive cover, hard disk drive, and

hard disk drive rubber rails . . . . . . . .60

1040 Palm rest or palm rest with fingerprint

reader . . . . . . . . . . . . . . .64

1050 DIMM and DIMM cover . . . . . . .67

1060 Keyboard . . . . . . . . . . . .68

1070 Optical drive for R60e and R61i . . . . .70

1080 Heat sink plate and Modem daughter card

(MDC-1.5) . . . . . . . . . . . . . .71

1090 PCI Express Mini Card for 802.11 a/b/g

wireless LAN . . . . . . . . . . . . .74

1100 PCI Express Mini Card for 802.11 a/b/g/n

wireless LAN . . . . . . . . . . . . .76

1110 PCI Express Mini Card for wireless WAN

for R60 and R61i . . . . . . . . . . .78

1120 Backup battery . . . . . . . . . .79

1130 Keyboard bezel and wireless WAN antenna

cable (AUX) . . . . . . . . . . . . .80

1140 SIM card slot . . . . . . . . . . .82

1150 Fan assembly . . . . . . . . . . .83

1160 CPU . . . . . . . . . . . . . .86

1170 LCD assembly . . . . . . . . . . .88

1180 Base cover . . . . . . . . . . . .91

1190 Speaker assembly . . . . . . . . .94

1200 Video connector sub card and FFC cable for

15.0-in. LCD models in R60, R61, and R61i . . .96

1210 Structure frame and IEEE1394 cable . . .98

1220 System board and PC Card/ExpressCard

slots assembly . . . . . . . . . . . . 103

2010 LCD front bezel . . . . . . . . . . 106

2020 Inverter card . . . . . . . . . . . 107

2030 Bluetooth daughter card (BDC-2) . . . . 108

2040 Wireless WAN antenna cable (MAIN) . . 109

2050 LCD panel, LCD cable, and hinges . . .110

2060 LCD rear cover and wireless LAN antenna

cables . . . . . . . . . . . . . . .113

Locations . . . . . . . . . . . . . . .114

Front view . . . . . . . . . . . . .114

Rear view . . . . . . . . . . . . .115

Bottom view . . . . . . . . . . . . .115

Parts list . . . . . . . . . . . . . . .116

Overall . . . . . . . . . . . . . .117

LCD FRUs . . . . . . . . . . . . . 197

14.1-in. XGA TFT . . . . . . . . . . 198

14.1-in. SXGA+ TFT . . . . . . . . . 205

15.0-in. XGA TFT . . . . . . . . . . 209

15.0-in. SXGA+ TFT . . . . . . . . . 220

Keyboard . . . . . . . . . . . . . . 229

Keyboard for R60, R60e, and R61i . . . . 229

Keyboard for R61 and R61i . . . . . . . 231

Recovery discs . . . . . . . . . . . . 233

Windows XP Professional CDs . . . . . 233

Windows XP Home Edition CDs . . . . . 238

Windows Vista Home Premium (32 bit)

DVDs . . . . . . . . . . . . . . 242

Windows Vista Home Basic (32 bit) DVDs 246

Windows Vista Business (32 bit) DVDs . . . 249

Windows Vista Business (64 bit) DVDs . . . 253

Windows Vista Ultimate (32 bit) DVDs . . . 254

Miscellaneous parts . . . . . . . . . . 255

AC adapters . . . . . . . . . . . . . 257

Common parts list . . . . . . . . . . . 258

Tools . . . . . . . . . . . . . . 258

Power cords . . . . . . . . . . . . 259

Notices . . . . . . . . . . . . . . . 260

Trademarks . . . . . . . . . . . . . . 261

Product overview

This section presents the following product-unique information:

v “Specifications”

v “Status indicators” on page 38

v “FRU tests” on page 41

v “Fn key combinations” on page 43

Specifications

The following table lists the specifications of the ThinkPad R60, R60e, R61, and

R61i:

Feature Description

Processor v Intel® Core™ Solo processor T1300 (1.6 GHz), 2-MB L2

cache

v Intel Core Solo processor T1400 (1.83 GHz), 2-MB L2 cache

v Intel® Core™ Duo processor T2300 (1.6 GHz), 2-MB L2

cache

v Intel Core Duo processor T2300E (1.6 GHz), 2-MB L2

cache

v Intel Core Duo processor T2400 (1.83 GHz), 2-MB L2

cache

v Intel Core Duo processor T2450 (2.0 GHz), 2-MB L2 cache

v Intel Core Duo processor T2500 (2.0 GHz), 2-MB L2 cache

v Intel Core Duo processor T2600 (2.16 GHz), 2-MB L2

cache

v Intel® Core™ 2 Duo processor T5250 (1.5 GHz), 2-MB L2

cache

v Intel Core 2 Duo processor T5270 (1.4 GHz), 2-MB L2

cache

v Intel Core 2 Duo processor T5300 (1.73 GHz), 2-MB L2

cache

v Intel Core 2 Duo processor T5450 (1.66 GHz), 2-MB L2

cache

v Intel Core 2 Duo processor T5470 (1.6 GHz), 2-MB L2

cache

v Intel Core 2 Duo processor T5500 (1.66 GHz), 2-MB L2

cache

v Intel Core 2 Duo processor T5550 (1.83 GHz), 2-MB L2

cache

v Intel Core 2 Duo processor T5600 (1.83 GHz), 2-MB L2

cache

v Intel Core 2 Duo processor T7100 (1.8 GHz), 2-MB L2

cache

v Intel Core 2 Duo processor T7200 (2.0 GHz), 4-MB L2

cache

v Intel Core 2 Duo processor T7250 (2.0 GHz), 2-MB L2

cache

v Intel Core 2 Duo processor T7300 (2.0 GHz), 4-MB L2

cache

v Intel Core 2 Duo processor T7400 (2.16 GHz), 4-MB L2

cache

(continued)

Product overview

34 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Feature Description

Processor v Intel Core 2 Duo processor T7500 (2.2 GHz), 4-MB L2

cache

v Intel Core 2 Duo processor T7600 (2.33 GHz), 4-MB L2

cache

v Intel Core 2 Duo processor T7700 (2.4 GHz), 4-MB L2

cache

v Intel® Pentium® Dual Core processor T2080 (1.73 GHz),

1-MB L2 cache

v Intel Pentium Dual Core processor T2130 (1.86 GHz),

1-MB L2 cache

v Intel Pentium Dual Core processor T2310 (1.46 GHz),

1-MB L2 cache

v Intel Pentium Dual Core processor T2330 (1.6 GHz), 1-MB

L2 cache

v Intel® Celelon® M Processor 410 (1.46 GHz), 1-MB L2

cache

v Intel Celeron M processor 420 (1.6 GHz), 1-MB L2 cache

v Intel Celeron M processor 430 (1.73 GHz), 1-MB L2 cache

v Intel Celeron M processor 440 (1.86 GHz), 1-MB L2 cache

v Intel Celeron M processor 450 (2.0 GHz), 1-MB L2 cache

v Intel Celeron M processor 520 (1.6 GHz), 1-MB L2 cache

v Intel Celeron M processor 530 (1.73 GHz), 1-MB L2 cache

v Intel Celeron M processor 540 (1.86 GHz), 1-MB L2 cache

Bus architecture v 667-MHz FSB

v 533-MHz FSB for R61 and R61i (some models)

v 800-MHz FSB for R61 and R61i (some models)

v 667-MHz DDR2 SDRAM (PC2-5300)

v PCI bus

v PCI Express bus

v DMI

Graphic memory chip v 64-MB GDDR SDRAM (ATI M52-CSP64)

v 64-MB GDDR SDRAM (ATI M62-CSP64)

v 128-MB GDDR SDRAM (ATI M54-CSP128)

v 128-MB GDDR SDRAM (ATI M64-CSP128)

v Intel 940GML

v Intel 945GM

v Intel 965GM

Display v 14.1-inch, 16M colors, XGA (1024 × 768 resolution) TFT

color LCD

v 14.1-inch, 16M colors, SXGA+ (1400 × 1050 resolution) TFT

color LCD

v 15.0-inch, 16M colors, XGA (1024 × 768 resolution) TFT

color LCD

v 15.0-inch, 16M colors, SXGA+ (1400 × 1050 resolution) TFT

color LCD

Standard memory v 256-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 1

v 512-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 1

v 1-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 1

v 2-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 1

(continued)

Product overview

ThinkPad R60, R60e, R61, and R61i 35

Feature Description

Optional memory v 256-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 1

v 512-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 1

v 1-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 1

v 2-GB DDR2-533 SDRAM SO-DIMM (PC2-4200) card × 1

v 2-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 1

(maximum of 4.0 GB)

Note: Due to the limitation of the current 32-bit PC

architecture, actual usable memory size is limited to 3 GB

even though the physical installable memory size is 4 GB in

ThinkPad R60, R60e, R61, and R61i computers.

CMOS RAM v 242 bytes

Hard disk drive v 40 GB, 5400 rpm, 9.5 mm high, Serial ATA (SATA)

interface

v 60 GB, 5400 rpm, 9.5 mm high, SATA interface

v 80 GB, 5400 rpm, 9.5 mm high, SATA interface

v 100 GB, 5400 rpm, 9.5 mm high, SATA interface

v 120 GB, 5400 rpm, 9.5 mm high, SATA interface

v 160 GB, 5400 rpm, 9.5 mm high, SATA interface

v 160 GB, 5400 rpm, 9.5 mm high, SATA interface (FDE)

v 60 GB, 7200 rpm, 9.5 mm high, SATA interface

v 100 GB, 7200 rpm, 9.5 mm high, SATA interface

v 160 GB, 7200 rpm, 9.5 mm high, SATA interface

v 200 GB, 7200 rpm, 9.5 mm high, SATA interface (FDE)

Supported hard disk drives depend on the model.

Ultrabay Enhanced™ device

(some models)

v CD drive, 12.7 mm high

v DVD drive, 12.7 mm high

v DVD/CD-RW combo drive, 12.7 mm high

v DVD-RAM/RW drive, 12.7 mm high

Fingerprint reader Some models

I/O port v External monitor connector

v Stereo headphone jack

v Monaural microphone jack

v Docking connector (for some models)

v RJ11 connector

v RJ45 connector

v Universal serial bus (USB) connector × 3 (compatible with

USB 1.1 and 2.0)

v IEEE 1394 connector (for some models)

v Video-out connector (for some models)

Internal modem v 56.6 Kbps

Audio v Built-in stereo speakers

v Built-in mono speakers

v Software control volume

Ethernet (on the system

board)

v Gigabit Ethernet

(continued)

Product overview

36 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Feature Description

PCI Express Mini Card v ThinkPad 11a/b/g Wireless LAN Mini PCI Express

Adapter

v Intel PRO Wireless 3945ABG Mini-PCI Express Adapter

v Sierra Wireless EV-DO Wireless WAN Mini PCI Express

Adapter

v Sierra Wireless MC8755 PCI Express MiniCard

v Integrated Cingular HSDPA 3G Wireless Broadband

Network Adapter

v ThinkPad 11a/b/g/n Wireless LAN Mini-PCI Express

Adapter

v Intel Wireless WiFi Link 4965AGN

v Intel Wireless WiFi Link 4965AGN (11n disabled)

v ThinkPad 11b/g Wireless LAN Mini-PCI Express Adapter

PC Card /ExpressCard slots

(some models)

v ExpressCard (34 module, 54 module) for upper slot

v PC Card (Type-II) for lower slot

PC Card slot (some models) v PC Card (Type-II)

Bluetooth wireless (some

models)

v ThinkPad Bluetooth with Enhanced Data Rate (BDC-2)

Modem v ThinkPad Modem (MDC-1.5, 56 kbps HDA)

Touch pad (some models) v UltraNav®

ThinkLight® Yes

Battery v Li-ion battery (6 cells) 4.8 Ah (2.4 Ah x 2)

v Li-ion battery (6 cells) 5.2 Ah (2.6 Ah x 2)

v Li-ion battery (9 cells) 7.8 Ah (2.6 Ah x 3)

v Ultrabay™ Slim Li Polymer battery (3 cells) (option)

AC adapter v 65-watt type

v 90-watt type

Preinstalled operating

system

v Windows XP Home Edition

v Windows XP Professional

v Windows Vista® Home Premium (32 bit)

v Windows Vista Home Basic (32 bit)

v Windows Vista Business (32 bit)

v Windows Vista Business (64 bit)

v Windows Vista Ultimate (32 bit)

Product overview

ThinkPad R60, R60e, R61, and R61i 37

Status indicators

The system status indicators show the status of the computer, as follows:

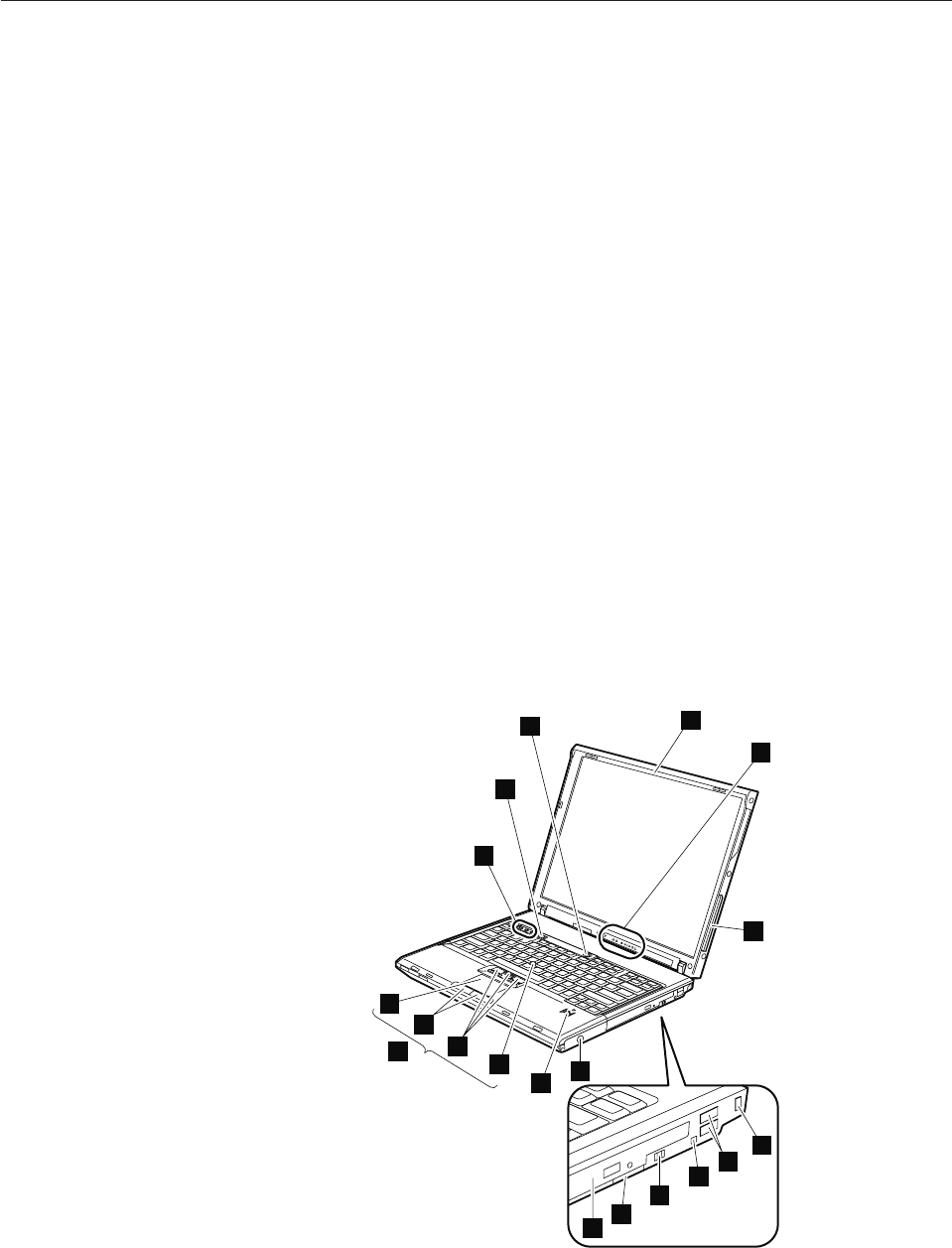

1 2 3 4 5 6 7 8 9 10

8910

Product overview

38 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Indicator Meaning

1 Wireless LAN

status

Green:

The wireless feature (the IEEE 802.11 standard or IEEE

802.11n) is on, and the radio link is ready for use.

Blinking green:

Data is being transmitted.

2 Bluetooth status

Green:

Bluetooth wireless is operational. This indicator is on when

Bluetooth wireless is on and not in suspend mode.

Blinking green:

Data is being transmitted.

3 Wireless WAN

status

Green:

The wireless WAN is on, and the radio link is ready for use.

Blinking green:

Data is being transmitted.

4 Num lock

Green:

The numeric keypad on the keyboard is enabled. To enable or

disable the keypad, press and hold the Shift key, and press

the NmLk (ScrLk) key.

5 Caps lock

Green:

Caps Lock mode is enabled. To enable or disable Caps Lock

mode, press the Caps Lock key.

6 Drive in use

Green:

Data is being read from or written to the hard disk drive, the

diskette drive, or the drive in the Ultrabay Enhanced device.

When this indicator is on, do not put the computer into

standby mode or turn off the computer.

Note: Do not move the system while the green drive-in-use light

is on. Sudden physical shock could cause drive errors.

7 Power on

Green:

The computer is on and ready to use. This indicator stays lit

whenever the computer is on and is not in standby mode.

8 Battery status

Green:

The battery is charged between 80% to 100% of the capacity,

and being discharged between 0% to 80% of the capacity.

Blinking green:

The battery is charged between 20% to 80% of the capacity,

and being charged.

Orange:

The battery is charged between 5% and 20% of the capacity,

and being discharged.

Blinking orange (slow):

The battery is charged between 5% to 20% of the capacity,

and being charged.

Blinking orange (rapid):

The battery is charged between 0% to 5% of the capacity.

(continued)

Product overview

ThinkPad R60, R60e, R61, and R61i 39

Indicator Meaning

9 AC power

status

Green:

The computer is connected to the ac power supply.

10 Standby status

Green:

The computer is in standby mode.

Blinking green:

The computer is entering standby mode or hibernation

mode, or is resuming normal operation.

11 Ultrabay

Enhanced status

Green:

An Ultrabay Enhanced device is installed and in use.

Blinking green:

An Ultrabay Enhanced device is in the process of being

detached.

Turn off:

An Ultrabay Enhanced device is ready to be attached or

detached.

Note: If you are using Windows 2000, the Ultrabay Enhanced

status indicator does not blink while an Ultrabay Enhanced

device is being detached. Instead, a message box pops up when

the process is completed; then the indicator turns off.

Product overview

40 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

FRU tests

The following table shows the test for each FRU.

FRU Applicable test

System board 1. Diagnostics --> CPU/Coprocessor

2. Diagnostics --> Systemboard

3. If the ThinkPad Advanced Dock, the ThinkPad Advanced Mini

Dock or the ThinkPad Essential Port Replicator is attached to

the ThinkPad computer, detach it. Place the computer on a

horizontal surface, and run Diagnostics --> ThinkPad Devices

--> HDD Active Protection Test.

Note: Do not apply any physical shock to the computer while

the test is running.

Power Diagnostics --> ThinkPad Devices --> AC Adapter, Battery 1

(Battery 2)

LCD unit 1. Diagnostics --> Video Adapter

2. Interactive Tests --> Video

Modem daughter card

(MDC-1.5)

1. Make sure the modem is set up correctly.

2. Replace the modem jack and the modem card in turn, and run

the following tests in Diagnostics --> Communication:

a. Conexant Smart Modem Interrupt

b. Conexant Smart Modem Dialtone

Audio Enter the BIOS Setup Utility and change Serial ATA (SATA) setting

to Compatibility, and run Diagnostics --> Other Devices -->

Analog Devices HDA CODEC Test

Speaker Interactive Tests --> Internal Speaker

Note: Once Modem/Audio test is done, the no sound is heard in

this test. In this case, turn off and turn on the computer. Then, run

this test again.

PC Card slot 1. Diagnostics --> Systemboard --> PCMCIA

ExpressCard slot 1. Insert a PCI-Express/USB Wrap card into the ExpressCard slot.

2. Turn on the computer.

3. Run Diagnostics --> ThinkPad Devices --> ExpressCard slot.

Keyboard 1. Diagnostics --> Systemboard --> Keyboard

2. Interactive Tests --> Keyboard

Hard disk drive Enter the BIOS Setup Utility and change Serial ATA (SATA) setting

to Compatibility, and run Diagnostics --> Fixed Disks

You can also diagnose the hard disk drive without starting up the

operating system. To diagnose the hard disk drive from the BIOS

Setup Utility, do as follows:

1. Remove any diskette from the diskette drive, and then turn off

the computer.

2. Turn on the computer.

3. While the message, “To interrupt normal startup, press the

blue ThinkVantage button,” is displayed at the lower left of the

screen, press F1 to enter the BIOS Setup Utility.

4. Using cursor keys, select HDD diagnostic program. Press

enter.

5. Using cursor keys, select Main hard disk drive or Ultrabay

hard disk drive.

6. Press Enter to start the diagnostic program.

(continued)

Product overview

ThinkPad R60, R60e, R61, and R61i 41

FRU Applicable test

Diskette drive 1. Diagnostics --> Diskette Drives

2. Interactive Tests --> Diskette

DVD drive or

DVD/CD-RW combo

drive

1. Diagnostics --> Other Devices --> Optical Drive

2. Interactive Tests --> Optical Drive Test

Memory 1. If two DIMMs are installed, remove one of them and run

Diagnostics --> Memory Test—Quick.

2. If the problem does not recur, return the DIMM to its place,

remove the other one, and run the test again.

3. If the test does not detect the error, run Diagnostics -->

Memory Test—Full.

Fan 1. Turn on the computer and check the air turbulence at the

louver near the PC Card slot.

2. Run Diagnostics --> ThinkPad Devices --> Fan.

TrackPoint or pointing

device

If the TrackPoint does not work, check the configuration as

specified in the BIOS Setup Utility. If the TrackPoint is disabled,

select Automatic to enable it.

After you use the TrackPoint, the pointer may drift on the screen

for a short time. This drift can occur when a slight, steady

pressure is applied to the TrackPoint pointer. This symptom is not

a hardware problem. If the pointer stops after a short time, no

service action is necessary.

If enabling the TrackPoint does not correct the problem, continue

with the following:

v Interactive Tests --> Mouse

Touch pad If the touch pad does not work, check the configuration as

specified in the BIOS Setup Utility. If the touch pad is disabled,

select Automatic to enable it. If enabling the touch pad does not

correct the problem, continue with the following:

v Interactive Tests --> Mouse

Product overview

42 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Fn key combinations

The following table shows the function of each combination of Fn with a function

key.

Key combination Description

Fn+F1 Reserved.

Fn+F2 Reserved.

Fn+F3 Select a power scheme that has been created by Power Manager. When

you press this combination, a panel for selecting a power scheme

appears.

Notes:

1. To use the Fn+F3 key combination, you must have the ThinkPad

PM device driver installed on the computer.

2. If you have logged on with an administrator user ID, and you press

Fn+F3, the panel for selecting a power scheme appears. If you have

logged on with another user ID, and you press Fn+F3, the panel

does not appear.

Fn+F4 Put the computer in standby mode. To return to normal operation,

press the Fn key only, without pressing a function key.

Notes:

1. To use the Fn+F4 key combination, you must have the ThinkPad

PM device driver installed on the computer.

2. This combination of keys also functions as a sleep button. If you

want to use the combination to put the computer into hibernation

mode or shut the computer down, change the settings in the Power

Manager.

Fn+F5 Enable or disable the built-in wireless networking features and the

Bluetooth features. If you press Fn+F5, a list of wireless features is

displayed. You can quickly change the power state of each feature in

the list.

Note: If you want to use Fn+F5 to enable the feature specified in IEEE

standard 802.11, the following device drivers must be installed on the

computer beforehand:

v ThinkPad Power Management driver

v OnScreen Display Utility

v Wireless device drivers

Fn+F6 Reserved.

(continued)

Product overview

ThinkPad R60, R60e, R61, and R61i 43

Key combination Description

Fn+F7 Apply a presentation scheme directly, with no need to start

Presentation Director.

To disable this function and use the Fn+F7 key combination for

switching a display output location, start Presentation Director, and

change the settings.

Switch a display output location

v External monitor (CRT display)

v Computer display and external monitor (LCD + CRT display)

v Computer display (LCD)

Notes:

1. This function is not supported if different desktop images are

displayed on the computer display and the external monitor (the

Extend desktop function).

2. This function does not work while a DVD movie or a video clip is

playing.

To enable this function, start Presentation Director, and change the

Fn+F7 settings.

Note: Multiple users can log on to a single operating system by using

different user IDs. Each user needs to change the settings:

Fn+F8 Change the settings of the UltraNav® pointing device.

Fn+F9 Open the ThinkPad EasyEject Utility screen. Buttons for the following

choices are displayed:

v Eject ThinkPad PC from Dock: This button is displayed only if the

ThinkPad computer has been attached to a ThinkPad Advanced Dock

or a ThinkPad Advanced Mini Dock. The computer can be detached

from the ThinkPad Advanced Dock or the ThinkPad Advanced Mini

Dock.

v Eject ThinkPad PC from Mini Dock: This button is displayed only if

the ThinkPad computer has been attached to a ThinkPad Essential

Port Replicator and one or more USB devices have been connected to

the ThinkPad Essential Port Replicator. You can stop and remove all

the USB devices safely by clicking the button.

Note: You cannot use this Utility to detach the computer from the

ThinkPad Essential Port Replicator.

v Run EasyEject Actions: This button is used to select, stop, or remove

external devices connected to the ThinkPad computer.

v Configure EasyEject Actions: Opens the ThinkPad EasyEject Utility

main window.

v Fn+F9 Settings: Configures the settings for the Fn+F9 function.

(continued)

Product overview

44 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Key combination Description

Fn+F10 Reserved.

Fn+F11 Reserved.

Fn+F12 Put the computer into hibernation mode. To return to normal operation,

press the power button for less than four seconds.

Note: To use Fn+F12 for hibernation, you must have the ThinkPad PM

device driver installed on the computer.

Fn+PgUp Turn the ThinkLight on or off.

Note: This function is supported only on the ThinkPad computers that

have the ThinkLight. The on or off status of the ThinkLight is shown

on the screen for a few seconds when you press Fn+PgUp.

Fn+Home The computer display becomes brighter.

Fn+End The computer display becomes dimmer.

Fn+Spacebar Enable the FullScreen Magnifier function.

Fn+PrtSc Has the same function as the SysRq key.

Fn+ScrLk Enable or disable the numeric keypad.

Fn+Pause Has the same function as the Break key.

Fn+cursor keys These key combinations work with Windows Media Player. Fn+down

arrow key works for the Play or Pause button, Fn+up arrow key for the

Stop button, Fn+right arrow key for the Next Track button, and Fn+left

arrow key for the Previous Track button.

Product overview

ThinkPad R60, R60e, R61, and R61i 45

Symptom-to-FRU index

The symptom-to-FRU index in this section lists symptoms and errors and their

possible causes. The most likely cause is listed first, in boldface type.

Note: Do the FRU replacement or other actions in the sequence shown in the

column headed “FRU or action, in sequence.” If replacing a FRU does not

solve the problem, put the original part back in the computer. Do not

replace a nondefective FRU.

This index can also help you determine, during regular servicing, what FRUs are

likely to need to be replaced next.

A numeric error is displayed for each error detected in POST or system operation.

In the displays, n can be any number.

If no numeric code is displayed, check the narrative descriptions of symptoms. If

the symptom is not described there, go to “Intermittent problems” on page 53.

Note

For a device not supported by diagnostic codes in the ThinkPad notebook

computers, see the manual for that device.

Numeric error codes

Symptom or error FRU or action, in sequence

0175

Bad CRC1, stop POST task—The EEPROM

checksum is not correct.

System board.

0176

System Security—The system has been

tampered with.

1. Run BIOS Setup Utility, and save the

current setting by pressing F10.

2. System board.

0177

Bad SVP data, stop POST task—The

checksum of the supervisor password in the

EEPROM is not correct.

System board.

0182

Bad CRC2. Enter BIOS Setup and load Setup

defaults.—The checksum of the CRS2 setting

in the EEPROM is not correct.

1. Run BIOS Setup Utility. Press F9, and

Enter to load the default setting. Then

save the current setting by pressing F10.

2. System board.

0185

Bad startup sequence settings. Enter BIOS

Setup and load Setup defaults.

1. Run BIOS Setup Utility. Press F9, and

Enter to load the default setting. Then

save the current setting by pressing F10.

0187

EAIA data access error—The access to

EEPROM is failed.

System board.

0188

Invalid RFID Serialization Information Area.

System board.

0189

Invalid RFID configuration information

area—The EEPROM checksum is not correct.

System board.

Symptom-to-FRU index

46 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Symptom or error FRU or action, in sequence

0190

Critical low-battery error

1. Charge the battery pack.

2. Battery pack.

0191

System Security—Invalid Remote Change

requested.

1. Run BIOS Setup Utility, and then save

current setting by pressing F10.

2. System board.

0192

System Security— Embedded Security

hardware tamper detected.

System board.

0199

System Security— Security password retry

count exceeded.

1. Run BIOS Setup Utility, and then save

the current setting by pressing F10.

2. System board.

01C8

Two or more modem devices are found.

Remove all but one of them. Press <Esc> to

continue.

1. Remove either a Mini-PCI Card or a

modem daughter card. Otherwise, press

Esc to ignore the warning message.

2. System board.

01C9

More than one Ethernet devices are found.

Remove one of them. Press <Esc> to

continue.

1. Remove the Ethernet device that you

installed; or press Esc to ignore the

warning message.

2. System board.

01CA

More than one Wireless LAN devices are

found. Remove one of them.

1. Remove the wireless LAN device that

you installed.

2. System board.

0200

Hard disk error—The hard disk is not

working.

1. Reseat the hard disk drive.

2. Load Setup Defaults in BIOS Setup

Utility.

3. Hard disk drive.

4. System board.

021x

Keyboard error.

Run interactive tests of the keyboard and

the auxiliary input device.

0220

Monitor type error—Monitor type does not

match the one specified in CMOS.

Load Setup Defaults in BIOS Setup Utility.

0230

Shadow RAM error—Shadow RAM fails at

offset nnnn.

System board.

0231

System RAM error—System RAM fails at

offset nnnn.

1. DIMM.

2. System board.

0232

Extended RAM error— Extended RAM fails

at offset nnnn.

1. DIMM.

2. System board.

0250

System battery error—System battery is

dead.

1. Charge the backup battery for more

than 8 hours by connecting the ac

adapter.

2. Replace the backup battery and run BIOS

Setup Utility to reset the time and date.

0251

System CMOS checksum bad— Default

configuration used.

1. Charge the backup battery for more

than 8 hours by connecting the ac

adapter.

2. Replace the backup battery and run BIOS

Setup Utility to reset the time and date.

Symptom-to-FRU index

ThinkPad R60, R60e, R61, and R61i 47

Symptom or error FRU or action, in sequence

0252

Password checksum bad—The password is

cleared.

Reset the password by running BIOS Setup

Utility.

0260

System timer error.

1. Charge the backup battery for more

than 8 hours by connecting the ac

adapter.

2. Replace the backup battery and run BIOS

Setup Utility to reset the time and date.

3. System board.

0270

Real-time clock error.

1. Charge the backup battery for more

than 8 hours by connecting the ac

adapter.

2. Replace the backup battery and run BIOS

Setup Utility to reset the time and date.

3. System board.

0271

Date and time error—Neither the date nor

the time is set in the computer.

Run BIOS Setup Utility to reset the time

and date.

0280

Previous boot incomplete— Default

configuration used.

1. Load “Setup Default” in BIOS Setup

Utility.

2. DIMM.

3. System board.

02F0

CPU ID:xx Failed.

1. CPU.

2. System board.

02F4

EISA CMOS not writable.

1. Load Setup Defaults in BIOS Setup

Utility.

2. Replace the backup battery.

3. System board.

02F5

DMA test failed.

1. DIMM.

2. System board.

02F6

Software NMI failed

1. DIMM.

2. System board.

02F7

Fail-safe timer NMI failed

1. DIMM.

2. System board.

1802

Unauthorized network card is plugged

in—Turn off and remove the miniPCI

network card.

1. Remove Mini PCI network card.

2. System board.

1803

Unauthorized daughter card is plugged

in—Turn off and remove the daughter card.

1. Remove the daughter card that you

installed.

2. System board.

1804

Unauthorized WAN card is plugged

in—Power off and remove the WAN card.

1. Remove the WAN card that you

installed.

2. System board.

1805

Unauthorized Wireless USB card is plugged

in—Power off and remove the Wireless USB

card.

1. Remove the Wireless USB card that you

installed.

2. System board.

Symptom-to-FRU index

48 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Symptom or error FRU or action, in sequence

1820

More than one external fingerprint reader is

attached. Power off and remove all but the

reader that you set up within your main

operating system.

Remove all but the reader that you set up

for the authentication.

2000

Hard Drive Active Protection sensor

diagnostics failed.

Press <Esc> to continue.

Press <F1> to enter SETUP

1. Undock docking station or port

replicator if it is attached to the

ThinkPad computer, and place the

computer on a horizontal surface. Do not

apply any physical shock to the

computer.

2. Run Diagnostics --> ThinkPad Devices

--> HDD Active Protection Test.

2010

Warning: Your internal hard disk drive

(HDD) may not function correctly on this

system. Ensure that your HDD is supported

on this system and that the latest HDD

firmware is installed.

Inform the following information to the

customer:

If in the primary bay the customer is using a

non-IBM or non-Lenovo hard disk drive

(HDD), or an old generation IBM HDD

which is not supported by this system, with

the risk in mind, the customer can still use it

by pressing ESC. If in the primary drive bay

the customer is using a supported

IBM/Lenovo HDD with an old firmware,

the customer needs to update its firmware to

the latest. The latest version is available at

http://www.lenovo.com/support

2100

Initialization error on HDD0 (Main hard

disk drive)

1. Reseat the hard disk drive.

2. Main hard disk drive.

3. System board.

2102

Initialization error on HDD1 (Ultrabay hard

disk drive)

1. Reseat the hard disk drive.

2. Ultrabay hard disk drive.

3. System board.

2110

Read error on HDD0 (Main hard disk drive)

1. Reseat the hard disk drive.

2. Main hard disk drive.

3. System board.

2112

Read error on HDD1 (Ultrabay hard disk

drive)

1. Reseat the hard disk drive.

2. Ultrabay hard disk drive.

3. System board.

Symptom-to-FRU index

ThinkPad R60, R60e, R61, and R61i 49

Error messages

Symptom or error FRU or action, in sequence

Device address conflict. 1. Load “Setup Defaults” in the BIOS

Setup Utility.

2. Backup battery.

3. System board.

Allocation error for device. 1. Load “Setup Defaults” in the BIOS

Setup Utility.

2. Backup battery.

3. System board.

Failing bits: nnnn. 1. DIMM.

2. System board.

Invalid system configuration data. 1. DIMM.

2. System board.

I/O device IRQ conflict. 1. Load “Setup Defaults” in the BIOS

Setup Utility.

2. Backup battery.

3. System board.

Hibernation error. 1. Restore the system configuration to

what it was before the computer

entered hibernation mode.

2. If memory size has been changed,

re-create the hibernation file.

Fan error. 1. Fan.

2. Thermal grease.

3. System board.

Thermal sensing error. System board.

Cannot boot from any device. Check the status of device which you want

to boot from.

Device not found.

1. The device you want to boot from.

2. System board.

Device Error.

1. The device you want to boot from.

2. System board.

No valid operating system.

1. Check that the operating system has no

failure and is installed correctly.

2. Reinstall the operation system.

Excluded from boot order.

v Enter the BIOS Setup Utility and add the

device in boot order.

Symptom-to-FRU index

50 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Beep symptoms

Symptom or error FRU or action, in sequence

One beep and a blank, unreadable, or

flashing LCD.

1. Reseat the LCD connector.

2. LCD assembly.

3. External CRT.

4. System board.

One long and two short beeps, and a blank

or unreadable LCD.

1. System board.

2. LCD assembly.

3. DIMM.

Two short beeps with error codes. POST error. See “Numeric error codes” on

page 46.

Two short beeps and a blank screen. 1. System board.

2. DIMM.

Three short beeps, pause, three more short

beeps, and one short beep.

1. DIMM.

2. System board

One short beep, pause, three short beeps,

pause, three more short beeps, and one short

beep.

Only the cursor appears. Reinstall the operating system.

Four cycles of four short beeps and a blank

screen.

System board (security chip)

Five short beeps and a blank screen. System board

No-beep symptoms

Symptom or error FRU or action, in sequence

No beep, power-on indicator on, LCD blank,

and no POST.

1. Make sure that every connector is

connected tightly and correctly.

2. DIMM.

3. System board.

No beep, power-on indicator on, and LCD

blank during POST.

1. Reseat DIMM.

2. System board.

The power-on password prompt appears. A power-on password or a supervisor

password is set. Type the password and

press Enter.

The hard-disk password prompt appears. A hard-disk password is set. Type the

password and press Enter.

Symptom-to-FRU index

ThinkPad R60, R60e, R61, and R61i 51

LCD-related symptoms

Important: The TFT LCD for the notebook computer contains many thin-film

transistors (TFTs). The presence of a small number of dots that are

missing, discolored, or always lighted is characteristic of TFT LCD

technology, but excessive pixel problems can cause viewing concerns.

The LCD should be replaced if the number of missing, discolored, or

lighted dots in any background is as follows:

Minimum quantity of defective pixels required for LCD replacement on June 2006 or later

manufactured ThinkPad

LCD resolution Bright dots Dark dots Bright and dark dots

XGA, WXGA 5 6 6

WXGA+, SXGA+,

WSXGA+

5 8 10

UXGA, WUXGA,

QXGA

5 13 13

Notes:

1. Lenovo will not provide replacement if the LCD is within specification as we

cannot guarantee that any replacement LCD will have zero pixel defects.

2. A bright dot means a pixel is always on (white or color.)

3. A dark dot means a pixel is always off (black color.)

4. One pixel consists of R, G, B sub-pixels.

Symptom or error FRU or action, in sequence

No beep, power-on indicator on, and a

blank LCD during POST.

System board.

v LCD backlight not working.

v LCD too dark.

v LCD brightness cannot be adjusted.

v LCD contrast cannot be adjusted.

1. Reseat the LCD connectors.

2. LCD assembly.

3. System board.

v LCD screen unreadable.

v Characters missing pixels.

v Screen abnormal.

v Wrong color displayed.

1. See important note for “LCD-related

symptoms.”

2. Reseat all LCD connectors.

3. LCD assembly.

4. System board.

Horizontal or vertical lines displayed on

LCD.

LCD assembly.

Symptom-to-FRU index

52 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Intermittent problems

Intermittent system hang problems can be due to a variety of causes that have

nothing to do with a hardware defect, such as cosmic radiation, electrostatic

discharge, or software errors. FRU replacement should be considered only when a

problem recurs.

When analyzing an intermittent problem, do the following:

1. Run the diagnostic test for the system board in loop mode at least 10 times.

2. If no error is detected, do not replace any FRUs.

3. If any error is detected, replace the FRU shown by the FRU code. Rerun the

test to verify that no more errors exist.

Undetermined problems

If the diagnostic tests did not identify the adapter or device that has failed, if

wrong devices are installed, or if the system simply is not operating, follow these

procedures to isolate the failing FRU (do not isolate FRUs that have no defects).

Verify that all attached devices are supported by the computer.

Verify that the power supply being used at the time of the failure is operating

correctly. (See “Power system checkout” on page 30.)

1. Turn off the computer.

2. Visually check each FRU for damage. Replace any damaged FRU.

3. Remove or disconnect all of the following devices:

a. Non-ThinkPad devices

b. Devices attached to the port replicator

c. Printer, mouse, and other external devices

d. Battery pack

e. Hard disk drive

f. External diskette drive or optical drive

g. DIMM

h. Optical disk or diskette in the internal drive

i. PC Cards

4. Turn on the computer.

5. Determine whether the problem has been solved.

6. If the problem does not recur, reconnect the removed devices one at a time

until you find the failing FRU.

7. If the problem remains, replace the following FRUs one at a time (do not

replace a nondefective FRU):

a. System board

b. LCD assembly

Symptom-to-FRU index

ThinkPad R60, R60e, R61, and R61i 53

FRU replacement notices

This section contains notices related to removing and replacing parts. Read this

section carefully before replacing any FRU.

Screw notices

Loose screws can cause a reliability problem. In the ThinkPad computer, this

problem is addressed with special nylon-coated screws that have the following

characteristics:

v They maintain tight connections.

v They do not easily come loose, even with shock or vibration.

v They are harder to tighten.

v Each one should be used only once.

Do the following when you service this machine:

v Keep the screw kit (for the P/N, see “Miscellaneous parts” on page 255) in your

tool bag.

v Always use new screws.

v Use a torque screwdriver if you have one.

Tighten screws as follows:

v Plastic to plastic

Turn an additional 90 degrees after the screw head touches the surface of the

plastic part:

90 degrees more

(Cross-section)

v Logic card to plastic

Turn an additional 180 degrees after the screw head touches the surface of the

logic card:

180 degrees more

(Cross-section)

v Torque driver

If you have a torque driver, refer to the “Torque” column for each step.

v Make sure that you use the correct screw. If you have a torque screwdriver,

tighten all screws firmly to the torque shown in the table. Never use a screw

that you removed. Use a new one. Make sure that all of the screws are

tightened firmly.

v Ensure torque screwdrivers are calibrated correctly following country

specifications.

Retaining serial numbers

This section includes the following descriptions:

v “Restoring the serial number of the system unit” on page 55

FRU replacement notices

54 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

v “Retaining the UUID”

v “Reading or writing the ECA information”

Restoring the serial number of the system unit

When the computer was manufactured, the EEPROM on the system board was

loaded with the serial numbers of the system and all major components. These

numbers need to remain the same throughout the life of the computer.

If you replace the system board, you must restore the serial number of the system

unit to its original value.

Before replacing the system board, save the original serial number by doing the

following:

1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and

restart the computer.

2. From the main menu, select 1. Set System Identification.

3. Select 2. Read S/N data from EEPROM.

The serial number of each device in your computer is displayed; the serial number

of the system unit is listed as follows:

v 20: Serial number

Write down that number.

Note: The serial number of the system unit is also written on the label attached to

the bottom of the computer.

After you have replaced the system board, restore the serial number by doing the

following:

1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later and

restart the computer.

2. From the main menu, select 1. Set System Identification.

3. Select 1. Add S/N data from EEPROM.

Follow the instructions on the screen.

Retaining the UUID

The Universally Unique Identifier (UUID) is a 128-bit number uniquely assigned to

your computer at production and stored in the EEPROM of your system board.

The algorithm that generates the number is designed to provide unique IDs until

the year A.D. 3400. No two computers in the world have the same number.

When you replace the system board, you must set the UUID on the new system

board as follows:

1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and

restart the computer.

2. From the main menu, select 4. Assign UUID.

A new UUID is created and written. If a valid UUID already exists, it is not

overwritten.

Reading or writing the ECA information

Information on Engineering Change Announcements (ECA) are stored in the

EEPROM of the system board. The electronic storage of this information simplifies

the procedure to check if the ECA has been previously applied to a machine. The

machine does not need to be disassembled to check for the ECA application.

FRU replacement notices

ThinkPad R60, R60e, R61, and R61i 55

To check what ECAs have been previously applied to the machine, use the ECA

Information Read/Write function on the ThinkPad Hardware Maintenance Diskette

Version 1.73 or later.

1. Insert the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and

restart the computer.

2. From the main menu, select 6. Set ECA Information.

3. To read ECA information, select 2. Read ECA/rework number from EEPROM

and follow the instruction.

4. To read box build date, select 5. Read box build date from EEPROM, and

follow the instruction on the screen.

After an ECA has been applied to the machine, the EEPROM must be updated to

reflect the ECA's application. Use the ThinkPad Hardware Maintenance Diskette

Version 1.73 or later to update the EEPROM.

Note: Only the ECA number is stored in the EEPROM. The machine type of the

ECA is assumed be the same as the machine type of the machine that had

the ECA applied to it.

1. Insert the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and

restart the computer.

2. From the main menu, select 6. Set ECA Information.

3. To write ECA information, select 1. Write ECA/rework number from EEPROM,

and follow the instruction.

4. To write box build date, select 4. Write box build date from EEPROM, and

follow the instruction on the screen.

If the system board is being replaced, try to read the ECA information from the old

system board and transfer the information to the new system. If the system board

is inoperable, this will not be possible.

FRU replacement notices

56 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Removing and replacing a FRU

This section presents directions and drawings for use in removing and replacing a

FRU. Be sure to observe the following general rules:

1. Do not try to service any computer unless you have been trained and certified.

An untrained person runs the risk of damaging parts.

2. Before replacing any FRU, review “FRU replacement notices” on page 54.

3. Begin by removing any FRUs that have to be removed before the failing FRU.

Any such FRUs are listed at the top of the page. Remove them in the order in

which they are listed.

4. Follow the correct sequence in the steps for removing the FRU, as given in the

drawings by the numbers in square callouts.

5. When turning a screw to replace a FRU, turn it in the direction as given by the

arrow in the drawing.

6. When removing the FRU, move it in the direction as given by the arrow in the

drawing.

7. To put the new FRU in place, reverse the removal procedure and follow any

notes that pertain to replacement. For information about connecting and

arranging internal cables, see “Locations” on page 114.

8. When replacing a FRU, use the correct screw as shown in the procedures.

DANGER

Attention: After replacing a FRU, do not turn on the computer until you have

made sure that all screws, springs, and other small parts are in place and none are

loose inside the computer. Verify this by shaking the computer gently and listening

for rattling sounds. Metallic parts or metal flakes can cause electrical short circuits.

Attention: The system board is sensitive to, and can be damaged by, electrostatic

discharge. Before touching it, establish personal grounding by touching a ground

point with one hand or by using an electrostatic discharge (ESD) strap (P/N

6405959).

Before removing any FRU, turn off the computer, unplug all power cords from

electrical outlets, remove the battery pack, and then disconnect any interconnecting

cables.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 57

1010 Battery pack

DANGER

Unlock the battery release lever 1. Holding the battery release lever in the

unlocked position 2, remove the battery pack in the direction shown by arrow

3.

When installing: Install the battery pack along the slide rails of the slot. Then

make sure that the battery release lever is in the locked position

as in this figure.

Use only the battery specified in the parts list for your computer. Any other battery

could ignite or explode.

Removing and replacing a FRU

58 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

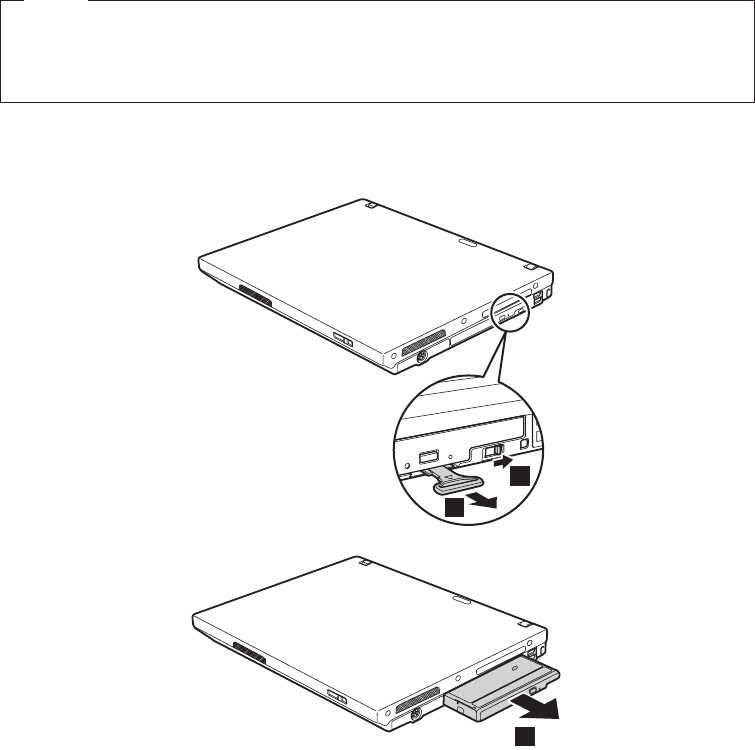

1020 Ultrabay Enhanced device for R60, R61, and R61i

Note

Ultrabay Enhanced does not accept any of the following devices:

v Ultrabay Plus™ devices

v Ultrabay 2000™ devices

When you release the switch in step 1, the lever pops out. In step 2, pull the

lever a little to release the device from the bay.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 59

1030 Hard disk drive cover, hard disk drive, and hard disk

drive rubber rails

For access, remove this FRU:

v “1010 Battery pack” on page 58

Attention

v Do not drop the hard disk drive or apply any physical shock to it. The

hard disk drive is sensitive to physical shock. Improper handling can cause

damage and permanent loss of data.

v Before removing the drive, have the user make a backup copy of all the

information on it if possible.

v Never remove the drive while the system is operating or is in suspend

mode.

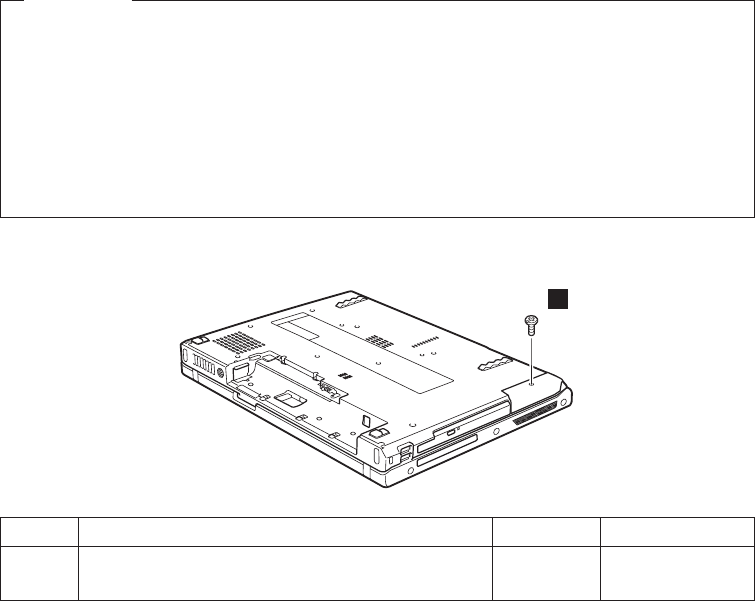

For 14.1-in. LCD models:

Step Screw (quantity) Color Torque

1 M3 × 3 mm, flat-head, nylon-coated (1) Black 0.491 Nm

(5 kgfcm)

(continued)

Removing and replacing a FRU

60 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

When installing: Make sure that the hard disk drive connector is attached firmly.

When installing: Rubber rails of the hard disk drive must be attached to the

replacement drive. Otherwise the hard disk drive cannot be

properly installed to the computer.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 61

For 15.0-in. LCD models:

Step Screw (quantity) Color Torque

1 M3 × 3 mm, flat-head, nylon-coated (1) Black 0.491 Nm

(5 kgfcm)

(continued)

Removing and replacing a FRU

62 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

When installing: Make sure that the hard disk drive connector is attached firmly.

When installing: Rubber rails of the hard disk drive must be attached to the

replacement drive. Otherwise the hard disk drive cannot be

properly installed to the computer.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 63

1040 Palm rest or palm rest with fingerprint reader

For access, remove this FRU in order:

v “1010 Battery pack” on page 58

Notes

In models with the fingerprint reader, the sensor has been attached to the

palm rest FRU as the child part. If the fingerprint reader has any defects and

needs to be replaced, you need to replace the palm rest by the procedures

given in this section. These procedures are the same for a palm rest with or

without a fingerprint reader.

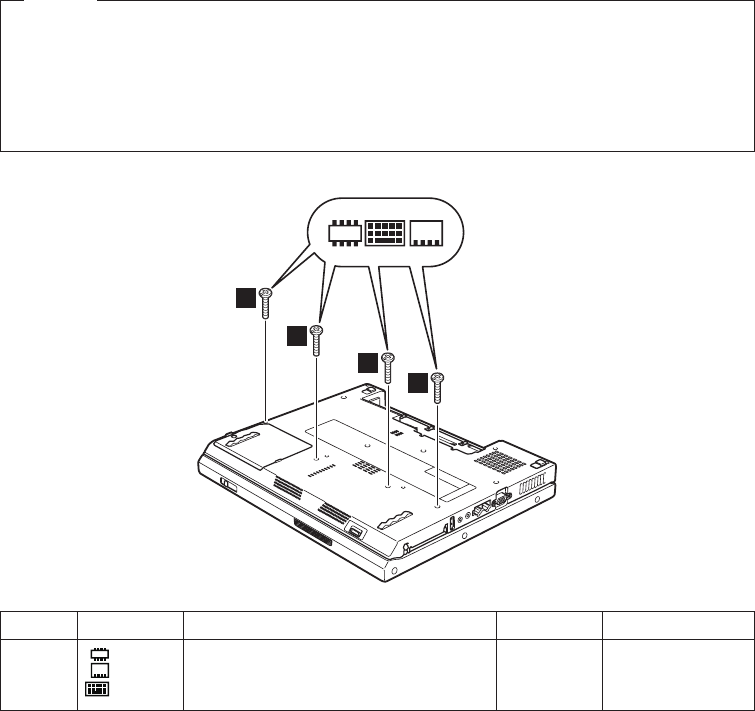

Step Icon Screw (quantity) Color Torque

1

M2 × 17 mm, flat-head, nylon-coated

(4)

Black 0.167 Nm

(1.7 kgfcm)

(continued)

Removing and replacing a FRU

64 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

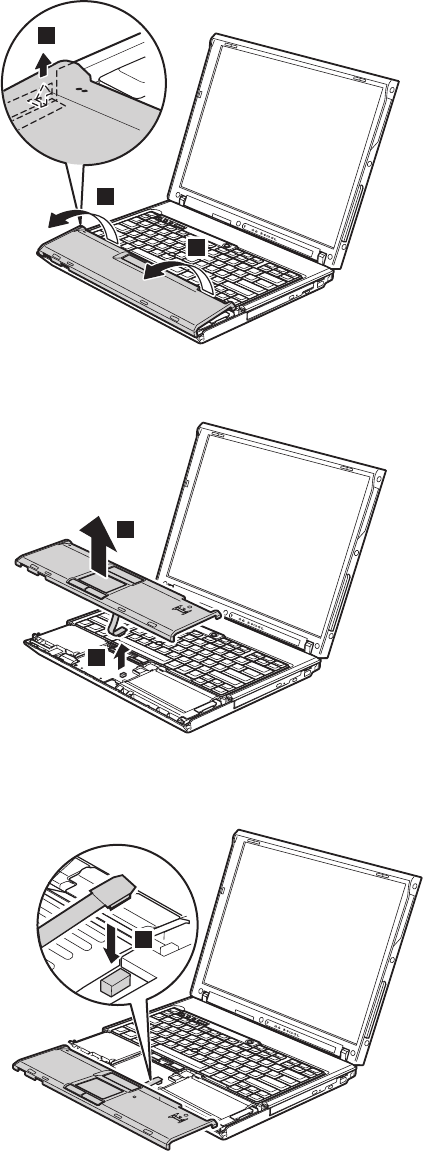

Lift the left edge of the palm rest a little in the direction shown by arrow2, and

then lift the palm rest from the computer in the direction shown by arrow3 .

Note: Step 4 and 5 are for R60, R61, and R61i (some models).

When installing:

1. Attach the touch pad connector to the system board firmly.

Note: Make sure that the connector is attached as in the figure above.

(continued)

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 65

2. Align the right and left top edges 2 of the palm rest.

3. Push gently on the area marked in this figure, in the direction shown by arrow

3, until you hear a click.

4. Push the front side of the palm rest 4 until it clicks into place.

5. Close the LCD cover and turn the computer over. Then fasten the four screws

to secure the palm rest.

Removing and replacing a FRU

66 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

1050 DIMM and DIMM cover

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

When installing: Insert the notched end of the DIMM into the socket. Press the

DIMM firmly, and pivot it until it snaps into the place. Make

sure that it is firmly fixed in the slot and does not move easily.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 67

1060 Keyboard

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

Step Icon Screw (quantity) Color Torque

1

M2 × 17 mm, flat-head, nylon-coated

(1)

Black 0.167 Nm

(1.7 kgfcm)

Lift the keyboard a little in the direction shown by arrow 2, and then detach the

connector 3.

(continued)

Removing and replacing a FRU

68 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

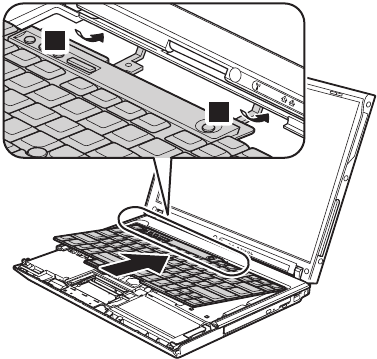

When installing: Make sure that the keyboard edges a are under the frame as

shown in this figure.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 69

1070 Optical drive for R60e and R61i

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

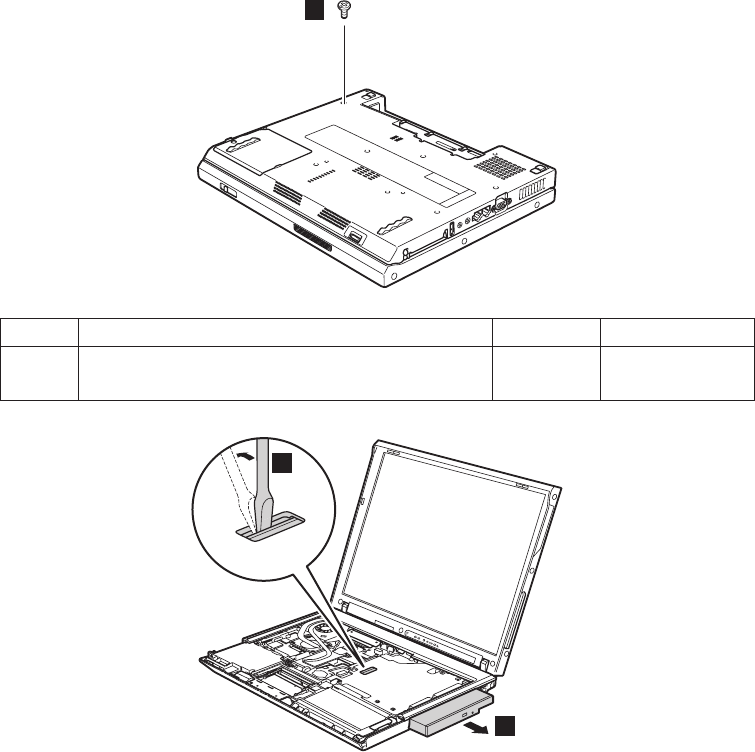

Step Screw (quantity) Color Torque

1 M3 × 6 mm, flat-head, nylon-coated (1) Black 0.491 Nm

(5 kgfcm)

Push the optical drive by using a screwdriver 2 as shown in this figure. Then

pull out the optical drive 3.

Removing and replacing a FRU

70 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

1080 Heat sink plate and Modem daughter card (MDC-1.5)

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

For models without a heat sink plate:

Step Screw (quantity) Color Torque

1 M2 × 3.5 mm, small-head, nylon-coated (1) Silver 0.167 Nm

(1.7 kgfcm)

(continued)

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 71

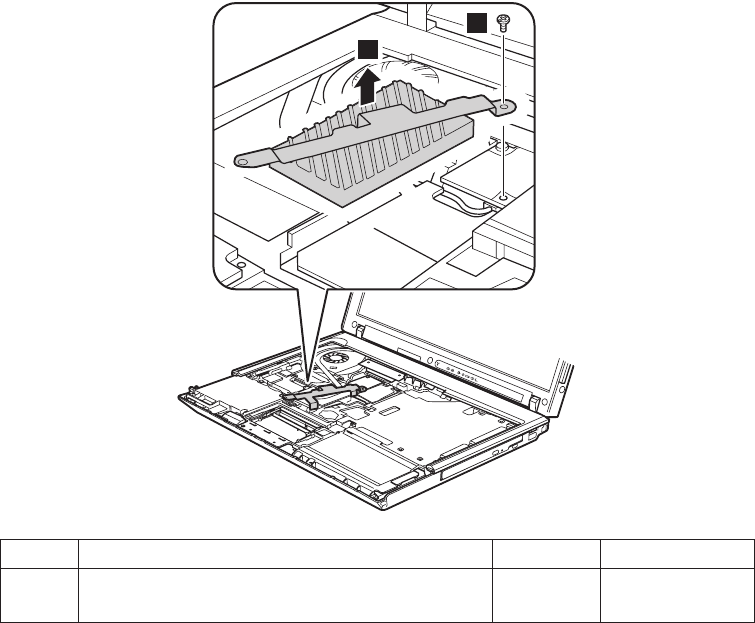

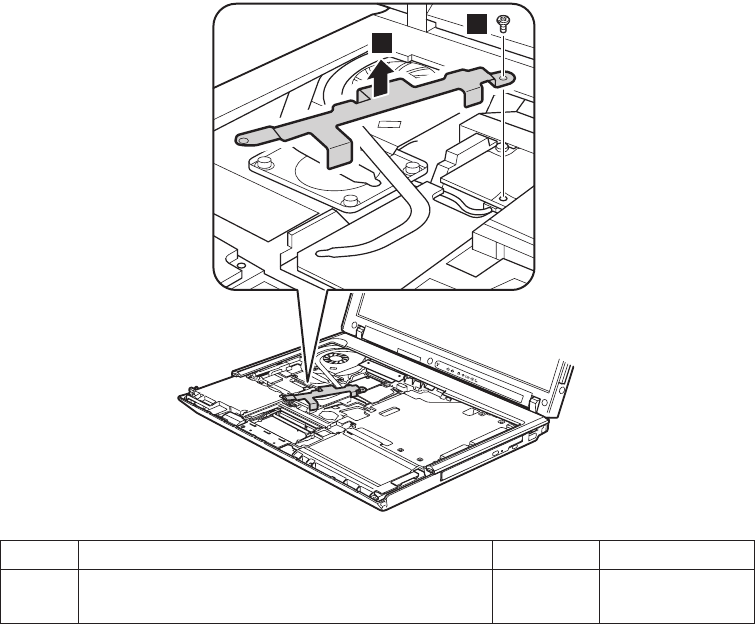

For models with a heat sink plate:

Step Screw (quantity) Color Torque

1 M2 × 3.5 mm, small-head, nylon-coated (1) Silver 0.167 Nm

(1.7 kgfcm)

(continued)

Removing and replacing a FRU

72 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

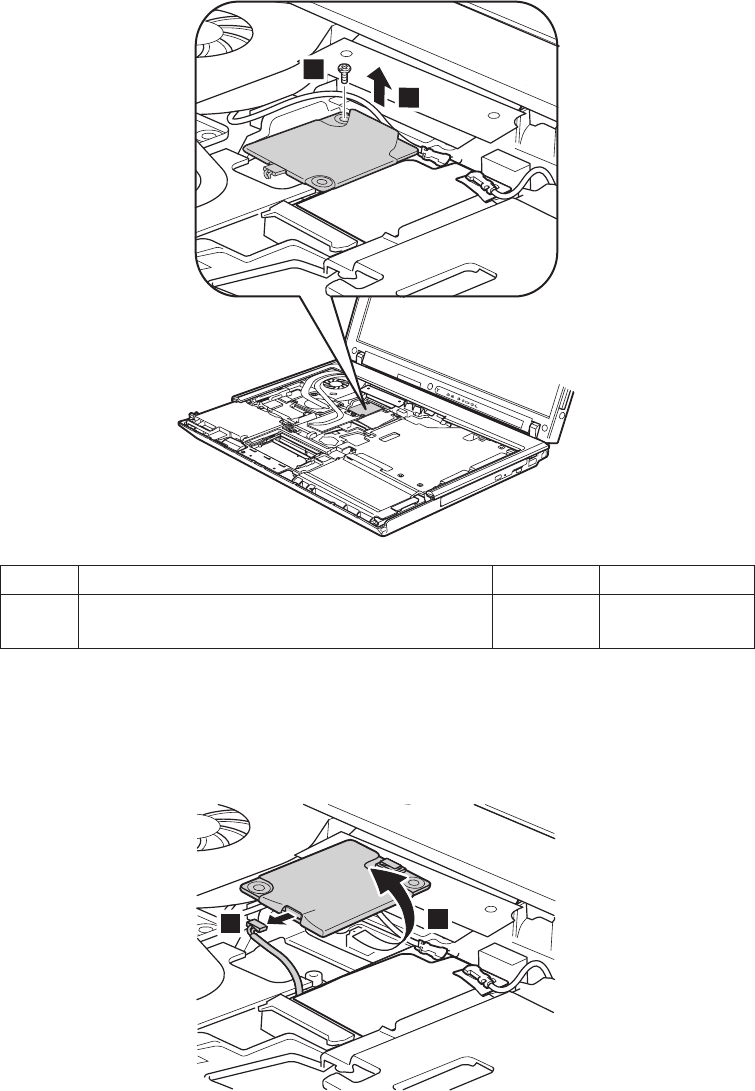

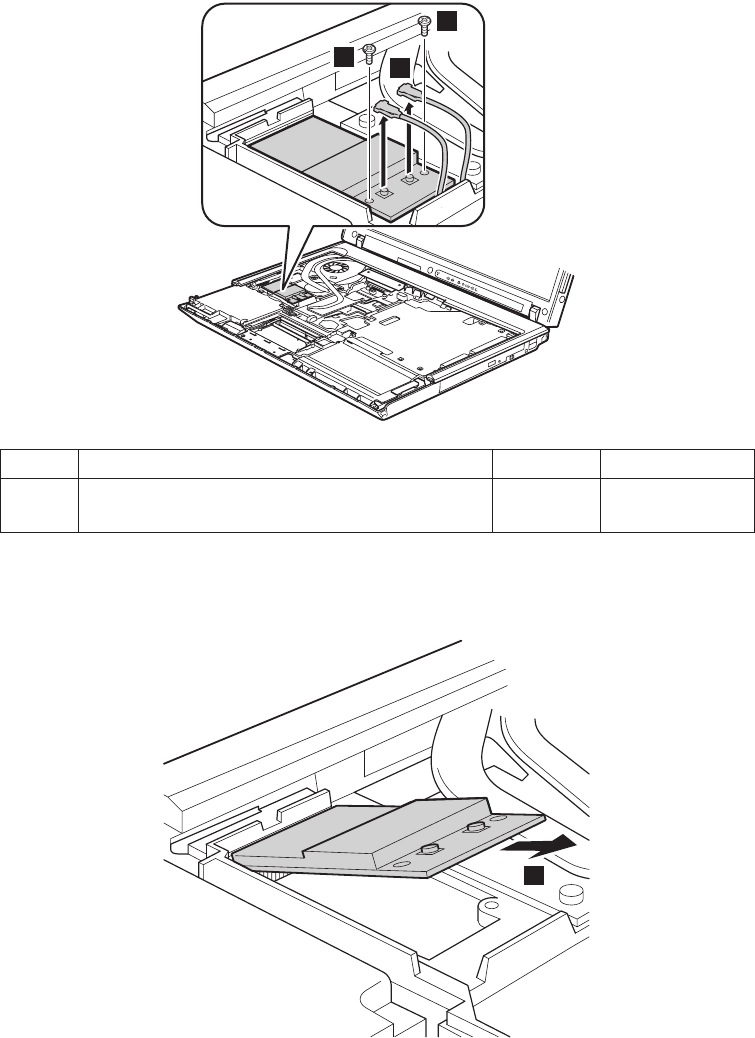

Step Screw (quantity) Color Torque

3 M2 × 3.5 mm, small-head, nylon-coated (1) Silver 0.167 Nm

(1.7 kgfcm)

In step 4, remove the card by pulling the tab with your fingers in the direction

shown by the arrow.

Turn the card over 5, and detach the modem connector 6.

When installing: Make sure that the modem connector and the connector on the

underside of the card are attached firmly.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 73

1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

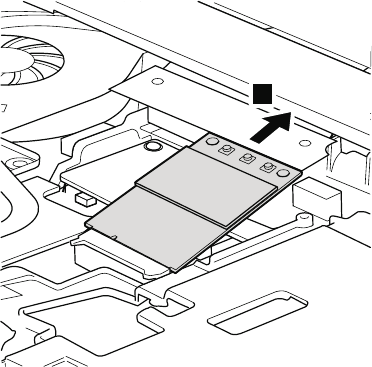

In step 1, unplug the jacks by using the removal tool antenna RF connector

(P/N: 08K7159) or pick the connectors with your fingers and gently unplug them

in direction of the arrow.

Step Screw (quantity) Color Torque

2 M2 × 3.5 mm, small-head, nylon-coated (2) Silver 0.167 Nm

(1.7 kgfcm)

When installing: Plug the gray cable into the jack labeled MAIN on the card, and

the black cable into the jack labeled AUX.

(continued)

Removing and replacing a FRU

74 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 75

1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

In step 1, unplug the jacks by using the removal tool antenna RF connector

(P/N: 08K7159) or pick the connectors with your fingers and gently unplug them

in direction of the arrow.

Step Screw (quantity) Color Torque

2 M2 × 3.5 mm, small-head, nylon-coated (2) Silver 0.167 Nm

(1.7 kgfcm)

When installing: Plug the gray cable (MAIN ) into the jack labeled TR1 on the

card, and the black cable (AUX) into the jack labeled TR2.

(continued)

Removing and replacing a FRU

76 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 77

1110 PCI Express Mini Card for wireless WAN for R60 and

R61i

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

In step 1, unplug the jacks by using the removal tool antenna RF connector

(P/N: 08K7159) or pick the connectors with your fingers and gently unplug them

in direction of the arrow.

Step Screw (quantity) Color Torque

2 M2 × 10 mm, small-head, nylon-coated (2) Black 0.167 Nm

(1.7 kgfcm)

When installing: Plug the red cable into the jack labeled MAIN on the card, and

the blue cable into the jack labeled AUX.

Removing and replacing a FRU

78 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

1120 Backup battery

DANGER

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

When installing: Make sure that the battery connector is attached firmly.

Use only the battery specified in the parts list for your computer. Any other battery

could ignite or explode.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 79

1130 Keyboard bezel and wireless WAN antenna cable (AUX)

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

Note: The wireless WAN antenna cable (AUX) is attached to the keyboard bezel.

To remove the wireless WAN antenna cable (AUX), remove the keyboard

bezel first.

Note: Screw 1 is only for 15.0-in. LCD models.

Step Screw (quantity) Color Torque

1 M2 × 17 mm, flat-head, nylon-coated (1) Black 0.167 Nm

(1.7 kgfcm)

2 M2 × 2.5 mm, flat-head, nylon-coated (3) Black 0.167 Nm

(1.7 kgfcm)

(continued)

Removing and replacing a FRU

80 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

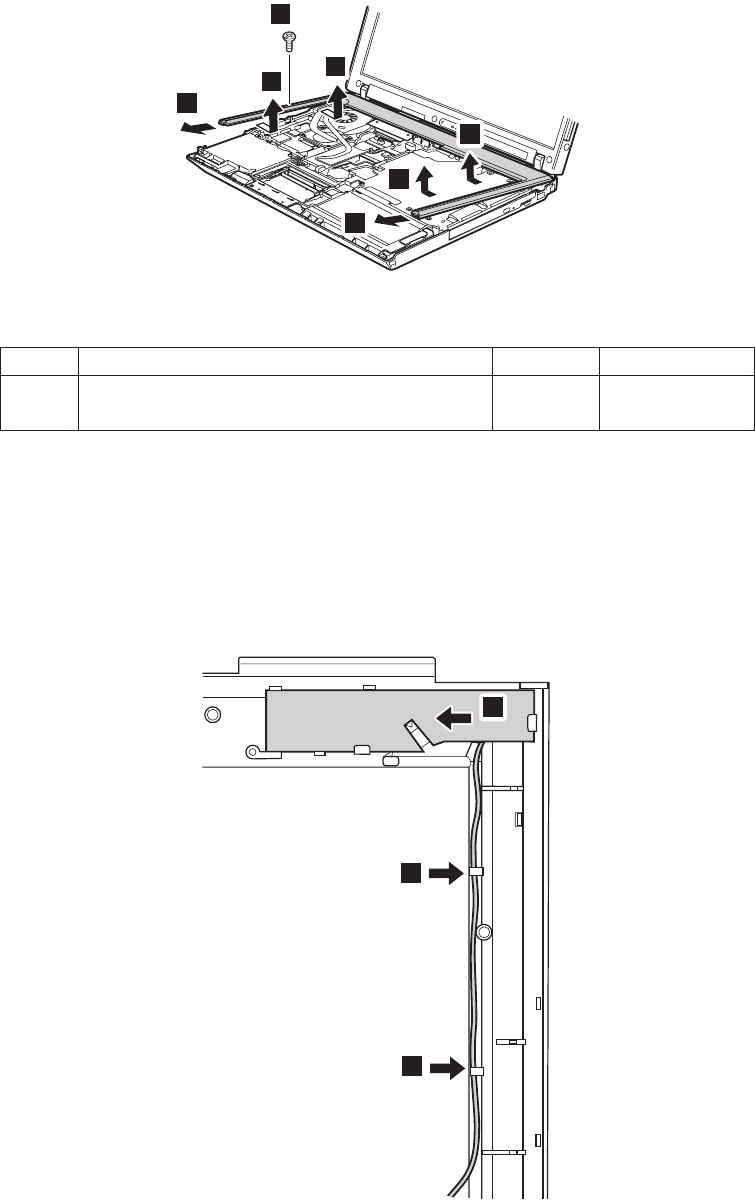

Note: Screw 3 is only for 14.1-in. LCD models.

Step Screw (quantity) Color Torque

3 M2 × 14 mm, flat-head, nylon-coated (1) Silver 0.167 Nm

(1.7 kgfcm)

In step 4, detach the claws. Then remove the keyboard bezel in the direction

shown by arrow 5.

When installing: Make sure that all the claws are attached firmly. Then fasten the

screws to secure the keyboard bezel.

Note: Step6 and 7 are only for the wireless WAN antenna cable (AUX).

When installing: Make sure that the antenna cable is routed along the cable

guides.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 81

1140 SIM card slot

For access, remove this FRU:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

Step Screw (quantity) Color Torque

1 M2 × 2.5 mm, flat-head, nylon-coated (1) Black 0.167 Nm

(1.7 kgfcm)

When installing: Make sure the connector 2 is attached firmly.

Removing and replacing a FRU

82 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

1150 Fan assembly

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1080 Heat sink plate and Modem daughter card (MDC-1.5)” on page 71

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

In step 1, loosen the screws.

Attention: Do not handle the fan roughly. Improper handling of the fan can cause

distortion or deformation and imperfect contact with components.

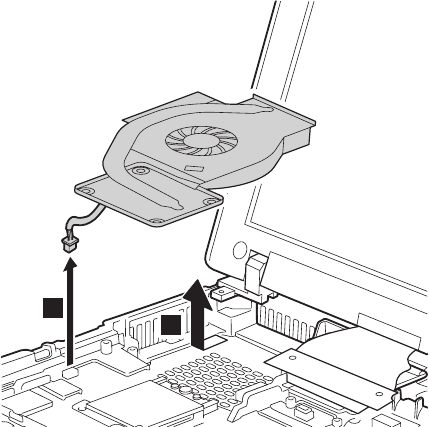

For models without a heat sink plate:

(continued)

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 83

For models with a heat sink plate:

(continued)

Removing and replacing a FRU

84 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

When installing:

v Before you attach the fan assembly to the computer, apply thermal grease, at an

amount of 0.2 grams, on the part marked a as in the following figure. Either

too much or too less application of grease can cause a thermal problem due to

imperfect contact with a component.

v Make sure that the fan connector is attached firmly.

v When attaching the fan assembly to the frame, take care not to damage the heat

sink (b) of the fan assembly.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 85

1160 CPU

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1080 Heat sink plate and Modem daughter card (MDC-1.5)” on page 71

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1150 Fan assembly” on page 83

Attention: CPU is extremely sensitive. When you service the CPU, avoid any

kind of rough handling.

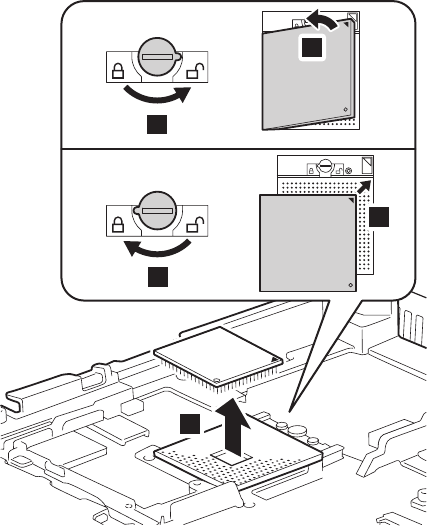

Rotate the head of the screw in the direction shown by arrow 1 to release the

lock; then remove the CPU.

For R60 and R61i (some models):

(continued)

Removing and replacing a FRU

86 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

For R60e, R61, and R61i (some models):

When installing: Place the CPU on the CPU socket a, and then rotate the head

of the screw in the direction shown by arrow b to secure the

CPU.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 87

1170 LCD assembly

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

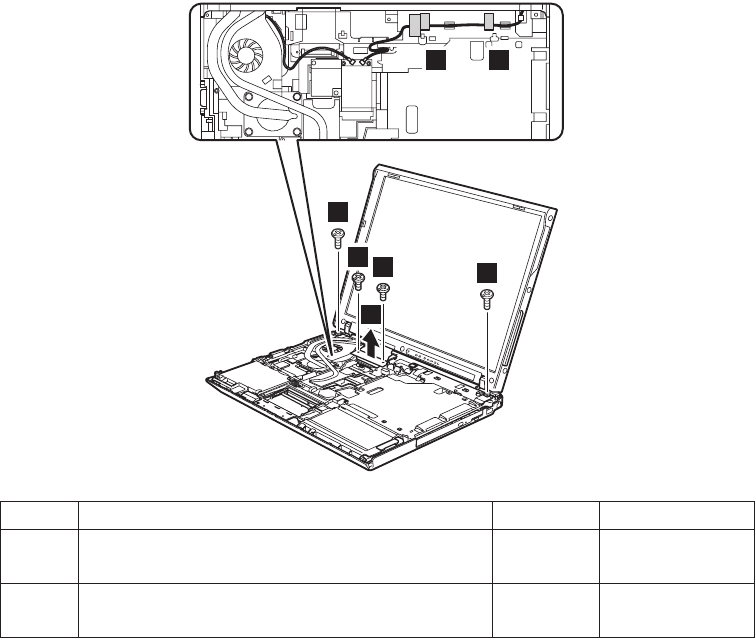

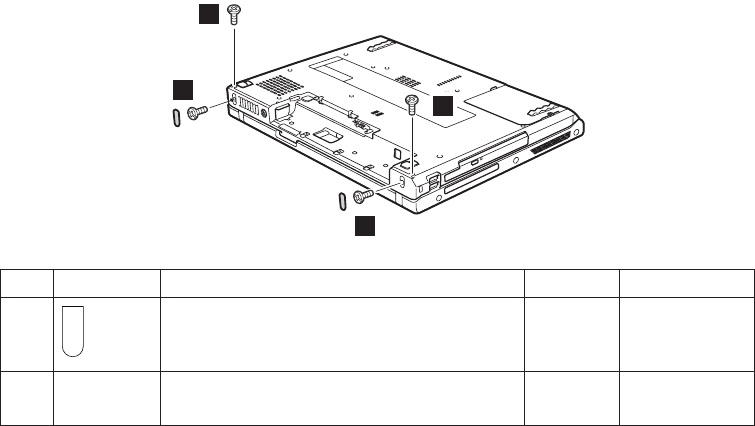

Step Screw cap Screw (quantity) Color Torque

1

M2.5 × 6 mm, flat-head, nylon-coated (2) Black 0.392 Nm

(4 kgfcm)

2 — M2.5 × 6 mm, flat-head, nylon-coated (2) Black 0.392 Nm

(4 kgfcm)

(continued)

Removing and replacing a FRU

88 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

334

Step Screw (quantity) Color Torque

3 M2 × 3.5 mm, small-head, nylon-coated (2) Silver 0.167 Nm

(1.7 kgfcm)

4 M2.5 × 6 mm, flat-head, nylon-coated (2) Black 0.392 Nm

(4 kgfcm)

In step 6, strip off the tapes securing the antenna cables, and release the cables

from the cable guides of the frame.

When installing: Do not pinch the antenna cables when you attach the LCD

connector.

(continued)

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 89

When installing:

1. Route the antenna cables along the cable guides and secure them with the

tapes. When you route the cables, do not tense them. To do so, the cables may

get damaged by the cable guides of the frame, and may cause a broken wire.

2. Make sure that the LCD connector is attached firmly.

Removing and replacing a FRU

90 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

1180 Base cover

For access, remove these FRUs, in order:

v “1010 Battery pack” on page 58

v “1020 Ultrabay Enhanced device for R60, R61, and R61i” on page 59

v “1030 Hard disk drive cover, hard disk drive, and hard disk drive rubber rails”

on page 60

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1070 Optical drive for R60e and R61i” on page 70

v “1080 Heat sink plate and Modem daughter card (MDC-1.5)” on page 71

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1140 SIM card slot” on page 82

v “1150 Fan assembly” on page 83

v “1170 LCD assembly” on page 88

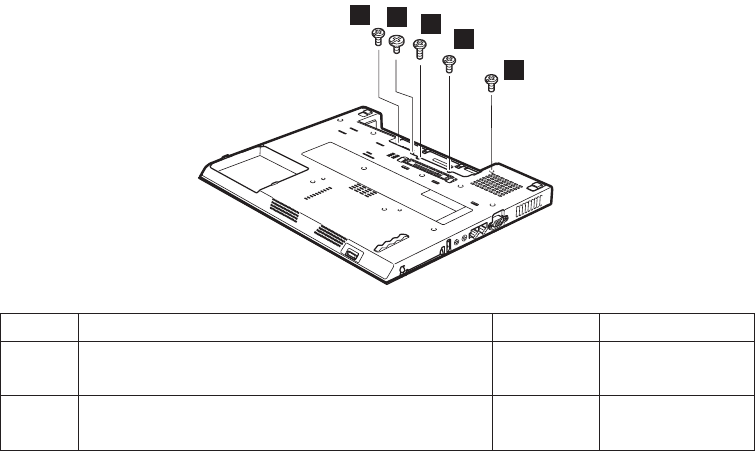

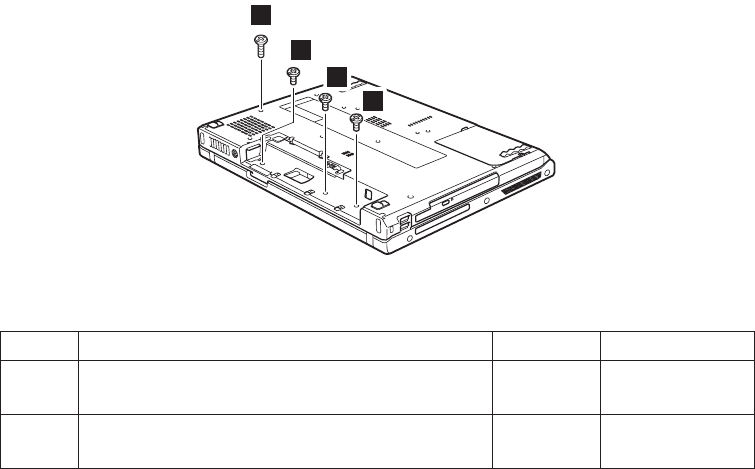

Step Screw (quantity) Color Torque

1 M2 × 3.5 mm, big flat-head, nylon-coated (1) Black 0.167 Nm

(1.7 kgfcm)

2 M2 × 5 mm, flat-head, nylon-coated (4) Black 0.167 Nm

(1.7 kgfcm)

(continued)

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 91

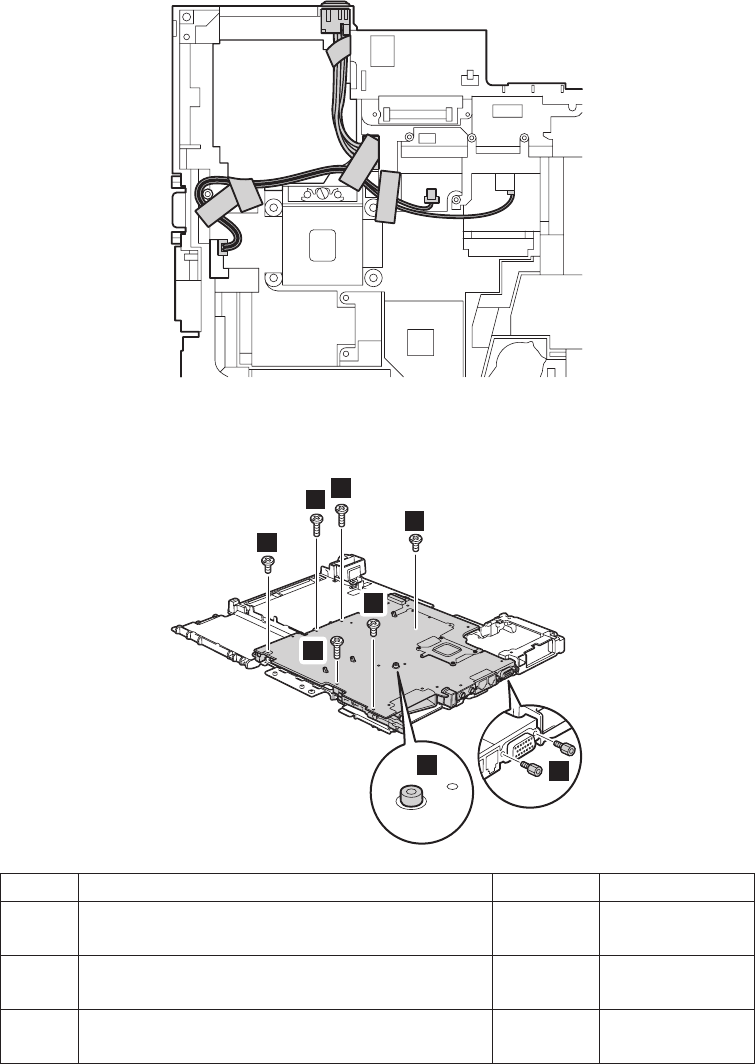

Step Screw (quantity) Color Torque

3 M2 × 17 mm, flat-head, nylon-coated (1) Black 0.167 Nm

(1.7 kgfcm)

4 M2 × 3.5 mm, small-head, nylon-coated (5) Silver 0.167 Nm

(1.7 kgfcm)

5 M2 × 10 mm, flat-head, nylon-coated (2) Black 0.167 Nm

(1.7 kgfcm)

Attention: Before step 7, be sure that the Ultrabay Enhanced device eject lever

is not popped out and it is housed in its position properly as shown in the figure

a.

Removing and replacing a FRU

92 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Note: Applying labels to the base cover

When you replace the base cover, you need to stick some labels on the new

base cover. Some of the labels have been shipped with the new base cover,

and some may need to be reused from the old base cover.

Following labels are the typical labels stuck on the bottom side of the

computer when it is shipped.

a FCC or homologation label

b FCC label

c FCC label for the wireless WAN

d Product label

e Windows license label (COA)

For some models, you also need to apply one or two FCC labels or the other

types of labels. Check the old base cover; if it has one or two FCC labels or

the other types of labels, find duplicates of them in the package and apply

them to the new base cover.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 93

1190 Speaker assembly

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1020 Ultrabay Enhanced device for R60, R61, and R61i” on page 59

v “1030 Hard disk drive cover, hard disk drive, and hard disk drive rubber rails”

on page 60

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1070 Optical drive for R60e and R61i” on page 70

v “1080 Heat sink plate and Modem daughter card (MDC-1.5)” on page 71

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1140 SIM card slot” on page 82

v “1150 Fan assembly” on page 83

v “1170 LCD assembly” on page 88

v “1180 Base cover” on page 91

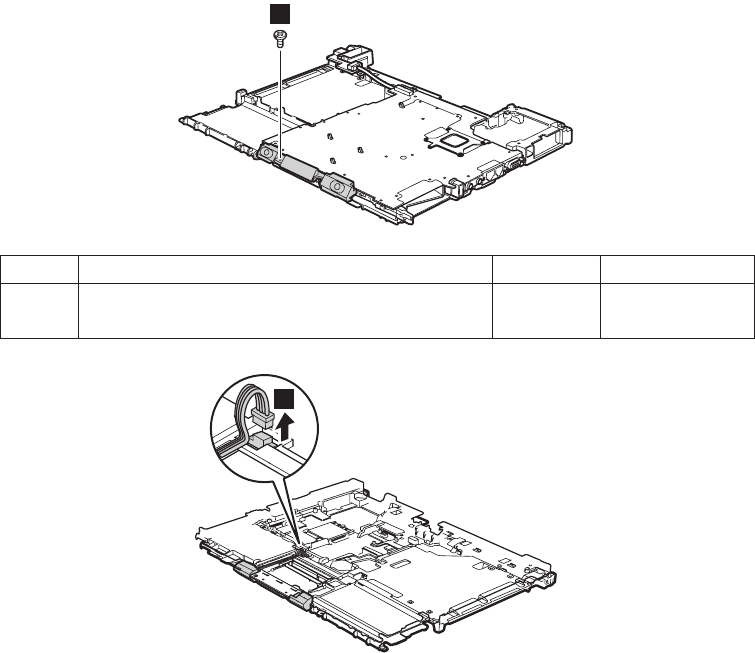

Note: Step1 is for R60, R61, and R61i (some models).

Step Screw (quantity) Color Torque

1 M2 × 3.5 mm, small-head, nylon-coated (1) Silver 0.167 Nm

(1.7 kgfcm)

When installing: Make sure that the speaker connector is attached firmly.

(continued)

Removing and replacing a FRU

94 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

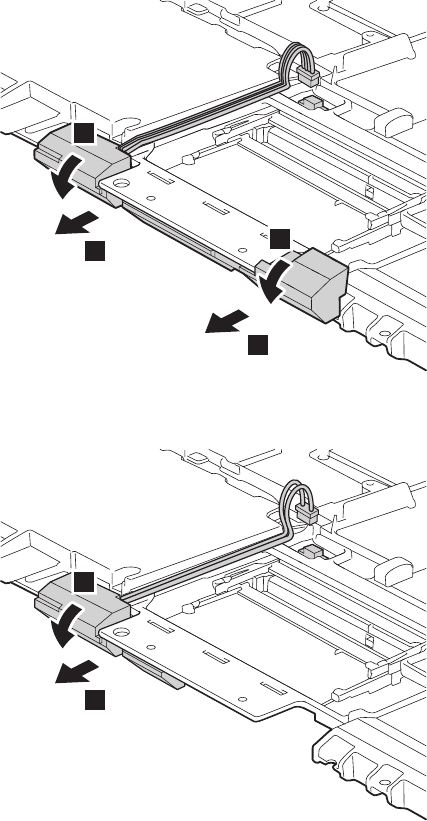

For R60, R61, and R61i (some models):

For R60e and R61i (some models):

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 95

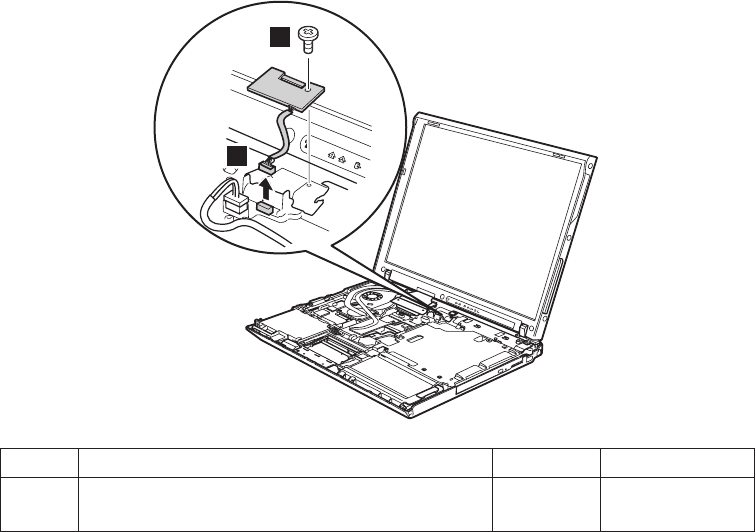

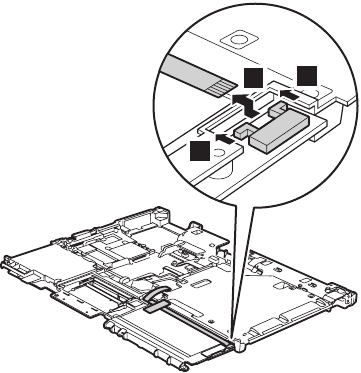

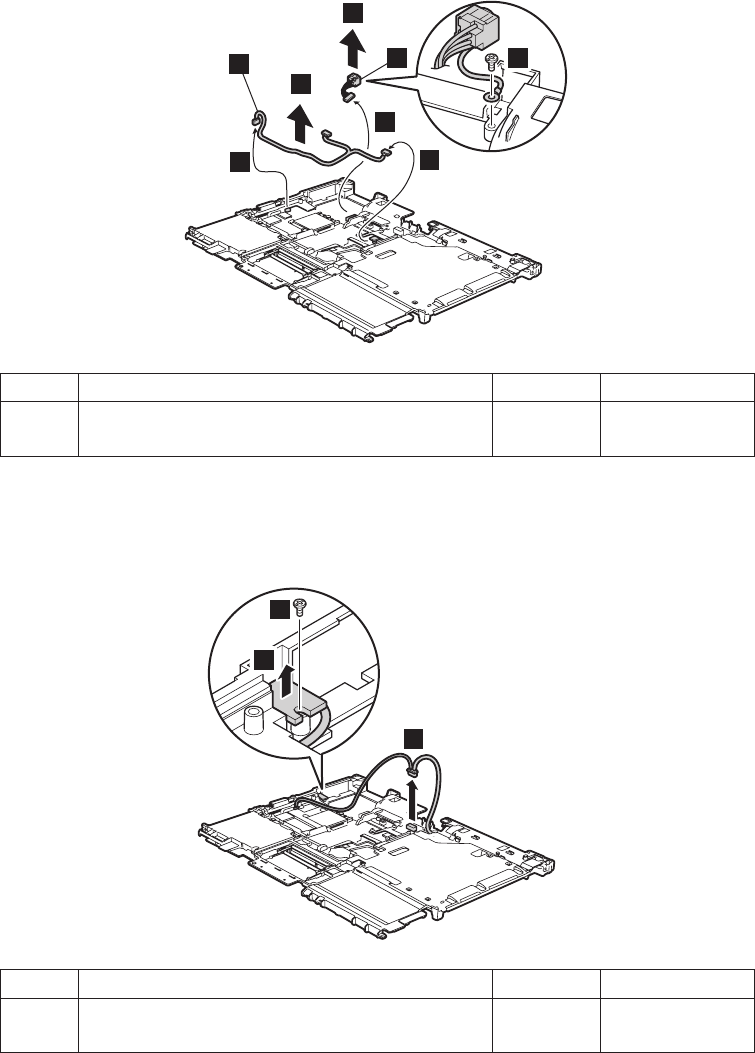

1200 Video connector sub card and FFC cable for 15.0-in. LCD

models in R60, R61, and R61i

For access, remove these FRUs, in order:

v “1010 Battery pack” on page 58

v “1020 Ultrabay Enhanced device for R60, R61, and R61i” on page 59

v “1030 Hard disk drive cover, hard disk drive, and hard disk drive rubber rails”

on page 60

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1070 Optical drive for R60e and R61i” on page 70

v “1080 Heat sink plate and Modem daughter card (MDC-1.5)” on page 71

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1140 SIM card slot” on page 82

v “1150 Fan assembly” on page 83

v “1170 LCD assembly” on page 88

v “1180 Base cover” on page 91

(continued)

Removing and replacing a FRU

96 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Turn over the structure frame and proceed to step 3.

Step Screw (quantity) Color Torque

3 M2 × 3.5 mm, small-head, nylon-coated (2) Silver 0.167 Nm

(1.7 kgfcm)

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 97

1210 Structure frame and IEEE1394 cable

For access, remove these FRUs, in order:

v “1010 Battery pack” on page 58

v “1020 Ultrabay Enhanced device for R60, R61, and R61i” on page 59

v “1030 Hard disk drive cover, hard disk drive, and hard disk drive rubber rails”

on page 60

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1070 Optical drive for R60e and R61i” on page 70

v “1080 Heat sink plate and Modem daughter card (MDC-1.5)” on page 71

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1140 SIM card slot” on page 82

v “1150 Fan assembly” on page 83

v “1170 LCD assembly” on page 88

v “1180 Base cover” on page 91

Remove the USB sub card with cable.

Step Screw (quantity) Color Torque

1 M2 × 3.5 mm, small-head, nylon-coated (1) Silver 0.167 Nm

(1.7 kgfcm)

2 M2.5 × 6 mm, flat-head, nylon-coated (1) Black 0.392 Nm

(4 kgfcm)

In step 3, detach the connector and release the cable from the cable guide of the

frame.

When installing: Make sure that the connector 3 is attached firmly.

(continued)

Removing and replacing a FRU

98 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Step Screw (quantity) Color Torque

5 M2 × 2.5 mm, flat-head, nylon-coated (1) Black 0.167 Nm

(1.7 kgfcm)

(continued)

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 99

Remove the ac power jack cable a and the modem cable b.

ba6

Step Screw (quantity) Color Torque

6 M2 × 2.5 mm, flat-head, nylon-coated (1) Black 0.167 Nm

(1.7 kgfcm)

Remove the IEEE1394 cable.

Note: Step12 and 13 are only for R60, R61, and R61i (some models).

Step Screw (quantity) Color Torque

12 M2.5 × 6 mm, flat-head, nylon-coated (1) Black 0.392 Nm

(4 kgfcm)

(continued)

Removing and replacing a FRU

100 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

When installing: Make sure the connectors are attached firmly, and that the cables

are routed as in the figure above.

Step Screw (quantity) Color Torque

14 M2 × 10 mm, flat-head, nylon-coated (3) Black 0.167 Nm

(1.7 kgfcm)

15 M2 × 3.5 mm, big flat-head, nylon-coated (3) Black 0.167 Nm

(1.7 kgfcm)

16 Hex stud (2) Silver 0.392 Nm

(4 kgfcm)

When installing: When attaching the system board to the frame, adjust the

placement with the small projection a. Then secure the system

board with the screws.

(continued)

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 101

Remove the system board, and the PC Card/ExpressCard slots assembly from the

structure frame together.

Removing and replacing a FRU

102 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

1220 System board and PC Card/ExpressCard slots assembly

For access, remove these FRUs, in order:

v “1010 Battery pack” on page 58

v “1020 Ultrabay Enhanced device for R60, R61, and R61i” on page 59

v “1030 Hard disk drive cover, hard disk drive, and hard disk drive rubber rails”

on page 60

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1070 Optical drive for R60e and R61i” on page 70

v “1080 Heat sink plate and Modem daughter card (MDC-1.5)” on page 71

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1140 SIM card slot” on page 82

v “1150 Fan assembly” on page 83

v “1170 LCD assembly” on page 88

v “1180 Base cover” on page 91

v “1210 Structure frame and IEEE1394 cable” on page 98

Important notices for handling the system board

When handling the system board, bear the following in mind.

v The system board has an accelerometer, which can be broken by applying

several thousands of G-forces.

Note: Dropping a system board from a height of as little as 6 inches so

that it falls flat on a hard bench can subject the accelerometer to as

much as 6,000 G’s of shock.

v Be careful not to drop the system board on a bench top that has a hard

surface, such as metal, wood, or composite.

v If a system board is dropped, you must test it, using PC-Doctor for DOS, to

make sure that the HDD Active Protection still functions (see below).

Note: If the test shows that HDD Active Protection is not functioning, be

sure to document the drop in any reject report, and replace the

system board.

v Avoid rough handling of any kind.

v At every point in the process, be sure not to drop or stack the system

board.

v If you put a system board down, be sure to put it only on a padded

surface such as an ESD mat or conductive corrugated material.

After replacing the system board, run PC-Doctor for DOS to make sure that

HDD Active Protection still functions. The procedure is as follows:

1. Place the computer on a horizontal surface.

2. Run Diagnostics --> ThinkPad Devices --> HDD Active Protection Test.

Attention: Do not apply physical shock to the computer while the test is

running.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 103

Following components soldered on the top side of the system board are extremely

sensitive. When you service the system board, avoid any kind of rough handling.

a Accelerometer chip for the HDD Active Protection System™

b Security chip

c CPU

d Video chip

e MCH (Memory Controller Hub)

f ICH (I/O Controller Hub)

Step Screw (quantity) Color Torque

1 M2 × 2.5 mm, flat-head, nylon-coated (2) Black 0.167 Nm

(1.7 kgfcm)

(continued)

Removing and replacing a FRU

104 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Turn over the system board, and then disconnect the PC Card/ExpressCard slots

assembly a from the system board.

When installing:

1. Make sure that the connectors of PC Card/ExpressCard slots assembly are

attached to the system board firmly.

2. When you attach the system board to the base cover, make sure that the

wireless switch on the system board and the plastic housing in the base cover

are in the same position (L or R). The wireless switch is fragile and might be

damaged by the pushing force of the system board into the base cover.

Installation for 15.0-in. LCD models in R60 and R61i (some models):

When replacing the system board, check the location of the wireless WAN card slot

b on the old system board. If it has the CU tape, you need to apply the CU tape

on the new system board.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 105

2010 LCD front bezel

For access, remove this FRU:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1170 LCD assembly” on page 88

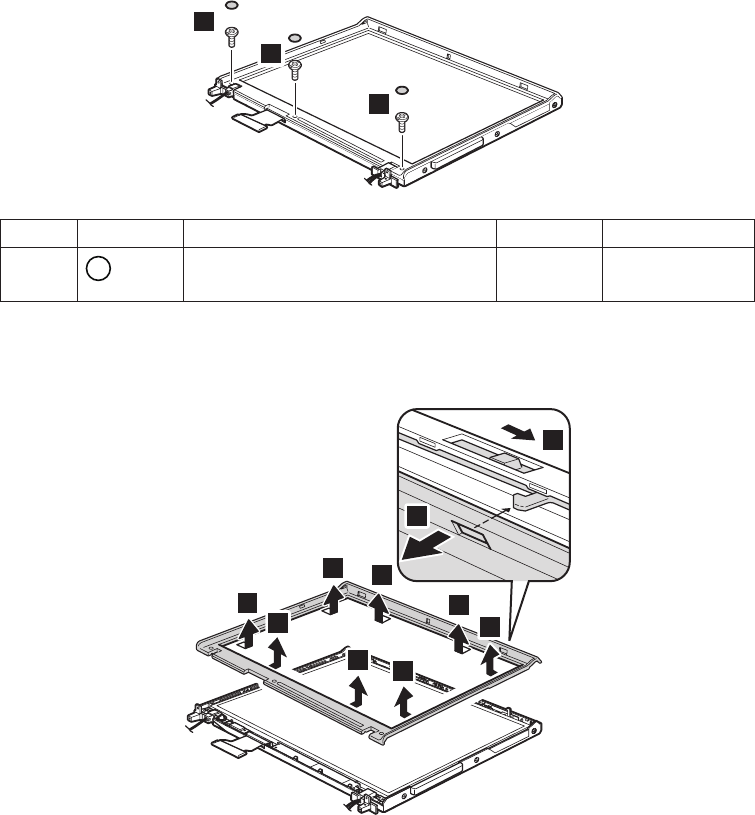

Step Screw cap Screw (quantity) Color Torque

1

M2.5 × 6 mm, flat-head,

nylon-coated (3)

Black 0.392 Nm

(4 kgfcm)

In step 3, while sliding the LCD latch lever in the direction shown by the arrow,

remove the bezel in the direction shown by arrow 4.

Removing and replacing a FRU

106 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

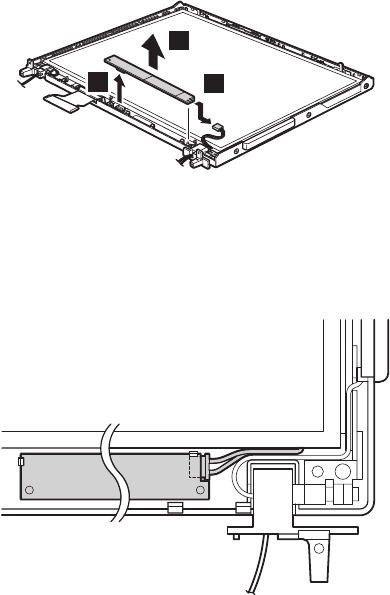

2020 Inverter card

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1170 LCD assembly” on page 88

v “2010 LCD front bezel” on page 106

When installing: Make sure that connectors 2 and 3 are attached firmly.

Cable routing: When replacing the inverter card, route the connector cable as in

this figure:

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 107

2030 Bluetooth daughter card (BDC-2)

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1170 LCD assembly” on page 88

v “2010 LCD front bezel” on page 106

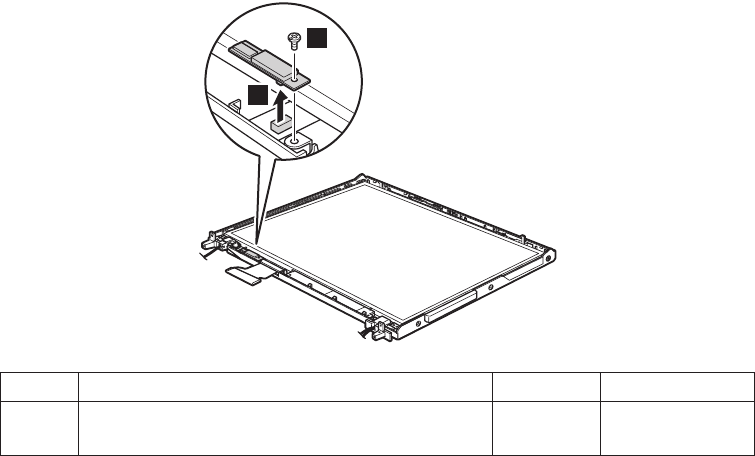

Step Screw (quantity) Color Torque

1 M2 × 3.5 mm, flat-head, nylon-coated (1) Black 0.167 Nm

(1.7 kgfcm)

When installing: Make sure that connector is attached firmly.

Removing and replacing a FRU

108 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

2040 Wireless WAN antenna cable (MAIN)

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1170 LCD assembly” on page 88

v “2010 LCD front bezel” on page 106

v “2020 Inverter card” on page 107

v “2030 Bluetooth daughter card (BDC-2)” on page 108

Note: Red cable is the wireless WAN antenna cable (MAIN).

When installing: When routing the antenna cable, do not tense the cable. To do

so, the cable may get damaged by the hinge, and may cause a

broken wire.

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 109

2050 LCD panel, LCD cable, and hinges

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1170 LCD assembly” on page 88

v “2010 LCD front bezel” on page 106

v “2020 Inverter card” on page 107

v “2030 Bluetooth daughter card (BDC-2)” on page 108

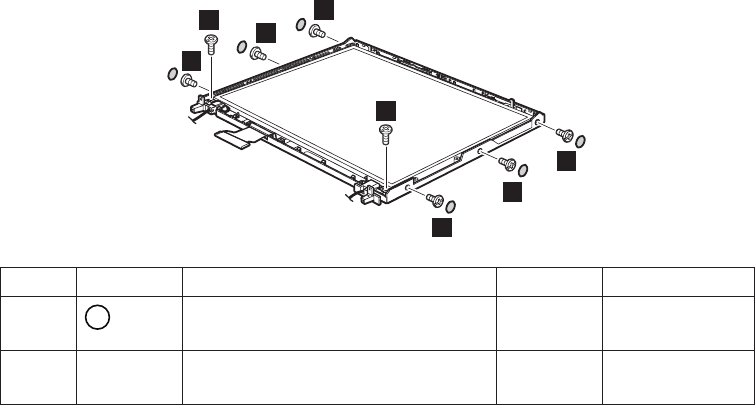

Step Screw cap Screw (quantity) Color Torque

1

M2 × 3.5 mm, small-head,

nylon-coated (6)

Silver 0.167 Nm

(1.7 kgfcm)

2 — M2.5 × 6 mm, flat-head,

nylon-coated (2)

Black 0.392 Nm

(4 kgfcm)

(continued)

Removing and replacing a FRU

110 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Remove the cables from the LCD panel.

(continued)

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 111

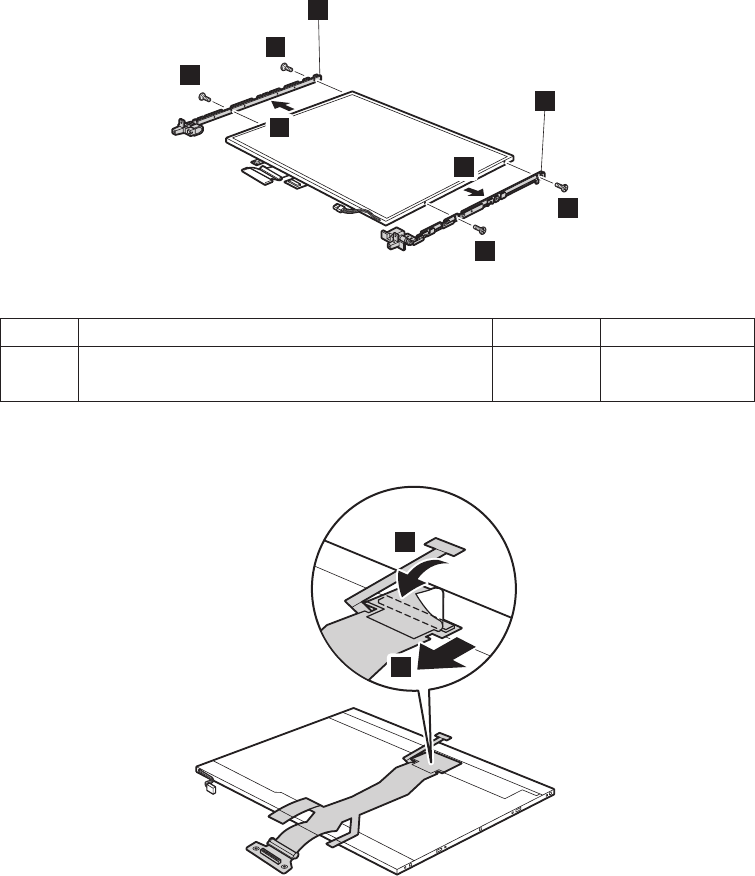

Remove the hinges (a) from the LCD panel.

Step Screw (quantity) Color Torque

11 M2 × 2.5 mm, flat-head, nylon-coated (4) Black 0.167 Nm

(1.7 kgfcm)

Remove the LCD cable assembly from the LCD panel.

Removing and replacing a FRU

112 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

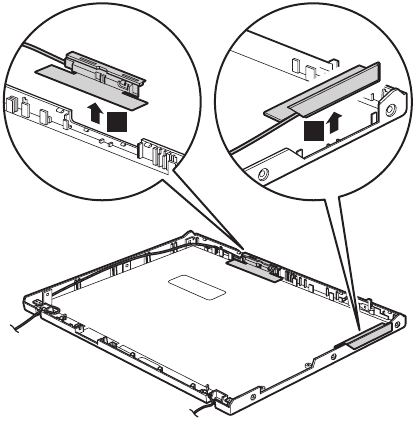

2060 LCD rear cover and wireless LAN antenna cables

For access, remove these FRUs in order:

v “1010 Battery pack” on page 58

v “1040 Palm rest or palm rest with fingerprint reader” on page 64

v “1060 Keyboard” on page 68

v “1090 PCI Express Mini Card for 802.11 a/b/g wireless LAN” on page 74

v “1100 PCI Express Mini Card for 802.11 a/b/g/n wireless LAN” on page 76

v “1110 PCI Express Mini Card for wireless WAN for R60 and R61i” on page 78

v “1130 Keyboard bezel and wireless WAN antenna cable (AUX)” on page 80

v “1170 LCD assembly” on page 88

v “2010 LCD front bezel” on page 106

v “2020 Inverter card” on page 107

v “2030 Bluetooth daughter card (BDC-2)” on page 108

v “2040 Wireless WAN antenna cable (MAIN)” on page 109

v “2050 LCD panel, LCD cable, and hinges” on page 110

Removing and replacing a FRU

ThinkPad R60, R60e, R61, and R61i 113

Locations

Front view

1 ThinkLight

2 Status indicators

Note: For the description of each indicator, see “Status indicators” on page

38.

3 Wireless WAN antenna

4 Security key hole

5 Universal serial bus (USB) connectors

6 Ultrabay Enhanced status indicator (for some models)

7 Ultrabay Enhanced latch (for some models)

8 Ultrabay Enhanced device eject lever (for some models)

9 Ultrabay Enhanced (for some models)

10 Video-out connector

11 Fingerprint reader (for some models)

12 TrackPoint pointing stick

13 TrackPoint buttons

14 Touch pad buttons (for some models)

15 Touch pad (for some models)

16 UltraNav

17 Volume control buttons

18 ThinkVantage button

19 Power switch

Locations

114 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Rear view

1 Status indicators

Note: For the description of each indicator, see “Status indicators” on page

38.

2 PC Card/ExpressCard slots eject buttons

3 PC Card/ExpressCard slots or PC Card slot

4 USB connector

5 Stereo headphone jack

6 Microphone jack

7 RJ-45 (Ethernet) connector

8 RJ-11 (modem) connector

9 External monitor connector

10 IEEE 1394 (for some models)

11 AC power connector

Bottom view

1 Battery pack

2 Battery pack latch

3 Docking connector (for some models)

4 Wireless radio switch

5 Stereo speakers

6 LCD cover latch

7 Hard disk drive

123

Locations

ThinkPad R60, R60e, R61, and R61i 115

Parts list

v Each FRU is available for all types or models, unless specific types or models are

specified.

v FRU with specific models listed and described as xxU (where U is an example of

a country designator) should be used for all models ending in U.

v FRU with specific models listed and described as 3Dx (where 3D is an example

of a unique configuration) should be used for all of these models, unless specific

country or region designator is specified.

v A CRU (customer replaceable unit) is identified by a single asterisk (*) or two

asterisks (**) in the CRU ID column. An N in the CRU ID column means the

part is not a CRU. A single asterisk (*) means the part is an External CRU; two

asterisks (**) means the part is an Internal CRU.

ThinkPad computers contain the following types of the external CRUs:

External CRUs (pluggable)

These CRUs unplug from the computer. Examples of these types of

CRUs include an ac adapter, an external keyboard, a mouse, a power

cord, a port replicator, a USB device, and an external bay device adapter.

External CRUs with latches

These CRUs have a latch to help you to remove and replace the part.

Examples of these types of CRUs include a battery pack, an Ultrabay

device such as an optical drive, a hard disk drive, and an extended

battery.

ThinkPad computers contain the following types of the internal CRUs:

Internal CRUs (located behind an access panel)

These CRUs are isolated parts within the computer that are concealed by

an access panel that is typically secured by either one or two screws.

Once the access panel is removed, only the specific CRU is visible.

Examples of these types of CRUs include a memory card and a hard

disk drive.

Internal CRUs (located within the product itself)

These CRUs are accessible only by opening the outer case of the

computer. Examples of these CRUs include the integrated keyboard

parts beneath the integrated keyboard and parts beneath the palm rest.

v A RoHS compliant FRU is identified by an R. An N in the RoHS ID column

means the part is not a RoHS compliant FRU.

v FRUs marked with OP are available as options.

Parts list

116 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

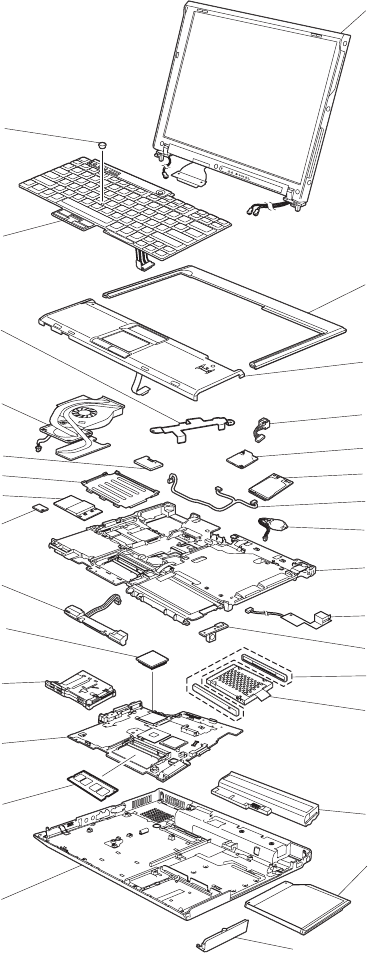

Overall

Parts list

ThinkPad R60, R60e, R61, and R61i 117

No. FRU FRU no. RoHS

CRU

a - c See “Miscellaneous parts” on page 255.

1 LCD unit (see “LCD FRUs” on page 197.)

2 Keyboard bezel assembly (14.1-in.)

v 9455-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax,

2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx,

2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx,

2Xx, 2Yx, 2Zx, 7Tx, 7Ux, 7Xx, 7Yx, A2x, A4x, A5x,

A6x, A7x, A8x, A9x, AAx, ABx, ADx, AEx, AFx, AGx,

AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx,

K2x, M9x, MAx, MBx, MCx, MDx, MEx

v 9456-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax,

5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx,

5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx,

D4x, D5x, D6x, D9x, DFx, DGx, DHx, DJx, DKx, DLx,

DMx, K9x, LAx,N2x, M4x, M5x, MNx, MPx, MQx

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax,

7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Px,

7Vx, 7Wx, 92x, 93x, G2x, G3x, G8x, H2x, H3x, H4x,

H6x, H7x, H8x, HAx, HBx, HCx, HDx, HEx, HFx,

HGx, HHx, HJx, HKx, HLx, HMx, HNx, HPx, HQx,

HRx, HSx, KGx, KHx, KJx

v 9458-CTO, 7Mx, L7x, LLx, LMx

v 9459-CTO, 74x, 7Gx, 7Px, 7Sx, 7Rx, 92x, 93x, 99x, 9Ax,

9Bx, ASx, ATx, AUx, AVx, AWx, AXx, AZx, G2x, G3x,

G9x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax,

2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx,

2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx,

2Xx, 2Yx, 2Zx, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx,

8Jx, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ACx,

AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx,

APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, AYx,

HDx, HFx, HSx

v 9461-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax,

4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx,

4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx,

4Xx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx,

CKx, HLx, HNx, M6x, M7x, M8x

(continued)

39T7474 R N

(continued)

Parts list

118 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

2 Keyboard bezel assembly (14.1-in.)

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax,

6Bx, 6Dx, 6Cx, 6Ex, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx,

6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx,

6Yx, 6Zx, 8Hx, 92x, 93x, 94x, E2x, E4x, E5x, E6x, G8x,

G9x, E7x, E8x, E9x, EAx, EBx, ECx, EDx, EEx, EGx,

EHx, EJx, EKx, ELx, H8x, H9x, HAx, KTx, KVx, HTx

v 9463-CTO, 82x, HPx, LPx, LQx, LRx

v 9464-CTO, 63x, 69x, 6Wx, 84x, 86x, 88x, 92x, 93x, 94x,

CDx, CEx, CFx, CGx, CHx, CJx, G9x

v 9446-CTO

v 9447-CTO

39T7474 R N

Keyboard bezel assembly (15.0-in.)

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v 9455-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x,, 3Ax,

3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx,

3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx,

3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x,

4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx,

4Mx, 4Nx, 4Px, 4Qx, 4Rx, ACx, B2x, B3x, B4x, B5x,

B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx,

BGx, BHx, BJx, BLx, BMx, BNx, BPx, BQx, BRx, BUx,

BVx, BWx, BXx, BYx, BZx, C2x, C3x, C4x, C5x, C6x,

C7x, C8x, C9x, CAx, CBx, CCx, CDx, CEx, CGx, CHx,

CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, DPx,

K3x, LCx, LDx, LEx, LFx, LUx, LVx, LWx, MFx, MGx,

MHx, MJx, MKx, MLx, MMx

v 9456-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax,

6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx,

6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx,

6Xx, 6Yx, 6Zx, DQx, DRx, E4x, E5x, E6x, E7x, EAx,

EBx, ECx, EDx, EEx, EFx, EGx, EHx, EJx, EKx, ELx,

EMx, ENx, EPx, EQx, ERx, ESx, ETx, EUx, EVx, EWx,

EXx, EYx, EZx, F3x, F4x, F5x, F6x, FAx, FBx, FCx, FFx,

FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx,

FSx, FTx, FUx, FVx, FWx, HTx, K8x, KAx, KLx, KMx,

L2x, L3x, L4x, L5x, L6x, L9x, LBx, LGx, LHx, LJx,

LKx, LXx, LYx, LZx, MRx, MSx, MTx, MUx, MVx

(continued)

39T7475 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 119

No. FRU FRU no. RoHS

CRU

2 Keyboard bezel assembly (15.0-in.)

v 9457-CTO, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax,

8Bx, 8Cx, 8Ex, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx,

8Px, 8Wx, 94x, 95x, 96x, 97x, 98x, DSx, DTx, DUx,

DVx, DWx, G4x, G5x, G6x, G7x, J3x, J6x, J7x, J9x, JAx,

JBx, JDx, JFx, JGx, JHx, JJx, JKx, JLx, JMx, JNx, JPx,

KDx, KEx, KFx, KNx, KPx, KQx, KRx, LSx

v 9458-CTO, 8Qx, 8Rx, L8x, LNx

v 9459-CTO, 8Jx, 8Kx, 8Vx, 8Wx, 94x, 95x, 96x, 97x, 98x,

CUx, CVx, CWx, CXx, CYx, DNx, FXx, FYx, FZx, G4x,

G5x, G6x, KKx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax,

3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Lx, 3Mx,

3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx,

9Px, B2x, B3x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx,

BDx, BEx, BFx, BGx, BHx, BJx, BKx, BLx, BMx, BNx,

BPx, BQx, BRx, BSx, BUx, BVx, BWx, H3x, HBx, HCx,

HEx

v 9461-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax,

5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx,

5Mx, 5Nx, D2x, D3x, D4x, D5x, D6x, D7x, D9x, DAx,

DBx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DUx,

DXx, DYx, DZx, H4x, H5x, KSx, HGx, HHx, HJx,

HKx, HMx, HRx, HWx, HXx, HYx

v 9462-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax,

7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx,

7Mx, 7Nx, 7Px, 7Qx, 7Xx, 7Yx, 7Zx, 95x, 96x, 97x, 98x,

9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx,

F2x, GAx, F3x, F4x, F7x, F8x, FAx, FBx, FCx, FDx,

FEx, FFx, FGx, H7x, KUx

v 9463-CTO, 7Rx, HQx, HUx, HVx

v 9464-CTO, 3Kx, 73x, 7Bx, 7Tx, 7Vx, 7Xx, 95x, 96x, 97x,

BYx, BZx, DLx, DMx, DNx, DPx, DSx, DVx, DWx,

GAx

v 9446-CTO

v 9447-CTO

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

39T7475 R N

(continued)

Parts list

120 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

3 Palm rest assembly without fingerprint reader (14.1-in.)

v 9455-CTO, 22x, 24x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx,

2Dx, 2Gx, 2Lx, 2Mx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux,

2Vx, 2Wx, 2Xx, 2Zx, 7Ux, 7 Xx, A2x, A4x, A5x, A7x,

A8x, A9x, ADx, AFx, AHx, AJx, AKx, ALx, AMx,

AQx, ARx, M9x, MBx, MCx

v 9456-CTO, 52x, 53x, 54x, 55x, 56x, 59x, 5Ax, 5Bx, 5Cx,

5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Kx, 5Lx, 5Nx, 5Rx, 5Sx,

5Tx, 5Ux, 5Vx, 5Wx, D9x, LAx, M2x, M4x, M5x, MNx

v 9457-CTO, 72x, 73x, 74x, 75x, 77x, 78x, 79x, 7Ax, 7Dx,

7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Px, 7Vx, 7Wx, 92x, G2x,

H3x, H4x, H6x, H7x, HAx, HGx, HJx, HKx, HLx,

HMx, HNx, HPx, HQx, HRx, KGx, KHx

v 9458-CTO, 7Mx, L7x, LLx

v 9459-CTO, 74x, 7Gx, 7Px, 7Rx, 7Sx, 92x, 99x, 9Ax, 9Bx,

ATx, AVx, G2x, G9x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 26x, 27x, 28x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex,

2Jx, 2Kx, 2Px, 2Sx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 89x,

8Ax, 8Cx, 8Dx, 8Ex, 8Gx, A3x, A4x, A6x, A7x, A9x,

ACx, AFx, AGx, AJx, ALx, APx, AQx, ARx, ASx, AUx,

AVx, AWx, HSx

v 9461-CTO, 42x, 45x, 47x, 49x, 4Ax, 4Cx, 4Ex, 4Gx,

4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Tx,

4Ux, 4Vx, CKx, N6x, M7x, M8x

v 9462-CTO, 62x, 64x, 65x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx,

6Ex, 6Jx, 6Mx, 6Qx, 6Rx, 6Ux, 6Vx, 6Xx, 6Yx, 6Zx, 92x,

94x, E2x, E4x, E6x, G8x, G9x, E7x, E9x, EAx, ECx,

ELx, H8x, HAx, KTx, KVx, HTx

v 9463-CTO, 82x, HPx, LQx, LRx

v 9464-CTO, 69x, 84x, 86x, 88x, 92x, 94x, CDx, CEx, CFx,

CGx, CJx, G9x

v 9446-CTO

v 9447-CTO

41W5157 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 121

No. FRU FRU no. RoHS

CRU

3 Palm rest assembly with fingerprint reader (14.1-in.)

v 9455-CTO, 23x, 25x, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Nx, 2Yx,

7Tx, 7Yx, A6x, AAx, ABx, AEx, AGx, ANx, APx, K2x,

MAx, MDx, MEx

v 9456-CTO, 57x, 58x, 5Jx, 5Mx, 5Px, 5Qx, D4x, D5x,

D6x, DFx, DGx, DHx, DJx, DKx, DLx, DMx, K9x,

MPx, MQx

v 9457-CTO, 76x, 7Bx, 7Cx, 7Ex, 7Lx, 93x, H2x, G3x,

H8x, HBx, HCx, HDx, HEx, HFx, HHx, HSx, KJx

v 9458-CTO, LMx

v 9459-CTO, 93x, ASx, AUx, AWx, AXx, AZx, G3x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 23x, 24x, 25x, 29x, 2Fx, 2Gx, 2Hx, 2Lx,

2Mx, 2Nx, 2Qx, 2Rx, 2Tx, 8Bx, 8Fx, 8Jx, A5x, A8x,

AAx, AEx, AHx, AKx, AMx, ANx, ATx, AYx, HDx,

HFx

v 9461-CTO, 43x, 44x, 46x, 48x, 4Bx, 4Dx, 4Fx, 4Rx,

4Wx, 4Xx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x,

CAx, HLx, HNx

v 9462-CTO, 63x, 66x, 67x, 6Gx, 6Hx, 6Kx, 6Lx, 6Nx,

6Px, 6Sx, 6Tx, 6Wx, 8Hx, 93x, E5x, EBx, EDx, EEx,

EHx, EJx, EKx, H9x

v 9463-CTO, LPx

v 9464-CTO, 63x, 6Wx, 93x, CHx

v 9446-CTO

v 9447-CTO

41W5158 R **

(continued)

Parts list

122 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

3 Palm rest assembly without fingerprint reader with IBM

Logo (15.0-in.)

v 9455-CTO, 32x, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx,

3Jx, 3Kx, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Lx,

4Nx, 4Qx, 4Rx, BLx, BVx, BXx, BZx, C2x, C4x, C5x,

C9x, CAx, CEx, CRx, CSx, LEx, LFx, MFx, MHx

v 9456-CTO, 62x, 63x, 64x, 66x, 68x, 69x, 6Ax, 6Bx, 6Cx,

6Hx, 6Jx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx,

6Xx, 6Yx, DQx, DRx, FAx, KLx. KMx, L4x, L5x, L6x,

L9x, LGx, LJx, LKx, MRx

v 9457-CTO, 84x, 86x, 87x, 88x, 8Bx, 8Ex, 8Gx, 8Hx, 8Jx,

8Kx, 8Lx, 8Nx, 8Px, 94x, 95x, 98x, DSx, DTx, DUx,

DVx, DWx, G4x, J3x, J6x, J7x, J9x, JAx, JDx, JGx, JJx,

JLx, JMx, JNx, KNx, KPx, KQx, KRx, LSx

v 9458-CTO, 8Qx, 8Rx, L8x

v 9459-CTO, 8Jx, 8Kx, 8Vx, 94x, 95x, 98x, G4x, CXx,

FXx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 35x, 37x, 39x, 3Ax, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,

3Lx, 3Mx, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, B5x,

B6x, BAx, BCx, BDx, BFx, BGx, BKx, BMx, BQx, BSx,

BUx, BVx, BWx

v 9461-CTO, 53x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Hx

v 9462-CTO, 74x, 78x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Jx, 7Mx,

7Nx, 7Zx, 95x, 97x, 9Qx 9Tx, 9Vx, 9Wx, 9Yx, 9Zx, F3x,

F4x, FCx, FDx

v 9463-CTO, 7Rx, HUx, HVx

v 9464-CTO, 3Kx, 7Bx, 7Tx, 7Vx, 95x, 97x, BYx, BZx,

DLx, DNx, DSx, DVx

v 9446-CTO

v 9447-CTO

v 8943-CTO, 4Jx, 4Lx, 4Nx, 4Qx, 52x 54x, 56x, 58x, 5Bx,

5Ex, 5Fx, 63x, 64x, AGx, ALx, AMx, ANx, APx, AQx,

ARx, ASx, BKx, BWx

v 8945-CTO, 7Ux, 7Wx, 7Yx, 82x, 84x, 86x, 88x, 8Ax,

8Dx, 8Gx, 8Hx, AKx, CRx, CUx

41W5159 R **

Palm rest assembly without fingerprint reader with IBM Logo (15.0-in.)

v 8942-CTO, 22x, 3Gx, 3Kx, 3Lx, 46x, 47x, 48x, 49x, 9Qx, AAx, ABx, ACx, ADx, AEx,

AFx

v 8944-CTO, 73x, 76x, 77x, 7Ax, 7Bx, 7Cx, 7Gx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 9Wx, AJx,

CPx

v 8947-CTO, 9Gx, 9Kx, 9Lx, 9Px

v 8948-CTO

v 8949-CTO

xxB, xxC, xxH, xxV 41W5159 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 123

No. FRU FRU no. RoHS

CRU

3 Palm rest assembly without fingerprint reader with ThinkPad Logo (15.0-in.)

v 8942-CTO, 22x, 33x, 35x, 37x, 39x, 3Bx, 3Dx, A5x, ATx, AVx

v 8944-CTO, 6Ax, 6Cx, 6Ex, 6Gx, 6Jx, 6Kx, 6Nx, 6Qx, 6Sx, 6Ux, 6Wx, 6Xx, 7Kx, 7Lx,

7Mx, 7Nx, 7Px, 9Ux, CBx, CDx, CEx, CHx, CKx, CLx

v 8947-CTO, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 99x, 9Ax, 9Bx, 9Cx, 9Dx, D6x, D7x, DGx,

DHx

v 8948-CTO

v 8949-CTO

xxA, xxE, xxG, xxF, xxJ, xxK, xxL, xxM, xxP, xxQ,

xxS, xxT,, xxU, xxY

42W3150 R **

Palm rest assembly with fingerprint reader with IBM

Logo (15.0-in.)

v 9455-CTO, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 3Lx,

3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx,

3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x,

4Ax, 4Kx, 4Px, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x,

BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BMx,

BNx, BPx, BQx, BRx, BUx, C3x, C6x, C7x, CBx, CCx,

CDx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx,

CQx, DPx, K3x, LCx, LDx, MJx, MKx, MLx, MMx

v 9456-CTO, 65x, 67x, 6Dx, 6Ex, 6Fx, 6Gx, 6Kx, 6Lx,

6Mx, 6Qx, 6Zx, E4x, E5x, E6x, E7x, EAx, EBx, ECx,

EDx, EEx, EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx,

EPx, EQx, ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx,

EZx, F3x, F4x, F5x, F6x, FBx, FCx, FFx, FGx, FHx, FJx,

FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx,

FVx, FWx, HTx, K8x, KAx, L2x, L3x, LBx, LHx, MSx,

MTx, MUx, MVx

v 9457-CTO, 82x, 83x, 85x, 89x, 8Ax, 8Cx, 8Mx, 8Wx,

96x, 97x, G5x, G6x, G7x, JBx, JFx, JHx, JKx, JPx, KDx,

KEx, KFx

v 9458-CTO, LNx

v 9459-CTO, 8Wx, 96x, 97x, CUx, CVx, CYx, DNx, FYx,

FZx, G5x, G6x, KKx

v 9444-CTO

v 9445-CTO

(continued)

41W5160 R **

(continued)

Parts list

124 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

3 Palm rest assembly with fingerprint reader with IBM

Logo (15.0-in.)

v 9460-CTO, 32x, 33x, 34x, 36x, 38x, 3Bx, 3Cx, 3Dx, 3Nx,

3Px, 3Xx, 9Px, B2x, B3x, B7x, B8x, B9x, BBx, BEx, BHx,

BJx, BLx, BNx, BPx, BRx, H3x, HBx, HCx, HEx

v 9461-CTO, 52x, 54x, 55x, 56x, 57x, 58x, 59x, 5Fx, 5Gx,

5Jx, 5Kx, 5Lx, 5Mx, 5Nx, D2x, D3x, D4x, D5x, D6x,

D7x, D9x, DAx, DBx, DDx, DEx, DFx, DGx, DHx,

DJx, DKx, DUx, DXx, DYx, DZx, H4x, H5x, KSx,

HGx, HHx, HJx, HKx, HMx, HRx, HWx, HXx, HYx

v 9462-CTO, 72x, 73x, 75x, 76x, 77x, 79x, 7Ax, 7Gx, 7Hx,

7Kx, 7Lx 7Px, 7Qx, 7Xx, 7Yx, 96x, 98x, 9Rx, 9Sx, 9Ux,

9Xx, F2x, F7x, F8x, FAx, FBx, FEx, FFx, FGx, GAx,

H7x, KUx

v 9463-CTO, HQx

v 9464-CTO, 73x, 7Xx, 96x, DMx, DPx, DWx, GAx

v 9446-CTO

v 9447-CTO

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,

4Kx, 4Mx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx,

4Yx, 4Zx, 53x, 55x, 57x, 59x, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx,

5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx,

5Xx, 5Yx, 5Zx, 62x, 65x, 9Rx, 9Sx, 9Tx, A6x, A7x, A8x,

A9x, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BMx,

BNx, BPx, BQx, BRx, BSx, BTx, BUx, BVx, BXx, BYx,

BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx

v 8945-CTO, 7Vx, 7Xx, 7Zx, 83x, 85x, 87x, 89x, 8Bx, 8Jx,

CSx, CVx

41W5160 R **

Palm rest assembly with fingerprint reader with IBM Logo (15.0-in.)

v 8942-CTO, 3Mx

v 8944-CTO, 78x, 7Ex, 7Dx, 7Jx, 7Qx, 7Rx, 7Sx, 7Tx, CQx

v 8947-CTO, 9Mx

v 8948-CTO

v 8949-CTO

xxB, xxC, xxH, xxV 41W5160 R **

Palm rest assembly with fingerprint reader with ThinkPad Logo (15.0-in.)

v 8942-CTO, 32x, 34x, 36x, 38x, 3Ax, 3Cx, 3Ex, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux,

3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 9Xx, 9Yx, 9Zx, A2x, A3x, A4x, AUx, AWx, AXx, AYx,

AZx, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx

v 8944-CTO, 66x, 67x, 68x, 69x, 6Bx, 6Dx, 6Fx, 6Hx, 6Lx, 6Mx, 6Px, 6Rx, 6Tx, 6Vx,

6Yx, 6Zx, 7Dx, 7Qx, 7Rx, 7Sx, 7Tx, 9Vx, AHx, CCx, CFx, CGx, CJx, CMx, CNx

v 8947-CTO, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Yx, 8Zx, 92x, 93x, 94x, 95x,

96x, 97x, 98x, 9Ex, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D8x, D9x, DAx,

DBx, DCx, DDx, DEx, DFx

v 8948-CTO

v 8949-CTO

xxA, xxE, xxG, xxF, xxJ, xxK, xxL, xxM, xxP, xxQ,

xxS, xxT,, xxU, xxY

42W3151 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 125

No. FRU FRU no. RoHS

CRU

3 Palm rest assembly TrackPoint only with IBM Logo

(15.0-in.)

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v 9455-CTO, 4Mx, ACx, BWx, BYx, C8x, LUx, LVx, LWx,

MGx

v 9456-CTO, LXx, LYx, LZx

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

v 8943-CTO

v 8945-CTO

41W5190 R **

Palm rest assembly TrackPoint only with IBM Logo (15.0-in.)

v 8942-CTO

v 8944-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

xxB, xxC, xxH, xxV 41W5190 R **

Palm rest assembly TrackPoint only with ThinkPad Logo (15.0-in.)

v 8942-CTO

v 8944-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

xxA, xxE, xxG, xxF, xxJ, xxK, xxL, xxM, xxP, xxQ,

xxS, xxT,, xxU, xxY

42W3152 R **

(continued)

Parts list

126 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

4 Modem daughter card (MDC-1.5) 39T0495 R **

5 ThinkPad 11a/b/g Wireless LAN Mini PCI Express Adapter

v 0656-CTO, 29x, A4x

v 0657-CTO, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Px, 44x, 4Dx, 4Ex,

4Fx, 4Hx, 4Jx, 4Kx, 4Lx, 4Rx, 4Sx, 4Ux, 9Ex, 9Fx, 9Gx, 9Hx, B2x, B3x, B4x, B5x,

B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, BLx, BMx,

BNx, BPx, BQx, BRx, BSx, CBx, CCx, CEx, HSx, HTx, J4x, JWx, KCx, KDx, KMx,

KNx, KRx, KSx, LDx, LGx, LKx, LLx, LMx, LNx, LPx

v 0658-CTO, 52x, 5Qx, 5Rx, 5Sx, 5Tx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 68x,

69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 7Lx, 7Mx, 7Nx, 8Ax, 8Bx, 8Cx, 8Kx, 8Lx, 8Mx, 9Jx,

9Kx, 9Lx, 9Mx, 9Nx, CNx, CPx, CQx, CRx, CSx, CTx, CUx, CVx, CWx, CXx, CYx,

CZx, D2x, D3x, D4x, D5x, D6x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DQx, DRx,

DSx, E4x, E7x, EGx, EVx, EWx, EXx, EYx, EZx, F2x, F3x, F4x, FEx, FFx, FHx, FNx,

FQx, FTx, FUx, FVx, FWx, FXx, HLx, HMx, JGx, KQx, L2x, L4x, L5x, L6x

v 0659-CTO, H5x, H6x, JPx

v 9455-CTO, 25x, 26x, 2Gx, 2Kx, 3Nx, 3Px, 4Lx, 4Mx, 7Xx, 7Yx, A4x, A5x, A6x, ADx,

AEx, AQx, BVx, BWx, BYx, C3x, C8x, CJx, CKx, K2x, K3x, LUx, LVx, LWx, M9x,

MAx, MCx, MFx, MGx

v 9456-CTO, 54x, 59x, 5Ax, 5Bx, 5Dx, 5Ex, 5Gx, 5Hx, 5Jx, 5Kx, 5Mx, 5Rx, 5Sx, 5Tx,

5Ux, 5Vx, 63x, 66x, 68x, 6Ax, 6Jx, 6Kx, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx,

FRx, FSx, L9x, LAx, M4x, M5x, LXx, LYx, LZx

v 9457-CTO, KGx, LSx

v 9458-CTO

v 9459-CTO, CUx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, HSx

v 9461-CTO, 4Hx, M6x, M7x, M8x

v 9462-CTO, 6Sx, EHx, HTx

v 9463-CTO, HPx, HUx, HVx

v 9464-CTO

v 9446-CTO

v 9447-CTO

v 8942-CTO, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 9Xx, 9Yx,

9Zx, A2x, A3x, A4x, AXx, AYx, AZx, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx

v 8943-CTO

v 8944-CTO, 6Jx, 6Kx, 6Lx, 6Mx, 7Bx, 7Dx, AJx, CDx, CEx, CFx, CGx, CPx, CQx

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

xxA, xxB, xxC, xxF, xxG, xxH, xxL, xxM, xxP, xxQ,

xxS, xxU, xxY

39T5578 R **

xxE, xxJ 39T5579 R **

xxV 39T5580 R **

xxT 39T5581 R **

xxK 39T5582 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 127

No. FRU FRU no. RoHS

CRU

5 Intel PRO Wireless 3945ABG Mini-PCI Express Adapter

v 0656-CTO

v 0657-CTO, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx,

3Wx, 3Xx, 42x, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Mx, 4Nx, 4Px, 4Qx, 4Tx, A8x,

A9x, ACx, ADx, AEx, ATx, AUx, AXx, AYx, AZx, HKx, HQx, HUx, HVx, J5x, J6x,

JMx, JNx, JSx, JTx, JUx, JVx, JXx, JYx, JZx, K2x, K5x, KEx, KFx, KGx, KJx, KKx,

KLx, KTx, KXx, KYx, KUx, LEx

v 0658-CTO, 5Vx, 66x, 67x, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx,

6Tx, 6Ux, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx,

7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Px, 7Qx, 7Tx, 7Ux, 7Yx, 7Zx, 82x, 84x, 85x, 86x, 87x,

88x, 89x, 9Nx, CKx, CLx, CMx, DTx, DUx, DVx, DWx, DXx, DYx, DZx, E2x, E3x,

E5x, E6x, ECx, EDx, EEx, EFx, EHx, ELx, EMx, ENx, EQx, ERx, FRx, FSx, G4x,

H2x, H3x, H4x, J7x, J8x, JEx, JFx, JHx, JJx, JKx, K8x, K9x, KAx, KBx, L9x, LAx

v 0659-CTO, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, H7x, H8x,

H9x, HAx, HBx, HCx, HDx, HEx, HFx, HGx, JQx, JRx

v 9455-CTO, 22x, 23x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Jx, 2Lx, 2Mx, 2Nx, 2Px,

2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 32x, 33x, 34x, 35x, 36x, 38x, 39x,

3Ax, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Vx, 3Wx, 3Xx, 3Yx, 43x, 44x, 45x,

46x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px,4Qx,

4Rx, 7Tx, 7Ux, AAx, ABx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ARx, A2x, A7x,

A9x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx,

BJx, BRx, BUx, BZx, C4x, C5x, C6x, C7x, C9x, CAx, CBx, CCx, CDx, CEx, CQx,

CRx, CSx, DPx, LCx, LDx, LEx, LFx

v 9456-CTO, 6Dx, 6Ex, 6Fx, 6Gx, 6Nx, 6Px, 6Qx, 6Zx, DJx, DKx, DQx, DRx, E5x, E6x,

E7x, ECx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx, ERx, ESx, ETx, EUx, EZx,

F3x, F4x, F5x, F6x, FBx, FCx, FKx, FNx, HTx, K8x, K9x, KAx, KLx, KMx, L2x, L3x,

L4x, L5x, L6x, LBx, LGx, LHx, LJx, LKx, M2x

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx,

7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Vx, 7Wx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx,

8Cx, 8Ex, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Wx, 92x, 93x, 94x, 95x, 96x,

97x, 98x, DSx, DTx, DUx, DVx, DWx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, H2x,

H3x, H4x, H6x, H7x, H8x, HAx, HBx, HCx, HDx, HEx, HGx, HHx, HJx, HKx,

HMx, HNx, HPx, HQx, HRx, HSx, J3x, J6x, J7x, J9x, JAx, JBx, JDx, JFx, JGx, JHx,

JJx, JKx, JLx, JMx, JNx, JPx, KDx, KEx, KFx, KHx, KJx, KNx, KPx, KQx, KRx

v 9458-CTO, 7Mx, 8Qx, 8Rx, L7x, L8x, LLx, LMx, LNx

v 9459-CTO, 74x, 7Gx, 7Px, 7Rx, 7Sx, 8Jx, 8Kx, 8Vx, 8Wx, 92x, 93x, 94x, 95x, 96x, 97x,

98x, 99x, 9Ax, 9Bx, ASx, ATx,AVx, AWx, AXx, AZx, CVx, CXx, CYx, DNx, FXx,

FYx, FZx, G2x, G3x, G4x, G5x, G9x, KKx

v 9444-CTO

v 9445-CTO

(continued)

xxA, xxB, xxF, xxH, xxL, xxM, xxP, xxQ, xxS, xxU,

xxV, xxY

42T0853 R **

xxG 42T0855 R **

xxC, xxK 42T0857 R **

xxE, xxJ 42T0859 R **

xxT 42T0861 R **

(continued)

Parts list

128 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

5 Intel PRO Wireless 3945ABG Mini-PCI Express Adapter

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,

2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx,

2Zx, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx,

3Jx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 89x, 8Ax, 8Bx,

8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, 9Px, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ACx,

AEx, AFx, AGx, AHx, AJx, AKx, ALx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AVx,

AWx, AYx, B2x, B3x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx,

BJx, BKx, BLx, BMx, BNx, BPx, BQx, BRx, BSx, BUx, BVx, BWx, H3x, HBx, HCx,

HDx, HEx, HFx

v 9461-CTO, 42x, 47x, 4Ax, 4Bx, 4Jx, 4Lx, 4Mx, 4Nx, 4Sx, 4Tx, 4Ux, 4Xx, 52x, 54x,

56x, 57x, 58x, 59x, 5Bx, 5Cx, 5Ex, 5Fx, 5Gx, 5Kx, 5Lx, 5Mx, 5Nx, C8x, C9x, CAx,

CKx, D5x, DDx, DEx, DFx, DHx, DJx, DXx, DYx, DZx, H4x, H5x, KSx, HGx, HHx,

HJx, HKx, HLx, HMx, HNx, HRx, HWx, HXx, HYx

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Gx,

6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,

72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,

7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Xx, 7Yx, 7Zx, 8Hx, 92x, 93x, 94x, 95x, 96x, 97x,

98x, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, E2x, E4x, E5x, E6x, E7x,

E9x, EAx, EBx, ECx, EDx, EEx, EJx, EKx, ELx, F3x, F4x, F7x, F8x, FAx, FBx, FCx,

FDx, FEx, FFx, FGx, G8x, G9x, GAx, H8x, H9x, HAx, KTx, KUx, KVx

v 9463-CTO,7Rx, 82x, HQx, LPx, LQx, LRx

v 9464-CTO, 3Kx, 63x, 69x, 6Wx, 73x, 7Bx, 7Tx, 7Vx, 7Xx, 84x, 86x, 88x, 92x, 93x, 94x,

95x, 96x, 97x, BYx, BZx, CDx, CEx, CFx, CGx, CHx, CJx, DLx, DMx, DNx, DPx,

DSx, DVx, DWx, G9x, GAx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 22x, 33x, 34x, 35x, 36x, 37x, 38x, 3Bx, 3Cx, 3Dx, 3Ex, 3Gx, 3Kx, 3Lx,

3Mx, 46x, 47x, 48x, A5x, ACx, ADx, AEx, AFx, ATx, AUx, AVx, AWx

v 8943-CTO, 54x, 55x, 56x, 57x, 58x, 59x, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx,

5Rx, 5Sx, 5Tx, 5Ux, 5Zx, 63x, A6x, A7x, A8x, A9x, AGx, BNx, BPx, BQx, BRx, BSx,

BTx, BUx, BVx, BWx, BXx, BYx, BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x,

CAx

v 8944-CTO, 66x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux,

6Vx, 73x, 76x, 77x, 78x, 7Ax, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 9Ux,

9Vx, CBx, CCx, CHx, CJx

v 8945-CTO, 7Ux, 7Vx, 7Yx, 7Zx, 86x, 87x, 88x, 89x, 8Ax, 8Bx, AKx, CRx, CSx, CUx,

CVx

v 8947-CTO, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx,

9Bx, 9Cx, 9Dx, 9Ex, 9Gx, 9Kx, 9Lx, 9Mx, 9Px, CWx, CXx, CYx, CZx, D2x, D3x,

D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx

v 8948-CTO, 22x

v 8949-CTO, 22x

xxA, xxB, xxF, xxH, xxL, xxM, xxP, xxQ, xxS, xxU,

xxV, xxY

42T0853 R **

xxG 42T0855 R **

xxC, xxK 42T0857 R **

xxE, xxJ 42T0859 R **

xxT 42T0861 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 129

No. FRU FRU no. RoHS

CRU

5 ThinkPad 11a/b/g/n Wireless LAN Mini-PCI Express Adapter

v 0656-CTO

v 0657-CTO, AFx, AGx, ARx, ASx, AVx, AWx, HRx

v 0658-CTO, ESx

v 0659-CTO

v 9455-CTO, B2x, BLx

v 9456-CTO, EYx, FJx, FLx

v 9457-CTO, HFx

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, B5x

v 9461-CTO, D6x, D7x, DGx, DKx, DUx

v 9462-CTO, F2x,

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

xxA, xxB, xxC, xxF, xxG, xxH, xxL, xxM, xxP, xxQ,

xxS, xxU, xxY

42T0825 R **

xxE, xxJ 42T0827 R **

xxV 42T0829 R **

xxK 42T0831 R **

xxT 42T0833 R **

Intel Wireless WiFi Link 4965AGN

v 8942-CTO, 49x

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 5Bx, 5Ex, 5Fx, 5Gx,

62x, 64x, 65x, 9Rx, 9Sx, 9Tx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, BMx

v 8944-CTO, 67x, 68x, 69x, AHx

v 8945-CTO, 8Dx, 8Gx, 8Hx, 8Jx

v 8947-CTO

v 8948-CTO

v 8949-CTO

xxB, xxF, xxH, xxL, xxM, xxP, xxS, xxU, xxV, xxY 42T0865 R **

xxG 42T0867 R **

xxC 42T0869 R **

xxE, xxJ 42T0871 R **

xxK 42T0905 R **

(continued)

Parts list

130 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

5 Intel Wireless WiFi Link 4965AGN (11n disabled)

v 8942-CTO

v 8943-CTO, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx

v 8944-CTO

v 8945-CTO, 7Wx, 7Xx, 82x, 83x

v 8947-CTO

v 8948-CTO

v 8949-CTO

xxA, xxB, xxF, xxH, xxL, xxM, xxP, xxQ, xxS, xxU,

xxV, xxY

42T0873 R **

xxG 42T0875 R **

xxC, xxK 42T0877 R **

xxE, xxJ 42T0879 R **

ThinkPad 11b/g Wireless LAN Mini-PCI Express

Adapter II

v 8942-CTO, 32x, 9Qx, AAx, ABx

v 8943-CTO, ALx, AMx, ANx, APx, AQx, ARx, ASx

v 8944-CTO, 6Wx, 6Xx, 6Yx, 6Zx, 7Cx, 7Ex, 7Gx, 7Jx,

9Wx, CKx, CLx, CMx, CNx

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

42T0917 R **

6 Backup battery 02K7078 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 131

No. FRU FRU no. RoHS

CRU

7 Structure frame (14.1-in.)

v 9455-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax,

2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx,

2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx,

2Xx, 2Yx, 2Zx, 7Tx, 7Ux, 7Xx, 7Yx, A2x, A4x, A5x,

A6x, A7x, A8x, A9x, AAx, ABx, ADx, AEx, AFx, AGx,

AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx,

K2x, M9x, MAx, MBx, MCx, MDx, MEx

v 9456-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax,

5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx,

5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx,

D4x, D5x, D6x, D9x, DFx, DGx, DHx, DJx, DKx, DLx,

DMx, K9x, LAx, N2x, M4x, M5x, MNx, MPx, MQx

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax,

7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Px,

7Vx, 7Wx, 92x, 93x, G2x, H2x, H3x, H4x, G3x, G8x,

H6x, H7x, H8x, HAx, HBx, HCx, HDx, HEx, HFx,

HGx, HHx, HJx, HKx, HLx, HMx, HNx, HPx, HQx,

HRx, HSx, KGx, KHx, KJx

v 9458-CTO, 7Mx, L7x, LLx, LMx

v 9459-CTO, 74x, 7Gx, 7Px, 7Sx, 7Rx, 92x, 93x, 99x, 9Ax,

9Bx, ASx, ATx, AUx, AVx, AWx, AXx, AZx, G2x, G3x,

G9x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax,

2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx,

2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx,

2Xx, 2Yx, 2Zx, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx,

A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ACx, AEx,

AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx,

AQx, ARx, ASx, ATx, AUx, AVx, AWx, HDx, HFx,

HSx

v 9461-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax,

4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx,

4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx,

4Xx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx,

HLx, HNx, M6x, M7x, M8x

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax,

6Bx, 6Dx, 6Cx, 6Ex, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx,

6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx,

6Yx, 6Zx, 8Hx, 92x, 93x, 94x, E2x, E4x, E5x, E6x, G8x,

G9x, E7x, E9x, EAx, EBx, ECx, EDx, EEx, EGx, H8x,

H9x, HAx, KTx, KVx, HTx

v 9463-CTO, 82x, HPx, LPx, LQx, LRx

v 9464-CTO, 63x, 69x, 6Wx, 84x, 86x, 88x, 92x, 93x, 94x,

CDx, CEx, CFx, CGx, CHx, CJx, G9x

v 9446-CTO

v 9447-CTO

41W5161 R N

(continued)

Parts list

132 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

7 Structure frame (14.1-in) for WWAN

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 8Jx, AYx

v 9461-CTO, CKx

v 9462-CTO, EHx, EJx, EKx, ELx

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42R9852 R N

Structure frame (15.0-in.)

v 9455-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x,, 3Ax,

3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx,

3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx,

3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x,

4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx,

4Mx, 4Nx, ACx, B2x, B3x, B4x, B5x, B6x, B7x, B8x,

B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx,

BLx, BMx, BNx, BPx, BQx, BRx, BVx, BWx, BXx, BYx,

BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx,

CBx, CCx, CDx, CEx, CGx, CHx, CJx, CKx, CLx,

CMx, CNx, CPx, CQx, CRx, CSx, DPx, K3x, LCx, LDx,

LEx, LFx, LUx, LVx, LWx, MFx, MGx, MHx, MJx,

MKx, MLx, MMx

v 9456-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax,

6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx,

6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx,

6Xx, 6Yx, 6Zx, DRx, E4x, E5x, E6x, E7x, EAx, EBx,

ECx, EDx, EEx, EFx, EGx, EHx, EJx, EKx, ELx, EMx,

ENx, EPx, EQx, ERx, ESx, ETx, EUx, EVx, EWx, EXx,

F3x, F4x, F5x, F6x, FAx, FBx, FCx, FFx, FGx, FHx, FJx,

FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx,

FVx, FWx, HTx, K8x, KAx, KLx, L2x, L3x, L4x, L5x,

L6x, L9x, LBx, LGx, LHx, LJx, LKx, LXx, LYx, LZx,

MRx, MSx, MTx, MUx, MVx

v 9457-CTO, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax,

8Bx, 8Cx, 8Ex, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx,

8Px, 8Wx, 94x, 95x, 96x, 97x, 98x, DSx, DTx, DUx,

DWx, G4x, G5x, G6x, G7x, J3x, J6x, J7x, J9x, JAx, JBx,

JDx, JFx, JGx, JHx, JJx, JKx, JLx, JMx, JNx, JPx, KDx,

KEx, KFx, KNx, KPx, KQx, KRx, LSx

v 9458-CTO, 8Qx, 8Rx, L8x, LNx

v 9459-CTO, 8Jx, 8Kx, 8Vx, 8Wx, 94x, 95x, 96x, 97x, 98x,

CUx, CVx, CWx, CXx, CYx, DNx, FXx, FYx, FZx, G4x,

G5x, G6x, KKx, LTx

v 9444-CTO

v 9445-CTO

(continued)

41W5162 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 133

No. FRU FRU no. RoHS

CRU

7 Structure frame (15.0-in.)

v 9460-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax,

3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Lx, 3Mx,

3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx,

9Px, B2x, B3x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx,

BDx, BEx, BFx, BGx, BHx, BJx, BKx, BLx, BMx, BNx,

BPx, BQx, BRx, BSx, BUx, BVx, BWx, H3x, HBx, HCx,

HEx

v 9461-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax,

5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx,

5Mx, 5Nx, D2x, D3x, D4x, D5x, D6x, D7x, D9x, DAx,

DBx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DUx,

DXx, DYx, DZx, H4x, H5x, KSx, HGx, HHx, HJx,

HKx, HMx, HRx, HWx, HXx, HYx

v 9462-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax,

7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,7Kx, 7Lx, 7Mx,

7Nx, 7Px, 7Qx, 7Xx, 7Yx, 7Zx, 95x, 96x, 97x, 98x, 9Qx,

9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, F2x,

GAx, F3x, F4x, F7x, F8x, FAx, FBx, FCx, FDx, FEx,

FFx, FGx, H6x, H7x, KUx

v 9463-CTO, 7Rx, HQx, HUx, HVx

v 9464-CTO, 3Kx, 73x, 7Bx, 7Tx, 7Vx, 7Xx, 95x, 96x, 97x,

BYx, BZx, DLx, DMx, DNx, DPx, DSx, DVx, DWx,

GAx

v 9446-CTO

v 9447-CTO

41W5162 R N

Structure frame (15.0-in) for WWAN

v 9455-CTO, 4Px, 4Qx, 4Rx, BUx

v 9456-CTO, EYx, EZx, DQx, KMx

v 9457-CTO, DVx

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42R9853 R N

Structure frame for R60e and R61i

v 0656-all

v 0657-all

v 0658-all

v 0659-all

41W6346 R N

Structure frame for R61 and R61i

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

42X4912 R N

(continued)

Parts list

134 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

8 S-Video Card (for 15.0-in. models)

v 9455-CTO, ACx, B2x, B3x, B4x, B5x, B6x, B7x, B8x,

B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx,

BLx, BMx, BNx, BPx, BQx, BRx, BUx, BVx, BWx, BXx,

BYx, BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x,

CAx, CBx, CCx, CDx, CEx, CGx, CHx, CJx, CKx, CLx,

CMx, CNx, CPx, CQx, CRx, CSx, DPx, K3x, LCx, LDx,

LEx, LFx, LUx, LVx, LWx, MFx, MGx, MHx, MJx,

MKx, MLx, MMx

v 9456-CTO, E4x, E5x, E6x, E7x, EAx, EBx, ECx, EDx,

EEx, EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx,

EQx, ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx, EZx,

F3x, F4x, F5x, F6x, FAx, FBx, FCx, FFx, FGx, FHx, FJx,

FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx,

FVx, FWx, HTx, DQx, DRx, K8x, KAx, KLx, KMx,

L2x, L3x, L4x, L5x, L6x, L9x, LBx, LGx, LHx, LJx,

LKx, LXx, LYx, LZx, MRx, MSx, MTx, MUx, MVx

v 9457-CTO, G4x, J3x, J6x, J7x, J9x, JAx, JBx, JPx, JDx,

G5x, JFx, JGx, G6x, JHx, JJx, JKx, JLx, JMx, JNx, G7x,

DSx, DTx, DUx, DVx, DWx, KDx, KEx, KFx, KNx,

KPx, KRx, LSx

v 9458-CTO, L8x, LNx

v 9459-CTO, CUx, CVx, G4x, CXx, CYx, DNx, FXx, FYx,

FZx, G5x, KKx, G6x, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, B2x, B3x, B5x, B6x, B7x, B8x, B9x, BAx,

BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, BLx,

BMx, BNx, BPx, BQx, BRx, BSx, BUx, BVx, BWx, H3x,

HBx, HCx, HEx

v 9461-CTO, D2x, D3x, D4x, D5x, D6x, D7x, D9x, DAx,

DBx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DUx,

DXx, DYx, DZx, H4x, H5x, KSx, HGx, HHx, HJx,

HKx, HMx, HRx, HWx, HXx, HYx

v 9462-CTO, F2x, GAx, F3x, F4x, F7x, F8x, FAx, FBx,

FCx, FDx, FEx, FFx, FGx, H7x, KUx

v 9463-CTO, HQx, HUx, HVx

v 9464-CTO, BYx, GAx, BZx, DLx, DMx, DNx, DPx,

DVx, DWx, DSx

v 9446-CTO

v 9447-CTO

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

41W1313 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 135

No. FRU FRU no. RoHS

CRU

8 FFC Cable for S-Video Card (for 15.0-in. models)

v 9455-CTO, ACx, B2x, B3x, B4x, B5x, B6x, B7x, B8x,

B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx,

BLx, BMx, BNx, BPx, BQx, BRx, BUx, BVx, BWx, BXx,

BYx, BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x,

CAx, CBx, CCx, CDx, CEx, CGx, CHx, CJx, CKx, CLx,

CMx, CNx, CPx, CQx, CRx, CSx, DPx, K3x, LCx, LDx,

LEx, LFx, LUx, LVx, LWx, MFx, MGx, MHx, MJx,

MKx, MLx, MMx

v 9456-CTO, E4x, E5x, E6x, E7x, EAx, EBx, ECx, EDx,

EEx, EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx,

EQx, ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx, EZx,

F3x, F4x, F5x, F6x, FAx, FBx, FCx, FFx, FGx, FHx, FJx,

FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx,

FVx, FWx, HTx, DQx, DRx, K8x, KAx, KLx, KMx,

L2x, L3x, L4x, L5x, L6x, L9x, LBx, LGx, LHx, LJx,

LKx, LXx, LYx, LZx,MRx, MSx, MTx, MUx, MVx

v 9457-CTO, G4x, J3x, J6x, J7x, J9x, JAx, JBx, JPx, JDx,

G5x, JFx, JGx, G6x, JHx, JJx, JKx, JLx, JMx, JNx, G7x,

DSx, DTx, DUx, DVx, DWx, KDx, KEx, KFx, KNx,

KPx, KRx, LSx

v 9458-CTO, L8x, LNx

v 9459-CTO, CUx, CVx, G4x, CXx, CYx, DNx, FXx, FYx,

FZx, G5x, KKx, G6x, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, B2x, B3x, B5x, B6x, B7x, B8x, B9x, BAx,

BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, BLx,

BMx, BNx, BPx, BQx, BRx, BSx, BUx, BVx, BWx, H3x,

HBx, HCx, HEx

v 9461-CTO, D2x, D3x, D4x, D5x, D6x, D7x, D9x, DAx,

DBx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DUx,

DXx, DYx, DZx, H4x, H5x, KSx, HGx, HHx, HJx,

HKx, HMx, HRx, HWx, HXx, HYx

v 9462-CTO, F2x, GAx, F3x, F4x, F7x, F8x, FAx, FBx,

FCx, FDx, FEx, FFx, FGx, H7x, KUx

v 9463-CTO, HQx, HUx, HVx

v 9464-CTO, BYx, GAx, BZx, DLx, DMx, DNx, DPx,

DVx, DWx, DSx

v 9446-CTO

v 9447-CTO

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

91P7019 R N

9 Hard disk drive rubber rails 42X3998 R *

(continued)

Parts list

136 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

10 SATA hard disk drive, 40 GB, 9.5 mm, 5,400 rpm

v 0656-CTO, 23x, 24x, 25x, 26x, 2Cx, 2Dx, F5x, F6x

v 0657-CTO, 8Rx, 8Sx, 8Tx, 8Ux, 9Gx, 9Hx, BKx, BLx, BMx, BNx, BPx, BQx, BVx,

BWx, BXx, BYx, BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, CEx

v 0658-CTO, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 65x, 7Kx,

7Mx, 7Nx, 8Dx, 8Ex, 8Fx, 8Gx, 9Lx, 9Mx, G3x, D8x, D9x, DAx, DBx, DCx, DDx,

DJx, DKx, DLx, DMx, DNx, DPx, EUx, F7x, F8x, F9x, FAx, FBx, FHx, HNx, HPx

v 0659-CTO

v 9455-CTO, 24x, 2Ex, 2Fx, 3Bx, 3Lx, 3Mx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 4Mx, A8x,

ACx, ANx, APx, BAx, BBx, BGx, BHx, C2x, CGx, CHx

v 9456-CTO, D9x, DLx, DMx, EMx, ENx, ETx, EUx, FAx, FPx, FQx

v 9457-CTO, 7Px, 94x

v 9458-CTO

v 9459-CTO, 7Px, 94x

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

HGST 42T1487 R **

Fujitsu 39T2881 R **

Toshiba 39T2709 R **

SATA hard disk drive, 60 GB, 9.5 mm, 5,400 rpm

v 0656-CTO, 22x, 29x, A3x, A4x

v 0657-CTO, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,

3Kx, 3Lx, 3Tx, 3Ux, 45x, 46x, 47x, 48x, 49x, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx,

4Mx, 4Nx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, A8x, A9x, ARx, ASx, AXx, B8x, B9x, BFx, BGx,

BHx, BJx, BTx, BUx, C9x, CAx, HSx, HTx, JSx, JTx, JWx, KCx, KGx, KSx, LFx, AAx

v 0658-CTO, 53x, 54x, 5Ax, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Vx, 5Wx, 5Xx,

5Yx, 5Zx, 62x, 63x, 64x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Kx, 6Gx, 6Hx, 6Jx,

6Lx, 6Mx, 6Nx, 6Px, 6Qx, 76x, 77x, 78x, 7Gx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx,

7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 8Hx, 8Jx, 8Qx, 9Nx, CKx, CUx,

CVx, D4x, D5x, D6x, D7x, DGx, DHx, DQx, DRx, DSx, DTx, DUx, E4x, E5x, E8x,

E9x, EJx, EKx, ELx, ETx, EUx, EVx, EWx, EXx, EYx, EZx, F2x, F3x, F4x, FCx, FDx,

FXx, FYx, FZx, G3x, G4x, HLx, HMx, J7x, JGx, KPx, KZx, L5x, L6x, L7x, L8x 8Kx,

8Lx, 8Mx, 8Nx, 8Px

v 0659-CTO, 92x, 9Cx, 9Dx, H8x, JPx, H5x

(continued)

HGSTOP 42T1489 R **

Fujitsu 39T2883 R **

Toshiba 39T2711 R **

WD 42T1429 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 137

No. FRU FRU no. RoHS

CRU

10 SATA hard disk drive, 60 GB, 9.5 mm, 5,400 rpm

v 9455-CTO, 22x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Cx, 2Dx, 2Gx, 2Jx, 2Kx, 2Px, 2Tx,

2Qx, 2Sx, 2Ux, 2Vx, 33x, 34x, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Kx, 43x, 45x, 46x,

48x, 49x, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Lx, 4Mx, 4Nx, 4Rx, A4x, A5x, A6x, A7x, A8x,

ACx, ADx, AEx, AJx, ANx, APx, AQx, ARx, B8x, B9x, BEx, BFx, BVx, BWx, BXx,

BYx, BZx, C2x, C8x, C9x, CAx, CBx, CEx, CGx, CHx CSx, LDx, LUx, 7Xx, 7Yx,

M9x, MAx, MBx, MCx, MDx, MEx, MFx, MGx, MHx, MJx, MKx

v 9456-CTO, 54x, 59x, 5Ax, 5Bx, 5Dx, 5Ex, 5Gx, 5Hx, 5Jx, 5Kx, 5Mx, 5Rx, 5Sx, 5Ux,

68x, 6Ax, 6Dx, 6Ex, 6Jx, 6Kx, 6Nx ,6Rx, 6Sx, 6Xx, 6Zx, D9x, DJx, DLx, DMx, EKx,

ELx, ERx, ESx, FKx, FAx, FPx, FQx, K9x, KAx, L3x, L9x, LGx, LXx, MNx, MPx,

MQx, MRx, MSx, MTx

v 9457-CTO, 72x, 73x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Fx, 7Gx, 7Hx, 7Jx, 7Px, 82x,

84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Ex, 8Gx, 8Hx, 8Jx, 8Nx, 8Px, 8Wx, 92x, 93x, 94x,

95x, 96x, 97x, 98x, DTx, G3x, G6x, H4x, H6x, HAx, HSx, J3x, J9x, JAx, JBx, JDx,

JFx, JGx, JJx, JKx, JLx, JPx, KGx, KPx

v 9458-CTO, 7Mx, 8Qx, 8Rx

v 9459-CTO, 7Gx, 7Px, 7Rx, 7Sx, 8Jx, 8Vx, 8Wx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x,

9Ax, 9Bx, ATx, AUx, AVx, AZx, CXx, CYx, DNx, FXx, G3x, G6x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 26x, 27x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Kx, 2Vx, 2Wx, 2Xx, 2Yx,

2Zx, 35x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Fx, 3Hx, 3Jx, 3Tx, 8Cx, ANx, APx, AQx,

AVx, AWx, BDx, BPx, BQx, BRx, BSx, BUx, BWx, H3x, HSx

v 9461-CTO, 42x, 47x, 4Hx, 4Jx, 4Lx, 4Mx, 4Sx, 4Vx, 5Bx, 5Cx, 5Ex, 5Fx, 5Kx, CKx

v 9462-CTO, 64x, 68x, 69x, 6Ax, 6Cx, 6Dx, 7Dx, 6Gx, 6Hx, 6Jx, 6Kx, 6Qx, 6Vx, 6Wx,

74x, 78x, 7Ax, 7Bx, 7Cx, 7Ex, 7Gx, 7Hx, 7Jx, 7Kx, 92x, 93x, 94x, 95x, 96x, 97x, 9Yx,

E4x, EAx, EBx, ECx, F4x, FCx, H8x, H9x

v 9463-CTO, 7Rx, 82x

v 9464-CTO, 69x, 6Wx, 7Bx, 7Vx, 86x, 88x, 92x, 93x, 94x, 95x, 96x, 97x, CGx, CHx,

CJx, DLx, DNx, DPx, DSx, DVx, DWx

v 9446-CTO

v 9447-CTO

HGSTOP 42T1489 R **

Fujitsu 39T2883 R **

Toshiba 39T2711 R **

WD 42T1429 R **

SATA hard disk drive, 60 GB, 9.5 mm, 5,400 rpm

v 8942-CTO, 32x, 3Nx, 3Px, 3Rx, 3Sx, 3Ux, 3Vx, 3Xx, 3Yx, 9Zx, A3x, AXx, AYx, B2x,

B3x, B5x, B6x, B8x, B9x

v 8943-CTO, 4Dx, 4Hx, 4Vx, 4Zx, 5Hx, 5Jx, 5Lx, 5Mx, 5Px, 5Qx, 5Sx, 5Tx, A8x, BEx,

BJx, BRx, BVx, BYx, BZx, C2x, C3x, C5x, C6x, C8x, C9x

v 8944-CTO, 7Kx

v 8945-CTO

v 8947-CTO, 8Lx, 8Nx, 8Qx, 8Sx, 92x, 94x, 96x, 98x, CXx, CZx, D3x, D5x, D9x, DBx,

DDx, DFx

v 8948-CTO

v 8949-CTO

HGSTOP 42T1489 R **

Fujitsu 39T2883 R **

Seagate 42T1303 R **

(continued)

Parts list

138 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

10 SATA hard disk drive, 80 GB, 9.5 mm, 5,400 rpm

v 0656-CTO

v 0657-CTO, 3Mx, 3Nx, 3Vx, 3Wx, 3Xx, 4Ax, 4Qx, 9Ex, 9Fx, ACx, ADx, ATx, AUx,

AVx, AWx, AYx, B2x, B3x, B4x, B5x, B6x, B7x, BAx, BBx, BCx, BDx, BEx, BRx, BSx,

CBx, CCx, HKx, HQx, HUx, HVx, J4x, J5x, J6x, JMx, JNx, JVx, JZx, K2x, K3x, K4x,

K5x, KDx, KEx, KFx, KKx, KLx, KMx, KRx, KVx, KWx, KXx, KYx, LDx, LEx, LGx,

LHx, LKx, LNx, LPx

v 0658-CTO, 52x, 5Qx, 5Rx, 5Sx, 5Tx, 6Ex, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx,

79x, 7Ax, 7Hx, 7Jx, 7Lx, 88x, 89x, 8A, 8Bx, 8Cx, 9Jx, 9Kx, CLx, CMx, CNx, CPx,

CQx, CRx, CSx, CTx, CWx, CXx, CYx, CZx, D2x, D3x, DEx, DFx, DVx, DWx, DXx,

DYx, DZx, E2x, E3x, E6x, E7x, EAx, EBx, EDx, EEx, EGx, EHx, EMx, FEx, FFx,

FNx, FPx, FQx, FRx, FTx, FVx, FWx, H2x, H3x, H4x, J8x, JFx, JHx, JJx, JKx, K6x,

K7x, KAx, KBx, KQx, L2x, L3x, L9x, LAx, LBx, LCx

v 0659-CTO, 93x, 94x, 95x, 98x, 99x, 9Bx, H6x, H7x, H9x, HBx, HCx, HDx, HFx, JQx,

JRx

v 9455-CTO, 2Bx, 2Lx, 2Mx, 2Nx, 2Rx, 2Wx, 2Zx, 32x, 35x, 36x, 3Ax, 3Jx, 3Nx, 3Px,

3Qx, 3Rx, 3Sx, 3Tx, 44x, 4Ax, 4Gx, 4Jx, 4Px, 4Qx, 7Ux, A9x, AAx, ABx, AFx, AGx,

AHx, ALx, B6x, B7x, BCx, BDx, BRx, BUx, C4x, C7x, CCx, CDx, CJx, CKx, CLx,

CMx, CNx, CPx, CQx, CRx, K2x, K3x, LCx, LEx, LFx, LVx, MLx, MMx

v 9456-CTO, 6Fx, 6Gx, 6Qx, 6Ux, DKx, DQx, DRx, E5x, EHx, EJx, EPx, EQx, EZx,

F3x, F4x, FBx, FJx, FLx, FMx, FNx, FRx, FSx, FTx, FUx, FVx, FWx, HTx, K8x, KLx,

KMx, L2x, L4x, L5x, L6x, LAx, LBx, LHx, LKx, LYx, M2x, M4x, M5x, MUx, MVx

v 9457-CTO, 74x, 75x, 7Dx, 7Ex, 7Kx, 7Lx, 7Vx, 8Bx, 8Cx, 8Kx, 8Lx, DSx, DVx, DWx,

G2x, G4x, G5x, G8x, H2x, H7x, H8x, HBx, HCx, HDx, HEx, HFx, HHx, HJx, HKx,

HMx, HNx, HPx, KDx, KEx, KHx, KJx, KNx, KQx, KRx, LSx

v 9458-CTO, L7x, L8x, LLx

v 9459-CTO, 74x, 8Kx, AWx, AXx, CUx, FYx, FZx, G2x, G4x, G5x, G9x, KKx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 28x, 2Jx, 2Px, 2Tx, 2Ux, 32x, 33x, 3Ex, 3Mx, 3Rx, 3Sx,

3Ux, 3Wx, 3Xx, 89x, 8Dx, 8Gx, 8Jx, 9Px, A3x, A4x, A5x, A8x, A9x, AAx, ACx, AGx,

AKx, ALx, AMx, ARx, ATx, AUx, B3x, B7x, B8x, B9x, BBx, BCx, BFx, BGx, BHx,

BLx, BMx, BNx, BVx

v 9461-CTO, 4Wx, 54x, 58x, 59x, 5Gx, 5Lx, C8x, C9x, CAx, DDx, DEx, DGx, DHx,

DJx, DKx, DYx, M7x, M8x

v 9462-CTO, 62x, 63x, 65x, 66x, 67x, 6Bx, 6Mx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Yx,

6Zx, 72x, 75x, 76x, 79x, 7Mx, 7Nx, 7Px, 7Qx, 7Xx, 7Zx, 98x, 9Tx, 9Xx, E2x, E5x,

E6x, E7x, E9x, EDx, EEx, EHx, EJx, EKx, ELx, F3x, F7x, F8x, FAx, FDx, FEx, FFx,

G8x, G9x, HAx, KVx

v 9463-CTO, HUx, LQx

v 9464-CTO, 3Kx, 63x, 7Tx, 7Xx, 84x, BYx, BZx, CDx, CEx, DMx, G9x

v 9446-CTO

v 9447-CTO

HGSTOP 42T1491 R **

Fujitsu 39T2885 R **

Toshiba 39T2713 R **

WD 42T1431 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 139

No. FRU FRU no. RoHS

CRU

10 SATA hard disk drive, 80 GB, 9.5 mm, 5,400 rpm

v 8942-CTO, 22x, 33x, 34x, 39x, 37x, 38x, 3Ax, 3Dx, 3Ex, 3Gx, 3Kx, 3Lx, 3Qx, 3Tx,

3Wx, 3Zx, 46x, 9Qx, 9Xx, 9Yx, A2x, A4x, A5x, AAx, ACx, ATx, AUx, AVx, AWx,

AZx, B4x, B7x, BAx

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Ex, 4Fx, 4Gx, 4Jx, 4Kx, 4Sx, 4Tx, 4Ux, 4Wx, 4Xx, 4Yx,

52x, 53x, 5Bx, 5Ex, 5Fx, 5Kx, 5Nx, 5Rx, 5Ux, 5Zx, 63x, 64x, A6x, A7x, A9x, ALx,

APx, BBx, BCx, BDx, BFx, BGx, BHx, BKx, BMx, BNx, BPx, BQx, BSx, BTx, BUx,

BWx, BXx, C4x, C7x, CAx

v 8944-CTO, 6Ax, 6Bx, 66x, 67x, 6Cx, 6Dx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px,

6Qx, 6Rx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 73x, 76x, 77x, 7Bx, 7Dx, 7Cx, 7Gx, 7Lx,

7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 9Ux, 9Vx, 9Wx, CBx, CCx, CDx, CEx, CFx, CGx,

CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx

v 8945-CTO, 7Ux, 7Vx, 7Yx, 7Zx, 84x, 85x, 88x, 89x, 8Dx, 8Gx, 8Hx, CRx, CSx, CUx,

CVx

v 8947-CTO, 8Kx, 8Mx, 8Px, 8Rx, 8Tx, 8Ux, 8Xx, 8Yx, 8Zx, 93x, 95x, 97x, 99x, 9Ax,

9Dx, 9Ex, 9Gx, 9Kx, 9Lx, CWx, CYx, D2x, D4x, D6x, D7x, D8x, DAx, DCx, DEx,

DGx, DHx

v 8948-CTO, 22x

v 8949-CTO, 22x

HGSTOP 42T1491 R **

Fujitsu 39T2885 R **

Seagate 42T1305 R **

SATA hard disk drive, 100 GB, 9.5 mm, 5,400 rpm

v 9455-CTO, B2x, B3x, B4x, B5x, DPx

v 9456-CTO, EDx, EEx, EFx, EGx

v 9457-CTO, G7x

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO, GAx

v 9463-CTO

v 9464-CTO, GAx

v 9446-CTO

v 9447-CTO

HGSTOP 42T1493 R **

Fujitsu 39T2887 R **

Toshiba 39T2715 R **

(continued)

Parts list

140 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

10 SATA hard disk drive, 120 GB, 9.5 mm, 5,400 rpm

v 0656-CTO

v 0657-CTO, 3Rx, 3Sx, 42x, 43x, AEx, AZx, JYx, JUx, AFx, AGx, HRx, JXx, KJx, KNx,

KTx, KUx, L4x, LJx, LLx, LMx

v 0658-CTO, 6Zx, 72x, 73x, 74x, 7Bx, 7Cx, 7Dx, ECx, EFx, ENx, EQx, ERx, ESx, FSx,

FUx, JEx, K8x, K9x

v 0659-CTO, 96x, 97x, HAx, HGx

v 9455-CTO, 23x, 2Xx, 2Yx, 4Hx, 7Tx, A2x, AKx, AMx, BJx, BLx,C3x, C5x, C6x, LWx

v 9456-CTO, 6Px, 6Tx, 6Vx, 6Wx, E6x, E7x, ECx, F5x, F6x, FCx, LZx

v 9457-CTO, 7Wx, 83x, 8Mx, DUx, H3x, HGx, HQx, HRx, J6x, J7x, JHx, JMx, JNx,

G7x, KFx

v 9458-CTO, LMx, LNx

v 9459-CTO, ASx, CVx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 29x, 2Lx, 2Qx, 34x, 36x, 3Nx, 3Vx, 8Ax, 8Bx, 8Ex, 8Fx, A6x, A7x, AEx,

AFx, AHx, AJx, ASx, B5x, B6x, BAx, BEx, BHx, BJx, BKx, HCx, HDx

v 9461-CTO, 4Ax, 4Bx, 4Tx, 4Ux, 4Xx, 52x, 57X, 5Mx, 5Nx, D5x, D6x, D7x, DFx,

DUx, DXx, DZx, H4x, H5x, HGx, HHx, HJx, HKx, HLx, HRx, HWx, HXx, HYx,

M6x

v 9462-CTO, 6Ex, 6Xx, 7Fx, 9Qx, 9Ux, F2x, FBx, FGx, GAx, H7x, HTx

v 9463-CTO, HQx, HVx, LPx, LRx

v 9464-CTO, CFx, GAx

v 9446-CTO

v 9447-CTO

HGSTOP 42T1417 R **

HGSTOP 42T1499 R **

Fujitsu 39T2889 R **

Toshiba 39T2791 R **

WD 42T1433 R **

SATA hard disk drive, 120 GB, 9.5 mm, 5,400 rpm

v 8942-CTO, 35x, 36x, 3Bx, 3Cx, 3Mx, 47x, 48x, ABx, ADx

v 8943-CTO, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 54x, 55x, 56x, 57x, 58x, 59x, 5Gx, 62x,

65x, 9Rx, 9Sx, 9Tx, AGx, AMx, ANx, AQx, ARx, ASx

v 8944-CTO, 68x, 69x, 6Ex, 6Fx, 6Sx, 6Tx, 78x, 7Ax, 7Ex, 7Jx, 7Tx, AHx, AJx

v 8945-CTO, 7Wx, 7Xx, 82x, 83x, 86x, 87x, 8Ax, 8Bx, 8Jx, AKx

v 8947-CTO, 8Vx, 8Wx, 9Bx, 9Cx, 9Mx, 9Px

v 8948-CTO

v 8949-CTO

HGSTOP 42T1417 R **

HGSTOP 42T1499 R **

Fujitsu 39T2889 R **

Seagate 42T1307 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 141

No. FRU FRU no. RoHS

CRU

10 SATA hard disk drive, 160 GB, 9.5 mm, 5,400 rpm

v 8942-CTO, 49x, AEx, AFx

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

HGSTOP 42T1501 R **

Fujitsu 39T2899 R **

Seagate 42T1309 R **

SATA hard disk drive, 160 GB, 9.5 mm, 5400 rpm (FDE)

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

42T1311 R **

SATA hard disk drive, 60 GB, 9.5 mm, 7,200 rpm

v 0656-CTO

v 0657-CTO

v 0658-CTO

v 0659-CTO

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 2Hx, 2Nx, 2Sx, 3Dx, 3Gx, 3Qx

v 9461-CTO

v 9462-CTO, 6Lx, 7Lx, 9Sx, 9Wx, 9Zx

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

HGST OP 42T1483 R **

Seagate 39T2795 R **

(continued)

Parts list

142 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

10 SATA hard disk drive, 100GB, 9.5 mm, 7,200 rpm

v 0656-CTO

v 0657-CTO

v 0658-CTO, 75x, 7Ex, 7Fx

v 0659-CTO, 9Ax, HEx

v 9455-CTO, 38x, 39x

v 9456-CTO, 63x, 66x, EYx

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 2Mx, 2Rx, 3Lx, 3Px, AYx, B2x, HEx, HFx

v 9461-CTO, 56x, HMx, HNx, KSx

v 9462-CTO, 73x, 77x, 7Yx, 9Rx, 9Vx, KTx, KUx

v 9463-CTO, HPx

v 9464-CTO, 73x

v 9446-CTO

v 9447-CTO

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

HGST OP 42T1485 R **

Seagate 39T2799 R **

SATA hard disk drive, 160 GB, 9.5 mm, 7,200 rpm

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

HGST 42T1461 R **

Seagate 42T1439 R **

SATA hard disk drive, 200 GB, 9.5 mm, 7,200 rpm (FDE)

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

42T1463 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 143

No. FRU FRU no. RoHS

CRU

11 Battery pack, Li-ion (6 cell, 2.4 Ah)

v 8942-CTO, 22x, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Gx,

3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 46x,

47x, 48x, 49x, 9Qx, 9Xx, 9Yx, 9Zx, A2x, A3x, A4x, A5x, AAx, ABx, ACx, ADx, AEx,

AFx, ATx, AUx, AVx, AWx, AXx, AYx, AZx, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x,

BAx

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px,

4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x,

59x, 5Bx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx,

5Ux, 5Zx, 62x, 63x, 64x, 65x, 9Rx, 9Sx, 9Tx, A6x, A7x, A8x, A9x, AGx, ALx, AMx,

ANx, APx, AQx, ARx, ASx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, BMx,

BNx, BPx, BQx, BRx, BSx, BTx, BUx, BVx, BWx, BXx, BYx, BZx, C2x, C3x, C4x,

C5x, C6x, C7x, C8x, C9x, CAx

v 8944-CTO, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx,

6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 73x, 76x,

77x, 78x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Gx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx,

7Sx, 7Tx, 9Ux, 9Vx, 9Wx, AHx, AJx, CBx, CCx, CDx, CEx, CFx, CGx, CHx, CJx,

CKx, CLx, CMx, CNx, CPx, CQx

v 8945-CTO, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x,

8Ax, 8Bx, 8Dx, 8Gx, 8Hx, 8Jx, AKx, CRx, CSx, CUx, CVx

v 8947-CTO, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx,

8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx, 9Kx, 9Lx,

9Mx, 9Px, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx,

DBx, DCx, DDx, DEx, DFx, DGx, DHx

v 8948-CTO, 22x

v 8949-CTO, 22x

Sanyo 42T4513 R *

Panosonic 42T5233 R *

Battery pack, Li-ion (6 cell, 2.6 Ah)

v 0656-CTO, 22x, 23x, 24x, 25x, 26x, 29x, 2Cx, 2Dx, A3x, A4x

v 0657-CTO, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,

3Kx, 3Lx, 3Mx, 3Nx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 42x, 43x, 45x, 46x, 47x,

48x, 49x, 4Ax, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, , 4Px, 4Qx, 4Rx, 4Sx,

4Tx, 4Ux, 8Rx, 8Sx, 8Tx, 8Ux, 9Ex, 9Fx, 9Gx, 9Hx, A8x, A9x, AAx, ACx, ADx, AEx,

AFx, AGx, ARx, ASx, ATx, AUx, AVx, AWx, AXx, AYx, AZx, B2x, B3x, B4x, B5x,

B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, BLx, BMx,

BNx, BPx, BQx, BRx, BSx, BTx, BUx, BVx, BWx, BXx, BYx, BZx, C2x, C3x, C4x,

C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CEx, HKx, HQx, HRx, HSx, HTx, HUx,

HVx, J4x, J5x, J6x, JMx, JNx, JSx, JTx, JUx, JVx, JWx, JXx, JYx, JZx, K2x, K3x, K4x,

K5x, KCx, KDx, KEx, KFx, KGx, KJx, KKx, KLx, KMx, KNx, KRx, KSx, KTx, KVx,

KWx, KXx, KYx, KUx, LDx, LEx, LFx, LGx, LHx, LJx, LKx, LLx, LMx, LNx, LPx

(continued)

Sanyo 42T4504 R *

Panasonic 92P1139 R *

Sony 92P1141 R *

(continued)

Parts list

144 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

11 Battery pack, Li-ion (6 cell, 2.6 Ah)

v 0658-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,

5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx,

62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Gx, 6Hx, 6Jx, 6Kx,

6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x,

76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Ex, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px,

7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x,

89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx,

9Jx, 9Kx, 9Lx, 9Mx, 9Nx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, CTx, CUx,

CVx, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx,

DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DQx, DRx,

DSx, DTx, DUx, DVx, DWx, DXx, DYx, DZx, E2x, E3x, E4x, E5x, E6x, E7x, E8x,

E9x, EAx, EBx, ECx, EDx, EEx, EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EQx,

ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx, EZx, F2x, F3x, F4x, F5x, F6x, F7x, F8x,

F9x, FAx, FBx, FCx, FDx, FEx, FFx, FHx, FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx,

FWx, FXx, FYx, FZx, G3x, G4x, H2x, H3x, H4x, HLx, HMx, HNx, HPx, J7x, J8x,

JEx, JFx, JGx, JHx, JJx, JKx, K6x, K7x, K8x, K9x, KAx, KBx, KPx, KQx, KZx, L2x,

L3x, L4x, L5x, L6x, L7x, L8x, L9x, LAx, LBx, LCx

v 0659-CTO, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Bx, 9Cx, 9Dx, H5x, H7x, H8x,

H9x, HAx, HBx, HCx, HDx, HEx, HFx, HGx, JPx, JQx, JRx

v 9455-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,

2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx,

32x, 33x, 34x, 35x, 36x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx,

3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 45x,

46x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx,

4Px,4Qx, 4Rx, 7Tx, 7Ux, 7Xx, 7Yx, A2x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx,

ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, B2x,

B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx,

BLx, BRx, BUx, BVx, BWx, BXx, BYx, BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x,

C9x, CAx, CBx, CDx, CEx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx,

CSx, DPx, K2x, K3x, LCx, LDx, LEx, LFx, LUx, LVx, LWx, M9x, MAx, MBx, MCx,

MDx, MEx, MFx, MGx, MHx, MJx, MKx, MLx, MMx

v 9456-CTO, 54x, 59x, 5Ax, 5Bx, 5Dx, 5Ex, 5Gx, 5Hx, 5Jx, 5Kx, 5Mx, 5Rx, 5Sx, 5Tx,

5Ux, 5Vx, 63x, 68x, 6Ax, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx,

6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Zx, D9x, DJx, DKx, DLx, DMx, DQx, DRx, E5x, E6x,

E7x, ECx, EDx, EEx, EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx, ERx,

ESx, ETx, EUx, EYx, EZx, F3x, F4x, F5x, F6x, FAx, FBx, FCx, FJx, FKx, FLx, FMx,

FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, HTx, K8x, K9x, KAx, KLx, KMx,

L2x, L3x, L4x, L5x, L6x, L9x, LAx, LBx, LGx, LHx, LJx, LKx, LUx, LVx, LWx, M2x,

M4x, M5x, MNx, MPx, MQx, MRx, MSx, MTx, MUx, MVx

(continued)

Sanyo 42T4504 R *

Panasonic 92P1139 R *

Sony 92P1141 R *

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 145

No. FRU FRU no. RoHS

CRU

11 Battery pack, Li-ion (6 cell, 2.6 Ah)

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx,

7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Vx, 7Wx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx,

8Cx, 8Ex, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Wx, 92x, 93x, 94x, 95x, 96x,

97x, 98x, DSx, DTx, DUx, DVx, DWx, G2x, G3x, G4x, G5x, G7x, G8x, H2x, H3x,

H4x, H6x, H7x, H8x, HAx, HBx, HCx, HDx, HEx, HFx, HGx, HHx, HJx, HKx,

HMx, HNx, HPx, HQx, HRx, HSx, J3x, J6x, J7x, J9x, JAx, JBx, JDx, JFx, JGx, G6x,

JHx, JJx, JKx, JLx, JMx, JNx, JPx, KDx, KEx, KFx, KGx, KHx, KJx, KNx, KPx, KQx,

KRx

v 9458-CTO, 7Mx, 8Qx, 8Rx, L7x, L8x, LLx, LMx, LNx

v 9459-CTO, 74x, 7Gx, 7Px, 7Rx, 7Sx, 8Jx, 8Kx, 8Vx, 8Wx, 92x, 93x, 94x, 95x, 96x, 97x,

98x, 99x, 9Ax, 9Bx, ASx, ATx, AUx, AVx, AWx, AXx, AZx, CUx, CVx, CXx, CYx,

DNx, FXx, FYx, FZx, G2x, G3x, G4x, G5x, G6x, G9x, KKx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,

2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx,

2Zx, 3Lx, 3Gx, 32x, 33x, 35x, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Hx,

3Jx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 89x, 8Ax, 8Bx, 8Cx,

8Dx, 8Ex, 8Fx, 8Gx, 8Jx, 9Px, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ACx, AEx,

AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AVx,

AWx, B3x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx,

BKx, BLx, BMx, BNx, BPx, BQx, BRx, BSx, BUx, BVx, BWx, H3x, HCx, HDx, HEx,

HFx, HSx

v 9461-CTO, 42x, 47x, 4Ax, 4Bx, 4Hx, 4Jx, 4Lx, 4Mx, , 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx,

52x, 54x, 57x, 58x, 59x, 5Bx, 5Cx, 5Ex, 5Fx, 5Gx, 5Kx, 5Lx, 5Mx, 5Nx, CKx, D5x,

D6x, D7x, DGx, DHx, DJx, DKx, DUx, DXx, DYx, DZx, H4x, H5x, KSx, HGx, HHx,

HKx, HLx, HMx, HNx, HRx, HWx, HXx, HYx, M6x, M7x, M8x

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Gx,

6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx,

6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx,

7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Xx, 7Zx, 8Hx, 92x, 93x, 94x, 95x, 96x, 97x, 98x,

9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, E2x, E4x, E5x, E6x, G8x, G9x,

E7x, E9x, EAx, EBx, ECx, EDx, EEx, EHx, EJx, EKx, ELx, F2x, F3x, F4x, F7x, F8x,

FAx, FBx, FCx, FDx, FEx, FFx, FGx, H7x, H8x, H9x, HAx, KTx, KUx, KVx, HTx

v 9463-CTO, 7Rx, 82x, HPx. HQx, HUx, HVx, LPx, LQx, LRx

v 9464-CTO, 3Kx, 63x, 69x, 6Wx, 73x, 7Bx, 7Tx, 7Vx, 7Xx, 84x, 86x, 88x, 92x, 93x, 94x,

95x, 96x, 97x, CDx, CEx, CFx, CGx, CHx, CJx, BYx, BZx, DLx, DMx, DNx, DPx,

DSx, DVx, DWx, G9x

v 9446-CTO

v 9447-CTO

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

Sanyo 42T4504 R *

Panasonic 92P1139 R *

Sony 92P1141 R *

(continued)

Parts list

146 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

11 Battery pack, Li-ion (9 cell, 2.6 Ah)

v 0656-CTO

v 0657-CTO

v 0658-CTO, 74x, 75x, 7Dx, 7Fx

v 0659-CTO, 9Ax, H6x

v 9455-CTO, 44x, CCx

v 9456-CTO, 66x

v 9457-CTO, LSx

v 9458-CTO

v 9459-CTO, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 34x, AYx, B2x, HBx

v 9461-CTO, 56x, C8x, C9x, CAx, DDx, DEx, DFx, HJx

v 9462-CTO, 7Yx, GAx

v 9463-CTO

v 9464-CTO, GAx

v 9446-CTO

v 9447-CTO

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

Sanyo 42T4511 R *

Panasonic 92P1133 R *

12 CD drive, 12.7mm

v 0656-CTO, 23x, 24x, 25x, 26x, 2Cx, 2Dx

v 0657-CTO, 33x, 34x, 4Hx, 4Jx, G2x, BPx, BQx, BZx,

C2x, C4x, C5x, CEx, G3x

v 0658-CTO, 5Cx, 5Dx, 5Ex, 5Fx, 5Xx, 65x, 7Kx, 8Dx,

8Ex, DCx, DDx, DNx, DPx, F5x, F6x, FAx, FBx, FHx

v 0659-CTO, H5x

39T2661 R **

CD drive, 12.7mm

v 9455-CTO, 4Mx, ACx, BWx, BYx, MGx

v 9456-CTO, 5Ux, 5Vx

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO, CKx

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

39T2661 R *

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 147

No. FRU FRU no. RoHS

CRU

12 DVD drive, 12.7 mm

v 0656-CTO

v 0657-CTO, LFx

v 0658-CTO, 53x, 5Gx, 5Hx, 5Nx, 64x, 6Lx, 7Rx, 7Wx, 7Yx, 8Nx, E8x, EYx, FPx, HNx,

HPx, L7x, L8x

v 0659-CTO

PCC (UJDA770DVD) 39T2817 R **

MKE (SR-8178) 39T2663 R **

HLDS (GDR-T10N) 39T2665 R **

DVD drive, 12.7 mm

v 9455-CTO, 2Sx, 2Tx, 4Ex, AQx

v 9456-CTO

v 9457-CTO, 7Ax, 7Bx, 88x, 89x

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 2Dx, 2Yx, 2Wx, 3Ax, AVx

v 9461-CTO

v 9462-CTO, 6Hx, 6Jx, 7Hx, 7Jx

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

PCC (UJDA770DVD) 39T2817 R *

MKE (SR-8178) 39T2663 R *

HLDS (GDR-T10N) 39T2665 R *

DVD drive, 12.7 mm

v 8944-CTO

v 8942-CTO, 3Px, 3Sx, 3Vx, 3Yx, AYx, B3x, B6x, B9x

v 8943-CTO, 5Jx, 5Mx, 5Qx, 5Tx, BZx, C3x, C6x, C9x

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

HLDS (GDR-T10N) 39T2665 R *

(continued)

Parts list

148 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

12 DVD/CD-RW combo drive, 12.7 mm

v 0656-CTO, 22x, 29x, A3x, A4x

v 0657-CTO, 35x, 36x, 38x, 3Ex, 3Fx, 3Gx, 3Kx, 3Nx, 3Tx, 3Ux, 45x, 46x, 47x, 49x, 4Ex,

4Gx, 4Kx, 4Nx, 4Px, A7x, AAx, ACx, ADx, AXx, AYx, B8x, B9x, BFx, BGx, BHx,

BJx, BKx, BLx, BMx, BNx, BTx, BUx, BVx, BWx, BXx, BYx, C3x, C6x, C7x, C8x,

C9x, CAx, HQx, HTx, JYx, JZx, K2x, K3x, K4x, KSx, KVx, KWx, KXx, KYx, LHx,

LJx, LKx, LLx, LMx

v 0658-CTO, 52x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Px, 5Vx, 5Wx, 5Yx, 5Zx,

62x, 63x, 66x, 67x, 68x, 69x, 6Ax, 6Dx, 6Gx, 6Hx, 6Jx, 6Mx, 6Nx, 6Px, 6Qx, 6Tx,

6Ux, 6Wx, 6Xx, 6Yx, 72x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Gx, 7Hx, 7Jx, 7Mx, 7Nx,

7Px, 7Qx, 7Sx, 7Tx, 7Ux, 7Vx, 7Xx, 7Zx, 82x, 83x, 84x, 85x, 89x, 8Fx, 8Gx, 8Hx, 8Jx,

8Kx, 8Mx, 8Px, 8Qx, CKx, CMx, CUx, CVx, D4x, D5x, D6x, D7x, D8x, D9x, DAx,

DBx, DGx, DHx, DJx, DKx, DLx, DMx, DQx, DRx, DSx, DTx, DUx, DXx, E2x, E3x,

E4x, E5x, E6x, E7x, E9x, EDx, EEx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EQx, ERx,

ETx, EUx, EVx, EWx, EXx, EZx, F2x, F7x, F8x, F9x, FCx, FDx, FNx, FQx, FRx, FSx,

FTx, FUx, FVx, FWx, FXx, FYx, FZx, G4x, H4x, HLx, HMx, J7x, J8x, JGx, K6x, K7x,

K9x, KAx, KBx, KPx, KZx, L2x, L3x, L4x, L5x, L6x, L9x, LAx, LBx, LCx

v 0659-CTO, 92x, 94x, 95x, 97x, 98x, 99x, 9Bx, 9Cx, 9Dx, H6x, H7x, H8x, HFx, JPx

PCC (UJDA770) 39T2667 R **

HLDS (GCC-T10N) 39T2669 R **

DVD/CD-RW combo drive, 12.7 mm

v 9455-CTO, 22x, 24x, 25x, 26x, 27x, 28x, 2Cx, 2Ex, 2Fx, 2Gx, 2Kx, 2Lx, 2Px, 2Qx,

2Rx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, 33x, 34x, 3Ax, 3Bx, 3Cx, 3Dx, 3Fx, 3Kx, 3Lx, 3Mx,

3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 48x, 4Bx, 4Cx, 4Dx, 4Fx, 4Gx, 4Jx, 4Rx,

7Ux, 7Xx, 7Yx, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ADx, AEx, AFx, AGx,

AHx, AJx, AKx, ALx, AMx, ANx, APx, ARx, B8x, B9x, BAx, BBx, BEx, BFx, BGx,

BHx, BRx, BVx, BXx, BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx,

CCx, CDx, CEx, CGx, CHx, CQx, CRx, CSx, K2x, K3x, LDx, LFx, LUx, LVx, LWx,

M9x, MAx, MBx, MCx, MDx, MEx, MFx, MHx, MJx, MKx

v 9456-CTO, 54x, 59x, 5Bx, 5Dx, 5Ex, 5Gx, 5Hx, 5Rx, 5Sx, 68x, 6Dx, 6Ex, 6Kx, 6Nx,

6Rx, 6Ux, 6Xx, D9x, DJx, DKx, DLx, DMx, EKx, ELx, EMx, ENx, ERx, ESx, ETx,

EUx, F3x, FAx, FBx, FMx, FNx, FPx, FQx, L3x, L6x, L9x, LGx, LHx, LJx, LXx, LYx,

LZx, MNx, MPx, MQx, MRx, MSx, MTx

v 9457-CTO, 72x, 73x, 77x, 78x, 7Cx, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Vx, 7Wx,

82x, 84x, 85x, 86x, 8Ax, 8Ex, 8Gx, 8Hx, 8Jx, 8Nx, 8Px, 92x, 93x, 94x, 95x, 96x, 97x,

98x, DTx, G2x, G3x, G4x, G5x, G8x, H2x, H4x, H6x, H7x, H8x, HAx, HBx, HCx,

HDx, HGx, HHx, HJx, HKx, HNx, HPx, HSx, J3x, J9x, JAx, JBx, JDx, JFx, JGx, JJx,

JKx, JLx, JMx, JPx, KDx, KGx, KHx, KPx, LSx

v 9458-CTO, 7Mx, 8Qx, 8Rx

v 9459-CTO, 7Gx, 7Px, 7Rx, 7Sx, 8Jx, 8Vx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 9Ax, ATx,

AUx, AVx, AWx, AXx, AZx, CUx, CXx, CYx, DNx, FXx, FYx, FZx, G2x, G3x, G4x,

G5x, G9x, LTx

v 9444-CTO

v 9445-CTO

(continued)

PCC (UJDA770) 39T2667 R *

HLDS (GCC-T10N) 39T2669 R *

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 149

No. FRU FRU no. RoHS

CRU

12 DVD/CD-RW combo drive, 12.7 mm

v 9460-CTO, 24x, 26x, 29x, 2Ax, 2Bx, 2Cx, 2Ex, 2Fx, 2Gx, 2Hx, 2Kx, 2Px, 2Tx, 2Ux,

2Vx, 2Xx, 2Zx, 33x, 35x, 36x, 37x, 38x, 39x, 3Bx, 3Cx, 3Dx, 3Hx, 3Jx, 3Mx, 3Rx, 3Sx,

3Tx, 3Ux, 3Wx, 89x, 8Ax, 8Cx, 8Dx, 8Ex, 8Gx, A7x, A8x, AEx, AFx, AHx, AJx, AKx,

ALx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AWx, B7x, BAx, BBx, BCx, BEx, BJx,

BKx, BLx, BMx, BRx, BSx, BUx, BVx, BWx, HEx, HFx, HSx

v 9461-CTO, 42x, 47x, 4Hx, 4Jx, 4Lx, 4Mx, 4Sx, 4Vx, 4Wx, 5Bx, 5Cx, 5Kx, C8x, C9x,

CAx, DDx, DGx, HMx, HNx

v 9462-CTO, 64x, 65x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Gx, 6Lx, 6Px, 6Qx, 6Tx,

6Vx, 6Wx, 6Yx, 6Zx, 74x, 76x, 78x, 7Ax, 7Bx, 7Cx, 7Dx, 7Gx, 7Lx, 7Qx, 7Xx, 7Zx,

92x, 93x, 94x, 95x, 96x, 97x, 98x, 9Tx, 9Xx, 9Yx, E2x, E4x, E6x, E7x, E9x, EAx, EBx,

ECx, EEx, EJx, F3x, F4x, F8x, FCx, FFx, G8x, G9x, H8x

v 9463-CTO, 7Rx, 82x

v 9464-CTO, 3Kx, 69x, 6Wx, 7Bx, 7Vx, 7Xx, 86x, 88x, 92x, 93x, 94x, 95x, 96x, 97x,

BZx, CEx, CFx, CGx, CHx, CJx, DLx, DMx, DNx, DPx, DSx, DVx, DWx, G9x

v 9446-CTO

v 9447-CTO

PCC (UJDA770) 39T2667 R *

HLDS (GCC-T10N) 39T2669 R *

DVD/CD-RW combo drive, 12.7 mm

v 8942-CTO, 22x, 32x, 33x, 34x, 39x, 3Ax, 3Nx, 3Rx, 3Ux, 3Xx, 46x, 47x, 48x, 9Zx,

A3x, A5x, AAx, ABx, ACx, AEx, ATx, AUx, AVx, AWx, AXx, B2x, B5x, B8x

v 8943-CTO, 4Bx, 4Dx, 4Fx, 4Hx, 4Tx, 4Vx, 4Xx, 4Zx, 5Hx, 5Lx, 5Px, 5Sx, A8x, ALx,

AMx, APx, AQx, ARx, BCx, BEx, BGx, BJx, BPx, BRx, BTx, BVx, BYx, C2x, C5x,

C8x

v 8944-CTO, 66x, 6Ax, 6Bx, 6Cx, 6Dx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Wx,

6Xx, 6Yx, 6Zx, 7Ax, 7Bx, 7Dx, 7Kx, CBx, CCx, CDx, CEx, CFx, CGx, CHx, CJx,

CKx, CLx, CMx, CNx, CPx, CQx

v 8945-CTO, 7Ux, 7Yx, 84x, 88x, CRx, CUx

v 8947-CTO, 8Lx, 8Nx, 8Qx, 8Sx, 8Tx, 8Ux, 92x, 94x, 96x, 98x, 99x, 9Ax, 9Px, CXx,

CZx, D3x, D5x, D6x, D7x, D9x, DBx, DDx, DFx, DGx, DHx

v 8948-CTO, 22x

v 8949-CTO, 22x

HLDS (GCC-T10N) 39T2669 R *

(continued)

Parts list

150 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

12 DVD-RAM/RW drive, 12.7 mm

v 0656-CTO

v 0657-CTO, 37x, 39x, 3Ax, 3Bx, 3Cx, 3Hx, 3Jx, 3Lx, 3Mx, 3Rx, 3Sx, 3Vx, 3Wx, 3Xx,

42x, 43x, 48x, 4Ax, 4Dx, 4Fx, 4Lx, 4Mx, 4Qx, 4Rx, 4Sx, 4Tx, A8x, A9x, AEx, AFx,

AGx, ARx, ASx, ATx, AUx, AVx, AWx, AZx, B2x, B3x, B4x, B5x, B6x, B7x, BAx,

BBx, BCx, BDx, BEx, BRx, BSx, CBx, CCx, HKx, HRx, HSx, HUx, HVx, J4x, J5x, J6x,

JMx, JNx, JSx, JTx, JUx, JVx, JWx, JXx, K5x, KCx, KDx, KEx, KFx, KGx, KJx, KKx,

KLx, KMx, KNx, KRx, KTx, KUx, LDx, LEx, LGx, LNx, LPx

v 0658-CTO, 5Jx, 5Kx, 5Lx, 5Mx, 5Qx, 5Rx, 5Sx, 5Tx, 6Bx, 6Cx, 6Ex, 6Kx, 6Rx, 6Sx,

6Vx, 6Zx, 73x, 74x, 75x, 7Cx, 7Dx, 7Ex, 7Fx, 7Lx, 86x, 87x, 88x, 8Ax, 8Bx, 8Cx, 8Lx,

CLx, CNx, CPx, CQx, CRx, CSx, CTx, CWx, CXx, CYx, CZx, D2x, D3x, DEx, DFx,

DVx, DWx, DYx, DZx, EAx, EBx, ECx, EFx, ESx, F3x, F4x, FEx, FFx, H2x, H3x, JEx,

JFx, JHx, JJx, JKx, K8x, KQx

v 0659-CTO, 93x, 96x, 9Ax, H9x, HAx, HBx, HCx, HDx, HEx, HGx, JQx, JRx

PCC (UJ-850) 39T2721 R **

HLDS (GMA-4082N) 39T2723 R **

DVD-RAM/RW drive, 12.7 mm

v 9455-CTO, 23x, 29x, 2Ax, 2Bx, 2Dx, 2Jx, 2Mx, 2Nx, 2Yx, 32x, 35x, 36x, 38x, 39x,

3Ex, 3Gx, 3Hx, 3Jx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 45x, 46x, 49x, 4Ax, 4Hx, 4Kx,

4Nx, 4Px, 4Qx, 7Tx, A2x, B2x, B3x, B4x, B5x, B6x, B7x, BCx, BDx, BJx, BLx, BUx,

CJx, CKx, CLx, CMx, CNx, CPx, DPx, LCx, LEx, MLx, MMx

v 9456-CTO, 5Ax, 5Jx, 5Kx, 5Mx, 63x, 66x, 6Ax, 6Fx, 6Gx, 6Jx, 6Px, 6Qx, 6Sx, 6Tx,

6Vx, 6Wx, 6Zx, DQx, DRx, E5x, E6x, E7x, ECx, EDx, EEx, EFx, EGx, EHx, EJx, EPx,

EQx, EYx, EZx, F4x, F5x, F6x, FCx, FJx, FKx, FLx, FRx, FSx, FTx, FUx, FVx, FWx,

HTx, K8x, K9x, KAx, KLx, KMx, L2x, L4x, L5x, LAx, LBx, LKx, M2x, M4x, M5x,

MUx, MVx

v 9457-CTO, 74x, 75x, 76x, 79x, 7Dx, 7Ex, 83x, 87x, 8Bx, 8Cx, 8Kx, 8Lx, 8Mx, DSx,

DUx, DVx, DWx, G6x, G7x, H3x, HEx, HFx, HMx, HQx, HRx, J6x, J7x, JHx, JNx,

KEx, KFx, KJx, KNx, KQx, KRx

v 9458-CTO, L7x, L8x, LLx, LMx, LNx

v 9459-CTO, 74x, 8Kx, 8Wx, ASx, CVx, G6x, KKx

v 9444-CTO

v 9459-CTO

(continued)

PCC (UJ-850) 39T2721 R *

HLDS (GMA-4082N) 39T2723 R *

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 151

No. FRU FRU no. RoHS

CRU

12 DVD-RAM/RW drive, 12.7 mm

v 9460-CTO, 22x, 23x, 25x, 27x, 28x, 2Jx, 2Lx, 2Mx, 2Nx, 2Qx, 2Rx, 2Sx, 32x, 34x, 3Ex,

3Fx, 3Gx, 3Lx, 3Nx, 3Px, 3Qx, 3Vx, 3Xx, 8Bx, 8Fx 8Jx, 9Px, A3x, A4x, A5x, A6x,

A9x, AAx, ACx, AGx, AMx, AYx, B2x, B3x, B5x, B6x, B8x, B9x, BDx, BFx, BGx,

BHx, BNx, BPx, BQx, H3x, HBx, HCx, HDx

v 9461-CTO, 4Ax, 4Bx, 4Tx, 4Ux, 4Xx, 52x, 54x, 56x, 57x, 58x, 59x, 5Ex, 5Fx, 5Gx, 5Lx,

5Mx, 5Nx, D5x, D6x, D7x, DEx, DFx, DHx, DJx, DKx, DUx, DXx, DYx, DZx, H4x,

H5x, KSx, HGx, HHx, HJx, HKx, HLx, HRx, HWx, HX, HYx, M6x, M7x, M8x

v 9462-CTO, 62x, 63x, 66x, 6Ex, 6Kx, 6Mx, 6Nx, 6Rx, 6Sx, 6Ux, 6Xx, 72x, 73x, 75x,

77x, 79x, 7Ex, 7Fx, 7Kx, 7Mx, 7Nx, 7Px, 7Yx, 8Hx, 9Qx, 9Rx, 9Sx, 9Ux, 9Vx, 9Wx,

9Zx, E5x, EDx, EHx, EKx, ELx, F2x, F7x, FAx, FBx, FDx, FEx, FGx, GAx, H7x, H9x,

HAx, KTx, KUx, KVx, HTx

v 9463-CTO, HPx, HQx, HUx, HVx, LPx, LQx, LRx

v 9464-CTO, 63x, 73x, 7Tx, 84x, CDx, BYx, GAx

v 9446-CTO

v 9447-CTO

PCC (UJ-850) 39T2721 R *

HLDS (GMA-4082N) 39T2723 R *

DVD-RAM/RW drive, 12.7 mm

v 8942-CTO, 35x, 36x, 37x, 38x, 3Bx, 3Cx, 3Dx, 3Ex, 3Gx, 3Kx, 3Lx, 3Mx, 3Qx, 3Tx,

3Wx, 3Zx, 49x, 9Qx, 9Xx, 9Yx, A2x, A4x, ADx, AFx, AZx, B4x, B7x, BAx

v 8943-CTO, 4Ax, 4Cx, 4Ex, 4Gx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Ux,

4Wx, 4Yx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Bx, 5Ex, 5Kx, 5Fx, 5Gx, 5Nx, 5Rx,

5Ux, 5Zx, 62x, 63x, 64x, 65x, 9Rx, 9Sx, 9Tx, A6x, A7x, A9x, AGx, ANx, ASx, BBx,

BDx, BFx, BHx, BKx, BMx, BNx, BQx, BSx, BUx, BWx, BXx, C4x, C7x, CAx

v 8944-CTO, 67x, 68x, 69x, 6Ex, 6Fx, 6Gx, 6Hx, 6Sx, 6Tx, 6Ux, 6Vx, 73x, 76x, 77x, 78x,

7Cx, 7Ex, 7Gx, 7Jx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 9Ux, 9Vx, 9Wx, AHx,

AJx

v 8945-CTO, 7Vx, 7Wx, 7Xx, 7Zx, 82x, 83x, 85x, 86x, 87x, 89x, 8Ax, 8Bx, 8Dx, 8Gx,

8Hx, 8Jx, AKx, CSx, CVx

v 8947-CTO, 8Kx, 8Mx, 8Px, 8Rx, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 93x, 95x, 97x, 9Bx, 9Cx,

9Dx, 9Ex, 9Gx, 9Kx, 9Lx, 9Mx, CWx, CYx, D2x, D4x, D8x, DAx, DCx, DEx

v 8948-CTO

v 8949-CTO

PCC (UJ-860) 39T2861 R *

HLDS (GSA-T20N) 39T2863 R *

Travel cover, 12.7 mm 13N5354 R *

(continued)

Parts list

152 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

13 Hard disk drive cover assembly (14.1-in.)

v 9455-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax,

2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx,

2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx,

2Yx, 2Zx, 7Tx, 7Ux, 7Xx, 7Yx, A2x, A4x, A5x, A6x,

A7x, A8x, A9x, AAx, ABx, ADx, AEx, AFx, AGx, AHx,

AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, K2x, M9x,

MAx, MBx, MCx, MDx, MEx

v 9456-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax,

5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx,

5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, D4x,

D5x, D6x, D9x, DFx, DGx, DHx, DJx, DKx, DLx, DMx,

K9x, LAx, M2x, M4x, M5x, MNx, MPx, MQx

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax,

7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Px,

7Vx, 7Wx, 92x, 93x, G2x, G3x, G8x, H2x, H3x, H4x,

H6x, H7x, H8x, HAx, HBx, HCx, HDx, HEx, HFx,

HGx, HHx, HJx, HKx, HLx, HMx, HNx, HPx, HQx,

HRx, KGx, KHx, KJx

v 9458-CTO, 7Mx, L7x, LLx, LMx

v 9459-CTO, 74x, 7Gx, 7Px, 7Sx, 7Rx, 92x, 93x, 99x, 9Ax,

9Bx, ASx, ATx, AUx, AVx, AWx, AXx, AZx, G2x, G3x,

G9x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax,

2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx,

2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx,

2Yx, 2Zx, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx,

A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ACx, AEx,

AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx,

AQx, ARx, ASx, ATx, AUx, AVx, AWx, AYx, HDx,

HFx, HSx

(continued)

41W5164 R *

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 153

No. FRU FRU no. RoHS

CRU

13 Hard disk drive cover assembly (14.1-in.)

v 9461-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax,

4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx,

4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx,

4Xx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx,

CKx, M6x, M7x, M8x

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax,

6Bx, 6Dx, 6Cx, 6Ex, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx,

6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx,

6Yx, 6Zx, 8Hx, 92x, 93x, 94x, E2x, E4x, E5x, E6x, G8x,

G9x, E7x, E9x, EAx, EBx, ECx, EDx, EEx, EGx, EHx,

EJx, EKx, ELx, H8x, H9x, HAx, KTx, KVx, HTx

v 9463-CTO, 82x, HPx, LPx, LQx, LRx

v 9464-CTO, 63x, 69x, 6Wx, 84x, 86x, 88x, 92x, 93x, 94x,

CDx, CEx, CFx, CGx, CHx, CJx, G9x

v 9446-CTO

v 9447-CTO

41W5164 R *

Hard disk drive cover assembly (15.0-in.)

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v 9455-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x,, 3Ax,

3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx,

3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx,

3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x,

4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx,

4Mx, 4Nx, 4Px, 4Qx, 4Rx, ACx, B2x, B3x, B4x, B5x,

B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx,

BGx, BHx, BJx, BLx, BMx, BNx, BPx, BQx, BRx, BUx,

BVx, BWx, BXx, BYx, BZx, C2x, C3x, C4x, C5x, C6x,

C7x, C8x, C9x, CAx, CBx, CCx, CDx, CEx, CGx, CHx,

CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, DPx,

K3x, LCx, LDx, LEx, LFx, LUx, LVx, LWx, MFx, MGx,

MHx, MJx, MKx, MLx, MMx

v 9456-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax,

6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx,

6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx,

6Xx, 6Yx, 6Zx, DQx, DRx, E4x, E5x, E6x, E7x, EAx,

EBx, ECx, EDx, EEx, EFx, EGx, EHx, EJx, EKx, ELx,

EMx, ENx, EPx, EQx, ERx, ESx, ETx, EUx, EVx, EWx,

EXx, EYx, EZx, F3x, F4x, F5x, F6x, FAx, FBx, FCx,

FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx,

FRx, FSx, FTx, FUx, FVx, FWx, HTx, K8x, KAx, KLx,

KMx, L2x, L3x, L4x, L5x, L6x, L9x, LBx, LGx, LHx,

LJx, LKx, LXx, LYx, LZx, MRx, MSx, MTx, MUx, MVx

(continued)

42X4376 R *

(continued)

Parts list

154 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

13 Hard disk drive cover assembly (15.0-in.)

v 9457-CTO, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax,

8Bx, 8Cx, 8Ex, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx,

8Px, 8Wx, 94x, 95x, 96x, 97x, 98x, DSx, DTx, DUx,

DVx, DWx, G4x, G5x, G6x, G7x, J3x, J6x, J7x, J9x, JAx,

JBx, JDx, JFx, JGx, JHx, JJx, JKx, JLx, JMx, JNx, JPx,

KDx, KEx, KFx, KNx, KPx, KQx, KRx, LSx

v 9458-CTO, 8Qx, 8Rx, L8x, LNx

v 9459-CTO, 8Jx, 8Kx, 8Vx, 8Wx, 94x, 95x, 96x, 97x, 98x,

CUx, CVx, CXx, CYx, DNx, FXx, FYx, FZx, G4x, G5x,

G6x, KKx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax,

3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Lx, 3Mx,

3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx,

9Px, B2x, B3x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx,

BDx, BEx, BFx, BGx, BHx, BJx, BKx, BLx, BMx, BNx,

BPx, BQx, BRx, BSx, BUx, BVx, BWx, H3x, HCx, HEx

v 9461-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax,

5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx,

5Mx, 5Nx, D2x, D3x, D4x, D5x, D6x, D7x, D9x, DAx,

DBx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DUx,

DXx, DYx, DZx, H4x, H5x, KSx, HWx, HXx, HYx

v 9462-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax,

7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,7Kx, 7Lx, 7Mx,

7Nx, 7Px, 7Qx, 7Xx, 7Yx, 7Zx, 95x, 96x, 97x, 98x, 9Qx,

9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, F2x,

F3x, F4x, F7x, F8x, FAx, FBx, FCx, FDx, FEx, FFx, FGx,

GAx, H7x, KUx

v 9463-CTO, 7Rx, HQx, HUx, HVx

v 9464-CTO, 3Kx, 73x, 7Bx, 7Tx, 7Vx, 7Xx, 95x, 96x, 97x,

BYx, BZx, DLx, DMx, DNx, DPx, DSx, DVx, DWx,

GAx

v 9446-CTO

v 9447-CTO

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

42X4376 R *

14 Base cover assembly for 0656 41W5199 R N

Base cover assembly for 0657 41W5203 R N

Base cover assembly for 0658 41W5178 R N

Base cover assembly for 0659 41W5179 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 155

No. FRU FRU no. RoHS

CRU

14 Base cover assembly for 9455 (14.1-in.) 41W5166 R N

Base cover assembly for 9455 (15.0-in.) 41W5172 R N

Base cover assembly for 9456 (14.1-in.) 41W5191 R N

Base cover assembly for 9456 (15.0-in.) 41W5195 R N

Base cover assembly for 9457 (14.1-in.) 41W5167 R N

Base cover assembly for 9457 (15.0-in.) 41W5173 R N

Base cover assembly for 9458 (14.1-in.) 41W5192 R N

Base cover assembly for 9458 (15.0-in.) 41W5196 R N

Base cover assembly for 9459 (14.1-in.) 41W5168 R N

Base cover assembly for 9459 (15.0-in.) 41W5174 R N

Base cover assembly for 9444 (14.1-in.) 42X4885 R N

Base cover assembly for 9444 (15.0-in.) 42X4886 R N

Base cover assembly for 9445 (14.1-in.) 42X4887 R N

Base cover assembly for 9445 (15.0-in.) 42X4888 R N

Base cover assembly for 9460 (14.1-in.) 41W5169 R N

Base cover assembly for 9460 (15.0-in.) 41W5175 R N

Base cover assembly for 9461 (14.1-in.) 41W5193 R N

Base cover assembly for 9461 (15.0-in.) 41W5197 R N

Base cover assembly for 9462 (14.1-in.) 41W5170 R N

Base cover assembly for 9462 (15.0-in.) 41W5176 R N

Base cover assembly for 9463 (14.1-in.) 41W5194 R N

Base cover assembly for 9463 (15.0-in.) 41W5198 R N

Base cover assembly for 9464 (14.1-in.) 41W5171 R N

Base cover assembly for 9464 (15.0-in.) 41W5177 R N

Base cover assembly for 9446 (14.1-in.) 42X4889 R N

Base cover assembly for 9446 (15.0-in.) 42X4890 R N

Base cover assembly for 9447 (14.1-in.) 42X4891 R N

Base cover assembly for 9447 (15.0-in.) 42X4892 R N

Base cover assembly for 8942 42X4377 R N

Base cover assembly for 8943 42X4378 R N

Base cover assembly for 8944 42X4379 R N

Base cover assembly for 8945 42X4380 R N

Base cover assembly for 8947 42X4381 R N

Base cover assembly for 8948 42X4382 R N

Base cover assembly for 8949 42X4383 R N

(continued)

Parts list

156 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

15 2-GB DDR2-533 SDRAM SO-DIMM (PC2-4200) card

v 0656-CTO

v 0657-CTO

v 0658-CTO

v 0659-CTO, HBx

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

73P3847 R **

256-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card

v 0656-CTO, 22x, 23x, 24x, 25x, 26x, 2Cx, 2Dx, A3x

v 0657-CTO, 33x, 34x, 35x, 36x, 38x, 3Ex, 3Fx, 3Tx, 45x,

46x, 4Ex, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px, 8Rx, 8Sx, BPx,

BQx, BXx, BYx, BZx, C2x, C4x, C5x, C6x, C7x, CEx

v 0658-CTO, 53x, 54x, 55x, 56x, 57x, 5Cx, 5Dx, 5Ex, 5Fx,

5Gx, 5Hx, 5Nx, 5Px, 5Vx, 5Wx, 5Xx, 5Yx, 63x, 65x,

66x, 67x, 6Jx, 6Lx, 6Mx, 6Nx, 6Rx, 6Sx, 6Tx, 6Ux, 76x,

7Kx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx,

7Zx, 8Dx, 8Ex, 8Nx, 8Px, 8Qx, DCx, DDx, DLx, DMx,

DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx,

DXx, DYx, DZx, E2x, E3x, E4x, E8x, E9x, EGx, EHx,

EJx, EKx, ELx, ETx, EXx, F5x, F6x, F7x, F8x, FAx, FBx,

FHx, FPx, FQx, FVx, FZx, G3x

v 0659-CTO,9Cx, H5x

v 9455-CTO, 24x, 25x, 26x, 28x, 2Cx, 2Ex, 2Fx, 2Gx, 2Lx,

2Mx, 2Nx, 2Px, 2Qx, 2Sx, 2Tx, 2Ux, 3Bx, 3Fx, 3Lx,

3Mx, 3Sx, 3Tx, 3Xx, 3Yx, 3Zx, 42x, 4Cx, 4Ex, 4Fx,

4Mx, 7Yx, A6x, A7x, A8x, ACx, ADx, AJx, AKx, ANx,

APx, AQx, ATx, BWx, BYx, BZx, C2x, CEx, CGx, CHx,

CNx, CPx

v 9456-CTO, 59x, 5Bx, 5Dx, 5Ex, 5Kx, 5Rx, 5Sx,

5Ux,6Ax, 6Jx, 6Nx, 6Rx, D9x, DLx, DMx, FAx, FPx,

FQx, FVx, FWx

v 9457-CTO, 7Kx, 7Lx, H7x, H8x, HHx, HKx

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 3Hx, AKx, AQx,

ATx, BSx

v 9461-CTO, 42x, 47x, 4Hx, 4Jx, 4Lx, 4Mx, 5Bx, 5Cx

v 9462-CTO

(continued)

40Y8401 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 157

No. FRU FRU no. RoHS

CRU

15 256-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

40Y8401 R **

512-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card

v 0656-CTO, 29x, A4x

v 0657-CTO, 37x, 39x, 3Ax, 3Bx, 3Cx, 3Gx, 3Hx, 3Jx,

3Kx, 3Lx, 3Mx, 3Nx, 3Rx, 3Sx, 3Ux, 3Wx, 42x, 43x,

47x, 48x, 49x, 4Ax, 4Dx, 4Fx, 4Lx, 4Mx, 4Qx, 4Rx, 4Sx,

4Tx, 4Ux, 8Tx, 8Ux, 9Ex, 9Fx, 9Gx, 9Hx, A8x, A9x,

AAx, ACx, ADx, AEx, AFx, AGx, ARx, ASx, ATx,

AUx, AVx, AWx, AXx, AYx, B2x, B3x, B4x, B5x, B6x,

B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx,

BHx, BJx, BKx, BLx, BMx, BNx, BRx, BSx, BTx, BUx,

BVx, BWx, C3x, C8x, C9x, CAx, CBx, CCx, HKx, HQx,

HRx, HSx, HTx, HUx, HVx, J4x, J5x, J6x, JMx, JNx,

JSx, JTx, JUx, JVx, JWx, JXx, JYx, JZx, K2x, K3x, K4x,

K5x, KCx, KDx, KEx, KFx, KGx, KKx, KLx, KMx,

KNx, KRx, KSx, KVx, KWx, KXx, KYx, LDx, LEx, LFx,

LGx, LHx, LJx, LKx, LLx, LMx, LNx, LPx

v 0658-CTO, 52x, 58x, 59x, 5Ax, 5Bx, 5Jx, 5Kx, 5Lx, 5Mx,

5Qx, 5Rx, 5Sx, 5Tx, 5Zx, 62x, 64x, 68x, 69x, 6Ax, 6Bx,

6Cx, 6Dx, 6Ex, 6Gx, 6Hx, 6Kx, 6Px, 6Qx, 6Vx, 6Wx,

6Xx, 6Yx, 6Zx, 72x, 73x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx,

7Ex, 7Gx, 7Hx, 7Jx, 7Lx, 7Mx, 7Nx, 7Qx, 82x, 83x, 84x,

85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Fx, 8Gx, 8Hx,

8Jx, 8Kx, 8Lx, 8Mx, 9Jx, 9Kx, 9Lx, 9Mx, 9Nx, CKx,

CLx, CMx, CNx, CPx, CQx, CRx, CSx, CTx, CUx,

CVx, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x,

D7x, D8x, D9x, DAx, DBx, DEx, DFx, DGx, DHx, DJx,

DKx, E5x, E6x, E7x, EAx, EBx, EDx, EEx, EMx, ENx,

EQx, ERx, EUx, EVx, EWx, EYx, EZx, F2x, F3x, F4x,

F9x, FCx, FDx, FEx, FFx, FNx, FRx, FSx, FTx, FUx,

FWx, FXx, FYx, G4x, H2x, H3x, H4x, HLx, HMx,

HNx, HPx, J7x, J8x, JEx, JFx, JGx, JHx, JJx, JKx, K6x,

K7x, K8x, K9x, KAx, KBx, KPx, KQx, KZx, L2x, L3x,

L4x, L5x, L6x, L7x, L8x, L9x, LAx, LBx, LCx

v 0659-CTO, 92x, 93x, 94x, 95x, 96x, 97x, 99x, 9Bx, 9Dx,

H7x, H8x, H9x, HAx, HCx, HDx, HFx, JRx

v 9455-CTO, 22x, 27x, 29x, 2Ax, 2Bx, 2Dx, 2Jx, 2Kx, 2Rx,

2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 32x, 33x, 34x, 35x, 36x, 3Ax,

3Cx, 3Dx, 3Ex, 3Gx, 3Hx, 3Jx, 3Kx, 3Nx, 3Px, 3Qx,

3Rx, 3Vx, 3Wx, 43x, 44x, 45x, 46x, 48x, 49x, 4Ax, 4Bx,

4Dx, 4Gx, 4Jx, 4Kx, 4Lx, 4Nx, 4Px, 4Qx, 4Rx, 7Ux,

7Xx, A4x, A5x, A9x, AAx, ABx, AEx, AFx, AGx, AHx,

AKx, ALx, AMx, ARx, B4x, B5x, B6x, B7x, B8x, B9x,

BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BRx, BUx,

BVx, BXx, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx,

CBx, CCx, CDx, CJx, CKx, CLx, CMx, CQx, CRx, CSx,

K2x, K3x, LCx, LDx, LEx, LFx, LUx, M9x, MAx, MBx,

MCx, MDx, MEx, MFx, MGx, MHx, MJx, MKx, MLx,

MMx

(continued)

40Y8402 R **

(continued)

Parts list

158 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

15 512-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card

v 9456-CTO, 54x, 5Ax, 5Gx, 5Hx, 5Jx, 5Mx, 5Tx, 5Vx,

68x, 6Dx, 6Ex, 6Fx, 6Gx, 6Kx, 6Qx, 6Sx, 6Tx, 6Ux, 6Vx,

6Wx, 6Xx, 6Zx, DJx, DKx, DQx, DRx, E5x, EFx, EGx,

EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx, ERx, ESx,

ETx, EUx, EZx, F3x, F4x, F5x, FBx, FCx, FJx, FKx, FLx,

FMx, FNx, FRx, FSx, FTx, FUx, HTx, K8x, K9x, KAx,

KLx, KMx, L2z, L3x, L5x, L6x, L9x, LAx, LBx, LGx,

LHx, LJx, LKx, LXx, M2x, M4x, M5x, MNx, MPx,

MQx, MRx, MSx, MTx, MUx, MVx

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax,

7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Px, 7Vx,

7Wx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx,

8Cx, 8Ex, 8Gx, 8Hx 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px,

8Wx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, DSx, DTx, DVx,

G2x, G3x, G4x, G5x, G6x, G7x, G8x, H2x, H4x, H6x,

HAx, HBx, HCx, HDx, HEx, HFx, HGx, HJx, HMx,

HNx, HPx, HSx, J3x, J9x, JAx, JBx, JDx, JFx, JGx, JJx,

JKx, JLx, JPx, KDx, KEx, KFx, KGx, KHx, KJx, KNx,

KPx, KQx, KRx

v 9458-CTO, 7Mx, 8Qx, 8Rx, L7x, LLx, LMx, LNx

v 9459-CTO, 74x, 7Gx, 7Px, 7Rx, 7Sx, 8Jx, 8Kx, 8Vx,

8Wx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx

ATx, AUx AVx, AWx, AXx, AZx, CUx, CXx, CYx,

DNx, FXx, FYx, FZx, G2x, G3x, G4x, G5x, G6x, G9x,

KKx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax,

2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Nx,

2Px, 2Qx, 2Sx, 2Tx, 2Ux, 32x, 33x, 35x, 36x, 37x, 38x,

39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Jx, 3Mx,

3Nx, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Wx, 3Xx, 89x, 8Ax,

8Bx, 8Cx, 8Dx, 8Ex, 8Gx, 8Jx, 9Px, A3x, A4x, A5x, A7x,

A8x, A9x, AAx, ACx, AEx, AFx, AGx, AHx, AJx, ALx,

AMx, ANx, APx, ARx, ASx, AUx, AVx, AWx, B3x,

B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BHx,

BJx, BKx, BLx, BMx, BNx, BPx, BQx, BRx, BUx, BVx,

BWx, H3x, HBx, HCx, HDx, HEx, HFx, HSx

v 9461-CTO, 4Ax, 4Bx, 4Nx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx,

4Xx, 52x, 54x, 57x, 58x, 59x, 5Ex, 5Fx, 5Gx, 5Kx, 5Lx,

5Mx, 5Nx, CKx, DGx, DHx, DJx, DKx, DYx, DZx,

KSx, HGx, HJx, HKx, HLx, HMx, HNx, HXx, M6x,

M7x, M8x

(continued)

40Y8402 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 159

No. FRU FRU no. RoHS

CRU

15 512-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax,

6Bx, 6Cx, 6Dx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx,

6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,

72x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx,

7Ex, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx,

7Xx, 7Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 9Qx, 9Sx,

9Tx, 9Ux, 9Wx, 9Xx, 9Yx, 9Zx,E2x, E4x, E5x, E6x, E7x,

E8x, E9x, EAx, EBx, ECx, EDx, EEx, EJx, ELx, F3x,

F4x, F7x, F8x, FAx, FCx, FDx, FEx, FFx, GAx, G8x,

H8x, H9x, HAx, KVx, HTx

v 9463-CTO, 7Rx, 82x, LPx, LQx

v 9464-CTO, 3Kx, 63x, 69x, 6Wx, 7Bx, 7Tx, 7Vx, 7Xx,

84x, 86x, 88x, 92x, 93x, 94x, 95x, 96x, 97x, BYx, BZx,

CDx, CEx, CFx, CGx, CHx, CJx, DLx, DMx, DNx,

DPx, DSx, DVx, DWx, GAx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 22x, 32x, 33x, 34x, 39x, 3Ax, 3Gx, 3Kx, 3Lx,

3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx,

3Xx, 3Yx, 3Zx, 46x, 47x, 9Qx, 9Xx, 9Yx, 9Zx, A2x, A3x,

A4x, A5x, AAx

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,

4Jx, 4Kx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x,

53x, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx,

5Tx, 5Ux, 5Bx, 5Ex, 5Fx, 5Gx, 5Zx, 62x, 63x, 64x, 65x,

9Rx, 9Sx, 9Tx, A6x, A7x, A8x, A9x

v 8944-CTO, 66x, 67x, 68x, 6Ax, 6Bx, 6Jx, 6Kx, 6Lx, 6Mx,

6Nx, 6Px, 6Wx, 6Xx, 6Yx, 6Zx, 73x, 76x, 77x, 78x, 7Bx,

7Cx, 7Dx, 7Ex, 7Gx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px,

7Qx, 7Rx, 7Sx, 7Tx, 9Ux, 9Vx, 9Wx, AHx

v 8945-CTO, 7Ux, 7Vx, 84x, 85x, 8Dx, 8Gx, 8Hx, 8Jx

v 8947-CTO, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx,

8Tx, 8Ux, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x,

9Ax, 9Gx, 9Kx, 9Lx, 9Mx

v 8948-CTO, 22x

v 8949-CTO, 22x

40Y8402 R **

(continued)

Parts list

160 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

15 1-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card

v 0656-CTO

v 0657-CTO, 3Vx, 3Xx, AZx, KJx, KTx, KUx

v 0658-CTO, 74x, 75x, 7Dx, 7Fx, ECx, EFx, ESx

v 0659-CTO, 98x, 9Ax, H6x, HEx, HGx, JPx, JQx

v 9455-CTO, 23x, 38x, 39x, 4Hx, 7Tx, A2x, B2x, B3x, BJx,

BLx, DPx, LVx, LWx

v 9456-CTO, 63x, 66x, 6Px, E6x, E7x, ECx, EDx, EEx,

EYx, F6x, L4x, LYx, LZx

v 9457-CTO, DUx, DWx, H3x, HQx, HRx, J6x, J7x, JHx,

JMx, JNx, LSx

v 9458-CTO, L8x

v 9459-CTO, ASx, CVx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 2Mx, 2Rx, 34x, 3Lx, 3Px, 3Vx, 8Fx, A6x,

AYx, B2x, B5x, B6x, BGx

v 9461-CTO, 56x, C8x, C9x, CAx, D5x, D6x, D7x, DDx,

DEx, DFx, DUx, DXx, H4x, H5x, HHx, HRx, HWx,

HYx

v 9462-CTO, 6Ex, 6Sx, 73x, 7Fx, 7Yx, 8Hx, 9Rx, 9Vx,

EHx, EKx, F2x, FBx, FGx, G9x, H7x, KTx, KUx

v 9463-CTO, HPx, HQx, HUx, HVx, LRx

v 9464-CTO, 73x, B2x, B6x, BGx, G9x

v 9446-CTO

v 9447-CTO

(continued)

40Y8403 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 161

No. FRU FRU no. RoHS

CRU

15 1-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card

v 8942-CTO, 35x, 36x, 37x, 38x, 3Bx, 3Cx, 3Dx, 3Ex, 48x,

49x, ABx, ACx, ADx, AEx, AFx, ATx, AUx, AVx, AWx,

AXx, AYx, AZx, B2x, B3x, B4x, B5x, B6x, B7x, B8x,

B9x, BAx

v 8943-CTO, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 54x, 55x,

56x, 57x, 58x, 59x, AGx, ALx, AMx, ANx, APx, AQx,

ARx, ASx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx,

BKx, BMx, BNx, BPx, BQx, BRx, BSx, BTx, BUx, BVx,

BWx, BXx, BYx, BZx, C2x, C3x, C4x, C5x, C6x, C7x,

C8x, C9x, CAx

v 8944-CTO, 69x, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Qx,

6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 7Ax, AJx, CBx, CCx, CDx,

CEx, CFx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx,

CQx

v 8945-CTO, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 86x, 87x, 88x,

89x, 8Ax, 8Bx, AKx, CRx, CSx, CUx, CVx

v 8947-CTO, 8Vx, 8Wx, 8Xx, 8Yx, 9Bx, 9Cx, 9Dx, 9Ex,

9Px, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x,

D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx,

DGx, DHx

v 8948-CTO

v 8949-CTO

40Y8403 R **

2-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

40Y8404 R **

16 System board assembly, Int 940GML with wireless LAN

(15.0-in.)

v 0656-CTO, 29x, A4x

v 0657-CTO, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 3Bx,

3Cx, 3Dx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx, 4Lx, 4Rx, 4Sx,

AAx, AHx, AMx, BRx, BSx, CBx, CCx, CEx, CFx, HSx,

HTx

v 0658-CTO, 5Qx, 5Rx, 5Sx, 5Tx, 5Vx, 5Wx, 5Xx, 5Yx,

5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx,

6Cx, 6Dx, 6Ex, 6Fx, 8Bx, 8Cx, 8Kx, 8Lx, 8Mx, DEx,

DFx, DQx, DRx, DSx, E4x, EGx, EVx, EWx, EXx, EYx,

EZx, F2x, F3x, F4x, FEx, FFx, FHx, FJx, FMx, FQx,

FVx, HLx, HMx, L5x, L6x

v 0659-CTO, H5x

42W2591 R N

(continued)

Parts list

162 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

16 System board assembly, Int 940GML with wireless LAN

(15.0-in.) OA2

v 0656-CTO

v 0657-CTO, JWx, K2x, KXx, KYx, KUx, LDx, LGx

v 0658-CTO, JGx, KBx, L2x, L4x, L9x, LAx

v 0659-CTO, JPx

42W7733 R N

System board assembly, Int 940GML without wireless

LAN (15.0-in.)

v 0656-CTO, 22x, 23x, 24x, 25x, 26x, 2Cx, 2Dx, A3x

v 0657-CTO, 4Gx, 8Rx, 8Sx, 8Tx, 8Ux, BTx, BUx, BVx,

BWx, BXx, BYx, BZx, C2x, C3x, C4x, C5x, C6x, C7x,

C8x, C9x, CAx, CDx, LFx

v 0658-CTO, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx,

5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx,

5Nx, 5Px, 5Ux, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Nx,

8Px, 8Qx, DGx, DHx, DJx, DKx, DLx, DMx, DNx,

DPx, E8x, EJx, ETx, EUx, F5x, F6x, F7x, F8x, F9x, FAx,

FBx, FCx, FDx, FGx, FPx, G3x, HNx, HPx, KZx, L3x,

L7x, L8x

v 0659-CTO

42W2590 R N

System board assembly, Int 940GML without wireless

LAN (15.0-in.) OA2

v 0656-CTO

v 0657-CTO, K3x, K4x, KVx, KWx

v 0658-CTO, K6x, K7x, LBx, LCx

v 0659-CTO

42W7732 R N

System board assembly, Int 945GM (14.1-in.)

v 9455-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx,

2Dx, 2Sx, 7Xx, 7Yx, A4x, A5x, A6x, A7x, A8x, A9x,

AAx, ABx, M9x, MAx, MBx

v 9456-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,

5Hx, 5Kx, 5Jx, 5Lx, 5Mx, 5Nx, 5Rx, 5Sx, 5Tx, 5Ux,

5Vx,, 5Wx, D9x, MNx

v 9457-CTO, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,

7Px, 92x, 93x, G3x, H4x, H6x, HSx

v 9458-CTO

v 9459-CTO, 7Px, 92x, 93x, 99x, 9Ax, 9Bx, ATx, AUx,

AZx, G3x

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W2575 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 163

No. FRU FRU no. RoHS

CRU

16 System board assembly, Int 945GM (14.1-in.) OA2

v 9455-CTO

v 9456-CTO

v 9457-CTO, KGx

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W7717 R N

System board assembly, Int 945GM with IEEE1394

(14.1-in.)

v 9455-CTO, 22x, 23x, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx,

2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx,

2Yx, 2Zx, 7Tx, 7Ux, A2x, ADx, AEx, AFx, AGx, AHx,

AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, MCx,

MDx, MEx

v 9456-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 5Px, 5Qx,

D4x, D5x, D6x, DFx, DGx, DHx, DJx, DKx, DLx, DMx,

MPx, MQx

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, 7Gx, 7Hx, 7Jx, 7Kx,

7Lx, 7Vx, 7Wx, G2x, G8x, H2x, H3x, H7x, H8x, HAx,

HBx, HCx, HDx, HEx, HFx, HGx, HHx, HJx, HKx,

HMx, HNx, HPx, HQx, HRx

v 9458-CTO, 7Mx, LLx, LMx

v 9459-CTO, 74x, 7Gx, 7Sx, 7Rx, ASx, AVx, AWx, AXx,

G2x, G9x

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W2576 R N

(continued)

Parts list

164 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

16 System board assembly, Int 945GM with IEEE1394

(14.1-in.) OA2

v 9455-CTO, K2x

v 9456-CTO, K9x, M2x, M4x, M5x, LAx

v 9457-CTO, KHx, KJx, KQx

v 9458-CTO, L7x

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W7718 R N

System board assembly, Int 945GM (15.0-in.)

v 9455-CTO, 32x, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx,

3Jx, 3Kx, 4Ex, 4Lx, 4Mx, 4Nx, ACx, BVx, BWx, BXx,

BYx, BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x,

MFx, MGx, MHx

v 9456-CTO, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Rx, 6Sx, 6Tx,

6Ux, 6Xx, 6Yx, F3x, F4x, F5x, F6x, FAx, L4x, MRx

v 9457-CTO, 82x, 83x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx,

8Cx, 8Ex, 8Gx, 94x, 95x, 96x, DTx, J9x, JAx, JBx, JDx,

JPx

v 9458-CTO, LNx

v 9459-CTO, 94x, 95x, 96x, CXx, CYx, DNx

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W2577 R N

System board assembly, Int 945GM (15.0-in.) OA2

v 9455-CTO, LUx, LVx, LWx

v 9456-CTO, L4x, LXx, LYx, LZx

v 9457-CTO, KNx, KPx

v 9458-CTO, L8x,

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W7719 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 165

No. FRU FRU no. RoHS

CRU

16 System board assembly, Int 945GM with IEEE1394

(15.0-in.)

v 9455-CTO, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 3Lx,

3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx,

3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x,

4Ax, 4Bx, 4Cx, 4Dx, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Qx,

4Rx, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx,

BCx, BDx, BEx, BFx, BGx, BHx, BJx, BLx, BMx, BNx,

BPx, BQx, BRx, CAx, CBx, CCx, CDx, CEx, CGx, CHx,

CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, DPx,

LHx, MJx, MKx, MLx, MMx

v 9456-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 6Dx, 6Ex, 6Fx,

6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Vx, 6Wx, 6Zx, DRx,

E4x, E5x, E6x, E7x, EAx, EBx, ECx, EDx, EEx, EFx,

EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx, ERx,

ESx, ETx, EUx, EVx, EWx, EXx, FBx, FCx, FFx, FGx,

FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx,

FTx, FUx, FVx, FWx, HTx, MSx, MTx, MUx, MVx

v 9457-CTO, 84x, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Wx,

97x, 98x, DSx, G4x, G5x, G6x, G7x, J3x, J6x, J7x JFx,

JGx, JHx, JJx, JKx, JLx, JMx, JNx

v 9458-CTO, 8Qx, 8Rx

v 9459-CTO, 8Jx, 8Kx, 8Vx, 8Wx, 97x, 98x, CUx, CVx,

G4x, FXx, FYx, FZx, G5x, G6x

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W2578 R N

System board assembly, Int 945GM with IEEE1394

(15.0-in.) OA2

v 9455-CTO, K3x, LCx, LDx, LEx, LFx

v 9456-CTO, K8x, KAx, KLx, L2x, L3x, L5x, L6x, L9x,

LBx, LGx, LJx, LKx

v 9457-CTO, KDx, KEx, KFx, KRx, LSx

v 9458-CTO

v 9459-CTO, KKx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W7720 R N

(continued)

Parts list

166 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

16 System board assembly, Int 945GM with IEEE1394 and

wireless WAN (15.0-in.)

v 9455-CTO, 4Px, BUx

v 9456-CTO, 6Nx, 6Px, 6Qx, DQx, EYx, EZx

v 9457-CTO, 8Px, DVx

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W2579 R N

System board assembly, Int 945GM with IEEE1394 and

wireless WAN (15.0-in.) OA2

v 9455-CTO

v 9456-CTO, KMx

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W7721 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 167

No. FRU FRU no. RoHS

CRU

16 System board assembly, Int 945GM with wireless LAN

(15.0- in.)

v 0656-CTO

v 0657-CTO, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx,

3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx,

3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Cx,

4Mx, 4Nx, 4Px, 4Qx, 4Tx, 9Ex, 9Fx, 9Gx, 9Hx, A8x,

A9x, ACx, ADx, AEx, AFx, AGx, AJx, AKx, ALx, ANx,

APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, AXx,

AYx, AZx, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x,

BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx,

BLx, BMx, BNx, BPx, BQx, HKx, HQx, HRx, HUx,

HVx, KCx, KDx, KEx, KFx

v 0658-CTO, 52x, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx,

6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx,

6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx,

7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx,

7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx,

7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax,

9Jx, 9Kx, 9Lx, 9Mx, 9Nx, CKx, CLx, CMx, CNx, CPx,

CQx, CRx, CSx, CTx, CUx, CVx, CWx, CXx, CYx,

CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx,

DBx, DCx, DDx, DTx, DUx, DVx, DWx, DXx, DYx,

DZx, E2x, E3x, E5x, E6x, E7x, E9x, EAx, EBx, ECx,

EDx, EEx, EFx, EHx, EKx, ELx, EMx, ENx, EQx, ERx,

ESx, FKx, FLx, FNx, FRx, FSx, FTx, FUx, FWx, FXx,

FYx, FZx, H2x, H3x, H4x, G4x, KGx, KSx

v 0659-CTO, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax,

9Bx, 9Cx, 9Dx, H6x, H7x, H8x, H9x, HAx, HBx, HCx,

HDx, HEx, HFx, HGx

42W2592 R N

System board assembly, Int 945GM with wireless LAN

(15.0- in.) OA2

v 0656-CTO

v 0657-CTO, J4x, J5x, J6x, JMx, JNx, JSx, JTx, JUx, JVx,

JXx, JYx, JZx, K5x, KJx, KKx, KLx, KMx, KNx, LHx,

LJx, LKx, LLx, LMx, LNx, LPx, KRx, KTx, LEx

v 0658-CTO, J7x, J8x, JEx, JFx, JHx, JJx, JKx, K8x, K9x,

KAx, KPx, KQx

v 0659-CTO, JQx, JRx

42W7734 R N

(continued)

Parts list

168 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

16 System board assembly, Intel 965GM with IEEE1394 and

S-Video (15.0-in)

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

42W7822 R N

System board assembly, ATI M52-64 with IEEE1394

(14.1-in.)

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 2Ax, 2Bx, 2Cx, 2Dx,

2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx,

2Rx, 2Sx, 2Tx, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 89x, 8Ax,

8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, A3x, A4x, A5x, A6x,

A7x, A8x, A9x, AAx, AMx, ANx, APx, AQx, ARx,

ASx, ATx, AUx, AVx, AWx

v 9461-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax,

4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx,

4Ux, 4Vx, 4Wx, C8x, C9x, CAx

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Cx,

6Dx, 6Ex, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px,

6Ux, 6Vx, 6Wx, 6Xx, 6Zx, 92x, 93x, 94x, E2x, E4x, E5x,

E6x, EAx, EBx, ECx, EDx, EEx

v 9463-CTO, 82x, LPx

v 9464-CTO, 63x, 69x, 6Wx, 84x, 86x, 88x, 92x, 93x, 94x,

CDx, CEx, CFx, CGx, CHx, CJx

v 9446-CTO

v 9447-CTO

42W2580 R N

System board assembly, ATI M52-64 with IEEE1394

(14.1-in.) OA2

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, HDx. HFx, HSx

v 9461-CTO, HLx, HNx, M6x, M7x, M8x

v 9462-CTO, H8x, KVx, HTx

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W7722 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 169

No. FRU FRU no. RoHS

CRU

16 System board assembly, ATI M52-64 with IEEE1394 and

wireless WAN (14.1-in.)

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 2Kx, 8Jx, AYx

v 9461-CTO, 4Sx, 4Tx, CKx

v 9462-CTO, 6Qx, 6Rx, 6Sx, 6Tx, 8Hx, EHx, EJx, EKx,

ELx

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W2584 R N

System board assembly, ATI M52-64 with IEEE1394 and

wireless WAN (14.1-in.) OA2

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W7726 R N

(continued)

Parts list

170 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

16 System board assembly, ATI M52-64 with IEEE1394

(15.0-in.)

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 35x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex,

3Fx, 3Hx, 3Jx, 3Tx, 3Ux, 3Vx, 3Wx, BDx, BNx, BPx,

BQx, BRx, BSx, BUx, BVx, BWx

v 9461-CTO, 58x, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,

5Jx, 5Kx, 5Lx, 5Mx, DDx, DEx, DFx, DGx, DHx, DJx,

DKx, DYx

v 9462-CTO, 78x, 79x, 7Dx, 7Cx, 7Ex, 7Fx, 7Gx, 7Hx,

7Jx, 7Lx, 7Kx, 7Mx, 7Nx, 7Px, 7Qx, 7Xx, 95x, 96x, 97x,

98x,

v 9463-CTO, 7Rx, FAx, FCx, FDx, FEx, FFx

v 9464-CTO, 7Vx, 7Xx, 95x, 96x, 97x, BZx, DLx, DMx,

DNx, DPx, DSx, DVx, DWx

v 9446-CTO

v 9447-CTO

42W2582 R N

System board assembly, ATI M52-64 with IEEE1394

(15.0-in.) OA2

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, H3x, HCx, HEx

v 9461-CTO, HMx

v 9462-CTO

v 9463-CTO, HUx

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W7724 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 171

No. FRU FRU no. RoHS

CRU

16 System board assembly, ATI M52-64 with IEEE1394

(15.0-in.) OA2

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, H3x, HCx, HEx

v 9461-CTO, HMx

v 9462-CTO

v 9463-CTO, HUx

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W7724 R N

System board assembly, ATI M54-128 with IEEE1394

(14.1-in.)

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 27x, 28x, 29x, 2Ux, ACx, AEx, AFx, AGx,

AHx, AJx, AKx, ALx

v 9461-CTO, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Xx,,C2x, C3x,

C4x, C5x, C6x, C7x

v 9462-CTO, 6Ax, 6Bx, 6Yx, C2x, C3x, C4x, C5x, C6x,

C7x, G8x, G9x, E7x, E9x

v 9463-CTO

v 9464-CTO, G9x

v 9446-CTO

v 9447-CTO

42W2581 R N

System board assembly, ATI M54-128 with IEEE1394

(14.1-in.) OA2

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO, H9x, HAx, KTx

v 9463-CTO, HPx, LQx, LRx

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W7723 R N

(continued)

Parts list

172 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

16 System board assembly, ATI M54-128 with IEEE1394

(15.0-in.)

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 32x, 33x, 34x, 36x, 3Gx, 3Lx, 3Mx, 3Nx,

3Px, 3Qx, 3Rx, 3Sx, 3Xx, 9Px, B2x, B3x, B5x, B6x, B7x,

B8x, B9x, BAx, BBx, BCx, BEx, BFx, BGx, BHx, BJx,

BKx, BLx, BMx

v 9461-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 59x, 5Ax, 5Nx,

D2x, D3x, D4x, D5x, D6x, D7x, D9x, DAx, DBx, DUx,

DXz, DZx

v 9462-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 7Ax, 7Bx, 7Yx,

7Zx, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx,

9Zx, F2x, GAx, F3x, F4x, F7x, F8x, FBx, FGx

v 9463-CTO

v 9464-CTO, 3Kx, 73x, 7Bx, 7Tx, BYx, GAx

v 9446-CTO

v 9447-CTO

42W2583 R N

System board assembly, ATI M54-128 with IEEE1394

(15.0-in.) OA2

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, HBx

v 9461-CTO, H4x, H5x, KSx, HGx, HHx, HJx, HKx,

HRx, HWx, HXx, HYx

v 9462-CTO, H7x, KUx

v 9463-CTO, HQx, HVx

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W7725 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 173

No. FRU FRU no. RoHS

CRU

17 PC Card/ExpressCard slot

v 9455-all

v 9456-all

v 9457-all

v 9458-all

v 9459-all

v 9444-CTO

v 9445-CTO

v 9460-all

v 9461-all

v 9462-all

v 9463-all

v 9464-all

v 9446-CTO

v 9447-CTO

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

26R9585 R N

PC Card slot

v 0656-all

v 0657-all

v 0658-all

v 0659-all

41W5206 R N

(continued)

Parts list

174 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Core Duo processor T2300 (1.60

GHz)

v 0656-CTO

v 0657-CTO, 3Hx

v 0658-CTO

v 0659-CTO, 92x

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO, 4Bx

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41W1132 R N

CPU assembly, Intel Core Duo processor T2300E (1.60

GHz)

v 0656-CTO

v 0657-CTO, 3Ex, 3Fx, 3Gx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx,

3Qx, 3Vx, 4Mx, 4Tx, 9Ex, 9Fx, 9Gx, 9Hx, ARx, ASx,

KFx, KGx, KJx, KKx, KLx, KMx, KNx, LEx

v 0658-CTO, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px,

6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 9Jx,

9Kx, 9Lx, 9Mx, 9Nx, KPx, KQx

v 0659-CTO, 93x, 94x, 95x, 9Dx

v 9455-CTO, 22x, 2Dx, 2Kx, 2Lx, 2Mx, 2Qx, 2Vx, 2Wx,

33x, 34x, 35x, 3Kx, 4Bx, 4Dx, 4Fx, 4Kx, 4Nx, 4Qx

v 9456-CTO, 54x, 55x, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 62x,

6Ax, 6Bx, 6Ex, 6Fx, 6Jx, 6Nx, 6Zx, FJx, L9x, LAx, LBx,

M2x

v 9457-CTO, 72x, 7Jx, 7Kx, 84x, 8Wx, 92x, 95x, 97x, 98x

v 9458-CTO

v 9459-CTO, 7Sx, 8Vx, 8Wx, 92x, 95x, 97x, 98x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 26x, 27x, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx,

2Jx, 2Kx, 2Yx, 2Zx, 35x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex,

3Fx, 3Tx, 89x, HSx

v 9461-CTO, 42x, 45x, 46x, 47x, 4Kx, 4Lx, 4Mx, 4Nx,

4Sx, 4Vx, 4Wx, 4Xx, 52x, 59x, 5Dx, 5Ex, 5Fx, 5Gx

v 9462-CTO, 64x, 68x, 6Ex, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx,

6Mx, 6Qx, 6Vx, 74x, 78x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx,

7Lx, 7Mx, 7Nx, 7Xx, 92x, 93x, 94x, 97x, 9Yx, HTx

v 9463-CTO, HUx. HVx

v 9464-CTO, 7Tx, 7Vx, 7Xx, 84x, 86x, 88x, 92x, 93x, 94x,

97x

v 9446-CTO

v 9447-CTO

41W1329 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 175

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Core Duo processor T2400 (1.83

GHz)

v 0656-CTO

v 0657-CTO, 3Rx, 3Sx, 3Tx, 3Ux, 3Wx, 3Xx, 3Zx, 4Qx

v 0658-CTO, 52x, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x,

79x, 7Ax, CKx, EHx

v 0659-CTO, 96x, 97x, 98x, 99x

v 9455-CTO, 23x, 2Jx, 2Nx, 2Rx, 2Xx, 2Yx, 2Zx, 38x, 3Ax,

49x, 4Ax, 4Gx, 4Px

v 9456-CTO, 56x, 57x, 5Mx, 5Nx, 5Px, 63x, 64x, 65x, 6Cx,

6Gx, 6Kx, 6Lx, 6Px, 6Qx, 6Wx

v 9457-CTO, 73x, 74x, 75x, 76x, 7Fx, 7Hx, 7Lx, 7Vx, 82x,

83x, 8Ex, 8Gx, 8Jx, 8Kx, 8Lx, 8Nx, 8Px, 93x, 96x, G5x,

HBx, HDx, HEx, KDx

v 9458-CTO, 7Mx, 8Qx, 8Rx

v 9459-CTO, 74x, 7Rx, 8Jx, 8Kx, 93x, 96x, G5x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 28x, 2Lx, 2Mx, 2Nx, 2Px,

2Ux, 32x, 33x, 3Gx, 3Jx, 3Lx, 3Mx, 3Sx, 3Ux, 3Xx, 8Ax,

8Bx, 8Cx, 8Dx, 8Jx, 9Px

v 9461-CTO, 43x, 48x, 4Ax, 4Cx, 4Dx, 4Px, 4Tx, 4Ux,

53x, 54x, 58x, 5Ax, 5Hx, 5Kx, 5Lx, 5Mx, D5x, D6x

v 9462-CTO, 62x, 65x, 66x, 67x, 69x, 6Ax, 6Bx, 6Rx, 6Sx,

6Tx, 6Ux, 6Wx, 6Yx, 6Zx, 72x, 75x, 76x, 79x, 7Ax, 7Bx,

7Zx, 8Hx, 95x, 96x, 98x, 9Qx, 9Rx, 9Sx, 9Tx, 9Zx

v 9463-CTO, 7Rx, 82x

v 9464-CTO, 3Kx, 69x, 6Wx, 7Bx, 95x, 96x, CFx

v 9446-CTO

v 9447-CTO

41W1134 R N

CPU assembly, Intel Core Duo processor T2450 (2.0

GHz)

v 0656-CTO

v 0657-CTO, LMx

v 0658-CTO

v 0659-CTO

v 9455-CTO

v 9456-CTO, M5x

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO, M6x

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41R7754 R N

(continued)

Parts list

176 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Core Duo processor T2500 (2.0

GHz)

v 0656-CTO

v 0657-CTO, 42x, 43x, 44x

v 0658-CTO, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,

CLx

v 0659-CTO, 9Ax, 9Bx

v 9455-CTO, 39x, 4Hx, 4Jx, 7Tx, 7Ux

v 9456-CTO, 58x, 5Qx, 66x, 67x, 6Mx

v 9457-CTO, 7Wx, 8Mx

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 29x, 2Qx, 2Rx, 2Sx, 2Tx, 34x, 36x, 3Nx, 3Px,

3Qx, 3Rx, 3Vx, 3Wx, 8Ex, 8Fx, 8Gx

v 9461-CTO, 44x, 49x, 4Ex, 4Fx, 4Qx, 4Rx, 55x, 56x, 57x,

5Jx, 5Nx

v 9462-CTO, 63x, 6Nx, 6Px, 6Xx, 73x, 77x, 7Px, 7Qx,

7Yx, 9Ux, 9Vx, 9Wx, 9Xx

v 9463-CTO

v 9464-CTO, 63x, 73x

v 9446-CTO

v 9447-CTO

41W1136 R N

CPU assembly, Intel Core Duo processor T2600 (2.13

GHz)

v 0656-CTO

v 0657-CTO

v 0658-CTO, ENx

v 0659-CTO

v 9455-CTO, A2x, AKx

v 9456-CTO

v 9457-CTO, H3x

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, A6x, AFx

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41W1138 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 177

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Core 2 Duo processor T5250 (1.5

GHz)

v 8942-CTO

v 8943-CTO, 9Tx, APx, AQx

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

42W7838 R N

CPU assembly, Intel Core 2 Duo processor T5270 (1.4

GHz)

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

42W7856 R N

CPU assembly, Intel Core 2 Duo processor T5300 (1.73

GHz)

v 0656-CTO

v 0657-CTO, LPx

v 0658-CTO

v 0659-CTO

v 9455-CTO,

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO, M8x

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41R7755 R N

CPU assembly, Intel Core 2 Duo processor T5450 (1.66

GHz)

v 8942-CTO

v 8943-CTO, 9Sx, ARx, ASx

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

42W7839 R N

(continued)

Parts list

178 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Core 2 Duo processor T5470 (1.6

GHz)

v 8942-CTO

v 8943-CTO, 9Rx

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

42W7840 R N

CPU assembly, Intel Core 2 Duo processor T5500 (1.66

GHz)

v 0656-CTO

v 0657-CTO, A8x, A9x, ACx, ADx, AEx, AFx, AJx, ANx,

B2x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx,

BKx, BLx, BMx, BNx, BPx, BQx, J5x, JTx, JUx, JNx,

JVx, JZx, KEx

v 0658-CTO, CMx, CWx, CXx, CYx, CZx, D2x, D3x,

D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx,

DTx, DUx, E5x, E9x, EDx, FLx, FRx, FXx, FYx, FZx,

H2x, H3x, H4x, HKx, HQx, HRx, HVx, J7x, JHx, KAx

v 0659-CTO, H6x, H7x, H8x, HBx, JQx, JRx

v 9455-CTO, A7x, AFx, AQx, ARx, BCx, BDx, BEx, BFx,

BGx, BHx, BNx, BZx, C4x, CBx, CCx, CSx, LCx, LDx,

LFx

v 9456-CTO, D4x, DFx, DQx, DRx, E5x, EAx, EPx, EQx,

ERx, ESx, ETx, EUx, EZx, F3x, F4x, FBx, FCx, FFx,

FKx, FMx, HTx, K8x, K9x, KAx, KLx, KMx, L2x, L3x,

L6x, LHx, LKx

v 9457-CTO, DSx, DTx, HJx, HKx, HMx, HNx, HPx,

HQx, J9x, JJx, JKx, JLx, JMx, KHx, KNx, KPx, KQx,

KRx

v 9458-CTO, L7x, LLx, LMx, LNx

v 9459-CTO, ATx, CUx, CXx

v 9444-CTO

v 9445-CTO

v 9460-CTO, AVx, AWx, BDx, BUx, BWx, HEx, HFx

v 9461-CTO, C2x, C5x, C8x, D2x, D9x, DDx, DJx, CKx,

H5x, HMx, HNx

v 9462-CTO, H8x

v 9463-CTO

v 9464-CTO, CEx, BZx

v 9446-CTO

v 9447-CTO

41W1409 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 179

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Core 2 Duo processor T5550 (1.83

GHz)

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

43N7302 R N

CPU assembly, Intel Core 2 Duo processor T5600 (1.83

GHz)

v 0656-CTO

v 0657-CTO, ALx, AQx, ATx, AUx, AVx, AWx, AXx,

AYx, B3x, B4x, B5x, B6x, B7x, B8x, B9x, J6x, JYx, K5x,

KTx

v 0658-CTO, CNx, CPx, CQx, CRx, CSx, CTx, CUx,

CVx, DVx, DWx, DXx, E6x, EAx, EEx, EQx, FKx, FNx,

FSx, FUx, FWx, J8x, JFx, K9x

v 0659-CTO, H9x, HCx, HEx, HFx

v 9455-CTO, A9x, AEx, AHx, ALx, B2x, B3x, B4x, B5x,

B6x, B7x, B8x, B9x, BAx, BBx, BMx, BRx, BUx, C5x,

CDx, CQx, CRx, DPx, K2x, K3x, LEx

v 9456-CTO, D5x, DGx, DJx, E6x, EBx, EDx, EEx, EFx,

EGx, EHx, EJx, EKx, ELx, EMx, ENx, EVx, F5x, F6x,

FGx, FLx, FNx, L4x, L5x

v 9457-CTO, DVx, DWx, G6x, G7x, H2x, H4x, H6x, H7x,

HAx, HCx, HFx, HHx, HRx, J3x, J6x, JAx, JDx, JFx,

JGx, JNx, KEx

v 9458-CTO, L8x

v 9459-CTO, AVx, AWx, FXx, FZx, G6x, KKx

v 9444-CTO

v 9445-CTO

v 9460-CTO, A8x, A9x, AAx, AGx, AJx, AKx, ALx, ANx,

APx, ARx, ASx, ATx, AUx, B6x, B7x, B8x, B9x, BAx,

BBx, BCx, BFx, BGx, BHx, BKx, BLx, BMx, BNx, BPx,

BQx, BRx, BVx, H3x, HCx, HDx

v 9461-CTO, C3x, C6x, C9x, D3x, DAx, DEx, DHx, DKx,

DXx, DYx, DZx, KSx, HGx, HKx, HLx, HRx, HWx,

HXx, HYx

v 9462-CTO, E4x, E5x, E6x, E9x, EAx, EBx, ECx, EHx,

EJx, EKx, ELx, F2x, F4x, F7x, F8x, FAx, FCx, FDx,

FGx, KTx, KUx, KVx

v 9463-CTO, HPx, LPx, LQx, LRx

v 9464-CTO, BYx, CDx, CGx, CHx, CJx, DLx, DMx, DSx

v 9446-CTO

v 9447-CTO

41W1410 R N

(continued)

Parts list

180 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Core 2 Duo processor T7100 (1.8

GHz)

v 8942-CTO, 33x, 34x, 39x, 3Ax, 3Gx, 3Kx, 3Lx, 3Nx,

3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx,

3Zx, 9Qx, 9Xx, 9Yx, 9Zx, A2x, A3x, A4x, ATx, AUx,

AVx, AWx, AXx, AYx, AZx, B2x, B3x, B4x, B5x, B6x,

B7x, B8x, B9x, BAx

v 8943-CTO, 4Bx, 4Dx, 4Fx, 4Hx, 4Jx, 4Kx, 4Tx, 4Vx,

4Xx, 4Zx, 52x, 53x, 5Bx, 5Ex, 5Fx, 5Hx, 5Jx, 5Kx, 5Lx,

5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Xx, 5Zx,

63x, 64x, A6x, A7x, A8x, A9x, BCx, BEx, BGx, BJx,

BKx, BMx, BPx, BRx, BTx, BVx, BWx, BXx, BYx, BZx,

C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx

v 8944-CTO, 66x, 67x, 6Ax, 6Bx, 6Cx, 6Dx, 6Lx, 6Mx,

6Nx, 6Px, 6Qx, 6Rx, 6Yx, 6Zx, 73x, 76x, 77x, 7Dx, 7Ex,

7Jx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 9Ux, 9Vx, 9Wx, CBx,

CCx, CFx, CGx, CHx, CJx, CMx, CNx, CQx

v 8945-CTO, 7Ux, 7Vx, 7Yx, 7Zx, 84x, 85x, 88x, 89x,

8Dx, 8Gx, 8Hx, CRx, CSx, CUx, CVx

v 8947-CTO, 8Lx, 8Nx, 8Qx, 8Sx, 8Tx, 8Ux, 92x, 94x,

96x, 98x, 99x, 9Ax, 9Gx, 9Kx, 9Lx, CXx, CZx, D3x,

D5x, D6x, D7x, D9x, DBx, DDx, DFx, DGx, DHx

v 8948-CTO

v 8949-CTO

42W7654 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 181

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Core 2 Duo processor T7200 (2.0

GHz)

v 0656-CTO

v 0657-CTO, AGx, AKx, APx, AZx, JXx

v 0658-CTO, DYx, DZx, E2x, E3x, E7x, EBx, ECx, EFx,

ERx, ESx, FTx, JEx, JJx, K8x

v 0659-CTO, HAx, HDx, HGx

v 9455-CTO, AAx, ABx, AGx, AMx, BJx, BLx, C6x, C7x,

v 9456-CTO, D6x, DHx, DKx, E4x, E7x, ECx, EYx, FHx

v 9457-CTO, DUx, G2x, G3x, G4x, G8x, H8x, HGx, HSx,

J7x, JBx, JHx, JPx, KFx, KJx, LSx

v 9458-CTO

v 9459-CTO, ASx, AUx, AXx, AZx, CVx, CYx, DNx,

FYx, G2x, G3x, G4x, G9x, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, A3x, A4x, A5x, A7x, ACx, AEx, AHx, AMx,

AXx, AYx, AZx, B2x, B3x, B5x, BEx, BJx, HBx

v 9461-CTO, C4x, C7x, CAx, D4x, D7x, DBx, DFx, DUx,

H4x, HHx, HJx

v 9462-CTO, E2x, E7x, EDx, EEx, F3x, FBx, FEx, FFx,

G8x, G9x, GAx, H9x, HAx

v 9463-CTO, HQx

v 9464-CTO, G9x, GAx, DNx, DPx, DVx, DWx

v 9446-CTO

v 9447-CTO

41W1411 R N

CPU assembly, Intel Core 2 Duo processor T7250 (2.0

GHz)

v 8942-CTO, ACx, ADx

v 8943-CTO, AGx

v 8944-CTO, AHx, AJx

v 8945-CTO, AKx

v 8947-CTO

v 8948-CTO

v 8949-CTO

42W7847 R N

CPU assembly, Intel Core 2 Duo processor T7300 (2.0

GHz)

v 8942-CTO, 22x, 35x, 36x, 37x, 38x, 3Bx, 3Cx, 3Dx, 3Ex,

3Mx, 46x, 47x, A5x

v 8943-CTO, 4Ax, 4Cx, 4Ex, 4Gx, 4Lx, 4Mx, 4Nx, 4Px,

4Qx, 4Rx, 4Sx, 4Ux, 4Wx, 4Yx, 54x, 55x, 56x, 57x, 58x,

59x, 5Gx, 5Yx, 62x, 65x, BBx, BDx, BFx, BHx, BNx,

BQx, BSx, BUx

v 8944-CTO, 68x, 69x, 6Ex, 6Fx, 6Gx, 6Hx, 6Sx, 6Tx,

6Ux, 6Vx, 78x, 7Sx, 7Tx

v 8945-CTO, 7Wx, 7Xx, 82x, 83x, 86x, 87x, 8Ax, 8Bx, 8Jx

v 8947-CTO, 8Kx, 8Mx, 8Px, 8Rx, 8Vx, 8Wx, 8Xx, 8Yx,

8Zx, 93x, 95x, 97x, 9Bx, 9Cx, 9Dx, 9Ex, 9Mx, CWx,

CYx, D2x, D4x, D8x, DAx, DCx, DEx

v 8948-CTO, 22x

v 8949-CTO, 22x

42W7655 R N

(continued)

Parts list

182 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Core 2 Duo processor T7400 (2.16

GHz)

v 0656-CTO

v 0657-CTO

v 0658-CTO, JKx

v 0659-CTO

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO, H7x

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41W1412 R N

CPU assembly, Intel Core 2 Duo processor T7500 (2.2

GHz)

v 8942-CTO, 48x, 49x

v 8943-CTO

v 8944-CTO, 7Ax

v 8945-CTO

v 8947-CTO, 9Px

v 8948-CTO

v 8949-CTO

42W7656 R N

CPU assembly, Intel Core 2 Duo processor T7500 (2.2

GHz)

v 8942-CTO, AEx, AFx

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

42W7849 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 183

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Core 2 Duo processor T7600 (2.33

GHz)

v 0656-CTO

v 0657-CTO

v 0658-CTO

v 0659-CTO

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41W1413 R N

CPU assembly, Intel Core 2 Duo processor T7700 (2.4

GHz)

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

42W7657 R N

CPU assembly, Intel Core 2 Duo processor T7700 (2.4

GHz)

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

42W7850 R N

(continued)

Parts list

184 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Core Solo processor T1300 (1.6

GHz)

v 0656-CTO

v 0657-CTO, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Cx

v 0658-CTO, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx,

7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x,

86x, 87x, 88x, 89x, 8Ax

v 0659-CTO, 9Cx

v 9455-CTO, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Px, 2Sx, 2Tx,

2Ux, 32x, 36x, 37x, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,

3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x,

48x, 4Cx, 4Ex

v 9456-CTO, 53x, 5Dx, 5Ex, 5Fx, 68x, 69x, 6Dx, 6Ux, 6Vx

v 9457-CTO, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex,

7Px, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Hx, 94x

v 9458-CTO

v 9459-CTO, 7Px, 94x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 2Ax, 2Bx, 2Vx, 2Wx, 2Xx, 37x, 38x, 3Hx

v 9461-CTO

v 9462-CTO, 6Cx, 6Dx, 7Cx, 7Dx

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41W1140 R N

CPU assembly, Intel Core Solo processor T1400 (1.73

GHz)

v 0656-CTO

v 0657-CTO, 4Nx, 4Px, HUx

v 0658-CTO, EKx, ELx, EMx, G4x

v 0659-CTO

v 9455-CTO, 4Rx, AJx, C8x, C9x, CEx

v 9456-CTO, 5Wx, 6Xx, 6Yx, LJx

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, AQx, BSx

v 9461-CTO, DGx

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41W1328 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 185

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Pentium Dual Core processor T2080

(1.73 GHz)

v 0656-CTO

v 0657-CTO, LHx, LJx, LNx

v 0658-CTO

v 0659-CTO

v 9455-CTO

v 9456-CTO, M4x

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41R7753 R N

CPU assembly, Intel Pentium Dual Core processor T2130

(1.86 GHz)

v 0656-CTO

v 0657-CTO, LKx, LLx

v 0658-CTO

v 0659-CTO

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO, M7x

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41R7853 R N

(continued)

Parts list

186 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Pentium Dual Core processor T2310

(1.46 GHz)

v 8942-CTO

v 8943-CTO, ALx, AMx

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

43N7304 R N

CPU assembly, Intel Pentium Dual Core processor T2330

(1.6 GHz)

v 8942-CTO

v 8943-CTO, ANx

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

43N7303 R N

CPU assembly, Intel Celeron M processor 410 (1.46 GHz)

v 0656-CTO, 2Cx, 2Dx

v 0657-CTO, 3Px, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx,

4Lx, 4Ux, 8Rx, 8Sx, 8Tx, 8Ux

v 0658-CTO, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx,

8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx

v 0659-CTO

v 9455-CTO, 4Lx, 4Mx, 7Xx, 7Yx

v 9456-CTO, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41W5181 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 187

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Celeron M processor 420 (1.6 GHz)

v 0656-CTO, 22x, 23x, 24x, 25x, 26x, 29x

v 0657-CTO, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 3Bx,

3Cx, 3Dx, 4Rx, 4Sx, AAx, AHx, AMx, BRx, BSx, BTx,

BUx, BVx, BWx, BXx, BYx, BZx, C2x, HSx, HTx, J4x,

JSx, K3x, K4x

v 0658-CTO, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx,

5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx,

5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx,

5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax,

6Bx, 6Cx, 6Dx, 6Ex, 6Fx, DEx, DFx, DGx, DHx, DJx,

DKx, DLx, DMx, DNx, DPx, FMx, FVx, G3x, HLx,

HMx, HNx, HPx, K6x, K7x

v 0659-CTO, JPx

v 9455-CTO, 24x, 25x, 26x, 2Ex, 2Fx, 2Gx, 2Hx, 3Bx, 3Lx,

3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, A4x, ACx,

BQx, BVx, BWx

v 9456-CTO, 52x, 59x, 5Ax, 5Bx, 5Cx, 6Hx, 6Rx, 6Sx,

6Tx, EXx

v 9457-CTO, 7Gx

v 9458-CTO

v 9459-CTO, 7Gx, 99x, 9Ax, 9Bx

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41W1202 R N

(continued)

Parts list

188 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Celeron M processor 430 (1.73 GHz)

v 0656-CTO, A3x, A4x

v 0657-CTO, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx,

CBx, CCx, CDx, CEx, CFx, JMx, JWx, K2x, KCx, KDx,

KRx, KSx, KVx, KWx, KUx, LDx, LFx

v 0658-CTO, DQx, DRx, DSx, E4x, E8x, EGx, EJx, ETx,

EUx, EVx, EWx, EXx, EYx, EZx, F2x, F3x, F4x, F5x,

F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx,

FHx, FJx, FPx, FQx, JGx, KBx, L5x, L6x, L7x, L8x, LBx,

LCx

v 0659-CTO

v 9455-CTO, A5x, A6x, A8x, ADx, ANx, APx, BPx, BXx,

BYx, C2x, C3x, CAx, CGx, CHx, CJx, CKx, CLx, CMx,

CNx, CPx, LUx, M9x, MAx, MBx, MCx, MDx, MEx,

MFx, MGx, MHx, MJx, MKx, MLx, MMx

v 9456-CTO, D9x, DLx, DMx, EWx, FAx, FPx, FQx, FRx,

FSx, FTx, FUx, FVx, FWx, LGx, LXx, MNx, MPx,

MQx, MRx, MSx, MTx, MUx, MVx

v 9457-CTO, KGx

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO, H5x

v 9446-CTO

v 9447-CTO

41W5183 R N

CPU assembly, Intel Celeron M processor 440 (1.86 GHz)

v 0656-CTO

v 0657-CTO, KXx

v 0658-CTO, KZx, L2x, L9x

v 0659-CTO

v 9455-CTO, LVx

v 9456-CTO, LYx

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41W1373 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 189

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Celeron M processor 450 (2.0 GHz)

v 0656-CTO

v 0657-CTO, KYx

v 0658-CTO, L3x, L4x, LAx

v 0659-CTO

v 9455-CTO, LWx

v 9456-CTO, LZx

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42T0207 R N

CPU assembly, Intel Celeron M processor 520 (1.6 GHz)

v 0656-CTO

v 0657-CTO

v 0658-CTO

v 0659-CTO

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42T0209 R N

(continued)

Parts list

190 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

18 CPU assembly, Intel Celeron M processor 530 (1.73 GHz)

v 0656-CTO

v 0657-CTO, LGx

v 0658-CTO

v 0659-CTO

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42T0211 R N

CPU assembly, Intel Celeron M processor 530 (1.73 GHz)

v 8942-CTO, AAx

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

43N7301 R N

CPU assembly, Intel Celeron M processor 540 (1.86 GHz)

v 8942-CTO, 32x, ABx

v 8943-CTO, 5Vx, 5Wx

v 8944-CTO, 6Jx, 6Kx, 6Wx, 6Xx, 7Bx, 7Cx, 7Gx, 7Kx,

7Lx, CDx, CEx, CKx, CLx, CPx

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

41R7621 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 191

No. FRU FRU no. RoHS

CRU

19 Speaker assembly for R60, R61, and R61i

v 9455-all

v 9456-all

v 9457-all

v 9458-all

v 9459-all

v 9460-all

v 9461-all

v 9462-all

v 9463-all

v 9464-all

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

39T7473 R N

Speaker assembly for R60e and R61i

v 0656-all

v 0657-all

v 0658-all

v 0659-all

39T7476 R N

20 IEEE 1394 cable for R60 and R61i

v 9455-all

v 9456-all

v 9457-all

v 9458-all

v 9459-all

v 9444-all

v 9445-all

v 9460-all

v 9461-all

v 9462-all

v 9463-all

v 9464-all

v 9446-all

v 9447-all

91P7011 R N

(continued)

Parts list

192 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

20 IEEE 1394 cable for R61 and R61i

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

93P4583 R N

21 Sierra Wireless EV-DO Wireless WAN Mini PCI Express

Adapter

v 9455-CTO

v 9456-CTO, 6Nx, 6Px

v 9457-CTO, 8Px

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 2Kx

v 9461-CTO, 4Sx, 4Tx, KSx

v 9462-CTO, 6Qx, 6Rx

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

41W1177 R **

Sierra Wireless MC8755 PCI Express MiniCard

v 9455-CTO, 4Px, 4Qx, 4Rx, BUx

v 9456-CTO, 6Qx, EYx, EZx, DQx, KMx

v 9457-CTO, DVx

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 8Jx, AYx

v 9461-CTO

v 9462-CTO, 6Sx, 6Tx, 8Hx, EHx, EJx, EKx, ELx

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42T0835 R **

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 193

No. FRU FRU no. RoHS

CRU

21 Integrated Cingular HSDPA 3G Wireless Broadband

Network Adapter

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42T0804 R **

22 SDRAM SO-DIMM cover 42W2395 R N

23 SIM card slot for R60 and R61i

v 9455-all

v 9456-all

v 9457-all

v 9458-all

v 9459-all

v 9444-CTO

v 9445-CTO

v 9460-all

v 9461-all

v 9462-all

v 9463-all

v 9464-all

v 9446-CTO

v 9447-CTO

41W1326 R *

(continued)

Parts list

194 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

24 Thermal device and fan ATI

v 0656-CTO

v 0657-CTO

v 0658-CTO

v 0659-CTO

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-all

v 9461-all

v 9462-all

v 9463-all

v 9464-all

v 9446-CTO

v 9447-CTO

Toshiba 41W5269 R N

CCI 41W5270 R N

Furukawa 41W5271 R N

Thermal device and fan Integ

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v 9455-all

v 9456-all

v 9457-all

v 9458-all

v 9459-all

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

Furukawa 41W5268 R N

CCI 41W5156 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 195

No. FRU FRU no. RoHS

CRU

24 Thermal device and fan integ

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

Toshiba 42X4374 R N

CCI 42X4913 R N

Heat sink plate

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v 9455-all

v 9456-all

v 9457-all

v 9458-all

v 9459-all

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

42W2401 R N

25 ATI chip Plate 42W3986 R N

26 Keyboard (see “Keyboard” on page 229.)

27 TrackPoint stick caps 91P9642 R *

— Thermal grease 91P8835 N N

— Security screw (M3 x 6) 13N5332 R *

Parts list

196 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

LCD FRUs

Parts list

ThinkPad R60, R60e, R61, and R61i 197

14.1-in. XGA TFT

No. FRU FRU no. RoHS

CRU

1 LCD cover kit (14.1-in.)

v 9455-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx,

2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,

2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx,

2Zx, 7Tx, 7Ux, 7Xx, 7Yx, A4x, A5x, A6x, A7x, A8x,

A9x, AAx, ABx, ADx, AEx, AFx, AGx, AHx, AJx, AKx,

ALx, AMx, ANx, APx, AQx, ARx, K2x, M9x, MAx,

MBx, MCx, MDx, MEx

v 9456-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,

5Hx, 5Kx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx,

5Tx, 5Ux, 5Vx, 5Wx, D9x, DFx, DGx, DHx, DJx, DKx,

DLx, DMx, K9x, LAx, M2x, M4x, M5x, MNx, MPx,

MQx

v 9457-CTO, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,

7Gx, 7Jx, 7Hx, 7Kx, 7Lx, 7Px, 7Vx, 7Wx, 92x, 93x, G3x,

H4x, H6x, H7x, H8x, HAx, HBx, HCx, HDx, HEx,

HFx, HGx, HHx, HJx, HKx, HMx, HNx, HPx, HQx,

HRx, HSx, KGx, KHx, KQx

v 9458-CTO, 7Mx, L7x, LLx, LMx

v 9459-CTO, 7Gx, 7Px, 7Sx, 7Rx, 92x, 93x, 99x, 9Ax, 9Bx,

ATx, AUx, AVx, AWx, AXx, AZx, G3x, G9x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx,

2Gx, 2Hx, 2Jx, 2Kx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx,

89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, ACx,

AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx,

APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, AYx,

HFx, HSx

v 9461-CTO, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx,

4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux,

4Xx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx,

CKx, HNx, M6x, M7x, M8x

v 9462-CTO, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Gx, 6Hx, 6Jx,

6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux,

6Vx, 6Wx, 6Yx, 6Zx, 8Hx, 92x, 93x, 94x, G8x, G9x,

E7x, E9x, EAx, EBx, ECx, EDx, EEx, EHx, EJx, EKx,

ELx, H8x, H9x, HAx, KTx, KVx, HTx

v 9463-CTO, 82x, HPx, LPx, LQx, LRx

v 9464-CTO, 6Wx, 86x, 88x, 92x, 93x, 94x, G9x, CEx,

CFx, CGx, CHx, CJx

v 9446-CTO

v 9447-CTO

13N7191 R N

(continued)

Parts list

198 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

2 Hinge, 14.1-in.

v 9455-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx,

2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,

2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx,

2Zx, 7Tx, 7Ux, 7Xx, 7Yx, A4x, A5x, A6x, A7x, A8x,

A9x, AAx, ABx, ADx, AEx, AFx, AGx, AHx, AJx, AKx,

ALx, AMx, ANx, APx, AQx, ARx, K2x, M9x, MAx,

MBx, MCx, MDx, MEx

v 9456-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,

5Hx, 5Kx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx,

5Tx, 5Ux, 5Vx, 5Wx, D9x, DFx, DGx, DHx, DJx, DKx,

DLx, DMx, K9x, LAx, M2x, M4x, M5x, MNx, MPx,

MQx

v 9457-CTO, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,

7Gx, 7Jx, 7Hx, 7Kx, 7Lx, 7Px, 7Vx, 7Wx, 92x, 93x, G3x,

H4x, H6x, H7x, H8x, HAx, HBx, HCx, HDx, HEx,

HFx, HGx, HHx, HJx, HKx, HMx, HNx, HPx, HQx,

HRx, HSx, KGx, KHx, KQx

v 9458-CTO, 7Mx, L7x, LLx, LMx

v 9459-CTO, 7Gx, 7Px, 7Sx, 7Rx, 92x, 93x, 99x, 9Ax, 9Bx,

ATx, AUx, AVx, AWx, AXx, AZx, G3x, G9x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx,

2Gx, 2Hx, 2Jx, 2Kx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx,

89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, ACx,

AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx,

APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, AYx, HFx

v 9461-CTO, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx,

4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux,

4Xx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx,

CKx, HNx, M6x, M7x, M8x

v 9462-CTO, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Gx, 6Hx, 6Jx,

6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux,

6Vx, 6Wx, 6Yx, 6Zx, 8Hx, 92x, 93x, 94x, G8x, G9x,

E7x, E9x, EAx, EBx, ECx, EDx, EEx, EHx, EJx, EKx,

ELx, H8x, H9x, HAx, KTx, KVx, HTx

v 9463-CTO, 82x, HPx, LPx, LQx, LRx

v 9464-CTO, 6Wx, 86x, 88x, 92x, 93x, 94x, G9x, CEx,

CFx, CGx, CHx, CJx

v 9446-CTO

v 9447-CTO

41W5152 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 199

No. FRU FRU no. RoHS

CRU

3 LCD cable assembly (14.1-in.)

v 9455-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx,

2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,

2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx,

2Zx, 7Tx, 7Ux, 7Xx, 7Yx, A4x, A5x, A6x, A7x, A8x,

A9x, AAx, ABx, ADx, AEx, AFx, AGx, AHx, AJx, AKx,

ALx, AMx, ANx, APx, AQx, ARx, K2x, M9x, MAx,

MBx, MCx, MDx, MEx

v 9456-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,

5Hx, 5Kx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx,

5Tx, 5Ux, 5Vx, 5Wx, D9x, DFx, DGx, DHx, DJx, DKx,

DLx, DMx, K9x, LAx, M2x, M4x, M5x, MNx, MPx,

MQx

v 9457-CTO, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,

7Gx, 7Jx, 7Hx, 7Kx, 7Lx, 7Px, 7Vx, 7Wx, 92x, 93x, G3x,

H4x, H6x, H7x, H8x, HAx, HBx, HCx, HDx, HEx,

HFx, HGx, HHx, HJx, HKx, HMx, HNx, HPx, HQx,

HRx, HSx, KGx, KHx, KQx

v 9458-CTO, 7Mx, L7x, LLx, LMx

v 9459-CTO, 7Gx, 7Px, 7Sx, 7Rx, 92x, 93x, 99x, 9Ax, 9Bx,

ATx, AUx, AVx, AWx, AXx, AZx, G3x, G9x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx,

2Gx, 2Hx, 2Jx, 2Kx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx,

89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, ACx,

AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx,

APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, AYx, HFx

v 9461-CTO, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx,

4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux,

4Xx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx,

CKx, HNx, M6x, M7x, M8x

v 9462-CTO, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Gx, 6Hx, 6Jx,

6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux,

6Vx, 6Wx, 6Yx, 6Zx, 8Hx, 92x, 93x, 94x, G8x, G9x,

E7x, E9x, EAx, EBx, ECx, EDx, EEx, EHx, EJx, EKx,

ELx, H8x, H9x, HAx, KTx, KVx, HTx

v 9463-CTO, 82x, HPx, LPx, LQx, LRx

v 9464-CTO, 6Wx, 86x, 88x, 92x, 93x, 94x, G9x, CEx,

CFx, CGx, CHx, CJx

v 9446-CTO

v 9447-CTO

93P4296 R N

(continued)

Parts list

200 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

4 Wireless WAN antenna (14.1-in.)

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO, 2Kx, 8Jx, AYx

v 9461-CTO, 4Sx, 4Tx, CKx

v 9462-CTO, 6Qx, 6Rx, 6Sx, 6Tx, 8Hx, EHx, EJx, EKx,

ELx

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

91P7014 R N

5 Wireless LAN antenna (14.1-in.)

v 9455-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx,

2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,

2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx,

2Zx, 7Tx, 7Ux, 7Xx, 7Yx, A4x, A5x, A6x, A7x, A8x,

A9x, AAx, ABx, ADx, AEx, AFx, AGx, AHx, AJx, AKx,

ALx, AMx, ANx, APx, AQx, ARx, K2x, M9x, MAx,

MBx, MCx, MDx, MEx

v 9456-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,

5Hx, 5Kx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx,

5Tx, 5Ux, 5Vx, 5Wx, D9x, DFx, DGx, DHx, DJx, DKx,

DLx, DMx, K9x, LAx, M2x, M4x, M5x, MNx, MPx,

MQx

v 9457-CTO, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,

7Gx, 7Jx, 7Hx, 7Kx, 7Lx, 7Px, 7Vx, 7Wx, 92x, 93x, G3x,

H4x, H6x, H7x, H8x, HAx, HBx, HCx, HDx, HEx,

HFx, HGx, HHx, HJx, HKx, HMx, HNx, HPx, HQx,

HRx, HSx, KGx, KHx, KQx

v 9458-CTO, 7Mx, L7x, LLx, LMx

v 9459-CTO, 7Gx, 7Px, 7Sx, 7Rx, 92x, 93x, 99x, 9Ax, 9Bx,

ATx, AUx, AVx, AWx, AXx, AZx, G3x, G9x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx,

2Gx, 2Hx, 2Jx, 2Kx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx,

89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, ACx,

AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx,

APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, AYx,

HFx, HSx

(continued)

91P7012 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 201

No. FRU FRU no. RoHS

CRU

5 Wireless LAN antenna (14.1-in.)

v 9461-CTO, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx,

4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux,

4Xx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx,

CKx, HNx, M6x, M7x, M8x

v 9462-CTO, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Gx, 6Hx, 6Jx,

6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux,

6Vx, 6Wx, 6Yx, 6Zx, 8Hx, 92x, 93x, 94x, G8x, G9x,

E7x, E9x, EAx, EBx, ECx, EDx, EEx, EHx, EJx, EKx,

ELx, H8x, H9x, HAx, KTx, KVx, HTx

v 9463-CTO, 82x, HPx

v 9464-CTO, 6Wx, 86x, 88x, 92x, 93x, 94x, G9x, CEx,

CFx, CGx, CHx, CJx

v 9446-CTO

v 9447-CTO

91P7012 R N

6 Inverter card (14.1-in.)

v 9455-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx,

2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx,

7Tx, 7Ux, 7Xx, 7Yx, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ADx, AEx, AFx,

AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, K2x, M9x, MAx, MBx,

MCx, MDx, MEx

v 9456-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Kx, 5Jx, 5Lx, 5Mx, 5Nx,

5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, D9x, DFx, DGx, DHx, DJx, DKx, DLx,

DMx, K9x, LAx, M2x, M4x, M5x, MNx, MPx, MQx

v 9457-CTO, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Jx, 7Hx, 7Kx, 7Lx,

7Px, 7Vx, 7Wx, 92x, 93x, G3x, H4x, H6x, H7x, H8x, HAx, HBx, HCx, HDx, HEx,

HFx, HGx, HHx, HJx, HKx, HMx, HNx, HPx, HQx, HRx, HSx, KGx, KHx, KQx

v 9458-CTO, 7Mx, L7x, LLx, LMx

v 9459-CTO, 7Gx, 7Px, 7Sx, 7Rx, 92x, 93x, 99x, 9Ax, 9Bx, ATx, AUx, AVx, AWx, AXx,

AZx, G3x, G9x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Ux,

2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, ACx, AEx,

AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AVx,

AWx, AYx, HFx

v 9461-CTO, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx,

4Rx, 4Sx, 4Tx, 4Ux, 4Xx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CKx, HNx,

M6x, M7x, M8x

v 9462-CTO, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx,

6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Yx, 6Zx, 8Hx, 92x, 93x, 94x, G8x, G9x, E7x, E9x,

EAx, EBx, ECx, EDx, EEx, EHx, EJx, EKx, ELx, H8x, H9x, HAx, KTx, KVx, HTx

v 9463-CTO, 82x, HPx, LPx, LQx, LRx

v 9464-CTO, 6Wx, 86x, 88x, 92x, 93x, 94x, G9x, CEx, CFx, CGx, CHx, CJx

v 9446-CTO

v 9447-CTO

YEC 41W1467 R N

(continued)

Parts list

202 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

7 Bluetooth daughter card (BDC-2)

v 9455-CTO, 25x, 29x, 2Bx, 2Jx, 2Kx, 2Mx, 2Nx, 2Rx,

2Xx, 2Yx, 7Tx, 7Ux, 7Yx, A6x, AEx, AHx, AKx, AMx,

K2x, MAx

v 9456-CTO, DFx, DGx, DHx, DJx, DKx, LAx, M2x,

M4x, M5x

v 9457-CTO, 78x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Jx, 7Vx,

7Wx, H6x, HAx, HFx, HGx, HMx, HNx, HPx, HQx,

HRx, KHx

v 9458-CTO, L7x, LLx, LMx

v 9459-CTO, 7Sx, AVx, AWx, AXx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 28x, 29x, 2Ax, 2Fx, 2Gx, 2Hx, 2Jx, 2Ux,

8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, ACx, AEx,

AFx, AGx, AHx, ALx, AMx, ANx ,AUx, AYx

v 9461-CTO, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x,

CAx, M6x, M7x, M8x

v 9462-CTO, 6Cx, 6Ex, 6Gx, 6Hx, 6Kx, 6Lx, 6Mx, 6Nx,

6Px, 6Sx, 6Tx, 6Vx, 6Yx, 6Zx, 8Hx, 94x, G8x, G9x,

ECx, EDx, EEx, EHx, EJx, EKx, ELx, H8x, H9x, HAx,

KTx, KVx, HTx

v 9463-CTO, HPx, LPx, LQx, LRx

v 9464-CTO, 88x, 94x, CEx, CFx, G9x

v 9446-CTO

v 9447-CTO

39T0497 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 203

No. FRU FRU no. RoHS

CRU

8 LCD panel, 14.1-in. XGA

v 9455-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx,

2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx,

7Tx, 7Ux, 7Xx, 7Yx, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ADx, AEx, AFx,

AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, K2x, M9x, MAx, MBx,

MCx, MDx, MEx

v 9456-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Kx, 5Jx, 5Lx, 5Mx, 5Nx,

5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, D9x, DFx, DGx, DHx, DJx, DKx, DLx,

DMx, K9x, LAx, M2x, M4x, M5x, MNx, MPx, MQx

v 9457-CTO, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Jx, 7Hx, 7Kx, 7Lx,

7Px, 7Vx, 7Wx, 92x, 93x, G3x, H4x, H6x, H7x, H8x, HAx, HBx, HCx, HDx, HEx,

HFx, HGx, HHx, HJx, HKx, HMx, HNx, HPx, HQx, HRx, HSx, KGx, KHx, KQx

v 9458-CTO, 7Mx, L7x, LLx, LMx,

v 9459-CTO, 7Gx, 7Px, 7Sx, 7Rx, 92x, 93x, 99x, 9Ax, 9Bx, ATx, AUx, AVx, AWx, AXx,

AZx, G3x, G9x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Ux,

2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, ACx, AEx,

AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AVx,

AWx, AYx, HFx, HSx

v 9461-CTO, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx,

4Rx, 4Sx, 4Tx, 4Ux, 4Xx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CKx, HNx,

M4x, M5x

v 9462-CTO, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx,

6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Yx, 6Zx, 8Hx, 92x, 93x, 94x, G8x, G9x, E7x, E9x,

EAx, EBx, ECx, EDx, EEx, EHx, EJx, EKx, ELx, H8x, H9x, HAx, KTx, KVx, HTx

v 9463-CTO, 82x, HPx, LPx, LQx, LRx

v 9464-CTO, 6Wx, 86x, 88x, 92x, 93x, 94x, G9x, CEx, CFx, CGx, CHx, CJx

v 9446-CTO

v 9447-CTO

Samsung 13N7118 R N

BOE-Hydis 13N7120 R N

TMD 13N7132 R N

9 Clear plate kit 42W2139 R N

Parts list

204 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

14.1-in. SXGA+ TFT

No. FRU FRU no. RoHS

CRU

1 LCD cover kit (14.1-in.)

v 9455-CTO, 22x, 23x, A2x

v 9456-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D4x, D5x,

D6x

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, G2x, G8x, H2x,

H3x, KJx

v 9458-CTO

v 9459-CTO, 74x, ASx, G2x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 2Lx, 2Mx, 2Nx, 2Px,

2Qx, 2Rx, 2Sx, 2Tx, A3x, A4x, A5x, A6x, A7x, A8x,

A9x, AAx, HDx

v 9461-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax,

4Vx, 4Wx, HLx

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Xx,

E2x, E4x, E5x, E6x

v 9463-CTO

v 9464-CTO, 63x, 69x, 84x, CDx

v 9446-CTO

v 9447-CTO

13N7191 R N

2 Hinge, 14.1-in.

v 9455-CTO, 22x, 23x, A2x

v 9456-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D4x, D5x,

D6x

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, G2x, G8x, H2x,

H3x, KJx

v 9458-CTO

v 9459-CTO, 74x, ASx, G2x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 2Lx, 2Mx, 2Nx, 2Px,

2Qx, 2Rx, 2Sx, 2Tx, A3x, A4x, A5x, A6x, A7x, A8x,

A9x, AAx, HDx

v 9461-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax,

4Vx, 4Wx, HLx

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Xx,

E2x, E4x, E5x, E6x

v 9463-CTO

v 9464-CTO, 63x, 69x, 84x, CDx

v 9446-CTO

v 9447-CTO

41W5152 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 205

No. FRU FRU no. RoHS

CRU

3 LCD cable assembly (14.1-in.)

v 9455-CTO, 22x, 23x, A2x

v 9456-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D4x, D5x,

D6x

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, G2x, G8x, H2x,

H3x, KJx

v 9458-CTO

v 9459-CTO, 74x, ASx, G2x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 2Lx, 2Mx, 2Nx, 2Px,

2Qx, 2Rx, 2Sx, 2Tx, A3x, A4x, A5x, A6x, A7x, A8x,

A9x, AAx, HDx

v 9461-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax,

4Vx, 4Wx, HLx

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Xx,

E2x, E4x, E5x, E6x

v 9463-CTO

v 9464-CTO, 63x, 69x, 84x, CDx

v 9446-CTO

v 9447-CTO

93P4296 R N

4 Wireless WAN antenna (14.1-in.)

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

91P7014 R N

(continued)

Parts list

206 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

5 Wireless LAN antenna (14.1-in.)

v 9455-CTO, 22x, 23x, A2x

v 9456-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D4x, D5x,

D6x

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, G2x, G8x, H2x,

H3x, KJx

v 9458-CTO

v 9459-CTO, 74x, ASx, G2x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 2Lx, 2Mx, 2Nx, 2Px,

2Qx, 2Rx, 2Sx, 2Tx, A3x, A4x, A5x, A6x, A7x, A8x,

A9x, AAx, HDx

v 9461-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax,

4Vx, 4Wx, HLx

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Xx,

E2x, E4x, E5x, E6x

v 9463-CTO

v 9464-CTO, 63x, 69x, 84x, CDx

v 9446-CTO

v 9447-CTO

91P7012 R N

6 Inverter card (14.1-in.)

v 9455-CTO, 22x, 23x, A2x

v 9456-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D4x, D5x, D6x

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, G2x, G8x, H2x, H3x, KJx

v 9458-CTO

v 9459-CTO, 74x, ASx, G2x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, A3x,

A4x, A5x, A6x, A7x, A8x, A9x, AAx, HDx

v 9461-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Vx, 4Wx, HLx

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Xx, E2x, E4x, E5x, E6x

v 9463-CTO

v 9464-CTO, 63x, 69x, 84x, CDx

v 9446-CTO

v 9447-CTO

YEC 41W1467 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 207

No. FRU FRU no. RoHS

CRU

7 Bluetooth daughter card (BDC-2)

v 9455-CTO, 23x, A2x

v 9456-CTO, D4x, D5x, D6x

v 9457-CTO, G2x, H2x, H3x, KJx

v 9458-CTO

v 9459-CTO, ASx, G2x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 26x, 2Lx, 2Mx, 2Nx, 2Px,

2Qx, 2Rx, 2Sx, 2Tx, A3x,A4x, A5x, A6x, A7x, A8x,

A9x, AAx

v 9461-CTO

v 9462-CTO, 66x, 67x, 6Xx, E5x

v 9463-CTO

v 9464-CTO, 84x, CDx

v 9446-CTO

v 9447-CTO

39T0497 R N

8 LCD panel, 14.1-in. SXGA+

v 9455-CTO, 22x, 23x, A2x

v 9456-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D4x, D5x, D6x

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, G2x, G8x, H2x, H3x, KJx

v 9458-CTO

v 9459-CTO, 74x, ASx, G2x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 22x, 23x, 24x, 25x, 26x, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, A3x,

A4x, A5x, A6x, A7x, A8x, A9x, AAx, HDx

v 9461-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Vx, 4Wx, HLx

v 9462-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Xx, E2x, E4x, E5x, E6x

v 9463-CTO

v 9464-CTO, 63x, 69x, 84x, CDx

v 9446-CTO

v 9447-CTO

Samsung 13N7059 R N

BOE-Hydis 13N7061 R N

TMD 13N7063 R N

9 Clear plate kit 42W2139 R N

Parts list

208 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

15.0-in. XGA TFT

No. FRU FRU no. RoHS

CRU

1 LCD cover kit with IBM Logo (15.0-in.)

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v 9455-CTO, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,

3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux,

3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x,

48x, 49x, 4Ax, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Lx,

4Mx, 4Nx, ACx, BVx, BWx, BXx, BYx, BZx, C2x, C3x,

C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx,

CEx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx,

CQx, CRx, CSx, K3x, LEx, LFx, LUx, LVx, LWx, MFx,

MGx, MHx, MJx, MKx, MLx, MMx

v 9456-CTO, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,

6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Rx, 6Sx, 6Tx, 6Ux,

6Vx, 6Wx, 6Xx, 6Yx, 6Zx, DRx, F3x, F4x, F5x, F6x,

FAx, FBx, FCx, FFx, FGx, FHx, FJx, FKx, FLx, FMx,

FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, HTx,

K8x, KAx, KLx, L4x, L5x, L6x, L9x, LGx, LHx, LJx,

LKx, LXx, LYx, LZx, MRx, MSx, MTx, MUx, MVx

v 9457-CTO, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Ex,

8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Wx, 94x, 95x,

96x, 97x, 98x, DSx, DTx, DWx, G5x, G6x, G7x, J9x,

JAx, JBx, JDx, JFx, JGx, JPx, JHx, JJx, JKx, JLx, JMx,

JNx, KDx, KEx, KFx, KNx, KPx, KRx, LSx

v 9458-CTO, 8Rx, 8Qx, L8x, LNx

v 9459-CTO, 8Jx, 8Kx, 8Vx, 8Wx, 94x, 95x, 96x, 97x, 98x,

CXx, CYx, DNx, FXx, FYx, FZx, G5x, G6x, KKx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex,

3Fx, 3Hx, 3Jx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 9Px, BEx, BFx,

BGx, BHx, BJx, BKx, BLx, BMx, BNx, BPx, BQx, BRx,

BSx, BUx, BVx, BWx, H3x, HEx

v 9461-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,

5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, D9x, DAx, DBx, DDx,

DEx, DFx, DGx, DHx, DJx, DKx, DYx, HMx, HXx

v 9462-CTO, 7Ax, 7Bx, 7Zx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx,

7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Xx, 95x, 96x,

97x, 98x, 9Yx, 9Zx, FBx, FCx, FDx, FEx, FFx, KUx

v 9463-CTO, 7Rx, HUx, HVx

v 9464-CTO, 3Kx, 7Bx, 7Vx, 7Xx, 95x, 96x, 97x, BZx,

DLx, DMx, DNx, DPx, DSx, DVx, DWx

v 9446-CTO

v 9447-CTO

v 8943-CTO, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px,

4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 56x, 57x, 5Bx, 5Zx, 63x,

AGx, ALx, AMx, ANx, APx, AQx, ARx, ASx, BFx,

BGx, BHx, BJx, BKx, BMx, BSx, BTx, BUx, BVx, BWx,

BXx

v 8945-CTO, 7Ux, 7Vx, 7Yx, 7Zx, 84x, 85x, 88x, 89x, 8Dx,

AKx, CRx, CSx, CUx, CVx

13N7192 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 209

No. FRU FRU no. RoHS

CRU

1 LCD cover kit with IBM Logo (15.0-in.)

v 8942-CTO, 22x, 3Gx, 46x, 9Qx, AAx, ABx, ACx, ADx, AEx

v 8944-CTO, 73x, 7Bx, 7Cx, 7Dx, 7Ex, 7Gx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx,

9Wx, AJx, CPx, CQx

v 8947-CTO, 9Gx

v 8948-CTO

v 8949-CTO

xxB, xxC, xxH, xxV 13N7192 R N

LCD cover kit with ThinkPad Logo (15.0-in.)

v 8942-CTO, 22x, 32x, 33x, 34x, 37x, 38x, 39x, 3Ax, 3Dx, 3Ex, A5x, ATx, AUx, AVx,

AWx

v 8944-CTO, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx,

6Px, 6Qx, 6Rx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 7Bx, 7Dx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px,

7Qx, 7Rx, 9Ux, 9Vx, AHx, CBx, CCx, CDx, CEx, CFx, CGx, CHx, CJx, CKx, CLx,

CMx, CNx

v 8947-CTO, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Xx, 8Yx, 93x, 94x, 97x, 98x, 99x, 9Ax,

9Dx 9Ex, CYx, CZx, D4x, D5x, D6x, D7x, DAx, DBx, DEx, DFx, DGx, DHx

v 8948-CTO

v 8949-CTO

xxA, xxE, xxF, xxG, xxJ, xxK, xxL, xxM, xxP xxQ,

xxS, xxT, xxU, xxY

42W3147 R N

2 Hinge, 15.0-in.

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v 9455-CTO, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,

3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux,

3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x,

48x, 49x, 4Ax, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Lx,

4Mx, 4Nx, ACx, BVx, BWx, BXx, BYx, BZx, C2x, C3x,

C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx,

CEx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx,

CQx, CRx, CSx, K3x, LEx, LFx, LUx, LVx, LWx, MFx,

MGx, MHx, MJx, MKx, MLx, MMx

v 9456-CTO, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,

6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Rx, 6Sx, 6Tx, 6Ux,

6Vx, 6Wx, 6Xx, 6Yx, 6Zx, DRx, F3x, F4x, F5x, F6x,

FAx, FBx, FCx, FFx, FGx, FHx, FJx, FKx, FLx, FMx,

FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, HTx,

K8x, KAx, KLx, L4x, L5x, L6x, L9x, LGx, LHx, LJx,

LKx, LXx, LYx, LZx, MRx, MSx, MTx, MUx, MVx

v 9457-CTO, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Ex,

8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Wx, 94x, 95x,

96x, 97x, 98x, DSx, DTx, DWx, G5x, G6x, G7x, J9x,

JAx, JBx, JDx, JFx, JGx, JPx, JHx, JJx, JKx, JLx, JMx,

JNx, KDx, KEx, KFx, KNx, KPx, KRx, LSx

v 9458-CTO, 8Rx, 8Qx, L8x, LNx

v 9459-CTO, 8Jx, 8Kx, 8Vx, 8Wx, 94x, 95x, 96x, 97x, 98x,

CXx, CYx, DNx, FXx, FYx, FZx, G5x, G6x, KKx, LTx

(continued)

42W2695 R N

(continued)

Parts list

210 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

2 Hinge, 15.0-in.

v 9444-CTO

v 9445-CTO

v 9460-CTO, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex,

3Fx, 3Hx, 3Jx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 9Px, BEx, BFx,

BGx, BHx, BJx, BKx, BLx, BMx, BNx, BPx, BQx, BRx,

BSx, BUx, BVx, BWx, H3x, HEx

v 9461-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,

5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, D9x, DAx, DBx, DDx,

DEx, DFx, DGx, DHx, DJx, DKx, DYx, HMx, HXx

v 9462-CTO, 7Ax, 7Bx, 7Zx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx,

7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Xx, 95x, 96x,

97x, 98x, 9Yx, 9Zx, FBx, FCx, FDx, FEx, FFx, KUx

v 9463-CTO, 7Rx, HUx, HVx

v 9464-CTO, 3Kx, 7Bx, 7Vx, 7Xx, 95x, 96x, 97x, BZx,

DLx, DMx, DNx, DPx, DSx, DVx, DWx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 22x, 32x, 33x, 34x, 37x, 38x, 39x, 3Ax, 3Dx,

3Ex, 3Gx, 46x, 9Qx, A5x, AAx, ABx, ACx, ADx, AEx,

ATx, AUx, AVx, AWx

v 8943-CTO, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px,

4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 56x, 57x, 5Bx, 5Zx, 63x,

AGx, ALx, AMx, ANx, APx, AQx, ARx, ASx, BFx,

BGx, BHx, BJx, BKx, BMx, BSx, BTx, BUx, BVx, BWx,

BXx

v 8944-CTO, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Gx,

6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Ux,

6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 73x, 7Bx, 7Dx, 7Cx, 7Ex,

7Gx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 9Ux,

9Vx, 9Wx, AHx, AJx, CBx, CCx, CDx, CEx, CFx, CGx,

CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx

v 8945-CTO, 7Ux, 7Vx, 7Yx, 7Zx, 84x, 85x, 88x, 89x, 8Dx,

AKx, CRx, CSx, CUx, CVx

v 8947-CTO, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Xx, 8Yx,

93x, 94x, 97x, 98x, 99x, 9Ax, 9Dx, 9Ex, 9Gx, CYx, CZx,

D4x, D5x, D6x, D7x, DAx, DBx, DEx, DFx, DGx, DHx

v 8948-CTO, 22x

v 8949-CTO, 22x

42W2695 R N

3 LCD cable assembly (15.0-in.)

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v 9455-CTO, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,

3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux,

3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x,

48x, 49x, 4Ax, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Lx,

4Mx, 4Nx, ACx, BVx, BWx, BXx, BYx, BZx, C2x, C3x,

C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx,

CEx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx,

CQx, CRx, CSx, K3x, LEx, LFx, LUx, LVx, LWx, MFx,

MGx, MHx, MJx, MKx, MLx, MMx

93P4297 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 211

No. FRU FRU no. RoHS

CRU

3 LCD cable assembly (15.0-in.)

v 9456-CTO, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,

6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Rx, 6Sx, 6Tx, 6Ux,

6Vx, 6Wx, 6Xx, 6Yx, 6Zx, DRx, F3x, F4x, F5x, F6x,

FAx, FBx, FCx, FFx, FGx, FHx, FJx, FKx, FLx, FMx,

FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, HTx,

K8x, KAx, KLx, L4x, L5x, L6x, L9x, LJx, LKx, LXx,

LYx, LZx, MRx, MSx, MTx, MUx, MVx

v 9457-CTO, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Ex,

8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Wx, 94x, 95x,

96x, 97x, 98x, DSx, DTx, DWx, G5x, G6x, G7x, J9x,

JAx, JBx, JDx, JFx, JGx, JPx, JHx, JJx, JKx, JLx, JMx,

JNx, KDx, KEx, KFx, KNx, KPx, KRx, LSx

v 9458-CTO, 8Rx, 8Qx, L8x, LNx

v 9459-CTO, 8Jx, 8Kx, 8Vx, 8Wx, 94x, 95x, 96x, 97x, 98x,

CXx, CYx, DNx, FXx, FYx, FZx, G5x, G6x, KKx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex,

3Fx, 3Hx, 3Jx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 9Px, BEx, BFx,

BGx, BHx, BJx, BKx, BLx, BMx, BNx, BPx, BQx, BRx,

BSx, BUx, BVx, BWx, H3x, HEx

v 9461-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,

5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, D9x, DAx, DBx, DDx,

DEx, DFx, DGx, DHx, DJx, DKx, DYx, HMx, HXx

v 9462-CTO, 7Ax, 7Bx, 7Zx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx,

7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Xx, 95x, 96x,

97x, 98x, 9Yx, 9Zx, FBx, FCx, FDx, FEx, FFx, KUx

v 9463-CTO, 7Rx, HUx, HVx

v 9464-CTO, 3Kx, 7Bx, 7Vx, 7Xx, 95x, 96x, 97x, BZx,

DLx, DMx, DNx, DPx, DSx, DVx, DWx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 22x, 32x, 33x, 34x, 37x, 38x, 39x, 3Ax, 3Dx,

3Ex, 3Gx, 46x, 9Qx, A5x, AAx, ABx, ACx, ADx, AEx,

ATx, AUx, AVx, AWx

v 8943-CTO, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px,

4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 56x, 57x, 5Bx, 5Zx, 63x,

AGx, ALx, AMx, ANx, APx, AQx, ARx, ASx, BFx,

BGx, BHx, BJx, BKx, BMx, BSx, BTx, BUx, BVx, BWx,

BXx

v 8944-CTO, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Gx,

6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Ux,

6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 73x, 7Bx, 7Cx, 7Dx, 7Ex,

7Gx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 9Ux,

9Vx, 9Wx, AHx, AJx, CBx, CCx, CDx, CEx, CFx, CGx,

CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx

v 8945-CTO, 7Ux, 7Vx, 7Yx, 7Zx, 84x, 85x, 88x, 89x, 8Dx,

AKx, AKx, CRx, CSx, CUx, CVx

v 8947-CTO, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Xx, 8Yx,

93x, 94x, 97x, 98x, 99x, 9Ax, 9Dx, 9Ex, 9Gx, CYx, CZx,

D4x, D5x, D6x, D7x, DAx, DBx, DEx, DFx, DGx, DHx

v 8948-CTO, 22x

v 8949-CTO, 22x

93P4297 R N

(continued)

Parts list

212 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

4 Wireless WAN antenna (15.0-in.)

v 9455-CTO

v 9456-CTO

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

91P7015 R N

5 Wireless LAN antenna (15.0-in.)

v 0656- CTO, 29x, A4x

v 0657-CTO, 33x, 34x, 35x, 36x, 37x, 3Ax, 3Bx, 3Dx, 3Ex,

3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Mx, 3Px, 3Qx, 3Tx, 3Ux,

3Yx, 3Zx, 44x, 45x, 46x, 48x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex,

4Fx, 4Hx, 4Jx, 4Kx, 4Lx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx,

A8x, A9x, AAx, ACx, ADx, AEx, AFx, AGx, AHx, AJx,

AKx, ALx, AMx, ANx, APx, AQx, ARx, ASx, ATx,

AUx, AVx, AWx, AXx, AYx, AZx, B2x, B3x, B4x, B5x,

B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx,

BGx, BHx, BJx, BKx, BLx, BMx, BNx, BPx, BQx, BRx,

BSx, CBx, CCx, CEx, CFx, HKx, HQx, HRx, HSx, HTx,

HUx, HVx, J4x, J5x, J6x, JMx, JNx, JSx, JTx, JUx, JVx,

JWx, JXx, JYx, JZx, K2x, K3x, K4x, K5x, KCx, KDx,

KEx, KFx, KGx, KJx, KKx, KLx, KMx, KNx, KRx, KSx,

KXx, KYx, KUx, KTx, LDx, LEx, LGx, LHx, LJx, LKx,

LLx, LMx, LNx, LPx

v 0658-CTO, 52x, 5Qx, 5Rx, 5Sx, 5Tx, 5Vx, 5Wx, 5Xx,

5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax,

6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx,

6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx,

6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x,

7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx,

7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx,

7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x,

8Ax, 8Bx, 8Cx, 8Kx, 8Lx, 8Mx, 9Jx, 9Kx, 9Lx, 9Mx,

9Nx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, CTx,

CUx, CVx, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x,

D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx,

DQx, DRx, DSx, DTx, DUx, DVx, DWx, DXx, DYx,

DZx, E2x, E3x, E4x, E5x, E6x, E7x, E9x, EAx, EBx,

ECx, EDx, EEx, EFx, EGx, EHx, EKx, ELx, EMx, ENx,

EQx, ERx, ESx, EVx, EWx, EXx, EYx, EZx, F2x, F3x,

F4x, FEx, FFx, FHx, FJx, FKx, FLx, FMx, FNx, FQx,

FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx, G4x,

H2x, H3x, H4x, HLx, HMx, J7x, J8x, JEx, JFx, JGx,

JHx, JJx, JKx, K8x, K9x, KAx, KBx, KPx. KQx, L2x,

L4x, L5x, L6x, L9x, LAx

(continued)

91P7013 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 213

No. FRU FRU no. RoHS

CRU

5 Wireless LAN antenna (15.0-in.)

v 0659-CTO, 92x, 93x, 94x, 95x, 96x, 97x, 99x, 9Bx, 9Dx,

H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx, HDx,

HEx, HFx, HGx, JPx, JQx, JRx

v 9455-CTO, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,

3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux,

3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x,

48x, 49x, 4Ax, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Lx,

4Mx, 4Nx, ACx, BVx, BWx, BXx, BYx, BZx, C2x, C3x,

C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx,

CEx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx,

CQx, CRx, CSx, K3x, LEx, LFx, LUx, LVx, LWx, MFx,

MGx, MHx, MJx, MKx, MLx, MMx

v 9456-CTO, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,

6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Rx, 6Sx, 6Tx, 6Ux,

6Vx, 6Wx, 6Xx, 6Yx, 6Zx, DRx, F3x, F4x, F5x, F6x,

FAx, FBx, FCx, FFx, FGx, FHx, FJx, FKx, FLx, FMx,

FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, HTx,

K8x, KAx, KLx, L4x, L5x, L6x, L9x, LGx, LHx, LJx,

LKx, LXx, LYx, LZx, MRx, MSx, MTx, MUx, MVx

v 9457-CTO, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Ex,

8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Wx, 94x, 95x,

96x, 97x, 98x, DSx, DTx, DWx, G5x, G6x, G7x, J9x,

JAx, JBx, JDx, JFx, JGx, JPx, JHx, JJx, JKx, JLx, JMx,

JNx, KCx, KDx, KEx, KFx, KNx, KPx, KRx, LSx

v 9458-CTO, 8Rx, 8Qx, L8x, LNx

v 9459-CTO, 8Jx, 8Kx, 8Vx, 8Wx, 94x, 95x, 96x, 97x, 98x,

CXx, CYx, DNx, FXx, FYx, FZx, G5x, G6x, KKx, LTx

v 9444-CTO

v 9445-CTO

(continued)

91P7013 R N

(continued)

Parts list

214 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

5 Wireless LAN antenna (15.0-in.)

v 9460-CTO, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex,

3Fx, 3Hx, 3Jx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 9Px, BEx, BFx,

BGx, BHx, BJx, BKx, BLx, BMx, BNx, BPx, BQx, BRx,

BSx, BUx, BVx, BWx, H3x, HEx

v 9461-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,

5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, D9x, DAx, DBx, DDx,

DEx, DFx, DGx, DHx, DJx, DKx, DYx, HMx, HXx

v 9462-CTO, 7Ax, 7Bx, 7Zx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx,

7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Xx, 95x, 96x,

97x, 98x, 9Yx, 9Zx, FBx, FCx, FDx, FEx, FFx, KUx

v 9463-CTO, 7Rx, HUx, HVx

v 9464-CTO, 3Kx, 7Bx, 7Vx, 7Xx, 95x, 96x, 97x, BZx,

DLx, DMx, DNx, DPx, DSx, DVx, DWx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 22x, 32x, 33x, 34x, 37x, 38x, 39x, 3Ax, 3Dx,

3Ex, 3Gx, 46x, 9Qx, A5x, AAx, ABx, ACx, ADx, AEx,

ATx, AUx, AVx, AWx

v 8943-CTO, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px,

4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 56x, 57x, 5Bx, 5Zx, 63x,

AGx, ALx, AMx, ANx, APx, AQx, ARx, ASx, BFx,

BGx, BHx, BJx, BKx, BMx, BSx, BTx, BUx, BVx, BWx,

BXx

v 8944-CTO, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Gx,

6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Ux,

6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 73x, 7Bx, 7Cx, 7Dx, 7Ex,

7Gx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 9Ux,

9Vx, 9Wx, AHx, AJx, CBx, CCx, CDx, CEx, CFx, CGx,

CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx

v 8945-CTO, 7Ux, 7Vx, 7Yx, 7Zx, 84x, 85x, 88x, 89x, 8Dx,

AKx, CRx, CSx, CUx, CVx

v 8947-CTO, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Xx, 8Yx,

93x, 94x, 97x, 98x, 99x, 9Ax,9Dx, 9Ex, 9Gx, CYx, CZx,

D4x, D5x, D6x, D7x, DAx, DBx, DEx, DFx, DGx, DHx

v 8948-CTO, 22x

v 8949-CTO, 22x

91P7013 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 215

No. FRU FRU no. RoHS

CRU

6 Inverter card (15.0-in. XGA)

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v 9455-CTO, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx,

3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x,

4Ax, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Lx, 4Mx, 4Nx, ACx, BVx, BWx, BXx, BYx,

BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx, CEx, CGx,

CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, K3x, LEx, LFx, LUx, LVx,

LWx, MFx, MGx, MHx, MJx, MKx, MLx, MMx

v 9456-CTO, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx,

6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, DRx, F3x, F4x, F5x, F6x, FAx, FBx,

FCx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx,

FWx, HTx, K8x, KAx, KLx, L4x, L5x, L6x, L9x, LGx, LHx, LJx, LKx, LXx, LYx,

LZx, MRx, MSx, MTx, MUx, MVx

v 9457-CTO, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Ex, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx,

8Mx, 8Nx, 8Wx, 94x, 95x, 96x, 97x, 98x, DSx, DTx, DWx, G5x, G6x, G7x, J9x, JAx,

JBx, JDx, JFx, JGx, JPx, JHx, JJx, JKx, JLx, JMx, JNx, KDx, KEx, KFx, KNx, KPx,

KRx, LSx

v 9458-CTO, 8Rx, 8Qx, L8x, LNx

v 9459-CTO, 8Jx, 8Kx, 8Vx, 8Wx, 94x, 95x, 96x, 97x, 98x, CXx, CYx, DNx, FXx, FYx,

FZx, G5x, G6x, KKx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Hx, 3Jx, 3Sx, 3Tx,

3Ux, 3Vx, 3Wx, 9Px, BEx, BFx, BGx, BHx, BJx, BKx, BLx, BMx, BNx, BPx, BQx,

BRx, BSx, BUx, BVx, BWx, H3x, HEx

v 9461-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx,

D9x, DAx, DBx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DYx, HMx, HXx

v 9462-CTO, 7Ax, 7Bx, 7Zx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx,

7Px, 7Qx, 7Xx, 95x, 96x, 97x, 98x, 9Yx, 9Zx, FBx, FCx, FDx, FEx, FFx, KUx

v 9463-CTO, 7Rx, HUx, HVx

v 9464-CTO, 3Kx, 7Bx, 7Vx, 7Xx, 95x, 96x, 97x, BZx, DLx, DMx, DNx, DPx, DSx,

DVx, DWx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 22x, 32x, 33x, 34x, 37x, 38x, 39x, 3Ax, 3Dx, 3Ex, 3Gx, 46x, 9Qx, A5x,

AAx, ABx, ACx, ADx, AEx, ATx, AUx, AVx, AWx

v 8943-CTO, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x,

56x, 57x, 5Bx, 5Zx, 63x, AGx, ALx, AMx, ANx, APx, AQx, ARx, ASx, BFx, BGx,

BHx, BJx, BKx, BMx, BSx, BTx, BUx, BVx, BWx, BXx

v 8944-CTO, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx,

6Px, 6Qx, 6Rx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 73x, 7Bx, 7Cx, 7Dx, 7Ex, 7Gx, 7Jx,

7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 9Ux, 9Vx, 9Wx, AHx, AJx, CBx, CCx, CDx,

CEx, CFx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx

v 8945-CTO, 7Ux, 7Vx, 7Yx, 7Zx, 84x, 85x, 88x, 89x, 8Dx, AKx, CRx, CSx, CUx, CVx

v 8947-CTO, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Xx, 8Yx, 93x, 94x, 97x, 98x, 99x,

9Ax,9Dx, 9Ex, 9Gx, CYx, CZx, D4x, D5x, D6x, D7x, DAx, DBx, DEx, DFx, DGx,

DHx

v 8948-CTO, 22x

v 8949-CTO, 22x

YEC 41W1467 R N

(continued)

Parts list

216 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

7 Bluetooth daughter card (BDC-2)

v 0656-CTO

v 0657-CTO, 37x, 39x, 3Bx, 3Cx, 3Lx, 3Mx, 3Nx, 3Rx,

3Sx, 3Wx, 42x, 43x, 47x, 49x, 4Ax, 4Qx, 4Tx, A8x, A9x,

AMx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AVx,

AWx, AZx, B4x, B5x, BBx, BCx, BHx, BJx, BKx, BLx,

HKx, J5x, J6x, JVx, JXx, K5x, KEx, KFx, KGx, KKx,

KGx, KSx, LEx, LNx, LPx

v 0658-CTO, 52x, 5Wx, 68x, 6Ex, 6Nx, 6Qx, 6Sx, 6Ux,

6Vx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 78x, 7Ax, 7Bx,

7Cx, 7Dx, 7Ex, 7Fx, 7Jx, 7Vx, 82x, 85x, 86x, 88x, CMx,

CQx, CRx, CYx, CZx, D6x, D7x, D8x, D9x, DWx, DXx,

DZx, E2x, E3x, E4x, E5x, E7x, E9x, EAx, EBx, ECx,

EFx, EQx, ESx, FNx, FQx, FRx, FTx, FUx, FVx, H3x,

J7x, JEx, JFx, JHx, JJx, JKx, K8x, KQx

v 0659-CTO, 96x, 99x, 9Ax, H6x, HEx, HGx

v 9455-CTO, 3Dx, 3Gx, 3Jx, 43x, 44x, 48x, 4Ax, 4Cx,

4Dx, 4Fx, 4Gx, 4Hx, 4Jx, 4Nx, CBx, CCx, CQx, CRx,

CSx, K3x

v 9456-CTO, 6Dx, 6Ex, 6Fx, 6Gx, 6Zx, DRx, FFx, FGx,

FHx, FJx, FKx, FLx, FMx, FNx, HTx, K8x, L4x, LJx,

LKx

v 9457-CTO, 87x, 89x, 8Ax, 8Bx, 8Cx, 8Gx, 8Mx, 97x,

98x, JDx, G5x, G6x, G7x, JFx, JGxJHx, JKx, JKx, JMx,

JNx, KDx, KEx, KFx, KRx, LSx

v 9458-CTO, L8x, LNx

v 9459-CTO, 8Vx, 97x, 98x, FXx, FYx, FZx, G5x, G6x,

KKx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 36x, 37x, 38x, 3Bx, 3Cx, 3Dx, 3Ex, 3Hx, 3Jx,

3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 9Px, BEx, BFx, BGx, BHx,

BJx, BLx, BMx, BNx, BPx, BRx, BUx, BWx, H3x

v 9461-CTO, 59x, 5Fx, 5Gx, D9x, DAx, DBx, DDx, DEx,

DFx, DGx, DHx, DJx, DKx, DYx, HXx

v 9462-CTO, 7Cx, 7Fx, 7Gx, 7Hx, 7Kx, 7Lx, 7Mx, 7Nx,

7Px, 7Qx, 7Xx, 7Zx, 98x, 9Yx, 9Zx, FBx, FDx, FEx, FFx,

KUx

v 9463-CTO

v 9464-CTO, 3Kx, 7Xx, BZx, DMx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 34x, 37x, 38x, 3Ax, 3Dx, 3Ex, 9Qx, AUx,

AWx

v 8943-CTO, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px,

4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 56x, 57x, 5Zx, 63x, AGx,

BFx, BGx, BHx, BJx, BKx, BMx, BSx, BTx, BUx, BVx,

BWx, BXx

(continued)

39T0497 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 217

No. FRU FRU no. RoHS

CRU

7 Bluetooth daughter card (BDC-2)

v 8944-CTO, 67x, 68x, 6Cx, 6Dx, 6Gx, 6Hx, 6Kx, 6Mx,

6Qx, 6Rx, 6Ux, 6Vx, 6Xx, 6Zx, 7Cx, 7Ex, 7Gx, 7Jx, 7Px,

7Qx, 7Rx, 9Vx, 9Wx, AHx, AJx, CEx, CGx, CLx, CNx

v 8945-CTO, 7Ux, 7Vx, 7Yx, 7Zx, 84x, 85x, 88x, 89x,

AKx, CRx, CSx, CUx, CVx

v 8947-CTO, 8Mx, 8Nx, 8Rx, 8Sx, 8Ux, 8Xx, 8Yx, 93x,

94x, 97x, 98x, 9Ax, 9Dx, 9Ex, CYx, CZx, D4x, D5x,

D7x, DAx, DBx, DEx, DFx, DHx

v 8948-CTO

v 8949-CTO

39T0497 R N

8 LCD panel, 15.0-in. XGA

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v 9455-CTO, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx,

3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x,

4Ax, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Lx, 4Mx, 4Nx, ACx, BVx, BWx, BXx, BYx,

BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx, CEx, CGx,

CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, K3x, LEx, LFx, LUx, LVx,

LWx, MFx, MGx, MHx, MJx, MKx, MLx, MMx

v 9456-CTO, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx,

6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, DRx, F3x, F4x, F5x, F6x, FAx, FBx,

FCx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx,

FWx, HTx, K8x, KAx, KLx, L4x, L5x, L6x, L9x, LGx, LHx, LJx, LKx, LXx, LYx,

LZx, MRx, MSx, MTx, MUx, MVx

v 9457-CTO, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Ex, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx,

8Mx, 8Nx, 8Wx, 94x, 95x, 96x, 97x, 98x, DSx, DTx, DWx, G5x, G6x, G7x, J9x, JAx,

JBx, JDx, JFx, JGx, JPx, JHx, JJx, JKx, JLx, JMx, JNx, KDx, KEx, KFx, KNx, KPx,

KRx, LSx

v 9458-CTO, 8Rx, 8Qx, L8x, LNx

v 9459-CTO, 8Jx, 8Kx, 8Vx, 8Wx, 94x, 95x, 96x, 97x, 98x, CXx, CYx, DNx, FXx, FYx,

FZx, G5x, G6x, KKx, LTx

v 9444-CTO

v 9445-CTO

v 9460-CTO, 36x, 37x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Hx, 3Jx, 3Sx, 3Tx,

3Ux, 3Vx, 3Wx, 9Px, BEx, BFx, BGx, BHx, BJx, BKx, BLx, BMx, BNx, BPx, BQx,

BRx, BSx, BUx, BVx, BWx, H3x, HEx

v 9461-CTO, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx,

D9x, DAx, DBx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DYx, HMx, HXx

v 9462-CTO, 7Ax, 7Bx, 7Zx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx,

7Px, 7Qx, 7Xx, 95x, 96x, 97x, 98x, 9Yx, 9Zx, FBx, FCx, FDx, FEx, FFx, KUx

v 9463-CTO, 7Rx, HUx. HVx

v 9464-CTO, 3Kx, 7Bx, 7Vx, 7Xx, 95x, 96x, 97x, BZx, DLx, DMx, DNx, DPx, DSx,

DVx, DWx

(continued)

Samsung 13N7122 R N

LG-Phillips 13N7124 R N

AUO 13N7126 R N

(continued)

Parts list

218 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

8 LCD panel, 15.0-in. XGA

v 9446-CTO

v 9447-CTO

v 8942-CTO, 22x, 32x, 33x, 34x, 37x, 38x, 39x, 3Ax, 3Dx, 3Ex, 3Gx, 46x, 9Qx, A5x,

AAx, ABx, ACx, ADx, AEx, ATx, AUx, AVx, AWx

v 8943-CTO, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x,

56x, 57x, 5Bx, 5Zx, 63x, AGx, ALx, AMx, ANx, APx, AQx, ARx, ASx, BFx, BGx,

BHx, BJx, BKx, BMx, BSx, BTx, BUx, BVx, BWx, BXx

v 8944-CTO, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx,

6Px, 6Qx, 6Rx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 73x, 7Bx, 7Cx, 7Dx, 7Ex, 7Gx, 7Jx,

7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 9Ux, 9Vx, 9Wx, AHx, AJx, CBx, CCx, CDx,

CEx, CFx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx

v 8945-CTO, 7Ux, 7Vx, 7Yx, 7Zx, 84x, 85x, 88x, 89x, 8Dx, AKx, CRx, CSx, CUx, CVx

v 8947-CTO, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Xx, 8Yx, 93x, 94x, 97x, 98x, 99x,

9Ax,9Dx, 9Ex, 9Gx, CYx, CZx, D4x, D5x, D6x, D7x, DAx, DBx, DEx, DFx, DGx,

DHx

v 8948-CTO, 22x

v 8949-CTO, 22x

Samsung 13N7122 R N

LG-Phillips 13N7124 R N

AUO 13N7126 R N

9 Clear plate kit for R60 and R61i

v 9455-all

v 9456-all

v 9457-all

v 9458-all

v 9459-all

v 9444-all

v 9445-all

v 9460-all

v 9461-all

v 9462-all

v 9463-all

v 9464-all

v 9446-all

v 9447-all

42W2139 R N

Clear plate kit for R60e and R61i

v 0656-all

v 0657-all

v 0658-all

v 0659-all

42W2140 R N

Clear plate kit for R61 and R61i

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

42X4428 R N

Parts list

ThinkPad R60, R60e, R61, and R61i 219

15.0-in. SXGA+ TFT

No. FRU FRU no. RoHS

CRU

1 LCD cover kit with IBM Logo (15.0-in.)

v 9455-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax,

4Bx, 4Kx, 4Px, 4Qx, 4Rx, B2x, B3x, B4x, B5x, B6x, B7x,

B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx,

BJx, BLx, BMx, BNx, BPx, BQx, BRx, BUx, DPx, LCx,

LDx

v 9456-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 6Nx, 6Px, 6Qx,

DQx, E4x, E5x, E6x, E7x, EAx, EBx, ECx, EDx, EEx,

EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx,

ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx, EZx, KMx,

L2x, L3x, LBx

v 9457-CTO, 82x, 83x, 84x, 8Px, DUx, DVx, G4x, J3x, J6x,

J7x

v 9458-CTO

v 9459-CTO, CUx, CVx, G4x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 32x, 33x, 34x, 35x, 3Gx, 3Lx, 3Mx, 3Nx,

3Px, 3Qx, 3Rx, 3Xx, B2x, B3x, B5x, B6x, B7x, B8x, B9x,

BAx, BBx, BCx, BDx, HBx, HCx

v 9461-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D2x, D3x,

D4x, D5x, D6x, D7x, DUx, DXx, DZx, H4x, H5x, KSx,

HGx, HHx, HJx, HKx, HRx, HWx, HYx

v 9462-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Yx,

9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, F2x, F3x, F4x,

F7x, F8x, FAx, FGx, GAx, H7x

v 9463-CTO, HQx

v 9464-CTO, 73x, 7Tx, BYx, GAx

v 9446-CTO

v 9447-CTO

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Dx, 4Lx, 4Mx, 4Qx, 4Rx,

4Sx, 4Tx, 4Ux, 4Vx, 54x, 55x, 58x, 59x, 5Ex, 5Fx, 5Gx,

5Vx, 5Wx, 5Xx, 5Yx, 62x, 64x, 65x, 9Rx, 9Sx, 9Tx, A6x,

A7x, A8x, A9x, BBx, BCx, BDx, BEx, BNx, BPx, BQx,

BRx, BYx, BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x,

C9x, CAx

v 8945-CTO, 7Wx, 7Xx, 82x, 83x, 86x, 87x, 8Ax, 8Bx,

8Gx, 8Hx, 8Jx

v 8948-CTO

v 8949-CTO

13N7192 R N

LCD cover kit with IBM Logo (15.0-in.)

v 8942-CTO, 3Kx, 3Lx, 3Mx, 47x, 48x, 49x, AFx

v 8944-CTO, 76x, 77x, 78x, 7Ax, 7Sx, 7Tx

v 8947-CTO, 9Kx, 9Lx, 9Mx, 9Px

v 8948-CTO

v 8949-CTO

xxB, xxC, xxH, xxV 13N7192 R N

(continued)

Parts list

220 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

1 LCD cover kit with ThinkPad Logo (15.0-in.)

v 8942-CTO, 35x, 36x, 3Bx, 3Cx, 9Xx 9Yx, 9Zx, A2x, A3x, A4x, AXx, AYx, AZx, B2x,

B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx

v 8944-CTO, 69x, 6Ex, 6Fx, 6Sx, 6Tx, 7Sx, 7Tx

v 8947-CTO, 8Kx, 8Lx, 8Px, 8Qx, 8Vx, 8Wx, 8Zx, 92x, 95x, 96x, 9Bx, 9Cx, CWx, CXx,

D2x, D3x, D8x, D9x, DCx, DDx

v 8948-CTO

v 8949-CTO

xxA, xxE, xxF, xxG, xxJ, xxK, xxL, xxM, xxP xxQ,

xxS, xxT, xxU, xxY

42W3147 R N

2 Hinge, 15.0-in.

v 9455-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax,

4Bx, 4Kx, 4Px, 4Qx, 4Rx, B2x, B3x, B4x, B5x, B6x, B7x,

B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx,

BJx, BLx, BMx, BNx, BPx, BQx, BRx, BUx, DPx, LCx,

LDx

v 9456-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 6Nx, 6Px, 6Qx,

DQx, E4x, E5x, E6x, E7x, EAx, EBx, ECx, EDx, EEx,

EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx,

ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx, EZx, KMx,

L2x, L3x, LBx

v 9457-CTO, 82x, 83x, 84x, 8Px, DUx, DVx, G4x, J3x, J6x,

J7x

v 9458-CTO

v 9459-CTO, CUx, CVx, G4x

v 9444-CTO

v 9445-CTO

(continued)

42W2695 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 221

No. FRU FRU no. RoHS

CRU

2 Hinge, 15.0-in.

v 9460-CTO, 32x, 33x, 34x, 35x, 3Gx, 3Lx, 3Mx, 3Nx,

3Px, 3Qx, 3Rx, 3Xx, B2x, B3x, B5x, B6x, B7x, B8x, B9x,

BAx, BBx, BCx, BDx, HBx, HCx

v 9461-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D2x, D3x,

D4x, D5x, D6x, D7x, DUx, DXx, DZx, H4x, H5x, KSx,

HGx, HHx, HJx, HKx, HRx, HWx, HYx

v 9462-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Yx,

9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, F2x, F3x, F4x,

F7x, F8x, FAx, FGx, GAx, H7x

v 9463-CTO, HQx

v 9464-CTO, 73x, 7Tx, BYx, GAx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 35x, 36x, 3Bx, 3Cx, 3Kx, 3Lx, 3Mx, 3Nx,

3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx,

3Zx, 47x, 48x, 49x, 9Xx, 9Yx, 9Zx, A2x, A3x, A4x, AFx,

AXx, AYx, AZx, B2x, B3x, B4x, B5x, B6x, B7x, B8x,

B9x, BAx

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Dx, 4Lx, 4Mx, 4Qx, 4Rx,

4Sx, 4Tx, 4Ux, 4Vx, 54x, 55x, 58x, 59x, 5Ex, 5Fx, 5Gx,

5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx,

5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 62x, 64x, 65x, 9Rx, 9Sx,

9Tx, A6x, A7x, A8x, A9x, BBx, BCx, BDx, BEx, BNx,

BPx, BQx, BRx, BYx, BZx, C2x, C3x, C4x, C5x, C6x,

C7x, C8x, C9x, CAx

v 8944-CTO, 69x, 6Ex, 6Fx, 6Sx, 6Tx, 76x, 77x, 78x, 7Ax,

7Sx, 7Tx

v 8945-CTO, 7Wx, 7Xx, 82x, 83x, 86x, 87x, 8Ax, 8Bx,

8Gx, 8Hx, 8Jx

v 8947-CTO, 8Kx, 8Lx, 8Px, 8Qx, 8Vx, 8Wx, 8Zx, 92x,

95x, 96x, 9Bx, 9Cx, 9Kx, 9Lx, 9Mx, 9Px, CWx, CXx,

D2x, D3x, D8x, D9x, DCx, DDx

v 8948-CTO

v 8949-CTO

42W2695 R N

3 LCD cable assembly (15.0-in.)

v 9455-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax,

4Bx, 4Kx, 4Px, 4Qx, 4Rx, B2x, B3x, B4x, B5x, B6x, B7x,

B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx,

BJx, BLx, BMx, BNx, BPx, BQx, BRx, BUx, DPx, LCx,

LDx

v 9456-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 6Nx, 6Px, 6Qx,

DQx, E4x, E5x, E6x, E7x, EAx, EBx, ECx, EDx, EEx,

EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx,

ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx, EZx, KMx,

L2x, L3x, LBx

v 9457-CTO, 82x, 83x, 84x, 8Px, DUx, DVx, G4x, J3x, J6x,

J7x

v 9458-CTO

v 9459-CTO, CUx, CVx, G4x

v 9444-CTO

v 9445-CTO

(continued)

93P4297 R N

(continued)

Parts list

222 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

3 LCD cable assembly (15.0-in.)

v 9460-CTO, 32x, 33x, 34x, 35x, 3Gx, 3Lx, 3Mx, 3Nx,

3Px, 3Qx, 3Rx, 3Xx, B2x, B3x, B5x, B6x, B7x, B8x, B9x,

BAx, BBx, BCx, BDx, HBx, HCx

v 9461-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D2x, D3x,

D4x, D5x, D6x, D7x, DUx, DXx, DZx, H4x, H5x, KSx,

HGx, HHx, HJx, HKx, HRx, HYx

v 9462-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Yx,

9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, F2x, F3x, F4x,

F7x, F8x, FAx, FGx, GAx, H7x

v 9463-CTO, HQx

v 9464-CTO, 73x, 7Tx, BYx, GAx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 35x, 36x, 3Bx, 3Cx, 3Kx, 3Lx, 3Mx, 3Nx,

3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx,

3Zx, 47x, 48x, 49x, 9Xx, 9Yx, 9Zx, A2x, A3x, A4x, AFx,

AXx, AYx, AZx, B2x, B3x, B4x, B5x, B6x, B7x, B8x,

B9x, BAx

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Dx, 4Lx, 4Mx, 4Qx, 4Rx,

4Sx, 4Tx, 4Ux, 4Vx, 54x, 55x, 58x, 59x, 5Ex, 5Fx, 5Gx,

5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx,

5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 62x, 64x, 65x, 9Rx, 9Sx,

9Tx, A6x, A7x, A8x, A9x, BBx, BCx, BDx, BEx, BNx,

BPx, BQx, BRx, BYx, BZx, C2x, C3x, C4x, C5x, C6x,

C7x, C8x, C9x, CAx

v 8944-CTO, 69x, 6Ex, 6Fx, 6Sx, 6Tx, 76x, 77x, 78x, 7Ax,

7Sx, 7Tx

v 8945-CTO, 7Wx, 7Xx, 82x, 83x, 86x, 87x, 8Ax, 8Bx,

8Gx, 8Hx, 8Jx

v 8947-CTO, 8Kx, 8Lx, 8Px, 8Qx, 8Vx, 8Wx, 8Zx, 92x,

95x, 96x, 9Bx, 9Cx, 9Kx, 9Lx, 9Mx, 9Px, CWx, CXx,

D2x, D3x, D8x, D9x, DCx, DDx

v 8948-CTO

v 8949-CTO

93P4297 R N

4 Wireless WAN antenna (15.0-in.)

v 9455-CTO, 4Px, 4Qx, 4Rx, BUx

v 9456-CTO, 6Nx, 6Px, 6Qx, EYx, EZx, DQx, KMx

v 9457-CTO, 8Px, DVx

v 9458-CTO

v 9459-CTO

v 9444-CTO

v 9445-CTO

v 9460-CTO

v 9461-CTO

v 9462-CTO

v 9463-CTO

v 9464-CTO

v 9446-CTO

v 9447-CTO

91P7015 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 223

No. FRU FRU no. RoHS

CRU

5 Wireless LAN antenna (15.0-in.)

v 9455-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax,

4Bx, 4Kx, 4Px, 4Qx, 4Rx, B2x, B3x, B4x, B5x, B6x, B7x,

B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx,

BJx, BLx, BMx, BNx, BPx, BQx, BRx, BUx, DPx, LCx,

LDx

v 9456-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 6Nx, 6Px, 6Qx,

DQx, E4x, E5x, E6x, E7x, EAx, EBx, ECx, EDx, EEx,

EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx,

ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx, EZx, KMx,

L2x, L3x, LBx

v 9457-CTO, 82x, 83x, 84x, 8Px, DUx, DVx, G4x, J3x, J6x,

J7x

v 9458-CTO

v 9459-CTO, CUx, CVx, G4x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 32x, 33x, 34x, 35x, 3Gx, 3Lx, 3Mx, 3Nx,

3Px, 3Qx, 3Rx, 3Xx, B2x, B3x, B5x, B6x, B7x, B8x, B9x,

BAx, BBx, BCx, BDx, HBx, HCx

v 9461-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D2x, D3x,

D4x, D5x, D6x, D7x, DUx, DXx, DZx, H4x, H5x, KSx,

HGx, HHx, HJx, HKx, HRx, HWx, HYx

v 9462-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Yx,

9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, F2x, F3x, F4x,

F7x, F8x, FAx, FGx, GAx, H7x

v 9463-CTO, HQx

v 9464-CTO, 73x, 7Tx, BYx, GAx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 35x, 36x, 3Bx, 3Cx, 3Kx, 3Lx, 3Mx, 3Nx,

3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx,

3Zx, 47x, 48x, 49x, 9Xx, 9Yx, 9Zx, A2x, A3x, A4x, AFx,

AXx, AYx, AZx, B2x, B3x, B4x, B5x, B6x, B7x, B8x,

B9x, BAx

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Dx, 4Lx, 4Mx, 4Qx, 4Rx,

4Sx, 4Tx, 4Ux, 4Vx, 54x, 55x, 58x, 59x, 5Ex, 5Fx, 5Gx,

5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx,

5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 62x, 64x, 65x, 9Rx, 9Sx,

9Tx, A6x, A7x, A8x, A9x, BBx, BCx, BDx, BEx, BNx,

BPx, BQx, BRx, BYx, BZx, C2x, C3x, C4x, C5x, C6x,

C7x, C8x, C9x, CAx

v 8944-CTO, 69x, 6Ex, 6Fx, 6Sx, 6Tx, 76x, 77x, 78x, 7Ax,

7Sx, 7Tx

v 8945-CTO, 7Wx, 7Xx, 82x, 83x, 86x, 87x, 8Ax, 8Bx,

8Gx, 8Hx, 8Jx

v 8947-CTO, 8Kx, 8Lx, 8Px, 8Qx, 8Vx, 8Wx, 8Zx, 92x,

95x, 96x, 9Bx, 9Cx, 9Kx, 9Lx, 9Mx, 9Px, CWx, CXx,

D2x, D3x, D8x, D9x, DCx, DDx

v 8948-CTO

v 8949-CTO

91P7013 R N

(continued)

Parts list

224 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

6 Inverter card (15.0-in. SXGA+)

v 9455-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 4Bx, 4Kx, 4Px, 4Qx, 4Rx, B2x,

B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx,

BLx, BMx, BNx, BPx, BQx, BRx, BUx, DPx, LCx, LDx

v 9456-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 6Nx, 6Px, 6Qx, DQx, E4x, E5x, E6x, E7x,

EAx, EBx, ECx, EDx, EEx, EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx,

ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx, EZx, KMx, L2x, L3x, LBx

v 9457-CTO, 82x, 83x, 84x, 8Px, DUx, DVx, G4x, J3x, J6x, J7x

v 9458-CTO

v 9459-CTO, CUx, CVx, G4x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 32x, 33x, 34x, 35x, 3Gx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Xx, B2x, B3x,

B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, HBx, HCx

v 9461-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D2x, D3x, D4x, D5x, D6x, D7x, DUx,

DXx, DZx, H4x, H5x, KSx, HGx, HHx, HJx, HKx, HRx, HWx, HYx

v 9462-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Yx, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx,

9Wx, 9Xx, F2x, F3x, F4x, F7x, F8x, FAx, FGx, GAx, H7x

v 9463-CTO, HQx

v 9464-CTO, 73x, 7Tx, BYx, GAx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 35x, 36x, 3Bx, 3Cx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux,

3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 47x, 48x, 49x, 9Xx, 9Yx, 9Zx, A2x, A3x, A4x, AFx, AXx,

AYx, AZx, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Dx, 4Lx, 4Mx, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 54x, 55x,

58x, 59x, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx,

5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 62x, 64x, 65x, 9Rx, 9Sx, 9Tx, A6x, A7x, A8x, A9x, BBx,

BCx, BDx, BEx, BNx, BPx, BQx, BRx, BYx, BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x,

C9x, CAx

v 8944-CTO, 69x, 6Ex, 6Fx, 6Sx, 6Tx, 76x, 77x, 78x, 7Ax, 7Sx, 7Tx

v 8945-CTO, 7Wx, 7Xx, 82x, 83x, 86x, 87x, 8Ax, 8Bx, 8Gx, 8Hx, 8Jx

v 8947-CTO, 8Kx, 8Lx, 8Px, 8Qx, 8Vx, 8Wx, 8Zx, 92x, 95x, 96x, 9Bx, 9Cx, 9Kx, 9Lx,

9Mx, 9Px, CWx, CXx, D2x, D3x, D8x, D9x, DCx, DDx

v 8948-CTO

v 8949-CTO

YEC 41W1467 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 225

No. FRU FRU no. RoHS

CRU

7 Bluetooth daughter card (BDC-2)

v 9455-CTO, 32x, 38x, 39x, 3Ax, 4Bx, 4Px, 4Qx, B2x, B3x,

B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx,

BEx, BFx, BGx, BHx, BJx, BLx, BRx, BUx, DPx, LCx,

LDx

v 9456-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 6Nx, 6Px, 6Qx,

DQx, E4x, E5x, E6x, E7x, EAx, EBx, ECx, EDx, EEx,

EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx,

ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx, EZx, KMx,

L2x, L3x, LBx

v 9457-CTO, 83x, 84x, G4x, J3x, J6x, J7x

v 9458-CTO, 8Qx, 8Rx

v 9459-CTO, CUx, CVx, G4x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 32x, 33x, 34x, 3Gx, 3Lx, 3Mx, 3Nx, 3Px,

3Qx, 3Rx, 3Xx, B2x, B3x, B5x, B6x, B7x, B8x, B9x, BBx,

BCx, BDx, HBx

v 9461-CTO, 54x, 57x, 58x, D2x, D3x, D4x, D5x, D6x,

D7x, DXx, DZx, KSx, H4x, HGx, HHx, HJx, HRx, HYx

v 9462-CTO, 75x, 76x, 77x, 79x, 7Yx, 9Qx, 9Rx, 9Sx, 9Tx,

9Ux, 9Vx, 9Wx, 9Xx, F2x, F7x, F8x, FAx, FGx, GAx,

H7x

v 9463-CTO, HQx

v 9464-CTO, 7Tx, BYx, GAx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 36x, 3Cx, 3Kx, 3Lx, 3Mx

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Dx, 4Lx, 4Mx, 4Qx, 4Rx,

4Sx, 4Tx, 4Ux, 4Vx, 54x, 55x, 58x, 59x, 5Ex, 5Fx, 5Gx,

62x, 64x, 65x, 9Rx, 9Sx, 9Tx, BBx, BCx, BDx, BEx, BNx,

BPx, BQx, BRx

v 8944-CTO, 69x, 6Ex, 6Fx, 6Sx, 6Tx, 76x, 77x, 78x, 7Sx,

7Tx

v 8945-CTO, 7Wx, 7Xx, 82x, 83x, 86x, 87x, 8Ax, 8Bx,

8Gx, 8Hx, 8Jx

v 8947-CTO, 8Kx, 8Lx, 8Px, 8Qx, 8Wx, 8Zx, 92x, 95x,

96x, 9Cx, 9Kx, 9Lx, 9Mx, CWx, CXx, D2x, D3x, D8x,

D9x, DCx, DDx

v 8948-CTO

v 8949-CTO

39T0497 R N

(continued)

Parts list

226 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

No. FRU FRU no. RoHS

CRU

8 LCD panel, 15.0-in. SXGA+

v 9455-CTO, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 4Bx, 4Kx, 4Px, 4Qx, 4Rx, B2x,

B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx,

BLx, BMx, BNx, BPx, BQx, BRx, BUx, DPx, LCx, LDx

v 9456-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 6Nx, 6Px, 6Qx, DQx, E4x, E5x, E6x, E7x,

EAx, EBx, ECx, EDx, EEx, EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx,

ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx, EZx, KMx, L2x, L3x, LBx

v 9457-CTO, 82x, 83x, 84x, 8Px, DUx, DVx, G4x, J3x, J6x, J7x

v 9458-CTO

v 9459-CTO, CUx, CVx, G4x

v 9444-CTO

v 9445-CTO

v 9460-CTO, 32x, 33x, 34x, 35x, 3Gx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Xx, B2x, B3x,

B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, HBx, HCx

v 9461-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, D2x, D3x, D4x, D5x, D6x, D7x, DUx,

DXx, DZx, H4x, H5x, KSx, HGx, HHx, HJx, HKx, HRx, HWx, HYx

v 9462-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Yx, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx,

9Wx, 9Xx, F2x, F3x, F4x, F7x, F8x, FAx, FGx, GAx, H7x

v 9463-CTO, HQx

v 9464-CTO, 73x, 7Tx, BYx, GAx

v 9446-CTO

v 9447-CTO

v 8942-CTO, 35x, 36x, 3Bx, 3Cx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux,

3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 47x, 48x, 49x, 9Xx, 9Yx, 9Zx, A2x, A3x, A4x, AFx, AXx,

AYx, AZx, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx

v 8943-CTO, 4Ax, 4Bx, 4Cx, 4Dx, 4Lx, 4Mx, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 54x, 55x,

58x, 59x, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx,

5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 62x, 64x, 65x, 9Rx, 9Sx, 9Tx, A6x, A7x, A8x, A9x, BBx,

BCx, BDx, BEx, BNx, BPx, BQx, BRx, BYx, BZx, C2x, C3x, C4x, C5x, C6x, C7x, C8x,

C9x, CAx

v 8944-CTO, 69x, 6Ex, 6Fx, 6Sx, 6Tx, 76x, 77x, 78x, 7Ax, 7Sx, 7Tx

v 8945-CTO, 7Wx, 7Xx, 82x, 83x, 86x, 87x, 8Ax, 8Bx, 8Gx, 8Hx, 8Jx

v 8947-CTO, 8Kx, 8Lx, 8Px, 8Qx, 8Vx, 8Wx, 8Zx, 92x, 95x, 96x, 9Bx, 9Cx, 9Kx, 9Lx,

9Mx, 9Px, CWx, CXx, D2x, D3x, D8x, D9x, DCx, DDx

v 8948-CTO

v 8949-CTO

Samsung 13N7128 R N

LG-Phillips 42T0350 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 227

No. FRU FRU no. RoHS

CRU

9 Clear plate kit for R60 and R61i

v 9455-all

v 9456-all

v 9457-all

v 9458-all

v 9459-all

v 9444-CTO

v 9445-CTO

v 9460-all

v 9461-all

v 9462-all

v 9463-all

v 9464-all

v 9446-CTO

v 9447-CTO

42W2139 R N

Clear plate kit for R61 and R61i

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v 8948-all

v 8949-all

42X4428 R N

Parts list

228 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Keyboard

Keyboard for R60, R60e, and R61i

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v 9455-all

v 9456-all

v 9457-all

v 9458-all

v 9459-all

v 9460-all

v 9461-all

v 9462-all

v 9463-all

v 9464-all

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 229

Language P/N

(ALPS)

P/N

(Chicony)

P/N

(NMB)

RoHS

CRU

Arabic 39T7321 39T7310 39T7308 R **

Belgian 39T7122 39T7182 39T0962

Canadian, multilanguage (445) 39T7119 39T7179 39T0959

Chinese, Traditional 39T7145 39T7205 39T0985

Czech 39T7123 39T7183 39T0963

Danish 39T7124 39T7184 39T0964

Dutch 39T7318 39T7316 39T7314

English, U.K. 39T7142 39T7202 39T0982

English, U.S. 39T7118 39T7178 39T0958

English, U.S. (International, with a

Euro symbol)

39T7143 39T7203 39T0983

Finnish, Swedish 39T7139 39T7199 39T0979

French, Canadian (058) 39T7120 39T7009 39T0960

French, Acnor Canadian — — 39T7468

French, European 39T7460 39T7458 39T7456

German 39T7454 39T7452 39T7450

Greek 39T7128 39T7188 39T0968

Hebrew 39T7130 39T7190 39T0970

Hungarian 39T7003 39T7189 39T0969

Icelandic — — 42T3004

Italian 39T7131 39T7191 39T0971

Japanese 39T7144 39T7010 39T0984

Korean 39T7215 39T7011 39T7213

Norwegian 39T7004 39T7193 39T0973

Polish 39T7134 39T7194 39T0974

Portuguese 39T7135 39T7195 39T0975

Portuguese, Brazilian 39T7299 39T7301 39T7297

Russian 39T7136 39T7196 39T0976

Slovak 39T7005 39T7197 39T0977

Slovenian 39T7006 39T7198 39T0978

Spanish, European 39T7002 39T7185 39T0965

Spanish, Latin American 39T7147 39T7008 39T0987

Swiss 39T7007 39T7200 39T0980

Thai 39T7146 39T7206 39T0986

Turkish 39T7141 39T7201 39T0981

Parts list

230 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Keyboard for R61 and R61i

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 231

Language P/N

(ALPS)

P/N

(Chicony)

P/N

(NMB)

RoHS

CRU

Arabic 42T3212 42T3276 42T3146 R **

Belgian 42T3213 42T3277 42T3147

Chinese, Traditional 42T3236 42T3300 42T3170

Czech 42T3214 42T3278 42T3148

Danish 42T3215 42T3279 42T3149

Dutch 42T3223 42T3287 42T3157

English, U.K. 42T3233 42T3297 42T3167

English, U.S. 42T3209 42T3273 42T3143

English, U.S. (International, with a

Euro symbol)

42T3234 42T3298 42T3168

Finnish, Swedish 42T3230 42T3294 42T3164

French, Canadian (058) 42T3211 42T3275 42T3145

French, Acnor Canadian 42T3210 42T3274 42T3144

French, European 42T3217 42T3281 42T3151

German 42T3218 42T3282 42T3152

Greek 42T3219 42T3283 42T3153

Hebrew 42T3221 42T3285 42T3155

Hungarian 42T3220 42T3284 42T3154

Icelandic — — 42T3175

Italian 42T3222 42T3286 42T3156

Japanese 42T3235 42T3299 42T3169

Korean 42T3239 42T3303 42T3173

Norwegian 42T3224 42T3288 42T3158

Polish 42T3225 42T3289 42T3159

Portuguese 42T3226 42T3290 42T3160

Portuguese, Brazilian 42T3240 42T3304 42T3174

Russian 42T3227 42T3291 42T3161

Slovak 42T3228 42T3292 42T3162

Slovenian 42T3229 42T3293 42T3163

Spanish, European 42T3216 42T3280 42T3150

Spanish, Latin American 42T3238 42T3302 42T3172

Swiss 42T3231 42T3295 42T3165

Thai 42T3237 42T3301 42T3171

Turkish 42T3232 42T3296 42T3166

Parts list

232 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Recovery discs

Windows XP Professional CDs

Windows XP Professional is preinstalled as the operating system in the following

models:

v 0656-CTO, 23x, 24x, 29x, 2Cx, 2Dx

v 0657-CTO, 34x, 38x, 39x, 3Ax, 3Cx, 3Ex, 3Gx, 3Hx, 3Kx, 3Nx, 3Rx, 3Tx, 3Ux, 3Vx,

3Wx, 3Xx, 43x, 45x, 47x, 48x, 4Dx, 4Ex, 4Jx, 4Lx, 4Mx, 4Nx, 4Sx, 4Tx, 4Ux, 8Rx,

8Sx, 8Tx, 8Ux, 9Ex, 9Fx, 9Gx, 9Hx

v 0658-CTO, 52x, 53x, 56x, 57x, 5Ax, 5Bx, 5Cx, 5Dx, 5Gx, 5Jx, 5Kx, 5Qx, 5Rx, 5Xx,

5Yx, 62x, 64x, 65x, 67x, 6Ax, 6Cx, 6Ex, 6Gx, 6Hx, 6Kx, 6Ux, 6Yx, 6Zx, 7Ex, 7Kx,

7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Zx, 85x, 86x, 87x, 88x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx,

8Gx, 8Hx, 8Jx, 8Mx, 9Jx, 9Kx, 9Lx, 9Mx, 9Nx

v 0659-CTO, 92x, 94x, 96x, 97x, 98x, 9Dx

v 9455-CTO, 22x, 23x, 24x, 26x, 27x, 29x, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Jx, 32x, 33x,

34x, 35x, 36x, 38x, 39x, 3Bx, 3Cx, 3Dx, 3Ex, 3Gx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px,

3Qx, 3Rx, 3Sx, 3Tx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 45x, 46x, 48x, 49x, 4Ax, 4Kx,

4Lx, 4Nx, 4Px, 4Qx, 4Rx, 7Xx

v 9456-CTO,54x, 5Ax, 5Bx, 5Ex, 5Hx, 5Jx, 5Kx, 5Mx, 5Sx, 5Tx, 5Ux, 5Vx, 63x, 66x,

68x, 6Ax, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx, 6Nx, 6Px, 6Qx, 6Ux, 6Vx, 6Wx, 6Xx, 6Zx

v 9457-CTO, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,

7Gx, 7Hx, 7Kx, 7Lx, 7Px, 82x, 83x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Ex,

8Gx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Wx, 92x, 93x, 94x, 95x, 96x, 97x

v 9458-CTO, 7Mx, 8Qx, 8Rx

v 9459-CTO, 74x, 7Gx, 7Px, 7Rx, 8Jx, 8Kx, 8Wx, 92x, 93x, 94x, 95x, 96x, 97x, 99x,

9Ax, 9Bx

v 9460-CTO, 24x, 25x, 26x, 27x, 2Ax, 2Bx, 2Cx, 2Dx, 2Gx, 2Hx, 2Jx, 2Kx, 33x, 34x,

35x, 37x, 38x, 39x, 3Ax, 3Cx, 3Dx, 3Ex, 3Fx, 3Xx, 8Jx, 9Px

v 9461-CTO, 42x, 4Ax, 4Bx, 4Jx, 4Mx, 4Nx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 52x, 54x,

56x, 57x, 58x, 59x, 5Cx, 5Ex, 5Fx, 5Gx, 5Kx, 5Lx, 5Mx, 5Nx

v 9462-CTO, 62x, 63x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Gx, 6Hx,

6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Wx, 72x, 73x, 75x, 76x,

77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Nx, 7Px,

7Qx, 7Xx, 8Hx, 92x, 93x, 94x, 95x, 96x, 97x, 98x

v 9463-CTO, 7Rx, 82x

v 9464-CTO, 63x, 69x, 6Wx, 73x, 7Bx, 7Xx, 92x, 93x, 94x, 95x, 96x, 97x

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 233

Language P/N RoHS

CRU

Arabic 42J7537 R *

Chinese, Simplified 42J7530

Chinese, Traditional 42J7531

Chinese, Traditional (Hong Kong S.A.R.) 42J7532

Czech 42J7536

Danish 42J7526

Dutch 42J7529

English, U.K. 42J7518

English, U.S. 42J7517

Finnish 42J7527

French 42J7520

German 42J7521

Greek 42J7541

Hebrew, English enabled 42J7534

Hungarian 42J7540

Italian 42J7523

Japanese 42J7533

Korean 42J7542

Norwegian 42J7528

Polish 42J7535

Portuguese, Brazilian 42J7524

Russian 42J7538

Russian, English enabled 42J7519

Slovenian 42J7543

Spanish 42J7522

Swedish 42J7525

Turkish 42J7539

(continued)

Parts list

234 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

v 0656-CTO, A4x

v 0657-CTO, A9x, ACx, ADx, AEx, AFx, AGx, ASx, AUx, AVx, AXx, AYx, AZx, B2x,

B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx,

BKx, BLx, BMx, BNx, BPx, BQx, BRx, BSx, BTx, BUx, BVx, BWx, BXx, BYx, BZx,

C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CEx, HKx, HQx, HRx,

HSx, HTx, HUx, HVx, KCx, KDx, KEx, KFx, KGx, KSx, LFx

v 0658-CTO, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, CTx, CUx, CVx, CWx,

CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx,

DEx, DFx, DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DSx, DUx, DXx, E2x,

E3x, E7x, E8x, ECx, EDx, EEx, EFx, EGx, EHx, EUx, EWx, EYx, F2x, F4x, F7x,

F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FHx, FNx, FPx, FUx, G4x, H4x, HLx,

HMx, HNx, HPx, L5x, L6x, L7x, L8x

v 0659-CTO, 92x, 94x, 96x, 97x, 98x, 9Dx, H6x, H7x, H8x, H9x, HAx, HBx, HEx,

HFx, HGx

v 9455-CTO, A4x, A5x, A8x, AFx, AGx, AHx, ANx, APx, B2x, B3x, B4x, B5x, B6x,

B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BUx, BVx, BXx,

C2x, C8x, C9x, CAx, CDx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx, DPx

v 9456-CTO, D9x, DJx, DKx, DLx, DMx, DQx, DRx, E5x, E6x, E7x, ECx, EDx, EEx,

EFx, EGx, EHx, EJx, EKx, ELx, EMx, ENx, EPx, EQx, ERx, ESx, ETx, EUx, EYx,

EZx, F3x, F4x, F5x, F6x, FAx, FBx, FCx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx,

FSx, FTx, FUx, FVx, FWx, HTx, LHx

v 9457-CTO, DTx, DSx, DUx, DVx, DWx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, H4x,

H6x, H7x, H8x, HBx, HCx, HHx, HJx, HKx, HPx, HQx, HRx, HSx, J6x, J7x, J9x,

JAx, JBx, JDx, JFx, JHx, JJx, JKx, JMx, JNx, JPx

v 9458-CTO,LLx, LMx, LNx

v 9459-CTO, ASx, ATx, AUx, AWx, AXx, AZx, CUx, CVx, CXx, CYx, DNx, FYx,

FZx, G2x, G3x, G4x, G5x, G6x, G9x

v 9460-CTO, A8x, AMx, AYx, B2x, B6x, B7x, B8x, BDx, BFx, BGx, BHx, BNx, BPx,

BQx, BUx

v 9461-CTO, C8x, C9x, CAx, D5x, D6x, D7x, DDx, DEx, DFx, DGx, DHx, DJx, DKx,

DUx, DXx, DYx, DZx

v 9462-CTO, E2x, E5x, E6x, E7x, E9x, EAx, EBx, ECx, EDx, EEx, EHx, EJx, EKx,

ELx, F2x, F3x, F7x, F8x, FAx, FBx, FCx, FEx, FFx, FGx, G8x, G9x, GAx

v 9463-CTO, LPx

v 9464-CTO, BZx, CEx, CFx, CGx, CHx, DLx, DMx, DNx, DPx, DVx, DWx, G9x,

GAx

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 235

Language P/N RoHS

CRU

Arabic 43T6161 R *

Chinese, Simplified 43T6166

Chinese, Traditional 43T6167

Chinese, Traditional (Hong Kong S.A.R.) 43T6168

Czech 43T6157

Danish 43T6155

Dutch 43T6156

English, U.K. 43T6149

English, U.S. 43T6145

Finnish 43T6158

French 43T6146

German 43T6147

Greek 43T6165

Hebrew, English enabled 43T6159

Hungarian 43T6164

Italian 43T6151

Japanese 43T6152

Korean 43T6169

Norwegian 43T6153

Polish 43T6160

Portuguese, Brazilian 43T6150

Russian 43T6162

Russian, English enabled 43T6561

Slovenian 43T6170

Spanish 43T6148

Swedish 43T6154

Turkish 43T6163

(continued)

Parts list

236 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

v 8942-CTO, 9Qx, 9Zx, A2x, A3x, A4x, A5x

v 8943-CTO, A8x, A9x, ASx

v 8944-CTO, 9Ux, 9Vx, 9Wx

v 8945-CTO

v 8947-CTO

Language P/N RoHS

CRU

Arabic 44Y0930 R *

Chinese, Simplified 44Y0935

Chinese, Traditional 44Y0936

Chinese, Traditional (Hong Kong S.A.R.) 44Y0937

Czech 44Y0926

Danish 44Y0924

Dutch 44Y0925

English, U.K. 44Y0918

English, U.S. 44Y0914

Finnish 44Y0927

French 44Y0915

German 44Y0916

Greek 44Y0934

Hebrew, English enabled 44Y0928

Hungarian 44Y0933

Italian 44Y0920

Japanese 44Y0921

Korean 44Y0938

Norwegian 44Y0922

Polish 44Y0929

Portuguese, Brazilian 44Y0919

Russian 44Y0931

Russian, English enabled 44Y0940

Slovenian 44Y0939

Spanish 44Y0917

Swedish 44Y0923

Turkish 44Y0932

Parts list

ThinkPad R60, R60e, R61, and R61i 237

Windows XP Home Edition CDs

Windows XP Home Edition is preinstalled as the operating system in the following

models:

v 0656-CTO, 22x, 25x, 26x

v 0657-CTO, 33x, 35x, 36x, 37x, 3Bx, 3Fx, 3Jx, 3Lx, 3Mx, 3Sx, 42x, 46x, 4Ax, 4Fx,

4Gx, 4Hx, 4Kx, 4Qx, 4Rx

v 0658-CTO, 54x, 55x, 58x, 59x, 5Ex, 5Fx, 5Hx, 5Lx, 5Mx, 5Nx, 5Px, 5Sx, 5Tx, 5Vx,

5Wx, 5Zx, 63x, 66x, 68x, 69x, 6Bx, 6Dx, 6Jx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx,

6Tx, 6Vx, 6Wx, 6Xx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx,

7Fx, 7Gx, 7Hx, 7Jx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 82x, 83x, 84x, 89x,

8Kx, 8Lx, 8Nx, 8Px, 8Qx, KZx, L3x

v 0659-CTO, 93x, 95x, 99x, 9Ax, 9Bx, 9Cx

v 9455-CTO, 25x, 28x, 2Ax, 2Gx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux,

2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 3Ax, 3Fx, 3Hx, 43x, 44x, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,

4Hx, 4Jx, 4Mx, 7Tx, 7Ux, 7Yx

v 9456-CTO,59x, 5Dx, 5Gx, 5Rx, 6Rx, 6Sx, 6Tx

v 9457-CTO, 7Jx, 7Vx, 7Wx, 84x, 8Hx, 98x

v 9458-CTO

v 9459-CTO, 7Sx, 8Vx, 98x

v 9460-CTO, 22x, 23x, 28x, 29x, 2Ex, 2Fx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx,

2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 32x, 36x, 3Bx, 3Gx, 3Hx, 3Jx, 3Lx, 3Mx, 3Nx, 3Px,

3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx

v 9461-CTO, 47x, 4Hx, 4Lx, 5Bx

v 9462-CTO,64x, 6Vx, 6Xx, 6Yx, 6Zx, 74x, 7Mx, 7Yx, 7Zx, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux,

9Vx, 9Wx, 9Xx, 9Yx, 9Zx

v 9463-CTO

v 9464-CTO, 3Kx, 7Tx, 7Vx, 84x, 86x, 88x

(continued)

Parts list

238 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Language P/N RoHS

CRU

Arabic 42J7753 R *

Chinese, Simplified 42J7746

Chinese, Traditional 42J7747

Chinese, Traditional (Hong Kong S.A.R.) 42J7748

Czech 42J7752

Danish 42J7742

Dutch 42J7745

English, U.K. 42J7734

English, U.S. 42J7733

Finnish 42J7743

French 42J7736

German 42J7737

Greek 42J7757

Hebrew 42J9033

Hebrew, English enabled 42J7750

Hungarian 42J7756

Italian 42J7739

Japanese 42J7749

Korean 42J7758

Norwegian 42J7744

Polish 42J7751

Portuguese, Brazilian 42J7740

Russian 42J7754

Russian, English enabled 42J7735

Slovenian 42J7759

Spanish 42J7738

Swedish 42J7741

Turkish 42J7755

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 239

v 0656-CTO, A3x

v 0657-CTO, A8x, AAx, ARx, ATx, AWx

v 0658-CTO, DQx, DRx, DTx, DVx, DWx, DYx, DZx, E4x, E5x, E6x, E9x, EAx, EBx,

EJx, EKx, ELx, EMx, ENx, EQx, ERx, ESx, ETx, EVx, EXx, EZx, F3x, FQx, FRx,

FSx, FTx, FVx, FWx, FXx, FYx, FZx, G3x, H2x, H3x

v 0659-CTO, HCx, HDx

v 9455-CTO, A9x, AAx, ABx, ALx, BRx, C4x, C7x, CCx, CQx, CRx,

v 9456-CTO, A2x, A6x, A7x, A9x, AAx, ABx, ACx, ADx, AEx, AJx, AKx, ALx, AMx,

AQx, ARx, BKx, BLx, BRx, BTx, BWx, BYx, BZx, C3x, C4x, C5x, C6x, C7x, CBx,

CCx, CEx, CFx, CQx, CRx, CSx

v 9457-CTO, H2x, H3x, HAx, HDx, HEx, HFx, HGx, HMx, HNx, J3x, JGx, JLx

v 9458-CTO

v 9459-CTO, AVx, FXx

v 9460-CTO, A3x, A4x, A5x, A6x, A7x, A9x, AAx, ACx, AEx, AFx, AGx, AHx, AJx,

AKx, ALx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, B3x, B5x, B9x, BAx,

BBx, BCx, BEx, BJx, BKx, BLx, BMx, BRx, BSx, BVx, BWx

v 9461-CTO, CKx

v 9462-CTO, E4x, F4x, FDx

v 9463-CTO

v 9464-CTO, BYx, CDx, CJx, DSx

(continued)

Parts list

240 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Language P/N RoHS

CRU

Arabic 43T6369 R *

Chinese, Simplified 43T6374

Chinese, Traditional 43T6375

Chinese, Traditional (Hong Kong S.A.R.) 43T6376

Czech 43T6365

Danish 43T6363

Dutch 43T6364

English, U.K. 43T6357

English, U.S. 43T6353

Finnish 43T6366

French 43T6354

German 43T6355

Greek 43T6373

Hebrew 43T6378

Hebrew, English enabled 43T6367

Hungarian 43T6372

Italian 43T6359

Japanese 43T6360

Korean 43T6377

Norwegian 43T6361

Polish 43T6368

Portuguese, Brazilian 43T6358

Russian 43T6370

Russian, English enabled 43T6569

Spanish 43T6356

Swedish 43T6362

Turkish 43T6371

Parts list

ThinkPad R60, R60e, R61, and R61i 241

Windows Vista Home Premium (32 bit) DVDs

Windows Vista Home Premium is preinstalled as the operating system in the

following models:

v 0656-CTO

v 0657-CTO, KNx

v 0658-CTO, JKx

v 0659-CTO

v 9455-CTO

v 9456-CTO, M4x, M5x

v 9457-CTO

v 9458-CTO

v 9459-CTO

v 9460-CTO

v 9461-CTO, M6x

v 9462-CTO, HAx, HTx

v 9463-CTO

v 9464-CTO

(continued)

Parts list

242 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Language P/N RoHS

CRU

Chinese, Simplified 43T7322 R *

Chinese, Traditional 43T7323

Chinese, Traditional (Hong Kong S.A.R.) 43T7324

Czech 43T7315

Danish 43T7927

Dutch 43T7314

English, U.K. 43T7303

English, U.S. 43T7302

Finnish 43T7316

French 43T7305

German 43T7306

Greek 43T7321

Hebrew 43T7326

Hungarian 43T7320

Italian 43T7309

Japanese 43T7310

Korean 43T7325

Norwegian 43T7923

Polish 43T7317

Portuguese, Brazilian 43T7308

Russian 43T7318

Russian, English enabled 43T7304

Slovenian 43T7327

Spanish 43T7307

Swedish 43T7925

Turkish 43T7319

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 243

v 8942-CTO, 46x, 47x, 48x, 49x

v 8943-CTO

v 8944-CTO, 7Ax, 7Gx, 7Jx

v 8945-CTO

v 8947-CTO, 9Px

Language P/N RoHS

CRU

Chinese, Simplified 44Y0819 R *

Chinese, Traditional 44Y0820

Chinese, Traditional (Hong Kong S.A.R.) 44Y0821

Czech 44Y0812

Danish 44Y0810

Dutch 44Y0811

English, U.K. 44Y0801

English, U.S. 44Y0799

Finnish 44Y0813

French 44Y0802

German 44Y0803

Greek 44Y0818

Hebrew 44Y0824

Hungarian 44Y0817

Italian 44Y0806

Japanese 44Y0807

Korean 44Y0822

Norwegian 44Y0808

Polish 44Y0814

Portuguese 44Y0828

Portuguese, Brazilian 44Y0805

Romanian 44Y0825

Russian 44Y0815

Russian, English enabled 44Y0800

Serbian-Latin 44Y0829

Slovak 44Y0831

Slovenian 44Y0823

Spanish 44Y0804

Swedish 44Y0809

Turkish 44Y0816

Parts list

244 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

Language P/N RoHS

CRU

Chinese, Simplified 44Y2282 R *

Chinese, Traditional 44Y2283

Chinese, Traditional (Hong Kong S.A.R.) 44Y2284

Czech 44Y2275

Danish 44Y2273

Dutch 44Y2274

English, U.K. 44Y2264

English, U.S. 44Y2262

Finnish 44Y2276

French 44Y2265

German 44Y2266

Greek 44Y2281

Hebrew 44Y2287

Hungarian 44Y2280

Italian 44Y2269

Japanese 44Y2270

Korean 44Y2285

Norwegian 44Y2271

Polish 44Y2277

Portuguese 44Y2289

Portuguese, Brazilian 44Y2268

Romanian 44Y2288

Russian 44Y2278

Russian, English enabled 44Y2263

Serbian-Latin 44Y2290

Slovak 44Y2291

Slovenian 44Y2286

Spanish 44Y2267

Swedish 44Y2272

Turkish 44Y2279

Parts list

ThinkPad R60, R60e, R61, and R61i 245

Windows Vista Home Basic (32 bit) DVDs

Windows Vista Home Basic is preinstalled as the operating system in the following

models:

v 0656-CTO

v 0657-CTO, JVx, JWx, JXx, JYx, JZx, K2x, KJx, KKx, KMx, KTx, KXx, KYx, KUx,

LHx, LJx, LKx, LLx, LMx, LNx, LPx

v 0658-CTO, JFx, JGx, JHx, K8x, K9x, KAx, KBx, KPx. KQx, L2x, L4x, L9x, LAx

v 0659-CTO, JPx, JQx

v 9455-CTO, LEx, LFx, LUx, LVx, LWx

v 9456-CTO, L5x, L6x, L9x, LGx, LJx, LXx, LYx, LZx

v 9457-CTO, KGx, KHx, LSx

v 9458-CTO

v 9459-CTO, LTx

v 9460-CTO, HCx, HDx, HEx, HFx, HSx

v 9461-CTO, HGx, HKx, HLx, HMx, HNx, HWx, M7x, M8x

v 9462-CTO, H8x

v 9463-CTO

v 9464-CTO

Language P/N RoHS

CRU

Chinese, Simplified 43T7270 R *

Chinese, Traditional 43T7271

Chinese, Traditional (Hong Kong S.A.R.) 43T7272

Czech 43T7263

Danish 43T7921

Dutch 43T7262

English, U.K. 43T7251

English, U.S. 43T7250

Finnish 43T7264

French 43T7253

German 43T7254

Greek 43T7269

Hebrew 43T7274

Hungarian 43T7268

Italian 43T7257

Japanese 43T7258

Korean 43T7273

Norwegian 43T7917

Polish 43T7265

Portuguese, Brazilian 43T7256

Russian 43T7266

Russian, English enabled 43T7252

Slovenian 43T7275

Spanish 43T7255

Swedish 43T7919

Turkish 43T7267

Parts list

246 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

v 8942-CTO, AAx, ABx, ACx, ADx, AEx

v 8943-CTO, AGx

v 8944-CTO, AJx

v 8945-CTO, AKx

v 8947-CTO

Language P/N RoHS

CRU

Chinese, Simplified 44Y2455 R *

Chinese, Traditional 44Y2456

Chinese, Traditional (Hong Kong S.A.R.) 44Y2457

Czech 44Y2448

Danish 44Y2446

Dutch 44Y2447

English, U.K. 44Y2437

English, U.S. 44Y2435

Finnish 44Y2449

French 44Y2438

German 44Y2439

Greek 44Y2454

Hebrew 44Y2460

Hungarian 44Y2453

Italian 44Y2442

Japanese 44Y2443

Korean 44Y2458

Norwegian 44Y2444

Polish 44Y2450

Portuguese, Brazilian 44Y2441

Russian 44Y2451

Russian, English enabled 44Y2436

Slovenian 44Y2459

Spanish 44Y2440

Swedish 44Y2445

Turkish 44Y2452

Parts list

ThinkPad R60, R60e, R61, and R61i 247

v 8942-CTO

v 8943-CTO, ALx, AMx, ANx, APx, AQx, ARx

v 8944-CTO

v 8945-CTO

v 8947-CTO

Language P/N RoHS

CRU

Chinese, Simplified 44Y2427 R *

Chinese, Traditional 44Y2428

Chinese, Traditional (Hong Kong S.A.R.) 44Y2429

Czech 44Y2420

Danish 44Y2418

Dutch 44Y2419

English, U.K. 44Y2409

English, U.S. 44Y2407

Finnish 44Y2421

French 44Y2410

German 44Y2411

Greek 44Y2426

Hebrew 44Y2432

Hungarian 44Y2425

Italian 44Y2414

Japanese 44Y2415

Korean 44Y2430

Norwegian 44Y2416

Polish 44Y2422

Portuguese, Brazilian 44Y2413

Russian 44Y2423

Russian, English enabled 44Y2408

Slovenian 44Y2431

Spanish 44Y2412

Swedish 44Y2417

Turkish 44Y2424

Parts list

248 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Windows Vista Business (32 bit) DVDs

Windows Vista Business is preinstalled as the operating system in the following

models:

v 0656-CTO

v 0657-CTO, J4x, J5x, J6x, JMx, JNx, JSx, JTx, JUx, K3x, K4x, K5x, KLx, KRx, KVx,

KWx, LDx, LEx, LGx

v 0658-CTO, J7x, J8x, JEx, JJx, K6x, K7x, LBx, LCx

v 0659-CTO, JRx

v 9455-CTO, K2x, K3x, LCx, LDx

v 9456-CTO, K8x, K9x, KAx, KLx, KMx, L2x, L3x, L4x, LAx, LBx, LKx, M2x

v 9457-CTO, KDx, KEx, KFx, KJx, KNx, KPx, KQx, KRx

v 9458-CTO, L7x, L8x

v 9459-CTO, KKx

v 9460-CTO, H3x, HBx

v 9461-CTO, H4x, H5x, KSx, HHx, HJx, HRx, HXx, HYx

v 9462-CTO, H7x, H9x, KTx, KUx, KVx

v 9463-CTO, HPx, HQx, HUx, HVx, LQx, LRx

v 9464-CTO

Language P/N RoHS

CRU

Chinese, Simplified 43T7220 R *

Chinese, Traditional 43T7221

Chinese, Traditional (Hong Kong S.A.R.) 43T7222

Czech 43T7213

Danish 43T7915

Dutch 43T7212

English, U.K. 43T7201

English, U.S. 43T7200

Finnish 43T7214

French 43T7203

German 43T7204

Greek 43T7219

Hungarian 43T7218

Italian 43T7207

Japanese 43T7208

Korean 43T7223

Norwegian 43T7911

Polish 43T7215

Portuguese, Brazilian 43T7206

Russian 43T7216

Russian, English enabled 43T7202

Slovenian 43T7224

Spanish 43T7205

Swedish 43T7913

Turkish 43T7217

Parts list

ThinkPad R60, R60e, R61, and R61i 249

v 8942-CTO, 22x, 32x, 34x, 35x, 36x, 37x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Gx, 3Kx, 3Lx,

3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 9Xx, 9Yx,

AFx, ATx, AUx, AVx, AWx, AXx, AYx, AZx, B2x, B3x, B4x, B5x, B6x, B7x, B8x,

B9x, BAx

v 8943-CTO, 4Cx, 4Dx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Ux, 4Vx, 4Yx, 4Zx, 52x, 53x,

54x, 55x, 5Bx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx,

5Tx, 5Ux, 5Zx, 62x, 63x, 64x, 65x, 9Rx, 9Sx, 9Tx, A6x, A7x, BDx, BEx, BHx, BJx,

BKx, BMx, BQx, BRx, BUx, BVx, BWx, BXx, BYx, BZx, C2x, C3x, C4x, C5x, C6x,

C7x, C8x, C9x, CAx

v 8944-CTO, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px,

6Qx, 6Rx, 6Ux, 6Wx, 6Xx, 6Yx, 6Zx, 73x, 76x, 77x, 78x, 7Bx, 7Dx, 7Kx, 7Lx, 7Mx,

7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, AHx, CBx, CCx, CDx, CEx, CFx, CGx, CHx, CJx,

CKx, CLx, CMx, CNx, CPx, CQx

v 8945-CTO, 7Wx, 7Xx, 86x, 87x, 8Dx, 8Gx, 8Hx, 8Jx, CRx, CSx, CUx, CVx

v 8945-CTO, 7Ux, 7Vx, 7Wx, 7Xx, 84x, 85x, 86x, 87x, 8Dx, 8Gx, 8Hx, 8Jx, CRx, CSx,

CUx, CVx

v 8947-CTO, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Zx,

92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Gx, 9Kx, 9Lx, 9Mx, CWx,

CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx,

DEx, DFx, DGx, DHx,

v 8948-CTO, 22x

v 8949-CTO, 22x

Parts list

250 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Language P/N RoHS

CRU

Chinese, Simplified 44Y2139 R *

Chinese, Traditional 44Y2140

Chinese, Traditional (Hong Kong S.A.R.) 44Y2141

Czech 44Y2132

Danish 44Y2130

Dutch 44Y2131

English, U.K. 44Y2121

English, U.S. 44Y2119

Finnish 44Y2133

French 44Y2122

German 44Y2123

Greek 44Y2138

Hungarian 44Y2137

Italian 44Y2126

Japanese 44Y2127

Korean 44Y2142

Norwegian 44Y2128

Polish 44Y2134

Portuguese 44Y2145

Portuguese, Brazilian 44Y2125

Romanian 44Y2144

Russian 44Y2135

Russian, English enabled 44Y2120

Serbian-Latin 44Y2146

Slovak 44Y2147

Slovenian 44Y2143

Spanish 44Y2124

Swedish 44Y2129

Turkish 44Y2136

Parts list

ThinkPad R60, R60e, R61, and R61i 251

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

v 8948-CTO

v 8949-CTO

Language P/N RoHS

CRU

Chinese, Simplified 44Y2252 R *

Chinese, Traditional 44Y2253

Chinese, Traditional (Hong Kong S.A.R.) 44Y2254

Czech 44Y2245

Danish 44Y2243

Dutch 44Y2244

English, U.K. 44Y2234

English, U.S. 44Y2232

Finnish 44Y2246

French 44Y2235

German 44Y2236

Greek 44Y2251

Hungarian 44Y2250

Italian 44Y2239

Japanese 44Y2240

Korean 44Y2255

Norwegian 44Y2241

Polish 44Y2247

Portuguese 44Y2258

Portuguese, Brazilian 44Y2238

Romanian 44Y2257

Russian 44Y2248

Russian, English enabled 44Y2233

Serbian-Latin 44Y2259

Slovak 44Y2260

Slovenian 44Y2256

Spanish 44Y2237

Swedish 44Y2242

Turkish 44Y2249

Parts list

252 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Windows Vista Business (64 bit) DVDs

Windows Vista Business is preinstalled as the operating system in the following

models:

v 8942-CTO, 38x, 3Ex

v 8943-CTO, 4Ax, 4Bx, 4Ex, 4Fx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Wx, 4Xx, 56x, 57x,

58x, 59x, BBx, BCx, BFx, BGx, BNx, BPx, BSx, BTx

v 8944-CTO, 69x, 6Ex, 6Fx, 6Hx, 6Sx, 6Tx, 6Vx, 7Cx, 7Ex

v 8944-CTO, 69x, 6Ex, 6Fx, 6Hx, 6Sx, 6Tx, 6Vx, 7Cx, 7Ex,

v 8945-CTO, 7Yx, 7Zx, 82x, 83x, 88x, 89x, 8Ax, 8Bx

v 8947-CTO, 8Xx, 8Yx, 9Dx, 9Ex

Language P/N RoHS

CRU

Chinese, Simplified 44Y2168 R *

Chinese, Traditional 44Y2169

Chinese, Traditional (Hong Kong S.A.R.) 44Y2170

Czech 44Y2161

Danish 44Y2159

Dutch 44Y2160

English, U.K. 44Y2150

English, U.S. 44Y2148

Finnish 44Y2162

French 44Y2151

German 44Y2152

Greek 44Y2167

Hungarian 44Y2166

Italian 44Y2155

Japanese 44Y2156

Korean 44Y2171

Norwegian 44Y2157

Polish 44Y2163

Portuguese, Brazilian 44Y2154

Russian 44Y2164

Russian, English enabled 44Y2149

Slovenian 44Y2172

Spanish 44Y2153

Swedish 44Y2158

Turkish 44Y2165

Parts list

ThinkPad R60, R60e, R61, and R61i 253

Windows Vista Ultimate (32 bit) DVDs

Windows Vista Ultimate is preinstalled as the operating system in the following

models:

v 8942-CTO

v 8943-CTO

v 8944-CTO

v 8945-CTO

v 8947-CTO

Language P/N RoHS

CRU

Chinese, Simplified 44Y0884 R *

Chinese, Traditional 44Y0885

Chinese, Traditional (Hong Kong S.A.R.) 44Y0886

Czech 44Y0877

Danish 44Y0875

Dutch 44Y0876

English, U.K. 44Y0866

English, U.S. 44Y0864

Finnish 44Y0878

French 44Y0867

German 44Y0868

Greek 44Y0883

Hungarian 44Y0882

Italian 44Y0871

Japanese 44Y0872

Korean 44Y0887

Norwegian 44Y0873

Polish 44Y0879

Portuguese, Brazilian 44Y0870

Russian 44Y0880

Russian, English enabled 44Y0865

Slovenian 44Y0888

Spanish 44Y0869

Swedish 44Y0874

Turkish 44Y0881

Parts list

254 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Miscellaneous parts

FRU P/N RoHS

CRU

Screw kit (including nylon-coated screws):

v M2 x 2.5mm (black), flat head (14)

v M2 x 3.5mm (silver), small head (19)

v M2 x 3.5mm (black), flat slim head (11)

v M2 x 10mm (black), flat head (5)

v M2 x 12mm (black), flat head (2)

v M2 x 17mm (black), flat head (7)

v M2.5 x 6mm (black), flat head (15)

v M3 x 2.8mm (black), flat head (4)

v M3 x 3mm (black), flat head (2)

v Screw cap, dia. 7mm (9)

v Hex stud (2)

41W5151 R N

Base miscellaneous parts :

v Slide lever, eject

v Ultrabay Steel Bar

v Slide lever spring

v Bracket puller spring

v LED for Ultrabay

v Latch, battery eject

v Spring, battery eject

v Wireless switch lever (14.1-in.)

v Wireless switch lever (15.0-in.)

v Flap, card bus

v Spring, card bus

v Rubber foot (front) (2)

v Rubber foot (rear) (2)

v Insulation sheet, 14.1-in. base cover

v Insulation sheet, 15.0-in. base cover

v Latch, ODD (for R60e)

41W5149 R N

System miscellaneous parts:

v (a) DC in cable

v (b) Modem cable assembly, MDC-1.5

v (c) USB subcard

v USB cable

v USB/IEEE1394 cable

Note: Italicized letters in parentheses are references to the

exploded view on page 117.

41W5150 R N

(continued)

Parts list

ThinkPad R60, R60e, R61, and R61i 255

FRU P/N RoHS

CRU

System board miscellaneous parts (for R60, R61, and R61i):

v 9455-all

v 9456-all

v 9457-all

v 9458-all

v 9459-all

v 9460-all

v 9461-all

v 9462-all

v 9463-all

v 9464-all

v 8942-all

v 8943-all

v 8944-all

v 8945-all

v 8947-all

v Insulator for card bus

v Insulator for dim

v Insulator for planer

v Insulator for battery and CPU

v CPU support plate

v CU tape for Verizon 15-in.model

41W5147 R N

System board miscellaneous parts (for R60e and R61i):

v 0656-all

v 0657-all

v 0658-all

v 0659-all

v Insulator for card bus

v Insulator for dim

v Insulator for planer

v Insulator for battery and CPU

v CPU support plate

41W5148 R N

LCD miscellaneous parts (14.1-in.):

v LCD FPC cable

v LCD FPC tube up

v LCD FPC tube low

v Blanck cover for WWAN

v Screw cap, dia. 7mm (9)

13N7189 R N

LCD miscellaneous parts (15.0-in.):

v LCD FPC cable

v LCD FPC tube up

v LCD FPC tube low

v Blank cover for WWAN

v Blank cover for WLAN MAIN

v Blank cover for WLAN AUX

v Screw cap, dia. 7mm (9)

13N7190 R N

Parts list

256 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

AC adapters

FRU P/N RoHS

CRU

2-pin (90 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxU, xxY)

ASTEC 42T5000 R *

Lite-On 93P5026 R *

Sanken 92P1114 R *

2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxU, xxY)

Delta 92P1155 R *

Lite-On 92P1159 R *

ASTEC 92P1214 R *

3-pin (90 W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV)

OP

ASTEC 92P1104 R *

Lite-On 92P1108 R *

Sanken 92P1112 R *

3-pin (65W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxQ, xxT,

xxV) OP

Delta 92P1153 R *

Lite-On 92P1157 R *

ASTEC 92P1212 R *

Parts list

ThinkPad R60, R60e, R61, and R61i 257

Common parts list

Tools

Tool P/N

Screwdriver kit 95F3598

1/4" drive spinner handle 1650840

1/4" Sq. to 1/4" hex torx adapter 93F2838

TR7-TR-10 tamper resistant torx bits 00P6967

Removal tool antenna RF connector 08K7159

USB 2.0 CD-RW/DVD-ROM combo drive II 40Y8687

USB cable 40Y8704

USB floppy diskette drive for maintenance diskette 05K9283

USB floppy diskette drive tool kit 27L3452

Test card for integrated Smart Card 42W7820

ThinkPad Hardware Maintenance Diskette Version 1.73 or later

Note: Download the file from the following Web site: http://www.lenovo.com/

spm

—

Parts list

258 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

Power cords

A ThinkPad power cord for a specific country or region is usually available only in

that country or region:

For 2-pin power cords:

Region P/N

(Longwell)

P/N (Volex) RoHS

CRU

Argentina, Uruguay, Paraguay 42T5020 42T5105 R *

Brazil 42T5180 42T5183

Canada, U.S. 42T5008 42T5093

Japan 42T5014 42T5099

For 3-pin power cords:

Region P/N

(Longwell)

P/N (Volex) RoHS

CRU

Australia, New Zealand 42T5050 42T5135 R *

Bangladesh, South Africa, Sri Lanka 42T5056 42T5141

China 42T5065 42T5150

Denmark 42T5041 42T5126

Europe 42T5029 42T5114

Hong Kong S.A.R. of China, U.K. 42T5035 42T5120

India 42T5083 42T5168

Israel 42T5062 42T5147

Italy 42T5047 42T5132

Korea 42T5077 42T5162

Philippine, Saudi Arabia, Thailand 42T5004 42T5089

Switzerland 42T5044 42T5129

Taiwan 42T5071 42T5156

Parts list

ThinkPad R60, R60e, R61, and R61i 259

Notices

Lenovo may not offer the products, services, or features discussed in this

document in all countries. Consult your local Lenovo representative for

information on the products and services currently available in your area. Any

reference to a Lenovo product, program, or service is not intended to state or

imply that only that Lenovo product, program, or service may be used. Any

functionally equivalent product, program, or service that does not infringe any

Lenovo intellectual property right may be used instead. However, it is the user’s

responsibility to evaluate and verify the operation of any other product, program,

or service.

Lenovo may have patents or pending patent applications covering subject matter

described in this document. The furnishing of this document does not give you

any license to these patents. You can send license inquiries, in writing, to:

Lenovo (United States), Inc.

1009 Think Place - Building One

Morrisville, NC 27560

U.S.A.

Attention: Lenovo Director of Licensing

LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF

ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some

jurisdictions do not allow disclaimer of express or implied warranties in certain

transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors.

Changes are periodically made to the information herein; these changes will be

incorporated in new editions of the publication. Lenovo may make improvements

and/or changes in the product(s) and/or the program(s) described in this

publication at any time without notice.

The products described in this document are not intended for use in implantation

or other life support applications where malfunction may result in injury or death

to persons. The information contained in this document does not affect or change

Lenovo product specifications or warranties. Nothing in this document shall

operate as an express or implied license or indemnity under the intellectual

property rights of Lenovo or third parties. All information contained in this

document was obtained in specific environments and is presented as an

illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it

believes appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for

convenience only and do not in any manner serve as an endorsement of those Web

sites. The materials at those Web sites are not part of the materials for this Lenovo

product, and use of those Web sites is at your own risk.

Any performance data contained herein was determined in a controlled

environment. Therefore, the result obtained in other operating environments may

vary significantly. Some measurements may have been made on development-level

systems and there is no guarantee that these measurements will be the same on

generally available systems. Furthermore, some measurements may have been

Notices

260 MT ThinkPad® ThinkPad R60, R60e, R61, and R61i

estimated through extrapolation. Actual results may vary. Users of this document

should verify the applicable data for their specific environment.

Trademarks

The following terms are trademarks of Lenovo in the United States, other countries

or both:

Lenovo

Active Protection System

Rescue and Recovery

ThinkLight®

ThinkPad®

ThinkVantage®

TrackPoint®

Ultrabay

Ultrabay Enhanced

Ultrabay 2000

Ultrabay Plus

UltraNav®

The following terms are trademarks of the International Business Machines

Corporation in the United States, other countries, or both:

IBM (used under license)

The following terms are trademarks of Microsoft Corporation in the United States,

other countries, or both:

Windows®

Windows Vista®

The following are trademarks of Intel Corporation or its subsidiaries in the United

States, other countries, or both:

Intel®

Intel® Core™

Intel® Core™ Duo

Intel® Core™ Solo

Intel® Core™ 2 Duo

Celeron®

Other company, product, or service names may be the trademarks or service marks

of others.

Notices

ThinkPad R60, R60e, R61, and R61i 261

Part Number: 42X3749_02

(1P) P/N: 42X3749_02

Lenovo Laptop R60E Users Manual MT ThinkPadｮ ThinkPad R60, R60e, R61, And R61i

R61I to the manual e9e27f73-dd4e-4ce4-a926-6640e766cccd

Navigation menu

Versions of this User Manual:

Views

Navigation
