ThinkPad X200, X200s, X200si, X201,
X201i, and X201s
Hardware Maintenance Manual
ThinkPad X200, X200s, X200si, X201,
X201i, and X201s
Hardware Maintenance Manual
Note
Before using this information and the product it supports, be sure to read the general information under “Notices” on page
311.
Sixth Edition (February 2010)
© Copyright Lenovo 2008, 2010.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted
rights to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant a General Services Administration ″GSA″contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.
© Lenovo 2008, 2010
Contents
About this manual ..........v
Safety information ..........1
General safety ..............2
Electrical safety .............3
Safety inspection guide ...........5
Handling devices that are sensitive to electrostatic
discharge ...............6
Grounding requirements ..........6

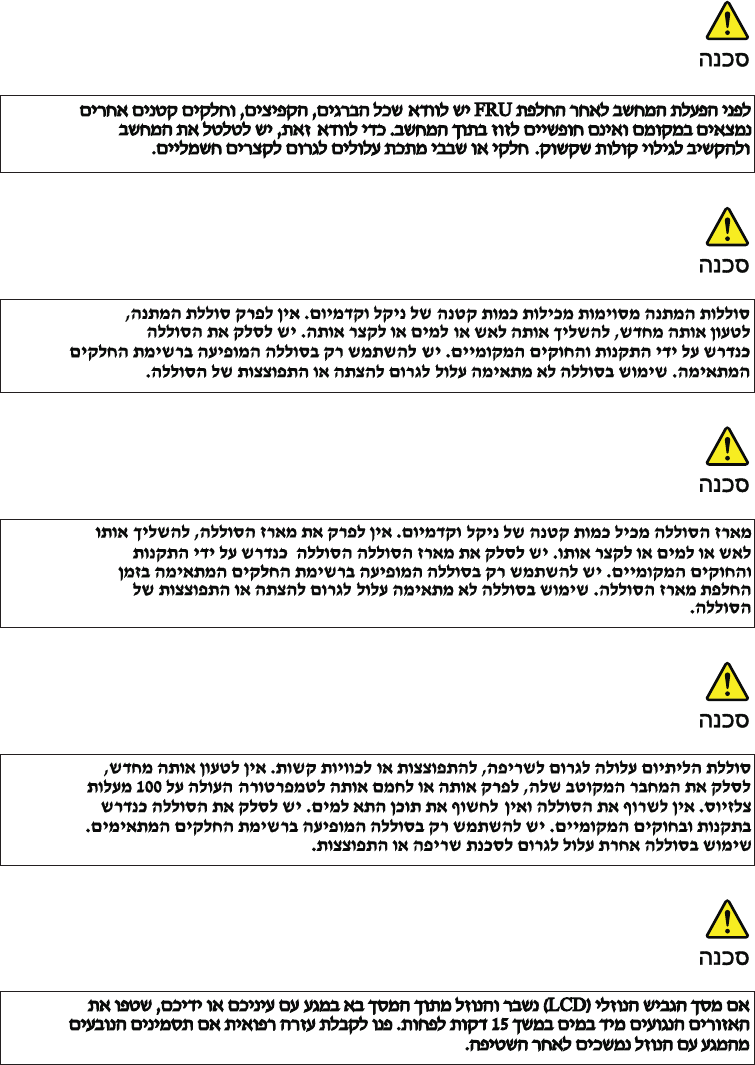

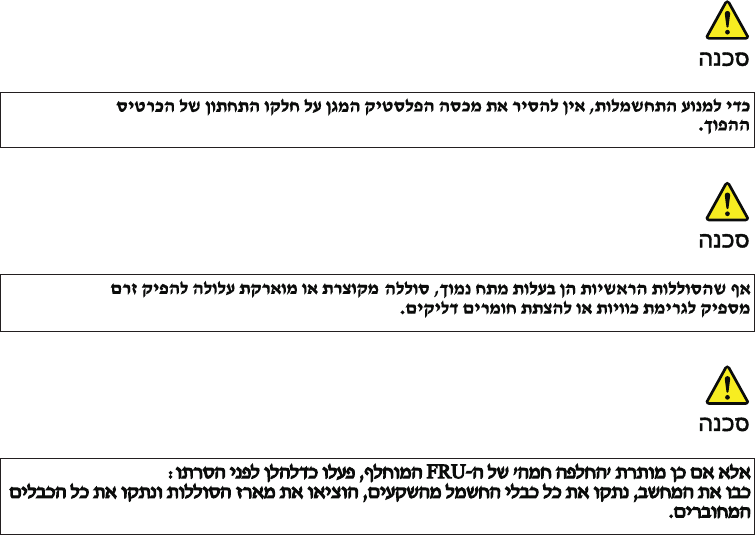

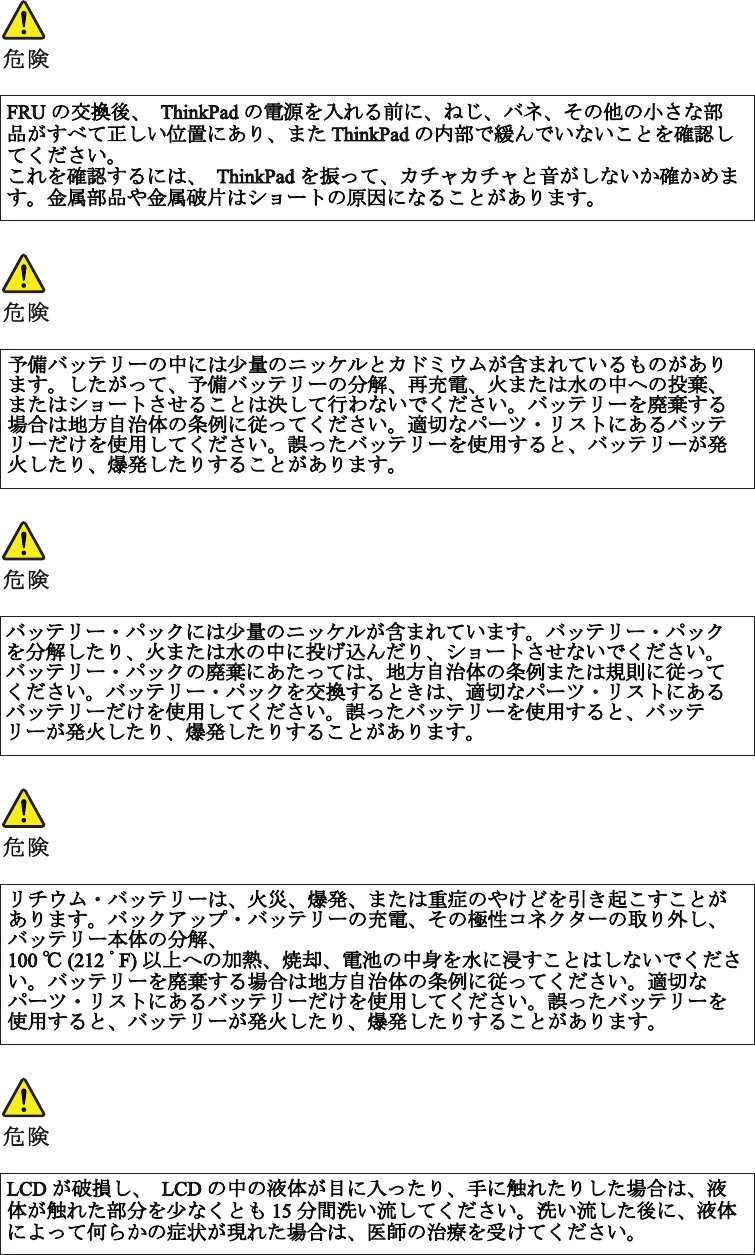

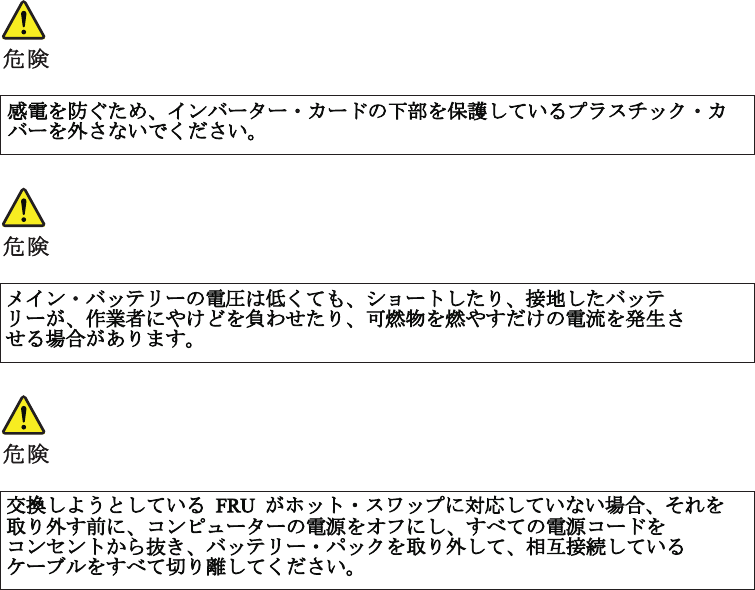

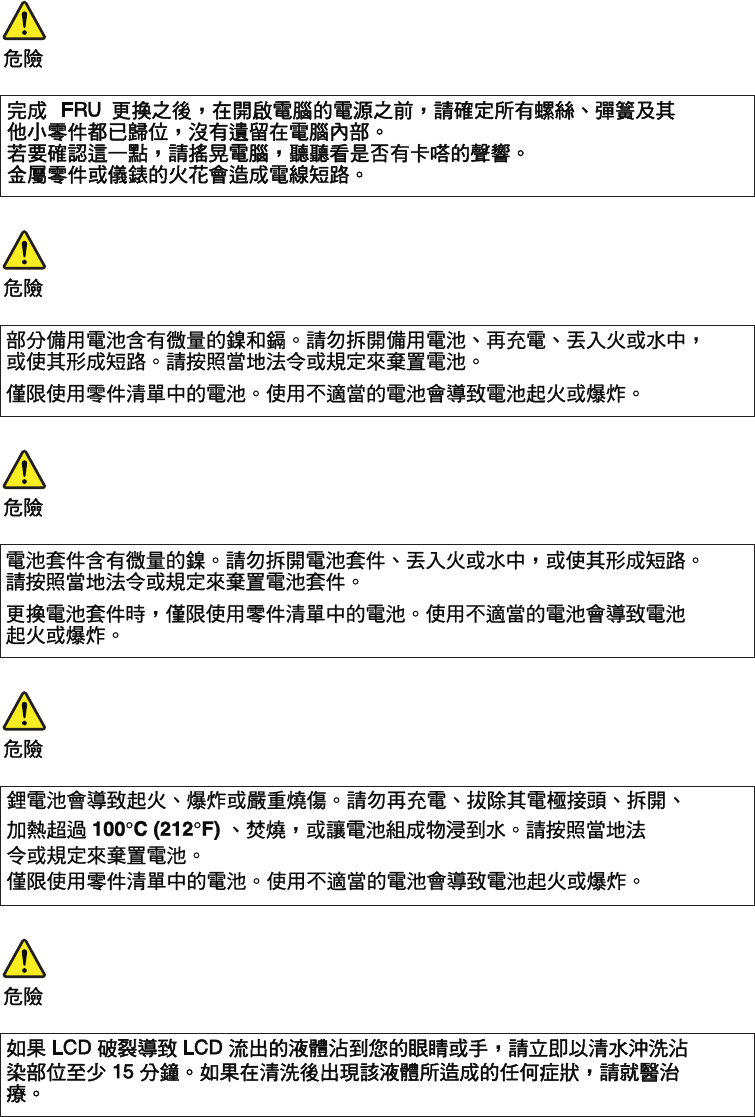

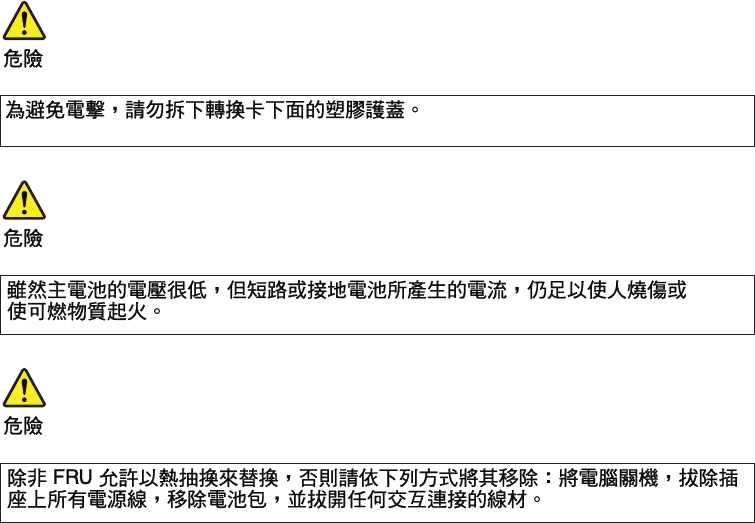

Safety notices (multilingual translations) .....7

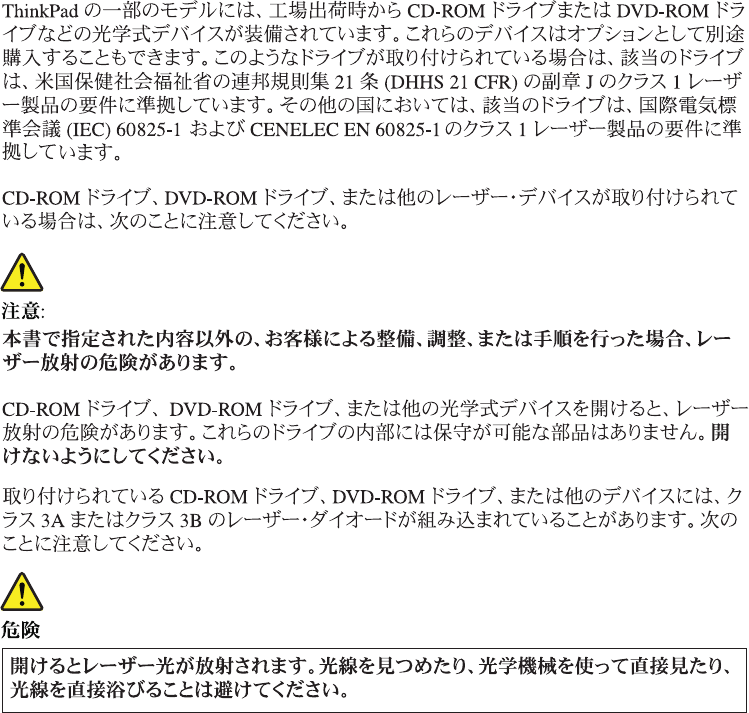

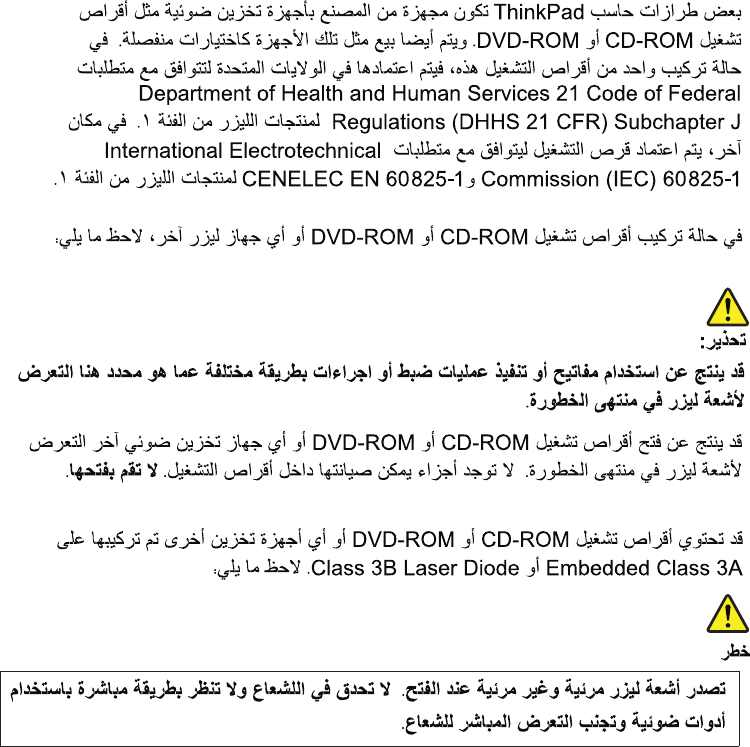

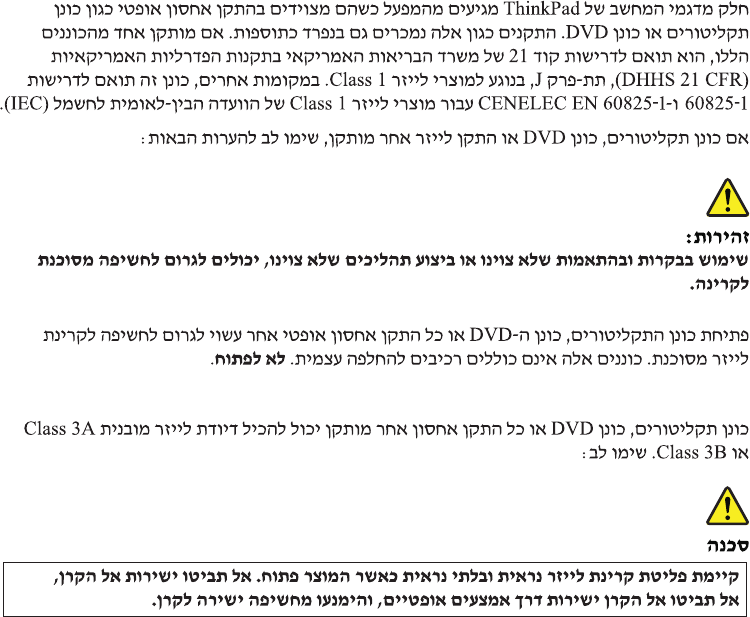

Laser compliance statement (multilingual
translations) ..............28
Important service information .....39
Strategy for replacing FRUs .........39
Strategy for replacing a hard disk drive ....40
Important notice for replacing a system board . . 40
How to use error message ........40
Strategy for replacing FRUs for CTO, CMV, and
GAV.................41
Product definition ...........41
FRU identification for CTO, CMV, and GAV
products ..............41
General checkout ..........43
What to do first .............44
Checkout guide .............45
Diagnostics using PC-Doctor for DOS ....45
Lenovo ThinkVantage Toolbox (Lenovo System
Toolbox) ..............48
PC-Doctor for Windows .........48
PC-Doctor for Rescue and Recovery .....49
FRU tests ..............50
Power system checkout ..........52
Checking the ac adapter .........52
Checking operational charging .......53
Checking the battery pack ........53
Checking the backup battery .......54
Related service information......55
Restoring the factory contents by using Product
Recovery discs .............55
Restoring the factory contents by using Recovery
Disc Set ...............56
Passwords ...............57
Power-on password ..........57
Hard-disk password ..........57
Supervisor password ..........58
How to remove the power-on password ....58
How to remove the hard-disk password ....59
Power management ...........60
Screen blank mode ...........60
Sleep (Standby) mode ..........60
Hibernation mode ...........61
Symptom-to-FRU index ..........62
Numeric error codes ..........62
Error messages ............66
Beep symptoms ............67
No-beep symptoms...........67
LCD-related symptoms .........68
Intermittent problems ..........69
Undetermined problems .........69
Status indicators ..........71
Fn key combinations ........75
FRU replacement notices .......79
Screw notices ..............79
Retaining serial numbers ..........80
Restoring the serial number of the system unit 80
Retaining the UUID ..........80
Reading or writing the ECA information . . . 81
Removing and replacing a FRU ....83
Before servicing ThinkPad X200, X200s, X200si,
X201, X201i, and X201s ..........84
1010 Battery pack ............85
1020 Hard disk drive (HDD) cover, HDD, and HDD
rubber rails or solid state drive (SSD) and storage
converter ...............87

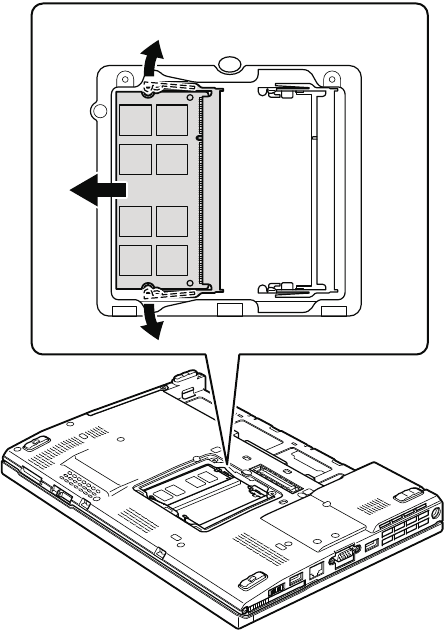

1030 DIMM ..............91

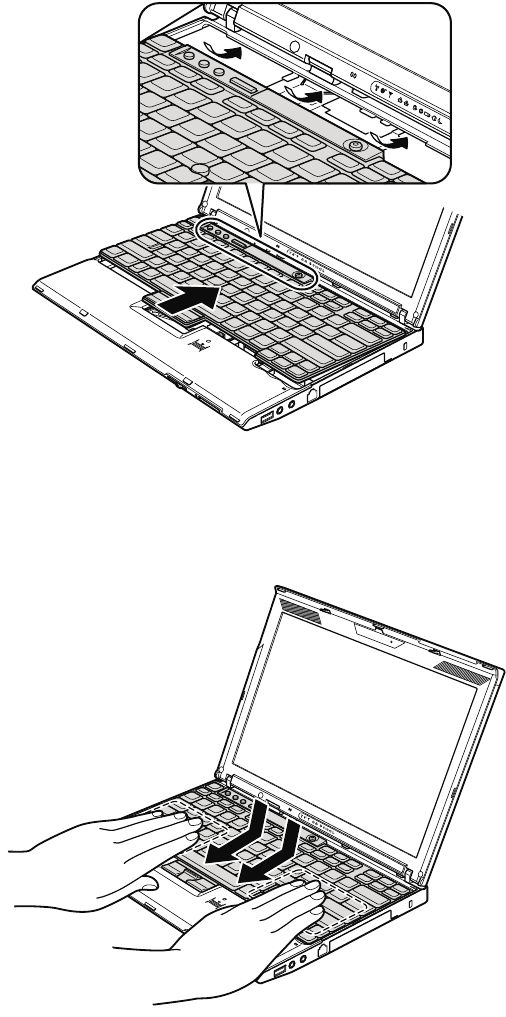

1040 Keyboard .............94
1050 Palm rest or palm rest with fingerprint reader 97
1060 Backup battery ...........100
1070 PCI Express Mini Card for wireless
LAN/WiMAX .............102
1080 PCI Express Mini Card for wireless WAN . . 105
1090 Intel Turbo Memory Minicard or Wireless
USB PCI Express Half-Mini Card .......107
1100 Keyboard bezel ...........109
1110 Monaural speaker assembly (for X200, X200s,
X201s, and X201si)............110
1120 I/O card assembly ..........111
1130 LCD assembly ...........114
1140 Base cover assembly and stereo speaker
assembly for X201 and X201i ........118
1150 Systemboard, DC-in connector, fan, and
ExpressCard slot assembly .........124
2010 LCD front bezel ...........138
2020 Inverter card or LED board .......141
2030 Bluetooth daughter card (BDC-2.1) ....143
2040 Integrated camera ..........144
2050 LCD panel, LCD brackets, and LCD cable . . 145
2060 Hinges and hinge brackets .......151
2070 LCD rear cover and wireless antenna cables 154
Locations .............161
© Copyright Lenovo 2008, 2010 iii
Front view ..............161
Rear view ..............162
Bottom view..............163
Rear view (ThinkPad X200 UltraBase) .....164
Bottom view (ThinkPad X200 UltraBase) ....165
Parts list .............167

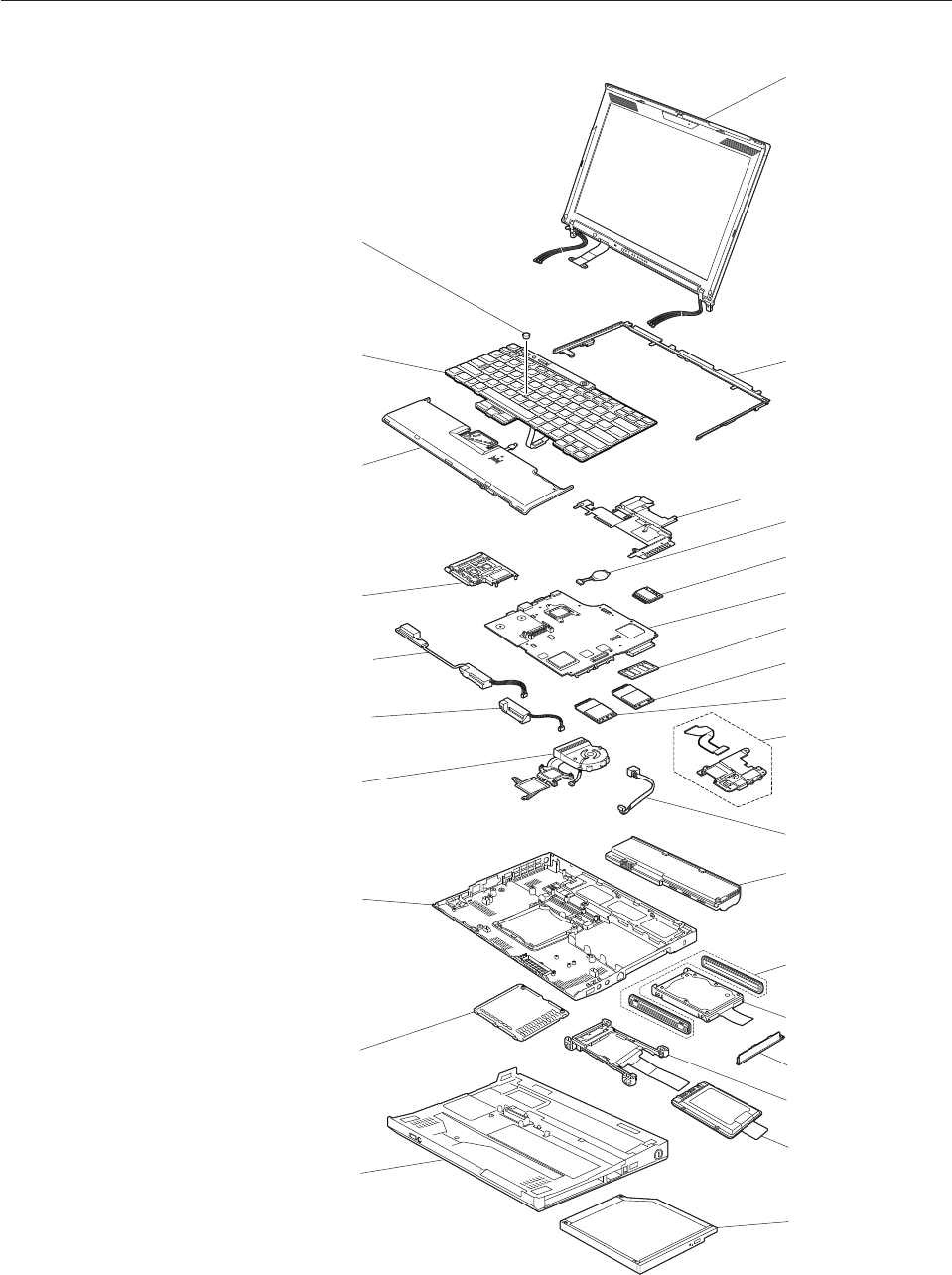

Overall ...............168

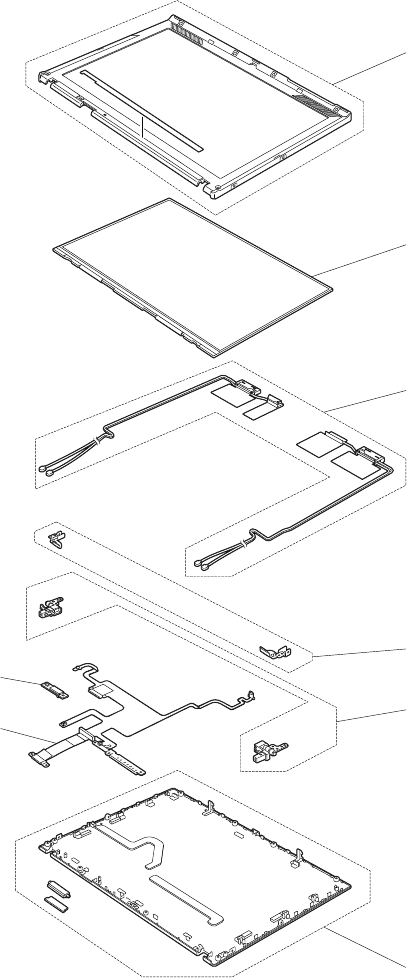

LCD FRUs ..............253
12.1-in. WXGA TFT ..........254
12.1-in. WXGA+ TFT ..........281
Keyboard...............286
Miscellaneous parts ...........287
AC adapters..............287
Power cords ..............288
Recovery discs .............289
Windows XP Professional (32 bit) DVDs . . . 289
Windows Vista Home Basic (32 bit) DVDs. . . 292
Windows Vista Home Premium (32 bit) DVDs 293
Windows Vista Business (32 bit) DVDs ....294
Windows Vista Business (64 bit) DVDs ....296
Windows Vista Ultimate (32 bit) DVDs ....297
Windows 7 Home Basic (32 bit) DVDs ....298
Windows 7 Home Premium (32 bit) DVDs . . 300
Windows 7 Home Premium (64 bit) DVDs . . 302
Windows 7 Professional (32 bit) DVDs ....304
Windows 7 Professional (64 bit) DVDs ....308
Common service tools ..........310
Notices ..............311
Trademarks ..............312
iv ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
About this manual
This manual contains service and reference information for the following
ThinkPad®products.
ThinkPad X200
MT 7454, 7455, 7457, 7458, 7459, 2023, and 2024
ThinkPad X200s and X200si
MT 7462, 7465, 7466, 7469, 7470, 2046, and 2047
ThinkPad X201 and X201i
MT 3249, 3323, 3357, 3626, 3680, 3712, and 4492
ThinkPad X201s
MT 5129, 5143, 5385, 5397, 5413, 5442, and 5446
Use this manual along with the advanced diagnostic tests to troubleshoot
problems.
Important:
This manual is intended only for trained service technicians who are familiar
with ThinkPad products. Use this manual along with the advanced diagnostic
tests to troubleshoot problems effectively.
Before servicing a ThinkPad product, be sure to read all the information under
“Safety information” on page 1 and “Important service information” on page 39.
© Copyright Lenovo 2008, 2010 v
vi ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety information
This chapter presents following safety information that you need to be familiar
with before you service a ThinkPad Notebook.
v“General safety” on page 2
v“Electrical safety” on page 3
v“Safety inspection guide” on page 5
v“Handling devices that are sensitive to electrostatic discharge” on page 6
v“Grounding requirements” on page 6
v“Safety notices (multilingual translations)” on page 7
v“Laser compliance statement (multilingual translations)” on page 28
© Copyright Lenovo 2008, 2010 1
General safety
Follow these rules to ensure general safety:
vObserve good housekeeping in the area of the machines during and after
maintenance.
vWhen lifting any heavy object:
1. Make sure that you can stand safely without slipping.
2. Distribute the weight of the object equally between your feet.
3. Use a slow lifting force. Never move suddenly or twist when you attempt to
lift.
4. Lift by standing or by pushing up with your leg muscles; this action removes
the strain from the muscles in your back. Do not attempt to lift any object that
weighs more than 16 kg (35 lb) or that you think is too heavy for you.
vDo not perform any action that causes hazards to the customer, or that makes
the equipment unsafe.
vBefore you start the machine, make sure that other service technicians and the
customer’s personnel are not in a hazardous position.
vPlace removed covers and other parts in a safe place, away from all personnel,
while you are servicing the machine.
vKeep your toolcase away from walk areas so that other people will not trip over
it.
vDo not wear loose clothing that can be trapped in the moving parts of a
machine. Make sure that your sleeves are fastened or rolled up above your
elbows. If your hair is long, fasten it.
vInsert the ends of your necktie or scarf inside clothing or fasten it with a
nonconductive clip, about 8 centimeters (3 inches) from the end.
vDo not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for your
clothing.
Attention: Metal objects are good electrical conductors.
vWear safety glasses when you are hammering, drilling, soldering, cutting wire,
attaching springs, using solvents, or working in any other conditions that might
be hazardous to your eyes.
vAfter service, reinstall all safety shields, guards, labels, and ground wires.
Replace any safety device that is worn or defective.
vReinstall all covers correctly before returning the machine to the customer.
vFan louvers on the machine help to prevent overheating of internal components.
Do not obstruct fan louvers or cover them with labels or stickers.
2ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Electrical safety
Observe the following rules when working on electrical equipment.
vFind the room emergency power-off (EPO) switch, disconnecting switch, or
electrical outlet. If an electrical accident occurs, you can then operate the switch
or unplug the power cord quickly.
vDo not work alone under hazardous conditions or near equipment that has
hazardous voltages.
vDisconnect all power before:
– Performing a mechanical inspection
– Working near power supplies
– Removing or installing main units
vBefore you start to work on the machine, unplug the power cord. If you cannot
unplug it, ask the customer to power-off the wall box that supplies power to the
machine, and to lock the wall box in the off position.
vIf you need to work on a machine that has exposed electrical circuits, observe the
following precautions:
– Ensure that another person, familiar with the power-off controls, is near you.
Attention: Another person must be there to switch off the power, if
necessary.
– Use only one hand when working with powered-on electrical equipment;
keep the other hand in your pocket or behind your back.
Attention: An electrical shock can occur only when there is a complete
circuit. By observing the above rule, you may prevent a current from passing
through your body.
– When using testers, set the controls correctly and use the approved probe
leads and accessories for that tester.
– Stand on suitable rubber mats (obtained locally, if necessary) to insulate you
from grounds such as metal floor strips and machine frames.
Observe the special safety precautions when you work with very high voltages;
Instructions for these precautions are in the safety sections of maintenance
information. Use extreme care when measuring high voltages.
vRegularly inspect and maintain your electrical hand tools for safe operational
condition.
vDo not use worn or broken tools and testers.
vNever assume that power has been disconnected from a circuit. First, check that it
has been powered off.
vAlways look carefully for possible hazards in your work area. Examples of these
hazards are moist floors, nongrounded power extension cables, power surges,
and missing safety grounds.
Important:
Use only approved tools and test equipment. Some hand tools have handles
covered with a soft material that does not insulate you when working with live
electrical currents.
Many customers have, near their equipment, rubber floor mats that contain small
conductive fibers to decrease electrostatic discharges. Do not use this type of mat
to protect yourself from electrical shock.
Safety information 3
vDo not touch live electrical circuits with the reflective surface of a plastic dental
mirror. The surface is conductive; such touching can cause personal injury and
machine damage.
vDo not service the following parts with the power on when they are removed
from their normal operating places in a machine:
– Power supply units
– Pumps
– Blowers and fans
– Motor generators
– Similar units to listed above
This practice ensures correct grounding of the units.
vIf an electrical accident occurs:
– Use caution; do not become a victim yourself.
– Switch off power.
– Send another person to get medical aid.
4ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety inspection guide
The purpose of this inspection guide is to assist you in identifying potentially
unsafe conditions. As each machine was designed and built, required safety items
were installed to protect users and service technicians from injury. This guide
addresses only those items. You should use good judgment to identify potential
safety hazards due to attachment of non-ThinkPad features or options not covered
by this inspection guide.
If any unsafe conditions are present, you must determine how serious the apparent
hazard could be and whether you can continue without first correcting the
problem.
Consider these conditions and the safety hazards they present:
vElectrical hazards, especially primary power (primary voltage on the frame can
cause serious or fatal electrical shock)
vExplosive hazards, such as a damaged CRT face or a bulging capacitor
vMechanical hazards, such as loose or missing hardware
To determine whether there are any potentially unsafe conditions, use the
following checklist at the beginning of every service task. Begin the checks with
the power off, and the power cord disconnected.
Checklist:
1. Check exterior covers for damage (loose, broken, or sharp edges).
2. Power off the computer. Disconnect the power cord.
3. Check the power cord for:
a. A third-wire ground connector in good condition. Use a meter to measure
third-wire ground continuity for 0.1 ohm or less between the external
ground pin and the frame ground.
b. The power cord should be the type specified in the parts list.
c. Insulation must not be frayed or worn.
4. Check for cracked or bulging batteries.
5. Remove the cover.
6. Check for any obvious non-ThinkPad alterations. Use good judgment as to the
safety of any non-ThinkPad alterations.
7. Check inside the unit for any obvious unsafe conditions, such as metal filings,
contamination, water or other liquids, or signs of fire or smoke damage.
8. Check for worn, frayed, or pinched cables.
9. Check that the power-supply cover fasteners (screws or rivets) have not been
removed or tampered with.
Safety information 5
Handling devices that are sensitive to electrostatic discharge
Any computer part containing transistors or integrated circuits (ICs) should be
considered sensitive to electrostatic discharge (ESD.) ESD damage can occur when
there is a difference in charge between objects. Protect against ESD damage by
equalizing the charge so that the machine, the part, the work mat, and the person
handling the part are all at the same charge.
When handling ESD-sensitive parts:
vKeep the parts in protective packages until they are inserted into the product.
vAvoid contact with other people.
vWear a grounded wrist strap against your skin to eliminate static on your body.
vPrevent the part from touching your clothing. Most clothing is insulative and
retains a charge even when you are wearing a wrist strap.
vUse a grounded work mat to provide a static-free work surface. The mat is
especially useful when handling ESD-sensitive devices.
vSelect a grounding system, such as those listed below, to provide protection that
meets the specific service requirement.
– Attach the ESD ground clip to any frame ground, ground braid, or green-wire
ground.
– When working on a double-insulated or battery-operated system, use an ESD
common ground or reference point. You can use coax or connector-outside
shells on these systems.
– Use the round ground prong of the ac plug on ac-operated computers.
Grounding requirements
Electrical grounding of the computer is required for operator safety and correct
system function. Proper grounding of the electrical outlet can be verified by a
certified electrician.
Notes:
1. Use product-specific ESD procedures when they exceed the requirements
noted here.
2. Make sure that the ESD protective devices you use have been certified (ISO
9000) as fully effective.
Note:
The use of a grounding system to guard against ESD damage is desirable but not
necessary.
6ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety notices (multilingual translations)
The safety notices in this section are provided in the following languages:
vEnglish
vArabic
vBrazilian Portuguese
vFrench
vGerman
vHebrew
vJapanese
vKorean
vSpanish
vTraditional Chinese
Safety information 7
DANGER
Before the computer is powered on after FRU replacement, make sure all screws,
springs, and other small parts are in place and are not left loose inside the computer.
Verify this by shaking the computer and listening for rattling sounds. Metallic parts or
metal flakes can cause electrical shorts.
DANGER
Some standby batteries contain a small amount of nickel and cadmium. Do not
disassemble a standby battery, recharge it, throw it into fire or water, or short-circuit it.
Dispose of the battery as required by local ordinances or regulations. Use only the
battery in the appropriate parts listing. Use of an incorrect battery can result in ignition
or explosion of the battery.
DANGER
The battery pack contains small amounts of nickel. Do not disassemble it, throw it into
fire or water, or short-circuit it. Dispose of the battery pack as required by local
ordinances or regulations. Use only the battery in the appropriate parts listing when
replacing the battery pack. Use of an incorrect battery can result in ignition or explosion
of the battery.
DANGER
The lithium battery can cause a fire, an explosion, or a severe burn. Do not recharge it,
remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate it,
or expose its cell contents to water. Dispose of the battery as required by local
ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an
incorrect battery can result in ignition or explosion of the battery.
DANGER
If the LCD breaks and the fluid from inside the LCD gets into your eyes or on your
hands, immediately wash the affected areas with water for at least 15 minutes. Seek
medical care if any symptoms from the fluid are present after washing.
8ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
DANGER
To avoid shock, do not remove the plastic cover that protects the lower part of the
inverter card.
DANGER
Though the main batteries have low voltage, a shorted or grounded battery can produce
enough current to burn personnel or combustible materials.
DANGER
Unless hot swap is allowed for the FRU being replaced, do as follows before removing
it: power off the computer, unplug all power cords from electrical outlets, remove the
battery pack, and disconnect any interconnecting cables.
Safety information 9
10 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety information 11
PERIGO
Antes de ligar o computador após a substituição da FRU, certifique-se de que todos os
parafusos, molas e outras peças pequenas estejam no lugar e não estejam soltos dentro
do computador. Verifique isso sacudindo o computador e procurando ouvir sons de
peças soltas. Peças metálicas ou lascas de metal podem causar curto-circuito.
PERIGO
Algumas baterias reserva contêm uma pequena quantidade de níquel e cádmio. Não
desmonte uma bateria reserva, recarregue-a, jogue-a no fogo ou na água, ou deixe-a
entrar em curto-circuito. Descarte a bateria conforme requerido pelas leis ou
regulamentos locais. Use somente a bateria nas partes listadas apropriadas. O uso de
uma bateria incorreta pode resultar em combustão ou explosão da bateria.
PERIGO
O pacote da bateria contém uma pequena quantidade de níquel. Não o desmonte,
jogue-o no fogo ou na água, ou deixe-o entrar em curto-circuito. Descarte o pacote da
bateria conforme requerido pelas leis ou regulamentos locais. Use somente a bateria nas
partes listadas apropriadas ao substituir o pacote da bateria. O uso de uma bateria
incorreta pode resultar em combustão ou explosão da bateria.
PERIGO
A bateria de lítio pode causar incêndio, explosão ou graves queimaduras. Não a
recarregue, remova seu conector polarizado, desmonte-a, aqueça-a acima de 100°C
(212°F), incinere-a, ou exponha o conteúdo de sua célula à água. Descarte a bateria
conforme requerido pelas leis ou regulamentos locais. Use somente a bateria nas partes
listadas apropriadas. O uso de uma bateria incorreta pode resultar em combustão ou
explosão da bateria.
PERIGO
Se o LCD quebrar e o fluido de dentro dele entrar em contato com seus olhos ou com
suas mãos, lave as áreas afetadas imediatamente com água durante pelo menos 15
minutos. Procure cuidados médicos se algum sintoma causado pelo fluido surgir após a
lavagem.
12 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
PERIGO
Para evitar choque elétrico, não remova a capa plástica que protege a parte inferior da
placa inversora.
PERIGO
Embora as principais baterias possuam baixa voltagem, uma bateria em curto-circuito ou
aterrada pode produzir corrente o bastante para queimar materiais de pessoal ou
inflamáveis.
PERIGO
A menos que uma hot swap seja permitida para a FRU que está sendo substituída, faça
o seguinte antes de removê-la: desligue o computador, desconecte todos os cabos de
energia das tomadas, remova o pacote de baterias e desconecte quaisquer cabos de
interconexão.
Safety information 13
DANGER
Avant de remettre l’ordinateur sous tension après remplacement d’une unité en clientèle,
vérifiez que tous les ressorts, vis et autres pièces sont bien en place et bien fixées. Pour
ce faire, secouez l’unité et assurez-vous qu’aucun bruit suspect ne se produit. Des pièces
métalliques ou des copeaux de métal pourraient causer un court-circuit.
DANGER
Certaines batteries de secours contiennent du nickel et du cadmium. Ne les démontez
pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne les mettez pas en
court-circuit. Pour les mettre au rebut, conformez-vous à la réglementation en vigueur.
Lorsque vous remplacez la pile de sauvegarde ou celle de l’horloge temps réel, veillez à
n’utiliser que les modèles cités dans la liste de pièces détachées adéquate. Une batterie
ou une pile inappropriée risque de prendre feu ou d’exploser.
DANGER
La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni à l’eau. Ne
la mettez pas en court-circuit. Pour la mettre au rebut, conformez-vous à la
réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n’utiliser que
les modèles cités dans la liste de pièces détachées adéquate. En effet, une batterie
inappropriée risque de prendre feu ou d’exploser.
DANGER
La pile de sauvegarde contient du lithium. Elle présente des risques d’incendie,
d’explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son connecteur
polarisé et ne la démontez pas. Ne l’exposez pas à une temperature supérieure à 100°C,
ne la faites pas brûler et n’en exposez pas le contenu à l’eau. Mettez la pile au rebut
conformément à la réglementation en vigueur. Une pile inappropriée risque de prendre
feu ou d’exploser.
DANGER
Si le panneau d’affichage à cristaux liquides se brise et que vous recevez dans les yeux
ou sur les mains une partie du fluide, rincez-les abondamment pendant au moins
quinze minutes. Consultez un médecin si des symptômes persistent après le lavage.
14 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
DANGER
Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique
protégeant la partie inférieure de la carte d’alimentation.
DANGER
Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la mise à
la masse d’une batterie peut produire suffisamment de courant pour brûler des
matériaux combustibles ou causer des brûlures corporelles graves.
DANGER
Si le remplacement à chaud n’est pas autorisé pour l’unité remplaçable sur site que vous
remplacez, procédez comme suit avant de retirer l’unité : mettez l’ordinateur hors
tension, débranchez tous les cordons d’alimentation des prises de courant, retirez le bloc
de batterie et déconnectez tous les câbles d’interconnexion.
Safety information 15
VORSICHT
Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird,
muß sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile
fehlen oder im Gehäuse vergessen wurden. Der Computer muß geschüttelt und
auf Klappergeräusche geprüft werden. Metallteile oder-splitter können
Kurzschlüsse erzeugen.
VORSICHT
Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet, kann
geringe Mengen Nickel und Cadmium enthalten. Sie darf nur durch die
Verkaufsstelle oder den IBM Kundendienst ausgetauscht werden. Sie darf nicht
zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt
werden. Die Batterie kann schwere Verbrennungen oder Verätzungen
verursachen. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll
beachten. Beim Ersetzen der Bereitschafts-oder Systembatterie nur Batterien des
Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher
Batterien kann zu Entzündung oder Explosion führen.
VORSICHT
Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,
wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden.
Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten.
Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der
Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu
Entzündung oder Explosion führen.
VORSICHT
Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden,
explodieren oder schwere Verbrennungen hervorrufen. Batterien dieses Typs
dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden.
Auch darf ihr Inhalt nicht mit Wasser in Verbindung gebracht oder der zur
richtigen Polung angebrachte Verbindungsstecker entfernt werden. Bei der
Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim
Ersetzen der Batterie nur Batterien des Typs verwenden, der in der
Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu
Entzündung oder Explosion führen.
16 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
VORSICHT
Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der
Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Der
LCD-Bildschirm besteht aus Glas und kann zerbrechen, wenn er unsachgemäß
behandelt wird oder der Computer auf den Boden fällt. Wenn der Bildschirm
beschädigt ist und die darin befindliche Flüssigkeit in Kontakt mit Haut und
Augen gerät, sollten die betroffenen Stellen mindestens 15 Minuten mit Wasser
abgespült und bei Beschwerden anschließend ein Arzt aufgesucht werden.
VORSICHT
Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der
Spannungswandlerplatine umgibt, nicht entfernen.
VORSICHT
Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei
Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu
entzünden oder Verletzungen bei Personen hervorzurufen.
VORSICHT
Wenn ein Austausch der FRU bei laufendem Betrieb nicht erlaubt ist, gehen
Sie beim Austausch der FRU wie folgt vor: Schalten Sie den Computer aus,
ziehen Sie alle Netzkabel von den Netzsteckdosen ab, entfernen Sie den Akku
und ziehen Sie alle miteinander verbundenen Kabel ab.
Safety information 17
18 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety information 19
20 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety information 21
22 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety information 23
PELIGRO
Antes de encender el sistema despues de sustituir una FRU, compruebe que todos los
tornillos, muelles y demás piezas pequeñas se encuentran en su sitio y no se encuentran
sueltas dentro del sistema. Compruébelo agitando el sistema y escuchando los posibles
ruidos que provocarían. Las piezas metálicas pueden causar cortocircuitos eléctricos.
PELIGRO
Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio. No las
desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal
como dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de
piezas. La utilización de una batería no apropiada puede provocar la ignición o
explosión de la misma.
PELIGRO
Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni recargue, ni
las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como dispone la normativa
local. Utilice sólo baterías que se encuentren en la lista de piezas al sustituir la batería.
La utilización de una batería no apropiada puede provocar la ignición o explosión de la
misma.
PELIGRO
La batería de repuesto es una batería de litio y puede provocar incendios, explosiones o
quemaduras graves. No la recargue, ni quite el conector polarizado, ni la desmonte, ni
caliente por encima de los 100°C (212°F), ni la incinere ni exponga el contenido de sus
celdas al agua. Deséchela tal como dispone la normativa local.
PELIGRO
Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o sus
manos, lave inmediatamente las áreas afectadas con agua durante 15 minutos como
mínimo. Obtenga atención medica si se presenta algún síntoma del fluido despues de
lavarse.
24 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
PELIGRO
Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la
tarjeta invertida.
PELIGRO
Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada o con
contacto a tierra puede producir la corriente suficiente como para quemar material
combustible o provocar quemaduras en el personal.
PELIGRO
Salvo que se permita el intercambio en caliente para la unidad sustituible localmente,
realice lo siguiente antes de extraerla: apague el sistema, desconecte todos los cables de
alimentación de las tomas de alimentación eléctrica, extraiga la batería y desconecte los
cables de interconexión.
Safety information 25
26 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety information 27
Laser compliance statement (multilingual translations)
The laser compliance statements in this section are provided in the following
languages:
vEnglish
vArabic
vBrazilian Portuguese
vFrench
vGerman
vHebrew
vJapanese
vKorean
vSpanish
vTraditional Chinese
Some models of ThinkPad Notebook are equipped from the factory with an optical
storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are
also sold separately as options. If one of these drives is installed, it is certified in
the U.S. to conform to the requirements of the Department of Health and Human
Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1
laser products. Elsewhere, the drive is certified to conform to the requirements of
the International Electrotechnical Commission (IEC) 60825-1 and CENELEC EN
60825-1 for Class 1 laser products.
If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note
the following:
CAUTION:
Use of controls or adjustments or performance of procedures other than those
specified herein might result in hazardous radiation exposure.
Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage
device could result in exposure to hazardous laser radiation. There are no
serviceable parts inside those drives. Do not open.
A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may
contain an embedded Class 3A or Class 3B laser diode. Note the following:
DANGER
Emits visible and invisible laser radiation when open. Do not stare into the
beam, do not view directly with optical instruments, and avoid direct exposure
to the beam.
28 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety information 29
Alguns modelos de computador ThinkPad são equipados na fábrica com um
dispositivo de armazenamento ótico, como uma unidade de CD-ROM ou de
DVD-ROM. Tais dispositivos também são vendidos separadamente como
opcionais. Se uma dessas unidades estiver instalada, ela é certificada nos Estados
Unidos em conformidade com os requisitos do Department of Health and Human
Services 21 Code of Federal Regulations (DHHS 21 CFR), Subcapítulo J, para
produtos a laser da Classe 1. Em outros países, a unidade é certificada em
conformidade com os requisitos da International Electrotechnical Commission
(IEC) 60825-1 e CENELEC EN 60825-1 para produtos a laser da Classe 1.
Se uma unidade de CD-ROM, uma unidade de DVD-ROM, ou outro dispositivo de
laser estiver instalado, observe o seguinte:
CUIDADO:
O uso de controles, ou ajustes, ou a execução de procedimentos diferentes dos
especificados nesta documentação pode resultar em exposição perigosa à
radiação.
Abrir a unidade de CD-ROM, a unidade de DVD-ROM, ou qualquer outro
dispositivo de armazenamento ótico pode resultar em exposição perigosa à
radiação de laser. Não há peças que permitam manutenção dentro dessas unidades.
Não abra.
Uma unidade de CD-ROM, uma unidade de DVD-ROM, ou qualquer outro
dispositivo de armazenamento instalado pode conter um diodo de laser da Classe
3A ou Classe 3B integrado. Observe o seguinte:
PERIGO
Emite radiação de laser visível e invisível quando aberto. Não olhe diretamente
para o feixe a olho nu ou com instrumentos óticos, e evite exposição direta ao
feixe.
30 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Certains modèles d’ordinateur ThinkPad sont équipés d’origine d’une unité de
stockage optique telle qu’une unité de CD-ROM ou de DVD-ROM. Ces unités sont
également vendues séparément en tant qu’options. Si l’une de ces unités est
installée, elle est certifiée conforme, aux Etats-Unis, aux normes indiquées dans le
sous-chapitre J du DHHS 21 CFR relatif aux produits à laser de classe 1. Dans les
autres pays, l’unité est certifiée être un produit à laser de classe 1 conforme aux
normes CEI 60825-1 et CENELEC EN 60825-1.
Si une unité de CD-ROM, une unité de DVD-ROM ou une unité à laser d’un autre
type est installée, veuillez tenir compte des informations suivantes :
ATTENTION :
Pour éviter tout risque d’exposition au rayon laser, respectez les consignes de
réglage et d’utilisation des commandes, ainsi que les procédures décrites dans le
présent manuel.
L’ouverture de l’unité de CD-ROM, de l’unité de DVD-ROM ou de toute autre
unité de stockage optique peut entraîner une exposition à des radiations
dangereuses. Aucune pièce de ces unités n’est réparable. Ne pas ouvrir.
Une unité de CD-ROM ou de DVD-ROM, ou toute autre unité de stockage optique
peut contenir une diode à laser de classe 3A ou 3B. Veuillez tenir compte des
informations suivantes :
DANGER
Emet un rayonnement laser visible et invisible lorsque l’unité est ouverte.
Evitez toute exposition directe au rayon laser. Evitez de regarder fixement le
faisceau ou de l’observer à l’aide d’instruments optiques.
Safety information 31
Einige ThinkPad-Modelle sind werkseitig mit einem CD-ROM- oder
DVD-ROM-Laufwerk ausgestattet. CD- und DVD-Laufwerke können auch
gesondert als Zusatzeinrichtung erworben werden. Die Laufwerke erfüllen die
Anforderungen gemäß IEC 60825-1 (International Electrotechnical Commission)
und gemäß CENELEC EN 60825-1 für Laserprodukte der Klasse 1.
Bei der Installation von CD-ROM-Laufwerken, DVD-ROM-Laufwerken oder
anderen Lasereinheiten Folgendes beachten:
VORSICHT:
Die Bedienung des Geräts auf eine andere als die hier beschriebene Weise oder
die Nichteinhaltung der hier beschriebenen Einstellungen oder Bedienschritte
kann zur Freisetzung gefährlicher Laserstrahlung führen.
Beim Öffnen eines CD-ROM-Laufwerks, DVD-ROM-Laufwerks oder anderen
optischen Speicherlaufwerks können gefährliche Laserstrahlungen freigesetzt
werden. Die Laufwerke enthalten keine zu wartenden Teile. Laufwerke nicht
öffnen!
Ein installiertes CD-ROM-Laufwerk, DVD-ROM-Laufwerk oder anderes optisches
Speicherlaufwerk kann eine Laserdiode der Klasse 3A oder 3B enthalten. Folgendes
beachten:
GEFAHR
Sichtbare und nicht sichtbare Laserstrahlung, wenn geöfnet. Nicht in den
Strahl blicken. Keine Lupen oder Spiegel verwenden. Strahlungsbereich
meiden.
32 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety information 33
34 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety information 35
Algunos modelos de sistemas ThinkPad están equipados de fábrica con un
dispositivo de almacenamiento óptico, como una unidad de CD-ROM o de
DVD-ROM. Estas unidades también se venden por separado como opciones. Si
está instalada alguna de dichas unidades, se certifica que en los Estados Unidos
cumple los requisitos del Department of Health and Human Services 21 Code of
Federal Regulations (DHHS 21 CFR) Subchapter J para productos láser de Clase 1.
En otros países, se certifica que cumple los requisitos para productos láser de Clase
1 de las normativas 60825-1 y CENELEC EN 60825-1 de International
Electrotechnical Commission (IEC).
Si está instalada alguna unidad de CD-ROM, DVD-ROM u otro dispositivo láser,
tenga en cuenta lo siguiente:
PRECAUCIÓN:
La utilización de controles, ajustes o la realización de procedimientos diferentes
a los especificados puede dar como resultado una exposición peligrosa a
radiaciones.
Si abre la unidad de CD-ROM, DVD-ROM o cualquier otro dispositivo de
almacenamiento óptico, podría quedar expuesto a una radiación láser peligrosa.
No hay piezas que requieran servicio dentro de estas unidades. No las abra.
Las unidades de CD-ROM, DVD-ROM u otro dispositivo de almacenamiento
instalado pueden contener un diodo láser de Clase 3A o Clase 3B incorporado.
Tenga en cuenta lo siguiente:
PELIGRO
Emite radiación láser visible e invisible cuando está abierto. No fije la vista en
el rayo, no lo mire directamente con instrumentos ópticos y evite la exposición
directa al rayo.
36 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Safety information 37
38 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Important service information
This chapter presents following important service information that applies to all
machine types supported by this manual:
v“Strategy for replacing FRUs”
– “Strategy for replacing a hard disk drive” on page 40
– “Important notice for replacing a system board” on page 40
– “How to use error message” on page 40
v“Strategy for replacing FRUs for CTO, CMV, and GAV” on page 41
– “Product definition” on page 41
– “FRU identification for CTO, CMV, and GAV products” on page 41
Strategy for replacing FRUs
Important:
BIOS and device driver fixes are customer-installable. The BIOS and device
drivers are posted on the customer support site http://www.lenovo.com/support
System Disassembly/Reassembly videos that show the FRU removals or
replacements for the Lenovo®authorized service technicians are available in the
following support site: http://www.lenovoservicetraining.com/ion/
Advise customers to contact the Customer Support Center at 800-426-7378 if they
need assistance in obtaining or installing any software fixes, drivers, and BIOS
downloads.
Customers in Canada should call the Customer Support Center at 800-565-3344
for assistance or download information.
Before replacing parts:
Make sure that all software fixes, drivers, and BIOS downloads are installed
before replacing any FRUs listed in this manual.
After a system board is replaced, ensure that the latest BIOS is loaded to the
system board before completing the service action.
To download software fixes, drivers, and BIOS, do as follows:
1. Go to http://www.lenovo.com/support
2. Enter the product number of the computer or press Auto-detect button on the
screen.
3. Select Downloads and drivers.
4. Follow the directions on the screen and install the necessary software.
© Copyright Lenovo 2008, 2010 39
Use the following strategy to prevent unnecessary expense for replacing and
servicing FRUs:
vIf you are instructed to replace a FRU but the replacement does not correct the
problem, reinstall the original FRU before you continue.
vSome computers have both a processor board and a system board. If you are
instructed to replace either the processor board or the system board, and
replacing one of them does not correct the problem, reinstall that board, and
then replace the other one.
vIf an adapter or a device consists of more than one FRU, any of the FRUs may
be the cause of the error. Before replacing the adapter or device, remove the
FRUs, one by one, to see if the symptoms change. Replace only the FRU that
changed the symptoms.
Attention: The setup configuration on the computer you are servicing may have
been customized. Running Automatic Configuration may alter the settings. Note
the current configuration settings (using the View Configuration option); then,
when service has been completed, verify that those settings remain in effect.
Strategy for replacing a hard disk drive
Always try to run a low-level format before replacing a hard disk drive. This will
cause all customer data on the hard disk to be lost. Be sure that the customer has a
current backup of the data before doing this task.
Attention: The drive startup sequence in the computer you are servicing may
have been changed. Be extremely careful during write operations such as copying,
saving, or formatting. If you select an incorrect drive, data or programs can be
overwritten.

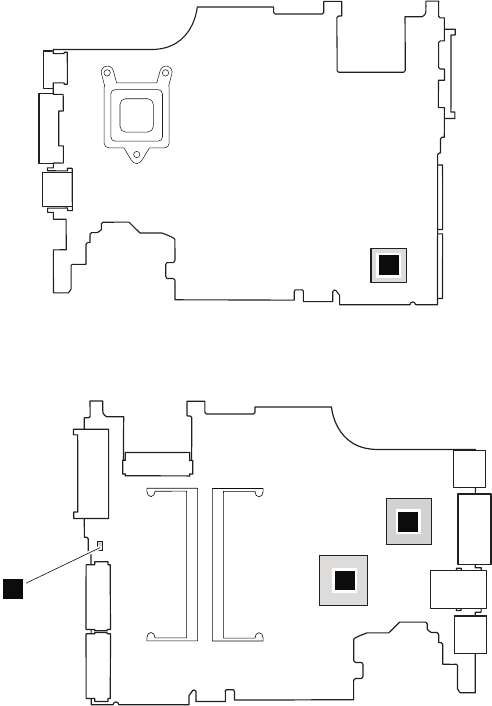

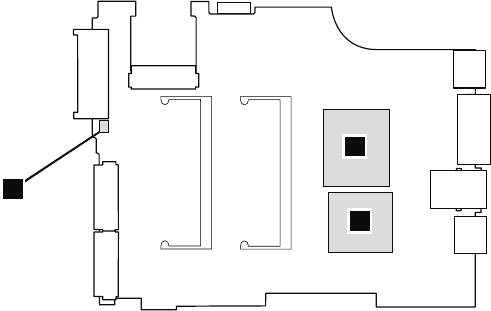

Important notice for replacing a system board
Some components mounted on a system board are very sensitive. Improper
handling of a system board can cause damage to those components, and may
cause a system malfunction.
Attention: When handling a system board:
vDo not drop a system board or apply any excessive force to it.
vAvoid rough handling of any kind.
vAvoid bending a system board and hard pushing to prevent cracking at each
BGA (Ball Grid Array) chipset.
How to use error message
Use the error codes displayed on the screen to diagnose failures. If more than one
error code is displayed, begin the diagnosis with the first error code. Whatever
causes the first error code may also cause false error codes. If no error code is
displayed, see whether the error symptom is listed in the Symptom-to-FRU Index
for the computer you are servicing.
40 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Strategy for replacing FRUs for CTO, CMV, and GAV
Product definition
Dynamic Configure To Order (CTO)
This provides the ability for a customer to configure an IBM®or a Lenovo solution
from an eSite, and have this configuration sent to fulfillment, where it is built and
shipped directly to the customer. The machine label, Product Entitlement
Warehouse (PEW), eSupport, and the HMM will load these products as the 4-digit
MT and 3-digit model, where model = “CTO” (Example: 1829-CTO).
Custom Model Variant (CMV)
This is a unique configuration that has been negotiated between IBM or Lenovo
and the customer. A unique 4-digit MT and 3-digit model is provided to the
customer to place orders (Example: 1829-W15). A CMV is a special bid offering.
Therefore, it is NOT generally announced.
vThe MTM portion of the machine label is the 4-digit MT and 3-digit model,
where model = “CTO” (Example: 1829-CTO). The PRODUCT ID portion of the
machine label is the 4-digit MT and 3-digit CMV model (Example: 1829-W15).
vThe PEW record is the 4-digit MT and 3-digit model, where model = “CTO”
(Example: 1829-CTO).
veSupport will show both the CTO and CMV machine type models (Example:
1829-CTO and 1829-W15 will be found on the eSupport site.)
vThe HMM will have the 4-digit MT and 3-digit CTO model only (Example:
1829-CTO). Again, CMVs are custom models and are not found in the HMM.
General Announce Variant (GAV)
This is a standard model (fixed configuration). GAVs are announced and offered to
all customers. The MTM portion of the machine label is a 4-digit MT and 3-digit
model, where model = a “fixed part number”, not “CTO” (Example: 1829-F1U).
Also, PEW, eSupport, and the HMM will list these products under the same fixed
model number.
FRU identification for CTO, CMV, and GAV products
There are three information resources to identify which FRUs are used to support
CTO, CMV, and GAV products. These sources are PEW, eSupport, and the HMM.
Using PEW
vPEW is the primary source for identifying FRU part numbers and FRU
descriptions for the key commodities for CTO, CMV and GAV products at a MT
- serial number level. An example of key commodities are hard disk drives,
system boards, microprocessors, Liquid Crystal Displays (LCDs), and memory.
vRemember, all CTO and CMV products are loaded in PEW under the 4-digit MT
and 3-digit model, where model = “CTO” (Example: 1829-CTO). GAVs are
loaded in PEW under the 4-digit MT and 3-digit model, where model = a “fixed
part number”, not “CTO” (Example: 1829-F1U).
vPEW can be accessed at the following Web site:
http://www.lenovo.com/support/site.wss/document.do?lndocid=LOOK-WARNTY
Select Warranty lookup. Input the MT and the Serial number and the list of key
commodities will be returned in the PEW record under COMPONENT
INFORMATION.
Important service information 41
vBusiness Partners using Eclaim will access PEW when performing Entitlement
Lookup. Business Partners will enter Loc ID, MT and Serial, and the key
commodities will be returned in the Eclaim record under SYSTEM DETAILS.
vAuthorized IBM Business Partners can access Eclaim at the following Web site:
https://wca.eclaim.com
Using eSupport
For Key Commodities (Examples - hard disk drive, system board,
microprocessor, LCD, and memory)
veSupport can be used to view the list of key commodities built in a particular
machine serial (this is the same record found in PEW).
veSupport can be accessed at the following Web site: http://www.lenovo.com/
support
vTo view the key commodities, click on PARTS INFORMATION, then PARTS
LOOKUP. Type in the model type and serial number. The key commodities will
be returned in the eSupport record under PARTS SHIPPED WITH YOUR
SYSTEM.
For the Remaining FRUs (the complete list of FRUs at the MT Model level)
veSupport can be used to view the complete list of FRUs for a machine type and
model.
vTo view the complete list of FRUs, type in the machine type and model
(Example: 1829-CTO) under QUICK PATH. Under “View by Document Type”
select PARTS INFORMATION. Under “Filter by Category” select SERVICE
PARTS. Under “Parts Information by Date” select SYSTEM SERVICE PARTS. The
list of service parts by description, with applicable machine type model and FRU
will be displayed.
Using the HMM
For Key Commodities (Examples - hard disk drive, system board,
microprocessor, LCD, and memory)
Use the HMM as a back-up to PEW and eSupport to view the complete list of
FRUs at the MT Model level.
42 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
General checkout
This chapter presents following information:
v“What to do first” on page 44
v“Checkout guide” on page 45
– “Diagnostics using PC-Doctor for DOS” on page 45
– “Lenovo ThinkVantage Toolbox (Lenovo System Toolbox)” on page 48
– “PC-Doctor for Windows” on page 48
– “PC-Doctor for Rescue and Recovery” on page 49
– “FRU tests” on page 50
v“Power system checkout” on page 52
The descriptions in this chapter apply to any ThinkPad model that supports the
PC-Doctor®for DOS diagnostics program. Some descriptions might not apply to
your particular computer.
Before you go to the checkout guide, be sure to read the following important notes.
Important notes:
vOnly certified trained personnel should service the computer.
vBefore replacing any FRU, read the entire page on removing and replacing
FRUs.
vWhen you replace FRUs, use new nylon-coated screws.
vBe extremely careful during such write operations as copying, saving, or
formatting. Drives in the computer that you are servicing sequence might
have been altered. If you select an incorrect drive, data or programs might be
overwritten.
vReplace a FRU only with another FRU of the correct model. When you
replace a FRU, make sure that the model of the machine and the FRU part
number are correct by referring to the FRU parts list.
vA FRU should not be replaced because of a single, unreproducible failure.
Single failures can occur for a variety of reasons that have nothing to do with
a hardware defect, such as cosmic radiation, electrostatic discharge, or
software errors. Consider replacing a FRU only when a problem recurs. If you
suspect that a FRU is defective, clear the error log and run the test again. If
the error does not recur, do not replace the FRU.
vBe careful not to replace a nondefective FRU.
© Copyright Lenovo 2008, 2010 43
What to do first
When you do return a FRU, you must include the following information in the
parts exchange form or parts return form that you attach to it:
__ 1. Name and phone number of service technician
__ 2. Date of service
__ 3. Date on which the machine failed
__ 4. Date of purchase
__ 5. Failure symptoms, error codes appearing on the display, and beep
symptoms
__ 6. Procedure index and page number in which the failing FRU was detected
__ 7. Failing FRU name and part number
__ 8. Machine type, model number, and serial number
__ 9. Customer’s name and address
Note for warranty: During the warranty period, the customer may be responsible
for repair costs if the computer damage was caused by misuse, accident,
modification, unsuitable physical or operating environment, or improper
maintenance by the customer.
Following is a list of some common items that are not covered under warranty and
some symptoms that might indicate that the system was subjected to stress beyond
normal use.
Before checking problems with the computer, determine whether the damage is
covered under the warranty by referring to the following list:
The following are not covered under warranty:
vLCD panel cracked from the application of excessive force or from being
dropped
vScratched (cosmetic) parts
vDistortion, deformation, or discoloration of the cosmetic parts
vPlastic parts, latches, pins, or connectors that have been cracked or broken by
excessive force
vDamage caused by liquid spilled into the system
vDamage caused by the improper insertion of a PC Card or the installation of an
incompatible card
vImproper disc insertion or use of an optical drive
vDiskette drive damage caused by pressure on the diskette drive cover, foreign
material in the drive, or the insertion of a diskette with multiple labels
vDamaged or bent diskette eject button
vFuses blown by attachment of a nonsupported device
vForgotten computer password (making the computer unusable)
vSticky keys caused by spilling a liquid onto the keyboard
vUse of an incorrect ac adapter on laptop products
The following symptoms might indicate damage caused by nonwarranted
activities:
vMissing parts might be a symptom of unauthorized service or modification.
vIf the spindle of a hard disk drive becomes noisy, it may have been subjected to
excessive force, or dropped.
44 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Checkout guide
Use the following procedures as a guide in identifying and correcting problems
with the ThinkPad Notebook.
Note: The diagnostic tests are intended to test only ThinkPad products. The use of
non-ThinkPad products, prototype cards, or modified options can lead to false
indications of errors and invalid system responses.
1. Identify the failing symptoms in as much detail as possible.
2. Verify the symptoms. Try to re-create the failure by running the diagnostic test
or by repeating the operation.
Diagnostics using PC-Doctor for DOS
The ThinkPad Notebook has a test program called PC-Doctor for DOS (hereafter
called PC-Doctor.) You can detect errors by running the diagnostics test included in
PC-Doctor.
For some possible configurations of the computer, PC-Doctor might not run
correctly. To avoid this problem, you need to initialize the computer setup by use
of the BIOS Setup Utility before you run PC-Doctor.
To enter BIOS Setup Utility, do as follows:
1. Turn on the computer.
2. When the ThinkPad logo comes up, immediately press F1 to enter the BIOS
Setup Utility.
Note: If a supervisor password has been set by the customer, BIOS Setup Utility
menu appears after the password is entered. You can start the utility by pressing
Enter instead of entering the supervisor password; however, you cannot change the
parameters that are protected by the supervisor password.
On the BIOS Setup Utility screen, press F9, Enter, F10, and then Enter.
Note: When you initialize the computer configuration, some devices are disabled,
such as the serial port. If you test one of these devices, you will need to enable it
by using Configuration utility for DOS. The utility is available on the following
Web site: http://www.lenovo.com/support
Note:
PC-Doctor for DOS is available at the following Web site: http://
www.lenovo.com/support
To create the PC-Doctor diagnostic CD, follow the instructions on the Web site.
General checkout 45
Testing the computer
Note: The PC-Doctor diagnostic CD does not support any optical drives connected
through USB devices or any others. It supports only the internal optical drive of
the ThinkPad Notebook.
To run the test, do as follows:
1. Turn off the computer.
2. Make sure that the internal optical drive that is supported as a startup device
is attached to the computer.
3. Turn on the computer.
If the computer cannot be powered on, go to “Power system checkout” on
page 52, and check the power sources.
If an error code appears, go to “Symptom-to-FRU index” on page 62.
4. When the ThinkPad logo comes up, immediately press F12 to enter the Boot
Menu.
5. Insert the PC-Doctor CD into the internal optical drive.
6. Press cursor keys to select ATAPI CDx (x: 0, 1, ...) and then press Enter.
7. Follow the instructions on the screen.
8. The main panel of PC-Doctor appears.
9. Select Diagnostics with the arrow keys, and press Enter.
Note: You can select an item not only with the arrow keys, but also with the
TrackPoint®pointer. Instead of pressing Enter, click the left button.
A pull-down menu appears. (Its exact form depends on the model.)
Note: PC-Doctor menu does not mean the formal support device list. Some
unsupported device names may appear in the PC-Doctor menu.
Diagnostics
Run Normal Test
Run Quick Test
CPU/Coprocessor
Systemboard
Video Adapter
Fixed Disks
Diskette Drives
Other Devices
Communication
Advanced Memory Tests
Interactive Tests Hardware Info Utility Quit F1=Help
PC-DOCTOR 2.0 Copyright 2008 PC-Doctor, Inc. All Rights Reserved.
Use the cursor keys and ESC to move in menus. Press ENTER to select.
Wireless LAN
46 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
The options on the test menu are as follows:
Diagnostics Interactive Tests
vRun Normal Test
vRun Quick Test
vCPU/Coprocessor
vSystemboard
vVideo Adapter
vFixed Disks
vDiskette Drives
vOther Devices
vThinkPad Devices
vCommunication
vWireless LAN
vAdvanced Memory Tests
vKeyboard
vVideo
vInternal Speaker
vMouse
vDiskette
vSystem Load
vOptical Drive Test
vIntel WLAN Radio Test
Notes:
vIn the Keyboard test in Interactive Tests, the Fn key should be held down for at least 2
seconds; otherwise, it cannot be sensed.
vVideo Adapter test supports only the LCD display on the ThinkPad Notebook. If you
have an external monitor attached to your computer, detach it before running PC-Doctor
for DOS.
vTo test Digital Signature Chip, the security chip must be set to Active.
10. Run the applicable function test.
11. Follow the instructions on the screen. If there is a problem, PC-Doctor shows
messages describing it.
12. To exit the test, select Quit — Exit Diag.
To cancel the test, press Esc.
Note: After running PC-Doctor, check the time and date on the system and reset
them if they are incorrect.
Detecting system information with PC-Doctor
PC-Doctor can detect the following system information:
Hardware Info
vSystem Configuration
vMemory Contents
vPhysical Disk Drives
vLogical Disk Drives
vVGA Information
vIDE Drive Info
vPCI Information
vPNPISA Info
vSMBIOS Info
vVESA LCD Info
vHardware Events Log
Utility
vRun External Tests
vSurface Scan Hard Disk
vBenchmark System
vDOS Shell
vTech Support Form
vBattery Rundown
vView Test Log
General checkout 47
vPrint Log
vSave Log
vFull Erase Hard Drive
vQuick Erase Hard Drive
Lenovo ThinkVantage Toolbox (Lenovo System Toolbox)
Lenovo ThinkVantage®Toolbox (Lenovo System Toolbox in Windows Vista®and
Windows®XP) is a diagnostic program that works through the Windows operating
system. It enables you to view symptoms of computer problems and solutions for
them, and includes automatic notification when action is required, computing
assistance, advanced diagnostics, and diagnostic history.
To run this program, do as follows:
Windows 7:
While the Windows operating system is running, press the ThinkVantage button.
You can also run this program as either of the following:
vClick Start --> All Programs --> Lenovo ThinkVantage Tools --> System Health
and Diagnostics.
vClick Start --> Control Panel --> System and Security --> Lenovo’s System
Health and Diagnostics.
Windows Vista and Windows XP:
Click Start --> All Programs --> Lenovo Services --> Lenovo System Toolbox.
Follow the instructions on the screen. Lenovo ThinkVantage Toolbox (Lenovo
System Toolbox) also has problem determination aids that determine software and
usage problems.
For additional information about this program, see the Help for the program.
PC-Doctor for Windows
In some models of ThinkPad Notebook, PC-Doctor for Windows enables you to
troubleshoot and resolve problems related to the computer.
Select one of the categories listed below to display symptoms and solutions:
vCheck System Health
vSystem and Device Tests
vLenovo Troubleshooting Center
vSystem Reports
vUpdates and Support
Note:
The latest Lenovo ThinkVantage Toolbox (Lenovo System Toolbox) is available at
the following Web site: http://www.lenovo.com/support
To install the latest Lenovo ThinkVantage Toolbox (Lenovo System Toolbox) on
the computer, follow the instructions on the Web site.
48 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
PC-Doctor for Rescue and Recovery
In some models of ThinkPad Notebook, the Rescue and Recovery®workspace
enables you to run the PC-Doctor program to test the hardware features of the
computer.
To run the test, click “Run Diagnostics” on the Rescue and Recovery main screen.
General checkout 49
FRU tests
The following table shows the test for each FRU.
Table 1. FRU tests
FRU Applicable test
System board 1. Diagnostics --> CPU/Coprocessor
2. Diagnostics --> Systemboard
3. If the ThinkPad X200 Ultrabase™is attached to the ThinkPad
computer, detach it. Place the computer on a horizontal
surface, and run Diagnostics --> ThinkPad Devices --> HDD
Active Protection Test.
Note: Do not apply any physical shock to the computer while
the test is running.
Power Diagnostics --> ThinkPad Devices --> AC Adapter,Battery 1
(Battery2)
LCD unit 1. Diagnostics --> Video Adapter
2. Interactive Tests --> Video
Audio Enter the BIOS Setup Utility and change Serial ATA (SATA) setting
to Compatibility, and run Diagnostics --> Other Device -->
Conexant Audio
Speaker Interactive Tests --> Internal Speaker
Note: Once Modem/Audio test is done, the no sound is heard
this test. In this case, turn off and turn on the computer. Then, run
this test again.
PC Card slot Diagnostics --> Systemboard --> PCMCIA
ExpressCard slot 1. Insert a PCI-Express/USB Wrap card into the ExpressCard slot.
2. Turn on the computer.
3. Run Diagnostics --> ThinkPad Devices --> ExpressCard slot.
Keyboard 1. Diagnostics --> Systemboard --> Keyboard
2. Interactive Tests --> Keyboard
Hard disk drive Enter the BIOS Setup Utility and change Serial ATA (SATA) setting
to Compatibility, and run Diagnostics --> Fixed Disks
You can also diagnose the hard disk drive without starting up the
operating system. To diagnose the hard disk drive from the BIOS
Setup Utility, do as follows:
1. Remove any diskette from the diskette drive, and then turn off
the computer.
2. Turn on the computer.
3. While the message, “To interrupt normal startup, press the
blue ThinkVangate button,” is displayed at the lower left of the
screen, press F1 to enter the BIOS Setup Utility.
4. Using cursor keys, select HDD diagnostic program. Press
enter.
5. Using cursor keys, select Main hard disk drive or Ultrabay
hard disk drive.
6. Press Enter to start the diagnostic program.
Diskette drive 1. Diagnostics --> Diskette Drives
2. Interactive Tests --> Diskette
Optical drive 1. Diagnostics --> Other Devices--> Optical Drive
2. Interactive Tests --> Optical Drive Test
Memory 1. If two DIMMs are installed, remove one of them and run
Diagnostics --> PM Memory.
2. If the problem does not recur, return the DIMM to its place,
remove the other one, and run the test again.
50 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 1. FRU tests (continued)
FRU Applicable test
TrackPoint or pointing
device
If the TrackPoint does not work, check the configuration as
specified in the BIOS Setup Utility. If the TrackPoint is disabled,
select Automatic to enable it.
After you use the TrackPoint, the pointer may drift on the screen
for a short time. This drift can occur when a slight, steady
pressure is applied to the TrackPoint pointer. This symptom is not
a hardware problem. If the pointer stops after a short time, no
service action is necessary.
If enabling the TrackPoint does not correct the problem, continue
with the following:
vInteractive Tests --> Mouse
General checkout 51
Power system checkout
To verify a symptom, do the following:
1. Turn off the computer.
2. Remove the battery pack.
3. Connect the ac adapter.
4. Check that power is supplied when you turn on the computer.
5. Turn off the computer.
6. Disconnect the ac adapter and install the charged battery pack.
7. Check that the battery pack supplies power when you turn on the computer.
If you suspect a power problem, see the appropriate one of the following power
supply checkouts:
v“Checking the ac adapter”
v“Checking operational charging” on page 53
v“Checking the battery pack” on page 53
v“Checking the backup battery” on page 54
Checking the ac adapter
You are here because the computer fails only when the ac adapter is used.
vIf the power problem occurs only when the ThinkPad X200 UltraBase is used,
replace the UltraBase.
vIf the power-on indicator does not turn on, check the power cord of the ac
adapter for correct continuity and installation.
vIf the computer does not charge during operation, go to “Checking operational
charging” on page 53.
To check the ac adapter, do the following:
1. Unplug the ac adapter cable from the computer.
2. Measure the output voltage at the plug of the ac adapter cable. See the
following figure:
1
2
3
(20V)
Pin Voltage (V dc)
1 +20
20
3 Ground
Note: Output voltage of pin no.2 of the ac adapter may different from the one
you are servicing.
3. If the voltage is not correct, replace the ac adapter.
4. If the voltage is acceptable, do the following:
vReplace the system board.
vIf the problem persists, go to “FRU tests” on page 50.
Note: Noise from the ac adapter does not always indicate a defect.
52 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Checking operational charging
To check whether the battery charges properly during operation, use a discharged
battery pack or a battery pack that has less than 50% of the total power remaining
when installed in the computer.
Perform operational charging. If the battery status indicator or icon does not turn
on, remove the battery pack and let it return to room temperature. Reinstall the
battery pack. If the charge indicator or icon still does not turn on, replace the
battery pack.
If the charge indicator still does not turn on, replace the system board. Then
reinstall the battery pack. If it is still not charged, go to the next section.
Checking the battery pack
Battery charging does not start until the Power Manager Battery Gauge shows that
less than 96% of the total power remains; under this condition the battery pack can
charge to 100% of its capacity. This protects the battery pack from being
overcharged or from having a shortened life.
To check your battery, move your cursor to the Power Manager Battery Gauge icon
in the icon tray of the Windows taskbar and wait for a moment (but do not click),
and the percentage of battery power remaining is displayed. To get detailed
information about the battery, double-click the Power Manager Battery Gauge icon.
Note: If the battery pack becomes hot, it may not be able to charge. Remove it
from the computer and leave it at room temperature for a while. After it cools
down, reinstall and recharge it.
To check the battery pack, do the following:
1. Power off the computer.
2. Remove the battery pack and measure the voltage between battery terminals 1
(+) and 7 (-). See the following figure:
1(+)2(+) 3456(-)7(-)
Terminal Voltage (V dc)
1 + 0 to + 12.6
7 Ground (-)
3. If the voltage is less than +11.0 V dc, the battery pack has been discharged.
Note: Recharging will take at least 3 hours, even if the indicator does not turn
on.
If the voltage is still less than +11.0 V dc after recharging, replace the battery.
4. If the voltage is more than +11.0 V dc, measure the resistance between battery
terminals 5 and 7. The resistance must be 4 to 30 K .
If the resistance is not correct, replace the battery pack. If the resistance is
correct, replace the system board.
General checkout 53
Checking the backup battery
Do the following:
1. Power off the computer, and unplug the ac adapter from it.
2. Turn the computer upside down.
3. Remove the battery pack (see “1010 Battery pack” on page 85).
4. Remove the backup battery (see “1060 Backup battery” on page 100).
5. Measure the voltage of the backup battery. See the following figure.
Red (+)
Black (-)
Wire Voltage (V dc)
Red +2.5 to +3.2
Black Ground
vIf the voltage is correct, replace the system board.
vIf the voltage is not correct, replace the backup battery.
vIf the backup battery discharges quickly after replacement, replace the system
board.
54 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Related service information
This chapter presents following information:
v“Restoring the factory contents by using Product Recovery discs”
v“Restoring the factory contents by using Recovery Disc Set” on page 56
v“Passwords” on page 57
v“Power management” on page 60
v“Symptom-to-FRU index” on page 62
Restoring the factory contents by using Product Recovery discs
When the hard disk drive (HDD) or solid state drive (SSD) is replaced because of a
failure, no Product Recovery program is on the new drive. In this case, you must
use the recovery discs for the computer. Order the recovery discs and the drive at
the same time so that you can recover the new drive with the pre-installed
software when they arrive. For information on which discs to order, see “Recovery
discs” on page 289.
To install the factory contents by using Product Recovery discs, do the following:
1. Insert the bootable Start Recovery Disc into the DVD drive.
2. Select your language and click Next.
3. Read the license. If you agree with the terms, select I accept these terms and
conditions and then click Next.
4. Insert the Operating System Recovery Disc when prompted and click Yes to
begin the operating system recovery process.
5. Insert the Product Recovery Disc when prompted and click OK.
6. If you have a Supplemental Recovery Disc, insert it when prompted and click
Yes. If you do not have a Supplemental Recovery Disc, click No.
Note: Not all recovery disc sets come with a Supplemental Recovery Disc.If
there is a Supplemental Recovery Disc, it will be clearly marked as such.
7. When all of the data has been copied from the last disc in the set, a message is
displayed prompting you to restart the computer. Remove the disc and then
click Yes.
Note: The remainder of the recovery process is fully automated and no action
is required by you. The computer will restart into the Windows desktop several
times and you might experience periods when no activity is apparent on the
screen for several minutes at a time. This is normal.
Service Web site:
When the latest maintenance diskette and the system program service diskette
become available, they will be posted on http://www.lenovo.com/spm
Note: Recovery takes several hours. The length of time depends on the method
you use. If you use recovery discs, recovery takes at least five hours.
© Copyright Lenovo 2008, 2010 55
8. When the recovery process is complete, the Welcome to Microsoft Windows
screen is displayed. Follow the instructions on the screen to complete the
Windows setup.
Restoring the factory contents by using Recovery Disc Set
When the hard disk drive (HDD) or solid state drive (SSD) is replaced because of a
failure, no product recovery program is on the new drive. In this case, you must
use the Recovery Disc Set for the computer. Order the Recovery Disc Set and the
drive at the same time so that you can recover the new drive with the pre-installed
software when they arrive. For information on which discs to order, see “Recovery
discs” on page 289.
The recovery disc set consists of the user instructions and the following set of
DVDs to restore the computer to the original factory configuration.
Operating System Recovery Disc (one disc)
This disc restores the Microsoft®Windows operating system. Use this disc
to start the recovery process.
Applications and Drivers Recovery Disc (one or more discs)
This disc restores the preinstalled applications and drivers on the
computer.
Supplemental Recovery Disc
This disc contains additional content, such as updates to the software that
was preinstalled on the computer. Not all recovery disc sets come with a
Supplemental Recovery Disc.
Notes:
vYou must have a DVD drive to use the recovery discs. If you do not have an
internal DVD drive, you can use an external USB DVD drive.
vDuring the recovery process, all data on the drive will be deleted. If possible,
copy any important data or personal files that you want to keep onto removable
media or a network drive before you start the recovery process.
To restore the computer to the original factory configuration using the recovery
disc set, do the following:
1. Make the CD/DVD drive the first startup device in the startup sequence
using the following procedure:
a. Press and hold down the F1 key, and then turn on the computer. When the
logo screen is displayed or if you hear repeating beeps, release the F1 key.
The Setup Utility program opens.
b. Use the arrow keys to select Startup →Boot.
c. Select the CD/DVD drive as the 1st Boot Device.
2. Insert the Operating System Recovery Disc into the DVD drive.
3. Press F10 to save the Setup Utility configuration changes. Follow the
instructions on the screen to begin the recovery process.
4. Select your language and click Next.
Note: Recovery takes several hours. The length of time depends on the method
you use. If you use recovery discs, recovery takes at least five hours.
56 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
5. Read the license. If you agree with the terms and conditions, select I accept
these terms and conditions and then click Next. If you do not agree with the
terms and conditions, follow the instructions on the screen.
6. Click Yes in the displayed window to begin the operating system recovery
process.
7. Insert the Applications and Drivers Recovery Disc when prompted and then click
OK to begin the applications and drivers recovery process.
8. If you have a Supplemental Recovery Disc, insert it when prompted and click
Yes. If you do not have a Supplemental Recovery Disc, click No.
9. When all of the data has been copied from the last disc in the set and has
been processed, remove the disc and restart the computer.
Note: The rest of the recovery process is fully automated and no action is
required by you. The computer will restart into the Microsoft Windows
desktop several times and you might experience periods when no activity is
apparent on the screen for several minutes at a time. This is normal.
10. When the recovery process is complete, the Set Up Windows screen is
displayed. Follow the instructions on the screen to complete the Windows
setup.
11. After you have completed the Windows setup, you might want to restore the
original startup sequence. Start the Setup Utility program and then press F9 to
restore the default settings. Press F10 to save and exit the Setup Utility.
Note: After restoring a drive to the factory default settings, you might need to
reinstall some device drivers.
Passwords
As many as three passwords may be needed for any ThinkPad Notebook: the
power-on password (POP), the hard-disk password (HDP), and the supervisor
password (SVP).
If any of these passwords has been set, a prompt for it appears on the screen
whenever the computer is turned on. The computer does not start until the
password is entered.
Exception: If only an SVP is installed, the password prompt does not appear when
the operating system is booted.
Power-on password
A power-on password (POP) protects the system from being powered on by an
unauthorized person. The password must be entered before an operating system
can be booted. For how to remove the POP, see “How to remove the power-on
password” on page 58.
Hard-disk password
There are two hard-disk passwords (HDPs):
vUser HDP—for the user
vMaster HDP—for the system administrator, who can use it to get access to the
hard disk even if the user has changed the user HDP
Related service information 57
Note: There are two modes for the HDP: User only and Master + User. The
Master + User mode requires two HDPs; the system administrator enters both in
the same operation. The system administrator then provides the user HDP to the
system user.
Attention: If the user HDP has been forgotten, check whether a master HDP has
been set. If it has, it can be used for access to the hard disk drive. If no master
HDP is available, neither Lenovo nor Lenovo authorized service technicians
provide any services to reset either the user or the master HDP, or to recover data
from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.
For how to remove the POP, see “How to remove the hard-disk password” on
page 59.
Supervisor password
A supervisor password (SVP) protects the system information stored in the BIOS
Setup Utility. The user must enter the SVP in order to get access to the BIOS Setup
Utility and change the system configuration.
Attention: If the SVP has been forgotten and cannot be made available to the
service technician, there is no service procedure to reset the password. The system
board must be replaced for a scheduled fee.
How to remove the power-on password
To remove a POP that you have forgotten, do the following:
(A) If no SVP has been set:
1. Turn off the computer.
2. Remove the battery pack.
For how to remove the battery pack, see “1010 Battery pack” on page 85.
3. Remove the backup battery.
For how to remove the backup battery, see “1060 Backup battery” on page 100.
4. Turn on the computer and wait until the POST ends.
After the POST ends, the password prompt does not appear. The POP has been
removed.
5. Reinstall the backup battery and the battery pack.
(B) If an SVP has been set and is known by the service technician:
1. Turn on the computer.
2. When the ThinkPad logo comes up, immediately press F1 to enter BIOS Setup
Utility.
For models supporting the Passphrase function, press F1 while the POP icon is
appearing on the screen; then enter the POP. For the other models, enter the
POP.
Note: To check whether the ThinkPad Notebook you are servicing supports the
Passphrase function, enter the BIOS Setup Utility and go to Security -->
Password.IftheUsing Passphrase item is displayed in the menu, this function
is available on the ThinkPad Notebook.
3. Select Security, using the cursor directional keys to move down the menu.
4. Select Password.
58 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
5. Select Power-On Password.
6. Type the current SVP in the Enter Current Password field. then leave the Enter
New Password field blank, and press Enter twice.
7. In the Changes have been saved window, press Enter.
8. Press F10; then, in the Setup confirmation window, select Yes.
How to remove the hard-disk password
Attention: If User only mode is selected and the user HDP has been forgotten
and cannot be made available to the service technician, neither Lenovo nor Lenovo
authorized service technicians provide any services to reset the user HDPs or to
recover data from the hard disk drive. The hard disk drive can be replaced for a
scheduled fee.
To remove a user HDP that has been forgotten, when the SVP and the master HDP
are known, do the following:
1. Turn on the computer.
2. When the ThinkPad logo comes up, immediately press F1 to enter BIOS Setup
Utility.
For models supporting the Passphrase function, press F1 while HDP icon is
appearing on the screen; then enter the master HDP. For the other models,
enter the master HDP.
Note: To check whether the ThinkPad Notebook you are servicing supports the
Passphrase function, enter the BIOS Setup Utility and go to Security -->
Password.IfUsing Passphrase item is displayed in the menu, this function is
available on the ThinkPad Notebook.
3. Select Security, using the cursor directional keys to move down the menu.
4. Select Password.
5. Select Hard-disk xpassword, where xis the letter of the hard disk drive. A
pop-up window opens.
6. Select Master HDP.
7. Type the current master HDP in the Enter Current Password field. then leave
the Enter New Password field blank, and press Enter twice.
8. Press F10.
9. Select Yes in the Setup Configuration window.
Both user HDP and master HDP will have been removed.
Related service information 59
Power management
To reduce power consumption, the computer has three power management modes:
screen blank, sleep (standby in Windows XP), and hibernation.
Screen blank mode
If the time set on the “Turn off monitor” timer in the operating system expires, the
LCD backlight turns off.
To put the computer into screen blank mode, do as follows:
1. Press Fn+F3. A panel for selecting a power plan (in Windows XP, power
scheme) appears.
2. Select Power off display (keep current power plan) (in Windows XP, keep
current power scheme).
You can also put the computer into screen blank mode, press ThinkVantage button
and use the ThinkVantage Productivity Center.
Note: If the computer is a Windows 7 model, it does not support ThinkVantage
Productivity Center.
To end screen blank mode and resume normal operation, press any key.
Sleep (Standby) mode
When the computer enters sleep (standby) mode, the following events occur in
addition to what occurs in screen blank mode:
vThe LCD is powered off.
vThe hard disk drive or the solid state drive is powered off.
vThe CPU stops.
To enter sleep (standby) mode, press Fn+F4.
Note: You can change the action of the Fn+F4 key combination by changing the
settings in Power Manager.
In certain circumstances, the computer goes into sleep (standby) mode
automatically:
vIf a “suspend time” has been set on the timer, and the user does not do any
operation with the keyboard, the TrackPoint, the hard disk, the parallel
connector, or the diskette drive within that time.
vIf the battery indicator blinks orange, indicating that the battery power is low.
Note: Even if you do not set the low-battery alarm, the charge indicator notifies
you when the battery is low, and then the computer enters the power-saving mode
automatically.
To cause the computer to return from sleep (standby) mode and resume operation,
do one of the following:
vPress the Fn key.
vOpen the LCD cover.
vTurn on the power switch.
60 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Also, in either of the following events, the computer automatically returns from
sleep (standby) mode and resumes operation:
vThe ring indicator (RI) is signaled by a serial device or a PC Card device.
vThe time set on the resume timer elapses.
Note: The computer does not accept any input immediately after it enters sleep
(standby) mode. Wait a few seconds before taking any action to reenter
operation mode.
Hibernation mode
In hibernation mode, the following occurs:
vThe system status, RAM, VRAM, and setup data are stored on the hard disk.
vThe system is powered off.
To cause the computer to enter hibernation mode, do any of the following:
vPress the Fn+F12 keys.
vIf you have defined one of the following actions as the event that causes the
system to go into hibernation mode, perform that action.
– Closing the lid.
– Pressing the power button.
– Pressing Fn+F4 keys.
Also, the computer goes into hibernation mode automatically in either of the
following conditions:
vIf a “hibernation time” has been set on the timer, and if the user does not do
any operation with the keyboard, the TrackPoint, the hard disk drive, the
parallel connector, or the diskette drive within that time.
vIf the timer conditions are satisfied in suspend mode.
When the power is turned on, the computer returns from hibernation mode and
resumes operation. The hibernation file in the boot record on the hard disk drive is
read, and system status is restored from the hard disk drive.
Related service information 61
Symptom-to-FRU index
This section contains following information:
v“Numeric error codes”
v“Error messages” on page 66
v“Beep symptoms” on page 67
v“No-beep symptoms” on page 67
v“LCD-related symptoms” on page 68
v“Intermittent problems” on page 69
v“Undetermined problems” on page 69
The symptom-to-FRU index in this section lists symptoms and errors and their
possible causes. The most likely cause is listed first, in boldface type.
Note: Do the FRU replacement or other actions in the sequence shown in the
column headed “FRU or action, in sequence.” If replacing a FRU does not solve
the problem, put the original part back in the computer. Do not replace a
nondefective FRU.
This index can also help you determine, during regular servicing, what FRUs are
likely to need to be replaced next.
A numeric error is displayed for each error detected in POST or system operation.
In the displays, ncan be any number.
If no numeric code is displayed, check the narrative descriptions of symptoms. If
the symptom is not described there, go to “Intermittent problems” on page 69.
Numeric error codes
Table 2. Numeric error codes
Symptom or error FRU or action, in sequence
0175
Bad CRC1, stop POST task—The EEPROM
checksum is not correct.
System board.
0176
System Security—The system has been
tampered with.
1. Run BIOS Setup Utility, and save the
current setting by pressing F10.
2. System board.
0177
Bad SVP data, stop POST task—The
checksum of the supervisor password in the
EEPROM is not correct.
System board.
0182
Bad CRC2. Enter BIOS Setup and load Setup
defaults.—The checksum of the CRS2 setting
in the EEPROM is not correct.
1. Run BIOS Setup Utility. Press F9, and
Enter to load the default setting. Then
save the current setting by pressing F10.
2. System board.
0185
Bad startup sequence settings. Enter BIOS
Setup and load Setup defaults.
1. Run BIOS Setup Utility. Press F9, and
Enter to load the default setting. Then
save the current setting by pressing F10.
Note:
For a device not supported by diagnostic codes in the ThinkPad Notebooks, see
the manual for that device.
62 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 2. Numeric error codes (continued)
Symptom or error FRU or action, in sequence
0187
EAIA data access error—The access to
EEPROM is failed.
System board.
0188
Invalid RFID Serialization Information Area.
System board.
0189
Invalid RFID configuration information
area—The EEPROM checksum is not correct.
System board.
0190
Critical low-battery error
1. Charge the battery pack.
2. Battery pack.
0191
System Security—Invalid Remote Change
requested.
1. Run BIOS Setup Utility, and then save
current setting by pressing F10.
2. System board.
0192
System Security— Embedded Security
hardware tamper detected.
System board.
0199
System Security— Security password retry
count exceeded.
1. Run BIOS Setup Utility, and then save
the current setting by pressing F10.
2. System board.
01C8
Two or more modem devices are found.
Remove all but one of them. Press <Esc> to
continue.
1. Remove either a Mini-PCI Card or a
modem daughter card. Otherwise, press
Esc to ignore the warning message.
2. System board.
01C9
More than one Ethernet devices are found.
Remove one of them. Press <Esc> to
continue.
1. Remove the Ethernet device that you
installed; or press Esc to ignore the
warning message.
2. System board.
01CA
More than one Wireless LAN devices are
found. Remove one of them.
1. Remove the wireless LAN device that
you installed.
2. System board.
0200
Hard disk error—The hard disk is not
working.
1. Reseat the hard disk drive.
2. Load Setup Defaults in BIOS Setup
Utility.
3. Hard disk drive.
4. System board.
021x
Keyboard error.
Run interactive tests of the keyboard and
the auxiliary input device.
0220
Monitor type error—Monitor type does not
match the one specified in CMOS.
Load Setup Defaults in BIOS Setup Utility.
0230
Shadow RAM error—Shadow RAM fails at
offset nnnn.
System board.
0231
System RAM error—System RAM fails at
offset nnnn.
1. DIMM.
2. System board.
0232
Extended RAM error— Extended RAM fails
at offset nnnn.
1. DIMM.
2. System board.
Related service information 63
Table 2. Numeric error codes (continued)
Symptom or error FRU or action, in sequence
0250
System battery error—System battery is
dead.
1. Charge the backup battery for more
than 8 hours by connecting the ac
adapter.
2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.
0251
System CMOS checksum bad— Default
configuration used.
1. Charge the backup battery for more
than 8 hours by connecting the ac
adapter.
2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.
0252
Password checksum bad—The password is
cleared.
Reset the password by running BIOS Setup
Utility.
0260
System timer error.
1. Charge the backup battery for more
than 8 hours by connecting the ac
adapter.
2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.
3. System board.
0270
Real-time clock error.
1. Charge the backup battery for more
than 8 hours by connecting the ac
adapter.
2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.
3. System board.
0271
Date and time error—Neither the date nor
the time is set in the computer.
Run BIOS Setup Utility to reset the time
and date.
0280
Previous boot incomplete— Default
configuration used.
1. Load “Setup Default” in BIOS Setup
Utility.
2. DIMM.
3. System board.
02F0
CPU ID:xx Failed.
1. CPU.
2. System board.
02F4
EISA CMOS not writable.
1. Load Setup Defaults in BIOS Setup
Utility.
2. Replace the backup battery.
3. System board.
02F5
DMA test failed.
1. DIMM.
2. System board.
02F6
Software NMI failed
1. DIMM.
2. System board.
02F7
Fail-safe timer NMI failed
1. DIMM.
2. System board.
1802
Unauthorized network card is plugged
in—Turn off and remove the miniPCI
network card.
1. Remove Mini PCI network card.
2. System board.
1803
Unauthorized daughter card is plugged
in—Turn off and remove the daughter card.
1. Remove the daughter card that you
installed.
2. System board.
64 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 2. Numeric error codes (continued)
Symptom or error FRU or action, in sequence
1804
Unauthorized WAN card is plugged
in—Power off and remove the WAN card.
1. Remove the WAN card that you
installed.
2. System board.
1805
Unauthorized Wireless USB card is plugged
in—Power off and remove the Wireless USB
card.
1. Remove the Wireless USB card that you
installed.
2. System board.
1820
More than one external fingerprint reader is
attached. Power off and remove all but the
reader that you set up within your main
operating system.
Remove all but the reader that you set up
for the authentication.
1830
Invalid memory configuration—Power off
and install a memory module to Slot-0 or
the lower slot.
Install DIMM in Slot-0, but not in Slot-1.
Note: For the construction of the DIMM
slot, see “1030 DIMM” on page 91.
2000
Hard Drive Active Protection sensor
diagnostics failed.Press <Esc> to
continue.Press <F1> to enter SETUP
1. Place the ThinkPad Notebook on a
horizontal surface. Do not apply any
physical shock to the computer.
2. Run Diagnostics --> ThinkPad Devices
--> HDD Active Protection Test.
2010
Warning: Your internal hard disk drive
(HDD) may not function correctly on this
system. Ensure that your HDD is supported
on this system and that the latest HDD
firmware is installed.
Inform the following information to the
customer: If in the primary bay the customer
is using a non-IBM or non-Lenovo hard disk
drive (HDD), or an old generation IBM
HDD which is not supported by this system,
with the risk in mind, the customer can still
use it by pressing ESC. If in the primary
drive bay the customer is using a supported
IBM/Lenovo HDD with an old firmware,
the customer needs to update its firmware to
the latest. The latest version is available at
http://www.lenovo.com/support
2100
Initialization error on HDD0 (Main hard
disk drive)
1. Reseat the hard disk drive.
2. Main hard disk drive.
3. System board.
2102
Initialization error on HDD1 (Ultrabay hard
disk drive)
1. Reseat the hard disk drive.
2. Ultrabay™hard disk drive.
3. System board.
2110
Read error on HDD0 (Main hard disk drive)
1. Reseat the hard disk drive.
2. Main hard disk drive.
3. System board.
2112
Read error on HDD1 (Ultrabay hard disk
drive)
1. Reseat the hard disk drive.
2. Ultrabay hard disk drive.
3. System board.
Related service information 65
Error messages
Table 3. Error messages
Symptom or error FRU or action, in sequence
Device address conflict. 1. Load “Setup Defaults” in the BIOS
Setup Utility.
2. Backup battery.
3. System board.
Allocation error for device. 1. Load “Setup Defaults” in the BIOS
Setup Utility.
2. Backup battery.
3. System board.
Failing bits: nnnn. 1. DIMM.
2. System board.
Invalid system configuration data. 1. DIMM.
2. System board.
I/O device IRQ conflict. 1. Load “Setup Defaults” in the BIOS
Setup Utility.
2. Backup battery.
3. System board.
Hibernation error. 1. Restore the system configuration to
what it was before the computer
entered hibernation mode.
2. If memory size has been changed,
re-create the hibernation file.
Fan error. 1. Fan.
2. Thermal grease.
3. System board.
Thermal sensing error. System board.
Cannot boot from any device. Check the status of device which you want
to boot from.
Device not found.
1. The device you want to boot from.
2. System board.
Device Error.
1. The device you want to boot from.
2. System board.
No valid operating system.
1. Check that the operating system has no
failure and is installed correctly.
2. Reinstall the operation system.
Excluded from boot order.
vEnter the BIOS Setup Utility and add the
device in boot order.
66 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Beep symptoms
Table 4. Beep symptoms
Symptom or error FRU or action, in sequence
One beep and a blank, unreadable, or
flashing LCD.
1. Reseat the LCD connector.
2. LCD assembly.
3. External CRT.
4. System board.
One long and two short beeps, and a blank
or unreadable LCD.
1. System board.
2. LCD assembly.
3. DIMM.
Two short beeps with error codes. POST error. See “Numeric error codes” on
page 62.
Two short beeps and a blank screen. 1. System board.
2. DIMM.
Three short beeps, pause, three more short
beeps, and one short beep.
1. DIMM.
2. System board
One short beep, pause, three short beeps,
pause, three more short beeps, and one short
beep.
Only the cursor appears. Reinstall the operating system.
Four cycles of four short beeps and a blank
screen.
System board (security chip)
Five short beeps and a blank screen. System board
No-beep symptoms
Table 5. No-beep symptoms
Symptom or error FRU or action, in sequence
No beep, power-on indicator on, LCD blank,
and no POST.
1. Make sure that every connector is
connected tightly and correctly.
2. DIMM.
3. System board.
No beep, power-on indicator on, and LCD
blank during POST. 1. Reseat DIMM.
2. System board.
The power-on password prompt appears. A power-on password or a supervisor
password is set. Type the password and
press Enter.
The hard-disk password prompt appears. A hard-disk password is set. Type the
password and press Enter.
Related service information 67
LCD-related symptoms
Table 6. LCD-related symptoms
Symptom or error FRU or action, in sequence
No beep, power-on indicator on, and a
blank LCD during POST.
System board.
vLCD backlight not working.
vLCD too dark.
vLCD brightness cannot be adjusted.
vLCD contrast cannot be adjusted.
1. Reseat the LCD connectors.
2. LCD assembly.
3. System board.
vLCD screen unreadable.
vCharacters missing pixels.
vScreen abnormal.
vWrong color displayed.
1. See important note for “LCD-related
symptoms.”
2. Reseat all LCD connectors.
3. LCD assembly.
4. System board.
Horizontal or vertical lines displayed on
LCD.
LCD assembly.
Important: The TFT LCD for the notebook computer contains many thin-film
transistors (TFTs). The presence of a small number of dots that are missing,
discolored, or always lighted is characteristic of TFT LCD technology, but
excessive pixel problems can cause viewing concerns.
If the LCD you are servicing has two or less visible defective pixels, it should not
be considered faulty. However, if the LCD has three or more visible defective
pixels, it will be deemed as defective by Lenovo and it should be replaced.
Notes:
vThis policy applies to all ThinkPad Notebooks purchased on 1 January,
2008 or later.
vLenovo will not provide replacement if the LCD is within specification as
we cannot guarantee that any replacement LCD will have zero pixel defects.
vOne pixel consists of R, G, B sub-pixels.
68 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Intermittent problems
Intermittent system hang problems can be due to a variety of causes that have
nothing to do with a hardware defect, such as cosmic radiation, electrostatic
discharge, or software errors. FRU replacement should be considered only when a
problem recurs.
When analyzing an intermittent problem, do the following:
1. Run the diagnostic test for the system board in loop mode at least 10 times.
2. If no error is detected, do not replace any FRUs.
3. If any error is detected, replace the FRU shown by the FRU code. Rerun the
test to verify that no more errors exist.
Undetermined problems
If the diagnostic tests did not identify the adapter or device that has failed, if
wrong devices are installed, or if the system simply is not operating, follow these
procedures to isolate the failing FRU (do not isolate FRUs that have no defects).
Verify that all attached devices are supported by the computer.
Verify that the power supply being used at the time of the failure is operating
correctly. (See “Power system checkout” on page 52.)
1. Turn off the computer.
2. Visually check each FRU for damage. Replace any damaged FRU.
3. Remove or disconnect all of the following devices:
a. Non-ThinkPad devices
b. Printer, mouse, and other external devices
c. Battery pack
d. Hard disk drive
e. External diskette drive or optical drive
f. DIMM
g. Optical disk or diskette in the internal drive
h. PC Cards
4. Turn on the computer.
5. Determine whether the problem has been solved.
6. If the problem does not recur, reconnect the removed devices one at a time
until you find the failing FRU.
7. If the problem remains, replace the following FRUs one at a time (do not
replace a nondefective FRU):
a. System board
b. LCD assembly
Related service information 69
70 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Status indicators
This chapter presents the system status indicators that show the status of the
computer.
12345678
9
10
11
1 2 3
Table 7. Status indicators
Indicator Meaning
1 Sleep (standby)
status
Green: The computer is in sleep (standby) mode.
Blinking green:
The computer is entering sleep (standby) mode or
hibernation mode, or is resuming normal operation.
© Copyright Lenovo 2008, 2010 71
Table 7. Status indicators (continued)
Indicator Meaning
2 AC power
status
Green: The computer is connected to the ac power supply.
3 Battery status Green: The battery is charged between 80% to 100% of the
capacity, and being discharged between 0% to 80% of
the capacity.
Blinking green:
The battery is charged between 20% to 80% of the
capacity, and being charged.
Orange:
The battery is charged between 5% and 20% of the
capacity, and being discharged.
Blinking orange (slow):
The battery is charged between 5% to 20% of the
capacity, and being charged.
Blinking orange (rapid):
The battery is charged between 0% to 5% of the capacity.
4 Power on Green: The computer is on and ready to use. This indicator
stays lit whenever the computer is on and is not in sleep
(standby) mode.
5 Drive in use Green: Data is being read from or written to the hard disk
drive, the diskette drive, or the drive in the Serial
Ultrabay Slim device. When this indicator is on, do not
put the computer into sleep (standby) mode or turn off
the computer.
Note: Do not move the system while the green drive-in-use light
is on. Sudden physical shock could cause drive errors.
6 Caps lock Green: Caps Lock mode is enabled. To enable or disable Caps
Lock mode, press the Caps Lock key.
7 Num lock Green: The numeric keypad on the keyboard is enabled. To
enable or disable the keypad, press and hold the Shift
key, and press the NumLk (ScrLk) key.
8 Wireless WAN
status
Green: The wireless WAN is on, and the radio link is ready for
use, or the data is being transmitted.
Blinking green:
Data is being transmitted (for some models).
9 Wireless PAN
status
R
or
Green: Wireless PAN (Bluetooth wireless or Wireless USB) is
operational. This indicator is on when Wireless PAN is
on and not in suspend mode, or the data is being
transmitted.
Blinking green:
Data is being transmitted (for some models).
10 Wireless LAN
status
Green: The wireless LAN feature is on, and the radio link is
ready for use, or the data is being transmitted.
Blinking green:
Data is being transmitted (for some models).
72 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 7. Status indicators (continued)
Indicator Meaning
11 Fingerprint
reader status
only for X201,
X201i and X201s
Green: The fingerprint reader is ready to swipe.
Blinking green:
The fingerprint is being authenticated or has been
authenticated.
Blinking amber:
The fingerprint could not be authenticated.
Status indicators 73
74 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Fn key combinations
The following table shows the function of each combination of Fn with a function
key.
Table 8. Fn key combinations
Key combination Description
Fn+F1 Reserved.
Fn+F2 Lock the computer.
Fn+F3 Select a power plan (in Windows XP, power scheme) that has been
created by Power Manager, or adjust the power level by using the
slider control. When you press this combination, a panel for selecting a
power plan (power scheme) appears.
Notes:
1. To use the Fn+F3 key combination, you must have the ThinkPad
PM device driver installed on the computer.
2. If you have logged on with an administrator user ID, and you press
Fn+F3, the panel for selecting a power plan (power scheme)
appears. If you have logged on with another user ID, and you press
Fn+F3, the panel does not appear.
3. You cannot turn off the computer display by pressing Fn+F3.
Fn+F4 Put the computer in sleep (standby) mode. To return to normal
operation, press the Fn key only, without pressing a function key.
Notes:
1. To use the Fn+F4 key combination, you must have the ThinkPad
PM device driver installed on the computer.
2. If you want to use the combination to put the computer into
hibernation mode or do-nothing mode (in Windows XP, shut the
computer down or show the panel for turning off the computer),
change the settings in the Power Manager.
Fn+F5 Enable or disable the built-in wireless networking features and the
Bluetooth features. If you press Fn+F5, a list of wireless features is
displayed. You can quickly change the power state of each feature in
the list.
Note: If you want to use Fn+F5 to enable the wireless feature, the
following device drivers must be installed on the computer beforehand:
vThinkPad Power Management driver
vOnScreen Display Utility
vWireless device drivers
Fn+F6 Change the camera and audio settings.
© Copyright Lenovo 2008, 2010 75
Table 8. Fn key combinations (continued)
Key combination Description
Fn+F7 Apply a presentation scheme directly, with no need to start
Presentation Director.
To disable this function and use the Fn+F7 key combination for
switching a display output location, start Presentation Director, and
change the settings.
Note: If the computer is a Windows 7 model, it does not support
presentation schemes, but the Fn+F7 combination is available for
switching a display output location.
For Windows 7:
Switch a display output location
vComputer display only (LCD)
vComputer display and external monitor (same image)
vComputer display and external monitor (extended desktop)
vExternal monitor only
Note: To switch between the computer display and an external
monitor, the Win+P key combination is also available.
For Windows Vista and Windows XP:
Switch a display output location
vExternal monitor
vComputer display (LCD) and external monitor
vComputer display (LCD)
Notes:
1. This function is not supported if different desktop images are
displayed on the computer display and the external monitor (the
Extend desktop function).
2. This function does not work while a DVD movie or a video clip is
playing.
To enable this function, start Presentation Director, and change the
Fn+F7 settings.
Note: Multiple users can log on to a single operating system by using
different user IDs. Each user needs to change the settings.
Fn+F8 Change the settings of the input device.
Fn+F9 Open the ThinkPad EasyEject Utility screen. Buttons for the following
choices are displayed:
vEject ThinkPad PC from UltraBase: This button is displayed only if
the ThinkPad computer has been attached to a ThinkPad X200
UltraBase. The computer can be detached from the ThinkPad X200
UltraBase.
vRun EasyEject Actions: This button is used to select, stop, or remove
external devices connected to the ThinkPad computer.
vConfigure EasyEject Actions: Opens the ThinkPad EasyEject Utility
main window.
vFn+F9 Settings: Configures the settings for the Fn+F9 function.
Note: If the computer is a Windows 7 model, it does not support the
EasyEject Utility function.
Fn+F10 Reserved.
Fn+F11 Reserved.
76 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 8. Fn key combinations (continued)
Key combination Description
Fn+F12 Put the computer into hibernation mode. To return to normal operation,
press the power button for less than four seconds.
Note: To use Fn+F12 for hibernation, you must have the ThinkPad PM
device driver installed on the computer.
Fn+PgUp Turn the ThinkLight®on or off.
Note: This function is supported only on the ThinkPad computers that
have the ThinkLight. The on or off status of the ThinkLight is shown
on the screen for a few seconds when you press Fn+PgUp.
Fn+Home The computer display becomes brighter.
Fn+End The computer display becomes dimmer.
Fn+Spacebar Enable the FullScreen Magnifier function.
Fn+PrtSc Has the same function as the SysRq key.
Fn+ScrLk Enable or disable the numeric keypad.
Fn+Pause Has the same function as the Break key.
Fn+cursor keys These key combinations work with Windows Media Player. Fn+down
arrow key works for the Play or Pause button, Fn+up arrow key for the
Stop button, Fn+right arrow key for the Next Track button, and Fn+left
arrow key for the Previous Track button.
Fn key combinations 77
78 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
FRU replacement notices
This chapter presents notices related to removing and replacing parts. Read this
chapter carefully before replacing any FRU.
Screw notices
Loose screws can cause a reliability problem. In the ThinkPad Notebook, this
problem is addressed with special nylon-coated screws that have the following
characteristics:
vThey maintain tight connections.
vThey do not easily come loose, even with shock or vibration.
vThey are harder to tighten.
vEach one should be used only once.
Do the following when you service this machine:
vKeep the screw kit (for the P/N, see “Miscellaneous parts” on page 287) in your
tool bag.
vAlways use new screws.
vUse a torque screwdriver if you have one.
Tighten screws as follows:
vPlastic to plastic
Turn an additional 90 degrees after the screw head touches the surface of the
plastic part:
90 degrees more
(Cross-section)
vLogic card to plastic
Turn an additional 180 degrees after the screw head touches the surface of the
logic card:
180 degrees more
(Cross-section)
vTorque driver
If you have a torque driver, refer to the “Torque” column for each step.
vMake sure that you use the correct screw. If you have a torque screwdriver,
tighten all screws firmly to the torque shown in the table. Never use a screw
that you removed. Use a new one. Make sure that all of the screws are
tightened firmly.
vEnsure torque screw drivers are calibrated correctly following country
specifications.
© Copyright Lenovo 2008, 2010 79
Retaining serial numbers
This section includes the following descriptions:
v“Restoring the serial number of the system unit”
v“Retaining the UUID”
v“Reading or writing the ECA information” on page 81
Restoring the serial number of the system unit
When the computer was manufactured, the EEPROM on the system board was
loaded with the serial numbers of the system and all major components. These
numbers need to remain the same throughout the life of the computer.
If you replace the system board, you must restore the serial number of the system
unit to its original value.
Before replacing the system board, save the original serial number by doing the
following:
1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and
restart the computer.
2. From the main menu, select 1. Set System Identification.
3. Select 2. Read S/N data from EEPROM.
The serial number of each device in your computer is displayed; the serial number
of the system unit is listed as follows:
v20: Serial number
Write down that number.
Note: The serial number of the system unit is also written on the label attached to
the bottom of the computer.
After you have replaced the system board, restore the serial number by doing the
following:
1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later and
restart the computer.
2. From the main menu, select 1. Set System Identification.
3. Select 1. Add S/N data from EEPROM.
Follow the instructions on the screen.
If the MTM and Product ID numbers differ from each other on the rear label, use
what is shown for the Product ID field. See example below:
MTM on rear label:
TTTT-CTO S/N SSSSSSS
Product ID on rear label:
TTTT-MMM (Use this number when setting Serial Number)
In the example, the Serial Number to be input is ’1STTTTMMMSSSSSSS’.
Retaining the UUID
The Universally Unique Identifier (UUID) is a 128-bit number uniquely assigned to
your computer at production and stored in the EEPROM of your system board.
80 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
The algorithm that generates the number is designed to provide unique IDs until
the year A.D. 3400. No two computers in the world have the same number.
When you replace the system board, you must set the UUID on the new system
board as follows:
1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and
restart the computer.
2. From the main menu, select 4. Assign UUID.
A new UUID is created and written. If a valid UUID already exists, it is not
overwritten.
Reading or writing the ECA information
Information on Engineering Change Announcements (ECA) are stored in the
EEPROM of the system board. The electronic storage of this information simplifies
the procedure to check if the ECA has been previously applied to a machine. The
machine does not need to be disassembled to check for the ECA application.
To check what ECAs have been previously applied to the machine, use the ECA
Information Read/Write function on the ThinkPad Hardware Maintenance Diskette
Version 1.73 or later.
1. Insert the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and
restart the computer.
2. From the main menu, select 6. Set ECA Information.
3. To read ECA information, select 2. Read ECA/rework number from EEPROM
and follow the instruction.
4. To read box build date, select 5. Read box build date from EEPROM, and
follow the instruction on the screen.
After an ECA has been applied to the machine, the EEPROM must be updated to
reflect the ECA’s application. Use the ThinkPad Hardware Maintenance Diskette
Version 1.73 or later to update the EEPROM.
Note: Only the ECA number is stored in the EEPROM. The machine type of the
ECA is assumed be the same as the machine type of the machine that had the ECA
applied to it.
1. Insert the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and
restart the computer.
2. From the main menu, select 6. Set ECA Information.
3. To write ECA information, select 1. Write ECA/rework number from EEPROM,
and follow the instruction.
4. To write box build date, select 4. Write box build date from EEPROM, and
follow the instruction on the screen.
If the system board is being replaced, try to read the ECA information from the old
system board and transfer the information to the new system. If the system board
is inoperable, this will not be possible.
FRU replacement notices 81
82 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Removing and replacing a FRU
This chapter presents directions and drawings for use in removing and replacing a
FRU. Be sure to observe the following general rules:
1. Do not try to service any computer unless you have been trained and certified.
An untrained person runs the risk of damaging parts.
2. Before replacing any FRU, review “FRU replacement notices” on page 79.
3. Begin by removing any FRUs that have to be removed before the failing FRU.
Any such FRUs are listed at the top of the page. Remove them in the order in
which they are listed.
4. Follow the correct sequence in the steps for removing the FRU, as given in the
drawings by the numbers in square callouts.
5. When turning a screw to replace a FRU, turn it in the direction as given by the
arrow in the drawing.
6. When removing the FRU, move it in the direction as given by the arrow in the
drawing.
7. To put the new FRU in place, reverse the removal procedure and follow any
notes that pertain to replacement. For information about connecting and
arranging internal cables, see “Locations” on page 161.
8. When replacing a FRU, use the correct screw as shown in the procedures.
DANGER
Before removing any FRU, turn off the computer, unplug all power cords
from electrical outlets, remove the battery pack, and then disconnect any
interconnecting cables.
Attention: After replacing a FRU, do not turn on the computer until you have
made sure that all screws, springs, and other small parts are in place and none are
loose inside the computer. Verify this by shaking the computer gently and listening
for rattling sounds. Metallic parts or metal flakes can cause electrical short circuits.
Attention: The system board is sensitive to, and can be damaged by, electrostatic
discharge. Before touching it, establish personal grounding by touching a ground
point with one hand or by using an electrostatic discharge (ESD) strap (P/N
6405959).
© Copyright Lenovo 2008, 2010 83
Before servicing ThinkPad X200, X200s, X200si, X201, X201i, and
X201s
Removing the SIM card:
Some models of the ThinkPad X200, X200s, X200si, X201, X201i, and X201s you are
servicing might have the SIM card that the customer has been installed.
If the computer you are servicing has the SIM card, remove it before you start the
servicing.
To remove the SIM card, you need to remove the battery pack first. (See “1010
Battery pack” on page 85.)
After you finish the servicing, make sure that you insert the card back into the slot
firmly.
Notice on disconnecting the cable from flip-lock ZIF connector:
Some cables used in the ThinkPad X200, X200s, X200si, X201, X201i, and X201s are
connected to the flip-lock ZIF connectors.
When disconnecting the cable from those connectors, do as shown in this figure.
1
2
84 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
1010 Battery pack
Important notice for replacing a battery pack:
Lenovo ThinkVantage Toolbox (in Windows 7) and Lenovo System Toolbox (in
Windows Vista and Windows XP) have an automatic battery diagnostic that
determines if the battery pack is defective. A battery pack FRU should not be
replaced unless this diagnostic shows that the battery is defective.
The only exception to this is if the battery pack is physically damaged or a
customer is reporting a possible safety issue.
If ThinkVantage Toolbox or Lenovo System Toolbox is not installed in the
computer, the customer should download this program before a non-physically
damaged battery pack is replaced. Note that a physically damaged battery pack
is non-warranty replacement.
Removing and replacing a FRU 85
Table 9. Removal steps of battery pack
DANGER
Use only the battery specified in the parts list for your computer. Any other
battery could ignite or explode.
Unlock the battery release lever 1. Holding the battery release lever in the
unlocked position 2, remove the battery pack in the direction shown by arrow
3.
1 2
3
When installing: Install the battery pack along the slide rails of the slot. Then
make sure that the battery release lever is in the locked position.
86 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
1020 Hard disk drive (HDD) cover, HDD, and HDD rubber rails or solid
state drive (SSD) and storage converter
For access, remove this FRU:
v“1010 Battery pack” on page 85
Table 10. Removal steps of HDD cover, HDD, and HDD drive rubber rails or SSD and
storage converter
1
2
Step Screw (quantity) Color Torque
1 Hard disk drive screw, M3 ×3 mm,
wafer-head, nylon-coated (1)
Black 0.392 Nm
(4 kgfcm)
Attention:
vDo not drop the hard disk drive or apply any physical shock to it. The hard
disk drive is sensitive to physical shock. Improper handling can cause damage
and permanent loss of data.
vBefore removing the drive, have the user make a backup copy of all the
information on it if possible.
vNever remove the drive while the system is operating or is in suspend mode.
Removing and replacing a FRU 87
Table 10. Removal steps of HDD cover, HDD, and HDD drive rubber rails or SSD and
storage converter (continued)
3
4
When installing: Make sure that the HDD connector or SSD connector is
attached firmly.
88 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 10. Removal steps of HDD cover, HDD, and HDD drive rubber rails or SSD and
storage converter (continued)
HDD and HDD rubber rails:
5
5
When installing: The rubber rails on the hard disk drive must be attached to
the replacement drive. Otherwise the drive cannot be installed properly.
SSD and storage converter:
5
Removing and replacing a FRU 89
Table 10. Removal steps of HDD cover, HDD, and HDD drive rubber rails or SSD and
storage converter (continued)
When installing: When you install the SSD in the storage converter, do as
follows.
1
90 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
1030 DIMM
For access, remove this FRU in order:
v“1010 Battery pack” on page 85
Table 11. Removal steps of dimm
Remove the DIMM slot cover as shown in this figure.
Note: Loosen the screws 1, but do not remove them.
1
1
2
Removing and replacing a FRU 91
Table 11. Removal steps of dimm (continued)
Note: For ThinkPad X200, X200s, and X200si, if only one DIMM is used on the
computer you are servicing, the card must be installed in SLOT-0 (a), but not
in SLOT-1 (b).
For ThinkPad X200, X200s, and X200si:
a b
92 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 11. Removal steps of dimm (continued)
For ThinkPad X201, X201i, and X201s:
When installing: Insert the notched end of the DIMM into the socket. Press the
DIMM firmly, and pivot it until it snaps into the place. Make sure that it is
firmly fixed in the slot and does not move easily.
Removing and replacing a FRU 93
1040 Keyboard
For access, remove this FRU in order:
v“1010 Battery pack” on page 85
Table 12. Removal steps of keyboard
1
1
1
1
Step Icon Screw (quantity) Color Torque
1 M2 ×5 mm, wafer-head,
nylon-coated (4)
Black 0.181 Nm
(1.85 kgfcm)
2
3
3
3
94 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 12. Removal steps of keyboard (continued)
Lift the keyboard a little in the direction shown by arrow 4, and then detach
the connector 5.
4
5
Removing and replacing a FRU 95
Table 12. Removal steps of keyboard (continued)
When installing:
1. Attach the keyboard connector firmly.
2. Make sure that the keyboard edges are under the frame as shown in this
figure. Then press the keys to latch the keyboard firmly in place.
3. To make sure that the front side of the keyboard is housed firmly, gently press
the keys with your thumbs and try to slide the keyboard toward you.
4. Secure the keyboard by tightening the screws from the bottom side of the
computer.
96 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
1050 Palm rest or palm rest with fingerprint reader
For access, remove this FRU in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
Table 13. Removal steps of palm rest
11
1
1
1
Step Icon Screw (quantity) Color Torque
1 M2 ×5 mm, wafer-head,
nylon-coated (5)
Black 0.181 Nm
(1.85 kgfcm)
Note:
In models with the fingerprint reader, the sensor is attached to the palm rest
FRU. If the fingerprint reader has any defects, you can replace it by the
procedures given in this section, which are the same for a palm rest with or
without a fingerprint reader.
Removing and replacing a FRU 97
Table 13. Removal steps of palm rest (continued)
Note: Step 2 is only for models with the fingerprint reader. For models
without the fingerprint reader, skip step 2.
2
3
4
4
43
98 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 13. Removal steps of palm rest (continued)
When installing:
1. In models with the fingerprint reader, attach the fingerprint reader connector
firmly to the system board.
2. Press the left and right top edges of the palm rest to fit it into place.
3. Push the front side of the palm rest until it clicks into place.
1
2
21
4. Close the LCD cover and turn the computer over. Then fasten the five screws
to secure the palm rest.
Removing and replacing a FRU 99
1060 Backup battery
DANGER
Use only the battery specified in the parts list for your computer. Any other
battery could ignite or explode.
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
Table 14. Removal steps of backup battery
1
100 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 14. Removal steps of backup battery (continued)
3
2
When installing: Make sure that the battery connector is attached firmly.
Removing and replacing a FRU 101
1070 PCI Express Mini Card for wireless LAN/WiMAX
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
Table 15. Removal steps of PCI Express Mini Card for wireless LAN/WiMAX
Full size PCI Express Mini Card:
In step 1, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159) or pick the connectors with your fingers and gently unplug
them in direction of the arrow.
Note: Some models might have two antenna cables in step 1.
1
2
2
Step Screw (quantity) Color Torque
2 M2 ×3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
102 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 15. Removal steps of PCI Express Mini Card for wireless LAN/WiMAX (continued)
3
When installing:
vIn models with wireless LAN card that has two antenna connectors, plug the
gray cable into the jack labeled MAIN or Mon the card, and the black cable
into the jack labeled AUX or A. If the computer you are servicing has three
cables, put the white cable in the cable protection tube.
vIn models with wireless LAN card that has three antenna connector, plug the
gray cable (MAIN) into the jack labeled TR1, the white cable (3rd) into jack
labeled RO or TR3, and the black cable (AUX) into jack labeled TR2 on the
card.
Removing and replacing a FRU 103
Table 15. Removal steps of PCI Express Mini Card for wireless LAN/WiMAX (continued)
Harf size PCI Express Mini Card:
In step 1, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159) or pick the connectors with your fingers and gently unplug
them in direction of the arrow.
2
1
2
Step Screw (quantity) Color Torque
2 M2 ×3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
3
When installing: Plug the gray cable into the jack labeled MAIN on the card,
and the black cable into the jack labeled AUX.
104 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
1080 PCI Express Mini Card for wireless WAN
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
Table 16. Removal steps of PCI Express Mini Card for wireless WAN
In step 1, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159) or pick the connectors with your fingers and gently unplug
them in direction of the arrow.
2
1
2
Step Screw (quantity) Color Torque
3 M2 ×3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 105
Table 16. Removal steps of PCI Express Mini Card for wireless WAN (continued)
3
When installing: Plug the red cable into the jack labeled MAIN on the card,
and the blue cable into the jack labeled AUX.
106 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
1090 Intel Turbo Memory Minicard or Wireless USB PCI Express
Half-Mini Card
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
Table 17. Removal steps of Intel Turbo Memory Minicard or Wireless USB PCI Express
Half-Mini Card
Note: Step 1 is only for models with the Wireless USB PCI Express Half-Mini
Card. For models with the Intel®Turbo Memory Minicard, skip step 1.
In step 1, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159) or pick the connectors with your fingers and gently unplug
them in direction of the arrow.
1
2
2
Step Screw (quantity) Color Torque
2 M2 ×3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 107
Table 17. Removal steps of Intel Turbo Memory Minicard or Wireless USB PCI Express
Half-Mini Card (continued)
3
When installing: In models with the Wireless USB PCI Express Half-Mini Card,
plug the yellow cable into the jack on the card.
108 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
1100 Keyboard bezel
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
Table 18. Removal steps of keyboard bezel
1
Step Screw (quantity) Color Torque
1 M2 ×5 mm, wafer-head, nylon-coated (1) Black 0.181 Nm
(1.85 kgfcm)
In step 2, detach the claws. Then remove the keyboard bezel in the direction
shown by arrow 3.
Attention: When you service the keyboard bezel, avoid any kind of rough
handling.
2
2
2
2
3
3
When installing: Make sure that all the claws are attached firmly.
Removing and replacing a FRU 109
1110 Monaural speaker assembly (for X200, X200s, X201s, and X201si)
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
Table 19. Removal steps of monaural speaker assembly (for X200, X200s, X201s, and
X201si)
1
2
When installing: Make sure that the speaker connector is attached firmly.
110 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
1120 I/O card assembly
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
v“1110 Monaural speaker assembly (for X200, X200s, X201s, and X201si)” on page
110
Table 20. Removal steps of I/O card assembly
1
2
Removing and replacing a FRU 111
Table 20. Removal steps of I/O card assembly (continued)
Note: The cable is secured with a double-faced adhesive tape.
34
Note: Step a is only for ThinkPad X201. For the other models, skip the step
a.
Step Screw (quantity) Color Torque
2 M2 ×3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
112 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 20. Removal steps of I/O card assembly (continued)
Turn the I/O card over, and then disconnect the cable from the flip-lock ZIF
connector.
5
6
Removing and replacing a FRU 113
1130 LCD assembly
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
v“1070 PCI Express Mini Card for wireless LAN/WiMAX” on page 102
v“1080 PCI Express Mini Card for wireless WAN” on page 105
v“1090 Intel Turbo Memory Minicard or Wireless USB PCI Express Half-Mini
Card” on page 107
v“1100 Keyboard bezel” on page 109
Table 21. Removal steps of LCD assembly
1
1
Step Screw (quantity) Color Torque
1 M2 ×5 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
114 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 21. Removal steps of LCD assembly (continued)
2
2
Step Screw (quantity) Color Torque
2 M2 ×5 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
Before step 3, strip off the tapes securing the antenna cables, and release the
cables from the cable guides of the frame.
3
4
3
Step Screw (quantity) Color Torque
3 M2 ×5 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 115
Table 21. Removal steps of LCD assembly (continued)
5
5
116 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 21. Removal steps of LCD assembly (continued)
When installing:
1. Route the antenna cables along the cable guides and secure them with the
tapes. As you route the cables, make sure that they are not subjected to any
tension. Tension could cause the cables to be damaged by the cable guides,
or a wire to be broken.
2. Make sure that the LCD connector is attached firmly.
Removing and replacing a FRU 117
1140 Base cover assembly and stereo speaker assembly for X201 and
X201i
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1020 Hard disk drive (HDD) cover, HDD, and HDD rubber rails or solid state
drive (SSD) and storage converter” on page 87
v“1030 DIMM” on page 91
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
v“1060 Backup battery” on page 100
v“1070 PCI Express Mini Card for wireless LAN/WiMAX” on page 102
v“1080 PCI Express Mini Card for wireless WAN” on page 105
v“1090 Intel Turbo Memory Minicard or Wireless USB PCI Express Half-Mini
Card” on page 107
v“1100 Keyboard bezel” on page 109
v“1110 Monaural speaker assembly (for X200, X200s, X201s, and X201si)” on page
110
v“1120 I/O card assembly” on page 111
v“1130 LCD assembly” on page 114
Table 22. Removal steps of base cover assembly for ThinkPad X200, X201, and X201i
ThinkPad X200, X201, and X201i:
Remove the top shielding assembly at first.
2
1
Step Screw (quantity) Color Torque
1 M2 ×3 mm, wafer-head, nylon-coated (1) Black 0.181 Nm
(1.85 kgfcm)
118 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 22. Removal steps of base cover assembly for ThinkPad X200, X201, and
X201i (continued)
3
Step Screw (quantity) Color Torque
3 M2 ×3.5 mm, wafer-head, nylon-coated (1) Black 0.181 Nm
(1.85 kgfcm)
4
4
4
4a
Note: Step 4a is only for X201 and X201i.
Step Screw (quantity) Color Torque
4 M2 ×3.5 mm, wafer-head, nylon-coated (3) Silver 0.181 Nm
(1.85 kgfcm)
4a M2 ×3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 119
Table 22. Removal steps of base cover assembly for ThinkPad X200, X201, and
X201i (continued)
In step 5 and 6, remove the system board, the DC-in connector, and the fan
assembly together from the base cover assembly.
5
6
a
When installing: Check the position of the wireless switch a, and firmly fit
the system board into the base cover assembly.
Note: Following step is only for ThinkPad X201 and X201i.
7
7
Cable routing: Route the speaker cable as shown in this figure.
120 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 23. Removal steps of base cover assembly for ThinkPad X200s, X200si, and X201s
ThinkPad X200s, X200si and X201s:
Remove the top shielding assembly at first.
2
1
Step Screw (quantity) Color Torque
1 M2 ×3 mm, wafer-head, nylon-coated (1) Black 0.181 Nm
(1.85 kgfcm)
3
Step Screw (quantity) Color Torque
3 M2 ×3.5 mm, wafer-head, nylon-coated (1) Black 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 121
Table 23. Removal steps of base cover assembly for ThinkPad X200s, X200si, and
X201s (continued)
45
4
4
4
Step Screw (quantity) Color Torque
4 M2 ×3.5 mm, wafer-head, nylon-coated (4) Silver 0.181 Nm
(1.85 kgfcm)
5 M2 ×3 mm, large-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
In step 6 and 7, remove the system board, the DC-in connector, and the fan
assembly together from the base cover assembly.
6
7
a
When installing: Attach the wireless radio switch as shown in the figure a.
122 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Applying labels to the base cover:
The new base cover FRU is shipped with a kit containing labels of several kinds.
When you replace the base cover, you need to apply the following labels:
1 Product label
2 Homologation label
2a Non-mercury label
Note: If the computer you are servicing is an LED-backlight LCD model,
you need to paste this label so that the notice for mercury is covered.
Following labels need to be peeled off from the old base cover, and need to be
put on the new base cover.
3 Windows license label (COA)
4 Serial number label
5 MAC address label
6 IMEI label
7 FCC-ID label for Wireless LAN
8 FCC-ID label for Wireless WAN
9 China modem label
10 SIRIM label
For some models, you need to apply one or two FCC labels, 7 or 8. Check
the old base cover; if it has one or two FCC labels, find duplicates of them in the
label kit and apply them to the new base cover.
For the location of each label, refer to the following figure:
1 2 3
9
10
8
7
5
6
4
2a
Removing and replacing a FRU 123
1150 Systemboard, DC-in connector, fan, and ExpressCard slot
assembly
Note: When you replace any of the following system boards, be sure that the new
one has the same ROM size as the original one.
60Y3787
System board with Intel®Core™2 Duo mobile processor P8600 (2.4 GHz),
non-AMT, TPM, 8-MB ROM
60Y3839
System board with Intel Core 2 Duo mobile processor P8600 (2.4 GHz),
non-AMT, TPM, 4-MB ROM
60Y3790
System board with Intel Core 2 Duo mobile processor P8600 (2.4 GHz),
non-AMT, non-TPM, 8-MB ROM
60Y3840
System board with Intel Core 2 Duo mobile processor P8600 (2.4 GHz),
non-AMT, non-TPM, 4-MB ROM
vTo identify the system board originally installed in your computer, go to PEW at
the following web site: http://www.lenovo.com/support/site.wss/
document.do?lndocid=LOOK-WARNTY
Select Warranty Lookup. Input the machine type and the serial number. Use the
system board listed on PEW.
vBusiness Partners using Eclaim can access PEW at the following web site:
https://wca.eclaim.com
Select Entitlement Lookup. Input the Loc ID, the machine type, and the serial
number. Use the system board listed on PEW.
124 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1020 Hard disk drive (HDD) cover, HDD, and HDD rubber rails or solid state
drive (SSD) and storage converter” on page 87
v“1030 DIMM” on page 91
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
v“1060 Backup battery” on page 100
v“1070 PCI Express Mini Card for wireless LAN/WiMAX” on page 102
v“1080 PCI Express Mini Card for wireless WAN” on page 105
v“1090 Intel Turbo Memory Minicard or Wireless USB PCI Express Half-Mini
Card” on page 107
v“1100 Keyboard bezel” on page 109
v“1110 Monaural speaker assembly (for X200, X200s, X201s, and X201si)” on page
110
v“1120 I/O card assembly” on page 111
v“1130 LCD assembly” on page 114
v“1140 Base cover assembly and stereo speaker assembly for X201 and X201i” on
page 118
Important notices for handling the system board:
When handling the system board, bear the following in mind.
vThe system board has an accelerometer, which can be broken by applying
several thousands of G-forces.
Note: Dropping a system board from a height of as little as 6 inches so that it
falls flat on a hard bench can subject the accelerometer to as much as 6,000 G’s
of shock.
vBe careful not to drop the system board on a bench top that has a hard
surface, such as metal, wood, or composite.
vIf a system board is dropped, you must test it, using PC-Doctor for DOS, to
make sure that the HDD Active Protection still functions (see below).
Note: If the test shows that HDD Active Protection is not functioning, be sure
to document the drop in any reject report, and replace the system board.
vAvoid rough handling of any kind.
vAt every point in the process, be sure not to drop or stack the system board.
vIf you put a system board down, be sure to put it only on a padded surface
such as an ESD mat or conductive corrugated material.
After replacing the system board, run PC-Doctor for DOS to make sure that
HDD Active Protection still functions. The procedure is as follows:
1. Place the computer on a horizontal surface.
2. Run Diagnostics --> ThinkPad Devices --> HDD Active Protection Test.
Attention: Do not apply physical shock to the computer while the test is
running.
Removing and replacing a FRU 125
Table 24. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200, X201, and X201i
Following components soldered on the system board are extremely sensitive.
When you service the system board, avoid any kind of rough handling.
ThinkPad X200:
a Accelerometer chip for the HDD Active Protection System™
b ICH (I/O Controller Hub)
c CPU
d MCH (Memory Controller Hub)
Top
b
a
Bottom
c
d
126 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 24. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200, X201, and X201i (continued)
ThinkPad X201 and X201i:
a CPU
b PCH (Platform Controller Hub)
c Accelerometer chip for the HDD Active Protection System
Bottom
a
b
c
Note: The DC-in connector and the fan assembly are attached to the underside
of the system board.
1
Note: Step 1 is only for ThinkPad X200.
Step Screw (quantity) Color Torque
1 M2 ×3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 127
Table 24. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200, X201, and X201i (continued)
Turn the system board over, and then disconnect the DC-in connector and the
fan connector from the system board.
2
3
When installing: Make sure that the DC-in connector and the fan connector are
attached to the system board firmly.
5
6
4
4
4
Step Screw (quantity) Color Torque
5 M2 ×3.5 mm, flat-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
128 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 24. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200, X201, and X201i (continued)
When installing:
vBefore you attach the fan assembly to the computer, apply thermal grease, at
an amount of 0.2 grams, on the part marked a as in the following figure.
Either too much or too less application of grease can cause a thermal problem
due to imperfect contact with a component. You need to peel the thin film off
from the rubber b.
For ThinkPad X200:
a
b
For ThinkPad X201 and X201i:
b
a
vMake sure that the fan connector is attached firmly.
Removing and replacing a FRU 129
Table 24. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200, X201, and X201i (continued)
Note: The ExpressCard slot assembly is attached to the system board.
1
Step Screw (quantity) Color Torque
1 M2 ×3.5 mm, flat-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
Turn the system board over, and then remove the ExpressCard slot assembly
from the system board.
3
2
130 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 25. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200s and X201s
ThinkPad X200s:
Following components soldered on the system board are extremely sensitive.
When you service the system board, avoid any kind of rough handling.
a ICH (I/O Controller Hub)
b CPU
c MCH (Memory Controller Hub)
d Accelerometer chip for the HDD Active Protection System
Top
a
Bottom
b
c
d
Removing and replacing a FRU 131
Table 25. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200s and X201s (continued)
ThinkPad X201s:
a CPU
b PCH (Platform Controller Hub)
c Accelerometer chip for the HDD Active Protection System
Bottom
a
b
c
132 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 25. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200s and X201s (continued)
1
Note: Step 1 in only for ThinkPad X201s.
Step Screw (quantity) Color Torque
1 M2 ×3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
Note: The DC-in connector and the fan assembly are attached to the underside
of the system board.
2
3
When installing: Make sure that the DC-in connector and the fan connector are
attached to the system board firmly.
Removing and replacing a FRU 133
Table 25. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200s and X201s (continued)
7
8
5
4
6
Step Screw (quantity) Color Torque
7 M2 ×3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
134 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 25. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200s and X201s (continued)
When installing:
vBefore you attach the fan assembly to the computer, apply thermal grease, at
an amount of 0.2 grams, on the part marked a as in the following figure.
Either too much or too less application of grease can cause a thermal problem
due to imperfect contact with a component. You need to peel the thin film off
from the rubber b.
For ThinkPad X200s:
a
b
For ThinkPad X201s:
b
a
vMake sure that the fan connector is attached firmly.
Removing and replacing a FRU 135
Table 25. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200s and X201s (continued)
Note: The ExpressCard slot assembly is attached to the system board.
For ThinkPad X200s:
1
For ThinkPad X201s:
1
Step Screw (quantity) Color Torque
1 M2 ×3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
136 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 25. Removal steps of system board, DC-in connector, fan, and ExpressCard slot
assembly for ThinkPad X200s and X201s (continued)
Turn the system board over, and then remove the ExpressCard slot assembly
from the system board.
2
3
Removing and replacing a FRU 137
2010 LCD front bezel
For access, remove this FRU:
v“1010 Battery pack” on page 85
Table 26. Removal steps of LCD front bezel for 12.1-in. WXGA LCD model
12.1-in. WXGA LCD model:
1
1
1
Step Screw cap Screw (quantity) Color Torque
1 M2.5 ×4 mm, wafer-head,
nylon-coated (3)
Black 0.392 Nm
(4 kgfcm)
In step 2, detach the claws. Then remove the LCD front bezel.
2
2
2
2
2
2
2
2
When installing: Make sure that all the claws are attached firmly.
138 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 27. Removal steps of LCD front bezel for 12.1-in. WXGA+ LCD model
12.1-in. WXGA+ LCD model:
1
2
2
2
2
2
1
3
3
3
3
Step Screw cap Screw (quantity) Color Torque
1 M2.5 ×4 mm, wafer-head,
nylon-coated (2)
Black 0.392 Nm
(4 kgfcm)
2 M2.5 ×4 mm, wafer-head,
nylon-coated (5)
Black 0.392 Nm
(4 kgfcm)
3 M2 ×3.5 mm, wafer-head,
nylon-coated (4)
Silver 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 139
Table 27. Removal steps of LCD front bezel for 12.1-in. WXGA+ LCD model (continued)
In step 4 and 5, detach the claws. Then remove the LCD front bezel.
4
4
6
4
6
4
4
4
5
5
When installing: Make sure that all the claws are attached firmly.
140 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
2020 Inverter card or LED board
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“2010 LCD front bezel” on page 138
Table 28. Removal steps of inverter card or LED board
For ThinkPad X200, X200s, and X200si:
2
3
4
1
Step Screw (quantity) Color Torque
1 M2 ×3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
When installing: Make sure that the connector 2 and 4 are attached firmly.
Cabling: When replacing the inverter card or the LED board, route the
connector cable as in this figure.
Removing and replacing a FRU 141
Table 28. Removal steps of inverter card or LED board (continued)
For ThinkPad X201, X201i, and X201s:
2
3
1
Step Screw (quantity) Color Torque
1 M2 ×3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
When installing: Make sure that the connector 2 is attached firmly.
142 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
2030 Bluetooth daughter card (BDC-2.1)
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“2010 LCD front bezel” on page 138
Table 29. Removal steps of Bluetooth daughter card
1
When installing: Make sure that the connector 1 is attached firmly.
Removing and replacing a FRU 143
2040 Integrated camera
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“2010 LCD front bezel” on page 138
Table 30. Removal steps of Integrated camera
3
1
1
2
Step Screw (quantity) Color Torque
1 M2 ×3.5 mm, wafer-head, nylon-coated (2) Silver 0.181 Nm
(1.85 kgfcm)
144 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
2050 LCD panel, LCD brackets, and LCD cable
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
v“1070 PCI Express Mini Card for wireless LAN/WiMAX” on page 102
v“1080 PCI Express Mini Card for wireless WAN” on page 105
v“1090 Intel Turbo Memory Minicard or Wireless USB PCI Express Half-Mini
Card” on page 107
v“1100 Keyboard bezel” on page 109
v“1130 LCD assembly” on page 114
v“2010 LCD front bezel” on page 138
v“2020 Inverter card or LED board” on page 141
v“2030 Bluetooth daughter card (BDC-2.1)” on page 143
v“2040 Integrated camera” on page 144
Table 31. Removal steps of LCD panel, LCD brackets, and LCD cable for 12.1-in. WXGA
LCD model
12.1-in. WXGA LCD model:
1
2
1
2
2
2
Step Screw (quantity) Color Torque
1 M2.5 ×4 mm, wafer-head, nylon-coated (2) Black 0.392 Nm
(4 kgfcm)
2 M2 ×3.5 mm, wafer-head, nylon-coated (4) Silver 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 145
Table 31. Removal steps of LCD panel, LCD brackets, and LCD cable for 12.1-in. WXGA
LCD model (continued)
Note: Step 3 is only for models without the integrated camera. For models
with the integrated camera, skip step 3.
33
4
Step Screw (quantity) Color Torque
3 M2 ×3.5 mm, wafer-head, nylon-coated (2) Silver 0.181 Nm
(1.85 kgfcm)
In step 5, release the antenna cables from the cable guides, and then remove
the LCD panel.
5
146 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 31. Removal steps of LCD panel, LCD brackets, and LCD cable for 12.1-in. WXGA
LCD model (continued)
6
Remove the LCD bracket a.
7
7
8
7
7
8
a
a
Step Screw (quantity) Color Torque
7 M2 ×2 mm, wafer-head, nylon-coated (4) Black 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 147
Table 31. Removal steps of LCD panel, LCD brackets, and LCD cable for 12.1-in. WXGA
LCD model (continued)
Turn the LCD panel over, and then remove the LCD cable b from the LCD
panel.
9
b
10
When installing: Make sure that the LCD cable connector is attached firmly.
148 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 32. Removal steps of LCD panel, LCD brackets, and LCD cable for 12.1-in. WXGA+
LCD model
12.1-in. WXGA+ LCD model:
1
3
2
Step Screw (quantity) Color Torque
1 M2 x 2 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgfcm)
4
5
Removing and replacing a FRU 149
Table 32. Removal steps of LCD panel, LCD brackets, and LCD cable for 12.1-in. WXGA+
LCD model (continued)
Turn the LCD panel over, and then remove the LCD cable c from the LCD
panel.
c
7
6
When installing: Make sure that the LCD cable connector is attached firmly.
150 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
2060 Hinges and hinge brackets
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
v“1070 PCI Express Mini Card for wireless LAN/WiMAX” on page 102
v“1080 PCI Express Mini Card for wireless WAN” on page 105
v“1090 Intel Turbo Memory Minicard or Wireless USB PCI Express Half-Mini
Card” on page 107
v“1100 Keyboard bezel” on page 109
v“1130 LCD assembly” on page 114
v“2010 LCD front bezel” on page 138
v“2020 Inverter card or LED board” on page 141
v“2030 Bluetooth daughter card (BDC-2.1)” on page 143
v“2040 Integrated camera” on page 144
v“2050 LCD panel, LCD brackets, and LCD cable” on page 145
Table 33. Removal steps of hinges for 12.1-in. WXGA LCD model
12.1-in. WXGA LCD model:
Remove the hinges.
1
1
Removing and replacing a FRU 151
Table 34. Removal steps of hinges and hinge brackets for 12.1-in. WXGA+ LCD model
12.1-in. WXGA+ LCD model:
In step 1, release the antenna cables from the cable guides.
1
1
152 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 34. Removal steps of hinges and hinge brackets for 12.1-in. WXGA+ LCD
model (continued)
Remove the hinges a and the hinge brackets b.
2
3
2
3
b
a
b
a
Step Screw (quantity) Color Torque
2 M2.5 x 4 mm, wafer-head, nylon-coated (2) Black 0.392 Nm
(4 kgfcm)
Removing and replacing a FRU 153
2070 LCD rear cover and wireless antenna cables
For access, remove these FRUs in order:
v“1010 Battery pack” on page 85
v“1040 Keyboard” on page 94
v“1050 Palm rest or palm rest with fingerprint reader” on page 97
v“1070 PCI Express Mini Card for wireless LAN/WiMAX” on page 102
v“1080 PCI Express Mini Card for wireless WAN” on page 105
v“1090 Intel Turbo Memory Minicard or Wireless USB PCI Express Half-Mini
Card” on page 107
v“1100 Keyboard bezel” on page 109
v“1130 LCD assembly” on page 114
v“2010 LCD front bezel” on page 138
v“2020 Inverter card or LED board” on page 141
v“2030 Bluetooth daughter card (BDC-2.1)” on page 143
v“2040 Integrated camera” on page 144
v“2050 LCD panel, LCD brackets, and LCD cable” on page 145
v“2060 Hinges and hinge brackets” on page 151
Table 35. Removal steps of LCD rear cover and wireless antenna cables for 12.1-in. WXGA
LCD model
12.1-in. WXGA LCD model:
1
1
Step Screw (quantity) Color Torque
1 M2 ×3.5 mm, wafer-head, nylon-coated (2) Silver 0.181 Nm
(1.85 kgfcm)
154 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 35. Removal steps of LCD rear cover and wireless antenna cables for 12.1-in. WXGA
LCD model (continued)
2
In step 3, release the antenna cables from the cable guides of the rear cover.
3
3 3
3
4 4 4 4 4 4
Removing and replacing a FRU 155
Table 35. Removal steps of LCD rear cover and wireless antenna cables for 12.1-in. WXGA
LCD model (continued)
5
5
5
5
5
5
Note: Wireless antennas are secured with double-faced adhesive tapes.
When installing: When you attache the antenna cables, do as follows.
1
1
1
1
156 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 35. Removal steps of LCD rear cover and wireless antenna cables for 12.1-in. WXGA
LCD model (continued)
Cable routing: Place the antenna assembly as shown in this figure.
a Wireless WAN antenna, AUX (blue)
b Wireless LAN antenna, AUX (black)
c Wireless USB antenna (yellow)
d MIMO antenna (white)
e Wireless LAN antenna, MAIN (gray)
f Wireless WAN antenna, MAIN (red)
ac
b d e f
Attention: As you route the antenna cables, make sure that they are not
subjected to any tension. Tension could cause the cables to be damaged by the
cable guides, or a wire to be broken.
Removing and replacing a FRU 157
Table 36. Removal steps of LCD rear cover and wireless antenna cables for 12.1-in. WXGA+
LCD model
12.1-in. WXGA+ LCD model:
In step 1, release the antenna cables from the cable guides of the rear cover.
1
1
1
1
2
Note: Wireless antennas are secured with double-faced adhesive tapes.
158 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 36. Removal steps of LCD rear cover and wireless antenna cables for 12.1-in. WXGA+
LCD model (continued)
Cable routing: Place the antenna assembly as shown in this figure.
a Wireless LAN antenna, AUX (black)
b Wireless USB antenna (yellow)
c MIMO antenna (white)
d Wireless LAN antenna, MAIN (gray)
a b c d
Attention: As you route the antenna cables, make sure that they are not
subjected to any tension. Tension could cause the cables to be damaged by the
cable guides, or a wire to be broken.
Removing and replacing a FRU 159
160 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Locations
This chapter presents the location of ThinkPad X200, X200s, X200si, X201, X201i,
and X201s features and hardware.
Front view
1 ThinkLight
2 Integrated camera (for some models)
3 Status indicators
Note: For the description of each indicator, see “Status indicators” on page
71.
4 Power switch
5 Security keyhole
6 Hard disk drive (HDD) or solid state drive (SSD)
7 RJ-11 (modem) connector
8 Microphone jack
9 Stereo headphone jack
10 Universal serial bus (USB) connector
11 TrackPoint pointing stick
12 Fingerprint reader (for some models)
13 TrackPoint buttons
14 Touch pad buttons (for some models)
15 Touch pad (for some models)
16 UltraNav®(for some models)
17 Volume control buttons
18 ThinkVantage button
19 Built-in microphone
1
2
5
11
12
17
18
3
4
13
19
6
7
8
10
9
15
14
16
© Copyright Lenovo 2008, 2010 161
Rear view
1 ExpressCard slot
2 Wireless radio switch
3 Universal Serial Bus (USB) connector
4 RJ-45 (Ethernet) connector
5 External monitor connector
6 Universal serial bus (USB) connector
7 AC power connector
8 Bluetooth antenna
(for some models)
9 Status indicators
Note: For the description of each indicator, see “Status indicators” on page
71.
1
8
5
2
3
4
6
7
9
162 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Bottom view
1 Battery pack
2 Battery pack latch
3 Docking connector
4 DIMM slots
5 LCD cover latch
6 Built-in speaker
7 5-in-1 Media Card Reader or 3-in-1 Media Card Reader slot
8 Hard disk drive (HDD) or solid state drive (SSD)
1
2
4
5
3
6
7
8
Locations 163
Rear view (ThinkPad X200 UltraBase)
1 AC power connector
2 Universal serial bus (USB) connectors
3 External monitor connector
4 DisplayPort connector
5 Headphone jack
6 Microphone jack
7 RJ-45 (Ethernet) connector
8 Security keyhole
9 Security lock key
10 Universal serial bus (USB) connector
11 Serial Ultrabay Slim device release latch
12 Serial Ultrabay Slim device eject lever
13 Serial Ultrabay Slim device
14 Docking connector
1
2
3
4
5
6
7
8
9
10
11
12
13
14
164 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Bottom view (ThinkPad X200 UltraBase)
1 Battery charger (behind the flip-down door)
2 UltraBase eject request button
3 UltraBase eject lever
4 Power button security latch
5 Power button
6 Built-in stereo speakers
1
2
3
5
6
4
Locations 165
166 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Parts list
This section contains following lists of the service parts.
v“Overall” on page 168
v“LCD FRUs” on page 253
v“Keyboard” on page 286
v“Miscellaneous parts” on page 287
v“AC adapters” on page 287
v“Power cords” on page 288
v“Recovery discs” on page 289
v“Common service tools” on page 310
Notes:
vEach FRU is available for all types or models, unless specific types or models
are specified.
vFRU with specific models listed and described as xxU (where U is an example
of a country designator) should be used for all models ending in U.
vFRU with specific models listed and described as 3Dx (where 3D is an
example of a unique configuration) should be used for all of these models,
unless specific country or region designator is specified.
vA CRU (customer replaceable unit) is identified by a single asterisk (*) or two
asterisks (**) in the CRU ID column. An N in the CRU ID column means that
the part is not a CRU. A single asterisk (*) means that the part is a Self-service
CRU; two asterisks (**) means that the part is an Optional-service CRU.
ThinkPad computers contain the following types of CRUs:
Self-service CRUs
These CRUs unplug or are held by no more than two screws.
Examples of these types of CRUs include an ac adapter, a power cord,
a battery, and a hard disk drive. Other Self-service CRUs depending
on product design may include a memory, a wireless card, a keyboard,
and a palm rest with finger print reader and touchpad.
Optional-service CRUs
These CRUs are isolated parts within the computer that are concealed
by an access panel that is typically secured by more than two screws.
Once the access panel is removed, the specific CRU is visible.
vFRUs marked with OP are available as options.
© Copyright Lenovo 2008, 2010 167
Overall
1
2
5
a
3
4
6
7
8
9
10
11
12
13
14
19
20
22a
22b
23
24
25
26
21
18
15
16
17
168 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall
No. FRU FRU no. CRU
ID
aSee “Miscellaneous parts” on page 287.
1 LCD unit (see “LCD FRUs” on page 253.)
2 Keyboard bezel assembly 44C9542 N
3 Backup battery 92P1210 N
4 Intel Turbo Memory 2-GB Minicard
v7454-CTO, 23x, 25x, 28x, 2Jx, 2Lx, 2Qx, GEx
v7455-CTO, 33x, 35x, 3Ax, 3Hx, 3Jx, 3Sx, 3Tx, 3Vx, 3Wx, 3Xx, 3Yx, 4Ex, 4Fx, 4Gx, 8Xx,
8Yx, D6x, D7x, D8x, DLx, DMx, FBx, FCx
v7457-CTO, 43x, 44x, 47x, 49x, 4Dx
v7458-CTO, 29x, 2Ax, 2Bx, 2Mx, 2Nx, 2Px, 53x, 54x, 56x, 57x, 58x, 5Ax, 5Bx, 5Cx, 5Dx,
5Lx, 5Mx, 5Sx, 69x, 6Cx, 6Dx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Vx, 6Yx, 6Zx, 7Bx, 7Dx,
7Jx, 7Kx, 7Zx, 8Cx, 8Fx, 8Wx, 8Xx, 8Yx, F3x, F4x, F7x, FDx, FEx, FFx, FHx, FKx, FLx,
FXx, G3x, G6x, G7x, G8x
v7459-CTO, 63x, 64x, 65x, 66x, 68x, 69x, 6Bx, 6Dx, 6Nx, 6Px, 6Qx, 6Tx, 6Ux, 6Vx, 6Xx,
H2x
v2023-CTO
v2024-CTO
v7462-CTO, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Dx, 4Ex, 4Fx
v7465-CTO, 25x, 26x, 27x, 28x, 29x, 2Ex, 2Fx
v7466-CTO, 34x, 35x, 38x, 39x, 3Ax, 3Fx, 3Gx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Zx, 92x,
9Dx, FQx, FSx, FTx, FZx, N2x
v7469-CTO, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Lx, 5Mx, 5Px, 5Qx, 5Zx, 6Bx, 6Ex, 72x,
73x, 78x, 79x, 7Bx, 7Ux, 8Cx, 8Dx, 8Ex, 8Gx, 8Kx, 8Nx, 8Qx
v7470-CTO, 64x, 65x, 68x, 69x, 6Ax
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
43Y6523 **
Parts list 169
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
4 Intel Turbo Memory 4-GB Minicard
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO, 2Cx, 2Tx, 6Ex, F8x, F9x, FJx, FYx, GBx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 5Yx
v7469-CTO, 8Fx, 8Hx, 8Px
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
43Y6525 **
4 Wireless USB PCI Express Half-Mini Card
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO, 44x, 45x, 4Cx
v7465-CTO, 2Dx
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
US 43Y6501 **
JP 43Y6503 **
5 System board with Intel Core 2 Duo mobile processor P8400 (2.26 GHz), AMT, TPM
v7454-CTO, 26x, 29x, 2Jx, 2Kx, 2Nx, 2Px, 2Rx, 2Wx, 2Xx, 2Yx, 92x
v7455-CTO, 36x, 38x, 39x, 3Dx, 3Jx, 3Kx, 3Px, 3Sx, 3Tx
v7457-CTO, 45x, 48x, 4Ax, 4Bx, 4Cx, 4Dx, 4Gx, 4Hx, 4Jx, 4Nx, 4Px, 4Qx, 4Ux, 4Vx, 4Wx
v7458-CTO, 55x, 57x, 5Ax, 5Bx, 5Lx, 5Mx, 5Nx, 5Px, 72x, 73x, 78x, 7Ex, 7Fx, 7Gx, 7Hx,
7Lx, 7Mx, 7Nx, 7Px, 7Rx, 7Tx, 7Xx, 7Zx, 82x, 86x, F5x, X5x
v7459-CTO, 62x, 63x, 68x, 6Cx, 6Ex, 6Fx, 6Lx, 6Rx, 6Tx
v2023-CTO
v2024-CTO
60Y3792 N
170 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Core 2 Duo mobile processor P8400 (2.26 GHz), AMT, non-TPM
v7454-CTO
v7455-CTO, 3Wx
v7457-CTO
v7458-CTO, 7Vx, 7Wx, 8Cx, 8Dx, 8Hx, 8Kx, 8Lx, 8Nx
v7459-CTO
v2023-CTO
v2024-CTO
60Y3795 N
5 System board with Intel Core 2 Duo mobile processor P8400 (2.26 GHz), non-AMT, TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
60Y3786 N
5 System board with Intel Core 2 Duo mobile processor P8400 (2.26 GHz), non-AMT,
non-TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
60Y3789 N
5 System board with Intel Core 2 Duo mobile processor P8600 (2.4 GHz), AMT, TPM
v7454-CTO, 3Yx, 3Zx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GFx, GGx, GHx, GJx,
GKx, GLx, GMx, GPx
v7455-CTO, 3Mx, 3Xx, 3Yx, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Jx, 8Tx,
8Ux, 8Vx, 8Wx, FTx, FUx, FVx, FWx, FXx, FYx, P9x, PGx, PHx, PJx
v7457-CTO, 42x, 43x, 44x, 46x, 47x, 49x, 4Ex, 4Fx, 4Kx, 4Lx, 4Mx
v7458-CTO, 52x, 53x, 54x, 56x, 58x, 59x, 5Cx, 5Dx, 5Ex, 5Fx, 5Hx, 5Jx, 5Qx, 5Rx, 5Sx,
5Tx, 69x, 74x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Jx, 7Kx, 7Qx, 7Sx, 7Ux, 7Yx, 83x, 84x, 85x,
87x, 88x, 89x, 8Ax, 8Px, 8Qx, 8Rx, 8Sx, 8Zx, E2x, F2x, F6x, F7x, F8x, FDx, FMx, FNx,
FPx, FQx, FSx, FTx, M2x, M3x, X4x
v7459-CTO, 5Ex, 5Fx, 64x, 65x, 66x, 67x, 69x, 6Ax, 6Bx, 6Dx, 6Gx, 6Jx, 6Kx, 6Mx, 6Nx,
6Px, 6Qx, 6Sx, 6Ux, 6Vx, 6Wx, 6Xx, E3x, H3x, M2x, M3x, M4x
v2023-CTO
v2024-CTO
60Y3793 N
5 System board with Intel Core 2 Duo mobile processor P8600 (2.4 GHz), AMT, non-TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO, 8Bx, 8Ex, 8Fx, 8Gx, 8Jx, 8Mx
v7459-CTO, 6Yx, 6Zx, H2x
v2023-CTO
v2024-CTO
60Y3796 N
Parts list 171
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5Note: When you replace the system board listed below, be sure that the new one has the same ROM size as
the original one.
vTo identify the system board originally installed in your computer, go to PEW at the following web site:
http://www.lenovo.com/support/site.wss/document.do?lndocid=LOOK-WARNTY
Select Warranty Lookup. Input the machine type and the serial number. Use the system board listed on
PEW.
vBusiness Partners using Eclaim can access PEW at the following web site: https://wca.eclaim.com
Select Entitlement Lookup. Input the Loc ID, the machine type, and the serial number. Use the system
board listed on PEW.
System board with Intel Core 2 Duo mobile processor P8600 (2.4 GHz), non-AMT, TPM,
8-MB ROM
v7454-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 2Gx, 2Hx, 2Jx, 2Mx, 2Qx, 2Sx, 2Tx, 2Ux, 2Vx,
2Zx, 3Tx, 93x, 95x, 96x, 97x, 98x, 9Fx, 9Gx, 9Hx, 9Lx, GBx, GCx, GDx, GEx, GNx
v7455-CTO, 32x, 33x, 34x, 35x, 3Ax, 3Bx, 3Cx, 3Ex, 3Fx, 3Gx, 3Hx, 3Lx, 3Nx, 3Qx, 3Rx,
3Zx, 4Wx, 82x, 83x, 8Gx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Zx, D5x, D9x, DCx,
DPx, DQx, FRx, FSx, FZx, N3x, N4x, N5x, P2x, P3x, P4x, P5x, P6x, P7x, PAx, PBx, PCx
v7457-CTO
v7458-CTO
v7459-CTO, 73x
v2023-CTO
v2024-CTO
60Y3787 N
5Note: When you replace the system board listed below, be sure that the new one has the same ROM size as
the original one.
vTo identify the system board originally installed in your computer, go to PEW at the following web site:
http://www.lenovo.com/support/site.wss/document.do?lndocid=LOOK-WARNTY
Select Warranty Lookup. Input the machine type and the serial number. Use the system board listed on
PEW.
vBusiness Partners using Eclaim can access PEW at the following web site: https://wca.eclaim.com
Select Entitlement Lookup. Input the Loc ID, the machine type, and the serial number. Use the system
board listed on PEW.
System board with Intel Core 2 Duo mobile processor P8600 (2.4 GHz), non-AMT, TPM,
4-MB ROM
v7454-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 2Gx, 2Hx, 2Jx, 2Mx, 2Qx, 2Sx, 2Tx, 2Ux, 2Vx,
2Zx, 3Tx, 93x, 95x, 96x, 97x, 98x, 9Fx, 9Gx, 9Hx, 9Lx, GBx, GCx, GDx, GEx, GNx
v7455-CTO, 32x, 33x, 34x, 35x, 3Ax, 3Bx, 3Cx, 3Ex, 3Fx, 3Gx, 3Hx, 3Lx, 3Nx, 3Qx, 3Rx,
3Zx, 4Wx, 82x, 83x, 8Gx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Zx, D5x, D9x, DCx,
DPx, DQx, FRx, FSx, FZx, N3x, N4x, N5x, P2x, P3x, P4x, P5x, P6x, P7x, PAx, PBx, PCx
v7457-CTO
v7458-CTO
v7459-CTO, 73x
v2023-CTO
v2024-CTO
60Y3839 N
172 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5Note: When you replace the system board listed below, be sure that the new one has the same ROM size as
the original one.
vTo identify the system board originally installed in your computer, go to PEW at the following web site:
http://www.lenovo.com/support/site.wss/document.do?lndocid=LOOK-WARNTY
Select Warranty Lookup. Input the machine type and the serial number. Use the system board listed on
PEW.
vBusiness Partners using Eclaim can access PEW at the following web site: https://wca.eclaim.com
Select Entitlement Lookup. Input the Loc ID, the machine type, and the serial number. Use the system
board listed on PEW.
System board with Intel Core 2 Duo mobile processor P8600 (2.4 GHz), non-AMT,
non-TPM, 8-MB ROM
v7454-CTO
v7455-CTO, 3Ux, 3Vx, 84x, DAx, DEx, DGx, DHx, F3x, PDx, PEx, PFx
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
60Y3790 N
5Note: When you replace the system board listed below, be sure that the new one has the same ROM size as
the original one.
vTo identify the system board originally installed in your computer, go to PEW at the following web site:
http://www.lenovo.com/support/site.wss/document.do?lndocid=LOOK-WARNTY
Select Warranty Lookup. Input the machine type and the serial number. Use the system board listed on
PEW.
vBusiness Partners using Eclaim can access PEW at the following web site: https://wca.eclaim.com
Select Entitlement Lookup. Input the Loc ID, the machine type, and the serial number. Use the system
board listed on PEW.
System board with Intel Core 2 Duo mobile processor P8600 (2.4 GHz), non-AMT,
non-TPM, 4-MB ROM
v7454-CTO
v7455-CTO, 3Ux, 3Vx, 84x, DAx, DEx, DGx, DHx, F3x, PDx, PEx, PFx
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
60Y3840 N
5 System board with Intel Core 2 Duo mobile processor P8700 (2.53 GHz), AMT, TPM
v7454-CTO
v7455-CTO, 4Cx, 4Dx, 4Kx, 4Lx, 4Mx, 4Tx, FHx, FQx
v7457-CTO, 4Rx, 4Sx, 4Tx, 53x, 54x, 56x, 57x, 58x
v7458-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Kx, 2Lx, 4Xx, 4Yx, 66x, 6Bx, 6Kx, 6Lx, 6Nx,
6Px, 6Qx, 6Rx, 6Vx, 6Xx, 8Tx, 8Wx, 8Xx, F3x, F4x, F9x, FAx, FCx, FEx, FFx, FGx, FHx,
FJx, FKx, FLx, FUx, FVx, FWx, G5x, G6x, GBx, GCx
v7459-CTO, H4x, H6x, H7x
v2023-CTO
v2024-CTO
60Y3825 N
Parts list 173
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Core 2 Duo mobile processor P8700 (2.53 GHz), AMT, non-TPM
v7454-CTO
v7455-CTO, D6x
v7457-CTO
v7458-CTO, 8Yx
v7459-CTO
v2023-CTO
v2024-CTO
60Y3827 N
5 System board with Intel Core 2 Duo mobile processor P8700 (2.53 GHz), non-AMT, TPM
v7454-CTO, 32x, 33x, 34x, 36x, 38x, 3Px, 3Rx, 3Vx, 3Wx, 3Xx, 9Bx, 9Cx, 9Jx
v7455-CTO, 42x, 43x, 44x, 49x, 4Bx, 4Xx, 4Zx, D2x, D3x, D7x, D8x, DDx, DJx, DKx, DLx,
DMx, DNx, DRx, DSx, DTx, DXx, F5x, F6x, FEx, FJx, FMx
v7457-CTO, 52x, 55x
v7458-CTO, 62x, 65x, 6Jx
v7459-CTO, 74x
v2023-CTO
v2024-CTO
60Y3841 N
5 System board with Intel Core 2 Duo mobile processor P8700 (2.53 GHz), non-AMT,
non-TPM
v7454-CTO, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx
v7455-CTO, 47x, DBx, DFx, F4x, FNx, FPx
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
60Y3842 N
5 System board with Intel Core 2 Duo mobile processor P8800 (2.4 GHz), AMT, TPM
v7454-CTO, 3Qx, 3Sx
v7455-CTO, 45x, 46x, 4Ax, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Ux, 4Vx,
4Yx, 8Fx, 8Hx, 8Xx, 8Yx, DUx, DVx, DYx, DZx, F2x, F7x, F9x, FDx, FFx, FGx, FKx, FLx,
N2x
v7457-CTO
v7458-CTO, 22x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx,
63x, 64x, 67x, 68x, 6Ax, 6Cx, 6Dx, 6Ex, 6Mx, 6Sx, 6Tx, 6Ux, 6Wx, 6Yx, 6Zx, FXx, FYx,
G3x, G4x, G7x, G8x, G9x, GDx, GEx, GFx
v7459-CTO, 72x, 75x, H5x
v2023-CTO
v2024-CTO
43Y9982 N
5 System board with Intel Core 2 Duo mobile processor P8800 (2.4 GHz), AMT, non-TPM
v7454-CTO
v7455-CTO, 48x, DWx
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
43Y9984 N
5 System board with Intel Core 2 Duo mobile processor P8800 (2.4 GHz), non-AMT, TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
45M2839 N
174 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Core 2 Duo mobile processor P8800 (2.4 GHz), non-AMT,
non-TPM
v7454-CTO
v7455-CTO
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
45M2840 N
5 System board with Intel Core 2 Duo mobile processor T9400 (2.53 GHz), AMT, TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
60Y3794 N
5 System board with Intel Core 2 Duo mobile processor T9400 (2.53 GHz), AMT, non-TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
60Y3797 N
5 System board with Intel Core 2 Duo mobile processor T9400 (2.53 GHz), non-AMT, TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
60Y3788 N
5 System board with Intel Core 2 Duo mobile processor T9400 (2.53 GHz), non-AMT,
non-TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
60Y3791 N
5 System board with Intel Core 2 Duo mobile processor T9550 (2.66 GHz), AMT, TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
60Y3826 N
Parts list 175
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Core 2 Duo mobile processor T9550 (2.66 GHz), AMT, non-TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
60Y3828 N
5 System board with Intel Core 2 Duo mobile processor T9600 (2.8 GHz), AMT, TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
43Y9983 N
5 System board with Intel Core 2 Duo mobile processor T9600 (2.8 GHz), AMT, non-TPM
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
43Y9985 N
5 System board with Intel Core 2 Duo mobile processor SU9300 (1.2 GHz), AMT, TPM
v7462-CTO, 4Dx, 4Gx
v7465-CTO, 2Ex, 2Hx
v7466-CTO, 38x, 3Bx
v7469-CTO, 58x, 5Bx
v7470-CTO, 68x, 6Bx
v2046-CTO
v2047-CTO
60Y3847 N
5 System board with Intel Core 2 Duo mobile processor SU9300 (1.2 GHz), AMT, non-TPM
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
60Y3850 N
5 System board with Intel Core 2 Duo mobile processor SU9400 (1.4 GHz), AMT, TPM
v7462-CTO
v7465-CTO, 3Mx
v7466-CTO, 4Kx, 4Lx, 4Mx, 58x
v7469-CTO, 65x, 66x
v7470-CTO
v2046-CTO
v2047-CTO
60Y3867 N
176 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Core 2 Duo mobile processor SU9400 (1.4 GHz), AMT, non-TPM
v7462-CTO
v7465-CTO, 3Lx
v7466-CTO, 46x
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
60Y3870 N
5 System board with Intel Core 2 Duo mobile processor SU9600 (1.6 GHz), AMT, TPM
v7462-CTO
v7465-CTO, 3Kx
v7466-CTO, 9Gx
v7469-CTO, 6Px
v7470-CTO
v2046-CTO
v2047-CTO
60Y3868 N
5 System board with Intel Core 2 Duo mobile processor SU9600 (1.6 GHz), AMT, non-TPM
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
60Y3871 N
5 System board with Intel Core 2 Duo mobile processor SL9300 (1.6 GHz), AMT, TPM
v7462-CTO, 42x, 43x, 44x, 45x, 46x, 4Ex, 4Hx, 4Kx, 4Lx, 4Nx, 4Qx, 4Sx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 2Fx, 2Jx, 2Mx, 2Px, 2Rx, 2Tx, 2Vx, 2Wx, 2Xx
v7466-CTO, 32x, 33x, 34x, 39x, 3Cx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Xx, 3Yx, 9Vx, 9Wx,
9Xx
v7469-CTO, 52x, 53x, 54x, 56x, 59x, 5Cx, 5Ex, 5Lx, 5Mx, 5Nx, 5Px, 5Xx, 5Yx, 5Zx, 72x,
75x, 78x, 7Ax, 7Dx, 7Ex, 7Gx, 7Hx, 7Jx, 7Kx, 7Yx, 7Zx, 82x, 8Ax, 8Bx
v7470-CTO, 62x, 63x, 64x, 69x, 6Cx
v2046-CTO
v2047-CTO
60Y3848 N
5 System board with Intel Core 2 Duo mobile processor SL9300 (1.6 GHz), AMT, non-TPM
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO, 7Qx
v7470-CTO
v2046-CTO
v2047-CTO
60Y3851 N
5 System board with Intel Core 2 Duo mobile processor SL9400 (1.86 GHz), AMT, TPM
v7462-CTO, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Fx, 4Jx, 4Mx, 4Px, 4Rx, 4Tx, F2x, F3x
v7465-CTO, 28x, 29x, 2Dx, 2Kx, 2Lx, 2Nx, 2Qx, 2Sx, 2Ux, 2Zx, 3Jx
v7466-CTO, 35x, 3Ax, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Rx, 3Sx, 45x, 4Nx, 4Px, 4Qx, 4Rx,
4Sx, 4Tx, 4Ux, 54x, 56x, 5Hx, 93x, 94x, 96x, 97x, 98x, 99x, 9Ax
v7469-CTO, 55x, 57x, 5Ax, 5Dx, 5Gx, 5Hx, 5Jx, 5Kx, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx,
67x, 68x, 69x, 6Ax, 6Cx, 6Dx, 6Hx, 6Kx, 6Lx, 6Mx, 6Nx, 6Tx, 6Ux, 6Vx, 6Wx, 73x, 74x,
76x, 77x, 79x, 7Bx, 7Cx, 7Fx, 86x, 89x, 8Lx, 8Mx, 8Tx, 95x, 9Ex, 9Gx, GCx
v7470-CTO, 5Gx, 5Hx, 65x, 6Ax, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Lx, 72x, 74x, 8Tx
v2046-CTO
v2047-CTO
60Y3849 N
Parts list 177
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Core 2 Duo mobile processor SL9400 (1.86 GHz), AMT, non-TPM
v7462-CTO
v7465-CTO
v7466-CTO, 3Tx, 3Ux, 3Zx, 5Bx, 5Cx, 5Dx, 5Ex, 5Yx, 92x, 9Ex, 9Fx, HDx, HEx
v7469-CTO, 5Fx, 7Lx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Xx, 8Gx, GBx
v7470-CTO, 6Jx, 6Kx
v2046-CTO
v2047-CTO
60Y3852 N
5 System board with Intel Core 2 Duo mobile processor SL9600 (2.13 GHz), AMT, TPM
v7462-CTO, 4Zx
v7465-CTO, 2Yx, D2x, D3x
v7466-CTO, 3Vx, 3Wx, 43x, 44x, 55x, 5Xx, 9Bx, 9Cx, 9Dx, DMx
v7469-CTO, 6Bx, 6Ex, 6Fx, 6Gx, 6Jx, 6Px, 6Qx, 6Rx, 6Xx, 6Yx, 6Zx, 87x, 88x, 8Cx, 8Dx,
8Ex, 8Fx, 8Kx, 8Nx, 8Px, 8Rx, 8Sx, 96x, 9Dx, GAx
v7470-CTO, 75x
v2046-CTO
v2047-CTO
60Y3869 N
5 System board with Intel Core 2 Duo mobile processor SL9600 (2.13 GHz), AMT, non-TPM
v7462-CTO
v7465-CTO
v7466-CTO, 4Wx, 4Xx, FZx, N2x
v7469-CTO, 8Hx, 8Jx, 8Qx, 98x, 99x
v7470-CTO
v2046-CTO
v2047-CTO
60Y3872 N
5 System board with Intel®Core™2 Solo mobile processor SU3500 (1.4 GHz), AMT, TPM
v7462-CTO, 24x, 25x, 26x, 29x, 2Ax, 2Bx, 2Gx, 2Hx, FBx, FCx, FDx, FEx, FFx, FGx, FLx,
FMx, FNx, FPx, FQx, FRx, FUx, FVx
v7465-CTO, 3Vx
v7466-CTO, 4Ex, 4Fx, 4Yx, 4Zx, 52x, 53x, 57x, 5Gx, 5Zx, 9Kx, 9Lx, 9Mx, 9Nx, 9Rx, 9Sx,
9Tx, 9Ux, H2x, H3x, H4x
v7469-CTO, 93x, 94x, G2x, G3x, G4x, G5x, G6x
v7470-CTO, 6Qx, 6Rx, 73x
v2046-CTO
v2047-CTO
60Y5691 N
5 System board with Intel Core 2 Solo mobile processor SU3500 (1.4 GHz), AMT, non-TPM
v7462-CTO
v7465-CTO, D6x, D7x, D8x, D9x, DAx, 3Ux
v7466-CTO, 59x, 5Ax, 9Px, 9Qx, 9Yx, 9Zx, HCx
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
60Y5692 N
5 System board with Intel Core 2 Solo mobile processor SU3500 (1.4 GHz), non-AMT, TPM
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
45M2841 N
178 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Core 2 Solo mobile processor SU3500 (1.4 GHz), non-AMT,
non-TPM
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
45M2842 N
5 System board with Intel®Celeron®M processor 723 (1.2 GHz), AMT, TPM
v7462-CTO, 22x, 23x, 27x, 28x, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F4x, F5x, F6x, F7x, F8x, F9x,
FAx
v7465-CTO, 3Nx, 3Px, 3Rx, 3Wx, DFx, G5x, G6x
v7466-CTO, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Hx, 4Jx, 5Wx, 9Jx, DLx
v7469-CTO, 62x, 63x, 64x, 83x, 84x, 85x, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 9Cx, E2x, G9x
v7470-CTO, 6Mx, 6Nx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
60Y5689 N
5 System board with Intel Celeron M processor 723 (1.2 GHz), AMT, non-TPM
v7462-CTO, FHx, FJx, FKx
v7465-CTO, D4x, DBx, DCx, DDx, DEx
v7466-CTO, 4Vx, 95x, 9Hx
v7469-CTO, 97x
v7470-CTO
v2046-CTO
v2047-CTO
60Y5690 N
5 System board with Intel Celeron M processor 723 (1.2 GHz), non-AMT, TPM
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
45M2848 N
5 System board with Intel Celeron M processor 723 (1.2 GHz), non-AMT, non-TPM
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
45M2849 N
5 System board with Intel Celeron M processor 743 (1.3 GHz), non-AMT, TPM
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
63Y2034 N
Parts list 179
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Celeron M processor 743 (1.3 GHz), non-AMT, non-TPM
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
63Y2035 N
5 System board with Intel®Celeron®processor SU2300 (1.2 GHz), non-AMT, TPM
v7462-CTO, 2Cx, 2Dx, 2Ex, 2Fx, FSx, FTx
v7465-CTO, G7x, G8x, G9x
v7466-CTO, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, H5x, H6x, H7x,
H8x, H9x
v7469-CTO, 9Ax, 9Bx, G7x, G8x
v7470-CTO, 6Sx, 6Tx, 6Ux, 6Vx, 76x, 77x
v2046-CTO
v2047-CTO
63Y2036 N
5 System board with Intel Celeron processor SU2300 (1.2 GHz), non-AMT, non-TPM
v7462-CTO
v7465-CTO, 3Sx, 3Tx, DGx, DHx, DJx, DKx
v7466-CTO, 5Vx, HAx, HBx
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
63Y2037 N
5 System board with Intel Core 2 Duo processor SU7300 (1.3 GHz), non-AMT, TPM
v7462-CTO
v7465-CTO, 3Xx, 3Yx, 3Zx, G2x, G3x, G4x, GAx, GBx
v7466-CTO, F2x, F3x, F4x, F5x, F6x, F7x, F8x, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx,
FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
63Y2110 N
5 System board with Intel Core 2 Duo processor SU7300 (1.3 GHz), non-AMT, non-TPM
v7462-CTO
v7465-CTO
v7466-CTO, F9x, FAx, FXx, FYx
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
63Y2111 N
5 System board with Intel Pentium processor SU4100 (1.3 GHz), non-AMT, TPM
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
63Y2112 N
180 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Pentium processor SU4100 (1.3 GHz), non-AMT, non-TPM
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
63Y2113 N
5 System board with Intel Core i3-330M processor, NV, AMT, TPM
v3249-CTO, J2x
v3323-CTO, K2x, KAx, KCx, KDx, KJx, KLx, KPx, KRx, KWx, KYx, KZx, L2x, L7x, LAx,
LDx, LEx, LFx
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
75Y4027 N
5 System board with Intel Core i3-330M processor, NV, AMT, non-TPM
v3249-CTO, J3x, J4x, J6x, J7x, JAx
v3323-CTO, K5x, K6x, K7x, K8x, KVx
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
75Y4028 N
5 System board with Intel Core i3-330M processor, NV, non-AMT, TPM
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2160 N
5 System board with Intel Core i3-330M processor, NV, non-AMT, non-TPM
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2161 N
5 System board with Intel Core i5-430M processor, NV, AMT, TPM
v3249-CTO
v3323-CTO, K3x, K4x, KEx, KFx, KGx, KHx, KMx, KNx, KSx, KTx, L3x, L4x, L5x, L6x,
L8x, LBx, LCx
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
75Y4029 N
Parts list 181
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Core i5-430M processor, NV, AMT, non-TPM
v3249-CTO, J5x, J8x, J9x
v3323-CTO, K9x, KUx
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
75Y4030 N
5 System board with Intel Core i5-430M processor, NV, non-AMT, TPM
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2164 N
5 System board with Intel Core i5-430M processor, NV, non-AMT, non-TPM
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2165 N
5 System board with Intel Core i5-520M processor, NV, AMT, TPM
v3249-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 29x, 2Hx, 2Jx, 2Kx, 2Lx
v3323-CTO, 42x, 44x, 49x, 4Ex, 4Gx, 4Kx, 4Lx, 4Mx, 4Nx, 53x, 54x, 55x, 56x, 57x, 5Bx,
5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Rx, 5Sx, 5Tx, 6Dx, 6Ex,
6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 7Yx, 82x, 85x,
86x, 87x, 8Bx, 8Cx, 8Dx, 8Gx, 8Jx, 8Kx, 8Rx, 8Sx, 8Vx, 8Wx, 92x, 93x, 95x, 98x, 99x, 9Ax,
9Cx, 9Ex, 9Gx, 9Hx
v3357-CTO, D2x, D4x, D6x, D7x
v3626-CTO, FBx, FLx, FMx, FNx, FPx, FTx, FXx, FYx, G2x, G4x, G5x, G9x, GAx, GBx,
GEx, GFx, GHx, GJx, GKx, GLx, GMx, GNx, GPx, GRx, GXx, H2x, H3x, H4x, H5x,
H6x, H7x
v3680-CTO, P2x, FBx, P7x, P8x, P9x, PDx, PEx, PFx, PGx, PHx, PJx
v3712-CTO
v4492-CTO
63Y2062 N
5 System board with Intel Core i5-520M processor, NV, AMT, non-TPM
v3249-CTO, 2Ax, 2Bx, 2Cx, 2Dx, 2Mx
v3323-CTO, 4Ux, 4Wx, 4Yx, 4Zx, 52x, 8Zx
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2063 N
5 System board with Intel Core i5-520M processor, NV, non-AMT, TPM
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2068 N
182 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Core i5-520M processor, NV, non-AMT, non-TPM
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2069 N
5 System board with Intel Core i5-540M processor, NV, AMT, TPM
v3249-CTO, 28x, 2Ex, 2Fx, 2Gx, 2Lx
v3323-CTO, 43x, 45x, 46x, 48x, 4Ax, 4Bx, 4Cx, 4Dx, 4Fx, 4Hx, 4Jx, 4Px, 4Rx, 4Sx, 4Tx,
58x, 59x, 5Ax, 5Ux, 5Vx, 5Wx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx,
6Cx, 6Wx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,
7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Zx, 83x,
84x, 88x, 89x, 8Ax, 8Ex, 8Fx, 8Lx, 8Nx, 8Px, 8Tx, 8Ux, 8Xx, 8Yx, 94x, 96x, 97x, 9Bx, 9Dx,
9Fx, R2x
v3357-CTO, D3x, D5x
v3626-CTO, 11x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FCx, FDx, FEx, FFx, FGx,
FHx, FJx, FKx, FRx, FSx, FUx, FVx, FWx, FZx, G3x, G6x, G7x, G8x, GCx, GDx, GHx,
GJx, GSx, GTx, GUx, GVx, GWx, GYx, GZx, R3x, N2x
v3680-CTO, 11x, F7x, F8x, F9x, FAx, P3x, P4x, P5x, P6x, PAx, PBx, PCx, N2x
v3712-CTO
v4492-CTO
63Y2064 N
5 System board with Intel Core i5-540M processor, NV, AMT, non-TPM
v3249-CTO
v3323-CTO, 4Vx
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2065 N
5 System board with Intel Core i5-540M processor, NV, non-AMT, TPM
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2070 N
5 System board with Intel Core i5-540M processor, NV, non-AMT, non-TPM
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2071 N
Parts list 183
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
5 System board with Intel Core i7-620M processor, NV, AMT, TPM
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2066 N
5 System board with Intel Core i7-620M processor, NV, AMT, non_TPM
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
63Y2067 N
5 System board with Intel Core i7-620LM processor, LV, AMT, TPM
v5129-CTO, 72x, 73x
v5143-CTO, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px,
2Rx, 3Wx, 3Yx, 43x, 44x, 45x, 48x, 49x, 4Cx, 4Dx, 4Gx, 4Hx
v5385-CTO, D4x
v5397-CTO, F4x, F5x, F6x, F7x, F8x, FKx, FMx, FNx, G4x, G5x, G6x, G7x, GAx
v5413-CTO, L2x, L3x
v5442-CTO
v5446-CTO
63Y2072 N
5 System board with Intel Core i7-620LM processor, LV, AMT, non-TPM
v5129-CTO
v5143-CTO, 43x, 4Gx
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
63Y2073 N
5 System board with Intel Core i7-640LM processor, LV, AMT, TPM
v5129-CTO, R1x
v5143-CTO, 22x, 23x, 24x, 25x, 28x, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Yx, 2Zx, 32x, 33x, 34x,
35x, 36x, 37x, 38x, 39x, 3Ax, 3Ux, 3Vx, 3Zx, 42x, 46x, 47x, 4Ax, 4Bx, 4Ex, 4Jx
v5385-CTO, D2x, D3x
v5397-CTO, F2x, F3x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FPx, FRx, FSx,
FTx, FUx, FVx, FWx, FXx, FYx, FZx, G2x, G3x, G8x, G9x
v5413-CTO, FDx, FEx, FFx, FGx, L4x, L5x
v5442-CTO
v5446-CTO
63Y2074 N
5 System board with Intel Core i7-640LM processor, LV, AMT, non-TPM
v5129-CTO
v5143-CTO, 26x, 27x
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
63Y2075 N
184 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
6 512-MB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card
v7454-CTO
v7455-CTO
v7457-CTO, 4Bx, 4Hx
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
43R1775 **
6 1-GB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card
v7454-CTO, 23x, 24x, 25x, 26x, 28x, 29x, 2Gx, 2Hx, 2Jx, 2Nx, 2Px, 2Rx, 2Sx, 2Tx, 2Ux,
2Vx, 2Wx, 2Xx, 2Yx, 3Mx, 3Nx, 3Px, 3Qx, 3Yx, 92x, 93x, 97x, 98x, 9Gx, GEx, GFx
v7455-CTO, 33x, 36x, 39x, 3Ax, 3Dx, 3Ex, 3Fx, 3Kx, 3Lx, 3Px, 3Qx, 3Rx, 42x, 43x, 48x,
49x, 4Ax, 8Ex, DAx, DBx, DCx, DDx, DEx, DFx, F3x, FXx, FYx, P6x, P7x, P9x, PDx, PFx
v7457-CTO, 44x, 45x, 47x, 48x, 49x, 4Ax, 4Ex, 4Gx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx,
4Vx, 4Wx, 54x, 57x, 58x
v7458-CTO, 26x, 2Ex, 2Kx, 2Tx, 54x, 55x, 56x, 5Ax, 5Ex, 5Px, 5Qx, 5Rx, 5Sx, 68x, 69x,
6Px, 6Qx, 73x, 74x, 76x, 78x, 7Cx, 7Ex, 7Fx, 7Gx, 7Hx, 7Lx, 7Mx, 7Qx, 7Rx, 7Sx, 7Ux,
7Vx, 7Wx, 7Xx, 7Yx, 84x, 85x, 87x, 8Bx, 8Ex, 8Fx, 8Gx, 8Jx, FNx, FPx, FTx, FYx, X5x
v7459-CTO, 5Ex, 62x, 63x, 66x, 67x, 68x, 6Ax, 6Cx, 6Dx, 6Fx, 6Kx, 6Lx, 6Qx, 6Rx, 6Tx,
6Wx, 6Xx, 6Yx, 6Zx, H2x, H4x, M3x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 27x, 42x, 4Kx, 4Lx, 4Nx, 4Px, 4Qx, 4Sx, 4Tx, 4Ux, 4Vx, F2x, F3x, F6x,
F7x, FAx, FBx, FDx, FHx, FJx, FLx, FNx
v7465-CTO, 23x, 2Lx, 2Mx, 2Px, 2Qx, 2Rx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, 3Jx, 3Lx, 3Mx,
3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Wx, DGx, DHx, DJx, DKx, G5x, G6x
v7466-CTO, 32x, 3Kx, 3Mx, 3Px, 3Qx, 46x, 4Hx, 4Jx, 95x, 9Vx, 9Wx, 9Xx, FXx, FZx, H2x,
H3x, H4x, N2x
v7469-CTO, 52x, 63x, 64x, 6Lx, 6Mx, 6Px, 6Qx, 6Ux, 6Vx, 6Xx, 6Yx, 75x, 76x, 77x, 7Ax,
7Bx, 7Dx, 7Ex, 7Fx, 7Hx, 7Kx, 7Xx, 83x, 84x, 85x, 8Hx, 8Tx, 9Gx, GCx
v7470-CTO, 62x, 6Nx, 6Ux, 6Vx, 8Tx, 8Ux
v2046-CTO
v2047-CTO
43R1989 **
Parts list 185
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
6 1-GB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card
v3249-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Jx, 2Kx, 2Lx, J3x, J4x,
J6x, J7x, J8x
v3323-CTO, 42x, 44x, 49x, 4Cx, 4Ex, 4Gx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Rx, 4Ux, 4Vx, 4Wx,
4Yx, 4Zx, 52x, 53x, 54x, 55x, 58x, 59x, 7Yx, 82x, 85x, 86x, 87x, 88x, 89x, 8Fx, 8Bx, 8Cx,
8Dx, 8Nx, 8Px, 8Zx, 98x, 99x, 9Ax, 9Cx, 9Fx, K5x, K6x, K7x, K8x, K9x, KUx, KVx, KYx,
KZx, L2x, L4x, L5x, L7x, LBx, LCx, LEx, LFx, R2x
v3357-CTO, D2x, D4x, D5x, D6x
v3626-CTO, F7x, G2x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx, GDx, GHx
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 22x, 24x, 26x, 3Ux, 3Wx, 3Zx, 42x, 43x, 4Gx
v5385-CTO, D2x, D3x
v5397-CTO, F2x, F3x, FEx, FHx, FJx, G2x, G4x
v5413-CTO, FEx
v5442-CTO
v5446-CTO
55Y3712 **
6 2-GB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card
v7454-CTO, 22x, 27x, 29x, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Zx, 32x, 33x, 34x,
36x, 38x, 3Hx, 3Jx, 3Kx, 3Lx, 3Nx, 3Qx, 3Rx, 3Sx, 3Tx, 3Vx, 3Wx, 3Xx, 3Zx, 95x, 96x,
97x, 98x, 9Bx, 9Cx, 9Fx, 9Gx, 9Hx, 9Jx, 9Lx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x,
GBx, GCx, GDx, GEx, GGx, GHx, GJx, GKx, GLx, GMx, GNx, GPx
v7455-CTO, 32x, 33x, 34x, 35x, 38x, 3Bx, 3Cx, 3Ex, 3Gx, 3Hx, 3Jx, 3Lx, 3Mx, 3Nx, 3Qx,
3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 4Ax, 44x, 45x, 46x, 47x, 48x, 4Bx,
4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux,
4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx,
8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, D2x, D3x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx,
DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx,
DXx, DYx, DZx, F2x, F3x, F4x, F5x, F6x, F7x, F9x, FBx, FCx, FDx, FEx, FFx, FGx, FHx,
FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx,
N2x, N3x, N4x, N5x, P2x, P3x, P4x, P5x, P6x, P7x, P9x, PAx, PBx, PCx, PDx, PEx, PFx,
PGx, PHx, PJx
v7457-CTO, 42x, 43x, 46x, 4Cx, 4Dx, 4Fx, 4Rx, 4Sx, 4Tx, 4Ux, 52x, 53x, 54x, 55x, 56x, 57x,
58x
v7458-CTO, 22x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Kx, 2Lx,
2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 4Xx, 4Yx, 52x, 53x, 57x, 58x, 59x, 5Bx, 5Cx,
5Dx, 5Fx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx, 5Tx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx,
6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx,
6Zx, 72x, 77x, 79x, 7Bx, 7Dx, 7Jx, 7Kx, 7Nx, 7Px, 7Tx, 7Zx, 82x, 83x, 86x, 88x, 89x, 8Ax,
8Cx, 8Dx, 8Hx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Wx, 8Xx, 8Yx, 8Zx, E2x,
F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx,
FLx, FMx, FQx, FSx, FUx, FVx, FWx, FXx, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx,
GCx, GDx, GEx, GFx, M2x, M3x, X4x, X5x
v7459-CTO, 5Fx, 64x, 65x, 69x, 6Bx, 6Ex, 6Gx, 6Jx, 6Mx, 6Nx, 6Px, 6Sx, 6Ux, 6Vx, 72x,
73x, 74x, 75x, E3x, H3x, H5x, H6x, H7x, M2x, M4x
v2023-CTO
v2024-CTO
(continued)
43R1969 **
186 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
6 (continued)
2-GB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card
v7462-CTO, 23x, 24x, 25x, 26x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 43x,
44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Mx, 4Rx,
4Wx, 4Xx, 4Yx, 4Zx, F4x, F5x, F8x, F9x, FAx, FBx, FCx, FEx, FFx, FGx, FJx, FKx, FMx,
FPx, FQx, FRx, FSx, FTx, FUx, FVx
v7465-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Nx, 2Sx, 2Yx,
3Kx, 3Lx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx, 3Zx, D2x, D3x, D4x, D6x, D7x, D8x, D9x, DAx,
DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, G2x, G3x, G4x, G7x, G8x, G9x, GAx,
GBx
v7466-CTO, 33x, 34x, 35x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Lx,
3Nx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 43x, 44x, 45x, 46x, 47x, 48x, 49x,
4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx,
4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx,
5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx,
5Zx, 92x, 93x, 94x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx,
9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Yx, 9Zx, DLx, DMx, F2x, F3x, F4x, F5x,
F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx,
FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx, H3x, H4x, H5x, H6x, H7x,
H8x, H9x, HAx, HBx, HCx, HDx, HEx, N2x
v7469-CTO, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,
5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x,
65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx,
6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 78x, 79x, 7Cx,
7Gx, 7Jx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Yx, 7Zx, 82x, 86x, 87x,
88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx,
8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax,
9Bx, 9Cx, 9Dx, 9Ex, 9Gx, E2x, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7470-CTO, 5Gx, 5Hx, 63x, 64x, 65x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx,
6Jx, 6Kx, 6Lx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 72x, 73x, 74x, 75x, 76x, 77x, 8Zx, E2x
v2046-CTO
v2047-CTO
43R1969 **
Parts list 187
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
6 2-GB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card
v3249-CTO, 28x, 2Ex, 2Fx, 2Gx, 2Hx, 2Kx, 2Lx, 2Lx, 2Mx, J2x, J5x, J7x, J8x, J9x, JAx
v3323-CTO, 43x, 45x, 46x, 48x, 4Ax, 4Bx, 4Dx, 4Fx, 4Hx, 4Jx, 4Sx, 4Tx, 56x, 57x, 5Ax,
5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Rx, 5Sx, 5Tx, 5Ux,
5Vx, 5Wx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Yx, 6Zx, 72x,
73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx,
7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Zx, 83x, 84x, 8Ax, 8Bx, 8Cx, 8Dx,
8Ex, 8Gx, 8Jx, 8Kx, 8Lx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x,
93x, 94x, 95x, 96x, 97x, 9Bx, 9Dx, 9Ex, 9Gx, 9Hx, K2x, K3x, K4x, K5x, K6x, K9x, KAx,
KCx, KDx, KEx, KFx, KGx, KHx, KJx, KLx, KMx, KNx, KPx, KRx, KSx, KTx, KUx,
KVx, KWx, L3x, L6x, L8x, LAx, LDx
v3357-CTO, D3x, D5x, D6x, D7x
v3626-CTO, 11x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx,
FZx, G3x, GAx, GBx, GCx, GDx, GEx, GFx, GHx, GHx, GJx, GJx, GKx, GLx, GMx,
GNx, GPx, GRx, GSx, GTx, GUx, GVx, GWx, GXx, GYx, GZx, H2x, H3x, H4x, H5x,
H6x, H7x, R3x, N2x
v3680-CTO, P2x, P3x, P4x, P5x, P6x, F7x, F8x, F9x, FAx, FBx, 11x, P7x, P8x, P9x, PAx,
PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx, N2x
v3712-CTO
v4492-CTO
v5129-CTO, R1x, 72x, 73x
v5143-CTO, 23x, 25x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx,
2Lx, 2Mx, 2Nx, 2Px, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Yx, 2Zx, 32x, 33x, 34x, 35x, 36x,
37x, 38x, 39x, 3Ax, 3Vx, 3Yx, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex,
4Gx, 4Hx, 4Jx
v5385-CTO, D4x
v5397-CTO, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FKx, FMx,
FNx, FPx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx, G3x, G5x, G6x, G7x, G8x,
G9x, GAx
v5413-CTO, FDx, FEx, FFx, FGx, L2x, L3x, L4x, L5x
v5442-CTO
v5446-CTO
55Y3713 **
6 4-GB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
55Y3714 **
188 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
6 1-GB DDR3-1333 SDRAM SO-DIMM (PC3-10600) card
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
55Y3715 **
6 2-GB DDR3-1333 SDRAM SO-DIMM (PC3-10600) card
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
55Y3716 **
6 4-GB DDR3-1333 SDRAM SO-DIMM (PC3-10600) card
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
55Y3717 **
Parts list 189
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
7 Qualcomm UNDP1 - Wireless WAN card
v7454-CTO, 3Vx
v7455-CTO
v7457-CTO
v7458-CTO, 5Fx, 8Ax
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
42T0961 **
7 Integrated Mobile Broadband (Gobi 2000 3G with GPS)
v3249-CTO, 2Hx
v3323-CTO, 48x, 4Ax, 4Dx, 4Fx, 4Jx, 4Kx, 4Lx, 4Px, 4Rx, 4Sx, 4Tx, 4Yx, 56x, 5Cx, 5Dx,
5Ex, 5Fx, 5Gx, 9Fx, K2x, K4x, K6x, K7x, KAx, KDx, KFx, KHx, KLx, KUx, KVx, LAx,
LDx
v3357-CTO
v3626-CTO, F4x, FRx, FSx, FTx, FVx, FWx, FXx, FYx, GJx, GNx, GRx, GSx, GWx, GXx,
GYx, H4x, H5x, H7x, R3x
v3680-CTO, P2x, P3x, P4x, P5x, P6x, P7x, P9x, PBx, PFx, PGx, PJx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
60Y3183 **
7 Integrated China Mobile Mobile Broadband (Leadcore LC5370D)
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
60Y3225 **
190 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
7 Integrated China Telecom Mobile Broadband (Huawei EM660)
v3249-CTO
v3323-CTO, 85x, 86x, 88x, 89x, 8Dx, 8Ex, 8Gx, 8Kx, 8Lx, 8Nx
v3357-CTO
v3626-CTO, GAx
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
60Y3227 **
7 KDDI Wireless WAN Modem Adapter
v7454-CTO
v7455-CTO
v7457-CTO, 49x
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO, 49x, 4Ax
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
43Y6476 **
7 Ericsson F3507g USA - Wireless WAN card
v7454-CTO, 2Gx, 2Mx, 2Nx, 2Zx, 36x, 3Xx
v7455-CTO
v7457-CTO
v7458-CTO, 5Hx, 6Bx, 6Cx, 6Yx, 7Dx, 89x, GEx, GFx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO, FDx, FRx, FSx
v7465-CTO
v7466-CTO
v7469-CTO, 6Jx, 9Gx, GAx
v7470-CTO
v2046-CTO
v2047-CTO
43Y6537 **
Parts list 191
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
7 Ericsson F3507g Other - Wireless WAN card
v7454-CTO
v7455-CTO, 3Sx, 3Xx, 46x, 4Rx, 4Ux, 4Vx, 88x, 8Ax, 8Ex, D7x, DKx, DLx, DZx, FFx, FGx,
FHx, FMx, FNx
v7457-CTO
v7458-CTO, 2Qx, 2Tx, 5Lx, 5Nx, 5Px, 5Sx, 65x, 6Vx, 7Zx, 83x, FDx, FEx, FMx, GDx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 3Tx, 3Xx, 4Xx, 5Dx, 5Ex, 96x, 9Cx, 9Ex, FVx, HEx
v7469-CTO, 5Lx, 5Mx, 5Nx, 5Px, 5Rx, 5Sx, 5Tx, 5Xx, 5Yx, 5Zx, 6Bx, 6Cx, 6Fx, 72x, 73x,
8Sx, 96x, 99x
v7470-CTO
v2046-CTO
v2047-CTO
43Y6513 **
8 ThinkPad 11b/g Wireless LAN Mini PCI Express Adapter III
v7454-CTO, 2Hx, 92x
v7455-CTO, 3Dx, 3Px
v7457-CTO
v7458-CTO, 53x, 5Ax, 78x, FGx, FPx, FTx
v7459-CTO, 6Lx, 6Tx
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 4Xx, 4Yx, F3x, F6x, F7x
v7465-CTO, 2Lx, 2Wx, 2Xx
v7466-CTO, 3Kx, 3Mx
v7469-CTO, 7Ax
v7470-CTO, 6Ux
v2046-CTO
v2047-CTO
43Y6511 **
192 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
8 Intel Centrino Wireless-N 1000
v7454-CTO
v7455-CTO, F9x, FCx, FEx
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO, GAx, GBx
v7466-CTO, FJx, FKx, FLx, FMx, FXx, FYx
v7469-CTO, 93x, 94x
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO, 26x, 2Fx, 2Jx, 2Lx, 2Mx, J2x, J3x, J4x, J5x, J6x, J8x, J9x
v3323-CTO, 46x, 4Dx, 4Fx, 4Kx, 4Nx, 4Ux, 4Vx, 53x, 57x, 5Ax, 5Bx, 7Yx, 82x, 85x, 87x,
8Fx, 8Jx, 8Px, 8Rx, 8Sx, 8Tx, 98x, 99x, 9Cx, K8x, KMx, KNx, KPx, KSx, KYx, L3x
v3357-CTO, D2x
v3626-CTO, G2x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx
v3680-CTO, P3x
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 43x, 4Gx
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
60Y3203 **
Parts list 193
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
8 Intel WiFi Link 5100
v7454-CTO, 26x, 29x, 2Gx, 2Mx, 2Nx, 2Px, 2Rx, 2Sx, 2Wx, 2Xx, 2Yx, 2Zx, 32x, 33x, 34x,
36x, 38x, 3Jx, 3Lx, 3Mx, 3Nx, 3Rx, 3Sx, 3Vx, 3Xx, 3Yx, 3Zx, 93x, 95x, 97x, 98x, 9Gx,
9Hx, 9Jx, 9Lx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx, GFx,
GGx, GHx, GJx, GKx, GLx, GMx, GNx, GPx
v7455-CTO, 36x, 39x, 3Ex, 3Fx, 3Kx, 3Qx, 3Rx, 3Ux, 3Vx, 3Wx, 42x, 43x, 44x, 45x, 46x,
47x, 48x, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Nx, 4Px, 4Tx, 4Ux, 4Vx, 4Zx, 82x, 85x, 86x,
8Cx, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx,
8Yx, 8Zx, D5x, D6x, D9x, DAx, DBx, DGx, DJx, DNx, DPx, DQx, DRx, DVx, DXx, F2x,
F3x, F4x, F5x, F6x, F7x, FBx, FDx, FFx, FGx, FJx, FKx, FLx, FMx, FNx, FPx, FRx, FSx,
FTx, FUx, FVx, FWx, FXx, FYx, FZx, P2x, P3x, P4x, P5x, P6x, P7x, P9x, PAx, PBx, PCx,
PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 45x, 48x, 4Ax, 4Bx, 4Gx, 4Hx, 4Jx, 4Nx, 4Px, 4Qx, 4Ux, 4Vx, 4Wx, 53x, 54x,
56x, 57x, 58x
v7458-CTO, 24x, 25x, 26x, 28x, 2Bx, 2Cx, 2Fx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 55x, 57x, 5Dx,
5Ex, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Qx, 6Rx, 6Sx, 6Xx, 6Zx, 73x, 74x, 76x, 7Cx, 7Ex,
7Fx, 7Gx, 7Hx, 7Qx, 7Rx, 7Ux, 7Wx, 7Xx, 7Yx, 88x, 8Bx, 8Cx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx,
8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Wx, 8Yx, E2x, F2x, F3x, F4x, F5x, F6x, F7x, FHx, FKx,
FLx, FNx, FQx, FSx, FUx, FVx, FWx, FYx, G7x, G8x, G9x, M2x, X4x, X5x
v7459-CTO, 5Ex, 67x, 68x, 6Ax, 6Dx, 6Ex, 6Kx, 6Qx, 6Rx, 6Yx, 6Zx, H2x, H7x, M2x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 43x, 4Dx, 4Gx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx,
F2x, F4x, F5x, FAx, FBx, FCx, FDx, FEx, FHx, FLx, FRx, FUx, FVx
v7465-CTO, 23x, 24x, 2Ex, 2Hx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Zx, 3Mx,
3Vx, D4x, D6x, D7x, D8x, D9x, DBx, DCx, DEx, DFx, DHx, DJx, G9x
v7466-CTO, 32x, 33x, 34x, 35x, 3Ax, 3Dx, 3Gx, 3Hx, 3Jx, 3Lx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx,
3Vx, 3Wx, 3Zx, 43x, 44x, 45x, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 54x, 57x, 59x, 5Ax,
5Fx, 5Gx, 5Jx, 5Rx, 5Sx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 93x, 94x, 95x, 98x, 9Ax, 9Bx,
9Gx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Wx, 9Xx, F8x, F9x, FAx, FBx, FPx, FQx, FRx, FVx,
FWx, FZx, H3x, H4x, H6x, H7x, H8x, H9x, HAx, HBx, HCx, N2x
v7469-CTO, 52x, 53x, 58x, 5Bx, 5Ex, 5Fx, 5Gx, 5Jx, 67x, 68x, 69x, 6Ax, 6Hx, 6Jx, 6Kx, 6Lx,
6Mx, 6Nx, 6Tx, 6Ux, 6Vx, 6Wx, 75x, 76x, 77x, 78x, 7Dx, 7Ex, 7Gx, 7Jx, 7Lx, 7Mx, 7Nx,
7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Zx, 83x, 84x, 86x, 8Ax, 8Gx, 8Lx, 8Nx, 8Qx, 8Tx, 8Ux,
8Vx, 8Wx, 95x, 9Cx, 9Dx, 9Ex, 9Gx, G3x, G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 62x, 64x, 69x, 6Dx, 6Gx, 6Jx, 6Kx, 6Mx, 6Nx, 6Rx, 6Tx, 6Vx, 72x, 74x,
76x, 77x, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
43Y6493 **
194 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
8 Intel WiFi Link 5300
v7454-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 2Jx, 2Kx, 2Lx, 2Qx, 2Tx, 2Ux, 2Vx, 3Qx, 96x,
9Bx, 9Cx
v7455-CTO, 32x, 33x, 34x, 35x, 38x, 3Ax, 3Bx, 3Cx, 3Gx, 3Hx, 3Jx, 3Lx, 3Mx, 3Nx, 3Sx,
3Tx, 3Xx, 3Yx, 3Zx, 4Ax, 4Hx, 4Jx, 4Kx, 4Mx, 4Qx, 4Rx, 4Sx, 4Yx, 87x, 88x, 89x, 8Ax,
8Bx, 8Dx, 8Ex, D2x, D3x, D7x, D8x, DCx, DDx, DKx, DLx, DMx, DYx, DZx, FHx, FQx,
N5x
v7457-CTO, 42x, 43x, 44x, 46x, 47x, 49x, 4Cx, 4Dx, 4Ex, 4Fx, 4Kx, 4Lx, 4Mx, 4Rx, 4Sx,
4Tx
v7458-CTO, 27x, 29x, 2Ax, 2Dx, 2Ex, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 4Xx, 4Yx, 52x, 54x, 56x,
58x, 59x, 5Bx, 5Cx, 5Fx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 62x, 63x, 64x,
65x, 66x, 67x, 69x, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Tx, 6Ux, 6Vx, 6Wx, 6Yx, 72x, 77x,
79x, 7Dx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Sx, 7Tx, 7Vx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x,
89x, 8Ax, 8Dx, 8Tx, 8Xx, 8Zx, F8x, F9x, FAx, FCx, FDx, FEx, FFx, FJx, FMx, G4x, G5x,
G6x, GBx, GCx, GDx, GEx, GFx, M3x
v7459-CTO, 5Fx, 62x, 63x, 64x, 65x, 66x, 69x, 6Cx, 6Fx, 6Gx, 6Jx, 6Mx, 6Nx, 6Px, 6Sx,
6Ux, 6Vx, 6Wx, 6Xx, 72x, 75x, E3x, H3x, H4x, H5x, H6x, M3x
v2023-CTO
v2024-CTO
v7462-CTO, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Ex, 4Fx, 4Hx, 4Jx, 4Zx, FSx, FTx
v7465-CTO, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Fx, 2Jx, 2Kx, 2Yx, 3Kx, D2x, D3x
v7466-CTO, 38x, 39x, 3Bx, 3Cx, 3Ex, 3Fx, 3Tx, 3Ux, 3Xx, 3Yx, 4Vx, 4Wx, 4Xx, 55x, 56x,
58x, 5Bx, 5Cx, 5Dx, 5Ex, 5Hx, 92x, 96x, 97x, 99x, 9Cx, 9Dx, 9Ex, 9Fx, 9Jx, 9Lx, 9Vx, FSx,
FTx, HDx, HEx
v7469-CTO, 54x, 55x, 56x, 57x, 59x, 5Ax, 5Cx, 5Dx, 5Hx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx,
5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Px, 6Qx,
6Rx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 79x, 7Cx, 7Px, 82x, 85x, 87x, 88x, 89x, 8Bx, 8Cx, 8Dx,
8Ex, 8Fx, 8Hx, 8Jx, 8Kx, 8Mx, 8Px, 8Rx, 8Sx, 96x, 97x, 98x, 99x
v7470-CTO, 5Hx, 63x, 65x, 68x, 6Ax, 6Bx, 6Cx, 6Ex, 6Fx, 6Hx, 6Lx, 6Qx, 75x, 8Tx
v2046-CTO
v2047-CTO
43Y6495 **
8 Intel WiMAX/WiFi Link 5150
v7454-CTO, 3Hx, 3Kx, 3Wx
v7455-CTO, 4Lx, 8Nx, DSx, DTx
v7457-CTO
v7458-CTO, FXx, G3x
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO, 3Lx
v7466-CTO, 46x
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
Japan 60Y3197 **
Other than Japan 43Y6539 **
Parts list 195
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
8 Intel WiMAX/WiFi Link 5350
v7454-CTO, 9Fx
v7455-CTO
v7457-CTO
v7458-CTO, 7Bx, 8Rx, 8Sx
v7459-CTO, 6Bx
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO, 7Yx
v7470-CTO
v2046-CTO
v2047-CTO
43Y6533 **
8 ThinkPad 11b/g/n Wireless LAN Mini-PCI Express Adapter II
v7454-CTO, 3Px, 3Tx
v7455-CTO, 49x, 4Wx, 4Xx, 83x, 84x, DEx, DFx, DHx, DUx, DWx, N2x, N3x, N4x
v7457-CTO, 52x, 55x
v7458-CTO, 22x
v7459-CTO, 73x, 74x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, F8x, F9x, FFx, FGx, FJx, FKx, FMx, FNx, FPx, FQx
v7465-CTO, 3Jx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Wx, 3Xx, 3Yx, 3Zx, DAx, DDx, DGx,
DKx, G2x, G3x, G4x, G5x, G6x, G7x, G8x
v7466-CTO, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Yx,
4Zx, 52x, 53x, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Tx, 9Hx, 9Kx, 9Sx, 9Tx, 9Ux, 9Yx, 9Zx,
DLx, DMx, F2x, F3x, F4x, F5x, F6x, F7x, FCx, FDx, FEx, FFx, FGx, FHx, FNx, FUx, H2x,
H5x
v7469-CTO, 62x, 63x, 64x, 65x, 66x, 7Bx, 7Fx, 7Hx, 7Kx, 7Xx, 8Xx, 8Yx, 8Zx, 9Ax, 9Bx,
E2x, G2x, G4x, G5x, G6x
v7470-CTO, 6Px, 6Sx, 73x
v2046-CTO
v2047-CTO
v3249-CTO, 23x, 24x, 27x, 2Bx, 2Cx, JAx
v3323-CTO, 42x, 44x, 49x, 4Cx, 4Ex, 4Gx, 4Mx, 4Wx, 52x, 5Cx, 5Dx, 9Ax, KRx, KWx,
KZx, L2x, L4x, L7x, L8x, LBx, LCx, LEx, LFx, R2x
v3357-CTO
v3626-CTO
v3680-CTO, P2x
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 42x
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
43Y6553 N
196 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
8 ThinkPad 11b/g/n Wireless LAN Mini-PCI Express Adapter II
v7454-CTO, 3Px, 3Tx
v7455-CTO, 49x, 4Wx, 4Xx, 83x, 84x, DEx, DFx, DHx, DUx, DWx, N2x, N3x, N4x
v7457-CTO, 52x, 55x
v7458-CTO, 22x
v7459-CTO, 73x, 74x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, F8x, F9x, FFx, FGx, FJx, FKx, FMx, FNx, FPx, FQx
v7465-CTO, 3Jx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Wx, 3Xx, 3Yx, 3Zx, DAx, DDx, DGx,
DKx, G2x, G3x, G4x, G5x, G6x, G7x, G8x
v7466-CTO, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Yx,
4Zx, 52x, 53x, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Tx, 9Hx, 9Kx, 9Sx, 9Tx, 9Ux, 9Yx, 9Zx,
DLx, DMx, F2x, F3x, F4x, F5x, F6x, F7x, FCx, FDx, FEx, FFx, FGx, FHx, FNx, FUx, H2x,
H5x
v7469-CTO, 62x, 63x, 64x, 65x, 66x, 7Bx, 7Fx, 7Hx, 7Kx, 7Xx, 8Xx, 8Yx, 8Zx, 9Ax, 9Bx,
E2x, G2x, G4x, G5x, G6x
v7470-CTO, 6Px, 6Sx, 73x
v2046-CTO
v2047-CTO
v3249-CTO, 23x, 24x, 27x, 2Bx, 2Cx, JAx
v3323-CTO, 42x, 44x, 49x, 4Cx, 4Ex, 4Gx, 4Mx, 4Wx, 52x, 5Cx, 5Dx, 9Ax, KRx, KWx,
KZx, L2x, L4x, L7x, L8x, LBx, LCx, LEx, LFx, R2x
v3357-CTO
v3626-CTO
v3680-CTO, P2x
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 42x
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
60Y3177 N
Parts list 197
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
8 Intel Centrino Advanced-N 6200
v3249-CTO, 22x, 25x, 29x, 2Ax, 2Dx, 2Ex, 2Gx, 2Hx, 2Kx, J7x
v3323-CTO, 45x, 48x, 4Ax, 4Bx, 4Lx, 4Px, 4Rx, 4Zx, 54x, 55x, 56x, 58x, 59x, 5Ex, 5Fx,
5Gx, 5Hx, 5Jx, 5Mx, 5Nx, 5Sx, 5Tx, 5Wx, 5Yx, 63x, 64x, 67x, 68x, 6Bx, 6Cx, 6Fx, 6Gx,
6Kx, 6Lx, 6Px, 6Rx, 6Ux, 6Vx, 6Zx, 72x, 75x, 76x, 79x, 7Ax, 7Dx, 7Ex, 7Hx, 7Jx, 86x, 88x,
89x, 8Kx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 9Bx, 9Dx, 9Ex,
9Fx, 9Gx, 9Hx, K2x, K3x, K4x, K5x, K6x, K7x, K9x, KAx, KCx, KDx, KEx, KFx, KGx,
KHx, KJx, KTx, L5x, L6x, LAx
v3357-CTO
v3626-CTO, 11x, F2x, F3x, F4x, F5x, F6x, F7x, F9x, FAx, FBx, FCx, FDx, FFx, FHx, FKx,
FMx, FNx, FPx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, GFx, GHx, GHx, GKx, GLx,
GMx, GNx, GPx, GTx, H2x, H3x, N2x
v3680-CTO, P4x, P5x, F8x, F9x, FAx, FBx, 11x, P7x, P8x, P9x, PAx, PDx, PEx, N2x
v3712-CTO
v4492-CTO
v5129-CTO, 72x, 73x
v5143-CTO, 22x, 24x, 26x, 28x, 29x, 2Ax, 2Dx, 2Ex, 2Hx, 2Jx, 2Mx, 2Nx, 2Sx, 2Tx, 2Wx,
2Yx, 33x, 34x, 37x, 38x, 3Ux, 3Wx, 3Zx, 4Cx, 4Dx, 4Ex, 4Hx
v5385-CTO, D4x
v5397-CTO, F4x, F5x, F9x, FAx, FDx, FEx, FFx, FGx, FKx, FMx, FNx, FSx, FUx, FWx,
FYx, G2x, G4x, G6x, G7x, GAx
v5413-CTO, FDx, FEx, FFx, FGx, L2x, L4x
v5442-CTO
v5446-CTO
60Y3231 N
8 Intel Centrino Ultimate-N 6300
v3249-CTO, 28x, 2Lx
v3323-CTO, 4Hx, 4Jx, 4Sx, 4Tx, 4Yx, 7Mx, 7Nx, 7Sx, 7Tx, 7Wx, 7Xx, 84x, 8Ax, 8Dx, 8Ex,
8Gx, 8Lx, 8Nx, KLx, KUx, KVx, LDx
v3357-CTO, D3x, D4x, D5x, D6x, D7x
v3626-CTO, F8x, FZx, G3x, GAx, GJx, GJx, GRx, GSx, GUx, GVx, GWx, GXx, GYx, GZx,
H4x, H5x, H6x, H7x, R3x
v3680-CTO, P6x, F7x, PBx, PCx, PFx, PGx, PHx, PJx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 23x, 25x, 27x, 3Vx, 3Yx, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Jx
v5385-CTO
v5397-CTO, F6x, F7x, F8x, FBx, FCx, FPx, FRx, G3x, G5x, G8x, G9x
v5413-CTO, L3x, L5x
v5442-CTO
v5446-CTO
60Y3233 N
198 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
8 Intel Centrino Advanced-N + WiMAX 6250
v3249-CTO
v3323-CTO, 43x, 5Kx, 5Lx, 5Px, 5Rx, 5Ux, 5Vx, 5Zx, 62x, 65x, 66x, 69x, 6Ax, 6Dx, 6Ex, 6Hx, 6Jx, 6Mx, 6Nx,
6Sx, 6Tx, 6Wx, 6Yx, 73x, 74x, 77x, 78x, 7Bx, 7Cx, 7Fx, 7Gx, 7Kx, 7Lx, 7Px, 7Rx, 7Ux, 7Vx, 7Zx, 83x, 8Bx,
8Cx
v3357-CTO
v3626-CTO, FEx, FGx, FJx, FLx
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO, R1x
v5143-CTO, 2Bx, 2Cx, 2Fx, 2Gx, 2Kx, 2Lx, 2Px, 2Rx, 2Ux, 2Vx, 2Zx, 32x, 35x, 36x, 39x, 3Ax
v5385-CTO, D2x, D3x
v5397-CTO, F2x, F3x, FHx, FJx, FTx, FVx, FXx, FZx
v5413-CTO
v5442-CTO
v5446-CTO
Russia 60Y3209 N
Other than Russia 60Y3195 N
9 I/O card assembly with modem connector, with 5-in-1 Media Card Reader slot
v7454-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px,
2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 32x, 33x, 34x, 36x, 38x, 3Lx, 3Mx,
3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Vx, 3Wx, 3Xx, 93x, 95x, 96x, 97x, 98x, 9Bx, 9Cx, 9Fx, 9Gx,
9Hx, 9Jx, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GEx, GKx, GLx, GMx
v7455-CTO, 32x, 33x, 34x, 35x, 36x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,
3Kx, 3Lx, 3Mx, 3Nx, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x,
45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx,
4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 82x, 83x, 84x, 85x, 86x,
87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px,
8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, D2x, D3x, D5x, D6x, D7x, D8x, D9x,
DBx, DCx, DDx, DFx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx,
DUx, DVx, DWx, DXx, DYx, DZx, F2x, F7x, F9x, FBx, FCx, FDx, FEx, FFx, FGx, FHx,
FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FYx, FZx, N2x, N3x, N4x, N5x, P2x, P3x,
P4x, P5x, P6x, P7x, PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Cx, 4Dx, 4Ex, 4Fx, 4Jx, 4Kx, 4Lx, 4Mx,
4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx
v7458-CTO, 22x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Kx, 2Lx,
2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 4Xx, 4Yx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x,
5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 62x,
63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px,
6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 76x, 77x, 79x, 7Bx,
7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Sx, 7Tx, 7Ux, 7Vx,
7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx,
8Lx, 8Mx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Wx, 8Xx, 8Yx, 8Zx, E2x, F2x, F3x, F4x, F5x, F8x,
F9x, FAx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FSx, FTx,
FUx, FVx, FWx, FXx, FYx, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx,
GFx, M2x, M3x, X4x, X5x
v7459-CTO, 5Fx, 63x, 64x, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx,
6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Vx, 6Wx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, E3x, H2x,
H3x, H4x, H5x, H6x, H7x, M2x, M3x, M4x
v
v2023-CTO
v2024-CTO
(continued)
42W8011 N
Parts list 199
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
9 (continued)
I/O card assembly with modem connector, with 5-in-1 Media Card Reader slot
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Gx, 2Hx, 43x, 44x, 45x, 46x,
47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px,
4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Xx, 4Yx, 4Zx, F2x, F3x, F4x, F6x, F7x, F8x, F9x, FHx,
FLx, FQx, FRx, FSx, FTx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx,
2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Yx, 2Zx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Rx,
3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, D2x, D3x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx,
DEx, DFx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,
3Lx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 43x, 44x, 45x, 46x,
47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx,
4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax,
5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx,
5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Cx, 9Dx,
9Ex, 9Fx, 9Gx, 9Jx, 9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx,
DLx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx,
FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx,
H2x, H3x, H4x, H5x, H6x, H7x, H8x, H9x, HBx, HCx, HDx, HEx, N2x
v7469-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Gx, 5Hx, 5Jx, 5Kx,
5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x, 64x,
65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx,
6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x,
78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Gx, 7Jx, 7Lx, 7Mx, 7Nx, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux,
7Vx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx,
8Hx, 8Jx, 8Kx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 93x,
94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx, E2x, G2x, G3x, G4x, G5x,
G6x, G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx,
6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Vx, 72x, 73x, 74x, 75x, 76x, 77x, 8Tx,
8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
42W8011 N
9 I/O card assembly without modem connector, with 3-in-1 Media Card Reader slot
v7454-CTO, 2Hx, 3Hx, 3Jx, 3Kx, 3Tx, 3Yx, 3Zx, 92x, 9Lx, G2x, G3x, GCx, GDx, GFx,
GGx, GHx, GJx, GNx, GPx
v7455-CTO, 3Dx, 3Px, DAx, DEx, DGx, F3x, F4x, F5x, F6x, FTx, FUx, FVx, FWx, FXx,
P9x
v7457-CTO, 4Ax, 4Bx, 4Gx, 4Hx, 4Ux, 4Vx, 4Wx, 52x, 53x, 54x, 55x, 56x, 57x, 58x
v7458-CTO, 78x, 7Rx, 7Wx, 7Xx, 7Yx, 8Dx, 8Qx, F6x, F7x
v7459-CTO, 5Ex, 62x, 65x, 69x, 6Lx, 6Ux
v2023-CTO
v2024-CTO
v7462-CTO, 2Cx, 2Dx, 2Ex, 2Fx, 42x, 4Wx, F5x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FJx,
FKx, FMx, FNx, FPx
v7465-CTO, 2Wx, 2Xx, 3Sx, 3Tx, D4x, DGx, DHx, DJx, DKx
v7466-CTO, 3Kx, 3Mx, 9Bx, 9Hx, 9Kx, 9Sx, DMx, HAx
v7469-CTO, 58x, 5Ex, 5Fx, 7Fx, 7Hx, 7Kx, 7Px, 7Xx, 8Lx
v7470-CTO, 64x, 69x, 6Ux
v2046-CTO
v2047-CTO
42W8012 N
200 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
9 I/O card assembly with modem connector, with 5-in-1 Media Card Reader slot
v3249-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 2Jx, 2Kx, 2Lx, 2Lx, 2Mx, J2x, J3x, J4x, J5x, J6x, J7x, J8x, J9x, JAx
v3323-CTO, 42x, 43x, 44x, 45x, 46x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,
4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Yx, 4Zx, 52x, 53x, 54x,
55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx,
5Nx, 5Px, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x,
6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx,
6Ux, 6Vx, 6Wx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx,
7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx,
7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx,
8Kx, 8Lx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x,
96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, K2x, K3x, K4x, K5x, K6x,
K7x, K8x, K9x, KAx, KCx, KDx, KEx, KFx, KGx, KHx, KJx, KLx, KMx, KNx, KPx, KRx,
KSx, KTx, KUx, KVx, KWx, KYx, KZx, L2x, L3x, L4x, L5x, L6x, L7x, L8x, LAx, LBx,
LCx, LDx, LEx, LFx, R2x
v3357-CTO, D2x, D3x, D4x, D5x, D6x, D7x
v3626-CTO, 11x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx,
FGx, FHx, FJx, FKx, FLx, FNx, FPx, FRx, FSx, FTx, FVx, FWx, FXx, FZx, G2x, G3x, G4x,
G5x, G6x, G7x, G8x, G9x, GAx, GBx, GCx, GDx, GEx, GFx, GHx, GHx, GJx, GJx, GKx,
GLx, GMx, GNx, GPx, GRx, GSx, GTx, GUx, GVx, GWx, GXx, GYx, GZx, H2x, H3x,
H4x, H5x, H6x, H7x, R3x, N2x
v3680-CTO, 11x, P2x, P3x, P4x, P5x, P6x, F7x, F8x, F9x, FAx, FBx, P7x, P8x, P9x, PAx,
PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx, N2x
v3712-CTO
v4492-CTO
v5129-CTO, 72x, 73x, R1x
v5143-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Yx, 2Zx, 32x, 33x,
34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 3Ux, 3Vx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x,
48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Gx, 4Hx, 4Jx
v5385-CTO, D2x, D3x, D4x
v5397-CTO, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx,
FHx, FJx, FNx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx, G2x, G3x, G4x, G5x, G6x,
G7x, G8x, G9x, GAx
v5413-CTO, FDx, FEx, FFx, FGx, L2x, L3x, L4x, L5x
v5442-CTO
v5446-CTO
60Y5407 N
9 I/O card assembly without modem connector, with 3-in-1 Media Card Reader slot
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
60Y5408 N
10 DC-in cable assembly 44C5396 N
Parts list 201
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
11 Battery pack, 4 cell, 47
v7454-CTO, 26x, 29x, 2Lx, 2Qx, 2Wx, 2Xx, 2Yx, 3Rx, 95x, 97x, 9Bx, 9Cx, 9Fx, G4x, G5x,
G6x, G7x, G8x, G9x, GLx, GMx
v7455-CTO, 36x, 3Kx, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px,
8Nx, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, D6x, DSx, DTx, FZx, P2x, P3x, P4x, P5x
v7457-CTO, 45x, 48x, 4Ax, 4Bx, 4Gx, 4Hx, 4Jx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx,
4Wx
v7458-CTO, 24x, 25x, 2Fx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 54x, 59x, 5Ax, 5Bx, 5Cx, 5Jx, 69x,
7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Sx, 7Wx, 7Xx, 7Yx, 7Zx, 8Ex, F2x, F3x, F4x, F5x,
F6x, F7x, F8x, F9x, FHx, FLx, FMx, FNx, FPx, FYx, G3x
v7459-CTO, 5Ex, 62x, 67x, 69x, 6Gx, 6Vx, 6Xx, H3x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 46x, 47x, 48x, 4Jx, 4Mx, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx,
F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx,
FLx, FNx, FPx, FRx, FSx
v7465-CTO, 23x, 24x, 2Ex, 2Hx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Zx, 3Mx,
3Nx, 3Px, 3Rx, 3Vx, 3Wx, D4x, G5x, G6x, G7x
v7466-CTO, 34x, 35x, 3Ax, 3Dx, 3Tx, 3Ux, 45x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex,
4Fx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Yx, 4Zx, 52x, 59x,
5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Vx, 5Zx,
93x, 94x, 95x, 96x, 9Bx, 9Hx, 9Jx, 9Yx, F2x, F3x, F4x, F5x, F6x, F9x, FAx, FBx, FCx, FDx,
FEx, FFx, FGx, FHx, FVx, H5x, H6x, H7x, H8x, H9x, HAx, HBx
v7469-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ex, 5Fx, 5Gx, 5Kx, 5Rx, 62x, 63x, 64x,
65x, 66x, 67x, 68x, 69x, 6Ax, 6Cx, 6Dx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx,
7Px, 7Xx, 7Zx, 86x, 89x, 8Ex, 8Fx, 8Gx, 8Hx, 8Lx, 8Px, 8Sx, E2x, G2x, G4x
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 64x, 69x, 6Ax, 6Dx, 6Jx, 6Kx, 6Mx, 6Px, 6Ux, 72x
v2046-CTO
v2047-CTO
v3249-CTO, J7x, JAx
v3323-CTO, 42x, 56x, 57x, 58x, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Rx, 5Sx, 5Tx, 5Ux,
5Vx, 5Wx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Yx, 6Zx, 72x,
73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx,
7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 8Wx,
8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx
v3357-CTO, D7x
v3626-CTO, F9x, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, GKx, H2x
v3680-CTO, F8x, PDx
v3712-CTO
v4492-CTO
v5129-CTO, 73x, R1x
v5143-CTO, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px,
2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Yx, 2Zx, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 44x,
45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Hx
v5385-CTO, D2x, D3x, D4x
v5397-CTO, F2x, F3x, FDx, FHx, FJx, FMx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx,
GAx
v5413-CTO, FDx
v5442-CTO
v5446-CTO
42T4646 *
202 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
11 Battery pack, 6cell, 47+
v7454-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 2Gx, 2Hx, 2Jx, 2Kx, 2Mx, 2Nx, 2Px, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Zx, 32x, 33x, 34x, 36x, 38x, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx,
3Sx, 3Tx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 92x, 93x, 96x, 98x, 9Gx, 9Hx, 9Jx, 9Lx, G2x, G3x,
GBx, GCx, GDx, GEx, GFx, GGx, GHx, GJx, GKx, GNx, GPx
v7455-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Fx, 3Gx, 3Hx, 3Jx, 3Lx,
3Mx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x,
47x, 48x, 49x, 4Ax, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 82x, 83x, 84x,
85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx,
8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, D2x, D3x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx,
DFx, DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DUx, DVx, DWx, DXx,
DYx, DZx, F2x, F3x, F4x, F5x, F6x, F7x, F9x, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx,
FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, N2x, N3x, N4x,
N5x, P6x, P7x, P9x, PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 42x, 43x, 44x, 46x, 47x, 49x, 4Cx, 4Dx, 4Ex, 4Fx, 4Kx, 4Lx, 4Mx, 52x, 53x,
54x, 55x, 56x, 57x, 58x
v7458-CTO, 22x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 4Xx,
4Yx, 52x, 53x, 55x, 56x, 57x, 5Dx, 5Ex, 5Lx, 5Mx, 5Nx, 5Qx, 5Rx, 5Sx, 5Tx, 62x, 63x, 64x,
65x, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Mx, 6Nx, 6Qx, 6Rx, 6Sx, 6Tx,
6Ux, 6Vx, 6Wx, 6Xx, 6Zx, 72x, 73x, 74x, 76x, 77x, 78x, 79x, 7Bx, 7Ex, 7Nx, 7Px, 7Qx,
7Rx, 7Tx, 7Ux, 7Vx, 82x, 83x, 85x, 86x, 87x, 88x, 8Bx, 8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx,
8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Wx, 8Xx, 8Yx, 8Zx, E2x, FAx, FCx, FDx, FEx,
FFx, FGx, FJx, FKx, FQx, FSx, FTx, FUx, FVx, FWx, FXx, G4x, G6x, G7x, G8x, G9x,
GBx, GCx, GDx, GEx, GFx, M2x, M3x, X4x, X5x
v7459-CTO, 5Fx, 63x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx,
6Rx, 6Yx, 72x, 73x, 74x, 75x, H4x, H5x, H6x, H7x, M2x, M3x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 43x, 44x, 45x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Kx, 4Lx, 4Nx, 4Px,
4Zx, FKx, FMx, FQx, FTx, FUx, FVx
v7465-CTO, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Fx, 2Jx, 2Kx, 2Lx, 2Wx, 2Xx, 2Yx, 3Jx, 3Kx,
3Lx, 3Sx, 3Tx, 3Ux, 3Xx, 3Yx, 3Zx, G2x, G3x, G4x, G8x, G9x, GAx, GBx, D2x, D3x, D6x,
D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx
v7466-CTO, 32x, 33x, 38x, 39x, 3Bx, 3Cx, 3Ex, 3Fx, 3Gx, 3Kx, 3Lx, 3Mx, 3Vx, 3Wx, 3Xx,
3Yx, 43x, 46x, 4Vx, 4Wx, 4Xx, 53x, 54x, 55x, 56x, 57x, 58x, 5Rx, 5Sx, 5Tx, 5Ux, 5Wx,
5Xx, 5Yx, 99x, 9Ax, 9Dx, 9Fx, 9Gx, 9Kx, 9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux,
9Vx, 9Wx, 9Xx, 9Zx, DLx, DMx, F7x, F8x, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx,
FSx, FTx, FUx, FWx, FXx, FYx, FZx, N2x, H2x, H3x, H4x, HEx
v7469-CTO, 5Ax, 5Bx, 5Cx, 5Dx, 5Hx, 5Jx, 5Lx, 5Mx, 5Qx, 5Sx, 5Ux, 5Wx, 5Xx, 5Yx, 6Bx,
6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Zx, 72x, 73x,
74x, 77x, 79x, 7Ax, 7Bx, 7Sx, 7Tx, 7Yx, 83x, 85x, 87x, 88x, 8Bx, 8Kx, 8Rx, 8Tx, 8Ux, 8Vx,
8Wx, 8Xx, 8Yx, 8Zx, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx,
G3x, G5x, G6x, G7x, G8x, G9x, GBx, GCx
v7470-CTO, 65x, 68x, 6Bx, 6Cx, 6Ex, 6Fx, 6Hx, 6Lx, 6Rx, 6Sx, 6Tx, 6Vx, 73x, 74x, 75x,
76x, 77x, 8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
(continued)
42T4647 *
Parts list 203
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
11 (continued) Battery pack, 6cell, 47+
v3249-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 2Jx, 2Kx, 2Lx, 2Lx, 2Mx, J2x, J3x, J4x, J5x, J6x, J8x, J9x
v3323-CTO, 43x, 44x, 45x, 46x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx,
4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Yx, 4Zx, 52x, 53x, 54x, 55x,
59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex,
8Fx, 8Gx, 8Jx, 8Kx, 8Lx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 9Ex, 9Fx, 9Gx, 9Hx, K2x,
K3x, K4x, K5x, K6x, K7x, K8x, K9x, KAx, KCx, KDx, KEx, KFx, KGx, KHx, KJx, KLx,
KMx, KNx, KPx, KRx, KSx, KTx, KUx, KVx, KWx, KYx, KZx, L2x, L3x, L4x, L5x, L6x,
L7x, L8x, LAx, LBx, LCx, LDx, LEx, LFx, R2x
v3357-CTO, D2x, D3x, D4x, D5x, D6x
v3626-CTO, 11x, F2x, F3x, F4x, F6x, F7x, FAx, FCx, FMx, FNx, FPx, FRx, FSx, FTx, FVx,
FWx, FXx, FYx, FZx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx, GCx, GDx,
GEx, GFx, GHx, GHx, GJx, GJx, GLx, GMx, GNx, GPx, GTx, GUx, GVx, GYx, GZx,
H3x, H6x, R3x, N2x
v3680-CTO, P2x, P3x, P4x, P5x, P6x, F9x, FBx, 11x, P7x, P8x, P9x, PAx, PBx, PCx, PEx,
PGx, PHx, N2x
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 3Ux, 3Vx, 3Wx, 3Yx, 3Zx, 42x, 43x, 4Gx, 4Jx
v5385-CTO
v5397-CTO, F4x, F5x, F6x, F7x, F9x, FAx, FBx, FFx, FGx, FKx, FNx, FPx, FRx, G2x, G3x,
G4x, G5x, G6x, G7x, G8x, G9x
v5413-CTO, FFx, FGx, L2x, L3x, L4x
v5442-CTO
v5446-CTO
42T4647 *
204 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
11 Battery pack, 6cell, 47+
v7454-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 2Gx, 2Hx, 2Jx, 2Kx, 2Mx, 2Nx, 2Px, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Zx, 32x, 33x, 34x, 36x, 38x, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx,
3Sx, 3Tx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 92x, 93x, 96x, 98x, 9Gx, 9Hx, 9Jx, 9Lx, G2x, G3x,
GBx, GCx, GDx, GEx, GFx, GGx, GHx, GJx, GKx, GNx, GPx
v7455-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Fx, 3Gx, 3Hx, 3Jx, 3Lx,
3Mx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x,
47x, 48x, 49x, 4Ax, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 82x, 83x, 84x,
85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx,
8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, D2x, D3x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx,
DFx, DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DUx, DVx, DWx, DXx,
DYx, DZx, F2x, F3x, F4x, F5x, F6x, F7x, F9x, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx,
FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, N2x, N3x, N4x,
N5x, P6x, P7x, P9x, PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 42x, 43x, 44x, 46x, 47x, 49x, 4Cx, 4Dx, 4Ex, 4Fx, 4Kx, 4Lx, 4Mx, 52x, 53x,
54x, 55x, 56x, 57x, 58x
v7458-CTO, 22x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 4Xx,
4Yx, 52x, 53x, 55x, 56x, 57x, 5Dx, 5Ex, 5Lx, 5Mx, 5Nx, 5Qx, 5Rx, 5Sx, 5Tx, 62x, 63x, 64x,
65x, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Mx, 6Nx, 6Qx, 6Rx, 6Sx, 6Tx,
6Ux, 6Vx, 6Wx, 6Xx, 6Zx, 72x, 73x, 74x, 76x, 77x, 78x, 79x, 7Bx, 7Ex, 7Nx, 7Px, 7Qx,
7Rx, 7Tx, 7Ux, 7Vx, 82x, 83x, 85x, 86x, 87x, 88x, 8Bx, 8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx,
8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Wx, 8Xx, 8Yx, 8Zx, E2x, FAx, FCx, FDx, FEx,
FFx, FGx, FJx, FKx, FQx, FSx, FTx, FUx, FVx, FWx, FXx, G4x, G6x, G7x, G8x, G9x,
GBx, GCx, GDx, GEx, GFx, M2x, M3x, X4x, X5x
v7459-CTO, 5Fx, 63x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx,
6Rx, 6Yx, 72x, 73x, 74x, 75x, H4x, H5x, H6x, H7x, M2x, M3x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 43x, 44x, 45x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Kx, 4Lx, 4Nx, 4Px,
4Zx, FKx, FMx, FQx, FTx, FUx, FVx
v7465-CTO, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Fx, 2Jx, 2Kx, 2Lx, 2Wx, 2Xx, 2Yx, 3Jx, 3Kx,
3Lx, 3Sx, 3Tx, 3Ux, 3Xx, 3Yx, 3Zx, G2x, G3x, G4x, G8x, G9x, GAx, GBx, D2x, D3x, D6x,
D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx
v7466-CTO, 32x, 33x, 38x, 39x, 3Bx, 3Cx, 3Ex, 3Fx, 3Gx, 3Kx, 3Lx, 3Mx, 3Vx, 3Wx, 3Xx,
3Yx, 43x, 46x, 4Vx, 4Wx, 4Xx, 53x, 54x, 55x, 56x, 57x, 58x, 5Rx, 5Sx, 5Tx, 5Ux, 5Wx,
5Xx, 5Yx, 99x, 9Ax, 9Dx, 9Fx, 9Gx, 9Kx, 9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux,
9Vx, 9Wx, 9Xx, 9Zx, DLx, DMx, F7x, F8x, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx,
FSx, FTx, FUx, FWx, FXx, FYx, FZx, N2x, H2x, H3x, H4x, HEx
v7469-CTO, 5Ax, 5Bx, 5Cx, 5Dx, 5Hx, 5Jx, 5Lx, 5Mx, 5Qx, 5Sx, 5Ux, 5Wx, 5Xx, 5Yx, 6Bx,
6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Zx, 72x, 73x,
74x, 77x, 79x, 7Ax, 7Bx, 7Sx, 7Tx, 7Yx, 83x, 85x, 87x, 88x, 8Bx, 8Kx, 8Rx, 8Tx, 8Ux, 8Vx,
8Wx, 8Xx, 8Yx, 8Zx, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx,
G3x, G5x, G6x, G7x, G8x, G9x, GBx, GCx
v7470-CTO, 65x, 68x, 6Bx, 6Cx, 6Ex, 6Fx, 6Hx, 6Lx, 6Rx, 6Sx, 6Tx, 6Vx, 73x, 74x, 75x,
76x, 77x, 8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
(continued)
42T4648 *
Parts list 205
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
11 (continued)
Battery pack, 6cell, 47+
v3249-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 2Jx, 2Kx, 2Lx, 2Lx, 2Mx, J2x, J3x, J4x, J5x, J6x, J8x, J9x
v3323-CTO, 43x, 44x, 45x, 46x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx,
4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Yx, 4Zx, 52x, 53x, 54x, 55x,
59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex,
8Fx, 8Gx, 8Jx, 8Kx, 8Lx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 9Ex, 9Fx, 9Gx, 9Hx, K2x,
K3x, K4x, K5x, K6x, K7x, K8x, K9x, KAx, KCx, KDx, KEx, KFx, KGx, KHx, KJx, KLx,
KMx, KNx, KPx, KRx, KSx, KTx, KUx, KVx, KWx, KYx, KZx, L2x, L3x, L4x, L5x, L6x,
L7x, L8x, LAx, LBx, LCx, LDx, LEx, LFx, R2x
v3357-CTO, D2x, D3x, D4x, D5x, D6x
v3626-CTO, 11x, F2x, F3x, F4x, F6x, F7x, FAx, FCx, FMx, FNx, FPx, FRx, FSx, FTx, FVx,
FWx, FXx, FYx, FZx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx, GCx, GDx,
GEx, GFx, GHx, GHx, GJx, GJx, GLx, GMx, GNx, GPx, GTx, GUx, GVx, GYx, GZx,
H3x, H6x, R3x, N2x
v3680-CTO, P2x, P3x, P4x, P5x, P6x, F9x, FBx, 11x, P7x, P8x, P9x, PAx, PBx, PCx, PEx,
PGx, PHx, N2x
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 3Ux, 3Vx, 3Wx, 3Yx, 3Zx, 42x, 43x, 4Gx, 4Jx
v5385-CTO
v5397-CTO, F4x, F5x, F6x, F7x, F9x, FAx, FBx, FFx, FGx, FKx, FNx, FPx, FRx, G2x, G3x,
G4x, G5x, G6x, G7x, G8x, G9x
v5413-CTO, FFx, FGx, L2x, L3x, L4x
v5442-CTO
v5446-CTO
42T4648 *
11 Battery pack, 9 cell, 47++
v7454-CTO
v7455-CTO, 3Ex, 3Qx, D5x, FKx
v7457-CTO
v7458-CTO, 2Ex, 58x, 5Fx, 5Hx, 5Px, 6Lx, 6Px, 6Yx, 7Cx, 7Dx, 84x, 89x, 8Ax, G5x
v7459-CTO, 64x, 65x, 66x, 6Ax, 6Sx, 6Tx, 6Ux, 6Wx, 6Zx, E3x, H2x
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 3Hx, 3Jx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Zx, 44x, 92x, 97x, 98x, 9Cx, 9Ex, HCx,
HDx
v7469-CTO, 5Nx, 5Px, 5Tx, 5Vx, 5Zx, 6Px, 6Qx, 6Xx, 6Yx, 75x, 76x, 78x, 7Mx, 7Nx, 7Qx,
7Rx, 7Ux, 7Vx, 82x, 84x, 8Ax, 8Cx, 8Dx, 8Jx, 8Mx, 8Nx, 8Qx, GAx
v7470-CTO, 6Gx, 6Nx, 6Qx
v
v2046-CTO
v2047-CTO
42T4649 *
206 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
11 Battery pack, 9 cell, 47++
v7454-CTO
v7455-CTO, 3Ex, 3Qx, D5x, FKx
v7457-CTO
v7458-CTO, 2Ex, 58x, 5Fx, 5Hx, 5Px, 6Lx, 6Px, 6Yx, 7Cx, 7Dx, 84x, 89x, 8Ax, G5x
v7459-CTO, 64x, 65x, 66x, 6Ax, 6Sx, 6Tx, 6Ux, 6Wx, 6Zx, E3x, H2x
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 3Hx, 3Jx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Zx, 44x, 92x, 97x, 98x, 9Cx, 9Ex, HCx,
HDx
v7469-CTO, 5Nx, 5Px, 5Tx, 5Vx, 5Zx, 6Px, 6Qx, 6Xx, 6Yx, 75x, 76x, 78x, 7Mx, 7Nx, 7Qx,
7Rx, 7Ux, 7Vx, 82x, 84x, 8Ax, 8Cx, 8Dx, 8Jx, 8Mx, 8Nx, 8Qx, GAx
v7470-CTO, 6Gx, 6Nx, 6Qx
v
v2046-CTO
v2047-CTO
42T4650 *
11 Battery pack, 9 cell, 47++
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO, F5x, F8x, FBx, FUx, GRx, GXx, H4x, H7x
v3680-CTO, F7x, FAx, PFx
v3712-CTO
v4492-CTO
v5129-CTO, 72x
v5143-CTO
v5385-CTO
v5397-CTO, F8x, FEx
v5413-CTO, FEx
v5442-CTO
v5446-CTO
42T4694 *
11 Battery pack, 9 cell, 47++
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO, F5x, F8x, FBx, FUx, GRx, GXx, H4x, H7x
v3680-CTO, F7x, FAx, PFx
v3712-CTO
v4492-CTO
v5129-CTO, 72x
v5143-CTO
v5385-CTO
v5397-CTO, F8x, FEx
v5413-CTO, FEx
v5442-CTO
v5446-CTO
42T4696 *
Parts list 207
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
11 Battery pack, 9 cell,
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO, GSx, GWx, H5x
v3680-CTO, PJx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, L5x
v5385-CTO
v5397-CTO, FCx
v5413-CTO
v5442-CTO
v5446-CTO
42T4823 *
11 Battery pack, 9 cell,
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO, GSx, GWx, H5x
v3680-CTO, PJx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, L5x
v5385-CTO
v5397-CTO, FCx
v5413-CTO
v5442-CTO
v5446-CTO
42T4825 *
12 Hard disk drive rubber rails 41V9756 *
13 SATA hard disk drive, 80 GB, 5,400 rpm OP
v7454-CTO
v7455-CTO
v7457-CTO, 4Gx
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO, 6Kx
v2046-CTO
v2047-CTO
39T2885 **
208 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 80 GB, 5,400 rpm OP
v7454-CTO
v7455-CTO
v7457-CTO, 4Gx
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO, 6Kx
v2046-CTO
v2047-CTO
42T1491 **
13 SATA hard disk drive, 80 GB, 5,400 rpm
v7454-CTO
v7455-CTO
v7457-CTO, 4Gx
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO, 6Kx
v2046-CTO
v2047-CTO
42T1305 **
13 SATA hard disk drive, 80 GB, 5,400 rpm
v7454-CTO
v7455-CTO
v7457-CTO, 4Gx
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO, 6Kx
v2046-CTO
v2047-CTO
42T1575 **
Parts list 209
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 160 GB, 5,400 rpm OP
v7454-CTO, 25x, 26x, 29x, 2Lx, 2Nx, 2Qx, 2Rx, 2Ux, 2Vx, 2Xx, 2Yx, 32x, 33x, 92x, 95x,
97x, 98x, 9Fx, 9Hx, 9Lx, G6x, G7x, GDx
v7455-CTO, 35x, 36x, 39x, 3Ax, 3Dx, 3Jx, 3Kx, 3Px, 3Wx, D9x, DHx, F7x, F9x
v7457-CTO, 45x, 48x, 49x, 4Ax, 4Bx, 4Hx, 4Lx, 4Mx, 4Px, 4Qx, 4Vx
v7458-CTO, 2Rx, 52x, 54x, 55x, 56x, 59x, 5Dx, 5Jx, 5Px, 5Tx, 69x, 72x, 74x, 79x, 7Fx, 7Mx,
7Nx, 7Qx, 7Sx, 7Wx, 7x,x, 84x, 87x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Hx, 8Jx, 8Kx, 8Nx, 8Qx,
FGx, FNx, FSx, X4x, X5x
v7459-CTO, 5Ex, 67x, 68x, 69x, 6Bx, 6Dx, 6Fx, 6Gx, 6Jx, 6Lx, 6Qx, 6Wx, H3x, H4x, H5x,
M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Jx, 4Kx, 4Qx, 4Tx, 4Ux, 4Xx, 4Yx, F6x,
FBx, FJx, FLx, FNx, FQx, FSx, FTx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 2Ex, 2Fx, 2Lx, 2Mx, 2Qx, 2Rx, 2Ux, 2Vx, 2Wx, 2Xx,
3Nx, 3Px, 3Rx, 3Wx, D8x, D9x, DCx, DDx, DFx, DGx, DKx, G5x, G6x
v7466-CTO, 34x, 35x, 38x, 3Ax, 3Bx, 3Hx, 3Px, 3Qx, 3Rx, 3Sx, 99x, 9Kx, 9Rx, 9Xx, HCx,
HDx, HEx
v7469-CTO, 55x, 56x, 57x, 58x, 5Ax, 5Cx, 5Ex, 5Gx, 5Hx, 5Qx, 5Rx, 5Ux, 5Vx, 77x, 78x,
7Cx, 7Dx, 7Nx, 7Qx, 7Yx, 8Ux, 8Zx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 65x, 69x, 6Ax, 6Bx, 6Dx, 6Hx, 6Lx, 6Rx, 6Sx, E2x
v2046-CTO
v2047-CTO
39T2899 **
13 SATA hard disk drive, 160 GB, 5,400 rpm OP
v7454-CTO, 25x, 26x, 29x, 2Lx, 2Nx, 2Qx, 2Rx, 2Ux, 2Vx, 2Xx, 2Yx, 32x, 33x, 92x, 95x,
97x, 98x, 9Fx, 9Hx, 9Lx, G6x, G7x, GDx
v7455-CTO, 35x, 36x, 39x, 3Ax, 3Dx, 3Jx, 3Kx, 3Px, 3Wx, D9x, DHx, F7x, F9x
v7457-CTO, 45x, 48x, 49x, 4Ax, 4Bx, 4Hx, 4Lx, 4Mx, 4Px, 4Qx, 4Vx
v7458-CTO, 2Rx, 52x, 54x, 55x, 56x, 59x, 5Dx, 5Jx, 5Px, 5Tx, 69x, 72x, 74x, 79x, 7Fx, 7Mx,
7Nx, 7Qx, 7Sx, 7Wx, 7x,x, 84x, 87x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Hx, 8Jx, 8Kx, 8Nx, 8Qx,
FGx, FNx, FSx, X4x, X5x
v7459-CTO, 5Ex, 67x, 68x, 69x, 6Bx, 6Dx, 6Fx, 6Gx, 6Jx, 6Lx, 6Qx, 6Wx, H3x, H4x, H5x,
M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Jx, 4Kx, 4Qx, 4Tx, 4Ux, 4Xx, 4Yx, F6x,
FBx, FJx, FLx, FNx, FQx, FSx, FTx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 2Ex, 2Fx, 2Lx, 2Mx, 2Qx, 2Rx, 2Ux, 2Vx, 2Wx, 2Xx,
3Nx, 3Px, 3Rx, 3Wx, D8x, D9x, DCx, DDx, DFx, DGx, DKx, G5x, G6x
v7466-CTO, 34x, 35x, 38x, 3Ax, 3Bx, 3Hx, 3Px, 3Qx, 3Rx, 3Sx, 99x, 9Kx, 9Rx, 9Xx, HCx,
HDx, HEx
v7469-CTO, 55x, 56x, 57x, 58x, 5Ax, 5Cx, 5Ex, 5Gx, 5Hx, 5Qx, 5Rx, 5Ux, 5Vx, 77x, 78x,
7Cx, 7Dx, 7Nx, 7Qx, 7Yx, 8Ux, 8Zx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 65x, 69x, 6Ax, 6Bx, 6Dx, 6Hx, 6Lx, 6Rx, 6Sx, E2x
v2046-CTO
v2047-CTO
42T1501 **
210 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 160 GB, 5,400 rpm
v7454-CTO, 25x, 26x, 29x, 2Lx, 2Nx, 2Qx, 2Rx, 2Ux, 2Vx, 2Xx, 2Yx, 32x, 33x, 92x, 95x,
97x, 98x, 9Fx, 9Hx, 9Lx, G6x, G7x, GDx
v7455-CTO, 35x, 36x, 39x, 3Ax, 3Dx, 3Jx, 3Kx, 3Px, 3Wx, D9x, DHx, F7x, F9x
v7457-CTO, 45x, 48x, 49x, 4Ax, 4Bx, 4Hx, 4Lx, 4Mx, 4Px, 4Qx, 4Vx
v7458-CTO, 2Rx, 52x, 54x, 55x, 56x, 59x, 5Dx, 5Jx, 5Px, 5Tx, 69x, 72x, 74x, 79x, 7Fx, 7Mx,
7Nx, 7Qx, 7Sx, 7Wx, 7x,x, 84x, 87x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Hx, 8Jx, 8Kx, 8Nx, 8Qx,
FGx, FNx, FSx, X4x, X5x
v7459-CTO, 5Ex, 67x, 68x, 69x, 6Bx, 6Dx, 6Fx, 6Gx, 6Jx, 6Lx, 6Qx, 6Wx, H3x, H4x, H5x,
M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Jx, 4Kx, 4Qx, 4Tx, 4Ux, 4Xx, 4Yx, F6x,
FBx, FJx, FLx, FNx, FQx, FSx, FTx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 2Ex, 2Fx, 2Lx, 2Mx, 2Qx, 2Rx, 2Ux, 2Vx, 2Wx, 2Xx,
3Nx, 3Px, 3Rx, 3Wx, D8x, D9x, DCx, DDx, DFx, DGx, DKx, G5x, G6x
v7466-CTO, 34x, 35x, 38x, 3Ax, 3Bx, 3Hx, 3Px, 3Qx, 3Rx, 3Sx, 99x, 9Kx, 9Rx, 9Xx, HCx,
HDx, HEx
v7469-CTO, 55x, 56x, 57x, 58x, 5Ax, 5Cx, 5Ex, 5Gx, 5Hx, 5Qx, 5Rx, 5Ux, 5Vx, 77x, 78x,
7Cx, 7Dx, 7Nx, 7Qx, 7Yx, 8Ux, 8Zx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 65x, 69x, 6Ax, 6Bx, 6Dx, 6Hx, 6Lx, 6Rx, 6Sx, E2x
v2046-CTO
v2047-CTO
42T1309 **
13 SATA hard disk drive, 160 GB, 5,400 rpm
v7454-CTO, 25x, 26x, 29x, 2Lx, 2Nx, 2Qx, 2Rx, 2Ux, 2Vx, 2Xx, 2Yx, 32x, 33x, 92x, 95x,
97x, 98x, 9Fx, 9Hx, 9Lx, G6x, G7x, GDx
v7455-CTO, 35x, 36x, 39x, 3Ax, 3Dx, 3Jx, 3Kx, 3Px, 3Wx, D9x, DHx, F7x, F9x
v7457-CTO, 45x, 48x, 49x, 4Ax, 4Bx, 4Hx, 4Lx, 4Mx, 4Px, 4Qx, 4Vx
v7458-CTO, 2Rx, 52x, 54x, 55x, 56x, 59x, 5Dx, 5Jx, 5Px, 5Tx, 69x, 72x, 74x, 79x, 7Fx, 7Mx,
7Nx, 7Qx, 7Sx, 7Wx, 7x,x, 84x, 87x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Hx, 8Jx, 8Kx, 8Nx, 8Qx,
FGx, FNx, FSx, X4x, X5x
v7459-CTO, 5Ex, 67x, 68x, 69x, 6Bx, 6Dx, 6Fx, 6Gx, 6Jx, 6Lx, 6Qx, 6Wx, H3x, H4x, H5x,
M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Jx, 4Kx, 4Qx, 4Tx, 4Ux, 4Xx, 4Yx, F6x,
FBx, FJx, FLx, FNx, FQx, FSx, FTx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 2Ex, 2Fx, 2Lx, 2Mx, 2Qx, 2Rx, 2Ux, 2Vx, 2Wx, 2Xx,
3Nx, 3Px, 3Rx, 3Wx, D8x, D9x, DCx, DDx, DFx, DGx, DKx, G5x, G6x
v7466-CTO, 34x, 35x, 38x, 3Ax, 3Bx, 3Hx, 3Px, 3Qx, 3Rx, 3Sx, 99x, 9Kx, 9Rx, 9Xx, HCx,
HDx, HEx
v7469-CTO, 55x, 56x, 57x, 58x, 5Ax, 5Cx, 5Ex, 5Gx, 5Hx, 5Qx, 5Rx, 5Ux, 5Vx, 77x, 78x,
7Cx, 7Dx, 7Nx, 7Qx, 7Yx, 8Ux, 8Zx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 65x, 69x, 6Ax, 6Bx, 6Dx, 6Hx, 6Lx, 6Rx, 6Sx, E2x
v2046-CTO
v2047-CTO
42T1579 **
Parts list 211
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 160 GB, 5,400 rpm
v7454-CTO, 25x, 26x, 29x, 2Lx, 2Nx, 2Qx, 2Rx, 2Ux, 2Vx, 2Xx, 2Yx, 32x, 33x, 92x, 95x,
97x, 98x, 9Fx, 9Hx, 9Lx, G6x, G7x, GDx
v7455-CTO, 35x, 36x, 39x, 3Ax, 3Dx, 3Jx, 3Kx, 3Px, 3Wx, D9x, DHx, F7x, F9x
v7457-CTO, 45x, 48x, 49x, 4Ax, 4Bx, 4Hx, 4Lx, 4Mx, 4Px, 4Qx, 4Vx
v7458-CTO, 2Rx, 52x, 54x, 55x, 56x, 59x, 5Dx, 5Jx, 5Px, 5Tx, 69x, 72x, 74x, 79x, 7Fx, 7Mx,
7Nx, 7Qx, 7Sx, 7Wx, 7x,x, 84x, 87x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Hx, 8Jx, 8Kx, 8Nx, 8Qx,
FGx, FNx, FSx, X4x, X5x
v7459-CTO, 5Ex, 67x, 68x, 69x, 6Bx, 6Dx, 6Fx, 6Gx, 6Jx, 6Lx, 6Qx, 6Wx, H3x, H4x, H5x,
M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Jx, 4Kx, 4Qx, 4Tx, 4Ux, 4Xx, 4Yx, F6x,
FBx, FJx, FLx, FNx, FQx, FSx, FTx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 2Ex, 2Fx, 2Lx, 2Mx, 2Qx, 2Rx, 2Ux, 2Vx, 2Wx, 2Xx,
3Nx, 3Px, 3Rx, 3Wx, D8x, D9x, DCx, DDx, DFx, DGx, DKx, G5x, G6x
v7466-CTO, 34x, 35x, 38x, 3Ax, 3Bx, 3Hx, 3Px, 3Qx, 3Rx, 3Sx, 99x, 9Kx, 9Rx, 9Xx, HCx,
HDx, HEx
v7469-CTO, 55x, 56x, 57x, 58x, 5Ax, 5Cx, 5Ex, 5Gx, 5Hx, 5Qx, 5Rx, 5Ux, 5Vx, 77x, 78x,
7Cx, 7Dx, 7Nx, 7Qx, 7Yx, 8Ux, 8Zx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 65x, 69x, 6Ax, 6Bx, 6Dx, 6Hx, 6Lx, 6Rx, 6Sx, E2x
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO, 56x
v3357-CTO
v3626-CTO, GLx, H2x
v3680-CTO, PDx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO, F4x, F9x
v5413-CTO
v5442-CTO
v5446-CTO
45N7215 **
212 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 160 GB, 5,400 rpm
v7454-CTO, 25x, 26x, 29x, 2Lx, 2Nx, 2Qx, 2Rx, 2Ux, 2Vx, 2Xx, 2Yx, 32x, 33x, 92x, 95x,
97x, 98x, 9Fx, 9Hx, 9Lx, G6x, G7x, GDx
v7455-CTO, 35x, 36x, 39x, 3Ax, 3Dx, 3Jx, 3Kx, 3Px, 3Wx, D9x, DHx, F7x, F9x
v7457-CTO, 45x, 48x, 49x, 4Ax, 4Bx, 4Hx, 4Lx, 4Mx, 4Px, 4Qx, 4Vx
v7458-CTO, 2Rx, 52x, 54x, 55x, 56x, 59x, 5Dx, 5Jx, 5Px, 5Tx, 69x, 72x, 74x, 79x, 7Fx, 7Mx,
7Nx, 7Qx, 7Sx, 7Wx, 7x,x, 84x, 87x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Hx, 8Jx, 8Kx, 8Nx, 8Qx,
FGx, FNx, FSx, X4x, X5x
v7459-CTO, 5Ex, 67x, 68x, 69x, 6Bx, 6Dx, 6Fx, 6Gx, 6Jx, 6Lx, 6Qx, 6Wx, H3x, H4x, H5x,
M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Jx, 4Kx, 4Qx, 4Tx, 4Ux, 4Xx, 4Yx, F6x,
FBx, FJx, FLx, FNx, FQx, FSx, FTx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 2Ex, 2Fx, 2Lx, 2Mx, 2Qx, 2Rx, 2Ux, 2Vx, 2Wx, 2Xx,
3Nx, 3Px, 3Rx, 3Wx, D8x, D9x, DCx, DDx, DFx, DGx, DKx, G5x, G6x
v7466-CTO, 34x, 35x, 38x, 3Ax, 3Bx, 3Hx, 3Px, 3Qx, 3Rx, 3Sx, 99x, 9Kx, 9Rx, 9Xx, HCx,
HDx, HEx
v7469-CTO, 55x, 56x, 57x, 58x, 5Ax, 5Cx, 5Ex, 5Gx, 5Hx, 5Qx, 5Rx, 5Ux, 5Vx, 77x, 78x,
7Cx, 7Dx, 7Nx, 7Qx, 7Yx, 8Ux, 8Zx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 65x, 69x, 6Ax, 6Bx, 6Dx, 6Hx, 6Lx, 6Rx, 6Sx, E2x
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO, 56x
v3357-CTO
v3626-CTO, GLx, H2x
v3680-CTO, PDx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO, F4x, F9x
v5413-CTO
v5442-CTO
v5446-CTO
45N7205 **
Parts list 213
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 160 GB, 5,400 rpm
v7454-CTO, 25x, 26x, 29x, 2Lx, 2Nx, 2Qx, 2Rx, 2Ux, 2Vx, 2Xx, 2Yx, 32x, 33x, 92x, 95x,
97x, 98x, 9Fx, 9Hx, 9Lx, G6x, G7x, GDx
v7455-CTO, 35x, 36x, 39x, 3Ax, 3Dx, 3Jx, 3Kx, 3Px, 3Wx, D9x, DHx, F7x, F9x
v7457-CTO, 45x, 48x, 49x, 4Ax, 4Bx, 4Hx, 4Lx, 4Mx, 4Px, 4Qx, 4Vx
v7458-CTO, 2Rx, 52x, 54x, 55x, 56x, 59x, 5Dx, 5Jx, 5Px, 5Tx, 69x, 72x, 74x, 79x, 7Fx, 7Mx,
7Nx, 7Qx, 7Sx, 7Wx, 7x,x, 84x, 87x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Hx, 8Jx, 8Kx, 8Nx, 8Qx,
FGx, FNx, FSx, X4x, X5x
v7459-CTO, 5Ex, 67x, 68x, 69x, 6Bx, 6Dx, 6Fx, 6Gx, 6Jx, 6Lx, 6Qx, 6Wx, H3x, H4x, H5x,
M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Jx, 4Kx, 4Qx, 4Tx, 4Ux, 4Xx, 4Yx, F6x,
FBx, FJx, FLx, FNx, FQx, FSx, FTx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 2Ex, 2Fx, 2Lx, 2Mx, 2Qx, 2Rx, 2Ux, 2Vx, 2Wx, 2Xx,
3Nx, 3Px, 3Rx, 3Wx, D8x, D9x, DCx, DDx, DFx, DGx, DKx, G5x, G6x
v7466-CTO, 34x, 35x, 38x, 3Ax, 3Bx, 3Hx, 3Px, 3Qx, 3Rx, 3Sx, 99x, 9Kx, 9Rx, 9Xx, HCx,
HDx, HEx
v7469-CTO, 55x, 56x, 57x, 58x, 5Ax, 5Cx, 5Ex, 5Gx, 5Hx, 5Qx, 5Rx, 5Ux, 5Vx, 77x, 78x,
7Cx, 7Dx, 7Nx, 7Qx, 7Yx, 8Ux, 8Zx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 65x, 69x, 6Ax, 6Bx, 6Dx, 6Hx, 6Lx, 6Rx, 6Sx, E2x
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO, 56x
v3357-CTO
v3626-CTO, GLx, H2x
v3680-CTO, PDx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO, F4x, F9x
v5413-CTO
v5442-CTO
v5446-CTO
45N7227 **
214 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 250 GB, 5,400 rpm OP
v7454-CTO, 23x, 28x, 2Hx, 2Tx, 2Wx, 3Hx, 3Jx, 3Kx, 3Mx, 3Px, 3Tx, 3Yx, 3Zx, 9Bx, 9Cx,
G4x, G5x, G8x, G9x, GFx, GGx, GHx, GKx, GLx, GMx
v7455-CTO, 33x, 3Cx, 3Lx, 3Mx, 3Sx, 3Tx, 3Zx, 44x, 47x, 48x, 49x, 4Kx, 4Lx, 4Mx, 4Tx,
4Wx, 4Xx, 83x, 8Fx, 8Hx, 8Kx, 8Nx, D5x, D6x, DAx, DCx, DDx, DEx, DGx, DNx, DPx,
DRx, DSx, DTx, DUx, F2x, F3x, F4x, FBx, FCx, FDx, FEx, FPx, FQx, FTx, P6x, P7x, PDx
v7457-CTO, 44x, 47x, 4Dx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux, 4Wx, 52x, 55x
v7458-CTO, 26x, 28x, 53x, 57x, 5Ax, 5Bx, 5Lx, 5Qx, 5Rx, 78x, 7Gx, 7Jx, 7Px, 7Tx, 7Ux,
7Yx, 7Zx, 82x, 85x, 8Gx, F2x, F6x, F7x, FEx, FMx, FPx, FTx, FVx, FYx, G3x
v7459-CTO, 62x, 63x, 6Px, 6Vx, 6Xx, 6Yx, 73x, 74x, H6x, H7x, M2x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 29x, 2Ax, 2Cx, 2Ex, 2Gx, 43x, 44x, 45x, 4Cx,
4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Lx, 4Rx, 4Sx, 4Vx, 4Wx, F2x, F3x, F4x, F5x, F7x, F8x, FAx,
FCx, FDx, FFx, FKx
v7465-CTO, 28x, 29x, 2Dx, 2Nx, 2Px, 2Sx, 2Tx, 2Zx, 3Jx, 3Lx, 3Sx, 3Ux, 3Vx, 3Xx, 3Yx,
D4x, D6x, D7x, DAx, DBx, DEx, G2x, G3x, G8x
v7466-CTO, 32x, 33x, 39x, 3Cx, 3Tx, 3Ux, 3Vx, 3Wx, 46x, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx,
4Px, 4Qx, 4Sx, 4Vx, 53x, 54x, 57x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Kx,
5Rx, 5Tx, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 95x, 96x, 9Bx, 9Hx, 9Jx, 9Lx, 9Mx, 9Px, 9Qx, 9Sx,
9Tx, 9Vx, 9Wx, 9Yx, 9Zx, DLx, DMx, F7x, F8x, F9x, FAx, FBx, FNx, FUx, FVx, FWx,
FXx, H5x, H6x, H7x, H8x, H9x, HAx, N2x
v7469-CTO, 52x, 53x, 54x, 59x, 5Fx, 5Kx, 5Bx, 5Dx, 5Jx, 5Nx, 5Tx, 5Xx, 62x, 63x, 64x, 65x,
66x, 67x, 68x, 6Cx, 6Dx, 6Gx, 7Ax, 7Lx, 7Xx, 7Vx, 82x, 8Lx, 8Rx, 8Sx, 8Tx, 8Vx, 8Xx,
97x, 9Cx, 9Dx, 9Ex, E2x, G2x, G3x, G4x, G5x, G8x, G9x
v7470-CTO, 63x, 68x, 6Cx, 6Vx, 73x, 74x, 76x, 8Tx
v2046-CTO
v2047-CTO
42T1471 **
13 SATA hard disk drive, 250 GB, 5,400 rpm OP
v7454-CTO, 23x, 28x, 2Hx, 2Tx, 2Wx, 3Hx, 3Jx, 3Kx, 3Mx, 3Px, 3Tx, 3Yx, 3Zx, 9Bx, 9Cx,
G4x, G5x, G8x, G9x, GFx, GGx, GHx, GKx, GLx, GMx
v7455-CTO, 33x, 3Cx, 3Lx, 3Mx, 3Sx, 3Tx, 3Zx, 44x, 47x, 48x, 49x, 4Kx, 4Lx, 4Mx, 4Tx,
4Wx, 4Xx, 83x, 8Fx, 8Hx, 8Kx, 8Nx, D5x, D6x, DAx, DCx, DDx, DEx, DGx, DNx, DPx,
DRx, DSx, DTx, DUx, F2x, F3x, F4x, FBx, FCx, FDx, FEx, FPx, FQx, FTx, P6x, P7x, PDx
v7457-CTO, 44x, 47x, 4Dx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux, 4Wx, 52x, 55x
v7458-CTO, 26x, 28x, 53x, 57x, 5Ax, 5Bx, 5Lx, 5Qx, 5Rx, 78x, 7Gx, 7Jx, 7Px, 7Tx, 7Ux,
7Yx, 7Zx, 82x, 85x, 8Gx, F2x, F6x, F7x, FEx, FMx, FPx, FTx, FVx, FYx, G3x
v7459-CTO, 62x, 63x, 6Px, 6Vx, 6Xx, 6Yx, 73x, 74x, H6x, H7x, M2x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 29x, 2Ax, 2Cx, 2Ex, 2Gx, 43x, 44x, 45x, 4Cx,
4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Lx, 4Rx, 4Sx, 4Vx, 4Wx, F2x, F3x, F4x, F5x, F7x, F8x, FAx,
FCx, FDx, FFx, FKx
v7465-CTO, 28x, 29x, 2Dx, 2Nx, 2Px, 2Sx, 2Tx, 2Zx, 3Jx, 3Lx, 3Sx, 3Ux, 3Vx, 3Xx, 3Yx,
D4x, D6x, D7x, DAx, DBx, DEx, G2x, G3x, G8x
v7466-CTO, 32x, 33x, 39x, 3Cx, 3Tx, 3Ux, 3Vx, 3Wx, 46x, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx,
4Px, 4Qx, 4Sx, 4Vx, 53x, 54x, 57x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Kx,
5Rx, 5Tx, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 95x, 96x, 9Bx, 9Hx, 9Jx, 9Lx, 9Mx, 9Px, 9Qx, 9Sx,
9Tx, 9Vx, 9Wx, 9Yx, 9Zx, DLx, DMx, F7x, F8x, F9x, FAx, FBx, FNx, FUx, FVx, FWx,
FXx, H5x, H6x, H7x, H8x, H9x, HAx, N2x
v7469-CTO, 52x, 53x, 54x, 59x, 5Fx, 5Kx, 5Bx, 5Dx, 5Jx, 5Nx, 5Tx, 5Xx, 62x, 63x, 64x, 65x,
66x, 67x, 68x, 6Cx, 6Dx, 6Gx, 7Ax, 7Lx, 7Xx, 7Vx, 82x, 8Lx, 8Rx, 8Sx, 8Tx, 8Vx, 8Xx,
97x, 9Cx, 9Dx, 9Ex, E2x, G2x, G3x, G4x, G5x, G8x, G9x
v7470-CTO, 63x, 68x, 6Cx, 6Vx, 73x, 74x, 76x, 8Tx
v2046-CTO
v2047-CTO
42T1481 **
Parts list 215
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 250 GB, 5,400 rpm
v7454-CTO, 23x, 28x, 2Hx, 2Tx, 2Wx, 3Hx, 3Jx, 3Kx, 3Mx, 3Px, 3Tx, 3Yx, 3Zx, 9Bx, 9Cx,
G4x, G5x, G8x, G9x, GFx, GGx, GHx, GKx, GLx, GMx
v7455-CTO, 33x, 3Cx, 3Lx, 3Mx, 3Sx, 3Tx, 3Zx, 44x, 47x, 48x, 49x, 4Kx, 4Lx, 4Mx, 4Tx,
4Wx, 4Xx, 83x, 8Fx, 8Hx, 8Kx, 8Nx, D5x, D6x, DAx, DCx, DDx, DEx, DGx, DNx, DPx,
DRx, DSx, DTx, DUx, F2x, F3x, F4x, FBx, FCx, FDx, FEx, FPx, FQx, FTx, P6x, P7x, PDx
v7457-CTO, 44x, 47x, 4Dx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux, 4Wx, 52x, 55x
v7458-CTO, 26x, 28x, 53x, 57x, 5Ax, 5Bx, 5Lx, 5Qx, 5Rx, 78x, 7Gx, 7Jx, 7Px, 7Tx, 7Ux,
7Yx, 7Zx, 82x, 85x, 8Gx, F2x, F6x, F7x, FEx, FMx, FPx, FTx, FVx, FYx, G3x
v7459-CTO, 62x, 63x, 6Px, 6Vx, 6Xx, 6Yx, 73x, 74x, H6x, H7x, M2x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 29x, 2Ax, 2Cx, 2Ex, 2Gx, 43x, 44x, 45x, 4Cx,
4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Lx, 4Rx, 4Sx, 4Vx, 4Wx, F2x, F3x, F4x, F5x, F7x, F8x, FAx,
FCx, FDx, FFx, FKx
v7465-CTO, 28x, 29x, 2Dx, 2Nx, 2Px, 2Sx, 2Tx, 2Zx, 3Jx, 3Lx, 3Sx, 3Ux, 3Vx, 3Xx, 3Yx,
D4x, D6x, D7x, DAx, DBx, DEx, G2x, G3x, G8x
v7466-CTO, 32x, 33x, 39x, 3Cx, 3Tx, 3Ux, 3Vx, 3Wx, 46x, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx,
4Px, 4Qx, 4Sx, 4Vx, 53x, 54x, 57x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Kx,
5Rx, 5Tx, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 95x, 96x, 9Bx, 9Hx, 9Jx, 9Lx, 9Mx, 9Px, 9Qx, 9Sx,
9Tx, 9Vx, 9Wx, 9Yx, 9Zx, DLx, DMx, F7x, F8x, F9x, FAx, FBx, FNx, FUx, FVx, FWx,
FXx, H5x, H6x, H7x, H8x, H9x, HAx, N2x
v7469-CTO, 52x, 53x, 54x, 59x, 5Fx, 5Kx, 5Bx, 5Dx, 5Jx, 5Nx, 5Tx, 5Xx, 62x, 63x, 64x, 65x,
66x, 67x, 68x, 6Cx, 6Dx, 6Gx, 7Ax, 7Lx, 7Xx, 7Vx, 82x, 8Lx, 8Rx, 8Sx, 8Tx, 8Vx, 8Xx,
97x, 9Cx, 9Dx, 9Ex, E2x, G2x, G3x, G4x, G5x, G8x, G9x
v7470-CTO, 63x, 68x, 6Cx, 6Vx, 73x, 74x, 76x, 8Tx
v2046-CTO
v2047-CTO
42T1517 **
13 SATA hard disk drive, 250 GB, 5,400 rpm
v7454-CTO, 23x, 28x, 2Hx, 2Tx, 2Wx, 3Hx, 3Jx, 3Kx, 3Mx, 3Px, 3Tx, 3Yx, 3Zx, 9Bx, 9Cx,
G4x, G5x, G8x, G9x, GFx, GGx, GHx, GKx, GLx, GMx
v7455-CTO, 33x, 3Cx, 3Lx, 3Mx, 3Sx, 3Tx, 3Zx, 44x, 47x, 48x, 49x, 4Kx, 4Lx, 4Mx, 4Tx,
4Wx, 4Xx, 83x, 8Fx, 8Hx, 8Kx, 8Nx, D5x, D6x, DAx, DCx, DDx, DEx, DGx, DNx, DPx,
DRx, DSx, DTx, DUx, F2x, F3x, F4x, FBx, FCx, FDx, FEx, FPx, FQx, FTx, P6x, P7x, PDx
v7457-CTO, 44x, 47x, 4Dx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux, 4Wx, 52x, 55x
v7458-CTO, 26x, 28x, 53x, 57x, 5Ax, 5Bx, 5Lx, 5Qx, 5Rx, 78x, 7Gx, 7Jx, 7Px, 7Tx, 7Ux,
7Yx, 7Zx, 82x, 85x, 8Gx, F2x, F6x, F7x, FEx, FMx, FPx, FTx, FVx, FYx, G3x
v7459-CTO, 62x, 63x, 6Px, 6Vx, 6Xx, 6Yx, 73x, 74x, H6x, H7x, M2x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 29x, 2Ax, 2Cx, 2Ex, 2Gx, 43x, 44x, 45x, 4Cx,
4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Lx, 4Rx, 4Sx, 4Vx, 4Wx, F2x, F3x, F4x, F5x, F7x, F8x, FAx,
FCx, FDx, FFx, FKx
v7465-CTO, 28x, 29x, 2Dx, 2Nx, 2Px, 2Sx, 2Tx, 2Zx, 3Jx, 3Lx, 3Sx, 3Ux, 3Vx, 3Xx, 3Yx,
D4x, D6x, D7x, DAx, DBx, DEx, G2x, G3x, G8x
v7466-CTO, 32x, 33x, 39x, 3Cx, 3Tx, 3Ux, 3Vx, 3Wx, 46x, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx,
4Px, 4Qx, 4Sx, 4Vx, 53x, 54x, 57x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Kx,
5Rx, 5Tx, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 95x, 96x, 9Bx, 9Hx, 9Jx, 9Lx, 9Mx, 9Px, 9Qx, 9Sx,
9Tx, 9Vx, 9Wx, 9Yx, 9Zx, DLx, DMx, F7x, F8x, F9x, FAx, FBx, FNx, FUx, FVx, FWx,
FXx, H5x, H6x, H7x, H8x, H9x, HAx, N2x
v7469-CTO, 52x, 53x, 54x, 59x, 5Fx, 5Kx, 5Bx, 5Dx, 5Jx, 5Nx, 5Tx, 5Xx, 62x, 63x, 64x, 65x,
66x, 67x, 68x, 6Cx, 6Dx, 6Gx, 7Ax, 7Lx, 7Xx, 7Vx, 82x, 8Lx, 8Rx, 8Sx, 8Tx, 8Vx, 8Xx,
97x, 9Cx, 9Dx, 9Ex, E2x, G2x, G3x, G4x, G5x, G8x, G9x
v7470-CTO, 63x, 68x, 6Cx, 6Vx, 73x, 74x, 76x, 8Tx
v2046-CTO
v2047-CTO
42T1581 **
216 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 250 GB, 5,400 rpm
v7454-CTO, 23x, 28x, 2Hx, 2Tx, 2Wx, 3Hx, 3Jx, 3Kx, 3Mx, 3Px, 3Tx, 3Yx, 3Zx, 9Bx, 9Cx,
G4x, G5x, G8x, G9x, GFx, GGx, GHx, GKx, GLx, GMx
v7455-CTO, 33x, 3Cx, 3Lx, 3Mx, 3Sx, 3Tx, 3Zx, 44x, 47x, 48x, 49x, 4Kx, 4Lx, 4Mx, 4Tx,
4Wx, 4Xx, 83x, 8Fx, 8Hx, 8Kx, 8Nx, D5x, D6x, DAx, DCx, DDx, DEx, DGx, DNx, DPx,
DRx, DSx, DTx, DUx, F2x, F3x, F4x, FBx, FCx, FDx, FEx, FPx, FQx, FTx, P6x, P7x, PDx
v7457-CTO, 44x, 47x, 4Dx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux, 4Wx, 52x, 55x
v7458-CTO, 26x, 28x, 53x, 57x, 5Ax, 5Bx, 5Lx, 5Qx, 5Rx, 78x, 7Gx, 7Jx, 7Px, 7Tx, 7Ux,
7Yx, 7Zx, 82x, 85x, 8Gx, F2x, F6x, F7x, FEx, FMx, FPx, FTx, FVx, FYx, G3x
v7459-CTO, 62x, 63x, 6Px, 6Vx, 6Xx, 6Yx, 73x, 74x, H6x, H7x, M2x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 29x, 2Ax, 2Cx, 2Ex, 2Gx, 43x, 44x, 45x, 4Cx,
4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Lx, 4Rx, 4Sx, 4Vx, 4Wx, F2x, F3x, F4x, F5x, F7x, F8x, FAx,
FCx, FDx, FFx, FKx
v7465-CTO, 28x, 29x, 2Dx, 2Nx, 2Px, 2Sx, 2Tx, 2Zx, 3Jx, 3Lx, 3Sx, 3Ux, 3Vx, 3Xx, 3Yx,
D4x, D6x, D7x, DAx, DBx, DEx, G2x, G3x, G8x
v7466-CTO, 32x, 33x, 39x, 3Cx, 3Tx, 3Ux, 3Vx, 3Wx, 46x, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx,
4Px, 4Qx, 4Sx, 4Vx, 53x, 54x, 57x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Kx,
5Rx, 5Tx, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 95x, 96x, 9Bx, 9Hx, 9Jx, 9Lx, 9Mx, 9Px, 9Qx, 9Sx,
9Tx, 9Vx, 9Wx, 9Yx, 9Zx, DLx, DMx, F7x, F8x, F9x, FAx, FBx, FNx, FUx, FVx, FWx,
FXx, H5x, H6x, H7x, H8x, H9x, HAx, N2x
v7469-CTO, 52x, 53x, 54x, 59x, 5Fx, 5Kx, 5Bx, 5Dx, 5Jx, 5Nx, 5Tx, 5Xx, 62x, 63x, 64x, 65x,
66x, 67x, 68x, 6Cx, 6Dx, 6Gx, 7Ax, 7Lx, 7Xx, 7Vx, 82x, 8Lx, 8Rx, 8Sx, 8Tx, 8Vx, 8Xx,
97x, 9Cx, 9Dx, 9Ex, E2x, G2x, G3x, G4x, G5x, G8x, G9x
v7470-CTO, 63x, 68x, 6Cx, 6Vx, 73x, 74x, 76x, 8Tx
v2046-CTO
v2047-CTO
v3249-CTO, 2Ex, 2Fx, J2x, J4x, J5x, J8x, J9x
v3323-CTO, 59x, 5Ax, 5Bx, 5Hx, 5Jx, 5Kx, 5Lx, 5Sx, 5Tx, 5Ux, 5Vx, 63x, 64x, 65x, 66x,
6Bx, 6Cx, 6Dx, 6Ex, 6Kx, 6Lx, 6Mx, 6Nx, 6Ux, 6Vx, 6Wx, 6Yx, 75x, 76x, 77x, 78x, 7Dx,
7Ex, 7Fx, 7Gx, 8Rx, LFx
v3357-CTO
v3626-CTO, F9x, FCx, FDx, FEx, FHx, FJx, FMx, FNx, FPx, FZx, GMx, GNx, GPx, GRx,
GSx, GTx, H3x, H4x, H5x, H6x, H7x, N2x
v3680-CTO, F8x, FBx, P8x, P9x, PAx, PFx, PHx, PJx, N2x
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 29x, 2Ax, 2Bx, 2Cx, 2Hx, 2Jx, 2Kx, 2Lx, 2Sx, 2Tx, 2Ux, 2Vx, 33x, 34x, 35x,
36x, 4Hx, 4Jx
v5385-CTO
v5397-CTO, F5x, FAx, FDx, FGx, FMx, FSx, FTx, FUx, FVx
v5413-CTO, FDx, FGx, L2x, L4x
v5442-CTO
v5446-CTO
45N7217 **
Parts list 217
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 250 GB, 5,400 rpm
v7454-CTO, 23x, 28x, 2Hx, 2Tx, 2Wx, 3Hx, 3Jx, 3Kx, 3Mx, 3Px, 3Tx, 3Yx, 3Zx, 9Bx, 9Cx,
G4x, G5x, G8x, G9x, GFx, GGx, GHx, GKx, GLx, GMx
v7455-CTO, 33x, 3Cx, 3Lx, 3Mx, 3Sx, 3Tx, 3Zx, 44x, 47x, 48x, 49x, 4Kx, 4Lx, 4Mx, 4Tx,
4Wx, 4Xx, 83x, 8Fx, 8Hx, 8Kx, 8Nx, D5x, D6x, DAx, DCx, DDx, DEx, DGx, DNx, DPx,
DRx, DSx, DTx, DUx, F2x, F3x, F4x, FBx, FCx, FDx, FEx, FPx, FQx, FTx, P6x, P7x, PDx
v7457-CTO, 44x, 47x, 4Dx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux, 4Wx, 52x, 55x
v7458-CTO, 26x, 28x, 53x, 57x, 5Ax, 5Bx, 5Lx, 5Qx, 5Rx, 78x, 7Gx, 7Jx, 7Px, 7Tx, 7Ux,
7Yx, 7Zx, 82x, 85x, 8Gx, F2x, F6x, F7x, FEx, FMx, FPx, FTx, FVx, FYx, G3x
v7459-CTO, 62x, 63x, 6Px, 6Vx, 6Xx, 6Yx, 73x, 74x, H6x, H7x, M2x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 29x, 2Ax, 2Cx, 2Ex, 2Gx, 43x, 44x, 45x, 4Cx,
4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Lx, 4Rx, 4Sx, 4Vx, 4Wx, F2x, F3x, F4x, F5x, F7x, F8x, FAx,
FCx, FDx, FFx, FKx
v7465-CTO, 28x, 29x, 2Dx, 2Nx, 2Px, 2Sx, 2Tx, 2Zx, 3Jx, 3Lx, 3Sx, 3Ux, 3Vx, 3Xx, 3Yx,
D4x, D6x, D7x, DAx, DBx, DEx, G2x, G3x, G8x
v7466-CTO, 32x, 33x, 39x, 3Cx, 3Tx, 3Ux, 3Vx, 3Wx, 46x, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx,
4Px, 4Qx, 4Sx, 4Vx, 53x, 54x, 57x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Kx,
5Rx, 5Tx, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 95x, 96x, 9Bx, 9Hx, 9Jx, 9Lx, 9Mx, 9Px, 9Qx, 9Sx,
9Tx, 9Vx, 9Wx, 9Yx, 9Zx, DLx, DMx, F7x, F8x, F9x, FAx, FBx, FNx, FUx, FVx, FWx,
FXx, H5x, H6x, H7x, H8x, H9x, HAx, N2x
v7469-CTO, 52x, 53x, 54x, 59x, 5Fx, 5Kx, 5Bx, 5Dx, 5Jx, 5Nx, 5Tx, 5Xx, 62x, 63x, 64x, 65x,
66x, 67x, 68x, 6Cx, 6Dx, 6Gx, 7Ax, 7Lx, 7Xx, 7Vx, 82x, 8Lx, 8Rx, 8Sx, 8Tx, 8Vx, 8Xx,
97x, 9Cx, 9Dx, 9Ex, E2x, G2x, G3x, G4x, G5x, G8x, G9x
v7470-CTO, 63x, 68x, 6Cx, 6Vx, 73x, 74x, 76x, 8Tx
v2046-CTO
v2047-CTO
v3249-CTO, 2Ex, 2Fx, J2x, J4x, J5x, J8x, J9x
v3323-CTO, 59x, 5Ax, 5Bx, 5Hx, 5Jx, 5Kx, 5Lx, 5Sx, 5Tx, 5Ux, 5Vx, 63x, 64x, 65x, 66x,
6Bx, 6Cx, 6Dx, 6Ex, 6Kx, 6Lx, 6Mx, 6Nx, 6Ux, 6Vx, 6Wx, 6Yx, 75x, 76x, 77x, 78x, 7Dx,
7Ex, 7Fx, 7Gx, 8Rx, LFx
v3357-CTO
v3626-CTO, F9x, FCx, FDx, FEx, FHx, FJx, FMx, FNx, FPx, FZx, GMx, GNx, GPx, GRx,
GSx, GTx, H3x, H4x, H5x, H6x, H7x, N2x
v3680-CTO, F8x, FBx, P8x, P9x, PAx, PFx, PHx, PJx, N2x
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 29x, 2Ax, 2Bx, 2Cx, 2Hx, 2Jx, 2Kx, 2Lx, 2Sx, 2Tx, 2Ux, 2Vx, 33x, 34x, 35x,
36x, 4Hx, 4Jx
v5385-CTO
v5397-CTO, F5x, FAx, FDx, FGx, FMx, FSx, FTx, FUx, FVx
v5413-CTO, FDx, FGx, L2x, L4x
v5442-CTO
v5446-CTO
45N7207 **
218 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 250 GB, 5,400 rpm
v7454-CTO, 23x, 28x, 2Hx, 2Tx, 2Wx, 3Hx, 3Jx, 3Kx, 3Mx, 3Px, 3Tx, 3Yx, 3Zx, 9Bx, 9Cx,
G4x, G5x, G8x, G9x, GFx, GGx, GHx, GKx, GLx, GMx
v7455-CTO, 33x, 3Cx, 3Lx, 3Mx, 3Sx, 3Tx, 3Zx, 44x, 47x, 48x, 49x, 4Kx, 4Lx, 4Mx, 4Tx,
4Wx, 4Xx, 83x, 8Fx, 8Hx, 8Kx, 8Nx, D5x, D6x, DAx, DCx, DDx, DEx, DGx, DNx, DPx,
DRx, DSx, DTx, DUx, F2x, F3x, F4x, FBx, FCx, FDx, FEx, FPx, FQx, FTx, P6x, P7x, PDx
v7457-CTO, 44x, 47x, 4Dx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux, 4Wx, 52x, 55x
v7458-CTO, 26x, 28x, 53x, 57x, 5Ax, 5Bx, 5Lx, 5Qx, 5Rx, 78x, 7Gx, 7Jx, 7Px, 7Tx, 7Ux,
7Yx, 7Zx, 82x, 85x, 8Gx, F2x, F6x, F7x, FEx, FMx, FPx, FTx, FVx, FYx, G3x
v7459-CTO, 62x, 63x, 6Px, 6Vx, 6Xx, 6Yx, 73x, 74x, H6x, H7x, M2x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 29x, 2Ax, 2Cx, 2Ex, 2Gx, 43x, 44x, 45x, 4Cx,
4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Lx, 4Rx, 4Sx, 4Vx, 4Wx, F2x, F3x, F4x, F5x, F7x, F8x, FAx,
FCx, FDx, FFx, FKx
v7465-CTO, 28x, 29x, 2Dx, 2Nx, 2Px, 2Sx, 2Tx, 2Zx, 3Jx, 3Lx, 3Sx, 3Ux, 3Vx, 3Xx, 3Yx,
D4x, D6x, D7x, DAx, DBx, DEx, G2x, G3x, G8x
v7466-CTO, 32x, 33x, 39x, 3Cx, 3Tx, 3Ux, 3Vx, 3Wx, 46x, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx,
4Px, 4Qx, 4Sx, 4Vx, 53x, 54x, 57x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Kx,
5Rx, 5Tx, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 95x, 96x, 9Bx, 9Hx, 9Jx, 9Lx, 9Mx, 9Px, 9Qx, 9Sx,
9Tx, 9Vx, 9Wx, 9Yx, 9Zx, DLx, DMx, F7x, F8x, F9x, FAx, FBx, FNx, FUx, FVx, FWx,
FXx, H5x, H6x, H7x, H8x, H9x, HAx, N2x
v7469-CTO, 52x, 53x, 54x, 59x, 5Fx, 5Kx, 5Bx, 5Dx, 5Jx, 5Nx, 5Tx, 5Xx, 62x, 63x, 64x, 65x,
66x, 67x, 68x, 6Cx, 6Dx, 6Gx, 7Ax, 7Lx, 7Xx, 7Vx, 82x, 8Lx, 8Rx, 8Sx, 8Tx, 8Vx, 8Xx,
97x, 9Cx, 9Dx, 9Ex, E2x, G2x, G3x, G4x, G5x, G8x, G9x
v7470-CTO, 63x, 68x, 6Cx, 6Vx, 73x, 74x, 76x, 8Tx
v2046-CTO
v2047-CTO
v3249-CTO, 2Ex, 2Fx, J2x, J4x, J5x, J8x, J9x
v3323-CTO, 59x, 5Ax, 5Bx, 5Hx, 5Jx, 5Kx, 5Lx, 5Sx, 5Tx, 5Ux, 5Vx, 63x, 64x, 65x, 66x,
6Bx, 6Cx, 6Dx, 6Ex, 6Kx, 6Lx, 6Mx, 6Nx, 6Ux, 6Vx, 6Wx, 6Yx, 75x, 76x, 77x, 78x, 7Dx,
7Ex, 7Fx, 7Gx, 8Rx, LFx
v3357-CTO
v3626-CTO, F9x, FCx, FDx, FEx, FHx, FJx, FMx, FNx, FPx, FZx, GMx, GNx, GPx, GRx,
GSx, GTx, H3x, H4x, H5x, H6x, H7x, N2x
v3680-CTO, F8x, FBx, P8x, P9x, PAx, PFx, PHx, PJx, N2x
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 29x, 2Ax, 2Bx, 2Cx, 2Hx, 2Jx, 2Kx, 2Lx, 2Sx, 2Tx, 2Ux, 2Vx, 33x, 34x, 35x,
36x, 4Hx, 4Jx
v5385-CTO
v5397-CTO, F5x, FAx, FDx, FGx, FMx, FSx, FTx, FUx, FVx
v5413-CTO, FDx, FGx, L2x, L4x
v5442-CTO
v5446-CTO
45N7229 **
Parts list 219
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 320 GB, 5,400 rpm OP
v7454-CTO, 3Lx, 3Rx, 9Kx, G4x
v7455-CTO, 3Hx, 3Nx, 3Vx, 3Xx, 3Yx, 45x, 4Bx, 4Cx, 4Hx, 4Jx, 4Nx, 4Px, 4Ux, 4Vx, 4Yx,
4Zx, 82x, 84x, 8Bx, 8Gx, 8Jx, 8Lx, 8Mx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Vx, D2x, D3x, D7x,
D8x, DBx, DFx, DJx, DKx, DQx, DVx, DWx, F5x, FFx, FGx, FKx, FLx, FMx, FNx, FRx,
FUx, FVx, FZx, N3x, N4x, N5x, P3x, P4x, PAx, PEx
v7457-CTO, 53x, 56x
v7458-CTO, 24x, 25x, 2Fx, 2Kx, 4Xx, 62x, 63x, 66x, 6Qx, 6Rx, 6Sx, 6Zx, 7Lx, 7Vx, 8Xx,
8Yx, 8Zx, E2x, F4x, F9x, FAx, FHx, FJx, G7x, G8x, G9x, GEx
v7459-CTO, 5Fx, 6Tx, 6Ux, 75x, H2x, M3x
v2023-CTO
v2024-CTO
v7462-CTO, 26x, 2Bx, 2Dx, 2Fx, 2Hx, F9x, FEx, FGx, FHx, FMx, FPx, FRx
v7465-CTO, 3Tx, 3Zx, DHx, DJx, G4x, G7x, G9x, GAx, GBx
v7466-CTO,3Xx, 3Yx, 3Zx, 47x, 4Bx, 4Rx, 4Tx, 4Ux, 4Wx, 4Xx, 55x, 56x, 58x, 5Jx, 5Lx,
5Mx, 5Nx, 5Px, 5Qx, 5Sx, 5Ux, 92x, 97x, 98x, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Nx, 9Ux, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FPx, FRx, FYx, FZx, H2x, H3x, H4x, HBx
v7469-CTO, 69x, 6Ax, 6Bx, 6Ex, 6Kx, 6Tx, 7Bx, 7Px, 88x, 8Ax, 8Cx, 8Dx, 8Ex, 8Fx, 8Kx,
8Mx, 8Nx, 8Px, 8Wx, 8Yx, 93x, 94x, 98x, 99x, 9Ax, 9Bx, G6x, G7x
v7470-CTO, 64x, 6Gx, 6Nx, 6Qx, 6Tx, 75x, 77x, 8Ux, 8Zx
v2046-CTO
v2047-CTO
42T1507 **
13 SATA hard disk drive, 320 GB, 5,400 rpm OP
v7454-CTO, 3Lx, 3Rx, 9Kx, G4x
v7455-CTO, 3Hx, 3Nx, 3Vx, 3Xx, 3Yx, 45x, 4Bx, 4Cx, 4Hx, 4Jx, 4Nx, 4Px, 4Ux, 4Vx, 4Yx,
4Zx, 82x, 84x, 8Bx, 8Gx, 8Jx, 8Lx, 8Mx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Vx, D2x, D3x, D7x,
D8x, DBx, DFx, DJx, DKx, DQx, DVx, DWx, F5x, FFx, FGx, FKx, FLx, FMx, FNx, FRx,
FUx, FVx, FZx, N3x, N4x, N5x, P3x, P4x, PAx, PEx
v7457-CTO, 53x, 56x
v7458-CTO, 24x, 25x, 2Fx, 2Kx, 4Xx, 62x, 63x, 66x, 6Qx, 6Rx, 6Sx, 6Zx, 7Lx, 7Vx, 8Xx,
8Yx, 8Zx, E2x, F4x, F9x, FAx, FHx, FJx, G7x, G8x, G9x, GEx
v7459-CTO, 5Fx, 6Tx, 6Ux, 75x, H2x, M3x
v2023-CTO
v2024-CTO
v7462-CTO, 26x, 2Bx, 2Dx, 2Fx, 2Hx, F9x, FEx, FGx, FHx, FMx, FPx, FRx
v7465-CTO, 3Tx, 3Zx, DHx, DJx, G4x, G7x, G9x, GAx, GBx
v7466-CTO,3Xx, 3Yx, 3Zx, 47x, 4Bx, 4Rx, 4Tx, 4Ux, 4Wx, 4Xx, 55x, 56x, 58x, 5Jx, 5Lx,
5Mx, 5Nx, 5Px, 5Qx, 5Sx, 5Ux, 92x, 97x, 98x, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Nx, 9Ux, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FPx, FRx, FYx, FZx, H2x, H3x, H4x, HBx
v7469-CTO, 69x, 6Ax, 6Bx, 6Ex, 6Kx, 6Tx, 7Bx, 7Px, 88x, 8Ax, 8Cx, 8Dx, 8Ex, 8Fx, 8Kx,
8Mx, 8Nx, 8Px, 8Wx, 8Yx, 93x, 94x, 98x, 99x, 9Ax, 9Bx, G6x, G7x
v7470-CTO, 64x, 6Gx, 6Nx, 6Qx, 6Tx, 75x, 77x, 8Ux, 8Zx
v2046-CTO
v2047-CTO
42T1535 **
220 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 320 GB, 5,400 rpm
v7454-CTO, 3Lx, 3Rx, 9Kx, G4x
v7455-CTO, 3Hx, 3Nx, 3Vx, 3Xx, 3Yx, 45x, 4Bx, 4Cx, 4Hx, 4Jx, 4Nx, 4Px, 4Ux, 4Vx, 4Yx,
4Zx, 82x, 84x, 8Bx, 8Gx, 8Jx, 8Lx, 8Mx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Vx, D2x, D3x, D7x,
D8x, DBx, DFx, DJx, DKx, DQx, DVx, DWx, F5x, FFx, FGx, FKx, FLx, FMx, FNx, FRx,
FUx, FVx, FZx, N3x, N4x, N5x, P3x, P4x, PAx, PEx
v7457-CTO, 53x, 56x
v7458-CTO, 24x, 25x, 2Fx, 2Kx, 4Xx, 62x, 63x, 66x, 6Qx, 6Rx, 6Sx, 6Zx, 7Lx, 7Vx, 8Xx,
8Yx, 8Zx, E2x, F4x, F9x, FAx, FHx, FJx, G7x, G8x, G9x, GEx
v7459-CTO, 5Fx, 6Tx, 6Ux, 75x, H2x, M3x
v2023-CTO
v2024-CTO
v7462-CTO, 26x, 2Bx, 2Dx, 2Fx, 2Hx, F9x, FEx, FGx, FHx, FMx, FPx, FRx
v7465-CTO, 3Tx, 3Zx, DHx, DJx, G4x, G7x, G9x, GAx, GBx
v7466-CTO,3Xx, 3Yx, 3Zx, 47x, 4Bx, 4Rx, 4Tx, 4Ux, 4Wx, 4Xx, 55x, 56x, 58x, 5Jx, 5Lx,
5Mx, 5Nx, 5Px, 5Qx, 5Sx, 5Ux, 92x, 97x, 98x, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Nx, 9Ux, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FPx, FRx, FYx, FZx, H2x, H3x, H4x, HBx
v7469-CTO, 69x, 6Ax, 6Bx, 6Ex, 6Kx, 6Tx, 7Bx, 7Px, 88x, 8Ax, 8Cx, 8Dx, 8Ex, 8Fx, 8Kx,
8Mx, 8Nx, 8Px, 8Wx, 8Yx, 93x, 94x, 98x, 99x, 9Ax, 9Bx, G6x, G7x
v7470-CTO, 64x, 6Gx, 6Nx, 6Qx, 6Tx, 75x, 77x, 8Ux, 8Zx
v2046-CTO
v2047-CTO
42T1583 **
Parts list 221
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 320 GB, 5,400 rpm
v7454-CTO, 3Lx, 3Rx, 9Kx, G4x
v7455-CTO, 3Hx, 3Nx, 3Vx, 3Xx, 3Yx, 45x, 4Bx, 4Cx, 4Hx, 4Jx, 4Nx, 4Px, 4Ux, 4Vx, 4Yx,
4Zx, 82x, 84x, 8Bx, 8Gx, 8Jx, 8Lx, 8Mx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Vx, D2x, D3x, D7x,
D8x, DBx, DFx, DJx, DKx, DQx, DVx, DWx, F5x, FFx, FGx, FKx, FLx, FMx, FNx, FRx,
FUx, FVx, FZx, N3x, N4x, N5x, P3x, P4x, PAx, PEx
v7457-CTO, 53x, 56x
v7458-CTO, 24x, 25x, 2Fx, 2Kx, 4Xx, 62x, 63x, 66x, 6Qx, 6Rx, 6Sx, 6Zx, 7Lx, 7Vx, 8Xx,
8Yx, 8Zx, E2x, F4x, F9x, FAx, FHx, FJx, G7x, G8x, G9x, GEx
v7459-CTO, 5Fx, 6Tx, 6Ux, 75x, H2x, M3x
v2023-CTO
v2024-CTO
v7462-CTO, 26x, 2Bx, 2Dx, 2Fx, 2Hx, F9x, FEx, FGx, FHx, FMx, FPx, FRx
v7465-CTO, 3Tx, 3Zx, DHx, DJx, G4x, G7x, G9x, GAx, GBx
v7466-CTO,3Xx, 3Yx, 3Zx, 47x, 4Bx, 4Rx, 4Tx, 4Ux, 4Wx, 4Xx, 55x, 56x, 58x, 5Jx, 5Lx,
5Mx, 5Nx, 5Px, 5Qx, 5Sx, 5Ux, 92x, 97x, 98x, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Nx, 9Ux, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FPx, FRx, FYx, FZx, H2x, H3x, H4x, HBx
v7469-CTO, 69x, 6Ax, 6Bx, 6Ex, 6Kx, 6Tx, 7Bx, 7Px, 88x, 8Ax, 8Cx, 8Dx, 8Ex, 8Fx, 8Kx,
8Mx, 8Nx, 8Px, 8Wx, 8Yx, 93x, 94x, 98x, 99x, 9Ax, 9Bx, G6x, G7x
v7470-CTO, 64x, 6Gx, 6Nx, 6Qx, 6Tx, 75x, 77x, 8Ux, 8Zx
v2046-CTO
v2047-CTO
v3249-CTO, 23x, 24x, 27x, 29x, 2Bx, 2Cx, 2Kx, 2Lx, 2Mx, J3x, J6x
v3323-CTO, 42x, 43x, 45x, 4Bx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px, 4Rx, 4Sx, 4Yx, 53x, 54x, 57x, 58x,
5Cx, 5Dx, 5Mx, 5Nx, 5Px, 5Rx, 5Wx, 5Yx, 5Zx, 62x, 67x, 68x, 69x, 6Ax, 6Fx, 6Gx, 6Hx,
6Jx, 6Px, 6Rx, 6Sx, 6Tx, 6Zx, 72x, 73x, 74x, 79x, 7Ax, 7Bx, 7Cx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx,
7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x,
88x, 8Bx, 8Cx, 8Dx, 8Jx, 8Kx, 8Lx, 8Sx, 8Tx, 8Ux, 8Vx, KFx, KGx, KHx, KJx, KNx, KPx,
KRx, KSx, KYx, L3x, L4x, L5x, L6x, L7x, L8x, LAx, LBx, LCx, R2x
v3357-CTO, D4x, D6x
v3626-CTO, F5x, FFx, FGx, FKx, FLx, G3x, G4x, G5x, G6x, GAx, GBx, GCx, GUx
v3680-CTO, P2x, P3x, P4x, P7x, PEx
v3712-CTO
v4492-CTO
v5129-CTO, 72x
v5143-CTO, 2Dx, 2Ex, 2Fx, 2Gx, 2Mx, 2Nx, 2Px, 2Rx, 2Wx, 2Yx, 2Zx, 32x, 37x, 38x, 39x,
3Ax, 3Zx, 42x, 43x, 4Gx
v5385-CTO, D2x, D3x
v5397-CTO, F2x, F3x, F6x, F8x, FCx, FHx, FJx, FWx, FXx, FYx, FZx
v5413-CTO, L3x, L5x
v5442-CTO
v5446-CTO
45N7219 **
222 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 320 GB, 5,400 rpm
v7454-CTO, 3Lx, 3Rx, 9Kx, G4x
v7455-CTO, 3Hx, 3Nx, 3Vx, 3Xx, 3Yx, 45x, 4Bx, 4Cx, 4Hx, 4Jx, 4Nx, 4Px, 4Ux, 4Vx, 4Yx,
4Zx, 82x, 84x, 8Bx, 8Gx, 8Jx, 8Lx, 8Mx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Vx, D2x, D3x, D7x,
D8x, DBx, DFx, DJx, DKx, DQx, DVx, DWx, F5x, FFx, FGx, FKx, FLx, FMx, FNx, FRx,
FUx, FVx, FZx, N3x, N4x, N5x, P3x, P4x, PAx, PEx
v7457-CTO, 53x, 56x
v7458-CTO, 24x, 25x, 2Fx, 2Kx, 4Xx, 62x, 63x, 66x, 6Qx, 6Rx, 6Sx, 6Zx, 7Lx, 7Vx, 8Xx,
8Yx, 8Zx, E2x, F4x, F9x, FAx, FHx, FJx, G7x, G8x, G9x, GEx
v7459-CTO, 5Fx, 6Tx, 6Ux, 75x, H2x, M3x
v2023-CTO
v2024-CTO
v7462-CTO, 26x, 2Bx, 2Dx, 2Fx, 2Hx, F9x, FEx, FGx, FHx, FMx, FPx, FRx
v7465-CTO, 3Tx, 3Zx, DHx, DJx, G4x, G7x, G9x, GAx, GBx
v7466-CTO,3Xx, 3Yx, 3Zx, 47x, 4Bx, 4Rx, 4Tx, 4Ux, 4Wx, 4Xx, 55x, 56x, 58x, 5Jx, 5Lx,
5Mx, 5Nx, 5Px, 5Qx, 5Sx, 5Ux, 92x, 97x, 98x, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Nx, 9Ux, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FPx, FRx, FYx, FZx, H2x, H3x, H4x, HBx
v7469-CTO, 69x, 6Ax, 6Bx, 6Ex, 6Kx, 6Tx, 7Bx, 7Px, 88x, 8Ax, 8Cx, 8Dx, 8Ex, 8Fx, 8Kx,
8Mx, 8Nx, 8Px, 8Wx, 8Yx, 93x, 94x, 98x, 99x, 9Ax, 9Bx, G6x, G7x
v7470-CTO, 64x, 6Gx, 6Nx, 6Qx, 6Tx, 75x, 77x, 8Ux, 8Zx
v2046-CTO
v2047-CTO
v3249-CTO, 23x, 24x, 27x, 29x, 2Bx, 2Cx, 2Kx, 2Lx, 2Mx, J3x, J6x
v3323-CTO, 42x, 43x, 45x, 4Bx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px, 4Rx, 4Sx, 4Yx, 53x, 54x, 57x, 58x,
5Cx, 5Dx, 5Mx, 5Nx, 5Px, 5Rx, 5Wx, 5Yx, 5Zx, 62x, 67x, 68x, 69x, 6Ax, 6Fx, 6Gx, 6Hx,
6Jx, 6Px, 6Rx, 6Sx, 6Tx, 6Zx, 72x, 73x, 74x, 79x, 7Ax, 7Bx, 7Cx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx,
7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x,
88x, 8Bx, 8Cx, 8Dx, 8Jx, 8Kx, 8Lx, 8Sx, 8Tx, 8Ux, 8Vx, KFx, KGx, KHx, KJx, KNx, KPx,
KRx, KSx, KYx, L3x, L4x, L5x, L6x, L7x, L8x, LAx, LBx, LCx, R2x
v3357-CTO, D4x, D6x
v3626-CTO, F5x, FFx, FGx, FKx, FLx, G3x, G4x, G5x, G6x, GAx, GBx, GCx, GUx
v3680-CTO, P2x, P3x, P4x, P7x, PEx
v3712-CTO
v4492-CTO
v5129-CTO, 72x
v5143-CTO, 2Dx, 2Ex, 2Fx, 2Gx, 2Mx, 2Nx, 2Px, 2Rx, 2Wx, 2Yx, 2Zx, 32x, 37x, 38x, 39x,
3Ax, 3Zx, 42x, 43x, 4Gx
v5385-CTO, D2x, D3x
v5397-CTO, F2x, F3x, F6x, F8x, FCx, FHx, FJx, FWx, FXx, FYx, FZx
v5413-CTO, L3x, L5x
v5442-CTO
v5446-CTO
45N7209 **
Parts list 223
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 320 GB, 5,400 rpm
v3249-CTO, 23x, 24x, 27x, 29x, 2Bx, 2Cx, 2Kx, 2Lx, 2Mx, J3x, J6x
v3323-CTO, 42x, 43x, 45x, 4Bx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px, 4Rx, 4Sx, 4Yx, 53x, 54x, 57x, 58x,
5Cx, 5Dx, 5Mx, 5Nx, 5Px, 5Rx, 5Wx, 5Yx, 5Zx, 62x, 67x, 68x, 69x, 6Ax, 6Fx, 6Gx, 6Hx,
6Jx, 6Px, 6Rx, 6Sx, 6Tx, 6Zx, 72x, 73x, 74x, 79x, 7Ax, 7Bx, 7Cx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx,
7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x,
88x, 8Bx, 8Cx, 8Dx, 8Jx, 8Kx, 8Lx, 8Sx, 8Tx, 8Ux, 8Vx, KFx, KGx, KHx, KJx, KNx, KPx,
KRx, KSx, KYx, L3x, L4x, L5x, L6x, L7x, L8x, LAx, LBx, LCx, R2x
v3357-CTO, D4x, D6x
v3626-CTO, F5x, FFx, FGx, FKx, FLx, G3x, G4x, G5x, G6x, GAx, GBx, GCx, GUx
v3680-CTO, P2x, P3x, P4x, P7x, PEx
v3712-CTO
v4492-CTO
v5129-CTO, 72x
v5143-CTO, 2Dx, 2Ex, 2Fx, 2Gx, 2Mx, 2Nx, 2Px, 2Rx, 2Wx, 2Yx, 2Zx, 32x, 37x, 38x, 39x,
3Ax, 3Zx, 42x, 43x, 4Gx
v5385-CTO, D2x, D3x
v5397-CTO, F2x, F3x, F6x, F8x, FCx, FHx, FJx, FWx, FXx, FYx, FZx
v5413-CTO, L3x, L5x
v5442-CTO
v5446-CTO
45N7231 **
13 SATA hard disk drive, 500 GB, 5,400 rpm
v7454-CTO, G3x, GEx
v7455-CTO, 4Ex, 8Zx, F6x, FSx, FWx, FYx, PBx, PCx, PFx, PGx, PHx, PJx, N2x
v7457-CTO, 54x, 58x
v7458-CTO, 2Dx, 2Mx, 6Ex, 6Kx, FXx, G4x, G6x
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 48x, 4Cx, 4Ex, 4Yx, F2x, F4x, F5x, F6x, FQx, FSx, FTx
v7469-CTO, 6Lx, 6Qx, 6Ux, 6Yx, 8Qx
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
45N7211 **
224 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 500 GB, 5,400 rpm
v7454-CTO, G3x, GEx
v7455-CTO, 4Ex, 8Zx, F6x, FSx, FWx, FYx, PBx, PCx, PFx, PGx, PHx, PJx, N2x
v7457-CTO, 54x, 58x
v7458-CTO, 2Dx, 2Mx, 6Ex, 6Kx, FXx, G4x, G6x
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 48x, 4Cx, 4Ex, 4Yx, F2x, F4x, F5x, F6x, FQx, FSx, FTx
v7469-CTO, 6Lx, 6Qx, 6Ux, 6Yx, 8Qx
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
45N7221 **
13 SATA hard disk drive, 500 GB, 5,400 rpm
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
45N7233 **
Parts list 225
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 100 GB, 7,200 rpm OP
v7454-CTO, 2Px, 93x
v7455-CTO, 3Fx, 3Rx
v7457-CTO
v7458-CTO, 7Hx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 3Lx, 3Mx
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
42T1485 **
13 SATA hard disk drive, 100 GB, 7,200 rpm
v7454-CTO, 2Px, 93x
v7455-CTO, 3Fx, 3Rx
v7457-CTO
v7458-CTO, 7Hx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 3Lx, 3Mx
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
39T2799 **
13 SATA hard disk drive, 160 GB, 7,200 rpm OP
v7454-CTO, 2Kx, 2Mx, 2Sx, 2Zx, 34x, 36x, 38x, 3Sx, 3Vx, 3Wx, 3Xx, 96x
v7455-CTO, 3Ex, 3Qx, 42x, 43x, 85x, 86x, 8Cx, DXx
v7457-CTO, 43x
v7458-CTO, 22x, 27x, 29x, 2Sx, 5Cx, 5Ex, 5Fx, 5Hx, 5Mx, 64x, 67x, 68x, 6Ax, 6Xx, 7Bx,
7Cx, 7Dx, 7Ex, 7Kx, 7Rx, 83x, 88x, 89x, 8Fx, 8Lx, 8Mx, 8Px, F3x, F5x, F8x, FDx, FQx,
M2x
v7459-CTO, 64x, 65x, 6Ax, 6Cx, 6Rx, 6Sx, 6Zx
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 3Gx, 3Jx, 3Kx, 3Nx, 43x, 45x, 9Ax
v7469-CTO, 5Wx, 5Yx, 6Hx, 74x, 76x, 79x, 7Fx, 7Hx, 7Jx, 7Tx, 7Zx, 83x
v7470-CTO, 6Px, 72x
v2046-CTO
v2047-CTO
42T1461 **
226 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 160 GB , 7,200 rpm
v7454-CTO, 2Kx, 2Mx, 2Sx, 2Zx, 34x, 36x, 38x, 3Sx, 3Vx, 3Wx, 3Xx, 96x
v7455-CTO, 3Ex, 3Qx, 42x, 43x, 85x, 86x, 8Cx, DXx
v7457-CTO, 43x
v7458-CTO, 22x, 27x, 29x, 2Sx, 5Cx, 5Ex, 5Fx, 5Hx, 5Mx, 64x, 67x, 68x, 6Ax, 6Xx, 7Bx,
7Cx, 7Dx, 7Ex, 7Kx, 7Rx, 83x, 88x, 89x, 8Fx, 8Lx, 8Mx, 8Px, F3x, F5x, F8x, FDx, FQx,
M2x
v7459-CTO, 64x, 65x, 6Ax, 6Cx, 6Rx, 6Sx, 6Zx
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 3Gx, 3Jx, 3Kx, 3Nx, 43x, 45x, 9Ax
v7469-CTO, 5Wx, 5Yx, 6Hx, 74x, 76x, 79x, 7Fx, 7Hx, 7Jx, 7Tx, 7Zx, 83x
v7470-CTO, 6Px, 72x
v2046-CTO
v2047-CTO
42T1439 **
13 SATA hard disk drive, 160 GB, 7,200 rpm
v7454-CTO, 2Kx, 2Mx, 2Sx, 2Zx, 34x, 36x, 38x, 3Sx, 3Vx, 3Wx, 3Xx, 96x
v7455-CTO, 3Ex, 3Qx, 42x, 43x, 85x, 86x, 8Cx, DXx
v7457-CTO, 43x
v7458-CTO, 22x, 27x, 29x, 2Sx, 5Cx, 5Ex, 5Fx, 5Hx, 5Mx, 64x, 67x, 68x, 6Ax, 6Xx, 7Bx,
7Cx, 7Dx, 7Ex, 7Kx, 7Rx, 83x, 88x, 89x, 8Fx, 8Lx, 8Mx, 8Px, F3x, F5x, F8x, FDx, FQx,
M2x
v7459-CTO, 64x, 65x, 6Ax, 6Cx, 6Rx, 6Sx, 6Zx
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 3Gx, 3Jx, 3Kx, 3Nx, 43x, 45x, 9Ax
v7469-CTO, 5Wx, 5Yx, 6Hx, 74x, 76x, 79x, 7Fx, 7Hx, 7Jx, 7Tx, 7Zx, 83x
v7470-CTO, 6Px, 72x
v2046-CTO
v2047-CTO
42T1465 **
13 SATA hard disk drive, 160 GB, 7,200 rpm
v7454-CTO, 2Kx, 2Mx, 2Sx, 2Zx, 34x, 36x, 38x, 3Sx, 3Vx, 3Wx, 3Xx, 96x
v7455-CTO, 3Ex, 3Qx, 42x, 43x, 85x, 86x, 8Cx, DXx
v7457-CTO, 43x
v7458-CTO, 22x, 27x, 29x, 2Sx, 5Cx, 5Ex, 5Fx, 5Hx, 5Mx, 64x, 67x, 68x, 6Ax, 6Xx, 7Bx,
7Cx, 7Dx, 7Ex, 7Kx, 7Rx, 83x, 88x, 89x, 8Fx, 8Lx, 8Mx, 8Px, F3x, F5x, F8x, FDx, FQx,
M2x
v7459-CTO, 64x, 65x, 6Ax, 6Cx, 6Rx, 6Sx, 6Zx
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 3Gx, 3Jx, 3Kx, 3Nx, 43x, 45x, 9Ax
v7469-CTO, 5Wx, 5Yx, 6Hx, 74x, 76x, 79x, 7Fx, 7Hx, 7Jx, 7Tx, 7Zx, 83x
v7470-CTO, 6Px, 72x
v2046-CTO
v2047-CTO
45N7261 **
Parts list 227
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 200 GB, FDE, 7,200 rpm OP
v7454-CTO, 22x, 27x
v7455-CTO, 32x
v7457-CTO, 42x, 46x
v7458-CTO, 4Yx, 5Nx, 5Sx, 86x
v7459-CTO, 6Ex
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO, 5Zx, 7Rx
v7470-CTO
v2046-CTO
v2047-CTO
42T1463 **
13 SATA hard disk drive, 200 GB, FDE, 7,200 rpm
v7454-CTO, 22x, 27x
v7455-CTO, 32x
v7457-CTO, 42x, 46x
v7458-CTO, 4Yx, 5Nx, 5Sx, 86x
v7459-CTO, 6Ex
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO, 5Zx, 7Rx
v7470-CTO
v2046-CTO
v2047-CTO
42T1561 **
13 SATA hard disk drive, 250 GB, FDE, 7,200 rpm
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO, FFx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
42T1563 **
228 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 250 GB, FDE, 7,200 rpm
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO, FFx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
42T1573 **
13 SATA hard disk drive, 250 GB, FDE, 7,200 rpm
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO, FFx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
42T1527 **
Parts list 229
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 250 GB, FDE, 7,200 rpm
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO, FFx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
45N7279 **
230 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 250 GB, FDE, 7,200 rpm
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO, FFx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
45N7259 **
13 SATA hard disk drive, 320 GB, 7,200 rpm
v7454-CTO
v7455-CTO, 46x, 4Dx, 4Fx, 4Qx, 4Rx, 4Sx, 87x, 88x, 89x, 8Ax, 8Dx, 8Ex, 8Ux, 8Wx, 8Xx,
8Yx, DLx, DMx, DYx, DZx, FHx, P2x, P5x
v7457-CTO, 57x
v7458-CTO, 2Bx, 2Lx, 2Nx, 2Qx, 2Tx, 2Vx, 65x, 6Bx, 6Cx, 6Dx, 6Tx, 6Wx, FKx, FLx, FUx,
FWx, GBx, M3x
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 44x, 49x, 4Dx, 4Fx, F3x, FCx, FDx, FEx
v7469-CTO, 6Jx, 6Px, 6Xx, 89x, 8Gx, 8Hx, 95x
v7470-CTO
v2046-CTO
v2047-CTO
42T1559 **
Parts list 231
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 320 GB, 7,200 rpm
v7454-CTO
v7455-CTO, 46x, 4Dx, 4Fx, 4Qx, 4Rx, 4Sx, 87x, 88x, 89x, 8Ax, 8Dx, 8Ex, 8Ux, 8Wx, 8Xx,
8Yx, DLx, DMx, DYx, DZx, FHx, P2x, P5x
v7457-CTO, 57x
v7458-CTO, 2Bx, 2Lx, 2Nx, 2Qx, 2Tx, 2Vx, 65x, 6Bx, 6Cx, 6Dx, 6Tx, 6Wx, FKx, FLx, FUx,
FWx, GBx, M3x
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 44x, 49x, 4Dx, 4Fx, F3x, FCx, FDx, FEx
v7469-CTO, 6Jx, 6Px, 6Xx, 89x, 8Gx, 8Hx, 95x
v7470-CTO
v2046-CTO
v2047-CTO
42T1571 **
13 SATA hard disk drive, 320 GB, 7,200 rpm
v7454-CTO
v7455-CTO, 46x, 4Dx, 4Fx, 4Qx, 4Rx, 4Sx, 87x, 88x, 89x, 8Ax, 8Dx, 8Ex, 8Ux, 8Wx, 8Xx,
8Yx, DLx, DMx, DYx, DZx, FHx, P2x, P5x
v7457-CTO, 57x
v7458-CTO, 2Bx, 2Lx, 2Nx, 2Qx, 2Tx, 2Vx, 65x, 6Bx, 6Cx, 6Dx, 6Tx, 6Wx, FKx, FLx, FUx,
FWx, GBx, M3x
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 44x, 49x, 4Dx, 4Fx, F3x, FCx, FDx, FEx
v7469-CTO, 6Jx, 6Px, 6Xx, 89x, 8Gx, 8Hx, 95x
v7470-CTO
v2046-CTO
v2047-CTO
42T1525 **
232 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 320 GB, 7,200 rpm
v7454-CTO
v7455-CTO, 46x, 4Dx, 4Fx, 4Qx, 4Rx, 4Sx, 87x, 88x, 89x, 8Ax, 8Dx, 8Ex, 8Ux, 8Wx, 8Xx,
8Yx, DLx, DMx, DYx, DZx, FHx, P2x, P5x
v7457-CTO, 57x
v7458-CTO, 2Bx, 2Lx, 2Nx, 2Qx, 2Tx, 2Vx, 65x, 6Bx, 6Cx, 6Dx, 6Tx, 6Wx, FKx, FLx, FUx,
FWx, GBx, M3x
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 44x, 49x, 4Dx, 4Fx, F3x, FCx, FDx, FEx
v7469-CTO, 6Jx, 6Px, 6Xx, 89x, 8Gx, 8Hx, 95x
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO, 2Gx, 2Hx, 2Jx, J7x, JAx
v3323-CTO, 5Ex, 5Fx, 5Gx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x,
9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, K2x, K3x, K4x, K5x, K6x, K7x, K8x, K9x, KAx,
KCx, KDx, KEx
v3357-CTO, D7x
v3626-CTO, 11x, F2x, F3x, F4x, F6x, F8x, FAx, FBx, FRx, FSx, FTx, FVx, FWx, FXx, G2x,
GFx, GHx, GHx, GKx, GVx, GWx, GXx
v3680-CTO, F7x, F9x, FAx, 11x, PBx
v3712-CTO
v4492-CTO
v5129-CTO, 73x, R1x
v5143-CTO, 28x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex
v5385-CTO, D4x
v5397-CTO, FEx, FFx, FNx, FPx, FRx, G6x, G7x, GAx
v5413-CTO, FEx, FFx
v5442-CTO
v5446-CTO
42N7255 **
13 SATA hard disk drive, 320 GB, 7,200 rpm
v3249-CTO, 2Gx, 2Hx, 2Jx, J7x, JAx
v3323-CTO, 5Ex, 5Fx, 5Gx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x,
9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, K2x, K3x, K4x, K5x, K6x, K7x, K8x, K9x, KAx,
KCx, KDx, KEx
v3357-CTO, D7x
v3626-CTO, 11x, F2x, F3x, F4x, F6x, F8x, FAx, FBx, FRx, FSx, FTx, FVx, FWx, FXx, G2x,
GFx, GHx, GHx, GKx, GVx, GWx, GXx
v3680-CTO, F7x, F9x, FAx, 11x, PBx
v3712-CTO
v4492-CTO
v5129-CTO, 73x, R1x
v5143-CTO, 28x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex
v5385-CTO, D4x
v5397-CTO, FEx, FFx, FNx, FPx, FRx, G6x, G7x, GAx
v5413-CTO, FEx, FFx
v5442-CTO
v5446-CTO
42N7275 **
Parts list 233
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
13 SATA hard disk drive, 500 GB, 7,200 rpm
v7454-CTO
v7455-CTO, 4Gx, FXx, P9x
v7457-CTO
v7458-CTO, 2Cx, 2Ex, 2Px, 6Jx, 6Lx, 6Ux, 6Vx, 6Yx, G5x, GCx, GDx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 4Ax, 4Zx, 52x
v7469-CTO, 6Mx, 6Vx, 96x, 9Gx
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO, 22x, 25x, 26x, 28x, 2Ax, 2Dx, 2Lx
v3323-CTO, 44x, 46x, 48x, 49x, 4Ax, 4Cx, 4Dx, 4Ex, 4Fx, 4Lx, 4Mx, 4Tx, 4Ux, 4Vx, 4Zx,
52x, 55x, 89x, 8Ax, 8Ex, 8Fx, 8Nx, 8Px, KLx, KMx, KTx, KUx, KVx, KZx, L2x, LDx, LEx
v3357-CTO, D2x, D3x, D5x
v3626-CTO, G7x, G8x, GDx, GEx, GJx, GJx
v3680-CTO, P5x
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 22x, 24x, 26x, 3Ux, 3Wx
v5385-CTO
v5397-CTO, G2x, G4x, G8x, G9x
v5413-CTO
v5442-CTO
v5446-CTO
45N7257 **
13 SATA hard disk drive, 500 GB, 7,200 rpm
v3249-CTO, 22x, 25x, 26x, 28x, 2Ax, 2Dx, 2Lx
v3323-CTO, 44x, 46x, 48x, 49x, 4Ax, 4Cx, 4Dx, 4Ex, 4Fx, 4Lx, 4Mx, 4Tx, 4Ux, 4Vx, 4Zx,
52x, 55x, 89x, 8Ax, 8Ex, 8Fx, 8Nx, 8Px, KLx, KMx, KTx, KUx, KVx, KZx, L2x, LDx, LEx
v3357-CTO, D2x, D3x, D5x
v3626-CTO, G7x, G8x, GDx, GEx, GJx, GJx
v3680-CTO, P5x
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 22x, 24x, 26x, 3Ux, 3Wx
v5385-CTO
v5397-CTO, G2x, G4x, G8x, G9x
v5413-CTO
v5442-CTO
v5446-CTO
45N7277 **
14 Hard disk drive cover assembly 44C9553 *
234 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
15 1.8-inch - 2.5-inch storage converter
v7454-CTO, 24x, 2Gx, 2Jx, 3Nx, 3Qx, 9Gx, 9Jx
v7455-CTO, 34x, 38x, 3Bx, 3Gx, 3Ux, 4Ax, FJx
v7457-CTO, 4Cx, 4Ex, 4Fx
v7458-CTO, 2Ax, 58x, 6Mx, 6Nx, 6Px, 73x, 76x, 77x, 8Rx, 8Sx, 8Tx, 8Wx, FCx, GFx
v7459-CTO, 66x, 6Kx, 6Mx, 6Nx, 72x, E3x
v2023-CTO
v2024-CTO
v7462-CTO, 4Mx, 4Nx, 4Px, 4Zx
v7465-CTO, 2Hx, 2Jx, 2Kx, 2Yx, 3Mx, D2x, D3x
v7466-CTO, 3Dx, 3Ex, 3Fx, 93x, 94x
v7469-CTO, 5Lx, 5Mx, 5Px, 5Sx, 6Fx, 6Nx, 6Rx, 6Wx, 6Zx, 72x, 73x, 75x, 7Ex, 7Gx, 7Kx,
7Mx, 7Sx, 7Ux, 84x, 85x, 86x, 87x, 8Bx, 8Jx, GAx
v7470-CTO, 6Ex, 6Fx, 6Jx, 6Mx, 6Ux
v
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO, 4Gx, 4Wx, 8Gx, KWx
v3357-CTO
v3626-CTO, F7x, FUx, FYx, G9x, GYx, GZx, R3x
v3680-CTO, P6x, PCx, PGx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 23x, 25x, 27x, 3Vx, 3Yx
v5385-CTO
v5397-CTO, F7x, FBx, FKx, G3x, G5x
v5413-CTO
v5442-CTO
v5446-CTO
42W8019 *
16 SATA solid state drive, 64 GB OP
v7454-CTO, 24x, 2Gx, 3Nx
v7455-CTO, 34x, 38x
v7457-CTO, 4Cx, 4Ex
v7458-CTO, 73x, 76x
v7459-CTO, 6Kx, 6Mx
v2023-CTO
v2024-CTO
v7462-CTO, 4Mx, 4Nx, 4Px, 4Zx
v7465-CTO, 2Hx, 2Jx, 2Kx, 2Yx, 3Mx, D2x, D3x
v7466-CTO, 3Dx, 3Ex, 3Fx
v7469-CTO, 5Lx, 5Mx, 5Px, 6Fx, 73x, 7Ex, 7Sx, 84x, 8Bx
v7470-CTO, 6Ex, 6Fx, 6Jx
v2046-CTO
v2047-CTO
42T1898 **
Parts list 235
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
16 SATA solid state drive, 64 GB
v7454-CTO, 24x, 2Gx, 3Nx
v7455-CTO, 34x, 38x
v7457-CTO, 4Cx, 4Ex
v7458-CTO, 73x, 76x
v7459-CTO, 6Kx, 6Mx
v2023-CTO
v2024-CTO
v7462-CTO, 4Mx, 4Nx, 4Px, 4Zx
v7465-CTO, 2Hx, 2Jx, 2Kx, 2Yx, 3Mx, D2x, D3x
v7466-CTO, 3Dx, 3Ex, 3Fx
v7469-CTO, 5Lx, 5Mx, 5Px, 6Fx, 73x, 7Ex, 7Sx, 84x, 8Bx
v7470-CTO, 6Ex, 6Fx, 6Jx
v2046-CTO
v2047-CTO
41W0520 **
16 SATA solid state drive, 64 GB
v7454-CTO, 24x, 2Gx, 3Nx
v7455-CTO, 34x, 38x
v7457-CTO, 4Cx, 4Ex
v7458-CTO, 73x, 76x
v7459-CTO, 6Kx, 6Mx
v2023-CTO
v2024-CTO
v7462-CTO, 4Mx, 4Nx, 4Px, 4Zx
v7465-CTO, 2Hx, 2Jx, 2Kx, 2Yx, 3Mx, D2x, D3x
v7466-CTO, 3Dx, 3Ex, 3Fx
v7469-CTO, 5Lx, 5Mx, 5Px, 6Fx, 73x, 7Ex, 7Sx, 84x, 8Bx
v7470-CTO, 6Ex, 6Fx, 6Jx
v2046-CTO
v2047-CTO
45N8201 **
16 SATA solid state drive, 80 GB
v7454-CTO, 9Jx
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO, 66x, E3x
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 93x, 94x
v7469-CTO, 72x, 7Gx, 7Kx, 7Mx, 7Ux
v7470-CTO, 6Mx, 6Ux
v2046-CTO
v2047-CTO
41W0516 **
236 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
16 SATA solid state drive, 80 GB
v7454-CTO, 9Jx
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO, 66x, E3x
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 93x, 94x
v7469-CTO, 72x, 7Gx, 7Kx, 7Mx, 7Ux
v7470-CTO, 6Mx, 6Ux
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO, GZx
v3680-CTO, PCx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO, FBx
v5413-CTO
v5442-CTO
v5446-CTO
41W0524 **
16 SATA solid state drive, 128 GB
v7454-CTO, 2Jx, 9Gx
v7455-CTO, 3Bx, 3Gx, 3Ux, FJx
v7457-CTO, 4Fx
v7458-CTO, 2Ax, 58x, 6Mx, 6Nx, 6Px, 77x, 8Rx, 8Sx, 8Tx, 8Wx, FCx, GFx
v7459-CTO, 6Nx, 72x
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO, 6Nx, 6Rx, 6Wx, 6Zx, 75x, 85x, 86x, 87x, 8Jx, GAx
v7470-CTO
v2046-CTO
v2047-CTO
41W0519 *
Parts list 237
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
16 SATA solid state drive, 128 GB
v7454-CTO, 2Jx, 9Gx
v7455-CTO, 3Bx, 3Gx, 3Ux, FJx
v7457-CTO, 4Fx
v7458-CTO, 2Ax, 58x, 6Mx, 6Nx, 6Px, 77x, 8Rx, 8Sx, 8Tx, 8Wx, FCx, GFx
v7459-CTO, 6Nx, 72x
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO, 6Nx, 6Rx, 6Wx, 6Zx, 75x, 85x, 86x, 87x, 8Jx, GAx
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO, 4Gx, 4Wx, 8Gx, KWx
v3357-CTO
v3626-CTO, F7x, FUx, FYx, G9x, GYx, R3x
v3680-CTO, P6x, PGx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 23x, 25x, 27x, 3Vx, 3Yx
v5385-CTO
v5397-CTO, F7x, FKx, G3x, G5x
v5413-CTO
v5442-CTO
v5446-CTO
45N8203 **
238 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
16 SATA solid state drive, 128 GB
v7454-CTO, 2Jx, 9Gx
v7455-CTO, 3Bx, 3Gx, 3Ux, FJx
v7457-CTO, 4Fx
v7458-CTO, 2Ax, 58x, 6Mx, 6Nx, 6Px, 77x, 8Rx, 8Sx, 8Tx, 8Wx, FCx, GFx
v7459-CTO, 6Nx, 72x
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO, 6Nx, 6Rx, 6Wx, 6Zx, 75x, 85x, 86x, 87x, 8Jx, GAx
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO, 4Gx, 4Wx, 8Gx, KWx
v3357-CTO
v3626-CTO, F7x, FUx, FYx, G9x, GYx, R3x
v3680-CTO, P6x, PGx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 23x, 25x, 27x, 3Vx, 3Yx
v5385-CTO
v5397-CTO, F7x, FKx, G3x, G5x
v5413-CTO
v5442-CTO
v5446-CTO
45N7953 **
16 SATA solid state drive, FDE, 128 GB,
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
45N8205 **
Parts list 239
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
16 SATA solid state drive, FDE, 128 GB
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
45N7955 **
16 SATA solid state drive, 160 GB
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
41W0522 **
240 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
16 SATA solid state drive, FDE, 256 GB
v7454-CTO, 3Qx
v7455-CTO, 4Ax
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO, 3Kx
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
45N8207 **
16 SATA solid state drive, FDE, 256 GB
v7454-CTO, 3Qx
v7455-CTO, 4Ax
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO, 3Kx
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
45N7959 **
Parts list 241
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
17 DVD drive
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
42T2541 *
17 DVD drive
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
42T2553 *
17 DVD/CD-RW combo drive
v7454-CTO
v7455-CTO, DBx, DFx
v7457-CTO
v7458-CTO, 7Cx
v7459-CTO, 6Ax
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO, 72x, 79x
v7470-CTO
v2046-CTO
v2047-CTO
42T2543 *
242 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
17 DVD/CD-RW combo drive
v7454-CTO
v7455-CTO, DBx, DFx
v7457-CTO
v7458-CTO, 7Cx
v7459-CTO, 6Ax
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO, 72x, 79x
v7470-CTO
v2046-CTO
v2047-CTO
42T2555 *
17 DVD-RAM/RW drive
v7454-CTO, 2Kx, 2Mx, 2Rx, 2Sx, 2Zx, 34x, 36x, 3Lx, 3Mx, 3Nx, 3Sx, 3Vx, 3Wx, 3Xx, 96x,
98x, 9Gx, 9Jx
v7455-CTO, 3Sx, 3Tx, 3Xx, 3Yx, 43x, 4Rx, 87x, 88x, 8Ax, 8Dx, 8Ex, 8Px, D7x, D8x, DLx,
DMx, DYx, DZx, FHx
v7457-CTO
v7458-CTO, 2Tx, 2Vx, 5Nx, 5Qx, 5Rx, 67x, 6Nx, 7Bx, 7Qx, 85x, 87x, 8Gx, 8Kx, 8Nx, M3x
v7459-CTO, 65x, 6Rx, 6Sx, 6Ux
v2023-CTO
v2024-CTO
v7462-CTO, 46x
v7465-CTO
v7466-CTO, 3Hx, 3Jx, 3Nx, 43x, 44x, 9Yx, 9Zx
v7469-CTO, 5Sx, 5Xx, 6Gx, 77x, 7Bx, 7Ex, 84x, GAx
v7470-CTO, 6Gx, 6Nx
v2046-CTO
v2047-CTO
42T2545 *
17 DVD-RAM/RW drive
v7454-CTO, 2Kx, 2Mx, 2Rx, 2Sx, 2Zx, 34x, 36x, 3Lx, 3Mx, 3Nx, 3Sx, 3Vx, 3Wx, 3Xx, 96x,
98x, 9Gx, 9Jx
v7455-CTO, 3Sx, 3Tx, 3Xx, 3Yx, 43x, 4Rx, 87x, 88x, 8Ax, 8Dx, 8Ex, 8Px, D7x, D8x, DLx,
DMx, DYx, DZx, FHx
v7457-CTO
v7458-CTO, 2Tx, 2Vx, 5Nx, 5Qx, 5Rx, 67x, 6Nx, 7Bx, 7Qx, 85x, 87x, 8Gx, 8Kx, 8Nx, M3x
v7459-CTO, 65x, 6Rx, 6Sx, 6Ux
v2023-CTO
v2024-CTO
v7462-CTO, 46x
v7465-CTO
v7466-CTO, 3Hx, 3Jx, 3Nx, 43x, 44x, 9Yx, 9Zx
v7469-CTO, 5Sx, 5Xx, 6Gx, 77x, 7Bx, 7Ex, 84x, GAx
v7470-CTO, 6Gx, 6Nx
v2046-CTO
v2047-CTO
42T2557 *
Parts list 243
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
17 DVD-RAM/RW drive
v7454-CTO, 2Kx, 2Mx, 2Rx, 2Sx, 2Zx, 34x, 36x, 3Lx, 3Mx, 3Nx, 3Sx, 3Vx, 3Wx, 3Xx, 96x,
98x, 9Gx, 9Jx
v7455-CTO, 3Sx, 3Tx, 3Xx, 3Yx, 43x, 4Rx, 87x, 88x, 8Ax, 8Dx, 8Ex, 8Px, D7x, D8x, DLx,
DMx, DYx, DZx, FHx
v7457-CTO
v7458-CTO, 2Tx, 2Vx, 5Nx, 5Qx, 5Rx, 67x, 6Nx, 7Bx, 7Qx, 85x, 87x, 8Gx, 8Kx, 8Nx, M3x
v7459-CTO, 65x, 6Rx, 6Sx, 6Ux
v2023-CTO
v2024-CTO
v7462-CTO, 46x
v7465-CTO
v7466-CTO, 3Hx, 3Jx, 3Nx, 43x, 44x, 9Yx, 9Zx
v7469-CTO, 5Sx, 5Xx, 6Gx, 77x, 7Bx, 7Ex, 84x, GAx
v7470-CTO, 6Gx, 6Nx
v2046-CTO
v2047-CTO
42T2551 *
17 DVD-RAM/RW drive
v3249-CTO, 2Gx, 2Hx, 2Jx
v3323-CTO, 9Gx, 9Hx, K4x, K5x, K8x, K9x, KDx, KEx
v3357-CTO
v3626-CTO, F5x, F6x, FAx, GNx
v3680-CTO, F9x, P9x, PBx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 46x, 47x, 4Ax, 4Bx
v5385-CTO
v5397-CTO, FEx
v5413-CTO, FEx
v5442-CTO
v5446-CTO
45N7457 *
17 DVD-RAM/RW drive
v3249-CTO, 2Gx, 2Hx, 2Jx
v3323-CTO, 9Gx, 9Hx, K4x, K5x, K8x, K9x, KDx, KEx
v3357-CTO
v3626-CTO, F5x, F6x, FAx, GNx
v3680-CTO, F9x, P9x, PBx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 46x, 47x, 4Ax, 4Bx
v5385-CTO
v5397-CTO, FEx
v5413-CTO, FEx
v5442-CTO
v5446-CTO
45N7453 *
244 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
17 DVD-RAM/RW drive
v3249-CTO, 2Gx, 2Hx, 2Jx
v3323-CTO, 9Gx, 9Hx, K4x, K5x, K8x, K9x, KDx, KEx
v3357-CTO
v3626-CTO, F5x, F6x, FAx, GNx
v3680-CTO, F9x, P9x, PBx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 46x, 47x, 4Ax, 4Bx
v5385-CTO
v5397-CTO, FEx
v5413-CTO, FEx
v5442-CTO
v5446-CTO
45N7451 *
17 Blu-ray disk drive
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO, 6Px
v7459-CTO, 66x, 6Tx, E3x, H2x
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO, 8Qx
v7470-CTO
v2046-CTO
v2047-CTO
42T2559 *
17 Blu-ray disk drive
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
45N7459 *
Parts list 245
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
18 ThinkPad X200 UltraBase
v7454-CTO, 2Kx, 2Mx, 2Rx, 2Sx, 2Zx, 34x, 36x, 3Lx, 3Mx, 3Nx, 3Sx, 3Vx, 3Wx, 3Xx, 96x,
98x, 9Gx, 9Jx
v7455-CTO, 3Sx, 3Tx, 3Xx, 3Yx, 43x, 4Rx, 87x, 88x, 8Ax, 8Dx, 8Ex, 8Px, D7x, D8x, DBx,
DFx, DLx, DMx, DYx, DZx, FHx
v7457-CTO
v7458-CTO, 2Tx, 2Vx, 5Nx, 5Qx, 5Rx, 67x, 6Nx, 6Px, 7Bx, 7Cx, 7Qx, 85x, 87x, 8Gx, 8Kx,
8Nx, M3x
v7459-CTO, 65x, 66x, 6Ax, 6Rx, 6Sx, 6Tx, 6Ux, E3x, H2x
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 3Fx, 3Gx, 3Jx, 43x, 44x, H2x, H3x, H4x
v7469-CTO, 5Fx, 5Jx, 5Lx, 5Px, 5Vx, 5Wx, 6Gx, 73x, 7Vx, 8Px, GBx
v7470-CTO, 6Ex, 6Jx
v2046-CTO
v2047-CTO
v3249-CTO, 2Gx, 2Hx, 2Jx
v3323-CTO, 9Gx, 9Hx, K4x, K5x, K8x, K9x, KDx, KEx
v3357-CTO
v3626-CTO, F5x, F6x, FAx, GNx
v3680-CTO, F9x, P9x, PBx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 46x, 47x, 4Ax, 4Bx
v5385-CTO
v5397-CTO, FEx
v5413-CTO, FEx
v5442-CTO
v5446-CTO
42X4963 *
19 DIMM door kit 44C9555 N
20 Base cover assembly for 7454 44C9559 N
20 Base cover assembly for 7455 44C9560 N
20 Base cover assembly for 7457 44C9561 N
20 Base cover assembly for 7458 44C9562 N
20 Base cover assembly for 7459 42X5178 N
20 Base cover assembly for 2023 42X5180 N
20 Base cover assembly for 2024 42X5182 N
20 Base cover assembly for 7462 45N3240 N
20 Base cover assembly for 7465 45N3237 N
20 Base cover assembly for 7466 45N3238 N
20 Base cover assembly for 7469 45N3241 N
20 Base cover assembly for 7470 45N3242 N
20 Base cover assembly for 2046 45N3243 N
20 Base cover assembly for 2047 45N3244 N
20 Base cover assembly for X201 and X201i 75Y4455
20 Base cover assembly for X201s 75Y4652
246 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
21 Fan assembly, NV, 25 W for X200
v7454-all
v7455-all
v7457-all
v7458-all
v7459-all
v2023-CTO
v2024-CTO
45N4782 N
21 Fan assembly, NV, 35 W for X200
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
44C9550 N
21 Fan assembly, LV for X200s
v7462-CTO, 43x, 44x, 45x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Kx,
4Lx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Zx, FMx, FPx, FQx, FRx, FSx, FTx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Fx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px,
2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 3Jx, D2x, D3x
v7466-CTO, 33x, 34x, 35x, 38x, 39x, 3Bx, 3Cx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx,
3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 43x, 44x, 45x, 4Nx, 4Px,
4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Wx, 4Xx, 54x, 55x, 56x, 5Bx, 5Cx, 5Dx, 5Ex, 5Hx, 5Xx, 5Yx,
92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Hx, FZx, H8x,
H9x, HAx, HBx, HCx, HDx, N2x
v7469-CTO, 52x, 53x, 54x, 5Bx, 5Dx, 5Ex, 5Gx, 5Hx, 5Jx, 5Mx, 5Nx, 5Px, 5Qx, 5Sx, 5Tx,
5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx,
6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x,
74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx,
7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x,
87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px,
8Qx, 8Rx, 8Sx, 8Tx, 95x, 96x, 98x, 99x, 9Dx, 9Ex, 9Gx, G9x, GAx
v7470-CTO, 5Gx, 5Hx, 64x, 65x, 68x, 69x, 6Ax, 6Cx, 6Dx, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx,
6Mx, 6Nx, 6Px, 6Qx, 6Ux, 72x, 74x, 75x
v2046-CTO
v2047-CTO
45N3235 N
Parts list 247
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
21 Fan assembly, ULV for X200s
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 42x, 46x, 4Jx, 4Mx, 4Wx, 4Xx, 4Yx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx,
FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FNx, FUx, FVx
v7465-CTO, 2Ex, 2Hx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Sx, 3Yx,
3Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx,
G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 32x, 3Ax, 3Dx, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx,
4Kx, 4Lx, 4Mx, 4Vx, 4Yx, 4Zx, 52x, 53x, 57x, 58x, 59x, 5Ax, 5Fx, 5Gx, 5Jx, 5Kx, 5Lx,
5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Zx, 9Gx, 9Jx, 9Kx, 9Lx, 9Mx, 9Nx,
9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, DLx, DMx, F2x, F3x, F4x, F5x,
F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx,
FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, H2x, H3x, H4x, H5x, H6x, H7x,
HEx
v7469-CTO, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Cx, 5Fx, 5Kx, 5Lx, 5Rx, 62x, 63x, 64x, 65x, 66x,
8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 93x, 94x, 97x, 9Ax, 9Bx, 9Cx, E2x, G2x, G3x, G4x, G5x,
G6x, G7x, G8x, GBx, GCx
v7470-CTO, 62x, 63x, 6Bx, 6Ex, 6Rx, 6Sx, 6Tx, 6Vx, 73x, 76x, 77x, 8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
45N3236 N
21 Fan assembly, NV for X201 and X201i 60Y5422 N
21 Fan assembly, LV for X201s 60Y5423 N
22a Speaker kit for X200 and X200s 44C9551 N
22a Speaker kit for X201s 75Y4690 N
22b Speaker kit for X201 and X201i 60Y5409 N
23 ExpressCard slot 44C9552 N
24 Palm rest assembly without fingerprint reader, with Logo plate, 35W for X200
v7454-CTO, 2Nx, 3Hx, 3Kx, 3Rx, 3Tx, 3Yx, 3Zx, 92x, 9Lx, G2x, G8x, G9x, GCx, GDx,
GFx, GGx, GHx, GNx, GPx
v7455-CTO, 39x, 3Cx, 4Bx, 4Cx, 4Dx, 85x, 86x, 8Cx, D5x, D6x, DAx, DEx, DGx, DHx,
DXx, F2x, F3x, F4x, FTx, FYx
v7457-CTO, 4Ax, 4Gx, 4Hx, 4Jx, 4Ux, 4Vx, 4Wx, 52x, 53x, 55x, 56x, 57x
v7458-CTO, 22x, 2Fx, 2Kx, 2Lx, 5Dx, 63x, 69x, 74x, 78x, 7Fx, 7Gx, 7Hx, 7Jx, 7Mx, 7Nx,
7Wx, 8Bx, 8Cx, 8Dx, 8Qx, 8Wx, F2x, F3x, FNx, FPx, FTx, X5x
v7459-CTO, 5Fx, 68x, 6Bx, 6Lx, 6Px, 6Vx, H3x, M4x
v2023-CTO
v2024-CTO
45N4361 **
248 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
24 Palm rest assembly with fingerprint reader, with Logo plate, 35W for X200
v7454-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Px,
2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 32x, 33x, 34x, 36x, 38x, 3Jx, 3Lx,
3Mx, 3Nx, 3Px, 3Qx, 3Sx, 3Vx, 3Wx, 3Xx, 93x, 95x, 96x, 97x, 98x, 9Bx, 9Cx, 9Fx, 9Gx,
9Hx, 9Jx, G3x, G4x, G5x, G6x, G7x, GBx, GEx, GJx, GKx, GLx, GMx
v7455-CTO, 32x, 33x, 34x, 35x, 36x, 38x, 3Ax, 3Bx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx,
3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x,
45x, 46x, 47x, 48x, 49x, 4Ax, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx,
4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 82x, 83x, 84x, 87x, 88x, 89x, 8Ax, 8Bx,
8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx,
8Wx, 8Xx, 8Yx, 8Zx, D2x, D3x, D7x, D8x, D9x, DBx, DCx, DDx, DFx, DJx, DKx, DLx,
DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, DYx, DZx, F5x, F6x, F7x, F9x,
FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FUx,
FVx, FWx, FXx, FZx, N2x, N3x, N4x, N5x, P2x, P3x, P4x, P5x, P6x, P7x, P9x, PAx, PBx,
PCx, PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Kx, 4Lx,
4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 54x, 58x
v7458-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Mx, 2Nx, 2Px, 2Qx,
2Rx, 2Sx, 2Tx, 2Vx, 4Xx, 4Yx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Ex,
5Fx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 62x, 64x, 65x, 66x, 67x, 68x, 6Ax,
6Bx, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx,
6Xx, 6Yx, 6Zx, 72x, 73x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Kx, 7Lx, 7Px, 7Qx, 7Rx, 7Sx,
7Tx, 7Ux, 7Vx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Ex, 8Fx, 8Gx,
8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Xx, 8Yx, 8Zx, E2x, F4x, F5x, F6x,
F7x, F8x, F9x, FAx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FQx, FSx, FUx,
FVx, FWx, FXx, FYx, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx, GFx,
M2x, M3x, X4x
v7459-CTO, 5Ex, 62x, 63x, 64x, 65x, 66x, 67x, 69x, 6Ax, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx,
6Kx, 6Mx, 6Nx, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, E3x,
H2x, H4x, H5x, H6x, H7x, M2x, M3x
v2023-CTO
v2024-CTO
45N4362 **
24 Palm rest assembly without fingerprint reader, without touch pad, with Logo plate, 35W
for X201 and X201i
v3249-CTO, 27x, 29x
v3323-CTO, 4Hx, 4Jx, 4Nx, LFx, R2x
v3357-CTO
v3626-CTO, GTx, H2x, H6x
v3680-CTO, P7x, PAx, PDx, PHx
v3712-CTO
v4492-CTO
60Y5414 **
24 Palm rest assembly without fingerprint reader, with touch pad, with Logo plate, 35W for
X201 and X201i
v3249-CTO, 24x, 2Cx, 2Fx, 2Kx, 2Lx, J2x, J4x, J5x, J8x, J9x
v3323-CTO, 43x, 44x, 45x, 46x, 4Bx, 4Cx, 54x, 86x, 87x, 8Bx, 8Tx, KFx, KGx, KNx
v3357-CTO, D4x, D6x
v3626-CTO, F3x, F9x, G3x, G4x, G5x, GAx, GBx
v3680-CTO, P2x, F8x
v3712-CTO
v4492-CTO
60Y5415 **
Parts list 249
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
24 Palm rest assembly with fingerprint reader, without touch pad, with Logo plate, 35W for
X201 and X201i
v3249-CTO, 26x, 28x
v3323-CTO, 42x, 4Kx, 4Lx, 4Mx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 56x, 57x, 58x, 5Hx,
5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Yx, 5Zx, 62x, 63x, 64x,
65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx,
6Nx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x,
7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx,
7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x
v3357-CTO
v3626-CTO, FDx, FEx, FHx, FJx, FMx, FUx, FYx
v3680-CTO
v3712-CTO
v4492-CTO
60Y5416 **
24 Palm rest assembly with fingerprint reader, with touch pad, with Logo plate, 35W for
X201 and X201i
v3249-CTO, 22x, 23x, 25x, 2Ax, 2Bx, 2Dx, 2Ex, 2Gx, 2Hx, 2Jx, 2Lx, 2Mx, J3x, J6x, J7x, JAx
v3323-CTO, 48x, 49x, 4Ax, 4Dx, 4Ex, 4Fx, 4Gx, 4Yx, 4Zx, 52x, 53x, 55x, 59x, 5Ax, 5Bx,
5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 88x, 89x, 8Ax, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, 8Kx, 8Lx, 8Nx,
8Px, 8Rx, 8Sx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax,
9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, K2x, K3x, K4x, K5x, K6x, K7x, K8x, K9x, KAx, KCx,
KDx, KEx, KHx, KJx, KLx, KMx, KPx, KRx, KSx, KTx, KUx, KVx, KWx, KYx, KZx,
L2x, L3x, L4x, L5x, L6x, L7x, L8x, LAx, LBx, LCx, LDx, LEx
v3357-CTO, D2x, D3x, D5x, D7x
v3626-CTO, 11x, F2x, F4x, F5x, F6x, F7x, F8x, FAx, FBx, FCx, FFx, FGx, FKx, FLx, FNx,
FPx, FRx, FSx, FTx, FVx, FWx, FXx, FZx, G2x, G6x, G7x, G8x, G9x, GCx, GDx, GEx,
GFx, GHx, GHx, GJx, GJx, GKx, GLx, GMx, GNx, GPx, GRx, GSx, GUx, GVx, GWx,
GXx, GYx, GZx, H3x, H4x, H5x, H7x, R3x, N2x
v3680-CTO, 11x, F7x, F9x, FAx, FBx, P3x, P4x, P5x, P6x, P8x, P9x, PBx, PCx, PEx, PFx,
PGx, PJx, N2x
v3712-CTO
v4492-CTO
60Y5417 **
24 Palm rest assembly without fingerprint reader, 25W for X200s
v7462-CTO, 22x, 23x, 24x, 25x, 27x, 28x, 29x, 2Ax, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 42x, 4Wx,
4x,x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, FAx, FBx, FCx, FDx, FFx, FGx, FHx, FKx, FLx,
FNx
v7465-CTO, 2Wx, 2Xx, 2Zx, 3Mx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Wx, 3Xx, 3Yx, D2x,
D3x, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DGx, DHx, DJx, DKx, G2x,
G3x, G5x, G6x, G7x, G8x, G9x
v7466-CTO, 3Mx, 3Nx, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Yx, 4Zx,
52x, 59x, 5Ax, 5Fx, 5Gx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Tx, 5Ux, 5Vx, 9Jx, 9Rx,
9Xx, DLx, F2x, F3x, F4x, F5x, F6x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FNx,
FVx, H3x, H5x, H6x, H7x
v7469-CTO, 58x, 59x, 5Ax, 5Cx, 5Fx, 5Kx, 62x, 63x, 64x, 6Fx, 7Mx, 86x, 8Ux, 8Vx, 8Xx,
9Ax, 9Bx, G6x, G7x, GCx
v7470-CTO, 62x, 63x, 65x, 6Rx, 6Sx, E2x
v2046-CTO
v2047-CTO
45N4363 **
250 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
24 Palm rest assembly with fingerprint reader, 25W for X200s
v7462-CTO, 26x, 2Bx, 2Hx, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex,
4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Yx, 4Zx,
F9x, FEx, FJx, FMx, FPx, FQx, FRx, FSx, FTx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx,
2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Yx, 3Jx, 3Kx, 3Lx, 3Vx, 3Zx, DFx, G4x, GAx,
GBx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,
3Kx, 3Lx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 43x, 44x, 45x, 46x,
4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 53x, 54x, 55x, 56x,
57x, 58x, 5Bx, 5Cx, 5Dx, 5Ex, 5Hx, 5Rx, 5Sx, 5Wx, 5Xx, 5Yx, 5Zx, 92x, 93x, 94x, 95x,
96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Kx, 9Lx, 9Mx, 9Nx, 9Px,
9Qx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Yx, 9Zx, DMx, F7x, F8x, FJx, FKx, FLx, FMx, FPx, FQx,
FRx, FSx, FTx, FUx, FWx, FXx, FYx, FZx, H2x, H4x, H8x, H9x, HAx, HBx, HCx, HDx,
HEx, N2x
v7469-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 5Bx, 5Dx, 5Ex, 5Gx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx,
5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 65x, 66x, 67x, 68x, 69x, 6Ax,
6Bx, 6Cx, 6Dx, 6Ex, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx,
6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,
7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Xx, 7Yx, 7Zx, 82x,
83x, 84x, 85x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx,
8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Wx, 8Yx, 8Zx, 93x, 94x, 95x, 96x, 97x, 98x, 99x,
9Cx, 9Dx, 9Ex, 9Gx, E2x, G2x, G3x, G4x, G5x, G8x, G9x, GAx, GBx
v7470-CTO, 5Gx, 5Hx, 64x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx,
6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Tx, 6Ux, 6Vx, 72x, 73x, 74x, 75x, 76x, 77x, 8Tx, 8Ux, 8Zx
v2046-CTO
v2047-CTO
45N4364 **
24 Palm rest assembly without fingerprint reader, without touch pad, with Logo plate, 25W
for X201s
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO, F4x, F9x
v5413-CTO
v5442-CTO
v5446-CTO
60Y5418 **
24 Palm rest assembly without fingerprint reader, with touch pad, with Logo plate, 25W for
X201s
v5129-CTO
v5143-CTO, 4Hx, 4Jx
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
60Y5419 **
Parts list 251
Table 37. Parts list—Overall (continued)
No. FRU FRU no. CRU
ID
24 Palm rest assembly with fingerprint reader, without touch pad, with Logo plate, 25W for
X201s
v5129-CTO, 72x
v5143-CTO, 22x, 23x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx,
2Nx, 2Px, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Yx, 2Zx, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x,
3Ax
v5385-CTO, D2x
v5397-CTO, F2x FHx FKx FSx FTx FUx FVx
v5413-CTO
v5442-CTO
v5446-CTO
60Y5420 **
24 Palm rest assembly with fingerprint reader, with touch pad, with Logo plate, 25W for
X201s
v5129-CTO, 73x, R1x
v5143-CTO, 24x, 25x, 26x, 27x, 28x, 3Ux, 3Vx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x,
47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Gx
v5385-CTO, D3x, D4x
v5397-CTO, F3x, F5x, F6x, F7x, F8x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FJx, FMx, FNx,
FPx, FRx, FWx, FXx, FYx, FZx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx
v5413-CTO, FDx, FEx, FFx, FGx, L2x, L3x, L4x, L5x
v5442-CTO
v5446-CTO
60Y5421 **
25 Keyboard (see “Keyboard” on page 286.)
26 TrackPoint stick caps 91P9642 *
— Non-mercury label (cover the notice for mercury for LED-backlight LCD models) 45N5784 *
— AC adapter (see “AC adapters” on page 287.)
252 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
LCD FRUs
In ThinkPad X200, X200s, X200si, X201, X201i, and X201s, there are following types
of LCDs.
v“12.1-in. WXGA TFT” on page 254
v“12.1-in. WXGA+ TFT” on page 281
Parts list 253
12.1-in. WXGA TFT
1
3
4
5
7
6
9
8
2
10
254 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT
No. FRU FRU no. CRU
ID
1 LCD bezel assembly
v7454-all
v7455-all
v7457-all
v7458-all
v7459-all
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,
4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x,
FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FRx, FSx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, 3Jx, 3Lx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx,
3Yx, 3Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx,
DKx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx,
3Zx, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx, 4Lx,
4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x,
59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx,
5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx,
9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx, 9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux,
9Vx, 9Wx, 9Xx, 9Yx, 9Zx, DLx, DMx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx,
FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx,
FVx, FWx, FXx, FYx, FZx, H2x, H3x, H4x, H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx,
HDx, HEx, N2x
v7469-CTO, 52x, 53x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,
5Jx, 5Kx, 5Sx, 5Tx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Hx, 7Jx, 7Kx, 7Lx, 7Qx, 7Rx,
7Sx, 7Tx, 7Xx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Lx, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux,
8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex,
9Gx, E2x, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx,
72x, 73x, 74x, 75x, 76x, 77x, 8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
v3249-all
v3323-all
v3357-all
v3626-all
v3680-all
v3712-all
v4492-all
44C9541 N
Parts list 255
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
2 LCD bracket L/R
v7454-all
v7455-all
v7457-all
v7458-all
v7459-all
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,
4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x,
FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FRx, FSx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, 3Jx, 3Lx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx,
3Yx, 3Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx,
DKx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx,
3Zx, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx, 4Lx,
4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x,
59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx,
5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx,
9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx, 9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux,
9Vx, 9Wx, 9Xx, 9Yx, 9Zx, DLx, DMx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx,
FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx,
FVx, FWx, FXx, FYx, FZx, H2x, H3x, H4x, H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx,
HDx, HEx, N2x
v7469-CTO, 52x, 53x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,
5Jx, 5Kx, 5Sx, 5Tx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Hx, 7Jx, 7Kx, 7Lx, 7Qx, 7Rx,
7Sx, 7Tx, 7Xx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Lx, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux,
8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex,
9Gx, E2x, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx,
72x, 73x, 74x, 75x, 76x, 77x, 8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
v3249-all
v3323-all
v3357-all
v3626-all
v3680-all
v3712-all
v4492-all
44C9545 N
256 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
3 Wireless LAN antenna kit
v7454-CTO, 26x, 29x, 2Gx, 2Hx, 2Nx, 2Qx, 2Rx, 2Wx, 2Xx, 2Yx, 3Lx, 3Mx, 3Nx, 3Px, 3Yx,
3Zx, 92x, 95x, 97x, 98x, G4x, G5x, G6x, G7x, G8x, G9x, GFx, GGx, GLx, GMx
v7455-CTO, 36x, 38x, 39x, 3Cx, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Rx, 3Ux, 3Vx, 3Wx, 49x, 4Hx,
4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 85x, 86x, 8Nx, D5x, D6x, DAx, DCx, DDx, DEx, DGx,
DHx, DMx, DSx, DTx, DXx, N3x, N4x
v7457-CTO, 45x, 48x, 4Ax, 4Cx, 4Dx, 4Gx, 4Hx, 4Nx, 4Px, 4Qx, 4Ux, 4Vx, 52x, 55x
v7458-CTO, 22x, 24x, 25x, 27x, 29x, 2Ax, 2Sx, 54x, 56x, 57x, 5Dx, 5Ex, 64x, 69x, 6Qx, 6Xx,
72x, 73x, 74x, 78x, 7Mx, 7Nx, 7Sx, 7Wx, 88x, 8Bx, 8Cx, 8Dx, 8Jx, 8Px, 8Qx, 8Yx, F2x,
F3x, F4x, FDx, FHx, FJx, FNx, FPx, FTx, FUx, FYx, G3x, G7x, M2x
v7459-CTO, 68x, 69x, 6Bx, 6Cx, 6Gx, 6Kx, 6Lx, 6Px, 72x, H3x, H4x, H6x, H7x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 27x, 28x, 29x, 2Cx, 2Dx, 42x, 47x, 48x, 4Qx, 4Rx, 4Sx, 4Tx,
4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F2x, F4x, F6x, F7x, FAx, FBx, FCx, FFx, FGx, FLx, FMx, FNx,
FSx
v7465-CTO, 23x, 24x, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, 3Lx,
3Nx, 3Px, 3Rx, 3Vx, 3Wx, 3Xx, D4x, DCx, DDx, DEx, DFx, G2x, G5x, G6x, G7x
v7466-CTO, 32x, 34x, 35x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Hx, 4Jx, 4Kx,
4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Vx, 58x, 59x, 5Ax, 5Kx, 5Lx, 5Mx, 5Nx, 5Rx, 5Vx, 5Wx,
5Zx, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx, 9Rx, 9x,x, DLx, DMx, F9x, FAx, FNx, FPx, FQx, H5x,
H6x, H7x
v7469-CTO, 52x, 53x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Sx, 62x, 63x, 64x, 65x, 66x,
67x, 68x, 7Lx, 7Xx, 8Ex, 8Vx, 8Wx, 8Xx, 8Yx, 97x, 9Bx, 9Cx, G2x, G6x, G7x, G8x
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 6Ux, 72x, 76x, 8Ux
v2046-CTO
v2047-CTO
v3249-CTO, 24x, 25x, 27x, 2Cx, 2Kx, 2Lx, J2x, J5x, JAx
v3323-CTO, 4Bx, 4Cx, 4Fx, 4Hx, 4Jx, 4Yx, 54x, 56x, 57x, 58x, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx,
5Nx, 5Px, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x,
6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx,
6Ux, 6Vx, 6Wx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx,
7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x
v3357-CTO
v3626-CTO, F9x, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FZx, G2x, G3x, G4x, GAx
v3680-CTO, F8x
v3712-CTO
v4492-CTO
44C5393 N
Parts list 257
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
3 Wireless LAN/WAN antenna kit
v7454-CTO, 23x, 24x, 25x, 28x, 2Jx, 2Mx, 2Px, 2Sx, 2Tx, 2Ux, 2Vx, 2Zx, 32x, 33x, 34x, 36x,
38x, 3Hx, 3Jx, 3Kx, 3Qx, 3Rx, 3Sx, 3Tx, 3Vx, 3Wx, 3Xx, 93x, 96x, 9Bx, 9Cx, 9Gx, 9Hx,
9Jx, 9Lx, G2x, G3x, GBx, GCx, GDx, GEx, GHx, GJx, GKx, GNx, GPx
v7455-CTO, 33x, 34x, 35x, 3Ax, 3Bx, 3Dx, 3Ex, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Sx, 3Tx, 3Xx,
3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Qx, 4Rx,
4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 82x, 83x, 84x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx,
8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, D2x, D3x, D7x, D8x, D9x, DBx, DFx, DJx, DKx, DLx, DNx, DPx, DQx,
DRx, DUx, DVx, DWx, DYx, DZx, F2x, F3x, F4x, F5x, F6x, F7x, F9x, FBx, FCx, FDx,
FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx,
FWx, FXx, FYx, FZx, N2x, N5x, P2x, P3x, P4x, P5x, P6x, P7x, P9x, PAx, PBx, PCx, PDx,
PEx, PFx, PGx, PHx, PJx
v7457-CTO, 43x, 44x, 47x, 49x, 4Bx, 4Ex, 4Fx, 4Jx, 4Kx, 4Lx, 4Mx, 4Rx, 4Sx, 4Tx, 4Wx,
53x, 54x, 56x, 57x, 58x
v7458-CTO, 26x, 28x, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Tx,
2Vx, 4Xx, 4Yx, 52x, 53x, 55x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx,
5Sx, 5Tx, 62x, 63x, 65x, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx,
6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Yx, 6Zx, 76x, 77x, 79x, 7Bx, 7Cx, 7Ex, 7Fx, 7Gx,
7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Qx, 7Rx, 7Tx, 7Ux, 7Vx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x,
86x, 87x, 8Ax, 8Fx, 8Gx, 8Hx, 8Kx, 8Lx, 8Mx, 8Nx, 8Sx, 8Wx, 8Xx, 8Zx, E2x, F5x, F6x,
F7x, F8x, F9x, FAx, FCx, FEx, FFx, FGx, FKx, FLx, FMx, FQx, FSx, FVx, FWx, FXx, G4x,
G5x, G6x, G8x, G9x, GBx, GCx, GDx, GEx, GFx, M3x, X4x
v7459-CTO, 5Ex, 5Fx, 62x, 63x, 64x, 65x, 66x, 67x, 6Ax, 6Dx, 6Ex, 6Fx, 6Jx, 6Mx, 6Nx,
6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 73x, 74x, 75x, E3x, H2x, H5x, M2x,
M3x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 25x, 26x, 2Ax, 2Bx, 2Ex, 2Fx, 2Gx, 2Hx, 43x, 44x, 45x, 46x, 4Bx, 4Gx, F3x,
F5x, F8x, F9x, FDx, FEx, FHx, FJx, FKx, FRx, FUx, FVx
v7465-CTO, 2Lx, 3Jx, 3Sx, 3Tx, 3Ux, 3Yx, 3Zx, D6x, D8x, DAx, DBx, DJx, G3x, G4x, G8x,
G9x, GAx, GBx
v7466-CTO, 33x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx, 3Zx, 43x, 4Ex,
4Fx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,
5Hx, 5Jx, 5Px, 5Qx, 5Sx, 5Tx, 5Ux, 5Xx, 5Yx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx,
9Cx, 9Dx, 9Ex, 9Lx, 9Mx, 9Nx, 9Qx, 9Sx, 9Tx, 9Ux, 9Wx, 9Yx, 9Zx, F2x, F3x, F4x, F5x,
F6x, F7x, F8x, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FRx, FSx, FTx,
FUx, FVx, FWx, FXx, FYx, FZx, H2x, H4x, H8x, H9x, HAx, HBx, HCx, HDx, HEx, N2x
v7469-CTO, 55x, 56x, 57x, 5Gx, 5Hx, 5Jx, 5Kx, 5Tx, 5Yx, 5Zx, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Hx, 7Jx, 7Kx, 7Qx, 7Rx, 7Sx,
7Tx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Fx, 8Lx, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Zx, 93x, 94x,
95x, 96x, 98x, 99x, 9Ax, 9Dx, 9Ex, 9Gx, E2x, G3x, G4x, G5x, G9x, GAx, GBx, GCx
v7470-CTO, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Vx, 73x, 74x, 75x, 77x, 8Tx, 8Zx, E2x
v2046-CTO
v2047-CTO
(continued)
44C5395 N
258 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
3 (continued)
Wireless LAN/WAN antenna kit
v3249-CTO, 22x, 23x, 26x, 28x, 29x, 2Ax, 2Bx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Lx, 2Mx,
J3x, J4x, J6x, J7x, J8x, J9x
v3323-CTO, 42x, 43x, 44x, 45x, 46x, 48x, 49x, 4Ax, 4Dx, 4Ex, 4Gx, 4Kx, 4Lx, 4Mx, 4Nx,
4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Zx, 52x, 53x, 55x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex,
5Fx, 5Gx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex,
8Fx, 8Gx, 8Jx, 8Kx, 8Lx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x,
93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, K2x, K3x,
K4x, K5x, K6x, K7x, K8x, K9x, KAx, KCx, KDx, KEx, KFx, KGx, KHx, KJx, KLx, KMx,
KNx, KPx, KRx, KSx, KTx, KUx, KVx, KWx, KYx, KZx, L2x, L3x, L4x, L5x, L6x, L7x,
L8x, LAx, LBx, LCx, LDx, LEx, LFx, R2x
v3357-CTO, D2x, D3x, D4x, D5x, D6x, D7x
v3626-CTO, 11x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, FAx, FBx, FCx, FMx, FNx, FPx, FRx,
FSx, FTx, FUx, FVx, FWx, FXx, FYx, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx,
GFx, GHx, GHx, GJx, GJx, GKx, GLx, GMx, GNx, GPx, GRx, GSx, GTx, GUx, GVx,
GWx, GXx, GYx, GZx, H2x, H3x, H4x, H5x, H6x, H7x, R3x, N2x
v3680-CTO, 11x, F7x, F9x, FAx, FBx, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PAx, PBx,
PCx, PDx, PEx, PFx, PGx, PHx, PJx, N2x
v3712-CTO
v4492-CTO
44C5395 N
3 Wireless LAN/WAN/USB antenna kit
v7454-CTO, 22x, 27x, 2Kx, 2Lx, 9Fx
v7455-CTO, 32x
v7457-CTO, 42x, 46x
v7458-CTO, 5Fx, 5Hx, 5Jx, 7Dx, 89x, 8Ex, 8Rx, 8Tx, X5x
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO, 49x, 4Ax, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx
v7465-CTO, 25x, 26x, 28x, 29x, 2Dx, D7x, D9x, DGx, DHx, DKx
v7466-CTO, 9Px, 9Vx, H3x
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
44C5394 N
Parts list 259
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
4 Hinge L/R
v7454-all
v7455-all
v7457-all
v7458-all
v7459-all
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,
4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x,
FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FRx, FSx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, 3Jx, 3Lx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx,
3Yx, 3Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx,
DKx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx,
3Zx, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx, 4Lx,
4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x,
59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx,
5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx,
9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx, 9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux,
9Vx, 9Wx, 9Xx, 9Yx, 9Zx, DLx, DMx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx,
FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx,
FVx, FWx, FXx, FYx, FZx, H2x, H3x, H4x, H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx,
HDx, HEx, N2x
v7469-CTO, 52x, 53x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,
5Jx, 5Kx, 5Sx, 5Tx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Hx, 7Jx, 7Kx, 7Lx, 7Qx, 7Rx,
7Sx, 7Tx, 7Xx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Lx, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux,
8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex,
9Gx, E2x, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx,
72x, 73x, 74x, 75x, 76x, 77x, 8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
v3249-all
v3323-all
v3357-all
v3626-all
v3680-all
v3712-all
v4492-all
44C9544 N
260 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
5 LCD rear cover assembly
v7454-all
v7455-all
v7457-all
v7458-all
v7459-all
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,
4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x,
FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FRx, FSx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, 3Jx, 3Lx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx,
3Yx, 3Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx,
DKx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx,
3Zx, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx, 4Lx,
4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x,
59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx,
5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx,
9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx, 9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux,
9Vx, 9Wx, 9Xx, 9Yx, 9Zx, DLx, DMx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx,
FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx,
FVx, FWx, FXx, FYx, FZx, H2x, H3x, H4x, H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx,
HDx, HEx, N2x
v7469-CTO, 52x, 53x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,
5Jx, 5Kx, 5Sx, 5Tx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Hx, 7Jx, 7Kx, 7Lx, 7Qx, 7Rx,
7Sx, 7Tx, 7Xx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Lx, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux,
8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex,
9Gx, E2x, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx,
72x, 73x, 74x, 75x, 76x, 77x, 8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
44C9543 N
5 LCD rear cover assembly for X201 and X201i 75Y4590 N
Parts list 261
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
6 CCFL-backlight LCD cable assembly with Bluetooth connector, with camera connector
v7454-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,
2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 92x, 93x, 95x, 96x, 97x, 98x,
9Bx, 9Cx, 9Fx, 9Gx, 9Hx, 9Jx, 9Lx
v7455-CTO, 32x, 33x, 34x, 35x, 36x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx,
3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, D2x,
D3x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx,
DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, Dx,x, DYx, DZx, N2x,
N3x, N4x, N5x
v7457-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx
v7458-CTO, 4Xx, 4Yx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex,
5Fx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 69x, 72x, 73x, 74x, 76x, 77x, 78x,
79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx,
7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx,
8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Wx,
8Xx, 8Yx, 8Zx, E2x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FCx, FDx, FEx, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FSx, FTx, FUx, FVx, FWx, FXx, FYx,
G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx, GFx, M2x, M3x, X4x, X5x
v7459-CTO, 5Ex, 5Fx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
E3x, H2x, H3x, H4x, H5x, H6x, H7x, M2x, M3x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F2x, F3x, F4x, F5x, F6x, F7x, F8x,
F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FRx, FSx, FUx,
FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx,
DFx, DGx, DHx, DJx, DKx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx,
3Zx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx,
9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, DLx, DMx,
H2x, H3x, H4x, H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx, HDx, HEx
v7469-CTO, 52x, 53x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,
5Jx, 5Kx, 5Sx, 5Tx, 5Yx, 5Zx, 72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,
7Hx, 7Jx, 7Kx, 7Lx, 7Qx, 7Rx, 7Sx, 7Tx, 7Xx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Lx,
8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, E2x, G2x, G3x, G4x, G5x, G6x,
G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx,
8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
44C9909 N
262 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
7 LED-backlight LCD cable assembly with Bluetooth connector, with camera connector
v7454-CTO, 32x, 33x, 34x, 36x, 38x, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx,
3Tx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx,
GDx, GEx, GFx, GGx, GHx, GJx, GKx, GLx, GMx, GNx, GPx
v7455-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx,
82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx,
8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, F2x, F3x, F4x,
F5x, F6x, F7x, F9x, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx,
FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx, P2x, P3x, P4x, P5x, P6x, P7x, P9x,
PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x
v7458-CTO, 22x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Kx, 2Lx,
2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Ax, 6Bx,
6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx,
6Yx, 6Zx
v7459-CTO, 72x, 73x, 74x, 75x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx
v7465-CTO, 3Jx, 3Lx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x,
G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx,
4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x,
58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx,
5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x,
FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx,
FTx, FUx, FVx, FWx, FXx, FYx, FZx, N2x
v7469-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx,
6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 93x, 94x, 95x,
96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx
v7470-CTO, 72x, 73x, 74x, 75x, 76x, 77x
v2046-CTO
v2047-CTO
44C9991 N
Parts list 263
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
7 (continued)
LED-backlight LCD cable assembly with Bluetooth connector, with camera connector
v3249-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 2Jx, 2Kx, 2Lx, 2Lx, 2Mx, J2x, J3x, J4x, J5x, J6x, J7x, J8x, J9x, JAx
v3323-CTO, 42x, 43x, 44x, 45x, 46x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,
4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Yx, 4Zx, 52x, 53x, 54x,
55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx,
5Nx, 5Px, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x,
6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx,
6Ux, 6Vx, 6Wx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx,
7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx,
7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx,
8Kx, 8Lx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x,
96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, K2x, K3x, K4x, K5x, K6x,
K7x, K8x, K9x, KAx, KCx, KDx, KEx, KFx, KGx, KHx, KJx, KLx, KMx, KNx, KPx, KRx,
KSx, KTx, KUx, KVx, KWx, KYx, KZx, L2x, L3x, L4x, L5x, L6x, L7x, L8x, LAx, LBx,
LCx, LDx, LEx, LFx, R2x
v3357-CTO, D2x, D3x, D4x, D5x, D6x, D7x
v3626-CTO, 11x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx,
FZx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx, GCx, GDx, GEx, GFx, GHx,
GHx, GJx, GJx, GKx, GLx, GMx, GNx, GPx, GRx, GSx, GTx, GUx, GVx, GWx, GXx,
GYx, GZx, H2x, H3x, H4x, H5x, H6x, H7x, R3x, N2x
v3680-CTO, 11x, F7x, F8x, F9x, FAx, FBx, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PAx,
PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx, N2x
v3712-CTO
v4492-CTO
44C9991 N
264 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
7 Integrated camera
v7454-CTO, 23x, 24x, 25x, 28x, 2Jx, 2Mx, 2Px, 2Sx, 2Tx, 2Ux, 2Vx, 2Zx, 34x, 36x, 38x,
3Hx, 3Jx, 3Kx, 3Qx, 3Rx, 3Sx, 3Tx, 3Vx, 3Wx, 3Xx, 93x, 96x, 9Bx, 9Cx, 9Gx, 9Hx, 9Jx,
9Lx, G2x, G3x, GBx, GCx, GDx, GEx, GHx, GJx, GNx, GPx
v7455-CTO, 33x, 34x, 35x, 3Ax, 3Bx, 3Dx, 3Ex, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Sx, 3Tx, 3Xx,
3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Qx, 4Rx,
4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 82x, 83x, 84x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx,
8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Px, 8Qx, 8Rx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx,
8Yx, 8Zx, D2x, D3x, D7x, D8x, D9x, DBx, DFx, DJx, DKx, DLx, DNx, DPx, DQx, DRx,
DUx, DVx, DWx, DYx, DZx, F2x, F3x, F4x, F5x, F6x, F7x, F9x, FBx, FCx, FDx, FEx, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx,
FYx, FZx, N2x, N5x, P2x, P3x, P4x, P5x, P6x, P7x, P9x, PAx, PBx, PCx, PDx, PEx, PFx,
PGx, PHx, PJx
v7457-CTO, 43x, 44x, 47x, 49x, 4Bx, 4Ex, 4Fx, 4Jx, 4Kx, 4Lx, 4Mx, 4Rx, 4Sx, 4Tx, 4Wx,
53x, 54x, 56x, 57x, 58x
v7458-CTO, 26x, 28x, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Tx,
2Vx, 4Xx, 4Yx, 52x, 53x, 55x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx,
5Sx, 5Tx, 62x, 63x, 65x, 66x, 67x, 68x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx,
6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Yx, 6Zx, 76x, 77x, 79x, 7Bx, 7Cx, 7Ex, 7Fx, 7Gx,
7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Qx, 7Rx, 7Tx, 7Ux, 7Vx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x,
86x, 87x, 8Ax, 8Fx, 8Gx, 8Hx, 8Kx, 8Lx, 8Mx, 8Nx, 8Sx, 8Wx, 8Xx, 8Zx, E2x, F5x, F6x,
F7x, F8x, F9x, FAx, FCx, FEx, FFx, FGx, FKx, FLx, FMx, FQx, FSx, FVx, FWx, FXx, G4x,
G5x, G6x, G8x, G9x, GBx, GCx, GDx, GEx, GFx, M3x, X4x
v7459-CTO, 5Ex, 5Fx, 62x, 63x, 64x, 65x, 66x, 67x, 6Ax, 6Dx, 6Ex, 6Fx, 6Jx, 6Mx, 6Nx,
6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 73x, 74x, 75x, E3x, H2x, H5x, M2x,
M3x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 25x, 26x, 2Ax, 2Bx, 2Ex, 2Fx, 2Gx, 2Hx, 43x, 44x, 45x, 46x, 4Bx, 4Gx, F3x,
F5x, F8x, F9x, FDx, FEx, FHx, FJx, FKx, FRx, FUx, FVx
v7465-CTO, 27x, 2Lx, 3Jx, 3Sx, 3Tx, 3Ux, 3Yx, 3Zx, D6x, D8x, DAx, DBx, DJx, G3x, G4x,
G8x, G9x, GAx, GBx
v7466-CTO, 33x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx, 3Zx, 43x, 4Ex,
4Fx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx,
5Hx, 5Jx, 5Px, 5Qx, 5Sx, 5Tx, 5Ux, 5Xx, 5Yx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx,
9Cx, 9Dx, 9Ex, 9Lx, 9Mx, 9Nx, 9Qx, 9Sx, 9Tx, 9Ux, 9Wx, 9Yx, 9Zx, F2x, F3x, F4x, F5x,
F6x, F7x, F8x, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FRx, FSx, FTx,
FUx, FVx, FWx, FXx, FYx, FZx, H2x, H4x, H8x, H9x, HAx, HBx, HCx, HDx, HEx, N2x
v7469-CTO, 55x, 56x, 57x, 5Gx, 5Hx, 5Jx, 5Kx, 5Tx, 5Yx, 5Zx, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Hx, 7Jx, 7Kx, 7Qx, 7Rx, 7Sx,
7Tx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Fx, 8Lx, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Zx, 93x, 94x,
95x, 96x, 98x, 99x, 9Ax, 9Dx, 9Ex, 9Gx, E2x, G3x, G4x, G5x, G9x, GAx, GBx, GCx
v7470-CTO, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Vx, 73x, 74x, 75x, 77x, 8Tx, 8Zx, E2x
v2046-CTO
v2047-CTO
42W8015 N
Parts list 265
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
7 Integrated camera (Unit 2M)
v3249-CTO, 22x, 23x, 26x, 28x, 29x, 2Ax, 2Bx, 2Gx, 2Hx, 2Jx, 2Lx, 2Mx, J3x, J4x, J6x, J7x,
J8x, J9x
v3323-CTO, 42x, 44x, 45x, 46x, 48x, 49x, 4Ax, 4Nx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx,
52x, 53x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux,
7Vx, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, 8Kx, 8Lx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx,
8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx,
9Gx, 9Hx, K2x, K3x, K4x, K5x, K6x, K7x, K8x, K9x, KAx, KCx, KDx, KEx, KFx, KGx,
KHx, KJx, KLx, KMx, KNx, KPx, KRx, KSx, KTx, KUx, KVx, KWx, KYx, KZx, L2x, L3x,
L4x, L5x, L6x, L7x, L8x, LAx, LBx, LCx, LDx, LEx, LFx, R2x
v3357-CTO, D2x, D3x, D4x, D5x, D6x, D7x
v3626-CTO, F6x, F7x, FBx, FCx, FMx, FNx, FPx, FRx, FSx, FTx, FUx, G5x, G6x, G7x,
G8x, G9x, GBx, GCx, GDx, GEx, GFx, GHx, GJx, GJx, GKx, GNx, GPx, GRx, GSx, GVx,
GWx, GXx, GYx, GZx, H3x, H4x, H5x, H7x, R3x, N2x
v3680-CTO, P2x, P3x, P4x, P5x, P6x, FAx, FBx, P7x, P9x, PBx, PCx, PDx, PEx, PFx, PGx,
PJx, N2x
v3712-CTO
v4492-CTO
45N2795 N
266 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
8 Inverter card
v7454-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,
2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 92x, 93x, 95x, 96x, 97x, 98x,
9Bx, 9Cx, 9Fx, 9Gx, 9Hx, 9Jx, 9Lx
v7455-CTO, 32x, 33x, 34x, 35x, 36x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx,
3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, D2x,
D3x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx,
DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, Dx,x, DYx, DZx, N2x,
N3x, N4x, N5x
v7457-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx
v7458-CTO, 4Xx, 4Yx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex,
5Fx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 69x, 72x, 73x, 74x, 76x, 77x, 78x,
79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx,
7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx,
8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Wx,
8Xx, 8Yx, 8Zx, E2x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FCx, FDx, FEx, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FSx, FTx, FUx, FVx, FWx, FXx, FYx,
G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx, GFx, M2x, M3x, X4x, X5x
v7459-CTO, 5Ex, 5Fx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
E3x, H2x, H3x, H4x, H5x, H6x, H7x, M2x, M3x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F2x, F3x, F4x, F5x, F6x, F7x, F8x,
F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FRx, FSx, FUx,
FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx,
DFx, DGx, DHx, DJx, DKx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx,
3Zx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx,
9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, DLx, DMx,
H2x, H3x, H4x, H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx, HDx, HEx
v7469-CTO, 52x, 53x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,
5Jx, 5Kx, 5Sx, 5Tx, 5Yx, 5Zx, 72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,
7Hx, 7Jx, 7Kx, 7Lx, 7Qx, 7Rx, 7Sx, 7Tx, 7Xx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Lx,
8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, E2x, G2x, G3x, G4x, G5x, G6x,
G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx,
8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
42W8009 N
Parts list 267
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
8 Inverter card
v7454-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,
2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 92x, 93x, 95x, 96x, 97x, 98x,
9Bx, 9Cx, 9Fx, 9Gx, 9Hx, 9Jx, 9Lx
v7455-CTO, 32x, 33x, 34x, 35x, 36x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx,
3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, D2x,
D3x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx,
DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, Dx,x, DYx, DZx, N2x,
N3x, N4x, N5x
v7457-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx
v7458-CTO, 4Xx, 4Yx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex,
5Fx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 69x, 72x, 73x, 74x, 76x, 77x, 78x,
79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx,
7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx,
8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Wx,
8Xx, 8Yx, 8Zx, E2x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FCx, FDx, FEx, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FSx, FTx, FUx, FVx, FWx, FXx, FYx,
G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx, GFx, M2x, M3x, X4x, X5x
v7459-CTO, 5Ex, 5Fx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
E3x, H2x, H3x, H4x, H5x, H6x, H7x, M2x, M3x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F2x, F3x, F4x, F5x, F6x, F7x, F8x,
F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FRx, FSx, FUx,
FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx,
DFx, DGx, DHx, DJx, DKx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx,
3Zx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx,
9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, DLx, DMx,
H2x, H3x, H4x, H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx, HDx, HEx
v7469-CTO, 52x, 53x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,
5Jx, 5Kx, 5Sx, 5Tx, 5Yx, 5Zx, 72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,
7Hx, 7Jx, 7Kx, 7Lx, 7Qx, 7Rx, 7Sx, 7Tx, 7Xx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Lx,
8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, E2x, G2x, G3x, G4x, G5x, G6x,
G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx,
8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
42W8010 N
268 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
8 LED board
v7454-CTO, 32x, 33x, 34x, 36x, 38x, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx,
3Tx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx,
GDx, GEx, GFx, GGx, GHx, GJx, GKx, GLx, GMx, GNx, GPx
v7455-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx,
82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx,
8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, F2x, F3x, F4x,
F5x, F6x, F7x, F9x, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx,
FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx, P2x, P3x, P4x, P5x, P6x, P7x, P9x,
PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x
v7458-CTO, 22x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Kx, 2Lx,
2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Ax, 6Bx,
6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx,
6Yx, 6Zx
v7459-CTO, 72x, 73x, 74x, 75x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx
v7465-CTO, 3Jx, 3Lx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x,
G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx,
4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x,
58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx,
5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x,
FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx,
FTx, FUx, FVx, FWx, FXx, FYx, FZx, N2x
v7469-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx,
6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 93x, 94x, 95x,
96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx
v7470-CTO, 72x, 73x, 74x, 75x, 76x, 77x
v2046-CTO
v2047-CTO
45M2812 N
Parts list 269
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
8 (continued)
LED board
v3249-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx, 2Jx, 2Kx, 2Lx, 2Lx, 2Mx, J2x, J3x, J4x, J5x, J6x, J7x, J8x, J9x, JAx
v3323-CTO, 42x, 43x, 44x, 45x, 46x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,
4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Yx, 4Zx, 52x, 53x, 54x,
55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx,
5Nx, 5Px, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x,
6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx,
6Ux, 6Vx, 6Wx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx,
7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx,
7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx,
8Kx, 8Lx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x,
96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, K2x, K3x, K4x, K5x, K6x,
K7x, K8x, K9x, KAx, KCx, KDx, KEx, KFx, KGx, KHx, KJx, KLx, KMx, KNx, KPx, KRx,
KSx, KTx, KUx, KVx, KWx, KYx, KZx, L2x, L3x, L4x, L5x, L6x, L7x, L8x, LAx, LBx,
LCx, LDx, LEx, LFx, R2x
v3357-CTO, D2x, D3x, D4x, D5x, D6x, D7x
v3626-CTO, 11x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx,
FZx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx, GCx, GDx, GEx, GFx, GHx,
GHx, GJx, GJx, GKx, GLx, GMx, GNx, GPx, GRx, GSx, GTx, GUx, GVx, GWx, GXx,
GYx, GZx, H2x, H3x, H4x, H5x, H6x, H7x, R3x, N2x
v3680-CTO, 11x, F7x, F8x, F9x, FAx, FBx, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PAx,
PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx, N2x
v3712-CTO
v4492-CTO
45M2812 N
270 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
9Bluetooth daughter card (BDC-2.1)
v7454-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,
2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 32x, 33x, 34x, 36x, 38x, 3Hx,
3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Vx, 3Wx, 3Xx, 92x, 93x, 95x, 96x,
97x, 98x, 9Bx, 9Cx, 9Fx, 9Gx, 9Hx, 9Jx, G3x, G4x, G5x, G6x, G7x, GBx, GCx, GEx, GJx,
GKx, GNx
v7455-CTO, 32x, 33x, 34x, 35x, 36x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx,
3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x,
43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx,
4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 82x, 83x, 84x, 85x,
86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx,
8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, D2x, D3x, D5x, D6x, D7x, D8x,
D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx,
DQx, DRx, DSx, DTx, DUx, DVx, DWx, DXx, DYx, DZx, F2x, F4x, F5x, F6x, F7x, F9x,
FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FUx,
FVx, FWx, FXx, FYx, FZx, N2x, N3x, N4x, N5x, P2x, P3x, P4x, P5x, P6x, P7x, P9x, PAx,
PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Jx, 4Kx, 4Lx,
4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Wx, 53x, 54x, 56x, 57x, 58x
v7458-CTO, 22x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Kx, 2Lx,
2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 4Xx, 4Yx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x,
5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 62x,
63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px,
6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 76x, 77x, 78x, 79x,
7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx,
7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx,
8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Xx, 8Yx, 8Zx, E2x, F2x, F3x, F4x, F5x,
F6x, F7x, F8x, F9x, FAx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx,
FQx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx,
GCx, GDx, GEx, GFx, M2x, M3x, X4x
v7459-CTO, 5Ex, 5Fx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, E3x, H2x, H3x, H4x, H5x, H6x, H7x, M2x, M3x, M4x
v2023-CTO
v2024-CTO
(continued)
42T0969 N
Parts list 271
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
9 (continued)
Bluetooth daughter card (BDC-2.1)
v7462-CTO, 25x, 26x, 2Ax, 2Bx, 2Gx, 2Hx, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx,
4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Xx, 4Yx, F2x, F3x, F4x,
F5x, F8x, F9x, FDx, FEx, FHx, FJx, FKx, FLx, FMx, FNx, FRx, FSx, FUx, FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, 3Jx, 3Lx, 3Sx, 3Tx, 3Ux, 3Yx, 3Zx, D4x, D6x, D7x, D8x,
D9x, DAx, DBx, DCx, DDx, DEx, DFx, G3x, G4x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx,
3Zx, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Kx, 4Lx, 4Mx, 4Nx,
4Px, 4Qx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx,
5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux,
5Vx, 5Wx, 5Xx, 5Yx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx,
9Gx, 9Hx, 9Jx, 9Kx, 9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx,
9Zx, DMx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx,
FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx,
FZx, H2x, H4x, H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx, HDx, HEx, N2x
v7469-CTO, 52x, 53x, 55x, 56x, 57x, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Sx, 5Tx, 5Yx, 5Zx, 62x,
65x, 66x, 67x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px,
6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx,
7Cx, 7Dx, 7Ex, 7Fx, 7Hx, 7Jx, 7Kx, 7Lx, 7Qx, 7Rx, 7Sx, 7Tx, 7Xx, 83x, 84x, 8Bx, 8Cx,
8Dx, 8Ex, 8Fx, 8Lx, 8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 93x, 94x,
95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx, E2x, G2x, G3x, G4x, G5x, G6x,
G7x, G8x, G9x, GAx, GBx
v7470-CTO, 5Gx, 5Hx, 68x, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 72x, 73x, 74x,
75x, 76x, 77x, 8Tx, 8Ux, 8Zx
v2046-CTO
v2047-CTO
42T0969 N
9Bluetooth daughter card (BDC-2.1)
v3249-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Gx, 2Hx,
2Jx, 2Kx, 2Lx, 2Lx, 2Mx, J2x, J3x, J4x, J5x, J6x, J7x, J8x, J9x, JAx
v3323-CTO, 42x, 43x, 44x, 45x, 46x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,
4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Yx, 4Zx, 52x, 53x, 54x,
55x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx,
5Px, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax,
6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux,
6Vx, 6Wx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,
7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx,
82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, 8Kx, 8Lx,
8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x,
98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, K2x, K3x, K4x, K5x, K6x, K7x, K8x,
K9x, KAx, KCx, KDx, KEx, KFx, KGx, KHx, KJx, KLx, KMx, KNx, KPx, KRx, KSx, KTx,
KUx, KVx, KWx, KYx, KZx, L2x, L3x, L4x, L5x, L6x, L7x, L8x, LAx, LBx, LCx, LDx,
LEx, LFx, R2x
v3357-CTO, D2x, D3x, D4x, D5x, D6x, D7x
v3626-CTO, 11x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, FAx, FBx, FCx, FDx, FEx, FFx, FGx,
FHx, FJx, FKx, FLx, FMx, FNx, FPx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx,
G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx, GCx, GDx, GEx, GFx, GHx, GHx,
GJx, GJx, GKx, GLx, GMx, GNx, GPx, GRx, GSx, GTx, GUx, GVx, GWx, GXx, GYx,
GZx, H2x, H3x, H4x, H5x, H6x, H7x, R3x, N2x
v3680-CTO, 11x, F7x, F9x, FAx, FBx, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PAx, PBx,
PCx, PDx, PEx, PFx, PGx, PHx, PJx, N2x
v3712-CTO
v4492-CTO
60Y3211 N
272 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
9Bluetooth daughter card (BDC-2.1)
v3249-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Gx, 2Hx,
2Jx, 2Kx, 2Lx, 2Lx, 2Mx, J2x, J3x, J4x, J5x, J6x, J7x, J8x, J9x, JAx
v3323-CTO, 42x, 43x, 44x, 45x, 46x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,
4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Yx, 4Zx, 52x, 53x, 54x,
55x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx,
5Px, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Yx, 5Zx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax,
6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux,
6Vx, 6Wx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 76x, 77x, 78x, 79x, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,
7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx,
82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, 8Kx, 8Lx,
8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x,
98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, K2x, K3x, K4x, K5x, K6x, K7x, K8x,
K9x, KAx, KCx, KDx, KEx, KFx, KGx, KHx, KJx, KLx, KMx, KNx, KPx, KRx, KSx, KTx,
KUx, KVx, KWx, KYx, KZx, L2x, L3x, L4x, L5x, L6x, L7x, L8x, LAx, LBx, LCx, LDx,
LEx, LFx, R2x
v3357-CTO, D2x, D3x, D4x, D5x, D6x, D7x
v3626-CTO, 11x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, FAx, FBx, FCx, FDx, FEx, FFx, FGx,
FHx, FJx, FKx, FLx, FMx, FNx, FPx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx,
G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx, GCx, GDx, GEx, GFx, GHx, GHx,
GJx, GJx, GKx, GLx, GMx, GNx, GPx, GRx, GSx, GTx, GUx, GVx, GWx, GXx, GYx,
GZx, H2x, H3x, H4x, H5x, H6x, H7x, R3x, N2x
v3680-CTO, 11x, F7x, F9x, FAx, FBx, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PAx, PBx,
PCx, PDx, PEx, PFx, PGx, PHx, PJx, N2x
v3712-CTO
v4492-CTO
60Y3215 N
Parts list 273
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
10 LCD panel, 12.1-in. WXGA, CCFL backlight
v7454-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,
2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 92x, 93x, 95x, 96x, 97x, 98x,
9Bx, 9Cx, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx, 9Lx
v7455-CTO, 32x, 33x, 34x, 35x, 36x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx,
3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, D2x,
D3x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx,
DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, DXx, DYx, DZx, N2x,
N3x, N4x, N5x
v7457-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx
v7458-CTO, 4Xx, 4Yx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex,
5Fx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 69x, 72x, 73x, 74x, 76x, 77x, 78x,
79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx,
7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx,
8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Wx,
8Xx, 8Yx, 8Zx, E2x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FCx, FDx, FEx, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FSx, FTx, FUx, FVx, FWx, FXx, FYx,
G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx, GFx, M2x, M3x, X4x, X5x
v7459-CTO, 5Ex, 5Fx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
E3x, H2x, H3x, H4x, H5x, H6x, H7x, M2x, M3x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F2x, F3x, F4x, F5x, F6x, F7x, F8x,
F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FRx, FSx, FUx,
FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx,
DFx, DGx, DHx, DJx, DKx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx,
3Zx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx,
9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, DLx, DMx,
H2x, H3x, H4x, H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx, HDx, HEx
v7469-CTO, 52x, 53x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,
5Jx, 5Kx, 5Sx, 5Tx, 5Yx, 5Zx, 72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,
7Hx, 7Jx, 7Kx, 7Lx, 7Qx, 7Rx, 7Sx, 7Tx, 7Xx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Lx,
8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, E2x, G2x, G3x, G4x, G5x, G6x,
G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx,
8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
42T0510 N
274 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
10 LCD panel, 12.1-in. WXGA, CCFL backlight
v7454-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,
2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 92x, 93x, 95x, 96x, 97x, 98x,
9Bx, 9Cx, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx, 9Lx
v7455-CTO, 32x, 33x, 34x, 35x, 36x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx,
3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, D2x,
D3x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx,
DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, DXx, DYx, DZx, N2x,
N3x, N4x, N5x
v7457-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx
v7458-CTO, 4Xx, 4Yx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex,
5Fx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 69x, 72x, 73x, 74x, 76x, 77x, 78x,
79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx,
7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx,
8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Wx,
8Xx, 8Yx, 8Zx, E2x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FCx, FDx, FEx, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FSx, FTx, FUx, FVx, FWx, FXx, FYx,
G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx, GFx, M2x, M3x, X4x, X5x
v7459-CTO, 5Ex, 5Fx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
E3x, H2x, H3x, H4x, H5x, H6x, H7x, M2x, M3x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F2x, F3x, F4x, F5x, F6x, F7x, F8x,
F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FRx, FSx, FUx,
FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx,
DFx, DGx, DHx, DJx, DKx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx,
3Zx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx,
9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, DLx, DMx,
H2x, H3x, H4x, H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx, HDx, HEx
v7469-CTO, 52x, 53x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,
5Jx, 5Kx, 5Sx, 5Tx, 5Yx, 5Zx, 72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,
7Hx, 7Jx, 7Kx, 7Lx, 7Qx, 7Rx, 7Sx, 7Tx, 7Xx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Lx,
8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, E2x, G2x, G3x, G4x, G5x, G6x,
G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx,
8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
42T0478 N
Parts list 275
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
10 LCD panel, 12.1-in. WXGA, CCFL backlight
v7454-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,
2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 92x, 93x, 95x, 96x, 97x, 98x,
9Bx, 9Cx, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx, 9Lx
v7455-CTO, 32x, 33x, 34x, 35x, 36x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx,
3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, D2x,
D3x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx,
DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, DXx, DYx, DZx, N2x,
N3x, N4x, N5x
v7457-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx
v7458-CTO, 4Xx, 4Yx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex,
5Fx, 5Hx, 5Jx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 69x, 72x, 73x, 74x, 76x, 77x, 78x,
79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx,
7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx,
8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Wx,
8Xx, 8Yx, 8Zx, E2x, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FCx, FDx, FEx, FFx,
FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FSx, FTx, FUx, FVx, FWx, FXx, FYx,
G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx, GDx, GEx, GFx, M2x, M3x, X4x, X5x
v7459-CTO, 5Ex, 5Fx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx,
E3x, H2x, H3x, H4x, H5x, H6x, H7x, M2x, M3x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, F2x, F3x, F4x, F5x, F6x, F7x, F8x,
F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FRx, FSx, FUx,
FVx
v7465-CTO, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx,
2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx,
DFx, DGx, DHx, DJx, DKx
v7466-CTO, 32x, 33x, 34x, 35x, 38x, 39x, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Xx, 3Yx,
3Zx, 92x, 93x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Kx,
9Lx, 9Mx, 9Nx, 9Px, 9Qx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, DLx, DMx,
H2x, H3x, H4x, H5x, H6x, H7x, H8x, H9x, HAx, HBx, HCx, HDx, HEx
v7469-CTO, 52x, 53x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx,
5Jx, 5Kx, 5Sx, 5Tx, 5Yx, 5Zx, 72x, 73x, 74x, 75x, 76x, 77x, 79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx,
7Hx, 7Jx, 7Kx, 7Lx, 7Qx, 7Rx, 7Sx, 7Tx, 7Xx, 83x, 84x, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Lx,
8Mx, 8Nx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, E2x, G2x, G3x, G4x, G5x, G6x,
G7x, G8x, G9x, GAx, GBx, GCx
v7470-CTO, 5Gx, 5Hx, 62x, 63x, 65x, 68x, 69x, 6Ax, 6Hx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx,
8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
42T0482 N
276 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
10 LCD panel, 12.1-in. WXGA, LED backlight
v7454-CTO, 32x, 33x, 34x, 36x, 38x, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx,
3Tx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx,
GDx, GEx, GFx, GGx, GHx, GJx, GKx, GLx, GMx, GNx, GPx
v7455-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx,
82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx,
8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, F2x, F3x, F4x,
F5x, F6x, F7x, F9x, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx,
FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx, P2x, P3x, P4x, P5x, P6x, P7x, P9x,
PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x
v7458-CTO, 22x, 22x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Kx,
2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Ax,
6Bx, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx,
6Xx, 6Yx, 6Zx
v7459-CTO, 72x, 73x, 74x, 75x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx
v7465-CTO, 3Jx, 3Lx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x,
G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx,
4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x,
58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx,
5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x,
FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx,
FTx, FUx, FVx, FWx, FXx, FYx, FZx, N2x
v7469-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx,
6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 93x, 94x, 95x,
96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx
v7470-CTO, 72x, 73x, 74x, 75x, 76x, 77x
v2046-CTO
v2047-CTO
v3249-all
v3323-all
v3357-all
v3626-all
v3680-all
v3712-all
v4492-all
42T0709 N
Parts list 277
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
10 LCD panel, 12.1-in. WXGA, LED backlight
v7454-CTO, 32x, 33x, 34x, 36x, 38x, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx,
3Tx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx,
GDx, GEx, GFx, GGx, GHx, GJx, GKx, GLx, GMx, GNx, GPx
v7455-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx,
82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx,
8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, F2x, F3x, F4x,
F5x, F6x, F7x, F9x, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx,
FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx, P2x, P3x, P4x, P5x, P6x, P7x, P9x,
PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x
v7458-CTO, 22x, 22x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Kx,
2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Ax,
6Bx, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx,
6Xx, 6Yx, 6Zx
v7459-CTO, 72x, 73x, 74x, 75x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx
v7465-CTO, 3Jx, 3Lx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x,
G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx,
4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x,
58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx,
5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x,
FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx,
FTx, FUx, FVx, FWx, FXx, FYx, FZx, N2x
v7469-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx,
6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 93x, 94x, 95x,
96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx
v7470-CTO, 72x, 73x, 74x, 75x, 76x, 77x
v2046-CTO
v2047-CTO
42T0715 N
278 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
10 LCD panel, 12.1-in. WXGA, LED backlight
v7454-CTO, 32x, 33x, 34x, 36x, 38x, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx,
3Tx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx,
GDx, GEx, GFx, GGx, GHx, GJx, GKx, GLx, GMx, GNx, GPx
v7455-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx,
82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx,
8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, F2x, F3x, F4x,
F5x, F6x, F7x, F9x, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx,
FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx, P2x, P3x, P4x, P5x, P6x, P7x, P9x,
PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x
v7458-CTO, 22x, 22x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Kx,
2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Ax,
6Bx, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx,
6Xx, 6Yx, 6Zx
v7459-CTO, 72x, 73x, 74x, 75x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx
v7465-CTO, 3Jx, 3Lx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x,
G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx,
4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x,
58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx,
5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x,
FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx,
FTx, FUx, FVx, FWx, FXx, FYx, FZx, N2x
v7469-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx,
6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 93x, 94x, 95x,
96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx
v7470-CTO, 72x, 73x, 74x, 75x, 76x, 77x
v2046-CTO
v2047-CTO
v3249-all
v3323-all
v3357-all
v3626-all
v3680-all
v3712-all
v4492-all
42T0711 N
Parts list 279
Table 38. Parts list—12.1-in. WXGA TFT (continued)
No. FRU FRU no. CRU
ID
10 LCD panel, 12.1-in. WXGA, LED backlight
v7454-CTO, 32x, 33x, 34x, 36x, 38x, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx,
3Tx, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x, GBx, GCx,
GDx, GEx, GFx, GGx, GHx, GJx, GKx, GLx, GMx, GNx, GPx
v7455-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx,
82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx,
8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, F2x, F3x, F4x,
F5x, F6x, F7x, F9x, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx,
FQx, FRx, FSx, FTx, FUx, FVx, FWx, FXx, FYx, FZx, P2x, P3x, P4x, P5x, P6x, P7x, P9x,
PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx
v7457-CTO, 52x, 53x, 54x, 55x, 56x, 57x, 58x
v7458-CTO, 22x, 22x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Kx,
2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Vx, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Ax,
6Bx, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx,
6Xx, 6Yx, 6Zx
v7459-CTO, 72x, 73x, 74x, 75x
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Hx
v7465-CTO, 3Jx, 3Lx, 3Nx, 3Px, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, G2x, G3x,
G4x, G5x, G6x, G7x, G8x, G9x, GAx, GBx
v7466-CTO, 43x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Hx, 4Jx, 4Kx,
4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 55x, 56x, 57x,
58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx,
5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x,
FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx, FNx, FPx, FQx, FRx, FSx,
FTx, FUx, FVx, FWx, FXx, FYx, FZx, N2x
v7469-CTO, 62x, 63x, 64x, 65x, 66x, 67x, 68x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx,
6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 93x, 94x, 95x,
96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Gx
v7470-CTO, 72x, 73x, 74x, 75x, 76x, 77x
v2046-CTO
v2047-CTO
v3249-all
v3323-all
v3357-all
v3626-all
v3680-all
v3712-all
v4492-all
42T0713 N
280 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
12.1-in. WXGA+ TFT
1
2
3
5
4
6
7
8
Parts list 281
Table 39. Parts list—12.1-in. WXGA+ TFT
No. FRU FRU no. CRU
ID
1 LCD bezel assembly
v7462-CTO, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Zx, FPx, FQx, FTx
v7465-CTO, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Yx, 3Kx, 3Mx, D2x, D3x
v7466-CTO, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Wx, 44x,
4Rx, 4Tx, 4Ux, 94x
v7469-CTO, 54x, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Ux, 5Vx, 5Wx, 5Xx, 69x, 6Ax, 78x, 7Ax,
7Gx, 7Mx, 7Nx, 7Px, 7Ux, 7Vx, 7Yx, 7Zx, 82x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Gx, 8Hx,
8Jx, 8Kx, 8Px, 8Qx
v7470-CTO, 64x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Qx
v2046-CTO
v2047-CTO
v5129-all
v5143-all
v5385-all
v5397-all
v5413-all
v5442-all
v5446-all
45N3232 N
2 LCD panel, 12.1-in. WXGA+, LED backlight
v7462-CTO, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Zx, FPx, FQx, FTx
v7465-CTO, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Yx, 3Kx, 3Mx, D2x, D3x
v7466-CTO, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Wx, 44x,
4Rx, 4Tx, 4Ux, 94x
v7469-CTO, 54x, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Ux, 5Vx, 5Wx, 5Xx, 69x, 6Ax, 78x, 7Ax,
7Gx, 7Mx, 7Nx, 7Px, 7Ux, 7Vx, 7Yx, 7Zx, 82x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Gx, 8Hx,
8Jx, 8Kx, 8Px, 8Qx
v7470-CTO, 64x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Qx
v2046-CTO
v2047-CTO
v5129-all
v5143-all
v5385-all
v5397-all
v5413-all
v5442-all
v5446-all
42T0480 N
3 Wireless LAN/USB antenna kit
v7462-CTO
v7465-CTO
v7469-CTO
v7470-CTO
v7470-CTO
v2046-CTO
v2047-CTO
43Y9841 N
282 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 39. Parts list—12.1-in. WXGA+ TFT (continued)
No. FRU FRU no. CRU
ID
3 Wireless LAN antenna kit
v7462-CTO, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Zx, FPx, FQx, FTx
v7465-CTO, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Yx, 3Kx, 3Mx, D2x, D3x
v7466-CTO, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Wx, 44x,
4Rx, 4Tx, 4Ux, 94x
v7469-CTO, 54x, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Ux, 5Vx, 5Wx, 5Xx, 69x, 6Ax, 78x, 7Ax,
7Gx, 7Mx, 7Nx, 7Px, 7Ux, 7Vx, 7Yx, 7Zx, 82x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Gx, 8Hx,
8Jx, 8Kx, 8Px, 8Qx
v7470-CTO, 64x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Qx
v2046-CTO
v2047-CTO
v5129-all
v5143-all
v5385-all
v5397-all
v5413-all
v5442-all
v5446-all
44C9997 N
4 Hinge bracket L/R
v7462-CTO, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Zx, FPx, FQx, FTx
v7465-CTO, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Yx, 3Kx, 3Mx, D2x, D3x
v7466-CTO, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Wx, 44x,
4Rx, 4Tx, 4Ux, 94x
v7469-CTO, 54x, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Ux, 5Vx, 5Wx, 5Xx, 69x, 6Ax, 78x, 7Ax,
7Gx, 7Mx, 7Nx, 7Px, 7Ux, 7Vx, 7Yx, 7Zx, 82x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Gx, 8Hx,
8Jx, 8Kx, 8Px, 8Qx
v7470-CTO, 64x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Qx
v2046-CTO
v2047-CTO
v5129-all
v5143-all
v5385-all
v5397-all
v5413-all
v5442-all
v5446-all
45N3234 N
5 Hinge L/R
v7462-CTO, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Zx, FPx, FQx, FTx
v7465-CTO, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Yx, 3Kx, 3Mx, D2x, D3x
v7466-CTO, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Wx, 44x,
4Rx, 4Tx, 4Ux, 94x
v7469-CTO, 54x, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Ux, 5Vx, 5Wx, 5Xx, 69x, 6Ax, 78x, 7Ax,
7Gx, 7Mx, 7Nx, 7Px, 7Ux, 7Vx, 7Yx, 7Zx, 82x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Gx, 8Hx,
8Jx, 8Kx, 8Px, 8Qx
v7470-CTO, 64x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Qx
v2046-CTO
v2047-CTO
45N3233 N
Parts list 283
Table 39. Parts list—12.1-in. WXGA+ TFT (continued)
No. FRU FRU no. CRU
ID
5 Hinge L/R
v7462-CTO, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Zx, FPx, FQx, FTx
v7465-CTO, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Yx, 3Kx, 3Mx, D2x, D3x
v7466-CTO, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Wx, 44x,
4Rx, 4Tx, 4Ux, 94x
v7469-CTO, 54x, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Ux, 5Vx, 5Wx, 5Xx, 69x, 6Ax, 78x, 7Ax,
7Gx, 7Mx, 7Nx, 7Px, 7Ux, 7Vx, 7Yx, 7Zx, 82x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Gx, 8Hx,
8Jx, 8Kx, 8Px, 8Qx
v7470-CTO, 64x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Qx
v2046-CTO
v2047-CTO
v5129-all
v5143-all
v5385-all
v5397-all
v5413-all
v5442-all
v5446-all
60Y4174 N
6 LCD rear cover assembly
v7462-CTO, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Zx, FPx, FQx, FTx
v7465-CTO, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Yx, 3Kx, 3Mx, D2x, D3x
v7466-CTO, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Wx, 44x,
4Rx, 4Tx, 4Ux, 94x
v7469-CTO, 54x, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Ux, 5Vx, 5Wx, 5Xx, 69x, 6Ax, 78x, 7Ax,
7Gx, 7Mx, 7Nx, 7Px, 7Ux, 7Vx, 7Yx, 7Zx, 82x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Gx, 8Hx,
8Jx, 8Kx, 8Px, 8Qx
v7470-CTO, 64x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Qx
v2046-CTO
v2047-CTO
45N3201 N
6 LCD rear cover assembly for X201s 75Y4591 N
7 LCD cable assembly with Bluetooth connector
v7462-CTO, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Zx, FPx, FQx, FTx
v7465-CTO, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Yx, 3Kx, 3Mx, D2x, D3x
v7466-CTO, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Wx, 44x,
4Rx, 4Tx, 4Ux, 94x
v7469-CTO, 54x, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Ux, 5Vx, 5Wx, 5Xx, 69x, 6Ax, 78x, 7Ax,
7Gx, 7Mx, 7Nx, 7Px, 7Ux, 7Vx, 7Yx, 7Zx, 82x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Gx, 8Hx,
8Jx, 8Kx, 8Px, 8Qx
v7470-CTO, 64x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Qx
v2046-CTO
v2047-CTO
v5129-all
v5143-all
v5385-all
v5397-all
v5413-all
v5442-all
v5446-all
44C9919 N
284 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 39. Parts list—12.1-in. WXGA+ TFT (continued)
No. FRU FRU no. CRU
ID
8Bluetooth daughter card (BDC-2.1)
v7462-CTO, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Zx, FPx, FQx, FTx
v7465-CTO, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Yx, 3Kx, D2x, D3x
v7466-CTO, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Wx, 44x,
4Rx, 4Tx, 4Ux, 94x
v7469-CTO, 54x, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Ux, 5Vx, 5Wx, 5Xx, 69x, 6Ax, 78x, 7Ax,
7Gx, 7Mx, 7Nx, 7Px, 7Ux, 7Vx, 7Yx, 7Zx, 82x, 85x, 87x, 88x, 89x, 8Ax, 8Gx, 8Hx, 8Jx,
8Kx, 8Px, 8Qx
v7470-CTO, 64x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Qx
v2046-CTO
v2047-CTO
42T0969 N
8Bluetooth daughter card (BDC-2.1)
v5129-all
v5143-all
v5385-all
v5397-all
v5413-all
v5442-all
v5446-all
60Y3211 N
8Bluetooth daughter card (BDC-2.1)
v5129-all
v5143-all
v5385-all
v5397-all
v5413-all
v5442-all
v5446-all
60Y3215 N
Parts list 285
Keyboard
Table 40. Parts list—Keyboard
Language P/N CRU
ID
Arabic 42T3752 42T3686 **
Belgian 42T3749 42T3683
Brazilian Portuguese 42T3768 42T3702
Bulgarian 42T4143 42T4139
Canadian French (058) 42T3739 42T3673
Canadian French (Acnor) 42T3738 42T3672
Czech 42T3757 42T3691
Danish 42T3746 42T3680
Dutch 42T3743 42T3677
Finnish, Swedish 42T3744 42T3678
French 42T3742 42T3676
German 42T3740 42T3674
Greek (U.S. English and Greek layout) 42T3759 42T3693
Hebrew 42T3754 42T3688
Hungarian 42T3758 42T3692
Icelandic 42T3769 42T3703
Italian 42T3747 42T3681
Japanese 42T3762 42T3696
Kazakhstan 42T4136 42T4133
Korean 42T3764 42T3698
Latin American Spanish 42T3765 42T3699
Norwegian 42T3745 42T3679
Polish 42T3755 42T3689
Portuguese 42T3751 42T3685
Russian 42T3753 42T3687
Slovak 42T3761 42T3695
Slovenian 42T3760 42T3694
Spanish 42T3748 42T3682
Swiss 42T3750 42T3684
Thai 42T3766 42T3700
Traditional Chinese 42T3763 42T3697
Turkish 42T3756 42T3690
U.K. English 42T3741 42T3675
U.S. English 42T3737 42T3671
U.S. English (International, with a Euro symbol) 42T3767 42T3701
286 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Miscellaneous parts
Table 41. Parts list—Miscellaneous parts
FRU P/N CRU
ID
Screw kit for X200, X200s, and X200si 44C9558 N
Screw kit for X201, X201i, and X201s 75Y4454 N
Base cover miscellaneous parts kit
vSD cover
vDummy cover, RJ-11 connector
vKnob, Wireless WAN
vKnob screw, Wireless WAN
vLatch, battery
vLatch spring, battery
44C9556 N
System miscellaneous parts kit
v(a) Top shielding assembly
vHolder, Heat sink
vI/O bracket, VGA
vInverter bracket, CCFL
Note: Italicized letters in parentheses are references to the exploded view in “Overall” on page
168.
44C9557 N
Rubber kit for X200, X200s, and X200si
vRubber foot, front
vRubber foot, rear Left
vRubber foot, rear Right
vRubber foot, battery
44C9554 N
Rubber kit for X201, X201i, and X201s
vRubber foot, front
vRubber foot, rear Left
vRubber foot, rear Right
vRubber foot, battery
75Y4453 N
AC adapters
Table 42. Parts list—ac adapters
FRU P/N CRU
ID
2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU) 42T5282 *
2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU) 42T4423 *
2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU) 42T4419 *
3-pin (65W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV) OP 42T5283 *
3-pin (65W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV) OP 42T4421 *
3-pin (65W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV) OP 42T4417 *
Parts list 287
Power cords
A ThinkPad power cord for a specific country or region is usually available only in
that country or region:
Table 43. Parts list—2-pin power cords
Country or region FRU no. CRU
ID
Argentina
vmodels -CTO, xxY
42T5020 42T5105 *
Brazil
vmodels -CTO, xxP
42T5180 42T5183
Canada, U.S.
vmodels -CTO, xxF, xxL, xxS, xxU
42T5008 42T5093
Japan
vmodels -CTO, xxE, xxJ
42T5014 42T5099
Table 44. Parts list—3-pin power cords
Country or region FRU no. CRU
ID
Australia, New Zealand
vmodels -CTO, xxM
42T5050 42T5135 *
Bangladesh, Sri Lanka, South Africa
vmodels -CTO, xxG
42T5056 42T5141
Canada, U.S.
vmodels -CTO, xxG, xxT
42T5004 42T5089
China (P.R.C.) (other than Hong Kong S.A.R.)
vmodels -CTO, xxC
42T5065 42T5150
Denmark
vmodels -CTO, xxG
42T5041 42T5126
European countries
vmodels -CTO, xxG
42T5029 42T5114
India
vmodels -CTO, xxQ
42T5083 42T5168
Israel
vmodels -CTO, xxG
42T5062 42T5147
Italy
vmodels -CTO, xxG
42T5047 42T5132
Korea
vmodels -CTO, xxK
42T5077 42T5162
Switzerland
vmodels -CTO, xxG
42T5044 42T5129
Taiwan
vmodels -CTO, xxV
42T5071 42T5156
U.K., China (Hong Kong S.A.R.)
vmodels -CTO, xxB, xxG, xxH
42T5035 42T5120
288 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Recovery discs
Windows XP Professional (32 bit) DVDs
Windows XP Professional (32 bit) is preinstalled as the operating system in the
following models:
v7454-CTO, 2Qx, 2Rx, 2Tx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 2Zx, 32x, 34x, 36x, 3Sx, 92x,
93x, 95x, 96x, 9Bx, 9Cx, 9Gx, 9Jx, G4x, G5x, G6x, G7x, G8x, G9x, GKx
v7455-CTO, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 4Jx, 4Lx, 4Mx, 4Px, 4Tx, 4Ux,
8Bx, DSx, DTx, F7x, F9x, FBx, FCx, N4x, PJx
v7457-CTO, 4Kx, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Sx, 4Tx
v7458-CTO, 4Xx, 63x, 68x, 6Bx, 7Sx, 7Tx, 7Ux, 7Vx, 7Wx, 7Xx, 7Yx, 7Zx, 82x, 83x,
84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Mx, 8Nx, 8Px, 8Wx, FVx, FYx, G3x, M3x
v7459-CTO, 5Ex, 72x
v2023-CTO
v2024-CTO
v7462-CTO, 4Vx
v7465-CTO, 2Sx, 2Tx, 2Ux, 2Vx, 2Xx, 2Zx, 3Nx, 3Px, 3Vx, G5x, DFx
v7466-CTO, 32x, 33x, 3Kx, 3Lx, 3Nx, 3Rx, 3Sx, 43x, 45x, 4Jx, 4Mx, 4Qx, 4Sx, 4Ux,
5Wx, 5Xx, 5Zx, FNx, HDx
v7469-CTO, 52x, 53x, 5Wx, 62x, 64x, 66x, 68x, 6Ax, 7Gx, 7Rx, 87x, 9Cx, 9Dx, G8x,
G9x
v7470-CTO, 5Gx, 5Hx, 6Lx, 6Qx, 72x
v2046-CTO
v2047-CTO
Parts list 289
Table 45. Parts list—Windows XP Professional (32 bit) recovery DVDs
Language P/N CRU
ID
Arabic 58Y2662 *
Brazilian Portuguese 58Y2663
Czech 58Y2666
Danish 58Y2667
Dutch 58Y2678
English 58Y2688
English (modem-disabled) 58Y2687
Finnish 58Y2668
French 58Y2669
German 58Y2671
Greek 58Y2670
Hebrew 58Y2672
Hungarian 58Y2674
Italian 58Y2675
Japanese 58Y2676
Korean 58Y2677
Norwegian 58Y2679
Polish 58Y2680
Russian 58Y2682
Russian (English-enabled) 58Y2681
Simplified Chinese 58Y2664
Slovenian 58Y2683
Spanish 58Y2684
Swedish 58Y2685
Traditional Chinese 58Y2665
Traditional Chinese (Hong Kong S.A.R.) 58Y2673
Turkish 58Y2686
290 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
v3249-CTO
v3323-CTO, 43x, 4Hx, 4Jx, 4Kx, 4Yx, 4Zx, 59x, 5Ax, 5Cx, 5Ex, 5Sx, 5Tx, 5Ux, 5Vx,
5Wx, 5Yx, 5Zx, 62x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Ux, 6Vx, 6Wx, 6Yx,
6Zx, 72x, 73x, 74x, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 86x, 87x, 88x
v3357-CTO
v3626-CTO, FHx, FJx, FKx, FLx, FNx, FVx, G3x, G4x
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Rx, 33x, 34x, 35x, 36x, 37x, 38x,
39x, 3Ax
v5385-CTO
v5397-CTO, FUx, FVx, FYx, FZx
v5413-CTO
v5442-CTO
v5446-CTO
Table 46. Parts list—Windows XP Professional (32 bit) recovery DVDs
Language P/N CRU
ID
English 76Y1275 *
French 76Y1265
German 76Y1266
Italian 76Y1268
Japanese 76Y1269
Korean 76Y1270
Russian 76Y1272
Russian (English-enabled) 76Y1271
Simplified Chinese 76Y1263
Spanish 76Y1273
Swedish 76Y1274
Traditional Chinese 76Y1264
Traditional Chinese (Hong Kong S.A.R.) 76Y1267
Parts list 291
Windows Vista Home Basic (32 bit) DVDs
Windows Vista Home Basic (32 bit) is preinstalled as the operating system in the
following models:
v7454-CTO, 9Lx
v7455-CTO, DGx, DHx
v7457-CTO, 4Ax, 4Gx, 4Ux, 4Vx, 52x, 53x
v7458-CTO, 7Fx, 7Gx, F2x
v7459-CTO, 6Wx
v2023-CTO
v2024-CTO
v7462-CTO, 22x, 23x, 24x, 25x, 26x, 47x, 4Qx, 4Wx, F6x, F7x, F8x, F9x, FAx, FBx,
FCx, FDx, FEx, FFx, FGx, FHx, FJx, FMx, FSx
v7465-CTO, 23x, 2Mx, 3Xx, 3Yx, 3Zx, D4x, D6x, D7x, D8x, D9x, DAx, DBx, DCx,
DDx, DEx, DJx, DKx
v7466-CTO, 34x, 9Jx, 9Mx, 9Rx, 9Tx, 9Xx
v7469-CTO, 54x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex
v7470-CTO, 65x
v2046-CTO
v2047-CTO
Table 47. Parts list—Windows Vista Home Basic (32 bit) DVDs
Language P/N CRU
ID
English 58Y2826 *
Japanese 58Y2822
Korean 58Y2823
Russian 58Y2825
Russian (English-enabled) 58Y2824
Simplified Chinese 58Y2819
Traditional Chinese 58Y2820
Traditional Chinese (Hong Kong S.A.R.) 58Y2821
292 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Windows Vista Home Premium (32 bit) DVDs
Windows Vista Home Premium (32 bit) is preinstalled as the operating system in
the following models:
v7454-CTO, 29x, 3Hx, 3Jx, 3Rx
v7455-CTO, 4Bx, DAx, DEx
v7457-CTO, 48x, 4Bx, 4Hx, 4Wx, 54x
v7458-CTO, 2Fx, FHx
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO, 42x, 4Xx, 4Yx, F2x, F3x, F4x, F5x
v7465-CTO
v7466-CTO, 3Hx, 47x, 48x, 49x, 4Ax, 4Ex, 4Fx, 9Zx, F2x, F3x
v7469-CTO, 55x, 56x, 57x, E2x, G4x, G6x, G7x
v7470-CTO
v2046-CTO
v2047-CTO
Table 48. Parts list—Windows Vista Home Premium (32 bit) DVDs
Language P/N CRU
ID
Danish 58Y2802 *
English 58Y2815
English (modem-disabled) 58Y2814
English, Finnish, and Swedish (in Sweden) 58Y2817
English, French, German, and Dutch (in Belgium and Luxemburg) 58Y2816
English, French, German, and Italian (in Switzerland) 58Y2818
French 58Y2803
German 58Y2804
Hebrew 58Y2805
Italian 58Y2807
Japanese 58Y2808
Korean 58Y2809
Norwegian 58Y2810
Russian 58Y2812
Russian (English-enabled) 58Y2811
Simplified Chinese 58Y2800
Spanish 58Y2813
Traditional Chinese 58Y2801
Traditional Chinese (Hong Kong S.A.R.) 58Y2806
Parts list 293
Windows Vista Business (32 bit) DVDs
Windows Vista Business (32 bit) is preinstalled as the operating system in the
following models:
v7454-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx,
2Px, 2Sx, 38x, 97x, 98x, 9Fx
v7455-CTO, 32x, 33x, 34x, 35x, 36x, 38x, 3Ax, 3Bx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx,
3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 47x, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx,
85x, 87x, 88x, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, D2x, D5x, D6x, D7x, D8x, DBx, DCx,
DDx, DFx, DJx, DKx, DLx, DMx, DNx, DRx, DUx, DVx, DWx, DXx, DYx, DZx,
N5x
v7457-CTO, 42x, 43x, 44x, 45x, 46x, 47x, 49x, 4Cx, 4Dx, 4Ex, 4Fx, 4Jx, 4Rx
v7458-CTO, 26x, 28x, 2Bx, 2Cx, 2Dx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Rx, 2Sx, 4Yx, 52x,
53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Jx, 5Lx, 5Mx,
5Px, 5Qx, 5Rx, 5Tx, 69x, 6Xx, 6Zx, 72x, 73x, 76x, 77x, 79x, 7Bx, 7Dx, 7Ex, 7Hx,
7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx,
8Kx, 8Lx, 8Qx, 8Rx, 8Sx, 8Tx, 8Xx, 8Yx, 8Zx, E2x, F3x, F4x, F5x, F6x, F7x, F8x,
F9x, FCx, FDx, FEx, FGx, FJx, FKx, FLx, FMx, FQx, FSx, FUx, FWx, FXx, G4x,
G6x, G7x, G8x, G9x, GBx, GCx, GDx, GFx, M2x, X4x, X5x
v7459-CTO, 5Fx, 62x, 63x, 64x, 66x, 67x, 68x, 69x, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx,
6Jx, 6Kx, 6Mx, 6Nx, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, H3x, H4x, H5x, H6x, H7x,
M2x, M3x, M4x
v2023-CTO
v2024-CTO
v7462-CTO, 45x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx,
4Mx, 4Nx, 4Px, 4Rx, 4Sx, 4Tx, 4Ux, 4Zx, FKx, FNx, FQx, FRx, FTx, FUx, FVx
v7465-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Dx, 2Ex, 2Fx, 2Hx, 2Jx, 2Kx, 2Lx, 2Nx,
2Px, 2Qx, 2Rx, 2Wx, 2Yx, D2x, D3x
v7466-CTO, 35x, 38x, 39x, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Jx, 3Mx, 3Px, 3Qx,
3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 4Bx, 4Cx, 4Dx, 59x, 5Bx, 5Dx, F9x, 92x, 93x,
94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, 9Hx, 9Kx, 9Lx,
9Nx, 9Qx, 9Sx, 9Ux, 9Wx, DMx, H2x, H5x, H6x, H7x, H8x, H9x, HAx, HBx,
HCx, HEx
v7469-CTO, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux,
5Vx, 5Xx, 5Yx, 5Zx, 6Kx, 6Lx, 6Mx, 6Px, 6Qx, 72x, 73x, 74x, 75x, 76x, 77x, 78x,
79x, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Hx, 7Jx, 7Kx, 7Lx, 7Mx, 7Nx, 7Px, 7Qx, 7Sx, 7Tx,
7Ux, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex,
8Fx, 8Gx, 8Hx, 8Jx, 8Lx, 8Mx, 8Nx, 8Px, 8Rx, 8Sx, 8Tx, 8Ux, 8Wx, 8Yx, 8Zx, G2x,
G3x, G5x, GAx, GBx, GCx
v7470-CTO, 64x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Mx,
6Nx, 6Px, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 8Tx, 8Ux, 8Zx, E2x
v2046-CTO
v2047-CTO
294 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 49. Parts list—Windows Vista Business (32 bit) DVDs
Language P/N CRU
ID
Brazilian Portuguese 58Y2770 *
Czech 58Y2773
Danish 58Y2774
English 58Y2796
English (modem-disabled) 58Y2795
English, Finnish, and Swedish (in Sweden) 58Y2798
English, French, German, and Dutch (in Belgium and Luxemburg) 58Y2797
English, French, German, and Italian (in Switzerland) 58Y2799
French 58Y2775
German 58Y2777
Greek 58Y2776
Hebrew 58Y2778
Hungarian 58Y2780
Italian 58Y2781
Japanese 58Y2782
Korean 58Y2783
Norwegian 58Y2784
Polish 58Y2785
Portuguese 58Y2786
Romanian 58Y2788
Russian 58Y2789
Russian (English-enabled) 58Y2787
Serbian-Latin 58Y2793
Simplified Chinese 58Y2771
Slovak 58Y2790
Slovenian 58Y2791
Spanish 58Y2792
Traditional Chinese 58Y2772
Traditional Chinese (Hong Kong S.A.R.) 58Y2779
Turkish 58Y2794
Parts list 295
v3249-CTO
v3323-CTO
v3357-CTO
v3626-CTO
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
Table 50. Parts list—Windows Vista Business (32 bit) DVDs
Language P/N CRU
ID
English 76Y1005 *
English (for India) 76Y1084
Windows Vista Business (64 bit) DVDs
Windows Vista Business (64 bit) is preinstalled as the operating system in the
following models:
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO, 2Ex, 6Yx, G5x
v7459-CTO, 6Xx, 6Yx, 6Zx, E3x, H2x
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO, 6Nx, 6Rx, 7Vx, 8Kx, 8Qx
v7470-CTO
v2046-CTO
v2047-CTO
Table 51. Parts list—Windows Vista Business (64 bit) DVDs
Language P/N CRU
ID
English 58Y2831 *
English (modem-disabled) 58Y2830
German 58Y2828
Japanese 58Y2829
Simplified Chinese 58Y2827
296 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Windows Vista Ultimate (32 bit) DVDs
Windows Vista Ultimate (32 bit) is preinstalled as the operating system in the
following models:
v7454-CTO, 9Hx
v7455-CTO, D9x
v7457-CTO
v7458-CTO, 2Qx, 5Hx, 5Nx, 5Sx, 7Cx, FAx, FFx, GEx
v7459-CTO, 65x, 6Ax
v2023-CTO
v2024-CTO
v7462-CTO, FPx
v7465-CTO
v7466-CTO
v7469-CTO, 7Ax
v7470-CTO
v2046-CTO
v2047-CTO
Table 52. Parts list—Windows Vista Ultimate (32 bit) DVDs
Language P/N CRU
ID
Czech 58Y2834 *
Danish 58Y2835
English 58Y2851
English, Finnish, and Swedish (in Sweden) 58Y2853
English, French, German, and Dutch (in Belgium and Luxemburg) 58Y2852
English, French, German, and Italian (in Switzerland) 58Y2854
French 58Y2836
German 58Y2838
Greek 58Y2837
Hebrew 58Y2839
Hungarian 58Y2841
Italian 58Y2842
Norwegian 58Y2843
Polish 58Y2844
Romanian 58Y2845
Serbian-Latin 58Y2849
Simplified Chinese 58Y2832
Slovak 58Y2846
Slovenian 58Y2847
Spanish 58Y2848
Traditional Chinese 58Y2833
Traditional Chinese (Hong Kong S.A.R.) 58Y2840
Turkish 58Y2850
Parts list 297
Windows 7 Home Basic (32 bit) DVDs
Windows 7 Home Basic (32 bit) is preinstalled as the operating system in the
following models:
v7454-CTO, 3Kx, 3Yx, 3Zx, G2x, G3x, GFx, GGx, GHx, GJx, GPx
v7455-CTO, F3x, FTx, FUx
v7457-CTO, 55x, 56x, 57x
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx
v7465-CTO, 3Tx, G2x, G3x, G4x
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
Table 53. Parts list—Windows 7 Home Basic (32 bit) DVDs
Language P/N CRU
ID
Brazilian Portuguese 58Y3907 *
English 58Y3915
English (for India) 58Y3909
Russian 58Y3911
Russian (English-enabled) 58Y3910
Serbian-Latin 58Y3913
Simplified Chinese 58Y3908
Spanish 58Y3912
Turkish 58Y3914
298 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
v3249-CTO, 23x, 26x, 27x, 2Bx, 2Kx, 2Lx, 2Mx, J2x, J4x, J5x
v3323-CTO, 4Bx, 4Nx, 53x, 8Bx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, KNx
v3357-CTO, D2x
v3626-CTO, G5x, GAx, GBx
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
Table 54. Parts list—Windows 7 Home Basic (32 bit) recovery DVDs
Language P/N CRU
ID
Brazilian Portuguese 76Y1176 *
English 76Y1185
English (for India) 76Y1178
English (modem-disabled) 76Y1184
Russian 76Y1180
Russian (English-enabled) 76Y1179
Serbian-Latin 76Y1182
Simplified Chinese 76Y1177
Spanish 76Y1181
Turkish 76Y1183
Parts list 299
Windows 7 Home Premium (32 bit) DVDs
Windows 7 Home Premium (32 bit) is preinstalled as the operating system in the
following models:
v7454-CTO, 3Px, 3Tx, GCx
v7455-CTO, 49x, 4Nx, 8Rx, 8Yx, P4x, P5x
v7457-CTO, 58x
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO, 3Jx, 3Lx, 3Wx, G6x, G7x, G8x, G9x, GAx
v7466-CTO, 46x, 4Zx, 5Lx, 5Px, 5Tx, 5Ux, F5x, FDx, FGx, FJx, FLx
v7469-CTO, 93x, 9Ax
v7470-CTO
v2046-CTO
v2047-CTO
Table 55. Parts list—Windows 7 Home Premium (32 bit) DVDs
Language P/N CRU
ID
Brazilian Portuguese 58Y3916 *
English 58Y3930
English (for India) 58Y3919
English (modem-disabled) 58Y3929
French 58Y3920
Hebrew 58Y3921
Japanese 58Y3923
Korean 58Y3924
Russian 58Y3926
Russian (English-enabled) 58Y3925
Simplified Chinese 58Y3917
Spanish 58Y3927
Traditional Chinese 58Y3918
Traditional Chinese (Hong Kong S.A.R.) 58Y3922
Turkish 58Y3928
300 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
v3249-CTO, 22x, 29x, 2Ax, J3x, J6x, J8x, J9x
v3323-CTO, 44x, 45x, 46x, 48x, 49x, 4Px, 52x, 8Jx, 8Yx, 94x, 98x, 9Cx, KPx
v3357-CTO, D4x, D6x
v3626-CTO, G6x, GCx
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO, 73x
v5143-CTO, 4Cx
v5385-CTO, D4x
v5397-CTO, GAx
v5413-CTO
v5442-CTO
v5446-CTO
Table 56. Parts list—Windows 7 Home Premium (32 bit) DVDs
Language P/N CRU
ID
English 76Y1194 *
English (for India) 76Y1188
Japanese 76Y1190
Korean 76Y1191
Russian 76Y1193
Russian (English-enabled) 76Y1192
Simplified Chinese 76Y1186
Traditional Chinese 76Y1187
Traditional Chinese (Hong Kong S.A.R.) 76Y1189
Parts list 301
Windows 7 Home Premium (64 bit) DVDs
Windows 7 Home Premium (64 bit) is preinstalled as the operating system in the
following models:
v7454-CTO
v7455-CTO
v7457-CTO
v7458-CTO
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO
v7469-CTO
v7470-CTO
v2046-CTO
v2047-CTO
Table 57. Parts list—Windows 7 Home Premium (64 bit) DVDs
Language P/N CRU
ID
English 58Y3936 *
English (for India) 58Y3932
Japanese 58Y3933
Polish 58Y3934
Simplified Chinese 58Y3931
Turkish 58Y3935
302 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
v3249-CTO
v3323-CTO, 7Sx, 7Tx, 7Ux, 7Vx, 82x, 83x, 84x, 85x, 8Zx, 95x, 99x, 9Dx
v3357-CTO
v3626-CTO, GFx
v3680-CTO
v3712-CTO
v4492-CTO
v5129-CTO, R1x
v5143-CTO, 4Dx
v5385-CTO
v5397-CTO
v5413-CTO
v5442-CTO
v5446-CTO
Table 58. Parts list—Windows 7 Home Premium (64 bit) DVDs
Language P/N CRU
ID
English 76Y1209 *
English (for India) 76Y1199
English (modem-disabled) 76Y1208
Japanese 76Y1201
Korean 76Y1202
Polish 76Y1203
Russian 76Y1205
Russian (English-enabled) 76Y1204
Serbian-Latin 76Y1206
Simplified Chinese 76Y1197
Traditional Chinese 76Y1198
Traditional Chinese (Hong Kong S.A.R.) 76Y1200
Turkish 76Y1207
Parts list 303
Windows 7 Professional (32 bit) DVDs
Windows 7 Professional (32 bit) is preinstalled as the operating system in the
following models:
v7454-CTO, 33x, 3Lx, 3Qx, 3Vx, 3Wx, 3Xx, GDx, GEx, GLx, GMx, GNx
v7455-CTO, 44x, 45x, 46x, 48x, 4Ax, 4Hx, 4Kx, 4Sx, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 82x,
83x, 84x, 86x, 8Cx, 8Dx, 8Ex, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Sx, 8Tx, 8Ux, F2x, F4x,
F5x, F6x, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FNx, FPx, FQx, FSx, FVx, FWx,
FXx, FYx, FZx, P2x, P7x, P9x, PAx, PCx, PDx, PEx, PFx, PHx
v7457-CTO
v7458-CTO, 62x, 64x, 66x, 6Ax, 6Cx, 6Dx, 6Ex, 6Jx, 6Kx, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux,
6Vx, 6Wx
v7459-CTO, 73x, 74x, 75x
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO, 3Kx, 3Mx, 3Rx, 3Ux, GBx
v7466-CTO, 4Hx, 4Lx, 4Px, 4Tx, 4Vx, 4Wx, 4Xx, 52x, 53x, 54x, 55x, 56x, 57x, 58x,
5Ax, 5Cx, 5Ex, 5Fx, 5Gx, 5Hx, 5Mx, 5Qx, 5Rx, 5Sx, 5Vx, 5Yx, F6x, F7x, F8x, FAx,
FBx, FEx, FHx, FKx, FMx, FPx, FQx, FRx, FSx, FTx, FUx, FVx, FXx, FYx, FZx,
N2x
v7469-CTO, 63x, 65x, 67x, 69x, 6Bx, 6Cx, 6Dx, 6Ex, 6Hx, 6Jx, 6Tx, 6Ux, 6Vx, 6Xx,
6Yx, 94x, 95x, 96x, 97x, 98x, 99x, 9Bx, 9Ex, 9Gx
v7470-CTO, 73x, 74x, 75x, 76x, 77x
v2046-CTO
v2047-CTO
304 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 59. Parts list—Windows 7 Professional (32 bit) DVDs
Language P/N CRU
ID
Brazilian Portuguese 58Y3862 *
Czech 58Y3865
Danish 58Y3866
English 58Y3889
English (modem-disabled) 58Y3888
English (for India) 58Y3867
English, Finnish, and Swedish (in Sweden) 58Y3891
English, French, German, and Dutch (in Belgium and Luxemburg) 58Y3890
English, French, German, and Italian (in Switzerland) 58Y3892
French 58Y3868
German 58Y3870
Greek 58Y3869
Hebrew 58Y3871
Hungarian 58Y3873
Italian 58Y3874
Japanese 58Y3875
Korean 58Y3876
Norwegian 58Y3877
Polish 58Y3878
Portuguese 58Y3879
Romanian 58Y3881
Russian 58Y3882
Russian (English-enabled) 58Y3880
Serbian-Latin 58Y3886
Simplified Chinese 58Y3863
Slovak 58Y3883
Slovenian 58Y3884
Spanish 58Y3885
Traditional Chinese 58Y3864
Traditional Chinese (Hong Kong S.A.R.) 58Y3872
Turkish 58Y3887
Parts list 305
v3249-CTO, 24x, 25x, 28x, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Lx, J7x
v3323-CTO, 42x, 4Ax, 4Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Rx, 4Sx, 4Tx, 4Vx, 54x, 55x, 56x,
57x, 58x, 5Bx, 5Dx, 5Fx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Rx, 63x, 64x, 65x,
66x, 67x, 68x, 69x, 6Ax, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Rx, 6Sx, 6Tx, 75x, 76x, 77x,
78x, 79x, 7Ax, 7Bx, 7Cx, 89x, 8Ax, 8Cx, 8Dx, 8Ex, 8Kx, 8Lx, 8Nx, 8Wx, 92x, 96x,
9Ax, 9Ex, 9Fx, 9Gx, 9Hx, K6x, K7x, K8x, K9x, KFx, KGx, KHx, KRx, KSx, KTx,
KVx, L3x, L5x, L6x, LAx, LBx, LFx, R2x
v3357-CTO, D3x, D5x, D7x
v3626-CTO, 11x, F2x, F3x, F5x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx,
FMx, FPx, FRx, FSx, FUx, FWx, FYx, FZx, G8x, GEx, GHx, GHx, GJx, GJx, GKx,
GLx, GTx, GUx, H2x, N2x
v3680-CTO, 11x, F7x, F8x, F9x, FAx, FBx, P4x, P5x, P6x, P7x, PAx, PDx, N2x
v3712-CTO
v4492-CTO
v5129-CTO, 72x
v5143-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx,
2Gx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 2Yx, 2Zx, 32x, 3Ux, 3Vx, 3Wx, 3Yx, 3Zx, 42x, 43x,
44x, 45x, 46x, 47x, 4Ex, 4Gx, 4Hx
v5385-CTO, D2x, D3x
v5397-CTO, F2x, F3x, F5x, FAx, FDx, FEx, FGx, FHx, FJx, FKx, FMx, FNx, FPx,
FSx, FTx, FWx, FXx, G2x, G3x, G4x, G5x, G6x, G7x, G8x, G9x
v5413-CTO, FDx, FEx, FGx, L2x, L4x
v5442-CTO
v5446-CTO
306 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Table 60. Parts list—Windows 7 Professional (32 bit) DVDs
Language P/N CRU
ID
Brazilian Portuguese 76Y1085 *
Czech 76Y1088
Danish 76Y1089
English 76Y1112
English (modem-disabled) 76Y1111
English (for India) 76Y1090
English, Finnish, and Swedish (in Sweden) 76Y1114
English, French, German, and Dutch (in Belgium and Luxemburg) 76Y1113
English, French, German, and Italian (in Switzerland) 76Y1115
French 76Y1091
German 76Y1093
Greek 76Y1092
Hebrew 76Y1094
Hungarian 76Y1096
Italian 76Y1097
Japanese 76Y1098
Korean 76Y1099
Norwegian 76Y1100
Polish 76Y1101
Portuguese 76Y1102
Romanian 76Y1104
Russian 76Y1104
Russian (English-enabled) 76Y1103
Serbian-Latin 76Y1109
Simplified Chinese 76Y1086
Slovak 76Y1106
Slovenian 76Y1107
Spanish 76Y1108
Traditional Chinese 76Y1087
Traditional Chinese (Hong Kong S.A.R.) 76Y1095
Turkish 76Y1110
Parts list 307
Windows 7 Professional (64 bit) DVDs
Windows 7 Professional (64 bit) is preinstalled as the operating system in the
following models:
v7454-CTO
v7455-CTO, 4Qx, 4Rx, 89x, 8Ax, 8Vx, 8Wx, 8Zx
v7457-CTO
v7458-CTO, 2Tx, 65x, 67x, 6Lx, 6Mx, 6Nx, 6Px
v7459-CTO
v2023-CTO
v2024-CTO
v7462-CTO
v7465-CTO
v7466-CTO, 44x, 4Kx, 4Nx, 4Rx
v7469-CTO, 6Fx, 6Gx, 6Wx, 6Zx
v7470-CTO
v2046-CTO
v2047-CTO
Table 61. Parts list—Windows 7 Professional (64 bit) DVDs
Language P/N CRU
ID
Danish 58Y3895 *
English 58Y3905
English (for India) 58Y3896
English, French, German, and Italian (in Switzerland) 58Y3906
French 58Y3897
German 58Y3898
Hebrew 58Y3899
Italian 58Y3901
Japanese 58Y3902
Korean 58Y3903
Simplified Chinese 58Y3893
Spanish 58Y3904
Traditional Chinese 58Y3894
Traditional Chinese (Hong Kong S.A.R.) 58Y3900
308 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
v3249-CTO
v3323-CTO, 4Fx, 4Gx, 4Ux, 4Wx, 5Gx, 7Mx, 7Nx, 7Px, 7Rx, 7Wx, 7Xx, 7Yx, 7Zx,
8Fx, 8Gx, 8Px, 8Xx, 93x, 97x, 9Bx, K2x, K3x, K4x, K5x, KAx, KCx, KDx, KEx,
KUx, KWx
v3357-CTO
v3626-CTO, F4x, F6x, FTx, FXx, G2x, G7x, G9x, GDx, GMx, GNx, GPx, GRx, GSx,
GVx, GWx, GXx, GYx, GZx, H3x, H4x, H5x, H6x, H7x, R3x
v3680-CTO, P8x, P9x, PBx, PCx, PEx, PFx, PGx, PHx, PJx
v3712-CTO
v4492-CTO
v5129-CTO
v5143-CTO, 48x, 49x, 4Ax, 4Bx, 4Jx
v5385-CTO
v5397-CTO, F4x, F6x, F7x, F8x, F9x, FBx, FCx, FFx, FRx
v5413-CTO, FFx, L3x, L5x
v5442-CTO
v5446-CTO
Table 62. Parts list—Windows 7 Professional (64 bit) DVDs
Language P/N CRU
ID
Danish 76Y1241 *
English 76Y1250
English (for India) 76Y1242
English (modem-disabled) 76Y1249
French 76Y1243
German 76Y1244
Italian 76Y1246
Japanese 76Y1247
Simplified Chinese 76Y1240
Spanish 76Y1248
Traditional Chinese (Hong Kong S.A.R.) 76Y1245
Parts list 309
Common service tools
Table 63. Parts list—Common service tools
Tool P/N
Screwdriver kit 95F3598
1/4″drive spinner handle 1650840
1/4″Sq. to 1/4″hex torx adapter 93F2838
TR7-TR-10 tamper resistant torx bits 00P6967
Removal tool antenna RF connector 08K7159
USB 2.0 CD-RW/DVD-ROM combo drive II 40Y8687
USB cable 40Y8704
USB floppy diskette drive for maintenance diskette 05K9283
USB floppy diskette drive tool kit 27L3452
Test card for integrated Smart Card 42W7820
ThinkPad Hardware Maintenance Diskette Version 1.73 or later
Note: Download the file from the following Web site: http://www.lenovo.com/
spm
—
310 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
Notices
Lenovo may not offer the products, services, or features discussed in this
document in all countries. Consult your local Lenovo representative for
information on the products and services currently available in your area. Any
reference to a Lenovo product, program, or service is not intended to state or
imply that only that Lenovo product, program, or service may be used. Any
functionally equivalent product, program, or service that does not infringe any
Lenovo intellectual property right may be used instead. However, it is the user’s
responsibility to evaluate and verify the operation of any other product, program,
or service.
Lenovo may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you
any license to these patents. You can send license inquiries, in writing, to:
Lenovo (United States), Inc.
1009 Think Place - Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some
jurisdictions do not allow disclaimer of express or implied warranties in certain
transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. Lenovo may make improvements
and/or changes in the product(s) and/or the program(s) described in this
publication at any time without notice.
The products described in this document are not intended for use in implantation
or other life support applications where malfunction may result in injury or death
to persons. The information contained in this document does not affect or change
Lenovo product specifications or warranties. Nothing in this document shall
operate as an express or implied license or indemnity under the intellectual
property rights of Lenovo or third parties. All information contained in this
document was obtained in specific environments and is presented as an
illustration. The result obtained in other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those Web
sites. The materials at those Web sites are not part of the materials for this Lenovo
product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments may
© Copyright Lenovo 2008, 2010 311
vary significantly. Some measurements may have been made on development-level
systems and there is no guarantee that these measurements will be the same on
generally available systems. Furthermore, some measurements may have been
estimated through extrapolation. Actual results may vary. Users of this document
should verify the applicable data for their specific environment.
Trademarks
The following terms are trademarks of Lenovo in the United States, other countries
or both:
Active Protection System
Lenovo®
Rescue and Recovery®
ThinkLight®
ThinkPad®
ThinkVantage®
TrackPoint®
UltraBase
Ultrabay
UltraNav®
The following terms are trademarks of the International Business Machines
Corporation in the United States, other countries, or both:
IBM®(used under license)
The following terms are trademarks of Microsoft Corporation in the United States,
other countries, or both:
Windows®
Windows Vista®
The following are trademarks of Intel Corporation or its subsidiaries in the United
States, other countries, or both:
Intel®
Intel®Celeron®
Intel®Celeron®M
Intel®CoreTM 2 Duo
Intel®CoreTM 2 Solo
Other company, product, or service names may be the trademarks or service marks
of others.
312 ThinkPad X200, X200s, X200si, X201, X201i, and X201s Hardware Maintenance Manual
