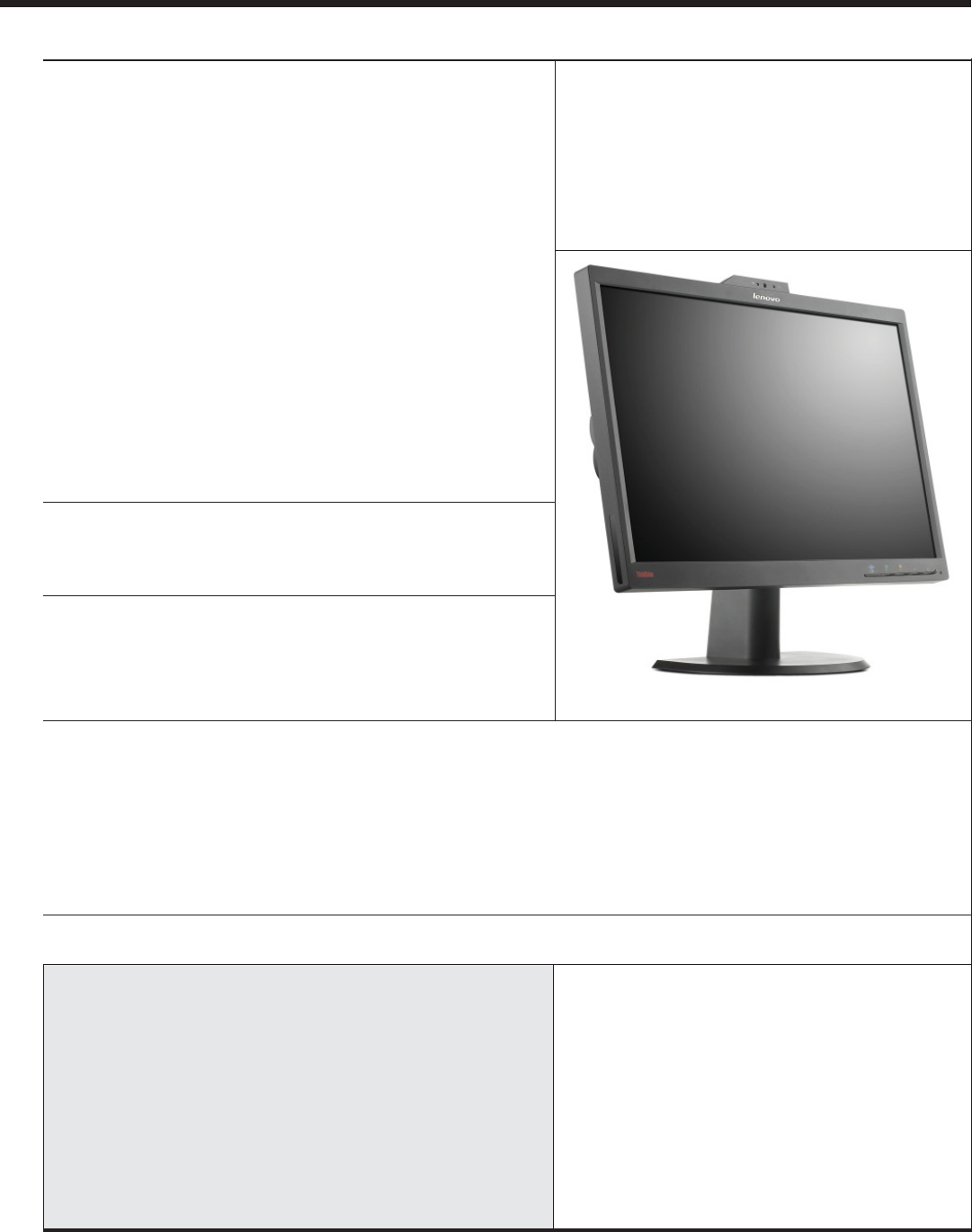

ThinkVision L2321x Wide Monitor
Visit www.lenovo.com/psref for the latest version
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Maximum resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Anti-refl ective
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Pixel defect
Emission standards
Environmental
Preset resolutions
Presets
Viewing adjustments
Rotating screen
On screen display
Control features
USB hub
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® D186 Wide
© Lenovo
(D186) January 2010
See footnotes for important warranty information
US model announced January 12, 2010
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
Kensington MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Easy Reach Monitor Stand 55Y9258
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision
Features
• Widescreen 18.5-inch monitor
• High Defi nition (HD) ready; 1366x768 resolution
• Detachable stand tilts for comfortable viewing
• Supports VESA mount (100mm)
• 50% less mercury
• Kensington® lock slot ready for enhanced security

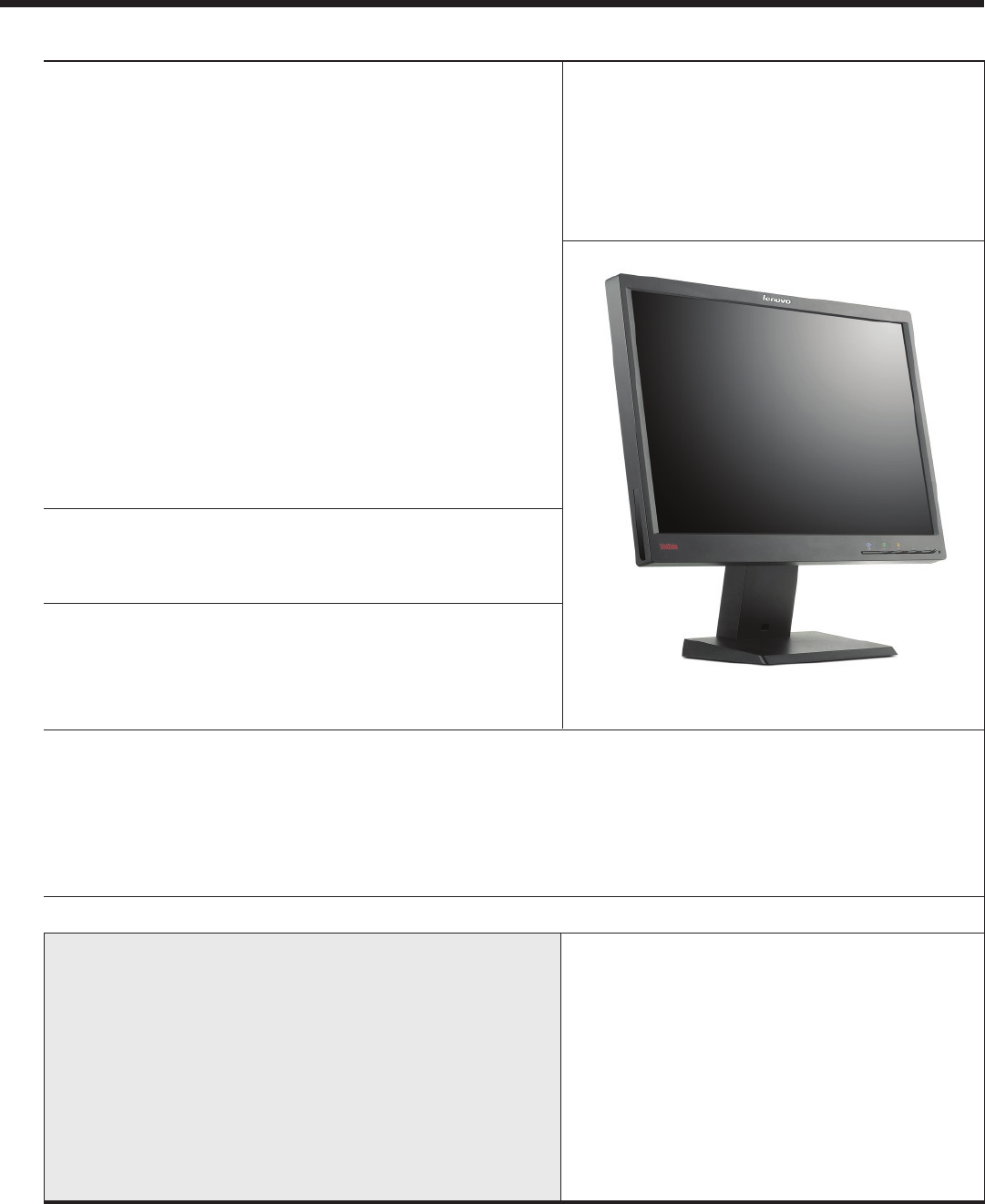

D186 Wide Flat Panel Monitor
Business black
2580-AB1
TFT-LCD, twisted nematic (TN), CCFL backlight
18.5" (470mm) diagonal
16.1" x 9.1" / 409.8mm x 230.4mm
1366x768 at 60Hz
1366x768 at 60Hz (135MHz max pixel rate)
16:9
.300mm
85 dpi
200 nits or cd/m2 (typical)
600:1 (typical)
5ms (typical)
67%
Anti-refl ective, anti-glare
90° (+/- 45°) horizontal, 50° (+/- 25°) vertical
Tilt adjustable stand
Sides:
0.61" (15.6mm)
; top: 0.67" (17.1mm);
bottom: 1.19" (30.1mm)
14.6" H x 17.4" W x 8.3" D;
370mm H x 442mm W x 210mm D
16 watts typical, 24 watts maximum,
<1 watts standby/suspend, universal,
integrated (no external brick-like power supply)
7.28 lb; 3.3kg
3 years (includes backlight)
January 2010
VESA DDC2B/CI, VESA DPMS-compliant
None
ISO 9241-307
ISO 9241-307 pixel defect standard
FCC Class B
WEEE, RoHS (EU Directive 2002/95/EC),
VGA: 640x350, 640x480, 720x400
SVGA: 800x600
XGA: 1024x768
WXGA: 1280x720, 1280x768
1360x768, 1366x768
Standard presets: 20; user settings: 16
Tilt: 20° back, -5° forward; no lift; no swivel; detachable stand
None
On screen display with digital user controls (8 languages)
Direct access (control buttons on front) for automatic image setup and adjustment for brightness
None
None
VGA
15-pin D-shell,
analog,
blue
Detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington lock-compatible)
Monitor, attached stand, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide and monitor
installation fi les, 1.8 meter analog signal cable, 1.8 meter black power cord
Lenovo D186 Wide Monitor
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Anti-refl ective
Vertical frequency
Horizontal frequency
Viewing angle at 5:1 CR
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
USB hub
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® L2021 Wide
© Lenovo
(L2021) October 2010
See footnotes for important warranty information
US model announced September 21, 2010
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
ThinkVision Soundbar 45K1263
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision
Features
• All-purpose 20-inch wide fl at panel LCD monitor
• View images in a 16x9 wide aspect ratio
• High-bandwidth Digital Content Protection (HDCP)-compliant
• Tilt and cable management stand
• Compliance with ENERGY STAR 5.0
• 50% less mercury
• Microsoft® Windows® 7 certifi ed

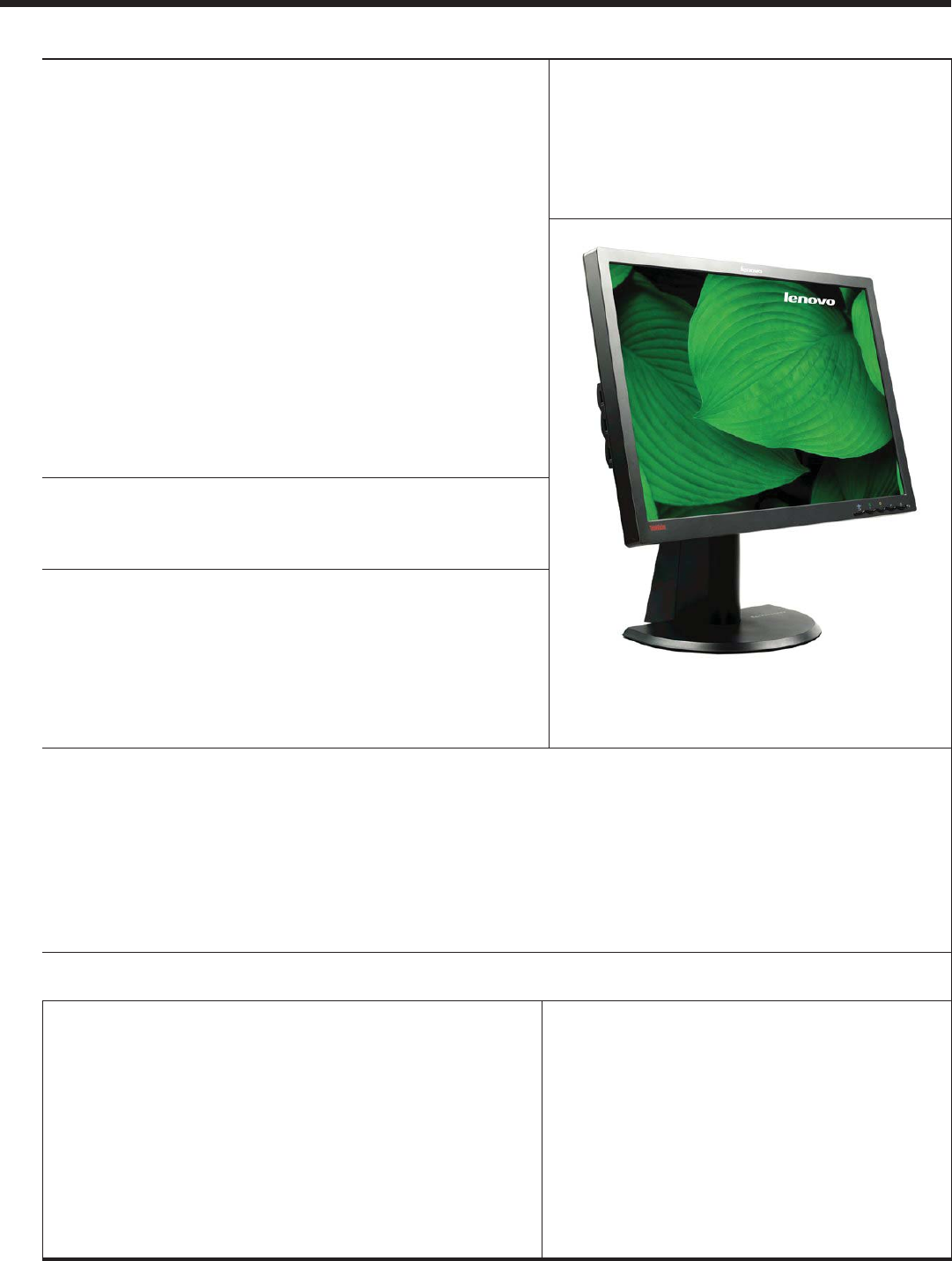

L2021 Wide Flat Panel Monitor
Business black
4449-HB1
TFT-LCD, twisted nematic (TN), CCFL backlight
20.0" / 508mm (diagonal)
17.4" x 9.8" / 443mm x 249mm
1600x900 at 60Hz
16:9
0.277mm
92 dpi
250 nits or cd/m2 (typical)
1000:1 (typical)
5ms (typical)
72%
Anti-refl ective, anti-glare
50 to 75 Hz
31 to 81 kHz
178° (+/- 89°) horizontal, 170° (+/- 85°) vertical
170° (+/- 85°) horizontal, 160° (+/- 80°) vertical
Tilt adjustable stand
Sides:
0.48" (12.1mm)
;
top: 0.47" (11.9mm);
bottom: 0.39" (10.1mm)
14.1" H x 18.7" W x 5.9" D;
357.5mm H x 475.9mm W x 151.2mm D
22 watts typical, 27 watts maximum,
<1 watts standby/suspend, universal,
integrated (no external brick-like power supply)
9.24 lb; 4.2kg
3 years
(includes backlight)
September 2010
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY STAR®3 5.0
ISO 9241-307
MPR-2, FCC Class B
EPEAT™ Gold rating, TCO (TCO Displays 5.0),
WEEE, RoHS (EU Directive 2002/95/EC)
VGA: 640x350, 640x480, 720x400
SVGA: 800x600, 832x624
XGA: 1024x768, 1152x864
WXGA: 1280x720, 1280x768,
1280x800, 1366x768
SXGA: 1280x1024
WXGA+: 1440 x 900, 1600x900
Standard presets: 25; user settings: 20
Tilt: 20° back, -5° forward; detachable stand
None
On screen display with digital user controls (8 languages)
Direct access (control buttons on front) for automatic image setup
None
Multiple input (two different PCs attach to two different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2)
Digital Visual Interface (DVI-D) for digital attach [white], HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, DVI-D at each end (for digital connector), 1.8 meter
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (75mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, Setup poster, Safety and Warranty Information, CD with
multilingual User's Guide and monitor installation fi les, analog signal cable, digital signal cable, 1.8m power cord

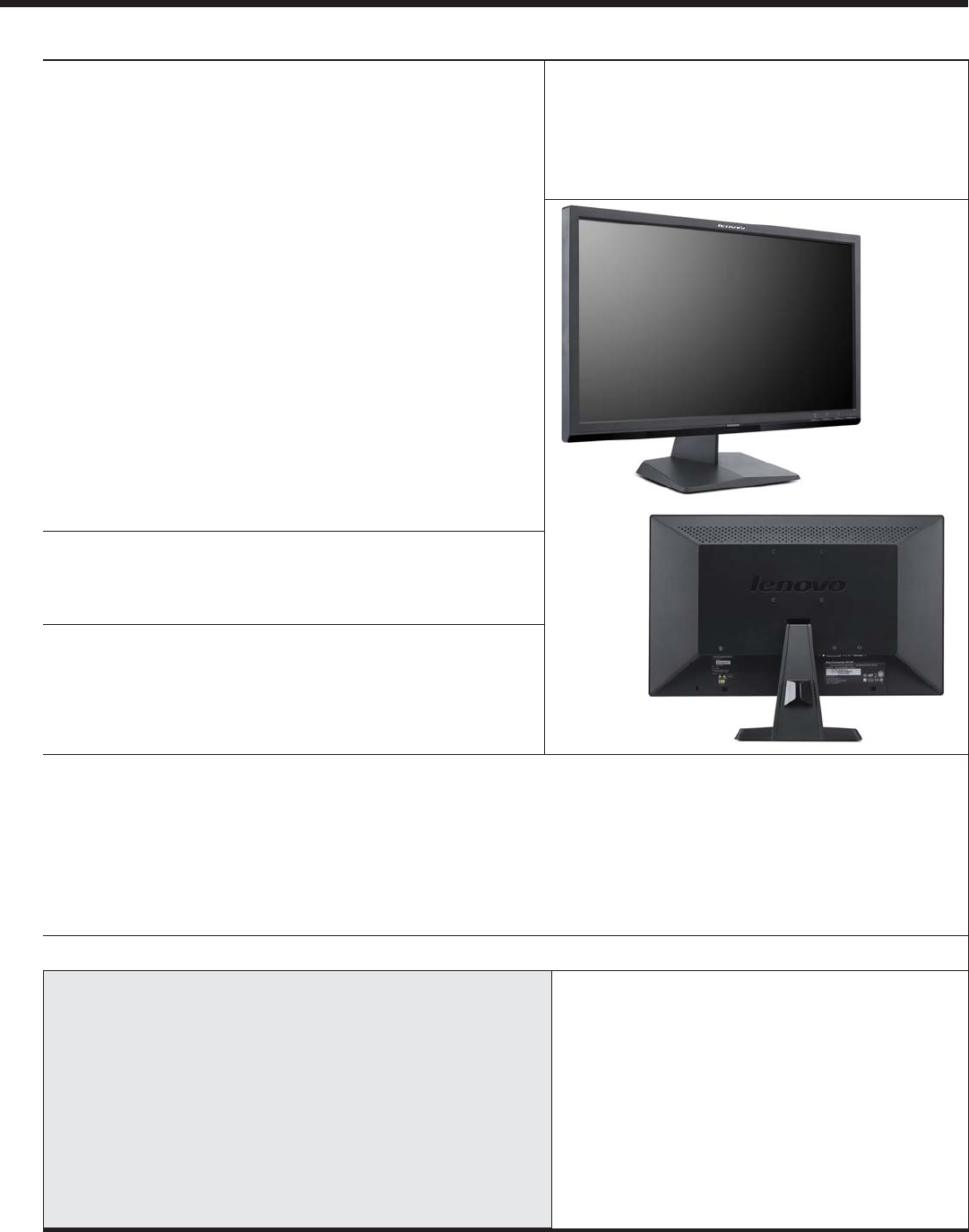

Lenovo
L2021 Wide
Monitor
Lenovo
L2021 Wide
Monitor
rear view
with cable
management
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Native resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® LS1922 Wide
© Lenovo
(LS1922) March 2012
See footnotes for important warranty information
US model announced February 28, 2012
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Security Cable Lock 57Y4303
Lenovo Easy Reach Monitor Stand 55Y9258
ThinkCentre Extend Arm 57Y4352
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision

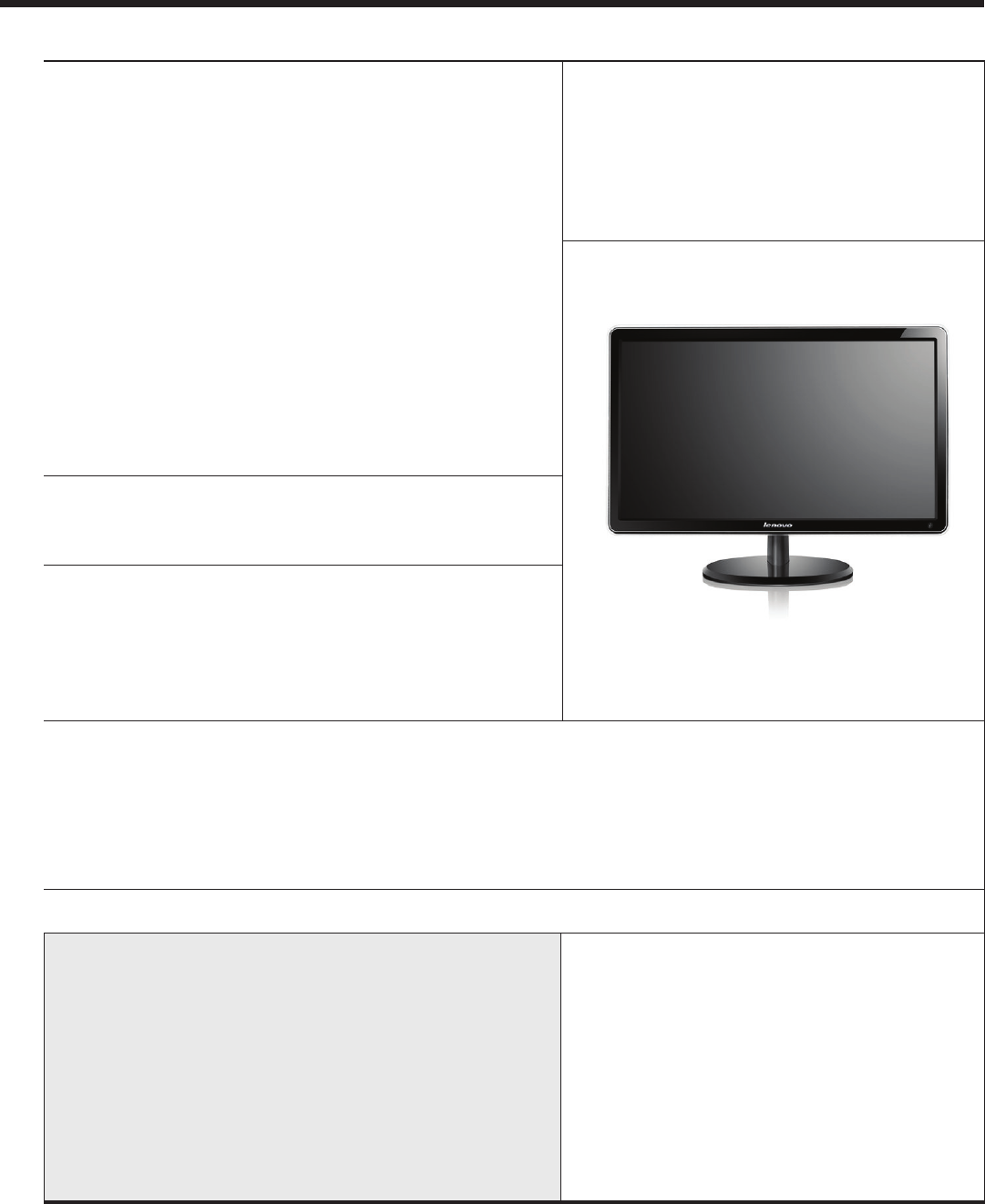

Lenovo LS1922 Wide Monitor
Features
• Widescreen 18.5-inch monitor
• Supports HD 1366x768 resolution
• Supports VESA mount (100mm)
• Mercury free panel and arsenic free glass
• Kensington® lock slot ready for enhanced security
• Microsoft® Windows® 7 certifi ed
LS1922 Wide Flat Panel Monitor
Business black
2580-AF1
TFT
-LCD, twisted nematic (TN), White LED backlight
18.5" (470mm) diagonal
16.1" x 9.1" / 409.8mm x 230.4mm
1366x768
16:9
.300mm
85 dpi
250 nits or cd/m2 (typical)
1000:1 (typical)
5ms (typical)
72%
170° (+/- 85°) horizontal, 160° (+/- 80°) vertical
Tilt adjustable stand
Sides:
0.61" (15.6mm)
; top: 0.67" (17.1mm);
bottom: 1.19" (30.1mm)
14.54" H x 17.38" W x 8.25" D;
370.1mm H x 442.2mm W x 210.0mm D
18 watts typical, 24 watts maximum,
<1 watts standby/suspend, universal,
integrated (no external brick-like power supply)
6.55 lb; 2.97 kg
3 year (includes backlight)
February 2012
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY STAR® 5.1
ISO 9241-307
FCC Class B
TCO (TCO Displays 5.2), WEEE, RoHS
VGA: 640x350, 640x480, 720x400
SVGA: 800x600
XGA: 1024x768
WXGA: 1280x720, 1280x768, 1360x768,
1366x768
Standard presets: 16 (VGA);
user settings: 16
Tilt: 20° backward, -5° forward
None
On screen display with digital user controls (8 languages)
Direct access (control buttons on front) for automatic image setup and adjustment for brightness
None
VGA
15-pin D-shell,
analog,
blue
detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, Setup poster with Safety and Warranty Information, CD with multilingual User's Guide and
monitor installation fi les, 1.8 meter analog signal cable, 1.8 meter black power cord
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Native resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Dynamic contrast ratio
Pixel response time
Color gamut
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® LS2221 Wide
© Lenovo
(LS2221) August 2011
See footnotes for important warranty information
US model announced August 2, 2011
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4

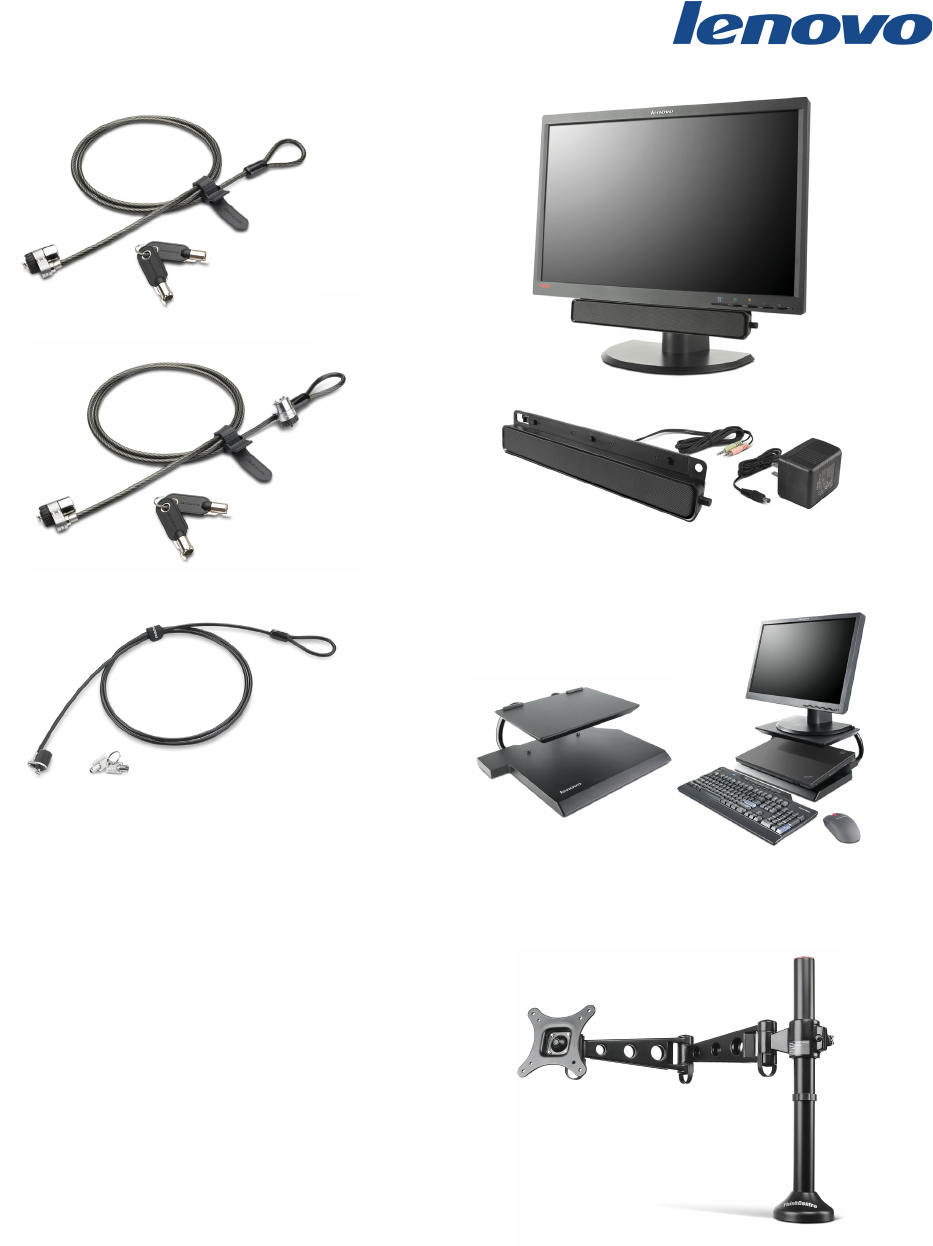

Accessories
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Easy Reach Monitor Stand 55Y9258
ThinkCentre Extend Arm 57Y4352
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision
Lenovo LS2221 Wide Monitor
Features
• Widescreen 21.5-inch monitor
• Supports Full HD 1920x1080 resolution
• Ergonomic stand tilts
• Includes dual input connection for attachment to two
systems concurrently (analog and digital)
• Mercury free panel and arsenic free glass
• Microsoft® Windows® 7 certifi ed
LS2221 Wide Flat Panel Monitor
High gloss black
5453-LS1
TFT-LCD, twisted nematic (TN), White LED backlight
21.5" (546mm) diagonal
18.76" x 10.55" (476.6mm x 268.1mm)
1920x1080
16:9
.248mm
103 dpi
250 nits or cd/m2 (typical)
1000:1 (typical)
10000000:1
5ms (typical)
72%
170° (+/- 85°) horizontal, 160° (+/- 80°) vertical
Tilt adjustable stand
Sides: 0.925" (23.5mm)
15.38" H x 20.67" W x 7.08" D;
390.7mm H x 525.0mm W x 179.8mm D
18 watts typical, 30 watts maximum,
<1 watts standby/suspend, universal,
integrated (no external brick-like power supply)
8.69 lb; 3.95 kg
3 year (includes backlight)
August 2011
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY STAR® 5.1
ISO 9241-307
FCC Class B
TCO (TCO Displays 5.2), WEEE, RoHS
VGA: 640x350, 640x480, 720x400
SVGA: 800x600, 832x624
XGA: 1024x768, 1152x864
SXGA: 1280x1024
WXGA: 1280x800, 1280x768, 1366x768
WXGA+: 1440x900, 1600x900
WSXGA+: 1680x1050
Full HD: 1920x1080
Standard presets: 32 (VGA), 32 (DVI);
user settings: 20
Tilt: 20° backward, -5° forward
None
On screen display with digital user controls (8 languages)
Direct access (buttons on front) for automatic image setup, dual input and NOVO vision
Dual input (two different PCs attach to two different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2) Digital Visual Interface (DVI-D), digital, white, HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, DVI-D at each end, digital, 1.8 meter
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide and monitor
installation fi les, 1.8 meter analog signal cable, 1.8 meter digital signal cable, 1.8 meter black power cord
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Native resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Dynamic contrast ratio
Pixel response time
Color gamut
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
USB hub
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® LS2421p Wide
© Lenovo
(LS2421P) August 2011
See footnotes for important warranty information
US model announced August 2, 2011
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Easy Reach Monitor Stand 55Y9258
ThinkCentre Extend Arm 57Y4352
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision

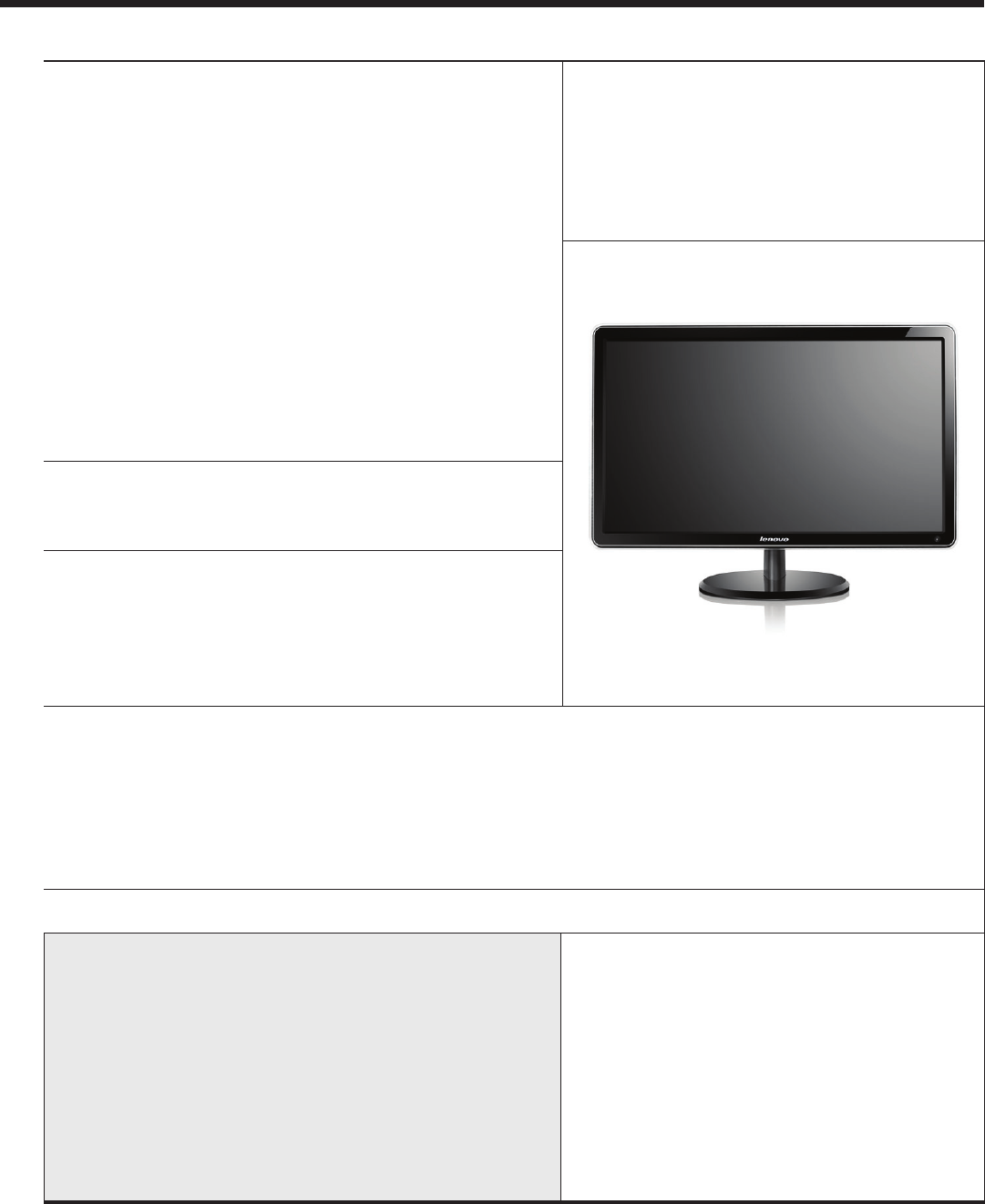

Lenovo LS2421p Wide Monitor
Features
• Widescreen 23.6-inch monitor
• Supports Full HD 1920x1080 resolution
• Ergonomic stand tilts
• Includes dual input connection for attachment to two
systems concurrently (analog and digital)
• Mercury free panel and arsenic free glass
• Microsoft® Windows® 7 certifi ed
LS2421p Wide Flat Panel Monitor
High gloss black
4015-LS1
TFT-LCD, twisted nematic (TN), White LED backlight
23.6" (598mm) diagonal
20.52" x 11.54" (521.3mm x 293.2mm)
1920x1080
16:9
.272mm
93 dpi
300 nits or cd/m2 (typical)
1000:1 (typical)
10000000:1
5ms (typical)
72%
170° (+/- 85°) horizontal, 160° (+/- 80°) vertical
Tilt adjustable stand
Sides: 0.968" (24.6mm)
13.78" H x 22.44" W x 7.47" D;
350.0mm H x 572.0mm W x 189.8mm D
30 watts typical, 35 watts maximum,
<1 watts standby/suspend, universal,
integrated (no external brick-like power supply)
9.79 lb; 4.44 kg
3 year (includes backlight)
August 2011
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY STAR® 5.1
ISO 9241-307
FCC Class B
TCO (TCO Displays 5.2), WEEE, RoHS
VGA: 640x350, 640x480, 720x400
SVGA: 800x600, 832x624
XGA: 1024x768, 1152x864
SXGA: 1280x1024
WXGA: 1280x800, 1280x768, 1366x768
WXGA+: 1440x900, 1600x900
WSXGA+: 1680x1050
Full HD: 1920x1080
Standard presets: 30 (VGA), 27 (HDMI);
user settings: 20
Tilt: 20° backward, -5° forward
None
On screen display with digital user controls (8 languages)
Direct access (buttons on front) for automatic image setup, dual input, brightness and NOVO vision
USB 2.0 Hub (1 port into PC, 4 ports for accessories)
Dual input (two different PCs attach to two different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2) HDMI (1.3), digital, black, HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, HDMI at each end, digital, 1.8 meter
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide and monitor
installation fi les, 1.8 meter analog signal cable, 1.8 meter digital signal cable, 1.8 meter black power cord
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Emission standards
Environmental
Preset resolutions
Protective Screen Cover
Viewing adjustments
Screen control
Input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® ThinkVision® LT1421 Wide Mobile Monitor
© Lenovo
(LT1421) November 2011
See footnotes for important warranty information
US model announced August 16, 2011
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision
ThinkVision LT1421 Wide Mobile Monitor
with ThinkPad Edge E420s
Features
• Widescreen 14-inch mobile monitor designed for ThinkPad
• Light and Slim
• Super low power (<5 watts)
• Supports 1366x768 resolution
• Ergonomic stand tilts, provides a 12° - 40° backward tilt
adjustment for comfortable viewing
• Detachable USB cable for power and signal
• Microsoft® Windows® 7 certifi ed
LT1421 Wide Mobile Monitor
Raven black
1452-DS6 (with Protective Screen Cover)
TFT
-LCD, twisted nematic (TN), White LED backlight
14.0" (355.6mm) diagonal
12.2" x 6.9" (310.8mm x 175.3mm)
1366x768
16:9
.227mm
112 dpi
200 nits or cd/m2 (typical)
400:1 (typical)
8ms (typical)
45%
90° (+/- 45°) horizontal, 50° (+/- 25°) vertical
Tilt adjustable stand
Sides: 0.476" (12.1mm)
8.58" H x 13.19" W x 0.37-0.85" D;
217.9mm H x 335mm W x 9.3-21.5mm D
4.2 watts typical, 5 watts maximum,
<0.1 watts standby/suspend, universal,
USB 2.0 cable (no external brick-like power supply)
monitor only: 1.91 lb; 0.87 kg;
with Protective Screen Cover: 2.31 lb; 1.05 kg
3 year (includes backlight)
September 2011
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY STAR®3 5.1
FCC Class B
WEEE, RoHS
Display mode and resolution auto setup
Polycarbonate Snap-On Cover protects the LCD
Screen while not in use
Tilt: 12° - 40° backward
Brightness (16 levels)
USB input
USB 2.0
detachable, USB Y-Type cable
, 1.8 meter
None
Security keyhole for attachment of optional
cable lock (Kensington® lock-compatible)

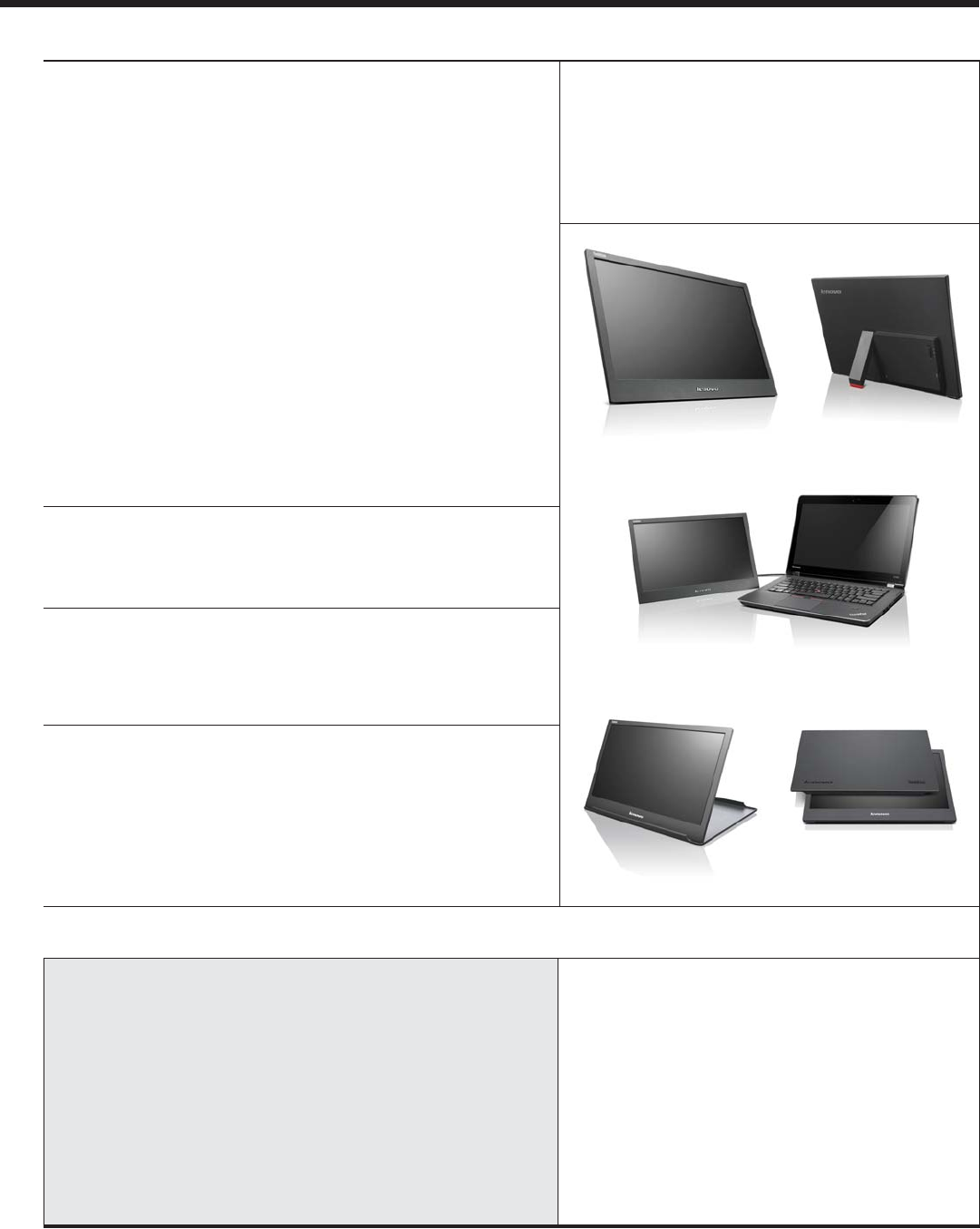

ThinkVision LT1421 Wide Mobile Monitor
Monitor, attached tile stand that cannot be removed, Setup poster, Safety and Warranty Information, CD with
multilingual User's Guide and monitor installation fi les, 1.8 meter USB Y-Type cable, Protective Screen Cover
ThinkVision LT1421 with Protective Screen Cover
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Maximum resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Anti-refl ective
Vertical frequency
Horizontal frequency
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® ThinkVision® L1711p
© Lenovo
(L1711P) October 2009
See footnotes for important warranty information
US model announced October 20, 2009
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9215)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
ThinkVision Soundbar 45K1263
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Easy Reach Monitor Stand 55Y9258
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision

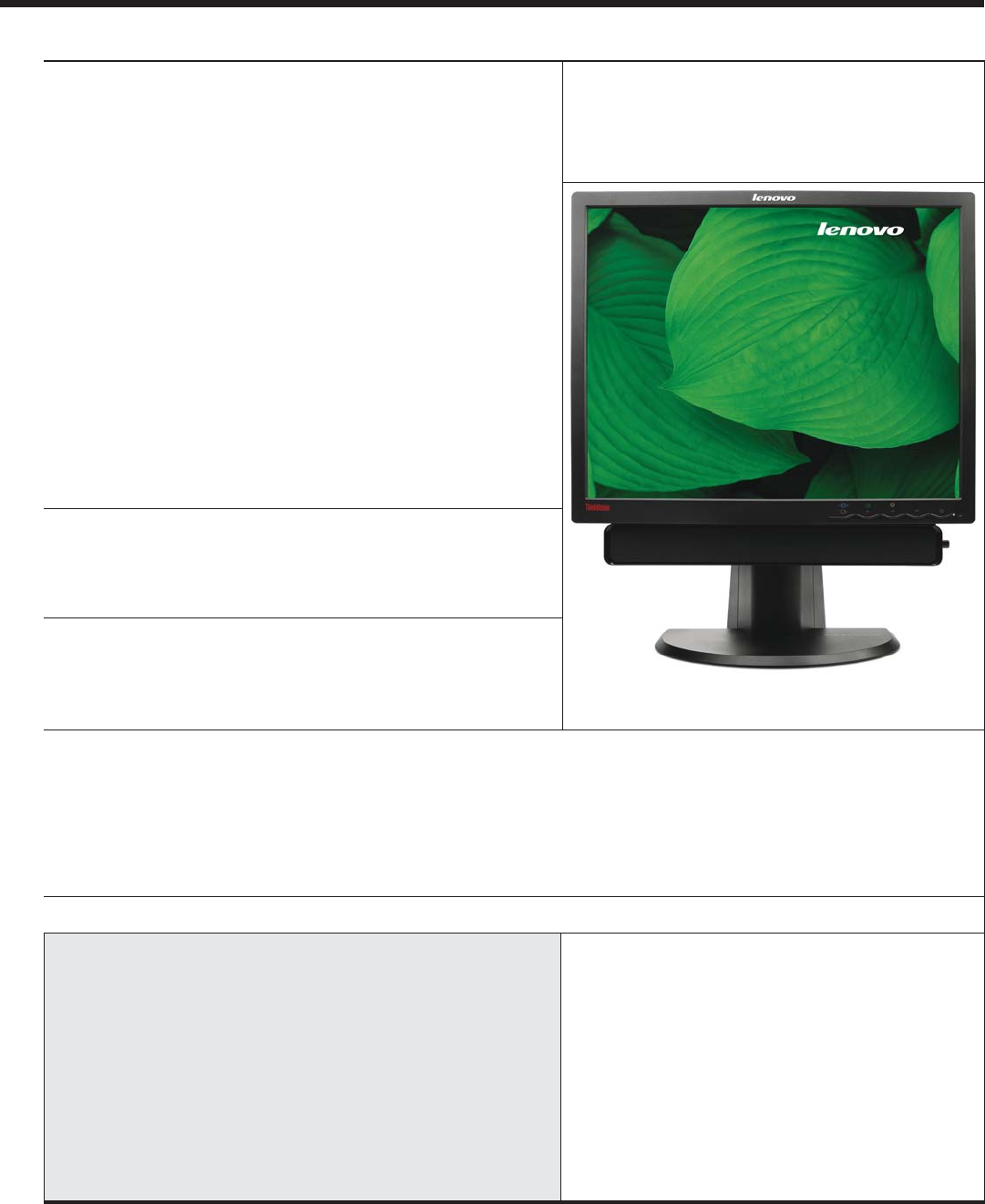

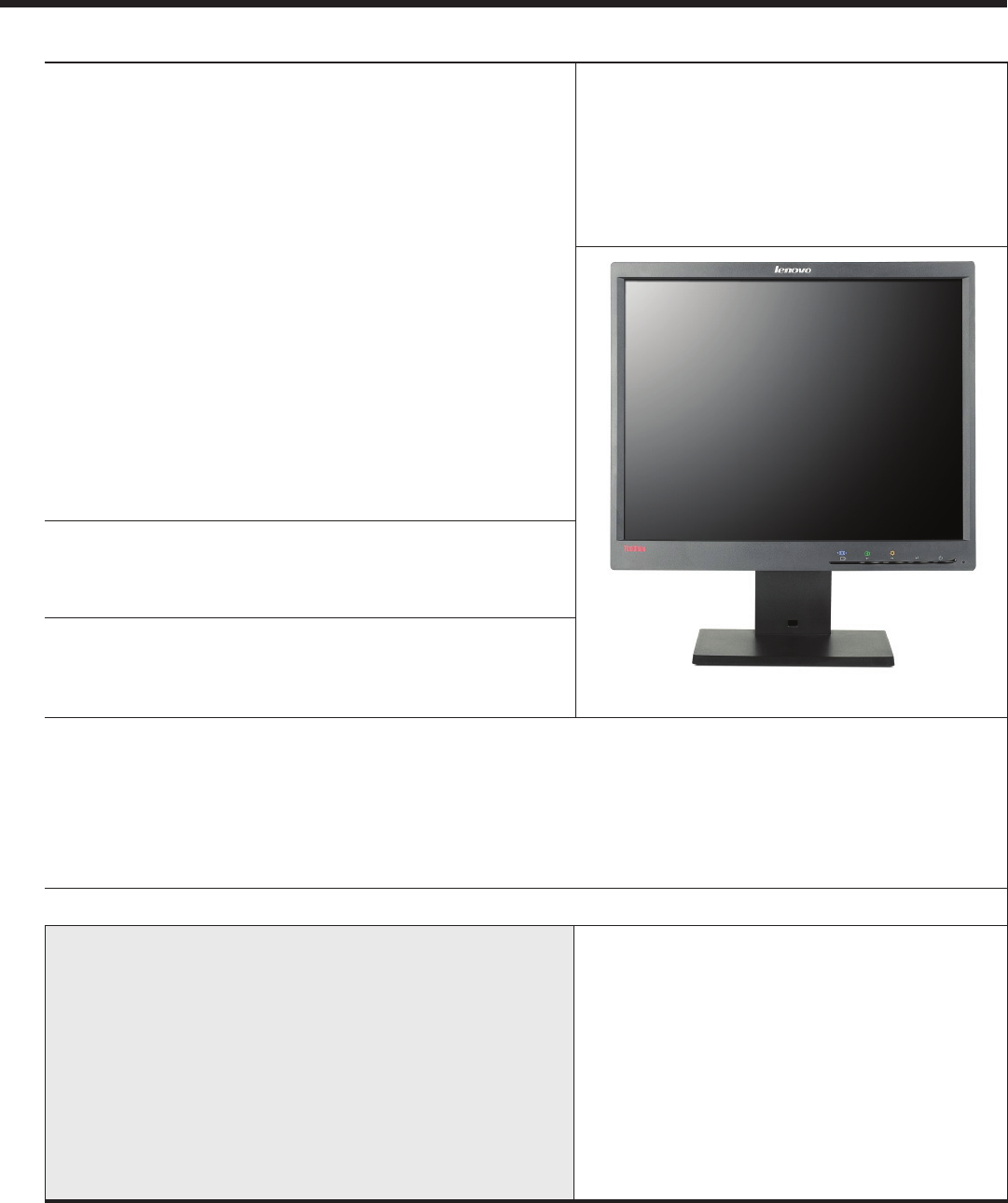

ThinkVision L1711p Monitor
Features
• Regular screen 17-inch monitor
• Supports SXGA 1280x1024 resolution
• Ergonomic stand tilts and provides a 4.3" (110mm)
range height adjustment for comfortable viewing
• Includes dual input connection for attachment to two
systems concurrently (analog and digital)
• Reduces mercury content by 50% and arsenic free glass
• Up to 70% recycled packaging materials
• Privacy Filter Slot
• Microsoft® Windows® 7 certifi ed
L1711p Flat Panel Monitor
Business black
5047-HB2
TFT-LCD, twisted nematic (TN), CCFL backlight
17.0" (432mm) diagonal
13.3" x 10.6" (337.9mm x 270.3mm)
1280x1024 at 60Hz
1280x1024 at 75Hz (165MHz max pixel rate)
5:4
0.264mm
96 dpi
250 nits or cd/m2 (typical)
1000:1 (typical)
5ms (typical)
72%
Anti-refl ective, anti-glare
50 to 75Hz
30 to 83kHz
160° (+/- 80°) horizontal, 160° (+/- 80°) vertical
Tilt height adjustable stand
Sides: 0.6" (15.3mm); top: 0.72" (18.4mm);
bottom: 1.11" (28.1mm)
16-20.33" H x 14.6" W x 6.1" D;
405.7-515.7mm H x 370mm W x 155.2mm D
18 watts typical, 21 watts maximum,
<1 watts standby/suspend, universal,
integrated (no external brick-like power supply)
9.3 lb; 4.21kg
3 year (includes backlight)
November 2009
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY STAR® 5.0
ISO 9241-307
MPR-2. MPR-3A, FCC Class B
TCO (TCO Displays 5.0), WEEE, RoHS,
EPEAT™ Gold rating
VGA: 640x350, 640x480, 720x400
SVGA: 800x600
XGA: 1024x768
SXGA: 1280x1024
Standard presets: 17;
user settings: 22
Tilt: 20° back, -3° forward; lift: 4.3" (110mm); detachable stand
None
On screen display with digital user controls (8 languages)
Direct access (buttons on front) for automatic image setup
Dual input (two different PCs attach to two different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2) Digital Visual Interface (DVI-D), digital, white, HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, DVI-D at each end, digital, 1.8 meter
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide and monitor
installation fi les, 1.8 meter analog signal cable, 1.8 meter digital signal cable, 1.8 meter black power cord

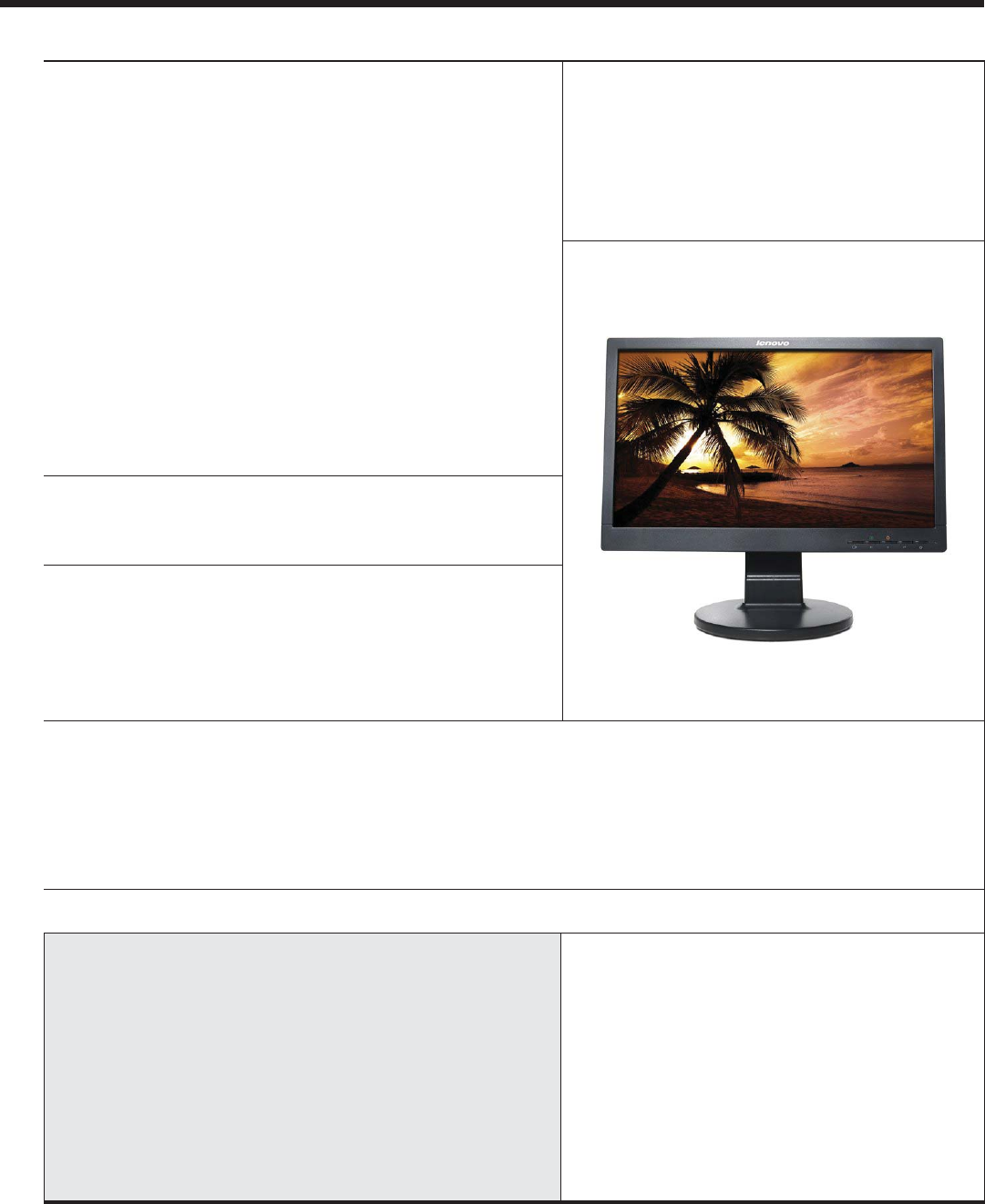

L197 Wide Flat Panel Monitor
Business black
4434-HE1
Tilt stand
LCD Active Matrix TFT (Thin Film Transistor)
19.0" / 481mm (diagonal)
16:10
.285mm
16.1" x 10.0" (horizontal x vertical)
408mm x 255mm (horizontal x vertical)
176° vertical, 176° horizontal
160° vertical, 170° horizontal
Digital or analog (two separate connectors)
Dual input (two different PCs attach to two different
connectors; one PC shows image; select via button)
No pivot
None
1440x900 at 60Hz
1440x900 at 75Hz (137MHz maximum pixel rate)
50 to 76Hz
30 to 81kHz
VGA: 640x480 60, 66, 72, 75Hz
640x350 70Hz
720x400 70Hz
SVGA: 800x600 56, 60, 72, 75Hz
832x624 75Hz
XGA: 1024x768 60, 70, 75Hz
1152x864 75Hz
SXGA: 1280x1024 60, 70, 75Hz
WXGA+: 1440x900 60, 75Hz
Standard presets: 20; user settings: 20
250 nits or cd/m2 (typical)
1000:1 (typical)
5ms (typical)
72%
On screen display with digital user controls (7 languages)
Direct access (buttons on front) for automatic image setup
Two connectors: (1) analog VGA
15-pin D-shell [blue],
(2) Digital Visual Interface (DVI-D) for digital (not analog) attach [white], HDCP-compliant
Two cables: (1)
detachable, VGA 15-pin D-shell at each end (for analog connector), 1.8 meter, matches color of monitor
(2) detachable digital, DVI-D at each end (for digital connector), 1.8 meter, matches color of monitor
Anti-refl ective, anti-glare
15.0"H x 17.3"W x 7.0"D / 381mm height x 440mm width x 179mm depth
9.15lb / 4.15kg
Tilt: 30° back, 4° forward / no lift, no swivel, detachable stand
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY STAR®3 5.0
ISO 13406 Part 21
ISO 13406-2 Class II pixel defect standard
MPR-2, MPR-3A, FCC Class B
TCO 03, WEEE, RoHS (EU Directive 2002/95/EC), EPEAT™ Gold rating
Monitor, attached stand, Setup Guide, Safety and Warranty Information, CD with multilingual User's Guide and
monitor installation fi les, analog signal cable, digital signal cable, 1.8m black power cord
90-264Vac (universal), integrated (no external brick-like power supply), 22 watts typical, <2 watts standby/suspend
3 year (includes backlight)
April 2008
Name
Case color
Type-model
Stand
Screen
Viewable image size (diag)
Aspect ratio
Pixel pitch (mm)
Max view area (inches)
Max view area (mm)
Viewing angle at 5:1 CR
Viewing angle at 10:1 CR
Video input
Dual input
Rotating screen
USB Hub
Optimum resolution
Maximum resolution
Vertical frequency
Horizontal frequency
Preset display modes
Presets / user settings
Brightness
Contrast ratio
Pixel response time
Color gamut
On screen display
Control features
Monitor connectors
Signal cables
Anti-refl ective
Dimensions
Weight
Viewing adjustments
Mounting features
Security
VESA-compliant2
Power management
Ergonomics
Pixel defect
Emission standards
Environmental
Ship group
Power supply
Limited warranty4
Available date
Flat Panel Monitors - US model
Lenovo® ThinkVision® L197 Wide
© Lenovo
(L197W) June 2011
See footnotes for important warranty information
US model announced April 15, 2008
Features
• Widescreen 19-inch fl at panel monitor
• EPEAT™ Gold rating
• View images in a 16:10 wide aspect ratio
• Resolution of 1440x900 provides crisp screen images
• Slim 14.3mm (0.56") side bezel
• High-bandwidth Digital Content Protection (HDCP)-compliant
• Includes dual input connection for attachment to two
systems concurrently (analog and digital)
• Complements the ThinkCentre® and ThinkPad® systems
• Microsoft® Windows® Vista™ Premium certifi ed
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Easy Reach Monitor Stand 55Y9258
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision

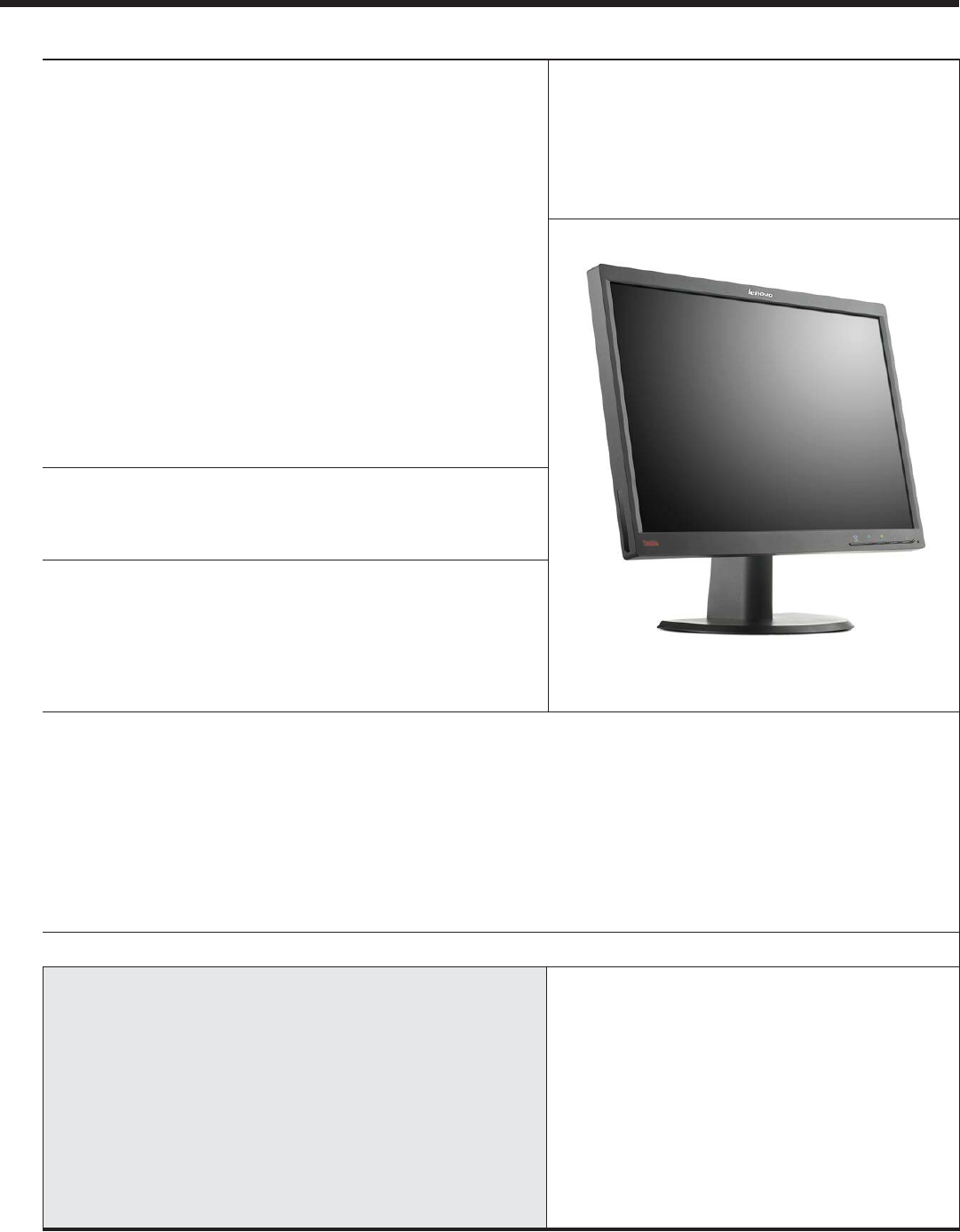

Lenovo ThinkVision L197 Wide
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Maximum resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Anti-refl ective
Vertical frequency
Horizontal frequency
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Pixel defect
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® ThinkVision® L1900p
© Lenovo
(L1900P) January 2009
See footnotes for important warranty information
US model announced November 11, 2008
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
ThinkVision Soundbar 45K1263
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Easy Reach Monitor Stand 55Y9258
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision
ThinkVision L1900p Monitor
with optional ThinkVision Soundbar
Features
• Regular screen 19-inch monitor
• Supports SXGA 1280x1024 resolution
• Ergonomic stand tilts, swivels, pivots and provides a 4.3"
(110mm) range height adjustment for comfortable viewing
• Detachable rear stand cable cover and clip to hide cables
• Microsoft® Windows® Vista® certifi ed
L1900p Flat Panel Monitor
Business black
4431-HE1
TFT-LCD, twisted nematic (TN), CCFL backlight
19.0" (483mm) diagonal
14.8" x 11.85" (376mm x 301mm)
1280x1024 at 60Hz
1280x1024 at 75Hz (135MHz max pixel rate)
5:4
.294mm
86 dpi
250 nits or cd/m2 (typical)
800:1 (typical)
5ms (typical)
72%
Anti-refl ective, anti-glare
56 to 76Hz
30 to 81kHz
160° (+/- 80°) horizontal, 160° (+/- 80°) vertical
Tilt, swivel, pivot, and height adjustable stand
Sides: 0.6" (15.3mm); top: 0.66" (16.8mm);
bottom: 1.05" (26.8mm)
14.9-19.2" H x 16.1" W x 7.4-9.5" D;
378.7-488.7mm H x 408mm W x 188-241.1mm D
17 watts typical, 24 watts maximum,
<1 watts standby/suspend, universal,
integrated (no external brick-like power supply)
12.5 lb; 5.7kg
3 year (includes backlight)
November 2008
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY STAR®3 5.0
ISO 13406 Part 21
ISO 13406-2 Class II pixel defect standard
MPR-2. MPR-3A, FCC Class B
TCO 03, WEEE, RoHS (EU Directive 2002/95/EC),
EPEAT™ Gold rating, GREENGUARD® certifi ed
VGA: 640x350, 640x480,
720x400
SVGA: 800x600
XGA: 1024x768
SXGA: 1280x1024
Standard presets: 21;
user settings: 17
Tilt: 30° back, 0° forward; lift: 4.3" (110mm); swivel: +/-45°; detachable stand
Screen pivots 90 degrees from landscape to portrait (requires image rotation support from graphics controller)
On screen display with digital user controls (8 languages)
Direct access (buttons on front) for automatic image setup
Multiple input (two different PCs attach to two different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2) Digital Visual Interface (DVI-D), digital, white, HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, DVI-D at each end, digital, 1.8 meter
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, cable cover, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide
and monitor installation fi les, 1.8 meter analog signal cable, 1.8 meter digital signal cable, 1.8 meter black power cord
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Maximum resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Anti-refl ective
Vertical frequency
Horizontal frequency
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® ThinkVision® L1951p Wide
© Lenovo
(L1951P) October 2009
See footnotes for important warranty information
US model announced October 20, 2009
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
ThinkVision Soundbar 45K1263
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Easy Reach Monitor Stand 55Y9258
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision

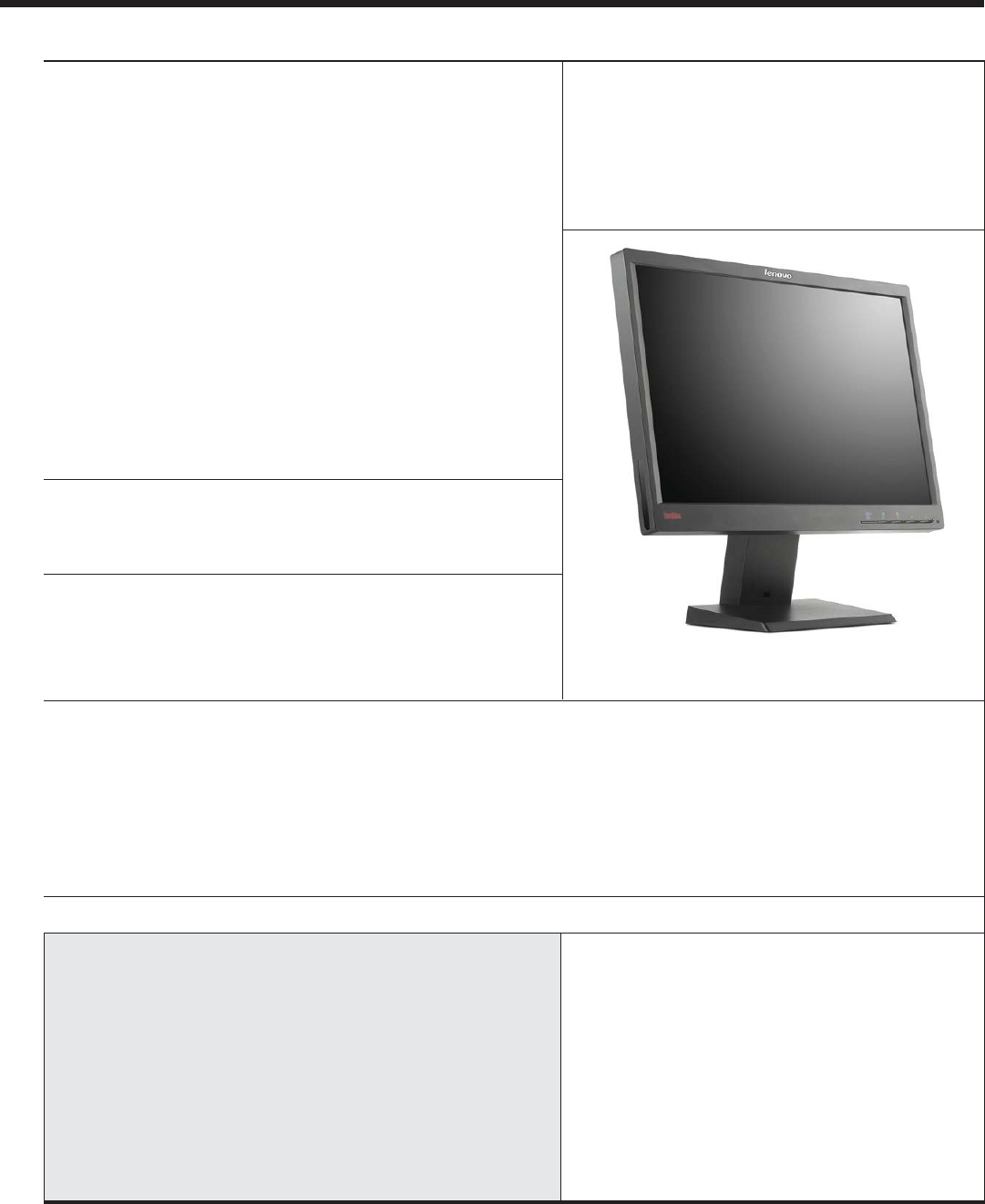

ThinkVision L1951p Wide Monitor
Features
• Widescreen 19-inch monitor
• Supports WXGA+ 1440x900 resolution
• Ergonomic stand tilts and provides a 3.1" (80mm)
range height adjustment for comfortable viewing
• Includes dual input connection for attachment to two
systems concurrently (analog and digital)
• Reduces mercury content by 50% and arsenic free glass
• Up to 70% recycled packaging materials
• Privacy Filter Slot
• Microsoft® Windows® 7 certifi ed
L1951p Wide Flat Panel Monitor
Business black
2448-HB6
TFT-LCD, twisted nematic (TN), CCFL backlight
19.0" (481mm) diagonal
16.07" x 10.05" (408.2mm x 255.2mm)
1440x900 at 60Hz
1440x900 at 75Hz (137MHz max pixel rate)
16:10
.285mm
89 dpi
250 nits or cd/m2 (typical)
1000:1 (typical)
5ms (typical)
72%
Anti-refl ective, anti-glare
50 to 76Hz
30 to 81kHz
160° (+/- 80°) horizontal, 160° (+/- 80°) vertical
Tilt and height adjustable stand
Sides: 0.61" (15.6mm); top: 0.67" (17.1mm);
bottom: 1.2" (30.5mm)
14.56-17.71" H x 17.36" W x 6.11" D;
369.9-449.9mm H x 440.9mm W x 155.2mm D
19 watts typical, 23 watts maximum,
<1 watts standby/suspend, universal,
integrated (no external brick-like power supply)
9.37 lb; 4.25kg
3 year (includes backlight)
October 2009
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY STAR® 5.0
ISO 9241-307
MPR-2. MPR-3A, FCC Class B
TCO (TCO Displays 5.0), WEEE, RoHS,
EPEAT™ Gold rating
VGA: 640x350, 640x480, 720x400
SVGA: 800x600, 832x624
XGA: 1024x768, 1152x864
SXGA: 1280x1024
WXGA 1280x720, 1360x768
WXGA+ 1440x900
Standard presets: 27;
user settings: 20
Tilt: 20° back, -3° forward; lift: 3.1" (80mm); detachable stand
None
On screen display with digital user controls (8 languages)
Direct access (buttons on front) for automatic image setup
Dual input (two different PCs attach to two different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2) Digital Visual Interface (DVI-D), digital, white, HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, DVI-D at each end, digital, 1.8 meter
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide and monitor
installation fi les, 1.8 meter analog signal cable, 1.8 meter digital signal cable, 1.8 meter black power cord
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Max pixel rate
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Anti-refl ective
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® ThinkVision® LT1952p Wide
© Lenovo
(LT1952P) September 2011
See footnotes for important warranty information
US model announced September 13, 2011
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories

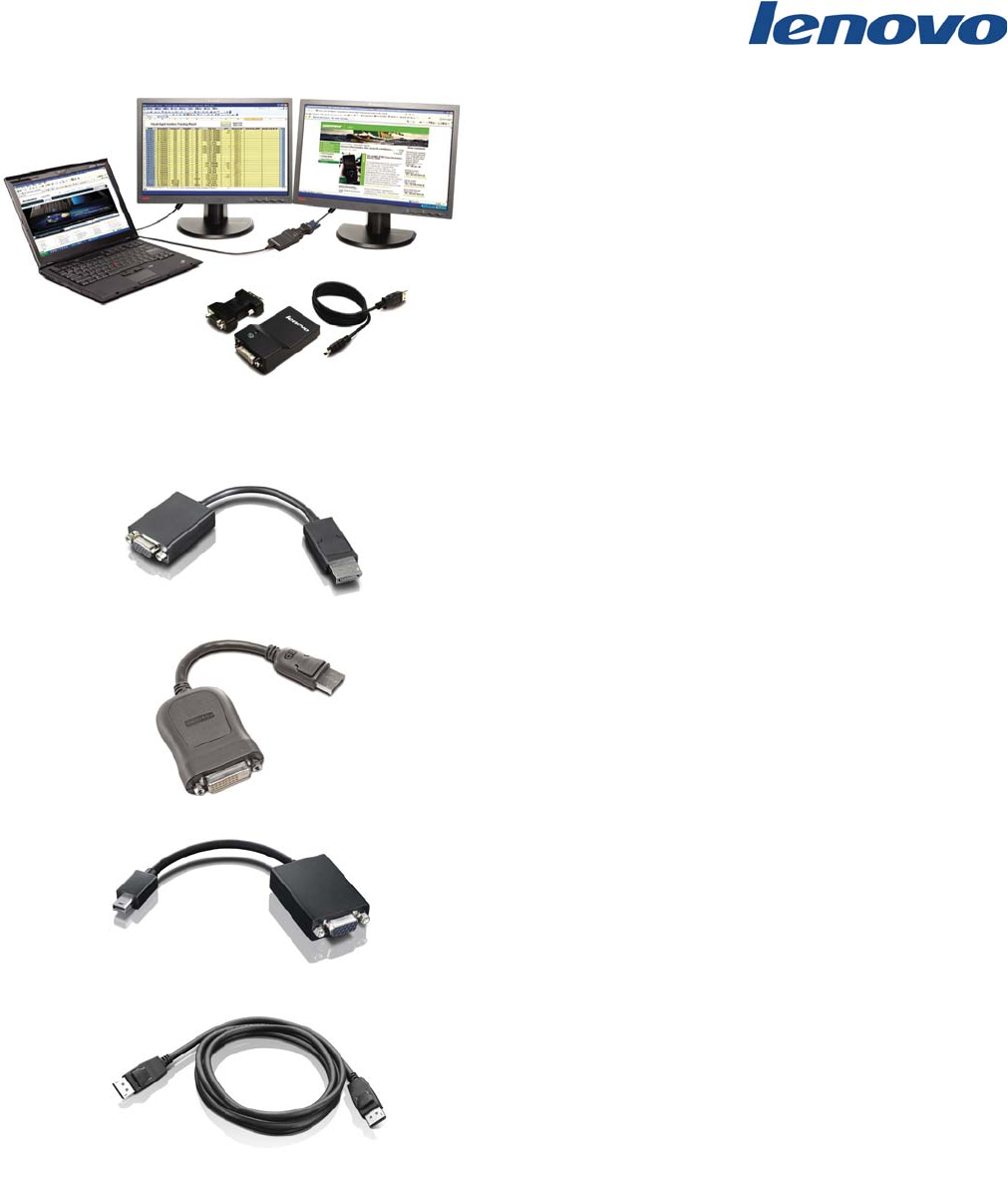

DisplayPort to DisplayPort Monitor Cable 0A36537
ThinkVision Soundbar 45K1263
Kensington MicroSaver Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Security Cable Lock 57Y4303
ThinkCentre Extend Arm 57Y4352
Lenovo Easy Reach Monitor Stand 55Y9258
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision

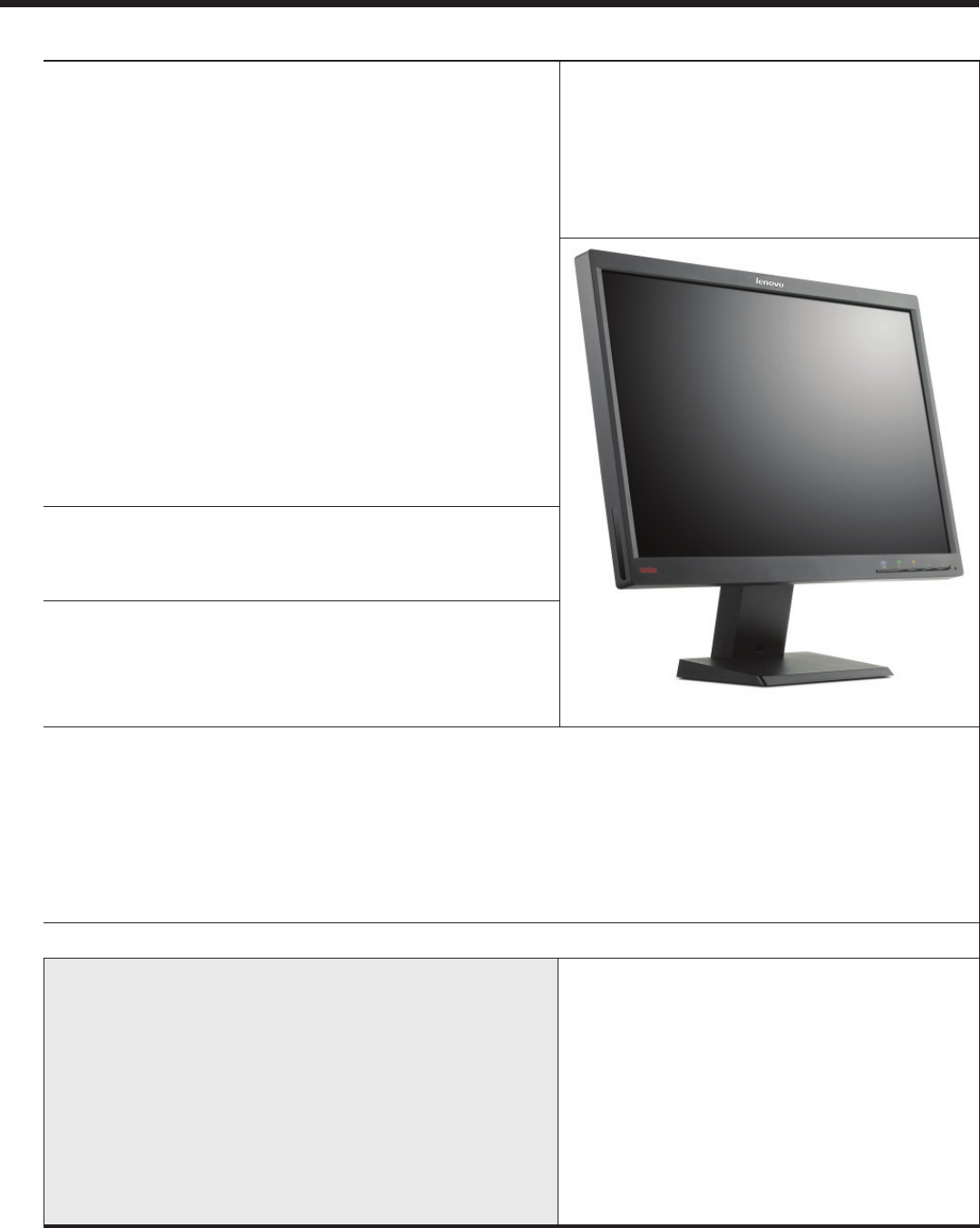

ThinkVision LT1952p Wide Monitor
Features
• Widescreen 19-inch monitor
• Supports 1440x900 resolution
• Ergonomic stand tilts, swivel, and provides a 4.3" (110mm)
range height adjustment for comfortable viewing
• Cable Management for better user experience
• Mercury and arsenic free glass
• Recycled content in plastic material
• Privacy Filter Slot
• Microsoft® Windows® 7 certifi ed
LT1952p Wide Flat Panel Monitor
Business black
2448-MB6
TFT-LCD, twisted nematic (TN), White LED backlight
19" (482.6mm) diagonal
16.07" x 10.05" (408.2mm x 255.2mm)
1440x900
137MHz
16:10
0.2835mm
89.4 dpi
250 nits or cd/m2 (typical)
1000:1 (typical)
5ms (typical)
72%
Anti-refl ective, anti-glare
170° horizontal, 160° vertical
Tilt, swivel, and height adjustable stand
Sides: 0.61" (15.6mm); top: 0.67" (17.1mm);
bottom: 1.2" (30.5mm)
15.66-19.99" H x 17.36" W x 6.74" D;
397.7-507.7mm H x 440.9mm W x 171.3mm D
13 watts typical, 17 watts maximum,
<0.5 watts standby/suspend, universal,
integrated (no external brick-like power supply)
9.49 lb; 4.30kg
3 year (includes backlight)
September 2011
VESA DDC2B/CI
ENERGY STAR® 5.1
ISO 9241-307
MPR-2, FCC Class B
TCO Displays 5.2, TCO Certifi ed Edge 1.1,
WEEE, RoHS, EPEAT™ Gold rating, ULE Gold
VGA: 640x350, 640x480, 720x400
SVGA: 800x600
XGA: 1024x768, 1152x864
SXGA: 1280x1024
WXGA: 1280x768, 1366x768
WXGA+: 1440x900
Standard presets: 22;
user settings: 22
Tilt: 20° back, -3° forward; lift: 4.3" (110mm); swivel: +/-180°; detachable stand
None
On screen display with digital user controls (8 languages)
Direct access (buttons on front) for automatic image setup, input switch, and brightness
Triple input (three different PCs attach to three different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2) DisplayPort, digital, black, HDCP-compliant
(3) Digital Visual Interface (DVI-D), digital, white, HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, DVI-D at each end, digital, 1.8 meter
Note: DisplayPort cable is not included; use optional DisplayPort to DisplayPort Monitor Cable (0A36537)
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide and monitor
installation fi les, 1.8 meter analog signal cable, 1.8 meter DVI-D cable, 1.8 meter black power cord
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Maximum resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Anti-refl ective
Vertical frequency
Horizontal frequency
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
USB hub
Camera
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® ThinkVision® L2250p Wide
© Lenovo
(L2250P) October 2009
See footnotes for important warranty information
US model announced October 20, 2009
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
ThinkVision Soundbar 45K1263
Kensington MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Easy Reach Monitor Stand 55Y9258
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision
ThinkVision L2250p Wide Monitor
Features
• Widescreen 22-inch monitor
• Supports WSXGA+ 1680x1050 resolution
• Ergonomic stand tilts and provides a 3.1" (80mm)
range height adjustment for comfortable viewing
• Includes dual input connection for attachment to two
systems concurrently (analog and digital)
• Reduces mercury content by 50% and arsenic free glass
• Up to 65% recycled packaging materials
• Privacy Filter Slot
• Microsoft® Windows® 7 certifi ed
L2250p Wide Flat Panel Monitor
Business black
2572-HB6
TFT-LCD, twisted nematic (TN), CCFL backlight
22.0" (559mm) diagonal
18.7" x 11.7" (473.8mm x 296.1mm)
1680x1050 at 60Hz
1680x1050 at 75Hz (205MHz max pixel rate)
16:10
.282mm
90 dpi
250 nits or cd/m2 (typical)
1000:1 (typical)
5ms (typical)
72%
Anti-refl ective, anti-glare
50 to 75Hz
30 to 83kHz
170° (+/- 85°) horizontal, 160° (+/- 80°) vertical
Tilt and height adjustable stand
Sides: 0.60" (15.3mm); top: 0.79" (20.0mm);
bottom: 1.10" (28.0mm)
15.68-18.83" H x 19.92" W x 6.11" D;
398.3-478.3mm H x 506mm W x 155.2mm D
21 watts typical, 28 watts maximum,
<1 watts standby/suspend, universal,
integrated (no external brick-like power supply)
11.49 lb; 5.21kg
3 year (includes backlight)
October 2009
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY STAR® 5.0
ISO 9241-307
MPR-2. MPR-3A, FCC Class B
TCO (TCO Displays 5.0), WEEE, RoHS,
EPEAT™ Gold rating
VGA: 640x350, 640x480, 720x400
SVGA: 800x600
XGA: 1024x768,1152x864
SXGA: 1280x1024
WXGA+: 1440x900
UXGA: 1600x1000
WSXGA+: 1680x1050
Standard presets: 24; user settings: 20
Tilt: 20° back, -3° forward; lift: 3.1" (80mm); detachable stand
None
On screen display with digital user controls (8 languages)
Direct access (buttons on front) for automatic image setup
None
None
Dual input (two different PCs attach to two different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2) Digital Visual Interface (DVI-D), digital, white, HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, DVI-D at each end, digital,
1.8
meter
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide and monitor
installation fi les, 1.8 meter analog signal cable, 1.8 meter digital signal cable, 1.8 meter black power cord
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Max pixel rate
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Anti-refl ective
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
USB hub
Camera
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® ThinkVision® LT2252p Wide
© Lenovo
(LT2252P) September 2011
See footnotes for important warranty information
US model announced September 13, 2011
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
DisplayPort to DisplayPort Monitor Cable 0A36537
ThinkVision Soundbar 45K1263
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Security Cable Lock 57Y4303
ThinkCentre Extend Arm 57Y4352
Lenovo Easy Reach Monitor Stand 55Y9258
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision
ThinkVision LT2252p Wide Monitor
Features
• Widescreen 22-inch monitor
• Supports 1680x1050 resolution
• Ergonomic stand tilts, swivels, pivots and provides a 4.3"
(110mm) range height adjustment for comfortable viewing
• Cable Management for better user experience
• Mercury and arsenic free glass
• Recycled content in plastic material
• Privacy Filter Slot
• Microsoft® Windows® 7 certifi ed
LT2252p Wide Flat Panel Monitor
Business black
2572-MB6
TFT-LCD, twisted nematic (TN), White LED backlight
22" (559mm) diagonal
18.7" x 11.7" (473.8mm x 296.1mm)
1680x1050
205MHz
16:10
0.282mm
90 dpi
250 nits or cd/m2 (typical)
1000:1 (typical)
5ms (typical)
72%
Anti-refl ective, anti-glare
170° horizontal, 160° vertical
Tilt, swivel, pivot, and height adjustable stand
Sides: 0.60" (15.3mm); top: 0.79" (20.0mm);
bottom: 1.10" (28.0mm)
14.46-18.79" H x 19.92" W x 9.50" D;
367.3-477.3mm H x 506mm W x 241.2mm D
20 watts typical, 26 watts maximum,
<0.5 watts standby/suspend, universal,
integrated (no external brick-like power supply)
12.97lb; 5.89kg
3 year (includes backlight)
September 2011
VESA DDC2B/CI
ENERGY STAR®3 5.1
ISO 9241-307
MPR-2, FCC Class B
TCO Displays 5.2, TCO Certifi ed Edge 1.1,
WEEE, RoHS, EPEAT™ Gold rating, ULE Gold
VGA: 640x350, 640x480, 720x400
SVGA: 800x600
XGA: 1024x768, 1152x864
SXGA: 1280x1024
WXGA: 1280x768, 1280x800, 1366x768
WXGA+: 1440x900
1600x900
WSXGA+: 1680x1050
Standard presets: VGA/DisplayPort: 26; DVI-D: 25;
user settings: 25
Tilt: 30° back, 0° forward; lift: 4.3" (110mm); swivel: +/-45°; detachable stand
Screen pivots 90 degrees from landscape to portrait (requires image rotation support from graphics controller)
On screen display with digital user controls (8 languages)
Direct access (buttons on front) for automatic image setup, input switch, and brightness
None
None
Triple input (three different PCs attach to three different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2) DisplayPort, digital, black, HDCP-compliant
(3) Digital Visual Interface (DVI-D) for digital attach [white], HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, DVI-D at each end, digital, 1.8 meter
Note: DisplayPort cable is not included; use optional DisplayPort to DisplayPort Monitor Cable (0A36537)
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, cable cover, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide
and monitor installation fi les, 1.8 meter analog signal cable, 1.8 meter DVI-D cable,1.8 meter black power cord
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Maximum resolution
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Anti-refl ective
Vertical frequency
Horizontal frequency
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
USB hub
Camera
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® ThinkVision® L2251x Wide
© Lenovo
(L2251X) May 2011
See footnotes for important warranty information
US model announced October 20, 2009
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
ThinkVision Soundbar 45K1263
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Easy Reach Monitor Stand 55Y9258
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision
ThinkVision L2251x Wide Monitor
Features
• Widescreen 22-inch monitor with white LED backlight
• Ergonomic stand tilts, swivels, pivots and provides a 4.3"
(110mm) range height adjustment for comfortable viewing
• Detachable rear stand cable cover and clip to hide cables
• Integrated camera (0.3 megapixel) and microphone
• Integrated ambient light sensor and a proximity sensor,
save more energy and make viewing more comfortable
• Low halogen, mercury free, and arsenic free glass,
92% recycled packaging materials
• Privacy Filter Slot
• Microsoft® Windows® 7 certifi ed
L2251x Wide Flat Panel Monitor
Business black
2578-HB6
TFT-LCD, twisted nematic (TN), white LED backlight
22.0" (559mm) diagonal
18.7" x 11.7" / 473.8mm x 296.1mm
1680x1050 at 60Hz
1680x1050 at 75Hz (205MHz max pixel rate)
16:10
.282mm
90 dpi
250 nits or cd/m2 (typical)
1000:1 (typical)
5ms (typical)
68%
Anti-refl ective, anti-glare
50 to 75Hz
30 to 83kHz
170° (+/- 85°) horizontal, 160° (+/- 80°) vertical
Tilt, swivel, pivot, and height adjustable stand
Sides: 0.60" (15.3mm); top: 0.79" (20.0mm);
bottom: 1.10" (28.0mm)
14.97-19.3" H x 19.92" W x 9.50" D;
380.3-490.3mm H x 506mm W x 241.2mm D
21 watts typical, 28 watts maximum,
<1 watts standby/suspend, universal,
integrated (no external brick-like power supply)
12.39 lb; 5.63kg
3 year (includes backlight)
November 2009
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY STAR®3 5.0
ISO 9241-307
MPR-2. MPR-3A, FCC Class B
TCO (TCO Certifi ed Edge), WEEE, RoHS,
EPEAT™ Gold rating
VGA: 640x350, 640x480, 720x400
SVGA: 800x600
XGA: 1024x768,1152x864
SXGA: 1280x1024
WXGA+: 1440x900
UXGA: 1600x1000
WSXGA+: 1680x1050
Standard presets: 24; user settings: 20
Tilt: 30° back, 0° forward; lift: 4.3" (110mm); swivel: +/-45°; detachable stand
Screen pivots 90 degrees from landscape to portrait (requires image rotation support from graphics controller)
On screen display with digital user controls (8 languages)
Direct access (buttons on front) for automatic image setup
USB 2.0 Hub (1 port into PC, 3 ports for accessories)
Integrated camera (0.3 megapixel) and microphone
Dual input (two different PCs attach to two different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2) DisplayPort, digital, black, HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, DisplayPort at each end, digital, 1.8 meter
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, cable cover, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide
and monitor installation fi les, 1.8 meter analog signal cable, 1.8 meter DisplayPort cable, 1.8 meter USB cable,
1.8 meter black power cord
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Dual screen function
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Anti-refl ective
Vertical frequency
Horizontal frequency
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Dual image resolution
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
USB hub
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® ThinkVision® L2321x Wide
© Lenovo
(L2321X) June 2010
See footnotes for important warranty information
US model announced June 10, 2010
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
ThinkVision Soundbar 45K1263
Kensington® MicroSaver® Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision
ThinkVision L2321x Wide Monitor
Features
• Widescreen 23-inch monitor
• 1080p full HD support, HDCP-compliant
• Function as two monitors, hardware based solution provies 4
patterns of screen split (2:1, 1:1, 1:2, PIP modes).
• Ergonomic stand tilts, swivels, pivots and provides a 4.3"
(110mm) range height adjustment for comfortable viewing
• Compliance with ENERGY STAR 5.0
• Arsenic free glass
• Microsoft® Windows® 7 certifi ed
L2321x Wide Flat Panel Monitor
Business black
4014-HB6
TFT-LCD, twisted nematic (TN), CCFL backlight
23.0" (584mm) diagonal
20.04" x 11.28" / 509.2mm x 286.4mm
1920x1080
Function as two monitors (need both VGA and
DisplayPort connected), hardware based solution
provies 4 patterns of screen split (2:1, 1:1, 1:2, PIP)
16:9
.265mm
96 dpi
250 nits or cd/m2 (typical)
1000:1 (typical)
5ms (typical)
72%
Anti-refl ective, anti-glare
50 to 75Hz
30 to 83kHz
170° (+/- 85°) horizontal, 160° (+/- 80°) vertical
Tilt, swivel, pivot, and height adjustable stand
Sides: 0.69" (17.6mm); top: 0.72" (18.2mm);
bottom: 0.79" (20.1mm)
14.72-19.05" H x 21.49" W x 9.49" D;
373.9-483.9mm H x 545.9mm W x 241.1mm D
24 watts typical, 28 watts maximum,
<1 watts standby/suspend, universal,
integrated (no external brick-like power supply)
14.75 lb; 6.69kg
3 year (includes backlight)
July 2010
VESA DDC2B/CI, VESA DPMS-compliant
ENERGY ST
AR®3 5.0
ISO 9241-307
MPR-2, FCC Class B
TCO (TCO Certifi ed Edge), WEEE, RoHS,
EPEAT™ Gold rating
NTSC, PAL, 640x350, 640x480, 800x600,
832x624, 960x1080, 1024x768, 1152x864,
1280x1024, 1280x1080, 1366x768
1440x900, 1680x1050, 1920x1080
(2:1): 1280x1080 + 640x1080
(1:2): 640x1080 + 1280x1080
(1:1): 960x1080 + 960x1080
(PIP): 640x480 in 1920x1080
Presets: 26(VGA), 25(DisplayPort); user settings: 20
Tilt: 30° back, 0° forward; lift: 4.3" (110mm); swivel: +/-45°; detachable stand
Screen pivots 90 degrees from landscape to portrait (requires image rotation support from graphics controller,
do not support image rotation under dual image modes)
On screen display with digital user controls (8 languages)
Direct access (buttons on front) for automatic image setup and image select (Dual image [2:1, 1:1, 1:2, PIP modes],
Swap, Single VGA, and Single DisplayPort)
USB 2.0 Hub (1 port into PC, 4 ports for accessories)
Dual input (two different PCs attach to two different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2) DisplayPort, digital, black, HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, DisplayPort at each end, digital, 1.8 meter
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide and monitor
installation fi les, analog signal cable, DisplayPort cable, 1.8 meter USB cable, 1.8 meter black power cord
Name
Case color
Type-model
Panel
Viewable image size
Max view area (W x H)
Optimum resolution
Max pixel rate
Aspect ratio
Pixel pitch (mm)
Dot/Pixel per Inch
Brightness
Contrast ratio
Pixel response time
Color gamut
Anti-refl ective
Viewing angle at 10:1 CR
Stand
Bezel width
Dimensions (HxWxD)
Power supply
Weight
Limited warranty4
Available date
VESA-compliant2
Power management
Ergonomics
Emission standards
Environmental
Preset resolutions
Presets / user settings
Viewing adjustments
Rotating screen
On screen display
Control features
USB hub
Multiple input
Monitor connectors
Signal cables
Mounting features
Security
Ship group
Lenovo® ThinkVision® LT2452p Wide
© Lenovo
(LT2452P) September 2011
See footnotes for important warranty information
US model announced September 13, 2011
Personal Systems Reference (PSREF)
Limited Warranty
➫ 3 year limited warranty4
➫ International Warranty Service5
➫ Rapid Replacement Service at 1-800-426-7378
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims6
➫ Service upgrade options:7
• 3 year, on site exchange, Mon-Fri 9-5 with next day response
(ThinkPlus™ part number 41C9209)
• 3 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9212)
• 4 year, on site exchange, Mon-Fri 9-5 with next day response (41C9233)
• 4 year, on site exchange, 7 day x 24 hr with 4 hour response (41C9216)
• 4 year, mail exchange (51J0589)
• 5 year, mail exchange (51J0590)
➫ 24x78 day toll-free support for warranty issues during the warranty period4
Accessories
DisplayPort to DisplayPort Monitor Cable 0A36537
ThinkVision Soundbar 45K1263
Kensington MicroSaver Cable Lock 73P2582
Kensington Twin Head Cable Lock 45K1620
Lenovo Security Cable Lock 57Y4303
ThinkCentre Extend Arm 57Y4352
Lenovo Easy Reach Monitor Stand 55Y9258
See details at www.lenovo.com/support/monitoraccessories
See all monitors at www.lenovo.com/thinkvision
ThinkVision LT2452p Wide Monitor
Features
• Widescreen 24-inch monitor
• Supports 1920x1200 resolution
• High Defi nition (HD) ready; supports 1080p video
• Ergonomic stand tilts, swivels, pivots and provides a 4.3"
(110mm) range height adjustment for comfortable viewing
• Cable Management for better user experience
• Carrying handle
• Recycled content in plastic material
• Microsoft® Windows® 7 certifi ed
LT2452p Wide Flat Panel Monitor
Business black
4420-MB2
TFT-LCD, e-IPS, White LED backlight
24" (610mm) diagonal
20.4" x 12.8" (518.4mm x 324.0mm)
1920x1200
202.5MHz
16:10
0.270mm
94 dpi
300 nits or cd/m2 (typical)
1000:1 (typical)
7ms (GtG)
72%
Anti-refl ective, anti-glare
178° horizontal, 178° vertical
Tilt, swivel, pivot, and height adjustable stand
Sides: 0.78" (19.9mm); top: 0.78" (19.9mm);
bottom: 1.12" (28.4mm)
15.54-19.87" H x 22" W x 10.13" D;
394.8-504.8mm H x 559.6mm W x 257.3mm D
30 watts typical (w/o USB hub),
40 watts maximum (w/o USB hub),
<0.5 watts standby/suspend (w/o USB hub), universal,
integrated (no external brick-like power supply)
14.70 lb; 6.67kg
3 year (includes backlight)
September 2011
VESA DDC2B/CI
ENERGY STAR®3 5.1
ISO 9241-307
MPR-2, FCC Class B
TCO Displays 5.2, TCO Certifi ed Edge 1.1, WEEE,
RoHS, EPEAT™ Gold rating, ULE Gold
VGA: 640x350, 640x480, 720x400
SVGA: 800x600
XGA: 1024x768,1152x864
SXGA: 1280x1024
WXGA: 1280x768, 1280x800, 1366x768
WXGA+: 1440x900
UXGA: 1600x1200
WSXGA+: 1680x1050
Full HD: 1920x1080
WUXGA: 1920x1200
Standard presets: 30;
user settings: 20
Tilt: 30° back, 0° forward; lift: 4.3" (110mm); swivel: +/-45°; detachable stand
Screen pivots 90 degrees from landscape to portrait (requires image rotation support from graphics controller)
On screen display with digital user controls (8 languages)
Direct access (buttons on front) for automatic image setup, input switch, and brightness
USB 2.0 Hub (1 port into PC, 4 ports for accessories)
Triple input (three different PCs attach to three different connectors; one PC shows image; select via button)
(1) VGA
15-pin D-shell,
analog,
blue
(2) DisplayPort, digital, black, HDCP-compliant
(3) Digital Visual Interface (DVI-D), digital, white, HDCP-compliant
(1) detachable, VGA
15-pin D-shell at each end, analog, 1.8 meter
(2) detachable, DVI-D at each end, digital, 1.8 meter
Note: DisplayPort cable is not included; use optional DisplayPort to DisplayPort Monitor Cable (0A36537)
Wall or desk mounting using the Extend Arm or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (Kensington® lock-compatible)
Monitor, attached stand, cable cover, Setup poster, Safety and Warranty Information, CD with multilingual User's Guide
and monitor installation fi les, 1.8 meter analog signal cable, 1.8 meter DVI-D cable, 1.8 meter USB cable,
1.8 meter black power cord
Lenovo Easy Reach Monitor Stand
(55Y9258)
ThinkVision Soundbar
(45K1263)
ThinkCentre Extend Arm
(57Y4352)
Kensington® MicroSaver® Cable Lock from Lenovo
(73P2582)
Kensington Twin Head Cable Lock from Lenovo
(45K1620)
Lenovo Security Cable Lock
(57Y4303)
Lenovo USB-to-DVI Monitor Adapter
(45K5296)
Lenovo DisplayPort to VGA Monitor Cable
(57Y4393)
Lenovo DisplayPort to Single-link DVI-D Monitor Cable
(45J7915)
Lenovo Mini-DisplayPort to VGA Monitor Cable
(0A36536)
Lenovo DisplayPort to DisplayPort Monitor Cable
(0A36537)
Monitor Accessories46 (all part numbers listed are US option P/N)
Lenovo USB-to-DVI Monitor Adapter ** 45K5296 ann 05/12/09
Lenovo DisplayPort to VGA Monitor Cable ** 57Y4393 ann 08/04/09
DisplayPort to Single-link DVI-D Cable ** 45J7915 ann 08/05/08
Lenovo Mini-DisplayPort to VGA Monitor Cable ** 0A36536 ann 05/17/11
** Supports a maximum 1920 x 1200 monitor resolution.
Lenovo DisplayPort to DisplayPort Monitor Cable*** 0A36537 ann 09/13/11
***Hardware requirement: All Lenovo systems and monitors with
DisplayPort 1.1a or 1.2 interface.
© Lenovo
(O-M) March 2012
Lenovo® Monitor Accessories Personal Systems Reference (PSREF)
Compatibility matrix
USB-to-DVI
Adapter
(45K5296)
DisplayPort
to VGA
Cable
(57Y4393)
DisplayPort
to DVI-D
Cable
(45J7915)
Mini-Display-
Port to VGA
Monitor Cable
(0A36536)
DisplayPort to
DisplayPort
Monitor Cable
(0A36537)
ThinkVision
Soundbar
(45K1263)
MicroSaver
Cable
Lock
(73P2582)
Twin Head
Cable
Lock
(45K1620)
Security
Cable
Lock
(57Y4303)
Easy Reach
Monitor
Stand
(55Y9258)
Extend
Arm
(57Y4352)
LT1421 73P2582 45K1620 57Y4303
L1711p 45K5296 57Y4393 45J7915 0A36536 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
D186 57Y4393 0A36536 73P2582 45K1620 57Y4303 55Y9258 57Y4352
L197 45K5296 57Y4393 45J7915 0A36536 73P2582 45K1620 57Y4303 55Y9258 57Y4352
L1900p 45K5296 57Y4393 45J7915 0A36536 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
L1951p 45K5296 57Y4393 45J7915 0A36536 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
LT1952p 45K5296 57Y4393 45J7915 0A36536 0A36537 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
L2021 45K5296 57Y4393 45J7915 0A36536 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
LS2221 0A36536 73P2582 45K1620 57Y4303 55Y9258 57Y4352
L2250p 45K5296 57Y4393 45J7915 0A36536 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
✂L2251p 45K5296 57Y4393 0A36536 0A36537 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
LT2252p 45K5296 57Y4393 45J7915 0A36536 0A36537 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
L2251x 45K5296 57Y4393 0A36536 0A36537 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
L2321x 45K5296 57Y4393 0A36536 0A36537 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
LS2421p 0A36536 0A36537 73P2582 45K1620 57Y4303 55Y9258 57Y4352
✂L2440p 45K5296 57Y4393 45J7915 0A36536 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
LT2452p 45K5296 57Y4393 45J7915 0A36536 0A36537 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
LS1922 57Y4393 0A36536 73P2582 45K1620 57Y4303 55Y9258 57Y4352
✂L2461x 57Y4393 0A36536 73P2582 45K1620 57Y4303 55Y9258 57Y4352
✂L151 45K5296 57Y4393 73P2582 45K1620 55Y9258
✂L151p 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂L171 45K5296 57Y4393 73P2582 45K1620 55Y9258
✂L171p 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂L172 45K5296 57Y4393 73P2582 45K1620 55Y9258
✂L174 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂L1700p 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂D185 45K5296 57Y4393 45J7915 45K1263 73P2582 45K1620 55Y9258
✂L190x 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂L191 45K5296 57Y4393 73P2582 45K1620 55Y9258
✂L192p 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂L193p 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂L194 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂L1940p 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂L200p 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂L201p 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂L2060 45K5296 57Y4393 45J7915 73P2582 45K1620 57Y4303 55Y9258 57Y4352
✂L215 45K5296 57Y4393 45J7915 45K1263 73P2582 45K1620 55Y9258
✂L215p 45K5296 57Y4393 45K1263 73P2582 45K1620 55Y9258
✂L220x 45K5296 57Y4393 73P2582 45K1620 55Y9258
✂L2230x 45K5296 57Y4393 45K1263 73P2582 45K1620 57Y4303 55Y9258 57Y4352
✂L2240p 45K5296 57Y4393 45J7915 73P2582 45K1620 55Y9258
✂L2440x 45K5296 57Y4393 45J7915 45K1263 73P2582 45K1620 55Y9258
✂
Monitors
withdrawn from marketing.
More information at www.lenovo.com/support/monitoraccessories
Other accessories at www.lenovo.com/accessories
Accessories Guide pdf at
www.lenovo.com/accessoriesguide
ThinkVision Soundbar 45K1263 ann 09/16/08
Kensington® MicroSaver® Cable Lock 73P2582 ann 12/29/03
Kensington Twin Head Cable Lock 45K1620 ann 09/30/08
Lenovo Security Cable Lock 57Y4303 ann 08/24/10
Lenovo Easy Reach Monitor Stand 55Y9258 ann 09/22/09
ThinkCentre Extend Arm 57Y4352 ann 07/06/10
46
Compatible on selected Lenovo and ThinkVision monitors.
Availability: All offers subject to avail-
ability. Lenovo reserves the right to alter
product offerings and specifi cations at
any time, without notice. Lenovo is not
responsible for photographic or typo-
graphic errors.
Warranty: For a copy of applicable
product warranties, write to: Warranty In-
formation, P.O. Box 12195, RTP, NC, 27709,
Attn: Dept ZPYA/B676. Lenovo makes no
representation or warranty regarding third
party products or services.
1 ISO-compliant: Compliance with ISO
9241 Part 3, ISO Part 7, ISO Part 8, and/or
ISO 13406 Part 2 is dependent on a
complete ISO-capable platform of a
system unit, monitor, video subsystem,
operating system and fonts.
2 VESA: Requires attachment to suitably
confi gured system with similarly enabled
operating system.
3 ENERGY STAR: As an ENERGY STAR
partner, Lenovo has determined that this
product meets the ENERGY STAR 4.0 or
4.1 guidelines for energy effi ciency. Re-
quires attachment to suitably confi gured
system.
4 Limited warranty: Support unrelated to
a warranty issue may be subject to ad-
ditional charges.
5 International Warranty Service is avail-
able in any country in which this product
is sold and serviced. Service delivery
methods and parts availability vary by
country, may be different from that in the
country of purchase, and are subject to
change without notice. Fees and restric-
tions may apply in some countries.
6 Lenovo pays all shipping costs for
warranty repairs during limited warranty
period.
7 ThinkPlus and Lenovo Care Ser-
vices: These services are available for
machines normally used for business,
professional, or trade purposes, rather
than personal, family, or household pur-
poses. Not all machine types and models
are covered. Service period begins with
the equipment date of purchase. Service
must be purchased during the original
limited product warranty period. Service
levels are response time objectives
and are not guarantees. If the machine
problem turns out to be a Customer
Replaceable Unit (CRU), a part will be
express shipped to you for quick re-
placement. Onsite 24x7x2-hour service is
not available in all locations. P&L means
parts and labor. P/U means pick-up. See
terms and conditions for complete details
and restrictions.
8 Telephone support may be subject
to additional charges, even during the
limited warranty period. In the United
States call 1-800-426-7378. Response
times may vary. May exclude some
holidays. If a machine is listed as having
“On-site service for select repairs”, this
means that onsite service is available
only for the replacement of select parts.
For all other warranty repairs, Lenovo will
provide the customer a replacement part
for customer installation. The parts for
which onsite service is available varies by
machine, but may include the processor,
power supply, heat sink, system board, or
base cover. For machines with EasyServ
or Courier service, Lenovo will attempt
to diagnose and resolve the problem
remotely before sending a courier.
10 TAA: Monitor is compliant with the U.S.
Federal Government's country-of-origin
requirements prescribed in 48 C.F.R.
Subpart 25.4; Trade Act Agreement (TAA)
model.
11 Post-warranty annual maintenance
agreement: Service begins at the end
of the base warranty or the end of any
other applied warranty and maintenance
option, whichever occurs last. Service
delivery is not available the same day the
maintenance agreement is purchased.
Maintenance agreements must be
purchased and the registration success-
fully completed prior to the service being
available.
12 Halogen: Less than 900 Parts Per Million.
Low halogen is defi ned in accordance
with IPC-401B and draft IPC-J-STD 709
Class 1 requirements.
Trademarks: Lenovo, the Lenovo logo,
New World. New Thinking., Access Con-
nections, Rescue and Recovery, Think-
Centre, ThinkPad, ThinkStation, ThinkVan-
tage, and ThinkVision are trademarks of
Lenovo. Microsoft, Windows, and Vista are
registered trademarks of Microsoft Corpo-
ration. Other company, product, or service
names may be trademarks or service
marks of others.
This publication was developed for prod-
ucts and services offered in the United
States. Lenovo may not offer the prod-
ucts, services or features discussed in
this document in other countries. Lenovo
may withdraw an offering at any time.
Information is subject to change without
notice. Consult your local representative
for information on offerings available in
your area.
Lenovo reserves the right to alter speci-
fi cations and other product information
at any time without prior notice. Lenovo
is not responsible for photographic or
typographical errors. LENOVO PROVIDES
THIS PUBLICATION “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING THE
IMPLIED WARRANTIES OF MERCHANT-
ABILITY OR FITNESS FOR A PARTICU-
LAR PURPOSE. Some jurisdictions do
not allow disclaimer of express or implied
warranties in certain transactions; there-
fore this disclaimer may not apply to you.
This publication was developed in the
US.
Visit www.lenovo.com/safecomputing
periodically for the latest information on
safe and effective computing.
Visit www.lenovo.com/psref
for the latest version of
Personal Systems Reference.
© Lenovo, 2012.
All rights reserved.
Lenovo
1009 Think Place
Morrisville, NC 27560
U.S. A.
March 2012
mbook.pdf

Navigation menu
