Lenovo V470/B470

Hardware

Maintenance

Manual

Note:

Before using this information and the product it supports, be sure to read the general information

under “Notices” on page 86.

First Edition (January 2011)

LENOVO products, data, computer software, and services have been developed exclusively at private

expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with

limited and restricted rights to use, reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are

delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclo-

sure is subject to restrictions set forth in Contract No. GS-35F-05925.

iii

About this manual........................................iv

Safety information.........................................1

General safety ...................................................... 2

Electrical safety.................................................... 3

Safety inspection guide ...................................... 5

Handling devices that are sensitive to

electrostatic discharge......................................... 6

Grounding requirements ................................... 6

Safety notices: multilingual translations.......... 7

Laser compliance statement............................. 14

Important service information ...................16

Strategy for replacing FRUs............................. 16

Strategy for replacing a hard disk

drive .............................................................. 17

Important notice for replacing a system

board ............................................................. 17

Important information about replacing RoHS

compliant FRUs ................................................. 18

General checkout ........................................19

What to do first.................................................. 20

Power system checkout.................................... 21

Checking the AC adapter........................... 21

Checking operational charging................. 21

Checking the battery pack ......................... 22

Related service information .......................23

Restoring the factory contents by using OneKey

Recovery ............................................................. 23

Restore of factory default........................... 23

Using recovery discs................................... 23

Passwords........................................................... 24

Power-on password.................................... 24

Supervisor password.................................. 24

Power management .......................................... 25

Screen blank mode ...................................... 25

Sleep (standby) mode ................................. 25

Hibernation mode ....................................... 26

Lenovo V470/B470 ......................................27

Specifications ..................................................... 27

Status indicators ................................................ 29

Fn key combinations......................................... 31

FRU replacement notices.................................. 32

Screw notices................................................ 32

Removing and replacing an FRU.................... 33

1010 Battery pack......................................... 34

1020 Dummy card ....................................... 35

1030 Hard disk drive(HDD)/Memory/

Mini PCI Express Card slot compartment

cover ..............................................................36

1040 Hard disk drive...................................37

1050 Optical drive........................................38

1060 DIMM...................................................39

1070 PCI Express Mini Card for wireless

LAN/WAN ..................................................40

1080 Keyboard..............................................42

1090 Keyboard bezel ...................................45

1100 System board.......................................49

1110 LCD unit...............................................52

1120 Fan assembly and Heat Sink

assembly........................................................54

1130 CPU.......................................................57

1140 Base cover, speakers and bluetooth

card ................................................................58

1150 LCD front bezel...................................61

1160 LCD panel, LCD cable and

hinges.............................................................62

1170 Integrated camera...............................66

1180 Antenna assembly and LCD

cover ..............................................................67

Locations.............................................................68

Front view.....................................................68

Right-side view ............................................70

Bottom and Left-side view .........................71

Parts list...............................................................72

Overall...........................................................73

LCD FRUs.....................................................78

Keyboard.......................................................80

Miscellaneous parts.....................................82

AC adapters..................................................83

Power cords..................................................84

Notices ......................................................... 87

Trademarks.........................................................88

Contents

This manual contains service and reference information for the following

Lenovo product:

Lenovo V470/B470

Use this manual to troubleshoot problems.

The manual is divided into the following sections:

• The common sections provide general information, guidelines, and safety

information required for servicing computers.

• The product-specific section includes service, reference, and product-specific

parts information.

About this manual

Important:

This manual is intended only for trained servicers who are familiar with

Lenovo products. Use this manual to troubleshoot problems effectively.

Before servicing a Lenovo product, make sure to read all the information

under “Safety information” on page 1 and “Important service information”

on page 16.

Safety information

This chapter presents the following safety information that you need to get

familiar with before you service a Lenovo computer:

• “General safety” on page 2

• “Electrical safety” on page 3

• “Safety inspection guide” on page 5

• “Handling devices that are sensitive to electrostatic discharge” on page 6

• “Grounding requirements” on page 6

• “Safety notices: multilingual translations” on page 7

• “Laser compliance statement” on page 14

Safety information

Lenovo V470/B470 Hardware Maintenance Manual

Follow these rules below to ensure general safety:

• Observe a good housekeeping in the area where the machines are put during

and after the maintenance.

• When lifting any heavy object:

1. Make sure that you can stand safely without slipping.

2. Distribute the weight of the object equally between your feet.

3. Use a slow lifting force. Never move suddenly or twist when you attempt

to lift it.

4. Lift it by standing or pushing up with your leg muscles; this action could

avoid the strain from the muscles in your back. Do not attempt to lift any

object that weighs more than 16 kg (35 lb) or that you think is too heavy for

you.

• Do not perform any action that causes hazards to the customer, or that makes

the machine unsafe.

• Before you start the machine, make sure that other service representatives

and the customer are not in a hazardous position.

• Place removed covers and other parts in a safe place, keeping them away

from all personnel, while you are servicing the machine.

• Keep your toolcase away from walk areas so that other people will not trip it

over.

• Do not wear loose clothing that can be trapped in the moving parts of the

machine. Make sure that your sleeves are fastened or rolled up above your

elbows. If your hair is long, fasten it.

• Insert the ends of your necktie or scarf inside clothing or fasten it with the

nonconductive clip, about 8 centimeters (3 inches) from the end.

• Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for

your clothing.

Attention: Metal objects are good electrical conductors.

• Wear safety glasses when you are hammering, drilling, soldering, cutting

wire, attaching springs, using solvents, or working in any other conditions

that may be hazardous to your eyes.

• After service, reinstall all safety shields, guards, labels, and ground wires.

Replace any safety device that is worn or defective.

• Reinstall all covers correctly before returning the machine to the customer.

• Fan louvers on the machine help to prevent the overheating of internal

components. Do not obstruct fan louvers or cover them with labels or

stickers.

General safety

Safety information

Observe the following rules when working on electrical equipments.

• Find the room emergency power-off (EPO) switch, disconnecting the switch

or electrical outlet. If an electrical accident occurs, you can then operate the

switch or unplug the power cord quickly.

• Do not work alone under hazardous conditions or near the equipment that

has hazardous voltages.

• Disconnect all power before:

– Performing a mechanical inspection

– Working near power supplies

– Removing or installing main units

• Before you start to work on the machine, unplug the power cord. If you

cannot unplug it, ask the customer to power-off the wall box that supplies

power to the machine, and to lock the wall box in the off position.

• If you need to work on a machine that has exposed electrical circuits, observe

the following precautions:

– Ensure that another person, familiar with the power-off controls, is near

you.

Attention: Another person must be there to switch off the power, if

necessary.

– Use only one hand when working with powered-on electrical equipment;

keep the other hand in your pocket or behind your back.

Attention: An electrical shock can occur only when there is a complete

circuit. By observing the above rule, you may prevent a current from

passing through your body.

– When using testers, set the controls correctly and use the approved probe

leads and accessories for that tester.

– Stand on suitable rubber mats (obtained locally, if necessary) to insulate

you from grounds such as metal floor strips and machine frames.

Observe the special safety precautions when you work with very high voltages;

instructions for these precautions are in the safety sections of maintenance

information. Be extremely careful when you measure the high voltages.

• Regularly inspect and maintain your electrical hand tools for safe operational

condition.

• Do not use worn or broken tools and testers.

• Never assume that power has been disconnected from a circuit. First, check it

to make sure that it has been powered off.

Electrical safety

Important:

Use only approved tools and test equipments. Some hand tools have

handles covered with a soft material that does not insulate you when

working with live electrical currents.

Many customers have rubber floor mats near their machines that contain

small conductive fibers to decrease electrostatic discharges. Do not use such

kind of mat to protect yourself from electrical shock.

Lenovo V470/B470 Hardware Maintenance Manual

• Always look carefully for possible hazards in your work area. Examples of

these hazards are moist floors, nongrounded power extension cables, power

surges, and missing safety grounds.

• Do not touch live electrical circuits with the reflective surface of a plastic

dental mirror. The surface is conductive; such touching can cause personal

injury and machine damage.

• Do not service the following parts with the power on when they are removed

from their normal operating places in a machine:

– Power supply units

–Pumps

–Blowers and fans

– Motor generators

and similar units. (This practice ensures correct grounding of the units.)

• If an electrical accident occurs:

– Caution: do not become a victim yourself.

–Switch off the power.

– Send the victim to get medical aid.

Safety information

The purpose of this inspection guide is to assist you in identifying potential

unsafe conditions. As each machine was designed and built, required safety

items were installed to protect users and service personnel from injury. This

guide addresses only those items. You should use good judgment to identify

potential safety hazards according to the attachment of non-Lenovo features or

options not covered by this inspection guide.

If any unsafe conditions are present, you must determine how serious the

apparent hazard could be and whether you can continue without first correcting

the problem.

Consider these conditions and the safety hazards they present:

• Electrical hazards, especially primary power (primary voltage on the frame

can cause serious or fatal electrical shock)

• Explosive hazards, such as a damaged CRT face or a bulging capacitor

• Mechanical hazards, such as loose or missing hardware

To determine whether there are any potential unsafe conditions, use the

following checklist at the beginning of every service task. Begin the checks with

the power off, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).

2. Turn off the computer. Disconnect the power cord.

3. Check the power cord for:

a. A third-wire ground connector in good condition. Use a meter to measure

third-wire ground continuity for 0.1 ohm or less between the external

ground pin and the frame ground.

b. The power cord should be the type specified in the parts list.

c. Insulation must not be frayed or worn.

4. Check for cracked or bulging batteries.

5. Remove the cover.

6. Check for any obvious non-Lenovo alterations. Use good judgment as to the

safety of any non-Lenovo alterations.

7. Check inside the unit for any obvious unsafe conditions, such as metal filings,

contamination, water or other liquids, or signs of fire or smoke damage.

8. Check for worn, frayed, or pinched cables.

9. Check that the power-supply cover fasteners (screws or rivets) have not been

removed or tampered with.

Safety inspection guide

Lenovo V470/B470 Hardware Maintenance Manual

Any computer part containing transistors or integrated circuits (ICs) should be

considered sensitive to electrostatic discharge (ESD). ESD damage can occur

when there is a difference in charge between objects. Protect against ESD damage

by equalizing the charge so that the machine, the part, the work mat, and the

person handling the part are all at the same charge.

When handling ESD-sensitive parts:

• Keep the parts in protective packages until they are inserted into the product.

• Avoid contact with other people.

• Wear a grounded wrist strap against your skin to eliminate static on your

body.

• Prevent the part from touching your clothing. Most clothing is insulative and

retains a charge even when you are wearing a wrist strap.

• Use the black side of a grounded work mat to provide a static-free work

surface. The mat is especially useful when handling ESD-sensitive devices.

• Select a grounding system, such as those listed below, to provide protection

that meets the specific service requirement.

– Attach the ESD ground clip to any frame ground, ground braid, or green-

wire ground.

– When working on a double-insulated or battery-operated system, use an

ESD common ground or reference point. You can use coax or connector-

outside shells on these systems.

– Use the round ground prong of the ac plug on ac-operated computers.

Electrical grounding of the computer is required for operator safety and correct

system function. Proper grounding of the electrical outlet can be verified by a

certified electrician.

Handling devices that are sensitive to electrostatic discharge

Notes:

1. Use product-specific ESD procedures when they exceed the

requirements noted here.

2. Make sure that the ESD protective devices you use have been certified

(ISO 9000) as fully effective.

Notes:

The use of a grounding system to guard against ESD damage is desirable but

not necessary.

Grounding requirements

Safety information

The safety notices in this section are provided in English, French, German,

Hebrew, Italian, Japanese, and Spanish.

Safety notices: multilingual translations

Safety notice 1

Before the computer is powered on after FRU replacement, make sure all

screws, springs, and other small parts are in place and are not left loose

inside the computer. Verify this by shaking the computer and listening for

rattling sounds. Metallic parts or metal flakes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement d’une unité

en clientèle, vérifiez que tous les ressorts, vis et autres pièces sont bien en

place et bien fixées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun

bruit suspect ne se produit. Des pièces métalliques ou des copeaux de métal

pourraient causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen

wird, muß sichergestellt werden, daß keine Schrauben, Federn oder andere

Kleinteile fehlen oder im Gehäuse vergessen wurden. Der Computer muß

geschüttelt und auf Klappergeräusche geprüft werden. Metallteile oder-

splitter können Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di

una FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole

dimensioni siano nella corretta posizione e non siano sparse all’interno

dell’elaboratore. Verificare ciò scuotendo l’elaboratore e prestando

attenzione ad eventuali rumori; eventuali parti o pezzetti metallici possono

provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que

todos los tornillos, muelles y demás piezas pequeñas se encuentran en su

sitio y no se encuentran sueltas dentro del sistema. Compruébelo agitando el

sistema y escuchando los posibles ruidos que provocarían. Las piezas

metálicas pueden causar cortocircuitos eléctricos.

Lenovo V470/B470 Hardware Maintenance Manual

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and cadmium. Do

not disassemble a standby battery, recharge it, throw it into fire or water, or

short-circuit it. Dispose of the battery as required by local ordinances or

regulations. Use only the battery in the appropriate parts listing. Use of an

incorrect battery can result in ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les

démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne

les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à

la réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde

ou celle de l’horloge temps réel, veillez à n’utiliser que les modèles cités dans

la liste de pièces détachées adéquate. Une batterie ou une pile inappropriée

risque de prendre feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet,

kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nicht

zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser

ausgesetzt werden. Bei der Entsorgung die örtlichen Bestimmungen für

Sondermüll beachten. Beim Ersetzen der Bereitschafts-oder Systembatterie

nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist.

Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e

cadmio. Non smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né

cortocircuitarle. Smaltirle secondo la normativa in vigore (DPR 915/82,

successive disposizioni e disposizioni locali). Quando si sostituisce la

batteria dell’RTC (real time clock) o la batteria di supporto, utilizzare

soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di una

batteria non adatta potrebbe determinare l’incendio o l’esplosione della

batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y

cadmio. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las

cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo

baterías que se encuentren en la lista de piezas. La utilización de una batería

no apropiada puede provocar la ignición o explosión de la misma.

Safety information

Safety notice 3

DANGER

The battery pack contains small amounts of nickel. Do not disassemble it,

throw it into fire or water, or short-circuit it. Dispose of the battery pack as

required by local ordinances or regulations. Use only the battery in the

appropriate parts listing when replacing the battery pack. Use of an

incorrect battery can result in ignition or explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni

à l’eau. Ne la mettez pas en court-circuit. Pour la mettre au rebut,

conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la

batterie, veillez à n’utiliser que les modèles cités dans la liste de pièces

détachées adéquate. En effet, une batterie inappropriée risque de prendre

feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt

werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll

beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der

in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu

Entzündung oder Explosion führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel

fuoco o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in

vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando

si sostituisce la batteria, utilizzare soltanto i tipi inseriti nell’appropriato

Catalogo parti. L’impiego di una batteria non adatta potrebbe determinare

l’incendio o l’esplosione della batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni

recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal

como dispone la normativa local. Utilice sólo baterías que se encuentren en

la lista de piezas al sustituir la batería. La utilización de una batería no

apropiada puede provocar la ignición o explosión de la misma.

Lenovo V470/B470 Hardware Maintenance Manual

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion, or a severe burn. Do not

recharge it, remove its polarized connector, disassemble it, heat it above

100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of

the battery as required by local ordinances or regulations. Use only the

battery in the appropriate parts listing. Use of an incorrect battery can result

in ignition or explosion of the battery.

La pile de sauvegarde contient du lithium. Elle présente des risques

d’incendie, d’explosion ou de brûlures graves. Ne la rechargez pas, ne

retirez pas son connecteur polarisé et ne la démontez pas. Ne l’exposez pas

à une temperature supérieure à 100°C, ne la faites pas brûler et n’en exposez

pas le contenu à l’eau. Mettez la pile au rebut conformément à la

réglementation en vigueur. Une pile inappropriée risque de prendre feu ou

d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden,

explodieren oder schwere Verbrennungen hervorrufen. Batterien dieses

Typs dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt

werden. Auch darf ihr Inhalt nicht mit Wasser in Verbindung gebracht oder

der zur richtigen Polung angebrachte Verbindungsstecker entfernt werden.

Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten.

Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der

Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu

Entzündung oder Explosion führen.

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o

procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore

polarizzato, smontarla, riscaldarla ad una temperatura superiore ai 100

gradi centigradi, incendiarla o gettarla in acqua. Smaltirla secondo la

normativa in vigore (DPR 915/82, successive disposizioni e disposizioni

locali). L’impiego di una batteria non adatta potrebbe determinare

l’incendio o l’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y puede provocar incendios,

explosiones o quemaduras graves. No la recargue, ni quite el conector

polarizado, ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la

incinere ni exponga el contenido de sus celdas al agua. Deséchela tal como

dispone la normativa local.

Safety information

Safety notice 5

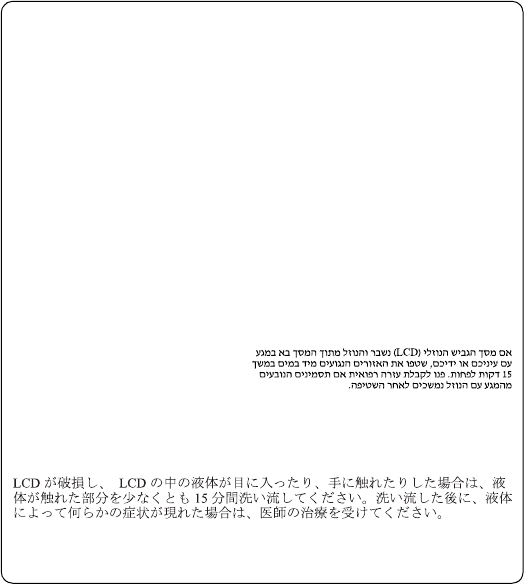

If the LCD breaks and the fluid from inside the LCD gets into your eyes or

on your hands, immediately wash the affected areas with water at least for

15 minutes. Seek medical care if any symptoms caused by the fluid are

present after washing.

Si le panneau d’affichage à cristaux liquides se brise et que vous recevez dans

les yeux ou sur les mains une partie du fluide, rincez-les abondamment

pendant au moins quinze minutes. Consultez un médecin si des symptômes

persistent après le lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der

Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Der

LCD-Bildschirm besteht aus Glas und kann zerbrechen, wenn er

unsachgemäß behandelt wird oder der Computer auf den Boden fällt. Wenn

der Bildschirm beschädigt ist und die darin befindliche Flüssigkeit in

Kontakt mit Haut und Augen gerät, sollten die betroffenen Stellen

mindestens 15 Minuten mit Wasser abgespült und bei Beschwerden

anschließend ein Arzt aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto

entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti

interessate con acqua corrente per almeno 15 minuti; poi consultare un

medico se i sintomi dovessero permanere.

Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o

sus manos, lave inmediatamente las áreas afectadas con agua durante

15 minutos como mínimo. Obtenga atención medica si se presenta algún

Lenovo V470/B470 Hardware Maintenance Manual

Safety notice 6

DANGER

To avoid shock, do not remove the plastic cover that protects the lower part

of the inverter card.

Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en

plastique protégeant la partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der

Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che

avvolge la parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja

de la tarjeta invertida.

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or grounded battery

can produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou

la mise à la masse d’une batterie peut produire suffisamment de courant

pour brûler des matériaux combustibles ou causer des brûlures corporelles

graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei

Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien

zu entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in

corto circuito o a massa può fornire corrente sufficiente da bruciare materiali

combustibili o provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería

cortocircuitada o con contacto a tierra puede producir la corriente suficiente

como para quemar material combustible o provocar quemaduras en el

personal.

Safety information

Safety notice 8

DANGER

Before removing any FRU, turn off the computer, unplug all power cords

from electrical outlets, remove the battery pack, and then disconnect any

interconnecting cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors

tension, débranchez tous les cordons d’alimentation des socles de prise de

courant, retirez la batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose

gezogen, der Akku entfernt und alle Verbindungskabel abgenommen sein,

bevor eine FRU entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese

elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare

i cavi di interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de

las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte

cualquier cable de conexión entre dispositivos.

Lenovo V470/B470 Hardware Maintenance Manual

Some models of Lenovo computer are equipped from the factory with an optical

storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are

also sold separately as options. If one of these drives is installed, it is certified in

the U.S. to conform to the requirements of the Department of Health and Human

Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class

1 laser products. Elsewhere, the drive is certified to conform to the requirements

of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60

825 for Class 1 laser products.

If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note

the following:

Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage

device could result in exposure to hazardous laser radiation. There are no

serviceable parts inside those drives. Do not open.

Laser compliance statement

CAUTION

Use of controls or adjustments or performance of procedures other than

those specified herein might result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de procedimentos diferentes

daqueles aqui especificados pode resultar em perigosa exposição à radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes

de réglage et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet,

kann gefährliche Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da

quelle specificate possono provocare l’esposizione a.

El uso de controles o ajustes o la ejecución de procedimientos distintos de los

aquí especificados puede provocar la exposición a radiaciones peligrosas.

Safety information

A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may

contain an embedded Class 3A or Class 3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the

beam, do not view directly with optical instruments, and avoid direct

exposure to the beam.

Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe

diretamente por meio de instrumentos óticos e evite exposição direta com o

feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder

directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische

Instrumente in den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai

eszközökkel. Kerülje a sugárnyalábbal való érintkezést!

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non

guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al

fascio.

Radiación láser al abrir. No mire fijamente ni examine con instrumental

óptico el haz de luz. Evite la exposición directa al haz.

Lenovo V470/B470 Hardware Maintenance Manual

This chapter presents the following important service information:

• “Strategy for replacing FRUs” on page 16

– “Strategy for replacing a hard disk drive” on page 17

– “Important notice for replacing a system board” on page 17

• “Important information about replacing RoHS compliant FRUs” on page 18

Before replacing parts:

Make sure that all software fixes, drivers, and BIOS downloads are installed

before replacing any FRUs listed in this manual.

After a system board is replaced, ensure that the latest BIOS is loaded to the

system board before completing the service action.

To download software fixes, drivers, and BIOS, follow the steps below:

1. Go to http://consumersupport.lenovo.com/.

2. Enter a serial number or select a product or use Lenovo smart downloading.

3. Select the BIOS/Driver/Applications and download.

4. Follow the directions on the screen and install the necessary software.

Important service information

Important:

BIOS and device driver fixes are customer-installable. The BIOS and device

drivers are posted on the customer support site:

http://consumersupport.lenovo.com/.

Strategy for replacing FRUs

Important service information

Use the following strategy to prevent unnecessary expense for replacing and

servicing FRUs:

• If you are instructed to replace an FRU, but the replacement does not solve

the problem, reinstall the original FRU before you continue.

• Some computers have both a processor board and a system board. If you are

instructed to replace either of them, and replacing one of them does not solve

the problem, reinstall that board, and then replace the other one.

• If an adapter or a device consists of more than one FRU, any of the FRUs may

be the cause of the error. Before replacing the adapter or device, remove the

FRUs one by one to see if the symptoms change. Replace only the FRU that

changed the symptoms.

Attention: The setup configuration on the computer you are servicing may have

been customized. Running Automatic Configuration may alter the settings. Note

the current configuration settings (using the View Configuration option); then,

when service has been completed, verify that those settings remain in effect.

Strategy for replacing a hard disk drive

Always try to run a low-level format before replacing a hard disk drive. This will

cause all customer data on the hard disk to be lost. Make sure that the customer

has a current backup of the data before performing this action.

Attention: The drive startup sequence in the computer you are servicing may

have been changed. Be extremely careful during write operations such as

copying, saving, or formatting. If you select an incorrect drive, data or programs

can be overwritten.

Important notice for replacing a system board

Some components mounted on a system board are very sensitive. Improper

handling can cause damage to those components, and may cause a system

malfunction.

Attention: When handling a system board:

• Do not drop the system board or apply any excessive force to it.

• Avoid rough handling of any kind.

• Avoid bending the system board and hard pushing to prevent cracking at

each BGA (Ball Grid Array) chipset.

Lenovo V470/B470 Hardware Maintenance Manual

RoHS, The Restriction of Hazardous Substances in Electrical and

Electronic Equipment Directive (2002/95/EC) is a European Union legal

requirement affecting the global electronics industry. RoHS requirements

must be implemented on Lenovo products placed on the market after June

2006. Products on the market before June 2006 are not required to have

RoHS compliant parts. If the original FRU parts are non-compliant,

replacement parts can also be non-compliant. In all cases if the original

FRU parts are RoHS compliant, the replacement part must also be RoHS

compliant.

Note: RoHS and non-RoHS FRU part numbers with the same fit and function are

identified with unique FRU part numbers.

Lenovo plans to transit to RoHS compliance well before the implementation date

and expects its suppliers to be ready to support Lenovo’s requirements and

schedule in the EU. Products sold in 2005 and 2006 will contain some RoHS

compliant FRUs. The following statement pertains to these products and any

product Lenovo produces containing RoHS compliant FRUs.

RoHS compliant FRUs have unique FRU part numbers. Before or after the RoHS

implementation date, failed RoHS compliant parts must always be replaced with

RoHS compliant ones, so only the FRUs identified as compliant in the system

HMM or direct substitutions for those FRUs may be used.

Note: A direct substitution is a part with a different FRU part number that is

automatically shipped by the distribution center at the time of the order.

Products marketed before June 2006 Products marketed after June 2006

Current or

original part

Replacement

FRU

Current or

original part

Replacement

FRU

Non-RoHS Can be Non-RoHS

Must be RoHS Must be RoHS

Non-RoHS Can be RoHS

Non-RoHS Can sub to RoHS

RoHS Must be RoHS

Important information about replacing RoHS compliant FRUs

General checkout

This chapter presents the following information:

• “What to do first” on page 20

• “Power system checkout” on page 21

Before you go to the checkout, make sure to read the following important notes:

General checkout

Important notes:

•Only certified trained personnel can service the computer.

•Before replacing any FRU, read the entire page on removing and

replacing FRUs.

•When you replace FRUs, use new nylon-coated screws.

•Be extremely careful during such write operations as copying,

saving, or formatting. Drives in the computer that you are servicing

sequence might have been altered. If you select an incorrect drive, data

or programs might be overwritten.

•Replace an FRU only with another FRU of the correct model. When

you replace an FRU, make sure that the machine model and the FRU part

number are correct by referring to the FRU parts list.

•An FRU should not be replaced just because of a single,

unreproducible failure. Single failures can occur for a variety of reasons

that have nothing to do with a hardware defect, such as cosmic radiation,

electrostatic discharge, or software errors. Consider replacing an FRU

only when a problem recurs. If you suspect that an FRU is defective,

clear the error logs and run the test again. If the error does not recur, do

not replace the FRU.

•Be careful not to replace a nondefective FRU.

Lenovo V470/B470 Hardware Maintenance Manual

When you do return an FRU, you must include the following information in the

parts exchange form or parts return form that you attach to it:

1. Name and phone number of servicer

2. Date of service

3. Date on which the machine failed

4. Date of purchase

5. Procedure index and page number in which the failing FRU was detected

6. Failing FRU name and part number

7. Machine type, model number, and serial number

8. Customer’s name and address

Note for warranty: During the warranty period, the customer may be

responsible for repair costs if the computer damage was caused by misuse,

accident, modification, unsuitable physical or operating environment, or

improper maintenance by the customer.

The following is a list of some common items that are not covered under

warranty and some symptoms that might indicate that the system was subjected

to stress beyond normal use.

Before checking problems with the computer, determine whether the damage is

covered under the warranty by referring to the following list:

The following are not covered under warranty:

• LCD panel cracked from the application of excessive force or from being

dropped

• Scratched (cosmetic) parts

• Distortion, deformation, or discoloration of the cosmetic parts

• Plastic parts, latches, pins, or connectors that have been cracked or broken by

excessive force

• Damage caused by liquid spilled into the system

• Damage caused by the improper insertion of a PC Card or the installation of

an incompatible card

• Improper disk insertion or use of an optical drive

• Diskette drive damage caused by pressure on the diskette drive cover, foreign

material in the drive, or the insertion of a diskette with multiple labels

• Damaged or bent diskette eject button

• Fuses blown by attachment of a nonsupported device

• Forgotten computer password (making the computer unusable)

• Sticky keys caused by spilling a liquid onto the keyboard

• Use of an incorrect AC adapter on laptop products

The following symptoms might indicate damage caused by nonwarranted

activities:

• Missing parts might be a symptom of unauthorized service or modification.

• If the spindle of a hard disk drive becomes noisy, it may have been subjected

to excessive force, or dropped.

What to do first

General checkout

To verify a symptom, follow the steps below:

1. Turn off the computer.

2. Remove the battery pack.

3. Connect the AC adapter.

4. Make sure that power is supplied when you turn on the computer.

5. Turn off the computer.

6. Disconnect the AC adapter and install the charged battery pack.

7. Make sure that the battery pack supplies power when you turn on the

computer.

If you suspect a power problem, see the appropriate one of the following power

supply checkouts:

• “Checking the AC adapter” on page 21

• “Checking operational charging” on page 21

• “Checking the battery pack” on page 22

Checking the AC adapter

You are here because the computer fails only when the AC adapter is used.

• If the power-on indicator does not turn on, check the power cord of the AC

adapter for correct continuity and installation.

• If the computer does not charge during operation, go to “Checking

operational charging”.

To check the AC adapter, follow the steps below:

1. Unplug the AC adapter cable from the computer.

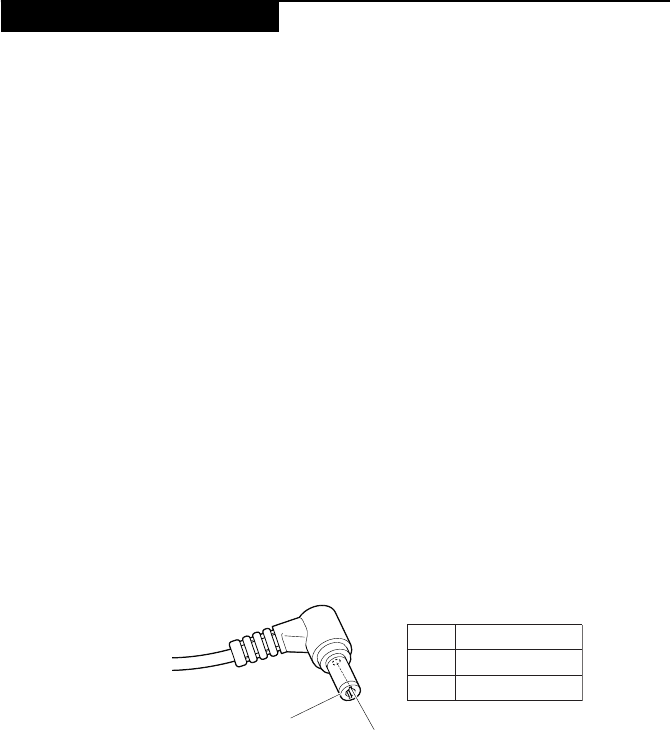

2. Measure the output voltage at the plug of the AC adapter cable. See the

following figure:

Note: Output voltage for the AC adapter pin No. 2 may differ from the one you

are servicing.

3. If the voltage is not correct, replace the AC adapter.

4. If the voltage is acceptable, do the following:

• Replace the system board.

• If the problem continues, go to “Lenovo V470/B470” on page 27.

Note: Noise from the AC adapter does not always indicate a defect.

Checking operational charging

To check whether the battery charges properly during operation, use a

discharged battery pack or a battery pack that has less than 50% of the total

power remaining when installed in the computer.

Power system checkout

Voltage (V DC)

+20

Lenovo V470/B470 Hardware Maintenance Manual

Perform operational charging. If the battery status indicator or icon does not

light on, remove the battery pack and let it return to room temperature. Reinstall

the battery pack. If the charge indicator or icon is still off, replace the battery

pack.

If the charge indicator still does not light on, replace the system board. Then

reinstall the battery pack. If it is still not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter shows that less than 95%

of the total power remains; under this condition the battery pack can charge to

100% of its capacity. This protects the battery pack from being overcharged or

from having a shortened life.

To check your battery, move your cursor to the Power Meter icon in the icon tray

of the Windows® taskbar and wait for a moment (but do not click it), and the

percentage of battery power remaining is displayed. To get detailed information

about the battery, double-click the Power Meter icon.

Note: If the battery pack becomes hot, it may not be able to be charged. Remove

it from the computer and leave it at room temperature for a while. After it cools

down, reinstall and recharge it.

To check the battery pack, follow the steps below:

1. Turn off the computer.

2. Remove the battery pack and measure the voltage between battery terminals

1 (+) and 7 (-). See the following figure:

3. If the voltage is less than +11.0 V DC, the battery pack has been discharged.

Note: Recharging will be continued for at least 3 hours, even though the

indicator does not light on.

If the voltage is still less than +11.0 V DC after recharging, replace the battery.

4. If the voltage is more than +11.0 V DC, measure the resistance between

battery terminals 5 and 7. The resistance must be 4 to 30 KΩ.

If the resistance is not correct, replace the battery pack. If the resistance is

correct, replace the system board.

1(+)2(+) 3456(-)7(-)

Terminal

1 +0 to +14

7 Ground (-)

Voltage (V DC)

Related service information

This chapter presents the following information:

• “Restoring the factory contents by using OneKey Recovery” on page 23

•“Passwords” on page24

• “Power management” on page 25

Restore of factory default

The Lenovo V470/B470 computers come with pre-installed OneKey Rescue

System. In order to save application files and the initial backed up files of the

system, the hard disk in a Lenovo computer includes a hidden partition when it

is shipped. If you need to restore the system to the point of your first boot up, just

enter Lenovo OneKey Rescue System and run Restore to factory default. For

details of OneKey Rescue System, see the User Guide for OneKey Rescue System.

Using recovery discs

When you replace a hard disk drive in your computer, you are unable to use the

pre-installed Lenovo OneKey Recovery and OneKey Rescue. However, you can

use the recovery discs that store your backed up data to restore your new hard

drive to a previous backup status.

Related service information

Restoring the factory contents by using OneKey Recovery

Note: This will delete all the new data on the system partition (C drive),

which is not recoverable. Make sure to back up your critical data before you

perform this action.

Note: You can create recovery discs by burning the backup image to a CD/

DVD as recovery discs. For details of Create recovery discs, see the User

Guide for OneKey Rescue System.

Lenovo V470/B470 Hardware Maintenance Manual

When you use the recovery discs to boot your computer, the system will enter

the user interface for system recovery automatically. Please follow the prompt to

insert the backup discs to complete the whole recovery process.

As many as two passwords may be needed for any Lenovo computer: the power-

on password (POP) and the supervisor password (SVP).

If any of these passwords has been set, a prompt for it appears on the screen

whenever the computer is turned on. The computer does not start until the

password is entered.

Exception: If only an SVP is installed, the password prompt does not appear

when the operating system is booted.

Power-on password

A power-on password (POP) protects the system from being powered on by an

unauthorized person. The password must be entered before an operating system

can be booted.

Supervisor password

A supervisor password (SVP) protects the system information stored in the BIOS

Setup Utility. The user must enter the SVP in order to get access to the BIOS

Setup Utility and change the system configuration.

Attention: If the SVP has been forgotten and cannot be made available to the

servicer, there is no service procedure to reset the password. The system board

must be replaced for a scheduled fee.

Note: The recovery process might take up to 2 hours.

Passwords

Related service information

Note: Power management modes are not supported for APM operating system.

To reduce power consumption, the computer has three power management

modes: screen blank, sleep (standby), and hibernation.

Screen blank mode

If the time set on the “Turn off monitor” timer in the operating system expires,

the LCD backlight turns off. You can also turn off the LCD backlight by pressing

Fn+F2.

To end screen blank mode and resume normal operation, press any key.

Sleep (standby) mode

When the computer enters sleep (standby) mode, the following events occur in

addition to what occurs in screen blank mode:

• The LCD is powered off.

• The hard disk drive is powered off.

•The CPU stops.

To enter sleep (standby) mode, press Fn+F1.

In certain circumstances, the computer goes into sleep (standby) mode

automatically:

• If a “suspend time” has been set on the timer, and the user does not do any

operation with the keyboard, the hard disk, the parallel connector, or the

diskette drive within that time.

• If the battery indicator is amber, indicating that the battery power is low.

(Alternatively, if Hibernate when battery becomes low has been selected in

the “Power Management Properties” window, the computer goes into

hibernation mode.)

To cause the computer to return from sleep (standby) mode and resume the

operation, do one of the following:

• Press the Fn key.

•Open the lid.

•Turn on the power switch.

Also, in the following event, the computer automatically returns from sleep

(standby) mode and resumes the operation:

• The time set on the resume timer elapses.

Note: The computer does not accept any input immediately after it enters sleep

(standby) mode. Wait a few seconds before taking any action to reenter

operation mode.

Power management

Lenovo V470/B470 Hardware Maintenance Manual

Hibernation mode

In hibernation mode, the following occurs:

• The system status, RAM, VRAM, and setup data are stored on the hard disk.

• The system is powered off.

To cause the computer to enter hibernation mode, follow the steps below:

• If you are using the ACPI operating system and have defined one of the

following actions as the event that causes the system to go into hibernation

mode, perform that action:

–Closing the lid.

– Pressing the power button.

Also, the computer goes into hibernation mode automatically in either of the

following conditions:

• If a “hibernation time” has been set on the timer, and if the user does not do

any operation with the keyboard, the hard disk drive, the parallel connector,

or the diskette drive within that time.

• If the timer conditions are satisfied in suspend mode.

When the power is turned on, the computer returns from hibernation mode and

resumes operation. The hibernation file in the boot record on the hard disk drive

is read, and system status is restored from the hard disk drive.

Lenovo V470/B470

This chapter presents the following product-specific service references and

product-specific parts information:

• “Specifications” on page 27

• “Status indicators” on page 29

• “FRU tests” on page 31

• “Fn key combinations” on page 31

• “FRU replacement notices” on page 32

• “Removing and replacing an FRU” on page 33

•“Locations” on page68

• “Parts list” on page 71

The following table lists the specifications of the Lenovo V470/B470:

Table 1. Specifications

Feature Description

Processor • Intel Huron River SV

Core Chipset • Intel HM65

Bus architecture • DDR3: 800, 1066MT/s for Dual Core CPU

• DDR3: 800, 1066, 1333MT/s for Quad Core CPU

• DMI X4, 2.5Gb/s

• FDI 8 lanes (2channels), 2.7Gt/s

•PCI Express

Graphic Chipset • Intel integrated

• NV N12P-GV/GE (V470)

• N12M-GS (B470)

Display • 14.0 HD LED Panel, Flat type, 1366x768 pixels, 220 nit

(V470)

• 14.0 HD LED Panel, Glossy type, 1366x768 pixels, 220

nit (B470)

Standard

memory

• DDR3 1066/1333 SODIMM (x2), Support Dual Channel

CMOS RAM • 256 bytes

Hard disk drive • 2.5" SATA 320/500GB/1TB (5400rpm)

• 2.5" SATA 320/500/750GB/1TB (7200rpm)

Optical drive • 12.7mm Tray Rambo/BD Combo

Lenovo V470/B470

Specifications

Lenovo V470/B470 Hardware Maintenance Manual

Table 1. Specifications (continued)

Feature Description

I/O port • External monitor connector

• Stereo headphone jack

•Microphone jack

• RJ45 x 1

• HDMI port (Select models only)

• USB 2.0 x 3 + USB 2.0&e-SATA COMBO x 1 (Select

models only)

• 6-in-1 memory card reader

MODEM slot • N/A

Audio • 1/8" Stereo Headphone Output Jack

• 1/8" Microphone Input Combo Jack

• Built-in stereo speakers

• Built-in microphone

Video • CRT port x 1, HDMI port x 1

Ethernet (on the

system board) • 10/100/1000M Ethernet

PCI Express Mini

Card slot

• 1 slot for WLAN card (half size)

• 1 slot for WWAN card (full size)

WLAN • Intel 802.11 a/b/g/n & WiMax combo

• Broadcom/Atheros b/g/n

WWAN • design ready

Bluetooth

wireless • BT2.1 + EDR CyberTan/USI module

Keyboard • Lenovo T2T7 type

Touch pad • Two clicks with Rubber-Dome (V470)

• Two clicks with Metal-Dome (B470)

Fingerprint

reader • Egistec ES603-WB (Select models only)

Integrated

camera

• 2.0M pixies (V470)

• 0.3M pixies (B470)

Battery • 48WH, 6 cell cylindrical Li-ion Battery

AC adapter • 65W/90W

Pre-installed

operating system

• Win 7 Starter/Home Basic/Premium/Professional

• Free DOS

Lenovo V470/B470

The system status indicators below show the computer status:

V470:

B470:

Status indicators

5 6 7

1 2 34

5 6 7

1 2 3

Lenovo V470/B470 Hardware Maintenance Manual

Table 2. Status indicators

Indicator Meaning

Caps lock White: Caps Lock mode is enabled. You can enter all

alphabetic characters (A-Z) in uppercase without

pressing the Shift key. To enable or disable Caps

Lock mode, press the CapsLk key.

Num lock White: The separate numeric keypad on the keyboard is

enabled. To enable or disable the numeric keypad,

press the Num Lock key.

Drive in use White: Data is being read from or written to the hard disk

drive, or the optical disk drive. When this indicator is

on, do not put the computer into standby mode or

turn off the computer.

Note: Do not move the system while the white drive-in-use

light is on. Sudden physical shock could cause drive errors.

APS status White: When your computer is subjected to shock or

excessive vibration, the shock sensor in the computer

detects the condition and stops the hard disk drive

until the environment is stable again.

Power on White: System is enabled.

Blinking white:

System is in sleep mode.

off: System is in hibernate mode or shut down.

Battery

status

Blinking amber: (500ms off/1s on)

The remaining power of the battery is less than 5% of

its capacity.

Blinking amber: (100ms off/3.2s on)

The battery is being charged with the remaining

power between 5% and 20% of its capacity.

Amber: The computer is operating on battery power with the

remaining power between 5% and 20% of its

capacity.

Blinking white:

The battery is being charged with the remaining

power between 20% and 80% of its capacity.

White: The remaining power of the battery is more than 80%

of its capacity, or the computer is operating on

battery power with the remaining power between

20% and 80% of its capacity.

Wireless

status

White: The wireless LAN radio is turned on and connected

to AP.

Blinking white:

The wireless LAN is switched on and the radio of it

is also turned off, or the wireless LAN radio is turned

on and not connected to AP.

Flashing white:

The wireless LAN radio is turned on and data is

being transmitted.

Off: The wireless LAN is switched off and the radio of it

is also turned off.

Lenovo V470/B470

The following table shows the function of each combination of Fn with a function

key.

Table 4. Fn key combinations

Key combination Description

Fn + Esc: Turn on/off the integrated camera.

Fn + F1: Enter sleep mode.

Fn + F2: Turn on/off the backlight of the LCD screen.

Fn + F3: Open the interface for the display device switch to

select this notebook or an external display.

Fn + F4: Open the interface for display resolution settings.

Fn + F5: Open the interface for integrated wireless devices

settings (on/off).

Fn + F6: Enable/Disable the touchpad.

Fn + F8: Enable/Disable the numeric keypad.

Fn + F9: Start/Pause playback of Windows Media Player.

Fn + F10: Stop playback of Windows Media Player.

Fn + F11: Skip to the previous track.

Fn + F12: Skip to the next track.

Fn + PgUp: Enable/Disable the scroll lock.

Fn + PrtSc: Activate the system request.

Fn + Home: Activate the pause function.

Fn + End: Activate the break function.

Fn + PgDn: Activate the insert function.

Fn + : Increase/Decrease display brightness.

Fn + : Increase/Decrease sound volume.

Fn key combinations

Lenovo V470/B470 Hardware Maintenance Manual

This section presents notices related to removing and replacing parts. Read this

section carefully before replacing any FRU.

Screw notices

Loose screws can cause a reliability problem. In the Lenovo computer, this

problem is addressed with special nylon-coated screws that have the following

characteristics:

• They maintain tight connections.

• They do not easily come loose, even with shock or vibration.

• They are harder to tighten.

• Each one should be used only once.

Do the following when you service this machine:

• Keep the screw kit in your tool bag.

• Always use new screws.

• Use a torque screwdriver if you have one.

Tighten screws as follows:

•Plastic to plastic

Turn an additional 90° after the screw head touches the surface of the plastic

part:

•Logic card to plastic

Turn an additional 180° after the screw head touches the surface of the logic

card:

•Torque driver

If you have a torque screwdriver , refer to the “Torque” column for each step.

• Make sure that you use the correct screws. If you have a torque screwdriver,

tighten all screws firmly to the torque shown in the table. Never use a screw

that you removed. Use a new one. Make sure that all screws are

tightened firmly.

• Ensure torque screwdrivers are calibrated correctly following country

specifications.

FRU replacement notices

more than 90°

(Cross-section)

more than 180°

(Cross-section)

Lenovo V470/B470

This section presents exploded figures with the instructions to indicate how to

remove and replace the FRU. Make sure to observe the following general rules:

1. Do not attempt to service any computer unless you have been trained and

certified. An untrained person runs the risk of damaging parts.

2. Before replacing any FRU, review “FRU replacement notices” on page 32.

3. Begin by removing any FRUs that have to be removed before the failing FRU.

Any of such FRUs are listed at the top of the page. Remove them in the order

in which they are listed.

4. Follow the correct sequence in the steps to remove the FRU, as given in the

figures by the numbers in square callouts.

5. When turning a screw to replace an FRU, turn it in the direction as given by

the arrow in the figure.

6. When removing the FRU, move it in the direction as given by the arrow in the

figure.

7. To put the new FRU in place, reverse the removal procedures and follow any

of the notes that pertain to replacement. For information about connecting

and arranging internal cables, see “Locations” on page 68.

8. When replacing an FRU, use the correct screw as shown in the procedures.

Attention: After replacing an FRU, do not turn on the computer until you have

made sure that all screws, springs, and other small parts are in place and none

are loose inside the computer. Verify this by shaking the computer gently and

listening for rattling sounds. Metallic parts or metal flakes can cause electrical

short circuits.

Attention: The system board is sensitive to, and can be damaged by, electrostatic

discharge. Before touching it, establish personal grounding by touching a

ground point with one hand or using an electrostatic discharge (ESD) strap

(P/N 6405959) to remove potential shock reasons.

Note: The illustrations used in this section are of the Lenovo V470, unless

otherwise stated.

Removing and replacing an FRU

DANGER

Before removing any FRU, turn off the computer, unplug all power cords

from electrical outlets, remove the battery pack, and then disconnect any of

the interconnecting cables.

Lenovo V470/B470 Hardware Maintenance Manual

1010 Battery pack

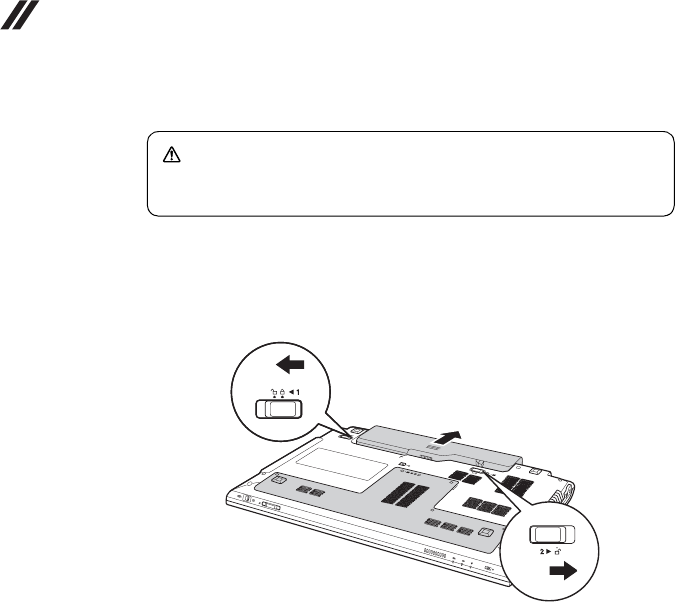

Figure 1. Removal steps of battery pack

Unlock the battery release lever . Holding the battery release lever in the

unlocked position , remove the battery pack in the direction shown by arrow

When installing: Install the battery pack along the slide rails of the slot. Then

make sure that the battery release lever is in the locked position.

DANGER

Only use the battery specified in the parts list for your computer. Any other

battery could ignite or explode.

Lenovo V470/B470

1020 Dummy card

For access, remove this FRU:

• “1010 Battery pack” on page 34

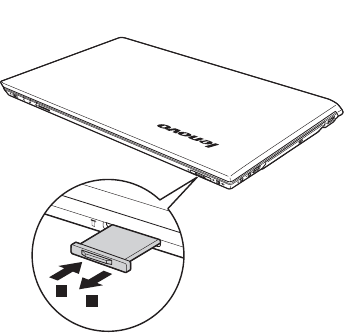

Figure 2. Removal steps of dummy cards

Remove the dummy card in the direction shown by arrows .

a b

Lenovo V470/B470 Hardware Maintenance Manual

1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card

slot compartment cover

For access, remove this FRU:

• “1010 Battery pack” on page 34

Figure 3. Removal steps of HDD/Memory/Mini PCI Express Card slot compartment

cover

Loosen four screws and screw , then remove the compartment cover .

Step Screw (quantity) Color Torque

M2 × 5 mm, flat-head, nylok-coated (4) Black 1.6 kgfcm

M2.5 × 7 mm, flat-head, nylok-coated

(1)

Black 3.0 kgfcm

a b c

Lenovo V470/B470

1040 Hard disk drive

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

Figure 4. Removal steps of hard disk drive

Remove the screw and pull the tab up in the direction shown by arrow

to remove the hard disk drive from the slot.

When installing: Make sure that the HDD connector is attached firmly.

Step Screw (quantity) Color Torque

M2 × 5 mm, flat-head, nylok-coated (1) Black 1.6 kgfcm

Attention:

•Do not drop the hard disk drive or apply any physical shock to it.

The hard disk drive is sensitive to physical shock. Improper handling

can cause damages and permanent loss of data.

• Before removing the drive, suggest the customer to backup all the

information on it if possible.

• Never remove the drive while the system is operating or is in suspend

mode.

a b

Lenovo V470/B470 Hardware Maintenance Manual

1050 Optical drive

For access, remove this FRU:

• “1010 Battery pack” on page 34

Figure 4. Removal steps of optical drive

Remove the screw , insert a screwdriver into the screw hole and push the

optical drive in the direction shown by arrow . Pull the optical drive out in the

direction shown by arrow .

Step Screw (quantity) Color Torque

M2 × 5 mm, flat-head, nylok-coated (1) Black 1.6 kgfcm

Lenovo V470/B470

1060 DIMM

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

Figure 6. Removal steps of DIMM

Release the two latches on both edges of the socket at the same time in the

direction shown by arrows , and then unplug the DIMM in the direction

shown by arrow .

Note: If only one DIMM is used on the computer you are servicing, the card must

be installed in SLOT-0 ( : lower slot), but not in SLOT-1 ( : upper slot).

When installing: Insert the notched end of the DIMM into the socket. Push the

DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly

fixed in the slot and difficult to be moved.

Lenovo V470/B470 Hardware Maintenance Manual

1070 PCI Express Mini Card for wireless LAN/WAN

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

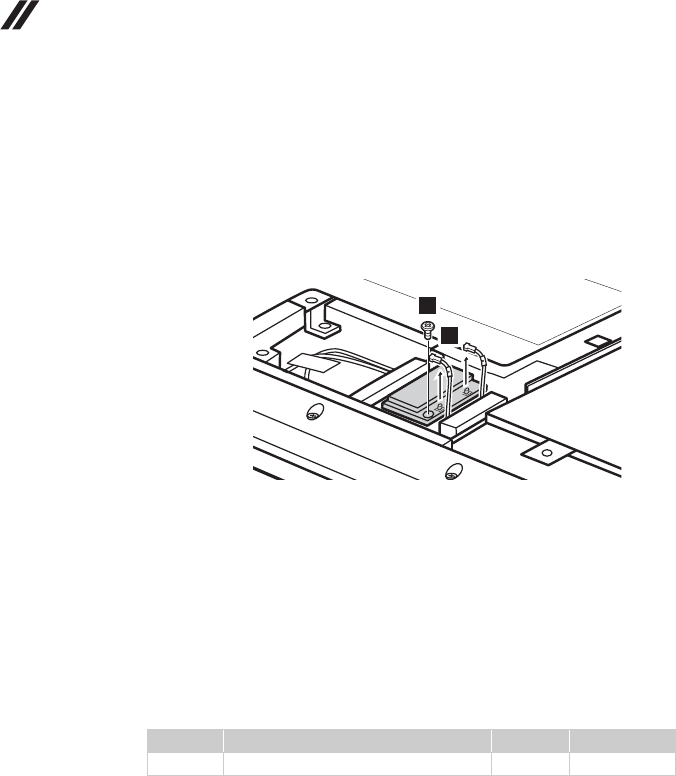

Figure 7. Removal steps of PCI Express Mini Card for wireless LAN/WAN

Disconnect the two wireless LAN cables (black, white) , and then remove the

screw .

In step , unplug the jacks by using the removal tool antenna RF connector

(P/N: 08K7159), or pick up the connectors with your fingers and gently unplug

them in the direction shown by arrows.

Notes: wireless LAN card has 2 cables in step .

wireless LAN card in some models may have 3 cables in step .

Step Screw (quantity) Color Torque

M2 × 3 mm, flat-head, nylok-coated (1) Black 1.6 kgfcm

Lenovo V470/B470

Figure 7. Removal steps of PCI Express Mini Card for wireless LAN/WAN (continued)

Remove the card in the direction shown by arrow .

When installing:

• In models with a wireless LAN card that has two antenna connectors, plug

the black cable (1st) (MAIN) into the jack labeled 1, and the white cable (2nd)

(AUX) into jack labeled 2 on the card.

• In models with a wireless LAN card that has three antenna connectors, plug

the black cable (1st) (MAIN) into the jack labeled 1, the grey cable (3rd) into

jack labeled 3, and the white cable (2nd) (AUX) into jack labeled 2 on the

card.

Lenovo V470/B470 Hardware Maintenance Manual

1080 Keyboard

For access, remove this FRU:

• “1010 Battery pack” on page 34

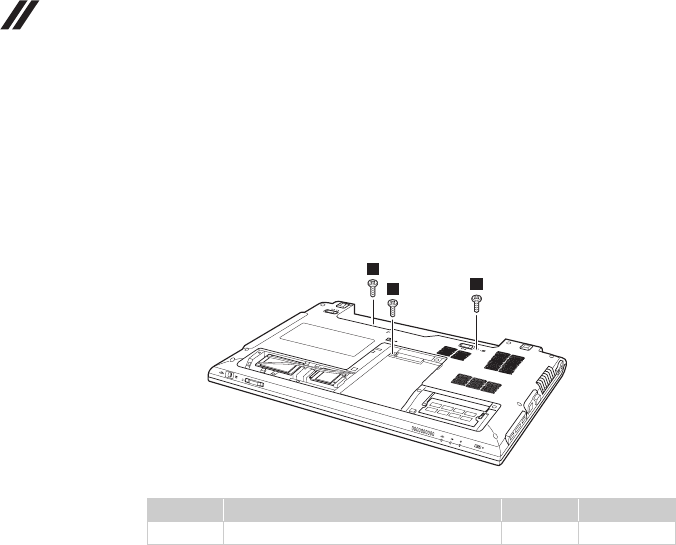

Figure 8. Removal steps of keyboard

Remove three screws .

Step Screw (quantity) Color Torque

M2.5 × 7 mm, flat-head, nylok-coated (3) Black 3.0 kgfcm

Lenovo V470/B470

Figure 8. Removal steps of keyboard (continued)

Loosen the keyboard with fingers in the direction shown by arrows .

Lenovo V470/B470 Hardware Maintenance Manual

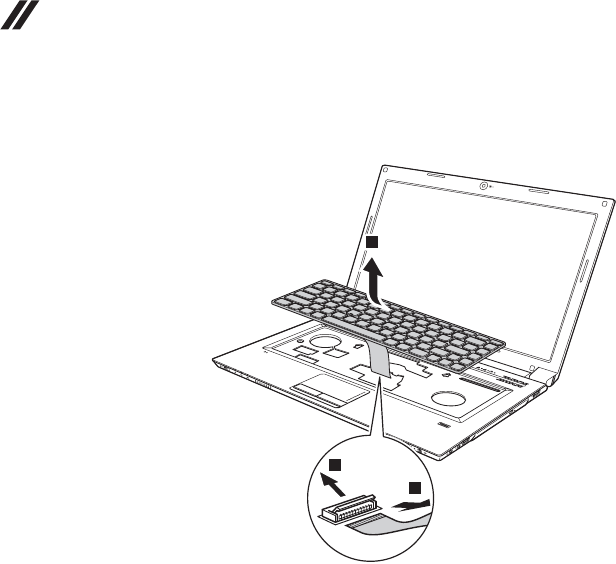

Figure 8. Removal steps of keyboard (continued)

Lift the keyboard a little , and then detach the connector in the direction

shown by arrows .

When installing: Make sure that the FPC connector is attached firmly.

Lenovo V470/B470

1090 Keyboard bezel

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1050 Optical drive” on page 38

• “1080 Keyboard” on page 42

Figure 9. Removal steps of keyboard bezel

Remove ten screws , three screws on the bottom.

Step Screw (quantity) Color Torque

M2.5 × 7 mm, flat-head, nylok-coated

(10)

Black 3.0 kgfcm

M2 × 3 mm, flat-head, nylok-coated (3) Black 1.6 kgfcm

a b

Lenovo V470/B470 Hardware Maintenance Manual

Figure 9. Removal steps of keyboard bezel (continued)

Remove the screw .

Step Screw (quantity) Color Torque

M2 × 5 mm, flat-head, nylok-coated (1) Black 1.6 kgfcm

Lenovo V470/B470

Figure 9. Removal steps of keyboard bezel (continued)

V470:

Detach five FPC connectors in the direction shown by arrows . Unplug

two microphone connectors in the direction shown by arrow , and the LCD

connector in the direction shown by arrow .

B470:

Detach four FPC connectors in the direction shown by arrows . Unplug

two microphone connectors in the direction shown by arrow , and the LCD

connector in the direction shown by arrow .

When installing: Make sure that all the FPC connectors, microphone connectors

and LCD connector are attached firmly.

d e

Lenovo V470/B470 Hardware Maintenance Manual

Figure 9. Removal steps of keyboard bezel (continued)

Remove the keyboard bezel in the direction shown by arrow .

Remove the screw , and then remove the power board .

Step Screw (quantity) Color Torque

M2 × 3 mm, flat-head, nylok-coated (1) Black 1.6 kgfcm

i j

Lenovo V470/B470

1100 System board

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 38

• “1060 DIMM” on page 39

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 40

• “1080 Keyboard” on page 42

• “1090 Keyboard bezel” on page 45

Important notices for handling the system board:

When handling the system board, bear the following in mind.

• Be careful not to drop the system board on a bench top that has a hard

surface, such as metal, wood, or composite.

• Avoid rough handling of any kind.

• In the whole process, make sure not to drop or stack the system board.

• If you put a system board down, make sure to put it only on a padded

surface such as an ESD mat or conductive corrugated material.

Lenovo V470/B470 Hardware Maintenance Manual

Figure 10. Removal steps of system board

Remove two screws . Unplug three microphone connectors in the direction

shown by arrows .

When installing: Make sure that all the connectors are attached firmly.

Step Screw (quantity) Color Torque

M2.5 × 7 mm, flat-head, nylok-coated (2) Black 3.0 kgfcm

Lenovo V470/B470

Figure 10. Removal steps of system board (continued)

Remove the system board in the direction shown by arrow .

When installing: When attaching the system board to the base cover, adjust the

placement of the wireless radio switch as shown in , and make sure that both

of the audio jack and the microphone jack are attached to the holes on the base

cover as shown in . Improper placement of the switch or those jacks might

cause a damage.

a a

Lenovo V470/B470 Hardware Maintenance Manual

1110 LCD unit

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 38

• “1060 DIMM” on page 39

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 40

• “1080 Keyboard” on page 42

• “1090 Keyboard bezel” on page 45

• “1100 System board” on page 49

Figure 11. Removal steps of LCD unit

Release the antenna cables from the cable guides in the direction shown by

arrows . Remove four screws .

When installing:

• Route the antenna cables along the cable guides. As you route the cables,

make sure that they are not subjected to any tension. Tension could cause the

cables to be damaged by the cable guides, or a wire to be broken.

• Make sure that the LCD connector is attached firmly and make sure that you

do not pinch the antenna cables when you attach the LCD assembly. Route

the LCD cable along the cable guides.

Step Screw (quantity) Color Torque

M2 × 5 mm, flat-head, nylok-coated (4) Black 1.6 kgfcm

a b

Lenovo V470/B470

Figure 11. Removal steps of LCD unit (continued)

Remove the LCD unit in the direction shown by arrows .

Lenovo V470/B470 Hardware Maintenance Manual

1120 Fan assembly and Heat Sink assembly

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 38

• “1060 DIMM” on page 39

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 40

• “1080 Keyboard” on page 42

• “1090 Keyboard bezel” on page 45

• “1100 System board” on page 49

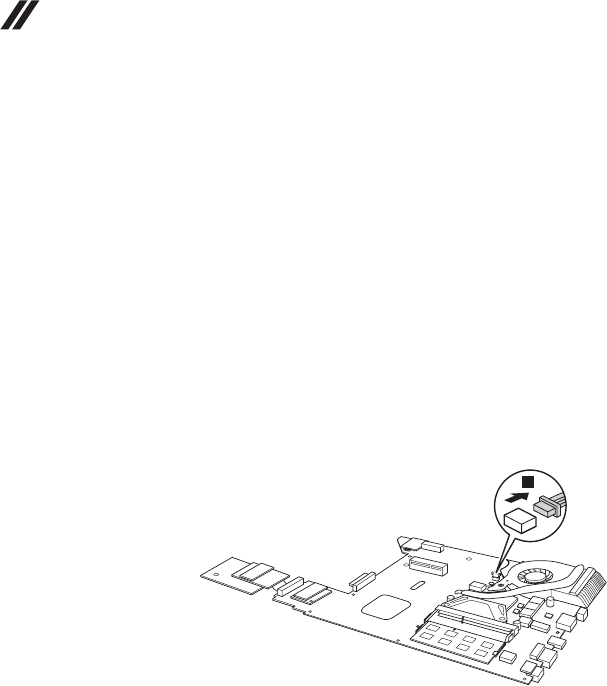

Figure 12. Removal steps of fan assembly and heat sink assembly

Detach the fan connector in the direction shown by arrow .

When installing: Make sure that the fan connector is attached firmly to the

system board.

Lenovo V470/B470

Figure 12. Removal steps of fan assembly and heat sink assembly (continued)

Loosen three screws .

Lenovo V470/B470 Hardware Maintenance Manual

Figure 12. Removal steps of fan assembly and heat sink assembly (continued)

Lift the fan assembly and heat sink assembly in the direction shown by arrow

. Be careful not to damage the connector.

Lenovo V470/B470

1130 CPU

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 38

• “1060 DIMM” on page 39

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 40

• “1080 Keyboard” on page 42

• “1090 Keyboard bezel” on page 45

• “1100 System board” on page 49

• “1120 Fan assembly and Heat Sink assembly” on page 54

Attention: CPU is extremely sensitive. When you service the CPU, avoid any

kind of rough handling.

Figure 13. Removal steps of CPU

Rotate the head of the screw in the direction shown by arrow to release the

lock, then remove the CPU in the direction shown by arrow .

When installing: Place the CPU on the CPU socket in the direction shown by

arrow , and then rotate the head of the screw in the direction shown by arrow

to secure the CPU.

Lenovo V470/B470 Hardware Maintenance Manual

1140 Base cover, speakers and bluetooth card

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 38

• “1060 DIMM” on page 39

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 40

• “1080 Keyboard” on page 42

• “1090 Keyboard bezel” on page 45

• “1110 LCD unit” on page 52

• “1100 System board” on page 49

Figure 14. Removal steps of base cover, speakers and bluetooth card

Remove the power assembly in the direction shown by arrow .

When installing: Make sure that the power connector is attached firmly.

Lenovo V470/B470

Figure 14. Removal steps of base cover, speakers and bluetooth card (continued)

Remove three screws , and then remove the speakers in the direction shown

by arrows .

Remove the bluetooth card in the direction shown by arrow .

Step Screw (quantity) Color Torque

M2 × 5 mm, flat-head, nylok-coated (3) Black 1.6 kgfcm

Lenovo V470/B470 Hardware Maintenance Manual

Note: Applying labels to the base cover

The new base cover FRU is shipped with a kit containing labels of several

kinds. When you replace the base cover, you need to apply the following

label:

The following labels need to be peeled off from the old base cover, and need

to be put on the new base cover.

Palmrst Label

COA Label

Rating Label

Wistron Label

PRC/MTM Label

VODAFONE Label

Indonesia WLAN&BT LBL

Malaysia SIRIM Label

Brazil Label (BT) or BT Label for US/CA/TW

Brazil Label (WLAN) or WLAN Label for US/CA/TW or Israel

LBL for WLAN

Indonesia D side Label

PPT Label

For some models, you also need to apply one or two FCC labels. Check the

old base cover; if it has one or two FCC labels, find duplicates of them in the

label kit and apply them to the new base cover.

For the location of each label, refer to the following figure:

Lenovo V470/B470

1150 LCD front bezel

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 38

• “1060 DIMM” on page 39

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 40

• “1080 Keyboard” on page 42

• “1090 Keyboard bezel” on page 45

• “1100 System board” on page 49

• “1110 LCD unit” on page 52

Figure 15. Removal steps of LCD front bezel

Remove two screws .

Remove the LCD front bezel in the direction shown by arrows .

Step Screw (quantity) Color Torque

M2.5 × 4 mm, flat-head, nylok-coated (2) Black 3.0 kgfcm

Lenovo V470/B470 Hardware Maintenance Manual

1160 LCD panel, LCD cable and hinges

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 38

• “1060 DIMM” on page 39

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 40

• “1080 Keyboard” on page 42

• “1090 Keyboard bezel” on page 45

• “1100 System board” on page 49

• “1110 LCD unit” on page 52

• “1150 LCD front bezel” on page 61

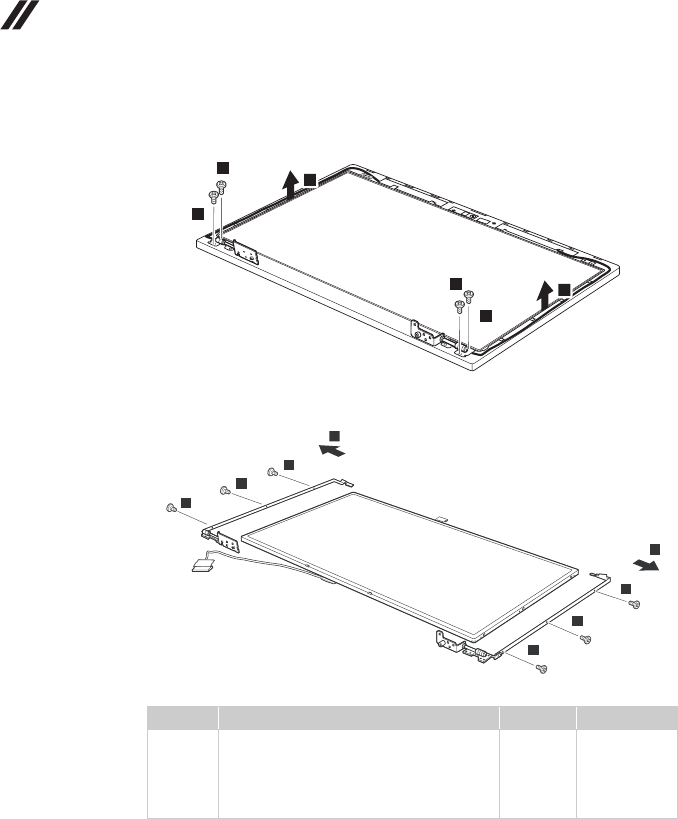

Figure 16. Removal steps of LCD panel, LCD cable and hinges

V470: Remove four screws . Unplug the integrated camera connector in the

direction shown by arrow . Lift the LCD panel in the direction shown by

arrows .

Lenovo V470/B470

B470: Remove six screws . Remove the integrated camera connector in the

direction shown by arrow . Lift the LCD panel with the hinges in the direction

shown by arrows .

When installing: Make sure that the connector is attached firmly.

Step Screw (quantity) Color Torque

V470: M2 × 3 mm, flat-head, nylokcoated

(4)

B470: M2 × 3 mm, flat-head, nylokcoated

(6)

Black 1.6 kgfcm

Lenovo V470/B470 Hardware Maintenance Manual

Figure 16. Removal steps of LCD panel, LCD cable and hinges (continued)

V470: Remove four screws , then remove the hinges in the direction shown

by arrow .

B470: Remove six screws and remove the hinges in the direction shown by

arrows .

Step Screw (quantity) Color Torque

V470: M2 × 3 mm, flat-head, nylokcoated

(4)

B470: M2 × 3 mm, flat-head, nylokcoated

(6)

Black 1.6 kgfcm

Lenovo V470/B470

Figure 16. Removal steps of LCD panel, LCD cable and hinges (continued)

Note: The LCD cables are attached to the LCD panel by a metal connector.

Peel off the adhesive tape and detach the connector in the direction shown by

arrow .

When installing: Make sure that the metal connector is attached firmly.

Lenovo V470/B470 Hardware Maintenance Manual

1170 Integrated camera

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 38

• “1060 DIMM” on page 39

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 40

• “1080 Keyboard” on page 42

• “1090 Keyboard bezel” on page 45

• “1100 System board” on page 49

• “1110 LCD unit” on page 52

• “1150 LCD front bezel” on page 61

• “1160 LCD panel, LCD cable and hinges” on page 62

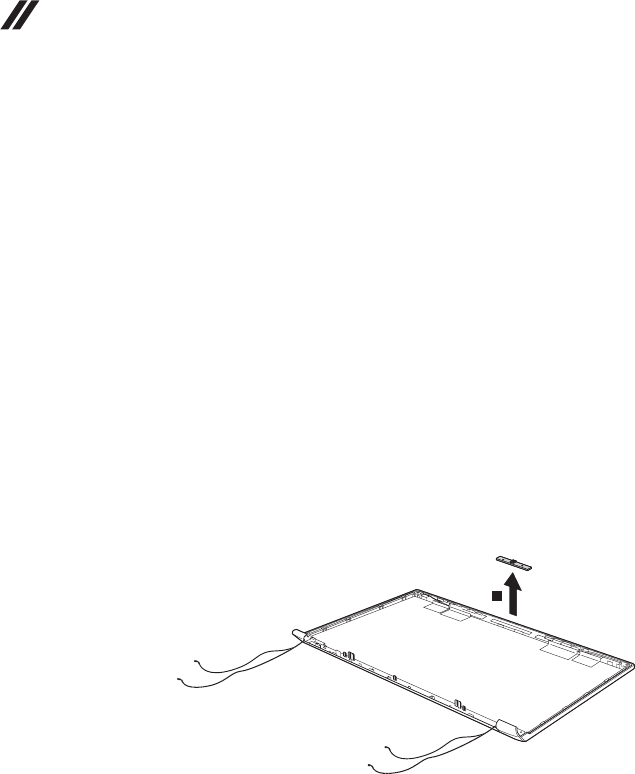

Figure 17. Removal steps of integrated camera

Note: The integrated camera is stuck on the top center of the LCD cover.

Remove the integrated camera from the LCD cover .

When installing: Stick the integrated camera to the top center of the LCD cover

and ajust the placement of it to make sure the connector is attached firmly.

Lenovo V470/B470

1180 Antenna assembly and LCD cover

For access, remove these FRUs in order:

• “1010 Battery pack” on page 34

• “1020 Dummy card” on page 35

• “1030 Hard disk drive(HDD)/Memory/Mini PCI Express Card slot

compartment cover” on page 36

• “1040 Hard disk drive” on page 37

• “1050 Optical drive” on page 38

• “1060 DIMM” on page 39

• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 40

• “1080 Keyboard” on page 42

• “1090 Keyboard bezel” on page 45

• “1100 System board” on page 49

• “1110 LCD unit” on page 52

• “1150 LCD front bezel” on page 61

• “1160 LCD panel, LCD cable and hinges” on page 62

Figure 18. Removal steps of antenna assembly and LCD cover

Peel off the adhesive tapes securing the antenna boards, release the

cables from the cable guide, and then remove the antenna assembly in the

direction shown by arrows .

When installing: Route the antenna cables along the cable guides and secure the

antenna boards with adhesive tapes. As you route the cables, make sure that they

are not subjected to any tension. Tension could cause the cables to be damaged

by the cable guides, or a wire to be broken.

Lenovo V470/B470 Hardware Maintenance Manual

Front view

Integrated camera (Select models only)

Wireless module antennas (Select models only)

Speaker

Power button

OneKey Rescue System button

Built-in microphone

GPU (Graphics Processing Unit) switch (Select models only)

System status indicators

Note: For the description of each indicator, see “Status indicators” on page 29.

Touchpad

Memory card slot

Integrated wireless device switch (Select models only)

Fingerprint reader (Select models only)

Locations

10 11

Lenovo V470/B470

Right-side view

Headphone jack

Microphone jack

USB port

Optical drive

Lenovo V470/B470 Hardware Maintenance Manual

Bottom and Left-side view

Kensington slot

AC power adapter jack

Fan louvers

VGA port

RJ-45 port

HDMI port (Select models only)

eSATA/USB combo port (Select models only)

USB port

Battery latch - spring loaded

Battery pack

Battery latch - manual

SIM card slot (Select models only)

Hard disk drive (HDD)/Memory/Mini PCI Express Card slot compartment

Lenovo V470/B470

This section presents the following service parts:

• “Overall” on page 72

• “LCD FRUs” on page 77

• “Keyboard” on page 79

• “Miscellaneous parts” on page 81

• “AC adapters” on page 82

•“Power cords” on page83

Parts list

Notes:

• Each FRU is available for all types or models, unless specific types or

models are specified.

Lenovo V470/B470 Hardware Maintenance Manual

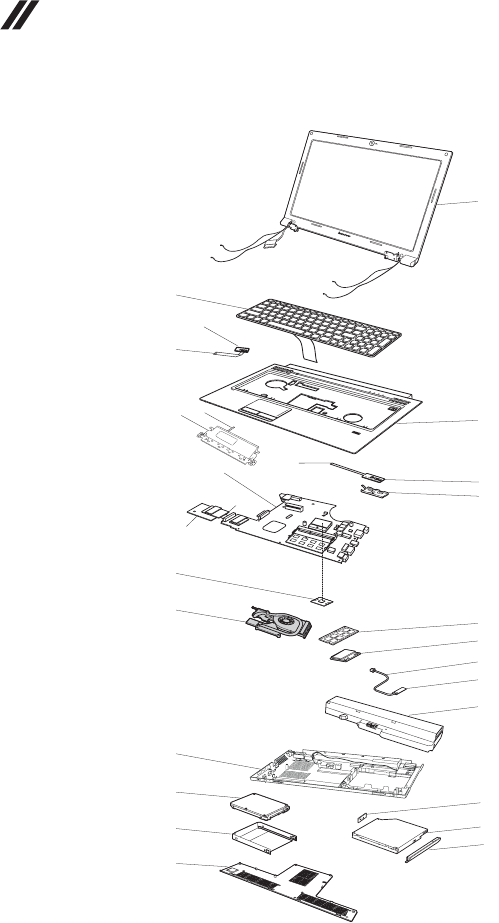

Overall

Lenovo V470/B470

Table 5. Parts list—Overall

No. FRU FRU no. CRU

1 LCD unit (see “LCD FRUs” on page 77.)

2 Keyboard (see “Keyboard” on page 79.)

3 LA47 UPPER CASE W/TOUCHPAD&MICROPHONE

(V470)

31047663 N

3 LB47 UPPER CASE W/TOUCHPAD&MICROPHONE

(B470)

31049008 N

4 LA47 POWER BOARD (V470) 31047650 N

4 LB47 POWER BOARD (B470) 11013303 N

5 LA47 FINGER PRINT BOARD 31047654 N

6 LA47 MB UMA FOR QUAD CORE W/RTC BATTERY

(V470)

11013072 N

6 LA47 MB UMA FOR DUAL CORE W/RTC BATTERY

(V470)

11013282 N

6 LA47 MB SG GE/2G W/3G/BT/HDMI/APS (V470) 11013267 N

6 LA47 MB SG GE/1G W/3G/BT/HDMI/APS (V470) 11013268 N

6 LB47 MB UMA FOR DUAL CORE W/RTC BATTERY

(B470)

11013304 N

7 LA47 SD DUMMY CARD 31047672 *

8 Intel I7-2620M 2.7G 4M 2c J1 PGA processor 102001069 N

8 Intel I5-2540M 2.6G 3M 2c J1 PGA processor 102001068 N

8 Intel I5-2520M 2.5G 3M 2c J1 PGA processor 102001067 N

8 Intel I5-2410M 2.3G 3M 2c J1 PGA processor 102001066 N

8 Intel I3-2310M 2.1G 3M 2c J1 PGA processor 102001065 N

8 Intel i7-2820QM 2.30G 8M 4c D2 PGA processor 102001055 N

8 Intel I7-2720QM 2.20G 6M 4c D2 PGA processor 102001071 N

8 Intel I7-2630QM 2.0G 6M 4c D2 PGA processor 102001070 N

8 Intel I7-2620M 2.7G 4M 2c J1 PGA processor 102001069 N

8 Intel I5-2540M 2.6G 3M 2c J1 PGA processorr 102001068 N

8 Intel I5-2520M 2.5G 3M 2c J1 PGA processor 102001067 N

8 Intel I5-2410M 2.3G 3M 2c J1 PGA processor 102001066 N

8 Intel I3-2310M 2.1G 3M 2c J1 PGA processor 102001065 N

9 LA47 HEATSINK UMA W/FAN/PAD 31047661 N

9 LA47 HEATSINK DIS W/FAN/PAD 31047662 N

10 DDRIII 1333 1GB, M471B2873FHS-CH9 (Rev F/1Gb/

46nm)

11011936 **

10 DDRIII 1333 1GB, RMT1910MD66E7F-1333 (V69A/2Gb/

50nm)

11012427 **

Lenovo V470/B470 Hardware Maintenance Manual

Table 5. Parts list—Overall (continued)

No. FRU FRU no. CRU

10 DDRIII 1333 1GB, HMT112S6DFR8C-H9 N0 (Rev Vega/

1Gb/44nm)

11012767 **

10 DDRIII 1333 1GB, RMT3010EF48E7W-1333 (Rev.F/1Gb/

60nm)

11012634 **

10 DDRIII 1333 1GB, SY321NG08HBF (Vega/1Gb/44nm) 11012810 **

10 DDRIII 1333 2GB, M471B5773CHS-CH9(Rev C/2Gb/

46nm)

11012630 **

10 DDRIII 1333 2GB, EBJ21UE8BFU0-DJ-F (Rev.F/1Gb/

60nm)

11012608 **

10 DDRIII 1333 2GB, RMT1950MD58E8F-1333 (V69A/2Gb/

50nm)

11012213 **

10 DDRIII 1333 2GB, HMT325S6BFR8C-H9 N0 (Rev Vega/

2Gb/44nm)

11012197 **

10 DDRIII 1333 2GB, RMT3020EF48E8W-1333 (Rev F/1Gb/

60nm)

11012633 **

10 DDRIII 1333 2GB, SY321NH08HAF (Vega/2Gb/44nm) 11012809 **

10 DDRIII 1333 4GB, M471B5273CH0-CH9 (Rev C/2Gb/

46nm)

11011934 **

10 DDRIII 1333 4GB, HMT351S6BFR8C-H9 N0 (Vega/2Gb/

44nm)

11012199 **

10 DDRIII 1333 4GB, MT16JSF51264HZ-1G4D1 (Rev V69A/

2Gb/50nm)

11012320 **

11 WLAN card, 802.11a/g/n && 802.16e, Intel 6250NX MOW

M PCIE NB HMC

20002321 **

11 WLAN card, 802.11a/g/n && 802.16e, Intel 6250GX MOW

M PCIE NB HMC

20002388 **

11 WLAN card, 802.11a/g/n && 802.16e, Intel 6150NX MOW

M PCIE NB HMC

20002484 **

11 WLAN card, 802.11a/g/n && 802.16e, Intel 6150GX MOW

M PCIE NB HMC

20002529 **

11 WLAN card, 802.11 b/g/n 1*1, Intel 1000N MOW M PCIE

NB HMC

20002329 **

11 WLAN card, 802.11 b/g/n 1*1, Cbt BCM4313 MOW M

PCIE NB HMC

20002505 **

11 WLAN card, 802.11 b/g/n 1*1, Liteon AR9285 HB95 BGN

MOW NB

20002357 **

11 WWAN card, WCDMA/HSDPA 7.2M, Ericsson F3307 R2

HSPA 900/2100MHz WWAN

11012853 **

11 WWAN card, WCDMA/HSDPA 7.2M, Ericsson F3307 R2

HSPA 850/1900MHz WWAN

11012852 **

11 WWAN card, WCDMA/HSDPA 7.2M, Huawei EM770W

WCDMA+GPS MiniPCIE WWAN

11011800 **

11 WWAN card, WCDMA/HSDPA 7.2M, Huawei EM820

HSPA+850/900/1900/2100MHz

11012850 **

Lenovo V470/B470

Table 5. Parts list—Overall (continued)

No. FRU FRU no. CRU

11 WWAN card, EVDO, Huawei EM660 EVDO+GPS

WWAN card 11012299 **

11 WWAN card, TD-SCDMA, Leadcoretech TD-SCDMA

LC5740 Mini-Card 11012849 **

12 Bluetooth card, BT2.1 + EDR, Fcn BCM92070 BT2.1 EDR

Flash U NB 20002266 N

12 Bluetooth card, BT2.1 + EDR, USI BCM92070 BT2.1 EDR

Flash U NB 20002326 N

13 Battery pack, 6 cell 2.2 Ah, Sanyo L09S6Y02 3S2P 48Wh bty

(LH) Comm01 121001091 *

13 Battery pack, 6 cell 2.2 Ah, Pana L10P6Y22 3S2P 48Wh bty

Comm01 121001096 *

13 Battery pack, 6 cell 2.2 Ah, SMP/LG L09M6Y02 3S2P 48Wh

bty (LH) Comm01 121001094 *

13 Battery pack, 6 cell 2.2 Ah, Celx/S L10C6Y02 3S2P 48Wh

bty (LH) Comm01 121001071 *

14 LA47LowerCaseWO/HDMI W/DcIn&Spk&USB cable 31047664 N

14 LA47 LowerCaseW/HDMI&DCIN&SPK&USB CABLE 31047667 N

15 Hard disk drive, 250G 5400rpm SATA, WD2500BPVT-

24ZEST0 5400RPM 250G 16004852 *

15 Hard disk drive, 250G 5400rpm SATA, Hitachi

HTS545025B9A300 250G 9NB 16004060 *

15 Hard disk drive, 250G 5400rpm SATA, Seagate

ST9250315AS 250G 9NB 16004186 *

15 Hard disk drive, 250G 5400rpm SATA, Hitachi

HTS543225A7A384 5400RPM 250G 16005023 *

15 Hard disk drive, 250G 5400rpm SATA, Seagate

ST250LT003 5400RPM 7MM 250G 16005210 *

15 Hard disk drive, 250G 5400rpm SATA, Toshiba

MK2565GSX 5400RPM 250G 16004641 *

15 Hard disk drive, 320G 5400rpm SATA, WD 4K sector

320GN 5400RPM250G 16004853 *

15 Hard disk drive, 320G 5400rpm SATA, Hitachi

HTS545032B9A300 320G 9NB 16004059 *

15 Hard disk drive, 320G 5400rpm SATA, Hitachi

HTS543232A7A384 5400RPM 320G 16005024 *

15 Hard disk drive, 320G 5400rpm SATA, Seagate

ST320LT020 5400RPM 7MM 320G 16005211 *

15 Hard disk drive, 320G 5400rpm SATA, Toshiba

MK3265GSX 5400RPM 320G 16004642 *

15 Hard disk drive, 500G 5400rpm SATA, Seagate

ST9500325AS 500G 9NB 16004189 *

15 Hard disk drive, 500G 5400rpm SATA, WD5000BPVT-

24HXZT1 5400RPM 500G 16004846 *

15 Hard disk drive, 500G 5400rpm SATA, Hitachi

HTS545050B9A300 500G 9NB 16004058 *

15 Hard disk drive, 500G 5400rpm SATA, Toshiba

MK5065GSX 5400RPM 500G 16004643 *

15 Hard disk drive, 640G 5400rpm SATA, WD6400BPVT-

24HXZT1 5400RPM 640G 16004847 *

15 Hard disk drive, 640G 5400rpm SATA, Toshiba

MK6465GSX 5400RPM 640G 16004644 *

15 Hard disk drive, 750G 5400rpm SATA, WD7500BPVT-

24HXZT1 5400RPM 750G 16004848 *

15 Hard disk drive, 320G 7200rpm SATA, Hitachi

HTS725032A9A364 7200RPM320G 16004530 *

Lenovo V470/B470 Hardware Maintenance Manual

Table 5. Parts list—Overall (continued)

No. FRU FRU no. CRU

15 Hard disk drive, 320G 7200rpm SATA, Seagate

ST9320423AS 7200RPM320G 9NB

16004533 *

15 Hard disk drive, 320G 7200rpm SATA, WD WD3200BEKT

7200RPM 320G

16005212 *

15 Hard disk drive, 320G 7200rpm SATA, Hitachi

HTS723232A7A364 7200RPM 320G

16005027 *

15 Hard disk drive, 320G 7200rpm SATA, Seagate

ST320LT007 7200RPM 7MM 320G

16005030 *

15 Hard disk drive, 500G 7200rpm SATA, Hitachi

HTS725050A9A364 7200RPM500G

16004531 *

15 Hard disk drive, 500G 7200rpm SATA, Seagate

ST9500420AS 7200RPM500G 9NB

16004532 *

15 Hard disk drive, 500G 7200rpm SATA, WD5000BEKT-

24KA9T0 7200RPM 500G

16004850 *

15 Hard disk drive, 750G 7200rpm SATA, TBD TBD *

16 ODD, 12.7mm Tray Rambo, PLDS DS-8A5S Tray in Rambo 25011187 **

16 ODD, 12.7mm Tray Rambo, Optiarc AD-7710H Tray in

Rambo

25011218 **

16 ODD, 12.7mm Tray Rambo, TSST TS-L633F Tray in Rambo 25011201 **

16 ODD, 12.7mm Tray Rambo, PSN UJ8A0 Tray in Rambo 25011472 **

16 ODD, 12.7mm BD Combo, PLDS DS-6E2S Tray in BD

Combo

25011471 **

16 ODD, 12.7mm BD Combo, HLDS CT30N Tray in BD

Combo

25011473 **

17 LA47 ODD BEZEL TRAYIN RAMBO 31047659 **

18 LA47 THERMAL DOOR 31047670 N

Lenovo V470/B470

LCD FRUs

In Lenovo V470/B470, there are following types of LCDs.

• “14.0-in. HD TFT”

Lenovo V470/B470 Hardware Maintenance Manual

14.0-in. HD TFT

Table 6. Parts list—14.0-in. HD TFT

No. FRU FRU no. CRU

1 LA47 LCD BEZEL W/CAMERA HOLE (V470) 31047641 N

1 LB47 LCD BEZEL W/CAMERA HOLE (B470) 31049003 N

2 LB47 LCD BEZEL SCREW MYLAR 40.4KZ20.001 31047646 N

3 14.0 HD LED Panel, B140XW01 V8 18004799 N

3 14.0 HD LED Panel, N140BGE-L21 18004798 N

3 14.0 HD LED Panel, LP140WH4-TLA1 18004797 N

3 14.0 HD LED Panel, LTN140AT16-L01 18004796 N

3 14.0 HD LED Panel, HT140WXB-501 18004795 N

3 14.0 HD LED Panel, M140NWR2 R1 18004793 N

4 LB47 LCD HINGER LEFT (B470) 31049006 N

4 LB47 LCD HINGER RIGHT (B470) 31049007 N

5 LA47 CAMERA 2M CHICON (V470) 31047643 N

5 LB47 CAMEAR VGA CHICONY/LITEON/BISON (B470) 31049002 N

6 LA47 LCD CABLE (V470) 31047642 N

6 LB47 LCD CABLE (B470) 31049000 N

7 LA47 LCD COVER W/HINGE &WIMAX ANTENNA

(V470)

31047639 N

7 LA47 LCD COVER W/HINGE &WLAN ANTENNA

(V470)

31047640 N

7 LB47 LCD COVER FOR WIMAX W/ANTENNA (B470) 31049005 N

8 LA47 LED BOARD W/CABLE 50.4KZ10.001 (V470) 31047657 N

8 LB47 LED BOARD W/CABLE 50.4MA02.001 (B470) 31049001 N

Lenovo V470/B470

Keyboard

Table 7. Parts list—Keyboard

Language P/N CRU

V470/B470

Dafon

English 25012640 **

U.K. English 25012642

Italian 25012643

Spanish 25012645

Turkish 25012648

Thai 25012649

Portuguese 25012651

Latin 25012653

Canadian English&French 25012654

Korean 25012657

Traditional Chinese 25012658

Russian 25012660

French 25012662

German 25012663

Arabic 25012665

Brazilian 25012667

Japanese 25012668

Dutch 25012669

Greek 25012670

Hebrew 25012671

Hungarian 25012672

Four Nordic countries 25012673

Belgian 25012674

Icelandic 25012675

Slovenian 25012676

Swiss 25012677

International English 25012678

Czechoslovakian 25012679

Bulgarian 25012680

Chicony

English 25012588

U.K. English 25012589

Italian 25012590

Spanish 25012591

Turkish 25012592

Thai 25012593

Portuguese 25012594

Latin 25012595

Canadian English&French 25012596

Korean 25012597

Traditional Chinese 25012598

Russian 25012599

French 25012600

German 25012601

Lenovo V470/B470 Hardware Maintenance Manual

Table 7. Parts list—Keyboard (continued)

Language P/N CRU

V470/B470

(continued

)

Chicony

(continued)

Arabic 25012602 **

Brazilian 25012603

Japanese 25012604

Dutch 25012605

Greek 25012606

Hebrew 25012607

Hungarian 25012608

Four Nordic countries 25012609

Belgian 25012610

Icelandic 25012611

Slovenian 25012612

Swiss 25012613

International English 25012614

Czechoslovakian 25012615

Bulgarian 25012616

V470/B470 Sunrex

English 25012588

U.K. English 25012589

Italian 25012590

Spanish 25012591

Turkish 25012592

Thai 25012593

Portuguese 25012594

Latin 25012595

Canadian English&French 25012596

Korean 25012597

Traditional Chinese 25012598

Russian 25012599

French 25012600

German 25012601

Arabic 25012602

Brazilian 25012603

Japanese 25012604

Dutch 25012605

Greek 25012606

Hebrew 25012607

Hungarian 25012608

Four Nordic countries 25012609

Belgian 25012610

Icelandic 25012611

Slovenian 25012612

Swiss 25012613

International English 25012614

Czechoslovakian 25012615

Bulgarian 25012616

Lenovo V470/B470

Miscellaneous parts

Table 8. Parts list—Miscellaneous parts

FRU P/N CRU

System miscellaneous parts:

•(a) LA47 FINGER PRINT BRACKET

•(b) LA47 HDD BRACKET

•(c) LA47 ODD BRKT BRACKET

•(d) LB47 TOUCHPAD BRACKET (B470)

31047655

31047671

31047660

31049004

Cable miscellaneous parts:

•(e) LA47 POWER BOARD CABLE

•(f) LA47 TOUCHPAD CABLE

•(g) LA47 IO BOARD W/CABLE (V470)

•(g) LB47 IO BOARD W/IO CABLE (B470)

•(h) LA47 BLUETOOTH CABLE

•(i) LA47 FINGER PRINT FFC 50.4KZ04.001

Note: Italicized letters in parentheses are references to the

exploded view in “Overall” on page 71.

31047653

31047648

11013071

11013302

31047658

31047656

Lenovo V470/B470 Hardware Maintenance Manual

AC adapters

Table 9. Parts list—3-pin AC adapters

FRU P/N CRU

65W, Delta ADP-65KH BD 20V/3.25A adapter 36001929 N

65W, Liteon PA-1650-56LC adapter 36001651 N

65W, Chicony CPA-A065 20V3.25A adapter 36001943 N

65W, Emerson AA26600L 20V 3.25A adapter 36001870 N

90W, Delta ADP-90DD BD 20V4.5A adapter 36001941 N

90W, Liteon PA-1900-56LC 20V4.5A adapter 36001927 N

90W, Chicony CPA-A090 20V4.5A adapter 36001942 N

Lenovo V470/B470

Power cords

A Lenovo power cord for a specific country or region is usually available only in

that country or region:

Table 10. Parts list—3-pin power cords

Region P/N CRU

CCC

•SSD YD-118-1+IEC53RVV+SSD-3-2B-1 1m

145000602 *

CCC

•LINETEK PC323+RVV300/300+LS15 1m

145000600

Argentina

•LINETEK LS15+H03VV-F+LP39 1m

145000599

Danmark

•LINETEK LS15+H03VV-F+LP-38 1m

145000598

Switzerland

•LINETEK LS15+H03VV-F+LP-37 1m

145000597

Brazil

•LINETEK LS15 H03VV-F LP26A 1m

145000596

Israel

•LINETEK LS15+H03VV-F+LP-41 1m

145000595

•LINETEK LP-30B + SPT-2 + LS15 1m

145000594

•LINETEK LP-61L+ H03VV-F+ LS15 1m

145000593

Indian

•LINETEK PE-361+ H05VV-F+ LS15 1m

145000592

Italy

•LINETEK LS15+H03VV-F+PE-336 1m

145000591

Korea

•LINETEK LS15+H05VV-F+LP-E04A 1m

145000590

Australia

•LINETEK LS15+H03VV-F+LP-23A 1m

145000589

Taiwan

•LINETEK LS15+VCTF+LP-53 1m

145000588

Japan

•LINETEK LS15+VCTF+LP-54 1m

145000587

Africa

•LINETEK LS15+H03VV-F+PE-364 1m

145000586

•LINETEK LP-34+H03VV-F + LS15 1m

145000585

CCC

•Longwell LSG-31+RVV300/300+LS-18 1m

145000568

Argentina

•Longwell LP-24+H03VV-F+LS-18 1m

145000567

Danmark

•Longwell LP-40+H03VV-F+LS-18 1m

145000566

Switzerland

•Longwell LP-37+H03VV-F+LS-18 1m

145000565

Lenovo V470/B470 Hardware Maintenance Manual

Table 10. Parts list—3-pin power cords (continued)

Region P/N CRU

Brazil

•Longwell LP-46+H03VV-F+LS-18 1m

145000564 *

Israel

•Longwell LP-41+H03VV-F+LS-18 1m

145000563

•Longwell LP-30B+SPT-2 18AWG+LS-18 1m

145000562

•Longwell LP-61L+H03VV-F+LS-18 1m

145000561

Indian

•Longwell LP-67+BIS+LS-18 1m

145000560

Italy

•Longwell LP-22+H03VV-F+LS-18 1m

145000559

Korea

•Longwell LP-486+KTLH03VV-F+LS-5 1m

145000558

Australia

•Longwell LP-23A+LFC-3R+LS-18 1m

145000557

Taiwan

•Longwell LP-71+VCTF+LS-33 1m

145000556

Japan

•Longwell LP-54+VCTF+LS-18 1m

145000555

Africa

•Longwell LP-39+H03VV-F+LS-18 1m

145000554

•Longwell LP-34A+H03VV-F+LS-18 1m

145000553

CCC

•Volex LSG-31+RVV300/300+LS-18 1m

145000538

Argentina

•Volex LP-24+H03VV-F+LS-18 1m

145000528

Danmark

•Volex LP-40+H03VV-F+LS-18 1m

145000534

Switzerland

•Volex LP-37+H03VV-F+LS-18 1m

145000524

Brazil

•Volex LP-46+H03VV-F+LS-18 1m

145000527

Israel

•Volex LP-41+H03VV-F+LS-18 1m

145000526

•Volex LP-30B+SPT-2 18AWG+LS-18 1m

145000537

•Volex LP-61L+H03VV-F+LS-18 1m

145000605

Indian

•Volex LP-67+BIS+LS-18 1m

145000536

Italy

•Volex LP-22+H03VV-F+LS-18 1m

145000535

Lenovo V470/B470

Table 10. Parts list—3-pin power cords (continued)

Region P/N CRU

Korea

•Volex LP-486+KTLH03VV-F+LS-5 1m

145000533 *

Australia

•Volex LP-23A+LFC-3R+LS-18 1m

145000532

Taiwan

•Volex LP-71+VCTF+LS-33 1m

145000531

Japan

•Volex LP-54+VCTF+LS-18 1m

145000530

•Volex LP-34A+H03VV-F+LS-18 1m

145000525

Lenovo V470/B470 Hardware Maintenance Manual

Lenovo may not offer the products, services, or features discussed in this

document in all countries. Consult your local Lenovo representative for

information on the products and services currently available in your area. Any

reference to a Lenovo product, program, or service is not intended to state or

imply that only that Lenovo product, program, or service may be used. Any

functionally equivalent product, program, or service that does not infringe any

Lenovo intellectual property right may be used instead. However, it is the user’s

responsibility to evaluate and verify the operation of any other product,

program, or service.

Lenovo may have patents or pending patent applications covering subject

matter described in this document. The furnishing of this document does not

give you any license to these patents.

LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS” WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-

INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. Some jurisdictions do not allow disclaimer of express or implied

warranties in certain transactions, therefore, this statement may not apply to

you.

This information could include technical inaccuracies or typographical errors.

Changes are periodically made to the information herein; these changes will be

incorporated in new editions of the publication. Lenovo may make

improvements and/or changes in the product(s) and/or the program(s)

described in this publication at any time without notice.

The products described in this document are not intended for use in

implantation or other life support applications where malfunction may result in

injury or death to persons. The information contained in this document does not

affect or change Lenovo product specifications or warranties. Nothing in this

document shall operate as an express or implied license or indemnity under the

intellectual property rights of Lenovo or third parties. All information contained

in this document was obtained in specific environments and is presented as an

illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it

believes appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for

convenience only and do not in any manner serve as an endorsement of those

Web sites. The materials at those Web sites are not part of the materials for this

Lenovo product, and use of those Web sites is at your own risk.

Notices

Any performance data contained herein was determined in a controlled

environment. Therefore, the result obtained in other operating environments

may vary significantly. Some measurements may have been made on

development-level systems and there is no guarantee that these measurements

will be the same on generally available systems. Furthermore, some

measurements may have been estimated through extrapolation. Actual results

may vary. Users of this document should verify the applicable data for their

specific environment.

The following terms are either registered trademarks or trademarks of Lenovo in

the United States and/or other countries:

Lenovo®

Lenovo logo®

IdeaPad®

VeriFace®

OneKey Rescue® (OneKey Recovery, OneKey Antivirus)

APS®

Power Express®

Energy Management and ReadyComm®

The following terms are trademarks of Microsoft Corporation in the United

States, other countries, or both:

Windows®

Windows® 7

The following are trademarks of Intel Corporation or its subsidiaries in the

United States, other countries, or both:

Intel®

Intel®Core™ 2 Duo

Other company, product, or service names may be the trademarks or service

marks of others.

Trademarks

Lenovo V470B470 Hardware Maintenance Manual V1.0 User B470 Laptop (Lenovo) Type 20087

Navigation menu

Versions of this User Manual:

Views

Navigation
