ThinkPad T500 and W500
Hardware Maintenance Manual
ThinkPad T500 and W500
Hardware Maintenance Manual
Note
Before using this information and the product it supports, be sure to read the general information under “Notices” on page
261.
Fifth Edition (September 2009)
© Copyright Lenovo 2008, 2009.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted
rights to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant a General Services Administration ″GSA″contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.
© Lenovo 2008, 2009
Contents
About this manual ..........v
Safety information ..........1
General safety ..............2
Electrical safety .............3
Safety inspection guide ...........5
Handling devices that are sensitive to electrostatic
discharge ...............6
Grounding requirements ..........6

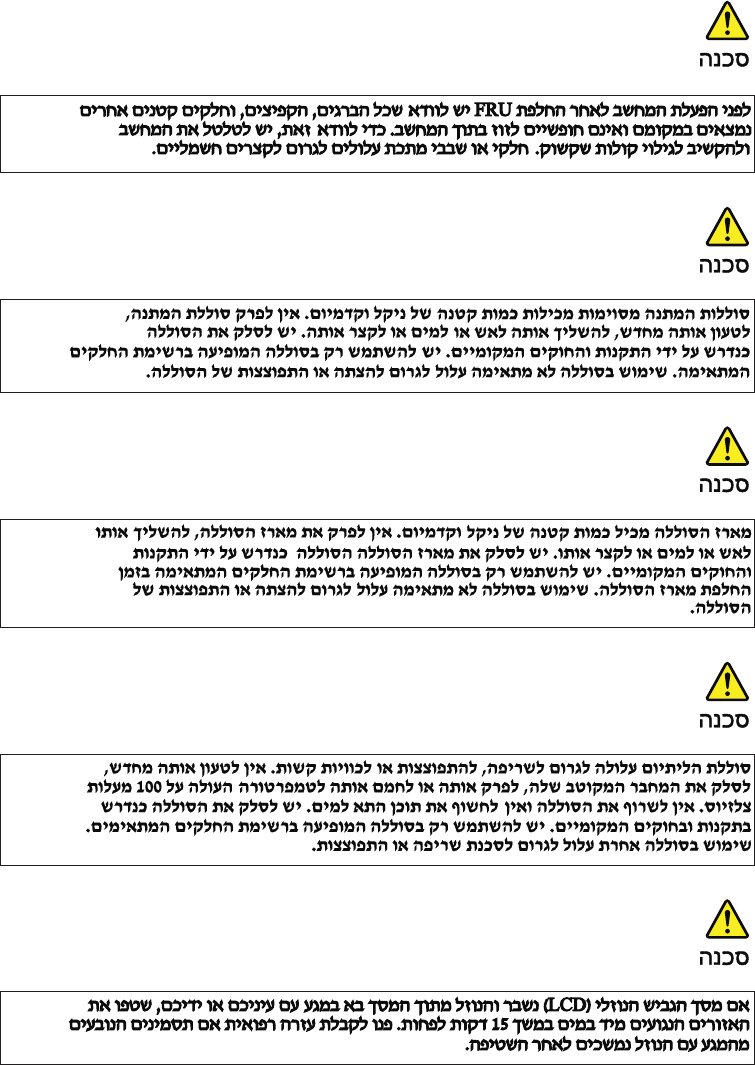

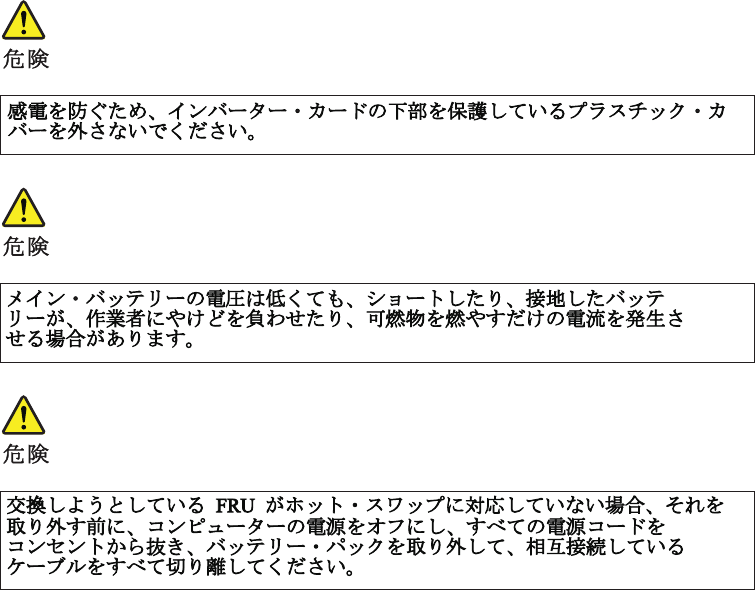

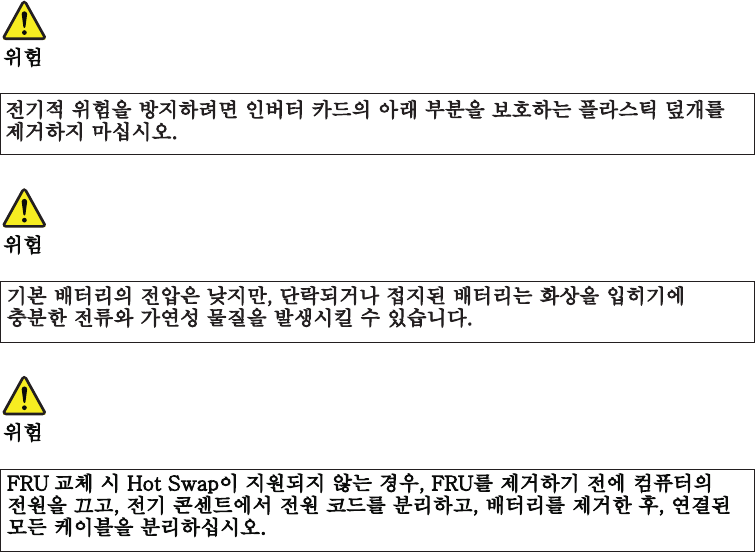

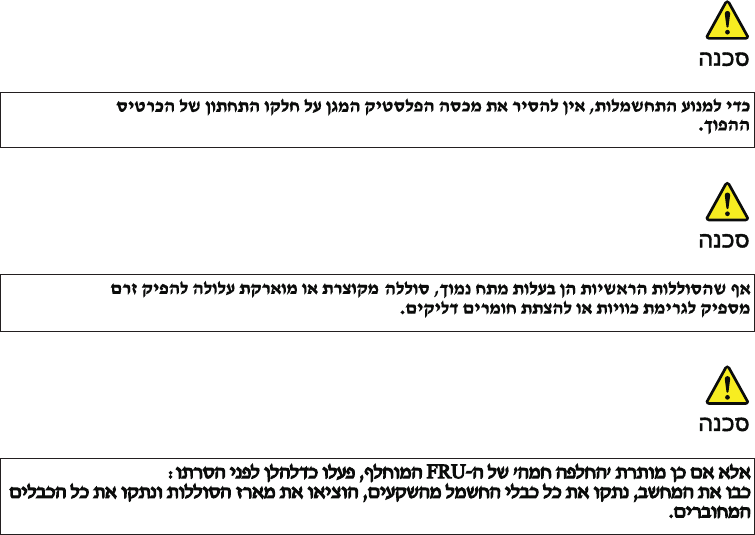

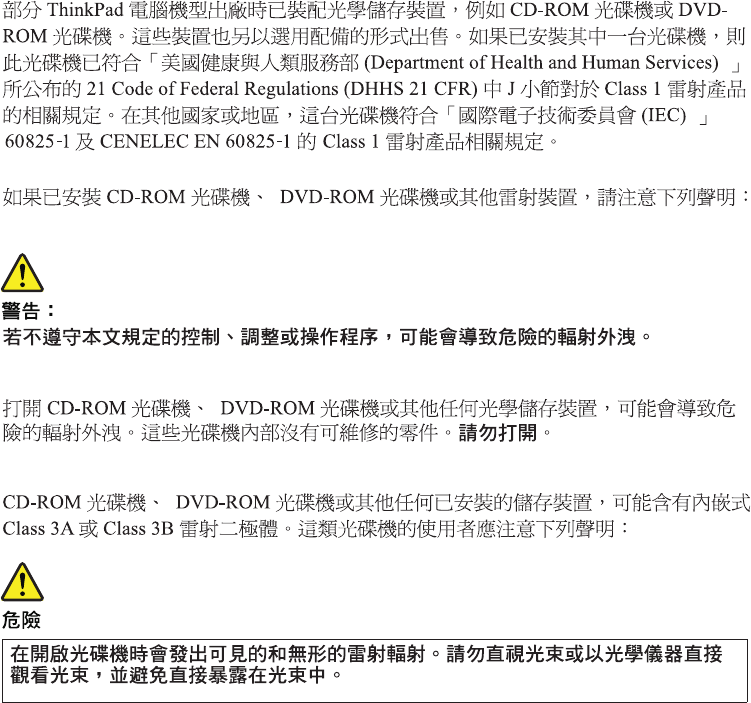

Safety notices (multilingual translations) .....7

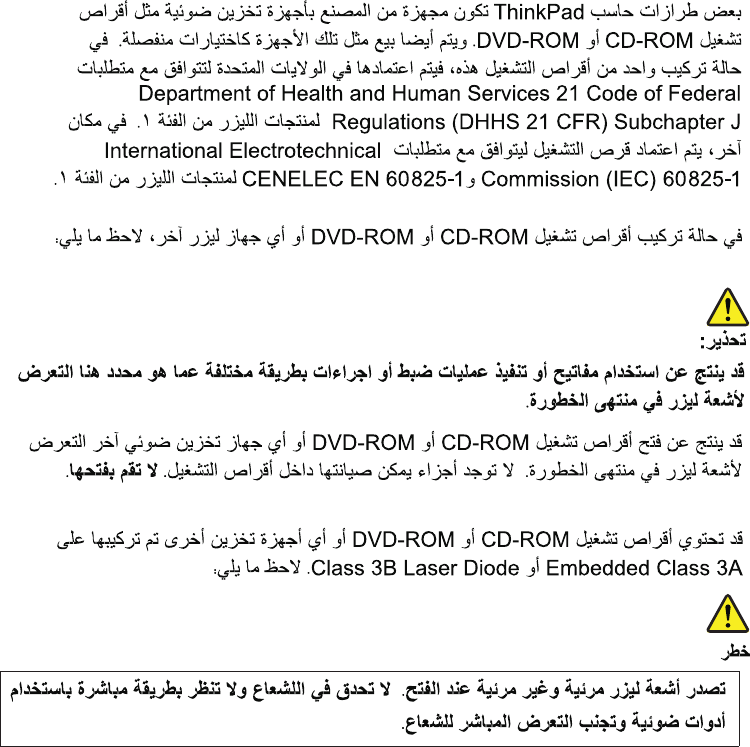

Laser compliance statement (multilingual
translations) ..............28
Important service information .....39
Strategy for replacing FRUs .........39
Strategy for replacing a hard disk drive ....40
Important notice for replacing a system board . . 40
How to use error message ........40
Strategy for replacing FRUs for CTO, CMV, and
GAV.................41
Product definition ...........41
FRU identification for CTO, CMV, and GAV
products ..............41
General checkout ..........43
What to do first .............44
Checkout guide .............45
Diagnostics using PC-Doctor for DOS ....45
Lenovo ThinkVantage Toolbox (Lenovo System
Toolbox) ..............48
PC-Doctor for Windows .........48
PC-Doctor for Rescue and Recovery .....49
FRU tests ..............50
Power system checkout ..........52

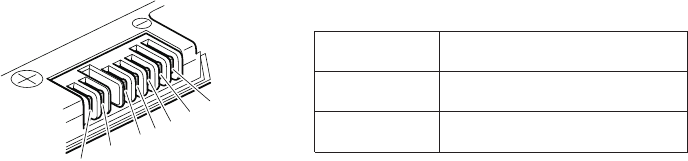

Checking the AC adapter.........52
Checking operational charging .......53
Checking the battery pack ........53
Checking the backup battery .......54
Related service information......55
Restoring the factory contents by using Product
Recovery discs .............55
Restoring the factory contents by using Recovery
Disc Set ...............56
Passwords ...............57
Power-on password ..........57
Hard-disk password ..........57
Supervisor password ..........58
How to remove the power-on password ....58
How to remove the hard-disk password ....59
Power management ...........60
Screen blank mode ...........60
Sleep (Standby) mode ..........60
Hibernation mode ...........61
Symptom-to-FRU index ..........62
Numeric error codes ..........62
Error messages ............66
Beep symptoms ............67
No-beep symptoms...........67
LCD-related symptoms .........68
Intermittent problems ..........69
Undetermined problems .........69

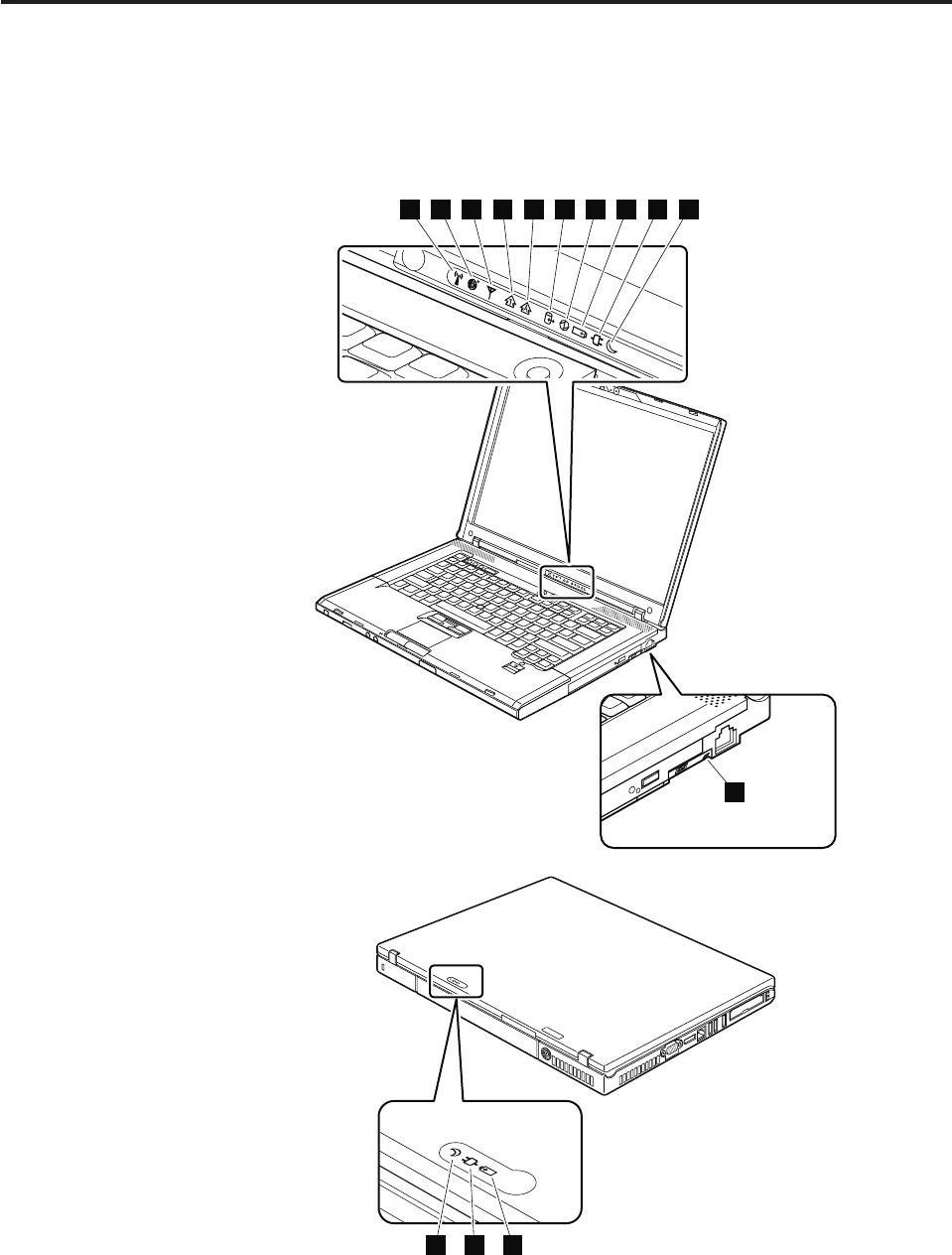

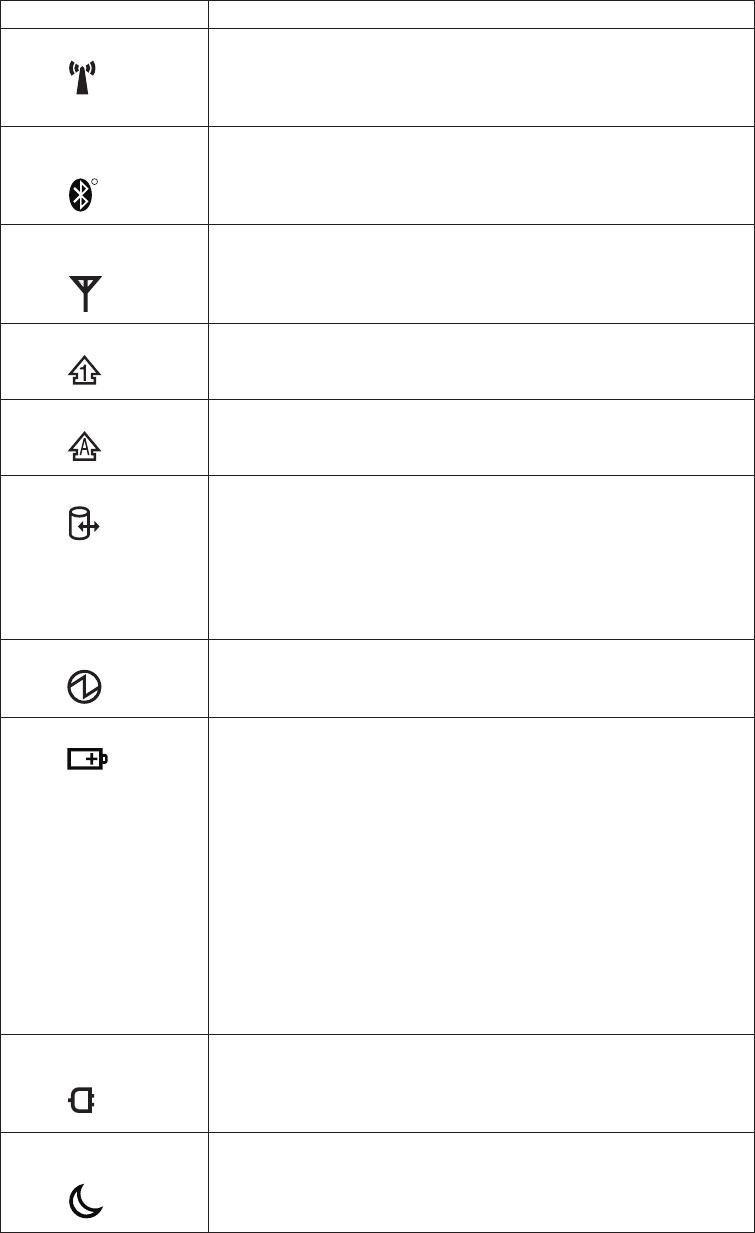

Status indicators ..........71
Fn key combinations ........75
FRU replacement notices .......79
Screw notices ..............79
Retaining serial numbers ..........80
Restoring the serial number of the system unit 80
Retaining the UUID ..........80
Reading or writing the ECA information . . . 81
Removing and replacing a FRU ....83

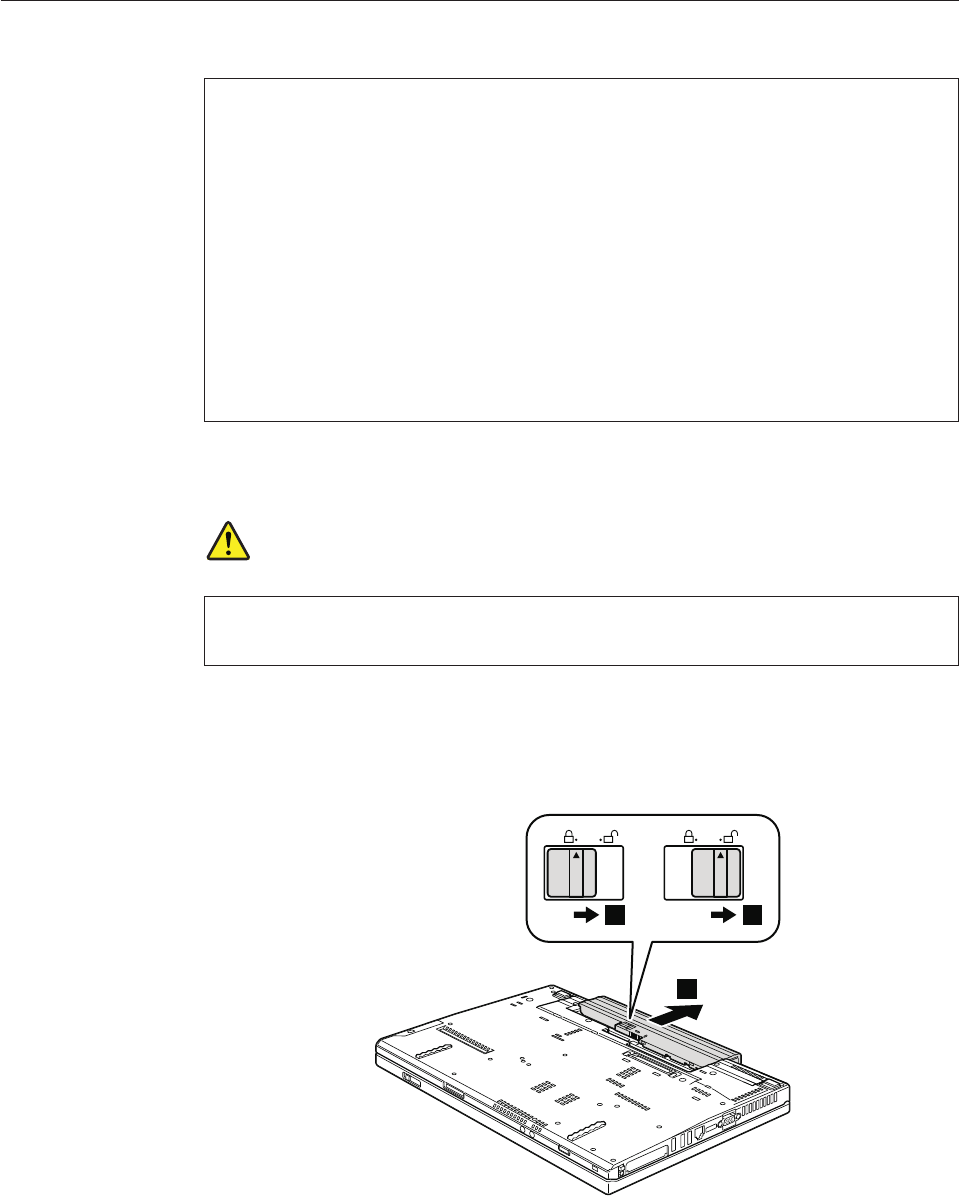

1010 Battery pack ............84
1020 Serial Ultrabay Slim device .......85

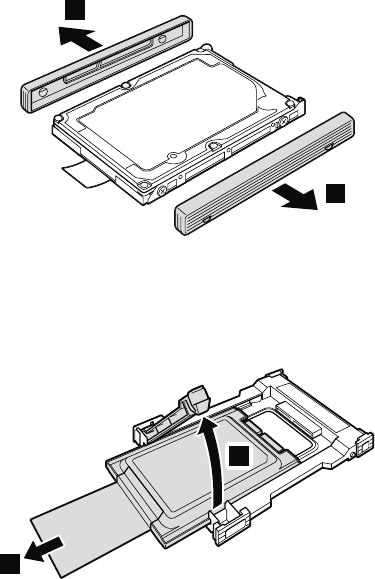

1030 Hard disk drive (HDD) cover, HDD and HDD
rubber rails or solid state drive (SSD) and storage
converter ...............86

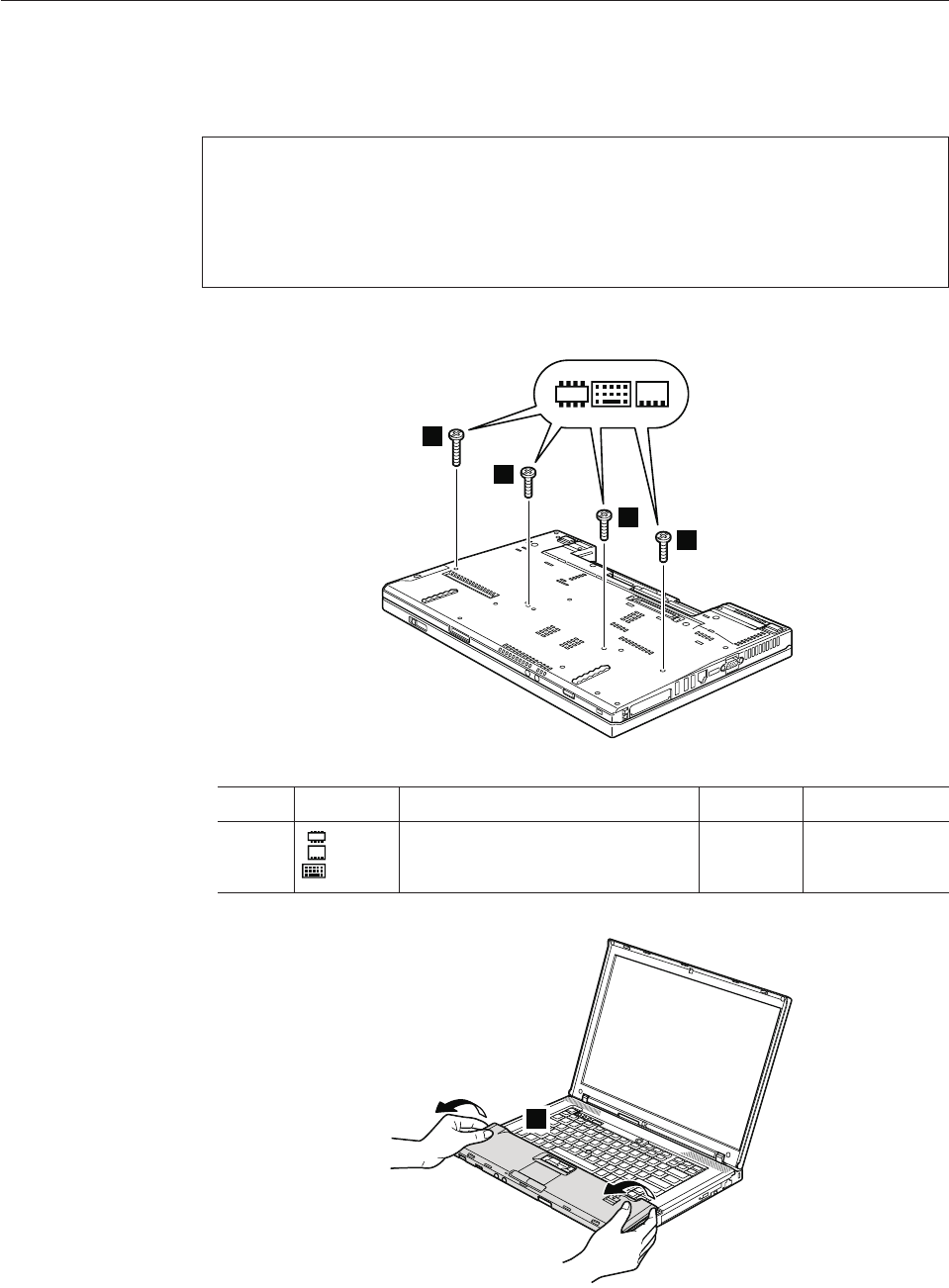

1040 Palm rest or palm rest with fingerprint reader 88

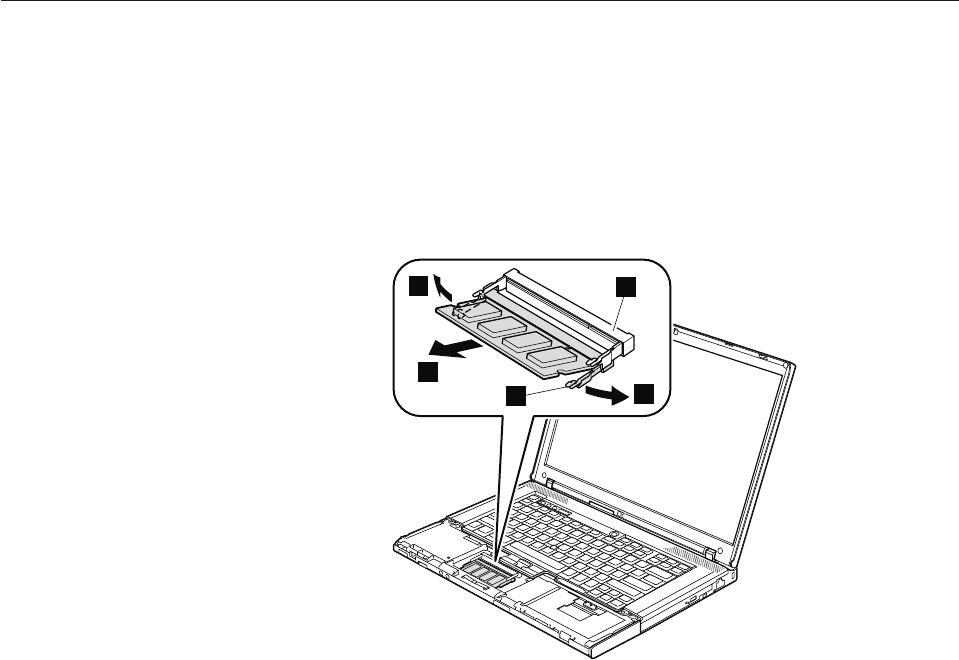

1050 DIMM ..............91

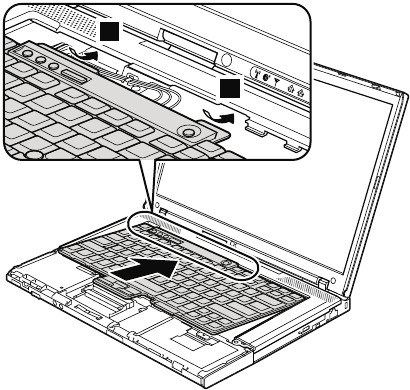

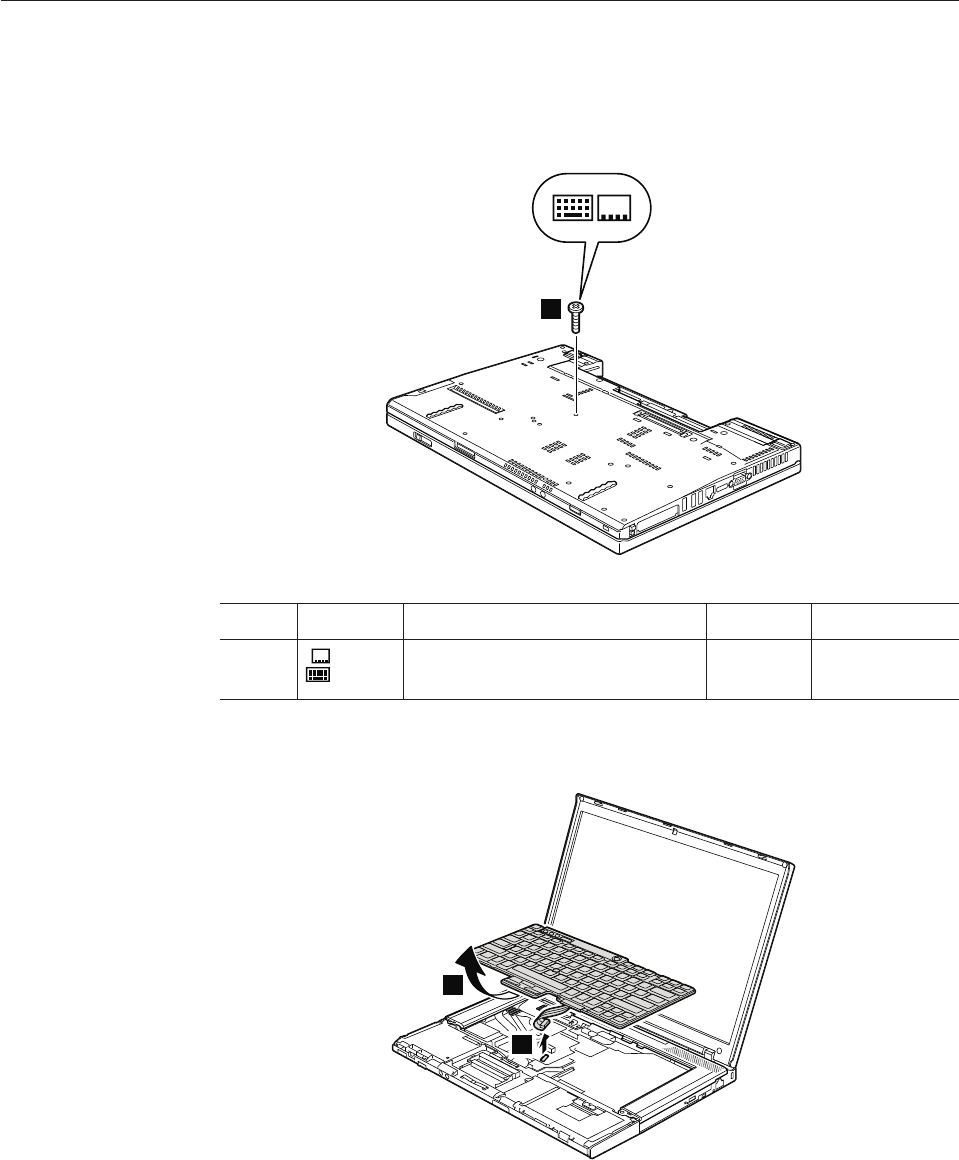

1060 Keyboard .............92
1070 Modem daughter card (MDC-3.0) .....94
1080 PCI Express Mini Card for wireless
LAN/WiMAX .............96
1090 Intel Turbo Memory Minicard or Wireless USB
adapter ................98

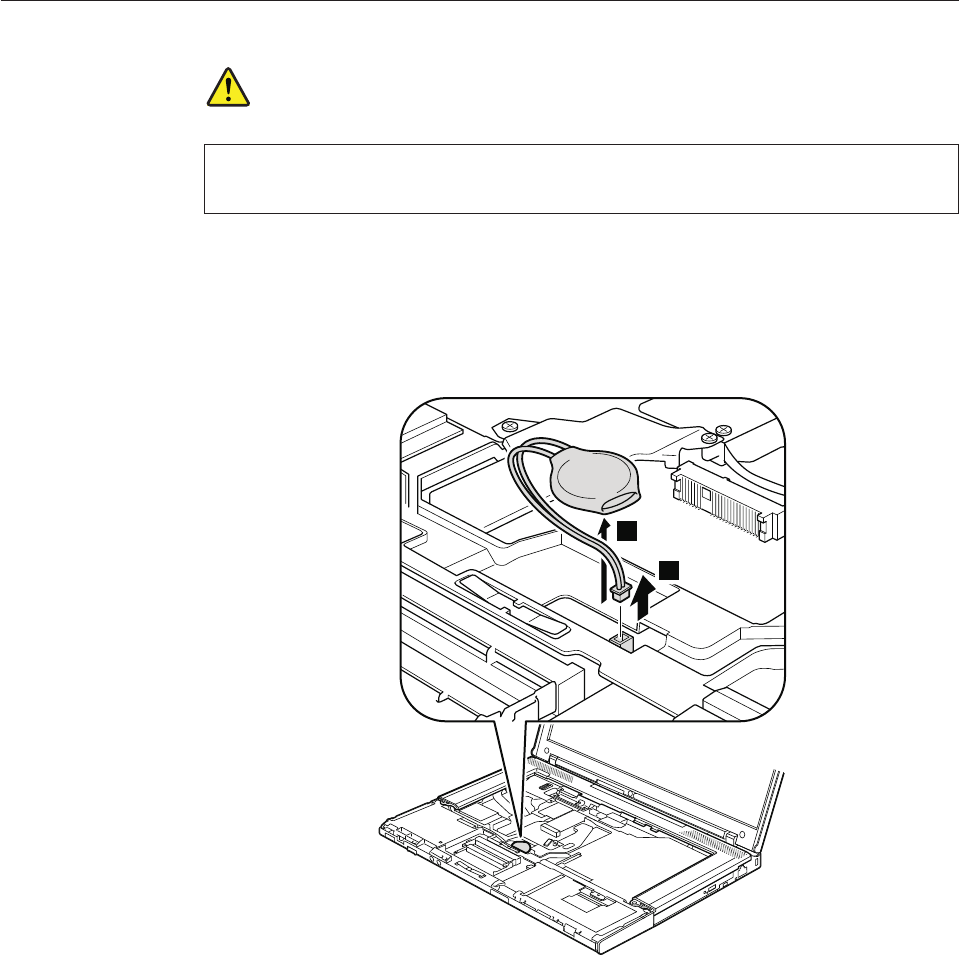

1100 Backup battery ...........100
1110 SIM card slot ............101
1120 Keyboard bezel ...........102
1130 PCI Express Mini Card for wireless WAN . . 104
1140 Speaker assembly ..........106

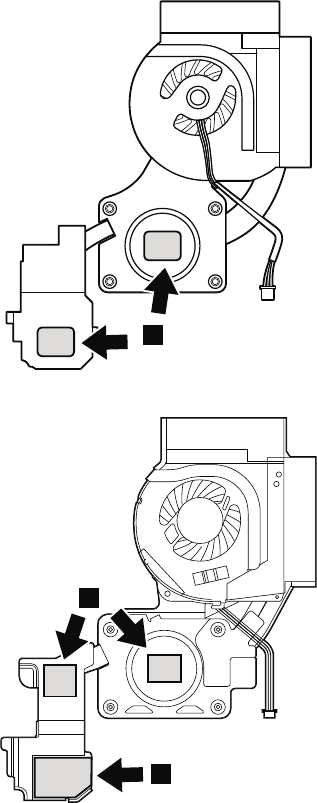

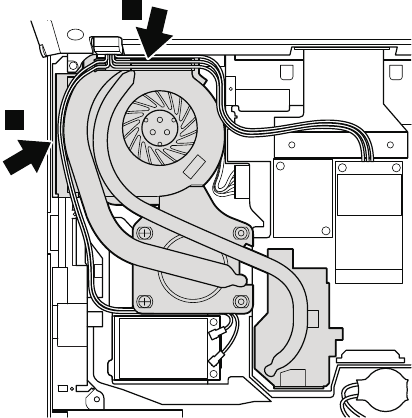

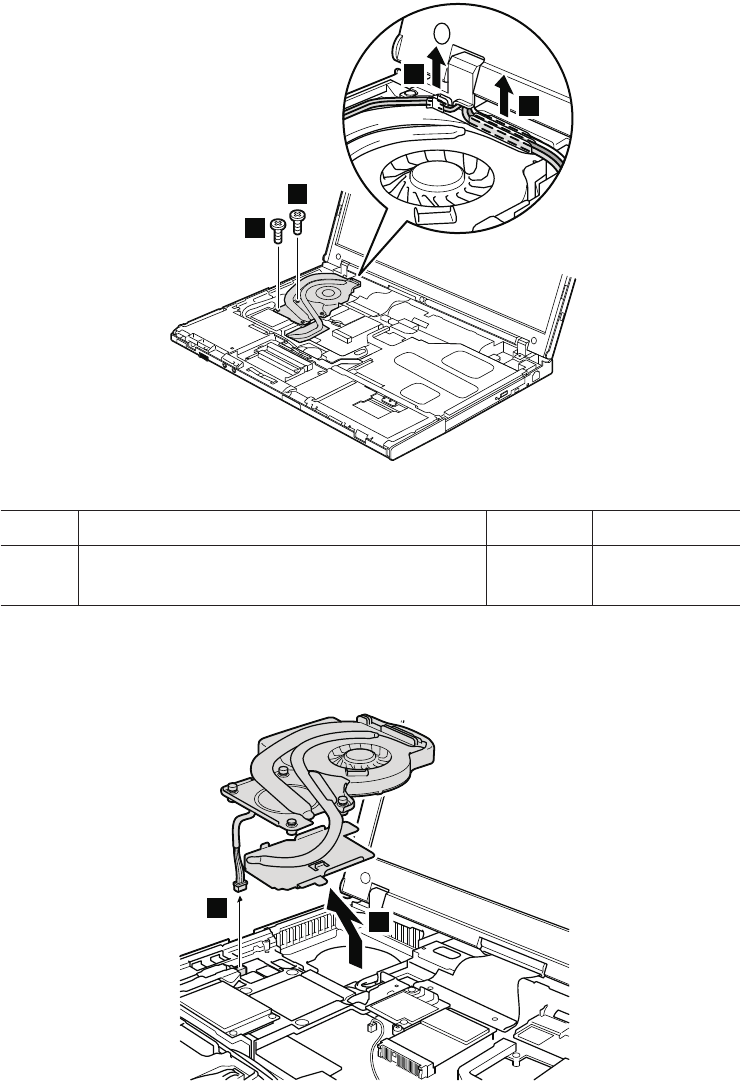

1150 Fan assembly............108

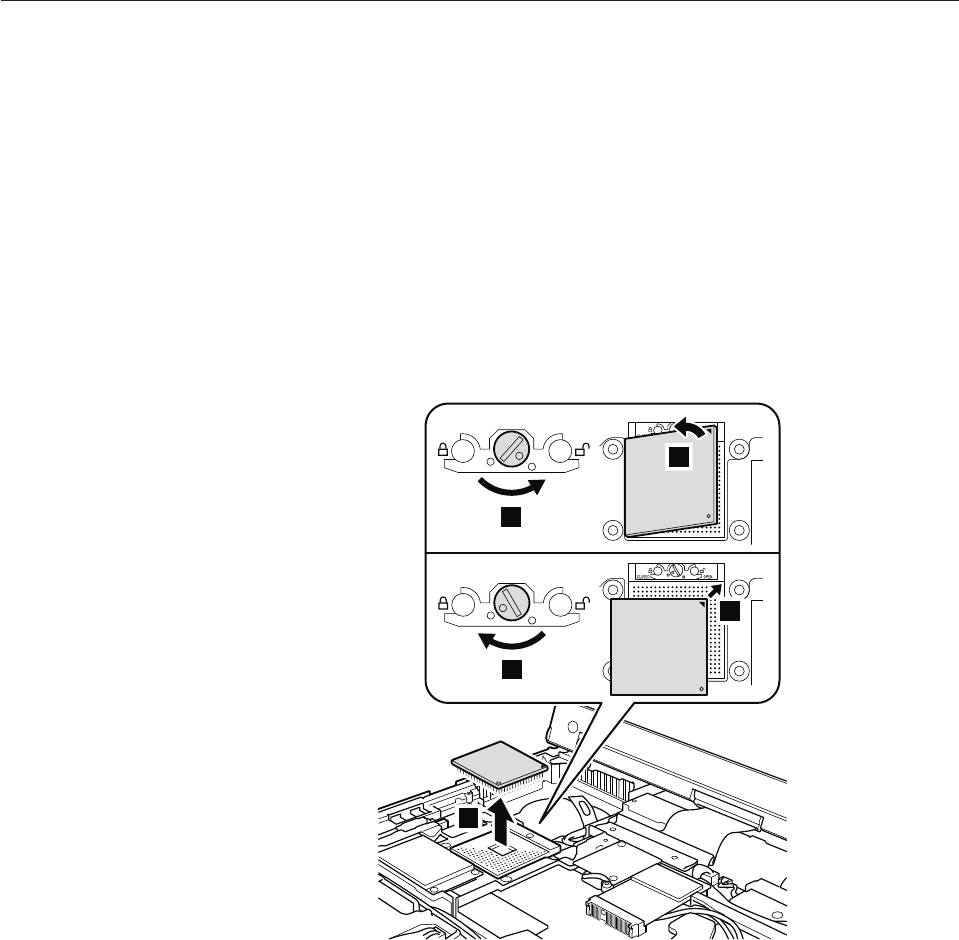

1160CPU...............112

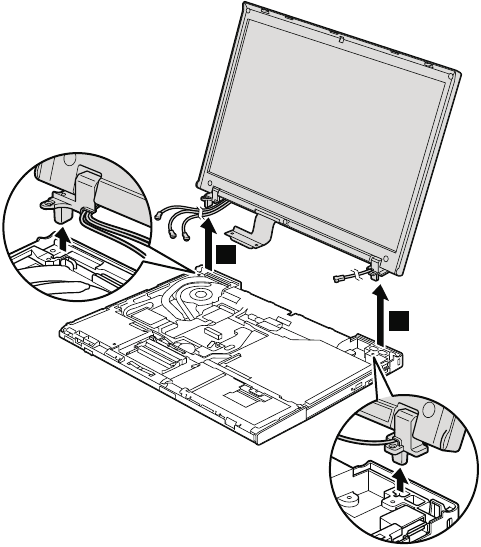

1170 LCD unit .............113
1180 Base cover and USB sub card with cable. . . 116

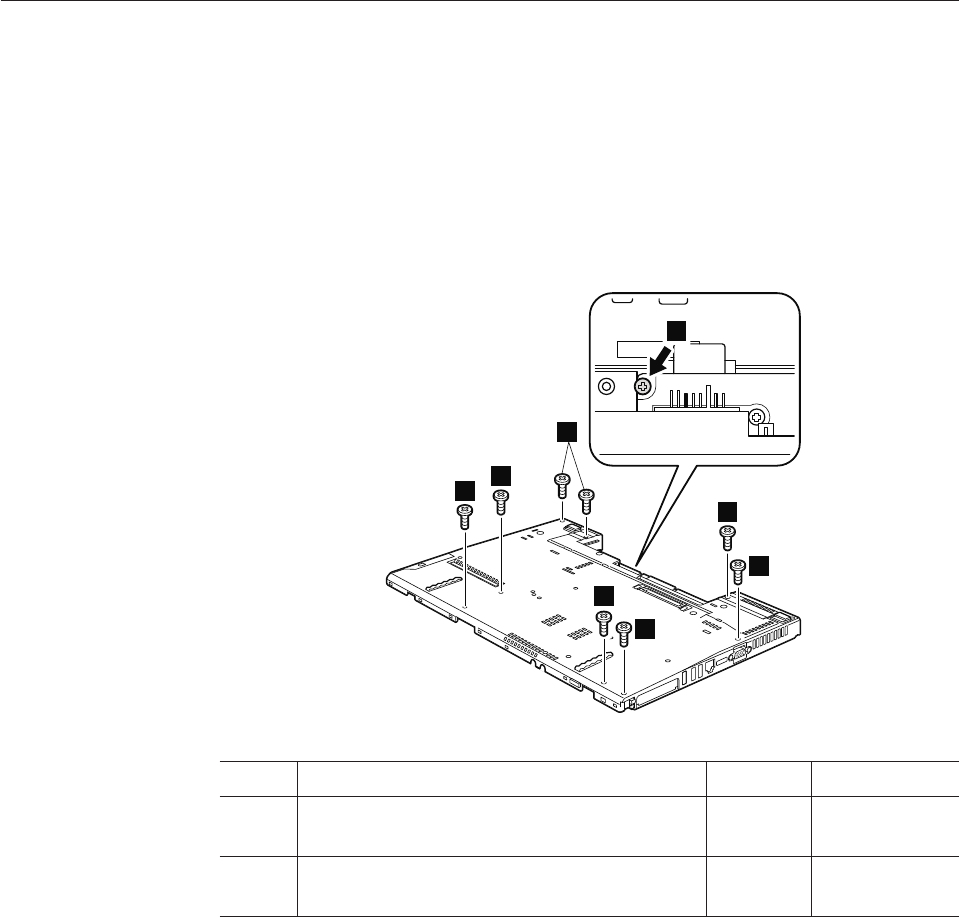

1190 Structure frame ...........121

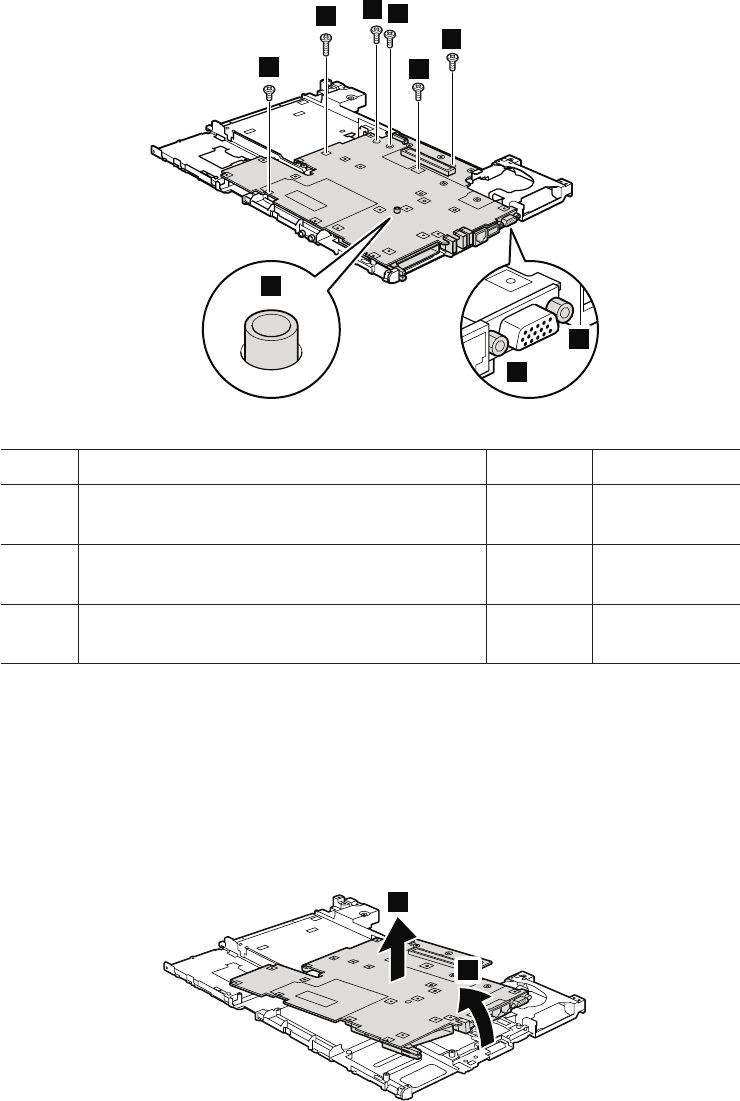

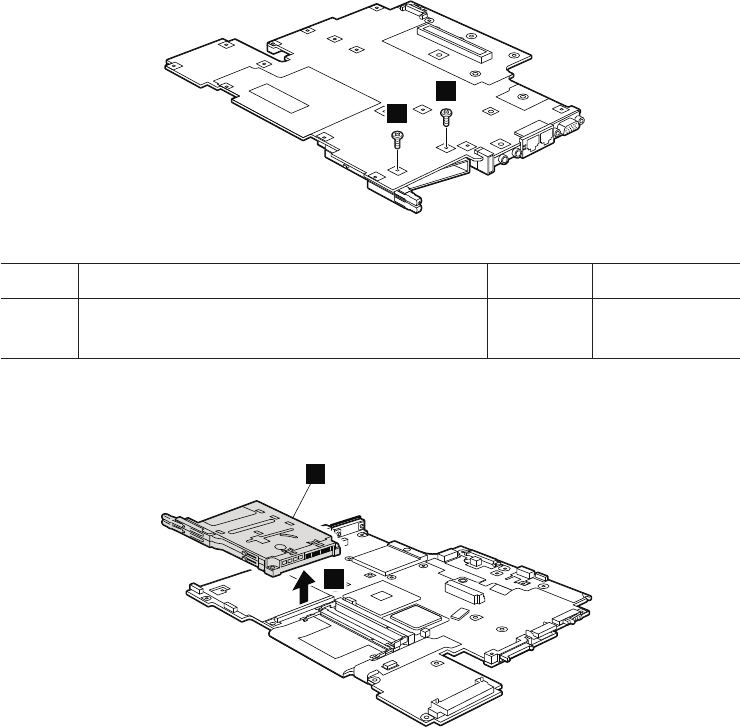

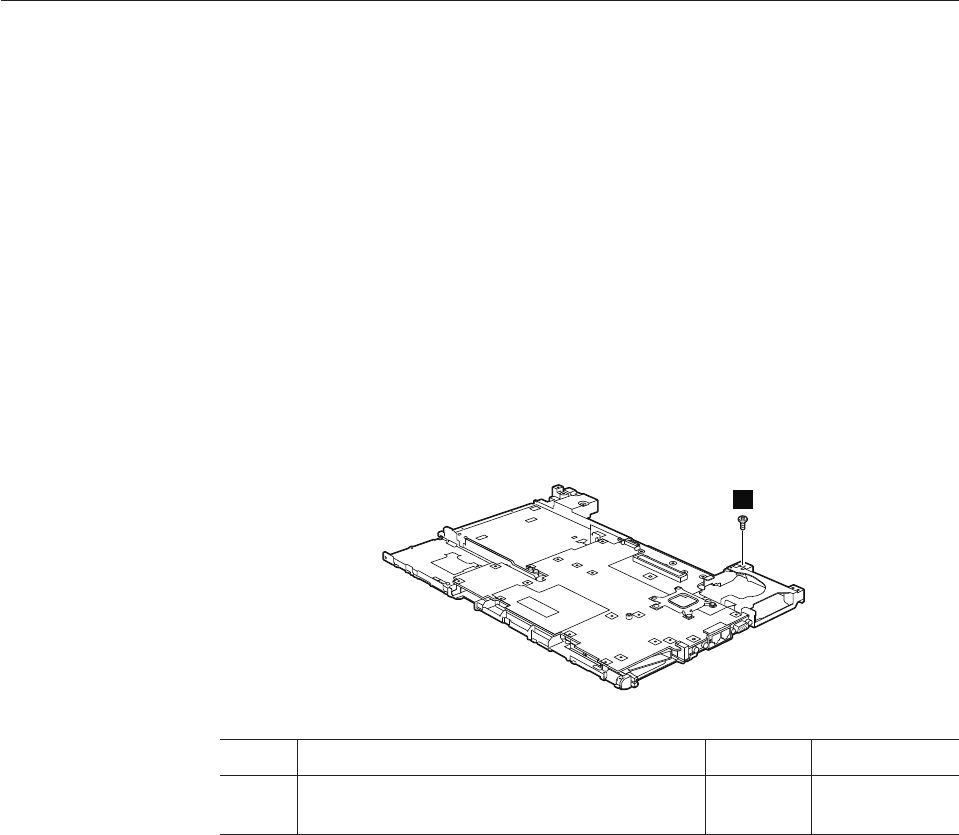

1200 System board and ExpressCard slot assembly 124

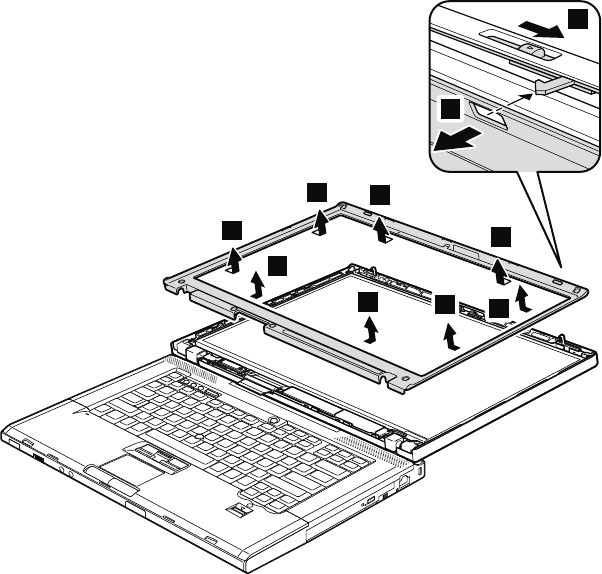

2010 LCD front bezel (LCD cover kit) .....127
2020 LCD rear cover (LCD cover kit) .....129
2030 Inverter card or LED control card .....130
2040 Integrated camera ..........131
2050 Bluetooth daughter card (BDC-2.1) ....132

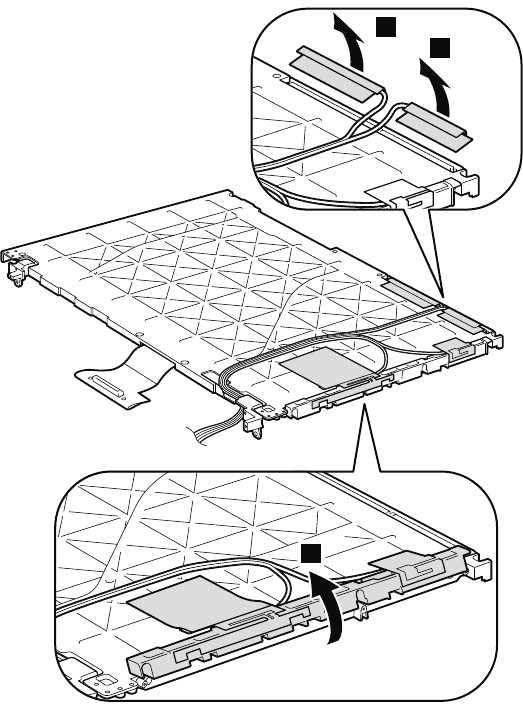

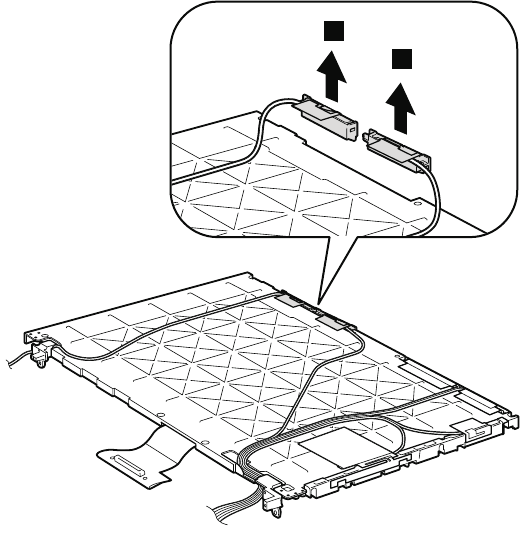

2060 Antenna assembly ..........133

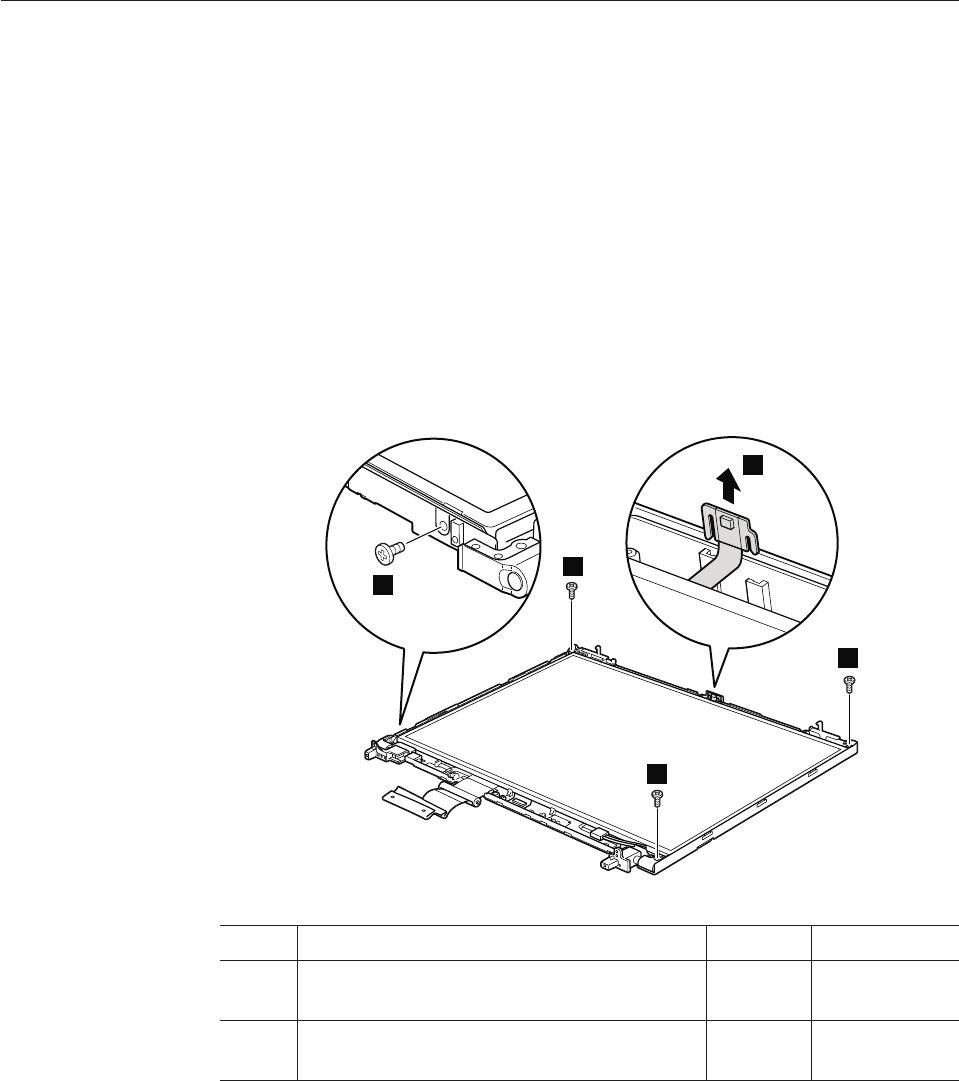

2070 LCD panel and LCD cable .......136

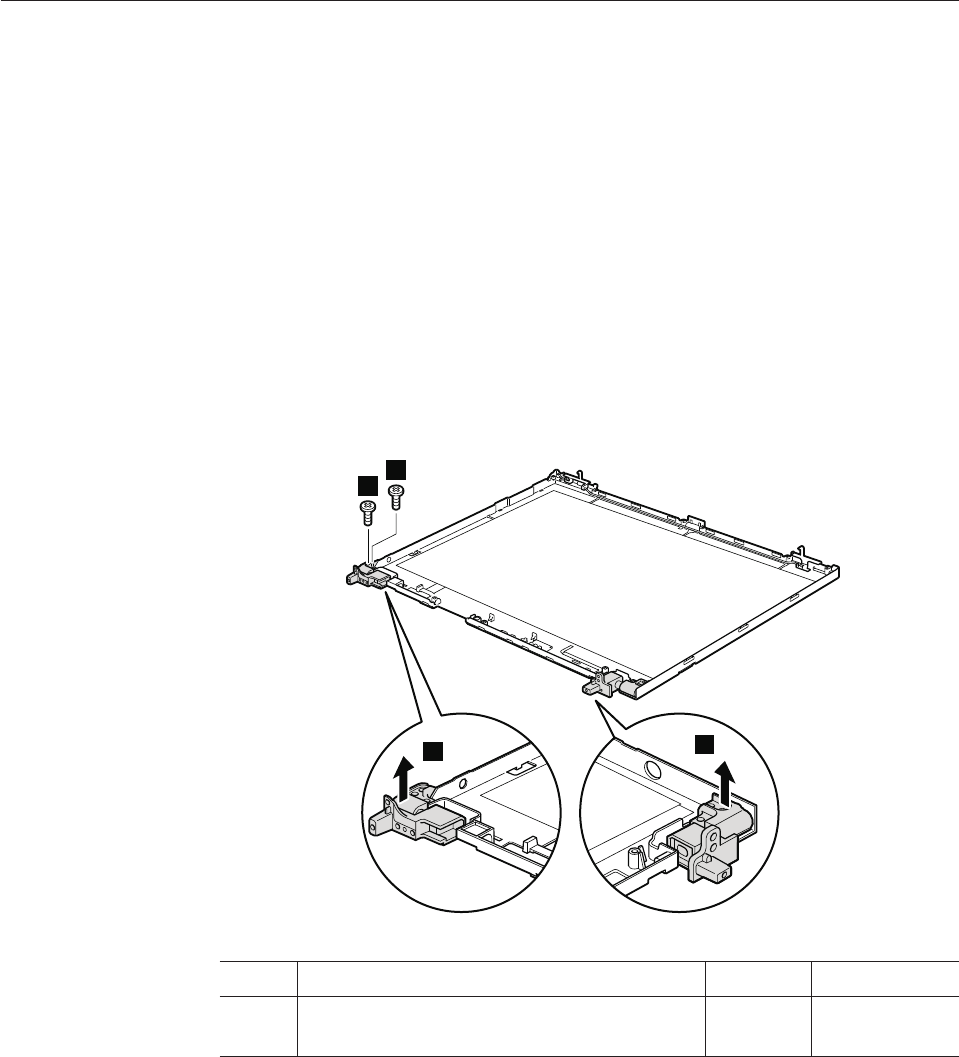

2080 Hinges and LCD magnesium frame ....139
© Copyright Lenovo 2008, 2009 iii
Locations .............141

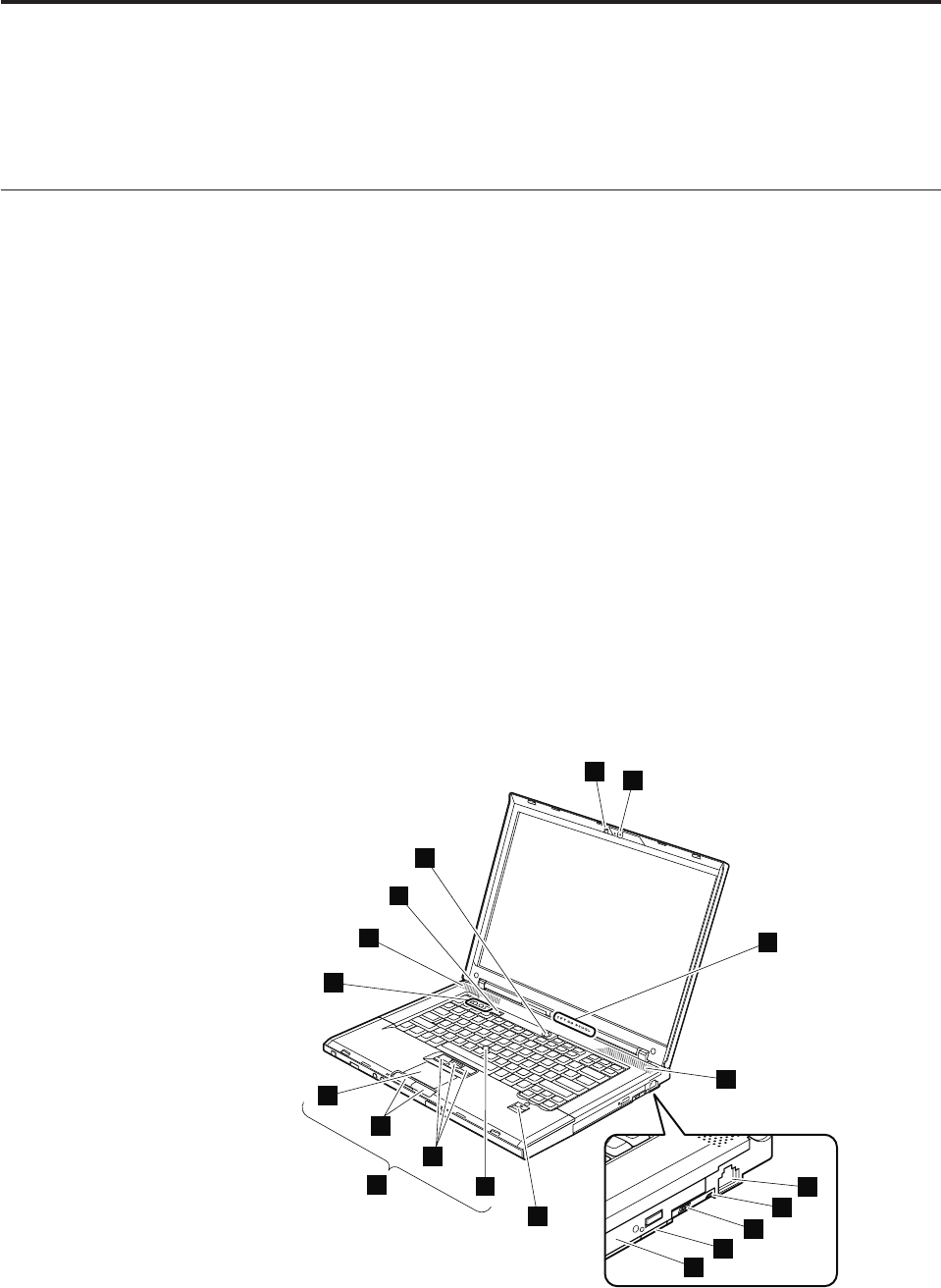

Front view ..............141

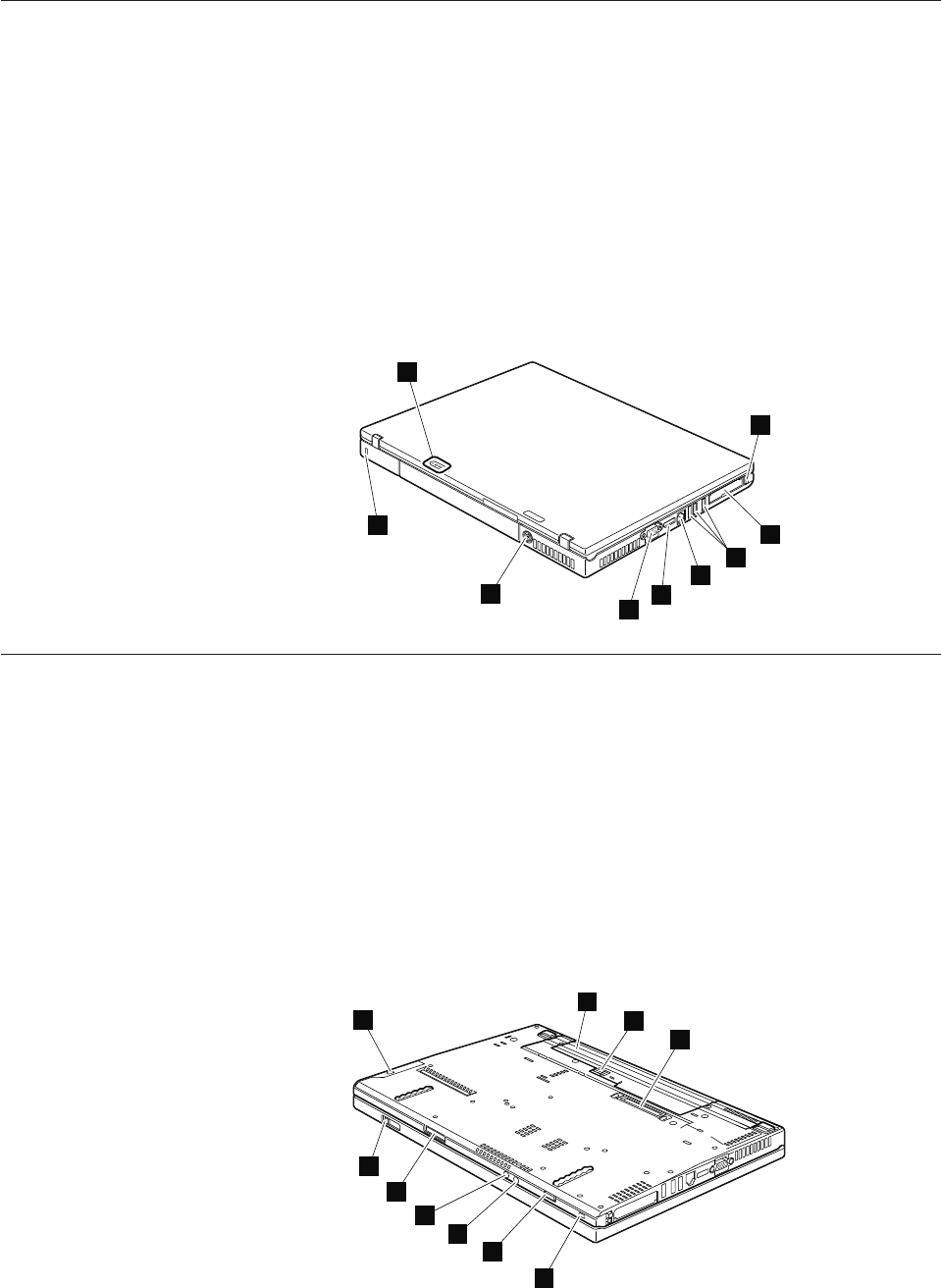

Rear view ..............142
Bottom view..............142
Parts list .............143

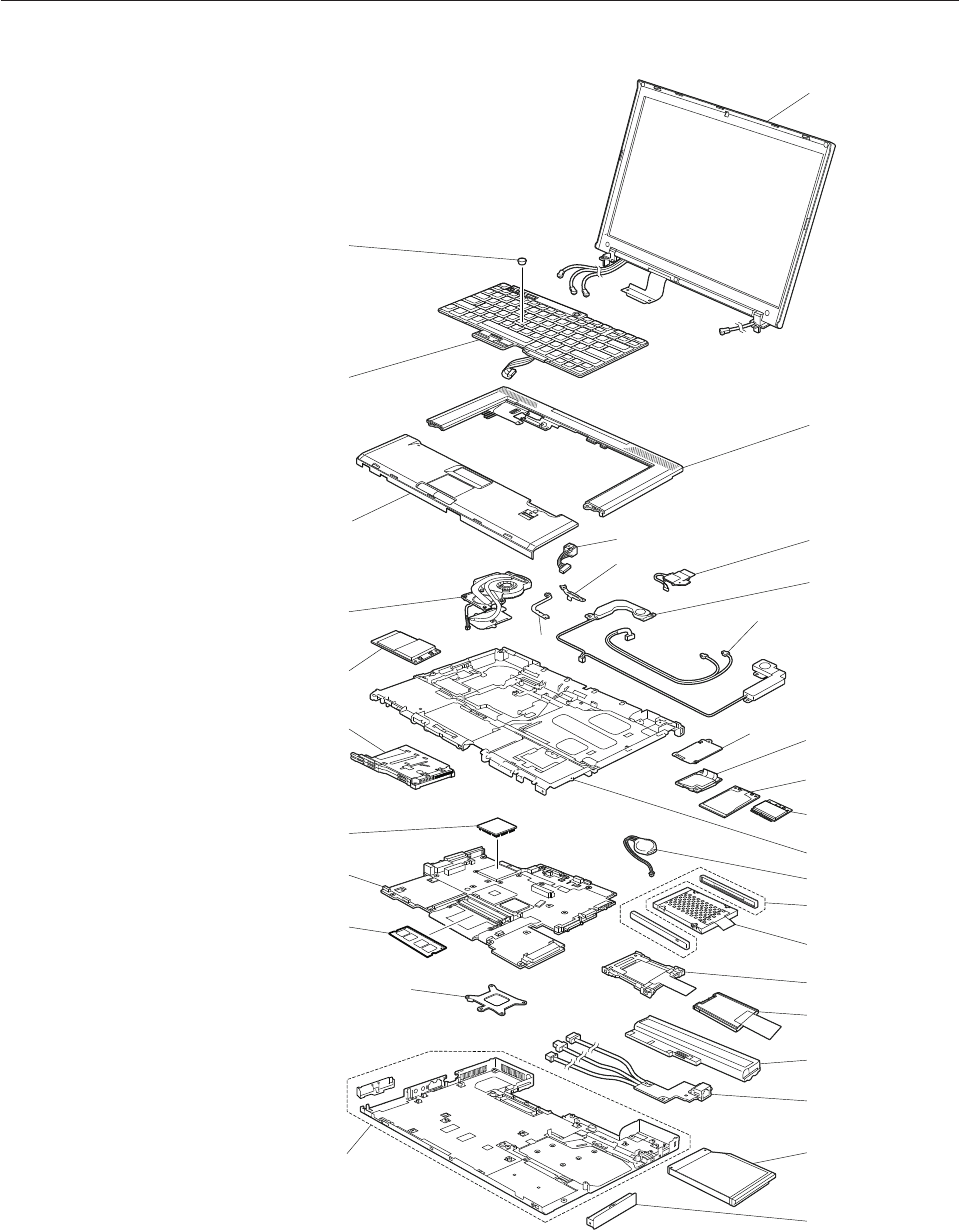

Overall ...............144
LCD FRUs ..............219
Keyboard...............237
Miscellaneous parts ...........239
AC adapters..............241
Power cords ..............242
Recovery discs .............243
Windows XP Professional (32 bit) DVDs . . . 243
Windows Vista Home Basic (32 bit) DVDs. . . 245
Windows Vista Home Premium (32 bit) DVDs 247
Windows Vista Business (32 bit) DVDs ....248
Windows Vista Business (64 bit) DVDs ....250
Windows Vista Ultimate (32 bit) DVDs ....251
Windows 7 Home Basic (32 bit) DVDs ....253
Windows 7 Home Premium (32 bit) DVDs . . 254
Windows 7 Home Premium (64 bit) DVDs . . 255
Windows 7 Professional (32 bit) DVDs ....256
Windows 7 Professional (64 bit) DVDs ....258
Common service tools ..........259
Notices ..............261
Trademarks ..............262
iv ThinkPad T500 and W500 Hardware Maintenance Manual
About this manual
This manual contains service and reference information for the following
ThinkPad®products.
ThinkPad T500
MT 2055, 2056, 2081, 2082, 2083, 2087, 2088, 2089, 2241, 2242, 2243, 2246,
2247, and 2261
ThinkPad W500
MT 4058, 4061, 4062, 4063, 4064, and 4065
Use this manual along with the advanced diagnostic tests to troubleshoot
problems.
Important:
This manual is intended only for trained service technicians who are familiar
with ThinkPad products. Use this manual along with the advanced diagnostic
tests to troubleshoot problems effectively.
Before servicing a ThinkPad product, be sure to read all the information under
“Safety information” on page 1 and “Important service information” on page 39.
© Copyright Lenovo 2008, 2009 v
vi ThinkPad T500 and W500 Hardware Maintenance Manual
Safety information
This chapter presents following safety information that you need to be familiar
with before you service a ThinkPad Notebook.
v“General safety” on page 2
v“Electrical safety” on page 3
v“Safety inspection guide” on page 5
v“Handling devices that are sensitive to electrostatic discharge” on page 6
v“Grounding requirements” on page 6
v“Safety notices (multilingual translations)” on page 7
v“Laser compliance statement (multilingual translations)” on page 28
© Copyright Lenovo 2008, 2009 1
General safety
Follow these rules to ensure general safety:
vObserve good housekeeping in the area of the machines during and after
maintenance.
vWhen lifting any heavy object:
1. Make sure that you can stand safely without slipping.
2. Distribute the weight of the object equally between your feet.
3. Use a slow lifting force. Never move suddenly or twist when you attempt to
lift.
4. Lift by standing or by pushing up with your leg muscles; this action removes
the strain from the muscles in your back. Do not attempt to lift any object that
weighs more than 16 kg (35 lb) or that you think is too heavy for you.
vDo not perform any action that causes hazards to the customer, or that makes
the equipment unsafe.
vBefore you start the machine, make sure that other service technicians and the
customer’s personnel are not in a hazardous position.
vPlace removed covers and other parts in a safe place, away from all personnel,
while you are servicing the machine.
vKeep your toolcase away from walk areas so that other people will not trip over
it.
vDo not wear loose clothing that can be trapped in the moving parts of a
machine. Make sure that your sleeves are fastened or rolled up above your
elbows. If your hair is long, fasten it.
vInsert the ends of your necktie or scarf inside clothing or fasten it with a
nonconductive clip, about 8 centimeters (3 inches) from the end.
vDo not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for your
clothing.
Attention: Metal objects are good electrical conductors.
vWear safety glasses when you are hammering, drilling, soldering, cutting wire,
attaching springs, using solvents, or working in any other conditions that might
be hazardous to your eyes.
vAfter service, reinstall all safety shields, guards, labels, and ground wires.
Replace any safety device that is worn or defective.
vReinstall all covers correctly before returning the machine to the customer.
vFan louvers on the machine help to prevent overheating of internal components.
Do not obstruct fan louvers or cover them with labels or stickers.
2ThinkPad T500 and W500 Hardware Maintenance Manual
Electrical safety
Observe the following rules when working on electrical equipment.
vFind the room emergency power-off (EPO) switch, disconnecting switch, or
electrical outlet. If an electrical accident occurs, you can then operate the switch
or unplug the power cord quickly.
vDo not work alone under hazardous conditions or near equipment that has
hazardous voltages.
vDisconnect all power before:
– Performing a mechanical inspection
– Working near power supplies
– Removing or installing main units
vBefore you start to work on the machine, unplug the power cord. If you cannot
unplug it, ask the customer to power-off the wall box that supplies power to the
machine, and to lock the wall box in the off position.
vIf you need to work on a machine that has exposed electrical circuits, observe the
following precautions:
– Ensure that another person, familiar with the power-off controls, is near you.
Attention: Another person must be there to switch off the power, if
necessary.
– Use only one hand when working with powered-on electrical equipment;
keep the other hand in your pocket or behind your back.
Attention: An electrical shock can occur only when there is a complete
circuit. By observing the above rule, you may prevent a current from passing
through your body.
– When using testers, set the controls correctly and use the approved probe
leads and accessories for that tester.
– Stand on suitable rubber mats (obtained locally, if necessary) to insulate you
from grounds such as metal floor strips and machine frames.
Observe the special safety precautions when you work with very high voltages;
Instructions for these precautions are in the safety sections of maintenance
information. Use extreme care when measuring high voltages.
vRegularly inspect and maintain your electrical hand tools for safe operational
condition.
vDo not use worn or broken tools and testers.
vNever assume that power has been disconnected from a circuit. First, check that it
has been powered off.
vAlways look carefully for possible hazards in your work area. Examples of these
hazards are moist floors, nongrounded power extension cables, power surges,
and missing safety grounds.
Important:
Use only approved tools and test equipment. Some hand tools have handles
covered with a soft material that does not insulate you when working with live
electrical currents.
Many customers have, near their equipment, rubber floor mats that contain small
conductive fibers to decrease electrostatic discharges. Do not use this type of mat
to protect yourself from electrical shock.
Safety information 3
vDo not touch live electrical circuits with the reflective surface of a plastic dental
mirror. The surface is conductive; such touching can cause personal injury and
machine damage.
vDo not service the following parts with the power on when they are removed
from their normal operating places in a machine:
– Power supply units
– Pumps
– Blowers and fans
– Motor generators
– Similar units to listed above
This practice ensures correct grounding of the units.
vIf an electrical accident occurs:
– Use caution; do not become a victim yourself.
– Switch off power.
– Send another person to get medical aid.
4ThinkPad T500 and W500 Hardware Maintenance Manual
Safety inspection guide
The purpose of this inspection guide is to assist you in identifying potentially
unsafe conditions. As each machine was designed and built, required safety items
were installed to protect users and service technicians from injury. This guide
addresses only those items. You should use good judgment to identify potential
safety hazards due to attachment of non-ThinkPad features or options not covered
by this inspection guide.
If any unsafe conditions are present, you must determine how serious the apparent
hazard could be and whether you can continue without first correcting the
problem.
Consider these conditions and the safety hazards they present:
vElectrical hazards, especially primary power (primary voltage on the frame can
cause serious or fatal electrical shock)
vExplosive hazards, such as a damaged CRT face or a bulging capacitor
vMechanical hazards, such as loose or missing hardware
To determine whether there are any potentially unsafe conditions, use the
following checklist at the beginning of every service task. Begin the checks with
the power off, and the power cord disconnected.
Checklist:
1. Check exterior covers for damage (loose, broken, or sharp edges).
2. Power off the computer. Disconnect the power cord.
3. Check the power cord for:
a. A third-wire ground connector in good condition. Use a meter to measure
third-wire ground continuity for 0.1 ohm or less between the external
ground pin and the frame ground.
b. The power cord should be the type specified in the parts list.
c. Insulation must not be frayed or worn.
4. Check for cracked or bulging batteries.
5. Remove the cover.
6. Check for any obvious non-ThinkPad alterations. Use good judgment as to the
safety of any non-ThinkPad alterations.
7. Check inside the unit for any obvious unsafe conditions, such as metal filings,
contamination, water or other liquids, or signs of fire or smoke damage.
8. Check for worn, frayed, or pinched cables.
9. Check that the power-supply cover fasteners (screws or rivets) have not been
removed or tampered with.
Safety information 5
Handling devices that are sensitive to electrostatic discharge
Any computer part containing transistors or integrated circuits (ICs) should be
considered sensitive to electrostatic discharge (ESD.) ESD damage can occur when
there is a difference in charge between objects. Protect against ESD damage by
equalizing the charge so that the machine, the part, the work mat, and the person
handling the part are all at the same charge.
When handling ESD-sensitive parts:
vKeep the parts in protective packages until they are inserted into the product.
vAvoid contact with other people.
vWear a grounded wrist strap against your skin to eliminate static on your body.
vPrevent the part from touching your clothing. Most clothing is insulative and
retains a charge even when you are wearing a wrist strap.
vUse a grounded work mat to provide a static-free work surface. The mat is
especially useful when handling ESD-sensitive devices.
vSelect a grounding system, such as those listed below, to provide protection that
meets the specific service requirement.
– Attach the ESD ground clip to any frame ground, ground braid, or green-wire
ground.
– When working on a double-insulated or battery-operated system, use an ESD
common ground or reference point. You can use coax or connector-outside
shells on these systems.
– Use the round ground prong of the ac plug on ac-operated computers.
Grounding requirements
Electrical grounding of the computer is required for operator safety and correct
system function. Proper grounding of the electrical outlet can be verified by a
certified electrician.
Notes:
1. Use product-specific ESD procedures when they exceed the requirements
noted here.
2. Make sure that the ESD protective devices you use have been certified (ISO
9000) as fully effective.
Note:
The use of a grounding system to guard against ESD damage is desirable but not
necessary.
6ThinkPad T500 and W500 Hardware Maintenance Manual
Safety notices (multilingual translations)
The safety notices in this section are provided in the following languages:
vEnglish
vArabic
vBrazilian Portuguese
vFrench
vGerman
vHebrew
vJapanese
vKorean
vSpanish
vTraditional Chinese
Safety information 7
DANGER
Before the computer is powered on after FRU replacement, make sure all screws,
springs, and other small parts are in place and are not left loose inside the computer.
Verify this by shaking the computer and listening for rattling sounds. Metallic parts or
metal flakes can cause electrical shorts.
DANGER
Some standby batteries contain a small amount of nickel and cadmium. Do not
disassemble a standby battery, recharge it, throw it into fire or water, or short-circuit it.
Dispose of the battery as required by local ordinances or regulations. Use only the
battery in the appropriate parts listing. Use of an incorrect battery can result in ignition
or explosion of the battery.
DANGER
The battery pack contains small amounts of nickel. Do not disassemble it, throw it into
fire or water, or short-circuit it. Dispose of the battery pack as required by local
ordinances or regulations. Use only the battery in the appropriate parts listing when
replacing the battery pack. Use of an incorrect battery can result in ignition or explosion
of the battery.
DANGER
The lithium battery can cause a fire, an explosion, or a severe burn. Do not recharge it,
remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate it,
or expose its cell contents to water. Dispose of the battery as required by local
ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an
incorrect battery can result in ignition or explosion of the battery.
DANGER
If the LCD breaks and the fluid from inside the LCD gets into your eyes or on your
hands, immediately wash the affected areas with water for at least 15 minutes. Seek
medical care if any symptoms from the fluid are present after washing.
8ThinkPad T500 and W500 Hardware Maintenance Manual
DANGER
To avoid shock, do not remove the plastic cover that protects the lower part of the
inverter card.
DANGER
Though the main batteries have low voltage, a shorted or grounded battery can produce
enough current to burn personnel or combustible materials.
DANGER
Unless hot swap is allowed for the FRU being replaced, do as follows before removing
it: power off the computer, unplug all power cords from electrical outlets, remove the
battery pack, and disconnect any interconnecting cables.
Safety information 9

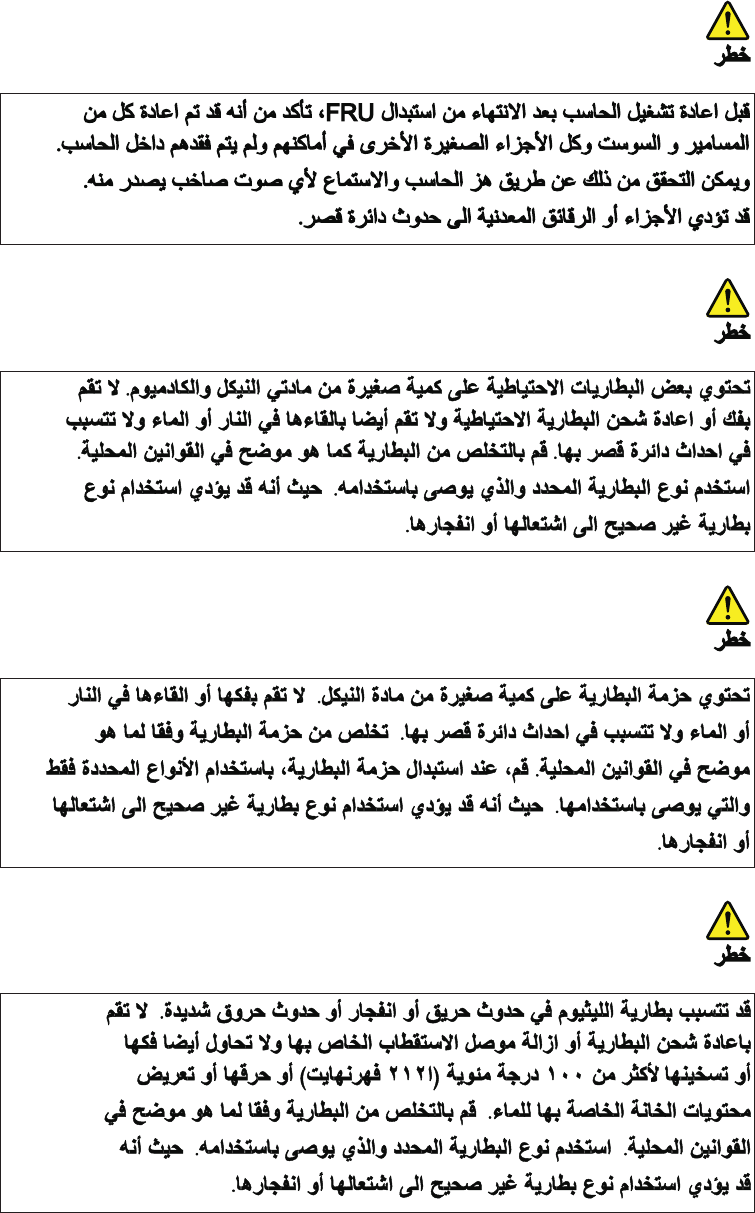

10 ThinkPad T500 and W500 Hardware Maintenance Manual
Safety information 11
PERIGO
Antes de ligar o computador após a substituição da FRU, certifique-se de que todos os
parafusos, molas e outras peças pequenas estejam no lugar e não estejam soltos dentro
do computador. Verifique isso sacudindo o computador e procurando ouvir sons de
peças soltas. Peças metálicas ou lascas de metal podem causar curto-circuito.
PERIGO
Algumas baterias reserva contêm uma pequena quantidade de níquel e cádmio. Não
desmonte uma bateria reserva, recarregue-a, jogue-a no fogo ou na água, ou deixe-a
entrar em curto-circuito. Descarte a bateria conforme requerido pelas leis ou
regulamentos locais. Use somente a bateria nas partes listadas apropriadas. O uso de
uma bateria incorreta pode resultar em combustão ou explosão da bateria.
PERIGO
O pacote da bateria contém uma pequena quantidade de níquel. Não o desmonte,
jogue-o no fogo ou na água, ou deixe-o entrar em curto-circuito. Descarte o pacote da
bateria conforme requerido pelas leis ou regulamentos locais. Use somente a bateria nas
partes listadas apropriadas ao substituir o pacote da bateria. O uso de uma bateria
incorreta pode resultar em combustão ou explosão da bateria.
PERIGO
A bateria de lítio pode causar incêndio, explosão ou graves queimaduras. Não a
recarregue, remova seu conector polarizado, desmonte-a, aqueça-a acima de 100°C
(212°F), incinere-a, ou exponha o conteúdo de sua célula à água. Descarte a bateria
conforme requerido pelas leis ou regulamentos locais. Use somente a bateria nas partes
listadas apropriadas. O uso de uma bateria incorreta pode resultar em combustão ou
explosão da bateria.
PERIGO
Se o LCD quebrar e o fluido de dentro dele entrar em contato com seus olhos ou com
suas mãos, lave as áreas afetadas imediatamente com água durante pelo menos 15
minutos. Procure cuidados médicos se algum sintoma causado pelo fluido surgir após a
lavagem.
12 ThinkPad T500 and W500 Hardware Maintenance Manual
PERIGO
Para evitar choque elétrico, não remova a capa plástica que protege a parte inferior da
placa inversora.
PERIGO
Embora as principais baterias possuam baixa voltagem, uma bateria em curto-circuito ou
aterrada pode produzir corrente o bastante para queimar materiais de pessoal ou
inflamáveis.
PERIGO
A menos que uma hot swap seja permitida para a FRU que está sendo substituída, faça
o seguinte antes de removê-la: desligue o computador, desconecte todos os cabos de
energia das tomadas, remova o pacote de baterias e desconecte quaisquer cabos de
interconexão.
Safety information 13
DANGER
Avant de remettre l’ordinateur sous tension après remplacement d’une unité en clientèle,
vérifiez que tous les ressorts, vis et autres pièces sont bien en place et bien fixées. Pour
ce faire, secouez l’unité et assurez-vous qu’aucun bruit suspect ne se produit. Des pièces
métalliques ou des copeaux de métal pourraient causer un court-circuit.
DANGER
Certaines batteries de secours contiennent du nickel et du cadmium. Ne les démontez
pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne les mettez pas en
court-circuit. Pour les mettre au rebut, conformez-vous à la réglementation en vigueur.
Lorsque vous remplacez la pile de sauvegarde ou celle de l’horloge temps réel, veillez à
n’utiliser que les modèles cités dans la liste de pièces détachées adéquate. Une batterie
ou une pile inappropriée risque de prendre feu ou d’exploser.
DANGER
La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni à l’eau. Ne
la mettez pas en court-circuit. Pour la mettre au rebut, conformez-vous à la
réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n’utiliser que
les modèles cités dans la liste de pièces détachées adéquate. En effet, une batterie
inappropriée risque de prendre feu ou d’exploser.
DANGER
La pile de sauvegarde contient du lithium. Elle présente des risques d’incendie,
d’explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son connecteur
polarisé et ne la démontez pas. Ne l’exposez pas à une temperature supérieure à 100°C,
ne la faites pas brûler et n’en exposez pas le contenu à l’eau. Mettez la pile au rebut
conformément à la réglementation en vigueur. Une pile inappropriée risque de prendre
feu ou d’exploser.
DANGER
Si le panneau d’affichage à cristaux liquides se brise et que vous recevez dans les yeux
ou sur les mains une partie du fluide, rincez-les abondamment pendant au moins
quinze minutes. Consultez un médecin si des symptômes persistent après le lavage.
14 ThinkPad T500 and W500 Hardware Maintenance Manual
DANGER
Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique
protégeant la partie inférieure de la carte d’alimentation.
DANGER
Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la mise à
la masse d’une batterie peut produire suffisamment de courant pour brûler des
matériaux combustibles ou causer des brûlures corporelles graves.
DANGER
Si le remplacement à chaud n’est pas autorisé pour l’unité remplaçable sur site que vous
remplacez, procédez comme suit avant de retirer l’unité : mettez l’ordinateur hors
tension, débranchez tous les cordons d’alimentation des prises de courant, retirez le bloc
de batterie et déconnectez tous les câbles d’interconnexion.
Safety information 15
VORSICHT
Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird,
muß sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile
fehlen oder im Gehäuse vergessen wurden. Der Computer muß geschüttelt und
auf Klappergeräusche geprüft werden. Metallteile oder-splitter können
Kurzschlüsse erzeugen.
VORSICHT
Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet, kann
geringe Mengen Nickel und Cadmium enthalten. Sie darf nur durch die
Verkaufsstelle oder den IBM Kundendienst ausgetauscht werden. Sie darf nicht
zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt
werden. Die Batterie kann schwere Verbrennungen oder Verätzungen
verursachen. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll
beachten. Beim Ersetzen der Bereitschafts-oder Systembatterie nur Batterien des
Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher
Batterien kann zu Entzündung oder Explosion führen.
VORSICHT
Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,
wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden.
Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten.
Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der
Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu
Entzündung oder Explosion führen.
VORSICHT
Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden,
explodieren oder schwere Verbrennungen hervorrufen. Batterien dieses Typs
dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden.
Auch darf ihr Inhalt nicht mit Wasser in Verbindung gebracht oder der zur
richtigen Polung angebrachte Verbindungsstecker entfernt werden. Bei der
Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim
Ersetzen der Batterie nur Batterien des Typs verwenden, der in der
Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu
Entzündung oder Explosion führen.
16 ThinkPad T500 and W500 Hardware Maintenance Manual
VORSICHT
Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der
Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Der
LCD-Bildschirm besteht aus Glas und kann zerbrechen, wenn er unsachgemäß
behandelt wird oder der Computer auf den Boden fällt. Wenn der Bildschirm
beschädigt ist und die darin befindliche Flüssigkeit in Kontakt mit Haut und
Augen gerät, sollten die betroffenen Stellen mindestens 15 Minuten mit Wasser
abgespült und bei Beschwerden anschließend ein Arzt aufgesucht werden.
VORSICHT
Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der
Spannungswandlerplatine umgibt, nicht entfernen.
VORSICHT
Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei
Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu
entzünden oder Verletzungen bei Personen hervorzurufen.
VORSICHT
Wenn ein Austausch der FRU bei laufendem Betrieb nicht erlaubt ist, gehen
Sie beim Austausch der FRU wie folgt vor: Schalten Sie den Computer aus,
ziehen Sie alle Netzkabel von den Netzsteckdosen ab, entfernen Sie den Akku
und ziehen Sie alle miteinander verbundenen Kabel ab.
Safety information 17
18 ThinkPad T500 and W500 Hardware Maintenance Manual
Safety information 19
20 ThinkPad T500 and W500 Hardware Maintenance Manual
Safety information 21
22 ThinkPad T500 and W500 Hardware Maintenance Manual
Safety information 23
PELIGRO
Antes de encender el sistema despues de sustituir una FRU, compruebe que todos los
tornillos, muelles y demás piezas pequeñas se encuentran en su sitio y no se encuentran
sueltas dentro del sistema. Compruébelo agitando el sistema y escuchando los posibles
ruidos que provocarían. Las piezas metálicas pueden causar cortocircuitos eléctricos.
PELIGRO
Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio. No las
desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal
como dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de
piezas. La utilización de una batería no apropiada puede provocar la ignición o
explosión de la misma.
PELIGRO
Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni recargue, ni
las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como dispone la normativa
local. Utilice sólo baterías que se encuentren en la lista de piezas al sustituir la batería.
La utilización de una batería no apropiada puede provocar la ignición o explosión de la
misma.
PELIGRO
La batería de repuesto es una batería de litio y puede provocar incendios, explosiones o
quemaduras graves. No la recargue, ni quite el conector polarizado, ni la desmonte, ni
caliente por encima de los 100°C (212°F), ni la incinere ni exponga el contenido de sus
celdas al agua. Deséchela tal como dispone la normativa local.
PELIGRO
Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o sus
manos, lave inmediatamente las áreas afectadas con agua durante 15 minutos como
mínimo. Obtenga atención medica si se presenta algún síntoma del fluido despues de
lavarse.
24 ThinkPad T500 and W500 Hardware Maintenance Manual
PELIGRO
Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la
tarjeta invertida.
PELIGRO
Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada o con
contacto a tierra puede producir la corriente suficiente como para quemar material
combustible o provocar quemaduras en el personal.
PELIGRO
Salvo que se permita el intercambio en caliente para la unidad sustituible localmente,
realice lo siguiente antes de extraerla: apague el sistema, desconecte todos los cables de
alimentación de las tomas de alimentación eléctrica, extraiga la batería y desconecte los
cables de interconexión.
Safety information 25
26 ThinkPad T500 and W500 Hardware Maintenance Manual
Safety information 27
Laser compliance statement (multilingual translations)
The laser compliance statements in this section are provided in the following
languages:
vEnglish
vArabic
vBrazilian Portuguese
vFrench
vGerman
vHebrew
vJapanese
vKorean
vSpanish
vTraditional Chinese
Some models of ThinkPad Notebook are equipped from the factory with an optical
storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are
also sold separately as options. If one of these drives is installed, it is certified in
the U.S. to conform to the requirements of the Department of Health and Human
Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1
laser products. Elsewhere, the drive is certified to conform to the requirements of
the International Electrotechnical Commission (IEC) 60825-1 and CENELEC EN
60825-1 for Class 1 laser products.
If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note
the following:
CAUTION:
Use of controls or adjustments or performance of procedures other than those
specified herein might result in hazardous radiation exposure.
Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage
device could result in exposure to hazardous laser radiation. There are no
serviceable parts inside those drives. Do not open.
A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may
contain an embedded Class 3A or Class 3B laser diode. Note the following:
DANGER
Emits visible and invisible laser radiation when open. Do not stare into the
beam, do not view directly with optical instruments, and avoid direct exposure
to the beam.
28 ThinkPad T500 and W500 Hardware Maintenance Manual
Safety information 29
Alguns modelos de computador ThinkPad são equipados na fábrica com um
dispositivo de armazenamento ótico, como uma unidade de CD-ROM ou de
DVD-ROM. Tais dispositivos também são vendidos separadamente como
opcionais. Se uma dessas unidades estiver instalada, ela é certificada nos Estados
Unidos em conformidade com os requisitos do Department of Health and Human
Services 21 Code of Federal Regulations (DHHS 21 CFR), Subcapítulo J, para
produtos a laser da Classe 1. Em outros países, a unidade é certificada em
conformidade com os requisitos da International Electrotechnical Commission
(IEC) 60825-1 e CENELEC EN 60825-1 para produtos a laser da Classe 1.
Se uma unidade de CD-ROM, uma unidade de DVD-ROM, ou outro dispositivo de
laser estiver instalado, observe o seguinte:
CUIDADO:
O uso de controles, ou ajustes, ou a execução de procedimentos diferentes dos
especificados nesta documentação pode resultar em exposição perigosa à
radiação.
Abrir a unidade de CD-ROM, a unidade de DVD-ROM, ou qualquer outro
dispositivo de armazenamento ótico pode resultar em exposição perigosa à
radiação de laser. Não há peças que permitam manutenção dentro dessas unidades.
Não abra.
Uma unidade de CD-ROM, uma unidade de DVD-ROM, ou qualquer outro
dispositivo de armazenamento instalado pode conter um diodo de laser da Classe
3A ou Classe 3B integrado. Observe o seguinte:
PERIGO
Emite radiação de laser visível e invisível quando aberto. Não olhe diretamente
para o feixe a olho nu ou com instrumentos óticos, e evite exposição direta ao
feixe.
30 ThinkPad T500 and W500 Hardware Maintenance Manual
Certains modèles d’ordinateur ThinkPad sont équipés d’origine d’une unité de
stockage optique telle qu’une unité de CD-ROM ou de DVD-ROM. Ces unités sont
également vendues séparément en tant qu’options. Si l’une de ces unités est
installée, elle est certifiée conforme, aux Etats-Unis, aux normes indiquées dans le
sous-chapitre J du DHHS 21 CFR relatif aux produits à laser de classe 1. Dans les
autres pays, l’unité est certifiée être un produit à laser de classe 1 conforme aux
normes CEI 60825-1 et CENELEC EN 60825-1.
Si une unité de CD-ROM, une unité de DVD-ROM ou une unité à laser d’un autre
type est installée, veuillez tenir compte des informations suivantes :
ATTENTION :
Pour éviter tout risque d’exposition au rayon laser, respectez les consignes de
réglage et d’utilisation des commandes, ainsi que les procédures décrites dans le
présent manuel.
L’ouverture de l’unité de CD-ROM, de l’unité de DVD-ROM ou de toute autre
unité de stockage optique peut entraîner une exposition à des radiations
dangereuses. Aucune pièce de ces unités n’est réparable. Ne pas ouvrir.
Une unité de CD-ROM ou de DVD-ROM, ou toute autre unité de stockage optique
peut contenir une diode à laser de classe 3A ou 3B. Veuillez tenir compte des
informations suivantes :
DANGER
Emet un rayonnement laser visible et invisible lorsque l’unité est ouverte.
Evitez toute exposition directe au rayon laser. Evitez de regarder fixement le
faisceau ou de l’observer à l’aide d’instruments optiques.
Safety information 31
Einige ThinkPad-Modelle sind werkseitig mit einem CD-ROM- oder
DVD-ROM-Laufwerk ausgestattet. CD- und DVD-Laufwerke können auch
gesondert als Zusatzeinrichtung erworben werden. Die Laufwerke erfüllen die
Anforderungen gemäß IEC 60825-1 (International Electrotechnical Commission)
und gemäß CENELEC EN 60825-1 für Laserprodukte der Klasse 1.
Bei der Installation von CD-ROM-Laufwerken, DVD-ROM-Laufwerken oder
anderen Lasereinheiten Folgendes beachten:
VORSICHT:
Die Bedienung des Geräts auf eine andere als die hier beschriebene Weise oder
die Nichteinhaltung der hier beschriebenen Einstellungen oder Bedienschritte
kann zur Freisetzung gefährlicher Laserstrahlung führen.
Beim Öffnen eines CD-ROM-Laufwerks, DVD-ROM-Laufwerks oder anderen
optischen Speicherlaufwerks können gefährliche Laserstrahlungen freigesetzt
werden. Die Laufwerke enthalten keine zu wartenden Teile. Laufwerke nicht
öffnen!
Ein installiertes CD-ROM-Laufwerk, DVD-ROM-Laufwerk oder anderes optisches
Speicherlaufwerk kann eine Laserdiode der Klasse 3A oder 3B enthalten. Folgendes
beachten:
GEFAHR
Sichtbare und nicht sichtbare Laserstrahlung, wenn geöfnet. Nicht in den
Strahl blicken. Keine Lupen oder Spiegel verwenden. Strahlungsbereich
meiden.
32 ThinkPad T500 and W500 Hardware Maintenance Manual
Safety information 33

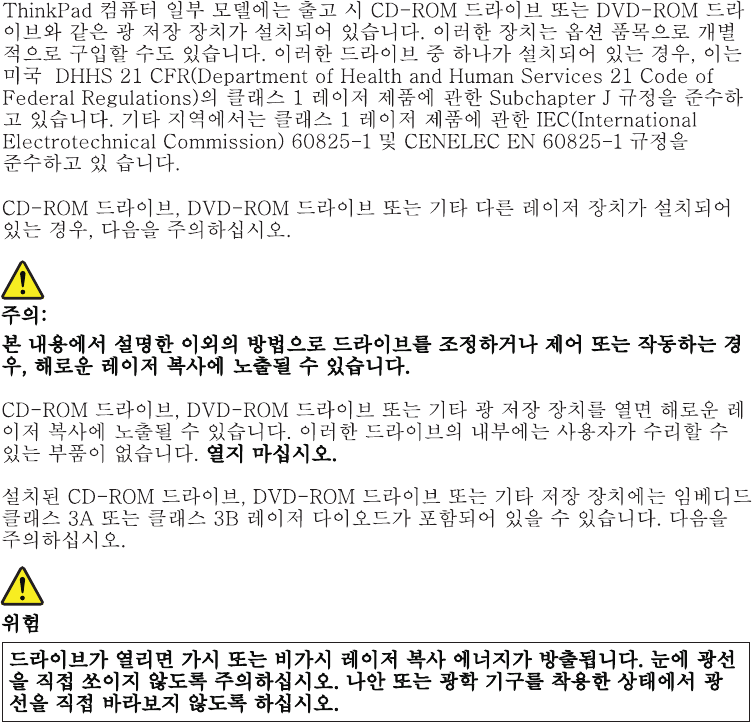

34 ThinkPad T500 and W500 Hardware Maintenance Manual
Safety information 35
Algunos modelos de sistemas ThinkPad están equipados de fábrica con un
dispositivo de almacenamiento óptico, como una unidad de CD-ROM o de
DVD-ROM. Estas unidades también se venden por separado como opciones. Si
está instalada alguna de dichas unidades, se certifica que en los Estados Unidos
cumple los requisitos del Department of Health and Human Services 21 Code of
Federal Regulations (DHHS 21 CFR) Subchapter J para productos láser de Clase 1.
En otros países, se certifica que cumple los requisitos para productos láser de Clase
1 de las normativas 60825-1 y CENELEC EN 60825-1 de International
Electrotechnical Commission (IEC).
Si está instalada alguna unidad de CD-ROM, DVD-ROM u otro dispositivo láser,
tenga en cuenta lo siguiente:
PRECAUCIÓN:
La utilización de controles, ajustes o la realización de procedimientos diferentes
a los especificados puede dar como resultado una exposición peligrosa a
radiaciones.
Si abre la unidad de CD-ROM, DVD-ROM o cualquier otro dispositivo de
almacenamiento óptico, podría quedar expuesto a una radiación láser peligrosa.
No hay piezas que requieran servicio dentro de estas unidades. No las abra.
Las unidades de CD-ROM, DVD-ROM u otro dispositivo de almacenamiento
instalado pueden contener un diodo láser de Clase 3A o Clase 3B incorporado.
Tenga en cuenta lo siguiente:
PELIGRO
Emite radiación láser visible e invisible cuando está abierto. No fije la vista en
el rayo, no lo mire directamente con instrumentos ópticos y evite la exposición
directa al rayo.
36 ThinkPad T500 and W500 Hardware Maintenance Manual
Safety information 37
38 ThinkPad T500 and W500 Hardware Maintenance Manual
Important service information
This chapter presents following important service information that applies to all
machine types supported by this manual:
v“Strategy for replacing FRUs”
– “Strategy for replacing a hard disk drive” on page 40
– “Important notice for replacing a system board” on page 40
– “How to use error message” on page 40
v“Strategy for replacing FRUs for CTO, CMV, and GAV” on page 41
– “Product definition” on page 41
– “FRU identification for CTO, CMV, and GAV products” on page 41
Strategy for replacing FRUs
Important:
BIOS and device driver fixes are customer-installable. The BIOS and device
drivers are posted on the customer support site http://www.lenovo.com/support
System Disassembly/Reassembly videos that show the FRU removals or
replacements for the Lenovo®authorized service technicians are available in the
following support site: http://www.lenovoservicetraining.com/ion/
Advise customers to contact the Customer Support Center at 800-426-7378 if they
need assistance in obtaining or installing any software fixes, drivers, and BIOS
downloads.
Customers in Canada should call the Customer Support Center at 800-565-3344
for assistance or download information.
Before replacing parts:
Make sure that all software fixes, drivers, and BIOS downloads are installed
before replacing any FRUs listed in this manual.
After a system board is replaced, ensure that the latest BIOS is loaded to the
system board before completing the service action.
To download software fixes, drivers, and BIOS, do as follows:
1. Go to http://www.lenovo.com/support
2. Enter the product number of the computer or press Auto-detect button on the
screen.
3. Select Downloads and drivers.
4. Follow the directions on the screen and install the necessary software.
© Copyright Lenovo 2008, 2009 39
Use the following strategy to prevent unnecessary expense for replacing and
servicing FRUs:
vIf you are instructed to replace a FRU but the replacement does not correct the
problem, reinstall the original FRU before you continue.
vSome computers have both a processor board and a system board. If you are
instructed to replace either the processor board or the system board, and
replacing one of them does not correct the problem, reinstall that board, and
then replace the other one.
vIf an adapter or a device consists of more than one FRU, any of the FRUs may
be the cause of the error. Before replacing the adapter or device, remove the
FRUs, one by one, to see if the symptoms change. Replace only the FRU that
changed the symptoms.
Attention: The setup configuration on the computer you are servicing may have
been customized. Running Automatic Configuration may alter the settings. Note
the current configuration settings (using the View Configuration option); then,
when service has been completed, verify that those settings remain in effect.
Strategy for replacing a hard disk drive
Always try to run a low-level format before replacing a hard disk drive. This will
cause all customer data on the hard disk to be lost. Be sure that the customer has a
current backup of the data before doing this task.
Attention: The drive startup sequence in the computer you are servicing may
have been changed. Be extremely careful during write operations such as copying,
saving, or formatting. If you select an incorrect drive, data or programs can be
overwritten.
Important notice for replacing a system board
Some components mounted on a system board are very sensitive. Improper
handling of a system board can cause damage to those components, and may
cause a system malfunction.
Attention: When handling a system board:
vDo not drop a system board or apply any excessive force to it.
vAvoid rough handling of any kind.
vAvoid bending a system board and hard pushing to prevent cracking at each
BGA (Ball Grid Array) chipset.
How to use error message
Use the error codes displayed on the screen to diagnose failures. If more than one
error code is displayed, begin the diagnosis with the first error code. Whatever
causes the first error code may also cause false error codes. If no error code is
displayed, see whether the error symptom is listed in the Symptom-to-FRU Index
for the computer you are servicing.
40 ThinkPad T500 and W500 Hardware Maintenance Manual
Strategy for replacing FRUs for CTO, CMV, and GAV
Product definition
Dynamic Configure To Order (CTO)
This provides the ability for a customer to configure an IBM®or a Lenovo solution
from an eSite, and have this configuration sent to fulfillment, where it is built and
shipped directly to the customer. The machine label, Product Entitlement
Warehouse (PEW), eSupport, and the HMM will load these products as the 4-digit
MT and 3-digit model, where model = “CTO” (Example: 1829-CTO).
Custom Model Variant (CMV)
This is a unique configuration that has been negotiated between IBM or Lenovo
and the customer. A unique 4-digit MT and 3-digit model is provided to the
customer to place orders (Example: 1829-W15). A CMV is a special bid offering.
Therefore, it is NOT generally announced.
vThe MTM portion of the machine label is the 4-digit MT and 3-digit model,
where model = “CTO” (Example: 1829-CTO). The PRODUCT ID portion of the
machine label is the 4-digit MT and 3-digit CMV model (Example: 1829-W15).
vThe PEW record is the 4-digit MT and 3-digit model, where model = “CTO”
(Example: 1829-CTO).
veSupport will show both the CTO and CMV machine type models (Example:
1829-CTO and 1829-W15 will be found on the eSupport site.)
vThe HMM will have the 4-digit MT and 3-digit CTO model only (Example:
1829-CTO). Again, CMVs are custom models and are not found in the HMM.
General Announce Variant (GAV)
This is a standard model (fixed configuration). GAVs are announced and offered to
all customers. The MTM portion of the machine label is a 4-digit MT and 3-digit
model, where model = a “fixed part number”, not “CTO” (Example: 1829-F1U).
Also, PEW, eSupport, and the HMM will list these products under the same fixed
model number.
FRU identification for CTO, CMV, and GAV products
There are three information resources to identify which FRUs are used to support
CTO, CMV, and GAV products. These sources are PEW, eSupport, and the HMM.
Using PEW
vPEW is the primary source for identifying FRU part numbers and FRU
descriptions for the key commodities for CTO, CMV and GAV products at a MT
- serial number level. An example of key commodities are hard disk drives,
system boards, microprocessors, Liquid Crystal Displays (LCDs), and memory.
vRemember, all CTO and CMV products are loaded in PEW under the 4-digit MT
and 3-digit model, where model = “CTO” (Example: 1829-CTO). GAVs are
loaded in PEW under the 4-digit MT and 3-digit model, where model = a “fixed
part number”, not “CTO” (Example: 1829-F1U).
vPEW can be accessed at the following Web site:
http://www.lenovo.com/support/site.wss/document.do?lndocid=LOOK-WARNTY
Select Warranty lookup. Input the MT and the Serial number and the list of key
commodities will be returned in the PEW record under COMPONENT
INFORMATION.
Important service information 41
vBusiness Partners using Eclaim will access PEW when performing Entitlement
Lookup. Business Partners will enter Loc ID, MT and Serial, and the key
commodities will be returned in the Eclaim record under SYSTEM DETAILS.
vAuthorized IBM Business Partners can access Eclaim at the following Web site:
https://wca.eclaim.com
Using eSupport
For Key Commodities (Examples - hard disk drive, system board,
microprocessor, LCD, and memory)
veSupport can be used to view the list of key commodities built in a particular
machine serial (this is the same record found in PEW).
veSupport can be accessed at the following Web site: http://www.lenovo.com/
support
vTo view the key commodities, click on PARTS INFORMATION, then PARTS
LOOKUP. Type in the model type and serial number. The key commodities will
be returned in the eSupport record under PARTS SHIPPED WITH YOUR
SYSTEM.
For the Remaining FRUs (the complete list of FRUs at the MT Model level)
veSupport can be used to view the complete list of FRUs for a machine type and
model.
vTo view the complete list of FRUs, type in the machine type and model
(Example: 1829-CTO) under QUICK PATH. Under “View by Document Type”
select PARTS INFORMATION. Under “Filter by Category” select SERVICE
PARTS. Under “Parts Information by Date” select SYSTEM SERVICE PARTS. The
list of service parts by description, with applicable machine type model and FRU
will be displayed.
Using the HMM
For Key Commodities (Examples - hard disk drive, system board,
microprocessor, LCD, and memory)
Use the HMM as a back-up to PEW and eSupport to view the complete list of
FRUs at the MT Model level.
42 ThinkPad T500 and W500 Hardware Maintenance Manual
General checkout
This chapter presents following information:
v“What to do first” on page 44
v“Checkout guide” on page 45
– “Diagnostics using PC-Doctor for DOS” on page 45
– “Lenovo ThinkVantage Toolbox (Lenovo System Toolbox)” on page 48
– “PC-Doctor for Windows” on page 48
– “PC-Doctor for Rescue and Recovery” on page 49
– “FRU tests” on page 50
v“Power system checkout” on page 52
The descriptions in this chapter apply to any ThinkPad model that supports the
PC-Doctor®for DOS diagnostics program. Some descriptions might not apply to
your particular computer.
Before you go to the checkout guide, be sure to read the following important notes.
Important notes:
vOnly certified trained personnel should service the computer.
vBefore replacing any FRU, read the entire page on removing and replacing
FRUs.

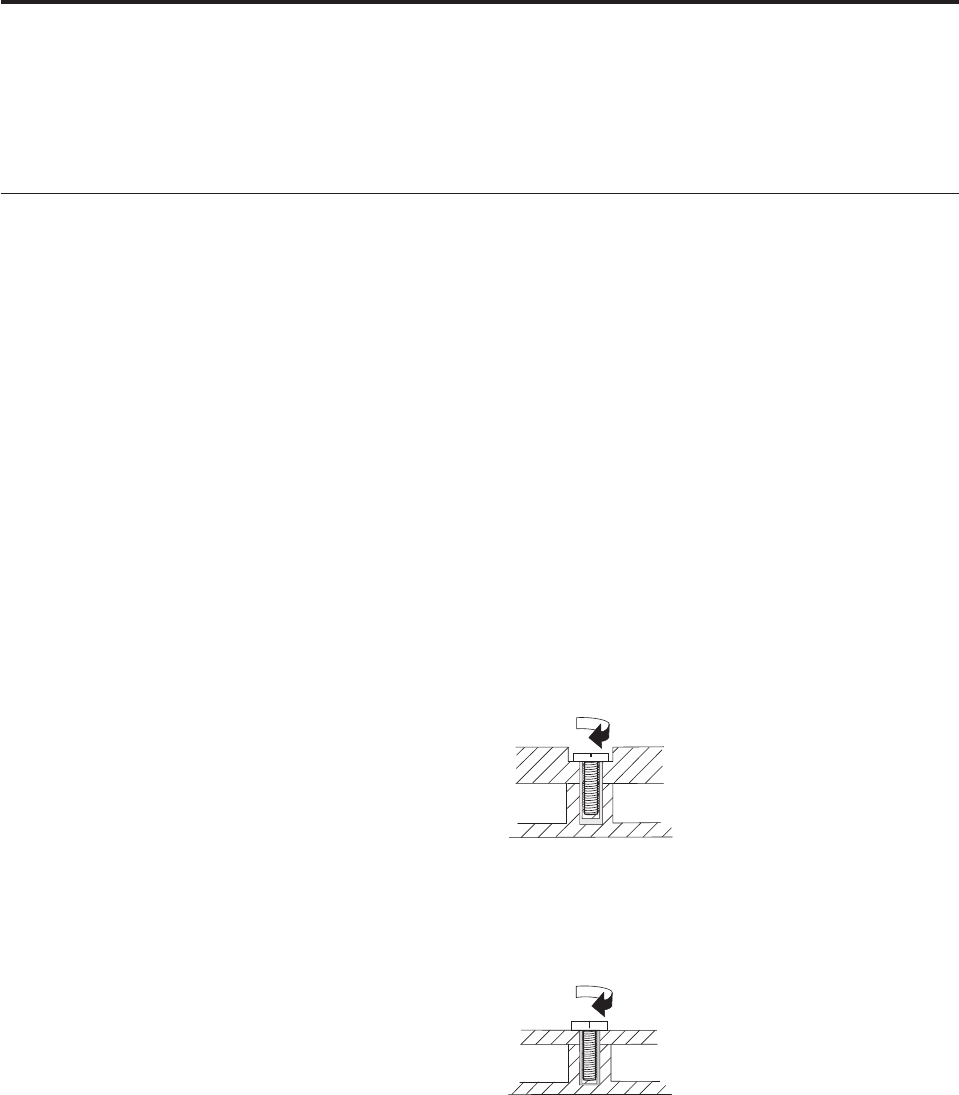

vWhen you replace FRUs, use new nylon-coated screws.
vBe extremely careful during such write operations as copying, saving, or
formatting. Drives in the computer that you are servicing sequence might
have been altered. If you select an incorrect drive, data or programs might be
overwritten.
vReplace a FRU only with another FRU of the correct model. When you
replace a FRU, make sure that the model of the machine and the FRU part
number are correct by referring to the FRU parts list.
vA FRU should not be replaced because of a single, unreproducible failure.
Single failures can occur for a variety of reasons that have nothing to do with
a hardware defect, such as cosmic radiation, electrostatic discharge, or
software errors. Consider replacing a FRU only when a problem recurs. If you
suspect that a FRU is defective, clear the error log and run the test again. If
the error does not recur, do not replace the FRU.
vBe careful not to replace a nondefective FRU.
© Copyright Lenovo 2008, 2009 43
What to do first
When you do return a FRU, you must include the following information in the
parts exchange form or parts return form that you attach to it:
__ 1. Name and phone number of service technician
__ 2. Date of service
__ 3. Date on which the machine failed
__ 4. Date of purchase
__ 5. Failure symptoms, error codes appearing on the display, and beep
symptoms
__ 6. Procedure index and page number in which the failing FRU was detected
__ 7. Failing FRU name and part number
__ 8. Machine type, model number, and serial number
__ 9. Customer’s name and address
Note for warranty: During the warranty period, the customer may be responsible
for repair costs if the computer damage was caused by misuse, accident,
modification, unsuitable physical or operating environment, or improper
maintenance by the customer.
Following is a list of some common items that are not covered under warranty and
some symptoms that might indicate that the system was subjected to stress beyond
normal use.
Before checking problems with the computer, determine whether the damage is
covered under the warranty by referring to the following list:
The following are not covered under warranty:
vLCD panel cracked from the application of excessive force or from being
dropped
vScratched (cosmetic) parts
vDistortion, deformation, or discoloration of the cosmetic parts
vPlastic parts, latches, pins, or connectors that have been cracked or broken by
excessive force
vDamage caused by liquid spilled into the system
vDamage caused by the improper insertion of a PC Card or the installation of an
incompatible card
vImproper disc insertion or use of an optical drive
vDiskette drive damage caused by pressure on the diskette drive cover, foreign
material in the drive, or the insertion of a diskette with multiple labels
vDamaged or bent diskette eject button
vFuses blown by attachment of a nonsupported device
vForgotten computer password (making the computer unusable)
vSticky keys caused by spilling a liquid onto the keyboard
vUse of an incorrect ac adapter on laptop products
The following symptoms might indicate damage caused by nonwarranted
activities:
vMissing parts might be a symptom of unauthorized service or modification.
vIf the spindle of a hard disk drive becomes noisy, it may have been subjected to
excessive force, or dropped.
44 ThinkPad T500 and W500 Hardware Maintenance Manual
Checkout guide
Use the following procedures as a guide in identifying and correcting problems
with the ThinkPad Notebook.
Note: The diagnostic tests are intended to test only ThinkPad products. The use of
non-ThinkPad products, prototype cards, or modified options can lead to false
indications of errors and invalid system responses.
1. Identify the failing symptoms in as much detail as possible.
2. Verify the symptoms. Try to re-create the failure by running the diagnostic test
or by repeating the operation.
Diagnostics using PC-Doctor for DOS
The ThinkPad Notebook has a test program called PC-Doctor for DOS (hereafter
called PC-Doctor.) You can detect errors by running the diagnostics test included in
PC-Doctor.
For some possible configurations of the computer, PC-Doctor might not run
correctly. To avoid this problem, you need to initialize the computer setup by use
of the BIOS Setup Utility before you run PC-Doctor.
To enter BIOS Setup Utility, do as follows:
1. Turn on the computer.
2. When the ThinkPad logo comes up, immediately press F1 to enter the BIOS
Setup Utility.
Note: If a supervisor password has been set by the customer, BIOS Setup Utility
menu appears after the password is entered. You can start the utility by pressing
Enter instead of entering the supervisor password; however, you cannot change the
parameters that are protected by the supervisor password.
On the BIOS Setup Utility screen, press F9, Enter, F10, and then Enter.
Note: When you initialize the computer configuration, some devices are disabled,
such as the serial port. If you test one of these devices, you will need to enable it
by using Configuration utility for DOS. The utility is available on the following
Web site: http://www.lenovo.com/support
PC-Doctor cannot be used to test a device that is in the docking station, even if the
computer supports the docking station. To test a USB device, connect it to the USB
connector of the computer.
Note:
PC-Doctor for DOS is available at the following Web site: http://
www.lenovo.com/support
To create the PC-Doctor diagnostic CD, follow the instructions on the Web site.
General checkout 45
Testing the computer
Note: The PC-Doctor diagnostic CD does not support any optical drives connected
through USB devices or any others. It supports only the internal optical drive of
the ThinkPad Notebook.
To run the test, do as follows:
1. Turn off the computer.
2. Make sure that the internal optical drive that is supported as a startup device
is attached to the computer.
3. Turn on the computer.
If the computer cannot be powered on, go to “Power system checkout” on
page 52, and check the power sources.
If an error code appears, go to “Symptom-to-FRU index” on page 62.
4. When the ThinkPad logo comes up, immediately press F12 to enter the Boot
Menu.
5. Insert the PC-Doctor CD into the internal optical drive.
6. Press cursor keys to select ATAPI CDx (x: 0, 1, ...) and then press Enter.
7. Follow the instructions on the screen.
8. The main panel of PC-Doctor appears.
9. Select Diagnostics with the arrow keys, and press Enter.
Note: You can select an item not only with the arrow keys, but also with the
TrackPoint®pointer. Instead of pressing Enter, click the left button.
A pull-down menu appears. (Its exact form depends on the model.)
Note: PC-Doctor menu does not mean the formal support device list. Some
unsupported device names may appear in the PC-Doctor menu.
Diagnostics
Run Normal Test
Run Quick Test
CPU/Coprocessor
Systemboard
Video Adapter
Serial Ports
Parallel Ports
Fixed Disks
Diskette Drives
Other Devices
Communication
Advanced Memory Tests
Interactive Tests Hardware Info Utility Quit F1=Help
PC-DOCTOR 2.0 Copyright 2008 PC-Doctor, Inc. All Rights Reserved.
Use the cursor keys and ESC to move in menus. Press ENTER to select.
Wireless LAN
46 ThinkPad T500 and W500 Hardware Maintenance Manual
The options on the test menu are as follows:
Diagnostics Interactive Tests
vRun Normal Test
vRun Quick Test
vCPU/Coprocessor
vSystemboard
vVideo Adapter
vSerial Ports
vParallel Ports
vFixed Disks
vDiskette Drives
vOther Devices
vThinkPad Devices
vCommunication
vWireless LAN
vAdvanced Memory Tests
vKeyboard
vVideo
vInternal Speaker
vMouse
vDiskette
vSystem Load
vOptical Drive Test
vIntel WLAN Radio Test
Notes:
vIn the Keyboard test in Interactive Tests, the Fn key should be held down for at least 2
seconds; otherwise, it cannot be sensed.
vVideo Adapter test supports only the LCD display on the ThinkPad Notebook. If you
have an external monitor attached to your computer, detach it before running PC-Doctor
for DOS.
vTo test Digital Signature Chip, the security chip must be set to Active.
vTo test Serial Ports or Parallel Ports, the ThinkPad Notebook must be attached to the
docking station.
10. Run the applicable function test.
11. Follow the instructions on the screen. If there is a problem, PC-Doctor shows
messages describing it.
12. To exit the test, select Quit — Exit Diag.
To cancel the test, press Esc.
Note: After running PC-Doctor, check the time and date on the system and reset
them if they are incorrect.
Detecting system information with PC-Doctor
PC-Doctor can detect the following system information:
Hardware Info
vSystem Configuration
vMemory Contents
vPhysical Disk Drives
vLogical Disk Drives
vVGA Information
vIDE Drive Info
vPCI Information
vPNPISA Info
vSMBIOS Info
vVESA LCD Info
vHardware Events Log
Utility
vRun External Tests
vSurface Scan Hard Disk
vBenchmark System
General checkout 47
vDOS Shell
vTech Support Form
vBattery Rundown
vView Test Log
vPrint Log
vSave Log
vFull Erase Hard Drive
vQuick Erase Hard Drive
Lenovo ThinkVantage Toolbox (Lenovo System Toolbox)
Lenovo ThinkVantage®Toolbox (Lenovo System Toolbox in Windows Vista®and
Windows®XP) is a diagnostic program that works through the Windows operating
system. It enables you to view symptoms of computer problems and solutions for
them, and includes automatic notification when action is required, computing
assistance, advanced diagnostics, and diagnostic history.
To run this program, do as follows:
Windows 7:
While the Windows operating system is running, press the ThinkVantage button.
You can also run this program as either of the following:
vClick Start --> All Programs --> Lenovo ThinkVantage Tools --> System Health
and Diagnostics.
vClick Start --> Control Panel --> System and Security --> Lenovo’s System
Health and Diagnostics.
Windows Vista and Windows XP:
Click Start --> All Programs --> Lenovo Services --> Lenovo System Toolbox.
Follow the instructions on the screen. Lenovo ThinkVantage Toolbox (Lenovo
System Toolbox) also has problem determination aids that determine software and
usage problems.
For additional information about this program, see the Help for the program.
PC-Doctor for Windows
In some models of ThinkPad Notebook, PC-Doctor for Windows enables you to
troubleshoot and resolve problems related to the computer.
Select one of the categories listed below to display symptoms and solutions:
vCheck System Health
vSystem and Device Tests
vLenovo Troubleshooting Center
Note:
The latest Lenovo ThinkVantage Toolbox (Lenovo System Toolbox) is available at
the following Web site: http://www.lenovo.com/support
To install the latest Lenovo ThinkVantage Toolbox (Lenovo System Toolbox) on
the computer, follow the instructions on the Web site.
48 ThinkPad T500 and W500 Hardware Maintenance Manual
vSystem Reports
vUpdates and Support
PC-Doctor for Rescue and Recovery
In some models of ThinkPad Notebook, the Rescue and Recovery®workspace
enables you to run the PC-Doctor program to test the hardware features of the
computer.
To run the test, click “Run Diagnostics” on the Rescue and Recovery main screen.
General checkout 49
FRU tests
The following table shows the test for each FRU.
Table 1. FRU tests
FRU Applicable test
System board 1. Diagnostics --> CPU/Coprocessor
2. Diagnostics --> Systemboard
3. If the docking station or the port replicator is attached to the
ThinkPad computer, detach it. Place the computer on a
horizontal surface, and run Diagnostics --> ThinkPad Devices
--> HDD Active Protection Test.
Note: Do not apply any physical shock to the computer while
the test is running.
Power Diagnostics --> ThinkPad Devices --> AC Adapter,Battery 1
(Battery2)
LCD unit 1. Diagnostics --> Video Adapter
2. Interactive Tests --> Video
Modem daughter card
(MDC-3.0)
1. Make sure the modem is set up correctly.
2. Replace the modem jack and the modem card in turn, and run
the following tests in Diagnostics --> Communication:
a. Conexant Smart Modem Interrupt
b. Conexant Smart Modem Dialtone
Audio Enter the BIOS Setup Utility and change Serial ATA (SATA) setting
to Compatibility, and run Diagnostics --> Other Device -->
Conexant Audio
Speaker Interactive Tests --> Internal Speaker
Note: Once Modem/Audio test is done, the no sound is heard
this test. In this case, turn off and turn on the computer. Then, run
this test again.
PC Card slot Diagnostics --> Systemboard --> PCMCIA
ExpressCard slot 1. Insert a PCI-Express/USB Wrap card into the ExpressCard slot.
2. Turn on the computer.
3. Run Diagnostics --> ThinkPad Devices --> ExpressCard slot.
Keyboard 1. Diagnostics --> Systemboard --> Keyboard
2. Interactive Tests --> Keyboard
Hard disk drive or
solid state drive
Enter the BIOS Setup Utility and change Serial ATA (SATA) setting
to Compatibility, and run Diagnostics --> Fixed Disks
You can also diagnose the hard disk drive without starting up the
operating system. To diagnose the hard disk drive from the BIOS
Setup Utility, do as follows:
1. Remove any diskette from the diskette drive, and then turn off
the computer.
2. Turn on the computer.
3. While the message, “To interrupt normal startup, press the
blue ThinkVangate button,” is displayed at the lower left of the
screen, press F1 to enter the BIOS Setup Utility.
4. Using cursor keys, select HDD diagnostic program. Press
enter.
5. Using cursor keys, select Main hard disk drive or Ultrabay
hard disk drive.
6. Press Enter to start the diagnostic program.
Diskette drive 1. Diagnostics --> Diskette Drives
2. Interactive Tests --> Diskette
50 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 1. FRU tests (continued)
FRU Applicable test
Optical drive 1. Diagnostics --> Other Devices--> Optical Drive
2. Interactive Tests --> Optical Drive Test
Memory 1. If two DIMMs are installed, remove one of them and run
Diagnostics --> Advanced Memory Tests.
2. If the problem does not recur, return the DIMM to its place,
remove the other one, and run the test again.
Fan 1. Turn on the computer and check the air turbulence at the
louver near the PC Card slot.
2. Run Diagnostics --> ThinkPad Devices --> Fan.
TrackPoint or pointing
device
If the TrackPoint does not work, check the configuration as
specified in the BIOS Setup Utility. If the TrackPoint is disabled,
select Automatic to enable it.
After you use the TrackPoint, the pointer may drift on the screen
for a short time. This drift can occur when a slight, steady
pressure is applied to the TrackPoint pointer. This symptom is not
a hardware problem. If the pointer stops after a short time, no
service action is necessary.
If enabling the TrackPoint does not correct the problem, continue
with the following:
vInteractive Tests --> Mouse
Touch Pad If the Touch Pad does not work, check the configuration as
specified in the BIOS Setup Utility. If the Touch Pad is disabled,
select Automatic to enable it. If enabling the Touch Pad does not
correct the problem, continue with the following:
vInteractive Tests --> Mouse
General checkout 51
Power system checkout
To verify a symptom, do the following:
1. Turn off the computer.
2. Remove the battery pack.
3. Connect the ac adapter.
4. Check that power is supplied when you turn on the computer.
5. Turn off the computer.
6. Disconnect the ac adapter and install the charged battery pack.
7. Check that the battery pack supplies power when you turn on the computer.
If you suspect a power problem, see the appropriate one of the following power
supply checkouts:
v“Checking the AC adapter”
v“Checking operational charging” on page 53
v“Checking the battery pack” on page 53
v“Checking the backup battery” on page 54
Checking the AC adapter
You are here because the computer fails only when the AC adapter is used.
vIf the power problem occurs only when the docking station or the port replicator
is used, replace the docking station or the port replicator.
vIf the power-on indicator does not turn on, check the power cord of the AC
adapter for correct continuity and installation.
vIf the computer does not charge during operation, go to “Checking operational
charging” on page 53
To check the AC adapter, do the following:
1. Unplug the AC adapter cable from the computer.
2. Measure the output voltage at the plug of the AC adapter cable. See the
following figure:

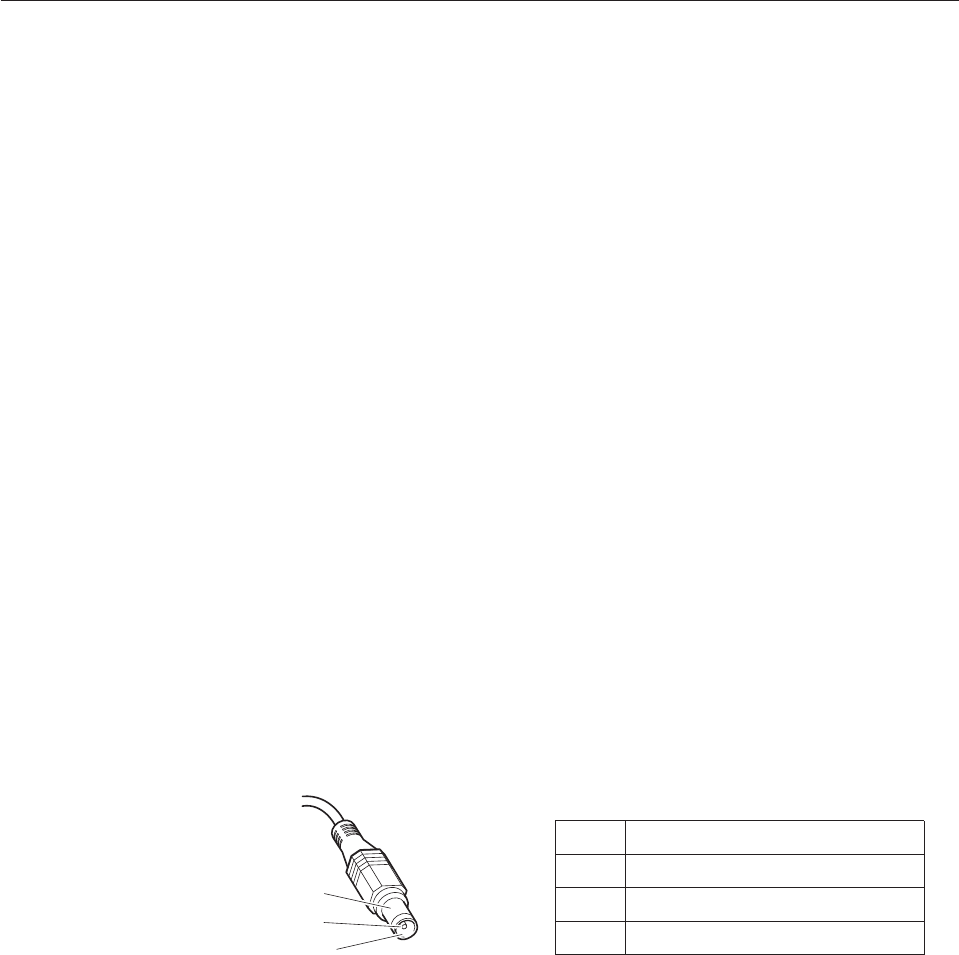

1
2
3
(20V)
Pin Voltage (V dc)
1 +20
20
3 Ground
Note: Output voltage of pin no.2 of the AC adapter may different from the one
you are servicing.
3. If the voltage is not correct, replace the AC adapter.
4. If the voltage is acceptable, do the following:
vReplace the system board.
vIf the problem persists, go to “FRU tests” on page 50.
Note: Noise from the AC adapter does not always indicate a defect.
52 ThinkPad T500 and W500 Hardware Maintenance Manual
Checking operational charging
To check whether the battery charges properly during operation, use a discharged
battery pack or a battery pack that has less than 50% of the total power remaining
when installed in the computer.
Perform operational charging. If the battery status indicator or icon does not turn
on, remove the battery pack and let it return to room temperature. Reinstall the
battery pack. If the charge indicator or icon still does not turn on, replace the
battery pack.
If the charge indicator still does not turn on, replace the system board. Then
reinstall the battery pack. If it is still not charged, go to the next section.
Checking the battery pack
Battery charging does not start until the Power Manager Battery Gauge shows that
less than 96% of the total power remains; under this condition the battery pack can
charge to 100% of its capacity. This protects the battery pack from being
overcharged or from having a shortened life.
To check your battery, move your cursor to the Power Manager Battery Gauge icon
in the icon tray of the Windows®taskbar and wait for a moment (but do not click),
and the percentage of battery power remaining is displayed. To get detailed
information about the battery, double-click the Power Manager Battery Gauge icon.
Note: If the battery pack becomes hot, it may not be able to charge. Remove it
from the computer and leave it at room temperature for a while. After it cools
down, reinstall and recharge it.
To check the battery pack, do the following:
1. Power off the computer.
2. Remove the battery pack and measure the voltage between battery terminals 1
(+) and 7 (-). See the following figure:
1(+)2(+) 3456(-)7(-)
Terminal Voltage (V dc)
1 + 0 to + 12.6
7 Ground (-)
3. If the voltage is less than +11.0 V dc, the battery pack has been discharged.
Note: Recharging will take at least 3 hours, even if the indicator does not turn
on.
If the voltage is still less than +11.0 V dc after recharging, replace the battery.
4. If the voltage is more than +11.0 V dc, measure the resistance between battery
terminals 5 and 7. The resistance must be 4 to 30 K .
If the resistance is not correct, replace the battery pack. If the resistance is
correct, replace the system board.
General checkout 53
Checking the backup battery
Do the following:
1. Power off the computer, and unplug the ac adapter from it.
2. Turn the computer upside down.
3. Remove the battery pack (see “1010 Battery pack” on page 84).
4. Remove the backup battery (see “1100 Backup battery” on page 100).
5. Measure the voltage of the backup battery. See the following figure.

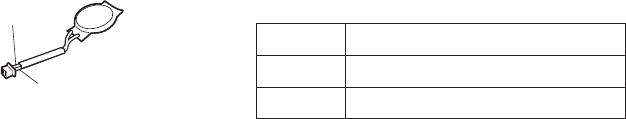

Red (+)
Black (-)
Wire Voltage (V dc)
Red +2.5 to +3.2
Black Ground
vIf the voltage is correct, replace the system board.
vIf the voltage is not correct, replace the backup battery.
vIf the backup battery discharges quickly after replacement, replace the system
board.
54 ThinkPad T500 and W500 Hardware Maintenance Manual
Related service information
This chapter presents following information:
v“Restoring the factory contents by using Product Recovery discs”
v“Restoring the factory contents by using Recovery Disc Set” on page 56
v“Passwords” on page 57
v“Power management” on page 60
v“Symptom-to-FRU index” on page 62
Restoring the factory contents by using Product Recovery discs
When the hard disk drive (HDD) or solid state drive (SSD) is replaced because of a
failure, no Product Recovery program is on the new drive. In this case, you must
use the recovery discs for the computer. Order the recovery discs and the drive at
the same time so that you can recover the new drive with the pre-installed
software when they arrive. For information on which discs to order, see “Recovery
discs” on page 243.
To install the factory contents by using Product Recovery discs, do the following:
1. Insert the bootable Start Recovery Disc into the DVD drive.
2. Select your language and click Next.
3. Read the license. If you agree with the terms, select I accept these terms and
conditions and then click Next.
4. Insert the Operating System Recovery Disc when prompted and click Yes to
begin the operating system recovery process.
5. Insert the Product Recovery Disc when prompted and click OK.
6. If you have a Supplemental Recovery Disc, insert it when prompted and click
Yes. If you do not have a Supplemental Recovery Disc, click No.
Note: Not all recovery disc sets come with a Supplemental Recovery Disc.If
there is a Supplemental Recovery Disc, it will be clearly marked as such.
7. When all of the data has been copied from the last disc in the set, a message is
displayed prompting you to restart the computer. Remove the disc and then
click Yes.
Note: The remainder of the recovery process is fully automated and no action
is required by you. The computer will restart into the Windows desktop several
times and you might experience periods when no activity is apparent on the
screen for several minutes at a time. This is normal.
Service Web site:
When the latest maintenance diskette and the system program service diskette
become available, they will be posted on http://www.lenovo.com/spm
Note: Recovery takes several hours. The length of time depends on the method
you use. If you use recovery discs, recovery takes at least five hours.
© Copyright Lenovo 2008, 2009 55
8. When the recovery process is complete, the Welcome to Microsoft Windows
screen is displayed. Follow the instructions on the screen to complete the
Windows setup.
Restoring the factory contents by using Recovery Disc Set
When the hard disk drive (HDD) or solid state drive (SSD) is replaced because of a
failure, no product recovery program is on the new drive. In this case, you must
use the Recovery Disc Set for the computer. Order the Recovery Disc Set and the
drive at the same time so that you can recover the new drive with the pre-installed
software when they arrive. For information on which discs to order, see “Recovery
discs” on page 243.
The recovery disc set consists of the user instructions and the following set of
DVDs to restore the computer to the original factory configuration.
Operating System Recovery Disc (one disc)
This disc restores the Microsoft®Windows operating system. Use this disc
to start the recovery process.
Applications and Drivers Recovery Disc (one or more discs)
This disc restores the preinstalled applications and drivers on the
computer.
Supplemental Recovery Disc
This disc contains additional content, such as updates to the software that
was preinstalled on the computer. Not all recovery disc sets come with a
Supplemental Recovery Disc.
Notes:
vYou must have a DVD drive to use the recovery discs. If you do not have an
internal DVD drive, you can use an external USB DVD drive.
vDuring the recovery process, all data on the drive will be deleted. If possible,
copy any important data or personal files that you want to keep onto removable
media or a network drive before you start the recovery process.
To restore the computer to the original factory configuration using the recovery
disc set, do the following:
1. Make the CD/DVD drive the first startup device in the startup sequence
using the following procedure:
a. Press and hold down the F1 key, and then turn on the computer. When the
logo screen is displayed or if you hear repeating beeps, release the F1 key.
The Setup Utility program opens.
b. Use the arrow keys to select Startup →Boot.
c. Select the CD/DVD drive as the 1st Boot Device.
2. Insert the Operating System Recovery Disc into the DVD drive.
3. Press F10 to save the Setup Utility configuration changes. Follow the
instructions on the screen to begin the recovery process.
4. Select your language and click Next.
Note: Recovery takes several hours. The length of time depends on the method
you use. If you use recovery discs, recovery takes at least five hours.
56 ThinkPad T500 and W500 Hardware Maintenance Manual
5. Read the license. If you agree with the terms and conditions, select I accept
these terms and conditions and then click Next. If you do not agree with the
terms and conditions, follow the instructions on the screen.
6. Click Yes in the displayed window to begin the operating system recovery
process.
7. Insert the Applications and Drivers Recovery Disc when prompted and then click
OK to begin the applications and drivers recovery process.
8. If you have a Supplemental Recovery Disc, insert it when prompted and click
Yes. If you do not have a Supplemental Recovery Disc, click No.
9. When all of the data has been copied from the last disc in the set and has
been processed, remove the disc and restart the computer.
Note: The rest of the recovery process is fully automated and no action is
required by you. The computer will restart into the Microsoft Windows
desktop several times and you might experience periods when no activity is
apparent on the screen for several minutes at a time. This is normal.
10. When the recovery process is complete, the Set Up Windows screen is
displayed. Follow the instructions on the screen to complete the Windows
setup.
11. After you have completed the Windows setup, you might want to restore the
original startup sequence. Start the Setup Utility program and then press F9 to
restore the default settings. Press F10 to save and exit the Setup Utility.
Note: After restoring a drive to the factory default settings, you might need to
reinstall some device drivers.
Passwords
As many as three passwords may be needed for any ThinkPad Notebook: the
power-on password (POP), the hard-disk password (HDP), and the supervisor
password (SVP).
If any of these passwords has been set, a prompt for it appears on the screen
whenever the computer is turned on. The computer does not start until the
password is entered.
Exception: If only an SVP is installed, the password prompt does not appear when
the operating system is booted.
Power-on password
A power-on password (POP) protects the system from being powered on by an
unauthorized person. The password must be entered before an operating system
can be booted. For how to remove the POP, see “How to remove the power-on
password” on page 58.
Hard-disk password
There are two hard-disk passwords (HDPs):
vUser HDP—for the user
vMaster HDP—for the system administrator, who can use it to get access to the
hard disk even if the user has changed the user HDP
Related service information 57
Note: There are two modes for the HDP: User only and Master + User. The
Master + User mode requires two HDPs; the system administrator enters both in
the same operation. The system administrator then provides the user HDP to the
system user.
Attention: If the user HDP has been forgotten, check whether a master HDP has
been set. If it has, it can be used for access to the hard disk drive. If no master
HDP is available, neither Lenovo nor Lenovo authorized service technicians
provide any services to reset either the user or the master HDP, or to recover data
from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.
For how to remove the POP, see “How to remove the hard-disk password” on
page 59.
Supervisor password
A supervisor password (SVP) protects the system information stored in the BIOS
Setup Utility. The user must enter the SVP in order to get access to the BIOS Setup
Utility and change the system configuration.
Attention: If the SVP has been forgotten and cannot be made available to the
service technician, there is no service procedure to reset the password. The system
board must be replaced for a scheduled fee.
How to remove the power-on password
To remove a POP that you have forgotten, do the following:
(A) If no SVP has been set:
1. Turn off the computer.
2. Remove the battery pack.
For how to remove the battery pack, see “1010 Battery pack” on page 84.
3. Remove the backup battery.
For how to remove the backup battery, see “1100 Backup battery” on page 100.
4. Turn on the computer and wait until the POST ends.
After the POST ends, the password prompt does not appear. The POP has been
removed.
5. Reinstall the backup battery and the battery pack.
(B) If an SVP has been set and is known by the service technician:
1. Turn on the computer.
2. When the ThinkPad logo comes up, immediately press F1 to enter BIOS Setup
Utility.
For models supporting the Passphrase function, press F1 while the POP icon is
appearing on the screen; then enter the POP. For the other models, enter the
POP.
Note: To check whether the ThinkPad Notebook you are servicing supports the
Passphrase function, enter the BIOS Setup Utility and go to Security -->
Password.IftheUsing Passphrase item is displayed in the menu, this function
is available on the ThinkPad Notebook.
3. Select Security, using the cursor directional keys to move down the menu.
4. Select Password.
58 ThinkPad T500 and W500 Hardware Maintenance Manual
5. Select Power-On Password.
6. Type the current SVP in the Enter Current Password field. then leave the Enter
New Password field blank, and press Enter twice.
7. In the Changes have been saved window, press Enter.
8. Press F10; then, in the Setup confirmation window, select Yes.
How to remove the hard-disk password
Attention: If User only mode is selected and the user HDP has been forgotten
and cannot be made available to the service technician, neither Lenovo nor Lenovo
authorized service technicians provide any services to reset the user HDPs or to
recover data from the hard disk drive. The hard disk drive can be replaced for a
scheduled fee.
To remove a user HDP that has been forgotten, when the SVP and the master HDP
are known, do the following:
1. Turn on the computer.
2. When the ThinkPad logo comes up, immediately press F1 to enter BIOS Setup
Utility.
For models supporting the Passphrase function, press F1 while HDP icon is
appearing on the screen; then enter the master HDP. For the other models,
enter the master HDP.
Note: To check whether the ThinkPad Notebook you are servicing supports the
Passphrase function, enter the BIOS Setup Utility and go to Security -->
Password.IfUsing Passphrase item is displayed in the menu, this function is
available on the ThinkPad Notebook.
3. Select Security, using the cursor directional keys to move down the menu.
4. Select Password.
5. Select Hard-disk xpassword, where xis the letter of the hard disk drive. A
pop-up window opens.
6. Select Master HDP.
7. Type the current master HDP in the Enter Current Password field. then leave
the Enter New Password field blank, and press Enter twice.
8. Press F10.
9. Select Yes in the Setup Configuration window.
Both user HDP and master HDP will have been removed.
Related service information 59
Power management
To reduce power consumption, the computer has three power management modes:
screen blank, sleep (standby in Windows XP), and hibernation.
Screen blank mode
If the time set on the “Turn off monitor” timer in the operating system expires, the
LCD backlight turns off.
To put the computer into screen blank mode, do as follows:
1. Press Fn+F3. A panel for selecting a power plan (in Windows XP, power
scheme) appears.
2. Select Power off display (keep current power plan) (in Windows XP, keep
current power scheme).
You can also put the computer into screen blank mode, press ThinkVantage button
and use the ThinkVantage Productivity Center.
Note: If the computer is a Windows 7 model, it does not support ThinkVantage
Productivity Center.
To end screen blank mode and resume normal operation, press any key.
Sleep (Standby) mode
When the computer enters sleep (standby) mode, the following events occur in
addition to what occurs in screen blank mode:
vThe LCD is powered off.
vThe hard disk drive is powered off.
vThe CPU stops.
To enter sleep (standby) mode, press Fn+F4.
Note: You can change the action of the Fn+F4 key combination by changing the
settings in Power Manager.
In certain circumstances, the computer goes into sleep (standby) mode
automatically:
vIf a “suspend time” has been set on the timer, and the user does not do any
operation with the keyboard, the TrackPoint, the hard disk, the parallel
connector, or the diskette drive within that time.
vIf the battery indicator blinks orange, indicating that the battery power is low.
Note: Even if you do not set the low-battery alarm, the charge indicator notifies
you when the battery is low, and then the computer enters the power-saving mode
automatically.
To cause the computer to return from sleep (standby) mode and resume operation,
do one of the following:
vPress the Fn key.
vOpen the LCD cover.
vTurn on the power switch.
60 ThinkPad T500 and W500 Hardware Maintenance Manual
Also, in either of the following events, the computer automatically returns from
sleep (standby) mode and resumes operation:
vThe ring indicator (RI) is signaled by a serial device or a PC Card device.
vThe time set on the resume timer elapses.
Note: The computer does not accept any input immediately after it enters sleep
(standby) mode. Wait a few seconds before taking any action to reenter
operation mode.
Hibernation mode
In hibernation mode, the following occurs:
vThe system status, RAM, VRAM, and setup data are stored on the hard disk.
vThe system is powered off.
Note: If the computer enters the hibernation mode while it is docked to the
docking station, do not undock it before resuming normal operation. If you do
undock it and then try to resume normal operation, you will get an error message,
and you will have to restart the system.
To cause the computer to enter hibernation mode, do any of the following:
vPress the Fn+F12 keys.
vIf you have defined one of the following actions as the event that causes the
system to go into hibernation mode, perform that action.
– Closing the lid.
– Pressing the power button.
– Pressing Fn+F4 keys.
Also, the computer goes into hibernation mode automatically in either of the
following conditions:
vIf a “hibernation time” has been set on the timer, and if the user does not do
any operation with the keyboard, the TrackPoint, the hard disk drive, the
parallel connector, or the diskette drive within that time.
vIf the timer conditions are satisfied in suspend mode.
When the power is turned on, the computer returns from hibernation mode and
resumes operation. The hibernation file in the boot record on the hard disk drive is
read, and system status is restored from the hard disk drive.
Related service information 61
Symptom-to-FRU index
This section contains following information:
v“Numeric error codes”
v“Error messages” on page 66
v“Beep symptoms” on page 67
v“No-beep symptoms” on page 67
v“LCD-related symptoms” on page 68
v“Intermittent problems” on page 69
v“Undetermined problems” on page 69
The symptom-to-FRU index in this section lists symptoms and errors and their
possible causes. The most likely cause is listed first, in boldface type.
Note: Do the FRU replacement or other actions in the sequence shown in the
column headed “FRU or action, in sequence.” If replacing a FRU does not solve
the problem, put the original part back in the computer. Do not replace a
nondefective FRU.
This index can also help you determine, during regular servicing, what FRUs are
likely to need to be replaced next.
A numeric error is displayed for each error detected in POST or system operation.
In the displays, ncan be any number.
If no numeric code is displayed, check the narrative descriptions of symptoms. If
the symptom is not described there, go to “Intermittent problems” on page 69.
Numeric error codes
Table 2. Numeric error codes
Symptom or error FRU or action, in sequence
0175
Bad CRC1, stop POST task—The EEPROM
checksum is not correct.
System board.
0176
System Security—The system has been
tampered with.
1. Run BIOS Setup Utility, and save the
current setting by pressing F10.
2. System board.
0177
Bad SVP data, stop POST task—The
checksum of the supervisor password in the
EEPROM is not correct.
System board.
0182
Bad CRC2. Enter BIOS Setup and load Setup
defaults.—The checksum of the CRS2 setting
in the EEPROM is not correct.
1. Run BIOS Setup Utility. Press F9, and
Enter to load the default setting. Then
save the current setting by pressing F10.
2. System board.
0185
Bad startup sequence settings. Enter BIOS
Setup and load Setup defaults.
1. Run BIOS Setup Utility. Press F9, and
Enter to load the default setting. Then
save the current setting by pressing F10.
Note:
For a device not supported by diagnostic codes in the ThinkPad Notebooks, see
the manual for that device.
62 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 2. Numeric error codes (continued)
Symptom or error FRU or action, in sequence
0187
EAIA data access error—The access to
EEPROM is failed.
System board.
0188
Invalid RFID Serialization Information Area.
System board.
0189
Invalid RFID configuration information
area—The EEPROM checksum is not correct.
System board.
0190
Critical low-battery error
1. Charge the battery pack.
2. Battery pack.
0191
System Security—Invalid Remote Change
requested.
1. Run BIOS Setup Utility, and then save
current setting by pressing F10.
2. System board.
0192
System Security— Embedded Security
hardware tamper detected.
System board.
0199
System Security— Security password retry
count exceeded.
1. Run BIOS Setup Utility, and then save
the current setting by pressing F10.
2. System board.
01C8
Two or more modem devices are found.
Remove all but one of them. Press <Esc> to
continue.
1. Remove either a Mini-PCI Card or a
modem daughter card. Otherwise, press
Esc to ignore the warning message.
2. System board.
01C9
More than one Ethernet devices are found.
Remove one of them. Press <Esc> to
continue.
1. Remove the Ethernet device that you
installed; or press Esc to ignore the
warning message.
2. System board.
01CA
More than one Wireless LAN devices are
found. Remove one of them.
1. Remove the wireless LAN device that
you installed.
2. System board.
0200
Hard disk error—The hard disk is not
working.
1. Reseat the hard disk drive.
2. Load Setup Defaults in BIOS Setup
Utility.
3. Hard disk drive.
4. System board.
021x
Keyboard error.
Run interactive tests of the keyboard and
the auxiliary input device.
0220
Monitor type error—Monitor type does not
match the one specified in CMOS.
Load Setup Defaults in BIOS Setup Utility.
0230
Shadow RAM error—Shadow RAM fails at
offset nnnn.
System board.
0231
System RAM error—System RAM fails at
offset nnnn.
1. DIMM.
2. System board.
0232
Extended RAM error— Extended RAM fails
at offset nnnn.
1. DIMM.
2. System board.
Related service information 63
Table 2. Numeric error codes (continued)
Symptom or error FRU or action, in sequence
0250
System battery error—System battery is
dead.
1. Charge the backup battery for more
than 8 hours by connecting the ac
adapter.
2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.
0251
System CMOS checksum bad— Default
configuration used.
1. Charge the backup battery for more
than 8 hours by connecting the ac
adapter.
2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.
0252
Password checksum bad—The password is
cleared.
Reset the password by running BIOS Setup
Utility.
0260
System timer error.
1. Charge the backup battery for more
than 8 hours by connecting the ac
adapter.
2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.
3. System board.
0270
Real-time clock error.
1. Charge the backup battery for more
than 8 hours by connecting the ac
adapter.
2. Replace the backup battery and run BIOS
Setup Utility to reset the time and date.
3. System board.
0271
Date and time error—Neither the date nor
the time is set in the computer.
Run BIOS Setup Utility to reset the time
and date.
0280
Previous boot incomplete— Default
configuration used.
1. Load “Setup Default” in BIOS Setup
Utility.
2. DIMM.
3. System board.
02F0
CPU ID:xx Failed.
1. CPU.
2. System board.
02F4
EISA CMOS not writable.
1. Load Setup Defaults in BIOS Setup
Utility.
2. Replace the backup battery.
3. System board.
02F5
DMA test failed.
1. DIMM.
2. System board.
02F6
Software NMI failed
1. DIMM.
2. System board.
02F7
Fail-safe timer NMI failed
1. DIMM.
2. System board.
1802
Unauthorized network card is plugged
in—Turn off and remove the miniPCI
network card.
1. Remove Mini PCI network card.
2. System board.
1803
Unauthorized daughter card is plugged
in—Turn off and remove the daughter card.
1. Remove the daughter card that you
installed.
2. System board.
64 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 2. Numeric error codes (continued)
Symptom or error FRU or action, in sequence
1804
Unauthorized WAN card is plugged
in—Power off and remove the WAN card.
1. Remove the WAN card that you
installed.
2. System board.
1820
More than one external fingerprint reader is
attached. Power off and remove all but the
reader that you set up within your main
operating system.
Remove all but the reader that you set up
for the authentication.
1830
Invalid memory configuration—Power off
and install a memory module to Slot-0 or
the lower slot.
Install DIMM in Slot-0, but not in Slot-1.
Note: For the construction of the DIMM
slot, see “1050 DIMM” on page 91.
2000
Hard Drive Active Protection sensor
diagnostics failed.Press <Esc> to
continue.Press <F1> to enter SETUP
1. Undock docking station or port
replicator if it is attached to the
ThinkPad Notebook.
2. Place the ThinkPad Notebook on a
horizontal surface. Do not apply any
physical shock to the computer.
3. Run Diagnostics --> ThinkPad Devices
--> HDD Active Protection Test.
2010
Warning: Your internal hard disk drive
(HDD) may not function correctly on this
system. Ensure that your HDD is supported
on this system and that the latest HDD
firmware is installed.
Inform the following information to the
customer: If in the primary bay the customer
is using a non-IBM or non-Lenovo hard disk
drive (HDD), or an old generation IBM
HDD which is not supported by this system,
with the risk in mind, the customer can still
use it by pressing ESC. If in the primary
drive bay the customer is using a supported
IBM/Lenovo HDD with an old firmware,
the customer needs to update its firmware to
the latest. The latest version is available at
http://www.lenovo.com/support
2100
Initialization error on HDD0 (Main hard
disk drive)
1. Reseat the hard disk drive.
2. Main hard disk drive.
3. System board.
2102
Initialization error on HDD1 (Ultrabay hard
disk drive)
1. Reseat the hard disk drive.
2. Ultrabay™hard disk drive.
3. System board.
2110
Read error on HDD0 (Main hard disk drive)
1. Reseat the hard disk drive.
2. Main hard disk drive.
3. System board.
2112
Read error on HDD1 (Ultrabay hard disk
drive)
1. Reseat the hard disk drive.
2. Ultrabay hard disk drive.
3. System board.
Related service information 65
Error messages
Table 3. Error messages
Symptom or error FRU or action, in sequence
Device address conflict. 1. Load “Setup Defaults” in the BIOS
Setup Utility.
2. Backup battery.
3. System board.
Allocation error for device. 1. Load “Setup Defaults” in the BIOS
Setup Utility.
2. Backup battery.
3. System board.
Failing bits: nnnn. 1. DIMM.
2. System board.
Invalid system configuration data. 1. DIMM.
2. System board.
I/O device IRQ conflict. 1. Load “Setup Defaults” in the BIOS
Setup Utility.
2. Backup battery.
3. System board.
Hibernation error. 1. Restore the system configuration to
what it was before the computer
entered hibernation mode.
2. If memory size has been changed,
re-create the hibernation file.
Fan error. 1. Fan.
2. Thermal grease.
3. System board.
Thermal sensing error. System board.
Cannot boot from any device. Check the status of device which you want
to boot from.
Device not found.
1. The device you want to boot from.
2. System board.
Device Error.
1. The device you want to boot from.
2. System board.
No valid operating system.
1. Check that the operating system has no
failure and is installed correctly.
2. Reinstall the operation system.
Excluded from boot order.
vEnter the BIOS Setup Utility and add the
device in boot order.
66 ThinkPad T500 and W500 Hardware Maintenance Manual
Beep symptoms
Table 4. Beep symptoms
Symptom or error FRU or action, in sequence
One beep and a blank, unreadable, or
flashing LCD.
1. Reseat the LCD connector.
2. LCD assembly.
3. External CRT.
4. System board.
One long and two short beeps, and a blank
or unreadable LCD.
1. System board.
2. LCD assembly.
3. DIMM.
Two short beeps with error codes. POST error. See “Numeric error codes” on
page 62.
Two short beeps and a blank screen. 1. System board.
2. DIMM.
Three short beeps, pause, three more short
beeps, and one short beep.
1. DIMM.
2. System board
One short beep, pause, three short beeps,
pause, three more short beeps, and one short
beep.
Only the cursor appears. Reinstall the operating system.
Four cycles of four short beeps and a blank
screen.
System board (security chip)
Five short beeps and a blank screen. System board
No-beep symptoms
Table 5. No-beep symptoms
Symptom or error FRU or action, in sequence
No beep, power-on indicator on, LCD blank,
and no POST.
1. Make sure that every connector is
connected tightly and correctly.
2. DIMM.
3. System board.
No beep, power-on indicator on, and LCD
blank during POST. 1. Reseat DIMM.
2. System board.
The power-on password prompt appears. A power-on password or a supervisor
password is set. Type the password and
press Enter.
The hard-disk password prompt appears. A hard-disk password is set. Type the
password and press Enter.
Related service information 67
LCD-related symptoms
Table 6. LCD-related symptoms
Symptom or error FRU or action, in sequence
No beep, power-on indicator on, and a
blank LCD during POST.
System board.
vLCD backlight not working.
vLCD too dark.
vLCD brightness cannot be adjusted.
vLCD contrast cannot be adjusted.
1. Reseat the LCD connectors.
2. LCD assembly.
3. System board.
vLCD screen unreadable.
vCharacters missing pixels.
vScreen abnormal.
vWrong color displayed.
1. See important note for “LCD-related
symptoms.”
2. Reseat all LCD connectors.
3. LCD assembly.
4. System board.
Horizontal or vertical lines displayed on
LCD.
LCD assembly.
Important: The TFT LCD for the notebook computer contains many thin-film
transistors (TFTs). The presence of a small number of dots that are missing,
discolored, or always lighted is characteristic of TFT LCD technology, but
excessive pixel problems can cause viewing concerns.
If the LCD you are servicing has two or less visible defective pixels, it should not
be considered faulty. However, if the LCD has three or more visible defective
pixels, it will be deemed as defective by Lenovo and it should be replaced.
Notes:
vThis policy applies to all ThinkPad Notebooks purchased on 1 January,
2008 or later.
vLenovo will not provide replacement if the LCD is within specification as
we cannot guarantee that any replacement LCD will have zero pixel defects.
vOne pixel consists of R, G, B sub-pixels.
68 ThinkPad T500 and W500 Hardware Maintenance Manual
Intermittent problems
Intermittent system hang problems can be due to a variety of causes that have
nothing to do with a hardware defect, such as cosmic radiation, electrostatic
discharge, or software errors. FRU replacement should be considered only when a
problem recurs.
When analyzing an intermittent problem, do the following:
1. Run the diagnostic test for the system board in loop mode at least 10 times.
2. If no error is detected, do not replace any FRUs.
3. If any error is detected, replace the FRU shown by the FRU code. Rerun the
test to verify that no more errors exist.
Undetermined problems
If the diagnostic tests did not identify the adapter or device that has failed, if
wrong devices are installed, or if the system simply is not operating, follow these
procedures to isolate the failing FRU (do not isolate FRUs that have no defects).
Verify that all attached devices are supported by the computer.
Verify that the power supply being used at the time of the failure is operating
correctly. (See “Power system checkout” on page 52.)
1. Turn off the computer.
2. Visually check each FRU for damage. Replace any damaged FRU.
3. Remove or disconnect all of the following devices:
a. Non-ThinkPad devices
b. Devices attached to the docking station or the port replicator
c. Printer, mouse, and other external devices
d. Battery pack
e. Hard disk drive
f. External diskette drive or optical drive
g. DIMM
h. Optical disk or diskette in the internal drive
i. PC Cards
4. Turn on the computer.
5. Determine whether the problem has been solved.
6. If the problem does not recur, reconnect the removed devices one at a time
until you find the failing FRU.
7. If the problem remains, replace the following FRUs one at a time (do not
replace a nondefective FRU):
a. System board
b. LCD assembly
Related service information 69
70 ThinkPad T500 and W500 Hardware Maintenance Manual
Status indicators
This chapter presents the system status indicators that show the status of the
computer.
1 2 3 4 5 6 7 8 9 10
11
8910
© Copyright Lenovo 2008, 2009 71
Table 7. Status indicators
Indicator Meaning
1 Wireless status Green: The wireless feature (802.11 standard or 802.11n) is on,
and the radio link is ready for use.
Blinking green:
Data is being transmitted.
2 Wireless PAN
status
R
Green: Bluetooth wireless is operational. This indicator is on
when Bluetooth wireless is on and not in suspend mode.
3 Wireless WAN
status
Green: The wireless WAN is on, and the radio link is ready for
use.
Blinking green:
Data is being transmitted.
4 Num lock Green: The numeric keypad on the keyboard is enabled. To
enable or disable the keypad, press and hold the Shift
key, and press the NumLk (ScrLk) key.
5 Caps lock Green: Caps Lock mode is enabled. To enable or disable Caps
Lock mode, press the Caps Lock key.
6 Drive in use Green: Data is being read from or written to the hard disk
drive, the diskette drive, or the drive in the Serial
Ultrabay Slim device. When this indicator is on, do not
put the computer into sleep (standby) mode or turn off
the computer.
Note: Do not move the system while the green drive-in-use light
is on. Sudden physical shock could cause drive errors.
7 Power on Green: The computer is on and ready to use. This indicator
stays lit whenever the computer is on and is not in sleep
(standby) mode.
8 Battery status Green: The battery is charged between 80% to 100% of the
capacity, and being discharged between 0% to 80% of
the capacity.
Blinking green:
The battery is charged between 20% to 80% of the
capacity, and being charged.
Orange:
The battery is charged between 5% and 20% of the
capacity, and being discharged.
Blinking orange (slow):
The battery is charged between 5% to 20% of the
capacity, and being charged.
Blinking orange (rapid):
The battery is charged between 0% to 5% of the capacity.
9 AC power
status
Green: The computer is connected to the ac power supply.
10 Sleep (standby)
status
Green: The computer is in sleep (standby) mode.
Blinking green:
The computer is entering sleep (standby) mode or
hibernation mode, or is resuming normal operation.
72 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 7. Status indicators (continued)
Indicator Meaning
11 Serial Ultrabay
Slim status
Green: A Serial Ultrabay Slim device is installed and in use.
Blinking green:
A Serial Ultrabay Slim device is in the process of being
detached.
Turn off:
A Serial Ultrabay Slim device is ready to be attached or
detached.
Note: If you are using Windows 2000, the Serial Ultrabay Slim
status indicator does not blink while a Serial Ultrabay Slim
device is being detached. Instead, a message box pops up when
the process is completed; then the indicator turns off.
Status indicators 73
74 ThinkPad T500 and W500 Hardware Maintenance Manual
Fn key combinations
The following table shows the function of each combination of Fn with a function
key.
Table 8. Fn key combinations
Key combination Description
Fn+F1 Reserved.
Fn+F2 Lock the computer.
Fn+F3 Select a power plan (in Windows XP, power scheme) that has been
created by Power Manager, or adjust the power level by using the
slider control. When you press this combination, a panel for selecting a
power plan (power scheme) appears.
Notes:
1. To use the Fn+F3 key combination, you must have the ThinkPad
PM device driver installed on the computer.
2. If you have logged on with an administrator user ID, and you press
Fn+F3, the panel for selecting a power plan (power scheme)
appears. If you have logged on with another user ID, and you press
Fn+F3, the panel does not appear.
3. You cannot turn off the computer display by pressing Fn+F3.
Fn+F4 Put the computer in sleep (standby) mode. To return to normal
operation, press the Fn key only, without pressing a function key.
Notes:
1. To use the Fn+F4 key combination, you must have the ThinkPad
PM device driver installed on the computer.
2. If you want to use the combination to put the computer into
hibernation mode or do-nothing mode (in Windows XP, shut the
computer down or show the panel for turning off the computer),
change the settings in the Power Manager.
Fn+F5 Enable or disable the built-in wireless networking features and the
Bluetooth features. If you press Fn+F5, a list of wireless features is
displayed. You can quickly change the power state of each feature in
the list.
Note: If you want to use Fn+F5 to enable the wireless feature, the
following device drivers must be installed on the computer beforehand:
vThinkPad Power Management driver
vOnScreen Display Utility
vWireless device drivers
Fn+F6 Reserved.
© Copyright Lenovo 2008, 2009 75
Table 8. Fn key combinations (continued)
Key combination Description
Fn+F7 Apply a presentation scheme directly, with no need to start
Presentation Director.
To disable this function and use the Fn+F7 key combination for
switching a display output location, start Presentation Director, and
change the settings.
Note: If the computer is a windows 7 model, it does not support
presentation schemes, but the Fn+F7 combination is available for
switching a display output location.
For Windows 7:
Switch a display output location
vComputer display only (LCD)
vComputer display and external monitor (same image)
vComputer display and external monitor (extended desktop)
vExternal monitor only
Note: To switch between the computer display and an external
monitor, the Win+P key combination is also available.
For Windows Vista and Windows XP:
Switch a display output location
vExternal monitor
vComputer display (LCD) and external monitor
vComputer display (LCD)
Notes:
1. This function is not supported if different desktop images are
displayed on the computer display and the external monitor (the
Extend desktop function).
2. This function does not work while a DVD movie or a video clip is
playing.
To enable this function, start Presentation Director, and change the
Fn+F7 settings.
Note: Multiple users can log on to a single operating system by using
different user IDs. Each user needs to change the settings.
Fn+F8 Change the settings of the UltraNav®pointing device.
Fn+F9 Open the ThinkPad EasyEject Utility screen. Buttons for the following
choices are displayed:
vEject ThinkPad PC from Dock: This button is displayed only if the
ThinkPad computer has been attached to a docking station. The
computer can be detached from the docking station.
vEject ThinkPad PC from Mini Dock: This button is displayed only if
the ThinkPad computer has been attached to a port replicator and
one or more USB devices have been connected to the port replicator.
You can stop and remove all the USB devices safely by clicking the
button.
Note: You cannot use this Utility to detach the computer from the
port replicator.
vRun EasyEject Actions: This button is used to select, stop, or remove
external devices connected to the ThinkPad computer.
vConfigure EasyEject Actions: Opens the ThinkPad EasyEject Utility
main window.
vFn+F9 Settings: Configures the settings for the Fn+F9 function.
Note: If the computer is a Windows 7 model, it does not support the
EasyEject Utility function.
76 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 8. Fn key combinations (continued)
Key combination Description
Fn+F10 Reserved.
Fn+F11 Reserved.
Fn+F12 Put the computer into hibernation mode. To return to normal operation,
press the power button for less than four seconds.
Note: To use Fn+F12 for hibernation, you must have the ThinkPad PM
device driver installed on the computer.
Fn+PgUp Turn the ThinkLight®on or off.
Note: This function is supported only on the ThinkPad computers that
have the ThinkLight. The on or off status of the ThinkLight is shown
on the screen for a few seconds when you press Fn+PgUp.
Fn+Home The computer display becomes brighter.
Fn+End The computer display becomes dimmer.
Fn+Spacebar Enable the FullScreen Magnifier function.
Fn+PrtSc Has the same function as the SysRq key.
Fn+ScrLk Enable or disable the numeric keypad.
Fn+Pause Has the same function as the Break key.
Fn+cursor keys These key combinations work with Windows Media Player. Fn+down
arrow key works for the Play or Pause button, Fn+up arrow key for the
Stop button, Fn+right arrow key for the Next Track button, and Fn+left
arrow key for the Previous Track button.
Fn key combinations 77
78 ThinkPad T500 and W500 Hardware Maintenance Manual
FRU replacement notices
This chapter presents notices related to removing and replacing parts. Read this
chapter carefully before replacing any FRU.
Screw notices
Loose screws can cause a reliability problem. In the ThinkPad Notebook, this
problem is addressed with special nylon-coated screws that have the following
characteristics:
vThey maintain tight connections.
vThey do not easily come loose, even with shock or vibration.
vThey are harder to tighten.
vEach one should be used only once.
Do the following when you service this machine:
vKeep the screw kit (for the P/N, see “Miscellaneous parts” on page 239) in your
tool bag.
vAlways use new screws.
vUse a torque screwdriver if you have one.
Tighten screws as follows:
vPlastic to plastic
Turn an additional 90 degrees after the screw head touches the surface of the
plastic part:
90 degrees more
(Cross-section)
vLogic card to plastic
Turn an additional 180 degrees after the screw head touches the surface of the
logic card:
180 degrees more
(Cross-section)
vTorque driver
If you have a torque driver, refer to the “Torque” column for each step.
vMake sure that you use the correct screw. If you have a torque screwdriver,
tighten all screws firmly to the torque shown in the table. Never use a screw
that you removed. Use a new one. Make sure that all of the screws are
tightened firmly.
vEnsure torque screw drivers are calibrated correctly following country
specifications.
© Copyright Lenovo 2008, 2009 79
Retaining serial numbers
This section includes the following descriptions:
v“Restoring the serial number of the system unit”
v“Retaining the UUID”
v“Reading or writing the ECA information” on page 81
Restoring the serial number of the system unit
When the computer was manufactured, the EEPROM on the system board was
loaded with the serial numbers of the system and all major components. These
numbers need to remain the same throughout the life of the computer.
If you replace the system board, you must restore the serial number of the system
unit to its original value.
Before replacing the system board, save the original serial number by doing the
following:
1. Install the LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or
later, and restart the computer.
2. From the main menu, select 1. Set System Identification.
3. Select 2. Read S/N data from EEPROM.
The serial number of each device in your computer is displayed; the serial number
of the system unit is listed as follows:
v20: Serial number
Write down that number.
Note: The serial number of the system unit is also written on the label attached to
the bottom of the computer.
After you have replaced the system board, restore the serial number by doing the
following:
1. Install the LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or
later and restart the computer.
2. From the main menu, select 1. Set System Identification.
3. Select 1. Add S/N data from EEPROM.
Follow the instructions on the screen.
If the MTM and Product ID numbers differ from each other on the rear label, use
what is shown for the Product ID field. See example below:
MTM on rear label:
TTTT-CTO S/N SSSSSSS
Product ID on rear label:
TTTT-MMM (Use this number when setting Serial Number)
In the example, the Serial Number to be input is ’1STTTTMMMSSSSSSS’.
Retaining the UUID
The Universally Unique Identifier (UUID) is a 128-bit number uniquely assigned to
your computer at production and stored in the EEPROM of your system board.
80 ThinkPad T500 and W500 Hardware Maintenance Manual
The algorithm that generates the number is designed to provide unique IDs until
the year A.D. 3400. No two computers in the world have the same number.
When you replace the system board, you must set the UUID on the new system
board as follows:
1. Install the LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or
later, and restart the computer.
2. From the main menu, select 4. Assign UUID.
A new UUID is created and written. If a valid UUID already exists, it is not
overwritten.
Reading or writing the ECA information
Information on Engineering Change Announcements (ECA) are stored in the
EEPROM of the system board. The electronic storage of this information simplifies
the procedure to check if the ECA has been previously applied to a machine. The
machine does not need to be disassembled to check for the ECA application.
To check what ECAs have been previously applied to the machine, use the ECA
Information Read/Write function on the LENOVO ThinkPad Hardware
Maintenance Diskette Version 1.76 or later.
1. Insert the LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or
later, and restart the computer.
2. From the main menu, select 6. Set ECA Information.
3. To read ECA information, select 2. Read ECA/rework number from EEPROM
and follow the instruction.
4. To read box build date, select 5. Read box build date from EEPROM, and
follow the instruction on the screen.
After an ECA has been applied to the machine, the EEPROM must be updated to
reflect the ECA’s application. Use the LENOVO ThinkPad Hardware Maintenance
Diskette Version 1.76 or later to update the EEPROM.
Note: Only the ECA number is stored in the EEPROM. The machine type of the
ECA is assumed be the same as the machine type of the machine that had the ECA
applied to it.
1. Insert the LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or
later, and restart the computer.
2. From the main menu, select 6. Set ECA Information.
3. To write ECA information, select 1. Write ECA/rework number from EEPROM,
and follow the instruction.
4. To write box build date, select 4. Write box build date from EEPROM, and
follow the instruction on the screen.
If the system board is being replaced, try to read the ECA information from the old
system board and transfer the information to the new system. If the system board
is inoperable, this will not be possible.
FRU replacement notices 81
82 ThinkPad T500 and W500 Hardware Maintenance Manual
Removing and replacing a FRU
This chapter presents directions and drawings for use in removing and replacing a
FRU. Be sure to observe the following general rules:
1. Do not try to service any computer unless you have been trained and certified.
An untrained person runs the risk of damaging parts.
2. Before replacing any FRU, review “FRU replacement notices” on page 79.
3. Begin by removing any FRUs that have to be removed before the failing FRU.
Any such FRUs are listed at the top of the page. Remove them in the order in
which they are listed.
4. Follow the correct sequence in the steps for removing the FRU, as given in the
drawings by the numbers in square callouts.
5. When turning a screw to replace a FRU, turn it in the direction as given by the
arrow in the drawing.
6. When removing the FRU, move it in the direction as given by the arrow in the
drawing.
7. To put the new FRU in place, reverse the removal procedure and follow any
notes that pertain to replacement. For information about connecting and
arranging internal cables, see “Locations” on page 141.
8. When replacing a FRU, use the correct screw as shown in the procedures.
DANGER
Before removing any FRU, turn off the computer, unplug all power cords
from electrical outlets, remove the battery pack, and then disconnect any
interconnecting cables.
Attention: After replacing a FRU, do not turn on the computer until you have
made sure that all screws, springs, and other small parts are in place and none are
loose inside the computer. Verify this by shaking the computer gently and listening
for rattling sounds. Metallic parts or metal flakes can cause electrical short circuits.
Attention: The system board is sensitive to, and can be damaged by, electrostatic
discharge. Before touching it, establish personal grounding by touching a ground
point with one hand or by using an electrostatic discharge (ESD) strap (P/N
6405959).
© Copyright Lenovo 2008, 2009 83
1010 Battery pack
DANGER
Use only the battery specified in the parts list for your computer. Any other
battery could ignite or explode.
Table 9. Removal steps of battery pack
Unlock the battery release lever 1. Holding the battery release lever in the
unlocked position 2, remove the battery pack in the direction shown by arrow
3.
3
1 2
When installing: Install the battery pack along the slide rails of the slot. Then
make sure that the battery release lever is in the locked position.
Important notice for replacing a battery pack:
ThinkVantage Toolbox (in Windows 7) and Lenovo System Toolbox (in Windows
Vista and Windows XP) have an automatic battery diagnostic that determines if
the battery pack is defective. A battery pack FRU should not be replaced unless
this diagnostic shows that the battery is defective.
The only exception to this is if the battery pack is physically damaged or a
customer is reporting a possible safety issue.
If ThinkVantage Toolbox or Lenovo System Toolbox is not installed in the
computer, the customer should download this program before a non-physically
damaged battery pack is replaced. Note that a physically damaged battery pack
is non-warranty replacement.
84 ThinkPad T500 and W500 Hardware Maintenance Manual
1020 Serial Ultrabay Slim device
Table 10. Removal steps of Serial Ultrabay Slim device
When you release the switch in step 1, the lever pops out. In step 2, pull the
lever a little to release the device from the bay.
1
2
3
Note:
Serial Ultrabay Slim does not accept any of the following devices:
vUltrabay Plus™devices
vUltrabay 2000™devices
vUltrabay Enhanced devices
vUltrabay Slim devices
vUltrabay devices
Removing and replacing a FRU 85
1030 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid
state drive (SSD) and storage converter
For access, remove this FRU:
v“1010 Battery pack” on page 84

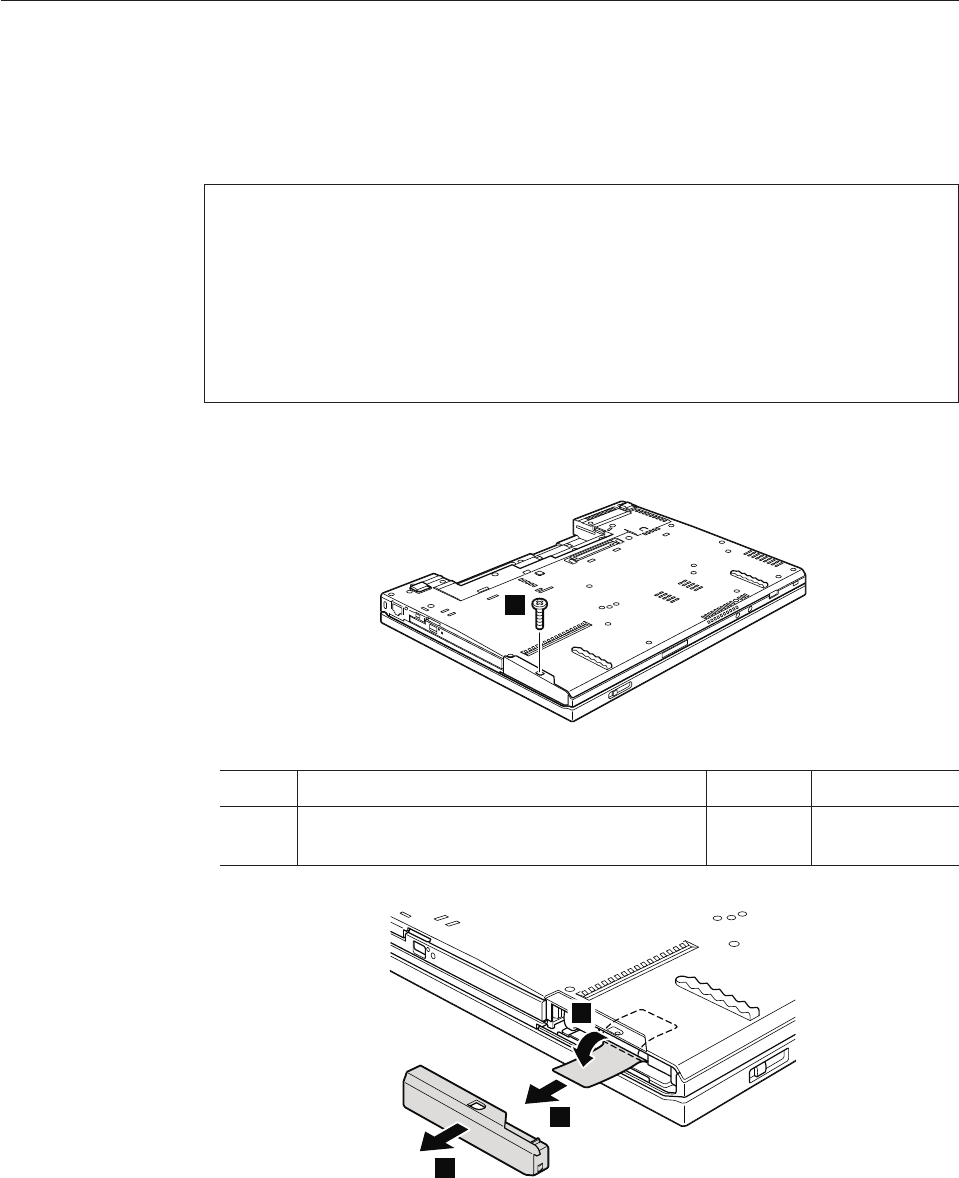

Table 11. Removal steps of HDD cover, HDD and HDD rubber rails or SSD and storage
converter
1
Step Screw (quantity) Color Torque
1 Hard disk drive screw, nylon-coated (1) Black 0.189 Nm
(1.85 kgfcm)
3
4
2
When installing: Make sure that the HDD connector or SSD connector is
attached firmly.
Attention:
vDo not drop the hard disk drive or apply any physical shock to it. The hard
disk drive is sensitive to physical shock. Improper handling can cause damage
and permanent loss of data.
vBefore removing the drive, have the user make a backup copy of all the
information on it if possible.
vNever remove the drive while the system is operating or is in suspend mode.
86 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 11. Removal steps of HDD cover, HDD and HDD rubber rails or SSD and storage
converter (continued)
HDD and HDD rubber rails:
5
5
When installing: The rubber rails on the hard disk drive must be attached to
the replacement drive. Otherwise the drive cannot be installed properly.
SSD and storage converter:
5
6
Removing and replacing a FRU 87
1040 Palm rest or palm rest with fingerprint reader
For access, remove this FRU in order:
v“1010 Battery pack” on page 84
Table 12. Removal steps of palm rest
1
1
1
1
Step Icon Screw (quantity) Color Torque
1 M2 ×14 mm, wafer-head,
nylon-coated (4)
Black 0.189 Nm
(1.85 kgfcm)
2
Note:
In models with the fingerprint reader, the sensor is attached to the palm rest
FRU. If the fingerprint reader has any defects, you can replace it by the
procedures given in this section, which are the same for a palm rest with or
without a fingerprint reader.
88 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 12. Removal steps of palm rest (continued)
3
When installing: When you attach the palm rest, do as follows:
Table 13. Installation of the palm rest
1. Attach the fingerprint reader connector firmly to the system board.
2. Attach the palm rest so that the two projections of the palm rest (a) firmly
fit into the guide holes of the keyboard bezel as shown in this figure.
a
a
Removing and replacing a FRU 89
Table 13. Installation of the palm rest (continued)
3. Push the front side of the palm rest until it clicks into place.
4. Close the LCD cover and turn the computer over. Then fasten the four screws
to secure the palm rest.
90 ThinkPad T500 and W500 Hardware Maintenance Manual
1050 DIMM
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
Table 14. Removal steps of DIMM
Note: If only one DIMM is used on the computer you are servicing, the card
must be installed in SLOT-0 (a: lower slot), but not in SLOT-1 (b: upper
slot).
2
1
a1
b
When installing: Insert the notched end of the DIMM into the socket. Press the
DIMM firmly, and pivot it until it snaps into the place. Make sure that it is
firmly fixed in the slot and does not move easily.
Removing and replacing a FRU 91
1060 Keyboard
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
Table 15. Removal steps of keyboard
1
Step Icon Screw (quantity) Color Torque
1 M2 ×14 mm, wafer-head,
nylon-coated (1)
Black 0.189 Nm
(1.85 kgfcm)
Lift the keyboard a little in the direction shown by arrow 2, and then detach
the connector 3.
3
2
92 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 15. Removal steps of keyboard (continued)
When installing: Make sure that the keyboard edges a are under the frame as
shown in this figure.
a
a
Removing and replacing a FRU 93
1070 Modem daughter card (MDC-3.0)
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92

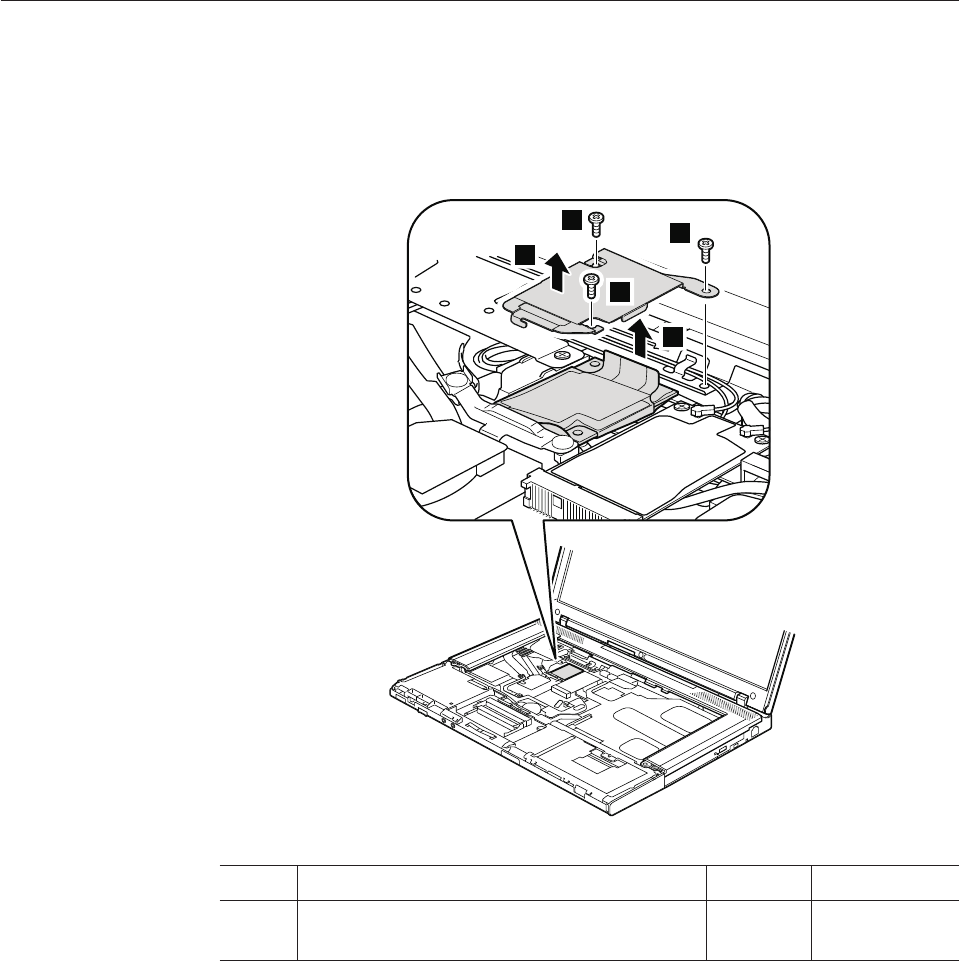

Table 16. Removal steps of MDC-3.0
3
1
1
2
1
Step Screw (quantity) Color Torque
1 M2 ×3 mm, small-head, nylon-coated (3) Silver 0.189 Nm
(1.85 kgfcm)
In step 3, remove the card by pulling the tab with your fingers in the direction
shown by the arrow.
94 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 16. Removal steps of MDC-3.0 (continued)

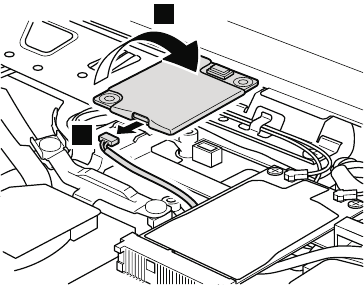

Turn the card over 4, and detach the modem connector 5.
4
5
When installing: Make sure that the modem connector and the connector on the
underside of the card are attached firmly.
Removing and replacing a FRU 95
1080 PCI Express Mini Card for wireless LAN/WiMAX
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92

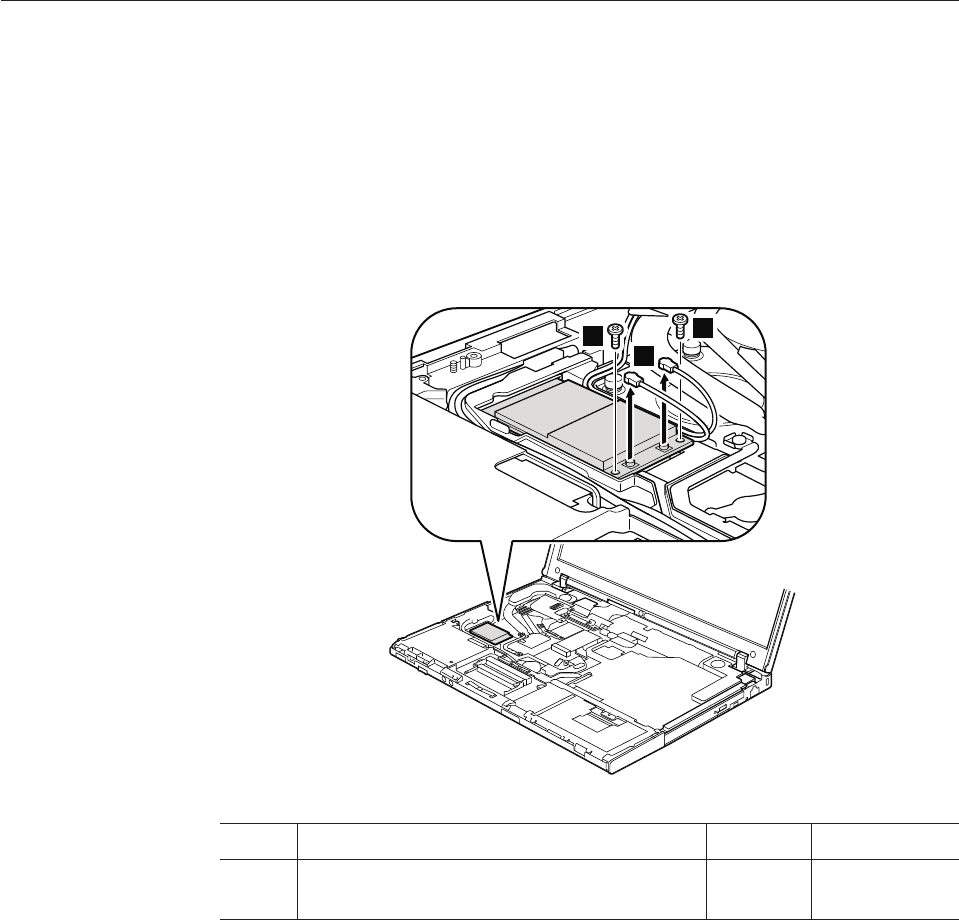

Table 17. Removal steps of PCI Express Mini Card for wireless LAN/WiMAX
In step 1, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159) or pick the connectors with your fingers and gently unplug
them in direction of the arrow.
Note: Some models might have only two antenna cables in step 1.
1
2
2
Step Screw (quantity) Color Torque
2 M2 ×9.5 mm, wafer-head, nylon-coated (2) Black 0.189 Nm
(1.85 kgfcm)
96 ThinkPad T500 and W500 Hardware Maintenance Manual

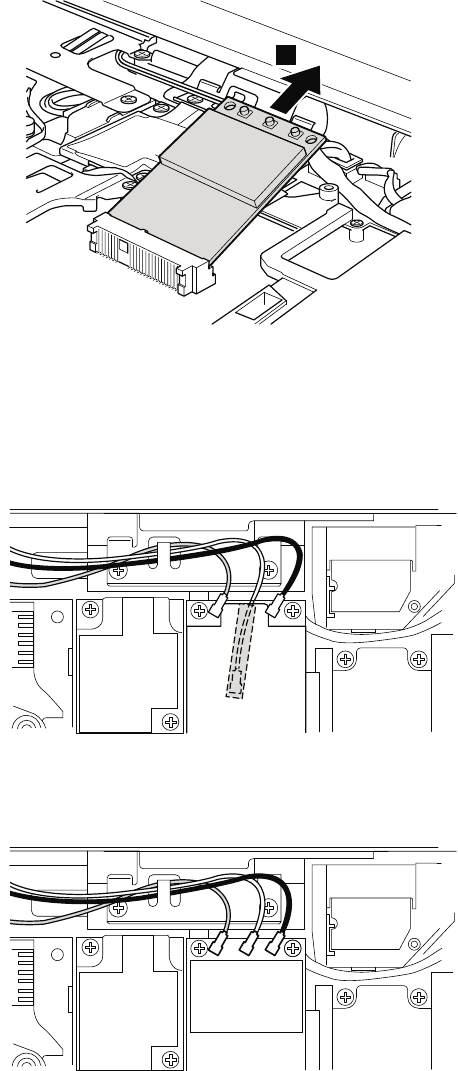

Table 17. Removal steps of PCI Express Mini Card for wireless LAN/WiMAX (continued)
3
When installing:
vIn models with wireless LAN card that has two antenna connectors, plug the
gray cable into the jack labeled MAIN or M, and the black cable into the jack
labeled AUX or Aon the card. If the computer you are servicing has three
cables, put the white cable in the cable holder and place it under the card.
vIn models with wireless LAN card that has three antenna connectors, plug the
gray cable (MAIN) into the jack labeled TR1, the white cable (3rd) into jack
labeled RO or TR3, and the black cable (AUX) into jack labeled TR2 on the
card.
Removing and replacing a FRU 97
1090 Intel Turbo Memory Minicard or Wireless USB adapter
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
Table 18. Removal steps of Intel Turbo Memory Minicard or Wireless USB adapter
Note: Step 1 is only for the models with the Wireless USB adapter. For the
models with the Intel®Turbo Memory Minicard, skip step 1.
In step 1, unplug the jack by using the removal tool antenna RF connector
(P/N: 08K7159) or pick the connector with your fingers and gently unplug it in
direction of the arrow.
1
98 ThinkPad T500 and W500 Hardware Maintenance Manual

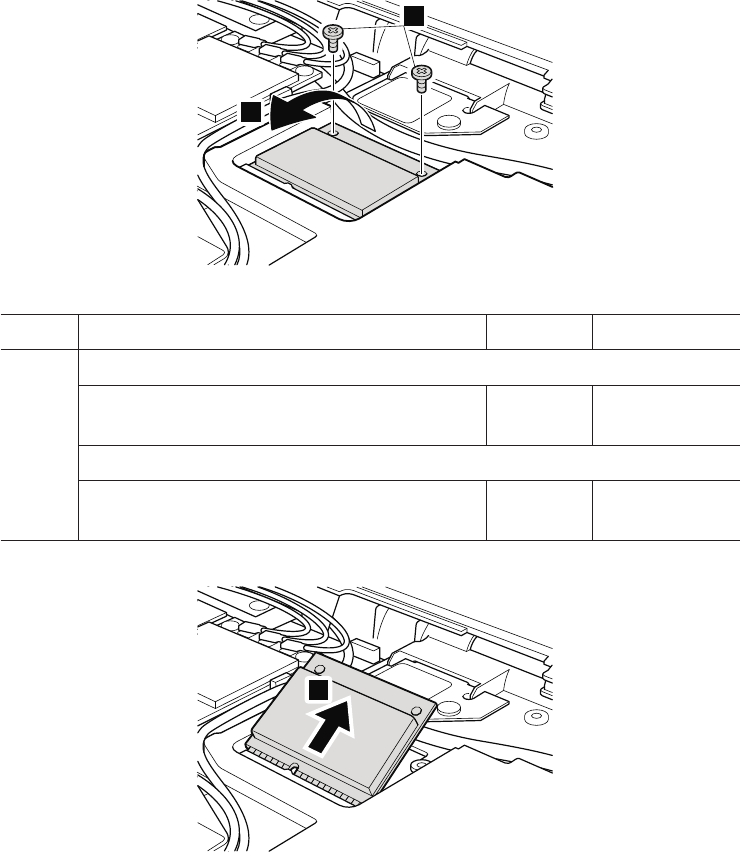

Table 18. Removal steps of Intel Turbo Memory Minicard or Wireless USB
adapter (continued)
2
3
Step Screw (quantity) Color Torque
2 For Japan
M2 ×3 mm, tamper proof (2) Black 0.189 Nm
(1.85 kgfcm)
Other than Japan
M2 ×3 mm, wafer-head, nylon-coated (2) Silver 0.189 Nm
(1.85 kgfcm)
4
Removing and replacing a FRU 99
1100 Backup battery
DANGER
Use only the battery specified in the parts list for your computer. Any other
battery could ignite or explode.
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
Table 19. Removal steps of backup battery
2
1
When installing: Make sure that the battery connector is attached firmly.
100 ThinkPad T500 and W500 Hardware Maintenance Manual
1110 SIM card slot
For access, remove these FRUs, in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
Note: If the SIM card has been inserted in the slot, remove it before you start the
servicing. After you finish the servicing, make sure that you insert the card back
into the slot firmly.

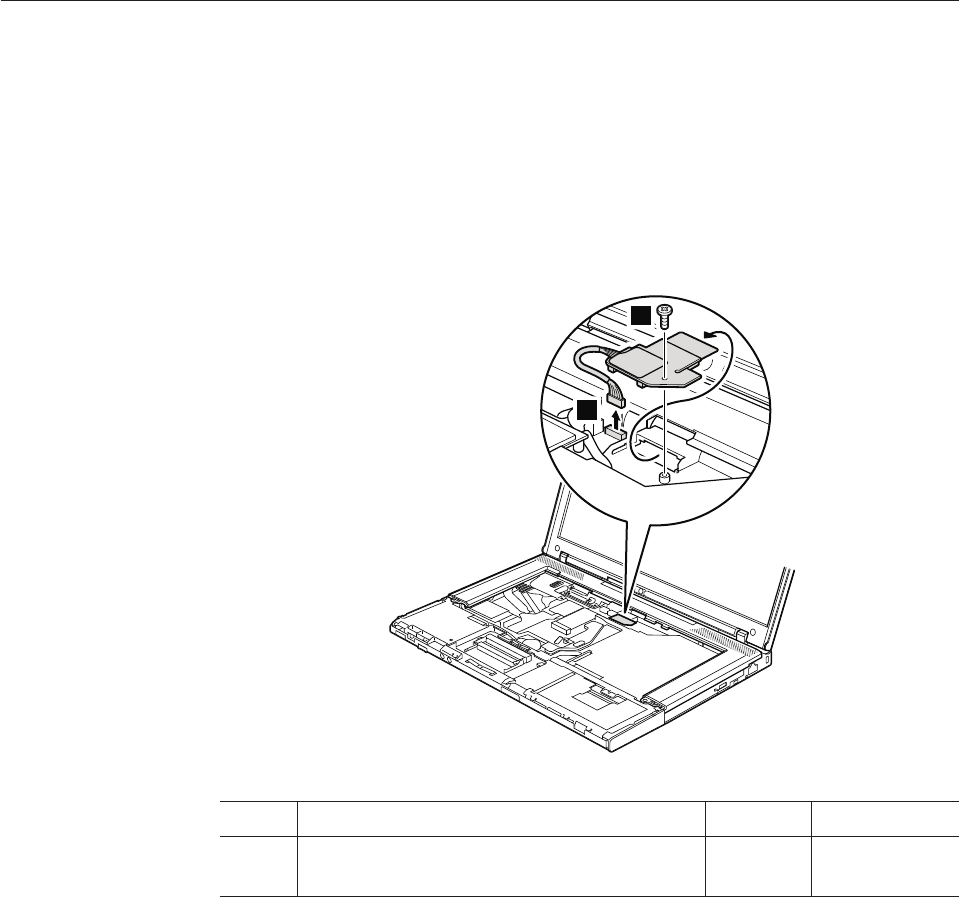

Table 20. Removal steps of SIM card slot
1
2
Step Screw (quantity) Color Torque
1 M2 ×3.5 mm, wafer-head, nylon-coated (1) Silver 0.189 Nm
(1.85 kgfcm)
When installing: Make sure the connector 2 is attached firmly.
Removing and replacing a FRU 101
1120 Keyboard bezel
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
Table 21. Removal steps of keyboard bezel
11
Step Screw (quantity) Color Torque
1 M2 ×14 mm, wafer-head, nylon-coated (2) Black 0.189 Nm
(1.85 kgfcm)

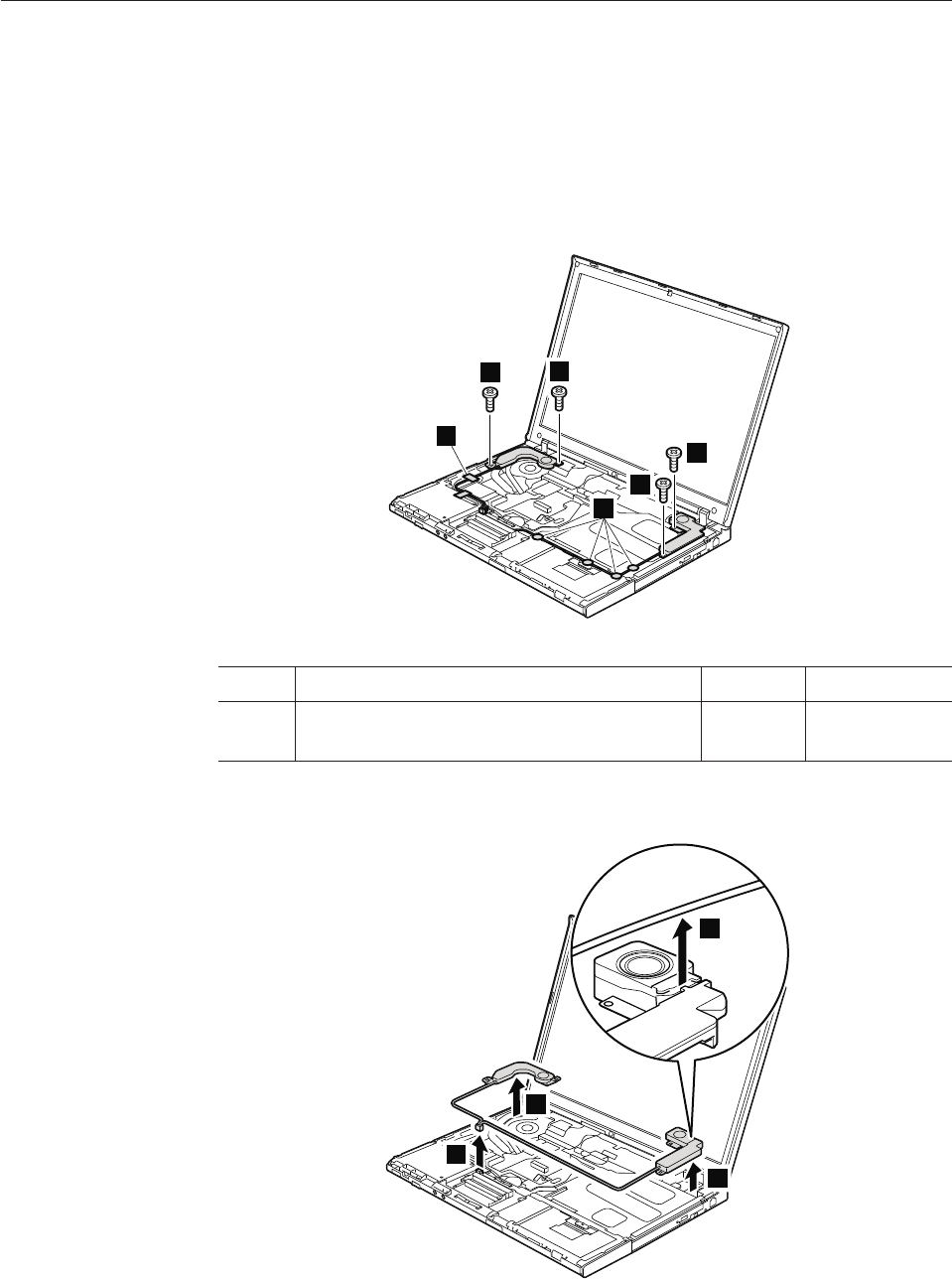

102 ThinkPad T500 and W500 Hardware Maintenance Manual

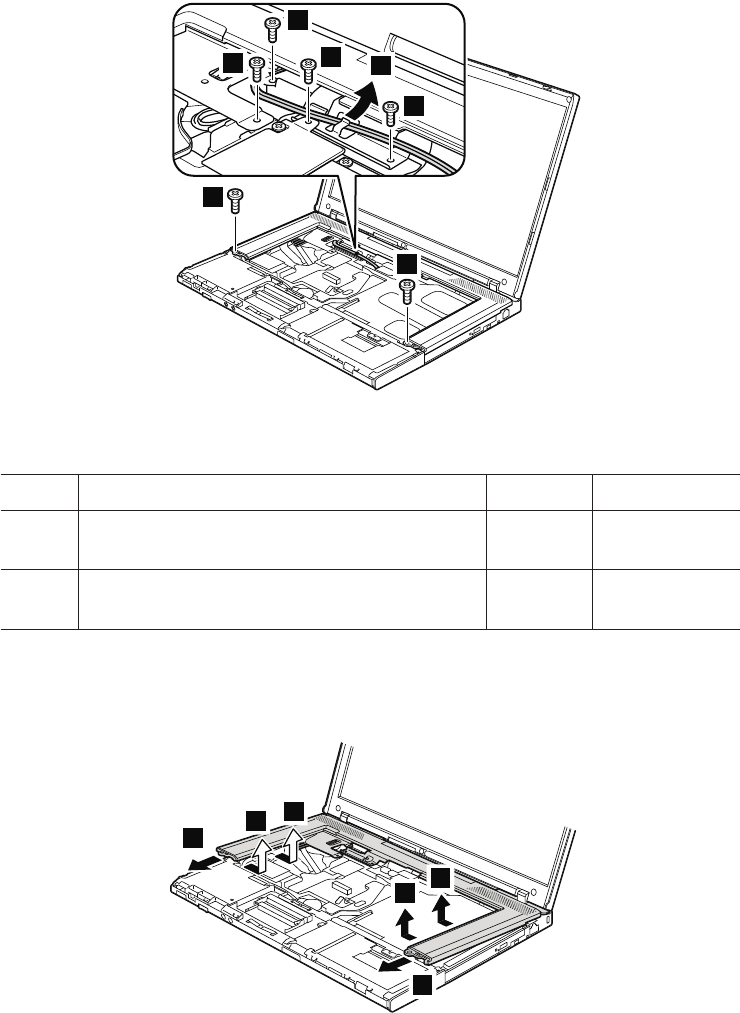

Table 21. Removal steps of keyboard bezel (continued)
3
3
3
2
34
4
In step 2, release the wireless antenna cables from the cable guide.
Step Screw (quantity) Color Torque
3 M2 ×3 mm, small-head, nylon-coated (4) Silver 0.189 Nm
(1.85 kgfcm)
4 M2 ×3.5 mm, wafer-head, nylon-coated (2) Black 0.189 Nm
(1.85 kgfcm)
In step 5, detach the claws. Then remove the keyboard bezel in the direction
shown by arrow 6.
5
5
5
5
6
6
When installing: Make sure that all the claws are attached firmly.
Removing and replacing a FRU 103
1130 PCI Express Mini Card for wireless WAN
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
v“1120 Keyboard bezel” on page 102
Table 22. Removal steps of PCI Express Mini Card for wireless WAN
In step 1, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159) or pick the connectors with your fingers and gently unplug
them in direction of the arrow.
2
1
2
Step Screw (quantity) Color Torque
1 M2 ×3 mm, wafer-head, nylon-coated (1) Silver 0.189 Nm
(1.85 kgfcm)
When installing: Plug the red cable into the jack labeled MAIN on the card,
and the blue cable into the jack labeled AUX.
104 ThinkPad T500 and W500 Hardware Maintenance Manual

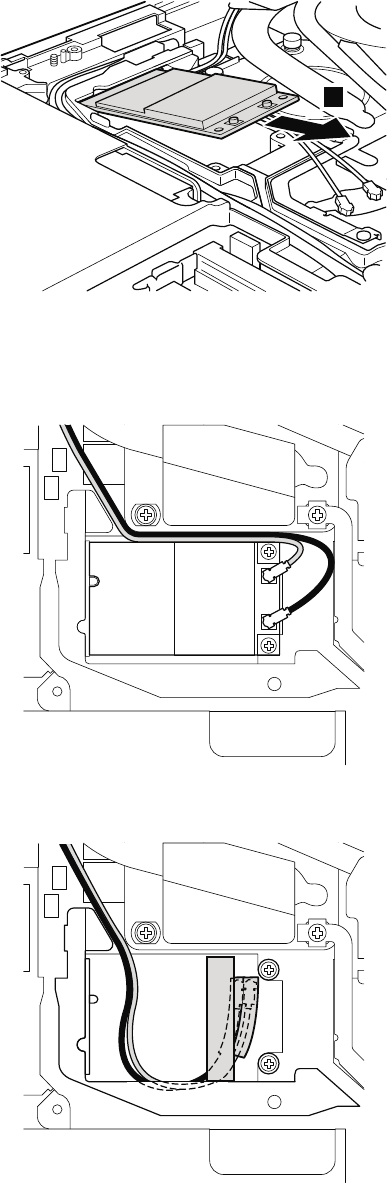

Table 22. Removal steps of PCI Express Mini Card for wireless WAN (continued)
3
Table 23. Installation of the PCI Express Mini Card for wireless WAN
Cable routing: When you install the card, route the antenna cables as shown in
this figure.
If the computer you are servicing is the wireless WAN-ready model, put the
cables in the cable holders and secure them with tape as shown in this figure.
Removing and replacing a FRU 105
1140 Speaker assembly
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
v“1120 Keyboard bezel” on page 102
Table 24. Removal steps of speaker assembly
The speaker cables are secured with tapes (a).
a
1
1
1
a
1
Step Screw (quantity) Color Torque
1 M2 ×3 mm, small-head, nylon-coated (4) Silver 0.189 Nm
(1.85 kgfcm)
In step 2, release the antenna cable from the cable guide of the left speaker.
4
3
4
2
106 ThinkPad T500 and W500 Hardware Maintenance Manual

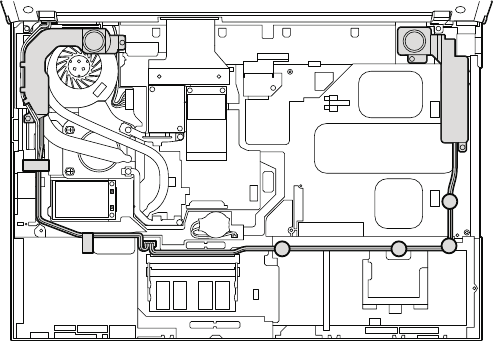

Table 24. Removal steps of speaker assembly (continued)
Cable routing: Make sure that the speaker connector is attached firmly, and the
cables are routed as in this figure.
Removing and replacing a FRU 107
1150 Fan assembly
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
v“1120 Keyboard bezel” on page 102
v“1140 Speaker assembly” on page 106

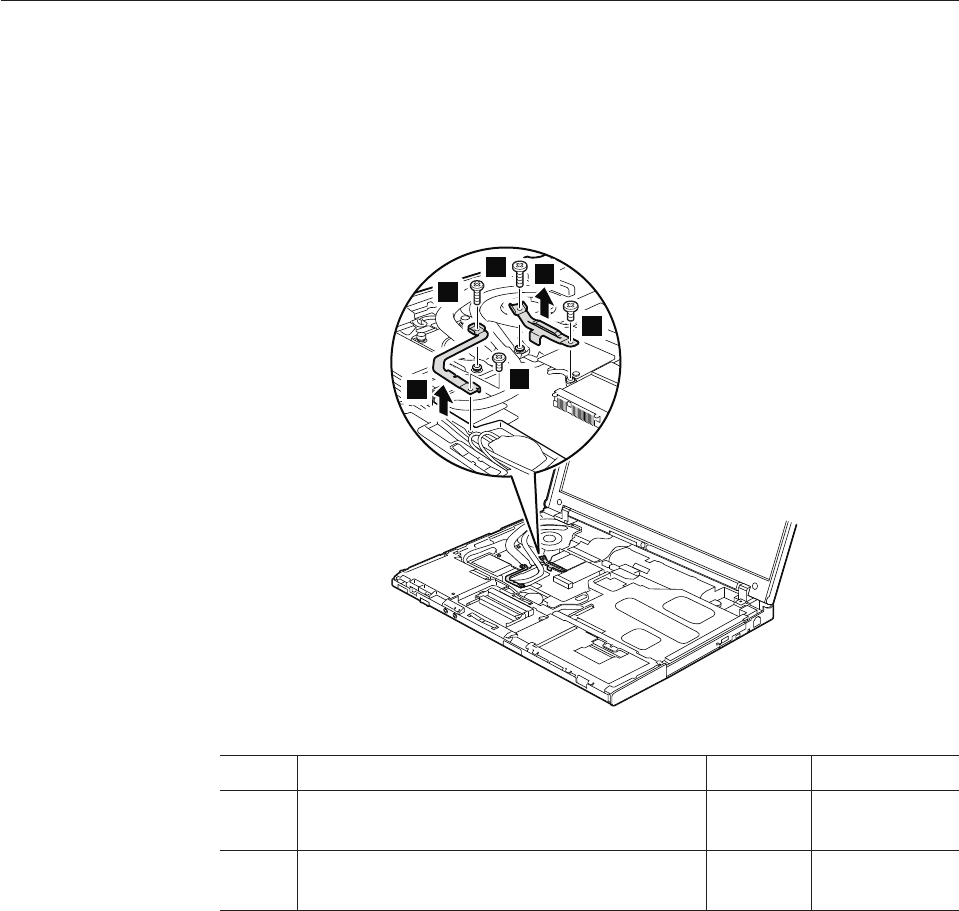

Table 25. Removal steps of fan assembly
3
2
1
3
1
2
Step Screw (quantity) Color Torque
1 M2 ×3 mm, small-head, nylon-coated (2) Silver 0.189 Nm
(1.85 kgfcm)
2 M2 ×9.5 mm, wafer-head, nylon-coated (2) Black 0.189 Nm
(1.85 kgfcm)
Attention: Do not handle the fan roughly. Improper handling of the fan can
cause distortion or deformation and imperfect contact with components.
108 ThinkPad T500 and W500 Hardware Maintenance Manual

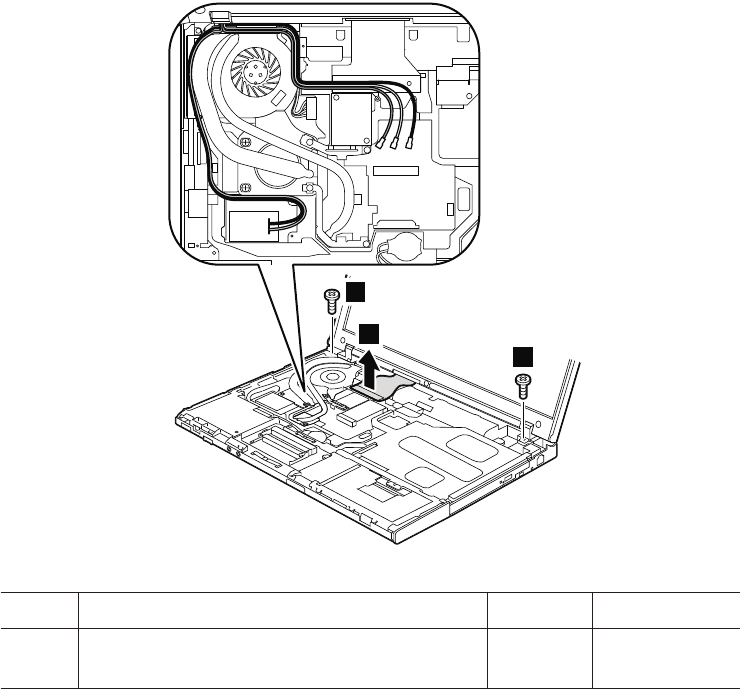

Table 25. Removal steps of fan assembly (continued)
4
4
5
5
Step Screw (quantity) Color Torque
4 M2 ×9.5 mm, wafer-head, nylon-coated (2) Silver 0.189 Nm
(1.85 kgfcm)
In step 5, release the wireless antenna cables from the cable guide of the fan
assembly.
6
7
Removing and replacing a FRU 109
Table 26. Installation of the fan assembly
When installing:
vBefore you attach the fan assembly to the computer, apply thermal grease, at an
amount of 0.2 grams, on the part marked a as in the following figure. Either
too much or too less application of grease can cause a thermal problem due to
imperfect contact with a component. In some modes, you need to peel the thin
film off from the rubber b.
For the integrated graphics models:
a
For the switchable graphics models:
a
b
vMake sure that the fan connector is attached firmly.
110 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 26. Installation of the fan assembly (continued)
vWhen attaching the fan assembly to the frame, take care not to damage the heat
sink and the cable guides (b) of the fan assembly.
b
b
Removing and replacing a FRU 111
1160 CPU
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
v“1120 Keyboard bezel” on page 102
v“1140 Speaker assembly” on page 106
v“1150 Fan assembly” on page 108
Attention: CPU is extremely sensitive. When you service the CPU, avoid any
kind of rough handling.
Table 27. Removal steps of CPU
Rotate the head of the screw in the direction shown by arrow 1 to release the
lock; then remove the CPU.
3
1
b
a
2
When installing: Place the CPU on the CPU socket a, and then rotate the head
of the screw in the direction shown by arrow b to secure the CPU.
112 ThinkPad T500 and W500 Hardware Maintenance Manual
1170 LCD unit
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
v“1080 PCI Express Mini Card for wireless LAN/WiMAX” on page 96
v“1120 Keyboard bezel” on page 102
v“1130 PCI Express Mini Card for wireless WAN” on page 104

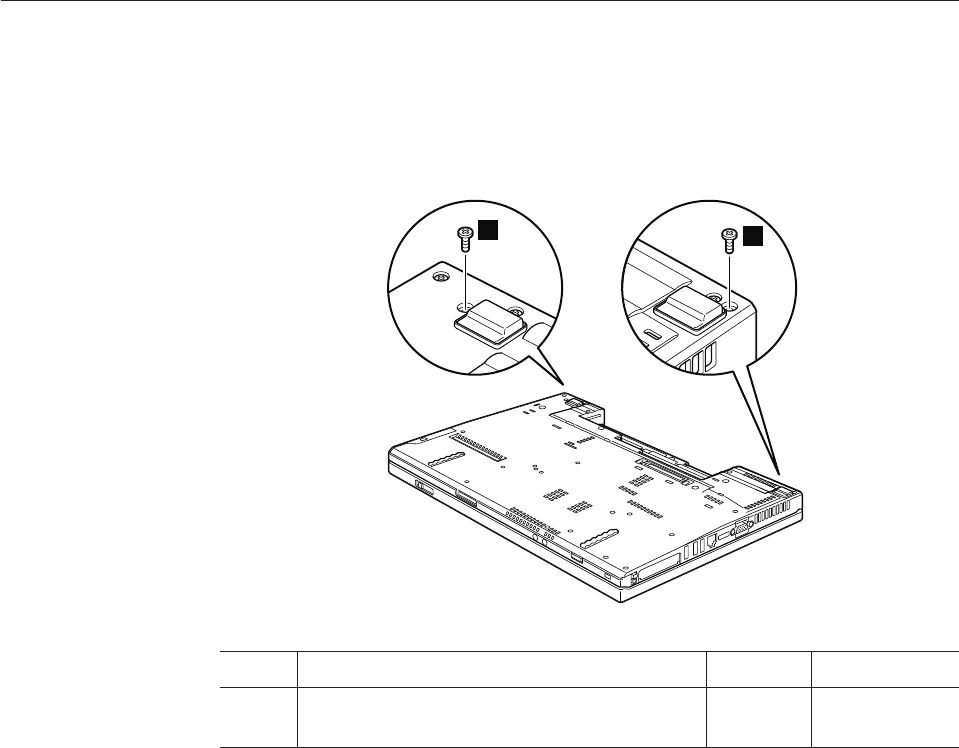

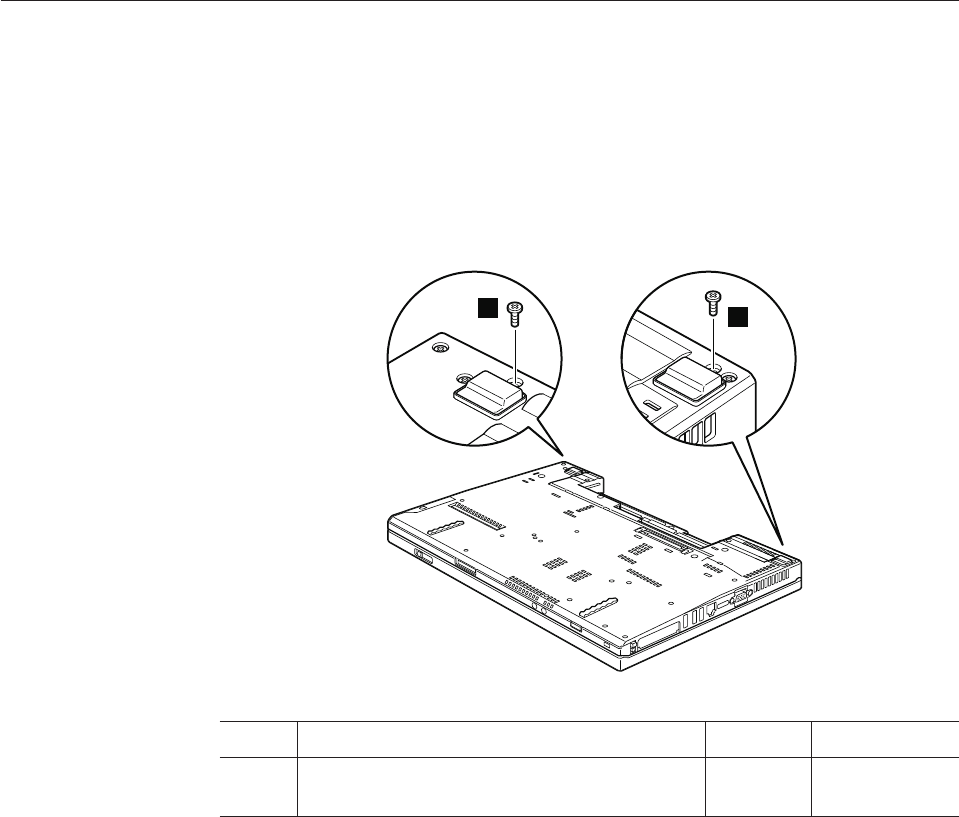

Table 28. Removal steps of LCD assembly
11
Step Screw (quantity) Color Torque
1 M2.5 ×6.5 mm, wafer-head, nylon-coated
(2)
Black 0.392 Nm
(4 kgfcm)
Removing and replacing a FRU 113
Table 28. Removal steps of LCD assembly (continued)
3
2
3
Step Screw (quantity) Color Torque
3 M2.5 ×6.5 mm, wafer-head, nylon-coated
(2)
Black 0.392 Nm
(4 kgfcm)
114 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 28. Removal steps of LCD assembly (continued)
4
4
When installing:
1. Route the antenna cables along the cable guides and secure them with the
tapes. As you route the cables, make sure that they are not subjected to any
tension. Tension could cause the cables to be damaged by the cable guides,
or a wire to be broken.
2. Make sure that the LCD connector is attached firmly.
Removing and replacing a FRU 115
1180 Base cover and USB sub card with cable
For access, remove these FRUs, in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
v“1080 PCI Express Mini Card for wireless LAN/WiMAX” on page 96
v“1120 Keyboard bezel” on page 102
v“1130 PCI Express Mini Card for wireless WAN” on page 104
v“1170 LCD unit” on page 113
Table 29. Removal steps of base cover and USB sub card with cable
1
1
1
1
1
1
1
2
Step Screw (quantity) Color Torque
1 M2 ×5 mm, wafer-head, nylon-coated (8) Black 0.189 Nm
(1.85 kgfcm)
2 M2 ×3.5 mm, wafer-head, nylon-coated (1) Black 0.189 Nm
(1.85 kgfcm)
116 ThinkPad T500 and W500 Hardware Maintenance Manual

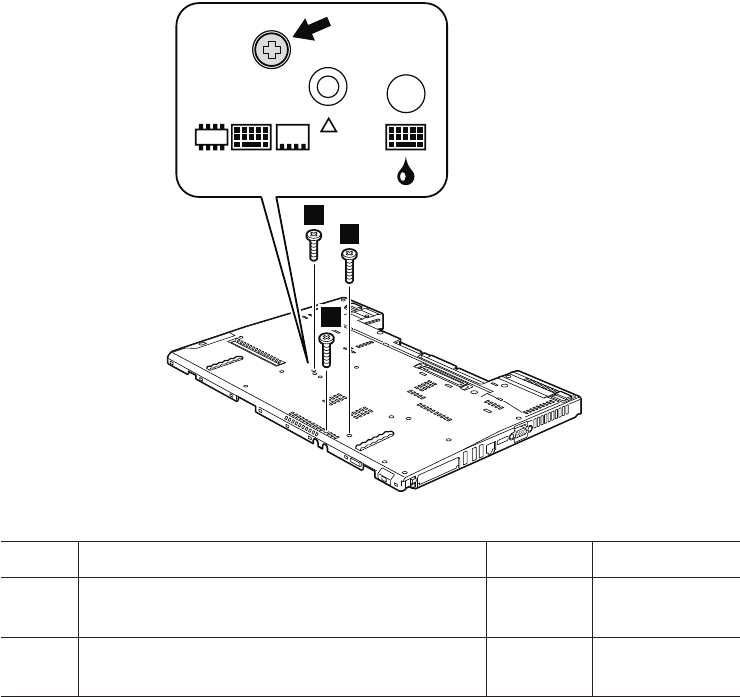

Table 29. Removal steps of base cover and USB sub card with cable (continued)
3
4
4
Step Screw (quantity) Color Torque
3 M2 ×9.5 mm, wafer-head, nylon-coated (1) Black 0.189 Nm
(1.85 kgfcm)
4 M2 ×14 mm, wafer-head, nylon-coated (2) Black 0.189 Nm
(1.85 kgfcm)
Removing and replacing a FRU 117
Table 29. Removal steps of base cover and USB sub card with cable (continued)
5
6
6
6
Step Screw (quantity) Color Torque
5 M2 ×3 mm, small-head, nylon-coated (1) Silver 0.189 Nm
(1.85 kgfcm)
When installing: Make sure that the connectors are attached firmly.
118 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 29. Removal steps of base cover and USB sub card with cable (continued)
Attention: Before step 7, be sure that the Serial Ultrabay Slim device eject
lever has not popped out. It must be housed in its position as shown in the
figure a.

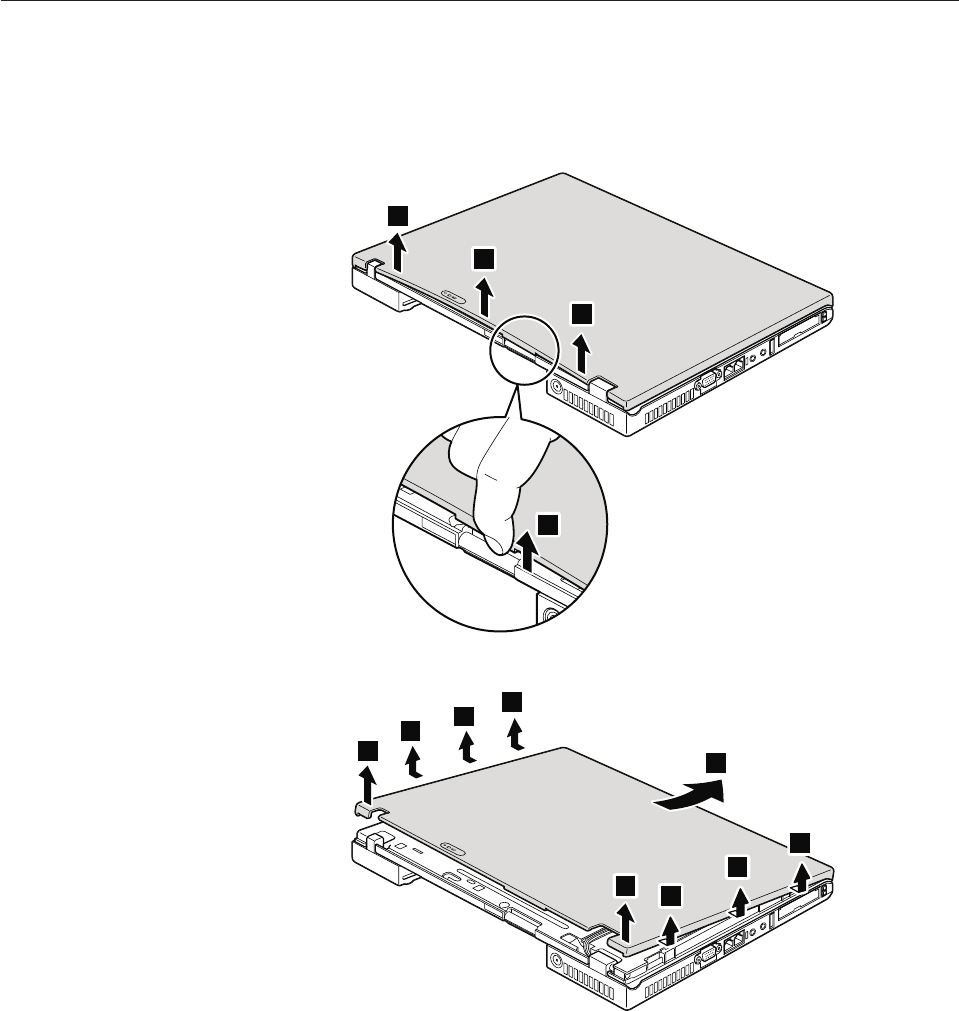

7
a
8
Remove the USB sub card with cable as shown in this figure.
2
1
1
Step Screw (quantity) Color Torque
1 M2 ×3.5 mm, wafer-head, nylon-coated (2) Black 0.189 Nm
(1.85 kgfcm)
Removing and replacing a FRU 119
Note: Applying labels to the base cover
The new base cover FRU is shipped with a kit containing labels of several kinds.
When you replace the base cover, you need to apply the following labels:
1 Product label
1a Non-mercury label
Note: If the computer you are servicing is an LED-backlight LCD model,
you need to paste this label so that the notice for mercury on the product
label is covered.
2 Homologation label
Following labels need to be peeled off from the old base cover, and need to be
put on the new base cover.
3 Wireless LAN LMA label
4 SIM ICCID label
5 Windows license label (COA)
6 Wireless WAN LMA label
7 SIRM label
8 Israel label
9 China modem label
10 Wireless WAN IMEI label or wireless WAN ESN label
11 Wireless WAN MAC address label
12 MAC address label
13 Serial number label
For some models, you also need to apply one or two FCC labels. Check the old
base cover; if it has one or two FCC labels, find duplicates of them in the label
kit and apply them to the new base cover.

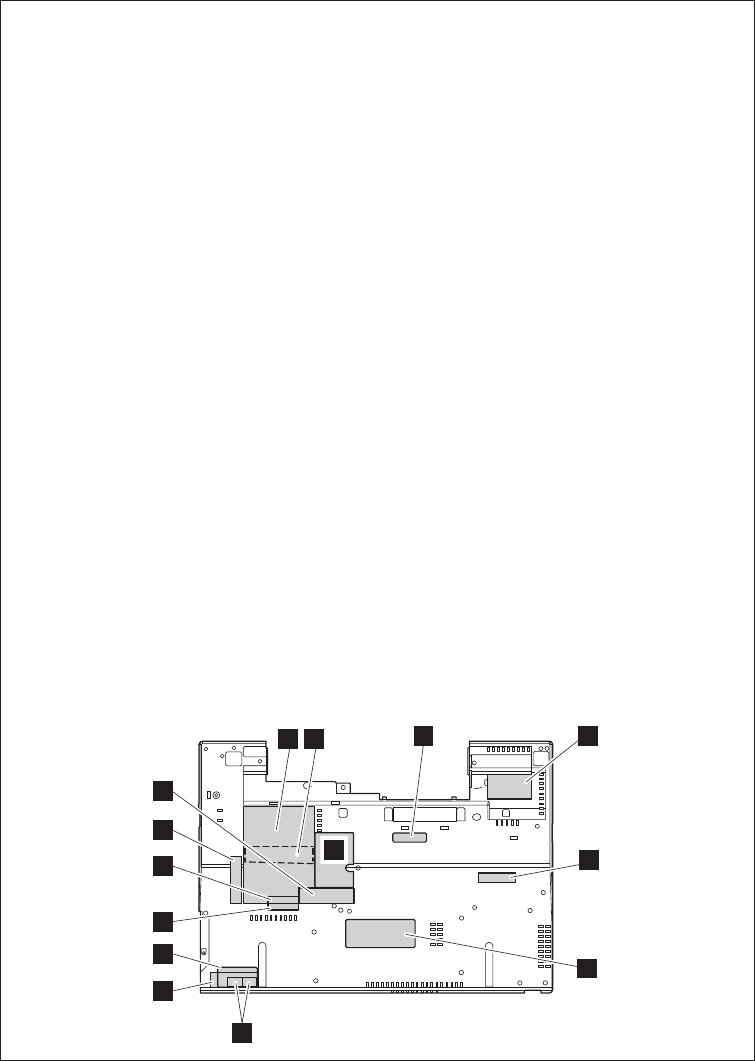

For the location of each label, refer the following figure:
2
12
13
34
5
6
11
10
9
8
7
11a
120 ThinkPad T500 and W500 Hardware Maintenance Manual
1190 Structure frame
For access, remove these FRUs, in order:
v“1010 Battery pack” on page 84
v“1020 Serial Ultrabay Slim device” on page 85
v“1030 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state
drive (SSD) and storage converter” on page 86
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
v“1070 Modem daughter card (MDC-3.0)” on page 94
v“1080 PCI Express Mini Card for wireless LAN/WiMAX” on page 96
v“1090 Intel Turbo Memory Minicard or Wireless USB adapter” on page 98
v“1120 Keyboard bezel” on page 102
v“1130 PCI Express Mini Card for wireless WAN” on page 104
v“1140 Speaker assembly” on page 106
v“1150 Fan assembly” on page 108
v“1170 LCD unit” on page 113
v“1180 Base cover and USB sub card with cable” on page 116
Table 30. Removal steps of structure frame
1
Step Screw (quantity) Color Torque
1 M2 ×3 mm, wafer-head, nylon-coated (1) Silver 0.189 Nm
(1.85 kgfcm)
Removing and replacing a FRU 121
Table 30. Removal steps of structure frame (continued)

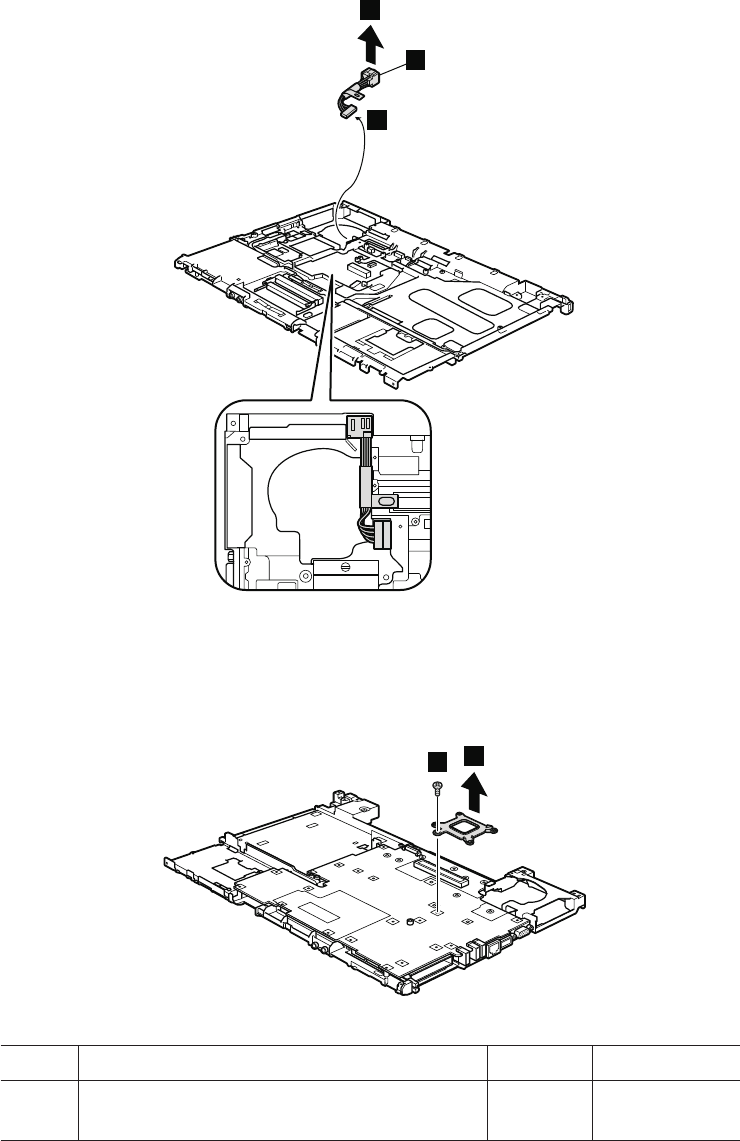

Remove the AC power jack cable a.
2
3
a
When installing: Make sure the connector is attached firmly, and that the cable
is routed as in the figure above.
Remove the CPU support plate.
45
Step Screw (quantity) Color Torque
4 M2 ×5 mm, wafer-head, nylon-coated (1) Black 0.189 Nm
(1.85 kgfcm)
122 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 30. Removal steps of structure frame (continued)
6
7
8
66
6
9
9
a
Step Screw (quantity) Color Torque
6 M2 ×3.5 mm, wafer-head, nylon-coated (4) Black 0.189 Nm
(1.85 kgfcm)
7 M2 ×9.5 mm, wafer-head, nylon-coated (1) Black 0.189 Nm
(1.85 kgfcm)
8 M2 ×3 mm, small-head, nylon-coated (1) Silver 0.189 Nm
(1.85 kgfcm)

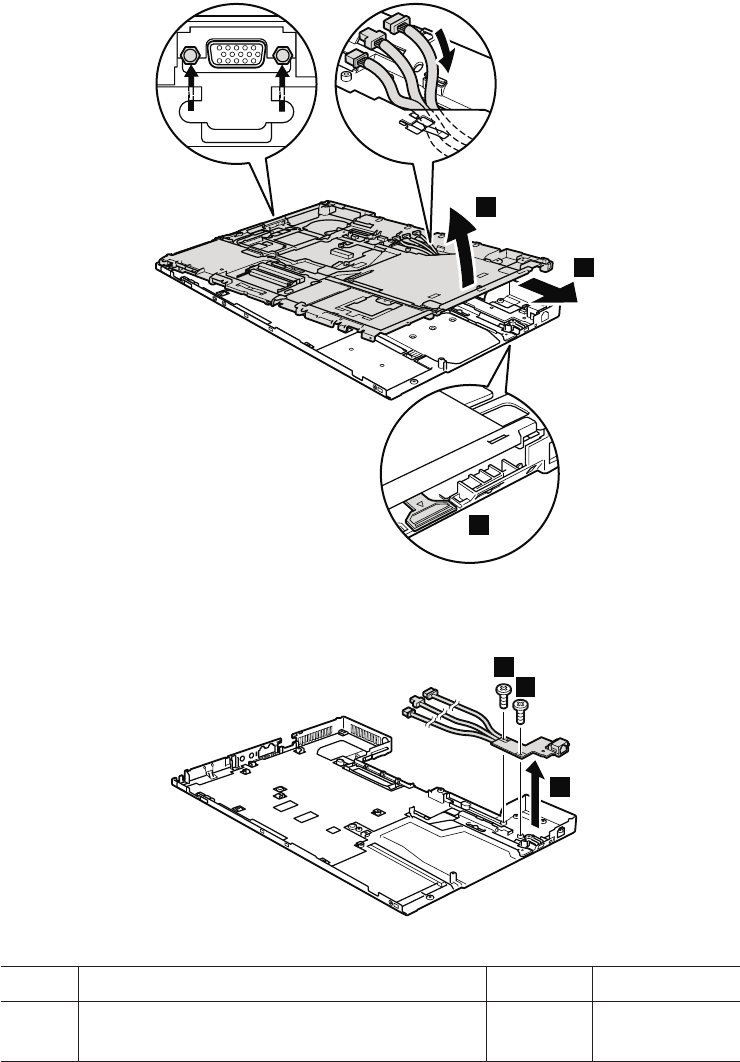

In step 9, loosen the hex screws.
When installing: When attaching the system board to the frame, adjust the
placement with the small projection a. Then secure the system board with the
screws.
Remove the system board and the PC Card/ExpressCard slots assembly from
the structure frame together.
11
10
Removing and replacing a FRU 123
1200 System board and ExpressCard slot assembly
Important notices for handling the system board:
When handling the system board, bear the following in mind.
vThe system board has an accelerometer, which can be broken by applying
several thousands of G-forces.
Note: Dropping a system board from a height of as little as 6 inches so that it
falls flat on a hard bench can subject the accelerometer to as much as 6,000 G’s
of shock.
vBe careful not to drop the system board on a bench top that has a hard
surface, such as metal, wood, or composite.
vIf a system board is dropped, you must test it, using PC-Doctor for DOS, to
make sure that the HDD Active Protection still functions (see below).
Note: If the test shows that HDD Active Protection is not functioning, be sure
to document the drop in any reject report, and replace the system board.
vAvoid rough handling of any kind.
vAt every point in the process, be sure not to drop or stack the system board.
vIf you put a system board down, be sure to put it only on a padded surface
such as an ESD mat or conductive corrugated material.
After replacing the system board, run PC-Doctor for DOS to make sure that
HDD Active Protection still functions. The procedure is as follows:
1. Place the computer on a horizontal surface.
2. Run Diagnostics --> ThinkPad Devices --> HDD Active Protection Test.
Attention:: Do not apply physical shock to the computer while the test is
running.
124 ThinkPad T500 and W500 Hardware Maintenance Manual

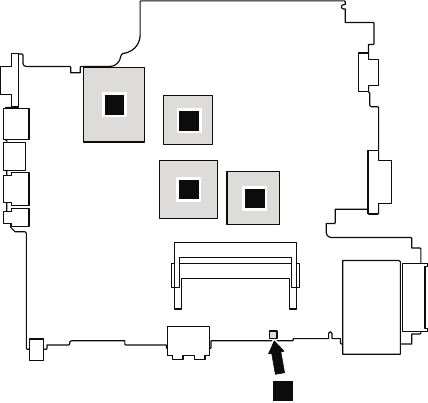

Following components soldered on the top side of the system board are extremely
sensitive. When you service the system board, avoid any kind of rough handling.
a CPU
b Video chip
c MCH (Memory Controller Hub)
d Accelerometer chip for the HDD Active Protection System™
e ICH (I/O Controller Hub)
d
a
b
c
e
For access, remove these FRUs, in order:
v“1010 Battery pack” on page 84
v“1020 Serial Ultrabay Slim device” on page 85
v“1030 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state
drive (SSD) and storage converter” on page 86
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1050 DIMM” on page 91
v“1060 Keyboard” on page 92
v“1070 Modem daughter card (MDC-3.0)” on page 94
v“1080 PCI Express Mini Card for wireless LAN/WiMAX” on page 96
v“1090 Intel Turbo Memory Minicard or Wireless USB adapter” on page 98
v“1100 Backup battery” on page 100
v“1110 SIM card slot” on page 101
v“1120 Keyboard bezel” on page 102
v“1130 PCI Express Mini Card for wireless WAN” on page 104
v“1140 Speaker assembly” on page 106
v“1150 Fan assembly” on page 108
v“1160 CPU” on page 112
v“1170 LCD unit” on page 113
v“1180 Base cover and USB sub card with cable” on page 116
v“1190 Structure frame” on page 121
Removing and replacing a FRU 125
Table 31. Removal steps of system board and ExpressCard slot assembly
1
1
Step Screw (quantity) Color Torque
1 M2 ×2.7 mm, wafer-head, nylon-coated (2) Black 0.189 Nm
(1.85 kgfcm)
Turn the system board over, and then disconnect the ExpressCard slot assembly
a from the system board.
2
a
When installing: Make sure that the connector of the Express Card slot
assembly is attached to the system board firmly.
126 ThinkPad T500 and W500 Hardware Maintenance Manual
2010 LCD front bezel (LCD cover kit)
For access, remove this FRU:
v“1010 Battery pack” on page 84
Table 32. Removal steps of LCD front bezel
2
1
1
2
1
1
Step Screw cap Screw (quantity) Color Torque
1 M2.5 ×6.5 mm, bind-head,
nylon-coated (3)
Black 0.392 Nm
(4 kgfcm)
2 M2.5 ×6.5 mm, bind-head,
nylon-coated (2)
Black 0.392 Nm
(4 kgfcm)
Removing and replacing a FRU 127
Table 32. Removal steps of LCD front bezel (continued)
Close the LCD cover. Detach the LCD rear cover a little as shown in step 3 of
this figure, and detach the rear edge of the LCD rear cover 4.
4
5
3
3
33
33
3
3
128 ThinkPad T500 and W500 Hardware Maintenance Manual
2020 LCD rear cover (LCD cover kit)
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“2010 LCD front bezel (LCD cover kit)” on page 127
Table 33. Removal steps of LCD rear cover
1
1
1
2
3
3
3
3
33
3
3
4
Removing and replacing a FRU 129
2030 Inverter card or LED control card
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“2010 LCD front bezel (LCD cover kit)” on page 127
Table 34. Removal steps of inverter card or LED control card
1
4
2
1
3
Step Screw (quantity) Color Torque
1 M2 ×2.8 mm, wafer-head, nylon-coated (2) Silver 0.189 Nm
(1.85 kgfcm)
Cable routing: When replacing the inverter card, route the connector cable as in
this figure:
130 ThinkPad T500 and W500 Hardware Maintenance Manual
2040 Integrated camera
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“2010 LCD front bezel (LCD cover kit)” on page 127

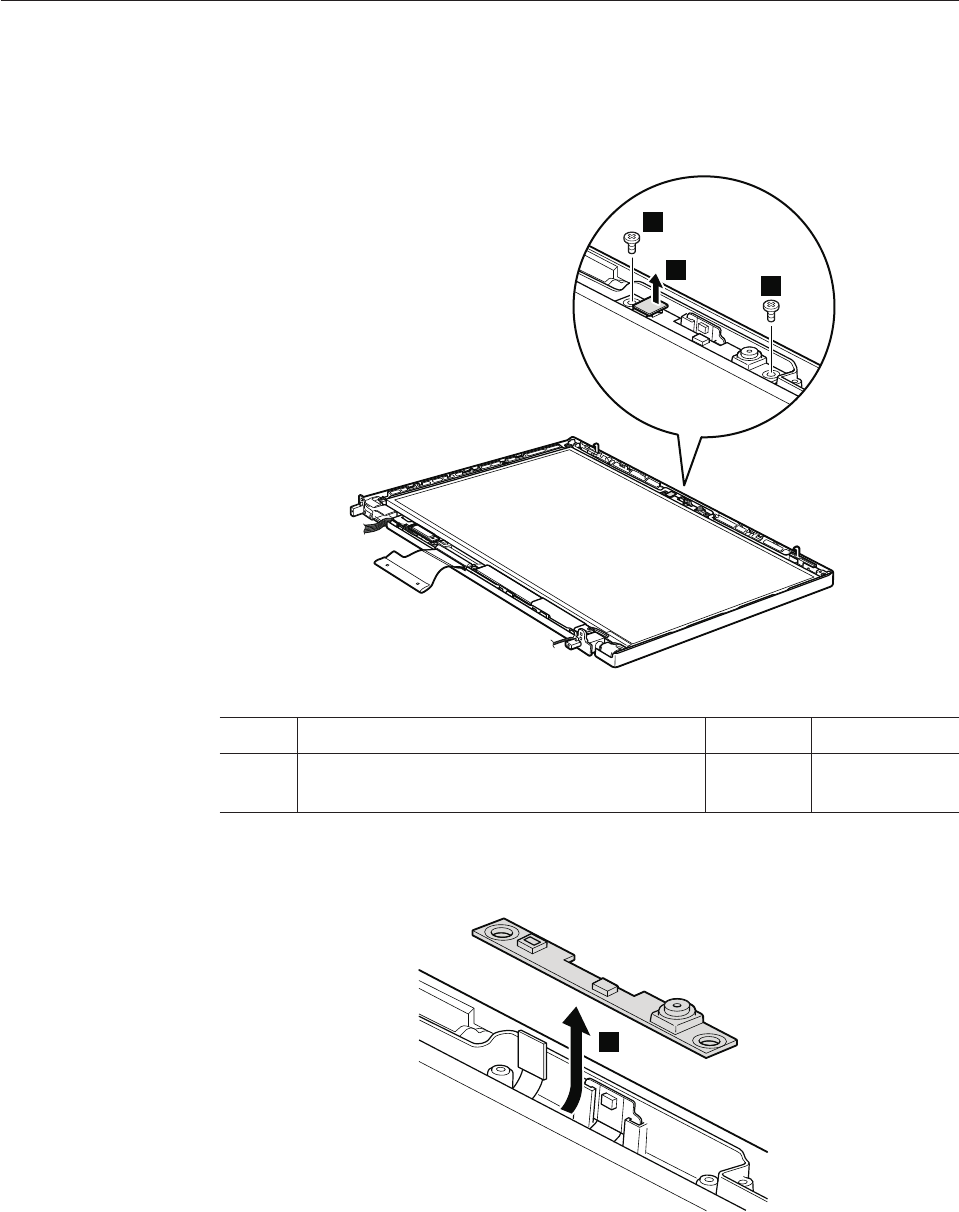

Table 35. Removal steps of integrated camera
1
2
2
Step Screw (quantity) Color Torque
1 M2 ×3.5 mm, wafer-head, nylon-coated (2) Black 0.189 Nm
(1.85 kgfcm)
Cable routing: When replacing the inverter card, route the connector cable as in
this figure:
3
Removing and replacing a FRU 131
2050 Bluetooth daughter card (BDC-2.1)
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“2010 LCD front bezel (LCD cover kit)” on page 127

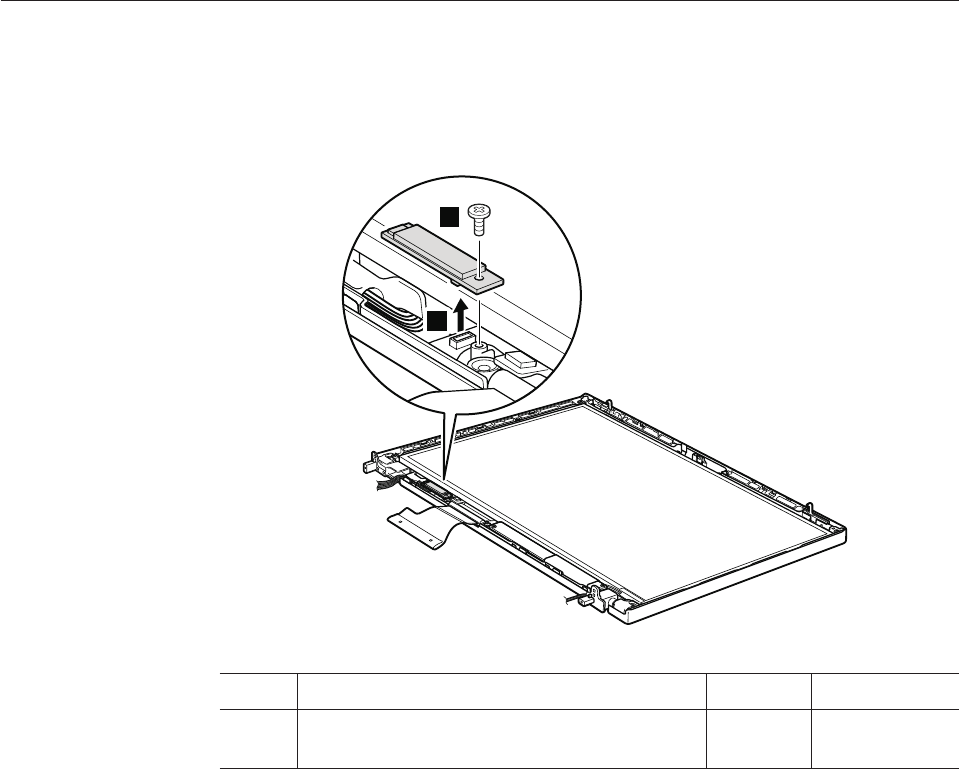

Table 36. Removal steps of BDC-2.1
1
2
Step Screw (quantity) Color Torque
1 M2 ×2.8 mm, wafer-head, nylon-coated (1) Silver 0.189 Nm
(1.85 kgfcm)
When installing: Make sure that connector is attached firmly.
132 ThinkPad T500 and W500 Hardware Maintenance Manual
2060 Antenna assembly
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
v“1120 Keyboard bezel” on page 102
v“1130 PCI Express Mini Card for wireless WAN” on page 104
v“1170 LCD unit” on page 113
v“2010 LCD front bezel (LCD cover kit)” on page 127
v“2020 LCD rear cover (LCD cover kit)” on page 129

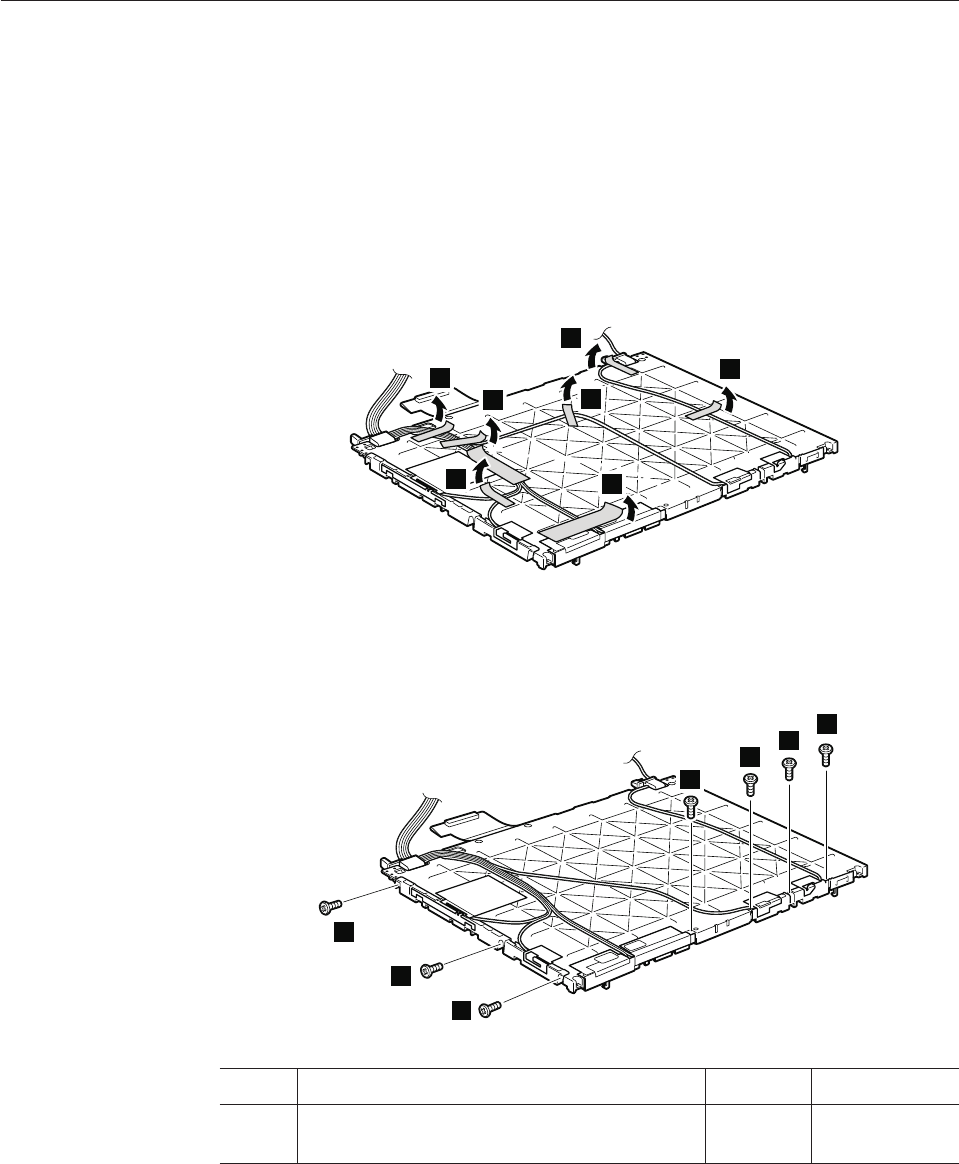

Table 37. Removal steps of antenna assembly
1
1
1
1
1
1
1
When installing: As you route the cables, make sure that they are not subjected
to any tension. Tension could cause the cables to be damaged by the cable
guides, or a wire to be broken.
2
2
2
2
2
2
2
Step Screw (quantity) Color Torque
2 M2 ×3.5 mm, small-head, nylon-coated (7) Black 0.189 Nm
(1.85 kgfcm)
Removing and replacing a FRU 133
Table 37. Removal steps of antenna assembly (continued)
3
3
134 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 37. Removal steps of antenna assembly (continued)
4
4
5
Removing and replacing a FRU 135
2070 LCD panel and LCD cable
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
v“1080 PCI Express Mini Card for wireless LAN/WiMAX” on page 96
v“1120 Keyboard bezel” on page 102
v“1130 PCI Express Mini Card for wireless WAN” on page 104
v“1170 LCD unit” on page 113
v“2010 LCD front bezel (LCD cover kit)” on page 127
v“2020 LCD rear cover (LCD cover kit)” on page 129
v“2030 Inverter card or LED control card” on page 130
v“2040 Integrated camera” on page 131
v“2050 Bluetooth daughter card (BDC-2.1)” on page 132
v“2060 Antenna assembly” on page 133
Table 38. Removal steps of LCD panel and LCD cable
1
1
1
2
3
Step Screw (quantity) Color Torque
1 M2.5 ×6.5 mm, wafer-head, nylon-coated
(3)
Black 0.392 Nm
(4 kgfcm)
2 M2 ×2.8 mm, wafer-head, nylon-coated (1) Silver 0.189 Nm
(1.85 kgfcm)
136 ThinkPad T500 and W500 Hardware Maintenance Manual

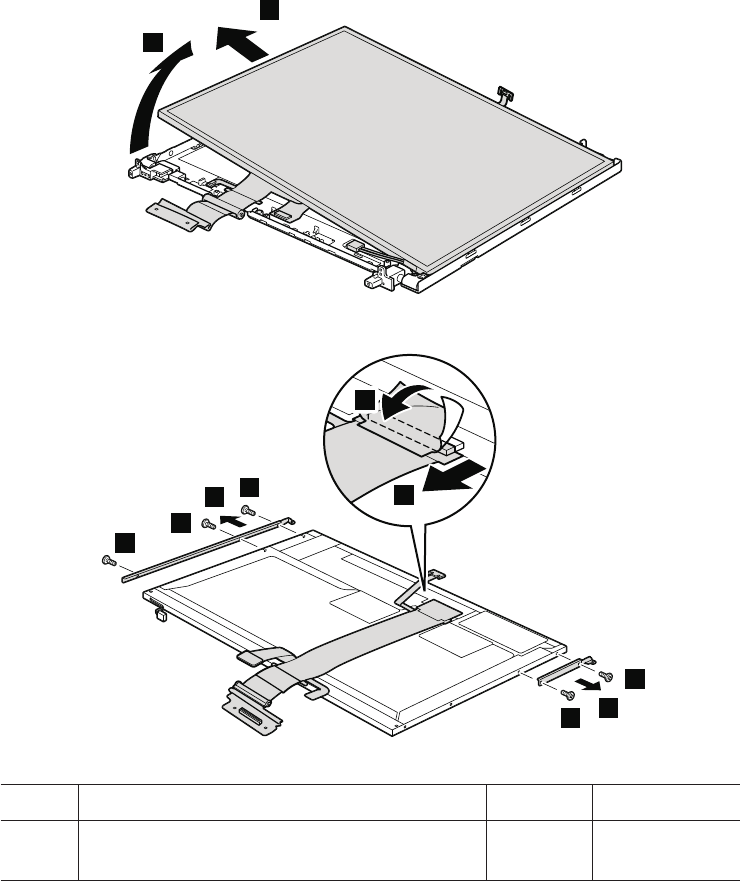

Table 38. Removal steps of LCD panel and LCD cable (continued)
5
4
6
6
7
6
6
6
7
8
9
Step Screw (quantity) Color Torque
6 M2 ×2.8 mm, small-head, nylon-coated (5) Silver 0.189 Nm
(1.85 kgfcm)
Removing and replacing a FRU 137

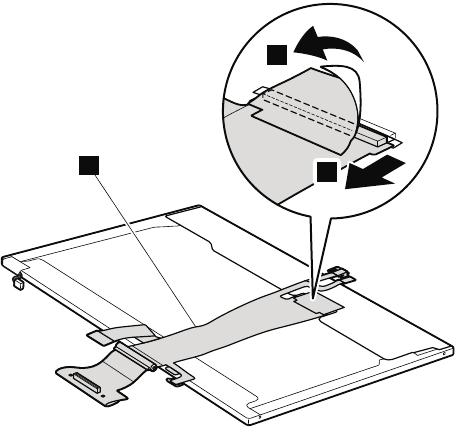

Table 38. Removal steps of LCD panel and LCD cable (continued)
b9
8
When installing: Make sure that the LCD cable is attached firmly.
138 ThinkPad T500 and W500 Hardware Maintenance Manual
2080 Hinges and LCD magnesium frame
For access, remove these FRUs in order:
v“1010 Battery pack” on page 84
v“1040 Palm rest or palm rest with fingerprint reader” on page 88
v“1060 Keyboard” on page 92
v“1080 PCI Express Mini Card for wireless LAN/WiMAX” on page 96
v“1120 Keyboard bezel” on page 102
v“1130 PCI Express Mini Card for wireless WAN” on page 104
v“1170 LCD unit” on page 113
v“2010 LCD front bezel (LCD cover kit)” on page 127
v“2020 LCD rear cover (LCD cover kit)” on page 129
v“2030 Inverter card or LED control card” on page 130
v“2040 Integrated camera” on page 131
v“2050 Bluetooth daughter card (BDC-2.1)” on page 132
v“2060 Antenna assembly” on page 133
v“2070 LCD panel and LCD cable” on page 136
Table 39. Removal steps of hinges
2
2
1
1
Step Screw (quantity) Color Torque
1 M2.5 ×6.5 mm, wafer-head, nylon-coated
(2)
Black 0.392 Nm
(4.0 kgfcm)
Removing and replacing a FRU 139
140 ThinkPad T500 and W500 Hardware Maintenance Manual
Locations
This chapter presents the location of ThinkPad T500 and W500 features and
hardware.
Front view
1 ThinkLight
2 Integrated camera (for some models)
3 Status indicators
Note: For the description of each indicator, see “Status indicators” on page
71.
4 Stereo speakers
5 RJ-11 (modem) connector
6 Serial Ultrabay Slim status indicator
7 Serial Ultrabay Slim latch
8 Serial Ultrabay Slim device eject lever
9 Serial Ultrabay Slim
10 Fingerprint reader (for some models)
11 TrackPoint pointing stick
12 TrackPoint buttons
13 Touch pad buttons
14 Touch pad
15 UltraNav
16 ThinkVantage button
17 Volume control buttons
18 Power switch
12
4
43
10 6
5
7
8
9
11
12
13
14
15
18
17
16
© Copyright Lenovo 2008, 2009 141
Rear view
1 Status indicators
Note: For the description of each indicator, see “Status indicators” on page
71.
2 PC Card/ExpressCard slots or PC Card/Smart Card eject buttons
3 PC Card/ExpressCard slots or PC Card/Smart Card slots
4 USB (Universal serial bus) connectors
5 RJ-45 (Ethernet) connector
6 Display port
7 External monitor connector
8 AC power connector
9 Security key hole
1
2
3
4
5
6
7
8
9
Bottom view
1 Battery pack
2 Battery pack latch
3 Docking connector
4 IEEE 1394 connector
5 Wireless radio switch
6 Stereo headphone jack
7 Microphone jack
8 7–in-1 media card reader
9 LCD cover latch
10 Hard disk drive or solid state drive
1
2
3
4
5
6
7
9
8
10
142 ThinkPad T500 and W500 Hardware Maintenance Manual
Parts list
This chapter contains following lists of the service parts.
v“Overall” on page 144
v“LCD FRUs” on page 219
v“Keyboard” on page 237
v“Miscellaneous parts” on page 239
v“AC adapters” on page 241
v“Power cords” on page 242
v“Recovery discs” on page 243
v“Common service tools” on page 259
Notes:
vEach FRU is available for all types or models, unless specific types or models
are specified.
vFRU with specific models listed and described as xxU (where U is an example
of a country designator) should be used for all models ending in U.
vFRU with specific models listed and described as 3Dx (where 3D is an
example of a unique configuration) should be used for all of these models,
unless specific country or region designator is specified.
vA CRU (customer replaceable unit) is identified by a single asterisk (*) or two
asterisks (**) in the CRU ID column. An N in the CRU ID column means that
the part is not a CRU. A single asterisk (*) means that the part is a Self-service
CRU; two asterisks (**) means that the part is an Optional-service CRU.
ThinkPad Notebooks contain the following types of CRUs:
Self-service CRUs
These CRUs unplug or are held by no more than two screws.
Examples of these types of CRUs include an AC adapter, a power
cord, a battery, and a hard disk drive. Other Self-service CRUs
depending on product design may include a memory, a wireless card,
a keyboard, and a palm rest with finger print reader and touchpad.
Optional-service CRUs
These CRUs are isolated parts within the computer that are concealed
by an access panel that is typically secured by more than two screws.
Once the access panel is removed, the specific CRU is visible.
vFRUs marked with OP are available as options.
© Copyright Lenovo 2008, 2009 143
Overall
1
25 3
4
d
e
5
6
7
8
9
10
11
14
12
13
15
16
17
18
f
19
20
21
22
23
24
26
27
a
b
c
2
144 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall
No. FRU FRU no. CRU ID
a-d See “Miscellaneous parts” on page 239.
1 LCD unit (see “LCD FRUs” on page 219.)
2 Keyboard bezel assembly 45N5499 N
3 SIM card slot 42X3919 N
4 Speaker assembly 42W3803 N
4 Speaker assembly 39T7492 N
5 Modem daughter card (MDC-3.0) 43Y6463 **
6 ThinkPad 11b/g Wireless LAN Mini PCI Express Adapter III
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 3Lx
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
43Y6511 **
6 ThinkPad 11b/g/n Wireless LAN Mini-PCI Express Adapter II
v2055-CTO, 9Ax, 9Bx, 9Cx, 9Dx, 9Sx
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 83x
v2241-CTO
v2242-CTO, 8Px
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
43Y6553 **
Parts list 145
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
6 ThinkPad 11b/g/n Wireless LAN Mini-PCI Express Adapter II
v2055-CTO, 9Ax, 9Bx, 9Cx, 9Dx, 9Sx
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 83x
v2241-CTO
v2242-CTO, 8Px
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
60Y3177 **
146 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
6 Intel WiFi Link 5100
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Ex, 3Ax, 45x, 46x, 47x, 4Bx, 5Sx, 62x, 63x, 64x, 74x,
75x, 76x, 77x, 78x, 7Ex, 7Fx, 7Lx, 8Kx, 8Rx, 8Sx, 9Kx, 9Lx, 9Rx, 9Tx, 9Yx, 9Zx,
A2x, A3x, A4x, A5x, A6x, A7x, AHx, AJx, AKx, ALx, AMx, AVx, AXx, AYx,
E1x, E2x, E3x
v2056-CTO, 34x, 4Kx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 63x, 79x, 7Ax, 7Bx, 7Cx, 7Lx,
E1x, E2x, E3x
v2081-CTO, 9Mx
v2082-CTO, 26x, 27x, 3Gx, 3Hx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx, 5Nx,
5Px, 5Qx, 5Rx, 5Xx, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx,
6Hx, 6Jx, 6Kx, 6Lx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x,
7Dx, 7Vx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x,
99x, 9Ex, 9Nx, 9Px, 9Qx, AAx, ABx, ACx, ADx, AEx, AFx, AGx, B5x, B6x,
B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, BMx, BNx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO
v2089-CTO, 2Jx, 2Kx, 2Lx, 2Mx, 2Vx, 2Wx, 2Xx, 2Yx, 3Hx, 3Jx, 3Kx, 3Mx, 3Nx,
3Rx, 3Tx, 4Wx, 4Xx, 4Yx, 4Zx, 58x, 59x, 5Nx, 5Px, 5Qx, 5Rx, 5Wx, 5Xx, 5Yx,
5Zx, 6Kx, 6Lx, 6Nx, 6Px, 6Qx, 79x, 7Qx, 82x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax,
8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Mx, 8Nx, E1x, E2x, E3x, E4x, E5x
v2241-CTO, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 58x, 5Sx, 5Tx, 5Ux, 5Zx,
E1x, E2x, E3x, E4x, E5x
v2242-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x,
4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 55x, 5Fx, 5Gx, 5Hx, 5Vx, 66x, 6Cx, 6Rx, 6Sx, 6Yx,
6Zx, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Qx, 8Rx, 8Sx, BVx, BWx
v2243-CTO, 2Bx, 2Cx, 3Cx, 4Nx, 4Px, 4Tx, 4Ux, 56x, 5Bx, 5Cx, 5Dx, 5Fx, 5Jx,
5Kx, 5Lx, 5Mx, 62x, 63x, 64x, 65x, 67x, 68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux,
6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax, 7Bx, 7Cx, 7Dx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx,
7Wx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x,
97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, BXx, BYx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 7Zx
v4058-CTO
v4061-CTO, 2Zx, 49x, 4Px, 6Cx, 6Dx
v4062-CTO, 24x, 25x, 26x, 27x, 35x, 36x, 3Gx, 3Hx, 3Rx, 3Sx, 4Fx, 4Gx, 4Hx,
4Jx, 4Kx, 4Lx, 54x, 55x, 56x, 57x, 58x, 5Dx, 5Ex, 5Fx, 5Gx, 5Qx, 5Rx, 5Sx, 5Tx
v4063-CTO, 33x
v4064-CTO
v4065-CTO
43Y6493 **
Parts list 147
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
6 Intel WiFi Link 5300
v2055-CTO, 2Lx, 2Mx, 2Nx, 2Px, 2Vx, 2Xx, 48x, 49x, 4Ax, 4Cx, 4Dx, 4Ex, 4Fx,
4Gx, 4Hx, 5Rx, 5Tx, 5Ux, 5Vx, 5Wx, 65x, 7Gx, 7Hx, 7Jx, 7Kx, 89x, 8Ax, 8Bx,
8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Tx, 8Ux, 9Ux,
9Vx, 9Wx, 9Xx, A8x, A9x, ANx, APx, AQx, ARx, ASx, ATx, AUx, AWx, AZx,
B2x, B3x, B4x,
v2056-CTO, 5Tx
v2081-CTO, 22x, 24x, 3Ex, 52x, 53x, 7Wx
v2082-CTO, 28x, 3Fx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Rx, 52x, 53x, 54x, 55x, 56x, 57x,
58x, 59x, 5Ax, 5Bx, 5Yx, 5Zx, 6Mx, 6Nx, 6Px, 6Qx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx,
7Sx, 7Tx, 7Ux, 85x, 86x, 87x, 8Vx, 8Wx, 8Xx, 8Yx, 9Fx, 9Gx, 9Hx, 9Jx, BPx,
BQx, BRx, BSx, BTx, BUx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Hx, 2Qx, 2Rx, 2Sx, 2Ux, 3Px, 3Qx, 3Sx, 3Ux, 3Vx, 4Dx, 52x, 53x,
54x, 5Ax, 6Gx, 6Hx, 6Jx, 6Mx, 8Kx, 8Lx
v2241-CTO
v2242-CTO, 39x, 3Ax, 4Kx, 5Ex
v2243-CTO, 3Bx, 4Dx, 4Ex, 4Lx, 4Mx, 4Qx, 4Rx, 4Sx, 57x
v2246-CTO
v2247-CTO
v2261-CTO, 3Ex, 3Fx, 3Gx, 4Vx
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 32x, 38x, 39x,
3Dx, 3Ex, 3Fx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x,
47x, 48x, 4Ax, 4Bx, 4Qx, 4Rx, 4Ux, 4Vx, 4Wx, 4Zx, 52x, 53x, 64x, 65x, 66x, 67x,
68x, 69x, 6Ax, 6Bx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx
v4062-CTO, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Xx, 2Yx, 37x, 3Ax,
3Bx, 3Cx, 3Jx, 3Kx, 3Mx, 3Nx, 3Px, 3Qx, 4Dx, 4Ex, 4Mx, 4Nx, 4Tx, 4Xx, 4Yx,
59x, 5Cx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx,
62x, 63x
v4063-CTO, 2Tx, 2Ux, 34x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
43Y6495 **
6 Intel WiMAX/WiFi Link 5350
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 6Bx, 72x
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
43Y6533 **
148 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
6 Intel WiMAX/WiFi Link 5150
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
Japan 60Y3197 **
Other than Japan 43Y6539 **
6 Intel WiFi Link 1000
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
60Y3203 **
Parts list 149
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
7 Intel Turbo Memory Minicard, 2GB (half size)
v2055-CTO, 2Px, 2Nx, 3Ax, 48x, 49x, 4Ax, 4Ex, 4Fx, 4Gx, 4Hx, 5Rx, 5Vx, 5Wx,
77x, 78x, 7Jx, 8Cx, 8Dx, 8Nx, 8Px, 8Rx, 8Sx, 9Ax, 9Bx, 9Yx, 9Zx, A9x, AHx,
ANx, APx, AQx, ARx, AUx
v2056-CTO, 4Sx, 7Cx
v2081-CTO, 52x, 7Wx
v2082-CTO, 3Fx, 3Gx, 3Jx, 3Kx, 5Px, 5Zx, 6Rx, 6Sx, 6Zx, 7Rx, 7Sx, 7Tx, 7Ux,
7Xx, 7Yx, 7Zx, 92x, 94x, 96x, 9Fx, 9Gx, 9Hx, 9Jx, BEx, BHx, BRx, BSx
v2083-CTO
v2087-CTO
v2088-CTO, 3Yx, 3Zx, 42x, 43x, 44x
v2089-CTO, 2Kx, 2Lx, 2Ux, 2Wx, 2Xx, 3Jx, 3Nx, 3Rx, 3Sx, 6Jx
v2241-CTO, 3Xx
v2242-CTO, 25x, 27x, 34x, 36x, 37x, 39x
v2243-CTO, 2Bx, 3Cx, 4Nx, 4Sx
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 2Ex, 2Gx, 3Dx, 3Ex, 3Fx
v4058-CTO, 22x
v4061-CTO, 2Jx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Sx, 32x, 3Ex, 3Fx, 3Vx, 48x, 49x,
4Zx, 64x, 65x
v4062-CTO, 24x, 27x, 2Ax, 2Xx, 2Yx, 3Ax, 3Bx, 3Hx, 3Sx, 4Hx, 4Kx, 57x
v4063-CTO, 2Tx, 2Ux, 34x, 3Fx
v4064-CTO
v4065-CTO
43Y6523 **
7 Intel Turbo Memory Minicard, 4GB (half size)
v2055-CTO, 8Ax, 8Bx, 8Hx, 8Qx, 8Tx, ASx, ATx
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO, 88x
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 42x, 46x, 4Ax, 4Bx, 66x, 67x, 68x, 69x, 6Hx
v4062-CTO, 3Qx
v4063-CTO
v4064-CTO
v4065-CTO
43Y6525 **
150 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
7 Wireless USB PCI Express Half-Mini Card
v2055-CTO, 2Dx, 2Vx
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 24x
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
US 43Y6501 **
Japan 43Y6503 **
8 Structure frame 45N3831 N
9 Backup battery 02K6572 **
10 Hard disk drive rubber rails 41V9756 *
11 SATA hard disk drive, 80 GB, 9.5 mm, 5,400 rpmOP
v2055-CTO, 2Bx, 74x
v2056-CTO, 4Px, 79x
v2081-CTO
v2082-CTO
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO
v2089-CTO, 2Jx, 59x
v2241-CTO, 3Wx, 5Sx,
v2242-CTO
v2243-CTO
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
39T2885 **
Parts list 151
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 80 GB, 9.5 mm, 5,400 rpmOP
v2055-CTO, 2Bx, 74x
v2056-CTO, 4Px, 79x
v2081-CTO
v2082-CTO
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO
v2089-CTO, 2Jx, 59x
v2241-CTO, 3Wx, 5Sx,
v2242-CTO
v2243-CTO
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T1491 **
11 SATA hard disk drive, 80 GB, 9.5 mm, 5,400 rpm
v2055-CTO, 2Bx, 74x
v2056-CTO, 4Px, 79x
v2081-CTO
v2082-CTO
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO
v2089-CTO, 2Jx, 59x
v2241-CTO, 3Wx, 5Sx,
v2242-CTO
v2243-CTO
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T1305 **
152 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 80 GB, 9.5 mm, 5,400 rpm
v2055-CTO, 2Bx, 74x
v2056-CTO, 4Px, 79x
v2081-CTO
v2082-CTO
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO
v2089-CTO, 2Jx, 59x
v2241-CTO, 3Wx, 5Sx,
v2242-CTO
v2243-CTO
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T1575 **
11 SATA hard disk drive, 160 GB, 9.5 mm, 5,400 rpmOP
v2055-CTO, 2Cx, 2Ex, 2Lx, 2Mx, 47x, 49x, 4Ax, 4Bx, 5Rx, 5Vx, 5Wx, 65x, 75x,
76x, 7Ex, 7Fx, 7Kx, 89x, 8Ux, 9Cx, 9Dx, 9Zx, A2x, A3x, A9x, ANx, APx, AQx,
ARx, AUx
v2056-CTO, 34x, 4Kx, 4Qx, 7Ax
v2081-CTO
v2082-CTO, 3Nx, 52x, 53x, 57x, 58x, 5Ax, 5Bx, 5Ex, 5Fx, 5Kx, 5Mx, 5Rx, 5Xx,
66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Vx,
6Wx, 6Yx, 73x, 85x
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 2Kx, 2Lx, 2Qx, 2Rx, 2Sx, 2Vx, 2Xx, 2Yx, 3Hx, 3Jx, 3Kx, 3Lx,
3Nx, 3Px, 3Rx, 3Sx, 3Tx, 4Dx, 4Xx, 4Yx, 4Zx, 52x, 53x, 58x, 5Ax, 5Nx, 5Px,
5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx, 6Gx, 6Hx, 6Kx, 6Lx, 6Nx, 6Px, 6Qx, 79x, 7Gx,
7Hx, 7Qx, 82x, 84x, 87x, 88x, 8Nx, E4x, E5x
v2241-CTO, 3Xx, 3Yx, 3Zx, 43x, 4Xx, 58x, 5Tx, 5Ux, 5Zx, E1x, E5x
v2242-CTO, 22x, 26x, 28x, 33x, 36x, 37x, 38x, 4Ex, 4Fx, 4Hx, 4Kx, 5Fx, 5Gx, 6Bx,
6Rx, 6Sx, 6Yx
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Qx, 4Ux, 56x, 5Bx, 5Cx,
5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 67x, 68x, 6Xx, 76x, 77x, 93x, 94x, 95x, 96x, 9Fx,
9Gx
v2246-CTO
v2247-CTO
v2261-CTO, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 3Ex, 3Fx, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO, 2Vx
v4065-CTO, 2Wx
39T2899 **
Parts list 153
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 160 GB, 9.5 mm, 5,400 rpmOP
v2055-CTO, 2Cx, 2Ex, 2Lx, 2Mx, 47x, 49x, 4Ax, 4Bx, 5Rx, 5Vx, 5Wx, 65x, 75x,
76x, 7Ex, 7Fx, 7Kx, 89x, 8Ux, 9Cx, 9Dx, 9Zx, A2x, A3x, A9x, ANx, APx, AQx,
ARx, AUx
v2056-CTO, 34x, 4Kx, 4Qx, 7Ax
v2081-CTO
v2082-CTO, 3Nx, 52x, 53x, 57x, 58x, 5Ax, 5Bx, 5Ex, 5Fx, 5Kx, 5Mx, 5Rx, 5Xx,
66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Vx,
6Wx, 6Yx, 73x, 85x
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 2Kx, 2Lx, 2Qx, 2Rx, 2Sx, 2Vx, 2Xx, 2Yx, 3Hx, 3Jx, 3Kx, 3Lx,
3Nx, 3Px, 3Rx, 3Sx, 3Tx, 4Dx, 4Xx, 4Yx, 4Zx, 52x, 53x, 58x, 5Ax, 5Nx, 5Px,
5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx, 6Gx, 6Hx, 6Kx, 6Lx, 6Nx, 6Px, 6Qx, 79x, 7Gx,
7Hx, 7Qx, 82x, 84x, 87x, 88x, 8Nx, E4x, E5x
v2241-CTO, 3Xx, 3Yx, 3Zx, 43x, 4Xx, 58x, 5Tx, 5Ux, 5Zx, E1x, E5x
v2242-CTO, 22x, 26x, 28x, 33x, 36x, 37x, 38x, 4Ex, 4Fx, 4Hx, 4Kx, 5Fx, 5Gx, 6Bx,
6Rx, 6Sx, 6Yx
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Qx, 4Ux, 56x, 5Bx, 5Cx,
5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 67x, 68x, 6Xx, 76x, 77x, 93x, 94x, 95x, 96x, 9Fx,
9Gx
v2246-CTO
v2247-CTO
v2261-CTO, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 3Ex, 3Fx, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42T1501 **
154 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 160 GB, 9.5 mm, 5,400 rpm
v2055-CTO, 2Cx, 2Ex, 2Lx, 2Mx, 47x, 49x, 4Ax, 4Bx, 5Rx, 5Vx, 5Wx, 65x, 75x,
76x, 7Ex, 7Fx, 7Kx, 89x, 8Ux, 9Cx, 9Dx, 9Zx, A2x, A3x, A9x, ANx, APx, AQx,
ARx, AUx
v2056-CTO, 34x, 4Kx, 4Qx, 7Ax
v2081-CTO
v2082-CTO, 3Nx, 52x, 53x, 57x, 58x, 5Ax, 5Bx, 5Ex, 5Fx, 5Kx, 5Mx, 5Rx, 5Xx,
66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Vx,
6Wx, 6Yx, 73x, 85x
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 2Kx, 2Lx, 2Qx, 2Rx, 2Sx, 2Vx, 2Xx, 2Yx, 3Hx, 3Jx, 3Kx, 3Lx,
3Nx, 3Px, 3Rx, 3Sx, 3Tx, 4Dx, 4Xx, 4Yx, 4Zx, 52x, 53x, 58x, 5Ax, 5Nx, 5Px,
5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx, 6Gx, 6Hx, 6Kx, 6Lx, 6Nx, 6Px, 6Qx, 79x, 7Gx,
7Hx, 7Qx, 82x, 84x, 87x, 88x, 8Nx, E4x, E5x
v2241-CTO, 3Xx, 3Yx, 3Zx, 43x, 4Xx, 58x, 5Tx, 5Ux, 5Zx, E1x, E5x
v2242-CTO, 22x, 26x, 28x, 33x, 36x, 37x, 38x, 4Ex, 4Fx, 4Hx, 4Kx, 5Fx, 5Gx, 6Bx,
6Rx, 6Sx, 6Yx
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Qx, 4Ux, 56x, 5Bx, 5Cx,
5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 67x, 68x, 6Xx, 76x, 77x, 93x, 94x, 95x, 96x, 9Fx,
9Gx
v2246-CTO
v2247-CTO
v2261-CTO, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 3Ex, 3Fx, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42T1309 **
Parts list 155
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 160 GB, 9.5 mm, 5,400 rpm
v2055-CTO, 2Cx, 2Ex, 2Lx, 2Mx, 47x, 49x, 4Ax, 4Bx, 5Rx, 5Vx, 5Wx, 65x, 75x,
76x, 7Ex, 7Fx, 7Kx, 89x, 8Ux, 9Cx, 9Dx, 9Zx, A2x, A3x, A9x, ANx, APx, AQx,
ARx, AUx
v2056-CTO, 34x, 4Kx, 4Qx, 7Ax
v2081-CTO
v2082-CTO, 3Nx, 52x, 53x, 57x, 58x, 5Ax, 5Bx, 5Ex, 5Fx, 5Kx, 5Mx, 5Rx, 5Xx,
66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Vx,
6Wx, 6Yx, 73x, 85x
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 2Kx, 2Lx, 2Qx, 2Rx, 2Sx, 2Vx, 2Xx, 2Yx, 3Hx, 3Jx, 3Kx, 3Lx,
3Nx, 3Px, 3Rx, 3Sx, 3Tx, 4Dx, 4Xx, 4Yx, 4Zx, 52x, 53x, 58x, 5Ax, 5Nx, 5Px,
5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx, 6Gx, 6Hx, 6Kx, 6Lx, 6Nx, 6Px, 6Qx, 79x, 7Gx,
7Hx, 7Qx, 82x, 84x, 87x, 88x, 8Nx, E4x, E5x
v2241-CTO, 3Xx, 3Yx, 3Zx, 43x, 4Xx, 58x, 5Tx, 5Ux, 5Zx, E1x, E5x
v2242-CTO, 22x, 26x, 28x, 33x, 36x, 37x, 38x, 4Ex, 4Fx, 4Hx, 4Kx, 5Fx, 5Gx, 6Bx,
6Rx, 6Sx, 6Yx
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Qx, 4Ux, 56x, 5Bx, 5Cx,
5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 67x, 68x, 6Xx, 76x, 77x, 93x, 94x, 95x, 96x, 9Fx,
9Gx
v2246-CTO
v2247-CTO
v2261-CTO, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 3Ex, 3Fx, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42T1579 **
156 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 250 GB, 9.5 mm, 5,400 rpmOP
v2055-CTO, 46x, 48x, 49x, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 5Sx, 8Bx, 8Ex, 8Rx, 9Ux,
9Xx, A4x, E2x
v2056-CTO, 4Tx, E2x
v2081-CTO, 52x, 9Mx
v2082-CTO, 3Kx, 3Lx, 3Mx, 54x, 55x, 56x, 59x, 5Cx, 5Dx, 5Gx, 5Jx, 5Nx, 5Qx,
5Zx, 6Mx, 6Nx, 6Px, 6Qx, 6Sx, 6Tx, 6Ux, 6Xx, 72x, 7Vx, 86x, 87x, 96x, 9Nx,
AAx, B7x, B8x, BBx
v2083-CTO
v2087-CTO
v2088-CTO, 3Yx, 3Zx, 42x, 43x
v2089-CTO, 2Wx, 3Mx, 3Qx, 3Vx, 4Wx, 6Mx, 7Jx, 7Kx, 83x, 89x, 8Ax, 8Bx, 8Cx,
E1x
v2241-CTO, 42x, E2x
v2242-CTO, 24x, 25x, 27x, 39x, 3Ax, 4Gx, 4Jx, 5Ex, 5Vx, 66x, 7Ux, 8Sx
v2243-CTO, 2Bx, 4Rx, 4Sx, 57x, 62x, 63x, 64x, 65x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx,
6Ux, 6Vx, 6Wx, 7Ax, 7Bx, 7Cx, 7Dx, 7Rx, 7Sx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, 92x, 99x, 9Dx, 9Ex, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 3Gx, 7Zx
v4058-CTO, 22x
v4061-CTO, 39x, 3Dx
v4062-CTO, 29x, 2Ax, 2Bx, 3Gx, 3Mx
v4063-CTO
v4064-CTO
v4065-CTO
42T1471 **
11 SATA hard disk drive, 250 GB, 9.5 mm, 5,400 rpmOP
v2055-CTO, 46x, 48x, 49x, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 5Sx, 8Bx, 8Ex, 8Rx, 9Ux,
9Xx, A4x, E2x
v2056-CTO, 4Tx, E2x
v2081-CTO, 52x, 9Mx
v2082-CTO, 3Kx, 3Lx, 3Mx, 54x, 55x, 56x, 59x, 5Cx, 5Dx, 5Gx, 5Jx, 5Nx, 5Qx,
5Zx, 6Mx, 6Nx, 6Px, 6Qx, 6Sx, 6Tx, 6Ux, 6Xx, 72x, 7Vx, 86x, 87x, 96x, 9Nx,
AAx, B7x, B8x, BBx
v2083-CTO
v2087-CTO
v2088-CTO, 3Yx, 3Zx, 42x, 43x
v2089-CTO, 2Wx, 3Mx, 3Qx, 3Vx, 4Wx, 6Mx, 7Jx, 7Kx, 83x, 89x, 8Ax, 8Bx, 8Cx,
E1x
v2241-CTO, 42x, E2x
v2242-CTO, 24x, 25x, 27x, 39x, 3Ax, 4Gx, 4Jx, 5Ex, 5Vx, 66x, 7Ux, 8Sx
v2243-CTO, 2Bx, 4Rx, 4Sx, 57x, 62x, 63x, 64x, 65x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx,
6Ux, 6Vx, 6Wx, 7Ax, 7Bx, 7Cx, 7Dx, 7Rx, 7Sx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, 92x, 99x, 9Dx, 9Ex, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 3Gx, 7Zx
v4058-CTO, 22x
v4061-CTO, 39x, 3Dx
v4062-CTO, 29x, 2Ax, 2Bx, 3Gx, 3Mx
v4063-CTO
v4064-CTO
v4065-CTO
42T1481 **
Parts list 157
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 250 GB, 9.5 mm, 5,400 rpm
v2055-CTO, 46x, 48x, 49x, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 5Sx, 8Bx, 8Ex, 8Rx, 9Ux,
9Xx, A4x, E2x
v2056-CTO, 4Tx, E2x
v2081-CTO, 52x, 9Mx
v2082-CTO, 3Kx, 3Lx, 3Mx, 54x, 55x, 56x, 59x, 5Cx, 5Dx, 5Gx, 5Jx, 5Nx, 5Qx,
5Zx, 6Mx, 6Nx, 6Px, 6Qx, 6Sx, 6Tx, 6Ux, 6Xx, 72x, 7Vx, 86x, 87x, 96x, 9Nx,
AAx, B7x, B8x, BBx
v2083-CTO
v2087-CTO
v2088-CTO, 3Yx, 3Zx, 42x, 43x
v2089-CTO, 2Wx, 3Mx, 3Qx, 3Vx, 4Wx, 6Mx, 7Jx, 7Kx, 83x, 89x, 8Ax, 8Bx, 8Cx,
E1x
v2241-CTO, 42x, E2x
v2242-CTO, 24x, 25x, 27x, 39x, 3Ax, 4Gx, 4Jx, 5Ex, 5Vx, 66x, 7Ux, 8Sx
v2243-CTO, 2Bx, 4Rx, 4Sx, 57x, 62x, 63x, 64x, 65x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx,
6Ux, 6Vx, 6Wx, 7Ax, 7Bx, 7Cx, 7Dx, 7Rx, 7Sx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, 92x, 99x, 9Dx, 9Ex, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 3Gx, 7Zx
v4058-CTO, 22x
v4061-CTO, 39x, 3Dx
v4062-CTO, 29x, 2Ax, 2Bx, 3Gx, 3Mx
v4063-CTO
v4064-CTO
v4065-CTO
42T1517 **
11 SATA hard disk drive, 250 GB, 9.5 mm, 5,400 rpm
v2055-CTO, 46x, 48x, 49x, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 5Sx, 8Bx, 8Ex, 8Rx, 9Ux,
9Xx, A4x, E2x
v2056-CTO, 4Tx, E2x
v2081-CTO, 52x, 9Mx
v2082-CTO, 3Kx, 3Lx, 3Mx, 54x, 55x, 56x, 59x, 5Cx, 5Dx, 5Gx, 5Jx, 5Nx, 5Qx,
5Zx, 6Mx, 6Nx, 6Px, 6Qx, 6Sx, 6Tx, 6Ux, 6Xx, 72x, 7Vx, 86x, 87x, 96x, 9Nx,
AAx, B7x, B8x, BBx
v2083-CTO
v2087-CTO
v2088-CTO, 3Yx, 3Zx, 42x, 43x
v2089-CTO, 2Wx, 3Mx, 3Qx, 3Vx, 4Wx, 6Mx, 7Jx, 7Kx, 83x, 89x, 8Ax, 8Bx, 8Cx,
E1x
v2241-CTO, 42x, E2x
v2242-CTO, 24x, 25x, 27x, 39x, 3Ax, 4Gx, 4Jx, 5Ex, 5Vx, 66x, 7Ux, 8Sx
v2243-CTO, 2Bx, 4Rx, 4Sx, 57x, 62x, 63x, 64x, 65x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx,
6Ux, 6Vx, 6Wx, 7Ax, 7Bx, 7Cx, 7Dx, 7Rx, 7Sx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, 92x, 99x, 9Dx, 9Ex, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 3Gx, 7Zx
v4058-CTO, 22x
v4061-CTO, 39x, 3Dx
v4062-CTO, 29x, 2Ax, 2Bx, 3Gx, 3Mx
v4063-CTO
v4064-CTO
v4065-CTO
42T1581 **
158 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 320 GB, 9.5 mm, 5,400 rpm
v2055-CTO, 4Ax, 4Cx, 5Rx, 62x, 64x, 8Nx, 8Qx, 8Sx, 8Tx, A5x, AHx, AJx, AKx,
AVx, B2x, B3x
v2056-CTO
v2081-CTO, 7Wx
v2082-CTO, 3Jx, 5Px, 6Rx, 6Zx, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux,
7Xx, 7Zx, 82x, 83x, 84x, 8Vx, 8Wx, 8Xx, 8Yx, 97x, 98x, 99x, 9Ex, 9Fx, 9Gx,
9Hx, 9Jx, 9Px, 9Qx, ABx, AEx, B5x, B6x, B9x, BAx, BJx, BPx, BQx, BRx, BSx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 3Ux
v2241-CTO
v2242-CTO, 7Vx, 8Qx, 8Rx, BVx, BWx
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 3Lx
v4061-CTO, 2Lx, 2Mx, 2Nx, 2Px, 2Qx
v4062-CTO, 3Px, 3Qx, 3Rx, 3Sx, 58x
v4063-CTO, 2Ux
v4064-CTO
v4065-CTO
42T1535 **
11 SATA hard disk drive, 320 GB, 9.5 mm, 5,400 rpm
v2055-CTO, 4Ax, 4Cx, 5Rx, 62x, 64x, 8Nx, 8Qx, 8Sx, 8Tx, A5x, AHx, AJx, AKx,
AVx, B2x, B3x
v2056-CTO
v2081-CTO, 7Wx
v2082-CTO, 3Jx, 5Px, 6Rx, 6Zx, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux,
7Xx, 7Zx, 82x, 83x, 84x, 8Vx, 8Wx, 8Xx, 8Yx, 97x, 98x, 99x, 9Ex, 9Fx, 9Gx,
9Hx, 9Jx, 9Px, 9Qx, ABx, AEx, B5x, B6x, B9x, BAx, BJx, BPx, BQx, BRx, BSx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 3Ux
v2241-CTO
v2242-CTO, 7Vx, 8Qx, 8Rx, BVx, BWx
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 3Lx
v4061-CTO, 2Lx, 2Mx, 2Nx, 2Px, 2Qx
v4062-CTO, 3Px, 3Qx, 3Rx, 3Sx, 58x
v4063-CTO, 2Ux
v4064-CTO
v4065-CTO
42T1583 **
Parts list 159
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 320 GB, 9.5 mm, 5,400 rpmOP
v2055-CTO, 4Ax, 4Cx, 5Rx, 62x, 64x, 8Nx, 8Qx, 8Sx, 8Tx, A5x, AHx, AJx, AKx,
AVx, B2x, B3x
v2056-CTO
v2081-CTO, 7Wx
v2082-CTO, 3Jx, 5Px, 6Rx, 6Zx, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux,
7Xx, 7Zx, 82x, 83x, 84x, 8Vx, 8Wx, 8Xx, 8Yx, 97x, 98x, 99x, 9Ex, 9Fx, 9Gx,
9Hx, 9Jx, 9Px, 9Qx, ABx, AEx, B5x, B6x, B9x, BAx, BJx, BPx, BQx, BRx, BSx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 3Ux
v2241-CTO
v2242-CTO, 7Vx, 8Qx, 8Rx, BVx, BWx
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 3Lx
v4061-CTO, 2Lx, 2Mx, 2Nx, 2Px, 2Qx
v4062-CTO, 3Px, 3Qx, 3Rx, 3Sx, 58x
v4063-CTO, 2Ux
v4064-CTO
v4065-CTO
42T1507 **
11 SATA hard disk drive, 500 GB, 9.5 mm, 5,400 rpm
v2055-CTO, A7x, A8x, A9x, APx, AUx
v2056-CTO
v2081-CTO
v2082-CTO, ADx, AGx, BDx, BGx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 4Vx, 64x
v4062-CTO, 4Tx
v4063-CTO
v4064-CTO
v4065-CTO
45N7221 **
160 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 500 GB, 9.5 mm, 5,400 rpm
v2055-CTO, A7x, A8x, A9x, APx, AUx
v2056-CTO
v2081-CTO
v2082-CTO, ADx, AGx, BDx, BGx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 4Vx, 64x
v4062-CTO, 4Tx
v4063-CTO
v4064-CTO
v4065-CTO
45N7211 **
11 SATA hard disk drive, 500 GB, 9.5 mm, 5,400 rpm
v2055-CTO, A7x, A8x, A9x, APx, AUx
v2056-CTO
v2081-CTO
v2082-CTO, ADx, AGx, BDx, BGx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 4Vx, 64x
v4062-CTO, 4Tx
v4063-CTO
v4064-CTO
v4065-CTO
45N7233 **
Parts list 161
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 100 GB, 9.5 mm, 7,200 rpm OP
v2055-CTO, 2Nx
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Ux
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T1485 **
11 SATA hard disk drive, 100 GB, 9.5 mm, 7,200 rpm
v2055-CTO, 2Nx
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Ux
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
39T2799 **
162 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 160 GB, 9.5 mm, 7,200 rpm
v2055-CTO, 2Dx, 2Ex, 2Px, 2Vx, 3Ax, 45x, 5Tx, 5Vx, 5Wx, 63x, 77x, 78x, 7Gx,
7Hx, 7Jx, 7Lx, 8Ax, 8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Kx, 9Ax, 9Bx, 9Lx, 9Rx, 9Vx,
9Wx, 9Yx, 9Zx, AWx, AXx, AYx, AZx, B4x, E1x, E3x
v2056-CTO, 4Rx, 4Sx, 5Tx, 63x, 7Bx, 7Cx, 7Lx, E1x, E3x
v2081-CTO, 7Wx
v2082-CTO, 26x, 27x, 3Fx, 3Gx, 3Hx, 6Lx, 7Yx, 8Zx, 92x, BTx, BUx
v2083-CTO
v2087-CTO
v2088-CTO, 44x
v2089-CTO, 2Mx, 54x, 6Jx, 7Ex, 7Fx, 85x, 86x, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx,
8Kx, 8Lx, 8Mx, E2x, E3x
v2241-CTO, 44x, E3x, E4x
v2242-CTO, 23x, 32x, 34x, 35x, 55x, 5Hx, 6Zx, 72x, 73x, 74x, 8Px
v2243-CTO, 4Px, 4Tx, 78x
v2246-CTO
v2247-CTO
v2261-CTO, 3Fx
v4058-CTO
v4061-CTO, 2Hx, 2Jx, 2Sx, 2Zx, 32x, 38x, 3Ex, 3Fx, 3Tx, 3Ux, 49x, 6Cx, 6Dx,
6Ex, 6Fx, 6Gx
v4062-CTO, 24x, 27x, 2Xx, 2Yx, 35x, 36x, 3Ax, 3Hx, 4Kx, 54x, 5Rx
v4063-CTO, 2Tx, 33x, 34x, 3Fx
v4064-CTO
v4065-CTO
42T1465 **
11 SATA hard disk drive, 160 GB, 9.5 mm, 7,200 rpmOP
v2055-CTO, 2Dx, 2Ex, 2Px, 2Vx, 3Ax, 45x, 5Tx, 5Vx, 5Wx, 63x, 77x, 78x, 7Gx,
7Hx, 7Jx, 7Lx, 8Ax, 8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Kx, 9Ax, 9Bx, 9Lx, 9Rx, 9Vx,
9Wx, 9Yx, 9Zx, AWx, AXx, AYx, AZx, B4x, E1x, E3x
v2056-CTO, 4Rx, 4Sx, 5Tx, 63x, 7Bx, 7Cx, 7Lx, E1x, E3x
v2081-CTO, 7Wx
v2082-CTO, 26x, 27x, 3Fx, 3Gx, 3Hx, 6Lx, 7Yx, 8Zx, 92x, BTx, BUx
v2083-CTO
v2087-CTO
v2088-CTO, 44x
v2089-CTO, 2Mx, 54x, 6Jx, 7Ex, 7Fx, 85x, 86x, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx,
8Kx, 8Lx, 8Mx, E2x, E3x
v2241-CTO, 44x, E3x, E4x
v2242-CTO, 23x, 32x, 34x, 35x, 55x, 5Hx, 6Zx, 72x, 73x, 74x, 8Px
v2243-CTO, 4Px, 4Tx, 78x
v2246-CTO
v2247-CTO
v2261-CTO, 3Fx
v4058-CTO
v4061-CTO, 2Hx, 2Jx, 2Sx, 2Zx, 32x, 38x, 3Ex, 3Fx, 3Tx, 3Ux, 49x, 6Cx, 6Dx,
6Ex, 6Fx, 6Gx
v4062-CTO, 24x, 27x, 2Xx, 2Yx, 35x, 36x, 3Ax, 3Hx, 4Kx, 54x, 5Rx
v4063-CTO, 2Tx, 33x, 34x, 3Fx
v4064-CTO
v4065-CTO
42T1461 **
Parts list 163
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 160 GB, 9.5 mm, 7,200 rpm
v2055-CTO, 2Dx, 2Ex, 2Px, 2Vx, 3Ax, 45x, 5Tx, 5Vx, 5Wx, 63x, 77x, 78x, 7Gx,
7Hx, 7Jx, 7Lx, 8Ax, 8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Kx, 9Ax, 9Bx, 9Lx, 9Rx, 9Vx,
9Wx, 9Yx, 9Zx, AWx, AXx, AYx, AZx, B4x, E1x, E3x
v2056-CTO, 4Rx, 4Sx, 5Tx, 63x, 7Bx, 7Cx, 7Lx, E1x, E3x
v2081-CTO, 7Wx
v2082-CTO, 26x, 27x, 3Fx, 3Gx, 3Hx, 6Lx, 7Yx, 8Zx, 92x, BTx, BUx
v2083-CTO
v2087-CTO
v2088-CTO, 44x
v2089-CTO, 2Mx, 54x, 6Jx, 7Ex, 7Fx, 85x, 86x, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx,
8Kx, 8Lx, 8Mx, E2x, E3x
v2241-CTO, 44x, E3x, E4x
v2242-CTO, 23x, 32x, 34x, 35x, 55x, 5Hx, 6Zx, 72x, 73x, 74x, 8Px
v2243-CTO, 4Px, 4Tx, 78x
v2246-CTO
v2247-CTO
v2261-CTO, 3Fx
v4058-CTO
v4061-CTO, 2Hx, 2Jx, 2Sx, 2Zx, 32x, 38x, 3Ex, 3Fx, 3Tx, 3Ux, 49x, 6Cx, 6Dx,
6Ex, 6Fx, 6Gx
v4062-CTO, 24x, 27x, 2Xx, 2Yx, 35x, 36x, 3Ax, 3Hx, 4Kx, 54x, 5Rx
v4063-CTO, 2Tx, 33x, 34x, 3Fx
v4064-CTO
v4065-CTO
42T1439 **
11 SATA hard disk drive, 200 GB, 9.5 mm, 7,200 rpm, Full Disk Encryption (FDE)
OP
v2055-CTO, 2Xx
v2056-CTO
v2081-CTO, 22x, 24x, 3Ex, 53x
v2082-CTO, 28x, 3Rx, 5Yx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 23x
v4061-CTO, 2Kx
v4062-CTO, 25x, 26x, 28x, 2Gx, 37x, 3Bx, 3Cx, 3Jx, 3Kx, 4Dx, 4Ex
v4063-CTO
v4064-CTO
v4065-CTO
42T1463 **
164 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 200 GB, 9.5 mm, 7,200 rpm, FDE
v2055-CTO, 2Xx
v2056-CTO
v2081-CTO, 22x, 24x, 3Ex, 53x
v2082-CTO, 28x, 3Rx, 5Yx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 23x
v4061-CTO, 2Kx
v4062-CTO, 25x, 26x, 28x, 2Gx, 37x, 3Bx, 3Cx, 3Jx, 3Kx, 4Dx, 4Ex
v4063-CTO
v4064-CTO
v4065-CTO
42T1561 **
11 SATA hard disk drive, 250 GB, 9.5 mm, 7,200 rpm, FDE
v2055-CTO, 8Jx, 9Sx, 9Tx
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 3Xx, 44x, 4Rx, 53x
v4062-CTO, 4Jx, 5Cx, 5Gx
v4063-CTO
v4064-CTO
v4065-CTO
42T1563 **
Parts list 165
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 250 GB, 9.5 mm, 7,200 rpm, FDE
v2055-CTO, 8Jx, 9Sx, 9Tx
v2056-CTO
v2081-CTO, 7Tx
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 3Xx, 44x, 4Rx, 53x
v4062-CTO, 4Jx, 5Cx, 5Gx
v4063-CTO
v4064-CTO
v4065-CTO
42T1573 **
11 SATA hard disk drive, 250 GB, 9.5 mm, 7,200 rpm, FDE
v2055-CTO, 8Jx, 9Sx, 9Tx
v2056-CTO
v2081-CTO, 7Tx
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 3Xx, 44x, 4Rx, 53x
v4062-CTO, 4Jx, 5Cx, 5Gx
v4063-CTO
v4064-CTO
v4065-CTO
42T1527 **
166 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 320 GB, 9.5 mm, 7,200 rpm
v2055-CTO, 8Lx, 8Mx, 8Px, A6x, ALx, AMx
v2056-CTO
v2081-CTO
v2082-CTO, 93x, 94x, 95x, ACx, AFx, BCx, BFx, BKx, BMx, BNx
v2083-CTO
v2087-CTO
v2088-CTO, 88x
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO, 7Mx, 7Nx, 7Px, 7Wx, 97x, 98x, 9Ax, 9Bx
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 4Sx
v4061-CTO, 3Vx, 3Wx, 3Yx, 3Zx, 42x, 43x, 45x, 46x, 47x, 48x, 4Ax, 4Bx, 4Qx,
4Ux, 4Wx, 4Zx, 52x, 6Ax, 6Bx, 6Hx, 6Jx, 6Kx, 6Lx
v4062-CTO, 3Nx, 4Fx, 4Gx, 4Hx, 4Mx, 4Nx, 4Xx, 4Yx, 55x, 56x, 59x, 5Dx, 5Ex,
5Fx, 5Hx, 5Jx, 5Kx, 5Lx, 5Nx, 5Qx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx,
62x, 63x
v4063-CTO, 4Cx
v4064-CTO
v4065-CTO
42T1559 **
11 SATA hard disk drive, 320 GB, 9.5 mm, 7,200 rpm
v2055-CTO, 8Lx, 8Mx, 8Px, A6x, ALx, AMx
v2056-CTO
v2081-CTO
v2082-CTO, 93x, 94x, 95x, ACx, AFx, BCx, BFx, BKx, BMx, BNx
v2083-CTO
v2087-CTO
v2088-CTO, 88x
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO, 7Mx, 7Nx, 7Px, 7Wx, 97x, 98x, 9Ax, 9Bx
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 4Sx
v4061-CTO, 3Vx, 3Wx, 3Yx, 3Zx, 42x, 43x, 45x, 46x, 47x, 48x, 4Ax, 4Bx, 4Qx,
4Ux, 4Wx, 4Zx, 52x, 6Ax, 6Bx, 6Hx, 6Jx, 6Kx, 6Lx
v4062-CTO, 3Nx, 4Fx, 4Gx, 4Hx, 4Mx, 4Nx, 4Xx, 4Yx, 55x, 56x, 59x, 5Dx, 5Ex,
5Fx, 5Hx, 5Jx, 5Kx, 5Lx, 5Nx, 5Qx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx,
62x, 63x
v4063-CTO, 4Cx
v4064-CTO
v4065-CTO
42T1571 **
Parts list 167
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
11 SATA hard disk drive, 320 GB, 9.5 mm, 7,200 rpm
v2055-CTO, 8Lx, 8Mx, 8Px, A6x, ALx, AMx
v2056-CTO
v2081-CTO
v2082-CTO, 93x, 94x, 95x, ACx, AFx, BCx, BFx, BKx, BMx, BNx
v2083-CTO
v2087-CTO
v2088-CTO, 88x
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO, 7Mx, 7Nx, 7Px, 7Wx, 97x, 98x, 9Ax, 9Bx
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 4Sx
v4061-CTO, 3Vx, 3Wx, 3Yx, 3Zx, 42x, 43x, 45x, 46x, 47x, 48x, 4Ax, 4Bx, 4Qx,
4Ux, 4Wx, 4Zx, 52x, 6Ax, 6Bx, 6Hx, 6Jx, 6Kx, 6Lx
v4062-CTO, 3Nx, 4Fx, 4Gx, 4Hx, 4Mx, 4Nx, 4Xx, 4Yx, 55x, 56x, 59x, 5Dx, 5Ex,
5Fx, 5Hx, 5Jx, 5Kx, 5Lx, 5Nx, 5Qx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx,
62x, 63x
v4063-CTO, 4Cx
v4064-CTO
v4065-CTO
42T1525 **
12 SATA hard disk drive, 500 GB, 9.5 mm, 7,200 rpm
v2055-CTO, ANx, AQx, ARx, ASx, ATx
v2056-CTO
v2081-CTO
v2082-CTO, BEx, BHx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 65x, 66x, 67x, 68x, 69x
v4062-CTO, 57x, 5Mx, 5Px
v4063-CTO
v4064-CTO
v4065-CTO
45N7267 **
168 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
12 SATA hard disk drive, 500 GB, 9.5 mm, 7,200 rpm
v2055-CTO, ANx, AQx, ARx, ASx, ATx
v2056-CTO
v2081-CTO
v2082-CTO, BEx, BHx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 65x, 66x, 67x, 68x, 69x
v4062-CTO, 57x, 5Mx, 5Px
v4063-CTO
v4064-CTO
v4065-CTO
45N7257 **
12 1.8-inch - 2.5-inch storage converter
v2055-CTO, 5Ux, 9Kx
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 6Cx, 75x, 7Lx
v2243-CTO, 9Cx
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 2Rx, 4Px
v4062-CTO, 2Cx, 2Dx, 2Ex, 2Fx, 4Lx
v4063-CTO
v4064-CTO
v4065-CTO
42W7888 **
Parts list 169
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
13 SATA solid state drive, 64 GB, 8 mm
v2055-CTO, 5Ux
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 2Rx
v4062-CTO, 2Cx, 2Dx, 2Ex, 2Fx
v4063-CTO
v4064-CTO
v4065-CTO
42T1898 **
13 SATA solid state drive, 64 GB, 8 mm
v2055-CTO, 5Ux
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 2Rx
v4062-CTO, 2Cx, 2Dx, 2Ex, 2Fx
v4063-CTO
v4064-CTO
v4065-CTO
41W0520 **
170 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
13 SATA solid state drive, 64 GB, 8 mm
v2055-CTO, 5Ux
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 2Rx
v4062-CTO, 2Cx, 2Dx, 2Ex, 2Fx
v4063-CTO
v4064-CTO
v4065-CTO
45N7951 **
13 SATA solid state drive, 64 GB, 8 mm
v2055-CTO, 5Ux
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 2Rx
v4062-CTO, 2Cx, 2Dx, 2Ex, 2Fx
v4063-CTO
v4064-CTO
v4065-CTO
45N8201 **
Parts list 171
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
13 SATA solid state drive, 80 GB, 8 mm
v2055-CTO, 9Kx
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 7Lx
v2243-CTO, 9Cx
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 4Px
v4062-CTO, 4Lx
v4063-CTO
v4064-CTO
v4065-CTO
41W0516 **
13 SATA solid state drive, 128 GB, 8 mm
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 6Cx, 75x
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
41W0519 **
172 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
13 SATA solid state drive, 128 GB, 8 mm
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 6Cx, 75x
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
45N7953 **
13 SATA solid state drive, 128 GB, 8 mm
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 6Cx, 75x
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
45N8203 **
Parts list 173
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
13 SATA solid state drive, 128 GB, 8 mm, FDE
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
45N7955 **
13 SATA solid state drive, 128 GB, 8 mm, FDE
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
45N8205 **
174 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
13 SATA solid state drive, 160 GB, 8 mm
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
41W0522 **
13 SATA solid state drive, 256 GB, 8 mm
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
45N8207 **
Parts list 175
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
14 Battery pack, Li-ion (6 cell, 2.4 Ah)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T4670 *
14 Battery pack, Li-ion (6 cell, 2.4 Ah)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T4671 *
176 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
14 Battery pack, Li-ion (6 cell, 2.4 Ah)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T4778 *
Parts list 177
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
14 Battery pack, Li-ion (6 cell, 2.6 Ah)
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 47x, 48x, 49x, 4Ax, 5Rx, 5Sx,
62x, 64x, 65x, 74x, 75x, 76x, 77x, 7Ex, 7Fx, 7Gx, 7Hx, 7Kx, 89x, 8Ax, 8Bx, 8Ex,
8Fx, 8Gx, 8Jx, 8Kx, 8Lx, 8Nx, 8Px, 8Qx, 8Rx, 8Ux, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx,
9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AHx,
AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, AXx,
AYx, AZx
v2056-CTO, 34x, 4Kx, 4Px, 4Qx, 79x, 7Ax
v2081-CTO, 52x, 53x, 7Wx, 9Mx
v2082-CTO, 3Lx, 3Mx, 3Nx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx,
5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx, 5Nx, 5Qx, 5Rx, 5Xx, 5Zx, 66x, 67x,
68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Mx, 6Nx, 6Px,
6Qx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 72x, 73x, 7Dx, 7Zx, 82x, 83x, 84x, 85x,
86x, 87x, 97x, 98x, 9Nx, 9Px, 9Qx, AAx, ABx, ACx, ADx, AEx, AFx, AGx, B5x,
B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Mx, 2Qx, 2Rx, 2Sx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 3Hx,
3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 4Dx, 4Wx, 4Xx, 4Yx,
4Zx, 52x, 53x, 54x, 58x, 59x, 5Ax, 5Nx, 5Px, 5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 79x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,
7Kx, 7Qx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx,
8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, E1x, E3x, E4x, E5x
v2241-CTO, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 58x, 5Sx, 5Tx, 5Ux, 5Zx, E1x,
E2x, E4x, E5x
v2242-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x,
39x, 3Ax, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 55x, 5Ex, 5Fx, 5Gx, 5Hx, 5Vx, 66x,
6Bx, 6Cx, 6Rx, 6Sx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Px, 8Qx, 8Rx,
8Sx, BVx, BWx
v2243-CTO, 2Bx, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx,
4Tx, 4Ux, 56x, 57x, 5Bx, 5Cx, 5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 62x, 63x, 64x, 65x,
67x, 68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 7Bx, 7Cx,
7Dx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Wx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx,
8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx,
BXx, BYx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx, 4Vx, 7Zx
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 2Jx, 2Rx, 2Sx, 3Fx, 3Tx, 3Xx, 44x, 49x, 4Qx, 4Rx, 52x, 53x, 64x, 6Cx,
6Dx, 6Ex, 6Fx, 6Gx, 6Kx
v4062-CTO, 29x, 2Bx, 2Dx, 2Ex, 2Fx, 37x, 3Cx, 3Gx, 3Jx, 3Kx, 3Mx, 4Dx, 4Ex,
4Mx, 4Nx, 4Xx, 4Yx, 54x, 55x, 56x, 59x, 5Cx, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx,
5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 3Fx
v4064-CTO
v4065-CTO
42T4621 *
178 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
14 Battery pack, Li-ion (6 cell, 2.6 Ah)
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 47x, 48x, 49x, 4Ax, 5Rx, 5Sx,
62x, 64x, 65x, 74x, 75x, 76x, 77x, 7Ex, 7Fx, 7Gx, 7Hx, 7Kx, 89x, 8Ax, 8Bx, 8Ex,
8Fx, 8Gx, 8Jx, 8Kx, 8Lx, 8Nx, 8Px, 8Qx, 8Rx, 8Ux, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx,
9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AHx,
AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, AXx,
AYx, AZx
v2056-CTO, 34x, 4Kx, 4Px, 4Qx, 79x, 7Ax
v2081-CTO, 52x, 53x, 7Wx, 9Mx
v2082-CTO, 3Lx, 3Mx, 3Nx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx,
5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx, 5Nx, 5Qx, 5Rx, 5Xx, 5Zx, 66x, 67x,
68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Mx, 6Nx, 6Px,
6Qx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 72x, 73x, 7Dx, 7Zx, 82x, 83x, 84x, 85x,
86x, 87x, 97x, 98x, 9Nx, 9Px, 9Qx, AAx, ABx, ACx, ADx, AEx, AFx, AGx, B5x,
B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Mx, 2Qx, 2Rx, 2Sx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 3Hx,
3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 4Dx, 4Wx, 4Xx, 4Yx,
4Zx, 52x, 53x, 54x, 58x, 59x, 5Ax, 5Nx, 5Px, 5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 79x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,
7Kx, 7Qx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx,
8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, E1x, E3x, E4x, E5x
v2241-CTO, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 58x, 5Sx, 5Tx, 5Ux, 5Zx, E1x,
E2x, E4x, E5x
v2242-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x,
39x, 3Ax, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 55x, 5Ex, 5Fx, 5Gx, 5Hx, 5Vx, 66x,
6Bx, 6Cx, 6Rx, 6Sx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Px, 8Qx, 8Rx,
8Sx, BVx, BWx
v2243-CTO, 2Bx, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx,
4Tx, 4Ux, 56x, 57x, 5Bx, 5Cx, 5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 62x, 63x, 64x, 65x,
67x, 68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 7Bx, 7Cx,
7Dx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Wx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx,
8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx,
BXx, BYx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx, 4Vx, 7Zx
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 2Jx, 2Rx, 2Sx, 3Fx, 3Tx, 3Xx, 44x, 49x, 4Qx, 4Rx, 52x, 53x, 64x, 6Cx,
6Dx, 6Ex, 6Fx, 6Gx, 6Kx
v4062-CTO, 29x, 2Bx, 2Dx, 2Ex, 2Fx, 37x, 3Cx, 3Gx, 3Jx, 3Kx, 3Mx, 4Dx, 4Ex,
4Mx, 4Nx, 4Xx, 4Yx, 54x, 55x, 56x, 59x, 5Cx, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx,
5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 3Fx
v4064-CTO
v4065-CTO
42T4622 *
Parts list 179
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
14 Battery pack, Li-ion (6 cell, 2.6 Ah)
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Lx, 2Mx, 2Nx, 2Px, 47x, 48x, 49x, 4Ax, 5Rx, 5Sx,
62x, 64x, 65x, 74x, 75x, 76x, 77x, 7Ex, 7Fx, 7Gx, 7Hx, 7Kx, 89x, 8Ax, 8Bx, 8Ex,
8Fx, 8Gx, 8Jx, 8Kx, 8Lx, 8Nx, 8Px, 8Qx, 8Rx, 8Ux, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx,
9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AHx,
AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, AXx,
AYx, AZx
v2056-CTO, 34x, 4Kx, 4Px, 4Qx, 79x, 7Ax
v2081-CTO, 52x, 53x, 7Wx, 9Mx
v2082-CTO, 3Lx, 3Mx, 3Nx, 52x, 53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx,
5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx, 5Nx, 5Qx, 5Rx, 5Xx, 5Zx, 66x, 67x,
68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Mx, 6Nx, 6Px,
6Qx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 72x, 73x, 7Dx, 7Zx, 82x, 83x, 84x, 85x,
86x, 87x, 97x, 98x, 9Nx, 9Px, 9Qx, AAx, ABx, ACx, ADx, AEx, AFx, AGx, B5x,
B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Mx, 2Qx, 2Rx, 2Sx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx, 3Hx,
3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 4Dx, 4Wx, 4Xx, 4Yx,
4Zx, 52x, 53x, 54x, 58x, 59x, 5Ax, 5Nx, 5Px, 5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 79x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,
7Kx, 7Qx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx,
8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, E1x, E3x, E4x, E5x
v2241-CTO, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 58x, 5Sx, 5Tx, 5Ux, 5Zx, E1x,
E2x, E4x, E5x
v2242-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x,
39x, 3Ax, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 55x, 5Ex, 5Fx, 5Gx, 5Hx, 5Vx, 66x,
6Bx, 6Cx, 6Rx, 6Sx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Px, 8Qx, 8Rx,
8Sx, BVx, BWx
v2243-CTO, 2Bx, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx,
4Tx, 4Ux, 56x, 57x, 5Bx, 5Cx, 5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 62x, 63x, 64x, 65x,
67x, 68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 7Bx, 7Cx,
7Dx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Wx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx,
8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx,
BXx, BYx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx, 4Vx, 7Zx
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 2Jx, 2Rx, 2Sx, 3Fx, 3Tx, 3Xx, 44x, 49x, 4Qx, 4Rx, 52x, 53x, 64x, 6Cx,
6Dx, 6Ex, 6Fx, 6Gx, 6Kx
v4062-CTO, 29x, 2Bx, 2Dx, 2Ex, 2Fx, 37x, 3Cx, 3Gx, 3Jx, 3Kx, 3Mx, 4Dx, 4Ex,
4Mx, 4Nx, 4Xx, 4Yx, 54x, 55x, 56x, 59x, 5Cx, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx,
5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 3Fx
v4064-CTO
v4065-CTO
42T4777 *
180 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
14 Battery pack, Li-ion (9 cell)
v2055-CTO, 2Ex, 2Vx, 2Xx, 3Ax, 45x, 46x, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,
5Tx, 5Ux, 5Vx, 5Wx, 63x, 78x, 7Jx, 7Lx, 8Cx, 8Dx, 8Hx, 8Mx, 8Sx, 8Tx, 9Ax,
9Bx, 9Yx, 9Zx, B2x, B3x, B4x, E1x, E2x, E3x
v2056-CTO, 4Rx, 4Sx, 4Tx, 5Tx, 63x, 7Bx, 7Cx, 7Lx, E1x, E2x, E3x
v2081-CTO, 22x, 24x, 3Ex
v2082-CTO, 26x, 27x, 28x, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Rx, 5Px, 5Yx, 6Lx, 6Rx,
6Sx, 6Zx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Xx, 7Yx, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 99x, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, BKx, BMx,
BNx, BPx, BQx, BRx, BSx, BTx, BUx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Lx, 3Jx, E2x
v2241-CTO, E3x
v2242-CTO
v2243-CTO, 77x, 78x, 7Ax
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 2Hx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Zx, 32x, 38x, 39x, 3Dx, 3Ex,
3Ux, 3Vx, 3Wx, 3Yx, 3Zx, 42x, 43x, 45x, 46x, 47x, 48x, 4Ax, 4Bx, 4Px, 4Ux,
4Vx, 4Wx, 4Zx, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Hx, 6Jx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 2Ax, 2Cx, 2Gx, 2Xx, 2Yx, 35x, 36x, 3Ax,
3Bx, 3Hx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Tx, 57x,
58x, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px
v4063-CTO, 2Tx, 2Ux, 33x, 34x, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42T4619 *
Parts list 181
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
14 Battery pack, Li-ion (9 cell)
v2055-CTO, 2Ex, 2Vx, 2Xx, 3Ax, 45x, 46x, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx,
5Tx, 5Ux, 5Vx, 5Wx, 63x, 78x, 7Jx, 7Lx, 8Cx, 8Dx, 8Hx, 8Mx, 8Sx, 8Tx, 9Ax,
9Bx, 9Yx, 9Zx, B2x, B3x, B4x, E1x, E2x, E3x
v2056-CTO, 4Rx, 4Sx, 4Tx, 5Tx, 63x, 7Bx, 7Cx, 7Lx, E1x, E2x, E3x
v2081-CTO, 22x, 24x, 3Ex
v2082-CTO, 26x, 27x, 28x, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Rx, 5Px, 5Yx, 6Lx, 6Rx,
6Sx, 6Zx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Xx, 7Yx, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 99x, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, BKx, BMx,
BNx, BPx, BQx, BRx, BSx, BTx, BUx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Lx, 3Jx, E2x
v2241-CTO, E3x
v2242-CTO
v2243-CTO, 77x, 78x, 7Ax
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 2Hx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Zx, 32x, 38x, 39x, 3Dx, 3Ex,
3Ux, 3Vx, 3Wx, 3Yx, 3Zx, 42x, 43x, 45x, 46x, 47x, 48x, 4Ax, 4Bx, 4Px, 4Ux,
4Vx, 4Wx, 4Zx, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Hx, 6Jx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 2Ax, 2Cx, 2Gx, 2Xx, 2Yx, 35x, 36x, 3Ax,
3Bx, 3Hx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Tx, 57x,
58x, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px
v4063-CTO, 2Tx, 2Ux, 33x, 34x, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42T4620 *
15 RJ-11 sub card 42W7887 N
15 RJ-11 sub card 42W7886 N
16 DVD drive, 9.5 mm
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T2553 N
182 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
16 DVD drive, 9.5 mm
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T2541 N
16 DVD/CD-RW combo drive, 9.5 mm
v2055-CTO, 2Bx, 74x, 7Ex, 7Fx
v2056-CTO, 34x, 4Px, 79x
v2081-CTO
v2082-CTO, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex,
6Fx, 6Gx, 6Hx, 6Jx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO
v2089-CTO, 2Jx, 2Yx, 59x
v2241-CTO, 3Wx, 5Sx
v2242-CTO, 4Ex, 4Fx
v2243-CTO, 56x
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Fx, 2Hx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T2543 *
Parts list 183
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
16 DVD/CD-RW combo drive, 9.5 mm
v2055-CTO, 2Bx, 74x, 7Ex, 7Fx
v2056-CTO, 34x, 4Px, 79x
v2081-CTO
v2082-CTO, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex,
6Fx, 6Gx, 6Hx, 6Jx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO
v2089-CTO, 2Jx, 2Yx, 59x
v2241-CTO, 3Wx, 5Sx
v2242-CTO, 4Ex, 4Fx
v2243-CTO, 56x
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Fx, 2Hx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T2555 *
184 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
16 DVD-RAM/RW drive, 9.5 mm
v2055-CTO, 2Cx, 2Dx, 2Ex, 2Lx, 2Mx, 2Nx, 2Px, 2Vx, 2Xx, 3Ax, 45x, 46x, 47x,
48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx,
5Wx, 62x, 63x, 64x, 65x, 75x, 76x, 77x, 78x, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 89x, 8Ax,
8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx,
8Sx, 8Ux, 9Ax, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx,
9Yx, 9Zx, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AHx, AJx, AKx, ALx,
AMx, ANx, APx, AQx, ARx, ASx, AUx, AVx, AWx, AXx, AYx, AZx, B2x, B3x,
B4x, E1x, E2x, E3x
v2056-CTO, 4Kx, 4Qx, 4Rx, 4Sx, 4Tx, 5Tx, 63x, 7Ax, 7Bx, 7Cx, 7Lx, E1x, E2x,
E3x
v2081-CTO, 22x, 24x, 3Ex, 52x, 53x, 7Wx, 9Mx
v2082-CTO, 26x, 27x, 28x, 3Fx, 3Gx, 3Hx, 3Kx, 3Lx, 3Mx, 3Nx, 3Rx, 52x, 53x,
54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Mx, 5Nx, 5Qx, 5Rx, 5Xx,
5Yx, 5Zx, 66x, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx,
6Yx, 72x, 73x, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Xx, 7Yx,
7Zx, 82x, 83x, 85x, 86x, 87x, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x,
97x, 98x, 99x, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Nx, 9Px, 9Qx, AAx, ABx, ACx, ADx,
AEx, AFx, AGx, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx,
BHx, BJx, BKx, BMx, BNx, BPx, BQx, BRx, BSx, BTx, BUx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Hx, 2Kx, 2Lx, 2Mx, 2Qx, 2Rx, 2Sx, 2Ux, 2Vx, 2Wx, 2Xx, 3Hx, 3Jx,
3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 4Dx, 4Wx, 4Xx, 4Yx,
4Zx, 52x, 53x, 54x, 58x, 5Ax, 5Nx, 5Px, 5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx, 6Gx,
6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 79x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx,
7Qx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx,
8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, E1x, E2x, E3x, E4x, E5x
v2241-CTO, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 58x, 5Tx, 5Ux, 5Zx, E1x, E2x,
E3x, E4x, E5x
v2242-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x,
39x, 3Ax, 4Gx, 4Hx, 4Jx, 4Kx, 55x, 5Ex, 5Fx, 5Gx, 5Hx, 5Vx, 66x, 6Bx, 6Cx,
6Rx, 6Sx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Px, 8Qx, 8Rx, 8Sx,
BVx, BWx
v2243-CTO, 2Bx, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx,
4Tx, 4Ux, 57x, 5Bx, 5Cx, 5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 62x, 63x, 64x, 65x, 67x,
68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax,
7Bx, 7Cx, 7Dx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Wx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex,
9Fx, 9Gx, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 2Ex, 2Gx, 3Dx, 3Ex, 3Fx, 3Gx, 4Vx, 7Zx
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Zx, 32x, 38x,
39x, 3Dx, 3Ex, 3Fx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 43x, 44x, 45x, 47x,
48x, 49x, 4Ax, 4Px, 4Qx, 4Rx, 4Ux, 4Wx, 4Zx, 52x, 53x, 64x, 65x, 66x, 68x, 69x,
6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Xx,
2Yx, 35x, 36x, 37x, 3Ax, 3Bx, 3Cx, 3Gx, 3Hx, 3Jx, 3Kx, 3Mx, 3Nx, 3Px, 3Qx,
3Rx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Tx, 4Xx, 4Yx, 54x,
55x, 56x, 57x, 58x, 59x, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx,
5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 2Tx, 33x, 34x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42T2545 *
Parts list 185
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
16 DVD-RAM/RW drive, 9.5 mm
v2055-CTO, 2Cx, 2Dx, 2Ex, 2Lx, 2Mx, 2Nx, 2Px, 2Vx, 2Xx, 3Ax, 45x, 46x, 47x,
48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx,
5Wx, 62x, 63x, 64x, 65x, 75x, 76x, 77x, 78x, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 89x, 8Ax,
8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx,
8Sx, 8Ux, 9Ax, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx,
9Yx, 9Zx, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AHx, AJx, AKx, ALx,
AMx, ANx, APx, AQx, ARx, ASx, AUx, AVx, AWx, AXx, AYx, AZx, B2x, B3x,
B4x, E1x, E2x, E3x
v2056-CTO, 4Kx, 4Qx, 4Rx, 4Sx, 4Tx, 5Tx, 63x, 7Ax, 7Bx, 7Cx, 7Lx, E1x, E2x,
E3x
v2081-CTO, 22x, 24x, 3Ex, 52x, 53x, 7Wx, 9Mx
v2082-CTO, 26x, 27x, 28x, 3Fx, 3Gx, 3Hx, 3Kx, 3Lx, 3Mx, 3Nx, 3Rx, 52x, 53x,
54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Mx, 5Nx, 5Qx, 5Rx, 5Xx,
5Yx, 5Zx, 66x, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx,
6Yx, 72x, 73x, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Xx, 7Yx,
7Zx, 82x, 83x, 85x, 86x, 87x, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x,
97x, 98x, 99x, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Nx, 9Px, 9Qx, AAx, ABx, ACx, ADx,
AEx, AFx, AGx, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx,
BHx, BJx, BKx, BMx, BNx, BPx, BQx, BRx, BSx, BTx, BUx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Hx, 2Kx, 2Lx, 2Mx, 2Qx, 2Rx, 2Sx, 2Ux, 2Vx, 2Wx, 2Xx, 3Hx, 3Jx,
3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 4Dx, 4Wx, 4Xx, 4Yx,
4Zx, 52x, 53x, 54x, 58x, 5Ax, 5Nx, 5Px, 5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx, 6Gx,
6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 79x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx,
7Qx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx,
8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, E1x, E2x, E3x, E4x, E5x
v2241-CTO, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 58x, 5Tx, 5Ux, 5Zx, E1x, E2x,
E3x, E4x, E5x
v2242-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x,
39x, 3Ax, 4Gx, 4Hx, 4Jx, 4Kx, 55x, 5Ex, 5Fx, 5Gx, 5Hx, 5Vx, 66x, 6Bx, 6Cx,
6Rx, 6Sx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Px, 8Qx, 8Rx, 8Sx,
BVx, BWx
v2243-CTO, 2Bx, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx,
4Tx, 4Ux, 57x, 5Bx, 5Cx, 5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 62x, 63x, 64x, 65x, 67x,
68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax,
7Bx, 7Cx, 7Dx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Wx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex,
9Fx, 9Gx, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 2Ex, 2Gx, 3Dx, 3Ex, 3Fx, 3Gx, 4Vx, 7Zx
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Zx, 32x, 38x,
39x, 3Dx, 3Ex, 3Fx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 43x, 44x, 45x, 47x,
48x, 49x, 4Ax, 4Px, 4Qx, 4Rx, 4Ux, 4Wx, 4Zx, 52x, 53x, 64x, 65x, 66x, 68x, 69x,
6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Xx,
2Yx, 35x, 36x, 37x, 3Ax, 3Bx, 3Cx, 3Gx, 3Hx, 3Jx, 3Kx, 3Mx, 3Nx, 3Px, 3Qx,
3Rx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Tx, 4Xx, 4Yx, 54x,
55x, 56x, 57x, 58x, 59x, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx,
5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 2Tx, 33x, 34x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42T2557 *
186 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
16 DVD-RAM/RW drive, 9.5 mm
v2055-CTO, 2Cx, 2Dx, 2Ex, 2Lx, 2Mx, 2Nx, 2Px, 2Vx, 2Xx, 3Ax, 45x, 46x, 47x,
48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx,
5Wx, 62x, 63x, 64x, 65x, 75x, 76x, 77x, 78x, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 89x, 8Ax,
8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx,
8Sx, 8Ux, 9Ax, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx,
9Yx, 9Zx, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AHx, AJx, AKx, ALx,
AMx, ANx, APx, AQx, ARx, ASx, AUx, AVx, AWx, AXx, AYx, AZx, B2x, B3x,
B4x, E1x, E2x, E3x
v2056-CTO, 4Kx, 4Qx, 4Rx, 4Sx, 4Tx, 5Tx, 63x, 7Ax, 7Bx, 7Cx, 7Lx, E1x, E2x,
E3x
v2081-CTO, 22x, 24x, 3Ex, 52x, 53x, 7Wx, 9Mx
v2082-CTO, 26x, 27x, 28x, 3Fx, 3Gx, 3Hx, 3Kx, 3Lx, 3Mx, 3Nx, 3Rx, 52x, 53x,
54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Mx, 5Nx, 5Qx, 5Rx, 5Xx,
5Yx, 5Zx, 66x, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Sx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx,
6Yx, 72x, 73x, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Xx, 7Yx,
7Zx, 82x, 83x, 85x, 86x, 87x, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x,
97x, 98x, 99x, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Nx, 9Px, 9Qx, AAx, ABx, ACx, ADx,
AEx, AFx, AGx, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx,
BHx, BJx, BKx, BMx, BNx, BPx, BQx, BRx, BSx, BTx, BUx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Hx, 2Kx, 2Lx, 2Mx, 2Qx, 2Rx, 2Sx, 2Ux, 2Vx, 2Wx, 2Xx, 3Hx, 3Jx,
3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 4Dx, 4Wx, 4Xx, 4Yx,
4Zx, 52x, 53x, 54x, 58x, 5Ax, 5Nx, 5Px, 5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx, 6Gx,
6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 79x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx,
7Qx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx,
8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, E1x, E2x, E3x, E4x, E5x
v2241-CTO, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 58x, 5Tx, 5Ux, 5Zx, E1x, E2x,
E3x, E4x, E5x
v2242-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x,
39x, 3Ax, 4Gx, 4Hx, 4Jx, 4Kx, 55x, 5Ex, 5Fx, 5Gx, 5Hx, 5Vx, 66x, 6Bx, 6Cx,
6Rx, 6Sx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Px, 8Qx, 8Rx, 8Sx,
BVx, BWx
v2243-CTO, 2Bx, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx,
4Tx, 4Ux, 57x, 5Bx, 5Cx, 5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 62x, 63x, 64x, 65x, 67x,
68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax,
7Bx, 7Cx, 7Dx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Wx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex,
9Fx, 9Gx, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 2Ex, 2Gx, 3Dx, 3Ex, 3Fx, 3Gx, 4Vx, 7Zx
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Zx, 32x, 38x,
39x, 3Dx, 3Ex, 3Fx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 43x, 44x, 45x, 47x,
48x, 49x, 4Ax, 4Px, 4Qx, 4Rx, 4Ux, 4Wx, 4Zx, 52x, 53x, 64x, 65x, 66x, 68x, 69x,
6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Xx,
2Yx, 35x, 36x, 37x, 3Ax, 3Bx, 3Cx, 3Gx, 3Hx, 3Jx, 3Kx, 3Mx, 3Nx, 3Px, 3Qx,
3Rx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Tx, 4Xx, 4Yx, 54x,
55x, 56x, 57x, 58x, 59x, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx,
5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 2Tx, 33x, 34x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42T2551 *
Parts list 187
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
16 Blu-ray drive, 9.5 mm
v2055-CTO, 8Tx, ATx
v2056-CTO
v2081-CTO
v2082-CTO, 3Jx, 5Px, 6Rx, 6Zx, 84x
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 42x, 46x, 4Bx, 4Vx, 67x
v4062-CTO, 2Gx, 3Sx
v4063-CTO, 2Ux
v4064-CTO
v4065-CTO
42T2559 *
16 Travel cover, 9.5 mm
v2055-CTO, xxE, xxJ
v2056-CTO, xxE, xxJ
v2081-CTO, xxE, xxJ
v2082-CTO, xxE, xxJ
v2083-CTO, xxE, xxJ
v2087-CTO, xxE, xxJ
v2088-CTO, xxE, xxJ
v2089-CTO, xxE, xxJ
v2241-CTO, xxE, xxJ
v2242-CTO, xxE, xxJ
v2243-CTO, xxE, xxJ
v2246-CTO, xxE, xxJ
v2247-CTO, xxE, xxJ
v2261-CTO, xxE, xxJ
v4058-CTO, xxE, xxJ
v4061-CTO, xxE, xxJ
v4062-CTO, xxE, xxJ
v4063-CTO, xxE, xxJ
v4064-CTO, xxE, xxJ
v4065-CTO, xxE, xxJ
13N5108 *
17 Hard disk drive cover assembly 43Y9743 *
18 Base cover assembly for 2055
Worldwide
v2055-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2508 N
Taiwan
v2055-CTO, xxV
45M2528 N
188 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
18 Base cover assembly for 2056
Worldwide
v2056-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2509 N
Taiwan
v2056-CTO, xxV
45M2529 N
18 Base cover assembly for 2081
Worldwide
v2081-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2505 N
Taiwan
v2081-CTO, xxV
45M2525 N
18 Base cover assembly for 2082
Worldwide
v2082-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2506 N
Taiwan
v2082-CTO, xxV
45M2526 N
18 Base cover assembly for 2083
Worldwide
v2083-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2510 N
Taiwan
v2083-CTO, xxV
45M2530 N
18 Base cover assembly for 2087
Worldwide
v2087-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2511 N
Taiwan
v2087-CTO, xxV
45M2531 N
18 Base cover assembly for 2088
Worldwide
v2088-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2507 N
Taiwan
v2088-CTO, xxV
45M2527 N
18 Base cover assembly for 2089
Worldwide
v2089-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2515 N
Taiwan
v2089-CTO, xxV
45M2535 N
Parts list 189
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
18 Base cover assembly for 2241
Worldwide
v2241-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2516 N
Taiwan
v2241-CTO, xxV
45M2536 N
18 Base cover assembly for 2242
Worldwide
v2242-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2512 N
Taiwan
v2242-CTO, xxV
45M2532 N
18 Base cover assembly for 2243
Worldwide
v2243-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2513 N
Taiwan
v2243-CTO, xxV
45M2533 N
18 Base cover assembly for 2246
Worldwide
v2246-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2517 N
Taiwan
v2246-CTO, xxV
45M2537 N
18 Base cover assembly for 2247
Worldwide
v2247-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2518 N
Taiwan
v2247-CTO
45M2538 N
18 Base cover assembly for 2261
Worldwide
v2261-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2514 N
Taiwan
v2261-CTO, xxV
45M2534 N
18 Base cover assembly for 4058
Worldwide
v4058-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2519 N
Taiwan
v4058-CTO, xxV
45M2539 N
190 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
18 Base cover assembly for 4061
Worldwide
v4061-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2521 N
Taiwan
v4061-CTO, xxV
45M2541 N
18 Base cover assembly for 4062
Worldwide
v4062-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2521 N
Taiwan
v4062-CTO, xxV
45M2540 N
18 Base cover assembly for 4063
Worldwide
v4063-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2522 N
Taiwan
v4063-CTO, xxV
45M2542 N
18 Base cover assembly for 4064
Worldwide
v4064-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2523 N
Taiwan
v4064-CTO, xxV
45M2543 N
18 Base cover assembly for 4065
Worldwide
v4065-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP,
xxQ, xxS, xxT, xxU, xxY
45M2524 N
Taiwan
v4065-CTO, xxV
45M2544 N
19 512-MB DDR3-1067 SDRAM SO-DIMM (PC3-8500) card
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
43R1775 **
Parts list 191
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
19 1-GB DDR3-1067 SDRAM SO-DIMM (PC3-8500) card
v2055-CTO, 2Bx, 46x, 47x, 4Ax, 4Bx, 4Dx, 5Rx, 62x, 64x, 74x, 7Ex, 7Fx, 7Gx,
7Hx, 7Jx, 8Fx, 8Gx, 8Hx, 9Dx, 9Kx, 9Vx, 9Wx, A5x, A6x, AMx, ANx, APx,
AQx, E2x
v2056-CTO, 34x, 4Kx, 4Px, 4Tx, 79x, E3x
v2081-CTO, 24x, 3Ex, 52x, 7Wx
v2082-CTO, 26x, 3Fx, 3Hx, 3Rx, 56x, 57x, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx, 5Nx,
5Rx, 5Xx, 5Yx, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx,
6Lx, 73x, 7Zx, 83x, 8Zx, 92x, 93x, 94x, 95x, 9Px, 9Qx, ACx, ADx, AFx, AGx,
B9x, BAx, BBx, BEx, BHx, BKx, BMx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO, 44x
v2089-CTO, 2Hx, 2Jx, 2Lx, 2Qx, 2Rx, 2Sx, 2Ux, 2Vx, 2Xx, 2Yx, 3Hx, 3Jx, 3Kx,
3Lx, 3Mx, 3Px, 3Qx, 3Rx, 3Tx, 3Vx, 4Dx, 4Wx, 52x, 53x, 59x, 5Ax, 5Nx, 5Px,
5Qx, 5Wx, 5Xx, 5Zx, 6Gx, 6Hx, 6Lx, 6Mx, 6Nx, 6Qx, 82x, 8Gx, 8Hx, 8Jx, 8Kx,
8Lx, 8Mx, 8Nx, E1x
v2241-CTO, 3Wx, 3Yx, 3Zx, 42x, 5Sx, 5Tx, E1x, E2x
v2242-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 32x, 33x, 34x, 35x, 37x, 38x, 39x,
3Ax, 4Ex, 4Fx, 4Gx, 4Kx, 5Ex, 5Fx, 6Yx, 73x, 74x, 75x
v2243-CTO, 2Bx, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Tx, 56x,
57x, 5Bx, 5Jx, 5Kx, 5Lx, 67x, 7Xx, 93x, 94x
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 3Gx, 4Vx
v4058-CTO, 22x
v4061-CTO, 4Px, 64x
v4062-CTO, 29x, 2Dx, 2Ex, 3Qx, 4Fx, 4Gx, 4Lx, 58x, 5Dx, 5Ex
v4063-CTO
v4064-CTO
v4065-CTO
43R1989 **
192 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
19 2-GB DDR3-1067 SDRAM SO-DIMM (PC3-8500) card
v2055-CTO, 2Cx, 2Dx, 2Ex, 2Lx, 2Mx, 2Nx, 2Px, 2Vx, 2Xx, 3Ax, 45x, 48x, 49x,
4Cx, 4Ex, 4Fx, 4Gx, 4Hx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 63x, 65x, 75x, 76x, 77x,
78x, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx,
8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 9Ax, 9Bx, 9Cx, 9Dx,
9Kx, 9Lx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, A2x, A3x, A4x, A5x,
A6x, A7x, A8x, A9x, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx, ARx, ASx,
ATx, AUx, AVx, AWx, AXx, AYx, AZx, B2x, B3x, B4x, E1x, E2x, E3x
v2056-CTO, 4Qx, 4Rx, 4Sx, 5Tx, 63x, 7Ax, 7Bx, 7Cx, 7Lx, E1x, E2x, E3x
v2081-CTO, 22x, 53x, 7Wx, 9Mx
v2082-CTO, 27x, 28x, 3Gx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 52x, 53x, 54x, 55x, 58x, 59x,
5Ax, 5Bx, 5Cx, 5Dx, 5Px, 5Qx, 5Zx, 66x, 6Kx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx,
6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx,
7Tx, 7Ux, 7Vx, 7Xx, 7Yx, 82x, 84x, 85x, 86x, 87x, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx,
92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Nx, 9Px, 9Qx,
AAx, ABx, ACx, ADx, AEx, AFx, AGx, B5x, B6x, B7x, B8x, B9x, BAx, BBx,
BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, BMx, BNx, BPx, BQx, BRx, BSx,
BTx, BUx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 88x
v2089-CTO, 2Kx, 2Mx, 2Wx, 3Nx, 3Sx, 3Ux, 4Xx, 4Yx, 4Zx, 54x, 58x, 5Rx, 5Wx,
5Xx, 5Yx, 6Jx, 6Kx, 6Mx, 6Nx, 6Px, 79x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Qx,
82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, E2x, E3x,
E4x, E5x
v2241-CTO, 3Xx, 43x, 44x, 4Xx, 58x, 5Ux, 5Zx, E3x, E4x, E5x
v2242-CTO, 36x, 4Hx, 4Jx, 55x, 5Gx, 5Hx, 5Vx, 66x, 6Bx, 6Cx, 6Rx, 6Sx, 6Zx,
72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Px, 8Qx, 8Rx, 8Sx, BVx, BWx
v2243-CTO, 4Rx, 4Sx, 4Ux, 5Cx, 5Dx, 5Fx, 5Mx, 62x, 63x, 64x, 65x, 68x, 69x,
6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax, 7Bx, 7Cx,
7Dx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Wx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx,
92x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, BXx, BYx
v2261-CTO, 2Dx, 3Ex, 3Fx, 7Zx
v4058-CTO, 23x, 3Lx, 4Sx
v4061-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Zx, 32x, 38x,
39x, 3Dx, 3Ex, 3Fx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x,
46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Px, 4Qx, 4Rx, 4Ux, 4Vx, 4Wx, 4Zx, 52x, 53x,
64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx,
6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 2Ax, 2Bx, 2Cx, 2Fx, 2Gx, 2Xx, 2Yx, 35x,
36x, 37x, 3Ax, 3Bx, 3Cx, 3Gx, 3Hx, 3Jx, 3Kx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx,
4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Tx, 4Xx, 4Yx, 54x, 55x,
56x, 57x, 58x, 59x, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx,
5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 2Tx, 2Ux, 33x, 34x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
43R1969 **
Parts list 193
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
19 4-GB DDR3-1067 SDRAM SO-DIMM (PC3-8500) card
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
51J0494 **
20 System board assembly, Intel Integrated graphics 4500MHD, non-AMT, TPM for
T500
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
60Y3769 N
20 System board assembly, Intel Integrated graphics 4500MHD, non-AMT,
non-TPM for T500
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
60Y3768 N
194 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
20 System board assembly, Intel Integrated graphics 4500MHD, AMT, TPM for
T500
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Qx, 2Rx, 2Sx, 2Ux, 2Vx, 2Wx, 2Xx, 2Yx,
3Hx, 3Jx, 3Kx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 4Dx, 4Wx, 4Xx,
4Yx, 4Zx, 52x, 53x, 54x, 58x, 59x, 5Ax, 5Wx, 5Xx, 5Yx, 5Zx, 6Gx, 6Hx, 6Jx,
6Kx, 6Lx, 6Mx, 6Nx, 6Px, 7Kx, 7Qx, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax,
8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, E1x, E2x, E3x,
E4x, E5x
v2241-CTO, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 58x, 5Zx, E1x, E2x, E3x, E4x,
E5x
v2242-CTO
v2243-CTO, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 9Fx,
9Gx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx, 4Vx, 7Zx
60Y3771 N
20 System board assembly, Intel Integrated graphics 4500MHD, AMT, non-TPM
v2089-CTO, 5Nx, 5Px, 5Qx, 5Rx
v2241-CTO, 5Sx, 5Tx, 5Ux
v2242-CTO
v2243-CTO, 5Lx
v2246-CTO
v2247-CTO
v2261-CTO
60Y3770 N
20 System board assembly, Intel Integrated graphics 4500MHD, non-AMT, TPM,
non-vPro for T500
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2088-CTO
v2089-CTO, 79x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx
v2241-CTO
v2242-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x,
39x, 3Ax, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 55x, 5Ex, 5Fx, 5Gx, 5Hx, 5Vx, 66x,
6Bx, 6Cx, 6Rx, 6Sx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Sx, BVx,
BWx
v2243-CTO, 2Bx, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx,
4Tx, 56x, 57x, 5Bx, 5Cx, 5Dx, 5Fx, 62x, 63x, 64x, 65x, 67x, 68x, 69x, 6Ax, 6Tx,
6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax, 7Rx, 7Sx, 7Wx, 7Xx, 7Yx, 99x, 9Ax,
9Bx, 9Cx, 9Dx, 9Ex, BXx, BYx
v2261-CTO
60Y3763 N
Parts list 195
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
20 System board assembly, Intel Integrated graphics 4500MHD, non-AMT,
non-TPM, non-vPro for T500
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 8Px
v2243-CTO, 4Ux, 5Jx, 5Kx, 5Mx, 6Dx, 6Ex, 6Fx, 7Bx, 7Cx, 7Dx
v2261-CTO
60Y3762 N
20 System board assembly, AMD M86 256 MB, non-AMT, TPM for T500
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
60Y3773 N
20 System board assembly, AMD M86 256 MB, non-AMT, non-TPM for T500
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
60Y3772 N
20 System board assembly, AMD M86 256 MB, AMT, TPM for T500
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Ex, 2Lx, 2Mx, 2Nx, 2Px, 2Vx, 2Xx, 3Ax, 45x, 46x,
47x, 48x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 5Rx, 5Sx, 5Tx, 5Ux,
5Vx, 5Wx, 62x, 63x, 65x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 89x, 8Ax, 8Bx,
8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx,
8Tx, 9Dx, 9Kx, 9Lx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx, 9Yx, 9Zx, A2x, A3x, A4x,
A5x, A6x, A7x, A8x, A9x, AKx, ALx, AMx, ANx, APx, AQx, ARx, ASx, ATx,
AUx, AVx, AWx, AXx, AYx, AZx, B2x, B3x, B4x, E1x, E2x, E3x
v2056-CTO, 34x, 4Kx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 5Tx, 63x, 7Ax, 7Lx, E1x, E2x,
E3x
v2081-CTO
v2082-CTO, 7Rx, 7Sx, 7Tx, 7Ux, 86x, AAx, ABx, ACx, ADx, AEx, AFx, AGx,
B7x, B8x, B9x, BAx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BTx, BUx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v
60Y3775 N
20 System board assembly, AMD M86 256 MB, AMT, non-TPM for T500
v2055-CTO, 64x, 74x, 75x, 76x, 77x, 78x
v2056-CTO, 79x, 7Ax, 7Bx, 7Cx
v2081-CTO
v2082-CTO, 5Px, 6Sx, 6Tx, 6Vx, 6Zx, 72x, 73x, 7Zx, 97x, 98x
v2089-CTO
v2242-CTO
60Y3774 N
196 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
20 System board assembly, AMD M86 256 MB, non-AMT, TPM, non-vPro for T500
v2055-CTO, 8Ux, 9Ax, 9Bx, 9Cx, AHx, AJx
v2056-CTO
v2081-CTO, 22x, 24x, 3Ex, 52x, 53x, 7Wx
v2082-CTO, 26x, 27x, 28x, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Rx, 52x,
53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx,
5Mx, 5Nx, 5Xx, 5Yx, 5Zx, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Vx,
7Xx, 7Yx, 85x, 87x, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 9Fx, 9Gx,
9Hx, 9Jx, 9Px, 9Qx, B5x, B6x, BKx, BMx, BNx, BPx, BQx, BRx, BSx
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO, 97x, 98x
v2261-CTO
60Y3765 N
20 System board assembly, AMD M86 256 MB, non-AMT, non-TPM, non-vPro for
T500
v2055-CTO
v2056-CTO
v2081-CTO, 9Mx
v2082-CTO, 5Qx, 5Rx, 6Rx, 6Ux, 6Wx, 6Xx, 6Yx, 82x, 83x, 84x, 99x, 9Ex, 9Nx,
BBx
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 8Qx, 8Rx
v2243-CTO, 7Mx, 7Nx, 7Px
v2261-CTO
60Y3764 N
20 System board assembly, AMD M86GL-M 512 MB, non-AMT, TPM for W500
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
60Y3777 N
20 System board assembly, AMD M86GL-M 512 MB, non-AMT, non-TPM for W500
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
60Y3776 N
20 System board assembly, AMD M86GL-M 512 MB, AMT, TPM for W500
v4058-CTO
v4061-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Zx, 32x, 38x,
39x, 3Dx, 3Ex, 3Fx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x,
46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Px, 4Ux, 4Vx, 4Wx, 4Zx, 64x, 65x, 66x, 67x, 68x,
69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Gx, 6Hx, 6Lx
v4062-CTO, 3Nx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 62x, 63x
v4063-CTO, 2Tx, 2Ux, 33x, 34x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4064-CTO, 2Wx
60Y3779 N
Parts list 197
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
20 System board assembly, AMD M86GL-M 512 MB, AMT, non-TPM for W500
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
60Y3778 N
20 System board assembly, AMD M86GL-M 512 MB, non-AMT, TPM, non-vPro for
W500
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 4Qx, 4Rx, 52x, 53x, 6Ex, 6Fx, 6Jx, 6Kx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Xx, 2Yx, 35x, 36x, 37x, 3Ax, 3Bx, 3Cx, 3Jx, 3Kx, 3Mx, 3Px, 3Qx, 4Dx, 4Ex,
4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Tx, 4Xx, 4Yx, 54x, 55x, 56x, 58x,
59x, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx,
5Zx
v4063-CTO
v4064-CTO
v4065-CTO
60Y3767 N
20 System board assembly, AMD M86GL-M 512 MB, non-AMT, non-TPM,
non-vPro for W500
v4058-CTO
v4061-CTO
v4062-CTO, 3Gx, 3Hx, 3Rx, 3Sx, 57x
v4063-CTO
v4064-CTO
v4065-CTO
60Y3766 N
21 CPU assembly, Intel®Celeron®processor 900 (2.2 GHz)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
43R0795 N
198 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Celeron Dual Core processor T1600 (1.66 GHz)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 6Qx
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42W8148 N
21 CPU assembly, Intel Celeron Dual Core processor T1700 (1.83 GHz)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42W8147 N
Parts list 199
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Celeron Dual Core processor T3000 (1.8 GHz)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
43R0894 N
21 CPU assembly, Intel Celeron Dual Core processor T3100 (1.9 GHz)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
45M2815 N
200 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel®CoreTM 2 Duo mobile processor P7370 (2.0 GHz)
v2055-CTO, 7Ex, 7Fx
v2056-CTO
v2081-CTO
v2082-CTO, 7Dx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 5Vx, 6Rx, 6Sx
v2243-CTO, 6Xx, 76x
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42W8149 N
21 CPU assembly, Intel Core 2 Duo mobile processor P8400 (2.26 GHz)
v2055-CTO, 48x, 4Bx, 5Rx, 5Sx, 62x, 64x, 9Lx, A3x, A4x, A5x, A6x
v2056-CTO, 34x, 4Kx
v2081-CTO, 9Mx
v2082-CTO, 26x, 3Fx, 3Hx, 3Nx, 6Vx, 9Nx, AAx, ABx, ACx, ADx, AEx, AFx,
AGx, BCx, BDx, BEx, BJx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO, 44x
v2089-CTO, 2Hx, 2Jx, 2Qx, 2Vx, 2Yx, 3Kx, 3Lx, 3Px, 3Qx, 3Rx, 3Tx, 4Dx, 4Wx,
59x, 7Qx, 8Nx
v2241-CTO, 3Wx, 3Zx, 5Sx, E1x
v2242-CTO, 22x, 26x, 28x, 32x, 33x, 35x, 37x, 38x, 3Ax, 4Ex, 4Fx, 4Kx, 5Ex, 5Fx,
5Gx, 5Hx, 7Ux, 7Vx, 8Px
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Rx, 5Dx, 5Jx, 5Kx, 5Lx,
7Rx, 7Sx, 7Xx, 7Yx, BXx, BYx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Fx, 2Hx, 3Dx, 3Gx, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42W7984 N
Parts list 201
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Core 2 Duo mobile processor P8400 (2.26 GHz), R-0
v2055-CTO, 48x, 4Bx, 5Rx, 5Sx, 62x, 64x, 9Lx, A3x, A4x, A5x, A6x
v2056-CTO, 34x, 4Kx
v2081-CTO, 9Mx
v2082-CTO, 26x, 3Fx, 3Hx, 3Nx, 6Vx, 9Nx, AAx, ABx, ACx, ADx, AEx, AFx,
AGx, BCx, BDx, BEx, BJx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO, 44x
v2089-CTO, 2Hx, 2Jx, 2Qx, 2Vx, 2Yx, 3Kx, 3Lx, 3Px, 3Qx, 3Rx, 3Tx, 4Dx, 4Wx,
59x, 7Qx, 8Nx
v2241-CTO, 3Wx, 3Zx, 5Sx, E1x
v2242-CTO, 22x, 26x, 28x, 32x, 33x, 35x, 37x, 38x, 3Ax, 4Ex, 4Fx, 4Kx, 5Ex, 5Fx,
5Gx, 5Hx, 7Ux, 7Vx, 8Px
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Rx, 5Dx, 5Jx, 5Kx, 5Lx,
7Rx, 7Sx, 7Xx, 7Yx, BXx, BYx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Fx, 2Hx, 3Dx, 3Gx, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42W8286 N
21 CPU assembly, Intel Core 2 Duo mobile processor P8600 (2.40 GHz)
v2055-CTO, 2Lx, 2Mx, 47x, 49x, 4Ax, 4Dx, 4Ex, 65x, 76x, 7Gx, 7Hx, 7Kx, 8Qx
v2056-CTO, 7Lx
v2081-CTO, 52x
v2082-CTO, 3Lx, 3Mx, 52x, 53x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Qx, 6Lx, 6Tx,
6Ux, 6Wx, 6Yx, 72x, 7Mx, 7Nx, 7Px, 7Qx, 7Vx, 7Yx, 8Zx, 92x, 97x, BFx, BGx,
BHx
v2083-CTO
v2087-CTO
v2088-CTO, 3Yx
v2089-CTO, 2Rx, 2Sx, 2Wx, 2Xx, 3Nx, 3Sx, 3Vx, 4Yx, 4Zx, 52x, 53x, 5Ax, 5Nx,
5Px, 5Wx, 5Xx, 5Yx, E3x, E5x
v2241-CTO, 43x, 5Zx, E4x
v2242-CTO, 24x, 25x, 27x, 36x, 39x, 4Gx, 4Jx, 66x, 6Bx, 6Cx, 6Yx, 6Zx, 72x, 73x,
8Qx, 8Sx, BVx, BWx
v2243-CTO, 2Bx, 4Sx, 4Tx, 5Fx, 62x, 63x, 64x, 65x, 67x, 68x, 69x, 6Ax, 77x, 78x,
7Ax, 7Bx, 7Px, 8Wx, 8Xx, 8Yx, 93x, 94x, 95x, 96x, 97x, 98x
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 2Ex, 2Gx, 3Ex, 3Fx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42W7985 N
202 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Core 2 Duo mobile processor P8600 (2.40 GHz), R-0
v2055-CTO, 2Lx, 2Mx, 47x, 49x, 4Ax, 4Dx, 4Ex, 65x, 76x, 7Gx, 7Hx, 7Kx, 8Qx
v2056-CTO, 7Lx
v2081-CTO, 52x
v2082-CTO, 3Lx, 3Mx, 52x, 53x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Qx, 6Lx, 6Tx,
6Ux, 6Wx, 6Yx, 72x, 7Mx, 7Nx, 7Px, 7Qx, 7Vx, 7Yx, 8Zx, 92x, 97x, BFx, BGx,
BHx
v2083-CTO
v2087-CTO
v2088-CTO, 3Yx
v2089-CTO, 2Rx, 2Sx, 2Wx, 2Xx, 3Nx, 3Sx, 3Vx, 4Yx, 4Zx, 52x, 53x, 5Ax, 5Nx,
5Px, 5Wx, 5Xx, 5Yx, E3x, E5x
v2241-CTO, 43x, 5Zx, E4x
v2242-CTO, 24x, 25x, 27x, 36x, 39x, 4Gx, 4Jx, 66x, 6Bx, 6Cx, 6Yx, 6Zx, 72x, 73x,
8Qx, 8Sx, BVx, BWx
v2243-CTO, 2Bx, 4Sx, 4Tx, 5Fx, 62x, 63x, 64x, 65x, 67x, 68x, 69x, 6Ax, 77x, 78x,
7Ax, 7Bx, 7Px, 8Wx, 8Xx, 8Yx, 93x, 94x, 95x, 96x, 97x, 98x
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 2Ex, 2Gx, 3Ex, 3Fx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42W8287 N
21 CPU assembly, Intel Core 2 Duo mobile processor P8700 (2.53 GHz)
v2055-CTO, 7Lx, 89x, 8Ex, 8Fx, 8Gx, 8Jx, 8Nx, 8Rx, 9Bx, 9Cx, 9Dx, 9Kx, 9Rx,
AMx, ANx, AUx
v2056-CTO
v2081-CTO
v2082-CTO, 85x, 8Vx, 8Wx, 8Xx, 8Yx, 98x, B7x, B8x, BBx, BKx, BMx, BPx, BQx,
BTx, BUx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 5Zx, 6Gx, 6Jx, 6Kx, 6Mx, 6Nx, 6Px, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 82x,
8Dx, 8Ex, 8Fx, E4x
v2241-CTO, E5x
v2242-CTO, 7Lx, 8Rx
v2243-CTO, 6Tx, 6Ux, 6Vx, 6Wx, 7Cx, 7Nx, 7Wx, 8Tx, 8Ux, 8Vx, 8Zx, 92x, 9Ax,
9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx
v2246-CTO
v2247-CTO
v2261-CTO, 7Zx
v4058-CTO
v4061-CTO, 49x
v4062-CTO, 54x, 55x, 56x
v4063-CTO
v4064-CTO
v4065-CTO
42W8194 N
Parts list 203
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Core 2 Duo mobile processor P8800 (2.66 GHz)
v2055-CTO, 9Tx, 9Ux, 9Vx, 9Wx, A7x, A9x, APx, AQx, ARx, AVx, AWx, AXx,
AYx, AZx
v2056-CTO
v2081-CTO
v2082-CTO, 9Px, 9Qx, B9x, BAx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 83x, 84x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx,
8Mx
v2241-CTO
v2242-CTO
v2243-CTO,
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO, 5Qx, 5Rx, 5Sx, 5Tx
v4063-CTO
v4064-CTO
v4065-CTO
45M2814 N
21 CPU assembly, Intel Core 2 Duo mobile processor P9500 (2.53 GHz)
v2055-CTO, 2Xx, 4Cx, 4Fx
v2056-CTO
v2081-CTO, 22x, 24x
v2082-CTO, 28x, 3Jx, 3Kx, 5Px, 6Rx, 6Sx, 6Zx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 42x
v2089-CTO, 3Ux
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 2Jx, 2Lx, 2Mx
v4062-CTO, 2Xx, 2Yx, 36x, 3Hx
v4063-CTO
v4064-CTO
v4065-CTO
42W7986 N
204 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Core 2 Duo mobile processor P9500 (2.53 GHz), E-0
v2055-CTO, 2Xx, 4Cx, 4Fx
v2056-CTO
v2081-CTO, 22x, 24x
v2082-CTO, 28x, 3Jx, 3Kx, 5Px, 6Rx, 6Sx, 6Zx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 42x
v2089-CTO, 3Ux
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 2Jx, 2Lx, 2Mx
v4062-CTO, 2Xx, 2Yx, 36x, 3Hx
v4063-CTO
v4064-CTO
v4065-CTO
42W8288 N
21 CPU assembly, Intel Core 2 Duo mobile processor P9600 (2.80 GHz)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO, 99x
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 3Tx
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42W8198 N
Parts list 205
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Core 2 Duo mobile processor P9700 (2.80 GHz)
v2055-CTO, ASx, ATx
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 64x, 65x, 69x
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
45M2830 N
21 CPU assembly, Intel Core 2 Duo mobile processor T5670 (1.8 GHz)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Xx, 5Yx, 5Zx, 66x, 67x, 68x,
69x, 6Ax, 6Bx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 4Hx
v2243-CTO, 4Px, 4Qx, 4Ux, 56x, 57x, 5Bx, 5Cx, 5Mx
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
43N7741 N
206 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Core 2 Duo mobile processor T5870 (2.0 GHz)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO, 5Mx, 5Nx, 5Rx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 73x
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO, 6Dx, 6Ex
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
43N7739 N
21 CPU assembly, Intel Core 2 Duo mobile processor T6570 (2.1 GHz)
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42W8193 N
Parts list 207
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Core 2 Duo mobile processor T9400 (2.53 GHz)
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Ex, 2Nx, 2Px, 2Vx, 45x, 46x, 4Gx, 5Tx, 5Ux, 5Vx,
5Wx, 63x, 74x, 75x, 77x, 7Jx, 9Sx, B4x, E1x, E3x
v2056-CTO, 4Px, 4Qx, 4Rx, 4Tx, 5Tx, 63x, 79x, 7Ax, 7Bx, E1x, E2x
v2081-CTO, 3Ex
v2082-CTO, 27x, 3Gx, 3Rx, 54x, 55x, 6Jx, 6Kx, 6Mx, 6Nx, 6Px, 6Qx, 6Xx, 7Xx,
93x, 94x, 95x, 96x
v2083-CTO
v2087-CTO
v2088-CTO, 3Zx
v2089-CTO, 2Kx, 2Lx, 2Mx, 2Ux, 3Hx, 3Jx, 3Mx, 4Xx, 54x, 58x, 5Qx, 5Rx, E1x,
E2x
v2241-CTO, 3Xx, 3Yx, 42x, 44x, 4Xx, 58x, 5Tx, 5Ux, E2x, E3x
v2242-CTO, 23x, 34x, 55x, 74x, 75x
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 22x
v4061-CTO, 2Hx, 2Nx, 2Zx, 3Dx, 3Fx
v4062-CTO, 29x, 2Dx, 2Ex, 35x, 3Ax, 3Cx, 3Gx, 3Jx, 3Kx, 4Fx, 58x
v4063-CTO, 2Tx, 33x, 3Fx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42W7987 N
21 CPU assembly, Intel Core 2 Duo mobile processor T9400 (2.53 GHz), E-0
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Ex, 2Nx, 2Px, 2Vx, 45x, 46x, 4Gx, 5Tx, 5Ux, 5Vx,
5Wx, 63x, 74x, 75x, 77x, 7Jx, 9Sx, B4x, E1x, E3x
v2056-CTO, 4Px, 4Qx, 4Rx, 4Tx, 5Tx, 63x, 79x, 7Ax, 7Bx, E1x, E2x
v2081-CTO, 3Ex
v2082-CTO, 27x, 3Gx, 3Rx, 54x, 55x, 6Jx, 6Kx, 6Mx, 6Nx, 6Px, 6Qx, 6Xx, 7Xx,
93x, 94x, 95x, 96x
v2083-CTO
v2087-CTO
v2088-CTO, 3Zx
v2089-CTO, 2Kx, 2Lx, 2Mx, 2Ux, 3Hx, 3Jx, 3Mx, 4Xx, 54x, 58x, 5Qx, 5Rx, E1x,
E2x
v2241-CTO, 3Xx, 3Yx, 42x, 44x, 4Xx, 58x, 5Tx, 5Ux, E2x, E3x
v2242-CTO, 23x, 34x, 55x, 74x, 75x
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 22x
v4061-CTO, 2Hx, 2Nx, 2Zx, 3Dx, 3Fx
v4062-CTO, 29x, 2Dx, 2Ex, 35x, 3Ax, 3Cx, 3Gx, 3Jx, 3Kx, 4Fx, 58x
v4063-CTO, 2Tx, 33x, 3Fx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42W8289 N
208 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Core 2 Duo mobile processor T9550 (2.66 GHz)
v2055-CTO, 8Ax, 8Bx, 8Cx, 8Dx, 8Hx, 8Kx, 8Px, 8Sx
v2056-CTO
v2081-CTO, 7Wx
v2082-CTO, 7Rx, 7Sx, 7Tx, 7Ux, 7Zx, 86x, 87x, 99x, 9Ex
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 6Hx, 6Lx
v2241-CTO
v2242-CTO, 25x
v2243-CTO, 6Fx, 7Dx, 7Mx
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 3Lx
v4061-CTO, 3Ux, 3Wx, 3Xx, 3Yx, 43x, 44x, 48x, 4Ax
v4062-CTO, 3Mx, 3Qx, 3Rx, 3Sx, 59x
v4063-CTO
v4064-CTO
v4065-CTO
42W8195 N
21 CPU assembly, Intel Core 2 Duo mobile processor T9600 (2.80 GHz)
v2055-CTO, 3Ax, 4Hx, 78x, 8Ux, 9Ax, AHx, AJx, AKx, ALx, E2x
v2056-CTO, 4Sx, 7Cx, E3x
v2081-CTO, 53x
v2082-CTO, 9Fx, 9Gx, 9Hx, 9Jx, B5x, B6x, BNx, BRx, BSx
v2083-CTO
v2087-CTO
v2088-CTO, 43x
v2089-CTO, 79x, 7Ex
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 23x, 4Sx
v4061-CTO, 2Kx, 2Px, 2Qx, 2Rx, 2Sx, 32x, 38x, 39x, 3Ex, 4Px, 4Rx, 4Ux, 53x,
68x, 6Ax, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Kx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 2Ax, 2Bx, 2Cx, 2Fx, 2Gx, 37x, 3Bx, 4Dx,
4Ex, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Xx, 4Yx, 57x, 5Cx, 5Dx, 5Hx, 5Jx,
5Nx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 2Ux, 34x
v4064-CTO
v4065-CTO
42W7988 N
Parts list 209
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Core 2 Duo mobile processor T9600 (2.80 GHz), E-0
v2055-CTO, 3Ax, 4Hx, 78x, 8Ux, 9Ax, AHx, AJx, AKx, ALx, E2x
v2056-CTO, 4Sx, 7Cx, E3x
v2081-CTO, 53x
v2082-CTO, 9Fx, 9Gx, 9Hx, 9Jx, B5x, B6x, BNx, BRx, BSx
v2083-CTO
v2087-CTO
v2088-CTO, 43x
v2089-CTO, 79x, 7Ex
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 23x, 4Sx
v4061-CTO, 2Kx, 2Px, 2Qx, 2Rx, 2Sx, 32x, 38x, 39x, 3Ex, 4Px, 4Rx, 4Ux, 53x,
68x, 6Ax, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Kx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 2Ax, 2Bx, 2Cx, 2Fx, 2Gx, 37x, 3Bx, 4Dx,
4Ex, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Xx, 4Yx, 57x, 5Cx, 5Dx, 5Hx, 5Jx,
5Nx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 2Ux, 34x
v4064-CTO
v4065-CTO
42W8290 N
21 CPU assembly, Intel Core 2 Duo mobile processor T9800 (2.93 GHz)
v2055-CTO, 8Lx, 8Mx, 8Tx, B2x, B3x
v2056-CTO
v2081-CTO
v2082-CTO, 82x, 83x, 84x
v2083-CTO
v2087-CTO
v2088-CTO, 88x
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 3Vx, 3Zx, 42x, 45x, 46x, 47x, 4Bx, 4Qx, 4Zx, 52x, 6Hx, 6Jx
v4062-CTO, 3Nx, 3Px
v4063-CTO, 4Cx
v4064-CTO
v4065-CTO
42W8196 N
210 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
21 CPU assembly, Intel Core 2 Duo mobile processor T9900 (3.06 GHz)
v2055-CTO, 9Xx, 9Yx, 9Zx, A2x, A8x
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 85x, 86x
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 4Vx, 4Wx, 66x, 67x, 6Bx
v4062-CTO, 4Tx, 5Ex, 5Fx, 5Gx, 5Kx, 5Lx, 5Mx, 5Px
v4063-CTO
v4064-CTO
v4065-CTO
42W8197 N
Parts list 211
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
22 ExpressCard/PC Card slot
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Ex, 2Lx, 2Mx, 2Nx, 2Px, 3Ax, 45x, 46x, 47x, 49x,
4Ax, 4Bx, 4Cx, 4Dx, 4Fx, 4Gx, 4Hx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 62x, 63x,
64x, 65x, 74x, 75x, 76x, 77x, 78x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 89x, 8Ax,
8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx,
8Tx, 8Ux, 9Ax, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx, 9Xx,
9Yx, 9Zx, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AHx, AJx, AKx, ALx,
AMx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, AXx, B2x, B3x, B4x,
E1x, E2x
v2056-CTO, 4Kx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 5Tx, 63x, 79x, 7Ax, 7Bx, 7Cx, 7Lx,
E1x, E2x, E3x
v2081-CTO, 3Ex, 52x, 53x, 7Wx, 9Mx
v2082-CTO, 26x, 27x, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Rx, 52x, 53x,
54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx,
5Nx, 5Px, 5Qx, 5Rx, 5Xx, 5Yx, 5Zx, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx,
6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux,
6Vx, 6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx,
7Ux, 7Vx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 8Vx, 8Wx, 8Xx, 8Yx,
8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Nx, 9Px,
9Qx, AAx, ABx, ACx, ADx, AEx, AFx, AGx, B5x, B6x, B7x, B8x, B9x, BAx,
BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, BMx, BNx, BPx, BQx, BRx,
BSx, BTx, BUx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Qx, 2Rx, 2Sx, 2Ux, 2Vx, 2Xx, 2Yx, 3Hx,
3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Tx, 3Ux, 3Vx, 4Dx, 4Wx, 4Xx, 4Yx,
4Zx, 52x, 53x, 54x, 58x, 59x, 5Ax, 5Nx, 5Px, 5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 79x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,
7Kx, 7Qx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx,
8Gx, 8Hx, 8Jx, 8Kx, 8Nx, E1x, E2x, E3x, E4x
v2241-CTO, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 58x, 5Sx, 5Tx, 5Ux, 5Zx,
E1x, E2x, E3x, E4x, E5x
v2242-CTO, 22x, 23x, 26x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 39x, 3Ax, 4Ex,
4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 55x, 5Ex, 5Fx, 5Gx, 5Hx, 5Vx, 66x, 6Bx, 6Cx, 6Rx,
6Sx, 6Yx, 6Zx, 72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Sx, BVx, BWx
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx,
4Ux, 56x, 57x, 5Bx, 5Cx, 5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 62x, 63x, 64x, 65x, 67x,
68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax,
7Bx, 7Cx, 7Dx, 7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Wx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx,
8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex,
9Fx, 9Gx, BXx, BYx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx, 4Vx
v4058-CTO, 22x, 3Lx
v4061-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Px, 2Qx, 2Rx, 2Sx, 2Zx, 32x, 38x, 39x, 3Dx,
3Ex, 3Fx, 3Tx, 3Ux, 3Vx, 3Wx, 3Yx, 3Zx, 43x, 45x, 47x, 48x, 49x, 4Ax, 4Bx,
4Px, 4Ux, 4Wx, 4Zx, 64x, 65x, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex,
6Fx, 6Gx, 6Hx, 6Jx
v4062-CTO, 24x, 25x, 26x, 27x, 2Gx, 2Xx, 2Yx, 35x, 36x, 37x, 3Ax, 3Bx, 3Cx,
3Gx, 3Hx, 3Jx, 3Kx, 3Nx, 3Px, 3Rx, 3Sx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx,
4Lx, 4Nx, 4Tx, 4Yx, 54x, 55x, 58x, 59x, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx,
5Lx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Vx, 5Xx, 5Zx, 63x
v4063-CTO, 2Tx, 2Ux, 33x, 34x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42W3436 N
212 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
22 ExpressCard/Smart Card slot
v2055-CTO, 2Vx, 2Xx, 48x, 4Ex, 8Lx, AYx, AZx, E3x
v2056-CTO, 34x
v2081-CTO, 22x, 24x
v2082-CTO, 28x
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 3Yx
v2089-CTO, 2Wx, 3Sx, 8Lx, 8Mx, E5x
v2241-CTO
v2242-CTO, 24x, 25x, 27x, 8Px, 8Qx, 8Rx
v2243-CTO, 2Bx
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 7Zx
v4058-CTO, 23x, 4Sx
v4061-CTO, 2Mx, 2Nx, 3Xx, 42x, 44x, 46x, 4Qx, 4Rx, 4Vx, 52x, 53x, 6Kx, 6Lx
v4062-CTO, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 3Mx, 3Qx, 4Mx, 4Xx, 56x,
57x, 5Sx, 5Tx, 5Ux, 5Wx, 5Yx, 62x
v4063-CTO
v4064-CTO
v4065-CTO
42X4992 N
22 PC Card/Smart Card slot
v2055-CTO, 2Vx, 2Xx, 48x, 4Ex, 8Lx, AYx, AZx, E3x
v2056-CTO, 34x
v2081-CTO, 22x, 24x
v2082-CTO, 28x
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 3Yx
v2089-CTO, 2Wx, 3Sx, 8Lx, 8Mx, E5x
v2241-CTO
v2242-CTO, 24x, 25x, 27x, 8Px, 8Qx, 8Rx
v2243-CTO, 2Bx
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 7Zx
v4058-CTO, 23x, 4Sx
v4061-CTO, 2Mx, 2Nx, 3Xx, 42x, 44x, 46x, 4Qx, 4Rx, 4Vx, 52x, 53x, 6Kx, 6Lx
v4062-CTO, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 3Mx, 3Qx, 4Mx, 4Xx, 56x,
57x, 5Sx, 5Tx, 5Ux, 5Wx, 5Yx, 62x
v4063-CTO
v4064-CTO
v4065-CTO
45M2418 N
Parts list 213
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
23 Qualcomm®UNDP1 - Wireless WAN card
v2055-CTO, 2Ex
v2056-CTO
v2081-CTO
v2082-CTO, BMx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Lx
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO, 5Fx
v4063-CTO
v4064-CTO
v4065-CTO
42T0961 **
23 Ericsson F3507g USA - Wireless WAN card
v2055-CTO, AKx, ALx
v2056-CTO
v2081-CTO
v2082-CTO, 26x, 27x, 95x
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 3Jx, 8Fx
v2241-CTO
v2242-CTO, 22x, 23x, 32x, 4Ex
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 6Ax, 6Bx
v4062-CTO, 24x, 25x, 4Hx
v4063-CTO
v4064-CTO
v4065-CTO
43Y6537 **
214 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
23 Ericsson F3507g Other - Wireless WAN card
v2055-CTO, 5Vx, 7Hx, 8Cx, 8Gx, 8Mx, 9Ax, 9Cx, 9Wx, 9Yx, A2x, AXx, AZx,
B3x
v2056-CTO
v2081-CTO
v2082-CTO, 52x, 54x, 5Ax, 6Nx, 6Qx, 7Nx, 7Qx, 7Sx, 7Ux, 86x, 87x, 8Wx, 8Yx,
9Fx, 9Hx, 9Qx, B9x, BAx, BQx, BSx, BUx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 4Dx, 4Yx, 5Xx, 6Jx, 6Nx, 7Ex, 7Gx, 7Jx, 83x, 86x, 88x, 8Ax,
8Gx, 8Jx, 8Lx
v2241-CTO
v2242-CTO
v2243-CTO, 4Ex, 4Mx, 63x, 65x, 6Ux, 6Wx, 9Ex, 9Gx, BYx
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 43x, 47x, 4Ux, 4Wx
v4062-CTO, 3Cx, 3Jx, 3Nx, 4Dx, 4Mx, 4Tx, 4Xx, 55x, 56x, 5Hx, 5Jx, 5Kx, 5Lx,
5Mx, 5Nx, 5Px, 5Sx, 5Tx, 5Ux, 5Wx, 5Yx, 62x
v4063-CTO
v4064-CTO
v4065-CTO
43Y6513 **
24 Thermal device and fan (Integrated)
v2089-all
v2241-all
v2242-all
v2243-all
v2246-all
v2247-all
v2261-all
45N5490 N
24 Thermal device and fan (Discrete)
v2055-all
v2056-all
v2083-all
v2087-all
v2081-all
v2082-all
v2088-all
v4058-all
v4061-all
v4062-all
v4063-all
v4064-all
v4065-all
45N5492 N
Parts list 215
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
25 Palm rest assembly without fingerprint reader
v2055-CTO, 2Vx, 4Bx, 4Cx, 4Dx, E3x
v2056-CTO
v2081-CTO, 9Mx
v2082-CTO, 5Ex, 5Xx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Vx, 3Tx, 3Ux, 3Vx, 6Qx, 7Fx, 7Gx, 7Hx, 7Jx, 87x, 88x, 89x, 8Ax,
E5x
v2241-CTO
v2242-CTO, 4Ex, 4Fx, 5Fx, 6Yx, 8Px
v2243-CTO, 4Px, 4Qx, 56x, 57x
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 4R, 53, 6Kx
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
44C0662 **
216 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
25 Palm rest assembly with fingerprint reader
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Ex, 2Lx, 2Mx, 2Nx, 2Px, 2Xx, 3Ax, 45x, 46x, 47x,
48x, 49x, 4Ax, 4Ex, 4Fx, 4Gx, 4Hx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 62x, 63x,
64x, 65x, 74x, 75x, 76x, 77x, 78x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 89x, 8Ax,
8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx,
8Sx, 8Tx, 8Ux, 9Ax, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx,
9Xx, 9Yx, 9Zx, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AHx, AJx, AKx, ALx,
AMx, ANx, APx, AQx, ARx, ASx, ATx, AUx, AVx, AWx, AXx, AYx, AZx, B2x,
B3x, B4x, E1x, E2x
v2056-CTO, 34x, 4Kx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 5Tx, 63x, 79x, 7Ax, 7Bx, 7Cx,
7Lx, E1x, E2x, E3x
v2081-CTO, 22x, 24x, 3Ex, 52x, 53x, 7Wx
v2082-CTO, 26x, 27x, 28x, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Rx, 52x,
53x, 54x, 55x, 56x, 57x, 58x, 59x, 5Ax, 5Bx, 5Cx, 5Dx, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx,
5Nx, 5Px, 5Qx, 5Rx, 5Yx, 5Zx, 66x, 67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex,
6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 6Rx, 6Sx, 6Tx, 6Ux, 6Vx,
6Wx, 6Xx, 6Yx, 6Zx, 72x, 73x, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux,
7Vx, 7Xx, 7Yx, 7Zx, 82x, 83x, 84x, 85x, 86x, 87x, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x,
93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ex, 9Fx, 9Gx, 9Hx, 9Jx, 9Nx, 9Px, 9Qx, AAx,
ABx, ACx, ADx, AEx, AFx, AGx, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx,
BDx, BEx, BFx, BGx, BHx, BJx, BKx, BMx, BNx, BPx, BQx, BRx, BSx, BTx,
BUx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Qx, 2Rx, 2Sx, 2Ux, 2Wx, 2Xx, 2Yx, 3Hx,
3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 4Dx, 4Wx, 4Xx, 4Yx, 4Zx, 52x,
53x, 54x, 58x, 59x, 5Ax, 5Nx, 5Px, 5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx, 6Gx, 6Hx,
6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 79x, 7Ex, 7Kx, 7Qx, 82x, 83x, 84x, 85x, 86x, 8Bx,
8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, E1x, E2x, E3x, E4x
v2241-CTO, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 58x, 5Sx, 5Tx, 5Ux, 5Zx,
E1x, E2x, E3x, E4x, E5x
v2242-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x,
39x, 3Ax, 4Gx, 4Hx, 4Jx, 4Kx, 55x, 5Ex, 5Gx, 5Hx, 5Vx, 66x, 6Bx, 6Cx, 6Rx,
6Sx, 6Zx, 72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Qx, 8Rx, 8Sx, BVx, BWx
v2243-CTO, 2Bx, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux,
5Bx, 5Cx, 5Dx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 62x, 63x, 64x, 65x, 67x, 68x, 69x, 6Ax,
6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax, 7Bx, 7Cx, 7Dx,
7Mx, 7Nx, 7Px, 7Rx, 7Sx, 7Wx, 7Xx, 7Yx, 8Tx, 8Ux, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx,
92x, 93x, 94x, 95x, 96x, 97x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, BXx,
BYx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx, 4Vx, 7Zx
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Zx, 32x, 38x,
39x, 3Dx, 3Ex, 3Fx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x,
46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Px, 4Qx, 4Ux, 4Vx, 4Wx, 4Zx, 52x, 64x, 65x, 66x,
67x, 68x, 69x, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx,
2Xx, 2Yx, 35x, 36x, 37x, 3Ax, 3Bx, 3Cx, 3Gx, 3Hx, 3Jx, 3Kx, 3Mx, 3Nx, 3Px,
3Qx, 3Rx, 3Sx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 4Jx, 4Kx, 4Lx, 4Mx, 4Nx, 4Tx, 4Xx,
4Yx, 54x, 55x, 56x, 57x, 58x, 59x, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx,
5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 2Tx, 2Ux, 33x, 34x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
44C0664 **
Parts list 217
Table 40. Parts list—Overall (continued)
No. FRU FRU no. CRU ID
26 Keyboard (see “Keyboard” on page 237.)
27 TrackPoint stick caps 91P9642 *
— Thermal grease 91P8835 N
— Telephone cable, RoHS 91P6915 *
— AC adapter (see “AC adapters” on page 241.)
218 ThinkPad T500 and W500 Hardware Maintenance Manual
LCD FRUs
In ThinkPad T500 and W500, there are following types of LCDs.
v15.4-in. WXGA TFT LCD (Table 41 on page 220)
v15.4-in. WSXGA+ TFT LCD (Table 42 on page 229)
v15.4-in. WUXGA TFT LCD (Table 43 on page 233)
1
3
4
5
6
7
2
8
9
10
Parts list 219
Table 41. Parts list—15.4-in. WXGA TFT
No. FRU FRU no. CRU ID
1 LCD cover kit 43Y9735 N
2 Integrated camera
v2055-CTO, 48x, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 62x, 64x, 7Fx, 7Gx, 7Hx, 7Jx,
8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Nx, 8Qx, 8Rx, 8Sx, 8Tx, 9Dx, 9Lx, 9Rx, 9Vx, 9Wx,
A3x, A4x, A5x, A6x, A7x, AMx, APx, ARx, ASx, AUx
v2056-CTO, 5Tx
v2081-CTO, 9Mx
v2082-CTO, 3Mx, 3Nx, 58x, 5Cx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Yx, 5Zx, 67x, 6Dx,
6Mx, 6Nx, 6Px, 6Qx, 6Ux, 6Vx, 6Zx, 72x, 73x, 7Zx, 82x, 85x, 9Ex, 9Nx, 9Px,
AAx, ABx, ACx, ADx, AEx, AFx, AGx, B7x, B8x, BCx, BDx, BEx, BFx, BGx,
BHx, BJx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Kx, 2Mx, 3Hx, 3Kx, 3Mx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 4Wx, 4Xx,
5Qx, 5Rx, 6Lx, 7Hx, 7Jx, 82x, 89x, 8Ax, 8Dx, 8Ex, 8Fx, 8Nx, E1x, E2x, E3x, E4x
v2241-CTO, 3Xx, 3Yx, 3Zx, 42x, 44x, 4Xx, 5Tx, 5Ux, E1x, E2x, E3x, E4x, E5x
v2242-CTO, 23x, 34x, 3Ax, 4Gx, 4Hx, 4Jx, 55x, 5Ex, 5Vx, 66x, 6Cx, 6Rx, 6Sx,
73x, 74x, 75x, 7Lx, 7Vx, 8Qx, BVx, BWx
v2243-CTO, 3Bx, 3Cx, 4Dx, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 5Bx, 5Cx, 5Fx, 5Jx, 5Mx,
62x, 63x, 64x, 65x, 68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x,
78x, 7Ax, 7Px, 7Rx, 7Sx, 7Wx, 7Xx, 7Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 98x, 99x,
9Ax, 9Bx, 9Cx, 9Dx, 9Ex, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 3Gx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T3634 N
3 Wireless LAN/WAN/wireless USB antenna assembly 44C5386 N
3 Wireless LAN/WAN/wireless USB antenna assembly 44C5387 N
4 LCD magnesium structure frame assembly 43Y9736 N
5 LCD cable assembly 44C5385 N
6 Hinge assembly 43Y9737 N
6 Hinge assembly 43Y9738 N
220 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 41. Parts list—15.4-in. WXGA TFT (continued)
No. FRU FRU no. CRU ID
7 Inverter card
v2055-CTO, 2Lx, 2Nx, 48x, 7Lx, 8Ax, 8Nx, A3x, A4x, A5x, A6x, AUx
v2056-CTO
v2081-CTO, 9Mx
v2082-CTO, 3Mx, 3Nx, 58x, 5Xx, 5Yx, 5Zx, 66x, 67x, 6Cx, 6Dx, 6Ux, 6Vx, 97x,
98x, 9Ex, 9Nx, AEx, AFx, AGx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Rx, 2Vx, 2Yx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx,
3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 58x, 59x, 5Ax, 5Nx, 5Qx, 5Wx, 5Xx,
5Zx, 6Mx, 6Nx, 6Qx, 8Nx, E1x, E2x
v2241-CTO, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 58x, 5Sx, 5Tx, E1x, E2x, E3x
v2242-CTO, 22x, 23x, 26x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 3Ax, 4Ex, 4Fx,
55x, 5Ex, 5Fx, 5Vx, 8Px
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 57x, 5Bx, 5Cx, 5Dx, 5Fx,
5Jx, 5Kx, 5Lx, 7Xx, 7Yx, 8Wx, 8Xx, 8Yx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Fx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
41W1338 N
7 Inverter card
v2055-CTO, 2Lx, 2Nx, 48x, 7Lx, 8Ax, 8Nx, A3x, A4x, A5x, A6x, AUx
v2056-CTO
v2081-CTO, 9Mx
v2082-CTO, 3Mx, 3Nx, 58x, 5Xx, 5Yx, 5Zx, 66x, 67x, 6Cx, 6Dx, 6Ux, 6Vx, 97x,
98x, 9Ex, 9Nx, AEx, AFx, AGx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Rx, 2Vx, 2Yx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx,
3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 58x, 59x, 5Ax, 5Nx, 5Qx, 5Wx, 5Xx,
5Zx, 6Mx, 6Nx, 6Qx, 8Nx, E1x, E2x
v2241-CTO, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 58x, 5Sx, 5Tx, E1x, E2x, E3x
v2242-CTO, 22x, 23x, 26x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 3Ax, 4Ex, 4Fx,
55x, 5Ex, 5Fx, 5Vx, 8Px
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 57x, 5Bx, 5Cx, 5Dx, 5Fx,
5Jx, 5Kx, 5Lx, 7Xx, 7Yx, 8Wx, 8Xx, 8Yx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Fx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
13R1015 N
Parts list 221
Table 41. Parts list—15.4-in. WXGA TFT (continued)
No. FRU FRU no. CRU ID
7 LED control card
v2055-CTO, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 62x, 64x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,
8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Qx, 8Rx, 8Sx, 8Tx, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx,
9Vx, 9Wx, 9Zx, A2x, A7x, AMx, APx, ARx, ASx, AWx, AXx
v2056-CTO, 5Tx
v2081-CTO
v2082-CTO, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 6Mx,
6Nx, 6Px, 6Qx, 6Zx, 72x, 73x, 7Zx, 82x, 85x, 9Px, AAx, ABx, ACx, ADx, B7x,
B8x, BCx, BDx, BEx, BFx, BGx, BHx, BJx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 5Rx, 5Yx, 6Jx, 6Kx, 6Lx, 7Fx,
7Gx, 7Hx, 7Jx, 7Kx, 7Qx, 82x, 83x, 84x, 87x, 88x, 89x, 8Ax, 8Bx, 8Dx, 8Ex, 8Fx,
8Gx, 8Hx, E3x, E4x
v2241-CTO, 4Xx, 5Ux, 5Zx, E4x, E5x
v2242-CTO, 4Gx, 4Hx, 4Jx, 4Kx, 5Gx, 5Hx, 66x, 6Bx, 6Cx, 6Rx, 6Sx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Qx, 8Sx, BVx, BWx
v2243-CTO, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 56x, 5Mx, 62x, 63x, 64x, 65x, 67x,
68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax,
7Bx, 7Cx, 7Dx, 7Px, 7Rx, 7Sx, 7Wx, 8Zx, 92x, 93x, 94x, 95x, 96x, 98x, 99x, 9Ax,
9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42W8080 N
222 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 41. Parts list—15.4-in. WXGA TFT (continued)
No. FRU FRU no. CRU ID
7 LED control card
v2055-CTO, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 62x, 64x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,
8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Qx, 8Rx, 8Sx, 8Tx, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx,
9Vx, 9Wx, 9Zx, A2x, A7x, AMx, APx, ARx, ASx, AWx, AXx
v2056-CTO, 5Tx
v2081-CTO
v2082-CTO, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 6Mx,
6Nx, 6Px, 6Qx, 6Zx, 72x, 73x, 7Zx, 82x, 85x, 9Px, AAx, ABx, ACx, ADx, B7x,
B8x, BCx, BDx, BEx, BFx, BGx, BHx, BJx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 5Rx, 5Yx, 6Jx, 6Kx, 6Lx, 7Fx,
7Gx, 7Hx, 7Jx, 7Kx, 7Qx, 82x, 83x, 84x, 87x, 88x, 89x, 8Ax, 8Bx, 8Dx, 8Ex, 8Fx,
8Gx, 8Hx, E3x, E4x
v2241-CTO, 4Xx, 5Ux, 5Zx, E4x, E5x
v2242-CTO, 4Gx, 4Hx, 4Jx, 4Kx, 5Gx, 5Hx, 66x, 6Bx, 6Cx, 6Rx, 6Sx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Qx, 8Sx, BVx, BWx
v2243-CTO, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 56x, 5Mx, 62x, 63x, 64x, 65x, 67x,
68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax,
7Bx, 7Cx, 7Dx, 7Px, 7Rx, 7Sx, 7Wx, 8Zx, 92x, 93x, 94x, 95x, 96x, 98x, 99x, 9Ax,
9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42W8082 N
Parts list 223
Table 41. Parts list—15.4-in. WXGA TFT (continued)
No. FRU FRU no. CRU ID
8 Bluetooth daughter card (BDC-2.1)
v2055-CTO, 2Lx, 2Nx, 48x, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 62x, 64x, 7Fx, 7Gx,
7Hx, 7Jx, 7Lx, 8Ax, 8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Nx, 8Qx, 8Rx, 8Sx, 8Tx, 9Bx,
9Cx, 9Dx, 9Kx, 9Lx, 9Rx, 9Vx, 9Wx, 9Zx, A2x, A3x, A4x, A5x, A6x, A7x, AMx,
APx, ARx, ASx, AUx, AWx, AXx
v2056-CTO, 5Tx
v2081-CTO, 9Mx
v2082-CTO, 3Mx, 3Nx, 58x, 5Cx, 5Dx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 5Xx, 5Yx, 5Zx,
6Cx, 6Dx, 6Mx, 6Nx, 6Px, 6Qx, 6Ux, 6Vx, 6Zx, 72x, 73x, 7Zx, 82x, 85x, 97x,
98x, 9Ex, 9Nx, 9Px, AAx, ABx, ACx, ADx, AEx, AFx, AGx, B7x, B8x, BCx,
BDx, BEx, BFx, BGx, BHx, BJx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Rx, 2Vx, 2Yx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx,
3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x,
58x, 59x, 5Ax, 5Nx, 5Qx, 5Rx, 5Wx, 5Xx, 5Yx, 5Zx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx,
6Qx, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Qx, 82x, 83x, 84x, 87x, 88x, 89x, 8Ax, 8Bx, 8Dx,
8Ex, 8Fx, 8Gx, 8Hx, 8Nx, E1x, E2x, E3x, E4x
v2241-CTO, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 58x, 5Sx, 5Tx, 5Ux, 5Zx,
E1x, E2x, E3x, E4x, E5x
v2242-CTO, 23x, 26x, 28x, 32x, 34x, 35x, 36x, 37x, 38x, 3Ax, 4Gx, 4Hx, 4Jx, 4Kx,
55x, 5Ex, 5Hx, 5Vx, 66x, 6Cx, 6Rx, 6Sx, 73x, 74x, 75x, 7Lx, 7Vx, 8Qx, BVx,
BWx
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx,
4Ux, 57x, 5Bx, 5Cx, 5Fx, 5Jx, 5Kx, 5Lx, 5Mx, 62x, 63x, 64x, 65x, 67x, 68x, 69x,
6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax, 7Bx, 7Cx,
7Dx, 7Px, 7Rx, 7Sx, 7Wx, 7Xx, 7Yx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x,
96x, 98x, 99x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, BXx, BYx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Fx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T0969 N
224 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 41. Parts list—15.4-in. WXGA TFT (continued)
No. FRU FRU no. CRU ID
9 LCD panel, 15.4-in. WXGA
v2055-CTO, 2Lx, 2Nx, 48x, 7Lx, 8Ax, 8Nx, A3x, A4x, A5x, A6x, AUx
v2056-CTO
v2081-CTO, 9Mx
v2082-CTO, 3Mx, 3Nx, 58x, 5Xx, 5Yx, 5Zx, 66x, 67x, 6Cx, 6Dx, 6Ux, 6Vx, 97x,
98x, 9Ex, 9Nx, AEx, AFx, AGx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Rx, 2Vx, 2Yx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx,
3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 58x, 59x, 5Ax, 5Nx, 5Qx, 5Wx, 5Xx,
5Zx, 6Mx, 6Nx, 6Qx, 8Nx, E1x, E2x
v2241-CTO, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 58x, 5Sx, 5Tx, E1x, E2x, E3x
v2242-CTO, 22x, 23x, 26x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 3Ax, 4Ex, 4Fx,
55x, 5Ex, 5Fx, 5Vx, 8Px
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 57x, 5Bx, 5Cx, 5Dx, 5Fx,
5Jx, 5Kx, 5Lx, 7Xx, 7Yx, 8Wx, 8Xx, 8Yx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Fx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T0486 N
9 LCD panel, 15.4-in. WXGA
v2055-CTO, 2Lx, 2Nx, 48x, 7Lx, 8Ax, 8Nx, A3x, A4x, A5x, A6x, AUx
v2056-CTO
v2081-CTO, 9Mx
v2082-CTO, 3Mx, 3Nx, 58x, 5Xx, 5Yx, 5Zx, 66x, 67x, 6Cx, 6Dx, 6Ux, 6Vx, 97x,
98x, 9Ex, 9Nx, AEx, AFx, AGx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Rx, 2Vx, 2Yx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx,
3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 58x, 59x, 5Ax, 5Nx, 5Qx, 5Wx, 5Xx,
5Zx, 6Mx, 6Nx, 6Qx, 8Nx, E1x, E2x
v2241-CTO, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 58x, 5Sx, 5Tx, E1x, E2x, E3x
v2242-CTO, 22x, 23x, 26x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 3Ax, 4Ex, 4Fx,
55x, 5Ex, 5Fx, 5Vx, 8Px
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 57x, 5Bx, 5Cx, 5Dx, 5Fx,
5Jx, 5Kx, 5Lx, 7Xx, 7Yx, 8Wx, 8Xx, 8Yx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Fx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T0607 N
Parts list 225
Table 41. Parts list—15.4-in. WXGA TFT (continued)
No. FRU FRU no. CRU ID
9 LCD panel, 15.4-in. WXGA
v2055-CTO, 2Lx, 2Nx, 48x, 7Lx, 8Ax, 8Nx, A3x, A4x, A5x, A6x, AUx
v2056-CTO
v2081-CTO, 9Mx
v2082-CTO, 3Mx, 3Nx, 58x, 5Xx, 5Yx, 5Zx, 66x, 67x, 6Cx, 6Dx, 6Ux, 6Vx, 97x,
98x, 9Ex, 9Nx, AEx, AFx, AGx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Rx, 2Vx, 2Yx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx,
3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 58x, 59x, 5Ax, 5Nx, 5Qx, 5Wx, 5Xx,
5Zx, 6Mx, 6Nx, 6Qx, 8Nx, E1x, E2x
v2241-CTO, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 58x, 5Sx, 5Tx, E1x, E2x, E3x
v2242-CTO, 22x, 23x, 26x, 28x, 32x, 33x, 34x, 35x, 36x, 37x, 38x, 3Ax, 4Ex, 4Fx,
55x, 5Ex, 5Fx, 5Vx, 8Px
v2243-CTO, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Lx, 4Mx, 4Nx, 57x, 5Bx, 5Cx, 5Dx, 5Fx,
5Jx, 5Kx, 5Lx, 7Xx, 7Yx, 8Wx, 8Xx, 8Yx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Fx, 2Hx, 3Dx, 3Ex, 3Fx, 3Gx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T0576 N
9 LCD panel, 15.4-in. WXGA LED backlight
v2055-CTO, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 62x, 64x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,
8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Qx, 8Rx, 8Sx, 8Tx, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx,
9Vx, 9Wx, 9Zx, A2x, A7x, AMx, APx, ARx, ASx, AWx, AXx
v2056-CTO, 5Tx
v2081-CTO
v2082-CTO, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 6Mx,
6Nx, 6Px, 6Qx, 6Zx, 72x, 73x, 7Zx, 82x, 85x, 9Px, AAx, ABx, ACx, ADx, B7x,
B8x, BCx, BDx, BEx, BFx, BGx, BHx, BJx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 5Rx, 5Yx, 6Jx, 6Kx, 6Lx, 7Fx,
7Gx, 7Hx, 7Jx, 7Kx, 7Qx, 82x, 83x, 84x, 87x, 88x, 89x, 8Ax, 8Bx, 8Dx, 8Ex, 8Fx,
8Gx, 8Hx, E3x, E4x
v2241-CTO, 4Xx, 5Ux, 5Zx, E4x, E5x
v2242-CTO, 4Gx, 4Hx, 4Jx, 4Kx, 5Gx, 5Hx, 66x, 6Bx, 6Cx, 6Rx, 6Sx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Qx, 8Sx, BVx, BWx
v2243-CTO, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 56x, 5Mx, 62x, 63x, 64x, 65x, 67x,
68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax,
7Bx, 7Cx, 7Dx, 7Px, 7Rx, 7Sx, 7Wx, 8Zx, 92x, 93x, 94x, 95x, 96x, 98x, 99x, 9Ax,
9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T0589 N
226 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 41. Parts list—15.4-in. WXGA TFT (continued)
No. FRU FRU no. CRU ID
9 LCD panel, 15.4-in. WXGA LED backlight
v2055-CTO, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 62x, 64x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,
8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Qx, 8Rx, 8Sx, 8Tx, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx,
9Vx, 9Wx, 9Zx, A2x, A7x, AMx, APx, ARx, ASx, AWx, AXx
v2056-CTO, 5Tx
v2081-CTO
v2082-CTO, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 6Mx,
6Nx, 6Px, 6Qx, 6Zx, 72x, 73x, 7Zx, 82x, 85x, 9Px, AAx, ABx, ACx, ADx, B7x,
B8x, BCx, BDx, BEx, BFx, BGx, BHx, BJx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 5Rx, 5Yx, 6Jx, 6Kx, 6Lx, 7Fx,
7Gx, 7Hx, 7Jx, 7Kx, 7Qx, 82x, 83x, 84x, 87x, 88x, 89x, 8Ax, 8Bx, 8Dx, 8Ex, 8Fx,
8Gx, 8Hx, E3x, E4x
v2241-CTO, 4Xx, 5Ux, 5Zx, E4x, E5x
v2242-CTO, 4Gx, 4Hx, 4Jx, 4Kx, 5Gx, 5Hx, 66x, 6Bx, 6Cx, 6Rx, 6Sx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Qx, 8Sx, BVx, BWx
v2243-CTO, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 56x, 5Mx, 62x, 63x, 64x, 65x, 67x,
68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax,
7Bx, 7Cx, 7Dx, 7Px, 7Rx, 7Sx, 7Wx, 8Zx, 92x, 93x, 94x, 95x, 96x, 98x, 99x, 9Ax,
9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T0587 N
Parts list 227
Table 41. Parts list—15.4-in. WXGA TFT (continued)
No. FRU FRU no. CRU ID
9 LCD panel, 15.4-in. WXGA LED backlight
v2055-CTO, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 62x, 64x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,
8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Qx, 8Rx, 8Sx, 8Tx, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx,
9Vx, 9Wx, 9Zx, A2x, A7x, AMx, APx, ARx, ASx, AWx, AXx
v2056-CTO, 5Tx
v2081-CTO
v2082-CTO, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 6Mx,
6Nx, 6Px, 6Qx, 6Zx, 72x, 73x, 7Zx, 82x, 85x, 9Px, AAx, ABx, ACx, ADx, B7x,
B8x, BCx, BDx, BEx, BFx, BGx, BHx, BJx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 5Rx, 5Yx, 6Jx, 6Kx, 6Lx, 7Fx,
7Gx, 7Hx, 7Jx, 7Kx, 7Qx, 82x, 83x, 84x, 87x, 88x, 89x, 8Ax, 8Bx, 8Dx, 8Ex, 8Fx,
8Gx, 8Hx, E3x, E4x
v2241-CTO, 4Xx, 5Ux, 5Zx, E4x, E5x
v2242-CTO, 4Gx, 4Hx, 4Jx, 4Kx, 5Gx, 5Hx, 66x, 6Bx, 6Cx, 6Rx, 6Sx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Qx, 8Sx, BVx, BWx
v2243-CTO, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 56x, 5Mx, 62x, 63x, 64x, 65x, 67x,
68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax,
7Bx, 7Cx, 7Dx, 7Px, 7Rx, 7Sx, 7Wx, 8Zx, 92x, 93x, 94x, 95x, 96x, 98x, 99x, 9Ax,
9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T0797 N
228 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 41. Parts list—15.4-in. WXGA TFT (continued)
No. FRU FRU no. CRU ID
9 LCD panel, 15.4-in. WXGA LED backlight
v2055-CTO, 5Rx, 5Sx, 5Tx, 5Ux, 5Vx, 5Wx, 62x, 64x, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx,
8Cx, 8Dx, 8Fx, 8Gx, 8Hx, 8Qx, 8Rx, 8Sx, 8Tx, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx,
9Vx, 9Wx, 9Zx, A2x, A7x, AMx, APx, ARx, ASx, AWx, AXx
v2056-CTO, 5Tx
v2081-CTO
v2082-CTO, 5Cx, 5Dx, 5Ex, 5Fx, 5Gx, 5Jx, 5Kx, 5Mx, 5Nx, 5Px, 5Qx, 5Rx, 6Mx,
6Nx, 6Px, 6Qx, 6Zx, 72x, 73x, 7Zx, 82x, 85x, 9Px, AAx, ABx, ACx, ADx, B7x,
B8x, BCx, BDx, BEx, BFx, BGx, BHx, BJx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 54x, 5Rx, 5Yx, 6Jx, 6Kx, 6Lx, 7Fx,
7Gx, 7Hx, 7Jx, 7Kx, 7Qx, 82x, 83x, 84x, 87x, 88x, 89x, 8Ax, 8Bx, 8Dx, 8Ex, 8Fx,
8Gx, 8Hx, E3x, E4x
v2241-CTO, 4Xx, 5Ux, 5Zx, E4x, E5x
v2242-CTO, 4Gx, 4Hx, 4Jx, 4Kx, 5Gx, 5Hx, 66x, 6Bx, 6Cx, 6Rx, 6Sx, 6Yx, 6Zx,
72x, 73x, 74x, 75x, 7Lx, 7Ux, 7Vx, 8Qx, 8Sx, BVx, BWx
v2243-CTO, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 56x, 5Mx, 62x, 63x, 64x, 65x, 67x,
68x, 69x, 6Ax, 6Dx, 6Ex, 6Fx, 6Tx, 6Ux, 6Vx, 6Wx, 6Xx, 76x, 77x, 78x, 7Ax,
7Bx, 7Cx, 7Dx, 7Px, 7Rx, 7Sx, 7Wx, 8Zx, 92x, 93x, 94x, 95x, 96x, 98x, 99x, 9Ax,
9Bx, 9Cx, 9Dx, 9Ex, 9Fx, 9Gx, BXx, BYx
v2246-CTO
v2247-CTO
v2261-CTO, 4Vx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
42T0795 N
10 Clear plate kit 43Y9739 N
Table 42. Parts list—15.4-in. WSXGA+ TFT
No. FRU FRU no. CRU ID
1 LCD cover kit 43Y9735 N
Parts list 229
Table 42. Parts list—15.4-in. WSXGA+ TFT (continued)
No. FRU FRU no. CRU ID
2 Integrated camera
v2055-CTO, 2Dx, 2Vx, 2Xx, 3Ax, 46x, 47x, 49x, 4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx,
4Gx, 4Hx, 78x, 8Jx, 8Kx, 8Lx, 8Mx, 8Px, 9Sx, A8x, A9x, AKx, ALx, ANx, AQx,
ATx, AVx, B4x, E1x, E2x
v2056-CTO, 4Kx, 4Sx, 4Tx, 7Cx, E1x, E2x, E3x
v2081-CTO, 22x, 24x, 52x, 53x, 7Wx
v2082-CTO, 27x, 28x, 3Fx, 3Gx, 3Jx, 3Kx, 3Lx, 56x, 57x, 59x, 6Ax, 6Bx, 6Gx,
6Hx, 6Jx, 6Kx, 6Rx, 6Sx, 6Tx, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux,
7Xx, 83x, 84x, 86x, 87x, 8Vx, 8Wx, 8Xx, 8Yx, 93x, 94x, 95x, 96x, 9Fx, 9Gx, 9Hx,
9Jx, 9Qx, B9x, BAx, BBx, BKx, BMx, BNx, BPx, BQx, BRx, BSx
v2083-CTO
v2087-CTO
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Wx
v2241-CTO
v2242-CTO, 24x, 25x, 8Rx
v2243-CTO, 2Bx, 7Mx, 7Nx, 97x
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 7Zx
v4058-CTO
v4061-CTO, 2Mx, 2Nx, 2Px, 2Qx, 3Ux, 3Yx, 42x, 43x, 49x, 4Ax, 4Ux, 64x, 6Ax
v4062-CTO, 3Ax, 3Rx, 4Fx, 4Kx, 55x, 56x, 5Dx, 5Hx, 5Jx, 5Sx, 5Tx
v4063-CTO, 2Tx
v4064-CTO
v4065-CTO
42T3634 N
3 Wireless LAN/WAN/wireless USB antenna assembly 44C5386 N
3 Wireless LAN/WAN/wireless USB antenna assembly 44C5387 N
4 LCD magnesium structure frame assembly 43Y9736 N
5 LCD cable assembly 44C5385 N
6 Hinge assembly 43Y9737 N
6 Hinge assembly 43Y9738 N
7 Inverter card 41W1338 N
7 Inverter card 13R1015 N
230 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 42. Parts list—15.4-in. WSXGA+ TFT (continued)
No. FRU FRU no. CRU ID
8 Bluetooth daughter card (BDC-2.1)
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Ex, 2Mx, 2Px, 2Xx, 3Ax, 45x, 46x, 47x, 49x, 4Ax,
4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 63x, 65x, 74x, 75x, 76x, 77x, 78x, 7Kx, 89x,
8Bx, 8Ex, 8Jx, 8Kx, 8Lx, 8Mx, 8Px, 8Ux, 9Ax, 9Sx, 9Tx, 9Ux, 9Xx, 9Yx, A8x,
A9x, AHx, AJx, AKx, ALx, ANx, AQx, ATx, AVx, AYx, AZx, B2x, B3x, B4x,
E1x, E2x
v2056-CTO, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 63x, 79x, 7Ax, 7Bx, 7Cx, 7Lx, E1x, E2x,
E3x
v2081-CTO, 22x, 24x, 3Ex, 52x, 53x, 7Wx
v2082-CTO, 26x, 27x, 28x, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Rx, 52x, 53x, 54x, 55x,
56x, 57x, 59x, 5Ax, 5Bx, 69x, 6Bx, 6Fx, 6Hx, 6Jx, 6Kx, 6Lx, 6Rx, 6Sx, 6Tx, 6Wx,
6Xx, 6Yx, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux, 7Vx, 7Xx, 7Yx, 83x,
84x, 86x, 87x, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, 96x, 99x, 9Fx, 9Gx,
9Hx, 9Jx, 9Qx, B5x, B6x, B9x, BAx, BBx, BKx, BMx, BNx, BPx, BQx, BRx, BSx,
BTx, BUx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Qx, 2Sx, 2Ux, 2Wx, 2Xx, 4Dx, 5Px, 6Gx, 6Hx, 6Px, 79x, 7Ex, 85x,
86x, 8Cx, 8Jx, 8Kx, 8Lx, 8Mx
v2241-CTO
v2242-CTO, 24x, 25x, 27x, 39x, 8Rx
v2243-CTO, 2Bx, 7Mx, 7Nx, 8Tx, 8Ux, 8Vx, 97x
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 2Ex, 2Gx, 7Zx
v4058-CTO
v4061-CTO, 2Hx, 2Mx, 2Nx, 2Px, 2Qx, 2Zx, 3Ux, 3Xx, 3Yx, 3Zx, 42x, 43x, 49x,
4Ax, 4Ux, 64x, 6Ax, 6Cx, 6Dx
v4062-CTO, 29x, 3Ax, 3Mx, 3Rx, 4Fx, 4Kx, 54x, 55x, 56x, 5Dx, 5Hx, 5Jx, 5Qx,
5Rx, 5Sx, 5Tx
v4063-CTO, 2Tx, 33x
v4064-CTO
v4065-CTO
42T0969 N
Parts list 231
Table 42. Parts list—15.4-in. WSXGA+ TFT (continued)
No. FRU FRU no. CRU ID
9 LCD panel, 15.4-in. WSXGA+
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Ex, 2Mx, 2Px, 2Vx, 2Xx, 3Ax, 45x, 46x, 47x, 49x,
4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 63x, 65x, 74x, 75x, 76x, 77x, 78x, 7Kx,
89x, 8Bx, 8Ex, 8Jx, 8Kx, 8Lx, 8Mx, 8Px, 8Ux, 9Ax, 9Sx, 9Tx, 9Ux, 9Xx, 9Yx,
A8x, A9x, AHx, AJx, AKx, ALx, ANx, AQx, ATx, AVx, AYx, AZx, B2x, B3x,
B4x, E1x, E2x, E3x
v2056-CTO, 34x, 4Kx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 63x, 79x, 7Ax, 7Bx, 7Cx, 7Lx,
E1x, E2x, E3x
v2081-CTO, 22x, 24x, 3Ex, 52x, 53x, 7Wx
v2082-CTO, 26x, 27x, 28x, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Rx, 52x, 53x, 54x, 55x,
56x, 57x, 59x, 5Ax, 5Bx, 68x, 69x, 6Ax, 6Bx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx,
6Rx, 6Sx, 6Tx, 6Wx, 6Xx, 6Yx, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux,
7Vx, 7Xx, 7Yx, 83x, 84x, 86x, 87x, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x,
96x, 99x, 9Fx, 9Gx, 9Hx, 9Jx, 9Qx, B5x, B6x, B9x, BAx, BBx, BKx, BMx, BNx,
BPx, BQx, BRx, BSx, BTx, BUx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Qx, 2Sx, 2Ux, 2Wx, 2Xx, 4Dx, 5Px, 6Gx, 6Hx, 6Px, 79x, 7Ex, 85x,
86x, 8Cx, 8Jx, 8Kx, 8Lx, 8Mx, E5x
v2241-CTO, 3Wx
v2242-CTO, 24x, 25x, 27x, 39x, 8Rx
v2243-CTO, 2Bx, 7Mx, 7Nx, 8Tx, 8Ux, 8Vx, 97x
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 2Ex, 2Gx, 7Zx
v4058-CTO
v4061-CTO, 2Hx, 2Mx, 2Nx, 2Px, 2Qx, 2Zx, 3Ux, 3Xx, 3Yx, 3Zx, 42x, 43x, 49x,
4Ax, 4Ux, 64x, 6Ax, 6Cx, 6Dx
v4062-CTO, 29x, 3Ax, 3Mx, 3Rx, 4Fx, 4Kx, 54x, 55x, 56x, 5Dx, 5Hx, 5Jx, 5Qx,
5Rx, 5Sx, 5Tx
v4063-CTO, 2Tx, 33x
v4064-CTO
v4065-CTO
42T0488 N
232 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 42. Parts list—15.4-in. WSXGA+ TFT (continued)
No. FRU FRU no. CRU ID
9 LCD panel, 15.4-in. WSXGA+
v2055-CTO, 2Bx, 2Cx, 2Dx, 2Ex, 2Mx, 2Px, 2Vx, 2Xx, 3Ax, 45x, 46x, 47x, 49x,
4Ax, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 63x, 65x, 74x, 75x, 76x, 77x, 78x, 7Kx,
89x, 8Bx, 8Ex, 8Jx, 8Kx, 8Lx, 8Mx, 8Px, 8Ux, 9Ax, 9Sx, 9Tx, 9Ux, 9Xx, 9Yx,
A8x, A9x, AHx, AJx, AKx, ALx, ANx, AQx, ATx, AVx, AYx, AZx, B2x, B3x,
B4x, E1x, E2x, E3x
v2056-CTO, 34x, 4Kx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 63x, 79x, 7Ax, 7Bx, 7Cx, 7Lx,
E1x, E2x, E3x
v2081-CTO, 22x, 24x, 3Ex, 52x, 53x, 7Wx
v2082-CTO, 26x, 27x, 28x, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Rx, 52x, 53x, 54x, 55x,
56x, 57x, 59x, 5Ax, 5Bx, 68x, 69x, 6Ax, 6Bx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx,
6Rx, 6Sx, 6Tx, 6Wx, 6Xx, 6Yx, 7Dx, 7Mx, 7Nx, 7Px, 7Qx, 7Rx, 7Sx, 7Tx, 7Ux,
7Vx, 7Xx, 7Yx, 83x, 84x, 86x, 87x, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x,
96x, 99x, 9Fx, 9Gx, 9Hx, 9Jx, 9Qx, B5x, B6x, B9x, BAx, BBx, BKx, BMx, BNx,
BPx, BQx, BRx, BSx, BTx, BUx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO, 3Tx, 3Wx, 3Yx, 3Zx, 42x, 43x, 44x, 88x
v2089-CTO, 2Qx, 2Sx, 2Ux, 2Wx, 2Xx, 4Dx, 5Px, 6Gx, 6Hx, 6Px, 79x, 7Ex, 85x,
86x, 8Cx, 8Jx, 8Kx, 8Lx, 8Mx, E5x
v2241-CTO, 3Wx
v2242-CTO, 24x, 25x, 27x, 39x, 8Rx
v2243-CTO, 2Bx, 7Mx, 7Nx, 8Tx, 8Ux, 8Vx, 97x
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 2Ex, 2Gx, 7Zx
v4058-CTO
v4061-CTO, 2Hx, 2Mx, 2Nx, 2Px, 2Qx, 2Zx, 3Ux, 3Xx, 3Yx, 3Zx, 42x, 43x, 49x,
4Ax, 4Ux, 64x, 6Ax, 6Cx, 6Dx
v4062-CTO, 29x, 3Ax, 3Mx, 3Rx, 4Fx, 4Kx, 54x, 55x, 56x, 5Dx, 5Hx, 5Jx, 5Qx,
5Rx, 5Sx, 5Tx
v4063-CTO, 2Tx, 33x
v4064-CTO
v4065-CTO
42T0423 N
10 Clear plate kit 43Y9739 N
Table 43. Parts list—15.4-in. WUXGA TFT
No. FRU FRU no. CRU ID
1 LCD cover kit 43Y9735 N
Parts list 233
Table 43. Parts list—15.4-in. WUXGA TFT (continued)
No. FRU FRU no. CRU ID
2 Integrated camera
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 2Kx, 2Lx, 2Rx, 2Sx, 32x, 38x, 3Ex, 3Vx, 3Wx, 46x, 47x, 48x, 4Bx,
4Px, 4Qx, 4Rx, 4Vx, 4Wx, 4Zx, 52x, 53x, 65x, 66x, 67x, 68x, 69x, 6Bx, 6Ex, 6Fx,
6Gx, 6Hx, 6Jx, 6Kx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 2Gx, 2Xx, 2Yx, 36x, 37x, 3Bx, 3Hx, 3Nx, 3Px,
3Qx, 3Sx, 4Dx, 4Ex, 4Gx, 4Hx, 4Jx, 4Lx, 4Tx, 58x, 59x, 5Ex, 5Fx, 5Gx, 5Kx, 5Lx,
5Mx, 5Nx, 5Px, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 2Ux, 34x, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42T3634 N
3 Wireless LAN/WAN/wireless USB antenna assembly 44C5386 N
3 Wireless LAN/WAN/wireless USB antenna assembly 44C5387 N
4 LCD magnesium structure frame assembly 43Y9736 N
5 LCD cable assembly 44C5385 N
6 Hinge assembly 43Y9737 N
6 Hinge assembly 43Y9738 N
7 Inverter card 41W1338 N
7 Inverter card 13R1015 N
234 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 43. Parts list—15.4-in. WUXGA TFT (continued)
No. FRU FRU no. CRU ID
8 Bluetooth daughter card (BDC-2.1)
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 2Jx, 2Kx, 2Lx, 2Rx, 2Sx, 32x, 38x, 39x, 3Dx, 3Ex, 3Fx, 3Tx, 3Vx,
3Wx, 44x, 45x, 46x, 47x, 48x, 4Bx, 4Px, 4Qx, 4Rx, 4Vx, 4Wx, 4Zx, 52x, 53x, 65x,
66x, 67x, 68x, 69x, 6Bx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Xx,
2Yx, 35x, 36x, 37x, 3Bx, 3Cx, 3Gx, 3Hx, 3Jx, 3Kx, 3Nx, 3Px, 3Qx, 3Sx, 4Dx,
4Ex, 4Gx, 4Hx, 4Jx, 4Lx, 4Mx, 4Nx, 4Tx, 4Xx, 4Yx, 57x, 58x, 59x, 5Cx, 5Ex, 5Fx,
5Gx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 2Ux, 34x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42T0969 N
9 LCD panel, 15.4-in. WUXGA
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 2Jx, 2Kx, 2Lx, 2Rx, 2Sx, 32x, 38x, 39x, 3Dx, 3Ex, 3Fx, 3Tx, 3Vx,
3Wx, 44x, 45x, 46x, 47x, 48x, 4Bx, 4Px, 4Qx, 4Rx, 4Vx, 4Wx, 4Zx, 52x, 53x, 65x,
66x, 67x, 68x, 69x, 6Bx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Xx,
2Yx, 35x, 36x, 37x, 3Bx, 3Cx, 3Gx, 3Hx, 3Jx, 3Kx, 3Nx, 3Px, 3Qx, 3Sx, 4Dx,
4Ex, 4Gx, 4Hx, 4Jx, 4Lx, 4Mx, 4Nx, 4Tx, 4Xx, 4Yx, 57x, 58x, 59x, 5Cx, 5Ex, 5Fx,
5Gx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 2Ux, 34x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
44C9614 N
Parts list 235
Table 43. Parts list—15.4-in. WUXGA TFT (continued)
No. FRU FRU no. CRU ID
9 LCD panel, 15.4-in. WUXGA
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 22x, 23x, 3Lx, 4Sx
v4061-CTO, 2Jx, 2Kx, 2Lx, 2Rx, 2Sx, 32x, 38x, 39x, 3Dx, 3Ex, 3Fx, 3Tx, 3Vx,
3Wx, 44x, 45x, 46x, 47x, 48x, 4Bx, 4Px, 4Qx, 4Rx, 4Vx, 4Wx, 4Zx, 52x, 53x, 65x,
66x, 67x, 68x, 69x, 6Bx, 6Ex, 6Fx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx
v4062-CTO, 24x, 25x, 26x, 27x, 28x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Xx,
2Yx, 35x, 36x, 37x, 3Bx, 3Cx, 3Gx, 3Hx, 3Jx, 3Kx, 3Nx, 3Px, 3Qx, 3Sx, 4Dx,
4Ex, 4Gx, 4Hx, 4Jx, 4Lx, 4Mx, 4Nx, 4Tx, 4Xx, 4Yx, 57x, 58x, 59x, 5Cx, 5Ex, 5Fx,
5Gx, 5Kx, 5Lx, 5Mx, 5Nx, 5Px, 5Ux, 5Vx, 5Wx, 5Xx, 5Yx, 5Zx, 62x, 63x
v4063-CTO, 2Ux, 34x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
42T0613 N
10 Clear plate kit 43Y9739 N
236 ThinkPad T500 and W500 Hardware Maintenance Manual
Keyboard
Table 44. Parts list—Keyboard
Language P/N CRU ID
Arabic 42T4005 42T4069 42T3940 **
Belgian 42T4006 42T4070 42T3941
Brazilian Portuguese 42T4033 42T4097 42T3968
Bulgarian 42T4145 42T4142 42T4138
Canadian French (058) 42T4004 42T4068 42T3939
Canadian French (Acnor) 42T4003 42T4067 42T3938
Czech 42T4007 42T4071 42T3942
Danish 42T4008 42T4072 42T3943
Dutch 42T4016 42T4080 42T3951
Finnish, Swedish 42T4023 42T4087 42T3958
French 42T4010 42T4074 42T3945
German 42T4011 42T4075 42T3946
Greek (U.S. English and Greek layout) 42T4012 42T4076 42T3947
Hebrew 42T4014 42T4078 42T3949
Hungarian 42T4013 42T4077 42T3948
Icelandic — — 42T3969
Italian 42T4015 42T4079 42T3950
Japanese 42T4028 42T4092 42T3963
Korean 42T4032 42T4096 42T3967
Latin American Spanish 42T4031 42T4095 42T3966
Norwegian 42T4017 42T4081 42T3952
Polish 42T4018 42T4082 42T3953
Portuguese 42T4019 42T4083 42T3954
Russian 42T4020 42T4084 42T3955
Slovak 42T4021 42T4085 42T3956
Slovenian 42T4022 42T4086 42T3957
Spanish 42T4009 42T4073 42T3944
Swiss 42T4024 42T4088 42T3959
Thai 42T4030 42T4094 42T3965
Traditional Chinese 42T4029 42T4093 42T3964
Turkish 42T4025 42T4089 42T3960
U.K. English 42T4026 42T4090 42T3961
U.S. English 42T4002 42T4066 42T3937
U.S. English (International, with a Euro symbol) 42T4027 42T4091 42T3962
Parts list 237
Table 45. Parts list—Keyboard
Language P/N CRU ID
Arabic 42T3212 42T3276 42T3146 **
Belgian 42T3213 42T3277 42T3147
Brazilian Portuguese 42T3240 42T3304 42T3174
Canadian French (058) 42T3211 42T3275 42T3145
Canadian French (Acnor) 42T3210 42T3274 42T3144
Czech 42T3214 42T3278 42T3148
Danish 42T3215 42T3279 42T3149
Dutch 42T3223 42T3287 42T3157
Finnish, Swedish 42T3230 42T3294 42T3164
French 42T3217 42T3281 42T3151
German 42T3218 42T3282 42T3152
Greek (U.S. English and Greek layout) 42T3219 42T3283 42T3153
Hebrew 42T3221 42T3285 42T3155
Hungarian 42T3220 42T3284 42T3154
Icelandic — — 42T3175
Italian 42T3222 42T3286 42T3156
Japanese 42T3235 42T3299 42T3169
Korean 42T3239 42T3303 42T3173
Latin American Spanish 42T3238 42T3302 42T3172
Norwegian 42T3224 42T3288 42T3158
Polish 42T3225 42T3289 42T3159
Portuguese 42T3226 42T3290 42T3160
Russian 42T3227 42T3291 42T3161
Slovak 42T3228 42T3292 42T3162
Slovenian 42T3229 42T3293 42T3163
Spanish 42T3216 42T3280 42T3150
Swiss 42T3231 42T3295 42T3165
Thai 42T3237 42T3301 42T3171
Traditional Chinese 42T3236 42T3300 42T3170
Turkish 42T3232 42T3296 42T3166
U.K. English 42T3233 42T3297 42T3167
U.S. English 42T3209 42T3273 42T3143
U.S. English (International, with a Euro symbol) 42T3234 42T3298 42T3168
238 ThinkPad T500 and W500 Hardware Maintenance Manual
Miscellaneous parts
Table 46. Parts list—Miscellaneous parts
FRU P/N CRU ID
Screw kit (including nylon-coated screws):
vM2 ×5 mm (black), flat head (11)
vM2 ×2.7 mm (black), flat head (10)
vM2 ×3.5 mm (black), bind head (18)
vM2 ×14 mm (black), flat head (10)
vM2 ×14 mm with TB2440B (2)
vM2 ×2.8 mm (silver), flat head (5)
vM2 ×14 mm HDD security (2)
vSecurity screw (2)
vM2.5 ×4 mm (black), flat head (2)
vM2.5 ×6.5 mm (black), flat head (13)
vM2 ×3 mm, tamper proof (2)
vM2 ×3 mm (silver), small head (21)
vM2 ×9.5 mm (black), bind head (6)
vHex stud (2)
vScrew cap, round, dia. 7 mm (4)
vScrew cap, square (2)
45N5866 N
Tape kit
vAntenna cable fix (80 mm×25 mm)
vCable fix
vCable, circle
vCable fix (10 mm×20 mm)
vLCD FPC
43Y9734 N
Base miscellaneous parts:
vKnob, wireless switch
vLever, wireless switch
vSlide lever, eject
vSpring, slide lever/battery eject
vBracket puller, eject
vPull lever, eject
vSpring, eject
vRubber foot (front)
vRubber foot (rear L)
vShield plate 1 (GND docking)
vInsulation sheet 1
vLens, LED-bay switch
vLatch, battery eject
vScrew cap (dia. 7 mm)
vForm-battery
vLens, LED-SD Card
vLens, LED-RJ45
vBracket-RJ45
vForm, under planar-1
vForm, under planar-2
vSpreader, heatsink base cover
vFoil, heatsink-1
vFoil, heatsink-2
vSpacer, ODD
vInsulation sheet ODD
vInsulation sheet, RJ45 Bracket
vInsulation sheet, RJ11 Sub card
vBracket ESD for Docking
vDust Filter _1
vDust Filter _5
43Y9731 N
Parts list 239
Table 46. Parts list—Miscellaneous parts (continued)
FRU P/N CRU ID
System miscellaneous parts:
v(a)Cable assembly, DC in.
v(b) Bracket, N/B, fan discrete/integ.
v(c) Bracket, VGA, fan discrete/integ.
v(d)Cable assembly, AMOM (modem)
v(f) Bracket, CPU support assembly
vBracket, Kensington
vGuide, SIM
vBracket, IEEE 1394
vEMI shield bracket for MDC
vBracket, Keyboarad support assembly, Integrate
vBracket, Keyboarad support assembly, Discrete
Note: Italicized letters in parentheses are references to the exploded view in “Overall”
on page 144.
45N5500 N
System board miscellaneous parts:
vInsulation sheet, docking
vInsulation under 4-in-1
vInsulation sheet, front louver formed
vInsulation sheet, PC Card slot
vInsulation sheet, bottom CPU
vInsulation sheet, front top
vShield sheet for NB
vInsulation sheet for video
vInsulation sheet, bottom louver
vShield sheet, AMOM
43Y9730 N
240 ThinkPad T500 and W500 Hardware Maintenance Manual
AC adapters
Table 47. Parts list—2-pin AC adapters
FRU P/N CRU ID
2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU) 42T5282 *
2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU) 42T4419
2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU) 42T4423
2-pin (90 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU) 92P1114
2-pin (90 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU) 42T4427
2-pin (90 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU) 42T4431
2-pin (90 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU) 42T4435
2-pin (90 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU) 42T4439
Table 48. Parts list—3-pin AC adapters
FRU P/N CRU ID
3-pin (65W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV)
OP
42T5283 *
3-pin (65W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV) 42T4421
3-pin (65W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV) 42T4417
3-pin (90 W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV) 92P1112
3-pin (90 W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV) 42T4425
3-pin (90 W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV) 42T4429
3-pin (90 W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV) 42T4433
3-pin (90 W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV) 45N0068
Parts list 241
Power cords
A ThinkPad power cord for a specific country or region is usually available only in
that country or region:
Table 49. Parts list—2-pin power cords
Region P/N CRU
ID
Argentina
vmodels -CTO, xxY
42T5020 42T5105 *
Brazil
vmodels -CTO, xxP
42T5180 42T5183
Canada, U.S.
vmodels -CTO, xxF, xxL, xxS, xxU
42T5008 42T5093
Japan
vmodels -CTO, xxE, xxJ
42T5014 42T5099
Table 50. Parts list—3-pin power cords
Region P/N CRU
ID
Australia, New Zealand
vmodels -CTO, xxG, xxM
42T5050 42T5135 *
Bangladesh, Sri Lanka, South Africa
vmodels -CTO, xxG
42T5056 42T5141
Canada, U.S.
vmodels -CTO, xxF, xxL, xxS, xxU
42T5004 42T5089
China (P.R.C.) (other than Hong Kong S.A.R.)
vmodels -CTO, xxC
42T5065 42T5150
Denmark
vmodels -CTO, xxG
42T5041 42T5126
European countries
vmodels -CTO, xxG
42T5029 42T5114
India
vmodels -CTO, xxG
42T5083 42T5168
Israel
vmodels -CTO, xxG
42T5062 42T5147
Italy
vmodels -CTO, xxG
42T5047 42T5132
Korea
vmodels -CTO, xxK
42T5077 42T5162
Switzerland
vmodels -CTO, xxG
42T5044 42T5129
Taiwan
vmodels -CTO, xxV
42T5071 42T5156
U.K., China (Hong Kong S.A.R.)
vmodels -CTO, xxB, xxG, xxH
42T5035 42T5120
242 ThinkPad T500 and W500 Hardware Maintenance Manual
Recovery discs
Windows XP Professional (32 bit) DVDs
Windows XP Professional (32 bit) is preinstalled as the operating system in the
following models:
v2055-CTO, 2Mx, 65x, 74x, 75x, 76x, A7x, A8x
v2056-CTO, 79x
v2081-CTO
v2082-CTO, 57x, 58x, 5Px, 5Qx, 6Rx, 6Vx, 6Wx, 7Rx, 7Ux, 7Vx, 7Xx, 7Yx, 82x, 87x,
97x, 98x, 9Ex, AAx, ABx, ACx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO, 2Lx, 2Rx, 2Sx, 54x, 59x, 5Ax, 5Nx, 8Bx, 8Cx, 8Dx
v2241-CTO, 58x
v2242-CTO, 37x, 5Ex, 6Bx, 6Cx, 72x, 74x, 75x, 8Px, 8Qx
v2243-CTO, 4Lx, 4Mx, 4Sx, 5Jx, 62x, 63x, 65x, 67x, 6Tx, 6Ux, 76x, 7Cx, 7Dx, 7Mx,
7Px, 7Rx, 7Xx, 8Tx, 8Ux, 8Wx, 8Xx, 8Zx, 93x, 98x, 9Ax
v2246-CTO
v2247-CTO
v2261-CTO, 2Gx, 2Hx
v4058-CTO
v4061-CTO, 38x, 39x, 6Ex, 6Jx
v4062-CTO, 27x, 2Dx, 2Yx, 36x, 3Ax, 3Bx, 4Fx, 4Gx, 4Lx, 56x, 5Dx, 5Ex, 5Hx, 5Kx,
5Mx, 5Qx, 5Sx, 5Wx, 5Xx
v4063-CTO
v4064-CTO
v4065-CTO
Parts list 243
Table 51. Parts list—Windows XP Professional (32 bit) recovery DVDs
Language P/N CRU
ID
Arabic 58Y1832 *
Brazilian Portuguese 58Y1833
Czech 58Y1836
Danish 58Y1837
Dutch 58Y1848
English 58Y1858
English (modem-disabled) 58Y1857
Finnish 58Y1838
French 58Y1839
German 58Y1841
Greek 58Y1840
Hebrew 58Y1842
Hungarian 58Y1844
Italian 58Y1845
Japanese 58Y2622
Korean 58Y1847
Norwegian 58Y1849
Polish 58Y1850
Russian 58Y1852
Russian (English-enabled) 58Y1851
Simplified Chinese 58Y1834
Slovenian 58Y1853
Spanish 58Y1854
Swedish 58Y1855
Traditional Chinese 58Y1835
Traditional Chinese (Hong Kong S.A.R.) 58Y1843
Turkish 58Y1856
244 ThinkPad T500 and W500 Hardware Maintenance Manual
Windows Vista Home Basic (32 bit) DVDs
Windows Vista Home Basic (32 bit) is preinstalled as the operating system in the
following models:
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 28x
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO, 3Fx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
Parts list 245
Table 52. Parts list—Windows Vista Home Basic (32 bit) recovery DVDs
Language P/N CRU
ID
Czech 58Y2022 *
Danish 58Y2023
English 58Y2042
English (modem-disabled) 58Y2041
English (for India) 58Y2095
English, Finnish, and Swedish (in Sweden) 58Y2044
English, French, German, and Dutch (in Belgium and Luxemburg) 58Y2043
English, French, German, and Italian (in Switzerland) 58Y2045
French 58Y2024
German 58Y2026
Greek 58Y2025
Hebrew 58Y2027
Hungarian 58Y2029
Italian 58Y2030
Japanese 58Y2627
Korean 58Y2032
Norwegian 58Y2033
Polish 58Y2034
Romanian 58Y2035
Serbian-Latin 58Y2039
Simplified Chinese 58Y2020
Slovak 58Y2036
Slovenian 58Y2037
Spanish 58Y2038
Traditional Chinese 58Y2021
Traditional Chinese (Hong Kong S.A.R.) 58Y2028
Turkish 58Y2040
246 ThinkPad T500 and W500 Hardware Maintenance Manual
Windows Vista Home Premium (32 bit) DVDs
Windows Vista Home Premium (32 bit) is preinstalled as the operating system in
the following models:
v2055-CTO
v2056-CTO
v2081-CTO, 7Tx
v2082-CTO, 86x, B5x
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 24x, 36x, 38x, 39x, 4Jx
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO, 2Dx, 2Fx
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
Table 53. Parts list—Windows Vista Home Premium (32 bit) recovery DVDs
Language P/N CRU
ID
Danish 58Y2005 *
English 58Y2016
English (modem-disabled) 58Y2015
English (for India) 58Y2094
English, Finnish, and Swedish (in Sweden) 58Y2018
English, French, German, and Dutch (in Belgium and Luxemburg) 58Y2017
English, French, German, and Italian (in Switzerland) 58Y2019
French 58Y2006
German 58Y2007
Hebrew 58Y2008
Italian 58Y2010
Japanese 58Y2626
Korean 58Y2012
Norwegian 58Y2013
Polish 58Y2085
Simplified Chinese 58Y2003
Spanish 58Y2014
Traditional Chinese 58Y2004
Traditional Chinese (Hong Kong S.A.R.) 58Y2009
Turkish 58Y2086
Parts list 247
Windows Vista Business (32 bit) DVDs
Windows Vista Business (32 bit) is preinstalled as the operating system in the
following models:
v2055-CTO, 2Bx, 2Cx, 2Ex, 2Lx, 2Px, 3Ax, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx,
4Dx, 4Ex, 4Fx, 4Gx, 4Hx, 5Rx, 5Vx, 5Wx, 62x, 63x, 64x, 77x, 78x, 7Gx, 7Hx, 7Jx,
7Kx, 7Lx, 89x, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx,
8Px, 8Qx, 8Tx, 8Ux, 9Ax, 9Bx, 9Cx, 9Dx, 9Kx, 9Lx, 9Rx, 9Sx, 9Tx, 9Ux, 9Vx, 9Wx,
9Xx, 9Yx, 9Zx, A2x, A3x, A4x, A5x, AUx, AVx, AWx, AXx, AYx, AZx, B2x, B3x,
B4x, E1x, E2x, E3x
v2056-CTO, 34x, 4Kx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 5Tx, 63x, 7Ax, 7Bx, 7Cx, 7Lx, E1x,
E2x, E3x
v2081-CTO, 52x, 7Wx, 9Mx
v2082-CTO, 3Fx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 52x, 53x, 54x, 55x, 56x, 59x, 5Ax, 5Bx,
5Zx, 6Mx, 6Nx, 6Px, 6Qx, 6Sx, 6Tx, 6Ux, 6Xx, 6Yx, 6Zx, 72x, 7Mx, 7Nx, 7Px, 7Qx,
7Sx, 7Tx, 7Zx, 83x, 84x, 85x, 8Vx, 8Wx, 8Xx, 8Yx, 8Zx, 92x, 93x, 94x, 95x, B6x,
B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, BRx, BSx,
BTx, BUx
v2083-CTO, 4Yx
v2087-CTO, 4Zx
v2088-CTO, 3Yx, 88x
v2089-CTO, 2Hx, 2Jx, 2Kx, 2Mx, 2Qx, 2Vx, 2Wx, 2Xx, 2Yx, 3Hx, 3Jx, 3Kx, 3Mx,
3Nx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 4Wx, 4Xx, 4Yx, 4Zx, 52x, 53x, 58x, 5Px, 5Qx, 5Rx,
5Wx, 5Xx, 5Yx, 5Zx, 6Gx, 6Hx, 6Jx, 6Kx, 6Lx, 6Mx, 6Nx, 6Px, 6Qx, 7Ex, 7Fx, 7Gx,
7Hx, 7Jx, 7Kx, 7Qx, 82x, 83x, 84x, 85x, 86x, 87x, 88x, 89x, 8Ax, 8Nx, E1x, E2x,
E3x, E4x, E5x
v2241-CTO, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 4Xx, 5Sx, 5Tx, 5Ux, 5Zx, E1x, E2x,
E3x, E4x, E5x
v2242-CTO, 25x, 27x, 3Ax, 4Kx, 66x, 8Sx, BVx, BWx
v2243-CTO, 2Bx, 2Cx, 3Bx, 3Cx, 4Dx, 4Ex, 4Qx, 4Rx, 57x, 5Fx, 5Kx, 5Lx, 64x, 68x,
69x, 6Ax, 6Fx, 6Vx, 6Wx, 77x, 78x, 7Bx, 7Nx, 7Wx, BXx, BYx
v2246-CTO, 4Bx
v2247-CTO, 4Cx
v2261-CTO, 2Ex, 3Dx, 3Ex, 3Gx, 4Vx, 7Zx
v4058-CTO, 22x, 4Sx
v4061-CTO, 2Hx, 2Jx, 2Lx, 2Rx, 2Sx, 2Zx, 3Dx, 3Ex, 3Fx, 3Tx, 3Ux, 3Wx, 3Xx, 3Yx,
3Zx, 43x, 44x, 45x, 47x, 48x, 49x, 4Px, 4Ux, 4Vx, 4Wx, 4Zx, 52x, 53x
v4062-CTO, 24x, 29x, 2Bx, 2Cx, 2Ex, 2Gx, 35x, 3Mx, 3Nx, 3Px, 3Qx, 3Rx, 3Sx, 4Jx,
4Kx, 4Tx, 4Xx, 4Yx, 55x
v4063-CTO, 33x, 3Fx, 4Cx
v4064-CTO, 2Vx
v4065-CTO, 2Wx
248 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 54. Parts list—Windows Vista Business (32 bit) recovery DVDs
Language P/N CRU
ID
Brazilian Portuguese 58Y1913 *
Czech 58Y1916
Danish 58Y1917
English 58Y1939
English (modem-disabled) 58Y1938
English (for India) 58Y2093
English, Finnish, and Swedish (in Sweden) 58Y1941
English, French, German, and Dutch (in Belgium and Luxemburg) 58Y1940
English, French, German, and Italian (in Switzerland) 58Y1942
French 58Y1918
German 58Y1920
Greek 58Y1919
Hebrew 58Y1921
Hungarian 58Y1923
Italian 58Y1924
Japanese 58Y2625
Korean 58Y1926
Norwegian 58Y1927
Polish 58Y1928
Portuguese 58Y1929
Romanian 58Y1931
Russian 58Y1932
Russian (English-enabled) 58Y1930
Serbian-Latin 58Y1936
Simplified Chinese 58Y1914
Slovak 58Y1933
Slovenian 58Y1934
Spanish 58Y1935
Traditional Chinese 58Y1915
Traditional Chinese (Hong Kong S.A.R.) 58Y1922
Turkish 58Y1937
Parts list 249
Windows Vista Business (64 bit) DVDs
Windows Vista Business (64 bit) is preinstalled as the operating system in the
following models:
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 32x, 3Vx, 42x, 46x, 4Bx, 4Qx, 4Rx
v4062-CTO, 4Hx, 4Mx, 4Nx, 54x, 5Ux, 5Vx
v4063-CTO, 34x
v4064-CTO
v4065-CTO
Table 55. Parts list—Windows Vista Business (64 bit) recovery DVDs
Language P/N CRU
ID
English 58Y2073 *
English (modem-disabled) 58Y2072
English (for India) 58Y2096
German 58Y2070
Japanese 58Y2629
Simplified Chinese 58Y2069
250 ThinkPad T500 and W500 Hardware Maintenance Manual
Windows Vista Ultimate (32 bit) DVDs
Windows Vista Ultimate (32 bit) is preinstalled as the operating system in the
following models:
v2055-CTO, 8Rx, 8Sx
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 26x, 4Gx
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO, 3Lx
v4061-CTO, 2Mx, 2Nx, 2Px, 2Qx, 4Ax
v4062-CTO, 2Ax, 3Gx, 3Hx
v4063-CTO, 2Tx, 2Ux
v4064-CTO
v4065-CTO
Parts list 251
Table 56. Parts list—Windows Vista Ultimate (32 bit) recovery DVDs
Language P/N CRU
ID
Czech 58Y2048 *
Danish 58Y2049
English 58Y2065
English (modem-disabled) 58Y2090
English, Finnish, and Swedish (in Sweden) 58Y2067
English, French, German, and Dutch (in Belgium and Luxemburg) 58Y2066
English, French, German, and Italian (in Switzerland) 58Y2068
French 58Y2050
German 58Y2052
Greek 58Y2051
Hebrew 58Y2053
Hungarian 58Y2055
Italian 58Y2056
Japanese 58Y2628
Korean 58Y2088
Norwegian 58Y2057
Polish 58Y2058
Romanian 58Y2059
Russian 58T2089
Serbian-Latin 58Y2063
Simplified Chinese 58Y2046
Slovak 58Y2060
Slovenian 58Y2061
Spanish 58Y2062
Traditional Chinese 58Y2047
Traditional Chinese (Hong Kong S.A.R.) 58Y2054
Turkish 58Y2064
252 ThinkPad T500 and W500 Hardware Maintenance Manual
Windows 7 Home Basic (32 bit) DVDs
Windows 7 Home Basic (32 bit) is preinstalled as the operating system in the
following models:
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 7Lx, 7Ux
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
Table 57. Parts list—Windows 7 Home Basic (32 bit) recovery DVDs
Language P/N CRU
ID
Brazilian Portuguese 58Y3208 *
English 58Y3215
English (for India) 58Y4027
Russian 58Y3211
Russian (English-enabled) 58Y3210
Serbian-Latin 58Y3213
Simplified Chinese 58Y3209
Spanish 58Y3212
Turkish 58Y3214
Parts list 253
Windows 7 Home Premium (32 bit) DVDs
Windows 7 Home Premium (32 bit) is preinstalled as the operating system in the
following models:
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO, 7Vx
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
Table 58. Parts list—Windows 7 Home Premium (32 bit) recovery DVDs
Language P/N CRU
ID
Brazilian Portuguese 58Y3216 *
Danish 58Y3219
English 58Y3232
English (modem-disabled) 58Y3231
English (for India) 58Y4028
English, Finnish, and Swedish (in Sweden) 58Y3234
English, French, German, and Dutch (in Belgium and Luxemburg) 58Y3233
English, French, German, and Italian (in Switzerland) 58Y3235
French 58Y3220
German 58Y3221
Hebrew 58Y3222
Japanese 58Y3224
Korean 58Y3225
Polish 58Y3226
Russian 58Y3228
Russian (English-enabled) 58Y3227
Simplified Chinese 58Y3217
Spanish 58Y3229
Traditional Chinese 58Y3218
Traditional Chinese (Hong Kong S.A.R.) 58Y3223
Turkish 58Y3230
254 ThinkPad T500 and W500 Hardware Maintenance Manual
Windows 7 Home Premium (64 bit) DVDs
Windows 7 Home Premium (64 bit) is preinstalled as the operating system in the
following models:
v2055-CTO
v2056-CTO
v2081-CTO
v2082-CTO
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO
v4062-CTO
v4063-CTO
v4064-CTO
v4065-CTO
Table 59. Parts list—Windows 7 Home Premium (64 bit) recovery DVDs
Language P/N CRU
ID
English 58Y3241 *
English (for India) 58Y4029
French 58Y3237
German 58Y3238
Japan 58Y3239
Simplified Chinese 58Y3236
Spanish 58Y3240
Parts list 255
Windows 7 Professional (32 bit) DVDs
Windows 7 Professional (32 bit) is preinstalled as the operating system in the
following models:
v2055-CTO, A6x, A9x, AHx, ALx, AMx, ANx, APx, AQx, ARx, ASx, ATx
v2056-CTO
v2081-CTO
v2082-CTO, 96x, 99x, 9Fx, 9Gx, 9Hx, 9Jx, 9Nx, 9Px, 9Qx, ADx, AEx, AFx, AGx,
BMx, BNx, BPx
v2083-CTO
v2087-CTO
v2088-CTO, 3Zx, 42x, 43x, 44x
v2089-CTO, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx
v2241-CTO
v2242-CTO, 8Rx
v2243-CTO, 7Yx, 8Vx, 8Yx, 92x, 94x, 95x, 96x, 97x, 99x, 9Bx, 9Cx, 9Dx, 9Ex, 9Fx,
9Gx
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 64x, 68x, 69x, 6Ax, 6Bx, 6Cx
v4062-CTO, 57x, 58x, 59x, 5Cx, 5Jx, 5Lx, 5Nx, 5Rx, 5Tx, 5Yx, 5Zx, 62x, 63x
v4063-CTO
v4064-CTO
v4065-CTO
256 ThinkPad T500 and W500 Hardware Maintenance Manual
Table 60. Parts list—Windows 7 Professional (32 bit) recovery DVDs
Language P/N CRU
ID
Brazilian Portuguese 58Y3242 *
Czech 58Y3245
Danish 58Y3246
English 58Y3268
English (modem-disabled) 58Y3267
English (for India) 58Y4030
English, Finnish, and Swedish (in Sweden) 58Y3270
English, French, German, and Dutch (in Belgium and Luxemburg) 58Y3269
English, French, German, and Italian (in Switzerland) 58Y3271
French 58Y3247
German 58Y3249
Greek 58Y3248
Hebrew 58Y3250
Hungarian 58Y3252
Italian 58Y3253
Japanese 58Y3254
Korean 58Y3255
Norwegian 58Y3256
Polish 58Y3257
Portuguese 58Y3258
Romanian 58Y3260
Russian 58Y3261
Russian (English-enabled) 58Y3259
Serbian-Latin 58Y3265
Simplified Chinese 58Y3243
Slovak 58Y3262
Slovenian 58Y3263
Spanish 58Y3264
Traditional Chinese 58Y3244
Traditional Chinese (Hong Kong S.A.R.) 58Y3251
Turkish 58Y3266
Parts list 257
Windows 7 Professional (64 bit) DVDs
Windows 7 Professional (64 bit) is preinstalled as the operating system in the
following models:
v2055-CTO, AJx, AKx
v2056-CTO
v2081-CTO
v2082-CTO, BQx
v2083-CTO
v2087-CTO
v2088-CTO
v2089-CTO
v2241-CTO
v2242-CTO
v2243-CTO
v2246-CTO
v2247-CTO
v2261-CTO
v4058-CTO
v4061-CTO, 65x, 66x, 67x, 6Dx, 6Fx, 6Gx, 6Hx, 6Kx, 6Lx
v4062-CTO, 5Fx, 5Gx, 5Px
v4063-CTO
v4064-CTO
v4065-CTO
Table 61. Parts list—Windows 7 Professional (64 bit) recovery DVDs
Language P/N CRU
ID
Danish 58Y3274 *
English 58Y3285
English (for India) 58Y4031
English, French, German, and Italian (in Switzerland) 58Y3286
French 58Y3275
German 58Y3276
Hebrew 58Y3277
Italian 58Y3279
Japanese 58Y3280
Korean 58Y3281
Polish 58Y3282
Simplified Chinese 58Y3272
Spanish 58Y3283
Traditional Chinese 58Y3273
Traditional Chinese (Hong Kong S.A.R.) 58Y3278
Turkish 58Y3284
258 ThinkPad T500 and W500 Hardware Maintenance Manual
Common service tools
Table 62. Parts list—Common service tools
Tool P/N
Screwdriver kit 95F3598
1/4″drive spinner handle 1650840
1/4″Sq. to 1/4″hex torx adapter 93F2838
TR7-TR-10 tamper resistant torx bits 00P6967
Removal tool antenna RF connector 08K7159
USB 2.0 CD-RW/DVD-ROM combo drive II 40Y8687
USB cable 40Y8704
USB floppy diskette drive for maintenance diskette 05K9283
USB floppy diskette drive tool kit 27L3452
Test card for integrated Smart Card 42W7820
LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or later
Note: Download the file from the following Web site: http://www.lenovo.com/
spm
—
Parts list 259
260 ThinkPad T500 and W500 Hardware Maintenance Manual
Notices
Lenovo may not offer the products, services, or features discussed in this
document in all countries. Consult your local Lenovo representative for
information on the products and services currently available in your area. Any
reference to a Lenovo product, program, or service is not intended to state or
imply that only that Lenovo product, program, or service may be used. Any
functionally equivalent product, program, or service that does not infringe any
Lenovo intellectual property right may be used instead. However, it is the user’s
responsibility to evaluate and verify the operation of any other product, program,
or service.
Lenovo may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you
any license to these patents. You can send license inquiries, in writing, to:
Lenovo (United States), Inc.
1009 Think Place - Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some
jurisdictions do not allow disclaimer of express or implied warranties in certain
transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. Lenovo may make improvements
and/or changes in the product(s) and/or the program(s) described in this
publication at any time without notice.
The products described in this document are not intended for use in implantation
or other life support applications where malfunction may result in injury or death
to persons. The information contained in this document does not affect or change
Lenovo product specifications or warranties. Nothing in this document shall
operate as an express or implied license or indemnity under the intellectual
property rights of Lenovo or third parties. All information contained in this
document was obtained in specific environments and is presented as an
illustration. The result obtained in other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those Web
sites. The materials at those Web sites are not part of the materials for this Lenovo
product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments may
© Copyright Lenovo 2008, 2009 261
vary significantly. Some measurements may have been made on development-level
systems and there is no guarantee that these measurements will be the same on
generally available systems. Furthermore, some measurements may have been
estimated through extrapolation. Actual results may vary. Users of this document
should verify the applicable data for their specific environment.
Trademarks
The following terms are trademarks of Lenovo in the United States, other countries
or both:
Active Protection System
Lenovo®
Rescue and Recovery®
ThinkLight®
ThinkPad®
ThinkVantage®
TrackPoint®
Ultrabay
Ultrabay 2000
Ultrabay Enhanced
Ultrabay Plus
UltraNav®
The following terms are trademarks of the International Business Machines
Corporation in the United States, other countries, or both:
IBM®(used under license)
The following terms are trademarks of Microsoft Corporation in the United States,
other countries, or both:
Microsoft®
Windows®
Windows Vista®
The following are trademarks of Intel Corporation or its subsidiaries in the United
States, other countries, or both:
Intel®
Intel®Celeron®
Intel®CoreTM 2 Duo
Other company, product, or service names may be the trademarks or service marks
of others.
262 ThinkPad T500 and W500 Hardware Maintenance Manual
Part Number: 43Y6630_04
(1P) P/N: 43Y6630_04

Navigation menu
