YOGA TABLET 2
Hardware Maintenance Manual
YOGA Tablet 2-1051F
YOGA Tablet 2-1051L
Note:
Before using this information and the product it supports, be sure to read the general information
under “Notices” on page 88.
First Edition (Sep 2014)
© Copyright Lenovo 2014. All rights reserved.
LENOVO products, data, computer software, and services have been developed exclusively at private
expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with
limited and restricted rights to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are
delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclo-
sure is subject to restrictions set forth in Contract No. GS-35F-05925.
© 2014 Lenovo
About this manual........................................iv
Safety information.........................................1
General safety ...................................................... 2
Electrical safety .................................................... 3
Safety inspection guide ...................................... 5
Handling devices that are sensitive to electro-
static discharge .................................................... 6
Grounding requirements ................................... 6
Safety notices: multilingual translations.......... 7
Laser compliance statement............................. 14
Important service information ...................16
Strategy for replacing FRUs............................. 16
Important notice for replacing a system
board ............................................................. 17
Important information about replacing RoHS
compliant FRUs ................................................. 18
General checkout........................................19
What to do first.................................................. 20
Power system checkout .................................... 21
Checking the Computer AC Charger....... 21
Checking the internal battery status......... 22
Related service information.......................23
Security ............................................................... 23
Power management .......................................... 23
Activating/Deactivating the Display........ 23
Lenovo 1051 ................................................24
Specifications ..................................................... 24
FRU replacement notices.................................. 26
Screw notices................................................ 26
Removing and replacing an FRU.................... 27
1010 Rear cover............................................ 28
1020 Right speaker ...................................... 31
1030 Vibrator motor .................................... 34
1040 Sub board............................................. 36
1050 LCD FPC.............................................. 41
1060 Main FPC............................................. 44
1070 HDMI FPC........................................... 47
1080 Hall sensor FPC .................................. 50
1090 Main board .......................................... 53
1100 Left speaker......................................... 60
1110 Rear camera......................................... 64
1120 USB and volume key FPC................. 66
1130 Volume key ......................................... 68
1140 LTE main antenna (LTE version) or
WIFI2 antenna (WiFi version) ................... 69
1150 LTE MINO/GPS/WIFI1 antenna (LTE
version) or GPS/WIFI1 antenna (WiFi ver-
sion) ............................................................... 71
1160 WIFI2 antenna (LTE version)............73
1170 Battery pack ......................................... 74
1180 Power key ............................................ 79
Locations ............................................................. 81
Front view..................................................... 81
Rear view ......................................................82
Parts list............................................................... 83
Overall........................................................... 83
Screws............................................................87
Notices .........................................................88
Trademarks......................................................... 89
Contents
iv
This manual contains service and reference information for the following
Lenovo product of the specified versions:
•Lenovo 1051 (WiFi version and LTE version)
Use this manual to troubleshoot problems.
The manual is divided into the following sections:
• The common sections provide general information, guidelines, and safety
information required for servicing computers.
• The product-specific section includes service, reference, and product-specific
parts information.
About this manual
Note:
The information provided in this manual is applicable to both product
versions mentioned above, unless otherwise specified.
Important:
This manual is intended only for trained servicers who are familiar with
Lenovo products. Use this manual to troubleshoot problems effectively.
Before servicing a Lenovo product, make sure to read all the information
under “Safety information” on page 1 and “Important service information”
on page 16.
Safety information
1
This chapter presents the following safety information that you need to get
familiar with before you service a Lenovo computer:
•“General safety” on page2
• “Electrical safety” on page 3
• “Safety inspection guide” on page 5
• “Handling devices that are sensitive to electrostatic discharge” on page 6
• “Grounding requirements” on page 6
• “Safety notices: multilingual translations” on page 7
• “Laser compliance statement” on page 14
Safety information
Lenovo 1051 Hardware Maintenance Manual
2
Follow these rules below to ensure general safety:
• Observe a good housekeeping in the area where the machines are put during
and after the maintenance.
• When lifting any heavy object:
1. Make sure that you can stand safely without slipping.
2. Distribute the weight of the object equally between your feet.
3. Use a slow lifting force. Never move suddenly or twist when you attempt
to lift it.
4. Lift it by standing or pushing up with your leg muscles; this action could
avoid the strain from the muscles in your back. Do not attempt to lift any
object that weighs more than 16 kg (35 lb) or that you think is too heavy for
you.
• Do not perform any action that causes hazards to the customer, or that makes
the machine unsafe.
• Before you start the machine, make sure that other service representatives
and the customer are not in a hazardous position.
• Place removed covers and other parts in a safe place, keeping them away
from all personnel, while you are servicing the machine.
• Keep your toolcase away from walk areas so that other people will not trip it
over.
• Do not wear loose clothing that can be trapped in the moving parts of the
machine. Make sure that your sleeves are fastened or rolled up above your
elbows. If your hair is long, fasten it.
• Insert the ends of your necktie or scarf inside clothing or fasten it with the
nonconductive clip, about 8 centimeters (3 inches) from the end.
• Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for
your clothing.
Attention: Metal objects are good electrical conductors.
• Wear safety glasses when you are hammering, drilling, soldering, cutting
wire, attaching springs, using solvents, or working in any other conditions
that may be hazardous to your eyes.
• After service, reinstall all safety shields, guards, labels, and ground wires.
Replace any safety device that is worn or defective.
• Reinstall all covers correctly before returning the machine to the customer.
• Fan louvers on the machine help to prevent the overheating of internal
components. Do not obstruct fan louvers or cover them with labels or
stickers.
General safety
Safety information
3
Observe the following rules when working on electrical equipments.
• Find the room emergency power-off (EPO) switch for disconnecting the
switch or electrical outlet. If an electrical accident occurs, you can then
operate the switch or unplug the power cord quickly.
• Do not work alone under hazardous conditions or near the equipment that
has hazardous voltages.
• Disconnect all power before:
—Performing a mechanical inspection
—Working near power supplies
—Removing or installing main units
• Before you start to work on the machine, unplug the power cord. If you
cannot unplug it, ask the customer to power-off the wall box that supplies
power to the machine, and to lock the wall box in the off position.
• If you need to work on a machine that has exposed electrical circuits, observe
the following precautions:
—Ensure that another person, familiar with the power-off controls, is near
you.
Attention: Another person must be there to switch off the power, if
necessary.
—Use only one hand when working with powered-on electrical equipment;
keep the other hand in your pocket or behind your back.
Attention: An electrical shock can occur only when there is a complete
circuit. By observing the above rule, you may prevent a current from
passing through your body.
—When using testers, set the controls correctly and use the approved probe
leads and accessories for that tester.
—Stand on suitable rubber mats (obtained locally, if necessary) to insulate
you from grounds such as metal floor strips and machine frames.
Observe the special safety precautions when you work with very high voltages;
instructions for these precautions are in the safety sections of maintenance
information. Be extremely careful when you measure the high voltages.
• Regularly inspect and maintain your electrical hand tools for safe operational
condition.
• Do not use worn or broken tools and testers.
• Never assume that power has been disconnected from a circuit. First, check it
to make sure that it has been powered off.
Electrical safety
Important:
Use only approved tools and test equipments. Some hand tools have
handles covered with a soft material that does not insulate you when
working with live electrical currents.
Many customers have rubber floor mats near their machines that contain
small conductive fibers to decrease electrostatic discharges. Do not use such
kind of mat to protect yourself from electrical shock.
Lenovo 1051 Hardware Maintenance Manual
4
• Always look carefully for possible hazards in your work area. Examples of
these hazards are moist floors, nongrounded power extension cables, power
surges, and missing safety grounds.
• Do not touch live electrical circuits with the reflective surface of a plastic
dental mirror. The surface is conductive; such touching can cause personal
injury and machine damage.
• Do not service the following parts with the power on when they are removed
from their normal operating places in a machine:
—Power supply units
—Pumps
—Blowers and fans
—Motor generators
and similar units. (This practice ensures correct grounding of the units.)
• If an electrical accident occurs:
—Caution: do not become a victim yourself.
—Switch off the power.
—Send the victim to get medical aid.
Safety information
5
The purpose of this inspection guide is to assist you in identifying potential
unsafe conditions. As each machine was designed and built, required safety
items were installed to protect users and service personnel from injury. This
guide addresses only those items. You should use good judgment to identify
potential safety hazards according to the attachment of non-Lenovo features or
options not covered by this inspection guide.
If any unsafe conditions are present, you must determine how serious the
apparent hazard could be and whether you can continue without first correcting
the problem.
Consider these conditions and the safety hazards they present:
• Electrical hazards, especially primary power (primary voltage on the frame
can cause serious or fatal electrical shock)
• Explosive hazards, such as a damaged CRT face or a bulging capacitor
• Mechanical hazards, such as loose or missing hardware
To determine whether there are any potential unsafe conditions, use the
following checklist at the beginning of every service task. Begin the checks with
the power off, and the power cord disconnected.
Checklist:
1. Check exterior covers for damage (loose, broken, or sharp edges).
2. Turn off the computer. Disconnect the power cord.
3. Check the power cord for:
a. A third-wire ground connector in good condition. Use a meter to measure
third-wire ground continuity for 0.1 ohm or less between the external
ground pin and the frame ground.
b. The power cord should be the type specified in the parts list.
c. Insulation must not be frayed or worn.
4. Check for cracked or bulging batteries.
5. Remove the cover.
6. Check for any obvious non-Lenovo alterations. Use good judgment as to the
safety of any non-Lenovo alterations.
7. Check inside the unit for any obvious unsafe conditions, such as metal filings,
contamination, water or other liquids, or signs of fire or smoke damage.
8. Check for worn, frayed, or pinched cables.
9. Check that the power-supply cover fasteners (screws or rivets) have not been
removed or tampered with.
Safety inspection guide
Lenovo 1051 Hardware Maintenance Manual
6
Any computer part containing transistors or integrated circuits (ICs) should be
considered sensitive to electrostatic discharge (ESD). ESD damage can occur
when there is a difference in charge between objects. Protect against ESD damage
by equalizing the charge so that the machine, the part, the work mat, and the
person handling the part are all at the same charge.
When handling ESD-sensitive parts:
• Keep the parts in protective packages until they are inserted into the product.
• Avoid contact with other people.
• Wear a grounded wrist strap against your skin to eliminate static on your
body.
• Prevent the part from touching your clothing. Most clothing is insulative and
retains a charge even when you are wearing a wrist strap.
• Use the black side of a grounded work mat to provide a static-free work
surface. The mat is especially useful when handling ESD-sensitive devices.
• Select a grounding system, such as those listed below, to provide protection
that meets the specific service requirement.
—Attach the ESD ground clip to any frame ground, ground braid, or green-
wire ground.
—When working on a double-insulated or battery-operated system, use an
ESD common ground or reference point. You can use coax or connector-
outside shells on these systems.
—Use the round ground prong of the ac plug on ac-operated computers.
Electrical grounding of the computer is required for operator safety and correct
system function. Proper grounding of the electrical outlet can be verified by a
certified electrician.
Handling devices that are sensitive to electrostatic discharge
Notes:
1. Use product-specific ESD procedures when they exceed the
requirements noted here.
2. Make sure that the ESD protective devices you use have been certified
(ISO 9000) as fully effective.
Notes:
The use of a grounding system to guard against ESD damage is desirable but
not necessary.
Grounding requirements
Safety information
7
The safety notices in this section are provided in English, French, German,
Hebrew, Italian, Japanese, and Spanish.

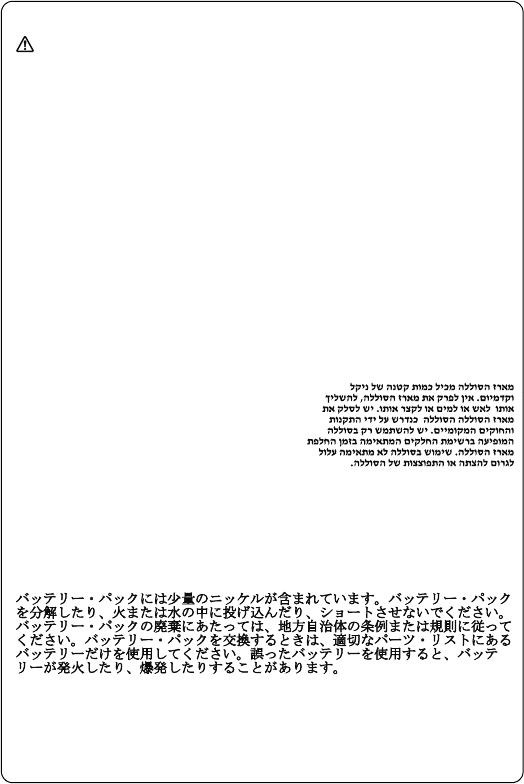

Safety notices: multilingual translations
Lenovo 1051 Hardware Maintenance Manual
8
Safety information
9
Lenovo 1051 Hardware Maintenance Manual
10
Safety information
11
Lenovo 1051 Hardware Maintenance Manual
12
Safety information
13
Lenovo 1051 Hardware Maintenance Manual
14
Some models of Lenovo computer are equipped from the factory with an optical
storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are
also sold separately as options. If one of these drives is installed, it is certified in
the U.S. to conform to the requirements of the Department of Health and Human
Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class
1 laser products. Elsewhere, the drive is certified to conform to the requirements
of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60
825 for Class 1 laser products.
If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note
the following:
Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage
device could result in exposure to hazardous laser radiation. There are no
serviceable parts inside those drives. Do not open.
Laser compliance statement
Safety information
15
A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may
contain an embedded Class 3A or Class 3B laser diode. Note the following:
Lenovo 1051 Hardware Maintenance Manual
16
This chapter presents the following important service information:
• “Strategy for replacing FRUs” on page 16
—“Important notice for replacing a system board” on page 17
• “Important information about replacing RoHS compliant FRUs” on page 18
Before replacing parts:
Make sure that all software fixes, drivers, and BIOS downloads are installed
before replacing any FRUs listed in this manual.
After a system board is replaced, ensure that the latest BIOS is loaded to the
system board before completing the service action.
To download software fixes, drivers, and BIOS, follow the steps below:
1. Go to http://consumersupport.lenovo.com/.
2. Enter a serial number or select a product or use Lenovo smart downloading.
3. Select the BIOS/Driver/Applications and download.
4. Follow the directions on the screen and install the necessary software.
Use the following strategy to prevent unnecessary expense for replacing and
servicing FRUs:
• If you are instructed to replace an FRU, but the replacement does not solve
the problem, reinstall the original FRU before you continue.
• Some computers have both a processor board and a system board. If you are
instructed to replace either of them, and replacing one of them does not solve
the problem, reinstall that board, and then replace the other one.
• If an adapter or a device consists of more than one FRU, any of the FRUs may
be the cause of the error. Before replacing the adapter or device, remove the
FRUs one by one to see if the symptoms change. Replace only the FRU that
changed the symptoms.
Attention: The setup configuration on the computer you are servicing may have
been customized. Running Automatic Configuration may alter the settings. Note
the current configuration settings (using the View Configuration option); then,
when service has been completed, verify that those settings remain in effect.
Important service information
Important:
BIOS and device driver fixes are customer-installable. The BIOS and device
drivers are posted on the customer support site:
http://consumersupport.lenovo.com/.
Strategy for replacing FRUs
Important service information
17
Important notice for replacing a system board
Some components mounted on a system board are very sensitive. Improper
handling can cause damage to those components, and may cause a system
malfunction.
Attention: When handling a system board:
• Do not drop the system board or apply any excessive force to it.
• Avoid rough handling of any kind.
• Avoid bending the system board and hard pushing to prevent cracking at
each BGA (Ball Grid Array) chipset.
Lenovo 1051 Hardware Maintenance Manual
18
RoHS, The Restriction of Hazardous Substances in Electrical and
Electronic Equipment Directive (2002/95/EC) is a European Union legal
requirement affecting the global electronics industry. RoHS requirements
must be implemented on Lenovo products placed on the market after June
2006. Products on the market before June 2006 are not required to have
RoHS compliant parts. If the original FRU parts are non-compliant,
replacement parts can also be non-compliant. In all cases if the original
FRU parts are RoHS compliant, the replacement part must also be RoHS
compliant.
Note: RoHS and non-RoHS FRU part numbers with the same fit and function are
identified with unique FRU part numbers.
Lenovo plans to transit to RoHS compliance well before the implementation date
and expects its suppliers to be ready to support Lenovo’s requirements and
schedule in the EU. Products sold in 2005 and 2006 will contain some RoHS
compliant FRUs. The following statement pertains to these products and any
product Lenovo produces containing RoHS compliant FRUs.
RoHS compliant FRUs have unique FRU part numbers. Before or after the RoHS
implementation date, failed RoHS compliant parts must always be replaced with
RoHS compliant ones, so only the FRUs identified as compliant in the system
HMM or direct substitutions for those FRUs may be used.
Note: A direct substitution is a part with a different FRU part number that is
automatically shipped by the distribution center at the time of the order.
Products marketed before June 2006 Products marketed after June 2006
Current or
original part
Replacement
FRU
Current or
original part
Replacement
FRU
Non-RoHS Can be Non-RoHS
Must be RoHS Must be RoHS
Non-RoHS Can be RoHS
Non-RoHS Can sub to RoHS
RoHS Must be RoHS
Important information about replacing RoHS compliant FRUs
General checkout
19
This chapter presents the following information:
• “What to do first” on page 20
• “Power system checkout” on page 21
Before you go to the checkout, make sure to read the following important notes:
General checkout
Important notes:
•Only certified trained personnel can service the computer.
•Before replacing any FRU, read the entire page on removing and
replacing FRUs.
•When you replace FRUs, use new nylon-coated screws.
•Be extremely careful during such write operations as copying,
saving, or formatting. Drives in the computer that you are servicing
sequence might have been altered. If you select an incorrect drive, data
or programs might be overwritten.
•Replace an FRU only with another FRU of the correct model. When
you replace an FRU, make sure that the machine model and the FRU part
number are correct by referring to the FRU parts list.
•An FRU should not be replaced just because of a single,
unreproducible failure. Single failures can occur for a variety of reasons
that have nothing to do with a hardware defect, such as cosmic radiation,
electrostatic discharge, or software errors. Consider replacing an FRU
only when a problem recurs. If you suspect that an FRU is defective,
clear the error logs and run the test again. If the error does not recur, do
not replace the FRU.
•Be careful not to replace a nondefective FRU.
Lenovo 1051 Hardware Maintenance Manual
20
When you do return an FRU, you must include the following information in the
parts exchange form or parts return form that you attach to it:
1. Name and phone number of servicer
2. Date of service
3. Date on which the machine failed
4. Date of purchase
5. Procedure index and page number in which the failing FRU was detected
6. Failing FRU name and part number
7. Machine type, model number, and serial number
8. Customer’s name and address
Note for warranty: During the warranty period, the customer may be
responsible for repair costs if the computer damage was caused by misuse,
accident, modification, unsuitable physical or operating environment, or
improper maintenance by the customer.
The following is a list of some common items that are not covered under
warranty and some symptoms that might indicate that the system was subjected
to stress beyond normal use.
Before checking problems with the computer, determine whether the damage is
covered under the warranty by referring to the following list:
The following are not covered under warranty:
• LCD panel cracked from the application of excessive force or from being
dropped
• Scratched (cosmetic) parts
• Distortion, deformation, or discoloration of the cosmetic parts
• Plastic parts, latches, pins, or connectors that have been cracked or broken by
excessive force
• Damage caused by liquid spilled into the system
• Damage caused by the improper insertion of a PC Card or the installation of
an incompatible card
• Improper disk insertion or use of an optical drive
• Diskette drive damage caused by pressure on the diskette drive cover,
foreign material in the drive, or the insertion of a diskette with multiple
labels
• Damaged or bent diskette eject button
• Fuses blown by attachment of a nonsupported device
• Forgotten computer password (making the computer unusable)
• Sticky keys caused by spilling a liquid onto the keyboard
• Use of an incorrect AC adapter on laptop products
The following symptoms might indicate damage caused by nonwarranted
activities:
• Missing parts might be a symptom of unauthorized service or modification.
• If the spindle of a hard disk drive becomes noisy, it may have been subjected
to excessive force, or dropped.
What to do first
General checkout
21
To verify a symptom, follow the steps below:
1. Turn off the computer.
2. Remove the battery pack.
3. Connect the AC adapter.
4. Make sure that power is supplied when you turn on the computer.
5. Turn off the computer.
6. Disconnect the AC adapter and install the charged battery pack.
7. Make sure that the battery pack supplies power when you turn on the
computer.
If you suspect a power problem, see the appropriate one of the following power
supply checkouts:
• “Checking the Computer AC Charger” on page 21
• “Checking the internal battery status” on page 22
Checking the Computer AC Charger
When you use the computer AC Charger to charge the tablet but no power is
charged, see the instructions in this topic to check the computer AC Charger.
To check the computer AC Charger, do the following:
1. Disconnect the micro-USB cable from the tablet.

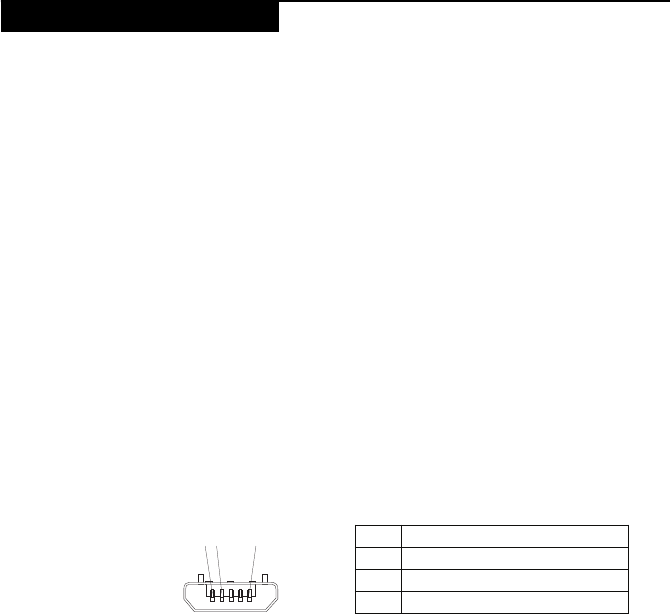

2. Measure the output voltage across the connector marked B of the micro-USB
cable. Refer to the following figure:
Note: The output voltage across pin 3 of the micro-B connector might be
different from the one you are servicing.
3. If the voltage is not correct, replace the micro-USB cable.
4. If the voltage is acceptable, replace the system board.
Power system checkout
Pin Voltage (V dc)
1Ground
20
3+5
12 3 (5V)
Lenovo 1051 Hardware Maintenance Manual
22
Checking the internal battery status
To check the battery status of the tablet, do either of the following:
• Approximate information about the battery status
Get the approximate status of the battery at any time by checking the battery
status icon on the system bar in the upper-right corner of the screen. The
shorter the green bar is, the less the battery power remains.
• Accurate information about the battery status
To get the accurate information about the battery status of the tablet, do the
following:
1. Open the Android Settings screen.
To open the Android Settings screen, do either of the following:
– From the main Home screen, touch the Android Settings icon on
Lenovo Launch Zone. The Android Settings screen is displayed.
– Pull down the application icon from the action bar and then touch
Settings. The Android Settings screen is displayed.
2. Touch Battery in the Device section on the Android Settings screen.
3. The accurate percentage of the remaining battery power is shown on the
screen.
Related service information
23
This chapter presents the following information:
• “Security” on page 23
• “Power management” on page 23
Security settings include: SCREEN SECURITY, SIM CARD LOCK (LTE version
only), PASSWORDS, DEVICE ADMINISTRATION and CREDENTIAL
STORAGE.
Note: Power management modes are not supported for APM operating system.
To reduce power consumption, the computer has three power management
modes: screen blank, sleep (standby), and hibernation.
Activating/Deactivating the Display
With the display deactivated, press the Power button on the computer to activate
the display. The computer display will then illuminate, indicating that it has
been activated.
If you do not need to use your computer temporarily, you can press the Power
button to deactivate the display. Your computer will then enter standby mode to
save power.
Related service information
Security
Power management
Lenovo 1051 Hardware Maintenance Manual
24
This chapter presents the following product-specific service references and
product-specific parts information:
• “Specifications” on page 24
• “FRU replacement notices” on page 26
• “Removing and replacing an FRU” on page 27
• “Locations” on page 81
• “Parts list” on page 83
The following table lists the specifications of the Lenovo 1051 tablet.
Table 1. Specifications
Feature Description
Size & Weight
Size • 261mm x 170mm x (3.0 ~ 8.0)mm
Weight • < 550g
System
CPU • 1.86GHz, Quad Cores
Hardware Platform • Intel® Bay Trail-T Atom™ Processor Z3745
RAM • LP-DDR3 2GB (64bit)
Storage Capacity • 32GB
LCD • 10.1”, 1,920 x 1,200 pixels
Integrated Camera • Rear camera, 8.0Mega pixels, Auto Focus
• Front camera, 1.6Mega pixels, HD Fixed Focus
Battery • Li-ion battery, 9,600mAh
Operating System
•Windows 8.1
Network
• FDD LTE (1051L model only)
Lenovo 1051
Specifications
Note:
The listed technical data is applicable to both versions of the product, i.e. the
WiFi version and the LTE version, unless otherwise specified.
Lenovo 1051
25
Ports
• Micro-USB (USB 2.0)
• Audio Jack, 3.5mm
• Micro SIM card slot (1051L model only)
• Micro-SD card slot (support external Micro-SD
card up to 64GB)
•HDMI
Communication
• WiFi: 802.11a/b/g/n
• FDD LTE: Band 1/2/3/5/7/8/19/20 (LTE version
only)
• Wireless WAN: FDD LTE Cat.4 150Mbps (LTE
version only)
•Bluetooth 4.0
•FM
•GPS
•AGPS
Others
• Speaker (Left and right)
• Microphone
•Gravity sensor
•E-compass
• Ambient light sensor
•Vibration
•Hall sensor
•Battery Manager
• LED indicator (on power button)
• Dolby audio system (DS1)
• Miracast
•Magnet
• WiFi Display
Lenovo 1051 Hardware Maintenance Manual
26
This section presents notices related to removing and replacing parts. Read this
section carefully before replacing any FRU.
Screw notices
Loose screws can cause a reliability problem. In Lenovo computers, this problem
is addressed with special nylon-coated screws that have the following
characteristics:
• They maintain tight connections.
• They do not easily come loose, even with shock or vibration.
• They are harder to tighten.
• Each one should be used only once.
Do the following when you service this machine:
• Keep the screw kit in your tool bag.
• Always use new screws.
• Use a torque screwdriver if you have one.

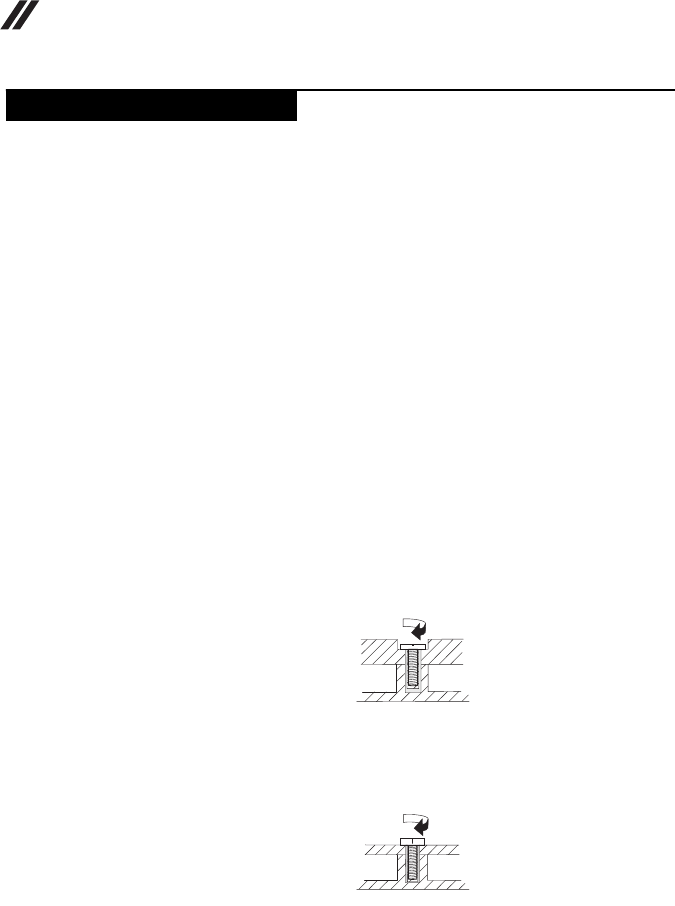

Tighten screws as follows:
•Plastic to plastic
Turn an additional 90° after the screw head touches the surface of the plastic
part:
•Logic card to plastic
Turn an additional 180° after the screw head touches the surface of the logic
card:
•Torque driver
If you have a torque screwdriver, refer to the “Torque” column for each step.
• Make sure that you use the correct screws. If you have a torque screwdriver,
tighten all screws firmly to the torque shown in the table. Never use a screw
that you removed. Use a new one. Make sure that all screws are
tightened firmly.
• Ensure torque screwdrivers are calibrated correctly following country
specifications.
FRU replacement notices
more than 90°
(Cross-section)
more than 180°
(Cross-section)
Lenovo 1051
27
This section presents exploded figures with the instructions to indicate how to
remove and replace the FRU. Make sure to observe the following general rules:
1. Do not attempt to service any computer unless you have been trained and
certified. An untrained person runs the risk of damaging parts.
2. Before replacing any FRU, review “FRU replacement notices” on page 26.
3. Begin by removing any FRUs that have to be removed before the failing FRU.
Any of such FRUs are listed at the top of the section that describes the
detailed removing and replacing procedure for the failing FRU. Remove
them in the order in which they are listed.
4. Follow the correct sequence in the steps to remove the FRU, while referring
to figures provided in the procedure.
5. When turning a screw to replace an FRU, turn it in the direction as given by
the arrow in the figure.
6. When removing the FRU, move it in the direction as given by the arrow in the
figure.
7. To put the new FRU in place, reverse the removal procedures and follow any
of the notes that pertain to replacement. For information about connecting
and arranging internal cables, see “Locations” on page 81.
8. When replacing an FRU, use the correct screw as specified in the procedures.
Attention: After replacing an FRU, do not turn on the computer until you have
made sure that all screws, springs, and other small parts are in place and none
are loose inside the computer. Verify this by shaking the computer gently and
listening for rattling sounds. Metallic parts or metal flakes can cause electrical
short circuits.
Attention: The system board is sensitive to, and can be damaged by, electrostatic
discharge. Before touching it, establish personal grounding by touching a
ground point with one hand or using an electrostatic discharge (ESD) strap
(P/N 6405959) to remove potential shock reasons.
Removing and replacing an FRU

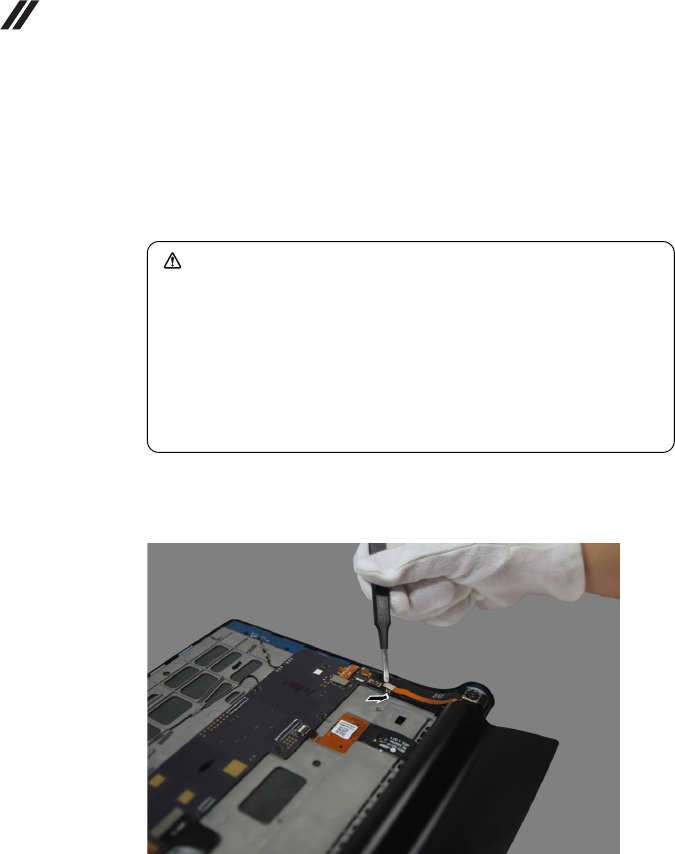

DANGER
Before removing any FRU, turn off the computer, unplug all power cords
from electrical outlets, remove the battery pack, and then disconnect any of
the interconnecting cables.
Lenovo 1051 Hardware Maintenance Manual
28
1010 Rear cover
1. Open the hinge frame.
Figure 1-1. Opening the hinge frame
2. Open the card slot cover using a thin flat blade or guitar pick.
Figure 1-2. Opening the card slot
Lenovo 1051
29

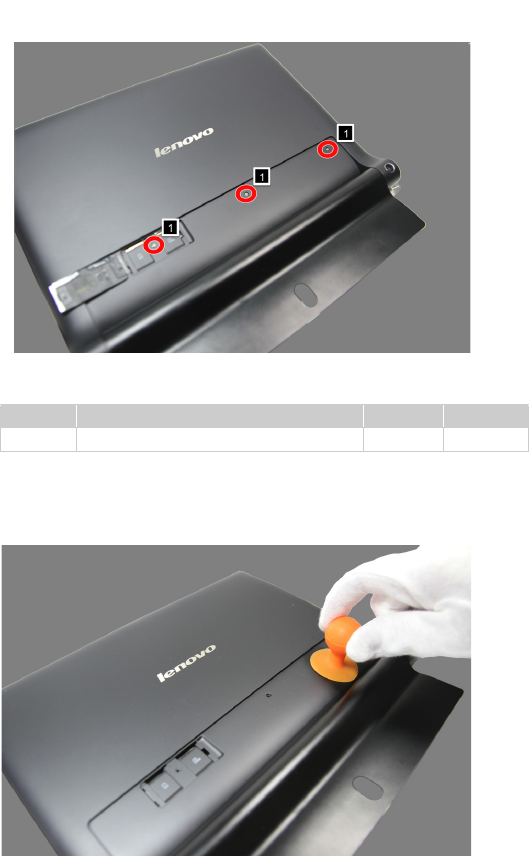

3. Remove screws on the rear cover as shown in the figure below.
Figure 1-3. The screws on the rear cover
4. Separate the bottom right corner of the rear cover from the main body of the
tablet using a suction tool as shown in the figure below.
Figure 1-4.
Separating the rear cover from the main body (bottom right)
Part No. Screw (quantity) Color Torque
Phillips flat head screw, M1.4 × 1.6 (3) Silver N/A
a
a
Lenovo 1051 Hardware Maintenance Manual
30

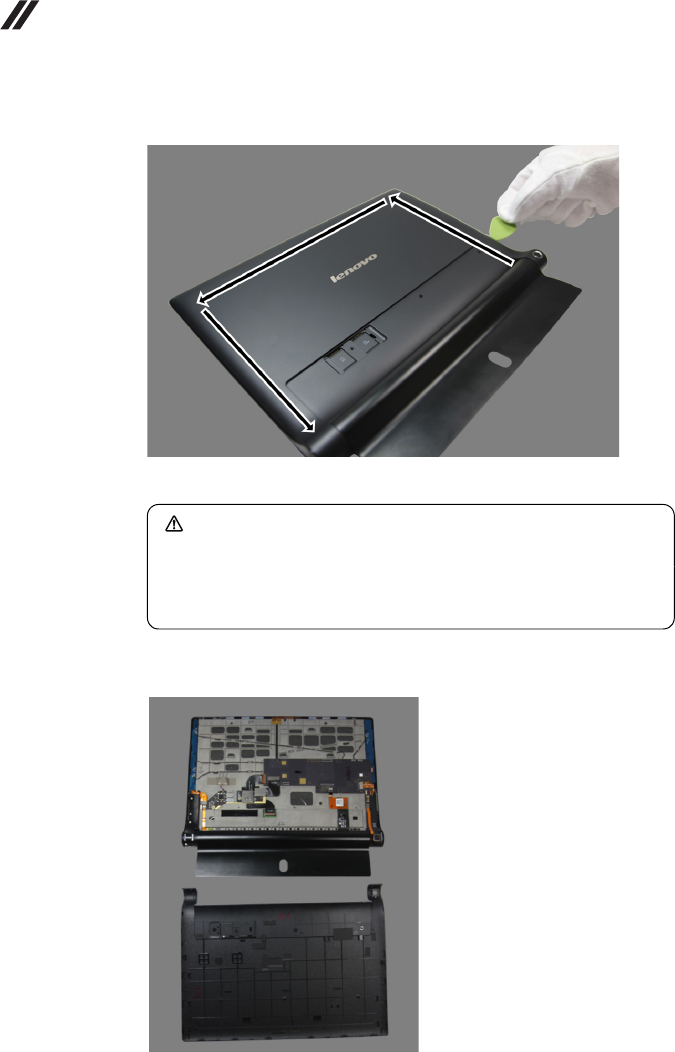

5. Hold the tablet in one hand and use a guitar pick to unlock the rear cover
from the tablet along the joint line as shown in the figure below.
Figure 1-5. Unlocking the rear cover from the main body (along the joint line)
6. Slowly remove the rear cover.
Figure 1-6. The removed rear cover
CAUTION:
Handle with care!
The rear cover or its locks can be damaged!
Do not try to lift the rear cover off the tablet when it is tightly locked at some
places. Use a guitar pick to unlock these places first.
Lenovo 1051
31
1020 Right speaker
For access, remove the following FRU:
• “1010 Rear cover” on page 28
1. Disconnect the power supply to the tablet by detaching the battery FPC from
its connector on the main board using a pair of tweezers.
Figure 2-1. Disconnecting the power supply of the tablet

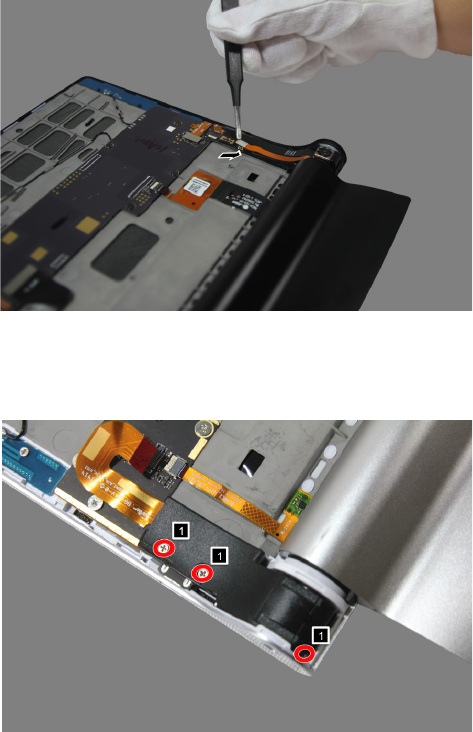

2. Remove screws on the holder of the right speaker as shown in the figure
below.
Figure 2-2. The screws on the right speaker holder
a
Lenovo 1051 Hardware Maintenance Manual
32
3. Detach the connector of the right speaker FPC from the sub board using a pair
of tweezers.
Figure 2-3. Detaching the FPC connector of the right speaker

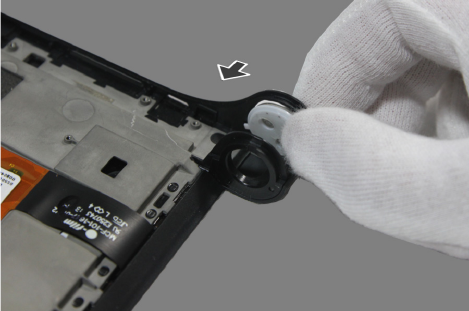

4. Gently detach the side of case from the right speaker using a pair of tweezers,
and at the same time push the right speaker in the direction as shown in the
figure below.
Figure 2-4. Removing the right speaker
Part No. Screw (quantity) Color Torque
Phillips flat-head screw, M1.4 × 2.0 (3) Silver N/A
a
Lenovo 1051
33
5. Remove the right speaker.

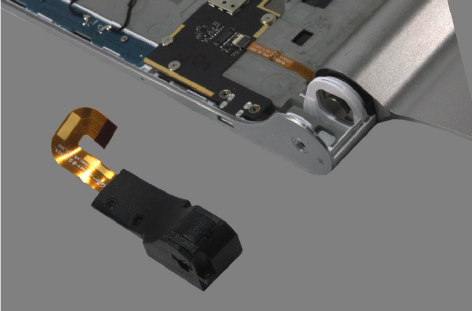

Figure 2-5. The removed right speaker
Lenovo 1051 Hardware Maintenance Manual
34
1030 Vibrator motor
For access, remove the following FRU:
• “1010 Rear cover” on page 28
1. Disconnect the power supply to the tablet by detaching the battery FPC from
its connector on the main board using a pair of tweezers.
Figure 3-1. Disconnecting the power supply of the tablet

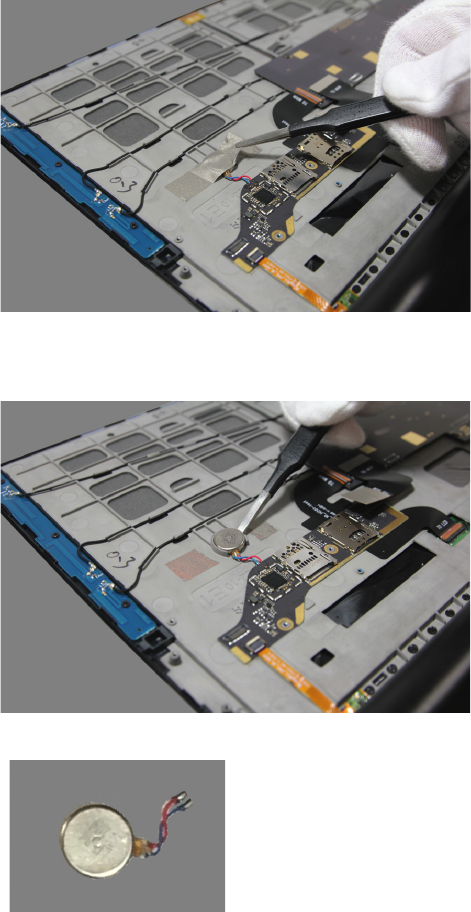

2. Desolder the wires of the vibrator motor from the sub board at the position
shown in the figure below.
Figure 3-2. Position for desoldering the wires of the vibrator motor
Lenovo 1051
35
3. Remove the conductive fabric tape of the vibrator motor as shown in the
figure below.
Figure 3-3. Removing the conductive fabric tape
4. Remove the vibrator motor from its seat using a thin flat blade.
Figure 3-4. Removing the vibrator motor
Figure 3-5. The removed vibrator motor
Lenovo 1051 Hardware Maintenance Manual
36
1040 Sub board
For access, remove the following FRU:
• “1010 Rear cover” on page 28
• “1020 Right speaker” on page 31
and
Detach the following wire connections:
• Vibrator motor wire connections (see Step 2 on page 34 in “1030 Vibrator
motor”)
1. Unlock the connector of the hall sensor FPC on the sub board using a guitar
pick.
Figure 4-1. Unlocking the connector of the hall sensor FPC
Important notices for handling PCB:
When handling PCB, bear the following in mind:
• Be careful not to drop the PCB onto a bench top that has a hard surface,
such as surface made of metal, wood, or composite materials.
• Avoid rough handling of any kind.
• Make sure not to drop or stack the PCB in the whole process.
• Make sure to put the PCB only on surface covered with such materials as
an ESD mat or conductive corrugated plate.
Lenovo 1051
37
2. Pull out the hall sensor FPC from its connector using a pair of tweezers.
Figure 4-2. Pulling out the hall sensor FPC
3. Detach the connector of the HDMI FPC from the sub board using a pair of tweezers.
Figure 4-3. Detaching the connector of the HDMI FPC (on the sub board)
Lenovo 1051 Hardware Maintenance Manual
38
4. Detach the connector of the main FPC from the sub board using a pair of tweezers.

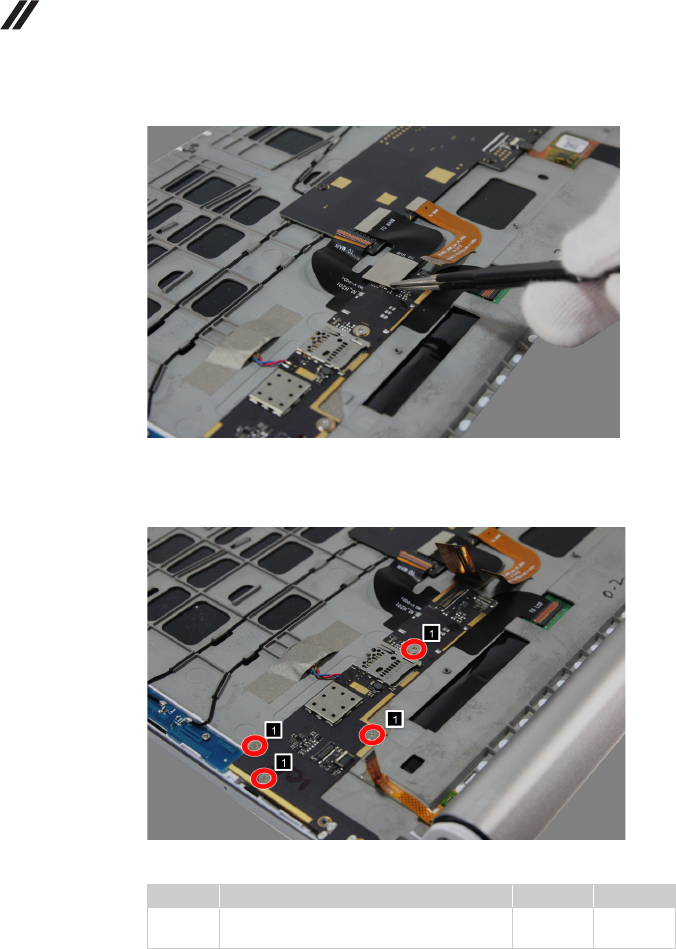

Figure 4-4. Detaching the connector of the main FPC (on the sub board)
5. Remove screws on the sub board.
Figure 4-5. The screws on the sub board
Part No. Screw (quantity) Color Torque
Phillips flat head screw, M1.4 × 1.3, wide
head (4) Silver N/A
a
a
Lenovo 1051
39
6. Detach the sub board from the tablet using a thin flat blade.
Figure 4-6. Detaching the sub board from the tablet
7. Remove the sub board from the tablet.
Figure 4-7. Removing the sub board
Lenovo 1051 Hardware Maintenance Manual
40
Figure 4-8. The removed sub board
Lenovo 1051
41
1050 LCD FPC
For access, remove the following FRUs in order:
• “1010 Rear cover” on page 28
• “1040 Sub board” on page 36

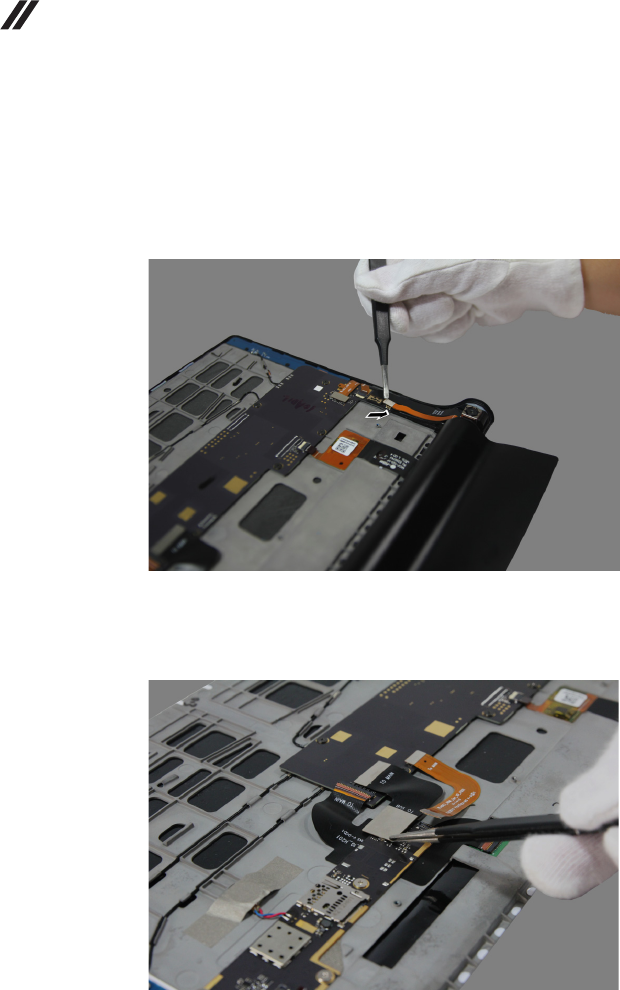

1. Unlock the connector of the LCD FPC on the front module of the tablet using a
guitar pick.
Figure 5-1. Unlocking the connector of the LCD FPC (front module side)
2. Unlock the connector of the LCD FPC on the main board using a guitar pick.
Figure 5-2. Unlocking the connector of the LCD FPC (main board side)
Lenovo 1051 Hardware Maintenance Manual
42
3. Pull out the LCD FPC from its connector on the front module using a pair of
tweezers.
Figure 5-3. Pulling out the LCD FPC (from the front module side)
4. Pull out the LCD FPC from its connector on the main board using a pair of
tweezers.
Figure 5-4. Pulling out the LCD FPC (from the main board side)
Lenovo 1051
43
5. Remove the LCD FPC using a pair of tweezers.
Figure 5-5. Removing the LCD FPC
Figure 5-6. The removed LCD FPC
Lenovo 1051 Hardware Maintenance Manual
44
1060 Main FPC
For access, remove the following FRU:
• “1010 Rear cover” on page 28
1. Disconnect the power supply to the tablet by detaching the battery FPC from
its connector on the main board using a pair of tweezers.
Figure 6-1. Disconnecting the power supply of the tablet

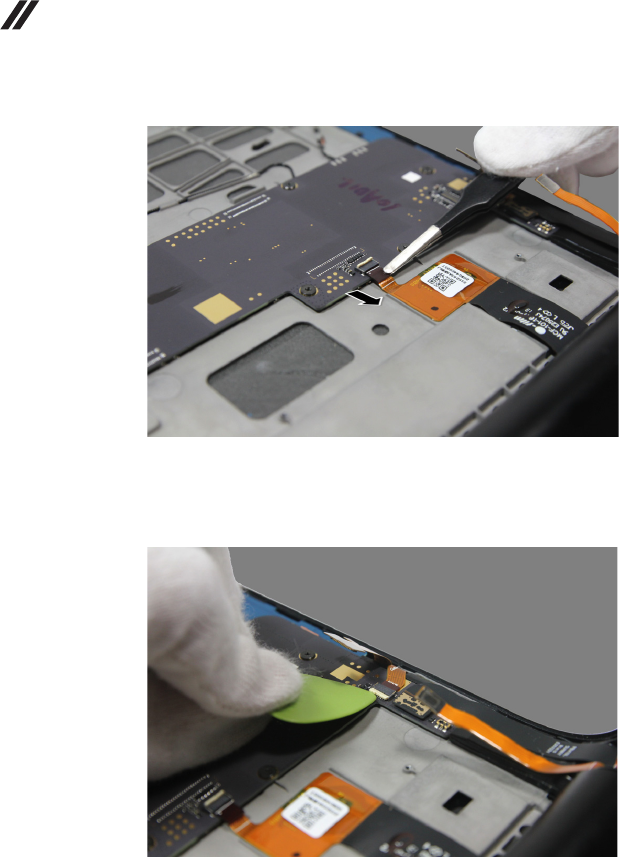

2. Detach the connector of the main FPC from the sub board using a pair of
tweezers.
Figure 6-2. Detaching the connector of the main FPC (on the sub board)
Lenovo 1051
45

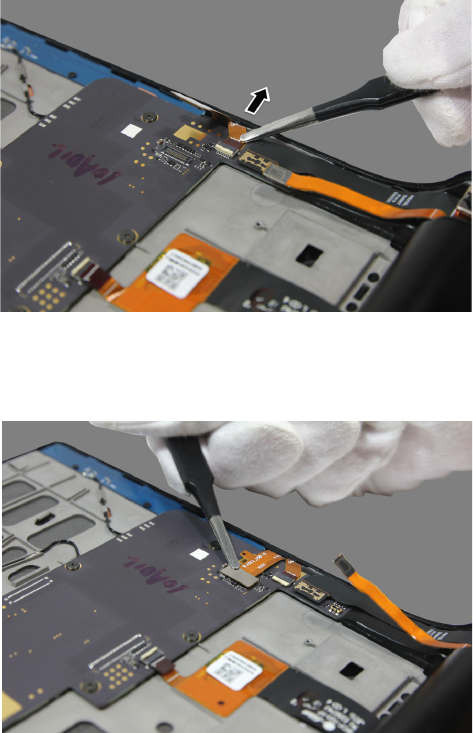

3. Detach the connector of the main FPC from the main board using a pair of
tweezers.
Figure 6-3. Detaching the connector of the main FPC (on the main board)
4. Remove the main FPC using a pair of tweezers.
Figure 6-4. Removing the main FPC
Lenovo 1051 Hardware Maintenance Manual
46

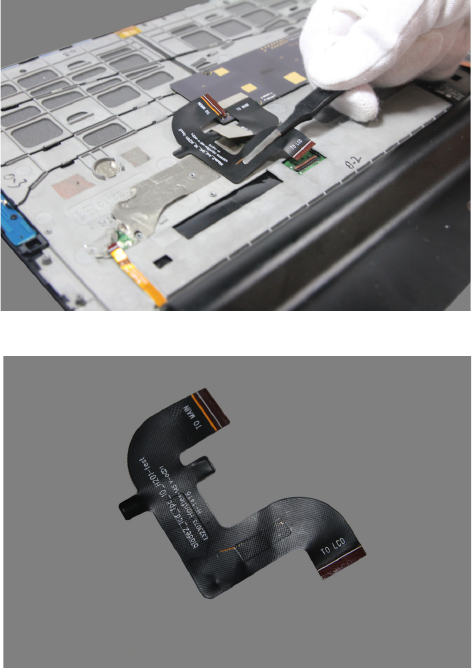

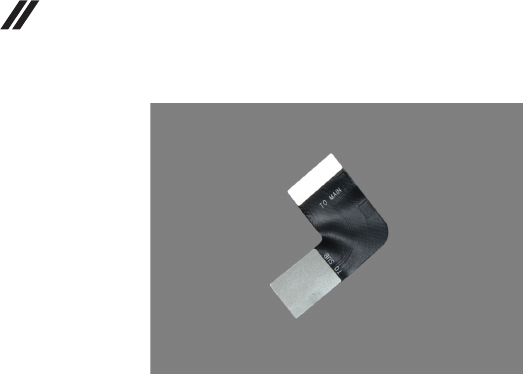

Figure 6-5. The removed main FPC
Lenovo 1051
47
1070 HDMI FPC
For access, remove the following FRU:
• “1010 Rear cover” on page 28
1. Disconnect the power supply to the tablet by detaching the battery FPC from
its connector on the main board using a pair of tweezers.
Figure 7-1. Disconnecting the power supply of the tablet
2. Detach the connector of the HDMI FPC from the sub board using a pair of
tweezers.
Figure 7-2. Detaching the connector of the HDMI FPC (on the sub board)
Lenovo 1051 Hardware Maintenance Manual
48
3. Detach the connector of the HDMI FPC from the main board using a pair of
tweezers.
Figure 7-3. Detaching the connector of the HDMI FPC (on the main board)
4. Remove the HDMI FPC.
Figure 7-4. Removing the HDMI FPC
Lenovo 1051
49
Figure 7-5. The removed HDMI FPC
Lenovo 1051 Hardware Maintenance Manual
50
1080 Hall sensor FPC
For access, remove the following FRU:
• “1010 Rear cover” on page 28
1. Disconnect the power supply to the tablet by detaching the battery FPC from
its connector on the main board using a pair of tweezers.
Figure 8-1. Disconnecting the power supply of the tablet
2. Unlock the connector of the hall sensor FPC on the sub board using a guitar
pick.
Figure 8-2. Unlocking the connector of the hall sensor FPC
Lenovo 1051
51
3. Pull out the hall sensor FPC from its connector using a pair of tweezers.
Figure 8-3. Pulling out the hall sensor FPC
4. Remove the hall sensor FPC using a pair of tweezers.
Figure 8-4. Removing the hall sensor FPC
Lenovo 1051 Hardware Maintenance Manual
52
Figure 8-5. The removed hall sensor FPC
Lenovo 1051
53
1090 Main board
For access, remove the following FRU:
• “1010 Rear cover” on page 28
and
Detach the following FPCs from the main board:
• Battery FPC (see Step 1 on page 31 in “1020 Right speaker”)
• LCD FPC (see Step 2 on page 41 and Step 4 on page 42 in “1050 LCD FPC”)
• Main FPC (see Step 3 on page 45 in “1060 Main FPC”)
• HDMI FPC (see Step 3 on page 48 in “1070 HDMI FPC”

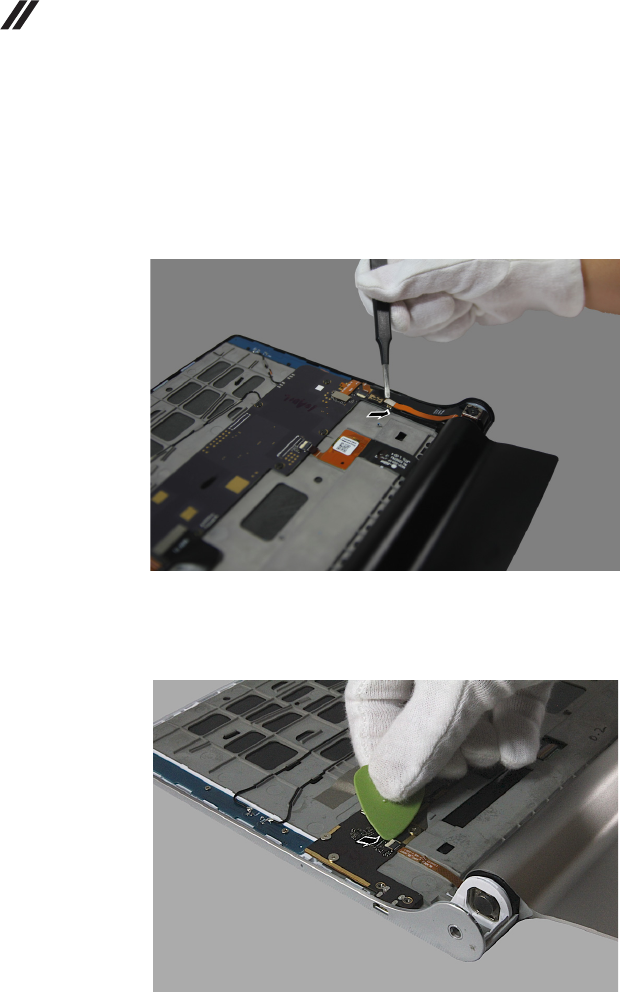

1. Unlock the connector of the TP FPC on the main board using a guitar pick as
shown in the figure below.
Figure 9-1. Unlocking the connector of the TP FPC
Important notices for handling PCB:
When handling PCB, bear the following in mind:
• Be careful not to drop the PCB onto a bench top that has a hard surface,
such as surface made of metal, wood, or composite materials.
• Avoid rough handling of any kind.
• Make sure not to drop or stack the PCB in the whole process.
• Make sure to put the PCB only on surface covered with such materials as
an ESD mat or conductive corrugated plate.
Lenovo 1051 Hardware Maintenance Manual
54
2. Pull out the TP FPC from its unlocked connector using a pair of tweezers.
Figure 9-2. Pulling out the TP FPC
3. Unlock the connector of the left speaker FPC on the main board using a guitar
pick.
Figure 9-3. Unlocking the connector of the left speaker FPC
Lenovo 1051
55
4. Pull out the FPC of the left speaker from the unlocked connector using a pair
of tweezers.
Figure 9-4. Pulling out the FPC of the left speaker
5. Detach the connector of the USB and volume key FPC from the main board
using a pair of tweezers.
Figure 9-5. Detaching the connector of the USB and volume key FPC
Lenovo 1051 Hardware Maintenance Manual
56
6. Detach the connector of the rear camera FPC from the main board using a
pair of tweezers.
Figure 9-6. Detaching the connector of the rear camera FPC

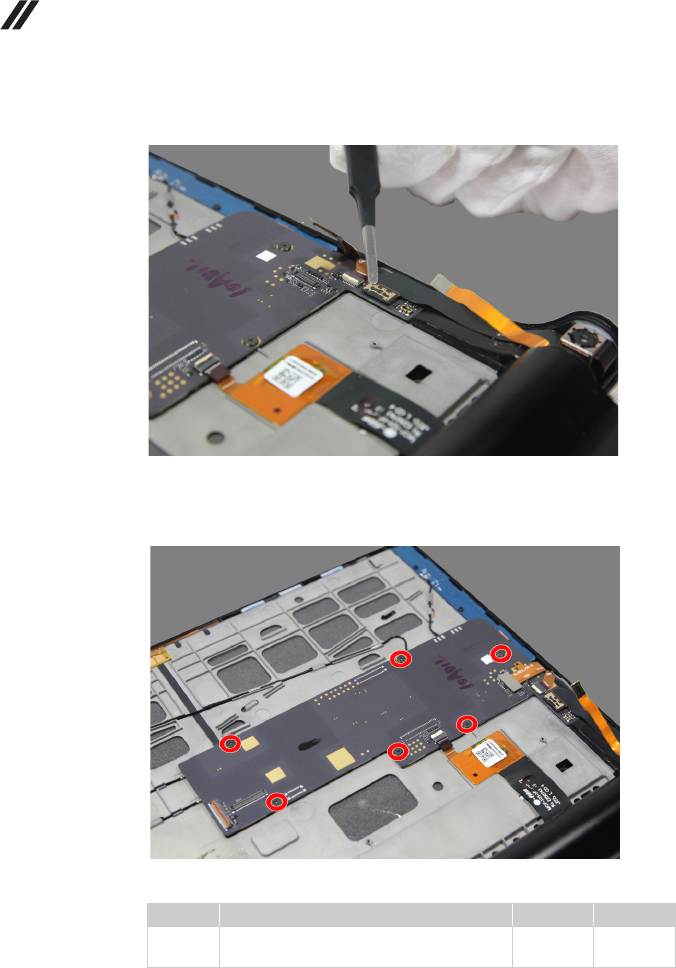

7. Remove screws on the main board as shown in the figure below.
Figure 9-7. The screws on the main board
Part No. Screw (quantity) Color Torque
Phillips flat head screw, M1.4 × 1.3, wide
head (6) Black N/A
a
a
Lenovo 1051
57
8. Disconnect the cable of the antennas from its connector on back of the main
board using a pair of tweezers at the positions shown in the figure below.
Figure 9-8. Positions for disconnecting the antennas
9. Remove the main board together with the connected front camera.
Figure 9-9. The removed main board together with the connected front camera
Lenovo 1051 Hardware Maintenance Manual
58
10. Unlock the connector of the front camera FPC on the back of main board
using a guitar pick.
Figure 9-10. Unlocking the connector of the front camera FPC
11. Remove the front camera FPC from its unlocked connector.
Figure 9-11. Removing the front camera
Lenovo 1051
59

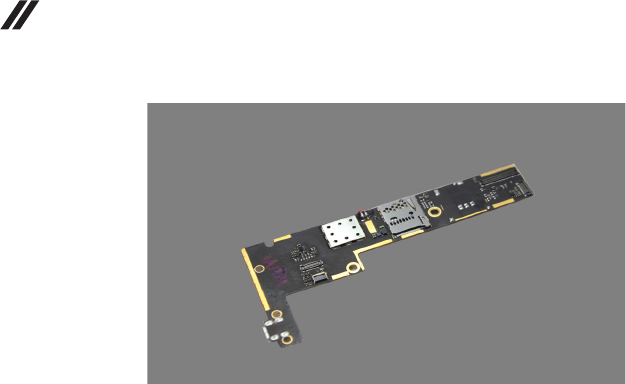

Figure 9-12. The removed main board and front camera
Lenovo 1051 Hardware Maintenance Manual
60
1100 Left speaker
For access, remove the following FRUs in order:
• “1010 Rear cover” on page 28
• “1090 Main board” on page 53
1. Remove screws on the left speaker as shown in the figure below.
Figure 10-1. The screws on the left speaker
Part No. Screw (quantity) Color Torque
Phillips flat-head screw, M1.4 × 3.0 (3) Black N/A
Phillips flat-head screw, M1.4 × 2.0 (1) Silver N/A
a
a
Lenovo 1051
61
2. Remove the left speaker unit together with the attached rear camera, USB and
volume key FPC using a pair of tweezers.
Figure 10-2. Removing the left speaker together with attached rear camera and USB and volume
key FPC

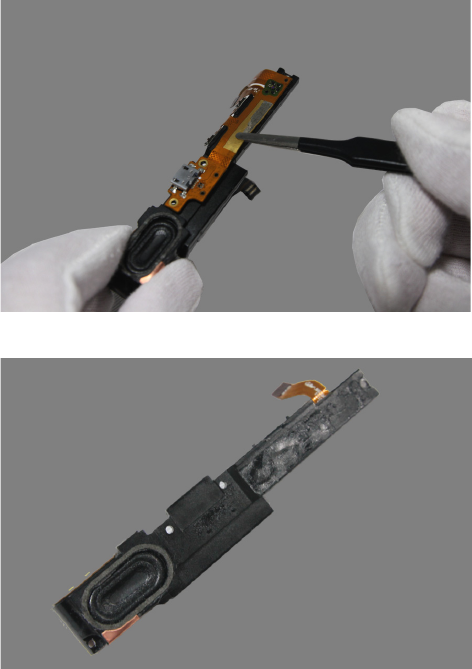

Figure 10-3. The removed left speaker together with attached rear camera and USB and volume
key FPC
Lenovo 1051 Hardware Maintenance Manual
62

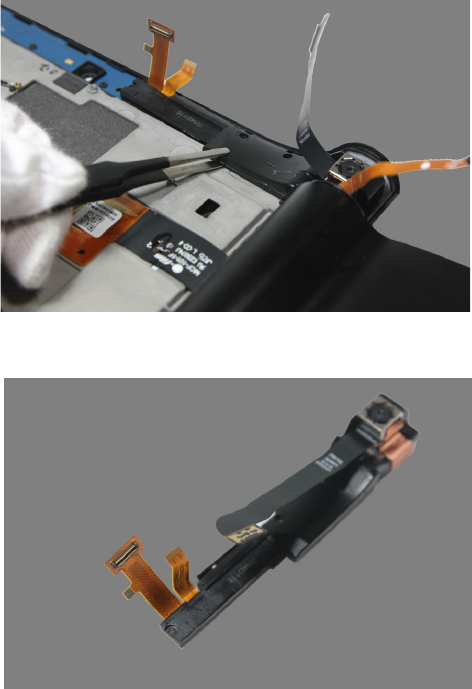

3. Detach the conductive shield at the side of the rear camera using a pair of
tweezers as shown in the figure below.
Figure 10-4. Detaching the conductive shield at the side of the rear camera

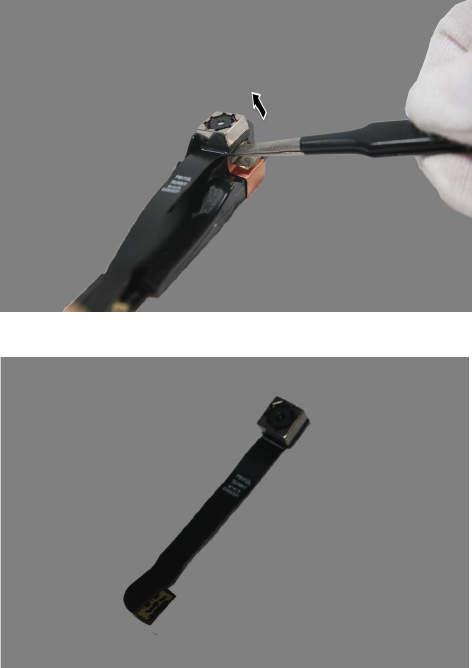

4. Remove the rear camera from its conductive shield seat on the left speaker
unit by inserting a thin flat blade under the camera bottom as shown in the
figure below.
Figure 10-5. Removing the rear camera
Lenovo 1051

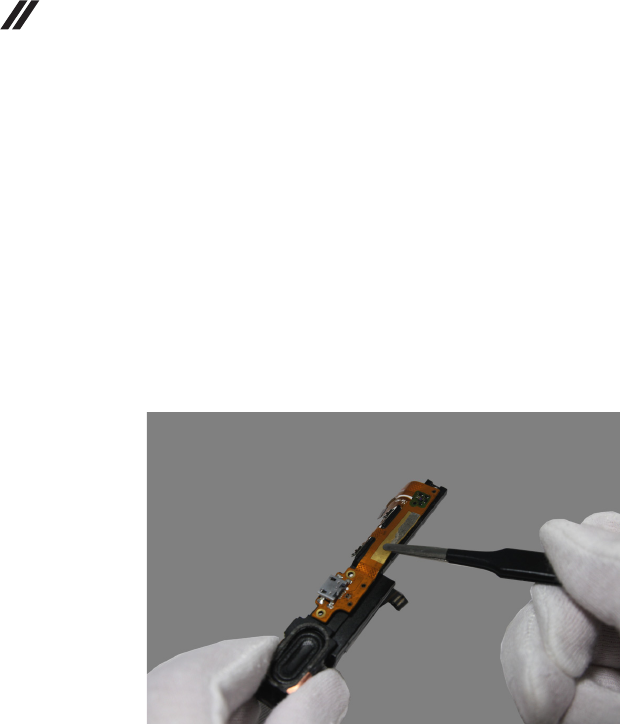

63
5. Remove the USB and volume key FPC on the back of the left speaker unit
using a pair of tweezers.
Figure 10-6. Removing the USB and volume key FPC
Figure 10-7. The removed left speaker
Lenovo 1051 Hardware Maintenance Manual
64
1110 Rear camera
For access, remove the following FRUs in order:
• “1010 Rear cover” on page 28
• “1090 Main board” on page 53
and
Detach the following FRU:
• Left Speaker (see Step 1 on page 60 and Step 2 on page 61 in “1100 Left
speaker”)
1. Detach the conductive shield at the side of the rear camera using a pair of
tweezers as shown in the figure below.
Figure 11-1. Detaching the conductive shield at the side of the rear camera
Lenovo 1051
65
2. Remove the rear camera from its conductive shield seat on the left speaker
box by inserting a thin flat blade under the camera bottom as shown in the
figure below.
Figure 11-2. Removing the rear camera
Figure 11-3. The removed rear camera
Lenovo 1051 Hardware Maintenance Manual
66
1120 USB and volume key FPC
For access, remove the following FRUs in order:
• “1010 Rear cover” on page 28
• “1090 Main board” on page 53
and
Detach the following FRU:
• Left Speaker (see Step 1 on page 60 and Step 2 on page 61 in “1100 Left
speaker”)
1. Detach the USB and volume key FPC from the back of the left speaker unit
using a pair of tweezers.
Figure 12-1. Detaching the USB and volume key FPC
Lenovo 1051
67
2. Remove the USB and volume key FPC from the left speaker.

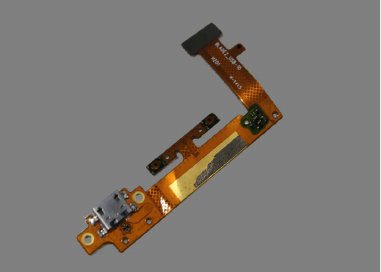

Figure 12-2. The removed USB and volume key FPC
Lenovo 1051 Hardware Maintenance Manual
68
1130 Volume key
For access, remove the following FRUs in order:
• “1010 Rear cover” on page 28
• “1090 Main board” on page 53
and
Detach the following FRU:
• Left speaker (see Step 1 on page 60 and Step 2 on page 61 in “1100 Left
speaker”)
1. Detach the volume key from the front module of the tablet using a pair of tweezers.
Figure 13-1. Detaching the volume key
2. Remove the volume key.
Figure 13-2. The removed volume key
Lenovo 1051
69
1140 LTE main antenna (LTE version) or WIFI2 antenna (WiFi
version)
For access, remove the following FRU:
• “1010 Rear cover” on page 28
• “1090 Main board” on page 53
1. Remove screw on the LTE main antenna or WIFI2 antenna as shown in
the figure below.
Figure 14-1. The screw on the antenna
Part No. Screw (quantity) Color Torque
Phillips flat-head screw, M1.4 × 1.6 (3) Silver N/A
a
a
Lenovo 1051 Hardware Maintenance Manual
70
2. Remove the LTE main antenna or WIFI2 antenna.
Figure 14-2. The removed antenna
Lenovo 1051
71
1150 LTE MINO/GPS/WIFI1 antenna (LTE version) or GPS/
WIFI1 antenna (WiFi version)
For access, remove the following FRU:
• “1010 Rear cover” on page 28
• “1090 Main board” on page 53
1. Remove screw on the LTE MINO/GPS/WIFI1 antenna or GPS/WIFI1
antenna as shown in the figure below.
Figure 15-1. The screw on the antenna
Part No. Screw (quantity) Color Torque
Phillips flat-head screw, M1.4 × 1.6 (3) Silver N/A
a
a
Lenovo 1051 Hardware Maintenance Manual
72
2. Remove the LTE MINO/GPS/WIFI1 antenna or GPS/WIFI1 antenna.
Figure 15-2. The removed
antenna
Lenovo 1051
73
1160 WIFI2 antenna (LTE version)
For access, remove the following FRU:
• “1010 Rear cover” on page 28
• “1090 Main board” on page 53
1. Detach the WIFI2 antenna using a pair of tweezers.
Figure 16-1. Detaching the WIFI2 antenna
2. Remove the WIFI2 antenna.
Figure 16-2. The removed WIFI2 antenna
Lenovo 1051 Hardware Maintenance Manual
74
1170 Battery pack
For access, remove the following FRUs in order:
• “1010 Rear cover” on page 28
• “1020 Right speaker” on page 31
Rechargeable Battery Notice
1. Disconnect the battery FPC from its connector on the main board using a pair
of tweezers.
Figure 17-1. Disconnecting the battery FPC
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type.
When replacing the lithium battery, use only the same or an equivalent type
that is recommended by the manufacturer. The battery contains lithium and
can explode if not properly used, handled, or disposed of.
Dispose of the used battery according to the instructions. Do not:
• Throw or immerse into water
• Heat to more than 100°C (212°F)
• Repair or disassemble
Lenovo 1051
75
2. Slowly pull out the hinge pivot using a pair of tweezers.
Figure 17-2. Pulling out the hinge pivot

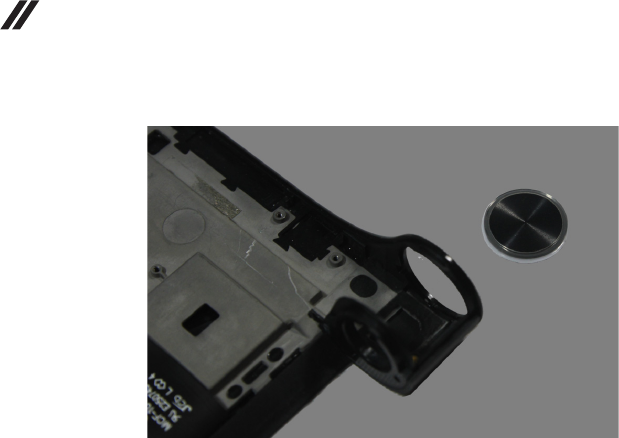

Figure 17-3. The removed hinge pivot
Lenovo 1051 Hardware Maintenance Manual
76
3. Detach the hinge frame at the left end, turn the hinge frame clockwise around
its right end so as to steer the battery FPC out through the supporting frame
at the right end, and then remove the hinge frame from the main body of the
tablet.

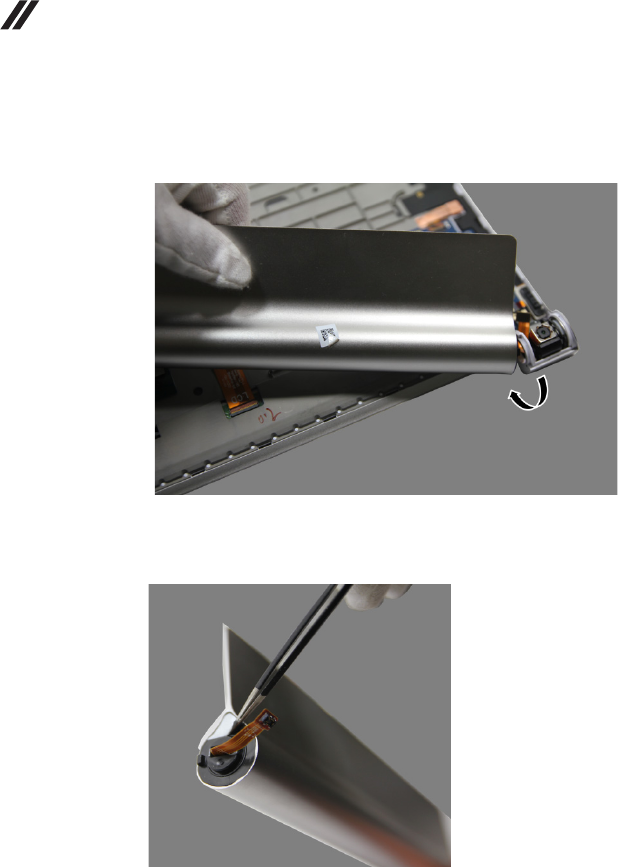

Figure 17-4. Removing the hinge frame with the battery pack
4. Peel off the foil on the battery cover at the FPC end of the hinge frame.
Figure 17-5. Peeling off the foil on the battery cover
Lenovo 1051
77
5. Remove screw
on the battery cover as shown in the figure below.
Figure 17-6. The screw on the battery cover
6. Remove the battery cover as shown in the figure below.
Figure 17-7. Removing the battery cover
Part No. Screw (quantity) Color Torque
Phillips flat-head screw, M1.4 × 2.0 (1) Silver N/A
a
a
Lenovo 1051 Hardware Maintenance Manual
78
7. Remove the battery pack from the hinge frame.

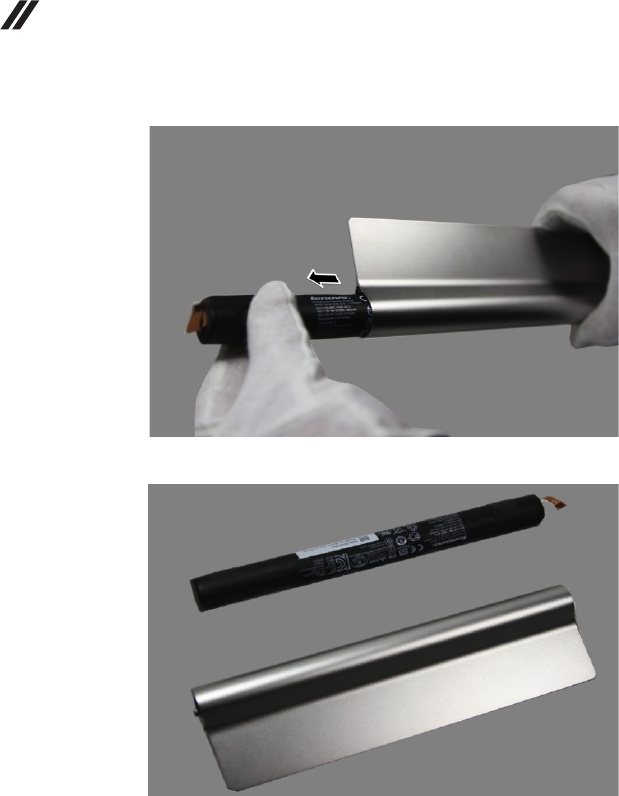

Figure 17-8. Removing the battery pack
Figure 17-9. The removed battery pack
Lenovo 1051
79
1180 Power key
For access, remove the following FRUs in order:
• “1010 Rear cover” on page 28
• “1090 Main board” on page 53
and
Detach the following FRU:
• Left speaker (see Step 1 on page 60 and Step 2 on page 61 in “1100 Left
speaker”)
1. Push out the power key as shown in the figure below.
Figure 18-1. Pushing out the power key
Lenovo 1051 Hardware Maintenance Manual
80
2. Remove the power key.
Figure 18-2. The removed power key
Lenovo 1051
81
Front view
Front camera
Left speaker
Right speaker
Locations
Lenovo 1051 Hardware Maintenance Manual
82
Rear view
Audio Jack
HDMI port
Microphone
Micro-SD card slot
SIM card slot (LTE version only)
Volume key
Micro-USB connection
Rear camera
Power key
Lenovo 1051
83
This section presents the following service parts:
• “Overall” on page 83
• “Screws” on page 87
Overall
Parts list
Notes:
The listed FRUs are applicable to both versions of the product, i.e. the WiFi
version and the LTE version, unless otherwise specified.
Lenovo 1051 Hardware Maintenance Manual
84
Lenovo 1051
85

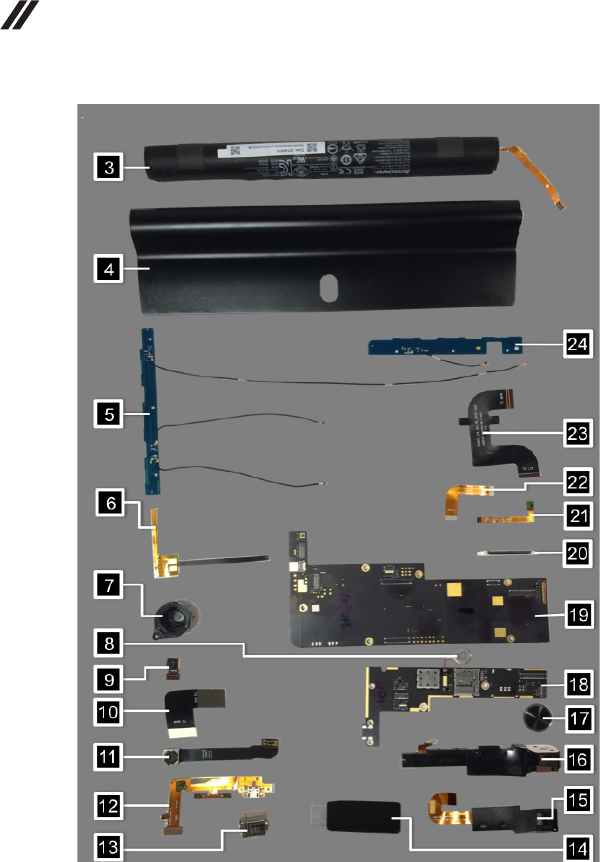

Table 1. Parts list–Overall
No. FRU FRU No. CRU ID
1 1051 front module (TP LCM assembly) 5D69A6N36D N
2 1051 rear cover WiFi version:
5S59A6N36E
LTE version:
5S59A6N36F
N
3 1051 battery 5B19A6MWSL
(battery cell)
5B19A6MWSN
(battery cell)
5B19A6N36C
(battery pack)
N
4 1051 hinge frame SM89A6N312
(black)
SM89A6N314
(black)
5S59A6MXK0
N
5 1051 LTE MIMO/GPS/WIFI1 antenna or
GPS/WIFI1 antenna
WiFi version:
5A39A6MYKN
LTE version:
5A39A6MYKK
N
6 1051 WIFI2 antenna (LTE version only) 5A39A6MYKL N
7 1051 battery cover Left:
5D79A6MXKE
(black)
Right:
5D79A6MXKF
(black)
N
8 1051 vibrator motor SM79A462OH N
9 1051 front camera 1.6MP 25PIN 3P FF 5C29A6MWJ8
5C29A6MWJ9
N
10 1051 main FPC 5F79A6MX4H
5F79A6MXBJ
N
11 1051 rear camera 8.0MP AF OV8865 5C29A6N017
5C29A6MWJ5
N
12 1051 USB and volume key FPC 5F79A6MX4J
5F79A6MXBK
N
13 1051 hinge pivot 5SR9A6MXL0 N
14 1051 card slot cover 5S59A6MXK1
(black)
N
15 1051 right speaker 5SB9A6MXFJ
5SB9A6MXFP
N
16 1051 left speaker 5SB9A6MXFL
5SB9A6MXFS
N
Lenovo 1051 Hardware Maintenance Manual
86
17 1051 power key 5B69A6MXJ6
(black)
5B69A6N07U
(black)
N
18 1051 sub board WiFi version:
5P69A6N3TN
LTE version:
5P69A6N3TP
N
19 1051 main board WiFi version:
5B29A6N36A
(32G)
LTE version:
5B29A6N36B
(32G)
N
20 1051 volume key 5B69A6MXJ0
(black)
5B69A6N07W
(black)
N
21 1051 hall sensor FPC 5F79A6MX4E
5F79A6MXBM
N
22 1051 HDMI FPC 5F79A6MX4G
5F79A6MXBN
N
23 1051 LCD FPC 5F79A6MWDN
5F79A6MXBL
N
24 1051 LTE main antenna or WIFI2 antenna WiFi version:
5A39A6MYKM
LTE version:
5A39A6MYKJ
N
Lenovo 1051
87
Screws
Table 2. Parts list–Screw
FRU P/N CRU ID
Phillips cross head screw, M1.4 × 2.0 5M89A4675V N
Phillips cross head screw, M1.4 × 3.0 SM89A44143 N
Phillips cross head screw, M1.4 × 1.3, wide head SM89A462RE N
Phillips cross head screw, M1.4 × 1.6 5M89A6N02R N
Lenovo 1051 Hardware Maintenance Manual
88
Lenovo may not offer the products, services, or features discussed in this
document in all countries. Consult your local Lenovo representative for
information on the products and services currently available in your area. Any
reference to a Lenovo product, program, or service is not intended to state or
imply that only that Lenovo product, program, or service may be used. Any
functionally equivalent product, program, or service that does not infringe any
Lenovo intellectual property right may be used instead. However, it is the user’s
responsibility to evaluate and verify the operation of any other product,
program, or service.
Lenovo may have patents or pending patent applications covering subject
matter described in this document. The furnishing of this document does not
give you any license to these patents.
LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. Some jurisdictions do not allow disclaimer of express or implied
warranties in certain transactions, therefore, this statement may not apply to
you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. Lenovo may make
improvements and/or changes in the product(s) and/or the program(s) described
in this publication at any time without notice.
The products described in this document are not intended for use in
implantation or other life support applications where malfunction may result in
injury or death to persons. The information contained in this document does not
affect or change Lenovo product specifications or warranties. Nothing in this
document shall operate as an express or implied license or indemnity under the
intellectual property rights of Lenovo or third parties. All information contained
in this document was obtained in specific environments and is presented as an
illustration. The result obtained in other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those
Web sites. The materials at those Web sites are not part of the materials for this
Lenovo product, and use of those Web sites is at your own risk.
Notices
Notices
89
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments
may vary significantly. Some measurements may have been made on
development-level systems and there is no guarantee that these measurements
will be the same on generally available systems. Furthermore, some
measurements may have been estimated through extrapolation. Actual results
may vary. Users of this document should verify the applicable data for their
specific environment.
Lenovo and the Lenovo logo are trademarks of Lenovo in the United States or
other countries, or both.
Other company, product, or service names may be trademarks or service marks
of others.
Trademarks

Navigation menu
